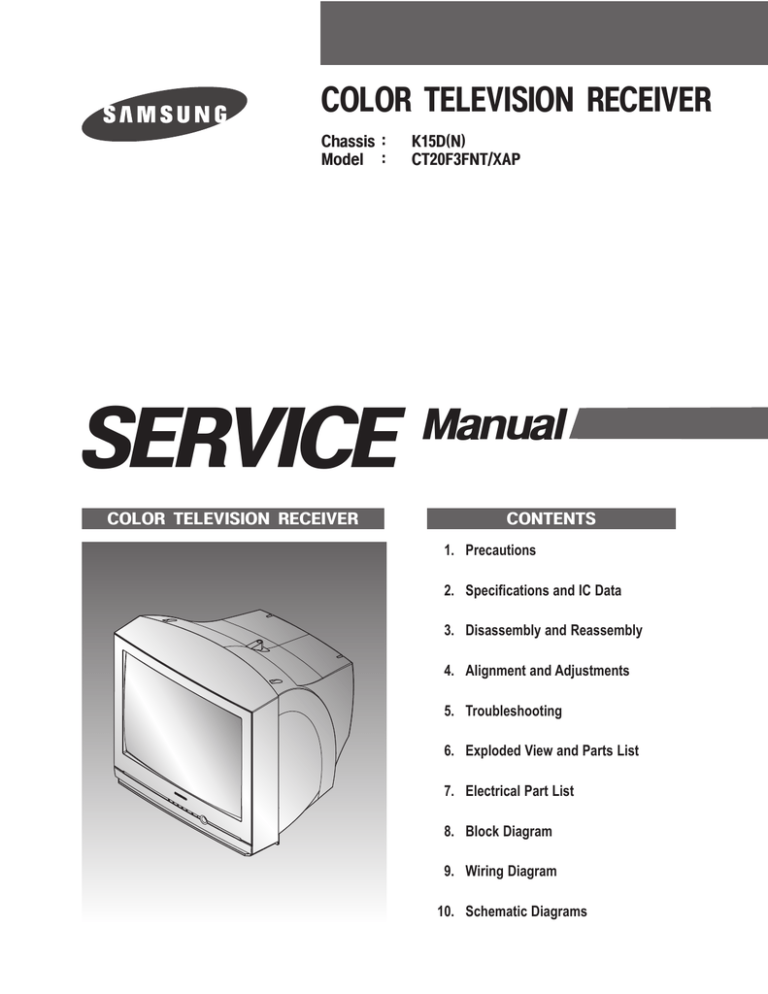

COLOR TELEVISION RECEIVER
Chassis :
Model :
SERVICE
COLOR TELEVISION RECEIVER
K15D(N)
CT20F3FNT/XAP
Manual
CONTENTS
1. Precautions
2. Specifications and IC Data
3. Disassembly and Reassembly
4. Alignment and Adjustments
5. Troubleshooting
6. Exploded View and Parts List
7. Electrical Part List
8. Block Diagram
9. Wiring Diagram
10. Schematic Diagrams
ELECTRONICS
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© Samsung Electronics Co., Ltd. MAY. 2004
Printed in Korea
AA82-01689A
Precautions
1. Precautions
Follow these safety, servicing and ESD precautions to prevent damage and protect against potential
hazards such as electrical shock and X-rays.
1-1 Safety Precautions
1. Be sure that all of the built-in protective
devices are replaced. Restore any missing
protective shields.
2. When reinstalling the chassis and its
assemblies, be sure to restore all protective
devices, including: nonmetallic control knobs
and compartment covers.
3. Make sure that there are no cabinet openings
through which people—particularly
children—might insert fingers and contact
dangerous voltages. Such openings include
the spacing between the picture tube and the
cabinet mask, excessively wide cabinet
ventilation slots, and improperly fitted back
covers.
If the measured resistance is less than 1.0
megohm or greater than 5.2 megohms, an
abnormality exists that must be corrected
before the unit is returned to the customer.
4. Leakage Current Hot Check (Figure 1-1):
Warning: Do not use an isolation
transformer during this test. Use a leakagecurrent tester or a metering system that
complies with American National Standards
Institute (ANIS C101.1, Leakage Current for
Appliances), and Underwriters Laboratories
(UL Publication UL1410, 59.7).
5. With the unit completely reassembled, plug
the AC line cord directly into the power
outlet. With the unit’s AC switch first in the
ON position and then OFF, measure the
current between a known earth ground (metal
water pipe, conduit, etc.) and all exposed
metal parts, including: antennas, handle
brackets, metal cabinets, screwheads and
control shafts. The current measured should
not exceed 0.5 milliamp. Reverse the powerplug prongs in the AC outlet and repeat the
test.
LEAKAGE
CURRENT
TESTER
DEVICE
UNDER
TEST
(READING SHOULD
NOT BE ABOVE
0.5mA)
TEST ALL
EXPOSED METAL
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
EARTH
GROUND
Fig. 1-1 AC Leakage Test
6. Antenna Cold Check:
With the unit’s AC plug disconnected from the
AC source, connect an electrical jumper across
the two AC prongs. Connect one lead of the
ohmmeter to an AC prong. Connect the other
lead to the coaxial connector.
7. X-ray Limits:
The picture tube is especially designed to prohibit X-ray emissions. To ensure continued
X-ray protection, replace the picture tube only
with one that is the same type as the original.
Carefully reinstall the picture tube shields and
mounting hardware; these also provide X-ray
protection.
8. High Voltage Limits:
High voltage must be measured each time servicing is done on the B+, horizontal deflection
or high voltage circuits. Correct operation of
the X-ray protection circuits must be
reconfirmed whenever they are serviced.
(X-ray protection circuits also may be called
“horizontal disable” or “hold-down”.)
Heed the high voltage limits. These include
the X–ray Protection Specifications Label, and
the Product Safety and X-ray Warning Note on
the service data schematic.
1-1
Precautions
1-1 Safety Precautions (Continued)
9. High voltage is maintained within specified
limits by close-tolerance, safety-related
components and adjustments. If the high
voltage exceeds the specified limits, check
each of the special components.
10. Design Alteration Warning:
Never alter or add to the mechanical or
electrical design of this unit. Example: Do not
add auxiliary audio or video connectors. Such
alterations might create a safety hazard. Also,
any design changes or additions will void the
manufacturer’s warranty.
11. Hot Chassis Warning:
Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord. If an isolation transformer is not
used, these units may be safely serviced only
if the AC power plug is inserted so that the
chassis is connected to the ground side of the
AC source.
To confirm that the AC power plug is inserted
correctly, do the following: Using an AC
voltmeter, measure the voltage between the
chassis and a known earth ground. If the
reading is greater than 1.0V, remove the AC
power plug, reverse its polarity and reinsert.
Re-measure the voltage between the chassis
and ground.
12. Some TV chassis are designed to operate with
85 volts AC between chassis and ground,
regardless of the AC plug polarity. These units
can be safely serviced only if an isolation
transformer inserted between the receiver and
the power source.
13. Some TV chassis have a secondary ground
system in addition to the main chassis ground.
This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulating material that must not be defeated
or altered.
15. Observe the original lead dress, especially
near the following areas: Antenna wiring,
sharp edges, and especially the AC and high
voltage power supplies. Always inspect for
pinched, out-of-place, or frayed wiring. Do
not change the spacing between components
and the printed circuit board. Check the AC
power cord for damage. Make sure that leads
and components do not touch thermally hot
parts.
16. Picture Tube Implosion Warning:
The picture tube in this receiver employs
“integral implosion” protection. To ensure
continued implosion protection, make sure
that the replacement picture tube is the same
as the original.
17. Do not remove, install or handle the picture
tube without first putting on shatterproof
goggles equipped with side shields. Never
handle the picture tube by its neck. Some
“in-line” picture tubes are equipped with a
permanently attached deflection yoke; do not
try to remove such “permanently attached”
yokes from the picture tube.
18. Product Safety Notice:
Some electrical and mechanical parts have
special safety-related characteristics which
might not be obvious from visual inspection.
These safety features and the protection they
give might be lost if the replacement component differs from the original—even if the
replacement is rated for higher voltage,
wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading,
(
) or (
).
Use replacement components that have the
same ratings, especially for flame resistance
and dielectric strength specifications.
A replacement part that does not have the
same safety characteristics as the original
might create shock, fire or other hazards.
14. Components, parts and wiring that appear to
have overheated or that are otherwise
damaged should be replaced with parts that
meet the original specifications. Always
determine the cause of damage or overheating, and correct any potential hazards.
1-2
Samsung Electronics
Precautions
1-2 Servicing Precautions
Warning1: First read the “Safety Precautions” section of this manual. If some unforeseen circumstance creates a conflict between
the servicing and safety precautions, always follow the safety precautions.
Warning2: An electrolytic capacitor installed with the wrong polarity might explode.
1. Servicing precautions are printed on the
cabinet. Follow them.
2. Always unplug the unit’s AC power cord from
the AC power source before attempting to: (a)
Remove or reinstall any component or
assembly, (b) Disconnect an electrical plug or
connector, (c) Connect a test component in
parallel with an electrolytic capacitor.
3. Some components are raised above the printed
circuit board for safety. An insulation tube or
tape is sometimes used. The internal wiring is
sometimes clamped to prevent contact with
thermally hot components. Reinstall all such
elements to their original position.
4. After servicing, always check that the screws,
components and wiring have been correctly
reinstalled. Make sure that the portion around
the serviced part has not been damaged.
5. Check the insulation between the blades of the
AC plug and accessible conductive parts
(examples: metal panels, input terminals and
earphone jacks).
6. Insulation Checking Procedure: Disconnect the
power cord from the AC source and turn the
power switch ON. Connect an insulation
resistance meter (500V) to the blades of the AC
plug.
The insulation resistance between each blade
of the AC plug and accessible conductive parts
(see above) should be greater than 1 megohm.
7. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of
its assemblies) unless all solid-state heat sinks
are correctly installed.
8. Always connect a test instrument’s ground
lead to the instrument chassis ground before
connecting the positive lead; always remove
the instrument’s ground lead last.
1-3
Precautions
1-3 Precautions for Electrostatically Sensitive Devices (ESDs)
1. Some semiconductor (“solid state”) devices
are easily damaged by static electricity. Such
components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect
transistors. The following techniques will
reduce the occurrence of component damage
caused by static electricity.
2. Immediately before handling any semicon
ductor components or assemblies, drain the
electrostatic charge from your body by
touching a known earth ground. Alternatively,
wear a discharging wrist-strap device. (Be
sure to remove it prior to applying power—
this is an electric shock precaution.)
3. After removing an ESD-equipped assembly,
place it on a conductive surface such as
aluminum foil to prevent accumulation of
electrostatic charge.
4. Do not use freon-propelled chemicals. These
can generate electrical charges that damage
ESDs.
5. Use only a grounded-tip soldering iron when
soldering or unsoldering ESDs.
6. Use only an anti-static solder removal device.
Many solder removal devices are not rated as
“anti-static”; these can accumulate sufficient
electrical charge to damage ESDs.
7. Do not remove a replacement ESD from its
protective package until you are ready to
install it. Most replacement ESDs are
packaged with leads that are electrically
shorted together by conductive foam,
aluminum foil or other conductive materials.
8. Immediately before removing the protective
material from the leads of a replacement ESD,
touch the protective material to the chassis or
circuit assembly into which the device will be
installed.
9. Minimize body motions when handling
unpackaged replacement ESDs. Motions such
as brushing clothes together, or lifting a foot
from a carpeted floor can generate enough
static electricity to damage an ESD.
CAUTION
These servicing instructions are for use by
qualified service personnel only.
To reduce the risk of electric shock do not
perform any servicing other than that contained
in the operating instructions unless you are
qualified to do so.
1-4
Samsung Electronics
Specifications and IC Data
2. Specifications and IC Data
2-1 Specifications
Television System:
MODEL
SYSTEM
NTSC ONLY
CT
System
Band
VHF
2 - 13
UHF
14 - 69
CABLE
1 - 125
Channels:
Intermediate Frequencies (MHz) :
NTSC
SYSTEM
NTSC
IF Carrier Frequency
Picture Tube:
Picture IF Carrier
45.75
Sound IF Carrier
41.25
Color Sub Carrier
42.18
14 Inch
A34KQV42X
14Inch
15 Inch
A36QDT351X
15Inch Flat
20 Inch
A48KRD82X
20Inch
21 Inch
A51KQJ63X
21Inch
Power Requirements:
AC 120V, 60Hz
Antenna Input Impedance:
VHF, UHF : Telescopic dipole antenna (75 ohm unbalanced type )
Speaker Impedance
8 ohm
Samsung Electronics
2-1
Specifications and IC Data
2-2 IC Line Up
Table 2-1 IC Line-Up
Loc. No
2-2
Specificatio
IC201S
SPM458AN
IC301
LA7840
IC501
TDA6107Q
IC602
TDA7266M/TDA7266S
IC801S
KA5Q0740RT
(0765RT)
IC802
KA7632
IC202
24C04
PC801S
TCET1108 / LTV817B
ICS601
UPC1851B
Description
Remark
TDA9377, English/Spanish/French
Philips
VERTICAL OUTPUT
Sanyo
RGB DRIVE AMP
Philips
SOUND-AMP,
TDA7266M (MONO)
TDA7266S (STEREO)
POWER IC (STR)
CUSTOM REGULATOR (5V, 8V, 3.3V)
Philips
FIAIR CHILD
SEC
EEPROM
PHOTO COUPLER
Sound Processor (STEREO)
NEC
Samsung Electronics
Specifications and IC Data
2-3 Semiconductor Base Diagrams
ELECTROLYTICCONDENSER
DIODE
IC
SPM458AN(Pin 64)
U4468B(Pin 16)
UPC851B(Pin 42)
TRANSISTOR
SAW-FILTER
TRANSISTOR
M1864M
11
1
KSC5802
KSC815-Y
KSA539-Y
B
C
E
E B C
IC
TRANSISTOR
LA7840
TDA6107Q
KA7632
KSC2331-Y
E C B
Fig. 2-1 Semiconductor Base Diagrams
Samsung Electronics
2-3
MEMO
2-4
Disassembly and reassembly
3. Disassembly and Reassembly
3-1 Back Cover Removal
1. After removing the screws, press the tension rib and pull the cabinet backwards.
2. To reassemble, press the tension rib (see diagram).
Samsung Electronics
3-1
Disassembly and reassembly
3-2 Main Board Removal
1. Separate the socket board from the CRT neck.
2. Remove the Anode Cap from the CRT.
3. Remove the main board by pulling it with both hands.
Warning: The FBT is charged with high voltage.
Before removing the Anode Cap, discharge the voltage
through one of the heat sinks on the main board.
3-3 Speaker Removal
1. Remove the speaker by
pressing the tension rib.
3-2
Samsung Electronics
Disassembly and reassembly
3-4 CRT Removal
1. Spread a soft mat on the floor. Place the TV set face
down.
2. Remove the 4 nuts mounting the CRT to the front cabinet. Lift the CRT.
3. Caution: Because of the high vacuum and large surface
area of the picture tube, be careful while handling it: (1)
Always lift the picture tube by grasping it firmly around
the faceplate, (2) Never lift the tube by its neck. (3) Do
not scratch the picture tube or apply excessive pressure.
Fractures of the glass may cause an implosion.
Samsung Electronics
3-3
MEMO
3-4
Samsung Electronics
Exploded View & Parts List
6. Exploded View & Parts List
6-1 CT20F3FNT/XAP
Yon can search for the updated part code through ITSELF web site.
URL:http://itself.sec.samsung.co.kr
5
Samsung Electronics
No.
Code No.
Description;Specification
Q’ty
Loc.No.
S.N.A
1
AA64-03156A
CABINET-FRONT;20F3(SAMEX),HIPS HB
1
T0003
1-1
AA64-70126A
BADGE-BRAND;ALL,AL,T1.5,7.5,L45,R2000,SI
1
T0057
S.N.A
1-2
AA64-03008A
KNOB-POWER;14F3,ABS,HB,G3676,SVM-3012
1
T0023
S.N.A
1-3
AA61-60003J
SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-,
1
CIS7
S.N.A
1-4
AA65-30105A
CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2,
1
CWFC
S.N.A
1-5
AA61-40113A
STOPPER-PCB;501H,HIPS,-,-,HB,NTR,-
1
T0607
S.N.A
1-6
AA65-30018A
CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-,
1
CWIRE2
S.N.A
1-7
AA64-03012A
WINDOW-RMC,LED;14F3,PC,CLR
1
T0299
S.N.A
1-8
6002-000512
SCREW-TAPPING;RH,+,2,M4,L12,ZPC(BLK),SWR
1
T0081
S.N.A
1-9
AA64-03007A
KNOB-CONTROL;14F3,ABS,HB,G3676,SVM-3012
1
T0022
S.N.A
1-10
6002-000512
SCREW-TAPPING;RH,+,2,M4,L12,ZPC(BLK),SWR
1
T0081
S.N.A
1-11
AA96-10007A
ASSY SPEAKER;-,8ohm,3W,O5F14BRA,-,L300
1
T0522
S.N.A
1-12
6002-000512
SCREW-TAPPING;RH,+,2,M4,L12,ZPC(BLK),SWR
4
T0081
S.N.A
2
AA03-00246A
CRT COLOR;A48KRD82X(H),380MG,2.20MH,30.0
1
T0063
2-1
AA61-00734A
HOLDER;25POLYVINYL,DEGAUSSING,T0.5,CHLO
2
CDCOIL
S.N.A
2-2
AA60-10050R
SCREW-MACHINE;-,SWRCH18A,M5,L31.5,HH,+,W
4
CCM1
S.N.A
2-3
3704-001105
SOCKET-CRT;11P,20PI,26.5PI,NI,-
1
V999S
3
AA64-03157A
CABINET-BACK;20F3(SAMEX),HIPS HB
1
T0015
3-1
6003-001026
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
4
T0081
S.N.A
4
AA96-20129C
ASSY POWER CORD;-,EP2/YES,H/C200,ME301P,
1
T0066
S.N.A
5
AA59-00232A
REMOCON;CT20R1,SAMSUNG,BLK,TM59,25,NTSC
1
T0074
6-1
Alignment and Adjustments
4. Alignment and Adjustments
4-1 Preadjustment
4-1-1 Factory Mode
4-1-3 When CRT Is Replaced
1. Do not attempt these adjustments in the Video
Mode.
1. Make the following adjustments AFTER setting up after setting up purity and convergence :
2. The Factory Mode adjustments are necessary
when either the EEPROM (IC902) or the CRT
is replaced.
3. Do not tamper with the “Adjustment” screen
of the Factory Mode menu. This screen is
intended only for factory use.
4-1-2 When EEPROM (IC902) Is Replaced
1. When IC902 is replaced all adjustment data
revert to initial values. It is necessary to
re-program this data.
White Balance
Sub-Brightness
Vertical Center
Vertical Size
Horizontal Size
Fail Safe (This adjustment must be the last
step).
2. If the EEPROM or CRT is replaced and set SC
as 20(factory mode).
2. After IC902 is replaced, warm up the TV for
10 seconds.
4-2 Factory/Service Mode
4-2-1 Procedure for the “Adjustment” Mode
1. This mode uses the standard remote control.
The Service Mode is activated by entering the
following remote-control sequence :
(1) DISPLAY → FACTORY.
(2) STAND-BY → MUTE → 1 → 8 → 2
→POWER ON.
2. The “SERVICE (FACTORY)” message will be
displayed. The Service Mode has four components: ADJUST, OPTION , G2-ADJUST and
RESET.
3. Access the Adjustment Mode by pressing the
“VOLUME” keys ( Up or Down). The adjustment parameters are listed in the accompanying table, and selected by pressing the CHANNEL keys ( , ).
Samsung Electronics
4. Selection sequences for the all system:
DOWN or UP key:
SCT>SBT>BLR>BLB>RG>GG>BG>VSL>VS>
VA>HS>SC>CDL>STT>AKB>FS>NDL>
LBS>NSR>SCBT>VOL>CAP>HBS>RP00>
RP01>FMWS>AGC1>OMD>SCL>PWL>
MUS>AGC>DSK>DVDB
5. The VOLUME keys increase or decrease the
adjustment values (stored in the
non-volatile memory) when Adjustment Mode
is cancelled.
6. Cancel the Adjustment Mode by re-pressing
the “FACTORY” or “Power OFF” keys.
4-1
Alignment and Adjustments
4-2-2 Main Adjustment Parameter
SETTING
NO
OSD
1
SCT
2
FUNCTION
RANGE
INITAL DATA
Su b Co n t ra s t
0 ~ 23
SBT
Su b Bri g h t n e s s
3
BLR
4
REMARK
19V
13V
15
13
13
W/B (HIGH Y)
0 ~ 23
8
9
9
W/B A (LOW Y)
Bl a c k Le v e l o f fse t Red
0 ~ 63
35
31
31
W/B (LOW X, Y)
BLB
Bl a c k Le v e l o f fse t Blu e
0 ~ 63
32
27
27
W/B (LOW X, Y)
5
RG
R ed Gain
0 ~ 63
40
32
32
W/B (HIGH X, Y)
6
GG
G re e n G a i n
0 ~ 63
30
25
25
FIX
7
BG
Bl u e G a i n
0 ~ 63
42
31
31
W/B (HIGH X, Y)
8
VSL
Ve r t i ca l S lo p e
0 ~ 63
30
31
31
Vertical SLOPE
9
VS
Ve r t i ca l Sh i f t
0 ~ 63
31
31
31
FIX
10
VA
Ve r t i ca l A m p l i tu d e
0 ~ 63
20
40
20
Vertical SIZE
11
HS
H o r i z o n t a l Sh i f t
0 ~ 63
32
30
30
Horizontal SHIFT
12
SC
S- Co r r e c t i o n
0 ~ 63
35
20
12
FIX
13
CD L
Ca t h o d e Dri ve Le ve l
0 ~ 15
11
11
7
FIX
14
ST T
Su b T i n t
0 ~ 7
3
7
7
FIX
15
AKB
AK B O n / o ff
0 ~ 1
0
0
0
FIX
16
FS
Filter Seting
0 ~ 15
32
37
37
FIX(STEREO)
17
ND L
NT SC De l a y
0 ~ 15
1
1
1
FIX
18
LBS
Low Band Separation Set
0 ~ 63
32
32
32
FIX(STEREO)
19
NSR
N T SC Su b c o l o r
0 ~ 23
3
3
3
FIX
20
SCBT
S c re e n B ri gh rtn e s s
0 ~ 63
35
45
45
FIX
21
VO L
Vo l u m e p re s e t t i n g
0 ~ 63
10
10
10
FIX
22
CAP
C a p ti on P o s i ti o n
0 ~ 15
12
12
12
FIX
23
HBS
Hig h B a n d S e p a ra ti on S e t
0 ~ 63
32
32
32
FIX(STEREO)
24
RP00
R a ti o Pre / o v e rs h o o t
0 ~ 1
1
1
1
FIX
25
RP01
R a ti o Pre / o v e rs h o o t
0 ~ 1
1
1
1
FIX
26
FMWS
W i nd o w S el ec ti on S o u n d PL L
0 ~ 1
0
0
0
FIX (Mono)
27
AGC1
IF A G C S p e e d
0 ~ 3
1
1
1
FIX (Nomal)
28
OMD
Offs et I F D em od u l ato r
0 ~ 63
32
32
32
FIX (No Crrection)
29
SCL
S o ft C l i p p i ng L ev e l
0 ~ 3
3
1
1
FIX (Off)
30
PWL
P e a k W hi te L i m i tti ng
0 ~ 15
15
13
13
FIX (100%)
0
0
0
FIX (Mono)
31
MUS
M a tri x U S A
0 ~ 1
32
AGC
Auto m ati c G a i n C o n tro l
0 ~ 63
33
33
33
FIX
33
DSK
Dy na m i c S k i n To n e
0 ~ 1
0
0
0
FIX
DV D B ri gh t O ffs et
0 ~ 10
5
4
4
FIX
34
4-2
DVDB
Samsung Electronics
Alignment and Adjustments
4-2-3 Option Bytes
In the Service Mode, various can be selected via the Option Table. Example:
Option Table : xx xx
1
OSD
SETTING
VIDEO MUTE
(When swiching channel)
ON
- 800msec Mute Time(Tri-norma)
OFF
- Unavailable
STEREO
2
AUDIO
LINE STEREO
MONO
3
TURBO
4
5
- Zenith stereo (WITH IN UPC1851B)
- Line stereo (WITH IN UPC1851B)
- Mono (WITH OUT UPC1851B)
ON
- Stereo/L STEREO Model
OFF
- Mono Model
ZOOM
- Nornal / Zoom
NOMAL
- Nomal
ZOOM
AUTO POWER ON
SOUND MUTE
6
REMARK
(NO SIGNAL)
ON
- The power is switched on automatically
when detaching the Master S/W Auto On
OFF
- Tact S/W Model
OFF
- Unavailable
ON
- Available
ENGLISH
LANGUAGE
7
ESPANOL
- Start Language Select
FRENCH/PORTU
8
HOTEL MODE
OFF
- Unavailable
ON
- Available
AIR/STD/HRC/IRC
9
10
11
CATV
X-RAY
AIR/STD/HRC/AFN
- U.S Army
ON
- Available (U.S.A, Army)
OFF
- Unavailable (South America)
ON
- Available (U.S.A)
OFF
- Unavailable (Canada)
V-CHIP
TV ↔ AV
12
13
Samsung Electronics
AV Option
DEMO
TV ↔ AV ↔ DVD
ON
- Available (South America)
OFF
- Unavailable (U.S.A)
4-3
Alignment and Adjustments
4-3 Other Adjustments
4-3-1 General
1. Usually, a color TV needs only slight touchup adjustment upon installation. Check the
basic characteristics such as height, horizontal
and vertical sync and focus.
2. The picture should have good black and white
details. There should be no objectionable
color shading; if color shading is present, perform the purity and convergence adjustments
described below.
3. Use the specified test equipment or its equivalent.
4. Correct impedance matching is essential.
5. Avoid overload. Excessive signal from a sweep
generator might overload the front-end of the
TV. When inserting signal markers, do not
allow the marker generator to distort test
results.
4-3-2 Automatic Degaussing
A degaussing coil is mounted around the picture tube, so that external degaussing after
moving the TV should be unnecessary. But
the receiver must be properly degaussed upon
installation.
The degaussing coil operates for about 1 second after the power is switched ON. If the set
has been moved or turned in a different direction, disconnect its AC power for at least 30
minutes.
If the chassis or parts of the cabinet become
magnetized, poor color purity will result. If
this happens, use an external degaussing coil.
Slowly move the degaussing coil around the
faceplate of the picture tube and the sides and
front of the receiver. Slowly withdraw the coil
to a distance of about 6 feet before removing
power.
6. Connect the TV only to an AC power source
with voltage and frequency as specified on the
backcover nameplate.
7. Do not attempt to connect or disconnect any
wires while the TV is turned on. Make sure
that the power cord is disconnected before
replacing any parts.
8. To protect against shock hazard, use an isolation transformer.
4-4
Samsung Electronics
Alignment and Adjustments
4-3-3 High Voltage Check
4-3-6 Purity Adjustment
CAUTION: There is no high voltage adjustment on this chassis.
The B+ power supply must be set to +122.5 volts (Full color bar
input and normal picture level).
1. Warm up the receiver for at least 20 minutes.
1. Connect a digital voltmeter to the second
anode of the picture tube.
2. Plug in the CRT deflection yoke and tighten
the clamp screw.
3. Plug the convergence yoke into the CRT and
set in as shown in Fig. 4-2.
2. Turn on the TV. Set the Brightness and
Contrast controls to minimum (zero beam current).
4. Input a black and white signal.
3. The high voltage should not exceed 30KV.
5. Fully demagnetize the receiver by applying an
external degaussing coil.
4. Adjust the Brightness and contrast controls to
both extremes. Ensure that the high voltage
does not exceed 30KV under any conditions.
6. Turn the CONTRAST and BRIGHTNESS controls to maximum.
4-3-4 FOCUS Adjustment
7. Loosen the clamp screw holding the yoke.
Slide the yoke backward or forward to provide vertical green belt. (Fig. 4-3).
1. Input a black and white signal.
2. Adjust the tuning control for the clearest picture.
8. Tighten the convergence yoke.
9. Slowly move the deflection yoke forward,
and adjust for the best overall green screen.
3. Adjust the FOCUS control for well defined
scanning lines in the center area of the screen.
10. Temporarily tighten the deflection yoke.
4-3-5 Cathode Voltage Adjustment
(Screen Adjustment)
11. Produce blue and red rasters by adjusting the
low-light controls. Check for good purity in
each field.
1. Connect CRT socket pin GK to an oscilloscope
probe.
12. Tighten the deflection yoke.
2. Input a gray scale pattern. (Use a pattern generator, PM5518)
3. Use the P mode key (on the remote control)
for the STANDARD picture.
4. Adjust the Screen VR (on the FBT) so that the
_
voltage on the oscilloscope becomes 125+2.5V
(See Fig. 4-1).
125 _+ 2.5V
GND
Fig. 4-1
Samsung Electronics
4-5
Alignment and Adjustments
4 Pole Magnet
6 Pole Magnet
2 POLE
PURITY
2 Pole Magnet
Clamper
Screw
ADJU
(VERT
YOKE
CLAMP
SCREW
6 POLE
CONVERGENCE
4 POLE
CONVERGENCE
Fig. 4-2 Convergence Magnet Assembly
Vertical Green Belt
31m/m
Fig. 4-3 Center Convergence Adjustment
4-3-7 White Balance Adjustment
(a) Set up
1
1. Warm up the TV for at least 30 minutes in the
Aging Mode (OSD White). This mode is displayed by entering the following sequence:
DISPLAY →FACTORY → FACTORY
2. Input a Toshiba pattern.
2
(b) Low-Light Adjustment
1. Set SBT to 1.2 fL in the Factory Service
Mode with using CA100. See Fig. 4-4.
Fig. 4-4
2. Adjust RG,BG so that the levels are suitable to
each local area.
(c) High-Light Adjustment
1. Set SCT to 50FL(13V : 60FL) in the Factory
Service Mode with using CA100.
See Fig. 4-4 .
4-6
Samsung Electronics
Alignment and Adjustments
4-3-8 Center Convergence Adjustment
1. Warm up the receiver for at least 20 minutes.
2. Adjust the two tabs of the 4 pole magnets to
change the angle between them. Superimpose
the red and blue vertical lines in the center
area of the screen.
3. Adjust the Brightness and Contrast controls
for a well defined picture.
4. Adjust the two-tab pairs of the 4 pole magnets, and change the angle between them.
Superimpose the red and the blue vertical
lines in the center area of the screen.
BLUE
5. Turn the both tabs at the same time, keeping
the angle constant, and superimpose the red
and blue horizontal line in the center of the
screen.
6. Adjust the two-tab pairs of the 6-pole magnets
to superimpose the red and blue line onto the
green. (Changing the angle affects the vertical
lines, and rotating both magnets affects the
horizontal lines.)
7. Repeat adjustments 2~6, if necessary.
8. Since the 4-pole magnets and 6-pole magnets
interact, the dot movement is complex
(Fig. 4-5).
RED/BLUE
RED
BLUE
RED/BLUE
RED
GREEN
GREEN
6-Pole Magnet Movement
4-Pole Magnet Movement
Fig. 4-5 Center Convergence Adjustment
Samsung Electronics
4-7
Alignment and Adjustments
4-3-9 RF AGC Adjustment
Set the AGC data to 33 (Factory Mode).
4-3-10 Sub-Color Adjustment
Set NSR data to 3 (Factory Mode).
5
5
4-3-11 Geometry Adjustment
Fig. 4-9
SC →VS→VA→VSL→HS
6. Adjust HS (Horizontal Shift) so that the left
and right margins of the picture are 5.
1. Input a lion head pattern.
2. Set the SC (S-Correction) as 20(13V : 12) and
VS(Vertical Shift) 31 so that the lion head circle
becomes oval.
3. Adjust with VA (Vertical Amplitude) so that
the top margin of the picture is 4.
4
Fig. 4-7
4. Adjust with VSL (Vertical-Slope) so that the
bottom margin of the picture is 4.
4
Fig. 4-8
5. Adjust with HS (Horizontal Shift) so that the
lion-head pattern and CRT centers are aligned.
4-8
Samsung Electronics
Electrical Parts List
Yon can search for the updated part code through ITSELF web site.
URL:http://itself.sec.samsung.co.kr
7. Electrical Parts List
7-1 CT20F3FNT/XAP
Level Loc.No.
Code No.
Description;Specification
Remark
ASSY COVER FRONT
1
M0001
AA90-04320B
ASSY COVER FRONT;CT20F3FX/XAX
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
..2
..2
..2
..2
...3
...3
T0081
CCM1
T0607
T0003
T0081
T0081
CIS7
T0299
T0022
T0023
T0057
CWIRE2
CWFC
T0522
T0082
T0245
6002-000512
AA60-10050R
AA61-40113A
AA64-03156A
6002-000512
6002-000512
AA61-60003J
AA64-03012A
AA64-03007A
AA64-03008A
AA64-70126A
AA65-30018A
AA65-30105A
AA96-10007A
3001-001037
AA39-20500G
SCREW-TAPPING;RH,+,2,M4,L12,ZPC(BLK),SWR
SCREW-MACHINE;-,SWRCH18A,M5,L31.5,HH,+,W
STOPPER-PCB;501H,HIPS,-,-,HB,NTR,CABINET-FRONT;20F3(SAMEX),HIPS HB
SCREW-TAPPING;RH,+,2,M4,L12,ZPC(BLK),SWR
SCREW-TAPPING;RH,+,2,M4,L12,ZPC(BLK),SWR
SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-,
WINDOW-RMC,LED;14F3,PC,CLR
KNOB-CONTROL;14F3,ABS,HB,G3676,SVM-3012
KNOB-POWER;14F3,ABS,HB,G3676,SVM-3012
BADGE-BRAND;ALL,AL,T1.5,7.5,L45,R2000,SI
CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-,
CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2,
ASSY SPEAKER;-,8ohm,3W,O5F14BRA,-,L300
SPEAKER;5W,8OHM,89DB,180HZ
LEAD CONNECTOR-ASSY;,3(2)P,300MM,67096-0
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY COVER REAR
1
M0002
AA90-04321B ASSY COVER REAR;CT20F3FX/XAX
S.N.A
..2
..2
..2
..2
..2
..2
T0081
T0015
T0214
H/T
T0069
CLW/HS
6003-001026
AA64-03157A
AA65-30008A
AA61-00356B
AA60-00091J
AA65-30018A
S.N.A
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
CABINET-BACK;20F3(SAMEX),HIPS HB
CLAMPER CORE-CORD;-,PE,HB,-,BLK,HOLDER-TUNER,F/JACK;501F,ABS,-,-,-,BLK,H
SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-,
S.N.A
S.N.A
S.N.A
S.N.A
ASSY CPT
1
T0521
AA91-06032A ASSY CPT;A48KRD82X(H)+380MG,NONAFTA,MALA
S.N.A
..2
..2
..2
..2
..2
..2
..2
..2
T0063
T0079
T0078
T0089
CDCOIL
SPACER
A/TBC
M0162
AA03-00246A
AA27-00002A
AA27-00127A
AA27-00254A
AA61-00734A
AA63-60028A
AA97-01678A
6502-001019
S.N.A
S.N.A
S.N.A
S.N.A
CRT COLOR;A48KRD82X(H),380MG,2.20MH,30.0
MAGNET CONVERGENCE;JH291-SC-OB,29.1MM,-,
DEFLECTION YOKE;,DSE-1992LL,PCL,A48KRD82
COIL DEGAUSSING;,20INCH,10%,70TS,4.5OHM,
HOLDER;25POLYVINYL,DEGAUSSING,T0.5,CHLO
SPACER-DY;-,NEOPRENE,-,-,-,BLK,-,-,V0 W1
ASSY TBC WIRE;,19,NTSC,1P,SAMEX
CABLE CLAMP;DAMC-10,ID9.9,T7.1,NYLON6.6,
ASSY CHASSIS
1
M0017
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
FBT
M0014
AA91-07058A ASSY CHASSIS;K15D,20,MONO,CT20F3
AA65-30018A
AA94-14124A
0202-001366
T0090
0502-001265
IC112
1103-001209
C598
2201-000446
CR401S 2303-001015
SF101S 2904-001221
SWN01 3404-000295
FP801S 3601-000281
V999S 3704-001105
Samsung Electronics
CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-,
ASSY PCB MAIN;20,MONO,K15D,F/V,LATIN
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb,
TR-POWER;FJAF6810D,NPN,60000mW,TO-3PF,ST
IC-EEPROM;24C04,512x8,DIP,8P,10.16x7.11m
C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,BK,15X
C-FILM,LEAD-PPF;5.5NF,5%,1.6KV,BK,29X9.5
FILTER-SAW AV,45.75MHz,SIP5K,ST,14.2dB,M
SWITCH-TACT;12VDC,50mA,160gf,8.4X22.7,SP
FUSE-CARTRIDGE;250V,4A,TIME-LAG,GLASS,5.
SOCKET-CRT;11P,20PI,26.5PI,NI,-
S.N.A
S.N.A
S.N.A
Level Loc.No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
...3
....4
....4
....4
....4
...3
....4
....4
....4
...3
....4
....4
....4
...3
....4
....4
....4
....4
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
JA701
T0119
T801S
T0616
T401
LR401S
LX801S
RM901
CN501
TU01S
IC301
Code No.
3722-000162
AA09-00374A
AA26-00172A
AA26-00065A
AA26-50001B
AA27-00053A
AA29-30001D
AA32-00015A
AA39-20620B
AA40-00073A
AA96-00244A
0205-001153
T0088
1204-001483
T0081
6003-000335
AA62-00046A
IC601
AA96-00244D
0205-001153
T0085
1201-001600
T0081
6003-000335
AA62-00046A
IC802
AA96-00245A
IC062
1203-001939
T0081
6003-000334
AA62-00055A
IC501
AA96-50311A
T0074
1201-001159
T0081
6003-000334
AA62-30175D
IC801S AA96-00816A
0205-001153
T0086
1203-001932
T0081
6003-000335
AA62-00112A
LD901
AA96-00555A
C701
2401-002219
T0900
1404-001045
CN906 3711-002642
P803T
1404-001265
T0245
AA39-20010H
A/AUTO AA97-13358A
CISS
0401-000005
CISS
0401-000005
CISS
0401-000005
CISS
0401-000006
CISS
0401-000006
T0083
0402-000132
T0083
0402-000132
T0083
0402-000254
T0083
0402-000493
T0083
0402-000534
T0083
0402-001105
T0083
0402-001105
T0083
0402-001105
T0083
0402-001105
T0083
0402-001105
T0083
0402-001105
T0083
0402-001105
T0083
0402-001111
T0083
0402-001111
T0083
0402-001111
T0083
0402-001111
DZ016 0403-000508
DZ016 0403-000508
DZ016 0403-000508
DZ016 0403-000508
DZ016 0403-000508
Description;Specification
Remark
JACK-PIN;2P,3.4mm,SN,BLK,IC MICOM;TDA9377PS/N2/AI,TXM1967,64P,3.3
TRANS-SWITCHING;EER3543,K15D,90~264,PM2A
TRANS FBT;-,FSV-14A004C(S),14-22,125V
TRANS-HORIZ.DRIVE;-,-,-,7.1mH,-,-,102uH,
COIL-LINEARLITY;-,193uH,DR10X10 C:4.35,7
FILTER LINE NOISE;SQ1913,-,6.0MH,0.8A,MODULE-REMOCON;FRP-3521H31,38KHZ,940MM,M
LEAD-CONNECTOR;ASSY,9P,YBNH250-09,S,400m
TUNER-TECC1040PG32A(S),181CH,45.75MHZ,75
ASSY H/S;-,-,AA62-00046A,LA7840,GREASE-SILICON;SC102,JAPAN,IC-VERTICAL PROCESSO;LA7840,SIP,7P,708MI
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
HEAT SINK-PS;-,-,T1.0,-,D1(DREAM) 60X25X
ASSY H/S;-,SOUND,AA62-00046A,TDA7266M,GREASE-SILICON;SC102,JAPAN,IC-AUDIO AMP;7266,ZSIP,15P,-,SINGLE,26dB
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
HEAT SINK-PS;-,-,T1.0,-,D1(DREAM) 60X25X
ASSY H/S;-,-,AA62-00055A,KA7632,IC-MULTI REG.;7632,SIP,10P,-,PLASTIC,3.3
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK-PS;-,-,T1.0,-,35*15*25,D1,-,-,
ASSY-H/S;-,VIDEO,AA62-30175D,TDA6107Q,IC-VIDEO AMP;6107,ZSIP,9P,-,SINGLE,-,PLA
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
HEAT SINK-PS;-,SECC,T1.0,-,33X15X30 FT-2
ASSY H/S;,POWER,AA62-00112A,5Q0765RT,TRO
GREASE-SILICON;SC102,JAPAN,IC-PWM CONTROLLER;5Q0765,TO-220F,5P,185M
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
HEAT SINK;TROJAN,AL1050 ,T2.0,W54.0,H40.
ASSY LED GUIDE;-,-,UEX-LD-030,GREEN
C-AL;220uF,20%,400V,GP,BK,25x40,10
THERMISTOR-NTC;4.7ohm,15%,2900K,35.0mW,T
CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
THERMISTOR-PTC;4.5OHM/100OHM,+30/-20%,22
LEAD CONNECTOR-ASSY;,1P,300,YFH800-01,S,
ASSY AUTO;K15D,20,F/V,MONO,LATIN,CT20F3
DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T
DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T
DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T
DIODE-SWITCHING;BAV21,250V,200MA,DO-35,T
DIODE-SWITCHING;BAV21,250V,200MA,DO-35,T
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;RGP10J,600V,1A,DO-41,TP
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;ERB43-04SV1,400V,1A,TS-1
DIODE-RECTIFIER;ERB43-04SV1,400V,1A,TS-1
DIODE-RECTIFIER;ERB43-04SV1,400V,1A,TS-1
DIODE-RECTIFIER;ERB43-04SV1,400V,1A,TS-1
DIODE-RECTIFIER;ERB43-04SV1,400V,1A,TS-1
DIODE-RECTIFIER;ERB43-04SV1,400V,1A,TS-1
DIODE-RECTIFIER;ERB43-04SV1,400V,1A,TS-1
DIODE-RECTIFIER;1N5397GP,600V,1.5A,-,TP
DIODE-RECTIFIER;1N5397GP,600V,1.5A,-,TP
DIODE-RECTIFIER;1N5397GP,600V,1.5A,-,TP
DIODE-RECTIFIER;1N5397GP,600V,1.5A,-,TP
DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO
DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO
DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO
DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO
DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
7-1
Electrical Parts List
Level Loc.No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
7-2
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
DZ016
T0156
T0156
T0156
T0156
T0156
R125
R125
R125
R125
R075
R075
R075
R075
R075
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
Code No.
0403-000508
0403-001039
0403-000700
0403-000700
0403-000719
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-000720
0403-001140
0403-001211
0403-001221
0403-001318
0403-001373
0403-001327
0403-001328
0403-001328
0501-000283
0501-000283
0501-000369
0501-002183
0501-002183
2001-000005
2001-000005
2001-000005
2001-000010
2001-000016
2001-000019
2001-000022
2001-000037
2001-001138
2001-000241
2001-000241
2001-000273
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000325
2001-000397
2001-000008
2001-000429
2001-000429
2001-000429
2001-000429
2001-000449
2001-000449
2001-000449
Description;Specification
DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO
DIODE-ZENER;MA2560,52-60V,1000MW,DO-41,T
DIODE-ZENER;TZP33A,5%,1000MW,DO-41,TP
DIODE-ZENER;TZP33A,5%,1000MW,DO-41,TP
DIODE-ZENER;MTZJ7.5B,7.11-7.44V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
DIODE-ZENER;RD10ESAB-T4,9.7-10.2V,400MW,
DIODE-ZENER;MTZJ12B,11.8-12.3V,500MW,DODIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D
DIODE-ZENER;MTZJ4.3B,4.17-4.43V,500MW,DO
DIODE-ZENER;MTZJ5.1A,4.85-5.03V,500MW,D0
DIODE-ZENER;MTZJ18A,16.22-17.06V,500MW,D
DIODE-ZENER;MTZJ22A,20.15-21.2V,500MW,DO
DIODE-ZENER;MTZJ22A,20.15-21.2V,500MW,DO
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOTR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;68KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);33OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);390OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;120OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;180KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Remark
Level Loc.No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R125
R075
R075
R075
R303
R075
R075
R075
R075
R075
R075
R0521
R0521
R0521
R0521
R402
R316
R413
R403
R827
R407
R834
R603
R024
R024
R219
R024
R024
R304
R305
R801
R608
R609
R824
R422
R421
R420
C806
C598
C598
C598
C598
C598
C598
C598
C598
C598
C689
C689
C689
C689
C689
C689
C689
Code No.
2001-000472
2001-000472
2001-000472
2001-000472
2001-000472
2001-000490
2001-000563
2001-000591
2001-000689
2001-000734
2001-000734
2001-000739
2001-000739
2001-000786
2001-000793
2001-000857
2001-000924
2001-000924
2001-000947
2001-000947
2001-000947
2001-000969
2001-000969
2001-000969
2001-001037
2001-001062
2001-001078
2003-002238
2001-001108
2001-001114
2001-001150
2001-001150
2001-001187
2001-001045
2002-001008
2002-001008
2002-001008
2002-001013
2003-002178
2003-000652
2003-000664
2003-002173
2003-000998
2003-001040
2003-001040
2004-000195
2004-001373
2004-001402
2004-001914
2004-001371
2004-001371
2008-000253
2008-000253
2008-001107
2008-000284
2008-000284
2008-000294
2008-001011
2008-001011
2008-001047
2301-001435
2201-000192
2201-000145
2201-000639
2201-000573
2201-000573
2201-000599
2201-000639
2201-000723
2201-000991
2202-000127
2202-000127
2202-000127
2202-000796
2202-000796
2202-000796
2202-000796
Description;Specification
Remark
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;200OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;390KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);0.39OHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);10MOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);15KOHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S)1.3OHM,5%2W,AF,TP,3.9X10
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-COMPOSITION;1.8Kohm,10%,1/2W,AA,TP,3.7
R-COMPOSITION;1.8Kohm,10%,1/2W,AA,TP,3.7
R-COMPOSITION;1.8Kohm,10%,1/2W,AA,TP,3.7
R-COMPOSITION;4.7Mohm,5%,1/2W,AA,TP,3.7x
R-METAL OXIDE(S) 1Kohm,5%,2W,AG,TP,3.9X1
R-METAL OXIDE(S);330ohm,5%,2W,AF,TP,4x12
R-METAL OXIDE(S);33ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE(S);7.5Kohm,5%,2W,AG,TP,3.9
R-METAL OXIDE;300ohm,5%,2W,AF,TP,3.9x10m
R-METAL OXIDE(S);47Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);47Kohm,5%,2W,AF,TP,3.9x
R-METAL;100Kohm,1%,1/8W,AA,TP,1.8x3.2m
R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL(S);6.8Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL;39Kohm,2%,1/8W,AA,TP,1.8x3.5mm
R-METAL(S);1.5Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL(S);1.5Kohm,1%,1/2W,AA,TP,2.4x6.4
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R-FUSIBLE(S);300ohm,5%,2W,AG,TP,3.9x12mm
R-FUSIBLE(S);0.1OHM,10%,2W,AF,TP,3.9X10M
R-FUSIBLE(S);0.1OHM,10%,2W,AF,TP,3.9X10M
R-FUSIBLE(S);33ohm,5%,2W,AF,TP,3.9x10mm
R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE(S);68ohm,5%,2W,AF,TP,3.9x10mm
C-FILM,LEAD-PPF;1.5nF,5%,1.2kV,TP,15x8x1
C-CERAMIC,DISC;10PF,0.25PF,500V,NPO,-,5M
C-CERAMIC,DISC;0.1NF,5%,50V,RH,TP,8.5X3M
C-CERAMIC,DISC;680PF,10%,2KV,Y5P,-,5MM,T
C-CERAMIC,DISC;0.047NF,5%,50V,C0G,TP,5X3
C-CERAMIC,DISC;0.047NF,5%,50V,C0G,TP,5X3
C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;680PF,10%,2KV,Y5P,-,5MM,T
C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5
C-CERAMIC,DISC;0.56NF,10%,2KV,Y5P,TP,7.5
C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
Samsung Electronics
Electrical Parts List
Level Loc.No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C689
C689
C689
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C420
C2560
C2560
C2560
C2560
C2560
CR405S
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C2560
C225
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
C701
L103
L202
L903
R101
R102
L203
L301
L302
L404
L102
Code No.
2202-000825
2202-000829
2202-002037
2301-000213
2301-000224
2301-000224
2301-000254
2301-000301
2301-000301
2301-000342
2301-000342
2301-000342
2301-000383
2301-000445
2301-001065
2305-000149
2305-000285
2305-000289
2305-000289
2305-000289
2305-000382
2305-000412
2305-000665
2305-000665
2305-000665
2305-000665
2305-000665
2305-000665
2305-000665
2305-000665
2305-000665
2305-000665
2305-000665
2301-001664
2401-000262
2401-000302
2401-000302
2401-000302
2401-000360
2401-000430
2401-000055
2401-000603
2401-000603
2401-000660
2401-000660
2401-000927
2401-000962
2401-001192
2401-001232
2401-001397
2401-002288
2401-000025
2401-000025
2401-000025
2401-000025
2401-000025
2401-001998
2401-002144
2401-000050
2401-000050
2401-000050
2401-000050
2401-000050
2401-002290
2401-002594
2401-002619
2401-003028
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000127
2701-000142
2701-000142
2701-000142
2701-000159
Samsung Electronics
Description;Specification
C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;820pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-FILM,LEAD-PEF;220nF,5%,250V,TP,21.5x11
C-FILM,LEAD-PEF;22nF,5%,50V,TP,7.4x3.9x1
C-FILM,LEAD-PEF;22nF,5%,50V,TP,7.4x3.9x1
C-FILM,LEAD-PEF;39nF,5%,50V,TP,7.5x3.5x6
C-FILM,LEAD-PEF;6.8nF,5%,50V,TP,6.5X5.5X
C-FILM,LEAD-PEF;6.8nF,5%,50V,TP,6.5X5.5X
C-FILM,LEAD-PEF;2.2nF,5%,50V,TP,7.4x3.9x
C-FILM,LEAD-PEF;2.2nF,5%,50V,TP,7.4x3.9x
C-FILM,LEAD-PEF;2.2nF,5%,50V,TP,7.4x3.9x
C-FILM,LEAD-PEF;10nF,5%,50V,TP,6x7x3.2mm
C-FILM,LEAD-PEF;4.7nF,5%,50V,TP,5.5x7x3m
C-FILM,LEAD-PPF;47nF,5%,630V,TP,19x15.5x
C-FILM,LEAD-PEF;100nF,5%,100V,TP,12x12.5
C-FILM,LEAD-PEF;220NF,5%,100V,TP,10.5X5.
C-FILM,LEAD-PEF;220nF,5%,63V,TP,-,5mm
C-FILM,LEAD-PEF;220nF,5%,63V,TP,-,5mm
C-FILM,LEAD-PEF;220nF,5%,63V,TP,-,5mm
C-FILM,MPEF;4.7NF,5%,400V,TP,-,5MM.
C-FILM,LEAD-PEF;470nF,5%,63V,TP,-,5mm
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
C-FILM,MPE-PPF;100nF,3%,50V,TP,20x16x8.5
C-AL;100uF,20%,160V,HR,TP,16x25,7.5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;1uF,20%,160V,WT,TP,3x11,5mm
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;1UF,20%,50V,GP,TP,5X11,2
C-AL;2.2uF,20%,50V,GP,TP,5x11,5
C-AL;2.2uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,250V,GP,TP,13x20,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;33uF,20%,50V,GP,TP,6.3x11,5
C-AL;4.7uF,20%,250V,GP,TP,10x12.5,5
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-AL;470uF,20%,25V,WT,TP,10x20,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;10uF,20%,16V,GP,TP,5x11,2.5
C-AL;10uF,20%,16V,GP,TP,5x11,2.5
C-AL;10uF,20%,16V,GP,TP,5x11,2.5
C-AL;10uF,20%,16V,GP,TP,5x11,2.5
C-AL;10uF,20%,16V,GP,TP,5x11,2.5
C-AL;47uF,20%,160V,GP,TP,13x20,5
C-AL;220uF,20%,16V,GP,TP,8x11.5,5
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;100uF,20%,25V,WT,TP,6.3x11,5
INDUCTOR-AXIAL;10UH,10%,2534
INDUCTOR-AXIAL;10UH,10%,2534
INDUCTOR-AXIAL;10UH,10%,2534
INDUCTOR-AXIAL;10UH,10%,2534
INDUCTOR-AXIAL;10UH,10%,2534
INDUCTOR-AXIAL;15UH,10%,2534
INDUCTOR-AXIAL;1UH,10%,2534
INDUCTOR-AXIAL;1UH,10%,2534
INDUCTOR-AXIAL;1UH,10%,2534
INDUCTOR-AXIAL;22UH,10%,4298
Remark
Level Loc.No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
...3
...3
....4
....4
L201
L230
L405
L902
L904
L804
L807
F101
L2514
L2514
L2514
L2514
SW901
SW902
SW903
SW904
SW905
FD801S
F801A
F801B
02VER
EY401
EY402
EY403
EY404
EY405
EY414
EY415
EY416
EY417
EY418
EY419
EY420
EY421
EY501
EY819
EY827
EY829
EY833
EL401
EL402
EL801
EL802
GT501
GT801
GT802
GT803
GT804
GT805
GT101
GT806
Z201
C701
R505
R825
CR403S
C701
T0083
R811
R812
C701
L2514
L2514
C2560
R125
C701
X901
GT301
T0066
T0077
Code No.
2701-000159
2701-000159
2701-000159
2701-000177
2701-000177
2701-001030
2701-001030
2901-000297
3301-000287
3301-000287
3301-000287
3301-000287
3404-000244
3404-000244
3404-000244
3404-000244
3404-000244
3601-001086
3602-000114
3602-000114
AA41-00625C
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000002
6042-000001
6042-000001
6042-000001
6042-000001
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
AA60-40014A
2903-000129
2401-002009
2008-000264
2008-000264
2306-000179
2401-000703
0402-001443
2003-002239
2003-002239
2401-001914
3301-001223
3301-001223
2301-000289
2001-000734
2401-000365
2801-004033
AA60-40012D
AA96-20129C
AA39-10007Y
AA61-20284A
Description;Specification
INDUCTOR-AXIAL;22UH,10%,4298
INDUCTOR-AXIAL;22UH,10%,4298
INDUCTOR-AXIAL;22UH,10%,4298
INDUCTOR-AXIAL;33UH,10%,2534
INDUCTOR-AXIAL;33UH,10%,2534
INDUCTOR-AXIAL;43UH,10%,4514
INDUCTOR-AXIAL;43UH,10%,4514
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50
BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50
BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50
BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50
SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-HOLDER;-,-,30mohm
FUSE-HOLDER;-,-,30mohm
PCB-MAIN;TXM1967X/XAA,FR-1,1L,C,1.6T,245
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
PIN-GT,ASSY;AUTO
FILTER-CERAMIC;BR,4.5MHz,-,-,-,TP,C-AL;100uF,20%,16V,GP,TP,6.3x7,5
R-FUSIBLE(S);1ohm,5%,1W,AF,TP,3.9x10mm
R-FUSIBLE(S);1ohm,5%,1W,AF,TP,3.9x10mm
C-FILM,LEAD-PPF;300nF,5%,250V,TP,20x18.5
C-AL;2200uF,20%,25V,GP,-,12.5x25mm,
DIODE-RECTIFIER;EGP20K,800V,2A,TO-220F,T
R-METAL OXIDE(S);100KOHM,5%,2W,AF,TP,3.9
R-METAL OXIDE(S);100KOHM,5%,2W,AF,TP,3.9
C-AL;1uF,20%,50V,BP,TP,5x11,5
BEAD-AXIAL;62ohm,3.5x0.8x5mm,,TP,,,
BEAD-AXIAL;62ohm,3.5x0.8x5mm,,TP,,,
C-FILM,LEAD-PEF;5.6nF,5%,50V,TP,7x6x3,5
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
CRYSTAL-UNIT;12MHZ,30PPM,28-AAM,30PF,30O
PIN-GT,ASSY;4P,T1.6,6-12.5-14MM,NYLON66
ASSY POWER CORD;-,EP2/YES,H/C200,ME301P,
CBF POWER CORD;-,EP2/YES,SPT-2 18AWGx2C,
HOLDER;P-CORD,PP,-,-,-,BLK,VO,KE-002
Remark
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY ACCESSORY
1
M0045
AA92-08377A ASSY ACCESSORY;K15D,14/20,XAP
S.N.A
7-3
Electrical Parts List
Level Loc.No.
..2
..2
..2
..2
..2
..2
..2
T0080
T0075
T0074
T0152
T0511
T0511
BAG-PE
Code No.
AA26-90001F
AA42-00004A
AA59-00232A
AA68-00987A
AA68-02665A
AA68-02666A
AA69-01195A
Description;Specification
TRANS MATCHING;-,300ohm/75ohm,NTSC,40-89
ANT ROD;CXD1334,VHF,4SDODIPOLE850MMBRN
REMOCON;CT20R1,SAMSUNG,BLK,TM59,25,NTSC
CARD WARRANTY;-,-,W/P100,-,-,-,-,-,A4,1P
MANUAL USERS;ENG,W/P100(G),B5,K15D
MANUAL USERS;SPA,W/P100(G),B5,K15D
BAG PE;CL29A6W8X,HDPET0.012,93/4X151/2
Remark
Level Loc.No.
Code No.
Description;Specification
Remark
S.N.A
S.N.A
S.N.A
S.N.A
ASSY P/MATERIAL
1
A/PACK AA92-07233B ASSY P/MATERIAL;CT20F3FX/XAX
S.N.A
..2
..2
PE-BAG AA69-01208A BAG;SHEET,19-20,W42,L50,FOAM,OEM
T0214
AA60-40006A PIN-STAPLE;AUTO,33X17.8X2.4,H18,33X17.8X
S.N.A
S.N.A
7-4
Samsung Electronics
Troubleshooting
5. Troubleshooting
5-1 No Power
Counect
the Power code
Check the
12.5V-A Line
Abnormal
Check the
FD801S, D807, IC801S
or AC-Fuse
Normal
Check the
3.3V-A,5V-A Line
of IC201S
Abnormal
Check/Replace
IC802
Normal
Check the
X-tal,SDA,SCL port
of IC201S
Normal
Check the
(33)Pin (H-Drive)
of IC201S
Abnormal
Replace
IC201 S
Abnormal
Normal
Check the
122.5V- A Line
Normal
Abnormal
Check the
FBT,D805(D806)
Check / Replace
Q401
Samsung Electronics
5-1
Troubleshooting
5-2 No Video (Sound OK)
Check RK,GK,BK
Signal
Abnormal
Check R,G,B
Signal into CRT
PCB
Nornal
Check IC501
B+(180V-B)
Nornal
Nornal
Abnormal
Check the
Voltage of heater
Re-Adjust
Screen Voltage
Abnormal
Abnormal
Check the
resistance of R420
Nornal
Abnormal
Check/Replace
R421,R422,D505
Nornal
Replace
R420
Check
CRT and FBT
Abnormal
Check/Replace
IC201S
Abnormal
Check IC201S
Pin 51,52,53
(R.G.B)
Check/Replace
D812,FBT
Nornal
Check IC201S
Pin 49(BCL-IN)
Pin50(IK)
Nornal
Check
CRT and FBT
5-2
Samsung Electronics
Troubleshooting
5-3 No Sound (Video OK)
Checkthe signal
Output from CN603
CN604
Normal
Abnormal
Check
Speaker and Wire
Normal
Check IC601
Pin1,2,14,15
Abnormal
* STEREO
Abnormal
Check
IC201S,TUNER
Normal
Check IC601
B+
* MONO
Check IC201S
Pin28(MIS)
Normal
Check ICS601
B+/SDA/SCL
Normal
Check/Replace
ICS601
Check IC201S
Pin28
Normal
Check/Replace
IC201S
Abnormal
Check TUNER
Abnormal
Check
R608,R609
Normal
Check FD801S
D807
Normal
Replace
IC601
Abnormal
Replace/Check
IC601
Abnormal
Replace
FD801S,D807
See
No Power
Samsung Electronics
5-3
Troubleshooting
5-4 Vertical Lines Appear or Screen
Check IC301 B+
16V-C,-13.5V-C
Abnormal
Normal
Check IC201S
Pin 21,22
(VDN,VDP)
Check
R304,R305
D301,D302
Abnormal
Normal
Check
IC201S
Check / Replace
IC301
5-4
Samsung Electronics
Block Diagram
8. Block Diagram
8-1 K15D
T U NE R -F /S
TECC1040PG32A(38A)
V I F SA W
M1864M
V E R T IC AL
AMP
LA7840
I 2C
C
R
T
12
21/ 22
23
24
28 MTS
IC -M C U
S P M -4 5 8 A N
RGB A M P
T D A 6107 Q
50- 53
AUDIO A M P
42
2 -3
33
44
(STEREO)
SOUND PROCESSOR
UPD1851B
R/L OUT (24, 25)
TDA7266M/S
STEREO
8R * 1EA
8R * 2EA
I 2C
38, 39
E 2P R OM
24C04
H -O UT
TR
KSC 5386
V IDE O
A V I N PU T
FBT
FSV-14A004C
AC
KA5Q0740RT
(KA5Q0765RT)
S/W
MONO
MULTI
REGULATOR
KA7632
180V TO C RT
± 16.5V TO Ver . A M P
Heat TO C RT
3.3V TO M CU
5V T O TUN ER
8V TO M CU
13V TO SOU ND
AM P
8-1
Schematic Diagrams
10. Schematic Diagrams
10-1 MAIN (1/4)
TP01
TP02
TP05
TP04
TP06
TP02
TP03
TP03
TP01
TP04
TP05
TP06
Samsung Electronics
10-1
Schematic Diagrams
10-2 MAIN (2/4)
TP07
TP08
TP11
TP09
TP10
TP08
TP09
TP10
TP07
TP11
10-2
Samsung Electronics
Schematic Diagrams
10-3 MAIN (3/4)
TP07
TP07
TP08
TP08
: Power Line
: Signal Line
Samsung Electronics
10-3
Schematic Diagrams
10-4 MAIN (4/4)
10-4
Samsung Electronics
