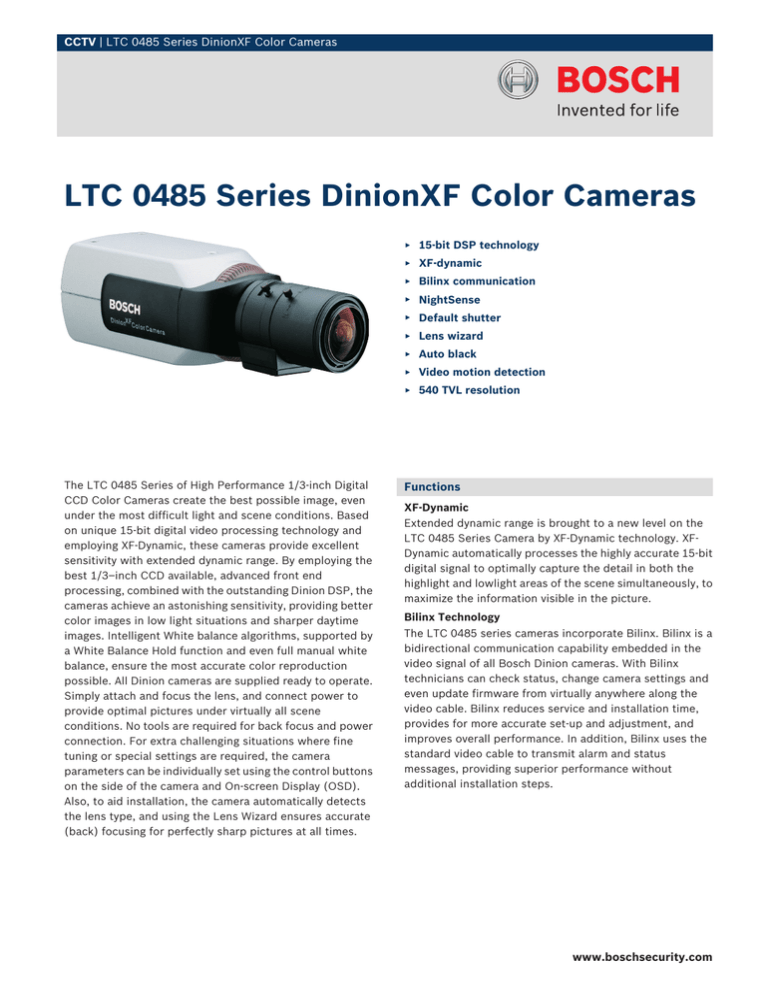

CCTV | LTC 0485 Series DinionXF Color Cameras LTC 0485 Series DinionXF Color Cameras ▶ 15-bit DSP technology ▶ XF-dynamic ▶ Bilinx communication ▶ NightSense ▶ Default shutter ▶ Lens wizard ▶ Auto black ▶ Video motion detection ▶ 540 TVL resolution The LTC 0485 Series of High Performance 1/3-inch Digital CCD Color Cameras create the best possible image, even under the most difficult light and scene conditions. Based on unique 15-bit digital video processing technology and employing XF-Dynamic, these cameras provide excellent sensitivity with extended dynamic range. By employing the best 1/3–inch CCD available, advanced front end processing, combined with the outstanding Dinion DSP, the cameras achieve an astonishing sensitivity, providing better color images in low light situations and sharper daytime images. Intelligent White balance algorithms, supported by a White Balance Hold function and even full manual white balance, ensure the most accurate color reproduction possible. All Dinion cameras are supplied ready to operate. Simply attach and focus the lens, and connect power to provide optimal pictures under virtually all scene conditions. No tools are required for back focus and power connection. For extra challenging situations where fine tuning or special settings are required, the camera parameters can be individually set using the control buttons on the side of the camera and On-screen Display (OSD). Also, to aid installation, the camera automatically detects the lens type, and using the Lens Wizard ensures accurate (back) focusing for perfectly sharp pictures at all times. Functions XF-Dynamic Extended dynamic range is brought to a new level on the LTC 0485 Series Camera by XF-Dynamic technology. XFDynamic automatically processes the highly accurate 15-bit digital signal to optimally capture the detail in both the highlight and lowlight areas of the scene simultaneously, to maximize the information visible in the picture. Bilinx Technology The LTC 0485 series cameras incorporate Bilinx. Bilinx is a bidirectional communication capability embedded in the video signal of all Bosch Dinion cameras. With Bilinx technicians can check status, change camera settings and even update firmware from virtually anywhere along the video cable. Bilinx reduces service and installation time, provides for more accurate set-up and adjustment, and improves overall performance. In addition, Bilinx uses the standard video cable to transmit alarm and status messages, providing superior performance without additional installation steps. www.boschsecurity.com 2 | LTC 0485 Series DinionXF Color Cameras Video Motion Detection The built-in video motion detector allows you to select up to four fully programmable areas with individual thresholds. The global scene change detector minimizes false alarms caused by sudden lighting condition changes, such as switching on or off the indoor or security lighting. When motion is detected alarms may be displayed in the video signal, the output relay can be closed in addition to alarm message transmission on Bilinx. Auto Black The automatic black level feature, enhances contrast by removing veiling glare from the picture or when contrast is reduced by fog or mist. Default Shutter Certifications and Approvals Electro Magnetic Compatibility Emission EN55022 class B, FCC class B part 15 Immunity EN50130-4 Alarm Systems, Part 4 Vibration Camera with .5 kg (1.1 lbs) lens according to IEC60068-2-27 Safety LTC 0485/11 and LTC 0485/51: EN60065 LTC 0485/21 and LTC 0485/61: UL6500, cUL CAN/CSA E60065-00 Installation/Configuration Notes When viewing moving objects a fast shutter speed is required. When using a fast shutter speed the lens opening or gain control needs to be increased to maintain the video signal. The camera sensitivity is limited by the fast shutter speed. The default shutter setting of the LTC 0485 offers the best of all worlds, fast shutter speed as long as there is sufficient light, however as the light level falls, when other adjustments have been exhausted, the shutter reverts to the standard setting maintaining the cameras excellent sensitivity. Back Light Compensation (BLC) Offering a fully programmable BLC area of interest, and a variable BLC level, the camera can be easily set up for even the most challenging entrance applications. Lens Wizard The LTC 0485 Series automatically detects the type of lens installed. The Lens Wizard will focus the lens at the maximum lens opening, to ensure that focus is maintained throughout the entire 24–hour day/night cycle. No special tools or filters are required. Programmable Modes The camera supports 3 independent operating modes. The 3 modes are preprogrammed for typical applications, but are fully programmable for individual situations. Switching between modes is easy via Bilinx or the external alarm input. NightSense The LTC 0485 cameras feature NightSense. With NightSense the sensitivity is increased by 9 dB in monochrome mode. NighSense can be automatically activated in low light situations, or remotely using Bilinx. SensUp By increasing the integration time on the CCD up to 10 times, the effective sensitivity is dramatically enhanced, especially useful where there is no artificial lighting and you rely on the moon, stars and scattered radiation. Dimensions in mm (inches) Parts Included Quantity Components 1 LTC 0485 Series DinionXF Color Camera 1 Spare male 4–pin lens connector Lens not included Technical Specifications Electrical Model No. Voltage Range LTC 0485/11 12–28 VAC 45–65 Hz 11–36 VDC LTC 0485/21 12–28 VAC 45–65 Hz LTC 0485/51 85–265 VAC 45–65 Hz LTC 0485/61 85–265 VAC 45–65 Hz 11–36 VDC Power Consumption 4 W Imager Interline transfer CCD, 1/3-inch format LTC 0485 Series DinionXF Color Cameras | 3 Mechanical Active Pixels PAL 752 H x 582 V NTSC 768 H x 492 V Sensitivity (3200 k) Sensitivity (Full Vid- 2.4 lux (0.24 fc) eo)1) Sensitivity 50 IRE1) 0.59 lux / 0.24 lux (NightSense) (0.059 fc / 0.024 fc (NightSense)) Minimum Illumination1) 0.24 lux / 0.10 lux (NightSense) (0.024 fc / 0.01 fc (NightSense)) Minimum Illumination with Sens Up 0.024 lux / 0.010 lux (NightSense) (0.0024 fc / 0.0010 fc (NightSense)) Horizontal Resolution 540 TVL Signal-to-Noise-Ra- > 50 dB tio Video Output 1 Vpp, 75 Ohm Y/C Output Y: 1 Vpp / C: 0.3 Vpp Synchronization Internal, line lock, HV-lock and genlock (Burst lock) selectable Electronic Shutter Auto (1/60 (1/50) to 1/500000), fixed, flickerless, default Sensitivity up Off, automatic continuous up to 10x Auto Black On, off selectable Range 32x dynamic range enhancement Dynamic Noise Reduction Auto, off selectable Contour Sharpness enhancement level selectable BLC Off, area and level selectable Gain Auto (maximum level selectable to 28 dB) or fixed level selectable White Balance ATW (2500–10000 K), AWB hold, manual WB selectable VMD 4 area, sensitivity selectable Alarm Output VMD or Bilinx Alarm Input (TTL) Profile switching, +5 V nominal, +40 VDC max. Alarm Output Relay Max. 30 VAC or +40 VDC, max. 0.5 A continuous, 10 VA External Synchrona- 75 Ohm or High Impedance selectable lInput Cable Compensation Up to 1000 m (3000 ft) coax without external amplifiers (automatic set-up in combination with coaxial communication) Camera ID 16 character editable string, position selectable Lens Types Manual, DC- and Video-iris auto-detect with override DC-iris drive: max. 50 mA continuous Video-iris: 11.5 ± 0.5 VDC, max. 50 mA continuous Remote Control Bi-directional coaxial communication Dimensions (H x W x L) 59 x 67 x 122 mm (2.28 x 2.6 x 4.8 in.) without lens Weight 450 g (0.99 lbs) without lens Tripod Mount Bottom (isolated) and top 1/4-in. 20 UNC Lens Mount Cand CS Controls OSD with softkey operation Environmental Operating Temperature -20 °C to +50 °C(-4 °F to +122 °F) Storage Temperature -25 °C to +70 °C(-13 °F to +158 °F) Operating Humidity 20% to 93% Relative humidity Storage Humidity Up to 98% Relative humidity Ordering Information LTC 0485/11 DinionXF Color Camera 1/3-inch, high performance, 540 TVL, PAL, DSP, 12 – 28 VAC/11 – 36 VDC, 50 Hz LTC0485/11 LTC 0485/21 DinionXF Color Camera 1/3-inch, high performance, 540 TVL, NTSC, DSP, 12 – 28 VAC/11 – 36VDC, 60 Hz LTC0485/21 LTC 0485/51 DinionXF Color Camera 1/3-inch, high performance, 540 TVL, PAL, DSP, 85 – 268 VAC, 50 Hz LTC0485/51 LTC 0485/61 DinionXFColor Camera 1/3-inch, high performance, 540 TVL, NTSC, DSP, 85 – 265 VAC, 60 Hz LTC0485/61 Accessories LTC 3364/21 Varifocal Lens IR corrected 1/3-inch, 2.8 – 6 mm, DC-iris, CS-mount F1.4-200, 4-pin LTC3364/21 LTC 3364/31 Varifocal Lens 1/3-inch, 3.5 – 8 mm, DC-iris, CS-mount F/ 1.4-200, 4-pin LTC3364/31 LTC 3384/21 Zoom Lens 1/3-inch, 6 – 60 mm, DC-iris, CS-mount F1.4-360, 4-pin LTC3384/21 TC120PS Power Supply Unit 110-120 VAC/15 VDC, 50/60 Hz, 300 mA TC120PS TC220PS Power Supply Unit 230 VAC/12 VDC, 50 Hz, 10 VA TC220PS TC220PSX‑24 Power Supply Unit 230 VAC/20 VAC, 50 Hz, 20 VA TC220PSX-24 TC1334 Power Supply Unit 120 VAC/24 VAC, 60 Hz, 30 VA TC1334 Software Options VP‑CFGSFT Configuration Software for cameras using Bilinx, includes VP-USB Adaptor VP-CFGSFT 1) F1.2, 89% reflection, SensUp Off www.boschsecurity.com 4 | LTC 0485 Series DinionXF Color Cameras Americas: Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, New York, 14450, USA Phone: +1 800 289 0096 Fax: +1 585 223 9180 [email protected] www.boschsecurity.us Europe, Middle East, Africa: Bosch Security Systems B.V. P.O. Box 80002 5600 JB Eindhoven, The Netherlands Phone: + 31 40 2577 284 Fax: +31 40 2577 330 [email protected] www.boschsecurity.com © Bosch Security Systems Inc. 2009 | Data subject to change without notice T1892137995 | Cur: en-US, V8, 12 Feb 2009 Asia-Pacific: Represented by Robert Bosch (SEA) Pte Ltd, Security Systems 38C Jalan Pemimpin Singapore 577180 Phone: +65 6319 3453 Fax: +65 6319 3499 [email protected] www.boschsecurity.com
