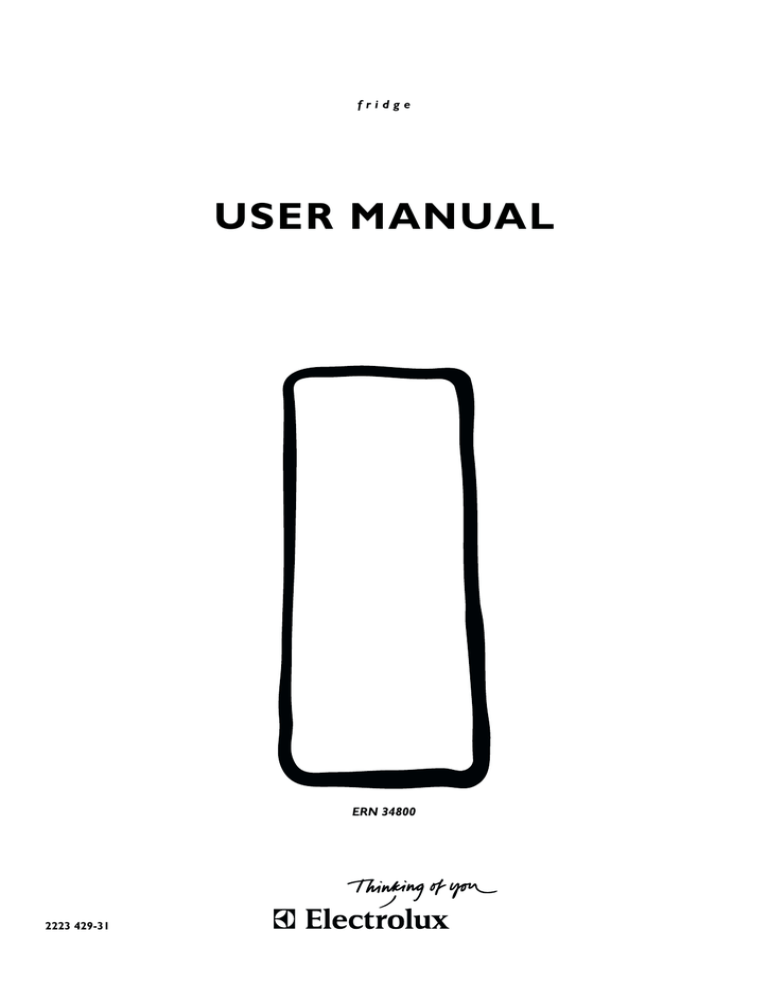

Electrolux 2223 429-31 User manual

fridge
USER MANUAL
ERN 34800
2223 429-31
IMPORTANT SAFETY INFORMATION
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of safety. You MUST read it carefully before installing
or using the appliance.
Installation
•
Frozen food must NOT be re-frozen once it has
thawed out.
•
•
Do not place carbonated or fizzy drinks in the
freezer.
•
Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
•
Ice lollies can cause ‘frost/freezer burns’ if
consumed straight from the freezer.
•
Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant
instructions.
•
The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
•
•
•
•
•
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from your
local Service Force Centre.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.
Child Safety
•
Do not allow children to tamper with the controls or
play with the product.
Maintenance and Cleaning
•
Keep all packaging well away from children.
•
General Safety
•
•
•
•
•
This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging must
therefore only be carried out by authorized
technicians.
Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.
The appliance must not be located close to
cookers, radiators or boilers.
Avoid prolonged exposure of the appliance to
direct sunlight.
Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating
appliances.
During Use
•
2
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs.
Switch off and unplug the appliance before
carrying out any cleaning or maintenance work.
Servicing
•
This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
•
Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Service Force Centre and always insist on
genuine spare parts.
At the end of the Appliance
Life
•
When disposing of your appliance, use an
authorised disposal site.
•
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
Disposal of old Appliances
The symbol
on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it should be taken to the
appropriate collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local council, your
household waste disposal service or the shop where
you purchased the product.
CONTENTS
Instructions for the User
Important Safety Information
2
Operation
4
Before use
4
Control panel
Instructions for the
Installer
Technical Specification
12
4
Installation
13
Display
4
Positioning
13
Operation
4
Shelf holders
13
Activation of functions
4
Switching off
4
Electrical Connection
14
Use of the fridge compartment
5
Setting the temperature
5
Instruction for totally built-in
appliances
15
Fresh food refrigeration
5
Shopping Function
5
Door open acoustic alarm
5
Normal operating sounds
5
Movable shelves
6
Positioning the door shelves
6
Bottle holder
6
Air recycling
6
Hints and Tips
7
Maintenance and Cleaning
8
Internal cleaning
8
External cleaning
8
When the appliance is not in use
8
Changing the light bulb
8
Defrosting
8
Something Not Working
Service and Spare Parts
Customer Care
Guarantee Conditions
9
10
10
11
3
OPERATION
Before using
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
Control panel
C - Function button
D - Fridge Thermostat knob
A - Appliance button ON/OFF
B - Temperature and function indicator
DISPLAY
1
1.
2.
3.
4.
2
3
4
Door open alarm indicator
Positive or negative Temperature indicator
Temperature indicator
If on the shopping function is on
Operation
Activation of functions
After plugging the plug into the power outlet, if the
display is not illuminated, press key (A), appliance on.
Each time key C is pressed, the following functions are
activated in a clockwise direction:
As soon as the appliance is turned on, the following
signals will appear on the control panel:
Symbol 4 : shopping function
•
symbol (2) will be positive, indicating that the
temperature is positive.
Turn the refrigerator thermostat knob (D) to the middle
position, this will adjust the temperature to approx.
+5°C, which is considered sufficiently cold for the
safe storage of food.
4
No Symbol: Normal operation
Switching off
The appliance is shut off by holding down key (A) for
more than 1 second. After this, a countdown of the
temperature from -3 -2 -1 will be shown.
When the appliance is shut off, display (B) also goes
off.
Use of the fridge compartment
Setting the temperature
Fresh food refrigeration
The temperature within the appliance is controlled by
the thermostat control knob situated at the top of the
appliance.
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; cover
or wrap the food, particularly if it has a strong flavour.
To operate the appliance proceed as follows:
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation.
Turn the thermostat control beyond the «O» position.
Position
●
= minimum coldness
Position ● = maximum coldness
Turn the thermostat dial to the required position.
To help you use your refrigerator correctly, here are
some more useful hints:
The intermediate position is usually the most
suitable.
Raw meat (beef, pork, lamb & chicken or poultry):
wrap in polythene bags and place on the glass shelf
above the salad drawers.
The thermostat setting can vary as the temperature
inside the appliance depends on the following
factors:
Meat can only be stored safely in this way for
one or two days at the most.
– room temperature
– how often the door is opened
– how much food is stored
– position of the appliance
Fruit & vegetables: these should be thoroughly
cleaned and placed in the salad drawers.
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
Shopping Function
If you need to insert a large amount of warm food, for
example after doing the grocery shopping, we suggest
activating the Shopping function to chill the products
more rapidly and to avoid warming the other food
which is already in the refrigerator and/or freezer.
The shopping function is activated by pressing key C
(several times if necessary) until the corresponding
icon appears
The shopping function shuts off automatically after
approximately 6 hours.
It is possible to de-activate the function at any time by
pressing key C (see paragraph "Function Activation").
Door open acoustic alarm
An acoustic alarm will sound when the door is left
open for around 5 minutes.
The door open alarm conditions are indicated by:
- flashing symbol (1);
- red display illumination;
- beeping sound.
Press the button (C) to stop the acoustic alarm.
When normal conditions are restored (door closed):
- the acoustic alarm will stop.
Normal Operating Sounds
•
You may hear faint gurgling or bubbling sounds
when the refrigerant is pumped through the coils
or tubing at the rear, to the cooling
plate/evaporator.
•
When the compressor is on, the refrigerant is
being pumped round, and you will hear a whirring
sound or pulsating noise from the compressor.
•
A thermostat controls the compressor, and you
will hear a faint ’click’ when the thermostat cuts in
and out.
5
Movable shelves
The walls of the refrigerator have runners so that the
shelves can be positioned as desired .
For better use of space, the front half-shelves can lie
over the rear ones.
D338
Positioning the door shelves
To permit storage of food packages of various sizes,
the door shelves can be adjusted in height.To make
these adjustments proceed as follows:
Gradually pull the shelf in the direction of the arrows
until it comes off, then reposition as required.
Bottle holder
Place the bottles (with the opening facing front) in
the pre-positioned shelf.
If the shelf is positioned horizontally, place only
closed bottles.
This bottle holder shelf can be tilted in order to store
previously opened bottles.
To obtain this result, pull the shelf up so it can rotate
upwards and be placed on the next higher level.
Air recycling
The refrigerator compartment is equipped with a
special D.A.C.(Dynamic Air Cooling) fan which can
be turned on with the switch A ( see fig. 1). The
green light, when on, means that the fan is working.
It is suggested that the fan (D.A.C.) be used when
the ambient temperature exceeds 25°C.
6
A
Fig.1
HINTS AND TIPS
Food Storage
•
To obtain the best results from the appliance
neither hot foods nor liquids which may
evaporate, should be placed in the larder
compartment.
•
Keep the time between buying chilled food and
placing it in your refrigerator as short as possible.
•
Do not push food together too much, try to allow
air to circulate around each item.
•
Do not store food uncovered.
•
Remove suspect food from your refrigerator and
clean, refer to Maintenance and Cleaning.
Energy Saving Advice
•
Do not install the appliance close to sources of
heat, such as a boiler or radiator.
•
Locate the appliance in a cool well ventilated
room and make sure that the air openings of the
appliance are not obstructed.
•
Always leave warm food to cool down to room
temperature before placing in the fridge.
•
Try to avoid keeping the door open for long
periods or opening the door too frequently as
warm air will enter the cabinet and cause the
compressor to switch on unnecessarily often.
•
Ensure there are no obstructions preventing the
door from closing properly.
•
It is advisable to peridocally clean the
refrigeration system at the back of the appliance
with a duster or vacuum cleaner.
7
MAINTENANCE AND CLEANING
Before any maintenance or cleaning work is carried
out, DISCONNECT the appliance from the
ELECTRICITY supply.
Internal cleaning
Changing the light bulb
If it becomes necessary to replace the lamp, press on
the rear hook and at the same time slide the cover in
the direction indicated by the arrow.
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
NEVER USE DETERGENTS, ABRASIVE
POWDERS, HIGHLY PERFUMED CLEANING
PRODUCTS OR WAX POLISHES, TO CLEAN THE
INTERIOR AS THESE WILL DAMAGE THE
SURFACE AND LEAVE A STRONG ODOUR.
External cleaning
An accumulation of dust will affect the performance
of the appliance and cause excessive electricity
consumption.
Unscrew the bulb and replace it with one of the same
power (the maximum power is shown on the light
diffuser) available from your nearest Service Force
Centre.
Once or twice a year dust the condenser (black grill)
and the compressor at the back of the appliance,
with a brush or vacuum cleaner, see figure.
Replace the light cover by sliding it into its original
position.
When the appliance is not in use
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all
foods and clean the appliance, leaving the doors ajar
to prevent unpleasant smells.
PR259
Defrosting
The refrigerator automatically defrosts every time the
compressor stops. The water is discharged, via the
pipe, into a tray located at the back of the appliance
above the compressor, where it evaporates.
Important
To avoid defrost water overflowing into the fridge,
periodically clean the water discharge hole in the
centre of the V shaped drip collector at the back of
the refrigerator compartment behind the salad
crispers. Use the defrost cleaner provided which you
will find already inserted into the discharge hole.
Remember to wash the defrost cleaner in hot soapy
water at regular intervals. Dry throughly before
replacing.
D037
SOMETHING NOT WORKING
If the appliance is not working correctly, please carry out the following checks before contacting your local
Service Force Centre
Symptom
Solution
No power to the appliance
Check there is power at the socket.
Check there is not a power cut by checking the
household lights.
Check the fuse has not blown.
The light does not come on
Ensure that the bulb is correctly fitted.
Replace the bulb if it has blown.
The temperature in the fridge
Check the thermostat control knob is turned to the
correct setting relative to ambient conditions.
Check the ambient temperature is within the
appliance’s operating limits, please refer to the
installation section in this instruction book.
Relocate the appliance if necessary.
The compressor runs continously
Adjust the thermostat control knob to give correct
temperature control. See “Setting the temperature”.
Check that the door is closed.
Large quantities of food have recently been placed in
the cabinet and/or door is frequently opened.
Check that air ventilation is not obstructed.
Noise
Refer to normal operating sounds.
Water under the salad crispers
Check the drain hole is not blocked. (see
Maintenance and Cleaning).
If after the above checks your appliance still does not operate correctly, contact your local Service Force Centre.
Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have been made, as the engineer will
make a charge if the fault is not a mechanical or electrical breakdown.
9
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local
Electrolux Service Force Centre by telephoning:-
0870 5 929929
Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details under the heading ‘Something Not
Working?
When you contact the Service Force Centre you will need to give the following details:
1.
Your name, address and post code
2.
Your telephone number
3.
Clear and concise details of the fault
4.
The model and serial number of the appliance (found on the rating plate)
5.
The purchase date
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee
service calls.
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your Electrolux appliance or for further information on Electrolux products,
please contact our Customer Care Department by letter or telephone at the address below or visit our website
at www.electrolux.co.uk
Customer Care Department
Electrolux Major Appliances
Addington Way
Luton
Bedfordshire
LU4 9QQ
08705 950 950 *
*
10
calls to this number may be recorded for training purposes.
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
instructions.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance
or defective part replaced shall become the Company’s property.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of Electrolux manufacture which are not marketed by Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France
Senlis
+33 (0)3 44 62 20 13
Germany
Nürnberg
+49 (0)800 234 7378
Italy
Pordenone
+39 (0)800117511
Sweden
Stockholm
+46 (0)20 78 77 50
UK
Luton
+44 (0)8705 950 950
11
TECHNICAL SPECIFICATIONS
POWER SUPPLY VOLTAGE AND FREQUENCY
220-240 V / 50 Hz
TOTAL POWER ABSORBED
120 W
AVERAGE DAILY UNITS ELECTRICITY *
0.397 kWh
GROSS CAPACITY
Fridge
332 l
Fridge
330 l
NET CAPACITY
* This figure is based on standard test results in accordance with European Standard EN 153.
Actual consumption will depend on how the appliance is used and where it is located.
12
INSTALLATION
Warning
IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.
Important
It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation.
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
on “Door reversal directions”.
Positioning
This appliance should only be installed at a location
where the ambient temperature corresponds to the
climate classification indicated on the rating plate,
which is located at the left on the inside of the
appliance.
The following table shows which ambient
temperature is correct for each climate classification:
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+18°C to + 38°C
T
+18°C to + 43°C
The appliance should be located in a dry
atmosphere, out of direct sunlight and away from
continuous heat and extreme temperature, e.g. not
next to a boiler or radiator, or in a very cold room e.g.
an outhouse. If these temperatures are exceeded i.e.
warmer or colder, then the appliance may not
operate correctly.
For building-in and door reversal instructions please
refer to the relevant instructions on the following
pages.
Shelf holders
A
Your appliance is equipped with shelf retainers that
make it possible to secure the shelves during
transportation.
To remove them proceed as follows:
Move the shelf holders in the direction of the arrow,
raise the shelf from the rear and push it forward until
it is freed and remove the retainers.
B
C
13
Electrical connections
The plug moulded onto the lead incorporates a fuse.
For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
A replacement cover/carrier must be obtained from
your local Service Force Centre.
The manufacturer declines any liability should
this safety measure not be observed.
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
This appliance complies with the following
E.E.C. Directives:
Remove the fuse from the cut off plug.
-
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.
73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;
-
89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Important
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow
- Earth
Blue
- Neutral
Brown
- Live
If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not correspond
with the markings identifying the terminals in your
plug, proceed as follows:
13 AMP. FUSE
13 AMP
GREEN & YELLOW
BROWN
BLUE
D207
CORD CLAMP
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter
«E» or the earth symbol
yellow.
or coloured green and
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
14
Door Reversibility
The appliance is supplied with the door
opening to the right.
For door opening in the opposite direction,
perform the following actions prior to
installation
1. Unscrew the upper pin and remove the spacer
2. Remove the door.
3. Unscrew the lower pin and remove the spacer;
replace them on the opposite side.
4. Reinsert the door and screw the pin and the
spacer back in place on the opposite side.
50 mm
Instructions for totally built-in
appliances
min. 2
200 cm
Recess dimensions
Height
Depth
Width
min.
200 cm
(1) 1780 mm
(2)
550 mm
(3)
560 mm
2
D567
The appliance’s door has been locked in position
for transport by means of pins on both sides.
According to the door opening direction, remove
relevant pins at the top and at the bottom.
540
B
T
To ensure adequate ventilation, allow the clearances
shown in figure.
Furthermore, it is necessary that the cabinet has a
ventilation recess with the following dimensions:
depth
50 mm
width
540 mm
50
H
PR01
15
Drill the unit using a Ø 2.5 mm drill (10 mm max.
penetration);
13mm
Ø 2,5
Fix the square fitting to the appliance.
D740
Fit the appliance in the niche by making sure that it
stands against the interior surface of the unit on the
side where the door hinges of the appliances are
fitted. Insert the appliance until the upper strip butts
up against the unit (1) and make sure that the lower
hinge is in line with the surface of the unit (2).
1
2
D022
Fasten the appliance with 4 screws provided in the
kit included with the appliance.
(I = short) (P = long)
I
P
Apply the sealing strip pushing it between the
refrigerator and the adjacent cabinet.
D724
16
Apply covers (C-D) on joint cover lugs and into hinge
holes.
Snap vent grille (B) and hinge cover (E) into
position.
D
C
E
B
Separate parts Ha, Hb, Hc, Hd as shown in the
figure.
Hb
Ha
Hc
Hd
PR266
ca. 50 mm
Place guide (Ha) on the inside part of the furniture
door, as shown in the figure and mark the position of
external holes. After having drilled holes, fix the
guide with the screws supplied.
90°
21 m
m
ca. 50 mm
Fix cover (Hc) on guide (Ha) until it clips into place
21 m
m
Ha
Hc
PR33
17
Open the appliance door and the furniture door at
90°. Insert the small square (Hb) into guide (Ha).
Put together the appliance door and the furniture
door and mark the holes as indicated in the figure.
Remove the squares and drill holes with ø 2 mm at 8
mm from the outer edge of the door. Place the small
square on the guide again and fix it with the screws
supplied.
8mm
Ha
Hb
PR167
Should the lining up of the furniture door be
necessary, use the clearance of slots.
At the end of operations, it is necessary to check if
the door of the furniture closes properly.
Hb
PR168
Fix cover (Hd) on guide (Hb) until it clips into place.
Hb
Hd
PR167/1
18
www.electrolux.com
www.electrolux.co.uk
© Electrolux plc 2007
