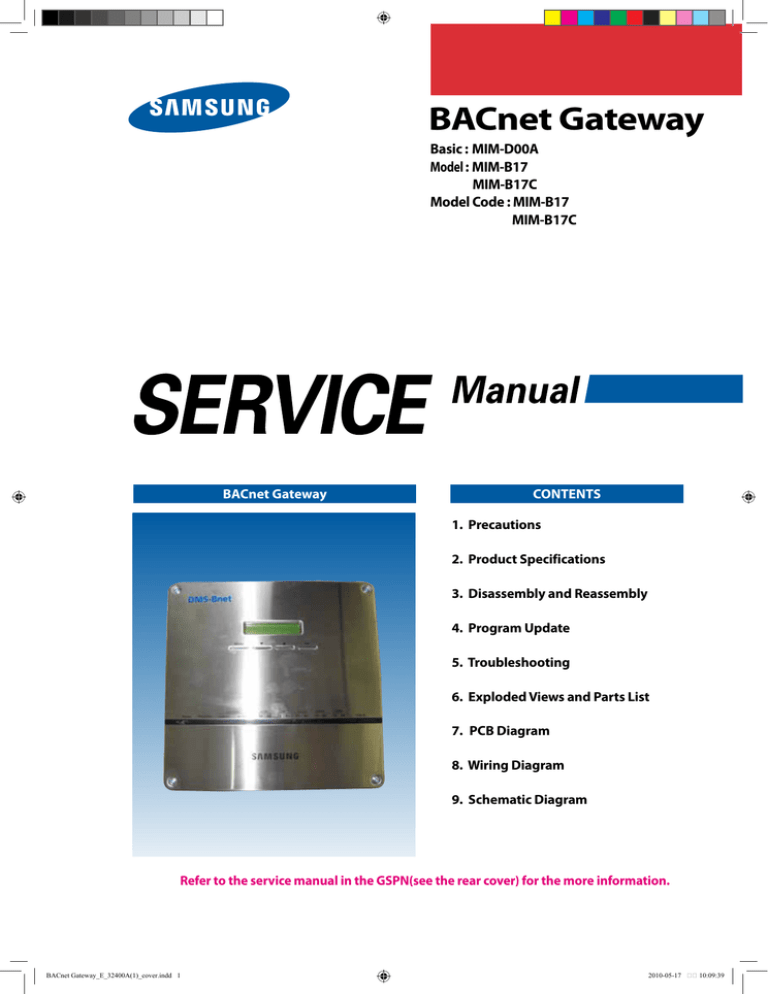

Samsung MIM-B17C Product specifications

BACnet Gateway
Basic :MIM-D00A
Model :MIM-B17
MIM-B17C
Model Code : MIM-B17
MIM-B17C
BACnet Gateway
CONTENTS
1. Precautions
2. Product Specifications
3. Disassembly and Reassembly
4. Program Update
5. Troubleshooting
6. Exploded Views and Parts List
7. PCB Diagram
8. Wiring Diagram
9. Schematic Diagram
Refer to the service manual in the GSPN(see the rear cover) for the more information.
BACnet Gateway_E_32400A(1)_cover.indd 1
2010-05-17 �� 10:09:39
Section 0
Contents
11. Precautions .............................................................................................................................................. 1-1
1-1. Precautions for the Service . ............................................................................................................................................. 1-1
1-2. Precautions for the Static Electricity and PL ................................................................................................................. 1-1
1-3. Precautions for the Safety . ............................................................................................................................................... 1-1
12. Product Specifications ......................................................................................................................... 2-1
2-1. The Feature of Product ...................................................................................................................................................... 2-1
2-2. Product Specifications........................................................................................................................................................ 2-2
2-3. System Organization...........................................................................................................................................................
2-3
2-4. Main Function ......................................................................................................................................................................
2-4
13. Disassembly and Reassembly .......................................................................................................... 3-1
3-1. Disassembly and Reassembly .......................................................................................................................................... 3-2
3-2. Sub board Disassembly and Reassembly ..................................................................................................................... 3-5
3-3. Main board Disassembly and Reassembly ...................................................................................................................
3-6
3-4. Display board Disassembly and Reassembly ...............................................................................................................
3-7
14. Program Update .................................................................................................................................... 4-1
4-1. OS Update ............................................................................................................................................................................. 4-2
4-2. Application Update using SD Card.................................................................................................................................. 4-4
4-3. How to make OS Update SD Card using PC. ................................................................................................................
4-6
4-4. How to make OS update SD Card using BACnet Gateway ......................................................................................
4-7
4-5. How to make Application SD Card using PC . ..............................................................................................................
4-9
4-6. How to make Application SD Card using BACnet Gateway . ................................................................................... 4-10
4-7. Application Update using FTP.......................................................................................................................................... 4-12
15. Troubleshooting . .................................................................................................................................. 5-1
5-1. Items to be checked first.................................................................................................................................................
5-1
5-2. Fault diagnosis by symptom.........................................................................................................................................
5-2
5-2-1. When BACnet Gateway is not working ..................................................................................................................................................................... 5-2
5-2-2. When the LCD Display is Not Working or the Backlight is Turing OFF ............................................................................... 5-4
5-2-3. When the Static LED is Not Turning ON/OFF ..................................................................................................................................................... 5-5
5-2-4. When the RS485 is Not Connecting .............................................................................................................................................................................. 5-6
5-2-5. When the Ethernet is Not Connecting ....................................................................................................................................................................... 5-7
5-2-6. When the SD Card is Not Doing Backup Data ................................................................................................................................................... 5-8
5-2-7. When the Button is Not Working ...................................................................................................................................................................................... 5-9
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 1
1
2010-05-17 �� 10:34:39
Section 0
Contents
5-2-8. When the DI/Do is Not Working ......................................................................................................................................................................................... 5-10
5-2-9. Action when the Tracking Error ........................................................................................................................................................................................... 5-11
5-2-10. Initialization Way when Admin Password is forgotten ...................................................................................................................... 5-12
5-2-11. How to know MAC address .................................................................................................................................................................................................. 5-12
5-2-12. If the connection to BACnet Gateway from the outside using internet is not working ............................ 5-13
5-2-13. Solution for DDC connection error .............................................................................................................................................................................. 5-14
5-2-14. When the BACnet is Not Connecting ______________________________________________ 5-15
5-2-15. When the BACnet Object Identification Not Display___________________________________ 5-16
16. Exploded Views and Part List . ........................................................................................................ 6-1
17. PCB Diagram ......................................................................................................................................... 7-1
7-1. Main Board ............................................................................................................................................................................................................................................................................ 7-1
7-2. Display Board ..................................................................................................................................................................................................................................................................... 7-2
7-3. Sub Board ............................................................................................................................................................................................................................................................................... 7-3
18. Wiring Diagram .................................................................................................................................... 8-1
19. Schematic Diagram ............................................................................................................................ 9-1
2
BACnet Gateway_E_32400A(1)_1.indd 2
9-1. Main Board.........................................................................................................................................................................
9-2. Display Board. ................................................................................................................................................................... 9-15
9-3. Sub Board........................................................................................................................................................................... 9-16
9-1
Samsung Electronics
2010-05-17 �� 10:34:39
1. Precautions
1-1. Precautions for the Service
● Use the standard parts when replacing the electric parts.
– Confirm the model name, rated voltage, rated current of the electric parts.
● Repair the disconnection of HARNESS securely when repairing the break down.
– If there is any connection error, it causes an abnormal noise and incorrect operation.
● In case that you assemble or disassemble the products with laying it on the side, do work on the work cloth.
– If not, the exterior of products can be scratched.
● Remove dust and foreign materials from harness, connection part, and inspection part thoroughly when repairing
the break down.
– It protects the danger of fire such as tracking and short.
● Check the assembly status of parts after repairing the break down.
– It should be same as the status before repairing.
1-2. Precautions for the Static Electricity and PL
● As the PCB power terminal has a weakness for the static electricity, pay attention to it during the repair and measurement.
– Work with insulation gloves during the repair and measurement of PCB.
● Check the distance between the product and the other electronic appliances such as TV, video, and audio. It should be over 2m.
– If not, it causes a bad picture quality or a noise.
● Repairing the products by consumer should be strictly prohibited.
– There is a danger of electric shock or fire due to incorrect disassembly.
1-3. Precautions for the Safety
● Do not pull any electric wires and do not touch an auxiliary power switch with a wet hand.
– There is a danger of electric shock or fire.
● In case any wire or power plug has been damaged, replace it to eliminate any possible danger.
● Do not bend the power cord by force and do not put any heavy object on the power cord.
– There is a danger of electric shock or fire.
● Do not use multi socket.
– There is a danger of electric shock or fire.
● Ground the product if necessary.
– Be sure to ground the product if there is any danger of electric leakage due to water or moisture.
● Be sure to turn off the auxiliary power switch or pull out the power plug during replacement or repair of electric parts.
– There is a danger of electric shock.
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 1
1-1
2010-05-17 �� 10:34:39
2. Product Specifications
2-1. The Feature of Product
1) BACnet Gateway
●Connecting BACnet Gateway with Centralized Controller (Type ⓐ)
- You can control up to 16 Centralized Controllers and 256 indoor units by using BACnet Gateway.
●Connecting BACnet Gateway with Interface Module (Type ⓑ)
- You can control up to 80 Interface Modules and 256 indoor units by using BACnet Gateway.
※ You can connect 16 Interface Modules in each communication channel.
- When connected Interface Modules is more, Tracking time can be long.
BMS system
BMS Engineering
Internet
SAMSUNG Engineering
BACnet Gateway
ⓐ
ⓑ
Centralized
controller
Interface Module
2-1
BACnet Gateway_E_32400A(1)_1.indd 1
Interface Module
Interface Module
Samsung Electronics
2010-05-17 �� 10:34:40
2-2. Product Specifications
Item
Remark
- Adaptor : DC Adaptor
- Input Voltage : 100 ~ 240V, 50/60Hz, 1.0A
Power
- Output Voltage : 12V, 3A
240(W)x255(H)x64.8(D) (Unit : mm)
Size
1.48kg
Weight
Panel sticking
Install Method
LCD(Text)
Display
DI / DO
LED
Power, CPU-Alive, Ethernet Linked, Ethernet Active, COM1, COM2, COM3, COM4, COM5 TX, RX, Check
KEY
4keys (Menu, ▲ , ▼, Set)
DO(Dry Contact)
Digital signal output(10CH)
DI(Dry Contact)
Digital signal input(10CH)
RS-232
Debugging port
Communication Port
RS485
Connection port for external devices
Etc.
Data Backup
Ethernet
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 2
RJ45 connector (10/100Mbps) for Ethernet
SD CARD slot (SD card is needed additional purchase)
2-2
2010-05-17 �� 10:34:40
2-3. System Organization
BMS system
BMS Engineering
Internet
SAMSUNG Engineering
BACnet Gateway
ⓐ
ⓑ
Centralized
controller
Interface Module
2-3
BACnet Gateway_E_32400A(1)_1.indd 3
Interface Module
Interface Module
Samsung Electronics
2010-05-17 �� 10:34:41
2-4. Main Function
As an Internet based device for centralized management of system airconditioner, BACnet Gateway supports LAN and MAN. It can operate for 24 hrs without extra
computer.
● 24 Hrs operation
- Convenience with 24hrs, 365 day operation.
● Independent operation and Electricity saving(DMS2 Function)
- BACnet Gateway executes Schedule control, Peak electricity control, and Integration power distribution and independently without extra computer.
- BACnet Gateway achieves Energy saving with no PC operation at all times.
● Data storage(DMS2 Function)
- BACnet Gateway stores and check the list of malfunction, installation information of indoor unit and the data of integration power distribution itself with built-in
database.
● Management of Large quantities units
- The maximum 256 indoor units are connected to one BACnet Gateway realizing efficiency.
● Automatic e-mail(DMS2 Function)
- BACnet Gateway sends a e-mail automatically with the list of malfunction to pre-registered address when certain problem occurred.
● Web-server
- You can use various function remotely without extra program.
(Unit condition monitoring, Function control, list of malfunction, schedule setting etc.)
● BACnet Support
※ Samsung is not responsible for BMS Engineering which create each device and objects.
For futher directions regarding on BMS engineering, consult with specialized BMS related render.
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 4
2-4
2010-05-17 �� 10:34:41
MEMO
2-5
BACnet Gateway_E_32400A(1)_1.indd 5
Samsung Electronics
2010-05-17 �� 10:34:41
3. Disassembly and Reassembly
■ Necessary Tools
Item
Remark
+Screw Driver
-Screw Driver
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 1
3-1
2010-05-17 �� 10:34:42
3-1. Disassembly and Reassembly
No
Parts
1
Common
Procedure
Remark
1) Unscrew 2 fixing screws.
(Use +Screw Driver)
2) Detach the lower cover.
3) Press lower part of cable tie and detach the
cable tie.
4) Pull the bead-core part of adapter.
5) Turn connector of adapter Counterclockwise.
3-2
BACnet Gateway_E_32400A(1)_1.indd 2
Samsung Electronics
2010-05-17 �� 10:34:43
Disassembly and Reassembly
No
Parts
Procedure
Remark
6) Detach the connector of adapter from BACnet
Gateway.
7) Detach connectors for 485communication,
network and DI/DO.
8) Unscrew at red circle part.
(Use +Screw Driver)
Ref.) The case of using additional Hole for install,
detach from wall after detaching upper cover.
9) Push up BACnet Gateway. and pull the BACnet
Gateway.0 front
direction.
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 3
3-3
2010-05-17 �� 10:34:44
Disassembly and Reassembly
No
Parts
Procedure
Remark
10) Unscrew 2 fixing screws at red circle.
11) Pick up the upper cover.
Be careful not to damage LED on sub board.
12) As the shown picture, detach the cable between
main and LCD board.
3-4
BACnet Gateway_E_32400A(1)_1.indd 4
Samsung Electronics
2010-05-17 �� 10:34:45
3-2. Sub board Disassembly and Reassembly
No
Parts
1
Common
Procedure
Remark
1) As shown picture, detach the connector pulling
upper direction.
2) Unscrew 4 fixing screw on sub board.
(Use +Screw Driver)
3) Detach the sub board from BACnet Gateway.
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 5
3-5
2010-05-17 �� 10:34:46
3-3. Main board Disassembly and Reassembly
No
Parts
1
Common
Procedure
Remark
1) As shown picture, detach the connector on sub
board pulling upper direction.
2) Detach connector on main board, as a same way.
3) Detach connector for connecting display board.
4) Unscrew 4 fixing screw on main board.
(Use +Screw Driver)
5) Push up the main board and detach it from
BACnet Gateway.
3-6
BACnet Gateway_E_32400A(1)_1.indd 6
Samsung Electronics
2010-05-17 �� 10:34:47
3-4. Display board Disassembly and Reassembly
No
Parts
1
Common
Procedure
Remark
1) Unscrew 4 fixing screw on display board.
(Use +Screw Driver)
2) Push up the display board and detach it from
upper cover.
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 7
3-7
2010-05-17 �� 10:34:48
4. Program Update
■ Necessary Tools
Item
Remark
+Screw Driver
SD-CARD
- At least 512MB
- Type: Normal, SDHC
4-1
BACnet Gateway_E_32400A(1)_1.indd 1
Samsung Electronics
2010-05-17 �� 10:34:48
4-1. OS Update
No
Parts
1
Common
Procedure
Remark
1) Unscrew 2 fixing screws of the bottom.
(Use +Screw Driver)
2) Pull the cover of the bottom, and detach lifting up.
3) Insert a SD card for updating software.
4) Push [Reset] button once with pushing [Menu]
button.
- Keep pushing [Menu] button until “1. Update
O/S” is showed.
5) Push [Set] button after seeing “1.Update O/S”
referring the right picture.
(If you can’t see “1.Update O/S” after completing
1)~4) with inserting SD card, Confirm whether your
SD-Card has a problem.)
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 2
4-2
2010-05-17 �� 10:34:49
Program Update
No
Parts
Procedure
Remark
6) Unscrew 2 fixing screws of the bottom.
(Use +Screw Driver)
Like the right picture, Kernel update is completed.
7) Click [▲] button like the right picture.
8) Push [Set] button after seeing “Update RootFS”.
9) “Updating RootFS” is showed, the program writing
step is progressed.
10) After showing “OK” under “Updating RootFS” like
the right picture, updating of Root File System is
completed.
4-3
BACnet Gateway_E_32400A(1)_1.indd 3
Samsung Electronics
2010-05-17 �� 10:34:49
4-2. Application Update using SD Card
No
Parts
1
Common
Procedure
Remark
1) Insert a SD card for updating.
2) Push [Reset] button once.
3) System is reset, Application is updated.
4) “remove SD card” is showed like the right picture,
detach SD card pushing it one more time.
5) There is nothing on the display for a while after
removing SD card, and system is reset.
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 4
4-4
2010-05-17 �� 10:34:50
Program Update
No
Parts
Procedure
Remark
6) After completing application update, confirm IP, time
and regular operation .
4-5
BACnet Gateway_E_32400A(1)_1.indd 5
Samsung Electronics
2010-05-17 �� 10:34:50
4-3. How to make OS Update SD Card using PC
No
Parts
1
Common
Procedure
Remark
1) Connect to a PC after insert a SD card into a SD
card reader.
2) Select ‘Format’ with right-click on the created
‘Removable storage devices’ .
3) Select ‘FAT32’ of ‘File system’, and start format
pushing [Start] button.
4) Format completed, Copy the provided OS files of
BACnet Gateway to the top in SD card.
- Provided OS files : rootfs.bin, vmlinux, xbl.bin, xblelf32, zImage
5) Remove SD card from PC after completing copy.
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 6
4-6
2010-05-17 �� 10:34:50
4-4. How to make OS update SD Card using BACnet Gateway
No
Parts
1
Common
Procedure
Remark
1) Insert a SD card for updating.
2) Connect BACnet Gateway to PC with a crossover
lan cable.
3) Set IP to 192.168.0.250.
- You can connect all BACnet Gateway with
192.168.0.254.
4) Type ‘telnet 192.168.0.254’ in the window of ‘Run’
after ‘Start’ button.
5) Log on the telnet.
4-7
BACnet Gateway_E_32400A(1)_1.indd 7
Samsung Electronics
2010-05-17 �� 10:34:51
Program Update
No
Parts
Procedure
Remark
6) Format SD card.
- mkfs.vfat /dev/mss/blk0p1
7) Run ‘mount /dev/mss/blk0p1 /mnt/mmc0 -t vfat’.
8) Copy the provided OS files of BACnet Gateway
after
connecting BACnet Gateway with FTP. You must
close
FTP window after completing copy.
- ftp://192.168.0.254/../../../mnt/mmc0
- Provided OS files : rootfs.bin, vmlinux, xbl.bin,
xbl-elf32, zImage
9) Type the below.
cd /
umount /mnt/mmc0
10) Remove SD card.
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 8
4-8
2010-05-17 �� 10:34:52
4-5. How to make Application SD Card using PC
No
Parts
1
Common
Procedure
Remark
1) Connect to a PC after insert a SD card into a SD
card reader.
2) Select ‘Format’ with right-click on the created
‘Removable storage devices’.
3) Select ‘FAT32’ of ‘File system’, and start format
pushing [Start] button.
4) Format completed, Copy the application files of
BACnet Gateway to the top in SD card.
- Provided OS files : BACnet Gateway.tar.gz, r, startapp, svcapp
5) Remove SD card from PC after completing copy.
4-9
BACnet Gateway_E_32400A(1)_1.indd 9
Samsung Electronics
2010-05-17 �� 10:34:52
4-6. How to make Application SD Card using BACnet Gateway
No
Parts
1
Common
Procedure
Remark
1) Insert a SD card for updating.
2) Connect BACnet Gateway to PC with a crossover
lan cable.
3) Set IP to 192.168.0.250.
- You can connect all BACnet Gateway with
192.168.0.254.
4) Type ‘telnet 192.168.0.254’ in the window of ‘Run’
after ‘Start’ button.
5) Log on the telnet.
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 10
4-10
2010-05-17 �� 10:34:53
Program Update
No
Parts
Procedure
Remark
6) Run ‘mount /dev/mss/blk0p1 /mnt/mmc0 -t vfat'.
7) Copy the provided OS files of BACnet Gateway after
connecting BACnet Gateway with FTP. You must
close FTP window after completing copy.
- ftp://192.168.0.254/../../../mnt/mmc0
- Provided OS files : BACnet Gateway.tar.gz, r, startapp, svcapp
8) Type the below on the telnet window.
cd /mnt/mmc0
chmod 755 svcapp
cd /
umount /mnt/mmc0
9) Remove SD card.
4-11
BACnet Gateway_E_32400A(1)_1.indd 11
Samsung Electronics
2010-05-17 �� 10:34:53
4-7. Application Update using FTP
No
Parts
Procedure
1
Common
1) Connect BACnet Gateway to PC with a crossover
lan cable.
Remark
2) Set IP to 192.168.0.250.
- You can connect all BACnet Gateway with
192.168.0.254.
3) Connect to BACnet Gateway with FTP.
- ftp://192.168.0.254/../../../dms
4) Copy the provided application folder to PC and
Rewrite it to the application folder in BACnet
Gateway
connected by FTP.
5) Push [Reset] button once.
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 12
4-12
2010-05-17 �� 10:34:54
5. Troubleshooting
5-1. Items to be checked first
Problem
BACnet Gateway.0 does not
work
Check
Explanation / Solution
Power failure?
After checking power line of each devices, try again.
Is there communication problem between
BACnet Gateway.0 and other control units?
After checking communication line of each devices, try gain.
Is the connection between adapter and
power cable correct?
After checking connection between adapter and power
cable, try again.
Is the Silverlight 2.0 version installed?
You can download Silverlight 2.0 version at
http://www.microsoft.com/silverlight/.
Is the Windows XP SP2 installed?
Silverlight 2.0 version can run properly under Windows XP
SP2.
Under previous OS version, Silverlight 2.0 version cannot run
poroperly.
Can’t access Log-in page
Can’t access Log in page
From external PC
Is the setting value for netwkor correct?
Not monitoring centralized
contol unit
Are the communication cables of BACnet
Gateway(C1, C2) properly connected?
Connect BACnet Gateway communication cables (C1, C2)
properly. Be careful to deal with the RS485 communication
cable because it has polarity.
Peak power management
is out of order
Are there no problems on power line of
BACnet Gateway?
If there is problem on power line of BACnet Gateway, Peak
power management function cannot operate properly.
Forget the IP address of
BACnet Gateway.0
At initial display, press [Menu] button and
then "1. IP config" message will be displayed.
Under that condition press [Set] button.
The IP address of BACnet Gateway is initialized at
192.168.0.100 when factory out.
Is Peak Power management or schedule
control running?
According to schedule control and power management,
indoor units can be turned it on or off.
Is BACnet Gateway system time different
from current time?
Set time of BACnet Gateway, according to real time.
Is the external circuit constituted?
Check additional circuit for external input control function of
BACnet Gateway.
Is the contact control pattern of BACnet
Gateway set to 1?
Set the pattern which fits to the control pattern you want.
Isn't there any indoor units?
BACnet Gateway is unsuccessful in tracking. Try it again.
Indoor units are out of order
External digital inputs are
out of order
Tracking Fail
Isn't firewall set in local computer?
You should consult with network manager.
※ Ref. Switch for using digital input and digital output
OFF
5-1
BACnet Gateway_E_32400A(1)_1.indd 1
ON
Samsung Electronics
2010-05-17 �� 10:34:54
5-2. Fault diagnosis by symptom
5-2-1. When BACnet Gateway is not working
Start
Power failure or Is plug connection proper?
No
Check Power failure and plug connection.
Yes
Is the connection between adapter
and power cable proper?
No
Check the connection
Between adapter and power cable
Yes
Is the output of adapter 12V?
No
Change adapter
Yes
Is the connection between Main Board
and adapter cable proper?
No
Check the condition of adapter
Yes
Continue
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 2
5-2
2010-05-17 �� 10:34:55
Troubleshooting
When BACnet Gateway is not working(cont.)
Continue
Change Main Board
No
Is BACnet Gateway working?
Change Display Board
Is BACnet Gateway working?
Yes
No
Change Sub Board
Yes
End
5-3
BACnet Gateway_E_32400A(1)_1.indd 3
Samsung Electronics
2010-05-17 �� 10:34:56
Troubleshooting
5-2-2. When the LCD Display is Not Working or the Backlight is Turing OFF
Start
No
Is the connection between Main Board
and Display Board proper?
Check the condition of cable connection
Yes
Change Display Board
No
Is LCD working properly?
Change Main Board
Yes
End
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 4
5-4
2010-05-17 �� 10:34:56
Troubleshooting
5-2-3. When the Static LED is Not Turning ON/OFF
Start
No
Is the connection between Main Board
and Sub Board proper?
Check the condition of cable connection
Yes
Change Sub Board
No
Is static LED working properly?
Change Main Board
Yes
End
5-5
BACnet Gateway_E_32400A(1)_1.indd 5
Samsung Electronics
2010-05-17 �� 10:34:57
Troubleshooting
5-2-4. When the RS485 is Not Connecting
Start
Is the cable connection for RS485 proper?
No
Check the condition of cable connection
Yes
Is the polarity of RS485 cable correct?
[Left : +(or “A”), Right : – (or “B”)]
Yes
No
Check the polarity of RS485 cable
ⓐ
ⓑ
Change Main Board
End
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 6
5-6
2010-05-17 �� 10:34:57
Troubleshooting
5-2-5. When the Ethernet is Not Connecting
Start
No
Is the cable for Ethernet proper?
Check the condition of Ethernet cable
Yes
Is the connector for Ethernet proper?
No
Check the condition of Ethernet connector
Yes
Are the static LEDs for Ethernet proper?
(Ehternet Linked, Ehernet Active)
No
Change Main Board
Linked : Constant
Active : Flickering
Yes
Are the addresses for ethernet correct?
No
Check IP, Sub net mask and gateway address
(Refer to install and service manual)
Yes
Change Main Board
End
5-7
BACnet Gateway_E_32400A(1)_1.indd 7
Samsung Electronics
2010-05-17 �� 10:34:59
Troubleshooting
5-2-6. When the SD Card is Not Doing Backup Data
Start
Is the SD card inserted in the slot?
No
Check the SD card slot
Yes
Is the SD card locked?
No
Check the SD card.
(If SD card was locked,
BACnet Gateway is not doing Backup data)
Yes
Change SD card
End
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 8
5-8
2010-05-17 �� 10:34:59
Troubleshooting
5-2-7. When the Button is Not Working
Start
No
Is the connection between Main Board
and Display Board proper?
Check the condition of cable connection
Yes
Change Display Board
No
Are buttons working properly?
Change Main Board
Yes
End
5-9
BACnet Gateway_E_32400A(1)_1.indd 9
Samsung Electronics
2010-05-17 �� 10:35:00
Troubleshooting
5-2-8. When the DI/Do is Not Working
Start
No
Is the connection between Main Board
and Sub Board proper?
Check the condition of cable connection
Yes
No
Is the setting of dip switch for DI/Do correct?
Check setting value of SW2
(Refer to User manual)
Yes
Change Main Board
No
Is the DI(/DO working properly?
Change Sub Board
Yes
End
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 10
5-10
2010-05-17 �� 10:35:01
Troubleshooting
5-2-9. Action when the Tracking Error
Start
No
Is the cable connection of RS485 proper?
Check the condition of cable connection
Yes
No
Is the polarity of RS485 cable correct?
Check the polarity of RS485 cable
Yes
No
Is the speed of centralized control unit
set 9600bps?
Set the speed of centralized control unit
as 9600bps(Turn 4th dip switch off)
Yes
No
Are the devices connected to BACnet Gateway
Satisfied with install limitation?
Less than 256 indoor units, 1 demand controller, Less
than 8 SIMs(When demand controller is connected,
less than 7 SIMs), Less than 8 DDCs.
Connect using less than 128 DDC connection points
or install additional BACnet Gateway.
Yes
End
5-11
BACnet Gateway_E_32400A(1)_1.indd 11
Samsung Electronics
2010-05-17 �� 10:35:01
Troubleshooting
5-2-10. Initialization Way when Admin Password is forgotten
Start
Press the [▲],[▼] buttons under LCD window
snd select 8.Password Reset menu.
Press [Menu],[Set] buttons simultaneously
after “RESET PASSWORD WAITING” message.
If you Press [Set] button after “Are you sure?” message,
the password is initialized as 1234.
End
5-2-11. How to know MAC address
Start
From local PC, access to BACnet Gateway.0
using telnet program.
Log in
Press Enter, after input data“ifconfigeth0” .
String beside HWaddr is MAC address.
End
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 12
5-12
2010-05-17 �� 10:35:01
Troubleshooting
5-2-12.If the connection to BACnet Gateway from the outside using internet is not working
Start
No
Is official IP address
set in the BACnet Gateway?
Set official IP address
Yes
No
Is the firewall of 80.1100 port
open to BACnet Gateway?
Request firewall opening
to network manager.
Yes
End
5-13
BACnet Gateway_E_32400A(1)_1.indd 13
Samsung Electronics
2010-05-17 �� 10:35:01
Troubleshooting
5-2-13. Solution for DDC connection error
Start
No
Is the cable connection proper?
Check the condition of cable connection
Yes
No
Is the polarity correct?
Check the polarity
Yes
No
Are the DDCa connected to BACnet Gateway
Satisfied with install limitation?
Less than 8 DDCs. Connect using less than 128
DDC connection points or install additional BACnet
Gateway.
Yes
End
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 14
5-14
2010-05-17 �� 10:35:02
Troubleshooting
5-2-14. When the BACnet is Not Connecting
Start
Is the cable for Ethernet
proper?
No
Check the condition of Ethernet cable
Yes
Is the connector for Ethernet
proper?
No
Check the condition of Ethernet
connector
Yes
Are the static LEDs for Ethernet proper?
(Ethernet Linked, Ethernet Active)
No
Linked : Constant
Active : Flickering
Yes
Are the addresses for
Ethernet correct?
Change Main Board
No
Check IP, Subnet mask and gateway address
(Refer to install and service manual)
Yes
Is the device instance
number for BACnet correct?
No
Check Device Instance number
Yes
Change Main Board
Yes
End
5-15
BACnet Gateway_E_32400A(1)_1.indd 15
Samsung Electronics
2010-05-17 �� 10:35:02
Troubleshooting
5-2-15. When the BACnet Object Identification Not Display
Start
Executed tracking proper?
No
Check the tracking execute
Yes
From local PC, access BACnet Gateway
using telnet program
No
Yes
Login
No
Yes
Press Enter, after input data
"ps -e".
Find a "BACipDMS2app"
No
Reboot BACnet Gateway
Yes
Change Main Board
Yes
End
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 16
5-16
2010-05-17 �� 10:35:02
6. Exploded Views and Part List
1
14
13
5
16
6
3
8
4
7
2
9
21
11
10
15
12
6
22
18
19
20
21
13
17
6-1
BACnet Gateway_E_32400A(1)_1.indd 1
Samsung Electronics
2010-05-17 �� 10:35:03
Exploded Views and Part List
 Parts List
No.
Code No.
1
DB61-03889A
Specification
Description
CASE-MAIN
PC/ABS 5VA/DARK GRAY(NH-1000T/G31760) Q'TY
SA/SNA
1
SNA
SE-1010(13um)
2
DB61-03885A
CASE-SUB
PC/ABS 5VA/DARK GRAY(NH-1000T/G31760)
1
SNA
3
DB93-08178A
ASS'Y PCB MAIN
PCB BOARD (MAIN)
1
SA
4
DB93-08179A
ASS'Y PCB SUB
PCB BOARD (SUB)
1
SA
5
DB93-08180A
ASS'Y PCB SUB
PCB BOARD(DISPLAY)
1
SA
6
DB61-03887A
CASE-UPPER
PC/ABS 5VA DARK GRAY(NH-1000T/G31760)
1
SNA
7
DB64-02277A
BUTTON-KEY
ABS(NATURAL)/HG-0760GP BUTTON
1
SNA
8
DB64-02276A
INLAY-WINDOW
ACRYL
1
SNA
9
DB09-04757C
ASS'Y-COVER CASE UP
ASSY
1
SNA
10
DB61-03888A
CASE-LED
ABS(UT-0510/G0526)/BLACK SMOG
1
SNA
11
DB61-03886A
CASE-WIRE
PC/ABS 5VA/ DARK GRAY(NH-1000T/G31760)
1
SNA
SE-1010(13um)
12
DB90-04780A
ASS'Y-COVER CASE DOWN
ASSY
1
SNA
13
DB61-03890A
BRACKEY
PC/ABS 5VA DARK GRAY(NH-1000T/G31760)
1
SNA
14
6002-000630
SCREW-TAPPING
ø3 X L8, 2
19
SNA
15
6001-000044
SCREW-MACHINE
M4 x L18, 2, TH
4
SNA
16
6501-001052
CABLE TIE
NYLON66, DACK-140
1
SNA
17
DB74-00042A
TAPE FILAMENT
W18, H40, D1.0
1
SNA
18
DB93-08182A
ASS'Y CONNECTOR WIRE
MAIN-DISPLAY
2
SNA
19
DB93-08183A
ASS'Y CONNECTOR WIRE
MAIN-SUB
1
SNA
20
DB61-04025A
CASE-INDICATOR
ABS
1
SNA
21
3716-001329
TERMINAL-BLOCK
RS485, DI-DO
25
SNA
22
DB98-32326B
ASS'Y-LABLE RATING
L/C
1
SNA
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 2
6-2
2010-05-17 �� 10:35:03
7. PCB Diagram
7-1. Main Board
1
2
3
4
5
6
7
8
9
10
11
① J11 : Power connector
#1 : GND
#2 : Not used
#3 : DC 12V
#4 : DC 12V
② S2 : Reset SW
#1 : GND
#2 : Reset signal
③ J18 : Main_Sub Connector
#1 : DC 12V
#2 : DC 12V
#3, 4 : GND
#5~#14 : DI_S1~10 signal
#15~#24 : DI_S1~10 signal
#25 : DC3.3V
#26 : CPU_ALIVE
#27 : GND
#28 : ETH_ALIVE
#29 : ETH_LINK
#30 : ERROR
#31~#40 : 485_TX LED signal
④ J21 : Connector for Serial Communication
#1 : Not used
#2 : TXR
#3 : RXR
#4 : Not used
#5 : GND
#6~#9 : Not used
⑤ J20 : Connector for Debugging
#1 : DC3.3V
#2 : DC3.3V
#3 : nTRST
#4 : GND
#5 : TDI
#6 : GND
#7 : TMS
#8 : GND
#9 : TCK
#10~#12 : GND
#13 : TDO
#14 : GND
#15 : CPU_nRESET
#16 : GND
#17 : Not used
#18 : GND
#19 : Not used
#20 : GND
⑥ CON1 : SD Card Socket
#1 : SD1_D3
#2 : SD1_CMD
#3 : GND
#4 : DC3.3V
#5 : SD1_CLK
#6 : GND
#7 : SD1_D0
#8 : SD1_D1
#9 : SD1_D2
#10 : SD1_nCD
#11 : GND
#12 : SD1_WP
⑦ J17 : Connector for Displaying
#1 : VCC_SUB_A(DC5V)
#2 : VCC_SUB_A(DC5V)
#3 : GND
#4 : GND
#5 : CLCD_RS
#6 : CLCD_RnW
#7 : CLCD_EN
#8~#15 : CLCD_DB0~7
#16 : GND
#17 : MENU
#18 : UP
#19 : DOWN
#20 : OK
⑧ J1 : Connector for Ethernet
#1 : TPO+
#2 : TPO#3 : TDC(DC3.3V)
#4 : Not used
#5 : TPI+
#6 : TPI#D2 : ETHERNET_LINK
#D1 : DC3.3V(Pullup 24.9 ohm)
#D4 : ETHERNET_ALIVE
#D3 : DC3.3V(Pullup 24.9 ohm)
⑨ J19 : Connector for Reset
#1 : MISO
#2 : VCC_5V
#3 : SCK
#4 : MOSI
#5 : nISP_RESET
#6 : GND
⑩ CN10 : Connector for RS485
#1(+) : 485 Ch1 A
#2(-) : 485 Ch1 B
#3(+) : 485 Ch2 A
#4(-) : 485 Ch2 B
#5(+) : 485 Ch3 A
#6(-) : 485 Ch3 B
#7(+) : 485 Ch4 A
#8(-) : 485 Ch4 B
#9(+) : 485 Ch5 A
#10(-) : 485 Ch5 B
⑪ SW2 : Mode Select Swich
#1 : MODE_SEL1
#2 : MODE_SEL2
#3 : MODE_SEL3
#4 : MODE_SEL4
#5~#8 : GND(Pulldown 330ohm)
7-1
BACnet Gateway_E_32400A(1)_1.indd 1
Samsung Electronics
2010-05-17 �� 10:35:04
PCB Diagram and Part List
7-2. Display Board
1
① Button1 : Menu Button
#1 : GND
#2 : B_Menu
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 2
2
3
② J1 : Connector for Displaying
#1~#2 : DC15V
#3~#4, #16 : GND
#5~#15 : CLCD signal
#17~#20 : Button signal
4
③ Button2 : Down Button
#1 : GND
#2 : B_Down
5
④ Button3 : Up Button
#1 : GND
#2 : B_Up
⑤ Button4 : OK Button
#1 : GND
#2 : B_OK
7-2
2010-05-17 �� 10:35:05
PCB Diagram and Part List
7-3. Sub Board
1
① J2 : Digital Input Connector
#1,#3,#5,#7,#8 : DC12V
#2,#4,#6,#7,#10 : CH1~5 DI signal
2
3
② J5 : Main_Sub Connector
#1, #2 : DC12V
#3, #4, #27 : GND
#5~#24 : DI signal
#25 : POWER LED signal
#26 : CPU_ALIVE LED signal
#28 : ETH_ALIVE LED signal
#29 : ETH_LINK LED signal
#30 : CHECK LED signal
#31~#40 : 485 TXD, RXD signal
4
③ J4 : Digital Input Connector
#1,#3,#5,#7,#8 : DC12V
#2,#4,#6,#7,#10 : CH6~10 DI signal
5
④ J1 : Digital Output Connector
#1,#3,#5,#7,#8 : DC12V
#2,#4,#6,#7,#10 : CH1~5 DO signal
⑤ J3 : Digital Output Connector
#1,#3,#5,#7,#8 : DC12V
#2,#4,#6,#7,#10 : CH6~10 DO signal
7-3
BACnet Gateway_E_32400A(1)_1.indd 3
Samsung Electronics
2010-05-17 �� 10:35:05
8. Wiring Diagram
Display Board
20 PIN cable
Ass'y Connector
Wire-Display
(DB93-08182A)
40 PIN Cable
Ass'y Connector Wire-Sub
(DB93-08183A)
Main Board
Sub Board
This Document can not be used without Samsung’s authorization.
Samsung Electronics
BACnet Gateway_E_32400A(1)_1.indd 1
8-1
2010-05-17 �� 10:35:06
9. Schematic Diagram
9-1. Main Board
PXA320-806MHz
U1A
GPIO
MA15
MA14
MA13
MA12
MA11
SDMA10
MA9
MA8
MA7
MA6
MA5
MA4
MA3
MA2
MA1
MA0
L4
K1
L2
L3
P4
K2
P2
N3
P3
R3
P1
T4
H1
J2
J1
K4
7
7
7
nSDRAS
nSDCAS
nSDCS0
7
7
7
7
7
7
7
7
7
7
7
7
nSDWE
nSDCKE
nSDCLK0
nSDCLK1
DQM3
DQM2
DQM1
DQM0
DQS3
DQS2
DQS1
DQS0
N2
R4
L1
N4
M3
M2
M1
N1
AA3
V2
F1
C3
AA2
W2
E1
D2
nSDRAS
nSDCAS
nSDCS0
nSDCS1
nSDWE
nSDCKE
nSDCLK0
nSDCLK1
DQM3
DQM2
DQM1
DQM0
DQS3
DQS2
DQS1
DQS0
U4
T3
U3
AD4
U1
R1
T2
T1
K3
R2
U2
nOE_RSV
nWE_RSV
nADV2_RSV
RFU_AD4
RFU_U1
RCOMP_DDR
nCS1_RSV
nCS0_RSV
MA10_RSV
DDR_EVAL_RSV
RFU_U2
AB2
AB3
AD1
AC1
AB4
AB1
AA4
Y2
W3
Y3
AA1
Y1
W1
V1
V3
V4
H2
G1
G2
H3
G3
F2
F3
E3
D1
E2
D3
C1
C4
C2
B2
B3
MD31
MD30
MD29
MD28
MD27
MD26
MD25
MD24
MD23
MD22
MD21
MD20
MD19
MD18
MD17
MD16
MD15
MD14
MD13
MD12
MD11
MD10
MD9
MD8
MD7
MD6
MD5
MD4
MD3
MD2
MD1
MD0
40.2_F/1608
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
MD31
MD30
MD29
MD28
MD27
MD26
MD25
MD24
MD23
MD22
MD21
MD20
MD19
MD18
MD17
MD16
MD15
MD14
MD13
MD12
MD11
MD10
MD9
MD8
MD7
MD6
MD5
MD4
MD3
MD2
MD1
MD0
A3
A4
A5
SDRAM_CONTROL
RESERVED
TP478
USBOTG_N
USBOTG_P
USBH1_N
AC3
AC4
DF_nCS1
DF_nCS0
nCS2/GPIO3
nCS3/GPIO4
DF_nWE
DF_nRE
DF_SCLK_E
DF_ALE_nWE2
DF_ALE_nWE1
DF_CLE_nOE
DF_INT_RnB
RDY_GPIO2
nLUA
nLLA
nBE1
nBE0
AF6
AE6
AD2
AD3
AF7
AD7
AF4
AB6
AF3
AD5
AE5
AC2
AE7
AE8
AF5
AE4
PWR_SCL
PWR_SDA
VCTCXO_EN
nBATT_FAULT
PWR_EN
SYS_EN
nGPIO_RESET
nRESET
nRESET_OUT
EXT_WAKEUP1
EXT_WAKEUP0
C11
A12
B12
B7
A7
E5
A11
E6
C9
F5
G5
TOUCH_XP
TOUCH_XM
TOUCH_YP
TOUCH_YM
E18
D19
E17
D18
TOUCH
JTAG
nTRST
TCK
TDI
TDO
TMS
DF_DATA
EMPI_DATA
R1
POWER_CONTROL
1 nSDCS1
DREQ/GPIO1
GPIO0
DF_CONTROL
TP1
MA15
MA14
MA13
MA12
MA11
SDMA10
MA9
MA8
MA7
MA6
MA5
MA4
MA3
MA2
MA1
MA0
EMPI_ADDRESS
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
DF_ADDR
DF_ALE_nWE2 8
DF_ALE_nWE1 8,10,11
DF_CLE_nOE 6,8,10,11
DF_INT_R/B 8
ETH_RDY 10
nLUA
6,9
nLLA
6,9
nBE1
6,10
nBE0
6,10
VCTCXO_EN 1
PWR_SCL 18
PWR_SDA 18
TP2
WAKEUP0
nBATT_FAULT 18
PWR_EN 8,18
SYS_EN 18
nGPIO_RESET 6
CPU_nRESET 16,18
nRST_OUT 10,11
WAKEUP1 6
TP3
1
nTRST
TCK
TDI
TDO
TMS
16
16
16
16
16
AC13
AB14
AD12
AB13
AD11
AE10
AF9
AB10
AF13
AE12
AF12
AC12
AF10
AD10
AC11
AD9
DF_IO15
DF_IO14
DF_IO13
DF_IO12
DF_IO11
DF_IO10
DF_IO9
DF_IO8
DF_IO7
DF_IO6
DF_IO5
DF_IO4
DF_IO3
DF_IO2
DF_IO1
DF_IO0
9
9
9
9
9
9
9
9
8,9
8,9
8,9
8,9
8,9
8,9
8,9
8,9
AE9
AF8
AD8
AC8
AE3
AF14
AE14
AB15
AC15
AC97_SYSCLK/GPIO34
AC97_BITCLK/GPIO39
AC97_nRESET/GPIO40
AC24
Y22
AA23
USB_HOST_CLIENT
RTPXA320B2C806-643
DF_ADDR3
DF_ADDR2
DF_ADDR1
DF_ADDR0
DF_nCS1 8
DF_nCS0 8
ETH_nCS1 10
nCS3
9
DF_nWE 6,8
DF_nRE 6,8
D6
B4
B6
D5
A8
nXCVREN
GPIO5/nPIOR
GPIO6/nPIOW
GPIO7/nIOIS16
GPIO8/nPWAIT
CF_ADDR
AC97
DF_IO15
DF_IO14
DF_IO13
DF_IO12
DF_IO11
DF_IO10
DF_IO9
DF_IO8
DF_IO7
DF_IO6
DF_IO5
DF_IO4
DF_IO3
DF_IO2
DF_IO1
DF_IO0
U1B
nXCVREN 6,9
16
16
SD1_nCD
SD1_WP
10
ETH_IRQ1
USBH_OVC
USBH_PEN
USBH1_P
CIF_D0/GPIO_49
CIF_D1/GPIO_50
CIF_D2/GPIO_51
CIF_D3/GPIO_52
CIF_D4/GPIO_53
CIF_D5/GPIO_54
CIF_D6/GPIO_55
CIF_D7/GPIO_56
CIF_D8/GPIO_57
CIF_D9/GPIO_58
CIF_CLK/GPIO_59
CIF_PCLK/GPIO_60
CIF_HSYNC/GPIO_61
CIF_VSYNC/GPIO_62
SSP
B25
B24
A24
A23
A22
A21
B21
E22
FF_RXD/GPIO_97
FF_TXD/GPIO_98 UART1_F/F
FF_CTS/GPIO_99
FF_DCD/GPIO_100
FF_DSR/GPIO_101
FF_RI/GPIO_102
FF_DTR/GPIO_103
FF_RTS/GPIO_104
13
11
11
11
RS485_EN5
RS485_RXD5
RS485_TXD5
RS485_INV5
A19
B19
E19
C19
UART2_RTS/GPIO_109
UART2_RXD/GPIO_110
UART2_TXD/GPIO_111
UART2_CTS/GPIO_112
8
DF_INT_R/B2
AF16
W25
AF19
AB19
AC19
J23
H23
H24
G24
G22
F25
F23
E25
E26
D22
D25
D23
C21
A20
B20
E21
B18
A17
C17
D17
E16
C16
B17
E14
B16
C15
A16
D14
E13
A15
D13
17
RS232_nEN
C_LCD_D0
C_LCD_D1
C_LCD_D2
C_LCD_D3
C_LCD_D4
C_LCD_D5
C_LCD_D6
C_LCD_D7
C_LCD_C1
C_LCD_C2
C_LCD_C3
DO_7
DO_8
DO_9
DO_10
14
16
17
17
14
15
15
15
15
15
15
15
15
15
15
CPU_ALIVE1
CPU_ALIVE2
DEBUG_L1
DEBUG_L2
ERR
DI_1
DI_2
DI_3
DI_4
DI_5
DI_6
DI_7
DI_8
DI_9
DI_10
VCC_3P3
RTC_nINT 17
R265 5.1K/1608_NCE12
B14
B13
D12
K25
H22
J24
H25
BUZ_PWM
BUZ_ON
GPIO_0_2
GPIO_1_2
GPIO_4_2
GPIO_5_2
GPIO_14_2/LCD_FCLK
GPIO_15_2/LCD_LCLK
GPIO_16_2/LCD_PCLK
GPIO_17_2/LCD_BIAS
PWM0/GPIO_11
GPIO_12/PWM1
AF17
AC17
GPIO_13/PWM2
GPIO_14/PWM3
C1
10uF_16V/A_NC
UART
GPIO_9/L_CS
GPIO
GPIO_10/UTM_CLK
GPIO_15
GPIO_16
GPIO_17
GPIO_74/U2D_RESET
GPIO_75
GPIO_76
GPIO_77
GPIO_78
GPIO_79
GPIO_80
GPIO_81
GPIO_82
GPIO_87/U2D_RXERROR
GPIO_89
GPIO_92
GPIO_105
GPIO_106
GPIO_107
GPIO_108/U2D_OPMODE1
GPIO_113/KEY_IN0
GPIO_114/KEY_IN1
GPIO_115/KEY_IN2
GPIO_116/KEY_IN3
GPIO_117
GPIO_118
GPIO_119
GPIO_120
GPIO_121/KEY_OUT0
GPIO_122/KEY_OUT1
GPIO_123/KEY_OUT2
GPIO_124/KEY_OUT3
GPIO_125
GPIO_126
GPIO_127
AB16
AB17
AA22
AD25
I2C_SCL
I2C_SDA
17,18
17,18
GPIO_18/MM1_D0
GPIO_19/MM1_D1
GPIO_20/MM1_D2
GPIO_21/MM1_D3
GPIO_22/MM1_CLK
GPIO_23/MM1_CMD
AE20
AB20
AC21
AF22
AC22
AF23
SD1_D0
SD1_D1
SD1_D2
SD1_D3
SD1_CLK
SD1_CMD
16
16
16
16
16
16
SSPSCLK1/GPIO_83
SSPSFRM1/GPIO_84
SSPTXD1/GPIO_85
SSPRXD1/GPIO_86
SSPIRQ1/GPIO_24
SSPINV1/GPIO_25
SSPEN1/GPIO_26
SSPSCLK2/GPIO_35
SSPSFRM2/GPIO_36
SSPTXD2/GPIO_37
SSPRXD2/GPIO_38
SSPIRQ2/GPIO_27
SSPINV2/GPIO_28
SSPEN2/GPIO_29
SSPSCLK3/GPIO_69
SSPRXD3/GPIO_72
SSPSFRM3/GPIO_90
SSPTXD3/GPIO_91
SSPIRQ3/GPIO_41
SSPINV3/GPIO_42
SSPEN3/GPIO_43
SSPSCLK4/GPIO_93
SSPSFRM4/GPIO_94
SSPTXD4/GPIO_95
SSPRXD4/GPIO_96
SSPIRQ4/GPIO_44
SSPINV4/GPIO_45
SSPEN4/GPIO_46
F22
D26
E23
E24
AE22
AD22
AF24
AD26
AC25
AB25
AC26
AD23
AB22
AE25
L23
K24
C26
D24
Y23
AA24
W22
D21
B23
C23
C24
AA25
W24
Y26
TXD1_LED 14
TXD2_LED 14
TXD3_LED 14
TXD4_LED 14
RS485_IRQ1 11
RS485_INV1 11
RS485_EN1_A 12
TXD5_LED 14
RXD1_LED 14
RXD2_LED 14
RXD3_LED 14
RS485_IRQ2 11
RS485_INV2 11
RS485_EN2_A 12
RXD4_LED 14
RXD5_LED 14
GPIO_30/UART3_RX
GPIO_31/UART3_TX
GPIO_47/UTM_D6
GPIO_48/UTM_D7
GPIO_63/LCD_D8
GPIO_64/LCD_D9
GPIO_65/LCD_10
GPIO_66/LCD_11
GPIO_67/LCD_11
GPIO_68/LCD_13
GPIO_70/LCD_15
GPIO_71/LCD_16
GPIO_73/UTM_TXRDY
GPIO_88/U2D_OPMODE0
GPIO_6_2/LCD_D0
GPIO_7_2/LCD_D1
GPIO_8_2/LCD_D2
GPIO_9_2/LCD_D3
GPIO_10_2/LCD_D4
GPIO_11_2/LCD_D5
GPIO_12_2/LCD_D6
GPIO_13_2/LCD_D7
AC23
AD24
Y25
V22
M24
L25
M26
K22
L24
L26
K26
K23
J22
C25
P25
P23
N23
M22
N25
L22
N26
M25
SDMMC
CARD1
RXD1
TXD1
DO_1
DO_2
DO_3
DO_4
DO_5
DO_6
14
14
14
14
14
14
14
14
14
14
14
15
15
15
15
I2C_SCL/GPIO_32
I2C_SDA/GPIO_33
CAMERA I2C
17
17
15
15
15
15
15
15
16
16
A14
C13
A6
W26
V23
U22
U23
T22
U25
U26
T24
R22
T23
R24
R23
P24
P26
PWM
NO_CONNECTION
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
TESTCLK
TEST
A1
A2
A25
A26
AE1
AE2
AE26
AF1
AF2
AF25
AF26
B1
B26
C12
A13
RS485_IRQ3
RS485_INV3
RS485_EN3
MODE_SEL1
MODE_SEL2
MODE_SEL3
MODE_SEL4
RS485_IRQ4
RS485_INV4
RS485_EN4
11
11
13
15
15
15
15
11
11
13
RS485_EN1_B
RS485_EN2_B
ETH_SW_RST
SD_RST 16
LCD_nEN 14
DIO_PWR_EN
485_SW_ RST
B_UP
B_DOWN
B_OK
B_MENU
TP480 R2
TP481 R3
12
12
10
15
11
14
14
14
14
0/1608
0/1608
RTPXA320B2C806-643
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 1-1
9-1
2010-05-12 �� 6:39:25
Schematic Diagram
Schematic Diagram
Main Board(cont.)
VCC_3P3
VCC_SD1
VCC_SD2
B8
D11
C6
D8
C8
B10
C10
C7
D7
C41
CT3
10uF_16V/A
100nF_16V/1005
C40
C39
C38
100nF_16V/1005
100nF_16V/1005
100nF_16V/1005
C37
C12
100nF_16V/1005
C11
100nF_16V/1005
C10
100nF_16V/1005
C9
100nF_16V/1005
C8
100nF_16V/1005
C7
100nF_16V/1005
C6
100nF_16V/1005
C5
C4
100nF_16V/1005
C3
TP483
100nF_16V/1005 C226
100nF_16V/1005 C225
100nF_16V/1005 C224
100nF_16V/1005 C223
100nF_16V/1005 C222
C35
100nF_16V/1005
C34
100nF_16V/1005
C33
100nF_16V/1005
C32
100nF_16V/1005
C31
100nF_16V/1005
C30
100nF_16V/1005
C29
100nF_16V/1005
C28
100nF_16V/1005
C27
100nF_16V/1005
C26
100nF_16V/1005
C25
100nF_16V/1005
C23
C24
100nF_16V/1005
CT2
10uF_16V/A
TP4
VCC_APPS
VCC_MVT
(14EA)
100nF_16V/1005 C236
100nF_16V/1005 C235
100nF_16V/1005 C234
100nF_16V/1005 C233
C52
100nF_16V/1005
C51
100nF_16V/1005
C50
100nF_16V/1005
C49
100nF_16V/1005
C48
100nF_16V/1005
C47
100nF_16V/1005
C46
100nF_16V/1005
C45
C43
C44
TP485
100nF_16V/1005
VCC_BBATT
(1EA)
100nF_16V/1005
C36
100nF_16V/1608
100nF_16V/1005
1
100nF_16V/1005
C19
22pF/1608
32.768KHz(CM200S)
PWR_OUT
CT1
10uF_16V/A
(5EA)
TP484
C22
N.C
VCC_SRAM
TP482
(21EA)
100nF_16V/1005
N.C
3
C21
4
100nF_16V/1005
C2
X-TAL
100nF_16V/1005
X-TAL
VCC_APPS
CT4
10uF_16V/A
R4
VCC_BBATT
1
1
TXTAL_IN
TXTAL_OUT
PXTAL_IN
PXTAL_OUT
TP494
C64
100K/1608
TP5
TP6
TP493
TP488
C63
100nF_16V/1608
nGPIO_RESET 5
CT5
10uF_16V/A
VCC_BBATT
R215 R216 R217 R218
100K/1608
100K/1608
100K/1608
100K/1608
R221
R224 R225
R222
100K/1608 100K/1608 100K/1608 100K/1608
TP495
TP496
TP497
TP498
100nF_16v/1608
100nF_16V/1005 C245
100nF_16V/1005 C244
100nF_16V/1005 C243
100nF_16V/1005 C242
100nF_16V/1005 C241
100nF_16V/1005 C240
100nF_16V/1005 C239
100nF_16V/1005 C238
100nF_16V/1005 C237
C62
100nF_16V/1005
C61
100nF_16V/1005
C60
100nF_16V/1005
C59
100nF_16V/1005
C58
100nF_16V/1005
C57
100nF_16V/1005
C56
VCC_SD1 VCC_SD2 VCC_BBATT
R5
PWR_OUT
TP486
100nF_16V/1005
C42
100nF_16V/1608
(19EA)
C55
WAKEUP1 5
C54
TP487
VCC_3P3
100nF_16V/1005
100K/1608
100nF_16V/1005
SRAM
POWER
RTPXA320B2C806-643
PWR_OUT
CLK_POUT
CLK_TOUT
TXTAL_IN
TXTAL_OUT
PXTAL_IN
PXTAL_OUT
PWR_CAP1
PWR_CAP0
2
100nF_16V/1005
VCC_IO6
VCC_IO6
VCC_IO4
VCC_IO4
VCC_IO3
VCC_IO1
VCC_IO1
VCC_USB
VCC_TSI
VCC_MSL
VCC_LCD
VCC_LCD
VCC_DF
VCC_DF
VCC_DF
VCC_DF
VCC_DF
VCC_OSC13M
VCC_BG
VCC_PLL
VCC_PLL
VCC_CI
VCC_CI
VCC_CARD1
VCC_CARD2
1
C18
22pF/1608
TXTAL_OUT
X2
C20
C20
B22
W23
AB24
AB18
E10
D15
C5
A18
F24
J26
N24
AB7
AC9
AD6
AE11
AE13
E8
D9
AE18
B15
R26
V24
AB21
AE23
TXTAL_IN
100nF_16V/1005
VCC_MVT
VCC_MVT
VCC_MVT
VCC_MVT
VCC_MVT
VCC_MVT
VCC_MVT
VCC_MVT
VCC_MVT
VCC_MVT
13MHZ(SO10130E3-13.0000)
100nF_16V/1005 C227
AB26
AB8
AD15
E20
E7
G23
H5
M4
P22
W4
GND XTAL-
C16
10pF/1608
PXTAL_OUT
3
C53
VCC_MEM
VCC_MEM
VCC_MEM
VCC_MEM
VCC_MEM
VCC_MEM
VCC_MEM
VCC_MEM
VCC_MEM
VCC_MEM
VCC_MEM
CORE_POWER
AB5
D4
F4
H4
J5
K5
M5
P5
T5
W5
Y5
2
4
100nF_16V/1005 C248
VCC_MVT
VCC_SRAM
VCC_SRAM
VCC_SRAM
VCC_SRAM
VCC_SRAM
C17
10pF/1608
XTAL+ GND
100nF_16V/1005 C247
VCC_3P3
AB11
D16
E9
H26
J3
AA26
AB12
AB9
AD14
AD16
AD17
AD18
AD21
AE15
AE19
AE21
G25
G26
L11
L12
L15
L16
M11
M12
M15
M16
N13
N14
N22
P13
P14
R11
R12
R15
R16
T11
T12
T15
T16
T26
V26
Y4
A9
B9
D10
AD20
AE24
R25
U24
AC10
AC6
AC7
AD13
AF11
E11
E15
AE17
AB23
Y24
C22
D20
J25
M23
AA5
AC5
E4
G4
J4
L5
N5
R5
U5
V5
F26
B11
AC18
C14
C18
B5
1
100nF_16V/1005
VCC_MVT
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
VCC_APPS
SDRAM_POWER
VCC_MEM_1P8
AC14
AC16
AC20
AD19
AE16
AF15
AF18
AF20
AF21
L13
L14
M13
M14
N11
N12
N15
N16
P11
P12
P15
P16
R13
R14
T13
T14
T25
V25
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS_BBATT
VSS_BG
VSS_CARD1
VSS_CARD2
VSS_CI
VSS_CI
VSS_DF
VSS_DF
VSS_DF
VSS_DF
VSS_DF
VSS_IO1
VSS_IO1
VSS_IO3
VSS_IO4
VSS_IO4
VSS_IO6
VSS_IO6
VSS_LCD
VSS_LCD
VSS_MEM
VSS_MEM
VSS_MEM
VSS_MEM
VSS_MEM
VSS_MEM
VSS_MEM
VSS_MEM
VSS_MEM
VSS_MEM
VSS_MSL
VSS_OSC13M
VSS_PLL
VSS_PLL
VSS_TSI
VSS_USB
PXA320_GND
VCC_SRAM
VCC_BBATT
PXTAL_IN
100nF_16V/1005 C246
A10
X1
U1C
IO POWER
VCC_BBATT
INTERNAL
LOGIC
POWER
VCC_APPS
(11EA)
100nF_16V/1005
PXA320-806MHz
100nF_16V/1005
BYPASS CAPACITOR
VCC_MEM_1P8
nLUA
nLLA
5,9
5,9
nBE1
nBE0
5,10
5,10
DF_nWE 5,8
DF_nRE 5,8
nXCVREN 5,9
DF_CLE_nOE 5,8,10,11
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 2-3
9-2
2010-05-12 �� 6:39:26
Schematic Diagram
Schematic Diagram
Main Board(cont.)
Mobile DDR SDRAM (256MB)
BA1
BA0
A13
A12
A11
A10/AP
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
nSDCLK0
nSDCLK1
nSDCKE
G2
G3
G1
CK
nCK
CKE
nSDCS0
nSDWE
H7
G7
nSDRAS
nSDCAS
G9
G8
nRAS
nCAS
F3
NC
DDR SDRAM
64M x 16
nCS
nWE
VSS
VSS
VSS
DQ15
DQ14
DQ13
DQ12
DQ11
DQ10
DQ9
DQ8
DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0
A2
B3
B2
C3
C2
D3
D2
E3
E7
D8
D7
C8
C7
B8
B7
A8
LDQS
UDQS
E8
E2
DQS0
DQS1
5
5
LDQM
UDQM
F8
F2
DQM0
DQM1
5
5
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
D9
B9
A3
E1
C1
K9
F9
A9
VDD
VDD
VDD
H9
H8
F7
H3
H2
J7
H1
J3
J2
J1
K3
K2
K8
K7
J9
J8
BA1
BA0
A13
A12
A11
A10/AP
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
nSDCLK0
nSDCLK1
nSDCKE
G2
G3
G1
CK
nCK
CKE
nSDCS0
nSDWE
H7
G7
nCS
nWE
nSDRAS
nSDCAS
G9
G8
nRAS
nCAS
F3
NC
A1
F1
K1
VSS
VSS
VSS
MD[0..15] 5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
MD15
MD14
MD13
MD12
MD11
MD10
MD9
MD8
MD7
MD6
MD5
MD4
MD3
MD2
MD1
MD0
5
5
5
5
5
5
5
MA15
MA14
MA13
MA12
MA11
SDMA10
MA9
MA8
MA7
MA6
MA5
MA4
MA3
MA2
MA1
MA0
K4X1G163PE-FGC60
DDR TEST POINT
B1
D1
A7
C9
E9
DQ15
DQ14
DQ13
DQ12
DQ11
DQ10
DQ9
DQ8
DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0
A2
B3
B2
C3
C2
D3
D2
E3
E7
D8
D7
C8
C7
B8
B7
A8
LDQS
UDQS
E8
E2
DQS2
DQS3
5
5
LDQM
UDQM
F8
F2
DQM2
DQM3
5
5
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
D9
B9
A3
E1
C1
MD[16..31] 5
MD31
MD30
MD29
MD28
MD27
MD26
MD25
MD24
MD23
MD22
MD21
MD20
MD19
MD18
MD17
MD16
BYPASS CAPACITOR
VCC_MEM_1P8
VCC_MEM_1P8
VCC_MEM_1P8
VCC_MEM_1P8
TP499
TP500
C80
100nF_16V/1005
C79
100nF_16V/1005
C78
100nF_16V/1005
C77
100nF_16V/1005
CT6
10uF_16V/A
C76
C73
C72
100nF_16V/1005
C71
100nF_16V/1005
C70
100nF_16V/1005
C69
100nF_16V/1005
C68
100nF_16V/1005
C67
100nF_16V/1005
100nF_16V/1005
C66
1
1
1
1
BYPASS CAPACITOR
C65
nSDCKE
nSDCS0
nSDWE
MD0
nSDCLK0
nSDCLK1
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
K4X1G163PE-FGC60
100nF_16V/1005
5
5
5
5
5
5
1
1
TP7 TP8 TP9 TP10TP11TP12
DDR SDRAM
64M x 16
100nF_16V/1005
A1
F1
K1
B1
D1
A7
C9
E9
C75
5
5
H9
H8
F7
H3
H2
J7
H1
J3
J2
J1
K3
K2
K8
K7
J9
J8
MA15
MA14
MA13
MA12
MA11
SDMA10
MA9
MA8
MA7
MA6
MA5
MA4
MA3
MA2
MA1
MA0
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
100nF_16V/1005
5
5
VDD
VDD
VDD
C74
5
5
5
K9
F9
A9
VCC_MEM_1P8
U3
100nF_16V/1005
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
VCC_MEM_1P8
VCC_MEM_1P8
U2
100nF_16V/1005
VCC_MEM_1P8
CT7
10uF_16V/A
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 4-5
9-3
2010-05-12 �� 6:39:27
Schematic Diagram
Schematic Diagram
Main Board(cont.)
512MB x 2 NAND FLASH
VCC_3P3
R6
R7
100K/1608 100K/1608
5 DF_INT_R/B
5,6 DF_nRE
5 DF_nCS0
TP501
TP315
TP316
R226
10K/1608_NC
5,6,10,11
5,10,11
5,6
5,18
DF_CLE_nOE
DF_ALE_nWE1
DF_nWE
PWR_EN
VCC_3P3
U4
TP317
R8
0/1608
R12
10K/1608_NC
TP503
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
NC
NC
NC
NC
NC
NC
nR/B
nRE
nCE
NC
NC
VCC
VSS
NC
NC
CLE
ALE
nWE
nWP
NC
NC
NC
NC
NC
512MB
NAND
FLASH
NC
NC
NC
NC
I/O7
I/O6
I/O5
I/O4
NC
NC
NC
VCC
VSS
NC
NC
NC
I/O3
I/O2
I/O1
I/O0
NC
NC
NC
NC
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
DF_IO[0..7]
DF_IO7
DF_IO6
DF_IO5
DF_IO4
5,9
U6
R16
R15
100K/1608 100K/1608
DF_INT_R/Bx
5,6 DF_nRE
5 DF_nCS1
TP502
TP319
TP320
R227
10K/1608_NC
VCC_3P3
5,6,10,11 DF_CLE_nOE
DF_ALE_nWEx
5,6 DF_nWE
5,18 PWR_EN
DF_IO3
DF_IO2
DF_IO1
DF_IO0
TP318
TP321
R17 0/1608
R18
10K/1608_NC
TP504
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
BYPASS CAPACITOR
VCC_3P3
5 DF_INT_R/B2
5,10,11 DF_ALE_nWE1
5 DF_ALE_nWE2
TP505 R19
R20
TP509 R21
R22
512MB
NAND
FLASH
NC
NC
NC
NC
I/O7
I/O6
I/O5
I/O4
NC
NC
NC
VCC
VSS
NC
NC
NC
I/O3
I/O2
I/O1
I/O0
NC
NC
NC
NC
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
DF_IO[0..7]
5,9
DF_IO7
DF_IO6
DF_IO5
DF_IO4
VCC_3P3
DF_IO3
DF_IO2
DF_IO1
DF_IO0
TP322
K9F4G08U0B-PIB0_NC
K9F4G08U0B-PIB0
5 DF_INT_R/B
NC
NC
NC
NC
NC
NC
nR/B
nRE
nCE
NC
NC
VCC
VSS
NC
NC
CLE
ALE
nWE
nWP
NC
NC
NC
NC
NC
0/1608
0/1608_NC
VCC_3P3
TP506
TP507
DF_INT_R/Bx
0/1608_NC
0/1608
BYPASS CAPACITOR
TP510
DF_ALE_nWEx
C81
C82
CT8
100nF_16V/1608
10uF_16V/A
100nF_16V/1608
C83
CT9
C84
100nF_16V/1608
10uF_16V/A
100nF_16V/1608
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 6-7
9-4
2010-05-12 �� 6:39:27
Schematic Diagram
Schematic Diagram
Main Board(cont.)
LATCH & TRANSCEIVER for VLIO
5,8
DF_IO[0..15]
VCC_3P3
U7
47
46
44
43
41
40
38
37
36
35
33
32
30
29
27
26
TP21
TP22
TP23
TP24
TP25
TP26
TP28
TP30
TP32
TP34
TP36
TP38
TP40
TP42
TP44
TP46
1D1
1D2
1D3
1D4
1D5
1D6
1D7
1D8
2D1
2D2
2D3
2D4
2D5
2D6
2D7
2D8
LATCH
5
VCC_3P3
TP50 2
2
4
TP51
4
TP55
3
nLLA
5
U8
5,6
1LE
25
2LE
1
24
1OE
2OE
3
TC7SZ04FU
48
VCC
VCC
VCC
VCC
7
18
31
42
1Q1
1Q2
1Q3
1Q4
1Q5
1Q6
1Q7
1Q8
2Q1
2Q2
2Q3
2Q4
2Q5
2Q6
2Q7
2Q8
2
3
5
6
8
9
11
12
13
14
16
17
19
20
22
23
GND
GND
GND
GND
GND
GND
GND
GND
45
39
34
28
21
15
10
4
B_AD[0..15] 10,11
TP27
TP29
TP31
TP33
TP35
TP37
TP39
TP41
TP43
TP45
TP47
TP48
TP49
TP52
TP53
TP54
5,8
B_AD0
B_AD1
B_AD2
B_AD3
B_AD4
B_AD5
B_AD6
B_AD7
B_AD8
B_AD9
B_AD10
B_AD11
B_AD12
B_AD13
B_AD14
B_AD15
5
DF_IO[0..15]
VCC_3P3
U45
DF_IO15
TP511 1
FF_CLK
TP512 2
CLK
3
GND
D
VCC
Q
5
5,6
DF_IO0
DF_IO1
DF_IO2
DF_IO3
DF_IO4
DF_IO5
DF_IO6
DF_IO7
DF_IO8
DF_IO9
DF_IO10
DF_IO11
DF_IO12
DF_IO13
DF_IO14
DF_IO15
TP73
nXCVREN
TP74
4
U10
7
18
31
42
VCC1
VCC1
VCC2
VCC2
47
46
44
43
41
40
38
37
36
35
33
32
30
29
27
26
1A0
1A1
1A2
1A3
1A4
1A5
1A6
1A7
2A0
2A1
2A2
2A3
2A4
2A5
2A6
2A7
48
25
1
24
1OE
2OE
1DIR
2DIR
SN74LVCH16245
DF_IO0
DF_IO1
DF_IO2
DF_IO3
DF_IO4
DF_IO5
DF_IO6
DF_IO7
DF_IO8
DF_IO9
DF_IO10
DF_IO11
DF_IO12
DF_IO13
DF_IO14
DF_IO15
B_D[0..15] 10,11
VCC_3P3
1B0
1B1
1B2
1B3
1B4
1B5
1B6
1B7
2B0
2B1
2B2
2B3
2B4
2B5
2B6
2B7
2
3
5
6
8
9
11
12
13
14
16
17
19
20
22
23
GND
GND
GND
GND
GND
GND
GND
GND
4
10
15
21
28
34
39
45
TP57
TP58
TP59
TP60
TP61
TP62
TP63
TP64
TP65
TP66
TP67
TP68
TP69
TP70
TP71
TP72
B_D0
B_D1
B_D2
B_D3
B_D4
B_D5
B_D6
B_D7
B_D8
B_D9
B_D10
B_D11
B_D12
B_D13
B_D14
B_D15
SN74LVCH16245ADGGR
SN74AUP1G80DCKT
SN74LVCH16373ADGGR
5
VCC_3P3
nLUA
4
2
4
FF_CLK
3
5,6
5
U9
TP56 2
3
TC7SZ04FU
CHIP-SELECT DECODER
5
5
TP443 2
4
2
4
TP444
C94
100nF_16V/1608
C93
C92
DECODER_EN
3
nCS3
CT12
10uF_16V/A
R371
4.7K/1608
U74
5
VCC_3P3
100nF_16V/1608
VCC_3P3
CT11
10uF_16V/A
100nF_16V/1608
74HC138D-T
TP516
C91
11
11
11
11
CT53
10uF_16V/A
TP515
C90
RS485_nCS1
RS485_nCS2
RS485_nCS3
RS485_nCS4
C363
100nF_16V/1608
VCC_3P3
VCC_3P3
C89
TP514
Transceiver(U10)
BYPASS CAPACITOR
100nF_16V/1608
GND
VCC_3P3
TP442
TP456
TP457
TP458
TP437
TP438
TP440
TP441
1
1
1
1
100nF_16V/1608
8
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
15
14
13
12
11
10
9
7
100nF_16V/1608
E1
E2
E3
16
C88
TP439 4
5
6
VCC
100nF_16V/1608
DECODER_EN
A0
A1
A2
C87
5 nCS3
1
2
3
100nF_16V/1608
10 B_AD13
10 B_AD14
10 B_AD15
LATCH(U7)
BYPASS CAPACITOR
VCC_3P3
U73
3
TC7SZ04FU_NC
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 8-9
9-5
2010-05-12 �� 6:39:28
Schematic Diagram
Schematic Diagram
Main Board(cont.)
ETHERNET Interface
LAN_+3.3V
LAN_+3.3V
0/1608
R39 TP534
0/1608
R40 TP535
10K/1608_NC
R41
10K/1608
10K/1608
10K/1608
10K/1608
R42
R43
R44
R45
TP539
TP540
TP542
TP543
LAN91C111-NU
LAN91C111I-NU
TP81
D4
D3
AN2
CA2
LAN_+3.3V
XTAL1
XTAL2
128
SH2 SH2
J8
2
TP527 TP528
TP529
24.9_F/1608
24.9_F/1608
FB4
HH-1T1608-260JT
1
1
FB1
HH-1T1608-260JT
LAN_+3.3V
Vcc
NC
ORG
GND
TP531
8
7
6
5
C96
100nF_16V/1608
AT93C46-10SU-2.7
VCC_3P3
3
C215
18pF/1608
4
X-TAL X-TAL
1
GND
2
GND
5,11 nRST_OUT
C216
18pF/1608
TP5362
2
4
4
TC7SZ04FU
25MHz(SX-7)
CT13
10uF_16V/A
VCC_3P3
U13
X3
100nF_16V/1608 C106
CS
SK
DI
DO
100nF_16V/1608 C105
1
2
3
4
100nF_16V/1608 C104
TP82
TP83
TP85
TP87
100nF_16V/1608 C103
U12
EESK1
EECS1
EEDI1
EEDO1
TP530
LAN_+3.3V
2
47
127
J7
2
TP526
ETHERNET_LINK 14
ETHERNET_ALIVE 14
J6
XRJH-01E-4-E11-17 0
TP525
R30
R31
J5
C99
PHY
nCSOUT
X25out
R29
11K_F/1608
J4
SH1 SH1
11
16
6
5
4
3
AN1
CA1
J3
100nF_16V/1608 C102
nADS
nCYCLE
W_nR
nVLBUS
LCLK
nSRDY
nRDYRTN
nDATACS
ENEEP
IOS2
IOS1
IOS0
D2
D1
J2
100nF_16V/1608 C101
37
35
36
40
42
43
46
34
9
10
8
7
TP80
TP78
TP79
RJ-45
J1
100nF_16V/1608 C100
RESET
AEN
ARDY
nRD
nWR
INTR
nLDEV
EESK
EECS
EEDI
EEDO
TX+
TXTDC
NC1
NC2
RDC
RD+
RD-
100nF_16V/1608
30
41
38
31
32
29
45
TXEN100
CRS100
COL100
RX_DV
RX_ER
MDI
MDO
MCLK
RX25
TX25
111
119
112
125
126
25
26
27
118
109
24.9_F/1608
24.9_F/1608
TRANSFORMER
1
2
3
4
5
6
7
8
5
R38
TP88
TP89
TP90
TP91
TP92
TP93
121
122
123
124
113
114
115
116
HH-1T1608-260JT
2
TP537
R46
10K/1608
1
U69
4
2
ETH_RESET
MC74VHC1G32DFT2G
3
LAN_+3.3V
10K/1608
nBE0
nBE1
nBE2
nBE3
RXD3
RXD2
RXD1
RXD0
TXD3
TXD2
TXD1
TXD0
TP522
R27
R28
FB5
1
5
5
5
5,6,8,11
5,8,11
5
ETH_RESET
ETH_nCS1
ETH_RDY
DF_CLE_nOE
DF_ALE_nWE1
ETH_IRQ1
94
95
96
97
22
23
TP524
TP75
TP76
TP77
5
5,6 nBE0
5,6 nBE1
TP84
TP86
TP532
TP533
nLEDA
nLEDB
TP523
HH-1T1608-260JT
2
3
10K/1608
10K/1608
10K/1608
10K/1608
10K/1608
10K/1608
LBK
nLNK
nCNTRL
RBIAS
21
20
28
12
FB3
1
J1
3
R37
18
C98
R36
TPI-
HH-1T1608-260JT
TP518
2
R23
R24
49.9_F/1608
49.9_F/1608
100nF_16V/1608
R35
TPI+
R25 R26
24.9_F/1608
24.9_F/1608
C97
R34
15
17
TP521
100nF_16V/1608
R33
GND0
GND1
GND2
GND3
GND4
GND5
GND6
GND7
GND8
GND9
R32
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
C95
10nF_16V/1608
TP520
14
TPO-
AGND0
AGND1
LAN_+3.3V
107
106
105
104
102
101
100
99
76
75
74
73
71
70
69
68
66
65
64
63
61
60
59
58
56
55
54
53
51
50
49
48
MII INTERFACE
B_D0
B_D1
B_D2
B_D3
B_D4
B_D5
B_D6
B_D7
B_D8
B_D9
B_D10
B_D11
B_D12
B_D13
B_D14
B_D15
TPO+
SERIAL EEPROM
9,11 B_D[0..15]
TP517
FB2
1
5 ETH_SW_RST
TP541
13
19
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
LAN_+3.3V
TP519
AVDD0
AVDD1
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
LAN_+3.3V
24
39
52
57
67
72
93
103
108
117
B_AD15
B_AD14
B_AD13
B_AD12
B_AD11
B_AD10
B_AD9
B_AD8
B_AD7
B_AD6
B_AD5
B_AD4
B_AD3
B_AD2
B_AD1
VDD0
VDD1
VDD2
VDD3
VDD4
VDD5
VDD6
VDD7
9,11 B_AD[0..15]
32-bit ISA-LIKE INTERFACE
U11
1
33
44
62
77
98
110
120
VCC_3P3
R320
10K/1608
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 10-11
9-6
2010-05-12 �� 6:39:29
Schematic Diagram
Schematic Diagram
Main Board(cont.)
RS-485 Channels (1)
B_AD[0..2]
VCC_3P3
VCC_3P3
BYPASS CAPACITOR
VCC_3P3
100nF_16V/1608 C373
100nF_16V/1608 C372
100nF_16V/1608 C371
100nF_16V/1608 C370
TP550
9
9
9
9
CT54
10uF_16V/A
RS485_nCS1
RS485_nCS2
RS485_nCS3
RS485_nCS4
5,8,10 DF_ALE_nWE1
5,6,8,10 DF_CLE_nOE
5
5
5
5
TXA
RXA
8
62
TXB
RXB
10
20
DTRA
RTSA
CTSA
RIA
CDA
DSRA
3
5
2
63
64
1
DTRB
RTSB
CTSB
RIB
CDB
DSRB
15
13
16
19
18
17
7
11
38
42
CSA
CSB
CSC
CSD
9
40
IOW
IOR
X10
X-TAL
2
14
28
45
61
C375
22pF/1608
14.7456MHz(SX-1)
RESET
10K/1608
25
26
X-TAL
INTA
INTB
INTC
INTD
XTAL1
XTAL2
GND
GND
GND
GND
DTRC
RTSC
CTSC
RIC
CDC
DSRC
34
36
33
30
31
32
TXC
RXC
39
29
TXD
RXD
41
51
DTRD
RTSD
CTSD
RID
CDD
DSRD
46
44
47
50
49
48
R372
10K/1608
12
5
12
R373
10K/1608
485_TXD1
TP547
RS485_INV1
485_RXD1
TP549
CH-1/2
C364
100nF_50V/1608
U76
1
3
2
A1
Y1
B1
5
4
6
B2
A2
Y2
7
GND
VCC
14
A4
Y4
B4
12
11
13
B3
A3
Y3
10
9
8
R375
D0
D1
D2
D3
D4
D5
D6
D7
TP55327
R377
C374
22pF/1608
53
54
55
56
57
58
59
60
6
12
37
43
RS485_IRQ1
RS485_IRQ2
RS485_IRQ3
RS485_IRQ4
485_RST
1
VCC
VCC
VCC
VCC
TP548
10K/1608
B_D0
B_D1
B_D2
B_D3
B_D4
B_D5
B_D6
B_D7
A0
A1
A2
485_RXD2 12
TP546
RS485_INV2 5
485_TXD2 12
MM74HC86M
VCC_3P3
VCC_3P3
VCC_3P3
TP552
R381
10K/1608
13
5
13
R382
10K/1608
1
3
2
485_TXD3
TP556
RS485_INV3
485_RXD3
TP558
CH-3/4
C367
100nF_50V/1608
U82
A1
Y1
B1
5
4
6
B2
A2
Y2
7
GND
VCC
14
A4
Y4
B4
12
11
13
B3
A3
Y3
10
9
8
TP557
R384
U83
B_D[0..7]
4
21
35
52
10K/1608
9,10
TP544
24
23
22
10K/1608 R374
U83
B_AD0
B_AD1
B_AD2
VCC_3P3
VCC_3P3
10K/1608 R383
9,10
485_RXD4 13
TP555
RS485_INV4 5
485_TXD4 13
MM74HC86M
ST16C554DIQ64-F
CH-5
VCC_3P3
U79
VCC_3P3
5
VCC_3P3
5
5
U77
2
4
2
4
TP562
3
5,10 nRST_OUT
R376
10K/1608
5
485_SW_R ST
5
U78
2
RS485_TXD5
RS485_INV5
TP560
1
A
2
B
3
4
TP563
GND
VCC
5
Y
4
485_RST
VCC_3P3
U81
13
485_RXD5
TP564
1
A
2
B
3
R378
10K/1608
GND
VCC
5
Y
4
VCC_3P3
R380
10K/1608
485_TXD5 13
NC7SV86P5X
MC74VHC1G32DFT2G
3
3
TC7SZ04FU
1
5
VCC_3P3
C368
100nF_16V/1608
VCC_3P3
C369
100nF_16V/1608
VCC_3P3
R385
10K/1608
TP565
NC7SV86P5X
5
RS485_RXD5
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 12-13
9-7
2010-05-12 �� 6:39:29
Schematic Diagram
Schematic Diagram
Main Board(cont.)
RS-485 Channels (2)
VCC_5V
VCC_3P3
VCC_3P3
11
11
485_RXD1
485_TXD1
485_IN1
RS485_EN1
485_EN1
1
2
485_IN1
R74
10K/1608
485_OUT1
R228
1K/1608
U17
TP115
1
1A
R75
10K/1608
C193
4.7nF_50V/1608
14
VCC
TP116
2
1Y
6A
13
TP117
TP118
3
2A
6Y
12
TP119
TP120
4
2Y
5A
11
TP121
TP122
5
3A
5Y
10
TP123
TP124
6
3Y
4A
9
TP125
7
GND
4Y
8
TP126
3
4
VCC485A_5V
U38
NC
A
C
NC
VCC
8
Vo
7
NC
6
GND
5
C194
100nF_50V/1608
VCC485A_5V
485_OUT2
C121
100nF_50V/2012
VCC_5V
R229
1K/1608
485_TXD2 11
485_IN2
RS485_EN2
1
2
485_EN1
C195
4.7nF_50V/1608
485_EN2
3
4
VCC485A_5V
U39
NC
A
C
NC
VCC
8
4
Vo
7
TP324
3
NC
6
2
GND
5
R230
1K/1608
C196
100nF_50V/1608
5 RS485_EN1_A
5 RS485_EN2_A
TP572 R422
TP573 R423
5 RS485_EN1_B
5 RS485_EN2_B
1
HCPL-0201
R231
1K/1608
RS485_EN1
RS485_EN2
J3
0/1608
0/1608
8
C197
100nF_50V/1608
U16
VCC
8
DE
B
7
RE
A
6
GND
5
DI
RO
MAX1487EESA
U40
VCC
NC
1
7
Vo
A
2
6
NC
C
3
NC
4
5
R77
D2
1K/2012
C124 SMBJ5.0CA
R76
C123
1K/2012 10nF_50V/2012 10nF_50V/2012
GND
R232
1K/1608
TP325
R233 1K/1608
C127
100nF_50V/2012
TP575
C198
4.7nF_50V/1608
1
VCC485A_5V
2
C200
4.7nF_50V/1608
3
4
NC
A
C
NC
VCC
8
Vo
7
NC
6
GND
5
C201
100nF_50V/1608
VCC485A_5V
13
13
485_CH4_A
485_CH4_B
7(+)
8(-)
13
13
485_CH5_A
485_CH5_B
9(+)
10(-)
2
485_EN2
C202
4.7nF_50V/1608
3
4
VCC485A_5V
U43
NC
A
C
NC
VCC
8
4
Vo
7
TP328
3
NC
6
2
GND
5
R236
1K/1608
C203
100nF_50V/1608
1
HCPL-0201
R237
1K/1608
TP580
C204
100nF_50V/2012
TP582
C205
100nF_50V/1608
AVL_5M_03_300
AVL_5M_03_300
TP127
VCC
8
DE
B
7
RE
A
6
GND
5
DI
RO
485_CH2_B
C126
10nF_50V/2012
485_CH2_A
TP128
R82
D5
1K/2012
C129
R81
C128
SMBJ5.0CA
1K/2012 10nF_50V/2012 10nF_50V/2012
D6
SMBJ5.0CA
VCC485A_5V
VCC_5V
485_OUT2
U18
MAX1487EESA
VCC_5V
VCC485A_5V
RV3
RV4
TP577
C125
100nF_50V/2012
7
-Vout
+Vout
NTE0505MC
1
8
5
NA
NA
10
3
+Vin
NA
12
1
-Vin
NA
14
R235
1K/1608
U42
CT44
220uF_10V/D
5(+)
6(-)
485-CH2
TP327
VCC_5V
C199
100nF_50V/2012
485_CH3_A
485_CH3_B
VCC485A_5V
U41
HCPL-0201
CT43
10uF_16V/A
13
13
VCC_5V
485_IN2
TP579
3(+)
4(-)
STL950-5.0-H(10-Pol e)
R234
1K/1608
VCC_5V
D3
SMBJ5.0CA
485_CH2_A
485_CH2_B
TP326
TP574
VCC_5V
1(+)
TP114
HCPL-0201
VCC_3P3
CT15
10uF_16V/A
2(-)
C122
10nF_50V/2012
VCC485A_5V
VCC_5V
485_OUT1
AVL_5M_03_300
AVL_5M_03_300
TP113
485_RXD2 11
VCC_5V
0/1608_NC
0/1608_NC
RV1
RV2
TP567
HCPL-0201
74LVC07APW
R420
R421
485-CH1
TP323
8
U44
VCC
NC
1
7
Vo
A
2
6
NC
C
3
5
GND
NC
4
R238
1K/1608
TP329
R239
1K/1608
TP330
C206
4.7nF_50V/1608
HCPL-0201
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 14-15
9-8
2010-05-12 �� 6:39:30
Schematic Diagram
Schematic Diagram
Main Board(cont.)
VCC_5V
R288
1K/1608
RS-485 Channels (3)
VCC_3P3
11
11
485_RXD3
485_IN3
5
RS485_EN3
485_EN3
VCC_5V
C252
4.7nF_50V/1608
U55
1
R292
10K/1608
1A
VCC
14
TP359
TP361
TP358
2
1Y
6A
13
TP360
3
2A
6Y
12
TP362
4
2Y
5A
11
TP363
TP364
5
5Y
10
TP365
TP368
6
3Y
4A
9
TP369
7
GND
4Y
8
TP370
3A
485_OUT4
485_RXD4 11
R295
1K/1608
485_TXD4 11
485_IN4
C255
4.7nF_50V/1608
3
C
4
NC
3
C
4
NC
7
R298
1K/1608
7
-Vout
+Vout
NA
10
U63
NTE0505MC
CT45
220uF_10V/D
485_IN4
C274
100nF_50V/2012
TP590
VCC_5V
C261
4.7nF_50V/1608
R300
1K/1608
U58
R299
10K/1608
1
1A
VCC
14
2
1Y
6A
13
TP373
3
2A
6Y
12
TP375
4
2Y
5A
11
TP376
TP378
5
3A
5Y
10
6
3Y
4A
9
TP379
7
GND
4Y
8
TP380
7
NC
6
GND
5
4
C254
100nF_50V/1608
NC
2
C
3
GND
NC
4
U54
DI
VCC
8
B
7
TP356
3
DE
R291
1K/1608
2
RE
A
6
1
RO
GND
5
VCC485B_5V
MAX1487EESA
TP354
485_CH3_B 12
C283
10nF_50V/2012
485_CH3_A 12
TP355
R294
D48
1K/2012
SMBJ5.0CA
R293
C257
C256
1K/2012 10nF_50V/2012 10nF_50V/2012
D49
SMBJ5.0CA
R296
1K/1608
1
A
AVL_5M_03_300
AVL_5M_03_300
TP366
R297
1K/1608
TP367
C259
4.7nF_50V/1608
NTE0505MC
NC
VCC
8
2
A
Vo
7
3
C
NC
6
GND
5
4
NC
485-CH4
VCC485B_5V
U57
TP371
VCC485B_5V
NC
VCC
8
C262
100nF_50V/2012
4
U60
DI
VCC
8
2
A
Vo
7
TP377
3
DE
B
7
3
C
NC
6
2
RE
A
6
GND
5
R301
1K/1608
GND
5
4
NC
C263
100nF_50V/1608
VCC_5V
1
VCC485B_5V
NC
1
7
Vo
A
2
6
NC
C
3
5
GND
NC
4
8
VCC
RO
MAX1487EESA
U61
TP372
R307
1K/1608
1
485_IN5
VCC_5V
C270
4.7nF_50V/1608
R303
D51
1K/2012
C266
C265
R302
SMBJ5.0CA
1K/2012 10nF_50V/2012 10nF_50V/2012
D52
SMBJ5.0CA
R305
1K/1608
TP381
R306
1K/1608
TP382
C268
4.7nF_50V/1608
485-CH5
VCC_5V
R312
1K/1608
NC
VCC
VCC485C_5V
8
2
A
Vo
7
3
C
NC
6
4
NC
GND
5
1
485_EN5
C275
100nF_50V/2012
TP600
VCC485C_5V
U62
TP383
C269
100nF_50V/1608
C273
4.7nF_50V/1608
4
VCC485C_5V
U65
DE
VCC
8
B
7
VCC
A
Vo
7
TP386
2
RE
A
6
3
C
NC
6
1
RO
GND
5
GND
5
R309
1K/1608
4
VCC_5V
C278
100nF_50V/1608
DI
3
2
NC
C272
100nF_50V/1608
8
U67
VCC
NC
1
7
Vo
A
2
6
NC
C
3
5
GND
NC
4
MAX1487EESA
VCC485C_5V
HCPL-0201
485_OUT5
U66
8
NC
RV9
RV10
AVL_5M_03_300
AVL_5M_03_300
TP597
C271
100nF_50V/2012
HCPL-0201
R308
1K/1608
CT46
220uF_10V/D
485_CH4_A 12
TP374
VCC_5V
485_IN5
485_EN5
485_CH4_B 12
C284
10nF_50V/2012
485_TXD5 11
RS485_EN5 5
AVL_5M_03_300
AVL_5M_03_300
TP589
C260
100nF_50V/1608
VCC485B_5V
U59
RV7
RV8
HCPL-0201
485_RXD5 11
7
-Vout
+Vout
8
5
NA
NA
8
Vo
Vo
NC
485_OUT5
TP599
U64
C264
4.7nF_50V/1608
C267
100nF_50V/1608
VCC485C_5V
10
3
+Vin
NA
12
1
-Vin
VCC
5
1
485_OUT4
VCC485C_5V
NA
C253
100nF_50V/2012
VCC485B_5V
VCC
RV5
RV6
TP584
C251
100nF_50V/1608
HCPL-0201
R304
1K/1608
74LVC07APW
14
VCC485B_5V
HCPL-0201
VCC_3P3
VCC_5V
6
5
U56
6
1
8
5
NA
3
12
NA
+Vin
1
-Vin
NA
14
TP588
VCC_3P3
TP595
NC
GND
TP353
VCC_5V
VCC485B_5V
VCC_5V
TP594
NC
A
8
485_EN4
TP593
Vo
7
HCPL-0201
VCC485B_5V
R321
R322
R323
10K/1608 10K/1608 10K/1608
8
U53
2
74LVC07APW
VCC_5V
VCC
HCPL-0201
C258
100nF_50V/1608
485_EN4
A
VCC_5V
485_OUT3
RS485_EN4 5
2
1
485_EN3
VCC_5V
NC
485-CH3
VCC485B_5V
U52
HCPL-0201
R289
1K/1608
TP357
485_TXD3
485_IN3
VCC_3P3
R290
10K/1608
485_OUT3
1
TP384
485_CH5_B 12
C285
10nF_50V/2012
485_CH5_A 12
TP385
R311
D54
1K/2012
R310
C276
C277
SMBJ5.0CA
1K/2012 10nF_50V/2012 10nF_50V/2012
D55
SMBJ5.0CA
R313
1K/1608
TP387
R314
1K/1608
TP388
C279
4.7nF_50V/1608
HCPL-0201
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 16-17
9-9
2010-05-12 �� 6:39:31
Schematic Diagram
Schematic Diagram
Main Board(cont.)
MAIN-DISPLAY CONNECTOR
10 ETHERNET_LINK
R329 0/1608 2
TP390
TP605
C298
10pF/1608_NC
Q20
KRA226S
ETH_ALIVE 15
ETH_LINK 15
VCC_3P3
RXD1_LED
R340 0/1608 2
TP400
TP607
C308
10pF/1608_NC
485_RX1_LED 15
C316
10pF/1608_NC
1
Q23
KRA226S
5
RXD2_LED
R346 0/1608 2
TP401
TP609
C317
10pF/1608_NC
5
RXD3_LED
R349 0/1608 2
TP402
TP612
14
TP470 1
TP471 3
TP472 5
TP473 9
11
13
7
U87
VCC
1A
2A
3A
4A
5A
6A
GND
1Y
2Y
3Y
4Y
5Y
6Y
2
4
6
8
10
12
B_UP
B_DOWN
B_OK
B_MENU
10pF/1608 C306
10pF/1608 C305
10pF/1608 C304
TP465
TP466
TP467
TP468
TP469
C_LCD_D3
C_LCD_D4
C_LCD_D5
C_LCD_D6
C_LCD_D7
14
1
3
5
9
11
13
7
VCC
1A
2A
3A
4A
5A
6A
GND
1Y
2Y
3Y
4Y
5Y
6Y
2
4
6
8
10
12
TP610
CLCD_DB3
CLCD_DB4
CLCD_DB5
CLCD_DB6
CLCD_DB7
74LVC07APW
5
5
5
5
74LVC07APW
1
1
Q28
KRA226S
5
RXD4_LED
R351 0/1608 2
TP403
TP614
C322
10pF/1608_NC
VCC_5V
VCC_5V
Q29
KRA226S
VCC_SUB_A_5V
R347
4.7K/1608
TP406
485_RX4_LED 15
3
485_TX4_LED 15
VCC_3P3
5
LCD_nEN
TP617 2
Q25
CT49
10uF_16V/A
KRC246S
Vin
Vout
EN
GND Cbyp
MIC5219YM5
TP405
5
4
TP616
C318
470pF_50V/1608
R407
100K_F/1608
R408
300K_F/1608
1
FB26
VCC_SUB_A
2
TP615
HH-1T2012-251JT
CT50
10uF_16V/A
1
1
1
VCC_3P3
U70
1
3
2
3
C321
10pF/1608_NC
UP
DOWN
OK
MENU
VCC_3P3
3
R350 0/1608 2
TP398
TP613
5
5
5
5
5
R416
R417
R418
R419
485_RX3_LED 15
VCC_3P3
TXD4_LED
VCC_3P3
Q27
KRA226S
3
C320
10pF/1608_NC
VCC_SUB_A
U86
VCC_3P3
485_TX3_LED 15
5
CLCD_RS
CLCD_RnW
CLCD_EN
CLCD_DB0
CLCD_DB1
CLCD_DB2
VCC_3P3
1
1
C319
10pF/1608_NC
2
4
6
8
10
12
1Y
2Y
3Y
4Y
5Y
6Y
VCC_3P3
3
TXD3_LED
Q26
KRA226S
VCC
1A
2A
3A
4A
5A
6A
GND
74LVC07APW
485_RX2_LED 15
VCC_3P3
5
TP459
TP460
TP461
TP462
TP463
TP464
C_LCD_C3
C_LCD_C2
C_LCD_C1
C_LCD_D0
C_LCD_D1
C_LCD_D2
Q24
KRA226S
485_TX2_LED 15
R348 0/1608 2
TP397
TP611
14
1
3
5
9
11
13
7
3
R345 0/1608 2
TP396
TP608
3
TXD2_LED
5
5
5
5
5
5
VCC_3P3
1
VCC_3P3
U85
VCC_3P3
485_TX1_LED 15
5
10pF/1608 C303
Q22
KRA226S
R410
R411
R412
R413
R414
R415
5
10K/1608
10K/1608
10K/1608
10K/1608
10K/1608
10K/1608
Q21
KRA226S
R401
R402
R403
R404
R405
R406
C307
10pF/1608_NC
VCC_SUB_A
3
R339 0/1608 2
TP395
TP606
CLCD_DB6
UP
OK
JE304-A1G-20
1
1
TXD1_LED
14
16
18
20
VCC_3P3
3
5
13
15
17
19
CLCD_RnW
CLCD_DB0
CLCD_DB2
CLCD_DB4
10pF/1608 C315
1
Q19
KRA226S
2
4
6
8
10
12
10K/1608
10K/1608
10K/1608
10K/1608
10K/1608
10K/1608
C297
10pF/1608_NC
CLCD_DB5
CLCD_DB7
MENU
DOWN
3
R328 0/1608 2
TP393
TP604
3
10 ETHERNET_ALIVE
1
3
5
7
9
11
10pF/1608 C302
VCC_3P3
1
VCC_3P3
15
10pF/1608 C301
ERROR
10pF/1608 C312
CPU_ALIVE 15
10pF/1608 C311
C296
10pF/1608_NC
10pF/1608 C300
Q18
KRA226S
R325 0/1608 2
TP394
TP603
10pF/1608 C299
ERR
10pF/1608 C310
5
10pF/1608 C309
C295
10pF/1608_NC
Q17
KRA226S
10K/1608
10K/1608
10K/1608
10K/1608
R324 0/1608 2
TP392
TP602
3
CPU_ALIVE1
3
5
VCC_SUB_A
J17
CLCD_RS
CLCD_EN
CLCD_DB1
CLCD_DB3
1
1
VCC_3P3
10pF/1608 C314
VCC_SUB_A
VCC_3P3
10pF/1608 C313
DESIGN LEDs INTERFACE
R352 0/1608 2
TP399
TP619
C323
10pF/1608_NC
Q30
KRA226S
5
RXD5_LED
R353 0/1608 2
TP404
TP620
C324
10pF/1608_NC
485_TX5_LED 15
Q31
KRA226S
VCC_3P3
VCC_SUB_A
3
TXD5_LED
3
5
485_RX5_LED 15
1
FB30
2
TP474
HH-1T2012-251JT_NC
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 18-19
9-10
2010-05-12 �� 6:39:31
Schematic Diagram
Schematic Diagram
Main Board(cont.)
DIGITAL INPUT / DIGITAL OUTPUT INTERFACE
VCC_3P3
MAIN-Board & Sub-Board Connector
DI_7
DI_8
VCC_3P3
TD62503F
Digital Output 10-CH
U22
5
5
5
5
DO_7
DO_8
DO_9
DO_10
TP154
TP156
TP158
TP159
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
TP644
TP645
TP646
TP647
R246
R247
R248
R249
0/2012
0/2012
0/2012
0/2012
DO_S_7
DO_S_8
DO_S_9
DO_S_10
R252
R253
6.8K/1608
6.8K/1608
10pF/1608 C333
10pF/1608 C334
10pF/1608 C344
10pF/1608 C331
10pF/1608 C330
10pF/1608 C332
10pF/1608 C343
10pF/1608 C342
10pF/1608 C341
10pF/1608 C340
MF-NSMF020_NC
Q32 FDS4435BZ
8
7
6
5
TP408
CT51
47uF_25V/D
R354
100K/2012
TP631
+
C359
100nF_50V/2012
D57
P6SMB18CAT3G
TP637
3
MODE_SEL1
MODE_SEL2
MODE_SEL3
MODE_SEL4
TP331
TP332
TP333
TP334
100nF_16V/1608 C214
5
5
5
5
100nF_16V/1608 C213
2
HH-1T2012-251JT_NC
R251
1 FB19
3
2
1
+
CT52
47uF_25V/D
6.8K/1608
TD62503F
AC_12V
5
5
TP407
CPU_ALIVE 14
ETH_ALIVE 14
ERROR
14
485_RX1_LED 14
485_RX2_LED 14
485_RX3_LED 14
485_RX4_LED 14
485_RX5_LED 14
P12V_SUB
F2
VCC_3P3
DO_S_1
DO_S_2
DO_S_3
DO_S_4
DO_S_5
DO_S_6
100nF_16V/1608 C212
0/2012
0/2012
0/2012
0/2012
0/2012
0/2012
R250
16
15
14
13
12
11
10
9
R240
R241
R242
R243
R244
R245
DI_9
DI_10
6.8K/1608
1
2
3
4
5
6
7
8
TP632
TP633
TP634
TP635
TP636
TP638
100nF_16V/1608 C211
TP142
TP143
TP144
TP145
TP146
TP147
10pF/1608 C329
AC_12V
DI/DO Mode Select Switch
U20
DO_1
DO_2
DO_3
DO_4
DO_5
DO_6
JE304-A1G-40
D56
MMSZ5227BT1
D25
D26
R114
R115
4.7K/1608 RLS4148 4.7K/1608 RLS4148
TP160
TP161
5
5
5
5
5
5
5
5
DO_S_2
DO_S_4
DO_S_6
DO_S_8
DO_S_10
10pF/1608 C358
TP155
TP157
16
15
14
13
12
11
10
9
10pF/1608 C357
1
2
3
4
5
6
7
8
10pF/1608 C356
TP627
TP628
TP629
TP630
26
28
30
32
34
36
38
40
10pF/1608 C355
150/2012
150/2012
150/2012
150/2012
25
27
29
31
33
35
37
39
4
R110
R111
R112
R113
HH
1 -1T1608-260JT
16
18
20
22
24
DI_S_2
DI_S_4
DI_S_6
DI_S_8
DI_S_10
1
2
3
4
SW2
5 DIO_PWR_EN
8
7
6
5
TP64R
0 254
TP64R
1 255
TP64R
2 256
TP64R
3 257
330/1608
330/1608
330/1608
330/1608
KHS-42C
R355
TP639
2K/1608
Q33
SI2312DS(SOT23)
1
TP409
2
DI_S_7
DI_S_8
DI_S_9
DI_S_10
ETH_LINK
485_TX1_LED
485_TX2_LED
485_TX3_LED
485_TX4_LED
485_TX5_LED
10pF/1608 C345
D21
D22
R108
R109
4.7K/1608 RLS4148 4.7K/1608 RLS4148
U23
2FB27
VCC_3P3
14
14
14
14
14
14
15
17
19
21
23
10pF/1608 C354
VCC_3P3
2
4
6
8
10
12
14
10pF/1608 C353
TP152
TP153
1
3
5
7
9
11
13
10pF/1608 C352
D17
D18
R106
R107
4.7K/1608 RLS4148 4.7K/1608 RLS4148
10pF/1608 C350
5
5
DO_S_1
DO_S_3
DO_S_5
DO_S_7
DO_S_9
VCC_3P3
10pF/1608 C328
TP150
TP151
P12V_SUB
J18
10pF/1608 C339
DI_5
DI_6
D13
D14
R104
R105
4.7K/1608 RLS4148 4.7K/1608 RLS4148
10pF/1608 C349
TD62503F
10pF/1608 C327
5
5
VCC_3P3
10pF/1608 C338
DI_3
DI_4
DI_S_1
DI_S_3
DI_S_5
DI_S_7
DI_S_9
10pF/1608 C348
5
5
10pF/1608 C326
DI_1
DI_2
10pF/1608 C337
TP148
TP149
16
15
14
13
12
11
10
9
10pF/1608 C347
1
2
3
4
5
6
7
8
10pF/1608 C325
TP621
TP622
TP623
TP624
TP625
TP626
10pF/1608 C336
150/2012
150/2012
150/2012
150/2012
150/2012
150/2012
10pF/1608 C335
R96
R97
R98
R99
R102
R103
10pF/1608 C346
DI_S_1
DI_S_2
DI_S_3
DI_S_4
DI_S_5
DI_S_6
P12V_SUB
R100
D9
R101
D10
4.7K/1608 RLS4148 4.7K/1608 RLS4148
U21
10pF/1608 C351
Digital INntput 10-CH
R356
10K/1608
C360
100nF_16V/1608
TD62503F
AC_12V
1 FB21
2
HH-1T2012-251JT_NC
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 20-21
9-11
2010-05-12 �� 6:39:32
Schematic Diagram
Schematic Diagram
Main Board(cont.)
SD CARD
CON1
R146
R147
4.7K/1608 4.7K/1608
SD1_nCD
SD1_D1
SD1_D0
5
SD1_CLK
5
5
5
SD1_CMD
SD1_D3
SD1_D2
TP246
TP248
TP249
TP250
D58
D59
RClamp0502B
D60
RClamp0502B
D61
RClamp0502B
WP
VSS
nCD
DAT1
DAT0
VSS2
CLK
VDD
VSS1
CMD
DAT3
DAT2
PAD2
PAD1
FB16
TP649 1
FB24
TP651 1
Q13
KRA226S
HH-1T1608-260JT
2
2
TP650
HH-1T1608-260JT
2
TP410
BZ1
R317
560/1608
RClamp0502B
R318
2K/1608
2
VCC_3P3
TP652
TP413
R366
10K/1608_NC
Q15
KRC246S
TP414
2
3
TP655
SD_RST
Q34
KRC246S
2
Vin
Vout
EN
GND Cbyp
5
4
TP654
TP653
MIC5219-3.3YM5
CT48
10uF_16V/A
C294
100nF_16V/1608
1
FB25
2
BUZ_ON
5
C282
10nF_50V/1608
TP415
HH-1T2012-251JT
CT47
10uF_16V/A
1
5
U68
BUZ_PWM 5
C280
10nF_50V/1608
R319
2K/1608
1
1
3
2
TP417
TP411
CBE2220BS_NC
VCC_SD1
R357
10K/1608
R365
10K/1608_NC
Q14
KRC246S
TP412
SCDA7A0201
VCC_5V
10/1608
R316
10/1608
C281
47uF_25V/D
VCC_5V
R315
TP648
3
5
5
5
12
11
10
8
7
6
5
4
3
2
1
9
TP247
TP244
TP245
1
TP243
SD1_WP
VCC_3P3
3
5
R144
R145
4.7K/1608 4.7K/1608
BUZZER
VCC_5V
1
R142
R143
R141
4.7K/1608 4.7K/1608 4.7K/1608
VCC_SD1
3
VCC_SD1
JTAG Interface
5
TDO
5,18 CPU_nRESET
TP656
J20
TP449
TP450
R392
10K/1608
R390
33/1608
R391
0/1608
D68
R393
10K/1608_NC
D69
D70
D71
2
4
6
8
10
12
14
16
18
20
MON_nRST
R359
R360
4.7K/1608 4.7K/1608_NC
TP418
3
1
3
5
7
9
11
13
15
17
19
TP445
TP446
TP447
TP448
18
nISP_RESET
Q16
KRC246S
C376
100nF_50V/1608
D72
MMSZ5227BT1
2
TP657
VCC_5V
R361
100/1608
CPU_ALIVE2
TP425
1
RESET/PB5
TP420
2
PB3
3
NC
4
PB4
R363
100/1608
GND
VCC
10
TP421
PB2/SCK
9
NC
8
PB1/MISO
7
TP423
PB0/MOSI
6
TP424
SCK
MISO
MOSI
ATTINY13V-10MMU_NC
Q35
KRC246S
2
1
5
TP419
5
TP658
VCC_5V
U71
TP422
R362
4.7K/1608
HIF3H-20DA-2.54DSA
RClamp0502B_NC
RClamp0502B_NC
RClamp0502B_NC
RClamp0502B_NC
VCC_5V
BOTTOM
nTRST
TDI
TMS
TCK
R387
R388
R389
10K/1608 10K/1608 10K/1608
VCC_5V
R358
4.7K/1608
3
5
5
5
5
VCC_BBATT
VCC_JTAG_3P3
1
VCC_BBATT
R386
10K/1608_NC
RESET MICOM
VCC_5V
J19
VCC_SD2 Power
VCC_5V
VCC_SD2
1
3
2
CT17
10uF_16V/A_NC
U19
Vout
Vin
EN
GND Cbyp
5
4
MIC5219-3.3YM5_NC
FB32
TP136
1
2
TP659
HH-1T2012-251JT_NC
TP662
C130
100nF_16V/1608_NC
JTAG POWER
VCC_BBATT
TP660
VCC_JTAG_3P3
1
FB33
MISO
SCK
nISP_RESET
1
3
5
2
4
6
MOSI
JE304-A1G-06_NC
2
HH-1T2012-251JT
CT16
10uF_16V/A_NC
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 22-23
9-12
2010-05-12 �� 6:39:33
Schematic Diagram
Schematic Diagram
Main Board(cont.)
Real Time Clock
VCC_3P3
D34
BAT54C
ANODE
3
1 2
ANODE
RTC_Backup
C163
SC_DCL_5R5_155H
3
TP261
2
BAT54C/SOT
R159
0/1608
R155
1.2k/1608
U31
1
CATHODE
VCC_3P3
TP259
R160
470/1608
8
C160
10nF_16V/1608
TP665
C161
11pF/1608
+
1
2
X9
X-TAL
N.C
X-TAL
4
N.C
3
1
2
4
C162
11pF/1608
32.768KHz(CM200S)
INTA
3
X1
SQW/INTB
7
X2
SCL
6
SDA
5
VCC
GND
VCC_3P3
R156
1.2k/1608
VCC_3P3
R157
1.2k/1608
TP260
TP663
TP664
R162
0/1608
TP264
R163
0/1608
TP265
RTC_nINT 5
I2C_SCL
5,18
I2C_SDA
5,18
DS1337S+
ADAPTOR
AC_12V
F1
TP667
D62
P6SMB18CAT3G
DC-005C-1.3
MF-MSMF110/24X
D41
RV11
P6SMB18CAT3G
AVL-14K_ 03_300
5
TP280
C170
100nF_50V/2012
+ C169
47uF_25V/D
C180
47uF_25V/D_NC
+
2
SHDN
TP668
1
Vc
C181
C182
1.5nF_50V/2012
TP670
100nF_50V/2012
4
GND
TP666
6
BOOST
Vin
Vsw
3
SENSE
7
TP669 L3
D46
MBRS330T3
TAB is GND
C381
0.1uF_10V/A
5
TXD1
5
RXD1
5
RS232_nEN
4
C1-
TP679
5
C2+
+
TP682
6
33/1608
TP683 11
TP453 R397
33/1608
TP686
TP455 R399
33/1608_NC
TP687
C2-
ROUT
1
EN
14
GND
LED1
BLUE/1608_NC
AC status
DEBUG LED
V-
7
TP678
INVALID
10
C380
0.1uF_10V/A
FORCEOFF
16
RIN
FORCEON
MAX3221IPW R
13
TP452
8
TP454
12
5
+
R394
R395
C378
0.1uF_10V/A 0/1608 0/1608
+
C379
0.1uF_10V/A
UART1
TX - 2
RX - 3
TP688
R398
0/1608_NC
D67
C382
330pF/1608
VCC_3P3
1
TP674
3
DOUT
VCC_3P3
TP673
15
V+
DIN
9
+
C383
330pF/1608
DEBUG_L1
RClamp0502B_NC
JE800-S-09P-NISN
DEBUG_L2
R368 0/1608 2
TP676
TP427
TP680
J21
1
6
2
7
3
8
4
9
5
Q36
5
KRA226S
R367 0/1608 2
TP426
TP675
C361
10pF/1608_NC
3
1
Q37
KRA226S
TP681
3
VCC
+
TP677
TP451 R396
R400
33/1608
C1+
+
C377
0.1uF_10V/A
C183
100uF_16V/C
VCC_3P3
U84
2
R178
200/2012_NC
IHSM4825RE4R7L
TP671
RS-232 Interface
TP672
TP285
C177
270nF_50V/2012
LT1374IR-5
TP475
CMDSH-3
1
4
3
2
1
D44
3
J11
VCC_5V
U33
AC_12V
LED2
LTST-C191KGKT/1608
TP684
R369
300/1608
C362
10pF/1608_NC
LED3
LTST-C191KGKT/1608
TP685
R370
300/1608
2
KRA226S
KRC246S
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 24-25
9-13
2010-05-12 �� 6:39:34
Schematic Diagram
Schematic Diagram
Main Board(cont.)
POWER
VCC_5V
TP689
R197
0/1608
6
TP693
LBF
R199
80.6K_F/1005
5
VCC_BBATT
LBR
5
nBATT_FAULT
SYS_EN
5,8 PWR_EN
R204
1M_F/1005
R409
10K/1608
nMR
VCC_BBATT
5
PWR_SDA
5
PWR_SCL
5,16 CPU_nRESET
5
5,17 I2C_SDA
U72
5,17 I2C_SCL
1
4
2
TP308
TP309
21
LBF
LBR
22
LBR
13
nLBO
0/1608
37
0/1608 TP69362
0/1608 TP69275
0/1608 TP69381
TP699
33
23
29
56K_F/1005 24
TP701
R206
0/1608
12
TP702
TP310
R207
0/1608
11
TP703
TP312
R208
0/1608_NC
TP313
R209
0/1608_NC
TP314
R205
18
IN
1
17
IN8
IN5
SET2
LBF
TP301
TP302 R200
R201
R202
TP305 R203
SET1
V1
LX2
15
V2
10
LX3
27
V3
30
TP69L04
1098AS-1R2N
TP69L25
VCC_APPS
TP69L46
LX4
4
TP298
1098AS-1R2N
V4
40
V5
2
V6
7
TP69L57
CT27
10uF_16V/A
TP297
1098AS-2 R0M
VCC_SRAM
EN1
EN2
EN5
EN34
SRAD
1098AS-4 R7M
CT35
10uF_16V/A
CT28
10uF_16V/A
TP477
CT31
10uF_16V/A
CT32
10uF_16V/A
CT36
10uF_16V/A
TP300
+ CT37
100uF_10V/D
CT38
10uF_16V/A
VCC_MVT
TP306
VCC_SD2
nMR
nRSO
RAMP
SDA
SCL
MAX8660ETL+
TP296
VCC_MEM_1P8
1
CT34
4.7uF_16V/A
0/1608
39
TP691
35
38
2
CT33
4.7uF_16V/A
R196
LX1
V7
9
V8
20
TP307
TP303
VCC_SD1
FB31
2 TP700
CT39
10uF_16V/A
CT40
1
10uF_16V/A
CT41 HH-1T2012-251JT_NC
10uF_16V/A
CT42
10uF_16V/A
VCC_BBATT
TP311
D63
EP
R198
1.8M_F/1005
CT30
4.7uF_16V/A
EP
CT29
4.7uF_16V/A
AGND
PG1
PG2
PG3
PG4
VCC_5V
PV1
PV2
PV3
PV4
19
34
16
26
5
36
14
28
3
TP476
VCC_3P3
8
U37
CT26
10uF_16V/A
IN67
CT25
10uF_16V/A
RTC_Backup
1
FB28
1
MON_nRST 16
HH-1T1608-260JT
TP704
2
2
C187
100nF_16V/1608
BAT54C/SOT_NC
3
TC7S08FU
3
VCC_BBATT
VCC_BBATT
VCC_3P3
VCC_5V
R210
TP705
100K/1608
R211
1.2K/1608
5
5
PWR_SDA
PWR_SCL
R212
1.2K/1608
5,16 CPU_nRESET
5
nBATT_FAULT
R213
10K/1608
R214
100K/1608
TP707
1
S1
2
STP-1236D
D64
SM05
TP436
nMR
C190
C191
C188
C189
100nF_50V/2012
100nF_50V/2012
100nF_50V/2012
100nF_50V/2012
C192
100nF_16V/1608
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 26-27
9-14
2010-05-12 �� 6:39:34
Schematic Diagram
Schematic Diagram
9-2. Display Board
MAIN INTERFACE
P5V
P5V
J1
P5V
1 2
3 4
5 6
7 8
9 10
1112
1314
1516
1718
1920
CLCD_RS
CLCD_EN
CLCD_D1
CLCD_D3
CLCD_D5
CLCD_D7
B_MENU
B_DOWN
CLCD_RnW
CLCD_D0
CLCD_D2
CLCD_D4
CLCD_D6
CT3
10uF_16V/A
+
C1
100nF_16V/1608
BUTTON
B_UP
B_OK
JE304-A1G-20
P5V
CHARACTER LCD INTERFACE
P5V
R5
5.1K/2012
TP1
B_UP
C2
D2
100nF/2012
MMSZ5232BT1
10K/2012_NC
BUTTON3
STP-1230A
D1
SM05
1
R3
10K/1608
2
R1
VCC_CLCD
P5V
J2
R9
47/2012
R2
CT4
10uF_16V/A
+
D11
SMF05
D12
2
B_DOWN
C5
100nF_16V/1608
BUTTON2
STP-1230A
D3
SM05
D7
SMBJ5.0CA
SMF05
R7
10K/1608
TP3
B_OK
BUTTON4
STP-1230A
C4
D6
100nF/2012
MMSZ5232BT1
D5
SM05
1
SMF05
TP2
C3
100nF/2012
D4
MMSZ5232BT1
JE117-A33T16P
D10
10K/1608
P5V
1
TP5
TP6
TP7
TP8
TP9
TP10
TP11
TP12
TP13
TP15
TP16
VSS
VDD
VO
RS
R/W
EN
DB0
DB1
DB2
DB3
DB4
DB5
DB6
DB7
BLA
BLK
2
CLCD_RS
CLCD_RnW
CLCD_EN
CLCD_D0
CLCD_D1
CLCD_D2
CLCD_D3
CLCD_D4
CLCD_D5
CLCD_D6
CLCD_D7
TP4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
10K/1608
TP14
B_MENU
2
R8
CLCD_RS
CLCD_RnW
CLCD_EN
CLCD_D0
CLCD_D1
CLCD_D2
CLCD_D3
CLCD_D4
CLCD_D5
CLCD_D6
CLCD_D7
C8
C9
C11
C10
C12
C13
C14
C15
C16
C17
BUTTON1
STP-1230A
C6
D9
100nF/2012
MMSZ5232BT1
D8
SM05
1
CLCD_RS
CLCD_RnW
CLCD_EN
CLCD_D0
CLCD_D1
CLCD_D2
CLCD_D3
CLCD_D4
CLCD_D5
CLCD_D6
CLCD_D7
C18
50pF/1608_NC50pF/1608_NC50pF/1608_NC50pF/1608_NC50pF/1608_NC50pF/1608_NC
50pF/1608_NC50pF/1608_NC50pF/1608_NC50pF/1608_NC50pF/1608_NC
P5V
VCC_CLCD
1
3
2
CT2
10uF_16V/A_NC
U1
Vin
Vout
EN
GND Cbyp
5
4
MIC5219YM5_NC
C7
470pF_50V/1608_NC
TP17
R10
180K_F/1608_NC
CT1
10uF_16V/A
R11
300K_F/1608_NC
P5V
VCC_CLCD
1
FB1
2
HH-1T2012-251JT
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 28-29
9-15
2010-05-12 �� 6:39:35
Schematic Diagram
Schematic Diagram
9-3. Sub Board
DI/DO INTERFACE
P12V
DO_1
DO_2
DO_3
DO_4
DO_5
DO_6
TP1
TP4
TP6
TP8
TP10
TP12
R16
R17
R18
R19
R20
R21
R22
R23
R24
R25
+ C1
47uF_25V/D
D1
P6SMB18CAT3G
D2
P6SMB18CAT3G
47K/1608
47K/1608
47K/1608
47K/1608
47K/1608
47K/1608
47K/1608
47K/1608
47K/1608
47K/1608
C3
100nF/2012
J1
1
2
3
4
5
6
7
8
9
10
STL950-5.0-H(10P )
J3
+
C4
100nF/2012
POWER
D4
SM12
TP2
TP5
TP7
TP9
TP11
TP13
DI_1
DI_2
DI_3
DI_4
DI_5
DI_6
Digital
Output
ETH_LINK
ETH_ALIVE
1
2
3
4
5
6
7
8
9
10
STL950-5.0-H(10P )
CPU_ALIVE
STL950-5.0-H(10P )
J4
1
2
3
4
5
6
7
8
9
10
D5
SM12
C2
47uF_25V/D
J2
1
2
3
4
5
6
7
8
9
10
D3
SM12
D7
SM12
LED
P12V
P12V
D6
SM12
485_TXD1
485_RXD1
STL950-5.0-H(10P )
Digital
Input
485_TXD2
TP20
TP22
TP24
TP26
TP21
TP23
TP25
TP27
D9
SM12
D10
SM12
DI_7
DI_8
DI_9
DI_10
485_TXD3
485_RXD3
485_TXD4
D11
SM12
D12
SM12
485_RXD4
485_TXD5
MAIN and SUB(B) INTERFACE
P12V
ETH_LINK
485_TXD1
485_TXD2
485_TXD3
485_TXD4
485_TXD5
100/1608
LED1
BLUE/1608
TP14
R2
180/1608
LED2
YELLOW/1608
TP15
R3
180/1608
LED3
GREEN/1608
TP16
R4
180/1608
LED4
YELLOW/1608
TP17
R5
180/1608
LED5
GREEN/1608
TP18
R6
180/1608
LED6
GREEN/1608
TP19
R7
180/1608
LED7
GREEN/1608
TP28
R8
180/1608
LED8
GREEN/1608
TP29
R9
180/1608
LED9
GREEN/1608
TP30
R10
180/1608
LED10
GREEN/1608
TP31
R11
180/1608
LED11
GREEN/1608
TP32
R12
180/1608
LED12
GREEN/1608
TP33
R13
180/1608
LED13
GREEN/1608
485_RXD5
TP34
R14
180/1608
LED14
GREEN/1608
TP35
R15
180/1608
LED15
GREEN/1608
P12V
J5
DI_1
DI_3
DI_5
DI_7
DI_9
DO_1
DO_3
DO_5
DO_7
DO_9
POWER
R1
D8
SM12
485_RXD2
DO_7
DO_8
DO_9
DO_10
TP3
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
ERROR
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
DI_2
DI_4
DI_6
DI_8
DI_10
DO_2
DO_4
DO_6
DO_8
DO_10
CPU_ALIVE
ETH_ALIVE
ERROR
485_RXD1
485_RXD2
485_RXD3
485_RXD4
485_RXD5
* LED (LITEON)
- BLUE LED
: LTST-C193TBKT-AC
- YELLOW LED : LTST-C191KSKT
- GREEN LED : LTST-C191KGKT
JE304-A1G-40
This Document can not be used without Samsung’s authorization.
Samsung Electronics
DMS2_E_32236A(1)_1.indd 30-31
9-16
2010-05-12 �� 6:39:35
GSPN(Global Service Partner Network)
Area
Web Site
North America
http://service.samsungportal.com
Latin America
http://latin.samsungportal.com
CIS
http://cis.samsungportal.com
Europe
http://europe.samsungportal.com
China
http://china.samsungportal.com
Asia
http://asia.samsungportal.com
Mideast & Africa
http://mea.samsungportal.com
This Service Manual is a property of Samsung Electronics Co., Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
BACnet Gateway_E_32400A(1)_cover.indd 2
©Samsung Electronics Co., Ltd. May. 2010.
Printed in Korea.
Code No. DB98-32400A(1)
2010-05-17 �� 10:09:39
