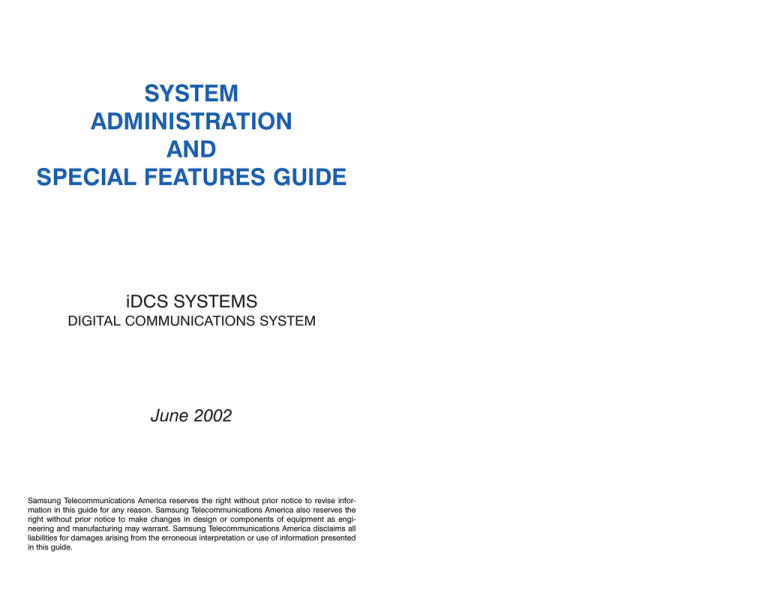

Samsung 100705 User guide

SYSTEM
ADMINISTRATION
AND
SPECIAL FEATURES GUIDE
iDCS SYSTEMS
DIGITAL COMMUNICATIONS SYSTEM
June 2002
Samsung Telecommunications America reserves the right without prior notice to revise information in this guide for any reason. Samsung Telecommunications America also reserves the
right without prior notice to make changes in design or components of equipment as engineering and manufacturing may warrant. Samsung Telecommunications America disclaims all
liabilities for damages arising from the erroneous interpretation or use of information presented
in this guide.
TABLE OF CONTENTS
ABOUT THIS BOOK
........................................................ 1
SPECIAL FEATURES
System Ring Plans ............................................................................ 2
Manual Ring Plan Change ................................................................ 2
Temporary Ring Plan Override ............................................................2
Calling The System Operator ............................................................ 3
Operator Recalls ................................................................................ 3
Executive Barge-in.............................................................................. 3
Walking Class of Service ....................................................................4
In/Out of Group....................................................................................4
Direct Inward System Access (DISA) ................................................ 5
DISA Security...................................................................................... 6
Forced Account Codes .................................................................... 7
Authorization Codes .......................................................................... 7
Using the Tie Line .............................................................................. 8
CALLER ID SPECIAL FEATURES
Abandon Call List .............................................................................. 9
CID on SMDR .................................................................................... 9
Number to Name Translation ..............................................................9
SYSTEM ADMINISTRATOR PROGRAMMING
Customer Level Access .................................................................. 10
Customer Level Access Using the PROG Key ................................10
Change Feature Passcode ................................................................11
Set Date and Time Display ........................................................ 11–12
Reset Station Passcodes to Default .......................................... 12–13
Program Station Names ..............................................................13–15
Program Trunk Names ......................................................................16
Program Station Group Names ........................................................17
Program System Speed Dial Numbers .................................... 18–19
Program System Speed Dial Names ................................................20
Program Personal Speed Dial Numbers for Other Stations ......21–22
Program Personal Speed Dial Names for Other Stations ..........23–24
Create Programmed Station Messages .................................... 24–25
Set Alarm/Appointment Reminder with Message ...................... 25–26
Managing Key Assignments ...................................................... 27–28
Programming Account Codes ..........................................................29
Station Timers ..............................................................................30–31
Adding Names to the Translation Table ......................................31–32
Holiday ..............................................................................................33
Customer Set Relocation ............................................................34–35
SYSTEM MAINTENANCE ALARMS ....................36
ABOUT THIS BOOK
This book contains instructions for special features that every telephone user
may not need to know. The owner can decide who the system administrator
will be and who will have access to these features. Station users can be
trained on only the items that apply to them. This procedure will help control
costs and telephone abuse.
Several of the features listed in this book are specific to the system operator
or attendant position. You can have more than one operator or set your system up to be used without an operator.
The designated system administrator can access specific programs and
modify some functions to better manage the iDCS office telephone system.
Instructions are detailed and easy to follow. When assistance is needed,
contact your installation and service company.
1
SPECIAL FEATURES
SYSTEM RING PLANS
Your system is designed to have a maximum of six different Ring Plans. Each
ring plan can be programmed to allow different lines to ring different ring
plans to ring different station and/or station groups. Examples of why different ring plans are required can include normal day operation, night operation, using different operators during different lunch shifts and Saturday or
evening hours of operation. While the system is in a ring plan, each station
will be limited to its individual Ring Plan class of service dialing restrictions.
You can place the system in one of any six of these ring plans at any time.
Ring Plans are available on an individual tenant basis and may be set automatically or manually. Automatic Ring Plans have an individual start time and
will remain in that mode until the beginning of the next defined ring plan. If
no automatic timer is set, you must change ring plans manually.
Any of these ring plans can be switched from one plan to another at any time
by manually pressing a ring plan button. There are two ways to override the
automatic ring plans; one is a temporary override until the next programmed
start time, and the other is a permanent override until manually changed.
MANUAL RING PLAN CHANGE
Press the RTO button plus the ring plan passcode (four digits) and the ring
plan (1-6) you wish to set. The system will override all the automatic time
tables and will remain in the set ring plan until manually changed. To manually change or cancel the ring plan time override and return ring plan operation to the system clock: press the RTO plus the ring plan passcode (four
digits) and a “0” to cancel the ring plan time override and return to normal
operation.
TEMPORARY RING PLAN CHANGE
Press the RP button plus the ring plan passcode (four digits) and the ring
plan (1-6) you wish to set. The system will remain in that ring plan until the
next automatic start time for the next ring plan goes into effect.
NOTE: This button may also be assigned an extender of one of the six ring
plans. Example: An RP button is given an extender of 3 (RP3) and the operation of this button is a push on/push off type of operation with the system
always returning to ring plan 1 when the key is turned off. When the system
2
is operating in ring plan 3, the RP3 button will light steady red, and when off
the light will also turn off.
CALLING THE SYSTEM OPERATOR
Any station that dials 0 will ring its assigned operator. (If tenant service is
used, each tenant may have a different operator or operator group.) Calls to
the system or tenant operator are easily identified because the CALL key will
have a fast flashing red light. Station users will never receive a busy signal
when they dial 0 or the operator group number. The calls will continue ringing in queue until answered.
OPERATOR RECALLS
Transferred calls that go unanswered will recall to the station that originated
the transfer. Should the station that originated the transfer not answer the recall, the call will be sent to the operator as a transfer recall.
A call left on hold will recall the station that put it on hold. If the hold recall is
unanswered at the station that originated the hold, the call is sent to the operator.
Both types of recalls will ring and have a slow flashing amber light on the
LINE key or CALL key.
EXECUTIVE BARGE-IN
If you want to break into another conversation, you must be allowed to
barge-in and the other station or trunk must not be secure.
• Dial the desired extension or trunk number and listen for the busy signal.
• Press the BARGE button and begin speaking after the tone.
• Hang up when you are finished.
The system can be set for one of the three following barge-in options:
• No barge-in allowed
• Barge-in with intrusion tone
• Barge-in without intrusion tone (service observing)
When the second or third option is selected the barger will take priority over
the line. This means unless you (barger) hang up first, the station or line you
barged into will still be connected to you when the station you barged into
hangs up.
3
When the third option is selected, the station that barges-in can monitor the
conversation and no warning tone or display will be sent to the station being
monitored. The handset transmitter and keyset microphone are disabled.
The party that originated the barge-in may join the conversation by pressing
the MUTE button on the keyset. Your service company must program these
options for you.
WARNING
Barge-in without tone may violate state or federal laws concerning
the right to privacy. Samsung Telecommunications America is in no
way responsible for the possible misuse of this feature.
WALKING CLASS OF SERVICE
You can change a restricted station’s class of service to the same class as
your station, allowing you to make calls or use features that would otherwise
be restricted from that station.
•
•
•
•
Lift the handset or press the SPK or the MONITOR key.
Dial 59 and then your extension number.
Dial your station passcode and receive internal dial tone.
Dial an access code and then the telephone number—OR—use the
desired feature as usual.
• Hang up. The station will be returned to its restricted status.
NOTE: The default station passcode 1234 cannot be used.
IN/OUT OF GROUP
Any station assigned to a station group can remove itself from that group
and then reenter the group at a later time. When out of the group, a station
can receive calls to its extension number but not to the group.
The number of groups available to choose from may vary depending on your
iDCS system type:
iDCS 100
20 Groups (500 through 519)
iDCS 500 M
30 Groups
(500 through 529) or (5000 through 5029 depending if
your system is setup for 4 digits numbering plan)
iDCS 500 L/LE
50 Groups
(500 through 549) or (5000 though 5049 depending if
your system is setup for 4 digits numbering plan)
4
To create a backup or relief operator position, assign the main operator and
one or more backup individuals to the operator group. All but the main operator should be out of the group. When it is necessary to use a backup
operator, put the desired backup station in the group and remove the main
operator. When incoming call traffic is heavy, you can have another station
put itself in the operator group along with the main operator to handle the
extra call load.
If the station does not have an IN/OUT key:
•
•
•
•
Lift the handset and dial the feature access code _________________.
Dial the group number.
Dial 0 to be out of the group or dial 1 to be in the group.
Receive confirmation tone and hang up.
If the station has an IN/OUT key:
• Press the IN/OUT key. It will light red when the station is in the group.
• Press the IN/OUT key again. The light is off when the station is out of
the group.
NOTE: A station can be in more than one group.
DIRECT INWARD SYSTEM ACCESS
(DISA)
From outside of the office, selected individuals can call into the iDCS system
on special DISA line(s). A security code must be entered to gain access.
Once these individuals are in the system, they can make outside calls using
the office lines or call stations within the system. Individuals who will use
DISA must have their stations assigned for DISA access and must change
their station passcodes. The default passcode 1234 cannot be used.
• Call in on the DISA line from any phone with tone dialing.
• You will hear a dial tone. Dial your security code (your extension number plus your station passcode).
• If you are allowed access, you will receive a dial tone.
• Dial any line access code, receive outside dial tone and then dial a
telephone number OR dial any extension number to call a station in
the system.
• To make another call, press ✱, receive dial tone and dial another number.
• Press # and hang up when finished.
5
NOTE: Outgoing DISA calls are controlled by the dialing class of the station
identified by the security code. The DISA line must have disconnect supervision from the central office. Insist that this service is verified by your installation/service company.
DISA SECURITY
NOT VERIFIED
When set for this option the user must enter an account code for all outgoing calls, but the account code is not verified against the system list. Non verified account codes can contain the digits 0~9, * and #.
USING FORCED ACCOUNT CODES
A common practice among hackers is to repeatedly dial a known DISA access number (usually with a computer) and try a different passcode each
time. The hacker hopes to eventually chance upon the correct passcode and
thus gain access to your system. The iDCS security feature counts the number of sequential incorrect passcode attempts. If a certain number is
reached, DISA is disabled and the system sends an alarm to designated display stations. The number of passcode attempts and the disable duration
are both programmable. In addition, the iDCS system will print an SMDR
record (a customer-provided printer is required) each time an incorrect passcode is entered.
The DISA alarm will ring for a programmable time before canceling the ringing; however, the DISA alarm display will remain until the alarm is cleared. To
clear the DISA alarm, follow the following procedure:
• Lift the handset and dial 58.
• Enter the DISA alarm passcode (see your service company).
• Replace the handset.
WARNING
As it is impossible to prevent unauthorized access to your telephone
system by hackers, we suggest that you do not turn the DISA feature
on unless you intend to use it. If you do use this feature, it is good
practice to frequently change passcodes and periodically review your
telephone records for unauthorized use.
FORCED ACCOUNT CODES
• Lift the handset and press the ACCT CODE key or dial 47.
• Enter the account code.
• Press the account code button again, press TRSF or hookflash (on an
SLT). If a correct code is entered, you will hear a dial tone and you can
make an outside call in the usual manner. If an incorrect code is entered, the station returns error tone.
This code will always print on SMDR reports. For information on entering and
changing forced account codes, see the system administrator programming
section of this book.
AUTHORIZATION CODES
Authorization codes are used to validate a station user and give permission
to make a call. These four digit authorization codes can be either forced or
optional, but if used, are always verified from a system list of 250 entries for
an iDCS 100 or iDCS 500 M system, and 500 entries for an iDCS 500 L/LE
system. Each authorization code has an associated class of service. When
the code is entered, the class of service is changed to that of the authorization code.
USING AUTHORIZATION CODES
After going off-hook, the station user must dial ✱ followed by a four digit
authorization code. If you enter a correct code, you will hear confirmation
tone and then receive a dial tone and you can make an outside call in the
usual manner. The station then follows the dialing class for that authorization
code. If you enter an incorrect code, the station returns error tone. This code
may or may not print on SMDR reports depending on SMDR programming.
VERIFIED
When set for this option the user must enter an account code for all outgoing calls. The account code entered will be verified from a system list of 500
entries for the iDCS 500 M version software and iDCS 100 software or from
a list of 999 entries for the iDCS 500 L/LE version software. Forced verified
codes can contain the digits 0~9.
6
7
USING THE TIE LINE
OUTGOING
Your office can be connected to another system with a tie line. Use this line
to make calls to stations in the other system. If programming allows, you can
access lines in the other system to make outside calls. Tie line calls can be
put on hold, transferred and conferenced in the same manner as are other
outside calls.
• Lift the handset or press the SPK or MONITOR key.
• Dial the tie line access code or press the tie line key.
• When you receive dial tone from the other system, you can dial extension numbers or access outside lines. You must know the extension
numbers and the line access codes for the other system.
• Finish the call by replacing the handset or pressing the ANS/RLS or
the MONITOR key if you are using a 7 button phone.
NOTE: Outgoing calls are controlled by the station’s dialing class.
INCOMING
Station users in the other system can access the tie line and make intercom
calls to stations in your system. Answer tie line calls ringing at your station
as you would any other outside call. They can be put on hold, transferred
and conferenced in the same manner as are other outside calls.
IN AND OUT ON TIE LINE
Users accessing the tie line from the other system can get a line in your system and make outgoing calls. These calls can be controlled by assigning a
dialing class to the tie line. For further information, see your service company.
CALLER ID
SPECIAL FEATURES
NOTE: The Caller ID features below require optional software and/or
hardware. Please ask your installation and service company for details.
ABANDON CALL LIST
The system has a system-wide abandoned calls list that stores CID information for the last 50 calls in the iDCS 500 M and iDCS 100 (100 in the iDCS
500 L/LE version) that rang but were not answered and were accompanied
with valid CID information. Calls with CID information consisting of OUT OF
AREA, PAYPHONE or PRIVATE will not be stored in the list. The abandoned
calls list is accessed using the system administrator’s passcode. When reviewing this list, you are provided options to CLEAR the entry or DIAL the
number. You can use the NND key to toggle between the CID name, CID
number and the date and time the call came in. The system must be using
LCR to dial numbers from the abandoned calls list.
To view the list of abandoned incoming calls for which CID information has
been received:
• Dial 64 and dial the system administrator passcode.
• Scroll through the entries using the VOL keys.
CID ON SMDR
The Station Message Detail Records (SMDR) report can be set to include
the CID name and number for incoming calls. This format expands the printout to 113 characters. You must use a wide carriage printer or an 80 column
printer set to the condensed print option.
NUMBER TO NAME TRANSLATION
The system provides a translation table of 400 entries in the iDCS 500 M
(1500 in the iDCS 500 L/LE version) or 350 entries in the iDCS 100 system
for use in areas that do not provide name and number (sometimes called
“deluxe”) Caller ID or when ANI is received. When the CID or ANI number is
received, the table is searched. When a match is found, the system will display the corresponding name from the table. This will allow users in areas
that do not support “deluxe” Caller ID or have only ANI service to provide
names for callers.
8
9
CALLER ID SPECIAL FEATURES
INVESTIGATE
TEAR HERE
Investigate allows selected stations with a special class of service to
investigate any call in progress. If CID information is available for an
incoming call, you will know to whom this station user is speaking. For
outgoing calls, you can see the number that was dialed. After investigating, you may barge-in on the conversation, disconnect the call or
hang up your phone to end the investigation.
• At your keyset, press the INVESTIGATE key.
• Enter your station passcode. (Default passcodes cannot be
used.)
• Enter the station number to be investigated.
• You can now press BARGE to barge-in on the conversation.
OR
You can press NND to view more information about the call.
OR
You can press DROP to disconnect the call.
NOTES:
1. If the call is an outgoing call, the NND key will not appear.
2. This feature requires optional software and/or hardware. Please
ask your installation and service company for details.
WARNING
This feature may violate state or federal laws concerning the
right to privacy. Samsung Telecommunications America is in
no way responsible for the possible misuse of this feature.
NOTE: This information is NOT repeated in this user guide.
SYSTEM
ADMINISTRATOR
PROGRAMMING
SYSTEM ADMINISTRATOR
PROGRAMMING
CUSTOMER LEVEL ACCESS
Before any customer programs can be accessed, you must first open system programming using the passcode you have been assigned. You must
use a display keyset. Should it become necessary to change this passcode,
see your service company.
• While on-hook, press TRSF and then dial 200.
Your display shows [ENABLE CUS. PROG. PASSCODE].
• Dial the four digit passcode.
The display shows [ENABLE CUS. PROG. - DISABLE].
• Dial 1 to enable.
The display shows [ENABLE CUS. PROG - ENABLE].
• Press TRSF. The keyset returns to its idle condition.
• Press TRSF and then dial the three digit program code you want to
access. Follow the instructions for that program.
NOTE: You must begin programming within 30 seconds. Once you are in
programming, any delay of more than 30 seconds between key strokes will
cause the system to automatically close programming.
CUSTOMER LEVEL ACCESS USING
THE PROG KEY
A designated keyset may be programmed with a “PROG” key which allows
access to the following areas of system programming. When pressed you
must enter your station passcode (the default code 1234 must be changed)
followed by the MMC number. The only MMCs that may entered from pressing the “PROG” key are as follows:
•
•
•
•
•
•
•
MMC
MMC
MMC
MMC
MMC
MMC
MMC
100
102
104
115
505
705
706
Station Lock for All Stations
Station Forward for All Stations
Station Name
Program Message for all Stations
System Day and Time
System Speed Dial
System Speed Dial Name
10
CHANGING FEATURE PASSCODE
MM (Minutes): Enter a number in the range of 00–59.
You can change individual feature passcodes. This program is used to
change the passcodes for several features. These features are the following:
RING PLAN SERVICE, DISA ALARM, ALARM CLEAR, and AA RECORD.
Note: Each passcode is four digits long. Each digit can be 0 to 9.
Failure to enter the time using the 24 hour clock will cause the date to
change at 12:00 P.M. Open customer programming and follow the instructions below.
PROGRAM KEYS
UP & DOWN - Select the extension number.
HOLD - Press to reset the passcode to default settings.
Open customer programming and follow the instructions below.
ACTION
DISPLAY
1. Press TRSF and then dial 202
Display shows
CHANGE PASSCODE
RING PLAN: 0000
2. Use the UP and DOWN keys to scroll
through the different options and press
the right soft keys.
CHANGE PASSCODE
DISA ALARM:5678
3. Press HOLD to reset the passcode
CHANGE PASSCODE
RING PLAN: 0000
4. Press TRSF to store and exit programming
OR press SPK to store and advance to the
next program
SET DATE AND TIME DISPLAY
Should it ever become necessary to correct the date and time displayed on
all of the keysets, do so as soon as you notice that they are incorrect. Automatic Operating Mode will not work correctly and SMDR records will be of
no value when the date and time are not correct.
The display format is the following:
W (Day of the week): Enter 0 for Sunday and 6 for Saturday.
MM (Month): Enter 01 for January and 12 for December.
DD (Day of the month): Enter a number in the range of 01–31.
YY (Year): Enter the last two digits of the year.
HH (Hours): Use the 24 hour clock and enter a number in the range of
00–24.
11
ACTION
DISPLAY
1. Press TRSF and then dial 505
Display shows
OLD:6010184:0047
NEW:WMMDDYY:HHMM
2. Enter the new time and date using
the above format
OLD:6010184:0047
NEW:3020994:1445
3. Verify the time and date and reenter
them if necessary
OLD:3020994:1445
NEW:WMMDDYY:HHMM
4. Press TRSF to store and exit
programming OR press SPK to store
and advance to the next program
If you have entered invalid data, you will receive an [ INVALID ENTRY ] message for three seconds. Reenter the correct date and time. If the information
you entered is incorrect, repeat the procedure.
RESET STATION PASSCODES
TO DEFAULT
Individual keyset users can set or change their own individual passcodes.
These passcodes are used to lock and unlock keysets, override toll restriction and access the DISA feature. At times, it may be necessary for the system administrator to reset a station’s passcode to default “1234.” This program cannot be used to display passcodes, only to reset them.
PROGRAM KEYS
UP & DOWN - Select the extension number.
HOLD - Press to reset the passcode.
Open customer programming and follow the instructions below.
ACTION
DISPLAY
1. Press TRSF and then dial 101
Display shows
[201] PASSCODE
PASSCODE:✱✱✱✱
12
2. Dial the station number OR use the
UP and DOWN keys to scroll through
the keyset numbers and press the
right soft key to move the cursor right
[205] PASSCODE
PASSCODE:✱✱✱✱
3. Press HOLD to reset the passcode
[205] PASSCODE
PASSCODE : 1234
4. Press TRSF to store and exit
programming OR press SPK to store
and advance to the next program
NOTE: Directory information is always 11 characters.
4. Press the right soft key to return to
step 2 OR press TRSF to store and exit
programming OR press SPK to
store and advance to the next program
DEFAULT DATA: ALL STATION PASSCODES = 1234
PROGRAM STATION NAMES
This program is used to assign a character name or identification for each
extension. You may assign a name of 11 characters long.
DEFAULT DATA: NONE
Names are written using the keypad. Each press of a key will select a character. Pressing the dial pad key moves the cursor to the next position. For
example, if the directory name is “SAM SMITH,” press the number “7” three
times to get the letter “S.” Press the number “2” once to get the letter “A.”
Continue selecting characters from the table below to complete your message. Press the “A” key to change the letter from upper case to lower case.
NOTE: When the character you want appears on the same dial pad key as
does the previous character, press the UP key to move the cursor to the
right.
DCS KEYSETS
PROGRAM KEYS
UP & DOWN - Used to scroll and move cursor.
KEYPAD - Used to enter characters.
HOLD - Press to clear entry.
Open customer programming and follow the instructions below.
ACTION
DISPLAY
1. Press TRSF and then dial 104
Display shows
[201] STN NAME
2. Dial station number (e.g., 205)
OR press UP or DOWN to select the
station and press the right soft key to
move the cursor
[205] STN NAME
3. Enter the station name using the
procedure described on the next page
and press the right soft key to return to
step 2
[205] STN NAME
SAM SMITH
13
COUNT
1
2
3
4
5
DIAL 0
Q
Z
.
)
0
DIAL 1
space
?
,
!
1
DIAL 2
A
B
C
@
2
DIAL 3
D
E
F
#
3
DIAL 4
G
H
I
$
4
DIAL 5
J
K
L
%
5
DIAL 6
M
N
O
^
6
DIAL 7
P
R
S
&
7
DIAL 8
T
U
V
✱
8
DIAL 9
W
X
Y
(
9
DIAL ✱
:
=
[
]
✱
The # key can be used for the following special characters: #, space, &, !,
:, ?, ., %, $, -, /, =, [, ], @, ^, (, ), _, +, {, }, |, ;, \, “ and ~.
14
iDCS KEYSETS
PROGRAM TRUNK NAMES
COUNT
1
2
3
4
5
DIAL 0
<
>
.
)
0
DIAL 1
space
?
,
!
1
DIAL 2
A
B
C
@
2
DIAL 3
D
E
F
#
3
DIAL 4
G
H
I
$
4
DIAL 5
J
K
L
%
5
DIAL 6
M
N
O
^
6
DIAL 7
P
Q
R
&
7
DIAL 8
T
U
V
✱
8
DIAL 9
W
X
Y
Z
9
DIAL ✱
:
=
[
]
✱
1. When the character you want appears on the same dial pad key as the
previous character, press UP to move the cursor one space to the right.
2. Other symbols are available for DIAL #.
This program is used to assign a character name or identification for each
C.O. line. You may assign a name of 11 characters long.
PROGRAM KEYS
UP & DOWN - Used to scroll and move cursor.
KEYPAD - Used to enter characters.
HOLD - Press to clear entry.
Open customer programming and follow the instructions below.
ACTION
DISPLAY
1. Press TRSF and then dial 404
Display shows
[701] TRUNK NAME
2. Dial trunk (e.g., 704) OR press UP or
DOWN to select trunk and press the right
soft key to move the cursor
[704] TRUNK NAME
3. Enter the trunk name using the procedure
in Program Station Names and press the
right soft key to return to step 2
[704] TRUNK NAME
SAMSUNG
4. Press TRSF to store and exit programming
OR press SPK to store and advance to
the next program
15
16
PROGRAM STATION GROUP NAMES
This program is used to assign a character name or identification for each
station group. You may assign a name 11 characters long.
The system list starts with 200 numbers and can be increased in blocks of
ten. The maximum amount is 500 numbers if no more than 1000 station
speed dial numbers are assigned. See your service company to increase or
decrease the system list.
PROGRAM KEYS
UP & DOWN - Used to scroll and move cursor.
KEYPAD - Used to enter characters.
HOLD - Press to clear entry.
Open customer programming and follow the instructions below.
ACTION
DISPLAY
1. Press TRSF and then dial 602
Display shows the first group
[501] SGR NAME
2. Dial the group number (e.g., 505) OR
press the UP or DOWN key to make a
selection and press the left or right
soft key to move the cursor
[505] SGR NAME
3. Enter the name using the method
in Program Station Names
[505] SGR NAME
SAMSUNG
4. Press the left or right soft key to return to
step 2 OR press TRSF to store and exit
programming OR press SPK to store and
advance to the next program
PROGRAM SYSTEM SPEED DIAL
NUMBERS
The speed dial codes are 500–999. Each speed dial number consists of a
line access code and the telephone number to be dialed. The access code
can be any line group, individual line, station group or individual extension.
The speed dial number can be up to 24 characters long including ✱, #,
FLASH and PAUSE.
NOTE: If Least Cost Routing (LCR) is being used, the LCR access code must
be entered.
When you are entering a speed dial number, there are some special keys
that you will need to use. These are the bottom row of programmable keys
on the LCD 12B and LCD 24B keysets and are known as keys A, B, C, D, E
and F.
PROGRAM KEYS
UP & DOWN - Select the speed dial bin.
KEYPAD - Used to enter number.
HOLD - Press to clear entry.
SPK/RLS - Save data and advance to next program.
A - Does not have a function.
B - Inserts a FLASH.
C - Inserts a PAUSE.
D - Changes the dialing type from pulse to tone.
E - Hides and displays digits.
F - Changes display to speed dial name entry.
DCS KEYSETS
12 BUTTON KEYSET
PROGRAMMABLE KEYS LAYOUT
A
17
B
C
D
E
F
24 BUTTON KEYSET
PROGRAMMABLE KEYS LAYOUT
A
B
C
D
E
F
18
iDCS KEYSETS
8D KEYSET PROGRAMMABLE
KEYS LAYOUT
A
B
C
D
E
28D KEYSET, 18D KEYSET
PROGRAMMABLE KEYS LAYOUT
F
VOLUME
Transfer
A
C
E
B
D
F
PROGRAM SYSTEM SPEED DIAL
NAMES
This program is used to assign a character name or identification for each
system speed dial location. This name enables you to locate the speed dial
number when you are using the directory dial feature. You may assign a
name 11 characters long.
Speaker
Transfer Speaker
Open customer programming and follow the instructions below.
ACTION
DISPLAY
1. Press TRSF and then dial 705
Display shows the first number
SYS SPEED DIAL
500:
2. Dial the speed bin desired (e.g., 505) OR
press UP or DOWN to choose and
press the right soft key to move the cursor
SYS SPEED DIAL
505:
3. Enter the access code (e.g., 9—the system
will automatically insert a dash) followed by
the phone number (up to 24 digits long)
and press the right soft key to return to
step 2
SYS SPEED DIAL
505:9–121223456789
4. Press the F key to toggle to Program
System Speed Dial Names, step 3 to
enter the name
SYS SPEED NAME
505:
5. Press TRSF to store and exit
programming OR press SPK to store
and advance to the next program
PROGRAM KEYS
UP & DOWN - Used to scroll through speed dial bins.
KEYPAD - Used to enter selections.
SOFT KEYS - Move cursor left and right.
SPK - Used to store data and advance to next program.
HOLD - Used to clear previous entry.
ACTION
DISPLAY
1. Press TRSF and then 706
Display shows the first name
SYS SPEED NAME
500:
2. Dial the system speed number (e.g., 505)
OR press UP or DOWN to select the entry
number and press the right soft key to
move the cursor
SYS SPEED NAME
505:
3. Enter the name as shown in Program
Station Names and press the right soft
key to return to step 2 OR press the
F key to toggle to the speed dial number
to return to Program System Speed Dial
Numbers, step 4
SYS SPEED NAME
505:SAMSUNG
4. Press the right soft key to return to step 2
above OR press TRSF to store and exit
programming OR press SPK to store and
advance to the next program
DEFAULT DATA: NO SPEED NUMBERS ASSIGNED
19
20
PROGRAM PERSONAL SPEED DIAL
NUMBERS FOR OTHER STATIONS
iDCS KEYSETS
8D KEYSET PROGRAMMABLE
KEYS LAYOUT
Individual station users can program their own numbers, but in cases where
this is not practical, or for single line telephone users, this program allows a
system administrator to view or change any station’s speed dial numbers.
The station speed dial codes are 00–49. Each station begins with ten numbers (00–09) and can be assigned more in blocks of ten (up to a maximum
of fifty numbers).
Each speed dial number consists of a line access code and the telephone
number to be dialed. The access code can be any line group, individual line,
station group or individual extension. The speed dial number can be up to
24 characters long including ✱, #, FLASH and PAUSE.
NOTE: If Least Cost Routing (LCR) is used, the LCR access code must be
entered.
When you are entering a speed dial number, there are some special keys
that you will need to use. These are the bottom row of programmable keys
on the LCD 12B and LCD 24B keysets and are known as keys A, B, C, D, E
and F.
PROGRAM KEYS
UP & DOWN - Scrolls through extension numbers and speed dial bins.
KEYPAD - Used to enter number.
HOLD - Press to clear entry.
A - Does not have a function.
B - Inserts a FLASH.
C - Inserts a PAUSE.
D - Changes the dialing type from pulse to tone.
E - Hides and displays digits.
F - Changes display to speed dial name entry.
DCS KEYSETS
12 BUTTON KEYSET
PROGRAMMABLE KEYS LAYOUT
A
21
B
C
D
E
F
24 BUTTON KEYSET
PROGRAMMABLE KEYS LAYOUT
A
B
C
D
E
A
B
C
D
E
28D KEYSET, 18D KEYSET
PROGRAMMABLE KEYS LAYOUT
F
VOLUME
Transfer
A
C
E
B
D
F
Speaker
Transfer Speaker
Open customer programming and follow the instructions below.
ACTION
DISPLAY
1. Press TRSF and then dial 105
Display shows
[201] SPEED DIAL
00 :
2. Dial the station number (e.g., 205) OR
press UP or DOWN to select the station
and press the right soft key to move the
cursor OR press the left soft key to go
to step 4
[205] SPEED DIAL
00 :
3. If the selected station has no speed dial
bins, this display will be shown and a new
station may be selected
[205] SPEED DIAL
SPDBLK NOT EXIST
4. Dial the location number (e.g., 05) OR
press UP or DOWN to select the location
and press the right soft key to move the
cursor OR press the left soft key to return
to step 2
[205] SPEED DIAL
05: _
5. Enter the trunk access code (e.g., 9)
followed by the number to be dialed
(e.g., 4264100) OR press the right
soft key to return to step 2 OR press the
left soft key to return to step 3 OR press
HOLD to clear an entry (if an error is made,
use the DOWN key to step back)
[205] SPEED DIAL
05 : 9-4264100_
F
22
6. Press the F key to access Program Station
Speed Dial Names OR press TRSF to save
and exit programming OR press SPK to save
and advance to the next program
4. Dial the speed dial location (e.g., 05) OR
use UP or DOWN to scroll through the
location numbers and use the right soft
key to move the cursor OR press the left
soft key to return to step 2 above
[205] SPEED NAME
01:_
DEFAULT DATA: NO SPEED DIAL NUMBERS PROGRAMMED
5. Enter the name using the procedure in
Program Station Names and press the
right soft key to return to step 2 OR
press the left soft key to return to step 3
[205] SPEED NAME
01:SAM SMITH
PROGRAM PERSONAL SPEED DIAL
NAMES FOR OTHER STATIONS
Each individual station user can program his/her own names but in cases
where it is impractical or for single line telephone users, this program allows
a system administrator to view or change any station’s speed dial names.
The station speed dial codes are 00–49. Each station begins with ten numbers (00–09) and can be assigned more in blocks of ten up to a maximum
of fifty numbers.
PROGRAM KEYS
UP & DOWN - Used to scroll through extension numbers and speed dial bins.
KEYPAD - Used to enter selections.
SOFT KEYS - Move cursor left and right.
SPK - Used to store data and advance to next program.
HOLD - Used to clear previous entry.
ANS/RLS - Used to select ALL.
ACTION
DISPLAY
1. Press TRSF and then dial 106
Display shows
[201] SPEED NAME
00:
2. Dial the station number (e.g., 205) OR
press UP or DOWN to select the station
and press the right soft key to move the
cursor
[205] SPEED NAME
00:
3. If the selected station has no speed dial
bins, this display will be shown and a new
station may be selected
[205] SPEED DIAL
SPDBLK NOT EXIST
23
6. Press the F key to access Program
Personal Speed Dial Numbers for
Other Stations OR press TRSF to
store and exit programming OR press
SPK to store and advance to the
next program
CREATE PROGRAMMED STATION
MESSAGES
The programmed station message feature lets you set a message at your
phone to notify users with Display Phones that you may be out of town. This
way, when Display Phone users call their display will show “OUT OF TOWN”
and they will know why you do not answer.
The iDCS 500 L/LE system stores 30 messages for you to choose from,
numbered from 01-30. Messages 26-30 are special in that you can add a
date or time mark to end the message with. For example, the message will
display “Return at XXXXX” so other people will know when to reach you. The
iDCS 100 and iDCS 500 M system stores 20 messages for you to choose
from, numbered from 01-20. The iDCS 100 system does not contain any
special messages for adding date and time mark.
PROGRAM KEYS
UP & DOWN - Select the message number.
KEYPAD - Used to enter characters.
HOLD - Press to clear entry.
24
Open customer programming and follow the instructions below.
2. Dial the station number (e.g., 205) OR
press UP or DOWN to select the station
and press the right soft key to move the
cursor OR press ANS/RLS to select all
stations
[205]ALM REM(1)
HHMM: NOTSET
OR
[ALL]ALM REM(1)
HHMM: NOTSET
3. Dial 1–3 to select the alarm (e.g., 2) OR
press UP or DOWN to select the alarm
and press the right soft key to move the
cursor OR press the left soft key to
return to step 2
[201]ALM REM(1)
HHMM: NOTSET
4. Enter the alarm time in 24 hour clock
format (e.g., 1300) and the display will
automatically advance to step 5
[205]ALM REM (2)
HHMM:1300NOTSET
[205]ALM REM (2)
HHMM:1300DAILY
SET ALARM/APPOINTMENT
REMINDER WITH MESSAGE
5. Enter the alarm type from the list above
OR press UP or DOWN to select the
alarm type and press the right soft key
to move the cursor
6. Enter the messages using the procedure
in Program Station Names and press the
right soft key to return to step 2
Keyset users can set their own alarms but standard telephone users cannot.
The system administrator can set alarm/appointment reminders for other stations in the system.
7. Press TRSF to store and exit programming OR press SPK to store
and advance to the next program
ACTION
DISPLAY
1. Press TRSF and then dial 715
Display shows the first message
PGM.MESSAGE (01)
GIVE ME THE CALL
2. Dial in the message number (e.g., 11)
OR press UP or DOWN to scroll through
the messages and press the right soft
key to move the cursor
PGM.MESSAGE (16)
EMPTY MESSAGE
3. Enter in the message using the
procedure in Program Station Names
and press the right soft key to return
to step 2 above
PGM.MESSAGE (16)
IN THE SHOWROOM
4. Press TRSF to store and exit programming
OR press SPK to store and advance to
the next program
[205]ALM REM (2)
TAKE MEDICATION
PROGRAM KEYS
UP & DOWN - Scroll through extensions.
HOLD - Press to clear data.
KEYPAD - Used to enter data.
Open customer programming and follow the instructions below.
ACTION
DISPLAY
1. Press TRSF and then dial 116
Display shows
[201]ALM REM(1)
HHMM: NOTSET
25
26
MANAGING KEY ASSIGNMENTS
PROGRAM KEYS
You can view station key assignments and add extenders to some of the programmable keys for easy one touch operation of frequently used features.
UP & DOWN - Select the extension number.
KEYPAD - Used to enter extender codes.
HOLD - Used to clear the displayed data.
An extender is a number that makes an otherwise general key very specific.
Adding the digit “4” to a PAGE key defines this key for paging zone four.
Adding “225” to a directed pickup key will define this key as pickup for extension 225 only. The key must already be assigned by the installing technician.
Open customer programming and follow the instructions below.
ACTION
DISPLAY
1. Press TRSF and then dial 107
Display shows the first station
[201] KEY EXTEND
01:CALL1
2. Dial the station number (e.g., 205) OR use
UP or DOWN to scroll through the station
numbers and press the right soft key to
move the cursor
[205] KEY EXTEND
01:CALL1
3. Enter the key number (e.g., 18) OR use
UP and DOWN to scroll through the keys
and use the right soft key to move the
cursor OR press the key to be programmed
[205] KEY EXTEND
18:DS
Use this program to assign extenders to the following keys:
KEY
DESCRIPTION
EXTENDER
BOSS ........Boss/Secretary ....................(1–4)
DP ..............Direct Pickup ......................(Extension number or
station group number)
DS ..............Direct Station ......................(Any extension number)
FWRD ........Call Forwarding ..................(0–7)
GPIK ..........Group Pick-Up ....................(01–20)
IG ..............In/Out of Group ..................(Any group number you are part of)
MMPG........Meet Me Page ....................(0–9, ✱)
PAGE ........Page ....................................(0–9, ✱)
PARK ........Park (orbits)..........................(0–9)
RP ..............Ring Plan..............................(1–6), HOLD for none
SPD............Speed Dialing ......................(00–49, 500–999)
PMSG ........Programmed Messages ....(01–30 for the iDCS 500)
(01–20 for the iDCS 100)
DIR ............Directory ..............................PERS (1), SYS (2) or STN (3)
VT ..............Voice Mail Transfer ..............Voice Mail Group
501–519 for the iDCS 100
501–529 for the iDCS 500 M
501–549 for the iDCS 500 L/LE
SG ..............Station Group ......................501–519 for the iDCS 100
501–529 for the iDCS 500 M
501–549 for the iDCS 500 L/LE
27
4. Dial the extender according to the list
above and the system will display your
selection
If there are no more entries, press
the left soft key to return to step 2
5. Press TRSF to store and exit programming
OR press SPK to store and advance to the
next program
[205] KEY EXTEND
18:DS207
28
PROGRAMMING ACCOUNT CODES
STATION TIMERS
This program is used to add or change account code entries.
Each station can have five timers customized for them to accomodate station users with individual work habits. These timers are as follows:
PROGRAM KEYS
NO ANS FWD No Answer Forward
KEYPAD - Used to enter the account code (allowable digits 0–9).
UP & DOWN - Used to select entry number.
FLASH & TRSF - Used to view and change only the used entries.
SPK/RLS - Used to clear data.
This is the amount of time a call will ring at a station before it forwards to the
Forward No Answer destination. The default is 15 seconds and the range is
000 to 250 seconds. Make sure that this timer is not set to a greater value
than the transfer recall timer or transferred calls will not forward.
Open customer programming and follow the instructions below.
DTMF DUR.
ACTION
DISPLAY
1. Press TRSF and then dial 708
Display shows
ACCOUNT CODE
(001)
This is the duration of DTMF tones sent to an analog voice mail port. The
default duration is 100 milliseconds and the range is 0100 to 9900 milliseconds.
2. Dial the account code entry (e.g., 005)
OR press UP or DOWN to select the
entry number and press the right soft
key to move the cursor
ACCOUNT CODE
(005)
3. Enter the account code via the dial pad,
e.g., 1234 (maximum of 12 digits) and
press the right soft key to move the
cursor back to step 2
ACCOUNT CODE
(005)123456789012
F-DGT DELY
4. Press TRSF to store and exit programming OR press SPK to store and
advance to the next program
DTMF Duration
First Digit Delay
This is the time the system will wait before sending DTMF digits to a voice
mail port. The default time is 600 milliseconds and the range is from 100 to
9900 milliseconds.
OFFHK SEL.
Off Hook Select
This timer controls the delay between going off hook (lifting the handset) and
the off hook select destination being called. The default duration is 10 seconds and the range is from 000 to 250 seconds.
EFWD DELAY External Forward Delay
This is the time that a station will ring before a call forwards to the external
call forward destination. The default duration is 10 seconds and the range is
1 second to 250 seconds.
Open customer programming and follow the instructions below.
PROGRAM KEYS
KEYPAD - Used to set timer values.
UP & DOWN - Used to select extension number.
SPK/RLS - Save data and advance to next program.
29
ACTION
DISPLAY
1. Press TRSF and then dial 502
Display shows
[201] NO ANS FWD
010 SEC
30
2. Dial the station number (e.g., 205) OR
press UP or DOWN key to select the
station and press the right soft key OR
press ANS/RLS to select all stations
and press the right soft key
[205] NO ANS FWD
010 SEC
OR
[ALL] NO ANS FWD
010 SEC
3. Press UP or DOWN key to select the
station timer and press the right soft key
[205] DTMF DUR.
0100 MS→
4. Enter the new value via the dial pad,
e.g., 0300 and the system will return
to step 2
[205] DTMF DUR.
0100 MS→0300
5. Press TRSF to store and exit
programming OR press SPK to store
and advance to the next program
ADDING NAMES TO THE
TRANSLATION TABLE
This program allows the system administrator or technician to associate a
CID or ANI number received from the Central Office with a name programmed in this translation table. If there is no match between a received
number and a name in this table, [no CID name] or [no ANI name] will be
displayed.
ACTION
DISPLAY
1. Press TRSF and then dial 728
Display shows first entry
TRANSLATION:(001)
DIGIT:
2. Dial entry number (e.g., 005 or 0005)
OR use UP and DOWN to scroll
through entries and press right
soft key to select entry
TRANSLATION:(005)
DIGIT:_
3. Enter telephone number and press
right soft key to advance to name entry
OR enter telephone number and press
left soft key to return to step 2 above
TRANSLATION:(005)
DIGIT:3054264100
4. Enter the name using the method
in Program Station Names
and press right or left soft key to
return to step 2 above
OR press SPK to save and advance
to next MMC OR press TRSF to
save and exit programming
TRANSLATION:(005)
SAMSUNG TELECOM
DEFAULT DATA: NONE
The translation table consists of 400 entries in the iDCS 500 system (1500
on L/LE version) or 350 entries in the iDCS 100 system with each entry comprised of a ten digit telephone number and a 16 digit name. See Program
Station Names.
Open customer programming and follow the instructions below.
PROGRAM KEYS
UP & DOWN - Used to scroll through options.
KEYPAD - Used to enter selections.
SOFT KEYS - Move cursor left and right.
SPK - Used to store data and advance to next MMC.
HOLD - Used to clear previous entry.
31
32
HOLIDAY
CUSTOMER SET RELOCATION
This program provides the ability to set as many as 20 different holidays.
Each holiday will override the System Operating Mode for that particular
date with a programmed ring plan.
This program is used to swap information associated with two stations. All
assignments such as trunk ring, station group, station COS, station speed
dial etc. will follow this program. 12 button keysets and 24 button keysets
can be exchanged. Basic 7 button keysets can be exchanged with Basic 7
button key sets. Single line stations numbers can be exchanged. If incompatible set types are selected the system will provide an ERROR: NO MATCH
message. 12 button and 24 button key assignments should be taken in consideration when relocating these type of sets. The table below shows which
phones can be switched with each other.
PROGRAM KEYS
UP & DOWN - Used to scroll through options.
KEYPAD - Used to enter selections.
SOFT KEYS - Move cursor left and right.
HOLD - Used to clear an entry.
ACTION
DISPLAY
1. Press TRSF and then dial 512
Display shows
RING PLAN
FOLLOW1
2. Press the right soft key to move the
cursor to bottom half of display
RING PLAN
FOLLOW1
3. Enter the desired ring plan (e.g., 0-6)
Display will return to STEP 1
RING PLAN
FOLLOW4
4. Press UP or DOWN to change display
to holiday assignment
ASSIGN HOLIDAY
01:
5. Press the right soft key to move the
cursor to bottom half of display
ASSIGN HOLIDAY
01:
6. Enter a desired holiday date
(e.g., 1225)
ASSIGN HOLIDAY
01:
7. Press TRSF to store and exit
programming OR press SPK to store
and advance to the next program
ASSIGN HOLIDAY
01:1225
33
NOTE: In order to use this program it must first be activated by a technician.
Please see your installing company to have this done if you wish to use this
program.
PROGRAM KEYS
UP & DOWN - Used to scroll through options.
KEYPAD - Used to enter selections.
SOFT KEYS - Move cursor left and right.
SPK - Used to store data and advance to next program.
HOLD - Used to clear previous entry.
ANS/RLS - Used to select ALL.
ACTION
DISPLAY
1. Press TRSF 315
Display shows
SET RELOCATION
EXT _
EXT
2. Enter first station number (e.g., 202)
Press RIGHT soft key to move cursor
SET RELOCATION
EXT 202 EXT _
3. Enter second station number (e.g., 210)
Press RIGHT soft key to enter data
SET RELOCATION
EXT 202 EXT 210
4. Display will return to STEP 1
Go to STEP 2
OR press TRSF to store and exit
programming.
SET RELOCATION
EXT _
EXT
34
The iDCS 500 system (with a LAN board installed) and the iDCS 100
Enhanced Software version system provide a feature that self-checks for
any failures. If a failure does occur in the iDCS software or hardware, a fault
error will be generated and buffered to an alarm report. During an alarm
state every phone with an assigned SYSTEM ALARM button will ring and
cause the SYSTEM ALARM button to flash amber. A phone with a display
should be used so that the alarm information can be viewed. When an alarm
occurs, the user can press the SYSTEM ALARM button to view and scroll
through the alarms. This will silence the audible part of the alarm, but the
SYSTEM ALARM button will continue to flash until your Service Company
views and clears the alarms in the alarm report located in the system software.
YES
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
YES
NO
NO
iDCS 28B
iDCS 28B
with iDCS
14AOM
NO
NO
NO
NO
NO
NO
NO
YES
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
YES
NO
YES
NO
NO
iDCS 18B
iDCS 18B
with iDCS
14AOM
NO
NO
NO
NO
NO
NO
NO
YES
NO
NO
NOi
NO
NO
iDCS 8B
NO
NO
NO
NO
NO
NO
YES
NO
NO
NO
NO
NO
NO
DCS & iDCS
64 AOM
NO
NO
NO
NO
NO
YES
NO
NO
NO
NO
YES
NO
NO
32 AOM
NO
NO
NO
NO
YES
YES
YES
YES
NO
NO
NO
NO
NO
LCD 24
NO
NO
YES
YES
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
YES
YES
NO
YES
NO
NO
YES
NO
NO
NO
NO
LCD 12
BSC 24
NO
NO
NO
NO
BSC 12
YES
YES
NO
NO
NO
NO
NO
NO
NO
NO
NO
YES
NO
7 BTN
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
YES
S/L
NO
NO
NO
NO
NO
NO
NO
NO
NO
DCS 28B
with iDCS
14AOM
iDCS 28B
iDCS 18B
with iDCS
14AOM
iDCS 18B
iDCS 8B
DCS & iDCS
64 AOM
32 AOM
LCD 24
BSC 24
LCD 12
7 BTN
S/L
BSC 12
CUSTOMER SET RELOCATION ALLOW TABLE
35
SYSTEM MAINTENANCE
ALARMS
36
NOTES
