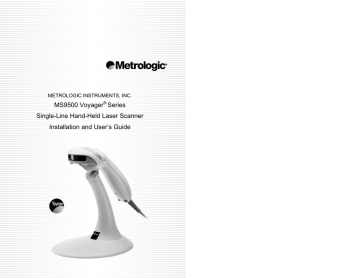

METROLOGIC INSTRUMENTS, INC.
MS9500 Voyager
®
Series
Single-Line Hand-Held Laser Scanner
Installation and User’s Guide
L
OCATIONS
C ORPORATE H EADQUARTERS
North America Metrologic Instruments, Inc.
90 Coles Road
Blackwood, NJ 08012-4683
E UROPEAN H EADQUARTERS
Germany,
Middle East and Africa
Spain
Italy
Metrologic Instruments GmbH
Dornierstrasse 2
82178 Puchheim b.
Munich, Germany
Metrologic Eria lbérica SL
Julián Camarillo 29, D-1
Edificio Diapasón
28037 Madrid
Metrologic Instruments Italia srl
Via Emilia 70
40064 Ozzano dell’Emilia (BO)
France Metrologic Eria France SA
69 Rue de la Belle Etoile
ZI Paris Nord II, BP 50057
95947 – ROISSY CDG CEDEX
United Kingdom Metrologic Instruments UK Limited
58 Tempus Business Centre
Kingsclere Road, Basingstoke
Hampshire RG21 6XG
A SIA
Customer Service: 1-800-ID-METRO
Tel: 856-228-8100
Fax: 856-228-6673
Email: [email protected]
Internet: www.metrologic.com
Tel: +49 89 89019 0
Fax: +49 89 89019 200
Email: [email protected]
Germany Email: [email protected]
Tel: +34 913 272 400
Fax: +34 913 273 829
Email: [email protected]
Tel: +39 0 51 6511978
Fax: +39 0 51 6521337
Email: [email protected]
Tel: +33 (0) 1 48.63.78.78
Fax: +33 (0) 1 48.63.24.94
Email: [email protected]
Tel: +44 (0) 1256 365900
Fax: +44 (0) 1256 365955
Email: [email protected]
Singapore
China
Japan
Metrologic Asia (Pte) Ltd
No. 8 Kaki Bukit Place
4 th Floor
Singapore 416186
Tel: 65-6842-7155
Fax: 65-6842-7166
Email: [email protected]
Metro (Suzhou) Technologies Co., Ltd.
Tel: 86-512-62572511
221 Xing Hai Street
Suzhou Industrial Park
Fax: 86-512-62571517
Email: [email protected]
Suzhou, China
215021
Metrologic Japan Co., Ltd.
Matsunoya Building, 6 Floor
3-14-8 Higashiueno
Taitou-Ku, Tokyo 110-0015 Japan
Tel: 81-03-3839-8511
Fax: 81-03-3839-8519
Email: [email protected]
S OUTH A MERICA
Brazil Metrologic do Brasil Ltda.
Rua da Paz 2059
CEP 04713-002
Chácara Santo Antônio
São Paulo, SP, Brasil
Tel: 55-11-5182-8226
Fax: 55-11-5182-8315
Email: [email protected]
Outside Brazil Metrologic South America
Rua da Paz 2059
CEP 04713-002
Chácara Santo Antônio
São Paulo, SP, Brasil
Tel: 55-11-5182-7273
Fax: 55-11-5182-7198
Email: [email protected]
Copyright
© 2002 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be reproduced, transmitted, or stored in any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review, or provided for in the Copyright Act of 1976.
Products and brand names mentioned in this document are trademarks of their respective companies.
ii
T
ABLE OF
C
ONTENTS
Installing the Scanner to the Host System
MS9520-00/9/11/14/41 and MS9540-00/9/11/14/41......................................... 5
Keyboard Wedge MS9520-47 and MS9540-47................................................ 6
Disconnection the PowerLink Cable from the Scanner ........................................ 8
- MS9540 Series Only.................................................... 9
Scanner and Cable Terminations
iii
I
NTRODUCTION
The Voyager
®
MS9500 Series single-line hand-held scanners include both the
MS9520 and MS9540.
The VoyagerCG
®
MS9540 features Metrologic’s patented CodeGate
® technology. CodeGate is an intuitive scanning system that is ideal for all scanning applications, including menu-scanning, point-of-sale, document processing, and inventory control.
CodeGate works hand-in-hand with Metrologic’s patented automatic-triggering scheme. Simply present a bar code to the scanner; the high-visibility
650-nanometer laser is automatically activated allowing the user to easily select the bar code to be scanned. Press the CodeGate button and the data is transmitted to the host system.
Equipped with both ‘in-stand’ and ‘out-of-stand’ operation, Voyager can be used as both a hand-held and fixed projection scanner. Voyager automatically senses when it is placed in the stand and de-activates the CodeGate button.
If the advantage of CodeGate technology is unnecessary in your application, then the MS9520 is the Voyager of choice. The MS9520 is packed with all of the same features as the MS9540, with the exception of CodeGate.
Metrologic has included many standard features such as: user programmable
Flash ROM, PowerLink user-replaceable cables, MetroSet
®
2 and MetroSelect
® configuration, EMI rating of Class B, data editing (parsing) capability using
Bits ‘n’ Pieces
®
, and a 5-year limited warranty.
V OYAGER V OYAGER CG
MS9520 – 00 MS9540 – 00
MS9520 – 9 MS9540 – 9
MS9520 – 11 MS9540 – 11
MS9520 – 14 MS9540 – 14
I NTERFACE
Laser Emulation
RS-232 Transmit/Receive
OCIA
IBM 468X/469X, RS232-TXD, RXD,
RTS, CTS
RS232 - TXD, RXD, RTS, CTS, DTR, DSR
MS9520 – 41 MS9540 – 41
MS9520 – 47 MS9540 – 47
RS-232/Light Pen Emulation
Keyboard Wedge, Stand-Alone Keyboard and RS232 Transmit/Receive
1
S
CANNER AND
A
CCESSORIES
Part #
MS9500
B ASIC K IT
Description
Voyager Series Scanner
00-02561 or
00-02544
00-02410
MetroSelect Programming Guide* or
MetroSelect Single-Line Programming Guide*
MS9500 Voyager
®
Series Single-Line Hand Held Laser
Scanner Installation and User’s Guide
* Available on the Metrologic website - www.metrologic.com
Part #
O PTIONAL A CCESSORIES
Description
AC to DC Power Transformer- Regulated 5.2VDC @ 650 mA output.
45-45593 120V United States
45-45591 220V-240V Continental European
45-45592
54-54xxx
53-53xxx
220V-240V United Kingdom
PowerLink Cable with built in power jack
2.1m (7') straight cord, short strain relief
PowerLink Cable with built in power jack
2.7m (9') coiled cord, long strain relief xxx specifies connection to the host.
MX009-2** MX009 USB Converter Cable
MVC**
Metrologic Voltage Converter Cable
+12VDC to +5.2VDC or -12VDC to +5.2VDC
** Contact a Metrologic customer service representative for additional information on the MVC and MX009 converter cable series and the host connections available.
Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s Customer Service Department at
1-800-ID-METRO or 1-800-436-3876.
2
S
CANNER AND
A
CCESSORIES
Part #
54-54002
O PTIONAL A CCESSORIES
Description
Keyboard Wedge PowerLink Cable with Adapter Cable
54-54020
46-46128
46-46351
46-46433
Stand Alone Keyboard Wedge PowerLink Cable
Free-Standing Stand with Accessories
Hard Mount Accessory Kit (used with kit #46-46128)
Wall Mount Hanger Accessory Kit
Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s Customer Service Department at
1-800-ID-METRO or 1-800-436-3876.
3
4
O
PERATIONAL
T
EST
1. Connect the 10-pin RJ45 male connector into the jack on the Voyager
VoyagerCG. You will hear a ‘click’ when the connection is made.
or
2. Connect the L-shaped plug of the power supply into the power jack on the
PowerLink cable.
3. Connect the power supply into an AC outlet. Make sure the AC input requirements of the power supply match the AC outlet.
p
Optional n o
4. When the Voyager is ready to scan, the green LED will turn on, the red LED will flash and the scanner will beep once.
q
5. Place a bar code in front of the scanning window. The scanner will beep once and flash the red (default mode only) LED if the bar code was successfully decoded. For the MS9540, press the CodeGate
® transmit the data. (See page 8.)
button to r
Voyager is shipped from the factory programmed with default settings.
Refer to the MetroSelect ® Programming Guide or MetroSet ® 2’s help files for instructions on how to configure the scanner.
MS9520/9540-00 Units Only
All MS9520/9540-00 units leave the factory with Laser Emulation Mode enabled. If you recall defaults while re-configuring your scanner the Laser
Emulation Mode will no longer be enabled. Refer to the MS9520/9540-00
Laser Emulation Mode section of the MetroSelect Single-Line Configuration
Guide ( MLPN 00-02544A) for information on enabling the Laser Emulation
Mode.
Caution:
To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV ( Safety Extra Low Voltage) according to EN 60950.
To maintain compliance with standard CSA C22.2 No. 950/UL 1950 and norm EN 60950, the power source should meet applicable performance requirements for a limited power source.
I
NSTALLING THE
S
CANNER TO THE
H
OST
S
YSTEM
MS9520-00/9/11/14/41
AND
MS9540-00/9/11/14/41
1. Turn off the host system.
2. Connect the 10-pin RJ45 male connector into the jack on the
Voyager or VoyagerCG. You will hear a ‘click’ when the connection is made.
If the scanner is receiving power from the host system, skip to step #5.
3. Connect the L-shaped plug of the power supply into the power jack on the PowerLink cable.
4. Make sure the AC input requirements of the power supply match the AC outlet. Connect the power supply into an AC outlet.
The outlet should be near the equipment and easily accessible.
5. Connect the PowerLink cable to the proper port on the host system.
6. Turn on the host system.
Plugging the scanner into a port on the host system does not guarantee that scanned information will be communicated properly to the host system. The scanner is shipped from the factory programmed with default settings. Please refer to the MetroSelect
(
MLPN
00-02544) or MetroSet ®
®
Programming Guide
2’s help files for instructions on changing the scanner’s configuration. In addition, please check that the scanner and host system are using the same communication protocol.
All MS9520-00/MS9540-00 scanners leave the factory with the Laser
Emulation Mode enabled. If you recall defaults while re-configuring your scanner the Laser Emulation Mode will no longer be enabled. Refer to the
MS9520/9540-00 Laser Emulation Mode section of the MetroSelect
Single-Line Configuration Guide (
MLPN
00-02544A) for information on enabling the Laser Emulation Mode.
Caution:
To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN 60950.
To maintain compliance with standard CSA C22.2 No. 950/UL 1950 and norm EN 60950, the power source should meet applicable performance requirements for a limited power source.
5
I
NSTALLING THE
S
CANNER TO THE
H
OST
S
YSTEM
K
EYBOARD
W
EDGE
MS9520-47
AND
MS9540-47
1. Turn off the PC.
2. Connect the 10-pin RJ45 male connector into the jack on the Voyager or the
VoyagerCG. You will hear a ‘click’ when the connection is made.
3. Connect the L-shaped plug of the power supply into the power jack on the
PowerLink cable.
If the scanner is receiving power from the host system, skip to step #5.
4. Make sure the AC input requirements of the power supply match the AC outlet.
Connect the power supply into an AC outlet. The outlet should be near the equipment and easily accessible.
5. Disconnect the keyboard from the PC.
6. The PowerLink cable is terminated with a
5-pin DIN female connector on one end, and a 6-pin mini DIN male on the other.
Metrologic will supply an adapter cable with a 5-pin DIN male connector on one end and a 6-pin mini DIN female connector on the other. According to the termination required, connect the appropriate end of the adapter cable to the
PowerLink cable, leaving the necessary termination exposed for connecting to the keyboard and the keyboard port on the PC.
7. Connect to the PowerLink cable to the keyboard and the keyboard port on the PC.
8. Power up the PC.
Powering the MS9520-47/MS9540-47 directly from the computer can sometimes cause interference with the operation of the scanner or the computer. Not all computers supply the same current through the keyboard port, explaining why a scanner would work on one computer and not another. Contact a Metrologic
Customer Service Representative if you require an external power supply.
Caution:
To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN 60950.
To maintain compliance with standard CSA C22.2 No. 950/UL 1950 and norm EN 60950, the power source should meet applicable performance requirements for a limited power source.
6
I
NSTALLING THE
S
CANNER
T
O
T
HE
H
OST
S
YSTEM
S
TAND
A
LONE
K
EYBOARD
1. Turn off the host system.
2. Connect the 10-pin RJ45 male connector into the jack on the
Voyager or VoyagerCG. You will hear a ‘click’ when the connection is made.
If the scanner is receiving power from the host system, skip to step #5.
3. Connect the L-shaped plug of the power supply into the power jack on the PowerLink cable.
4. Make sure the AC input requirements of the power supply match the AC outlet.
Connect the power supply into an AC outlet. The outlet should be near the equipment and easily accessible.
5. Connect the PowerLink cable to the keyboard port on the host system.
6. Turn on the host system.
Powering the MS9520-47/MS9540-47 directly from the computer can sometimes cause interference with the operation of the scanner or the computer. Not all computers supply the same current through the keyboard port, explaining why a scanner would work on one computer and not another. Contact a Metrologic Customer Service Representative if you require an external power supply.
Caution:
To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN 60950.
To maintain compliance with standard CSA C22.2 No. 950/UL 1950 and norm EN 60950, the power source should meet applicable performance requirements for a limited power source.
7
I
NSTALLING THE
S
CANNER
T
O
T
HE
H
OST
S
YSTEM
I
NSTALLATION
N
OTES FOR
USB I
NTERFACE
Metrologic’s MX009 USB cable is a device that converts serial RS232 formatted data to either USB Keyboard or USB Point-of Sale communication protocol.
Please refer to the MX009 USB Converter Cable Programming Guide
(
MLPN
00-02574A) supplied with your MX009 cable for detailed installation and programming guidelines.
D
ISCONNECTING
T
HE
P
OWER
L
INK
C
ABLE FROM THE
S
CANNER
Before removing the cable from the scanner, Metrologic recommends that the power on the host system is off and the power supply has been disconnected from the PowerLink cable.
8 q n
1. Locate the small ‘pin-hole’ on the top of the unit near the bottom of the
Voyager logo.
2. Bend an ordinary paperclip into the shape shown above.
3. Insert the paperclip (or other small metallic pin) into the small ‘pin-hole’.
4. You will here a faint ‘click’. Pull gently on the strain-relief of the PowerLink cable and it will slide out of the scanner.
H
OW TO
U
SE
C
ODE
G
ATE
® –MS9540 S
ERIES
O
NLY
1 • Auto trigger activates the laser
2 • Place the laser line on the bar code
3 • Press the
CodeGate button to transmit the data
T
WO
M
ODES OF
O
PERATION
• Auto-trigger while in the stand
• Bar code is automatically decoded and transmitted
• CodeGate activates when removed from the stand
• Bar code data is transmitted when the
CodeGate button is pressed
9
S
TAND
K
ITS
Free Standing Kits #46-46128
Contains: a. Stand ( MLPN 36-00454) ................................ Qty 1 b. Apron ( MLPN 50-50440)................................ Qty 1 c. Screw, M3 x 6 mm (
MLPN
18-18670)............ Qty 2 d. Washer, #5 x .5 OD ( MLPN 18-18671).......... Qty 2 e. Stand Anchor ( MLPN 50-50449).................... Qty 1 f. M3 x 20 mm Set Screw ( MLPN 18-18672) .... Qty 1 a .
b .
Optional Hard Mount Accessory Kit #46-46351
This kit, used in conjunction with the stand kit
(#46-46128), can be used to bolt/hard mount
the MS9500 to the countertop.
Contains: a. Screw, #8 Round Head ( MLPN 18-18057) .... Qty 4 b. Base ( MLPN 36-36080) ................................. Qty 1 b .
.
a .
e .
f.
d .
c.
Optional Wall Mount Hanger Accessory
Kit #46-46433
Contains: a. Screw #8 Round Head ( MLPN 18-18057) ..... Qty.2
b. Wall Mount Hanger ( MLPN 18-18057)........... Qty.1
Optional Wall Mount Hanger
Kit #46-46508
Contains: a.
Wall Mount Hanger ( MLPN 36-00611 ) ....... Qty. 1 b. Wall Mount Base ( MLPN 36-00812) ........... Qty. 1 c. 4.8 x 13 mm, Self Tapping Screw ............. Qty. 2
( MLPN 18-18233) d. Double-Sided Adhesive Tape ..................... Qty. 1
( MLPN 36-00821) e. #8 Wood Screw ( MLPN 18-18057) .............. Qty. 2
10
A
SSEMBLING THE
S
TANDS
There are 2 options for assembling the stand. The first option allows the stand to be self-supporting and moved freely or placed anywhere on the countertop. The second option is used if the stand will be bolted/hard-mounted to the countertop.
Stand Option 1: Self-supported
For use with kit #46-46128
Step 1 Apron
Slide the apron (
MLPN
50-50440) over the stand (
MLPN
36-00454).
Stand
Step 2
Apron
Position the stand so it sits under the tab on the apron. Then secure the apron to the stand using the
M3 x 6 mm screws
( MLPN 18-18670) and the #5 washers (
MLPN
18-18671) provided .
Tab
M3 x 6 mm
Screw
Stand
#5 Washer
Stand Option 2: Hard-mounted to countertop
For use with kit #46-46351
2.00 in
Step 1
2.00 in
Drill four #39 holes in the countertop.
#8 Wood
Screw
Continued on next page
Base
Step 2
Secure the base (
MLPN
36-36080) to the countertop with the four
#8 wood screws (
MLPN
18-18057) provided.
11
A
SSEMBLING THE
S
TAND
(C
ONTINUED
)
Stand Option 2: Hard-mounted to countertop (continued)
For use with kits #46-46128, #46-46351 and
MS951 Stand Replacements
Anchor from
Kit #46-46128
Base Assembly from
Kit #46-46351 or
MS951 Stand Base
Step 3
Screw the stand anchor (
MLPN
50-50449) onto the base assembly until it sits flush.
Step 4
Remove the logo plate on the stand by gently using an exacto knife to release the plate hook.
Step 5
Position the stand over the base assembly.
Step 6
Secure the stand to the base assembly by installing and tightening the M3 set screw ( MLPN 18-18672) under the logo plate as shown.
Step 7
Snap the logo plate back into place.
12
A
SSEMBLING
T
HE
S
TAND
(C
ONT
.)
Wall Mount, Option 1:
For Kit #46-46433 or
Kit #46-46508
Step 1:
Drill two #39 pilot holes 3.00” apart.
Step 2
:
Attach the Wall Mount Hanger to the wall with the two #8 wood screws provided.
Wall Mount, Option 2:
Kit #46-46508
Step 1:
Attach the Wall Mount Base to the Wall
Mount Hanger with the two 4.8 x 13 mm self-tapping screws.
Step 2:
Remove one side of the protective backing from the double-sided adhesive tape.
Step 3:
Attach the tape to the back of the Wall
Mount Hanger as shown.
Step 4:
Remove the protective backing from the double-sided adhesive tape and apply hook to the wall.
13
S
CANNER
P
ARTS
Yellow LED *
CodeGate Button *
Red LED
Green LED
Output Window
MS9500 Top View
Cable Connection
MS9500 Side View
* This feature is not available on the MS9520
14
A
UDIBLE
I
NDICATORS
When the Voyager is in operation, it provides audible feedback. These sounds indicate the status of the scanner. Eight settings are available for the tone of the beep (normal, 6 alternate tones and no tone). To change the tone, refer to the
MetroSelect
®
Single-Line Programming Guide (
MLPN
00-02544) or MetroSet
®
2’s help files.
One Beep
When the scanner first receives power, the green LED will turn on, then the red LED will flash and the scanner will beep once. (The red LED will remain on for the duration of the beep.) The scanner is ready to scan.
When the scanner successfully reads a bar code, the red
LED will flash and the scanner beeps once (if programmed to do so). If the scanner does not beep once and the green light does not flash, then the bar code has not been successfully read.
Razzberry Tone
This tone is a failure indicator. Refer to “Failure
Modes" page 17.
Two Beeps – On Power Up
When there is a Flash ROM upgrade needed, the scanner will beep twice followed by alternating flashing of the green and red LEDs.
Three Beeps - During Operation
When entering configuration mode, the red LED will flash while the scanner simultaneously beeps three times. The red and green LEDs will continue to flash while in this mode. Upon exiting configuration mode, the scanner will beep three times, and the LEDs will stop flashing.
When configured, 3 beeps can also indicate a communications timeout during normal scanning mode.
When using one-code-programming, the scanner will beep three times (the current selected tone), followed by a short pause then by a high tone and a low tone. This tells the user that the single configuration bar code has successfully configured the scanner.
Three Beeps - On Power Up
This is a failure indicator. Refer to “Failure Modes” on page 17.
15
V
ISUAL
I
NDICATORS
The MS9540 has three LED indicators (green, red and yellow) located on the head of the scanner. The MS9520 has two LED indicators (green and red) located on the head of the scanner. When the scanner is on, the flashing or stationary activity of the LEDs indicates the status of the current scan and the scanner.
Green, Red & Yellow (MS9540’s Only) LEDs are off
The LEDs will not be illuminated if the scanner is not receiving power from the host or transformer.
The scanner is stand-by mode, and CodeGate
®
is enabled.
Present a bar code to the scanner and the green LED will turn on when the laser turns on.
Steady Yellow (MS9540’s Only)
The CodeGate button is not active. If a bar code is in the scan field, the laser will turn on. The bar code will be decoded and transmitted to the host automatically.
Steady Green
When the laser is active, the green LED is illuminated. The green LED will remain illuminated until the laser is deactivated. (Default Mode Only)
Steady Green and Single Red Flash
When the scanner successfully reads a bar code, the red
LED will flash and the scanner will beep once. If the red LED does not flash or the scanner does not beep once, then the bar code has not been successfully read.
(Default Mode Only)
Steady Green and Steady Red
After a successful scan, the scanner transmits the data to the host device. Some communication modes require that the host inform the scanner when data is ready to be received. If the host is not ready to accept the information, the scanner’s red LED will remain on until the data can be transmitted.
16
V
ISUAL
I
NDICATORS
(
CONTINUED
)
Alternating Flashing of Green and Red
This indicates the scanner is program mode. A razzberry tone indicates that an invalid bar code has been scanned while in this mode.
The scanner needs to have a Flash ROM upgrade if the alternating flashing of the red and green LEDs occurs during startup and is accompanied by three beeps.
Steady Red, Green off
This indicates the scanner may be waiting for communication from the host.
17
F
AILURE
M
ODES
Flashing Green and one Razzberry Tone
This indicates the scanner has experienced a laser subsystem failure. Return the unit for repair to an authorized service center.
Flashing Red and Green with Two Razzberry Tones
This indicates the scanner has experienced a scanning mechanism failure. Return the unit for repair to an authorized service center.
Continuous Razzberry Tone with all LEDs off
If, upon power, the scanner emits a continuous razzberry tone, then the scanner has an experienced an electronic failure. Return the unit for repair to an authorized service center.
Three Beeps – on power up
If the scanner beeps 3 times on power up then the nonvolatile memory (NovRAM) that holds the scanner configuration has failed. If the scanner does not respond after reprogramming, return the scanner for repair to an authorized service center.
18
P
ROGRAMMING
M
ODES
The MS9500 Voyager has 3 modes of programming.
¾
Bar Codes
Voyager or Voyager CG can be configured by scanning the bar codes located in the MetroSelect
®
Single-Line Programming Guide (
MLPN
00-
02544). Please refer to this guide for instructions. This manual can be downloaded for FREE from Metrologic’s website (www.metrologic.com).
¾
MetroSet
®
2
This user-friendly Windows-based configuration program allows you to simply ‘point-and-click’ at the desired scanner options. This program can be downloaded for FREE from Metrologic’ website (www.metrologic.com), or set-up disks can be ordered by calling 1-800-ID-METRO.
¾
Serial Programming
This mode of programming is ideal for OEM applications. This mode gives the end-user the ability to send a series of commands using the serial port of the host system. The commands are equivalent to the numerical values of the bar codes located in the MetroSelect Single-Line Programming Guide
(
MLPN
00-02544).
How does Serial Programming work?
1. Each command sent to the scanner is the ASCII representation of each numeral in the configuration bar code. The entire numeric string is framed with an ASCII [stx] and an ASCII [etx].
EXAMPLE #1:
Command for Disabling Codabar
Command = [stx]100104[etx]
String Sent to Scanner = 02h 31h 30h 30h 31h 30h 34h 03h
(All values are hexadecimal).
2. If the command sent to the scanner is valid, the scanner will respond with an
[ack].
3. If the command sent to the scanner in invalid, the scanner will respond with a [nak].
NOTE: If this occurs, the end-user must start over at the very beginning of the configuration sequence. Simply re-transmitting the invalid command will not work, you must start over.
19
P
ROGRAMMING
M
ODES
(
CONTINUED
)
4. During programming, the motor and laser turn off. YOU CANNOT SCAN A
BAR CODE WHILE IN SERIAL PROGRAM MODE.
5. There is a 20 second window between commands. If a 20 second timeout occurs, the scanner will send a [nak] and you must start over.
6. To enter serial program mode, send the following command
[stx]999999[etx].
7. To exit serial program mode, send the following command [stx]999999[etx], the scanner will respond with an [ack] followed by 3 beeps.
8. This mode uses the current Baud Rate, Parity, Stop Bits and Data Bits settings that are configured in the scanner. The default settings of the scanner are 9600, Space, 2, 7 respectively. If a command is sent to the scanner to change any of these settings, the change will NOT take effect until after serial program mode is exited.
EXAMPLE #2:
The following example will set the scanner to the factory default settings,
Disable Scanning of Code 128 bar codes, change the beeper tone, and add a “G” as a programmable prefix.
FEATURE
HOST
COMMAND
Enter Program Mode [stx]999999[etx]
Load Defaults [stx]999998[etx]
Disable Code 128 [stx]100113[etx]
Alternate Tone 1
Prog. Prefix #1
Code Byte 0
Code Byte 7
[stx]318565[etx]
[stx]903500[etx]
[stx]0[etx]
[stx]7[etx]
Code Byte 1 [stx]1[etx]
Exit Program Mode [stx]999999[etx]
The scanner will beep three times!
SCANNER
ASCII REPRESENTATION RESPONSE
02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h
02h 39h 39h 39h 39h 39h 38h 03h [ack] or 06h
02h 31h 30h 30h 31h 31h 33h 03h [ack] or 06h
02h 33h 31h 38h 35h 36h 35h 03h [ack] or 06h
02h 39h 30h 33h 35h 30h 30h 03h [ack] or 06h
02h 30h 03h [ack] or 06h
02h 37h 03h
02h 31h 03h
[ack] or 06h
[ack] or 06h
02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h
The commands sent to the scanner do not include the small superscripted
‘3’ that you see in front of each bar code string in the MetroSelect manual.
THE ‘3’ SHOULD NOT BE SENT, IT IS A CODE TYPE DESIGNATION
ONLY!
As you will note for commands requiring additional bar codes to be scanned
(such as prefixes, suffixes, timeouts, etc.), simply send the code bytes in the same order that you would normally scan the bar codes.
20
P
ROGRAMMING
M
ODES
(
CONTINUED
)
EXAMPLE #3:
The following example shows the events that occur when an invalid bar code is sent. This sample will load the factory default settings and then set the baud rate to 19200.
FEATURE
HOST
COMMAND ASCII REPRESENTATION
SCANNER
RESPONSE
Enter Program Mode [stx]999999[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h
Load Defaults [stx]99999:[etx] 02h 39h 39h 39h 39h 39h 3Ah 03h [nak] or 15h
Invalid command was sent, you must start over!
Enter Program Mode [stx]999999[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h
Load Defaults [stx]999998[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h
19200 Baud Rate [stx]415870[etx] 02h 34h 31h 35h 38h 37h 30h 03h [ack] or 06h
Exit Program Mode [stx]999999[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h
The scanner will beep three times!
This example illustrates two important points.
First, if an invalid command is sent from the host, the scanner responds with a [nak] and the end-user must start over from the beginning.
Second, if a command is sent to change the Baud Rate, the new baud rate does not take effect until after the end-user exits program mode.
ABBREVIATED ASCII TABLE
Character
[STX]
[ETX]
[ACK]
[NAK]
0
1
2
3
4
7
8
9
5
6
Hex Value
02h
03h
06h
15h
30h
31h
32h
33h
34h
35h
36h
37h
38h
39h
Decimal Value
2
3
6
21
48
49
50
51
52
53
54
55
56
57
21
U
PGRADING THE
F
LASH
ROM F
IRMWARE
The Meteor program is a functional component of Metrologic’s new line of Flashbased scanners. This program allows the user of a Metrologic scanner to quickly upgrade to a new or custom version of software. It requires the use of a personal computer running under Windows 95 or greater and the use of a communication port. The user merely connects the scanner to a communications port of the PC, launches the Meteor program, and blasts off to new software upgrades.
Each MS9500, regardless of the version number or communication protocol, can be upgraded. In other words, all RS232 (-41), keyboard wedge (-47), light pen
(-41), laser emulation (-00), OCIA (-9) and IBM 468X/469X (-11) units can be upgraded. To upgrade all units, a power supply and PowerLink cable
(
MLPN
54-54012) are required.
The upgrades and custom software versions will be supplied by Metrologic in files called Motorola S-record files. These files contain all the information needed to upgrade the scanner. Simply add this file to the working directory or retrieve from its current location.
The program guides the user with its simplistic one click approach. The user must first select the file; once selected and verified, the file is ready to be used in the upgrade. Press the button to upgrade the scanner, the unit will go into a
“flash mode” – both the green and red LEDs will be on. The user can follow the progress of the upgrade by watching the screen for details. When the upgrade is complete, the scanner will respond with its normal one beep on power up. If two beeps occur, the scanner did not upgrade properly. (Contact Metrologic for additional details).
22
L
ABELS
Each scanner has a label on the back of the unit. This label has the model number, date of manufacture, serial number, CE and caution information. The following is an example of this label:
EVITER TOUTE EXPOSITION-Lumiere laser emis par cette overture
AVOID EXPOSURE –Laser light is emitted from this aperture
Patent Information-See Manual
FCC and ICES-003 Information-See Manual
Warranty VOID if case opened.
Contains no user serviceable components.
Complies with 21CFR 1040.10 & 1040.11
NACH EN60825-1:1994/A11:1996
5V
M
AINTENANCE
Smudges and dirt can interfere with the proper scanning of a bar code.
Therefore, the output window will need occasional cleaning.
1. Spray glass cleaner onto lint free, non-abrasive cleaning cloth.
2. Gently wipe the scanner window.
23
D
EPTH OF
F
IELD
mm mils
A
.13
5.2
B
.15
5.7
Minimum Bar Code Element Width
C D E F G
-
-
-
-
.19
7.5
-
-
.25
10
H
.33
13
J
.53
21
K
-
-
24
IR A
CTIVATION
25
A
PPLICATIONS AND
P
ROTOCOLS
The model number on each scanner includes the scanner number and factory default communications protocol.
Scanner
MS9520
MS9540
MS9520
MS9540
MS9520
MS9540
MS9520
MS9540
MS9520
MS9540
MS9520
MS9540
Version
Identifier
41
47
9
11
00
14
Communication Protocol(s)
RS-232/Light Pen Emulation
Keyboard Wedge, Stand-Alone Keyboard and
RS-232 Transmit/Receive
OCIA and RS-232 Transmit/Receive
IBM 468X/469X, RS232-TXD, RXD, RTS, CTS
Laser Emulation and
RS-232 Transmit/Receive
RS232-TXD, RXD, RTS, CTS, DTR, DSR
The MS9500 Series Hand-Held Laser Scanner with built-in PC Keyboard Wedge
Interface is designed to be used for Keyboard emulation only. Many RS-232 programmable functions available in other Metrologic scanners are also available as keyboard wedge functions.
The following are the most important selectable options specific to the keyboard wedge.
Keyboard Type
• **AT (includes IBM® PS2 models 50, 55, 60, 80)
• XT
• IBM PS2 (includes models 30, 70, 8556)
• **USA
• Belgium
• French
Keyboard Country Type
• German
• Italian
• Japanese
• Spanish
• Swiss
**Default setting. Refer to pages 30-34 for default settings. Refer to the
MetroSelect ® Single-Line Programming Guide (
MLPN
00-02544) or MetroSet ® 2’s help files for information on how to change the default settings.
26
T
ROUBLESHOOTING
G
UIDE
The following guide is for reference purposes only. Contact a Metrologic representative at 1-800-ID-Metro or 1-800-436-3876 to preserve the limited warranty terms.
All Interfaces
MS9500 Series Troubleshooting Guide
Symptoms
No LEDs, beep or laser
Possible Causes
No power is being supplied to the scanner
Solution
Check transformer, outlet and power strip. Make sure the cable is plugged into the scanner.
No LEDs, beep, or laser
No power is being supplied to the scanner from host
2 Beeps with alternately flashing LEDs on Power up
Possible ROM failure
Some host systems cannot supply enough current to power Voyager.
A power supply may be needed.
Flash ROM Upgrade Required
3 Beeps on power up
Continuous razz tone on power up
Non-volatile RAM failure
RAM or ROM failure
Contact a Metrologic
Representative, if the unit will not hold the programmed configuration.
Contact a Metrologic
Representative, if the unit will not function.
Razz tone and green LED flash at power up
VLD failure
Contact a Metrologic
Representative
Razz tone, red and green LEDs flash at power up
Scanning mechanism failure
Contact a Metrologic
Representative
Unit scans,
Communicates and beeps twice
Same symbol timeout set too short
Adjust same symbol timeout for a longer time.
The unit powers up, but does not scan/or beep
Beeper disabled. No tone selected
Enable beeper. Select tone.
27
T
ROUBLESHOOTING
G
UIDE
(
CONTINUED
)
Symptoms Possible Causes
The unit powers up, but does not scan and/or beep
Scanning a particular symbology that is not enabled
Solution
UPC/EAN, Code 39, interleaved 2 of 5, Code 93, Code 128 and
Codabar are enabled by default.
Verify that the type of bar code being read has been selected.
The unit powers up, but does not scan and/or beep
The scanner has been programmed for a character length lock, or a minimum length and bar code being scanned does not satisfy the programmed criteria
Verify that the bar code that is being scanned falls into the criteria (Typical of Non-UPC/EAN codes) The scanner defaults to a minimum of 3 character bar code.
The unit scans a bar code, but locks up after the first scan red LED stays on
The scanner is configured to support some form of host handshaking but is not receiving the signal
If the scanner is setup to support
ACK/NAK, RTS/CTS, XON/XOFF or D/E, verify that the host cable and host are supporting the handshaking properly.
The unit scans, but the data transmitted to the host is incorrect
The scanner’s data format does not match the host system requirements
Verify that the scanner’s data format matches that required by the host. Most sure that the scanner is connected to the proper host port.
Scanner beeps at some bar codes and NOT for others of the same bar code symbology
The print quality of the bar code is suspect
Check print mode. The type of printer could be the problem.
Change print settings. i.e. change to econo mode or high speed.
Scanner beeps at some bar codes and NOT for others of the same bar code symbology
The aspect ratio of the bar code is out of tolerance
Check print mode. The type of printer could be the problem.
Change print settings. i.e. change to econo mode or high speed.
28
T
ROUBLESHOOTING
G
UIDE
(
CONTINUED
)
Symptoms
Scanner beeps at some bar codes and NOT for others of the same bar code symbology
Possible Causes
The bar code may have been printed incorrectly
Solution
Check if it is a check digit/character/or border problem.
Scanner beeps at some bar codes and NOT for others of the same bar code symbology
The scanner is not configured correctly for this type of bar code
Check if check digits are set properly.
Scanner beeps at some bar codes and NOT for others of the same bar code symbology
The minimum symbol length setting does not work with the bar code
Check if the correct minimum symbol length is set.
The unit scans the bar code but there is no data
Configuration is not correct
Make sure the scanner is configured for the appropriate mode.
The unit scans but the data is not correct
Configuration is correct
Make sure that the proper PC type
AT, PS2 or XT is selected. Verify correct country code and data formatting are selected. Adjust inter-character delay symptom.
The unit is transmitting each character twice
Configuration is not correct
Increase interscan code delay setting. Adjust whether the F0 break is transmitted. It may be necessary to try this in both settings.
29
T
ROUBLESHOOTING
G
UIDE
(
CONTINUED
)
Symptoms Possible Causes
Alpha characters show as lower case
Computer is in Caps
Lock mode
Solution
Enable Caps Lock detect setting of the scanner to detect whether the PC is operating in Caps Lock.
Everything works except for a couple of characters
These characters may not be supported by that country’s key look up table
Try operating the scanner in Alt mode.
Power-up OK and scans OK but does not communicate properly to the host
Power-up OK and scans OK but does not communicate properly to the host
Power-up OK and scans OK but does not communicate properly to the host
Com port at the host is not working or configured properly
Cable not connected to the proper com port
Cable not connected to the proper com port
Check to make sure that the baud rate and parity of the scanner and the communication port match and the program is looking for
“RS-232” data.
Check to make sure that the baud rate and parity of the scanner and the communication port match and the program is looking for
“RS-232” data.
Check to make sure that the baud rate and parity of the scanner and the communication port match and the program is looking for
“RS-232” data.
The host is receiving data but the data does not look correct
The scanner and host may not be configured for the same interface parameters
Check that the scanner and the host are configured for the same interface parameters
Characters are being dropped
Inter-character delay needs to be added to the transmitted output
Add some inter-character delay to the transmitted output by using the MetroSelect Single-Line
Programming Guide MLPN
00-02544.
30
RS-232 D
EMONSTRATION
P
ROGRAM
If an RS-232 scanner is not communicating with your IBM compatible PC, key in the following BASIC program to test that the communication port and scanner are working.
This program is for demonstration purposes only. It is only intended to prove that cabling is correct, the com port is working, and the scanner is working. If the bar code data displays on the screen while using this program, it only demonstrates that the hardware interface and scanner are working. At this point, investigate whether the application software and the scanner configuration match.
If the application does not support RS-232 scanners, a software wedge program that will take RS-232 data and place it into a keyboard buffer may be needed.
This program tells the PC to ignore RTS-CTS, Data Set Ready (DSR) and Data
Carrier Detect (DCD) signals. If the demonstration program works and yours still does not, jumper RTS to CTS and Data Terminal Reading (DTR) to DCD and
DSR on the back of your PC.
10 CLS
20 ON ERROR GOTO 100
“COM1:9600,S,7,1,CSO,DSO,CD0,LF” AS#1
35
40
PRINT “SCAN A FEW BAR CODES”
LINE INPUT #1, BARCODE$
50 PRINT
60 K$ = INKEY$: IF K$ = CHR$(27) THEN GOTO 32766
100
110
PRINT “ERROR NO.”; ERR ;“PRESS ANY KEY TO TERMINATE.”
KK$ = INKEY$: IF K$ = “”THEN GOTO 110
32766 CLOSE: SYSTEM
32767 END
31
D
ESIGN
S
PECIFICATIONS
O PERATIONAL
Light Source: Visible Laser Diode 650 nm ± 10 nm
Laser Power: Less than 1 mW (peak)
Depth of Scan Field:
0 mm – 203 mm (0” – 8”) for 0.330 mm (13 mil) bar code at default setting
Scan Speed: 72 scan lines per second
Scan Pattern: Single scan line
Minimum Bar Width: 0.127 mm (5.0 mil)
InfraRed Activation:
Decode Capability:
Long Range: 0 mm – 279 mm ± 51 mm (0” – 11” ± 2”)
Short Range: 0 mm – 102 mm ± 25 mm (0” – 4” ± 1”)
Autodiscriminates all standard bar codes for others call a
Metrologic service representative
System Interfaces:
RS232, PC Keyboard Wedge, Stand-Alone Keyboard,
OCIA, IBM 468X/469X, Light Pen Emulation, Laser
Emulation, RS232 with DSR
Print Contrast: 35% minimum reflectance difference
Number Characters
Read:
Up to 80 data characters
(Maximum number will vary based on symbology & density)
Roll, Pitch, Yaw: 42°, 68°, 52°
Beeper Operation: 7 tones or no beep
Indicators (LED)
Default Settings:
Temperature:
Green = laser on, ready to scan; Red = good read;
Yellow (MS9540 Only) = CodeGate button is inactive (on).
CodeGate button is active (off)
M ECHANICAL
Length: 198 mm (7.8”)
Width: Handle - 45 mm (1.8”), Head - 78 mm (3.1”)
Depth: 40 mm (1.6”)
Weight: 149 g (5.25 oz)
E LECTRICAL
Input Voltage: 5VDC ± 0.25V
Power: Operating = 0.825 W, Standby = 0.600 W
Current: Operating = 165 mA @ 5VDC, Standby = 120 mA @ 5VDC
DC Transformers: Class 2; 5.2V @ 650 mA
Laser Class: CDRH: Class II; EN60825-1:1994/A11:1996 Class 1
EMC: FCC Class B
E NVIRONMENTAL
Operating = 0°C to 40° (32° to 104°F)
Storage = -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
Light Levels: Up to 4842 Lux (450 footcandles)
Shock: Designed to withstand 1.5 m (5’) drops
Contaminants: Sealed to resist airborne particulate contaminants
Ventilation: None required
32
D
EFAULT
S
ETTINGS
Many functions of the scanner can be “programmed” – that is, enabled or disabled. The scanner is shipped from the factory programmed to a set of default conditions. The default parameter of the scanner has an asterisk (*) in the charts on the following pages. If an asterisk is not in the default column then the default setting is OFF or DISABLED. Every communication does not support every parameter. If the communication supports a parameter listed in the charts on the following pages, a check mark will appear.
PARAMETER
Normal Scan Mode
Continuous Scan Mode
Blinky Scan
Continuous Blinky Scan
Custom (one shot) Scan
Long-Range In-Stand
Short-Range In-Stand
Long-Range Out-of-Stand
Short-Range Out-of-Stand
CodeGate Active In-Stand
CodeGate Inactive In-Stand
CodeGate Active
Out-of Stand
CodeGate Inactive
Out-of Stand
UPC/EAN
Code 128
Code 93
Codabar
Interleaved 2 of 5 (ITF)
MOD 10 check on ITF
Code 11
Code 39
Full ASCII Code 39
DEFAULT OCIA RS-232
LIGHT
PEN
* 9 9 9
9
9
9
9
9
9
9
9
9
*
*
*
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
IBM
46XX
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
KBW
9
9
9
9
9
9
9
LASER
EMULATION
9
9
9
9
* 9 9 9 9 9 9
*
*
*
*
*
*
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
33
D
EFAULT
S
ETTINGS
(
CONTINUED
)
PARAMETER
Mod 43 Check on Code 39
MSI-Plessy 10/10
Check Digit
MSI-Plessy Mod 10
Check Digit
Paraf Support ITF
ITF Symbol Lengths
Minimum Symbol Length
Symbol Length Lock
Bars High as Code 39
Spaces High as Code 39
Bars High as Scanned
Spaces High as Scanned
DTS/SIEMENS
DTS/NIXDORF
NCR F
NCR S
Poll light pen source
Beeper tone
Beep/transmit sequence
Communication timeout
Razzberry tone on timeout
Three beeps on timeout
Same symbol rescan timeout 250 msecs
Same symbol rescan timeout 375 msecs
Same symbol rescan timeout: 500 msecs)
Same symbol rescan timeout 625 msecs
DEFAULT OCIA RS-232
LIGHT
PEN
9 9 9
IBM
46XX
9
KBW
9
LASER
EMULATION
9
*
Variable
3
None
*
*
Normal
Before transmit
None
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
34
D
EFAULT
S
ETTINGS
(
CONTINUED
)
PARAMETER DEFAULT OCIA RS-232
LIGHT
PEN
Same symbol rescan timeout 750 msecs
Same symbol rescan timeout 875 msecs
Same symbol rescan timeout: 1000 msecs
*
No Same symbol timeout
Infinite Same symbol timeout
Inter-character delay
Program able in 1 msec steps (max 255 msecs)
Number of scan buffers
(maximum)
Transmit UPC-A check digit
1 msecs
10 msecs
in KBW
4
*
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
IBM
46XX
9
9
9
9
9
9
9
9
Transmit UPC-E check digit 9
9
9
9
9
9
9
9
KBW
LASER
EMULATION
9 9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9 Expand UPC-E
Convert UPC-A to EAN-13
Transmit lead zero on
UPC-E
Transmit UPC-A number system
Transmit UPC-A
Manufacturer ID#
Transmit UPC –A Item ID#
Transmit Codabar
Start/Stop Characters
CLSI Editing (Enable)
Transmit Mod 43 Check digit on Code 39
Transit Mod 10/ITF
Transmit MSI-Plessy
Parity
Baud Rate
8 Data Bits
7 Data Bits
Stop Bits
*
*
*
Space
9600
*
2
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
35
D
EFAULT
S
ETTINGS
(
CONTINUED
)
PARAMETER
Transmit Sanyo ID
Characters
Nixdorf ID
LRC Enabled
UPC Prefix
UPC Suffix
Carriage Return
Line Feed-Disabled by default in KBW
Tab Prefix
Tab Suffix
“DE” Disable Command
“FL” Laser
Enable Command
DTR Handshaking support
RTS/CTS Handshaking
Character
Message RTS/CTS
XON/XOFF Handshaking
ACK/NAK
Two Digit Supplements
Five Digit Supplements
Bookland
977 (2 digit) Supplemental
Requirement
Supplements are not
Required
Two Digit Redundancy
Five digit Redundancy
DEFAULT OCIA RS-232
LIGHT
PEN
9
9
IBM
46XX
*
9
9
9
9
* 9
*
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9 as code 39 as code 39 as code 39
9
9
9
9
9
9
9
9
9
9
9
9
KBW
LASER
EMULATION
9
9
9
9
9
9 as code 39 as code 39 as code 39
9
*
*
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
36
D
EFAULT
S
ETTINGS
(
CONTINUED
)
PARAMETER DEFAULT OCIA RS-232
LIGHT
PEN
IBM
46XX
KBW
LASER
EMULATION
100 msec to Find
Supplement Programmable in 100 msec steps
(max 800 msec)
*
Coupon Code 128
† Programmable Code
Lengths
† Code Selects with programmable Code
Length Locks
Programmable Prefix characters
Suffix characters
Prefixes for Individual
Code types
Editing
Inter Scan-Code delay programmable
(100 µsec steps)
Function/control Key
Support
Minimum Element width
Programmable in 5.6 µsec steps
7 avail
3 avail
10 avail
10 avail
800 µsec
1 msec
9
9
9
9
9
9
9
9
9
9
9
9
9
9 as code 39
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9 as code 39
9
9
9
9
† These options are mutually exclusive. One can not be used in conjunction with the other.
37
S
CANNER AND
C
ABLE
T
ERMINATIONS
Scanner Pinout Connections
The MS9520 and MS9540 scanner interfaces terminate to a 10-pin modular jack. The serial # label indicates the interface enabled when the scanner is shipped from the factory.
Pin
6
7
8
9
10
3
4
5
1
2
MS9520-41 & MS9540-41
RS-232C and Light Pen Emulation
Function
Ground
RS-232 Transmit Output
RS-232 Receive Input
RTS Output
CTS Input
DTR Input/LTPN Source
Reserved
LTPN Data
+5VDC
Shield Ground
1 10
Pin
5
6
7
1
2
3
4
8
9
10
MS9520-47 & MS9540-47 Keyboard
Wedge and Stand-Alone Keyboard
Function
Ground
RS-232 Transmit Output
RS-232 Receive Input
PC Data
PC Clock
KB Clock
PC +5V
KB Data
+5VDC
Shield Ground
MS9520-11 & MS9540-11 IBM 468X/469X
Pin
5
6
3
4
7
1
2
8
9
10
Function
Ground
RS-232 Transmit Output
RS-232 Receive Input
RTS Output
CTS Input
DTR Input
IBM B-Transmit
IBM A+ Receive
+5VDC
Shield Ground
Continued next page
38
S
CANNER AND
C
ABLE
T
ERMINATIONS
MS9520-9 & MS9540-9 OCIA
Pin Function
4
5
6
1
2
3
Ground
RS232 Transmit Output
RS232 Receive Input
RDATA
RDATA Return
Clock In
7
8
Clock Out
Clock in Return/Clock out Rtrn
9 +5VDC
10 Shield Ground
MS9520-00 & MS9540-00
Pin
1
2
3
4
5
6
7
8
9
Reserved
Data Out
+5VDC
10 Shield Ground
Function
Ground
RS232 Transmit Output
RS232 Receive Input
Flip Sense/Start of Scan Output
Proximity Detect/Trigger Emulation Output
Scan/Laser Enable Input
MS9520-14 & MS9540-14
Pin
1
2
3
4
5
6
7
8
9
Reserved
DSR Out
+5VDC
10 Shield Ground
Function
Ground
RS-232 Transmit Output
RS-232 Receive Input
RTS Output
CTS Input
DTR Input
1 10
39
S
CANNER AND
C
ABLE
T
ERMINATIONS
(
CONTINUED
)
Cable Connector Configurations (Host End)
“Standard” PowerLink cable
9 5
7
8
9
3
4
5
Pin
1
2
9-pin D-type female connector to the PC
Shield Ground
Function
RS-232 Transmit Output
RS-232 Receive Input
DTR Input/Light Pen Source
Power/Signal Ground
6
Light Pen Data
(DSR Out for -14 interfaces)
CTS Input
RTS Output
+5VDC
6
9-Pin D-Type Connector
1
Stand Alone Keyboard Power Link Cable
4
5
6
Pin
1
2
3
PC Data
NC
Power Ground
Function
+5VDC PC Power to KB
PC Clock
NC
4
2
6 5
1
3
6-Pin Male Mini-DIN Connector
40
S
CANNER AND
C
ABLE
T
ERMINATIONS
(
CONTINUED
)
Cable Connector Configuration
The Keyboard Wedge PowerLink cable [
MLPN
53-53002 or 54-54002] is terminated with a 5-pin DIN female connector on one end, and a 6-pin mini DIN male on the other.
1
4
2
5
3
4
2
6 5
1
3
Keyboard Wedge
PowerLink Cable 5-Pin DIN, Female 6-Pin DIN, Male
Metrologic will supply an adapter cable with a 5-pin DIN male connector on one end and a 6-pin mini DIN female connector on the other.
3
5
2
4
1
5-Pin DIN, Male
Adapter Cable
3
1
5 6
2
4
6-pin Mini DIN, Female
According to the termination required, connect the appropriate end of the adapter cable to the PowerLink cable, leaving the necessary termination exposed for connecting to the keyboard and the keyboard port on the PC. The pin assignments are as follows:
PowerLink Cable
5-pin Female DIN
Pin Function
1 Keyboard Clock
2 Keyboard Data
3 No Connect
4 Power Ground
5 +5 Volts DC
6-pin Male Mini-DIN
Pin Function
1 PC Data
2 No Connect
3 Power Ground
4 +5 Volts DC
5 PC Clock
6 No Connect
Adapter Cable
5-pin Male DIN
Pin Function
1 PC Clock
2 PC Data
3 No Connect
4 Power Ground
5 +5 Volts DC
6-pin Female Mini-DIN
Pin Function
1 Keyboard Data
2 No Connect
3 Power Ground
4 +5 Volts DC
5 Keyboard Clock
6 No Connect
41
L
IMITED
W
ARRANTY
The MS9500 series scanners are manufactured by Metrologic at its Blackwood, New
Jersey, USA facility. The MS9500 series scanners have a five (5) year limited warranty from the date of manufacture. Metrologic warrants and represents that all MS9500 series scanners are free of all defects in material, workmanship and design, and have been produced and labeled in compliance with all applicable US Federal, state and local laws, regulations and ordinances pertaining to their production and labeling.
This warranty is limited to repair, replacement of Product or refund of Product price at the sole discretion of Metrologic. Faulty equipment must be returned to the Metrologic facility in
Blackwood, New Jersey, USA or Puchheim, Germany. To do this, contact Metrologic’s
Customer Service/Repair Department to obtain a Returned Material Authorization (RMA) number.
In the event that it is determined that the equipment failure is covered under the warranty, Metrologic shall, as its sole option, repair the Product or replace the Product with a functionally equivalent unit and return such repaired or replaced Product without charge for service or return freight, whether distributor, dealer/reseller, or retail consumer, or refund an amount equal to the original purchase price.
This limited warranty does not extend to any Product which, in the sole judgement of
Metrologic, has been subjected to abuse, misuse, neglect improper installation, or accident, nor any damage due to use or misuse produced from integration of the Product into any mechanical, electrical or computer system. The warranty is void if the case of
Product is opened by anyone other than Metrologic’s repair department or authorized repair centers.
THIS LIMITED WARRANTY, EXCEPT AS TO TITLE, IS IN LIEU OF ALL OTHER
WARRANTIES OR GUARANTEES, EITHER EXPRESS OR IMPLIED, AND
S P E C I F I C A L L Y EXCLUDES, W I T H O U T L I M I T A T I O N , W A R R A N T I E S OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE UNDER THE
UNIFORM COMMERCIAL CODE, OR ARISING OUT OF CUSTOM OR CONDUCT.
THE RIGHTS AND REMEDIES PROVIDED HEREIN ARE EXCLUSIVE AND IN LIEU
OF ANY OTHER RIGHTS OR REMEDIES. IN NO EVENT SHALL METROLOGIC BE
LIABLE FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES, INCIDENTAL
DAMAGE, DAMAGES TO PERSON OR PROPERTY, OR EFFECT ON BUSINESS OR
PROPERTY, OR OTHER DAMAGES OR EXPENSES DUE DIRECTLY OR
INDIRECTLY TO THE PRODUCT, EXCEPT AS STATED IN THIS WARRANTY. IN NO
EVENT SHALL ANY LIABILITY OF METROLOGIC EXCEED THE ACTUAL AMOUNT
PAID TO METROLOGIC FOR THE PRODUCT. METROLOGIC RESERVES THE
RIGHT TO MAKE ANY CHANGES TO THE PRODUCT DESCRIBED HEREIN.
North America Headquarters
Metrologic Instruments, Inc.
90 Coles Road
Blackwood, NJ 08012-4683
Customer Service: 1-800-ID-METRO
Tel: 856-228-8100
Fax: 856-228-6673
Email: [email protected]
Website: www.metrologic.com
Germany
Metrologic Instruments GmbH
Dornierstrasse 2
82178 Puchheim b.
Munich, Germany
Tel: 49-89-89019-0
Fax: 49-89-89019-200
Email: [email protected]
42
N
OTICES
Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•
•
•
•
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Notice
This Class B digital apparatus complies with Canadian ICES-003.
Remarque
Cet appareil numerique de la class B est conforme à la norme NMB-003 du Canada.
Caution
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser light exposure. Under no circumstances should the customer attempt to service the laser scanner. Never attempt to look at the laser beam, even if the scanner appears to be nonfunctional.
Never open the scanner in an attempt to look into the device. Doing so could result in hazardous laser light exposure. The use of optical instruments with the laser equipment will increase eye hazard.
Atención
La modificación de los procedimientos, o la utilización de controles o ajustes distintos de los especificados aquí, pueden provocar una luz de láser peligrosa. Bajo ninguna circunstancia el usuario deberá realizar el mantenimiento del láser del escáner. Ni intentar mirar al haz del láser incluso cuando este no esté operativo. Tampoco deberá abrir el escáner para examinar el aparato. El hacerlo puede conllevar una exposición peligrosa a la luz de láser. El uso de instrumentos ópticos con el equipo láser puede incrementar el riesgo para la vista.
Attention
L'emploi de commandes, réglages ou procédés autres que ceux décrits ici peut entraîner de graves irradiations. Le client ne doit en aucun cas essayer d'entretenir lui-même le scanner ou le laser. Ne regardez jamais directement le rayon laser, même si vous croyez que le scanner est inactif. N'ouvrez jamais le scanner pour regarder dans l'appareil. Ce faisant, vous vous exposez à une rayonnement laser qú êst hazardous. L'emploi d'appareils optiques avec cet équipement laser augmente le risque d'endommagement de la vision.
Achtung
Die Verwendung anderer als der hier beschriebenen Steuerungen, Einstellungen oder Verfahren kann eine gefährliche Laserstrahlung hervorrufen. Der Kunde sollte unter keinen Umständen versuchen, den
Laser-Scanner selbst zu warten. Sehen Sie niemals in den Laserstrahl, selbst wenn Sie glauben, daß der Scanner nicht aktiv ist. Öffnen Sie niemals den Scanner, um in das Gerät hineinzusehen. Wenn Sie dies tun, können Sie sich einer gefährlichen Laserstrahlung aussetzen. Der Einsatz optischer Geräte mit dieser Laserausrüstung erhöht das Risiko einer Sehschädigung.
Attenzione
L’utilizzo di sistemi di controllo, di regolazioni o di procedimenti diversi da quelli descritti nel presente
Manuale può provocare delle esposizioni a raggi laser rischiose. Il cliente non deve assolutamente tentare di riparare egli stesso lo scanner laser. Non guardate mai il raggio laser, anche se credete che lo scanner non sia attivo. Non aprite mai lo scanner per guardare dentro l’apparecchio. Facendolo potete esporVi ad una esposizione laser rischiosa. L’uso di apparecchi ottici, equipaggiati con raggi laser, aumenta il rischio di danni alla vista.
43
P
ATENTS
Patents
“Patent Information
This METROLOGIC product may be covered by one or more of the following US
Patents:
US Patent No. 4,958,984; 5,081,342; 5,260,553; 5,340,971; 5,340,973;
5,424,525; 5,468,951; 5,484,992; 5,525,789; 5,528,024; 5,591,953; 5,616,908;
5,627,359; 5,661,292; 5,777,315; 5,789,730; 5,789,731; 5,811,780; 5,825,012;
5,828,048; 5,883,375; 5,886,337; 5,895,907; 5,925,870; 5,925,871; 5,939,698;
6,029,894; D408,532;
4,360,798; 4,369,361; 4,387,297; 4,460,120; 4,593,186; 4,607,156; 4,673,805;
4,736,095; 4,758,717; 4,816,660; 4,845,350; 4,896,026; 4,923,281; 4,933,538;
4,992,717; 5,015,833; 5,017,765; 5,059,779; 5,117,098; 5,124,539; 5,130,520;
5,132,525; 5,140,144; 5,149,950; 5,180,904; 5,200,599; 5,229,591; 5,247,162;
5,250,790; 5,250,791; 5,250,791; 5,250,792; 5,262,628; 5,280,162; 5,280,164;
5,304,788; 5,321,246; 5,324,924; 5,396,053; 5,396,055; 5,408,081; 5,410,139;
5,436,440; 5,449,891; 5,468,949; 5,479,000; 5,532,469; 5,545,889
No license right or sublicense is granted, either expressly or by implication, estoppel, or otherwise, under any METROLOGIC or third party intellectual property rights (whether or not such third party rights are licensed to
METROLOGIC), including any third party patent listed above, except for an implied license only for the normal intended use of the specific equipment, circuits, and devices represented by or contained in the METROLOGIC products that are physically transferred to the user, and only to the extent of
METROLOGIC’s license rights and subject to any conditions, covenants and restrictions therein.”
Other worldwide patents pending.
44
I
NDEX
A
AC Input/Outlet......................5, 6, 7 accessories ...................................2
accessories ...................................2
adapter ..........................................2
approvals.....................................23
audible.........................................15
autodiscriminates ........................32
B bar code ......1, 4, 15, 16, 17, 19-21,
23, 24, 28, 29, 32 beep ..........4, 15, 16, 20-22, 27, 28,
32, 34
C
Cable....................... 2, 3, 30, 40, 41 communication ....... 5, 16, 17, 22,
30, 33 detachable.............................1, 8 pin assignments ......................41
powerLink ....... 1, 2, 4, 5, 7, 8, 22,
40, 41 caution.........................4, 5, 6, 7, 23
CDRH ..........................................32
CE ...............................................43
codeGate................. 1, 9, 16, 32, 33 compliance ............ 4, 5, 6, 7, 42, 43 configuration......... 1, 15, 19, 27, 31,
40, 41 connector.......................................2
current ..................... 6, 7, 15, 27, 32 customer Service................. ii, 3, 42
D decode Capability........................32
default Settings........ 4, 5, 20, 21, 26 depth of Field.........................24, 25 detachable.....................................3
disclaimer ....................................42
E electrical ......................................32
F failure Indicator(s) ....................... 15 failure Modes ........................ 15, 18
G green LED................... 4, 15, 16, 27
H host ............. 1-3, 5, 7, 8, 16, 17, 19,
21, 27, 28, 30
I indicators audible .................................... 15
LED....... 4, 14, 15, 16, 27, 28, 32 input Voltage ............................... 32 installation ............................. 42, 43 interfaces ........................ 27, 32, 38
K keyboard Wedge....................... 1, 2
L labels .......................................... 23 light Levels .................................. 32 light Pen....... 1, 2, 22, 26, 33, 34-37 light Source ................................. 32
M maintenance ............................... 23 meteor......................................... 22
N notices......................................... 43
O
OCIA ......................................... 1, 2 operation ..................................... 15 output window ............................. 14
45
I
NDEX
P parts ........................................2, 14
PC . 5, 22, 26, 29, 30, 32, 38, 40, 41 pin Assignments ..........................41
port ................................................6
power Supply............. 4, 6, 8, 22, 27 powerLink ..................................5, 7 programming ... 4, 15, 19, 20, 26, 30 programming guide .......................2
R razzberry Tone .......... 15, 17, 18, 34 red LED ................. 4, 15, 16, 22, 28 repair .....................................18, 42
RMA ............................................42
RS-232 .........1, 2, 26, 30, 31, 33-40
S
SELV .................................4, 5, 6, 7 service .....................................3, 42 specifications...............................32
stand..............................................2
system interfaces ........................32
T termination .................................... 6 tones ..................................... 15, 18 transformers................................ 32 troubleshooting ......... 27, 28, 29, 30
V ventilation.................................... 32 visual..................................... 16, 17 voltage ........................................ 32
W warranty ...................................... 42 window.................................. 14, 23
46
April 2002
Printed in the USA
0 0 - 0 2 4 1 0 C
advertisement
Related manuals
advertisement
Table of contents
- 5 Introduction
- 6 Scanner and Accessories
- 8 Operation Test
- 9 MS9520-00/9/11/14/41 and MS
- 10 Keyboard Wedge MS9520-47 and MS
- 11 Stand Alone Keyboard
- 12 Installation Notes for USB Interface
- 12 Disconnection the PowerLink Cable from the Scanner
- 13 - MS9540 Series Only
- 14 Stand Kits
- 15 Assembling the Stands
- 18 Scanner Parts
- 19 Audible Indicators
- 20 Visual Indicators
- 22 Failure Modes
- 23 Programming Modes
- 26 Upgrading the Flash ROM Firmware
- 27 Labels
- 27 Maintenance
- 28 Depth of Field
- 29 IR Activation
- 30 Applications and Protocols
- 31 Trouble Shooting Guide
- 35 RS-232 Demonstration Program
- 36 Design Specifications
- 37 Default Settings
- 42 Scanner Pinout Connections
- 44 Cable Connector Configurations
- 46 Limited Warranty
- 47 Notices
- 48 Patents
- 49 Index
