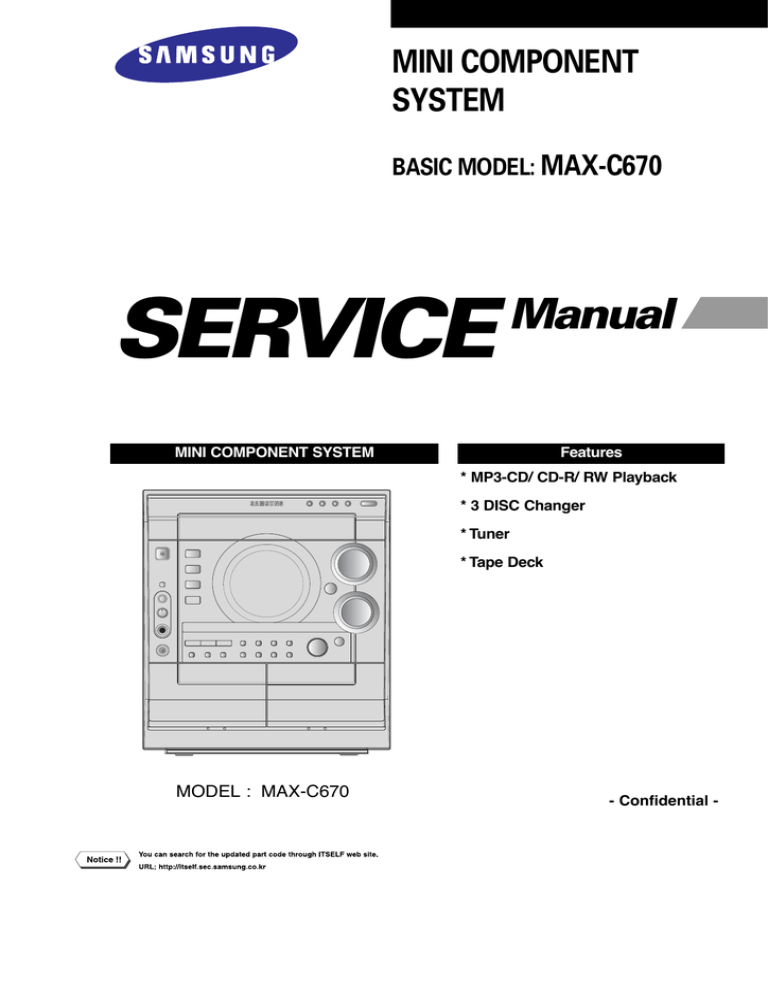

MINI COMPONENT
SYSTEM
BASIC MODEL: MAX-C670
SERVICE
Manual
MINI COMPONENT SYSTEM
Features
* MP3-CD/ CD-R/ RW Playback
* 3 DISC Changer
* Tuner
* Tape Deck
MODEL : MAX-C670
- Confidential -
ELECTRONICS
© Samsung Electronics Co.,Ltd. AUG. 2005
Printed in Korea
Code no. AH68-01771N
INDEX
Ch1
Ch8
Precautions
1-1. Safety Precautions
1-2. Servicing Precautions
1-3. Precautions for Electrostatically
Sensitive Device (ESDs)
1-4. Special Precations and Waring
Lables for Laser Products
1-5. Special Precautions for HDD
1-1
1-2
1-3
Electrical Parts List
Electrical Parts List
Ch9
Block Diagram
Block Diagram
1-4
1-5
Ch10
Ch11
PCB Diagram
1. MAIN
11-1
2. AMP
11-2
Ch12
Schematic Diagram
1. MAIN
12-1
2. AMP
12-2
3. FRONT
12-3
4-1
How to disassemble
How to disassemble
Ch6
3-1
3-2
3-3
Adjustments
Cassette Deck
Ch5
2-1
2-2
2-3
Product Functions
1. SPK Connection & Setup
2. Main Functions
3. New Functions
Ch4
5-1
Ch13
Circuit Description
Circuit Board Description
13-1
Troubleshooting
1. No Power
2. No Output
3.Protection
6-1
6-2
6-3
Ch14
Reference
1. Cleaning your Component System
Exploded View & Parts List
1. Total Exploded View
2. Parts List
7-1
7-5
14-1
2. Precautions when using
the compact disc
Ch7
10-1
Product Descriptions
1. Specifications
2. Notes on Discs
3. Accessories
Ch3
9-1
Wiring Diagram
Wiring Diagram
Ch2
8-1
14-2
3. Precautions when using
audio cassette
14-3
1. Precautions
Follow these safety, servicing and ESD precautions to prevent damage and protect against potential hazards
such as electrical shock and X-rays.
1-1 Safety Precautions
1. Be sure that all of the built-in protective
devices are replaced.
2. When reinstalling the chassis and its
assemblies, be sure to restore all protective
devices, including control knobs and
compartment covers.
3. Make sure that there are no cabinet
openings through which people-particularly children--might insert fingers
and contact dangerous voltages. Such
openings include the spacing between the
picture tube and the cabinet mask,
excessively wide cabinet ventilation slots,
and improperly fitted back covers.
4. Design Alteration Warning:
Never alter or add to the mechanical or
electrical design of the unit. Example: Do
not add auxiliary audio or video connectors. Such alterations might create a safety
hazard. Also, any design changes or additions will void the manufacturer's warranty.
5. Leakage Current Hot Check (Figure 1-1):
Warning: Do not use an isolation
transformer during this test. Use a leakagecurrent tester or a metering system that
complies with American National Standards
Institute (ANSI C101.1, Leakage Current for
Appliances), and Underwriters Laboratories
(UL Publication UL1410, 59.7).
With the unit completely reassembled, plug
the AC line cord directly into a 120V AC
outlet. With the unit's AC switch first in
the ON position and then OFF, measure the
current between a known earth ground
(metal water pipe, etc.) and all exposed
metal parts. Examples: Handle brackets,
metal cabinets, screwheads and control
shafts. The current measured should not
exceed 0.5 milliamp. Reverse the powerplug prongs in the AC outlet and repeat.
(Reading should
not be above
0.5mA)
Device
Under
Test
Leakage
Currant
Tester
Test all
exposed metal
surfaces
2-Wire Cord
Also test with
plug reversed
(using AC adapter
plug as required)
Earth
Ground
Fig. 1-1 AC Leakage Test
6. Insulation Resistance Cold Check:
(1) With the unit's AC plug disconnected
from the AC source, connect an electrical
jumper across the two AC prongs. (2) Set
the power switch to ON. (3) Measure the
resistance between the shorted AC plug and
any exposed metallic parts. Example:
Screwheads, antenna, control shafts or
handle brackets.
If any of the exposed metallic parts has a
return path to the chassis, the measured
resistance should be between 1 and 5.2
megohms. If there is no return path, the
measured resistance should be "infinite." If
the resistance is outside these limits, a shock
hazard might exist. See Figure 1-2
Antenna
Terminal
Exposed
Metal Part
ohm
Ohmmeter
Fig. 1-2 Insulation Resistance Test
1-1
Samsung Electronics
Precautions
1-1 Safety Precautions (Continued)
7. Components, parts and wiring that appear
to have overheated or that are otherwise
damaged should be replaced with parts
that meet the original specifications.
Always determine the cause of damage or
overheating, and correct any potential
hazards
8. Observe the original lead dress, especially
near the following areas: Antenna
wiring, sharp edges, and especially the
AC and high voltage power supplies.
Always inspect for pinched, out-of-place,
or frayed wiring. Do not change the
spacing between components and the
printed circuit board. Check the AC
power cord for damage. Make sure that
no wires or components touch thermally
hot parts.
9. Product Safety Notice:
Some electrical and mechanical parts
have special safety-related characteristics
which might not be obvious from visual
inspection. These safety features and the
protection they give might be lost if the
replacement component differs from the
original--even if the replacement is rated
for higher voltage, wattage, etc.
10 Components that are critical for safety are
indicated in the circuit diagram by
shading,
or
. Use replacement
components that have the same ratings,
especially for flame resistance and
dielectric strength specifications. A
replacement part that does not have the
same safety characteristics as the original
might create shock, fire or other hazards.
1-2 Servicing Precautions
Warning1:
First read the "Safety Precautions" section of this manual. If some unforeseen circumstance creates a conflict
between the servicing and safety precautions, always follow the safety precautions.
1. Servicing precautions are printed on the
cabinet. Follow them.
2. Always unplug the unit's AC power cord
from the AC power source before
attempting to: (a) Remove or reinstall any
component or assembly, (b) Disconnect an
electrical plug or connector, (c) Connect a
test component in parallel with an
electrolytic capacitor.
3. Some components are raised above the
printed circuit board for safety. An
insulation tube or tape is sometimes used.
The internal wiring may be clamped to
prevent contact with thermally hot
components. Reinstall all such elements to
their original position.
4. After servicing, always check that the
screws, components and wiring have been
correctly reinstalled. Make sure that the
portion around the serviced part has not
been damaged.
Samsung Electronics
5. Check the insulation between the blades of
the AC plug and accessible conductive parts
(examples: metal panels, input terminals
and earphone jacks).
6. Insulation Checking Procedure: Disconnect
the power cord from the AC source and
turn the power switch ON. Connect an
insulation resistance meter (500V) to the
blades of the AC plug.
The insulation resistance between each
blade of the AC plug and accessible
conductive parts (see above) should be
greater than 1 megohm.
7. Never defeat any of the B+ voltage
interlocks. Do not apply AC power to the
unit (or any of its assemblies) unless all
solid-state heat sinks are correctly installed.
8. Always connect a test instrument's ground
lead to the instrument chassis ground
before connecting the positive lead; always
remove the instrument's ground lead last.
1-2
Precautions
1-3 Precautions for Electrostatically Sensitive Devices (ESDs)
1. Some semiconductor ("solid state") devices
are easily damaged by static electricity.
Such components are called Electrostatically
Sensitive Devices (ESDs). Examples include
integrated circuits and some field-effect
transistors. The following techniques will
reduce the occurrence of component
damage caused by static electricity.
5. Use only a grounded-tip soldering iron
when soldering or unsoldering ESDs.
2. Immediately before handling any
semiconductor components or assemblies,
drain the electrostatic charge from your
body by touching a known earth ground.
Alternatively, wear a discharging
wrist-strap device. (Be sure to remove it
prior to applying power--this is an electric
shock precaution.)
7. Do not remove a replacement ESD from its
protective package until you are ready to
install it. Most replacement ESDs are
packaged with leads that are electrically
shorted together by conductive foam,
aluminum foil or other conductive
materials.
6. Use only an anti-static solder removal
device. Many solder removal devices are
not rated as "anti-static" (these can
accumulate sufficient electrical charge to
damage ESDs).
8. Immediately before removing the protective
material from the leads of a replacement
ESD, touch the protective material to the
chassis or circuit assembly into which the
device will be installed.
3. After removing an ESD-equipped assembly,
place it on a conductive surface such as
aluminum foil to prevent accumulation of
electrostatic charge.
4. Do not use freon-propelled chemicals.
These can generate electrical charges that
damage ESDs.
9. Minimize body motions when handing
unpackaged replacement ESDs. Motions
such as brushing clothes together, or lifting
a foot from a carpeted floor can generate
enough static electricity to damage an ESD.
1-4 Special Precautions and Warning Labels for Laser Products
(UL)
(CSA)
This Product Complies with
DHHS Rules 21CFR, Sub
chapter J.At date of Manufacture
(UL,CSA,EU)
CERTIFIED ONLY TO CANADIAN
ELECTRICAL CODE.
CLASS 1
LASER PRODUCT
CERTIFIE EN VERTU DU CODE
CANADIAN DE LELETRICITE
SEULEMENT
Fig. 1-3 Warning Labels (Location: Enclosure Block)
(UL,CSA,SCAN)
CAUTION : INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATEO AVOIDEXPOSURE TO BEAM
ADVARSEL: USYNLIG LASERSTRÅLING VED ABNING
NÅR SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION
UNDGA UDSAETTELSE FOR STRALING
VARO:AVATTAESSA JA SUOJALUKITUS OHITETTAESSA
OLET ALTTINA NAKYMATTÖMALLE LASERSATEILYLLE ALA
KATSO SATEESEEN!
VARNING:OSYNLIG LASERSTRÅLNING NAR DENNA DEL
AR OPPNAD OCH SPARREN AR URKOPPLAD BETRAKTA
EJSTRÅLEN!
(EU)
UL
CSA
EU
SCAN
: Manufactured for U.S.A. Market.
: Manufactured for Canadian Market.
: Manufactured for European Market.
: Manufactured for Scandinavian
Market.
Fig. 1-4 Warning Labels (Location: Disc Clamper, Inner Side of Unit Door or Nearby Unit Chassis )
1-3
Samsung Electronics
Precautions
1-4 Special Precautions and Warning Labels for Laser Products (Continued)
1-4-1 Warnings
1. When servicing, do not approach the LASER
exit with the eye too closely. In case it is
necessary to confirm LASER beam emission,
be sure to observe from a distance of more
than 30 cm from the surface of the objective
lens on the optical pick-up block.
2. Do not attempt to handle the objective lens
when the DISC is not on the tray.
1-4-2 Laser Diode Specifications
Material: GaAs+ GaAlAs
Wavelength: 760-800 nm
Emission Duration: Continuous
1-4-3 Handling the Optical Pick-up
1. Static electricity from clothing or the body
may cause electrostatic breakdown of the
laser diode in the Optical Pickup. Follow
this procedure:
2. Place a conductive sheet on the work bench
(i.e., the black sheet used for wrapping
repair parts.) Note: The surface of the work
bench should be covered by a copper
ground plane, which is grounded.
3. The repair technician must wear a wrist
strap which is grounded to the copper sheet.
4. To remove the Optical Pickup block:
Place the set on the conductive sheet, and
momentarily touch the conductive sheet
with both hands. (While working, do not
allow any electrostatic sources--such as
clothes--to touch the unit.)
Laser Output: 0.2 mw (measured at a
1.6 mm distance from the objective lens
surface on the optical pick-up block.)
5. Ground the "Short Terminal" (located on the
PCB, inside the Pickup Assembly) before
replacing the Pickup. This terminal should
be shorted whenever the Pickup Assembly
is lifted or moved.
short
terminal
SOH91VI(LDP)
short terminal
6. After replacing the Pickup, reopen the Short
Terminal. See diagrams below:
SOH91CI(CAR,walkman)
1M
THE UNIT
(1) WRIST-STRAP
FOR GROUNDING
short
terminal
SOH-A1
(CMS-V10,CMS-V30)
CONDUCTIVE SHEET
1M
short
terminal
SOH94T4N
(CMS-V10,CMS-V30)
1-5 Special Precautions for HDD
* HDD Data Maintenance Step
1. Since the data on the HDD is weak to mechanical shock, place the HDD in a safe
location that is free from mechanical shock once it is removed from the main unit.
2. In order to safe keep the data on the HDD, back up the data before the repair or
make sure not to place the HDD near any electrical appliance that generates a strong
magnetic field.
Samsung Electronics
1-4
2. Product Description
1. Specifications
RADIO
SW(OPTION)
Usable sensitivity
40 dB
AM (MW)
Signal/noise ratio
40 dB
Usable sensitivity
60 dB
Total harmonic distortion
2%
FM
Signal/noise ratio
55 dB
Usable sensitivity
10 dB
Total harmonic distortion
0.6 %
COMPACT DISC PLAYER
Capacity
3 discs
Frequency range
20 Hz - 20 KHz (± 1 dB)
Signal/noise ratio
85 dB (at 1 KHz) with filter
Distortion
0.05 % (at 1 KHz)
Channel separation
75 dB
Disc sizes
Diameter: 120 or 80 mm. Thickness: 1.2 mm
TAPE DECK
Frequency range
125 Hz ~ 10 KHz
Signal/noise ratio
40 dB
Channel separation
30 dB
Erasing effect
50 dB(without filter)
AMPLIFIER
Output power
Speaker(6 Ω)
Channel separation
Signal/noise ratio
130 Watts/CH RMS,IEC (total harmonic distortion: 10 %)
40 dB
75 dB
GENERAL
Dimensions
Samsung Electronics
270 (D) x 332 (H) x 426 (W) mm
2-1
2. Notes on discs
Disc Recording Format
CD-R Discs
• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the
condition of the disc.
• Use a 650MB/74 minute CD-R disc.
Do not use CD-R disk over 700MB/80 minute as much as possible since it may not be played back.
• Some CD-RW (Rewritable) media, may not be playable.
• Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you
may not be able to fully play the disc.
CD-R MP3 Discs
• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
• MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Use discs recorded with a compression/decompression data rate greater than 128Kbps.
• Only files with the ".mp3" and ".MP3" extensions can be played.
• Only a consecutively written Multisession disc can be played. If there is a blank segment in the Multisession disc,
the disc can be played only up to the blank segment.
• If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
• For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
• A maximum of 500 tracks can be played per CD.
• A maximum of 300 folders can be played per CD.
CD-R JPEG Discs
• Only files with the ".jpeg" and ".JPEG" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the
disc can be played only up to the blank segment.
• A maximum of 9,999 images can be stored on a single CD.
• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
• Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
2-2
Samsung Electronics
3. Accessories
Code no.
Description & Specification
Remarks
AH39-00320C
CBF COAXIAL CABLE
110REC,1007#
AH40-00087A
TUNER-FM/AM
MJ104MA1-55C,FM,AM
AH42-00019A
ANT LOOP
S0160BL-16,9uH,-,1KH
AH59-01159S
REMOCON-ASSY
SAMSUNG,-,-,28KEY
Samsung Electronics
2-3
3. Product Functions
1. SPK connection
Connecting the Loudspeakers
Connect the connecting jacks (2) to the back of mini-compact system.
Make sure the polarities (+and -) are correct.
Left speaker wire should be connected to mark “L” of the unit back.
Right speaker wire should be connected to mark “R” of the unit back.
SPEAKERS OUT (6
)
Directions in Installing Speaker
Installation in a place near heating apparatus, under direct lay of light or with high humidity may cause performance degradation of the speaker.
Do not install on the wall or on a high place of pole or other unstable place to prevent any safety accident caused by falling of the speaker.
Do not take the speaker apart from TV or computer monitor.
The speaker near the TV or computer monitor may influence the quality of the screen display.
Samsung Electronics
3-1
2. Main Functios
Loading and Changing Compact
Discs
The CD disc changer can contain up to three 12 cm or 8 cm
compact discs without using an adapter.
To replay the CD/MP3-CD
This is a player that enables the playback of audio CD, CD-R,
CD-RW and MP3-CD and does not possess the function that
saves MP3 files.
Never force the compact disc carrousel when opening and
closing the compartment.
Do not use CDs of irregular shapes like heart or octagon shapes.
The performance of the player may be degraded.
Never press down or place objects on the carrousel.
Always treat your compact discs with care; refer, if necessary, to
the section entitled “Precautions When Using Compact Discs” on
page 24 .
1
Switch the system on by pressing STANDBY/ON.
2
Press the OPEN/CLOSE( ) button on the front panel.
Result: The compartment opens.
3
Place one discs in the front slots of the carrousel, with the label on
the discs facing upwards.
Check that the compact disc has been correctly inserted in
the holder before closing the compartment.
4
If you wish to load another compact disc, press the DISC CHANGE
button on the front panel (or DISC SKIP on the remote control).
Result: The carrousel rotates by 120°.
5
Close the compartment by pressing the OPEN/CLOSE( ) button
again.
If you wish to start playing a disc directly, you can also
proceed as follows.
To play...
1
2
3
4
Press the STANDBY/ON button to switch on the power.
Press the CD/MP3-CD(
) of the main unit to select the CD function.
Insert more than one CD or a MP3-CD.
Press the CD/MP3-CD(
) button of the main unit or the
button
of the remote control.
If there are more than one CD or an MP3-CD inserted,
replays are then processed in order.
Your CD Player will take a few moments to scan through
all the tracks recorded on a particular MP3-CD.
The English name of the song may be indicated on the display
only if directly downloaded from the PC or if the purchased MP3CD is sorted according to titles(directory). (Other
languages besides English may not be indicated.)
The English name of the track may not be indicated
depending on the characteristics of the MP3-CD.
<CD Playback>
<During the MP3-CD playback>
Track Indicator
Track Indicator
Press...
Playtime Indicator
Disc 1
CD (
) or Disc 1
Disc 2
Disc 2
Disc 3
Disc 3
Result: The compartment closes automatically and the disc selected
starts playing.
6
At least more than one CD should be inserted for playbacks.
5
Adjust the volume according to needs with the following procedures.
Turn the VOLUME control of the main unit.
or
Press the VOLUME + or – button of the remote control.
The volume level can be adjust in 31 steps(VOL MIN,VOL 1VOL 29,and VOL MAX).
6
If it is desired to pause while the playback is processing, press the
CD/MP3-CD(
) button.
Press the CD/MP3-CD(
) button once again
to playback again.
7
To stop playback, press the
To change or unload the compact disc changer, repeat Steps 2 to 5.
Keep the compartment closed whenever you are not using
it, to prevent dust from entering.
You can load or unload compact discs when the radio,
tape or auxiliary source function is selected.
4
2,5
Title(Directory) Indicator Playtime Indicator
button.
A new disc may be inserted in the remaining two compartments
excluding the CD which is being played back. Press the Disc
Changer button to open the CD tray. The revolving part does
not turn during playbacks.
If there is not even one CD inserted in the CD tray, it is
indicated as “NO DISC”.
If the CD Repeat function is not selected, 3 CDs are played back
which automatically stops.
5
1
2,4,6
1
5
7
3-2
Samsung Electronics
Repeating One or All Tracks
on the Compact Discs
You can repeat indefinitely:
A specific track on a compact disc.
All tracks on the compact disc selected.
All discs loaded in the carrousel
1
2
Function to skip through 10
tracks at a time
Press the +10 button briefly while playing back a
CD and MP3-CD. The track 10 tracks after the current
one will then be played back.
To repeat...
Press CD REPEAT on the Remote
Control or more times until...
The current track indefinitely
The selected disc
All discs loaded
REPEAT 1 is displayed
REPEAT 1 CD is displayed
REPEAT ALL CD is displayed
Example: If you want to select track 43 during playback of track
5, press the +10 button four times, and then press
the
button three times .
5 ➝10➝ 20 ➝ 30 ➝ 40 ➝ 41 ➝ 42 ➝ 43
When you wish to stop the Repeat function, press CD REPEAT until
ALL CD or 1 CD is displayed, or press
SHUFFLE
DISC SKIP
CD/MP3-CD
CD REPEAT
CD/MP3-CD
2
VOLUME
.
1,2
VOLUME
TUNING/
ALBUM
TUNING
MODE
TUNING/
ALBUM
TUNING
MODE
DECK
1/2
+10
DECK
1/2
+10
TA P E
Medley Play
(This function is only available during playback of a CD.)
Last Memory Function
(This function is only available during playback of MP3-CD.)
You can select “MEDLEY ON”and “MEDLEY OFF”during playback of a CD.
1
Press the MEDLEY PLAY button once.
Result: “MEDLEY ” is displayed.
The interval time between the tracks can be shorten.
2
Press the MEDLEY PLAY button again.
Cancel this function,return to normal playback.
BAND
TIMER ON/OFF
DEMO/DIMMER
SOUND MODE
AI SLEEP
PROGRAM/SET
MEDLEY
DISC SKIP
SHUFFLE
CD REPEAT
When MP3-CD playback is selected again after your CD
player has been stopped or turned off, this function allows
playback from the start of the track that you last listened
to.
Press the PROGRAM button while your MP3-CD is being played
. The LAST ON and LAST OFF may be repeatedly selected.
AI SLEEP
PROGRAM/SET
MEDLEY
DISC SKIP
SHUFFLE
CD REPEAT
CD/MP3-CD
CD/MP3-CD
Samsung Electronics
3-3
3. New Functions
Power Surround/Power Surround
XT/Power Sound Function
Mute Function
You can turn the sound off temporarily on your system.
Example: You wish to answer a telephone call.
1
2
Press MUTE.
To switch the sound back on (at the same volume as before), press
MUTE again or the VOLUME buttons.
P.SURROUND
TIMER ON/OFF
DEMO/DIMMER
SOUND MODE
AI SLEEP
PROGRAM/SET
MEDLEY
TUNER
The Power Surround replaces conventional stereo sound
with a wider and more true-to-life sound. It creates the
feeling of being right at the centre of the music and being
surrounded by total music sound.
The function of Power Sound amplifies bass and improves
high key or bass twice as much for you to appreciate
powerful real sound.
Press SURROUND XT button on the front panel until the
required option is selected. Each time the SURROUND XT
button is pressed, “P,SOUND,P,SUR,P,SUR, XT ,OFF” is
selected or cancelled in this order.
MUTE
AUX
Your mini-compact system is equipped with the function
of Power Surround/Power Surround XT/Power Sound.
The P. SURROUND function is not available if plugging the
Microphone into MIC jack.
BAND
Selecting Sound Mode
Your mini-compact system is equipped with a preset equalizer
that allows you to choose the most appropriate balance
between treble and bass frequencies, according to the type of
music you are listening to.
This model provides D.S.P modes so that you can enjoy
virtually original sound.
Turn SOUND MODE on the front panel or Press SOUND MODE on
the remote control until the required option is selected.
To obtain a...
Select...
Normal balance (linear)
Balance suitable for pop music
Balance suitable for rock music
Balance suitable for classic music
Balance suitable for hall
Balance suitable for live
Balance suitable for cinema
PASS
POP
ROCK
CLASSIC
HALL
LIVE
CINEMA
CD SYNCHRO
3-4
Samsung Electronics
4. Adjustments
Cassette Deck
1. To Adjust Tape Speed
Notes
MAIN PCB
1) Measuring tape: i) MTT-111 (or equivalent)
(Tapes recorded with 3kHz)
ii) MTT-5512 (or equivalent)
2) Connect the SPK OUT of the MAIN PCB to the frequency counter as in figure 1-5.
Step
1
Item
Pre-Setup
Condition
NOR
SPEED
Control
SPK OUT
(connected
to the frequency
counter)
Frequency Counter
SPK OUT
output
Figure 1-5
To Adjust
Pre-Setup
1) Deck :MTT-111
2) Press PLAY
SW button
Standard
3KHz
Fixed
Remark
±1%
range
Recording /Play head
MAIN PCB
VTVM
Oscilloscope
SPK OUT
(GND)
AZIMUTH control screw
AZIMUTH control screw
(RVS Play)
(FWD Play)
In Out
Figure 1-7
Figure 1-6
Audio OSC.
SET
(MAIN PCB)
IN
AUX IN
VTVM
Oscilloscope
TP
SPK OUT
IN OUT
Figure 1-8
Samsung Electronics
4-1
2. To Adjust PlayBack Level/REC
Notes
1) Before the actual adjustment, clean the play/recording
head.
2) Measuring tape :
i) MTT-114N(or equivalent 10kHz AZIMUTH control)
ii) MTT-5512
3) The cassette deck is connections as shown in figure 1-7.
1. Adjust Deck 1 Play Level
Step
1
Item
AZIMUTH
Pre-Setup
Condition
SPK OUT
(VTVM is
connected to
the scope)
Pre-Setup
After putting MTT114N into Deck 1
- Press FWD PLAY
button.
To Adjust
- Turn the control
screw to as shown
in Figure 1-6.
Standard
Max output
and same phase
(both channels)
Remark
After
adjustment
secure it with
REGION
LOCK.
2. Adjust Deck 2 Play Level/ REC BIAS
Step
Item
Pre-Setup
Condition
SPK OUT
1
(VTVM is con-
AZIMUTH
nected to the
scope)
Pre-Setup
After putting MTT114N into Deck 2
- Press FWD PLAY
button.
Standard
Remark
- Turn the control
screw to as shown in
Figure 1-6.
MAX OUTPUT
and same phase
(both channels)
After adjustment secure
it with
REGION
LOCK.
- Turn JSR2L,JSR2R
to the right and left
CHECK TO
7mV(±0.5mV)
To Adjust
After putting MTT-
2
Recording
Bias
Voltage
5512 into Deck 2
Fig 1-8
1) Press REC PLAY button.
2) TAPE PCB JCW3 ,connected
to VTVM
4-2
Samsung Electronics
5. How to disassemble
Samsung Electronics
5-1
5-2
Samsung Electronics
Samsung Electronics
5-3
5-4
Samsung Electronics
6. TroubleShooting
Samsung Electronics
6-1
6-2
Samsung Electronics
Samsung Electronics
6-3
7.Exploded Views and Parts List
1. Total Exploded View
AS183
AC080
AH025
AC050
AS182
AH410
AK290
AL140
AA173
AC010
AK061
AD480
AB000
AL160
AW060
AH060
AK250
AF020
AH365
AS292
AB100
AW140
AH090
AK420
AD410
AH090
AL002
AD010
AS291
AC020
AD420
AW010
AW020
AK210
AK230
AA163
AH230
Samsung Electronics
7-1
2. Parts List
7-2
AB100
AH61-00413B
BRACKET-DECK
SPTE 0.3T,0.3T
AS291
AH61-00552A
SPRING ETC-EJECT,L
SUS 304 WPB,PI
AS292
AH61-00553A
SPRING ETC-EJECT,R
SUS 304 WPB,PI
AH410
AH61-01520A
HOLDER-VFD
ABS ,BLK
AH365
AH61-01841B
HOLDER-RING
ABS
AH100
AH61-01842A
HOLDER-CASS,A
ABS
AH110
AH61-01843A
HOLDER-CASS,B
ABS
AH381
AH61-01845A
HOLDER-SOUND
ABS
AH230
AH61-01856B
HOLDER-FRONT
ABS
AS400
AH61-40014A
SUPPORT-RIVET
SUPPORT-RIVET
AD010
AH61-80030A
DAMPER-ASSY
POM,BLK,M0.8
AH080
AH62-00062A
HEAT SINK-TR
AL EXTR,
AH060
AH62-00141A
HEAT SINK-MAIN
SECC,
AH025
AH62-00142B
HEAT SINK-AMP
,AL
AH020
AH62-30048A
HEAT SINK
PBSS,T0.8,KCD-11/22
AF020
AH63-00951B
FILTER-VFD
PC,T0.5
AS183
AH63-01066A
SHIELD-AMP-TOP
SECC
AS182
AH63-01067A
SHIELD-AMP-BOTTOM
SECC
AC080
AH64-00593A
CABINET--TOP
PCM T0.625,
AK250
AH64-02289B
KNOB-MIC
ABS,L/GRAY,SI
AC020
AH64-02840A
CABINET-BOTTOM
SECC 1.
AC010
AH64-03295B
CABINET-FRONT
MIPS
AD410
AH64-03297B
DOOR-CASS,A
ABS
AD420
AH64-03298B
DOOR-CASS,B
ABS
AD480
AH64-03299B
DOOR-CD
ABS
AK210
AH64-03301B
KNOB-JOG
ABS
AK230
AH64-03303B
KNOB-MAIN
ABS
AK061
AH64-03304B
KNOB-CD,OPEN
ABS
AK420
AH64-03306B
KNOB-VOLUME
ABS
AW010
AH64-03307B
WINDOW-CASS,A
PMMA
AW020
AH64-03308B
WINDOW-CASS,B
PMMA
AW060
AH64-03309B
WINDOW-DOOR,CD
PMMA
AW140
AH64-03310D
WINDOW-VFD
PMMA
AK290
AH64-03313B
KNOB-POWER,ECHO
ABS
AC050
AH64-03343G
CABINET-REAR
AA163
AH64-03521A
KNOB-EQ,ASS’Y
ABS
AB000
AH64-70003K
BADGE-BRAND
ABS+STAMPING,L35,SIL
AG030
AH66-00235A
GEAR-PULLEY
SDM-R31,POM (F20-03),0.5,14,
AP090
AH66-00239A
PULLEY-BELT
SDM-R31,CR 1.5,75,78,mm,
AL140
AH67-00238A
LENS-POWER
PMMA,MILKY
AL060
AH67-00260C
LENS-DVD
PMMA
AL160
AH67-00344B
LENS-SOUND
PMMA
AL070
AH67-00372B
LENS-FUNCTION
PMMA
AL160
AH67-00373A
LENS-SOUND,ASS’Y
PMMA
AL002
AH95-50001A
ASSY-LATCH
X
Samsung Electronics
*S.N.A. : Service Not Available
8. Electrical Parts List
Location no.
Code no.
Description & Specification Remarks
AH92-02328A
ASSY PCB-MAIN
MAX-DS650
APR1
APR2
APR3
APR4
AC1
2001-001077
2001-001077
2001-000020
2001-000020
2201-000376
R-CARBON(S)
R-CARBON(S)
R-CARBON(S)
R-CARBON(S)
C-CERAMIC,DISC
150OHM,5%,1/2W,AA,TP,2.4X6.4
150OHM,5%,1/2W,AA,TP,2.4X6.4
22OHM,5%,1/2W,AA,TP,2.4X6.4M
22OHM,5%,1/2W,AA,TP,2.4X6.4M
0.22NF,5%,50V,SL,TP,6.3X3
AC10
AC11
AC12
AC13
AC14
2301-000404
2301-000379
2401-000651
2301-000379
2401-001080
C-FILM,LEAD-PEF
C-FILM,LEAD-PEF
C-AL
C-FILM,LEAD-PEF
C-AL
2.2nF,10%,50V,TP,5.5x12x
10nF,10%,50V,TP,6x12x3.5
2.2uF,20%,50V,GP,TP,4x7,5
10nF,10%,50V,TP,6x12x3.5
330nF,20%,50V,GP,-,5x11,2mm
AC15
AC16
AC17
AC18
AC2
2401-001080
2401-000651
2401-000651
2401-000480
2201-000376
C-AL
C-AL
C-AL
C-AL
C-CERAMIC,DISC
330nF,20%,50V,GP,-,5x11,2mm
2.2uF,20%,50V,GP,TP,4x7,5
2.2uF,20%,50V,GP,TP,4x7,5
10uF,20%,50V,GP,TP,5x11,5
0.22NF,5%,50V,SL,TP,6.3X3
AC3
AC4
AC5
AC6
AC7
2201-000376
2201-000376
2301-000375
2301-000375
2301-000375
C-CERAMIC,DISC
C-CERAMIC,DISC
C-FILM,LEAD-PEF
C-FILM,LEAD-PEF
C-FILM,LEAD-PEF
0.22NF,5%,50V,SL,TP,6.3X3
0.22NF,5%,50V,SL,TP,6.3X3
100nF,5%,50V,TP,11x12.5x
100nF,5%,50V,TP,11x12.5x
100nF,5%,50V,TP,11x12.5x
AC8
AC9
ACW5
AD111
ADDD1
2301-000375
2301-000404
3711-000820
0401-000005
0401-000005
C-FILM,LEAD-PEF
C-FILM,LEAD-PEF
CONNECTOR-HEADER
DIODE-SWITCHING
DIODE-SWITCHING
100nF,5%,50V,TP,11x12.5x
2.2nF,10%,50V,TP,5.5x12x
BOX,2P,1R,2.5MM,STRAIGH
1N4148,75V,150MA,DO-35,T
1N4148,75V,150MA,DO-35,T
ADDR1
ADDR2
AMC1
AMD1
AMD2
2001-000429
2001-000429
2401-000480
0402-000127
0403-000509
R-CARBON
R-CARBON
C-AL
DIODE-RECTIFIER
DIODE-ZENER
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10uF,20%,50V,GP,TP,5x11,5
1N4002,100V,1A,DO-41,TP
MTZJ5.6B,5.4-5.7V,500MW,DO-3
AMD3
AMQ1
AMR1
AMR2
APQ02
0401-000005
0501-002375
2001-000290
2001-000734
0501-000422
DIODE-SWITCHING
TR-SMALL SIGNAL
R-CARBON
R-CARBON
TR-SMALL SIGNAL
1N4148,75V,150MA,DO-35,T
KTC8050,NPN,625MW,TO-92,
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
KTA1273,PNP,-30V,-30V,-2
APQ1
AQ111
AR1
AR10
AR11
0501-002176
0501-000331
2001-000449
2001-000515
2001-000273
TR-SMALL SIGNAL
TR-SMALL SIGNAL
R-CARBON
R-CARBON
R-CARBON
KTD863,NPN,1W,TO-92L,TP,
KSC1009-Y,NPN,800mW,TO-9
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
220OHM,5%,1/8W,AA,TP,1.8X3.2MM
100KOHM,5%,1/8W,AA,TP,1.8X3.2M
AR12
AR14
AR2
AR3
AR4
2001-000017
2001-000221
2001-000449
2001-000786
2001-000786
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
4.7OHM,5%,1/4W,AA,TP,2.4X6.4MM
1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
AR6
AR7
AR8
CC1
CC2
2001-000802
2001-000689
2001-000689
2401-000480
2401-000480
R-CARBON
R-CARBON
R-CARBON
C-AL
C-AL
5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
390KOHM,5%,1/8W,AA,TP,1.8X3.2M
390KOHM,5%,1/8W,AA,TP,1.8X3.2M
10uF,20%,50V,GP,TP,5x11,5
10uF,20%,50V,GP,TP,5x11,5
CC3
CC5
CCW1
CCW2
CQ2
2201-000565
2401-000651
3711-000658
3711-002809
0501-002375
C-CERAMIC,DISC
C-AL
CONNECTOR-HEADER
CONNECTOR-HEADER
TR-SMALL SIGNAL
47nF,+80-20%,-,,-,12.5x4m
2.2uF,20%,50V,GP,TP,4x7,5
BOX,12P,1R,2.5mm,STRAIG
BOX,8P,1R,2mm,STRAIGHT,
KTC8050,NPN,625MW,TO-92,
CQ3
CQ3AA
CR1
CR1A
CR2
0501-002375
0504-001128
2001-000890
2001-000290
2001-000890
TR-SMALL SIGNAL
TR-DIGITAL
R-CARBON
R-CARBON
R-CARBON
KTC8050,NPN,625MW,TO-92,
KRA103M,PNP,400MW,22K/22K,TO6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
CR2A
CR4
CR6
CR7
DC10
2001-000290
2001-000411
2001-000411
2001-000591
2301-000375
R-CARBON
R-CARBON
R-CARBON
R-CARBON
C-FILM,LEAD-PEF
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
100nF,5%,50V,TP,11x12.5x
DC11
DC12
DC128
DC12A
DC13
2301-000379
2401-001975
2201-000338
2201-000338
2301-000407
C-FILM,LEAD-PEF
C-AL
C-CERAMIC,DISC
C-CERAMIC,DISC
C-FILM,LEAD-PEF
10nF,10%,50V,TP,6x12x3.5
47uF,20%,16V,GP,TP,5x11mm,5mm
2.2nF,20%,50V,Y5T,TP,5.0x
2.2nF,20%,50V,Y5T,TP,5.0x
2.7nF,10%,50V,TP,5.5x12x
DC15
DC16
DC17
2301-000404
2201-000376
2201-000376
C-FILM,LEAD-PEF
C-CERAMIC,DISC
C-CERAMIC,DISC
2.2nF,10%,50V,TP,5.5x12x
0.22NF,5%,50V,SL,TP,6.3X3
0.22NF,5%,50V,SL,TP,6.3X3
Samsung Electronics
Location no.
Code no.
Description & Specification Remarks
DC18
DC19
2201-000017
2201-000017
C-CERAMIC,DISC
C-CERAMIC,DISC
1nF,10%,50V,Y5P,-,5x3.5mm
1nF,10%,50V,Y5P,-,5x3.5mm
DC2
DC20
DC21
DC22
DC23
2201-000376
2401-001912
2401-001975
2201-000017
2201-000017
C-CERAMIC,DISC
C-AL
C-AL
C-CERAMIC,DISC
C-CERAMIC,DISC
0.22NF,5%,50V,SL,TP,6.3X3
1uF,20%,50V,GP,BK,5x11mm,2mm
47uF,20%,16V,GP,TP,5x11mm,5mm
1nF,10%,50V,Y5P,-,5x3.5mm
1nF,10%,50V,Y5P,-,5x3.5mm
DC24
DC26
DC27
DC28
DC30
2301-000379
2301-000375
2401-000651
2401-000651
2401-000480
C-FILM,LEAD-PEF
C-FILM,LEAD-PEF
C-AL
C-AL
C-AL
10nF,10%,50V,TP,6x12x3.5
100nF,5%,50V,TP,11x12.5x
2.2uF,20%,50V,GP,TP,4x7,5
2.2uF,20%,50V,GP,TP,4x7,5
10uF,20%,50V,GP,TP,5x11,5
DC31
DC31A
DC32
DC33
DC34
2301-000422
2301-000375
2401-001975
2201-000376
2401-000651
C-FILM,LEAD-PEF
C-FILM,LEAD-PEF
C-AL
C-CERAMIC,DISC
C-AL
3.3nF,10%,50V,TP,5.5x7x3
100nF,5%,50V,TP,11x12.5x
47uF,20%,16V,GP,TP,5x11mm,5mm
0.22NF,5%,50V,SL,TP,6.3X3
2.2uF,20%,50V,GP,TP,4x7,5
DC36
DC37
DC4
DC41
DC7
2401-000598
2301-000422
2401-001164
2401-000598
2301-000375
C-AL
C-FILM,LEAD-PEF
C-AL
C-AL
C-FILM,LEAD-PEF
1uF,20%,50V,GP,TP,4x7,5
3.3nF,10%,50V,TP,5.5x7x3
33uF,20%,16V,GP,TP,5x11mm,5mm
1uF,20%,50V,GP,TP,4x7,5
100nF,5%,50V,TP,11x12.5x
DC8
DC8AA
DC9
DCW1
DCW2
2401-000651
2401-000651
2401-000651
3711-001038
3711-003409
C-AL
C-AL
C-AL
CONNECTOR-HEADER
CONNECTOR-HEADER
2.2uF,20%,50V,GP,TP,4x7,5
2.2uF,20%,50V,GP,TP,4x7,5
2.2uF,20%,50V,GP,TP,4x7,5
BOX,6P,1R,2.5mm,STRAIGH
BOX,3P,1R,2mm,STRAIGHT,
DCW3
DD1
DIC1
DL1
DL2
3711-003107
0401-000005
1201-001899
AH27-10001T
AH27-10001T
CONNECTOR-HEADER
DIODE-SWITCHING
IC-PREAMP
COIL CHOKE
COIL CHOKE
BOX,3P,1R,2.5mm,STRAIGH
1N4148,75V,150MA,DO-35,T
HA12237F,QFP,40P,7X7MM,-,-,PLA
875-101-105K,MAX-S530,18MH##1
875-101-105K,MAX-S530,18MH##1
DL3
DL4
DQ2
DQ3
DQ4
2701-000298
AH26-00227A
0501-002409
0501-000422
0501-002176
INDUCTOR-AXIAL
TRANS RF
TR-SMALL SIGNAL
TR-SMALL SIGNAL
TR-SMALL SIGNAL
470uH,10%,4298
-,-,-,-,-,-,105KHZ,7.6 X 7.6,KTC945B,NPN,625MW,T0-92,
KTA1273,PNP,-30V,-30V,-2
KTD863,NPN,1W,TO-92L,TP,
DQ5
DQ6
DQ7
DQ8
DQ9
0504-001128
0501-000010
0501-000010
0501-000010
0501-000010
TR-DIGITAL
TR-SMALL SIGNAL
TR-SMALL SIGNAL
TR-SMALL SIGNAL
TR-SMALL SIGNAL
KRA103M,PNP,400MW,22K/22K,TOKSC1008,NPN,800mW,TO-92,
KSC1008,NPN,800mW,TO-92,
KSC1008,NPN,800mW,TO-92,
KSC1008,NPN,800mW,TO-92,
DR1
DR10
DR12
DR13
DR14
2001-000281
2001-000435
2001-000008
2001-000258
2001-000411
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
1MOHM,5%,1/8W,AA,TP,1.8X3.2MM
15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
DR15
DR16
DR17
DR18
DR19
2001-000734
2001-000734
2001-000281
2001-001070
2001-000786
R-CARBON
R-CARBON
R-CARBON
R-CARBON(S)
R-CARBON
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
120OHM,5%,1/2W,AA,TP,2.4X6.4
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
DR2
DR20
DR21
DR22
DR23
2001-000281
2001-000591
2001-000802
2001-000734
2001-001096
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON(S)
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
2.2OHM,5%,1/2W,AA,TP,2.4X6.4
DR24
DR25
DR26
DR27
DR28
2001-000290
2001-000734
2001-000977
2001-000008
2001-000734
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
8.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
DR28A
DR29
DR3
DR30
DR31
2001-000802
2001-000734
2001-000290
2001-000924
2001-000924
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
680OHM,5%,1/8W,AA,TP,1.8X3.2MM
680OHM,5%,1/8W,AA,TP,1.8X3.2MM
DR32
DR33
DR34
DR35
DR36
2001-000924
2001-000924
2001-000890
2001-000890
2001-000890
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
680OHM,5%,1/8W,AA,TP,1.8X3.2MM
680OHM,5%,1/8W,AA,TP,1.8X3.2MM
6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
DR37
DR4
2001-000890
2001-000281
R-CARBON
R-CARBON
6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
8-1
Location no.
Code no.
Description & Specification Remarks
DR42
DR5
DR6
2001-000411
2001-000522
2001-000258
R-CARBON
R-CARBON
R-CARBON
18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
DR8
DR9
DSR2
DSR3
DVC2
2001-000977
2001-000302
2001-000563
2001-000563
2401-000480
R-CARBON
R-CARBON
R-CARBON
R-CARBON
C-AL
8.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
10OHM,5%,1/8W,AA,TP,1.8X3.2MM
27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10uF,20%,50V,GP,TP,5x11,5
DVC2A
DVR16
EMC3
EMC4
FC18
2401-000480
2001-000793
2202-000806
2202-000806
2401-000651
C-AL
R-CARBON
C-CERAMIC,MLC-AXIAL
C-CERAMIC,MLC-AXIAL
C-AL
10uF,20%,50V,GP,TP,5x11,5
47OHM,5%,1/8W,AA,TP,1.8X3.2MM
220pF,10%,50V,Y5P,TP
220pF,10%,50V,Y5P,TP
2.2uF,20%,50V,GP,TP,4x7,5
FC19
FC2
FC22
FC23
FC25
2401-000651
2401-000027
2401-000651
2401-000651
2401-000027
C-AL
C-AL
C-AL
C-AL
C-AL
2.2uF,20%,50V,GP,TP,4x7,5
4.7uF,20%,50V,GP,TP,5x11,5
2.2uF,20%,50V,GP,TP,4x7,5
2.2uF,20%,50V,GP,TP,4x7,5
4.7uF,20%,50V,GP,TP,5x11,5
FC3
FC33
FC34
FC37
FC38
2201-000376
2401-000027
2201-000674
2202-000121
2202-000121
C-CERAMIC,DISC
C-AL
C-CERAMIC,DISC
C-CERAMIC,MLC-AXIAL
C-CERAMIC,MLC-AXIAL
0.22NF,5%,50V,SL,TP,6.3X3
4.7uF,20%,50V,GP,TP,5x11,5
0.82NF,10%,50V,Y5P,BK,5X3
0.1nF,10%,50V,Y5P,-,
0.1nF,10%,50V,Y5P,-,
FC4
FC5
FC6
FC8
FC9
2401-000027
2401-000042
2201-000376
2401-000651
2401-000651
C-AL
C-AL
C-CERAMIC,DISC
C-AL
C-AL
4.7uF,20%,50V,GP,TP,5x11,5
100uF,20%,16V,GP,TP,6.3x7,5
0.22NF,5%,50V,SL,TP,6.3X3
2.2uF,20%,50V,GP,TP,4x7,5
2.2uF,20%,50V,GP,TP,4x7,5
FCON2
FD1
FIC1
FIC2
FIC3
3711-002809
0401-000005
1201-000191
1201-000191
1204-002219
CONNECTOR-HEADER
DIODE-SWITCHING
IC-OP AMP
IC-OP AMP
IC-AUDIO PROCESSOR
BOX,8P,1R,2mm,STRAIGHT,
1N4148,75V,150MA,DO-35,T
4558,DIP,8P,300MIL,DUAL,20V/mV
4558,DIP,8P,300MIL,DUAL,20V/mV
BD3872FS,SOP,32P,13.6
FQ1
FQ1A
FR1
FR11
FR12
0501-002409
0504-001123
2001-000734
2001-000003
2001-000645
TR-SMALL SIGNAL
TR-DIGITAL
R-CARBON
R-CARBON
R-CARBON
KTC945B,NPN,625MW,T0-92,
KRC103M,NPN,400MW,22K/22K,TO4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
330ohm,5%,1/8W,AA,TP,1.8x3.2mm
330KOHM,5%,1/8W,AA,TP,1.8X3.2M
FR13
FR18
FR19
FR2
FR20
2001-000645
2001-000734
2001-000429
2001-000591
2001-000864
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
330KOHM,5%,1/8W,AA,TP,1.8X3.2M
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
FR21
FR23
FR24
FR25
FR28
2001-000864
2001-000773
2001-000273
2001-000273
2001-000802
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
470KOHM,5%,1/8W,AA,TP,1.8X3.2M
100KOHM,5%,1/8W,AA,TP,1.8X3.2M
100KOHM,5%,1/8W,AA,TP,1.8X3.2M
5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
FR3
FR4
FR44
FR5
FR6
2001-000786
2001-000591
2001-000522
2001-000591
2001-000786
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
FR7
FR8
FZD1
HC1
HC2
2001-000591
2001-000734
0403-000145
2401-000480
2202-000806
R-CARBON
R-CARBON
DIODE-ZENER
C-AL
C-CERAMIC,MLC-AXIAL
3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
1N4739A,5%,1000MW,DO-41,TP
10uF,20%,50V,GP,TP,5x11,5
220pF,10%,50V,Y5P,TP
HC3
HC4
HC5
HC6
HC7
2401-000480
2202-000806
2401-001975
2401-001975
2401-000480
C-AL
C-CERAMIC,MLC-AXIAL
C-AL
C-AL
C-AL
10uF,20%,50V,GP,TP,5x11,5
220pF,10%,50V,Y5P,TP
47uF,20%,16V,GP,TP,5x11mm,5mm
47uF,20%,16V,GP,TP,5x11mm,5mm
10uF,20%,50V,GP,TP,5x11,5
HC8
HIC1
HJL1
HJL2
HJR1
2401-000480
1201-001285
2701-000111
2701-000111
2001-000429
C-AL
IC-OP AMP
INDUCTOR-AXIAL
INDUCTOR-AXIAL
R-CARBON
10uF,20%,50V,GP,TP,5x11,5
4556,SOP,8P,150MIL,+/-18V,100d
100UH,10%,2534
100UH,10%,2534
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
HQ1
HQ2
HQ3
HR1
HR10
0501-002375
0501-002375
0501-002409
2001-000449
2001-000449
TR-SMALL SIGNAL
TR-SMALL SIGNAL
TR-SMALL SIGNAL
R-CARBON
R-CARBON
KTC8050,NPN,625MW,TO-92,
KTC8050,NPN,625MW,TO-92,
KTC945B,NPN,625MW,T0-92,
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
HR11
HR12
HR2
HR3
HR4
2001-000449
2001-000449
2001-000449
2001-000734
2001-000734
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
8-2
Location no.
Code no.
Description & Specification Remarks
HR5
HR6
HR7
HR8
HR9
2001-000786
2001-000786
2001-000019
2001-000429
2001-000449
R-CARBON
R-CARBON
R-CARBON(S)
R-CARBON
R-CARBON
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10OHM,5%,1/2W,AA,TP,2.4X6.4M
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
JJJ
KC12
KC13
KC14
KC15
3722-000143
2301-000379
2301-000445
2301-000474
2202-002055
JACK-PHONE
C-FILM,LEAD-PEF
C-FILM,LEAD-PEF
C-FILM,LEAD-PEF
C-CERAMIC,MLC-AXIAL
1P(VER),3.4PI,AG,BLK,NO
10nF,10%,50V,TP,6x12x3.5
4.7nF,5%,50V,TP,5.5x7x3m
8.2nF,10%,50V,TP,6.5x12x
47nF,+80-20%,50V,Y5V
KC16
KC17
KC18
KC19
KC20
2202-002055
2301-000379
2202-002037
2301-000422
2202-000797
C-CERAMIC,MLC-AXIAL
C-FILM,LEAD-PEF
C-CERAMIC,MLC-AXIAL
C-FILM,LEAD-PEF
C-CERAMIC,MLC-AXIAL
47nF,+80-20%,50V,Y5V
10nF,10%,50V,TP,6x12x3.5
100nF,80-20%,50V,Y5V
3.3nF,10%,50V,TP,5.5x7x3
10NF,30%,16V,Y5S,TP,
KC22
KC23
KC3
KC4
KC7
2401-001938
2401-001975
2202-000173
2202-000173
2201-000376
C-AL
C-AL
C-CERAMIC,MLC-AXIAL
C-CERAMIC,MLC-AXIAL
C-CERAMIC,DISC
22uF,20%,25V,GP,TP,5x11mm,5mm
47uF,20%,16V,GP,TP,5x11mm,5mm
1nF,10%,50V,Y5P,-,1.
1nF,10%,50V,Y5P,-,1.
0.22NF,5%,50V,SL,TP,6.3X3
KC8A
KD1
KD2
KIC1
KQ2
2201-000376
0401-000005
0401-000005
1204-001730
0501-002375
C-CERAMIC,DISC
DIODE-SWITCHING
DIODE-SWITCHING
IC-ECHO
TR-SMALL SIGNAL
0.22NF,5%,50V,SL,TP,6.3X3
1N4148,75V,150MA,DO-35,T
1N4148,75V,150MA,DO-35,T
M65855P,DIP,16P,300MIL,PLASTIC
KTC8050,NPN,625MW,TO-92,
KQ3
KQ4
KR12
KR13
KR14
0504-000118
0504-000118
2001-000773
2001-000773
2001-000786
TR-DIGITAL
TR-DIGITAL
R-CARBON
R-CARBON
R-CARBON
KSR1003,NPN,300MW,22K/22K,TOKSR1003,NPN,300MW,22K/22K,TO470KOHM,5%,1/8W,AA,TP,1.8X3.2M
470KOHM,5%,1/8W,AA,TP,1.8X3.2M
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
KR15
KR19
KR20
KR21
KR22
2001-000591
2001-000977
2001-000290
2001-000522
2001-000111
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
8.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
150OHM,5%,1/4W,AA,TP,2.4X6.4MM
KR23
KR24
KR26
KR27
KR28
2001-000290
2001-000008
2001-000290
2001-000734
2001-000008
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
KR29
KR30
KR4
KR5
KR7
2001-000522
2001-000290
2001-000591
2001-000591
2001-000591
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
KR8
MC1
MC5
MC6
MC7
2001-000591
2401-001102
2401-001938
2401-000651
2202-000806
R-CARBON
C-AL
C-AL
C-AL
C-CERAMIC,MLC-AXIAL
3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
330uF,20%,16V,GP,TP,8x11.5mm,5
22uF,20%,25V,GP,TP,5x11mm,5mm
2.2uF,20%,50V,GP,TP,4x7,5
220pF,10%,50V,Y5P,TP
MCN7
MCR8
MCW1
MCW2
MD1
AH39-00509A
2202-000806
3708-001094
3708-000193
0401-000005
LEAD CONNECTOR
C-CERAMIC,MLC-AXIAL
CONNECTOR-FPC/FFC/PIC
CONNECTOR-FPC/FFC/PIC
DIODE-SWITCHING
-,-,-,8P,-,-,-,51004,3502
220pF,10%,50V,Y5P,TP
13P,1.25MM,STRAIGH
17P,1.25MM,STRAIGH
1N4148,75V,150MA,DO-35,T
MD2
MIC1
MJ1
MPD1
MPD1A
0401-000005
1201-001572
3722-000363
0402-000151
0402-000127
DIODE-SWITCHING
IC-PREAMP
JACK-PHONE
DIODE-RECTIFIER
DIODE-RECTIFIER
1N4148,75V,150MA,DO-35,T
2011,SIP,7P,17MIL,SINGLE,47,PL
9P,6.4PI,AU,BLK,1N5392,100V,1.5A,DO-15,T
1N4002,100V,1A,DO-41,TP
MPD2
MPD3
MPD4
MPIC1
MPIC2
0402-000151
0402-000151
0402-000151
1203-000242
1203-000110
DIODE-RECTIFIER
DIODE-RECTIFIER
DIODE-RECTIFIER
IC-POSI.FIXED REG.
IC-NEGA.FIXED REG.
1N5392,100V,1.5A,DO-15,T
1N5392,100V,1.5A,DO-15,T
1N5392,100V,1.5A,DO-15,T
7812,TO-220,3P,-,PLAS
7912,TO-220,3P,-,PLAS
MPIC3
MPIC4
MPQ1
MPQ2
MPQ3
1203-002560
1203-002560
0501-002409
0501-002176
0504-001128
IC-POSI.FIXED REG.
IC-POSI.FIXED REG.
TR-SMALL SIGNAL
TR-SMALL SIGNAL
TR-DIGITAL
NJM7805,TO-220F,3P,-,
NJM7805,TO-220F,3P,-,
KTC945B,NPN,625MW,T0-92,
KTD863,NPN,1W,TO-92L,TP,
KRA103M,PNP,400MW,22K/22K,TO-
MPR2
MPR3
MPR4
MR01
MR01A
2001-000290
2001-000449
2001-000734
2001-000290
2001-000522
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
MR10
MR2
2001-001107
2001-000449
R-CARBON(S)
R-CARBON
220ohm,5%,1/2W,AA,TP,2.4x6.4
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
Samsung Electronics
Location no.
Code no.
Description & Specification Remarks
Location no.
MR3
MR4
MR5
2001-000429
2001-000290
2001-000281
R-CARBON
R-CARBON
R-CARBON
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
MR6
MR7
MR9
MUD1
MUD2
2001-000005
2001-000435
2001-000290
0401-000005
0401-000005
R-CARBON
R-CARBON
R-CARBON
DIODE-SWITCHING
DIODE-SWITCHING
390ohm,5%,1/8W,AA,TP,1.8x3.2mm
1MOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
1N4148,75V,150MA,DO-35,T
1N4148,75V,150MA,DO-35,T
MVR1
PBD4
PC1
PC10
PC11
2101-001106
0402-001258
2401-000042
2401-000303
2401-001355
VR-ROTARY
DIODE-BRIDGE
C-AL
C-AL
C-AL
10KOHM,10%,1/20W,SIDE
GBU606,600V,6A,SIP-4,BK
100uF,20%,16V,GP,TP,6.3x7,5
100uF,20%,25V,GP,TP,6.3x11,5
470uF,20%,10V,GP,TP,8x11.5mm,5
PC13
PC26
PC39
PC4
PC40
2401-000303
2401-000129
2401-000480
2201-000021
2201-000565
C-AL
C-AL
C-AL
C-CERAMIC,DISC
C-CERAMIC,DISC
100uF,20%,25V,GP,TP,6.3x11,5
1000uF,20%,16V,GP,-,10x16mm,5
10uF,20%,50V,GP,TP,5x11,5
100NF,+80-20%,50V,Y5V,TP,
47nF,+80-20%,-,,-,12.5x4m
PC42
PC42A
PC43
PC43A
PC44
2201-000565
2201-000565
2201-000565
2201-000565
2401-001633
C-CERAMIC,DISC
C-CERAMIC,DISC
C-CERAMIC,DISC
C-CERAMIC,DISC
C-AL
47nF,+80-20%,-,,-,12.5x4m
47nF,+80-20%,-,,-,12.5x4m
47nF,+80-20%,-,,-,12.5x4m
47nF,+80-20%,-,,-,12.5x4m
6800uF,20%,25V,GP,BK,18x35.5,7
PC45
PC46
PC47
PC48
PC49
2401-001633
2201-000565
2201-000565
2401-003381
2401-003381
C-AL
C-CERAMIC,DISC
C-CERAMIC,DISC
C-AL
C-AL
6800uF,20%,25V,GP,BK,18x35.5,7
47nF,+80-20%,-,,-,12.5x4m
47nF,+80-20%,-,,-,12.5x4m
3300uF,20%,63V,GP,BK,22x40,10
3300uF,20%,63V,GP,BK,22x40,10
PC5
PC53
PC54
PC55
PC56
2201-000565
2401-000042
2401-000042
2401-000230
2401-000357
C-CERAMIC,DISC
C-AL
C-AL
C-AL
C-AL
47nF,+80-20%,-,,-,12.5x4m
100uF,20%,16V,GP,TP,6.3x7,5
100uF,20%,16V,GP,TP,6.3x7,5
100uF,20%,100V,GP,TP,12.5x20mm
100uF,20%,50V,GP,-,8x11.5,3.5m
AC1
AC10
AC11
AC12
AC13
PC57
PC58
PC60
PC7
PCW11
2401-000480
2401-001625
2401-000042
2201-000565
AH39-00241A
C-AL
C-AL
C-AL
C-CERAMIC,DISC
LEAD CONNECTOR ASSY
10uF,20%,50V,GP,TP,5x11,5
6.8uF,20%,50V,GP,TP,5x11,5
100uF,20%,16V,GP,TP,6.3x7,5
47nF,+80-20%,-,,-,12.5x4m
MAX-L65,1007,#22,-,1
PD1
PD15A
PD31
PIC7
PPR1
0402-000127
0402-000127
0401-000005
1203-001697
2001-000429
DIODE-RECTIFIER
DIODE-RECTIFIER
DIODE-SWITCHING
IC-POSI.FIXED REG.
R-CARBON
PQ40
PQ41
PQ43
PQ44
PR14
0501-000422
0501-002409
0501-000422
0501-002409
2003-000690
PR15
PR17
PR18
PR19
PR20
Code no.
Description & Specification Remarks
TC6
TC8
TC9
TCON1
TR1
2202-000121
2202-000121
2202-000121
3708-000412
2001-000281
C-CERAMIC,MLC-AXIAL
C-CERAMIC,MLC-AXIAL
C-CERAMIC,MLC-AXIAL
CONNECTOR-FPC/FFC/PIC
R-CARBON
0.1nF,10%,50V,Y5P,-,
0.1nF,10%,50V,Y5P,-,
0.1nF,10%,50V,Y5P,-,
12P,1.25MM,ANGLE,100OHM,5%,1/8W,AA,TP,1.8X3.2MM
TR10
TR11
TR12
TR15
TR2
2001-000734
2001-000281
2001-000734
2001-000022
2001-000281
R-CARBON
R-CARBON
R-CARBON
R-CARBON(S)
R-CARBON
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
33OHM,5%,1/2W,AA,TP,2.4X6.4M
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
TR3
TR5
TR6
TR9
2001-000281
2001-000281
2001-000281
2001-000281
2001-000356
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
150KOHM,5%,1/8W,AA,TP,1.8X3.2M
2401-000118
2401-001324
3722-000377
3811-000130
6003-001375
C-AL
C-AL
JACK-PIN
WIRE-PVC CU
SCREW-TAPTITE
1000uF,20%,10V,GP,TP,10x12.5,5
0.47UF,20%,50V,GP,BK,3X5,2.5
4P/2C,3.5mm,SN,BLK,#16~22
BCWA,300V,60mm,7/0.16mm,#26,
BH,+,B,M3,L8,ZPC(YEL),SWRC
AH27-10001F
AH62-00062A
AH62-00141A
AH65-30010A
AH69-20342A
COIL-CHOKE
HEAT SINK-TR
HEAT SINK-MAIN
CLAMP-WIRE
CUSHION-MOTOR
27uH,K,Q30,-,-,DR(6.5*7.5),-,
HT-DL100,AL EXTR,-,-,-,-,-,
MAX-DC650,SECC,-,-,-,-,-,
-,-,-,-,-,-,HYMERON,0.4,37,14,-,-
AH92-02329C
ASSY PCB-AMP
MAX-C670,-
2401-000650
2203-005148
2203-002398
2203-005065
2203-005065
C-AL
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
2.2uF,20%,50V,GP,TP,3.5x5,2.5
100nF,10%,16V,X7R,TP,1608
22nF,10%,50V,X7R,TP,1608
1000nF,+80-20%,10V,Y5V,1608
1000nF,+80-20%,10V,Y5V,1608
AC14
AC14
AC15
AC16
AC17
2401-002335
2401-000230
2203-005148
2401-000407
2203-005065
C-AL
C-AL
C-CER,CHIP
C-AL
C-CER,CHIP
1000uF,20%,63V,LZ,BK,16x40,5mm
100uF,20%,100V,GP,TP,12.5x20mm
100nF,10%,16V,X7R,TP,1608
10UF,20%,16V,GP,TP,3.5X5,2.5
1000nF,+80-20%,10V,Y5V,1608
1N4002,100V,1A,DO-41,TP
1N4002,100V,1A,DO-41,TP
1N4148,75V,150MA,DO-35,T
78R08,TO-220,4P,-,PLA
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
AC18
AC19
AC2
AC20
AC21
2203-005819
2203-005065
2401-000650
2203-005065
2401-002335
C-CER,CHIP
C-CER,CHIP
C-AL
C-CER,CHIP
C-AL
1000nF,+80-20%,16V,Y5V,-,1608
1000nF,+80-20%,10V,Y5V,1608
2.2uF,20%,50V,GP,TP,3.5x5,2.5
1000nF,+80-20%,10V,Y5V,1608
1000uF,20%,63V,LZ,BK,16x40,5mm
TR-SMALL SIGNAL
TR-SMALL SIGNAL
TR-SMALL SIGNAL
TR-SMALL SIGNAL
R-METAL OXIDE(S)
KTA1273,PNP,-30V,-30V,-2
KTC945B,NPN,625MW,T0-92,
KTA1273,PNP,-30V,-30V,-2
KTC945B,NPN,625MW,T0-92,
4.7ohm,5%,2W,AA,TP,4x12
AC21
AC22
AC23
AC24
AC25
2401-000230
2401-000213
2401-001324
2401-001324
2401-000213
C-AL
C-AL
C-AL
C-AL
C-AL
100uF,20%,100V,GP,TP,12.5x20mm
100nF,20%,50V,GP,TP,3x5,2.5
0.47UF,20%,50V,GP,BK,3X5,2.5
0.47UF,20%,50V,GP,BK,3X5,2.5
100nF,20%,50V,GP,TP,3x5,2.5
2003-000690
2003-000775
2001-000786
2001-000449
2001-000429
R-METAL OXIDE(S)
R-METAL OXIDE(S)
R-CARBON
R-CARBON
R-CARBON
4.7ohm,5%,2W,AA,TP,4x12
68ohm,5%,1W,AA,TP,3.3x9
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
AC26
AC27
AC28
AC29
AC3
2401-000213
2203-001408
2203-005218
2301-000375
2203-005148
C-AL
C-CER,CHIP
C-CER,CHIP
C-FILM,LEAD-PEF
C-CER,CHIP
100nF,20%,50V,GP,TP,3x5,2.5
0.27nF,5%,50V,NP0,TP,1608
470nF,10%,50V,X7R,TP,3216,100nF,5%,50V,TP,11x12.5x
100nF,10%,16V,X7R,TP,1608
PR23
PR25
PR3
PR32
PR33
2001-000290
2001-000449
2001-000449
2001-000734
2001-000734
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
AC30
AC31
AC32
AC33
AC34
2203-005218
2401-001324
2401-001324
2203-001408
2401-000213
C-CER,CHIP
C-AL
C-AL
C-CER,CHIP
C-AL
470nF,10%,50V,X7R,TP,3216,0.47UF,20%,50V,GP,BK,3X5,2.5
0.47UF,20%,50V,GP,BK,3X5,2.5
0.27nF,5%,50V,NP0,TP,1608
100nF,20%,50V,GP,TP,3x5,2.5
PR40
PR41
PR42
PR43
PR45
2001-000522
2001-000449
2001-000660
2003-000701
2001-001153
R-CARBON
R-CARBON
R-CARBON
R-METAL OXIDE(S)
R-CARBON(S)
22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
470ohm,5%,2W,AA,TP,4x12
47OHM,5%,1/2W,AA,TP,2.4X6.4M
AC35
AC36
AC37
AC38
AC39
2203-005218
2301-000375
2305-000412
2203-001137
2301-000375
C-CER,CHIP
C-FILM,LEAD-PEF
C-FILM,LEAD-PEF
C-CER,CHIP
C-FILM,LEAD-PEF
470nF,10%,50V,X7R,TP,3216,100nF,5%,50V,TP,11x12.5x
470nF,5%,63V,TP,-,5mm
68nF,+80-20%,50V,Y5V,TP,2012,
100nF,5%,50V,TP,11x12.5x
PR46
PR47
PR48
PR49
PR4A
2001-001153
2001-000003
2001-000890
2001-000613
2001-000290
R-CARBON(S)
R-CARBON
R-CARBON
R-CARBON
R-CARBON
47OHM,5%,1/2W,AA,TP,2.4X6.4M
330ohm,5%,1/8W,AA,TP,1.8x3.2mm
6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
3.9KOHM,5%,1/8W,AA,TP,1.8X3.2M
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
AC4
AC40
AC41
AC42
AC43
2203-001126
2203-001137
2203-001137
2203-000257
2203-001137
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
0.68nF,10%,50V,X7R,1608
68nF,+80-20%,50V,Y5V,TP,2012,
68nF,+80-20%,50V,Y5V,TP,2012,
10nF,10%,50V,X7R,1608
68nF,+80-20%,50V,Y5V,TP,2012,
PR4B
PR50
PZD01
PZD02
PZD03
2001-000449
2001-000734
0403-000139
0403-000139
0403-001036
R-CARBON
R-CARBON
DIODE-ZENER
DIODE-ZENER
DIODE-ZENER
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
1N4734A,5%,1000MW,DO-41,TP
1N4734A,5%,1000MW,DO-41,TP
1N4745A,5%,1000MW,DO-41,TP
AC44
AC45
AC46
AC47
AC48
2203-001137
2203-001137
2301-000375
2305-000412
2203-001126
C-CER,CHIP
C-CER,CHIP
C-FILM,LEAD-PEF
C-FILM,LEAD-PEF
C-CER,CHIP
68nF,+80-20%,50V,Y5V,TP,2012,
68nF,+80-20%,50V,Y5V,TP,2012,
100nF,5%,50V,TP,11x12.5x
470nF,5%,63V,TP,-,5mm
0.68nF,10%,50V,X7R,1608
PZD04
PZD05
TC1
TC20
TC3
0403-001036
0403-000142
2401-000480
2202-002037
2202-000121
DIODE-ZENER
DIODE-ZENER
C-AL
C-CERAMIC,MLC-AXIAL
C-CERAMIC,MLC-AXIAL
1N4745A,5%,1000MW,DO-41,TP
1N4736A,6.46-7.14(5%),1000MW
10uF,20%,50V,GP,TP,5x11,5
100nF,80-20%,50V,Y5V
0.1nF,10%,50V,Y5P,-,
AC5
AC50
AC51
AC52
AC55
2203-001126
2203-005218
2401-001975
2401-001975
2305-000412
C-CER,CHIP
C-CER,CHIP
C-AL
C-AL
C-FILM,LEAD-PEF
0.68nF,10%,50V,X7R,1608
470nF,10%,50V,X7R,TP,3216,47uF,20%,16V,GP,TP,5x11mm,5mm
47uF,20%,16V,GP,TP,5x11mm,5mm
470nF,5%,63V,TP,-,5mm
Samsung Electronics
8-3
Location no.
Code no.
Description & Specification Remarks
AC56
AC58
AC6
AC61
AC62
2305-000412
2203-001034
2203-001052
2401-000385
2401-000385
C-FILM,LEAD-PEF
C-CER,CHIP
C-CER,CHIP
C-AL
C-AL
470nF,5%,63V,TP,-,5mm
5.6nF,10%,50V,X7R,TP,1608,0.56nF,10%,50V,X7R,TP,1608
10uF,20%,100V,GP,TP,6.3x11,5
10uF,20%,100V,GP,TP,6.3x11,5
AC63
AC64
AC66
AC67
AC68
2401-000385
2401-000385
2203-005148
2203-000257
2203-000357
C-AL
C-AL
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
10uF,20%,100V,GP,TP,6.3x11,5
10uF,20%,100V,GP,TP,6.3x11,5
100nF,10%,16V,X7R,TP,1608
10nF,10%,50V,X7R,1608
0.15NF,5%,50V,C0G,TP,1608
AC69
AC7
AC70
AC71
AC76
2203-000405
2203-001052
2203-000357
2203-000405
2203-005065
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
0.18NF,5%,50V,C0G,TP,1608
0.56nF,10%,50V,X7R,TP,1608
0.15NF,5%,50V,C0G,TP,1608
0.18NF,5%,50V,C0G,TP,1608
1000nF,+80-20%,10V,Y5V,1608
AC78
AC8
AC80
AC9
ACW1
2203-000357
2203-001126
2203-000357
2203-005148
AH39-00765A
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
LEAD CONNECTOR
0.15NF,5%,50V,C0G,TP,1608
0.68nF,10%,50V,X7R,1608
0.15NF,5%,50V,C0G,TP,1608
100nF,10%,16V,X7R,TP,1608
MAX-DC650,WIRE,-,12,160MM
AD1
AD2
AD3
AD4
AD5
0401-001090
0401-001090
0401-001090
0401-001090
0401-001090
DIODE-SWITCHING
DIODE-SWITCHING
DIODE-SWITCHING
DIODE-SWITCHING
DIODE-SWITCHING
1SS355,80V,100MA,SOD-323
1SS355,80V,100MA,SOD-323
1SS355,80V,100MA,SOD-323
1SS355,80V,100MA,SOD-323
1SS355,80V,100MA,SOD-323
AD6
AFQ1/AFQ3
AFQ2/AFQ4
AJ1
AL1
2007-000102
0505-000177
0505-000320
3716-001179
AH27-00058A
R-CHIP
FET-SILICON
FET-SILICON
TERMINAL-BLOCK
COIL CHOKE
100Kohm,5%,1/10W,TP,1608
FQFP15P12,P,-120V,15A,0.2OHM
FQFP32N12V2,N,120V,32A,0.05O
SOLDER,4P,6.3MM,60V,7A
ID15-15,MM-ZJ9,15,-,-,30m##,-
AL2
APQ1
APQ2
APRR1
AQ1
AH27-00058A
0501-000341
0501-000341
2007-000097
0501-000341
COIL CHOKE
TR-SMALL SIGNAL
TR-SMALL SIGNAL
R-CHIP
TR-SMALL SIGNAL
ID15-15,MM-ZJ9,15,-,-,30m##,KSC1623-L,NPN,200mW,SOTKSC1623-L,NPN,200mW,SOT47Kohm,5%,1/10W,TP,1608
KSC1623-L,NPN,200mW,SOT-
AQ10
AQ2
AQ3
AQ4
AQ5
0501-000341
0501-000002
0501-000341
0501-000002
0501-000002
TR-SMALL SIGNAL
TR-SMALL SIGNAL
TR-SMALL SIGNAL
TR-SMALL SIGNAL
TR-SMALL SIGNAL
KSC1623-L,NPN,200mW,SOTKSA812,PNP,150MW,SOT-23,
KSC1623-L,NPN,200mW,SOTKSA812,PNP,150MW,SOT-23,
KSA812,PNP,150MW,SOT-23,
AQ6
AQ7
AQ9
AR1
AR10
0501-000341
0501-000341
0501-000002
2007-000094
2007-000106
TR-SMALL SIGNAL
TR-SMALL SIGNAL
TR-SMALL SIGNAL
R-CHIP
R-CHIP
KSC1623-L,NPN,200mW,SOTKSC1623-L,NPN,200mW,SOTKSA812,PNP,150MW,SOT-23,
22Kohm,5%,1/10W,TP,1608
220Kohm,5%,1/10W,TP,1608
AR11
AR12
AR13
AR14
AR15
2007-000063
2007-000094
2007-000090
2007-000094
2007-000078
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
150Kohm,1%,1/10W,TP,1608
22Kohm,5%,1/10W,TP,1608
10Kohm,5%,1/10W,TP,1608
22Kohm,5%,1/10W,TP,1608
1Kohm,5%,1/10W,TP,1608
AR16
AR17
AR18
AR19
AR2
2007-000094
2007-000078
2007-000124
2007-000090
2007-000094
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
22Kohm,5%,1/10W,TP,1608
1Kohm,5%,1/10W,TP,1608
2.2Kohm,5%,1/10W,TP,1608
10Kohm,5%,1/10W,TP,1608
22Kohm,5%,1/10W,TP,1608
AR20
AR21
AR22
AR23
AR24
2007-000094
2007-000078
2007-000078
2007-000104
2007-000092
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
22Kohm,5%,1/10W,TP,1608
1Kohm,5%,1/10W,TP,1608
1Kohm,5%,1/10W,TP,1608
150Kohm,5%,1/10W,TP,1608
15Kohm,5%,1/10W,TP,1608
AR25
AR26
AR27
AR28
AR29
2007-000107
2007-000309
2007-000309
2007-000107
2007-000104
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
470Kohm,5%,1/10W,TP,1608
10ohm,5%,1/10W,TP,1608
10ohm,5%,1/10W,TP,1608
470Kohm,5%,1/10W,TP,1608
150Kohm,5%,1/10W,TP,1608
AR3
AR30
AR31
AR32
AR33
2007-000090
2007-000092
2007-000104
2007-000092
2007-000107
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
10Kohm,5%,1/10W,TP,1608
15Kohm,5%,1/10W,TP,1608
150Kohm,5%,1/10W,TP,1608
15Kohm,5%,1/10W,TP,1608
470Kohm,5%,1/10W,TP,1608
AR34
AR35
AR36
AR37
AR38
2007-000309
2007-000107
2007-000309
2007-000104
2007-000092
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
10ohm,5%,1/10W,TP,1608
470Kohm,5%,1/10W,TP,1608
10ohm,5%,1/10W,TP,1608
150Kohm,5%,1/10W,TP,1608
15Kohm,5%,1/10W,TP,1608
AR39
AR4
2007-000078
2007-000081
R-CHIP
R-CHIP
1Kohm,5%,1/10W,TP,1608
2.7Kohm,5%,1/10W,TP,1608
8-4
Location no.
Code no.
Description & Specification Remarks
AR40
AR41
AR42
2007-007069
2003-000473
2007-000094
R-CHIP
R-METAL OXIDE(S)
R-CHIP
0.05OHM,1%,1W,TP,6432
10ohm,5%,3W,AA,TP,6x16m
22Kohm,5%,1/10W,TP,1608
AR43
AR44
AR45
AR46
AR47
2007-000078
2007-000078
2007-007069
2003-000473
2007-000094
R-CHIP
R-CHIP
R-CHIP
R-METAL OXIDE(S)
R-CHIP
1Kohm,5%,1/10W,TP,1608
1Kohm,5%,1/10W,TP,1608
0.05OHM,1%,1W,TP,6432
10ohm,5%,3W,AA,TP,6x16m
22Kohm,5%,1/10W,TP,1608
AR48
AR5
AR53
AR55
AR57
2007-000078
2007-000125
2007-000075
2007-000075
2007-000070
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
1Kohm,5%,1/10W,TP,1608
3.9Kohm,5%,1/10W,TP,1608
220ohm,5%,1/10W,TP,1608
220ohm,5%,1/10W,TP,1608
0ohm,5%,1/10W,TP,1608
AR58
AR59
AR6
AR60
AR61
2007-000070
2007-000070
2007-000102
2007-000070
2007-000070
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
0ohm,5%,1/10W,TP,1608
0ohm,5%,1/10W,TP,1608
100Kohm,5%,1/10W,TP,1608
0ohm,5%,1/10W,TP,1608
0ohm,5%,1/10W,TP,1608
AR62
AR66
AR67
AR68
AR69
2007-000070
2007-000084
2007-000078
2007-000947
2007-000078
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
0ohm,5%,1/10W,TP,1608
4.7Kohm,5%,1/10W,TP,1608
1Kohm,5%,1/10W,TP,1608
47ohm,5%,1/8W,TP,2012
1Kohm,5%,1/10W,TP,1608
AR7
AR70
AR71
AR72
AR73
2007-000102
2007-000947
2007-000078
2007-000097
2007-000097
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
100Kohm,5%,1/10W,TP,1608
47ohm,5%,1/8W,TP,2012
1Kohm,5%,1/10W,TP,1608
47Kohm,5%,1/10W,TP,1608
47Kohm,5%,1/10W,TP,1608
AR74
AR75
AR76
AR77
AR78
2007-000090
2007-000092
2007-000309
2007-000309
2007-000947
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
10Kohm,5%,1/10W,TP,1608
15Kohm,5%,1/10W,TP,1608
10ohm,5%,1/10W,TP,1608
10ohm,5%,1/10W,TP,1608
47ohm,5%,1/8W,TP,2012
AR8
AR80
AR9
AZD1
AZD2
2007-000081
2007-000947
2007-000125
0403-001464
0403-001464
R-CHIP
R-CHIP
R-CHIP
DIODE-ZENER
DIODE-ZENER
2.7Kohm,5%,1/10W,TP,1608
47ohm,5%,1/8W,TP,2012
3.9Kohm,5%,1/10W,TP,1608
UDZS12B,11.74-12.24V,200MW,S
UDZS12B,11.74-12.24V,200MW,S
AZD3
AZD4
B1
B2
B3
0403-001464
0403-001464
3811-000389
3811-000389
3811-000389
DIODE-ZENER
DIODE-ZENER
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
UDZS12B,11.74-12.24V,200MW,S
UDZS12B,11.74-12.24V,200MW,S
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
B4
EMC1
EMC2
EMC3
EMC4
3811-000389
2203-000260
2203-000260
2203-000260
2203-000260
WIRE-NO SHEATH CU
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
SPCW,300V,52.4mm,1/0.5
10nF,10%,50V,X7R,TP,2012
10nF,10%,50V,X7R,TP,2012
10nF,10%,50V,X7R,TP,2012
10nF,10%,50V,X7R,TP,2012
EMC5
EMC6
EMC7
EMC8
2203-000260
2203-000260
2203-000260
2203-000260
6003-001375
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
SCREW-TAPTITE
10nF,10%,50V,X7R,TP,2012
10nF,10%,50V,X7R,TP,2012
10nF,10%,50V,X7R,TP,2012
10nF,10%,50V,X7R,TP,2012
BH,+,B,M3,L8,ZPC(YEL),SWRC
AH62-00142B
AH63-01066A
AH63-01067A
AH65-30010A
HEAT SINK-AMP
SHIELD-AMP-TOP
SHIELD-AMP-BOTTOM
CLAMP-WIRE
MAX-DC650,AL,-,-,-,-,-,MAX-DC650,SECC,-,-,-,-,MAX-DC650,SECC,-,-,-,-,-,-,-,-,-
AH92-02330H
ASSY PCB-FRONT
MAX-C670,-
CON12
CON21
PC1
PC2
PCW1
3711-002813
AH39-00734A
2201-002128
2201-002128
3711-000190
CONNECTOR-HEADER
CONNECT WIRE
C-CERAMIC,DISC
C-CERAMIC,DISC
CONNECTOR-HEADER
BOX,12P,1R,2mm,STRAIGHT
MAX-DS990,#28,1007,12,150MM
4.7NF,20%,400V,Y5U,BK,15X
4.7NF,20%,400V,Y5U,BK,15X
1WALL,2P,1R,7.92MM,STRA
PCW2
PD1
PPF2
PPF2_1
PPF3
3711-000658
0402-000127
3602-000147
3602-000147
3601-000301
CONNECTOR-HEADER
DIODE-RECTIFIER
FUSE-CLIP
FUSE-CLIP
FUSE-CARTRIDGE
BOX,12P,1R,2.5mm,STRAIG
1N4002,100V,1A,DO-41,TP
250V,7.5A,30mohm
250V,7.5A,30mohm
250V,6.3A,TIME-LAG,GLASS,
PPF3
PPF3_1
PPF4
PPF4_1
PPF5
3602-000147
3602-000147
3602-000147
3602-000147
3602-000147
FUSE-CLIP
FUSE-CLIP
FUSE-CLIP
FUSE-CLIP
FUSE-CLIP
250V,7.5A,30mohm
250V,7.5A,30mohm
250V,7.5A,30mohm
250V,7.5A,30mohm
250V,7.5A,30mohm
PPF5_1
PPR1
PPR2
PSFS2
3602-000147
2008-000003
2008-000003
3602-000147
FUSE-CLIP
R-FUSIBLE
R-FUSIBLE
FUSE-CLIP
250V,7.5A,30mohm
0.22ohm,5%,1/2W,AA,TP,3.5x9.4m
0.22ohm,5%,1/2W,AA,TP,3.5x9.4m
250V,7.5A,30mohm
Samsung Electronics
Location no.
Code no.
Description & Specification Remarks
PSFS2_1
3602-000147
FUSE-CLIP
250V,7.5A,30mohm
RELAY
UC1
UC10
UC11
UC12
3501-001197
2201-000565
2201-000017
2409-000123
2401-001238
RELAY-MINIATURE
C-CERAMIC,DISC
C-CERAMIC,DISC
C-EDL
C-AL
12VDC,0.54W,44.4MA,1FORM
47nF,+80-20%,-,,-,12.5x4m
1nF,10%,50V,Y5P,-,5x3.5mm
47000uF,4uA,5.5V,-,BK,-,5mm
4.7uF,20%,25V,GP,BK,3x5,1mm
UC12
UC12A
UC13
UC14
UC16
2201-000472
2401-000407
2201-000565
2201-000565
2401-000240
C-CERAMIC,DISC
C-AL
C-CERAMIC,DISC
C-CERAMIC,DISC
C-AL
0.33NF,5%,50V,SL,TP,8.5X3
10UF,20%,16V,GP,TP,3.5X5,2.5
47nF,+80-20%,-,,-,12.5x4m
47nF,+80-20%,-,,-,12.5x4m
100uF,20%,10V,GP,TP,5x11,5
UC17
UC18
UC2
UC20
UC21
2401-000042
2401-000480
2201-000565
2201-000389
2401-000480
C-AL
C-AL
C-CERAMIC,DISC
C-CERAMIC,DISC
C-AL
100uF,20%,16V,GP,TP,6.3x7,5
10uF,20%,50V,GP,TP,5x11,5
47nF,+80-20%,-,,-,12.5x4m
0.022NF,5%,50V,C0G,TP,5X3
10uF,20%,50V,GP,TP,5x11,5
UC22
UC24
UC2A
UC2C
UC3
2202-000205
2401-001364
2201-000565
2201-000565
2401-000240
C-CERAMIC,MLC-AXIAL
C-AL
C-CERAMIC,DISC
C-CERAMIC,DISC
C-AL
22pF,5%,50V,SL,TP,1.
470uF,20%,16V,GP,TP,10x12.5,5
47nF,+80-20%,-,,-,12.5x4m
47nF,+80-20%,-,,-,12.5x4m
100uF,20%,10V,GP,TP,5x11,5
UC33
UC35
UC35A
UC4
UC5
2202-000806
2202-002037
2202-002037
2401-000651
2201-000021
C-CERAMIC,MLC-AXIAL
C-CERAMIC,MLC-AXIAL
C-CERAMIC,MLC-AXIAL
C-AL
C-CERAMIC,DISC
220pF,10%,50V,Y5P,TP
100nF,80-20%,50V,Y5V
100nF,80-20%,50V,Y5V
2.2uF,20%,50V,GP,TP,4x7,5
100NF,+80-20%,50V,Y5V,TP,
UC6
UC7
UC8
UC9
UCR1
2202-000205
2202-000205
2201-000389
2401-000759
2001-000290
C-CERAMIC,MLC-AXIAL
C-CERAMIC,MLC-AXIAL
C-CERAMIC,DISC
C-AL
R-CARBON
22pF,5%,50V,SL,TP,1.
22pF,5%,50V,SL,TP,1.
0.022NF,5%,50V,C0G,TP,5X3
220nF,20%,50V,GP,TP,5x11mm,5mm
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
UCW0
UCW1
UCW2
UCW3
UCW4
3708-000448
3708-001094
3708-000454
3708-000178
AH39-20008P
CONNECTOR-FPC/FFC/PIC
CONNECTOR-FPC/FFC/PIC
CONNECTOR-FPC/FFC/PIC
CONNECTOR-FPC/FFC/PIC
LEAD CONNECTOR ASSY
6P,1.25MM,STRAIGHT
13P,1.25MM,STRAIGH
22P,1.25MM,STRAIGH
16P,1.25MM,ANGLE,S
5264,5395,2P,250MM,1
UCW5
UD13A
UD14A
UD16A
UD17
3711-000814
0401-000005
0401-000005
0401-000005
0402-000127
CONNECTOR-HEADER
DIODE-SWITCHING
DIODE-SWITCHING
DIODE-SWITCHING
DIODE-RECTIFIER
BOX,2P,1R,2.5mm,ANGLE,S
1N4148,75V,150MA,DO-35,T
1N4148,75V,150MA,DO-35,T
1N4148,75V,150MA,DO-35,T
1N4002,100V,1A,DO-41,TP
UD18
UD19
UD20
UD21
UD22
0401-000005
0402-000127
0401-000005
0401-000005
0401-000005
DIODE-SWITCHING
DIODE-RECTIFIER
DIODE-SWITCHING
DIODE-SWITCHING
DIODE-SWITCHING
1N4148,75V,150MA,DO-35,T
1N4002,100V,1A,DO-41,TP
1N4148,75V,150MA,DO-35,T
1N4148,75V,150MA,DO-35,T
1N4148,75V,150MA,DO-35,T
UD23
UD24
UD25
UD25A
UD26
0402-000127
0401-000005
0401-000005
0401-000005
0401-000005
DIODE-RECTIFIER
DIODE-SWITCHING
DIODE-SWITCHING
DIODE-SWITCHING
DIODE-SWITCHING
1N4002,100V,1A,DO-41,TP
1N4148,75V,150MA,DO-35,T
1N4148,75V,150MA,DO-35,T
1N4148,75V,150MA,DO-35,T
1N4148,75V,150MA,DO-35,T
UIC1
UIC2
UIC3
UKK1
ULED6
0903-001273
0609-001189
1205-002635
3404-000165
0601-001238
IC-MICROCONTROLLER
MODULE REMOCON
IC-EXPANDER
SWITCH-TACT
LED
LC87F67C8A,8BIT,QFP,1
HORIZONTAL,16.4MM,TR
LC709004A,MFP,24P,300MIL,PLA
12V,50mA,160gf,6x6mm,SPST
ROUND,RED,3.1mm,697nm,3.8x5.2m
UQ1
UQ10
UQ11
UQ2
UQ3
0501-002409
0501-000303
0504-000118
0501-000422
0501-000422
TR-SMALL SIGNAL
TR-SMALL SIGNAL
TR-DIGITAL
TR-SMALL SIGNAL
TR-SMALL SIGNAL
KTC945B,NPN,625MW,T0-92,
KSA733,PNP,250mW,TO-92,T
KSR1003,NPN,300MW,22K/22K,TOKTA1273,PNP,-30V,-30V,-2
KTA1273,PNP,-30V,-30V,-2
UQ4
UQ5
UQ6
UQ7
UQ9
0501-000422
0501-002409
0504-000118
0504-000118
0504-000118
TR-SMALL SIGNAL
TR-SMALL SIGNAL
TR-DIGITAL
TR-DIGITAL
TR-DIGITAL
KTA1273,PNP,-30V,-30V,-2
KTC945B,NPN,625MW,T0-92,
KSR1003,NPN,300MW,22K/22K,TOKSR1003,NPN,300MW,22K/22K,TOKSR1003,NPN,300MW,22K/22K,TO-
UR1
UR10
UR101
UR102
UR105
2001-000290
2001-000290
2001-000802
2001-000786
2001-000472
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
UR106
UR109
UR11
UR110
UR111
2001-000411
2001-000786
2001-000241
2001-000786
2001-000786
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
UR112
2001-000786
R-CARBON
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Samsung Electronics
Location no.
Code no.
Description & Specification Remarks
UR113
UR114
UR115
UR116
2001-000786
2001-000786
2001-000786
2001-000786
R-CARBON
R-CARBON
R-CARBON
R-CARBON
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
UR117
UR118
UR119
UR12
UR120
2001-000786
2001-000786
2001-000786
2001-001178
2001-000290
R-CARBON
R-CARBON
R-CARBON
R-CARBON(S)
R-CARBON
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
680OHM,5%,1/2W,AA,TP,2.4X6.4
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
UR121
UR122
UR123
UR124
UR125
2001-000290
2001-000734
2001-000734
2001-000405
2001-000734
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
180OHM,5%,1/8W,AA,TP,1.8X3.2MM
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
UR126
UR127
UR128
UR129
UR13
2001-000786
2001-000786
2001-000734
2001-000786
2001-001178
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON(S)
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
680OHM,5%,1/2W,AA,TP,2.4X6.4
UR130
UR131
UR132
UR139
UR14
2001-000362
2001-000786
2001-000786
2001-000429
2001-001178
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON(S)
150OHM,5%,1/8W,AA,TP,1.8X3.2MM
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
680OHM,5%,1/2W,AA,TP,2.4X6.4
UR15
UR158
UR159
UR16
UR17
2001-000734
2001-000734
2001-000429
2001-000290
2001-000281
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
UR18
UR2
UR20
UR21
UR22
2001-000591
2001-000290
2001-000221
2001-000258
2001-000472
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
UR24
UR25
UR26
UR27
UR28
2001-000281
2001-000429
2001-000429
2001-000290
2001-000290
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
UR29
UR3
UR30
UR32
UR33
2001-000281
2001-000258
2001-000281
2001-000290
2001-000281
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
UR37
UR38
UR39
UR4
UR40
2001-000290
2001-000290
2001-000290
2001-000008
2001-000290
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
UR41
UR44
UR47
UR48
UR49
2001-000290
2001-000290
2001-000850
2001-000281
2001-000290
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
560KOHM,5%,1/8W,AA,TP,1.8X3.2M
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
UR5
UR50
UR51
UR52
UR53
2001-000660
2001-000290
2001-000449
2001-000429
2001-000295
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10MOHM,5%,1/8W,AA,TP,1.8X3.2MM
UR54
UR55
UR56
UR57
UR58
2001-000290
2001-000429
2001-000290
2001-000290
2001-000435
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
1MOHM,5%,1/8W,AA,TP,1.8X3.2MM
UR59
UR6
UR60
UR61
UR62
2001-000290
2001-000008
2001-000290
2001-000290
2001-000290
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
UR63
UR64
UR65
UR66
UR67
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
UR68
UR69
UR7
UR70
2001-000290
2001-000290
2001-000281
2001-000290
R-CARBON
R-CARBON
R-CARBON
R-CARBON
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
100OHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
8-5
Location no.
Code no.
Description & Specification Remarks
Location no.
Code no.
Description & Specification Remarks
UR71
2001-000290
R-CARBON
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
AH39-00320C
CBF COAXIAL CABLE
MAX-L68,110REC,-,1007#
UR72
UR73
UR74
UR75
UR76
2001-000290
2001-000290
2001-000786
2001-000290
2001-000429
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
AH40-00087A
AH42-00019A
AH59-01159S
TUNER-FM/AM
ANT LOOP
REMOCON-ASSY
MJ104MA1-55C,MAX-DJ750,FM,AM
S0160BL-16,HT-DS665T,9uH,-,1KH
MAX-ZJ650,SAMSUNG,-,-,28KEY
AH59-01478B
DECK
-,MAX-C550,-,-,-,D73,-,ONE MOT
UR77
UR8
UR80
UR81
UR86
2001-000786
2001-000290
2001-000802
2001-000786
2001-000734
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
3101-001377
3301-000132
3708-001955
AH62-30048A
MOTOR-DC
CORE-FERRITE
CONNECTOR-FPC/FFC/PIC
HEAT SINK
2540RPM,12.6G.CM,5V,120MA
AC,28.8x19.3x7.5mm,1400,290
8P,1MM,ANGLE,TIN,N
PBSS,-,T0.8,-,-,-,KCD-11/22,-
UR87
UR89
UR9
UR90
UR91
2001-000290
2001-000786
2001-000864
2001-000522
2001-000290
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
AH65-30010A
AH91-60150C
3409-001078
AH30-00007A
AH81-00614A
CLAMP-WIRE
ASSY CDP DECK
SWITCH-LEAF
PICK UP
A/S-SHAFT-PU
-,-,-,-,-,CMS-D73SG6(U)/JVC,CMS-300D
16Vdc,500mA,10gf,SPST
SOH-AD3,-,-,-,100*80*45,D73SG6
-,METAL,-,-,-,-,-
UR93
UR93A
UR93B
UR93C
UR94
2001-000221
2001-000241
2001-000258
2001-000472
2001-000241
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
AH81-00614B
AH81-00614C
AH81-00614D
AH81-00614E
AH81-00614F
A/S-SCREW
A/S-SCREW
A/S-WASHER
A/S-GEAR(C)
A/S-GEAR(B)
-,METAL,AJ60-00601D,-,-,-,-,METAL,6003-000294,-,-,-,-,PBT,AJ60-00608A,-,-,-,-,PBT,AJ66-00006A,-,-,-,-,PBT,AJ66-00005A,-,-,-,-
UR95
UR96
UR97
UR98
UR99
2001-000411
2001-000221
2001-000660
2001-000660
2001-000008
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
AH81-00614G
AH81-00614H
AH81-00614J
AH81-00614K
A/S-GEAR(A)
A/S-MOTOR-FEED
A/S-MOTOR-PCB ASSY
A/S-CONNECTOR
-,PBT,AJ66-00004A,-,-,-,-,-,AJ31-00601C,-,-,-,-,-,AJ41-00601S,-,-,-,-,AJ37-00601A,-,-,-,-
USW10
USW11
USW12
USW13
USW14
3404-000165
3404-000165
3404-000165
3404-000165
3404-000165
SWITCH-TACT
SWITCH-TACT
SWITCH-TACT
SWITCH-TACT
SWITCH-TACT
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
USW17
USW18
USW19
USW2
USW20
3404-000165
3404-000165
3404-000165
3404-000165
3404-000165
SWITCH-TACT
SWITCH-TACT
SWITCH-TACT
SWITCH-TACT
SWITCH-TACT
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
USW21
USW22
USW23
USW24
USW25
3404-000165
3404-000165
3404-000165
3404-000165
3404-000165
SWITCH-TACT
SWITCH-TACT
SWITCH-TACT
SWITCH-TACT
SWITCH-TACT
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
USW26
USW27
USW29
USW3
USW30
3404-000165
3404-000165
3404-000165
3404-000165
3404-000165
SWITCH-TACT
SWITCH-TACT
SWITCH-TACT
SWITCH-TACT
SWITCH-TACT
USW33
USW34
USW35
USW36
USW4
3404-000165
3404-000165
3404-000165
3404-000165
3404-000165
USW7
USW8
UVR1
UVR3
UVR5
UVR7
UX2
VFD
X-TAL1
8-6
AH92-02406A
ASSY PCB
MAX-C570,CDP,-
IC401
XT201
CW101
CW105
CW107
1003-001418
2802-000211
3708-001252
3708-001438
3711-000906
IC-MOTOR DRIVER
RESONATOR-CERAMIC
CONNECTOR-FPC/FFC/PIC
CONNECTOR-FPC/FFC/PIC
CONNECTOR-HEADER
FAN8082,DIP,8P,-,-,1MA,S
16.93MHz,0.5%,TP,10.0x
16P,1MM,STRAIGHT-F
22P,1.25MM,ANGLE,S
BOX,3P,1R,2MM,ANGLE,SN,
CW106
CW102
D201
D201
D301
AH39-00345A
AH39-20561P
AH94-01870A
0401-000008
0402-000151
WIRE HARNESS
LEAD CONNECTOR ASSY
ASSY TAPG-CDP
DIODE-SWITCHING
DIODE-RECTIFIER
G3HI-3CD/VCD,-,-,8P,370MM,-,5295,PHR,6P,150mm,
MAX-C570,CDP
DAN217,80V,100MA,SOT-23,
1N5392,100V,1.5A,DO-15,T
D305
D302
D401
D306
Q101
0403-000334
0403-000344
0403-000509
0404-000144
0501-000002
DIODE-ZENER
DIODE-ZENER
DIODE-ZENER
DIODE-SCHOTTKY
TR-SMALL SIGNAL
UZ2.7BSA,2.54-2.75V,500MW,DO
UZ3.9B,3.7-4.1V,500MW,DO-35,
MTZJ5.6B,5.4-5.7V,500MW,DO-3
SB01-05CP,50V,100MA,SOT-2
KSA812,PNP,150MW,SOT-23,
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
Q303
Q302
IC301
IC501
IC101
IC201
0501-000010
0501-000010
1003-000179
1105-001261
1204-001799
1204-002230
TR-SMALL SIGNAL
TR-SMALL SIGNAL
IC-MOTOR DRIVER
IC-DRAM
IC-AUDIO PROCESSOR
IC-DECODER
KSC1008,NPN,800mW,TO-92,
KSC1008,NPN,800mW,TO-92,
KA9258D,SOP,28P,-,SINGLE
12L1616A,16Bit,TSOP,50P,400MIL
KB9226,LQFP,48P,393MI
S5L9279X01,TQFP,100P,-,PLASTI
SWITCH-TACT
SWITCH-TACT
SWITCH-TACT
SWITCH-TACT
SWITCH-TACT
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
R108
R210
R422
R423
R428
2001-000331
2001-000734
2001-000780
2001-000780
2001-000780
R-CARBON
R-CARBON
R-CARBON
R-CARBON
R-CARBON
12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
470OHM,5%,1/8W,AA,TP,1.8X3.2MM
470OHM,5%,1/8W,AA,TP,1.8X3.2MM
470OHM,5%,1/8W,AA,TP,1.8X3.2MM
3404-000165
3404-000165
3406-001047
3406-001050
3406-001050
SWITCH-TACT
SWITCH-TACT
SWITCH-ROTARY
SWITCH-ROTARY
SWITCH-ROTARY
12V,50mA,160gf,6x6mm,SPST
12V,50mA,160gf,6x6mm,SPST
5V DC,0.5mA,-,12mm
5V DC,0.5mA,click,12mm
5V DC,0.5mA,click,12mm
R122
R103
J18
J21
J4
2001-001000
2007-000001
2007-000029
2007-000029
2007-000029
R-CARBON
R-CHIP
R-CHIP
R-CHIP
R-CHIP
82KOHM,5%,1/8W,AA,TP,1.8X3.2MM
68Kohm,5%,1/8W,TP,2012
0ohm,5%,1/8W,TP,2012
0ohm,5%,1/8W,TP,2012
0ohm,5%,1/8W,TP,2012
2103-000341
2802-001174
AH07-00120A
2801-001394
2001-000290
VR-SEMI
RESONATOR-CERAMIC
VF DISPLAY
CRYSTAL-UNIT
R-CARBON
2Kohm,30%,1/10W,TOP
10MHZ,0.5%,BK,8X3.5X3M
HNA-12LS06,MAX-ZJ550,90X40,1/
32.768KHz,20ppm,28-AAY,12.5
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
J6
J7
J9
J12
J13
2007-000029
2007-000029
2007-000029
2007-000029
2007-000029
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
0ohm,5%,1/8W,TP,2012
0ohm,5%,1/8W,TP,2012
0ohm,5%,1/8W,TP,2012
0ohm,5%,1/8W,TP,2012
0ohm,5%,1/8W,TP,2012
2401-000118
3601-000263
3708-000193
3811-000130
AH27-10001F
AH61-01520A
AH69-20042A
C-AL
FUSE-CARTRIDGE
CONNECTOR-FPC/FFC/PIC
WIRE-PVC CU
COIL-CHOKE
HOLDER-VFD
CUSHION-CUSHION
1000uF,20%,10V,GP,TP,10x12.5,5
250V,3.15A,TIME-LAG,GLASS
17P,1.25MM,STRAIGH
BCWA,300V,60mm,7/0.16mm,#26,
27uH,K,Q30,-,-,DR(6.5*7.5),-,
MAX-ZJ650,ABS ,-,-,-,BLK,-,-,-,-,-,-,-,-,RCD-1800
J14
J17
J16
J15
J20
2007-000029
2007-000029
2007-000029
2007-000029
2007-000033
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
0ohm,5%,1/8W,TP,2012
0ohm,5%,1/8W,TP,2012
0ohm,5%,1/8W,TP,2012
0ohm,5%,1/8W,TP,2012
0ohm,5%,1/4W,TP,3216
3809-001332
3809-001434
3809-001661
3809-001666
6801-001066
CABLE-FLAT
CABLE-FLAT
CABLE-FLAT
CABLE-FLAT
CARD-REGISTRATION
30V,80C,140MM,16P,1.25MM,UL28
30V,80C,100MM,12P,1.25MM,UL28
30V,80,150mm,13P,1.25mm,30V,80,150MM,17P,1.25MM,RUSSIA,CIS(RUSSIA),RUS
J22
J3
J5
J8
J1
2007-000033
2007-000033
2007-000033
2007-000033
2007-000033
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
0ohm,5%,1/4W,TP,3216
0ohm,5%,1/4W,TP,3216
0ohm,5%,1/4W,TP,3216
0ohm,5%,1/4W,TP,3216
0ohm,5%,1/4W,TP,3216
6801-001313
AH26-00331A
AH31-00029F
AH39-00257F
CARD-WARRANTY
TRANS POWER
MOTOR FAN
CBF-POWER CORD
LATVIA,SEO,LITHUANIAN,MOJO
-,MAX-ZC670,-,-,220V,-,-,-,C161NK10B0110,MX-GT88,0.15A,-,
MAX980,-,CP2,250V,2.5A,18
J10
J11
J19
J2
R203L
2007-000033
2007-000033
2007-000033
2007-000033
2007-000282
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
0ohm,5%,1/4W,TP,3216
0ohm,5%,1/4W,TP,3216
0ohm,5%,1/4W,TP,3216
0ohm,5%,1/4W,TP,3216
100Kohm,5%,1/8W,TP,2012
R202R
2007-000282
R-CHIP
100Kohm,5%,1/8W,TP,2012
Samsung Electronics
Location no.
Code no.
Description & Specification Remarks
R201R
R204L
R211
R110
2007-000290
2007-000290
2007-000300
2007-000300
R-CHIP
R-CHIP
R-CHIP
R-CHIP
100ohm,5%,1/8W,TP,2012
100ohm,5%,1/8W,TP,2012
10Kohm,5%,1/8W,TP,2012
10Kohm,5%,1/8W,TP,2012
R109
R121
R116
R115
R113
2007-000300
2007-000308
2007-000338
2007-000338
2007-000409
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
10Kohm,5%,1/8W,TP,2012
10ohm,5%,1/8W,TP,2012
120Kohm,5%,1/8W,TP,2012
120Kohm,5%,1/8W,TP,2012
15Kohm,5%,1/8W,TP,2012
R102
R101
R429
R420
R104
2007-000444
2007-000457
2007-000468
2007-000468
2007-000468
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
180Kohm,5%,1/8W,TP,2012
18Kohm,5%,1/8W,TP,2012
1Kohm,5%,1/8W,TP,2012
1Kohm,5%,1/8W,TP,2012
1Kohm,5%,1/8W,TP,2012
R209
R105
R107
R213
R119
2007-000477
2007-000477
2007-000546
2007-000572
2007-000653
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
1Mohm,5%,1/8W,TP,2012
1Mohm,5%,1/8W,TP,2012
20Kohm,5%,1/8W,TP,2012
220ohm,5%,1/8W,TP,2012
27Kohm,5%,1/8W,TP,2012
R412
R411
R421
R425
R426
2007-000872
2007-000872
2007-000931
2007-000931
2007-000931
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
4.7Kohm,5%,1/8W,TP,2012
4.7Kohm,5%,1/8W,TP,2012
470ohm,5%,1/8W,TP,2012
470ohm,5%,1/8W,TP,2012
470ohm,5%,1/8W,TP,2012
R427
R408
R216
R217
R406
2007-000931
2007-000931
2007-000931
2007-000931
2007-000931
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
470ohm,5%,1/8W,TP,2012
470ohm,5%,1/8W,TP,2012
470ohm,5%,1/8W,TP,2012
470ohm,5%,1/8W,TP,2012
470ohm,5%,1/8W,TP,2012
R407
R431
R432
R433
R430
2007-000931
2007-000941
2007-000941
2007-000941
2007-000941
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
470ohm,5%,1/8W,TP,2012
47Kohm,5%,1/8W,TP,2012
47Kohm,5%,1/8W,TP,2012
47Kohm,5%,1/8W,TP,2012
47Kohm,5%,1/8W,TP,2012
R114
R120
R409
R126
R125
2007-000941
2007-000941
2007-000941
2007-001039
2007-001039
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
47Kohm,5%,1/8W,TP,2012
47Kohm,5%,1/8W,TP,2012
47Kohm,5%,1/8W,TP,2012
56Kohm,5%,1/8W,TP,2012
56Kohm,5%,1/8W,TP,2012
R124
R123
R117
R112
R106
2007-001039
2007-001039
2007-001039
2007-001039
2007-001177
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
56Kohm,5%,1/8W,TP,2012
56Kohm,5%,1/8W,TP,2012
56Kohm,5%,1/8W,TP,2012
56Kohm,5%,1/8W,TP,2012
8.2Kohm,5%,1/8W,TP,2012
R129
R111
R118
R127
R303
2007-001195
2007-001208
2007-001208
2007-001208
2007-001216
R-CHIP
R-CHIP
R-CHIP
R-CHIP
R-CHIP
820Kohm,5%,1/8W,TP,2012
82Kohm,5%,1/8W,TP,2012
82Kohm,5%,1/8W,TP,2012
82Kohm,5%,1/8W,TP,2012
82ohm,5%,1/8W,TP,2012
R302
R128
C407
C227
C226
2007-001216
2007-001216
2202-002037
2203-000203
2203-000203
R-CHIP
R-CHIP
C-CERAMIC,MLC-AXIAL
C-CER,CHIP
C-CER,CHIP
82ohm,5%,1/8W,TP,2012
82ohm,5%,1/8W,TP,2012
100nF,80-20%,50V,Y5V
100nF,10%,16V,X7R,TP,2012,2mm
100nF,10%,16V,X7R,TP,2012,2mm
C220
C218
C216
C215
C224
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
100nF,10%,50V,X7R,2012
100nF,10%,50V,X7R,2012
100nF,10%,50V,X7R,2012
100nF,10%,50V,X7R,2012
100nF,10%,50V,X7R,2012
C401
C406
C501
C502
C214
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
100nF,10%,50V,X7R,2012
100nF,10%,50V,X7R,2012
100nF,10%,50V,X7R,2012
100nF,10%,50V,X7R,2012
100nF,10%,50V,X7R,2012
C109
C110
C112
C120
C125
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
100nF,10%,50V,X7R,2012
100nF,10%,50V,X7R,2012
100nF,10%,50V,X7R,2012
100nF,10%,50V,X7R,2012
100nF,10%,50V,X7R,2012
C211
C208
C202
C126
C231
2203-000206
2203-000206
2203-000206
2203-000206
2203-000239
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
100nF,10%,50V,X7R,2012
100nF,10%,50V,X7R,2012
100nF,10%,50V,X7R,2012
100nF,10%,50V,X7R,2012
0.1NF,5%,50V,C0G,TP,2012
C232
C233
C230
C140
2203-000239
2203-000239
2203-000239
2203-000239
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
0.1NF,5%,50V,C0G,TP,2012
0.1NF,5%,50V,C0G,TP,2012
0.1NF,5%,50V,C0G,TP,2012
0.1NF,5%,50V,C0G,TP,2012
Samsung Electronics
Location no.
Code no.
Description & Specification Remarks
C141
2203-000239
C-CER,CHIP
0.1NF,5%,50V,C0G,TP,2012
C142
C143
C130
C117
C115
2203-000239
2203-000260
2203-000260
2203-000260
2203-000260
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
0.1NF,5%,50V,C0G,TP,2012
10nF,10%,50V,X7R,TP,2012
10nF,10%,50V,X7R,TP,2012
10nF,10%,50V,X7R,TP,2012
10nF,10%,50V,X7R,TP,2012
C213L
C209R
C123
C124
C132
2203-000495
2203-000495
2203-000495
2203-000595
2203-000609
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
2.2nF,10%,50V,X7R,2012
2.2nF,10%,50V,X7R,2012
2.2nF,10%,50V,X7R,2012
0.22nF,5%,50V,C0G,2012
22nF,10%,50V,X7R,TP,2012
C223
C222
C127
C113
C122
2203-000683
2203-000683
2203-000802
2203-000802
2203-000840
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
0.027nF,5%,50V,C0G,2012
0.027nF,5%,50V,C0G,2012
33nF,10%,50V,X7R,2012
33nF,10%,50V,X7R,2012
0.39NF,5%,50V,C0G,TP,2012
C104
C103
C116
C101
C121
2203-000892
2203-000892
2203-000919
2203-001026
2203-001064
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
4.7nF,10%,50V,X7R,TP,2012
4.7nF,10%,50V,X7R,TP,2012
470nF,+80-20%,16V,Y5V,TP,2012
0.004nF,0.25pF,50V,SL,TP,2012
56NF,10%,50V,C0G,TP,2012
C133
C119
C205
C204
C201
2203-001137
2203-001137
2203-001537
2203-001537
2203-001537
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
68nF,+80-20%,50V,Y5V,TP,2012,
68nF,+80-20%,50V,Y5V,TP,2012,
1nF,10%,50V,X7R,TP,2012
1nF,10%,50V,X7R,TP,2012
1nF,10%,50V,X7R,TP,2012
C129
C111
C131
C206R
C212L
2203-001537
2203-001537
2203-001551
2401-000027
2401-000027
C-CER,CHIP
C-CER,CHIP
C-CER,CHIP
C-AL
C-AL
1nF,10%,50V,X7R,TP,2012
1nF,10%,50V,X7R,TP,2012
1.5nF,10%,50V,X7R,TP,2012
4.7uF,20%,50V,GP,TP,5x11,5
4.7uF,20%,50V,GP,TP,5x11,5
C303
C304
C503
C221
C207
2401-000240
2401-000240
2401-000240
2401-000240
2401-000240
C-AL
C-AL
C-AL
C-AL
C-AL
100uF,20%,10V,GP,TP,5x11,5
100uF,20%,10V,GP,TP,5x11,5
100uF,20%,10V,GP,TP,5x11,5
100uF,20%,10V,GP,TP,5x11,5
100uF,20%,10V,GP,TP,5x11,5
C210
C219
C118
C203
C302
2401-000240
2401-000240
2401-000480
2401-000480
2401-001102
C-AL
C-AL
C-AL
C-AL
C-AL
100uF,20%,10V,GP,TP,5x11,5
100uF,20%,10V,GP,TP,5x11,5
10uF,20%,50V,GP,TP,5x11,5
10uF,20%,50V,GP,TP,5x11,5
330uF,20%,16V,GP,TP,8x11.5mm,5
C107
C135
C134
C128
C105
2401-001625
2401-002042
2401-002042
2401-002042
2401-002042
C-AL
C-AL
C-AL
C-AL
C-AL
6.8uF,20%,50V,GP,TP,5x11,5
220uF,20%,10V,GP,TP,6.3x11,5
220uF,20%,10V,GP,TP,6.3x11,5
220uF,20%,10V,GP,TP,6.3x11,5
220uF,20%,10V,GP,TP,6.3x11,5
C114
JW29
JW3
JW30
JW31
2404-000148
3811-000389
3811-000389
3811-000389
3811-000389
C-TA,CHIP
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
1uF,10%,20V,-,TP,3216
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
JW28
JW27
JW26
JW25
JW32
3811-000389
3811-000389
3811-000389
3811-000389
3811-000389
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
JW9
JW8
JW7
JW6
JW5
3811-000389
3811-000389
3811-000389
3811-000389
3811-000389
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
JW4
JW34
JW33
JW16
JW15
3811-000389
3811-000389
3811-000389
3811-000389
3811-000389
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
JW14
JW13
JW12
JW11
JW10
3811-000389
3811-000389
3811-000389
3811-000389
3811-000389
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
JW1
JW17
JW24
JW23
JW22
3811-000389
3811-000389
3811-000389
3811-000389
3811-000389
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
JW21
3811-000389
WIRE-NO SHEATH CU
SPCW,300V,52.4mm,1/0.5
8-7
Location no.
JW18
JW19
JW2
JW20
8-8
Code no.
Description & Specification Remarks
3811-000389
3811-000389
3811-000389
3811-000389
AH97-01455A
0205-001109
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
WIRE-NO SHEATH CU
ASSY-MECHA
GREASE-HARD
AH59-01602B
AH81-01916A
AH81-01916B
AH64-70003K
AH81-01781D
SPEAKER SYSTEM-PS-C670 PS-C670,-,-,-,-,A/S PART-PS-ZC670 SPK SYSTEM PS-ZC670,-,
A/S PART-LEFT SPK SYSTEM PS-ZC670,-,-,LE
BADGE-BRAND
-,ABS+STAMPING,-,-,L35,-,SIL
A/S PART-FRONT PANEL L
PSDC650,HIPS,-,FR
AH81-01781F
AH81-01781G
AH81-01781H
AH81-01781N
AH81-01916D
A/S PART-WOOFER RING
A/S PART-GRILL PUNCHING
A/S PART-GRILL PUNCHING
A/S PART-PIEZO
A/S PART-WOOFER UNIT
PSDC650,-,-,WOOFER
PSDC650,STEEL,-,
PSDC650,STEEL,-,
PS-DC650,-,-,PIEZO,-,-,MI
PS-ZC670,-,-,WOOFER
AH81-01916M
AH81-01916Q
AH81-01916C
AH64-70003K
AH81-01781E
A/S PART-LEFT CABINIT
A/S PART-TWEETER UNIT
A/S PART-RIGHT SPK SYSTEM
BADGE-BRAND
A/S PART-FRONT PANEL R
PS-C670G,WOOD,-,LE
PS-C670,-,-,TWEETE
PS-ZC670,-,-,R
-,ABS+STAMPING,-,-,L35,-,SIL
PSDC650,HIPS,-,FR
AH81-01781F
AH81-01781G
AH81-01781H
AH81-01781N
AH81-01916D
A/S PART-WOOFER RING
A/S PART-GRILL PUNCHING
A/S PART-GRILL PUNCHING
A/S PART-PIEZO
A/S PART-WOOFER UNIT
PSDC650,-,-,WOOFER
PSDC650,STEEL,-,
PSDC650,STEEL,-,
PS-DC650,-,-,PIEZO,-,-,MI
PS-ZC670,-,-,WOOFER
AH81-01916N
AH81-01916Q
AH81-01916E
A/S PART-RIGHT CABINET
A/S PART-TWEETER UNIT
A/S PART-CUSHION
PS-C670G,WOOD,-,R
PS-C670,-,-,TWEETE
PS-ZC670,EPS,-,CUSHION,
AH97-01111A
6003-001446
AH39-00021A
AH39-20002D
AH59-01145A
ASSY-CA’DECK
SCREW-TAPTITE
LEAD CONNECTOR ASSY
LEAD CONNECTOR ASSY
DECK-CASSETTE
-,MAX-S720,ASSY CA’DECK
BH,+,,M2,L5,NI PLT
UL1533#28,300MM,-,-,
5264,-,3P,300MM,2970
ADR268AMW1,MAXS560,-,-,DC1
AH81-00101A
AH81-00102A
AH81-00141B
AH81-00363A
A/S-BELT SUB
A/S-SOLENOID
A/S-HEAD PB
A/S-ASSY MOTOR
34.1X1.1X1.1,6602-001055,-,
DAT-05A1,MT75-00049A,-,-,-,
MK10P-AA2N3,MT59-00041V,-,-,
ADR246DSW,MT91-15012J,-,-
AH81-00364A
AH81-00365A
AH81-00368A
AH61-00413B
A/S-BELT MAIN1
A/S-BELT MAIN2
A/S-ASSY RP HEAD
BRACKET-DECK
ADR246DSW,6602-001056,-,ADR246DSW,6602-001057,-,ADR246FTW,MT91-11010T,MAX-B550,SPTE 0.3T,0.3T,-,-
Location no.
Code no.
Description & Specification Remarks
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
SPCW,300V,52.4mm,1/0.5
MOLD BASE,SDM-R31,CD MODEL
DM5231,HARD,1KG/CAN
Samsung Electronics
9. Block Diagram
1. MAIN Part
Samsung Electronics
9-1
10. Wiring Diagram
Samsung Electronics
10-1
11. PCB Diagram
1. MAIN
Samsung Electronics
11-1
2. AMP
11-2
Samsung Electronics
3. FRONT
Samsung Electronics
11-3
Регулировка CD-механизма Samsung
Antey
http://monitor.net.ru
12. Schematic Diagram
- This Document can not be used without Samsung’s authorization -
1-1. MAIN
Samsung Electronics
12-1
2. AMP
12-2
- This Document can not be used without Samsung’s authorization -
Samsung Electronics
3. FRONT
Samsung Electronics
- This Document can not be used without Samsung’s authorization -
12-3
13. Circuit Board Description
Samsung Electronics
13-1
13-2
Samsung Electronics
14. Reference
Precautions When Using Compact
Discs
Cleaning Your Component
System
To obtain the best possible results from your micro component system, you must clean the following elements regularly:
The outer casing
The compact disc player
The cassette players (heads, rollers and drive capstans)
Always unplug the system from the wall outlet:
Before cleaning it
If you are not going to be using it for a long time
Handle your compact discs with care. Always hold them by the
edges to avoid leaving fingerprints on the shiny surface.
When you have finished playing a compact disc, always put it back
in its case.
Do not fix paper or adhesive tape to the discs and do not write on
the label.
Clean them with a special-purpose cloth.
Store your compact discs in a clean place, out of direct sunlight,
where they will not be exposed to high temperatures.
Always use compact discs marked
.
COMPACT
DIGITAL AUDIO
Outer Casing
Clean the outer casing regularly using a soft cloth and a light detergent. Do
not use abrasive powders, liquids or aerosol cleaners. Never let any liquids
get into the system.
Compact Disc Player
1
Before playing a compact disc, clean it with a special CD cleaning
agent. Do not use the same cleaning agents as for vinyl LP records.
Carefully wipe the disc from the centre outward.
2
Regularly clean the player with a special cleaning disc (available from
your local dealer).
Precautions When Using Audio
Cassettes
Tape Decks
1
2
Press Push Eject(
) to open the cassette deck.
Use a cotton bud and a special cassette cleaning agent to clean the:
Head (1)
Rollers (2)
Drive capstans (3)
3
1
Check that the tape in the cassette is sufficiently taut.
To prevent erasing a cassette that you wish to keep, remove the
safety tab on the upper edge of the cassette. To record a cassette,
where the tab has been broken, simply cover the opening with
adhesive tape.
When you have finished playing a cassette, always put it back in its
case.
Store your cassettes in a clean place, out of direct sunlight, where
they will not be exposed to high temperatures.
Avoid using 120-minute cassettes as they place unnecessary strain
on the tape mechanism.
2
If you will not be using the remote control for a long time,
remove the batteries to prevent corrosion.
Although your system is very hard-wearing, it should not be
used in an excessively dusty environment or subjected to
shocks or extreme heat (close to heating appliances or in
direct sunlight, etc.).
If the unit emits an unpleasant odor when in use, unplug it
from the main supply and contact the after-sales service.
14-1
Samsung Electronics
Samsung Electronics
14-2
