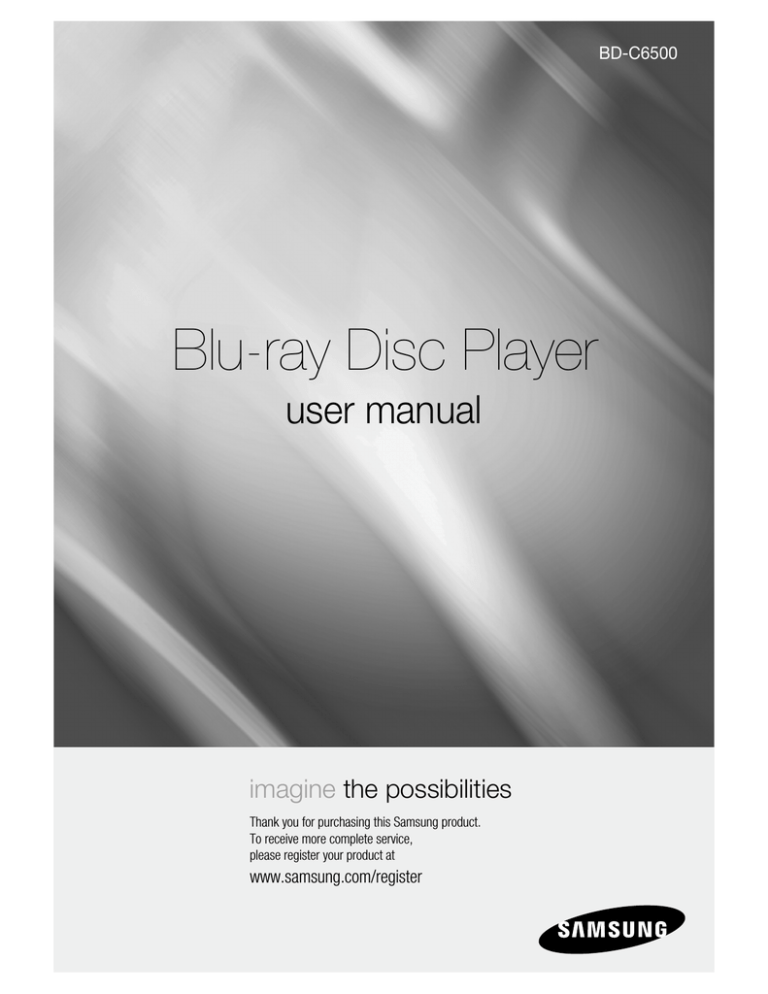

Samsung AK68-01859A User manual

BD-C6500
Blu-ray Disc Player
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
Key features
Blu-ray Disc Features
Subtitles
Blu-ray Discs support the highest quality HD video
available in the industry - Large capacity means
no compromise on video quality. Furthermore, a
Blu-ray Disc has the same familiar size and look
as a DVD.
Depending on what is contained on the Blu-ray
Disc, you may be able to select different font
styles, sizes and colors for the subtitles. Subtitles
may also be animated, scrolled or faded in and
out.
The following Blu-ray Disc features are disc
dependant and will vary.
Appearance and navigation of features will also
vary from disc to disc.
Not all discs will have the features described
below.
BD-LIVE
Video highlights
The BD-ROM format supports three highly advanced
video codecs, including AVC, VC-1 and MPEG-2.
HD video resolutions are also available:
• 1920 x 1080 High Definition
• 1280 x 720 High Definition
For High-Definition Playback
To view high-definition contents on a Blu-ray Disc,
an HDTV (High Definition Television) is required.
Some Blu-ray Discs may require using the player’s
HDMI OUT to view high-definition content.
The ability to view high-definition content on
Blu-ray Discs may be limited depending on the
resolution of your TV.
Interactivity
Certain Blu-ray Discs may contain Animated
menus and Trivia games.
User Browsable Slideshows
With Blu-ray Discs, you can browse through
various still pictures while the audio remains
playing.
2
English
You can use a Blu-ray Disc supporting BD-LIVE
through network connection to enjoy various
contents provided by the disc manufacturer.
Blu-ray Disc Player Features
Internet@TV
You can download various chargeable or free-ofcharge applications through network connection.
Various internet service and contents will be
provided, which include news, weather forecast,
stock market, games, movies and music.
Safety Information
02
Warning
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lighting flash and Arrowhead within the CAUTION: TO REDUCE THE RISK OF ELECTRIC The explanation point within the triangle
triangle is a warning sign alerting you of
SHOCK, DO NOT REMOVE COVER (OR BACK)
is a warning sign alerting you of important
dangerous voltage inside the product.
NO USER SERVICEABLE PARTS INSIDE. REFER instructions accompanying the product.
SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
FCC RF Radiation Exposure
• To reduce the risk of fire or electric shock, do
not expose this appliance to rain or moisture.
RF Radiation Exposure Statement
FCC NOTE (for U.S.A)
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on.
The user is encouraged to try to correct the
interference by one or more of the following
measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect this equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
• This class B digital product meets all
requirements of the Canadian Interference Causing Equipment Regulations.
This equipment complies with FCC RF Radiation
Exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with a minimum distance of
20cm between the radiator and your body. This
transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved
by the party responsible for compliance could void
the user’s authority to operate the equipment.
To comply with the FCC RF exposure compliance
requirements, this device and its antenna must
not be co-located or operated in conjunction with
any other antenna or transmitter.
The final device into which this transmitter module
is installed must be labeled with the following
statement:
“This device contains TX FCC ID: A3LDNUBS1.”
If this transmitter will be configured as a pc
peripheral, it will be the OEM’s responsibility
to obtain authorization as such (either through
Certification of Declaration of Conformity) prior to
marketing of the device.
English
3
Safety Information
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Safety Information
Note to CATV system installer
This reminder is provided to call CATV system
installer’s attention to Article 820-40 of the
National Electrical Code (Section 54 of Canadian
Electrical Code, Part I) that provides guidelines
for proper grounding and, in particular, specifies
that the cable ground shall be connected to the
grounding system of the building as close to the
point of cable entry as practical.
Precautions
Important Safety Instructions
Read these operating instructions carefully before
using the unit. Follow all the safety instructions
listed below.
Keep these operating instructions handy for future
reference.
CLASS 1 LASER PRODUCT
1. Read these instructions.
This Compact Disc player is classified as a CLASS
1 LASER product. Use of controls, adjustments
or performance of procedures other than those
specified herein may result in hazardous radiation
exposure.
Complies with 21CFR 1040.10 except for
deviations pursuant to Laser Notice No. 50, dated
June 24, 2007.
DANGER :
• VISIBLE AND INVISIBLE LASER RADIATION
WHEN OPEN. AVOID DIRECT EXPOSURE TO
BEAM. (FDA 21 CFR)
CAUTION :
• CLASS 3B VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN. AVOID EXPOSURE
TO THE BEAM (IEC 60825-1)
• THIS PRODUCT UTILIZES A LASER. USE
OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE. DO NOT OPEN COVER AND DO
NOT REPAIR YOURSELF. REFER SERVICING
TO QUALIFIED PERSONNEL.
2. Keep these instructions.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
PRODUCTO
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
LÁSER CLASE 1
✎ NOTE
ƒ If the Region number of a Blu-ray Disc/DVD disc
does not correspond to the Region number of this
player, the player cannot play the disc.
4
English
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this player near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, install
in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, or other player
(including amplifiers) that produce heat.
9. The polarized or the grounding type plug has
an important safety purpose. A polarized plug
has two blades with one wider than the other.
A grounding type plug has two blades and a
third grounding prong. The wide blade or the
third prong is provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being deformed
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the player.
11. Only use attachments/accessories specified
by the manufacturer.
12. Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the player. When a cart is used,
use caution when moving the cart/player
combination to avoid injury from tip-over.
13. Unplug this player during lightning storms or
when unused for long periods of time.
Disc Handling
Disc Shape
• Use discs with regular
shapes. If an irregular disc
(a disc with a special shape)
is used, this player may be damaged.
Holding discs
• Avoid touching the surface of a
disc where recording is performed.
Blu-ray Discs
• If the player is not used for a long period of time,
remove the Blu-ray Disc from the player and
store it in its case.
• Be careful not to leave fingerprints or scratches
on the surface of the Blu-ray Disc.
DVD-VIDEO, Audio CD (CD-DA)
• Wipe off dirt or contamination on the disc with a
soft cloth.
Disc Storage
Be careful not to damage the disc because the
data on these discs is highly vulnerable to the
environment.
• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
• Keep in a clean protection jacket.
Handling Cautions
• Do not write on the printed side with a ball-point
pen or pencil.
• Do not use record cleaning sprays or antistatic.
Also, do not use volatile chemicals, such as
benzene or thinner.
• Do not apply labels or stickers to discs. (Do not
use discs fixed with exposed tape adhesive or
leftover peeled-off stickers.)
• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers
available on the market.
• Do not load warped or cracked discs.
• Before connecting other components to this
player, be sure to turn them all off.
• Do not move the player while a disc is being
played as the disc may be scratched or broken,
or the player’s internal parts may be damaged.
• Do not put a flower vase filled with water or any
small metal objects on the player.
• Be careful not to put your hand into the disc
tray.
• Do not place anything other than the disc in the
disc tray.
• Exterior interferences such as lightning and
static electricity can affect the normal operation
of this player. If this occurs, turn the player
off and on again with the POWER button, or
disconnect and then reconnect the AC power
cord to the AC power outlet. The player will
operate normally.
• Be sure to remove the disc and turn off the
player after use.
• Disconnect the AC power cord from the AC
outlet when you don’t intend to use the player
for long periods of time.
English
5
Safety Information
Disc Storage & Management
• If you move your player suddenly from a cold
place to a warm place, condensation may
generate on the operating parts and lens and
cause abnormal disc playback. If this occurs,
wait for two hours before connecting the plug to
the power outlet.
Then insert the disc and try to play back again.
02
14. Refer all servicing to a
qualified service personnel.
Servicing is required
when the player has been
damaged in any way, such
as power-supply cord or
plug is damaged, liquid has been spilled or
objects have fallen into the player, the player
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Safety Information
• To clean a disc, wipe it in a straight
line from the inside to the outside of
the disc.
• Do not expose the player to any
liquid.
• When the AC plug is connected to a wall outlet,
the player will still draw power (standby mode)
when it is turned off.
• Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus.
• The main plug is used as a disconnect device
and shall stay readily operable at any time.
Maintenance of Cabinet
For safety reasons, be sure to disconnect the AC
power cord from the AC outlet.
• Do not use benzene, thinner, or other solvents
for cleaning.
• Wipe the cabinet with a soft cloth.
Restrictions on Playback
• This player may not respond to all operating
commands because some Blu-ray, DVD and
CD discs allow specific or limited operation and
features during playback.
Please note that this is not a defect in the
player.
• Samsung cannot assure that this player will
play every disc bearing the Blu-ray Disc, DVD
or CD logo because disc formats evolve, and
problems and errors may occur during the
creation of Blu-ray Disc, DVD, CD software
and/or the manufacture of discs.
Please contact the SAMSUNG customer care
center if you have questions or encounter
difficulty in playing Blu-ray, DVD, or CD discs
in this player. Also, refer to rest of this user
manual for additional information on playback
restrictions.
6
English
Contents
ENGLISH
KEY FEATURES
2
2
Blu-ray Disc Features
Blu-ray Disc Player Features
SAFETY INFORMATION
3
4
4
5
5
Warning
Precautions
Important Safety Instructions
Disc Storage & Management
Disc Handling
GETTING STARTED
11
11
11
12
12
13
14
14
15
15
16
17
18
19
19
20
20
Before Using the user manual
Disc Types and Contents that can be played.
Disc types that cannot be played
Blu-ray Disc Compatibility
Disc Types
Supported File Formats
Region Code
Copyright
Logos of Discs that can be played
Accessories
Front Panel
Front Panel Display
Rear Panel
Remote Control
Tour of the Remote Control
Setting the Remote Control
Controllable TV Codes
CONNECTIONS
21
21
Connecting to a TV
Case 1 : Connecting to a TV with an HDMI Cable
- Best Quality (Recommended)
Case 2 : Connecting to a TV with DVI Cable
- Best Quality (Recommended)
Case 3 : Connecting to a TV (Component)
- Better Quality
Case 4 : Connecting to a TV (Video)
- Good Quality
22
23
24
English
7
Contents
CONNECTIONS
25
25
28
28
29
Connecting to an Audio System
Case 1 : Connecting to an Audio System
(HDMI Supported Amplifier) - Best Quality
(Recommended)
Case 2 : Connecting to an Audio System
(7.1 Channel Amplifier) - Better Quality
Case 3 : Connecting to an Audio System
(Dolby Digital, DTS Amplifier) - Better Quality
Case 4 : Connecting to an Audio System
(2 Channel Amplifier) - Good Quality
Connecting to the Network
Cable Network
Wireless Network
30
31
32
32
32
32
34
34
34
34
34
34
34
35
36
36
36
36
37
37
37
37
37
38
38
38
38
38
42
42
Before Starting (Initial Settings)
Setting the Menu
Display
TV Aspect
BD Wise (Samsung Players only)
Resolution
HDMI Format
Movie Frame (24Fs)
Progressive Mode
Still Mode
HDMI Deep Color
Audio
Digital Output
PCM Downsampling
Dynamic Range Control
Downmixing Mode
DTS Neo:6
Speaker Setting
System
Initial Settings
Internet@TV Screen Size
Anynet+(HDMI-CEC)
BD Data Management
Clock
DivX(R) Registration
DivX(R) Deactivation
Network Setup
Network Settings
Network Status
BD-LIVE Internet Connection
26
27
27
SETUP
8
English
ENGLISH
SETUP
42
42
42
43
43
43
43
43
43
43
44
44
44
Language
Security
Parental Rating
Change Password
General
Background
Energy Saving
Front Display
Power On/Off Sound
Light Effect
Support
Software Upgrade
Contact Samsung
BASIC FUNCTIONS
45
45
45
45
45
45
45
46
46
46
46
46
46
46
47
47
47
47
47
48
48
48
48
49
Playing a Disc
Playback
Disc Structure
Using the Disc menu/Title menu/Popup menu
Using the Disc Menu
Using the Title Menu
Playing the Title List
Using the Popup Menu
Using the Search and Skip Functions
Searching for a Desired Scene
Skipping Chapters
Slow Motion Play/Step Motion Play
Slow Motion Play
Step Motion Play
Repeat Playback
Repeat the Title or Chapter
Repeat the Section
Using the TOOLS button
Moving to a Desired Scene Directly
Selecting the Audio Language
Selecting the Subtitle Language
Changing the Camera Angle
Selecting the Picture Setting
Setting BONUSVIEW
English
9
Contents
50
50
50
51
51
51
52
Listening to Music
Buttons on the Remote Control used for Music
Playback
Playing an Audio CD (CD-DA)/MP3
Repeat an Audio CD (CD-DA)/MP3
Playlist
Playing back a Picture
Playing a JPEG Disc
Using the TOOLS button
Playing back a USB Storage Device
NETWORK SERVICES
53
53
55
56
57
57
57
Using Internet@TV
Getting Started with Internet@TV
Settings
Samsung AppS
BD-LIVE™
Software Upgrade Notification
Using the AllShare Function
APPENDIX
59
62
63
64
64
65
66
Troubleshooting
Index
Specifications
Compliance and Compatibility Notice
Copy Protection
Network Service Disclaimer
License
BASIC FUNCTIONS
10
English
49
49
Getting Started
03
Before Using the user manual
Getting Started
Disc Types and Contents that can be played.
Term
Logo
Icon
h
z
Z
BD-ROM
BD-RE/-R
DVD-VIDEO
Definition
This involves a function available on a BD-ROM.
This involves a function available on a BD-RE/-R disc recorded in the BD-RE format.
This involves a function available on a DVD-VIDEO.
DVD-RW(V)
DVD-R
y
DVD+RW
This involves a function available on recorded DVD+RW or DVD-RW(V)/DVD-R/+R
discs that have been recorded and finalized.
DVD+R
Audio CD
MP3
WMA
-
JPEG
-
DivX
MKV
MP4
-
o
w
G
x
This involves a function available on an audio CD-RW/-R (CD-DA format).
This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage
media containing MP3 or WMA contents.
This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage
media containing JPEG contents.
This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage
media containing DivX, MKV, MP4 contents.
✎ NOTE
ƒ The player may not play certain CD-RW/-R and DVD-R due to the disc type or recording conditions.
ƒ If a DVD-RW/-R disc has not been recorded properly in DVD video format, it will not be playable.
Disc types that cannot be played
• HD DVD
• DVD-ROM/PD/MVDisc, etc
• DVD-RAM
• Super Audio CD
(except CD layer)
• DVD-RW(VR mode)
• 3.9 GB DVD-R Disc for
Authoring.
• CVD/CD-ROM/CDV/
CD-G/CD-I/LD
(CD-Gs play audio only,
not graphics.)
English
11
Getting Started
✎ NOTE
ƒ Some commercial discs and DVD discs purchased
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
outside your region may not be playable with this
player. When these discs are played, either “This
disc can not be played.” or “Please check the
regional code of the disc.” will be displayed.
Playback may not work for some types of discs, or
when specific operations, such as angle change and
aspect ratio adjustment, are being performed.
Information about the discs is written in detail on the
disc box. Please refer to this if necessary.
Do not allow the disc to become dirty or scratched.
Fingerprints, dirt, dust, scratches or deposits of
cigarette smoke on the recording surface may make
it impossible to use the disc for playback.
Discs with PAL programs recorded on them cannot
be played using this player.
This player is compatible with the NTSC color system
only.
When a BD-J title is played, loading may take longer
than a normal title, or some functions may perform
slowly.
This player may not respond to all operating
commands because some Blu-ray, DVD and CD
discs allow specific or limited operation and features
during playback.
Please note that this is not a defect in the player.
Samsung cannot assure that this player will play
every disc bearing the Blu-ray Disc, DVD or CD logo
because disc formats evolve, and problems and
errors may occur during the creation of Blu-ray Disc,
DVD, CD software and/or the manufacture of discs.
Please contact the SAMSUNG customer care center
if you have questions or encounter difficulty when
playing Blu-ray, DVD, or CD discs in this player.
Also, refer to rest of this user manual for additional
information on playback restrictions.
Blu-ray Disc Compatibility
Blu-ray Disc is a new and evolving format.
Accordingly, disc compatibility issues are possible.
Not all discs are compatible and not every disc will
play back. For additional information, refer to the
Compliance and Compatibility Notice section of
this user manual.
12
English
Disc Types
BD-ROM
This Blu-ray disc can only be played back.
This player can play back pre-recorded
commercial BD-ROM discs.
BD-RE/-R
This Blu-ray disc can be recorded and played
back.
This player can play back a BD-RE/-R disc
recorded by other compatible Blu-ray disc
recorders.
DVD-VIDEO
• This player can play back pre-recorded
commercial DVD discs (DVD-VIDEO discs) with
movies.
• When switching from the first layer to the
second layer of a dual-layered DVD-VIDEO disc,
there may be momentary distortion in the image
and sound. This is not a malfunction of the
player.
DVD-RW
This player can play back a DVD-RW disc
recorded and finalized with a DVD video recorder.
Ability to play back may depend on recording
conditions.
DVD-R
This player can play back a DVD-R disc recorded
and finalized with a DVD Video recorder. Ability to
play back may depend on recording conditions.
DVD+RW
• This player can play back a DVD+RW disc
recorded with a DVD Video recorder. Ability to
play back may depend on recording conditions.
CD-RW/-R
• This player can play back a DVD+R disc
recorded and finalized with a DVD Video
recorder. Ability to play back may depend on
recording conditions.
• Use a 700MB(80 minutes) CD-RW/-R disc.
If possible, do not use a 800MB(90 minutes) or
above disc, as the disc may not play back.
• If the CD-RW/-R disc was not recorded as a
closed session, you may experience delays
when playing back the beginning of the disc or
all recorded files may not play.
• Some CD-RW/-R discs may not be playable
with this player, depending on the device which
was used to burn them. For contents recorded
on CD-RW/-R media from CDs for your
personal use, playability may vary depending on
contents and discs.
• This player can play back CD-DA format audio
CD-RW/-R discs.
• The player may not be able to play some
CD-RW/-R discs due to the condition of the
recording.
Supported File Formats
Video File Support
File Extension
*.avi
Container
AVI
Video Codec
Audio Codec
Resolution
Divx 3.11/4.x/5.1/6.0
MP3
AC3
DTS
WMA
PCM
1920x1080
XviD
MP4v3
H.264 BP/MP/HP
MKV
DivX 5.1/6.0
XviD
MP3
AC3
DTS
WMV
*.mp4
MP4
VC-1 AP
VC-1 SM
MP4 (mp4v)
H.264 BP/MP/HP
MPEG1
*.mpg
*.mpeg
PS
MPEG2
H.264 BP/MP/HP
1920x1080
1920x1080
1920x1080
1920x1080
H.264 BP/MP/HP
*.wmv
1920x1080
1920x1080
VC-1 AP(wmv1)
*.mkv
1920x1080
WMA
AAC
MP1, 2
AC3
DTS
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
English
13
Getting Started
Audio CD (CD-DA)
03
DVD+R
Getting Started
Music File Support
Region Code
File
Extension
Container
Audio
Codec
Support Range
*.mp3
MP3
MP3
-
WMA
Compliant with
WMA version 10
* Sampling rates (in
kHz) - 8, 11, 16,
22, 32, 44.1, 48
* Bit rates - All bitrates in the range
5kbps to 384kbps
*.wma
WMA
AVCHD (Advanced Video Codec High
Definition)
• This player can playback AVCHD format discs.
These discs are normally recorded and used in
camcorders.
• The AVCHD format is a high definition digital
video camera format.
• The MPEG-4 AVC/H.264 format is capable of
compressing images at higher efficiency than
that of the conventional image compressing
format.
• Some AVCHD discs use the “x.v.Color” format.
• This player can playback AVCHD discs using
“x.v.Color” format.
• “x.v.Color” is a trademark of Sony Corporation.
• “AVCHD” and the AVCHD logo are trademarks
of Matsushita Electronic Industrial Co., Ltd. and
Sony Corporation.
Both the player and the discs are coded by region.
These regional codes must match in order to play
the disc. If the codes do not match, the disc will
not play.
The Region Number for this player is described on
the rear panel of the player.
Disc Type
Blu-ray
DVD-VIDEO
✎ NOTE
ƒ Some AVCHD format discs may not play, depending
on the recording condition.
AVCHD format discs need to be finalized.
ƒ
ƒ
“x.v.Color” offers a wider color range than normal
DVD camcorder discs.
Some DivX, MKV and MP4 format discs may not
play, depending on the video resolution and frame
rate condition.
Region
Code
Area
A
North America, Central America,
South America, Korea, Japan,
Taiwan, Hong Kong and South
East Asia.
B
Europe, Greenland, French
territories, Middle East, Africa,
Australia and New Zealand.
C
India, China, Russia, Central
and South Asia.
1
The U.S., U.S. territories and
Canada
2
Europe, Japan, the Middle East,
Egypt, South Africa, Greenland
3
Taiwan, Korea, the Philippines,
Indonesia, Hong Kong
4
Mexico, South America,
Central America, Australia,
New Zealand, Pacific Islands,
Caribbean
5
Russia, Eastern Europe, India,
most of Africa, North Korea,
Mongolia
6
China
Copyright
© 2010 Samsung Electronics Co.,Ltd.
All rights reserved; No part or whole of this user’s
manual may be reproduced or copied without the
prior written permission of Samsung Electronics
Co.,Ltd.
14
English
DTS-HD Master Audio
Dolby TrueHD
NTSC broadcast system in U.S.A, Canada,
Korea, Japan
DivX
Getting Started
Blu-ray Disc
03
Logos of Discs that can be played
BD-LIVE
Java
Accessories
Check for the supplied accessories below.
POWER
TV
POWER
BONUSVIEW
SOURCE
1
2
4
5
7
8
SUBTITLE
Audio/Video cable
(AC39-00073A)
Batteries for Remote Control (AAA Size)
(AC43-12002H)
3
6
9
AUDIO
0
DISC MENU
MENU
TITLE MENU
TOOLS
INFO
RETURN
A
EXIT
B
C
INTERNET@ FULL SCREEN
D
REPEAT
TV
MUTE
VOL
CH
AK59-00104R
User Manual
(AK68-01859A)
Quick Guide
(AK68-01855C)
Remote Control
(AK59-00104R)
English
15
Getting Started
Front Panel
b c
1
DISC TRAY
Opens to accept a disc.
2
REMOTE CONTROL SENSOR
Detects signals from the remote control.
3
DISPLAY
Displays the playing status, time, etc.
4
OPEN/CLOSE BUTTON
Opens and closes the disc tray.
5
STOP BUTTON
Stops disc playback.
6
PLAY/PAUSE BUTTON
Plays a disc or pauses playback.
7
POWER BUTTON
Turns the player on and off.
8
USB HOST
A USB memory flash stick can be connected here and used as storage when
connected to BD-LIVE. It can also be used for software upgrades and MP3/JPEG/
DivX/MKV/MP4 playback.
✎ NOTE
ƒ Software upgrades using the USB Host jack must be performed with a USB memory flash stick only.
ƒ A USB device consuming more than 500mA requires a separate power supply device for normal operation.
ƒ A USB HDD device cannot be used for BD Data storage (BD-LIVE).
16
English
Getting Started
03
Front Panel Display
b
c
1
IN DISC INDICATOR
Lights when a disc is inserted or played back.
2
CURRENT TIME AND
STATUS INDICATOR
Displays the play time and the current status.
3
WIFI INDICATOR
Lights when the wireless network is connected.
English
17
Getting Started
Rear Panel
b c
1
LAN
Can be used for network based services (See pages 53~58), BD-LIVE and software
upgrades using a network connection.
2
HDMI OUT
Using an HDMI cable, connect this HDMI output terminal to the HDMI input terminal
on your TV for the best quality picture or to your Receiver for the best quality sound.
3
DIGITAL AUDIO OUT
Connects to a Receiver.
4
COMPONENT OUT
Connects to equipment having component video input.
5
7.1CH ANALOG AUDIO OUT
Connect to a 7.1CH analog input on an A/V amplifier.
(When connecting to a 5.1CH home theater or receiver, connect all the Analog
Audio output jacks from this product except for the Surround Back Left/Surround
Back Right outputs)
6
VIDEO OUT
Connects the input of external equipment using a video cable.
7
AUDIO OUT
Connects to the audio input of external equipment using audio cables.
18
English
03
Remote Control
TV
POWER
POWER
Turn the player on and off.
To open and close the disc tray.
Press this to use Bonusview function.
Press numeric buttons to operate options.
Press this to switch the Blu-ray Disc/DVD’s
subtitle language.
BONUSVIEW
Turn the TV on and off.
(To operate your TV, please refer to page 20)
SOURCE
1
2
3
4
5
6
7
8
SUBTITLE
After setup, allows you to set the input
source on your TV.
9
AUDIO
0
Use this to access various audio functions
on a disc (Blu-ray Disc/DVD).
Press to skip backwards or forwards.
Press to search a disc backwards or
forwards.
Press to pause a disc.
Press to stop a disc.
Use this to enter the disc menu.
Press this to move to the home menu.
DISC MENU
MENU
Press to play a disc.
TITLE MENU
TOOLS
INFO
RETURN
EXIT
Use this to enter the popup menu/title
menu.
Use this to display the playback information
during playing a Blu-ray/DVD disc.
Select menu items and change menu value.
Press this to use Tools menu.
Return to the previous menu.
Press this to link to various Internet@TV
services.
A
B
C
INTERNET@ FULL SCREEN
Press this to see the full screen on a TV.
Press this to exit the menu.
These buttons are used both for menus
on the player and also several Blu-ray Disc
functions.
D
REPEAT
TV
Allows you to repeat a title, chapter, track
or disc.
MUTE
TV volume adjustment.
Mutes the speakers of your TV.
VOL
CH
AK59-00104R
Use this to select a TV program.
Installing batteries
✎ NOTE
ƒ If the remote does not operate properly :
•
•
•
•
Check the polarity +/– of the batteries (Dry-Cell)
Check if the batteries are drained.
Check if remote sensor is blocked by obstacles.
Check if there is any fluorescent lighting nearby.
English
19
Getting Started
Tour of the Remote Control
Getting Started
Setting the Remote Control
You can control certain functions of your TV with
this remote control.
Button
Function
TV POWER
Used to switch the television on and off.
TV SOURCE
Used to select an external source
connected to the TV.
TV VOL (+/–)
Used to adjust the volume of the television.
TV CH (,/.) Used to select the desired channel.
TV MUTE
Used to toggle the sound on and off.
✎ NOTE
ƒ The functions listed above will not necessarily work
on all televisions. If you encounter problems, operate
the television directly.
To determine whether your television is
compatible, follow the instructions below.
1. Switch your television on.
2. Point the remote control towards the
television.
3. Press and hold the TV POWER button and
enter the two-figure code corresponding to
the brand of your television by pressing the
appropriate number buttons.
If your television is compatible with the remote
control, it will switch off.
It is now programmed to operate with the
remote control.
✎
Controllable TV Codes
Brand
Code
Brand
TV POWER+01, +02,
+03, +04, +05,
+06, +07, +08, +09
NOBLEX
SAMSUNG
AIWA
TV POWER+82
ANAM
TV POWER+10, +11,
+12, +13, +14,
+15, +16, +17, +18
BLAUPUNKT
TV POWER+71
BRANDT
TV POWER+73
BRIONVEGA
TV POWER+57
CGE
TV POWER+52
CONTINENTAL
EDISON
TV POWER+75
DAEWOO
ƒ
ƒ
If you replace the remote control’s batteries, you
must set the brand code again.
EMERSON
TV POWER+64
FERGUSON
TV POWER+73
FINLUX
NORDMENDE
PANASONIC
TV POWER+53, +54,
+74, +75
PHILIPS
TV POWER+06, +55,
+56, +57
PHONOLA
TV POWER+06, +56,
+57
PIONEER
TV POWER+58, +59,
+73, +74
RADIOLA
TV POWER+06, +56
RADIOMARELLI TV POWER+57
RCA
TV POWER+45, +46
REX
TV POWER+74
SABA
TV POWER+57, +72,
+73, +74, +75
SALORA
TV POWER+74
SANYO
TV POWER+41, +42,
+43, +44, +48
TV POWER+57
SCHNEIDER
TV POWER+06
FUJITSU
TV POWER+84
SELECO
TV POWER+74
GRADIENTE
TV POWER+70
SHARP
TV POWER+36, +37,
+38, +39, +48
GRUNDIG
TV POWER+49, +52,
+71
HITACHI
TV POWER+60, +72,
+73, +75
IMPERIAL
TV POWER+52
SIEMENS
TV POWER+71
SINGER
TV POWER+57
SINUDYNE
TV POWER+57
JVC
TV POWER+61, +79
SONY
LG
TV POWER+06, +19,
+20, +21, +22, +78
TELEAVA
LOEWE
TV POWER+06, +69
LOEWE OPTA
TV POWER+06, +57
MAGNAVOX
TV POWER+40
METZ
TV POWER+57
TV POWER+35, +48
TV POWER+73
TELEFUNKEN
TV POWER+67, +73,
+75, +76
THOMSON
TV POWER+72, +73,
+75
THOMSON ASIA TV POWER+80, +81
TV POWER+06, +48,
+62, +65
TOSHIBA
TV POWER+47, +48,
+49, +50, +51, +52
TV POWER+52, +77
WEGA
TV POWER+57
NEC
TV POWER+83
YOKO
TV POWER+06
NEWSAN
TV POWER+68
ZENITH
TV POWER+63
MIVAR
English
TV POWER+06, +49,
+57
TV POWER+74
FORMENTI
MITSUBISHI
20
TV POWER+19, +20,
+23, +24, +25,
+26, +27, +28,
+29, +30, +31,
+32, +33, +34
TV POWER+66
TV POWER+72, +73,
+75
BANG & OLUFSEN TV POWER+57
NOTE
If several codes are listed for your television brand,
try each one in turn until you find one that works.
NOKIA
Code
Connections
04
Connecting to a TV
1. Using an HDMI cable, connect the HDMI OUT terminal on the rear of the player to the HDMI IN
terminal of your TV.
2. Turn on the player and TV.
3. Press the input selector on your TV remote control until the HDMI signal from the player appears on
your TV screen.
• If you have set the remote control to operate your TV (See page 20), press the TV SOURCE
button on the remote control and select HDMI as the external source of the TV.
HDMI cable
(not included)
✎ NOTE
ƒ An HDMI cable outputs digital video/audio, so you don’t need to connect an audio cable.
ƒ If the player is connected to your TV in HDMI 720p, 1080i, 1080p output mode, you must use a High speed(category2)
HDMI cable.
ƒ
ƒ
ƒ
HDMI outputs only a pure digital signal to the TV.
If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.
Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.
When you connect the player to the TV using the HDMI cable for the first time or to a new TV, the HDMI output
resolution will be automatically set to the highest supported by the TV.
English
21
Connections
Case 1 : Connecting to a TV with an HDMI Cable - Best Quality
(Recommended)
Connections
Case 2 : Connecting to a TV with DVI Cable - Best Quality
(Recommended)
1. Using an HDMI-DVI cable, connect the HDMI OUT terminal on the rear of the player to the DVI IN
terminal of your TV.
2. Using the audio cables, connect the AUDIO OUT (red and white) terminals on the rear of the player
to the AUDIO IN (red and white) terminals of your TV.
3. Turn on the player and TV.
4. Press the input selector on your TV remote control until the DVI signal from the player appears on
your TV screen.
• If you have set the remote control to operate your TV (See page 20), press the TV SOURCE
button on the remote control and select HDMI as the external source of the TV.
HDMI-DVI cable
(not included)
Audio cable
Red
White
✎ NOTE
ƒ HDMI outputs only a pure digital signal to the TV. If your TV does not support HDCP (High-bandwidth Digital Content
Protection), random noise appears on the screen.
ƒ
ƒ
22
Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.
When you connect the player to the TV using the HDMI-DVI cable for the first time or to a new TV, the HDMI output
resolution will be automatically set to the highest supported by the TV.
English
04
Case 3 : Connecting to a TV (Component) - Better Quality
1. Using Component video cables, connect the COMPONENT VIDEO OUT terminals on the rear of
the player to the COMPONENT IN terminals of your TV.
2. Using the audio cables, connect the AUDIO OUT (red and white) terminals on the rear of the player
to the AUDIO IN (red and white) terminals of your TV.
3. Turn on the player and TV.
4. Press the input selector on your TV remote control until the “COMPONENT” signal from the player
appears on the TV screen.
• If you have set the remote control to operate your TV (See page 20), press the TV SOURCE
button on the remote control and select COMPONENT as the external source of the TV.
Audio cable
Component cable
(not included)
Red
White
Red
Blue
Green
✎ NOTE
ƒ Depending on the manufacturer, the component terminals on your TV may be marked “R-Y, B-Y, Y ” or “Cr, Cb, Y”
ƒ
ƒ
ƒ
instead of “PB, PR, Y”. The number and position of terminals may vary depending on the TV set.
Please refer to the user manual of your TV.
You can select from a variety of resolution settings for Blu-ray Discs such as 1080i, 720p, 480p, 480i, depending on
the disc type. (See pages 32~33)
The actual resolution may differ from the setting in the setup menu if both Component and HDMI cables are connected.
The resolution may also be different depending on the disc. (See pages 32~33)
In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p, 1080i or
720p mode, the Display Setup menu will show the output resolution as 1080p, 1080i or 720p in the menu.
The resolution is actually 480i.
English
23
Connections
- Connecting to your TV using Component video cables.
- You will enjoy high quality images with accurate color reproduction. Component video separates the
picture element into black and white(Y), blue(PB) and red(PR) signals to present clear and clean images.
(Audio signals are delivered through the audio output.)
Connections
Case 4 : Connecting to a TV (Video) - Good Quality
1. Using video/audio cables, connect the VIDEO OUT (yellow) / AUDIO OUT (red and white)
terminals on the rear of the player to the VIDEO IN (yellow) / AUDIO IN (red and white) terminals of
your TV.
2. Turn on the player and TV.
3. Press the input selector on your TV remote control until the “VIDEO” signal from the player appears
on the TV screen.
• If you have set the remote control to operate your TV (See page 20), press the TV SOURCE
button on the remote control and select VIDEO as the external source of the TV.
Audio/Video cable
Red
White
Yellow
✎ NOTE
ƒ Noise may be generated if the audio cable is placed too close to the power cable.
ƒ If you want to connect to an Amplifier, please refer to the Amplifier connection pages. (See pages 25~27)
ƒ The number and position of terminals may vary depending on your TV set. Please refer to the user manual of your TV.
ƒ If there is only one audio input terminal on the TV, connect it to the AUDIO OUT(right/white) terminal of the player.
! CAUTION
ƒ Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection
systems and the picture will be distorted on the television.
24
English
04
Connecting to an Audio System
Case 1 : Connecting to an Audio System (HDMI Supported Amplifier)
- Best Quality (Recommended)
1. Using an HDMI cable, connect the HDMI OUT terminal on the rear of the player to the HDMI IN
terminal of your Amplifier.
2. Using an HDMI cable, connect the HDMI OUT terminal of the Amplifier to the HDMI IN terminal of
your TV.
3. Turn on the player, TV and Amplifier.
4. Press the input select button of the Amplifier to select the external input in order to hear sound from
the player. Refer to your Amplifier’s user manual to set the Amplifier’s audio input.
HDMI cable
(not included)
HDMI cable
(not included)
English
25
Connections
• Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause
damage to the speakers and your ears.
• Please set the audio in the menu screen according to the Amplifier. (See pages 34~36)
• The position of HDMI terminals may vary depending on the Amplifier. Please refer to the user manual
of your Amplifier.
Connections
Case 2 : Connecting to an Audio System (7.1 Channel Amplifier)
- Better Quality
1. Using the 7.1CH audio cables, connect the 7.1CH ANALOG AUDIO OUT terminals on the rear of
the Player to the 7.1CH ANALOG AUDIO IN terminals of your Amplifier.
2. Using the video signal cable(s), connect the HDMI, COMPONENT or VIDEO OUT terminals on the
rear of the Player to the HDMI, COMPONENT or VIDEO IN terminal of your TV. (See pages 21~24)
3. Turn on the Player, TV and Amplifier.
4. Press the input select button of the Amplifier to select the external input in order to hear sound from
the Player. Refer to your Amplifier’s user manual to set the Amplifier’s audio input.
7.1CH audio cables
(not included)
7.1 Channel Amplifier
M
 The front left and right outputs on your player and 7.1 channel amplifier must be connected to hear disc
menu audio from certain Blu-ray discs.
 When you connecting the 7.1CH ANALOG AUDIO OUT terminals using 7.1CH audio cables, it is
recommended to set the Digital Output to PCM. (See page 34)
 When connecting to a 5.1 channel home theater or receiver, connect all the Analog Audio output jacks from
the player except for the Surround Back Left/Surround Back Right outputs.
26
English
1. Using an optical cable, connect the DIGITAL
AUDIO OUT (OPTICAL) terminal on the
rear of the player to the DIGITAL AUDIO IN
(OPTICAL) terminal of your Amplifier.
1. Using the audio cables, connect the AUDIO
OUT (red and white) terminals on the rear of
the player to the AUDIO IN (red and white)
terminals of your Amplifier.
2. Using the video signal cable(s), connect
the HDMI, COMPONENT or VIDEO OUT
terminals on the rear of the player to the
HDMI, COMPONENT or VIDEO IN terminal
of your TV. (See pages 21~24)
2. Using the video signal cable(s), connect
the HDMI, COMPONENT or VIDEO OUT
terminals on the rear of the player to the
HDMI, COMPONENT or VIDEO IN terminal
of your TV. (See pages 21~24)
3. Turn on the player, TV and Amplifier.
3. Turn on the player, TV and Amplifier.
4. Press the input select button of the Amplifier
to select the external input in order to
hear sound from the player. Refer to your
Amplifier’s user manual to set the Amplifier’s
audio input.
4. Press the input select button of the Amplifier
to select the external input in order to
hear sound from the player. Refer to your
Amplifier’s user manual to set the Amplifier’s
audio input.
Case 3 :
Optical cable
(not included)
Case 4 : Audio cable
Red
White
✎ NOTE
ƒ When following the case 3 connection, discs with PCM audio soundtracks will only be heard over the front two
channels.
English
27
Connections
Case 4 : Connecting to an Audio
System (2 Channel Amplifier)
- Good Quality
04
Case 3 : Connecting to an Audio
System (Dolby Digital, DTS
Amplifier) - Better Quality
Connections
Connecting to the Network
This player enables you to view network based services (See pages 53~58) such as Internet@TV and
BD-LIVE, as well as receive software upgrades when a network connection is made. We recommend
using an AP (Access Point) or IP router for the connection. For more information on router connection,
refer to the user manual of the router or contact the router manufacturer for technical assistance.
Cable Network
1. Using the Direct LAN Cable (UTP cable), connect the LAN terminal of the player to the LAN terminal
of your modem.
2. Set the network options. (See pages 38~42)
Router
Or
Broadband modem
(with integrated router)
Broadband modem
Broadband
service
Broadband
service
Networking with PC for
AllShare function
(See pages 57~58)
✎ NOTE
ƒ Internet access to Samsung’s software update server may not be allowed, depending on the router you use or the ISP’s
policy. For more information, contact your ISP (Internet Service Provider).
ƒ
ƒ
28
For DSL users, please use a router to make a network connection.
For the AllShare function, a PC must be connected in the network as shown in the figure.
English
04
Wireless Network
Connections
You can connect to network with a Wireless IP sharer.
A wireless AP/IP router is required to make a wireless network connection.
Set the network options. (See pages 38~42)
Broadband
service
Wireless IP sharer
Networking with PC for
AllShare function
(See pages 57~58)
✎ NOTE
ƒ You must use a wireless IP sharer that supports IEEE 802.11 b/g/n. (n is recommended for stable operation of the
wireless network.)
ƒ
ƒ
ƒ
Wireless LAN, by its nature, may cause interference, depending on the use condition (AP performance, distance,
obstacles, interference by other radio devices, etc).
Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.
When applying the security key for the AP (wireless IP sharer), only the following is supported.
1) Authentication Mode : WEP, WPAPSK, WPA2PSK
2) Encryption Type : WEP, TKIP, AES
ƒ
For the AllShare function, a PC must be connected in the network as shown in the figure.
English
29
Setup
Before Starting (Initial Settings)
1. Turn on your TV after connecting the player.
(When the player is connected to TV for the
first time, player will turn on automatically and
the Initial Settings screen will be displayed.)
5. Press the ◄► buttons to the select the
desired Network Settings: Wired, Wireless or
PBC (WPS), then press the ENTER button.
(See pages 39~42)
The Network Test will start and Initial Settings
will be completed.
6. Press the OK button.
The home menu will be displayed. (For more
information about home menu, please see
page 31)
Initial Settings I On-Screen Language
Select a language for the on-screen displays.
English
Français
• Home Menu
Deutsch
Español
Italiano
Nederlands
You Tube
internet radio service
Please activate Internet@TV
to enjoy a variety of Internet Services.
> Move
" Select
2. Press the ▲▼ buttons to select desired
language, then press the ENTER button.
3. Press the ENTER button to select Start
button.
No Disc
TV Aspect and Network will be set.
Each setting may be changed later under "Settings"
Start
" Select
4. Press the ▲▼ buttons to select the desired
TV Aspect ratio, then press the ENTER
button. (See page 32)
ƒ
ƒ
ƒ
Initial Settings I Network
ƒ
Network Setting is needed to use various Internet services.
Choose the primary method for connecting to network.
Wired : Set the network by using Ethernet cable.
Please make sure that Ethernet cable is connected.
Wireless
a Previous
30
English
PBC (WPS)
d Skip
< Move
" Enter
player will turn on automatically.
Do not confuse because this is not malfunction.
ƒ
Wired
d View Devices
✎ NOTE
ƒ When the player is connected to TV for the first time,
Initial Settings
a Previous
a Change Device
" Select
The home menu will not be displayed if you do not
configure the initial settings.
If you press the BLUE(D) button during the network
setup, you can access the home menu even if the
network setup is not completed yet.
When you return to home menu, the full screen
mode will be cancelled automatically.
If you want to display Initial Setting screen again
in order to make changes, press the STOP (
)
button on the front panel of the player for more than
5 seconds with no disc inserted.
Use the HDMI cable to connect the player to an
Anynet+(HDMI-CEC)-compliant Samsung TV.
If the TV uses a language supported by the player,
that language will be set to a preferred language
automatically.
However, the Anynet+(HDMI-CEC) feature should
be set to On in both TV and the player.
1
MENU
TOOLS
RETURN
6
Displays buttons available.
2. Press the ◄► buttons to select Settings,
then press the ENTER button.
4. Press the ▲▼ buttons to select the desired
item, then press the ENTER button.
TITLE MENU
5. Press the EXIT button to exit the menu.
INFO
✎ NOTE
ƒ When the player is connected to the network, select
3
2
Selects the Settings.
3. Press the ▲▼ buttons to select the desired
submenu, then press the ENTER button.
Setting the Menu
DISC MENU
5
EXIT
4
Internet@TV from the home menu.
Download desired content from Samsung AppS.
(See page 56)
1
MENU Button : Press this to move to the home menu.
2
RETURN Button : Return to the previous menu.
3
ENTER / DIRECTION Button :
Move the cursor or select an item.
Select the currently selected item.
Confirm the setting.
4
EXIT Button : Press this to exit the menu.
ƒ
ƒ
The access step may differ depending on the
selected menu.
The OSD (On Screen Display) may change in this
player after upgrading the software version.
1. Press the POWER button.
The Home Menu will appear.
• Home Menu
You Tube
internet radio service
Please activate Internet@TV
to enjoy a variety of Internet Services.
2
3
4
1
5
No Disc
a Change Device
1
Selects the Internet@TV.
2
Selects the Videos.
3
Selects the Music.
4
Selects the Photos.
d View Devices
" Enter
6
English
31
Setup
If the player is left in the stop mode more than 5
minutes without being used, a screen saver will
appear on your TV. If the player is left in the screen
saver mode for more than 25 minutes, the power
will automatically turn off.
05
ƒ
Setup
ƒ
Display
You can configure various display options such as
the TV Aspect, Resolution, etc.
If you select the 16:9 Normal, 4:3 Pillarbox may
displayed.
In this case, you can’t see full screen by pressing
the FULL SCREEN button on the remote control.
TV Aspect
BD Wise (Samsung Players only)
Depending on the type of television you have, you
may want to adjust the screen setting.
BD Wise is Samsung’s latest inter-connectivity
feature.
When you connect Samsung players with BD
Wise to each other via HDMI, the optimum
resolution will be set automatically.
• On : The original resolution of the BD/DVD disc
will be output to the TV.
• Off : The output resolution will be fixed
according to the Resolution previously set,
regardless of the resolution of the disc.
• 16:9 Normal
Certain movies(4:3 source) will be
displayed in 4:3 Pillarbox (black
bars on sides of picture) if 16:9
normal is selected.
• 16:9 Wide
You can view the full 16:9 picture
on your widescreen TV.
✎ NOTE
ƒ If you want to change the resolution in BD Wise, you
must set BD Wise to Off in advance.
Setting the Menu
ƒ
• 4:3 Letter Box
Select when you want to see the
total 16:9 ratio screen a Blu-ray
Disc/DVD supplies, even though
you have a TV with a 4:3 ratio
screen. Black bars will appear at
the top and bottom of the screen.
ƒ
ƒ
If you set off the BD Wise, the resolution of the
connected TV will be adjusted to its maximum
resolution automatically.
If the player is connected to a device that does not
support BD Wise, you can not use the BD Wise
function.
For proper operation of BD Wise, set the BD Wise
menu of both the product and the TV to On.
Resolution
• 4:3 Pan-Scan
Select when you want to see the
16:9 video supplied by the Blu-ray
Disc/DVD without the black bars
on top and bottom, even though
you have a TV with a 4:3 ratio
screen(extreme left and right portion
of the movie picture will be cut off).
✎ NOTE
ƒ Depending on the disc type, some aspect ratios may
ƒ
ƒ
32
not be available.
If you select an aspect ratio and option which is
different than the aspect ratio of your TV screen,
then the picture might appear to be distorted.
If you select the 4:3 Pan-Scan or 4:3 Letter Box, you
can’t see full screen by pressing the FULL SCREEN
button on the remote control.
English
Sets the output resolution of the Component and
HDMI video signal.
The number in 1080p, 1080i, 720p, 480p, 480i
indicates the number of lines of video.
The i and p indicate interlace and progressive
scan, respectively.
• Auto : It automatically checks and sets the
optimal resolution.
• BD Wise : Automatically sets the optimal
resolution when connected via HDMI to a TV
with the BD Wise feature. (The BD Wise menu
item appears only if BD Wise is set to On.)
• 1080p : Outputs 1080 lines of progressive
video.
• 1080i : Outputs 1080 lines of interlaced video.
• 720p : Outputs 720 lines of progressive video.
• 480p : Outputs 480 lines of progressive video.
• 480i : Outputs 480 lines of interlaced video.
05
Resolution according to the output mode
HDMI / connected
Output
Setup
Setup
• Blu-ray Disc playback
HDMI / not connected
HDMI Mode
Component/VIDEO Mode
Component Mode
VIDEO Mode
Auto
Optimal Resolution
480i
-
-
1080p, Movie Frame(24Fs) off
1080p@60F
480i
-
-
1080p/1080i,
Movie Frame(24Fs) on
1080p@24F
480i
-
-
1080i, Movie Frame(24Fs) off
1080i
480i
1080i
480i
720p
720p
480i
720p
480i
480p
480p
480i
480p
480i
480i
-
-
480i
480i
• DVD playback
HDMI / connected
Output
Setup
HDMI / not connected
HDMI Mode
Component/VIDEO Mode
Component Mode
VIDEO Mode
Auto
Optimal Resolution
480i
-
-
1080p
1080p@60F
480i
-
-
1080i
1080i
480i
480p
480i
720p
720p
480i
480p
480i
480p
480p
480i
480p
480i
480i
-
-
480i
480i
✎ NOTE
ƒ If the connected TV does not support Movie Frame or
the selected resolution, the message “If no pictures
are shown after the selection, please wait for 15
seconds. And then, the resolution will be reverted to
the previous value automatically. Would you like to
make a selection?” will be displayed.
If you select Yes and the resolution is not supported,
the TV’s screen will be blank. Please wait for 15
seconds and the resolution will be reverted to the
previous value automatically.
ƒ
ƒ
ƒ
ƒ
If the screen is blank, press and hold the STOP (
)
button on the front of the player for more than 5
seconds (no disc inserted). All settings are restored to
the factory default. Follow the steps on the previous
page to access each mode and select the Display
Setup that your TV will support.
When the factory default settings are restored, all
the user data stored in the BD data will be deleted.
The Blu-ray Disc must have the 24 frame feature in
order to use the Movie Frame (24Fs) mode.
If both HDMI and Component jacks are connected
and you are currently viewing component output,
there is a difference between resolution table and
acutal resuloution depending on your TV.
English
33
Setup
HDMI Format
HDMI Deep Color
You can optimize the color setting from the HDMI
output.
Select a connected device Type.
• TV : Select if connected to a TV via HDMI.
• Monitor : Select if connected to a Monitor via
HDMI.
Set to output the picture from the HDMI OUT jack
with Deep Color or not. Deep Color allows more
accurate color reproduction with deeper color
depth.
• Auto : The picture will be output with Deep
Color to the connected TV which supports
HDMI Deep Color.
• Off : The picture will be output without Deep
Color.
Movie Frame (24Fs)
Setting the Movie Frame (24Fs) feature to On
allows you to adjust the player’s HDMI output to
24 frames per second for improved picture quality.
You can enjoy the Movie Frame (24Fs) feature only
on a TV supporting this frame rate. This menu can
only be selected in 1080i or 1080p HDMI output
resolution modes.
• On : Movie Frame (24Fs) functions will work.
• Off : Movie Frame (24Fs) functions will not work.
Audio
Digital Output
✎ NOTE
ƒ If your TV does not support Movie Frame (24Fs)
Set Digital Output depending on the connected
receiver. (For more details, please refer to the
digital output selection on the next page)
• PCM
• Bitstream(Re-encode)
• Bitstream(Audiophile)
Progressive Mode
✎ NOTE
ƒ Be sure to select the correct Digital Output or you
function, the pop-up message will be displayed.
will hear no sound or a loud noise.
Set to improve picture quality when viewing DVDs.
• Auto : Select this to have the player
automatically set the best picture for the DVD
you’re watching.
• Video : Select for the best picture quality from
concert or TV show DVDs.
ƒ
Still Mode
ƒ
Set the type of picture shown when you pause
DVD playback.
• Auto : Automatically set the best still picture
depending on the content.
• Frame : Select when pausing a scene with a
little action.
• Field : Select when pausing a scene with a lot
of action.
34
English
ƒ
ƒ
ƒ
If the HDMI device (Receiver, TV) is not compatible
with compressed formats (Dolby digital, DTS), the
audio signal outputs as PCM.
Secondary and Effect audio will not be heard with
regular DVDs.
Some Blu-ray Discs do not have Secondary and
Effect audio.
This Digital Output setup does not effect the analog
(L/R) audio or HDMI audio output to your TV.
It effects the optical and HDMI audio output when
connected to a receiver.
If you play MPEG audio soundtracks, audio signal
outputs PCM regardless of Digital Output Selections
(PCM or Bitstream).
05
Digital Output Selection
Setup
Audio Stream
Setup
PCM
Definition
Decodes Primary,
Secondary and
Effect audio
streams together
into PCM audio.
Decodes Primary,
Secondary and
Effect audio
streams together
Bitstream
into PCM
(Re-encode)
audio, then reencodes the PCM
audio into DTS
bitstream.
Bitstream
(Audiophile)
Outputs only the
Primary audio
soundtrack (main
soundtrack of
the movie) so
that your receiver
can decode the
audio bitstream.
You will not hear
Secondary and
Effect audio.
Connection
HDMI
Receiver
Optical
PCM
Dolby
Digital
Dolby
Digital
Plus
Dolby
TrueHD
DTS
Up to
PCM
7.1ch
Up to
PCM
5.1ch
Up to
PCM
7.1ch
Up to
PCM
7.1ch
Up to
PCM
6.1ch
DTS-HD DTS-HD
HRA
HRA
Up to
PCM
7.1ch
Up to
PCM
7.1ch
PCM 2ch PCM 2ch PCM 2ch PCM 2ch PCM 2ch PCM 2ch PCM 2ch
HDMI/
Optical
DTS
DTS
DTS
DTS
DTS
HDMI 1.3
Receiver
Up to
PCM
7.1ch
Dolby
Digital
Dolby
Digital
Plus
Dolby
TrueHD
DTS
Optical
PCM 2ch
Dolby
Digital
Dolby
Digital
Dolby
Digital
DTS
Blu-ray Discs may include three audio streams.
- Primary Audio : The audio soundtrack of the
main feature
- Secondary Audio : Addional soundtrack such as
director or actor’s commentary.
- Interactive Audio : Interactive sounds will be
heard when selected.
Interactive Audio is different on each Blu-ray
Disc.
DTS
DTS
DTS-HD DTS-HD
HRA
MA
DTS
DTS
PCM Downsampling
Set whether to downsample 96KHz signals.
• On : Select this when the Amplifier connected
to the player is not 96KHz compatible. 96KHz
signals will be down converted to 48KHz.
• Off : Select this when the Amplifier connected
to the player is 96KHz compatible.
✎ NOTE
ƒ Even when PCM Downsampling is set to Off, some
discs will only output downsampled audio through
the optical digital outputs.
English
35
Setup
HDMI
• If your TV is not compatible with compressed
multi-channel formats (Dolby Digital, DTS), the
player may output PCM 2ch downmixed audio
even though you set Bitstream(either Re-encode
or Audiophile) on your setup menu.
• If your TV is not compatible with PCM sampling
rates over 48kHz, the player may output 48kHz
downsampled PCM audio even though you set
PCM Downsampling to Off.
Dynamic Range Control
You can listen at low volumes but still hear dialog
clearly.
This is only active when a Dolby Digital signal is
detected.
• On : When Movie soundtracks are played at low
volume or from smaller speakers, the system
can apply appropriate compression to make
low-level content more intelligible and prevent
dramatic passages from getting too loud.
• Off : You can enjoy the movie with the standard
Dynamic Range.
Downmixing Mode
Set whether to downmix the multi-channel audio
into fewer channels.
• Normal Stereo : Downmixes the multi-channel
audio into two channel stereo. Choose when
connected to equipment that does not support
virtual surround functions such as Dolby Pro
Logic.
• Surround Compatible : Downmixes multichannel audio into surround compatible stereo.
Choose when connected to equipment that
supports virtual surround functions such as
Dolby Pro Logic.
DTS Neo:6
You can enjoy multi-channel sound from a simple
2-channel audio source.
• Off : Outputs a 2-channel audio signal through
the front speakers only.
36
English
• Cinema : Select this if you want to play
2-channel movie sound over multi-channels.
• Music : Select this if you want to play 2-channel
music sound over multi-channels.
✎ NOTE
ƒ If you are using HDMI receiver, this option is
available when you set Digital Output setup as PCM.
ƒ
You can use this option with analog 7.1ch output
when you don’t use HDMI receiver.
Speaker Setting
Set the speaker sound to obtain the best possible
surround sound.
This menu is available only when using 7.1ch
analog output.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Speaker Setting
Front
:
Large
Center
Surround
Surround Back
Subwoofer
Test Tone
:
:
:
:
:
Large
Large
Large
On
Off
< Change
" Enter
' Return
Set the front speaker size to Large.
Test Tone
• A test tone will be sent to L C R RS RSB LSB LS LFE in order, so you can
make sure the speakers are set up correctly.
• The test tone can only be activated when no
discs are in the unit.
• The test tone outputs through the 7.1 channel
analog outputs only.
By using Initial Settings, you can set language, TV
aspect and Network Settings, etc.
For more information on the settings, refer to the
corresponding section in this user manual.
(See pages 31~44)
Internet@TV Screen Size
Set the Internet@TV Screen to the optimal size.
• Size 1 : Display smaller application icons, you
may see some black on sides of screen.
• Size 2 : Display normal application icons, image
may be too large for your TV screen.
• Size 3 : Display larger application icons, image
may be too large for your TV screen.
Enables you to manage the downloaded contents
from a Blu-ray Disc that supports the BD-LIVE
service.
You can check the device information including
the storage size, delete the BD data or change the
Flash memory device.
Change Device allows you to select either the
player’s Internal Memory or External Memory
(connected USB Device).
If the data to be stored from BD-LIVE is greater
than the size of the remaining memory or the
Internal Memory is full, connect an External USB
device, then select External Device in the menu.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Anynet+(HDMI-CEC)
Anynet+ is a convenient function that offers linked
operations with other Samsung players with the
Anynet+ feature.
To operate this function, connect this player to a
Samsung TV with an HDMI cable.
You can operate this player using a Samsung TV
remote control and start disc playback simply
) button on the TV’s
by pressing the PLAY (
remote control.
For more information, please see the TV user
manual.
• On : Anynet+ functions will work.
• Off : Anynet+ function will not work.
✎ NOTE
ƒ This function is not available if the HDMI cable does
ƒ
If your Samsung TV has an n logo, then it
supports the Anynet+ function.
Depending on your TV, certain HDMI output
resolutions may not work.
Please refer to the user manual of your TV.
: Internal Memory
Total Size
: 703MB
Available Size
: 703MB
Delete BD Data
Change Device
: Internal Memory
" Select
' Return
Delete all BD data in the storage.
Description of Device(Storage) Information on
the Player
• Total Size : Total size of the Device(Storage).
• Available Size : Available size of the Device
(Storage).
✎ NOTE
ƒ In the external memory mode, disc playback will
be stopped if you disconnect the USB device in the
middle of the playback.
ƒ
not support CEC.
ƒ
BD Data Management
Current Device
ƒ
ƒ
ƒ
Only those USB devices formatted in FAT file system
(DOS 8.3 volume label) are supported, and it is
recommended to use USB devices that support USB
2.0 protocol, 4 MB/sec or faster read/write speed.
A USB HDD device cannot be used for BD Data
storage (BD-LIVE).
The Resume Play function may not work after
formatting the storage device.
The total size of BD Data Management may differ,
depending on the software version.
English
37
Setup
Initial Settings
BD Data Management
05
System
Setup
Clock
DivX(R) Deactivation
Set time-related functions.
Select this to get a new registration code.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Settings
Clock
Clock Mode
: Auto
Clock Set
Time Zone
: GMT + 0:00
DST
: Off
> Move
" Enter
' Return
Display
Audio
System
Network
Language
Security
General
Support
Initial Setting
Disc Menu
:
Audio
:
Subtitle
:
Do you want
to deactivate your device?
Yes
No
Choose your preferred method of setting clock.
• Clock Mode : You can set it to Auto or
Manual.
If you select Manual, the Clock Set menu will
be activated while DST will be deactivated.
• Clock Set : You can specify the current time
and date manually.
• Time Zone : You can specify the time zone that
is applicable to your area.
• DST : You can set DST (Daylight Saving Time)
on or off.
DivX(R) Registration
View DivX(R) VOD Registration Code to purchase
and play DivX(R) VOD content.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Initial Setting
Disc Menu
:
AudioVideo On Demand:
DivX(R)
Subtitlecode is : XXXXXXXXXX
:
Your registration
To learn more visit www.divx.com/vod
OK
✎ NOTE
ƒ This function can be operated when DivX(R)
Registration function is deactivated.
Network Setup
To begin setting up the network connection for
your player, follow these steps:
1. In the Home menu, press the ◄► buttons
to select the Settings, and then press the
ENTER button.
2. Press the ▲▼ buttons to select Network, and
then press the ENTER button.
3. Press the ▲▼ buttons to select Network
Settings, and then press the ENTER button.
4. Press the ▲▼ buttons to select Network
Type, and then press the ENTER button.
5. Press the ▲▼ buttons to select Wired or
Wireless, and then press the ENTER button.
6. Go to the next section.
Network Settings
✎ NOTE
ƒ This option is not activated if you select OK.
To activate this option, please activate the DivX(R)
Deactivation.
38
English
Please contact your ISP to find out if your IP
address is static or dynamic. If it is dynamic, we
recommend using the Auto setting. This is the
easiest and will work in the majority of cases. If it is
static, you must use the manual set up procedure.
Directions for wired networks are below. Directions
for wireless networks are after the directions for
wired networks.
2. Press the ► button, then select Auto or
Manual, and then press the ENTER button.
If the Auto Setting does not work, you’ll need to
set the Network Setting values manually.
To get the Network setting values from most
Windows computers, follow these steps:
1. Right click the Network icon on the bottom
right of the screen.
2. In the pop-up menu, click Status.
Setting Up a Wired Connection - Auto
1. If you selected Auto, the Network Function
acquires and fills in the values for IP Address,
Subnet Mask, etc., automatically.
✎ NOTE
ƒ This process can take up to five minutes.
3. On the dialog that appears, click the Support
tab.
4. On the Support tab, click the Details button.
The Network settings are displayed.
To enter the Network settings into your player,
follow these steps:
1. On the Internet Protocol Setup screen, press
the ENTER button.
Settings
Network Settings
Display
Internet Protocol Setup : Auto
Audio
0
IP Address
: 0
System
0
Subnet Mask
: 0
Network
0
Gateway
: 0
Language
DNS
: Auto
Security
0
DNS Server
: 0
General
Support
> Move
" Select
0
0
0
0
0
0
0
0
' Return
2. After the Network Function has acquired the
network values, press the RETURN button.
Then, run a Network Test to ensure the player
has connected to your network (See page 42).
3. If the Network Function does not acquire the
network values or you selected Manual, go to
the directions for Manual Setup.
2. Press the ▲▼ buttons to select Manual, and
then press the ENTER button.
3. Press the ▼ button to go to the first entry field
(IP Address).
Settings
Network Settings
Display
Internet Protocol Setup : Manual
Audio
0
0
IP Address
: 0
System
Subnet Mask
: 255 255 255
Network
0
0
Gateway
: 0
Language
DNS
: Manual
Security
0
0
DNS Server
: 0
General
Support
0
0
0
0
> Move " Select ' Return
Select to configure your network type and IP address, or to perform a Network Test.
4. Use the number buttons on your remote to
enter numbers.
5. When done with each field, use the ► button
to move successively to the next field.
You can also use the other arrow buttons to
move up, down, and back.
6. Enter the IP Address, Subnet Mask, and
Gateway values.
7. Press the ▼ button to go to DNS.
8. Press the ▼ button to go to the first DNS
entry field. Enter the numbers as above.
English
39
Setup
1. In the Network Settings menu, press the ▲▼
buttons to select Network Settings, and then
press the ENTER button.
The Internet Protocol Setup screen appears.
05
Setting Up a Wired Connection - Manual
Wired Network
Setup
9. Press the RETURN button on your remote.
10. Run a Network Test to ensure the player has
connected to your network (See page 42).
Wireless Network
You can setup the wireless network three ways:
• Using PBC (WPS)
• Using the Auto Network Search function.
• Manually.
Each method is described below.
Setting Up the Wireless Network Connection
- PBC (WPS)
The easiest way to set up the wireless network
connection is using the PBC (WPS) function.
If your wireless router has a PBC (WPS) button,
follow these steps:
1. In the Network Settings menu, press the ▲▼
buttons to select Network Settings, and then
press the ENTER button.
The Internet Protocol Setup screen appears.
2. Press the RED(A) button on the remote
control.
3. Press the PBC (WPS) button on your router
within two minutes. Your player displays the
Network Selection Screen, and automatically
acquires all the network setting values it
needs and connects to your network. When
it is done, it displays an OK button. Press the
ENTER button on your remote.
4. After the network connection is set up, press
the RETURN button to exit the Network
Setting screen.
Setting Up the Wireless Network Connection
- Auto Network Search
Most wireless networks have an optional security
system that requires devices that access the
network to transmit an encrypted security code
called an Access or Security Key. The Security
Key is based on a Pass Phrase, typically a word
or a series of letters and numbers of a specified
length you were asked to enter when you set up
security for your wireless network. If you use this
method of setting up the network connection, and
have a Security Key for your wireless network,
you will have to enter the Pass Phrase during the
setup process.
Setting Up the Network Connection
To set up the wireless connection using Auto
Network Search, follow these steps:
1. In the Network Settings menu, press the ▲▼
buttons to select Network Settings, and then
press the ENTER button.
The Internet Protocol Setup screen appears.
2. Press the ▲▼ buttons to select the Internet
Protocol Setup, and then press the ENTER
button.
3. Press the ▲▼ buttons to select Auto or
Manual, and then press the ENTER button.
4. If you selected Auto, press the ▲ button to
go to Access Point Selection, and then
press the ENTER button.
The Network function searches for available
wireless networks.
When done, it displays a list of the available
networks.
Settings
Display
Audio
System
Network
Language
Security
General
Support
40
English
Network Settings
Network Selection
Connecting to network.
Network Name(SSID) : shj
Stop
" Select
' Return
6. If the PIN/Security pop-up appears, go to
Step 7. If the Network Connecting Screen
appears, go to Step 11.
Setting Up the Wireless Network Connection
- Manual
7. Press the ▲▼ buttons to select PIN or
Security.
For most home networks, you would select
Security (for Security Key).
If the Auto Setting does not work, you need to
enter the Network settng values manually.
To get the Network setting values from most
Windows computers, follow these steps:
8. On the Security screen, enter your network’s
Pass Phrase.
1. Right click the Network icon on the bottom
right of the screen.
✎ NOTE
ƒ You should be able to find the Pass Phrase on one of
2. In the pop-up menu, click Status.
the set up screens you used to set up your router or
modem.
9. To enter the Pass Phrase, follow these
general directions:
• Press the number keys on your remote to
enter numbers.
• Use the arrow keys on your remote to move
from button to button on the Security Key
screen.
• To enter letters, move to the button labeled
a/A/1/, and then press the ENTER button.
Each time you press the ENTER button,
you change the kind of characters you can
enter (a/A/1/).
• To enter a letter, press the number button
that corresponds to the letter. Pressing the
button repeatedly changes the letter.
• To delete the last letter or number you
entered, move to the Delete button, and
then press the ENTER button.
• To clear all entered letters and numbers,
move to the Clear key, and then press the
ENTER button. You can also just press the
RED(A) button on your remote.
10. When done, press the YELLOW(C) button
on your remote, or move to the Done button,
and then press the ENTER button.
The Network Connecting screen appears.
3. On the dialog that appears, click the Support
tab.
4. On the Support tab, click the Details button.
The Network settings are displayed.
To Enter the Network settings into your player,
follow these steps:
1. On the Internet Protocol Setup screen, press
the ENTER button.
2. Press the ▲▼ buttons to select Manual, and
then press the ENTER button.
3. Press the ▼ button to go to the first entry field
(IP Address).
Settings
Network Settings
Display
Access Point Selection : Not Selected
Audio
Internet Protocol Setup : Manual
System
0
0
IP Address
: 0
Network
Subnet Mask
: 255 255 255
Language
0
0
Gateway
: 0
Security
DNS
: Manual
General
0
0
DNS Server
: 0
Support
0
0
0
0
a PBC (WPS) > Move " Select ' Return
4. Use the number buttons to enter numbers.
5. When done with each field, use the ► button
to move successively to the next field.
You can also use the other arrow buttons to
move up, down, and back.
11. Wait until the connection confirmation
message is displayed, and then press the
ENTER button. The Network Settings screen
reappears.
English
41
Setup
12. To test the connection, press the ▼ button
to select Network Test, and then press the
ENTER button.
05
5. In the list of networks, press the ▲▼ buttons
to select a network, and then press the
ENTER button.
Setup
6. Enter the IP Address, Subnet Mask, and
Gateway values.
7. Press the ▼ to go to DNS.
✎ NOTE
ƒ What is a valid certificate?
8. Press the ▼ button to go to the first DNS
entry field. Enter the numbers as above.
9. When done, press the ▲ button to return to
Access Point Selection. Select the network,
and then press the ENTER button.
10. Go to Step 6 in the Automatic Wireless
procedure above, and follow the directions
from that point on.
Network Test
Use this menu to connect the wired network
or check whether your network connection is
working or not.
Settings
Display
Network Test
Audio
MAC Address (00:00:00:00:00:00)
System
IP Address,Subnet Mask,Gateway,DNS Server
Network
Gateway Ping
Language
Internet Service Test
Security
Network testing...
General
Support
Test your Internet Protocol setup to see if it works correctly.
Network Status
Check whether a connection to the network and
the Internet have been established.
BD-LIVE Internet Connection
Set to allow internet connection when BD-LIVE
service is used.
• Allow (All) : The Internet connection will be
allowed for all BD-LIVE contents.
• Allow (Valid Only) : The Internet connection will
be allowed only for BD-LIVE contents containing
a valid certificate.
• Prohibit : No Internet connection will be allowed
for any BD-LIVE content.
42
English
ƒ
When the player uses BD-LIVE to send the disc data
and a request to the server to certify the disc, the
server uses the transferred data to check if the disc is
valid and sends the certificate back to the player.
The Internet connection may be restricted while you
are using BD-LIVE contents.
Language
You can select the language you prefer for home
menu, disc menu, etc.
• On-Screen Menu : Select the language for the
on-screen displays.
• Disc Menu : Select the language for the disc
menu displays.
• Audio : Select the language for disc audio.
• Subtitle : Select the language for disc subtitles.
✎ NOTE
ƒ The selected language will only appear if it is
supported on the disc.
Security
When you operate this menu for the first time,
password setup screen will be displayed.
Enter the desired 4-digit password using the
number buttons. (Default password is set to 0000.)
Parental Rating
This function works in conjunction with Blu-ray
Disc/DVDs that have been assigned a rating,
which helps you control the types of Blu-ray Disc/
DVDs that your family watches.
Select the rating level you want to set.
A larger number indicates that the program is
intended for adult use only. For example, if you
select up to Level 6, discs that contain Level 7, 8
will not play.
Parental Rating
Change Password
Off
8(Adults)
7
6
5
4
|
You can reduce power consumption by setting
the front panel to turn off automatically when there
is no operation for 5 seconds.
• On : The front panel will automatically turn off
when there is no operation for 5 seconds.
• Off : Energy Saving function is not used.
Front Display
Change Password
Change the 4-digit password used to access
security functions.
Change the brightness of the front panel.
• Auto : Dim during playback.
• Dim : Dim the display window.
• Bright : Brighten the display window.
If you forgot your password
Power On/Off Sound
1. Remove the disc.
2. Press and hold the STOP (
) button on the
front panel for 5 seconds or more.
All settings will revert to the factory settings.
Play a melody when the player is turned on and off.
• On : Turn Power Sound On.
• Off : Turn Power Sound Off.
✎ NOTE
ƒ When the factory default settings are restored, all
Light Effect
the user data stored in the BD data will be deleted.
General
Background
Change the background theme of the menu screen.
You can activate or deactivate the light effect on
the top of the product.
• Always On : Activate Light Effect at all times.
Select this for retail display.
• Auto : Activate Light Effect when turning the
player on and off or when moving the tray.
Select when installing the player in your home.
• Off : Turn Light Effect off at all times.
Settings
Dis
Display
Aud
Audio
Sys
System
Net
Network
an
Language
Sec
Security
Gen
General
Sup
Support
Background
Skin 1
Skin 2
Skin 3
Skin 4
Skin 5
> Move
" Select
' Return
English
43
Setup
Display
Audio
System
Network
Language
Security
General
Support
05
Energy Saving
Settings
Setup
Support
Software Upgrade
This menu allows you to upgrade software
for performance improvements or additional
services. You can check the current software
version, upgrade using the internet and set the
Auto upgrade notification. If the player is properly
connected to the network by cable or wirelessly,
the player will automatically connect to Samsung’s
website each time it is turned on and download
update files if any valid upgrade exists.
Settings
Display
Software Upgrade
Software
Audio
Disc MenuUpgrade :
System Current Version
Audio : XXX-XXXXXXXXX
:
Network
Subtitle
:
By Internet
Language
Auto Upgrade Notification : On
Security
General
" Select ' Return
Support
You can also update software in any of the two
ways as follows: Software update is the same as
in the By Internet menu.
• USB : Visit www.samsung.com/bluraysupport,
then download and store the latest software
(RUF file) into a USB flash drive. Connect
the USB flash drive to the USB port of the
player (disc tray must be empty) to update the
software, then follow the on-screen instructions.
• CD/DVD : Visit www.samsung.com/
bluraysupport, download and write the latest
software (RUF file) onto a disc. Insert and play
the disc in the player to start the update, then
follow the on-screen instructions.
✎ NOTE
ƒ Software upgrades using the USB Host jack must be
performed with no disc inside.
ƒ
ƒ
ƒ
1. To select By Internet, press the ENTER
button.
A popup message will appear if an update is
available.
2. If you select Yes, the player will turn off
automatically before restarting.
(Never turn it on manually.)
3. The update progress popup will appear.
When the update is completed, the player will
turn back off automatically.
4. Press the POWER button to turn on the
player.
✎ NOTE
ƒ The Update will be completed when the player turns
off after restarting. Press the POWER button to turn
on the updated player for your use.
Never turn off or on the player manually during the
update process.
ƒ
44
Samsung Electronics shall take no legal responsibility
for player malfunction caused an unstable internet
connection or consumer negligence during software
upgrade.
English
ƒ
If you want to cancel the upgrade in the process of
downloading the upgrade data, press the ENTER
button.
When the system upgrade is done, check the
software details in the software Upgrade menu.
Do not turn off the player during the System
Upgrade, as it may cause the player to not work
properly.
Software upgrades using the USB Host jack must be
performed with a USB memory flash stick only.
Contact Samsung
Provide contact information for assistance with
your player.
Basic Functions
Using the Disc menu/Title menu/
Popup menu
Using the Disc Menu
1. Press the OPEN/CLOSE (
open the disc tray.
) button to
2. Place a disc gently into the tray with the disc’s
label facing up.
3. Press the OPEN/CLOSE (
close the disc tray.
4. Press the PLAY (
) button to
STOP (
PAUSE (
) button.
✎ NOTE
ƒ Depending on the disc, the menu items may differ
)
Starts playback.
)
Stops playback.
• If pressing the button once : The
stop position will be memorized.
• If pressing the button twice : The
stop position will be not memorized.
)
and this menu may not be available.
Disc Structure
The contents of disc are usually divided as below.
• Blu-ray Disc, DVD-VIDEO
chapter 1
title 2
chapter 2
track 2
2. Press the ▲▼◄► buttons to make
the desired selection, then press the
ENTER button.
✎ NOTE
ƒ Depending on the disc, the menu items may differ
and this menu may not be available.
Playing the Title List
track 3
track 4
z
track 5
• MP3, WMA, DivX, MKV and MP4
folder (group) 1
file 1
file 2
Z
chapter 3
• Audio CD (CD-DA)
track 1
Using the Title Menu
1. During playback, press the TITLE
MENU button on the remote control.
Pauses playback.
title 1
chapter 1 chapter 2
1. During playback, press the DISC
MENU button on the remote control.
2. Press the ▲▼◄► buttons to make
the desired selection, then press the
ENTER button.
Playback related buttons
PLAY (
hZ
folder (group) 2
file 1
file 2
file 3
1. During playback, press the DISC
MENU or TITLE MENU button.
2. Press the ▲▼ buttons to select an
entry you want to play from Title List,
then press the ENTER button.
✎ NOTE
ƒ If your disc has the playlist, press the GREEN(B)
button to go to the Playlist.
English
45
Basic Functions
Playback
06
Playing a Disc
Basic Functions
Using the Popup Menu
Skipping Chapters
h
1. During playback, press the POPUP
MENU button on the remote control.
2. Press the ▲▼◄► buttons or ENTER
button to select the desired menu.
✎ NOTE
ƒ Depending on the disc, the menu items may differ
and this menu may not be available.
Using the Search and Skip Functions
During play, you can search quickly through a
chapter or track, and use the skip function to
jump to the next selection.
Searching for a Desired Scene
hzZyx
• During playback, press the SEARCH (
)
button.
Each time you press the SEARCH (
)
button, the playback speed will change as follows.
BD-ROM,
BD-RE/-R,
DVD-RW/-R,
DVD+RW/+R,
DVD-VIDEO
)1)2)3
)4)5)6)7
(1(2(3
(4(5(6(7
)1)2)3
DivX, MKV, MP4
(1(2(3
• To return to normal speed playback, press the
PLAY (
) button.
✎ NOTE
ƒ No sound is heard during search mode.
hzZyx
• During playback, press the SKIP (
)
button.
If you press the SKIP (
) button, it moves to
the next chapter.
If you press the SKIP (
) button, it moves to
the beginning of the chapter. One more press
makes it move to the beginning of the previous
chapter.
Slow Motion Play/Step Motion Play
Slow Motion Play
hzZyx
• In pause mode, press the SEARCH (
)
button.
If you press the SEARCH (
) button, the
playback speed is reduced to
* 1/8 * 1/4 * 1/2
• To return to normal speed playback, press the
PLAY (
) button.
✎ NOTE
ƒ No sound is heard during slow mode.
ƒ Slow motion operates only in the forward direction.
Step Motion Play
hzZyx
• In pause mode, press the PAUSE (
) button.
Each time the PAUSE (
) button is pressed,
a new frame will appear.
• To return to normal speed playback, press the
PLAY (
) button.
✎ NOTE
ƒ No sound is heard during step mode.
ƒ Step motion operates only in the forward direction.
46
English
hzZy
Repeat the disc title or chapter.
Depending on the disc, the Repeat function may
not be available.
1. During playback, press the REPEAT
button on the remote control.
2. Press the ▲▼ buttons to select Chapter or
Title, then press the ENTER button.
5. To return to normal play, press the REPEAT
button again.
Basic Functions
Repeat the Title or Chapter
4. Press the ENTER button at the point where
you want repeat play to stop (B).
06
Repeat Playback
6. Press the ENTER button.
✎ NOTE
ƒ If you set point (B) before 5 seconds has lapsed, the
prohibition message will appear.
Using the TOOLS button
During playback, you can operate disc
menu by pressing the TOOLS button.
• TOOLS Menu Screen
Repeat
> Chapter
Tools
3. To return to normal play, press the REPEAT
button again.
4. Press the ▲▼ buttons to select Off, the press
the ENTER button.
Title
:
1/1
Chapter
<
4/21
Playing Time
:
00:12:06
Audio
: 1/7 ENG Multi CH
Subtitle
:
1/6 ENG
Angle
:
1/1
BONUSVIEW Video :
Off
BONUSVIEW Audio :
0/1 Off
>
Picture Setting
< Change
" Select
Repeat the Section
hzZy
1. During playback, press the REPEAT
button on the remote control.
2. Press the ▲▼ buttons to select Repeat A-B.
✎ NOTE
ƒ Depending on the disc, the TOOLS menu may differ.
Moving to a Desired Scene Directly
hzZy
1. During playback, press the TOOLS button.
Repeat
> Repeat A-B : Off
" Mark A
3. Press the ENTER button at the point where
you want repeat play to start (A).
2. Press the ▲▼ buttons to select Title, Chapter
or Playing Time.
3. Enter the desired Title, Chapter or Playing
Time using the number buttons, then press
the ENTER button.
English
47
Basic Functions
Selecting the Audio Language
hzZx
You can also operate this function by
pressing the AUDIO button on the
remote control.
✎ NOTE
ƒ Depending on the Blu-ray Disc / DVD, you may be
able to change the desired subtitle in the Disc Menu.
Press the DISC MENU button.
ƒ
ƒ
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Audio.
3. Press the ◄► buttons to select the desired
audio language.
✎ NOTE
ƒ The ◄► indicator will not be displayed on the
screen if the BONUSVIEW section does not contain
any BONUSVIEW audio settings.
ƒ
ƒ
ƒ
ƒ
ƒ
Information about the primary / secondary mode
will be also displayed if the Blu-ray Disc has a
BONUSVIEW section.
Use the ◄► button to switch between primary and
secondary audio modes.
This function depends on what audio languages are
encoded on the disc and may not be available.
A Blu-ray Disc can contain up to 32 audio languages
and a DVD up to 8.
Some Blu-ray Discs may allow you to select either
the multi-channel LPCM or Dolby digital audio
soundtrack in English.
If you press the AUDIO button on the remote control,
Audio bar will be displayed.
Press the RETURN button to remove the Audio bar.
Selecting the Subtitle Language
hZx
You can also operate this function by
pressing the SUBTITLE button on the
remote control.
ƒ
ƒ
ƒ
ƒ
This function depends on what subtitles are encoded
on the disc and may not be available on all Blu-ray
Discs/DVDs.
A Blu-ray Disc can contain up to 255 subtitle
languages and a DVD up to 32.
Information about the primary / secondary mode
will also be displayed if the Blu-ray Disc has a
BONUSVIEW section.
This function changes both the primary and
secondary subtitles at the same time.
The total number of subtitles is the sum of the
primary and secondary ones.
If you press the SUBTITLE button on the remote
control, the subtitle bar will be displayed.
Press the RETURN button to remove the subtitle bar.
Changing the Camera Angle
hZ
When a Blu-ray Disc/DVD contains multiple angles
of a particular scene, you can use the ANGLE
function.
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Angle.
3. Press the ◄► buttons to select the desired
Angle.
Selecting the Picture Setting
hzZy
This function enables you to adjust video quality
when you are connected to a TV via HDMI.
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Picture Setting,
then press the ENTER button.
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Subtitle.
3. Press the ◄► buttons to select the desired
subtitle language.
48
English
3. Press the ◄► buttons to select the desired
Picture Setting, then press the ENTER button.
• Dynamic : Choose this setting to increase
Sharpness.
Buttons on the Remote Control
used for Music Playback
• User : The user can adjust the sharpness
and noise reduction function respectively.
Setting BONUSVIEW
h
The BONUSVIEW feature allows you to view
additional content (such as commentaries) in a
small screen window while the movie is playing.
This function is only available if the disc has the
bonusview feature.
You can also operate this function by
pressing the BONUSVIEW button on
the remote control.
1
2
3
!
4
5
6
7
8
0
SUBTITLE
9
AUDIO
0
1
9
2
8
3
TOOLS
INFO
RETURN
EXIT
4
7
A
1. During playback, press the TOOLS button.
B
C
INTERNET@ FULL SCREEN
5
6
D
REPEAT
2. Press the ▲▼ buttons to select BONUSVIEW
Video or BONUSVIEW Audio.
3. Press the ◄► buttons to select the desired
bonusview.
1
SEARCH buttons : Fast Play.
(Audio CD (CD-DA) only)
✎ NOTE
ƒ If you switch from BONUSVIEW Video, BONUSVIEW
2
PAUSE button : Pauses playback.
3
PLAY button : Plays the currently selected track.
4
▲▼ buttons : Selects a track in the Music List or
Playlist.
>
5
YELLOW(C) button : Select or deselect a track in
the music list.
" Select
6
REPEAT button : Selects the play mode in the
Playlist.
7
ENTER button : Plays and pauses the selected
track.
8
STOP button : Stops a track.
9
SKIP button : During playback, moves to the next
page in the Music List or moves to the next track in
the Playlist.
Audio will change automatically in accordance with
BONUSVIEW Video.
Tools
BONUSVIEW Video <
Off
BONUSVIEW Audio :
0/1 Off
Picture Setting
< Change
English
49
Basic Functions
ow
• Normal : Choose this setting for most
viewing applications.
• Movie : This is the best setting for watching
movies.
06
Listening to Music
Basic Functions
SKIP button : During playback, moves to the
previous page in the Music List or moves to the
previous track in the Playlist.
If you press this button after three seconds of
playback in the Playlist, the current track will be
replayed from the beginning. But, if you press this
button within three seconds after playback starts in
the Playlist, the previous track will be played.
0
NUMBER button : During the Playlist playback,
press the desired track number. The selected track
will be played.
!
5
Shows the current play time/total play time.
6
Displays the current playback status
7
Displays the repeated playback status.
2. Press the ▲▼ buttons to select the track
you want to play, and then press the ENTER
button.
Repeat an Audio CD (CD-DA)/MP3
1. During the Playlist playback, press the
REPEAT button.
Playing an Audio CD (CD-DA)/MP3
2. Select the desired play mode by
pressing the REPEAT button repeatedly.
1. Insert an Audio CD (CD-DA) or an MP3 Disc
into the disc tray.
• For an Audio CD (CD-DA), the first track will
be played automatically.
• For an MP3 disc, press the ◄► buttons
to select Music, then press the ENTER
button.
Audio CD (CD-DA)/MP3 Screen Elements
1
2
3
Playlist
TRACK 001
1/3
Off
Audio CD
(CD-DA)/MP3
Tracks on a disc are
played in the order in
which they were recorded
on the disc.
(
) Track
Audio CD
(CD-DA)
Current track is repeated.
(
) One
MP3
Current track is repeated.
(
) All
Audio CD
(CD-DA)/MP3
All tracks are repeated.
(
) Shuffle
Audio CD
(CD-DA)/MP3
The random option plays
a disc’s track in random
order.
TRACK 001
05:57
TRACK 002
04:27
TRACK 003
7
6
04:07
TRACK 004
+
00:08 / 05:57
03:41
03:17
TRACK 006
03:35
" Pause
5
1
Displays the music information.
2
Displays the playlist.
3
Shows the current page/total pages.
4
Displays buttons available.
50
Playlist
TRACK 005
English
Tools
4
' Return
1. Insert an Audio CD (CD-DA) or an MP3 Disc
into the disc tray.
• For an Audio CD (CD-DA), the first track will
be played automatically.
• For an MP3 disc, press the ◄► buttons
to select Music, then press the ENTER
button.
2. To move to the Music List, press the STOP (
or RETURN button.
The Music List screen is displayed.
)
G
Playing a JPEG Disc
1. Insert a JPEG disc into the disc tray.
3 files selected 1/2 Page
TRACK 003
TRACK 001
TRACK 002
00:05:57
00:04:27
TRACK 003
TRACK 004
00:04:07
00:03:41
TRACK 005
TRACK 006
00:03:17
00:03:35
TRACK 007
TRACK 008
00:03:47
00:03:49
TRACK 009
TRACK 010
2. Press the ◄► buttons to select the Photos,
and then press the ENTER button.
3. Press the ▲▼◄► buttons to select the folder
you want to play, and then press the ENTER
button.
4. Press the ▲▼◄► buttons to select the photo
you want to play, and then press the ENTER
button.
The Slide Show starts automatically.
00:03:45
00:03:53
Select
CDDA
06
Music
Playing back a Picture
() Jump page
' Return
4. If there is an undesired track in the playlist,
press the YELLOW(C) button again.
The selected track will be deleted.
✎ NOTE
ƒ You can’t enlarge the subtitle and PG graphic in the
full screen mode.
5. Press the ENTER button to play the selected
tracks.
Selected tract will automatically play.
Using the TOOLS button
Playlist
TRACK 001
1/1
During the slide show playback, you
can use various function by pressing the
TOOLS button.
TRACK 001
05:57
TRACK 002
04:27
TRACK 003
04:07
+
00:08 / 05:57
Tools
Stop Slide Show
Slide Show Speed :
" Pause
Tools
Normal
Background Music
' Return
Zoom
Rotate
Information
6. To go to the Music List, press the STOP (
or RETURN button.
)
> Move
" Enter
' Return
7. To go to the Playlist, press the ENTER
button.
✎ NOTE
ƒ You can create a playlist with up to 99 tracks on
Audio CD (CD-DA).
• Stop Slide Show : Select this if you want to
stop the slide show.
• Slide Show Speed : Select this if you want to
adjust the Slide Show speed.
• Background Music : Select this if you want to
listen to music while viewing a picture.
English
51
Basic Functions
3. Press the ▲▼◄► buttons to move desired
track, then press the YELLOW(C) button to
check desired tracks.
Repeat this procedure to select additional
tracks.
Basic Functions
• Zoom : Select this if you want to enlarge the
current picture. (Enlarged up to 4 times)
• Rotate : Select this if you to rotate the picture.
(This will rotate the picture either clockwise or
counter clockwise.)
• Information : Shows the picture information
including the name and size, etc.
5. Press the ▲▼ buttons to select the USB, then
press the ENTER button.
6. Press the ◄► buttons to select the desired
Videos, Music or Photos, then press the
ENTER button.
4-1. Press the BLUE(D) button.
✎ NOTE
ƒ To enable the Background Music function, both
Please activate Internet@TV service
to enjoy a variety of Internet Services.
music and MP3 files must be contained in the same
folder. However, the sound quality can be affected
by the bit rate of the MP3 file, the size of the photo
and the encoding method.
USB
USB
d Home
" Enter
Playing back a USB Storage Device
You can use the USB connection to play multimedia
files (MP3, JPEG, DivX, etc) downloaded from the
USB storage device.
1. Move to the home menu.
2. In Stop mode, connect the USB storage
device to the USB port on the front panel of
the player.
The message “Do you want to access the
device?” will be displayed.
5-1. Press the ◄► buttons to select the USB,
then press the ENTER button.
6-1. Press the ▲▼ buttons to select the desired
Videos, Music or Photos, then press the
ENTER button.
7. For playing back Video, Music or Photo files,
refer to pages 49~52.
✎ NOTE
ƒ You must remove the USB storage device safely
(by performing the “Safe to Remove USB” function)
in order to prevent a possible damage to the USB
memory. Press the MENU button to move to the
home menu, and select the YELLOW(C) button and
press the ENTER button.
3. Press the ◄► button to select Yes, then
press the ENTER button.
4. Press the RED(A) button.
You Tube
internet radio service
Please activate Internet@TV
to enjoy a variety of Internet Services.
ƒ
ƒ
CD
USB
USB
52
a Change Device
English
Safely Remove USB d View Devices " Enter
When the Audio-CD (CD-DA), MP3 and JPEG files
are in stop mode, you can’t see full screen by
pressing the FULL SCREEN button on the remote
control.
If you insert the disc when playing USB storage
device, the device mode is changed to “DVD or CD”
automatically.
Network Services
1. Connect the player to the network.
(See pages 28~29)
Internet@TV at a Glance
2. Configure the network settings.
(See pages 38~42)
1
2
3
Recommended
Contents 1
Using Internet@TV
Connect this player to the network to download
various chargeable or free-of-charge applications.
Internet@TV brings useful and entertaining
contents and services directly from the web to
your player.
And enjoy the applications such as news, weather
forecast, stock market, games, movies and music.
You can also operate this function by
pressing the INTERNET@ button on
the remote control.
1. Move to the home menu.
You Tube
internet radio service
Please activate Internet@TV
to enjoy a variety of Internet Services.
d View Devices
Contents 2
Contents 4
by Date 1/3
Contents 3
Samsung AppS Settings
a Login b Mark as Favorite d Sort by ' Return
6
5
4
1
Commercial : Displays Internet@TV Guide, product
introduction and new application introduction.
2
Recommenced : Displays recommended contents
managed by Samsung.
3
My Application : Displays your personal gallery
which can be added and deleted by you.
4
Navigation Help : Displays remote control buttons
available.
• RED(A) : To log in to to Internet@TV.
• GREEN(B) : To mark the application as a favorite.
• BLUE(D) : To sort the applications.
• Return : To return to the previous menu.
5
Settings : You can set the system setup and create
accounts, etc.
6
Samsung AppS : You can download various
chargeable or free-of-charge application services.
Getting Started with Internet@TV
a Change Device
Contents 3
My Applications
Contents 1
No Disc
Contents 2
" Enter
2. Press the ◄► buttons to select Internet@TV
and press the ENTER button.
3. In the start screen of the Internet@TV service,
you will see the service agreement screen.
You should agree to the service terms and
conditions before you can use the Internet@
TV service.
English
53
Network Services
Check the following instructions before using
any network service.
4. When you have agreed on the service
agreement, the Internet@TV service will start
being updated. It takes several minutes.
When the update is completed, you will see
the Internet@TV menu screen.
07
You can enjoy various network services such as
Internet@TV or BD-LIVE by connecting the player
to the network system.
Network Services
Using the Keypad
Pressing the SUBTITLE button on the remote
while you are using the Screen Keypad enables
you to change the text fields to lower case, upper
case, numbers and icons.
You can use this Screen Keypad in a several
Internet@TV applications.
1
2
abc
3
def
4
ghi
5
jkl
6
mno
7
pqrs
8
tuv
9
wxyz
Input Mode
a
A
1
13. Press the ENTER button.
14. The map and address appear on the screen.
✎ NOTE
ƒ Samsung Electronics shall take no legal responsibility
for any interruption of the Internet@TV service
caused by the service provider for any reasons.
ƒ
Delete
]
0
12. Press buttons on the remote to input the rest
of ‘Challenger Rd., Ridgefield Park NJ’.
For example, here is how to search an address in
Google Maps:
ƒ
1. Press the ENTER button on the remote at the
Google Maps icon at the Internet@TV.
ƒ
2. Press GREEN(B) button to use the SEARCH
function.
ƒ
3. Press the ◄► buttons to move to the “Search
or address” window.
ƒ
4. Press the ENTER button to use Search or
address function.
ƒ
5. For example, suppose that you want to input
‘105 Challenger Rd., Ridgefield Park NJ’.
ƒ
6. Press the SUBTITLE button on the remote
twice to change the input mode from lower
case to numbers.
7. Press ‘1’, ‘0’, ‘5’.
8. Press the YELLOW(C) button on the remote
to input a blank space.
9. Press the SUBTITLE button on the remote
3 times to change the input mode from
numbers to upper case.
10. Press ‘2’ button on the remote 3 times to
input C.
11. Press the SUBTITLE button on the remote 3
times to change the input mode from upper
case to lower case.
54
English
The Internet@TV service is to download and process
data via the Internet so that you can enjoy the
contents on the TV screen.
If the Internet connection is unstable, the service
may be delayed or interrupted.
Furthermore, the player may be turned off automatically.
If this is the case, check the Internet connection and
try again.
The application service may be provided in English
only and the contents available may vary, depending
on the area.
When using a application service, you can not
operate FULL SCREEN button on the remote control.
For more information about the Internet@TV service,
visit the web site of the applicable service provider.
The provided services are subject to change,
depending on the Internet@TV service provider.
The Internet@TV service contents may differ
according to the firmware version.
A chargeable DivX contents with copy protection can
only be played using HDMI cable.
If connected with component or video cable, the
video signal can not output or the popup message
“Connect with a HDMI cable to play this file.” will be
displayed.
System Setup
1. Press the ▲▼◄► buttons to select the
desired application and press the RED(A)
button.
Login
Reset
Resets Internet@TV settings to factory default
settings.
✎ NOTE
ƒ If you forgot your password, press the STOP (
)
button on the front panel of the player for more than
5 seconds with no disc inserted.
Internet@TV ID
User Account :
You can use this menu when creating, deleting
the account.
You can control your account including contents
site’s account information.
Account is only for Internet@TV.
adgim
Password :
a Create
[0~9] Enter PIN ' Cancel
Create
2. Enter the user account and password.
Settings
Create IDs and configure Internet@TV settings
from this screen.
Settings
System setup
Internet@TV ID
Service Manager
Properties
Create an account and link it with desired service
applications.
✎ NOTE
ƒ Account will be made less than 10 and Maximum
number of characters is 10.
Manager
Change the Service Lock password
Reset
• Service Site : Register login information for
service sites.
• Change Password : Change account
password.
• Delete : Delete the account.
' Cancel
English
55
Network Services
For a more enjoyable application experience,
register and log in to your account.
To do this, you must create an account first.
(For instructions on creating an account, refer to
Internet@TV ID on this page)
07
Account Login
Network Services
Service Manager
Delete and lock applications installed to Internet@
TV.
Lock
Lock the application. Accessing a locked
application requires the password.
Delete
Using the color buttons with the Samsung
Apps
• RED(A) (Login) : To log in to the internet
service.
• GREEN(B) (Thumbnail View) : To change the
view mode.
• BLUE(D) (Sort By) : To sort the applications by
Featured, Most Downloaded, Most Recent or
Name.
Delete the application.
Internet@TV Services Available
Properties
• YouTube/Pandora/Netflix/Blockbuster/USA
Today News
- Blockbuster : You can view movies streamed
by Blockbuster.
- YouTube : You can view video streamed by
YouTube.
- Netflix : You can view movies streamed by
Netflix.
- Pandora : You can listen to Internet radio.
- USA Today News : You can read news
streamed by USA Today News.
- AccuWeather : You can view weather
information by AccuWeather.
- Google Maps : You can view the map by
Google Maps.
Display information about Internet@TV. Use the
Check the speed of your internet connection
option to test your network connection.
Samsung AppS
Various applications are available from here,
organized into different categories. Some
applications have a download fee.
Samsung AppS
Video
Featured
What's New!
Video
| Sports
| Lifestyle
| Games
| Infomation
| Other
|
|
1/1
Most downloaded
Most recent
YouTube
Name
Free
TV store Test User002
✎ NOTE
ƒ The available Internet contents services may be
added or deleted.
My Applications
Help
a Login
b Thumbnail View
d Sort By
' Return
My Application
Displays the application list.
Help
If you questions about Internet@TV, check this
section first. If none of the tips apply, please visit
the help website.
56
English
1. Check the size of the remaining memory.
The memory device must have at least 1GB
of free space to accommodate the BD-LIVE
services.
AllShare enables you to play music, video and
photo files in your PC using the player.
To use AllShare, you must connect the player to
your PC via the network (See pages 28~29) and
install the SAMSUNG PC Share Manager on the
PC.
2. Insert a Blu-ray disc that supports BD-LIVE.
1. Visit the Samsung website at www.samsung.
com.
3. Select an item from various BD-LIVE service
contents provided by the disc manufacturer.
2. Download the SAMSUNG PC Share Manager
and install it on the PC.
✎ NOTE
ƒ The way you use BD-LIVE and the provided contents
may differ, depending on the disc manufacturer.
Software Upgrade Notification
In network connection, the player will notice you of
any new software version with a popup message.
3. When the installation is completed, you will
see the SAMSUNG PC Share Manager icon
on your desktop.
Double-click the icon to launch the application.
Application Program at a Glance
6
1
SAMSUNG PC Share Manager
File
1. Turn on the player.
Share
Server
Help
Server : PC Share Manager
2345
2. From the Software Upgrade menu, set Auto
Upgrade Notification to On. (See page 44)
If there is a new software version available, the
player will notice you with a popup message.
My Computer
Shared Folder
C: Document and settings Admin
Name
Folder 1
Size
Kind
File
Folder 2
File
Folder 3
File
Folder
Folder 1
Full Path
C: Document and settin..
3. To upgrade the firmware, select Yes.
It will turn off automatically before restarting.
(Never turn it on manually.)
4. The update progress popup will appear.
When the update is completed, it will turn
back off automatically.
5. Press the POWER button to turn on the
player.
✎ NOTE
ƒ Update will be completed when the player turns off
after restarting. Press the POWER button to turn on
the updated player for your use.
Never turn off or on the player manually during the
update process.
ƒ
Samsung Electronics shall take no legal responsibility
for player malfunction caused by unstable of internet
connection or consumer negligence during software
upgrade.
8
7
1
Menu Bar
2
Share Folder Enabled icon : Use this if you want to
select a folder in your PC to share.
3
Share Folder Disabled icon : Use this if you want
to set folder sharing off.
4
Refresh icon : Use this if you want to refresh list of
folders and files in My Computer.
5
Update icon : Select a folder to share and don’t
forget to press this button.
The updated state will be applied to the server.
6
Server : Displays the name of the sharing server.
English
57
Network Services
Once the player is connected to the network, you
can enjoy various movie-related service contents
using a BD-LIVE compliant disc.
Using the AllShare Function
07
BD-LIVE™
Network Services
7
Shared Folder : Displays a list of the shared folders.
8
My Computer : Displays a list of the folders and
files in the PC.
modem or router, HD video may not play properly.
4. Select a folder to share from the My computer
e, and clic
pane,
click the Share Folder Enabled
icon ( ).
(To remove a shared folder : Select a folder to
ers, and click
c
remove from the shared folders,
the
Share Folder Disabled icon ( ).)
5. To apply the updated sharing state to thee
server, click the Set Change State icon (
SAMSUNG PC Share Manager
Share
Server
Help
Server : PC Share Manager
Set Device Policy
My Computer
Folder 2
File
Folder 3
File
OK
ƒ
ƒ
ƒ
ƒ
Cancel
8. To select a device, use the RED(A) or BLUE(D)
button to select a file to play.
(For playing back Video, Music or Photos files,
see pages 49~52.)
You Tube
internet radio service
Please activate Internet@TV
to enjoy a variety of Internet Services.
a Change Device
English
ƒ
Delete Selected Item
Full Path
Set State
C: Document and settin..
Accept
7. Move to the home menu.
58
ƒ
Shared Folder
C: Document and settings Admin
Folder
IP
Device
State
Folder 1
Name
Size
Kind
SAMSUNG Blu-ray
FolderXXX.XXX.X.XX
1
FileDisc Player Deny
No Disc
ƒ
).
6. To enable the player to locate a PC server,
click Share from the menu bar.
Click Set Device Policy and click Accept.
File
✎ NOTE
ƒ Depending on the performance of the external
d View Devices
" Enter
If your system uses a firewall, the player may not
locate your PC on the TV screen.
AllShare does not support the following functions.
- The Background Music and Background Music
Setting functions.
- Sorting files by preference in the Photo, Music,
and Movie folders.
- The Change Group function.
- The Safe Remove function.
The Sorting method may differ depending on the
sever function.
The search and skip operation may differ depending
on the sever function.
If you press the STOP (
) button during video
playback, stop position will be memorized and it will
be memorized only end user’s operation.
But stop position will not be memorized depending
on the sever function.
During video playback, play time will not display.
To use AllShare function, please locate both this
player and PC in same subnet.
Appendix
08
Troubleshooting
Appendix
Before requesting service, please check the following.
PROBLEM
SOLUTION
No operation can be performed with the
remote control.
• Check the batteries in the remote control. They may need replacing.
• Operate the remote control at a distance of no more than 20 feet.
• Remove batteries and hold down one or more buttons for several minutes
to drain the microprocessor inside the remote control to reset it. Reinstall
batteries and try to operate the remote control again.
Disc does not play.
• Ensure that the disc is installed with the label side facing up.
• Check the region number of the Blu-ray Disc/DVD.
Disc Menu does not appear.
• Ensure that the disc has disc menus.
The prohibition message appears on the
screen.
• This message appears when an invalid button is pressed.
• The Blu-ray Disc/DVD’s software doesn’t support the feature (e.g., angles)
• You’ve requested a title or chapter number or search time that is out of
range.
Play mode differs from the Setup Menu
selection.
• Some of the functions selected in the Setup Menu may not work properly if
the disc is not encoded with the corresponding function.
The screen ratio cannot be changed.
• The Screen Ratio is fixed on your Blu-ray Disc/DVDs.
• This is not a problem with the player.
No audio.
• Make sure you have selected the correct Digital Output in the Audio Options
Menu.
The screen is blocked
• Press the STOP (
) button (on front panel) for more than 5 seconds with
no disc inside. All settings will revert to the factory settings.
• When the factory default settings are restored, all the user data stored in
the BD data will be deleted.
If the HDMI output is set to a resolution your • Press the STOP (
) button (on front panel) for more than 5 seconds with
TV cannot support (for example, 1080p), you
no disc inside. All settings will revert to the factory settings.
may not see a picture on your TV.
• When the factory default settings are restored, all the user data stored in
the BD data will be deleted.
English
59
Appendix
PROBLEM
SOLUTION
Forgot password
• Press the STOP (
) button (on front panel) for more than 5 seconds with
no disc inside. All settings including the password will revert to the factory
settings.
Don’t use this unless absolutely necessary.
• When the factory default settings are restored, all the user data stored in
the BD data will be deleted.
If you experience other problems.
• Go to the contents and find the section of the user manual that contains the
explanations regarding the current problem, and follow the procedure once
again.
• If the problem still cannot be solved, please contact your nearest Samsung
authorized service center.
The picture is noisy or distorted
• Make sure that the disc is not dirty or scratched.
• Clean the disc.
No HDMI output.
• Check the connection between the TV and the HDMI jack of the player.
• Check if your TV supports 480p, 720p, 1080i, 1080p HDMI input resolution.
Abnormal HDMI output screen.
• If random noise appears on the screen, it means that TV does not support
HDCP (High-bandwidth Digital Content Protection).
PC Share Manager function
I can see folders shared through the PC
Share Manager, but I cannot see the files.
• Since it shows only files corresponding to the Image, Music, and Movie
categories, files that do not correspond to these categories may not be
displayed.
AllShare function
Video is played intermittently.
• Check if the network is stable.
• Check if the network cable is properly connected and if the network is not
overloaded.
• Wireless connection between the server and the player is unstable.
Check the connection.
AllShare connection between TV and PC is
unstable.
• IP address under the same subnetwork should be unique, otherwise IP
collision can results in such a phenomenon.
• Check if you have a firewall enabled.
If so, disable the firewall function.
60
English
08
PROBLEM
SOLUTION
I cannot connect to the BD-LIVE server.
• Check whether the network connection is successful or not by using
Network Test menu. (See page 42)
• Check whether the USB memory device is connected with player
or not.
• The memory device must have at least 1GB of free space to accommodate
the BD-LIVE service.
You can check the available size in BD Data Management. (See page 37)
• Please check whether the BD-LIVE Internet Connection menu is set to
Allow(All).
• If all above fails, contact the contents provider or update the latest
firmware.
When using the BD-LIVE service, an error
occurs.
• The memory device must have at least 1GB of free space to accommodate
the BD-LIVE service.
You can check the available size in BD Data Management. (See page 37)
✎ NOTE
ƒ When the factory default settings are restored, all the user data stored in the BD data will be deleted.
English
61
Appendix
BD-LIVE
Appendix
Index
J
A
Accessories
Ad-hoc
Anynet+ (HDMI-CEC)
Audio Language
AllShare
15
29
37
48
57~58
51
M
Movie Frame (24F)
MP3
34
50~51
TV Aspect
Title Menu
TOOLS Menu
32
45
47~49
U
USB Storage Device
B
52
N
BD Wise
BD Data Management
BD-LIVE
BONUSVIEW
Background Music
32
37
42, 57
49
51
Network Setup
38~42
Component
Cable Network
Camera Angle
23
28
48
Wireless Network
Optimal Resolution
32~33
Digital Output
34~35
Dynamic Range Control
36
Downmixing Mode
36
DTS Neo:6
36
DST (Daylight Saving Time) 38
DivX
38
Disc Menu
45
Disc Structure
45
H
HDMI
21, 36
HDMI Supported Amplifier 25
HDMI Deep Color
34
I
Internet@TV
Initial Settings
English
38, 53
30, 37
29, 40
Z
Zoom
PCM Downsampling
Popup Menu
Picture Setting
35~36
46
48
R
D
W
O
P
C
62
JPEG
T
Region Code
14
Romote Control Sensor
16
Romote Control
19
Resolution
32
Repeat
47, 50
S
Supported File Format
Software Upgrade
Search and Skip
Slow and Step
Subtitle Language
Slide Show
SAMSUNG PC Share
Manager
13
44, 57
46
46
48
51
57~58
51
AC 120V, 60Hz
Power Consumption
14W
Weight
4 Ibs
Dimensions
17 (W) × 8.8 (D) × 1.7 (H) inches
Operating Temperature Range
+41°F to +95°F
Operating Humidity Range
10 % to 75 %
BD (Blu-ray Disc)
Reading Speed : 4.917m/sec
DVD (Digital Versatile Disc)
Disc
CD : 5 inches (COMPACT DISC)
CD : 3 1/2 inches (COMPACT DISC)
Composite Video
Video Output
Component Video
Video/Audio
Audio Output
HDMI
Appendix
General
Power Requirements
08
Specifications
Reading Speed : 3.49 ~ 4.06 m/sec.
Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 74 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 20 min.
1 Channel : 1.0 Vp-p (75Ω load)
Blu-ray/DVD Disc : 480i
Y : 1.0Vp-p (75Ω load)
PR : 0.7Vp-p (75Ω load)
PB : 0.7Vp-p (75Ω load)
Blu-ray Disc : 1080i, 720p, 480p, 480i
DVD : 480p, 480i
1080p, 1080i, 720p, 480p
PCM multichannel audio, Bitstream audio
2 Channel
L(1/L), R(2/R)
7.1 Channel
F/L, F/R, R/L, R/R, C/T, S/W, SBR, SBL
Digital Audio Output
Optical
*Frequency Response
48 kHz Sampling : 4 Hz ~ 22 kHz
96 kHz Sampling : 4 Hz ~ 44 kHz
*S/N Ratio
110 dB
*Dynamic Range
100 dB
*Total Harmonic Distortion
0.003%
*: Nominal specification
- Design and specifications are subject to change without prior notice.
- Weight and dimensions are approximate.
English
63
Appendix
Compliance and Compatibility Notice
NOT ALL discs are compatible
• Subject to the restrictions described below and those noted throughout this Manual, including the Disc
Type and Characteristics section of this user manual, disc types that can be played are: pre-recorded
commercial BD-ROM, DVD-VIDEO, and Audio CD (CD-DA) discs; BD-RE/-R, DVD-RW/-R discs; and
CD-RW/-R discs.
• Discs other than the above cannot and/or is not intended to be played by this player. And some of the
above discs may not play due to one or more reasons provided below.
• Samsung cannot assure that this player will play every disc bearing the BD-ROM, BD-RE/-R,
DVD-VIDEO, DVD-RW/-R, DVD+RW/+R and CD-RW/-R logos, and this player may not respond to
all operating commands or operate all features of every disc. These and other disc compatibility and
player operation issues with new and existing format discs are possible because:
- Blu-ray is a new and evolving format and this player may not operate all features of Blu-ray Discs
because some features may be optional, additional features may have been added to the Blu-ray
Disc format after the production of this player, and certain available features may be subject to
delayed availability;
- not all new and existing disc format versions are supported by this player;
- new and existing disc formats may be revised, changed, updated, improved and/or supplemented;
- some discs are produced in a manner that allows specific or limited operation and feature during
playback;
- some features may be optional, additional features may have been added after the production of this
player or certain available features may be subject to delayed availability;
- some discs bearing the BD-ROM, BD-RE/-R, DVD-VIDEO, DVD-RW/-R, DVD+RW/+R and
CD-RW/-R logos may still be non-standardized discs;
- some discs may not be played depending on their physical state or recording conditions;
- problems and errors can occur during the creation of Blu-ray Disc, DVD software and/or the
manufacture of discs;
- this player operates differently than a standard DVD player or other AV equipment; and/or
- for reasons noted throughout this user manual and for other reason(s) discovered and posted by
SAMSUNG customer care center.
• If you encounter disc compatibility or player operation problems, please contact SAMSUNG customer care
center.
You may also contact SAMSUNG customer care center for possible updates on this player.
• For additional information on playback restrictions and disc compatibility, refer to the Precautions,
Before Reading the user manual, Disc Types and Characteristics, and Before Playing sections of this
user manual.
Copy Protection
• Because AACS (Advanced Access Content System) is approved as content protection system for
Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain
restrictions are imposed on playback, analog signal output, etc., of AACS protected contents.
The operation of this product and restrictions on this product may vary depending on your time of
purchase as those restrictions may be adopted and/or changed by AACS after the production of this
product. Furthermore, BD-ROM Mark and BD+ are additionally used as content protection system for
Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM
Mark and/or BD+ protected contents. To obtain additional information on AACS, BD-ROM Mark, BD+,
or this product, please contact SAMSUNG customer care center.
64
English
All content and services accessible through this device belong to third parties and are protected by
copyright, patent, trademark and/or other intellectual property laws. Such content and services are
provided solely for your personal noncommercial use. You may not use any content or services in a
manner that has not been authorized by the content owner or service provider. Without limiting the
foregoing, unless expressly authorized by the applicable content owner or service provider, you may
not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or
distribute in any manner or medium any content or services displayed through this device.
THIRD PARTY CONTENT AND SERVICES ARE PROVIDED “AS IS.” SAMSUNG DOES NOT WARRANT
CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE.
SAMSUNG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED
TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SAMSUNG
DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS
OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO
CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER IN
CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN
CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF ANY
CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
Third party services may be terminated or interrupted at any time, and Samsung makes no representation
or warranty that any content or service will remain available for any period of time. Content and services
are transmitted by third parties by means of networks and transmission facilities over which Samsung
has no control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any
responsibility or liability for any interruption or suspension of any content or service made available
through this device.
Samsung is neither responsible nor liable for customer service related to the content and services.
Any question or request for service relating to the content or services should be made directly to the
respective content and service providers.
English
65
Appendix
Network Service Disclaimer
08
• Many Blu-ray Disc/DVD discs are encoded with copy protection. Because of this, you should only
connect your Player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted
picture from copy-protected Blu-ray Disc/DVD discs.
• This product incorporates copyright protection technology that is protected by U.S. patents and
other intellectual property rights. Use of this copyright protection technology must be authorized by
Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized
by Macrovision. Reverse engineering or disassembly is prohibited.
• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use,
display, distribution, or revision of television programs, videotapes, Blu-ray Discs, DVDs, and other
materials may subject you to civil and/or criminal liability.
• For Blu-ray Disc Player progressive scan output : CONSUMERS SHOULD NOTE THAT NOT
ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND
MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF PROGRESSIVE SCAN
PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO
THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET
COMPATIBILITY WITH THIS PRODUCT, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.
Appendix
License
• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.
• Manufactured under license under U.S. Patent #’s : 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567
& other U.S. and worldwide patents issued & pending. DTS and the Symbol are
registered trademarks, & DTS-HD, DTS-HD Master Audio, and the DTS logos are
trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
• ABOUT DIVX VIDEO : DivX® is a digital video format created by DivX,Inc. This is an official
DivX Certified device that plays DivX video. Visit www.divx.com for more information and
software tools to convert your files into DivX video.
• ABOUT DIVX VIDEO-ON-DEMAND : This DivX Certified® device must be registered in order to play
DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section
in the device setup menu. Go to vod.divx.com with this code to complete the registration process and
learn more about DivX VOD.
• DivX Certified to play DivX video up to HD 1080p, including premium content.
• The product unit accompanying this user manual is licensed under certain intellectual property rights of
certain third parties. This product is covered by one or more of the following U.S. patents: 5,060,220
5,457,669 5,561,649 5,705,762 6,043,912 6,438,099 6,467,061 6,556,521 6,578,163 6,697,307
6,728,474 6,771,891 6,894,963 6,895,593 6,937,815 6,996,327 7,009,926 7,085,221 7,088,649
7,092,327 7,099,566 7,123,564 7,142,493 7,142,495 7,145,861 7,146,624 7,151,729 7,161,879
7,164,647 7,167,437 7,173,891 7,177,250 7,194,187 7,203,891 7,209,423 7,210,067 7,228,062
7,245,566 7,245,567 7,257,065 7,263,045 7,269,110 7,272,086 7,272,106 7,280,460 7,283,729
7,286,454 7,304,938
• This license is limited to private non-commercial use by end-user consumers for licensed contents.
No rights are granted for commercial use. The license does not cover any product unit other than this
product unit and the license does not extend to any unlicensed product unit or process conforming to
ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit.
The license only covers the use of this product unit to encode and/or decode audio files conforming to
the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features
or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
66
English
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and
delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing
defects in materials and workmanship for the following limited warranty period:
One (1) Year Parts / Ninety Days (90) Labor
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United
States, and does not include transportation, installation, removal or reinstallation. Warranty repairs must be performed by
SAMSUNG’s authorized service center. To receive warranty service, the original dated bill of sale must be presented upon
request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. Transportation to and from the service
center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge with new or reconditioned parts, if found to be
defective during the limited warranty period specified above. The product must be returned during the warranty period with
transportation charges prepaid to SAMSUNG’s designated service center. Prior to returning any product for warranty service,
the purchaser must contact SAMSUNG for problem determination and service procedures. SAMSUNG does not warrant
uninterrupted or error-free operation of the product.
All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and
products assume the remaining original warranty, or ninety (90) days, whichever is longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use
of this product and shall not apply to the following, including, but not limited to: damage which occurs in shipment; applications
and uses for which this product was not intended; failures or problems which are caused by products or equipment not supplied
by SAMSUNG; accidents, misuse, abuse, neglect, misapplication, fire, water, lightning or other acts of nature; incorrect electrical
line voltage, fluctuations or surges; damage caused by improper or faulty installation; improper connection with any peripheral;
product alteration or modification; improper or unauthorized repair; cosmetic damage or exterior finish; product with altered serial
numbers; failure to follow operating instructions, customer adjustments, maintenance and environmental instructions that are
covered and prescribed in the instruction book; use of non-SAMSUNG or unauthorized parts, supplies, accessories or equipment
which damage this product or result in service problems; failures or problems due to incompatibility with other equipment.
No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any
manner whatsoever. The time within which an action must be commended to enforce any obligations of SAMSUNG arising under
the warranty or under any statute, or law of the United States or of any state thereof, is hereby limited to ninety (90) days from the
date you discovered or should have discovered the defect. This limitation does not apply to implied warranties arising under state
law, if any.
SAMSUNG does not warrant (i) disc compatibility with new and existing format discs or (ii) error free playback in full compliance
with specifications of the compatible disc formats, and SAMSUNG shall not be liable for any data loss recorded in your discs.
SAMSUNG’s responsibility shall be limited to appropriate warranty services during the warranty period through SAMSUNG
customer care center. If you encounter compatibility or data loss problems, please contact SAMSUNG customer care center.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES
WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED
ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF
REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF
THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE
PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING
THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND
PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY
TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS
LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS
NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights,
and you may also have other rights which vary from state to state.
To obtain warranty service, please contact SAMSUNG customer care center.
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
Region
North America
Latin America
Europe
CIS
Asia Pacific
Area
Canada
Mexico
U.S.A
Argentine
Brazil
Chile
Nicaragua
Honduras
Costa Rica
Ecuador
El Salvador
Guatemala
Jamaica
Panama
Puerto Rico
Rep. Dominica
Trinidad & Tobago
Venezuela
Colombia
Contact Center 1-800-SAMSUNG (726-7864)
01-800-SAMSUNG (726-7864)
1-800-SAMSUNG (726-7864)
0800-333-3733
0800-124-421, 4004-0000
800-SAMSUNG (726-7864)
00-1800-5077267
800-7919267
0-800-507-7267
1-800-10-7267
800-6225
1-800-299-0013
1-800-234-7267
800-7267
1-800-682-3180
1-800-751-2676
1-800-SAMSUNG (726-7864)
0-800-100-5303
01-8000112112
Belgium
02 201 2418
Czech Republic
Denmark
Finland
France
Germany
Hungary
Italia
Luxemburg
Netherlands
Norway
Poland
Portugal
Slovakia
Spain
Sweden
U.K
Eire
Austria
800-SAMSUNG (800-726786)
8-SAMSUNG (7267864)
30-6227 515
01 4863 0000
01805-SAMSUNG (726-7864 € 0,14/Min)
06-80-SAMSUNG (726-7864)
800-SAMSUNG (726-7864)
02 261 03 710
0900-SAMSUNG (0900-7267864) (€ 0,10/Min)
3-SAMSUNG (7267864)
0 801 1SAMSUNG (172678), 022-607-93-33
80820-SAMSUNG (726-7864)
0800-SAMSUNG (726-7864)
902-1-SAMSUNG (902 172 678)
0771 726 7864 (SAMSUNG)
0845 SAMSUNG (7267864)
0818 717 100
0810-SAMSUNG (7267864, € 0.07/min)
Switzerland
0848-SAMSUNG (7267864, CHF 0.08/min)
Russia
Kazakhstan
Uzbekistan
Kyrgyzstan
Tadjikistan
8-800-555-55-55
8-10-800-500-55-500
8-10-800-500-55-500
00-800-500-55-500
8-10-800-500-55-500
Ukraine
8-800-502-0000
Belarus
Moldova
Lithuania
Latvia
Estonia
Australia
New Zealand
China
810-800-500-55-500
00-800-500-55-500
8-800-77777
8000-7267
800-7267
1300 362 603
0800 SAMSUNG (0800 726 786)
400-810-5858, 010-6475 1880
Hong Kong
3698-4698
India
Indonesia
Japan
Malaysia
3030 8282, 1800 110011, 1800 3000 8282
0800-112-8888
0120-327-527
1800-88-9999
1-800-10-SAMSUNG (726-7864), 1-800-3-SAMSUNG (726-7864),
1-800-8-SAMSUNG (726-7864), 02-5805777
1800-SAMSUNG (726-7864)
1800-29-3232, 02-689-3232
0800-329-999
1 800 588 889
444 77 11
0860-SAMSUNG (726-7864 )
800-SAMSUNG (726-7864), 8000-4726
Philippines
Middle East &
Africa
Singapore
Thailand
Taiwan
Vietnam
Turkey
South Africa
U.A.E
Web Site
www.samsung.com/ca
www.samsung.com/mx
www.samsung.com/us
www.samsung.com/ar
www.samsung.com/br
www.samsung.com/cl
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com.co
www.samsung.com/be (Dutch)
www.samsung.com/be_fr (French)
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com/fr
www.samsung.de
www.samsung.com/hu
www.samsung.com/it
www.samsung.com/lu
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.com/sk
www.samsung.com/es
www.samsung.com/se
www.samsung.com/uk
www.samsung.com/ie
www.samsung.com/at
www.samsung.com/ch
www.samsung.com/ch_fr/ (French)
www.samsung.ru
www.samsung.com/kz_ru
www.samsung.com/kz_ru
www.samsung.ua
www.samsung.com/ua_ru
www.samsung.com/lt
www.samsung.com/lv
www.samsung.com/ee
www.samsung.com/au
www.samsung.com/nz
www.samsung.com/cn
www.samsung.com/hk
www.samsung.com/hk_en/
www.samsung.com/in
www.samsung.com/id
www.samsung.com/jp
www.samsung.com/my
www.samsung.com/ph
www.samsung.com/sg
www.samsung.com/th
www.samsung.com/tw
www.samsung.com/vn
www.samsung.com/tr
www.samsung.com/za
www.samsung.com/ae
QUESTIONS OR COMMENTS?
COUNTRY
CALL
OR VISIT US ONLINE AT
WRITE
IN THE US
1-800-SAMSUNG
(7267864)
www.samsung.com
Samsung Electronics America, Inc.
105 Challenger Road Ridgefield Park,
NJ 07660-0511
AK68-01859A
