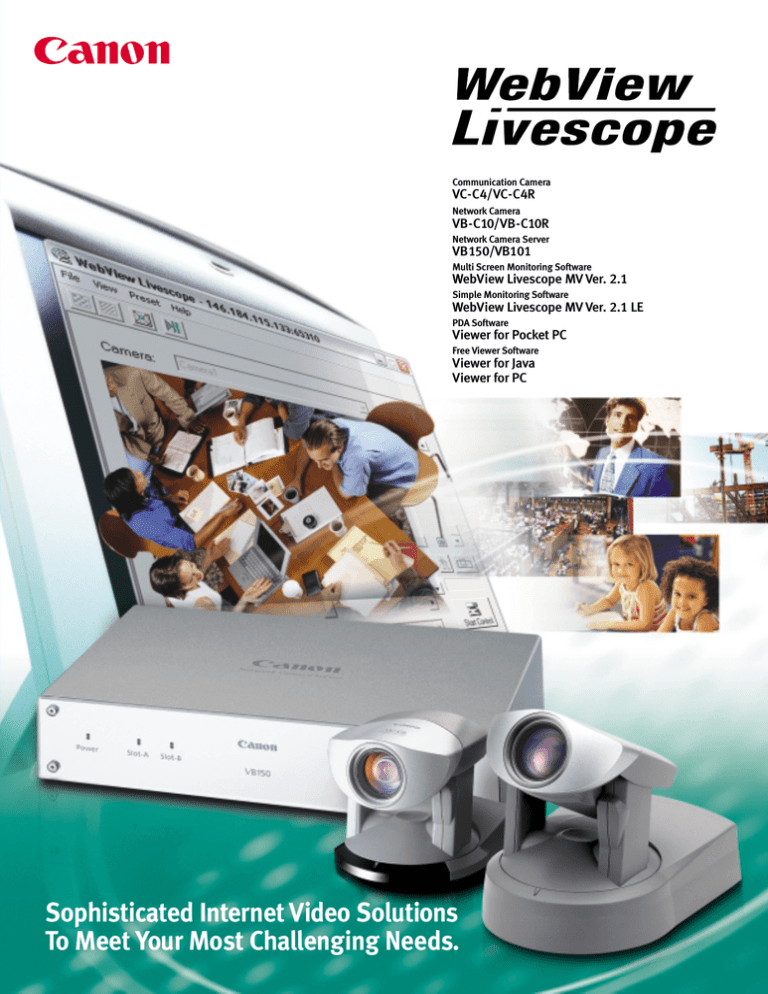

Canon WebView LivescopeMV Specifications

Communication Camera
VC-C4/VC-C4R
Network Camera
VB-C10/VB-C10R
Network Camera Server
VB150/VB101
Multi Screen Monitoring Software
WebView Livescope MV Ver. 2.1
Simple Monitoring Software
WebView Livescope MV Ver. 2.1 LE
PDA Software
Viewer for Pocket PC
Free Viewer Software
Viewer for Java
Viewer for PC
Sophisticated Internet Video Solutions
To Meet Your Most Challenging Needs.
Usher in a new era in live broadcast technology.
By combining well-known expertise in optics with the latest advances in networking, Canon has
developed a powerful way to transmit high-quality video images through the Internet or a LAN.
From teleconferencing to surveillance, top-quality broadcasting without expert training and installation
is now possible.
Bringing Canon lens
technology to the modern
network.
With wide-ranging pan/tilt/zoom capabilities
that can be remotely controlled from a network
or the Internet, you can ensure the images you
desire will be captured. Broadcasting live video
or still images captured with the network cameras
is even easier, since standard HTTP protocol is
used. With transmission speeds of up to 30 fps,
Canon’s network camera server products make
live Web broadcasting a reality.
Centralized controls
make maintenance easy.
As with all Canon camera products, the advanced
network cameras feature high-end image quality,
thanks to a bright, 16x optical zoom lens featuring
410,000 pixels.
The possibilities are
endless.
Not sure of how to use the WebView system?
Here are a few different applications, addressing
a diverse set of needs – from strictly business to
personal.
Teleconferencing
Conduct high quality video teleconferencing
with colleagues and clients around the world.
Convenience and value are maximized through
a Web-based system.
Most impressively, this system can be fully
managed through a centralized server. The camera’s
pan, tilt, and zoom, image quality and capture
rate are some of the many features that can be
remotely controlled through the Web browser.
Network errors and server access information are
also automatically logged in a file on the server,
allowing easy maintenance.
Professional look and feel,
but simple to install.
Because of its sleek, lightweight casing, the discreet
network cameras are well-suited for the modern
business setting. Two models (VC-C4R and
VB-C10R) are designed for ceiling
mounts, which make them well suited
for security and other surveillance
applications. Finally, through our
Web-based program, you’ll be able to
connect your Canon network cameras
in minutes.
Network Camera
VB-C10
Teleconferencing using Viewer for PC
Telemedicine
offer higher quality healthcare and optimize your
hospital’s medical resources by using telemedicine
to consult with other physicians, respond to
urgent questions, or monitor patients around the
clock. WebView provides all the flexibility you
need to meet your special needs.
Introducing Canon’s WebView Livescope System.
CAMERA
VC-C4
VC-C4R
VB-C10
VB-C10R
Distance Learning
Broadcast lectures and classroom sessions to
distance learning students. WebView’s crisp
images and superior camera control will enable
students to read lecture notes just as if they
were seated in
the front now.
Communication
Camera VC-C4R
NETWORK CAMERA SERVER
Special Events
Share life’s most special events with extended
family and friends through live video transmission.
WebView’s ease
of use promises
to make it simple
for you to reach
out to loved ones.
VB150
VB101
INCLUDED SOFTWARE
Security
Protect your employees at the office or loved ones
at home by keeping track of area activity. Discretion
is guaranteed with WebView’s sleek and professional look.
Webcasting
Broadcast speeches and conferences to multiple
authorized online viewers who are unable to attend
your event.
WebView’s fast
and clear transmission will
make your webcasts a quality
service.
VB Collector
VB Administration Tools
OPTIONAL SOFTWARE
Promotional
Security monitoring using
WebView Livescope MV Ver. 2.1 LE
Promote tourist destinations, amusement parks
and more through online live videos to educate
and attract new customers. WebView’s fast and
clear transmission is sure to please your prospective consumers.
WebView Livescope
MV Ver. 2.1
WebView Livescope
MV Ver. 2.1 LE
Factory Monitoring
Boost efficiency and catch production line problems
early by monitoring utilization, cycle time and
more. Canon’s superior camera control will help
you take your
factory to the
next level.
Viewer for Pocket PC
(Available in single or five license pack)
Free Viewer Software
Tourist promotion using Viewer for Java
Viewer for Java
Viewer for PC
CAMERA
COMMUNICATION CAMERA
Up to nine cameras can be daisy chained and
operated from one (addressable) I/R controller or
your PC (via RS-232).*
* Custom Programming required.
VC-C4 / VC-C4R
Max. 9 Clients
VC-C4 or VC-C4R
Advanced Processing
Intelligent image processing enables the VC-C4’s
codec to achieve higher compression performance
for crisp, robust images.
Unsurpassed Flexibility
The VC-C4 can be used over a LAN, Intranet, or
Internet.* It can also connect to a standard television
or monitoring system by using the built-in S-Video
and Composite Video terminals. The VC-C4R offers all
the benefits of the VC-C4, but designed to be ceilingmounted. It is ideal for applications that require
discreet, unobtrusive positioning. * Requires VB101.
The lightest and most sophisticated remote
control camera.
CAMERA
Lightweight, but Packed with
Advanced Optics
Featuring a 410,000 pixel CCD and state-of the art
electronics, the VC-C4 delivers the highest quality
video images. And a Canon precision 16x zoom lens
is controlled by a high-speed auto-focus engine.
Weighing less than a pound, it is the smallest
remote controlled camera
in its class.
Superior Control
With a precision pan/tilt mechanism that minimizes
shaking and vibration, the VC-C4’s camera angle
can be used in almost any environment. A wide
range of on-screen controls and a 32-button I/R
controller makes the pan/
tilt/zoom easy to control.
Compatibility Viewer
VC- C4
VC-C4R
Pan 200°
Pan 340°
Nomenclature
Tilt 60°
•Up 30° •Down 30°
q
Tilt 100°
•Up 10° •Down 90°
Range of Camera Head Movement
w
e
r
t
q DC In Terminal w S Video Out Terminal
e Composite Video Out Terminal r RS-232C Out Terminal
t RS-232C In Terminal
NETWORK CAMERA
SERVER
VB-C10 / VB-C10R
Built-in Server Capabilities
With a built-in Web and FTP server, you can transmit
video and still images through the Web. Video can
be transmitted up to 20 clients simultaneously.
VB-C10
VB-C10R
Internet
Max. 20 Clients
Automatic Image Capturing
The VB-C10 can capture up to 5MB of still images,
either schedule-based or sensor-activated. The recording interval can be set from 0.1-1 seconds (in 0.1
second intervals). Up to 99 images can be captured
and stored before and after sensor-activation.
SOFTWARE
Simple to use, compact and affordable. The ideal
network camera with a built-in network server.
Compact, Sleek Casing
CAMERA
Superior Optics with Pan/Tilt/Zoom Control
To satisfy all of your imaging needs,
the VB-C10/VB-C10R feature
Canon’s high precision 16x optical
zoom lens. With 410,000 pixels,
images are crisp and bright. Wideranging pan and tilt angles are made possible by a
fast, vibration-free engine, thus allowing wide areas
to be captured. Restrictions on camera angles and
zoom magnifications can be set to prevent viewers
from seeing certain areas to protect privacy.
Bundled Software Adds Value and
Performance
Packaged with the VB-C10 is a full suite of
administration and application software, providing
flawless operation and userfriendly functionality.
The VB-C10 is a mere 1.4 lbs and 5.6 inches deep,
allowing it to be installed in tight spaces. The
interface is a standard Ethernet connection (RJ45,
10/100 Mbit auto-negotiation). Simply connect a
LAN cable and a power supply, and the unit can
distribute live videos from any location. The VB-C10R
includes a ceiling mounting plate, making it ideal
for surveillance-type applications.
High Image Quality and Transfer Rate
Depending on your network environment, live images
can be captured smoothly up to 30 frames per second. Motion-JPEG is used for image compression.
For added flexibility, video image size, quality and
capture rate can be easily set by the transmitter.
VB Administration Tools
VB Collector
Compatibility Viewer
Nomenclature
30 fps
q
w
e
q DC In Terminal w Sensor Input/Relay Output
e 100/10 BT Ethernet Terminal
Set restrictions using the View Restriction Tool
SERVER
Network Camera Server
Superior Server Features
The VB150/VB101 has a built-in Web server and
FTP server. User access can be restricted using
user name/password or IP address. Up to 50 clients
can view video simultaneously with a single VB150
(40 with the VB101). The number of simultaneous
client access can be set in advance based on
your network bandwidth. To maintain network
connection, the server can be set to send periodic
data packets.
VB150 / VB101
Makes Changes Remotely
All it takes is a PC and a standard Web browser to
adjust settings or perform administrative tasks.
This means you
have total control
over the
VB150/VB101,
from anywhere in
the world.
VB150
Create and Host Exciting Web Pages
Perfect for applications requiring Internet-based
video transmission or monitoring.
High Quality Images and High Frame Rate
Flexibility and Control
The VB150/VB101 is capable of capturing videos
up to 30 fps. Motion-JPEG is used to compress
video images. Since the video quality (from 1 to
99) and frame rate (from 0.1 to 30 fps) can be
freely set, video can be adjusted to best suit the
network environment.
The full camera range can be created and saved as
a panorama picture. Since frames are used to visually
set the camera angle and zoom magnification, it is
easy to set view restrictions and presets.
VC-C4R
VC-C4
Maximum range (horizontal)
Expandability
Controllable
VC-C4
Extent of control
Up to four VC-C4 and VC-C4R cameras can be
connected and controlled. When the VB150 is
used in conjunction with Canon’s Webview
Livescope 2.1 or 2.1 LE software, up to four live
camera views can be simultaneously displayed
on one screen – a big plus for security monitoring.
Field of view at the maximum wide-angle setting
Maximum range (vertical)
Connect Up to 4 Cameras
VC-C4R
VB150/VB101
Example of 2 cameras cascade connected to 2 camera control connectors
Acting as a high-quality Web
Server, Web page content can
be stored on a flash memory card,
allowing high-impact, interactive
content to be transmitted via the Web at any time.
Interactive video streaming will add great value to
your site, and
enhance the
viewers’ on-line
experience.
The VB150/VB101 automatically switches
between Ethernet 100 and 10 mbps, allowing
smooth, high-speed communication. Two built-in
PCMCIA card slots are available for attaching a
dial-up modem card or flash memory card.
Captured images may be saved, then forwarded
to preset e-mail addresses.
Interactive Video Streaming
using Viewer for PC
No Computer Required
Acting as a stand-alone server, the VB150/VB101
operates without a computer. Simply configure the
VB150/VB101, connect your camera and data line,
and start Webcasting. Weighing less than 3
pounds, it is unobtrusive and operates smoothly
and effectively, without getting in the way.
Automatic Image Capture System
The VB150/VB101 can be easily adapted for home
or office security applications. Trigger sensors on
a door, window, or light switch, can be attached
to the VB150/VB101’s IN/OUT device terminals.
When an event takes place, such as the opening
of a door, still images can be automatically
recorded. In addition, images may be captured
based on a predetermined schedule.
INCLUDED SOFTWARE
The VB150 Network Camera Server offers the
following additional features for enhanced
performance and expert operation.
Wireless (802.11b) Capability
Simply insert a wireless LAN card into the VB150’s
PCMCIA card slot and transmit data – without
connecting a long network cable. Wireless means
you also have the freedom to place the VB150
virtually anywhere.
VB Administration Tools
Canon software provides the administrator with
unrestricted control and unprecedented ease.
Special Privileges
The Administration Tools software offers numerous
ways to successfully manage the VB150, VB101
and VB-C10 system. In contrast to the Viewer for
PC software or the Viewer for Java, Administration
Viewer delivers a superior level of control. Those
using the Administration Viewer may connect
beyond the preset service times. Once connected,
administrators do not have to adhere to the
preset time limit. Any pending control requests
are temporarily suspended. Viewing restrictions
set by the Viewing Restriction Tool can also be
ignored, giving administrators freedom to pan,
tilt, and zoom as much as they choose. They are
also informed when the status of an external
device has changed (such as a window opening).
When used with the VB150, a setup tool for the
motion detection feature is also available.
Built-in Motion Detection
The VB150 can detect image changes caused by
people or objects. Based on these changes, it can
capture pictures, send data to control external
devices, or record data in a log. Various settings such
as detection
area, sensitivity,
duration, and
area ratio can be
made by using
the supplied
software.
Easy Setup
Initial setup is quick and easy by using a standard
(RJ-45) Ethernet connection.
Compatibility Viewer
VB Collector
Nomenclature
Automatically collect, store, and manage
still images.
Effortless Still Image Capture
q
w
e
q Card Slot A and B
w DC Terminal
e External Device I/O
Terminals
r 100/10 BT Ethernet
Connector
r t
y
u
i
t Console Connector Terminal
(VB101 only)
y Camera Control Connectors
u Video Input Terminals
(Composite)
i Video Input Terminals (BNC)
VB101 with optional
Communication Camera VC-C4
Downloaded Image Display
VB Collector software is used to view pictures
recorded by the VB150, VB101, and VB-C10.
With VB Collector, you can collect and display
still images based on inputs from an external
device or schedules. It monitors the Network
Server at specific times (such as dates, weeks, or
months), then downloads the recorded images
to a PC. With the VB150, images stored on a
memory card can be saved to a hard drive on a
remote computer. Since images are saved in the
PC which has the VB Collector software installed,
or a designated PC (with VB150), they can be
securely saved when the Network Camera Server
exceeds its storage capacity. The VB101 can
store up to 10,000 images (32Kb each), while
the VB150 can store up to 30,000 images
(128Kb each). Downloaded images can also be
easily viewed in the Web browser.
OPTIONAL SOFTWARE
Supports Advanced VB150 Features
Besides taking advantage of the VB150’s live,
simultaneous camera display function, the software
incorporates Motion Detection and network drive
storage of captured images.
Pick The Monitoring Screen
That’s Right For You
MV Manager features a Monitoring Screen Wizard,
allowing you to choose the perfect screen design
to suit your needs from a wide selection of screen
templates. The number of cameras and servers you
are using are reflected in the design.
United Type
Camera Source
Window
Panorama
Window
Type A
Camera Control
Panel
Create a high quality remote monitoring
environment that is ideally suited to your
business needs.
Type A
Seamless Image Management
and Display
By creating a monitoring
screen using MV Manager,
you can simultaneously
display up to sixteen
cameras, view a layout
map with camera locations, and automatically
switch between displays.
16 Multiple Views
Automatic camera position changes and camera server
information displays are right at your fingertips.
When the VB150 is used, all camera locations can
be displayed live on one screen.
Capturing, viewing and saving images has never
been easier. VB ImageBrowser allows you to download still images from the camera server, compare
and display differences between consecutive
images, view all images
as thumbnails, and
more. Animated replays
and electronic zoom
are also possible.
Example 2
1
2
2
1
3
3
4
4
Example 3
5
6
Example 4
1
2
3
4
5
6
7
8
1
2
9
10
11
12
3
4
5
6
13
14
15
16
7
8
9
10
Examples of Monitoring Screen
Type B
Flexible Monitoring Settings
Simultaneously Monitor Up to
16 Locations per Display
Example 1
Type B
Separated Type
VB Image Browser
Interface with External Devices
When an input from an external device is triggered
(such as a door opening), an automatic alert feature
relays this message to the
MV Station. The viewer
may be alerted by one of
the following options: a
pop-up of the image, a
flashing of the existing
display, or a voice.
Choose between video relay, automatic rotation
and autoswitch modes.
• Video relay
Allows users to relay between video and still images
when multiple cameras are connected to a single
camera server.
• Automatic rotation
Follows a preset rotation schedule for up to
eight locations.
• Autoswitch
Enables you to automatically switch the display
between cameras and camera servers.
Monitor from Multiple Sites
The monitoring screen created by the MV Manager
can be shared by multiple MV Stations if placed in a
common directory location.
MV Manager
• Create Customized Monitor Screens
• Centralized Control of Several Camera Servers
MV Station
• View Cameras in Multiple Locations
• Download, View, Save, and Manage Still
Images Recorded in the Camera Server
• One Copy Included with MV Manager. Additional
licenses are required for use on other computers.
WebView Livescope MV 2.1 LE is a light version
of MV 2.1. It is perfect for those who only need
to view four cameras on one screen.
Simultaneously Display Four Cameras
Easy-to-use and affordable monitoring software.
Choose between three settings: one view window
(large), one view window (medium) and four view
windows. By clicking on the camera control panel
or display area, you can control the camera’s pan,
tilt, and zoom functions.
Easy Camera Server Registration
A built-in search feature automatically locates
camera servers on the same network, making
registration a snap.
View Window
One View Window
(Medium)
Four View Window
Camera Control
Panel
Panorama
Window
One View Window (Large)
Viewer for
Pocket PC
Experience all the benefits of Viewer for PC from
the comfort of your PDA! Canon’s exclusive
Viewer for Pocket PC allows you to access and
control your network cameras right from the palm
of your hand. The software supports a wide variety
of Windows CE based and Pocket PC handheld
computers. It is available in a single or five
license pack.
Free Viewer Software
Maximize the number of people who can view live
videos through WebView Livescope.
Viewer for Java
Viewer for PC
Allows video from the VB150, VB101 or VB-C10
to be displayed on a standard (Java-based) Web
browser. It is automatically downloaded and does
not need to be pre-installed. This viewer is perfect
for any business or educational application.
Viewer for PC is a pre-installed viewing application.
In contrast to the Viewer for Java, it offers faster
start-up and a higher video frame rate. It is ideal
for those who plan to view frequently.
EXAMPLE OF SYSTEM CONFIGURATION
Canon offers complete, intelligent solutions for Webcasting, security
monitoring, and distance learning. Internet Video allows you to communicate
more effectively, provides peace of mind, and offers the benefit of live,
streaming information. Whether your application takes you across the yard,
or around the world, Canon possesses the technology, sophistication, and
expertise to put it all together.
Network Camera VB-C10/VB-C10R
LAN-connected
Internet-connected
VB-C10R
Web Server
VB-C10
Viewer PC
Router
Router
VB-C10
Router
LAN
Viewer PC
Internet
ISDN
Viewer PC
Viewer PC
Network Camera Server VB150 or VB101
LAN-connected
Internet Service Provider
VB150
or
VB101
VB150
or
VB101
VC-C4R
VC-C4
Dial-up
LAN + Dial-up
Web Server
VB150
or
VB101
VC-C4
LAN
Router
Router
Router
PHS
PHS
ISDN
Viewer PC
Viewer PC
WebView Livescope MV Ver. 2.1 LE
WebView Livescope MV Ver. 2.1
VC-C4R
VC-C4
Monitoring Two
VB150
or
VB101
VC-C4R
Ethernet
(10/100Mbps)
VC-C4R
Router
VC-C4
Viewer PC
Viewer PC
Viewer PC
Monitoring One
LAN
VC-C4
VC-C4
Internet
Viewer PC
VB150
or
VB101
VC-C4R
VC-C4
VC-C4R
VC-C4
Monitoring One
VB150
or
VB101
VC-C4R
Ethernet
(10/100MBPS)
VC-C4
VB150
or
VB101
Ethernet
(10/100Mbps)
Router
VB-C10R
VB-C10
VB-C10R
WebView Livescope MV Ver.2.1
VB-C10
VC-C10R
WebView Livescope MV Ver.2.1
VC-C10
WebView Livescope MV Station
Ver.2.1 License
WebView Livescope MV Ver. 2.1 LE
SPECIFICATIONS
SPECIFICATIONS
VB-C10/VB-C10R
VC-C4/VC-C4R
VB101
VB150
Image Sensor: 410,000 pixels (380,000 effective)
Zoom: 16x optical
Minimum Object Brightness: 6 lux
Pan Angle Range: VB-C10: 200°, VB-C10R: 340°
Tilt Angle Range: VB-C10: 120°, VB-C10R: 100°
Network: Ethernet 10M/100 (auto negotian)
Protocol: TCP/IP, http, BOOTP, FTP, NTP
Capture Frame Rate: 30 fps (320 x 240)
Video Capture Sizes: 160 x 120, 320 x 240, 640 x 480
Video Compression Method: M-JPEG (video), JPEG
(still images)
Simultaneous Client Access: 20 (max.)
Compatible Viewers: Java Viewer Ver. 3.2, Helper Viewer
Ver. 3.2, Administration Viewer, WebView Livescope MV
Ver. 2.1, WebView Livescope MV 2.1 LE
Server Functions: WWW, FTP
Video Transmission Rate: 0.1 to 30 fps (variable)
Connection Limitation: Using software management
tools
Setting for Camera Control Privileges: Using software
management tools
View Restriction: Using software management tools
Camera Angle Presets: 8 positions
Home Position Function: Using software management
tools
External Device I/O: Included, 1/1
Recording Capacity: Approx. 5MB (JPEG)
Picture Recording: Schedule/sensor
Output to External Device: Manual
Display and Management of Stored Images: VB
Collector, WebView Livescope MV Ver. 2.0
Dimensions, W x D x H (VB-C10): 4.2 x 5.6 x 4.4 in.
(106 x 143 x 111mm)
Weight (VB-C10): 1.4 lb. (645g)
Power Supply: AC adapter (100-240V, 50/60Hz)
included, power consumption 15W or less, DC
11.5V-14V
Image Sensor: 410,000 pixels (380,000 effective)
Zoom: 16x optical
Minimum Object Brightness: 6 lux (2 lux at gain-up
mode)
Pan Angle Range: VC-C4:+/-100 degrees, VC-C4R:+/
-170 degrees
Tilt Angle Range: VC-C4: +90/-30 degrees, VC-C4R:+10/
-30 degrees
Video Standard: NTSC
TV-Line: 460 TV L
SNR: 48 dB
Horizontal, Field of View: 3 to 47.5 degrees (65 degrees
with Wide angle lens adapter)
White Balance: Auto
Exposure: Auto/manual
Focus: Auto/manual
Focus Length: 4 to 64mm, f/1.4 to 2.8
Pan Speed: 1 to 90 degrees/sec
Tilt Speed: 1 to 70 degrees/sec
Menu Mode by Super Impose: Camera setting, Display
setting, etc.
Camera Angle Presets: 9 positions
Controllable # by one IR: 9 units
Cascade Control: 9 units
Control: RS232 serial, RTS/CTS has to be active (Up to
19.2kbps)
Dimensions, W x D x H: 4 x 4.48 x 3.58 in.
(102 x 114 x 91mm)
Weight: VC-C4: 0.83 lbs. (375g), VC-C4R: 0.96 lbs. (435g)
Power: 13V, 12W
Operating Temperature: 32°F to 104°F (0°C to 40°)
Operating Humidity: 20-85% non-condensing
SOFTWARE
OS: DRYOS (Canon Realtime OS)
Protocol: TCP/IP, HTTP, BOOTP, FTP, SMTP
Image: Compression Technique Motion-JPEG (Image
quality range 1-99), JPEG (for still images)
Image Compression Rate: 0.1-30 fps (variable)
Output Image Size: 160 x 120, 320 x 240, 640 x 480
Display Image Size: 80 x 60, 160 x 120, 320 x 240,
640 x 480, and full screen size
Http Server: Apache 1.3.0 Subset
Log Management: Syslog (mail, ftp, flash memory
recording possible)
Camera Control Operations: Pan, tilt, zoom, brightness,
shutter speed etc.
(compatible cameras: Canon VC-C4/VC-C4R/VC-C3) field-ofview, control time, number of camera control participants.
Network Operations: Access restriction (password/host),
video connection time.
Image Storage: Flash memory card (optional)
Simultaneous Client Access: 40 (Max.)
SOFTWARE
OS: DRYOS (Canon Realtime OS)
Protocol: TCP/IP, HTTP, BOOTP, FTP, SMTP
Image: Compression Technique Motion-JPEG (Image
quality range 1-99), JPEG (for still images)
Image Compression Rate: 0.1-30 fps (variable)
Output Image Size: 160 x 120, 320 x 240, 640 x 480
Display Image Size: 80 x 60, 160 x 120, 320 x 240,
640 x 480, and full screen size
Http Server: Apache 1.3.0 Subset
Log Management: Syslog (mail, ftp, flash memory
recording possible)
Camera Control Operations: Pan, tilt, zoom, brightness,
shutter speed etc.
(compatible cameras: Canon VC-C4/VC-C4R/VC-C3) field-ofview, control time, number of camera control participants.
Network Operations: Access restriction (password/host),
video connection time.
Image Storage: Flash memory card (optional)
Simultaneous Client Access: 50 (Max.)
INTERFACE
Image Input: 4 Inputs (BNC x 2, RCA x 2; NTSC/PAL)
Serial Ports: RS-232C x 3 (mini DIN 8, for camera use
x 2, for initial setting x 1)
Networking: Ethernet x 1 (RJ45, 10 Base T/100 Base TX
auto-negotiation)
Expansion Slots: PCMCIA Type II (5V) x 2
Output Image Size: 160 x 120, 320 x 240, 640 x 480
Display Image Size: 80 x 60, 160 x 120, 320 x 240,
640 x 480, and full screen size
Display LEDs: Power On/Off, network status, PCMCIA
status display
INTERFACE
Image Input: 4 Inputs (BNC x 2, RCA x 2; NTSC/PAL)
Serial Ports: RS-232C x 2 (mini DIN 8, for camera use)
Networking: Ethernet x 1 (RJ45, 10 Base T/100 Base TX
auto-negotiation, wireless LAN (1 PC card slot used)
Expansion Slots: PCMCIA Type II (3.3V/5V) x 2
Output Image Size: 160 x 120, 320 x 240, 640 x 480
Display Image Size: 80 x 60, 160 x 120, 320 x 240,
640 x 480, and full screen size
Display LEDs: Power On/Off, network status, PCMCIA
status display
PHYSICAL
Dimensions, W x D x H: 9 x 6 x 2 1/16 in.
(248 x 165 x 52mm) (base unit only)
Weight: 2 lbs. 10 oz./1300g (base unit only)
Operating Conditions: F:32-104 degrees (C:0-40) 20-85%
RH (non-condensing)
Regulation: FCC part 15 Class B
Power Source: AC adapter (100-240 V, 50/60 Hz) included,
power consumption 25 W or less.
PHYSICAL
Dimensions, W x D x H: 9 x 6 x 2 1/16 in.
(248 x 165 x 52mm) (base unit only)
Weight: 2 lbs. 10 oz./1300g (base unit only)
Operating Conditions: F:32-104 degrees (C:0-40) 20-85%
RH (non-condensing)
Regulation: FCC part 15 Class B
Power Source: AC adapter (100-240 V, 50/60 Hz) included,
power consumption 25 W or less.
SYSTEM REQUIREMENTS
WebView Livescope MV 2.1 Manager
WebView Livescope MV 2.1 Station
WebView Livescope MV 2.1 LE
CPU: Pentium III 600 MHz or better
Operating System: Windows Me/Windows 2000 (Service Pack 1.0, 2.0, 3.0 )
/Windows XP
Web Browser: Internet Explorer 5.0, 5.01, 5.01 (service pack 1, 2) 5.5, 5.5 (service
pack 1, 2) 6.0, 6.0 (service pack 1)
Memory: 128 MB or better
Hard Disk: Available space of 50 MB or better
Monitor: XGA (1,024 x 768) or better with high-resolution 16-bit color
display or better
CPU: Pentium III 600 MHz or better
Operating System: Windows Me/Windows 2000 (Service Pack 1.0, 2.0, 3.0)
/Windows XP
Web Browser: Internet Explorer 5.0, 5.01, 5.01 (service pack 1, 2) 5.5, 5.5 (service
pack 1, 2) 6.0, 6.0 (service pack 1)
Memory: 128 MB or better
Hard Disk: Available space of 50 MB or better
Monitor: SVGA (800 x 600) or better with high-resolution 16-bit color
display or better
CPU: Pentium III 600 MHz or higher
Operating Systems: Windows Me/Windows 2000 Professional or later/Windows XP
Web Browser: Internet Explorer 5.0, 5.01, 5.01 (service pack 1, 2) 5.5, 5.5 (service
pack 1, 2) 6.0, 6.0 (service pack 1)
RAM: 128 MB or higher
Hard Disk: Available space of 20 MB or better
Display: XGA (1,024 x 768) or better
Viewer for Java
Viewer for PC
Viewer for Pocket PC
Web Browser: Java supported Web browser.
• Microsoft Internet Explorer 5.0, 5.01, 5.01 (service pack 1, 2) 5.5, 5.5 (service
pack 1, 2) 6.0, 6.0 (service pack 1)
• Netscape Navigator or Communicator 4.78 or later recommended.
Computer: IBM PC/AT Compatible
Operating System: Windows 98 Second Edition, Windows Me, Windows 2000,
Windows XP
Web Browser: Java supported Web browser.
• Microsoft Internet Explorer 5.0, 5.01, 5.01 (service pack 1, 2) 5.5, 5.5 (service
pack 1, 2) 6.0, 6.0 (service pack 1)
• Netscape Navigator or Communicator 4.78
Computer: IBM PC/AT Compatible
Operating System: Windows 98 Second Edition, Windows Me, Windows 2000,
Windows XP
Operating System: Windows CE 3.0 for Pocket PC 2002
* This viewer is installed in the camera server and automatically downloads to the client
when accessed.
* Operation is unstable when used with an OS or Web browser other than those noted above.
* Must be installed in advance from the CD-ROM supplied with the camera server.
COMPARISON CHART OF VIEWER SOFTWARE
Maximum Number of Servers
Maximum Number of Cameras per Screen
Save Camera Internet Location
Pan/Tilt/Zoom Control
Preset Selection
Custom Background Display
Focus Set
Trigger External Relay
Sensor Receive Notification
Automatic Search of Units on Network
Drag and Drop Server Views
WebView LiveScope MV 2.1*
100
16/template, unlimited templates
Yes
Yes
Yes, Manual and Automatic
Yes
Wide/Infinity/Auto
Yes
Yes
Yes
Yes
WebView LiveScope MV Station**
Template viewing only
*Includes one license for MV Station. **Requires MV Ver. 2.1 for template creation. Errors and omissions excepted.
WebView LiveScope MV 2.1 LE
4
4
Yes
Yes
No
No
Wide/Infinity/Auto
No
Yes
Yes
No
Viewer for PC
1
1
Yes
Yes
Yes, Manual
No
No
No
No
No
No
Viewer for Pocket PC
1
1
Yes
Yes
Yes, Manual
No
No
No
No
No
No
