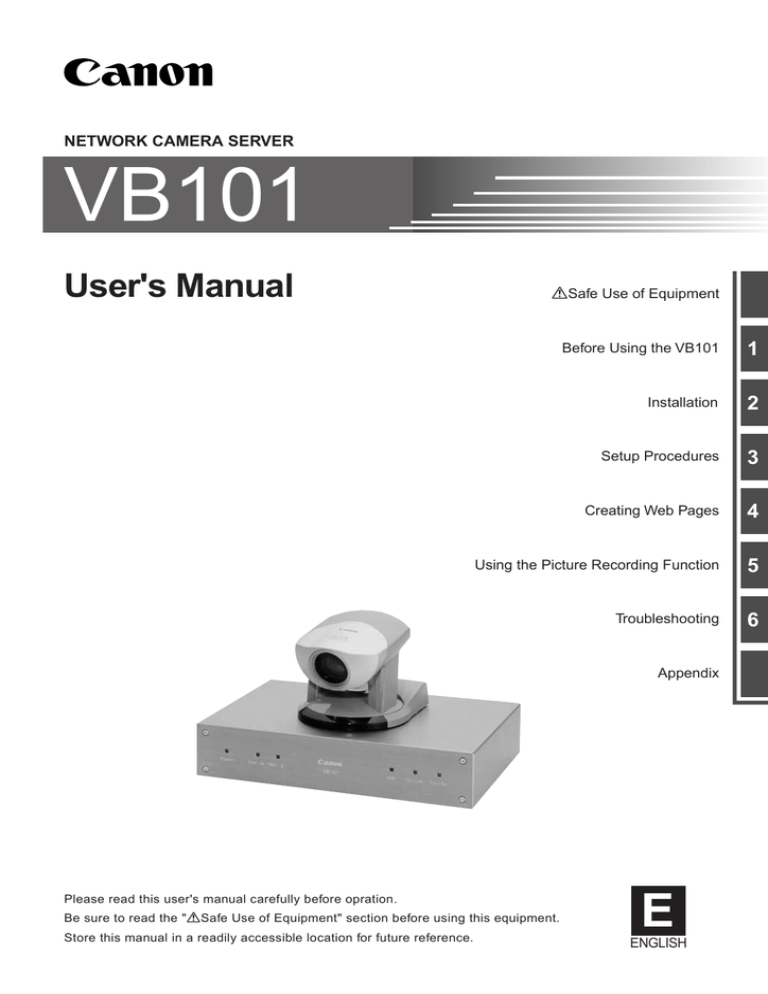

Canon VB101 User`s manual

NETWORK CAMERA SERVER
VB101
User's Manual
aSafe Use of Equipment
Before Using the VB101
1
Installation
2
Setup Procedures
3
Creating Web Pages
4
Using the Picture Recording Function
5
Troubleshooting
6
Appendix
Please read this user's manual carefully before opration.
Be sure to read the "aSafe Use of Equipment" section before using this equipment.
Store this manual in a readily accessible location for future reference.
E
ENGLISH
a Safe Use of Equipment
Introduction
Thank you for purchasing the Canon Network Camera Server VB101 (referred to hereafter as the
system).
This manual describes how to set up and use the server. Read this manual carefully before using
the server to ensure effective operation. In particular make sure that you read the "aSafe Use of
Equipment" in this manual, as well as the CD-ROM Readme file.
An exclamation point, within a triangle, is intended to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the equipment.
1
a Important Warnings
a CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The serial number of this equipment may be found on the back of the camera
head. No others have the same serial number as yours.
You should record the number and other vital information here and retain this
book as a permanent record of your purchase to aid identification in case of theft.
Date of Purchase
Dealer Purchased from
Dealer Address
Dealer Phone No.
Model No. VB101
Serial No.
If the Product is connected to a recording device (for example a VCR), Canon Inc. accepts no
responsibility whatsoever for any financial losses that may be incurred as a result of the loss of
recorded information or images, regardless of the internal or external cause of the loss.
Copyright Information
Video or still images recorded using your VB101 cannot be used in ways that infringe copyright
laws or without the consent of the owner, unless intended for personal use only.
Notes
1. The unauthorized transfer of all or any part of the contents of this Manual is forbidden.
2. The contents of this Manual are subject to change without notice.
3. Every effort has been made to ensure that this Manual is flawless. However, if you find any
oversights, please let us know.
4. Item 3. notwithstanding, Canon accepts no responsibility for any effects resulting from the use of
this Manual.
2
2
a Important Operational Instructions
a WARNING:
Trademark Notices
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT
● Canon and Canon logo are registered trademark of Canon Inc.
● Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States
and other countries.
● Windows is legally recognized as Microsoft Windows Operating System.
● Other brand or product names in this manual may be trademarks or registered trademarks of
their respective companies.
TO RAIN OR MOISTURE.
© Copyright 2000 CANON INC.
ALL RIGHTS RESERVED
a Safe Use of Equipment
Exclusion of Liability
a CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK AND TO REDUCE ANNOYING
INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.
FDA regulation
This communication camera has not been evaluated by the Food and Drug
Administration (FDA) for use as a medical device. When incorporated into a
system with medical applications, FDA regulations may apply. Therefore,
please consult your legal advisor to determine whether FDA regulations apply.
3
a Safe Use of Equipment
a Safe Use of Equipment
FCC NOTICE
Network Camera Server VB101 (D78-0138)
IC NOTICE
This product does not exceed the Class B limits for radio noise emissions
from digital apparatus as set out in the Interference-causing equipment
standard entitled ‘Digital Apparatus’, ICES-003 of the Industry Canada.
NOTIFICATION IC
Cet appareil numériquw respecte les limites de bruits radioélectriques
applicables aux appareils numériques de Classe B prescrites dans la norma
sur le matériel brouilleur: “Appareils Numériques”, NMB-003 édictées par
I’lndustrie Canada.
Dieses Produkt ist zum Gebrauch im Wohnbereich, Geschäfts- und
Gewerbebereich sowie in Kleinbetrieben vorgesehen.
4
a IMPORTANT SAFETY INSTRUCTIONS
In these safety instructions, the word
“equipment” refers to the Canon Network
Camera Server VB101 and all its
accessories.
Quick stops, excessive force, and
uneven surfaces may cause the
equipment and cart combination to
overturn.
1. Read Instructions - All the safety and
operating instructions should be read
before the equipment is operated.
9. Power Sources - The PA-V16 AC
adapter should be operated only from
the type of power source indicated on
the marking label. If you are not sure of
the type of power supply to your home,
consult your equipment dealer or local
power company.
10. Polarization - The PA-V16 AC adapter
is equipped with a polarized 2-prong
plug (a plug having one blade wider than
the other).
The 2-prong polarized plug will fit into
the power outlet only one way. This is a
safety feature. If you are unable to insert
the plug fully into the outlet, try reversing
the plug. If the plug still fails to fit, contact
your electrician to replace your obsolete
outlet. Do not defeat the safety purpose
of the polarized plug.
2. Retain Instructions - The safety and
operating instruction should be retained
for future reference.
3. Heed Warnings - All warnings on the
equipment and in the operating
instructions should be adhered to.
4. Follow Instructions - All operating and
maintenance instructions should be
followed.
5. Cleaning - Unplug this equipment from
the wall outlet before cleaning.
Wipe the equipment with a clean soft
cloth. If necessary, put a cloth in diluted
neutral detergent and wring it well before
wiping the equipment with it. Finally,
clean the equipment with a clean dry
cloth. Do not use benzene, thinner or
other volatile liquids or pesticides as
they may damage the product’s finish.
When using chemically-treated cleaning
cloths, observe those precautions
accordingly.
6. Accessories - Do not use accessories
not recommended in this manual as
they may be hazardous. Always use
specified connection cables. Connect
devices correctly.
7. Water and Moisture - Hazard of electric
shock - Do not use the equipment near
water or in rainy/moist situations. Do not
put a heater near this equipment.
8. Placing or Moving - Do not place on an
unstable cart, stand, tripod, bracket or
table. The equipment may fall, causing
serious injury to a child or adult, and
serious damage to the equipment. An
equipment and cart
combination should
be moved with care.
a Safe Use of Equipment
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of
Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise
specified in the manual. If such changes or modifications should be made,
you could be required to stop operation of the equipment.
Canon U.S.A. Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516) 328-5600
3
