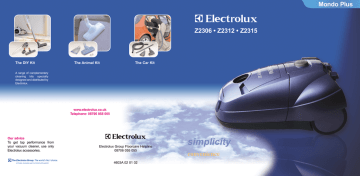

Electrolux MONDO PLUS Operating instructions

Mondo Plus
Z2306 • Z2312 • Z2315
The DIY Kit
The Animal Kit
The Car Kit
A range of complementary
cleaning kits specially
designed and distributed by
Electrolux.
www.electrolux.co.uk
Telephone: 08706 055 055
Our advice
To get top performance from
your vacuum cleaner, use only
Electrolux accessories.
Electrolux Group Floorcare Helpline
08706 055 055
4603A 02 01 02
simplicity
convenience
Thank you for choosing an Electrolux Mondo Plus vacuum
cleaner. These operating instructions cover all Mondo Plus
models. This means that with your specific model, some
accessories may not be included.
Accessories and safety precautions
Before starting
Getting the best results
Replacing the dustbag
Replacing the motor filter and exhaust filter
Cleaning the hose and nozzle
Troubleshooting and customer information
3
4
4
5
5
6
7
2
ACCESSORIES AND SAFETY PRECAUTIONS
3
2
1
5
4
7. on board
6
9
Accessories
1 Dustbag
2 Telescopic extension tube (Z2315)
3 Plastic extension tubes (Z2306, Z2312)
4 Hose
5 Hose handle with suction control
6 Dual purpose floor nozzle
7 Upholstery nozzle
8 Crevice nozzle
9 Hard floor nozzle (Z2315)
Safety precautions
The Mondo Plus should only be used by adults for normal
vacuuming in a domestic environment. The vacuum cleaner
features double insulation and does not need to be earthed.
Never vacuum:
• In wet areas
• Close to flammable gas, etc.
• Without a dustbag (this may damage the cleaner). A safety
device is fitted which prevents the cover closing without a
dustbag in place. Do not attempt to force the cover shut.
8. on board
Never vacuum:
• Sharp objects
• Fluids (this can cause serious damage to the machine)
• Hot or cold cinders, lit cigarette butts, etc.
• Fine dust from plaster, concrete, flour or ash, for example.
The above can cause serious damage to the motor - damage
which is not covered by the warranty.
Electrical cable precautions:
• A damaged cable must be replaced by an authorised
Electrolux service engineer. Damage to the cleaner cable
will not be covered by the warranty.
• Never pull or lift the vacuum cleaner by the cable.
• Disconnect the plug from the mains before cleaning or
maintenance of the vacuum cleaner.
• Regularly check that the cable is not damaged. Never use
the vacuum cleaner if the cable is damaged.
All service and repairs must be carried out by an authorised
Electrolux service engineer. Always keep the vacuum cleaner
in a dry place.
3
BEFORE STARTING
1 Open the dustbag cover.
2 Check that the dustbag is in place.
3 Insert the hose until the catch clicks to engage (press
the catch to engage hose).
1
3
2
4 Attach the telescopic extension tube (Z2315) or plastic
extension tubes (Z2306, Z2312) to the hose handle and
the floor nozzle.
5 Pull out the cable and plug it in. Press the foot pedal to
rewind the cable (take hold of the plug to prevent it striking you).
6 Press the On/Off button with control your foot to start the
vacuum cleaner.
5
4
6
7 Adjust the suction power using the variable suction power
control on the vacuum cleaner (Z2312, Z2315) or the suction control on the hose handle.
GETTING THE BEST RESULTS
Hard floors: Use the dual purpose floor nozzle with the left
pedal in position (8).
Carpets: Use the dual purpose floor nozzle with the left
pedal in position (9).
7
Reduce suction power for rugs and fabrics.
Upholstered furniture: Use the upholstery nozzle.
Skirting boards, crevices, corners, etc.: Use the crevice
nozzle.
Hard floors / wooden / parquet: use the hard floor nozzle
to avoid scratching (Z2315). (10)
8
9
10
4
REPLACING THE DUSTBAG
1
2
3
Replace the dustbag as soon as the indicator becomes fully
illuminated, when the cleaner is operating at maximum
power and the nozzle is raised from the floor.
1 Remove the hose and open the dustbag cover.
2 Pull the cardboard holder to remove the dustbag.
3 Insert a new dustbag by pushing the cardboard holder
straight down in its tracks. Close the cover.
Note: Replace the dustbag even if it is not full (it may be
blocked). Also replace after using carpet cleaning powder.
Use only Electrolux original dustbags.
Dustbag reference number: E51
Replacing the motor filter
(The motor filter should be cleaned approximately every three
months, or when required for more frequent use).
4
6
5
4 Remove the old filter with grill.
5 Take the filter out of the grill and insert a new one in grill.
6 Replace the filter with grill and close the cover.
Filter reference number: EF51.
Cleaning the Microfilter (Z2306, Z2312)
(The exhaust filter should be replaced approximately every 4
months).
7-8 Open the filter grill to remove the exhaust filter.
9 Rinse the filter under tap water and dry it completely.
8-7 Replace the filter with grill and close the filter grill.
8
7
9
Changing the HEPA filter (Z2315)
(The exhaust filter should be replaced approximately every 4
months).
7-8 Open the filter grill to remove the exhaust filter.
8-7 Replace it with a new one and put it back into the cleaner.
HEPA filter reference number: EF51b.
Note: Do not use cleaning agents and avoid touching the delicate
filter surface.
5
CLEANING THE HOSE AND NOZZLE
The vacuum cleaner stops automatically if the nozzle, tube
or hose becomes blocked, or the filter and dustbag are
blocked. Disconnect from the mains and allow the vacuum
cleaner to cool down for approximately 20-30 minutes.
Clear whatever is causing the blockage and/or replace dirty
filters or the full dustbag. Then restart the vacuum cleaner.
1
Tubes and hose
1 Use a cleaning strip or similiar to clear the tubes and
hose.
2 It is sometimes possible to clear the hose by "massaging" it. However, be careful in case the obstruction has
been caused by glass or needles caught inside the
hose.
Note: The warranty does not cover any damage to hoses
caused by cleaning them.
Cleaning the floor nozzle
3 To avoid reduction in suction power, frequently clean the
dual purpose floor nozzle. The easiest way to clean it is
by using the hose handle.
2
3
6
TROUBLESHOOTING AND CUSTOMER INFORMATION
Troubleshooting
The vacuum cleaner does not start
1 Check that the cable is connected to the mains.
2 Check that the plug and the cable are not damaged.
3 Check for a blown fuse.
The vacuum cleaner stops
1 Check whether the dustbag is full. If so, replace it with a
new one.
2 Is the nozzle, tube or hose blocked?
3 Are the filters blocked?
Water has entered the vacuum cleaner
It will be necessary to replace the motor by an authorised
Electrolux service engineer.
Damage to the motor caused by the penetration of water is
not covered by the warranty.
Customer Information
Electrolux decline all responsibility for all damages arising
from any improper use of the appliance or in cases of tampering with the appliance. This product is designed with the
environment in mind. All plastic parts are marked for recycling purposes. For futher details see our website:
www.electrolux.com
For repairs or accessories, contact the Electrolux Group
Floorcare Helpline on 08706 055 055.
If you have any comments on the cleaner or the Instructions
for Use booklet please e-mail us at:
floorcare@electrolux.com
7
ELECTRICAL SUPPLY INSTRUCTIONS
Before you start …check
the voltage
Before connecting the cleaner
to an electrical supply ensure
that voltage marked on the
data plate (on the underside of
cleaner) is correct for your
electrical supply. If is not, do
not use the cleaner but refer
back to your dealer.
Connecting to your electrical supply
Permanently connected to the cleaner is a mains supply (2-core) cable fitted with a non-rewirable plug incorporating a 13A fuse. In the event of the
fuse requiring replacement the fuse cover should be removed using a small
screwdriver. The old fuse MUST be replaced by a 13A ASTA approved
BS1362 fuse and the fuse cover mustbe replaced before the plus is used
again. In the event ofloss of the fuse cover, replacements can be obtained
from your Electrolux dealer or Electricity Board and must be of the same
colour as indicated by the coloured insert on the base plug.
If difficulty is experienced in obtaining a replacement, contact your nearest
Electrolux Service Centre. (Please see the separate Electrolux Service
Organisation leaflet).
In no circumstances must be plug be used without a correct
fuse cover fitted
If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug fitted. Remove the fuse from
the cut off plug. The cutoff plug should then be disposed of to prevent hazard of shocks in case it should be plugged into a 13 Amp socket in another
part of your home.
As the colours of the wires in the mains cable of this appliance may not correspond with the coloured markings identifying the terminals in your plug,
proceed as follows:
The wire which is coloured blue must be connected to the terminal which
marked with the letter N or coloured black. The wire which is coloured brown
must be connected to the terminal which is marked the letter L or coloured
red.
If using a three-pin plug, do not make any connection to the terminal marked
with the letter E or by the earth symbol or coloured green or green-and-yellow. [This cleaner is double insulated and no earth-connection is necessary.]
It is in your interest to ensure that the plug is correctly attached to the mains
cable. In case of doubt, have it done by a qualified electrician, as Electrolux
cannot regard the repair of faults on the plug connection as a service that
can be given free of charge under the terms of guarantee.
As a general guide to fitting any plug
• Ensure the lengths of wire inside the plug are prepared correctly.
• Connection should be firmly made after all conductor stands are entered
into the terminal posts.
• When preparing the cable ends take care not to damage the outer seal, or
insulation surrounding the inner conductors.
• Tighten all screws.
• Replace the top cover of the plug and secure.
The wires in the mains cable of this appliance are coloured in
accordance with the following code:
Blue: Neutral.
Brown: Live.
8
When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL THE INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
WARNING
To reduce the risk of fire, electric shock, or injury:
• Do not use out doors or on wet surfaces.
• Do not leave vacuum cleaner when plugged in.
• Do not allow to be used as a toy. Close attention is necessary when used near
children. Do not allow children to operate this appliance.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has
been dropped, damaged, left outdoors, or dropped into water, return it to a service centre
before using.
• Do not pull or carry by cord, use cord as a handle, close door on cord. Keep cord away
from heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Turn off all controls before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug not the cord.
• Do not handle plug or vacuum cleaner with wet hands.
• Do not put any object into openings. Do not use with any opening block, keep free of dust,
lint, hair and anything that may reduce air flow.
• Do not use to pick up anything that is burning or smoking, such as cigarettes, matches or
hot ashes.
• Do not use without dust bag in place.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas
where they may be present.
• Store your cleaner indoors in a cool, dry area.
• Keep your work area well lighted.
• Unplug electrical appliances before vacuuming them.
SAVE THESE INSTRUCTIONS
9
GUARANTEE
This guarantee is in addition to your statutory and other legal rights.
Electrolux products are carefully designed, manufactured, tested and inspected and in consequence, we undertake to replace or repair any part found to be defective in material or
workmanship, within one year of delivery to the original purchaser, free of charge. You may
be required to take the product to your nearest service provider if the product requries attention during the first year.
There are certain conditions which may invalidate this guarantee:
a. It is dependent upon the appliance being correctly installed and used in accordance with
the Company's instructions under normal domestic conditions within the United Kingdom
or the Republic of Ireland.
b. Service at all times must be carried out by an Electrolux Service Representative or authorised agent.
c. The guarantee may be invalidated by unauthorised repair or modification of the appliance.
d. You may be charged by the Electrolux Group if you call for an engineer to resolve a problem that we believe is covered in the instruction booklet.
The Company does not accept liability for defects arising from neglect, misuse or accident.
This guarantee excludes such normal wearing parts as filters, brushes and dust bags as the
life of these depends upon the amount and nature of use.
Proof of the date of purchase will be required before service under guarantee is provided.
For futher assistance call the
Electrolux Group Floorcare Helpline on 08706 055 055.
Important:
For future reference we suggest you record the following details here, and keep the receipt
with this booklet as proof or purchase.
Purchased from: _______________________________________
Date purchased ________Model No _______________________
The Electrolux Group, 101 Oakley Road, LUTON, BEDFORDSHIRE, LU4 9QQ
Features of the Electrolux vacuum cleaner and accessories with it are protected in Great Britain and abroad by Patents
of Registered Designs.
This appliance conforms with the requirements of the amended E.E.C. directive No. 89/336/EEC relating to electromagnetic compatibility (EMC) CE.
The Electrolux Group may introduce modifications to their product from time to time, and consequently the details given
in this booklet are subject to alteretion without notice.
10
