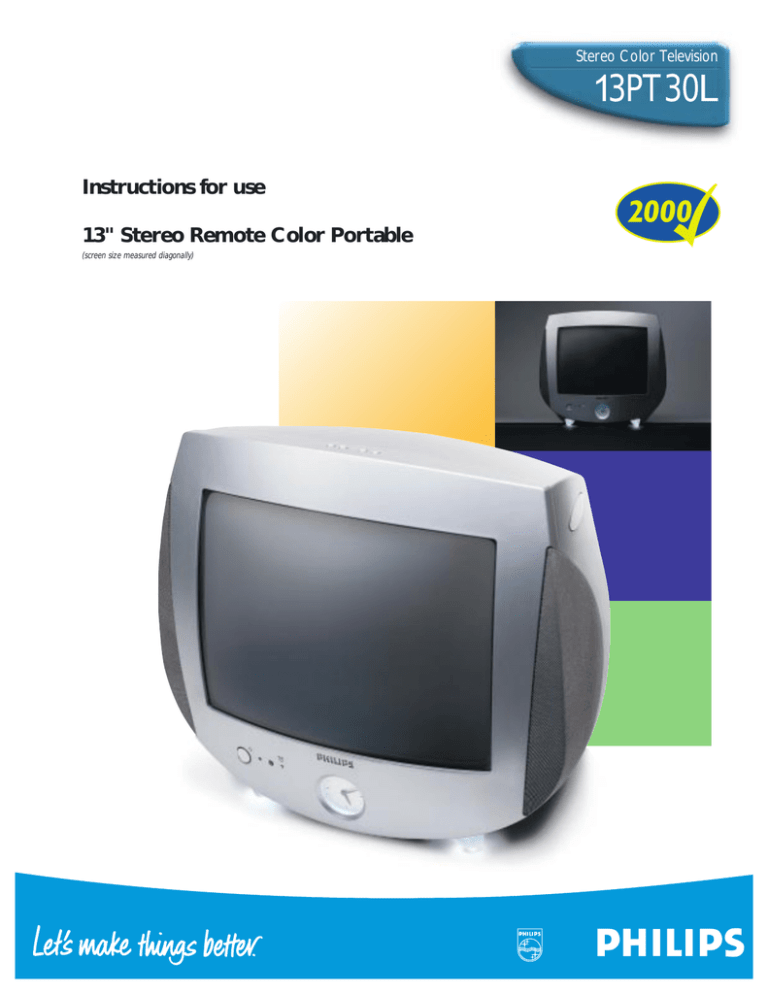

Philips 13PT30L Operating instructions

Stereo Color Television
13PT30L
Instructions for use
13" Stereo Remote Color Portable
(screen size measured diagonally)
Return your Warranty Registration card today to ensure you
receive all the benefits you’re entitled to.
Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a
PHILIPS product. So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.
Owner
Confirmation
Model
Registration
Registering your product within
10 days confirms your right to
maximum protection under the
terms and conditions of your
PHILIPS warranty.
Your completed Warranty
Registration Card serves as
verification of ownership in the
event of product theft or loss.
Returning your Warranty
Registration Card right away guarantees you’ll receive all the information and special offers which
you qualify for as the owner of your
model.
REG
TION
N
!
y
r
r
Hu
A
I
T
YS
RA
DED W
Congratulations on your purchase,
and welcome to the “family!”
T
EE
IS
Warranty
Verification
HI
N 10
D
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase
for many years to come.
As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive
warranties and outstanding service networks in the industry.
What’s more, your purchase guarantees you’ll receive all the information and special offers for which
you qualify, plus easy access to accessories from our convenient home shopping network.
And most importantly you can count on our uncompromising commitment to your total satisfaction.
All of this is our way of saying welcome–and thanks for investing in a PHILIPS product.
Sincerely,
Robert Minkhorst
President and Chief Executive Officer
Know these
P.S. Remember, to get the most from your PHILIPS
product, you must return your
Warranty Registration Card within 10 days. So
please mail it to us right now!
t
This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical
shock. For the safety of everyone in your household, please do not remove product covering.
The “exclamation point” calls attention to features for which you should read the enclosed litsymbols s
erature closely to prevent operating and maintenance problems.
safety
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la
borne correspondante de la prise et pousser jusqu’au fond.
Visit our World Wide Web Site at http://www.philipsmagnavox.com
SAFETY INSTRUCTIONS - Read before operating equipment
This product was designed and manufactured to meet strict quality and
safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.
11. Power-Cord Protection - Power supply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords and plugs,
convenience receptacles, and the point where they exit from the
appliance.
12. Cleaning - The appliance should be cleaned only as recommended
by the manufacturer.
13. Power Lines - An outdoor antenna should be located away from
power lines.
14. Outdoor Antenna Grounding - If an outside antenna is connected to
the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static
charges.
Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984,
provides information with respect to proper grounding of the mats
and supporting structure grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antennadischarge unit, connection to grounding electrodes and requirements for the grounding electrode. See Fig. below.
15. Non-use Periods - The power cord of the appliance should be
unplugged from the outlet when left unused for a long period of time.
16. Object and Liquid Entry - Care should be taken so that objects do not
fall and liquids are not spilled into the enclosure through openings.
17. Damage Requiring Service - The appliance should be serviced by
qualified service personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance;
or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a
marked change in performance; or
E. The appliance has been dropped, or the enclosure damaged.
18. Servicing - The user should not attempt to service the appliance
beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.
1.
Read Instructions - All the safety and operating instructions should
be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should
be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating
instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be
followed.
5. Water and Moisture - The appliance should not be used near water
- for example, near a bathtub, washbowl, kitchen sink, laundry tub,
in a wet basement or near a swimming pool, etc.
6. Carts and Stands - The appliance should be used only with a cart or
stand that is recommended by the manufacturer.
6A.
An appliance and cart combination should be moved
with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to
overturn.
6B. Tilt/Stability - All televisions must comply with recommended international global safety standards for tilt and stability properties of its
cabinet design.
•
Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could
ultimately overturn the product.
•
Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items
could unsuspectingly fall from the top of the set and cause
product damage and/or personal injury.
7. Wall or Ceiling Mounting - The appliance should be mounted to a
wall or ceiling only as recommended by the manufacturer.
8. Ventilation - The appliance should be situated so that its location or
position does not interfere with its proper ventilation. For example,
the appliance should not be situated on a bed, sofa, rug, or similar
surface that may block the ventilation openings; or, placed in a builtin installation, such as a bookcase or cabinet that may impede the
flow of air through the ventilation openings.
9. Heat - The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
10. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as
marked on the appliance.
Note to the CATV system installer: This reminder is provided to call the
CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building,
as close to the point of cable entry as practical.
Example of Antenna Grounding
as per NEC - National Electric Code
GROUND CLAMP
ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM
ELECTRIC SERVICE EQUIPMENT
(NEC ART 250, PART H)
3
TABLE OF CONTENTS
Introduction
Here are a few of the special features built into this
new Color Television:
Welcome/Registration of Your TV . . . . . . . . . . . . . . .2
Safety/Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Basic Cable TV Hookups . . . . . . . . . . . . . . . . . . . . .5
Basic Antenna Hookups . . . . . . . . . . . . . . . . . . . . . . .6
Basic TV to VCR Hookup . . . . . . . . . . . . . . . . . . . . .7
Basic TV and Remote Operations . . . . . . . . . . . . . . .8
TV Remote Buttons . . . . . . . . . . . . . . . . . . . . . . . . . .9
AutoLock™ feature allows you to block the viewing
of certain channel or external audio/video connections where you might not want your children viewing inappropriate material.
Infrared Remote Control works your TV set.
Standard broadcast (VHF/UHF) or Cable TV
(CATV) channel capability.
Setup MENU
✧
✧
✧
✧
✧
✧
Stereo TV with built-in audio amplifier and twin
speaker system for receiving TV programs broadcast
in stereo sound. This TV can actually detect if the
signal being received is Stereo and adjust for it.
✧ Setting the Language Control . . . . . . . . .10
Setting the TV’s Clock (AutoChron) . . . . . . . .11
Using the Tuner Control . . . . . . . . . . . . . . . . .12
Using the Auto Program Control . . . . . . . . . . .13
How to Use the Channel Edit Control . . . . . . .14
How to Manually Fine Tune Channels . . . . . .15
Using the External (Input Naming) Control . . .16
Closed Captioning allows the viewer to read TV
program dialogue or voice conversations as onscreen
text.
Onscreen MENU
✧
✧
✧
✧
✧
✧
✧
✧
✧
✧
Automatic Programming of Channels for quick
and easy selection of favorite stations available in
your area.
✧ Adjusting the TV Picture . . . . . . . . . . . . .17
Activating Contrast Plus (Black Stretch) Control 18
Activating Noise Reduction (Picture) Control .18
Using the Sleep Timer Control . . . . . . . . . . . .19
Setting the TV for Closed Caption . . . . . . . . .20
Setting the TV’s Wakeup Time . . . . . . . . . . . .21
Selecting the TV’s Wakeup Channel . . . . . . . .21
Selecting the TV’s Wakeup Alarm . . . . . . . . . .22
Setting the TV’s Wakeup Volume . . . . . . . . . .23
Activating the Demo Control . . . . . . . . . . . . .24
Using the TV’s Night Light . . . . . . . . . . . . . . .25
Onscreen Features (in either English, French, or
Spanish) show helpful messages for setting of TV
controls.
Audio/Video Jack Panel for direct connections with
VCRs (or other video accessories) providing quality
TV picture and sound playback.
Wakeup automatically turns the TV ON at a preset
time, and channel.
AutoLock™
✧
✧
✧
✧
Sleep Timer automatically turns the TV OFF at preset times.
✧ Understanding the AutoLock Feature . . . . .26
✧ Setting the AutoLock Access Code . . . . . . .27
✧ Setting the Blocking Options . . . . . . . . . . .28
Using the Channels Blocked Options . . . . . . . .29
Block Programming using Movie Ratings . . . .30
Block Programming using Parental Guideline .31
Using the AutoLock Review Screen . . . . . . . . .32
AutoPicture™ allows you to set the picture color,
tint, contrast, etc. for various types of programming
such as Personal (picture controls the way you set
them), Sports, Movies, or Weak Signals with the push
of one button.
Sound
AutoSound™ controls allow you to set the sound
controls for various types of listening programs such
as Personal (sound controls the way you set them),
Theater, Music, or Voice with the push of one button.
✧ Setting Treble and Bass Boost Controls .33
✧ Setting the TV for Stereo Programs . . . . . . . . .34
✧ Using the Volume Bar Control . . . . . . . . . . . .35
✧ The Input Control and Audio/Video Input Jacks .36
Remote Control Operation
NOTE: This owner's manual is used with several different television models. Not all features (and drawings) discussed in this manual
will necessarily match those found with your
television system. This is normal and does not
require contacting your dealer or requesting
service.
Using the AutoPicture™ Control . . . . . . . . .37
Using the AutoSound™ (AVL) Control . . . .38
Using Surf™ (Alternate Channel) . . . . . . . . . . . . . .39
General Information
Tips if Something Isn’t Working . . . . . . . . .40
Glossary of TV Terms . . . . . . . . . . . . . . . . . . . . . . .41
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Factory Service Locations . . . . . . . . . . . . . . . . .42-43
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
AutoChron™, AutoPicture™, AutoSound™, Surf™, and AutoLock™ are all
registered trademarks of Philips Consumer Electronics Company.
Copyright © 1999 Philips Consumer Electronics Company. All rights reserved.
4
HOOKING UP YOUR TV (BASIC CABLE TV CONNECTIONS)
SMART
CABLE TV
HELP
Y
our Cable TV input into your
home may be a single (75
ohm) cable, or a Converter Box
installation. In either case the
connection to the TV is very easy.
Just put the threaded end of the
cable signal to the TV's antenna
plug and screw it down tight.
Remember:
Set the TV for the
type signal you've
just connected (see
the “Tuner” section
on page 12 of this
manual.)
BEGIN
If your Cable TV signal is a single round cable (75 ohm) then
you're ready to connect to the TV.
If you have a Cable Converter
Box:
Connect the Cable TV signal to the
Cable Signal IN(put) plug on the
Converter.
To select only the
channel numbers on
your Cable system
see “Auto Program"
(page 13). If you use
a Cable Converter
box, set the TV to the
same channel as the
converter's CH 3/4
switch (on the rear of
the converter.)
VIDEO
L
ANT/CABLE
75Ω
UHF/VHF
AUDIO
R
Connect the Cable TV cable to the
75Ω plug on the TV.
If you have a Cable Converter Box:
Connect the OUT(put) plug from the
Converter to the 75Ω plug on the TV.
2
Cable TV Signal Input
VIDEO
Cable TV Company
OR
IN
OUT
Round Cable
75Ω
ANT/CABLE
75 V
UHF/VHF
1
Cable TV Converter
Box Connection
5
Back of TV
L
AUDIO
R
HOOKING UP YOUR TV (BASIC ANTENNA TV CONNECTIONS)
SMART
ANTENNA
HELP
A
combination antenna receives
normal broadcast channels
(VHF 2-13 and UHF 14-69).
Your connection is easy since
there is only one 75Ω (ohm)
antenna plug on the back of your
TV - and that’s where the antenna
goes.
Note: For homes with separate UHF and VHF antennas
you will need an optional combiner to connect to the TV.
U/V
Combiner
BEGIN
If your antenna has a round
cable (75 ohm) on the end, then
you're ready to connect it to the TV.
If your antenna has flat twin-lead
wire (300 ohm), you first need to
attach the antenna wires to the screws
on a 300 to 75 ohm adapter.
To set the TV to
select only the channel numbers in your
area see how to
“Program" or "Add"
channels in the TV’s
memory on page 13
(Auto Program section).
VIDEO
L
ANT/CABLE
75Ω
UHF/VHF
Remember:
Be sure to set the
TV for the type signal you've connected (see the “Tuner”
section on page 12
of this manual.)
AUDIO
R
Back of TV
75-300 Ohm Adapter
Push the round end of the
adapter (or antenna) onto the 75Ω
plug on the rear of the TV. If the
round end of the antenna wire is
threaded, screw it down tight.
To order any optional accessory contact
your dealer or the
Philips Parts Center
at 1-800-851-8885.
VIDEO
ANT/CABLE
75Ω
UHF/VHF
L
AUDIO
R
Combination VHF/UHF
Antenna
(Outdoor or Indoor)
1
2
300 to 75Ω
Adapter
VIDEO
Twin Lead
Wire
OR
Round Cable
75Ω
ANT/CABLE
75Ω
UHF/VHF
6
Back of TV
L
AUDIO
R
HOOKING UP YOUR TV (BASIC TV TO VCR CONNECTIONS)
TV TO VCR
T
he basic Antenna, or Cable
TV, to VCR to TV connection
is shown to the right. For more
information on other hookups
(possible when Cable
Converter/Descrambler boxes are
included) refer to your accessory
VCR and Cable Converter
Owner's Manual for details.
BEGIN
Connect your Antenna or Cable
TV signal to the IN FROM
ANT(enna) plug on the VCR.
Connect the OUT TO TV plug
on the VCR to the 75Ω plug on the
TV (connecting cable supplied with
the VCR.)
VIDEO
ANT/CABLE
75Ω
UHF/VHF
Outdoor
VHF/UHF
Antenna
L
AUDIO
R
300 to 75Ω
Ohm Adapter
1
2
VIDEO
OR
IN FROM ANT.
OUT TO TV
ANT/CABLE
75Ω
UHF/VHF
Cable TV signal
L
Back of TV
AUDIO
R
in
VCR
Round Cable
75Ω Supplied with VCR
7
BASIC TV/REMOTE OPERATIONS
TELEVISION
BEGIN
The VOL
Press the POWER button to
turn the TV ON.
Press the VOLUME . button
to increase the sound level or the
VOLUME , button to lower the
sound level.
and CH
buttons are located on the top of the TV.
6
Pressing both buttons at the same
time will display the onscreen menu.
Once in the menu, use these buttons
to make adjustments or selections.
,
,
Press the CHANNEL UP ▲ or
DOWN ▼ button to select TV channels.
Headphone Jack
Digital Clock
(Use AutoChron feature to set.)
Remote Sensor Window
Power Indicator
(Located on the Side)
Wakeup Alarm Indicator
CH
VOL
REMOTE
BATTERY INSTALLATION
POWER
1
T
o load the supplied batteries
into the remote:
3
2
1. Remove the battery compartment lid on the back of the remote.
2. Place the batteries (2- AA) in
the remote. Be sure the (+) and (-)
ends of the batteries line up correctly
(inside of case is marked.)
3. Reattach the battery lid.
ER
POW
EDIA
TI M
MUL
T
P
SLEE
3
CC
XI
US/E
A/CH
STAT
AUTO
URE
PICT
F
SUR
AUTO
D
SOUN
U
MEN
CH
Point the remote control toward
the remote sensor window on the
TV when operating the TV with
the remote.
E
MUT
VOL
GHT
T LI
T
RESE
NIGH
SET
FF
ON/O
M
ALAR
SMART HELP
You can press
any button on the
TOP of the TV to turn
the TV ON.
8
The tuned channel
number will always
briefly appear when the
TV is first turned ON
(and with channel
changes.)
You can also press the
STATUS/EXIT button
(on the remote) to see
what channel the TV is
ON.
TV REMOTE BUTTONS
Power Button
Press to turn the TV ON and OFF.
Sleep Button
Press to set the TV to automatically turn itself OFF.
POWER
SLEEP
Multi Media Button
Press to select the EXT 1 input and change the AutoPicture control.
A/CH Button
A/CH
STATUS/EXIT
CC
MULTI MEDIA
Press to toggle between the currently viewed channel and the previously
viewed channel.
Status/Exit Button
Press to see the current channel number on the TV screen. Also press to clear
the TV screen after control adjustments.
CC Button
1
2
3
4
5
6
7
8
Press to select Closed Caption options within the menu.
Number Buttons
Press the number buttons to select TV channels. For single digit entries, press
the number of the channel you desire. The TV will pause for a few seconds,
then change to the selected channel. For channels 100 and above, press "1"
then the next two numbers. (Example, Press "1", then "2", then "5" for channel 125.)
AUTO
9
AUTO
0
SOUND
MENU
SURF
AutoPicture Button
Press to select from a list of AutoPicture controls. (Factory preset picture
control levels set for different types of viewing sources and programs.)
AutoSound Button
Press to select from a list of AutoSound controls. (Factory preset sound
control levels set for different types of listening sources and programs.)
Menu Button
CH
VOL
Press for the onscreen menu to appear. Pressing the menu button after
menu selections are made will eliminate the menu from the display.
MUTE
Cursor Buttons
Use these buttons to select and adjust the TV's onscreen menu.
Surf Button
Press to select previously viewed channels. You can place up to 8 channels in
memory. Then by pressing the SURF button you can quickly view the selected channels. See the “Surf" section to see how to select a series of channels
using the Surf button.
NIGHT LIGHT
Volume (+), (–) Buttons
ON/OFF
Press to adjust the TV sound level.
SET
Mute Button
ALARM
Press to turn the sound OFF on the TV. Press again to return the sound to
its previous level.
Channel (+), (–) Buttons
Press to change the tuned channel.
Night Light Button
Use this button to turn the Night Light in the Clock and feet of the TV on.
Alarm Buttons
Press the ON/OFF to turn the Alarm On or Off. Press the SET button to set
the Alarm features within the Wakeup control. Press the RESET button to set
the Alarm back to it’s last setting.
9
RESET
USING THE LANGUAGE CONTROL
F
or our Spanish and French speaking TV owners an onscreen LANGUAGE option is present. With the
LANGUAGE control you can set the
TV’s onscreen menu to be shown in
either English, Spanish, or French.
BEGIN
Press the MENU button on the
remote to show the onscreen menu.
Press the CURSOR UP ▲ or
DOWN ▼ buttons to scroll through
the onscreen menu until the word
SETUP is highlighted.
DEMO
OFF
WAKEUP
©
SETUP
©
AutoLock REVIEW
©
BRIGHTNESS
30
LANGUAGE
AUTOCHRON
Press the CURSOR RIGHT ©
button to display the SETUP menu
features.
TUNER
POWER
Press CURSOR UP ▲ or
DOWN ▼ buttons to scroll the
Setup features until the word LANGUAGE is highlighted.
Press the CURSOR RIGHT ©
button repeatedly to select ENGLISH, ESPANOL (Spanish), or
FRANCAIS (French).
A/CH
STATUS/EXIT
CC
LANGUAGE
1
2
3
4
5
6
7
8
AUTO
9
AUTO
0
SOUND
2
4
MENU
SURF
3
SMART HELP
CH
VOL
MUTE
Remember: The Language
control only makes the TV’s
onscreen MENU items appear in
English, Spanish, or French text.
NIGHT LIGHT
ON/OFF
SET
ALARM
It does not change the other onscreen
text features such as Closed Caption
(CC) TV shows.
The onscreen menu will time out and
disappear from the screen when you
finish, or you can press the STATUS/EXIT button to clear the menu
from the screen.
10
RESET
FRANCAIS
or
MULTI MEDIA
1
©
CABLE
LANGUAGE
SLEEP
ENGLISH
5
ESPANOL
SETTING THE TV CLOCK (AUTOCHRON)
A
utoChron is a feature that can
automatically set the TV’s clock
for you. Setup is easy and only takes a
few seconds. AutoChron also allows
the TV’s clock to be set manually.
BEGIN
Press the MENU button on the
remote to show the onscreen menu.
Press the CURSOR UP ▲ or
DOWN ▼ buttons to scroll through
the onscreen menu until the word
SETUP is highlighted.
DEMO
OFF
WAKEUP
©
SETUP
©
AutoLock REVIEW
©
BRIGHTNESS
30
LANGUAGE
ENGLISH
©
AUTOCHRON
TUNER
Press the CURSOR RIGHT ©
button to display the SETUP menu
features.
CABLE
©
AUTOPROGRAM
STATUS/EXIT
1
4
5
7
8
Clock can be set via
AUTOCHRON
feature
Set Time
AUTO
MANUAL
Press > to continue
Press
to select
Press > to continue
Press
to select
time zone
Daylight savings
time?
ATLANTIC
EASTERN
CENTRAL
MOUNTAIN
YES
NO
3
>
2
MULTI MEDIA
>
1
CC
6
9
AUTO
AUTO
0
SOUND
2
4
>
MENU
SURF
Press
to select
Press > to continue
>
>
Press the CURSOR RIGHT ©
button to start the AutoChron feature. Simply follow the series of
screens to set the AutoChron feature.
A/CH
>
POWER
SLEEP
Press CURSOR UP ▲ or
DOWN ▼ buttons to scroll the
Setup features until the word
AUTOCHRON is highlighted.
3
Press > to continue
5
CH
VOL
MUTE
The time is broadcast
by certain TV stations
SMART HELP
Enter the PBS channel
2
NIGHT LIGHT
Press > to continue
ON/OFF
SET
or
ALARM
Time was not found
Be sure that the correct TUNER (see
page 12) setting is made and that
AUTO PROGRAM has been run (see
page 13).
Time was found
Enter another channel
Set time Manually
Press > to continue
Set Time
AUTO
MANUAL
12:30 PM
Press
to select
Press > to continue
use
to set AM/PM
Press > to continue
>
Press
to select
Press > to continue
>
11
>
Note: When setting the clock manually,
use the number button on the remote to
enter the time. Don’t forget to set AM or
PM with the CURSOR ▲ or ▼ buttons.
When finished, press the CURSOR © to
clear the AutoChron menu from the
screen.
>
>
The onscreen menu will time out and
disappear from the screen when you
finish, or you can press the STATUS/EXIT button to clear the menu
from the screen.
Please wait
RESET
>
Remember, AutoChron will
automatically set the TV’s clock
for you. You will need to know the
channel number that broadcasts your
local PBS station.
USING THE TUNER CONTROL
T
he TUNER feature allows you to
change the TV’s signal input to
either CABLE, AUTO or ANTENNA
mode. It’s important for the TV to
know what type of signal to look for.
(From a Cable TV signal or a normal Antenna signal.) In the AUTO
mode, when the AUTO PROGRAM
feature is activated, the TV will automatically choose the correct mode.
BEGIN
Press the MENU button on the
remote to show the onscreen menu.
DEMO
OFF
WAKEUP
©
SETUP
©
LANGUAGE
AutoLock REVIEW
©
AUTOCHRON
BRIGHTNESS
30
TUNER
Press the CURSOR UP ▲ or
DOWN ▼ buttons to scroll through
the onscreen menu until the word
SETUP is highlighted.
POWER
Press the CURSOR RIGHT ©
button to display the SETUP menu
features.
Press CURSOR UP ▲ or
DOWN ▼ buttons to scroll the
Setup features until the word
TUNER is highlighted.
SLEEP
A/CH
1
STATUS/EXIT
CC
MULTI MEDIA
1
2
3
4
5
6
8
7
AUTO
9
AUTO
0
SOUND
4
MENU
SURF
Press the CURSOR RIGHT ©
button to select either CABLE,
AUTO or ANTENNA mode.
3
CH
VOL
MUTE
SMART HELP
When CABLE is selected,
channels 1-125 are available.
2
NIGHT LIGHT
ON/OFF
SET
ALARM
When ANTENNA is selected, channels 2-69 are available.
When AUTO is selected, the TV will
automatically set itself to the correct
mode based on the type of signal it
detects when the AUTO PROGRAM
feature is activated.
The onscreen menu will time out and
disappear from the screen when you
finish, or you can press the STATUS/EXIT button to clear the menu
from the screen.
12
RESET
5
ENGLISH
©
CABLE
AUTO PROGRAM
©
CHANNEL EDIT
©
TUNER
AUTO
TUNER
ANTENNA
USING THE AUTO PROGRAM CONTROL
Y
our TV can automatically set itself
for local area (or Cable TV) channels. This makes it easy for you to
select only the TV stations in your
area when the CHANNEL (+), (–) buttons are pressed.
Note: Make sure the antenna or cable
signal connection has been completed
before AUTO PROGRAM is activated.
BEGIN
Press the MENU button on the
remote to show the onscreen menu.
DEMO
OFF
WAKEUP
©
SETUP
©
AUTOCHRON
AutoLock REVIEW
©
TUNER
BRIGHTNESS
30
AUTO PROGRAM
©
CHANNEL EDIT
©
MANUAL
©
Press the CURSOR UP ▲ or
DOWN ▼ buttons to scroll through
the onscreen menu until the word
SETUP is highlighted.
©
CABLE
POWER
SLEEP
Press the CURSOR RIGHT ©
button to display the SETUP menu
features.
Press CURSOR UP ▲ or
DOWN ▼ buttons to scroll the
Setup features until the words AUTO
PROGRAM are highlighted.
A/CH
1
STATUS/EXIT
CC
MULTI MEDIA
1
2
3
4
5
6
8
7
AUTO
9
AUTO
0
SOUND
4
AUTO PROG
33
MENU
SURF
Press the CURSOR RIGHT ©
button to start the Auto Program
scanning of channels.
3
CH
VOL
MUTE
NIGHT LIGHT
SMART HELP
2
ON/OFF
SET
Try it out. Press the CHANNEL (+), (–) buttons and see
which channels have been added to
the TV’s memory.
ALARM
If you want to delete any unwanted
channels from the TV’s memory, see the
CHANNEL EDIT section on page 14.
The onscreen menu will time out and
disappear from the screen when you
finish, or you can press the STATUS/EXIT button to clear the menu
from the screen.
13
RESET
5
Auto Program will scan for
all available channels within
the Antenna/Cable signal.
When finished, the TV will
go back to the SETUP menu.
HOW TO ADD AND DELETE CHANNELS
C
hannel Edit makes it easy for you
to ADD or DELETE channels
from the list of channels stored in the
TV’s memory.
BEGIN
Press the MENU button on the
remote to show the onscreen menu.
Press the CURSOR UP ▲ or
DOWN ▼ buttons to scroll through
the onscreen menu until the word
SETUP is highlighted.
Press the CURSOR RIGHT ©
button to display the SETUP menu
features.
DEMO
OFF
WAKEUP
©
SETUP
©
TUNER
AutoLock REVIEW
©
AUTO PROGRAM
©
BRIGHTNESS
30
CHANNEL EDIT
©
MANUAL
©
EXTERNAL
©
Press the CURSOR UP ▲ or
DOWN ▼ buttons to scroll the
Setup features until the words
CHANNEL EDIT are highlighted.
POWER
SLEEP
A/CH
Press the CURSOR RIGHT ©
button to display the CHANNEL
EDIT options.
With the CHANNEL EDIT
options displayed, and the word
CHANNEL highlighted; enter the
channel number (with the NUMBERED or the CH + or – buttons)
you wish to ADD to, or DELETE
from the TV’s memory.
STATUS/EXIT
6
MULTI MEDIA
1
2
3
4
5
6
7
1
CC
8
AUTO
CHANNEL
SAVED
9
AUTO
SOUND
2
YES
CHANNEL ADDED
0
7
MENU
SURF
CHANNEL
3
CH
VOL
Scroll down (using the CURSOR UP ▲ or DOWN ▼ buttons)
to highlight the word SAVED.
Now use the CURSOR RIGHT ©
button to toggle between YES or
NO.
If YES is selected the menu reads
“CHANNEL ADDED” and the
channel is added to the TV’s memory. If NO is selected the menu reads
“CHANNEL DELETED” and the
channel is deleted from the TV’s
memory.
CABLE
MUTE
4
2
NIGHT LIGHT
ON/OFF
SET
ALARM
14
RESET
SAVED
5
7
CHANNEL DELETED
2
NO
HOW TO MANUALLY FINE TUNE CHANNELS
MANUAL
T
he Fine Tune (Manual) feature of
this television will help adjust the
reception of some channel signals
being received. This can help to reduce
noise (snow) in the picture giving the
best possible viewing image.
BEGIN
Tune to the channel you wish to
adjust.
Press the MENU button on the
remote control to show the onscreen
menu.
DEMO
OFF
WAKEUP
©
SETUP
©
AUTO PROGRAM
©
AutoLock REVIEW
©
CHANNEL EDIT
©
BRIGHTNESS
30
MANUAL
©
EXTERNAL
©
Press the CURSOR UP ▲ or
DOWN ▼ button to select the word
SETUP.
POWER
SLEEP
Press the CURSOR RIGHT ©
button to display the SETUP menu
features.
Press the CURSOR UP ▲ or
DOWN ▼ button to scroll the Setup
features until the word MANUAL is
highlighted.
A/CH
2
CC
MULTI MEDIA
1
2
3
4
5
6
7
8
AUTO
2
STORE
©
9
0
MENU
SURF
4
CH
VOL
MUTE
7
FINE TUNE
AUTO
SOUND
Press the CURSOR LEFT § or
the CURSOR RIGHT © buttons to
adjust the tuning of the channel signal
being received.
Press the CURSOR DOWN ▼
button to highlight STORE.
STATUS/EXIT
5
3
6
8
FINE TUNE
2
STORE
©
1
NIGHT LIGHT
Press the CURSOR RIGHT ©
button to save the adjustment in the
TV’s memory. The screen will change
from STORE to STORED.
ON/OFF
SET
ALARM
RESET
FINE TUNE
STORED
SMART HELP
Remember, run the AUTOPROGRAM feature (see page
13) first, then the channels saved in
the TV memory can be adjusted.
15
2
USING THE EXTERNAL CONTROL
T
he External feature allows you to
rename your input source selections. When the Input feature (refer to
Owner’s Manual for details) is
accessed to change audio/video jacks,
your source selection will be called by
the name you choose. This name will
also appear onscreen when using the
audio/video inputs.
BEGIN
Press the MENU button on the
remote to show the onscreen menu.
Press the CURSOR UP ▲ or
DOWN ▼ buttons to scroll through
the onscreen menu until the word
SETUP is highlighted.
Press the CURSOR RIGHT ©
button to display the SETUP menu
features.
Press the CURSOR UP ▲ or
DOWN ▼ buttons to scroll the
Setup features until the word
EXTERNAL is highlighted.
Press the CURSOR RIGHT ©
button to activate the External feature.
With the External options menu
displayed, press the CURSOR
RIGHT © button to select a name
from the list: EXT, GAM, DVD,
VCD, VCR, LD, or AV.
DEMO
OFF
WAKEUP
©
SETUP
©
CHANNEL EDIT
©
AutoLock REVIEW
©
MANUAL
©
BRIGHTNESS
30
EXTERNAL
©
POWER
SLEEP
A/CH
1
STATUS/EXIT
CC
MULTI MEDIA
1
2
3
4
5
6
7
8
AUTO
9
AUTO
0
SOUND
2
4
EXT 1
EXT
EXT 1
GAM
EXT 1
DVD
EXT 1
VCD
EXT 1
VCR
EXT 1
LD
EXT 1
AV
MENU
SURF
3
5
6
CH
VOL
MUTE
NIGHT LIGHT
ON/OFF
SET
RESET
ALARM
EXT 1
SMART HELP
12:00
DVD
Remember: This feature will
rename your external signal
source and appear onscreen with the
new name but does not limit you to
the type of accessory device that you
may use.
The onscreen menu will time out and
disappear from the screen when you
finish, or you can press the STATUS/EXIT button to clear the menu
from the screen.
16
CHANGE TO
12:00
HOW TO ADJUST THE TV PICTURE
T
o adjust your TV picture controls, select a channel and follow
the steps shown below:
BEGIN
Press the MENU button on the
remote to display the onscreen menu.
Press the CURSOR UP ▲ or
DOWN ▼ buttons until the
word BRIGHTNESS is highlighted.
(Or, COLOR, PICTURE, SHARPNESS, TINT, COL. TEMP depending on the adjustment you want to
make.)
SETUP
©
AutoLock REVIEW
©
BRIGHTNESS
30
AutoLock REVIEW
©
COLOR
30
BRIGHTNESS
30
30
COLOR
30
30
SHARPNESS
30
Press the CURSOR RIGHT ©
or the CURSOR LEFT § buttons
to increase or decrease the brightness
of the picture.
POWER
SLEEP
A/CH
SMART HELP
BRIGHTNESS Press the ©
or § buttons until darkest parts of
the picture are as bright as you prefer.
COLOR Press the © or § buttons to
add or eliminate color.
1
STATUS/EXIT
CC
MULTI MEDIA
1
2
3
4
5
6
7
8
AUTO
9
AUTO
0
SOUND
MENU
SURF
3
30
30
SHARPNESS
30
TINT
0
COLOR
30
30
SHARPNESS
30
0
COL TEMP
NORMAL
CH
VOL
MUTE
TINT Press the © or § buttons to
obtain natural skin tones.
COLOR TEMP Press the © or § buttons to select NORMAL, COOL, or
WARM picture preferences. (NORMAL
will keep the whites, white; COOL will
make the whites, bluish; and WARM will
make the whites, reddish.)
30
COLOR
TINT
PICTURE Press the © or § buttons
until lightest parts of the picture show
good detail.
SHARPNESS Press the © or § buttons
to improve detail in the picture.
2
BRIGHTNESS
30
SHARPNESS
30
TINT
0
NIGHT LIGHT
COL TEMP
ON/OFF
SET
RESET
NORMAL
CONTRAST PLUS
ON
ALARM
SHARPNESS
The onscreen menu will time out and disappear from the screen when you finish, or
you can press the STATUS/EXIT button to
clear the menu from the screen.
30
TINT
COL TEMP
17
0
NORMAL
CONTRAST PLUS
ON
NOISE REDUCTION
ON
COL TEMP
WARM
COL TEMP
COOL
ACTIVATING THE CONTRAST PLUS (BLACK STRETCH) CONTROL
T
he Contrast Plus (Black Stretch)
feature helps to “sharpen” the
picture quality. The black portions of
the picture become richer in darkness and the whites become brighter.
TINT
0
COL TEMP
BEGIN
Press the MENU button on the
remote to display the onscreen menu.
NORMAL
CONTRAST PLUS
0FF
TINT
NOISE REDUCTION
OFF
COL TEMP
VOLUME
15
0
NORMAL
CONTRAST PLUS
0N
NOISE REDUCTION
OFF
VOLUME
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ buttons until
the words CONTRAST PLUS are
highlighted.
15
POWER
SLEEP
Press the CURSOR RIGHT ©
or CURSOR LEFT § buttons to
activate or deactivate the Contrast
Plus feature.
A/CH
1
STATUS/EXIT
CC
MULTI MEDIA
1
2
3
4
5
6
7
8
SMART HELP
9
AUTO
0
SOUND
Remember: The onscreen
menu will disappear in a few
seconds after you have finished your
adjustment.
2
AUTO
MENU
SURF
3
CH
VOL
MUTE
ACTIVATING THE NOISE REDUCTION (PICTURE) CONTROL
F
or reasons such as poor cable
reception, the picture can sometime appear slightly “speckled” (or
signal noise shown in the picture).
The NOISE REDUCTION control can
help eliminate this type of interference and improve the quality of the
picture.
COL TEMP
NORMAL
CONTRAST PLUS
ON
NOISE REDUCTION
OFF
VOLUME
TREBLE BOOST
COL TEMP
NORMAL
15
CONTRAST PLUS
ON
OFF
NOISE REDUCTION
ON
VOLUME
BEGIN
TREBLE BOOST
15
OFF
Press the MENU button on the
remote to display the onscreen menu.
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ button until
the words NOISE REDUCTION are
highlighted.
Press the CURSOR RIGHT ©
or CURSOR LEFT § buttons to
activate or deactivate the Noise
Reduction Feature.
POWER
SLEEP
A/CH
1
STATUS/EXIT
CC
MULTI MEDIA
1
2
3
4
5
6
7
8
AUTO
9
AUTO
0
SOUND
SMART HELP
Remember: The onscreen
menu will disappear in a few
seconds after you have finished your
adjustment.
2
MENU
SURF
3
CH
VOL
MUTE
18
“Noise” Reduction is a video adjustment feature that affects the picture
quality of the TV but not the sound.
USING THE SLEEP TIMER CONTROL
H
ave you ever fallen asleep in
front of the TV only to have it
wake you up at two in the morning
with a test pattern screeching in
your ears? Well, your TV can save
you all that trouble by automatically turning itself off.
12
15 MIN
BEGIN
12
Press the SLEEP button on the
remote control and the SLEEP timer
display will appear on the screen.
30 MIN
12
Press the SLEEP button
repeatedly to pick the amount of
time (In 15 minute increments up to
60 minutes; then 30 minute increments up to 120 minutes; then 60
minute increments up to 240 minutes) before the TV will turn itself
off.
An onscreen count down will appear
during the last minute before the TV
shuts itself off.
45 MIN
12
1
60 MIN
POWER
SLEEP
A/CH
STATUS/EXIT
CC
MULTI MEDIA
90 MIN
1
2
3
4
5
6
7
8
9
AUTO
12
12
120 MIN
AUTO
0
SOUND
MENU
12
SURF
180 MIN
12
SMART HELP
240 MIN
CH
VOL
MUTE
Remember: The SLEEP
TIMER control can also be set
within the TV’s main menu.
The onscreen menu will time out
and disappear from the screen when
you finish, or you can press the
STATUS/EXIT button to clear the
menu from the screen.
NIGHT LIGHT
ON/OFF
SET
RESET
ALARM
12
12
50 SEC
10 SEC
During the last minute of a SLEEP
timer setting, an onscreen count
down will be displayed. Pressing
any button during the last minute
will cancel the SLEEP timer.
GOODBYE
19
During the last 10 seconds of a
SLEEP timer setting, an onscreen
display will read GOODBYE.
USING THE CLOSED CAPTION CONTROL
C
losed Captioning (CC) allows
you to read the voice content of
television programs on the TV
screen. Designed to help the hearing impaired, this feature uses
onscreen “text boxes” to show dialogue and conversations while the
TV program is in progress.
NOTE: Not all TV programs and product commercials are made for broadcast
with Closed Caption (CC) information included. Neither are all Closed Caption
modes (CC-1, or CC-2) necessarily being used by a broadcast station during the
transmission of a closed caption program. Refer to your area's TV program listings
for the stations and times of Closed Caption shows.
BEGIN
Press the MENU button on the
remote to display the onscreen
menu.
SLEEPTIMER
CC
OFF
SLEEPTIMER
©
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ button until
the word CC (Closed Caption) is
highlighted.
DEMO
OFF
AutoLock
©
©
WAKEUP
CC
1
DEMO
OFF
©
WAKEUP
Press the CURSOR RIGHT
NOTE: You can also set the
Closed Caption by pressing the CC
button on the remote. When pressed
repeatedly the screen will display the
options: CC-OFF, CC-1, CC-2, or
CC-MUTE.
©
AutoLock
4
© button to select the CLOSED
CAPTION option you want (OFF, 1,
2, or MUTE). Dialogue (and
descriptions) for the action on the
captioned TV program will appear
onscreen.
©
A/CH
1
©
AutoLock
POWER
SLEEP
CC
STATUS/EXIT
CC
MULTI MEDIA
2
DEMO
OFF
©
WAKEUP
1
2
3
4
5
6
AutoLock
7
8
9
CC
AUTO
AUTO
0
SOUND
2
©
MUTE
DEMO
OFF
MENU
WAKEUP
SURF
4
3
CH
VOL
CC - 1
MUTE
NIGHT LIGHT
SMART HELP
ON/OFF
SET
RESET
ALARM
Remember: The onscreen
menu will time out and disappear from the screen when you finish, or you can press the
STATUS/EXIT button to clear the
menu from the screen.
CAPTION mode
Example Display
NOTE: The CC-MUTE option
can be used to set the TV to
turn the Closed Caption mode
“ON” whenever the MUTE button on the remote is pressed.
This activates the CC-1 option.
MUTE will appear smaller in
the upper center of the screen.
20
©
JOHN: Why did they move the
meeting up to this week?
MARSHA: I don't know, but they
are pushing to close the deal.
SETTING THE TV’S WAKEUP TIME
Y
our television comes with an alarm
system known as WAKEUP. This
feature allows you to set a Wakeup
Time, choose an alarm sound, select a
Wakeup channel and set the volume
level.
Let’s start with learning how to set the
WAKEUP Time.
SMART
HELP
CC
OFF
DEMO
OFF
WAKEUP
©
SETUP
©
AutoLock REVIEW
©
START TIME
MODE
BEGIN
VOLUME
Press the MENU button on the
remote to display the onscreen menu.
©
12
POWER
SLEEP
A/CH
Press the CURSOR UP ▲ OR
CURSOR DOWN ▼ buttons until
the word WAKEUP is highlighted.
Press the CURSOR RIGHT ©
button to display the WAKEUP features. START TIME will be highlighted.
- - :- - PM
4
1
STATUS/EXIT
CC
MULTI MEDIA
1
2
3
4
5
6
7
8
9
AUTO
0
SOUND
MODE
MENU
Press the NUMBERED buttons
on the remote to enter the time you
wish the WAKEUP feature to turn ON.
START TIME 12:30 PM
2
AUTO
VOLUME
SURF
3
CH
VOL
5
MUTE
Press the CURSOR RIGHT © or
LEFT § button to set AM or PM.
NIGHT LIGHT
ON/OFF
SET
©
Remember: Be
sure to press “0” first
and then the hour number for single digit
entries.
To clear the onscreen
menu press the STATUS/EXIT button or
wait a few seconds after
you have finished your
adjustment and the menu
will automatically disappear from the screen.
12
To turn the ALARM ON or OFF simply press the
ALARM ON/OFF button located on the remote
control. Please be sure that the TV’s clock has been
set using the AutoChron feature and the WAKEUP
features have been properly set.
RESET
ALARM
SELECTING THE WAKEUP CHANNEL
U
sed along with the WAKEUP
features, you can select a specific channel that the television will
tune to when the Alarm control is
turned ON.
SMART
HELP
BEGIN
Press the MENU button to display the onscreen menu.
Press he CURSOR DOWN ▼
button to highlight the word
MODE.
OFF
DEMO
OFF
WAKEUP
©
SETUP
©
START TIME
AutoLock REVIEW
©
MODE
VOLUME
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ button until
the word WAKEUP is highlighted.
Press the CURSOR RIGHT ©
button to display the WAKEUP features. START TIME will be highlighted.
CC
Channel.
©
12
Be sure to set the Alarm
control to ON.
POWER
SLEEP
6
A/CH
1
STATUS/EXIT
CC
MULTI MEDIA
1
2
3
4
5
6
7
8
AUTO
9
SOUND
TV Channel
2
AUTO
0
ALARM
MENU
SURF
3
Press the CURSOR RIGHT
© button to highlight the words TV
- - :- - PM
Remember: Be
sure the TV’s clock has
been set to the correct
time using the
AutoChron feature.
CH
VOL
4
Press the NUMBERED buttons
on the remote to select the desired
Wakeup Channel.
MUTE
NIGHT LIGHT
ON/OFF
SET
RESET
ALARM
21
5
12
©
The onscreen menu will
time out and disappear
from the screen when
you finish, or you can
press the STATUS/EXIT
button to clear the menu
from the screen.
To turn the ALARM ON or OFF simply press the
ALARM ON/OFF button located on the remote
control. Please be sure that the TV’s clock has been
set using the AutoChron feature and the WAKEUP
features have been properly set.
SELECTING THE WAKEUP ALARM (SOUND)
U
sed along with the WAKEUP
feature, you can select a specific ALARM sound (Rooster,
Xylophone or Harp) to wake you.
Follow the steps below to select an
alarm sound.
BEGIN
Press the MENU button to display the onscreen menu.
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ button until
the word WAKEUP is highlighted.
Press the CURSOR RIGHT ©
button to show the Wakeup menu.
CC
OFF
DEMO
OFF
WAKEUP
©
SETUP
©
START TIME
AutoLock REVIEW
©
MODE
- - :- - PM
©
VOLUME
12
TV Channel
12
Press the CURSOR DOWN ▼
button on the remote to highlight
the word MODE.
POWER
Press the CURSOR RIGHT ©
button to show the TV Channel and
Alarm options. Then, press the
CURSOR DOWN ▼ button to
highlight the word ALARM.
Press the CURSOR RIGHT ©
button to display the three Alarm
Sound options (Rooster, Xylophone
or Harp).
Press the CURSOR UP ▲ or
▼ DOWN button to highlight the
desired sound. The highlight option
will sound indicating your selection.
SLEEP
6
A/CH
STATUS/EXIT
CC
MULTI MEDIA
ALARM
1
1
2
3
4
5
6
7
8
AUTO
9
AUTO
0
SOUND
2
7
MENU
SURF
3
CH
VOL
5
4
©
MUTE
ROOSTER
5
6
XYLOPHONE
HARP
NIGHT LIGHT
ON/OFF
SET
ALARM
To turn the ALARM ON or OFF
simply press the ALARM ON/OFF
button located on the remote control. Please be sure that the TV’s
clock has been set using the
AutoChron feature and the WAKEUP features have been properly set.
22
RESET
When an option is selected the
TV will sound that selection’s
chime repeatedly. This will
stop if you exit the menu or if
you let the menu time out and
disappear from the screen.
SETTING THE WAKEUP VOLUME
U
sed along with the WAKEUP
features, you can set a specific
Volume level that the television will
set itself to when the Alarm control
is turned ON.
BEGIN
Press the MENU button to display the onscreen menu.
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ button until
the word WAKEUP is highlighted.
Press the CURSOR RIGHT ©
button to display the WAKEUP features. START TIME will be highlighted.
CC
OFF
DEMO
OFF
WAKEUP
©
SETUP
©
AutoLock REVIEW
©
START TIME
MODE
VOLUME
- - :- - PM
©
12
Press the CURSOR DOWN ▼
button to highlight the word VOLUME.
POWER
START TIME
SLEEP
Press the CURSOR RIGHT
© or CURSOR LEFT § button to
adjust the volume level desired for the
TV’s Alarm.
A/CH
STATUS/EXIT
CC
VOLUME
1
1
2
3
4
5
6
7
8
AUTO
0
SMART HELP
The onscreen menu will time out
and disappear from the screen when
you finish, or you can press the
STATUS/EXIT button to clear the
menu from the screen.
9
AUTO
SOUND
Remember: Be sure to set
the Wakeup Alarm to ON.
MODE
MULTI MEDIA
- - :- - PM
©
12
2
MENU
SURF
5
3
CH
VOL
5
MUTE
4
NIGHT LIGHT
ON/OFF
SET
RESET
ALARM
To turn the ALARM ON or OFF
simply press the ALARM ON/OFF
button located on the remote control. Please be sure that the TV’s
clock has been set using the
AutoChron feature and the WAKEUP features have been properly set.
23
ACTIVATING THE DEMO CONTROL
A
DEMO Control has been added
to this television to display various features of the set. This is
intended for sales floors were limited numbers of sales personal are
available. It displays for the customer some of the unique features
built into the set.
To turn the DEMO control OFF,
follow the steps below:
©
AutoLock
BEGIN
Press the MENU button to display the onscreen menu.
CC
OFF
DEMO
OFF
WAKE UP
©
CC
OFF
SETUP
©
DEMO
ON
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ button until
the word DEMO is highlighted.
Press the CURSOR RIGHT ©
button to toggle the DEMO control
ON or OFF.
©
AutoLock
WAKE UP
©
SETUP
©
POWER
SLEEP
A/CH
STATUS/EXIT
CC
MULTI MEDIA
PHILIPS
Note: When the DEMO control is in
the ON position, pressing any button
on the remote or TV will eliminate it
from the screen until the TV is powered off. When the TV is powered
ON, the DEMO will begin again.
1
1
2
3
4
5
6
7
8
DEMONSTRATION
9
AUTO
AUTO
0
SOUND
2
MENU
SURF
We recommend that the DEMO control be set to the OFF position when
used in the home.
START TIME
- - : - - PM
©
MODE
3
12
CH
VOL
2
VOLUME
MUTE
NIGHT LIGHT ON
NIGHT LIGHT
ON/OFF
SET
RESET
ALARM
ROOSTER
NIGHT LIGHT
INTENSITY IS
CHANGING
..... CONTINUED
24
USING THE TV’S NIGHT LIGHT
A
unique feature of this television
is it’s Night Light. This feature
allows vision of the Clock while
also lighting the “feet” of the TV.
It’s a great feature for a child’s
room or the kitchen area.
BEGIN
Press the NIGHT LIGHT button on the remote control to turn the
televisions Night Light ON.
The Clock and the television’s feet
will be lit with a soft blue light.
Press the CURSOR UP ▲ or
DOWN ▼ buttons to increase or
decrease the light’s brightness.
Press the NIGHT LIGHT button on the remote again to turn the
light OFF.
NOTE: The Clock and both legs (feet)
will light when the NIGHT LIGHT button on the remote is pressed.
POWER
SLEEP
A/CH
2
STATUS/EXIT
CC
MULTI MEDIA
1
2
3
4
5
6
7
8
AUTO
9
AUTO
0
SOUND
MENU
SURF
2
CH
VOL
MUTE
3
1
NIGHT LIGHT
ON/OFF
SET
ALARM
25
RESET
UNDERSTANDING THE AUTOLOCK™ CONTROL
T
he AutoLock feature is an integrated circuit that receives and
processes data sent by broadcasters, or other program providers,
that contain program content advisories. When programmed by the
viewer, a TV with AutoLock can
respond to the content advisories
and block program content that may
be found objectionable (such as
offensive language, violence, sexual
situations, etc.). This is a great feature to censor the type of viewing
children may watch.
Over the next few pages you’ll
learn how to block channels and
certain rated programming. Below
is a brief explanation of some terms
and ratings you will find in the
AutoLock feature.
AutoLock offers various BLOCKING OPTION controls from
which to choose:
MASTER DISABLE: This is what
might be called the "master switch"
for AutoLock. When in the ON position, ALL blocking/censoring is
turned off (or disabled). When in the
OFF position, ALL blocking based
on specifically blocked settings will
take place.
BLOCK UNRATED: ALL unrated
programs based on the Movie
Ratings or Parental (TV) Guidelines
can be blocked if this feature is set
to ON and the MASTER DISABLE
feature is set to OFF.
BLOCK NO RATINGS: ALL programming with NO content advisory
data can be blocked if this feature is
set to ON and the MASTER DISABLE feature is set to OFF.
After an access code has been programmed, you can block up to 5
individual channels. But more than
just blocking channels, certain
blocking options exist which will
block programming based on ratings
patterned by the Motion Pictures
Association of America and TV
broadcasters. (See description of ratings on this page.)
G
OFF
TV-Y
PG
OFF
TV-Y7
PG-13
OFF
TV-G
OFF
©
R
ON
TV-PG
OFF
©
NC-17
ON
TV-14
©
X
ON
TV-MA
©
MOVIE RATINGS
TV PARENTAL GUIDELINES
(MOTION PICTURE ASSOCIATION OF AMERICA)
(TV BROADCASTERS)
G: General Audience - All ages admitted. Most parents would find this program suitable for all ages. This type of
programming contains little or no violence, no strong language, and little or no
sexual dialogue or situations.
TV TV-Y - (All children -- This program
PG: Parental Guidance Suggested - This
programming contains material that parents
may find unsuitable for younger children.)
It may contain one or more of the following: Moderate violence, some sexual situations, infrequent coarse language, or some
suggestive dialogue.
PG-13: Parents Strongly Cautioned - This
programming contains material that parents
may find unsuitable for children under the
age of 13. It contains one or more of the
following: violence, sexual situations,
coarse language, or suggestive dialogue.
R: Restricted -This is programming is
specifically designed for adults. Anyone
under the age of 17 should only view this
programming with an accompanying parent
or adult guardian. It contains one or more
of the following: intense violence, intense
sexual situations, strong coarse language,
or intensely suggestive dialogue.
NC-17: No one under the age of 17 will
be admitted. - This type of programming
should be viewed by adults only. It contains graphic violence, explicit sex, or
crude indecent language.
X: Adults Only - This type of programming
contains one or more of the following: very
graphic violence, very graphic and explicit
or indecent sexual acts, very coarse and
intensely suggestive language.
designed to be appropriate for all
Y ischildren.)
Designed for a very young
audience, including children ages 2-6. This
type of programming is not expected to
frighten younger children.
TV TV-Y7 - (Directed to Older
-- This program is designed
Y7 Children
for children age 7 and above.) It may
be more appropriate for children who have
acquired the development skills needed to
distinguish between make-believe and reality. This programming may include mild fantasy and comic violence (FV).
TV TV-G - (General Audience -- Most
would find this program suitG parents
able for all ages.) This type of programming contains little or no violence, no
strong language, and little or no sexual dialogue or situations.
TV-PG - (Parental Guidance
Suggested -- This program contains
material that parents may find unsuitable for younger children.) This type of programming contains one or more of the following: Moderate violence (V), some sexual
situations (S), infrequent coarse language
(L), or some suggestive dialogue (D).
TV
PG
TV-14 - (Parents Strongly
Cautioned -- This program contains
some material that many parents
would find unsuitable for children under 14
years of age.) This type of programming
contains one or more of the following:
intense violence (V), intense sexual situations (S), strong coarse language (L), or
intensely suggestive dialogue (D).
TV
14
TV TV-MA - (Mature Audience Only --
program is specifically designed
MA This
to be viewed by adults and therefore
may be unsuitable for children under 17.)
This type of programming contains one or
more of the following: graphic violence (V),
explicit sexual situations (S), or crude indecent language (L).
26
UNDERSTANDING THE AUTOLOCK CONTROL (ACCESS CODE)
TM
O
ver the next few pages you’ll
learn how to block channels
and get a better understanding of
the rating terms for certain programming.
First, let’s start by learning how to
set a personal access code:
SLEEPTIMER
Press the MENU button on the
remote to display the onscreen
menu.
Press the CURSOR DOWN ▼
button until the words CHANGE
CODE are highlighted.
OFF
DEMO
OFF
ACCESS CODE
_ _ _ _
8
POWER
SLEEP
7
A/CH
STATUS/EXIT
CC
MULTI MEDIA
4
AutoLock
1
1
2
3
4
5
6
7
8
AUTO
9
AUTO
0
SOUND
ACCESS CODE
2
X X X X
MENU
SURF
3
5
6
AutoLock
CH
VOL
MUTE
ACCESS CODE
Press the CURSOR RIGHT ©
button to change your personal
Access Code.
_ _ _ _
NIGHT LIGHT
INCORRECT CODE
ON/OFF
“Next enter a “new” 4 digit
code using the NUMBERED
buttons. The screen will then ask
you to confirm the code you just
entered. Enter your new code
again. “XXXX” will appear when
you enter your new code.
AutoLock
©
CC
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ buttons
until the words AutoLock are highlighted.
Using the NUMBERED buttons, enter 0, 7, 1, 1. “XXXX”
appears on the Access Code screen
as you press the numbered buttons.
“INCORRECT CODE” will
appear on the screen, and you will
need to enter 0, 7, 1, 1 again.
OFF
AutoLock
BEGIN
Press the CURSOR RIGHT
© button to display the
AutoLock Access Code screen.
©
INPUT
SET
RESET
ALARM
BLOCK
©
CHANGE CODE
©
CHANGE CODE
XXXX
Press the STATUS/EXIT
button after the new code has been
entered to set the code in the TV's
memory.
CONFIRM CODE X X X X
NOTE: The 0,7,1,1 access code shown
on this page is the default code or a
way to reset the code when the current
access code is not known.
Parents - it isn’t possible for your child
to unblock a channel without knowing
your access code or changing it to a new
one. If your code changes, and you didn’t change it, then you know it’s been
altered by someone else and blocked
channels have been viewed.
27
UNDERSTANDING THE AUTOLOCK CONTROL (BLOCK CHANNEL)
TM
A
fter your personal access code
has been set (see previous
page), you are now ready to select
the channels you want to block out
or censor.
©
INPUT
BEGIN
SLEEPTIMER
Press the MENU button on the
remote to show the onscreen menu.
OFF
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ button until
the words AutoLock are highlighted.
AutoLock
©
AutoLock
CC
OFF
DEMO
OFF
ACCESS CODE
_ _ _ _
POWER
Press the CURSOR RIGHT
© button to display the AutoLock
Access screen.
AutoLock
SLEEP
A/CH
STATUS/EXIT
CC
7
MULTI MEDIA
4
Enter the correct access code
number. “XXXX” shows on the
Access Code display as you press
the NUMBERED buttons.
1
1
2
3
ACCESS CODE
4
5
6
X X X X
7
8
9
AUTO
MENU
Press the CURSOR UP ▲ or
DOWN ▼ buttons until the word
BLOCK is highlighted. Press the
CURSOR RIGHT © button then
highlight CHANNELS
BLOCKED.
2
AUTO
0
SOUND
SURF
CH
VOL
8
5
4
MUTE
BLOCK
©
CHANGE CODE
©
6
BLOCKING OPTIONS
Press the CURSOR RIGHT ©
button. Three options will be displayed; CHANNEL, LOCK or
CLEAR ALL.
NIGHT LIGHT
ON/OFF
SET
RESET
MOVIE RATINGS
©
PARENTAL GUIDELINE
©
ALARM
With CHANNEL highlighted,
use the NUMBERED buttons to
enter the channel number you wish
to block.
Use the CURSOR DOWN ▼
button to highlight the word
LOCK, then press the CURSOR
RIGHT © button to select YES
(block) or NO (do not block). The
channel chosen is now blocked from
viewing.
Repeat steps 7 and 8 for any other
channels you wish to block from
viewing.
©
CHANNELS BLOCKED ©
CHANNEL 5 BLOCKED
CHANNEL
LOCK
CLEAR ALL
5
NO
©
CHANNEL
LOCK
CLEAR ALL
5
YES
©
BY CHANNEL BLOCKING
ENTER CODE TO VIEW
_ _ _ _
When a blocked channel is viewed, this is what the screen will display. To view the blocked channel, simply enter the current access code. Note: Once the access code is entered ALL blocked channels will be
viewable until the TV is powered off. Once the set is turned off and then back on the previously blocked
channels will again be blocked.
To clear blocked channels
follow the steps below:
Press the CURSOR DOWN ▼
button until the words CLEAR
ALL are highlighted, then press the
CURSOR RIGHT © button.
The screen will read “ALL
UNBLOCKED” for a moment. At
this point ALL the previously
blocked channels will be unblocked.
CHANNEL
LOCK
CLEAR ALL
5
YES
©
28
CHANNEL
LOCK
ALL UNBLOCKED
ALL
NO
Note: When the CLEAR
ALL option is selected, the
CHANNEL option will
display ALL.
If at this point if you change
the LOCK option to YES,
ALL channels will be blocked
from viewing.
UNDERSTANDING THE AUTOLOCKTM CONTROL (BLOCKING OPTIONS)
A
utoLock offers the viewer other
blocking features as well. With
these Blocking Option features, the
censoring can be turned ON or
OFF.
SLEEPTIMER
OFF
Press the MENU button on the
remote to display the onscreen
menu.
AutoLock
©
AutoLock
BEGIN
CC
OFF
DEMO
OFF
ACCESS CODE
_ _ _ _
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ buttons until
the word AutoLock are highlighted.
POWER
SLEEP
A/CH
Press the CURSOR RIGHT
© button to display the AutoLock
Access Code screen.
©
INPUT
1
STATUS/EXIT
4
CC
MULTI MEDIA
1
2
3
4
5
6
7
8
9
AUTO
2
AUTO
0
SOUND
Using the NUMBERED buttons on the remote, enter your personal Access Code.
AutoLock
X X X X
MENU
SURF
3
CH
VOL
With the word BLOCK highlighted, Press the CURSOR
RIGHT © button.
ACCESS CODE
6
MUTE
5
7
BLOCK
©
CHANGE CODE
©
NIGHT LIGHT
Scroll the menu using the
CURSOR UP ▲ or CURSOR
DOWN ▼ buttons until the words
BLOCKING OPTIONS are highlighted.
Press the CURSOR RIGHT ©
button to display the Blocking
Options (MASTER DISABLE,
BLOCK UNRATED, or BLOCK
NO RATING). When highlighted,
each feature can be turned ON or
OFF using the CURSOR RIGHT
© or CURSOR LEFT § buttons
on the remote.
ON/OFF
SET
RESET
ALARM
©
MASTER DISABLE
ON
MASTER DISABLE
OFF
CHANNELS BLOCKED ©
BLOCK UNRATED
ON
BLOCK UNRATED
OFF
BLOCK NO RATING
ON
BLOCK NO RATING
OFF
BLOCKING OPTIONS
MOVIE RATINGS
©
CHANNEL 20 BLOCKED
BY CONTENT ADVISORY
CANNOT DECODE RATING
ENTER CODE TO VIEW
OR
If the BLOCK UNRATED or BLOCK NO RATINGS
controls are turned ON, all unrated programs and programs containing NO content advisory data will display
the screen shown to the left. To watch the channel enter
your access code, or change the BLOCK UNRATED
and BLOCK NO RATINGS back to OFF.
– – – –
BLOCKING OPTIONS:
MASTER DISABLE: This is what might be called the “master switch” for AutoLock. When in the ON position, ALL blocking/censoring is turned off (or disabled). When in the OFF position, ALL blocking based on specifically blocked settings will
take place.
BLOCK UNRATED: ALL unrated programs based on the Movie Ratings or Parental (TV) Guidelines can be blocked if this
feature is set to ON and the MASTER DISABLE feature is set to OFF.
BLOCK NO RATINGS: ALL programming with NO content advisory data can be blocked if this feature is set to ON and the
MASTER DISABLE feature is set to OFF.
29
UNDERSTANDING THE AUTOLOCK CONTROL (MOVIE RATINGS)
TM
SMART
HELP
T
here are two types of program
ratings within the AutoLock feature. One is based on the Movie
Industry ratings while the other is
based on the TV Industry ratings.
Both can be used to block or censor
programming that has been rated in
either manner.
©
INPUT
SLEEPTIMER
Let’s first look at the Movie Rating
options of AutoLock:
AutoLock
OFF
©
CC
OFF
DEMO
OFF
AutoLock
Remember:
Selecting to
block any rating
will cause all the
higher ratings to
also be blocked
automatically.
ACCESS CODE
BEGIN
_ _ _ _
Press the MENU button on the
remote to display the onscreen
menu.
POWER
AutoLock
SLEEP
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ buttons until
the words AutoLock are highlighted.
Press the CURSOR RIGHT
© button to display the AutoLock
Access Code screen.
Using the NUMBERED buttons on the remote, enter your
Personal Access Code.
A/CH
1
STATUS/EXIT
CC
4
MULTI MEDIA
1
2
3
ACCESS CODE
4
5
6
X X X X
7
8
AUTO
9
AUTO
0
SOUND
2
6
MENU
SURF
3
CH
VOL
MUTE
With the word BLOCK highlighted, Press the CURSOR
RIGHT © button.
Scroll the menu using the
CURSOR UP ▲ or CURSOR
DOWN ▼ buttons until the words
MOVIE RATINGS are highlighted.
Press the CURSOR RIGHT ©
button to display the MOVIE
RATINGS (G, PG, PG-13, R,
NC17, or X).
When highlighted, all these options
can be turned ON (which will allow
blocking) or OFF (which will allow
viewing).
Use the CURSOR RIGHT © or
CURSOR LEFT § buttons on the
remote to turn the rating option ON
or OFF.
5
BLOCK
©
CHANGE CODE
©
7
BLOCKING OPTIONS
CHANNELS BLOCKED ©
©
MOVIE RATINGS
NIGHT LIGHT
ON/OFF
SET
RESET
PARENTAL GUIDELINE
ALARM
CHANNEL 5 BLOCKED
BY CONTENT ADVISORY
©
PG
OFF
PG-13
OFF
R
MOVIE RATING
©
ON
NC-17
ON
X
ON
R
ENTER CODE TO VIEW
_ _ _ _
Screen will display a message when programming is
blocked by the Movie Rating feature. To unblock, turn
the Movie Rating OFF, or enter your personal access
code. Entering the code will unblock ALL blocked
Movie Ratings until the TV is turn off. Then the
blocked ratings will be reset to ON.
30
NOTE: When a rating is turned ON, all
higher ratings will automatically be turned
ON. To turn them OFF, you will have to be
set each rating individually. (i.e., R blocked
manually, NC-17 and X will be blocked
automatically).
UNDERSTANDING THE AUTOLOCKTM CONTROL (PARENTAL GUIDELINE)
SMART
HELP
T
his portion of the AutoLock features cover program ratings
based on the TV Industry rating
system. This is known as Parental
Guideline within AutoLock.
After selecting the AutoLock feature
and entering your personal access
code, the BLOCK/CHANGE CODE
screen appears;
BLOCK
©
CHANGE CODE
©
Remember:
Selecting to
block any rating
will cause all the
higher ratings to
also be blocked
automatically.
CHANNELS BLOCKED ©
©
MOVIE RATINGS
PARENTAL GUIDELINE
©
BEGIN
With the word BLOCK highlighted, Press the CURSOR
RIGHT © button.
Scroll the menu using the
CURSOR UP ▲ or CURSOR
DOWN ▼ buttons until the words
PARENTAL GUIDELINE are
highlighted.
POWER
SLEEP
TV-Y
A/CH
STATUS/EXIT
CC
TV-Y7
1
2
3
TV-G
4
5
6
TV-PG
OFF
©
7
8
TV-14
©
TV-MA
©
AUTO
Press the CURSOR RIGHT ©
button to display the Parental
(TV) Guideline (TV-Y, TV-Y7,
TV-G, TV-PG, TV-14, or TVMA).
When highlighted, the TV-Y and
TV-G can be turned ON (which will
allow blocking), or OFF (which
will allow viewing) of these rated
programs.
The ratings of TV-Y7, TV-PG,
TV-14, TV-MA can be customized
to block V (violence), S (sexual situations), L (coarse language), D (suggestive dialogue) or FV (fantasy violence).
Use the CURSOR RIGHT © or
CURSOR LEFT § buttons on the
remote to turn the rating option ON
or OFF.
OFF
©
MULTI MEDIA
9
2
AUTO
0
SOUND
MENU
1
SURF
3
4
TV RATING SUB MENUS:
CH
VOL
TV-Y
MUTE
TV-Y7
TV-G
TV-PG
NIGHT LIGHT
ON/OFF
SET
OFF
©
Y7
ON
OFF
©
FV
ON
©
RESET
ALARM
PG
ON
D
ON
TV-PG
OFF
©
L
ON
TV-14
©
S
ON
TV-MA
©
V
ON
TV-Y7
TV-G
TV-G
TV-Y - (All children -- This program is designed to be appropriate for all children.)
Designed for a very young audience, including children ages 2-6. This type of programming is not expected to frighten younger children.
TV-Y7 - (Directed to Older Children -- This program is designed for children age 7
and above.) It may be more appropriate for children who have acquired the development skills needed to distinguish between make-believe and reality. This programming may include mild fantasy and comic violence (FV).
TV-G - (General Audience -- Most parents would find this program suitable for all
ages.) This type of programming contains little or no violence, no strong language,
and little or no sexual dialogue or situations.
TV-PG - (Parental Guidance Suggested -- This program contains material that parents may find unsuitable for younger children.) This type of programming contains
one or more of the following: some suggestive dialogue (D), infrequent coarse language (L), some sexual situations (S), or moderate violence (V).
TV-14 - (Parents Strongly Cautioned -- This program contains some material that
many parents would find unsuitable for children under 14 years of age.) This type of
programming contains one or more of the following: intensely suggestive dialogue
(D), strong coarse language (L), intense sexual situations (S), or intense violence (V).
TV-MA - (Mature Audience Only -- This program is specifically designed to be
viewed by adults and therefore may be unsuitable for children under 17.) This type of
programming contains one or more of the following: crude indecent language (L),
explicit sexual situations (S), or graphic violence (V).
31
TV-PG
OFF
©
TV-14
TV-MA
14
ON
D
ON
©
L
ON
©
S
ON
V
ON
TV-PG
©
MA
ON
TV-14
©
L
ON
TV-MA
©
S
ON
V
ON
UNDERSTANDING THE AUTOLOCKTM CONTROL (REVIEW SCREEN)
N
ow that you’ve learned how to
block channels or censor your
viewing, using the Movie Ratings
or Parental (TV) Guidelines, let’s
review what you’ve done. The
AutoLock Review feature allows
you to see what has been blocked.
Whenever the Menu button is
pressed the onscreen menu will be
displayed with the AutoLock
Review highlighted.
WAKEUP
©
SETUP
©
©
AutoLock REVIEW
BRIGHTNESS
30
COLOR
30
BEGIN
Press the MENU button on the
remote to show the onscreen menu.
AutoLock REVIEW will be highlighted.
CHANNELS BLOCKED
-- -- -- -- -MOVIE RATINGS
-- -- -- -- -PARENTAL GUIDELINE
-- -- -- -- -BLOCK UNRATED
OFF
BLOCK NO RATING OFF
POWER
SLEEP
A/CH
STATUS/EXIT
CC
MULTI MEDIA
Press the CURSOR RIGHT
© button and the AutoLock
Review Menu will appear.
This menu will display what channels have been blocked; what
Movie Ratings have been blocked;
what Parental (TV Ratings)
Guideline have been blocked. This
review screen will also display the
status of Unrated and No Rating
settings. If the Master Disable feature has been turned ON, the
AutoLock Review screen will display “AutoLock DISABLED.”
1
1
2
3
4
5
6
7
8
AUTO
AutoLock DISABLED
9
AUTO
0
SOUND
MENU
SURF
2
AutoLock DISABLED will appear in the
AutoLock Review screen if the AutoLock
Disable feature is set to ON.
CH
VOL
MUTE
NIGHT LIGHT
ON/OFF
SET
RESET
ALARM
CHANNELS BLOCKED - Shows all blocked channels that were set within
the CHANNELS BLOCKED feature. Up to 5 channels may be blocked at
one time.
MOVIE RATINGS - Shows all blocked Movie Ratings that were set within
the MOVIE RATINGS feature. All or some may be blocked at one time.
Note: If a lower rating is blocked, this will automatically cause the higher
ratings to be blocked also. (i.e., if R is set to be blocked, X will automatically be blocked also.)
PARENTAL GUIDELINE - Shows all blocked TV Ratings that were set
within the PARENTAL GUIDELINES feature. All or some may be blocked
at one time. Note: If a lower rating is blocked; this will automatically cause
the higher ratings to be blocked also. (i.e., if TV-14 is set to be blocked, TVMA will automatically be blocked.) Parental Guidelines also have sub ratings
for Violence (V), Fantasy Violence (FV), Sexual Situations (S), Coarse
Language (L), and Suggestive Language (D). If the main rating is turned off
but the sub rating is turned ON, the program will be blocked but the rating
will not appear within the AutoLock Review menu.
BLOCK UNRATED - Shows ON or OFF depending on the status of the
BLOCK UNRATED feature. Based on the Movie Ratings or Parental (TV)
Guidelines.
BLOCK NO RATING - Shows ON or OFF depending on the status of the
BLOCK NO RATING feature. Based on programming with NO content
advisory data.
CHANNELS BLOCKED
5 10 12 32 45
MOVIE RATINGS
-- -- -- R X
PARENTAL GUIDELINE
-- -- -- 14 MA
BLOCK UNRATED
ON
BLOCK NO RATING ON
32
SETTING THE BASS AND TREBLE BOOST CONTROLS
B
esides the normal volume level
control, your TV also has Bass
and Treble Boost sound adjustment
controls. The TREBLE Boost affects
only the high frequency sound coming from the TV enhancing the
highs; while the BASS Boost affects
only the low frequency sound coming from the TV enhancing the lows.
BEGIN
NOISE REDUCTION
ON
Press the MENU button on the
remote to show the onscreen menu.
VOLUME
15
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ buttons to
select and highlight the name of the
control you wish to change (TREBLE BOOST, or BASS BOOST).
BASS BOOST
TREBLE BOOST
NOISE REDUCTION
OFF
ON
SOUND
STEREO
VOLUME
15
TREBLE BOOST
ON
BASS BOOST
SOUND
Use the CURSOR LEFT § or
RIGHT © buttons to turn the
selected control ON or OFF.
ON
ON
STEREO
POWER
OR
SLEEP
A/CH
1
STATUS/EXIT
CC
MULTI MEDIA
1
2
3
4
5
6
7
8
AUTO
9
AUTO
0
SOUND
15
TREBLE BOOST
ON
BASS BOOST
2
SOUND
MENU
VOLUME
AVL
SURF
OFF
STEREO
OFF
3
CH
VOL
MUTE
VOLUME
NIGHT LIGHT
ON/OFF
SET
ALARM
33
TREBLE BOOST
ON
BASS BOOST
ON
SOUND
RESET
15
AVL
STEREO
OFF
HOW TO SET THE TV FOR STEREO PROGRAMS
Y
our TV can detect a stereo signal and will set itself automatically so the stereo sound can be
heard. However, there may be
occasions when you might want to
set the TV to mono. The following
steps describe how to change the
SOUND control:
BEGIN
Press the MENU button on
the remote to show the onscreen
menu.
TREBLE BOOST
ON
BASS BOOST
ON
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ button
until the word SOUND is highlighted.
AVL
SOUND
MONO
ON
©
INPUT
ON
SOUND
INPUT
Press the CURSOR RIGHT
POWER
SLEEP
tons to choose between STEREO
or MONO.
A/CH
1
STATUS/EXIT
CC
MULTI MEDIA
1
2
3
4
5
6
7
8
AUTO
9
AUTO
0
SOUND
2
MENU
SURF
CH
VOL
MUTE
SMART HELP
Remember: If stereo is
not present on a selected
show and the TV is placed in the
STEREO mode, the sound coming from the set will remain
monaural (mono).
ON
BASS BOOST
AVL
© or CURSOR LEFT § but-
With STEREO selected, the television will reproduce any stereo
broadcast signal it receives.
Please note that you can force a
stereo broadcast signal to MONO,
but you cannot force a mono
broadcast signal to stereo.
TREBLE BOOST
NIGHT LIGHT
ON/OFF
SET
ALARM
34
RESET
3
STEREO
ON
©
USING THE TV VOLUME BAR CONTROL
U
se the Volume Bar control to see
the TV’s volume level settings
on the TV screen. The Volume Bar
will be seen each time the VOLUME
buttons (on the TV or remote) are
pressed.
BEGIN
Press the MENU button to display the onscreen menu.
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ buttons until
the word VOLUME is highlighted.
CONTRAST PLUS
ON
NOISE REDUCTION
ON
VOLUME
15
TREBLE BOOST
ON
BASS BOOST
ON
POWER
SLEEP
A/CH
Press the CURSOR RIGHT ©
button to increase the TV’s volume
or the CURSOR LEFT § button to
decrease the sound.
1
STATUS/EXIT
CC
MULTI MEDIA
1
2
3
4
5
6
7
8
AUTO
9
AUTO
0
SOUND
2
MENU
OR
SURF
CH
VOL
3
MUTE
VOLUME
NIGHT LIGHT
ON/OFF
SET
15
RESET
ALARM
POWER
SLEEP
A/CH
STATUS/EXIT
CC
1
2
3
4
5
6
7
8
AUTO
Note: Pressing the VOL
(+) or (–) buttons will
also allow you to adjust
the sound level of the
TV. A Volume Bar
adjustment will appear
onscreen. Press the (+)
to increase the volume
and the (–) button to
decrease the volume.
MULTI MEDIA
9
AUTO
0
SOUND
MENU
SURF
1
CH
VOL
MUTE
NIGHT LIGHT
ON/OFF
SET
ALARM
35
RESET
HOW TO USE THE INPUT CONTROL (A/V INPUTS)
AUDIO/VIDEO INPUTS
The TV’s Audio/Video Input jacks
are for direct picture and sound
connections between the TV and
a VCR (or similar device) that
has Audio/Video Output jacks.
BEGIN
Connect the VIDEO (yellow)
CABLE to the VIDEO IN jack
on the back of the TV. Then connect the AUDIO (red and white)
CABLES to the AUDIO (left and
right) IN jacks on the rear of the
TV.
Connect the VIDEO (yellow)
CABLE to the VIDEO OUT jack
on the back of the VCR. Then
connect the AUDIO (red and
white) CABLES to the AUDIO
(left and right) OUT jacks on the
rear of the VCR.
VIDEO
L
ANT/CABLE
75Ω
UHF/VHF
AUDIO
R
1
BACK OF TV
VIDEO
VIDEO IN
(YELLOW)
L
ANT/CABLE
75Ω
UHF/VHF
AUDIO
R
AUDIO IN
(RED/WHITE)
2
IF YOU ARE USING A
MONO DEVICE, USE
ONLY THE
AUDIO L JACK.
OUT
BACK OF VCR
Turn the VCR and the TV
ON.
R AUDIO
IN
3
Press the MENU button on
the remote to display the
onscreen menu.
SOUND
STEREO
AVL
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ buttons
until the word INPUT is highlighted.
OFF
©
INPUT
SLEEPTIMER
OFF
©
AutoLock
Press the CURSOR RIGHT
© or CURSOR LEFT § button
POWER
Now you’re ready to place a prerecorded video tape in the VCR and
press the PLAY © button.
ANTENNA
SLEEP
to display the picture/sound menu
(ANTENNA, EXT 1). Use the
CURSOR UP ▲ or DOWN ▼
buttons to select.
A/CH
4
STATUS/EXIT
CC
1
2
3
4
5
6
7
8
AUTO
9
AUTO
0
SOUND
MENU
SURF
CH
VOL
MUTE
NIGHT LIGHT
ON/OFF
SET
36
EXT 1
MULTI MEDIA
RESET
5
6
L
OUT
ANTENNA
IN
VIDEO
ANTENNA
OUT
IN
VCR
(EQUIPPED WITH
VIDEO AND AUDIO
OUTPUT JACKS)
USING THE AUTOPICTURE™ CONTROL
W
hether you’re watching a
movie or a video game, your
TV has automatic video control settings matched for your current program source or content. The
AutoPicture feature quickly resets
your TV’s video controls for a number of different types of programs
and viewing conditions you may
have in your home. Each
AutoPicture setting is preset at the
factory to automatically adjust the
TV’s Brightness, Color, Picture,
Sharpness, Tint, and Color
Temperature levels.
PERSONAL
MOVIES
BEGIN
Press the AUTO PICTURE
button on the remote control. The
current SmartPicture setting will
appear in the middle of the screen.
POWER
SPORTS
SLEEP
Press the AUTO PICTURE
button repeatedly to select either
PERSONAL, MOVIES, SPORTS,
or WEAK SIGNAL picture settings.
Note: The PERSONAL setting is
the setting that you set up using the
PICTURE options within the
onscreen menu. This is the only
AutoPicture setting that can be
changed. All other settings are
setup at the factory during the time
of production.
A/CH
STATUS/EXIT
CC
MULTI MEDIA
1
2
3
4
5
6
7
8
9
AUTO
1
AUTO
0
SOUND
MENU
SURF
CH
VOL
MUTE
NIGHT LIGHT
ON/OFF
SET
ALARM
37
RESET
WEAK SIGNAL
USING THE AUTOSOUND™ CONTROL
T
he AutoSound feature allows
the listener to select between
four different factory set sound
options. Personal (which can be set
by the user), Theater (for movie
viewing), Music (for musical type
programming) and Voice (when the
program is mainly dialogue). To
select any of the options follow the
directions below.
PERSONAL
THEATER
BEGIN
Press the AUTO SOUND button on the remote control. The current AutoSound setting will appear in
the middle of the screen.
POWER
MUSIC
SLEEP
Press the AUTO SOUND button repeatedly to toggle between
the four settings.
Remember, only the PERSONAL
control can be changed by the viewer. This changes the settings in the
main onscreen menu's sound controls.
A/CH
1
STATUS/EXIT
CC
MULTI MEDIA
1
2
3
4
5
6
8
7
9
AUTO
AUTO
0
SOUND
VOICE
MENU
SURF
CH
VOL
MUTE
SMART HELP
Remember, AutoSound
works only with the programs coming through the 75Ω
input on the rear of the TV (RF
audio). It will not control the sound
levels for the External connections.
NOTE: When the VOICE mode of
SmartSound is selected the AVL feature will be automatically turned ON.
NIGHT LIGHT
ON/OFF
SET
RESET
ALARM
AVL CONTROL
In most cases the volume levels coming from broadcast programming or
commercials are never the same.
With the AVL control turned ON,
you can have the TV level out the
sound being heard. This makes for a
more consistent sound by reducing
the peaks and valleys that occur during program changes or commercial
breaks.
BASS BOOST
SOUND
ON
STEREO
AVL
OFF
©
INPUT
SLEEPTIMER
OFF
BASS BOOST
SOUND
AVL
INPUT
SLEEPTIMER
38
ON
STEREO
ON
©
OFF
USING THE TV’S SMARTSURF™ CONTROL
A
“list” or series of previously
viewed channels can be selected with the SURF button on your
remote control. With this feature
you can easily switch between different TV programs that currently
interest you. The SmartSurf control
allows you set up to eight channels
in its quick viewing“list”.
5
5
ADDED
BEGIN
Press the CHANNEL (+) or (–)
buttons (or the NUMBER buttons)
to select a channel to add to the
SURF list.
8
Press the SURF button on the
remote while the channel number is
still displayed to ADD the channel to
the SURF list.
POWER
8
SLEEP
ADDED
A/CH
1
Repeat steps 1 through 2 to add
additional channels (up to 8) to the
SURF list.
STATUS/EXIT
CC
MULTI MEDIA
1
2
3
4
5
6
7
8
AUTO
9
AUTO
0
SOUND
To remove a channel for the SURF
list, simply choose the channel with
the numbered buttons and press the
SURF button while the channel
number is still displayed and the
screen will read DELETED.
2
MENU
SURF
10
10
ADDED
CH
VOL
MUTE
NIGHT LIGHT
ON/OFF
A/CH BUTTON
SET
RESET
ALARM
5
Your remote also has an A/CH
(Alternate Channel) button.
Pressing this button will toggle
between the Current and one previously selected channel.
1
SLEEP
A/CH
STATUS/EXIT
CC
POWER
MULTI MEDIA
1
2
3
4
5
6
7
8
AUTO
SURF
SURF
10
SURF
5
22
Press the SURF button repeatedly to cycle or "loop"
through the channels saved in the SURF channel list.
9
AUTO
0
SOUND
8
PICT
39
TIPS IF SOMETHING ISN'T WORKING
P
lease make these simple
checks before calling for service. These tips can save you time
and money since charges for TV
installation and adjustment of
customer controls are not covered under your warranty.
CAUTION: A video source (such as a video game, Compact Disc Interactive - CDI, or
TV information channel) which shows a constant non-moving pattern on the TV screen,
can cause picture tube damage. When your TV is continuously used with such a source
the pattern of the non-moving portion of the game (CDI, etc.) could leave an image
permanently on the picture tube. When not in use, turn the video source OFF.
Regularly alternate the use of such video sources with normal TV viewing.
No Power
• Check the TV power cord. Unplug the TV, wait 10 seconds, then reinsert plug into
outlet and push POWER button again.
• Check that outlet is not on a wall switch. Be sure fuse is not blown on AC Power strip.
No Picture
• Check antenna connections. Are they properly secured to the TV's 75Ω plug?
• Check the TUNER control for CABLE or ANTENNA setting.
• Check Audio/Video Input jack connections if using a VCR or other external device.
No Sound
• Check the VOLUME buttons.
• Check the MUTE button on the remote control.
• Check Audio/Video Input jack connections if using a VCR or other external device.
Remote Does Not
Work
TV Displays Wrong
Channel or No
Channels Above 13
• Check batteries. Replace with AA Heavy Duty (Zinc Chloride) or Alkaline batteries
if necessary.
• Clean the remote and the remote sensor window on the TV.
• Check the TV power cord. Unplug the TV, wait 10 seconds, then reinsert plug into
outlet and push POWER button again. Be sure fuse is not blown on AC Power strip.
• Check to be sure TV outlet is not on a wall switch.
• Repeat channel selection.
• Add desired channel numbers (CHANNEL control) into TV memory.
• Check to be sure the TUNER control is set to the CABLE option.
Cleaning and Care
• To avoid possible shock hazard be sure the TV is unplugged from the electrical outlet before cleaning.
• When cleaning the TV screen take care not to scratch or damage the screen surface (avoid wearing jewelry or using
anything abrasive). Wipe the front screen with a clean cloth dampened with water. Use even, easy, vertical strokes when
cleaning.
• Gently wipe the cabinet surfaces with a clean cloth or sponge dampened in a solution of cool clear water. Use a clean
dry cloth to dry the wiped surfaces.
• Never use thinners, insecticide sprays, or other chemicals on or near the cabinet, as they might cause permanent marring
of the cabinet finish.
40
GLOSSARY TO TELEVISION TERMS
Programming • The procedure of adding or deleting channel numbers
into the Television’s memory circuits. In this way the Television
“remembers’’ only the locally available or desired channel numbers
and skips over any unwanted channel numbers.
Coaxial Cable • A single solid antenna wire normally matched with a
metal plug (F-type) end connector that screws (or pushes) directly onto
a 75 Ohm input found on the Television or VCR.
Closed Caption • Broadcast standard which allows you to read the
voice content of television programs on the TV screen. Designed to help
the hearing impaired this feature uses onscreen "text boxes" to show
dialogue and conversations while the TV program is in progress.
Remote Sensor Window • A window or opening found on the
Television control panel through which infrared remote control command signals are received.
Direct Audio/Video Inputs • Located on the rear of the TV these connectors (RCA phono type plug) are used for the input of audio and
video signals. Designed for use with VCRs (or other accessories) in
order to receive higher picture resolution and offer sound connection
options.
Setup Mode • Automatic feature control settings made by the TV.
Designed for first time setup and use. Settings for signal connections
(antenna or cable TV), plus channel program memory are held in the
TV's memory (even if the set is unplugged and moved to a new location).
Identify • Method by which a remote control searches and finds an
operating code for another product (such as a VCR or Cable Converter).
Once the code has been "identified" then the TV remote can operate and
send commands to the other product.
Status • Allows the user to quickly confirm what channel number is
currently being viewed. Status can also be used to clear the Television
of onscreen displays or information (rather than waiting for the displays to “time out” or automatically disappear from the screen).
Onscreen Displays (OSD) • Refers to the wording or messages generated by the television (or VCR) to help the user with specific feature
controls (color adjustment, programming, etc.).
Twin Lead Wire • The more commonly used name for the two strand
300 Ohm antenna wire used with many indoor and outdoor antenna
systems. In many cases this type of antenna wire requires an additional
adapter (or balun) in order to connect to the 75 Ohm Input terminals
designed into the more recent Televisions and VCRs.
Menu • An onscreen listing of feature controls shown on the Television
screen that are made available for user adjustments.
Multichannel Television Sound (MTS) • The broadcast standard that
allows for stereo sound to be transmitted with the TV picture.
INDEX
Input Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Language Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Manual Fine Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Memory/Program Channels . . . . . . . . . . . . . . . . . . . . . . .13, 14
Menu Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Minus(-)/Plus (+) Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Night Light Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Picture Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Picture Noise Reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Precautions/Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . .2, 40, 44
Programming Channels (Automatically) . . . . . . . . . . . . . . . .13
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Requesting Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42-44
RF Coaxial Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7
Safety/Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . .2, 40, 44
Sensor Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Set Up/First Time Use . . . . . . . . . . . . . . . . . . . . . . . . . . .10-16
Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Sound Control (Stereo/Mono) . . . . . . . . . . . . . . . . . . . . . . . .34
Start-up Channel Control . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Start-up Time Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Status Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Tips for Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40, 42-44
Treble Boost Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Tuner Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
VCR/TV Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 36
Volume Bar Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Wakeup Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-23
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Accessories/Optional . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7, 36
Adapter Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7
Add/Delete Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Alternate Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Antenna/Cable Hookup . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7
Audio/Video Input Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
AutoLock - Understanding the Feature . . . . . . . . . . . . . . . . .26
AutoLock Access Code Feature . . . . . . . . . . . . . . . . . . . . . . .27
AutoLock Blocking Options . . . . . . . . . . . . . . . . . . . . . . . . .28
AutoLock Block Channel Feature . . . . . . . . . . . . . . . . . . . . .29
AutoLock Movie Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . .30
AutoLock Parental Guideline . . . . . . . . . . . . . . . . . . . . . . . .31
AutoLock Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
AutoPicture Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
AutoSound Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
AutoSurf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Bass Boost Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Cable TV Connections/Settings . . . . . . . . . . . . . . . . . . . . .5, 12
Channel Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Channel Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13, 14
Clock Set Time (AutoChron) . . . . . . . . . . . . . . . . . . . . . . . . .11
Closed Captioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Contrast Plus (Black Stretch) . . . . . . . . . . . . . . . . . . . . . . . . .18
Controls/TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Controls/Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Demo Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
External Control (Input Naming) . . . . . . . . . . . . . . . . . . . . . .16
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Glossary TV Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
41
Philips Consumer Electronics Company
Factory Service Center Locations
Detroit/Toledo
•
Cleveland/
•
N Ohio •
•
Chicago
★ Columbus
•
• San Francisco/Metro Area
★ Los Angeles
★ Charlotte
•
Knoxville/E Tennessee
•
★ Pittsburgh/WV Area
•
Atlanta/N Georgia
• Dallas
★ Wash/Balt
★ Orlando
•
★ Indicates In-Home Service Only
1-800-242-9225
• Philadelphia/S New Jersey
Houston/Galveston
Beaumont/Austin
San Antonio
• Tampa/W Florida
★ Ft. Myers/SW Florida
★ Miami/SE Florida
• Indicates In-Home/Carry-In Service
NOTE: If you reside in one of our Philips Factory Service Branch areas (see directory on back), you can contact the nearest Service Branch to
obtain efficient and expedient repair for your product. If your product is In-Warranty, you should have proof-of-purchase to ensure No Charge
Service. For Out-of-Warranty service, call the location nearest you.
NOTA: Si vous résidez dans une des régions desservies par une succursale de service après vente du fabricant Philips (voir liste ci-dessous),
vous pourrez contacter la branche de service après vente la plus près de chez vous pour obtenir un service après vente rapide et efficace. Si le
produit est sous garantie, il suffira de présenter une preuve d`achat pour bénéficier d'un service sans frais. Pour les produits non couverts par la
garantie, contactez le centre le plus près de chez vous.
NOTA: Si Ud. reside en una de nuestras zonas para sucursales Philips de servicio al de fábrica (ver directorio más abajo), Ud. puede comunicarse
con la sucursal de servicio más cercana para obtener una reparación oportuna y eficaz de su producto. Si su producto está todavía bajo garantía, Ud. debe presentar comprobante de compra para no ocasionar ningunos cargos por servicio. Para servicio después del vencimiento de la
garantía, llame al lugar más cercano de los abajo indicados.
In Canada
How you can obtain efficient and expedient carry-in, mail-in, or in-home service for your product
Please contact Philips at
1-800-661-6162 (French speaking)
1-800-363-7278 (English speaking)
Au Canada
Comment obtenir le service après-vente pour les produits apportés ou envoyés par la poste à notre centre de service ou le service à domicile
Veuillez contacter philips á:
1-800-661-6162 (Francophone)
1-800-363-7278
En el Canadá
Cómo recibir servicio efficiente para su producto, en persona, por correo o a domicillo
Favor de comunicarse con Philips al:
1-800-661-6162 (francófono)
1-800-363-7278 (anglófono)
EL4482-3 Rev. AA
3135 015 07541
MAC2929 1/99
42
QUALITY SERVICE IS AS CLOSE AS YOUR TELEPHONE! SIMPLY LOOK OVER THE LIST BELOW FOR THE NUMBER OF A FACTORY SERVICE CENTER
NEAR YOU. YOUR PRODUCT WILL RECEIVE EFFICIENT AND EXPEDIENT CARRY-IN, MAIL-IN, OR IN-HOME SERVICE, AND YOU WILL RECEIVE PEACE OF MIND,
KNOWING YOUR PRODUCT IS BEING GIVEN THE EXPERT ATTENTION OF PHILIPS’ FACTORY SERVICE. AND, IF THE PHONE NUMBER LISTED FOR YOUR AREA
IS LONG DISTANCE, CALL 1-800-242-9225 FOR FACTORY SERVICE.
COMMENT OBTENIR NOTRE SERVICE APRÈS VENTE RAPIDE ET EFFICACE SOIT PAR COURRIER, À DOMICILE, OU EN SE PRÉSENTANT À UN CENTRE DE SERVICE PHILIPS. PLUS DE 600 CENTRES
DE RÉCEPTION DE PRODUITS À RÉPARER À TRAVERS LE PAYS: CONTACTER LE CENTRE DE SERVICE AUX CONSOMMATEURS LE PLUS PROCHE POUR SAVOIR L’EMPLACEMENT DE CES DÉPÔTS
DANS UN RAYON DE 50 À 75 MILES (80 KM À 120 KM) DU CENTRE DE SERVICE LOCAL.
CÓMO OBTENER UN SERVICIO OPORTUNO Y EFICIENTE POR CORREO, EN CASA O EN PERSONA PARA SU PRODUCTO A TRAVÉS DE UN CENTRO PHILIPS DE SERVICIO. MAS DE 600 SITIOS POR
TODO EL PAIS PARA LA RECEPCION DE PRODUCTOS NECESITADOS DE REPARACIONES: COMUNICARSE CON EL CENTRO DE SERVICIO DE FABRICA MAS CERCANO PARA ESTOS LUGARES DENTRO
DE UN RADIO DE 80 A 120 KM (50 A 75 MILLAS) DEL CENTRO DE SERVICIO LOCAL.
GEORGIA
Philips Factory Service of Georgia
200 N. Cobb Pkwy., Suite 120
Marietta, GA 30062
(770) 795-0085
CENTRAL U.S.A.
Philips Factory Service Central US
950 Keynote Circle
Brooklyn Heights, OH 44131
(216) 741-3334
ILLINOIS
Philips Factory Service of Illinois
1279 W. Hamilton Pkwy.
Itasca, IL 60143
(630) 775-0990
FLORIDA
Philips Factory Service of Florida
1911 US Highway 301 North
Tampa, FL 33619
(813) 621-8181
MICHIGAN
Philips Factory Service of Michigan
25173 Dequindre
Madison Heights, MI 48071
(248) 544-2110
TENNESSEE
Philips Factory Service of East Tennessee
6700 D Papermill Rd.
Knoxville, TN 37919
(423) 584-6614
WESTERN U.S.A.
Philips Factory Service Western Region
681 East Brokaw Rd.
San Jose, CA 95112
(408) 436-8566
DALLAS AREA
Philips Factory Service of Dallas
415 N. Main Street, #107
Euless, TX 76040
(713) 682-3990
MID-ATLANTIC
Philips Factory Service Mid-Atlantic
352 Dunks Ferry Rd.
Bensalem, PA 19020
(215) 638-7500
TEXAS
Philips Factory Service of Texas
1110 N. Post Oak Rd., Suite 100
Houston, TX 77055
(713) 682-3990
MAC2929 1/99
43
LIMITED WARRANTY
COLOR TELEVISION
90 Days Free Labor
One Year Free Replacement of Parts (Two Years Free Replacement on Color Picture Tube)
This product must be carried in for repair.
WHO IS COVERED?
MAKE SURE YOU KEEP...
You must have proof of purchase to receive warranty service. A sales
receipt or other document showing that you purchased the product is
considered proof of purchase.
Please keep your sales receipt or other document showing proof of
purchase. Attach it to this owner’s manual and keep both nearby.
Also keep the original box and packing material in case you need to
return your product.
WHAT IS COVERED?
BEFORE REQUESTING SERVICE...
Warranty coverage begins the day you buy your product. For 90 days
thereafter, all parts will be repaired or replaced free, and labor is free.
From 90 days to one year from the day of purchase, all parts will be
repaired or replaced free, but you pay for all labor charges. From one
to two years from the day of purchase, you pay for the replacement or
repair of all parts except the picture tube, and for all labor charges.
After two years from the day of purchase, you pay for the replacement
or repair of all parts, and for all labor charges.
All parts, including repaired and replaced parts, are covered only for
the original warranty period. When the warranty on the product
expires, the warranty on all replaced and repaired parts also expires.
Please check your owner’s manual before requesting service.
Adjustments of the controls discussed there may save you a service
call.
TO GET WARRANTY SERVICE IN U.S.A.,
PUERTO RICO OR U.S. VIRGIN ISLANDS...
Contact a Philips factory service center (see enclosed list) or authorized service center to arrange repair.
(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties,
including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express
warranty. But, because some states do not allow limitations on how
long an implied warranty may last, this limitation may not apply to
you.)
WHAT IS EXCLUDED?
Your warranty does not cover:
• labor charges for installation or setup of the product, adjustment of
customer controls on the product, and installation or repair of
antenna systems outside of the product.
• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of
Philips Consumer Electronics Company.
• reception problems caused by signal conditions or cable or antenna
systems outside the unit.
• a product that requires modification or adaptation to enable it to
operate in any country other than the country for which it was
designed, manufactured, approved and/or authorized, or repair of
products damaged by these modifications.
• incidental or consequential damages resulting from the product.
(Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This
includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)
• a product used for commercial or institutional purposes.
TO GET WARRANTY SERVICE IN CANADA...
Please contact Philips at:
1-800-894-5463
1-800-363-7278
(In Canada, this warranty is given in lieu of all other warranties. No
other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is
not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified
of the possibility of such damages.)
REMEMBER...
Please record the model and serial numbers found on the product
below. Also, please fill out and mail your warranty registration card
promptly. It will be easier for us to notify you if necessary.
WHERE IS SERVICE AVAILABLE?
Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute
the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare
parts and technical manual(s) are not readily available).
MODEL # ________________________________________________
SERIAL #
________________________________________________
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
Philips Consumer Electronics Company, P.O. Box 2976, Longview, Texas 75606,
Printed in U.S.A.
44
(903) 242-4800
