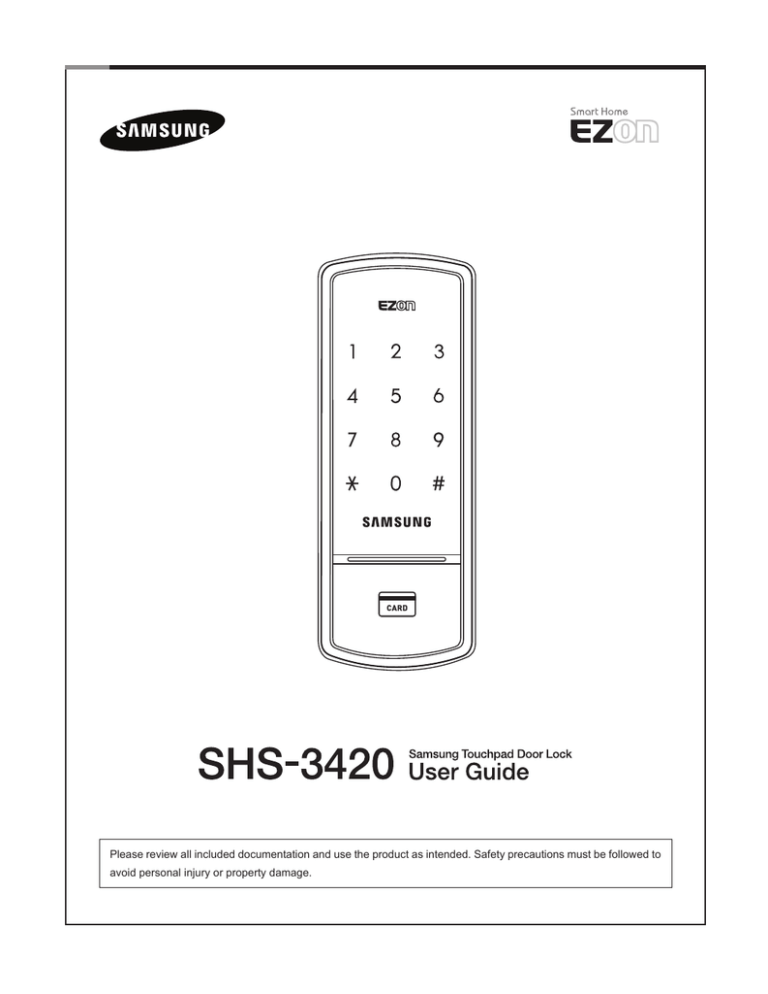

Samsung SHS-3420 Product specifications

Please review all included documentation and use the product as intended. Safety precautions must be followed to
avoid personal injury or property damage.
| Table of Contents
Introduction & Helpful Tips � ���
Components & Tools
3
4
��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ���
6
Basic Lock Operation Overview � ���
��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ���
Programming Features & Definitions
Programming � ���
� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��
Troubleshooting � ���
8
9-12
��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ���
Miscellaneous Information
13
� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ���
16
��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ���
17
Management Number Table � ���
��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ���
19
� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ���
20
� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ���
21
Product Specifications
Warranty
2
��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ���
Door Preparation � ���
Installation � ���
��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ���
� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ���
Drilling Template
�� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ���
23
| Introduction
Congratulations on the purchase of your Samsung Touchpad Door Lock! Your lock has a touch sensitive
number display pad and optionally a 13.56MHz Card reader. Up to 70 users can be registered to gain access
with unique Codes or Access Cards (supports ISO14443A type).
The touchpad makes it convenient to enter the code and the Randomizer function helps prevent lockpicking
using fingerprint traces on the touchpad. Other convenient functions such as Automatic Locking / Sound
Setting / Out-of-Home Security, etc. provide advanced security and peace of mind.
You can unlock the door using video intercom’s monitor after connecting a Samsung video intercom.
(Refer to page 6 for connection diagram to a video intercom).
| Helpful Tips
Do not attempt to repair the product yourself.
Change your codes regularly to ensure the security of your codes.
Minimize the lock’s exposure to moisture including wet hands and direct contact with liquids.
Do not exert excessive force or use sharp instrument on the touchpad.
Insert the batteries according to correct polarity.
When the low-battery warning sounds, replace all batteries immediately.
Do not mix old batteries with new batteries.
Use soft, dry cloth to clean the lock and avoid cleaning with water, alcohol or other chemicals.
| Components and Tools
Components
● Exterior Unit
● Interior Unit
● Key Tag
● User Guide
● Interior Mounting Plate
● Turn Shaft
● Screw Pack (6 types)
● Deadbolt
● Strike
● 4 AA Alkaline Batteries
● Magnet
Parts Drawings
Exterior Unit
Interior Unit
Interior Plate
Rubber Pad
Turn Shaft
Deadbolt
Strike
Magnet
Tools
Door Preparation
Lock Installation
● 2-1/8˝(54mm) hole saw
● 1˝(25mm) hole saw
● 3/8˝(10mm) drill bit
● 1/8˝(2.5mm) drill bit
● Chisel and hammer
● Screw driver #2
● Drill
| Door Preparation
Step 1. Check Door Status
1) This lock supports door thickness of 1-7/32˝ to 1-9/16˝ (31 to 40 mm).
2) Using the provided lock template, ensure that there are no obstructions that would prevent installing the
lock properly.
3) Take note of which orientation the deadbolt will need to be installed, left hand or right hand.
Left-Handed Door
Right-Handed Door
When viewed from the Outside,
the hinge is on the left.
When viewed from the Outside,
the hinge is on the right.
The hand type is not set by default and it is set
to the direction where the magnetic is detected.
In order to change the hand type when it is
already set, press the [OPEN/CLOSE] button
while the magnet is detected from the desired
direction.
Step 2. Mark the Door
Check the location and direction of the deadbolt, attach the drilling
template (page 23) on the side of the door, and mark on it with a pen.
1) Align the horizontal line across the door.
2) Align the vertical line over the door.
3) Mark the centers of the holes with the drilling template.
4) Mark the centerline of the deadbolt by aligning it with the vertical
line.
Step 3. Drilling
1) Drill a 2-1/8˝ (54 mm) diameter hole through the door, as indicated on
the template, using a hole saw.
2) Drill a 1˝ (25 mm) mortise hole using a hole saw.
3) Drill strike plate holes using a drill bit (1/8˝, 2.5 mm).
① 54mm
② 25mm
③ 2.5mm
Step 4. Strike Plate Installation
1) Using the template, locate the center horizontal
line for the deadbolt hole, which lines up with the
center of the 2-1/8˝ hole, and draw a horizontal line
on the door frame to mark where you will make the
deadbolt mortise hole.
2) Measure half the thickness of the door. Now,
measure that distance from where the door stops
at the frame when the door is closed toward the
the door jamb and mark a straight, vertical line the
length of the door strike plate. Draw a horizontal
line from the mark you made in Step 1 toward the
vertical line. Where both lines cross, make a 1˝ (25
mm) diameter hole, 1/2˝ (13 mm) in depth.
3) Align the holes of the strike plate with the vertical
line. Trace the outline of the strike plate and
mortise with a 1/16˝ (1.6 mm) indentation. Attach
the strike plate with the 2 screws provided.
(T4 x 15: for wooden door, U10-24 x 9: for metal
door)
FH+ T4 x 15
| Installation
Outside
Inside
2
3
8
6a
PH+M4×26
6b
PH+M4×26
5
1
4
3
1
3c
FH+T4x25
FH+ T4 x 25
3a
OH+M4x22
FH+ M5 x 20
4
3b
FH+ T4 x 25
5
5
7
Connection for video intercom
3c
Procedures
1) Insert the deadbolt from the side of the door.
3) Using two PH+M4 x 26 screws, fasten the
upper portion of the Interior Unit (6a).
2) Rotate the deadbolt so the center hole is
horizontally aligned from the outside.
4) Using two PH+M4 x 26 screws, fasten the
lower portion of the Interior Unit (6b).
1. Insert the deadbolt.
3) Fix the deadbolt using two FH+T4 x 25 screws.
(T4x25/T4x15: for wooden door, U10-24x14: for
steel door)
7. Install the magnet after seeing page 23 to
26 for information about the drilling template sheet.
2. Insert the Exterior Unit.
The hand type is not set by default and it
(Ensure the Exterior Unit is aligned with the
center hole of the deadbolt.)
is set to the direction where the magnetic
is detected.
In order to change the hand type when it is
3. C
onnect the Interior Mounting Plate.
already set, press the [OPEN/CLOSE] button
1) Detach the Interior Mounting Plate from the
Interior Unit.
while the magnet is detected from the desired
direction.
2) First, install the two OH+M4 x 22 screws (3a)
90% of the way.
CAUTION: If the magnet is not detected,
automatic lock does not work.
3) Next, fasten the Interior Mounting Plate with
three FH+M5 x 20 screws (3b).
So be sure to install it with the specified gap
size.
4) Align the Exterior Unit with the Interior
Mounting Plate and then fasten the Interior
Mounting Plate using four FH+T4X25 screws
(3c).
8. Install 4 Alkaline batteries.
A melody will sound when all 4 batteries are
installed correctly.
5) Tighten all screws on the Interior Mounting
Plate 100%.
CAUTION: Press the [OPEN/CLOSE] button to
check whether the dead bolt works properly.
4. W
hile the deadbolt is in the open position,
insert the turn shaft.
Connect the video intercom
5. Connect the cable to the Interior Unit.
Connect the cable of video intercom to the
Interior Unit.
6. Fix screws for the Interior Unit.
1) Align the Interior Unit on to the Interior
Mounting Plate, and check that the Manual
switchgear operates correctly. (Ensure cables
are arranged neatly to prevent them from
getting entangled or being compressed.)
2) Open the battery cover of the Interior Unit.
(There are screw grooves at the upper left and
right corners.)
SHS-3420 is compatible with SHT-3005 and
other Samsung video intercom systems.
| Basic Lock Operation Overview
Opening the Door with a PIN Code
→
Press the [Wake
Up] button.
Enter the PIN Code and
press the [ ] button.
Successful:
The number pad will illuminate. (If the Random Security function is enabled, press
the 2 illuminated numbers.)
The door opens within
one second.
Ding dong dang dong
Failed:
Ding dong ding dong
Opening the Door with a Card
→
Press the [Wake Up]
button.
Touch the Card reader with
an Access Card.
Successful:
Ding dong dang dong
Failed:
Ding dong ding dong
The door opens within one
second.
| Programming Features
Outside
Inside
Battery Cover
Open Button
Auto/Manual Switch
IR Sensor
Registration Button
Manual Switchgear
Number Pad
Double Lock Lever
Open/Close Button
Display Lamp
Volume Switch
Wake Up Button
Battery Cover
Card Reader
External Power
Contact
RestartButton
button
Reset
Symbols
Description
Symbols
Press the [Wake Up] button on
the Exterior Unit. It is used to
Description
Press the [ ] button. It is used to
initiate Pin code or card access or
to quit the registration mode.
complete number entry.
Press the [Registration] button.
Enter the Master PIN Code (4~12
It is used to change the PIN Code
or set other functions.
digits). Factory Default: 1234
R: Press the [Registration]
5
button briefly (~1 second)
R5: Press the [Registration]
button for 5 seconds
10
Press the Number buttons.
R10: Press the [Registration ]
button for 10 seconds
Symbols
Description
Symbols
Description
Enter the User PIN Code (4~12
digits).
Repeat the process inside the
rectangle.
Touch the Card reader with the
User Card.
Press the [OPEN/CLOSE] button.
Enter the User/Management
Number. Can be set from 1 to 70.
Sound Icon Display.
Sound Indicators
Sound
Description
Fur Elise
Tiritiritiriririri
Low voltage warning sound
accompanied with [OPEN/CLOSE] button flashing red.
Ding
Button input sound
Ding dong ding dong
Error sound
Ding dong dang
Success sound
Ding dong
Input standby sound
Toot~ toot~ (10 seconds)
Malfunction prevention warning
Ti~ ti~ ti~ ti~ (5 minutes)
Intrusion Detection/Out-of-home Security warning
Too~~t, too~~t
Double locking sound
10
| Definitions
Double Authentication Mode : This mode requires both User Card and PIN Code to open the door,
ensuring more security. However, Master PIN Code can open the door regardless of mode. This mode is
disabled by default.
Double-locking : Double-locking prevents the lock from being unlocked from the outside. You can enable
it by using the Double lock lever.
Double-locking enable
Double-locking disable
Emergency Power Supply : Continuing to use the lock without replacing batteries when required will
lead to the batteries discharging and cause the lock to malfunction. You can open the door by touching the
external power contacts on the Exterior Unit with a 9V battery and then touching with the Card or entering
the PIN Code.
Indicator Lamp : Indicates the operational status when the Card is being read or the lock is in operation.
Infrared Ray Sensor : This sensor detects movement on the inside with an infrared ray when the door
opens by pressing [Open/Close] button. It prevents the door being opened by abnormal methods. You can
enable or disable this sensor. This sensor is disabled by default.
Intrusion Detection Function : When the Interior Unit is forcibly detached while the door is locked, it is
detected by the magnetic sensor and an alarm is sounded. (The function is not activated when the magnet is
not used.)The Intrusion Detection function is a basic function and cannot be enabled or disabled.
Locking Mode (Auto/Manual) : You can enable or disable the function for locking the door automatically
when it is closed. The factory default is ‘Auto mode’.
- Auto: The door is locked automatically 2 seconds after it is closed. However, it does not function if the magnet is not used or the batteries are completely discharged.
- Manual: When the door does not lock automatically when it is closed, pressing the [Wake-Up] button or the
[OPEN/CLOSE] button on the Interior Unit will lock the door.
Low Voltage : Refers to the state when the operating voltage of the lock is lower than the standard voltage,
and activates the Low Voltage Alarm (“Fur Elise”) to indicate that the batteries need to be replaced. Use the
Emergency Power when the batteries are completely discharged.
Magnetic Sensor : Detects the opening and closing of the door.
Malfunction Prevention Function (Mischief Prevention Function) : When more than 5 failed authentication attempts with unregistered PIN Codes/Cards occur, a warning sounds for 10 seconds, and the
lock stops operating for 3 minutes. While lock operation is stopped, a ‘beep’ is sounded every 10 seconds
and the lock is activated again automatically after 3 minutes. The Malfunction Prevention function is a basic
function and cannot be enabled or disabled.
Manual Switchgear : When the batteries are completely discharged, this device is used to mechanically
lock or unlock the door from inside.
Master PIN Code : You can enter only one Master PIN (4-12 digits) Code. You can register the User PIN
Codes/Cards after authenticating with the Master PIN (4-12 digits) Code. You can open the door with the
Master PIN Code, and the factory default is ‘1234’.
OPEN/CLOSE Button : A one-touch button to open the locked door. (It is also used to lock the door from
inside in the Manual locking mode.)
Out-of-Home Security Function : This function prevents intrusions from outside when no one is home.
Pressing the [OPEN/CLOSE] button while the Out-of-Home function is enabled sounds an alarm. You can
enable this function with either the Master PIN code or the User PIN Codes.
Random Security Function : This mode prevents the disclosure of the PIN Code by entering the PIN
Code after authenticating 2 arbitrarily selected numbers. When the buttons for 2 arbitrarily selected numbers
are illuminated, pressing the 2 illuminated buttons illuminates the whole number pad. You can enable or disable the Random Security function. This function is enabled by default.
11
Registration Button : This button is used to change Master PIN Code/User PIN Codes/User Cards or the
lock settings. It is found below the battery cover of the Interior Unit. The length of time the [Registration]
button is pressed varies depending on the function.
Resetting : Deletes all registered information and restores the factory default. After resetting, change the
Master PIN Code for security.
Restart Button : This button resets the lock when the lock stops functioning. Registered information is not
deleted.
Sound Setting : The volume during the input of numbers and opening or locking of the door can be set
from Level 0 ~ Level 2. The sound is muted at Level 0 and is at maximum volume at Level 2. The registration
mode operates at Level 1 regardless of the sound setting.
User Card : You can register up to 70 User Cards including the User PIN Codes. You can open the door
with a User Card.
User/Management Number : It is the same number as the registered user’s address and can be set
from 1 to 70. The User Number should be managed with caution as it is used to register or delete User PIN
Codes/Cards.
User PIN Code : You can register up to 70 User PIN Codes (4-12 digits) including the User Cards. You can
open the door with a User PIN Code.
Wake Up Button : Pressing this button activates the number pad. Enter the PIN Code or touch with the
Card while the number pad is illuminated. It is also used to quit the registration mode.
Scope of Master, User Settings
Settings
Factory Defaults
Master
User
Function
Opening the Door


Master PIN Code
Setting Up the Sound


Volume
Changing Master PIN Code

User PIN Code/Card
None
Registering User PIN Code/Card

Locking Mode
Auto
Deletion of User PIN Code/Card

Out-of-home Security Function
Disabled
Setting the Locking Mode


Double-locking
Disabled
Setting Out-of-home Security


Random Security
Enabled
Setting Double-locking


Double Authentication Mode
Disabled
Setting Random Security


Infrared Ray Sensor
Disabled
Factory Reset

Setting the Infrared Ray Sensor


Setting the Double Authentication Mode


12
Factory Defaults
1234
Level 1
| Programming
Note: Pressing the [Registration] button is only available while the door is open.
(Deadbolt must be unlocked.)
Changing the Master PIN Code
Open the battery cover of the
Interior Unit and press the
When the number pad is illuminated, enter the current Master PIN Code (default is
[Registration] button briefly.
‘1234’) and press the [ ] button.
Successful:
Ding dong
Ding dong
Failed:
Ding dong ding dong
Enter the new Master PIN Code
and press the [ ] button.
Successful:
Ding dong dang
Ding dong ding dong
Failed:
Note: Master PIN Code must be
4~12 digits.
R
Registering a User PIN Code
Open the battery cover of the
Interior Unit and
press the [Reg-
When the number
pad is illuminated,
enter the current
Master PIN Code
istration] button
(default is ‘1234’)
briefly.
Ding dong
and press the [ ]
button.
Successful:
Ding dong
Failed:
Ding
dong ding dong
Enter a new User
Enter
(1~70*) to register the
User PIN Code and
PIN Code and
press [ ] button.
User Number or
press the [Wake
press the [ ] button.
*Choose a User Number
Successful:
Ding dong dang
Failed:
Ding
Up] button
quit.
Enter a User Number
that has not already
been used.
Successful:
Ding dong
Failed:
Ding dong
ding dong
R
13
dong ding dong
Note: User PIN
Code must be
4~12 digits.
another
to
Registering a User Card
Open the battery cover of the
Interior Unit and press the
When the number pad is illuminated,
enter the current Master PIN Code
[Registration] button briefly.
Ding dong
(default is ‘1234’) and press the
[ ] button.
Successful:
Ding dong
Failed:
Ding dong ding dong
Enter a User Number (1~70*) to
register the User Card code and
press the [ ] button.
* Choose a User Number that has
not already been used.
Successful:
Ding dong
Ding dong ding dong
Failed:
Enter another User Number or
press the [Wake Up] button to
Touch the Card reader with
the Card to register.
Ding dong dang
quit.
R
User PIN Code / Card Deletion
Open the battery cover of the
Interior Unit and press and
hold the [Registration] button
for 5 seconds.
Ding dong → Ding ding
Enter the Master PIN Code
and press the [ ] button.
Successful: Ding dong
Failed:
Ding dong ding dong
R
14
Enter the User Number (1 to 70) of
the User PIN Code or card to be
deleted and press the [ ] button.
Successful:
Ding dong dang
Failed:
Ding dong ding dong
Setting the Out-of-Home Security Function
Press and hold the [Wake
Up] button on the outdoor
Press and hold the [#] button
on the outdoor assembly for 3
assembly while the door is
locked.
seconds.
Too~~t, too~~t
Additional Functions
Enable Infrared Ray Sensor
R
Disable Infrared Ray Sensor
Enable Double Authentication Mode
6
Disable Double Authentication Mode
Enable Random Security
15
Enter the Master PIN Code or
User PIN Code and press the [ ]
button to set the security function.
Too~~~t
| Miscellaneous Information
Reset to Factory Default
Resetting the lock will delete all registered information.
Note: After Reset, let the sensor detect the magnet to set the hand type again.
All registered Master and user data will be deleted, and the lock will be reset to default settings.
(Refer to the Program section on Page 12 for default values.)
Enter the current Master PIN Code, and press
Press the [Registration] button for 10 seconds.
Successful: Ding dong → Ding ding
→Ding ding
the [ ] button.
Successful:
Failed:
Ding dong dang
Ding dong ding dong
9V Battery Emergency Power
Continuing to use the lock without replacing the batteries when required will lead to lock malfunction.
Touching a 9V DC battery to the external power contacts on the under-side of the Exterior Unit will allow
for temporary access (continue touching the battery to the contacts until the lock is open).
Restart function
Note: Restarting does not delete registered information.
If there is no response after pressing the [Wake Up] button,
use a pin to press the [Restart] button on the right of the external
power contact of the Exterior Unit.
16
| Troubleshooting
When the lock doesn’t function correctly, please check the items below.
If you can’t resolve the problem, please contact the nearest service center.
Problem
Resolution
Reference
● Check if the batteries are inserted in the correct polarity.
There is no power.
● Check that the batteries have a full charge.
-
● Check that the Exterior Unit cable has not come loose.
I can’t change the
Master PIN Code.
● There was a delay while changing the PIN Code. The number
pad must be illuminated when changing the PIN Code. Also, after
entering the first digit, the next digit must be entered within 10
seconds.
● Replace the batteries if they are discharged.
Page 13
● Refer to the ‘Registering/changing the Master PIN Code’ section
in the user manual and try again. Ensure that the Master PIN
Code is 4~12 digits long.
I can’t register the User
PIN Code.
I can’t register the User
Card.
● The User Number has already been used. Delete the desired
User Number and re-register.
Page 13
● Ensure that the User PIN Code is 4~12 digits long.
● The User Number has already been used. Delete the desired
User Number and re-register.
● Ensure that the card is touched to the card reader within 10
seconds of entering the User Number.
Page 14
● Check that the registered PIN Code was entered correctly.
I entered the PIN Code
and pressed the [ ]
button, but the door
won’t open.
I can’t unlock the door
with my Card.
● If the number pad illumination turns off while entering the PIN
Code, the button input was not registered. Press the [Wake Up]
button to illuminate the number pad and enter the PIN Code again
from the beginning. (The number pad illumination is turned off
automatically if there is no input within 5 seconds)
● The Card is either unregistered or unrecognized.
● The Card must touch the Card reader correctly.
I can’t unlock the door
with my PIN Code or
Card.
Check if the Double-locking function has been enabled. When this
function is enabled, the lock will not open with a PIN Code or Card.
Pressing the [Wake Up] button when the Double-locking function is
enabled causes the lock to emit a ‘Too~~t, too~~t’ sound.
My PIN Code or Card is
authenticated, but the
door won’t open.
The lock may be malfunctioning. Please contact service center.
17
Page 13
Page 14
Page 15
-
● Check if Auto Locking is set. When Manual Locking is set, pressing
the [Wake Up] button locks the door.
The door won’t lock
automatically when I
close it.
● If the door doesn’t lock automatically when Auto Locking is set,
then the lock has been installed incorrectly.
Page 15
● The Auto Locking function is not activated when the batteries are
completely discharged. Check if the batteries are discharged.
I hear the “Too~~t,
too~~t” warning sound
when I press the [Wake
Up] button.
When the Double-Locking function is enabled, pressing the [Wake
Up] button issues this warning sound. Check if Double-locking is
enabled, disable the function and try again.
Page 15
The lock issues a
different melody (Fur
Elise) when I activate it.
The sound indicates that it is time to replace the batteries. Replace
with new batteries within a week.
Page 10
There is no response
when I press the [Wake
Up] button.
● Use a pin to press the hole on the right of the external power
contact of the Exterior Unit.
● If doing the above does nothing, contact the service center.
18
Page 16
| Management Number Table
Management No.
PIN CODE/CARD
User Name
Management No.
19
PIN CODE/CARD
User Name
| Product Specifications
Specifications
Item
Voltage
Emergency Power
Source
4 AA Alkaline 1.5V Batteries (LR6) (6V)
9V Battery (6LF22) (purchased separately)
Operation Method
Electronic Control Method (PIN Code entry or Card reading)
Weight
1.8Kg (including both inside and Exterior Unit)
Exterior Unit
68.7 mm (W) × 175.1 mm (H) × 21.5 mm (D)
2.70 inch (W) × 6.89 inch (H) × 0.85 inch (D)
Product Dimensions
90 mm (W) × 164.0 mm (H) × 46.65 mm (D)
Interior Unit
3.54 inch (W) × 6.46 inch (H) × 1.84 inch (D)
The content of this manual is subject to change without prior notice to the user in order to enhance the performance of the product.
20
LIMITED PRODUCT WARRANTY
Installation of the product is considered acceptance of warranty conditions
SEOUL COMMTECH CO., LTD (SEOUL COMMTECH) warrants its products to be free from
manufacturing defects in materials and workmanship for 12 months from the date of purchase.
SEOUL COMMTECH will, within said period, at its option, repair or replace any product failing to
operate correctly without charge to the original purchaser or user.
This warranty shall not apply to any equipment, or any part thereof, which has been repaired
by others, improperly installed, improperly used, abused, altered, damaged, subjected to acts
of God, or on which any serial numbers have been altered, defaced or removed. SEOUL COMMTECH does not warrant the performance or sale conditions of the seller/installer.
There are no warranties, express or implied, which extend beyond the description on the face
hereof. There is no express or implied warranty of merchantability of a warranty of fitness for a
particular purpose. Additionally, this warranty is in lieu of all other obligations or liabilities on the
part of SEOUL COMMTECH.
Any action for breach of warranty, including but not limited to any implied warranty of merchantability, must be brought within the six months following the end of the warranty period. In no case
shall SEOUL COMMTECH be liable to anyone for any consequential or incidental damages for
breach or this or any other warranty, express or implied, even if the loss or damage is caused by
the seller’s own negligence or fault.
SEOUL COMMTECH shall have no obligation under this warranty, or otherwise, if the product
has been repaired by others, improperly installed, improperly used, abused, altered, damaged,
subjected to accident, nuisance, flood, fire or acts of God, or on which any serial numbers have
been altered, defaced or removed. SEOUL COMMTECH and its distributor will not be responsible for any dismantling, reassembly or reinstallation charges. This warranty contains the entire
warranty. It is the sole warranty and any prior agreements or representations, whether oral or
written, are either merged herein or are expressly cancelled. SEOUL COMMTECH neither assumes, nor authorizes any other person purporting to act on its behalf to modify, to change, or
to assume for it, any other warranty or liability concerning its products. In no event shall SEOUL
COMMTECH be liable for an amount in excess of SEOUL COMMTECH’s original selling price
of the product, for any loss or damage, whether direct, indirect, incidental, consequential, or otherwise arising out of any failure of the product. Seller’s warranty, as hereinabove set forth, shall
not be enlarged, diminished or affected by and no obligation or liability shall arise or grow out of
Seller’s rendering of technical advice or service in connection with Buyer’s order of the goods
furnished hereunder.
SEOUL COMMTECH recommends that the entire system be completely tested weekly.
Warning: Despite frequent testing, and due to, but not limited to, any or all of the following;
criminal tampering, electrical or communications disruption, it is possible for the system to fail to
perform as expected. SEOUL COMMTECH does not represent that the product/system may not
be compromised or circumvented; or that the product or system will prevent any personal injury
or property loss by burglary, robbery, fire or otherwise; nor that the product or system will in all
cases provide adequate warning or protection. A properly installed and maintained alarm may
only reduce risk of burglary, robbery, fire or otherwise but it is not insurance or a guarantee that
these events will not occur.
21
Consequently, seller shall have no liability for any personal injury, property damage, or other loss
based on a claim the product failed to give warning.
Therefore, the installer should in turn advise the consumer to take any and all precautions for his
or her safety including, but not limited to, fleeing the premises and calling police or fire department, in order to mitigate the possibilities of harm and/or damage. SEOUL COMMTECH is not
an insurer of either the property or safety of the user’s family or employees, and limits its liability
for any loss or damage including incidental or consequential damages to SEOUL COMMTECH’s
original selling price of the product regardless of the cause of such loss or damage.
Some states do not allow limitations on how long an implied warranty lasts or do not allow the
exclusion or limitation of incidental or consequential damages, or differentiate in their treatment
of limitations of liability for ordinary or gross negligence, so the above limitations or exclusions
may not apply to you. This Warranty gives you specific legal rights and you may also have other
rights which vary from state to state.
In case of the product defect, contact our U.S. Customer Service Center. In order to exercise the
warranty, you must contact our U.S. Customer Service Center and obtain a proper RMA # - the
product must be returned to our U.S. Customer Service Center at user’s shipping expense and
the replacement product will be shipped back at our expense.
For outside U.S customer, visit our website at www.scommtech.com/en and go to Support menu
to find the contact information of our worldwide distributors.
For product service, the product in all cases must be accompanied by below warranty form. Customer must ask the reseller or installer to fill out the warranty form indicated below, otherwise the
product warranty may be considered void.
(MM/DD/YY)
Date of Purchase or Installation :
Name, telephone and full address of purchaser :
Stamp or Signature of authorized reseller / installer
Product Code and Serial Number :
22
| Drilling Template Sheet for 60mm Backset
23
| Drilling Template Sheet for 60mm Magnet
69.0
69.0
2.0
24
| Drilling Template Sheet for 70mm Backset
When installing the 60 mm iron door and 70 mm iron/wood door,
a separate magnet sensor is applied.
25
Product information and customer service contact :
SEOUL COMMTECH
EZON® is a registered trademark of SEOUL COMMTECH Co.,Ltd.
Other products’ brand names may be trademarks or registered trademarks of their respective owners and are
mentioned for reference purposes only. These materials are protected under U.S. copyright laws.
All contents current at time of publication.
SEOUL COMMTECH Co.,Ltd., reserves the right to change availability of any item in this catalog, its design,
construction, and/or its materials.
Copyright © 2009, EZON, SEOUL COMMTECH Co.,Ltd. All right reserved.
Reproduction in whole or in part without the express written permission of SEOUL COMMTECH is
prohibited.
GC68-01733A ED:01
