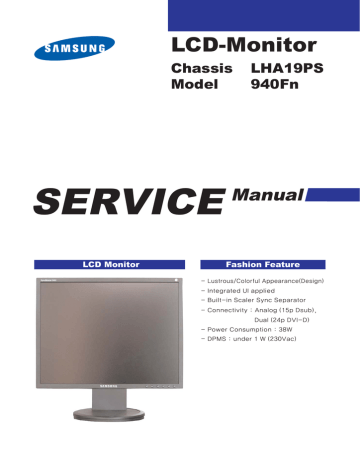

LCD-Monitor
Chassis
Model
SERVICE
LCD Monitor
LHA19PS
940Fn
Manual
Fashion Feature
- Lustrous/Colorful Appearance(Design)
- Integrated UI applied
- Built-in Scaler Sync Separator
- Connectivity : Analog (15p Dsub),
Dual (24p DVI-D)
- Power Consumption : 38W
- DPMS : under 1 W (230Vac)
-This Service Manual is a property of Samsung
Electronics Co., Ltd.
Any unauthorized use of Manual can be punished
under applicable International and/or domestic
law.
Samsung Electronics Co.,Ltd.
416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
Gyeonggi-Do, Korea, 443-742
Printed in Korea
P/N : BN82-00136C-00
URL : http://itself.sec.samsung.co.kr/
10 Operating Instructions and Installation
10 Operating Instructions and Installation
10-1 Front
1. Menu button
Opens the OSD menu. Also use to exit the OSD
menu or return to the previous menu.
2. MagicBright button
MagicBright is a new feature providing optimum
viewing environment depending on the contents of
the image you are watching. Currently six different
modes are available: Custom, Text, Internet,
Game, Sport and Movie. Each mode has its own
pre-configured brightness value. You can easily
select one of six settings by simply pressing
MagicBright control buttons.
1) Custom
Although the values are carefully chosen by our
engineers, the pre-configured values may not be
comfortable to your eyes depending on your taste.
If this is the case, adjust the brightness and contrast by using the OSD menu.
2) Text : Normal brightness
For documentations or works involving heavy text.
3) Internet : Medium brightness
For working with a mixture of images such as text
and graphics.
4) Game
For watching motion pictures such as a game.
5) Sport
For watching motion pictures such as a sport.
6) Movie : High brightness
For watching motion pictures such as a DVD or
Video CD.
3. Brightness button
When OSD is not on the screen, push the button
to adjust brightness.
2,3. Adjust buttons
Adjust items in the menu.
10-1
10 Operating Instructions and Installation
4. Enter button / Source button
6. Power button
Activates a highlighted menu item. /
Push the 'SOURCE', then selects the video signal
Use this button for turn the monitor on and off.
while the OSD is off. (When the source button is
pressed to change the input mode, a message
7. Power indicator
This light glows green during normal operation,
appears in the center of the screen displaying the
and blinks green once as the monitor saves your
current mode -- analog or digital input signal.)
Note : If you select the digital mode, you must con-
adjustments.
nect your monitor to the graphic card's port using
the DVI cable.
5. Auto button
Use this button for auto adjustment.
10-2 Rear
(The configuration at the back of the monitor may vary from product to product.)
1. Power port
Connect the power cord for your monitor to the power port on the back of the monitor.
2. DVI IN port
Connect the DVI Cable to the DVI port on the back of your monitor.
3. RGB IN port
Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.
4. Power on/off Switch(option)
Use this button for turn the monitor on and off.
5. Kensington Lock
The Kensington lock is a device used to physically fix the system when using it in a public place.
(The locking device has to be purchased separately. )
For using a locking device, contact where you purchase it.
10-2
10 Operating Instructions and Installation
10-3 Connecting the monitor
Rear of monitor
Rear of Computer
New Model Macintosh
Old Model Macintosh
1. Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
2-1. Using the D-sub (Analog) connector on the video card.
Connect the 'DVI-A to D-sub' Cable to the D-sub port on the back of your monitor.
[ RGB IN ]
2-2. Using the DVI (Digital) connector on the video card.
Connect the DVI Cable to the DVI port on the back of your monitor.
[ DVI IN ]
2-3. Connected to a Macintosh.
Connect the monitor to the Macintosh computer using the 'DVI-A to D-sub' connection cable.
2-4. In the case of an old model Macintosh, you need to connect the monitor using a special Mac adapter.
3. Turn on your computer and monitor. If your monitor displays an image, installation is complete.
10-3
10 Operating Instructions and Installation
10-4 Attaching a Base
- This monitor accepts a 75mm x 75mm VESA-compliant mounting interface pad.
A. Monitor
B. Mounting interface pad
1. Turn off your monitor and unplug its power cord.
2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.
3. Align the mounting interface pad with the holes in the rear cover mounting Pad and secure it with four
screws that came with the arm-type base, wall mount hanger or other base.
10-4
11 Disassembly and Reassembly
11 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the TFT-LCD monitors.
WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling
these components.
11-1 Disassembly (Simple - Stand)
Cautions:
1. Disconnect the monitor from the power source before disassembly.
1. Place monitor face down on cushioned table. Remove 3 screws from the stand.
2. Remove stand and front cover.
11-1
11 Disassembly and Reassembly
3. Lift up the back cover and Use the jig to remove the shield lamp.
4. Disconnect cables.
5. Lift up the shield and disconnect LVDS cable.
11-2
11 Disassembly and Reassembly
6. Lift up the LCD panel.
11-2 Disassembly (HAS-Stand)
1. Place monitor face down on cushioned table. Remove 2 screws from the stand and remove front cover.
11-3
11 Disassembly and Reassembly
2. Lift up the back cover and Use the jig to remove the shield lamp.
3. Disconnect cables.
4. Lift up the shield and disconnect LVDS cable.
11-4
11 Disassembly and Reassembly
5. Lift up the LCD panel.
11-3 Reassembly
Reassembly procedures are in the reverse order of disassembly procedures.
11-5
11 Disassembly and Reassembly
Memo
11-6
12 PCB Layout
12 PCB Diagram
12-1
12 PCB Layout
Memo
12-2
14 Reference Infomation
14 Reference Infomation
14-1 Technical Terms
-TFT-LCD
-Image Lock
(Thin film Transistor Liquid Crystal Display)
ADC(Analog to Digital Converter)
This means "Fineness adjustment " in LCD Monitor,
the features are "Fine" and "Coarse"
This is a circuit that converts from analog signal to
digital signals.
-FINE
"Fine" adjustment is used to adjust visibility by con-
-PLL(Phase Locked Loop)
During progressing ADC, Device makes clock syn-
trol phase difference.
chronizing HSYNC with Video clock
-COARSE
This is a adjustment by tuning with Video colck and
-Inverter
PLL clock.
Device that supply Power to LCD panel lamp. this
device gernerate about 1,500~2,000V.
-L.V.D.S.(Low Voltage Differential Signaling)
AC Adapter
Device that converts AC(90V~240V) to DC(+12V or
a kind of transmission method for Digital.It can be
used from Main PBA to Panel.
14V)
-DVI (Digital Visual Interface)
This provides a high speed digital connection for
SMPS(Switching Mode Power Supply)
Switching Mode Power supply. This design technology is used to step up/down the input power by
visual data types that is display technology independent. this interface is primarily forcused at providing a connection between a computer and its dis-
switching on/off
play device.
-FRC(Frame Rate Controller)
Technology that change image frame quantity displayed on screen for one second.
Actually TFT-LCD panel require 60 pcs of frame for
one second.
so,this technology is needed to convert input image
to 60 pcs regardless input frame quantity.
-T.M.D.S
(Transition minimized Differential Signaling)
a kind of transmission method for Digital.
It can be used from Video card to Main PBA.
-Image Scaler
Technology that convert various input resolution to
other resolution.(ex. 640* 480 to 1024*768)
-Auto Configuration(Auto adjustment)
This is an algorithm to adjust monitor to optimum
condition by pushing one key.
-OSD(On Screen Display)
On screen display. customer can control the screen
easily with this.
-DDC(Display data channel)
It is a communication method between Host
Computer and related equipment.
It can make it Plug and Play between PC and
Monitor.
-EDID
Extended Display Identification Data PC can recognize the monitor information as Product data,
Product name,Display mode,Serial number and
Signal source,etc through DDC Line communicating
with PC and Monitor.
14-1
14 Reference Infomation
-Dot Pitch
The image on a monitor is composed of red, green
and blue dots. The closer the dots, the higher the
resolution. The distance between two dots of the
same color is called the 'Dot Pitch'. Unit: mm
-Vertical Frequency
The screen must be redrawn several times per second in order to create and display an image for the
user. The frequency of this repetition per second is
called Vertical Frequency or Refresh Rate. Unit: Hz
Example: If the same light repeats itself 60 times
per second, this is regarded as 60 Hz.
-Horizontal Frequency
The time to scan one line connecting the right edge
to the left edge of the screen horizontally is called
Horizontal Cycle. The inverse number of the
Horizontal Cycle is called Horizontal Frequency.
Unit: kHz
-Interlace and Non-Interlace Methods
Showing the horizontal lines of the screen from the
top to the bottom in order is called the Non-Interlace
method while showing odd lines and then even lines
in turn is called the Interlace method. The NonInterlace method is used for the majority of monitors
to ensure a clear image. The Interlace method is the
same as that used in TVs.
-Plug & Play
This is a function that provides the best quality
screen for the user by allowing the computer and
the monitor to exchange information automatically.
This monitor follows the international standard
VESA DDC for the Plug & Play function.
-Resolution
The number of horizontal and vertical dots used to
compose the screen image is called 'resolution'.
This number shows the accuracy of the display.
High resolution is good for performing multiple tasks
as more image information can be shown on the
screen.
Example: If the resolution is 1280 x 1024 , this
means the screen is composed of 1280 horizontal
dots (horizontal resolution) and 1024 vertical lines
(vertical resolution).
14-2
14 Reference Infomation
14-2 Pin Assignments
Sync
Type
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15-Pin D-Sub Signal Cable Connector
Separate
Composite
Sync-on-green
Red
Green
Blue
GND
DDC Return (GND)
GND-R
GND-G
GND-B
DDC Power Input (+5V)
Self Raster
GND
Bi-Dr Data (SDA)
H-Sync.
V-Sync.
DDC Clock (SCL)
Red
Green
Blue
GND
DDC Return (GND)
GND-R
GND-G
GND-B
DDC Power Input (+5V)
Self Raster
GND
Bi-Dr Data (SDA)
H/V-Sync.
Not Used
DDC Clock (SCL)
Red
Green + H/V Sync.
Blue
GND
DDC Return (GND)
GND-R
GND-G
GND-B
DDC Power Input (+5V)
Self Raster
GND
Bi-Dr Data (SDA)
Not Used
Not Used
DDC Clock (SCL)
Sync
Type
Pin No.
24P DVI-D
1
Rx2-
13
No Connection
2
Rx2+
14
+5V_M
3
GND
15
Self Raster
4
No Connection
16
+5V_M
5
No Connection
17
Rx0-
6
DDC Clock (SCL)
18
Rx0+
7
DDC Data (SDA)
19
NC
8
NC
20
No Connection
9
Rx1-
21
No Connection
10
Rx1+
22
NC
11
NC
23
RxC+
12
No Connection
24
RxC-
14-3
14 Reference Infomation
14-3 Timing Chart
This section of the service manual describes the timing that the computer industry recognizes as standard for computergenerated video signals.
Table 2-1 Timing Chart
IBM
Mode
VGA2/
70 Hz
Timing
VESA
VGA3/
60 Hz
640/75 Hz 800/60 Hz 800/75 Hz 1024/60 Hz 1024/75 Hz 1280/60 Hz 1280/75 Hz
720 x 400 640 x 480
640x480
800x600
800x600
1024x768 1024x768 1280x1024 1280x1024
fH (kHz)
31.469
31.469
37.500
37.879
46.875
48.363
60.023
63.981
79.975
A μsec
31.777
31.778
26.667
26.400
21.333
20.677
16.660
11.852
12.504
B μsec
3.813
3.813
2.032
3.200
1.616
2.092
1.219
1.037
1.067
C μsec
1.589
1.589
3.810
2.200
3.232
2.462
2.235
2.296
1.837
D μsec
26.058
26.058
20.317
20.000
16.162
15.754
13.003
9.259
9.481
E μsec
0.318
0.318
0.508
0.000
0.323
0.369
0.203
0.000
0.119
fV (Hz)
70.087
59.940
75.000
60.317
75.000
60.004
75.029
60.020
75.025
O msec
14.268
16.683
13.333
16.579
13.333
16.666
13.328
16.005
13.329
P msec
0.064
0.064
0.080
0.106
0.064
0.124
0.050
0.047
0.038
Q msec
0.858
0.794
0.427
0.607
0.448
0.600
0.466
0.594
0.475
R msec
13.155
15.761
12.800
15.840
12.800
15.880
12.795
15.630
12.804
S msec
0.191
0.064
0.027
0.0261
0.021
0.062
0.017
0.016
0.013
28.322
26.175
31.500
40.000
49.500
75.000
78.750
108.000
Clock
Freq.
(MHz)
135.000
Polarity
H.Sync
Negative Negative Negative Positive
Positive Negative
Positive
Positive
Positive
V.Sync
Positive Negative Negative Positive
Positive Negative
Positive
Positive
Positive
Remark
Separate Separate Separate Separate Separate Separate Separate Separate Separate
H/V Composite Sync
Separate Sync
Video
Video
C
D
E
Q
R
S
Sync-on-Green
Sync
Sync
B
P
A
O
A : Line time total
B : Horizontal sync width
O : Frame time total
P : Vertical sync width
C : Back porch
D : Active time
Q : Back porch
R : Active time
E : Front porch
14-4
S : Front porch
14 Reference Infomation
14-4 Preset Timing Modes
-If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen
will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED
is on. Refer to the video card manual and adjust the screen as follows.
Table 1. Preset Timing
Display Mode
Horizontal
Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
MAC, 640 x 480
35.000
66.667
30.240
-/-
MAC, 832 x 624
49.726
74.551
57.284
-/-
MAC,1152 x870
68.681
75.062
100.000
-/-
IBM, 640 x 350
31.469
70.086
25.175
+/-
IBM, 640 x 480
31.469
59.940
25.175
-/-
IBM, 720 x 400
31.469
70.087
28.322
-/+
VESA, 640 x 480
37.500
75.000
31.500
-/-
VESA, 640 x 480
37.861
72.809
31.500
-/-
VESA, 800 x 600
35.156
56.250
36.000
+,-/+,-
VESA, 800 x 600
37.879
60.317
40.000
+/+
VESA, 800 x 600
46.875
75.000
49.500
+/+
VESA, 800 x 600
48.077
72.188
50.000
+/+
VESA, 1024 x 768
48.363
60.004
65.000
-/-
VESA, 1024 x 768
56.476
70.069
75.000
-/-
VESA, 1024 x 768
60.023
75.029
78.750
+/+
VESA, 1152 x 864
67.500
75.000
108.00
+/+
VESA 1280 x 960
60.000
60.000
108.00
+/+
VESA, 1280 x 1024
63.981
60.020
108.00
+/+
VESA, 1280 x 1024
79.976
75.025
135.00
+/+
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the screen horizontally is called
Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an
image to the user. The frequency of this repetition is called Vertical Frequency or Refresh Rate. Unit: Hz
14-5
14 Reference Infomation
14-5 Panel Description
Maker
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
14-6
VENDOR P/N
LT140X1-002
LT150XS-L01
LT150XS-L01-B
LTM150XS-L02
LT181E2-132
LT150XS-T01
LTM181E3-132
LT170E2-131
LT181E2-131
LTM170E4-L01
LTM240W1-L01
LTM213U3-L01
LTM150XH-L01
LTM150XH-L03
LTM150XS-L01
LTM181E4-L01
LTM170EH-L01
LTM170E5-L01
LTM150XH-L11
LTM213U4-L01
LTM150XH-L01(ZPD)
LTM150XH-L04
LTM170W1-L01
LTM150XH-L06
LTM153W1-L01
LTM170EH-L05
LTM170E5-L03
LTM190E1-L01
LTM181E5-L01
LTM150XP-L01
LTM240W1-L02
LTM170EU-L01
LTM170E5-L04
LTA220W1-L01
LTM170E6-L02
LTM170W1-L01
LTM170EH-L01
LTM170E5-L01
LTM170EH-L05
LTM170E5-L03
LTM170EU-L01
LTM170E5-L04
LTM170E6-L02
LTM150XH-L06
LTM153W1-L01
LTM170W1-L01
LTM170EH-L05
LTA400W1-L01
LTM153W1-L01
LTM150XH-L06
LTM170W1-L01
LTM170EH-L05
LTM220W1-L01
LTM150XH-L06
LTM153W1-L01
LTM170WP-L01
LTM213U4-L01
LTA260W1-L01
PANEL_CODE
BN07-00004A
BN07-00009A
BN07-00022A
BN07-00005A
BN07-00001A
BN07-00010A
BN07-00019A
BN07-10001D
BN07-10001E
BN07-00018A
BN07-00015A
BN07-00016A
BN07-00026A
BN07-00027A
BN07-00032A
BN07-00034A
BN07-00036A
BN07-00037A
BN07-00041A
BN07-00039A
BN07-00045A
BN07-00046A
BN07-00047A
BN07-00053A
BN07-00054A
BN07-00055A
BN07-00056A
BN07-00057A
BN07-00061A
BN07-00065A
BN07-00062A
BN07-00071A
BN07-00072A
BN07-00074A
BN07-00075A
BN07-00082A
BN07-00080A
BN07-00081A
BN07-00083A
BN07-00084A
BN07-00085A
BN07-00086A
BN07-00087A
BN07-00091A
BN07-00092A
BN07-00100A
BN07-00097A
BN07-00109A
BN07-00110A
BN07-00111A
BN07-00112A
BN07-00113A
BN07-00114A
BN07-00117A
BN07-00118A
BN07-00119A
BN07-00039A
BN07-00121A
PANEL_ABB
SA
SB
SC
SD
SE
SF
SG
SH
SJ
SK
SL
SM
SN
SP
SQ
SR
SS
SU
SV
SW
SX
SY
SZ
EA
EB
EC
ED
EE
EF
EG
EH
EJ
EK
EL
EM
EN
EP
EQ
ER
ES
ET
EU
EV
EW
EX
EY
EZ
S1
S2
S3
S4
S5
S6
S7
S8
S9
E1
E2
STICKER_CODE
BN68-00239H
Remarks
DELL(ZPD)
PVA
TN
PVA
PVA
ZPD
New panel with high brightness
Panel for TV
Panel for TV/ High luminance for 450cd _ SONY&EOS Team Panel for TV
Use NIKE MODEL
Panel EOS proj. for high brightness of 17" EH-L05
Dell 1702FP pro. E4. EH mechanical Compatible
DELL 1900 FP
18" narrow bezel GH18PS
AMLCD PVA PANEL
Panel for 15" Wide TV
Slim design, TN
E5-L04 6 bits FRC... for IBM
Panel for 22" TV
AMLCD Narrow & slim design 17" PVA mode
LTM170W1-L01 ZPD panel
LTM170EH-L01 ZPD panel
LTM170E5-L01 ZPD panel
LTM170EH-L05 ZPD panel
LTM170E5-L03 ZPD panel
LTM170EU-L01 ZPD panel
LTM170E5-L04 ZPD panel
LTM170E6-L02 ZPD panel
Color coordinates change for LCD TV
AMLCD WIDE 15",9/10
Color Coordinates change code management
LTM170E5-L05 Color Coordinates Change Panel Code
PANEL of AMLCD 40" TV
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
ZPD Panel for AMLCD 22" TV
ZPD Panel code
ZPD Panel code
PVA Panel for NIKE
21.3" NARROW
VENUS
14 Reference Infomation
Maker
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
VENDOR P/N
LTA220W1-L01
LTA320W1-L01
LTM213U4-L01
LTM170E6-L04
LTM190E1-L01
M150X4-L06
LTA170V1
LTM190E1-L02
LTM170EX-L01
LTM170E8-L01
LTM170E6-L04
LTA320W1-L02
LTM190E1-L03
LTM240W1-L03
LTM190E1-L02
LTM190E4-L01
LTM170E8-L01
LTM170EX-L01
LTM190E1-L03
LTA460H1-L01
LTM170EU-L11
LTM240W1-L03
LTM190E4-L01
LTM240W1-L03
LTM150XO-L01
LTM150XO-L01
LTM170EU-L11
LTA320W2-L01
LTM213U4-L01
LTM170EU-L11
LTM170EU-L11
LTM240W1-L04
LTM240W1-L04
LTM190EX-L01
LTM190EX-L02
LTA230W1-L02
LTA260W2-L01
LTM240M1-L01
LTA400W2-L01
LTM150XO-L01
LTM150XO-L01
LTM170EU-L21
LTA460W2-L03
LTM240M1-L01
M170EX-L21
LTA460H3-L01
LTM170EU-L15
LTM170E8-L21
LTM190EX-L21
LTM201U1-L01
LTM190E4-L21
LTA570H1-L01
LTM150XO-L21
LTA260W2-L11
LTA400WS-LH1
LTM213U6-L01
LTA320WS-LH2
LTA400WS-LH1
PANEL_CODE
BN07-00074B
BN07-00108A
BN07-00124A
BN07-00129A
BN07-00088A
BN07-00137A
BN07-00139A
BN07-00128A
BN07-00143A
BN07-00144A
BN07-00129B
BN07-00108B
BN07-00151A
BN07-00134A
BN07-00128B
BN07-00145A
BN07-00158A
BN07-00159A
BN07-00151B
BN07-00157A
BN07-00160A
BN07-00134B
BN07-00145B
BN07-00134B
BN07-00164A
BN07-00164B
BN07-00160B
BN07-00172A
BN07-00124B
BN07-00189A
BN07-00189B
BN07-00188A
BN07-00188B
BN07-00191A
BN07-00191B
BN07-00184A
BN07-00185A
BN07-00195A
BN07-00186A
BN07-00197A
BN07-00197B
BN07-00202A
BN07-00187A
BN07-00195B
BN07-00206A
BN07-00200A
BN07-00214A
BN07-00218A
BN07-00222A
BN07-00190B
BN07-00223A
BN07-00196A
BN07-00229A
BN07-00239A
BN07-00245A
BN07-00231A
BN07-00244A
BN07-00245A
PANEL_ABB
E3
E4
E5
E6
E7
E8
E9
E10
E11
E12
E13
E14
E15
E16
E17
E18
E19
E20
E21
E22
E23
E24
E25
E26
E27
E28
E29
SPZ
SPZ
STH
STZ
SPH
SPZ
STH
STZ
SPZ
SPZ
SPH
SPZ
STH
STZ
STZ
SPZ
SPZ
STZ
SPZ
STZ
SPZ
STZ
SPZ
SPZ
SPZ
STZ
SPZ
SPZ
SPZ
SPZ
SPZ
STICKER_CODE
Remarks
"Panel B-level panel code for 22"" TV Panel "
"Panel for AMLCD 32"" TV"
NARROW BEZEL 21 " PANEL
"HIGHLAND 17"" LOW PANEL (Panel only for TCO03)"
LTM190E1-L01 ZPD panel
15" Narrow & Slim panel
"17"" Panel for Muse 4:3 VGA TV"
"New Panel from AMLCDl, Specification : 6bit Driver IC"
"Development new Panel from AMLCD"
"Development new Panel from AMLCD"
"ZPD panel for AMLCD (Panel only for TCO03)"
"Creat B-level Panel code for AMLCD 32"" TV"
"Development new 19"" Panel form AMLCD (Panel only for TCO03)"
"AMLCD 24"" panel development"
"New Panel from AMLCD, Specification : 6bit Driver IC(ZPD)"
"AMLCD 24"" new panel development"
"ZPD code derivation"
"ZPD code derivation"
"Creat new panel code for AMLCD 19"" (Panel only for TCO03)"
"creat panel code for AMLCD 46"" TV "
"creat new panel code for AMLCD 17"" (Panel only for TCO03)"
"24"" panel ZPD code derivation"
"AMLCD 19"" ZPD Panel code derivation"
"24"" panel ZPD code derivation"
"AMLCD 15"" XO-L01 new panel development"
"AMLCD 15"" XO-L01 ZPD code derivation"
"AMLCD 17"" NEW panel code derivation"
AMLCD 32" NEW panel
21.3" Narrow PANEL ZPD Panel derivation
AMLCD EU-L11 Pb free panel code derivation
AMLCD EU-L11 Pb free panel ZPD code derivation
24" A-DCC new panel development
24" A-DCC panel ZPD code derivation
AMLCD 19" TN new Panel
AMLCD 19" TN new Panel ZPD derivation
AMLCD 23" 16:9 new Panel
AMLCD 26" 16:9 new Panel
24" panel with high brightness deveiopment
AMLCD 40" 16:9 new Panel
AMLCD 15" XO-L01 Pb free panel code
AMLCD 15" XO-L01 Pb free panel ZPD code
AMLCD EU-L21 ZPD new code derivation
BEETOVEN 46"ZPD new panel
24" igh brightness panel ZPD code derivation
AMLCD LTM170EX-L21 ZPD new code derivation
AMLCD 46" LED BLU panel
AMLCD EU-L15 TV high brightness ZPD new code derivation
AMLCD LTM170E8-L21 PVA ZPD new code derivation
DISPLAY LCD
AMLCD 20.1" Normal panel ZPD code derivation
HAYDN 17" PZD code PANEL derivation
AMLCD 57" new panel development
AMLCD 15" XO-L21 8ms panel code
AMLCD 26" 16:9 7Line new Panel
AMLCD 40" 16:9 SPVA 90% new Panel
AMLCD 21.3" PVA new Panel Code
AMLCD 32" 16:9 SPVA 90% new Panel
AMLCD 40" 16:9 SPVA 90% new Panel
14-7
14 Reference Infomation
Maker
CPT
CPT
CPT
CPT
CPT
CPT
CPT
CPT
CPT
CPT
CPT
CPT
TOSHIBA
TOSHIBA
TOSHIBA
TOSHIBA
TOSHIBA
TOSHIBA
TOSHIBA
TOSHIBA
HANNSTAR
HANNSTAR
HANNSTAR
HANNSTAR
HANNSTAR
HANNSTAR
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
SHARP
SHARP
SHARP
HITACHI
HITACHI
HITACHI
HITACHI
HITACHI
HITACHI
HITACHI
IBM
14-8
VENDOR P/N
CLAA150XG09
CLAA170EA02
CLAA170EA02
CLAA150XG09
CLAA150XP01
CLAA150XP01
CLAA170EA07
CLAA170EA07
CLAA170EA07
CLAA170EA07Q
CLAA170EA07Q
CLAA150XP01F
LTM15C419(A)
LTM15C423(B)
LTM18C161
LTM15C443
LTM15C458
LTM15C458S
LTM15C458
LTM15C458S
HSD150MX41A(A)
HSD150MX12
HSD170ME13
HSD170ME13
HSD190ME12
HSD150MX17-A
TM150XG-22L03(A)
TM150XG-26L06
TM181SX-76N01
TM150XG-26L06
TM290WX-71N31
TM396WX-71N31
TM150XG-26L09
TM150XG-26L10
TM150XG-26L10
TM190SX-70N01
TM181SX-76N01
TM190SX-70N01
TM290WX-71N31
TM396WX-71N31
TM22OWX-71N31
TM22OWX-71N31
TM396WX-71N32A
TM190SX-70N02
TM190SX-70N02
TM150XG-A01
TM150XG-A01
LQ181E1DG11(A)
LQ150X1LW71
LQ370T3LZ41
TX38D12VC0CAA(A)
TX43DVCOCAB
TX43D15VC0CAB
TX51D11VC0CAB
TX54D11VC0CAB
TX80D12VC0CAB
TX54D11VC0CAB
ITSX94S
PANEL_CODE
BN07-00141A
BN07-00148A
BN07-00148B
BN07-00141B
BN07-00173A
BN07-00173B
BN07-00174A
BN07-00174B
BN07-00174B
BN07-00220A
BN07-00220B
BN07-00236A
BN07-00002A
BN07-00006A
BN07-00008A
BN07-00031A
BN07-00043A
BN07-00077A
BN07-00078A
BN07-00099A
BN07-00020A
BN07-00030A
BN07-00180A
BN07-00180B
BN07-00210A
BN07-00226A
BN07-00021A
BN07-00042A
BN07-00048A
BN07-00059A
BN07-00063A
BN07-00064A
BN07-00073A
BN07-00089A
BN07-00090A
BN07-00098A
BN07-00106A
BN07-00107A
BN07-00115A
BN07-00116A
BN07-00125A
BN07-00127A
BN07-00150A
BN07-00154A
BN07-00154B
BN07-00162A
BN07-00162B
BN07-10001C
BN07-00067A
BN07-00216A
BN07-00003A
BN07-00060A
BN07-00101A
BN07-00122A
BN07-00123A
BN07-00169A
BN07-00123B
BN07-00017A
PANEL_ABB
PA
PB
PC
PTZ
PTH
PTZ
PTH
PTZ
PTZ
PTZ
PTH
PTZ
TA
TB
TC
TD
TE
TF
TG
TH
NA
NB
NTH
NTZ
NTZ
NTZ
RA
RB
RC
RD
RE
RF
RG
RH
RJ
RK
RL
RM
RN
RP,Q
RR
RS
RT
RMH
RMZ
RTH
RTZ
PA
PB
FAZ
HA
HB
HC
HD
HE
HIZ
HIZ
IA
STICKER_CODE
Remarks
"CPT 15"" Monitor new panel development"
"17"" CPT NEW development panel"
"17"" CPT ZPD panel code derivation"
"CPT 15"" panel ZPD code derivation (GOYA-PJT)"
CPT 15" PSWG code derivation
CPT 15" PSWG panel ZPD code
"CPT 17"" PSWG panel code derivation
CPT 17"""" PSWG type new Panel code"""
CPT 17" PSWG type new Panel code
CPT 17" PSWG R/T 8msec code derivation
CPT 17" PSWG R/T 8msec HPD code derivation
CPT 15" PSWG panel ZPD & Lead free code derivation
"TSB 15"" high brightness Panel"
Toshiba ZPD panel
TSB LTM15C458S ( ZPD )
"TTL type"
"TTL type"
Hannstar 17" TN new panel development
Hannstar 17" TN new panel development ZPD code derivation
Hannstar 19" TN new panel development
Hannstar 15" slim panel ZPD code derivation
15" XGA TN MODE(ZPD)
"RS24NS (TORISAN 29"" NEW PANEL)"
"RS24NS (TORISAN 40"" NEW PANEL)"
"Panel for 15"" TV"
"L10(change except D/IC) ZPD"
L10 NORMAL
Torisan 19" Panel
ZPD Panel code
ZPD Panel code
"Color Coordinates change panel for TORISAN 29"" TV"
"Color Coordinates change panel for TORISAN 40"" TV"
"Development TORISAN 22"" TV PANEL (ZPD)"
"Development TORISAN 22"" TV PANEL (HPD)"
120V inverter Exclusive panel
Torisan 6bit panel code Derivation
Torisan 6bit panel code Derivation
Torisan 15" Narrow & Slim panel development
Torisan 15" N&S panel ZPD code Derivation
SHARP 15" PVA PANEL
Rome2
17" SXGA PVA MODE
ZPD Panel
20.1" NARROW
21.3" NARROW
"Development new panel for Hitachi 32"" TV (ZPD)"
Hitachi 21.3"ZPD panel
-
14 Reference Infomation
Maker
UNIPAC
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
NEC
VENDOR P/N
UM170E0
HT15X13
HT17E11-200
HT17E11-300
HT17E11-400
HT17E11-400
HT17E12
HT17E12
HT15X15-D00
HT15X15-D01
HT17E13-100
HT17E13-100
L170E3
M170EN05
M170EN05
M190EN02
M190EN02
M170EN06
T260XW01
A201SN01
M170EN06
T315XW01
M170EG01
M170EG01
M190EN04
T260XW02
M170EG01 V8
T260XW02
T315XW01
M190EN03
T315XW01
T315XW01
M201UN02 V3
M170E3-LO1
M150X3-L01
M170E4-L01
M150X2-L01
M150X3-L01
M170E3-L01
M170E4-L01
V296W1-L01
M170E6-L02
M190E2-L01
M150X4-L06
M170E6-L01
M170E6-L01
V201V1-T01
M170E6-L02
M170E6-L05
M170E6-L05
M150X4-L06
M170E5-L05
M170E5-L05
V230W1-L02
V320B1-L01
V270W1-L01
SVA150XG04TB
PANEL_CODE
BN07-00028A
BN07-00035A
BN07-00049A
BN07-00093A
BN07-00094A
BN07-00095A
BN07-00096A
BN07-00105A
BN07-00146A
BN07-00146B
BN07-00167A
BN07-00167B
BN07-00044A
BN07-00076A
BN07-00102A
BN07-00170A
BN07-00170B
BN07-00171A
BN07-00163A
BN07-00177A
BN07-00171B
BN07-00194A
BN07-00192A
BN07-00192B
BN07-00203A
BN07-00208A
BN07-00221A
BN07-00233A
BN07-00234A
BN07-00224A
BN07-00237A
BN07-00238A
BN07-00168A
BN07-00050A
BN07-00051A
BN07-00052A
BN07-00066A
BN07-00079A
BN07-00103A
BN07-00104A
BN07-00120A
BN07-00126A
BN07-00131A
BN07-00137A
BN07-00133A
BN07-00133B
BN07-00135A
BN07-00126B
BN07-00152A
BN07-00152B
BN07-00137B
BN07-00165A
BN07-00165B
BN07-00209A
BN07-00207A
BN07-00136A
BN07-00225A
PANEL_ABB
UA
DA
DB
DC
DD
DE
DF
DG
DH
DJ
DTH
DTZ
AA
AB
AC
AMH
AMZ
ATH
AMZ
ATZ
ATZ
AMZ
ATH
ATZ
ATH
AMZ
ATZ
AMZ
AMZ
AMZ
AMZ
AMZ
AMZ
CA
CB
CC
CD
CE
CF
CG
CH
CJ
CK
CL
CM
CN
CP
CQ
CR
CS
CT
CTH
CTZ
CMZ
CMZ
CMZ
BTZ
STICKER_CODE
Remarks
Loaded by cisdba
TN MODE
HT17E11-300 ZPD panel
HT17E11-400 normal panel
HT17E11-400 ZPD panel code
HT17E12 ( Narow & slim Design )
ZPD Panel code
"Development for Ares 15"" Hydis TV"
"Derivation panel HPD for Ares 15"" Hydis TV "
"PINEHURST-2(IBM) PJT 17"" HYDIS PANEL Derivation"
"PINEHURST-2(IBM) Hydis 17"" ZPD code Derivation"
TN(ADT)
AU 17" Panel ( Narrow & slim design )
ZPD Panel code
"AU Monitor 19"" new panel development (P19-1S)"
"AU 19"" ZPD code derivation (ZPD)"
"AU Monitor 17"" New panel development "
"AU 26"" new panel development (NF26EO)"
"AU TV panel 20.1"" TN SVGA new panel development"
AU Monitor 17" ZPD code derivation
AU 32" new
AU TN PSWG type new Panel code
AU TN PSWG type NEW panel code derivation
AU Monitor 19" ZPD new Panel code
AUO 26" ZPD panel
AU TN PSWG type new Panel (8msec) ZPD code derivation
AUO 26" Panel new (Cosmetic spec down grade)
AUO 32" Grade new (Cosmetic spec down grade)
AU Monitor 19" MVA new code derivation
LCD TV VE project new
LCD TV VE project new
TN PANEL
COMPATIBLE
MVA PANEL
CHIME 15"I PVA PANEL
Chimei ZPD panel
ZPD Panel code
ZPD Panel code
MVA
HIGHLAND 17" LOW PANEL
GH19AS,BS CHIMEI PANEL
15" Narrow & Slim panel
"2003-03-11 vendor change"
ZPD derivation panel
CHIMEI 20.1" panel development
"HIGHLAND 17"" LOW PANEL ZPD derivation panel"
"CMO 17"" new panel development code"
"CMO 17"" ZPD panel code derivation"
Chimei 15" Narrow & Slim panel ZPD derivation
CMO 17" new panel development code (GOYA2-PJT)
CMO 17" ZPD panel(GOYA2-PJT)
CMO 23" development
CMO 32" development
CHI MEI 27" panel development
SVA NEC 15" panel ZPD code
14-9
14 Reference Infomation
Memo
14-10
2 Product Specifications
2 Product Specifications
2-1 Fashion Feature
- Develop Cost Effective Model
- LCD Monitor Standardization/Develop Concept-leading Product
- Develop New Design & Advanced Stand
- Apply integrated GUI for the user's convenience
2-2 LHA19PS Specifications
Item
Description
LCD Panel
TFT-LCD panel, RGB vertical stripe, normally black transmissive,
19-Inch viewable, 0.294 (H) x 0.294 (V) mm pixel pitch
Scanning Frequency
Horizontal : 30 kHz ~ 81 kHz (Automatic)
Vertical : 56 Hz ~ 75 Hz
Display Colors
16.7 Million colors
Maximum Resolution
Horizontal : 1280 Pixels
Vertical : 1024 Pixels
Input Video Signal
Analog, 0.7 Vp-p positive at 75Ω +/- 10%, internally terminated
Input Sync Signal
Type : Seperate H/V sync, Composite H/V, Sync-on-Green (option), automatic
synchronization without external switch of sync type
Level : TTL level
Maximum Pixel Clock rate
140 MHz
Active Display
Horizontal/Vertical
396 mm / 324 mm
AC power voltage & Frequency
AC 100 to 240 VAC(+/- 10%) ,60/50Hz ¡¾ 3Hz
Power Consumption
42W (Max)
Dimensions
Set (W x D x H)
403.6 x 65.4 x 331.9mm / 15.9 x 2.6 x 13.1inch (with Basic Stand)
Weight (Set)
3.85 kg
Environmental Considerations
Operating Temperature : 50° F ~ 104°F (10° C ~ 40° C)
Operating Humidity : 10 % ~ 80 %
Storage Temperature : -4° F ~ 113° F (-20° C ~ 45°C)
Storage Humidity : 5 % ~ 95 %
- Design and specifications are subject to change without prior notice.
2-1
2 Product Specifications
2-3 Option Specification
Item
2-2
Item Name
CODE.NO
Quick Setup Guide
BH68-00376L
Warranty Card
(Not available in all
locations)
BH68-70438A
User's Guide,
Monitor Driver,
Natural Color software,
MagicTune¢â software
MagicRotation software
BN59-00486G
'DVI-A to D-SUB' Cable
(3EA)
BN39-00310B
Power Cord (3EA)
3903-000042
DVI Cable (3EA)
BN39-00246F
Remark
13 Circuit Descriptions
13 Circuit Descriptions
13-1 Overall Block Structure
13-1-1 Power Tree
1. When the AD board is in DPMS state:
1.1 The Scaler consumes power up to 27mA
1.2 The power to the panel is switched off
1.3 The MCU consumes power up to 23mA.
--> The total current consumption to the DPMS is less then 60mA
and the total power consumption is 0.6W + 5V*60mA = 0.9W so that the total power consumption is
less than 1W.
2. When the AD board is operating normally:
2.1 The maximum power consumption of the panel lamps is described below (It may vary depending on
the panel manufacturer)
17" : 4*(7.5mA*650mVrms)=4*4.9=19.6W
19: : 4*(7.5mA*720mVrms)=4*5.4=21.6W
2.2 The power consumption of the Panel Control board is as follows: 5V*720mA=3.6W
2.3 The power consumption of the Scaler is as follows: 3.3V*245mA + 1.8V*300mA = 1.35W
2.4 The power consumption of the MCU is as follows: 5V*44mA =0.22W
13-1
13 Circuit Descriptions
13-1-2 Main Board Parts
1. Inverter: A conversion device that converts DC
rated voltage/current to high ones necessary
for the panel lamp.
6. MCU & EEPROM: I2C is a two-way serial bus of
two lines that supports communications across
the integrated circuits as well as between MCU,
2. DC/DC(Regulator): General term for DC to DC
converting devices.
The IP board receives 5V and outputs 1.8 or
3.3V that is supplied to the scaler (SE56AWL).
Scaler and EEPROM.
In particular, MCU and Scaler (SE56AWL) use
the DDR direct bus for mutual communications,
which is an effective, speedy system because it
allows 4 additional address/data lines compared to the old serial systems.
3. Power MosFET: The IP board receives 5V and
outputs a lower voltage in DPMS mode and
supplies the whole 5V for the panel operating
board in normal conditions. In that case, the
switching of Power MosFET is controlled by
Micom.
4. Scaler: Receives the digital TMDS and analog
R,G,B signals and convert them to proper resolutions using up- or down- scaling that are
transferred to the panel in the LDVS formats.
5. Crystal(Oscillator): Use one 24MHz oscillator
externally to supply power to both MCU and
Scaler at the same time.
13-2
7. Function Key: A certain keystroke generates a
certain electrical potential, which is transferred
into ADC input port of the MCU and then converted to a digital value by the A/D converter of
the chip. The digital value (data) is a clue to
which key is entered. In practical, the voltage
levels are set as below.
13 Circuit Descriptions
13-1-3 IP BOARD BLOCK(POWER) Parts
13-1-4 IP BOARD BLOCK( INVERTER ) Parts
IP BO A RD
B LO C K
( IN V ERT ER )
D C Input
nput
+1
13V dc
IN V ERT ER PA RT
POWER
DC INPUT
Lamp
FULL
BRIDGE
CIRCUIT
Lamp
Lamp
Lamp
+5
5V
Vd
dc
A D IM + 3.
.3V
3 dc
BD IM + 4.
.5V dc
ON/OFF
DIM INPUT
INVERTER
CONTROL
IC
DRIVER
IC
FEED BACK
CIRCUIT
PROTECTION
CIRCUIT
C O N T RO L PA RT
13-3
13 Circuit Descriptions
13-1-5 IP BOARD ( inverter ) PROTECTION Parts
BIZET INVERTER CONTROLER FAN7310 have 2-way of the PROTECTION MODE.
1. OVP[Over Voltage Protection] : If the Voltage of the series capacitors C10 & C15 is over the 2.0V, the
Inverter latched-off.[See the Picture1]
2. OLP[Over Load Protection] : If the inverter output harness is opened(No-output current), the base of the
Q1 turns on and chage the C9 ovter 2V and then, the Inverter latchedoff[See the Picture2]
Figure 1.
Figure 2.
13-4
13 Circuit Descriptions
13-2 Trouble Shooting
13-2-1 IP BOARD(Power)
Power On
No
Check fuse
Change FUSE
Yes
3 pin of FDM0565R
Vcc system in normal: HIGH
No
Check the Vcc system
Yes
1 pin of FDM0565R
Check the drain system
Normal: Switching
No
Check the main switching
Yes
Check the
protection system
No
Check the output current
No
Check the
feedback system
Yes
Check others
Harness, Inlet
13-5
13 Circuit Descriptions
13-2-2 IP BOARD(Inverter)
Power On
No
Check the power system
Yes
1 and 2 pins of FDM0565R
Check Protection
Normal:0.6V~0.8V
No
Check the IC drive
Check MOSFET
No
Check the OVP and OLR
circuits
Yes
1 and 2 pins of FDM0565R
Check Protection
Normal:0.6V~0.8V
Yes
Check any dimming
circuit
No
No
Check the output current
Yes
Check others
13-6
Check the feedback
system
13 Circuit Descriptions
13-3 IP BOARD(Power) Schematic Diagrams
13-7
13 Circuit Descriptions
13-4 IP BOARD(Inverter) Schematic Diagrams
13-8
4 Troubleshooting
4 Troubleshooting
’
•
•
•
•
•
•
“
”
4-1 No Power
When pin4 of CN600 is 0V
does proper DC 5V appear at
Pin 6.7 of CN600 separately?
No
Change IP Board.
Yes
When pin1 of IC600 is 5V
does proper DC 3.3V appear
at Pin 3 of IC600
No
Check IC600 related circuit
Yes
When pin3 of IC601,IC602
is 5V does proper DC 1.8V
appear at Pin 3 of IC601,
IC602 ?
No
Check IC601,IC602 related circuit
Yes
Does proper DC 3.3V appear
at pin of IC200
No
Check IC200 and related circuit
4-1
4 Troubleshooting
4-2 No Video (Analog)
check signal cable connection
and power
Do X401,X901 oscillate
like as figure 1 properly?
No
Replace or check related circuit
1
Yes
Is there R,G,B input at
R11,R106,R108,R117,
R116,R115?
No
Check input part.
Yes
Do Hsync,Vsync waveformgnal
appear at R147,R830,R142,R145 ?
No
check input part
Yes
2 3
Does sync signal(figure 2,3) appear
at Pin 1, pin100 of IC400
No
check IC400 and related circuit
Yes
2 3
Does sync signal(figure 2,3)
appear at pin43,pin44 of IC200?
No
check IC200 and related circuit
Yes
Does the output signal
appear at Pin 17 ~ 20,
22 ~ 27 of CN400?
No
check IC 400 and related circuit
Yes
Does DC 5V appear at pin
28,29,30 of CN400?
Yes
Replace LCD Panel.
4-2
No
check the panel_En signal and
BL_En signal and related circuit
4 Troubleshooting
WAVEFORMS
1
2
3
4-3
4 Troubleshooting
4-3 No Video (Digital)
check signal cable connection
and power
Do X401,X901 oscillate
like as figure 1 properly?
No
Replace or check related circuit
1
Yes
Is there R,G,B input at
R126 ~ R131 like as figure
4,5,6? 4 5 6
No
check input part
Yes
7
Is there waveform figure 7
at R132,R133,R140,R141?
No
check input part
Yes
Does the output signal appear at Pin
17 ~ 20, 22 ~ 27 of CN400?
No
check IC 400 and related circuit
Yes
Does DC 5V appear at pin
28,29,30 of CN400?
Yes
Replace LCD Panel.
4-4
No
check the panel_En signal and
BL_En signal and related circuit
4 Troubleshooting
WAVEFORMS
1
4
5
6
7
4-5
4 Troubleshooting
Memo
4-6
3 Alignments and Adjustments
3 Alignments and Adjustments
This section of the service manual explains how to use the RS232 JIG.
This function is needed for AD board change and program memory (IC110) change.
3-1 Required Equipment
The following equipment is necessary for adjusting the monitor:
• Computer with Windows 95, Windows 98, or Windows NT.
• MTI-2031,2055,2058 DDC Manager Jig are avalable if only #3pin of DVI Port in DDC manager jig should be
connected to GND)
• MTI-2059 is avalable for only using new DDC program(DDC ver : 4.65.12v--20050425)
3-2 Automatic Color Adjustment
To input video, use 16 gray or any pattern using black and white, XGA mode(1024*768@60Hz)
1. Select english for OSD language.
2. Press the "
(Enter/Source)" key for 5 seconds.
3-3 DDC EDID Data Input
1. Input DDC EDID data when replacing AD PCB.
MTI-2031
DDC Manager
Parallel Connector
(25P Cable)
Connect Monitor
(Signal Cable)
Figure 1.
2. Receive/Download the proper DDC file for the model from HQ quality control department.
Install the below jig (Figure 1) and enter the data.
3-4 OSD Adjustment When Replacing Panel
1. Adjust brightness and contrast to 0. Then, press the (Enter/Source) key for 5 second.
Service function OSD will appear on screen.
2. Press the + key to place the cursor on the panel. Press the menu key for 5 seconds.
3-5 OSD Adjustment When Replacing Lamp Only
1. Adjust brightness and contrast to 0. Then, press the exit key for 5 seconds.
Service function OSD will appear on the screen.
2. Press the + key. Select upper lamp and press the menu key for 5 seconds.
Then, select lower lamp and press the menu key for 5 seconds.
-Note
: Please be sure to read the following instructions for details on service function.
3-1
3 Alignments and Adjustments
3-6 Service Function Spec.
3-6-1 How to Display Service Function OSD
1. The value for brightness and contrast should be changed to zero.
2. Within 5 seconds, press the (Enter/Source) key.
3. Service function OSD will be displayed.
-If
you want to disable the service function OSD, you will have to power off.
Panel Information
Softward Version
Checksum
Figure 2. The example of service function OSD
The service function OSD is based on a grid of 29 columns x 12 rows.
The service function OSD consists of panel information, software version and MICOM checksum.
3-6-2 How to Control Service Function OSD
1. With the panel selected on OSD, whenever you press the right key, the base color will change to blue from
"Panel" to "Upper Lamp", "Lower Lamp".
Figure 3.
3-2
3 Alignments and Adjustments
3-6-3 How to Control Service Function OSD
• After change the panel or lamp, you must reset service function OSD.
• The case of panel change
After changeing the panel, press the menu key within 5 seconds,.
Then, panel Ch. No increases one step and the panel time information is reset to zero.
Simultaneously, other information is reset to zero (Upper/Lower lamp, Panel cycle).
Figure 4.
3-6-4 How to Control Service Function OSD
• In the case of Upper Lamp or Lower Lamp change
After changeing the Upper Lamp or Lower Lamp,
1. Select the Upper Lamp or Lower Lamp
2. Press the Menu key within an 5 seconds.
Then, Ch. No and time will be reset to zero (selected item only).
Figure 5, 6.
3-3
3 Alignments and Adjustments
3-7 How to execute DDC
1
2
3
4
1. Open file.
2. Select Port #1.
3. Select DDC file.
4.Click, "Next" Button
5
5. Type in the monitor serial number and press Enter.
*Repeat this step 2 to 5 times in digital inputs after the analog input.
3-4
6 Electrical Parts List
6 Electrical Parts List
-You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
6-1 LS19HAPNSQ/EDC Parts list
Level
Loc. No.
0
Code No.
Description & Specification
LS19HAPNSQ/EDC
940FN,SGT9/S19B0-LHA,19,LCD-MO,NETHERLAN
EA
SA/SNA
0.1
M0002
BN90-00781N
ASSY COVER REAR;LS19HAPASQ/EDC
1
S.N.A
..2
M0006
BN63-02254A
COVER-REAR;HA19Fn,HIPS,2.0,HB,BK24,2 DVI
1
S.A
0.1
M0001
BN90-00794H
ASSY COVER FRONT;LS19HAPASQ/XSA
1
S.N.A
..2
T0003
BN96-02239C
ASSY COVER P-FRONT;HA19Fn,ABS HB,GR70,SI
1
S.A
...3
M0112
BN63-01967B
COVER-FRONT;HA19TS,ABS,T1.5,403.2,331.9,
1
S.N.A
...3
T0022
BN64-00377B
KNOB CONTROL;HA17TS,PC CLEAR,T2.1,9,112,
1
S.N.A
...3
M0145
BN96-02474C
ASSY BOARD P-FUNCTION;HAYDN,YWP-VD-05-05
1
S.A
....4
C/F
0601-001896
LED;SMD,BLUE,1.6x0.8x0.4mm,470,1.6x0.8x0
1
S.A
....4
C/F
2007-000081
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
2
S.A
....4
C/F
2007-000123
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
2
S.A
....4
C/F
3711-005935
HEADER-BOARD TO CABLE;BOX,4P,1R,1mm,SMD-
1
S.A
....4
C/F
BN34-00001A
SWITCH-DOME SHEET;HYADN_FUNCTION F/K,DOM
6
S.A
....4
M2893
BN39-00688A
LEAD CONNECTOR;HAYDN,UL1571#30,4P,450mm,
1
S.A
....4
T0077
BN41-00633A
PCB MAIN;HAYDN,FR4,2L,MP1.0,0.6T,105*8,1
1
S.N.A
....4
C/F
BN61-01846A
GUIDE-CONTROL;HA17T,ABS HB,T1.1,9,112,IV
1
S.N.A
0.1
MP1.0
BN91-00841Y
ASSY LCD-AMZ;LS19MJS*
1
S.N.A
..2
M0215
BN07-00224A
LCD-PANEL;M190EN03,Matisse,8BIT,396*324*
1
S.A
0.1
M0017
BN91-00937P
ASSY CHASSIS-AMZ,M/SWICH(O),TC;LS19HAP*,
1
S.A
BN94-00756G
ASSY PCB MAIN-AMZ,TCO03/99,W/W;LS19HAP*,
1
S.A
..2
...3
CN100
3701-001221
CONNECTOR-DSUB;24P+5C,3R,FEMALE,ANGLE,AU
1
S.A
...3
CN101
3701-001221
CONNECTOR-DSUB;24P+5C,3R,FEMALE,ANGLE,AU
1
S.A
...3
CN400
3711-005884
HEADER-BOARD TO BOARD;BOX,30P,2R,2mm,ANG
1
S.A
...3
M0131
BN63-00533A
GASKET;BESTBUY17",CONDUCTIVE FABRIC,7.5M
1
S.N.A
...3
M0131
BN63-01243A
GASKET;KD17AS,CONDUCTIVE FABRIC,3mm,13mm
1
S.N.A
...3
T0174
BN97-00644K
ASSY SMD;LS19HAP*
1
S.N.A
....4
D100
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
1
S.A
....4
D101
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
1
S.A
....4
D102
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
1
S.A
....4
D103
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
1
S.A
....4
D104
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
1
S.A
....4
D105
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
1
S.A
....4
ZD100
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD101
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD102
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD103
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD104
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD105
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD106
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD107
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD108
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD109
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD112
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD113
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD114
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD115
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD116
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD117
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD118
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
6-1
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
....4
ZD119
0403-001411
DIODE-ZENER;-,5.49-5.73V,200MW,SOD-323,T
1
S.A
....4
ZD110
0406-001061
DIODE-TVS;MMQA5V6T3,5.32/5.6/5.88V,24W,S
1
S.A
....4
ZD111
0406-001061
DIODE-TVS;MMQA5V6T3,5.32/5.6/5.88V,24W,S
1
S.A
....4
ZD200
0406-001061
DIODE-TVS;MMQA5V6T3,5.32/5.6/5.88V,24W,S
1
S.A
....4
D106
0406-001217
DIODE-TVS;NUP4301MR6,6/-/-V,500W,TSOP-6
1
S.A
....4
D107
0406-001217
DIODE-TVS;NUP4301MR6,6/-/-V,500W,TSOP-6
1
S.A
....4
D108
0406-001217
DIODE-TVS;NUP4301MR6,6/-/-V,500W,TSOP-6
1
S.A
....4
D109
0406-001217
DIODE-TVS;NUP4301MR6,6/-/-V,500W,TSOP-6
1
S.A
....4
Q101
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q102
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q201
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q601
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q602
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q409
0505-001772
FET-SILICON;FDS9933A,P,-20V,-3.8A,0.075O
1
S.A
....4
Q409
0505-001772
FET-SILICON;FDS9933A,P,-20V,-3.8A,0.075O
1
S.A
....4
Q409
0505-001957
FET-SILICON;NTR2101P,P,-8V,-3.7A,0.052oh
1
S.A
....4
IC202
0803-000122
IC-TTL;74F125,BUFFER,SOP,14P,150MIL,Q
1
S.A
....4
IC109
1003-001814
IC-LCD CONTROLLER;SE56AWL,PQFP,100P,23.4
1
S.A
....4
IC109
1003-001814
IC-LCD CONTROLLER;SE56AWL,PQFP,100P,23.4
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,256x8,SOP,8P,5x4mm,4.5/5
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,256x8,SOP,8P,5x4mm,4.5/5
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,256x8,SOP,8P,5x4mm,4.5/5
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,256x8,SOP,8P,5x4mm,4.5/5
1
S.A
....4
IC112
1103-001023
IC-EEPROM;24C08,1Kx8,SOP,8P,5x4mm,2.5/5.
1
S.A
....4
T0087
1203-003695
IC-POSI.FIXED REG.;NCP1117ST33T3G,SOT-22
1
S.A
....4
T0087
1203-003696
IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3
1
S.A
....4
T0087
1203-003696
IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3
1
S.A
....4
R112
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R113
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R114
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R115
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R116
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R117
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R239
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R241
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R126
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R127
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R128
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R129
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R130
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R131
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R132
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R133
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R134
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R135
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R136
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R137
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R138
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R139
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R140
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R141
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R401
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R402
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R403
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R404
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R405
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R406
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R407
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R408
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R409
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
6-2
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
....4
R410
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R411
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R412
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R413
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R414
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R415
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R416
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R417
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R418
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R419
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R420
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R421
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R422
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R423
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R424
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R425
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R426
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R427
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R428
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R429
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R430
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R431
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R432
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R433
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R434
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R435
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R436
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R437
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R438
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R439
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R440
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R142
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R143
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R144
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R145
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R146
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R147
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R148
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R149
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R150
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R157
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R159
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R166
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R171
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R227
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R228
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R230
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R231
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R232
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R233
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R236
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R237
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R238
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R240
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R242
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R243
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R244
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R245
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R246
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R247
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
6-3
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
....4
R248
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R249
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R250
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R255
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R256
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R266
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R267
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R271
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R830
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R225
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R155
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R172
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R210
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R226
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R229
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R234
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R257
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R258
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R251
2007-000083
R-CHIP;3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R254
2007-000083
R-CHIP;3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R151
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R152
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R153
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R154
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R200
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R205
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R206
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R207
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R208
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R209
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R211
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R212
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R213
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R214
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R215
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R216
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R218
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R219
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R220
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R221
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R222
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R223
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R235
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R602
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R605
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R156
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R162
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R201
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R203
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R217
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R260
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R261
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R262
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R263
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R400
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R441
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R442
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R600
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R601
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R604
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
6-4
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
....4
R124
2007-000092
R-CHIP;15Kohm,5%,1/10W,TP,1608
1
S.A
....4
R125
2007-000092
R-CHIP;15Kohm,5%,1/10W,TP,1608
1
S.A
....4
R163
2007-000092
R-CHIP;15Kohm,5%,1/10W,TP,1608
1
S.A
....4
R164
2007-000092
R-CHIP;15Kohm,5%,1/10W,TP,1608
1
S.A
....4
R158
2007-000093
R-CHIP;20Kohm,5%,1/10W,TP,1608
1
S.A
....4
R167
2007-000093
R-CHIP;20Kohm,5%,1/10W,TP,1608
1
S.A
....4
R603
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R170
2007-000118
R-CHIP;390ohm,5%,1/10W,TP,1608
1
S.A
....4
R809
2007-000118
R-CHIP;390ohm,5%,1/10W,TP,1608
1
S.A
....4
R100
2007-000287
R-CHIP;100OHM,1%,1/10W,TP,1608
1
S.A
....4
R101
2007-000287
R-CHIP;100OHM,1%,1/10W,TP,1608
1
S.A
....4
R102
2007-000287
R-CHIP;100OHM,1%,1/10W,TP,1608
1
S.A
....4
R103
2007-000287
R-CHIP;100OHM,1%,1/10W,TP,1608
1
S.A
....4
R104
2007-000287
R-CHIP;100OHM,1%,1/10W,TP,1608
1
S.A
....4
R105
2007-000287
R-CHIP;100OHM,1%,1/10W,TP,1608
1
S.A
....4
R106
2007-000287
R-CHIP;100OHM,1%,1/10W,TP,1608
1
S.A
....4
R107
2007-000287
R-CHIP;100OHM,1%,1/10W,TP,1608
1
S.A
....4
R108
2007-000287
R-CHIP;100OHM,1%,1/10W,TP,1608
1
S.A
....4
R109
2007-000287
R-CHIP;100OHM,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000287
R-CHIP;100OHM,1%,1/10W,TP,1608
1
S.A
....4
R111
2007-000287
R-CHIP;100OHM,1%,1/10W,TP,1608
1
S.A
....4
R447
2007-000821
R-CHIP;390ohm,1%,1/10W,TP,1608
1
S.A
....4
R448
2007-000821
R-CHIP;390ohm,1%,1/10W,TP,1608
1
S.A
....4
R160
2007-001002
R-CHIP;510ohm,5%,1/10W,TP,1608
1
S.A
....4
R161
2007-001002
R-CHIP;510ohm,5%,1/10W,TP,1608
1
S.A
....4
R118
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R119
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R120
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R121
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R122
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R123
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R443
2007-002899
R-CHIP;10ohm,1%,1/10W,TP,1608
1
S.A
....4
R444
2007-002899
R-CHIP;10ohm,1%,1/10W,TP,1608
1
S.A
....4
R445
2007-002899
R-CHIP;10ohm,1%,1/10W,TP,1608
1
S.A
....4
R446
2007-002899
R-CHIP;10ohm,1%,1/10W,TP,1608
1
S.A
....4
C425
2203-000041
C-CER,CHIP;0.01nF,0.25pF,50V,C0G,1608
1
S.A
....4
C915
2203-000041
C-CER,CHIP;0.01nF,0.25pF,50V,C0G,1608
1
S.A
....4
C100
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C206
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C208
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C123
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C124
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C113
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,1608
1
S.A
....4
C115
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,1608
1
S.A
....4
C207
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,1608
1
S.A
....4
C209
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,1608
1
S.A
....4
C429
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,1608
1
S.A
....4
C432
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,1608
1
S.A
....4
C202
2203-000426
C-CER,CHIP;0.018nF,5%,50V,C0G,1608
1
S.A
....4
C416
2203-000426
C-CER,CHIP;0.018nF,5%,50V,C0G,1608
1
S.A
....4
C427
2203-000426
C-CER,CHIP;0.018nF,5%,50V,C0G,1608
1
S.A
....4
C117
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C118
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C119
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C120
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C121
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C122
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C125
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.A
....4
C126
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.A
....4
C101
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
6-5
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
....4
C102
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C103
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C104
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C105
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C106
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C107
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C108
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C109
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C110
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C111
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C112
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C129
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C130
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C201
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C400
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C402
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C403
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C404
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C405
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C406
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C407
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C408
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C409
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C410
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C411
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C412
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C413
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C414
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C415
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C417
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C418
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C419
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C420
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C421
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C422
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C423
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C424
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C426
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C428
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C430
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C431
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C433
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C434
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C435
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C436
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C437
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C438
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C439
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C440
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C441
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C443
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C444
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C445
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C447
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C448
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C449
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C450
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C451
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C600
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C601
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
6-6
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
....4
C603
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C604
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C607
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C611
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C203
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C204
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C608
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C200
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C442
2402-000108
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.2m
1
S.A
....4
C446
2402-000108
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.2m
1
S.A
....4
C605
2402-001128
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
1
S.A
....4
C606
2402-001128
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
1
S.A
....4
C610
2402-001128
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
1
S.A
....4
C401
2402-001129
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
1
S.A
....4
C609
2402-001129
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
1
S.A
....4
X401
2801-003773
CRYSTAL-SMD;12MHz,30ppm,28-AAN,20pF,50oh
1
S.A
....4
X901
2801-003773
CRYSTAL-SMD;12MHz,30ppm,28-AAN,20pF,50oh
1
S.A
....4
CN600
3711-005503
HEADER-BOARD TO CABLE;BOX,9P,1R,2mm,SMD-
1
S.A
....4
CN200
3711-005509
HEADER-BOARD TO CABLE;BOX,4P,1R,1.25mm,S
1
S.A
....4
S201
BN32-00005A
SENSOR SW-TILT;SPSF100100,DC5V,1mA,-10 ~
1
S.A
....4
T0077
BN41-00648A
PCB MAIN;HAYDN,FR-4,2,1.0,1.6,118*85*1.6
1
S.N.A
....4
MICOM
BN97-00642M
ASSY MICOM-W/W,AU,TCO03/99;LS19HAP*,W/W,
1
S.A
.....5
IC520
0903-001402
IC-MICROCONTROLLER;NT68F632ALG,8Bit,PLCC
1
S.N.A
S.N.A
....4
CIS5
0202-001375
SOLDER-CREAM;RMA-20-21L,S63,-,Sn63/Pb36.
0.88
...3
M0524
BP39-00028A
CONNECT WIRE;BI17,19BS,UL1007#26,9P,80mm
1
...3
T0245
0202-001366
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb,
0.01
S.N.A
..2
M0006
BN96-02241C
ASSY SHIELD P-COVER;HA19Fn,SECC T0.8,2DV
1
S.N.A
BN63-01774A
SHIELD-INSULATOR;BI17/19BS,PET,T0.35
1
S.N.A
1
S.N.A
...3
S.A
...3
M0107
BN63-01974C
SHIELD-COVER;HA19Fn,SECC,T0.8,398,222,2D
..2
M0174
BN44-00124C
IP BOARD;IP-35135B (H),BI17VS,3.0 ~4.0mA
1
S.A
..2
M2893
BN39-00664D
LEAD CONNECTOR;LS19HAP(940FN),UL1571#30,
1
S.A
..2
M0081
6003-000334
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
1
S.N.A
..2
M0081
6003-000334
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
2
S.N.A
..2
M0081
6003-001439
SCREW-TAPTITE;BH,+,S,M4,L8,ZPC(YEL)
1
S.N.A
0.1
M0112
BN91-00950E
ASSY SHIELD;LS19HAP*
1
S.N.A
..2
CIS
BN63-01781A
SHIELD-LAMP;BI19BS,SPTE,T0.3
1
S.N.A
..2
T0081
BN61-01234A
HOLDER-INVERTER;MATISSE,ABS V0,BK07
2
S.N.A
0.1
M0019
BN92-01585B
ASSY LABEL;LS19DOWSS/EDC,TCO99,DO19WS
1
S.N.A
0.1
M0003
BN92-01612A
ASSY BOX;LS19HAPNSQ/EDC
1
S.N.A
..2
T0130
BN69-01219A
BOX-00,SET;S/M940FN(HA19PS),SY-01,A,YEL,
0.34
S.N.A
0.1
M0045
BN92-01613A
ASSY ACCESSORY;LS19HAPNSQ/EDC
1
S.N.A
..2
M0045
BN96-02745F
ASSY ACCESSORY;LS17MCASS/EDC,TCO99,MC17A
1
S.A
...3
T0268
3903-000042
CBF-POWER CORD;DT,EU,FP3/YES,IEC320 C13/
1
...3
T0524
6902-000110
BAG PE;LDPE,T0.05,W250,L400,TRP,28,2
0.333
...3
ACCESSORY
BH68-70438A
CARD-11,BLOC WARRANTY;TFT LCD,BASIC,EU,M
0.333
S.N.A
...3
ACCESSORY
BH68-70448A
CARD-01;TFT LCD,SRC,RUSSIA,S/W,120,W210*
0.333
S.N.A
...3
M0125
BN39-00246F
CBF SIGNAL-DVI(D);1703FP,24P/24P,20276-D
1
S.A
...3
M0114
BN39-00310B
CBF SIGNAL;NB19PS,15P/24P,20276-N,1830mm
1
S.A
...3
T0059
BN68-00907A
MANUAL FLYER-CARD;COMM,SAMSUNG,18 LANG,E
0.333
S.N.A
...3
ACCESSORY
BN69-01220A
BOX ACCESSORY-00;S/M940FN(HA19PS),SY-01,
0.333
S.N.A
...3
M0215
BN96-02495Q
ASSY MANUAL P-IB+QSG;HA19**/940N(Standle
0.333
S.N.A
....4
QSG
BH68-00376L
MANUAL FLYER-04,QSG;LCDQUICK SETUP GUIDE
1
S.N.A
....4
IB
BN59-00486Q
S/W DRIVER-00,IB;COMM,W/W,SYNCMASTER
1
S.N.A
0.1
M0113
BN92-01614A
ASSY P/MATERIAL;LS19HAPNSQ/EDC
1
S.N.A
..2
T0376
6902-000061
BAG AIR;LDPE,T0.2,L1000,W500,TRP,,,
0.004
S.N.A
S.A
S.N.A
6-7
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
..2
T0376
6902-000379
BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,--
0.002
S.N.A
..2
T0524
6902-000520
BAG PE;HDPE/NITRON(DOUBLE),T0.015/T0.5(D
1
S.N.A
..2
P/M
6902-000604
BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP,
1.51
S.N.A
..2
M0081
6902-000609
BAG ROLL;LDPE,T0.05,W2400,L1000,TRP,-,-
0.1
S.N.A
6-8
5 Exploded View & Parts List
5 Exploded View and Parts List
-You can search for updated part codes through ITSELF web site.
URL : http://itself. sec. samsung.co.kr
5-1 Exploded View
M0112
T0077
M0107
M0174
T0022
T0145
T0003
M0215
M0006
M0006
CIS
T0003
5-1
5 Exploded View & Parts List
5-2 Parts List
Location
Code.No
Item & Specification
Q'ty
SA/SNA
T0003
BN96-02239C
ASSY COVER P-FRONT;HA19Fn,ABS HB,GR70,SI
1
SA
M0112
BN63-01967B
COVER-FRONT;HA19TS,ABS,T1.5,403.2,331.9,
1
SNA
T0022
BN64-00377B
KNOB CONTROL;HA17TS,PC CLEAR,T2.1,9,112,
1
SNA
M0145
BN96-02474C
ASSY BOARD P-FUNCTION;HAYDN,YWP-VD-05-05
1
SA
M0215
BN07-00224A
LCD-PANEL;M190EN03,Matisse,8BIT,396*324*
1
SA
M0006
BN63-02254A
COVER-REAR;HA19Fn,HIPS,2.0,HB,BK24,2 DVI
1
SA
M0107
BN63-01974C
SHIELD-COVER;HA19Fn,SECC,T0.8,398,222,2D
1
SNA
SNA
T0077
BN41-00633A
PCB MAIN;HAYDN,FR4,2L,MP1.0,0.6T,105*8,1
1
M0174
BN44-00124C
IP BOARD;IP-35135B (H),BI17VS,3.0 ~4.0mA
1
SA
CIS
BN63-01781A
SHIELD-LAMP;BI19BS,SPTE,T0.3
1
SNA
T0003
BN96-02239C
ASSY COVER P-FRONT;HA19Fn,ABS HB,GR70,SI
1
SA
M0006
BN63-02254A
COVER-REAR;HA19Fn,HIPS,2.0,HB,BK24,2 DVI
1
SA
5-2
Remark
7 Block Diagrams
7 Block Diagram
7-1 Power Tree
7-1
7 Block Diagrams
7-2 Main Board Part
7-2
7 Block Diagrams
7-3 IP Board Part (SMPS Part)
7-3
7 Block Diagrams
7-4 IP Board Part (Inverter Part)
7-4
8 Wiring Diagram
8 Wiring Diagram
8-1
8 Wiring Diagram
Memo
8-2
1 Precautions
1 Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.
1-1 Safety Precautions
1-1-1 Warnings
1.
For continued safety, do not attempt to modify the circuit
board.
2.
Disconnect the AC power and DC power jack before
servicing.
1-1-2 Servicing the LCD Monitor
1.
When servicing the LCD Monitor, Disconnect the AC
line cord from the AC outlet.
2.
It is essential that service technicians have an accurate
voltage meter available at all times. Check the
calibration of this meter periodically.
1-1-3 Fire and Shock Hazard
Before returning the monitor to the user, perform the
following safety checks:
1.
Inspect each lead dress to make certain that the leads are
not pinched or that hardware is not lodged between the
chassis and other metal parts in the monitor.
2.
Inspect all protective devices such as nonmetallic control
knobs, insulating materials, cabinet backs, adjustment
and compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
3.
Leakage Current Hot Check (Figure 1-1):
WARNING : Do not use an isolation
transformer during this test.
Use a leakage current tester or a metering system that
complies with American National Standards Institute
(ANSI C101.1, Leakage Current for Appliances), and
Underwriters Laboratories (UL Publication UL1410,
59.7).
Figure 1-1. Leakage Current Test Circuit
4.
With the unit completely reassembled, plug the AC line
cord directly into a 120V AC outlet. With the unit’s AC
switch first in the ON position and then OFF, measure
the current between a known earth ground (metal water
pipe, conduit, etc.) and all exposed metal parts,
including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and
repeat the test.
1-1-4 Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by
replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are
identified by
on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics
as the recommended replacement part might create shock, fire
and/or other hazards. Product safety is under review
continuously and new instructions are issued whenever
appropriate.
1-1
1 Precautions
1-2 Servicing Precautions
WARNING:
An electrolytic capacitor installed with the wrong polarity might explode.
Caution:
Before servicing units covered by this service manual, read and follow the Safety Precautions section
of this manual.
Note:
If unforeseen circumstances create conflict between the following servicing precautions and any of the safety
precautions, always follow the safety precautions.
1-2-1 General Servicing
Precautions
1.
2.
3.
Always unplug the unit’s AC power cord from the AC
power source and disconnect the DC Power Jack before
attempting to:
(a) remove or reinstall any component or assembly, (b)
disconnect PCB plugs or connectors, (c) connect a test
component in parallel with an electrolytic capacitor.
Some components are raised above the printed circuit
board for safety. An insulation tube or tape is sometimes
used. The internal wiring is sometimes clamped to
prevent contact with thermally hot components. Reinstall
all such elements to their original position.
4.
Check the insulation between the blades of the AC plug
and accessible conductive parts (examples: metal panels,
input terminals and earphone jacks).
5.
Insulation Checking Procedure: Disconnect the power
cord from the AC source and turn the power switch ON.
Connect an insulation resistance meter (500 V) to the
blades of the AC plug.
The insulation resistance between each blade of the AC
plug and accessible conductive parts (see above) should
be greater than 1 megohm.
6.
After servicing, always check that the screws,
components and wiring have been correctly reinstalled.
Make sure that the area around the serviced part has not
been damaged.
Always connect a test instrument’s ground lead to the
instrument chassis ground before connecting the positive
lead; always remove the instrument’s ground lead last.
1-3 Static Electricity Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called
Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The
following techniques will reduce the incidence of component damage caused by static electricity.
1.
Immediately before handling any semiconductor
components or assemblies, drain the electrostatic charge
from your body by touching a known earth ground.
Alternatively, wear a discharging wrist-strap device. To
avoid a shock hazard, be sure to remove the wrist strap
before applying power to the monitor.
2.
After removing an ESD-equipped assembly, place it on a
conductive surface such as aluminum foil to prevent
accumulation of an electrostatic charge.
3.
Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage ESDs.
4.
Use only a grounded-tip soldering iron to solder or
desolder ESDs.
5.
Use only an anti-static solder removal device. Some
solder removal devices not classified as “anti-static” can
generate electrical charges sufficient to damage ESDs.
1-2
6.
Do not remove a replacement ESD from its protective
package until you are ready to install it. Most
replacement ESDs are packaged with leads that are
electrically shorted together by conductive foam,
aluminum foil or other conductive materials.
7.
Immediately before removing the protective material
from the leads of a replacement ESD, touch the
protective material to the chassis or circuit assembly into
which the device will be installed.
Caution:
Be sure no power is applied to the
chassis or circuit and observe all
other safety precautions.
8.
Minimize body motions when handling unpackaged
replacement ESDs. Motions such as brushing clothes
together, or lifting your foot from a carpeted floor can
generate enough static electricity to damage an ESD.
1 Precautions
1-4 Installation Precautions
1. For safety reasons, more than two people are
required for carrying the product.
2. Keep the power cord away from any heat emitting
devices, as a melted covering may cause fire or
electric shock.
3. Do not place the product in areas with poor
ventilation such as a bookshelf or closet. The
increased internal temperature may cause fire.
6. Keep the antenna far away from any high-voltage
cables and install it firmly. Contact with the highvoltage cable or the antenna falling over may
cause fire or electric shock.
7. When installing the product, leave enough space
(10cm) between the product and the wall for
ventilation purposes.
A rise in temperature within the product may
cause fire.
4. Bend the external antenna cable when connecting
it to the product. This is a measure to protect it
from being exposed to moisture. Otherwise, it
may cause a fire or electric shock.
5. Make sure to turn the power off and unplug the
power cord from the outlet before repositioning
the product. Also check the antenna cable or the
external connectors if they are fully unplugged.
Damage to the cord may cause fire or electric
shock.
1-3
1 Precautions
Memo
1-4
9 Schematic Diagrams
9 Schematic Diagrams
- This Document can not be used without Samsung s authorization.
9-1 Schematic Diagrams
9-1
9 Schematic Diagrams
1
2
3
5
6
7
9-2
4
