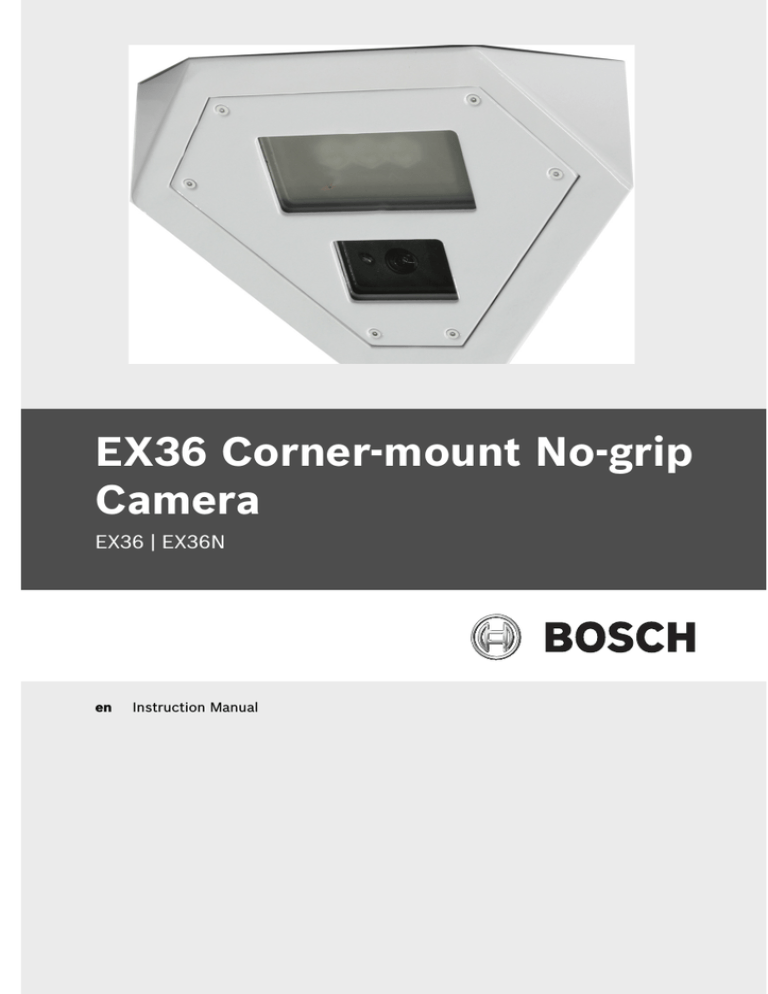

Bosch EX36 Instruction manual

EX36 Corner-mount No-grip
Camera
EX36 | EX36N
en
Instruction Manual
Corner-mount No-grip Camera
Table of Contents | en
3
Table of Contents
1
Safety
4
1.1
Important Safety Instructions
4
1.2
Bosch Contact Information
7
2
Description
8
2.1
Unpacking
8
2.2
Parts List
8
2.2.1
Parts Included with the Product
8
2.2.2
User-Supplied Parts
9
3
Installation
10
3.1
Initial Preparations
10
3.2
Faceplate Removal
10
3.3
Input Power Connections
12
3.4
Mounting the Camera Housing
13
3.5
Camera - Directional Adjustment
15
3.6
LED Adjustments (EX36N only)
16
3.6.1
Power Adjustments
16
3.7
Lens Replacement
17
3.8
Camera Re-assembly
18
4
Technical Information
19
4.1
Troubleshooting - Camera
19
4.2
Troubleshooting - LEDs
20
4.3
General Specifications
21
Bosch Security Systems, Inc.
Instruction Manual
F.01U.172.707 | 3.0 | 2011.02
4
en | Safety
Corner-mount No-grip Camera
1
Safety
1.1
Important Safety Instructions
–
Read and follow all instructions.
–
Keep these instructions.
–
Heed all warnings.
–
Do not use this apparatus near water.
–
Clean with a dry cloth only.
–
Do not block any ventilation openings. Install in
accordance with manufacturer instructions.
–
Do not install near any heat sources such as radiators, heat
registers, stoves or other apparatus (including amplifiers)
that produces heat.
–
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong is provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
–
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and where
the power exits from the unit.
–
Only use attachments and accessories specified by the
manufacturer.
–
Use only with the manufacturer specified cart, stand,
tripod, bracket or table. If moving the cart and apparatus
combination, use caution to avoid injury from tip overs.
–
Unplug this apparatus during lightning storms or when
unused for long periods of time.
–
Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power supply cord or plug is damaged, liquid
has been spilled or objects have fallen onto or into the
apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
F.01U.172.707 | 3.0 | 2011.02
Instruction Manual
Bosch Security Systems, Inc.
Corner-mount No-grip Camera
Safety | en
5
NOTICE!
For best results, please read this Instruction Booklet prior to
installing the EX36(N) camera.
WARNING!
CSA Certified/UL Listed CLASS 2 power adaptors must be used
in order to comply with electrical safety standards.
NOTICE!
This product has been certified by CSA International to include
the healthcare facility requirements of UL 2044.
EU Directives covered by this declaration:72/9/EC Low
Voltage Directives89/336/EEC Electromagnetic
Compatibility Directive
WARNING!
This installation should be made by a qualified service person
and conform to all local codes. Bosch Security Systems, Inc.,
will not be responsible for injuries or damages resulting from
the improper installation or use of any camera sold by Bosch,
its agents, distributors, or dealers.
Bosch Security Systems, Inc.
Instruction Manual
F.01U.172.707 | 3.0 | 2011.02
6
en | Safety
Corner-mount No-grip Camera
FCC Information
This equipment has been tested and found to comply with the
limits for a digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. As part
of its normal operation, this device can generate radio
frequency energy and if not installed and used in accordance
with the installation manual may cause interference to radio
communications. However, there is no guarantee that
interference will not occur on a particular installation. If the
device does cause interference to radio or television reception,
the user is encouraged to try to correct the problem by one or
more of the following measures:
–
Fit Ferrite beads on all cable to and from the power supply
box, within the box walls.
–
Route the composite cable between the camera and the
power supply in steel conduit piping over the entire run of
the cable up to and including connection to a deep conduit
base fitted under the camera and a conduit fitting adaptor
in the wall of the PSU box.
–
Contact a Bosch Service Center for further advice.
F.01U.172.707 | 3.0 | 2011.02
Instruction Manual
Bosch Security Systems, Inc.
Corner-mount No-grip Camera
1.2
Safety | en
7
Bosch Contact Information
If this unit needs service, contact the nearest Bosch Security
Systems Service Center for authorization to return and for
shipping instructions.
USA
Repair Center
Telephone: 800-566-2283
Fax: 800-366-1329
E-mail: repair@us.bosch.com
Customer Service
Telephone: 888-289-0096
Fax: 585-223-9180
E-mail: security.sales@us.bosch.com
Technical Support
Telephone: 800-326-1450
Fax: 585-223-3508 or 717-735-6560
E-mail: technical.support@us.bosch.com
Canada
Telephone: 514-738-2434
Fax: 514-738-8480
Europe, Middle East, Africa Region
Repair Center
Telephone: 31 (0) 76-5721500
Fax: 31 (0) 76-5721413
E-mail: RMADesk.STService@nl.bosch.com
Asia Region
Repair Center
Telephone: 65 63522776
Fax: 65 63521776
E-mail: rmahelpdesk@sg.bosch.com
Customer Service
Telephone: 86 (0) 756 7633117 or
86 (0) 756 7633121
Fax: 86 (0) 756 7631710
E-mail: customer.service@cn.bosch.com
Warranty and additional information
For additional information and warranty queries, please contact
your Bosch Security Systems representative or visit our website
at www.boschsecurity.com.
Bosch Security Systems, Inc.
Instruction Manual
F.01U.172.707 | 3.0 | 2011.02
8
en | Description
2
Corner-mount No-grip Camera
Description
The EX36(N) Night Vision Camera has been designed with tilt
on its faceplate to allow corner mounting and t provide better
angle views in small rooms. The housing and faceplate consist
of tough materials to withstand damage in hostile environments
such as prison cells and psychiatric wards.
The smooth compact housing allows for tight installations
without exposed wiring or mounting screws, while separate
windows for the camera lens and LEDs result in a perfect
picture without light rebound.
A photocell circuit is used to provide automatic on/off infrared
operation.
The voltage regulator circuit allows for 12 VDC or 24 VAC
operation, and a range in between. This regulator also provides
protection from voltage surges, transient spikes, and reverse
voltage.
2.1
Unpacking
This electronic equipment should be unpacked and handled
with care. Check the parts list below and confirm that all items
are included. Inspect the equipment thoroughly to ensure that
nothing was damaged in transit.
Contact a Bosch Service Center if a problem is noted. Please
refer to Section 1.2 Bosch Contact Information, page 7 for
contact information in your area.
2.2
2.2.1
Parts List
Parts Included with the Product
The following items are supplied with the unit:
–
EX36(N) camera assembly
–
installation instruction booklet
–
Plastic bag containing one hex key for removal of faceplate
mounting screws
F.01U.172.707 | 3.0 | 2011.02
Instruction Manual
Bosch Security Systems, Inc.
Corner-mount No-grip Camera
2.2.2
Description | en
9
User-Supplied Parts
The following items are required for installation but are not
supplied:
–
mounting hardware
–
mounting tools
Bosch Security Systems, Inc.
Instruction Manual
F.01U.172.707 | 3.0 | 2011.02
10
en | Installation
Corner-mount No-grip Camera
3
Installation
3.1
Initial Preparations
–
Determine the operating voltage at the installation site.
–
Determine the optimum location for the camera. Refer to
–
All units have been tested prior to shipment. After the
Section 3.4 Mounting the Camera Housing.
wiring has been reconnected, check the unit’s operation
before installation.
–
3.2
Follow these installation steps in sequence:
Installation Step
PAGE
Faceplate Removal
Page 10
Input Power Connections
Page 12
Mounting the Camera Housing
Page 13
Camera - Directional Adjustment
Page 15
LED Adjustments
Page 16
Camera Re-Assembly
Page 18
Faceplate Removal
You must remove the faceplate prior to installation in order to
reach the mounting holes. You may need to change the
directional angle of the lens. Refer to Figure 3.1.
1.
Place the camera housing on a flat surface.
2.
Use the supplied hex key to remove the six screws holding
3.
Remove the square foam cushion attached to the camera
the faceplate into the housing.
lens.
F.01U.172.707 | 3.0 | 2011.02
Instruction Manual
Bosch Security Systems, Inc.
Corner-mount No-grip Camera
4.
Installation | en
11
Ensure that the polycarbonate windows in the faceplate
are not scratched.
Figure 3.1 Faceplate Removal
Number
1
2
3
Description
Faceplate
Housing
Tamper-resistant hex screws
Figure 3.2 below shows the interior layout of the EX36(N)
camera assembly after the faceplate has been removed.
Smaller details such as wiring and terminal blocks are
omitted for clarity. Refer to the specific module sections
for these details.
Bosch Security Systems, Inc.
Instruction Manual
F.01U.172.707 | 3.0 | 2011.02
12
en | Installation
Corner-mount No-grip Camera
Figure 3.2 Layout of Modules
Number
1
2
3
4
3.3
Description
LED / Illuminator Board
LED Voltage Regulator Board (VRB)
Camera and Lens assembly
Camera Voltage Regulator Board (VRB)
Input Power Connections
The camera unit is pre-connected with an electrically isolated
power board for 24 VAC or 12 VDC operation with no wiring
change or wiring polarity. Refer to Figure 3.3 and Figure 3.4,
Page 13, for wiring details.
Figure 3.3
Electrically Isolated Board, Camera Voltage Regulator Board
(VRB)
Number Description
1
Power IN
2
Power OUT
F.01U.172.707 | 3.0 | 2011.02
Instruction Manual
Bosch Security Systems, Inc.
Corner-mount No-grip Camera
Installation | en
13
Figure 3.4 Board Connections, LED Voltage Regulator Board (VRB)
Number Description
1
LED Power Output
2
Voltage Regulator Board (VRB) Power Input
3.4
Mounting the Camera Housing
1.
Select a suitable location that is protected from accidental
damage, tampering, and environmental conditions
exceeding the unit’s specifications.
CAUTION!
The selected mounting location should not place the unit in a
situation where its environmental specifications could be
exceeded.
Ensure that the location is protected from falling objects,
accidental contact with moving objects, and unintentional
interference from personnel. Follow all applicable building
codes.
2.
Locate the unit so that it cannot be easily interfered with,
either intentionally or accidentally.
Bosch Security Systems, Inc.
Instruction Manual
F.01U.172.707 | 3.0 | 2011.02
14
en | Installation
3.
Corner-mount No-grip Camera
Select a mounting surface capable of supporting the
combined weight of the unit and mounting hardware to
anticipate all expected conditions of both temperature and
vibration.
4.
Secure all cabling.
NOTICE!
If you are installing the camera on drywall, you must use #8
screws and #8 drywall nylon plugs or a superior connection.
5.
Drill holes into the mounting surface. Depending on the
type of mounting surface (brick, wood, etc.), you may need
to pre-drill the holes for the mounting screws. Bosch
recommends that you use the housing as a drill template-refer to Figure 3.5 for the location of the mounting holes in
the housing--to mark the location of the holes, and then
drill the holes. This way no burrs or debris will fall into the
housing.
Figure 3.5
Mounting Holes - EX36(N) Camera Housing
Note: Each arrow points to a mounting hole.
F.01U.172.707 | 3.0 | 2011.02
Instruction Manual
Bosch Security Systems, Inc.
Corner-mount No-grip Camera
6.
7.
Installation | en
15
Mount the housing using the supplied mounting screws.
Ensure that the power and video cables are not crimped or
stressed after the camera has been mounted.
3.5
Camera - Directional Adjustment
Both the camera and the LED array can be adjusted for
optimum picture quality. The camera lens can be tilted on its
axis via two adjustment screws on the mounting bracket. It can
also be moved closer to or farther from the viewing window.
1.
Mount the Camera/LED Array Assembly into the housing.
2.
Connect the video and power wires.
3.
Check the picture for quality and directional alignment.
4.
If you must adjust the camera’s viewing angle or picture
quality, remove the Camera/LED Array Assembly. Refer to
Figure 3.6.
Figure 3.6 Camera Directional Alignment
Number
1
2
3
4
5
5.
Description
LED Array
Tilt Adjustment
Horizontal Adjustment
Camera/Lens Assembly
Adjustment screw
Loosen both adjustment screws for tilt or horizontal
directional alignment.
6.
Once optimal position is obtained, tighten the screws.
Bosch Security Systems, Inc.
Instruction Manual
F.01U.172.707 | 3.0 | 2011.02
16
en | Installation
3.6
Corner-mount No-grip Camera
LED Adjustments (EX36N only)
If you must make adjustments to the LEDs, follow the steps
below. Refer to Figure 3.7 below for more details.
Figure 3.7
LED Array Adjustments
Number Description
1
LED Power Adjustment (VR1)
2
Photocell On/Off Adjustment (VR2)
3.6.1
Power Adjustments
If you must adjust the power, follow these steps:
1.
Ensure that the unit is “ON.”
2.
Remove the rear cover for access to the LRB.
3.
Cover the photocell to turn on the LEDs. (850nm LEDs will
have a slight red glow.)
–
For photocell “On/Off” light-level adjustment, rotate
VR2. Clockwise is off and counter-clockwise is on.
–
For IR power adjustment, rotate VR1. Clockwise is
high and counter-clockwise is low.
F.01U.172.707 | 3.0 | 2011.02
Instruction Manual
Bosch Security Systems, Inc.
Corner-mount No-grip Camera
3.7
Installation | en
17
Lens Replacement
There is an extra 3.6 mm lens supplied with the unit and one
extra focusing hex key.
To replace the standard 2.5 mm lens with the supplied 3.6 mm
replacement, follow the steps below:
1.
2.
Open the front facia using the supplied hex key.
Remove the camera sub-assembly from the housing.
–
For EX36MNXxxx models, use the supplied hex key to
loosen the set screw that fixes the lens to its holder.
–
For EX36C7xxx models, use a Phillips screw driver to
loosen the screw that fixes the lens to its holder.
3.
Thread the 2.5mm lens out. Thread the 3.6mm lens in.
4.
Power up the whole sub-assembly.
5.
Connect video to a monitor.
6.
Adjust the back focus. Ensure that the focus is balanced on
both day and night mode. The camera can be forced to
night-mode by covering the photocell.
7.
Tighten the lens.
8.
Disconnect the power.
9.
Mount the whole camera sub-assembly back into the
housing.
10. Adjust the camera sub-assembly mounting position so that
when you mount the sub-assembly to the housing, the lens
will not touch the window.
11. Close the front facia.
Bosch Security Systems, Inc.
Instruction Manual
F.01U.172.707 | 3.0 | 2011.02
18
en | Installation
3.8
Corner-mount No-grip Camera
Camera Re-assembly
1.
Ensure that all wires are properly connected, that all holes
are sealed against moisture penetration, and that all
mounting screws are tight.
2.
Slide the square foam pad over the camera’s lens. Ensure
that the pad is as close to the faceplate viewing window as
possible and the photocell is not covered by the foam pad.
The foam pad is not symmetrical. Ensure that the LEDs are
not covered when installing the pad.
3.
Re-attach the faceplate with the six tamper-resistant
screws. Tighten screws carefully, but do not overtighten.
4.
Power up the camera and check its operation. Refer to
Figure 3.8 below.
Figure 3.8
Camera Re-assembly
Number Description
1
Photocell
2
Foam pad
F.01U.172.707 | 3.0 | 2011.02
Instruction Manual
Bosch Security Systems, Inc.
Corner-mount No-grip Camera
Technical Information | en
4
Technical Information
4.1
Troubleshooting - Camera
PROBLEM
No video
POSSIBLE CAUSE POSSIBLE SOLUTION
Power supply:
Check input power connections
connections
No video
19
at the terminal:
–
AC input wires to “AC IN”
–
DC input wires to “DC IN”
Power supply:
–
Loose wires
The supply range is: 12-28 VAC
voltage range
or 10.5 - 40 VDC for the camera
section.
Measure the voltage at the
No video
terminal block.
Video connections Determine if wiring polarity at
“Video Connector” terminal
block is correct (V and GND).
If still no video, connect the
camera directly to the monitor.
Check the video signal. If okay,
the problem is with the
interconnections. If still no
video, contact your Bosch
Service Center. See
Section 1.2 Bosch Contact
Information for contact
Poor picture quality - Poor video signal
information.
Ensure that the video cable is
snowy image
correctly matched and
terminated with 75 ohms at
each end. Ensure that the video
cables are similar types.
Noisy power supply Check connections.
Relocate or replace power
supply.
Bosch Security Systems, Inc.
Instruction Manual
F.01U.172.707 | 3.0 | 2011.02
20
en | Technical Information
Corner-mount No-grip Camera
PROBLEM
POSSIBLE CAUSE POSSIBLE SOLUTION
Horizontal scan lines, Ground looping
Check the coax cable shield is
rolling up or down
on video cable
not touching ground (for
Reversed video or
Low voltage
example, at couplings).
Check voltage at input power
faded image
cable. Must be >10.5 VDC or
>12 VAC for camera section.
Check video leads for reversed
connections.
4.2
Troubleshooting - LEDs
PROBLEM
Fuse blows
POSSIBLE SOLUTION
–
Check fuse rating.
–
Unsure if LEDs are “On”
Check for shorting between the
enclosure and the input power.
850nm LEDs will have a faint red glow when
“On”. 940nm LEDs are covert. Aim the LEDs
directly at an IR-sensitive camera to see the
lights or wait for the LEDs to warm up (two
minutes).
F.01U.172.707 | 3.0 | 2011.02
Instruction Manual
Bosch Security Systems, Inc.
Corner-mount No-grip Camera
4.3
Technical Information | en
21
General Specifications
CCD Sensor
1/3 in. - IR Optimized
Video Signal Output
1 V p-p, 75 Ohm
LED Type (EX36N only)
High Perf. 850nm/940nm
Operational
-50 °C to +50 °C
Temperature
(-58 °F to 122 °F)
Range
Humidity Range
Up to 85% (relative)
Power Supply
24 VAC / 12 VDC (50/60 Hz), 11W
Window
Polycarbonate (1/4 in. LEXAN)
Housing
Steel, welded and powder coated
Dimensions
8.3 in. (211 mm) W
6.0 in. (152 mm) D
5.5 in. (140 mm) H
Weight
1.2 kg (2.64 lbs)
Specifications are subject to change without notice.
Bosch Security Systems, Inc.
Instruction Manual
F.01U.172.707 | 3.0 | 2011.02
22
en | Technical Information
F.01U.172.707 | 3.0 | 2011.02
Corner-mount No-grip Camera
Instruction Manual
Bosch Security Systems, Inc.
Bosch Security Systems, Inc.
850 Greenfield Road
Lancaster, PA 17601
USA
www.boschsecurity.us
© Bosch Security Systems, Inc., 2011
