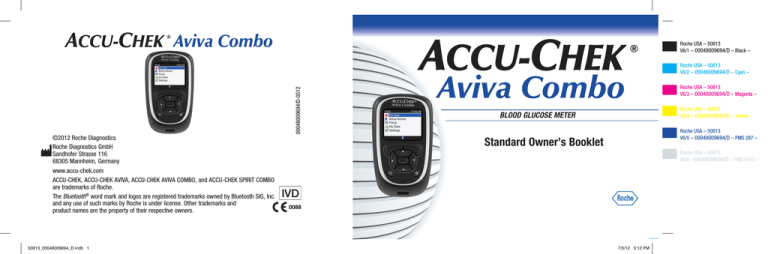

Roche Accu-Chek Aviva Technical information

Aviva Combo
00048009694/D-0512
©2012­Roche­Diagnostics
Roche­Diagnostics­GmbH
Sandhofer­Strasse­116
68305­Mannheim,­Germany
­Roche­USA­–­50813­
V6/1­–­00048009694/D­–­Black­–
Aviva Combo
Blood glucose Meter
Roche­USA­–­50813
V6/3­–­00048009694/D­–­Magenta­–
Roche­USA­–­50813
V6/4­–­00048009694/D­–­Yellow­–
Roche­USA­–­50813­
V6/5­–­00048009694/D­–­PMS­287­–
Standard Owner’s Booklet
Roche­USA­–­50813­
V6/6­–00048009694/D­–­PMS­5445­–
www.accu-chek.com
ACCU-CHEK,­ACCU-CHEK­AVIVA,­ACCU-CHEK­AVIVA­COMBO,­and­ACCU-CHEK­SPIRIT­COMBO­
are­trademarks­of­Roche.
The­Bluetooth®­word­mark­and­logos­are­registered­trademarks­owned­by­Bluetooth­SIG,­Inc.­
and­any­use­of­such­marks­by­Roche­is­under­license.­Other­trademarks­and­­
product­names­are­the­property­of­their­respective­owners.
50813_00048009694_D.indb 1
Roche­USA­–­50813­
V6/2­–­00048009694/D­–­Cyan­–
7/3/12 3:12 PM
Distributed­in­the­United­Kingdom­by:­
Roche­Diagnostics­Limited
Charles­Avenue,­Burgess­Hill
West­Sussex,­RH15­9RY,­United Kingdom­
Accu-Chek­Pump­Care­Line:*
UK­Freephone­number:­0800­731­22­91
ROI­Freephone­number:­1800­88­23­51
burgesshill.insulinpumps@roche.com­
www.accu-chek.co.uk­
www.accu-chek.ie­
*Calls­may­be­recorded­for­training­purposes
LAST­UPDATE:­2012-01
50813_00048009694_D.indb 2
7/3/12 3:12 PM
­Roche­USA­–­50813­
V4/1­–­00048009694/D­–­Black­–
Contents
Introduction
7
The­Accu-Chek­Aviva­Combo­System­
8
1 Understanding Your New System
11
1.1­Overview­
1.2­­The­Accu-Chek­Aviva­Combo­Meter­at­a­Glance­
1.3­­The­Accu-Chek­Spirit­Combo­Insulin­Pump­at­a­Glance­
1.4­Summary­of­Features­
1.5­Screen­Content­and­Navigation­
12
13
19
20
30
2 Testing Your Blood Glucose
39
2.1­Overview­
2.2­­Using­the­Accu-Chek­Aviva­Combo­System­
2.3­Performing­a­Blood­Glucose­Test­­
2.4­Detailed­Blood­Glucose­Test­Results­
2.5­­Understanding­Blood­Glucose­Test­Results­
2.6­Unusual­Blood­Glucose­Test­Results­
2.7­­Symptoms­of­High­or­Low­Blood­Glucose­
40
41
42
49
53
57
58
Roche­USA­–­50813­
V4/2­–­00048009694/D­–­Cyan­–
Roche­USA­–­50813
V4/3­–­00048009694/D­–­Magenta­–
Roche­USA­–­50813
V4/4­–­00048009694/D­–­Yellow­–
1
50813_00048009694_D.indb 1
7/3/12 3:12 PM
3 Control Testing
59
3.1­Overview­
3.2­Why­Perform­Control­Tests­
3.3­About­the­Control­Solutions­
3.4­Performing­a­Control­Test­
3.5­Understanding­Control­Test­Results­
60
61
62
63
69
4 Managing Your Data
75
4.1­Overview­
4.2­Viewing­or­Modifying­Your­Data­
4.3­Adding­New­Data­
4.4­Reporting­Your­Data­
4.5­Downloading­Your­Data­to­a­Computer­
76
79
87
90
128
5 Changing Meter Settings
131
5.1­Overview­
5.2­­Setting­bG­Test­Reminders:­After­High­bG,­After­Low­bG,­After­Meal­
5.3­Setting­Alarm­Clock­Reminders:­bG­Test,­Other­
5.4­­Setting­Date­Reminders:­Dr.­Visit,­Lab­Test,­Infusion­Set­Change­
5.5­­Setting­Bolus­Advice­for­the­First­Time­
5.6­­Setting­Time­Blocks,­Health­Events,­Advice­Options:­Bolus­Advice­Set­Up­
132
133
138
141
146
155
2
50813_00048009694_D.indb 2
7/3/12 3:12 PM
5.7­Setting­Warning­Limits:­Hyper,­Hypo­
5.8­Turning­Key­Lock­On­or­Off­
5.9­Setting­the­Language­
5.10­Setting­Units:­Carbs­
5.11­Turning­Bluetooth®­Wireless­Technology­On­or­Off­
5.12­Pairing­the­Meter­and­Pump­
5.13­Setting­the­Beeper,­Vibrate,­and­Key­Sound­
5.14­Setting­the­Time­Format,­Time,­and­Date­
5.15­Setting­Time­Blocks:­Bolus­Advice­Not­Set­Up­
5.16­Backlight­Settings­­
164
167
170
173
176
178
179
182
185
193
6 Icons, Reminders, Warnings, and Errors
195
6.1­Overview­
6.2­List­of­Icons­
6.3­­Confirming­a­Reminder,­Warning,­or­Error­
6.4­List­of­Reminders­
6.5­List­of­Warnings­
6.6­List­of­Errors­
196
197
199
200
210
216
3
50813_00048009694_D.indb 3
7/3/12 3:12 PM
7 Care and Maintenance
219
7.1­Overview­
7.2­Changing­the­Batteries­
7.3­Power-Saving­Tips­
7.4­Cleaning­the­Meter­
7.5­Maintenance­and­Testing­
220
221
224
225
226
8 Troubleshooting
227
8.1­Overview­
8.2­­Troubleshooting­the­Accu-Chek­Aviva­Combo­Meter­
228
229
9 Technical Information
245
9.1­Overview­
9.2­Product­Limitations­
9.3­Specifications­
9.4­Product­Safety­Information­
9.5­Disposing­of­the­Meter­
9.6­Guarantee­
9.7­Additional­Supplies­
9.8­Information­for­Healthcare­Professionals­
246
247
248
250
253
254
255
256
4
50813_00048009694_D.indb 4
7/3/12 3:12 PM
Appendices
257
Appendix­A:­Abbreviations­
Appendix­B:­Carb­Units­
Appendix­C:­Explanation­of­Symbols­
Appendix­D:­Meter­Settings­and­Range­Limits­
257
259
260
261
Glossary
267
Index
275
5
50813_00048009694_D.indb 5
7/3/12 3:12 PM
6
50813_00048009694_D.indb 6
7/3/12 3:12 PM
Introduction
Whether­the­Accu-Chek­Aviva­Combo­Meter­is­your­first­blood­glucose­meter­or­you­have­used­a­meter­for­
some­time,­please­take­the­time­to­read­the­Getting­Started­Guide,­the­Standard­Owner’s­Booklet,­and­the­
Advanced­Owner’s­Booklet­carefully­before­you­use­your­new­meter.­To­use­it­correctly­and­dependably,­you­
need­to­understand­its­operation,­screen­displays,­and­all­individual­features.
Your­new­meter­includes­three­booklets:
This­booklet­includes­information­about:
•­ G
­ etting­Started­Guide:
­ ­Use­this­booklet­to­set­up­the­meter.
•­­Understanding­your­new­Accu-Chek­Aviva­Combo­
System
•­ S­ tandard­Owner’s­Booklet:
•­Testing­your­blood­glucose
­ ­Use­this­booklet­for­instructions­on­how­to­operate­ •­Control­testing
the­standard­features­of­the­meter.
•­Managing­your­data
•­ A­ dvanced­Owner’s­Booklet:
•­Changing­the­meter­settings
­ ­Use­this­booklet­for­instructions­on­how­to­operate­
•­­Understanding­the­icons,­reminders,­warnings,­­
the­advanced­features­of­the­meter.
and­errors
Should­you­have­any­questions,­please­contact­one­
•­Care­and­maintenance
of­our­customer­support­and­service­centres.­A­
•­Troubleshooting
listing­is­at­the­back­of­this­booklet.
•­Technical­information
7
50813_00048009694_D.indb 7
7/3/12 3:12 PM
The Accu-Chek Aviva Combo System
The­Accu-Chek­Aviva­Combo­Meter­is­for­quantitative­blood­glucose­testing­using­Accu-Chek­Aviva­Test­
Strips.­The­meter­has­many­features­including:
•­Controlling­your­Accu-Chek­Spirit­Combo­Pump­
•­Administering­a­bolus
•­Bolus­advice
•­Daily­time­blocks­that­can­be­adjusted­to­fit­your­lifestyle
•­Data­management
•­Data­transfer
•­Date­reminders
•­bG­test­reminders:­Alarm­clock,­Target­bG­levels,­and­Health­events
•­­An­electronic­diary­that­allows­you­to­enter­meal­time,­carbs,­health,­and­bolus­information­with­your­
blood­glucose­test­results
For­detailed­information­about­the­features­of­the­meter,­see­Chapter­1,­“Understanding­Your­New­System.”
8
50813_00048009694_D.indb 8
7/3/12 3:12 PM
i NOTE
Blood­glucose­and­bG­are­interchangeable­and­mean­the­same­thing.
Intended Use
The­Accu-Chek­Aviva­Combo­blood­glucose­monitoring­system­is­intended­for­the­quantitative­measurement­
of­blood­glucose.­The­Accu-Chek­Aviva­Combo­System­is­intended­for­self-testing­outside­the­body­(in­vitro­
diagnostic­use)­by­people­with­diabetes­and/or­by­professionals­in­a­clinical­setting­as­an­aid­to­effective­
diabetes­management.
The­Accu-Chek­Aviva­Combo­Meter­can­also­be­used­to­interface­with­and­remotely­control­compatible­
Accu-Chek­insulin­infusion­pumps­via­Bluetooth­wireless­technology­(radio­frequency­communication).
The­Accu-Chek­Aviva­Combo­Meter­is­also­indicated­for­the­management­of­diabetes­by­calculating­an­insulin­
dose­or­carbohydrate­intake­based­on­user-entered­data.
Suitable­for­self-testing
9
50813_00048009694_D.indb 9
7/3/12 3:12 PM
The­system­includes:
• Accu-Chek Aviva Combo Meter with three AAA batteries (already inserted)
• Accu-Chek Aviva Test Strips and pre-inserted activation chip
• Accu-Chek Aviva Control Solution
w WARNING
•­­Any­object­coming­into­contact­with­human­blood­is­a­potential­source­of­infection­(see:­Clinical­and­
Laboratory­Standards­Institute:­Protection­of­Laboratory­Workers­from­Occupationally­Acquired­Infections;­
Approved­Guideline­–­Third­Edition;­CLSI­document­M29-A3,­2005).
•­­Choking­hazard.­Small­parts.­Keep­away­from­children­under­the­age­of­3­years.
Why Regular Blood Glucose Testing Is Important
Testing­your­blood­glucose­regularly­can­make­a­big­difference­in­how­you­manage­your­diabetes­every­day.­
We­have­made­it­as­simple­as­possible.
Important Information About Your New Meter
•­­The­meter­is­designed­for­testing­fresh­whole­blood­samples­(for­example,­blood­from­your­fingertip­or­
forearm).­The­meter­is­for­outside­the­body­(in­vitro)­use.­It­should­not­be­used­to­diagnose­diabetes.
•­This­meter­requires­Accu-Chek­Aviva­Test­Strips.­Other­test­strips­will­give­inaccurate­results.
•­The­meter­comes­with­the­time­and­date­preset.­You­may­need­to­change­the­time­to­your­time­zone.
•­­If­you­have­followed­the­steps­in­this­booklet­but­still­have­symptoms­that­do­not­seem­to­match­your­test­
results,­or­if­you­have­questions,­talk­to­your­healthcare­professional.
10
50813_00048009694_D.indb 10
7/3/12 3:12 PM
1
1
Understanding Your New System
1.1­Overview­
1.2­­The­Accu-Chek­Aviva­Combo­Meter­at­a­Glance­
1.3­­The­Accu-Chek­Spirit­Combo­Insulin­Pump­at­a­Glance­
1.4­Summary­of­Features­
1.5­Screen­Content­and­Navigation­
12
13
19
20
30
11
50813_00048009694_D.indb 11
7/3/12 3:12 PM
1.1 Overview
Your­new­meter­has­several­features­to­assist­you­in­managing­your­diabetes.­It­is­important­you­understand­
the­features­and­how­to­operate­the­meter­correctly.
i NOTE
•­­This­booklet­shows­sample­screens.­The­screens­in­this­booklet­may­look­slightly­different­from­the­
screens­on­the­meter.­If­you­have­any­questions­about­the­meter­screens,­contact­Roche.
•­­On­the­meter­display,­the­activation­chip­is­referred­to­as­a­code­key.­Code­key­and­activation­chip­are­
interchangeable­and­mean­the­same­thing.
•­Blood­glucose­and­bG­are­interchangeable­and­mean­the­same­thing.
12
50813_00048009694_D.indb 12
7/3/12 3:12 PM
1
1.2 The Accu-Chek Aviva Combo Meter at a Glance
Infrared (IR) Window
Display
Transfers­data­from­the­
meter­to­a­computer
Shows­menus,­results,­
messages,­and­data­stored­in­
the­diary
Activation Chip Slot
Buttons
Activation­chip­is­­
pre-inserted­here
Press­to­enter­menus­or­the­
diary,­adjust­settings,­and­
scroll­through­results
Battery Door
Remove­the­battery­door­
by­pushing­the­tab­and­
pulling­up­the­door
Left/Right Soft Keys
Press­to­select­the­menu­or­
option­above­the­key
Power On/Off Button
Press­to­turn­the­meter­on
or­off
Test Strip Slot
Insert­golden­end­of­test­strip­
here
Backlight Button
Press­to­adjust­the­backlight­level
13
50813_00048009694_D.indb 13
7/3/12 3:12 PM
Batteries
Insert­batteries­according­to­the­+­and­-­symbols­in­
the­battery­compartment.
Test Strip
Yellow­Window­Touch­blood­drop­or­
control­solution­here.­
Golden­End­-­
Insert­this­end­of­the­test­
strip­into­the­meter.­
Control Solution Bottle
(for­example)
Test Strip Container
(for­example)
14
50813_00048009694_D.indb 14
7/3/12 3:12 PM
1
Top View
Infrared­(IR)­Window
Activation Chip
(for­example)
Side View
Pre-inserted­activation­chip
i NOTE
Your­meter­is­already­coded­and­comes­with­a­pre-inserted­black­activation­chip­that­you­never­need­
to­change.­Even­if­you­use­test­strips­from­boxes­that­contain­another­activation­chip­that­is­a­different­
color­or­has­different­numbers,­you­never­need­to­change­the­black­activation­chip­again.
15
50813_00048009694_D.indb 15
7/3/12 3:12 PM
The­meter­has­seven­buttons­and­two­soft­keys.
Left Soft Key
Right Soft Key
Up Arrow
Right Arrow
Enter
Down Arrow
Left Arrow
Backlight
Power On/Off
i NOTE
•­­You­hear­a­sound­every­time­an­active­button/soft­key­is­pressed­unless­you­turned­off­the­key­sound.­
•­­Press­+­or­insert­a­test­strip­to­turn­on­the­meter.­If­the­meter­displays­the­Time/Date­screen,­make­
the­necessary­changes­and­select­Save.
16
50813_00048009694_D.indb 16
7/3/12 3:12 PM
1
Table of Buttons and Soft Keys
Button
<
>
x
z
,
.
=
Name
Function
Left­Arrow
jMove­or­scroll­to­the­left­in­a­screen.
Right­Arrow
jMove­or­scroll­to­the­right­in­a­screen.
Up­Arrow
jMove­or­scroll­up­in­a­screen.
Down­Arrow
jMove­or­scroll­down­in­a­screen.
Left­Soft­Key
jSelect­the­option­above­the­key­on­the­display.
Right­Soft­Key jSelect­the­option­above­the­key­on­the­display.
Enter
jSelect­a­menu­or­option.
jSave­changes­and­exit­the­entry­field.
*
Backlight
jAdjust­the­backlight­level­(low,­medium,­high).­
j­Turn­Bluetooth­wireless­technology­on­and­off­(press­and­hold­*­in­the­
BLUETOOTH­screen).­
+
Power­On/Off
jTurn­the­meter­on­and­off.
17
50813_00048009694_D.indb 17
7/3/12 3:12 PM
Table of Button Combinations
Button Combination
Name
Function
When­the­buttons­are­locked,­press­and­
hold­,and­.until­the­Main­Menu­
appears.
Unlock­Keys
jUnlocks­the­buttons.
With­the­meter­turned­off,­press­and­hold­ Meter/Pump­
*­and­then­press­+.
Pairing
jBegins­meter­and­pump­pairing.­
18
50813_00048009694_D.indb 18
7/3/12 3:12 PM
1
1.3 The Accu-Chek Spirit Combo Insulin Pump at a Glance
Up Key
Menu Key
Moves­forward­in­an­information­
screen,­increases­a­setting,­turns­
on­the­backlight,­programmes­
a­Quick­Bolus,­cancels­a­Quick­
Bolus,­and­turns­off­the­STOPWarning
Cycles­through­menus,­
functions,­and­information­
screens
OK Key
Selects­current­settings­
displayed­on­screen,­saves­
changes,­exits­a­screen,­and­
allows­the­user­to­view­the­
QUICK­INFO­screen
Display
Shows­menus,­messages,­
and­data­stored­in­the­pump­
memory
Down Key
Holds­insulin
Moves­backward­in­an­information­
screen,­decreases­a­setting,­
programmes­a­Quick­Bolus,­
cancels­a­Quick­Bolus,­and­turns­
off­the­STOP-Warning
Adapter
Infusion Set
Cartridge
Connects­the­cartridge­to­the­
infusion­set
Connects­the­pump­to­your­body­to­
deliver­insulin
For information about the pump, see the Accu-Chek Spirit Combo Insulin Pump User Guide.
19
50813_00048009694_D.indb 19
7/3/12 3:12 PM
1.4 Summary of Features
Display
The­meter­has­a­full-colour­graphic­LCD­(Liquid­Crystal­Display)­that­displays­current­and­historical­
information.
Backlight
•­The­backlight­helps­you­read­the­information­on­the­meter­display­under­different­lighting­conditions.­
•­When­the­meter­is­turned­on,­the­backlight­is­set­to­the­medium­level.­
•­Adjust­the­backlight­level­by­pressing­and­releasing­the­backlight­button.­
•­The­backlight­adjusts­from­low,­to­medium,­to­high,­and­back­to­low­again.­
•­­If­set­to­the­medium­or­high­level­and­the­buttons­are­not­pressed­for­about­15­seconds,­the­backlight­
returns­to­the­low­level­to­save­power.­
•­When­the­meter­returns­to­the­low­level,­pressing­any­button­restores­the­previous­backlight­level.­
•­For­more­information­about­backlight­settings,­see­Chapter­5,­“Changing­Meter­Settings.”­
•­For­more­about­power-saving­tips,­see­Chapter­7,­“Care­and­Maintenance.”
20
50813_00048009694_D.indb 20
7/3/12 3:12 PM
1
Key Lock
•­The­key­lock­feature­allows­you­to­lock­all­of­the­buttons­on­the­meter,­except­for­the­power­on/off­button.­
•­The­key­lock­serves­as­a­safety­measure­against­unintentional­activation­of­meter­functions.
•­For­more­information,­see­Chapter­5,­“Changing­Meter­Settings.”
Signal Settings
•­The­meter­communicates­reminders,­warnings,­and­errors­using­sounds­and­vibrations.­
•­For­more­information,­see­Chapter­6,­“Icons,­Reminders,­Warnings,­and­Errors.”­
Blood Glucose Test
Your­new­meter­allows­you­to­enter­detailed­information­for­each­blood­glucose­test­to­include:
•­Meal­time­(pre-meal,­post-meal,­bedtime,­or­other)
•­Carbs­(the­amount­of­carbohydrates­you­are­intending­to­eat)
•­Health­events­(fasting,­exercise­1,­stress,­illness,­exercise­2,­or­premenstrual).­
If­bolus­advice­is­set­up­on­the­meter­and­the­meter­recently­communicated­with­the­pump,­the­amount­of­
active­insulin­is­displayed­on­the­detailed­bG­Result­screen.
21
50813_00048009694_D.indb 21
7/3/12 3:12 PM
Bolus Advice (Optional)
•­­The­term­“bolus”­refers­to­the­delivery­of­insulin­all­at­once­rather­than­slowly­throughout­the­day,­usually­
used­to­compensate­for­meals­or­high­blood­glucose.­
•­­Bolus­advice­calculates­a­bolus­for­you­that­is­adapted­to­the­time­of­day­and­your­changing­situations.­
•­­This­function­is­activated­only­if­you­set­up­bolus­advice­on­the­meter.­
•­­For­instructions­on­how­to­set­up­bolus­advice,­see­Chapter­5,­“Changing­Meter­Settings.”
w WARNING
­ efore­setting­up­bolus­advice,­it­is­very­important­to­read­all­of­the­safety­information­in­the­Advanced­
B
Owner’s­Booklet.
Using the Meter with the Pump
•­The­meter­can­communicate­with­and­remotely­control­your­pump.­
•­­Pump­information­is­automatically­downloaded­to­the­meter­when­Bluetooth­wireless­technology­is­
activated.
•­The­meter­must­be­paired­with­the­pump.­
•­For­more­information,­see­the­Advanced­Owner’s­Booklet.
22
50813_00048009694_D.indb 22
7/3/12 3:12 PM
1
Administering a Bolus
Using­your­new­meter,­you­can­deliver­a­bolus:
•­Remotely­on­your­pump­using­Bluetooth­wireless­technology
•­Using­the­bolus­advice­feature­on­the­meter
•­Independently­on­your­pump
•­Using­an­insulin­pen­or­syringe
My Data
•­Your­new­meter­stores­1,000­records­in­the­diary.­
•­You­can­view,­modify,­or­add­information­to­your­diary.­
•­­You­can­view­blood­glucose­test­averages,­trends,­standard­day,­standard­week,­and­target­tables­and­
graphs­of­the­data­in­the­diary.­
•­You­can­view­the­data­in­graph­or­table­format­for­the­last­7,­14,­30,­60,­or­90­days.­
•­For­more­information,­see­Chapter­4,­“Managing­Your­Data.”
23
50813_00048009694_D.indb 23
7/3/12 3:12 PM
Data Transfer
•­You­can­transfer­your­data­stored­on­the­meter­to­a­computer.­
•­For­more­information,­see­Chapter­4,­“Managing­Your­Data.”
Warning Limits for Hyper and Hypo Blood Glucose Levels
•­­You­can­select­hyper­(high)­and­hypo­(low)­blood­glucose­limits­that­best­fit­your­needs.­Whenever­a­blood­
glucose­test­result­is­above­or­below­this­range,­the­meter­displays­a­warning.­
•­­In­addition,­Trend­Graph­screens­indicate­the­hypo­warning­limit­when­displaying­your­blood­glucose­test­
results.­For­more­information,­see­Chapter­4,­“Managing­Your­Data.”­
•­­The­meter­has­default­warning­limits­that­can­be­adjusted.­For­more­information,­see­Chapter­5,­“Changing­
Meter­Settings.”
24
50813_00048009694_D.indb 24
7/3/12 3:12 PM
Time Blocks
•­Time­blocks­allow­you­to­divide­a­day­into­different­time­periods.
•­­Setting­time­blocks­to­fit­your­own­schedule­helps­you­and­your­healthcare­professional­see­how­patterns­in­
your­blood­glucose­are­affected­by­your­daily­activities­and­lifestyle.­
•­Time­blocks­can­be­set­up­with­or­without­bolus­advice.­
•­­Talk­to­your­healthcare­professional­about­the­best­way­to­set­up­your­time­blocks­to­assist­you­in­managing­
your­diabetes.­
•­The­meter­has­five­default­time­blocks.­
•­You­may­set­up­to­eight­time­blocks.­
•­For­more­information,­see­Chapter­5,­“Changing­Meter­Settings.”­
1
25
50813_00048009694_D.indb 25
7/3/12 3:12 PM
Without­bolus­advice,­you­need­to­consider­the­following­when­setting­up­time­blocks:
•­Determine­the­appropriate­time­range­by­reviewing­the­end­time­for­each­time­block.
•­Review­the­acceptable­blood­glucose­target­range­(low­and­high)­for­each­time­block.­
With­bolus­advice,­you­need­to­consider­the­following­when­setting­up­time­blocks:
•­Determine­the­appropriate­time­range­by­reviewing­the­end­time­for­each­time­block.
•­Review­the­acceptable­blood­glucose­target­range­(low­and­high)­for­each­time­block.­
•­­Determine­your­carb­ratio­(the­amount­of­insulin­needed­to­cover­a­given­amount­of­carbohydrates)­for­each­
time­block.
•­­Determine­your­insulin­sensitivity­(the­amount­of­insulin­needed­to­lower­your­blood­glucose­by­a­given­
amount)­for­each­time­block.
26
50813_00048009694_D.indb 26
7/3/12 3:12 PM
1
Health Events
Health­events­can­be­selected­to­indicate­how­you­are­feeling­or­what­you­are­doing­that­might­affect­your­
diabetes.­The­meter­allows­you­the­option­of­setting­a­percentage­for­each­health­event­if­you­set­up­bolus­
advice.­
Health­events­available­on­the­meter­are:
•­Fasting
•­Exercise­1
•­Stress
•­Illness
•­Exercise­2
•­Premenstrual
Fasting­does­not­scale­bolus­advice­calculations­and­is­not­adjustable.­Discuss­the­appropriate­percentage­
for­each­health­event­with­your­healthcare­professional.­For­instructions­on­how­to­set­up­bolus­advice,­see­
Chapter­5,­“Changing­Meter­Settings.”
27
50813_00048009694_D.indb 27
7/3/12 3:12 PM
Blood Glucose Test Reminders (Optional)
The­meter­can­be­set­up­to­remind­you­to­retest­your­blood­glucose­after­a­high­blood­glucose­test­result,­
after­a­low­blood­glucose­test­result,­or­after­a­meal.
An­after­high­blood­glucose­test­reminder­example:
•­­The­meter­is­set­up­with­a­high­bG­threshold­level­of­13.3­mmol/L­and­with­a­reminder­time­of­60­minutes.
•­­You­have­a­blood­glucose­test­result­higher­than­13.3­mmol/L,­perhaps­15.0­mmol/L.
•­In­60­minutes,­the­meter­reminds­you­to­perform­another­blood­glucose­test.­
The­after­meal­bG­test­reminder­is­set­up­with­a­carb­value­and­occurs­when­the­carb­value­exceeds­the­
snack­size.­Any­of­these­blood­glucose­test­reminders­can­be­turned­on­or­off­individually,­as­needed.­For­
more­information,­see­Chapter­5,­“Changing­Meter­Settings.”
28
50813_00048009694_D.indb 28
7/3/12 3:12 PM
Alarm Clock Reminders
•­­The­meter­has­alarm­clock­reminders­which­can­be­used­as­a­helpful­way­to­remind­you­when­to­test­
throughout­the­day.­
•­In­addition­to­“bG­Test,”­you­can­set­reminders­for­“Other”­for­any­other­daily­reminder.­
•­You­can­set­up­to­eight­reminders­per­day.­
•­For­more­information,­see­Chapter­5,­“Changing­Meter­Settings.”
1
Date Reminders
•­­The­meter­can­be­set­up­to­remind­you­of­upcoming­appointments­or­dates,­such­as­a­“Dr.­Visit,”­­
a­“Lab­Test,”­or­an­“Infusion­Set­Change.”­
•­For­more­information,­see­Chapter­5,­“Changing­Meter­Settings.”
29
50813_00048009694_D.indb 29
7/3/12 3:12 PM
1.5 Screen Content and Navigation
This­section­provides­an­explanation­of­how­to­understand­and­navigate­the­screens­on­the­meter.
Each­time­the­meter­is­turned­on,­this­splash­screen­(Accu-Chek­logo­screen)­is­displayed­for­a­short­
period­of­time.­
30
50813_00048009694_D.indb 30
7/3/12 3:12 PM
1
Features on the Main Menu:
Sound Icon
Appears­when­the­beeper­is­
turned­on
Time
Menu Options
Vibrate Icon
Appears­when­vibrate­is­turned­on
Date
Low Battery Icon
Appears­when­the­meter­batteries­are­low
Bluetooth Wireless Technology Icon
Indicates­whether­the­Bluetooth­wireless­
technology­is­on,­off,­or­connecting
i NOTE
•­­To­select­an­item­on­a­menu,­press­x­or­z­to­highlight­(blue)­the­menu­item­and­then­press­=.­
•­­When­using­the­meter­to­remotely­control­your­pump,­the­buttons­of­the­meter­have­differing­
functions.­For­more­information,­see­the­Advanced­Owner’s­Booklet.
31
50813_00048009694_D.indb 31
7/3/12 3:12 PM
Bluetooth Wireless Technology Icon Communication States
You­may­turn­Bluetooth­wireless­technology­on­or­off­at­any­time­using­the­meter.
Icon
Communication State
Bluetooth­wireless­technology­is­on.­The­meter­and­pump­are­communicating.
Bluetooth­wireless­technology­is­off.­The­meter­and­pump­are­not­communicating.
Bluetooth­wireless­technology­is­on.­However,­the­meter­and­pump­are­not­communicating.
32
50813_00048009694_D.indb 32
7/3/12 3:12 PM
1
Connecting to the Pump screen:
This­screen­appears­when­Bluetooth­wireless­technology­is­on­and­the­meter­is­connecting­to­the­pump.
33
50813_00048009694_D.indb 33
7/3/12 3:12 PM
Features on a screen:
Title Bar
Primary­menu­title­is­displayed­
here.
Secondary Title Bar
When­necessary,­a­secondary­
title­bar­appears.­Secondary­
menu­text­is­displayed­here.
Left Soft Key Option
Press­,­to­select­the­option­
above­the­button­on­the­screen.
Highlighted Option
When­a­menu­choice­or­item­
is­selected,­it­is­highlighted­in­
blue.
Scroll Bar
If­there­is­more­information­
available­than­fits­on­the­screen,­
a­vertical­scroll­bar­appears­on­
the­right­side­of­the­screen.
Right Soft Key Option
Press­.­to­select­the­option­
above­the­button­on­the­screen.
34
50813_00048009694_D.indb 34
7/3/12 3:12 PM
Information­can­be­entered­on­some­screens.­Numerical­entry­fields­appear­as­pop-up­entry­fields.­When­
an­option­must­be­selected,­it­appears­as­a­pop-up­menu.
•­To­open­a­pop-up­menu­or­entry­field,­press­=.
•­­Press­x­or­z­to­select­the­appropriate­pop-up­menu­option­or­until­the­correct­numerical­entry­is­
present,­and­then­press­=.
•­Press­and­hold­x­or­z­to­scroll­faster.
1
Pop-Up Entry Field
Pop-Up Menu
35
50813_00048009694_D.indb 35
7/3/12 3:12 PM
General Navigation Steps
To­change­the­settings­or­enter­information­into­the­meter:
1.
j­­Press­x­or­z­to­select­a­menu­option­and­press­=.
j­­Repeat­the­previous­step­as­necessary.
36
50813_00048009694_D.indb 36
7/3/12 3:12 PM
2.
3.
1
4.
j­­Select­Save­by­pressing­.­to­
save­changes­and­return­to­the­
previous­screen.
j­­Press­x­or­z­or­<­or­>­to­
select­an­option­or­a­desired­
entry­field­and­press­=.
j­­Press­x­or­z­to­select­the­
desired­entry­and­press­=.
j­­Repeat­Steps­2­and­3,­as­
necessary.
37
50813_00048009694_D.indb 37
7/3/12 3:12 PM
38
50813_00048009694_D.indb 38
7/3/12 3:12 PM
2
2
Testing Your Blood Glucose
2.1­Overview­
2.2­­Using­the­Accu-Chek­Aviva­Combo­System­
2.3­Performing­a­Blood­Glucose­Test­­
2.4­Detailed­Blood­Glucose­Test­Results­
2.5­­Understanding­Blood­Glucose­Test­Results­
2.6­Unusual­Blood­Glucose­Test­Results­
2.7­­Symptoms­of­High­or­Low­Blood­Glucose­
40
41
42
49
53
57
58
39
50813_00048009694_D.indb 39
7/3/12 3:12 PM
2.1 Overview
It­is­important­to­understand­how­to­perform­a­blood­glucose­test­properly.
i NOTE
Blood­glucose­and­bG­are­interchangeable­and­mean­the­same­thing.
40
50813_00048009694_D.indb 40
7/3/12 3:12 PM
2
2.2 Using the Accu-Chek Aviva Combo System
Before You Start Testing
•­Only­use­Accu-Chek­Aviva­Test­Strips.
•­Store­the­unused­test­strips­in­their­original­container.
•­Immediately­after­you­take­out­a­test­strip,­securely­close­the­container.­This­helps­keep­the­test­strips­dry.
•­Use­the­test­strip­immediately­after­you­take­it­out­of­the­container.
•­Be­sure­to­check­the­use­by­date­on­the­test­strip­container.­Do­not­use­the­test­strips­after­the­use­by­date.
•­­Store­the­test­strip­container­and­the­meter­in­a­cool,­dry­place,­such­as­a­bedroom.­Do­not­freeze.­Refer­to­
the­test­strip­package­insert­for­specifications­on­storage­conditions.
•­Use­test­strips­at­temperatures­within­the­range­indicated­in­the­test­strip­package­insert.
•­Do­not­apply­blood­or­control­solution­to­the­test­strip­before­you­insert­it­into­the­meter.
w WARNING
Do­not­store­test­strips­in­high­heat­and­moisture­areas­(bathroom­or­kitchen).­Heat­and­moisture­can­
damage­the­test­strips.
41
50813_00048009694_D.indb 41
7/3/12 3:12 PM
2.3 Performing a Blood Glucose Test
Before­you­perform­your­first­blood­test,­ensure­the­meter­is­set­up­correctly­and­that­you­perform­a­control­
test.­You­need­the­meter­with­a­pre-inserted­activation­chip,­a­test­strip,­and­a­finger­pricker.
w WARNING
•­­Do­not­change­your­treatment­because­of­one­blood­glucose­test­result.
•­NEVER­ignore­symptoms­of­high­or­low­blood­glucose.
i NOTE
If­you­need­to­perform­a­control­test,­only­use­Accu-Chek­Aviva­Control­Solutions.­See­Chapter­3,­“Control­
Testing”­for­more­information­about­control­testing.
42
50813_00048009694_D.indb 42
7/3/12 3:12 PM
2
Performing a Fingertip Blood Glucose Test
Prepare > Check the Use By Date > Insert Test Strip > Test Blood Sample > bG Test Result
1.
2.
3.
j­­Check­the­use­by­date­date­on­
the­test­strip­container.­Do­not­
use­test­strips­past­the­use­
by­date.
j­­Insert­the­golden­end­of­a­
test­strip­into­the­meter­in­the­
direction­of­the­arrow.­The­
meter­turns­on.
j­­Wash­and­dry­your­hands.­
j­­Prepare­the­finger­pricker­for­a­
fingertip­test.
43
50813_00048009694_D.indb 43
7/3/12 3:13 PM
4.
5.
6.
The­Apply­Sample­screen­
appears.­The­test­strip­is­ready­
for­testing.
Fingerstick:
j­­Perform­a­fingerstick­with­the­
finger­pricker.­
Fingerstick:
j­­Gently­squeeze­your­finger­to­
assist­the­flow­of­blood.­This­
helps­you­get­a­blood­drop.
44
50813_00048009694_D.indb 44
7/3/12 3:13 PM
7.
8.
9.
When­the­test­strip­has­enough
blood,­the­Analyzing­screen
appears.
The­result­appears­on­the­
display.­
2
j­­Touch­the­blood­drop­to­the­
front edge­of­the­yellow­
window­of­the­test­strip.­Do­
not­put­blood­on­top­of­the­test­
strip.
45
50813_00048009694_D.indb 45
7/3/12 3:13 PM
10.
Approximately­3­seconds­later,­
the­detailed­bG­Result­screen­
appears.
j­­Remove­and­discard­the­used­
test­strip.
46
50813_00048009694_D.indb 46
7/3/12 3:13 PM
2
i NOTE
•­If­the­blood­drop­is­too­small,­reapply­pressure­to­get­a­sufficient­blood­drop.­
•­­For­more­information­regarding­blood­glucose­test­results,­see­Section­2.5,­“Understanding­Blood­
Glucose­Test­Results.”
•­­To­add­detailed­information­to­the­blood­glucose­test­(meal­time,­carbs,­and­health­events)­see­­
Section­2.4,­“Detailed­Blood­Glucose­Test­Results.”­
•­­If­a­test­strip­error­occurs,­remove­and­discard­the­used­test­strip­and­repeat­the­test­with­a­­
new­test­strip.
•­Be­careful­not­to­put­any­fluids­into­the­test­strip­slot.
•­The­meter­cannot­be­turned­off­when­the­following­screens­are­displayed:
•­Match­Code­to­Vial
•­Apply­Sample
•­Analyzing
•­bG­Result
•­­When­a­test­strip­is­in­the­meter,­the­buttons­are­inactive.­The­buttons­become­active­when­you­remove­
the­test­strip­or­when­the­test­is­complete.
•­The­meter­turns­off­automatically­in­approximately­2­minutes­if­no­buttons­are­pressed.
47
50813_00048009694_D.indb 47
7/3/12 3:13 PM
i NOTE
Other ways to start a blood glucose test:
•­From­the­Main­Menu,­select­bG­Test­and­press­=.­Insert­a­test­strip­into­the­meter.
•­When­a­reminder­notification­or­the­key­lock­icon­is­displayed,­insert­a­test­strip­into­the­meter.
•­­From­the­Main­Menu,­select­Bolus­Advice­and­press­=.­If­“bG­Test”­is­displayed­instead­of­an­actual­
blood­glucose­value,­then­you­can­start­a­blood­glucose­test­by­selecting­bG­Test.­If­an­actual­blood­
glucose­value­is­displayed,­then­you­cannot­start­a­blood­glucose­test­using­this­process.
48
50813_00048009694_D.indb 48
7/3/12 3:13 PM
2
2.4 Detailed Blood Glucose Test Results
The­detailed­bG­Result­screen­displays­the­following­information:
Test Time
Meal Time
Carbohydrates
Health Event
Active Insulin
Status Bar
Blood Glucose Test Result
Unit of Measure
Displayed­only­if­bolus­
advice­is­activated­and­
data­has­recently­been­
read­from­the­pump.
49
50813_00048009694_D.indb 49
7/3/12 3:13 PM
Detailed bG Results > Change Meal Time/Carbs/Health Events (Optional)
The­detailed­bG­Result­screen­allows­you­to­view­and­to­add­information­to­a­blood­glucose­test­result.
50
50813_00048009694_D.indb 50
7/3/12 3:13 PM
2
How to Add Information to a Blood Glucose Result
To Change Meal Time:
j­­Select­the­Meal­Time­entry­
field­and­press­=.
j­­Select­either­Pre­Meal,­
Post­Meal,­Bedtime,­or­Other­
and­press­=.
To Change Carbs:
j­­Select­the­Carbs­entry­field­
and­press­=.
j­­Set­the­number­of­carbs­and­
press­=.
To Change Health Events:
j­­Select­the­Health­entry­field­
and­press­=.­
j­­Select­either­Fasting,­
Exercise­1,­Stress,­Illness,­
Exercise­2,­or­Premenstrual­
and­press­=.­
Active Insulin Display:
The­meter­displays­the­
calculated­amount­of­Active­
Insulin.
To save the changes and exit
the detailed bG Result screen:
j­­To­return­to­the­Main­Menu,­
select­Menu.
j­­To­proceed­to­the­Bolus­Advice­
screen,­select­Bolus.
Bolus Advice is not available
if:
j­­The­blood­glucose­test­result­is­
below­the­hypo­warning­limit.
j­­The­detailed­bG­Result­screen­
has­been­displayed­for­more­
than­5­minutes.­The­warning­
message­“Bolus­Advice­
Timeout”­is­displayed.­Select­
OK­to­return­to­the­detailed­bG­
Result­screen.
For­more­information­about­
bolus­advice,­see­the­Advanced­
Owner’s­Booklet.
51
50813_00048009694_D.indb 51
7/3/12 3:13 PM
i NOTE
•­You­can­add­information­on­the­detailed­bG­Result­screen­for­meal­time,­carbs,­and­health­events.
•­­Review­and,­if­necessary,­update­information­for­meal­time,­carbs,­and­health­events­to­receive­an­
accurate­bolus­recommendation.
•­­Active­insulin­is­bolus­insulin­that­has­been­given­to­lower­your­blood­glucose,­but­has­not­yet­been­­
fully­used.­
•­Active­insulin­appears­only­if­bolus­advice­is­activated.­
•­­Calculation­of­the­amount­of­the­active­insulin­is­completed­automatically­by­the­meter.­If­necessary,­
the­meter­rounds­the­active­insulin­amount.
•­If­the­active­insulin­amount­is­calculated­as­zero,­then­the­value­is­displayed­as­0.
•­If­active­insulin­data­is­not­found,­then­active­insulin­value­is­displayed­as­“---U.”
•­­If­Bolus­is­selected,­then­the­Connecting­to­the­Pump­screen­appears­before­the­Bolus­Advice­screen­­
is­displayed.
52
50813_00048009694_D.indb 52
7/3/12 3:13 PM
2
2.5 Understanding Blood Glucose Test Results
The­bG­Result­screen­displays­the­following­information:
Test Time
Blood Glucose
Test Result
Test Date
Status Bar
Unit of Measure
i NOTE
•­­If­the­dosed­test­strip­is­removed­from­the­meter­before­results­or­errors­are­displayed,­a­blood­glucose­
test­result­will­not­appear.
•­­After­approximately­3­seconds,­the­meter­displays­the­detailed­bG­Result­screen­(see­Section­2.4,­
“Detailed­Blood­Glucose­Test­Results”).
53
50813_00048009694_D.indb 53
7/3/12 3:13 PM
Status Bar
The­status­bar­on­the­bG­Result­screen­indicates­how­the­result­compares­to­the­target­blood­glucose­range­
for­the­current­time­block.­The­following­are­status­bar­descriptions­with­sample­displays:
Green­indicates­the­result­is­
within­the­target­range­for­the­
current­time­block.
Yellow­indicates­the­result­is­
below­the­target­range­for­the­
current­time­block.­The­result­
is­not­below­the­hypo­warning­
limit.
Red­with­“Hypo”­indicates­the­
result­is­below­the­hypo­warning­
limit.
54
50813_00048009694_D.indb 54
7/3/12 3:13 PM
2
Light­blue­indicates­the­result­is­
above­the­target­range­for­the­
current­time­block.­The­result­
is­not­above­the­hyper­warning­
limit.
Light­blue­with­“Hyper”­
indicates­the­result­is­above­the­
hyper­warning­limit.
55
50813_00048009694_D.indb 55
7/3/12 3:13 PM
LO or HI Display
i NOTE
If­“LO”­is­displayed,­the­test­
result­may­be­below­the­
measurement­range.
j­­Contact­your­healthcare­
professional.
If­“HI”­is­displayed,­the­test­
result­may­be­above­the­
measurement­range.
j­­Contact­your­healthcare­
professional.
Blood Glucose Warnings
If­the­blood­glucose­test­
results­are­outside­the­hyper­
or­hypo­warning­limits,­or­
outside­the­measurement­
range­of­the­meter,­then­a­
warning­is­displayed­after­the­
bG­Test­Result­screen.­Select­
OK­to­acknowledge­a­warning­
and­continue.
56
50813_00048009694_D.indb 56
7/3/12 3:13 PM
2
2.6 Unusual Blood Glucose Test Results
If­your­blood­glucose­result­does­not­match­the­way­you­feel,­follow­these­steps:
Troubleshooting Checks
Actions
1.­Are­the­test­strips­expired?
Discard­the­test­strips­if­they­are­past­the­use­by­date.­Repeat­
the­blood­glucose­test­with­an­unexpired­test­strip.
2.­­Has­the­cap­on­the­test­strip­container­ Replace­the­test­strips­if­you­think­the­test­strip­container­was­
always­been­closed­tightly?
uncapped­for­some­time­and­repeat­the­blood­glucose­test.
3.­­Was­the­test­strip­used­immediately­
Repeat­the­blood­glucose­test­with­a­new­test­strip.
after­it­was­removed­from­the­test­strip­
container?
4.­­Were­the­test­strips­stored­in­a­cool,­
dry­place?
Repeat­the­blood­glucose­test­with­a­properly­stored­test­strip.
5.­Did­you­follow­the­directions?
Read­Chapter­2,­“Testing­Your­Blood­Glucose”­and­repeat
the­blood­glucose­test­again.­Contact­Roche­if­you­still­have
problems.
6.­­Are­the­meter­and­test­strips­working­
properly?
Perform­a­control­test.­See­Chapter­3,­“Control­Testing”.
7.­Are­you­still­unsure­of­the­problem?
Contact­Roche.
After­performing­a­control­test­and­repeating­a­blood­glucose­test,­if­your­blood­glucose­test­results­still­do­
not­reflect­the­way­you­feel,­contact­your­healthcare­professional­immediately.
57
50813_00048009694_D.indb 57
7/3/12 3:13 PM
2.7 Symptoms of High or Low Blood Glucose
Being­aware­of­the­symptoms­of­high­or­low­blood­glucose­can­help­you­understand­your­test­results­and­
decide­what­to­do­if­they­seem­unusual.­Here­are­the­most­common­symptoms:
•­­High­blood­glucose­(hyperglycaemia):­fatigue,­increased­appetite­or­thirst,­frequent­urination,­blurred­
vision,­headache,­or­general­aching.
•­­Low­blood­glucose­(hypoglycaemia):­sweating,­trembling,­blurred­vision,­rapid­heartbeat,­tingling,­or­
numbness­around­mouth­or­fingertips.
w WARNING
If­you­are­experiencing­any­of­these­symptoms,­test­your­blood­glucose.­If­your­blood­glucose­test­
result­is­displayed­as­LO­or­HI,­contact­your­healthcare­professional­immediately.
58
50813_00048009694_D.indb 58
7/3/12 3:13 PM
3
3
Control Testing
3.1­Overview­
3.2­Why­Perform­Control­Tests­
3.3­About­the­Control­Solutions­
3.4­Performing­a­Control­Test­
3.5­Understanding­Control­Test­Results­
60
61
62
63
69
59
50813_00048009694_D.indb 59
7/3/12 3:13 PM
3.1 Overview
This­chapter­describes­how­and­when­to­perform­a­control­test­to­ensure­the­accuracy­of­your­blood­glucose­
meter.­It­is­recommended­you­complete­a­control­test­prior­to­performing­a­blood­glucose­test­for­the­first­
time.
i NOTE
Blood­glucose­and­bG­are­interchangeable­and­mean­the­same­thing.
60
50813_00048009694_D.indb 60
7/3/12 3:13 PM
3
3.2 Why Perform Control Tests
Performing­a­control­test­lets­you­know­the­meter­and­test­strips­are­working­properly­to­give­reliable­blood­
glucose­test­results.­You­should­perform­a­control­test­when:
•­You­open­a­new­test­strip­box.
•­You­left­the­test­strip­container­open.
•­You­want­to­check­the­meter­and­test­strips.
•­Your­test­strips­were­stored­in­extreme­temperatures,­humidity,­or­both.
•­You­dropped­the­meter.
•­Your­test­result­does­not­match­with­how­you­feel.
•­You­want­to­check­if­you­are­performing­the­test­correctly.
61
50813_00048009694_D.indb 61
7/3/12 3:13 PM
3.3 About the Control Solutions
•­Only­use­Accu-Chek­Aviva­Control­Solutions.
•­The­meter­automatically­recognizes­the­control­solution.
•­The­control­test­results­are­not­displayed­in­the­diary.
•­­Write­the­date­you­opened­the­control­solution­bottle­on­the­bottle­label.­The­solution­is­good­for­3­months­
from­that­date­or­until­the­use­by­date­on­the­bottle­label,­whichever­comes­first.
•­Do­not­use­control­solution­that­is­past­the­use­by­date.
•­The­solution­can­stain­clothing.­If­you­spill­it,­wash­your­clothes­with­soap­and­water.
•­Close­the­bottle­tightly­after­use.
62
50813_00048009694_D.indb 62
7/3/12 3:13 PM
3
3.4 Performing a Control Test
The­Control­Result­screen­displays­the­following­information:
Test Time
Control Result
Test Date
Unit of Measure
You­need­the­meter­with­a­pre-inserted­activation­chip,­a­test­strip,­and­control­solution­Level­1,­Level­2,­or­
both.­The­control­level­is­printed­on­the­bottle­label.
63
50813_00048009694_D.indb 63
7/3/12 3:13 PM
Check the Use By Date > Insert Test Strip > Test Control Solution > Control Result
1.
2.
3.
j­­Check­the­use­by­date­on­the­
test­strip­container.­Do­not­
use­test­strips­past­the­use­
by­date.
j­­Insert­the­golden­end­of­a­
test­strip­into­the­meter­in­the­
direction­of­the­arrow.­The­
meter­turns­on.
The­Apply­Sample­screen­
appears.­The­test­strip­is­ready­
for­testing.
64
50813_00048009694_D.indb 64
7/3/12 3:13 PM
3
4.
5.
6.
j­­Select­the­control­solution­to­
test.­You­will­enter­the­level­
later­in­the­test.
j­­Place­the­meter­on­a­flat­
surface,­like­a­table.
j­­Remove­the­control­bottle­cap.­
Wipe­the­tip­of­the­bottle­with­
a­tissue.
65
50813_00048009694_D.indb 65
7/3/12 3:13 PM
7.
8.
9.
When­the­test­strip­has­enough
control­solution,­the­Analyzing
screen­appears.­
j­­Wipe­the­tip­of­the­bottle­with­a­
tissue­and­then­cap­the­bottle­
tightly.
The­control­result­appears­on­
the­display.
j­­Select­Level­to­display­the­
control­solution­level­pop-up­
menu.
j­­Squeeze­the­bottle­until­a­tiny­
drop­forms­at­the­tip.
j­­Touch­the­drop­to­the­front
edge­of­the­yellow­window­
of­the­test­strip.­Do­not­put­
control­solution­on­top­of­the­
test­strip.
66
50813_00048009694_D.indb 66
7/3/12 3:13 PM
10.
11.
j­­Select­the­control­solution­level­
and­press­=.
j­­Remove­and­discard­the­test­
strip.
j­­For­information­on­
understanding­control­test­
results,­proceed­to­the­next­
section,­or­select­Menu­to­
save­this­result­and­display­the­
Main­Menu­screen.
3
67
50813_00048009694_D.indb 67
7/3/12 3:13 PM
iNOTE
•­­If­a­test­strip­error­occurs,­remove­and­discard­the­used­test­strip­and­repeat­the­test­with­a­new­test­
strip.
•­Be­careful­not­to­put­any­fluids­into­the­test­strip­slot.
•­­When­the­Control­Level­screen­is­displayed­and­you­select­Cancel­without­selecting­a­control­solution­
level,­then­No­Entry­is­chosen.­The­meter­stores­the­control­test­result­along­with­No­Entry­and­then­
the­Detailed­Control­Result­screen­is­displayed.
•­­When­the­Control­Level­screen­is­displayed­and­you­turn­off­the­meter,­or­if­the­meter­auto-powers­
off,­without­selecting­a­control­solution­level,­then­No­Entry­is­chosen.­The­meter­stores­the­control­
test­result­along­with­No­Entry.
•­Other ways to start a control test:
•­­From­the­Main­Menu,­select­bG­Test.­Insert­a­test­strip­into­the­meter.
•­­When­a­reminder­notification­or­the­key­lock­icon­is­displayed,­insert­a­test­strip­into­the­meter.
68
50813_00048009694_D.indb 68
7/3/12 3:13 PM
3
3.5 Understanding Control Test Results
The­detailed­Control­Result­screen­displays­the­following­information:
Test Time
Test Date
Control Result
Control Solution Level
Result
Unit of Measure
Menu
Within­range­or­Out­of­range
Select­Menu­to­save­
result­and­display­
Main­Menu­screen
69
50813_00048009694_D.indb 69
7/3/12 3:13 PM
Example Control Results
Example
Range­(mmol/L)
Level­1­1.4-3.1
Level­2­14.2-19.1
j­­The­label­on­your­test­
strip­container­shows­the­
acceptable­ranges­for­both­
the­Level­1­and­the­Level­2­
control­solutions.­The­test­
result­you­get­should­be­inside­
this­range.­Ensure­you­select­
and­compare­the­test­result­to­
the­correct­level­of­control.­For­
the­level­selected,­the­meter­
displays­whether­the­result­
is­within­or­outside­of­the­
acceptable­range.
j­­When­the­control­test­result­
is­inside­the­range­on­the­test­
strip­container,­the­test­strips­
and­the­meter­are­working­
properly.
If­the­control­test­result­is­within­
the­acceptable­range,­“Within­
range”­appears­on­the­detailed­
Control­Result­screen.
70
50813_00048009694_D.indb 70
7/3/12 3:13 PM
3
If­the­control­test­result­is­
outside­of­the­acceptable­range,­
“Out­of­range”­appears­on­the­
detailed­Control­Result­screen.
If­“HI”­is­displayed,­the­control­
test­result­may­be­above­the­
measurement­range.
If­“LO”­is­displayed,­the­control­
test­result­may­be­below­the­
measurement­range.
71
50813_00048009694_D.indb 71
7/3/12 3:13 PM
If­the­meter­stored­No­Entry­for­
the­control­solution­level,­then­
“---”­appears­with­no­indication­
of­in­or­out­of­range.
72
50813_00048009694_D.indb 72
7/3/12 3:13 PM
3
Out-of-Range Control Test Results
If­the­control­test­result­is­out­of­range,­check­this­list­to­help­solve­the­problem:
Troubleshooting Checks
Actions
1.­­Were­either­the­test­strips­or­control­solutions­
expired?
Discard­the­test­strips­or­control­solutions­if­either­is­
past­the­use­by­date.­If­the­control­solution­was­
opened­more­than­3­months­ago,­discard­it.­Repeat­
the­control­test­with­an­unexpired­test­strip­and­an­
unexpired­control­solution.
2.­­Did­you­wipe­the­tip­of­the­control­solution­bottle­ Wipe­the­tip­of­the­bottle­with­a­tissue.­Repeat­the­
before­use?
control­test­with­a­new­test­strip­and­a­fresh­drop­of­
control­solution.
3.­­Were­the­caps­on­the­test­strip­container­and­the­ Replace­the­test­strips­or­control­solutions­if­you­
control­solution­bottle­always­closed­tightly?
think­either­was­uncapped­for­some­time­and­repeat­
the­control­test.
4.­­Was­the­test­strip­used­immediately­after­it­was­
removed­from­the­test­strip­container?
Repeat­the­control­test­with­a­new­test­strip­and­a­
fresh­drop­of­control­solution.
5.­­Were­the­test­strips­and­control­solutions­stored­in­ Repeat­the­control­test­with­a­properly­stored­test­
a­cool,­dry­place?
strip­and­control­solution.
6.­Did­you­follow­the­directions?
Read­Chapter­3,­“Control­Testing”­and­repeat­the­
control­test.­Contact­Roche­if­you­still­have­problems.
73
50813_00048009694_D.indb 73
7/3/12 3:13 PM
Troubleshooting Checks
Actions
7.­­Did­you­choose­the­correct­control­solution­level,­ If­you­chose­the­wrong­control­solution­level,­you­
either­1­or­2,­when­you­performed­the­control­test? can­still­compare­the­control­result­to­the­range­
printed­on­the­test­strip­container.
8.­­Are­you­still­unsure­of­the­problem?
Contact­Roche.
74
50813_00048009694_D.indb 74
7/3/12 3:13 PM
4
4
Managing Your Data
4.1­Overview­
4.2­Viewing­or­Modifying­Your­Data­
4.3­Adding­New­Data­
4.4­Reporting­Your­Data­
4.5­Downloading­Your­Data­to­a­Computer­
76
79
87
90
128
75
50813_00048009694_D.indb 75
7/3/12 3:13 PM
4.1 Overview
Analyzing­your­blood­glucose­test­results­stored­in­the­meter­is­an­effective­way­for­you­and­your­healthcare­
professional­to­determine­how­well­you­are­controlling­your­diabetes.­This­analysis­is­a­valuable­tool­for­
making­improvements­to­your­diabetes­management.­The­reports­the­meter­displays­help­you­get­the­most­
from­your­Accu-Chek­Aviva­Combo­Meter.
From­the­diary­records­stored­in­the­meter,­you­are­able­to­view­a­specific­blood­glucose­test­record­with­its­
attributes­(e.g.,­meal­time,­carbs,­health­event,­and­bolus).­In­addition,­for­a­specific­diary­record,­you­are­able­
to­change­or­add­to­its­attributes.
The­meter­generates­reports,­such­as­blood­glucose­averages­with­standard­deviations­for­the­time­period­
you­select­(e.g.,­the­past­7­days­or­the­past­30­days).­Graphs­can­be­a­good­way­to­view­your­blood­glucose­
test­results.­The­meter­can­display­a­line­graph­to­depict­blood­glucose­record­trends,­a­graph­showing­result­
ranges­for­a­standard­day­or­a­standard­week,­and­a­pie­chart­with­different­colours­to­illustrate­the­amount­
of­test­results­within,­above,­or­below­your­blood­glucose­target­range.
i NOTE
•­­You­must­be­the­only­user­of­the­meter­because­the­diary­data­will­be­incorrect­if­the­meter­is­shared.
•­Blood­glucose­and­bG­are­interchangeable­and­mean­the­same­thing.
76
50813_00048009694_D.indb 76
7/3/12 3:13 PM
4
Storing Test Results
The­meter­automatically­stores­up­to­1,000­diary­records­with­the­time­and­date.­You­can­review­up­to­­
250­diary­records­on­the­meter­or­up­to­1,000­diary­records­using­a­computer­with­compatible­software.­
Diary­records­are­stored­from­the­newest­to­the­oldest.­It­is­very­important­to­have­the­correct­time­and­
date­set.­Having­the­correct­time­and­date­setting­helps­ensure­accurate­interpretation­of­blood­glucose­test­
results­by­you­and­your­healthcare­professional.
Each­diary­record­can­contain:
•­Date­and­time
•­Blood­glucose­test­result
•­Meal­time­(events)
•­Carbs
•­Health­event
•­Bolus­type
•­Bolus­amount
You­can­display­filtered­diary­data­in­graphical­or­table­format.
77
50813_00048009694_D.indb 77
7/3/12 3:13 PM
i NOTE
•­­Do not change your therapy based on one individual record or test result in the diary.
•­­This­chapter­shows­sample­screens.­The­screens­may­look­slightly­different­from­the­screens­on­the­
meter.­If­you­have­any­questions­about­the­meter­screens,­contact­Roche.
•­­The­information­in­the­diary­is­saved­when­you­replace­the­batteries.­You­need­to­check­the­time­and­
date­after­you­replace­the­batteries.­For­more­information­on­changing­the­batteries,­see­Chapter­7,­
“Care­and­Maintenance.”
•­­Once­1,000­records­are­in­the­diary­memory,­adding­a­new­record­causes­the­oldest­diary­record­to­
be­deleted.
•­The­control­results­are­stored­in­memory,­but­cannot­be­reviewed­on­the­meter.
•­­Before­reviewing­diary­records­or­control­results­with­software,­the­stored­diary­records­must­first­be­
downloaded­to­a­compatible­software­application.­For­product­availability,­please­contact­Roche.­
•­Control­results­are­not­used­in­any­report­or­graph.
78
50813_00048009694_D.indb 78
7/3/12 3:13 PM
4
4.2 Viewing or Modifying Your Data
The­View­Data­screen­displays­the­following­information:
Date of Record(s)
Carbs Icon
Time of Blood
Glucose Test
Unit of Measure
Blood Glucose Test
Icon
Meal Time Icon
Blood Glucose Test Result
Appropriate Bolus Icon
Select View
Change­meter­display­between­blood­
glucose,­bolus,­and­carbs­views.
Health Event Icon
79
50813_00048009694_D.indb 79
7/3/12 3:13 PM
i NOTE
•­­If­data­are­not­available,­the­No­Data­Available­screen­is­displayed.
•­­The­View­Data­screen­displays­the­records­in­the­order­in­which­they­occurred­with­the­most­recent­
record­shown­on­top.
•­For­the­blood­glucose­test­result:
•­“HI”­is­displayed­if­the­test­result­is­above­the­measurement­range.
•­“LO”­is­displayed­if­the­test­result­is­below­the­measurement­range.
•­The­blood­glucose­test­result­is­blank­if­a­blood­glucose­test­value­does­not­exist.
80
50813_00048009694_D.indb 80
7/3/12 3:13 PM
4
Refer to the following two tables for icon descriptions:
Icon
Icon Name
Description
bG­Test
Icon­is­displayed­when­information­exists­for­this­diary­
record­regarding­a­blood­glucose­test.
Meal­Time
Icon­is­displayed­when­information­exists­for­this­diary­
record­regarding­meal­time.
Carbs
Icon­is­displayed­when­information­exists­for­this­diary­
record­regarding­carbs.
Health­Event
Icon­is­displayed­when­information­exists­for­this­diary­
record­regarding­health­events.
Standard­Bolus­Not­Confirmed
Delivery­has­not­been­confirmed­by­the­pump.
Standard­Bolus­Confirmed
Delivery­has­been­confirmed­by­the­pump.
Multiwave­Bolus­Not­Confirmed
Delivery­has­not­been­confirmed­by­the­pump.
Multiwave­Bolus­Confirmed
Delivery­has­been­confirmed­by­the­pump.
Extended­Bolus­Not­Confirmed
Delivery­has­not­been­confirmed­by­the­pump.
81
50813_00048009694_D.indb 81
7/3/12 3:13 PM
Icon
Icon Name
Description
Extended­Bolus­Confirmed
Delivery­has­been­confirmed­by­the­pump.
Manual­Pump
Delivery­has­not­been­confirmed­by­the­pump.
Pen/Syringe­Bolus
Pump­does­not­deliver­bolus.
82
50813_00048009694_D.indb 82
7/3/12 3:13 PM
You­can­view­a­diary­record­with­its­attributes­(blood­glucose­value,­meal­time,­carbs,­health­event,­and­
bolus).
4
Main Menu > My Data > View Data
1.
2.
j­­From­the­Main­Menu,­select­
My­Data­and­press­=.
j­­Select­View­Data­and­
press­=.
83
50813_00048009694_D.indb 83
7/3/12 3:13 PM
3.
Blood Glucose View:
Bolus View:
Carbs View:
j­­Shown­above­are­View­Data­screens­that­display­values­for­blood­glucose,­bolus,­or­carbs.­To­choose­
another­view,­press­.­(a­pop-up­menu­appears).­Select­the­view­you­want­and­press­=.
j­­Press­x­or­z­to­view­other­records­(the­screen­scrolls­if­there­are­additional­records).
j­­To­view­or­modify­a­record’s­details,­select­the­record­and­press­=.
84
50813_00048009694_D.indb 84
7/3/12 3:13 PM
4.
5.
4
i NOTE
To­cancel­changes­or­return­to­
the­View­Detail­screen,­select­
Cancel.
j­­Press­<­to­view­the­previous­
record­or­press­>­to­view­the­
next­(newer)­record.­
To return to the previous
screen, select Back.
or
To modify a diary record,
select Modify and continue to
the next step.
j­­Select­the­entry­field­to­modify­
and­press­=.
j­­Make­the­change­in­the­entry­
field­and­press­=.
j­­Modify­other­fields,­as­needed.
To save the changes and
return to the View Detail
screen, select Save.
85
50813_00048009694_D.indb 85
7/3/12 3:13 PM
The following fields cannot be modified with the specified condition:
Fields
Cannot be modified if the …
Bolus
Bolus­type­is­confirmed­standard,­extended,­or­multiwave
Bolus
Blood­glucose­test­result­was­below­the­hypo­warning­limit
Meal­Time
Record­has­no­blood­glucose­value
Meal­Time,­Carbs,­Health­Event,­
and­Bolus­
Record­has­been­used­for­bolus­advice
86
50813_00048009694_D.indb 86
7/3/12 3:13 PM
4
4.3 Adding New Data
You­can­add­data­to­a­diary­record­for­carbs,­health,­and­bolus.­The­Add­Data­screen­displays­the­following­
information:
Time Entry Field
Carbs Entry Field
Date Entry Field
Health Entry Field
Bolus Entry Field
Save
Appears­once­data­has­been­
entered­to­an­entry­field
87
50813_00048009694_D.indb 87
7/3/12 3:13 PM
Main Menu > My Data > Add Data
1.
2.
3.
j­­From­the­Main­Menu,­select­
My­Data­and­press­=.
j­­Select­Add­Data­and­press­=.
j­­Select­an­entry­field­and­
press­=.
j­­Make­addition­in­the­entry­field­
and­press­=.
j­­Make­additions­to­other­entry­
fields,­as­needed.
To save the changes and
return to the My Data screen,
select Save.
88
50813_00048009694_D.indb 88
7/3/12 3:13 PM
4
i NOTE
•­­The­meter­initially­displays­the­current­date­and­the­current­time.­You­can­change­the­date­and­time­
when­adding­a­diary­record,­although­the­date­and­time­cannot­be­set­in­the­future.
•­­Before­a­diary­record­can­be­saved,­data­must­be­entered­(not­including­date­and­time).­“Save”­is­not­
displayed­above­.­until­data­has­been­entered.
•­­To­cancel­changes­and­return­to­the­My­Data­screen,­select­Cancel.
89
50813_00048009694_D.indb 89
7/3/12 3:13 PM
4.4 Reporting Your Data
Time Range
Meal Times
Blood Glucose Standard
Deviation
Calculated­for­the­time­range
Number of Tests
Used­to­calculate­the­averages­
and­standard­deviations
Blood Glucose Average
Calculated­for­the­time­range
90
50813_00048009694_D.indb 90
7/3/12 3:13 PM
4
i NOTE
•­­If­data­are­not­available­to­calculate­averages,­the­No­Data­Available­screen­is­displayed.
•­­Standard­deviation­measures­how­much­the­blood­glucose­test­results­are­scattered­around­the­
blood­glucose­average.­A­low­standard­deviation­means­the­blood­glucose­test­results­are­tightly­
clustered­around­the­blood­glucose­average;­a­high­standard­deviation­means­the­blood­glucose­test­
results­are­widely­scattered­around­the­blood­glucose­average.
•­Calculations­do­not­include­corrupt­results,­control­results,­or­HI­and­LO­results.
91
50813_00048009694_D.indb 91
7/3/12 3:13 PM
Reporting Your Blood Glucose Averages
The­meter­displays­your­blood­glucose­averages­and­standard­deviations­for­the­time­range­you­choose­­
(7,­14,­30,­60,­or­90­days).
Main Menu > My Data > Reports > bG Averages
1.
2.
3.
j­­From­the­Main­Menu,­select­
My­Data­and­press­=.
­­Select­Reports­and­press­=.
j­­Select­bG­Averages­and­
press­=.
92
50813_00048009694_D.indb 92
7/3/12 3:13 PM
4.
4
The­blood­glucose­averages­are­
displayed.
j­­To­display­blood­glucose­
averages­for­another­time­
range­(last­7,­14,­30,­60,­or­
90­days),­press­either­<­or­>­
to­scroll­the­screen­until­you­
reach­the­time­range­you­need.
To return to the Reports
screen, select Back.
93
50813_00048009694_D.indb 93
7/3/12 3:13 PM
Reporting Your Data Trends
The­meter­displays­your­blood­glucose­record­trends­for­the­time­range­you­choose­(last­8­hours,­24­hours,­
48­hours,­or­7­days).
Main Menu > My Data > Reports > Trend
1.
2.
3.
j­­From­the­Main­Menu,­select­
My­Data­and­press­=.
j­­Select­Reports­and­press­=.
j­­Select­Trend­and­press­=.
94
50813_00048009694_D.indb 94
7/3/12 3:13 PM
4
Trend Graph Screen
Time Range
Bolus Icon
Meal Time Selection
Bolus Unit of Measure
Blood Glucose Unit of
Measure
Bolus Amount Indicator Value
Blood Glucose Icon
Carbs Unit of Measure
Carbs Amount Indicator Value
Times or Days of
Month
Carbs Icon
Arrow
Bolus Value
Indicates­blood­glucose­data­
extends­beyond­screen
Blue­bar:­height­shown­is­in­relation­
to­the­bolus­insulin­amount
Each Blood Glucose Value
Carb Value
Dark­orange­bar:­height­shown­is­in­
relation­to­the­carbs­amount
Connected­with­lines
Warning Limit Hypo Level
Red­horizontal­line
Time Change Icon
Only­shown­when­meter­time­has­
been­changed­for­this­data
95
50813_00048009694_D.indb 95
7/3/12 3:13 PM
Follow these tips to get the most value from My Data reports:
•­­If­you­delivered­a­bolus­directly­on­the­pump,­go­to­My­Data­on­the­meter­to­receive­the­bolus­information­
automatically.­Do­this­before­your­next­blood­glucose­test.
•­­Replace­the­batteries­when­the­Low­Battery­icon­appears.­This­maintains­the­communication­between­
meter­and­pump.
96
50813_00048009694_D.indb 96
7/3/12 3:13 PM
4
i NOTE
•­­If­data­are­not­available­to­display­the­trend­graph,­the­No­Data­Available­screen­is­displayed.
•­Trend­graphs­do­not­include­corrupt­results­or­control­results.
•­­Trend­graph­data­is­cleared­if­bolus­advice­data­is­cleared.
•­­If­ ­(time­change­icon)­is­shown­at­the­bottom­of­the­Trend­Graph­screen,­the­time­and­date­of­one­or­more­
data­points­in­the­trend­graph­may­not­match­the­time­stamp­in­My­Data­because­the­meter­clock­has­been­
changed.­All­times­in­the­trend­graph­show­the­data­relative­to­the­current­meter­time.
For­example:
1.­You­take­a­bG­test­and­the­value­is­stored­in­the­meter­at­9:00.
2.­The­meter­time­is­changed­ahead­1­hour.
3.­The­bG­data­on­the­trend­graph­is­shown­at­10:00.
•­­On­the­right­side­of­the­graph,­the­Maximum­Bolus­Amount­Indicator­is­a­horizontal­line­with­the­corresponding­
value­shown­above­it.­The­purpose­of­this­indicator­is­to­scale­the­top­portion­of­the­graph­for­the­Bolus­Value­
blue­bars.­The­Maximum­Bolus­Amount­Indicator­values­available­on­the­meter­are­1,­5,­15,­30,­and­60­U.­The­
indicator­displayed­is­based­on­the­single­largest­bolus­insulin­amount­delivered­for­the­time­range­chosen.­For­
example,­if­the­largest­bolus­delivered­during­the­chosen­time­range­is­8­U,­then­the­meter­will­scale­the­upper­
graph­to­be­between­0­and­15­U.
•­­On­the­right­side­of­the­graph,­the­Maximum­Carbs­Amount­Indicator­is­a­horizontal­line­with­the­corresponding­
value­shown­below­it.­The­purpose­of­this­indicator­is­to­scale­the­bottom­portion­of­the­graph­for­the­Carb­
Value­dark­orange­bars.­The­Maximum­Carbs­Amount­Indicator­values­available­on­the­meter­are­30,­60,­120,­
180,­and­240­g,­or­the­equivalent­scale­for­BE,­KE,­or­CC.­The­indicator­displayed­is­based­on­the­single­largest­
carbs­amount­for­the­time­range­chosen.­For­example,­if­the­largest­carbs­amount­for­the­chosen­time­range­is­
86­g,­then­the­meter­will­scale­the­lower­graph­to­be­between­0­and­120­g.
•­Select­Table­to­change­the­display­to­the­Table­View.­The­time­range­remains­the­same.
97
50813_00048009694_D.indb 97
7/3/12 3:13 PM
Trend Graph
1.
j­­To­display­a­trend­graph­for­
another­time­range­(last­­
8­hours,­24­hours,­48­hours,­­
or­7­days),­press­x­to­highlight­
the­time­range­selection­field­
(top­of­screen).­Press­either­­
<­or­>­until­you­reach­the­time­
range­you­need.
2.
3.
j­­To­display­a­trend­graph­for­
another­meal­time­selection­
(Overall,­Pre­Meal,­Post­Meal,­
Bedtime,­or­Other),­press­
either­x­or­z­to­highlight­
the­meal­time­selection­field­
(immediately­below­the­time­
range­which­is­at­the­top­of­
the­screen).­Press­either­<­or­>­
until­you­reach­the­meal­time­
selection­you­need.
j­­Press­.­to­display­the­Table­
(proceed­to­the­next­section­
for­more­information).
To return to the Reports
screen, select Back.
98
50813_00048009694_D.indb 98
7/3/12 3:13 PM
4
i NOTE
The­meter­saves­the­current­settings­(time­range,­meal­time,­and­graph­view)­when­you­select­Back­or­
when­the­meter­powers­off.
99
50813_00048009694_D.indb 99
7/3/12 3:13 PM
Trend Table Screen
Time Range
Meal Time Selection
Date of Records
Blood Glucose Icon
with Blood Glucose
Unit of Measure
Carbs Icon with Carbs Unit of
Measure
Bolus Icon with the Bolus Unit
of Measure
Time Change Icon
Only­shown­when­meter­
time­has­been­changed­for­
this­data
100
50813_00048009694_D.indb 100
7/3/12 3:13 PM
4
i NOTE
•­If­data­are­not­available­to­display­the­trend­table,­the­No­Data­Available­screen­is­displayed.
•­Trend­tables­do­not­include­corrupt­results­or­control­results.
•­­If­ ­(time­change­icon)­is­shown­at­the­bottom­of­the­Trend­Table­screen,­the­time­and­date­of­one­
or­more­data­points­in­the­trend­table­may­not­match­the­time­stamp­in­My­Data­because­the­meter­
clock­has­been­changed.­All­times­in­the­trend­table­show­the­data­relative­to­the­current­meter­time.
For­example:
1.­You­take­a­bG­test­and­the­value­is­stored­in­the­meter­at­9:00.
2.­The­meter­time­is­changed­ahead­1­hour.
3.­The­bG­data­on­the­trend­table­is­shown­at­10:00.
•­Trend­table­data­is­cleared­if­bolus­advice­data­is­cleared.
•­­For­a­given­record,­if­the­blood­glucose­value,­carb­value,­or­bolus­value­is­empty,­the­corresponding­
field­is­blank.
•­The­most­recent­record­is­displayed­first.
101
50813_00048009694_D.indb 101
7/3/12 3:13 PM
Trend Table
1.
j­­When­there­are­multiple­
records,­press­x­or­z­to­view­
other­records.
2.
3.
j­­To­display­a­trend­table­for­
another­time­range­(last­­
8­hours,­24­hours,­48­hours,­­
or­7­days),­press­x­to­highlight­
the­time­range­selection­field­
(top­of­screen).­Press­­
either­<­or­>­until­you­reach­
the­time­range­you­need.
j­­To­display­a­trend­table­for­
another­meal­time­selection­
(Overall,­Pre­Meal,­Post­Meal,­
Bedtime,­or­Other),­press­
either­x­or­z­to­highlight­
the­meal­time­selection­field­
(immediately­below­the­time­
range­which­is­at­the­top­of­
the­screen).­Press­either­<­or­>­
until­you­reach­the­meal­time­
selection­you­need.
102
50813_00048009694_D.indb 102
7/3/12 3:13 PM
4.
j­­Press­.­to­display­the­Graph­
(see­previous­section­for­more­
information).
4
i NOTE
The­meter­saves­the­current­settings­(time­range,­meal­time,­and­
table­view)­when­you­select­Back­or­when­the­meter­powers­off.
To return to the Reports
screen, select Back.
103
50813_00048009694_D.indb 103
7/3/12 3:13 PM
Reporting Your Standard Day
The­meter­displays­(for­a­standard­day)­your­blood­glucose­averages,­number­of­tests,­and­standard­
deviations­within­predetermined­time­blocks­for­the­time­range­you­choose­(last­7,­14,­30,­60,­or­90­days).
Main Menu > My Data > Reports > Standard Day
1.
2.
3.
j­­From­the­Main­Menu,­select­
My­Data­and­press­=.
j­­Select­Reports­and­press­=.
j­­Select­Standard­Day­and­
press­=.
104
50813_00048009694_D.indb 104
7/3/12 3:13 PM
4
Standard Day Graph Screen
Time Range
Meal Time Selection
Blood Glucose Unit of
Measure
Blood Glucose Icon
Time of Day
Warning Limit Hypo Level
Red­horizontal­line
Arrow
Indicates­blood­glucose­
average­is­off­the­top­of­the­
graph­(“X”­is­not­displayed)
Box for Each Time Block
•­­“X”­in­centre­of­box­indicates­the­
average­of­all­blood­glucose­test­
results­for­the­selected­criteria.
•­­The­top­of­the­box­indicates­1­standard­
deviation­above­the­average­and­the­
bottom­of­the­box­indicates­1­standard­
deviation­below­the­average.­The­box­
is­not­displayed­if­there­are­not­enough­
data­to­determine­standard­deviation.
•­­The­top­of­box­is­open­if­the­standard­
deviation­is­off­the­top­of­the­graph.
•­­Box­and­“X”­are­not­displayed­for­a­
time­block­if­no­data­are­found.
Ending Time of Each Time
Block
Vertical­dashed­line
105
50813_00048009694_D.indb 105
7/3/12 3:13 PM
i NOTE
•­If­data­are­not­available­to­display­the­standard­day­graph,­the­No­Data­Available­screen­is­displayed.
•­The­standard­day­graph­does­not­include­corrupt­results,­control­results,­HI­values,­or­LO­values.
106
50813_00048009694_D.indb 106
7/3/12 3:13 PM
4
Standard Day Graph
1.
j­­To­display­a­standard­day­
graph­for­another­time­range­
(last­7,­14,­30,­60,­or­90­days),­
press­x­to­highlight­the­time­
range­selection­field­(top­of­
screen).­Press­either­<­or­>­
until­you­reach­the­time­range­
you­need.
2.
3.
j­­To­display­a­standard­day­
graph­for­another­meal­time­
selection­(Overall,­Pre­Meal,­­
Post­Meal,­Bedtime,­or­Other),­­
press­either­x­or­z­to­
highlight­the­meal­time­
selection­field­(immediately­
below­the­time­range­which­is­
at­the­top­of­the­screen).­Press­
either­<­or­>­until­you­reach­
the­meal­time­selection­you­
need.
j­­Press­.­to­display­the­Table­
(proceed­to­the­next­section­for­
more­information).
To return to the Reports screen,
select Back.
107
50813_00048009694_D.indb 107
7/3/12 3:13 PM
i NOTE
The­meter­saves­the­current­settings­(time­range,­meal­time,­and­graph­view)­when­you­select­Back­or­
when­the­meter­powers­off.
108
50813_00048009694_D.indb 108
7/3/12 3:13 PM
4
Standard Day Table Screen
Time Range
Standard Deviation (SD)
Meal Time Selection
Number of Tests
Time Block
Blood Glucose Average
109
50813_00048009694_D.indb 109
7/3/12 3:13 PM
i NOTE
•­If­data­are­not­available­to­display­the­standard­day­table,­the­No­Data­Available­screen­is­displayed.
•­Standard­day­table­calculations­do­not­include­corrupt­results,­control­results,­or­HI­and­LO­results.
•­­For­a­standard­deviation­to­be­displayed­for­a­given­time­block,­there­must­have­been­two­or­more­
tests­recorded­during­the­time­block.
110
50813_00048009694_D.indb 110
7/3/12 3:13 PM
4
Standard Day Table
1.
j­­Press­x­or­z­to­scroll­screen.
2.
3.
j­­To­display­a­standard­day­table­
for­another­time­range­(last­7,­
14,­30,­60,­or­90­days),­press­
x­to­highlight­the­time­range­
selection­field­(top­of­screen).­
Press­either­<­or­>­until­you­
reach­the­time­range­you­need.
j­­To­display­a­standard­day­table­
for­another­meal­time­selection­
(Overall,­Pre­Meal,­Post­Meal,­
Bedtime,­or­Other),­press­­
either­x­or­z­to­highlight­
the­meal­time­selection­field­
(immediately­below­the­time­
range­which­is­at­the­top­of­
the­screen).­Press­either­<­or­>­
until­you­reach­the­meal­time­
selection­you­need.
111
50813_00048009694_D.indb 111
7/3/12 3:13 PM
4.
j­­Press­.­to­display­the­Graph­
(see­previous­section­for­more­
information).
i NOTE
The­meter­saves­the­current­settings­(time­range,­meal­time,­and­
table­view)­when­you­select­Back­or­when­the­meter­powers­off.
To return to the Reports screen,
select Back.
112
50813_00048009694_D.indb 112
7/3/12 3:13 PM
4
Reporting Your Standard Week
The­meter­displays­(for­a­standard­week)­your­blood­glucose­averages,­number­of­tests,­and­standard­
deviations­for­each­day­of­the­week­for­the­time­range­you­choose­(last­7,­14,­30,­60,­or­90­days).
Main Menu > My Data > Reports > Standard Week
1.
2.
3.
j­­From­the­Main­Menu,­select­
My­Data­and­press­=.
j­­Select­Reports­and­press­=.
j­­Select­Standard­Week­and­
press­=.
113
50813_00048009694_D.indb 113
7/3/12 3:13 PM
Standard Week Graph Screen
Time Range
Meal Time Selection
Blood Glucose Unit of
Measure
Blood Glucose Icon
Day of Week
Warning Limit Hypo Level
Red­horizontal­line
Arrow
Indicates­blood­glucose­average­is­off­the­
top­of­the­graph­(“X”­is­not­displayed)
Box for Each Time Block
•­­“X”­in­centre­of­box­indicates­the­average­
of­all­blood­glucose­test­results­for­the­
selected­criteria.
•­­The­top­of­the­box­indicates­1­standard­
deviation­above­the­average­and­the­
bottom­of­the­box­indicates­1­standard­
deviation­below­the­average.­The­box­is­
not­displayed­if­there­are­not­enough­data­
to­determine­standard­deviation.
•­­The­top­of­box­is­open­if­the­standard­
deviation­is­off­the­top­of­the­graph.
•­­Box­and­“X”­are­not­displayed­for­a­day­if­
no­data­are­found.
114
50813_00048009694_D.indb 114
7/3/12 3:13 PM
4
i NOTE
•­­If­data­are­not­available­to­display­the­standard­week­graph,­the­No­Data­Available­screen­is­
displayed.
•­The­standard­week­graph­does­not­include­corrupt­results,­control­results,­HI­values,­or­LO­values.
115
50813_00048009694_D.indb 115
7/3/12 3:13 PM
Standard Week Graph
1.
j­­To­display­a­standard­week­
graph­for­another­time­range­
(last­7,­14,­30,­60,­or­90­days),­
press­x­to­highlight­the­time­
range­selection­field­(top­of­
screen).­Press­either­<­or­>­
until­you­reach­the­time­range­
you­need.­
2.
3.
j­­To­display­a­standard­week­
graph­for­another­meal­time­
selection­(Overall,­Pre­Meal,­­
Post­Meal,­Bedtime,­or­Other),­­
press­either­x­or­z­to­
highlight­the­meal­time­
selection­field­(immediately­
below­the­time­range­which­is­
at­the­top­of­the­screen).­Press­
either­<­or­>­until­you­reach­
the­meal­time­selection­you­
need.
j­­Press­.­to­display­the­Table­
(proceed­to­the­next­section­for­
more­information).
To return to the Reports
screen, select Back.
116
50813_00048009694_D.indb 116
7/3/12 3:13 PM
4
i NOTE
The­meter­saves­the­current­settings­(time­range,­meal­time,­and­graph­view)­when­you­select­Back­or­
when­the­meter­powers­off.
117
50813_00048009694_D.indb 117
7/3/12 3:13 PM
Standard Week Table Screen
Time Range
Standard Deviation (SD)
Meal Time Selection
Number of Tests
Day of Week
Blood Glucose Average
i NOTE
•­If­data­are­not­available­to­display­the­standard­week­table,­the­No­Data­Available­screen­is­displayed.
•­Standard­week­table­calculations­do­not­include­corrupt­results,­control­results,­or­HI­and­LO­results.
•­­For­a­standard­deviation­to­be­displayed­for­a­given­day­of­the­week,­there­must­have­been­two­or­
more­tests­recorded­during­the­day.
118
50813_00048009694_D.indb 118
7/3/12 3:13 PM
4
Standard Week Table
1.
j­­Press­x­or­z­to­scroll­screen.
2.
3.
j­­To­display­a­standard­week­
table­for­another­time­range­
(last­7,­14,­30,­60,­or­90­days),­
select­the­time­range­selection­
field­(top­of­screen).­Press­
either­<­or­>­until­you­reach­
the­time­range­you­need.
j­­To­display­a­standard­week­
graph­for­another­meal­time­
selection­(Overall,­Pre­Meal,­­
Post­Meal,­Bedtime,­or­Other),­­
press­either­x­or­z­to­
highlight­the­meal­time­
selection­field­(immediately­
below­the­time­range­which­is­
at­the­top­of­the­screen).­Press­
either­<­or­>­until­you­reach­
the­meal­time­selection­you­
need.
119
50813_00048009694_D.indb 119
7/3/12 3:13 PM
4.
j­­Press­.­to­display­the­Graph­
(see­previous­section­for­more­
information).
i NOTE
The­meter­saves­the­current­settings­(time­range,­meal­time,­and­
table­view)­when­you­select­Back­or­when­the­meter­powers­off.
To return to the Reports
screen, select Back.
120
50813_00048009694_D.indb 120
7/3/12 3:13 PM
4
Reporting Your Target
The­meter­displays­a­pie­chart­illustrating­your­blood­glucose­records­as­“Above,”­“Within,”­“Below,”­and­
“Hypo”­for­the­time­range­you­choose­(last­7,­14,­30,­60,­or­90­days).
Main Menu > My Data > Reports > Target
1.
2.
3.
j­­From­the­Main­Menu,­select­
My­Data­and­press­=.
j­­Select­Reports­and­press­=.
j­­Select­Target­and­press­=.
121
50813_00048009694_D.indb 121
7/3/12 3:13 PM
Target Graph Screen
Time Range
Meal Time Selection
Legend
Pie Chart
Blood­glucose­test­result­
categories
Represents­the­percentages­for­the­
blood­glucose­test­result­categories
iNOTE
•­If­data­are­not­available­to­display­the­target­graph,­the­No­Data­Available­screen­is­displayed.
•­The­target­graph­does­not­include­corrupt­results,­control­results,­or­HI­and­LO­results.
122
50813_00048009694_D.indb 122
7/3/12 3:13 PM
4
Target Graph
1.
j­­To­display­a­target­graph­for­
another­time­range­(last­7,­14,­
30,­60,­or­90­days),­select­the­
time­range­selection­field­(top­
of­screen).­Press­either­<­or­>­
until­you­reach­the­time­range­
you­need.
2.
3.
j­­To­display­a­target­graph­for­
another­meal­time­selection­
(Overall,­Pre­Meal,­Post­Meal,­
Bedtime,­or­Other),­press­
either­x­or­z­to­highlight­
the­meal­time­selection­field­
(immediately­below­the­time­
range­which­is­at­the­top­of­
the­screen).­Press­either­<­or­>­
until­you­reach­the­meal­time­
selection­you­need.
j­­Press­.­to­display­the­Table­
(proceed­to­the­next­section­for­
more­information).
To return to the Reports
screen, select Back.
123
50813_00048009694_D.indb 123
7/3/12 3:13 PM
i NOTE
The­meter­saves­the­current­settings­(time­range,­meal­time,­and­graph­view)­when­you­select­Back­or­
when­the­meter­powers­off.
124
50813_00048009694_D.indb 124
7/3/12 3:13 PM
4
Target Table Screen
Time Range
Meal Time Selection
Legend
Percentage of Occurrence
Blood­glucose­test­result­
categories
i NOTE
•­­If­results­or­data­are­not­available­for­the­selected­time­period­and­meal­time,­the­No­Data­Available­
screen­is­displayed.
•­The­target­table­does­not­include­corrupt­results,­control­results,­or­HI­and­LO­results.
125
50813_00048009694_D.indb 125
7/3/12 3:13 PM
Target Table
1.
j­­To­display­a­target­table­for­
another­time­range­(last­7,­14,­
30,­60,­or­90­days),­select­the­
time­range­selection­field­(top­
of­screen).­Press­either­<­or­>­
until­you­reach­the­time­range­
you­need.
2.
3.
j­­To­display­a­target­table­for­
another­meal­time­selection­
(Overall,­Pre­Meal,­Post­Meal,­
Bedtime,­or­Other),­press­
either­x­or­z­to­highlight­
the­meal­time­selection­field­
(immediately­below­the­time­
range­which­is­at­the­top­of­
the­screen).­Press­either­<­or­>­
until­you­reach­the­meal­time­
selection­you­need.
j­­Press­.­to­display­the­Target­
Graph­(see­previous­section­for­
more­information).
To return to the Reports
screen, select Back.
126
50813_00048009694_D.indb 126
7/3/12 3:13 PM
4
i NOTE
The­meter­saves­the­current­settings­(time­range,­meal­time,­and­table­view)­when­you­select­Back­or­
when­the­meter­powers­off.
127
50813_00048009694_D.indb 127
7/3/12 3:13 PM
4.5 Downloading Your Data to a Computer
You­can­transfer­your­stored­results­to­a­computer­to­track,­identify­patterns,­and­print.­
1.
2.
j­­Install­the­software­according­
to­the­instructions.
j­­Connect­the­computer­cable­
according­to­the­instructions.­
j­­Run­the­software­programme­
and­follow­the­instructions­
about­how­to­download­
information.­Ensure­the­
software­is­ready­to­accept­
data­from­the­meter.
3.
j­­From­the­Main­Menu,­select­
My­Data­and­press­=.
128
50813_00048009694_D.indb 128
7/3/12 3:13 PM
4.
5.
4
6.
Infrared­(IR)­Window
j­­Select­Data­Transfer­and­
press­=.
j­­Locate­the­infrared­(IR)­window­
on­the­top­of­the­meter.­
j­­Locate­the­IR­window­on­the­
computer’s­infrared­cable.
j­­Point­the­two­IR­windows­
toward­each­other.­They­should­
be­3­to­10­cm­apart.
j­­Follow­the­prompts­on­your­
computer­software­to­start­the­
data­transfer.
129
50813_00048009694_D.indb 129
7/3/12 3:13 PM
7.
i NOTE
If­the­data­did­not­transfer­successfully,­turn­off­the­meter,­turn­the­
meter­back­on,­and­try­again.­If­you­still­have­problems,­contact­
Roche.
j­­Once­the­data­transfer­is­
complete,­the­Data­Transfer­
Complete­screen­is­displayed­
for­3­seconds­and­then­the­
meter­turns­off.
130
50813_00048009694_D.indb 130
7/3/12 3:13 PM
5
5
Changing Meter Settings
5.1­Overview­
5.2­­Setting­bG­Test­Reminders:­After­High­bG,­After­Low­bG,­After­Meal­
5.3­Setting­Alarm­Clock­Reminders:­bG­Test,­Other­
5.4­­Setting­Date­Reminders:­Dr.­Visit,­Lab­Test,­Infusion­Set­Change­
5.5­­Setting­Bolus­Advice­for­the­First­Time­
5.6­­Setting­Time­Blocks,­Health­Events,­Advice­Options:­Bolus­Advice­Set­Up­
5.7­Setting­Warning­Limits:­Hyper,­Hypo­
5.8­Turning­Key­Lock­On­or­Off­
5.9­Setting­the­Language­
5.10­Setting­Units:­Carbs­
5.11­Turning­Bluetooth®­Wireless­Technology­On­or­Off­
5.12­Pairing­the­Meter­and­Pump­
5.13­Setting­the­Beeper,­Vibrate,­and­Key­Sound­
5.14­Setting­the­Time­Format,­Time,­and­Date­
5.15­Setting­Time­Blocks:­Bolus­Advice­Not­Set­Up­
5.16­Backlight­Settings­­
132
133
138
141
146
155
164
167
170
173
176
178
179
182
185
193
131
50813_00048009694_D.indb 131
7/3/12 3:13 PM
5.1 Overview
You­have­the­flexibility­to­change­the­Accu-Chek­Aviva­Combo­Meter­settings­that­you­initially­selected­
during­the­Setup­Wizard­process.­You­can­make­adjustments­to­the­meter­settings­in­order­to­meet­changing­
conditions.­Consult­with­your­healthcare­professional­to­ensure­the­appropriate­settings­are­selected.
Settings: Important Information
•­­When­editing­a­setting,­any­unsaved­changes­are­discarded­if­the­meter­turns­off­or­if­a­test­strip­is­
inserted­into­the­meter.
•­It­is­important­to­ensure­that­the­time­and­date­are­correctly­set­in­order­to­create­accurate­diary­records.
•­­If­you­change­the­pump­time­and­date,­the­meter­time­and­date­will­automatically­synchronize­to­match­the­
pump.
i NOTE
­Blood­glucose­and­bG­are­interchangeable­and­mean­the­same­thing.
132
50813_00048009694_D.indb 132
7/3/12 3:13 PM
5
5.2 Setting bG Test Reminders: After High bG, After Low bG,
After Meal
bG Test Reminders: Important Information
•­­At­the­scheduled­time,­the­meter­turns­on­and­displays­the­reminder­(if­a­test­strip­has­not­been­inserted).­
However,­if­the­meter­is­already­on­when­the­reminder­is­scheduled­and­no­blood­glucose­test­was­
performed,­the­reminder­is­displayed­when­the­meter­powers­down.
•­Dismiss­the­reminder­by­pressing­..
•­­Reschedule­(snooze)­the­reminder­by­pressing­,.­The­snooze­time­for­After­High­bG­is­15­minutes.­
The­snooze­time­for­After­Low­bG­and­After­Meal­is­5­minutes.
•­­If­not­dismissed­or­snoozed,­the­reminder­is­displayed­a­total­of­four­times­at­intervals­of­2­minutes,­
after­which­the­meter­dismisses­the­reminder.
•­­When­you­perform­a­blood­glucose­test,­the­meter­dismisses­any­bG­test­reminders­which­are­pending­
within­the­next­30­minutes.­If­necessary,­a­new­reminder­is­scheduled­based­upon­the­blood­glucose­test­
result.
•­For­more­information,­see­Chapter­6,­“Icons,­Reminders,­Warnings,­and­Errors.”
133
50813_00048009694_D.indb 133
7/3/12 3:13 PM
Main Menu > Settings > Reminders > bG Test Reminders
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
j­­Select­Reminders­and­
press­=.
j­­Select­bG­Test­Reminders­and­
press­=.
134
50813_00048009694_D.indb 134
7/3/12 3:13 PM
5
4.
To Change the bG Threshold:­
j­­Select­the­bG­Threshold­entry­
field­and­press­=.
j­­Set­the­bG­Threshold­level­and­
press­=.
j­­Select­either­After­High­bG,­
After­Low­bG,­or­After­Meal­
and­press­=.
j­­Proceed­to­either­After­High­
bG,­After­Low­bG,­or­After­Meal­
in­this­step.
To Turn the After High bG
Reminder On or Off:­
j­­Select­the­Reminder­entry­field­
and­press­=.­
j­­Select­On­or­Off­and­press­=.
To Change the Remind After
Time:­
j­­Select­the­Remind­After­entry­
field­and­press­=.­
j­­Set­the­amount­of­time­after­a­
high­blood­glucose­test­result­
you­want­to­be­reminded­to­
retest­your­blood­glucose­and­
press­=.
To save the changes and
return to the bG Test
Reminders screen, select
Save.
135
50813_00048009694_D.indb 135
7/3/12 3:13 PM
To Turn the After Low bG
Reminder On or Off:­
j­­Select­the­Reminder­entry­field­
and­press­=.­
j­­Select­On­or­Off­and­press­=.
To Change the bG Threshold:­
j­­Select­the­bG­Threshold­entry­
field­and­press­=.
j­­Set­the­bG­Threshold­level­and­
press­=.
To Change the Remind After
Time:­
j­­Select­the­Remind­After­entry­
field­and­press­=.
j­­Set­the­amount­of­time­after­a­
low­blood­glucose­test­result­
you­want­to­be­reminded­to­
retest­your­blood­glucose­and­
press­=.
To save the changes and
return to the bG Test
Reminders screen, select
Save.
To Turn the After Meal
Reminder On or Off: ­
j­­Select­the­Reminder­entry­field­
and­press­=.­
j­­Select­On­or­Off­and­press­=.
To Change the Snack Size:
j­­Select­the­Snack­Size­entry­
field­and­press­=.
j­­Set­the­Snack­Size­amount­
and­press­=.
136
50813_00048009694_D.indb 136
7/3/12 3:13 PM
5
To Change the Remind After
Time:
j­­Select­the­Remind­After­entry­
field­and­press­=.­
j­­Set­the­amount­of­time­after­
a­meal­(carb­entry­larger­than­
the­snack­size)­you­want­to­be­
reminded­to­retest­your­blood­
glucose­and­press­=.
To save the changes, select
Save.­
If­you­did­not­change­the­Snack­
Size,­the­meter­returns­to­the­­
bG­Test­Reminders­screen.
i NOTE
•­­Remind­After­is­displayed­
as­“HH:MM”­(e.g.,­1:30)­
where­“H”­is­hour­and­“M”­
is­minute.
If­you­changed­the­Snack­
Size,­the­After­Meal­screen­is­
displayed.
j­­Select­OK­to­return­to­the­
bG­Test­Reminders­screen.
•­­When­the­meter­is­
displaying­the­Remind­After­
Meal­screen­for­the­first­
time,­if­bolus­advice­has­
not­been­set­up,­the­default­
for­Snack­Size­is­no­entry­
(“---g”).­If­bolus­advice­has­
been­set­up,­the­default­
value­is­the­value­set­for­the­
Snack­Size­on­the­Advice­
Options­screen.
•­­To­cancel­changes­or­to­
return­to­the­previous­
screen,­select­Cancel.
137
50813_00048009694_D.indb 137
7/3/12 3:13 PM
5.3 Setting Alarm Clock Reminders: bG Test, Other
Alarm­clock­reminders­are­a­helpful­way­to­remind­you­to­test­your­blood­glucose,­or­for­any­other­daily­
appointment.­You­can­set­up­to­eight­reminders­per­day.
Alarm Clock Reminders: Important Information
•­­At­the­scheduled­time,­the­meter­turns­on­and­displays­the­reminder­(if­a­test­strip­has­not­been­inserted).­
However,­if­the­meter­is­already­on­when­the­reminder­is­scheduled­(and­no­blood­glucose­test­was­
performed­for­an­Alarm­Clock­bG­Test­Reminder),­the­reminder­is­displayed­when­the­meter­powers­down.
•­­Alarm­Clock­bG­Test:­Dismiss­the­reminder­by­pressing­..­Reschedule­(snooze)­the­reminder­for­
15­minutes­by­pressing­,.
•­­Alarm­Clock­Other:­Dismiss­the­reminder­either­by­pressing­.­or­by­inserting­a­test­strip.­
Reschedule­(snooze)­the­reminder­for­15­minutes­by­pressing­,.
•­­If­not­dismissed­or­snoozed,­the­reminder­is­displayed­a­total­of­four­times­at­intervals­of­2­minutes,­
after­which­the­meter­dismisses­the­reminder.
•­­When­you­perform­a­blood­glucose­test,­the­meter­dismisses­Alarm­Clock­bG­Test­reminders­which­are­
pending­within­the­next­30­minutes.
•­For­more­information,­see­Chapter­6,­“Icons,­Reminders,­Warnings,­and­Errors.”
138
50813_00048009694_D.indb 138
7/3/12 3:13 PM
5
Main Menu > Settings > Reminders > Alarm Clock
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
j­­Select­Reminders­and­
press­=.
j­­Select­Alarm­Clock­and­
press­=.
139
50813_00048009694_D.indb 139
7/3/12 3:13 PM
4.
To Turn Off a Reminder:
j­­Select­the­type­of­Reminder­
entry­field­(i.e.,­bG­Test­or­
Other)­and­press­=.
j­­Select­Off­and­press­=.
j­­Repeat­the­above­steps­to­turn­
off­additional­reminders.
To Turn On or Change a
Reminder:
j­­Select­the­time­entry­field­for­a­
Reminder­and­press­=.
j­­Set­the­time­to­schedule­the­
Reminder­and­press­=.
j­­Press­=.­Select­the­type­
of­Reminder­(i.e.,­bG­Test­or­
Other)­and­press­=.
j­­Repeat­the­above­steps­to­set­
additional­reminders.
To save the changes and
return to the Reminders
screen, select Save.
i NOTE
•­­To­cancel­changes­or­return­
to­the­Reminders­screen,­
select­Cancel.
•­­Time­for­the­Alarm­Clock­
reminders­can­be­set­in­
15-minute­increments,­
where­“HH”­is­hour,­­
“MM”­is­minutes,­and­
with­“am”­or­“pm”­for­the­
12-hour­format.­
•­­If­you­tested­within­­
30­minutes­of­a­bG­Test­
Reminder,­the­reminder­
does­not­occur.
•­­Exposure­to­extreme­cold­
conditions­may­disable­
Alarm­Clock­reminders­until­
the­meter­is­turned­on.
140
50813_00048009694_D.indb 140
7/3/12 3:13 PM
5
5.4 Setting Date Reminders: Dr. Visit, Lab Test, Infusion Set
Change
Date­reminders­are­a­helpful­way­to­remind­you­of­an­upcoming­Dr.­visit­or­lab­test.­In­addition,­you­can­set­
up­an­ongoing­reminder­for­an­infusion­set­change­for­the­interval­you­choose­(1­day,­2­days,­or­3­days).
Date Reminders: Important Information
•­Displayed­when­you­turn­on­the­meter­and­a­test­strip­has­not­been­inserted.
•­Dismiss­the­reminder­either­by­pressing­.­or­by­inserting­a­test­strip.
•­For­more­information,­see­Chapter­6,­“Icons,­Reminders,­Warnings,­and­Errors.”
141
50813_00048009694_D.indb 141
7/3/12 3:13 PM
Main Menu > Settings > Reminders > Date Reminders
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
j­­Select­Reminders­and­
press­=.
j­­Select­Date­Reminders­and­
press­=.
142
50813_00048009694_D.indb 142
7/3/12 3:13 PM
5
4.
To Set the Date:
j­­Select­the­Date­entry­field­and­
press­=.­
j­­Set­the­Day­and­press­=.­
j­­Set­the­Month­and­press­=.­
j­­Set­the­Year­and­press­=.
j­­Select­either­Dr.­Visit,­Lab­Test,­
or­Infusion­Set­Change­and­
press­=.
j­­Proceed­to­either­Dr.­Visit,­Lab­
Test,­or­Infusion­Set­Change­in­
this­step.
To Turn the Dr. Visit Reminder
On or Off:
j­­Select­the­Reminder­entry­field­
and­press­=.­
j­­Select­On­or­Off­and­press­=.
To Set the Time (Optional):
j­­Select­the­Time­entry­field­and­
press­=.
j­­Set­the­Time­and­press­=.
To save the changes and
return to the Date Reminders
screen, select Save.
143
50813_00048009694_D.indb 143
7/3/12 3:13 PM
To Set the Time (Optional):
j­­Select­the­Time­entry­field­and­
press­=.
j­­Set­the­Time­and­press­=.
To Turn the Lab Test
Reminder On or Off:
j­­Select­the­Reminder­entry­field­
and­press­=.­
j­­Select­On­or­Off­and­press­=.
To Set the Date:
j­­Select­the­Date­entry­field­and­
press­=.­
j­­Set­the­Day­and­press­=.­
j­­Set­the­Month­and­press­=.­
j­­Set­the­Year­and­press­=.
To save the changes and
return to the Date Reminders
screen, select Save.­
To Turn the Infusion Set
Change Reminder On or Off:
j­­Select­the­Reminder­entry­field­
and­press­=.­
j­­Select­On­or­Off­and­press­=.
To Set the Interval:
j­­Select­the­Interval­entry­field­
and­press­=.­
j­­Select­the­Interval­(1­day,­
2­days,­or­3­days)­and­­
press­=.
To save the changes and
return to the Date Reminders
screen, select Save.­
144
50813_00048009694_D.indb 144
7/3/12 3:13 PM
5
i NOTE
•­­Setting­a­time­for­a­Date­Reminder­is­optional.­If­you­choose­not­to­set­a­time,­ensure­the­Time­entry­
field­value­is­“--:--”­(no­entry).­
•­­To­cancel­changes­or­to­return­to­the­Date­Reminders­screen,­select­Cancel.
•­­Time­for­the­Dr.­Visit­Reminder­and­the­Lab­Test­Reminder­can­be­set­in­15-minute­increments,­where­
“HH”­is­hour,­“MM”­is­minutes,­and­with­“am”­or­“pm”­for­the­12-hour­format.
•­­Date­Reminders­do­not­automatically­turn­on­the­meter­and­display­the­Reminder.­Date­Reminders­
only­occur­when­you­power­on­the­meter­on­the­appropriate­date.­
145
50813_00048009694_D.indb 145
7/3/12 3:13 PM
5.5 Setting Bolus Advice for the First Time
Set Up Bolus Advice
If­you­did­not­set­up­bolus­advice­when­you­went­through­the­Setup­Wizard­and­have­now­decided­to­utilize­
bolus­advice,­proceed­with­this­section.­Once­you­do­set­up­bolus­advice,­you­cannot­turn­it­off.
It­is­suggested­that­you­review­the­information­in­the­Getting­Started­Guide­before­continuing.­Prior­to­
setting­up­time­blocks­for­bolus­advice,­it­is­recommended­that­you­decide­how­many­time­blocks­you­
need­and­also­determine­the­start/end­times.­Talk­to­your­healthcare­professional­about­arranging­your­
time­blocks­to­help­best­manage­your­diabetes.­For­each­time­block,­you­can­set­up­different­blood­glucose­
target­ranges,­carb­ratios,­and­insulin­sensitivities­to­accommodate­your­differing­insulin­needs­throughout­
the­day.
146
50813_00048009694_D.indb 146
7/3/12 3:13 PM
5
Time Blocks > Bolus Advice Screen
Time Block Start Time
Time Block End Time
Target Range Lower
Value
Target Range Upper Value
Carb Ratio–Number of Carbs
Carb Ratio–Number of
Insulin Units
scroll­down
Insulin Sensitivity–
Number of Insulin Units
Scroll Bar
Insulin Sensitivity–Change in
Glucose Level
147
50813_00048009694_D.indb 147
7/3/12 3:13 PM
Main Menu > Settings > Bolus Advice
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
j­­Select­Bolus­Advice­and­
press­=.
j­­If­you­do­NOT­want­to­set­up­
bolus­advice,­select­No­to­
return­to­the­Settings­screen.­
j­­To­set­up­bolus­advice,­select­
Yes­and­continue­to­the­next­
step.
148
50813_00048009694_D.indb 148
7/3/12 3:13 PM
4.
5.
j­­To­continue,­select­Next.
To Change Time Blocks:
j­­Select­a­time­block­to­edit­and­
press­=.
5
scroll­down
To Change the End Time:
j­­Select­the­End­Time­entry­field­
and­press­=.
j­­Set­the­End­Time­and­
press­=.
149
50813_00048009694_D.indb 149
7/3/12 3:13 PM
6.
To Change the Target Range:
j­­Select­the­entry­field­for­the­
lower­value­of­the­Target­
Range­and­press­=.
j­­Set­the­value­and­press­=.
j­­Select­the­entry­field­for­the­
upper­value­of­the­Target­
Range­and­press­=.
j­­Set­the­value­and­press­=.
To Change the Carb Ratio:
j­­Select­the­entry­field­for­the­
number­of­Insulin­Units­and­
press­=.
j­­Set­the­number­of­Insulin­Units­
and­press­=.
j­­Select­the­entry­field­for­the­
amount­of­Carbs­and­­
press­=.
j­­Set­the­amount­of­Carbs­
covered­by­the­number­of­
Insulin­Units­and­press­=.
To Change the Insulin
Sensitivity:
j­­Select­the­entry­field­for­the­
number­of­Insulin­Units­and­
press­=.
j­­Set­the­number­of­Insulin­Units­
and­press­=.
j­­Select­the­entry­field­for­the­
Insulin­Sensitivity­level­and­
press­=.
j­­Set­the­Insulin­Sensitivity­level­
and­press­=.
j­­Select­Save.
The­carb­ratio­and­insulin­
sensitivity­are­copied­to­all­time­
blocks.­You­may­edit­the­target­
range,­carb­ratio,­and­insulin­
sensitivity­for­any­other­time­
block,­if­necessary.
j­­Select­OK.
150
50813_00048009694_D.indb 150
7/3/12 3:13 PM
5
7.
j­­Return­to­Step­5­to­change­
another­Time­Block.
j­­Continue­in­order­to­add­
or­remove­Time­Blocks,­
otherwise­select­Next­and­
proceed­to­Step­8.­
To Add a Time Block:
j­­Select­the­last­time­block­and­
press­=.
j­­Select­the­End­Time­entry­field­
and­press­=.
j­­Set­the­End­Time­of­the­
selected­time­block­and­press­
=.­This­will­be­the­start­time­
of­the­added­time­block.
j­­To­save­the­changes­and­
return­to­the­Time­Blocks­
screen,­select­Save.
j­­Add­another­Time­Block,­or­
proceed­to­Step­8.
j­­Select­the­End­Time­entry­field­
and­press­=.
j­­Set­the­End­Time­to­match­the­
start­time­of­the­Time­Block­
and­press­=.
j­­To­save­the­changes­and­
return­to­the­Time­Blocks­
screen,­select­Save.
j­­Remove­another­Time­Block,­or­
proceed­to­Step­8.
To Remove a Time Block:
j­­Select­the­Time­Block­you­
want­to­remove­and­press­=.
151
50813_00048009694_D.indb 151
7/3/12 3:13 PM
8.
9.
To Change the Acting Time:
j­­Select­the­Acting­Time­entry­
field­and­press­=.­
j­­Set­the­Acting­Time­duration­
and­press­=.
To Change the Health Events:
j­­Select­the­entry­field­of­the­
Health­Event­to­be­changed­
and­press­=.
j­­Set­the­percentage­and­
press­=.
j­­Repeat­the­previous­steps­to­
change­another­Health­Event.
j­­To­continue,­select­Next.
To Change the Meal Rise:
j­­Select­the­Meal­Rise­entry­field­
and­press­=.­
j­­Set­the­Meal­Rise­limit­and­
press­=.­
To Change the Snack Size:
j­­Select­the­Snack­Size­entry­
field­and­press­=.
j­­Set­the­Snack­Size­amount­
and­press­=.
To Change the Offset Time:
j­­Select­the­Offset­Time­entry­
field­and­press­=.­
j­­Set­the­Offset­Time­duration­
and­press­=.
To save the changes and exit,
select Save.­
152
50813_00048009694_D.indb 152
7/3/12 3:13 PM
10.
11.
j­­Select­OK.
j­­To­return­to­the­Settings­
screen,­select­Back.­
5
153
50813_00048009694_D.indb 153
7/3/12 3:13 PM
Bolus Advice Options
Meal­Rise,­Snack­Size,­Acting­Time,­and­Offset­Time­are­Bolus­Advice­Options.­Below­are­detailed­
descriptions­of­each­of­these­settings.
Meal Rise
During­or­after­meals,­an­increase­in­blood­glucose­levels­is­considered­normal­within­a­certain­range,­even­
though­a­meal­bolus­has­been­delivered.­Enter­the­maximum­increase­in­your­blood­glucose­test­result­that­
is­to­be­tolerated­without­an­additional­correction­bolus.
Snack Size
The­snack­size­is­the­amount­of­carbohydrates­that­is­not­to­be­counted­as­a­regular­meal­with­the­expected­
meal­rise.­In­this­case­(in­contrast­to­regular­meals),­an­increase­in­your­blood­glucose­test­result­is­not­
tolerated­since­the­meal­rise­factor­is­not­triggered­for­bolus­advice­calculations.
Acting Time
The­acting­time­is­the­period­of­time­from­the­start­of­the­meal­rise­or­the­delivery­of­a­correction­bolus­­
until­your­blood­glucose­level­is­expected­to­return­to­the­target­level.­You­can­adjust­the­length­of­the­acting­
time­to­your­individual­needs,­within­a­specified­time­interval­(1½­hours­to­8­hours).
Offset Time
Offset­time­takes­into­account­the­expected­delay­for­the­blood­glucose­level­to­actually­fall­during­the­
acting­time­of­insulin­in­the­body.­
154
50813_00048009694_D.indb 154
7/3/12 3:13 PM
5
5.6 Setting Time Blocks, Health Events, Advice Options: Bolus
Advice Set Up
If­bolus­advice­has­been­set­up,­use­this­section­for:
•­Adding­or­removing­time­blocks
•­Changing­the­time­of­day­when­time­blocks­occur
•­Changing­the­values­for­target­range,­carb­ratio,­and­insulin­sensitivity­for­any­time­block
•­Changing­health­event­percentages
•­Changing­advice­options­(meal­rise,­snack­size,­acting­time,­offset­time)
Before­continuing,­it­is­recommended­that­you­review­the­Getting­Started­Guide,­determine­how­many­time­
blocks­you­need,­and­determine­the­start/end­times­for­each­time­block.­To­help­best­manage­your­diabetes,­
talk­to­your­healthcare­professional­about­arranging­your­time­blocks,­including­setting­up­different­blood­
glucose­target­ranges,­carb­ratios,­and­insulin­sensitivities­for­each­time­block.
155
50813_00048009694_D.indb 155
7/3/12 3:13 PM
Setting Time Blocks–Bolus Advice is Set Up
Main Menu > Settings > Bolus Advice > Time Blocks
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
j­­Select­Bolus­Advice­and­
press­=.
j­­Select­Time­Blocks­and­
press­=.
156
50813_00048009694_D.indb 156
7/3/12 3:13 PM
5
4.
To Add or Remove Time
Blocks:
If­you­do­not­need­to­add­or­
remove­time­blocks,­then­
proceed­to­“To­Change­the­Time­
Blocks.”
To Add a Time Block:
j­­Select­the­last time­block­and­
press­=.
j­­Select­the­End­Time­entry­field­
and­press­=.
j­­Set­the­End­Time­of­the­
selected­Time­Block­and­press­
=.­This­will­be­the­start­time­
of­the­added­time­block.
j­­To­save­the­changes­and­
return­to­the­Time­Blocks­
screen,­select­Save.
j­­Proceed­to­“To­Change­the­
Time­Blocks.”
To Remove a Time Block:
j­­Select­the­Time­Block­you­
want­to­remove­and­press­=.
j­­Select­the­End­Time­entry­field­
and­press­=.
j­­Set­the­End­Time­to­match­the­
start­time­of­the­Time­Block­
and­press­=.
j­­To­save­the­changes­and­
return­to­the­Time­Blocks­
screen,­select­Save.
j­­Proceed­to­“To­Change­the­
Time­Blocks.”
To Change the Time Blocks:
j­­Select­a­Time­Block­to­edit­and­
press­=.
157
50813_00048009694_D.indb 157
7/3/12 3:13 PM
5.
To Change the End Time:
j­­Select­the­End­Time­entry­field­
and­press­=.­
j­­Set­the­End­Time­and­
press­=.
To Change the Target Range:
j­­Select­the­entry­field­for­the­
lower­value­of­the­Target­
Range­and­press­=.
j­­Set­the­value­and­press­=.
j­­Select­the­entry­field­for­the­
upper­value­of­the­Target­
Range­and­press­=.
j­­Set­the­value­and­press­=.
To Change the Carb Ratio:
j­­Select­the­entry­field­for­the­
number­of­Insulin­Units­and­
press­=.
j­­Set­the­number­of­Insulin­Units­
and­press­=.
j­­Select­the­entry­field­for­the­
amount­of­Carbs­and­­
press­=.
j­­Set­the­amount­of­Carbs­
covered­by­the­selected­units­
of­insulin­and­press­=.
To Change the Insulin
Sensitivity:
j­­Select­the­entry­field­for­the­
number­of­Insulin­Units­and­
press­=.
j­­Set­the­number­of­Insulin­Units­
and­press­=.
j­­Select­the­entry­field­for­the­
Insulin­Sensitivity­level­and­
press­=.
j­­Set­the­Insulin­Sensitivity­level­
and­press­=.
j­­Select­Save.
158
50813_00048009694_D.indb 158
7/3/12 3:13 PM
6.
5
j­­To­change­another­time­block,­
select­the­time­block­and­­
press­=.­Return­to­Step­5.
j­­To­return­to­the­Bolus­Advice­
screen,­select­Back.
159
50813_00048009694_D.indb 159
7/3/12 3:13 PM
Setting Health Events–Bolus Advice is Set Up
Main Menu > Settings > Bolus Advice > Health Events
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
j­­Select­Bolus­Advice­and­
press­=.
j­­Select­Health­Events­and­
press­=.
160
50813_00048009694_D.indb 160
7/3/12 3:13 PM
4.
5
To Change the Health Events:
j­­Select­the­entry­field­of­the­
Health­Event­to­be­changed­
and­press­=.
j­­Set­the­percentage­and­
press­=.
j­­Repeat­the­previous­steps­to­
change­other­Health­Events.
To save the changes and
return to the Bolus Advice
screen, select Save.
161
50813_00048009694_D.indb 161
7/3/12 3:13 PM
Setting Bolus Advice Options–Bolus Advice is Set Up
Main Menu > Settings > Bolus Advice > Advice Options
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
j­­Select­Bolus­Advice­and­
press­=.
j­­Select­Advice­Options­and­
press­=.
162
50813_00048009694_D.indb 162
7/3/12 3:13 PM
5
4.
To Change the Snack Size:
j­­Select­the­Snack­Size­entry­
field­and­press­=.
j­­Set­the­Snack­Size­amount­
and­press­=.
To Change the Meal Rise:
j­­Select­the­Meal­Rise­entry­field­
and­press­=.
j­­Set­the­Meal­Rise­limit­and­
press­=.
If­you­did­not­change­the­Snack­
Size,­the­meter­returns­to­the­
Bolus­Advice­screen.
To Change the Acting Time:
j­­Select­Acting­Time­entry­field­
and­press­=.
j­­Set­the­Acting­Time­duration­
and­press­=.
To Change the Offset Time:
j­­Select­the­Offset­Time­entry­
field­and­press­=.
j­­Set­the­Offset­Time­duration­
and­press­=.
If­you­changed­the­Snack­Size,­
the­meter­displays­the­Advice­
Options­screen.
j­­Select­OK­to­return­to­the­
Bolus­Advice­screen.
To save the changes, select
Save.­
163
50813_00048009694_D.indb 163
7/3/12 3:13 PM
5.7 Setting Warning Limits: Hyper, Hypo
You­can­set­blood­glucose­warning­limits­for­hyperglycaemia­(Hyper)­or­hypoglycaemia­(Hypo)­conditions.­
Once­these­blood­glucose­limit­values­have­been­set,­if­your­test­result­is­above­the­hyper­warning­limit,­
the­meter­displays­the­Above­Hyper­Warning­Limit­message:­“Consider­checking­for­ketones,­bG­and­insulin­
regularly.”­If­your­test­result­is­below­the­hypo­warning­limit,­the­meter­displays­the­Below­Hypo­Warning­
Limit­message:­“Eat­fast­carbs­of­at­least­(number­of­carbs)¹­Retest­bG.”
1
The­meter­displays­a­recommended­amount­of­fast­carbohydrates.
w WARNING
This­function­is­no­substitute­for­hyperglycaemia­or­hypoglycaemia­training­by­your­healthcare­professional.
164
50813_00048009694_D.indb 164
7/3/12 3:13 PM
5
Main Menu > Settings > Meter > Warning Limits
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
j­­Select­Meter­and­press­=.
j­­Select­Warning­Limits­and­
press­=.
165
50813_00048009694_D.indb 165
7/3/12 3:13 PM
4.
To save the changes and
return to the Meter Menu
screen, select Save.
To Change the Hyper Blood
Glucose Level:
j­­Select­the­Hyper­entry­field­
and­press­=.
j­­Set­the­Hyper­(upper)­blood­
glucose­level­and­press­=.
To Change the Hypo Blood
Glucose Level:
j­­Select­the­Hypo­entry­field­and­
press­=.
j­­Set­the­Hypo­(lower)­blood­
glucose­level­and­press­=.
166
50813_00048009694_D.indb 166
7/3/12 3:13 PM
5
5.8 Turning Key Lock On or Off
The­key­lock­feature­allows­you­to­lock­all­of­the­buttons­on­the­meter,­except­for­the­power­on/off­button.­
This­serves­as­a­safety­measure­against­unintentional­activation­of­meter­functions.
167
50813_00048009694_D.indb 167
7/3/12 3:13 PM
Main Menu > Settings > Meter > Key Lock
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
j­­Select­Meter­and­press­=.
j­­Select­Key­Lock­and­press­=.
168
50813_00048009694_D.indb 168
7/3/12 3:13 PM
5
4.
j­­Press­=­to­display­the­Key­
Lock­pop-up­menu.
j­­Select­On­or­Off.
To save the change and return
to the Meter Menu screen,
select Save.
If­the­buttons­are­locked­when­
you­turn­on­the­meter,­the­Key­
Lock­screen­is­displayed.
j­­To­unlock­the­buttons,­press­
and­hold­,­and­.­at­the­
same­time­until­the­Main­Menu­
is­displayed.
The­buttons­remain­unlocked­for­
the­current­session.­When­the­
meter­is­turned­on­again,­the­
buttons­are­locked.
Key Lock: Important
Information
j­­When­the­buttons­are­locked,­
you­can­still­turn­the­meter­on­
and­off.­You­can­also­adjust­the­
backlight.
j­­The­buttons­are­unlocked­
when:
•­­A­test­strip­is­inserted­into­
the­meter
•­­The­meter­is­turned­on­and­
a­pump­error­or­a­pump­
warning­occurs
For­these­occurrences,­the­
buttons­remain­unlocked­for­the­
current­session.­When­the­meter­
is­turned­on­again,­the­buttons­
are­locked.
169
50813_00048009694_D.indb 169
7/3/12 3:13 PM
5.9 Setting the Language
You­can­select­a­language­from­the­predefined­list.­
170
50813_00048009694_D.indb 170
7/3/12 3:13 PM
5
Main Menu > Settings > Meter > Language
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
j­­Select­Meter­and­press­=.
j­­Select­Language­and­
press­=.
171
50813_00048009694_D.indb 171
7/3/12 3:13 PM
4.
j­­Press­=­to­display­the­
Language­options.
j­­Select­the­desired­Language­
and­press­=.
To save the change and return
to the Meter Menu screen,
select Save.
172
50813_00048009694_D.indb 172
7/3/12 3:13 PM
5
5.10 Setting Units: Carbs
You­can­set­up­the­meter­for­different­carbohydrate­(carbs)­units­(Grams,­BE,­KE,­or­CC).
173
50813_00048009694_D.indb 173
7/3/12 3:13 PM
Main Menu > Settings > Meter > Units
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
j­­Select­Meter­and­press­=.
j­­Select­Units­and­press­=.
174
50813_00048009694_D.indb 174
7/3/12 3:13 PM
4.
5
i NOTE
For­more­information­on­the­units­for­carbohydrates­and­
carbohydrate­equivalents,­see­Appendix­B,­“Carb­Units.”
j­­Press­=­to­display­the­list­of­
units­for­carbs.
j­­Select­the­units­(Grams,­BE,­
KE,­or­CC)­and­press­=.
To save the change and return
to the Meter Menu screen,
select Save.
175
50813_00048009694_D.indb 175
7/3/12 3:13 PM
5.11 Turning Bluetooth® Wireless Technology On or Off
Main Menu > Settings > Meter > Bluetooth
1.
2.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
j­­Select­Meter­and­press­=.
3.
j­­Select­Bluetooth­and­press­=.
176
50813_00048009694_D.indb 176
7/3/12 3:13 PM
4.
5
j­­To­turn­Bluetooth­wireless­
technology­either­On­or­Off,­
press­and­hold­*­until­the­
Bluetooth­wireless­technology­
icon­changes.­Release­*.
To save the change and return
to the Meter Menu screen,
select Back.
177
50813_00048009694_D.indb 177
7/3/12 3:13 PM
5.12 Pairing the Meter and Pump
For­complete­pairing­instructions,­see­the­Advanced­Owner’s­Booklet.
178
50813_00048009694_D.indb 178
7/3/12 3:13 PM
5
5.13 Setting the Beeper, Vibrate, and Key Sound
You­can­set­up­the­meter­for­sound­mode­and/or­vibration­mode.­The­meter­features­different­sound­
(beeper)­tones.­Sounds­may­occur­for:
•­Button­presses­
•­Errors
•­Warnings
•­Reminders
i NOTE
•­Beeper­and­vibrate­cannot­both­be­turned­off­at­the­same­time.
•­When­Key­Sound­is­on,­the­meter­beeps­each­time­a­button­is­pressed.
•­Even­when­the­beeper­is­turned­off,­the­meter­still­beeps­when­an­error­message­occurs.
•­­When­in­the­low­battery­condition,­the­meter­uses­the­medium­beeper­level­(if­the­beeper­level­is­
set­to­high)­and­disables­vibrate.­In­the­low­battery­condition,­the­main­menu­screen­will­continue­
to­display­the­icons­for­vibration­and­beeper,­unless­you­have­set­them­to­Off.­After­the­batteries­are­
replaced­with­new­ones,­the­meter­returns­to­the­beeper/vibrate­settings­you­have­set.
179
50813_00048009694_D.indb 179
7/3/12 3:13 PM
Main Menu > Settings > Sound/Vibrate
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
j­­Select­Sound/Vibrate­and­
press­=.
To Change the Beeper Sound
Level:
j­­Select­the­Beeper­entry­field­
and­press­=.
j­­Select­the­Beeper­Sound­Level­
(Off,­Low,­Medium,­or­High)­
and­press­=.
To Turn the Vibration On or
Off:
j­­Select­the­Vibrate­entry­field­
and­press­=.
j­­Select­the­Vibration­mode­(On­
or­Off)­and­press­=.
180
50813_00048009694_D.indb 180
7/3/12 3:13 PM
5
To Change the Key Sound:
j­­Select­the­Key­Sound­entry­
field­and­press­=.
j­­Select­the­Key­Sound­mode­
(On­or­Off)­and­press­=.
To save the changes and
return to the Settings Menu
screen, select Save.
181
50813_00048009694_D.indb 181
7/3/12 3:13 PM
5.14 Setting the Time Format, Time, and Date
i NOTE
•­­It­is­recommended­you­set­the­date­and­time­on­the­pump­(the­date­and­time­on­the­meter­will­
automatically­synchronize­to­match­the­pump).
•­­Changing­the­date­and­time­will­impact­the­Trend­Graph­and­the­Trend­Table­(see­“Reporting­Your­
Data­Trends”­in­Section­4.4,­“Reporting­Your­Data”).
•­­For­12-hour­time­format,­time­is­displayed­as­“HH:MM­A/P”­(example:­3:53­pm)­and­for­24-hour­time­
format,­time­is­displayed­as­“HH:MM”­(example:­15:53)­where­“H”­is­hour­and­“M”­is­minute.
•­­The­date­format­is­displayed­as­“DD­MMM­YY”­(example:­02­Feb­08)­where­“D”­is­day,­“M”­is­month,­
and­“Y”­is­year.
182
50813_00048009694_D.indb 182
7/3/12 3:13 PM
5
Main Menu > Settings > Time/Date
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
j­­Select­Time/Date­and­
press­=.
To Change the Time Format:
j­­Select­the­Time­Format­entry­
field­and­press­=.
j­­Select­12-hr­or­24-hr­Time­
Format­and­press­=.
To Change the Time:
j­­Select­the­Time­entry­field­and­
press­=.
j­­Set­the­Hour­and­press­=.
j­­Set­the­Minutes­and­press­=.
j­­If­Time­Format­is­12-hour,­
select­am­or­pm­and­press­=.­
183
50813_00048009694_D.indb 183
7/3/12 3:13 PM
To Change the Date:
j­­Select­the­Date­entry­field­and­
press­=.
j­­Set­the­Day­and­press­=.
j­­Set­the­Month­and­press­=.
j­­Set­the­Year­and­press­=.
To save the changes and
return to the Settings Menu
screen, select Save.
184
50813_00048009694_D.indb 184
7/3/12 3:13 PM
5
5.15 Setting Time Blocks: Bolus Advice Not Set Up
This­section­is­for­changing,­adding,­and­removing­time­blocks­only­if­bolus­advice­has­not­been­set­up.­
For­each­time­block,­you­can­set­up­different­blood­glucose­target­ranges.­It­is­suggested­that­you­review­
the­Getting­Started­Guide­before­continuing.­Prior­to­setting­up­time­blocks,­it­is­recommended­that­you­
determine­how­many­time­blocks­you­need­and­also­determine­the­start/end­times.­Talk­to­your­healthcare­
professional­about­arranging­your­time­blocks­in­order­to­help­best­manage­your­diabetes.­
Target Range Lower Value
Time Block End Time
Target Range Upper Value
185
50813_00048009694_D.indb 185
7/3/12 3:13 PM
Change End Time, Target Range Lower Value, and/or Target Range Upper Value
Main Menu > Settings > Time Blocks
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
Time­Blocks­does­not­appear­if­
bolus­advice­has­been­set­up.
j­­Select­Time­Blocks­and­
press­=.
j­­Select­the­time­block­to­edit­
and­press­=.
186
50813_00048009694_D.indb 186
7/3/12 3:13 PM
4.
5
5.
To save the changes and
return to the Time Blocks
screen, select Save.
To Change the End Time:
j­­Select­the­End­Time­entry­field­
and­press­=.
j­­Set­the­End­Time­and­
press­=.
To Change the Target Range:
j­­Select­the­entry­field­for­the­
lower­value­of­the­Target­
Range­and­press­=.
j­­Set­the­value­and­press­=.
j­­Select­the­entry­field­for­the­
upper­value­of­the­Target­
Range­and­press­=.
j­­Set­the­value­and­press­=.
j­­Repeat­Steps­3­and­4­to­
change­another­time­block.­
Otherwise,­select­Back­to­
return­to­the­Settings­screen.
187
50813_00048009694_D.indb 187
7/3/12 3:13 PM
i NOTE
•­­When­you­set­the­end­time,­the­meter­sets­this­end­time­as­the­start­time­for­the­next­time­block.
•­The­end­time­can­be­set­in­30-minute­increments.­
•­To­cancel­changes­press­,.
188
50813_00048009694_D.indb 188
7/3/12 3:13 PM
5
Add a Time Block
Main Menu > Settings > Time Blocks
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
Time­Blocks­does­not­appear­if­
bolus­advice­has­been­set­up.
j­­Select­Time­Blocks­and­
press­=.
j­­Select­the­last­time­block­
and­press­=.
189
50813_00048009694_D.indb 189
7/3/12 3:13 PM
4.
5.
j­­Update­the­End­Times­and­
Target­Ranges­for­all­time­
blocks,­as­needed.­See­
“Change­End­Time,­Target­
Range­Lower­Value,­and/or­
Target­Range­Upper­Value”­in­
this­section.
j­­Select­the­End­Time­entry­field­
and­press­=.
j­­Set­the­End­Time­of­the­
selected­Time­Block­and­­
press­=.­This­will­be­the­start­
time­of­the­added­time­block.
To save the changes and
return to the Time Blocks
screen, select Save.
190
50813_00048009694_D.indb 190
7/3/12 3:13 PM
5
Remove a Time Block
Main Menu > Settings > Time Blocks
1.
2.
3.
j­­From­the­Main­Menu,­select­
Settings­and­press­=.
Time­Blocks­does­not­appear­if­
bolus­advice­has­been­set­up.
j­­Select­Time­Blocks­and­
press­=.
j­­Select­the­Time­Block­you­
want­to­remove­and­press­=.
191
50813_00048009694_D.indb 191
7/3/12 3:13 PM
4.
5.
j­­Update­the­End­Times­
and­Target­Ranges­for­the­
remaining­time­blocks,­as­
needed. See­“Change­End­
Time,­Target­Range­Lower­
Value,­and/or­Target­Range­
Upper­Value”­in­this­section.
j­­Select­the­End­Time­entry­field­
and­press­=.
j­­Set­the­End­Time­to­match­the­
start­time­of­the­Time­Block­
and­press­=.
To save the changes and
return to the Time Blocks
screen, select Save.
192
50813_00048009694_D.indb 192
7/3/12 3:13 PM
5
5.16 Backlight Settings
The­backlight­on­your­Accu-Chek­Aviva­Combo­Meter­helps­you­read­the­information­on­the­meter­display­
under­different­lighting­conditions.­You­can­adjust­the­backlight­level­by­pressing­the­backlight­button­on­the­
front­of­the­meter.­The­backlight­adjusts­from­low,­to­medium,­to­high,­and­back­to­low­again.
Backlight Button­
Press­to­adjust­the­backlight­level.
193
50813_00048009694_D.indb 193
7/3/12 3:13 PM
i NOTE
•­­When­the­meter­is­turned­on,­the­backlight­is­set­to­medium.
•­­When­the­backlight­is­set­to­high­or­medium­and­no­button­activity­has­occurred­for­approximately­
15­seconds,­the­meter­goes­to­low­backlight­(to­conserve­battery­life).­The­meter­restores­the­original­
backlight­setting­when­you­press­a­button,­insert­a­test­strip,­or­when­the­meter­displays­the­bG­Results­
screen.
•­­When­in­the­low­battery­condition,­the­meter­uses­the­medium­backlight­level­(if­the­backlight­level­is­
set­to­high).­After­the­batteries­are­replaced­with­new­ones,­the­meter­again­allows­the­high­backlight­
setting.
•­­The­backlight­button­is­disabled­during­a­blood­glucose­test,­a­control­test,­and­when­the­meter­is­
transferring­data.
194
50813_00048009694_D.indb 194
7/3/12 3:13 PM
6
6
Icons, Reminders, Warnings, and Errors
6.1­Overview­
6.2­List­of­Icons­
6.3­­Confirming­a­Reminder,­Warning,­or­Error­
6.4­List­of­Reminders­
6.5­List­of­Warnings­
6.6­List­of­Errors­
196
197
199
200
210
216
195
50813_00048009694_D.indb 195
7/3/12 3:13 PM
6.1 Overview
This­chapter­provides­you­with­detailed­listings­of­all­the­icons,­reminders,­warnings,­and­errors­included­in­
the­meter.
i NOTE
Blood­glucose­and­bG­are­interchangeable­and­mean­the­same­thing.
196
50813_00048009694_D.indb 196
7/3/12 3:13 PM
6
6.2 List of Icons
The­icons­and­icon­names­in­the­meter­are:
Icon Name
Icon
Icon Name
Active­Insulin
Control­Test
Add­Data
Date
Analyzing
Download­(Data­Transfer)
Beeper
Error
Blood­Glucose­Averages
Extended­Bolus­Not­Confirmed
Blood­Glucose­Test
Extended­Bolus­Confirmed
Bluetooth­Wireless­Technology­Enabled
Health
Bolus­Advice
Low­Battery
Bolus­Advice­(Settings)
Meal­Time
Carbs
Meter
Icon
197
50813_00048009694_D.indb 197
7/3/12 3:13 PM
Icon Name
Icon
Icon Name
Meter­(Settings)
Sound/Vibrate­(Settings)
Multiwave­Bolus­Not­Confirmed
Standard­Bolus­Not­Confirmed
Multiwave­Bolus­Confirmed
Standard­Bolus­Confirmed
My­Data
Time
Pen/Syringe­Bolus
Time­Block­(Settings)
Pump
Time­Change
Reminder
Time/Date­(Settings)
Reminders­(Settings)
Vibrate
Reports
View­Data
Settings
Warning
Icon
198
50813_00048009694_D.indb 198
7/3/12 3:13 PM
6
6.3 Confirming a Reminder, Warning, or Error
To­confirm­(or­dismiss)­most­reminders­or­warnings,­press­..­Some­error­messages­require­a­different­
confirmation,­such­as­“Retest­with­new­Strip”­or­“Replace­batteries­now.”­To­place­some­reminders­in­the­
snooze­mode,­press­,.­See­the­following­sections­for­more­details­on­a­specific­reminder,­warning,­or­error.­
199
50813_00048009694_D.indb 199
7/3/12 3:13 PM
6.4 List of Reminders
Reminder Screen Example
Reminder Icon
Reminder Title
Snooze
Reminder Message
Reschedule­the­reminder.­
This­is­not­available­for­all­
reminders.
Dismiss
i NOTE
•­The­meter­beeps­when­it­displays­any­reminder­if­the­beeper­setting­is­on.
•­­The­meter­vibrates­when­it­displays­any­of­the­following­reminders­if­the­vibrate­setting­is­on:­After­
Meal­Retest,­bG­Test,­High­bG­Retest,­Low­bG­Retest,­and­Other.
200
50813_00048009694_D.indb 200
7/3/12 3:13 PM
For­instructions­on­how­to­set­up­meter­reminders,­see­Chapter­5,­“Changing­Meter­Settings.”­The­reminders­
available­on­the­meter­are:
Reminder Title
Reminder Message
Left Soft Key Right Soft Key Snooze Time
After­Meal­Retest
Carbs­entry­higher­than­Snack­
Size­setting.­Retest.
Snooze
Dismiss
5­minutes
bG­Test
It­is­time­for­your­scheduled­bG­ Snooze
test
Dismiss
15­minutes
Dr.­Visit­Today
If the Dr. Visit time has been
set:
You­have­a­Dr.­Appointment­
today­at­(Settings­Dr.­Visit­Time)1
Or, if the Dr. Visit time has not
been set:
You­have­a­Dr.­Appointment­
today
Dismiss
6
201
50813_00048009694_D.indb 201
7/3/12 3:13 PM
Reminder Title
Reminder Message
Dr.­Visit­Tomorrow
If the Dr. Visit time has been
set:
You­have­a­Dr.­Appointment­
tomorrow­at­(Settings­Dr.­Visit­
Time)¹
Or, if the Dr. Visit time has not
been set:
You­have­a­Dr.­Appointment­
tomorrow
High­bG­Retest
High­bG­Result­on­last­test.­
Retest.
Left Soft Key Right Soft Key Snooze Time
Dismiss
Snooze
Dismiss
15­minutes
Infusion­Set­Change It­is­time­to­change­your­Infusion­ Snooze
Set
Dismiss
Displayed­the­
next­time­the­
meter­is­
powered-on
202
50813_00048009694_D.indb 202
7/3/12 3:13 PM
Reminder Title
Reminder Message
Lab­Test­Today
If the lab test time has been
set:
You­have­a­Lab­Test­today­at­
(Settings­Lab­Test­Time)1
Or, if the lab test time has not
been set:
You­have­a­Lab­Test­today
Dismiss
Lab­Test­Tomorrow
If the lab test time has been
set:
You­have­a­Lab­Test­tomorrow­at­
(Settings­Lab­Test­Time)1
Or, if the lab test time has not
been set:
You­have­a­Lab­Test­tomorrow
Dismiss
Low­bG­Retest
Low­bG­Result­on­last­test.­
Retest.
Snooze
Dismiss
5­minutes
Other
It­is­time­for­your­Other­activity
Snooze
Dismiss
15­minutes
1
Left Soft Key Right Soft Key Snooze Time
6
If­set,­the­time­of­the­Dr.­Visit­or­the­Lab­Test­is­displayed­on­the­screen.
203
50813_00048009694_D.indb 203
7/3/12 3:13 PM
Reminders: Important Information
•­­When­two­or­more­event­reminders­occur­at­the­same­time,­the­meter­displays­the­event­reminder­with­
the­highest­priority­first:
1.­bG­Test­Reminders­(After­High­bG,­After­Low­bG,­and­After­Meal)
2.­Alarm­Clock­Reminders­(bG­Test­and­Other)
3.­Date­Reminders­(Dr.­Visit,­Lab­Test,­and­Infusion­Set­Change)
The­following­occur­when­the­particular­reminder­is­enabled­and­scheduled:
Dr. Visit Today, Dr. Visit Tomorrow, Lab Test Today, and Lab Test Tomorrow Reminders
•­Displayed­when­you­turn­on­the­meter­and­a­test­strip­has­not­been­inserted.
•­Dismiss­the­reminder­either­by­pressing­.­or­by­inserting­a­test­strip.
Infusion Set Change Reminder
•­Displayed­when­you­turn­on­the­meter­and­a­test­strip­has­not­been­inserted.
•­Dismiss­the­reminder­by­pressing­..
•­Snooze­the­reminder­either­by­pressing­,­or­by­inserting­a­test­strip.
204
50813_00048009694_D.indb 204
7/3/12 3:13 PM
Low bG Retest Reminder
•­­When­your­blood­glucose­test­result­is­less­than­the­low­blood­glucose­threshold­setting­you­have­set­up­
(see­Chapter­5,­“Changing­Meter­Settings”),­then­the­meter­schedules­a­Low­bG­Retest­reminder­for­the­
time­duration­you­have­set­up.­The­meter­maintains­the­duration­of­this­scheduled­reminder­regardless­of­
meter­time­and­date­changes.
6
•­­At­the­scheduled­time,­the­meter­turns­on­and­displays­the­reminder­(if­a­test­strip­has­not­been­inserted).
•­­If­the­meter­is­already­on­when­the­reminder­is­scheduled­and­no­blood­glucose­test­was­performed,­the­
reminder­is­displayed­when­the­meter­powers­down.
•­­When­the­meter­displays­the­reminder­and­you­do­not­press­any­meter­buttons­within­30­seconds,­the­
meter­turns­off­and­displays­the­reminder­again­in­2­minutes.­After­the­fourth­time­the­meter­displays­the­
reminder,­then­the­meter­dismisses­the­reminder.
•­Dismiss­the­reminder­by­pressing­..
•­Snooze­the­reminder­for­5­minutes­either­by­pressing­,­or­by­inserting­a­test­strip.
•­­When­you­perform­a­blood­glucose­test,­the­meter­dismisses­any­Low­bG­Retest­reminders­pending­within­
the­next­30­minutes.­If­necessary,­a­new­reminder­is­scheduled­based­upon­the­blood­glucose­test­result.
205
50813_00048009694_D.indb 205
7/3/12 3:13 PM
High bG Retest Reminder
•­­When­your­blood­glucose­test­result­is­greater­than­the­high­blood­glucose­threshold­setting­you­have­set­
up­(see­Chapter­5,­“Changing­Meter­Settings”),­then­the­meter­schedules­a­High­bG­Retest­reminder­for­
the­time­duration­you­have­set­up.­The­meter­maintains­the­duration­of­this­scheduled­reminder­regardless­
of­meter­time­and­date­changes.
•­­At­the­scheduled­time,­the­meter­turns­on­and­displays­the­reminder­(if­a­test­strip­has­not­been­inserted).
•­­If­the­meter­is­already­on­when­the­reminder­is­scheduled­and­no­blood­glucose­test­was­performed,­the­
reminder­is­displayed­when­the­meter­powers­down.
•­­When­the­meter­displays­the­reminder­and­you­do­not­press­any­meter­buttons­within­30­seconds,­the­
meter­turns­off­and­displays­the­reminder­again­in­2­minutes.­After­the­fourth­time­the­meter­displays­the­
reminder,­then­the­meter­dismisses­the­reminder.
•­Dismiss­the­reminder­by­pressing­..
•­Snooze­the­reminder­for­15­minutes­either­by­pressing­,­or­by­inserting­a­test­strip.
•­­When­you­perform­a­blood­glucose­test,­the­meter­dismisses­any­High­bG­Retest­reminders­pending­within­
the­next­30­minutes.­If­necessary,­a­new­reminder­is­scheduled­based­upon­the­blood­glucose­test­result.
206
50813_00048009694_D.indb 206
7/3/12 3:13 PM
6
After Meal Reminder
•­­When­you­enter­carbohydrates­into­the­diary­through­one­of­the­following­screens­and­the­carbohydrates­
entered­are­greater­than­the­Snack­Size­setting,­then­the­meter­schedules­an­After­Meal­reminder­for­
the­time­duration­you­have­set­up­(see­Chapter­5,­“Changing­Meter­Settings”).­The­meter­maintains­the­
duration­of­this­scheduled­reminder­regardless­of­meter­time­and­date­changes.
•­Add­Data­screen­(see­Chapter­4,­“Managing­Your­Data”)
•­Modify­Data­screen­(see­Chapter­4,­“Managing­Your­Data”)
•­Detailed­bG­Result­screen­(see­Chapter­2,­“Testing­Your­Blood­Glucose”)
•­Bolus­Advice­screen­(see­the­Advanced­Owner’s­Booklet)
•­­At­the­scheduled­time,­the­meter­turns­on­and­displays­the­reminder­(if­a­test­strip­has­not­been­inserted).
•­­If­the­meter­is­already­on­when­the­reminder­is­scheduled­and­no­blood­glucose­test­was­performed,­the­
reminder­is­displayed­when­the­meter­powers­down.
•­­When­the­meter­displays­the­reminder­and­you­do­not­press­any­meter­buttons­within­30­seconds,­the­
meter­turns­off­and­displays­the­reminder­again­in­2­minutes.­After­the­fourth­time­the­meter­displays­the­
reminder,­then­the­meter­dismisses­the­reminder.
•­Dismiss­the­reminder­by­pressing­..
•­Snooze­the­reminder­for­5­minutes­either­by­pressing­,­or­by­inserting­a­test­strip.
•­­When­you­perform­a­blood­glucose­test,­the­meter­dismisses­any­After­Meal­reminders­pending­within­the­
next­30­minutes.­If­necessary,­a­new­reminder­is­scheduled­based­upon­the­blood­glucose­test­result.
207
50813_00048009694_D.indb 207
7/3/12 3:13 PM
Alarm Clock Reminders for bG Test and Other
•­­At­the­scheduled­time,­the­meter­turns­on­and­displays­the­reminder­(if­a­test­strip­has­not­been­inserted).
•­­When­the­meter­displays­an­Alarm­Clock­reminder­and­you­do­not­press­any­meter­buttons,­­
after­30­seconds­the­meter­turns­off­and­displays­the­reminder­again­in­2­minutes.­After­the­fourth­time­
the­meter­displays­the­reminder,­then­the­meter­dismisses­the­reminder.
• bG Test Alarm Clock Reminder
•­­If­the­meter­is­already­on­when­the­reminder­is­scheduled­and­no­blood­glucose­test­was­performed,­
the­reminder­is­displayed­when­the­meter­powers­down.
•­Dismiss­all­active­bG­Test­reminders­by­pressing­..
•­Snooze­the­reminder­for­15­minutes­either­by­pressing­,­or­by­inserting­a­test­strip.
•­­When­you­perform­a­blood­glucose­test,­the­meter­dismisses­any­bG­Test­reminders­that­have­been­
snoozed­or­that­are­pending­within­the­next­30­minutes.
208
50813_00048009694_D.indb 208
7/3/12 3:13 PM
6
• Other Alarm Clock Reminder
•­­If­the­meter­is­already­on­when­the­reminder­is­scheduled,­the­reminder­is­displayed­when­the­meter­
powers­down.
•­Dismiss­this­reminder­either­by­pressing­.­or­by­inserting­a­test­strip.
•­Snooze­the­reminder­for­15­minutes­by­pressing­,.­
209
50813_00048009694_D.indb 209
7/3/12 3:13 PM
6.5 List of Warnings
Warning Screen Example
Warning Icon
Warning Title
No
Warning Message
Only­shown­on­a­few­
warning­screens
Yes or OK
i NOTE
The­meter­beeps­when­it­displays­a­warning­if­the­beeper­setting­is­on.
210
50813_00048009694_D.indb 210
7/3/12 3:13 PM
6
The­warnings­the­meter­may­display­are:
Warning Title
Warning Message
Left Soft Key Right Soft Key
Above­Hyper­Warning­
Limit
Consider­checking­for­ketones,­bG­and­
insulin­regularly
OK
Beep/Vibrate­Off
Beep­and­Vibrate­settings­cannot­both­be­
turned­off­at­same­time
OK
Below­Hypo­Warning­Limit Eat­fast­carbs­of­at­least­(number­of­carbs)1­
Retest­bG
OK
Bolus­Advice
Bolus­Advice­data­deleted
OK
Bolus­Advice­Not­Setup
Advice­not­provided­unless­setup­through­
Bolus­Advice­in­Settings
OK
Bolus­Advice­Timeout
Bolus­Advice­no­longer­possible­for­this­bG­
result
OK
Bolus­Delivery­Unavailable Communication­lost.­Retry­or­set­to­Manual­
Pump.
OK
Bolus­Delivery­Unavailable Pump­unable­to­start­Bolus.­See­Pump.
OK
Bolus­Delivery­Unavailable Pump­currently­in­Stop­mode
OK
211
50813_00048009694_D.indb 211
7/3/12 3:13 PM
Warning Title
Warning Message
Left Soft Key Right Soft Key
Bolus­Too­High
Bolus­above­allowed­amount.­Bolus­set­to­
maximum.
OK
Bolus­Too­Low
Bolus­below­allowed­amount.­Bolus­set­to­
minimum.
OK
Calculation­Out­of­Range
No­Bolus­Advice­available
OK
Carbohydrate­Ratio
Carb­Ratio­seems­unusual.­Check­entries.
OK
Code­Key­Missing
Turn­off­Meter­and­insert­valid­Code­Key²
OK
Communication­Lost
See­Pump
OK
Communication­Warning
Pump­data­not­available,­Active­Insulin­may­
not­be­accurate
OK
Communication­Warning
Pump­data­not­available,­recent­Bolus­data­
may­not­be­accurate
OK
Connection­Lost
Ensure­Pump­is­within­range­of­Meter
OK
212
50813_00048009694_D.indb 212
7/3/12 3:13 PM
Warning Title
Warning Message
Left Soft Key Right Soft Key
Connection­Lost
Restart­Meter,­select­“Settings”,­“Meter”,­
“Pair­with­Pump”
OK
Corrupt­Language
Choose­another­language
OK
Diary­Entry­Used­For­
Advice
Diary­entry­used­for­Advice,­modifications­
not­allowed
OK
Diary­Results­Expired
New­data­cannot­be­saved­with­this­record
OK
HI­bG­Warning
Consider­checking­bG,­ketones­and­insulin
OK
Incorrect­Pump­Time/Date Pump­time/date­incorrect.­Set­time/date­on­
the­Pump.3
OK
Infrequent­Pump­
Communication
Two­weeks­since­last­communication­with­
Pump
OK
Insulin­Sensitivity
Insulin­Sensitivity­seems­unusual.­Check­
entries.
OK
Invalid­Active­Insulin
Unable­to­calculate­the­Active­Insulin.­Bolus­
Advice­not­available.
OK
Invalid­Bolus­Advice­
Times
Acting­time­must­be­greater­than­or­equal­
to­offset­time
OK
6
213
50813_00048009694_D.indb 213
7/3/12 3:13 PM
Warning Title
Warning Message
Left Soft Key Right Soft Key
Invalid­Date
Reenter­valid­date
OK
Invalid­Hyper­Values
Hyper­value­must­be­greater­than­Time­
Block­target­ranges
OK
Invalid­Hypo­Values
Hypo­value­must­be­less­than­Time­Block­
target­ranges
OK
Invalid­PIN
Reenter­PIN­shown­on­Pump­display
OK
Invalid­Record­Time/Date Record­time/date­must­be­older­than­the­
current­meter­time/date
OK
Invalid­Target­Range
Lower­target­range­value­above­upper­
target­range­value
OK
Invalid­Target­Range
Range­selected­conflicts­with­Hyper­and/or­
Hypo­Warning­Limit­settings
OK
LO­bG­Warning
Retest­bG.­Contact­your­doctor.
OK
Meter­and­Pump­Not­
Paired
Pair­with­Pump­to­use­this­feature
OK
Meter­Battery­Low
Replace­soon.­No­Pump­connection.
OK
214
50813_00048009694_D.indb 214
7/3/12 3:13 PM
Warning Title
Warning Message
No­bG­with­Bolus
Consider­testing­bG­before­delivering­
Insulin.­Continue?
Pairing­Failed
Restart­Meter,­select­“Settings”,­“Meter”,­
“Pair­with­Pump”
OK
Pump­Not­Available
Ensure­Bluetooth­is­on­and­Pump­is­within­
range­of­Meter
OK
Test­Strips­Expiring
Change­Code­Key­and­Strips­soon²
OK
Time­Mismatch
Meter­time­has­been­changed­by­more­than­
5­minutes­to­match­Pump
OK
6
Left Soft Key Right Soft Key
No
Yes
The­meter­displays­a­recommended­amount­of­fast­carbohydrates.
­On­the­meter­display,­the­activation­chip­is­referred­to­as­a­code­key.­Code­key­and­activation­chip­are­
interchangeable­and­mean­the­same­thing.­If­you­need­an­activation­chip,­please­contact­Roche.
3­
The­meter­keeps­its­current­date­and­time.­The­meter­turns­off­Bluetooth­wireless­technology­communication­­
for­this­session.
1
2
215
50813_00048009694_D.indb 215
7/3/12 3:13 PM
6.6 List of Errors
Error Screen Example
Error Icon
Error Title
Menu
Error Message
This­option­is­not­available­
for­all­errors.
i NOTE
The­meter­beeps­when­it­displays­an­error,­even­if­the­beeper­setting­is­turned­off.
216
50813_00048009694_D.indb 216
7/3/12 3:13 PM
6
The­errors­the­meter­may­display­are:
Error Title
Error Message
E-51
Bad­Strip­Error
Reinsert­or­replace­with­new­Strip
E-52
Code­Key­Error
Turn­Meter­off,­reinsert­or­replace­Code­­
Key1
E-53
Bad­Test­Error
Retest­with­new­Strip
E-54
Not­Enough­Sample
Retest­with­new­Strip
E-55
Code­Key­Expired
Turn­Meter­off,­replace­Code­Key­and­
Strips1
E-56
Sample­Applied­Early
Retest­with­new­Strip
E-57
Electronic­Error
Remove­batteries,­wait­20­seconds,­replace­
batteries
E-58
Temp.­Error
Move­Meter­to­correct­temperature­and­
wait­5­minutes
Left Soft Key Right Soft Key
Menu2
OK3
Menu2
OK3
Menu4
OK4
217
50813_00048009694_D.indb 217
7/3/12 3:13 PM
Error Title
Error Message
E-59
Battery­Empty
Replace­batteries­now
E-60
Time/Date­Error
Correct­time/date­if­necessary
Left Soft Key Right Soft Key
Menu
­ n­the­meter­display,­the­activation­chip­is­referred­to­as­a­code­key.­Code­key­and­activation­chip­are­
O
interchangeable­and­mean­the­same­thing.­If­you­need­an­activation­chip,­please­contact­Roche.
2­
“Menu”­is­only­displayed­when­the­meter­is­in­a­bG­test­screen.
3
“OK”­is­only­displayed­after­the­Splash­screen­(Accu-Chek­logo­screen).
4
­­If­the­meter­is­powering­up,­then­“OK”­is­displayed­above­the­right­soft­key­and­“Menu”­is­not­displayed­
above­the­left­soft­key.­
1­
218
50813_00048009694_D.indb 218
7/3/12 3:13 PM
7
7
Care and Maintenance
7.1­Overview­
7.2­Changing­the­Batteries­
7.3­Power-Saving­Tips­
7.4­Cleaning­the­Meter­
7.5­Maintenance­and­Testing­
220
221
224
225
226
219
50813_00048009694_D.indb 219
7/3/12 3:13 PM
7.1 Overview
It­is­important­to­properly­care­for­and­maintain­your­Accu-Chek­Aviva­Combo­Meter.­If­you­have­any­
questions­about­the­care­and­maintenance­of­your­meter,­contact­Roche.
220
50813_00048009694_D.indb 220
7/3/12 3:13 PM
7
7.2 Changing the Batteries
1.
2.
3.
j­­Remove­the­battery­door­
from­the­back­of­the­meter­by­
pushing­the­tab­in­the­direction­
of­the­arrow­and­pulling­up­
the­door.­
j­­Remove­the­old­batteries­from­
the­meter.
j­­Insert­three­AAA­batteries­with­
the­+­and­-­ends­matching­
the­marks­in­the­battery­
compartment.­
­­Put­the­battery­door­back­in­
place­and­snap­it­closed.
221
50813_00048009694_D.indb 221
7/3/12 3:13 PM
w WARNING
•­­Using­batteries­other­than­those­supplied­or­recommended­for­use­with­the­meter­may­significantly­
reduce­the­life­of­the­batteries.­Batteries­other­than­those­recommended­may­leak­and­corrode­
the­battery­contacts­within­the­meter.­Using­batteries­not­supplied­or­recommended­may­void­the­
warranty.
•­­Replace­all­batteries­of­a­set­at­the­same­time.­Newly­purchased­batteries­should­not­be­mixed­with­
partially­exhausted­ones.­Batteries­of­different­electrochemical­systems,­grades,­or­brands­should­
not­be­mixed.­Failure­to­observe­these­precautions­may­result­in­some­batteries­in­a­set­being­driven­
beyond­their­normal­exhaustion­point­and­thus­increase­the­probability­of­leakage.
222
50813_00048009694_D.indb 222
7/3/12 3:13 PM
7
i NOTE
•­­Alkaline­batteries­are­recommended­for­use­with­the­meter.
•­­After­you­change­the­batteries,­the­meter­prompts­you­to­confirm­the­time­and­date­settings.
•­It­is­a­good­idea­to­have­spare,­packaged­batteries­available.
•­­All­test­results,­diary­information,­and­settings­are­saved­in­the­meter­memory­when­the­batteries­are­
replaced.
•­The­meter­remains­paired­with­the­pump­when­you­remove­and­replace­the­batteries.
•­­Rechargeable­batteries­may­be­used­in­the­meter.­However,­rechargeable­batteries­may­not­maintain­
the­same­battery­life­as­non-rechargeable­batteries.
•­When­the­Low­Battery­warning­appears:
•­Bluetooth­wireless­technology­communication­is­disabled.
•­If­vibrate­is­set­to­On,­it­is­disabled­until­the­batteries­are­replaced.
•­I­f­the­backlight­level­is­set­to­high,­the­medium­backlight­level­is­used­until­the­batteries­are­
replaced.
•­If­the­beeper­level­is­set­to­high,­the­medium­beeper­level­is­used­until­the­batteries­are­replaced.
223
50813_00048009694_D.indb 223
7/3/12 3:13 PM
7.3 Power-Saving Tips
To­conserve­battery­life:
•­Use­the­low­beeper­setting
•­Only­turn­on­the­vibration­feature­when­it­is­needed
•­­Turn­off­the­meter­when­you­are­finished­rather­than­utilizing­the­auto­power­off­feature
224
50813_00048009694_D.indb 224
7/3/12 3:13 PM
7
7.4 Cleaning the Meter
Caring­for­the­meter­is­easy:­just­keep­it­free­of­dust.­If­you­need­to­clean­it,­follow­these­guidelines­carefully­
to­help­you­get­the­best­performance­possible:
•­Ensure­the­meter­is­off
•­Gently­wipe­the­meter’s­surface­with­a­soft­cloth­slightly­dampened­with­one­of­these­cleaning­solutions:
-­70­%­isopropyl­alcohol
-­Mild­dishwashing­liquid­mixed­with­water
-­10­%­household­bleach­solution­(1­part­bleach­plus­9­parts­water)­made­the­same­day
•­Squeeze­out­any­excess­liquid­from­the­cloth­before­you­wipe­the­meter­surface
•­Get­any­moisture­in­the­activation­chip­slot­or­test­strip­slot
•­Spray­any­cleaning­solution­directly­onto­the­meter
•­Put­the­meter­under­water­or­liquid
•­Pour­liquid­into­the­meter
For instructions on how to clean the pump, see the Accu-Chek Spirit Combo Insulin Pump User Guide.
225
50813_00048009694_D.indb 225
7/3/12 3:13 PM
7.5 Maintenance and Testing
•­­The­meter­needs­little­or­no­maintenance­with­normal­use.­It­automatically­tests­its­own­systems­every­
time­you­turn­it­on­and­lets­you­know­if­something­is­wrong.­For­detailed­information­on­troubleshooting­the­
meter,­see­Chapter­8,­“Troubleshooting.”
•­­If­you­drop­the­meter­or­think­it­is­not­giving­accurate­results,­ensure­your­test­strips­and­control­solution­
have­not­expired,­and­then­perform­a­control­test.
•­Perform­a­control­test­with­each­new­vial­of­test­strips.
•­­To­test­the­meter­display,­turn­off­the­meter,­and­then­press­and­hold­+.­The­display­cycles­through­colours­
(red,­blue,­green,­and­white).­If­any­part­of­the­display­does­not­change­colours,­contact­Roche.
•­If­the­meter­is­not­working­properly,­contact­Roche.
226
50813_00048009694_D.indb 226
7/3/12 3:13 PM
8
8
Troubleshooting
8.1­Overview­
8.2­­Troubleshooting­the­Accu-Chek­Aviva­Combo­Meter­
228
229
227
50813_00048009694_D.indb 227
7/3/12 3:13 PM
8.1 Overview
For­most­problems,­the­meter­displays­a­message­with­a­short­description­of­the­symptom­and,­along­with­it,­
a­proposed­solution.­This­chapter­goes­into­more­detail­by­describing­the­symptom,­the­possible­cause,­and­
the­possible­solution.­If­the­possible­solutions­do­not­fix­the­problem,­contact­Roche.
w WARNING
Never­make­treatment­decisions­based­on­a­warning­or­error­message.­If­you­have­any­concerns,­
contact­Roche.
i NOTE
•­­If­you­drop­the­meter­or­think­it­is­not­giving­accurate­results,­make­sure­your­test­strips­and­control­
solution­have­not­expired,­and­then­perform­a­control­test.­For­further­assistance,­contact­Roche.
•­Blood­glucose­and­bG­are­interchangeable­and­mean­the­same­thing.
228
50813_00048009694_D.indb 228
7/3/12 3:13 PM
8
8.2 Troubleshooting the Accu-Chek Aviva Combo Meter
Display Shows
Possible Cause(s)
The­display­is­blank­ j­­Batteries­are­dead.
or­the­meter­will­
not­turn­on.
j­­Display­is­damaged.
Bluetooth­icon­
flashing
Possible Solution(s)
j­­Install­new­batteries.­See­Chapter­7,­“Care­and­
Maintenance.”
j­­Contact­Roche.
j­­Meter­is­defective.
j­­Contact­Roche.
j­­E xtreme­temperature­–­the­
temperature­is­outside­the­
meter­operating­range.
j­­Move­the­meter­to­an­area­with­proper­temperature.­
Wait­five­minutes­before­turning­on­the­meter.­Do­
not­artificially­heat­or­cool­the­meter.
j­­Communication­ended­due­to­ j­­Check­the­pump­and­continue­operation­of­the­
a­button­press­on­the­pump.
pump­manually.
j­­Ensure­the­pump­has­Bluetooth­wireless­technology­
turned­on.
j­­Meter­and­pump­are­outside­ j­­Ensure­pump­is­within­communication­range.
of­communication­range.
229
50813_00048009694_D.indb 229
7/3/12 3:13 PM
Display Shows
Possible Cause(s)
Possible Solution(s)
Above­Hyper­
Warning­Limit
j­­Your­test­result­is­above­the­ j­­Treat­your­high­blood­glucose­as­recommended­by­
hyper­warning­limit­set­in­the­ your­healthcare­professional.
meter.
j­­Consider­checking­bG,­ketones,­and­insulin.
j­­See­the­pump­User­Guide­for­additional­solutions.
Beep/Vibrate­Off
j­­Beep­and­Vibrate­settings­
cannot­be­turned­off­at­the­
same­time.
Below­Hypo­
Warning­Limit
j­­Your­test­result­is­below­the­ j­­Treat­your­low­blood­glucose­as­recommended­by­
hypo­warning­limit­set­in­the­
your­healthcare­professional.
j­­The­meter­displays­a­recommended­number­of­
meter.
carbohydrates­for­you­to­eat,­and­then­retest­your­
blood­glucose.
j­­­Ensure­that­either­the­Beep­or­Vibrate­setting­is­
turned­on.­See­Chapter­5,­“Changing­Meter­
Settings.”
Bolus­Advice
j­­Bolus­advice­data­integrity­
j­­Wait­8­hours­for­accurate­bolus­advice.
cannot­be­confirmed.
Bolus­Advice­data­
deleted
IMPORTANT:
•­­Insulin­doses­and­meals­taken­before­the­Bolus­Advice­warning­are­no­longer­
reflected­in­the­bolus­advice­calculation.
•­­The­meter­may­not­reflect­the­pump­bolus­history,­however­the­bolus­history­is­
available­on­the­pump.
230
50813_00048009694_D.indb 230
7/3/12 3:13 PM
8
Display Shows
Possible Cause(s)
Possible Solution(s)
Bolus­Advice­Not­
Setup
j­­Advice­is­not­provided­unless­it­ j­­You­can­continue­to­use­the­meter­without­bolus­
is­set­up­through­Bolus­Advice­ advice­or­see­Chapter­5,­“Changing­Meter­Settings”­
in­Settings­Menu.
for­instructions­on­how­to­set­up­bolus­advice.
Bolus­Advice­
Timeout
j­­­Bolus­advice­is­no­longer­
available­for­this­bG­result.
Bolus­Delivery­
Unavailable
j­­The­meter­cannot­
j­­Retry­or­set­to­Manual­Pump.
communicate­with­the­pump. j­­Ensure­the­meter­and­pump­have­Bluetooth­wireless­
technology­turned­on.
j­­Ensure­the­meter­and­pump­are­within­
communication­range.
j­­If­the­low­battery­icon­is­displayed­on­the­meter,­the­
meter­cannot­communicate­with­the­pump.­Replace­
the­batteries.
j­­Review­data­that­was­saved­in­My­Data.­Then,­decide­
to­modify­data,­add­data,­or­begin­a­new­bolus­advice­
session.
j­­The­pump­is­currently­in­Stop­ j­­Take­the­pump­out­of­Stop­mode.
mode.
j­­The­pump­is­currently­
delivering­a­bolus.
j­­Allow­the­current­bolus­delivery­to­complete­before­
delivering­the­next­bolus.
231
50813_00048009694_D.indb 231
7/3/12 3:13 PM
Display Shows
Possible Cause(s)
Possible Solution(s)
Bolus­Too­High
j­­The­bolus­is­above­the­
allowed­amount.­The­bolus­
was­set­to­50­Units.
j­­Check­the­accuracy­of­all­entries.­If­necessary,­
contact­your­healthcare­professional.
Bolus­Too­Low
j­­The­insulin­pump­cannot­
j­­The­pump­will­adjust­the­bolus­to­0.2­Units.
deliver­a­0.1­Unit­of­multiwave­
bolus.
Carbohydrate­Ratio j­­Carbohydrate­ratio­is­outside­ j­­Check­your­entries­and­contact­your­healthcare­
professional­to­determine­the­appropriate­settings.
of­the­acceptable­meter­
range.
Code­Key­Missing
j­­The­activation­chip­is­not­
inserted.
j­­Turn­the­meter­off­and­insert­the­activation­chip.­If­
you­need­an­activation­chip,­please­contact­Roche.
Communication­
Lost
j­­Pump­is­out­of­range­of­the­
meter.
j­­Bolus­delivery­continuing,­see­pump­screen.
j­­Ensure­the­meter­and­pump­have­Bluetooth­wireless­
technology­turned­on.
j­­Ensure­the­meter­and­pump­are­within­
communication­range.
j­­If­the­low­battery­icon­is­displayed­on­the­meter,­the­
meter­cannot­communicate­with­the­pump.­Replace­
the­batteries.
j­­Use­the­pump­to­monitor­or­cancel­a­bolus­which­is­
in­the­process­of­being­delivered.
232
50813_00048009694_D.indb 232
7/3/12 3:13 PM
8
Display Shows
Possible Cause(s)
Possible Solution(s)
Communication­
Warning
j­­Communication­of­bolus­data­
from­the­pump­was­not­
successful.­Therefore,­pump­
data­are­not­available­and­the­
bolus­data­may­not­be­
accurate.
j­­Communication­of­bolus­data­
from­the­pump­was­not­
successful.­Therefore,­pump­
data­are­not­available­and­the­
active­insulin­amount­may­not­
be­accurate.
j­­Ensure­the­meter­and­pump­have­Bluetooth­wireless­
technology­turned­on.
j­­Ensure­the­meter­and­pump­are­within­
communication­range.
j­­If­the­low­battery­icon­is­displayed­on­the­meter,­the­
meter­cannot­communicate­with­the­pump.­Replace­
the­batteries.
233
50813_00048009694_D.indb 233
7/3/12 3:13 PM
Display Shows
Possible Cause(s)
Connection­Lost
j­­The­connection­was­lost­
j­­Restart­the­pairing­process.­See­the­Advanced­
between­the­meter­and­the­
Owner’s­Booklet.
pump­during­the­pairing­
process.­Therefore,­the­
attempt­to­pair­the­meter­and­
pump­was­unsuccessful.
j­­Pump­is­out­of­range­of­the­
meter.
Possible Solution(s)
j­­Ensure­the­meter­and­pump­have­Bluetooth wireless­
technology turned­on.
j­­Ensure­the­meter­and­pump­are­within­
communication­range.
j­­If­the­low­battery­icon­is­displayed­on­the­meter,­the­
meter­cannot­communicate­with­the­pump.­Replace­
the­batteries.
Diary­Entry­Used­
For­Advice
j­­The­diary­entry­selected­has­ j­­Carefully­confirm­all­information­involving­bolus­
advice.­You­cannot­modify­bolus­advice­related­
been­used­for­bolus­advice­
entries­on­the­meter.­
and­modifications­are­not­
allowed.
Diary­Results­
Expired
j­­­Bolus­advice­is­no­longer­
available­for­this­result.
j­­Review­data­that­was­saved­in­My­Data.­Then,­
decide­to­modify­data,­add­data,­or­begin­a­new­
bolus­advice­session.
234
50813_00048009694_D.indb 234
7/3/12 3:13 PM
8
Display Shows
Possible Cause(s)
Possible Solution(s)
E-51­Bad­Strip­
Error
j­­Your­blood­glucose­may­be­
extremely­low.­
If­you­see­this­error­message­after­you­applied­blood
to­the­test­strip:
j­­If­you­are­experiencing­any­of­the­common­
symptoms­of­low­blood­sugar,­contact­your­
healthcare­professional­immediately.
j­­Treat­your­low­blood­sugar­as­recommended­by­
your­healthcare­professional.
j­­If­this­does­not­match­how­you­feel,­repeat­the­
blood­glucose­test­and­see­Chapter­2,­“Testing­Your­
Blood­Glucose.”
j­­The­test­strip­is­damaged.
j­­The­test­strip­is­not­properly­
inserted­into­the­meter.
If­you­see­this­error­message­before­you­applied­
blood­to­the­test­strip:
j­­Remove­the­test­strip­and­reinsert­it,­or­replace­it­if­
damaged.­If­the­message­reappears,­contact­
Roche.
j­­The­activation­chip­is­
incorrect.
j­­Please­contact­Roche.
E-52­Code­Key­
Error
235
50813_00048009694_D.indb 235
7/3/12 3:13 PM
Display Shows
Possible Cause(s)
E-53­Bad­Test­
Error
j­­A­meter­or­test­strip­error­has­ j­­Discard­the­test­strip­and­repeat­the­test.
occurred.
j­­Your­blood­glucose­may­be­
extremely­high.
Possible Solution(s)
j­­If­this­matches­how­you­feel,­contact­your­
healthcare­professional­immediately.­If­it­does­not­
match­how­you­feel,­repeat­the­blood­glucose­test­
and­see­Chapter­2,­“Testing­Your­Blood­Glucose.”­If­
this­still­does­not­match­the­way­you­feel,­run­a­
control­test­with­your­control­solution­and­a­new­
test­strip.­If­the­control­result­is­within­the­
acceptable­range,­review­the­proper­testing­
procedure­and­repeat­your­blood­glucose­test­with­a­
new­test­strip.­If­the­E-53­error­still­appears­for­your­
blood­glucose­test,­your­blood­glucose­test­result­
may­be­extremely­high­and­above­the­system’s­
reading­range.­Contact your healthcare
professional immediately.­If­the­control­result­is­
not­within­the­acceptable­range,­see­Chapter­3,­
“Control­Testing.”
236
50813_00048009694_D.indb 236
7/3/12 3:13 PM
8
Display Shows
Possible Cause(s)
Possible Solution(s)
E-54­Not­Enough­
Sample
j­­Not­enough­blood­or­control­ j­­Discard­the­test­strip­and­repeat­the­test.
solution­was­drawn­into­the­
test­strip­for­measurement­or­
was­applied­after­the­test­has­
started.
E-55­Code­Key­
Expired
j­­The­code­key­is­from­an­
expired­lot­of­test­strips.
E-56­Sample­
Applied­Early
j­­Blood­or­control­solution­was­ j­­Discard­the­test­strip­and­repeat­the­test­with­a­new­
applied­to­the­test­strip­before­ test­strip.
the­Apply­Sample­screen­
appeared­on­the­display.
E-57­Electronic­
Error
j­­Turn­off­the­meter­and­remove­the­batteries.­Wait­at­
j­­An­electronic­error­has­
occurred­or,­in­rare­cases,­a­
least­30­seconds­prior­to­reinserting­the­batteries.­
used­test­strip­was­removed­
Turn­on­the­meter­and­perform­a­blood­glucose­or­
and­reinserted.
control­test.­If­the­problem­persists,­contact­Roche.
j­­This­message­may­appear­when­using­a­white­
activation­chip­in­the­meter.­It­means­the­test­strips­
expire­at­the­end­of­the­current­month.­At­the­end­of­
the­month,­discard­the­white­activation­chip­and­
any­remaining­test­strips.­Insert­a­black­activation­
chip.­Make­sure­the­time­and­date­in­the­meter­are­
correct.­If­you­need­a­black­activation­chip,­please­
contact­Roche.
237
50813_00048009694_D.indb 237
7/3/12 3:13 PM
Display Shows
Possible Cause(s)
Possible Solution(s)
E-58­Temp.­Error
j­­The­temperature­is­above­or­
below­the­proper­range­for­
the­meter.
j­­Move­the­meter­to­an­area­within­the­proper­
temperature­range­indicated­for­test­strip­use­in­the­
test­strip­package­insert.­Wait­5­minutes­before­
turning­on­the­meter.­Repeat­the­test.­Do­not­
artificially­heat­or­cool­the­meter.
E-59­Battery­
Empty
j­­The­batteries­are­extremely­
low.
j­­Insert­new­batteries.­See­Chapter­7,­“Care­and­
Maintenance.”
E-60­Time/Date­
Error
j­­The­time­and­date­settings­
may­be­incorrect.
j­­You­have­changed­the­
batteries.
j­­Ensure­the­time­and­date­are­correct­and­adjust,­if­
necessary.­See­Chapter­5,­“Changing­Meter­
Settings.”
HI­bG­Warning
j­­Your­blood­glucose­may­be­
higher­than­the­measuring­
range­of­the­system.
j­­If­you­are­experiencing­any­of­the­common­
symptoms­of­high­blood­glucose,­contact­your­
healthcare­professional­immediately.
j­­Treat­your­high­blood­glucose­as­recommended­by­
your­healthcare­professional.
j­­Consider­checking­bG,­ketones,­and­insulin.
j­­See­the­pump­User­Guide­for­additional­solutions.
Incorrect­Pump­
Time/Date
j­­Pump­time/date­incorrect.
j­­Set­time/date­on­the­pump­(see­pump­User­Guide).
238
50813_00048009694_D.indb 238
7/3/12 3:13 PM
8
Display Shows
Possible Cause(s)
Possible Solution(s)
Infrequent­Pump­
Communication
j­­­At­least­2­weeks­have­passed­ j­­Ensure­the­meter­and­pump­have­Bluetooth­wireless­
since­the­meter­and­pump­
technology­turned­on.
have­communicated.
j­­Ensure­the­meter­and­pump­are­within­
communication­range.
j­­If­the­low­battery­icon­is­displayed­on­the­meter,­the­
meter­cannot­communicate­with­the­pump.­Replace­
the­batteries.­
j­­It­is­important­to­use­Bluetooth­wireless­technology­
communication­between­the­meter­and­pump­
regularly­if­you­utilize­bolus­advice.
Insulin­Sensitivity
j­­Insulin­sensitivity­is­outside­of­ j­­Check­your­entries­and­contact­your­healthcare­
the­acceptable­meter­range.
professional­to­determine­the­appropriate­settings.
Invalid­Bolus­
Advice­Times
j­­The­acting­time­value­is­less­ j­­The­acting­time­value­must­be­set­equal­to­or­
than­the­offset­time.
greater­than­the­offset­time.­Reset­the­acting­time­
value­or­revise­the­offset­time.
Invalid­Date
j­­The­date­entered­is­invalid­
(dates­for­reminders­cannot­
be­set­to­occur­in­the­past).
j­­Re-enter­date.
239
50813_00048009694_D.indb 239
7/3/12 3:13 PM
Display Shows
Possible Cause(s)
Possible Solution(s)
Invalid­Hyper­
Values
j­­The­hyper­warning­limit­value­ j­­Reset­the­hyper­warning­limit­or­revise­the­target­
must­be­greater­than­all­of­
ranges­in­time­blocks­and­re-enter­the­hyper­
your­target­ranges­in­the­time­ warning­limit.
block­settings.
j­­Enter­a­hyper­warning­limit­that­is­above­the­target­
ranges­of­your­time­blocks.­See­Chapter­5,­
“Changing­Meter­Settings.”
Invalid­Hypo­Values j­­The­hypo­warning­limit­value­ j­­Reset­the­hypo­warning­limit­or­revise­the­target­
ranges­in­time­blocks­and­re-enter­the­hypo­
must­be­less­than­all­of­your­
warning­limit.
target­ranges­in­the­time­
block­settings.
j­­Enter­a­hypo­warning­limit­that­is­below­the­target­
ranges­of­your­time­blocks.­See­Chapter­5,­
“Changing­Meter­Settings.”
Invalid­PIN
j­­The­wrong­PIN­was­entered.
j­­Select­OK­and­re-enter­the­PIN­shown­on­the­pump­
display.
Invalid­Record­
Time/Date
j­­Re-enter­time/date.
j­­The­time/date­entered­is­
invalid­(Add­Data­entries­
cannot­be­set­to­occur­in­the­
future).
240
50813_00048009694_D.indb 240
7/3/12 3:13 PM
8
Display Shows
Possible Cause(s)
Possible Solution(s)
Invalid­Target­
Range
j­­The­lower­target­range­value­ j­­Reset­the­target­range­values.
is­above­the­upper­target­
j­­Enter­the­correct­lower­target­range­value­and­
range­value.
upper­target­range­value.­See­Chapter­5,­“Changing­
Meter­Settings.”
j­­The­range­selected­conflicts­ j­­Reset­range­or­revise­warning­limit­settings­and­
with­your­hyper­and/or­hypo­
re-enter­range.
warning­limit­settings.
j­­Enter­the­correct­lower­target­range­value­and­
upper­target­range­value.­See­Chapter­5,­“Changing­
Meter­Settings.”
j­­Treat­your­low­blood­glucose­as­recommended­by­
your­healthcare­professional.
j­­If­you­are­experiencing­any­of­the­common­
symptoms­of­low­blood­glucose,­contact­your­
healthcare­professional­immediately.
LO­bG­Warning
j­­Your­blood­glucose­may­be­
lower­than­the­measuring­
range­of­the­system.
Meter­and­Pump­
Not­Paired
j­­You­must­pair­the­meter­and­pump­to­use­these­
j­­Meter­and­pump­have­not­
features.
been­paired.­You­cannot­use­
the­pump­functions­without­ j­­For­instructions­on­how­to­pair­the­meter­and­pump,­
see­the­Advanced­Owner’s­Booklet.
pairing­the­meter­and­the­
pump.
Meter­Battery­Low j­­Battery­power­is­low.
j­­Install­new­batteries.­See­Chapter­7,­“Care­and­
Maintenance.”
241
50813_00048009694_D.indb 241
7/3/12 3:13 PM
Display Shows
Possible Cause(s)
No­bG­with­Bolus
j­­You­have­not­tested­your­bG­ j­­It­is­recommended­to­test­bG­before­delivering­
and­are­attempting­to­deliver­ insulin.
a­bolus.
Pairing­Failed
j­­The­attempt­to­pair­the­meter­ j­­Restart­the­pairing­process.­See­the­Advanced­
and­pump­was­unsuccessful. Owner’s­Booklet.
Pump­Not­Available j­­The­pump­is­out­of­the­
communication­range­of­the­
meter.
Possible Solution(s)
j­­Ensure­the­meter­and­pump­have­Bluetooth­wireless­
technology­turned­on.
j­­Ensure­the­meter­and­pump­are­within­
communication­range.
j­­If­the­low­battery­icon­is­displayed,­the­meter­
cannot­communicate­with­the­pump.­Replace­the­
batteries.
242
50813_00048009694_D.indb 242
7/3/12 3:13 PM
Display Shows
Possible Cause(s)
8
Possible Solution(s)
Test­Strips­Expiring j­­The­test­strips­expire­at­the­
end­of­the­current­month.
j­­This­message­may­appear­when­using­a­white­
activation­chip­in­the­meter.­It­means­the­test­strips­
expire­at­the­end­of­the­current­month.­At­the­end­of­
the­month,­discard­the­white­activation­chip­and­
any­remaining­test­strips.­Insert­a­black­activation­
chip.­Make­sure­the­time­and­date­in­the­meter­are­
correct.­If­you­need­a­black­activation­chip,­please­
contact­Roche.
j­­Ensure­the­time­and­date­are­correct­and­adjust,­if­
necessary.­See­Chapter­5,­“Changing­Meter­
Settings.”
Time­Mismatch
j­­The­meter­time­and­date­were­changed­to­match­
the­pump­time.­Ensure­the­time­and­date­are­
correct.­If­the­time­or­date­are­not­correct,­change­
the­time­and­date­on­the­pump.
j­­The­time­or­date­on­the­meter­
is­more­than­5­minutes­
different­than­the­time­or­date­
on­the­pump.
i NOTE
•­­For­additional­information­on­errors­and­warnings,­see­Chapter­6,­“Icons,­Reminders,­Warnings,­and­
Errors.”­
•­If­you­have­a­question­or­if­you­see­any­other­error­screen,­please­contact­Roche.
243
50813_00048009694_D.indb 243
7/3/12 3:13 PM
244
50813_00048009694_D.indb 244
7/3/12 3:13 PM
9
9
Technical Information
9.1­Overview­
9.2­Product­Limitations­
9.3­Specifications­
9.4­Product­Safety­Information­
9.5­Disposing­of­the­Meter­
9.6­Guarantee­
9.7­Additional­Supplies­
9.8­Information­for­Healthcare­Professionals­
246
247
248
250
253
254
255
256
245
50813_00048009694_D.indb 245
7/3/12 3:13 PM
9.1 Overview
This­chapter­provides­you­with­important­performance­information­regarding­the­meter.
246
50813_00048009694_D.indb 246
7/3/12 3:13 PM
9
9.2 Product Limitations
Please­read­the­literature­packaged­with­your­test­strips­to­find­the­latest­information­on­product­
specifications­and­limitations.
247
50813_00048009694_D.indb 247
7/3/12 3:13 PM
9.3 Specifications
Blood­volume­
j­­Refer­to­the­test­strip­package­insert.
Sample­type­
j­­Fresh­whole­blood
Measuring­time­
j­­Refer­to­the­test­strip­package­insert.
Measuring­range­
j­­Refer­to­the­test­strip­package­insert.
Test­strip­storage­conditions­
j­­Refer­to­the­test­strip­package­insert.
Meter­storage­conditions­(with­
batteries­inserted)
j­­-20­ºC­to­50­ºC­
System­operating­conditions­
j­­Refer­to­the­test­strip­package­insert.
Relative­humidity­operating­range
j­­Refer­to­the­test­strip­package­insert.
Memory­capacity­
j­­1,000­diary­records
Automatic­power­off
j­­2­minutes
248
50813_00048009694_D.indb 248
7/3/12 3:13 PM
9
Power­supply­
j­­Three­AAA­batteries­(recommended:­alkaline)
Display
j­­LCD
Dimensions­
j­­94­x­55­x­25­mm­LWH
Weight
j­­­Approximately­103­g­with­batteries­inserted
Construction­
j­­Hand-held
Protection­class
j­­III
Meter­type
j­­The­Accu-Chek­Aviva­Combo­Meter­is­suitable­for­continuous­
operation.
Control­solution­storage­conditions
j­­2­°C­to­32­°C
Interface
j­­IR;­LED/IRED­–­Class­1
249
50813_00048009694_D.indb 249
7/3/12 3:13 PM
9.4 Product Safety Information
Bluetooth Wireless Technology
The­meter­and­the­pump­utilize­Bluetooth­wireless­technology­to­communicate­and­transfer­information.­
Bluetooth­wireless­technology­is­a­form­of­radio­frequency­(RF)­technology­that­operates­in­the­unlicensed­
industrial,­scientific,­and­medical­band­at­2.4­to­2.485­GHz.­The­RF­channel­utilized­for­communication­
between­the­meter­and­the­pump­is­not­an­open­channel.­The­meter­can­only­communicate­with­the­pump­it­
is­paired­with;­therefore,­other­Bluetooth­wireless­technology­devices­(e.g.,­cell­phone,­printer,­etc.)­cannot­be­
paired­with,­communicate­with,­or­access­your­personal­information­on­the­meter­or­the­pump.
Radio Frequency Communication
The­device­complies­with­the­United­States­Federal­Communications­Commission­(FCC)­standards.­The­­
device­complies­with­FCC­Part­15­Rules.­Operation­of­the­device­is­subject­to­the­following­two­conditions:­­
(1)­this­device­may­not­cause­harmful­interference,­and­(2)­this­device­must­accept­any­interference­received,­
including­interference­that­may­cause­undesired­operation.
Compliance­with­these­guidelines­means­that­under­normal,­daily­circumstances­the­device­should­not­
affect­the­operation­of­other­devices.­In­addition,­the­device­should­operate­normally­in­the­presence­of­other­
devices.
250
50813_00048009694_D.indb 250
7/3/12 3:13 PM
In­the­event­there­is­interference­from­another­device,­it­is­recommended­that­you­increase­distance­between­
meter­and­that­device.­You­may­also­turn­off­the­interfering­device.­In­addition,­you­may­turn­off­Bluetooth­
wireless­technology­on­the­meter­and­deliver­insulin­directly­using­the­pump.
9
Changes­or­modifications­to­the­device­not­expressly­approved­by­Roche­could­void­the­user’s­authority­to­
operate­the­device.
The­device­has­been­tested­and­found­to­comply­with­the­limits­for­a­Class­B­digital­device.­The­device­
generates,­uses,­and­can­radiate­radio­frequency­energy.
Electromagnetic Compatibility
This­meter­meets­the­electromagnetic­immunity­requirements­as­per­EN­ISO­15197­Annex­A.­The­chosen­
basis­for­electrostatic­discharge­immunity­testing­was­basic­standard­IEC­61000-4-2.­In­addition,­it­meets­
the­electromagnetic­emissions­requirements­as­per­EN­61326.­Its­electromagnetic­emission­is­thus­low.­
Interference­from­the­meter­to­other­electrically­driven­equipment­is­not­to­be­anticipated.­
251
50813_00048009694_D.indb 251
7/3/12 3:13 PM
Performance Analysis
The­performance­data­for­the­Accu-Chek­Aviva­Combo­System­(Accu-Chek­Aviva­Combo­Meter­with­
Accu-Chek­Aviva­Test­Strips)­were­obtained­using­capillary­blood­from­diabetic­patients­(method­comparison,­
accuracy),­venous­blood­(repeatability),­and­control­solution­(reproducibility).­The­system­is­calibrated­with­
venous­blood­containing­various­levels­of­glucose.­The­reference­values­are­obtained­using­the­hexokinase­
method.­For­method­comparison,­the­results­were­compared­with­results­obtained­using­the­hexokinase­
method­with­deproteinization­(automatic­analyzer).­The­hexokinase­method­is­traceable­to­an­NIST­standard.­
Measuring Principle
Refer­to­your­test­strip­package­insert­for­more­information.
w WARNING
•­­Strong­electromagnetic­fields­may­interfere­with­the­proper­operation­of­the­meter.­Do­not­use­this­
meter­close­to­sources­of­strong­electromagnetic­radiation.
•­­To­avoid­electrostatic­discharge,­do­not­use­the­meter­in­a­very­dry­environment,­especially­one­in­
which­synthetic­materials­are­present.
252
50813_00048009694_D.indb 252
7/3/12 3:13 PM
9
9.5 Disposing of the Meter
w WARNING
•­­During­blood­glucose­measurement,­the­meter­itself­may­come­into­contact­with­blood.­Used­meters­
therefore­carry­a­risk­of­infection.­Dispose­of­your­used­meter,­after­removing­the­batteries,­according­
to­the­regulations­applicable­in­your­country.­For­information­about­correct­disposal,­contact­your­local­
council­and­authority.
•­­The­meter­falls­outside­the­scope­of­the­European­Directive­2002/96/EC­-­Directive­on­waste­electrical­
and­electronic­equipment­(WEEE).
253
50813_00048009694_D.indb 253
7/3/12 3:13 PM
9.6 Guarantee
The­statutory­provisions­on­rights­in­consumer­goods­sales­in­the­country­of­purchase­shall­apply.
254
50813_00048009694_D.indb 254
7/3/12 3:13 PM
9
9.7 Additional Supplies
The­following­supplies­and­accessories­are­available­from­your­authorized­Roche­Diabetes­Healthcare­Centre,­
pharmacies,­or­your­medical/surgical­supply­dealer:
Test Strips
Accu-Chek­Aviva­Test­Strips
Control Solutions
Accu-Chek­Aviva­Control­Solutions
255
50813_00048009694_D.indb 255
7/3/12 3:13 PM
9.8 Information for Healthcare Professionals
w WARNING
Healthcare Professionals: Follow the infection control procedures appropriate for your facility.
A­drop­of­fresh,­whole­blood­is­required­to­perform­a­blood­glucose­test.­Refer­to­the­test­strip­package­insert­
for­additional­healthcare­professional­information.
256
50813_00048009694_D.indb 256
7/3/12 3:13 PM
Appendices
Appendix A: Abbreviations
Abbreviation
Definition
BE
Bread­Equivalent­(equal­to­12­grams­of­carbohydrates)
bG
Blood­Glucose
°C
Degrees­Celsius­(or­Centigrade)
Carbs
Carbohydrates
CC
Carbohydrate­Choice­(equal­to­15­grams­of­carbohydrates)
FCC
Federal­Communications­Commission­(United­States)
g
Grams
GHz
Gigahertz
Hyper
Hyperglycaemia­(high­blood­glucose)
Hypo
Hypoglycaemia­(low­blood­glucose)
IC
Industry­Canada
257
50813_00048009694_D.indb 257
7/3/12 3:13 PM
Abbreviation
Definition
IR
Infrared
ISO
International­Organization­for­Standardization
KE
Kohlenhydrateinheit­(equal­to­10­grams­of­carbohydrates)
LCD
Liquid­Crystal­Display
mmol/L
Millimoles­per­Liter­
N/A
Not­Applicable
NIST
National­Institute­of­Standards­and­Technology­(United­States)
PIN
Personal­Identification­Number
RF
Radio­Frequency
SD
Standard­Deviation
U
Units­(bolus­insulin­units)
258
50813_00048009694_D.indb 258
7/3/12 3:13 PM
Appendix B: Carb Units
For­carbohydrates,­the­following­units­of­measure­are­available­on­the­meter.
Abbreviation
Unit of Measurement
Gram Equivalent
g
Grams
1­gram
KE
Kohlenhydrateinheit
10­grams
BE
Bread­Equivalent
12­grams
CC
Carbohydrate­Choice
15­grams
259
50813_00048009694_D.indb 259
7/3/12 3:13 PM
Appendix C: Explanation of Symbols
You­may­encounter­the­following­symbols­on­the­packaging,­on­the­type­plate­(back­of­meter),­and­in­the­
instructions­for­the­meter,­shown­here­with­their­meaning.
Consult­instructions­for­use
w
­Caution,­refer­to­safety-related­notes­in­the­instructions­for­use­accompanying­this­
product.
i
A­NOTE­is­used­to­provide­additional­information
Temperature­limitation­(store­at)
Manufacturer
Catalogue­number
In­vitro­diagnostic­medical­device
­ lood­glucose­meter­and­test­strips:­These­products­fulfil­the­requirements­of­the
B
European­Directive­98/79/EC­on­in­vitro­diagnostic­medical­devices.
1.5V­AAA
260
50813_00048009694_D.indb 260
7/3/12 3:13 PM
Appendix D: Meter Settings and Range Limits
mmol/L
Data Type
Unit of Measurement
MIN
MAX
Increments
Default Setting
Acting­Time
hours:minutes
1:30
8:00
0:15
4:00
Active­Insulin
Units
0
99.9
0.1
N/A
bG­Threshold­(High) mmol/L
6.5
19.5
0.1
Hyper­Warning­Limit
bG­Threshold­(Low) mmol/L
3
5.5
0.1
Hypo­Warning­Limit
Carb­Ratio­(carbs)
1
0.1
0.1
0.1
240
20
24
16
1
0.1
0.1
0.1
No­entry­(“---­g”)
No­entry­(“---­BE”)
No­entry­(“---­KE”)
No­entry­(“---­CC”)
Carb­Ratio­(insulin) Units
0.1
50
0.1
1
Carbohydrates
0
0
0
0
240
20
24
16
1
0.1
0.1
0.1
No­entry­(“---­g”)
No­entry­(“---­BE”)
No­entry­(“---­KE”)
No­entry­(“---­CC”)
grams
BE
KE
CC
grams
BE
KE
CC
261
50813_00048009694_D.indb 261
7/3/12 3:14 PM
Data Type
Unit of Measurement
MIN
MAX
Increments
Default Setting
Exercise­1­­
(health­event)
%
-50
50
1
0
Exercise­2­­
(health­event)
%
-50
50
1
0
Extended­Bolus­
(insulin)
Units
0
501
0.1
N/A
Hyper­Warning­
Limit
mmol/L
10
19.4
0.1
16.5
3
5
0.1
4
Hypo­Warning­Limit mmol/L
Illness­(health­
event)
%
-50
50
1
0
Insulin­Sensitivity­
(bG)
mmol/L
0.1
55.4
0.1
No­entry­(“---mmol/L”)
Insulin­Sensitivity­
(insulin)
Units
0.1
50
0.1
1
Meal­Rise­(bG)
mmol/L
2.8
11.1
0.1
2.8
Multiwave­Bolus­
(insulin)
Units
0.2
501
0.1
N/A
262
50813_00048009694_D.indb 262
7/3/12 3:14 PM
Data Type
Unit of Measurement
MIN
MAX
Offset­Time
hours:minutes
0:45
Acting­ 0:15
Time
1:00
Premenstrual­
(health­event)
%
-50
50
1
0
Snack­Size­(carbs)
grams
BE
KE
CC
0
0
0
0
24
2
2.4
1.6
1
0.1
0.1
0.1
No­entry­(“---­g”)
No­entry­(“---­BE”)
No­entry­(“---­KE”)
No­entry­(“---­CC”)
Standard­Bolus­
(insulin)
Units
0
50
0.1
N/A
Stress­(health­
event)
%
-50
50
1
0
Target­Range­Upper­ mmol/L
Value
5.5
15
0.1
8
Target­Range­
Lower­Value
3
8
0.1
4
mmol/L
Increments
Default Setting
T­ he­maximum­that­can­actually­be­delivered­may­be­less­due­to­the­Accu-Chek­Spirit­Combo­Pump’s­
maximum­insulin­amount.
1
263
50813_00048009694_D.indb 263
7/3/12 3:14 PM
The­following­are­the­default­settings­for­bG­test­reminders.­To­turn­on­a­bG­test­reminder,­see­“Setting­the­
Alarm­Clock­Reminders:­bG­Test,­Other”­in­Chapter­5,­“Changing­Meter­Settings.”
Test Reminder
Default Time of Day
1
07:00
2
09:00
3
11:00
4
12:00
5
14:00
6
16:00
7
19:00
8
22:00
264
50813_00048009694_D.indb 264
7/3/12 3:14 PM
The­following­are­the­default­settings­for­the­time­blocks.­Talk­to­your­healthcare­professional­about­setting­
up­time­blocks­to­help­you­manage­your­diabetes.­To­adjust­the­time­blocks,­see­Chapter­5,­“Changing­Meter­
Settings.”
Time Block
24-Hour Format
1
0:00–5:30
2
5:30–11:00
3
11:00–17:00
4
17:00–21:30
5
21:30–0:00
265
50813_00048009694_D.indb 265
7/3/12 3:14 PM
266
50813_00048009694_D.indb 266
7/3/12 3:14 PM
Glossary
Term
Definition
7-day­average
Includes­results­generated­today­and­the­previous­6­days.
Acting­Time
The­period­of­time­from­the­start­of­the­meal­rise­or­the­delivery­of­a­
correction­bolus­until­your­blood­glucose­level­is­expected­to­return­to­the­
target­level.
Active­Insulin
Bolus­insulin­that­has­been­given­to­lower­your­blood­glucose­but­has­not­
yet­been­fully­used.
Advice­Options
Factors­that­influence­bolus­advice­calculations­including­meal­rise,­
snack­size,­acting­time,­and­offset­time.
After­High­bG­Reminder
A­reminder­to­retest­your­blood­glucose.­When­enabled,­this­reminder­
occurs­after­a­high­blood­glucose­test­result.
After­Low­bG­Reminder
A­reminder­to­retest­your­blood­glucose.­When­enabled,­this­reminder­
occurs­after­a­low­blood­glucose­test­result.
After­Meal­Reminder
A­reminder­to­retest­your­blood­glucose.­When­enabled,­this­reminder­
occurs­after­a­meal.­For­this­reminder­to­occur,­you­must­enter­
carbohydrate­data­greater­than­the­snack­size­amount.
Alarm
Audible­or­vibrating­(silent)­notification­indicating­a­reminder,­warning,­or­
error.
267
50813_00048009694_D.indb 267
7/3/12 3:14 PM
Term
Definition
bG­Test­Reminders
Reminders­to­retest­your­blood­glucose­after­a­high­blood­glucose­test­
result,­after­a­low­blood­glucose­test­result,­or­after­a­meal.
bG­Threshold
A­bG­test­reminder­setting.­The­upper­limit­for­your­blood­glucose­for­a­
high­bG­test­reminder­and­the­lower­limit­for­your­blood­glucose­for­a­low­
bG­test­reminder.
Blood­Glucose­(bG)
The­level­of­sugar­in­blood.
Bluetooth­Wireless­Technology
Wireless­short-range­communications­technology­which­connects­
devices­(such­as­meter­and­pump)­in­order­to­exchange­information.
Bolus
The­delivery­of­insulin­all­at­once­rather­than­slowly­throughout­the­day,­
usually­used­to­compensate­for­meals­or­high­blood­glucose.
Bolus­Advice
When­enabled,­bolus­advice­provides­recommendations­on­the­amount­of­
insulin­for­food­intake­and­for­correcting­blood­glucose­levels­that­are­not­
within­your­target­range.
Bolus­Advice­Options­
See­Advice­Options.
Bolus­Delivery­Start­Delay
The­Standard­Bolus­icon­blinks­for­5­seconds­and­then­the­meter­
communicates­to­the­pump­to­begin­delivery­of­the­bolus­amount.­During­
this­delay­you­are­able­to­cancel­the­bolus­delivery­by­pressing­x­or­z.­
The­meter­beeps­and­returns­to­the­Pump­Run­screen.
268
50813_00048009694_D.indb 268
7/3/12 3:14 PM
Term
Definition
Carb­Ratio
The­amount­of­insulin­necessary­to­account­for­a­certain­number­of­
carbohydrates.
Carbohydrates­(or­Carbs)
Carbohydrate­foods­include­sugars­and­starches.­Carbohydrates­can­
raise­blood­glucose­levels­slowly­or­rapidly.­Carbohydrates­are­generally­
counted­to­calculate­a­bolus­insulin­dose.
Caution
Provides­information­that,­if­not­followed,­could­result­in­material­hazards­
(damage­to­or­destruction­of­equipment­or­materials).
Control­Result
Value­displayed­on­meter­as­the­result­of­a­control­test.­When­the­Control­
Result­is­within­the­range­shown­on­the­label­of­the­test­strip­container,­
then­the­test­strips­and­the­meter­are­working­properly.
Control­Test
A­meter­test­using­control­solution­which­lets­you­know­that­the­meter­
and­test­strips­are­working­properly.
Corrupt­Result
bG­test­result­that­had­an­error.
Current­Date
Refers­to­the­date­you­set­through­the­menu­Settings­and­then­the­Time/
Date­screen.
Current­Time
Refers­to­the­time­you­set­through­the­menu­Settings­and­then­the­Time/
Date­screen.
269
50813_00048009694_D.indb 269
7/3/12 3:14 PM
Term
Definition
Day
Period­of­time­starting­at­00:00­and­ending­at­23:59.
End­Time
The­end­time­of­a­time­block.
Extended­Bolus
A­bolus­delivered­over­a­period­of­time.­It­can­be­helpful­during­long­
meals­or­when­you­have­meals­that­are­digested­slowly.­The­Extended­
Bolus­may­also­be­appropriate­for­people­who­have­gastroparesis­
(delayed­digestion).­This­option­is­available­only­when­Bluetooth­wireless­
technology­is­turned­on­and­the­meter­and­pump­are­communicating.
Health­Events
A­pop-up­menu­selection­(fasting,­exercise­1,­stress,­illness,­exercise­2,­
or­premenstrual)­that­allows­information­to­be­stored­with­a­blood­
glucose­test­result­or­in­a­diary­record­and­percentages­that­could­adjust­
bolus­advice­recommendations­for­your­current­health­status­or­
activities.
HI
The­test­result­is­above­the­meter’s­measurement­range.
Hyper
Hyperglycaemia:­an­abnormally­high­level­of­glucose­in­the­blood.
Hyper­Warning­Limit
When­your­blood­glucose­test­result­is­above­the­hyper­warning­limit,­a­
warning­is­displayed.
270
50813_00048009694_D.indb 270
7/3/12 3:14 PM
Term
Definition
Hypo
Hypoglycaemia:­an­abnormally­low­level­of­glucose­in­the­blood.
Hypo­Warning­Limit
When­your­blood­glucose­test­result­is­below­the­hypo­warning­limit,­a­
warning­is­displayed.
Insulin­Pump
A­device­that­delivers­a­continuous­supply­of­insulin­into­the­body.
Insulin­Sensitivity
The­amount­of­insulin­necessary­to­lower­your­blood­glucose­by­a­certain­
amount.
Ketones
A­by-product­or­waste­product­when­your­body­burns­stored­fat­for­
energy.­Ketones­are­produced­when­there­is­not­enough­insulin­to­help­
your­body­use­glucose­for­energy.­Without­enough­insulin,­glucose­builds­
up­in­the­blood.
Key­Lock
A­meter­function­which­disables­the­keys­(buttons)­in­order­to­prevent­its­
unintended­use.
LO
The­test­result­is­below­the­meter’s­measurement­range.
Meal­Rise
During­or­after­meals,­an­increase­in­blood­glucose­levels­is­considered­
normal­within­a­certain­range,­even­though­a­meal­bolus­has­been­
delivered.­A­meal­rise­is­in­effect­for­a­specified­time­period.
271
50813_00048009694_D.indb 271
7/3/12 3:14 PM
Term
Definition
Meal­Time
A­pop-up­menu­selection­(Pre­Meal,­Post­Meal,­Bedtime,­or­other)­that­
allows­information­to­be­stored­with­a­blood­glucose­test­or­in­a­diary­
record.
Meter
Blood­glucose­meter.
Multiwave­Bolus
A­bolus­designed­to­better­simulate­the­body’s­insulin­delivery.­It­
combines­an­immediate­bolus­delivery­followed­by­an­Extended­Bolus­
delivery.­A­Multiwave­Bolus­can­be­helpful­when­you­have­meals­that­
include­both­rapidly­and­slowly­absorbed­carbohydrates.­This­option­is­
available­only­when­Bluetooth­wireless­technology­is­turned­on­and­the­
meter­and­pump­are­communicating.
Note
Additional­information.
Offset­Time
Offset­time­takes­into­account­the­expected­delay­for­the­blood­glucose­
level­to­actually­fall­during­the­acting­time­of­insulin­in­the­body.­It­
describes­the­first­time­period­within­the­acting­time.
Paired
A­pump­and­meter­exclusively­communicating­and­transferring­
information­with­each­other.
Pump
See­Insulin­Pump.
272
50813_00048009694_D.indb 272
7/3/12 3:14 PM
Term
Definition
Quick­Bolus
A­bolus­delivery­on­the­pump­using­the­pump­UP­and­DOWN­keys.­One­
key­press­equals­one­bolus­increment­(i.e.,­0.1,­0.2,­0.5,­1.0,­2.0).­See­
the­pump­User­Guide­for­more­information.
Remind­After
A­bG­test­reminder­setting.­The­amount­of­time­after­a­high­blood­glucose­
test­result,­after­a­low­blood­glucose­test­result,­or­after­a­meal­you­want­
the­reminder­to­occur.
Reminder
When­enabled,­reminders­occur­to­remind­you­to­test­your­blood­glucose,­
to­retest­your­blood­glucose­or­of­an­event­or­activity.
Snack­Size
The­amount­of­carbohydrates­that­should­not­be­counted­as­a­regular­
meal­with­the­expected­meal­rise.
Snooze
Delay­of­some­reminders­for­a­defined­time­period.
Soft­Keys
Two­buttons­under­the­meter­display­used­to­navigate­through­the­user­
interface.­Just­above­each­soft­key,­the­meter­display­shows­the­
selection­(i.e.,­Save,­Cancel,­Back,­etc.).­
Standard­Deviation
As­it­is­used­in­this­owner’s­booklet,­standard­deviation­measures­how­
widely­spread­the­bG­test­results­are­(e.g.,­if­the­bG­test­results­are­close­
to­the­bG­average,­then­the­standard­deviation­is­small).
273
50813_00048009694_D.indb 273
7/3/12 3:14 PM
Term
Definition
Standard­Bolus
A­bolus­that­is­immediately­delivered­to­cover­a­food­or­a­blood­glucose
correction.­When­Standard­is­selected,­the­bolus­is­delivered­by­the­
pump.­This­option­is­available­only­when­Bluetooth­wireless­technology­is­
turned­on­and­the­meter­and­pump­are­communicating.
Start­Time
The­start­time­of­a­time­block.
Target­Range
The­desired­upper­and­lower­limits­of­your­blood­glucose­level­considered­
acceptable­as­set­by­your­healthcare­professional.
Time­Blocks
Up­to­eight­time­periods­within­one­day­to­facilitate­your­changing­insulin­
needs­throughout­the­day.
Time­Range
The­user­sets­the­duration­of­time.­There­is­a­start­and­end­time.­
User
A­person­using­the­meter­or­pump.
Warning
Describes­items­and­conditions­that­present­hazards­and­may­cause­
personal­injury.
Warning­Limits
See­Hyper­Warning­Limit­or­Hypo­Warning­Limit.­
274
50813_00048009694_D.indb 274
7/3/12 3:14 PM
Index
A
abbreviations,­­257–259
acting­time,­­152–154, 163
activation­chip,­­12–13, 15
activation­chip­slot,­­13
active­insulin,­­49–52
advice­options,­­162–163
after­high­bG­test­reminder,­­133–137, 200, 204
after­low­bG­test­reminder,­­133–137, 200, 204
after­meal­bG­test­reminder,­­133–137, 201,
204, 207
alarm­clock­reminders,
bG­test,­­29, 138–140, 204, 208
other,­­29, 138–140, 204, 208–209
appetite,­increased,­­58
B
backlight,­­20, 193
button,­­13, 17
batteries,­­14
changing,­­221–223
low,­­31
type,­­221
BE,­­173–175
beeper,­setting,­­179–181
bG­test­reminder,­­28, 201, 264
bG­threshold,­­135–136
blood­glucose­averages,­­92–93
blood­glucose­test,
performing,­­42–50
reminder,­­28
results,­­46, 49–57
unusual­results,­­53–57
Bluetooth­wireless­technology,­­17, 32, 250–251
turning­on­or­off,­­176–177
275
50813_00048009694_D.indb 275
7/3/12 3:14 PM
blurred­vision,­­58
bolus­advice,­­22, 146–154
bolus­advice­options. See advice­options
bolus,­delivery,­­23, 230–232
buttons,­­13, 15–17, 16–18
C
carbohydrates,­­49–52, 85, 88
units­of­measure,­­173–175, 259
carb­ratio,­­150, 232
carbs. See carbohydrates
CC,­­173–175
cleaning­meter,­­225
code­chip. See activation­chip
communication,­­229, 231–233
control­solution,­­14, 62, 65
control­test,
performing,­­61, 63–68
results,­­66–67, 69–72
results,­troubleshooting,­­73–74
D
data,­­23
adding,­­50–52, 87–89
downloading­to­a­computer,­­24, 128–130
modifying,­­79–87
reporting,­­90–127
trends,­­94–103
viewing,­­79–87
date,
reminders,­­, 29, 141–145
settings,­­182–184
display,­­13, 20, 229
disposing,­meter,­­253
Dr.­visit­reminder,­­141–145, 201–202, 204
E
electromagnetic­compatibility,­­251
errors,­list­of,­­216–218
276
50813_00048009694_D.indb 276
7/3/12 3:14 PM
F
fatigue,­­58
frequent­urination,­­58
G
g­(grams),­­173–175
graph,
standard­day,­­105–108
standard­week,­­114–117
target,­­122–124
trend,­­95–98
guarantee,­­254
H
headache,­­58
health­events,­­27, 50–51, 85, 88, 152,
160–161
high­bG­retest­reminder,­­202, 206
hyper­warning­limit,­­24, 164–166, 230, 240
hypo­warning­limit,­­24, 164–166, 230, 240
I
icons,­listing,­­81–82, 197–198
infrared­(IR)­window,­­13–14, 129
infusion­set­change­reminder,­­141–145, 202,
204
insulin­pump,­­19
insulin­pump,­connecting. See pairing
insulin­sensitivity,­­150, 239
K
KE,­­173–175
key­lock,­­18, 21, 167–169
key­sound,­setting,­­179–181
L
lab­test­reminder,­­141–145, 203–204
lancing­device,­­44–45
language,­­170–172
lock. See key­lock
low­bG­retest­reminder,­­203–205
277
50813_00048009694_D.indb 277
7/3/12 3:14 PM
M
maintenance,­meter,­­226
meal­rise,­­152, 154, 163
meal­time,­­49–52, 85
meter,
settings­and­range­limits,­­261–266
summary­of­features,­­13, 20–28
N
navigation,­­36–37
numbness,­­58
O
offset­time,­­152–153, 163
P
pairing,­­18, 178
power­button,­­13, 16–17
power-saving­tips,­­224
pump. See insulin­pump
R
rapid­heartbeat,­­58
reminders,
list­of,­­200–201
others,­­203
priority,­­204
S
safety­information,­­250–252
screen,­features,­­31, 34–35
scroll­bar,­­34
snack­size,­­136–137, 152–153, 163
snooze,­­133, 138, 199, 209
soft­keys,­­13, 16–18
sound. See beeper­setting
sound,­­31
specifications,­meter,­­248–249
standard­day,­reporting,­­104–112
standard­deviation,­­90–91
standard­week,­reporting,­­113–121
supplies,­­255
278
50813_00048009694_D.indb 278
7/3/12 3:14 PM
sweating,­­58
symbols,­explanation,­­260
T
table,
standard­day,­­109–112
standard­week­­118–120
target,­­125–127
trend,­­100–103
target­range,­­150, 187, 240–241
target,­reporting,­­121–127
test­results,
storing,­­77–78
unusual,­­57
test­strip,­­235–237, 243
thirst,­increased,­­58
time­blocks,­­25–26, 146–154, 155–159,
185–192, 265
time­change,­­95, 97, 100–101
time­format,­setting,­­182–183
time,­setting,­­182–183
tingling,­­58
trembling,­­58
troubleshooting,­­229–243
U
units­of­measure. See carbohydrates,­units­of­
measure
unlock. See key­lock
use­by­date,­­41, 57, 62, 73
V
vibrate,­setting,­­179–181
W
warnings,­list­of,­­210–215
279
50813_00048009694_D.indb 279
7/3/12 3:14 PM
280
50813_00048009694_D.indb 280
7/3/12 3:14 PM
