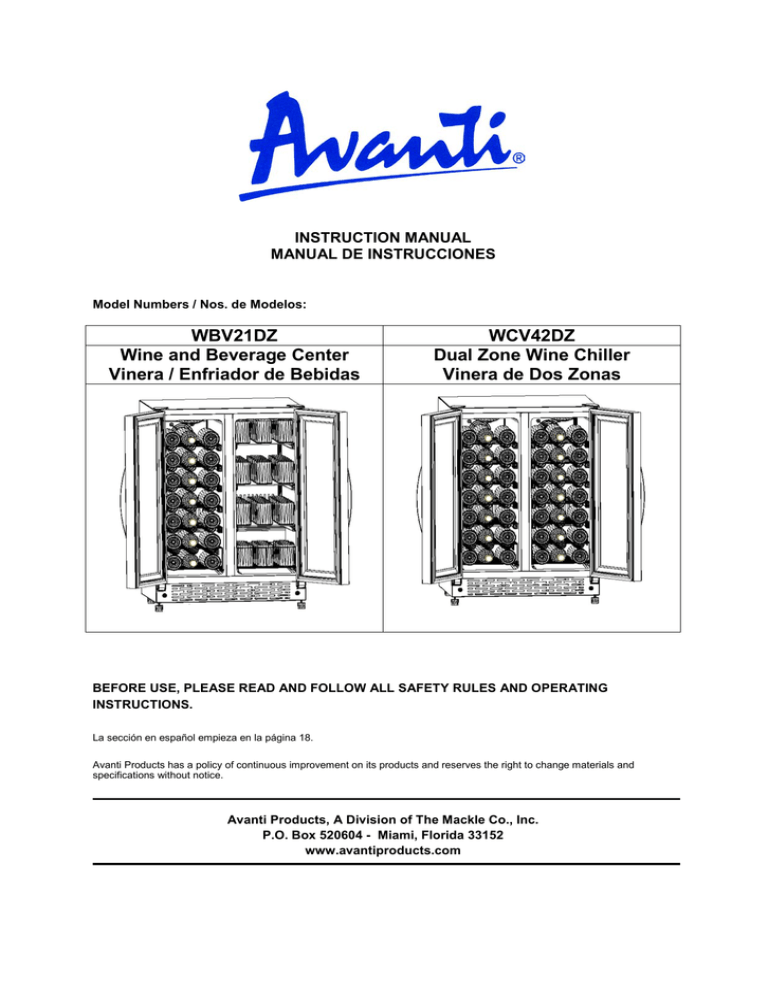

INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Model Numbers / Nos. de Modelos:
WBV21DZ
Wine and Beverage Center
Vinera / Enfriador de Bebidas
WCV42DZ
Dual Zone Wine Chiller
Vinera de Dos Zonas
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 18.
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com
TABLE OF CONTENTS
Appliance Safety
3
Important Safeguides
4
Help Us Help You …
5
Parts and Features - Model WBV21DZ
6
Parts and Features - Model WCV42DZ
7
Important Safety Instructions
8
Electrical Connection
8
Extension Cord
8
Installation Instructions
9
Before Using Your Appliance
9
Installation of Your Appliance
9
Built-in Cabinet Instructions
9
Operating Your Appliance - WBV21DZ
ON/OFF Power
Setting the Temperature Control
Storage
Interior Light
Control Panel Lock
Door Lock
10 - 11
Operating Your Appliance - WCV42DZ
ON/OFF Power
Setting the Temperature Control
Storage
Interior Light
Control Panel Lock
Door Lock
12 - 13
Care and Maintenance
14
Cleaning Your Wine Chiller
14
Power Failure
14
Moving Your Wine Chiller
14
Energy Saving Tips
14
Troubleshooting Guide
15
Service for Your Appliance
16
Wiring Diagram
16
Your Avanti Products Warranty
17
Instrucciones en Español
18 ~22
Registration Information and Registration Card
Last
Page
2
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always
read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words “DANGER”, “WARNING” or “CAUTION”.
Danger means that failure to heed this
safety statement may result in severe
personal injury or death.
Warning means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
Caution means that failure to heed this
safety statement may result in minor or
moderate personal injury, or property or
equipment damage.
All safety messages will alert you do what the potential hazard is, tell you how to reduce the chance of
injury, and let you know what can happen if the instructions are not followed.
3
IMPORTANT SAFEGUIDES
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precaution,
including the following:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and
do not use an extension cord.
Replace all panels before operating.
It is recommended that a separate circuit, serving only your appliance be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result
in electrical shock or death.
Do not attempt to repair or replace any part of your appliance unless it is specifically
recommended in this material. All other servicing should be referred to a qualified technician.
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
Use two or more people to move and install appliance. Failure to do so can result in back or other
injury.
To ensure proper ventilation for your appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below
90°F (32°C). This unit must be installed in an area protected from the element, such as wind, rain,
water spray or drips.
The appliance should not be located next to ovens, grills or other sources of high heat.
The appliance must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances is required.
Do not kink or pinch the power supply cord of appliance.
The fuse (or circuit breaker) size should be 15 amperes.
It is important for the appliance to be leveled in order to work properly. You may need to make
several adjustments to level it.
Never allow children to operate, play with or crawl inside the appliance.
Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may
damage or discolor the interior.
Do not use this apparatus for other than its intended purpose.
4
HELP US HELP YOU...
Read this guide carefully.
Write down the model and serial numbers.
It is intended to help you operate and maintain
your new Wine Chiller properly.
You'll find them on a plate located on the rear
outside wall of the Wine Chiller.
Keep it handy to answer your questions.
If you don't understand something or you
need more assistance, please call:
Please write these numbers here:
____________________________________
Date of Purchase
Avanti Customer Service
800-220-5570
____________________________________
Model Number
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
____________________________________
Serial Number
CAUTION:
Use these numbers in any correspondence or
service calls concerning your Wine Chiller.
THIS WINE CHILLER IS NOT
DESIGNED FOR THE STORAGE
OF MEDICINE OR OTHER
MEDICAL PRODUCTS.
If you received a damaged Wine Chiller,
immediately contact the dealer (or builder) that
sold you the Wine Chiller.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problems that
you can correct yourself.
IF YOU NEED SERVICE
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further assistance.
FIRST, contact the people who serviced your
Wine Chiller. Explain why you are not pleased.
In most cases, this will solve the problem.
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA
5
PARTS & FEATURES
WBV21DZ – Wine & Beverage Center
1
2
3
4
5
6
7
8
9
10
11
6
Wine Chiller Temperature Controls
(Left Zone)
Interior Fan
Interior Light
Cabinet
Beverage Center Temperature
Controls (Right Zone)
Wine Bottle Shelves (5)
Wine Bottle Storage Rack / Basket
Beverage Shelves (3)
Storage Basket
Leveling Legs
Lock (Not Shown)
PARTS & FEATURES
WCV42DZ – Dual Zone Wine Chiller
1
2
3
4
5
6
7
8
9
7
Wine Chiller Temperature Controls
(Left Zone)
Interior Fan
Interior Light
Cabinet
Wine Chiller Temperature Controls
(Right Zone)
Wine Bottle Shelves (10)
Wine Bottle Storage
Rack / Basket (2)
Leveling Legs
Lock (Not Shown)
IMPORTANT SAFETY INSTRUCTIONS
•
•
•
•
•
•
To reduce the risk of fire, electrical shock,
or injury when using your appliance, follow
WARNING
these basic precautions:
Read all instructions before using the Wine Chiller.
DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
Before you throw away your old Wine Chiller / Beverage Center: Take off the
door. Leave the shelves in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
-Save these instructions-

ELECTRICAL CONNECTION
Warning
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with three-prong.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from
the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.

EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at
least 10 amperes.
8
INSTALLATION INSTRUCTIONS

BEFORE USING YOUR WINE CHILLER
• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:
Model WBV21DZ
Model WCV42DZ
Wine / Beverage Center
Dual Zone Wine Chiller
1
Instruction Manual
1
Instruction Manual
5
Wine Bottle Shelves (Wire)
10 Wine Bottle Shelves (Wire)
1
Wine Bottle Shelf / Basket (Wire)
2
Wine Bottle Shelf / Basket (Wire)
3
Beverage Shelves (Glass)
4
Keys
1
Storage Basket (Wire)
4
Keys
• Before connecting this appliance to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.

INSTALLATION OF YOUR WINE CHILLER
• This appliance is designed to be for free standing installation or built-in (fully recessed).
• Place your Wine Chiller on a floor that is strong enough to support it when it is fully loaded. To
level your Wine Chiller, adjust the front leveling legs at the bottom of the Wine Chiller.
• Locate the Wine Chiller away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
• Avoid locating the unit in moist areas.
• Plug the Wine Chiller into an exclusive, properly installed-grounded wall outlet. Do not under
any circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Avanti Products service center.

BUILT – IN CABINET INSTRUCTIONS
This unit is designed for both built-in or free standing installation. If you plan to use this unit in a builtin application please follow the requirements shown to the right.
Cabinet Opening Dimensions
IN (min) CM (min)
Width
24”
61 cm
Depth
24”
61 cm
Height
34 ½”
87.6 cm
9
MODEL WBV21DZ
OPERATING YOUR WINE & BEVERAGE CENTER
It is recommended you install the appliance in a place where the ambient temperature is between 7278 degrees Fahrenheit. If the ambient temperature is above or below recommended temperatures,
the performance of the unit may be affected. For example, placing your unit in extreme cold or hot
conditions may cause interior temperatures to fluctuate. The range of 40-65 degrees Fahrenheit may
not be reached.
Temperature Ranges by Side / Zone
WINE Chiller (LEFT SIDE)
45º - 65º F
BEVERAGE COOLER (RIGHT SIDE)
34º - 43º F
7º - 18º C
1º - 6º C
Recommended Temperatures for Chilling Wine.
Red Wines
Dry / White Wines
Rose Wines
Sparkling Wines
58 - 65 ºF
48 - 57 ºF
49 - 51 ºF
40 - 47 ºF
14 - 18 ºC
10 - 13 ºC
9 – 11 ºC
5 - 8 ºC
Wine Chiller (Left Side / Zone) Control Panel
Beverage Center (Right Side / Zone) Control Panel
You can select temperature display setting from Fahrenheit to Celsius degree by pushing the ºF/ºC
button/mark. Fahrenheit or Celsius degrees indicator will appear in blue color in the temperature
display window for each zone.
 ON/OFF POWER
To turn ON or OFF the appliance, press the
button/mark and hold for 3 seconds.
10
 SETTING THE TEMPERATURE CONTROL
You can control the internal temperature of each side/zone independently by using the control panel
for that side.
You can press the left side UP and DOWN buttons/marks to control the internal temperature of each
respective side / zone.
The degrees indicators will appear in the display window.
•
The temperature that you desire to set will increase 1ºF or 1ºC if you push the UP button/mark
once, on the contrary the temperature will decrease 1ºF or 1ºC if you push the DOWN
button/mark once.
NOTE:
• If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, the Wine Chiller will not start.
• When you use the wine chiller for the first time or restart the wine chiller after having been shut off
for a long time, there could be a few degrees variance between the temperature you select and
the one indicated on the LED readout. This is normal and it is due to the length of the activation
time. Once the wine chiller is running for a few hours everything will be back to normal.
 STORAGE
Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able
to store may vary.
NOTE:
Capacity:
Wine Chiller / LEFT SIDE / ZONE:
Beverage Center / RIGHT SIDE / ZONE:
21 Standard bottles
54 Cans
Bottle capacities are approximate maximums when storing traditional Bordeaux 750 ML bottles and
include bulk storage.

•
•
INTERIOR LIGHT
Interior lights are available in both zones.
You can turn the interior light on in each zone by pushing the button marked with the “bulb”
symbol
or touch the mark
.
The lights will turn off automatically if it remains ON for 10 minutes or more. You have to push the
button marked with the “bulb” symbol
or touch the mark
again and the light will turn
back on.

•
•
•
CONTROL PANEL LOCK
Your Wine chiller is equipped with an automatic Control panel lock function. This function will
prevent any unwanted changes to your temperature or power settings.
The lock function will activate automatically 12 seconds after the last time a button is pushed on
the control panel.
To unlock the control panel lock press and hold the (UP) and the (DOWN) buttons for 3 seconds
the control panel will beep and blink once indicating that the control panel is active and the
settings can be changed.
 DOOR LOCK
Your unit is provided with a lock and key combination on each side..
The keys are located inside the plastic bag that contains the User’s Guide. Insert the key into the lock
and turn it counterclockwise to unlock the door. To lock the door do the reverse operation making
sure metal pin is engaged completely. Remove the key and place it in a secure place for safekeeping.
11
MODEL WCV42DZ
OPERATING YOUR WINE & BEVERAGE CENTER
It is recommended you install the appliance in a place where the ambient temperature is between 7278 degrees Fahrenheit. If the ambient temperature is above or below recommended temperatures,
the performance of the unit may be affected. For example, placing your unit in extreme cold or hot
conditions may cause interior temperatures to fluctuate. The range of 40-65 degrees Fahrenheit may
not be reached.
Temperature Ranges by Side / Zone
LEFT SIDE
45º - 65º F
7º - 18º C
RIGHT SIDE
45º - 65º F
7º - 18º C
Recommended Temperatures for Chilling Wine.
Red Wines
Dry / White Wines
Rose Wines
Sparkling Wines
58 - 65 ºF
48 - 57 ºF
49 - 51 ºF
40 - 47 ºF
14 - 18 ºC
10 - 13 ºC
9 – 11 ºC
5 - 8 ºC
Left Side / Zone Control Panel
Right Side / Zone Control Panel
You can select temperature display setting from Fahrenheit to Celsius degree by pushing the ºF/ºC
button/mark. Fahrenheit or Celsius degrees indicator will appear in blue color in the temperature
display window for each zone.
 ON/OFF POWER
To turn ON or OFF the appliance, press the
button/mark and hold for 3 seconds.
12
 SETTING THE TEMPERATURE CONTROL
You can control the internal temperature of each side/zone independently by using the control panel
for that side.
You can press the left side UP and DOWN buttons/marks to control the internal temperature of each
respective side / zone.
The degrees indicators will appear in the display window.
•
The temperature that you desire to set will increase 1ºF or 1ºC if you push the UP button/mark
once, on the contrary the temperature will decrease 1ºF or 1ºC if you push the DOWN
button/mark once.
NOTE:
• If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, the Wine Chiller will not start.
• When you use the wine chiller for the first time or restart the wine chiller after having been shut off
for a long time, there could be a few degrees variance between the temperature you select and
the one indicated on the LED readout. This is normal and it is due to the length of the activation
time. Once the wine chiller is running for a few hours everything will be back to normal.
 STORAGE
Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able
to store may vary.
NOTE:
LEFT SIDE / ZONE:
RIGHT SIDE / ZONE:
TOTAL
21 Standard bottles
21 Standard bottles
42 Standard bottles
Bottle capacities are approximate maximums when storing traditional Bordeaux 750 ML bottles and
include bulk storage.

•
•
INTERIOR LIGHT
Interior lights are available in both zones.
You can turn the interior light on in each zone by pushing the button marked with the “bulb”
symbol
or touch the mark
.
The lights will turn off automatically if it remains ON for 10 minutes or more. You have to push the
button marked with the “bulb” symbol
or touch the mark
again and the light will turn
back on.

•
•
•
Control Panel Lock.
Your Wine chiller is equipped with an automatic Control panel lock function. This function will
prevent any unwanted changes to your temperature or power settings.
The lock function will activate automatically 12 seconds after the last time a button is pushed on
the control panel.
To unlock the control panel lock press and hold the (UP) and the (DOWN) buttons for 3 seconds
the control panel will beep and blink once indicating that the control panel is active and the
settings can be changed.
 DOOR LOCK
Your unit is provided with a lock and key combination on each side..
The keys are located inside the plastic bag that contains the User’s Guide. Insert the key into the lock
and turn it counterclockwise to unlock the door. To lock the door do the reverse operation making
sure metal pin is engaged completely. Remove the key and place it in a secure place for safekeeping.
13
CARE AND MAINTENANCE

•
•
•
•
•
•
CLEANING YOUR WINE CHILLER
Turn off the power, unplug the appliance, and remove all items including shelves.
Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with
a clean soft cloth.
Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless
steel with steel particles and rusting may occur.

•
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your contents.

•
•
•
•
MOVING YOUR WINE CHILLER
Remove all items.
Securely tape down all loose items (shelves) inside your appliance.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation. Also protect
outside of appliance with a blanket, or similar item.

•
ENERGY SAVING TIPS
The Wine Chiller should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
14
PROBLEMS WITH YOUR WINE CHILLER?
You can solve many common Wine Chiller problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM
Wine Chiller does not operate.
Wine Chiller is not cold enough.
Turns on and off frequently.
The light does not work.
Vibrations.
The Wine Chiller seems to make too much noise.
The door will not close properly.
Display flashes Error message “E0”
Display flashes Error message “E1”
Display flashes Error message “E2”
POSSIBLE CAUSE
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Check the temperature control setting.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
The room temperature is hotter than normal.
A large amount of contents has been added to
the wine chiller.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The light button is “OFF”.
Check to assure that the Wine Chiller is level.
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
Wine Chiller.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The Wine Chiller is not level.
The Wine Chiller is not level.
The gasket is dirty.
The shelves are out of position.
Connection failure – there is a wire or component
that is not connected correctly.
Contact the Avanti Service Department –
1 – 800 – 220 – 5570
Temperature sensor failure.
Contact the Avanti Service Department –
1 - 800 – 220 - 5570
Defrost sensor (Coil Sensor) failure.
Contact the Avanti Service Department –
1 - 800 – 220 - 5570
15
SERVICE FOR YOUR WINE CHILLER
We are proud of our customer service organization and the network of professional service
technicians that provide service on your Avanti appliances. With the purchase of your Avanti
appliance, you can have the confidence that if you ever need additional information or assistance, the
Avanti Products Customer Service team will be here for you. Just call us toll-free.
Product Information
800-323-5029
Part Orders
800-220-5570
In-Home Repair Service
800-220-5570
AVANTI PRODUCTS CUSTOMER SERVICES
Whatever your questions are about our products,
help is available.
You may order parts and accessories that will be
delivered directly to your home by personal
check, money order, Master Card, or Visa.
An Avanti Products authorized service center will
provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your appliance inside and out.
WIRING DIAGRAM
16
YOUR Avanti Products WARRANTY
Staple your sales receipt here. Proof of
original purchase date is needed to obtain
service under warranty.
WHAT IS COVERED
LIMITED ONE-YEAR
WARRANTY
LIMITED SECOND THROUGH
FIFTH YEAR WARRANTY
For one year from the date of
purchase by the original owner, Avanti
Products will, at its option, repair or
replace any part of the unit, which
proves to be defective in material or
workmanship under normal use.
During this period Avanti Products will
provide all parts and labor necessary
to correct such defects free of charge,
so long as the unit has been installed
and operated in accordance with the
written instructions in this manual. In
rental or commercial use, the warranty
period is 90 days. Avanti Products will
provide you with a reasonably similar
replacement product that is either new
or factory refurbished. All Avanti
Appliances of 3.5 cubic feet capacity
or less must be brought/sent to the
appliance service shop for repair.
For the second through the fifth year from date
of original purchase, Avanti Products will
provide a replacement compressor free of
charge due to a failure. You are responsible
for the service labor and freight charges. In
rental or commercial use, the limited
compressor warranty is one year and nine
months. Cost to move the appliance to the
servicers’ shop and back to the user's home,
as may be required, are the user's
responsibility.
WHAT IS NOT COVERED
•
•
•
•
•
•
•
•
•
•
Content losses of food or other, due to
spoilage.
Incidental or consequential damages.
Parts and labor costs for the following will
not be considered as warranty:
Door springs, and/or frames.
Inner door panels, door rails and/or door
supports.
Light bulbs and/or plastic housing.
Plastic cabinet liners.
Punctured evaporator that voids the
warranty on the complete sealed system.
Repairs performed by unauthorized
servicers.
•
•
•
•
•
17
Service calls that do not involve defects in
material or workmanship such as
customer education, door reversal, or
proper installation.
Surcharges including, but not limited to,
any after hour, weekend, or holiday
service calls, tolls, ferry trip charges, or
mileage expense for service call to remote
areas, including the State of Alaska.
Service calls that are related to external
problems, such as abuse, misuse,
inadequate electrical power, accidents,
fire, floods, or acts of God.
Replacement of house fuses or resetting
circuit breakers.
Failure of the product if it is used for other
than its intended purpose.
This warranty does not apply outside the
Continental USA.
INSTRUCCIONES DE SEGURIDAD
ATENCION
INSTRUCCIONES PARA
LA CONEXION A TIERRA
Este aparato electrodoméstico debe estar conectado a tierra. En caso de un cortocircuito eléctrico, la
conexión a tierra reduce el riesgo de choque eléctrico proporcionando un cable a tierra con una
enchufe de conexión a tierra. Este enchufe debe estar conectado en un tomacorriente instalado
correctamente y conectado a tierra.
ADVERTENCIA – El uso inadecuado del enchufe de conexión a tierra puede resultar en un riesgo de
choque eléctrico. Consulte con un electricista o persona de reparaciones competente si no
comprenden bien las instrucciones de conexión a tierra o si existe alguna duda sobre si el aparato
esta conectado a tierra correctamente.
NO USE UN CORDON DE PROLONGACION ELECTRICA
Use un tomacorriente de pared exclusivo. No conecte su vinera a cordones de prolongación eléctrica
o junto a cualquier otro electrodoméstico en el mismo tomacorriente de pared.
ADVERTENCIA IMPORTANTE:
Una vinera vacía es una atracción muy peligrosa para los niños. Saque todas las juntas,
pestillos, tapas o puerta de todo electrodoméstico que no esté en uso, o tome alguna
medida para asegurar que no presente peligro.
INSTRUCCIONES DE INSTALACION
Saque los embalajes exteriores, limpie bien el exterior con un paño suave seco, y el interior con un
paño húmedo y tibio. Evite colocar la vinera cerca de una fuente de calor, luz de sol directa, o lugar
húmedo.
Ubicación
1. Seleccione un lugar con su piso fuerte y nivelado.
2. Evite la luz directa del sol o calor. La luz directa del sol puede afectar la capa de acrílico.
Las fuentes de calor en su proximidad provocarán un consumo mayor de electricidad.
OPERACION
Para evitar vibraciones, el compartimiento interior debe estar bien nivelado. La temperatura variará
dependiendo de la cantidad de botellas almacenadas y la frecuencia con que se abre la puerta.
Cuando la vinera no se use por un período largo, desconecte el enchufe y deje la puerta entreabierta.
Nota: Espere entre 3 a 5 minutos antes de volver a encender si el funcionamiento ha sido
interrumpido.
Se recomienda que Ud coloque su vinera en un lugar donde la temperatura ambiental se mantenga
entre 23-25 grados centígrados.
Si la temperatura ambiental oscila afuera de esos límites, pueda afectar la temperatura de la caja.
Por ejemplo, si su unidad está situada en lugares donde hay temperaturas muy frías o calientes
también puede afectar la temperatura de la caja.
Temperaturas recomendadas para enfriar vinos:
Vinos tintos
15º - 18º C
58 – 65º F
Vinos blanco/seco
9º - 14º C
48 – 57º F
Vinos rosé/Zinfandel
10º - 11º C
49 – 51º F
Vinos blanco/espumante
5º - 8º C
40 – 47º F
18
Modelo: WBV21DZ – Vinera / Enfriador de Bebidas.
CONTROL – ZONA IZQUIERDA – VINERA
CONTROL – ZONA DERECHA – ENFRIADOR DE BEBIDAS
ENCENDIDO/APAGADO
Para apagar el refrigerador de vino, presione el botón (
de 3 segundos.
) y manténgalo presionado por un mínimo
PANEL DE CONTROL DE SEGURIDAD
• Su refrigeradora de vino está equipada con un Panel de Control de Seguridad de función
automática. Esta función previene cualquier cambio no deseado en el control de
temperatura.
• La función de seguridad se activará automáticamente 12 segundos después de la última vez
que cualquier botón del Panel de Control sea presionado.
• Para poder hacer cambios en el Panel de Control, presione y mantenga presionados los
botones (↑ ) y (↓ ) por 3 segundos, el Panel del Control emitirá un sonido de “Beep” y
parpadeará una vez, indicando que el Panel de Control ha sido activado y que puede
efectuar cambios en los controles.
Operación
Oprima los botones marcado “↑ “ y “↓ “ localizados en el panel de controles para programar la
temperatura. Al presionar los botones marcados “↑ “ o “↓ “ por primera vez, el indicador en la
pantalla mostrará la temperatura programada de fábrica o la más reciente.
Oprima el botón marcado (↑) una vez y la temperatura aumentará un grado. Si Ud oprime el botón
marcado (↓) una vez la temperatura bajará un grado.
Luz interior
La luz interior se controla manualmente y no funciona al abrir ni cerrar la puerta. Para prender o
apagar la luz, presione el boton marcado (
) de la luz ubicado en el panel de control. Si la luz
está prendida, por más de 10 minutos, se apagará automáticamente.
19
Modelo: WCV42DZ – Vinera de Dos Zonas
CONTROL – ZONA IZQUIERDA
CONTROL – ZONA DERECHA
ENCENDIDO/APAGADO
Para apagar el refrigerador de vino, presione el botón (
de 3 segundos.
) y manténgalo presionado por un mínimo
PANEL DE CONTROL DE SEGURIDAD
• Su refrigeradora de vino está equipada con un Panel de Control de Seguridad de función
automática. Esta función previene cualquier cambio no deseado en el control de
temperatura.
• La función de seguridad se activará automáticamente 12 segundos después de la última vez
que cualquier botón del Panel de Control sea presionado.
• Para poder hacer cambios en el Panel de Control, presione y mantenga presionados los
botones (↑ ) y (↓ ) por 3 segundos, el Panel del Control emitirá un sonido de “Beep” y
parpadeará una vez, indicando que el Panel de Control ha sido activado y que puede
efectuar cambios en los controles.
Operación
Oprima los botones marcado “↑ “ y “↓ “ localizados en el panel de controles para programar la
temperatura. Al presionar los botones marcados “↑ “ o “↓ “ por primera vez, el indicador en la
pantalla mostrará la temperatura programada de fábrica o la más reciente.
Oprima el botón marcado (↑) una vez y la temperatura aumentará un grado. Si Ud oprime el botón
marcado (↓) una vez la temperatura bajará un grado.
Luz interior
La luz interior se controla manualmente y no funciona al abrir ni cerrar la puerta. Para prender o
apagar la luz, presione el boton marcado (
) de la luz ubicado en el panel de control. Si la luz
esta prendida, por más de 10 minutos, se apagara automáticamente.
20
Cerradura de la puerta
Su unidad viene equipada con una combinación de cerradura y llave.
Las llaves (2) están dentro de la bolsa plástica junto al manual de instrucciones.
Introduzca la llave en la cerradura y gírela hacia la izquierda para abrir la puerta.
Para cerrarla, gire la llave hacia la derecha.
Quite la llave y colóquela en un lugar seguro para evitar que se pierda.
Descongelación
Su refrigerador para vinos ha sido diseñado con un sistema de descongelación de “ciclo automático”.
Las superficies refrigeradas del compartimiento para vinos se descongela automáticamente, durante
el ciclo “apagado” del control de enfriamiento (termostato). El agua descongelada del compartimiento
es eliminada automáticamente, encauzándola hacia una bandeja de goteo ubicado en el compresor.
La transferencia de calor del compresor evapora el agua.
ADVERTENCIA
Asegúrese de tener la puerta abierta completamente se Ud desea remover las repisas o moverlas
hacia adelante para extraer una botella.
NOTA:
Para remover las repisas corredizas, vacíe las repisas antes de sacarlas. Hálelas aproximadamente
un tercio hacia afuera hasta que la marca en el raíl se alinee con el poste plástico en ambos lados.
Levante cada repisa y sáquela suavemente de la unidad. Para reemplazar de nuevo la repisa, repita
los pasos anteriores en dirección opuesta.
CUIDADO Y MANTENIMIENTO
Limpieza
Para limpiar el interior, use un paño suave con una solución de una cucharada de bicarbonato de
sodio por cada cuarto de agua, o una solución de espuma de jabón suave, o un detergente suave.
Para lavar las rejillas, sáquelas deslizándolas con cuidado, y use una solución de detergente suave;
luego séquelas con un paño suave. Limpie el exterior con un paño húmedo suave y un poco de
detergente suave o productos de limpieza para electrodomésticos.
Período de vacaciones
Para períodos cortos de vacaciones, deje los controles en la posición normal. Durante ausencias
más largas;
(a)
(b)
(c)
(d)
saque todas las botellas,
desconecte la vinera del tomacorriente,
limpie bien el refrigerador para vinos,
deje la puerta abierta para evitar la formación de condensación, moho u olores.
Corte de corriente
La mayoría de los cortes de corriente se corrigen en una o dos horas y no afectarán las temperaturas
de su vinera. Sin embargo, Ud. deberá reducir la cantidad de veces que abra la puerta cuando la
corriente esté apagada.
Si Ud. se muda
Saque o asegure todos los artículos dentro de su vinera. Para evitar que los tornillos nivelantes se
averíen, gírelos completamente hacia la base.
21
Algunas reglas importantes para el uso correcto de la vinera.
•
•
•
•
•
Las bebidas se deben guardar en botellas cerradas.
No sobrecargue el compartimiento interior.
No abra la puerta a menos que sea necesario.
Si la vinera se guardara sin uso por períodos largos, se sugiere que, luego de una limpieza
cuidadosa, se deje la puerta entreabierta para permitir que el aire circule dentro de la caja y evitar
una posible formación de condensación, moho u olores.
Nunca cubra los estantes del compartimiento para vinos con papel de aluminio o cualquier otro
material para cubrir estantes que puedan obstruir la circulación del aire.
22
REGISTRATION INFORMATION
Thank you for purchasing this fine Avanti products. Please fill out this form and return it within 100
days of purchase and receive these important benefits to the following address:
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152 USA

Protect your product:
We will keep the model number and date of purchase of your new Avanti Products product on
file to help you refer to this information in the event of an insurance claim such as fire or theft.

Promote better products:
We value your input. Your responses will help us develop products designed to best meet
your future needs.
----------------------------------------------------------(detach here)---------------------------------------------------------Avanti Registration Form
__________________________________
Name
_____________________________________
Model #
Serial #
__________________________________
Address
_____________________________________
Date Purchased
Store/Dealer Name
__________________________________
City
State
Zip
______________________________________
Occupation
__________________________________
Area Code
Phone Number
As Your Primary Residence, Do You:
Own
Rent
Did You Purchase An Additional Warranty:
Extended
Food Loss
None
Reason For Choosing This Avanti Product:
Please indicate the most important factors
that influenced your decision to purchase
this product.
Price
Product Features
Avanti Products Reputation
Product Quality
Salesperson Recommendation
Friend/Relative Recommendation
Warranty
Other_______________________
Your Age:
under 18 18-25 26-30
31-35
36-50 over 50
Marital Status:
Married
Single
Is This Product Used In The:
Home
Business
How Did You Learn About This Product:
Advertising
In Store Demo
Personal Demo
Other_______________________________
Comments____________________________
_____________________________________
_____________________________________
23
PRINTED IN CHINA
24
