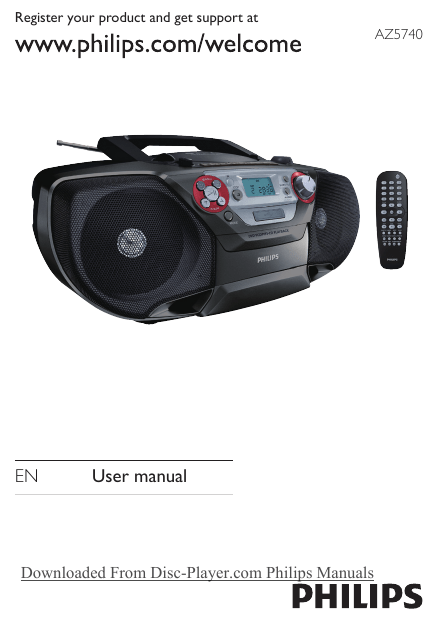

Register your product and get support at
EN User manual
Downloaded From Disc-Player.com Philips Manuals
AZ5740
English
1Important
Safety
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
h Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
i Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
j Only use attachments/accessories specified by the
manufacturer.
Downloaded From Disc-Player.com Philips Manuals
k Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
l Unplug this apparatus during lightning storms or when
unused for long periods of time.
m Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
n Battery usage CAUTION – To prevent battery leakage which
may result in bodily injury, property damage, or damage to
the unit:
• Install all batteries correctly, + and - as marked on the unit.
• Do not mix batteries (old and new or carbon and alkaline, etc.).
• Remove batteries when the unit is not used for a long time.
o Apparatus shall not be exposed to dripping or splashing.
p Do not place any sources of danger on the apparatus (e.g.
liquid filled objects, lighted candles).
q This product may contain lead and mercury. Disposal of
these materials may be regulated due to environmental
considerations.
disposal or recycling
information,
Downloaded
FromFor
Disc-Player.com
Philips
Manuals please
contact your local authorities or the Electronic Industries
Alliance: www.eiae.org.
r Where the MAINS plug or an appliance coupler is used as
the disconnect device, the disconnect device shall remain
readily operable.
Warning
••
••
••
••
••
••
Never remove the casing of this apparatus.
Never lubricate any part of this apparatus.
Never place this apparatus on other electrical equipment.
Keep this apparatus away from direct sunlight, naked flames or heat.
Never look into the laser beam inside this apparatus.
Ensure that you always have easy access to the power cord, plug or
adaptor to disconnect this apparatus from the power.
Notice
Any changes or modifications made to this device that are not
expressly approved by WOOX Innovations may void the user’s
authority to operate the equipment.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Recording and playback of material might require consent. See
Downloaded From Disc-Player.com Philips Manuals
Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.
The making of unauthorized copies of copy-protected material,
including computer programs, files, broadcasts and sound recordings,
may be an infringement of copyrights and constitute a criminal
offence. This equipment should not be used for such purposes.
This apparatus includes this label:
Windows Media and the Windows logo are trademarks, or
registered trademarks of Microsoft Corporation in the United States
and/or other countries.
2
Your DVD Soundmachine
Congratulations on your purchase, and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Downloaded From Disc-Player.com Philips Manuals
Introduction
With this unit, you can enjoy:
• Video from DVD/VCD/SVCD or USB devices.
• Audio from discs, radio, tape, or USB devices.
• Pictures from Kodak/JPEG discs, or USB devices.
The unit supports the following media formats:
Recordable
ReWritable
You can play DVD discs with the following region codes:
DVD region code
Countries
Asia Pacific, Taiwan, Korea
Downloaded From Disc-Player.com Philips Manuals
What’s in the box
Check and identify the contents of your package:
• Main unit
• Remote control
• AC power cord
• Composite AV cable
• User manual
• Quick start guide
Overview of the main unit
m
l
AZ574
0
DISC
USB
FM
TAPE
a
k
b
c
j
SUBTIT
i
h
g
LE
d
e
f
r
q
n
o
p
Downloaded From Disc-Player.com Philips
Manuals
a LIFT TO OPEN
• Open/close the disc compartment.
b TUNING
• Tune to radio stations
c SUBTITLE
• Select a subtitle langu
d VOLUME
• Adjust volume.
e AUDIO
• For CD/MP3 discs, select an audio mode.
• For DVD, select an audio language.
f Display panel
• Show current status.
g
•
Jack for a USB mass storage device.
h MODE
• Select a play mode.
i
j
•
Stop play.
• Start or pause play.
SEARCH
/
• Skip to the previous/next track.
• Search within a track/disc/USB.
ALBUM
/
• Skip to the previous/next album.
k IR
•
The remote control sensor.
Downloaded
From Disc-Player.com Philips Manuals
l
Source selector
• Turn on or off the unit, or select a source.
m Tape controls
• RECORD
Start to record.
• PLAY
Start tape play.
• SEARCH
/
Fast rewind/forward the tape.
• STOP/OPEN
Stop the tape play or open the tape door.
• PAUSE
Pause tape play or pause recording.
n
•
Jack for headphone.
o Voltage selector
p AC MAINS
• Socket for the power cord.
q AV OUT
• Transmit audio/video to a connected device.
r Telescopic antenna
• Improve FM reception.
Downloaded From Disc-Player.com Philips Manuals
Overview of the remote control
a
b
v
c
u
d
e
t
s
r
q
p
o
n
m
f
g
h
i
j
k
l
Downloaded From Disc-Player.com Philips Manuals
a MUTE
• Mute volume.
b Numeric keypad
• Select a track/title/file directly.
• Input password.
c ALBUM +/• Skip to the previous/next album.
d
•
•
•
•
e
•
/
/
/ /
Navigate through the menu.
For JPEG discs, rotate the picture.
Move an enlarged picture up/down/left/right.
For DVD/MP3/VCD/SVCD/CD discs, search backward
or forward.
/
Skip to the previous/next chapter/track.
f PAUSE
• Pause or resume playback.
g AUDIO
• For CD/MP3 discs, select an audio mode.
• For DVD, select an audio language.
h GOTO
• For DVD/SVCD/VCD, go to the desired title, chapter or
time.
• For CD/MP3, go to the desired album/track.
i PROG
• Program tracks.
j SHUFFLE
• Play inFrom
random
order.
Downloaded
Disc-Player.com
Philips Manuals
• Show current status.
•
For pictures, select slide show mode.
k SYSTEM MENU
• Display/exit the system menu.
l DISC MENU
• For DVD, display the root menu.
• For VCD/SVCD, select PBC ON/OFF.
m RETURNTITLE
• Return to the previous menu.
n REPEAT
• Play a track repeatedly.
o REPEAT A-B
• Repeat a specific section within a track/disc.
p ANGLE
• Selects a different viewing angle of a DVD.
q SUBTITLE
• Select a subtitle language.
r
s
•
Start play.
•
Stop play.
t OK
•
Confirm a selection.
u ZOOM+/• Zoom into or out of an image.
Downloaded From Disc-Player.com Philips Manuals
3
Get started
Caution
•• Use of controls or adjustments or performance of procedures
other than herein may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial
number of this apparatus. The model number and serial number are
on the bottom of the apparatus. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Install remote control batteries
Caution
•• Risk of explosion! Keep batteries away from heat, sunshine or fire.
Never discard batteries in fire.
•• Risk of decreased battery life! Never mix different brands or types
of batteries.
•• Risk of product damage! When the remote control is not used for
long periods, remove the batteries.
1
2
3
Open the battery compartment.
Insert 3 AAA batteries with correct polarity (+/-) as indicated.
Close the battery compartment.
Downloaded From Disc-Player.com Philips Manuals
Connect TV
1
2
3
4
Connect the black end of the supplied video cable to the
AV OUT socket on this unit.
Connect the yellow plug to the VIDEO INPUT socket on the TV.
Connect the red plug to the AUDIO INPUT socket marked “R”.
Connect the white plug to the AUDIO INPUT socket marked “L”.
IN
TV
Downloaded From Disc-Player.com Philips Manuals
Connect power
Caution
•• Risk of product damage! Ensure that the power supply voltage
corresponds to the voltage printed on the bottom of the unit.
•• The type plate is located on the bottom of the main unit.
•• Before connecting the AC power cord, ensure you have completed
all other connections.
1
2
Switch the voltage selector at the bottom of the unit to the
local power line voltage.
Connect the AC power cable to:
• the main unit.
• the wall socket.
Downloaded From Disc-Player.com Philips Manuals
Turn on
Push the source selector on the main unit to DISC/USB/FM/TAPE.
Turn off
Push the source selector on the main unit to OFF.
4Play
Play disc
1
2
3
4
Push the source selector on the main unit to DISC.
Lift to open the disc compartment.
Insert a disc with the printed side facing up, then close the disc
compartment.
Press to start play.
• To pause/resume play, press PAUSE .
• To stop play, press .
• To skip to a track, press
/
.
• To search within a track/disc, press and hold
/
,
then release to resume normal play.
Select the correct source on TV
1 Turn on the apparatus.
2 Push the source selector to DISC.
3 Turn on the TV and then select the correct video source.
Downloaded From Disc-Player.com Philips Manuals
Tip
•• See the TV user manual for details of how to select the correct
video source.
Play from USB
Note
•• Ensure that the USB device contains playable audio contents for
supported formats. (See "USB playability information")
1
2
3
4
Flip open the USB socket cover.
Plug the USB device into the
socket.
Push the source selector on the main unit to USB.
Press to start play.
• To pause/resume play, press PAUSE .
• To stop play, press .
• To skip to a track, press
/
.
• To search within an audio file, press and hold
then release to resume normal play.
/
Play tape
Note
•• When you play or record a tape, the sound source cannot be
changed.
Downloaded From Disc-Player.com Philips Manuals
1
Push the source selector on the main unit to TAPE.
,
2
3
4
5
Open the tape button cover.
Press STOP/OPEN
on the main unit to open the tape door.
Load the tape with the open side upward and the full spool to
the right.
Press PLAY on the main unit to start play.
• To pause/resume play, press PAUSE on the main unit.
• To rewind or fast-forward, press SEARCH
/
on
the main unit.
• To stop play, press STOP/OPEN
on the main unit.
Listen to a radio station
Tip
•• Position the antenna as far as possible from TV, VCR or other
radiation source.
Note
•• For optimal reception, fully extend and adjust the position of the
antenna.
1
2
5
Push the source selector on the main unit to FM.
Turn TUNING to tune to a radio station.
Play options
Adjust volume
Downloaded From Disc-Player.com Philips Manuals
During play, turn VOLUME to increase/decrease the volume level.
Mute sound
During play, press MUTE to mute/unmute sound.
Adjust settings
To maximize your play experience, use SYSTEM MENU to fine tune
your settings.
1 Press SYSTEM MENU.
»» The system menu is displayed.
2
3
4
Press
or
/
to navigate through the menu and press
to select an option.
press OK to confirm.
Press SYSTEM MENU to exit.
Tip
•• Some of the features in the System Menu Options are described in
“Get Started”.
-- SYSTEM MENU -SCREEN SAVER
Activate/deactivate screen saver.
PICTURE MUSIC
Turn on/off the background music.
SLIDE TIME
Set slide time for pictures.
PASSWORD
Set password to restrict the play of discs.
RATING
Select rating level for different viewers.
DEFAULT
Restore original setting.
Downloaded From Disc-Player.com Philips Manuals
Tip
•• The default password is "0000" for system setup.
-- LANGUAGE SETUP -OSD LANGUAGE
Select on-screen-display
language.
MENU LANGUAGE
Select menu language.
-- AUDIO SETUP -DOWNMIX
Select an audio downmix.
NIGHT MODE
Make a loud sound level softer
or a soft sound level louder.
DYNAMIC RANGE
Select the Dynamic Rang to fit
the individual listening situation.
-- VIDEO SETUP -TV SYSTEM
Select video output format to
TV system.
TV TPYE
Select display aspect ratio.
Use the disc menu
When you load a (S)VCD disc, a menu may be displayed on the TV screen.
Downloaded From Disc-Player.com Philips Manuals
To access or exit the menu manually:
Press DISC MENU.
For VCD with PlayBack Control (PBC) feature (version 2.0 only):
With the PBC feature, you can play VCD interactively according to
the menu screen.
During play, press DISC MENU to enable/disable PBC.
»» When PBC is enabled, the menu screen is displayed.
»» When PBC is disabled, normal play is resumed.
•
To return to the previous menu, press RETURN.
Select repeat mode
During play, press REPEAT repeatedly to select different repeat
mode.
To repeat a specific section,
1 During play, press REPEAT A-B at the start point.
2 Press REPEAT A-B again at the end point.
»» The selected section starts to play repeatedly.
3 To resume normal play, press REPEAT A-B one more time.
Tip
•• The section A and B can be set only within the same track.
Search by time or chapter/track number
During video/audio play, press GOTO until a time field or track field
is displayed.
• For the time field, enter the play position in hours,
minutes and seconds.
• For the
trackDisc-Player.com
field, enter the track
number.
Downloaded
From
Philips
Manuals
»» Play starts automatically at your selected point.
Display play information
During play, press DISPLAY repeatedly to select different play
information.
Zoom in/out image
During video play, press ZOOM+/- repeatedly to zoom in/out the image.
Change the audio channel
Note
•• This feature is only available for CD/MP3 play.
During play, press AUDIO repeatedly to select an audio channel
available on the disc:
• Mono Left
• Mono Right
• Stereo
6
Other features
Record
Note
•Downloaded
• To record, use
only "Normal"
(IEC type I)Philips
tapes onManuals
which the
From
Disc-Player.com
write-protect notches (tabs) are not broken.
Tip
•• When you play or record a tape, the sound source cannot be changed.
•• The best recording level is set automatically. Change of volume and
sound effect does not affect recording.
Note
•• The quality of recorded sound can differ depending on the source
and the tape used.
Record from disc to tape
to open the tape door.
1 Press STOP/OPEN
2 Load a tape.
3 Push the source selector on the main unit to DISC to select
4
5
6
disc source.
Load a disc.
Start disc playback.
Press RECORD to start recording.
• To stop recording, press STOP/OPEN
.
Record from radio to tape
to open the tape door.
1 Press STOP/OPEN
2 Load a tape.
3 Push the source selector on the main unit to FM.
4 Adjust VOLUME to tune to the desired radio station.
5Downloaded
Press RECORD to start recording.
From Disc-Player.com Philips Manuals
•
To stop recording, press STOP/OPEN
.
Record from USB to tape
to open the tape door.
1 Press STOP/OPEN
2 Load a tape.
3 Push the source selector on the main unit to USB.
4 Connect a USB device.
5 Start play the USB device and then press RECORD
recording.
• To stop recording, press STOP/OPEN
to start
.
Listen through headphone
Plug a headphone into the
7
socket on the unit.
Product information
Note
•• Product information is subject to change without prior notice.
Specifications
Disc
Laser Type
Semiconductor
Disc Diameter
12cm/8cm
Support Disc
CD-DA, CD-R, CD-RW, MP3-
Downloaded From Disc-Player.com
Philips Manuals
CD, WMA-CD
Audio DAC
24Bits / 44.1kHz
Total Harmonic Distortion
<1%
Frequency Response
60Hz -16kHz
S/N Ratio
>62dBA
FM
Tuning Range
87.5 - 108MHz;
Tuning grid
50 kHz
Total Harmonic Distortion
<3%
Signal to Noise Ratio
>50 dB
Tape deck
Frequency response
- Normal tape (type I)
125 - 8000 Hz (8 dB)
Signal-to-noise ratio
- Normal tape (type I)
40 dBA
Wow and flutter
<0.4% JIS
General
Power supply
Input: 110V~127V / 220V~240V
;50/60Hz
Operation Power Consumption
16 W
Standby Power Consumption
≤ 1.2 W
Dimensions
Downloaded From Disc-Player.com Philips Manuals
- Main Unit (W x H x D)
341 x 297 x 177 mm
Weight
3 kg
Supported MP3 disc formats
•
•
•
•
•
ISO9660, Joliet
Maximum title number: 512 (depending on file name length)
Maximum album number: 255
Supported sampling frequencies: 32 kHz, 44.1kHz, 48 kHz
Supported Bit-rates: 32~256 (kbps), variable bit rates
USB playability information
Compatible USB devices:
• USB flash memory (USB 2.0 or USB1.1)
• USB flash players (USB 2.0 or USB1.1)
• memory cards (requires an additional card reader to work
with this apparatus)
Supported formats:
• USB or memory file format FAT12, FAT16, FAT32 (sector size:
512 bytes)
• MP3 bit rate (data rate): 32-320 Kbps and variable bit rate
• WMA v9 or earlier
• Directory nesting up to a maximum of 8 levels
• Number of albums/ folders: maximum 99
• Number of tracks/titles: maximum 999
• ID3 tag v2.0 or later
• File name in Unicode UTF8 (maximum length: 128 bytes)
Unsupported formats:
• Empty albums: an empty album is an album that does not
contain MP3/WMA files, and is not be shown in the display.
Downloaded From Disc-Player.com Philips Manuals
•
•
•
•
Unsupported file formats are skipped. For example, Word
documents (.doc) or MP3 files with extension .dlf are ignored
and not played.
AAC, WAV, PCM audio files
DRM protected WMA files (.wav, .m4a, .m4p, .mp4, .aac)
WMA files in Lossless format
Maintenance
Clean the cabinet
• Use a soft cloth slightly moistened with a mild detergent
solution. Do not use a solution containing alcohol, spirits,
ammonia or abrasives.
Clean discs
• When a disc becomes dirty, clean it with a cleaning cloth.
Wipe the disc from the centre out.
•
Do not use solvents such as benzene, thinner, commercially
available cleaners, or antistatic spray intended for analogue
records.
Clean the disc lens
• After prolonged use, dirt or dust may accumulate at the disc
lens. To ensure good play quality, clean the disc lens with
Philips CD lens cleaner or any commercially available cleaner.
Downloaded
Disc-Player.com
Follow theFrom
instructions
supplied withPhilips
cleaner.Manuals
Clean the heads and the tape paths
•
•
To ensure good recording and play quality, clean the heads A,
the capstan(s) B, and pressure roller(s) C after every 50 hours
of tape operation.
Use a cotton swab slightly moistened with cleaning fluid or alcohol.
• You can also clean the heads by playing a cleaning tape once.
Demagnetise the heads
• Use a demagnetising tape available at your dealer.
8Troubleshooting
Warning
•• Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the
following points before requesting service. If the problem remains
unsolved, go to the Philips web site (www.philips.com/support).
When you contact Philips, ensure that the apparatus is nearby and
the model number and serial number are available.
Downloaded
From Disc-Player.com Philips Manuals
No
power/No sound
•• Ensure that the AC power plug of the unit is connected properly.
•• Ensure that there is power at the AC outlet.
•• Ensure that the batteries are installed correctly.
•• Adjust the volume.
•• The file is a non-audio one. Select an audio file.
No response from the unit
•• Disconnect and reconnect the AC power plug, then turn on the
unit again.
No disc detected
•• Insert a disc.
•• Check if the disc is inserted with the print side facing inward.
•• Wait until the moisture condensation at the lens has cleared.
•• Replace or clean the disc.
•• Use a finalized CD or correct format disc.
Poor radio reception
•• Increase the distance between the unit and your TV or VCR.
•• Fully extend and adjust the FM antenna.
Cannot display some files in USB device
•• The number of folders or files in the USB device has exceeded
a certain limit. This phenomenon is not a malfunction.
•• The formats of these files are not supported.
Cannot record/play tape
•• Clean deck parts.
•• Use only NORMAL tape.
•• Apply a piece of adhesive tape over the missing tab space.
USB device not supported
•• The USB device is incompatible with the unit. Try another one.
Downloaded From Disc-Player.com Philips Manuals
2014 © WOOX Innovations Limited. All rights reserved.
Philips and the Philips’ Shield Emblem are registered trademarks of
Koninklijke Philips N.V. and are used by WOOX Innovations Limited
Downloaded
Disc-Player.com
under
license from From
Koninklijke
Philips N.V.
AZ5740_98_UM_V4.0
Philips Manuals
