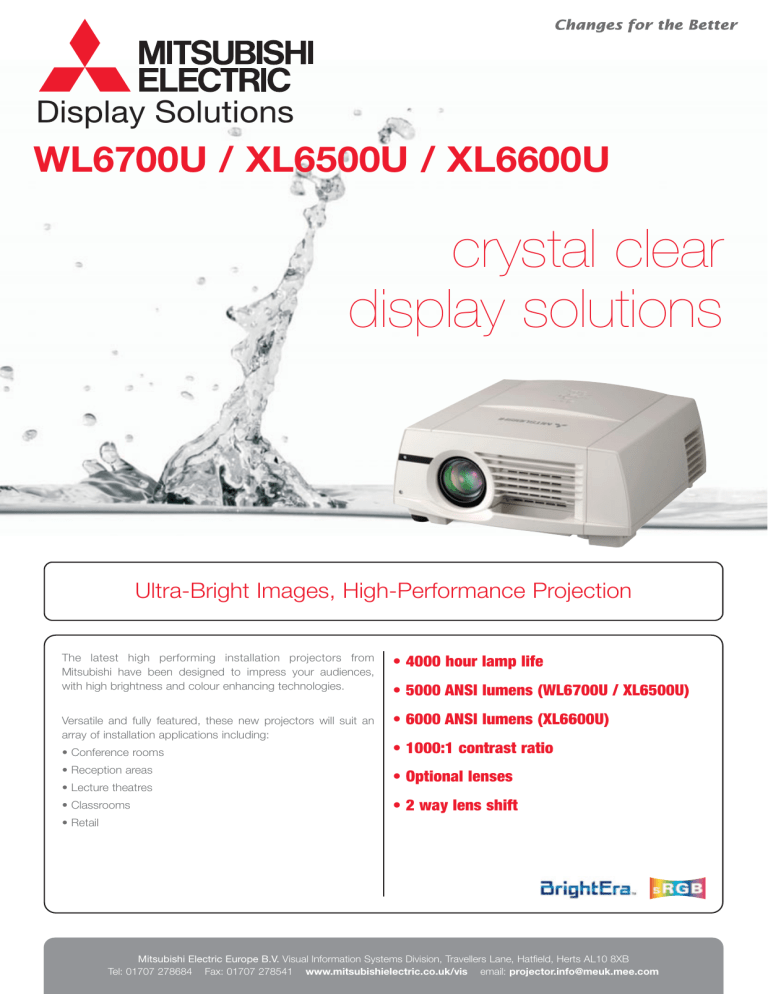

Mitsubishi WL6700U

Display Solutions
WL6700U / XL6500U / XL6600U
crystal clear
display solutions
Ultra-Bright Images, High-Performance Projection
The latest high performing installation projectors from
Mitsubishi have been designed to impress your audiences,
with high brightness and colour enhancing technologies.
• 4000 hour lamp life
Versatile and fully featured, these new projectors will suit an
array of installation applications including:
• 6000 ANSI lumens (XL6600U)
• Conference rooms
• Reception areas
• Lecture theatres
• Classrooms
• 5000 ANSI lumens (WL6700U / XL6500U)
• 1000:1 contrast ratio
• Optional lenses
• 2 way lens shift
• Retail
Mitsubishi Electric Europe B.V. Visual Information Systems Division, Travellers Lane, Hatfield, Herts AL10 8XB
Tel: 01707 278684 Fax: 01707 278541 www.mitsubishielectric.co.uk/vis email: projector.info@meuk.mee.com
WL6700U / XL6500U / XL6600U
Ultra-Brightness
Super bright 6000lm*
The XL6600U/LU delivers super bright 6000 ANSI lumen* images, a
high brightness level for presenting in large meeting rooms and
conference halls.
*WL6700U/LU, XL6500U/LU are 5000 lumens.
3000lm
6000lm
Designed for Flexible Installations
Versatile Input Terminals
2-way Mechanical Lens Shift
(Vertical & Horizontal)
Equipped with an RJ45 network terminal, administrators can remotely
manage their projectors from a web browser via their Local Area
Network (LAN). Administrators can check the projector status including
lamp usage, change input selections, remote power on or off, as well
as receive email alerts if an error occurs. In addition, these projectors
support RS232C standards as well as BNC connectivity for long cable
setups with PC or video inputs.
Lens shift allows images to be shifted both
horizontally and vertically, letting you position the
projector conveniently anywhere in the room.
Digital Keystone Correction reduces line
distortion by allowing for vertical correction to
create a more natural-looking picture even when
it is difficult to set up the unit perfectly
perpendicular with the screen.
Terminal Cover
Includes a terminal cover for efficient
cable management.
Optional Lenses
A wide variety of optional lenses are available to suit any operating
requirement.
Wider Screen Range (WL6700U/LU only)
Optional Lenses Line-up
OL-X500SZ
(Short Throw Zoom Lens)
OL-X500LZ
(Long Throw Zoom Lens)
OL-X500TZ
(Tele Throw Zoom Lens)
OL-X500FR(F)
(Rear Projection Short Throw Fix Lens with
Front Cabinet)
The WL6700U/LU automatically detects the input signal, and will
display an optimum screen size to either Auto (16:10), Auto (16:9), or
Auto (4:4). Users will no longer need to worry about selecting the
optional screen size since the projector can automatically detect the
signal and select the optical mode. The WL6700U/LU also
incorporates a 1366 x 800 WXGA panel that supports multiple WXGA
images - 1280 x 768, 1280 x 800, 1360 x 768, 1366 x 768 at its native
resolution without compressing the images or picture quality.
*The CA-XL6600 (FR) Front Cabinet (sold separately) is required when using the OL-X500FR Rear Projection Short Throw Fix Lens.
Impressive Picture Quality
Colour Enhancer
sRGB Mode
Optimum source reproduction is achieved with six different viewing
modes: Auto, Presentation, Standard, Theatre, sRGB, and User.
Developed to ensure standard, uniform colour reproduction regardless
of the type of display used, sRGB colour profile technology uses
independent colour coordination common to all display technologies. As
a result, it helps to eliminate hue variations that occur between different
display systems and more accurately matches the way colours look.
Depending on the input signal, you can adjust to the best colour setting.
3D Y/C digital comb filter and 3D noise reduction
The luminance and chrominance (Y/C) signals of images are separated
with 3D processing for enhanced brightness. Cross-colourization
(rainbow-like noise patterns) and dotcrawl (checkerboard-like noise
patterns) are reduced, producing a clear and distinct image.
Non-sRGB
Original
User-friendly Functions
Long 4000 hours Lamp Life
Ultra Quiet 29dBA Operation
Designed with a lamp temperature controlling system, the
WL6700U/LU, XL6500U/LU, XL6600U/LU can support a lamp life
of up to 4000 hours*1.
Fan noise from a projector can get annoying during a presentation or
video conference, but now that's a thing of the past.
The long life lamp makes dramatic reductions in overall cost of
ownership by decreasing the frequency of lamp replacements.
The WL6700U/LU, XL6500U/LU, XL6600U/LU offer a significantly low
noise level of only 29dBA (low lamp mode). As a result, your audience
can enjoy the presentation or conference without noisy distractions
from the projector.
Lamp Replacement Frequency*2
2,000-hour lamp
Original Lamp
1st replacement
Split (side-by-side) window function*
Reduced
Lamp
Replacements
Original Lamp
4,000-hour lamp
2,000 hours
The split-screen function of conventional XGA projectors overlap, with
the sub-screen in front of the main screen.
4,000 hours
Our WXGA panels present perfectly parallel split windows, placing two
screens side-by-side. When displays are simultaneous and identical in
scale, comparative viewing is clear and effective.
(*1): When used in Lamp Low mode. Maximum lamp life at standard mode use is 2,000
hours. (*2): Lamp life refers to the average time required for brightness to be reduced by half,
and not the time specified in the warranty. Use time may vary widely by the environment and
conditions, and whether or not cleaning and other maintenance procedures are followed.
*WL6700U/LU only. Not compatible with the XL6500U/LU, XL6600U/LU.
PJ Link available (Projector control by network LAN)
A diagnostic system PJ Link provides management control over key
functions of the projector including filter clogging.
XGA(1024 X 768)
ROOM
101
WL6700U/LU
XL6600U/LU
XL6500U/LU
ROOM
202
WL6700U/LU
XL6600U/LU
XL6500U/LU
Local Area
Network
Projector View,
PC Monitoring Station
Remote access to Projector View
can be launched via the Internet
This innovative technology allows you to show two images (two
motion/live images) simultaneously on screen. Images from two
different sources (PC and video) can be shown together on the main
screen and PIP to double the impact of any presentation. An increase
in video processing to 60 frames / sec. provides smoother image
transitions and it is also possible to zoom up on the picture.
30~40
20~30
40~50
50~60
A
0
100
500
1,000
30~40
1,500
Splash Screen
Motion alarm
Once the motion alarm is set, unauthorised attempts to remove the
projector will cause the alarm to sound. Undetectable externally the
alarm is battery powered and features a ‘safety pin’ that prevents
accidental activation during projector maintenance.
CUSTOMER ANALYSIS
CUSTOMER ANALYSIS
20~30
C
Anti-Theft Features
(password security, motion alarm, screen capture)
Through software, password menus help lock
out access to operation and a customised
splash or logo screen can appear when
powering on the projector to help prevent
potential theft.
High image quality PinP* (Real Motion)
PC
WXGA
Projector View,
PC Monitoring Station
A PC with web browser
40~50
Video
Movable
PIP
50~60
0
100
*XL6600U/LU, XL6500U/LU, only. Not compatible with the WL6700U/LU.
500
1,000
1,500
Protected by Motion Alarm
Protegido mediante alarma contra robo
Durch Diebstahlalarm geschutzt
Protege par une alarme antivol
Specifications
Model
WL6700U
Display technology
XL6600U
XL6500U
1.2" TFT Poly silicon x 3
Resolution
1366 x 800 dots
Brightness
5000lm
1.3" TFT Poly silicon x 3
1024 x 768 dots
5000lm
Contrast
6000lm
1000 : 1
Zoom / focus
Power (zoom ratio : 1.3 : 1)
Picture size
60" ~ 250"
60" ~ 300"
Source lamp
220W (Shut off Time 4000Hrs) with Low Mode, 275W (Shut off Time 2000Hrs) with Standard Mode
Computer compatibility
640 x 400 ~ 1600 x 1200, True ; 1024 x 768, Sync on green available
640 x 400 ~ 1600 x 1200, True ; 1366 x 800, Sync on green available
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video ; 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz), 1080i (1125i 50/60Hz), 1080p (1125p 50/60Hz), SCART (RGB + 1V sync, only Mini D-SUB 15pin)
Video compatibility
Input terminals
PC ; 5BNC x 1, Mini D-SUB 15pin x 1, DVI-D (with HDCP) x 1, PC Audio ; Stereo mini jack (ø3.5mm) x 2, Video (1) ; RCA x 1 or BNC x 1, Video (2) ; S-VIDEO (4pin) x 1 or S-VIDEO Y/C (BNC), Video Audio ; RCA (L/R) x 2
Output terminals
RGB : mini D-SUB 15pin x 1, Audio ; Stereo mini jack (ø3.5mm) x 1
Communication terminals
LAN (RJ-45) x 1 (Projector control), RS-232C (D-SUB 9pin) x 1, USB x 1 (Mouse control), Wired remote (IN) ; Stereo mini jack (ø3.5mm) x 1, Wired remote (OUT) ; Stereo mini jack (ø3.5mm) x 1
Audio speaker
10W mono
443 x 207 x 434mm / 17.4 x 8.1 x 17.1 inch (including terminal cover)
Dimensions (W x H x D)
9.8kg / 21.6lbs (excluding terminal cover)
Weight
AC100 ~ 240V, 50 / 60Hz
Power supply
* Windows is a registered trademark of Microsoft Corporation. * Macintosh is a registered trademark of Apple Computer Inc. * SXGA, XGA, SVGA, WXGA are registered trademarks of IBM Corporation.
* All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
Dimensions (unit: mm, inch)
Input and Output Terminals
31.5
143
127
50
1 REMOTE IN and OUT terminals
2 LAN terminal
1
2
3
4
5
6
147.25
3 SERIAL terminal (D-SUB 9-pin)
4 USB (COMPUTER) terminal
6 COMPUTER / COMPONENT VIDEO IN 1
terminals (R/PR, G/Y, B/PB, H/HV, V) (BNC)
42
157.75
329
5 COMPUTER/COMPONENT VIDEO DVI-D (HDCP)
terminal (DVI-D 24-pin)
7 Main power switch O : OFF I : ON
443(With terminal cover)
371(Without terminal cover)
131.5
84
20
273
30
8 Power jack
172.6
10
9 AUDIO IN 1 terminal (Mini jack)
The AUDIO IN 1 terminal is used for both COMPUTER 1
and DVI input.
48.5 10
terminal
cover
433
10 AUDIO IN 2 terminal (Mini jack)
197
11 COMPUTER/COMPONENT VIDEO IN 2 terminal (Mini D-SUB 15-pin)
102.5
12 MONITOR OUT terminal (Mini D-SUB 15-pin)
8.5
13 AUDIO OUT terminal (Mini jack)
40.5
40.5
307
287
316
7
8
9 10 11 12 13
14
15
14 VIDEO IN and audio input terminals
7
58
15 S-VIDEO IN and audio input terminals
Screen size and projection distance
XL6500U / XL6500LU / XL6600U / XL6600LU
Screen
Width
Height
inch
cm
inch
cm
Refer to the following table to determine
the screen size and projection distance.
Left
W1
Diagonal size
inch
cm
Right
W1
W
60
80
100
120
150
200
250
300
+H2
-H2
H
152
203
254
305
381
508
635
762
48
64
80
96
120
160
200
240
122
163
203
244
305
406
508
610
WL6700U / WL6700LU
Screen
Width
Diagonal size
inch
cm
inch
cm
H1
L
L
60
80
100
120
150
200
250
152
203
254
305
381
508
635
52
69
86
104
129
173
216
132
175
219
263
329
438
548
36
48
60
72
90
120
150
180
91
122
152
183
229
305
381
457
Distance from Screen (L)
Max. Zoom
Min. Zoom
inch
m
inch
m
Down(H1)
Up(H2) Down(H1)
Up(H2) Left(W1)
Right(W1) Left(W1)
Right(W1)
inch
cm
inch
cm
89
120
150
181
227
304
381
458
18
24
30
36
45
60
75
90
2.3
3.0
3.8
4.6
5.8
7.7
9.7
11.6
114
153
191
230
289
386
483
-
2.9
3.9
4.9
5.8
7.3
9.8
12.3
-
Movable V Position from Default Position
-2
-2
-3
-4
-5
-6
-8
-9
46
61
76
91
114
152
191
229
-5
-6
-8
-9
-11
-15
-19
-23
Movable H Position from Default Position
3
3
4
4
5
5
7
8
3
3
4
4
5
5
7
8
7
8
9
10
12
14
17
20
7
8
9
10
12
14
17
20
Height
inch
cm
Distance from Screen (L)
Max. Zoom
Min. Zoom
inch
m
inch
m
Down(H1)
Up(H2) Down(H1)
Up(H2) Left(W1)
Right(W1) Left(W1)
Right(W1)
inch
cm
inch
cm
30
40
51
61
76
101
126
96
129
162
195
245
328
411
15
21
26
31
38
51
63
77
103
128
154
193
257
321
2.4
3.3
4.1
5.0
6.2
8.3
10.4
122
164
206
248
311
416
-
3.1
4.2
5.2
6.3
7.9
10.6
-
Movable V Position from Default Position
2
3
4
4
5
7
9
39
52
65
78
97
129
161
5
7
9
11
14
18
23
Movable H Position from Default Position
3
4
4
5
7
9
11
3
4
4
5
7
9
11
7
9
11
13
17
22
28
7
9
11
13
17
22
28
Optional Lenses
WL6700U / WL6700LU
Model
Type
F NO.
f
Throw ratio
Off-set axis
Zoom / Focus
Weight
Length
Lens diameter
XL6500U / XL6500LU / XL6600U / XL6600LU
OL-X500SZ
Short Throw
Zoom Lens
OL-X500LZ
Long Throw
Zoom Lens
OL-X500TZ
Tele Throw
Zoom Lens
OL-X500FR(F)
Rear Projection Short
Throw Fix Lens (on axis)
F2.0 - 2.3
37 - 44mm
1.3 - 1.6
15 (up) : -1 (down)*
Motorized (1.2 : 1)
1.4kg / 3.1lbs
177mm (max)
84mm
F2.5 - 3.2
64 - 90mm
2.4 - 3.3
15 (up) : -1 (down)*
Manual (1.4 : 1)
1.7kg / 3.8lbs
204mm (max)
84mm
F2.5 - 3.4
93 - 140mm
3.4 - 5.2
15 (up) : -1 (down)*
Manual (1.5 : 1)
1.7kg / 3.8lbs
205mm (max)
84mm
F2.5
22mm
0.8
1 : 1 (on axis)*
Manual
1.7kg / 3.8lbs
174mm (max)
123.6mm
* The lens shift function allows the picture off-set to be adjusted between 15 : -1 (off axis) and 1 : 1 (on axis).
Lens shift cannot be used with OL-X500FR(F).
Model
Type
F NO.
f
Throw ratio
Off-set axis
Zoom / Focus
Weight
Length
Lens diameter
OL-X500SZ
Short Throw
Zoom Lens
OL-X500LZ
Long Throw
Zoom Lens
OL-X500TZ
Tele Throw
Zoom Lens
OL-X500FR(F)
Rear Projection Short
Throw Fix Lens (on axis)
F2.0 - 2.3
37 - 44mm
1.3 - 1.6
19 (up) : 1 (down)*
Motorized (1.2 : 1)
1.4kg / 3.1lbs
177mm (max)
84mm
F2.5 - 3.2
64 - 90mm
2.4 - 3.3
19 (up) : 1 (down)*
Manual (1.4 : 1)
1.7kg / 3.8lbs
204mm (max)
84mm
F2.5 - 3.4
93 - 140mm
3.4 - 5.2
19 (up) : 1 (down)*
Manual (1.5 : 1)
1.7kg / 3.8lbs
205mm (max)
84mm
F2.5
22mm
0.8
1 : 1 (on axis)*
Manual
1.7kg / 3.8lbs
174mm (max)
123.6mm
* The lens shift function allows the picture off-set to be adjusted between 19 : 1 (off axis) and 1 : 1 (on axis).
Lens shift cannot be used with OL-X500FR(F).
MITSUBISHI ELECTRIC EUROPE
New publication, effective June 2008 Specifications subject to change without notice.
Mitsubishi Electric Europe B.V. Visual Information Systems Division, Travellers Lane, Hatfield, Herts AL10 8XB
T
