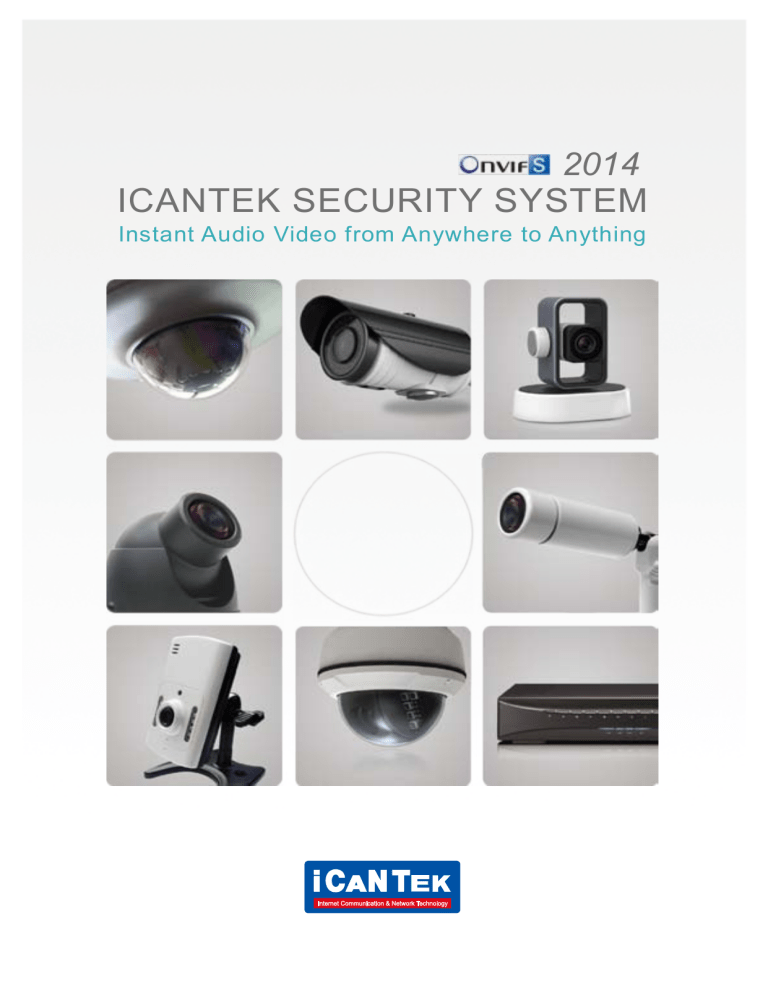

2014
ICANTEK SECURITY SYSTEM
Instant Audio Video from Anywhere to Anything
"Powerful” Panoramic Viewing with Panomorph Lens
Various Panoramic Viewing Mode available on NVR-Pro (Packaged VMS)
iCanView361MP
New
Palm-Sized Design
Vandal Proof IP66
Full HD@30fps
Edge Storage (Micro SD Card Slot)
3-axis Camera Viewing Angle Adjustment
Original Video of 360° Surround View
(Entire View)
iCanView388MPG
[Metal Gray]
New
Discreet Mini-Turret Design
Vandal Proof IP66
Full HD@30fps
Edge Storage(Micro SD Card Slot)
Encoder Detachable
iCanView388MP
[Metal Gray]
Discreet Mini-Bullet Design
Vandal Proof IP66
Full HD@30fps
Edge Storage(Micro SD Card Slot)
Encoder Detachable
e-PTZ : Pan / Tilt / Zoom Control
(Move to the Region of Interest)
Quad with 4 Viewing Screens
(Same with 4 independent PTZ Cameras)
180° Panoramic View (Wall to Wall)
(2 x 180° Views with
Panning Control for ceiling mount)
Selection of installation location : Ceiling, Wall, Ground.
For each selection 3 different viewing types, Perimeter, PTZ, and Quad are available.
Single iCanView361MP-PM with NVR-Pro can replace 4 Fixed cameras.
<Panomorph Lens vs. Fisheye Lens>
Number of effective pixels in Imageing for 5M Pixel Sensor
Panomorph Lens
Fisheye Lens
Overall
3.925 MPixels(+33%)
2.944 MPixels
Blue area
107500 Pixels(+119%)
7988 Pixels
Red area
17500 Pixels(+119%)
7988 Pixels
Yellow area
72485 Pixels(+101%)
35923 Pixels
Elliptic imaging region of panomorph lens provides 33% more pixels than conventional fisheye lens
in the overall. As shown in the table, more number of effective pixels especially for perimeter area
results superb image quality which is not possible with fisheye lens.
New
iCanView361MP-PM
It is exactly what you're looking for!
It can provide surveillance for broad areas like stores, warehouses,
parking lots, stadiums, musemus, concert halls etc.
PRODUCT LINE UP
NETWORK CAMERA
iCanView337MP/337MP5
14
iCanView346MP
33
iCanView327MP/327MP5
15
iCanView356MP
34
iCanView320MP
16
iCanView316MP
35
iCanView367MP/367MP5
iCanView360MP
CAMERA ACCESSORIES
SOFTWARE
17
18
iCanView347MP
iCanView321MPE
NVR-Pro
52
SOFTWARE
55
Bracket & Housing
myNVRxx Series
58
Adapter
myNVR2xx Series
59
Keyboard
VIDEO RECORDER
37
79
39
HD-SDI CAMERA
iCanView361MP
19
iCanView361MPE
40
iCanView361MP-PM
20
iCanView387MPE
41
iCanView386MP
21
iCanView321MPI
42
iCanView387MP
22
iCanView327MPI
43
iCanView389MP
23
iCanView361MPI
44
iCanView388MP
24
iCanView367MPI
45
iCanView388MPG
25
iCanView387MPI
46
iCanView391MP
26
iCanView389MPI
47
iCanView382E / E+
27
iCanSever611/612
48
iCanView372
28
iCanView340-18S/36S
29
iCanView350-18S/36S
30
iCanView342-27D/33D/37D
31
iCanSever642
78
iCanView321SDI
64
iCanView327SDI
65
iCanView361SDI
66
iCanView367SDI
67
iCanView387SDI
68
iCanView389SDI
69
iCanView321AH
70
iCanView327AH
71
ANALOGUE CAMERA
iCanView361AH
72
iCanView367AH
73
iCanView387AH
74
iCanView389AH
75
49
Application
IP based Video Surveillance Solutions are becoming an integral part of most security projects. As the market needs HD video from
video surveillance system, IP camera is virtually the only solution that can fulfill such demand with reasonable budget. Proliferation of
Smart Phones and easy integration with other IP based solutions is another factor of accelerating the trends. Our IP camera products
cover entire spectrum ranging from simplest to most demanding conditions.
Security and Safety in Industries
Plants, Manufacturing Facilities and Warehouse need security monitoring to protect the valuable
goods and materials from thieves or to protect from potential hazardous factors. Our IP Video
Surveillance Solutions are adapted by globally well-known customers who are benefitted from
state-of-the art features such as :
- Mutiple zone Motion Detection.
- Vivid Night Vision with Smart IR LED and TDN
- Easy Installation. Full line-up covering entire spectrum.
- Full HD Video Images
- Multi-profile Streaming (up to 5 video profiles)
- Seamless real-time connection anytime and anywhere
- Smart mobile viewer
Management and Improved Profit in Commercial Area
IP Surveillance System offers much more enhanced services over analog based CCTV system.
- Enhanced security in retail shop returns you more profit by minimizing losses caused by stolen goods
- Network based Integration with POS and EAS system for efficient business management
and analysis.
- Secure access through ID & Password protects your privacy or other confidential information.
- Seamless communication through "ViewNTalk" on Smart Phone and PC enables effectively
management of shops and staffs anytime anywhere.
- Alert message via E-mail and SMS enables early detection of problems and save time to cope
with the problems.
Security and Safety in Institutions
iCanTek.com
Protection against vandalism, violence or sexual harassments in educational institutes.
Since its foundation in 2000, we have been committed to providing our valuable
customer with the highest quality products and services, making satisfied with our
customers’ demands.
Video
Surveillance
We, iCanTek, therefore have been globally well-recognized for developing IP Camera,
Video Server, Hardware NVR, NVR-Pro(VMS Software) as well as Mobile/Smart App
with smart network, providing end to end total solution to fulfill all of the demands of IP
surveillance industry.
With our innovative technology and high reputation, we also have been performing
successful business with many globally well-known partners and we have positioned
as a global leader in IP surveillance market, accumulating many experiences and
having mutually good business partnership.
In addition, our professional employees are always making efforts to achieve the
integration of IP total solution and to represent the superior quality products. The wellstructured our network technology also makes our company more competent in the
international market. Besides, by developing the Analogue cameras, we will continue
to be creative and competitive in our endeavor, capturing the latest trends for our
valued customers.
With all of these advantages and more, iCanTek assures you excellence in mutually
profitable business and high quality products, adhering to the business concept of
“Instant Audio/Video from Anywhere to Anything”. Our sound structure and established
trust always guarantee you satisfaction to the fullest.
- Monitoring the activity of your lovely child via Wired or Wireless Internet
- Increased security for students and staffs
- Prevent the potential violence and vandalism by early detection of suspects.
Any tampering to the camera, motion or unusual sound during off hours will discharge an
automatic alert notification to security staff in the form of e-mail and SMS with picture enabling
them to effectively evaluate the situation and take proper action against it.
Public and Governmental Application
Public safety and security.
Smart &
Easy
- Public and Governmental facilities, City Halls, Fire Station, Police Stations, Courts etc
- Immigration Office and Customs Office
- University, Museums
- Transportation System (Railway, Airport, Ports)
Our network video solutions have been successfully implemented and in use in many
governmental and public facilities in Korea, India, Indonesia, Iran, Thailand, Brazil etc.
Audio
Communication
Security in Residential Area
IP Based Surveillance Solution is the most effective solutions for protecting citizens
against crime and disasters.
WDR
Optical Zoom
It provides clear and bright image in circumstances
where back light and intense illumination can vary
excessively.
It can zoom-in and zoom-out reducing or
enlarging the focal length of lens without
degradation of image qualities.
OFF
ON
2DNR+3DNR
Motion Detection
It provides clear images effectively removing the
noise that occurs under dark circumstances.
It can detect moving object in a particular area
and raise the alarm.
OFF
ON
Day & Night
Audio Detection
It provides clear and bright image even under
dark circumstances
It can detect sound beyond certain decibel and
raise the alarm.
DAY
NIGHT
IR
PAN/TILT/ZOOM
The distant objects can be seen clearly even
under dark circumstances.
It provides a various degree of images which is
not supported by fixed cameras through PTZ
function.
NORMAL
360° Panorama
The objects and surrounding environment can be
seen clearly even in fog.
It provides a 360-degree video as well as
PTZ/Quad/Perimiter mode.
START
ALARM EVENT
START
ALARM EVENT
PTZ Mode
ON
INTENSIFIER (Sens-UP)
SD Card Slot
It can provide vivid color images without IR LED
even under dark circumstances.
It can record event image such as record alarm,
motion, audio, and sensor as well as general
image using SD card.
NORMAL
ZOOM IN
IR ON
DEFOG
OFF
ZOOM OUT
NIGHT
Quad Mode
Perimeter Mode
iCanView388MP
Eye Level-Hole Mounted
on Wall for Overview &
Identification
Uniquely Designed for applying into various circumstances
meeting unusual requirements in flexibility and installation
iCanView388MPG
NETWORK
PRODUCT
Full HD Box Type IP Camera
Full HD IR Dome Type IP Camera
•2MP CMOS / 5MP CMOS
•Dual Codec (H.264 / MJPEG)
•Digital PTZ, Cropped Video
•2-Way Audio Communication
•Analog video output (CVBS)
•PoE / DC12V
•Full Compatible Onvif Standard
iCanView337MP
iCanView337MP5
Image Sensor
1/2.9′′ CMOS
1/2.5′′ CMOS
Max. Resolution
1920x1080@30FPS
2592 x 1,944 pixels@15FPS
Scanning Mode
Progressive Scan
Optional (C/S mount)
Recommended : 4.5~10mm, F1.6
Lens
IRIS Control
DC Auto / Manual
Min. Illumination
Color : 0.12lux@F1.4
S/R Ratio
50dB
D-WDR
Supported
Electronic Shutter Speed
Auto / Manual
Supported
•Dual Codec (H.264 / MJPEG)
•Multi Streaming w/ Max. 5
•Digital PTZ, Cropped Video
Max. Resolution
1920x1080@30FPS
•Analog video output (CVBS)
Min. Illumination
•Built-in D/N (TDN)
•PoE / DC12V
•Full Compatible Onvif Standard
Supported
True Day & Night
Supported
H.264 (High Profile) / MJPEG
NETWORK
Video Compression
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Streaming Method
Security
Intelligent Hybrid Control (VBR + CBR)
64Kbps 16bit μ-law PCM ~ Line-out
Trigger Event
Alarm I/O
Event Notification
Event Buffering (Pre & Post)
Motion Detection, Audio Detection
1 Sensor Input & 1 Relay Output
E-mail (with JPEG), FTP, Push Alarm
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Consumption
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
Operating Temperature &
Humidity
0°C~45°C (32~113°F) / 8~80% RH
Outdoor Usage Certificate
-
Approval
Network Protocols
Security
SD Card Slot
ALARM & EVENT
Power Source
2 Way-Audio
User ID & Password Protection, IP Filtering, HTTPS, SSL
Encryption,Digest Authentication, User Access Log, IEEE 802.1x
10/100 Base T LAN (Auto MDIX)
CE, FCC, RoHS
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Intelligent Hybrid Control (VBR + CBR)
Max. Frame Rate
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
LAN
Max. 5 (2MP, D1, CIF, Crop, Photo)
Bit Rate Control
15fps@5MP / 30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
Edge Storage
H.264 (High Profile) / MJPEG
Multi-Video Streaming
30fps@2MP
64Kbps 16bit μ-law PCM ~ Line-out
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
User ID & Password Protection, IP Filtering, HTTPS, SSL
Encryption, Digest Authentication, User Access Log, IEEE 802.1x
Edge Storage
DIMENSIONS
15fps@5MP / 30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
LAN
SD Card Slot
10/100 Base T LAN (Auto MDIX)
ALARM & EVENT
Trigger Event
Alarm I/O
Event Notification
Event Buffering (Pre & Post)
Motion Detection, Audio Detection
1 Sensor Input & 1 Relay Output
E-mail (with JPEG), FTP, Push Alarm
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
0°C~45°C (32~113°F) / 8~80% RH
CE, FCC, RoHS
15
CAMERA ACCESSORIES
Network Protocols
Motion Detection, Audio Detection
ANALOGUE CAMERA
2 Way-Audio
15M
Intelligent Video
Max. 5 (2MP, D1, CIF, Crop, Photo)
30fps@2MP
Auto / Manual
Privacy Masking
IR Distance
Max. Frame Rate
50dB
Supported
Electronic Shutter Speed
Supported
Bit Rate Control
Color : 0.12lux@F1.4 / BW : 0lux with IR ON
D-WDR
Motion Detection, Audio Detection
Streaming Method
3.6~16mm
DC Auto / Manual
S/R Ratio
Intelligent Video
Multi-Video Streaming
2592 x 1944 pixels@15FPS
Progressive Scan
Lens
IRIS Control
iCanView327MP5
1/2.5′′ CMOS
Scanning Mode
True Day & Night
Video Compression
14 www.icantek.com
1/2.9′′ CMOS
•2-Way Audio Communication
NETWORK
DIMENSIONS
iCanView327MP
Image Sensor
HD-SDI CAMERA
Privacy Masking
•2MP CMOS / 5MP CMOS
VIDEO
VIDEO RECORDER
•Multi Streaming w/ Max. 5
KEY FEATURES
VIDEO
SOFTWARE
KEY FEATURES
NETWORK PRODCUT
iCanView327MP/327MP5
iCanView337MP/337MP5
Full HD IR Mini-Eyeball Type IP Camera
Full HD Vandal-Resistant IR Dome Type IP Camera
•2MP CMOS
•Dual Codec (H.264 / MJPEG)
iCanView320MP
Image Sensor
Max. Resolution
1920x1080@30FPS
Scanning Mode
Progressive Scan
•Digital PTZ, Cropped Video
Lens
•2-Way Audio Communication
IRIS Control
•Edge Storage in micro SD Card
•PoE / DC12V
•Full Compatible Onvif Standard
1/2.9′′ CMOS
3.7mm, F2.5
DC Auto / Manual
Min. Illumination
Color : 0.12lux@F1.4 / BW : 0lux with IR ON
S/R Ratio
50dB
D-WDR
Supported
Electronic Shutter Speed
Auto / Manual
Supported
True Day & Night
Supported
IR Distance
•Dual Codec (H.264 / MJPEG)
•Multi Streaming w/ Max. 5
•Digital PTZ, Cropped Video
•2-Way Audio Communication
•Analog video output (CVBS)
•PoE / DC12V
•Built-in D/N (TDN)
•Full Compatible Onvif Standard
15M
Intelligent Video
Motion Detection, Audio Detection
2592 x 1944 pixels@15FPS
Progressive Scan
Lens
3.6~16mm
IRIS Control
DC Auto / Manual
Min. Illumination
Color : 0.12lux@F1.4 / BW : 0lux with IR ON
S/R Ratio
50dB
D-WDR
Supported
Electronic Shutter Speed
Auto / Manual
Privacy Masking
Supported
True Day & Night
Supported
15M
Motion Detection, Audio Detection
Video Compression
Max. 3 (2MP, D1, CIF)
Max. 5 (2MP, D1, CIF, Crop, Photo)
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Bit Rate Control
30fps@2MP
Intelligent Hybrid Control (VBR + CBR)
Max. Frame Rate
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
2 Way-Audio
64Kbps 16bit μ-law PCM ~ Line-out
ANALOGUE CAMERA
Streaming Method
Intelligent Hybrid Control (VBR + CBR)
Max. Frame Rate
H.264(High Profile) / MJPEG
Multi-Video Streaming
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Bit Rate Control
30fps@2MP
10fps@5MP / 30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
64Kbps 16bit μ-law PCM ~ Line-out
Network Protocols
Security
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP,, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
Security
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
Edge Storage
Micro SD Card Slot
10/100 Base T LAN (Auto MDIX)
ALARM & EVENT
Trigger Event
Alarm I/O
Event Notification
Event Buffering (Pre & Post)
Motion Detection, Audio Detection
1 Sensor Input & 1 Relay Output
E-mail (with JPEG), FTP, Push Alarm
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
Operating Temperature &
Humidity
0°C~ 45°C (32~113°F) / 8~80% RH
Outdoor Usage Certificate
-
Approval
CE, FCC, RoHS
DIMENSIONS
Edge Storage
LAN
Micro SD Card Slot
10/100 Base T LAN (Auto MDIX)
ALARM & EVENT
Trigger Event
Alarm I/O
Event Notification
Event Buffering (Pre & Post)
Motion Detection, Audio Detection
1 Sensor Input & 1 Relay Output
E-mail (with JPEG), FTP, Push Alarm
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
Operating Temperature &
Humidity
0°C~ 45°C (32 ~113°F) / 8 ~ 80% RH
Outdoor Usage Certificate
IP 66 & Vandal-Proof Casing
Approval
CE, FCC, RoHS
17
CAMERA ACCESSORIES
Network Protocols
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS, SOCKS
LAN
16 www.icantek.com
1920x1080@30FPS
Scanning Mode
Intelligent Video
H.264 (High Profile) / MJPEG
Multi-Video Streaming
DIMENSIONS
Max. Resolution
iCanView367MP5
1/2.5′′ CMOS
NETWORK
Video Compression
2 Way-Audio
1/2.9′′ CMOS
IR Distance
NETWORK
Streaming Method
iCanView367MP
Image Sensor
HD-SDI CAMERA
Privacy Masking
•2MP CMOS / 5MP CMOS
VIDEO
VIDEO RECORDER
•Multi Streaming w/ Max. 3
KEY FEATURES
VIDEO
SOFTWARE
KEY FEATURES
NETWORK PRODCUT
iCanView367MP/367MP5
iCanView320MP
Full HD Vandal-Resistant IR
Mini-Eyeball Type Dome Camera
Full HD Vandal-Resistant IR
PanCake Type IP Camera
•2MP CMOS
•Dual Codec (H.264 / MJPEG)
iCanView360MP
Image Sensor
Max. Resolution
1920x1080@30FPS
Scanning Mode
Progressive Scan
•Digital PTZ, Cropped Video
Lens
•2-Way Audio Communication
IRIS Control
•Edge Storage in micro SD Card
•PoE / DC12V
•Full Compatible Onvif Standard
1/2.9′′ CMOS
3.7mm, F2.5
DC Auto / Manual
Min. Illumination
Color : 0.12lux@F1.4 / BW : 0lux with IR ON
S/R Ratio
50dB
D-WDR
Supported
Electronic Shutter Speed
Auto / Manual
Supported
True Day & Night
Supported
IR Distance
•Dual Codec (H.264 / MJPEG)
•Multi Streaming w/ Max. 5
•PoE / DC12V
•Built-in D/N (TDN)
•Full Compatible Onvif Standard
Min. Illumination
Color : 0.12lux@F1.4 / BW : 0lux with IR ON
S/R Ratio
50dB
D-WDR
Supported
Electronic Shutter Speed
Auto / Manual
Privacy Masking
Supported
True Day & Night
Supported
12M
Intelligent Video
Motion Detection, Audio Detection
NETWORK
Video Compression
Max. 3 (2MP, D1, CIF)
Max. 5 (2MP, D1, CIF, Crop, Photo)
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Bit Rate Control
30fps@2MP
Intelligent Hybrid Control (VBR + CBR)
Max. Frame Rate
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
2 Way-Audio
64Kbps 16bit μ-law PCM ~ Line-out
ANALOGUE CAMERA
Streaming Method
Intelligent Hybrid Control (VBR + CBR)
Max. Frame Rate
H.264(High Profile) / MJPEG
Multi-Video Streaming
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Bit Rate Control
30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
64Kbps 16bit μ-law PCM ~ Line-out
Network Protocols
Security
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
Security
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
Edge Storage
Micro SD Card Slot
Edge Storage
10/100 Base T LAN (Auto MDIX)
LAN
ALARM & EVENT
Trigger Event
Alarm I/O
Event Notification
Event Buffering (Pre & Post)
Power Consumption
Alarm I/O
E-mail (with JPEG), FTP
12VDC, PoE (IEEE802. 3af )
12W (12V, 1A)
Operating Temperature &
Humidity
0~45°C (32~113°F) / 8~80% RH
Outdoor Usage Certificate
IP 66
Approval
Trigger Event
1 Sensor Input & 1 Relay Output
POWER & ENVIRONMENTAL
Power Source
ALARM & EVENT
Motion Detection, Audio Detection
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
CE, FCC, RoHS
Micro SD Card Slot
10/100 Base T LAN (Auto MDIX)
DIMENSIONS
Event Notification
Event Buffering (Pre & Post)
Motion Detection, Audio Detection
1 Sensor Input & 1 Relay Output
E-mail (with JPEG), FTP, Push Alarm
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
0°C~ 45°C (32 ~113°F) / 8 ~ 80% RH
IP 66
CE, FCC, RoHS
19
CAMERA ACCESSORIES
Network Protocols
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
LAN
18 www.icantek.com
3.7mm, F2.5
DC Auto / Manual
IR Distance
H.264 (High Profile) / MJPEG
Multi-Video Streaming
DIMENSIONS
Progressive Scan
IRIS Control
Motion Detection, Audio Detection
Video Compression
2 Way-Audio
Scanning Mode
•2-Way Audio Communication
NETWORK
Streaming Method
1920x1080@30FPS
Lens
•Analog video output (CVBS)
1/2.9′′ CMOS
Max. Resolution
•Digital PTZ, Cropped Video
15M
Intelligent Video
iCanView361MP
Image Sensor
HD-SDI CAMERA
Privacy Masking
•2MP CMOS
VIDEO
VIDEO RECORDER
•Multi Streaming w/ Max. 3
KEY FEATURES
VIDEO
SOFTWARE
KEY FEATURES
NETWORK PRODCUT
iCanView361MP
iCanView360MP
Full HD Vandal-Resistant IR
Bullet Type IP Camera
iCanView361MP-PM
iCanView386MP
- 33% more pixels than fisheye lens
•Panoramic viewing features
- 360° field of view (ceiling mount)
- 180° field of view (wall mount)
- PTZ, Quad and Perimeter views
iCanView361MP-PM
Image Sensor
1/2.5′′ CMOS
Max. Resolution
2592x1944pixels@10FPS
Scanning Mode
Progressive Scan
Lens
0.98~1.12mm Panomorph
IRIS Control
DC Auto / Manual
Min. Illumination
Color : 0.12 lux (F 1.4)
S/R Ratio
50dB
D-WDR
Supported
•2MP CMOS
•Dual Codec (H.264 / MJPEG)
•Multi Streaming w/ Max. 5
VIDEO
iCanView386MP
Image Sensor
1920x1080@30FPS
Scanning Mode
Progressive Scan
•Digital PTZ, Cropped Video
Lens
•2-Way Audio Communication
IRIS Control
•Edge Storage in micro SD Card
•PoE / DC12V
1/2.9′′ CMOS
Max. Resolution
3.5~16mm
DC Auto / Manual
Min. Illumination
Color : 0.12lux@F1.4 / BW : 0lux with IR ON
S/R Ratio
50dB
D-WDR
Supported
•Built-in D/N (TDN)
Electronic Shutter Speed
Privacy Masking
Supported
•IP67
Privacy Masking
Supported
•Digital PTZ, Cropped Video
True Day & Night
Supported
Supported
•2-Way Audio Communication
IR Distance
•Full Compatible Onvif Standard
True Day & Night
•Multi Streaming w/ Max. 5
•PoE / DC12V
•Built-in D/N (TDN)
-
Intelligent Video
Motion Detection, Audio Detection
H.264(High Profile) / MJPEG
Multi-Video Streaming
Max. 5 (2MP, D1, CIF, Crop, Photo)
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Streaming Method
Max. 5 (2MP, D1, CIF, Crop, Photo)
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Bit Rate Control
Intelligent Hybrid Control (VBR + CBR)
Max. Frame Rate
Intelligent Hybrid Control (VBR + CBR)
Max. Frame Rate
10fps@5MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
2 Way-Audio
64Kbps 16bit μ-law PCM ~ Line-out
30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
64Kbps 16bit μ-law PCM ~ Line-out
Network Protocols
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
Security
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
Security
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
LAN
Alarm I/O
Event Notification
Event Buffering (Pre & Post)
Motion Detection, Audio Detection
1 Sensor Input & 1 Relay Output
E-mail (with JPEG), FTP
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
Power Consumption
ALARM & EVENT
Trigger Event
Alarm I/O
Event Notification
Event Buffering (Pre & Post)
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
Power Source
Power Consumption
Operating Temperature &
Humidity
0°C~45°C (32~113°F) / 8~80% RH
Operating Temperature &
Humidity
Outdoor Usage Certificate
IP 66 & Vandal-Proof Casing
Outdoor Usage Certificate
Approval
Micro SD Card Slot
10/100 Base T LAN (Auto MDIX)
Motion Detection, Audio Detection
1 Sensor Input & 1 Relay Output
E-mail (with JPEG), FTP
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
POWER & ENVIRONMENTAL
Power Source
LAN
DIMENSIONS
ALARM & EVENT
Trigger Event
Edge Storage
Micro SD Card Slot
10/100 Base T LAN (Auto MDIX)
CE, FCC, RoHS
Approval
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
0°C~ 45°C (32~113°F) / 8~80% RH
IP 67
CE, FCC, RoHS
21
CAMERA ACCESSORIES
Network Protocols
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
Edge Storage
20 www.icantek.com
Video Compression
H.264 (High Profile) / MJPEG
Multi-Video Streaming
Bit Rate Control
DIMENSIONS
25M
Motion Detection, Audio Detection
NETWORK
Video Compression
2 Way-Audio
IR Distance
Intelligent Video
NETWORK
Streaming Method
Auto / Manual
ANALOGUE CAMERA
•Full Compatible Onvif Standard
Auto / Manual
HD-SDI CAMERA
•Analog video output (CVBS)
Electronic Shutter Speed
VIDEO RECORDER
•Panomorph lens (Immervision)
KEY FEATURES
VIDEO
SOFTWARE
KEY FEATURES
•5 MPixel (2592x1944, 10 fps)
Panoramic w/ Dual Codec
(H.264 / MJPEG)
NETWORK PRODCUT
Full HD Vandal-Resistant 360° Panoramic
PanCake Type IP Camera
Full HD Vanda-Resistant IR Mini
Bullet Type IP Camera
Full HD Vandal-Resistant IR
Bullet Type IP Camera
•2MP CMOS
•Dual Codec (H.264 / MJPEG)
iCanView387MP
Image Sensor
Max. Resolution
1920x1080@30FPS
Scanning Mode
Progressive Scan
•Digital PTZ, Cropped Video
Lens
•2-Way Audio Communication
IRIS Control
•Edge Storage in micro SD Card
•PoE / DC12V
•Built-in D/N (TDN)
•IP67
3.7mm, F2.5
DC Auto / Manual
Min. Illumination
Color : 0.12lux@F1.4 / BW : 0lux with IR ON
S/R Ratio
50dB
D-WDR
Supported
Electronic Shutter Speed
Auto / Manual
Privacy Masking
Supported
True Day & Night
Supported
IR Distance
25M
Intelligent Video
•2MP CMOS
•Dual Codec (H.264 / MJPEG)
•Multi Streaming w/ Max. 5
•2-Way Audio Communication
IRIS Control
•PoE / DC12V
•Built-in D/N (TDN)
•IP67
•Full Compatible Onvif Standard
Motion Detection, Audio Detection
Color : 0.12lux@F1.4 / BW : 0lux with IR ON
S/R Ratio
50dB
D-WDR
Supported
Electronic Shutter Speed
Auto / Manual
Privacy Masking
Supported
True Day & Night
Supported
IR Distance
25M
Motion Detection, Audio Detection
Video Compression
Max. 5 (2MP, D1, CIF, Crop, Photo)
Max. 5 (2MP, D1, CIF, Crop, Photo)
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Bit Rate Control
30fps@2MP
Intelligent Hybrid Control (VBR + CBR)
Max. Frame Rate
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
64Kbps 16bit μ-law PCM ~ Line-out
2 Way-Audio
30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
64Kbps 16bit μ-law PCM ~ Line-out
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP,, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
Network Protocols
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
Security
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
Security
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
Edge Storage
LAN
Micro SD Card Slot
Edge Storage
10/100 Base T LAN (Auto MDIX)
LAN
ALARM & EVENT
Trigger Event
Alarm I/O
Event Notification
Event Buffering (Pre & Post)
ALARM & EVENT
Motion Detection, Audio Detection
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
Trigger Event
Alarm I/O
1 Sensor Input & 1 Relay Output
Event Notification
E-mail (with JPEG), FTP
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
Micro SD Card Slot
10/100 Base T LAN (Auto MDIX)
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
0°C~45°C (32°F ~113°F) / 8~80% RH
IP 66
CE, FCC, RoHS
Event Buffering (Pre & Post)
DIMENSIONS
TBD
Motion Detection, Audio Detection
1 Sensor Input & 1 Relay Output
E-mail (with JPEG), FTP
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
0°C~45°C (32° ~113°F) / 8~80% RH
IP 67
CE, FCC, RoHS
23
CAMERA ACCESSORIES
Network Protocols
ANALOGUE CAMERA
Streaming Method
Intelligent Hybrid Control (VBR + CBR)
Max. Frame Rate
H.264 (High Profile) / MJPEG
Multi-Video Streaming
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Bit Rate Control
22 www.icantek.com
DC Auto / Manual
Min. Illumination
Intelligent Video
H.264 (High Profile) / MJPEG
Multi-Video Streaming
DIMENSIONS
Progressive Scan
3.5~16mm (5~50mm : optional)
NETWORK
Video Compression
2 Way-Audio
1920x1080@30FPS
Scanning Mode
Lens
•Edge Storage in micro SD Card
1/2.9′′ CMOS
Max. Resolution
•Digital PTZ, Cropped Video
NETWORK
Streaming Method
iCanView389MP
Image Sensor
HD-SDI CAMERA
•Full Compatible Onvif Standard
1/2.9′′ CMOS
VIDEO
VIDEO RECORDER
•Multi Streaming w/ Max. 5
KEY FEATURES
VIDEO
SOFTWARE
KEY FEATURES
iCanView389MP
NETWORK PRODCUT
iCanView387MP
Full HD Vandal-Resistant Mini Spy
Golf Ball Type IP Camera
Full HD Vandal-Resistant Mini Spy
Bullet Type IP Camera
iCanView388MP
•Dual Codec (H.264 / MJPEG)
Image Sensor
Max. Resolution
1920x1080@30FPS
Scanning Mode
Progressive Scan
•Digital PTZ, Cropped Video
Lens
•2-Way Audio Communication
IRIS Control
•Analog video output (CVBS)
•Edge Storage in micro SD Card
•PoE / DC12V
•Full Compatible Onvif Standard
1/2.7′′ CMOS
3.7mm, F2.5
DC Auto / Manual
Min. Illumination
Color : 0.12lux@F1.4
S/R Ratio
50dB
D-WDR
Supported
Electronic Shutter Speed
Auto / Manual
Supported
True Day & Night
Supported
IR Distance
•2MP CMOS
•Dual Codec (H.264 / MJPEG)
•Multi Streaming w/ Max. 5
•Digital PTZ, Cropped Video
•2-Way Audio Communication
•Analog video output (CVBS)
•Edge Storage in micro SD Card
•PoE / DC12V
•Full Compatible Onvif Standard
-
Intelligent Video
Motion Detection, Audio Detection
3.7mm, F2.5
IRIS Control
DC Auto / Manual
Min. Illumination
Color : 0.12lux@F1.4
S/R Ratio
50dB
D-WDR
Supported
Electronic Shutter Speed
Auto / Manual
Privacy Masking
Supported
True Day & Night
Supported
Motion Detection, Audio Detection
Edge Storage
LAN
Micro SD Card Slot
10/100 Base T LAN (Auto MDIX)
Trigger Event
Alarm I/O
Event Notification
Event Buffering (Pre & Post)
DIMENSIONS
64Kbps 16bit μ-law PCM ~ Line-out
Network Protocols
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
Security
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
Edge Storage
LAN
Micro SD Card Slot
10/100 Base T LAN (Auto MDIX)
ALARM & EVENT
Motion Detection, Audio Detection
1 Sensor Input & 1 Relay Output
E-mail (with JPEG), FTP, Relay Output
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Trigger Event
Alarm I/O
Event Notification
Event Buffering (Pre & Post)
Motion Detection, Audio Detection
1 Sensor Input & 1 Relay Output
E-mail (with JPEG), FTP, Relay Output
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
0°C~45°C (32~113°F) / 8~80% RH
IP 66
CE, FCC, RoHS
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
0°C~45°C (32~113°F) / 8~80% RH
IP 66
CE, FCC, RoHS
25
CAMERA ACCESSORIES
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
2 Way-Audio
64Kbps 16bit μ-law PCM ~ Line-out
Security
Intelligent Hybrid Control (VBR + CBR)
Max. Frame Rate
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
Network Protocols
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Bit Rate Control
30fps@2MP
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
H.264 (High Profile) / MJPEG
Max. 5 (2MP, D1, CIF, Crop, Photo)
ANALOGUE CAMERA
Streaming Method
Intelligent Hybrid Control (VBR + CBR)
ALARM & EVENT
24 www.icantek.com
Progressive Scan
Lens
Multi-Video Streaming
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Max. Frame Rate
Approval
Scanning Mode
Video Compression
Max. 5 (2MP, D1, CIF, Crop, Photo)
Bit Rate Control
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
1920x1080@30FPS
Intelligent Video
H.264(High Profile) / MJPEG
Multi-Video Streaming
DIMENSIONS
1/2.7′′ CMOS
Max. Resolution
NETWORK
Video Compression
2 Way-Audio
iCanView388MPG
Image Sensor
IR Distance
NETWORK
Streaming Method
VIDEO
HD-SDI CAMERA
Privacy Masking
KEY FEATURES
VIDEO RECORDER
•Multi Streaming w/ Max. 5
iCanView388MP
SOFTWARE
•2MP CMOS
VIDEO
NETWORK PRODCUT
KEY FEATURES
iCanView388MPG
SD Weather-proof Vandal
Resistant Bullet Type IP Camera
Full HD IR Cube Type IP Camera
•2MP CMOS
•Dual Codec (H.264 / MJPEG)
•Digital PTZ, Cropped Video
•2-Way Audio Communication
•Microphone & Speaker Embedded
•PoE / DC12V
•Full Compatible Onvif Standard
iCanView391MP
Image Sensor
1/2.7′′ CMOS
Max. Resolution
1920x1080@30FPS
Scanning Mode
Progressive Scan
Lens
3.7mm, F2.5
IRIS Control
DC Auto / Manual
Min. Illumination
Color : 0.12lux@F1.4 / BW : 0lux with IR ON
S/R Ratio
50dB
D-WDR
Supported
Electronic Shutter Speed
Auto / Manual
Supported
True Day & Night
Supported
IR Distance
12M
Intelligent Video
•Dual Codec (H.264 / MJPEG)
•Multi Streaming w/ Max. 5
•D-WDR
IRIS Control
•2-Way Audio Communication
Min. Illumination
•Analog video output (CVBS)
S/R Ratio
Video Quality Compensation
D-WDR
DC Auto / Manual
Color : 0.15lux@F1.2 / 0.0003lux(F1.2) : IR LED Off, 512x
Sens-Up
52dB or more
AE, AWB, 2D-3DNR, BLC
Supported
•Edge Storage in micro SD Card
•DC12V
•Full Compatible Onvif Standard
DIMENSIONS
2 Way-Audio
Electronic Shutter Speed
Privacy Masking
True Day & Night
70M
Intelligent Video
Motion Detection, Audio Detection
NETWORK
Max. 5 (2MP, D1, CIF, Crop, Photo)
Video Compression
Intelligent Hybrid Control (VBR + CBR)
Streaming Method
H.264 (High Profile) / MJPEG
Multi-Video Streaming
30fps@2MP
Max. 5 (2MP, D1, CIF, Crop, Photo)
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Bit Rate Control
32Kbps G.726 ADPCM , 64Kbps 16bit μ-law PCM ~ Built-in MIC-in
Intelligent Hybrid Control (VBR + CBR)
Max. Frame Rate
64Kbps 16bit μ-law PCM ~Built-in Speaker
30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
2 Way-Audio
Security
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
Network Protocols
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
Security
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
LAN
Micro SD Card Slot
10/100 Base T LAN (Auto MDIX)
ALARM & EVENT
Trigger Event
Alarm I/O
Event Notification
Event Buffering (Pre & Post)
Motion Detection, Audio Detection
1 Sensor Input & 1 Relay Output
E-mail (with JPEG), FTP, Relay Output
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
DIMENSIONS
64Kbps 16bit μ-law PCM ~ Line-out
Edge Storage
LAN
ALARM & EVENT
Trigger Event
Alarm I/O
Event Notification
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
0°C~45°C (32~113°F) / 8~80% RH
CE, FCC, RoHS
SD Card Slot
10/100 Base T LAN (Auto MDIX)
Event Buffering (Pre & Post)
Motion Detection, Audio Detection
1 Sensor Input & 1 Relay Output
E-mail (with JPEG), FTP, Relay Output
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
12VDC, 3.3A
38.6W (12V, 3.3A)
-Without heater : -10°C~50°C (14°F~122°F)
-With heater : -40° ~50°C (-40°F~122°F) / 8% ~ 00%
IP 66
CE, FCC, RoHS
27
CAMERA ACCESSORIES
Network Protocols
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
Edge Storage
26 www.icantek.com
Auto / Manual
Supported
Supported
IR DIstance
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Max. Frame Rate
Progressive Scan
3.5 ~ 16mm (iCanView382E) / 5 ~ 50mm (iCanView382E+)
H.264 (High Profile) / MJPEG
Bit Rate Control
NTSC : 768 x 494 / PAL : 752 x 582
Scanning Mode
ANALOGUE CAMERA
Streaming Method
Max. Resolution
Lens
NETWORK
Multi-Video Streaming
Sony 1/3′′ Super HAD CCD
•Digital PTZ, Cropped Video
Motion Detection, Audio Detection
Video Compression
iCanView382E /E+
Image Sensor
HD-SDI CAMERA
Privacy Masking
•NTSC : 768 x 494 / PAL : 752 x 582
VIDEO
VIDEO RECORDER
•Multi Streaming w/ Max. 3
KEY FEATURES
VIDEO
SOFTWARE
KEY FEATURES
iCanView382E / E+
NETWORK PRODCUT
iCanView391MP
SD In/Outdoor Mini PTZ Speed Dome
IP Camera
SD Outdoor PTZ Speed Dome
IP Camera
•Dual-codec (H.264 & MJPEG)
•Multi profile streaming
iCanView372
Image Sensor
•IP66 water-resistant
•Virtual keyboard controller
(IP+ Hybrid)
720x480(full D1),
720X576(full D1),
640x480(VGA)
640x480(VGA)
720x240(half D1),
720x288(half D1),
352x240(CIF), 176x112(QCIF) 352x288(CIF), 176x112(QCIF)
Lens
12x Optical Zoom f=3.94 ~ 46.05mm (F 1.67 ~ 1.88)
IRIS Control
Min. Illumination
•Two-way audio communication
S/R Ratio
DC Auto / Manual
Color : 0.02Lux, F1.6
0.04Lux, F1.6
50dB
D-WDR
Supported
DSS
Auto / Manual
Privacy Masking
Supported
Day & Night
Supported
IR Distance
•Multi profile streaming
•Digital PTZ, video crop
•DIS / DNR / BLC / Day&Night Level Setting
•Ultra quiet mechanism
Lens
•IP + (Hybrid) feature
IRIS Control
– Simultaneous control via RS-485 and IP network
•IP66 compliant housing
•Fan & heater
Motion Detection
2 Way-Audio
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log
Edge Storage
SD Card Slot
LAN
10/100 Base T LAN (Auto MDIX)
ALARM & EVENT
Trigger Event
Motion Detection
Alarm I/O
2 Sensor Input & 1 Relay Output
video file upload (FTP), still Image (Email), PTZ presets, Relay output
Event Buffering (Pre & Post)
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
28 www.icantek.com
Bit Rate Control
24VAC, 1.75A
42W (24V, 1.75A)
Without heater : -10°C ~ 50°C (14°F~122°F) / 8~80% RH
With heater : -40°C ~50°C (-40°F~122°F) / 8~80% RH
IP 66
Max. 5 (D1, D1, CIF, Crop, Photo)
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Intelligent Hybrid Control (VBR + CBR)
Max. Frame Rate
2 Way-Audio
64Kbps 16bit μ-law PCM ~ Line-out
Security
Event Notification
Streaming Method
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, SNMP, NTP, DNS, DynDNS, SOCKS
H.264 / MJPEG
Multi-Video Streaming
30fps@ 720 x 576
Network Protocols
Supported
Supported
Motion Detection
DIMENSIONS
Network Protocols
Security
30fps@ 720 x 576
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
64Kbps 16bit μ-law PCM ~ Line-out
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, SNMP, NTP, DNS, DynDNS, SOCKS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log
Edge Storage
SD Card Slot
LAN
10/100 Base T LAN (Auto MDIX)
ALARM & EVENT
Trigger Event
Alarm I/O
Event Notification
Motion Detection
4 Sensor Input & 2 Relay Output
video file upload (FTP), still Image (Email), PTZ presets, Relay output
Event Buffering (Pre & Post)
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
12VDC, 1.75A
21W (12V, 1.75A)
Without heater : -10°C ~ 50°C (14°F~122°F) / 8~80% RH
With heater : -40°C ~50°C (-40°F~122°F) / 8~80% RH
IP 66
CE, FCC, RoHS
CE, FCC, RoHS
29
CAMERA ACCESSORIES
DIMENSIONS
50dB
Supported
Auto / Manual
Video Compression
Intelligent Hybrid Control (VBR+CBR)
Max. Frame Rate
Color : 0.01Lux
S/R Ratio
D-WDR
DSS
NETWORK
H.264 / MJPEG
Max. 5 (D1, D1, CIF, Crop, Photo)
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Bit Rate Control
Min. Illumination
ANALOGUE CAMERA
Streaming Method
1/4" Sony HAD CCD
NTSC
PAL
720x480(full D1),
720X576(full D1),
640x480(VGA)
640x480(VGA)
720x240(half D1),
720x288(half D1),
352x240(CIF), 176x112(QCIF) 352x288(CIF), 176x112(QCIF)
36x Optical Zoom (F=1.6 ~ 4.5 , f=3.4 ~ 122.4mm )
18x Optical Zoom (F=1.4~3.0, f=4.1~73.8mm)
DC Auto / Manual
Privacy Masking
Day & Night
IR Distance
Intelligent Video
NETWORK
Video Compression
Multi-Video Streaming
Max. Resolution
•Bi-directional audio communication
-
Intelligent Video
iCanView340-18S/36S
Image Sensor
HD-SDI CAMERA
•Analog CVBS output
PAL
VIDEO
VIDEO RECORDER
Max. Resolution
•Dual-codec (H.264 & MJPEG)
1/4" Sony HAD CCD
NTSC
•Digital PTZ, video crop
•12X optical zoom, Vandal proof
KEY FEATURES
VIDEO
SOFTWARE
KEY FEATURES
iCanView340-18S/36S
NETWORK PRODCUT
iCanView372
SD Indoor PTZ Speed Dome
IP Camera
SD IR In/Outdoor PTZ Speed Dome
IP Camera
•Dual-codec (H.264 & MJPEG)
•Multi profile streaming
•12X optical zoom, Vandal proof
iCanView350-18S/36S
Image Sensor
Max. Resolution
•IP66 water-resistant
•Virtual keyboard controller
(IP+ Hybrid)
•Analog CVBS output
NTSC
PAL
720x480(full D1),
720X576(full D1),
640x480(VGA)
640x480(VGA)
720x240(half D1),
720x288(half D1),
352x240(CIF), 176x112(QCIF) 352x288(CIF), 176x112(QCIF)
36x Optical Zoom(F=1.6~4.5 , f=3.4~122.4mm )
18x Optical Zoom(F=1.4~3.0, f=4.1~73.8mm)
IRIS Control
Min. Illumination
S/R Ratio
DSS
Motion Detection
•IP + (Hybrid) feature
•Proportional PTZ Control
•0.009° Dome System Accuracy
•Fan & Heater
•High performance PTZ
NETWORK
Video Compression
H.264 / MJPEG
Streaming Method
Max. 5 (D1, D1, CIF, Crop, Photo)
DIMENSIONS
Security
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, SNMP, NTP, DNS, DynDNS, SOCKS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log
Edge Storage
SD Card Slot
LAN
10/100 Base T LAN (Auto MDIX)
Trigger Event
Motion Detection
Alarm I/O
4 Sensor Input & 2 Relay Output
video file upload (FTP), still Image (Email), PTZ presets, Relay output
Event Buffering (Pre & Post)
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
Power Consumption
30 www.icantek.com
12VDC, 1.75A
21W (12V, 1.75)
Operating Temperature &
Humidity
Without heater : -10°C~50°C (14°F~122°F) / 8~80% RH
With heater : -40°C~50°C (-40°F~122°F) / 8~80% RH
Outdoor Usage Certificate
-
Approval
Bit Rate Control
DIMENSIONS
Intelligent Hybrid Control (VBR + CBR)
Max. Frame Rate
2 Way-Audio
Network Protocols
Security
30fps@ 720 x 576
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
64Kbps 16bit μ-law PCM ~ Line-out
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, SNMP, NTP, DNS, DynDNS, SOCKS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log
Edge Storage
SD Card Slot
10/100 Base T LAN (Auto MDIX)
ALARM & EVENT
Trigger Event
Motion Detection
Alarm I/O
Event Notification
4 Sensor Input & 2 Relay Output
video file upload (FTP), still Image (Email), PTZ presets, Relay output
Event Buffering (Pre & Post)
POWER & ENVIRONMENTAL
Power Source
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
LAN
ALARM & EVENT
Event Notification
H.264 / MJPEG
Max. 5 (D1, D1, CIF, Crop, Photo)
CE, FCC, RoHS
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
24VDC, 2.5A
60W (24V, 2.5A)
-40°C ~55°C (-40°F~131°F) / 30~90% RH
IP 66
CE, FCC, RoHS
31
CAMERA ACCESSORIES
Network Protocols
Streaming Method
30fps@ 720 x 576
64Kbps 16bit μ-law PCM ~ Line-out
S/R Ratio
D-WDR
DSS
Privacy Masking
Day & Night
IR Distance
Intelligent Video
Multi-Video Streaming
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
2 Way-Audio
Min. Illumination
Video Compression
Intelligent Hybrid Control (VBR + CBR)
Max. Frame Rate
IRIS Control
NETWORK
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Bit Rate Control
Lens
1/4" Sony Exview HAD CCD
NTSC
PAL
720x480(full D1),
720X576(full D1),
640x480(VGA)
640x480(VGA)
720x240(half D1),
720x288(half D1),
352x240(CIF), 176x112(QCIF) 352x288(CIF), 176x112(QCIF)
37x Optical
27x Optical Zoom
33x Optical
(F= 1.6 ~ 2.9 , f=3.5 ~ Zoom(F= 1.6 ~ 3.6 , Zoom(F= 1.6 ~ 3.9 ,
f=3.5 ~ 129.5mm)
94.5mm)
f=3.5 ~ 115.5mm)
DC Auto / Manual
Color : 0.2Lux, F.16
0.04Lux, F.16
50dB
Supported
Auto / Manual
Supported
Supported
Optional (70M)
Motion Detection
ANALOGUE CAMERA
Multi-Video Streaming
Max. Resolution
•Bi-directional audio communication
• Auto IR LED brightness control by Distance Range
Supported
Intelligent Video
•Digital PTZ, video crop
Color : 0.01Lux
Auto / Manual
Day & Night
•Multi profile streaming
– Simultaneous control through RS-485 and IP network
Supported
iCanView342-27D/33D/37D
Image Sensor
•Dual-codec (H.264 & MJPEG)
DC Auto / Manual
50dB
D-WDR
•Professional speed dome
VIDEO
HD-SDI CAMERA
•Two-way audio communication
Lens
1/4" Sony Exview HAD CCD
KEY FEATURES
VIDEO RECORDER
•Digital PTZ, video crop
VIDEO
SOFTWARE
KEY FEATURES
iCanView342-27D/33D/37D
NETWORK PRODCUT
iCanView350-18S/36S
PTZ Mechanism, Camera Module for ICV340/350/342
18X Optical
(Sony)
Model
26XOptical
(Sony)
27X Optical
(Samsung)
Pan / Tilt
Preset
Manual
Max 300˚/sec,
Min 10˚/sec
Max 400˚/sec,
Min 10˚/sec
0.5˚ ~ 45˚/sec
(64step)
0.5˚ ~ 45˚/sec
(64step)
0.5˚ ~ 150˚/sec
(64step)
0.5˚ ~ 150˚/sec
(64step)
0.024˚
0.009˚
Max 250˚/sec, Min 200˚/sec
0.024˚
0.024˚
0.009˚
0.009˚
Max. 8 Programmable group tours(each one consisting of up to 60 preset steps with different steps)
Auto Pan
Programmable Auto Scan
Pattern
8 Programmable Patterns (total 480 seconds)
Sector
8 Selectable Sectors with 16 characters
Password Protection
Yes
24
24
8
8
KEY FEATURES
Alarm Input
4 alarms (with various programmable states)
Alarm Actions
Activate preset, Group scanning or output per alarm input
Aux Output
2 Relay Output
OSD Menu
Yes
Communication
RS-485
PTZ Protocol
Pelco-D, Pelco-P
Motor Type
Stepping motor
Max. Resolution
•DIS / DNR / BLC / Day&Night Level Setting
•Bi-directional audio communication
•Ultra quiet mechanism
•IP + (Hybrid) feature
– Simultaneous control via RS-485 and IP network
1920x1080@30fps
canning Mode
Progressive Scan
Lens
20x (f=4.7mm~94mm)
IRIS Control
DC Auto / Manual
Color : 1.7Lux (1.6, 50 IRE)
0.5Lux(High Sense)
Min. Illumination
S/R Ratio
50dB
D-WDR
Supported
DSS
Auto / Manual
Privacy Masking
Supported
Day & Night
Supported
IR Distance
-
Intelligent Video
1/8 Micro Step
Image Sensor
1/4" Sony Exview
HAD CCD
Motion Detection
NETWORK
Video Compression
H.264 / MJPEG
Multi-Video Streaming
Streaming Method
Bit Rate Control
PAL
795(H) * 596(V) 470K
Max. Frame Rate
NTSC
768(H) * 494(V) 380K
PAL
752(H) * 582(V) 440K
2 Way-Audio
NTSC
470TV line
470TV line
550TV line(Color) 550TV line(Color) 530TV line(Color) 550TV line(Color)
PAL
460TV line
460TV line
680TV line(B/W) 680TV line(B/W) 530TV line(Color) 680TV line(B/W)
Day & Night (ICR)
Supported
Supported
Supported
Supported
Supported
Supported
Digital Slow Shutter
ON / OFF
ON / OFF
ON / OFF
ON / OFF
ON / OFF
ON / OFF
Normal
Mode
0.05Lux
0.14Lux
0.2Lux
0.2Lux
0.1Lux
0.2Lux
Night
Mode
0.01Lux
0.05Lux
0.02Lux
0.02Lux
0.01Lux
0.02Lux
Sense-up :
256x
N/A
N/A
0.00007Lux
0.00007Lux
N/A
0.00007Lux
Network Protocols
Security
DIMENSIONS
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Intelligent Hybrid Control (VBR+CBR)
30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
64Kbps 16bit μ-law PCM ~ Line-out
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, SNMP, NTP, DNS, DynDNS, SOCKS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log
Edge Storage
SD Card Slot
LAN
10/100 Base T LAN (Auto MDIX)
ALARM & EVENT
Trigger Event
Motion Detection
Alarm I/O
Event Notification
4 Sensor Input & 2 Relay Output
video file upload (FTP), still Image (Email), PTZ presets, Relay output
Event Buffering (Pre & Post)
Luminance S/N Ratio
More than 50dB
Video Output
Composite video output 75 ohm terminated
BLC
ON / OFF
Power Consumption
Flickerless
ON / OFF
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
IEEE802.3at PoE or 12VDC
24W (12V, 2A)
Without heater : -10°C~50°C (14°F~122°F) / 20~80% RH
With heater : -40°C~50°C (-40°F~122°F) / 20~80% RH
IP 66
CE, FCC, RoHS
33
CAMERA ACCESSORIES
811(H) * 508(V) 410K
Max. 5 (2MP, D1, CIF, Crop, Photo)
ANALOGUE CAMERA
Micro Steps
Min.
Illumination
•Multi profile streaming
Sony 1 / 2.8’’ CMOS Sensor
HD-SDI CAMERA
ON / OFF
Horizontal
Resolution
Image Sensor
•IP66 compliant housing
Auto Flip
Number Of
Effective Pixels
8
iCanView346MP
•Dual-codec (H.264 & MJPEG)
•Digital PTZ, video crop
24
VIDEO
VIDEO RECORDER
Group Tour
NTSC
32 www.icantek.com
0.5˚ ~ 150˚/sec
(64step)
165 positions with 16 character labels available for each position with different speed steps
Total Image
Pixels
Camera
Module
0.5˚ ~ 45˚/sec
(64step)
iCanView346MP
SOFTWARE
Others
Max 400˚/sec,
Min 10˚/sec
Presets
Privacy Zone
Functions
Max 400˚/sec,
Min 10˚/sec
Full HD Outdoor PTZ Speed Dome
IP Camera
-2˚ ~ 90˚
Preset
System Accuracy
Max 300˚/sec,
Min 10˚/sec
0.5˚ ~ 200˚/sec (64step)
Max 300˚/sec,
Min 10˚/sec
Tilt Rotation Angle
Tilt Speed
37X Optical
(Samsung)
360˚ Endless
Manual
Pan Speed
36X Optical
(Sony, WDR)
NETWORK PRODCUT
Pan Rotation Angle
33X Optical
(Samsung)
Full HD Indoor PTZ Speed Dome
IP Camera
Full HD Professional IR Outdoor
PTZ Speed Dome IP Camera
VIDEO
iCanView356MP
Image Sensor
•Progressive scan megapixel (2M CMOS)
Max. Resolution
•Multi profile
canning Mode
•Digital PTZ, video crop
Lens
•Bi-directional audio communication
IRIS Control
•Ultra quiet mechanism
Min. Illumination
•IP + (Hybrid) feature
S/R Ratio
– Simultaneous control through RS-485 and IP network
Image Sensor
1920x1080@30fps
•Progressive scan megapixel (2M CMOS)
Max. Resolution
Progressive Scan
•Multi profile
canning Mode
•Digital PTZ, video crop
Lens
•Bi-directional audio communication
IRIS Control
•Ultra quiet mechanism
Min. Illumination
20x (f=4.7mm~94mm)
F1.6~F3.5
DC Auto / Manual
Color : 1.7Lux (1.6, 50 IRE)
0.5Lux(High Sense)
50dB
Supported
DSS
•IP + (Hybrid) feature
– Simultaneous control through RS-485 and IP network
Auto / Manual
Supported
Day & Night
Supported
IR Distance
Motion Detection
Auto IR LED Brightness Control
• Illumination level of IR LED is automatically
readjusted by distance range.
Video Compression
Intelligent Hybrid Control (VBR+CBR)
[Wide Angle]
30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
64Kbps 16bit μ-law PCM ~ Line-out
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, SNMP, NTP, DNS, DynDNS, SOCKS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log
Edge Storage
Tempered Glass Adopted
• Tempered glass and specially coating for
preventing dew condensation.
Trigger Event
Motion Detection
4 Sensor Input & 2 Relay Output
video file upload (FTP), still Image (Email), PTZ presets, Relay output
Event Buffering (Pre & Post)
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
34 www.icantek.com
64Kbps 16bit μ-law PCM ~ Line-out
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, SNMP, NTP, DNS, DynDNS, SOCKS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log
SD Card Slot
10/100 Base T LAN (Auto MDIX)
Motion Detection
Alarm I/O
Alarm I/O
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
Network Protocols
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
ALARM & EVENT
10/100 Base T LAN (Auto MDIX)
Trigger Event
Power Consumption
2 Way-Audio
Edge Storage
LAN
ALARM & EVENT
Power Source
Bit Rate Control
Max. Frame Rate
Security
SD Card Slot
LAN
Event Notification
[Telescopic Angle]
Event Notification
DIMENSIONS
24W (12V, 2A)
Without heater : -10°C~50°C (14°F~122°F) / 20~80% RH
With heater : -40°C~50°C (-40°F~122°F) / 20~80% RH
CE, FCC, RoHS
video file upload (FTP), still Image (Email), PTZ presets, Relay output
Event Buffering (Pre & Post)
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
IEEE802.3at PoE or 12VDC
4 Sensor Input & 2 Relay Output
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
IEEE802.3at PoE or 24VAC
48W (24V, 2A)
Without heater : -10°C~50°C (14°F~122°F) / 20~80% RH
With heater : -40°C~50°C (-40°F~122°F) / 20~80% RH
IP 68
CE, FCC, RoHS
35
CAMERA ACCESSORIES
DIMENSIONS
Streaming Method
H.264 / MJPEG
Max. 5 (2MP, D1, CIF, Crop, Photo)
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Intelligent Hybrid Control (VBR+CBR)
30fps@2MP
ANALOGUE CAMERA
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Max. Frame Rate
Security
DC Auto / Manual
Color : 1.7Lux (1.6, 50 IRE)
0.5Lux(High Sense)
50dB
Supported
Auto / Manual
Supported
Supported
70M
Motion Detection
S/R Ratio
D-WDR
DSS
Privacy Masking
Day & Night
IR Distance
Intelligent Video
Multi-Video Streaming
Max. 5 (2MP, D1, CIF, Crop, Photo)
Bit Rate Control
Network Protocols
Progressive Scan
20x (f=4.7mm~94mm)
F1.6~F3.5
Video Compression
H.264 / MJPEG
Multi-Video Streaming
2 Way-Audio
1920x1080@30fps
NETWORK
NETWORK
Streaming Method
Sony 1 / 2.8’’ CMOS Sensor
HD-SDI CAMERA
Privacy Masking
Intelligent Video
iCanView316MP
•Dual-Codec (H.264/MJPEG)
Sony 1 / 2.8’’ CMOS Sensor
D-WDR
VIDEO
KEY FEATURES
VIDEO RECORDER
•Dual-Codec (H.264/MJPEG)
SOFTWARE
KEY FEATURES
iCanView316MP
NETWORK PRODCUT
iCanView356MP
PTZ Mechanism, Camera Module for ICV346MP/356MP/316MP
1 / 2.8 Type Exmor CMOS Sensor
Effective Pixels
3270K Pixels
Progressive Scan
Yes
Output Pixel@fps
1920x1080@30fps
Lens
Optical Zoom
20x (f=4.7mm~94mm)
Practical f - value
f = 4.7mm(W) ~ 94mm(T)
F- value
Zoom Speed
iCanView347MP
F1.6~F3.5
Optical Wide – Optical Tele
Optical Wide – Digital Tele Digital Wide – Digital Tele
2.3 sec (Focus Tracking On)
4.3 sec (30p/60p mode)
2.1 sec (30p/60p mode)
1.6 sec (Focus Tracking Off)
4.9 sec (25p/50p mode)
2.6 sec (25p/50p mode)
~ Near : 0.8 sec
Angle of View (H)
Approx. 55.4 degrees (Wide End) , Approx. 2.9 degrees (Tele End)
Digital Zoom
12x (240x with Optical Zoom)
Min. Working Distance
10mm(Wide End), 1000mm(Tele End)
(1/30 sec, 50%, High Sensitivity Mode On)
•Professional speed dome
•Dual-codec (H.264 & MJPEG)
1.7Lux
(1/30 sec, 50%, High Sensitivity Mode Off)
0.08Lux
(NTSC1/4 sec, PAL 1/3 sec. 50%, High Sensitivity Mode On)
0.26Lux
(NTSC1/4 sec, PAL 1/3 sec. 50%, High Sensitivity Mode Off)
0.095Lux
ICR-On Mode (1/30 sec, 50%, High Sensitivity Mode On)
0.3Lux
ICR-On Mode (1/30 sec, 50%, High Sensitivity Mode Off)
0.005Lux
(NTSC1/4 sec, PAL 1/3 sec. 30%, High Sensitivity Mode On)
100Lux ~ 100,000Lux
Recommended Illumination
Internal
S/N Ratio
50dB (Weight On)
Back Light Compensation
ON/OFF
Electronic Shutter Speed
60/30 Mode
1/1 sec ~ 1/10,000 sec (22 Steps)
50/25 Mode
1/1 sec ~ 1/10,000 sec (22 Steps)
AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto,
Sodium Vapor Lamp (Fix/Auto)
White Balance
Noise Reduction
ON/OFF (Level 5 ~ 1 / OFF, 6 Steps)
Color Enhancement
ON/OFF
•Digital PTZ, video crop
Lens
•Bi-directional audio communication
IRIS Control
DC Auto / Manual
Min. Illumination
Color : 0.2Lux, F.16
0.04Lux, F.16
•IP + (Hybrid) feature
– Simultaneous control through RS-485 and IP network
• Auto IR LED brightness control by Distance Range
•Proportional PTZ Control
•0.009° Dome System Accuracy
16 Steps
Preset
6-POSITIONS
Serial Interface
VISCA Protocol (CMOS 5V)
9.6 kbps, 19.2 kbps, 38.4 kbps, Stop bit, 1 bit
HD
Analog Component (Y/Pb/Pr), Digital (LVDS)
Analog SD
VBS
Progressive Scan
20x (f=4.7mm~94mm)
F1.6~F3.5
S/R Ratio
50dB
D-WDR
Supported
DSS
Auto / Manual
Privacy Masking
Supported
•Fan & Heater
Day & Night
Supported
•High performance PTZ
IR Distance
Optional (70M)
Intelligent Video
Motion Detection
NETWORK
Video Compression
Multi-Video Streaming
Streaming Method
H.264 / MJPEG
Max. 5 (2MP, D1, CIF, Crop, Photo)
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Bit Rate Control
Intelligent Hybrid Control (VBR+CBR)
Max. Frame Rate
DIMENSIONS
2 Way-Audio
Network Protocols
Security
30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
64Kbps 16bit μ-law PCM ~ Line-out
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, SNMP, NTP, DNS, DynDNS, SOCKS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log
Edge Storage
SD Card Slot
LAN
10/100 Base T LAN (Auto MDIX)
ALARM & EVENT
Trigger Event
Motion Detection
Alarm I/O
Event Notification
4 Sensor Input & 2 Relay Output
video file upload (FTP), still Image (Email), PTZ presets, Relay output
Event Buffering (Pre & Post)
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
36 www.icantek.com
IEEE802.3at PoE or 24VDC
60W (24V, 2.5A)
-40°C~55°C (-40°F~131°F) / 30~90% RH
IP 66
CE, FCC, RoHS
37
CAMERA ACCESSORIES
Aperture Control
1920x1080@30fps
ANALOGUE CAMERA
ON/OFF/AUTO
Max. Resolution
canning Mode
Max. Gain Limit ( 6 dB ~ 28 dB, 12 Steps)
Wide Dynamic Range
Sony 1 / 2.8’’ CMOS Sensor
•Multi profile streaming
Auto / Manual (-3 dB ~ +28 dB, 16 Steps)
Gain
iCanView347MP
Image Sensor
HD-SDI CAMERA
Sync System
VIDEO
VIDEO RECORDER
Min. Illumination
KEY FEATURES
SOFTWARE
Focus Movement Time
0.5Lux
Video Output
Full HD IR In/Outdoor PTZ
Speed Dome IP Camera
NETWORK PRODCUT
Image Sensor
Moving Speed Control of Panning and Tilting is available from 250°/Sec with manual
control. In Preset Positions, Max.400°/sec Panning and 300°/sec Tilting Speed Control
is available.
HIGH-QUALITY IR LED
AUTO LED BRIGHTNESS CONTROL BY DISTANCE RANGE
Special LED mechanism achieves lowheat, low-power and high-illumination with
excellent energy saving technology.
Wide Angle(Zoom Out) - Illumination Level : automatically readjusted to a dimmer lever
by way of prevention against image saturation.
Narrow Angle(Zoom In) - Illumination Level : automatically readjusted to get the
maximum to have enough light for clear image display and reduction of energy
consumption.
1,000h made on 90° C, -30°C and 60°C/RH 90%
Full HD Low-Cost IR PanCake
Type IP Camera
iCanView321MPE
KEY FEATURES
FREEZE/FOCUS AF, MF PRESET
•Dual Codec (H.264 / MJPEG)
iCanView321MPE
Image Sensor
1920x1080@30fps
•Multi Streaming w / Max. 3
canning Mode
Progressive Scan
•Compact Design & Easy Installation
Lens
•PoE / DC12V
•Full Compatible Onvif Standard
3.7mm, F2.5
IRIS Control
DC Auto / Manual
Min. Illumination
Color : 0.12lux@F1.4 / BW : 0lux with IR ON
S/R Ratio
50dB
Video Quality Compensation
AE, AWB, 2D-3DNR
Supported
DSS
Supported
Day & Night
Supported
Approx. 2 million
Digital Zoom
20x (200x with optical zoom)
IR Distance
Horizontal Viewing Angle
54.1° (wide end) to 2.9° (tele end)
Intelligent Video
Minimum Object Distance
10mm (wide) ~ 1,000 mm (tele)
NETWORK
Sync System
Internal
Video Compression
Electronic Shutter
1/2 to 1/10,000 s, 21 steps
Multi-Video Streaming
White Balance
Auto, ATW, Indoor, Outdoor Auto, Sodium Vapor Lamp (fix/auto), One-push, Manual
Gain
Auto/Manual/Max. Gain Limit (-3 to 28 dB, 2 dB steps)
Wide Dynamic Range
Auto/Manual
Privacy Zone Masking
Spherical
Character Generator
20 characters/line, max. 11 lines
Focus System
Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom trigger AF
Camera Operation / Zoom Switch
Yes (Zoom Tele, Zoom Wide)
Picture Effects
E-flip, Nega Art, Black & White, Mirror image, Color enhancement
Exposure Control
AE Control: Auto, Manual, Priority (shutter priority and iris priority), Bright, EV Compensation, Slow AE
Lens Value
20x Optical Zoom, f=4.7 mm (wide) ~ 94.0 mm (tele, F1.6 to F3.5
S/N Ratio
More than 50 dB
ALARM & EVENT
Minimum Illumination
Less than 1.7 lx (F1.6, 50 IRE), 0.5 lx in High Sensitivity Mode
Trigger Event
Signal System
HD: 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 720p/50, 720p/29.97, 720p/25SD: NTSC/PAL
Camera Control Interface
VISCA (TTL Signal Level) Baud Rate: 96 Kb/s, 19.2 Kb/s, 38.4 Kb/sStop bit: 1/2 bit selectable
Dimensions (W x H x D)
50.0 (w) x 60 (h) x 89 (d) mm
Weight
Less than 270g
Operating Temperature
-5°C - 60°C
Storage Temperature
-20°C - 60°C
Power Consumption
Less than 4.8W (motors inactive)
Power Requirements
6.0V ~ 12.0V DC
Streaming Method
Bit Rate Control
15M
Motion Detection
H.264 / MJPEG
Max. 3 (2MP, D1, Photo)
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Intelligent Hybrid Control (VBR + CBR)
Max. Frame Rate
30fps@2MP
2 Way-Audio
Network Protocols
Security
N/A
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
Edge Storage
LAN
DIMENSIONS
Alarm I/O
Event Notification
Event Buffering (Pre & Post)
N/A
10/100 Base T LAN (Auto MDIX)
Motion Detection
N/A
E-mail (with JPEG), FTP, Push Alarm
Pre-alarm : 5~10sec / Post-alarm : 10~30sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
12VDC/0.6A, PoE (IEEE802. 3af)
7.2W (12V, 0.6A)
0°C~45°C (32°F~113°F) & 8~80%RH
CE, FCC, RoHS, KCC
39
CAMERA ACCESSORIES
Effective Pixels
ANALOGUE CAMERA
1/3 type Exmor CMOS sensor
HD-SDI CAMERA
D-WDR
Image Sensor
38 www.icantek.com
1/2.9′′ CMOS
Max. Resolution
•Built-in D/N (TDN)
Samsung Zoom Camera Module Specification
VIDEO
VIDEO RECORDER
Freeze Preset : On moving the preset, it is for stopping imagination on the screen.
Focus AF,MF Preset : It is for moving into Auto Focus / Manual Focus the preset as
user want.
•2MP CMOS
SOFTWARE
MAX.400°/S PAN SPEED
Camera provides excellent sensitivity and
delicate controlling on preset mode by
adopting 1/16 micro step and twin gear
system.
NETWORK PRODCUT
0.009° ACCURACY
Full HD Low-Cost Vandal-Resistant
IR PanCake Type IP Camera
Full HD Low-Cost Vandal-Resistant
IR Bullet Type IP Camera
•2MP CMOS
•Dual Codec (H.264 / MJPEG)
•Compact Design & Easy Installation
•Built-in D/N (TDN)
•PoE / DC12V
•Full Compatible Onvif Standard
iCanView361MPE
Image Sensor
1/2.9′′ CMOS
KEY FEATURES
•2MP CMOS
Max. Resolution
1920x1080@30fps
•Dual Codec (H.264 / MJPEG)
canning Mode
Progressive Scan
•Multi Streaming w/ Max. 3
Lens
3.7mm, F2.5
IRIS Control
DC Auto / Manual
Min. Illumination
Color : 0.12lux@F1.4 / BW : 0lux with IR ON
S/R Ratio
Video Quality Compensation
50dB
AE, AWB, 2D-3DNR
•Compact Design & Easy Installation
•Built-in D/N (TDN)
•PoE / DC12V
•Full Compatible Onvif Standard
1/2.9′′ CMOS
Max. Resolution
1920x1080@30fps
canning Mode
Progressive Scan
Lens
3.7mm, F2.5
IRIS Control
DC Auto / Manual
Min. Illumination
Color : 0.12lux@F1.4 / BW : 0lux with IR ON
S/R Ratio
Video Quality Compensation
50dB
AE, AWB, 2D-3DNR
D-WDR
Supported
Supported
DSS
Supported
Day & Night
Supported
Day & Night
Supported
IR Distance
15M
IR Distance
Motion Detection
Streaming Method
Max. Frame Rate
2 Way-Audio
30fps@2MP
N/A
LAN
Network Protocols
Security
Alarm I/O
Event Notification
Event Buffering (Pre & Post)
Pre-alarm : 5~10sec / Post-alarm : 10~30sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
12VDC/0.6A, PoE (IEEE802. 3af)
7.2W (12V, 0.6A)
0°C~45°C (32°F~113°F) & 8~80%RH
IP 66
CE, FCC, RoHS, KCC
N/A
10/100 Base T LAN (Auto MDIX)
ALARM & EVENT
Trigger Event
Motion Detection
E-mail (with JPEG), FTP, Push Alarm
30fps@2MP
N/A
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
LAN
10/100 Base T LAN (Auto MDIX)
N/A
Intelligent Hybrid Control (VBR + CBR)
Edge Storage
N/A
ALARM & EVENT
Trigger Event
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Alarm I/O
DIMENSIONS
Event Notification
Event Buffering (Pre & Post)
Motion Detection
N/A
E-mail (with JPEG), FTP, Push Alarm
Pre-alarm : 5~10sec / Post-alarm : 10~30sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
12VDC/0.6A, PoE (IEEE802. 3af)
7.2W (12V, 0.6A)
0°C~ 45°C (32°F~113°F) & 8~80%RH
IP 66
CE, FCC, RoHS, KCC
41
CAMERA ACCESSORIES
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
Edge Storage
Max. 3 (2MP, D1, Photo)
Bit Rate Control
Intelligent Hybrid Control (VBR + CBR)
2 Way-Audio
H.264 / MJPEG
Multi-Video Streaming
Max. 3 (2MP, D1, Photo)
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Max. Frame Rate
Security
Video Compression
H.264 / MJPEG
Bit Rate Control
Network Protocols
Motion Detection
ANALOGUE CAMERA
Streaming Method
15M
Intelligent Video
NETWORK
Video Compression
Multi-Video Streaming
HD-SDI CAMERA
Supported
DSS
NETWORK
40 www.icantek.com
iCanView387MPE
Image Sensor
D-WDR
Intelligent Video
DIMENSIONS
VIDEO
VIDEO RECORDER
•Multi Streaming w/ Max. 3
VIDEO
SOFTWARE
KEY FEATURES
iCanView387MPE
NETWORK PRODCUT
iCanView361MPE
Full HD Low-Light PanCake Type IP Camera
Full HD Low-Light Dome Type IP Camera
•2MP CMOS
•Dual Codec (H.264 / MJPEG)
•Compact Design & Easy Installation
•Built-in D/N (TDN)
•PoE / DC12V
•Full Compatible Onvif Standard
iCanView321MPI
Image Sensor
1/2.9′′ CMOS
Max. Resolution
canning Mode
1920x1080@30fps
Progressive Scan
Lens
3mm, F2.0
IRIS Control
DC Auto / Manual
Min. Illumination
Color : 0.12lux@F1.4
•Dual Codec (H.264 / MJPEG)
•Multi Streaming w/ Max. 5
•Compact Design & Easy Installation
•Built-in D/N (TDN)
•PoE / DC12V
•Full Compatible Onvif Standard
Security
Edge Storage
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Intelligent Hybrid Control (VBR + CBR)
30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
64Kbps 16bit μ-law PCM ~ Line-out
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
Micro SD Card Slot
10/100 Base T LAN (Auto MDIX)
Trigger Event
Motion Detection, Audio Detection
Alarm I/O
1 Sensor Input & 1 Relay Output
Event Notification
E-mail (with JPEG), FTP, Push Alarm
Event Buffering (Pre & Post)
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
42 www.icantek.com
62dB or more
AUTO (Mechanical ICR), DAY, NIGHT
Intensifier Off –
Intensifier Max. x128 On/Off
ATB (2,000K ~ 10,000K) / MANUAL / PUSH
DC/ESC
On-15frame / Off-30frame
Day : 0~20 / Night : 0~20
AUTO ON (Max. x128) / OFF
x1 ~ x12
OFF/AUTO
Built-In Internally
Streaming Method
Bit Rate Control
Max. Frame Rate
2 Way-Audio
Network Protocols
DIMENSIONS
Security
Edge Storage
H.264 / MJPEG
Max. 5 (2MP, D1, CIF, Crop, Photo)
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Intelligent Hybrid Control (VBR + CBR)
30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
64Kbps 16bit μ-law PCM ~ Line-out
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
Micro SD Card Slot
LAN
10/100 Base T LAN (Auto MDIX)
Trigger Event
Motion Detection, Audio Detection
Alarm I/O
1 Sensor Input & 1 Relay Output
Event Notification
E-mail (with JPEG), FTP, Push Alarm
Event Buffering (Pre & Post)
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
POWER & ENVIRONMENTAL
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
Color : 0.12lux@F1.4
S/R Ratio
Day & Night
Sensitivity
(F1.2, 30IRE, ICR B/W)
ALARM & EVENT
ALARM & EVENT
Power Source
DC Auto / Manual
Min. Illumination
Video Compression
Multi-Video Streaming
Max. 5 (2MP, D1, CIF, Crop, Photo)
LAN
DIMENSIONS
2.8~12mm, F2.0
IRIS Control
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
0°C~45°C (32°F~113°F) & 8~80%RH
CE, FCC, RoHS
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
0°C~45°C (32°F~113°F) & 8~80%RH
CE, FCC, RoHS
43
CAMERA ACCESSORIES
Network Protocols
Lens
White Balance
Exposure
WDR
3D-DNR
Intensifier
Digital Zoom
DEFOG
OSD/Language
H.264(High Profile) / MJPEG
Multi-Video Streaming
2 Way-Audio
1920x1080@30fps
Progressive Scan
NETWORK
Video Compression
Bit Rate Control
Max. Frame Rate
1/2.9′′ CMOS
Max. Resolution
canning Mode
Back Light Compensation
NETWORK
Streaming Method
iCanView327MPI
Image Sensor
ANALOGUE CAMERA
62dB or more
AUTO (Mechanical ICR), DAY, NIGHT
Intensifier Off –
Intensifier Max. x128 On/Off
ATB (2,000K ~ 10,000K) / MANUAL / PUSH
DC/ESC
On-15frame / Off-30frame
Day : 0~20 / Night : 0~20
AUTO ON (Max. x128) / OFF
x1 ~ x12
OFF/AUTO
Built-In Internally
•2MP CMOS
VIDEO
HD-SDI CAMERA
S/R Ratio
Day & Night
Sensitivity
(F1.2, 30IRE, ICR B/W)
Back Light Compensation
White Balance
Exposure
WDR
3D-DNR
Intensifier
Digital Zoom
DEFOG
OSD/Language
KEY FEATURES
VIDEO RECORDER
•Multi Streaming w/ Max. 5
VIDEO
SOFTWARE
KEY FEATURES
iCanView327MPI
NETWORK PRODCUT
iCanView321MPI
Full HD Low-Light Vandal-Resistant
Dome Type IP Camera
iCanView361MPI
iCanView367MPI
•2MP CMOS
•Dual Codec (H.264 / MJPEG)
•Compact Design & Easy Installation
•Built-in D/N (TDN)
•PoE / DC12V
•Full Compatible Onvif Standard
iCanView361MPI
Image Sensor
1/2.9′′ CMOS
Max. Resolution
canning Mode
1920x1080@30fps
Progressive Scan
Lens
3.7mm, F2.5
IRIS Control
DC Auto / Manual
Min. Illumination
Color : 0.12lux@F1.4
S/R Ratio
Day & Night
Sensitivity
(F1.2, 30IRE, ICR B/W)
62dB or more
AUTO (Mechanical ICR), DAY, NIGHT
Intensifier Off –
Intensifier Max. x128 -
•2MP CMOS
•Dual Codec (H.264 / MJPEG)
•Multi Streaming w/ Max. 5
•Compact Design & Easy Installation
•Built-in D/N (TDN)
•PoE / DC12V
•Full Compatible Onvif Standard
On/Off
On/Off
ATB (2,000K ~ 10,000K) / MANUAL / PUSH
DC/ESC
On-15frame / Off-30frame
Day : 0~20 / Night : 0~20
AUTO ON (Max. x128) / OFF
x1 ~ x12
OFF/AUTO
Built-In Internally
Micro SD Card Slot
10/100 Base T LAN (Auto MDIX)
Trigger Event
Alarm I/O
Event Buffering (Pre & Post)
H.264 / MJPEG
Max. 5 (2MP, D1, CIF, Crop, Photo)
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Intelligent Hybrid Control (VBR + CBR)
2 Way-Audio
Network Protocols
DIMENSIONS
Security
Edge Storage
LAN
30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
64Kbps 16bit μ-law PCM ~ Line-out
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
Micro SD Card Slot
10/100 Base T LAN (Auto MDIX)
ALARM & EVENT
Motion Detection, Audio Detection
1 Sensor Input & 1 Relay Output
E-mail (with JPEG), FTP, Push Alarm
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
0°C~45°C (32°F~113°F) & 8~80%R
IP 66
CE, FCC, RoHS
Trigger Event
Motion Detection, Audio Detection
Alarm I/O
1 Sensor Input & 1 Relay Output
Event Notification
E-mail (with JPEG), FTP, Push Alarm
Event Buffering (Pre & Post)
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
0°C~45°C (32°F~113°F) & 8~80%R
IP 66
CE, FCC, RoHS
45
CAMERA ACCESSORIES
64Kbps 16bit μ-law PCM ~ Line-out
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
Event Notification
44 www.icantek.com
62dB or more
AUTO (Mechanical ICR), DAY, NIGHT
Intensifier Off –
Intensifier Max. x128 -
Max. Frame Rate
30fps@2MP
ALARM & EVENT
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
Color : 0.12lux@F1.4
S/R Ratio
Day & Night
Sensitivity
(F1.2, 30IRE, ICR B/W)
Bit Rate Control
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
LAN
Power Consumption
Min. Illumination
Streaming Method
Intelligent Hybrid Control (VBR + CBR)
Edge Storage
Power Source
DC Auto / Manual
Multi-Video Streaming
Max. 5 (2MP, D1, CIF, Crop, Photo)
Max. Frame Rate
DIMENSIONS
2.8~12mm, F2.0
IRIS Control
Video Compression
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Bit Rate Control
Security
Lens
White Balance
Exposure
WDR
3D-DNR
Intensifier
Digital Zoom
DEFOG
OSD/Language
H.264 / MJPEG
Multi-Video Streaming
Network Protocols
1920x1080@30fps
Progressive Scan
NETWORK
Video Compression
2 Way-Audio
1/2.9′′ CMOS
Max. Resolution
canning Mode
Back Light Compensation
ATB (2,000K ~ 10,000K) / MANUAL / PUSH
DC/ESC
On-15frame / Off-30frame
Day : 0~20 / Night : 0~20
AUTO ON (Max. x128) / OFF
x1 ~ x12
OFF/AUTO
Built-In Internally
NETWORK
Streaming Method
iCanView367MPI
Image Sensor
ANALOGUE CAMERA
White Balance
Exposure
WDR
3D-DNR
Intensifier
Digital Zoom
DEFOG
OSD/Language
VIDEO
HD-SDI CAMERA
Back Light Compensation
KEY FEATURES
VIDEO RECORDER
•Multi Streaming w/ Max. 5
VIDEO
SOFTWARE
KEY FEATURES
NETWORK PRODCUT
Full HD Low-Light Vandal-Resistant
PanCake Type IP Camera
Full HD Low-Light Vandal-Resistant
Bullet Type IP Camera
iCanView387MPI
iCanView389MPI
•2MP CMOS
•Dual Codec (H.264 / MJPEG)
•Compact Design & Easy Installation
•Built-in D/N (TDN)
•PoE / DC12V
•Full Compatible Onvif Standard
iCanView387MPI
Image Sensor
1/2.9′′ CMOS
Max. Resolution
canning Mode
1920x1080@30fps
Progressive Scan
Lens
3.7mm, F2.5
IRIS Control
DC Auto / Manual
Min. Illumination
Color : 0.12lux@F1.4
S/R Ratio
Day & Night
Sensitivity
(F1.2, 30IRE, ICR B/W)
62dB or more
AUTO (Mechanical ICR), DAY, NIGHT
Intensifier Off –
Intensifier Max. x128 -
•2MP CMOS
•Dual Codec (H.264 / MJPEG)
•Multi Streaming w/ Max. 5
•Compact Design & Easy Installation
•Built-in D/N (TDN)
•PoE / DC12V
•Full Compatible Onvif Standard
On/Off
30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
64Kbps 16bit μ-law PCM ~ Line-out
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
Micro SD Card Slot
2 Way-Audio
Network Protocols
Security
Event Notification
E-mail (with JPEG), FTP, Push Alarm
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
0°C~45°C (32°F~113°F) & 8~80%R
IP 66
CE, FCC, RoHS
H.264 / MJPEG
Max. 5 (2MP, D1, CIF, Crop, Photo)
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
Intelligent Hybrid Control (VBR + CBR)
30fps@2MP
32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
64Kbps 16bit μ-law PCM ~ Line-out
IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE,
RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP,
UPnP, NTP, DNS, DynDNS
User ID & Password Protection, IP Filtering, HTTPS, SSL Encryption,
Digest Authentication, User Access Log, IEEE 802.1x
Edge Storage
LAN
Micro SD Card Slot
10/100 Base T LAN (Auto MDIX)
ALARM & EVENT
Motion Detection, Audio Detection
1 Sensor Input & 1 Relay Output
Event Buffering (Pre & Post)
46 www.icantek.com
On/Off
ATB (2,000K ~ 10,000K) / MANUAL / PUSH
DC/ESC
On-15frame / Off-30frame
Day : 0~20 / Night : 0~20
AUTO ON (Max. x128) / OFF
x1 ~ x12
OFF/AUTO
Built-In Internally
Max. Frame Rate
10/100 Base T LAN (Auto MDIX)
Alarm I/O
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
62dB or more
AUTO (Mechanical ICR), DAY, NIGHT
Intensifier Off –
Intensifier Max. x128 -
Bit Rate Control
Intelligent Hybrid Control (VBR + CBR)
Trigger Event
Power Consumption
Color : 0.12lux@F1.4
S/R Ratio
Day & Night
Sensitivity
(F1.2, 30IRE, ICR B/W)
Streaming Method
ALARM & EVENT
Power Source
Min. Illumination
Multi-Video Streaming
RTSP Streaming with Proprietary Format for Control Information
- Standard RTSP Streaming
- HTTP Streaming
LAN
DIMENSIONS
DC Auto / Manual
Trigger Event
DIMENSIONS
TBD
Motion Detection, Audio Detection
Alarm I/O
1 Sensor Input & 1 Relay Output
Event Notification
E-mail (with JPEG), FTP, Push Alarm
Event Buffering (Pre & Post)
Pre-alarm : 5~15sec / Post-alarm : 10~60sec
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Operating Temperature &
Humidity
Outdoor Usage Certificate
Approval
12VDC, PoE (IEEE802. 3af)
12W (12V, 1A)
0°C~45°C (32°F~113°F) & 8~80%R
IP 66
CE, FCC, RoHS
47
CAMERA ACCESSORIES
Security
Edge Storage
2.8~12mm, F2.0
IRIS Control
Video Compression
Max. 5 (2MP, D1, CIF, Crop, Photo)
Bit Rate Control
Network Protocols
Lens
White Balance
Exposure
WDR
3D-DNR
Intensifier
Digital Zoom
DEFOG
OSD/Language
H.264 / MJPEG
Multi-Video Streaming
2 Way-Audio
1920x1080@30fps
Progressive Scan
NETWORK
Video Compression
Max. Frame Rate
1/2.9′′ CMOS
Max. Resolution
canning Mode
Back Light Compensation
ATB (2,000K ~ 10,000K) / MANUAL / PUSH
DC/ESC
On-15frame / Off-30frame
Day : 0~20 / Night : 0~20
AUTO ON (Max. x128) / OFF
x1 ~ x12
OFF/AUTO
Built-In Internally
NETWORK
Streaming Method
iCanView389MPI
Image Sensor
ANALOGUE CAMERA
White Balance
Exposure
WDR
3D-DNR
Intensifier
Digital Zoom
DEFOG
OSD/Language
VIDEO
HD-SDI CAMERA
Back Light Compensation
KEY FEATURES
VIDEO RECORDER
•Multi Streaming w/ Max. 5
VIDEO
SOFTWARE
KEY FEATURES
NETWORK PRODCUT
Full HD Low-Light Vandal-Resistant
Mini Bullet Type IP Camera
Dual Codec (H.264/MJPEG)
1CH Video Server
Dual Codec (H.264/MJPEG)
4CH Video Server
iCanSever611
iCanSever642
KEY FEATURES
•Dual-codec (H.264 & MJPEG)
•Multi profile streaming
•Small form factor
- Ultra compact design
KEY FEATURES
VIDEO
iCanServer611
Video Compression
Max Video Resolution
Max. Frame Rate
Audio In/Out
H.264 / MJPEG
720x576
30FPS
NA
Alarm In/Out
NA
PTZ Control
NA
Storage Interface
SD Card
Intelligent Video
Trigger Event
Motion Detection
NA
Approval
•Video resolution
- Full D1, VGA, CIF, QCIF
- Up to 120fps (NTSC), 100fps (PAL)
•Pentaplex Functionality
•2-way audio communication
•USB back-up function
iCanServer642
Video Compression
Max Video Resolution
Max. Frame Rate
Audio In/Out
H.264 / MJPEG
720x576
30FPS
4CH / 1 CH
Alarm In/Out
4CH / 1 CH
PTZ Control
Supported (RS-485)
Storage Interface
-
Intelligent Video
Trigger Event
GENERAL
GENERAL
Power Source
•4ch video serve (H.264 video, ADPCM audio)
VIDEO
12VDC
CE, FCC, RoHS
Power Source
Approval
12VDC
CE, FCC, RoHS
Dual Codec (H.264/MJPEG)
1CH Video Server
iCanSever612
KEY FEATURES
•Dual-codec (H.264 & MJPEG)
•Multi profile streaming
•Digital PTZ, video crop
•Built-in standard PoE
•Two-way audio communication
•Small form factor
- Ultra compact design
•Added convenience in the installation
- Power output (12V) for analog camera
(Power cable accessory provided)
- BALUN
•Improved picture quality
- Input to Y/C separation provided (S-Video)
•Video output : BNC and BALUN
(twisted UTP cable)
48 www.icantek.com
VIDEO
iCanServer612
Video Compression
Max Video Resolution
Max. Frame Rate
Audio In/Out
H.264 / MJPEG
720x576
30FPS
1CH / 1 CH
Alarm In/Out
1CH / 1 CH
PTZ Control
Supported (RS-485)
Storage Interface
SD Card
Intelligent Video
Motion Detection
Trigger Event
Intelligent Video + Sensor Input
GENERAL
Power Source
Approval
12VDC
CE, FCC, RoHS
49
SOFTWARE
Functional Buttons and Indicators
Clone Window
ON/OFF Button
Centralized Video Management Solution
Display Ratio
Swap
Change Channels
Displayed
Screen Lock
NETWORK PRODCUT
NVR-PRO
Channel Status
Indicator
Full Screen
Display
Screen
Configuration
•Simultaneous Viewing & Recording
NVR-PRO, as Centralized Video Management Software,
provides security managers with real-time live monitoring,
recording, playback as well as advanced event
management by combining and remotely managing the
diversified network cameras and network video recorders.
Remote Relay
On / Off
VIDEO RECORDER
•Separate playback Screen handing up
to 16 Ch simultaneous playback without
interrupting real-time monitoring
SOFTWARE
KEY FEATURES
•Registration of up to 64Ch for Small &
Medium Project
•Recommended Hardware specification
•Expandable to RAID Storage System
•Intuitive & User-Friendly GUI
Display Unit (DU).
The smallest DU is called MDU (Minimum display Unit). This can
be called as Channel when connection information is set up
•Separate Event Log Management
•Integrated Pan/Tilt/Zoom Control
Focus Control
Pan / Tilt Control
HD-SDI CAMERA
•Various Recording Modes : Scheduled,
Manual, Alarm, Motion Triggered.
Remote Relay
On / Off
Close NVR
Manual Recording
Control
HDD Usage Indicator
Live Connection Control
Connect to Admin Page
Bidirectional
Audio ON/OFF
Rotate Video By 180
Degree
Still Video Capture
Virtual Controller for
PTZ Camera
LAN
WAN
Network DVR Control
Smart Mobile Client
(Android/iPhone
Backberry/ iPad)
52 www.icantek.com
Web Client
CAMERA ACCESSORIES
Magnify Highlighted
Channel
ANALOGUE CAMERA
Quad Mode Display Including
Highlighted Channel
Sensor and Motion
Indicators for Each of
16 Channels
E-map
Audio/Video Control
Centering
Move to PTZ Home
Move to Preset Position
PTZ Parameter Set-up
53
Panomorph menu is enabled when play the
“Mega Profile(Ch1)” of Panoramic Camera
Professional Smart&Easy Video
Management Solution
Panomorph Navigator
NETWORK PRODCUT
SOFTWARE
Select the camera
position.
Select the camera
view type.
iCanTek’s Network Based Surveillance Management Solution, as combined video management
software for combining and managing diversified network devices, supports ;
SOFTWARE
- Video Monitoring, Recording, Playback, Network Configuration as well as Event Management etc.
Network Based Surveillance Management Solution is composed of
Item
Range
360°
Description
VMS
WEB VIEWER
[NVR-Pro]
[Web Viewer]
SMART MOBILE APP
HD-SDI CAMERA
PTZ
mode
NVR-Pro
VIDEO RECORDER
Indicate the guideline of each
video image, it is available of
Pan/Tilt/Zoom function.
- Basic Web Viewer
- NVR-Pro for Remote Controlling and Monitoring
- Smart Mobile App
On one image screen, it is
available of Pan/Tilt/Zoom
function.
ANALOGUE CAMERA
180°
4 View
Quad
mode
360°
On each image, it is available of
Pan/Tilt/Zoom function.
Perimeter
mode
(Wall)
54 www.icantek.com
CAMERA ACCESSORIES
180°
Perimeter
mode
[iCanSmart]
These innovative technologies and solutions competitively enable the
keyword of “Instant Audio / Video from Anywhere to Anything”.
360°
180°
Two 180° image is made of 360°
image and Panning function is
available.
As installing it on the wall, one
180° image is available on
Perimeter mode.
55
Network Video Recorder
NETWORK PRODCUT
Smartphone App
Access to IP Cameras
on Smart Phone and
Pad through 3G/Wi-Fi
anywhere
Mobile
3G/Wi-Fi
Web Client
SOFTWARE
Owner
VIDEO RECORDER
Client
HD-SDI CAMERA
Remote Monitoring
• One Plug All IP
• Run Auto Configuration Wizard
NETWORK
VIDEO RECORDER
• H.264, MPEG4, MJPEG
Customized Monitoring System
• QCMS
• 4/8/16 /30 CH of NVR
• HD SDI/ 960H monitoring
Quick search / Backup
• Bookmark search
• Calendar search
• AVI file
56 www.icantek.com
• CCTV image information received unicast and
multicast transport
• Video server / IP camera network traffic for
distributed processing
Stable System
• Self-WatchDog
• Diagnosis
Friendly user Interface
• PTZ Control
• Notification from Alarm & Sensor
3rd Party System integration
• SDK & API
• GIS (E-MAP)
• ONVIF Profile-S
57
CAMERA ACCESSORIES
Various multi codec
Efficient CCTV Live streaming
ANALOGUE CAMERA
Easy to install IP Camera
“One Plug, All IP” Full HD Network
Video Recorder
myNVRxx Series
myNVR2xx Series
NETWORK PRODCUT
“One Plug, All IP” Full HD Network
Video Recorder
SOFTWARE
KEY FEATURES
VIDEO
•H.264/MPEG4/MJPEG Codec Acceptable
•Max. 16Ch 1080P Decoding & Display
•Auto Searching & Setting IP Camera in LAN
Camera Input
myNVR04(P)
Max 8ch
(4ch@1080p or
8ch@720p/D1)
Max 16ch
(4ch@1080p or
4ch@720p/D1)
Output
16:9 Progressive
AUDIO
Input via network/Output
•Network Access up to 25 users
SENSOR
•HDD*2 up to 6TB
Sensor In / Alarm Out
8/1
4/1
4/1
4/1
DISPLAY
•H.264/MPEG4/MJPEG Codec Acceptable
VIDEO
•Manage Video & Audio from IP Camera incl.
IP Speed Dome
Camera Input
•Max. 30Ch D1 / 16Ch 1080P Decoding &
Display
AUDIO
•Auto Searching & Setting IP Camera in LAN
SENSOR
myNVR230
Max 30ch
(16ch@1080p or
30ch@720p/D1)
Output
Input via network/Output
Sensor In / Alarm Out
myNVR216
Max 16ch
(16ch@1080p or
16ch@720p/D1)
1 HDMI , 1 VGA
NVR
Max 8ch
(8ch@1080p or
8ch@720p/D1)
30/1
16/1
8/1
16/4
8/4
4/4
DISPLAY
1920x1080P , 1920x1080i
HDMI Resolution
1920x1080P , 1920x1080i
VGA Resolution
Split Display
1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080
1/4/9 way
1/4 way
VGA Resolution
Split Display
1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080
1/4/9/16/30 way
1/4/9/16 way
1/4/9 way
Compression
Resolution (Pixel)
Mode
Rec Frame
RECORDING
Split Display
Search Mode
Mode
USB 2.0x2 , e-SATA
Internal DVDRW, Network, USB Memory Stick, e-SATA Storage
EVENT
Motion Detection
Event Log
Area : Programmable motion detection area for each camera
Sensitivity : 10 Steps for each channel
Up to 5000 events logs
(Alarm, Motion, Video & Power Loss, Power & Record On/Off)
CONTROL
Controller
PTZ Camera
IR Remote Control / Mouse
Control From RS485 Interface / Via Network
OTHERS
Operating System
HDD/ODD
Power Source
Power Consumption
Weight
Dimension
Split Display
Search Mode
Mode
Ethernet*3 (for IP Camera, Client PC & NAS)
TCP/IP, SMTP, HTTP, DHCP, PPPOE(ADSL), RTP/RTSP
RS-232 x1, RS-485 x2 (PTZ & Keyboard Control)
Windows 2000 / XP(PC Client System) / Windows Vista
Internet Explorer 5.0 Higher (NVR Control or Monitoring)
E-mail notification when Event occurs
PC Client, CMS, Mobile Viewer / Up to 25 users
NETWORK
Ethernet*2 (for IP Camera, Client PC)
TCP/IP, SMTP, HTTP, DHCP, PPPOE(ADSL), RTP/RTSP
RS-232 x1, RS-485 x2 (PTZ & Keyboard Control)
Windows 2000 / XP(PC Client System) / Windows Vista
Internet Explorer 5.0 Higher (NVR Control or Monitoring)
E-mail notification when Event occurs
PC Client, CMS, Mobile Viewer / Up to 25 users
ARCHIVE
Interface
Archive Device
1/4/9/16/30 way Split 1/4/9/16 way Split
1/4/9 way Split
Date & Time, Calendar, Event(Alarm/Motion), Bookmark
Normal, REW(*1,*2,*4,*8,*16) & FF(*1,*2,*4,*8,*16,*32),Frame
to Frame, Pause, Slow REW/FF91/2,1/4,1/8,1/16,1/32)
PLAYBACK
1/4/9 way Split
1/4 way Split
Date & Time, Calendar, Event(Alarm/Motion), Bookmark
Normal, REW(*1,*2,*4,*8,*16) & FF(*1,*2,*4,*8,*16,*32),Frame
to Frame, Pause, Slow REW/FF91/2,1/4,1/8,1/16,1/32)
NETWORK
Network Interface
Protocol
Serial Communication
Application
Web Browser
Event Transport
Viewing / User Access
Rec Frame
H.264 / MPEG4 / JPEG
1080P(1920x1080) / 720P(1280x720) / D1(720x480/720x576)
Normal, Event(Alarm/Motion), Schedule
160fps@1080p
160fps@1080p
160fps@1080p
320fps@720p
320fps@720p
240fps@720p
640fps@D1
480fps@D1
240fps@D1
CAMERA ACCESSORIES
PLAYBACK
Compression
Resolution (Pixel)
Mode
ANALOGUE CAMERA
H.264 / MPEG4 / JPEG
1080P(1920x1080) / 720P(1280x720) / D1(720x480/720x576)
Normal, Event(Alarm/Motion), Schedule
120fps@1080p
120fps@1080p
240fps@720p
120fps@720p
240fps@D1
120fps@D1
HD-SDI CAMERA
HDMI Resolution
RECORDING
58 www.icantek.com
KEY FEATURES
VIDEO RECORDER
•Manage Video & Audio from IP Camera incl.
IP Speed Dome
myNVR08(P)
Embedded Linux OS
Support Max. 2 HDDs up to 6TB
D12V/3.5A
40W
3Kg(Net) / 4Kg(Gross)
350(W)x250(D)x72(H)mm/Net , 400(W)x340(D)x150(H)mm/Box
Network Interface
Protocol
Serial Communication
Application
Web Browser
Event Transport
Viewing / User Access
ARCHIVE
Interface
Archive Device
USB 2.0x2 , e-SATA
Internal DVDRW, Network, USB Memory Stick, e-SATA Storage
EVENT
Motion Detection
Event Log
Area : Programmable motion detection area for each camera
Sensitivity : 10 Steps for each channel
Up to 5000 events logs
(Alarm, Motion, Video & Power Loss, Power & Record On/Off)
CONTROL
Controller
PTZ Camera
IR Remote Control / Mouse
Control From RS485 Interface / Via Network
OTHERS
Operating System
HDD/ODD
Power Source
Power Consumption
Weight
Dimension
Embedded Linux OS
Support Max. 5 HDDs up to 15TB / DVDRW x1
AC 100-240V, 50/60Hz
70W
9Kg(Net) / 11Kg(Gross)
440(W)x420(D)x90(H)mm/Net, 550(W)x540(D)x220(H)mm/Box
59
One Plug! All IP!
“One Plug, All IP” Description
Plug & Play under 50 seconds Your perfect professional IP install solution
NETWORK PRODCUT
“One Plug, All IP” surveillance solution is an ideal for business
owners and high-end residential use to quickly and directly secure
your home or small business.
The huge advantage is remarkably easy setup the systems
involves almost no configuration by simply running cables
between IP cameras and VNR to work out of the box and you can
monitor everything via smartphone, tablet or computer. Setting up
“One Plug, All IP”, it couldn’t be easier.
Just run LAN cables between IP cameras and NVR.
Now you are ready to go. It is that easy!
Once power is ON, NVR automatically searches for the IP
cameras and create its own network without interfering your
current network.
SOFTWARE
Onvif
Camera
Compatible
All footage captured on your cameras can be directly sent to your
smartphone, tablet and computer.
“One Plug, All IP” is fully supported between all IP Cameras
(iCanView3xx Series) and NVR(myNVR Series).
VIDEO RECORDER
Plug
“Connection"
NVR
Configuration
IP Camera
Configuration
Play
“Watching”
HD-SDI CAMERA
No more hassle in building full HD IP surveillance system!
Our “One Plug, All IP” solution do it all.
ANALOGUE CAMERA
CAMERA ACCESSORIES
Onvif VMS
Compatible
50 seconds POE NVR
IP Camera
•
•
•
•
•
•
•
•
•
•
•
• Dual Codec (H.264 & MJPEG)
• Progressive Scan (Full HD 2MP)
• Multi Profiles
(3 different streams per Resolution, Frame, Rate, Codec)
• Compact Design & Easy Installation
• OnVIF Profile-S
Various Compression Formats (H.264/MPEG4/MJPEG)
1Tera Full Multi Stream for Monitoring & Recording
1080P HD Recording & Display
Network Access up to 25 users
Dynamic Search Mode
User Friendly Full HD GUI
Support PoE (4ch:4 ports)
Only compatible with ICANTEK IP cameras
Free apps with support for viewing on Ipad, Iphone&Android
HDD*2 Up to 6TB
OnVIF Profile-S
Distinctive Features
•Highly advanced Motion Detection Alarm Features & Security Settings
- Nothing can escape from your Watching.
•Alarm Triggered Pre & Post - Recording w/ 10 Sec
- Against any alarm triggered event, you can see up to 10 seconds into the past and future to find out what the situation was like
and be like before the event happened and after the event finished.
61
HD-SDI CAMERA &
ANALOGUE CAMERA
62 www.icantek.com
2MP HD-SDI Dome Type Analogue Camera
iCanView321SDI
iCanView327SDI
NETWORK PRODCUT
2MP HD-SDI PanCake Type Analogue Camera
SOFTWARE
KEY FEATURES
•1/3” Progressive scan CMOS Sensor
iCanView321SDI
Signal System
Progressive Image Processing
Scanning Mode
16:9 Progressive
•DSS(x120), TDN(ICR), OSD
Image Sensor
•WDR, BLC, HLC, DEFOG
Max. Resolution
•3D-DNR Noise Reduction function
Horizontal Resolution
•AWB, AGC, Flicker less
Video Output Level
Lens
Sensitivity
(F1.2, 30 IRE, ICR B/W)
Back Light Compensation
White Balance
Exposure
WDR
3D-DNR
Digital output HD-SDI / Select NTSC /
PAL 1.0Vp-p (BNC 75Ω, composite)
64 www.icantek.com
Sensitivity
(F1.2, 30 IRE, ICR B/W)
Back Light Compensation
White Balance
Exposure
WDR
X1 ~ X12
PAL : 1/25 ~ 1/30,000
1920 x 1080P @50, 60 / YCbCr 4:2:2 16bit 74.25MHz
SMPTE 292M (1.485Gbps) : 1920x1080p 30Frame
800mVp-p, 75Ω, unbalanced generator (single-ended)
1CH Composite Video (1.0Vp-p / 75 ohm)
BUILT IN Internally (English...)
DIMENSIONS
Progressive Image Processing
16:9 Progressive
1/3” Progressive CMOS Sensor
1944 x 1092 2.0 Mega Pixels, FULL HD
More than 1,100 TV Line
Digital output HD-SDI / Select NTSC /
PAL 1.0Vp-p (BNC 75Ω, composite)
3 Mega Fixed Lens (3.0mm or 3.5mm...)
AUTO (Mecanical ICR), DAY, NIGHT
INTENSIFIER OFF - 1.0 Lux
INTENSIFIER Max X128 - 0.1Lux
On/Off
ATW(2.000 K ~ 10,000 K) / MANUAL / PUSH
DC / ESC
ON - 15 Frame / OFF - 30 Frame
3D-DNR
DAY : 0~20, NIGHT : 0~20
Intensifier
AUTO ON (Max X128) / OFF
Privacy Mask
ON / OFF (10 Programmable Zone)
Motion Detection
ON / OFF (4 Programmable Zone)
Digital Zoom
Mirror
Defog
DSS
HD Format
SDI Output
CVBS Output (NTSC / PAL)
OSD / Language
X1 ~ X12
H / V / Rotate
OFF / AUTO
PAL : 1/25 ~ 1/30,000
1920 x 1080P @50, 60 / YCbCr 4:2:2 16bit 74.25MHz
CAMERA ACCESSORIES
Approval
Day & Night
AUTO ON (Max X128) / OFF
SMPTE 292M (1.485Gbps) : 1920x1080p 30Frame
800mVp-p, 75Ω, unbalanced generator (single-ended)
1CH Composite Video (1.0Vp-p / 75 ohm)
BUILT IN Internally (English...)
POWER & ENVIRONMENTAL
POWER & ENVIRONMENTAL
Power Consumption
Lens
DAY : 0~20, NIGHT : 0~20
OFF / AUTO
Power Source
Video Output Level
ON - 15 Frame / OFF - 30 Frame
H / V / Rotate
OSD / Language
•AWB, AGC, Flicker less
DC / ESC
Defog
CVBS Output (NTSC / PAL)
Horizontal Resolution
On/Off
Mirror
SDI Output
Max. Resolution
•3D-DNR Noise Reduction function
ATW(2.000 K ~ 10,000 K) / MANUAL / PUSH
ON / OFF (4 Programmable Zone)
HD Format
•WDR, BLC, HLC, DEFOG
INTENSIFIER OFF - 1.0 Lux
INTENSIFIER Max X128 - 0.1Lux
Motion Detection
DSS
Image Sensor
AUTO (Mecanical ICR), DAY, NIGHT
ON / OFF (10 Programmable Zone)
Scanning Mode
•DSS(x120), TDN(ICR), OSD
3 Mega Fixed Lens(3.0mm or 3.5mm...)
Privacy Mask
Digital Zoom
DIMENSIONS
More than 1,100 TV Line
•1/3” Progressive scan CMOS Sensor
iCanView327SDI
Signal System
ANALOGUE CAMERA
Intensifier
1944 x 1092 2.0 Mega Pixels, FULL HD
•High Definition 2Mega Pixels HD-SDI
VIDEO
HD-SDI CAMERA
Day & Night
1/3” Progressive CMOS Sensor
KEY FEATURES
VIDEO RECORDER
•High Definition 2Mega Pixels HD-SDI
VIDEO
DC 12V(±10%)
160mA / 2W (Max)
-10°C to +50’C / (Humidity) 30% to 80% RH
Power Source
Power Consumption
Approval
DC 12V(±10%)
160mA / 2W (Max)
-10°C to +50°C / (Humidity) 30% to 80% RH
65
2MP HD-SDI Vandal-Resistant
PanCake Type Analogue Camera
iCanView361SDI
NETWORK PRODCUT
2MP HD-SDI Vandal-Resistant
Dome Type Analogue Camera
iCanView367SDI
SOFTWARE
KEY FEATURES
•1/3” Progressive scan CMOS Sensor
iCanView361SDI
Signal System
Progressive Image Processing
Scanning Mode
16:9 Progressive
•DSS(x120), TDN(ICR), OSD
Image Sensor
•WDR, BLC, HLC, DEFOG
Max. Resolution
•3D-DNR Noise Reduction function
Horizontal Resolution
•AWB, AGC, Flicker less
Video Output Level
Lens
Day & Night
Back Light Compensation
White Balance
Exposure
WDR
3D-DNR
Digital output HD-SDI / Select NTSC /
PAL 1.0Vp-p (BNC 75Ω, composite)
Image Sensor
•WDR, BLC, HLC, DEFOG
Max. Resolution
•3D-DNR Noise Reduction function
Horizontal Resolution
•AWB, AGC, Flicker less
Video Output Level
3 Mega Fixed Lens (3.0mm or 3.5mm...)
Lens
AUTO (Mecanical ICR), DAY, NIGHT
Day & Night
Sensitivity
(F1.2, 30 IRE, ICR B/W)
INTENSIFIER OFF - 1.0 Lux
INTENSIFIER Max X128 - 0.1Lux
Back Light Compensation
On/Off
White Balance
ATW(2.000 K ~ 10,000 K) / MANUAL / PUSH
Exposure
DC / ESC
WDR
ON - 15 Frame / OFF - 30 Frame
16:9 Progressive
1/3” Progressive CMOS Sensor
1944 x 1092 2.0 Mega Pixels, FULL HD
More than 1,100 TV Line
Digital output HD-SDI / Select NTSC /
PAL 1.0Vp-p (BNC 75Ω, composite)
DC Varifocal (3.0mm or 3.5mm...)
AUTO (Mecanical ICR), DAY, NIGHT
INTENSIFIER OFF - 1.0 Lux
INTENSIFIER Max X128 - 0.1Lux
On/Off
ATW(2.000 K ~ 10,000 K) / MANUAL / PUSH
DC / ESC
ON - 15 Frame / OFF - 30 Frame
DAY : 0~20, NIGHT : 0~20
3D-DNR
DAY : 0~20, NIGHT : 0~20
AUTO ON (Max X128) / OFF
Intensifier
AUTO ON (Max X128) / OFF
ON / OFF (10 Programmable Zone)
Privacy Mask
ON / OFF (10 Programmable Zone)
Motion Detection
ON / OFF (4 Programmable Zone)
Motion Detection
ON / OFF (4 Programmable Zone)
Mirror
Defog
HD Format
SDI Output
CVBS Output (NTSC / PAL)
OSD / Language
X1 ~ X12
H / V / Rotate
OFF / AUTO
PAL : 1/25 ~ 1/30,000
1920 x 1080P @50, 60 / YCbCr 4:2:2 16bit 74.25MHz
SMPTE 292M (1.485Gbps) : 1920x1080p 30Frame
800mVp-p, 75Ω, unbalanced generator (single-ended)
1CH Composite Video (1.0Vp-p / 75 ohm)
BUILT IN Internally (English...)
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Approval
Digital Zoom
DIMENSIONS
Mirror
Defog
DSS
HD Format
SDI Output
CVBS Output (NTSC / PAL)
OSD / Language
X1 ~ X12
H / V / Rotate
OFF / AUTO
PAL : 1/25 ~ 1/30,000
CAMERA ACCESSORIES
DSS
66 www.icantek.com
Scanning Mode
•DSS(x120), TDN(ICR), OSD
Progressive Image Processing
Privacy Mask
Digital Zoom
DIMENSIONS
More than 1,100 TV Line
•1/3” Progressive scan CMOS Sensor
iCanView367SDI
Signal System
ANALOGUE CAMERA
Intensifier
1944 x 1092 2.0 Mega Pixels, FULL HD
•High Definition 2Mega Pixels HD-SDI
VIDEO
HD-SDI CAMERA
Sensitivity
(F1.2, 30 IRE, ICR B/W)
1/3” Progressive CMOS Sensor
KEY FEATURES
VIDEO RECORDER
•High Definition 2Mega Pixels HD-SDI
VIDEO
1920 x 1080P @50, 60 / YCbCr 4:2:2 16bit 74.25MHz
SMPTE 292M (1.485Gbps) : 1920x1080p 30Frame
800mVp-p, 75Ω, unbalanced generator (single-ended)
1CH Composite Video (1.0Vp-p / 75 ohm)
BUILT IN Internally ( English...)
POWER & ENVIRONMENTAL
DC 12V (±10%)
160mA / 2W (Max)
-10°C to +50°C / (Humidity) 30% to 80% RH
Power Source
Power Consumption
Approval
DC 12V (±10%)
160mA / 2W (Max)
-10°C to +50°C / (Humidity) 30% to 80% RH
67
2MP HD-SDI Vandal-Resistant
Bullet Type Analogue Camera
iCanView387SDI
iCanView389SDI
NETWORK PRODCUT
2MP HD-SDI Vandal-Resistant Mini
Bullet Type Analogue Camera
SOFTWARE
KEY FEATURES
•1/3” Progressive scan CMOS Sensor
iCanView387SDI
Signal System
Progressive Image Processing
Scanning Mode
16:9 Progressive
•DSS(x120), TDN(ICR), OSD
Image Sensor
•WDR, BLC, HLC, DEFOG
Max. Resolution
•3D-DNR Noise Reduction function
Horizontal Resolution
•AWB, AGC, Flicker less
Video Output Level
Lens
Sensitivity
(F1.2, 30 IRE, ICR B/W)
Back Light Compensation
White Balance
Exposure
WDR
More than 1,100 TV Line
Digital output HD-SDI / Select NTSC /
PAL 1.0Vp-p (BNC 75Ω, composite)
Scanning Mode
•DSS(x120), TDN(ICR), OSD
Image Sensor
•WDR, BLC, HLC, DEFOG
Max. Resolution
•3D-DNR Noise Reduction function
Horizontal Resolution
•AWB, AGC, Flicker less
Video Output Level
3 Mega Fixed Lens (3.0mm or 3.5mm...)
Lens
AUTO (Mecanical ICR), DAY, NIGHT
Day & Night
INTENSIFIER OFF - 1.0 Lux
INTENSIFIER Max X128 - 0.1Lux
Sensitivity
(F1.2, 30 IRE, ICR B/W)
On/Off
Back Light Compensation
ATW(2.000 K ~ 10,000 K) / MANUAL / PUSH
White Balance
DC / ESC
Exposure
ON - 15 Frame / OFF - 30 Frame
WDR
Progressive Image Processing
16:9 Progressive
1/3” Progressive CMOS Sensor
1944 x 1092 2.0 Mega Pixels, FULL HD
More than 1,100 TV Line
Digital output HD-SDI / Select NTSC /
PAL 1.0Vp-p (BNC 75Ω, composite)
DC Varifocal (3.0mm or 3.5mm...)
AUTO (Mecanical ICR), DAY, NIGHT
INTENSIFIER OFF - 1.0 Lux
INTENSIFIER Max X128 - 0.1Lux
On/Off
ATW(2.000 K ~ 10,000 K) / MANUAL / PUSH
DC / ESC
ON - 15 Frame / OFF - 30 Frame
3D-DNR
DAY : 0~20, NIGHT : 0~20
AUTO ON (Max X128) / OFF
Intensifier
AUTO ON (Max X128) / OFF
Privacy Mask
ON / OFF (10 Programmable Zone)
Privacy Mask
ON / OFF (10 Programmable Zone)
Motion Detection
ON / OFF (4 Programmable Zone)
Motion Detection
ON / OFF (4 Programmable Zone)
Defog
HD Format
SDI Output
CVBS Output (NTSC / PAL)
OSD / Language
H / V / Rotate
Mirror
OFF / AUTO
Defog
PAL : 1/25 ~ 1/30,000
1920 x 1080P @50, 60 / YCbCr 4:2:2 16bit 74.25MHz
SMPTE 292M (1.485Gbps) : 1920x1080p 30Frame
800mVp-p, 75Ω, unbalanced generator (single-ended)
1CH Composite Video (1.0Vp-p / 75 ohm)
BUILT IN Internally (English...)
POWER & ENVIRONMENTAL
Power Source
Power Consumption
Approval
Digital Zoom
DSS
DIMENSIONS
HD Format
TBD
SDI Output
CVBS Output (NTSC / PAL)
OSD / Language
X1 ~ X12
H / V / Rotate
OFF / AUTO
PAL : 1/25 ~ 1/30,000
CAMERA ACCESSORIES
DSS
X1 ~ X12
ANALOGUE CAMERA
DAY : 0~20, NIGHT : 0~20
Intensifier
Mirror
68 www.icantek.com
•1/3” Progressive scan CMOS Sensor
iCanView389SDI
Signal System
3D-DNR
Digital Zoom
DIMENSIONS
1944 x 1092 2.0 Mega Pixels, FULL HD
•High Definition 2Mega Pixels HD-SDI
VIDEO
HD-SDI CAMERA
Day & Night
1/3” Progressive CMOS Sensor
KEY FEATURES
VIDEO RECORDER
•High Definition 2Mega Pixels HD-SDI
VIDEO
1920 x 1080P @50, 60 / YCbCr 4:2:2 16bit 74.25MHz
SMPTE 292M (1.485Gbps) : 1920x1080p 30Frame
800mVp-p, 75Ω, unbalanced generator (single-ended)
1CH Composite Video (1.0Vp-p / 75 ohm)
BUILT IN Internally (English...)
POWER & ENVIRONMENTAL
DC 12V (±10%)
160mA / 2W (Max)
-10°C to +50°C / (Humidity) 30% to 80% RH
Power Source
Power Consumption
Approval
DC 12V (±10%)
160mA / 2W (Max)
-10°C to +50°C / (Humidity) 30% to 80% RH
69
960H Intensifier Dome Type
Analogue Camera
iCanView321AH
NETWORK PRODCUT
2MP HD-SDI Vandal-Resistant
Dome Type Analogue Camera
iCanView327AH
SOFTWARE
KEY FEATURES
•1/3” Progressive scan CMOS Sensor
•DSS(x120), TDN(ICR), OSD
iCanView321AH
Max. Resolution
976 X 494
Image Sensor
1/3 interline CCD
Video Output
Composite Video (1.0Vp-p / 75 ohm)
•WDR, BLC, HLC, DEFOG
Lens
•3D-DNR Noise Reduction function
Exposure
•AWB, AGC, Flicker less
Electric Shutter Speed
Manual Shutter
Fixed Lens (3.6mm)
DC / ESC
1/60 ~ 1/120.000
S/N Ratio
Horizontal Resolution
D-WDR
Day & Night
•Extra Video Out Port for Installer
OFF, LOW, MIDDLE, HIGH
POSI / NEGA
OFF, ON
White Balance
ATW / MANUAL / PUSH
Privacy
Mirror
Lens Shading
Sharpness
Gamma
Communication Protocol
OSD Language
ON / OFF (4 Programmable Zone)
ON / OFF (8 Programmable Zone)
HORIZONTAL
0 ~ 20
1 ~ 20
0.35/ 0.40/ 0.45/ 0.5/ 0.55/ 0.6/ 0.65/ 0.70
COAXIAL (Pelco-C)
ENGLISH , KOREAN, JAPANESE, CHINESE1/ 2,
SPANISH, GERMAN, FRENCH, POLISH,
ITALIAN, PORTUGUESE, CZECH, RUSSIAN,
TURKISH, HUNGARIAN, GREEK
DC Varifocal Lens (2.8mm ~12mm)
Exposure
DC / ESC
Electric Shutter Speed
1/60 ~ 1/120.000
1/60(1/50), 1/120(1/100), 1/250, 1/500, 1/700, 1/1K,
1/1.6K, 1/2.5K, 1/5K, 1/7K, 1/10K, 1/30K, 1/60K, 1/120K
Horizontal Resolution
D-WDR
Day & Night
2D/3DNR
Intensifier
Internal Sync
52dB Min ( AGC off )
700 TV Line
LOW, MIDDLE, HIGH, OFF
AUTO, DAY, NIGHT, EXTERNAL, IRED
LOW, MIDDLE, HIGH, OFF
X2 ~ X512 (Default x32)
Back Light Compensation
OFF, LOW, MIDDLE, HIGH
HLC / Defog
OFF, LOW, MIDDLE, HIGH
POSI / NEGA
OFF, ON
White Balance
ATW / MANUAL / PUSH
AGC
DIMENSIONS
INTENSIFIER OFF - 0.005 Lux
INTENSIFIER Max X512 - 0.00005 Lux
OFF, ON (1~20)
Motion Detection
ON / OFF (4 Programmable Zone)
Privacy
ON / OFF (8 Programmable Zone)
Mirror
Lens Shading
Sharpness
Gamma
Communication Protocol
OSD Language
CAMERA ACCESSORIES
Motion Detection
OFF, ON (1~20)
Composite Video (1.0Vp-p / 75 ohm)
Lens
ANALOGUE CAMERA
OFF, LOW, MIDDLE, HIGH
Video Output
S/N Ratio
LOW, MIDDLE, HIGH, OFF
HLC / Defog
1/3 interline CCD
Sync. System
AUTO, DAY, NIGHT, EXTERNAL, IRED
Back Light Compensation
976 X 494
Image Sensor
Sensitivity
(F1.2, 30 IRE, ICR B/W)
700 TV Line
X2 ~ X512 (Default x32)
iCanView327AH
Max. Resolution
Manual Shutter
52dB Min (AGC off )
Intensifier
AGC
HORIZONTAL
0 ~ 20
1 ~ 20
0.35/ 0.40/ 0.45/ 0.5/ 0.55/ 0.6/ 0.65/ 0.70
COAXIAL (Pelco-C)
ENGLISH , KOREAN, JAPANESE, CHINESE1/ 2,
SPANISH, GERMAN, FRENCH, POLISH,
ITALIAN, PORTUGUESE, CZECH, RUSSIAN,
TURKISH, HUNGARIAN, GREEK
POWER & ENVIRONMENTAL
POWER & ENVIRONMENTAL
70 www.icantek.com
•AWB, AGC, Flicker less
Internal Sync
LOW, MIDDLE, HIGH, OFF
Operating Temperature
•3D-DNR Noise Reduction function
INTENSIFIER OFF - 0.005 Lux
INTENSIFIER Max X512 - 0.00005 Lux
2D/3DNR
Power Consumption
•D-WDR, BLC, HLC, DEFOG
VIDEO
HD-SDI CAMERA
Sync. System
Supply Voltage
•Ultra High Resolution : 700 TV
LinesDSS(x512), TDN(ICR), OSD
1/60(1/50), 1/120(1/100), 1/250, 1/500, 1/700, 1/1K,
1/1.6K, 1/2.5K, 1/5K, 1/7K, 1/10K, 1/30K, 1/60K, 1/120K
Sensitivity
(F1.2, 30 IRE, ICR B/W)
DIMENSIONS
KEY FEATURES
VIDEO RECORDER
•High Definition 2Mega Pixels HD-SDI
VIDEO
DC 12V(-10% ~ +10%)
120mA / 1.5W (Max)
-10°C to +50°C / (Humidity) 30% to 80% RH
Supply Voltage
Power Consumption
Operating Temperature
DC 12V(-10% ~ +10%)
120mA / 1.5W (Max)
-10°C to +50°C / (Humidity) 30% to 80% RH
71
NETWORK PRODCUT
960H Intensifier Vandal-Resistant
Dome Type Analogue Camera
960H Intensifier Vandal-Resistant
PanCake Type Analogue Camera
iCanView367AH
iCanView361AH
SOFTWARE
KEY FEATURES
•D-WDR, BLC, HLC, DEFOG
•3D-DNR Noise Reduction function
•AWB, AGC, Flicker less
•Extra Video Out Port for Installer
iCanView361AH
Max. Resolution
976 X 494
Image Sensor
1/3 interline CCD
Video Output
Composite Video (1.0Vp-p / 75 ohm)
Lens
Fixed Lens (3.6mm)
Exposure
DC / ESC
Electric Shutter Speed
Manual Shutter
1/60 ~ 1/120.000
S/N Ratio
Horizontal Resolution
D-WDR
Day & Night
•D-WDR, BLC, HLC, DEFOG
Image Sensor
1/3 interline CCD
Video Output
Composite Video (1.0Vp-p / 75 ohm)
Lens
DC Varifocal Lens (2.8mm ~12mm)
•3D-DNR Noise Reduction function
•AWB, AGC, Flicker less
Exposure
•Extra Video Out Port for Installer
Electric Shutter Speed
Manual Shutter
976 X 494
DC / ESC
1/60 ~ 1/120.000
1/60(1/50), 1/120(1/100), 1/250, 1/500, 1/700, 1/1K,
1/1.6K, 1/2.5K, 1/5K, 1/7K, 1/10K, 1/30K, 1/60K, 1/120K
Sensitivity
(F1.2, 30 IRE, ICR B/W)
INTENSIFIER OFF - 0.005 Lux
INTENSIFIER Max X512 - 0.00005 Lux
Sync. System
Internal Sync
S/N Ratio
52dB Min (AGC off )
Horizontal Resolution
700 TV Line
D-WDR
LOW, MIDDLE, HIGH, OFF
Day & Night
2D/3DNR
2D/3DNR
LOW, MIDDLE, HIGH, OFF
Intensifier
Intensifier
X2 ~ X512 (Default x32)
INTENSIFIER OFF
- 0.005 Lux
INTENSIFIER Max X512 - 0.00005 Lux
Internal Sync
52dB Min (AGC off )
700 TV Line
LOW, MIDDLE, HIGH, OFF
AUTO, DAY, NIGHT, EXTERNAL, IRED
LOW, MIDDLE, HIGH, OFF
X2 ~ X512 (Default x32)
Back Light Compensation
OFF, LOW, MIDDLE, HIGH
OFF, LOW, MIDDLE, HIGH
Back Light Compensation
OFF, LOW, MIDDLE, HIGH
HLC / Defog
HLC / Defog
OFF, LOW, MIDDLE, HIGH
POSI / NEGA
OFF, ON
POSI / NEGA
OFF, ON
White Balance
ATW / MANUAL / PUSH
White Balance
ATW / MANUAL / PUSH
AGC
OSD Language
ON / OFF (8 Programmable Zone)
HORIZONTAL
0 ~ 20
1 ~ 20
0.35/ 0.40/ 0.45/ 0.5/ 0.55/ 0.6/ 0.65/ 0.70
COAXIAL (Pelco-C)
ENGLISH , KOREAN, JAPANESE, CHINESE1/ 2,
SPANISH, GERMAN, FRENCH, POLISH,
ITALIAN, PORTUGUESE, CZECH, RUSSIAN,
TURKISH, HUNGARIAN, GREEK
POWER & ENVIRONMENTAL
Supply Voltage
Power Consumption
Operating Temperature
DC 12V (-10% ~ +10%)
120mA / 1.5W (Max)
AGC
OFF, ON (1~20)
Motion Detection
ON / OFF (4 Programmable Zone)
Privacy
ON / OFF (8 Programmable Zone)
Mirror
Lens Shading
Sharpness
Gamma
Communication Protocol
OSD Language
CAMERA ACCESSORIES
Privacy
Mirror
Lens Shading
Sharpness
Gamma
Communication Protocol
OFF, ON (1~20)
ON / OFF (4 Programmable Zone)
DIMENSIONS
ANALOGUE CAMERA
AUTO, DAY, NIGHT, EXTERNAL, IRED
Motion Detection
72 www.icantek.com
iCanView367AH
Max. Resolution
HD-SDI CAMERA
Sync. System
VIDEO
•Ultra High Resolution : 700 TV
LinesDSS(x512), TDN(ICR), OSD
1/60(1/50), 1/120(1/100), 1/250, 1/500, 1/700, 1/1K,
1/1.6K, 1/2.5K, 1/5K, 1/7K, 1/10K, 1/30K, 1/60K, 1/120K
Sensitivity
(F1.2, 30 IRE, ICR B/W)
DIMENSIONS
KEY FEATURES
VIDEO RECORDER
•Ultra High Resolution : 700 TV
LinesDSS(x512), TDN(ICR), OSD
VIDEO
HORIZONTAL
0 ~ 20
1 ~ 20
0.35/ 0.40/ 0.45/ 0.5/ 0.55/ 0.6/ 0.65/ 0.70
COAXIAL (Pelco-C)
ENGLISH , KOREAN, JAPANESE, CHINESE1/ 2,
SPANISH, GERMAN, FRENCH, POLISH,
ITALIAN, PORTUGUESE, CZECH, RUSSIAN,
TURKISH, HUNGARIAN, GREEK
POWER & ENVIRONMENTAL
Supply Voltage
Power Consumption
Operating Temperature
DC 12V (-10% ~ +10%)
120mA / 1.5W (Max)
-10°C to +50°C / (Humidity) 30% to 80% RH
-10°C to +50°C / (Humidity) 30% to 80% RH
73
960H Intensifier Vandal-Resistant
Mini Bullet Type Analogue Camera
iCanView387AH
NETWORK PRODCUT
960H Intensifier Vandal-Resistant
Dome Type Analogue Camera
iCanView389AH
SOFTWARE
KEY FEATURES
•D-WDR, BLC, HLC, DEFOG
•3D-DNR Noise Reduction function
•AWB, AGC, Flicker less
•Extra Video Out Port for Installer
iCanView387AH
Max. Resolution
976 X 494
Image Sensor
1/3 interline CCD
Video Output
Composite Video (1.0Vp-p / 75 ohm)
Lens
Fixed Lens (3.6mm)
Exposure
DC / ESC
Electric Shutter Speed
Manual Shutter
1/60 ~ 1/120.000
S/N Ratio
Horizontal Resolution
D-WDR
Day & Night
•Extra Video Out Port for Installer
OFF, LOW, MIDDLE, HIGH
POSI / NEGA
OFF, ON
White Balance
ATW / MANUAL / PUSH
Privacy
ON / OFF (8 Programmable Zone)
Mirror
0 ~ 20
Sharpness
1 ~ 20
Gamma
Communication Protocol
OSD Language
COAXIAL (Pelco-C)
POWER & ENVIRONMENTAL
DC 12V (-10% ~ +10%)
120mA / 1.5W (Max)
-10°C to +50°C / (Humidity) 30% to 80% RH
1/60(1/50), 1/120(1/100), 1/250, 1/500, 1/700, 1/1K,
1/1.6K, 1/2.5K, 1/5K, 1/7K, 1/10K, 1/30K, 1/60K, 1/120K
Day & Night
2D/3DNR
Intensifier
INTENSIFIER OFF
- 0.005 Lux
INTENSIFIER Max X512 - 0.00005 Lux
Internal Sync
52dB Min (AGC off )
700 TV Line
LOW, MIDDLE, HIGH, OFF
AUTO, DAY, NIGHT, EXTERNAL, IRED
LOW, MIDDLE, HIGH, OFF
X2 ~ X512 (Default x32)
Back Light Compensation
OFF, LOW, MIDDLE, HIGH
HLC / Defog
OFF, LOW, MIDDLE, HIGH
POSI / NEGA
OFF, ON
White Balance
ATW / MANUAL / PUSH
AGC
OFF, ON (1~20)
Motion Detection
ON / OFF (4 Programmable Zone)
Privacy
ON / OFF (8 Programmable Zone)
Mirror
Lens Shading
Sharpness
0.35/ 0.40/ 0.45/ 0.5/ 0.55/ 0.6/ 0.65/ 0.70
ENGLISH , KOREAN, JAPANESE, CHINESE1/ 2,
SPANISH, GERMAN, FRENCH, POLISH,
ITALIAN, PORTUGUESE, CZECH, RUSSIAN,
TURKISH, HUNGARIAN, GREEK
1/60 ~ 1/120.000
D-WDR
HORIZONTAL
Lens Shading
DC / ESC
Electric Shutter Speed
Gamma
DIMENSIONS
Communication Protocol
TBD
OSD Language
CAMERA ACCESSORIES
ON / OFF (4 Programmable Zone)
DC Varifocal Lens (2.8mm ~12mm)
Exposure
Horizontal Resolution
OFF, ON (1~20)
Motion Detection
Composite Video (1.0Vp-p / 75 ohm)
Lens
ANALOGUE CAMERA
HLC / Defog
Video Output
S/N Ratio
AUTO, DAY, NIGHT, EXTERNAL, IRED
OFF, LOW, MIDDLE, HIGH
1/3 interline CCD
Sync. System
700 TV Line
Back Light Compensation
976 X 494
Image Sensor
Sensitivity
(F1.2, 30 IRE, ICR B/W)
LOW, MIDDLE, HIGH, OFF
X2 ~ X512 (Default x32)
iCanView389AH
Max. Resolution
Manual Shutter
52dB Min (AGC off )
Intensifier
AGC
74 www.icantek.com
•AWB, AGC, Flicker less
Internal Sync
LOW, MIDDLE, HIGH, OFF
Operating Temperature
•3D-DNR Noise Reduction function
INTENSIFIER OFF - 0.005 Lux
INTENSIFIER Max X512 - 0.00005 Lux
2D/3DNR
Power Consumption
•D-WDR, BLC, HLC, DEFOG
VIDEO
HD-SDI CAMERA
Sync. System
Supply Voltage
•Ultra High Resolution : 700 TV
LinesDSS(x512), TDN(ICR), OSD
1/60(1/50), 1/120(1/100), 1/250, 1/500, 1/700, 1/1K,
1/1.6K, 1/2.5K, 1/5K, 1/7K, 1/10K, 1/30K, 1/60K, 1/120K
Sensitivity
(F1.2, 30 IRE, ICR B/W)
DIMENSIONS
KEY FEATURES
VIDEO RECORDER
•Ultra High Resolution : 700 TV
LinesDSS(x512), TDN(ICR), OSD
VIDEO
HORIZONTAL
0 ~ 20
1 ~ 20
0.35/ 0.40/ 0.45/ 0.5/ 0.55/ 0.6/ 0.65/ 0.70
COAXIAL (Pelco-C)
ENGLISH , KOREAN, JAPANESE, CHINESE1/ 2,
SPANISH, GERMAN, FRENCH, POLISH,
ITALIAN, PORTUGUESE, CZECH, RUSSIAN,
TURKISH, HUNGARIAN, GREEK
POWER & ENVIRONMENTAL
Supply Voltage
Power Consumption
Operating Temperature
DC 12V (-10% ~ +10%)
120mA / 1.5W (Max)
-10°C to +50°C / (Humidity) 30% to 80% RH
75
CAMERA
ACCESSORIES
Bracket & Housing
Adapter
CAMERA ACCESSORIES
mD-101M
[iCanView270/372]
mD-101
[iCanView35x(MP)]
mD-103
[iCanView34x(MP)]
mD-104
[iCanView270/372]
Embedded mount bracket
Embedded mount bracket
Indoor Embedded mount
bracket for flush type
Outdoor Housing with
Fan & Heater and mD-104
Wall mount bracket, IP166
NETWORK PRODCUT
mD-100
[iCanView36x(MP)]
CAMERA ACCESSORIES
PA-1
mD-107
mD-109
mD-302TCAM
[iCanView36x(MP)]
mD-301TCAM
[iCanView36x(MP)]
Embedded ceiling mounts
bracket
Wall mount bracket
Ceiling mount bracket
iCanView240/250/312/340(MP),
350(MP), myDome240/250
-Power adapter, 12VDC, 5A
-Input : 100-240VAC 50/60Hz
-Output : 12VDC 5A
iCanServer540/540R/540RH
PA-3
PA-4
-Power adapter, 12VDC, 3.35A
-Input : 100-240VAC 50/60Hz 0.4A
-Output : 12VDC 3.35A
iCanView260/270/370x/382x
myDome270/270H
-Power adapter 12VDC, 1.5A
-Input: 100-240VAC, 50/60Hz
-Output: 12VDC 1.5A
iCanView222/232/322(MP)/332(MP),
262/362(MP), iCanServer512/612
VIDEO RECORDER
Corner mount adaptor only for Pole mount adaptor only for
mD-103/104
mD-103/104
mD-M300F
[iCanView36x(MP)]
PA-2
SOFTWARE
-Power Adapter , 24VAC, 2.5A
-Input : 100VAC, 50/60Hz 960mA
-Output : 24VAC 2.5Aor
-Input : 230VAC, 50/60Hz 450mA
-Output : 24VAC 2.5A
Camera Accessories
mD-302
[iCanView35x(MP)]
mD-303
mD-304
[iCanView34x(MP), 372]
mD-305
[iCanView34x(MP), 372]
Ceiling bracket kits for indoor
Speed Dome with mD-303
Wall bracket kits for Indoor
Speed Dome with mD-303
Indoor Ceiling Cap Only for
mD-301/302
Ceiling Bracket kits for
outdoor Speed Dome with
mD-306
Wall Bracket kits for outdoor
Speed Dome with mD-306
Keyboard
ANALOGUE CAMERA
KEY FEATURES
HD-SDI CAMERA
mD-301
[iCanView35x(MP)]
System Configuration
•Discrete design and ergonomic structure
•Professional 3-axis joystick
mD-306
mD-307
mD-308
mD-309
mD-310
Ceiling Cap for Outdoor
Speed Dome Only for
mD-304/305
Junction box kits including
PCB and Cable Only for
mD-301/302/304/305
Junction box only without PCB
and Cable Only for
mD-301/302/304/305
Pole mount adaptor Only for
mD-301/302/304/305
Corner mount adaptor Only for
mD-301/302/304/305
•Internal 9V battery available
•2 line dot matrix LCD display
•Low power operation
CAMERA ACCESSORIES
•Front power button
•USB mouse functionality (works as mouse)
INTERNET
mD-304R
[iCanView31x]
mD-305R
[iCanView31x]
mD-306R
[iCanView31x]
Ceiling Bracket kits for
outdoor Speed Dome with
mD-306R
Wall Bracket kits for outdoor
Speed Dome with mD-306R
Ceiling Cap for Outdoor
Speed Dome Only for
mD-304R/305R
mD-309R
mD-310R
Pole mount adaptor
Only for mD-30xR
Corner mount adaptor
Only for mD-30xR
78 www.icantek.com
mD-307R
Junction box kits including
PCB and Cable Only for
mD-30xR
mD-308R
DIMENSIONS
Junction box only without
PCB and Cable Only for
mD-30xR
79
6F, 614 Starvalley 60-11 Gasan-dong, Geumcheon-gu, Seoul 153-777, Korea
TEL : +82-2-830-6767 FAX : +82-2-830-8765
http://www.icantek.com
