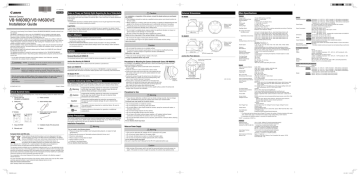

Canon VB-M600VE Installation guide

YT1-1603-000
VB-M600D
To reduce a risk of fire or electric shock, do not expose
this product to rain or moisture.
• VB-M600D/VB-M600VE Installation Guide (This document)
This guide provides notes on camera installation and explains the procedures to install the
camera onto a ceiling or wall.
• VB-M700F/VB-M600D/VB-M600VE Operation Guide (Included in the Setup CD-ROM)
This document explains the initial camera settings, Admin Tools settings, viewer operations
and troubleshooting, etc.
Request a professional installer for all camera installation work.
Never try to install the camera by yourself. Doing so may result in
unforeseen accidents such as dropping the camera or electric shock.
Options
Options can be bought separately as necessary.
This dedicated optional item is used to install the camera recessed into a wall or ceiling.
Serial No.
_________________________________
MAC Address
_________________________________
Printed in Taiwan
Warning
Inappropriate handling against the instruction accompanied
by this sign may result in death or serious injury. Be sure to
observe these warnings to ensure safety.
Caution
Inappropriate handling against the instruction accompanied
by this sign may result in injury. Be sure to observe these
precautions to ensure safety.
Check Bundled Items
This product comes with the following items. If any item is missing, contact the dealer where you
purchased the product.
2. Power connector
1. Camera main unit
(VB-M600D or VB-M600VE)
3. Safety wire
4. Audio interface cable
Caution
Important
Note
5. Template
for VB-M600D
for VB-M600VE
6. Dome case lock screw wrench
(VB-M600VE only)
Inappropriate handling against the instruction accompanied by
this sign may result in property damage. Be sure to observe these
precautions.
This symbol indicates important or restricted items. Be sure to
read this section.
Contains reference information for operation or additional
explanations.
Safety Precautions
This section explains precautions that must be observed when using the camera. If they
are not observed, injury, death and/or property damage may occur. Read the following
information carefully and be sure to observe the precautions.
Precautions for Use
8. Installation Guide (This document)
9. Warranty card
10. Notice
These symbols indicate that this product is not to be disposed of with your
household waste, according to the WEEE Directive (2002/96/EC), the Battery
Directive (2006/66/EC) and/or your national laws implementing those Directives.
If a chemical symbol is printed beneath the symbol shown above, in
accordance with the Battery Directive, this indicates that a heavy metal
(Hg = Mercury, Cd = Cadmium, Pb = Lead) is present in this battery or accumulator at a
concentration above an applicable threshold specified in the Battery Directive.
This product should be handed over to a designated collection point, e.g., on an authorized one-forone basis when you buy a new similar product or to an authorized collection site for recycling waste
electrical and electronic equipment (EEE) and batteries and accumulators. Improper handling of this
type of waste could have a possible impact on the environment and human health due to potentially
hazardous substances that are generally associated with EEE.
46.0
(1 13/16)
83.5 (3 9/32)
85.7 (3 3/8)
• If you discover defective conditions such as smoke, strange sounds, heat or strange
odors, immediately stop using the camera and contact your closest dealer.
Fire or electric shock may result.
Video Compression Method
Image Size
140 (5.51)
Image Quality
Frame Rate*1
Max. Frame Rate
Simultaneous Client Access
Unit: mm (in.)
Audio Compression Method
Audio Communication Method
Audio Playback
Protocol
On-Screen Display
Encrypted Communications
Camera Control
Access Control
Intelligent Function
Event Trigger Type
Image Upload
Event Notification
Language
• Places in strong direct sunlight, near heat-generating objects, or subject to high
temperatures
• Places near fire sources or flammable solvents (alcohol, thinner, etc.)
• Humid or dusty places
• Places subject to lamp black or steam
• Places subject to sea air
• Confined or enclosed places
AC Adapter (optional)
Model
Input
Output
Polarity
Dimensions
Weight
PA-V17
100-240 VAC 50/60 Hz
13 VDC 1.8 A (MAX), temperature -10°C – 35°C (14 – 95°F) humidity 20 – 85%
(without condensation)
When combined with the network camera
13 VDC 1.0 A (MAX), temperature -10°C – 45°C (14 – 113°F) humidity 20 – 85%
(without condensation)
Black line side (-), white line side (+)
(W x D x H) 58 x 118 x 25 mm (2.28 x 4.65 x 0.98 in.) (excluding projections)
Approx. 215 g (7.6 oz.) (excluding cables)
H.264, JPEG
JPEG: 160 x 120/320 x 240/640 x 480/1280 x 960
H.264: 320 x 240/640 x 480/1280 x 960
JPEG/H.264: 5 levels
JPEG: 30 – 0.1 fps
H.264: 30/15/10 fps
Max. 30 fps (1280 x 960) *1
JPEG: Max. 30 Clients + 1 Admin Client
H.264: Max. 10 Clients
G.711 µ-law (64 kbps)
Full-duplex (two-way) – Echo cancellation function compliant
available *2
IPv4: TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS
(Client), ARP, ICMP, POP3, NTP, SMTP authentication, WV-HTTP (from
Canon), ONVIF
IPv6: TCP/IP, UDP, HTTP, FTP, SMTP (Client), DNS (Client), ICMPv6, POP3, NTP,
SMTP authentication, WV-HTTP (from Canon), ONVIF
available
SSL/TLS, IPsec (Auto Key Exchange/Manual)
3 user levels available (Administrator/Authorized user/Guest user)
Up to 50 users' user names and passwords can be set for Authorized users.
Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9
colors)
Access control (user name and password)/Host-based access control (IPv4, IPv6)
<Image>
Detection Types: Moving Object Detection, Abandoned Object Detection,
Removed Object Detection, Camera Tampering Detection
Detection Areas: Max. 15 places
<Volume>
Volume Detection
External Device Input 1/2, Intelligent Function (Image), Intelligent Function
(Volume), Timer
FTP/HTTP/SMTP (e-mail)
Temporary storage memory in camera: Max. approx. 4MB, Frame Rate: Max. 10 fps
HTTP/SMTP (e-mail)
English/French/German/Italian/Spanish/Japanese
Model
PS600-VB
Network camera-mounting environments
VB-M600D
Temperature: -10 – 50°C (14 – 122°F) / Humidity: 5 – 85% (without condensation)
VB-M600VE
Temperature: -10 – 50°C (14 – 122°F) / Humidity: 5 – 85% (without condensation)
Temperature: -30 – 50°C (-22 – 122°F) / Humidity: 5 – 85% (without condensation)*
*equipped with an optional Heater Unit HU600-VB
VB-M600D
Approx. 159 g (5.7 oz.) (including camera fixing screws)
Weight
VB-M600VE
Approx. 162 g (5.8 oz.) (including camera fixing screws)
“ONVIF” is a trademark of ONVIF Inc.
Interface
Warning
•
•
•
•
Operating Environment VB-M600D Temperature: -10 – 50°C (14 – 122°F) / Humidity: 5 – 85% (without condensation)
VB-M600VE Temperature: -10 – 50°C (14 – 122°F) / Humidity: 5 – 85% (without condensation)
Temperature: -30 – 50°C (-22 – 122°F) / Humidity: 5 – 85% (without condensation)*
*equipped with an optional Heater Unit HU600-VB
Power Supply
PoE: PoE power supply via a LAN connector (IEEE802.3af compliant)
AC adapter: Optional PA-V17 (AC 100-240 V)
External power source: AC 24 V/DC 12 V
Power Consumption
PoE Input: Max. approx. 8.6 W
When using AC adapter PA-V17: Max. approx. 10.9 W
DC Input: Max. approx. 9.0 W
AC Input: Max. approx. 8.3 W
VB-M600VE
Max. approx. 18.9 W* *equipped with an optional Heater Unit HU600-VB
VB-M600D (Φ x H) Φ 186 x 140 mm (Φ 7.32 x 5.51 in.)
Dimensions
VB-M600VE (Φ x H) Φ 180 x 147 mm (Φ 7.09 x 5.79 in.)
VB-M600D Approx. 1200 g (2.65 lb.) (camera main unit only)
Weight
VB-M600VE Approx. 1910 g (4.22 lb.) (camera main unit only)
VB-M600VE External materials: aluminum alloy, Dome: polycarbonate plastics
Impact Resistance
Lens shock absorbing mechanism
Estimated shock resistant: 50J (impact strength) *Based on Canon's test method
VB-M600VE IP66-rated
Dust-resistant/
Waterproof Specification
*Only when installed correctly and proper dust and waterproofing are performed.
*1 The frame rate may be reduced due to Viewer PC's specs, the number of clients accessing at the same
time, network loads, type or movement of the subject, image quality setting or other reasons.
*2 A separately-sold amplifier speaker is necessary for playing audio files.
Notes on Power Supply
Do not install in the following places:
Others
Junction Box Mounting Kit (Optional)
Server
Continued use may cause fire or electric shock.
• Do not disassemble or modify the camera.
• Do not damage the connecting cable and others.
• Do not spill water or other liquid inside the camera, spray the camera with water, or
otherwise make it wet.
• Do not insert foreign objects into the camera.
• Do not use flammable sprays near the camera.
• Do not leave LAN cables, external power supplies or AC adapter (optional) power
connectors connected when the camera is not in use for long periods.
• Do not use flammable solvents such as alcohol, paint thinner or benzine when cleaning
the camera.
1/3 type CMOS (primary color filter)
Approx. 1.3 million pixels
Progressive
3x Optical Zoom Lens (Electric Drive)
f = 2.8 mm (W) – 8.4 mm (T)
F1.2 (W) – F2.0 (T)
Horizontal: 101.2° (W) – 33.7° (T)
Vertical: 74.7° (W) – 25.3° (T)
Auto or Manual. In “Auto” mode, it switches automatically according to “Switching
Brightness” and “Response” settings.
0.25 lux (F1.2, Shutter Speed 1/30 sec., when Smart Shade Control is off)
0.07 lux (F1.2, Shutter Speed 1/8 sec., when Smart Shade Control is off)
0.018 lux (F1.2, Shutter Speed 1/8 sec., when Smart Shade Control is on)
Night Mode (monochrome): 0.008 lux (F1.2, Shutter Speed 1/30 sec., when Smart Shade Control is off)
0.002 lux (F1.2, Shutter Speed 1/8 sec., when Smart Shade Control is off)
0.001 lux (F1.2, Shutter Speed 1/8 sec., when Smart Shade Control is on)
Focus
One-shot AF/Manual/Fixed at infinity
Shooting Distance (from front of lens)
Day Mode: 0.3 m (12 in.) – ∞
Night Mode: 1.0 m (3.3 ft.) – ∞
Shutter Speed
1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000,
1/4000, 1/8000 sec.
Exposure
Auto/Flickerless/Shutter-Priority AE/Manual (Shutter Speed/Aperture/Gain)
White Balance
Auto/Light Source (Warm Fluorescent, White Fluorescent, Daylight Fluorescent,
Mercury Lamp, Sodium Lamp, Halogen Lamp)/Lock (One-shot WB)/Manual
Metering Mode
3 Options (Center-weighted/Average/Spot)
Exposure Compensation
7 levels
Smart Shade Control
7 levels (function for increasing the brightness of shaded subjects in a highcontrast image)
Pan Angle Range
350° (±175°)
Tilt Angle Range
150° (±75°)
Rotation Angle Range
350° (±175°)
Moving Speed*
Pan: 19.2°/sec., Tilt: 14.2°/sec.
Rotation: 43.7 °/sec.
*When the Camera Angle Setting Tool is used
Network Terminal
Audio Input Terminal
(common for LINE IN & MIC IN)
Warning
European Union (and EEA) only.
Junction box mounting holes
Φ 4.5 (Φ 0.18)
83.5 (3 9/32)
Day/Night Switch
Privacy Mask
Warning
Installation Precautions
7. Setup CD-ROM
61.5
(2.42)
.
For installation of VB-M600VE underneath eaves, observe the following precautions to retain
waterproof/dustproof capabilities.
• Be sure to install the camera underneath eaves unexposed to
direct sunlight.
• Install the camera in a place unexposed to direct rainfall.
• Firmly fix the dome case to the main unit of the camera with the
lock screws, taking care not to pinch cables between the main
unit and dome case.
• If wiring the camera through the wiring hole on the bottom, use
silicone sealant or a rubber mat to ensure waterproofing. Also
Position the
use an insect repellent sponge if necessary.
wiring hole
straight down
• If wiring with a composite pipe (NPT 3/4 inch threaded hole)
attached to the wiring hole, wrap teflon tape around the tip of the
pipe, clear any debris from the wiring hole and firmly tighten the
pipe. Apply silicone sealant after attaching the pipe.
• When mounting the camera onto a wall or other upright surface, position the wiring hole
straight down to prevent rain infiltration.
Symbols Indicating Safety Precautions
Junction Box Plate (Optional)
Damage to peripheral items may result.
This dedicated optional item is used to mount the camera to a junction box.
This "Installation Guide" uses the following marks to indicate important information the
user should know in order to use the product safely. Be sure to observe these items.
© CANON INC. 2011
3/4” NPT threaded hole
Precautions for Mounting the Camera Underneath Eaves (VB-M600VE)
A dedicated AC adapter for this camera.
Radius of ceiling
mounting holes
placement
Φ 158 (Φ 6.22)
180 ( 7.09)
Malfunction may result.
Junction Box Mounting Kit PS600-VB
This dedicated optional item is attached to the interior of VB-M600VE to maintain operation
temperature within the dome and achieve stable operation even in extremely cold environments.
123 ( 4.84)
Caution
• Take care not to damage wiring or pipes in the room.
Recessed Mounting Kit SR600-VB
VB-M600VE
Injury may result.
• Do not install the camera on an unstable surface.
• To maximize shock resistant specifications, do not install on insufficiently strong
surfaces or surfaces subject to significant vibration (VB-M600VE).
AC Adapter PA-V17
Write the serial number and MAC address of the camera (printed on the seal at the bottom of
the camera) in the field below before storing this Installation Guide in a safe location.
• Do not touch the edge of metal parts with bare hands.
• Do not insert your finger in the space between the brackets and the ceiling.
Image Sensor
Number of Effective Pixels
Scanning Method
Lens
Focal Length
F-number
Viewing Angle
Min. Subject Illumination
Day Mode (color):
186 ( 7.32)
147 (5.79)
Failure to do so may result in the camera falling or other accidents.
Heater unit HU600-VB
Caution
• Do not install in unstable places, places subject to significant vibration or impact, or
places subject to salt damage or corrosive gas.
• Be sure to attach the safety wire when installing the camera.
Radius of ceiling
mounting holes
placement
Φ 155 (Φ 6.10)
85.7 (3 3/8)
* For the latest information (firmware and bundled software, User's Manuals, operating
environment, etc.) please check our website.
User's Manuals
123 ( 4.84)
83.5 (3 9/32)
Thank you for purchasing Canon Network Camera VB-M600D/VB-M600VE (hereafter referred to as
the camera).
VB-M600D is designed for indoor use only. VB-M600VE can be installed underneath eaves.
Be sure to read “Installation Guide” (this document) and “VB-M700F/VB-M600D/VB-M600VE
Operation Guide” (included in the Setup CD-ROM) before use.
This “Installation Guide” explains the mounting method of the camera on a ceiling or wall and
the mounting method using the optional junction box mounting kit PS600-VB. Be sure to read the
“Safety Precautions” section for correct use. After reading this “Installation Guide”, keep it in a
readily accessible location for future reference.
For the installation of this camera recessed into a ceiling or wall using the recessed mounting kit
(optional), please read the “Recessed Mounting Kit SR600-VB Installation Guide” bundled with
the recessed mounting kit.
When using the heater unit (optional), please read the “Heater Unit HU600-VB User's Manual”
bundled with the heater unit.
The detailed procedures for using this camera are explained in the “VB-M700F/VB-M600D/
VB-M600VE Operation Guide”. Read these guides carefully before using the camera to ensure
correct use.
In some cases, camera monitoring may be prohibited by law or regulation, the details of which
differ by country or region. Before using the camera, check the laws or regulations of the country
or region where the camera is used.
• This installation should be made by a qualified service person and should conform to
all local codes.
• When installing on a ceiling, make sure the surface is capable of withstanding the total
weight of the camera and ceiling plates and is sufficiently reinforced if necessary.
• Periodically check the brackets and screws for rust and loose material to prevent
injuries and equipment damage due to falling items.
78.5
(3.09)
Legal Notice
Camera
VB-M600D
61.5
(2.42)
Installation Guide
For installation or inspection of this camera, consult the dealer where you purchased
the product.
Main Specifications
External Dimensions
85.5
(3.37)
/
Caution
46.0
(1 13/16)
When using the camera (for video or audio recording), it is the full responsibility of the user to
protect privacy and avoid any violation of publicity rights. Canon shall have no liability whatsoever
in this regard.
Reference
• If identifiable structures or premises will be captured, be sure to gain approval of the building
management office before installing the camera.
Network Camera
WARNING
Notes on Privacy and Publicity Rights Regarding the Use of Video/Audio
4.2 (0.17)
ENGLISH
Only use the dedicated AC adapter PA-V17 (optional) for AC power.
Do not set any heavy objects on the power cable.
Do not pull, forcibly bend, scratch, or modify the power cable.
Do not cover or wrap the AC adapter (optional) with cloth or blankets.
Audio Output Terminal
(LINE OUT)
External device I/O Terminal
Memory Card
LAN x 1 (RJ45, 100Base-TX (Auto/full-duplex/half-duplex))
Φ 3.5 mm (Φ 0.14 in.) mini-jack connector (monaural)
∗ connect via a bundled audio interface cable
LINE IN/MIC IN can be switched in the setting page
LINE IN x 1 (connect to an amplifier microphone) or
MIC IN x 1 (connect to a microphone w/o amplifier)
Φ 3.5 mm (Φ 0.14 in.) mini-jack connector (monaural)
∗ connect via a bundled audio interface cable
LINE OUT x 1 (connect to an amplifier speaker)
Input x 2 Output x 2
SD Memory Card, SDHC Memory Card Compatible. Max. approx. 32 GB,
Frame Rate: Max. 1 fps
Fire or electric shock may result.
Be sure to read the User's Manual for the PA-V17 (optional) before use.
Fire or electric shock may result.
Caution
• After turning off the power, wait for at least five seconds before turning the power on
again. If the power is turned on again too quickly, the camera may operate poorly.
Your cooperation in the correct disposal of this product will contribute to the effective usage of
natural resources.
For more information about the recycling of this product, please contact your local city office, waste
authority, approved scheme or your household waste disposal service or visit
www.canon-europe.com/environment.
(EEA: Norway, Iceland and Liechtenstein)
VBM600IG_E.indd 1
2011/06/17 13:59:24
VB-M600D
VB-M600VE
Installing the Camera
Use the junction box plate (bundled with the
optional junction box mounting kit PS600-VB) to
Mounting hole (inner side)
mount the camera to the junction box.
VB-M600VE
Mounting hole (outer side) 1 Attach the junction box plate to the junction
box with screws that match the screw holes
in the junction box.
2 Guide the cables through the wiring hole and
Junction box plate
mount the camera to the junction box plate
using the 3 bundled camera fixing screws
(M4).
The camera fixing screws differ in length
Camera fixing screw (bundled)
depending on the camera. Use short
VB-M600D Short screw x 3
screws for VB-M600D, and long screws for
VB-M600VE Long screw × 3
VB-M600VE.
3 Wire the cables and attach the inner cover
Dome case
and dome case.
fixing screw x 3
The following describes procedures for mounting the camera to a ceiling.
Before installing the camera, set the IP address and other network information on the camera
using the “VB Initial Setting Tool” on the Setup CD-ROM.
For details on how to operate the “VB Initial Setting Tool,” see “VB-M700F/VB-M600D/VB-M600VE
Operation Guide”.
Lock screw
holes
VB-M600D
1 Determine an installation position for the camera and drill holes in the ceiling
Dome case
Use the bundled template to determine the positions of the fixing screw holes and wiring hole
according to the camera orientation. Next, drill holes in the the ceiling.
2 Loosen the three lock screws on the dome case and remove the dome case
VB-M600VE
3
Special temper-resistant screws are used for the dome case lock screws. Use the bundled
dome case lock screw wrench.
Connecting the Camera
Part Names
Using a Junction Box
Dome Case/Inner Cover/Camera
VB-M600VE
VB-M600D
Inner cover
Important
* Diagram of VB-M600D.
• Some PoE HUBs have total consumption current limits for ports, which can interfere with performance
when multiple ports are in use. For more information, check the instruction guide for your PoE HUB.
• Use a category 5 or higher cable 100 m (328 ft.) or less in length for the LAN cable that connects the
camera and the PoE HUB.
* Diagram of VB-M600VE.
VB-M600D
Use a coin to unscrew the wiring hole cover from the side through which cables will be
guided. Screw the wiring hole cover into the other wiring hole. You can fit a composite pipe
(NPT 3/4 inch threaded hole) to the wiring hole.
VB-M600VE
When guiding cables through
the side
When guiding cables through
the ceiling wiring hole
5 Secure the safety wire
7
Inserting the card
Securely attach the safety wire to an anchor or structure. After securing one end of the safety
wire to the ceiling, secure the other end to the camera using the screw that is fastened to the
camera.
6 Guide the LAN cable through the wiring hole
SD card slot
Push the SD memory card in all the way until the card slightly
pops out. Pinch the card and remove.
• Make sure the SD memory card isn't write-protected.
• When using an SD memory card with the camera for the first time, it is recommended to format the card
after inserting it into the camera (see “Memory Card” in “Setting Page” in the “VB-M700F/VB-M600D/
VB-M600VE Operation Guide”).
Screwdriver
Tightening torque: 0.2 N·m (max)
Bottom
VB-M600D
VB-M600VE
Approx. 4 to 6 mm
(0.16 to 0.24 in.)
Power connector
(bundled)
Serial No.
Wiring hole
MAC address No.
External Device I/O cable
VB-M600D
VB-M600VE
Power cable
Cable clamp
(VB-M600VE only)
When wiring is complete, seal the wiring hole to keep out insects and dust.
Loosen the screw and rotate the
cable clamp. Bend the cable clamp
as shown in the diagram before
wiring the cables.
9 Attach the inner cover
Bend the cable clamp to
grip the cables.
Φ 1.03
(Φ 0.041)
Φ 1.30
(Φ 0.051)
12 VDC maximum cable length
m
(ft.)
5
(16.4)
9
(29.5)
14
(45.9)
23
(75.5)
32
(105.0)
24 VAC maximum cable length
m
(ft.)
11
(36.1)
18
(59.1)
29
(95.1)
46
(150.9)
64
(210.0)
Use UL cable (UL-1015 or equivalent) for 12 VDC or 24 VAC wiring.
J Audio Output Terminal LINE OUT (monaural output)
Connect the camera to a speaker with an amplifier. Audio can be sent to the speaker from RM
Viewer.
Output terminal: Φ 3.5 mm (Φ 0.14 in.) mini-jack (monaural)
Output level: Max. 1 Vp-p
* Use a speaker with an amplifier.
Tighten the screw to fix the cable
clamp and bend the cable clamp to
grip the cables.
Firmly bend the cable clamp so that
it does not come into contact with the
inner cover.
VB-M600D
Cutout section
VB-M600VE
Camera
VB-M600VE
When attaching the dome case, be sure not to pinch cables between the camera and dome case. Pinched
cables may impair dust and waterproofing capabilities.
11 Set the camera angle
Bend the cable clamp so that
it does not exceed this height
Cable clamp
Inner cover
Important
• Using the wrong settings in [Audio Input] may damage the camera and/or microphone. Be sure to
configure settings correctly.
• Microphone characteristics may affect volume and sound quality.
• Use RM Viewer to send audio to the speaker. VB-M600 Viewer cannot be used to send audio.
• Images and audio do not always synchronize properly.
• Audio may be interrupted depending on PC characteristics and network environment.
External device I/O terminals consist of two input and output systems each. VB-M600 Viewer
and RM Viewer can be used to check external device input status and control output to an
external device (see “Operating the External Device Output” and “Displaying Event Status” in the
“VB-M700F/VB-M600D/VB-M600VE Operation Guide”).
Firmly fix the dome case at three points to the camera using the dome case screws.
VBM600IG_E.indd 2
16
Φ 0.82
(Φ 0.032)
External Device I/O Terminals
10 Attach the dome case
Dome case
18
Φ 0.65
(Φ 0.026)
• When using the heater unit HU600-VB (optional), use 24 VAC for the VB-M600VE power supply. Poe, 12
VDC and the AC adapter cannot be used.
Attach the inner cover to its original position.
Important
20
Φ 0.52
(Φ 0.020)
• When the camera needs to be rebooted, perform the reboot operation from the camera setting page
(see “Maintenance” in “Setting Page” in the “VB-M700F/VB-M600D/VB-M600VE Operation Guide”).
Important
VB-M600D
22
mm
(in.)
• The camera does not have a power switch. Connecting and disconnecting the LAN cable (PoE power
supply), AC adapter, or external power supply plug turns the power ON and OFF, respectively.
Cable clamp (VB-M600VE only)
10
IN
Note
Wire the cables referring to “Cable Wiring Method.”
If the cables cannot be stored above a ceiling made
of concrete, etc., break the cutout section of the dome
case using diagonal pliers to create a cutout through
which to guide the cables.
24
Conductor diameter
J AC Adapter
Heater cable
* Diagram of VB-M600D.
The long end (has cable marker) from the bifurcation point in the
cable corresponds to the audio output terminal. The short end
(does not have cable marker) from the bifurcation point in the cable
corresponds to the audio input terminal.
Although the camera has a single audio input system, it supports two types of microphone input:
LINE IN and MIC IN. Before using the audio input, change the [Audio Input] on the Setting Page
(see “Audio Input” in the “VB-M700F/VB-M600D/VB-M600VE Operation Guide”). LINE IN is
selected by default.
Input terminal: Φ 3.5 mm (Φ 0.14 in.) mini-jack (monaural)
• Dynamic MIC IN
Input impedance: 1.75 kΩ ± 20%
* Supported microphones: Output impedance: 400Ω – 600Ω
• Condenser MIC IN
Input impedance (microphone bias resistance): 2.2 kΩ ± 20%
Microphone power supply: plug-in power (voltage: 1.8 V)
* Supported microphones: Condenser microphones with plug-in power support
• LINE IN
Input level: Max. 1 Vp-p
* Use a microphone with an amplifier.
Use the dedicated AC adapter PA-V17 (optional).
8 Wire the cables
9
Cable (AWG)
LAN cable
Audio interface cable
(bundled)
Each audio input/output terminal has one input system and one output system.
Connecting the camera to an audio input/output device such as a microphone or a speaker with
an amplifier allows you to send/receive audio through the viewer.
Use the bundled audio interface cable to connect audio input/output devices to the camera.
Use the Φ 3.5 mm (Φ 0.14 in.) monaural mini-jack connector to connect an audio output device
with the audio interface cable.
J Audio Input Dual LINE IN/MIC IN (monaural input)
Recommended Power Cables for VB-M600D/VB-M600VE [Reference]
Top view of the camera interior
Fix the camera at three points to the ceiling using the appropriate screws. Three Φ 4.5 mm
(Φ 0.18 in.) ceiling fixing screw holes are located on the camera. You must provide screws that
correspond to the ceiling fixing screw holes.
Output terminal
OUT1, OUT2
• 24 VAC: Voltage fluctuation within 10% of 24 VAC (50 Hz or
60 Hz ± 0.5 Hz or less)
Current supply capacity of at least 1.0 A per camera
• For an external power supply, use a double-insulated device.
The camera's unique address. Write the number
on the front of this Installation Guide before
installing the camera.
7 Fix the camera to the ceiling
External device
• The power supply should be within the following voltage range.
• When using a 12 VDC battery power supply, be sure to connect
resistors of at least 0.5 – 1.0 Ω/20 W in series to the power line.
The camera's serial number. Write the number
on the front of this Installation Guide before
installing the camera.
Heater unit HU600-VB
(optional for VB-M600VE)
0.1 µF
Output terminal
IN1, IN2
Important
• 12 VDC: Voltage fluctuation within 10% of 12 VDC
Current supply capacity of at least 1.5 A per camera
External Device I/O Terminals
+
External device
Audio Input/Output Terminals
OUT
For 12 VDC and 24 VAC input, use a power supply insulated
from 100 VAC.
12 VDC can be connected in a non-polar configuration.
10 kΩ
Strip
Attaches the bundled
safety wire.
For VB-M600VE, secure the various cables with the cable clamps fastened to the camera to
prevent damage to cables or connectors due to vibration, etc.
*The diagram is a wiring example for VB-M600VE.
Adaptive wiring for external device cables
Solid conductor AWG: No. 28 – 22
Conductor size: Φ 0.32 – Φ 0.65 mm (Φ 0.013 – Φ 0.026 in.)
Cable strip should be approx. 8 – 9 mm (0.31 – 0.35 in.).
Cable marker
Wiring hole
Cable Wiring Method
Note
12 VDC or 24 VAC input can be used.
Connect the bundled power connector as shown below.
Safety wire attachment
When using the AC adapter PA-V17 (optional), cut the cable tie and remove
the ferrite core. Be sure not to damage the power cable when cutting the
cable tie.
* Diagram of VB-M600D.
J External Power Supply
Camera
Wiring hole
Cable tie
Important
* Diagram of VB-M600D.
• The camera can also be connected to an AC adapter (optional) while receiving power from a PoE
HUB. In such cases, the PoE power supply is given priority, and the camera does not use the power
supply from the AC adapter (optional). When the PoE power supply is disconnected, power is supplied
automatically from the AC adapter (optional). Midspan (a LAN cable power supply device) is a device
that, like a PoE HUB, supplies power to the camera via a LAN cable.
3x optical zoom lens
(Electric Drive)
• Insert the SD memory card before attaching the dome case.
When using an external power supply, guide the power interface cable through the wiring
hole. Guide the I/O interface cable and the audio interface cable (bundled) through the wiring
hole if necessary.
5
• When the camera is connected to a switching HUB, changing the connection while the camera is
operating may cause the HUB learning function to interfere with communication. Do not change the
connection when the camera is operating.
Using an SD Memory Card
The load connected to the output terminals should be within the following rating range.
Rating between output terminals:
Internal Connection Diagram
Maximum voltage 50 VDC
+3.3 V
Continuous load current at or below 100 mA
1 kΩ
10 kΩ
• Some PoE HUBs allow current limits for each port, but applying limits may interfere with performance. If
using this type of PoE HUB, do not limit the operating current.
Important
VB-M600VE
4
• Check with your Canon sales representative for more information about PoE HUB and Midspan
technology.
Removing the card
Use a box cutter to cut a cross shape into the wiring hole cover in order to guide cables
through. Do not remove the wiring hole cover.
External device output terminals consist of two sets (OUT1, OUT2) of two terminals. The sets have
no polarity. Controls from the viewer can be used to switch between electrical continuity and
insulation from one terminal to the next. Using optical couplers, the output terminals are isolated
from the camera's internal circuit.
Important
Dome case
Lock screw
Push the SD memory card as far as possible into the SD card
slot with the label facing outward.
VB-M600D
Power can be supplied to the camera in the three ways described below.
The camera supports PoE functions. Power can be supplied to the camera by using a LAN cable
to connect it to a PoE HUB that conforms to the IEEE 802.3af standard.
Dome case
Inner cover
4 Open the wiring hole according to the installation method
Be sure to remove the 6 pieces of orange tape that
prevent lens rotation during shipping. If the tape is
not removed, the camera will not operate correctly.
J External Device Output Terminals (OUT1, OUT2)
J PoE (Power over Ethernet)
3 Remove the inner cover
Remove the 4 pieces of tape that prevent lens rotation during shipping, and push the inner
cover in the direction of the arrows to remove it. Then remove the 2 pieces of tape attached to
the base of the lens.
Power Connection
Internal controller
2
1 Reset switch
Turn on the power while pushing this switch using a sharp object. Continue to push the switch for 5
seconds or more to restore all factory settings except for the date and time.
2 LED
The blue LED light comes on.
On: When powered on, during reboot
Off: During normal use
3
4
5
6
SD card slot
External device I/O terminals
Power connection terminal
Installation screw holes
Used when securing the camera to the installation surface, the junction box mounting kit (optional), or the
recessed mounting kit (optional).
• Images and audio can be distributed to up to 30 clients. However, audio may be interrupted when
distributing to many clients.
• Audio may be interrupted when using antivirus software.
• Connecting and disconnecting the LAN cable interrupts the audio. Use the viewer to reconnect.
J External Device Input Terminals (IN1, IN2)
External device input terminals consist of two sets (IN1, IN2) of two terminals, with the negative
terminal connected to the camera interior GND. Connect two cables to the positive and negative
terminals. When electrical continuity or insulation is created between the terminals, the viewer will
be notified of either status.
Important
• When connecting sensors and switches, connect terminals that are electrically isolated from the
respective power and GND.
• Do not push the external device I/O terminal button with too much force. Doing so may cause the button
to remain pushed-in.
7 Wiring hole
8 Audio I/O terminal
Connect the bundled audio interface cable here to connect audio input and output devices to the camera.
9 100BT LAN connector
100Base-TX support PoE power supply (IEEE802.3af compliant)
When installation is complete, use the Camera Angle Setting Tool to adjust the pan, tilt,
rotation, zoom (and focus) (See “Camera Angle Setting Tool” in the “VB-M700F/VB-M600D/
VB-M600VE Operation Guide”.
A
q Cable clamps (VB-M600VE only)
A
a Fan (VB-M600VE only)
A
s Heater connection terminal
2011/06/17 13:59:25
