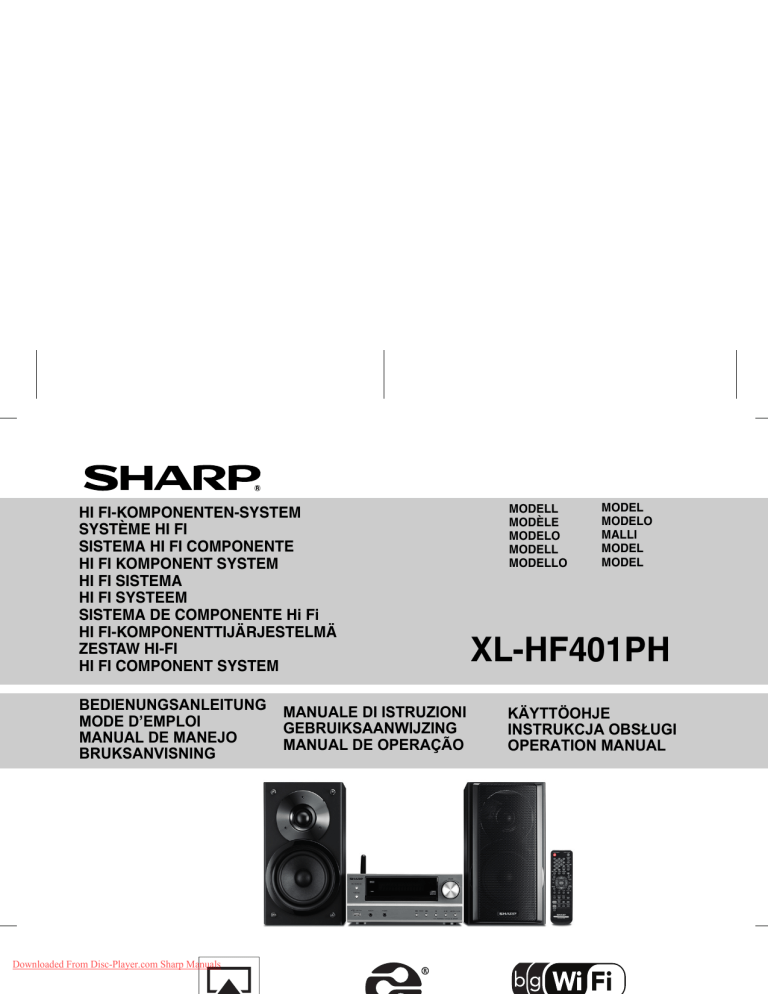

HI FI-KOMPONENTEN-SYSTEM
SYSTÈME HI FI
SISTEMA HI FI COMPONENTE
HI FI KOMPONENT SYSTEM
HI FI SISTEMA
HI FI SYSTEEM
SISTEMA DE COMPONENTE Hi Fi
HI FI-KOMPONENTTIJÄRJESTELMÄ
ZESTAW HI-FI
HI FI COMPONENT SYSTEM
BEDIENUNGSANLEITUNG
MODE D’EMPLOI
MANUAL DE MANEJO
BRUKSANVISNING
Downloaded From Disc-Player.com Sharp Manuals
MANUALE DI ISTRUZIONI
GEBRUIKSAANWIJZING
MANUAL DE OPERAÇÃO
MODELL
MODÈLE
MODELO
MODELL
MODELLO
MODEL
MODELO
MALLI
MODEL
MODEL
XL-HF401PH
KÄYTTÖOHJE
INSTRUKCJA OBSŁUGI
OPERATION MANUAL
BESONDERE ANMERKUNGEN
REMARQUES SPÉCIALES
NOTAS ESPECIALES
SÄRSKILDA ANMÄRKNINGAR
NOTE PARTICOLARI
BIJZONDERE OPMERKINGEN
NOTAS ESPECIAIS
ERITYISHUOMAUTUS
WAŻNE INFORMACJE
SPECIAL NOTES
● Hiermit erklärt SHARP Electronics (Europe) GmbH, dass sich das
● Hierbij verklaart SHARP Electronics (Europe) GmbH dat het
Gerät SHARP Hi Fi-Komponenten-System XL-HF401PH in
Übereinstimmung mit den grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG
befindet. Die Konformitätserklärung kann unter folgender Adresse
gefunden werden:
http://www.sharp.de/doc/XL-HF401PH.pdf
● Für die Verwendung in Europa.
● Dieses Produkt ist für den Betrieb im Innenbereich konzipiert.
● Par la présente, SHARP Electronics (Europe) GmbH déclare que
l’appareil SHARP Système Hi Fi XL-HF401PH est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE. La déclaration de conformité peut être
consultée sur le site:
http://www.sharp.de/doc/XL-HF401PH.pdf
● Compatible avec une utilisation en Europe.
● Ce produit n'est conçu que pour une utilisation en intérieur.
● Por la presente, SHARP Electronics (Europe) GmbH, declara que
este SHARP Sistema Hi Fi Componente XL-HF401PH cumple
con los requisitos esenciales y otras exigencias relevantes de la
Directiva 1999/5/EC Pueden consultar la declaración de
conformidad en:
Downloaded From Disc-Player.com
Sharp Manuals
http://www.sharp.de/doc/XL-HF401PH.pdf
● Para su uso en Europa.
toestel SHARP Hi Fi Systeem XL-HF401PH in overeenstemming
is met de essentiële eisen en de andere relevante bepalingen van
richtlijn 1999/5/EG. De overeen-stemmingsverkiaring is
beschikbaar op:
http://www.sharp.de/doc/XL-HF401PH.pdf
Voor gebruik in Europa.
Dit product is alleen voor gebruik binnenshuis.
Eu, SHARP Electronics (Europe) GmbH, declaro que o SHARP
Sistema De Componente Hi Fi XL-HF401PH cumpre os requisitos
essenciais e outras provisões relevantes da Directiva 1999/5/EC.
A Declaração de conformidade pod ser consultada em:
http://www.sharp.de/doc/XL-HF401PH.pdf
Para uso na Europa.
Este produto destina-se a ser usado apenas dentro de casa.
SHARP Electronics (Europe) GmbH vakuuttaa täten että SHARP
Hi Fi-komponenttijärjestelmä XL-HF401PH tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen. Vakuutus on nähtävissä
osoitteessa:
http://www.sharp.de/doc/XL-HF401PH.pdf
Käytettäväksi Euroopassa.
Laite sopii käytettäväksi vain sisätiloissa.
Niniejszym SHARP Electronics (Europe) GmbH deklaruje, że
●
●
●
●
●
●
●
●
●
● Bei Einstellung der ON/STAND-BY-Taste auf STAND-BY ist die
● Wanneer de ON/STAND-BY toets in de STAND-BY stand staat,
Netzspannung immer noch im Gerät vorhanden.
Wenn die ON/STAND-BY-Taste auf STAND-BY eingestellt wird,
kann das Gerät unter Verwendung der Timer-Betriebsart oder
Fernbedienung in Betrieb gesetzt werden.
Warnung:
In diesem Gerät sind keine vom Benutzer wartbaren Teile
vorhanden. Niemals Abdeckungen entfernen, außer wenn Sie
dafür qualifiziert sind. In diesem Gerät sind gefährliche
Spannungen vorhanden. Vor Ausführung von irgendwelchen
Kundendienstarbeiten oder bei längerer Nichtverwendung des
Gerätes stets den Netzstecker aus der Netzsteckdose ziehen.
● Quando o botão ON/STAND-BY estiver ajustado na posição
● Lorsque la touche ON/STAND-BY est mise en STAND-BY,
l’appareil est toujours sous tension.
Lorsque la touche ON/STAND-BY se trouve sur la position STANDBY, l’appareil est prêt à fonctionner par la minuterie ou la
télécommande.
Avertissement:
Cet appareil contient des pièces non réparables par l’utilisateur.
Personne non qualifiée n’enlèvera jamais les couvercles. L’appareil
contenant des organes portés à haute tension, débrancher
l’appareil avant toute réparation ou en période de non-utilisation.
● Cuando el botón ON/STAND-BY está puesto en la posición
STAND-BY, todavía hay tensión dentro del aparato.
Cuando el botón ON/STAND-BY está puesto en la posición
STAND-BY, el aparato puede ponerse en funcionamiento
utilizando el modo del temporizador o el controlador remoto.
Advertencia:
Tenga en cuenta que dentro de este aparato no hay piezas que
pueda reparar. No quite nunca las tapas a menos que se esté
cualificado para hacerlo. Este aparato tiene en su interior tensiones
peligrosas. Desenchufe siempre la clavija de la red del
tomacorriente antes de realizar cusalquier servicio de
mantenimiento y cuando no se use el aparato durante un largo
período de tiempo.
När ON/STAND-BY
knappen är i läge STAND-BY, finns
Downloaded From●Disc-Player.com
Sharp Manuals
nätspänning i apparaten.
loopt er nog steeds stroom (netspanning) in het toestel.
Wanneer de ON/STAND-BY toets in de STAND-BY stand staat,
kan het toestel ingeschakeld worden via de timerfunctie of de
afstandsbediening.
Waarschuwing:
Dit toestel bevat geen door de gebruiker te repareren onderdelen.
Verwijder de behuizing nooit tenzij u deskundig bent op dit gebied.
In het toestel loopt een gevaarlijke spanning; haal de stekker altijd
uit het stopcontact alvorens onderhoud uit te voeren of wanneer het
toestel voor langere tijd niet gebruikt wordt.
STAND-BY, a voltagem de alimentação ainda se encontra
presente dentro do aparelho.
Quando o botão ON/STAND-BY estiver ajustado na posição
STAND-BY, o aparelho pode ser colocado em operação através do
modo de programação horária ou pelo controle remoto.
Advertência:
Neste aparelho não há partes que podem ser consertadas pelo
usuário. Nunca retire a tampa, a menos que você tenha
qualificação para tal. Este aparelho contém voltagens perigosas.
Remova sempre o cabo de alimentação da tomada antes de
efetuar qualquer conserto ou quando deixar o aparelho muito
tempo fora de uso.
● Kun ON/STAND-BY -kytkin on STAND-BY-asennossa, laitteessa
on yhä virta.
Kun ON/STAND-BY -kytkin on STAND-BY-asennossa, laite
voidaan kytkeä päälle kaukosäätimestä.
Varoitus:
Laitteen sisällä ei ole käyttäjän huollettavissa olevia osia. Kotelon
saa irrottaa vain siihen pätevöitynyt henkilö. Laitteen sisällä on
vaarallinen jännite. Laite on aina irrotettava verkkovirrasta ennen
huoltotoimenpiteitä ja jos laite on pitkään käyttämättä.
● Gdy urządzenie znajduje się w trybie czuwania, jego wewnętrzne
elementy są pod napięciem.
Gdy urządzenie znajduje się w trybie czuwania, może zostać
włączone przy pomocy zegara lub pilota.
Ostrzeżenie:
● Vorsicht:
DENNA APPARAT ÄR ANSLUTEN TILL 230 V
VÄXELSTRÖM
NÄR
STICKPROPPEN
ÄR
INSKJUTEN I VÄGGUTTAGET. FÖR ATT
FULLSTÄNDIGT KOPPLA IFRÅN APPARATEN,
V.G. DRAG UT STICKPROPPEN.
●
●
● Audio-visuelles
Material kann Urheberrechte
umfassen, die ohne Genehmigung des Eigentümers
dieser Urheberrechte nicht aufgenommen werden
dürfen. Siehe die entsprechenden nationalen
Gesetze.
● Le matériel audio-visuel peut comporter des oeuvres
faisant l’objet de droits d’auteur qui ne peuvent être
enregistrées sans l’autorisation du possesseur du
droit d’auteur, veuillez vous référer aux
réglementations nationales en vigueur.
● El material audiovisual puede consistir en trabajos
que tengan derechos de autor y que no deben
grabarse sin la autorización del poseedor de dichos
derechos de autor. Sírvase consultar las leyes
aplicables en su país.
● Audiovisuellt
material
kan
innehålla
upphovsrättsarbete som inte skall mångfaldigas utan
tillstånd av copyrightinnehavaren. Se den tillämpliga
lagen i ditt land.
● Il materiale audio-visivo che fosse soggetto a
copyright non può essere registrato senza
l’autorizzazione
possessore del copyright. Si
Downloaded From Disc-Player.com
Sharpdel
Manuals
prega di attenersi alle leggi in vigore sul territorio
nazionale.
●
●
●
●
Das Gerät weder Tropf- noch Spritzwasser
aussetzen. Ansonsten besteht die Gefahr eines
Brandes oder elektrischen Schlages. Es dürfen keine
mit Flüssigkeiten gefüllten Gegenstände wie Vasen
auf dem Gerät abgestellt werden.
Attention:
Pour éviter un incendie ou une secousse électrique,
mettre l’appareil à l’abri de l’eau (éclaboussure,
goutte). Ne pas poser sur l’appareil un récipient
contenant du liquide.
Advertencia:
Para evitar incendios y descargas eléctricas, no
exponga el aparato a goteo o salpicadura de líquidos.
No deberán ponerse encima del aparato objetos que
estén llenos de líquido, como por ejemplo un florero.
Varning:
Utsätt inte enheten för dropp eller stänk för att
förhindra brand eller elektriska stötar. Inga
vätskefyllda föremål såsom vaser får placeras på
enheten.
Attenzione:
Per prevenire incendi o scosse elettriche, non fare
gocciolare nessun liquido sull’apparecchio e non
bagnarlo. Non collocarvi sopra nessun oggetto
riempito d’acqua, come per esempio vasi.
Waarschuwing:
Stel het toestel niet bloot aan druipend of spattend
water om brand en elektrische schokken te
voorkomen. Met vloeistoffen gevulde voorwerpen,
zoals vazen, mogen niet op het toestel geplaatst
worden.
Cuidado:
Para evitar incêndio ou choque elétrico, não exponha
este aparelho a gotejamento ou salpicamento de
água. Não coloque objetos com água como, por
● Advarsel:
Til at forbygge ild og stød risiko, lad vaere med at undsaette
denne indretning for drypning eller overstaenkning. Der må
ikke anbringes nogen genstande fyldt med vand, som for
eksempel vaser, på dette apparat.
● Dieses Produkt ist ein Laserprodukt der Klasse 1.
● Ce produit est classifié comme étant un LASER DE
●
● Advarsel:
For å unngå brann eller kortslutning, utsett ikke produktet
for vann eller fuktighet. Gjenstander som inneholder
vaeske, feks. en blomstervase, må ikke plasseres oppå
apparatet.
● Varoitus:
Älä vie laitetta sateeseen tai kosteisiin tiloihin. Jos laite on
kostunut, anna sen kuivua ennen kuin käytät sitä
verkkovirralla. Nestettä sisältäviä astioita kuten esim.
kukkamaljakoita ei saa asettaa laitteen päälle.
●
●
●
●
●
●
●
“DLNA®, das DLNA Logo und DLNA CERTIFIED™
Markenzeichen, Dienstleistungsmarken oder Gütezeichen
der Digital Living Network Alliance.”
“DLNA®, le logo DLNA et DLNA CERTIFIED™ sont des
marques de commerce, des marques de service ou des
marques de certification de la Digital Living Network Alliance.”
“DLNA®, el logotipo DLNA y DLNA CERTIFIED™ son
marcas registradas, marcas de servicio, o marcas de certificación
de Digital
Network Alliance.”
Downloaded From
Disc-Player.com
SharpLiving
Manuals
“DLNA®, DLNA-logotypen och DLNA CERTIFIED™ är
CLASSE 1.
Este producto está clasificado como un PRODUCTO
LÁSER DE CLASE 1.
Denna
produkt
klassificeras
som
KLASS
1
LASERPRODUKT.
Questo prodotto è classificato come CLASS 1 LASER
PRODUCT.
Dit product is geclassificeerd als een KLASSE 1 LASER
PRODUCT.
Este produto é classificado como PRODUTO LASER DE
CLASSE 1.
Tämä laite on luokiteltu LUOKAN 1 LASERLAITTEEKSI.
Opisywane urządzenie jest sklasyfikowane jako PRODUKT
LASEROWY KLASY 1.
This product is classified as a CLASS 1 LASER PRODUCT.
● OBSERVERA
Användning av reglage eller justeringar eller handhavande
på annat sätt än som anges kan leda till farlig bestrålning.
Försök inte ta isär höljet eftersom CD-spelarens laserstråle
är skadlig för ögonen. Överlåt service endast till kvalificerad
personal.
● ATTENZIONE
L’uso dei comandi e l’effettuazione di regolazioni e
procedimenti diversi da quelli specificati nel manuale
possono provocare una pericolosa esposizione alle
radiazioni.
Poiché il raggio laser usato in questo giradischi può
danneggiare gli occhi, non smontare l’apparecchio. Per le
riparazioni rivolgersi a personale specializzato.
● LET OP
Gebruik van regelaars, het maken van instellingen, gebruik
of handelingen anders dan in deze gebruiksaanwijzing
vermeld, kan gevaarlijke straling blootleggen.
De laserstraal in deze CD-speler kan de ogen beschadigen,
Probeer derhalve de ombouw niet te verwijderen. Laat
reparaties alleen over aan erkend onderhoudspersoneel.
● CUIDADO
O uso de controles, ajustes ou a execução de
procedimentos além daqueles especificados aqui pode
resultar em perigosa exposição à radiação.
Como os raios laser usados neste player de CD são
perigosos para os olhos, não tente desmontar o aparelho.
Solicite o conserto somente para pessoas especializadas.
● VAROITUS
Muiden kuin tässä määriteltyjen ohjaustoimintojen,
säätöjen ja toimintojen käyttö saattaa johtaa vaaralliseen
säteilyaltistumiseen.
Koska tässä cd-soittimessa käytetty lasersäde on silmille
vahingollinen, älä pura soitinta. Ainoastaan pätevä
henkilökunta saa huoltaa laitetta.
● OSTRZEŻENIE
Wykorzystanie
elementów
Downloaded From Disc-Player.com
Sharp Manuals
sterujących
oraz
wykonywanie czynności innych niż opisano w
niniejszej instrukcji może spowodować narażenie na
Eigenschaften der Laserdiode
Material: AIGaAs
Wellenlänge: 790 nm
Emissionsdauer: kontinuierlich
Laser-Ausgang: max. 0.7 mW
Caractéristiques de la diode laser
Matière: AIGaAs
Longueur d’onde: 790 nm
Durée d’émission: ininterrompue
Puissance de sortie laser maximale: 0.7 mW
Características del diodo láser
Material: AIGaAs
Longitud de onda: 790 nm
Duración de emisión : continua
Salida de láser: máx. 0.7 mW
Laserdiodens egenskaper
Material: AIGaAs
Våglängd: 790 nm
Utstrålningsvaraktighet: kontinuerlig
Lasereffekt: max. 0.7 mW
Proprietà del diodo laser
”Made for iPod”, ”Made for iPhone” och ”Made for iPad”
innebär att ett elektroniskt tillbehör har designats för att
kopplas specifikt till en iPod, iPhone eller iPad och har
certifierats av utvecklaren för att tillfredsställa Apples
prestandanormer. Apple ansvarar inte för användning av
denna apparat eller dess överensstämmelse med
säkerhetsnormer och föreskrifter. Observera att användning
av detta tillbehör med iPod eller iPhone kan påverka den
trådlösa prestandan.
“Made for iPod”, “Made for iPhone” e “Made for iPad”
significano che un accessorio elettronico è stato progettato
per essere specificamente collegato iPod, iPhone o iPad,
rispettivamente; inoltre, il produttore ne ha certificato la
conformità agli standard di funzionamento Apple. Apple non
si ritiene responsabile circa il funzionamento del presente
dispositivo o la sua conformità con gli standard normativi e
relativi alla sicurezza. L’utilizzo di questo accessorio con
iPod o iPhone potrebbe influire sulle prestazioni wireless.
"Made for iPod", "Made for iPhone" en "Made for iPad"
betekent dat een electronische accessoire ontworpen is om
specifiek aangesloten te worden op de iPod, iPhone of iPad
respectievelijk en gecertificeerd is door de ontwerper om
aan de Apple prestatie maatstaven te voldoen. Apple is niet
verantwoordelijk voor de werking van dit apparaat of zijn
naleving aan veiligheids- en regelgevende maatstaven.
Realiseer u, dat het gebruik van dit accessoire een
negatieve invloed kan hebben op draadloos gebruik van uw
iPod of iPhone.
Downloaded From Disc-Player.com Sharp Manuals
„Made for iPod“, „Made for iPhone“ und „Made for iPad“
bedeutet, dass ein elektronisches Zubehörteil speziell für
A indicação “Made for iPod”, “Made for iPhone” e “Made for
iPad” significa que um acessório electrónico foi concebido
para se ligar especificamente ao iPod, iPhone ou iPad,
respectivamente, e foi certificado pelo fabricante para
satisfazer os padrões de desempenho da Apple. A Apple
não é responsável pelo funcionamento deste aparelho ou
pelo cumprimento das normas de segurança e
regulamentares. De salientar que o uso deste acessório
com o iPod ou iPhone pode afectar o desempenho sem fios.
Entsorgungsinformationen
A. Entsorgungsinformationen für Benutzer aus Privathaushalten
1. In der Europäischen Union
Achtung: Ihr
Produkt trägt
dieses Symbol.
Es besagt,
dass Elektround
Elektronikgeräte nicht mit
dem
Haushaltsmüll
entsorgt,
sondern einem
getrennten
Rücknahmesystem
zugeführt
werden sollten.
Achtung: Werfen Sie dieses Gerät zur Entsorgung bitte nicht in den
normalen Hausmüll!
Gemäß einer neuen EU-Richtlinie, die die ordnungsgemäße Rücknahme,
Behandlung und Verwertung von gebrauchten Elektro- und
Elektronikgeräten vorschreibt, müssen elektrische und elektronische
Altgeräte getrennt entsorgt werden.
Nach der Einführung der Richtlinie in den EU-Mitgliedstaaten können
Privathaushalte ihre gebrauchten Elektro- und Elektronikgeräte nun
kostenlos an ausgewiesenen Rücknahmestellen abgeben*.
In einigen Ländern* können Sie Altgeräte u.U. auch kostenlos bei Ihrem
Fachhändler abgeben, wenn Sie ein vergleichbares neues Gerät kaufen.
*) Weitere Einzelheiten erhalten Sie von Ihrer Gemeindeverwaltung.
Wenn Ihre gebrauchten Elektro- und Elektronikgeräte Batterien oder Akkus
enthalten, sollten diese vorher entnommen und gemäß örtlich geltenden
Regelungen getrennt entsorgt werden.
Durch die ordnungsgemäße Entsorgung tragen Sie dazu bei, dass
Altgeräte angemessen gesammelt, behandelt und verwertet werden. Dies
verhindert mögliche schädliche Auswirkungen auf Umwelt und Gesundheit
durch eine unsachgemäße Entsorgung.
2. In anderen Ländern außerhalb der EU
Bitte erkundigen Sie sich bei Ihrer Gemeindeverwaltung nach dem
ordnungsgemäßen Verfahren zur Entsorgung dieses Geräts.
Für die Schweiz: Gebrauchte Elektro- und Elektronikgeräte können
kostenlos beim Händler abgegeben werden, auch wenn Sie kein neues
Produkt kaufen. Weitere Rücknahmesysteme finden Sie auf der
Homepage von www.swico.ch oder www.sens.ch.
B. Entsorgungsinformationen für gewerbliche Nutzer
1. In der Europäischen Union
Wenn Sie dieses Produkt für gewerbliche Zwecke genutzt haben und nun
entsorgen möchten:
Bitte wenden Sie sich an Ihren SHARP Fachhändler, der Sie über die
Rücknahme des Produkts informieren kann. Möglicherweise müssen Sie
die Kosten für die Rücknahme und Verwertung tragen. Kleine Produkte
(und kleine Mengen) können möglicherweise bei Ihrer örtlichen
Rücknahmestelle abgegeben werden.
Für Spanien: Bitte wenden Sie sich an das vorhandene
Rücknahmesystem oder Ihre Gemeindeverwaltung, wenn Sie Fragen zur
Rücknahme Ihrer Altgeräte haben.
2. In anderen Ländern außerhalb der EU
Bitte erkundigen Sie sich bei Ihrer Gemeindeverwaltung nach dem
ordnungsgemäßen Verfahren zur Entsorgung dieses Geräts.
Informations sur la mise au rebut correcte
A. Informations sur la mise au rebut à l'intention des utilisateurs privés
(ménages)
1. Au sein de l'Union européenne
Attention : si vous souhaitez mettre cet appareil au rebut, ne le jetez pas dans
une poubelle ordinaire!
Les appareils électriques et électroniques usagés doivent être traités
séparément
et conformément
Downloaded From Disc-Player.com
Sharp
Manuals aux lois en vigueur en matière de traitement, de
récupération et de recyclage adéquats de ces appareils.
Suite à la mise en oeuvre de ces dispositions dans les Etats membres, les
Información sobre la eliminación
A. Información sobre eliminación para usuarios particulares
1. En la Unión Europea
Atención: si quiere desechar este equipo, ¡por favor no utilice el cubo de la
basura habitual!
Los equipos eléctricos y electrónicos usados deberían tratarse por separado de
acuerdo con la legislación que requiere un tratamiento, una recuperación y un
reciclaje adecuados de los equipos eléctricos y electrónicos usados.
Tras la puesta en práctica por parte de los estados miembros, los hogares de
particulares dentro de los estados de la Unión Europea pueden devolver sus
equipos eléctricos y electrónicos a los centros de recogida designados sin
Atención: su coste alguno *.
producto está En algunos países* es posible que también su vendedor local se lleve su viejo
marcado con producto sin coste alguno si Ud. compra uno nuevo similar.
*) Por favor, póngase en contacto con su autoridad local para obtener más
este símbolo.
detalles.
Significa que Si sus equipos eléctricos o electrónicos usados tienen pilas o acumuladores,
por
favor deséchelos por separado con antelación según los requisitos locales.
los productos
Al desechar este producto correctamente, ayudará a asegurar que los residuos
eléctricos y
reciban el tratamiento, la recuperación y el reciclaje necesarios, previniendo de
electrónicos
esta forma posibles efectos negativos en el medio ambiente y la salud humana
que de otra forma podrían producirse debido a una manipulación de residuos
usados no
inapropiada.
deberían
2. En otros países fuera de la Unión Europea
mezclarse con Si desea desechar este producto, por favor póngase en contacto con las
los residuos
autoridades locales y pregunte por el método de eliminación correcto.
Para Suiza: Los equipos eléctricos o electrónicos pueden devolverse al
domésticos
vendedor sin coste alguno, incluso si no compra ningún nuevo producto. Se
generales.
puede encontrar una lista de otros centros de recogida en la página principal de
Existe un
www.swico.ch o www.sens.ch.
sistema de
B. Información sobre Eliminación para empresas usuarias
1. En la Unión Europea
recogida
el producto se utiliza en una empresa y quiere desecharlo:
independiente Si
Por favor póngase en contacto con su distribuidor SHARP, quien le informará
para estos
sobre la recogida del producto. Puede ser que le cobren los costes de recogida
y reciclaje. Puede ser que los productos de tamaño pequeño (y las cantidades
productos.
pequeñas) sean recogidos por sus centros de recogida locales.
Para España: por favor, póngase en contacto con el sistema de recogida
establecido o con las autoridades locales para la recogida de los productos
usados.
2. En otros países fuera de la Unión Europea
Si desea desechar este producto, por favor póngase en contacto con sus
autoridades locales y pregunte por el método de eliminación correcto.
Information om återvinning
Information om återvinning av elektrisk utrustning för hushåll
EU-länder
OBS! Kasta inte denna produkt i soporna!
Förbrukad elektrisk utrustning måste hanteras i enlighet med gällande
miljölagstiftning och återvinningsföreskrifter.
I enlighet med gällande EU-regler ska hushåll ha möjlighet att lämna in
elektrisk utrustning till återvinningsstationer utan kostnad.*
I vissa länder* kan det även hända att man gratis kan lämna in gamla
produkter till återförsäljaren när man köper en ny liknande enhet.
OBS! Produkten *) Kontakta kommunen för vidare information.
A.
1.
Informação sobre Eliminação de Produtos
Informações sobre a Eliminação de Produtos para os
Utilizadores (particulares)
1. Na União Europeia
Atenção: Se quiser eliminar este equipamento, não o deve fazer
juntamente com o lixo doméstico comum!
O equipamento eléctrico e electrónico deve ser tratado
separadamente e ao abrigo da legislação aplicável que obriga a
um tratamento, recuperação e reciclagem adequados de
equipamentos eléctricos e electrónicos usados.
Atenção: O seu Após a implementação desta legislação por parte dos Estadosmembros, todos os cidadãos residentes na União Europeia
produto está
identificado com poderão entregar o seu equipamento eléctrico e electrónico usado
estações de recolha específicas a título gratuito*.
este símbolo. em
Em alguns países* o seu revendedor local também pode recolher
Significa que
o seu equipamento usado a título gratuito na compra de um novo
os produtos
equipamento.
eléctricos e
*)Contacte as entidades locais para mais informações.
electrónicos não Se o seu equipamento eléctrico e electrónico usado funcionar a
pilhas ou baterias, deverá eliminálas em separado, conforme a
devem ser
legislação local, e antes de entregar o seu equipamento.
misturados com Ao eliminar este produto correctamente estará a contribuir para
o lixo doméstico que o lixo seja submetido aos processos de tratamento,
comum. Existe recuperação e reciclagem adequados. Desta forma é possível
um sistema de evitar os efeitos nocivos que o tratamento inadequado do lixo
poderia provocar no ambiente e na saúde.
recolhas
específico para 2. Em outros Países fora da UE
quiser eliminar este produto, contacte as entidades locais e
estes produtos. Se
informese sobre o método correcto para proceder à sua
eliminação.
Na Suíça: O equipamento eléctrico e electrónico é aceite, a título
gratuito, em qualquer revendedor, mesmo que não tenha adquirido
um novo produto. Poderá encontrar uma lista das estações de
recolha destes equipamentos na página da Web www.swicho.ch
ou www.sens.ch.
B. Informações sobre a Eliminação de Produtos para
Utilizadores-Empresas
1. Na União Europeia
Se o produto for usado para fins comerciais e quiser eliminá-lo:
Contacte o seu revendedor SHARP que irá informá-lo sobre a
melhor forma de eliminar o produto. Poderá ter de pagar as
despesas resultantes da recolha e reciclagem do produto. Alguns
produtos mais pequenos (e em pequenas quantidades) poderão
ser recolhidos pelas estações locais.
Na Espanha: Contacte o sistema de recolhas público ou as
entidades locais para mais informações sobre a recolha de
produtos usados.
2. Em outros Países fora da UE
Se quiser eliminar este produto, contacte as entidades locais e
informese
sobre
o método correcto para proceder à sua
Downloaded From Disc-Player.com
Sharp
Manuals
eliminação.
Tietoja laitteen hävittämisestä
A.
Hävitysohjeet käyttäjille (yksityiset kotitaloudet)
Euroopan unionissa
Huomio: Jos haluat hävittää tämän laitteen, älä käytä tavallista
jätesäiliötä.
Käytetyt sähkö- ja elektroniikkalaitteet pitää hävittää erikseen noudattaen lainsäädäntöä, joka takaa käytettyjen sähkö- ja elektroniikkalaitteiden oikean käsittelyn, keräämisen ja kierrättämisen.
Jäsenvaltioiden täytäntöönpanoa seuraten yksityiset kotitaloudet
EU:n jäsenvaltioissa voivat palauttaa käytetyt sähkö- ja elektroniikkalaitteet määrättyihin keräyspaikkoihin ilmaiseksi*. Joissakin
maissa* paikalliset vähittäismyyjät voivat myös ottaa vastaan vanhan tuotteen ilmaiseksi, jos asiakas ostaa vastaavan uuden tuotteen.
*) Pyydä lisätietoja paikallisviranomaisilta.
Jos käytetyissä sähkö- tai elektroniikkalaitteissa käytetään paristoja
tai akkuja, hävitä nämä tuotteet etukäteen erikseen paikallisten
säädösten mukaisesti.
Hävittämällä tuotteen asiamukaisesti, autat varmistamaan, että jätteet käsitellään, kerätään ja kierrätetään asianmukaisella tavalla.
Näin vältytään haitallisilta ympäristö- ja terveysvaikutuksilta, joita
saattaa olla seuraamuksena jätteen epäasianmukaisesta käsittelystä.
2. Muissa maissa EU:n ulkopuolella
Jos haluat hävittää tuotteen, ota yhteys paikallisiin viranomaisiin ja
pyydä ohjeita tuotteen asianmukaiseen hävittämiseen.
B. Hävitysohjeet yrityskäyttäjille
1. Euroopan unionissa
Jos tuotetta on käytetty yrityskäytössä, ja haluat hävittää sen,
Oota yhteys SHARP-jälleenmyyjään, joka antaa sinulle lisäohjeita
tai ottaa tuotteen vastaan. Sinulta saatetaan veloittaa tuotteen vastaanottamisesta ja kierrätyksestä johtuvat kustannukset. Paikalliset
keräyspisteet saattavat ottaa vastaan pienet tuotteet (ja pienet
määrät).
2. Muissa maissa EU:n ulkopuolella
Jos haluat hävittää tuotteen, ota yhteys paikallisiin viranomaisiin ja
pyydä ohjeita tuotteen asianmukaiseen hävittämiseen.
A.
1.
Huomio: Tuote
on merkitty
tällä symbolilla. Tämä
tarkoittaa, että
käytettyjä sähkö- ja elektroniikkalaitteita
ei saa sekoittaa
kotitalouden
yleisjätteiden
kanssa. Näille
tuotteille on
olemassa erillinen
keräysjärjestelmä.
Informazioni per un corretto smaltimento
Informacje dotyczące usuwania zużytego urządzenia
A. Informazioni sullo smaltimento per gli utenti (privati)
1. Nell'Unione europea
Attenzione: Il
dispositivo è
contrassegnato
da questo
simbolo, che
segnala di non
smaltire le
apparecchiature
elettriche ed
elettroniche
insieme ai
normali rifiuti
domestici. Per tali
prodotti è previsto
un sistema di
raccolta a parte.
Attenzione: Per smaltire il presente dispositivo, non utilizzare il normale
bidone della spazzatura!
Le apparecchiature elettriche ed elettroniche usate devono essere gestite a
parte e in conformità alla legislazione che richiede il trattamento, il recupero
e il riciclaggio adeguato dei suddetti prodotti.
In seguito alle disposizioni attuate dagli Stati membri, i privati residenti nella
UE possono conferire gratuitamente le apparecchiature elettriche ed
elettroniche usate a centri di raccolta designati*.
In alcuni paesi*, anche il rivenditore locale può ritirare gratuitamente il vecchio
prodotto se l'utente acquista un altro nuovo di tipologia simile.
*) Per maggiori informazioni si prega di contattare l'autorità locale
competente.
Se le apparecchiature elettriche o elettroniche usate hanno batterie o
accumulatori, l'utente dovrà smaltirli a parte preventivamente in conformità
alle disposizioni locali.
Lo smaltimento corretto del presente prodotto contribuirà a garantire che i
rifiuti siano sottoposti al trattamento, al recupero e al riciclaggio necessari
prevenendone il potenziale impatto negativo sull'ambiente e sulla salute
umana, che potrebbe derivare da un'inadeguata gestione dei rifiuti.
2. In paesi che non fanno parte dell'UE
Se si desidera eliminare il presente prodotto, contattare le autorità locali e
informarsi sul metodo di smaltimento corretto.
Per la Svizzera: Le apparecchiature elettriche o elettroniche usate possono
essere restituite gratuitamente al rivenditore, anche se non si acquista un
prodotto nuovo. Altri centri di raccolta sono elencati sulle homepage di
www.swico.ch o di www.sens.ch.
B. Informazioni sullo smaltimento per gli utenti commerciali
1. Nell'Unione europea
Se il prodotto è impiegato a scopi commerciali, procedere come segue per
eliminarlo.
Contattare il proprio rivenditore SHARP che fornirà informazioni circa il ritiro
del prodotto. Potrebbero essere addebitate le spese di ritiro e riciclaggio.
Prodotti piccoli (e quantitativi ridotti) potranno essere ritirati anche dai centri
di raccolta locali.
Per la Spagna: Contattare il sistema di raccolta ufficiale o l'ente locale
preposto al ritiro dei prodotti usati.
2. In paesi che non fanno parte dell'UE
Se si desidera eliminare il presente prodotto, contattare le autorità locali e
informarsi sul metodo di smaltimento corretto.
Informatie over verantwoorde verwijdering
Informatie over afvalverwijdering voor gebruikers (particuliere
huishoudens)
1. In de Europese Unie
Let op: Deze apparatuur niet samen met het normale huisafval weggooien!
Afgedankte elektrische en elektronische apparatuur moet gescheiden worden
ingezameld conform de wetgeving inzake de verantwoorde verwerking,
terugwinning en recycling van afgedankte elektrische en elektronische
apparatuur.
Downloaded From Disc-Player.com
Sharp Manuals
Na de invoering van de wet door de lidstaten mogen particuliere huishoudens
Let op: Uw
in de lidstaten van de Europese Unie hun afgedankte elektrische en
A.
Informacje dla użytkowników (prywatne gospodarstwa
domowe) dotyczące usuwania odpadów
1. W krajach Unii Europejskiej
Uwaga: Jeśli chcą Państwo usunąć to urządzenie, prosimy nie używać
zwykych pojemników na śmieci!
Zużyty sprzęt elektryczny i elektroniczny należy usuwać oddzielnie,
zgodnie z wymogami prawa dotyczącymi odpowiedniego przetwarzania,
odzysku i recyklingu zużytego sprzętu elektrycznego i elektronicznego.
Po wdrożeniu przepisów unijnych w Państwach Członkowskich
prywatne gospodarstwa domowe na terenie krajów UE mogą
bezpłatnie* zwracać zużyty sprzęt elektryczny i elektroniczny do
wyznaczonych punktów zbiórki odpadów. W niektórych krajach* można
bezpłatnie zwrócić stary produkt do lokalnych punktów sprzedaży
detalicznej pod warunkiem, że zakupią Pasńtwo podobny nowy produkt.
*) W celu uzyskania dalszych informacji na ten temat należy
skontaktować się z lokalnymi władzami.
Jeśli zużyty sprzęt elektryczny i elektroniczny jest wyposażony w baterie
lub akumulatory, należy je usunąć oddzielnie, zgodnie z wymogami
lokalnych przepisów.
Jeśli ten produkt zostanie usunięty we właściwy sposób, pomogą
Państwo zapewnić, że odpady zostaną poddane przetworzeniu,
odzyskowi i recyklingowi, a tym samym zapobiec potencjalnym
negatywnym skutkom dla środowiska naturalnego i zdrowia ludzkiego,
które w przeciwnym razie mogłyby mieć miejsce na skutek niewłaściwej
obróbki odpadów.
2. Kraje pozaunijne
Jeśli chcą Państwo pozbyć się produktu, należy skontaktować się z
władzami lokalnymi i uzyskać informacje na temat prawidłowej metody
usunięcia produktu.
Dotyczy Szwajcarii: Zużyte urządzenia elektryczne i elektroniczne
można zwrócić bezpłatnie do dostawcy, bez konieczności zakupu
nowego produktu. Adresy punktów odbioru zużytego sprzętu można
znaleźć na stronie www.swico.ch lub www.sens.ch.
B. Informacje dla użytkowników biznesowych dotyczące usuwania
odpadów
1. W krajach Unii Europejskiej
W przypadku gdy produkt używany jest do celów handlowych i
zamierzają go Państwo usunąć:
Należy skontaktować się z dealerem firmy SHARP, który poinformuje o
możliwości zwrotu wyrobu. Być może będą Państwo musieli ponieść
koszty zwrotu i recyklingu produktu. Produkty niewielkich rozmiarów (i w
małej liczbie) można zwrócić do lokalnych punktów zbiórki odpadów.
Dotyczy Hiszpanii: Skontaktuj się z punktem odbioru lub władzami
lokalnymi w sprawie oddania używanego produktu.
2. Kraje pozaunijne
Jeśli chcą Państwo usunąć ten produkt, należy skontaktować się z
władzami lokalnymi i uzyskać informacje na temat prawidłowej metody
jego usunięcia.
A.
Uwaga: Państwa produkt
oznaczony jest
tym symbolem.
Oznacza to, że
zużytego sprzętu elektrycznego i
elektronicznego nie należy
łączyć z odpadami zgospodarstw
domowych. Dla
tego typu
produktów istnieje odrębny
system zbiórki
odpadów.
Information on Proper Disposal
A.
Information on Disposal for Users (private households)
Informationen zur Batterieentsorgung
Die für dieses Produkt mitgelieferte Batterie kann Spuren von Blei
enthalten.
Für die EU: Die durchgestrichene Abfalltonne bedeutet, dass
gebrauchte Batterien nicht mit dem Haushaltsmüll entsorgt werden
sollten! Es gibt getrennte Sammelsysteme für gebrauchte Batterien,
welche eine ordnungsgemäße Behandlung und Verwertung
entsprechend gesetzlicher Vorgaben erlauben. Weitere Einzelheiten
erhalten Sie von IhrerGemeindeverwaltung.
Für die Schweiz: Die gebrauchte Batterie kann an der Verkaufsstelle
zurückgegeben werden.
Für andere Nicht-EU Staaten: Bitte erkundigen Sie sich bei Bedarf
bei Ihrer Gemeindeverwaltung nach weiteren Informationen zur
Entsorgung von gebrauchten Batterien.
Information sur la mise au rebut de la pile
Les piles/accus fournies avec ce produit peuvent contenir des traces
de Plomb.
Au sein de l’Union Européenne : Le symbole de la poubelle sur
roues barrée laisse supposer que les piles/accus usagées ne
doivent pas être mélangées avec les déchets ménagers! Il existe un
mode de collecte séparé pour les piles/accus usagées, ce qui
permet d’effectuer un traitement et un recyclage en accord avec la
législation. Veuillez contacter une autorité locale pour plus de
renseignements sur le système mis en place.
Pour la Suisse : Les piles/accus usagées doivent être retournées
chez votre détaillant.
Pour les pays hors Union Européenne : Veuillez contacter une
autorité locale afin de connaître la bonne méthode à utiliser pour la
collecte de vos piles/accus usagées.
Información sobre la eliminación de la batería
Las baterías suministradas con este producto contienen pequeñas
cantidades de Plomo.
Para EU: El contenedor de basura con ruedas tachado indica que
las baterías usadas no deberían mezclarse con los residuos
domésticos generales. Existe un sistema de recogida independiente
de baterías usadas, para permitir un correcto tratamiento y reciclado
de acuerdo con la legislación vigente. Por favor póngase en contacto
con el sistema de recogida establecido o con las autoridades locales
para la recogida selectiva de las baterías usadas.
Para Suiza: Las baterías usadas deben ser retornadas al punto de
venta.
Para otros países fuera de la Unión Europea: Por favor póngase en
contacto
con las
autoridades locales para un correcto procedimiento
Downloaded From Disc-Player.com
Sharp
Manuals
de eliminación de las baterías usadas.
Informatie over afvalverwerking van batterijen
De batterij die bij dit toestel geleverd wordt bevat sporen van Lood.
Voor EU: De doorgestreepte vuilnisbak op wieltjes duidt aan dat de
gebruikte batterijen niet mogen terechtkomen in het gewone
huishoudelijke afval. Er bestaat een gescheiden ophaalsysteem
voor deze gebruikte batterijen om eigen behandeling en recyclage
volgens de wetgeving toe te laten. Gelieve de locale autoriteiten te
contacteren voor de details van ophaling en recyclage.
Voor Zwitserland: De gebruikte batterij moet bij hetverkooppunt
teruggebracht worden.
Voor andere niet EU landen: Gelieve contact op te nemen met uw
locale autoriteiten voor de correcte methode van verwerking van de
gebruikte batterijen.
Informação sobre Eliminação de Pilhas
A bateria fornecida com este produto contém traços de chumbo.
Para a União Europeia: O contentor de rodas traçado significa que
as baterias usadas não deverão ser colocadas junto com o lixo
doméstico! Existe um sistema de separação próprio para baterias
usadas, para permitir um tratamento e reciclagem própria de acordo
com a legislação em vigor. Por favor contacte as autoridades locais
para mais detalhes nos esquemas de recolha e reciclagem.
Para a Suíça: As baterias usadas deverão ser devolvidas ao ponto
de venda.
Para os outros países fora da União Europeia: Por favor contacte a
sua autoridade local para o método correcto de disposição das
baterias usadas.
Tietoja paristojen hävittämisestä
Tämän tuotteen mukana oleva paristo/akku saattaa sisältää
jäänteitä Lyijy.
EU-maat: Paristo/akku on merkitty yliviivatun roskasäiliön
symbolilla, mikä tarkoittaa, että sitä ei saa hävittää kotitalouden
yleisjätteiden kanssa. Paristoille/akuille on olemassa erillinen
keräysjärjestelmä, joka helpottaa niiden asiamukaista käsittelyä ja
lainmukaista kierrätystä. Ota yhteys kuntaviranomaisiin saadaksesi
lisätietoa keräyksestä ja kierrätyksestä.
Sveitsi: Käytetyt paristot/akut palautetaan ostopaikkaan.
EU:n ulkopuoliset maat: Ota yhteys paikallisviranomaisiin
saadaksesi lisätietoa voimassa olevista lajittelu- ja
kierrätyssäädöksistä ja ohjeet käytetyn pariston/akun hävittämiseen.
ENGLISH
● XL-HF401PH Hi Fi Component System consisting of XL-HF401PH (main unit) and CP-HF401H (speaker system).
Introduction
Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual
carefully. It will guide you in operating your SHARP product.
Special Note
Supply of this product does not convey a license nor imply any right to distribute content created with this product in
revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), revenue-generating
streaming applications (via Internet, intranets and/or other networks), other revenue-generating content distribution
systems (pay-audio or audio-on-demand applications and the like) or on revenue-generating physical media (compact
discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for
such use is required. For details, please visit http://mp3licensing.com
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
Accessories
R
Adaptors for iPhone x 3
FM aerial
x1
Downloaded From Disc-Player.com
Sharp Manuals
NE
TW
OR
K
D
S
CD
/U
SB
The following accessories are included.
Remote control x 1
(RRMCGA287AWSA)
“AA” size battery
(UM/SUM-3, R6, HP-7 or similar) x 1
Speaker wires x 2
Stand for iPad x 1
Precautions
■
General
● Please ensure that the equipment is positioned in a
well ventilated area and ensure that there is at least 10
cm (4") of free space along the sides, top and back of
the equipment.
10 cm (4")
10 cm (4")
10 cm (4")
10 cm (4")
● Use the unit on a firm, level surface free from vibration.
● Place the speakers at least 30 cm (12") away from any
CRT TV to avoid colour variations across the TV
screen. If the variations persist, move the speakers
further away from the TV. LCD TV is not prone to such
variation.
● Keep the unit away from direct sunlight, strong
magnetic fields, excessive dust, humidity and
electronic/electrical equipment (home computers,
facsimiles, etc.) which generate electrical noise.
● Do not place anything on top of the unit.
● Do not expose the unit to moisture, to temperatures
higher than
60°C (140°F) or to extremely low
temperatures.
● If your system does not work properly, disconnect the
AC power lead from the wall socket. Plug the AC power
lead back in, and then turn on your system.
● In case of an electrical storm, unplug the unit for safety.
● Hold the AC power plug by the head when removing it
from the wall socket, as pulling the lead can damage
internal wires.
Controls and indicators
Downloaded From Disc-Player.com Sharp Manuals
1
● The AC power plug is used as a disconnect device and
shall always remain readily operable.
● Do not remove the outer cover, as this may result in
electric shock. Refer internal service to your local
SHARP service facility.
● The ventilation should not be impeded by covering the
ventilation openings with items, such as newspapers,
tablecloths, curtains, etc.
● No naked flame sources, such as lighted candles,
should be placed on the apparatus.
● Attention should be drawn to the environmental aspects
of battery disposal.
● This unit should only be used within the range of 5°C 35°C (41°F - 95°F).
● The apparatus is designed for use in moderate
climates.
Warning:
The voltage used must be the same as that specified on
this unit. Using this product with a higher voltage other
than that which is specified is dangerous and may result
in a fire or other type of accident causing damage. SHARP
will not be held responsible for any damage resulting from
use of this unit with a voltage other than that which is
specified.
■
Volume control
The sound level at a given volume setting depends on
speaker efficiency, location, and various other factors. It is
advisable to avoid exposure to high volume levels. Do not
turn the volume on to full at switch on. Listen to music at
moderate levels. Excessive sound pressure from
earphones and headphones can cause hearing loss.
Controls and indicators (continued)
■
1
2
18
19
20
21
3
22
23
24
25
26
4
5
6
7
8
27
28
29
9
10
11
12
13
14
15
30
31
32
33
34
35
36
37
CD/USB
RDS
16
17
Downloaded From Disc-Player.com Sharp Manuals
1 23
4 5
6 7 8
9
15
10 1112 13 14 16
Remote control
Page
1. Remote Control Transmitter . . . . . . . . . . . . . . . . . . 5
2. On/Stand-by Button . . . . . . . . . . . . . . . . 6, 10, 11, 20
3. Numeric Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4. Bass/Treble Button . . . . . . . . . . . . . . . . . . . . . . . . . 6
5. X-Bass Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6. Tuning Down, Skip Down, Fast Reverse,
Time Down Button . . . . . . . . . . . . . . 6, 11, 14, 16, 20
7. Tuner Preset Up Button,
iPod Cursor Up. . . . . . . . . . . . . . . . . . . . . . 10, 15, 16
8. Volume Down Button . . . . . . . . . . . . . . . . . . . . . . . . 6
9. Folder Button . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 15
10. Tuner Preset Down Button,
iPod Cursor Down . . . . . . . . . . . . . . . . . . . 10, 15, 16
11. CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
12. USB Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
13. iPod Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
14. iPod Display (TV OUT) Button . . . . . . . . . . . . . . . 10
15. Disc/USB Display Button . . . . . . . . . . . . . . . . 14, 15
16. RDS ASPM Button . . . . . . . . . . . . . . . . . . . . . . . . 17
17. Network Button . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8
18. Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . . 11
19. Memory Button . . . . . . . . . . . . . . . . . . . . . . . . 12, 16
20. Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
21. Clock/Timer Button . . . . . . . . . . . . . . . . . . . . . . 6, 20
22. Sleep Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
23. Repeat Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
24. Mute Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
25. Random Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
26. Tuning Up, Skip Up, Fast Forward,
Time Up Button . . . . . . . . . . . . . . . . 6, 11, 14, 16, 20
27. Volume Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . 6
28. Enter Button . . . . . . . . . . . . . . . . . . . . . . 6, 10, 15, 16
29. Demo/Dimmer Button . . . . . . . . . . . . . . . . . . . . . 4, 6
30. Audio/Line (INPUT) Button . . . . . . . . . . . . . . . . 5, 22
31. Tuner Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
32. iPod Play/Pause Button. . . . . . . . . . . . . . . . . . . . . 11
33. iPod Menu Button . . . . . . . . . . . . . . . . . . . . . . . . . 11
34. CD/USB Play/Pause Button. . . . . . . . . . . . . . . 11, 15
35. CD/USB Stop Button . . . . . . . . . . . . . . . . . . . . 11, 15
36. RDS Display Button . . . . . . . . . . . . . . . . . . . . . . . 17
37. RDS PTY Button. . . . . . . . . . . . . . . . . . . . . . . . . . . 17
System connections
Make sure to unplug the AC power lead before making any connections.
Right
speaker
Wi-Fi aerial
Video cable
(not supplied)
FM aerial
TV
To video input socket
Turn the Wi-Fi
aerial upright
before operation.
Left
speaker
Red
Black
Wall socket
(AC 220 - 240 V ~ 50/60 Hz)
■
Aerial connection
■
Demonstration (Network Stand-by) mode
Supplied FM aerial:
Connect the FM aerial wire to the FM 75 OHMS socket and
position the FM aerial wire in the direction where the
strongest signal can be received.
● The first time the unit is plugged in, the unit will enter
the demonstration mode (refer page 9).
External FM aerial:
Use an external FM aerial (75 ohms coaxial cable) for
● To cancel the demonstration mode, press the DEMO/
Downloaded From Disc-Player.com Sharp Manuals
System connections (continued)
Remote control
■
■
Subwoofer pre-out connection
You can connect a subwoofer with an amplifier to the
SUBWOOFER PRE OUT socket.
Audio cable
(commercially
available)
Commercially available subwoofer
(amplifier built in)
Audio signal
Battery installation
1 Open the battery cover.
2 Insert the supplied battery according to the terminal
indicated in the battery compartment.
When inserting or removing the battery, push it towards the
(–) battery terminals.
3 Close the cover.
To audio input
socket
To SUBWOOFER
PRE OUT socket
Wi-Fi aerial
Main
unit
Notes:
● No sound is heard from the subwoofer without a built-in
amplifier.
● Subwoofer Pre-out (audio signal): 200mV / 10k ohms at
70 Hz.
■
Line input connection (TV, etc.)
Connect to the TV using an audio cable.
TV
Downloaded From Disc-Player.com Sharp Manuals
To audio
output sockets
Audio cable
(commercially
available)
Caution:
● Remove the battery if the unit will not be used for a long
period of time. This will prevent potential damage due to
battery leakage.
● Do not use rechargeable battery (nickel-cadmium battery,
etc.).
● Installing the battery incorrectly may cause the unit to
malfunction.
● Batteries (battery pack or batteries installed) shall not be
exposed to excessive heat such as sunshine, fire or the
like.
Notes concerning use:
● Replace the battery if the operating distance is reduced or
if the operation becomes erratic. Purchase a “AA” size
battery (UM/SUM-3, R6, HP-7 or similar).
● Periodically clean the transmitter on the remote control
and the sensor on the unit with a soft cloth.
● Exposing the sensor on the unit to strong light may
interfere with operation. Change the lighting or the
direction of the unit if this occurs.
● Keep the remote control away from moisture, heat, shock,
and vibrations.
A
General control
■
Muting
The volume is muted temporarily when pressing the
(MUTE)
button on the remote control. Press again to restore the volume.
■
CD/USB
X-Bass control
When the power is first turned on, the unit will enter the extra
bass mode which emphasises the bass frequencies, and
“X-Bass On” will appear. To cancel the extra bass mode, press
the X-BASS button on the remote control.
RDS
■
■
To turn the power on
Press the ON/STAND-BY button to turn the power on.
After use:
Press the ON/STAND-BY button to enter the power stand-by mode.
■
Display brightness control
To dim the display brightness, press the DEMO/DIMMER
button on the remote control.
Dimmer 1 (Display is dim).
1 Press the BASS/TREBLE
button to select “Bass”.
2 Within 5 seconds, press
the VOLUME (+ or –)
button to adjust the bass.
■
■
Volume auto fade-in
If you turn off and on the main unit with the volume set to 27 or
higher, the volume starts at 16 and fades in to the last set level.
■
■
Treble control
button to select “Treble”.
2 Within 5 seconds, press
the VOLUME (+ or –)
button to adjust the treble.
■
Direct key power on function
When you press any of the following buttons, the unit turns on.
● iPod, CD, USB, AUDIO/LINE INPUT, TUNER, NETWORK on the
Downloaded From Disc-Player.com
Sharp Manuals
remote control: Selected
function is activated.
●
/ button on the main unit: The unit turns on and playback of the last func-
- 5 ↔ - 4........↔ + 4 ↔ + 5
Function
When the FUNCTION button on main unit is pressed, the
current function will change to different mode. Press the
FUNCTION button repeatedly to select desired function.
CD
Volume control
Turn the volume knob towards VOLUME +/– (on main unit) or press
VOL +/– (on remote control) to increase or decrease the volume.
- 5 ↔ - 4........↔ + 4 ↔ + 5
1 Press the BASS/TREBLE
Dimmer 2 (Display gets dimmer).
Dimmer Off (Display is bright).
Bass control
Network
FM STEREO
FM MONO
USB
Line In
Audio In
iPod
Note:
The backup function will protect the memorised function mode
for a few hours should there be a power failure or the AC power
lead becomes disconnected.
Setting the clock (Remote control only)
(continued)
6 On the iPod touch/iPhone/iPad, select ‘Settings’ -->
‘Wi-Fi’. On the PC/Mac, enter the list of available
wireless networks.
5 To adjust the hour, press the
or
button and then press the ENTER
button. Press the
or
button once to advance the time by 1 hour.
Hold it down to advance continuously.
6 To adjust the minutes, press the
or
button and then press the
ENTER button. Press the
or
button once to advance the time
by 1 minute. Hold it down to advance the time by 5 minutes interval.
To confirm the time display:
Press the CLOCK/TIMER button. The time display will
appear for about 5 seconds.
Note:
When power supply is restored after unit is plugged in again or
after a power failure, reset the clock (pages 6 - 7).
To readjust the clock:
Perform “Setting the clock” from step 1. If the “Clock” does not
appear in step 2, step 4 (for selecting the 24-hour or 12-hour
display) will be skipped.
To change the 24-hour or 12-hour display:
1 Clear all the programmed contents. [Refer to “Factory
reset, clearing all memory” on page 23 for details.]
2 Perform “Setting the clock” from step 1 onwards.
Wi-Fi network Setup for AirPlay / DLNA
(AirPlay)
With Apple AirPlay technology, you can stream your music from your
iTunes on a Mac, PC, iPod touch, iPhone, or iPad to external
speakers (XL-HF401PH) via a Wi-Fi network.
AirPlay usage requires:
● MacBook or MacBook Pro running MacOS 10.6.6 or greater.
● iTunes 10.2 or greater (Mac/PC).
● iOS 4.3 or later
- iPod touch (4th, 3rd and 2nd generation)
- iPhone 4S
- iPhone 4
- iPhone 3GS (iPhone
3G cannot support AirPlay)
Downloaded From Disc-Player.com
Sharp Manuals
- iPad 2
- iPad
SHARP_XL-HF401
Wi-Fi
SHA
SHARP_XL-HF401
For other DLNA compatible devices, turn on the Wi-Fi. For more details,
refer to your devices’ manual.
7 Select SHARP_XL-HF401 from the list of available networks.
8 Launch Music and play desired song on your iPod touch / iPhone or
iPad. For PC/Mac, launch iTunes.
For other DLNA compatible devices, launch the DLNA compatible
media software. For more details, refer to your devices’ manual.
9 Tap / click on the AirPlay icon
.
Select the speaker : SHARP_XL-HF401_xxxxxx.
Sound will be heard from the XL-HF401 speakers via audio
streaming.
Note: The last 6 digits ‘xxxxxx’ is MAC ID.
SHARP_XL-HF401_xxxxxx
■ Connection via wireless router with WPS
1 Press the WPS button on the wireless router.
Wi-Fi network Setup for AirPlay / DLNA (continued)
■ Connection via SSID (wireless router without WPS)
1 Press the ON/STAND-BY button.
2 Press the NETWORK button on the remote control.
3 Press the iPod MENU button on the remote control.
4 Press the / button to select ‘Wi-Fi Setup’.
Press the ENTER button.
/ button to select ‘SSID Set’. Press the ENTER
button. Wait until the display shows “SSID Ready” which takes
about 40 seconds.
6 On the iPod touch/iPhone/iPad, select ‘Settings’ --> ‘Wi-Fi’.
On the PC/Mac, enter the list of available wireless networks.
For other DLNA compatible devices, turn on the Wi-Fi. For
more details, refer to your devices’ manual.
7 Select Sharp_XL-HF401 from the list of available networks.
8 Open web browser as Safari or Explorer on iPod touch / iPhone
/ iPad or PC/Mac. Type 192.168.1.1 at the address bar.
The XL-HF401 configuration page is displayed.
16Select your router from the list of available networks.
5 Press the
SHARP XL-HF401
192.168.1.1
17Continue with step 8 to 9 in ‘Direct wireless connection’
of page 7.
■
Connection of an AirPlay device to the
same Wi-Fi network
You can add other AirPlay devices to join the same Wi-Fi
network as the unit.
1 On the iPod touch/iPhone/iPad, select ‘Settings’ -->
‘Wi-Fi’. On the PC/Mac, enter the list of available
wireless networks. For other DLNA compatible devices
turn on the Wi-Fi. For more details, refer to your devices’
manual.
2 Select your router SSID from the list of available wireless
networks.
Network Configuration
9 Select Network Configuration tab.
10Select your router SSID from the pull-down list of
Service Set ID (SSID).
3 Wait until successful Wi-Fi connection from the
additional AirPlay devices to the router.
4 Continue with step 8 to 9 in ‘Direct wireless connection’
SHARP_XL-HF401 xxxxx
Downloaded From Disc-Player.com Sharp Manuals
of page 7.
Notes:
● This product may face some irregularities due to various
unforseen reasons from other devices in the process of Wi-Fi
pairing. Should this happen, unplug the AC power lead, and plug
it back in.
Wi-Fi network Setup for AirPlay / DLNA (continued)
Notes:
● For DLNA compatible devices, the function control may
vary depending on DLNA application used.
● To enable this unit to control iTunes software, the
setting below is required.
For Mac iTunes:
1 On the toolbar menu, click iTunes and select Preferences.
2 Under Devices tab, check the ‘
Allow iTunes audio control
from remote control speakers’ box.
For Windows iTunes:
1 On the toolbar menu, click Edit and select Preferences.
2 Under Devices tab, check the ‘
Allow iTunes control from
remote control speakers’ box.
■
Network Stand-by mode
On: Network Stand-by mode is enable.
During stand-by mode, if select XL-HF401PH speakers through AirPlay
icon and tap/click PLAY on AirPlay device, the unit will automatically power
on and stream the music from your AirPlay device.
To enable the Network Stand-by mode :
During Stand-by mode, press DEMO/DIMMER button on remote
control to select the Network Stand-by mode on or off.
To check the IP address of the router / Mac ID / SSID:
1 Press iPod MENU button on the remote control.
2 Press / button on the remote control repeatedly.
The display will toggle as below:
Wi-Fi Setup
IP address
SSID
(when using router)
Mac ID
Listening to the iPod, iPhone or iPad
Made for:
● iPod touch (4th generation) ● iPod nano (3rd generation)
nd
● iPod
touch (3rd generation)
Downloaded From
Disc-Player.com
Sharp Manuals● iPod nano (2 generation)
● iPod touch (2nd generation) ● iPhone 4S
● iPod touch (1st generation) ● iPhone 4
● The headphone output of the main unit is switched off during inserting
iPod, iPhone and iPad unit. This is an Apple product specification.
■
iPod, iPhone and iPad connection via USB terminal
1 Insert the connector to the iPod, iPhone or iPad.
iPad
Connector
2 Place the iPad to the stand for iPad.
iPad
Stand for iPad
3 Connect the iPod, iPhone or iPad to the unit via USB
connector.
Listening to the iPod, iPhone or iPad (continued)
■ iPod and iPhone connection (Dock only)
Caution:
Unplug all accessories from the iPod or iPhone before
inserting it into the dock.
Note:
Docking station is not recommended for iPad connection.
Adaptor for iPod and iPhone connection
Notes:
● Please use the adaptor supplied with your iPod or iPhone unit.
● You can use an audio cable to connect your iPod to the AUDIO
IN socket if:
1. your iPod adaptor does not fit into the iPod dock on the
main unit.
2. you have an iPod that does not have an iPod adaptor.
3. you have an iPod that does not have an iPod 30 pin
connector.
Adaptor No.
12
15
15
19
19
■
■
iPod or iPhone playback
1 Press the ON/STAND-BY button to turn the power on.
2 Press the iPod button on the remote control or FUNCTION
button repeatedly on the main unit to select iPod function.
3 Insert iPod or iPhone unit into the dock of main unit. “DOCK
OK” will appear.
4 Press the / (iPod
/ ) button to start playback.
iPhone Description
iPhone
iPhone 3G
iPhone 3GS
iPhone 4
iPhone 4S
To insert adaptor for iPod or iPhone
CD/USB
RDS
1 Open the docking station for iPod and iPhone by pulling
up the cover.
■
Downloaded From Disc-Player.com Sharp Manuals
2 Insert the adaptor for iPod or iPhone into unit and
To disconnect iPod, iPhone or iPad
Simply remove the iPod or iPhone from the docking station
or iPad connector from USB terminal. It is safe to do so
even during playback.
Listening to the iPod, iPhone or iPad
(continued)
■
Navigating the iPod, iPhone or iPad
menus
Function Main unit
Dock/USB
Remote control
Dock
iPod
Note:
When navigating the iPod, iPhone or iPad menu with remote
control, do not operate any of the buttons on the iPod or iPhone
unit. The volume level is adjusted by turning the volume knob (on
the main unit) or by pressing the VOL (+ or –) button (on the
remote control). Adjusting the volume on the iPod, iPhone or iPad
units give no effect.
Operation
Menu
____
Enter
____
Press to confirm the
selection.
Cursor
Up/Down
____
Press to select the
iPod menu.
1 Press the iPod MENU button to view the menu on iPod,
iPhone or iPad unit. Press it again to go back to previous
menu.
2 Use the PRESET ( or ) button to select an item on the
menu and then press ENTER button.
USB
iPod
Press to view the
iPod menu during
iPod function.
Listening to a CD or MP3/WMA disc
iPod, iPhone and iPad operations:
The operations described below depend on the generation iPod,
iPhone and iPad you are using.
System on operation:
When the main unit is powered on, the iPod, iPhone or iPad units
will automatically power on when docked or connected in the unit.
System off (stand-by operation):
When the main unit is turned to stand-by mode, the docked iPod,
iPhone or connected iPad unit will automatically turn to stand-by
mode.
■
Various iPod, iPhone and iPad functions
Function Main unit
Dock/USB
Remote control
Dock
PlayDisc-Player.com Sharp Manuals
Downloaded From
iPod
Operation
CD/USB
RDS
USB
CD/USB
Press in the pause
mode.
This system can play back a standard CD, CD-R/RW in the CD format
Listening to a CD or MP3/WMA disc
(continued)
Advanced CD or MP3/WMA disc
playback
5 Press the OPEN/CLOSE button to close the disc tray.
6 Press the / (CD/USB / ) button to start playback. After
CD/USB
RDS
the last track is played, the unit will stop automatically.
Caution:
● Do not place two discs in one disc tray.
● Do not play discs of special shapes (heart, octagon, etc). It
may cause malfunctions.
● Do not push the disc tray while it is moving.
● If the power fails while the tray is open, wait until the power is
restored.
● If TV or radio interference occurs during CD operation, move
the unit away from the TV or radio.
● Be sure to place 8 cm (3") disc in the middle of the disc tray.
● Due to the structure of the disc information, it takes longer to
read an MP3/WMA disc than a normal CD (approximately 20
to 90 seconds).
Notes for CD or MP3/WMA disc:
● When the end of the last track is reached during fast forward,
“END” will appear on the display and CD operation will be
paused. When the beginning of the first track is reached
during fast reverse, the unit will enter the playback mode (only
for CD).
● Rewritable multi-session discs with unfinished writing, can
still be played.
■
Various disc functions
Main
Remote
Downloaded FromFunction
Disc-Player.com
Sharp Manuals
unit
control
Operation
■
Direct track search
By using the Numeric buttons, the desired tracks on the
current disc can be played.
Use the Numeric buttons on the remote control to select
the desired track while playing the selected disc.
● The Numeric buttons allow you to select up to number 9.
● When selecting number 10 or higher, use the “10+” button.
A. For example, to choose 13
1 Press the “10+” button once.
2 Press the “1” button.
3 Press the “3” button.
Selected track number
B. For example, to choose 130
1
2
3
4
Press the “10+” button twice.
Press the “1” button.
Press the “3” button.
Press the “0” button.
Notes:
● A track number higher than the number of tracks on the
disc cannot be selected.
Advanced CD or MP3/WMA disc playback (continued)
■
Random play (shuffle)
The tracks on the disc can be played in random order
automatically.
To random play all tracks:
Press RANDOM button on the remote control until “Random”
appears. Press the / (CD/USB / ) button.
To cancel random play:
Press the RANDOM button again. “RDM” indicator will
disappear.
Notes:
● If you press the
button during random play, you can
move to the track selected next by the random operation.
On the other hand, the
button does not allow you to
move to the previous track. The beginning of the track
being played will be located.
● In random play, the unit will select and play tracks
automatically. (You cannot select the order of the tracks.)
■
Programmed play (CD)
You can choose up to 32 selections for playback in the order
you like.
1 While in the stop mode, press the MEMORY button on the
remote control to enter the programming save mode.
2 Press the Numeric buttons on the remote control to
Downloaded From select
Disc-Player.com
Sharptrack.
Manuals
the desired
■
Programmed play (MP3/WMA)
1 While in the stop mode, press the MEMORY button to
enter the programming save mode.
2 Press the PRESET (
or
) button on the remote
control to select the desired folder.
Then press Numeric buttons on the remote control to
select the desired tracks.
Note: To select track number 10 or higher, refer
’Direct track search’ on page 12.
3 Repeat step 2 for other folder/tracks. Up to 32 tracks
can be programmed.
4 Press the
/ (CD/USB
/ ) button to start playback.
To cancel the programmed play mode:
During programmed stop mode, press the (CD/USB )
button. The display will show “Memory Clear” and all the
programmed contents will be cleared.
Adding tracks to the programme:
If a programme has been previously stored, the “MEM”
indicator will be displayed. Press the MEMORY button.
MP3/WMA folder mode (only for MP3/WMA files)
To play back MP3/WMA (Windows Media Audio) file
There are many music sites on the internet that you can
download MP3/WMA (Windows Media Audio) music files.
Follow the instructions from the website on how to
download the music files. You can then play back these
downloaded music files by burning them to a CD-R/RW
disc.
● Your downloaded song/files are for personal use only.
Any other usage of the song without owner’s
permission, is against the law.
■
CD/USB
RDS
About folder playback order
If MP3/WMA files are recorded in several folders, a folder
number will be set to each folder automatically.
These folders can be selected by the FOLDER button on
the remote control. If there is no supported file formats
inside the selected folder, the folder is skipped and the next
folder will be selected.
Example: How to set folder number if MP3/WMA format
files are recorded as below figure.
■
Procedure to playback MP3/WMA disc with
folder mode on
To play back CD-R/RW.
1 Press the CD button, and load an MP3/WMA disc.
Press the FOLDER button and disc info will be
displayed.
1 ROOT folder is set as folder 1.
MP3 indicator
WMA indicator
2 As for folders inside ROOT folder (Folder A and Folder
TOTAL indicator
B), the folder which is recorded earlier on the disc will be
set as folder 2 and folder 6.
3 As for folder inside Folder A (Folder C and Folder D), the
folder which is recorded earlier on the disc will be set as
folder 3 and folder 4.
4 Folder E that is inside Folder D will be set as folder 5.
● The folder and file order information which is recorded
on the disc depends on the writing software. There
maybe possibilities that this unit will playback the files
Downloaded From Disc-Player.com
Manuals
not accordingSharp
to our
expected playback order.
● For CD MP3/WMA, 999 numbers of folders and files
Total number of folder
Total number of files
2 Press the PRESET (
or ) button to select desired
playback folder. (Folder mode on)
FOLDER
indicator
FOLDER number
First track number
Listening to USB mass storage device/MP3 player
Caution:
At USB mode, once the iPod or iPhone is docked onto the
unit, the iPod or iPhone will automatically start charging.
‘iPod DOCK Charge Mode’ will be displayed. In order to
listen to any USB mass storage device / MP3 player, the
iPod or iPhone must be removed from the docking station.
2 Press the FOLDER button, and press the PRESET (
or ) button
to select desired playback folder. To start playback with folder mode on,
go to step 4. To change the playback folder, press the PRESET
( or ) button to select another folder.
3 Select desired file to be played back by pressing the
or
button.
4 Press the / (CD/USB / ) button. Playback will start and the file
name will be displayed.
● Title, Artist and Album name are displayed if they are recorded in
the USB memory device.
● Display content can be changed by pressing the
CD/USB DISPLAY button.
■
To remove USB memory device
1 Press the
(CD/USB
) button to stop playback.
2 Disconnect USB memory device from the USB terminal.
CD/USB
RDS
Note:
This product is not compatible with MTP and AAC file
systems from USB mass storage device or MP3 player.
■
To play back USB/MP3 player with folder
mode off
1 Press the USB button on the remote control or
FUNCTION button repeatedly on main unit to select
function.Sharp
Connect
Downloaded From USB
Disc-Player.com
Manualsthe USB memory device that
has MP3/WMA format files on the unit. When the USB
memory is connected to the main unit, the device
Notes:
● SHARP will not be held liable for the loss of data while
the USB memory device is connected to the audio
system.
● Files compressed in MP3 and/or WMA format can be
played back when connected to the USB terminal.
● This USB memory’s format supports FAT 16 or FAT 32.
● SHARP cannot guarantee that all USB memory
devices will work on this audio system.
● USB cable is not recommended for use in this audio
system to connect to USB memory device. Use of the
Advanced USB playback
Listening to the radio
The following functions are the same as CD
operations:
Page
Direct track search . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Repeat play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Random play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Programmed play (MP3/WMA) . . . . . . . . . . . . . . . . . .13
Note:
If USB memory device is not connected, “USB No Media”
will be shown on the display.
Notes:
● This unit only supports “MPEG-1 Audio Layer-3”
format. (Sampling Frequency is 32, 44.1, 48kHz)
● Playback order for MP3 files may differ depending on
the writing software used during file download.
● Bitrate which is supported by MP3 is 32~320 kbps,
WMA is 64~160 kbps.
● For MP3/WMA files, please put “.MP3” “.WMA”
extension. Files cannot be played back if there is no
MP3/WMA extension.
● Playlists are not supported on this unit.
● This unit can display Folder Name or File Name up to
32 characters.
● Maximum total number of MP3/WMA files is 65025.
● Total number of folders read is 999 including folder with
non-playable file. However, the display shows only
folder with MP3 files.
● The display playback time may not be displayed
correctly when playing back a variable bitrate file.
● The ID3TAG information supported are TITLE, ARTIST
and ALBUM only. Title name, artist name and album
name can be displayed by pressing the CD/USB
DISPLAY button during file playback or pause mode.
● WMA meta tag also supports title, artist and album
name which are recorded in WMA files. Copyright
protected WMA files cannot be played back.
Downloaded From Disc-Player.com Sharp Manuals
CD/USB
RDS
■
Tuning
1 Press the ON/STAND-BY button to turn the power on.
2 Press the TUNER button repeatedly to select FM Stereo
or FM Mono.
3 Press the TUNING (
or
) button on the remote
control to tune in to the desired station.
● Manual tuning:
Press the TUNING (
or
) button repeatedly to
tune in to the desired station.
● Auto tuning:
When the TUNING ( or
) button is pressed for
more than 0.5 seconds, scanning will start
Listening to the radio (continued)
Using the Radio Data System (RDS)
■
RDS is a broadcasting service which a growing
number of FM stations provide. These FM stations
send additional signals along with their regular
programme signals. They send their station names,
and information about the type of programme such as
sport, music, etc.
When tuned to an RDS station, “RDS” and the station
name will be displayed.
“TP” (Traffic Programme) will appear on the display when
the received broadcast carries traffic information, and “TA”
(Traffic Announcement) will appear while a traffic
information is on air.
“PTYI” (Dynamic PTY Indicator) will appear while the
Dynamic PTY station is received.
Memorising a station
You can store 40 FM stations in memory and recall them
at the push of a button. (Preset tuning)
1 Perform steps 1 - 3 in “Tuning”.
2 Press the MEMORY button.
3 Within 30 seconds, press the PRESET (
or ) button
to select the preset channel number. Store the stations
in memory, in order, starting with preset channel 1.
4 Within 30 seconds, press the MEMORY button to store
that station in memory. If the “MEM” and preset number
indicators disappear before the station is memorised,
repeat the operation from step 2.
5 Repeat steps 1 - 4 to set other stations, or to change a
preset station. When a new station is stored in the
memory, the station previously memorised for that
preset channel number will be erased.
Note:
The backup function protects the memorised stations for a
few hours should there be a power failure or the AC power
lead become disconnected.
■
To recall a memorised station
1 Press the PRESET (
or
) button for less than 0.5
seconds to select the desired station.
Downloaded From
Sharppreset
Manuals stations
■ Disc-Player.com
To scan the
The stations saved in the memory can be scanned
You can control the RDS by using the buttons on the
remote control only.
■
Information provided by RDS
Each time the RDS DISPLAY button is pressed, the
display will switch as follows:
Using the Radio Data System (RDS) (continued)
■
Using the Auto Station Programme
Memory (ASPM)
While in the ASPM operation mode, the tuner will
automatically search for new RDS stations. Up to 40
stations can be stored.
If you have already stored some stations in memory, the
number of new stations you can store will be less.
1 Press the TUNER button on the remote control or
FUNCTION button repeatedly on the main unit to
select TUNER function.
2 Press and hold down the RDS ASPM button on the
remote control.
1 After “ASPM” has flashed for about 4 seconds,
scanning will start (87.50 - 108.00 MHz).
Notes for radio text:
● The first 14 characters of the radio text will appear for
4 seconds and then they will scroll across the display.
● If you tune in to an RDS station which is not
broadcasting any radio text, “No RT” will be displayed
when you switch to the radio text position.
● While radio text data is received or when the text
contents change, “RT” will be displayed.
■
To recall stations in memory
To specify programmed types and select stations
(PTY search):
You can search a station by specifying the programme type
(news, sports, traffic programme, etc. ... see page 19) from
the stations in memory.
1 Press the TUNER button on the remote control or
FUNCTION button repeatedly on the main unit to
select TUNER function.
2 When an RDS station is found, “RDS” will appear
for a short time and the station will be stored in
memory.
2 Press the RDS PTY button on the remote control.
“SELECT” and “PTY TI” will appear alternately for
about 6 seconds.
3 After scanning, the number of stations stored in
memory will be displayed for 4 seconds, and then
“END” will appear for 4 seconds.
To stop the ASPM operation before it is complete:
Press
the RDS ASPM
button while it is scanning for stations.
Downloaded From
Disc-Player.com
Sharp Manuals
The stations which are already stored in memory will be kept
there.
3 Within 6 seconds, press the PRESET (
or
) button
to select the programme type.
Each time the button is pressed, the programme type
will appear. If the button is held down for more than
0.5 seconds, the programme type will appear
continuously.
Using the Radio Data System (RDS) (continued)
Descriptions of the PTY (Programme Type) codes, TP
(Traffic Programme) and TA (Traffic Announcement)
You can search for and receive the following PTY, TP and
TA signals.
Short accounts of facts, events and
publicly expressed views, reportage and
actuality.
AFFAIRS
Topical programme expanding or
enlarging upon the news, generally in
different presentation style or concept,
including debate, or analysis.
INFO
Programmes whose purpose is to impart
advice in the widest sense.
SPORT
Programme concerned with any aspect
of sport.
EDUCATE
Programme intended primarily to
educate, of which the formal element is
fundamental.
DRAMA
All radio plays and serials.
CULTURE
Programmes concerned with any aspect
of national or regional culture, including
language, theatre, etc.
SCIENCE
Programmes about the natural sciences
and technology.
VARIED
Used
for
mainly
speech-based
programmes
usually
of
lightentertainment nature, not covered by
other categories. Examples include:
quizzes, panel games, personality
interviews.
POP M
Commercial
music,
which
would
generally be considered to be of current
popular appeal, often featuring in current
or recent record sales charts.
ROCK M
Contemporary modern music, usually
and performed by young
Downloaded From Disc-Player.com written
Sharp Manuals
musicians.
RELIGION
PHONE IN
NEWS
TRAVEL
LEISURE
JAZZ
COUNTRY
NATION M
OLDIES
FOLK M
DOCUMENT
Any aspect of beliefs and faiths, involving
a God or Gods, the nature of existence
and ethics.
Involving members of the public
expressing their views either by phone or
at a public forum.
Features and programmes concerned
with travel to near and far destinations,
package tours and travel ideas and
opportunities.
Not
for
use
for
announcements about problems, delays,
or roadworks affecting immediate travel
where TP/TA should be used.
Programmes
concerned
with
recreational activities in which the
listener might participate. Examples
include, Gardening, Fishing, Antique
collecting, Cooking, Food & Wine, etc.
Polyphonic,
syncopated
music
characterised by improvisation.
Songs which originate from, or continue
the musical tradition of the American
Southern States. Characterised by a
straightforward melody and narrative
story line.
Current Popular Music of the Nation or
Region in that country's language, as
opposed to International “Pop” which is
usually US or UK inspired and in English.
Music from the so-called “golden age” of
popular music.
Music which has its roots in the musical
culture of a particular nation, usually
played on acoustic instruments. The
narrative or story may be based on
historical events or people.
Programme concerned with factual
matters, presented in an investigative
Timer and sleep operation (Remote control only)
■
Timer playback
Before setting timer:
● Check that the clock is set to the correct time (refer to
page 6 - 7). If it is not set, you cannot use the timer
function.
● For timer playback: Plug in USB or load discs or dock
iPod to be played.
CD/USB
RDS
1 Press the ON/STAND-BY button to turn the power on.
2 Press and hold the CLOCK/TIMER button.
Timer playback:
The unit turns on and plays the desired source (CD,
TUNER, USB, iPod, AUDIO IN, LINE IN) at a preset time.
This unit has 2 types of timer: ONCE TIMER and DAILY
TIMER.
Once timer:
Once timer play works for one time only at a preset time.
(“ ” indicator).
Daily timer:
Daily timer play works at the same preset time every day
that we set. For example, set the timer as a wake-up call
every morning.
(“DAILY” indicator).
3 Within 10 seconds, press the
or
button to
select “Once” or “Daily”, and press the ENTER button.
4 Within 10 seconds, press the
or
button to
select “Timer Set”, and press the ENTER button.
5 To select the timer playback source (CD, TUNER, USB,
iPod, AUDIO IN, LINE IN), press the
or
button.
Press the ENTER button.
When you select the tuner, select a station by pressing
the
or
button, and then press the ENTER
button. If a station has not been programmed, “No
Preset” will be displayed and timer setting will be
cancelled.
6 To adjust the day, press the
7 To adjust the hour, press the
1 Set the daily timer (pages 20 - 21).
8 To adjust the minutes, press the
Downloaded From Disc-Player.com Sharp Manuals
2 Set the once timer (pages 20 - 21).
or
button and then
or
button and then
press the ENTER button.
Using the once timer and daily timer in combination:
For example, use the once timer to listen a radio
programme, and use the daily timer to wake up.
press the ENTER button.
then press the ENTER button.
or
button and
Timer and sleep operation (Remote control only) (continued)
13 When the timer end time is reached, the system will
To confirm the remaining sleep time:
enter the power stand-by mode automatically.
Once timer:
The timer will be cancelled.
Daily timer:
The timer operates at the same time every selected day.
It will continue until the daily timer setting is cancelled.
Cancel the daily timer when it is not in use.
1 While “SLEEP” is indicated, press the SLEEP button.
Notes:
● When performing timer playback using another unit
connected to the USB terminal or AUDIO IN jack, select
“USB” or “AUDIO IN” or “LINE IN” in step 5.
● This unit will turn on or enter the power stand-by mode
automatically. However, the connected unit will not turn
on or off. To stop the timer playback, follow step
“Cancelling the timer setting” of this page.
1 While “SLEEP” is indicated, press the SLEEP button.
Checking the timer setting:
Sleep and timer playback:
For example, you can fall asleep listening to the radio and
wake up to CD in the next morning.
1 Turn the power on and press and hold down the
CLOCK/TIMER button.
2 Within 10 seconds, press the
or
button to select
“Once” or “Daily”, and press the ENTER button.
3 Within 10 seconds, press the
or
button to select
“Timer Call”, and press the ENTER button.
Cancelling the timer setting:
1 Turn the power on and press and hold down the
CLOCK/TIMER button.
2 Within 10 seconds, press the
or
button to select
“Once” or “Daily”, and press the ENTER button.
To cancel the sleep operation:
Press the ON/STAND-BY button while “SLEEP” is
indicated. To cancel the sleep operation without setting
the unit to the stand-by mode, proceed as follows.
2 Within 5 seconds, press the “0” button twice until
“SLEEP 00” appears.
■
To use timer and sleep operation together
1 Set the sleep time (steps 1 - 5).
2 While the sleep timer is set, set the timer playback
(steps 2 - 9, page 20).
Sleep timer
setting
Timer playback
setting
1-99 minutes
Sleep operation will
automatically stop
3 Within 10 seconds, press the
or
button to select
“Timer Off”, and press the ENTER button. Timer will be
cancelled (the setting will not be cancelled).
Downloaded From Disc-Player.com Sharp Manuals
Reusing the memorised timer setting:
End
time
Desired time
Timer playback
start time
Enhancing your system
The connection lead is not included. Purchase a
Enhancing your system (continued)
■
Listening to the playback sounds of
portable audio player, etc.
1 Use a connection lead to connect the portable audio
player etc. to the AUDIO IN socket. When using video
equipment, connect the audio output to this unit and the
video output to a television.
2 Press the ON/STAND-BY button to turn the power on.
3 Press the AUDIO/LINE (INPUT) button on the remote
control or FUNCTION button repeatedly on main unit to
select AUDIO IN function.
4 Play the connected equipment. If volume level of the
connected device is too high, sound distortion may
occur. Should this happen, lower the volume of the
connected device. If volume level is too low, increase the
volume of the connected device.
Note:
To prevent noise interference, place the unit away from the
television.
■
Headphones
● Do not turn the volume on to full at switch on and listen
to music at moderate levels. Excessive sound pressure
from earphones and headphones can cause hearing
loss.
● Before plugging in or unplugging the headphone,
reduce the volume.
● Be sure your headphone has a 3.5 mm (1/8") diameter
plug and impedance between 16 and 50 ohms. The
recommended impedance is 32 ohms.
● Plugging in the headphone disconnects the speakers
automatically. Adjust the volume using the VOLUME
control.
Troubleshooting chart
Many potential problems can be resolved by the owner
without calling a service technician.
If something is wrong with this product, check the following before
calling your authorised SHARP dealer or service centre.
■
General
Symptom
Possible cause
● The clock is not set to ● Did a power failure occur?
the correct time.
Reset the clock. (Refer page 6)
● When a button is
● Set the unit to the power
pressed, the unit
stand-by mode and then
does not respond.
turn it back on.
● If the unit still malfunctions,
reset it. (Refer page 23)
● No sound is heard.
● Is the volume level set to “Min”?
● Are the headphones connected?
Downloaded From Disc-Player.com Sharp Manuals● Are the speaker wires
disconnected?
■
CD player
Symptom
Possible cause
● Playback does not
● Is the disc loaded upside
start.
down?
● Playback stops in the ● Does the disc satisfy the
middle or is not
standards?
performed properly. ● Is the disc distorted or
scratched?
● Playback sounds are ● Is the unit located near
skipped, or stopped in
excessive vibrations?
the middle of a track. ● Is the disc very dirty?
● Has condensation formed
inside the unit?
■
Tuner
Symptom
Possible cause
Troubleshooting chart (continued)
■
Symptom
● Wi-Fi network
connection failed.
■
■
Wi-Fi connection
Possible cause
● Is your router Wi-Fi
certified?
● WPS-Pin and WPS-PBC
routers is not supported by
this unit.
● Is the SSID broadcast on
the Wi-Fi router enabled?
● Avoid using Wi-Fi channel
which is much overlapped
by the nearby Wi-Fi
network.
● Is the unit placed near a
potential source of
interference which may
affect Wi-Fi signal, such as
microwave ovens?
● Is your PC using a Wi-Fi
network? Ethernet
connection for AirPlay /
DLNA network setup is not
possible.
● Do not use special
characters like ‘%, #, *’ to
rename your router or the
AirPlay device in the
setting menu.
AirPlay / DLNA
Symptom
Possible cause
● No AirPlay icon on ● Is the unit joined to the
Apple AirPlay
AirPlay network?
device or iTunes in ● Is the Bonjour service in
Downloaded From Disc-Player.com
Sharp Manuals your PC enabled before you
my PC.
open iTunes?
Remote control
Symptom
● The remote control
does not operate.
■
Possible cause
● Is the AC power lead of the
unit plugged in?
● Is the battery polarity
correct?
● Are the batteries dead?
● Is the distance or angle
incorrect?
● Does the remote control
sensor receive strong light?
Condensation
Sudden temperature changes, storage or operation in an
extremely humid environment may cause condensation
inside the cabinet (CD pickup, etc.) or on the transmitter on
the remote control. Condensation can cause the unit to
malfunction. If this happens, leave the power on with no
disc in the unit until normal playback is possible (about 1
hour). Wipe off any condensation on the transmitter with a
soft cloth before operating the unit.
■
If problem occurs
When this product is subjected to strong external
interference (mechanical shock, excessive static
electricity, abnormal supply voltage due to lightning, etc.)
or if it is operated incorrectly, it may malfunction.
If such a problem occurs, do the following:
1 Set the unit to the stand-by mode and turn the power on
again.
2 If the unit is not restored in the previous operation,
unplug and plug in the unit again, and then turn the
power on.
Troubleshooting chart (continued)
■
NO
Before transporting the unit
Remove the iPod, iPhone, iPad, USB memory device and disc from
the unit. Then, set the unit to the power stand-by mode. Carrying the
unit with iPod, iPhone, iPad or USB memory device left connected
or discs left inside might damage the unit.
■
Care of compact discs
Compact discs are fairly resistant to damage, however mistracking can occur
due to an accumulation of dirt on the disc surface. Follow the guidelines below
for maximum enjoyment from your CD collection and player.
● Do not write on either side of the disc, particularly the non-label side
from which signals are read. Do not mark this surface.
● Keep your discs away from direct sunlight, heat, and excessive
moisture.
● Always hold the CDs by the edges. Fingerprints, dirt, or water on the
CDs can cause noise or mistracking. If a CD is dirty or does not play
properly, clean it with a soft, dry cloth, wiping straight out from the
centre, along the radius.
YES
Correct
Maintenance
■
Cleaning the cabinet
Periodically wipe the cabinet with a soft cloth and a diluted
soap solution, then with a dry cloth.
Caution:
● Do not use chemicals for cleaning (petrol, paint thinner,
etc.). It may damage the cabinet.
● Do not apply oil to the inside of the unit. It may cause malfunctions.
Specifications
As part of our policy of continuous improvement, SHARP reserves
the right to make design and specification changes for product
improvement without prior notice. The performance specification
figures indicated are nominal values of production units. There
may be some deviations from these values in individual units.
■
General
Power source
Power
consumption
Dimensions
AC 220 - 240 V ~ 50/60 Hz
Power on: 40 W
Power stand-by: 0.4 W (*)
Width: 215 mm (8 - 1/2")
Height: 96 mm (3 - 4/5")
136 mm (5 - 2/5") (with Wi-Fi
aerial upright)
Depth: 335 mm (13 - 1/5")
Downloaded From
Disc-Player.com Sharp Manuals
Weight
2.8 kg (6.2 lbs.)
■
USB (MP3 / WMA)
USB host interface ● Complies with USB 1.1 (Full
Speed)/2.0 Mass Storage
Class.
● Support Bulk only and CBI
protocol.
Support file
● MPEG 1 Layer 3
● WMA (Non DRM)
Bitrate support
● MP3 (32 ~ 320 kbps)
● WMA (64 ~ 160 kbps)
Other
● Maximum total number of
MP3/WMA files is 65025.
● Maximum total number of
folders is 999 INCLUSIVE of
root directory.
● The ID3TAG information
Downloaded From Disc-Player.com Sharp Manuals
UP
XL-HF401PH
HI FI COMPONENT SYSTEM
Downloaded From Disc-Player.com Sharp Manuals
DOWN
