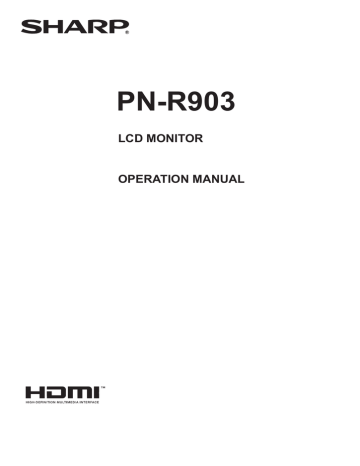

Sharp PN-R903 Car Video System Operation Manual

PN-R903

LCD MONITOR

OPERATION MANUAL

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dustbin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don’t purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

The battery supplied with this product contains traces of Lead.

For EU:

The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.

For Switzerland:

The used battery is to be returned to the selling point.

For other non-EU countries:

Please contact your local authority for correct method of disposal of the used battery.

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC

SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER.

NO USER-SERVICEABLE PARTS

INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within a triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

FOR CUSTOMERS IN U.K.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW:

BLUE:

BROWN:

Earth

Neutral

Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

• The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth or coloured green or green-and-yellow.

• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

Ensure that your equipment is connected correctly. If you are in any doubt consult a qualified electrician.

“WARNING: THIS APPARATUS MUST BE EARTHED.”

3

E

E

4

DEAR SHARP CUSTOMER

Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product.

SAFETY PRECAUTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the following precautions carefully before using the product.

1. Read instructions — All operating instructions must be read and understood before the product is operated.

2. Keep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future reference.

3. Observe warnings — All warnings on the product and in the instructions must be observed closely.

4. Follow instructions — All operating instructions must be followed.

5. Cleaning — Unplug the power cord from the AC outlet before cleaning the product. Use a dry cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.

6. Attachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.

7. Water and moisture — Do not use the product near water. Do not install the product in a place where water may splash onto it. Be careful of equipment which drains water such as an air-conditioner.

8. Ventilation — The vents and other openings in the cabinet are designed for ventilation.

Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a sofa, rug or other similar surface, since they can block ventilation openings.

Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

9. Power cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from resting on them.

10. The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.

11. Overloading — Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.

12. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts.

For the same reason, do not spill water or liquid on the product.

13. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.

14. Repair — If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs. a. When the power cord or plug is damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.

e. When the product has been dropped or damaged.

f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing.

15. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

16. Safety checks — Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

17. Wall mounting — When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer.

18. Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).

SAFETY PRECAUTIONS (Continued)

19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment, dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below:

• Use the specified batteries only.

• Install the batteries with due attention to the plus (+) and minus (-) sides of the batteries according to the instructions in the compartment.

• Do not mix old and new batteries.

• Do not mix batteries of different types. Voltage specifications of batteries of the same shape may vary.

• Replace an exhausted battery with a new one promptly.

• If you will not use the remote control for a long time, remove the batteries.

• If leaked battery fluid gets on your skin or clothing, rinse immediately and thoroughly. If it gets into your eye, bathe your eye well rather than rubbing and seek medical treatment immediately. Leaked battery fluid that gets into your eye or your clothing may cause a skin irritation or damage your eye.

20. Usage of the monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury, severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and missile launch control in a weapon system.

21. Do not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in low-temperature burns.

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

To maintain compliance with EMC regulations, use shielded cables to connect to the following terminals: DVI-D output terminal, DVI-I input terminal, PC/AV HDMI input terminal, PC/AV D-SUB input terminal, RS-232C input/output terminals, and

DisplayPort input/output terminals.

If a monitor is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using fixing devices like wall mount brackets recommended by the manufacturer.

• Only using furniture that can safely support the monitor.

• Ensuring the monitor is not overhanging the edge of the supporting furniture.

• Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the monitor to a suitable support.

• Not standing the monitors on cloth or other materials placed between the monitor and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the monitor or its controls.

Especially for child safety

- Don’t allow children to climb on or play with the monitor.

- Don’t place the monitor on furniture that can easily be used as steps, such as a chest of drawers.

- Remember that children can become excited while watching a program, especially on a “larger than life” monitor. Care should be taken to place or install the monitor where it cannot be pushed, pulled over, or knocked down.

- Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by curious children.

5

E

E

6

TIPS AND SAFETY INSTRUCTIONS

- The TFT color LCD panel used in this monitor is made with the application of high precision technology. However, there may be minute points on the screen where pixels never light or are permanently lit. Also, if the screen is viewed from an acute angle there may be uneven colors or brightness.

Please note that these are not malfunctions but common phenomena of LCDs and will not affect the performance of the monitor.

- Do not display a still picture for a long period, as this could cause a residual image.

- Never rub or tap the monitor with hard objects.

- Please understand that SHARP CORPORATION bears no responsibility for errors made during use by the customer or a third party, nor for any other malfunctions or damage to this product arising during use, except where indemnity liability is recognized under law.

- This monitor and its accessories may be upgraded without advance notice.

- Do not use the monitor where there is a lot of dust, where humidity is high, or where the monitor may come into contact with oil or steam, as this could lead to fire.

- Ensure that the monitor does not come into contact with water or other fluids. Ensure that no objects such as paper clips or pins enter the monitor as this could lead to fire or electric shock.

- Do not place the monitor on top of unstable objects or in unsafe places. Do not allow the monitor to receive strong shocks or to strongly vibrate. Causing the monitor to fall or topple over may damage it.

- Do not use the monitor near heating equipment or in places where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire.

- Do not use the monitor in places where it may be exposed to direct sunlight.

- Please be sure to constantly remove dust and garbage that has attached to the ventilation opening.

If dust collects in the ventilation opening, it may lead to excessive heat, outbreak of fire, or malfunction.

- As a standard, clean the inside of the monitor once every year. If dust collects inside the monitor, it may lead to excessive heat, outbreak of fire, or malfunction. Please request a cleaning of the inside of the monitor from an authorized SHARP servicing dealer or service center.

- Images cannot be rotated on this monitor.

When using in portrait orientation, you will need to prepare appropriately orientated content in advance.

- The AC outlet shall be installed near the equipment and shall be easily accessible.

The Power Cord

- Use only the power cord supplied with the monitor.

- Do not damage the power cord nor place heavy objects on it, stretch it or over bend it. Also, do not add extension cords.

Damage to the cord may result in fire or electric shock.

- Do not use the power cord with a power tap.

Adding an extension cord may lead to fire as a result of overheating.

- Do not remove or insert the power plug with wet hands.

Doing so could result in electric shock.

- Unplug the power cord if it is not used for a long time.

- Do not attempt to repair the power cord if it is broken or malfunctioning. Refer the servicing to the service representative.

Manual Scope

- Microsoft, Windows and Internet Explorer are registered trademarks of Microsoft Corporation.

- The terms HDMI and HDMI High-Definition Multimedia

Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

- DisplayPort is a registered trademark of Video Electronics

Standards Association.

- Adobe, Acrobat, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United

States and/or other countries.

- This product comes with RICOH Bitmap Fonts produced and sold by RICOH COMPANY, LTD.

- All other brand and product names are trademarks or registered trademarks of their respective holders.

- Language of OSD menu used in this manual is English by way of example.

- Illustrations in this manual may not exactly represent the actual product or display.

- This manual assumes use in landscape orientation, except where specifically noted.

LED Backlight

● The LED backlight in this product has a limited lifetime.

* If the screen gets dark or does not turn on, it may be necessary to replace the LED backlight.

* This LED backlight is exclusive to this product and must be replaced by an authorized SHARP servicing dealer or service center. Please contact an authorized SHARP servicing dealer or service center for assistance.

Fan

● The fan in this product has a limited lifetime.

● Please contact an authorized SHARP servicing dealer or service center for assistance with fan replacement.

MOUNTING PRECAUTIONS

• This product is for use indoors.

• A mounting bracket is required.

• Since the monitor is heavy, consult your dealer before installing, removing or moving the monitor.

• Mounting the monitor on the wall requires special expertise and the work must be performed by an authorized SHARP dealer. You should never attempt to perform any of this work yourself. Our company will bear no responsibility for accidents or injuries caused by improper mounting or mishandling.

• Use the monitor with the surface perpendicular to a level surface. If necessary, the monitor may be tilted up to 20 degrees upward or downward.

• This monitor should be used at an ambient temperature between 32°F (0°C) and 104°F (40°C). Provide enough space around the monitor to prevent heat from accumulating inside.

For the monitor in landscape orientation

Unit: inch [cm]

7-7/8 [20]

2 [5]

2

[5]

2 [5]

2

[5]

For the monitor in portrait orientation

Unit: inch [cm]

7-7/8 [20]

2 [5]

• Adhere to the following when installing the monitor in its portrait orientation. Failing to adhere to the following may cause malfunctions.

- Install the monitor such that the power LED is located on the bottom side.

- Set the MONITOR on the MONITOR menu to PORTRAIT.

(See page 26.)

• Use the supplied vertical sticker when you install the monitor in portrait orientation.

Logo

Operation panel

Do not remove the factory-affixed sticker but affix the sticker over it. Be careful not to cover the remote control sensor or buttons.

• This monitor is fixed to the temporary stand used in the package for transportation when shipped from the factory.

Please note that this stand is for temporary use only until the monitor is properly mounted.

2

[5]

2

[5]

2 [5]

• If it is difficult to provide sufficient space for any reason such as the installation of the monitor inside a housing, or if the ambient temperature may be outside of the range of 32°F (0°C) to 104°F (40°C), install a fan or take other measures to keep the ambient temperature within the required range.

• Temperature condition may change when using the monitor together with the optional equipments recommended by

SHARP. In such cases, please check the temperature condition specified by the optional equipments.

• Do not block any ventilation openings. If the temperature inside the monitor rises, this could lead to a malfunction.

• Do not place the monitor on a device which generates heat.

7

E

E

8

IMPORTANT INFORMATION ............................................3

DEAR SHARP CUSTOMER ..............................................4

SAFETY PRECAUTIONS ..................................................4

TIPS AND SAFETY INSTRUCTIONS ...............................6

MOUNTING PRECAUTIONS ............................................7

Supplied Components .....................................................8

Part Names .......................................................................9

Connecting Peripheral Equipment ...............................11

Connection with a PC or AV equipment .....................11

Connecting the Power Cord .........................................13

Binding Cables ...............................................................14

Removing the Handles ..................................................14

Preparing the Remote Control Unit ..............................15

Installing the batteries ................................................15

Remote control operation range .................................15

Turning Power On/Off ....................................................16

Turning on the main power.........................................16

Turning power on/off ..................................................16

Disabling power on/off operations ..............................17

Basic Operation .............................................................18

Menu Items .....................................................................20

Displaying the menu screen .......................................20

Menu item details .......................................................21

Adjustments for PC screen display ............................31

Contents

Initialization (Reset)/Functional Restriction Setting

(FUNCTION) ....................................................................32

Controlling the Monitor with a PC (RS-232C) ..............33

PC connection ............................................................33

Communication conditions .........................................33

Communication procedure .........................................33

Setting of the GAMMA user data ................................36

RS-232C command table ...........................................37

Controlling the Monitor with a PC (LAN) .....................45

Settings to connect to a LAN ......................................45

Controlling with a PC ..................................................47

[Advanced operation] Command-based control .........53

Troubleshooting .............................................................54

Specifications ...............................................................56

Mounting Precautions

(For SHARP dealers and service engineers) ...............61

Supplied Components

If any component should be missing, please contact your dealer.



Liquid Crystal Display Monitor: 1



Remote control unit: 1



Cable clamp: 3



Power cord



R-6 battery (“AA” size): 2



CD-ROM (Utility Disk for Windows): 1



Setup Manual: 1



Cover: 2



Cover screws: 4



Screw masking sheet: 4



Vertical sticker (Operation panel): 1



Vertical sticker (Logo): 1



Cover SHARP logo: 1

Place this sticker onto the SHARP logo to cover the logo.

* SHARP Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.

* For environmental protection!

Do not dispose of batteries in household waste. Follow the disposal instructions for your area.

n

Front view

1

Part Names

1. LCD panel

2. Remote control sensor (See page 15.)

3. Input switch (See page 18.)

4. Power switch (See page 16.)

5. Power LED (See page 16.)

TIPS

• Use a pointed object such as a pen tip to press the switches at the front of the monitor.

2

n

Rear view

3 4 5

2

5

6

7

3

8

1

4

5

9 10 11 12 13

Caution

• Consult your SHARP dealer for attachment/detachment of optional parts.

• Do not block the fan cover.

17

18

19

14

15

16

20

21

1. Optional attachment section

This section is used to connect optional hardware for function expansion. Offering this attachment location is not a guarantee that future compatible hardware attachments will be released.

2. Handles (See page 14.)

3. Fan/Fan Cover

4. Vents

5. Speakers

6. AC input terminal (See page 13.)

7. Main power switch (See page 16.)

8. DisplayPort input terminal (See page 11.)

9. DisplayPort output terminal (See page 11.)

10. DVI-I input terminal (See page 11.)

11. DVI-D output terminal (See page 12.)

12. Audio1 input terminal (See page 11.)

13. Audio2 input terminal (See page 11.)

14. Optional terminal

This terminal is provided for possible future

(optional) function expansion. Offering of this terminal is not a guarantee that future expanded functionality will be provided.

15. LAN terminal (See page 12.)

16. RS-232C output terminal (See page 12.)

17. RS-232C input terminal (See page 12.)

18. Audio output terminal (See page 12.)

19. PC/AV D-sub input terminal (See page 11.)

20. PC/AV HDMI1 input terminal (See page 11.)

21. PC/AV HDMI2 input terminal (See page 11.)

9

E

E

10

Part Names

n

Remote control unit

1

2

3

4

5

6

7

8

9

10

11

1. Signal transmitter

2. POWER button (See page 16.)

3. MUTE button (See page 18.)

4. VOL +/- buttons (See page 18.)

BRIGHT +/- buttons (See page 18.)

Cursor control ( / / / ) buttons

5. DISPLAY button (See page 18.)

6. MODE button (See page 18.)

7. INPUT button (See page 18.)

8. MENU button (See page 18.)

9. ENTER button (See page 18.)

10. RETURN button (See page 18.)

11. SIZE button (See page 18.)

Connecting Peripheral Equipment

3

4

12

10

5

13

11

Caution

• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/ disconnecting cables. Also, read the manual of the equipment to be connected.

• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables connected to the input and output terminals may cause malfunctions and the other problems.

• Do not use any cable that has a damaged or deformed terminal. Using such cables may cause malfunctions.

TIPS

• Images may not be displayed properly depending on the computer (video card) to be connected.

• Use the automatic screen adjustment when a PC screen is displayed for the first time using D-SUB[RGB] or DVI-I

(analog), or when the setting of the PC is changed. The screen is adjusted automatically when SELF ADJUST in the MONITOR menu is set to ON.

• If the audio output from the playback device is connected directly to speakers or other devices, the video on the monitor may appear delayed from the audio portion.

Audio should be played through this monitor by connecting the playback device to the monitor’s audio input, and connecting the monitor’s audio output to the speakers or other devices.

• The audio input terminals used in each input mode are factory-set as follows.

Input mode

DVI-I

DisplayPort

HDMI1[PC], HDMI1[AV],

HDMI2[PC], HDMI2[AV]

D-SUB[RGB],

D-SUB[COMPONENT],

D-SUB[VIDEO]

Audio input terminal

(Factory setting)

Audio1 input terminal

DisplayPort input terminal

PC/AV HDMI input terminal

Audio2 input terminal

1 8 2 9 6 7

Connection with a PC or AV equipment

1. DisplayPort input terminal

• Use a commercially available DisplayPort cable.

• Select the audio input terminal to be used in DisplayPort of AUDIO SELECT on the SETUP menu.

When DisplayPort is selected, connection to the audio input terminal is unnecessary.

2. DVI-I input terminal

• Use a commercially available signal cable (DVI-I 29 pin).

• Select the audio input terminal to be used in DVI-I of

AUDIO SELECT on the SETUP menu.

• If the display is not shown properly, set EDID SELECT

(DVI-I) of INPUT SELECT on the SETUP menu according to the device to be connected.

3. PC/AV HDMI1 input terminal

4. PC/AV HDMI2 input terminal

• Use a commercially available HDMI cable (conforming to the HDMI standard).

• Set HDMI1 or HDMI2 of INPUT SELECT on the SETUP menu according to the device to be connected.

• Select the audio input terminal to be used in HDMI1[AV],

HDMI1[PC], HDMI2[AV] or HDMI2[PC] of AUDIO SELECT on the SETUP menu.

When HDMI is selected, connection to the audio input terminal is unnecessary.

5. PC/AV D-sub input terminal

• Set D-SUB of INPUT SELECT on the SETUP menu according to the device to be connected.

• To use with D-SUB[VIDEO], connect the green terminal to the device’s video output.

• Select the audio input terminal to be used in D-SUB[RGB],

D-SUB[COMPONENT] or D-SUB[VIDEO] of AUDIO

SELECT on the SETUP menu.

6. Audio1 input terminal

7. Audio2 input terminal

• Use an audio cable without resistance.

• Set the audio input terminal to be used in each input mode in AUDIO SELECT on the SETUP menu.

11

E

E

12

Connecting Peripheral Equipment

8. DisplayPort output terminal

• The video of the DisplayPort input can be output to an external device.

• Use a commercially available DisplayPort cable.

• Outputting HDCP-encrypted video requires an external device which supports HDCP.

• This terminal allows the daisy chain connection (up to 25 monitors or up to 4 monitors when transmitting HDCPencoded content) by connecting the monitors to each other through the DisplayPort input terminal of each monitor.

9. DVI-D output terminal

• The video of the DVI-I (digital) input can be output to an external device.

• Outputting HDCP-encrypted video requires an external device which supports HDCP.

• This terminal allows the daisy chain connection of up to 5 monitors by connecting the monitors to each other through the DVI-I input terminal of each monitor.

TIPS

• The length of the signal cables or surrounding environment may affect the image quality.

• The output screen may not display properly when using terminals other than DVI-I for the input mode. In this case, turn off the power to all the monitors connected in a daisy chain and then turn the power on again.

• When connecting monitors in a daisy chain set AUTO

INPUT CHANGE to OFF.

• Video output is disabled in the following cases:

When the power is turned off

When the monitor is in input signal waiting mode

10. Audio output terminal

• The output sound varies depending on the input mode.

• The volume of the output sound can be fixed by setting

AUDIO OUTPUT of AUDIO OPTION on the SETUP menu.

• It is not possible to control the sound output from the audio output terminals with the AUDIO menu.

11. RS-232C output terminal

12. RS-232C input terminal

• You can control the monitor from a PC by connecting a commercially available RS-232 straight cable between these terminals and the PC.

13. LAN terminal

• You can control the monitor from a PC on a network by connecting a commercially available LAN cable between this terminal and a network.

Connecting the Power Cord

Caution

• Use only the power cord supplied with the monitor.

1. Turn off the main power switch.

2. Plug the power cord (supplied) into the AC input terminal.

3. Plug the power cord (supplied) into the AC power outlet.

3

For power outlet

Main power switch

1

2

Power cord (Supplied)

AC input terminal

TIPS

• When installing the monitor in landscape orientation, be sure to clamp the power cord (supplied) onto the cable clamp attachment using the supplied cable clamp. When clamping the power cord, take care not to stress the terminal of the power cord. Do not bend the power cord excessively.

Power cord (Supplied)

Cable clamp

Cable clamp attachment

13

E

E

14

Binding Cables

The cables connected to the terminals on the rear of the monitor can be fastened with the cable clamp.

Insert the cable clamp into the cable clamp attachment on the rear of the monitor and fasten the cables.

Cable

Cable clamp

attachment

Cable clamp

The handles can be removed.

Removing the Handles

Handle

Handle screws

Caution

• The removable handles and handle screws are for use with this monitor. Do not use them for any other devices.

• To attach handles, be sure to use the handles and handle screws which were removed from the monitor.

• Be sure the handles are attached securely.

Preparing the Remote Control Unit

Installing the batteries

1. Press the cover gently and slide it in the direction of the arrow.

Remote control operation range

The operation range of the remote control unit is approx. 16.4 feet (5 m) at an angle of approx 10° from the center to the top/ bottom/right/left of the remote control sensor.

2. See the instructions in the compartment and put in the supplied batteries (R-6 (“AA” size) x 2) with their plus (+) and minus (-) sides oriented correctly.

3. Close the cover.

TIPS

• When the batteries become exhausted, replace them with new (commercially available) batteries.

• The supplied batteries (R-6 (“AA” size) x 2) may become exhausted quickly depending on how they are stored.

• If you will not be using the remote control for a long time, remove the batteries.

• Use manganese or alkaline batteries only.

Remote control sensor

10°

10°

10°

16.4 feet

(5 m)

10°

TIPS

• Do not expose the remote control unit to shock by dropping or stepping on it. This could lead to a malfunction.

• Do not expose the remote control unit to liquids, and do not place it in an area with high humidity.

• The remote control unit may not work properly if the remote control sensor is under direct sunlight or strong lighting.

• Objects between the remote control unit and the remote control sensor may prevent proper operation.

• Replace the batteries when they run low as this may shorten the remote control’s operation range.

• If a fluorescent light is illuminated near the remote control unit, it may interfere with proper operation.

• Do not use it with the remote control of other equipment such as air conditioner, stereo components, etc.

15

E

E

16

Turning Power On/Off

Caution

• Turn on the monitor first before turning on the PC or playback device.

Turning on the main power

Turning power on/off

Press the POWER button or POWER switch to turn the power

ON/OFF.

Main power switch

Caution

• The main power must be turned on/off with the main power switch. Do not connect/disconnect the power cord or turn the breaker on/off while the main power switch is on.

• When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds.

• For a complete electrical disconnection, pull out the main plug.

Status

Green lit

Orange lit

Green flashing

Caution

Power LED

Status of the monitor

Power on

Power off (Standby mode)

Input signal waiting mode

• When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds.

A short interval may result in a malfunction.

TIPS

• When the main power switch is off, the monitor cannot be turned on.

• If the monitor is in the input signal standby mode and you press the POWER button on the remote control unit, the monitor enters standby mode.

• Setting the SCHEDULE flashes the power LED alternately in red and orange in standby mode.

• To disable the logo screen from displaying when turning the power ON, set LOGO SCREEN to OFF on the OTHERS menu. (See page 28.)

Turning Power On/Off

n

Operation mode

When the monitor is turned on for the first time after being shipped from the factory, the operation mode setting screen will be displayed. Set it to MODE1 or MODE2.

MODE1 ....OFF IF NO OPERATION is set to ON, and

STANDBY MODE is set to LOW POWER. (These settings can not be changed.)

If there is no operation for 4 hours or more, the monitor automatically enters standby mode. Power consumption in standby mode is also minimized.

MODE2 ....Will perform standard operation.

OFF IF NO OPERATION is set to OFF, and

STANDBY MODE is set to STANDARD. These settings can be changed.

Even after being set, changes can be made using

OPERATION MODE, located in the menu of the monitor. (See page 26.) n

Date/time setting

• If the time has yet to be set when the monitor is first turned on, the date/time setting screen appears. Set the date and time.

DATE/TIME SETTING

/ / : :

Disabling power on/off operations

Power on/power off operations can be disabled in order to protect the monitor from an accidental power off. Set the

ADJUSTMENT LOCK in FUNCTION menu to “ON 2”. (See page 32.)

01 / 01 / 20 13 00 : 00

OK···[ENTER] CANCEL···[RETURN]

1. Press or to select the date and time, and press or to change the numerical values.

2. Press

ENTER

.

• Be sure to set the date and time.

• The date/time setting screen will close automatically if no operation is performed for about 15 seconds. The date and time can be set using DATE/TIME SETTING from the SETUP menu when the date/time setting screen disappears.

•

•

•

•

•

•

TIPS

Set the date in “Day/Month/Year” order.

Set the time on a 24-hour basis.

The clock is maintained by the internal battery.

If you already set the time but the date/time setting screen appears when the power is turned on, the internal battery may be exhausted. Please contact an authorized SHARP servicing dealer or service center for assistance with battery replacement.

Estimated service life of the internal battery: About 5 years (depending on monitor operation)

The initial battery was inserted at the factory when the monitor was shipped, so it may run out of power before its expected operation life.

17

E

E

18

2

5

6

9

10

1. INPUT (Input mode selection)

The menu is displayed. Press or to select the input mode, and press

ENTER

to enter.

* You can select the input terminal by pressing the input switch of the monitor.

Audio Input mode

DVI-I

DisplayPort

HDMI1[PC]

HDMI1[AV]

HDMI2[PC]

HDMI2[AV]

D-SUB[RGB]

D-SUB[COMPONENT]

D-SUB[VIDEO]

Video

DVI-I input terminal

DisplayPort input terminal

PC/AV HDMI1 input terminal *1

PC/AV HDMI2 input terminal *2

PC/AV D-sub input terminal *3

*4

*1 Select the terminal to be used in HDMI1 of INPUT

SELECT. (See page 24.)

*2 Select the terminal to be used in HDMI2 of INPUT


*3 Select the terminal to be used in D-SUB of INPUT


*4 Select the terminal for AUDIO SELECT which is used for audio input. (See page 24.)

2. MUTE

Turns off the volume temporarily.

Press the MUTE button again to turn the sound back to the previous level.

3. MENU

Displays and turns off the menu screen. (see page 20.)

Basic Operation

1

4. VOL +/- (Volume adjustment)

Pressing or displays the VOLUME menu when the menu screen is not displayed.

V O L U M E 15

3

4

7

8

Press or to adjust the volume of the sound.

* If you do not press any buttons for about 4 seconds, the

VOLUME menu automatically disappears.

5. BRIGHT +/- (Brightness adjustment)

Pressing or displays the BRIGHT menu when the menu screen is not displayed.

B R I G H T 15

Press or to adjust the brightness.

* If you do not press any buttons for about 4 seconds, the

BRIGHT menu automatically disappears.

6. ENTER

Confirms the setting.

7. RETURN

Returns to the previous screen.

8. SIZE (Screen size selection)

The menu is displayed.

Press or to select the screen size. (See page 19.)

9. DISPLAY

Displays monitor information.

The display changes from INFORMATION1 →

INFORMATION2 → clear display, and so on every time you press this button.

• The display disappears automatically after about 15 seconds.

•

LAN

is displayed during LAN communication.

• If

LAN

is displayed in red, there is a duplicate IP address.

10. MODE (Color mode selection)

Each time you press this button, the color mode changes in the following order:

STD (Standard) → VIVID → sRGB →

HIGH ILLUMINANCE → STD...

• HIGH ILLUMINANCE is a display with colors suited to bright locations.

• sRGB applies to PC input only.

sRGB is international standard of color representation specified by IEC (International Electrotechnical

Commission). Color conversion is made in taking account of liquid crystal’s characteristics and represents color tone close to its original image.

Basic Operation

n

Switching the screen size

Even when the screen size is changed, the display may remain the same depending on the input signal.

WIDE

PC input Displays image so it fills the entire screen.

ZOOM 1

AV input

PC input

An image with a 4:3 aspect ratio is stretched to fill the entire screen.

An image with a 4:3 aspect ratio is enlarged to fill the entire screen without changing the aspect ratio. The edges of the image may be cut off.

ZOOM 2

AV input

PC input Use this size if ZOOM 1 cuts off the subtitles.

NORMAL

AV input

PC input

Dot by Dot

AV input

PC input

AV input

Displays image so it fills the screen without changing the aspect ratio of the input signals.

Displays the entire image of the aspect ratio of 4:3 without changing the aspect ratio.

Displays the dots of the signals input from the connected PC as the corresponding dots on the screen.

Displays the dots of the input signals as the corresponding dots on the screen.

TIPS

• Using this monitor’s screen-size switching or dual-screen display functions to compress or expand the screen for commercial or public viewing in establishments like cafes or hotels may infringe on the rights of the creators, as protected by Copyright

Law, so please be careful.

• When “Enlarge” is set, the screen size is fixed to “WIDE” mode.

• When dual-screen display is selected, the screen size cannot be changed.

• The appearance of the original video may change if you select a screen size with a different aspect ratio than the original image (e.g. TV broadcast or video input from external equipment).

• When an ordinary non-wide image (4:3) is viewed with the whole screen using the screen-size switching function of this monitor, the edge of the image may be lost or appear distorted. If you wish to respect the creator’s intentions, set the screen size to “NORMAL”.

• When playing commercial software, parts of the image (like subtitles) may be cropped. In this case select the optimal screen size using the screen-size switching function of this monitor. With some software, there may be noise or distortion at the edges of the screen. This is due to the characteristics of the software, and is not a malfunction.

• Depending on the original image size, black bands may remain at the edges of the screen.

19

E

E

20

Menu Items

Displaying the menu screen

Video and audio adjustment and settings of various functions are enabled. This section describes how to use the menu items. See pages 20 to 29 for details of each menu items.

Caution

• Do not turn the main power switch off while the menu items are being displayed. Doing so may initialize the settings.

n

Example of operation

(Adjusting CONTRAST in the PICTURE menu)

1. Press

MENU

to display the menu screen.

SCREEN


AUDIO

SETUP

MONITOR

MULTI/PIP

OTHERS

SCREEN

AUTO

CLOCK

PHASE

H-POS

V-POS

H-SIZE

V-SIZE

RESOLUTION SETTING

RESET

600

25

610

37

50

50

D-SUB[RGB]

1 9 2 0 x 1 0 8 0

OK···[ENTER] BACK···[RETURN]

V: 60 Hz H: 67.5 kHz

2. Press

or to select PICTURE, and press

ENTER

.

3. Press

or to select CONTRAST.

SCREEN


AUDIO

SETUP

MONITOR

MULTI/PIP

OTHERS


BRIGHT

CONTRAST

BLACK LEVEL

TINT

COLORS

SHARPNESS

COLOR ADJUSTMENT

ADVANCED

RESET

31

30

30

30

30

12

D-SUB[RGB]

TIPS

• The menu will differ depending on the input mode.

• The menu screen will close automatically if no operation is performed for about 15 seconds. (DATE/TIME SETTING,

SCHEDULE and LAN SETUP screens will close in about 4 minutes.) n

Menu screen display

1

3

SCREEN


AUDIO

SETUP

MONITOR

MULTI/PIP

OTHERS


BRIGHT

CONTRAST

BLACK LEVEL

TINT

COLORS

SHARPNESS


ADVANCED

RESET

31

30

30

30

30

12

2

D-SUB[RGB]

MOVE OSD···[DISPLAY]

1 9 2 0 x 1 0 8 0 V: 60 Hz H: 67.5 kHz

BACK···[RETURN]

4

1 Name of the menu

2 Input mode

3 An item being selected (highlighted)

4 Screen resolution of input signal, and other data.

TIPS

• Items that cannot be selected appear in gray.

(e.g. Function not supported by the current input signal)


1 9 2 0 x 1 0 8 0 V: 60 Hz H: 67.5 kHz


4. Press or to adjust the setting.

SCREEN


AUDIO

SETUP

MONITOR

MULTI/PIP

OTHERS


BRIGHT

CONTRAST

BLACK LEVEL

TINT

COLORS

SHARPNESS


ADVANCED

RESET

31

40

30

30

30

12

D-SUB[RGB]


1 9 2 0 x 1 0 8 0

V: 60 Hz H: 67.5 kHz


For items that have , press

ENTER

, make settings and then press

RETURN

.

5. Press

MENU

to close the menu screen.

Menu Items

Menu item details

The menu will differ depending on the input mode.

n

SCREEN

You can move the menu screen display position each time

DISPLAY

is pressed.

AUTO (D-SUB[RGB]/DVI-I (analog))

The CLOCK, PHASE, H-POS, and V-POS are automatically adjusted.

Pressing

ENTER

performs adjustment. Use this automatic adjustment when you use the D-SUB[RGB] or DVI-I (analog) to display a PC screen for the first time or when you change the setting of the PC. (See page 31.)

CLOCK (D-SUB[RGB]/DVI-I (analog))

Adjusts frequency for sampling clock for applicable video.

Adjust when there is flickering in the form of vertical stripes.

When using the adjustment pattern (see page 31), make adjustments so that no vertical stripe noise appears in it.

PHASE (D-SUB[RGB]/DVI-I (analog))

Adjusts sampling clock phase for applicable video. Useful when small characters appear with low contrast and/or there are flickers at corners. When using the adjustment pattern (see page 31), make adjustments so that no horizontal stripe noise appears in it.

* Adjustments to PHASE should be made only after CLOCK has been correctly set.

H-POS

Adjust the horizontal position of the image.

V-POS

Adjust the vertical position of the image.

H-SIZE

Adjust the horizontal size of the image.

V-SIZE

Adjust the vertical size of the image.

RESOLUTION SETTING (D-SUB[RGB]/DVI-I (analog))

H-RESOLUTION

Sets proper horizontal resolution when the resolution of input signals is not recognized properly.

(Adjustment may be impossible with some signals.)

V-RESOLUTION

Sets proper vertical resolution when the resolution of input signals is not recognized properly.

(Adjustment may be impossible with some signals.)

RESET

Resets the values of the SCREEN menu items to the factory preset values.

Select “ON” and then press

ENTER

.

21

E

E

22

Menu Items

n


You can move the menu screen display position each time

DISPLAY

is pressed.

BRIGHT

Adjusts the backlight brightness. (In PIP mode, the main side setting is reflected in the image.)

CONTRAST

Adjusts the difference between the bright and dark portions of the image.

BLACK LEVEL

Adjusts the entire brightness of the video signals.

TINT

Adjusts the hue. Selecting + changes the color towards green, and selecting - changes it towards magenta.

COLORS

Adjusts the color intensity.

SHARPNESS

Adjusts the sharpness of the image.


COLOR MODE

Changes the color mode on the screen. The color mode on the screen can also be changed using a remote control unit. (See page 18.)

* sRGB is PC input only. See page 18 for details.

(In PIP mode, the main side setting is reflected in the image.)

WHITE BALANCE

THRU ..............Displays the input signal level as is. (for PC input only)

PRESET ..........Selects the color temperature using PRESET.

USER .............. Used for adjusting R-/G-/B-CONTRAST and R-/G-/B-OFFSET respectively.


PRESET

Selects the color temperature when the WHITE BALANCE is set to PRESET.

The setting values are shown for reference. The color temperature of the screen varies over time. This function is not intended to keep the color temperature constant.

USER

Adjusts each item when the WHITE BALANCE is set to USER.

R-CONTRAST .... Adjusts bright-toned red component.

G-CONTRAST ... Adjusts bright-toned green component.

B-CONTRAST .... Adjusts bright-toned blue component.

R-OFFSET ......... Adjusts dark-toned red component.

G-OFFSET ......... Adjusts dark-toned green component.

B-OFFSET ......... Adjusts dark-toned blue component.

COPY TO USER

Copies the value of white set for PRESET to the USER setting.


ENTER

.

(In the case other than white, color tone may differ from the PRESET.)

GAMMA

Selects the gamma. USER sets the gamma to the sent value (see page 36).


When using LOCAL DIMMING, it controls the brightness per area. So, the gamma may differ from the set value.

FLESH TONE (AV input)

Adjust the hue control.

When FLESH TONE is set to LOW or HIGH, C.M.S.-HUE/-SATURATION/-VALUE cannot be set.

C.M.S.-HUE (AV input)

Adjusts color tone with 6 colors of R (red), Y (yellow), G (green), C (cyan), B (blue), and M (magenta).

C.M.S.-SATURATION (AV input)

Adjusts color vividness with 6 colors of R (red), Y (yellow), G (green), C (cyan), B (blue), and M (magenta).

C.M.S.-VALUE (AV input)

Adjusts color brightness with 6 colors of R (red), Y (yellow), G (green), C (cyan), B (blue), and M (magenta).

Menu Items

ADVANCED

AUTO (D-SUB[RGB]/DVI-I (analog))

The ANALOG GAIN and ANALOG OFFSET are automatically adjusted.

Pressing

ENTER

performs adjustment.

ANALOG GAIN (D-SUB[RGB]/DVI-I (analog))

Adjusts the bright portions of the video input signal.

ANALOG OFFSET (D-SUB[RGB]/DVI-I (analog))

Adjusts the dark portions of the video input signal.

3D-NR (AV input)

Reduce the noise of playback images on video.

Setting a higher level reduces more noise. However, it may cause blurring on an image.

MPEG-NR (AV input)

Reduce block noise caused by digital compression.

3D-Y/C (D-SUB[VIDEO])

Specify whether to perform 3-dimension Y/C separation.

If dot interference or cross-color is occurring in fast-motion scenes, selecting “OFF” may improve the image quality.

RGB INPUT RANGE (DVI-I/HDMI[PC]/HDMI[AV]/D-SUB[RGB]/DisplayPort)

Sets the RGB input signal range. When using HDMI or DisplayPort set to AUTO, the RGB input signal is detected automatically. Use AUTO normally.

If the RGB input signal range cannot be set appropriately even when using AUTO, set according to the image. When the setting is different, images will be displayed with washed out blacks and compressed gradients.

LOCAL DIMMING

Automatically controls the backlight brightness per area according to the image.

Increasing the level of this setting will result in higher contrast of the image, and will lower the monitor power consumption.

Light leakage and/or a ring-like appearance may be seen depending on the image. Change the setting in this situation.


POWER LIMITER

Can be set when LOCAL DIMMING is HIGH. Set the value so that it is smaller than the set power consumption (see page

57.) by adjusting the brightness, etc.

ACTIVE CONTRAST (AV input)

Automatically adjusts the contrast according to the image.


The adjustment operation may not be smooth depending on the image. In this case select OFF.

DISPLAY COLOR PATTERN

Displays a color pattern. Can be displayed while the menu screen is displayed, so you can refer to the pattern while adjusting the image.

OFF ...............No pattern display.

WHITE ...........White single color pattern display.

RED...............Red single color pattern display.

GREEN .........Green single color pattern display.

BLUE .............Blue single color pattern display.

USER ............Red/green/blue mixed color pattern display. When USER is selected, set each color’s level.

RESET

Resets the values of the PICTURE menu items to the factory preset values.


ENTER

.

23

E

E

24

Menu Items

n

AUDIO

TREBLE

Adjusts the volume of treble-level sound.

BASS

Adjusts the volume of bass-level sound.

BALANCE

Adjusts the balance of the audio sound between right and left.

RESET

Resets the values of the AUDIO menu items to the factory preset values.


ENTER

.

n

SETUP

DATE/TIME SETTING

Set the date and time. Press or

to select the date and time, and press or

to change the numerical values.

Set the date in “Day/Month/Year” order.

Set the time on a 24-hour basis. (Factory default)

DATE/TIME FORMAT

Sets the date/time display format.

DATE ..................MM/DD/YYYY, DD/MM/YYYY, YYYY/MM/DD

(YYYY: Year, MM: Month, DD: Day)

TIME ...................Select 12- or 24-hour time.

SCHEDULE (See page 30.)

You can turn the power on/off and change the screen brightness at a specified time.

LANGUAGE

Sets the display language for the menu screen.

INPUT SELECT

HDMI1/HDMI2

Select the input mode to be used in PC/AV HDMI1 and PC/AV HDMI2 input terminals.

D-SUB

Select the input mode to be used in PC/AV D-Sub input terminal. Select SET after selecting the input mode, and then press

ENTER

.

HDMI AUTO VIEW

When ON is selected, the screen size is adjusted automatically according to the screen size control signal included in the video signal input from the AV HDMI input terminal.

HOT PLUG CONTROL

Sets whether to use hot plug control for the DVI-I, PC/AV HDMI1, and PC/AV HDMI2 input terminals.

EDID SELECT (DVI-I)

Normally, leave this setting as AUTO.

If the display is not shown properly, change the setting according to the connected device.

AUDIO SELECT

Selects the terminal used to input audio signals in each input mode.

AUDIO OPTION

AUDIO OUTPUT

Sets the volume of sound output from the audio output terminals.

When set to VARIABLE 2, sound will not be output from the built-in speaker.

VARIABLE1 ........ You can adjust the volume using VOLUME.

VARIABLE2 ........ You can adjust the volume using VOLUME.

FIXED................. Fixes the sounds.

AUDIO INPUT LEVEL 1/2

Selects the maximum audio input level of the audio input 1, 2 terminals.

MONAURAL AUDIO

Outputs audio signals as monaural.

Menu Items

COMMUNICATION SETTING

RS-232C/LAN SELECT

Selects the method with which to control the monitor from the computer.

BAUD RATE

Selects the communication speed used for RS-232C communication.

LAN SETUP

Configures the settings to control the monitor from the computer via LAN. (See page 45.)

AUTO ASSIGN FIXED IP ADDR.

Can be enabled when RS-232C/LAN SELECT is LAN and the DHCP CLIENT is OFF.

Set DHCP CLIENT to OFF for the monitor connected to the RS-232C output terminal and the daisy chain of connected monitors that follows. Fixed IP addresses are automatically allocated.

If the IP address is a duplicate with a network device other than a monitor, individually change the IP address.

ID SETTING

ID No. SET

Assigns ID numbers to monitors connected in a daisy chain (see page 34), using the RS-232 cables.

The numbers 1 to 255 are available for ID numbers.

If “0” is set, the system regards this as the state where no ID number is set.

AUTO ASSIGN ID No.

ID No. to be used will be automatically assigned when multiple monitors are connected with RS-232C.

Select ON, then press

ENTER

.

Perform operations using the first monitor in the daisy chain.

COPY SETTING VALUE

When the monitor has been connected to multiple monitors by RS-232C, the settings in the monitor can be copied to the monitor connected to the RS-232C output terminal and to the daisy chain of connected monitors that follows.

Selects the settings to copy with COPY SETTING VALUE TARGET.

“PICTURE” ONLY ..... Copies the PICTURE menu settings.*

ALL ........................... Copies all the settings.*

Select the ID No. of the monitor that you would like copy to with COPY TO ID No., then select COPY and press

ENTER

.

If you select ALL, settings will be copied to all monitors.

When you would like to confirm the ID No. that is set to the monitor, select ID No. DISPLAY and press

ENTER

. The ID No. will be displayed on the screen.

* Certain setting details such as ANALOG GAIN, ANALOG OFFSET, and DISPLAY COLOR PATTERN cannot be copied.

25

E

E

26

Menu Items

n

MONITOR

MONITOR

Select the installation direction of the monitor.

LANDSCAPE ............Landscape orientation

PORTRAIT ...............Portrait orientation

OSD H-POSITION

Adjusts the horizontal display position of menu screen.

OSD V-POSITION

Adjusts the vertical display position of menu screen.

OPERATION MODE

MODE1 ......OFF IF NO OPERATION is set to ON, and STANDBY MODE is set to LOW POWER.

(These settings can not be changed.)

MODE2 ......Will perform standard operation. OFF IF NO OPERATION is set to OFF, and STANDBY MODE is set to

STANDARD. These settings can be changed.

STANDBY MODE

When STANDARD is selected, startup time from standby mode is reduced. Note, however that, more power will be consumed in standby mode.

When LOW POWER is selected, current consumption is reduced while the monitor is in standby mode. Note, however, that the startup time from standby mode becomes longer.

If set to LOW POWER, certain RS-232C commands cannot be used in standby mode, and control via LAN will be disabled.

OFF IF NO OPERATION

Determines whether or not to set the monitor to go into standby mode when there is no operation from the remote control unit,

RS-232C commands, or LAN for over 4 hours.

POWER ON DELAY

If SET is set to ON, you can delay the screen display after the monitor is turned on. When ON is selected, set the delay time with INTERVAL (interval can be set up to 60 seconds in units of 1 second).

When this function is activated, the power LED flashes (at approx. 1 second interval) in orange.

SELF ADJUST

On a D-SUB[RGB]/DVI-I (analog) screen, specify whether to perform screen adjustment automatically or not.

When ON is selected, the screen is automatically adjusted when its resolution is 800 x 600 or higher and the timing of input signals changes. “ADJUSTING” appears on the screen during the adjustment.

If SELF ADJUST is set to ON, set the time it takes to start the SELF ADJUST function in START TIMING.

For images with black edges, etc., depending on the signal, adjustment may not be possible. In this case select OFF. (Perform manual adjustment of the screen.)

Menu Items

n

MULTI/PIP

MULTI

ENLARGE (See page 29.)

Sets whether or not to use the enlarge function.

ADVANCED (ENLARGE)

ENLARGE H / ENLARGE V

.......... Sets the number of screen splits (number of monitors) in the horizontal/vertical direction used for the enlargement.

ENLARGE-POS

.......... Specify the split screen to be displayed when the enlargement function is used.

H-POS / V-POS

..........Adjust the horizontal/vertical position of the enlarged screen.

BEZEL ADJUST

Sets whether or not to use the frame correction function.

ADVANCED (BEZEL ADJUST)

BEZEL ADJUST (TOP) / BEZEL ADJUST (BOTTOM) /BEZEL ADJUST (RIGHT) / BEZEL ADJUST (LEFT)

.......... Adjusts so that the top/bottom/left/right connecting joints of grouped units will be displayed smoothly when a group of monitors are aligned in multiples to display a single image.

BEZEL (TOP) / BEZEL (BOTTOM) / BEZEL (RIGHT) / BEZEL (LEFT)

.......... Sets the frame width of the display.

PIP/PbyP

PIP MODES

Sets the display method.

OFF .........Displays one screen.

PIP ..........Displays a sub screen inside a main screen.

PbyP ........Displays a main screen and a sub screen in a line.

PbyP2......Displays a main screen which measures 1280 pixels in the longest direction and a sub screen in a line.

PIP SIZE

Sets the size of the sub screen in PIP mode.

PIP H-POS

Adjusts the horizontal position of the sub screen in PIP mode.

PIP V-POS

Adjusts the vertical position of the sub screen in PIP mode.

PIP BLEND

In PIP mode, use this menu item to display the sub screen transparently.

PIP SOURCE

Selects the input signal of the sub screen in PIP, PbyP, or PbyP2 mode.

SOUND CHANGE

Sets the sound which is output in PIP, PbyP, or PbyP2 mode.

If the main screen is displayed as a full screen by the AUTO OFF function, the sound for the main screen is output even when the sound for the sub screen is specified.

MAIN POS

Sets the position of the main screen in PbyP or PbyP2 mode.

PbyP2 POS

Sets the position of the sub screen in PbyP2 mode.

AUTO OFF

Sets the display method when no signals for the sub screen are input in PIP, PbyP, or PbyP2 mode.

MANUAL ....... Displays a main screen and a black sub screen.

AUTO ............Displays the main screen as a full screen.

27

E

Menu Items

n

OTHERS

SCREEN MOTION

PATTERN

Residual images are reduced by moving the screen.

OFF ................. SCREEN MOTION function is disabled.

PATTERN1 ...... The whole screen moves vertically and horizontally.

PATTERN2 ...... A black screen spreads from the bottom of the screen and then shrinks to the bottom of the screen. If the monitor is installed in the portrait orientation, a black screen spreads from the left end of the screen and then shrinks to the left end of the screen.

PATTERN3 ...... A black bar moves from the left end to the right end of the screen. If the monitor is installed in the portrait orientation, a black bar moves from the top to the bottom of the screen.

PATTERN4 ...... Black screens appear from both the top and bottom of the screen, and the displayed image is compressed into the central field. If the monitor is installed in the portrait orientation, the screen is compressed from the left and right ends.

PATTERN1 PATTERN2 PATTERN3 PATTERN4

E

28

MOTION TIME 1

Specify a time period (operating interval) until SCREEN MOTION starts.

MOTION TIME 2

Specify a time period during which SCREEN MOTION operates (time period during which the screen will move).

POWER MANAGEMENT

POWER MANAGEMENT determines whether or not to switch modes from no signal to the input signal standby mode.

AUTO INPUT CHANGE

Specify whether to change inputs automatically. When ON is selected and no signal is present in the selected input mode,

AUTO INPUT CHANGE automatically changes the selected mode to another mode where a video signal is present.

When video signals exist in multiple input modes, the switching priority is as follows:

DVI-I, DisplayPort, HDMI1, HDMI2, D-SUB

(Input mode switching may take 15 seconds or more, depending on the connected equipment. Input signals may not be detected properly and a priority may change, depending on the connected equipment or video signals.)

LOGO SCREEN

Sets whether or not to display the logo screen.

INPUT SIGNAL (D-SUB[RGB]/DVI-I (analog))

If a computer connected to the D-SUB[RGB]/DVI-I (analog) outputs any of the following resolutions, make a selection from the following options.

480 LINES .......... AUTO, 640x480 or 848x480

768 LINES ..........AUTO, 1024x768, 1280x768, or 1360x768

1050 LINES ........1400x1050 or 1680x1050

ZOOM2 SPECIAL SETTING (See page 29.)

SCAN MODE (AV input)

Sets the scan mode used for AV mode input.

MODE1 ............... Over-scan display

MODE2 ...............Under-scan display

MODE3 ............... Under-scan display when the input signal is 1080i/p. Otherwise, over-scan display

* Even when MODE1 is selected, under-scan display is used when the input signal is 1080i/p and the screen size is Dot by Dot.

COLOR SYSTEM (D-SUB[VIDEO])

Select the color system of the AV equipment which is connected to PC/AV D-sub input terminal. (AUTO / PAL / PAL-60 /

SECAM / NTSC3.58 / NTSC4.43)

When AUTO is selected, the color system is automatically set according to the input signal.

TIPS

• When WHITE BALANCE is set to THRU, BLACK LEVEL, CONTRAST, TINT, COLORS, RGB INPUT RANGE, GAMMA and

COPY TO USER cannot be set.

• If COLOR MODE is set to sRGB, the following items cannot be set.

WHITE BALANCE, PRESET, USER, COPY TO USER, and GAMMA

• When the COLOR MODE is set to VIVID or HIGH ILLUMINANCE, GAMMA can not be adjusted.

• STANDBY MODE cannot be set to LOW POWER when SCHEDULE is effective.

• When displaying the color pattern, it is possible to adjust certain items of the PICTURE menu.

Non-adjustable items cannot be selected.

Audio input from the HDMI input terminal is also not output.

Menu Items

n

Dual screen display

You can display two screens simultaneously.

Set this function with PIP MODES of PIP/PbyP in the MULTI/

PIP menu.

PIP

Main screen

Sub screen

A sub screen is displayed inside a main screen.

PbyP

Main screen

Sub screen

A main screen and a sub screen are displayed in a line.

n

Enlarge

• You can align several monitors and integrate them into a single large screen to display.

• Up to 5 monitors can be aligned in both the horizontal and vertical directions.

• Each monitor displays enlarged views of separated images.

(Example)

Horizontal direction: 2 monitors

Vertical direction: 2 monitors

PbyP2

Main screen

Sub screen

DisplayPort - D-SUB[VIDEO]

DVI-I - HDMI1 or HDMI2

DVI-I - D-SUB[COMPONENT]

DVI-I - D-SUB[VIDEO]

Displays a main screen which measures 1280 pixels in the longest direction and a sub screen in a line.

* The currently selected input signal is displayed on the main screen.

* The following combinations are available for display:

DisplayPort - HDMI1 or HDMI2

DisplayPort - D-SUB[RGB]

DisplayPort - D-SUB[COMPONENT]

TIPS

• You might infringe on a copyright of the author which is protected by copyright law when you display the images of the computer screen and television/VCR simultaneously for profit-making or to show the image to the public.

• The screen size for dual-screen display is the same as the screen size for single-screen display. The Dot by Dot screen is displayed in NORMAL size except when it is set as the PIP main screen.

• When dual-screen display is selected, the SCREEN

MOTION function is disabled.

• When dual-screen display is selected, the AUTO INPUT

CHANGE function is disabled.

• When dual-screen display is selected, the screen cannot be enlarged.

• When dual-screen display is selected, the INPUT SELECT options cannot be set.

• When an interlaced signal (1080i, 480i, video) is input to the sub screen, horizontal lines may flicker. If this happens, display the image on the main screen.

Horizontal direction: 3 monitors

Vertical direction: 2 monitors

Setting procedure

Set using MULTI in the MULTI/PIP menu.

1. Set ENLARGE to ON.

2. Select ADVANCED (ENLARGE).

3. Set the number of monitors aligned in the horizontal direction in ENLARGE H.

4. Set the number of monitors aligned in the vertical direction in ENLARGE V.

5. Set the section of the separated image to be displayed on each monitor in ENLARGE-POS.

1) Press

ENTER

.

2) Press , , or to select position, then press

MENU

.

TIPS

• When Enlarge is used, the SCREEN MOTION function is disabled.

• When Enlarge is used, the AUTO INPUT CHANGE function is disabled.

• When Enlarge is used, the HDMI AUTO VIEW function is disabled.

n

ZOOM2 SPECIAL SETTING

If you connect a laptop computer with any of the following screen resolutions and black bands appear around the screen, set ZOOM2 SPECIAL SETTING of INPUT SIGNAL on the

OTHERS menu to ON and then select ZOOM2 in the SIZE setting.

This displays the area inside the black band.

Laptop computer resolution

Corresponding signal* 1

1280x800 1280x1024, 1280x960, 1400x1050* 2

1280x600 1280x720

1024x600 1024x768

*1: This setting is effective only when the screen resolution, including the black band, is one of the resolutions listed above.

*2: Use the automatic screen adjustment.

29

E

E

30

Menu Items

n

SCHEDULE

You can set the time to switch the monitor on and off.

Set this function with SCHEDULE in the SETUP menu. (See page 24.)

SCHEDULE

No.

(1)

D-SUB[RGB]

(2)

POWER DAY OF THE WEEK

(4)

TIME

(5)

INPUT

(6)

BRIGHT

–

–

–

–

–

– – –

– –

– –

– –

– –

– – –

–

–

–

–

– – –

– –

– –

– –

– –

– –

-

-

-

-

-

-

– –

– –

– –

– –

– –

– –

– –

– –

– –

– –

– –

– –

:

:

:

:

:

:

– –

– –

– –

– –

– –

– –

– –

– –

– –

– –

– –

– –

– –

– –

– –

– –

– –

– –

–

– – –

– – –

– – –

– –

-

-

– –

– –

– –

:

– –

– –

:

– –

– –

– –

– –

– –

1 9 2 0 x 1 0 8 0

OK···[ENTER] CANCEL···[RETURN]

V: 60 Hz H: 67.5 kHz

1. Press or to select the SCHEDULE number, and press .

2. Set the SCHEDULE. (See the description below.)

Press or to select items, and press or to change the setting.

3. Press

ENTER

.

SCHEDULE becomes effective.

(1)

●: SCHEDULE effective

-: SCHEDULE not effective

(2) POWER

ON : Switches the monitor on at the specified time.

OFF : Switches the monitor off at the specified time and puts the monitor in standby mode.

(3) DAY OF THE WEEK

Specifies the day of the week to execute the SCHEDULE.

0:ONLY ONCE

Executes the SCHEDULE once on the specified day.

Specify the day of the week to execute the SCHEDULE.

1:EVERY WEEK

Executes the SCHEDULE on the specified day of the week every week. Specify the day of the week to execute the

SCHEDULE.

Periodic setting such as “Monday through Friday” is also possible.

2:EVERY DAY

Executes the SCHEDULE every day regardless of the day of the week.

(4) TIME

Specifies the time to execute the SCHEDULE.

Set the time on a 24-hour basis. (Factory default)

Can be entered as 12-hour time using the TIME setting in

DATE/TIME FORMAT.

(5) INPUT

Specifies the input mode at power-on. If you don’t specify this the input active at the last power-off will appear.

Input modes displayed on HDMI1, HDMI2 and D-SUB will depend upon the INPUT SELECT settings.

(6) BRIGHT

Sets the brightness when changing the screen brightness at a specified time.

Caution

• Do not switch off the main power after setting the

SCHEDULE.

• Specify the correct date and time. (See page 24.)

SCHEDULE does not function unless the date and time are specified.

• Check regularly that the set date and time are correct.

• When STANDBY MODE is LOW POWER, SCHEDULE cannot be set.

• When a temperature abnormality occurs and the backlight brightness is reduced, the brightness is not changed even if a schedule set to BRIGHT is executed.

TIPS

• Up to 8 SCHEDULE items can be registered.

• Setting the SCHEDULE flashes the power LED alternately in red and orange in standby mode.

• A SCHEDULE that has a large number has precedence over that of a small number when schedules overlap.

Adjustments for PC screen display

n

Automatic adjustment

When you use the D-SUB[RGB] or DVI-I (analog) to display a

PC screen for the first time, or when you change the setting of the PC, use the automatic screen adjustment.

1. Switch the input to D-SUB[RGB] or DVI-I (analog) and

display the adjustment pattern. (See the description below.)

2. Press

MENU

menu.

and use or to display the SCREEN

3. Press

4. Press

ENTER

ENTER

.

and select “AUTO”.

The automatic adjustment is complete in several seconds.

5. Press

MENU

to close the menu screen.

TIPS

• If the screen cannot be adjusted properly with one automatic adjustment, repeat the automatic adjustment two or three times. Try manual adjustment if necessary. n

Screen display for adjustment

Before making adjustments in the SCREEN menu or

PICTURE menu, display an image to brighten the entire screen. If you are using a Windows PC, use the adjustment pattern on the supplied CD-ROM.

Opening the adjustment pattern

The following example is performed in Windows 7.

1. Load the supplied CD-ROM into the computer’s CD-

ROM drive.

2. Open [CD Drive] in [Computer].

In Windows XP, open [CD Drive] in [My Computer].

3. Double-click [Adj_uty.exe].

The adjustment pattern will appear.

Adjust the screen automatically or manually.

4. When adjustment is finished, press the [Esc] on the computer’s keyboard to quit the adjustment program.

5. Eject the CD-ROM from the CD-ROM drive.

TIPS

• If the display mode on the computer you are using is

65,000 colors, the color levels in the color pattern may appear differently or grayscale may appear to be colored.

(This is due to the specifications of the input signal and is not a malfunction.)

Menu Items

31

E

E

32

Initialization (Reset)/Functional Restriction Setting (FUNCTION)

You can return the settings to their factory-preset values and restrict operations.

1. Hold

SIZE

down until “F” appears in the upper left corner of the screen.

2. While “F” appears, press , , , in that order.

FUNCTION

ALL RESET

ADJUSTMENT LOCK

ADJUSTMENT LOCK TARGET

RS-232C/LAN

OSD DISPLAY

LED

TEMPERATURE ALERT

STATUS ALERT

POWER BUTTON

CONTROLLER INPUT

OFF

UNLOCKED

ON 1

ON

LED

OFF

MONITOR

OK…[ENTER] END…[RETURN]

3. Select and set the items.

ALL RESET

Resets the settings to the factory default settings.

Press

ENTER

, select the resetting method, and then press

ENTER

.

After initialization, turn the main power switch off and then back on.

ALL RESET1 ....Resets all the settings to the factory default settings.

ALL RESET2 ....Returns all settings to the factory default settings except for the following items:

LAN SETUP, RS-232C/LAN SELECT,

ID No. SET, BAUD RATE, NETWORK,

MAIL, SERVICE & SUPPORT, and

SNMP (See page 25, and pages 49 to

52.)

ADJUSTMENT LOCK

You can disable operations on the monitor and the remote control unit that use buttons.

OFF ...Enables operation.

ON 1 ..Disables all operations other than turning power on/off and FUNCTION.

ON 2 ..Only the FUNCTION operation is enabled.

Disables all operations other than FUNCTION (not even power on/off).

ADJUSTMENT LOCK TARGET

Sets the target to prohibit operation of with

ADJUSTMENT LOCK.

REMOTE CONTROL ..... Prohibits remote control operation

MONITOR BUTTONS ... Prohibits monitor switch operation

BOTH ............................. Prohibits remote control and monitor switch operation

RS-232C/LAN

Specifies whether to allow control via RS-232C or LAN

(see pages 33 and 45).

OSD DISPLAY

Shows/hides the menu, modes and messages.

The FUNCTION screen cannot be hidden.

ON 1 .............. Shows all menus, modes and messages.

ON 2 .............. Hides messages automatically displayed by the display. Shows messages during operation.

OFF ............... Hides all menus, modes and messages.

LED

Specifies whether to light the power LED.

TEMPERATURE ALERT

Selects the notification method for an abnormal temperature.

OFF .............. Do not notify about an abnormal temperature.

OSD & LED .. When an abnormal temperature is detected, the power LED flashes in red and green alternately and the screen displays a message: TEMPERATURE.

LED............... When an abnormal temperature is detected, the power LED flashes in red and green alternately.

STATUS ALERT

Selects the notification method for a hardware error.

OFF .............. Do not notify about the error.

OSD & LED .. When a hardware error is detected, the power LED flashes in red and the screen displays a message: STATUS [xxxx].

LED............... When a hardware error is detected, the power LED flashes in red.

POWER BUTTON

Normally, leave this setting as MONITOR.

When using an optional part, if instruction appears, change the setting accordingly.

CONTROLLER INPUT

Normally, you do not need to change this setting.

When using an optional part, if instruction appears, change the setting accordingly.

4. Press

RETURN

to return to the normal screen.

TIPS

• When both abnormal temperature and hardware error are detected, the hardware error notification overrides.

• If TEMPERATURE ALERT or STATUS ALERT is set to

OSD&LED, alert messages will appear even if the OSD

DISPLAY is set to ON 2 or OFF.

• If TEMPERATURE ALERT or STATUS ALERT is set to LED or OSD & LED, the LED lights even if the LED function is set to OFF.

Controlling the Monitor with a PC (RS-232C)

You can control this monitor from a PC via RS-232C (COM port) on the PC.

You can also connect multiple monitors via a daisy chain by using a PC. By assigning ID numbers to each monitor (see page 34), you can make input mode selection/adjustment or can check the status of a specific monitor.

TIPS

• To control the monitor via RS-232C, set RS-232C/LAN

SELECT to RS-232C.

• You cannot use RS-232C and LAN control simultaneously.

PC connection

n

One-to-one connection with a PC

Connect with RS-232 straight cable between the PC’s COM port (RS-232C connector) and the RS-232C input terminal on the monitor.

RS-232C input terminal

To COM port

PC

Communication conditions

Set the RS-232C communication settings on the PC to match the monitor’s communication settings as follows:

Baud rate

Data length

Parity bit

*

8 bits

None

Stop bit 1 bit

Flow control None

* Set to the same baud rate as the BAUD RATE setting of

SETUP menu. (Initial setting: 38400 bps)

* When connecting multiple monitors in a daisy chain, set all monitors to the same BAUD RATE.

Communication procedure

n

Command format

When a command is sent from the PC to the monitor, the monitor operates according to the received command and sends a response message to the PC.

Return code

C1 C2 C3 C4 P1 P2 P3 P4

Command field

(4 prescribed alphanumerical characters)

Parameter field

(4 character string comprised of:

0-9, +, -, space, ?)

Second monitor

First monitor

RS-232 straight cable

(commercially available) n

Daisy chain connection…

Advanced operation

Connect with RS-232 straight cable between the PC’s COM port (RS-232C connector) and the RS-232C input terminal on the first monitor.

Next, connect RS-232 straight cable to the first monitor’s

RS-232C output terminal and to the second monitor’s

RS-232C input terminal. Connect in the same way to the third and subsequent monitors.

Up to 25 monitors can be connected. (Depending on the length of the cable used and the surrounding environment.)

RS-232C output terminal

RS-232C input terminal

RS-232 straight cables

(commercially available)

To COM port

PC

Example: VOLM0030

VOLM 30

* Be sure to input 4 characters for the parameter. Pad with spaces (“ ”) if necessary.

(“ ” is a return code (0D

H

, 0A

H

or 0D

H

))

Wrong : VOLM30

Right : VOLM 30

When inputting a negative value, specify a numerical value in three digits.

Example: AUTR-005

Do not use spaces for MPOS, DATE, and SC01 through

SC08. Specify parameters using a specified number of characters.

Example: MPOS010097

If a command has “R” listed for “DIRECTION” in the

“RS-232C command table” on page 37, the current value can be returned by using “?” as the parameter.

Example:

VOLM ? ? ? ?

←

From PC to monitor (How much is current volume setting?).

30 ←

From monitor to PC (Current volume setting: 30).

* If an ID number (see page 34) has been assigned

(For example, ID number = 1).

VOLM

30 001

?

←

From PC to monitor.

←

From monitor to PC.

33

E


n

Response code format

When a command has been executed correctly

O K

Return code

(0D

H

, 0A

H

)

A response is returned after a command is executed.

* If an ID number has been assigned

Space (20

H

)

Return code

(0D

H

, 0A

H

)

O K SPC 0 0 1

ID number of responding monitor

When a command has not been executed

E R R

Return code

(0D

H

, 0A

H

)

* If an ID number has been assigned

Space (20

H

)

Return code

(0D

H

, 0A

H

)

E R R SPC 0 0 1

ID number n

Communication interval

• After OK or ERR is returned, you must send the following commands.

To set a timeout for the command response, specify 10 seconds or longer.

When connecting multiple monitors in a daisy chain, set the timeout to at least the product of the monitor’s position from the computer multiplied by 10 seconds.

Example) 3rd monitor from computer: 30 seconds or longer.

• Provide an interval of 100 ms or more between the command response and the transmission of the next command.

VOLM0020

OK

Interval of 100 ms or more

INPS0001

WAIT

OK

E

34

TIPS

• “ERR” is returned when there is no relevant command or when the command cannot be used in the current state of the monitor.

• If communication has not been established for reasons such as a bad connection between the PC and monitor, nothing is returned (not even ERR).

• “ERR” may be returned when a command cannot be received correctly due to interference from the surrounding environment.

Please ensure that the system or software retries the command if this occurs.

• If no monitor has been assigned the designated ID number

(e.g. if the command IDSL0002 is used, but no monitor with ID number: 2 is found), no response is returned.

If execution of the command is taking some time

W A I T

Return code

(0D

H

, 0A

H

)

When the following commands are used, “WAIT” is returned.

In this case, a value will be returned if you wait a while. Do not send any command during this period.

No ID number is attached to WAIT response.

• Commands which return WAIT:

1. When repeater control is used

2. When an IDSL or IDLK command is used

3. When one of the following commands is used: RSET,

INPS, ASNC, WIDE, EMAG, EPOS, PXSL, POWR,

AGIN, MWIN, MWIP, MWPP, ESTG, EMHV, EPHV,

ESHV, ENLG

When control via RS-232C is locked (to prevent use) using the operation lock function (see page 33)

L O C K E D

Return code

(0D

H

, 0A

H

)

When RS-232C/LAN SELECT is set to LAN

U N S E L E C T E D

Return code

(0D

H

, 0A

H

)

TIPS

• When executing ALL RESET, set the timeout period to 30 seconds or longer.

• When turning the power on while the POWER ON DELAY function is in use, set the timeout period to the POWER ON

DELAY period + 10 seconds or longer.

Advanced operation

This section explains commands for daisy chain connection.

The basic communication procedure is the same as in the

“One-to-one connection with a PC” section.

n

ID numbers

You can assign a unique ID number to each monitor (see page 25). This allows you to control a particular monitor in a daisy chain of monitors.

You can assign ID numbers either from the menu screen or from the PC using RS-232 cable.

[Example]

ID number: 1 ID number: 2 ID number: 3 ID number: 4

If monitors are connected as shown above, you can execute commands like “Set the volume of the monitor with

ID 4 to 20”.

When designating ID numbers for a set of monitors linked in a daisy chain, you should basically avoid any duplication of ID numbers.

ID numbers do not have to be assigned in ascending order starting from the PC. They can also be connected as shown below.

[Example]



n

Commands for ID control

The command examples shown on this page assume the following connection and ID number set up.


IDST ......... A monitor receiving this command sets its own ID

Example:

TIPS number in the parameter field.

IDST0001

OK 001 ← The ID number of this monitor is set to 1.

You can automatically assign ID numbers by using the IDST command with the Repeater control (see “Repeater control” on page 36).

For example, using the command “IDST001+” automatically sets the ID numbers, as shown below.

[Example]


IDST001 +

WAIT

OK 001

OK 002

OK 003

OK 004

← ID setting command with repeater control

←

“OK” response from ID number: 1

← “OK” response from ID number: 2

← “OK” response from ID number: 3

← “OK” response from ID number: 4 (End)

IDSL ........The parameter of this command sets the ID number of the monitor. The monitor is subject to the next command.

Example:

IDSL0002 ←

The next command is for the monitor with ID number: 2.

WAIT ←

Searching for monitor with ID number:

2

OK 002 ←

Found monitor with ID number: 2

VOLM0030

WAIT

←

Sets volume of monitor with ID number: 2 to 30.

←

Processing

OK 002 ←

OK response from monitor with ID number: 2

VOLM0020 ←

Sets volume to 20.

OK 001 ←

The volume of the monitor with ID number: 1 (the one directly connected to the PC) is set to 20.*

* The IDSL command is effective only once, for the immediately succeeding command.

IDLK ........The parameter of this command sets the ID number of the monitor. The monitor is subject to all subsequent commands.

Example:

IDLK0002

WAIT

VOLM0020

←

←

←

Following commands are for the monitor with ID number: 2.

Searching for monitor with ID number:

2

OK 002 ←

Found monitor with ID number: 2

VOLM0030

WAIT

OK 002

←

Sets volume of monitor with ID number: 2 to 30.*

←

Processing

Sets volume of monitor with ID number: 2 to 20.*

WAIT

OK 002

IDLK0000

WAIT

←

←

Canceling fixed ID number setting

Canceling IDLK

OK 002 ←

Cancelation complete

VOLM0010

OK 001 ←

The volume of the monitor with ID number:

1 (the one directly connected to the PC) is set to 10. (IDLK is canceled.)

* The IDLK command remains effective until it is canceled, or power is shut off.

IDCK ........Provides screen display of the ID number currently assigned to a monitor, and the ID number currently set for IDLK (if any).

Example:

(After executing IDLK0002)

IDCK0000

←

(Parameter has no meaning.)

ID : 001 IDLK : 002

IDCK000 +

WAIT

ID : 001 IDLK : 000

ID : 002 IDLK : 000

ID : 003 IDLK : 000

ID : 004 IDLK : 000

←

Returned response. The ID number is also displayed on the monitor screen.

← Repeater control. (If a command is used with repeater control, ID designation using IDSL or IDLK is canceled.)

35

E


n

Repeater control

This system has a function to allow setting of multiple monitors connected in a daisy chain using a single command.

This function is called repeater control. You can use Repeater control function without assigning ID numbers.

[Example]

Set 1 Set 2 Set 3 Set 4

* If monitors are connected as shown above, you can execute a command like “Set all monitors’ input settings to

D-SUB[RGB]”.

n

Repeater control command

Repeater control is achieved by setting the FOURTH

CHARACTER of the parameter to “+”.

Example:

VOLM030 + ←

Sets volume of all monitors to 30.

In repeater control, responses are returned by all the connected monitors.

If you want to determine that a value has been returned by a specific set, assign ID numbers to each monitor in advance.

When some monitors do not return their responses, the probable cause is that the monitors could not receive the command or command processing is not complete. Do not send a new command.

Example: (When 4 monitors are connected, and assigned ID numbers: 1 through 4)

VOLM030 +

WAIT

OK 001

OK 002

OK 003

OK 004 ← If 4 monitors are connected in a chain, reliable operation can be ensured by sending a new command only after a reply has been returned by 4th (last) monitor.

Repeater control can also be used for reading settings.

Example:

VOLM ? ? ? +

WAIT

10 001

20 002

30 003

30 004

Volume settings for all monitors are returned.

Setting of the GAMMA user data

n

To transfer the GAMMA user data

Use the user data transfer commands (UGRW, UGGW and

UGBW). For each of the R, G and B colors, divide the total

512 pieces of user data into 16 blocks, and transfer 32 pieces of data with each command.

C1 C2 C3 C4 P1 P2 P3 P4

… S1 S2

Command field Block number (01 to 16) Data field Checksum field

Example: To transfer the data of block 1 (0 to 31 levels) of red (R) data

UGRW01000000010002 … 0031C0

One piece of data consists of 4 digits.

Command Block number 32 pieces of data Checksum

* If data is less than 4 digits, add a “0” (zero) to make it 4 digits.

* The checksum field is the character string (ASCII) data of lower-order one byte which indicates the sum of the block number and 32 pieces of data in hexadecimal (0 to F).

n

Saving the GAMMA user data

Use the user data save command (UGSV) to save the transferred user data in the monitor.

If the data is not saved, it will be cleared when:

• The main power switch is off

• STANDBY MODE is LOW POWER and the monitor enters standby mode n

Activating the GAMMA user data

To activate the transferred user data, select USER for GAMMA of the PICTURE menu, or send the corresponding RS-232C command.

n

Checking the GAMMA user data

Use the user data read commands (UGRR, UGGR and

UGBR) to return 512 pieces of user data for each of the R,

G and B colors. Divide the data into 16 blocks and return 32 pieces of data with each command. The value to be returned is not the value stored in the monitor, but the value in the temporary memory for display. (These values are the same when the user data save command (UGSV) above has been sent.)

TIPS

• The user data is not initialized by RESET of the PICTURE menu. To initialize the user data, use ALL RESET of the

FUNCTION menu.

The GAMMA user data initialize command (UGRS) allows the initialization of the user data only.

E

36

TIPS

• If repeater control is used during ID designation (IDSL,

IDLK), the ID designation is canceled.


RS-232C command table

How to read the command table

Command:

Direction:

Command field (See page 33.)

W When the “Parameter” is set in the parameter field (see page 33), the command functions as described under “Control/Response Contents”.

R The returned value indicated under “Reply” can be obtained by setting “????”, “ ?” or “???+”

Parameter:

Reply:

* :

(repeater control) in the parameter field (see page 33).

Parameter field (See page 33.)

Response (Returned value)

“●” indicates a command which can be used in power standby mode regardless of the STANDBY MODE setting.

“○” indicates a command which cannot be used in power standby mode when STANDBY MODE is set to LOW POWER.

“–” indicates a command which cannot be used in power standby mode regardless of the STANDBY MODE setting.

Power control/Input mode selection

Function

POWER CONTROL

Command Direction

POWR W

Parameter

0

1

R

INPUT MODE SELECTION INPS W

R

9

10

3

4

0

1

2

12

13

14

Reply Control/Response contents

Switches to standby mode.

Returns from standby mode.

0 Standby mode

1 Normal mode

2 Input signal waiting mode

Toggle change for input mode. Terminals not selected in INPUT SELECT cannot be selected.

DVI-I

D-SUB[RGB]

“ERR” when other than RGB is selected for D-SUB of INPUT SELECT.

D-SUB[COMPONENT]

“ERR” when other than COMPONENT is selected for D-SUB of INPUT SELECT.

D-SUB[VIDEO]

“ERR” when other than VIDEO is selected for D-SUB of INPUT SELECT.

HDMI1[AV]

“ERR” when PC is selected for HDMI1 of INPUT SELECT.

HDMI1[PC]

“ERR” when AV is selected for HDMI1 of INPUT SELECT.

HDMI2[AV]

“ERR” when PC is selected for HDMI2 of INPUT SELECT.

HDMI2[PC]

“ERR” when AV is selected for HDMI2 of INPUT SELECT.

DisplayPort

1 DVI-I

2 D-SUB[RGB]

3 D-SUB[COMPONENT]

4 D-SUB[VIDEO]

9 HDMI1[AV]

10 HDMI1[PC]

12 HDMI2[AV]

13 HDMI2[PC]

14 DisplayPort

*

●

●

●

37

E


E

38

SCREEN menu

Function

AUTO

CLOCK

PHASE

POSITIONING

SIZE

RESOLUTION

POSITION OF

THE LONGEST

DIRECTION

POSITION OF

THE SHORTEST

DIRECTION

SIZE OF THE

LONGEST

DIRECTION

SIZE OF THE

SHORTEST

DIRECTION

LONGEST

DIRECTION

RESOLUTION

SHORTEST

DIRECTION

RESOLUTION

RESET


ASNC W

CLCK WR

PHSE

HPOS

WR

WR

VPOS

HSIZ

VSIZ

HRES

VRES

ARST

WR

WR

WR

WR

WR

W

Parameter

1

0-1200

0-63

0-100

0-100

0-100

0-100

300-1920

200-1200

1

PICTURE menu

Function

BRIGHT

CONTRAST

BLACK LEVEL

TINT

COLORS

SHARPNESS

COLOR

ADJUSTMENT

COLOR MODE

WHITE

BALANCE

THRU

PRESET

USER

R-CONTRAST

G-CONTRAST

B-CONTRAST

R-OFFSET

G-OFFSET

B-OFFSET

COPY TO USER

GAMMA

FLESH TONE (AV input)

C.M.S.-HUE (AV input)

C.M.S.-SATURATION

(AV input)

C.M.S.-VALUE (AV input)


When the input mode is D-SUB[RGB], DVI-I (analog).

0-1200 When the input mode is D-SUB[RGB], DVI-I (analog).

Varies depending on the signal.


0-100 0-800 on D-SUB[RGB], DVI-I (analog).


0-100 0-200 on D-SUB[RGB], DVI-I (analog).


0-100

0-100


Only even numbers are valid for parameters.


200-1200

CMSC

CMSB

CMSM

CRST

CMVR

CMVY

CMVG

CMVC

CMVB

CMVM

CRST

FLES

CMHR

CMHY

CMHG

CMHC

CMHB

CMHM

CRST

CMSR

CMSY

CMSG

CRTR

CRTG

CRTB

OFSR

OFSG

OFSB

CPTU

GAMM

Command Direction Parameter

VLMP WR 0-31

CONT

BLVL

WR

WR

0-60

0-60

TINT

COLR

SHRP

BMOD

WR

WR

WR

WR

0-60

0-60

0-24

0

CTMP WR

4

0

1-18

2

3

WR

WR

WR

WR

WR

WR

W

WR

99

0-256

0-256

0-256

-127-127

-127-127

-127-127

0

0-2

4-6

WR

WR

W

WR

W

WR

W

0-2

-10-10

1

-10-10

2

-10-10

3

Reply

0-31

0-60

0-60

0-60

0-60

0-24

0 STD

Control/Response contents

2 VIVID

3 sRGB (When the input mode is PC)

4 HIGH ILLUMINANCE

0 PC input

1-18 From 1: approximately 3,000K to 15: approximately 10,000K (500K steps)

16: approximately 5,600K, 17: approximately 9,300K, 18: approximately 3,200K

99

0-256 “ERR” when CTMP is not set to 99.

0-256

0-256

-127-127

-127-127

-127-127

Copies a preset value to the user setting.

0-2 0: 1.8, 1: 2.2, 2: 2.4 (during PC input)

0: LIGHT 2, 2: DARK (during AV input)

4-6 4: USER, 5: 2.0, 6: STD (during PC input)

4: USER, 5: LIGHT 1, 6: STD (during AV input)

0-2 0: OFF, 1: LOW, 2: HIGH

-10-10 R

Y

G

C

B

M

Resets the hue.

-10-10 R

Y

G

C

B

M

Resets the saturation.

-10-10 R

Y

G

C

B

M

Resets the brightness.

-

*

○

○

○

-

*

ADVANCED

RESET

AUDIO menu

Function

TREBLE

BASS

BALANCE

RESET


Function

AUTO

ANALOG GAIN

ANALOG OFFSET

3D-NR (AV input)

MPEG-NR (AV input)

3D-Y/C

RGB INPUT RANGE

(HDMI1[AV])

RGB INPUT RANGE

(HDMI1[PC])

RGB INPUT RANGE

(HDMI2[AV])

RGB INPUT RANGE

(HDMI2[PC])

RGB INPUT RANGE

(DVI-I)

RGB INPUT RANGE

(D-SUB)

RGB INPUT RANGE

(DisplayPort)

LOCAL DIMMING

POWER LIMITER

Command Direction Parameter

AGIN

ANGA

ANOF

W

WR

WR

1

0-127

0-127

TDNR

MPNR

YCSP

AHDR

WR

WR

WR

WR

0-2

0-1

0-1

0-2

PHDR

AH2R

PH2R

PDVR

PDSR

PDPR

LODI

PWSV

ACTIVE CONTRAST (AV input) ACNT

DISPLAY COLOR PATTERN PTDF

DISPLAY COLOR PATTERN (R) PTDR

DISPLAY COLOR PATTERN (G) PTDG

DISPLAY COLOR PATTERN (B) PTDB

ARST

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

W

0-2

0-2

0-2

1-2

1-2

0-15

0-15

0-15

2

3

4

99

0-1

0

1

2

0-2

0-3

0-2


When the input mode is D-SUB[RGB], DVI-I (analog).



0-2 0: OFF, 1: LOW, 2: HIGH

0-1 0: OFF, 1: ON

0-1 0: OFF, 1: ON (When the input mode is D-SUB[VIDEO])

0-2 0: AUTO, 1: FULL, 2: LIMITED




1-2 1: FULL, 2: LIMITED

1-2 1: FULL, 2: LIMITED


0-3 0: OFF, 1: LOW, 2: MIDDLE, 3: HIGH

0-2 0: OFF, 1: MODE1, 2: MODE2

“ERR” when LOCAL DIMMING is not set to HIGH.

0-1 0: OFF, 1: ON

0 No pattern display.

1 White single color pattern display.

2 Red single color pattern display.

3 Green single color pattern display.

4 Blue single color pattern display.

99 Red/green/blue mixed color pattern display.

Set each color's level with RED, GREEN, BLUE.

0-15 “ERR” when PTDF is not set to 99.

0-15

0-15


AUTR WR

AUBS

AUBL

ARST

WR

WR

W

Parameter

-5-5

-5-5

-10-10

3

Reply

-5-5

-5-5

-10-10


-

*

○

-

*

○

-

39

E

E

40


SETUP menu

Function

DATE/TIME SETTING

DATE DISPLAY FORMAT

TIME DISPLAY FORMAT

SCHEDULE

SCHEDULE BRIGHTNESS

LANGUAGE

INPUT SELECT

AUDIO SELECT

AUDIO OPTION

COMMUNICATION

SETTING

ID SETTING

HDMI1

HDMI2

D-SUB

HDMI1 AUTO VIEW HDAW

HDMI2 AUTO VIEW H2AW

HOT PLUG

CONTROL (DVI-I)

HPCT

HOT PLUG

CONTROL (HDMI1)

HOT PLUG

CONTROL (HDMI2)

EDID SELECT

(DVI-I)

DVI-I

HDSL

H2SL

SLDS

HPCH

HPH2

DVED

D-SUB[RGB]

HDMI1[PC]

HDMI1[AV]

ASDP

ASAP

ASHP

ASHA

HDMI2[PC]

HDMI2[AV]

AH2P

AH2A

D-SUB[COMPONENT] ASC2

D-SUB[VIDEO]

DisplayPort

AUDIO OUTPUT

ASV2

ASDI

AOUT

AIVP

AUDIO INPUT

LEVEL1

AUDIO INPUT

LEVEL2

AIV2

MONO MONAURAL

AUDIO

RS-232C/LAN

SELECT

BAUD RATE

ID NO.SETTING

CTLS

BAUD

IDST

COPY SETTING

VALUE

ID NO. SETTING

(ONCE)

ID NO. SETTING

(SUBSEQUENT)

ID CHECK

ID DISPLAY

SETTING COPY

MODE

SETTING COPY

TARGET


DATE WR

DTFT WR

TMFT

SC01-

SC08

SB01-

SB08

LANG

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

0-2

Parameter

AABBCCDDEE

Reply

AABBCCDDEE

0-2


AA: Year, BB: Month, CC: Day, DD: Hour, EE: Minute

0: YYYY/MM/DD, 1: MM/DD/YYYY, 2: DD/MM/YYYY

YYYY: Year, MM: Month, DD: Day

0: 24-HOUR TIME, 1: 12-HOUR TIME 0-1 0-1

ABCDEFFGGH ABCDEFFGGH Schedule of a specified number

A: Schedule

B: Power

0= Not effective, 1 = Effective

0 = OFF, 1 = ON

C: Day of the week 1 0 = Only once, 1 = Every week, 2 = Every day

D: Day of the week 2 0 = Sunday, 1 = Monday through 6 = Saturday,

9 = Not exist

E: Day of the week 3 0 = Sunday, 1 = Monday through 6 = Saturday,

F: Hour

G: Minute

H: Input

9 = Not exist

00-23

00-59

0 = Not specified, 1 = DVI-I, 2 = DisplayPort,

3 = HDMI1, 4 = HDMI2, 5 = D-SUB

“ERR” when LOW POWER is selected for STANDBY MODE.

0-31

99

0-31 Screen brightness to change

99 Disable brightness setting

14

1

2

14 ENGLISH

1 DEUTSCH

2 FRANÇAIS

5

6

3

4

3 ITALIANO

4 ESPAÑOL

5 РУССКИЙ

6

0-1

0-1

0-2

0-1

0-1

0-1

0-1 0:PC 1:AV

0-1 0:PC 1:AV

0-2 0:RGB 1:COMPONENT 2:VIDEO

0-1 0: OFF, 1: ON

0-1 0: OFF, 1: ON

0-1 0: OFF, 1: ON

IDSL

IDLK

IDCK

IDDP

CPMD

CPTG

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

W

R

W

W

W

W

WR

WR

0-1

0-1

0-2

1-2

1-2

0-2

0-2

0-2

0-2

1-2

1-2

1-3

0-2

0-1

0-1

0-1

0-1

0-1 0: OFF, 1: ON

0-1 0: OFF, 1: ON

0-2 0: AUTO, 1: DIGITAL, 2: ANALOG

1-2 1: AUDIO1, 2: AUDIO2


0-2 0: HDMI, 1: AUDIO1, 2: AUDIO2






1-3 1: AUDIO1, 2: AUDIO2, 3: DisplayPort

0-2 0: VARIABLE1, 1: FIXED, 2: VARIABLE2

0-1 0: 1.0Vrms, 1: 0.5Vrms

0-1 0: 1.0Vrms, 1: 0.5Vrms

0-1 0: OFF, 1: ON

0-1 0: RS-232C 1: LAN

0-2

0-255

0-2 0: 9600bps, 1: 19200bps, 2: 38400bps

Sets the monitor’s ID number. (“0” means “no ID number”.)

1-255

0-255 Returns the monitor’s ID number.

Sets a monitor ID number.

This ID number is only effective for the command immediately after this command.

Clears the ID number if one has been designated.

0

1-255

0

1-255

0

1

0

0 ID : xxx

IDLK : yyy

0-2

Sets a monitor ID number.

This ID number is effective for the next and all subsequent commands after this command.

Clears the ID number if one has been designated.

Displays monitor’s own ID number and the selected ID number on the screen.

0: OFF, 1: ON, 2: ON (turns OFF after 4 sec.)

(The IP address and MAC address are both displayed.)

0 Copy to all monitors.

1-255 Copy to the monitor with the set ID Number.

0 Copies the PICTURE menu settings.

1 Copies all the settings.

○

○

○

○

○

○

○

-

*


MONITOR menu

Function

MONITOR

OSD H-POSITION

OSD V-POSITION

OPERATION MODE

STANDBY MODE

OFF IF NO OPERATION

POWER ON

DELAY

SET

INTERVAL

SELF ADJUST SELF ADJUST

START TIMING


STDR WR

OSDH

OSDV

WR

WR

FNCM

STBM

WR

WR

ATOF

PODS

PWOD

AADJ

AADD

WR

WR

WR

WR

WR

Parameter

0-1

0-100

0-100

0-1

0-1

0-1

0-1

0-60

0-1

10-200


0-1 0: LANDSCAPE, 1: PORTRAIT

0-100

0-100

0-1 0: MODE1, 1: MODE2

0-1 0: STANDARD, 1: LOW POWER

(“ERR" when SCHEDULE is effective.)

0-1 0: OFF, 1: ON

0-1 0: OFF, 1: ON

0-60 0: OFF, 1-60 seconds

0-1 0: OFF, 1: ON

10-200 10: 1 second through 200: 20 seconds

○

*

41

E

E

42


MULTI/PIP menu

Function

ENLARGE

ENLARGE MODE

IMAGE POSITION (M x N) EPHV

IMAGE POSITION (2 x 2)




ENLARGED

SCREEN

POSITIONING

THE LONGEST

DIRECTION

THE SHORTEST

DIRECTION

BEZEL ADJUST

EPOS

EPOS

EPOS

EPOS

EPSH

EPSV

BZCO

BEZEL ADJUST TOP

BOTTOM

RIGHT

LEFT

TOP

BZCT

BZCB

BZCR

BZCL

BZWT BEZEL WIDTH

BOTTOM

RIGHT

BZWB

BZWR

LEFT BZWL

ENLARGE/IMAGE POSITION SETTING ESTG

ESHV

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

WR

• IMAGE POSITION (EPOS) setting

In landscape orientation

2 x 2 3 x 3

0

2

1

3

0

3

6

1

4

7

2

5

8


ENLG WR

EMAG

EMHV

WR

WR

Parameter

0-1

0-4

11-55

11-55

0-3

0-8

0-15

0-24

-999-999

-999-999

0-1

0-1

0-1

0-1

0-1

0-100

0-100

0-100

0-100

XXYY

XXYY

4 x 4

8

12

0

4

9

13

1

5


0-1 0: OFF, 1: ON

0-4 0: OFF, 1: 2 x 2, 2: 3 x 3, 3: 4 x 4, 4: 5 x 5

11-55 1 x 1 (OFF) to 5 x 5 (“m x n” is expressed as “mn”, where m and n are the numbers of monitors specified for the longest direction and the shortest direction respectively.)

11-55 Specifies values in the order of IMAGE POSITION IN LONGEST/ SHORTEST

DIRECTION.

0-3 See the description below.

0-8

0-15

0-24

-999-999 The setting range depends on the ENLARGE MODE setting and the IMAGE

POSITION.

-999-999

-

*

0-1 0: OFF, 1: ON

0-1 0: OFF, 1: ON

0-1 0: OFF, 1: ON

0-1 0: OFF, 1: ON

0-1 0: OFF, 1: ON

0-100

0-100

0-100

0-100

XXYY XX: ENLARGE MODE (Same as EMAG), YY: IMAGE POSITION (Same as

EPOS)

XXYY XX: ENLARGE MODE (Same as EMHV), YY: IMAGE POSITION (Same as

EPHV)

10

14

2

6

11

15

3

7

5 x 5

10

15

20

0

5

11

16

1

6

21

12

17

2

7

22

13

18

3

8

23

14

19

4

9

24

In portrait orientation

2 x 2

1 3

3 x 3

2 5 8

4 x 4

3 7 11 15

5 x 5

4 9 14 19 24

0 2

1 4 7

0 3 6

2

6 10

14

1

5 9

13

0 4 8 12

3 8 13 18 23

2 7 12 17 22

1 6 11 16 21

0 5 10 15

20


Function

PIP MODES

PIP SIZE

PIP POS THE LONGEST

DIRECTION

THE SHORTEST

DIRECTION

PIP POS LD+SD BATCH


MWIN WR

MPSZ

MHPS

WR

W

MVPS

MPOS

R

W

R

W

PIP BLEND

PIP SOURCE

MWBL

MWIP

R

WR

WR

Parameter

0-3

1-64

0-100

0-100

0-100,0-100

0-15

1

2

3

10

12

4

9

13

14

1-2

0-1

0-2

0-1

SOUND CHANGE

MAIN POS (Main screen)

PbyP2 POS (Sub screen)

AUTO OFF

MWAD

MWPP

MW2P

MOFF

WR

WR

WR

WR

OTHERS menu

Function

SCREEN MOTION PATTERN

MOTION TIME1

MOTION TIME2

(PATTERN1)


SCSV

MTIM

MINT

INPUT

RESOLUTION

(PC)

MOTION TIME2

(PATTERN2-4)

POWER MANAGEMENT (PC)

POWER MANAGEMENT (AV)

AUTO INPUT CHANGE

LOGO SCREEN

MINT

PMNG

PMAV

AINC

BTSC

RESOLUTION CHECK PXCK

PIXEL SETTING

(D-SUB[RGB],

DVI-I(analog))

PXSL

WR

WR

WR

WR

WR

WR

WR

WR

R

WR

INPUT RESOLUTION (AV) RESOLUTION CHECK RESO

ZOOM2 SPECIAL SETTING

(D-SUB[RGB], DVI-I(analog))

Z2SP

SCAN MODE

COLOR SYSTEM

SCAN

CSYS

R

WR

WR

WR

Parameter

0-4

0-20

10-990

5-20

0-1

0-1

0-1

0-1

0-1

0-2

0-5

3

5

6

1

2

9

10

7

8


0-3 0: OFF, 1: PIP, 2: PbyP, 3: PbyP2

1-64

0-100

0-100

Specify the position in MPOSxxxyyy format.

(xxx: Longer side, yyy: Shorter side position)

0-100,0-100 Returns a response in (xxx,yyy) format.

(xxx: Longer side, yyy: Shorter side position)

0-15

1 DVI-I

2 D-SUB[RGB]

3 D-SUB[COMPONENT]

4 D-SUB[VIDEO]

9 HDMI1[AV]

10 HDMI1[PC]

12 HDMI2[AV]

13 HDMI2[PC]

14 DisplayPort

1-2 1: MAIN, 2: SUB

0-1 0: POS1, 1: POS2

0-2 0: POS1, 1: POS2, 2: POS3

0-1 0: MANUAL, 1: AUTO

Reply

0-4 0: OFF, 1-4: PATTERN1-4

0-20

10-990 Per 10 seconds


5-20 Per second

0-1 0: OFF, 1: ON

0-1 0: OFF, 1: ON

0-1 0: OFF, 1: ON

0-1 0: OFF, 1: ON

- Returns current resolution in the form of hhh, vvv.

1 768) 1360 x 768

2 768) 1280 x 768

3 768) 1024 x 768

5 480) 848 x 480

6 480) 640 x 480

7 1050) 1680 x 1050

8 1050) 1400 x 1050

9 768) AUTO

10 480) AUTO

- 480i, 480p, 1080i, 720p, 1080p, VGA , etc.

0-1 0: OFF, 1: ON

0-2 0: MODE1, 1: MODE2, 2: MODE3 (When the input mode is AV)

0-5 0: AUTO, 1: PAL, 2: PAL-60, 3: SECAM, 4: NTSC3.58, 5: NTSC4.43

○

○

○

-

*

*

43

E

E

44


Initialization/Functional Restriction Setting (FUNCTION) menu

Reply Function

ALL RESET

ADJUSTMENT LOCK

ADJUSTMENT LOCK TARGET

OSD DISPLAY

LED

TEMPERATURE ALERT

POWER BUTTON

CONTROLLER INPUT

STATUS ALERT


RSET W

ALCK

ALTG

WR

WR

LOSD

OFLD

TALT

PBTN

PCIP

WR

WR

WR

WR

WR

SALT WR

Parameter

0-1

0-2

0-2

0-2

0-1

0-2

0-1

0-4

0-2


0: ALL RESET 1, 1: ALL RESET 2

0-2 0: OFF, 1:ON1, 2:ON2

0-2 0: REMOTE CONTROL, 1: MONITOR BUTTONS, 2: BOTH

0-2 0: ON1, 1: OFF, 2: ON2

0-1 0: ON, 1: OFF

0-2 0: OFF, 1: OSD & LED, 2: LED

0-1 0: MONITOR, 1: CONTROLLER

0-4 0: D-SUB, 1: DisplayPort, 2: HDMI1, 3: HDMI2, 4: DVI-I

(”ERR” when MONITOR is selected for POWER BUTTON.)

0-2 0: OFF, 1: OSD & LED, 2: LED

Others

Function

SCREEN SIZE (PC)

SCREEN SIZE (AV)

VOLUME

MUTE

INFORMATION MODEL

SERIAL NO

TEMPERATURE SENSOR

TEMPERATURE ACQUISITION

CAUSE OF LAST STANDBY MODE


WIDE WR

WIDE

VOLM

MUTE

WR

WR

WR

INF1

SRNO

DSTA

R

R

R

ERRT

STCA

R

W

R

Parameter

1-5

1-5

0-31

0-1

0

-

*

○


1-5 1: WIDE, 2: NORMAL, 3: Dot by Dot, 4: ZOOM1, 5: ZOOM2

1-5 1: WIDE, 2: ZOOM1, 3: ZOOM2, 4: NORMAL, 5: Dot by Dot

0-31

0-1 0: OFF, 1: ON

Value

Value

0 Internal temperature normal

1 Internal temperature abnormal has occurred and the monitor is in standby mode

2 Internal temperature abnormal occurred (To delete the information of temperature abnormal, turn off the main power.)

3 Internal temperature abnormal has occurred and backlight brightness is dimmed

4 Temperature sensor abnormal

Value Temperature at temperature sensors 1 through 6 are returned in the following forms:

[Sensor 1], [Sensor 2], [Sensor 3], [Sensor 4], [Sensor 5], [Sensor 6]

Indicates a temperature sensor abnormality when “126” is returned.

Initialization

0 No detectable error has occurred

1 Standby mode by POWER button

2 Main power off by the main power switch

3 Standby mode by RS-232C or LAN

4 Input signal waiting mode by No Signal

6 Standby mode by abnormal temperature

8 Standby mode by SCHEDULE setting

20 Standby mode by OFF IF NO OPERATION setting

-

*

○

●

●

○

●

Commands for setting of the GAMMA user data

Function Command Direction Parameter Reply

RED GAMMA DATA TRANSFER

GREEN GAMMA DATA TRANSFER

BLUE GAMMA DATA TRANSFER

RED GAMMA DATA READ

GREEN GAMMA DATA READ

BLUE GAMMA DATA READ

USER DATA INITIALIZE

USER DATA SAVE

UGRW

UGGW

UGBW

UGRR

UGGR

UGBR

UGRS

UGSV

W

W

W

W

W

W

W

W aaxxxx ··· xxxxcc

(xxxx: 32 pieces) aa: 01-16 xxxx: 0000-1023 cc: 00-FF

1-16 xxxx ··· xxxx

1-16

1-16

(xxxx: 32 pieces) xxxx: 0000-1023

0

0


aa: Block number xxxx: 32 pieces of user data cc: Checksum (ASCII data) of the block number and user data xxxx: User data of 32 pieces

Initialize the user data.

Save the user data in the monitor.

*

○

Controlling the Monitor with a PC (LAN)

Your monitor can be connected to a LAN allowing you to control it from a PC on the LAN.

You can also configure the monitor to send e-mail notification when it has a problem.

The connection requires a commercially available LAN cable

(UTP cable, Category 5, straight through).

Network (LAN)

LAN terminal

Hub

LAN cable (commercially available, straight)

TIPS

• You must assign an IP address to the monitor by following the procedures in “Settings to connect to a LAN”. (See the description on the right.)

• Your PC must be installed with Internet Explorer (version 7.0 or later).

• To control the monitor via LAN, set RS-232C/LAN SELECT to LAN. (See page 25.)

• You cannot use RS-232C and LAN control simultaneously.

Initializing personal information

• Personal information such as e-mail addresses can be registered in the monitor. Before transferring or disposing of the monitor, initialize all settings by selecting ALL RESET

1. (See page 32.) Note that ALL RESET 2 will not initialize e-mail addresses and other settings.

Settings to connect to a LAN

Set the monitor’s IP address and subnet mask to match the settings of your LAN.

These settings can be made on either the monitor or a PC connected to the monitor.

The settings depend on the configuration of your LAN. Ask your LAN administrator for details.

■ To set on the monitor

Set RS-232C/LAN SELECT of COMMUNICATION SETTING on the SETUP menu to LAN, and then set the LAN SETUP options. (See page 25.)

After setting each item, select SET and press

ENTER

.

DHCP CLIENT

If your LAN has a DHCP server and you wish to obtain an address automatically, change this setting to ON.

To set the address manually, set this to OFF.

IP ADDRESS

If the DHCP CLIENT is set to OFF, specify an IP address.

Press or to select items, and press or to change the values.

SUBNET MASK

If the DHCP CLIENT is set to OFF, specify the subnet mask.


DEFAULT GATEWAY

If the DHCP CLIENT is set to OFF, specify the default gateway.

If you are not using a gateway, specify “0.0.0.0”.


RESET

Resets the values of the LAN settings to the factory preset values.

Select ON and then press

ENTER

.

TIPS

• When the IP address is set manually, the IP addresses of the monitor connected to the RS-232C output terminal and the daisy chain of connected monitors that follows can be assigned automatically. (See page 25.)

45

E

E

46


■ To set from a PC

When the monitor is connected to a PC, LAN settings can be configured via PC.

Set up process

(1) Connect your monitor to a PC

(2) Specify the PC’s IP address

(3) Configure the monitor’s LAN settings

(1) Connecting your monitor to a PC

Connect a commercially available crossover LAN cable

(UPT cable, Category 5) to the LAN port on the PC and this monitor.

7. Temporarily change the IP address and subnet mask.

To access the monitor as it is shipped from the factory, set as follows.

• IP Address: 192.168.150.1

• Subnet Mask: 255.255.255.0

• Default Gateway: (leave blank)

8. Click [OK] and then reboot the PC.

LAN terminal

To LAN terminal

PC

LAN cable

(commercially available, crossover)

(2) Specifying the PC’s IP address

To configure the monitor’s LAN settings, you must temporarily change the settings on the PC.

This explanation is based on Windows 7.

1. Log on to the PC with an administrator account.

2. Click [Start], and then click “Control Panel”.

3. Click “View network status and tasks” in “Network and

Internet”.

In “Classic View”, click “Network and Sharing Center”.

4. Click “Local Area Connection” and then “Properties”.

5. Click “Internet Protocol Version 4 (TCP/IPv4)” and then

“Properties”.

6. Make a note of the current IP address, subnet mask, and default gateway settings.

Make sure you write this information now as you will be changing the IP address, subnet mask, and default gateway settings back to these settings afterwards.

TIPS

• This monitor is factory preset as shown below.

(When DHCP CLIENT is set to OFF)

IP Address

Subnet Mask

: 192.168.150.2

: 255.255.255.0

Default Gateway : 0.0.0.0

(3) Configuring the monitor’s LAN settings

Access the monitor using Internet Explorer.

Controlling the monitor

1. Turn the power ON to the monitor.

2. Set RS-232C/LAN SELECT of COMMUNICATION

SETTING on the SETUP menu to LAN.

3. Set DHCP CLIENT of LAN SETUP of COMMUNICATION

SETTING on the SETUP menu to OFF.

PC operation

4. Launch Internet Explorer, in the “Address” box type

“http://192.168.150.2/” and press the Enter key.

5. Click on “LAN SETUP” under NETWORK.

6. Specify the “DHCP CLIENT”, “IP ADDRESS”,etc.


Controlling with a PC

■ Basic operation

You use Internet Explorer on a PC on the LAN to control the monitor.

1. Launch Internet Explorer on the PC.

2. In the “Address” box, type “http://” followed by your monitor’s

IP address followed by “/”, then press the Enter key.

You can confirm the IP address with the DISPLAY function.

When prompted to enter a user name and password, type the user name and password that you specified in the security settings (see page 49), and click [OK].

3. You can check, control, and change the monitor’s status and settings by clicking the menu items on the left side of the screen.

DHCP CLIENT

If your LAN has a DHCP server and you wish to obtain an address automatically, change this setting to “ON”.

To set the address manually, set this to “OFF”.

IP ADDRESS

If the DHCP CLIENT is set to “OFF”, specify an IP address.

SUBNET MASK

If the DHCP CLIENT is set to “OFF”, specify the subnet mask.

DEFAULT GATEWAY

If the DHCP CLIENT is set to “OFF”, specify the default gateway.

If you are not using a default gateway, specify “0.0.0.0”.

7. When the setting is changed, click [Apply].

8. Check the message and click [OK].

9. Exit Internet Explorer.

10. Restore the PC’s IP address jotted in Step 6, “(2)

Specifying the PC’s IP address”.

11. Connect the monitor and the PC to the LAN.

Caution

• Wait 10 seconds after clicking [OK] before proceeding.

• When operating using the remote control unit or similar, click [Refresh].

TIPS


• If you see an [Apply] button next to a setting, click it after you change that setting.

TIPS

• See pages 48 to 52 for details on each setting.

• If you click [Refresh] before the screen finishes updating the current display, the “Server Busy Error” will appear.

Wait for a moment before operating your monitor again.

• You cannot operate the monitor while it is warming up.

• If “DHCP CLIENT” is set to “ON”, press

DISPLAY

on the remote control unit two times and then check the monitor’s

IP address.

47

E

E

48


■ INFORMATION

Information about this monitor appears.

■ ADJUSTMENT

You can adjust these settings which are also available on the monitor’s menu.

• SCREEN (See page 21.)

• PICTURE (See page 22.)

• PICTURE (ADVANCED) (See page 23.)

• AUDIO (See page 24.)

• SETUP (See page 24.)

• MONITOR (See page 26.)

• OTHERS (See page 28.)

• SCHEDULE (See page 30.)

• MULTI (See page 27.)

• PIP/PbyP (See page 27.)

• FUNCTION (See page 32.)

■ CONTROL

(

You can control the operations corresponding to the buttons

POWER INPUT SIZE

) on the remote control unit. (See page 18.)

TIPS

• In standby mode, Power ON is the operation available.

TIPS

• After changing DISPLAY COLOR PATTERN to OFF, click

[Refresh] to correctly retrieve the status of the monitor.


■ NETWORK (LAN SETUP)

This screen allows you to set the settings necessary when the monitor is connected to a LAN.

■ NETWORK (SECURITY)

This screen allows you to specify the security-related settings.

DHCP CLIENT

If your LAN has a DHCP server and you wish to obtain an address automatically, change this setting to ON.

To set the address manually, set this to OFF.

IP ADDRESS

If the DHCP CLIENT is set to OFF, specify an IP address.

SUBNET MASK

If the DHCP CLIENT is set to OFF, specify the subnet mask.

DEFAULT GATEWAY

If the DHCP CLIENT is set to OFF, specify the default gateway.

If you are not using a default gateway, specify “0.0.0.0”.

DNS SERVER ADDRESS AUTO ACQUISITION

If the DHCP CLIENT is set to ON, specify whether or not to automatically obtain the DNS server address.

DNS SERVER

Specify the DNS server address if the DHCP CLIENT is SET to OFF or the DNS SERVER ADDRESS AUTO

ACQUISITION is set to OFF.

If you are not using a DNS server, specify “0.0.0.0”.

RESET

Clicking [Execute] returns all of the LAN SETUP settings to the factory-preset values except for the DNS SERVER

ADDRESS AUTO ACQUISITION and DNS SERVER settings.

USER NAME / PASSWORD

Sets up a user name and password to restrict access to this monitor.

After entering a user name and password, click [Apply].

ACCEPT IP ADDRESS

You can limit access to this monitor by registering IP addresses of PCs that should have access.

To limit access, specify the option “From only specific IP addresses”. Otherwise, to allow access from any PC, specify

“All IP Addresses”.

IP ADDRESS 1 to 3

If “ACCEPT IP ADDRESS” is set to “From only specific IP addresses”, enter the IP addresses that you want to allow.

TIPS

• The USER NAME and PASSWORD can be up to 8 alphanumeric characters (hyphens and underscores allowed).

• To cancel the user name and/or password after it has been set, make the box empty and click [Apply].

TIPS


49

E


■ NETWORK (GENERAL)

This screen allows you to specify the general LAN settings.

■ MAIL (ORIGINATOR)

This screen allows you to configure the e-mail sent periodically or when the monitor has an error.

The settings depend on the configuration of your LAN. Ask your LAN administrator for details.

E

50

MONITOR NAME

Specify a name for this monitor as it should appear on the

Internet Explorer screen.

AUTO LOGOUT TIME

Specify the time (in minutes) to elapse before automatically disconnecting this monitor from the network.

Specify in minutes from 1 to 65535. A value of ‘0’ will disable this function.

DATA PORT

Specify the TCP port number to use for exchanging data with the monitor.

Specify a value from 1025 to 65535.

SEARCH PORT

Specify the port number to use when searching for this monitor.

Specify a value from 1025 to 65535.

INSTALLATION INFORMATION (NAME/LOCATION)

Specify the information to display for this monitor in the

Internet Explorer window.

LINK MODE

Selects the link speed and duplex.

Use AUTO normally.

TIPS

• The MONITOR NAME can be up to 16 alphanumeric characters or symbols.

• Enter up to 50 characters in the NAME field in the

INSTALLATION INFORMATION.

• Enter up to 100 characters in the LOCATION field in the

INSTALLATION INFORMATION.

SMTP SERVER

Specify the SMTP server address for sending e-mail.

* When using a domain name, make sure to specify the

DNS SERVER as well. (See page 49.)

SMTP PORT

If the “AUTHENTICATION” is “SMTP-AUTH”, specify the port number.

ORIGINATOR E-MAIL ADDRESS

Specify the e-mail address for this monitor.

This address becomes the e-mail address of the originator.

ORIGINATOR NAME

Specify the name for the originator.

This name appears in the “Originator Name” field of the e-mail.

AUTHENTICATION

Specify the authentication method to use when sending e-mail.

POP SERVER

If the “AUTHENTICATION” is “POP before SMTP”, specify the POP server address.

ACCOUNT NAME / PASSWORD

If the “AUTHENTICATION” is “POP before SMTP” or

“SMTP-AUTH”, specify the account name and password to connect to the SMTP server.

TIPS

• You can enter up to 64 alphanumeric characters or symbols for the ORIGINATOR E-MAIL ADDRESS, ORIGINATOR

NAME, ACCOUNT NAME, and PASSWORD.

• The SMTP SERVER and POP SERVER can be up to 64 characters.

The following characters can be used: a-z, A-Z, 0-9, - , .

■ MAIL (RECIPIENT)

This screen allows you to specify the recipients of the e-mail sent periodically or when the monitor has an error.


■ MAIL (PERIODICAL)

When PERIODICAL for CONDITION of MAIL (RECIPIENT) is checked, set the date and time to send the mail.

RECIPIENT E-MAIL ADDRESSES

Specify the e-mail addresses to send error notification e-mail to.

CONDITION

Specify the conditions to send mails.

When you check PERIODICAL, specify the date and time to send the mails in the PERIODICAL setting.

CONFIRMATION

Sends test e-mail.

This allows you to confirm that the e-mail settings are configured properly.

Attach the log file to a TEMPERATURE/HARDWARE error e-mail.

When this option is checked, a log is added to the mail which notifies a temperature or status error.

TIPS

• The RECIPIENT E-MAIL ADDRESSES can be up to 64 alphanumeric characters or symbols.

DAY OF THE WEEK

Specify the day of the week to send the periodical mails.

TIME

Specify the time of the day to send the periodical mails.

Caution

• Do not turn off the main power when you set to send the periodical mails.

• Specify the correct date and time. (See page 24.)

If the date and time settings are incorrect, the periodical mail is not sent properly.

• Regularly confirm that the specified date and time is correct.

• When LOW POWER is selected for STANDBY MODE, periodical mails will not be sent in standby mode.

51

E


■ SNMP

You can configure settings related to SNMP.

Caution

• After you set SNMP, click [Switch the main power of monitor off and on now.] or turn off the monitor and then turn it on again with the main power switch. When the monitor restarts, wait about 30 seconds and then start the next operation.

• If the IP address is changed while the SNMP function is operational, turn off the monitor and then turn it on again with the main power switch.

TIPS

• Depending on the SNMP settings, a short delay may occur before the SNMP is usable. (About 5 minutes)

• Up to 16 alphanumeric letters and symbols can be used for the community name, user name and password.

■ SERVICE & SUPPORT

(URL INFORMATION)

You can display a specific URL in the URL INFORMATION field on the INFORMATION screen when an error occurs in the monitor. (See page 48.)

E

52

SNMP SETTING

Set whether to enable or disable SNMP.

VERSION

Set the version of the SNMP to be supported.

COMMUNITY NAME 1 to 3

Set the name of the community required for the access.

USER 1 to 3

Set the user name, password, authentication method and other options required for access.

TRAP SETTING

Set whether to enable or disable the trap function.

When this function is enabled, a trap will be sent when the monitor is turned on.

TRAP SETTING OF AUTHENTICATION ERROR

Set whether the trap function sends a notification when authentication fails.

TRAP ADDRESS & PORT

Set the destination address and port number of the notification sent by the trap function.

URL INFORMATION

Enter the URL to display on the INFORMATION screen when an error occurs on the monitor.

Up to 64 alphanumeric characters or symbols can be used.

CONDITION

Specify the condition to display the URL.

CONFIRMATION

The home page of the specified URL is displayed.

You can check whether the URL you entered is correct.

TIPS

• It is also possible to specify the message text, such as the name of a contact or a telephone number, to be displayed instead of the linked URL.

[Advanced operation]

Command-based control

You can control the monitor using RS-232C commands

(see page 36) via terminal software and other appropriate applications.

In order to use this function, enable a connection to the monitor through Internet Explorer.

Read the manual for the terminal software for detailed instructions.

(1) Connect the PC to the monitor.

1. Specify the IP address and data port number and connect the PC to the monitor.

When connection has been established successfully,

[ Login:] is returned as response.

2. Send the user name set in the SECURITY settings (see page 49).

• Send [User name] + [ ].

• If the user name is not set, send [ ].

• When the transmission is successful, [ Password:] is returned as response.

3. Send the password set in the SECURITY settings (see page 49).

• Send [Password] + [ ].

• If the password is not set, send [ ].

• When the transmission is successful, [OK ] is returned as response.

(2) Send commands to control the monitor.

• The commands used are the same as those for RS-

232C. Refer to the communication procedure (see page 33) for operation.

• Usable commands are provided in the RS-232C command table (see page 37).

(3) Disconnect the connection with the monitor and quit the function.

1. Send [BYE ].

When the transmission is successful, [goodbye] is returned and the connection is disconnected.

TIPS

• Connection is automatically disconnected when the time specified in AUTO LOGOUT TIME elapses over a no-communication period.


53

E

E

54

Troubleshooting

If you are experiencing any problem with your display, before calling for service, please review the following troubleshooting tips.

There is no picture or sound.

• Is the power cord disconnected? (See page 13.)

• Is the main power switch off? (See page 16.)

• Is the monitor in standby mode (the power LED illuminating in orange)? (See page 16.)

• Make sure correct input mode is selected. (See page 18.)

• If any external equipment is connected, make sure the equipment is operating (playing back).

Remote control does not work.

• Are the batteries inserted with polarity (+,-) aligned? (See page 15.)

• Are the batteries exhausted?

• Point the remote control unit toward the monitor’s remote control sensor. (See page 15.)

• Is the menu display hidden or is operation disabled? (See page 32.)

Sound from left and right speakers is reversed.

Sound is heard from only one side.

• Are audio cables connected properly?

• Check the setting of BALANCE for AUDIO menu. (See page 24.)

There is a picture but no sound.

• Is the sound muted?

• Make sure the volume is not set to minimum.

• Are audio cables connected properly?

• Is the setting of AUDIO SELECT on the SETUP menu correct? (See page 24.)

Unstable video.

• The signal may be incompatible.

• Try the automatic screen adjustment when the

D-SUB[RGB] or DVI-I (analog) are used.

The video from the PC/AV HDMI input terminal does not appear properly.

• Is the setting for HDMI1 or HDMI2 of INPUT SELECT on the SETUP menu correct? (See page 24.)

• Is the HDMI cable HDMI standard compliant? The monitor will not work with cables that are not standard compliant.

• Is the input signal compatible with this monitor? (See page

58.)

The video from the DVI-I input terminal does not appear properly.

• Is the setting for EDID SELECT (DVI-I) of INPUT SELECT on the SETUP menu correct? (See page 24.)


58.)

• Turn off the power to the connected equipment and then turn the power on again.

• If the monitors are connected in a daisy chain, turn off the power to all the monitors connected in a daisy chain and then turn the power on again.

The video from PC/AV D-Sub input terminal does not appear correctly.

• Is the setting for D-SUB of INPUT SELECT on the SETUP menu correct? (See page 24.)


58.)

The video from the DisplayPort does not appear properly.


58.)

Control buttons do not work.

There is no picture.

• Load noises from outside may be interfering with normal operation. Turn off the power and turn it on after waiting at least 5 seconds, and then check the operation.

The input mode changes automatically.

• When the AUTO INPUT CHANGE is ON and no signal is present in a selected input mode, the AUTO INPUT

CHANGE automatically changes the selected mode to a mode where a video signal is present.

The input mode may change in the following cases:

- When a computer is in standby mode.

- When video play is stopped with a playback device.

Power LED flashes red.

“STATUS [xxxx]” appears in the corner of the screen.

• Hardware has a problem. Turn off the monitor and request repair from your SHARP dealer.

(When STATUS ALERT is set to OSD & LED. This varies depending on the setting.)

When “AUTO DIMMING” is displayed.

• When the internal temperature of the monitor rises excessively, the brightness of the backlight automatically decreases in order to prevent a further temperature rise. If you attempt to use to adjust the brightness while the monitor is in this state, “AUTO DIMMING” is displayed and you cannot change the brightness.

• Remove the cause of the excessive temperature rise.

The monitor makes a cracking sound.

• You may occasionally hear a cracking sound from the monitor. This happens when the cabinet slightly expands and contracts according to change in temperature. This does not affect the monitor’s performance.

The Power LED is flashing in red and green alternately.

When “TEMPERATURE” is displayed in the corner of the screen.

• When the internal temperature of the monitor rises excessively, the brightness of the backlight decreases automatically in order to prevent high-temperaturerelated problems. When this occurs, “TEMPERATURE” is displayed on the screen and the Power LED flashes red and green alternately. (When TEMPERATURE ALERT is set to OSD & LED. This varies depending on the setting.)

• If the internal temperature rises further, the monitor automatically enters standby mode. (The Power LED continues flashing red and green alternately.)

• Remove the cause of the excessive temperature rise.

- If the monitor enters standby mode due to a rise in temperature, to return to normal display, turn the power switch off and then back on again. The monitor, however, will enter standby mode again if the cause of the temperature rise is not eliminated. (See page 7.)

- Check whether the monitor is placed at a location where a quick rise in temperature is likely. Internal temperature rises quickly if the vents on the monitor are blocked.

- Internal temperature rises quickly if dust accumulates inside the monitor or around the vents. Remove dust if possible. Ask SHARP dealer about removing internal dust.

Troubleshooting

55

E

E

56

Specifications

n

Product Specifications

Model

LCD component

Max. resolution

Max. colors

Pixel pitch

PN-R903

90" Class [90-1/16 inch (228.7cm) diagonal] TFT LCD

(pixels)

1920 x 1080

Approx. 1.06 billion colors

Viewing angle

Screen active area

Computer input signal

Sync signal

1.038 mm (H) × 1.038 mm (V)

176° right/left/up/down (contrast ratio ≥ 10) inch (mm) 78-7/16 x 44-1/8 (1993.0 x 1121.0)

Digital (DVI 1.0 standard-compliant), Analog RGB (0.7 Vp-p) [75 Ω],

DisplayPort 1.1

Horizontal/vertical separate (TTL: positive/negative), Sync-on-green*

Composite sync (TTL: positive/negative)*

1

NTSC (3.58MHz)/NTSC (4.43MHz)/PAL/PAL-60/SECAM

1 ,

VESA DDC2B

Video color system

Plug and play

Power management

Input terminals

Output terminals

PC/AV

PC

Audio

Serial (RS-232C)

PC

VESA DPMS, DVI DMPM

HDMI x 2

Mini D-sub 15 pin, 3 rows x 1

DisplayPort x 1

DVI-I 29 pin (HDCP compatible) x 1

3.5 mm mini stereo jack x 2

D-sub 9 pin x 1

DisplayPort x 1

DVI-D 24 pin (HDCP compatible) x 1

LAN terminal

Speaker output

Power requirement

Audio

Serial (RS-232C)

Operating temperature *

2

3.5 mm mini stereo jack x 1

D-sub 9 pin x 1

10 BASE-T/100 BASE-TX

10 W + 10 W

AC 100 V - 240 V, 7.5 A, 50/60 Hz

32°F to 104°F (0°C to 40°C)

Operating humidity

Power consumption

(Input signal waiting mode * 3 / standby mode *

Dimensions (excluding protrusions)

4 )

20% to 80% (no condensation)

660 W (1.4 W / 1.4 W) inch (mm) Approx. 80-7/8 (W) x 4-13/16 (D) x 47-1/8 (H) (2055 x 122 x 1197)

Weight lbs. (kg) Approx. 165.3 (75) (excluding the temporary stand used in the package for transportation)

*1 D-Sub input terminal only.

*2 Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such cases, please check the temperature condition specified by the optional equipments.

*3 When AUTO INPUT CHANGE is set to OFF.

*4 When STANDBY MODE is set to STANDARD. When STANDBY MODE is set to LOW POWER: 0.5 W

As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

n

Dimensional Drawings

Note that the values shown are approximate values.

2-15/16

[74]

1-3/16

[30]

80-7/8 [2055]

Opening width (78-3/4 [2001])

1-7/16

[37]

Screw holes for mounting brackets*

11-13/16

[300]

11-13/16

[300]

Specifications

Unit: inch [mm]

4-13/16

[122]

When mounting the monitor, be sure to use a wall-mount bracket.

SHARP recommends using M6 screws and tighten the screws.

Note that screw hole depth of the monitor is 3/8 inch (10 mm). Loose mounting may cause the product to fall, resulting in serious personal injuries as well as damage to the product. The screw and hole should come together with over 5/16 inch

(8 mm) length of thread. Use a bracket which has been approved for UL1678 standard, and which can endure at least 4 times or more the weight of the monitor.

n

Power management

This monitor conforms to VESA DPMS and DVI DMPM. Both your video card and computer must support the same standard in order for the monitor’s power management function to work.

DPMS: Display Power Management Signaling

DPMS Screen

ON STATE Display

STANDBY

SUSPEND

No display

OFF STATE

Power consumption Hsync

660 W

1.4 W *

Yes

No

Yes

No

Vsync

Yes

Yes

No

No

* When AUTO INPUT CHANGE is set to OFF.

DMPM: Digital Monitor Power Management

DMPM Screen

Monitor ON Display

Active OFF No display

Power consumption

660 W

1.4 W * n

POWER LIMITER (See page 23.)

MODE

MODE2

MODE1

OFF

Power consumption

340 W

410 W

660 W

Set to ensure maximum power consumption. (See page 56.) n

DDC (plug and play)

The monitor supports the VESA DDC (Display Data Channel) standard.

DDC is a signal standard for plug and play between monitors and computers. Information about resolution and other parameters is exchanged between the two. This function can be used if the computer supports DDC and it has been configured to detect plug-and-play monitors.

There are several types of DDC, depending on the communication method used. This monitor supports DDC2B.

57

E

Specifications

n

Compatible signal timing (PC)

Screen resolution Hsync Vsync Dot frequency

Digital

VESA

Wide

US TEXT

Sun

640 × 480

800 × 600

848 × 480

1024 × 768

1152 × 864

1280 × 768

1280 × 800

1280 × 960

1280 × 1024

1360 × 768

1400 × 1050

1440 × 900

1600 × 1200

1680 × 1050

1920 × 1200

1280 × 720

1920 × 1080

720 × 400

1024 × 768

1152 × 900

1280 × 1024

1600 × 1000

*

*

31.5kHz

37.9kHz

37.5kHz

35.1kHz

37.9kHz

48.1kHz

46.9kHz

31.0kHz

48.4kHz

56.5kHz

60.0kHz

67.5kHz

47.8kHz

60.3kHz

49.7kHz

60.0kHz

64.0kHz

80.0kHz

47.7kHz

65.3kHz

55.9kHz

75.0kHz

65.3kHz

74.0kHz

44.7kHz

66.3kHz

67.5kHz

31.5kHz

48.3kHz

53.6kHz

56.6kHz

61.8kHz

71.8kHz

71.7kHz

81.1kHz

68.6kHz

60Hz

72Hz

75Hz

56Hz

60Hz

72Hz

75Hz

60Hz

60Hz

70Hz

75Hz

75Hz

60Hz

75Hz

60Hz

60Hz

60Hz

75Hz

60Hz

60Hz

60Hz

60Hz

60Hz

60Hz

60Hz

60Hz

60Hz

70Hz

60Hz

66Hz

70Hz

66Hz

76.2Hz

67.2Hz

76Hz

66Hz

25.175MHz

31.5MHz

31.5MHz

36.0MHz

40.0MHz

50.0MHz

49.5MHz

33.75MHz

65.0MHz

75.0MHz

78.75MHz

108.0MHz

79.5MHz

102.25MHz

83.5MHz

108.0MHz

108.0MHz

135.0MHz

85.5MHz

121.75MHz

106.5MHz

162.0MHz

146.25MHz

154.0MHz

74.4MHz

148.5MHz

148.5MHz

28.3MHz

64.13MHz

70.4MHz

74.25MHz

94.88MHz

108.23MHz

117.01MHz

134.99MHz

135.76MHz

* Displays a reduced image, except in Dot by Dot. In Dot by Dot, the image will be cut down to panel size then displayed.

Yes

Yes

Yes

Yes

Yes

Yes

-

-

Yes

Yes

Yes

Yes

Yes

Yes

Yes

-

-

-

-

-

-

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

DVI-I

Yes

Yes

Yes

-

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

-

-

Yes

Yes

Yes

Yes

Yes

Yes

-

-

-

-

-

-

-

Yes

Yes

-

Yes

Yes

Yes

Yes

-

HDMI

Yes

Yes

Yes

-

Yes

Yes

Yes

Yes

Yes

Yes

Yes

-

-

-

-

-

-

-

-

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

DisplayPort

Yes

Yes

Yes

-

Yes

Yes

Yes

-

Yes

Yes

Yes

Yes

Yes

Yes

Analog

(D-SUB/DVI-I)

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

E

58

• All are compliant only with non-interlaced.

• Depending on the connected PC, images may not be displayed properly even if the compatible signal described above is input.

• The frequency values for the Sun are reference values.

n

Compatible signal timing (AV)

Screen resolution

1920 × 1080p

1920 × 1080i

1280 × 720p

720 × 576p

720 × 480p

640 × 480p(VGA)

720(1440) × 576i

720(1440) × 480i

Frequency

24Hz

50Hz

59.94Hz

60Hz

50Hz

59.94Hz

60Hz

50Hz

59.94Hz

60Hz

50Hz

59.94Hz

60Hz

59.94Hz

60Hz

50Hz

59.94Hz

60Hz

HDMI

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Component

-

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

-

-

Yes

Yes

Yes

n

DVI-I input terminal pins

(DVI-I 29 pin)

Specifications

n

PC/AV HDMI input terminal pins

(HDMI

TM

Connector)

No.

Function

1 TMDS data 2-

2 TMDS data 2+

3 TMDS data 2/4 shield

4 N.C.

5 N.C.

6 DDC clock

7 DDC data

8 Analog Vsync signal

9 TMDS data 1-

10 TMDS data 1+


12 N.C.

13 N.C.

14 +5V

15 GND

No.

Function

16 Hot-plug detection

17 TMDS data 0-

18 TMDS data 0+


20 N.C.

21 N.C.

22 TMDS clock shield

23 TMDS clock+

24 TMDS clock-

C1 Analog red video signal

C2 Analog green video signal

C3 Analog blue video signal

C4 Analog Hsync signal

C5 Analog GND

No.

Function

1 TMDS data 2+

2 TMDS data 2 shield

3 TMDS data 2-

4 TMDS data 1+


6 TMDS data 1-

7 TMDS data 0+


9 TMDS data 0-

10 TMDS clock+

No.

Function


12 TMDS clock-

13 CEC

14 N.C.

15 SCL

16 SDA

17 DDC/CEC GND

18 +5V

19 Hot-plug detection n

PC/AV D-sub input terminal pins

(Mini D-sub 15 pin)

No.

Function

1 Red video signal input

2 Green video signal input

3 Blue video signal input

4 N.C.

5 GND

No.

9 +5V

10 GND

11 N.C.

Function

12 DDC data

13 Hsync signal input

6 GND for red video signal 14 Vsync signal input

7 GND for green video signal 15 DDC clock

8 GND for blue video signal n

RS-232C input terminal pins

(D-sub 9 pin)

No.

1 N.C.

Function

2 Transmitted data

3 Received data

4 N.C.

5 GND

No.

6 N.C.

7 N.C.

8 N.C.

9 N.C.

Function

n

DisplayPort input terminal pins

(DisplayPort 20 pin)

No.

Function

1 MainLane 3-

2 Gnd

3 MainLane 3+

4 MainLane 2-

5 Gnd

6 MainLane 2+

7 MainLane 1-

8 Gnd

9 MainLane 1+

10 MainLane 0-

No.

11 Gnd

Function

12 MainLane 0+

13 Gnd

14 Gnd

15 Aux +

16 Gnd

17 Aux -


19 Gnd

20 3.3V

59

E

E

60

Specifications

n

DVI-D output terminal pins

(DVI-D 24 pin)

No.

Function

1 TMDS data 2-

2 TMDS data 2+


4 N.C.

5 N.C.

6 DDC clock

7 DDC data

8 N.C.

9 TMDS data 1-

10 TMDS data 1+


12 N.C.

No.

13 N.C.

14 +5V

15 GND

Function


17 TMDS data 0-

18 TMDS data 0+


20 N.C.

21 N.C.


23 TMDS clock+

24 TMDS clockn

RS-232C output terminal pins

(D-sub 9 pin)

No.

1 N.C.

Function

2 Received data

3 Transmitted data

4 N.C.

5 GND

No.

6 N.C.

7 N.C.

8 N.C.

9 N.C.

Function

n

DisplayPort output terminal pins

(DisplayPort 20 pin)

No.

Function

1 MainLane 0+

2 Gnd

3 MainLane 0-

4 MainLane 1+

5 Gnd

6 MainLane 1-

7 MainLane 2+

8 Gnd

9 MainLane 2-

10 MainLane 3+

No.

11 Gnd

Function

12 MainLane 3-

13 Gnd

14 Gnd

15 Aux +

16 Gnd

17 Aux -


19 Gnd

20 3.3V

Mounting Precautions

(For SHARP dealers and service engineers)

• When installing, removing or moving the monitor, ensure that this is carried out by at least 4 people.

• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.

• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials such as plaster / thin plastic board / wood before starting installation.

• This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor.

Install by the most suitable method for the material and the structure.

• To attach a mounting bracket, use M6 screws that are 5/16 inch (8 mm) to 3/8 inch (10 mm) longer than the thickness of the mounting bracket.

• Do not use an impact driver.

• When moving the monitor, be sure to hold it with the handles, the unit bottom and the side of unit. Do not hold the LCD panel.

This may cause product damage, failure, or injury.

• After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.

• Do not use any screw holes other than those for mounting brackets, located on the rear of the monitor, for installation.

n

Removing the temporary stand used in the package for transportation

Caution

• The temporary stand used in the package for transportation is only for use with this monitor. Do not use it for any other devices.

1. Spread a soft thick cloth (such as a blanket) on a stable level surface on which the entire monitor can be placed, and place the monitor on it with the screen facing down.

2. Remove the stand fixing screws and then remove the stand.

3. Attach the cover (supplied) onto the back of the monitor.

Secure using 2 cover screws (supplied).

Apply the screw masking sheets (supplied).

Cover screws
