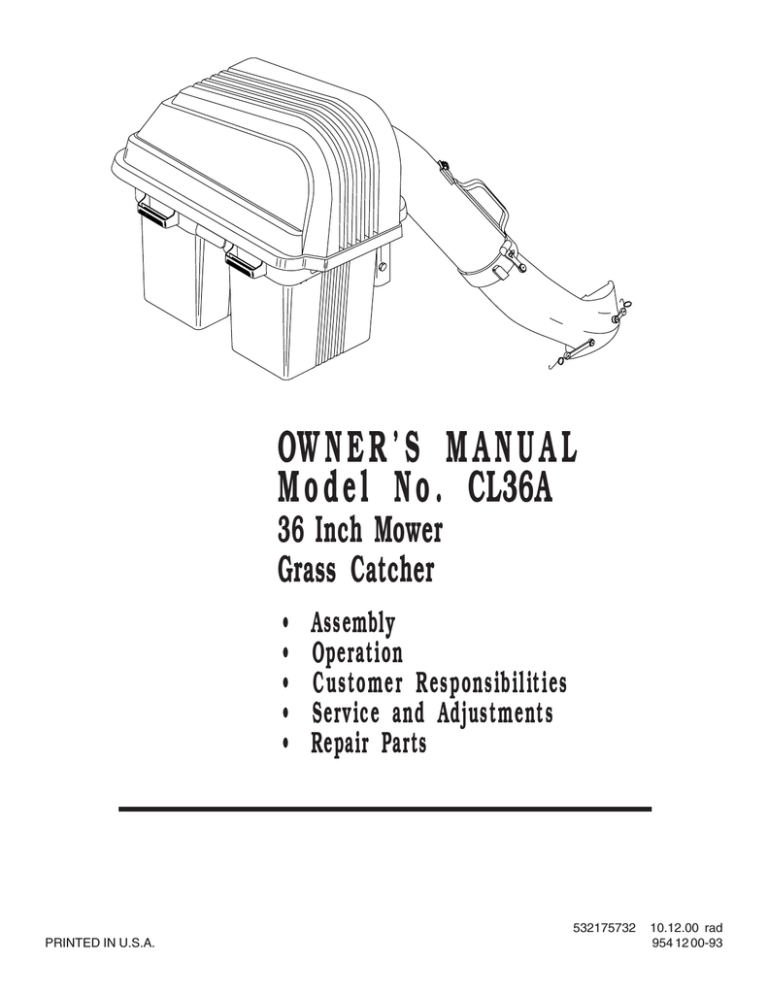

OW N E R ’ S M A N U A L
M o d e l N o . CL36A
36 Inch Mower
Grass Catcher





Assembly
Operation
Customer Responsibilities
Service and Adjustments
Repair Parts
532175732
PRINTED IN U.S.A.
1
10.12.00 rad
954 12 00-93
SAFETY RULES
Safe Operation Practices for Ride-On Mowers
IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.
FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.
DO NOT:
Do not turn on slopes unless necessary, and then, turn
•
slowly and gradually downhill, if possible.
Do not mow near drop-offs, ditches, or embankments. The
•
mower could suddenly turn over if a wheel is over the edge
of a cliff or ditch, or if an edge caves in.
•
Do not mow on wet grass. Reduced traction could cause
sliding.
•
Do not try to stabilize the machine by putting your foot on the
ground.
Do not use grass catcher on steep slopes.
•
I. GENERAL OPERATION
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Read, understand, and follow all instructions in the manual
and on the machine before starting.
Only allow responsible adults, who are familiar with the
instructions, to operate the machine.
Clear the area of objects such as rocks, toys, wire, etc., which
could be picked up and thrown by the blade.
Be sure the area is clear of other people before mowing. Stop
machine if anyone enters the area.
Never carry passengers.
Do not mow in reverse unless absolutely necessary. Always
look down and behind before and while backing.
Be aware of the mower discharge direction and do not point
it at anyone. Do not operate the mower without either the
entire grass catcher or the guard in place.
Slow down before turning.
Never leave a running machine unattended. Always turn off
blades, set parking brake, stop engine, and remove keys
before dismounting.
Turn off blades when not mowing.
Stop engine before removing grass catcher or unclogging
chute.
Mow only in daylight or good artificial light.
Do not operate the machine while under the influence of
alcohol or drugs.
Watch for traffic when operating near or crossing roadways.
Use extra care when loading or unloading the machine into
a trailer or truck.
Data indicates that operators, age 60 years and above, are
involved in a large percentage of riding mower-related
injuries. These operators should evaluate their ability to
operate the riding mower safely enough to protect themselves
and others from serious injury.
III. CHILDREN
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the
machine and the mowing activity. Never assume that
children will remain where you last saw them.
•
•
•
•
•
•
IV. SERVICE
•
II. SLOPE OPERATION
Slopes are a major factor related to loss-of-control and
tipover accidents, which can result in severe injury or death.
All slopes require extra caution. If you cannot back up the
slope or if you feel uneasy on it, do not mow it.
•
•
DO:
•
•
•
•
•
•
•
•
Keep children out of the mowing area and under the watchful
care of another responsible adult.
Be alert and turn machine off if children enter the area.
Before and when backing, look behind and down for small
children.
Never carry children. They may fall off and be seriously
injured or interfere with safe machine operation.
Never allow children to operate the machine.
Use extra care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision.
Mow up and down slopes, not across.
Remove obstacles such as rocks, tree limbs, etc.
Watch for holes, ruts, or bumps. Uneven terrain could
overturn the machine. Tall grass can hide obstacles.
Use slow speed. Choose a low gear so that you will not have
to stop or shift while on the slope.
Follow the manufacturer’s recommendations for wheel
weights or counterweights to improve stability.
Use extra care with grass catchers or other attachments.
These can change the stability of the machine.
Keep all movement on the slopes slow and gradual. Do not
make sudden changes in speed or direction.
Avoid starting or stopping on a slope. If tires lose traction,
disengage the blades and proceed slowly straight down the
slope.
•
•
•
•
•
•
•
2
Use extra care in handling gasoline and other fuels. They
are flammable and vapors are explosive.
- Use only an approved container.
- Never remove gas cap or add fuel with the engine
running. Allow engine to cool before refueling. Do not
smoke.
- Never refuel the machine indoors.
- Never store the machine or fuel container inside where
there is an open flame, such as a water heater.
Never run a machine inside a closed area.
Keep nuts and bolts, especially blade attachment bolts, tight
and keep equipment in good condition.
Never tamper with safety devices. Check their proper
operation regularly.
Keep machine free of grass, leaves, or other debris build-up.
Clean oil or fuel spillage. Allow machine to cool before
storing.
Stop and inspect the equipment if you strike an object.
Repair, if necessary, before restarting.
Never make adjustments or repairs with the engine running.
Grass catcher components are subject to wear, damage,
and deterioration, which could expose moving parts or allow
objects to be thrown. Frequently check components and
replace with manufacturer's recommended parts, when
necessary.
Mower blades are sharp and can cut. Wrap the blade(s) or
wear gloves, and use extra caution when servicing them.
Check brake operation frequently. Adjust and service as
required.
SAFETY RULES
Safe Operation Practices for Ride-On Mowers
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Be sure the area is clear of other people before mowing.
Stop machine if anyone enters the area.
Never carry passengers or children even with the blades
off.
Do not mow in reverse unless absolutely necessary. Always
look down and behind before and while backing.
Never carry children. They may fall off and be seriously
injured or interfere with safe machine operation.
Keep children out of the mowing area and under the
watchful care of another responsible adult.
Be alert and turn machine off if children enter the area.
Before and when backing, look behind and down for small
children.
Mow up and down slopes (15° Max), not across.
Remove obstacles such as rocks, tree limbs, etc.
Watch for holes, ruts, or bumps. Uneven terrain could
overturn the machine. Tall grass can hide obstacles.
Use slow speed. Choose a low gear so that you will not have
to stop or shift while on the slope.
Avoid starting or stopping on a slope. If tires lose traction,
disengage the blades and proceed slowly straight down
the slope.
If machine stops while going uphill, disengage blades, shift
into reverse and back down slowly.
Do not turn on slopes unless necessary, and then, turn
slowly and gradually downhill, if possible.
Look for this symbol to point out important safety precautions. It means CAUTION!!! BECOME ALERT!!! YOUR
SAFETY IS INVOLVED.
CAUTION: Do not coast down a hill in
neutral, you may lose control of the
tractor.
CAUTION: Tow only the attachments
that are recommended by and comply
with specifications of the manufacturer of your tractor. Use common
sense when towing. Operate only at
the lowest possible speed when on a
slope. Too heavy of a load, while on
a slope, is dangerous. Tires can lose
traction with the ground and cause
you to lose control of your tractor.
CAUTION: In order to prevent
accidental starting when setting up,
transporting, adjusting or making
repairs, always disconnect spark plug
wire and place wire where it cannot
contact spark plug.
CONGRATULATIONS on your purchase of a new Grass Catcher. It has been designed, engineered and manufactured to
give you the best possible dependability and performance.
Should you experience any problems you cannot easily remedy, please contact your nearest authorized service center/
department. They have competent, well trained technicians and the proper tools to service or repair this unit.
Please read and retain this manual. The instructions will enable you to assemble and maintain your Grass Catcher
properly. Always observe the "SAFETY RULES".
NOTE: To make debris disposal easier 30 gallon plastic trash bags may be inserted in plastic grass containers. To order, see
repair parts section of this manual.
TABLE OF CONTENTS
SAFETY RULES ......................................................... 2-3
BAG OF PARTS ......................................................... 4-5
ASSEMBLY .............................................................. 6-10
OPERATION ................................................................ 11
CUSTOMER RESPONSIBILITIES ............................... 12
STORAGE ................................................................... 12
REPAIR PARTS....................................center of manual
3
KNOW YOUR GRASS CATCHER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE ASSEMBLING OR OPERATING YOUR GRASS CATCHER.
Compare the illustrations with the carton contents to familiarize yourself with the parts before starting the assembly. Study the
operating instructions and safety precautions thoroughly to insure proper functioning of your Grass Catcher and to prevent injury
to yourself and others. Save this manual for future reference.
The operation of any tractor can result in foreign objects thrown into the eyes, which can result in
severe eye damage. Always wear safety glasses or eye shields before starting your tractor and while
mowing. We recommend wide vision safety mask for over the spectacles or standard safety glasses.
UNPACKING INSTRUCTIONS
CARTON CONTENTS:
•
•
(2) Container Tops
(2) Container Bottoms
(1) Upper Chute
(1) Lower Chute
(1) Support Post
•
Remove all parts and packing materials from carton.
Fold flaps to inside of carton and turn carton upsidedown
on floor of work area. To protect grass catcher cover
during assembly place cover upsidedown on overturned
carton.
Check carton contents against list. Be sure all parts are
there.
(1) Mounting Bracket
(1) Cover Assembly
(1) Cover Seal
(1) Bag of Parts
(1) Owner's Manual
NOTE: For ease of assembly, aside of your work area, lay out all hardware in the following groups. Each step of the assembly
instructions will identify the group needed for that step.
BAG OF PARTS CONTENTS
ASSEMBLY
LOCATION
HARDWARE SHOWN ACTUAL SIZE
GROUP "A"
REAR
MOUNTING
BRACKET
TO
DRAW BAR
(4) Bolt 5/16 - 18 x 3/4
(4) Locknut 5/16-18
(4) Shoulder Bolt 5/16 - 18 Self Tapping
GROUP "B"
SUPPORT
POST
TO
CONTAINER
SUPPORT
(3) Carriage Bolt 5/16 - 18 x 3/4
GROUP "C"
SUPPORT
POST
TO
MOUNTING
BRACKET
(3) Locknut 5/16-18
(1) Bracket Support Pin
(1) Retainer Spring
(3) Tubing End Caps
4
BAG OF PARTS CONTENTS (continued)
GROUP "D"
(2) Latch Hook Assembly
LOWER
CHUTE
ASSEMBLY
TO
MOWER
DECK
(2) Screw #10 x 5/8
(2) Washer, Lock #10
(2) Nut, Weld #10
(2) Washer 3/16 x 3/4 x 16 Ga.
GROUP "E"
CHUTE
LATCH
ASSEMBLY
TO
UPPER
CHUTE
(1) Screw #10 x 1-1/8
(1) Spacer, Split #10
(2) Washer 3/16 x 3/4 x 16 Ga.
(1) Nut, Acorn #10
GROUP "F "
CHUTE
LATCH
ASSEMBLY
TO
LOWER
CHUTE
(1) Rubber Latch
(1) Screw #10 x 5/8
(1) Washer, Lock #10
5
(1) Washer 3/16 x 3/4 x 16 Ga.
(1) Nut, Weld #10
ASSEMBLY
PARTS IDENTIFICATION
COVER ASSEMBLY
UPPER CHUTE
DUMP
BAG
INDICATOR
r is
ne
ntai en
d.Coe wh r.
talle plac aine
s ns . Re cont
erlyiently ent
prop qu em
r is g fre plac
aine k ba d re
contChecmende
less n. m
un ratio reco
er
a
INGmow tierioonly
RNerate and deUse
WAnot op wear aged.
Do ect to dam
or
subjked
crac
r is
ne
ntai en
d.Coe wh r.
talle plac aine
s ns . Re cont
erlyiently ent
prop qu em
r is g fre plac
aine k ba d re
contChecmende
less n. m
un ratio reco
er
a
INGmow tierioonly
RNerate and deUse
WAnot op wear aged.
Do ect to dam
or
subjked
crac
CHUTE LATCH
GRASS
CATCHER
CONTAINERS
LOWER CHUTE
LOWER CHUTE
ATTACHING
STRAPS
NOTE: When right hand (R.H.) and left hand (L.H.) are mentioned in this manual, it means when you are seated on the tractor,
in the operator's position.
THESE ARE THE TOOLS YOU WILL NEED TO
ASSEMBLE YOUR GRASS CATCHER:
(1) 3/8" Wrench
(1) 1/2" Wrench
(2) 9/16" Wrenches
(1) 1/2" Socket
(1) 9/16" Deep well Socket
(1) Drive Ratchet
(1) 3" or longer Extension
(1) Short Handle
Phillips Screwdriver
CAUTION: BEFORE ASSEMBLING GRASS CATCHER TO TRACTOR:
• Depress clutch/brake pedal fully and set parking brake.
• Place gearshift/motion control lever in neutral (N) position.
• Place attachment clutch in "DISENGAGED" position.
• Turn ignition key "OFF" and remove key.
• Make sure the blade and all moving parts have completely stopped.
• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with
plug.
6
ASSEMBLY
1
BOLTS
REAR MOUNTING BRACKET
(See Figs. 1A, 1B & 1C)
NOTE: If your tractor already has four (4) shoulder bolts
installed on the rear drawbar, simply hang the mounting
bracket, lanced tabs towards bottom, on the bolts. Discard
hardware group "A" and disregard the remaining Step 1
instructions.
LOCKNUTS
LANCED TABS
TOWARD BOTTOM
FIG. 1C
SHOULDER
BOLTS
2
•
•
LANCED TABS
TOWARD BOTTOM
FIG. 1A
If your tractor does not have four (4) shoulder bolts installed
on the drawbar, follow the instructions below.
COVER SEAL (See Fig. 2)
No hardware required
Align mark on seal with mark at cover opening.
Work seal into opening so cover sits between flanges of
seal.
ALIGNMENT
MARKS
Use Hardware - - GROUP "A"
Only one set of hardware in GROUP "A" will be used to mount
the rear mounting bracket. To determine which set is correct
for your tractor, check to see if there are (2) two upper corner
ribs on each side of drawbar. If your tractor has the upper
corner ribs, use the (4) four self tapping shoulder bolts. If your
tractor does not have the corner ribs, use the set of (4) four
bolts and locknuts.
COVER SEAL
FIG. 2
SELF TAPPING SHOULDER BOLTS (See Fig. 1B)
• Using the four formed holes in the drawbar, install the
four shoulder bolts as shown and tighten securely.
• Hang the mounting bracket, lanced tabs towards bottom,
on the bolts.
3
SUPPORT POST (See Fig. 3)
Use Hardware - - GROUP "B"
CAUTION: Container support is spring
loaded and locked to the cover. Handle
cover assembly carefully so as not to
unlatch the cover from the container
support.
UPPER CORNER
RIBS
UPPER CORNER
RIBS
SELF
TAPPING
SHOULDER
BOLTS
•
•
Rotate cover assembly onto its side as shown.
Assemble support post to container support with the
three (3) carriage bolts and locknuts. Tighten securely.
CARRIAGE
BOLTS
LANCED TABS
TOWARD BOTTOM
FIG. 1B
BOLTS AND LOCKNUTS (See Fig. 1C)
• Assemble the mounting bracket, lanced tabs towards
bottom, using the four smaller inside holes on the
drawbar.
• Install the four bolts and locknuts as shown and tighten
securely.
SUPPORT
POST
LOCKNUTS
7
FIG. 3
ASSEMBLY
4
MOUNTING COVER ASSEMBLY TO
TRACTOR (See Fig. 4)
Use Hardware - - GROUP "C"
5
•
•
NOTE: For ease of assembly, you may wish to obtain the
assistance of another person for mounting assembly to
tractor.
• Raise seat on tractor to allow assembly to be mounted.
• With cover closed, lift assembly and place support post
inside mounting bracket. Allow assembly to rest on
lanced tabs of mounting bracket.
• Line up holes in mounting bracket with holes in support
post and insert bracket support pin. Secure with retainer
spring.
• Unlatch and open cover.
• Install the three (3) tubing end caps onto container
support.
• Tap each end cap onto container support tubes to seat
securely.
BRACKET
SUPPORT PIN
•
CONTAINER ASSEMBLY (See Fig. 5)
No hardware required
Place bottom half inside of top half, as shown.
Place one foot inside bottom half and lift top half to meet
bottom half.
Press halves tightly together while lifting top to lock into
place as shown.
IMPORTANT: BEFORE LOCKING THE TABS, HOOKED
EDGES ON BOTH HALVES MUST OVERLAP TO FORM
SEAL AS SHOWN IN INSET.
•
Repeat for second container.
CONTAINER
BOTTOM
HALF
COVER ASSEMBLY
CONTAINER
TOP HALF
CONTAINER
BOTTOM
HALF
RETAINER
SPRING
PRESS TOGETHER
TO FORM SEAL
WHILE LIFTING
TOP HALF
LOCKING
TAB
ASSEMBLY CHECK: Squeeze sides of lower half of container and check that there is no gap between upper and
lower halves. If a gap appears, unlock tabs to separate
container halves and repeat instructions above.
END CAP
r is
ne
tai en
.Con wh r.
led
tal place ine
s ns . Re conta
erlyientlyment
prop qu ce
r is g fre pla
ine ba d re
nta eck de
s co Ch en
les tion. comm
r un ra re
we tierio ly a
mo de on
RNeratear andd. Use
WAnot op
we ge
to ma
Do ct da
bje or
su cked
cra
ING
SUPPORT POST
LANCED TABS
FIG. 5
MOUNTING
BRACKET
FIG. 4
8
ASSEMBLY
6
7
CONTAINER MOUNTING (See Fig. 6)
No hardware required
•
•
Install one container to left side first with warning to
outside of unit. Install other container to right side.
NOTE: Right container should always overlap left container
at center support.
• Close cover and lock latch handle over center support
tube.
•
•
•
•
COVER LATCH
HANDLE
•
CONTAINER
WARNING
LOWER CHUTE (See Figs. 7A & 7B)
Use Hardware - - GROUP "D"
Press weld nut into rubber latch and install two latch
hook assemblies to lower chute using screw, flat washer,
and lock washer as shown.
Tighten hardware securely.
Raise and hold deflector shield in upright position.
Place front of chute over front of mower deck opening
and slide into place as shown.
Hook front latch down into latch hole at front of mower
deck.
Hook rear latch down into latch hole at back of mower
deck.
W
AD
INoRton ous
b
GtN
r e p c ej c
e a ot t c ar
o m e w dek
re w a ra ro
lnu dn ad
se ed a m
c s eit . d e g
n o oi r
i at t ar s U
e n n oi o e
si r C . yl n
rp eh a
p o k c o c er
lr e a b
si y r f g m m
tsn uqe dne
ell a lt n e r d e
C.d R .y alpe
no
iat calpeemec
en
ssi r hw e oc tn
n e i at n
n
CAUTION: Do not remove discharge
guard from mower. Raise and hold guard
when attaching lower chute and allow it
to rest on chute while in operation.
.re
CONTAINER
HANDLE
CENTER
SUPPORT
TUBE
is
er is
er
ntain
when
ed.Co
ce iner
nstallRepla iner.
rlyis . nt conta
ently
ently.
is prope
frequ ceme
iner k bag repla
ed
Checmend
s conta
ion.
r unles a recom
INGmowe riorat
only
RN te and detie
Use
ARN
opera
WA
not wear ged.
Do ct to dama
or
subjeed
crack
CONTAINER
WARNING
WASHER
FIG. 6
LOCK
WASHER
LATCH
DEFLECTOR
SHIELD
LATCH
WELD NUT
WELD NUT
SCREW
LOCK
WASHER
WASHER
FIG. 7A
LATCH
HOOKS
FIG. 7B
9
ASSEMBLY
8
•
•
•
CHUTE LATCH ASSEMBLY
(See Fig. 8)
Use Hardware - - GROUPS "E & F"
ALIGNMENT
SLOT
Assemble latch pin to upper chute, as shown.
Press weld nut into rubber latch and assemble rubber
latch to lower chute, as shown.
Tighten all hardware securely.
LATCH PIN
RUBBER
LATCH
WASHERS
3/16 x 3/4 x 16 Ga.
#10 x 1-1/8" SCREW
SPLIT
SPACER
UPPER
CHUTE
BOSSES
FIG. 9B
ACORN NUT
#10 x 5/8"
SCREW
10
RUBBER
LATCH
•
LOWER CHUTE
WELD
NUT
WASHER
3/16 x 3/4 x 16 Ga.
LOCK WASHER
FIG. 8
9
UPPER CHUTE (See Figs. 9A & 9B)
No hardware required
•
•
Lower mower deck to its lowest cutting position.
Assemble upper chute by inserting curved end into hole
in back of cover.
NOTE: Handle carefully so as not to damage dump bag
indicator.
• Push in and turn upper chute until it is in line with lower
chute.
• Align the bosses on lower chute with alignment slots on
upper chute and slide together.
• Secure with rubber latch by hooking hole in latch over
latch pin.
DUMP BAG
INDICATOR
HANDLE
COVER
UPPER
CHUTE
LOWER
CHUTE
FIG. 9A
10
LEVEL MOWER DECK
No hardware required
Be sure deck is properly leveled for best mower performance. See your tractors owner's manual for instructions.
OPERATION
•
TIPS FOR IMPROVED BAGGING OPERATION:
Follow the mower operation instructions in your tractor
owner's manual.
When operating your grass catcher on a lawn where grass
and leaf bagging equipment has not been used, you are
picking up thatch and debris that has accumulated for long
periods of time. The amount collected and the total time of
operation may be greater than you will experience with
regular use of your grass catcher.
• Always run throttle at full speed when bagging.
• Select a gear low enough to give good mower cutting
performance, good quality cut and good bagging performance.
NOTE: It may be necessary to overlap width of cut to suit
your conditions.
• If grass is extremely tall, it should be mowed twice. The
first time relatively high, the second time to desired
height.
• Use left hand side of mower for trimming.
• Plastic trash bags can be inserted inside grass catcher
containers for ease of debris disposal. To remove the
plastic trash bags when full:
a. Disengage blades, shift into neutral, engage the
parking brake and stop the engine.
b. Raise seat. Unlatch and raise cover.
c. Remove one container at a time by grasping container handles and pulling toward the rear, off of the
tube rails.
d. With the container resting on the ground, close and
secure the top of the plastic lawn bag.
e. Tip the container on its side and slide the filled bag
from the container.
f. Install a new plastic lawn bag with the edges of the
bag draped over upper lip of the Container (for
replacement bags refer to REPLACEMENT
PARTS).
g. Repeat for other container.
h. Reinstall containers making sure right container
overlaps left container at center support.
j. Close cover and secure latch over center support
tube.
•
•
Avoid cutting wet grass or in the morning while the dew
is still heavy. Grass clippings collected under these
conditions tend to be sticky and adhere to the walls of
the flow path causing clogging.
Your bagger is equipped with a dump bag indicator. As
the bags become full, the flow indicating ball will drop
down in its slot, indicating that the bags are full or the
chutes have become clogged. Care should be taken not
to damage the parts and that the ball moves freely at the
beginning of each use.
If the grass catcher fails to pick up cut grass or leaves,
it is an indication that clogging has occurred in the
system or that the grass catcher containers are full.
a. Disengage blades, shift into neutral, engage the
parking brake and stop the engine.
- Raise seat. Unlatch and raise cover.
- Slide out containers and dispose of clippings .
- Replace containers, close cover, and latch.
b. Unlatch chutes and check for clogging
- Remove all debris in chutes.
- Reassemble and latch chutes
c. Check to insure dump bag indicator has not become
clogged.
- The air passage hole must be clear of debris.
Gently insert a small twig or wire into passageway to clear.
CAUTION
• Do not operate mower with grass catcher
partially installed.
• Disengage blades and stop engine before
leaving tractor seat to empty containers, unclogging chutes, etc.
• Close cover before starting.
• Disengage mower when crossing driveways
or gravel surfaces and other areas where thrown
objects could be a hazard.
• Do not attempt to vacuum up cans or other
potentially hazardous projectiles.
11
CUSTOMER RESPONSIBILITIES
GENERAL RECOMMENDATIONS
STORAGE
Always observe safety rules when performing any maintenance.
• Before each use check for loose fasteners.
• Clean unit thoroughly after each use.
When grass catcher is to be stored for a period of time, clean
it thoroughly, remove all dirt, grass, leaves, etc. Store in a
clean, dry place.
BLADE CARE
CAUTION: Do not leave grass in bagger
containers. Empty containers after each
use and before storing. Failure to do so
may result in spontaneous combustion
which could develop into a fire.
For best results mower blades must be kept sharp. Replace
bent or damaged blades.
• See BLADE CARE instructions in your tractor owner's
manual.
TO REMOVE GRASS CATCHER
CAUTION: BEFORE PERFORMING ANY
MAINTENANCE, SERVICE OR ADJUSTMENTS:
• Depress clutch brake pedal fully and set
parking brake.
• Place gearshift/motion control lever in neutral (N) position.
• Place clutch control in "DISENGAGED" position.
• Turn ignition key to "OFF" position.
• Make sure blades and all moving parts have
completely stopped.
• Disconnect spark plug wire(s) from spark
plug(s) and place wire where it cannot come in
contact with plug.
Reverse appropriate steps in ASSEMBLY section of this
manual.
CAUTION: Grass catcher components
are subject to wear, damage and
deterioration, which could expose
moving parts or allow objects to be
thrown. Frequently check components
and replace with manufacturer's
recommended parts, when necessary.
12
SERVICE NOTES
13
REPAIR PARTS / PIÈCES DE RECHANGE
GRASS CATCHER - - MODEL NUMBER CL36A / RAMASSE-HERBE - - NUMÉRO DE MODÈLE CL36A
PRODUCT NUMBER 954 12 00-93 / NUMÉRO DE PRODUIT 954 12 00-93
2
5
3
6
7
4
8 9
20
10
20
9
2
38
12 13
9
11
14
39
18
20
9
20
2
12
20
14
2
12
2
21
20
35
23
34
W
R A oD
2
16
22
20
INo tonbus
j
GtN
rep tce rc
e a ot kca
om aew de
rew na r ad ro
lnu d
se ted ga m
c s rei . de
no roi
iat ita esU
ren .no o
si hC a yln
orp ce er
ep b k oc
iyl r rf ga e m m
s
tsn euqe ed n
lla
d
de .yltn lper
C.
no eR ca
iat alp me
ren ec ne
si e hw n oc t
n iat
n
.re
16
14
14
9
24
33
20
25
32
er
ntainen
d.Co wh .
talle place ainer
s ns . Re cont
t
erlyi tly
op quen men
ce
is pr fre
er bag repla
ntaineck ded
en
s co Ch
les tion. comm
un
er riora a re
ING
mowdetie only
e
N
R erat and Use
WAnot op wear aged.
Do ct to dam
or
subjeked
crac
40
is
26
31
29
31
27
40
29
27
31
30
26 25
36
25
28
REPAIR PARTS / PIÈCES DE RECHANGE
GRASS CATCHER - - MODEL NUMBER CL36A / RAMASSE-HERBE - - NUMÉRO DE MODÈLE CL36A
PRODUCT NUMBER 954 12 00-93 / NUMÉRO DE PRODUIT 954 12 00-93
15
KEY
NO.
PART
NO.
2
3
4
53269180
532127533
532161314
5
6
7
532128598
818021008
532140572
8
9
10
11
12
13
14
16
18
20
21
22
23
532087175
819061216
532007206
532060867
810071000
532109808
532125004
532160793
532174570
871081010
532132796
532133235
532132983
DESCRIPTION
Nut, Crownlock #10-24
Screen, Cover
Cover Asm.(Incl. 3,38,39)
DESCRIPTION
Écrou auto-serrant #10-24
Grillage de couvercle
Couvercle Ens.
(Y combris 3,38,39)
Chute, Upper
Glissière supérieure
Screw, Special #10-14x1/2 Vis spéciale #10-14x1/2
Dump Bag Indicator
Indicateur de sac de
déchargement
Screw, #10-24 x 1-1/8
Vis #10-24 x 1-1/8
Washer #10
.
Rondelle #10
Spacer, Split
Entretoise fendue
Nut, Acorn #10-24
Écrou borgne #10-24
Washer, lock #10
Rondelle frein #10
Latch, Chute
Loquet de glissière
Nut, Weld
Axe du loquet
Latch Hook Asm.
Crochet de loquet
Chute, Lower
Glissière inférieure
Screw #10-24 x 5/8
Vis #10-24 x 5/8
Spring, Cover L.H. (black) Ressort de couvercle C.G.
Spacer, Cover
Entretoise de couvercle
Spring, Cover R.H. (gray) Ressort de couvercle C.D.
KEY
NO.
PART
NO.
DESCRIPTION
DESCRIPTION
24
25
26
27
28
29
30
31
532126813
873800500
532124670
874760512
532170053
532170165
532131137
532174083
Post, Support
Locknut 5/16 x 18
Spring, Retainer
Bolt, Hex 5/16-18 x 3/4
Bracket, Mounting
Shoulder Bolt
Pin, Support Post
Plug, Tubing End
32
33
34
35
36
38
39
40
—
532126919
532128600
532127534
532129585
532129586
532130895
532155042
872140506
532104419
—
532175732
Bagger, Frame
Pin, Hinge
Gasket, Cover
Container, Top
Container, Bottom
Latch Handle, Cover
Strip, Reinforcement
Carriage Bolt 5/16-18x3/4
Bag, 3.0 mil. 30 Gallon
Trash (not included
with bagger)
Owner's Manual
Poteau de soutien
Écrou frein 5/16 x 18
Ressort de retenue
Boulon H 5/16-18 x 3/4
Support de montage
Boulon
Goupille du poteau de soutien
Chapeau de l’extrémité de
tuyau
Cadre de ramasse-herbe
Goupille de charnière
Garniture de couvercle
Conteneur supérieur
Conteneur inférieur
Poignée de loquet de couvercle
Bande
Boulon de chariot 5/16-18 x 3/4
Sac-poubelle; 3,0 mil. 30 gallon
(N'y pas compris avec le
ramasse-herbe)
Manuel du propriétaire
