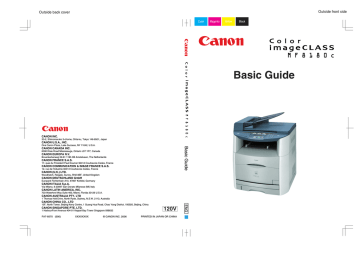

Canon Color imageCLASS 8180c Specifications

Cyan
Magenta
Yellow
Black
Basic Guide
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
CANON U.S.A., INC.
Basic Guide
One Canon Plaza, Lake Success, NY 11042, U.S.A.
CANON CANADA INC.
6390 Dixie Road Mississauga, Ontario L5T 1P7, Canada
CANON EUROPA N.V.
Bovenkerkerweg 59-61 1185 XB Amstelveen, The Netherlands
CANON FRANCE S.A.S.
17, quai du Président Paul Doumer 92414 Courbevoie Cedex, France
CANON COMMUNICATION & IMAGE FRANCE S.A.S.
12, rue de l'Industrie 92414 Courbevoie Cedex, France
CANON (U.K.) LTD.
Woodhatch, Reigate, Surrey, RH2 8BF, United Kingdom
CANON DEUTSCHLAND GmbH
Europark Fichtenhain A10, 47807 Krefeld, Germany
CANON ITALIA S.p.A.
Via Milano, 8 20097 San Donato Milanese (MI) Italy
CANON LATIN AMERICA, INC.
703 Waterford Way Suite 400, Miami, Florida 33126 U.S.A.
CANON AUSTRALIA PTY. LTD
1 Thomas Holt Drive, North Ryde, Sydney, N.S.W. 2113, Australia
CANON CHINA CO., LTD
CANON SINGAPORE PTE. LTD.
1 HarbourFront Avenue #04-01 Keppel Bay Tower Singapore 098632
FA7-8570 (000)
XXXXXXXX
© CANON INC. 2006
120V
PRINTED IN JAPAN OR CHINA
ENG
15F, North Tower, Beijing Kerry Centre, 1 Guang Hua Road, Chao Yang District, 100020, Beijing, China
Color
imageCLASS
MF8180c
Basic Guide
Manuals for the Machine
The manuals for this machine are divided as follows. Please refer to them for detailed information.
Depending on the system configuration and product purchased, some manuals may not be needed.
Guides with this symbol are printed manuals.
CD-ROM
• Setting Up the Machine
• Software Installation and Network Settings
• Copying and Printing Instructions
• Troubleshooting
• Fax Instructions
• Troubleshooting
• Software Installation and Instructions
• Printing and Scanning Instructions
• Troubleshooting
• Remote User Interface Instructions
• Network Connectivity and Setup Instructions
Guides with this symbol are PDF manuals included on the
accompanying CD-ROM. (See footnote.)
Quick Start Guide
Basic Guide
(This Manual)
Facsimile Guide
Software Guide
CD-ROM
Remote UI Guide
CD-ROM
Network Guide
CD-ROM
Model Name
• F148800 (Color imageCLASS MF8180c)
• The machine illustration on the cover may differ slightly from your machine.
• To view the manual in PDF format, Adobe Reader/Acrobat Reader/Acrobat is required. If Adobe Reader/Acrobat Reader/Acrobat is not installed on
your system, please download it from the Adobe Systems Incorporated website (http://www.adobe.com).
How This Manual Is Organized
Chapter 1
Introduction
Chapter 2
Paper Handling
Chapter 3
Document Handling
Chapter 4
Printing from Your Computer
Chapter 5
Copying
Chapter 6
Scanning
Chapter 7
System Monitor
Chapter 8
Maintenance
Chapter 9
Troubleshooting
Chapter 10 Machine Settings
Chapter 11 Appendix
Includes the specifications of this machine and the index.
Considerable effort has been made to ensure that this manual is free of inaccuracies and omissions. However, as we are constantly improving our
products, if you need an exact specification, please contact Canon.
Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
How to Use This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Symbols Used in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Keys Used in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Messages Displayed in the LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Legal Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
FCC (Federal Communications Commission) . . . . . . . . . . . . . . . . . . . . . . . . . . x
Laser Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
CDRH Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
International Energy Star Program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Disclaimers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Legal Limitations on the Usage of Your Product and the Use of Images . . . . . xiii
About the Part Containing Mercury (Applicable Only to the USA) . . . . . . . . . . xiii
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiv
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi
Maintenance and Inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xvii
Consumables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix
Other Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix
Chapter 1
Introduction
Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Main Components of the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Operation Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Standby Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Energy Saver Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Setting the Energy Saver Mode Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Restoring from the Energy Saver Mode Manually . . . . . . . . . . . . . . . . . . . . . .1-7
Chapter 2
Paper Handling
Print Media Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Storing Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Storing Color Print Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
iv
Printing Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Loading Paper in the Cassette. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Opening the Multi-Purpose Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Closing the Multi-Purpose Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Loading Paper in the Multi-Purpose Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
Loading Envelopes in the Multi-Purpose Tray . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Specifying the Paper Size and Type
(Common for Cassette and Multi-Purpose Tray) . . . . . . . . . . . . . . . . . . . . . . 2-19
Specifying the Paper Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
Specifying the Paper Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Orientation of the Document and the Paper Loading. . . . . . . . . . . . . . . . . . . 2-21
Selecting the Paper Output Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
Paper Type and Paper Output Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
Face Down Paper Output Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23
Face Up Paper Output Area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
Chapter 3
Document Handling
Document Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Problem Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Scanned Area of a Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Setting Up Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Placing a Document on the Platen Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Loading Documents in the ADF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
The Paper Path of the ADF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Chapter 4
Printing from Your Computer
Before Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Printing Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Canceling Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
More Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Chapter 5
Copying
Documents You Can Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Making Copies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Setting Enlarging/Reducing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Enlarging/Reducing Using Preset Copy Ratios . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Enlarging/Reducing Using Custom Copy Ratios . . . . . . . . . . . . . . . . . . . . . . . 5-5
Improving Copied Image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Adjusting the Image Quality (Resolution). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Adjusting the Exposure (Density). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Adjusting Automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
v
Adjusting Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7
Adjusting the Color Balance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7
Adjusting the Saturation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-8
Removing the Background Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-10
Special Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-11
Collate Copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-11
When Loading Documents in the ADF . . . . . . . . . . . . . . . . . . . . . . . . . . .5-11
When Placing a Document on the Platen Glass. . . . . . . . . . . . . . . . . . . .5-12
Reserve Copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-13
Chapter 6
Scanning
Before Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Scanning Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
More Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3
Chapter 7
System Monitor
Checking the Status of the Jobs Stored in the Machine . . . . . . . . . . . . . . . . .7-1
Confirming and Deleting a Fax Job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2
Confirming Transmission Results. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3
Confirming and Deleting a Copy Job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3
Confirming and Deleting a PC Print Job . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-4
Confirming and Deleting a Report Job. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-5
Chapter 8
Maintenance
Periodic Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
Cleaning the Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
Cleaning the Scanning Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2
Cleaning the ADF Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2
Cleaning the Fusing Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-3
Replacing the Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-5
Replacing the Toner Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-5
Precautions for Handling Toner Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . .8-13
Storing Toner Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-14
Recycling Used Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-15
The Clean Earth Campaign . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-16
THE Canon CARTRIDGE RECYCLING PROGRAM . . . . . . . . . . . . . . . . .8-16
U.S.A. PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-17
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-17
Shipping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-19
CANADA PROGRAM-CANADA PROGRAMME . . . . . . . . . . . . . . . . . . . . . .8-20
Replacing the Drum Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-22
Replacing the Drum Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-22
vi
Precautions for Handling the Drum Cartridge . . . . . . . . . . . . . . . . . . . . . . . . 8-30
Storing a Drum Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-32
Condensation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-32
Repacking and Transporting Your Machine . . . . . . . . . . . . . . . . . . . . . . . . . . 8-33
Carrying the Machine by the Sides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-34
Chapter 9
Troubleshooting
Clearing Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
Paper Jam Inside the Machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
Paper Jam Behind the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-9
Paper Jam in the Drum Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-21
Removing Jammed Paper from the ADF . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-22
LCD Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-24
Paper Feeding Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-29
Copying Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-32
Print Quality Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-33
Printing Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-37
Scanning Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-38
General Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-39
If You Cannot Solve the Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-40
Chapter 10 Machine Settings
Accessing the Machine Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
Menu Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
PAPER SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
COMMON SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
COPY SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-6
PRINTER SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-7
TIMER SETTINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8
MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9
Chapter 11 Appendix
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3
vii
Preface
Thank you for purchasing Canon Color imageCLASS MF8180c. Please read this manual
thoroughly before operating the machine in order to familiarize yourself with its capabilities,
and to make the most of its many functions. After reading this manual, store it in a safe place
for future reference.
How to Use This Manual
Symbols Used in This Manual
The following symbols are used in this manual to explain procedures, restrictions,
handling precautions, and instructions that should be observed for safety.
WARNING
Indicates a warning concerning operations that may lead to death or
injury to persons if not performed correctly. In order to use the machine
safely, always pay attention to these warnings.
CAUTION
Indicates a caution concerning operations that may lead to injury to
persons, or damage to property if not performed correctly. In order to use
the machine safely, always pay attention to these cautions.
IMPORTANT
Indicates operational requirements and restrictions. Be sure to read
these items carefully in order to operate the machine correctly, and to
avoid damage to the machine.
NOTE
Indicates a clarification of an operation, or contains additional
explanations for a procedure. Reading these notes is highly
recommended.
Keys Used in This Manual
The following symbols and key names are a few examples of how keys to be
pressed are expressed in this manual. The operation panel keys on the machine
are indicated within brackets.
Press [Color Start].
Quality
viii
Press [Image Quality].
Messages Displayed in the LCD
The following are a few examples of how messages in the LCD are expressed in
this manual. The messages are indicated within angle brackets.
• If
<MEMORY FULL> is displayed, the machine cannot scan the documents.
• <COL.>
appears in the LCD.
ix
Legal Notices
FCC (Federal Communications Commission)
Color imageCLASS MF8180c: Model F148800
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part
15 of the FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise
specified in this manual. If such changes or modifications should be made, you
could be required to stop operation of the equipment.
Canon U.S.A. Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
TEL No. (516) 328-5600
x
IMPORTANT
• This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
• Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur
le matériel brouilleur du Canada.
Laser Safety
This product complies with 21 CFR Chapter 1 Subchapter J as a Class I laser
product under the U.S. Department of Health and Human Services (DHHS)
Radiation Performance Standard according to the Radiation Control for Health and
Safety Act of 1968. Class I levels of laser radiation are not considered to be
hazardous.
Since radiation emitted inside the product is completely confined within protective
housings and external covers, the laser beam cannot escape from the machine
during any phase of user operation. Do not remove protective housings or external
covers, except as directed by this manual.
CDRH Regulations
The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug
Administration implemented regulations for laser products on August 2, 1976.
These regulations apply to laser products manufactured from August 1, 1976.
Compliance is mandatory for products marketed in the United States.
CAUTION
Use of controls, adjustments or performance of procedures other than those
specified in this manual may result in hazardous radiation exposure.
The label shown below is attached to the laser scanner assembly within the
product.
xi
International Energy Star Program
As an ENERGY STAR® Partner, Canon USA, Inc. has
determined that this product meets the ENERGY STAR®
guidelines for energy efficiency.
The International ENERGY STAR® Office Equipment Program
is an international program that promotes energy saving
through the use of computers and other office equipment. The
program backs the development and dissemination of products
with functions that effectively reduce energy consumption. It is
an open system in which business proprietors can participate
voluntarily. The targeted products are office equipment, such as
computers, displays, printers, facsimiles, and copiers. The
standards and logos are uniform among participating nations.
Trademarks
Canon, the Canon logo, and imageCLASS are trademarks of Canon Inc.
Other product and company names herein may be the trademarks of their
respective owners.
Copyright
Copyright 2006 by Canon Inc. All rights reserved.
No part of this publication may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying and recording, or by any
information storage or retrieval system without the prior written permission of
Canon Inc.
Disclaimers
The information in this manual is subject to change without notice.
Canon INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS
MATERIAL, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN,
INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO
MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE OF USE OR AGAINST INFRINGEMENT OF ANY PATENT. Canon INC.
SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
THE USE OF THIS MATERIAL.
xii
Legal Limitations on the Usage of Your Product and the
Use of Images
Using your product to scan, print or otherwise reproduce certain documents, and
the use of such images as scanned, printed or otherwise reproduced by your
product, may be prohibited by law and may result in criminal and/or civil liability. A
non-exhaustive list of these documents is set forth below. This list is intended to be
a guide only. If you are uncertain about the legality of using your product to scan,
print or otherwise reproduce any particular document, and/or of the use of the
images scanned, printed or otherwise reproduced, you should consult in advance
with your legal advisor for guidance.
•
Paper Money
•
Travelers Checks
•
Money Orders
•
Food Stamps
•
Certificates of Deposit
•
Passports
•
Postage Stamps
(canceled or uncanceled)
•
Immigration Papers
•
Identifying Badges or Insignias
•
Internal Revenue Stamps
(canceled or uncanceled)
•
Selective Service or Draft Papers
•
Bonds or Other Certificates of
Indebtedness
•
Checks or Drafts Issued by
Governmental Agencies
•
Stock Certificates
•
Motor Vehicle Licenses and
Certificates of Title
•
Copyrighted Works/Works of Art
without Permission of Copyright
Owner
About the Part Containing Mercury (Applicable Only to the
USA)
Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE
RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL
LAWS.
xiii
Important Safety Instructions
Please read these instructions thoroughly before operating the machine. As these
instructions are intended to prevent injury to the user or other persons or
destruction of property, always pay attention to these instructions. Also, since it may
result in unexpected accidents or injuries, do not perform any operation unless
otherwise specified in the manual. Improper operation or use of this machine could
result in personal injury and/or damage requiring extensive repair that may not be
covered under your Limited Warranty.
Installation
WARNING
• Do not install the machine near alcohol, paint thinner, or other flammable
substances. If flammable substances come into contact with electrical parts inside
the machine, it may result in a fire or electrical shock.
• Do not place the following items on the machine. If these items come into contact
with a high-voltage area inside the machine, it may result in a fire or electrical shock.
If these items are dropped or spilled inside the machine, immediately disconnect the
power cord from the power outlet. Then, contact Canon Authorized Service Facilities
or the Canon Customer Care Center.
- Necklaces and other metal objects
- Cups, vases, flowerpots, and other containers filled with water or liquids
CAUTION
• Do not install the machine in unstable locations, such as unsteady platforms or
inclined floors, or in locations subject to excessive vibrations, as this may cause the
machine to fall or tip over, resulting in personal injury.
• Never block the ventilation slots and louvers on the machine. These openings are
provided for proper ventilation of working parts inside the machine. Blocking these
openings can cause the machine to overheat. Never place the machine on a soft
surface, such as a sofa or rug.
xiv
• Do not install the machine in the following locations:
- A damp or dusty location
- A location near water faucets or water
- A location exposed to direct sunlight
- A location subject to high temperatures
- A location near open flames
- A location near devices that contain magnets or generate magnetic fields, such as
speakers
• Avoid poorly ventilated locations.
During use, the machine generates ozone. However, the amount of ozone generated
is not enough to affect the human body. Nevertheless, if the machine is used for a
prolonged period of time in a poorly ventilated room, or when making a large quantity
of prints, be sure to ventilate the room to make the working environment as
comfortable as possible.
• Make sure the machine is approximately 4" (10 cm) away from walls and other
equipment for proper ventilation.
• Make sure the location is not affected by extreme temperature changes, and always
stays between 59°F and 86°F (15°C and 30°C).
• Make sure the relative humidity of the area is between 10% and 80%.
• Do not use or store the machine outdoors.
Power Supply
WARNING
• Do not damage or modify the power cord. Also, do not place heavy objects on the
power cord, or pull on or excessively bend it, as this could cause electrical damage
and result in a fire or electrical shock.
• Keep the power cord away from a heat source; failure to do this may cause the power
cord coating to melt, resulting in a fire or electrical shock.
• Do not connect or disconnect the power cord with wet hands, as this may result in
electrical shock.
• Do not connect the power cord to a multiplug power strip, as this may cause a fire or
electrical shock.
• Do not bundle up or tie the power cord in a knot, as this may result in a fire or
electrical shock.
• Insert the power plug completely into the power outlet, as failure to do so may result
in a fire or electrical shock.
• Do not use power cords other than the power cord provided, as this may result in a
fire or electrical shock.
• As a general rule, do not use extension cords. Using an extension cord may result in
a fire or electrical shock. If an extension cord must be used, however, use one rated
for voltages of 120 V AC and over, untie the cord binding, and insert the power plug
completely into the extension cord outlet to ensure a firm connection between the
power cord and the extension cord.
xv
CAUTION
• Do not use power supplies with voltages other than those specified herein, as this
may result in a fire or electrical shock.
• Always grasp the power plug when disconnecting the power cord. Pulling on the
power cord may expose or snap the core wire, or otherwise damage the power cord. If
the power cord is damaged, this could cause current to leak, resulting in a fire or
electrical shock.
• Leave sufficient space around the power plug so that it can be unplugged easily. If
objects are placed around the power plug, you will be unable to unplug it in an
emergency.
• During electrical storms, unplug the power cord from the power outlet. Electrical
storms may cause damage to the machine and result in a fire or electrical shock.
IMPORTANT
• If dust accumulates around the plug of the power cord when it is connected to a power outlet,
unplug the machine and wipe the plug with a clean, dry cloth.
• Do not plug the machine into the same circuit with appliances such as an air conditioner,
television or copier. These devices generate an electrical noise, and may interfere with your
machine's operation.
• Unplug the machine in the following conditions:
- When the power cord or plug is damaged or frayed.
- If liquid has spilled into the machine.
- If the machine has been exposed to rain or water.
- If the machine does not operate normally when you have followed the instructions in the
guides included with your machine. Adjust only those controls that are covered by the
instructions in the guides since improper adjustment of other controls may result in damage
and will often require extensive work by a qualified technician to restore the product to normal
operation.
- If the machine has been dropped or damaged.
- If the machine exhibits a distinct change in performance, indicating a need for servicing.
Handling
WARNING
• Do not attempt to disassemble or modify the machine. There are high-temperature
and high-voltage components inside the machine which may result in a fire or
electrical shock.
• If the machine makes strange noises, or gives off smoke, heat, or strange smells,
immediately disconnect the power cord from the power outlet. Then, contact Canon
Authorized Service Facilities or the Canon Customer Care Center. Continued use of
the machine in this condition may result in a fire or electrical shock.
• Do not use highly flammable sprays near the machine. If gas from these sprays
comes into contact with the electrical components inside the machine, it may result
in a fire or electrical shock.
xvi
• To avoid damage to the power cord and creating a fire hazard, always disconnect the
power cord and the interface cable when moving the machine. Otherwise, the power
cord or interface cable may be damaged, resulting in a fire or electrical shock.
• Do not drop paper clips, staples, or other metal objects inside the machine. Also, do
not spill water, liquids, or flammable substances (alcohol, benzene, paint thinner,
etc.) inside the machine. If these items come into contact with a high-voltage area
inside the machine, it may result in a fire or electrical shock. If these items are
dropped or spilled inside the machine, immediately disconnect the power cord from
the power outlet. Then, contact Canon Authorized Service Facilities or the Canon
Customer Care Center.
CAUTION
• Do not place heavy objects on the machine, as they may tip over or fall resulting in
personal injury.
• Disconnect the power cord for safety when the machine will not be used for an
extended period of time, such as during consecutive holidays.
• The laser beam can be harmful to human bodies. Since radiation emitted inside the
product is completely confined within protective housings and external covers, the
laser beam cannot escape from the machine during any phase of user operation.
Read the following remarks and instructions for safety.
• Close the platen glass cover gently to avoid catching your hand. Failing to do so may
result in personal injury.
• Do not press down hard on the platen glass cover when using the platen glass to
scan a thick book. This may damage the platen glass and/or result in personal injury.
• Do not subject the machine to strong physical shock or vibration.
• Unplug the machine before moving it.
• Do not lift the machine by any of its attachments.
• If the machine exhibits a distinct change in performance, this indicates a need for
servicing.
Maintenance and Inspections
WARNING
• When cleaning the machine, disconnect the power cord. Failure to observe these
steps may result in a fire or electrical shock.
• Disconnect the power cord from the power outlet regularly, and clean the area around
the base of the power plug's metal pins and the power outlet with a dry cloth to
ensure that all dust and grime is removed. If the power cord is connected for a long
period of time in a damp, dusty, or smoky location, dust can build up around the
power plug and become damp. This may cause a short circuit and result in a fire.
• Clean the machine using a slightly dampened cloth with a mild detergent mixed with
water. Do not use alcohol, benzene, paint thinner, or other flammable substances.
Check detergent for flammability prior to use. If flammable substances come into
contact with a high-voltage area inside the machine, it may result in a fire or electrical
shock.
xvii
• There are some areas inside the machine which are subject to high-voltages. When
removing jammed paper or when inspecting the inside of the machine, do not allow
necklaces, bracelets, or other metal objects to touch the inside of the machine, as
this may result in burns or electrical shock.
• Do not burn or throw used toner cartridges into open flames, as this may cause the
toner remaining inside the cartridge to ignite, resulting in burns or a fire.
CAUTION
• Never attempt to service this machine yourself, except as explained in this manual.
There are no user serviceable parts inside the machine. Adjust only those controls
that are covered in the operating instructions. Improper adjustment could result in
personal injury and/or damage requiring extensive repair that may not be covered
under your Limited Warranty.
• The fuser unit and its surroundings inside the machine may become hot during use.
When removing jammed paper or when inspecting the inside of the machine, do not
touch the fuser unit and its surroundings, as doing so may result in burns or
electrical shock.
• When removing jammed paper or replacing the toner cartridge, take care not to allow
the toner to come into contact with your hands or clothing, as this will dirty your
hands or clothing. If they become dirty, wash them immediately with cold water.
Washing them with warm water will set the toner, and make it impossible to remove
the toner stains.
• When removing paper which has become jammed inside the machine, remove the
jammed paper gently to prevent the toner on the paper from scattering and getting
into your eyes or mouth. If the toner gets into your eyes or mouth, wash them
immediately with cold water and immediately consult a physician.
• When loading paper or removing jammed documents or paper, take care not to cut
your hands on the edges of the documents or paper.
• When removing a used toner cartridge from the machine, remove the cartridge
carefully to prevent the toner from scattering and getting into your eyes or mouth. If
the toner gets into your eyes or mouth, wash them immediately with cold water and
immediately consult a physician.
xviii
Consumables
WARNING
• Do not burn or throw used toner cartridges into open flames, as this may cause the
toner remaining inside the cartridges to ignite, resulting in burns or a fire.
• Do not store toner cartridges or copy paper in places exposed to open flames, as this
may cause the toner or paper to ignite, resulting in burns or a fire.
• When discarding used toner cartridges, put the cartridges in a bag to prevent the
toner remaining inside the cartridges from scattering, and dispose of them in a
location away from open flames.
CAUTION
Keep toner and other consumables out of the reach of small children. If these items
are ingested, consult a physician immediately.
Other Warnings
WARNING
For cardiac pacemaker users:
This product generates a low level magnetic field. If you use a cardiac pacemaker and
feel abnormalities, please move away from the product and consult a physician.
CAUTION
Follow all warnings and instructions marked on the machine.
xix
Introduction
1
CHAPTER
This chapter describes the main components, the operation panel and the standby display of
the machine. It also explains how to set the energy saver function.
Customer Support
Your machine is designed with the latest technology to provide trouble-free
operation. If you encounter a problem with the machine's operation, try to solve it by
using the information in Chapter 9, "Troubleshooting." If you cannot solve the
problem or if you think your machine needs servicing, contact Canon Authorized
Service Facilities or the Canon Customer Care Center at 1-800-828-4040 between
the hours of 8:00 A.M. to 8:00 P.M. EST Monday through Friday and 10:00 A.M. to
8:00 P.M. on Saturday.
Customer Support
1-1
Main Components of the Machine
This section describes the main components of the machine.
1
Introduction
Front View
a
b
c
d
e
f
g
h
i
a Operation panel
Controls the machine.
b ADF(Automatic Document Feeder)
Holds the documents and feeds them
automatically into the scanning unit.
c Document feeder tray
Place documents.
d Document guides
Adjust to the width of document.
e Scanning platform
Lift it to access inside the machine.
1-2
Main Components of the Machine
f Output tray
Outputs printouts.
g Cartridge cover
Open it when you install drum and toner
cartridges, or remove jammed paper.
h Front cover
Open it when using the multi-purpose tray.
i Cassette
Holds the paper supply.
a
b
Introduction
1
c
a Platen glass cover
b Platen glass
Open it when you place documents on the platen
glass for copying or scanning.
Place documents.
c Multi-purpose tray
Holds the paper supply.
Rear View
a
d
b
LINE
EXT.
c
ef
g
a USB port
Connect the USB (Universal Serial Bus) cable.
b Power socket
Connect the power cord.
c Face up cover
Open it when you output paper face up, or
remove jammed paper.
d Ethernet port
e Telephone line jack
Connect the telephone line cable.
f External device jack
Connect an external device.
g Lock Release Levers
Turn these levers to remove the fuser unit when
you are replacing the fuser unit or clearing paper
jams from the fuser unit.
Connect the network cable.
Main Components of the Machine
1-3
Operation Panel
a
1
Introduction
In Use/
Memory
Redial/
Pause
Coded
Dial
Directory
b
c
d
COPY
FAX
SCAN
ef g
Enlarge/
Reduce
03
04
05
07
08
09
10
1
GHI
B&W Start
Color Start
Collate
2
JKL
4
PQRS
Status Monitor
Quality
DEF
ABC
Paper Select
02
Exposure
Energy Saver
Menu
06
ij
Alarm
Hook
01
h
Set
Stop/Reset
3
MNO
5
TUV
7
6
WXYZ
8
9
SYMBOLS
0
TONE
k lm
n
a In Use/Memory indicator
Lights green during copying or when the copy job
is stored in the memory.
b COPY key
Switches the standby display to the Copy mode.
c FAX key
Switches the standby display to the Fax mode.
d SCAN key
Switches the standby display to the Scan mode.
e Alarm indicator
Flashes red when the machine has a problem
such as a paper jam. (The error message is
displayed in the LCD.)
f Enlarge/Reduce key
Sets an enlargement or reduction ratio of the
copy.
g Exposure key
Adjusts the copy exposure.
h Image Quality key
Adjusts the quality of copies.
i Collate key
Sorts copies in order of pages.
j Energy Saver key
Sets or cancels the energy saver mode manually.
The key lights green when the energy saver mode
is set, and goes off when the mode is canceled.
1-4
Operation Panel
o
p q rs
t
k Paper Select key
Selects the paper feeding location (cassette or
multi-purpose tray).
l Status Monitor key
Checks the status of copy, fax, print and report
jobs.
m LCD
Displays messages and prompts during
operation. Also displays selections, text, and
numbers when specifying settings.
n B&W Start key
Starts B&W copying.
o Color Start key
Starts color copying.
p Stop/Reset key
Cancels copying and other operations, and
returns to the standby display.
q Set key
Sets or registers the contents you select.
r [((-)] or [)(+)] keys
Scroll through the selections so you can see
other settings.
s Menu key
Customizes the way your machine operates.
t Numeric keys
Enter copy quantity and other numerical values.
Standby Display
The standby display differs depending on which mode is selected.
1
Introduction
The standby display in the Copy, Scan or FAX mode is as follows:
■ Copy Mode
Copy ratio
Exposure
Paper size
quality
Copy
quantity
■ Scan Mode
■ Fax Mode
Date & time
Receive mode
Image quality
Canon Color imageCLASS MF8180c has various fax features such as Error
Correction Mode (ECM), Automatic switching between fax and voice calls,
Answering machine connection, Memory sending/receiving, Reduced-size printing,
Automatic dialing and broadcasting, etc.
For more details about Fax functions, refer to the Facsimile Guide.
NOTE
When the machine is plugged in, the LCD displays <PLEASE WAIT> for several minutes,
then the standby display appears.
Standby Display
1-5
Energy Saver Mode
This machine provides an energy saver function. When no operations are
performed for a specified number of minutes, the machine automatically enters the
energy saver mode.
Introduction
1
NOTE
• The time until the machine enters the energy saver mode can be specified in a range of 3
minutes to 30 minutes. You can also turn off the energy saver function. For details on the
energy saver mode settings, see <4. ENERGY SAVER> of "Menu Descriptions," on p.
10-8.
• The energy saver function does not activate when the machine is in the following
conditions:
- When printing out copies, faxes or other pages
- When sending or receiving faxes
- When scanning
- While a copy job is saved in the memory or when the collate copy or other functions are
operating, or when the Memory indicator lights up
- When paper jams occur
- When an error code appears and the Alarm indicator flashes
- When no paper is loaded in the cassette
- When the message<PREPARE NEW ∗ CART> appears
∗: indicates either "C", "M", "Y", or "K".
• The machine will be restored from the energy saver mode in the following conditions:
- When receiving print jobs from your computer
- When receiving faxes
- When you pick up the handset of the telephone connected to the machine
- When receiving a call
• When the machine is restored from the energy saver mode, it needs to warm up before it
can scan any document or enter the energy saver mode again. The warm-up time varies
(approx. 15 to 180 seconds) depending on how long the machine was in the energy saver
mode.
Setting the Energy Saver Mode Manually
1
Press [Energy Saver].
The LCD is turned off and the Energy Saver key lights up.
1-6
Energy Saver Mode
NOTE
Right after the machine is restored from the energy saver mode, or right after copying
finishes, wait about 15 seconds before pressing [Energy Saver].
Restoring from the Energy Saver Mode Manually
1
Press [Energy Saver].
Introduction
1
The Energy Saver key goes off and the machine enters the standby mode.
NOTE
Depending on how long it was in the energy saver mode, the machine requires
approximately 15 to 180 seconds to be fully restored from the energy saver mode.
Energy Saver Mode
1-7
2
Paper Handling
CHAPTER
This chapter describes the media you can use with this machine, how to load them, and where
the documents come out.
Print Media Requirements
Storing Paper
The quality of paper may deteriorate if it is stored improperly even when the paper
meets the normal specifications.
Deteriorated paper may cause misfeeds, paper jams, or deterioration in print
quality.
Observe the following guidelines for storing and handling paper:
IMPORTANT
• Store paper away from moisture since paper quality deteriorates in a moist environment.
• Paper wrappers are moisture-proof. Keep paper in the wrapper until it is ready to be used.
Store all unused paper in a wrapper.
• Store paper on a flat surface to prevent it from creasing or curling.
• Do not store paper on the floor where water and moisture can accumulate.
• Avoid physical damage to stored paper.
• Do not store a paper stack vertically or leaning on another object.
• Avoid direct sunlight and moisture when storing paper.
• If the paper storage room and work area differ significantly in temperature or humidity,
keep the paper in the work area for at least one day prior to printing so that it can adapt to
the new environment. When paper is moved to a location that differs significantly in
temperature or humidity, it may curl or get creased.
Print Media Requirements
2-1
Storing Color Print Paper
When handling or storing color printouts printed by this machine, be careful of the
following points:
IMPORTANT
• Avoid storing color prints with PVC materials such as clear folders. Toner may come off
and stick to the PVC material.
• Use insoluble adhesive when gluing color prints. Toner may melt when insoluble
adhesive is used. Before using the adhesive, test it with paper that is no longer required.
• Confirm that the color prints are completely dry before placing one over another. Prints
may stick if they are placed together half-dried.
• Store color prints on a flat surface to avoid creasing or curling. Toner may peel off when
they are folded or creased.
• Avoid storing color prints at high temperatures. Otherwise toner may melt and blot.
• Put color prints in a binder when storing them for a long period of time (more than two
years). Color prints may discolor when they are stored for a long period of time.
Paper Handling
2
■ Unacceptable Paper
Do not copy on the following types of copy stock. Doing so may result in paper
jams.
• Severely
curled or wrinkled paper
• Transparencies
designed for full-color copiers or printers
• Paper
which has already been copied using a digital full-color copier (Do not copy
on the reverse side.)
• Paper
which has been printed on using a thermal transfer printer (Do not copy on
the reverse side.)
IMPORTANT
Never attempt to make copies on full-color transparencies. Doing so may result in
machine malfunction.
■ Acceptable Paper
Cassette/Multi-Purpose Tray
Paper Size
A4, B5, A5, Executive, Letter, Legal, Envelope*: COM10, Monarch,
DL, ISO-C5
Paper Weight
17 lb to 28 lb (60 g/m2 to 105 g/m2), 17lb to 44lb (60 g/m2 to
163 g/m2)*
Paper Type
Plain paper, Heavy paper*, Transparency*, Envelope*
* Only for the multi-purpose tray.
2-2
Print Media Requirements
NOTE
• The printing speed may become slower than usual depending on the paper size, the
paper type, and the number of sheets you specify.
This is because the machine's safety function works to prevent the failure due to heat.
• Some types of paper may not feed properly into the cassette or the multi-purpose tray.
Printing Areas
Printing area (light shade): Canon recommends that you print within this area.
■ Paper
MAX. 13/64" (5 mm)
MAX. 13/64" (5 mm)
MAX. 13/64" (5 mm)
Feeding
direction
MAX. 13/64" (5 mm)
■ Envelope
MAX. 13/32" (10 mm)
MAX. 13/32" (10 mm)
MAX. 13/32" (10 mm)
Feeding
direction
MAX. 13/32" (10 mm)
NOTE
Copying areas are a little larger than printing areas.
Print Media Requirements
2
Paper Handling
Please note that the term "printing area" represents both the recommended area
for optimum print quality and the entire area where the machine can technically
print from your computer.
2-3
Loading Paper
This section describes how to load paper in the cassette and the multi-purpose tray.
CAUTION
Paper Handling
2
When loading paper, take care not to cut your hands on the edges of the paper.
NOTE
The cassette holds up to approximately 250 sheets of 17 lb (60 g/m2) paper.
Loading Paper in the Cassette
Do not touch the black rubber pad in the paper cassette. It may result in misfeeds.
Rubber pad
1
2-4
Pull out the paper cassette.
Loading Paper
2
Push down the plate of the paper cassette to lock it.
Paper Handling
2
CAUTION
Do not touch the lock release levers located on the right and left sides of the
paper cassette when the plate of the paper cassette is locked. The plate may
snap forcefully if the lock is released and may result in personal injuries.
Lock release lever
Lock release lever
3
Hold the lock release lever of the rear paper guide and slide the
guide to the mark indicating the subject paper size.
The paper size indicated on the paper guide should be aligned with the mark.
Loading Paper
2-5
IMPORTANT
Slide the paper guide to the "B5-JIS" position when using B5 size paper (7 1/8" x 10 1/8"
(182 mm x 257 mm)). "B5-ISO" and "8.5" x 13"" are not used.
4
Adjust both sides of the paper guide to the mark of the desired
paper size.
When adjusting the paper guides, hold both guides at one time.
Paper Handling
2
Set this part
to the position
of paper size
IMPORTANT
Align the paper guide with the position shown in the figure ("B5-JIS" position) when using
B5 size paper (7 1/8" x 10 1/8" (182 mm x 257 mm)). "B5-ISO" is not used.
"B5-ISO" position
"B5-JIS" position
2-6
Loading Paper
Load the paper stack so that the bottom of the page touches the
paper guide.
Paper limit
mark
2
CAUTION
When loading paper, be careful not to cut your hands with the edges of the paper.
IMPORTANT
• Make sure that the paper guide is adjusted to fit the paper size. If it does not fit correctly,
it may result in misfeeds.
• Up to approximately 250 sheets of plain paper (17 lb (60 g/m2)) can be loaded in the
paper cassette. Be careful that the paper stack does not exceed the paper limit mark on
the paper guide, as it may result in misfeeds.
• Double-feeding may occur frequently if the edges of the paper stack are not aligned
properly. In this case, align the edges of the stack on a hard, flat surface.
Loading Paper
2-7
Paper Handling
5
NOTE
To print on letterhead paper or paper printed with a logo, load the paper with the print side
facing down and the top of the paper to the front of the cassette.
C
AB
Paper Handling
2
Paper feed direction
6
Press down the paper stack so that it is loaded under the hook on
the paper guides.
Confirm that there is sufficient space between the hook and paper stack. Take out
some paper when there is no space.
Hook
Hook
2-8
Loading Paper
Set the paper cassette into the machine.
Push the paper cassette into the machine firmly until the front side of the cassette is
flush with the front surface of the machine.
2
Paper Handling
7
● Amount of Paper Remaining in the Cassette
The paper cassette has a display indicating the amount of paper remaining in
the cassette. If the cassette is full, the indicator will be at the top. The indicator
will go down as the amount of paper decreases. The indicator is helpful for
confirming the amount of paper remaining in the cassette.
Amount of Paper
Remaining
Loading Paper
2-9
Opening the Multi-Purpose Tray
Open the multi-purpose tray using the following procedure.
1
Open the multi-purpose tray.
Hold the grip at the center of the front surface of the printer.
Paper Handling
2
2
Pull out the auxiliary tray.
IMPORTANT
Be sure to pull out the auxiliary tray when loading paper in the multi-purpose tray.
2-10
Loading Paper
3
Open the extension tray when loading long-size paper such as A4.
Closing the Multi-Purpose Tray
Close the multi-purpose tray using the following procedure. Keep the multi-purpose
tray closed when it is not used.
1
2
Remove any loaded paper, close the extension tray, and then put
the auxiliary tray back to the original position.
Close the multi-purpose tray.
Loading Paper
2-11
Paper Handling
2
Loading Paper in the Multi-Purpose Tray
Use the multi-purpose tray when you want to copy or print on the different paper
which is in the cassette.
1
Open the multi-purpose tray and pull out the auxiliary tray.
For opening the multi-purpose tray, see "Opening the Multi-Purpose Tray," on p. 2-10.
2
Paper Handling
2
3
Spread the paper guides a little wider than the actual paper width.
Gently load the stack of paper with the printing side facing up until
it touches the back of the tray.
Be sure that the paper stack is loaded under the paper limit guides.
Paper limit
guide
CAUTION
When loading paper, be careful not to cut your hands with the edges of the paper.
2-12
Loading Paper
AB
C
NOTE
To print on letterhead paper or paper printed with a logo, load the paper so that the print
side is facing up and the top of the paper goes into the far end.
Loading Paper
2-13
2
Paper Handling
IMPORTANT
• The maximum amount of paper that can be loaded in the multi-purpose tray may vary
depending on the paper type (e.g., maximum capacity: 125 sheets of 17 lb (60g/m2)
paper). For more details, see "Acceptable Paper," on p. 2-2.
• Confirm that there is sufficient space between the paper limit guides and the paper
stack. Take out some paper when there is no space.
• Load the paper stack straight.
• If the rear edge of the paper stack is not properly aligned, it may result in misfeeds or
paper jams.
• If the paper is curled or folded at corners, flatten it before loading.
• Double-feeding may occur frequently if the edges of the paper stack are not aligned
properly. In this case, align the edges of the stack on a hard, flat surface.
4
Slide the paper guides so that they fit to both sides of the paper
stack.
Paper Handling
2
IMPORTANT
• Be sure to align the paper guides with the width of the paper. If the guides are too loose
or too tight, it may result in misfeeds or paper jams.
• Do not touch the paper in the multi-purpose tray or pull it out while printing. It may result
in a faulty operation.
Loading Envelopes in the Multi-Purpose Tray
Use the multi-purpose tray when you want to copy or print envelopes.
IMPORTANT
The recommended envelopes are COM10, MONARCH, DL, and ISO-C5. Using other
envelopes may affect the quality of the printout.
2-14
Loading Paper
1
Open the multi-purpose tray and pull out the auxiliary tray.
For opening the multi-purpose tray, see "Opening the Multi-Purpose Tray," on p. 2-10.
2
Spread the paper guides a little wider than the actual envelope
width.
Paper Handling
2
3
Place the stack of envelopes on a flat surface, flatten them to
release any remaining air, and be sure that the edges are pressed
tightly.
CAUTION
Be careful not to cut your hands with the edges of the envelopes.
Loading Paper
2-15
4
Loosen the hard corners of the envelopes and flatten curls as
shown in the figure.
Paper Handling
2
5
6
Align the edges of the envelopes on a flat surface.
Gently load the stack of envelopes with the address side facing up
and the flap side come the leftward. Be sure to insert the envelopes
completely.
Be sure that the stack of envelopes is loaded under the paper limit guides.
Paper limit
guide
2-16
Loading Paper
CAUTION
When loading envelopes, be careful not to cut your hands with the edges of the
envelopes.
2
Paper Handling
IMPORTANT
• Up to 10 sheets of envelopes can be loaded.
• Confirm that there is sufficient space between the paper limit guides and the envelope
stack. Take out some envelopes when there is no space.
• The back side (with adhesive surface) of an envelope cannot be printed on.
• Load the envelopes so that the flaps face leftward.
• Load the stack of envelopes straight.
• If the rear edge of the stack is not properly aligned, it may result in misfeeds or paper
jams.
7
Slide and fit the paper guides to both sides of the stack.
Loading Paper
2-17
IMPORTANT
• Be sure to align the paper guides with the width of the envelopes. If the guides are too
loose or too tight, it may result in misfeeds or paper jams.
Paper Handling
2
• Do not touch the envelopes in the multi-purpose tray or pull them out while printing. It
may result in a faulty operation.
2-18
Loading Paper
Specifying the Paper Size and Type (Common for
Cassette and Multi-Purpose Tray)
Specifying the Paper Size
1
Press [Menu].
2
Press [((-)] or [)(+)] to select <PAPER SETTINGS> ➞ press [Set].
3
Press [((-)] or [)(+)] to select <CASSETTE> or <MP TRAY> ➞
press [Set].
4
Press [((-)] or [)(+)] to select <PAPER SIZE> ➞ press [Set].
5
Press [((-)] or [)(+)] to select the appropriate paper size ➞ press
[Set].
You can select from the following paper sizes: LTR (Letter), LGL (Legal), A4, B5, A5,
EXECUTIV (Executive), COM10, MONARCH, DL, and ISO-C5.
NOTE
Select <COM10>, <MONARCH>, <DL>, or <ISO-C5> for envelopes.
6
Press [Stop/Reset] to return to the standby display.
Specifying the Paper Size and Type (Common for Cassette and Multi-Purpose Tray)
2-19
2
Paper Handling
At the factory, the paper size has already been set to <LTR>. Each time you change
the paper size you load in the cassette or the multi-purpose tray, it is necessary to
specify the paper size according to the following.
Specifying the Paper Type
<PLAIN PAPER> is selected as the default paper type. When using paper other
than plain paper, you can specify the paper type according to the following.
Specifying the paper type can prevent poor copy quality, or the printout not being
printed correctly.
Paper Handling
2
1
Press [Menu].
2
Press [((-)] or [)(+)] to select <PAPER SETTINGS> ➞ press [Set].
3
Press [((-)] or [)(+)] to select <CASSETTE> or <MP TRAY> ➞
press [Set].
4
Press [((-)] or [)(+)] to select <PAPER TYPE> ➞ press [Set].
5
Press [((-)] or [)(+)] to select the appropriate paper type ➞ press
[Set].
You can select from the following paper types:
- Plain Paper (17 lb to 28 lb (60 g/m2 to 105 g/m2)): <PLAIN PAPER>
- Heavy paper (28 lb to 44 lb (106 g/m2 to 163 g/m2)): <HEAVY PAPER>
- Transparency: <TRANSPARENCY>
- Envelope: <HEAVY PAPER>
When you select the <CASSETTE> in Step 3, either plain paper or heavy paper is
selectable.
6
2-20
Press [Stop/Reset] to return to the standby display.
Specifying the Paper Size and Type (Common for Cassette and Multi-Purpose Tray)
Orientation of the Document and the Paper Loading
When you load or place a document in the ADF or on the platen glass, the
orientation of the document and the orientation of the paper in the cassette or in the
multi-purpose tray are as shown below.
ADF
Platen glass
Document
Document
Paper Handling
2
Paper
Cassette
Multipurpose
tray
Copy
Specifying the Paper Size and Type (Common for Cassette and Multi-Purpose Tray)
2-21
Selecting the Paper Output Area
Face down paper output delivers paper with the printed side down on the output
tray. Face up paper output delivers paper with the printed side up from the output
area. Select the area depending on your purpose by opening or closing the face up
cover.
2
Paper Handling
Open the face up cover for face up paper output, or close the face up cover and pull
out the output tray for face down paper output.
IMPORTANT
Do not open or close the face up cover while copying and printing.
Paper Type and Paper Output Area
Select the suitable paper output area depending on the paper type and your
purpose.
Paper Type
Plain Paper
Recycled Paper
2-22
Paper Output Area
The Number of Output Sheets
face up
1 sheet
face down
approx. 80 to 100 sheets
(17 lb to 28 lb (60 g/m2 to 105 g/m2))
face up
1 sheet
face down
approx. 80 to 100 sheets
(17 lb to 28 lb (60 g/m2 to 105 g/m2))
Selecting the Paper Output Area
Heavy Paper
Transparencies
Envelopes
Paper Output Area
The Number of Output Sheets
face up
1 sheet
face down
approx. 20 sheets
(28 lb to 44 lb (106 g/m2 to 163 g/m2))
face up
1 sheet
face down
10 sheets
face up
1 sheet
face down
10 sheets
2
Paper Handling
Paper Type
Face Down Paper Output Area
The paper is delivered with the printed side down on the output tray.
Paper is stacked in printed order.
Close the face up cover.
IMPORTANT
• Do not place the delivered paper back on the output tray. Doing so may result in paper
jams.
• Do not place objects other than paper on the output tray. Doing so may result in paper
jams.
Selecting the Paper Output Area
2-23
Face Up Paper Output Area
The paper is delivered with the printed side up from the face up paper output at the
rear of the machine.
This way is convenient for printing on transparencies, or envelopes which tend to
curl, because the paper is delivered straight through out of the machine.
Open the face up cover.
• Remove
the delivered paper one by one.
Paper Handling
2
IMPORTANT
• Do not pull the paper forcibly.
• This machine has no face up output tray. Remove the delivered paper with your hand.
• Do not place an object in front of the face up paper output to prevent a paper jam.
2-24
Selecting the Paper Output Area
3
Document Handling
CHAPTER
This chapter describes the types of documents you can scan or copy with this machine and
how to set them on the platen glass.
Document Requirements
The documents you place on the platen glass or loaded in the ADF for copying,
scanning, or sending must meet these requirements:
Platen Glass
Plain paper
Thick documents
Photographs
Small documents (e.g., index
cards)
Special types of paper (e.g.,
tracing paper*1,
transparencies*1, etc.)
Book
ADF
Plain paper (multiple page documents of
the same size, thickness, and weight or
one page documents)
Size (W x L)
Max. 8 1/2" x 11 3/4"
(216 mm x 297 mm)
Max. 8 1/2" x 14"
(216 mm x 356 mm) (LGL)
Min. 5 13/16" x 4 1/8"
(148 mm x 105 mm) (A6)
Quantity
1 sheet
Max. 50 sheets*2 or paper stack within
5/16" (8 mm) thickness including curled
sheets (reference at regular ambient
temperature and humidity)
Weight
4.4 lb (2 kg)
Type of
Document
17 lb to 44 lb
(60 g/m2 to 163 g/m2)/document
*1 When scanning, copying, or sending a transparent document such as tracing paper or transparencies, place a piece
of plain white paper behind the document.
*2 21 lb (80 g/m2) paper
Document Requirements
3-1
NOTE
When making copies of a small size document, the copy speed may be slightly slower
than usual.
Problem Documents
• Make
sure any glue, ink, or correction fluid on the document is completely dry
before placing it on the platen glass or loading it in the ADF.
• Remove
all fasteners (staples, paper clips, etc.) before loading the document in
the ADF.
• To
- Wrinkled or creased paper
- Curled or rolled paper
- Torn paper
- Hole-punched paper
3
Document Handling
prevent document jams in the ADF, do not use any of the following:
- Carbon paper or carbon-backed paper
- Coated paper
- Onion skin or thin paper
Scanned Area of a Document
The shaded area in the illustration below shows the scanned area of a document.
Make sure your document's text and graphics are within this area.
MAX. 13/64" (5.0 mm)
MAX. 1/8" (3.0 mm)
MAX. 1/8" (3.0 mm)
Scanning
direction
LTR
MAX. 1/8" (3.0 mm)
3-2
Document Requirements
Setting Up Documents
For scanning, place your documents on the platen glass or load them in the ADF.
Where you set up your documents depends on the size and type of documents you
want to scan. (See "Document Requirements," on p. 3-1.)
Placing a Document on the Platen Glass
2
Place your document face down on the platen glass.
BA
Open the platen glass cover.
Document Handling
3
1
Use the paper size marks on the left side of the platen glass to position a document.
• If your document conforms to a standard paper size (e.g., LTR or A4), align the
document between the appropriate paper size marks.
• If you do not know the size of your document, or if your document does not match
any of the paper size marks, align the center of your document with the ➞ mark.
Setting Up Documents
3-3
The illustration below shows how to place an LTR-size document on the platen glass.
Document Handling
3
3
Gently lower the platen glass cover.
The document is now ready for scanning.
Loading Documents in the ADF
1
3-4
Fan the edges that will feed into the machine first, then tap the
edges of multiple page documents on a flat surface to even the
stack.
Setting Up Documents
2
Adjust the document guides to the width of the document.
3
Load the documents face up in the ADF.
Document Handling
3
NOTE
• For multiple page documents, the pages are fed one by one from the top of the stack
(from the first page).
• Wait until all pages of your document have been scanned before starting a new job.
• 50 sheets (80 g/m2) or paper stack within 5/16" (8 mm) thickness including curled sheets
(guaranteed) (reference at regular ambient temperature and humidity) documents can be
loaded in the ADF. If the documents exceed the capacity of the ADF, paper jams may
occur.
Setting Up Documents
3-5
The Paper Path of the ADF
1
2
3
The machine scans documents
from the first page.
Scanning
unit
Document Handling
3
NOTE
• When documents are loaded in the ADF, the scanning unit moves to the position shown
above and remains there.
• When documents are not loaded in the ADF, the scanning unit moves to scan it.
3-6
Setting Up Documents
4
Printing from Your Computer
CHAPTER
This chapter explains how to print the documents from your computer using the printer driver
included in the CD-ROM.
Before Printing
Before printing, software must be installed in your computer.
• If
not, please refer to the Quick Start Guide or Chapter 1, "Installation," in the
Software Guide.
Check if the machine is selected as the default printer.
• You
can check if your machine is set as the default printer when you open the
[Print] dialog box in an application and your machine is selected in the printer box.
(See "Printing Documents," on p. 4-3.)
Follow this procedure if it is not selected:
1
Open the [Printers and Faxes] (Windows 98/Me/2000: [Printers])
folder.
● On Windows XP/Server 2003:
❑ Click [start] on the Windows task bar ➞ select [Printers and Faxes].
● On Windows 98/Me/2000:
❑ Click [Start] on the Windows task bar ➞ select [Settings] ➞ [Printers].
Before Printing
4-1
2
3
Click the corresponding printer driver icon.
From the [File] menu, click [Set as Default Printer] (Windows 98/
Me: [Set as Default]).
Printing from Your Computer
4
4-2
Before Printing
Printing Documents
The general steps for printing a document are explained below.
1
Load paper in the cassette or the multi-purpose tray.
For details on how to load paper, see "Loading Paper," on p. 2-4.
Open the document in an application.
3
Select the command to print.
4
Printing from Your Computer
2
In most cases, click [Print] in the [File] menu.
The [Print] dialog box appears.
4
5
From the [Select Printer] list box or the [Name] pull-down list in
the [Print] dialog box, select the printer to be used.
Click [Preference] or [Properties].
NOTE
Depending on the application you are using, select the printer to be used in the [General]
tab sheet in the [Print] dialog box, then specify the print settings in the corresponding tab
sheet (only for Windows 2000).
6
Specify the required settings ➞ click [OK].
For details on the color printing, refer to the Software Guide.
7
Click [Print] or [OK].
Printing starts.
NOTE
To cancel printing, click [Cancel].
Printing Documents
4-3
Canceling Printing
1
Open the [Printers and Faxes] (Windows 98/Me/2000: [Printers])
folder.
● On Windows XP/Server 2003:
❑ Click [start] on the Windows task bar ➞ select [Printers and Faxes].
● On Windows 98/Me/2000:
❑ Click [Start] on the Windows task bar ➞ select [Settings] ➞ [Printers].
Printing from Your Computer
4
2
Double-click the corresponding printer driver icon.
3
Right click on the print job ➞ click [Cancel Printing].
NOTE
You can also cancel a print job using [Status Monitor] on the operation panel of the
machine. (See "Confirming and Deleting a PC Print Job," on p. 7-4.)
4-4
Printing Documents
More Information
For detailed information on all printing features, refer to Chapter 2, "Printing," in the
Software Guide.
Printing from Your Computer
4
More Information
4-5
Copying
5
CHAPTER
This chapter explains how to make copies, adjust scan settings to improve the image quality,
and enlarge or reduce the copy sizes. It also describes the special copy features.
Documents You Can Copy
For information on the types of documents you can copy, their requirements, and
details on setting up documents, refer to Chapter 3, "Document Handling."
IMPORTANT
For better scanning quality for color documents, we recommend that you place
documents on the platen glass. If you use the ADF, the scanned image might not be
clear.
Documents You Can Copy
5-1
Making Copies
NOTE
• When making copies on LTR-size paper after having continuously copied on paper
smaller than LTR-size paper, the copies may be dirty. To prevent copies from being dirty,
wait about 1 minute before making copies.
• When making copies of a small size or heavy paper*, etc., the copy speed may be
slightly slower than usual.
* The paper type should be selected in the Menu. (See "Specifying the Paper Type," on p.
2-20.)
• If you intend to make a copy and print with a thermal transfer printer using the same
sheet of paper, make the copy first. Failure to do so may make copies dirty or cause a
paper jam.
• When copying onto transparencies, remove each transparency from the output tray as it
is output.
Copying
5
1
Place the document on the platen glass or load it in the ADF.
For details on how to place documents, see "Setting Up Documents," on p. 3-3.
2
Press [COPY].
3
Use the numeric keys to enter the number of copies.
You can set up to 99 copies.
4
Adjust any necessary settings for your document.
• Specify the size and the type of the paper you load in the cassette or the
multi-purpose tray. (See "Specifying the Paper Size and Type (Common for Cassette
and Multi-Purpose Tray)," on p. 2-19.)
• Press [Image Quality] to select the scanning resolution. (See "Adjusting the Image
Quality (Resolution)," on p. 5-6.)
• Press [Exposure] to select the scanning exposure. (See "Adjusting the Exposure
(Density)," on p. 5-6.)
• Press [Enlarge/Reduce] to select the copy ratio. (See "Setting Enlarging/Reducing,"
on p. 5-4.)
5-2
Making Copies
Press [B&W Start] or [Color Start].
NOTE
• To cancel copying, press [Stop/Reset] ➞ follow the instructions in the LCD.
You can also cancel copying using [Status Monitor]. See "Confirming and Deleting a
Copy Job," on p. 7-3.
• When you cancel copying while scanning a document from the ADF, the document may
jam in the ADF. If the paper jam occurs, the LCD displays <CHECK DOCUMENT>, or
<DOCUMENT TOO LONG>. (See "Removing Jammed Paper from the ADF," on p.
9-22.)
IMPORTANT
When you make copies immediately after connecting the power cord, the print quality may
deteriorate. Make copies after making sure the whirring sound stops.
5
Copying
5
Making Copies
5-3
Setting Enlarging/Reducing
You can enlarge or reduce the copy size using preset copy ratios or using custom
copy ratios.
Enlarging/Reducing Using Preset Copy Ratios
1
Press [Enlarge/Reduce].
2
Press [((-)] or [)(+)] to select the copy ratio ➞ press [Set].
You can select from the following:
5
Copying
- 200% MAX.
- 129% STMT ➞ LTR
- 100%
- 78% LGL ➞ LTR
- 64%
- 50% MIN.
NOTE
• If the <PAPER SIZE GROUP> setting of <COPY SETTINGS> menu in the Menu is set to
<A> or <AB>, the preset copy ratios will be as follows:
A: 50%, 70%, 100%, 141% and 200%;
AB: 50%, 70%, 81%, 86%, 100%, 115%, 122%, 141% and 200%.
• To return the copy ratio to 100%, press [Enlarge/Reduce] several times to display
<DIRECT 100%> ratio ➞ press [Set].
You can also return the ratio to 100% using a custom copy ratio. (See "Enlarging/
Reducing Using Custom Copy Ratios," on p. 5-5.)
5-4
Setting Enlarging/Reducing
Enlarging/Reducing Using Custom Copy Ratios
1
Press [Enlarge/Reduce] twice.
2
Use the numeric keys to enter the copy ratio ➞ press [Set].
ZOOM
-
50-200%
80%
+
➞
80%
LTR
TEXT/PHOTO
01
• You can enter the copy ratio from 50% to 200%, selectable in 1% increments.
• Even after entering the copy ratio, you can use [((-)] or [)(+)] to adjust the copy
ratio. To increase the copy ratio, press [)(+)]. To decrease the copy ratio, press
[((-)].
5
Copying
NOTE
To return the copy ratio to 100%, press [Enlarge/Reduce] several times to display
<DIRECT 100%> ratio ➞ press [Set].
You can also return the ratio to 100% using a preset copy ratio. (See "Enlarging/Reducing
Using Preset Copy Ratios," on p. 5-4.)
Setting Enlarging/Reducing
5-5
Improving Copied Image
Adjusting the Image Quality (Resolution)
You can adjust image quality to the appropriate level best suited for a document
with text or photos. Three modes are available for adjusting the image quality.
1
2
Copying
5
Press [Image Quality].
Press [Image Quality] repeatedly until the image quality you want
appears.
You can select from the following:
- <TEXT> for text-only documents
- <PHOTO> for photographs
- <TEXT/PHOTO> for documents with text and photographs. Three submodes are
available: <STANDARD>, <PHOTO PRIORITY>, <TEXT PRIORITY>
NOTE
Copy exposure automatically changes to manual mode when <TEXT/PHOTO> or
<PHOTO> is set.
Adjusting the Exposure (Density)
You can adjust the copy exposure automatically or manually according to how light
or dark your document is.
Adjusting Automatically
1
Press [Exposure] twice to select the auto mode ➞ press [Set].
EXPOSURE
AUTO EXPOSURE
➞
100%
A
LTR
TEXT
The copy exposure is adjusted automatically.
5-6
Improving Copied Image
01
NOTE
• Image quality mode automatically changes to <TEXT> when <AUTO EXPOSURE> is
set.
• Automatic exposure only works in black and white copying. The exposure has to be
manually adjusted in color copying. Press [Color Start] after setting to the auto mode in
order to adjust the exposure for color copying.
Adjusting Manually
1
Press [Exposure] to select the manual mode.
2
Press [((-)] or [)(+)] to adjust the copy exposure ➞ press [Set].
For a lighter copy exposure, press [((-)].
For a darker copy exposure, press [)(+)].
DK+
➞
100%
LTR
TEXT/PHOTO
5
01
Copying
EXPOSURE
-LT
NOTE
When setting the exposure lighter, the indicator moves to the left. When setting the
exposure darker, the indicator moves to the right.
Adjusting the Color Balance
You can make fine adjustments to the color by varying the relative strength and
density of yellow, magenta, cyan, and black for color copying. Color balance setting
applies only to color copying. Toner density can be specified by the following
procedure.
Improving Copied Image
5-7
1
Press [Menu].
2
Press [((-)] or [)(+)] to select <COPY SETTINGS> ➞ press [Set].
3
Press [((-)] or [)(+)] to select <COLOR BALANCE> ➞ press [Set].
4
5
5
Press [((-)] or [)(+)] to select the each color <BLACK>, <CYAN>,
<MAGENTA> and <YELLOW> ➞ press [Set].
Press [((-)] or [)(+)] or use the numeric keys to specify the toner
density ➞ press [Set].
Copying
You can specify the level from between 1 and 7. A value of 5 is the default setting. For
the toner density indication, 1 is the lightest and 7 is the darkest.
NOTE
Please refer to the table below when you adjust the color balance setting.
When the preview image
Change the yellow to lower side, or change the
is yellow-looking.
magenta and cyan to higher side.
When the preview image
is magenta-looking.
Change the magenta to lower side, or change the
yellow and cyan to higher side.
When the preview image
is cyan-looking.
Change the cyan to lower side, or change the yellow
and magenta to higher side.
When the preview image
is red-looking.
Change the yellow and magenta to lower side, or
change the cyan to higher side.
When the preview image
is green-looking.
Change the yellow and cyan to lower side, or change
the magenta to higher side.
When the preview image
is blue-looking.
Change the magenta and cyan to lower side, or
change the yellow to higher side.
Adjustment on the monotone area have an instant effect on your imaging.
Adjusting the Saturation
You can adjust saturation to the appropriate level best suited for a document. Three
modes are available for adjusting the saturation level.
5-8
Improving Copied Image
1
Press [Menu].
2
Press [((-)] or [)(+)] to select <COPY SETTINGS> ➞ press [Set].
3
Press [((-)] or [)(+)] to select <SATURATION> ➞ press [Set].
4
Press [((-)] or [)(+)] to select the appropriate saturation level ➞
press [Set].
You can select from the following:
- <STANDARD>
- <VIVID>
- <TRANQUIL>
Copying
5
5
Press [Stop/Reset] to return to the standby display.
Improving Copied Image
5-9
Removing the Background Color
You can adjust the background color by specifying the level from between 1 and 5
so that you can erase the background color of the document on the copy.
1
Press [Menu].
2
Press [((-)] or [)(+)] to select <COPY SETTINGS> ➞ press [Set].
3
Press [((-)] or [)(+)] to select <REMOVE BACKGROUND> ➞
press [Set].
4
Copying
5
Press [((-)] or [)(+)] or use the numeric keys to specify the
appropriate level ➞ press [Set].
Select a smaller number for a stronger effect. As you select a larger number, the effect
becomes less pronounced.
5
Press [Stop/Reset] to return to the standby display.
NOTE
• It may be unable to erase the background color even if you specify the level <1>
according to the step 4 above.
• It may be unable to erase the background color if the document is deep in color.
5-10
Improving Copied Image
Special Features
The machine has the following SPECIAL COPY features. These features allow you
to sort copies in page order and create special copies easily.
- Collate Copy
Sorts copies in page order.
- Reserve Copy
Reserves the next job while the machine is printing out.
Collate Copy
Copy 1
1
2
1
3
4
Set 3
sets of copies
2
Copy 2
1
3
4
2
Copy 3
1
3
4
2
3
4
When Loading Documents in the ADF
1
Load documents face up in the ADF.
For details on how to load documents in the ADF, see "Loading Documents in the ADF,"
on p. 3-4.
2
Press [Collate].
<COL.> appears in the LCD.
NOTE
If <AUTO SORT> in <COPY SETTINGS> of the Menu is set to <ON>, the collate copy
feature is automatically set. (See <5. AUTO SORT> of "Menu Descriptions," on p. 10-6.)
Special Features
5
Copying
The collate copy allows you to sort copies in page order. It is convenient when you
make multiple copies of multiple page documents.
5-11
3
Use the numeric keys to enter the number of copies you want.
100% COL.
LTR
TEXT/PHOTO
03
You can set up to 99 copies.
4
Press [B&W Start] or [Color Start].
The machine begins scanning from the first page of the document. After scanning, the
scanned documents will come out in order.
NOTE
When scanning multiple page documents, <MEMORY FULL> may appear in the LCD,
and the document being scanned stops in the ADF. Follow the procedure in "Removing
Jammed Paper from the ADF," on p. 9-22 to clear the paper jam in the ADF.
If this happens, reduce the documents to be scanned. Or, change the image quality
mode to <TEXT>.
5
Copying
When Placing a Document on the Platen Glass
1
Place the first page of a document on the platen glass.
For details on how to place documents on the platen glass, see "Placing a Document
on the Platen Glass," on p. 3-3.
2
Press [Collate].
<COL.> appears in the LCD.
3
Use the numeric keys to enter the number of copies you want.
You can set up to 99 copies.
4
Press [B&W Start] or [Color Start].
The machine begins scanning and then prints only one copy.
5
Place the next page of the document on the platen glass.
NEXT PAGE
END SCANNING
5-12
Special Features
:START
:SET
6
Press [B&W Start] or [Color Start].
The machine scans the next document and then prints only one copy.
Repeat step 5 and 6 to scan all documents and the machine prints only one copy for
each document.
7
Press [Set].
The machine begins printing out the rest of the copies.
NOTE
When scanning multiple page documents, <MEMORY FULL> may appear in the LCD
and scanning is canceled. In this case, reduce the documents to be scanned. Or change
the image quality mode to <TEXT>.
Reserve Copy
NOTE
The machine can store up to 10 copy jobs in memory.
1
Press [Stop/Reset] twice to return to the standby display while the
machine is printing out.
NOTE
It is necessary to return to the standby display in order to reserve the next copy job.
2
Place the document you want to reserve face down on the platen
glass or in the ADF.
For details on how to place documents, see "Setting Up Documents," on p. 3-3.
3
Use the numeric keys to enter the number of copies.
You can set up to 99 copies.
4
Adjust any necessary settings for your document.
• Press [Image Quality] to select the scanning resolution. (See "Adjusting the Image
Quality (Resolution)," on p. 5-6.)
Special Features
5-13
5
Copying
This feature allows you to reserve the next job while the machine is printing out a
current job.
• Press [Exposure] to select the scanning exposure. (See "Adjusting the Exposure
(Density)," on p. 5-6.)
• Press [Enlarge/Reduce] to select the copy ratio. (See "Setting Enlarging/Reducing,"
on p. 5-4.)
5
Press [B&W Start] or [Color Start].
The machine begins scanning.
NOTE
• After printing of the current copy job is complete, the next copy job begins.
• If the memory becomes full while scanning, <MEMORY FULL> appears in the LCD.
When the ADF is used for scanning, the document being scanned stops in the ADF.
Follow the procedure in "Removing Jammed Paper from the ADF," on p. 9-22 to clear the
paper jam in the ADF.
All of the scanned documents will be erased if <MEMORY FULL> appears, so divide the
document and copy each part separately, or select a lower image quality mode and
make copies again.
Copying
5
5-14
Special Features
6
Scanning
CHAPTER
This chapter briefly explains how to scan documents into your computer using the scanner
driver included in the CD-ROM.
Before Scanning
Before scanning, software must be installed on your computer.
• If
not, please refer to the Quick Start Guide or Chapter 1, "Installation," in the
Software Guide.
Check if the scanner driver is installed on your computer by following this
procedure.
1
Open the [Scanners and Cameras] folder (Windows 98/2000: the
[Scanners and Cameras Properties] dialog box).
● On Windows XP:
❑ Click [start] on the Windows task bar ➞ select [Control Panel] ➞ [Printers and Other
Hardware] ➞ [Scanners and Cameras].
● On Windows 98/Me/2000:
❑ Click [Start] on the Windows task bar ➞ select [Settings] ➞ [Control Panel] ➞ double
click [Scanners and Cameras].
2
Make sure there is the corresponding scanner driver name or icon.
Before Scanning
6-1
Scanning Methods
There are two methods of scanning documents to your computer:
• Using
a TWAIN- or WIA- (Windows XP) compliant Windows application
• Using
[SCAN] on the operation panel of the machine
IMPORTANT
For better scanning quality for color documents, we recommend that you place
documents on the platen glass. If you use the ADF, the scanned image might not be
clear.
This section explains how to scan using [SCAN] on the operation panel of the
machine. By pressing [SCAN] ➞ [B&W Start] or [Color Start] on the operation panel
of the machine, you can scan documents to your computer.
6
Scanning
1
Place the document on the platen glass or load it in the ADF.
For details on how to place documents, see "Setting Up Documents," on p. 3-3.
2
Press [SCAN] ➞ [B&W Start] or [Color Start] on the machine.
If you are asked to select the program to launch, select "MF Toolbox Ver4.9."
Scanning starts.
The MF Toolbox and the MF Toolbox settings dialog box will open, but the document
will be scanned without pressing [Start].
The scanned document will be processed according to your settings.
When you use [Start] for the first time, a folder with the scanning date will be created in
the [My Pictures] folder in the [My Documents] folder, and your document will be
saved in this folder. If there is no [My Pictures] folder, the folder with the scanning date
will be created in the [My Documents] folder and your document will be saved in this
folder.
6-2
Scanning Methods
More Information
For detailed information on all scanning features, refer to Chapter 3, "Scanning," in
the Software Guide.
Scanning
6
More Information
6-3
7
System Monitor
CHAPTER
This chapter explains how to check the status of the jobs stored in the machine, and to confirm
or delete them as needed.
Checking the Status of the Jobs Stored in the Machine
Use the [Status Monitor] to confirm or delete copy, fax, print and report jobs stored
in the machine.
When using [Status Monitor], the LCD displays the jobs in the following order in
each mode.
In Copy mode,
In Fax mode,
- COPY STATUS
- RX/TX STATUS
- RX/TX STATUS
- TX/RX LOG
- TX/RX LOG
- PRINT STATUS
- PRINT STATUS
- REPORT STATUS
- REPORT STATUS
- COPY STATUS
NOTE
[Status Monitor] is disabled in the Scan mode.
Checking the Status of the Jobs Stored in the Machine
7-1
Confirming and Deleting a Fax Job
Follow the procedure below to confirm the sending or receiving status.
1
Press [Status Monitor].
2
Press [((-)] or [)(+)] to select <RX/TX STATUS> ➞ press [Set].
NOTE
• If there is no job, <NO CURRENT RX/TX JOB> is displayed.
• If there is only one fax job, go to step 4.
• The transaction number and <TX/RX> in the LCD mean the following:
- <0001> to <4999>: A sent document (TX)
- <5001> to <9999>: A received document (RX)
3
Press [((-)] or [)(+)] to confirm the transaction number and time.
NOTE
For the fax job with multiple destinations (sequential broadcasting), only the fax/
telephone number to be sent first is displayed.
System Monitor
7
4
If you want to delete the fax job, press [Set].
NOTE
If you delete the fax job with multiple destinations, the machine does not send the fax to
any of the destinations registered for the job.
5
If you decide to delete the job, press [((-)] for <YES>.
NOTE
To cancel deleting the job, press [)(+)] for <NO>. Once the job is deleted, the job cannot
be restored.
6
Press [Stop/Reset] to return to the standby display.
NOTE
For detailed information on all fax features, refer to the Facsimile Guide.
7-2
Checking the Status of the Jobs Stored in the Machine
Confirming Transmission Results
Follow the procedure below to confirm the sending or receiving results.
1
Press [Status Monitor].
2
Press [((-)] or [)(+)] to select <TX/RX LOG> ➞ press [Set].
NOTE
If there is no job, <NOT FOUND!> is displayed.
3
Press [((-)] or [)(+)] to confirm the sending or receiving results.
4
Press [Stop/Reset] to return to the standby display.
Confirming and Deleting a Copy Job
Press [Status Monitor].
2
Press [((-)] or [)(+)] to select <COPY STATUS> ➞ press [Set].
System Monitor
1
7
NOTE
• If there is no job, <NO COPY JOBS EXIST> is displayed.
• If there is only one copy job, go to step 4.
3
Press [((-)] or [)(+)] to confirm the job number, and the quantity
of copies.
4
If you want to delete the copy job, press [Set].
5
If you decide to delete the job, press [((-)] for <YES>.
NOTE
To cancel deleting the job, press [)(+)] for <NO>. Once the job is deleted, the job cannot
be restored.
Checking the Status of the Jobs Stored in the Machine
7-3
6
Press [Stop/Reset] to return to the standby display.
Confirming and Deleting a PC Print Job
1
Press [Status Monitor].
2
Press [((-)] or [)(+)] to select <PRINT STATUS> ➞ press [Set].
NOTE
• If there is no job, <NO PRINT JOBS EXIST> is displayed.
• If there is only one print job, go to step 4.
7
3
Press [((-)] or [)(+)] to confirm the file name.
4
If you want to delete the print job, press [Set].
5
If you decide to delete the job, press [((-)] for <YES>.
System Monitor
NOTE
• To cancel deleting the job, press [)(+)] for <NO>. Once the job is deleted, the job cannot
be restored.
• The LCD can display characters in ASCII cord. Using characters other than those in
ASCII cord may have the LCD display garbled characters.
6
7-4
Press [Stop/Reset] to return to the standby display.
Checking the Status of the Jobs Stored in the Machine
Confirming and Deleting a Report Job
1
Press [Status Monitor].
2
Press [((-)] or [)(+)] to select <REPORT STATUS> ➞ press [Set].
NOTE
• If there is no job, <NO REPORT JOBS EXIST> is displayed.
• If there is only one report job, go to step 4.
3
Press [((-)] or [)(+)] to confirm the report.
4
If you want to delete the report job, press [Set].
5
If you decide to delete the job, press [((-)] for <YES>.
6
Press [Stop/Reset] to return to the standby display.
Checking the Status of the Jobs Stored in the Machine
7
System Monitor
NOTE
To cancel deleting the job, press [)(+)] for <NO>. Once the job is deleted, the job cannot
be restored.
7-5
Maintenance
8
CHAPTER
This chapter explains how to clean the machine, replace the toner cartridge, and repack and
transport the machine.
Periodic Cleaning
Your machine requires little periodic maintenance. This section describes the
necessary cleaning procedures for your machine.
CAUTION
• When cleaning the machine's exterior or the platen glass, be sure to disconnect
the power cord before cleaning the machine.
• Do not use tissue paper, paper towels, or similar materials for cleaning; they can
stick to the components or generate static charges.
Use a soft cloth to avoid scratching the components.
• Never use volatile liquids such as thinner, benzene, acetone, or any other
chemical cleaner to clean the interior of the machine; these can damage the
machine's components.
Cleaning the Exterior
Wipe the machine's exterior with a clean, soft, lint-free cloth moistened with water
or diluted dishwashing detergent solution.
Periodic Cleaning
8-1
Cleaning the Scanning Area
Wipe the scanning area (shaded area) with a clean, soft, lint-free cloth moistened
with water, then wipe with a clean, soft, dry, lint-free cloth.
Platen glass cover
Platen glass
Cleaning the ADF Area
Maintenance
Black lines may appear in copies when the ADF is used to feed documents.
This is caused by paste, ink, correction fluid, or other foreign matters in the read
area of the platen glass (shaded area). Use a clean soft cloth to wipe the read area
clean. Take particular care to clean at the locations where the black lines are
appearing on copies.
If you have trouble getting the glass clean, wipe with a cloth moistened with water
or a mild neutral detergent, and then wipe the glass dry with another cloth.
8
Paste, ink,
correction fluid,
etc.
Read area
White roller
A
Black lines
Copy
8-2
Periodic Cleaning
B
C
IMPORTANT
• Paste, ink, correction fluid, and other foreign matter can soil the platen glass when you
send a document through the ADF while the paste, ink, or correction fluid on the
document is still wet. This is what causes black lines on copies. Whenever you load a
document in the ADF, always check to make sure that any paste, ink, or correction fluid
that is on the document is completely dry.
• When cleaning the read area of the platen glass, take care not to damage the white roller
located on the center of the ADF.
Cleaning the Fusing Roller
IMPORTANT
A cleaning page cannot be printed on paper in size other than LTR or A4. Be sure to set
LTR or A4 paper in the cassette.
1
Press [Menu].
Maintenance
If smudge marks appear on the back or front side of printed pages, clean the fusing
roller in the following procedure. Print quality deterioration can be prevented by
cleaning the fusing roller. First, print out a cleaning page using LTR or A4 size
paper. Then, feed the cleaning page from the multi-purpose tray to clean the fusing
roller.
8
2
Press [((-)] or [)(+)] to select <MAINTENANCE> ➞ press [Set].
3
Press [((-)] or [)(+)] to select <ROLLER CLEANING> ➞ press
[Set].
4
Press [((-)] or [)(+)] to select <CLEAN PAPER PRT> ➞ press
[Set].
A cleaning page will be printed.
Periodic Cleaning
8-3
5
Load the cleaning page with the printed side facing down and
wide edge with the largest blank space entering the multi-purpose
tray first.
Maintenance
When other paper has already been loaded in the multi-purpose tray, remove it before
loading the cleaning page.
6
Press [Menu].
7
Press [((-)] or [)(+)] to select <MAINTENANCE> ➞ press [Set].
8
Press [((-)] or [)(+)] to select <ROLLER CLEANING> ➞ press
[Set].
9
Press [((-)] or [)(+)] to select <START CLEANING> ➞ press [Set].
8
The paper will go into the printer slowly to start cleaning the fusing roller.
NOTE
It takes approximately 3 minutes to clean the roller. The cleaning process cannot be
canceled. Please wait until it ends.
8-4
Periodic Cleaning
Replacing the Cartridges
This section describes how to remove used cartridges and replace them with new
ones.
IMPORTANT
If printout becomes faint or inconsistent, the reason may be that the lifetime of the toner
cartridge has been reached even when a message does not appear. Do not continue to
use the toner cartridge when there is a deterioration in the print quality.
Model Name
MF8180
Supported Canon Genuine Cartridge
Print Yield
EP-87 Toner Cartridge Black
Approx. 5,000 sheets
EP-87 Toner Cartridge Yellow
EP-87 Toner Cartridge Magenta
Approx. 4,000 sheets
EP-87 Toner Cartridge Cyan
• Before handling the cartridge, see the precautions in "Storing Toner Cartridges," on p.
8-14.
Replacing the Toner Cartridges
When <PREPARE NEW ∗ CART> and then <REPLACE ∗ CARTRIDGE> appears
in the LCD, replace the toner cartridge of the indicated color with a new toner
cartridge.
∗: indicates either "C", "M", "Y", or "K".
WARNING
Do not burn or throw used toner cartridges into open flames, as this may cause
the toner remaining inside the cartridges to ignite resulting in burns or a fire.
CAUTION
If toner gets onto your hands or clothing, wash it off immediately with cold
water. Do not use warm water as this may set the toner permanently, and you
may not be able to remove the toner stains.
Replacing the Cartridges
8-5
Maintenance
NOTE
• The lifetime of the toner cartridges (Canon Genuine Cartridges) used in this printer is as
follows. The number of the sheets is estimated when printing in the following conditions.
• Printing ratio: 5%; Print density: the default; Paper size: Letter or A4; Paper type: Plain
paper.
8
IMPORTANT
Use only toner cartridges intended for use with this machine.
1
Press [Menu].
2
Press [((-)] or [)(+)] to select <MAINTENANCE> ➞ press [Set].
3
Press [((-)] or [)(+)] to select <CHANGE CARTRIDGE> ➞ press
[Set].
4
Press [((-)] or [)(+)] to select the cartridge to be replaced ➞
press [Set].
You can select from the following:
Maintenance
- BLACK
- CYAN
- MAGENTA
- YELLOW
- ALL COLORS
5
8
Lift the scanning platform a and open the cartridge cover until it
is locked b when the whirring sound stops.
a
b
8-6
Replacing the Cartridges
6
Make sure that the toner cartridge you want to replace is at the
position for replacing.
7
Remove the toner cartridge from the machine.
Press and hold the blue buttons on the top of the toner cartridge and lift it straight up.
Maintenance
If the spent toner cartridge is not in the replacement position, close the cover, then
open it again when the whirring sound stops. Repeat this process until the cartridge
you want to replace is in the correct position.
8
Replacing the Cartridges
8-7
8
Confirm the color of the label on the toner cartridge holder, then
take out a toner cartridge of the same color from the protective
bag.
Open the protective bag with scissors, so as not to damage the cartridge.
Maintenance
IMPORTANT
• Keep the protective bag in which the cartridge came in. It may be required when taking
out the toner cartridge for machine maintenance.
• Be careful not to hold or touch the prohibited portions such as the sensor or electrical
contacts. It may result in damage to the machine.
8
Electrical
contacts
Sensor
8-8
Replacing the Cartridges
9
Hold the toner cartridge as shown in the figure, shake it gently 5
or 6 times from side to side a, then back and forth b to evenly
distribute the toner inside.
a
b
Maintenance
IMPORTANT
• If toner is not distributed evenly, it may result in a deterioration of the print quality. Be
sure to carry out this procedure properly.
• Be sure to shake the toner cartridge gently. Toner may spill if the cartridge is handled
without caution.
10 Remove the protective cover.
8
Pull down the tab on the protective cover as shown in the figure.
Protective
cover
NOTE
Remove the cover carefully as it may be snug.
Replacing the Cartridges
8-9
IMPORTANT
• Do not touch or hold the development roller. The image quality may deteriorate if you do
so. Do not apply shock to the toner cartridge memory or bring it near magnetic waves as
this may result in damage to the machine.
Toner cartridge
memory
Development roller
• Keep the protective cover with which the cartridge from removed. It may be required
when taking out the toner cartridge for machine maintenance.
11 Place the toner cartridge on a flat surface, then pull out the
Maintenance
sealing tape completely (approx. 17 3/4" (45 cm) in length) while
supporting the toner cartridge.
Hold the tab on the sealing tape and pull it out straight.
8
CAUTION
If the sealing tape is pulled out forcefully or stopped at midpoint, toner may spill
out. If toner gets into your eyes or mouth, wash it away immediately and consult
a physician.
8-10
Replacing the Cartridges
IMPORTANT
• Do not pull the sealing tape diagonally, upwards, or downwards. If the tape is severed, it
may become difficult to pull it out completely.
• Pull out the sealing tape completely from the toner cartridge. If the sealing tape remains
in the toner cartridge, it may result in a deterioration in print quality.
12 Press and hold the blue buttons on the top of the toner cartridge
and install it in the machine.
Keep the guides a, b on both sides aligned with the grooves c, d (triangular mark)
on the machine. Please note that these arrows are just for alignment purpose and do
not represent the color of the toner.
Replacing the Cartridges
8-11
Maintenance
• Dispose of the sealing tape according to local regulations.
8
When the toner cartridge is installed properly, the label on the cartridge and on the
toner cartridge holder will be aligned as shown in the figure.
Maintenance
13 Close the cartridge cover and lower the scanning platform.
8
The toner cartridge holder will rotate automatically.
IMPORTANT
• When you make copies immediately after replacing a toner cartridge, the print quality
may deteriorate. Make copies after making sure the whirring sound stops.
• When <INSERT ∗ CARTRIDGE> still appears in the LCD after inserting a cartridge,
disconnect and connect the power cord.
∗: indicates either "C", "M", "Y", or "K".
NOTE
The color labels should appear in this order: Yellow > Magenta > Cyan > Black. If the
color you want does not appear, start over from step 1 and select the required color.
8-12
Replacing the Cartridges
Precautions for Handling Toner Cartridges
Please use caution when handling the toner cartridges. Careless handling can
damage delicate mechanical parts or cause deterioration of the print quality.
Please read the following notices before installing or removing the toner cartridges.
WARNING
Do not burn or throw used toner cartridges into open flames, as this may cause
the toner remaining inside the cartridges to ignite resulting in burns or a fire.
CAUTION
If toner gets onto your hands or clothing, wash it off immediately with cold
water. Do not use warm water as this may set the toner permanently, and you
may not be able to remove the toner stains.
Maintenance
IMPORTANT
• If a toner cartridge is removed from the machine during maintenance, attach the
protective cover immediately and place it in the protective bag that it came in or wrap it
with a thick cloth.
Protective cover
8
• Be careful not to hold or touch the prohibited portions such as the sensor or electrical
contacts. It may result in damage to the machine.
Electrical
contacts
Sensor
Replacing the Cartridges
8-13
• Do not touch or hold the development roller. The image quality may deteriorate. Do not
apply shock to the toner cartridge memory or bring it near magnetic waves. It may result
in damage to the machine.
Toner cartridge
memory
Development roller
• When handling a toner cartridge, hold it properly as shown in the figure. Do not set it
Maintenance
vertically or upside-down.
• Never attempt to disassemble or modify the cartridge.
• If a toner cartridge is brought to an environment where the temperature differs extremely,
8
condensation may occur both inside and on the outside of the cartridge. If you are going
to install a cartridge that was stored in a cold place in a warm room, leave the cartridge
stored in the protective bag for over two hours in the warm room so that it can adapt to
the ambient temperature.
• Be sure to use a new toner cartridge within the expiration date indicated on the package.
• Using a genuine Canon toner cartridge is recommended.
Storing Toner Cartridges
Be careful of the following points for storing new cartridges or those that were
removed for maintenance.
IMPORTANT
• Do not remove a new toner cartridge from the protective bag until it is ready to be used.
8-14
Replacing the Cartridges
• If a toner cartridge has to be removed from the machine for maintenance, attach the
protective cover immediately and place it in the protective bag that it came in or wrap it
with a thick cloth.
Protective cover
•
•
•
•
installed in the machine.
Do not store a cartridge in a place exposed to direct sunlight.
Do not store a cartridge in a hot or humid place, or a place where the temperature and
humidity can change significantly.
Storing temperature range: 32 to 95 °F (0 to 35 °C)
Storing humidity range: 35 to 85 % RH (no condensation)
Do not store a cartridge in a place that can generate corrosive gases such as ammonia,
a place in which a considerable amount of salt is contained in the air, or a place with a lot
of dust.
Store the cartridge out of the reach of small children.
■ Condensation
Even within the storable humidity range, water drops may develop both inside and on the
outside of the cartridge due to the difference in temperature. The development of water
drops is called condensation. Condensation will adversely affect the quality of the toner
cartridge.
Recycling Used Cartridges
Canon has instituted a worldwide recycling program for
cartridges called "The Clean Earth Campaign." This
program preserves precious natural resources by utilizing a
variety of materials found in the used cartridges that are of
no further use, to remanufacture new cartridges which, at
the same time, keeps the environment cleaner by reducing
landfill waste. Complete details concerning this program are
enclosed in each PC Cartridge box.
Replacing the Cartridges
8-15
Maintenance
• Do not place it vertically or upside-down. Store a cartridge in the same position as when
8
The Clean Earth Campaign
THE Canon CARTRIDGE RECYCLING PROGRAM
The Canon Cartridge Recycling Program fulfills the first initiative of Canon's Clean
Earth Campaign, which supports four critical environmental areas:
• Recycling
in the Workplace
• Conserving
• Scientific
Environmental Resources
Research and Education
• Encouraging
Outdoors Appreciation
The remaining "Clean Earth" initiatives are supported in the U.S. through
sponsorships of the National Park Foundation, the National Wildlife Federation, and
The Nature Conservancy and in Canada through donations to the World Wildlife
Fund Canada and The Nature Conservancy of Canada.
Maintenance
Since its inception, The Canon Cartridge Recycling Program has collected millions
of cartridges that otherwise would have been discarded into landfills or similar
facilities. Instead, this rapidly growing program returns used cartridges to the
manufacturing process, thus conserving an array of resources.
Becoming a part of this worthwhile program is easy. When your cartridge is of no
further use, simply follow the instructions detailed for U.S. or Canadian residents.
We appreciate your support of The Canon Cartridge Recycling Program.
Working together we can make a significant contribution to a cleaner planet.
8
• Cartridges
• You
• This
8-16
collected through this program are not refilled.
are not entitled to a tax deduction or rebate for the return of empty cartridges.
program may be modified or discontinued without notice.
Replacing the Cartridges
U.S.A. PROGRAM
Packaging
■ Option A-1: Single Box Return
• Repackage
the empty cartridge utilizing the wrapper and pulp mould end-blocks
from the new cartridge's box.
the empty cartridge in the box of your new cartridge. Seal the box.
Maintenance
• Place
■ Option B: Volume Box Return
We encourage you to use this option as a more efficient way to ship cartridges.
• Place
as many cartridges as possible into one box.
Carefully seal the box with tape;
8
or
• Call
1-800-OK-Canon to receive your free eight cartridge collection box.
Replacing the Cartridges
8-17
■ Option A-2: Multiple Box Return
We encourage you to use this option as a more efficient way to ship cartridges.
• Complete
• Bundle
Option A-1.
multiple cartridge boxes together securely with tape.
Maintenance
Please be sure that the shipment does not exceed UPS specifications.
Maximum weight = 70 lb (31.8 kg)
Maximum length = 108" (2,743 mm)
Maximum girth (length + 2 × width + 2 × height) = 130" (3,302 mm)
If your shipment exceeds the above limits, please call 1-800-OK-Canon for special
shipping information.
Please Note:
Do not send defective cartridges for replacement.
Defective cartridges under warranty should be exchanged by an authorized dealer
or service facility as provided in the warranty.
8
8-18
Replacing the Cartridges
Shipping
Apply the UPS authorized returning label provided in this guide.
Residents of Alaska and Hawaii: Do not use the UPS authorized returning label.
For Alaska and Hawaii Canon set up alternative mail service with the U.S. Postal
Service.
Please call 1-800-OK-Canon to receive U.S. Postal Service merchandise returning
label.
■ Option A: UPS Pick-up
• Give
the shipment to your UPS driver when you receive your next regular delivery;
or
the shipment to your local UPS receiving point.
Maintenance
• Take
■ Option B: MBE Drop off
8
Take the shipment to a participating MBE (Mail Boxes, Etc.) Center.
For location, please call 1-800-949-6660.
By using either of the above methods of shipment, your used cartridge(s) will
be forwarded to the Canon Cartridge Collection Center at no charge to you.
For further information about the Clean Earth Campaign in the United States,
please call: 1-800-OK-Canon
Replacing the Cartridges
8-19
CANADA PROGRAM-CANADA PROGRAMME
■ Option A: Single Box Return
• Repackage
the empty cartridge utilizing the wrapper and pulp mould end-blocks
from the new cartridge's box.
• Place
the empty cartridge in the box of your new cartridge. Seal the box.
• Apply
the Canon Canada Inc./Canada Post label provided in this brochure.
Canon's labels are specially marked so that Canon pays the postage.
• Deposit
Maintenance
your empty cartridge in any full size street mailbox or take it to your local
Canada Post outlet or franchise.
■ Option B: Volume Box Return (eight or more cartridges)
We encourage you to use this option as a more efficient way to ship cartridges.
8
• Call
1-800-667-2666 to receive your free Canon collection box kit.
The collection box can accommodate eight individual cartridge boxes.
• Place
your eight individually packaged boxes of empty cartridges into the Canon
collection box. Seal the box.
• Apply
the Canon Canada Inc./Canada Post label provided in this brochure.
Canon's labels are specially marked so that Canon pays the postage.
• Deliver
to any local Canada Post outlet or franchise. Customers who hold a
Commercial pick-up agreement with Canada Post may have their collection box
picked up.
8-20
Replacing the Cartridges
Working to preserve endangered species is a long-standing Canon interest.
To this end, for every cartridge collected, Canon Canada donates $1, shared
equally between World Wildlife Fund Canada and the Nature Conservancy of
Canada. This donation is utilized in Canada.
For further information about The Clean Earth Campaign in Canada, please
call or write to Canon.
1-800-667-2666
Canon Canada Inc.
Corporate Customer Relations
6390 Dixie Road
Mississauga, ON L5T 1P7
Maintenance
•
8
Replacing the Cartridges
8-21
Replacing the Drum Cartridge
This section describes the precautions for replacing, handling, and storing drum
cartridges.
NOTE
• The lifetime of the drum cartridge (Canon Genuine Cartridge) used in this printer is as
follows. The number of the sheets is estimated when printing in the following conditions.
• Printing ratio: 5%; Print density: the default; Paper size: Letter or A4; Paper type: Plain
paper.
Model Name
Maintenance
MF8180
Supported Canon Genuine Cartridge
EP-87 Drum Cartridge
Print Yield
Color print: Approx.
5,000 sheets
B&W print: Approx.
20,000* sheets
* It is the amount of pages for which a drum cartridge will last when printing Letter or A4 size plain paper
continuously on Canon evaluation standard. The amount may be reduced to about half depending on
paper type or paper size.
Replacing the Drum Cartridge
8
Drum cartridges are consumable products. Replace the drum cartridge with a new
one when <PREPARE NEW DRUM> or <REPLACE THE DRUM> appears in the
LCD.
WARNING
Do not burn or throw used drum cartridges into open flames, as this may cause
the toner remaining inside the cartridges to ignite resulting in burns or a fire.
CAUTION
• If toner gets onto your hands or clothing, wash it off immediately with cold
water. Do not use warm water as this may set the toner permanently, and you
may not be able to remove the toner stains.
8-22
Replacing the Drum Cartridge
• Do not touch the electrical contacts or gears in the cartridge cover, as this may
result in an electric shock.
IMPORTANT
• Use only a drum cartridge intended for use with this machine.
• The inner portion of the machine must be cleaned when replacing the drum cartridge,
therefore, have a soft, dry cloth available.
Lift the scanning platform and open the cartridge cover.
Maintenance
1
8
2
Remove the drum cartridge from the machine.
Pull up the green handle on the drum cartridge in the direction of the arrow a, and lift
the cartridge straight up b.
a
Replacing the Drum Cartridge
8-23
b
Use a soft, dry cloth and wipe off chipped paper and toner that are
attached on the transparent sheet located at the front of the roller.
Maintenance
3
8
WARNING
Clean the machine using a soft, dry cloth. Do not use alcohol, benzene, paint
thinner, or other flammable substances.
IMPORTANT
• Be careful not to scratch the transparent sheet or peel it by force.
• Do not wet the cloth with water or detergent.
• Be careful not to touch unnecessary parts in the machine when cleaning.
8-24
Replacing the Drum Cartridge
Take the drum cartridge out of the protective bag.
Open the protective bag with scissors, so as not to damage the cartridge.
IMPORTANT
• Keep the protective bag in which the cartridge came in. It may be required when taking
out the drum cartridge for machine maintenance.
• Print quality may deteriorate if you touch or damage the drum that is set inside. Be
careful not to touch the drum or open the drum protective shutter. Be careful not to hold
or touch the portions that are not described for this procedure such as the sensors. It
may result in damage to the machine.
Drum protective
shutter
Maintenance
4
8
Sensors
• Do not expose the drum cartridge to direct sunlight or strong light.
Replacing the Drum Cartridge
8-25
5
Remove the packing materials (7 pieces).
Remove the packing materials a and b by hooking your fingers into the tab and
pulling them in the direction of the arrows.
b
a
Maintenance
Remove the packing materials c and d by turning them in the direction of the arrows
until they stop and pulling them away.
d
8
c
8-26
Replacing the Drum Cartridge
Remove the packing materials e and f by holding the grips and pulling them in the
direction of the arrows.
f
e
Maintenance
Hold the packing material g and remove it as shown in the figure.
g
8
IMPORTANT
• Do not hold or touch the electrical contacts. It may result in damage to the machine.
Electrical
contacts
Electrical
contacts
Replacing the Drum Cartridge
8-27
• Do not hold or touch the imaging transfer belt. The image quality may deteriorate. Do not
apply shock to the drum cartridge memory or bring it near magnetic waves. It may result
in damage to the machine.
Drum cartridge memory
Imaging
transfer belt
• After removing the packing materials, install the drum cartridge in the machine as soon
as possible.
• Dispose of the packing materials according to local regulations.
6
Hold the drum cartridge with both hands and install it in the
machine.
Maintenance
Position the triangular mark on the drum cartridge with the triangular mark on the
machine and install the drum cartridge a.
8
8-28
Replacing the Drum Cartridge
Lock the drum cartridge by pushing it down toward you b.
b
Maintenance
IMPORTANT
Lock the drum cartridge securely so that it may be in the state shown in the figure.
7
8
Close the cartridge cover and lower the scanning platform.
Replacing the Drum Cartridge
8-29
IMPORTANT
• When you make copies immediately after replacing the drum cartridge, the print quality
may deteriorate. Make copies after making sure the whirring sound stops.
• When <INSERT DRUM> still appears in the LCD after inserting the cartridge, disconnect
and connect the power cord.
Precautions for Handling the Drum Cartridge
A drum cartridge consists of parts that are sensitive to light and delicate parts.
Therefore, handling the cartridge without caution may lead to damage or a
deterioration in the print quality. Be careful of the following points when removing or
installing the cartridge.
WARNING
Do not burn or throw used drum cartridges into open flames, as this may cause
the toner remaining inside the cartridges to ignite resulting in burns or a fire.
CAUTION
Maintenance
If toner gets onto your hands or clothing, wash it off immediately with cold
water. Do not use warm water as this may set the toner permanently, and you
may not be able to remove the toner stains.
IMPORTANT
• Print quality may deteriorate if you touch or damage the drum that is set inside. Be
careful not to touch the drum or open the drum protective shutter. Be careful not to hold
or touch the portions that are not described for this procedure such as the sensor. It may
result in damage to the machine.
8
Drum protective
shutter
Sensors
• Do not expose the drum cartridge to direct sunlight or strong light.
8-30
Replacing the Drum Cartridge
• If a drum cartridge has to be removed from the machine for maintenance, attach the
protective cover immediately and place it in the protective bag that it came in.
• Do not hold or touch the electrical contacts. It may result in damage to the machine.
Electrical
contacts
Electrical
contacts
• Do not hold or touch the imaging transfer belt. The image quality may deteriorate. Do not
apply shock to the drum cartridge memory or bring it near magnetic waves. It may result
in damage to the machine.
Imaging
transfer belt
• When handling a drum cartridge, hold it properly as shown in the figure. Do not set it
vertically or upside-down.
Maintenance
Drum cartridge memory
8
• Never attempt to disassemble or modify the cartridge.
• If a cartridge is brought to an environment where the temperature differs extremely,
condensation may occur both inside and on the outside of the cartridge. If you are going
to install a cartridge that was stored in a cold place in a warm room, leave the cartridge
stored in the protective bag for over two hours in the warm room so that it can adapt to
the ambient temperature.
• Be sure to use a new cartridge within the expiration date indicated on the package.
• Using a genuine Canon drum cartridge is recommended.
Replacing the Drum Cartridge
8-31
Storing a Drum Cartridge
Be careful of the following points for storing new cartridges or those that were
removed for maintenance.
IMPORTANT
• Do not remove a new drum cartridge from the protective bag until it is ready to be used.
• If a drum cartridge has to be removed from the machine for maintenance, place it in the
protective bag that it came in or wrap it with a thick cloth immediately.
• Do not store a cartridge in a place exposed to direct sunlight.
• Do not store a cartridge in a hot or humid place, or a place where the temperature and
humidity can change significantly.
Storing temperature range: 32 to 95 °F (0 to 35 °C)
Storing humidity range: 35 to 85 % RH (no condensation)
• Do not store a cartridge in a place that can generate corrosive gases such as ammonia,
a place in which a considerable amount of salt is contained in the air, or a place with a lot
of dust.
• Store the cartridge out of the reach of small children.
Maintenance
Condensation
Even within the storable humidity range, water drops may develop both inside and on the
outside of the cartridge due to the difference in temperature. The development of water
drops is called condensation. Condensation will adversely affect the quality of the
cartridge.
8
8-32
Replacing the Drum Cartridge
Repacking and Transporting Your Machine
1
Disconnect the printer cable and/or network.
2
Lift the scanning platform.
3
Open the cartridge cover.
4
Remove a toner cartridge from the machine. In order to avoid
direct sunlight, place the toner cartridge in the protective bag that
it came in when you purchased it.
Maintenance
Be sure to unplug the power cord before transporting the machine. If the machine is
likely to be subjected to vibration (e.g., when transporting over long distances), the
following precautions should be taken. If you do not follow these precautions, the
machine may be damaged or the quality of your printouts may be adversely
affected.
8
5
6
Close the cartridge cover.
The machine will rotate to the next cartridge position. Repeat
steps 3 to 5 until all the toner cartridges are removed.
7
Open the cartridge cover again.
8
Remove the drum cartridge and store it as described on page 9-4.
9
Close the cartridge cover and lower the scanning platform.
10 Detach the document feeder tray.
11 Unplug the power cord.
Repacking and Transporting Your Machine
8-33
Carrying the Machine by the Sides
Detach the document feeder tray.
Grip the handles on both sides of the machine and lift it carefully, as shown in the
illustration above.
CAUTION
Maintenance
When carrying the machine, be sure to hold it in the designated places as
shown in the illustration. Dropping the machine can cause personal injury.
8
8-34
Repacking and Transporting Your Machine
Troubleshooting
9
CHAPTER
This chapter describes the problems you might encounter when using the machine and their
remedies. It also explains what to do if you cannot solve the problem by yourself.
Clearing Jams
This section describes how to remove jammed paper. When print media jams inside
the machine, the LCD displays <REC. PAPER JAM> and <OPEN PRINTER
COVER> repeatedly.
CAUTION
There are some areas inside the machine and cartridge which are subject to
high voltages and high temperatures. Take adequate precaution when
performing internal inspections to avoid burns or electrical shock.
NOTE
When removing jammed paper from inside the machine, take care not to allow the toner
on the jammed paper to come into contact with your hands or clothing. If they become
dirty, wash them immediately with cold water. Washing with warm water will set the toner,
and make it impossible to remove the toner stains.
Clearing Jams
9-1
Paper Jam Inside the Machine
If the message <REC. PAPER JAM> and <OPEN PRINTER COVER> appear in
the LCD, remove the paper in the following procedure.
1
Troubleshooting
2
If paper is jammed in the output tray, remove the jammed paper.
If paper is jammed in the multi-purpose tray, remove the jammed
paper.
9
IMPORTANT
If the jammed paper cannot be removed easily, proceed to the next step. Do not try to
remove it forcefully.
9-2
Clearing Jams
Pull out the paper cassette.
4
Remove the jammed paper.
Troubleshooting
3
IMPORTANT
If the jammed paper cannot be removed easily, proceed to the next step. Do not try to
remove it forcefully.
5
Insert the cassette in the machine.
9
Clearing Jams
9-3
6
Lift the scanning platform a and open the cartridge cover until it
is locked b when the whirring sound stops.
a
b
7
Remove the drum cartridge from the machine.
Troubleshooting
Pull up the green handle on the drum cartridge in the direction of the arrow a, and lift
the cartridge straight up b.
a
9
b
9-4
Clearing Jams
If paper is jammed in the removed drum cartridge, do not try to pull the paper out
forcefully but see "Paper Jam in the Drum Cartridge," on p. 9-21.
IMPORTANT
• Print quality may deteriorate if you touch or damage the drum that is set inside. Be
careful not to touch the drum or open the drum's protective shutter. Be careful not to hold
or touch the portions that are not described for this procedure such as the sensors. It
may result in damage to the machine.
Troubleshooting
Drum protective
shutter
Sensors
• Do not expose the drum cartridge to direct sunlight or strong light.
9
• Do not hold or touch the electrical contacts. It may result in damage to the machine.
Electrical
contacts
Electrical
contacts
Clearing Jams
9-5
• Do not hold or touch the imaging transfer belt. The image quality may deteriorate. Do not
apply shock to the drum cartridge memory or bring it near magnetic waves. It may result
in damage to the machine.
Drum cartridge memory
Imaging
transfer belt
Troubleshooting
8
9
Place the drum cartridge in the protective bag.
Press the green lock release lever a and remove the jammed
paper b.
9
b
a
9-6
Clearing Jams
10 Take the drum cartridge out of the protective bag.
11 Hold the drum cartridge with both hands and install it in the
machine.
Troubleshooting
Position the triangular mark on the drum cartridge with the triangular mark on the
machine and install the drum cartridge a.
9
Lock the drum cartridge by pushing it down toward you b.
b
Clearing Jams
9-7
IMPORTANT
Lock the drum cartridge securely so that it may be in the state shown in the figure.
Troubleshooting
12 Close the cartridge cover and lower the scanning platform.
9
If the message is still displayed after closing the cartridge cover, pieces of torn paper
may still be remaining inside. Re-check the various sections of the machine and
remove all pieces of the jammed paper from inside the machine.
9-8
Clearing Jams
Paper Jam Behind the Machine
If the message <REC. PAPER JAM>, <OPEN PRINTER COVER> appears in the
LCD, remove the paper using the following procedure.
CAUTION
1
Troubleshooting
The fuser unit and its surroundings inside the machine may become hot during
use. When replacing fuser unit, do not touch the fuser unit and its
surroundings, as doing so may result in burns or electrical shock.
Open the face up cover.
9
Clearing Jams
9-9
2
Tilt both the green pressure release lever on the left and right side
of the fuser unit towards you to release the pressure in the fuser
unit.
Remove the jammed paper.
4
Lift the scanning platform a and open the cartridge cover b.
Troubleshooting
3
9
a
b
9-10
Clearing Jams
Remove the drum cartridge from the machine.
Pull the green handle on the drum cartridge in the direction of the arrow a, and lift the
cartridge straight up b.
a
b
Troubleshooting
5
If paper is jammed in the removed drum cartridge, do not try to pull the paper out
forcefully but see "Paper Jam in the Drum Cartridge," on p. 9-21.
Clearing Jams
9
9-11
IMPORTANT
• Print quality may deteriorate if you touch or damage the drum that is set inside. Be
careful not to touch the drum or open the drum's protective shutter. Be careful not to hold
or touch the portions that are not described for this procedure such as the sensors. It
may result in damage to the machine.
Drum protective
shutter
Sensors
Troubleshooting
• Do not expose the drum cartridge to direct sunlight or strong light.
• Do not hold or touch the electrical contacts. It may result in damage to the machine.
9
Electrical
contacts
Electrical
contacts
• Do not hold or touch the imaging transfer belt. The image quality may deteriorate. Do not
apply shock to the drum cartridge memory or bring it near magnetic waves. It may result
in damage to the machine.
Drum cartridge memory
Imaging
transfer belt
9-12
Clearing Jams
7
Place the drum cartridge in the protective bag.
Press the green lock release lever a and remove the jammed
paper b.
b
a
Troubleshooting
6
IMPORTANT
If no paper jam has been found after performing the procedure up to this step, the paper
may be jammed in the fuser unit at the back of the machine. In this case, skip Step 8 to
Step 10 and start with Step 11 ( ➞ p. 9-16) to remove the jammed paper. In doing so,
never close the cartridge cover. It may result in paper jams that are difficult to clear. Follow
Step 8 to Step 10 to set the drum cartridge after removing the paper.
Clearing Jams
9-13
9
8
9
Take the drum cartridge out of the protective bag.
Hold the drum cartridge with both hands and install it in the
machine.
Troubleshooting
Position the triangular mark on the drum cartridge with the triangular mark on the
machine and install the drum cartridge a.
9
Lock the drum cartridge by pushing it down toward you b.
b
9-14
Clearing Jams
IMPORTANT
Lock the drum cartridge securely so that it may be in the state shown in the figure.
Troubleshooting
10 Close the cartridge cover and lower the scanning platform.
9
If the message is still displayed after closing the cartridge cover and lowering the
scanning platform, proceed to the following procedure.
Clearing Jams
9-15
11 If the paper jam message is still displayed, unplug the power cord
from the wall outlet.
CAUTION
Troubleshooting
The fuser unit and the surrounding area can become extremely hot during
operation. Perform the following procedure after the fuser unit has cooled down
completely. Touching the fuser unit when it is still hot may result in burns.
9
12 Return the green pressure release levers on the fuser unit to their
original positions.
9-16
Clearing Jams
13 Close the face up cover.
14 Turn the lock release levers located on the back of the machine in
Troubleshooting
the direction of the arrow and release the lock.
9
15 Hold the grip on the fuser unit and remove it.
Clearing Jams
9-17
CAUTION
The fuser unit weighs approximately 3.7 lb (1.7 kg), and it is heavier on the back
side. Be sure to hold the grip securely when carrying a fuser unit. Dropping the
unit may result in personal injuries.
Heavier on the back side
Troubleshooting
16 Open the sub-output tray.
17 Tilt both the green pressure release lever on the left and right side
of the fuser unit towards you to release the pressure in the fuser
unit.
9
9-18
Clearing Jams
18 Remove the jammed paper.
IMPORTANT
If the paper completely winds around the fusing roller and is impossible to be removed,
contact your Canon dealer.
19 Return the green pressure release levers on the fuser unit to their
Troubleshooting
original positions.
9
20 Close the sub-output tray.
Clearing Jams
9-19
21 Hold the grip on the fuser unit and install it securely.
22 Lock the fuser unit by turning the two lock release levers in the
Troubleshooting
direction of the arrow.
9
23 Connect the power cord and all interface cables.
24 Plug the power cord in the wall outlet to turn on the machine.
If the message is still displayed after turning on the machine, pieces of torn paper may
still be remaining inside. Re-check the various sections of the machine and remove all
pieces of the jammed paper from inside the machine.
9-20
Clearing Jams
Paper Jam in the Drum Cartridge
When the paper is jammed in the drum cartridge as shown in the figure, remove the
jammed paper using the following procedure.
Turn the knob on the drum cartridge in the direction of the arrow.
Troubleshooting
1
9
2
Lift the cover a and remove the jammed paper b.
a
b
Clearing Jams
9-21
IMPORTANT
Do not touch the imaging transfer belt. The image quality may deteriorate.
Imaging
transfer belt
3
Return the cover to its original position a and turn the knob in the
direction of the arrow b.
b
Troubleshooting
a
Proceed to the next steps to remove the jammed paper.
When removing paper jammed inside the machine ➞ (Step 8 ➞ p. 9-6)
When removing paper jammed behind the machine ➞ (Step 8 ➞ p. 9-14)
9
Removing Jammed Paper from the ADF
When the document jams in the ADF, the LCD displays <CHECK DOCUMENT>, or
<DOCUMENT TOO LONG>.
NOTE
Do not open the platen glass cover until the jammed paper is removed. Doing so will
result in damaging the document and the paper.
9-22
Clearing Jams
2
3
Open the ADF and gently remove the jammed paper from the ADF.
Widen the document guides until they stop, and remove the paper
so as not to be caught by the guides. Open the ADF and gently
remove the jammed paper from the ADF.
Troubleshooting
1
Open the ADF and gently remove the jammed paper from the
document output tray.
9
NOTE
After removing jammed paper, even edges of the document before loading it in the ADF
again.
Clearing Jams
9-23
LCD Messages
The following messages are displayed in the LCD when the machine performs a
function or if it encounters an error.
This section describes the general messages and those related to copy and print
functions. For the messages related to fax functions, refer to Chapter 7,
"Troubleshooting," in the Facsimile Guide.
Troubleshooting
ADJUSTING
WAITING TO SCAN
Cause
The machine is not ready for copying because you have just connected the
power cord to the machine.
Remedy
Please wait for a while (approx. 1 min.) till the working sound of the main unit
stops. Scanning cannot be performed for a while immediately after the power
cable is connected.
CHECK DOCUMENT
Cause 1
There is a paper jam in the ADF.
Remedy
Remove the document you are trying to copy in the ADF. (See "Removing
Jammed Paper from the ADF," on p. 9-22.)
Make sure that the document is not too long or too short. (See "Document
Requirements," on p. 3-1.)
Cause 2
The ADF roller rotates without feeding documents.
Remedy
Fan the edge that will feed into the machine first, then tap the edge of multiple
page documents on a flat surface to even the stack.
9
CHECK PAPER SIZE
9-24
Cause
The size of the paper in the cassette or multi-purpose tray is different from that
of the paper specified in <PAPER SETTINGS> of the Menu.
Remedy
Load the correct paper size or change <PAPER SIZE> in <PAPER SETTINGS>
of the Menu. (See "Loading Paper," on p. 2-4, or "Specifying the Paper Size," on
p. 2-19.)
Then reset the machine by opening the cartridge cover and then closing it.
LCD Messages
CHECK PRINTER
Cause 1
A problem has occurred in the machine.
Remedy
Reset the machine by opening the cartridge cover and then closing it. If the
message persists, unplug the machine from the power supply and contact
Canon Authorized Service Facilities or the Canon Customer Care Center.
Cause 2
A cartridge is not installed correctly.
Remedy
Install the cartridge correctly.
CHECK PRINTER COVER
Cause
The cartridge cover is not closed completely.
Remedy
Check the cartridge cover, and make sure that it is completely closed.
Cause
The document is longer than 391/2" (1 m), or is not feeding correctly.
Remedy
Reduce the length of the document to within 391/2" (1 m), and then copy it.
INSERT ∗ CARTRIDGE
Cause
Remedy
A cartridge is not inserted or not inserted correctly.
Insert the cartridge correctly. When <INSERT ∗ CARTRIDGE> still appears in
the LCD after inserting the cartridge, disconnect and connect the power cord.
(See "Replacing the Cartridges," on p. 8-5.)
∗: indicates either "C", "M", "Y", or "K".
INSERT DRUM
Cause
The drum cartridge is not inserted or not inserted correctly.
Remedy
Insert the drum cartridge correctly. When <INSERT DRUM> still appears in the
LCD after inserting the drum cartridge, disconnect and connect the power cord.
(See "Replacing the Cartridges," on p. 8-5.)
LCD Messages
9-25
Troubleshooting
DOCUMENT TOO LONG
9
MEMORY FULL
Cause 1
The machine's memory is full because the collate copy or function was set
when a large document is loaded.
Remedy
Divide the document and copy each part separately.
If <MEMORY FULL> appears while scanning documents by using the ADF, the
document to be scanned stops in the ADF. In this case, follow the procedure in
"Removing Jammed Paper from the ADF," on p. 9-22 to clear the jammed paper
in the ADF.
Cause 2
You tried to reserve more than 10 copy jobs.
Remedy
The machine can store up to 10 copy jobs in memory. Wait until the current copy
job completes, or use [Status Monitor] to delete the reserved copy jobs in
memory.
Troubleshooting
PREPARE NEW ∗ CART
Cause
A toner cartridge need to be replaced soon.
Remedy
Prepare a new toner cartridge to be replaced.
∗: indicates either "C", "M", "Y", or "K".
PREPARE NEW DRUM
9
Cause
The drum cartridge need to be replaced soon.
Remedy
Prepare a new drum cartridge to be replaced.
PRINT NOT GUARANTEED
CHECK ∗ CARTRIDGE
9-26
Cause
The installed toner cartridge cannot guarantee the print quality.
Remedy
Cartridges that have low toner or made by third party vendors may cause
machine malfunction. Install a new cartridge available from Canon.
∗: indicates either "C", "M", "Y", or "K".
LCD Messages
PRINTER DATA ERROR
Cause
When you canceled a job being processed, the next job on the spooled job list
may have been also deleted.
Remedy
Check if the job that immediately follows the job being processed has been
deleted on the spooled job list. Disconnect the USB cable and connect it again,
or unplug the machine and plug it in again to clear the error message.
REC. PAPER JAM
Cause
There is a paper jam.
Remedy
Clear the paper jam (See "Clearing Jams," on p. 9-1.) and reload paper in the
cassette or multi-purpose tray. Then reset the machine by opening the cartridge
cover and then closing it.
Cause
A toner cartridge need to be replaced.
Remedy
Replace a toner cartridge with a new one.
∗: indicates either "C", "M", "Y", or "K".
Troubleshooting
REPLACE ∗ CARTRIDGE
REPLACE THE DRUM
Cause
The drum cartridge needs to be replaced.
Remedy
Replace the drum cartridge with a new one.
9
SUPPLY REC. PAPER
Cause
No paper is loaded in the cassette or multi-purpose tray.
Remedy
Load paper in the cassette or multi-purpose tray. (See "Loading Paper," on p.
2-4.) Make sure the paper stack in the cassette does not exceed the capacity of
the cassette.
If you load paper while making copies, do not load a different paper size.
On the second line in the LCD the message <CASSETTE> or <TRAY> and the
paper size may appear. In this case, load the corresponding paper in the
cassette or multi-purpose tray.
LCD Messages
9-27
SYSTEM ERROR
Exxx**
Cause
An error of some kind has occurred in the machine.
Remedy
Unplug the machine from the power supply and wait approximately 3 minutes to
5 minutes, then plug it in again. If this does not solve the problem, unplug the
machine and contact Canon Authorized Service Facilities or the Canon
Customer Care Center.
** xxx stands for a number.
SYSTEM ERROR
E078
Cause
The drum cartridge is not installed correctly.
Remedy
Install the drum cartridge correctly, and then unplug and plug the power cord
again.
Troubleshooting
SYSTEM ERROR
E197
Cause
The power cord in the lower part of the machine is unplugged.
Remedy
Plug the power cord in the lower part and then unplug and plug the power cord
in the higher part to the wall outlet.
WASTE TONER FULL
9
9-28
Cause
The drum cartridge is filled with waste toner.
Remedy
Replace the drum cartridge with a new one.
LCD Messages
Paper Feeding Problems
Paper does not feed correctly.
Does the cassette or multi-purpose tray contain an appropriate quantity of
sheets?
A
Make sure the paper stack in the cassette or multi-purpose tray does not
exceed the capacity of the cassette or multi-purpose tray. (See "Loading Paper,"
on p. 2-4.)
Q
Is paper loaded correctly?
A
Make sure the paper stack in the cassette or multi-purpose tray is loaded
properly, and that the paper guides are adjusted correctly. (See "Loading
Paper," on p. 2-4.)
Q
Is the cassette inserted into the machine correctly?
A
Push the cassette into the machine as far as it will go, and make sure the
cassette is not tilted or inserted at an angle.
Troubleshooting
Q
Paper feeds skewed. (Printing is skewed.)
Q
Is paper loaded correctly?
A
Make sure the paper stack in the cassette or multi-purpose tray is loaded
properly, and that the paper guides are adjusted correctly. (See "Loading
Paper," on p. 2-4.)
A
Make sure the paper exit path is clear.
9
Multiple sheets feed into the machine at the same time.
Q
Is paper loaded correctly?
A
Make sure the paper stack in the cassette or multi-purpose tray is loaded
properly, and that the paper guides are adjusted correctly. (See "Loading
Paper," on p. 2-4.)
Paper Feeding Problems
9-29
Q
Have you fanned the paper stack before loading it in the cassette or
multi-purpose tray?
A
Be sure to fan the paper stack before loading it in the cassette or multi-purpose
tray. This keeps the sheets of paper from sticking together.
Q
Does the cassette or multi-purpose tray contain an appropriate quantity of
sheets?
A
Make sure the paper stack in the cassette or multi-purpose tray does not
exceed the capacity of the cassette or multi-purpose tray. (See "Loading Paper,"
on p. 2-4.)
A
Do not force the paper stack into the cassette or multi-purpose tray.
Q
Is only one type of paper loaded in the cassette or multi-purpose tray?
A
Load only one type of paper.
A
Make sure you load paper that meets the paper requirements for the machine.
(See Chapter 2, "Paper Handling.")
Troubleshooting
Transparencies do not feed correctly.
9
Q
Are the transparencies loaded correctly?
A
Make sure the transparencies in the multi-purpose tray is loaded properly, and
that the paper guides are adjusted correctly. (See "Loading Paper," on p. 2-4.)
Q
Is the proper transparency loaded in the multi-purpose tray?
A
Do not use any transparencies designed for color copiers. They will cause a
paper jam. Please use transparencies recommended by Canon.
Paper feeds curled.
9-30
Q
Is the proper paper loaded?
A
Check if the proper paper is loaded in the cassette or multi-purpose tray. (See
Chapter 2, "Paper Handling.")
Paper Feeding Problems
Paper stacked roughly.
Q
Is the proper paper loaded?
A
Check if the proper paper is loaded in the cassette or multi-purpose tray. (See
Chapter 2, "Paper Handling.")
A
Check if the appropriate paper type is selected in <PAPER TYPE> in <PAPER
SETTINGS> of the Menu. (See "Specifying the Paper Type," on p. 2-20.)
Repeated paper jams occur.
Is the proper paper loaded?
A
Check that the size, thickness and type of the paper you are using. (See "Print
Media Requirements," on p. 2-1.)
Q
Is the proper paper loaded correctly?
A
Be sure to fan the paper stack before loading it in the cassette. This keeps the
sheets of paper from sticking together.
Q
Is the output tray free of obstructions?
A
Do not place the delivered paper back on the output tray. (See "Face Down
Paper Output Area," on p. 2-23.)
A
Do not place objects other than paper on the output tray. (See "Face Down
Paper Output Area," on p. 2-23.)
Q
Is the machine installed in a proper location?
A
Check that the machine is installed in the proper location. (For information
about specifications of the machine, see "Specifications," on p. 11-1. For safety
warnings and cautions, see "Installation," on p. xiv.)
Troubleshooting
Q
Envelopes do not feed correctly.
Q
Are the envelopes loaded correctly?
A
Make sure the envelopes are loaded correctly. (See "Loading Envelopes in the
Multi-Purpose Tray," on p. 2-14.)
Q
Is the proper envelope loaded?
A
Load the recommended envelopes (COM10, MONARCH, DL, or ISO-C5) in the
multi-purpose tray. (See "Loading Envelopes in the Multi-Purpose Tray," on p.
2-14.)
Paper Feeding Problems
9-31
9
Copying Problems
Troubleshooting
The machine will not make a copy.
9
Q
Is the cartridge installed correctly?
A
Make sure the cartridge is installed correctly. (Refer to the Quick Start Guide.)
Q
Is the sealing tape removed from the cartridge?
A
Remove the sealing tape from the cartridge. (Refer to the Quick Start Guide.)
Q
Is the cassette inserted completely into the machine?
A
Insert the cassette as far as it will go. (Refer to the Quick Start Guide.)
Q
Did you connect the power cord to the machine just now?
A
Wait for a while. After connecting the power cord, the machine cannot scan
documents immediately.
Q
Is the document loaded correctly?
A
Remove the document, stack it if necessary, and load it in the ADF correctly.
(See "Loading Documents in the ADF," on p. 3-4.)
Q
Is the energy saver mode off?
A
The machine does not scan documents, if it is in the energy saver mode. To
restore the machine from the energy saver mode, press [Energy Saver].
If the documents have black streaks or appear dirty after you feed them in the ADF.
9-32
Q
Is the read area of the platen glass clean?
A
Clean the read area of the platen glass. (See "Cleaning the ADF Area," on p.
8-2.)
Copying Problems
Print Quality Problems
Q
Are the size, thickness and type of the paper you are using within the
specifications of the machine?
A
Check that the paper you are using is supported by the specifications of the
machine. (See "Print Media Requirements," on p. 2-1.)
Q
Are the cartridges installed correctly?
A
Make sure the cartridges are installed correctly. (Refer to the Quick Start Guide.)
Q
Is any toner left in a cartridge?
A
See "Replacing the Cartridges," on p. 8-5, and replace the toner cartridges if
necessary.
Q
Is the exposure adjusted correctly?
A
Adjust the exposure correctly using [Exposure]. (See "Adjusting the Exposure
(Density)," on p. 5-6.)
Copies are dirty.
9
Q
Is the platen glass or the platen glass cover clean?
A
Clean the platen glass or the platen glass cover. (See "Cleaning the Scanning
Area," on p. 8-2.)
Q
Is the cartridge free of damage?
A
If there is a scratch on the cartridge, replace with a new one. (See "Replacing
the Cartridges," on p. 8-5.)
Q
Is the machine adjusted to room temperature? If not, condensation might build
up inside the machine.
A
Allow at least 2 hours for the machine to adjust to room temperature before
attempting to use it.
Q
Is the machine installed in a stable location?
A
Install the machine in a proper location. (See "Installation," on p. xiv.)
Print Quality Problems
Troubleshooting
The print quality is not what you expect; print is not clear, has missing dots or white streaks.
9-33
Copies are too dark or too light.
Q
Is the exposure adjusted correctly?
A
Adjust the exposure correctly using [Exposure]. (See "Adjusting the Exposure
(Density)," on p. 5-6.)
Q
Is the machine in the toner saver mode?
A
Set <B & W TONER SAVER> to <OFF> in <COMMON SETTINGS> of the
Menu. (See <3. B & W TONER SAVER> of "Menu Descriptions," on p. 10-4.)
The printouts are partly missing or shaded when you make copies on heavy paper.
Q
Is the paper type set correctly?
A
Select <HEAVY PAPER> in <PAPER TYPE> in <PAPER SETTINGS> of the
Menu. (See "Specifying the Paper Type," on p. 2-20.)
Troubleshooting
The printouts are missing when you make copies on rough paper.
Q
Is the paper type set correctly?
A
Select <TRANSPARENCY> in <PAPER TYPE> in <PAPER SETTINGS> of the
Menu. (See "Specifying the Paper Type," on p. 2-20.)
The edges of copies are dirty when you make copies.
9
Q
Is the paper size set correctly?
A
Specify the appropriate paper size in <PAPER SIZE> in <PAPER SETTINGS>
of the Menu. (See "Specifying the Paper Size," on p. 2-19.)
Images in which two or more colors are overlaid come out faint.
Q
Is proper paper being used?
A
Replace the paper to a type that can be used with this machine. (See "Print
Media Requirements," on p. 2-1.)
Data is not printed in accurate color (specified color), or colored text appears blurred due to
color deviation.
9-34
Q
Has one of the four color-cartridges reached its lifetime, or has deteriorated?
A
Replace the toner cartridge that is almost reached with a new cartridge. (See
"Replacing the Toner Cartridges," on p. 8-5.)
Print Quality Problems
Q
Is proper paper is not being used?
A
Replace the paper to a type that can be used with this machine. (See "Print
Media Requirements," on p. 2-1.)
Q
Was data sent before completing calibration, such as before turning the power
ON?
A
Make sure that the machine is ready, then send the data.
Colored lines and text come out faint.
Q
Are thin lines or text being used?
A
Check [Prioritize Printing of Colored Lines and Text] in the printer driver.
Specify [Prioritize Printing of Colored Lines and Text] in the [Detailed Settings]
dialog box by clicking [Details] in the [Quality] sheet.
Q
Is a bold font being used for the colored text?
A
Specify [Matching Method] in the printer driver to [Perceptual [Photographic]].
Specify [Matching Method] in the [Matching] sheet by checking [Manual Color
Settings] in the [Quality] sheet and clicking [Color Settings].
The colors of thin lines or filled-in patterns are different from those specified, or do not
appear.
Q
Are colors reproduced due to the combination of colors or patterns?
A
Adjust the colors with the application and print again.
A
Change the patterns with the application and print again.
Q
Does the color appear different depending on the fill-pattern?
A
Readjust to a darker color and print again.
9
Fill-patterns are not printed in accurate color (specified color).
Q
Are the fill-pattern of the print data and the dither pattern of the printer
interfering with one another?
A
Do not specify a fill-pattern in the application and print again.
Print Quality Problems
Troubleshooting
Colored text appears to be blurred.
9-35
A
Change the [Color Halftones] setting in the printer driver to [Gradation] or [Color
Tone].
Specify [Color Halftones] in the [Details Settings] dialog box by clicking [Details]
in the [Quality] sheet.
The displayed color and printed color differ when printing photos, etc.
Is the method for adjusting color on the screen (RGB) or is in the printer
(YMCK) different? Therefore, there may be cases when the color on the screen
cannot be printed out exactly as it appears.
A
Specify [Matching Method] in the printer driver to [Perceptual [Photographic]].
Specify [Matching Method] in the [Matching] sheet by checking [Manual Color
Settings] in the [Quality] sheet and clicking [Color Settings].
A
Adjust [Gamma] in the printer driver.
Specify [Gamma] in the [Matching] sheet by checking [Manual Color Settings] in
the [Quality] sheet and clicking [Color Settings].
Troubleshooting
Q
9
9-36
Print Quality Problems
Printing Problems
Q
Does the machine feed paper correctly, or is there paper in the cassette or
multi-purpose tray?
A
Clear the paper jam, or load paper in the cassette or multi-purpose tray. (For
instructions on clearing paper jam, see "Clearing Jams," on p. 9-1. For
instructions on loading paper, see "Loading Paper," on p. 2-4.)
A
If the machine has no paper jam, or paper is loaded in the cassette or
multi-purpose tray, unplug the machine and wait approximately 3 minutes to 5
minutes, then plug it in again. If the problem is fixed, the Alarm indicator will turn
off, and the LCD will return to the standby mode. If the Alarm indicator remains
flash, unplug the machine, and contact Canon Authorized Service Facilities or
the Canon Customer Care Center.
Printout does not match paper size.
Q
Is the paper stack loaded and aligned correctly in the cassette, or is paper
loaded in the multi-purpose tray correctly?
A
Make sure the paper is loaded and aligned correctly in the cassette or the paper
is loaded correctly in the multi-purpose tray. (See "Loading Paper," on p. 2-4.)
Printing Problems
9-37
Troubleshooting
The Alarm indicator comes on.
9
Scanning Problems
Troubleshooting
The machine will not scan a document.
Q
Did you connect the power cord to the machine just now?
A
Wait for a while. After connecting the power cord, the machine cannot scan
documents immediately.
Q
Is the document loaded correctly?
A
Remove the document, stack it if necessary, and load it in the ADF correctly.
(See "Loading Documents in the ADF," on p. 3-4.)
A
Make sure the ADF is closed.
Q
Is the USB cable connected securely?
A
Check that the USB cable is connected securely to the machine and your
computer. Disconnect the USB cable, and reconnect it correctly after a while.
Scanned images are dirty.
9
Q
Is the platen glass or the platen glass cover clean?
A
Clean the platen glass or the platen glass cover. (See "Cleaning the Scanning
Area," on p. 8-2.)
White streaks appear on the left side of the image.
9-38
Q
Is the document placed on the platen glass correctly?
A
Place the document approximately 1/8" (3 mm) from the edge of the platen
glass.
Scanning Problems
General Problems
The machine has no power.
Q
Is the power cord plugged in securely?
A
Check that the power cord is plugged securely into the machine and into the
wall outlet. Insert the power cord straight into the power socket on the back of
the machine. Do not insert it at an angle. Otherwise, the machine may not be
properly connected to the power source and may not turn on. If this happens,
disconnect the power cord, and reconnect it correctly after a minute or more.
(Refer to the Quick Start Guide.)
Q
Is the power cord plugged in securely?
A
Check that the power cord is plugged securely into the machine and into the
wall outlet. Insert the power cord straight into the power socket on the back of
the machine. Do not insert it at an angle. Otherwise, the machine may not be
properly connected to the power source and may not turn on. If this happens,
disconnect the power cord, and reconnect it correctly after a minute or more.
(Refer to the Quick Start Guide.) If the LCD remains blank, unplug the machine
and wait approximately 3 minutes to 5 minutes until the temperature inside the
machine lowers, then plug it in again. If the LCD remains blank, unplug the
machine, and contact Canon Authorized Service Facilities or the Canon
Customer Care Center.
Q
Does the Energy Saver key go off?
A
When the Energy Saver key lights up, the energy saver mode activates. To
restore the machine from the energy saver mode, press [Energy Saver].
General Problems
9-39
Troubleshooting
Nothing appears in the LCD.
9
If You Cannot Solve the Problem
If you have a problem with your machine and you cannot solve it by referring to the
information in this chapter, contact Canon Authorized Service Facilities or the
Canon Customer Care Center at 1-800-828-4040 between the hours of 8:00 A.M.
to 8:00 P.M. EST Monday through Friday and 10:00 A.M. to 8:00 P.M. on Saturday.
CAUTION
If the machine makes strange noises, emits smoke or strange smells, unplug
the power cord immediately, and then contact Canon Authorized Service
Facilities or the Canon Customer Care Center. Do not attempt to disassemble or
repair the machine yourself.
IMPORTANT
Attempting to repair the machine yourself may void the limited warranty.
Troubleshooting
If you need to contact Canon Authorized Service Facilities or the Canon Customer
Care Center, make sure you have the following information:
• Product
name
Canon Color imageCLASS MF8180c
• Serial
number
The serial number is on the label located at the right back side under the ADF.
9
• Software
• Place
of purchase
• Nature
• Steps
9-40
version number
of problem
you have taken to solve the problem and the results
If You Cannot Solve the Problem
Machine Settings
10
CHAPTER
This chapter explains how to adjust machine settings. The list of all the settings is also
provided for your reference.
Accessing the Machine Settings
1
2
Press [Menu].
Press [((-)] or[)(+)] to select the menu you want to change ➞
press [Set].
You have now accessed the settings in the list.
3
Press [((-)] or [)(+)] to select the sub menu you want to change ➞
press [Set].
NOTE
• For details on sub menus, see "Menu Descriptions," on p. 10-2.
• If you press [Stop/Reset] before [Set] is pressed, the item you have selected will not be
registered.
• Press [Stop/Reset] to exit from the Menu.
• If you press [Menu], the display returns to the previous screen.
• The settings changed in the Menu do not return automatically to the settings you set
previously. Change to the previous settings again if necessary.
• To specify or register the settings of the fax function, refer to Chapter 8, "Machine
Settings," in the Facsimile Guide.
Accessing the Machine Settings
10-1
Menu Descriptions
NOTE
For details on <FAX SETTINGS>, <ADD. REGISTRATION>, and <REPORTS/LISTS>,
refer to Chapter 8, "Machine Settings," in the Facsimile Guide.
PAPER SETTINGS
Name
1. PAPER SETTINGS
Descriptions
Sets the paper size and paper type.
Machine Settings
1. CASSETTE
1. PAPER SIZE
Selects the paper size for the paper cassette.
LTR, LGL, A4, B5, A5, EXECUTIV
2. PAPER TYPE
Selects the paper type to be used in the paper
cassette.
PLAIN PAPER, HEAVY PAPER
2. MP TRAY
1. PAPER SIZE
Selects the paper size for the MP tray.
LTR, LGL, A4, B5, A5, EXECUTIV, COM10,
MONARCH, DL, ISO-C5
2. PAPER TYPE
Selects the paper type to be used in the MP tray.
PLAIN PAPER, HEAVY PAPER,
TRANSPARENCY
10
(The factory default setting is in bold face.)
COMMON SETTINGS
Name
1. DEFAULT SETTINGS
10-2
Descriptions
Selects the Copy, or Scan mode for the machine's
default mode. When the power cord is plugged in,
or after the auto clear function activates, the
standby display of the selected mode appears.
COPY
The Copy mode is selected as default.
FAX
The Fax mode is selected as default.
Menu Descriptions
SCAN
2. VOLUME CONTROL
Descriptions
The Scan mode is selected as default.
Adjusts the beep or alarm volume of the machine.
1. KEYPAD VOLUME
Adjusts the volume of keypad tones.
0 to 3 (1)
2. ALARM VOLUME
Adjusts the alarm volume.
0 to 3 (1)
3. TX DONE TONE
Sets the transmission end tone settings.
ERROR ONLY
The transmission end tone sounds only when any
error occurs while printing.
1 to 3 (1)
OFF
The transmission end tone does not sound.
ON
The transmission end tone sounds.
1 to 3 (1)
4. RX DONE TONE
Sets the reception end tone settings.
ERROR ONLY
The reception end tone sounds only when any
error occurs while printing.
1 to 3 (1)
OFF
The reception end tone does not sound.
ON
The reception end tone sounds.
1 to 3 (1)
5. PRINT DONE TONE
Sets the printing end tone settings.
ERROR ONLY
The printing end tone sounds only when any error
occurs while printing.
1 to 3 (1)
OFF
The printing end tone does not sound.
ON
The printing end tone sounds.
1 to 3 (1)
6. SCAN DONE TONE
10
Sets the scanning end tone settings.
ERROR ONLY
A scanning end tone sounds only when any error
occurs while scanning.
1 to 3 (1)
OFF
The scanning end tone does not sound.
ON
A scanning end tone sounds.
1 to 3 (1)
7. CALLING VOLUME
Adjusts the calling volume.
1 to 3 (1)
Menu Descriptions
Machine Settings
Name
10-3
Name
8. LINE MONITOR VOL.
Machine Settings
3. B & W TONER SAVER
Adjusts the line monitor volume.
0 to 3 (1)
Sets the toner saver mode for B&W printing.
Not available for color printing.
OFF
The toner saver mode is turned off.
ON
The toner saver mode is turned on.
4. DISPLAY LANGUAGE
Shows the language displayed in the LCD.
ENGLISH, FRENCH, SPANISH, GERMAN,
ITALIAN, DUTCH, FINNISH, PORTUGUESE,
NORWEGIAN, SWEDISH, DANISH, SLOVENE,
CZECH, HUNGARIAN, RUSSIAN
5. SPECIAL PRT MODE
<SPECIAL PRT MODE> provides the settings
that avoid or correct problems of printing quality.
Read the each description carefully before
specifying this option.
Note:
After correcting problems, reset to the default
setting: <OFF>.
OFF
The special print mode function is turned off.
SPECIAL SETTINGS1
It is not recommended to print on the reverse of
paper that has been printed once. However, if you
have to print on both sides of the paper, select
<SPECIAL SETTINGS1> when printing on the
reverse.
SPECIAL SETTINGS2
Depending on the operating environment
(especially the dry environment) or the type of
paper, some smudged marks of spattering toner
may appear on print pages. In this case, select
<SPECIAL SETTINGS2> to improve the result.
Note:
Do not select <SPECIAL SETTINGS2> when
using paper that has been stored at high
temperature or high humidity. Otherwise the print
quality may deteriorate.
SPECIAL SETTINGS3
When an image of high color density is printed,
sometimes the image partially appears on the
next page. In this case, select <SPECIAL
SETTINGS3> to improve the result.
SPECIAL SETTINGS4
Depending on the operating environment
(especially the humid environment) some images
may look spotty or striped when printing black. In
this case, select <SPECIAL SETTINGS4> to
improve the result.
10
10-4
Descriptions
Menu Descriptions
Descriptions
SPECIAL SETTINGS5
When heavy paper of rough surface is used, some
images may look patchy due to toner failing to
fuse to the paper. In this case, select <SPECIAL
SETTINGS5> to improve the result.
Note
Do not select <SPECIAL SETTINGS5> when
using thin paper. It may cause a problem such as
winding around the fuser unit.
Before selecting <SPECIAL SETTINGS5>, try
printing when <HEAVY PAPER> is selected for
<PAPER TYPE>. If the print result is not
satisfactory yet, select <SPECIAL SETTINGS5>.
SPECIAL SETTINGS6
When thin paper is used, it may be output curled
or black letters on some page may partially
appear on the other pages. In this case, select
<SPECIAL SETTINGS6> to improve the result.
Note
Do not select <SPECIAL SETTINGS6> when
using heavy paper. Some pages may look patchy
due to toner failing to fuse to the paper.
Before selecting <SPECIAL SETTINGS6>, try
printing when <PLAIN PAPER> is selected for
<PAPER TYPE>. If the paper is still output curled
or some images partially appear on other pages,
select <SPECIAL SETTINGS6>.
SPECIAL SETTINGS7
When label sheets are used, some images may
look patchy due to toner failing to fuse to the
paper. In this case, select <SPECIAL
SETTINGS7> to improve the result.
SPECIAL SETTINGS8
Depending on the operating environment
(especially the humid environment) some colors
especially red, blue, and green that are made by
more than two colors may look patchy. In this
case, select <SPECIAL SETTINGS8> to improve
the result.
(The factory default setting is in bold face.)
Menu Descriptions
10-5
Machine Settings
Name
10
COPY SETTINGS
Name
1. STD. IMAGEQUALITY
Text/photo mode
Selects the PRIORITY LEVEL.
STANDARD, PHOTO PRIORITY, TEXT
PRIORITY
TEXT
Character mode
Photo mode
Machine Settings
Sets how the exposure is adjusted.
MANUAL
Adjusts the exposure manually.
The exposure can be adjusted in 9 increments.
(center)
AUTO
The exposure is adjusted automatically.
3. STD ZOOM RATIO
Selects the copy ratio.
MANUAL
Selects the copy ratio.
50% to 200% (100%)
PRESET RATIO
Selects the preset copy ratio. The preset copy
ratios will change when the paper size group is
changed.
4. STANDARD COPY QTY
Selects the copy quantity.
1 to 99 (1)
5. AUTO SORT
Sets the auto sort function.
OFF
The auto sort function is turned off.
ON
The auto sort function is turned on.
6. PAPER SIZE GROUP
10-6
Selects the document type.
TEXT/PHOTO
2. STANDARD EXPOSURE
10
Descriptions
The paper size group can be selected. If the paper
size group is changed, the preset copy ratios will
also change.
INCH
Preset copy ratios: 50%, 64%, 78%, 100%, 129%,
200%
A
Preset copy ratios: 50%, 70%, 100%, 141%,
200%
AB
Preset copy ratios: 50%, 70%, 81%, 86%, 100%,
115%, 122%, 141%, 200%
Menu Descriptions
Name
Descriptions
7. COLOR BALANCE
Specify the toner density for the following each
color when using color mode.
1. BLACK
2. CYAN
3. MAGENTA
4. YELLOW
1 to 7 (5)
8. SHARPNESS
The sharpness setting of an image can be
adjusted. When you want to make characters and
lines clear, select a larger value. When you make
copies of photographs, select a smaller value.
1 to 9 (5)
9. SATURATION
Selects the saturation type when using color
mode.
STANDARD, VIVID, TRANQUIL
10. REMOVE BACKGROUND
Selects the level of removing the background of
documents when using color mode.
1 to 5 (4)
(The factory default setting is in bold face.)
Sets the length of time before the machine returns
an error when no data is received from the
computer.
Machine Settings
PRINTER SETTINGS
ON
The error time out is on. Sets the time out period.
5SEC to 300SEC (15SEC)
10
OFF
The error time out is off.
Name
1. ERROR TIME OUT
Descriptions
(The factory default setting is in bold face.)
Menu Descriptions
10-7
TIMER SETTINGS
Name
1. DATE/TIME SETTING
Sets the current date and time.
year, month, day, hour, minute
2. DATE SETUP
Selects the format of the date displayed in the
LCD.
MM/DD/YYYY, DD/MM YYYY, YYYY MM/DD
3. AUTO CLEAR
Sets the auto clear function. If the machine
remains idle for a set amount of time, the display
returns to the standby mode.
ON
Sets the time until the machine returns to the
standby mode.
1MIN. to 9MIN. (1MIN.)
OFF
The auto clear function is turned off.
4. ENERGY SAVER
ON
Machine Settings
Descriptions
Sets the energy saver mode.
Sets the time until the machine enters the energy
saver mode.
1. ENERGY SVR TIME 1
3MIN. to 30MIN. (5MIN.)
2. ENERGY SVR TIME 2
30MIN. to 300MIN. (120MIN.)
OFF
5. DAYLIGHT SAV TIME
The auto energy saver function is turned off.
Sets the daylight save time.
OFF
The daylight save time setting is enabled.
ON
The daylight save time setting is disabled.
1. START DATE/TIME
Sets the MONTH, WEEK, and DAY when the
daylight save time starts.
2. END DATE/TIME
Sets the MONTH, WEEK, and DAY when the
daylight save time ends.
10
(The factory default setting is in bold face.)
10-8
Menu Descriptions
MAINTENANCE
Name
1. CHANGE CARTRIDGE
SELECT CARTRIDGE
Descriptions
Selects the toner cartridge to be removed.
Selects the color to be removed.
1. BLACK
2. CYAN
3. MAGENTA
4. YELLOW
5. ALL COLORS
2. AUTO GRAD. ADJUST
Sets automatic gradation adjustment.
3. ROLLER CLEANING
Cleans the fusing roller.
1. START CLEANING
Starts cleaning of the fusing roller.
2. CLEAN PAPER PRT
Prints a cleaning page.
Machine Settings
(The factory default setting is in bold face.)
10
Menu Descriptions
10-9
11
Appendix
CHAPTER
This chapter lists the specifications of the machine and the index.
Specifications
Type
Personal Desktop
Platen
Stationary
Photoconductive Material
Organic Photosensitive Conductor
Copying System
Indirect Electrostatic Transfer System
Developing System
Toner Projection System
Fixing System
Canon's RAPID Fusing System™
Resolution
Platen glass: Approx. 600 × 600 dpi
(monochrome/color)
ADF:
Approx. 600 dpi × 400 dpi (monochrome)
Approx. 600 dpi × 600 dpi (color)
Number of Tones
256
Acceptable Documents
Up to LTR size
Sheets, books, and three-dimensional objects
(up to 4.4 lb (2 kg))
Acceptable Copy Stock
Cassette Feeding: 17 lb to 28 lb (60 g/m2 to 105 g/m2)
Multi-Purpose Tray: 17 lb to 44 lb (60 g/m2 to 163 g/m2)
Plain paper, recycled paper, transparencies, labels,
bond paper, envelopes, and heavy paper (up to 44 lb
(163 g/m2))
Copy Sizes
LTR (8 1/2" × 11" (216 mm × 279 mm))
Automatic Document Feeder: 8 1/2" × 14" (216 mm ×
356 mm)
Specifications
11-1
Appendix
11
Non-image Area
Paper: Max. 13/64" (5 mm) at each edge
Envelope: Max. 13/32" (10 mm) at each edge
Warm-up Time
Approx. 60 sec. * (temperature: 68°F (20°C), humidity:
65%; from when the machine is plugged in until the
standby display appears)
* Warm-up time may differ depending on the condition
and environment of the machine.
First Copy Time
Platen glass: Approx. 21 sec. (monochrome)
Approx. 45 sec. (color)
ADF:
Approx. 28 sec. (monochrome)
Approx. 52 sec. (color)
LTR or A4 size, direct, Manual Exposure Control,
Cassette Feeding (except just after being restored from
energy saver mode)
Copy Speed
B & W: 20 cpm (LTR)
Color: 4 cpm (LTR)
Magnification
1:1±1.0%, 1:2.000, 1:1.294, 1:0.786, 1:0.647, 1:0.500
Zoom: 0.500 - 2.000 in 1% increments
Paper Feeding System
Cassette Feeding: 250 sheets of 17 lb (60 g/m2)
Multi-Purpose Tray: 125 sheets of 17 lb (60 g/m2)
Multiple Copies
1-99
Power Requirements
120 V, 60 Hz (Power requirements differ depending on
the country in which you purchased the product.)
Power Consumption
Max: Approx. 1.10 kw
Standby: Approx. 30 w
Energy Sleep Mode 1: Approx. 25 w
Energy Sleep Mode 2: Approx. 6 w
Dimensions (W x D x H)
205/64" × 205/32" × 2515/64" (510 mm x 512 mm x 641
mm) (including tray)
Installation Space (W x D)
24 1/64" x 40" (610 mm x 1016 mm)
Weight
Approx. 79.4 lb (36 kg)(excluding cartridges)
Lifetime of Fuser Unit
Approx. 50,000 sheets for paper size A4
Features are subject to change without notice due to product improvements.
For high-quality copies, we recommended using paper and transparencies
recommended by Canon. Some types of paper available at office supply stores may
not be suitable for this machine. If you have any questions about paper and
transparencies, consult Canon Authorized Service Facilities or the Canon
Customer Care Center.
11-2
Specifications
Index
Symbols
( (–), ) (+) keys, 1-4
A
ADF (Automatic Document Feeder)
capacity, 3-5
jams in, 9-22
loading documents in, 3-4
paper path, 3-6
Alarm indicator, 1-4
ALARM VOLUME setting, 10-3
AUTO CLEAR setting, 10-8
AUTO GRAD. ADJUST settings, 10-9
AUTO SORT setting, 10-6
periodic, 8-1
scanning area, 8-2
Collate
copy, 5-11
key, 1-4
Color Start key, 1-4
COMMON SETTINGS settings, 10-2
COPY key, 1-4
COPY SETTINGS settings, 10-6
Copying
adjusting the exposure, 5-6
adjusting the image quality, 5-6
document requirements, 3-1
making copies, 5-2
problems, 9-32
setting enlarging/reducing, 5-4
specifying the paper size, 2-19
specifying the paper type, 2-20
Customer support, 1-1
B
C
CALLING VOLUME settings, 10-3
Cartridge
recycling, 8-15
replacing, 8-5
Cassette, 1-2
CHANGE CARTRIDGE settings, 10-9
CHECK PAPER SIZE message, 9-24
CHECK PRINTER COVER message, 9-25
CHECK PRINTER message, 9-25
Cleaning
ADF Area, 8-2
machine's exterior, 8-1
D
Appendix
B&W Start key, 1-4
B&W TONER SAVER setting, 10-4
DATE SETUP setting, 10-8
DATE/TIME SETTING settings, 10-8
DEFAULT SETTINGS setting, 10-2
DISPLAY LANGUAGE settings, 10-4
Document
Loading, 3-4
orientation, 2-21
printing, 4-3
problem, 3-2
quantity, 3-1
requirements, 3-1
scanned area, 3-2
scanning, 6-2
size, 3-1
type, 3-1
weight, 3-1
Index
11
11-3
Appendix
11
Document feed
ADF, 3-4
platen glass, 3-3
Drum Cartridge
Precautions for Handling the Drum Cartridge,
8-30
Replacement, 8-22
Storing a Drum Cartridge, 8-32
I
E
J
Energy Saver
key, 1-4
restoring, 1-7
setting, 1-6
ENERGY SAVER setting, 10-8
Enlarge/Reduce
key, 1-4
setting, 5-4
Enlargement/Reduction, 5-4
Envelope
loading, 2-14
printing area, 2-3
Exposure
key, 1-4
External device jack, 1-3
Jams clearing, 9-1
Image Quality
adjusting, 5-6
key, 1-4
In Use/Memory indicator, 1-4
INSERT ∗ CARTRIDGE, 8-12, 9-25
INSERT DRUM, 8-30, 9-25
K
KEYPAD VOLUME settings, 10-3
L
F
LCD, 1-4
LCD Messages, 9-24
LINE MONITOR VOL. setting, 10-4
Loading
documents in the ADF, 3-4
envelopes in the multi-purpose tray, 2-14
paper in the multi-purpose tray, 2-12
Lock Release Lever, 9-17
Face up cover, 1-3
Fax key, 1-4
Front cover, 1-2
M
G
General problems, 9-39
11-4
Index
Machine Settings
accessing, 10-1
Making copies, 5-2
MEMORY FULL message, 9-26
Menu
descriptions, 10-2
key, 1-4
Multi-purpose tray, 1-3
loading envelopes, 2-14
loading paper, 2-12
paper requirements, 2-1
Numeric keys, 1-4
O
Operation panel, 1-2, 1-4
Orientation
document, 2-21
paper, 2-21
Output tray, 1-2
P
Paper
acceptable paper, 2-2
cassette, 1-2
feeding problems, 9-29
jam, 2-2
loading, 2-4
orientation, 2-21
output area, 2-22
printing area, 2-3
Storing Color Print Paper, 2-2
Storing Paper, 2-1
type, 2-20, 2-22
Paper Jams
Behind the Machine, 9-9
In the Drum Cartridge, 9-21
Inside the Machine, 9-2
Paper output area
face down, 2-23
face up, 2-24
Paper Select key, 1-4
PAPER SETTINGS settings, 10-2
PAPER SIZE GROUP setting, 10-6
PAPER SIZE settings, 10-2
PAPER TYPE setting, 10-2
Periodic cleaning, 8-1
Plain paper, 2-20
Platen
glass, 1-3
glass cover, 1-3
Power socket, 1-3
PRESET RATIO setting, 10-6
PRINT DONE TONE setting, 10-3
Print media
requirements, 2-1
size, 2-2
type, 2-2
weight, 2-2
Print quality problems, 9-33
PRINTER DATA ERROR message, 9-27
Printing
areas, 2-3
before Printing, 4-1
canceling, 4-4
documents, 4-3
problems, 9-37
Problems
cannot solve, 9-40
copying, 9-32
document, 3-2
general, 9-39
paper feeding, 9-29
print quality, 9-33
printing, 9-37
scanning, 9-38
Q
Quality
adjusting the image, 5-6
print problems, 9-33
Quantity, document, 3-1
Appendix
N
11
R
REC. PAPER JAM message, 9-27
REMOVE BACKGROUND settings, 10-7
Removing Jammed Paper from the ADF, 9-22
Repacking, 8-33
Replacing the cartridges, 8-5
Reserve copy, 5-13
RX DONE TONE setting, 10-3
Index
11-5
Appendix
S
11
Troubleshooting, 9-1
TX DONE TONE setting, 10-3
SATURATION settings, 10-7
SCAN DONE TONE setting, 10-3
SCAN key, 1-4
Scanned area, 3-2
Scanning
areas, 3-2
beforehand, 6-1
documents, 6-2
problems, 9-38
Scanning platform, 1-2
Set key, 1-4
Setting Enlargement/Reduction, 5-4
SHARPNESS setting, 10-7
Size
document, 3-1
marks, 3-3
print media, 2-2
SPECIAL PRT. MODE settings, 10-4
Specifications, 11-1
STANDARD COPY QTY setting, 10-6
STANDARD EXPOSURE setting, 10-6
Standby display, 1-5
Status Monitor
key, 1-4
using, 7-1
STD ZOOM RATIO settings, 10-6
STD. IMAGEQUALITY setting, 10-6
Stop/Reset key, 1-4
SUPPLY REC. PAPER message, 9-27
System monitor, 7-1
T
Telephone line jack, 1-3
Toner Cartridge
Precautions for Handling Toner Cartridges,
8-13
Storing Toner Cartridges, 8-14
Transporting, 8-33
Tray
multi-purpose, 1-3
output, 1-2
11-6
Index
U
USB port, 1-3
V
VOLUME CONTROL settings, 10-3
W
Weight
document, 3-1
machine, 11-2
print media, 2-2
Z
Zoom, 5-5
ZOOM RATIO setting, 10-6
