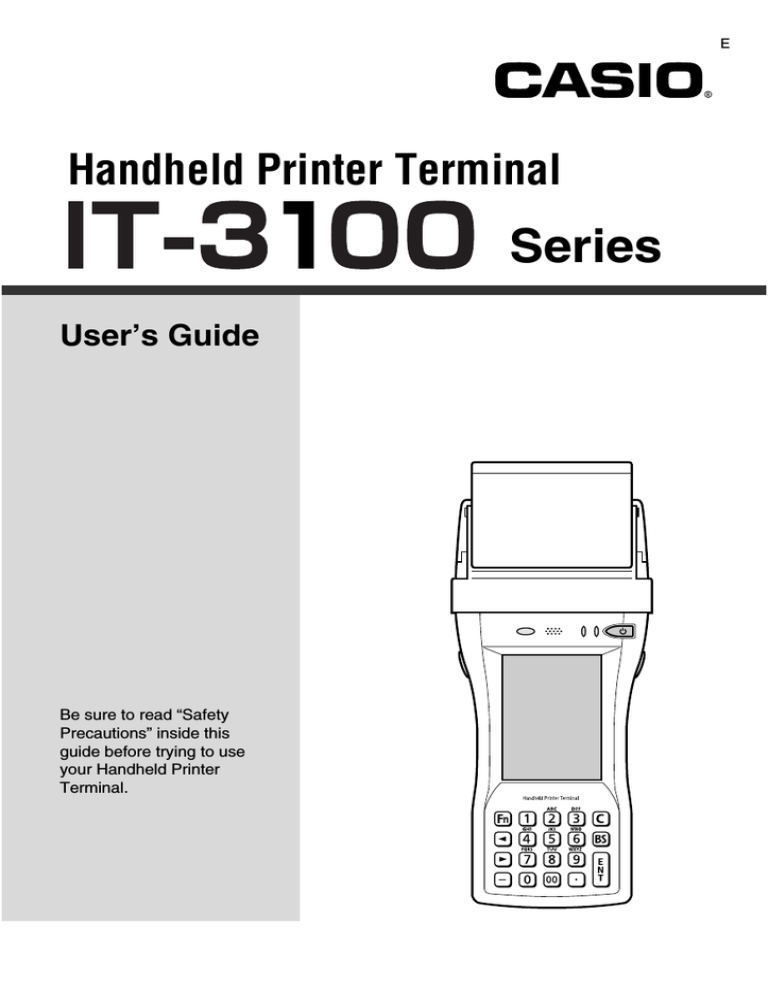

Casio IT-3100 User`s guide

E
Handheld Printer Terminal
Series
User’s Guide
Be sure to read “Safety
Precautions” inside this
guide before trying to use
your Handheld Printer
Terminal.
• This Product is equipped with the Brycen B-RAPPORE Stack and My Wirefree
Network Bluetooth User Interface Application, the use of which is governed by a license
granted by Brycen Co., Ltd.
®
• BLUETOOTH is a registered trademark owned by Bluetooth SIG, Inc. and licensed to
CASIO COMPUTER CO., LTD.
• Microsoft and Windows are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
• Datalight is a registered trademark of Datalight, Inc.
• FlashFXTM is a trademark of Datalight, Inc.
Copyright 1993-2000 Datalight, Inc., All Rights Reserved.
U.S. Patent Office 5,860,082
• Other company names and product names used in this guide are trademarks or registered
trademarks of their respective owners.
Information in this document is subject to change without advance notice. CASIO Computer Co.,
Ltd. makes no representations or warranties with respect to the contents or use of this manual and
specifically disclaims any express or implied warranties of merchantability or fitness for any
particular purpose.
Safety Precautions
Congratulations upon your selection of this CASIO product. Be sure to read the
following Safety Precautions before trying to use it for the first time.
Your neglect or avoidance of the warning and caution statements in the
subsequent pages causes the danger of fire, electric shock, malfunction and
damage on the goods as well as personal injury.
Markings and Symbols
The following are the meanings of the markings and symbols used in these Safety
Precautions.
Danger
This symbol indicates information that, if ignored or applied
incorrectly, creates the danger of death or serious personal injury.
Warning
This symbol indicates information that, if ignored or applied
incorrectly, creates the possibility of death or serious personal
injury.
Caution
This symbol indicates information that, if ignored or applied
incorrectly, creates the possibility of personal injury or property
damage.
• A diagonal line indicates something you should not do. The symbol shown
here indicates you should not try to take the unit apart.
• A black circle indicates something you should do. The symbol shown here
indicates you should unplug the unit from the wall outlet.
Warning
Disassembly and Modification
• Never try to disassemble or modify the Handheld Printer Terminal and its
options including battery pack and battery in any way.
Abnormal Conditions
• Should the Handheld Printer Terminal and/or its options including battery
pack and battery become hot or start to emit smoke or a strange odor,
immediately turn off the power and contact your dealer or distributor whom
you purchased the product from, or an authorized CASIO service provider.
E-1
Safety Precautions
Warning
Dust and Moisture
• Though the Handheld Printer Terminal is dust and water splash resistant, its
options including the battery pack are not. Keep loose metal objects and
containers filled with liquid away from your Handheld Printer Terminal and
the options. Also, never handle the Handheld Printer Terminal and the
options while your hands are wet.
Laser Light
• This product with the integrated laser scanning module scans bar codes
using laser light. Never look directly into the laser light or shine the laser
light into the eyes.
Warning
Interference with the Operation of Other Equipment
(Using Wireless Data Communication Function)
• Keep your Handheld Printer Terminal at least 22 centimeters (85/8") away
from anyone wearing a pacemaker. Radio waves emitted by the Handheld
Printer Terminal can affect the operation of a pacemaker.
• Before the use in aircraft, be sure to consult with cabin crew for interference
the Handheld Printer Terminal emits.
• Before the use in medical facility, be sure to consult with the facility
management or the manufacture of a specific medical equipment that the
Handheld Printer Terminal may interfere with.
Caution
Foreign Objects
• Take care to ensure that metals or combustible objects are not inserted into the
openings of the Handheld Printer Terminal or its options, and not to allow
moisture to get inside of them.
Location
• Install the cradle properly on a flat and stable surface so that it cannot fall
down onto floor.
LCD Screen
• Never apply strong pressure to the screen or subject it to strong impact.
Doing so can crack the screen or LCD panel glass.
E-2
Caution
Printer
• Do not touch the areas around the printer motor or head since they can
become very hot. Doing so can cause burns.
• Touching any of the gears while they are turning with unprotected hands can
cause personal injury. Be careful not to come in contact with turning gears.
• Contact with the blade installed in the paper outlet can cause personal injury.
Be careful not to touch the blade.
E-3
Safety Precautions
Lithium-ion Battery Pack
Danger
• Never use the Handheld Printer Terminal and its option including the battery
pack and battery next to open flame, near a stove, or any other area exposed
to high heat, or leave them for a long period of time in a vehicle parked in
direct sunlight.
• Never use the battery pack with any device other than the Handheld Printer
Terminal.
• Never dispose of the battery pack by incinerating it or otherwise expose it to
heat.
• Never transport or store the battery pack together with metal objects that
may result in shorting positive (+) and negative (–) terminals of the battery
pack. Be sure to place the battery pack in its case whenever transporting or
storing it.
• Never throw the battery pack or otherwise subject it to strong impact.
• Never pierce the battery pack with nails, hit it with a hammer, or step on it.
• Use only the specified battery charger to charge the battery pack.
Warning
• Never place the battery pack in a microwave oven or any other high-voltage
device.
• If the amount of time period the battery pack can serve becomes
considerably short even after it has been fully charged for the specified time
period, stop using it.
• Should the battery pack start to leak or emit a strange odor, immediately
move it away from any nearby flame. Leaking battery fluid is combustible.
• Should fluid from the battery pack accidentally get into your eyes or on the
skin, do not rub it. Immediately rinse it off with clean tap water and then
consult a physician.
Caution
• Replace only with the same type of battery pack recommended by CASIO.
Dispose of used battery packs according to the local regulation.
• Keep the battery pack out of the reach of small children.
E-4
Power Supply / AC Adaptor
Warning
• Do not use the Handheld Printer Terminal at a voltage other than the
specified voltage. Also, do not connect the Handheld Printer Terminal to a
multi-plug power strip.
• Never modify, sharply bend, twist, or pull on the power cord.
• Never use a detergent to clean AC adaptor and its power cable, especially on
the plug and the jack.
• When using the battery charger and Bridge Satellite Cradle, be sure to use
the respective AC adaptors.
Caution
• Never pull on the power cord when unplugging it. Always hold the plug
when unplugging it from the wall outlet.
• Never touch the plug while your hands are wet.
• Be sure to unplug the power cord from the wall outlet before cleaning the
battery charger and Bridge Satellite Cradle.
• Unplug the power cord from the wall outlet whenever leaving the battery
chargers and the cradles unattended for a long period.
• The housing of the AC adaptor can become warm during normal use.
• At least once a year, unplug the AC adaptor from the wall outlet and clean
any dust that builds up between the prongs of the plug.
Dust built up between the prongs can lead to the danger of fire.
E-5
Safety Precautions
Backup Copies of All Important Data
Caution
• Note that CASIO Computer Co., Ltd. shall not be held liable to you or any
third party for any damages or loss caused by deletion or corruption of data
due to use of the Handheld Printer Terminal, malfunction or repair of the
Handheld Printer Terminal or its peripherals, or due to the batteries going
dead.
• The Handheld Printer Terminal employs electronic memory to store data,
which means that memory contents can be corrupted or deleted if power is
interrupted due to the batteries going dead or incorrect battery replacement
procedures. Data cannot be recovered once it is lost or corrupted. Be sure to
make backup copies of all important data.
E-6
Operating Precautions
Your Handheld Printer Terminal and its options are precision digital instruments.
Improper operation or rough handling can cause problems with data storage and other
problems. Note and observe the following precautions to ensure proper operation.
• Do not leave dead batteries in the Handheld Printer Terminal for a long period.
Dead batteries can leak, leading to malfunction and damage to the Handheld Printer
Terminal.
• Stop or avoid using the Handheld Printer Terminal and its options in areas and
conditions subject to the following.
— Large amounts of static electricity
— Extreme heat or cold or humidity
— Sudden temperature change
— Large amount of dust
— After large amount of rain or water falls on the Handheld Printer Terminal
— Pressing the screen or keys with excessive force when using in the rain
• Use only the dedicated stylus that comes with the Handheld Printer Terminal to
operate its touch screen and reset switch.
E-7
Important
• This guide does not include any information about programming and download
procedures. See the applicable separate documentation for information about the
procedures.
After Service
• Should this product ever malfunction, contact your original retailer providing
information about the product name, the date you purchased it, and details about the
problem.
This mark applies to EU countries and Turkey only.
E-8
Regulatory Information
The USA and Canada
GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THIS UNIT IN THE U.S.A. (not
applicable to other areas).
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Proper connectors must be used for connection to host computer and/or peripherals in order to meet FCC
emission limits.
Caution Exposure to radio frequency radiation (below is for portable device)
To comply with FCC RF exposure compliance requirements, this device must not be co-located or operating
in conjunction with any other antenna or transmitter.
Declaration of Conformity
Model Numbers:
IT-3100M53E, IT-3100M54E, HA-B61IO, HA-B30CHG
Trade Name:
CASIO
Responsible party: Casio America, Inc. Industrial Handheld Division
Address:
10710 Baxter Avenue, Los Altos, California 94024 USA
Telephone number: 408-738-8220
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
For Users in Canada
These Class B digital apparatuses comply with Canadian ICES-003.
Cet appareil numériqué de la classes B est conformé à la norme NMB-003 du Canada.
These devices comply with RSS 210 of Industry Canada (IC).
Operation is subject to the following two conditions:
(1) These devices may not cause interference, and
(2) These devices must accept any interference, including interference that may cause undesired
operation of this device.
E-9
Regulatory Information
L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(1) il ne doit pas produire de brouillage et
(2) I’utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre le fonctionnement du dispositif.
Exposure to radio frequency radiation
The installer of this radio equipment must ensure that the antenna is located or pointed such that it does
not emit RF field in excess of Health Canada limits for the general population;
consult Safety Code 6, obtainable from Health Canada's website at
http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/99ehd-dhm237/index_e.html
Europe
DECLARATION OF CONFORMITY
We, the under signed, CASIO Europe GmbH, hereby declare that the following equipment:
Product: Handheld Printer Terminal
Models: IT-3100M53E, IT-3100M54E, IT-3100M55E,
IT-3100M56E, IT-3100M75E
Brand: CASIO
are in conformity with all the provisions of the following EC directive with meeting the
related test standards:
Council Directive: 1999/5/EC (R&TTE Directive):
Standards for all models:
EN60950-1:2001+A11:2004
EN 301 489-17 v1.2.1 (2002-08)
EN 300 328 v1.7.1 (2006-10)
Hereunder, that this declaration is based on the above standards have been complied fully,
constructing into a Technical File.
Manufacturer:
CASIO COMPUTER CO., LTD.
6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan
Representative within the European Union:
CASIO Europe GmbH
Bornbarch 10, 22848 Norderstedt, Germany
Optional models HA-B61IO and HA-B30CHG, are in conformity with the Council Directives
89/336/EEC,92/31/EEC,93/68/EEC.
E-10
Contents
Safety Precautions ......................................................................................... E-1
Operating Precautions ................................................................................... E-7
Important ......................................................................................................... E-8
After Service ....................................................................................................... E-8
Regulatory Information .................................................................................. E-9
Before Getting Started ................................................................................. E-13
Handheld Printer Terminal System Configuration .................................... E-15
Options ............................................................................................................. E-15
General Guide ............................................................................................... E-18
IT-3100 ............................................................................................................. E-18
Key Functions ................................................................................................... E-21
Replacing the Battery .................................................................................. E-22
Replacing the Battery Pack ............................................................................... E-22
Attaching the Hand Strap ............................................................................ E-25
Attaching the Neck Strap ............................................................................ E-26
Attaching the Stylus Holder ............................................................................. E-27
Configuring Handheld Printer Terminal Settings ...................................... E-29
Calibrating Touch Screen Alignment ................................................................ E-29
Adjusting Display Contrast .............................................................................. E-30
Adjusting Display Brightness ........................................................................... E-30
Display Auto Dimmer ....................................................................................... E-30
Using the Printer .......................................................................................... E-31
When Using Roll Paper .................................................................................... E-31
When Using Formed Sheet Paper ..................................................................... E-34
Precautions When Using Printer ....................................................................... E-38
Using the C-MOS Imager (IT-3100M55E/IT-3100M55U/IT-3100M56E/IT-3100M75E only) ...... E-40
Warning Label .................................................................................................. E-41
Magnetic Card Reader ................................................................................. E-42
Performing Data Communication ............................................................... E-43
IR Communication ........................................................................................... E-43
RS-232C Communication (IT-3100M53E/IT-3100M54E only) ...................... E-43
Bluetooth® Communication .............................................................................. E-44
Resetting the Handheld Printer Terminal ................................................... E-45
Performing a Full Reset (Initialization) ............................................................ E-46
IT-3100 Specifications .................................................................................. E-47
E-11
Contents
Using the Bridge Satellite Cradle (HA-B61IO) ........................................... E-49
General Guide ................................................................................................... E-49
Connecting the AC Adaptor and Connecting to a Computer ............................ E-51
Configuring DIP Switch Settings ..................................................................... E-53
Connecting Multiple Bridge Satellite Cradles (HA-B61IO) ............................ E-54
Bridge Satellite Cradle (HA-B61IO) Specifications ........................................ E-55
Using the Cradle-type Battery Charger (HA-B30CHG) ............................. E-56
General Guide ................................................................................................... E-56
Connecting the AC Adaptor for the Cradle-type Battery Charger .................... E-58
Cradle-type Battery Charger (HA-B30CHG) Specifications ........................... E-59
Using the AC Adaptor (AD-S10095AE/AU) ................................................. E-60
Specifications .................................................................................................... E-61
Using PC Cards ............................................................................................ E-62
Attaching the PC Card Removal Tape to a PC Card ........................................ E-62
Inserting a PC Card (When Using the Roll Paper Holder) ............................... E-62
Inserting a PC Card (When Using the Paper Holder) ....................................... E-64
Using SD Memory Cards ............................................................................. E-67
Inserting an SD Memory Card .......................................................................... E-67
Removing an SD Memory Card ....................................................................... E-67
Connecting a Bar Code Reader (IT-3100M53E/IT-3100M54E only) ........... E-68
Connecting the bar code reader ........................................................................ E-68
Attaching the Screen Protect Cover ........................................................... E-69
Attaching the Splash Protect Cover ........................................................... E-70
Using the Battery Pack ................................................................................ E-72
Battery Pack Specifications .............................................................................. E-72
E-12
Before Getting Started
Be sure to perform the following steps before trying to use the Handheld Printer
Terminal for the first time.
1. When unpacking, make sure that everything is included.
Open the box and make sure that all the items shown here are included.
Handheld Printer Terminal
PC Card Remover (2 pcs)
Handheld Printer Terminal
n
Stylus
Neck strap and stylus holder
Hand strap
Neck strap rings
Roll paper*
Battery pack
58mm Paper Width Adjuster*
PC card fixers
User's Guide (this manual)
2. Charge the battery pack.
To charge the battery pack, use either the AC Adaptor (AD-S10095AE/AU) for direct
charging, or Cradle-type Battery Charger or Bridge Satellite Cradle. Before charging
the battery pack with one of these options, first install the battery pack in the
Handheld Printer Terminal. For information how to charge, see page 35.
* Not included with IT-3100M75E.
E-13
Before Getting Started
3. Load the battery pack into the Handheld Printer Terminal.
1 Turn the battery pack cover lock
switch on the side of the Handheld
Printer Terminal to the “FREE”
position.
2 Open the battery pack cover.
3 Install the battery pack (DT-9723LIC).
Push it all way to the end inside the
compartment until the eject button at
the front of the battery compartment
comes up (and sounds).
Make sure the battery pack is aligned
correctly when you install it.
4 Return the battery pack cover to its
original position as shown in the
illustration, and then turn the battery
pack cover lock switch to the
“LOCK” position.
4. Hold down the power key for about one
second to turn on the power. Start up
the application you want to run.
E-14
Handheld Printer Terminal System Configuration
Options
IT-3100 Series
Bridge Satellite Cradle
HA-B61IO
Cradle-type Battery Charger
HA-B30CHG
Required AC Adaptor for Bridge Satellite Cradle /
Cradle-type Battery Charger
AD-S42120BE
AD-S42120B-N
E-15
Handheld Printer Terminal System Configuration
AC Cord for Europe
AC-CORD-EU
AC Cord for North America
AC-CORD-US
AC Code for Taiwan
AC-CORD-TW
AC Code for Korea
AC-CORD-KR
AC Code for Australia
AC-CORD-AU
Battery Pack
DT-9723LIC
Paper Holder*
HA-B93PH
Splash Protect Cover*
HA-B92PCV
* Not available for IT-3100M75E.
E-16
Screen Protect Cover*
HA-B90DCV
AC Adaptor
AD-S10095AE
AD-S10095A-N
AD-S10095AU
Cables
DT-887AXA
DT-888RSC
DT-380USB
HA-B80AX
Dsub 9-Pin (Female) RS-232C Cross Cable for Bridge
Satellite Cradle
RS-422 Modular Cable for connecting Bridge Satellite
Cradle
USB Cable for connecting Bridge Satellite Cradle and
PC
RS-232C Cross Cable for connecting Handheld Printer
Terminal and PC
* Not available for IT-3100M75E.
E-17
General Guide
IT-3100
3
17
1
2
7
8
24
9
10
4
5
6
23
11
18
12
25
13
14
15
16
19
20
18
22
21
* The above illustrations show a model with C-MOS Imager and
Magnetic Card Reader installed.
E-18
1
SD Memory Card Slot
Slot for inserting SD memory card.
This key can be assigned any function available.
IT-3100M55E/IT-3100M55U/IT-3100M56E/IT-3100M75E
The default settings are as follows.
This key is used to read bar codes and 2D code.
2
Program Key (L)
3
Roll Paper Holder
Roll paper is placed in this holder. Use the optional Paper
Holder when using a formed sheet paper.
4
Splash Protect
Cover and Paper
Cutter
Printed roll paper is torn off here. The paper cutter is provided
with a splash protect cover. Open the cover when printing. The
paper cutter is revealed when the cover is opened.
5
Power Key
Press this key to turn the power on or off.
6
Indicator 1
(Left Side)
This indicator is green when charging the battery pack is
completed and red during charging.
Indicator 2
(Right Side)
This indicator flashes or lights according to the settings of the
application software.
7
Speaker
Generates audio and buzzer tones.
8
Brightness Sensor
This sensor detects the brightness of the surroundings. The
display backlight and key backlight can be controlled
automatically according to programmed settings. Be careful not
to inadvertently block this sensor.
9
LCD Panel/Touch
Screen
Displays text, operations, indicators and so forth. In addition,
operations can be performed and data can be input using the
stylus provided.
10
Stroke Keys
There are a total of 19 keys including function keys and numeric
keys. Refer to "Key Functions" on page 26 for further details.
Each numeral and symbol on the key buttons in the table above
is backlit.
11
RS-232C Interface
Connector
(IT-3100M53E/
M54E)
For connection of a bar code reader and so forth. Connect by
opening the connector cover.
12
Program Key (R)
This key can be assigned any function available.
IT-3100M55E/IT-3100M55U/IT-3100M56E/IT-3100M75E
The default settings are as follows.
This key is used to read bar codes and 2D codes.
13
Power Jack
The AC adaptor is connected to this jack when charging the lithium
ion battery pack. Open the jack cover to connect the AC adaptor.
14
IR Port
This is used for IR data communication with another Handheld
Printer Terminal or with the Bridge Satellite Cradle.
E-19
General Guide
15
Battery Pack
Cover Lock Switch
Turn this switch when opening and closing the battery pack
cover.
16
Battery Pack
Cover
Houses the battery pack inside.
17
PC Card Slot
For connection of a separately sold PC card. Remove the cover
to install a PC card.
18
Hand Strap Hook
Hook the hand strap here.
19
14-pin Serial
Interface
Connector
Provided for future use.
20
Power Terminals
Terminals for supplying power from the Bridge Satellite Cradle
and Cradle-type Battery Charger.
21
Neck Strap Hooks
Hook the neck strap here.
22
Magnetic Card Reader
(IT-3100M54E/
M55E/M55U/
M75E)
Magnetic cards are read by passing through this magnetic card
reader.
Remove the cover to use.
23
Reset Switch
Press to reset the Handheld Printer Terminal. Be careful not to
press by mistake.
24
Screen Protect
Cover Mounting
Remove the screws when attaching the Screen Protect Cover.
25
C-MOS Imager
(IT-3100M55E/
M55U/M56E/
M75E)
Reads 1D bar code symbologies and stacked 2D code
symbologies.
E-20
Key Functions
1
Fn Key
This key is used to switch the character input mode or make
various settings in combination with other keys, or start up a
pre-registered application.
2
Numeric Keys
These keys are used to input numbers and letters.
3
(Cursor Key)
Moves the cursor to the left.
4
(Cursor Key)
Moves the cursor to the right. This is also used to feed paper
when pressed after pressing the Fn key when printing paper is
loaded.
5
-
This key is pressed when inputting a hyphen or bar.
6
.
This key is pressed when inputting a decimal point.
7
C
This key is pressed when canceling an operation and input.
8
BS
This key is pressed when deleting the character to the left of the
cursor.
9
ENT
This key is pressed when entering an input.
* Each numeral and symbol on the key buttons in the table above is backlit.
E-21
Replacing the Battery
Your Handheld Printer Terminal uses two types of battery: a battery pack and a memory
backup battery.
A battery pack (DT-9723LIC) is used for the main battery. A backup battery is housed
inside the Handheld Printer Terminal.
This guide uses the following terms to refer to the batteries.
Battery Pack:
Rechargeable battery pack for normal operations and data storage
Backup Battery: Built-in battery for memory backup
When the battery pack power goes low, immediately charge it or replace it with a
charged battery pack.
For information how to charge battery pack, see pages 49, 56 and 60.
Replacing the Battery Pack
Important!
Always keep backup copies of all important data!
• The main battery powers normal operation and also provides power required to
maintain memory contents, while the backup battery provides backup power to
maintain memory contents. Because of this, you should not remove the main
battery while the backup battery is dead. Removing the battery pack while the
backup battery is dead causes data in the memory to be corrupted or lost. Note
that once data is lost it cannot be recovered. Always keep separate backup copies
of all important data.
• The charge of a battery pack when you purchase it may be depleted due to
testing at the factory or natural discharge during shipment and storage. Be sure
to charge the battery pack before you use it.
• The life of a battery pack is limited, and charging a battery pack causes it to
gradually lose its ability to maintain the charge. If your battery pack seems to
require charging very frequently, it probably means it is time to purchase a new one.
• A fully charged backup battery can maintain memory (RAM) contents for about
10 minutes, even when the main battery is removed.
• The backup battery achieves a full charge in about four days when the battery
pack is loaded.
E-22
To replace the battery pack
1. Make sure that the Handheld Printer Terminal is turned off.
If the power is on, press the power key to turn it off.
2. Turn the battery pack cover lock switch
on the side of the Handheld Printer
Terminal to the “FREE” position.
3. Open the battery pack cover.
4. Remove the battery pack.
Press down the battery pack eject button
(see the arrow).
Remove the battery pack by pulling on
the tape.
5. Install a charged battery pack in the
Handheld Printer Terminal. Make sure
the battery pack is aligned correctly
when you install it.
E-23
Replacing the Battery
6. Return the battery pack cover to its
original position as shown in the
illustration, and then turn the battery
pack cover lock switch to the “LOCK”
position.
Important!
• When replacing the battery pack, make sure you do not leave the Handheld
Printer Terminal without a battery pack for more than about 10 minutes. Doing
so can cause data in the memory to be deleted.
• Never try to use other type of battery than the one that is specified for this
product.
E-24
Attaching the Hand Strap
A flexible hand strap can be attached to the Handheld Printer Terminal.
Hook A
Hook B
Hand Strap
Attach the hand strap following the procedure described below.
1. Attach Hook B of the hand strap to the
hand strap hook located on the bottom of
the Handheld Printer Terminal.
2. Pull on the hand strap in the direction
shown in the illustration, and then fasten
Hook A onto hook ( 1 ) on the back of
the Handheld Printer Terminal.
1
1
3. Fasten the wire of Hook A by inserting
into the indentation in the Handheld
Printer Terminal.
• Pull up on the center of the wire when
unfastening.
* The illustration shows the IT-3100M53E.
E-25
Attaching the Neck Strap
A neck strap can be attached to the Handheld Printer Terminal to keep it from being
dropped while being carried. The stylus holder provided can also be attached.
Neck strap rings*
Adjust length here
Stylus holder
Mounting
hooks
Neck strap
Attach the neck strap following the
procedure described below.
Attachment Procedure
1. Pull out the neck strap mounting hooks
out of each silo on the bottom of the
Handheld Printer Terminal using the tip
of stylus. Hook the protrusive part (**)
of the ring on the neck strap mounting
hook as shown in the illustration. While
slightly pushing the ring, turn the ring
until all part of it is fully hooked.
** The ring is very stiff for the first time. A
small flat screw driver is helpful by
inserting it into overlapped part of the
ring to make a room when hooking the
protrusive part.
The illustration shows the IT-3100M53E.
2. Pull back the locking bar of the neck
strap mounting hook and then hook the
mounting hook onto the ring as shown in
the illustration.
* ; The rings give an extra mechanical strength for
the Neck Strap. The metallic hooks of the Neck
Strap can, in rare case, be worn by abrasion
induced by swinging the IT-3100 terminal
specifically when it is hung from the operator's
neck with the Neck Strap. For those who often
use the IT-3100 terminal in a hanging position, it
is recommended to use the rings to secure the
Neck Strap.
E-26
Removal Procedure
1. Pull back the locking bar of the neck
strap mounting hook and then release
the hook from each ring as shown in the
illustration.
2. Following the attachment procedure in
reverse way, remove the neck strap rings
from each neck strap mounting hook on
the Handheld Printer Terminal and then
push back the neck strap mounting
hooks into each silo.
Attaching the Stylus Holder
The stylus holder provided can be attached to the neck strap as necessary. When
attaching the stylus holder, first remove the neck strap from the Handheld Printer
Terminal. In addition, remove the stylus from the stylus holder.
Bracket B
Mounting Hook C
Bracket A
Attach the stylus holder following the
procedure described below.
1. Remove the end of the strap from
Bracket A and Bracket B.
E-27
Attaching the Neck Strap
2. Remove Mounting Hook C.
3. Pass the stylus holder through the strap
as shown in the illustration.
4. Fold back the strap after passing through
Bracket C, and then fasten in the same
way it was originally fastened with
Bracket A and Bracket B.
• Do not pass the strap through the stylus
holder when folding it back.
• Place the stylus in the stylus holder after
first re-attaching the neck strap to the
Handheld Printer Terminal.
Important!
• Do not swing the Handheld Printer Terminal with the neck strap.
E-28
Configuring Handheld Printer Terminal Settings
Calibrating Touch Screen Alignment
Whenever you feel that touch screen response is poor or that the operations being
executed do not match the location you are tapping on the touch screen, perform the
following operations to calibrate the alignment of the touch screen.
• Press the “Fn” key and then make sure that “F” appears in the lower right corner of
the screen. If the “F” appears, press the “4” key.
* The following screen can also be displayed by navigating to Start → Settings →
Stylus and Calibration tab.
• Press the stylus against the center of each target mark (total of five marks) as
indicated on the screen. The screen shown below appears after you press stylus
against the target at five different locations.
• Press the ENTER key or tap anywhere on the touch screen.
E-29
Configuring Handheld Printer Terminal Settings
Adjusting Display Contrast
Perform the following steps to adjust display contrast to make display colors more vivid
and easier to see.
• Press the “Fn” key and then make sure that “F” appears in the lower right corner of
the screen. If the “F” appears, press the “2” key or “3” key. Pressing the “2” key
adjusts for more contrast, while pressing the “3” key adjusts for less contrast.
* In order to continue to make adjustments, press the “2” key or “3” key after again
first pressing the “Fn” key.
* Contrast settings can also be made by consecutively tapping “Brightness” on the
control panel.
Adjusting Display Brightness
You can use the following procedure to adjust screen brightness to make it easier to
read under different lighting conditions.
• Press the “Fn” key and then make sure that “F” appears in the lower right corner of
the screen. If the “F” appears, press the “5” key or “6” key. Pressing the “5” key
adjusts brightness for a darker display, while pressing the “6” key adjusts brightness
for a brighter display.
* In order to continue to make adjustments, press the “5” key or “6” key after again
first pressing the “Fn” key.
* Brightness settings can also be made by consecutively tapping “Brightness” on the
control panel.
Important!
• If you use your Handheld Printer Terminal in a location where it is hot, it
automatically dims the screen to protect against damage.
Display Auto Dimmer
The display auto dimmer automatically lowers display brightness if you do not perform
any operation for a specific amount of time. This saves the battery power to be drawn.
You can use the following procedure to specify the amount of time should be allowed
to pass before auto dimming is performed.
• Select “Control Panel” on the “Settings” menu after tapping the “Start” button in the
lower left corner of the screen. Next, consecutively tap the “Brightness” icon and
then tap “Backlight” to set the displayed parameters.
* Double tap: This refers to lightly tapping the touch-screen twice in succession.
** Tap: This refers to lightly tapping the touch-screen once.
E-30
Using the Printer
The printer can print on roll paper (80 mm or 58 mm wide)* or 80 mm wide formed
sheet paper. When printing on formed sheet paper, use the paper holder (HA-B93PH)
sold separately.
When Using Roll Paper
Installing the Roll Paper
1. Check that the power is off. If the power is on, always make sure to turn it off by
pressing the power key.
2. Press the ridged ( ) portions ( 1 ) of
the splash protect cover while spreading
apart the locks on the left and right sides
( 2 ) to disengage them as shown in the
illustration followed by opening the
splash protect cover ( 3 ).
1
1
3
2
2
3. Slide the lock knobs on the left and right
sides of the roll paper holder as shown
in the illustration to align at the FREE
position ( 1 ), and then push up the
ridged ( ) portion ( 2 ) to open.
• Please note that the positions of the
lock knobs on the left and right sides
are different.
2
LOCK
FREE
FREE
1
1
LOCK
4. Peel off the seal from the roll paper and
install as shown in the illustration.
* IT-3100M75E prints on 82.55mm width roll paper only.
E-31
Using the Printer
5. Close the roll paper holder, slide the
lock knobs on the left and right sides as
shown in the illustration to align at the
“LOCK” position to lock the roll paper
holder in position, and then tear off the
protruding roll paper.
• Please note that the positions of the
lock knobs on the left and right sides
are different.
LOCK
FREE
1
2
FREE
2
LOCK
6. Close the splash protect cover as
necessary.
• Open the splash protect cover when
printing with the printer.
• Close the splash protect cover when
using outdoors in the rain and so forth.
Important!
• Always print with the roll paper properly installed. Printing without properly
installing roll paper can damage the printer.
• If the roll paper should happen to become jammed in the printer, open the roll
paper holder by following the procedure described in steps 1 and 3 of the
procedure for “Installing the Roll Paper”, and then remove the jammed paper.
Be careful not to touch the printer at this time since it may have become hot
during the course of printing.
• The printer is not protected against splashing water when the splash protect
cover is closed with roll paper present outside the roll paper holder.
• The drip-proof of the splash protect cover is not sufficient if the cover is not
installed.
• If the end of the roll paper has become curled making it difficult to install the
paper, first flatten out the paper by bending it back in the opposite direction
before installing.
E-32
Attaching the 58 mm Paper Width Adjuster
Attach the 58 mm Paper Width Adjuster* inside the roll paper holder when using 58
mm wide roll paper. Refer to the procedure described in “Installing the Roll Paper” for
information on opening and closing the roll paper holder.
1. Remove the 80 mm Paper Width
Adjuster as shown in the illustration.
• Store the 80 mm Paper Width Adjuster
in a safe place after it has been
removed.
2. Press the attachments of the 58 mm
Paper Width Adjuster from the left and
right sides as shown in the illustration.
3. Insert the attachment of the 58 mm
Paper Width Adjuster into the mounting
holes inside the left side of the roll paper
holder to lock in position.
Important!
• Always make sure to attach the 58 mm Paper Width Adjuster when using 58
mm wide roll paper. Failure to attach the 58 mm Paper Width Adjuster may
cause the paper to jam or the printer to malfunction.
• 58 mm wide roll paper can only be used when the installed application is for use
with 58 mm wide paper only.
* Not available for IT-3100M75E.
E-33
Using the Printer
When Using Formed Sheet Paper
Attaching the Paper Holder
Attach the separately sold Paper Holder (HA-B93PH)* when printing on formed sheet
paper. The Paper Holder is composed of four parts and four screws.
In addition, a PC card cushion is enclosed to prevent the PC card from being dislodged
by an impact and so forth. Use this card as necessary.
Part C
Part B
Part A
PC card cushion
Part D
Screws (4)
1. Check that the power is off. If the power is on, always make sure to turn it off by
pressing the power key.
2. Press the ridged ( ) portions ( 1 ) of
the splash protect cover while spreading
apart the left and right locks ( 2 ) to
disengage as shown in the illustration, and
then open the splash protect cover ( 3 ).
1
1
3
2
2
3. Slide the lock knobs on the left and right
sides of the roll paper holder as shown
in the illustration to align at the FREE
position ( 2 ), and then push up the
ridged ( ) portion ( 2 ) to open.
• Please note that the positions of the
lock knobs on the left and right sides
are different.
4. Turn over the Handheld Printer Terminal.
* Not available for IT-3100M75E.
E-34
2
LOCK
1
1
FREE
LOCK
FREE
5. Loosen the two screws shown in the
illustration (the screws cannot be
removed off).
6. Open the cover (PC card slot cover) as
shown in the illustration.
7. Loosen and remove the four screws
shown in the illustration. Store the
removed screws in a safe place so that
they do not become lost.
8. Turn the Handheld Printer Terminal
back over.
9. Remove the entire roll paper holder.
E-35
Using the Printer
10. Fasten Part A of the Paper Holder to
the Handheld Printer Terminal.
Press both ends of Part A to fasten to
the Handheld Printer Terminal.
11. Insert the projections on both sides of
Part into the grooves of Part B and
fasten to the Handheld Printer
Terminal with the four screws for the
Paper Holder.
12. While spreading apart both ends of
Part A ( 1 ), remove Part A from the
Handheld Printer Terminal by lifting
up Part A until the projections reach
the upper edges of the grooves of
Part B ( 2 ), and then press on Part C
and Part D from the left and right
sides ( 3 ). Next, push on both ends
of Part A to fasten to the Handheld
Printer Terminal.
Remove the Holder
1. Check that the power is off. If the
power is on, always make sure to turn it
off by pressing the power key.
2. Remove the Paper Holder by following
the reverse procedure for "Attaching the
Paper Holder", and then attach the Roll
Paper Holder.
• Remove Part C and Part D using an
ordinary screwdriver as shown in the
illustration.
E-36
2
D
3
1
C
1
3
Loading Formed Sheet Paper
Enable the Auto Loading function by selecting Start, Settings, Control Panel and then
“Printing Control” of Printer Settings in that order before loading the formed sheet
paper.
1. Insert the formed sheet paper all the way
into the printer until it stops with the
side to be printed facing downward.
The paper will be fed into the printer
automatically and be positioned at the
printing position.
• If the formed sheet paper becomes
jammed, open the top cover (Part A) of
the Paper Holder as shown in the
illustration ( 1 2 ) and remove the
jammed paper.
1
2
1
Important!
• Always make sure to load formed sheet paper in the printer before printing.
Printing without loading paper can cause the printer to malfunction.
• Do not touch the printer since it can become very hot.
E-37
Using the Printer
Precautions When Using Printer
Printing Accuracy
1. During high-duty printing such as printing horizontal lines or printing while the
battery remaining capacity is low, the printing speed may slow down to prevent
excess current consumption that may cause unaligned printing for one dot or
more.
2. Line change errors may occur if the printing interval between lines is about one
second or more. In the case of using formed sheet paper, either use a large frame
with free spaces available or set the printer to continuously print to prevent the
line change errors.
3. Because printing may pause if the battery remaining capacity is low, line
alignment error or printing with uneven space between characters may occur
when printing resumes later.
4. Printing may be illegible right after the roll paper cover has been opened for
reloading roll paper. This can be prevented by feeding the roll paper before
starting printing again.
5. The printer will not print unless the paper is loaded properly. Always make
sure to properly load the paper before starting printing.
6. Only use the recommended printer paper. Use of paper other than the
recommended printer paper can reduce printing quality, shorten printer service
life or cause other detrimental effects that have the risk of impairing printer
characteristics.
7. Observe the following when storing printer paper.
• Do not store paper in locations subject to high temperature and high humidity since
spontaneous coloring of the paper occurs at temperatures of 60°C (140°F) and
above.
• Store paper in a cool, dark location while avoiding excessive exposure to direct
sunlight.
• Plastic films containing plasticizers, ester-based erasers, tape and glue can cause
discoloration, while contact with organic solvents, diazo copy paper or scratching
with the fingernail, etc. can cause the paper to become colored.
E-38
Others
1. The temperature range for printing with 2-ply paper and label paper is 5 to
35°C.
2. Once the end mark of the paper appears, promptly replace with new paper.
3. Recommended paper: Use only specified papers by CASIO.
4. Paper scraps may accumulate and printing quality may decrease when the
printer has been used for a long period of time. The thermal head must be
cleaned when this happens. Contact your nearest CASIO distributor or an
authorized CASIO service provider to have cleaning performed.
5. Printing quality may decrease when the surrounding temperature becomes
excessively low.
6. If once the printer is set for 58 mm width paper, it cannot be changed again for
80mm width paper.
7. Load paper in the printer when not using for a long period of time to prevent
damage to printer components.
Important!
• Do not touch the thermal head during or immediately after printing.
E-39
Using the C-MOS Imager
(IT-3100M55E/IT-3100M55U/IT-3100M56E/IT-3100M75E only)
1. Turn on the Handheld Printer Terminal, position its C-MOS Imager reader port near
the bar code or 2D code, and then press the Trigger Key (R or L).
2. The Handheld Printer Terminal reads the code by emitting laser and red lights.
Indicator 2 (read operation indicator lamp) lights in green when the reading is successful.
Bar code and stacked 2D code Reading Guide
When you press the Trigger key (R or L), LEDs in the Handheld Printer Terminal
emit laser and red lights. Align the laser frame with the center of the bar code or 2D
code you are trying to read. Take particular care aligning the light when there are
other bar codes nearby.
When reading a large code, adjust the position of the Handheld Printer Terminal so
that the entire code is enclosed within the laser frame.
Important!
• If you have problem not properly reading a code, change the angle and/or the
distance between the code and the Handheld Printer Terminal and try reading it
again.
• A bar code can be read from a distance of 40mm to 410mm (19/16" to 161/8"), and a
stacked 2D code can be read from a distance of 50mm to 250mm (115⁄16" to 913⁄16")
and matrix 2D code can be read from a distance of 60mm to 150mm (23⁄8" to
515⁄16"). The actual reading distance depends on the symbology and the resolution.
• For smaller codes, move the Handheld Printer Terminal closer to the code.
• To read a large code, move the Handheld Printer Terminal further away from
the code.
• Note that a special reader application is required to read bar codes and 2D codes.
• The IT-3100M55E/M55U/M56E/M75E support reading of 2D code symbologies.
• Fingerprints, dust, dirt, or other foreign matter on the C-MOS Imager reader
port can cause abnormal reading. Should the reader port become dirty, wipe it
clean with a soft and dry cloth.
E-40
Warning Label
IT-3100M55U/M56U/
M55E/M56E
Laser light is emitted
from this port
• This label is a warning label for Class 2 laser products that comply with
IEC60825-1+A2:2001
CAUTION
• Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
• The laser light emitted by the C-MOS Imager has a maximum output of less
than 1 mW and a wavelength of 650 nm.
Warning!
■ Never look directly into the laser light.
• This product with the integrated laser scanning module scans bar codes
using laser light. Never look directly into the laser light or shine the laser
light into the eyes.
E-41
Magnetic Card Reader
The Magnetic Card Reader comes as standard with IT-3100M54E/M55E/M55U/M75E.
Only use cards that are compatible with the ISO standards. The procedure for reading
cards is described below.
1. Remove the cover as shown in the illustration.
2. Insert the card all the way into the reader as shown in the illustration, and steadily
pass the card through the reader in the direction of the arrow.
Precautions During Use
• Cards may not be able to be read if they are passed through the reader rapidly.
• A reading error may occur if the speed at which the card is passed through the
reader changes suddenly.
• Do not allow magnets to come in close proximity to the magnetic card since this
can prevent data on the card from being read. In addition, do not stack
magnetic cards on top of each other.
• Cards that have been excessively misshaped or bent may not be able to be read.
• Soiling of the magnetic strip may make it difficult to read the card. If a card has
become soiled, wipe with a clean and soft cloth.
• Regularly clean the magnetic card reader by passing a cleaning card through
the reader to prevent excessive friction with cards. When using in a location
where there are low levels of dust, clean once a week or about once every 500
passes through the card reader.
• Install the cover when not using the magnetic card reader. The drip-proof of the
magnetic card reader is not sufficient if the cover is not installed.
E-42
Performing Data Communication
IR Communication
IR communication can be used to transfer
data between two Handheld Printer
Terminals.
When performing IR communication,
orient the IR ports of both Handheld
Printer Terminals so they are pointing
directly at each other.
Data communication is possible within a
distance of 0 (in direct contact) to 1 m
(max. 20 cm at 4 Mbps).
Important!
• A high-sensitivity communication element is used during IR communication.
• In order to ensure successful communication, avoid using cellular phones or
other devices that emit radio wave in the area where you are performing IR
communication.
• If you need to use such a device, move away from the communicating Handheld
Printer Terminals. In case of a cellular phone, keep it at least 30cm (117⁄8") away.
RS-232C Communication (IT-3100M53E/IT-3100M54E only)
You can also transfer data directly between
the Handheld Printer Terminal and your
computer. With the power turned off, open
the connector cover ( 1 ) and connect the
RS-232C interface connector on the right
side of the Handheld Printer Terminal ( 2 )
with your computer using the RS-232C
Cross Cable (HA-B80AX).
1
2
E-43
Performing Data Communication
Bluetooth® Communication
Bluetooth® protocol can also be used to
transfer data between two Handheld
Printer Terminals.
The two Handheld Printer Terminals
should be no more than three meters apart
(as long as there is nothing blocking the
path in between).
Important!
Observe the following precautions to help ensure that data communication is
successful.
• Make sure that the Handheld Printer Terminal are located within about three
meters (16'413⁄16") of each other. Surroundings (obstacles) may require a shorter
distance between the two terminals.
• Make sure there is at least two meters (6' 7") between this device and other
devices (electrical appliances, audio-visual equipment, office automation
equipment, and digital cordless telephones, facsimile machines, etc. Take special
care with microwave ovens. Allow at least three meters (9' 103⁄8") between
communicating devices and a microwave oven.) When approaching such a
device with its power is turned on, proper data communication may prove
impossible while this may also cause interference with TV and radio reception
(images produced by certain UHF and broadcast satellite channels may become
blurry).
• Normal data communication may not be possible in an area near a broadcast
transmitter or wireless transmitter. If this happens, move to a different location.
Normal data communication may not be possible in areas exposed to strong
radio waves.
• Wireless LAN Interference
Because Bluetooth® and Wireless LAN use the same frequency band (2.4GHz),
radio interference can occur if there is a Wireless LAN device nearby. This can
result in lower data communication speeds, or even make it impossible to
establish a connection. If this happens, try the following countermeasures.
• Move at least 10 meters (32'103⁄4") away from the Wireless LAN device.
• If you cannot keep the distance at least 10 meters (32'103⁄4") or more between the
Handheld Printer Terminal and a Wireless LAN device, turn off the power of the
Wireless LAN device.
E-44
Resetting the Handheld Printer Terminal
Resetting the Handheld Printer Terminal is the same as restarting a computer.
Performing a reset causes all unsaved inputs and edits to be lost, but data that is already
stored in the memory as well as all settings should be unaffected.
Use reset to restore normal operation whenever the Handheld Printer Terminal operates
abnormally due to misoperation or some other reason.
Use the stylus to press the reset switch
on the back of the Handheld Printer
Terminal.
This starts the reset operation.
If reset does not find a memory problem
The Handheld Printer Terminal restarts, and normal operation is restored.
If reset finds a memory problem
A message like the one shown below appears on the display when the reset operation
discovers a memory problem.
the program
key (L)
the program
key (R)
When this message appears, press the program key (R) to continue with the reset
operation. Note, however, that reset may not be successful depending on the condition
of the memory. In this case, perform the full reset operation described on the next
page.
E-45
Resetting the Handheld Printer Terminal
Performing a Full Reset (Initialization)
Performing a full reset initializes memory. This means that all data stored in the
memory (RAM) is deleted and all the settings are returned to their initial factory
settings.
Perform a full reset whenever any one of the following conditions exists.
• When you want to delete all memory contents and return the settings to their initial
factory settings.
• When you are no longer able to use the Handheld Printer Terminal because you
forgot your password.
• When the Handheld Printer Terminal does not operate normally due to a memory
problem.
• When the message “A problem with memory contents has been found. ...” appears.
To perform a full reset
Important!
Performing a full reset deletes all data currently stored in the memory (RAM). If
possible, backup data of the Handheld Printer Terminal to a computer, Flash
Memory, a memory card, or some other medium before performing a full reset.
1. The message shown below appears on the display when the reset switch is pressed
for about 1 second with the stylus while simultaneously pressing the power key and
cancel key.
the program
key (L)
the program
key (R)
• To cancel the full reset operation, press the program key (L) instead of the program key (R).
2. Press the program key (R). This causes the message shown below to appear.
the program
key (L)
the program
key (R)
• To cancel the full reset operation, press the program key (L) instead of the program key (R).
3. Press the program key (R) again.
• Full reset is performed, all data in the memory (RAM) are erased and the start-up
screen is displayed.
E-46
IT-3100 Specifications
1. Terminal
Model:
IT-3100M53E, IT-3100M55E, IT-3100M55U, IT-3100M54E,
IT-3100M56E, IT-3100M75E
CPU:
Marvell® PXA255 Application Processor (400 MHz max.)
Memory:
128MB RAM, 96MB ROM (user defined: Approx. 30MB)
OS:
Microsoft® Windows® CE 5.0 operating system
Display:
3.5-inch, 240 × 320 dots, 2-Way TFT Color LCD
2. C-MOS Imager (IT-3100M55E/IT-3100M55U/IT-3100M56E/IT-3100M75E)
Reading 1D Code symbologies:
UPC-A/UPC-E/EAN8 (JAN8)/EAN13 (JAN13)/Codabar (NW-7)/
Code39/Interleaved 2 of 5 (ITF)/MSI/Code93/Code128 (EAN128
(GS1-128))/Code11/IATA/RSS-14 (GS1 DataBar Omnidirectional)/
RSS Limited (GS1 DataBar Limited)/RSS Expanded (GS1 DataBar
Expanded)
Reading distance: Within approximately 40 mm~410 mm (19/16" to 161/8")
Reading stacked 2D Code symbologies (Stacked):
PDF417/Micro PDF/CODE49/Composite/Codablock F/TLC39/RSS
Expanded Stacked (GS1 DataBar Expanded Stacked)/RSS-14 Stacked
(GS1 DataBar Stacked)
Reading distance: Within approximately 50 mm to 250 mm (115/16" to 913/16")
Reading Matrix 2D Code symbologies (Matrix):
Aztec, Data Matrix, Maxicode, QR Code
Reading distance: Within approximately 60 mm to 150 mm (23/8" to 515/16")
3. IR Communication
Interface:
Compatible with IrDA Ver. 1.1
Synchronization: Start/stop synchronous, frame synchronization
Transfer Rate:
Up to 4 Mbps (max.)
4. Serial Interface (IT-3100M53E/M54E)
Interface:
8-pin
Synchronization: Start/stop synchronous
Transfer Rate:
300 bps to 115.2 Kbps
5. 14-pin Serial Interface
Interface:
14-pin
Synchronization: Start/stop synchronous
Transfer Rate:
300 bps to 115.2 Kbps
* Wake on function available
6. Bluetooth Communication
Protocol:
Bluetooth Specification Ver. 1.2
Range:
Approximately 3 m (depends on radio wave conditions and environment)
Output:
3 dBm max. (PowerClass2)
* Wake on function available
7. Printer
Type:
Drop-in thermal line dot printer
Effective Printing Width:
72 mm (80mm/82.55mm wide paper)/48 mm (58 mm wide paper)
Printing Speed:
28 lines/second
Printable Characters:
ANK, symbologies (JAN/UPC-E/ NW-7/Code-39/ITF/Code-128), OCRB, 128 non-standard characters
E-47
IT-3100 Specifications
Character Fonts:
Kanji 12-dot 48/32 columns, 16-dot 36/24 columns, 24-dot 24/16
columns (columns shown for 80 mm wide paper and 58 mm wide paper,
respectively)
Character Size:
Free double-width characters
Generating Method: Black/white inversion, mixed character font printing
8. Card Slot
PC Card Slot:
PC Card Type I/Type II (3.3 V/5.0 V specifications)
* Wake on function available
SD Memory Card Slot:
SD Memory Card
9. Magnetic Card Reader : ISO 7811 Tracks, 1, 2, and 3 (IT-3100M54E/M55E/M55U)
10. Power Requirements
Main Power:
Lithium ion battery pack (DT-9723LIC)
Backup Power:
Lithium battery (installed inside the terminal)
Battery Life:
Main battery - Approx. 12.6 hours*,
* Backlight off, When the keys are pressed 20 times (30seconds) and
continuous printing of 20 lines (font height 2mm Alphabet and
Numeric/30% of total digits) is carried out at four minute intervals.
Backup battery- Data retention (RAM) - 10 minutes (without main
battery)
Clock - 2 weeks (without main battery)
Power Consumption: DC 4.5 A/7.4-10 V
11. Operating Environment
Temperature:
-20 to 50°C (5-35°C when printing on 2-ply paper or labels)
Humidity:
10-80% RH (no condensation)
12. Dimensions and Weight
Dimensions:
IT-3100M53E Approx. 80*/108** (W) × 265 (D) × 28*/68** (H) mm
(31/8'' / 41/4''W × 107/16''D × 11/8 / 211/16''H)
IT-3100M54E
Approx. 80*/108** (W) × 295 (D) × 28*/68** (H) mm
(31/8'' / 41/4''W × 115/8''D × 11/8 / 211/16''H)
IT-3100M55E/M55U
Approx. 80*/145** (W) × 295 (D) × 28*/70** (H) mm
(31/8'' / 511/16''W × 115/8''D × 11/8 / 23/4''H)
IT-3100M56E/M75E
Approx. 80*/145** (W) × 265 (D) × 28*/70** (H) mm
(31/8'' / 511/16''W × 107/16''D × 11/8 / 23/4''H)
*; display part, **; printer part (All sizes exclude extruding parts.)
Weight:
IT-3100M53E Approx. 635g (22.4 oz)
IT-3100M54E2
Approx. 680g (23.99 oz)
IT-3100M55E/M55U
Approx. 700g (24.69 oz)
IT-3100M56E/M75E
Approx. 655g (23.10 oz)
13. Environment
Drop Durability:
1.2 m
Dust and Water Resistance:
Complies with IEC60529, level IP54
Clock Function:
Year, month, date, day, hour, minute; fully automated calendar
E-48
Using the Bridge Satellite Cradle (HA-B61IO)
The optionally available Bridge Satellite Cradle (HA-B61IO) makes it possible to
transfer system data and file data between the Handheld Printer Terminal and a
computer using an RS-232C interface or USB interface. You can also use the Bridge
Satellite Cradle to charge the battery pack installed on the Handheld Printer
Terminal.
General Guide
Top
Front
Right
Back
Bottom
E-49
Using the Bridge Satellite Cradle (HA-B61IO)
1
System Status
Indicator Lamp
This lamp indicates whether the system is operating normally.
This lamp indicates the system status and whether or not
communication with the system can be performed regardless of
whether or not a Handheld Printer Terminal is mounted.
Off: System is not operating.
Green: System is operating.
2
Communication
Indicator Lamp
This lamp shows when the Handheld Printer Terminal is
performing data communication.
Off: No data communication being performed
Green flashing: Data communication in progress
Red: Problem with a connection between Bridge Satellite Cradle
3
Power Indicator
Lamp
This lamp indicates the Power Status and the mounting status of
the Handheld Printer Terminal.
Off: Power off
Green: Power on, Handheld Printer Terminal mounted correctly
Red: Power on, Handheld Printer Terminal not mounted
4
Terminal Detect
Switches
These switches detect when the Handheld Printer Terminal is
seated correctly on the Bridge Satellite Cradle.
5
IR Port
This port transfers data with the Handheld Printer Terminal IR
port by non-contact data communication.
6
Power Contacts
Power is supplied to the Handheld Printer Terminal via these
contacts.
7
Power Switch
Turns the power on and off.
8
AC Adaptor Jack
Connect the AC adaptor here to supply power.
9
RS-422 Port
This port is used when connecting to another Bridge Satellite
Cradle.
10
RS-232C Port
This port accepts connection of an RS-232C cable for
connection to a computer for transfer of system data and file
data. Use of the RS-232C port requires installation of a special
driver on the PC.
11
USB Port
This port accepts connection of a USB cable for connection to a
computer for transfer of system data and file data. Use of the
USB port requires installation of a special driver on the PC.
12
DIP Switches
Use these switches to configure the Bridge Satellite Cradle as
required.
E-50
Connecting the AC Adaptor and Connecting to a Computer
Use the AC adaptor available as an option for the Bridge Satellite Cradle to supply the
power to it. Always make sure that the power is being supplied to the Bridge Satellite
Cradle by the AC adaptor before performing any type of data communication operation
with the Handheld Printer Terminal. The Handheld Printer Terminal draws the power
via the Bridge Satellite Cradle during data communication.
1. After making sure that the Bridge
Satellite Cradle power switch is turned
off, plug the AC adaptor into the AC
adaptor jack on the back.
2. Next, after connecting the power cable
to the AC Adaptor, plug the AC adaptor
into a power outlet.
Power switch (OFF)
When using the RS-232C port
3. After making sure that the Bridge
Satellite Cradle and your computer are
both turned off, connect the RS-232C
interface or USB interface (after
removing the cap) on the back of the
Bridge Satellite Cradle to your computer
with an RS-232C Cross Cable (DT887AXA) or USB Cable (DT-380USB).
LINE
DATA
System Status Indicator Lamp
Communication Indicator Lamp
Power indicator Lamp
POWER
Attach the cap always when not using
the port.
Power switch (ON)
Power contacts
E-51
Using the Bridge Satellite Cradle (HA-B61IO)
4. Turn on the power. This causes the Bridge Satellite Cradle power indicator lamp to
light red.
5. Place the Handheld Printer Terminal so that the infrared communication unit on the
right side is faced firmly with the infrared communication unit of the Bridge Satellite
Cradle.
• If the system is operating normally and data communication is enabled, the system
status indicator lamp lights green.
• The communication indicator lamp flashes green when data communication starts.
When charging is initiated, Indicator 1 (left side) on the Handheld Printer Terminal
lights red. When charging has been completed, it changes the color from red to green.
* The indicator may light even if the battery pack is not installed. Make sure that the
battery pack is installed when charging.
Important!
• A high-sensitivity communication element is used during IR data
communication.
In order to ensure successful communication, avoid using cellular phones or
other devices that emit radio waves in the area where you are performing IR
data communication.
If you need to use such a device, move it away from the communicating
Handheld Printer Terminals. In case of a cellular phone, keep it at least 30cm
(117⁄8") away.
• Take care to avoid allowing the Bridge Satellite Cradle power contacts to make
contact with each other since this can cause.
Shorting the power contacts can damage the Bridge Satellite Cradle.
• If you print while charging, the battery will wear down since the amount of
power discharged is greater than the amount of power supplied. Consequently,
you may not be able to print if the battery power is excessively low.
E-52
Configuring DIP Switch Settings
Removing the bottom cover of the Bridge Satellite Cradle exposes the DIP switches.
You can change the ON/OFF settings of the DIP switches to set the configuration. Only
set the DIP switches after first switching OFF the power.
1 2 3 4 5 6 7 8
Not used (Always off)
Not used (Always off)
Host Computer Interface
Setting
RS-232C
USB
6
OFF
ON
*
5
OFF
ON
*
Daisy Chain
Setting
Intermediate Unit
Daisy Chain Disabled/Termination
Connection Type
Setting
Host Computer
Daisy Chain
3
OFF
ON
4
OFF
OFF
*
Bridge Satellite Cradle Data Rate
Setting
115,200bps
*Initial factory setting
1
ON
2
OFF
*
Important!
Note that other DIP settings are used for testing and inspection purposes. Because
of this, you should never use any DIP settings other than those described above.
E-53
Using the Bridge Satellite Cradle (HA-B61IO)
Connecting Multiple Bridge Satellite Cradles (HA-B61IO)
Connect “C-OUT” of the Bridge Satellite
Cradle connected to the host computer to
“C-IN” of the next Bridge Satellite Cradle
you want to connect.
RS-232C
cable or
USB cable
To host
computer
RS-422 modular cables
(DT-888RSC)
Important!
You can use the optional RS-422 modular cables (DT-888RSC) to link up to eight
Bridge Satellite Cradles.
E-54
Bridge Satellite Cradle (HA-B61IO) Specifications
1. IR Data Communication
Interface:
Protocol:
Synchronization:
Transfer Rate:
2. USB
Protocol:
Transfer Rate:
3. RS-232C
Protocol:
Synchronization:
Transfer Rate:
4. RS-422
Protocol:
Synchronization:
Transfer Rate:
5. Charging
Charging System:
Charge Time:
6. Power Supply
Power Requirement:
Power Consumption:
Output to Handheld Printer
Terminal:
7. AC Adaptor
Model:
Input:
Output:
8. Dimensions and Weight
Dimensions:
Weight:
9. Operating Environment
Temperature:
Humidity:
IR interface
IrDA Ver. 1.1 Standard
Start/stop synchronous, frame synchronization
9,600/115,200bps/4Mbps
(4Mbps is possible during a USB connection with the host
computer only.)
USB Ver1.1 Standard
12Mbps (max.)
Full duplex
Start/stop synchronous
115,200bps
Full duplex
Start/stop synchronous
115,200bps
Fixed-voltage (with current limiter)
Approximately 8.0 hours
AC adaptor (AD-S42120BE)
DC12V approximately 2,200mA
DC10V 1,800mA (max.)
* The printer cannot be operated with this power supply alone.
AD-S42120B
100V to 240V AC 50/60Hz 1.2A
12V DC 3,500mA
Approximately 130(W) × 206(D) × 104(H) mm
(51⁄8"W × 81⁄8"D × 41⁄8"H)
Approximately 660g (23.28oz)
0°C to 40°C (32°F to 104°F)
30% to 80% RH (non-condensation)
The AD-S42120 series comes available in the following models depending on area or region
where you are in.
Model no. of ACAdaptor
AD-S42120BE
Area/Region
All except China
AD-S42120BE-CN
China only
Compliance
Compliant with CE,
UL, FCC, and Energy
Efficiency Standards.
Compliant with Energy
Efficiency Standards and
CCC.
E-55
Using the Cradle-type Battery Charger (HA-B30CHG)
The optionally available Cradle-type Battery Charger (HA-B30CHG) lets you charge
the Handheld Printer Terminal’s battery simply by placing the Handheld Printer
Terminal onto the charger.
General Guide
Top
Front
Bottom
E-56
Right
Back
1
Power Indicator
Lamp
This lamp indicates the power status and the mounting status of
the Handheld Printer Terminal.
Off: Power off
Red: Power on, Handheld Printer Terminal not mounted
Green: Power on, Handheld Printer Terminal mounted correctly
2
Terminal Detect
Switches
These switches detect when the Handled Printer Terminal is
seated correctly on the Cradle.
3
Power Contacts
Power is supplied to the Handheld Printer Terminal via these
contacts.
4
Power Switch
Turns the power on and off.
5
AC Adaptor Jack
Connect the AC adaptor here.
E-57
Using the Cradle-type Battery Charger (HA-B30CHG)
Connecting the AC Adaptor for the Cradle-type Battery Charger
Use the dedicated AC adaptor for the Cradle-type Battery Charger to connect to a wall outlet.
1. After making sure that the Cradle-type
Battery Charger power switch is turned
off, plug the AC adaptor into the AC
adaptor jack on the back of the charger.
Power switch (OFF)
2. Next, after connecting the power cable
to the AC adaptor, plug the AC adaptor
into a power outlet.
3. Turn on the power. This causes the
Cradle-type Battery Charger power
indicator lamp to light red.
Power Indicator Lamp
POWER
Power switch (ON)
Power contacts
4. Making sure that their power contacts come into contact with each other, place the
Handheld Printer Terminal onto the Cradle-type Battery Charger. This causes the
Cradle-type Battery Charger power indicator lamp to light green.
When charging is initiated, Indicator 1 (left side) on the Handheld Printer Terminal
lights red. When charging has been completed, it changes the color from red to green.
* The indicator may light even if the battery pack is not installed. Make sure that the
battery pack is installed in the Handheld Printer Terminal when charging.
Important !
• Take care to avoid allowing the Cradle-type Battery Charger power contacts to
make contact with each other since this can cause a short.
Shorting the power contacts can damage the Cradle-type Battery Charger.
• If you print while charging, the battery will wear down since the amount of
power discharged is greater than the amount of power supplied. Consequently,
you may not be able to print if the battery power is excessively low.
E-58
Cradle-type Battery Charger (HA-B30CHG) Specifications
1. Charging
Charging System:
Charge Time:
2. Power Supply
Power Requirement:
Power Consumption:
Output to Handheld Printer
Terminal:
3. AC Adaptor
Model:
Input:
Output:
4. Dimensions and Weight
Dimensions:
Weight:
5. Operating Environment
Temperature:
Humidity:
Fixed-voltage (with current limiter)
Approximately 8.0 hours
AC adaptor (AD-S42120BE*)
12V DC, approximately 2,100mA
10V DC 1,800mA (max.)
AD-S42120B
100V to 240V AC 50/60Hz 1.2A
12V DC 3,500mA
Desktop: Approximately 130(W) X 206(D) X 104(H) mm
(51⁄8"W × 81⁄8"D × 41⁄8"H)
Approximately 630g (22.22oz)
0°C to 40°C (32°F to 104°F)
30% to 80% RH (non-condensation)
* See page 55.
E-59
Using the AC Adaptor (AD-S10095AE/AU)
1. Turn off the power of the Handheld
Printer Terminal by pressing the power
key.
2. Open the jack cover ( 1 ), and then
insert the plug of the AC Adapter into
the charging jack ( 2 ).
After connecting the power cable to the
AC adaptor, plug the other end of it into
an electrical outlet.
1
2
3. Charging begins and Indicator 1 on the Handheld Printer Terminal lights red.
Charging is completed when Indicator 1 changes to green. (Charging time is about 8
hours with the power off.)
* The indicator may light even if the battery pack is not installed. Make sure that the
battery pack is installed when charging.
Important!
• Securely install the battery pack.
• Charge in a location free of vibrations.
• Use only the dedicated AC Adaptor (AD-S10095AE/AU) to charge the battery
pack.
• Turn off the power of the Handheld Printer Terminal when connecting the AC
Adaptor.
• When the battery pack has been reinstalled with the battery charger still
plugged into the Handheld Printer Terminal, always make sure to first unplug
the battery charger and then plug it in again.
E-60
Specifications
1. Charging Specification
Charging Method:
Charge Period:
2. AC Adaptor
Model:
Input:
Output:
3. Dimensions and Weight
Dimensions:
Weight:
4. Operating Environment
Temperature:
Humidity:
Constant current/voltage
Approx. 8 hours (with the power off)
AD-S10095A
100V to 240V AC 50/60 Hz 0.4A
9.5V DC 1A 9.5W
Approximately 78(W) × 50(D) × 30(H) mm
(31⁄16"W × 115⁄16"D × 13⁄16"H)
Approximately 130g (4.6oz)
Approximately 0°C to 40°C (32°F to 104°F)
30% to 80% RH (non-condensation)
The AD-S10095 series comes available in the following models depending on area or region
where you are in.
Model no. of ACAdaptor
AD-S10095AE
Area/Region
All except China, USA,
and Canada
AD-S10095AE-CN
China only
AD-S10095AU
USA and Canada
Compliance
Compliant with CE
and Energy Efficiency
Standards.
Compliant with Energy
Efficiency Standards and
CCC.
Compliant with UL, FCC,
and Energy Efficiency
Standards.
E-61
Using PC Cards
PC card compatible with the PCMCIA(Type I/II) standard can be installed in the PC
Card slot on the Handheld Printer Terminal. Insert a PC card according to the
procedure described below.
Attaching the PC Card Removal Tape to a PC Card
There are some PC cards that may be
difficult to remove from the PC card slot
once they have been inserted. In the case
of such PC cards, attach the PC card
removal tape provided before inserting the
PC card.
PC card removal tape
Direction of insertion
Important!
When inserting a CF card and so forth using the PC Card Adapter, always make
sure to attach the PC card removal tape to the PC Card Adapter. If the PC card
removal tape is mistakenly attached to the CF card and so forth, only the CF card
will come out when the PC Card Adapter is attempted to be removed, preventing
the PC Card Adapter from being able to be removed.
Inserting a PC Card (When Using the Roll Paper Holder)
1. Check that the power is off. If the power is on, always make sure to turn it off by
pressing the power key.
2. Turn over the Handheld Printer Terminal.
3. Loosen the two screws shown in the
illustration (the screws cannot be
removed off).
E-62
4. Open the cover (PC card slot cover) as
shown in the illustration.
5. Insert a PC card having PC card removal
tape attached. Insert the PC card all the
way in with the top of the card facing
towards the top of the Handheld Printer
Terminal.
Fold up the end of the PC card removal
tape so that it does not get caught in the
way when closing the cover.
6. Attach the PC Card Holder to lock the
end of the PC card and prevent it from
coming out due to impacts and so forth.
Decide on the type of PC Card Holder
Fixer (three types are available) and the
orientation and attachment position of
the holder according to the location of
the end of the PC card.
7. Close the cover (PC card slot cover) and
fasten with the two screws.
E-63
Using PC Cards
Removing a PC Card
Press the eject button on the left side of PC
card slot with the stylus as shown by the
arrow, and pull out the PC card while
holding onto the end of the PC card
removal tape.
Inserting a PC Card (When Using the Paper Holder)
Check the names of the parts of the Paper Holder before beginning work.
Part C
Part B
Part A
PC card cushion
Part D
Screws (4)
1. Check that the power is off. If the power is on, always make sure to turn it off by
pressing the power key.
2. Spread apart both ends of Part A of the
Paper Holder ( 1 ) and remove it from
the Handheld Printer Terminal ( 2 ), and
then remove Part C and Part D ( 3 ).
A
C
3
E-64
D
3
1
• Remove Part C and Part D using an
ordinary screwdriver as shown in the
illustration.
1
2
3. After pushing on both ends of Part A
and reattaching to the Handheld Printer
Terminal ( 1 ), remove Part B by
removing the screws ( 2 ).
1
2
4. Insert a PC card to which PC card
removal tape has been attached. Insert the
PC card all the way in so that the top of
the PC card faces the top of the Handheld
Printer Terminal. (The illustration shows
the Handheld Printer Terminal turned
over.) Fold the portion of the PC card
removal tape extending from the PC card
that is grabbed when removing the PC
card so that it does not get in the way
when reattaching the Paper Holder.
5. Attach the PC card cushion to Part B of the Paper Holder to immobilize the end of the
PC card and prevent it from being dislodged by an impact and so forth. Select the type
of cushion (three types are provided) according to the location of the end of the PC card.
Cushion A
Cushion B
Cushion C
• Position the cushion as shown in the illustration.
• Insert all the way in to the center of Part B.
• Cushion A and Cushion C can be used in combination.
6. Align the grooves of Part B with the
projections on both sides of Part A, and
then fasten the Paper Holder to the
Handheld Printer Terminal using the
Paper Holder screws.
E-65
Using PC Cards
7. While spreading apart both ends of Part A
( 1 ), remove Part A from the Handheld
Printer Terminal by lifting up Part A until
the projections reach the upper edges of
the grooves of Part B ( 2 ), and then press
on Part C and Part D from the left and
right sides ( 3 ). Next, push on both ends
of Part A to fasten to the Handheld
Printer Terminal.
When Removing the PC card
Press the eject button on the left side of the
PC card slot with the stylus, and then pull
out the PC card while grabbing onto the
end of the PC card removal tape. (The
illustration shows the Handheld Printer
Terminal turned over.)
E-66
2
1
3
1
3
Using SD Memory Cards
SD memory card can be installed in the SD Memory Card slot on the Handheld Printer
Terminal. Insert (or remove) an SD memory card according to the procedure described
below.
Inserting an SD Memory Card
1. Check that the power is off. If the power is on, always make sure to turn it off by
pressing the power key.
2. Open the cover of the SD memory
card slot ( 1 ) and insert an SD
memory card all the way in until the
top of the SD memory card aligns
with the entrance of the slot of the
Handheld Printer Terminal ( 2 ).
2
1
3. Close the cover of the SD memory card slot.
Removing an SD Memory Card
1. Check that the power is off. If the power is on, always make sure to turn it off by
pressing the power key.
2. Open the cover of the SD memory
card slot and press on the SD memory
card ( 1 ). The SD memory card is
pushed out ( 2 ).
2
1
3. Pull out the SD memory card and close the cover of the SD memory card slot.
E-67
Connecting a Bar Code Reader
(IT-3100M53E/IT-3100M54E only)
Connect a bar code reader to the RS-232C interface connector (8-Pin) on the Handheld
Printer Terminal.
Connecting the bar code reader
1. Check that the power is off. If the power is on, always make sure to turn it off by
pressing the power key. Open the cover of the RS-232C interface connector. ( 1 )
2. Insert the plug of the bar code reader
into the connector as shown in the
illustration.( 2 )
1
2
Disconnecting bar code reader
Turn off the power of the Handheld Printer Terminal. Unplug the bar code reader.
E-68
Attaching the Screen Protect Cover
Attaching the Screen Protect Cover to the Handheld Printer Terminal prevents the
screen from being cracked or damaged when carrying.
1. Remove the two screws on the right side
of the Handheld Printer Terminal. Store
the screws in a safe place after they have
been removed.
2. Fasten the Screen Protect Cover with the
two screws provided with the Screen
Protect Cover.
3. Close the Screen Protect Cover and
fasten by pressing on the cover hook at
the right side.
4. Lift up on the cover hook when opening
the cover.
E-69
Attaching the Splash Protect Cover
Attaching the Splash Protect Cover to the Handheld Printer Terminal lets you use it
even during inclement weather.
inner cover
Attach the Splash Protect Cover by following the procedure described below.
1. Press the ridged ( ) portions ( 1 ) of
the paper outlet cover while spreading
apart the locks on the left and right sides
( 2 ) to disengage them as shown in the
illustration followed by opening the
paper outlet cover ( 3 ).
2. Slide the lock knobs on the left and right
sides of the roll paper holder as shown
in the illustration to align at the FREE
position ( 1 ), and then push up the
ridged ( ) portion ( 2 ) to open.
• Please note that the positions of the
lock knobs on the left and right sides
are different.
1
1
3
2
2
2
LOCK
1
1
FREE
LOCK
3. Spread apart the bearing supports of the
paper outlet cover towards the left and
right directions and remove.
4. Attach the inner cover as shown in the
illustration. First, insert a tab on one side
of the roll paper holder into one of the
slits of the inner cover ( 1 ). Next, push
down on the opposite side of the inner
cover, and insert the tab on that side of
the roll paper holder into the slit on that
side ( 2 ).
E-70
2
1
FREE
5. Close the roll paper holder, slide the
lock knobs on the left and right sides as
shown in the illustration to align at the
“LOCK” position to lock the roll paper
holder in position, and then tear off the
protruding roll paper.
• Please note that the positions of the
lock knobs on the left and right sides
are different.
LOCK
FREE
1
2
FREE
2
LOCK
6. Slide the lock knobs ( 1 ) on the left and
right sides of the Splash Protect Cover
as shown in the illustration and open the
cover ( 2 ).
2
1
1
7. Attach the Splash Protect Cover as
shown in the illustration.
• Check that the transparent film of the
inner cover is at the position shown in
the illustration ( 1 ).
Transparent film
Splash Protect
Cover bottom plate
• Furthermore, the transparent film may
shift from the position shown in the
illustration when the roll paper is torn
off. Check the position of the
transparent film after roll paper has been
torn off.
• Check that the tabs on the inside of the
Splash Protect Cover (located on the left
and right sides) have entered the
indentations on the left and right sides of
the Handheld Printer Terminal ( 2 ).
8. Close the Splash Protect Cover ( 1 ),
and fasten with the lock knobs ( 2 ) on
the left and right sides.
1
Indentation
2
Tab
1
2
2
E-71
Using the Battery Pack
Important!
• Make sure to attach the contact cover provided when removing the Battery Pack
from the Handheld Printer Terminal and storing.
• If the battery pack has been left over unused for a long period of time, the
capacity remained decreases due to spontaneous discharge or chemical
decomposition by the battery pack itself. If the battery pack fails to hold its
operating duration after it has been fully charged, replace it with a new one. The
battery pack may reach the end of its service life.
Battery Pack Specifications
Model:
Nominal Capacity:
Nominal Voltage:
Dimensions:
Weight:
Accessories:
E-72
DT-9723LIC
2200mAh
7.4V
39 (W) × 71 (D) × 21 (H) mm
(19⁄16"W × 213⁄16"D × 5⁄16"H)
Approximately 110 g (3.88oz)
Contact cover
CASIO COMPUTER CO., LTD.
6-2, Hon-machi 1-chome
Shibuya-ku, Tokyo 151-8543, Japan
