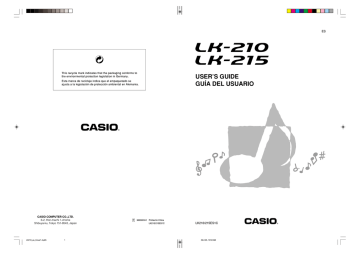

Casio LK-215 User`s guide

ES
This recycle mark indicates that the packaging conforms to
the environmental protection legislation in Germany.
Esta marca de reciclaje indica que el empaquetado se
ajusta a la legislación de protección ambiental en Alemania.
CASIO COMPUTER CO.,LTD.
6-2, Hon-machi 1-chome
Shibuya-ku, Tokyo 151-8543, Japan
LK210_es_Cover1-4.p65
1
F
MA0903-C Printed in China
LK210/215ES1C
USER’S GUIDE
GUÍA DEL USUARIO
LK210/215ES1C
09.2.25, 10:53 AM
GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THE UNIT IN THE U.S.A. (not applicable to other areas).
This mark applies in EU countries only.
C
2
09.2.25, 10:53 AM
*4
*4
O : Yes
X : No
*5
*5
Mode 1 : OMNI ON, POLY
Mode 3 : OMNI OFF, POLY
Remarks
Messages
Mode 2 : OMNI ON, MONO
Mode 4 : OMNI OFF, MONO
*6 • Reverb Type [F0] [7F] [7F] [04] [05] [01] [01] [01] [01] [01] [00]
[vv] [F7] vv=00: Room1, 01: Room2, 04: Hall1, 03: Hall2
• Chorus Type [F0] [7F] [7F] [04] [05] [01] [01] [01] [01] [02] [00]
[vv] [F7] vv=00: Chorus1, 01: Chorus2, 02: Chorus3, 03: Chorus4
*6 • Tipo de reverberación [F0] [7F] [7F] [04] [05] [01] [01] [01] [01] [01]
[00] [vv] [F7] vv=00: Room1, 01: Room2, 04: Hall1, 03: Hall2
• Tipo de Chorus [F0] [7F] [7F] [04] [05] [01] [01] [01] [01] [02] [00]
[vv] [F7] vv=00: Chorus1, 01: Chorus2, 02: Chorus3, 03: Chorus4
*7 GM on/off GM ON : [F0] [7E] [7F] [09] [01] [F7] GM OFF : [F0]
[7E] [7F] [09] [02] [F7]
*7 Activación/desactivación GM GM ON: [F0] [7E] [7F] [09] [01] [F7]
GM OFF: [F0] [7E] [7F] [09] [02] [F7]
LK-210:X 9nH V = 98, LK-215:O 9nH V = 1-127
LK-210:X 9nH V = 98, LK-215:O 9nH V = 1-127
Modulation and after touch for each channel are the same effect.
La modulación y después del toque para cada canal tienen el
mismo efecto.
FINE TUNE, COARSE TUNE receive, and PITCH BEND SENSE,
RPN Null receive
FINE TUNE, recepción COARSE TUNE, y PITCH BEND SENSE,
recepción RPN.
In accordance with sustain/assignable jack setting
De acuerdo con el ajuste de la toma asignable.
X
O
O
X
X
O
X
X
: Local ON/OFF
: All notes OFF
: Active Sense
: Reset
Aux
X
X
O
O
: Clock
: Commands
System
Real Time
X
X
X
X
X
X
: Song Pos
: Song Sel
: Tune
System
Common
O*6 *7
O*6
*2
*2
*3
*3
Manufacturer:
CASIO COMPUTER CO.,LTD.
6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan
Responsible within the European Union:
CASIO EUROPE GmbH
Casio-Platz 1, 22848 Norderstedt, Germany
LK210_es_Cover1-4.p65
System Exclusive
O
O
O
O*4
O
O
O*5
X
O
X
O
O
67
91
93
100, 101
120
121
Control
Change
Key’s
Ch’s
After
Touch
Pitch Bender
Note ON
Note OFF
Velocity
True voice
Note
Number
Default
Messages
Altered
Mode
Default
Changed
Basic
Channel
Models
Function ...
• Before using the optional AD-5 Adaptor to power the unit, be sure to check the AC Adaptor
for any damage first. Carefully check the power cord for breakage, cuts, exposed wire and
other serious damage. Never let children use an AC adaptor that is seriously damaged.
• Never attempt to recharge batteries.
• Do not use rechargeable batteries.
• Never mix old batteries with new ones.
• Use recommended batteries or equivalent types.
• Always make sure that positive (+) and negative (–) poles are facing correctly as indicated
near the battery compartment.
• Replace batteries as soon as possible after any sign they are getting weak.
• Do not short-circuit the battery terminals.
• The product is not intended for children under 3 years.
• Use only CASIO AD-5 adaptor.
• The AC adaptor is not a toy.
• Be sure to disconnect the AC adaptor before cleaning the product.
O 0-127
❊❊❊❊❊❊❊❊❊❊❊❊❊❊
O
O*3
O*4
O
O
O
O
O
O
X
X
X
X
X
O*5
O*5
0, 32
1
6, 38
7
10
11
64
66
X
X
1
1-16
Please note the following important information before using this product.
O 0-127
❊❊❊❊❊❊❊❊❊❊❊❊❊❊
O
X
O*3
X
*2
X 8nH V = 64
1-16
1-16
0-127
12-108*1
36-96
❊❊❊❊❊❊❊❊❊❊❊❊❊❊
Mode 3
X
❊❊❊❊❊❊❊❊❊❊❊❊❊❊
Important!
Transmitted
Model Number: LK-210/LK-215
Trade Name: CASIO COMPUTER CO., LTD.
Responsible party: CASIO AMERICA, INC.
Address: 570 MT. PLEASANT AVENUE, DOVER, NEW JERSEY 07801
Telephone number: 973-361-5400
This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Program
Change
Recognized
Declaration of Conformity
O 9nH V = 1-127
X 9nH V = 0,8nH V = XX
Mode 3
X
❊❊❊❊❊❊❊❊❊❊❊❊❊❊
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
:True #
Bank select
Modulation
Data entry
Volume
Pan
Expression
Hold1
Sostenuto
FCC WARNING
XX: no relation
XX: sin relación
*1: See Tone List on page A-1.
*1: Vea la lista de sonidos
en la página A-1.
Remarks
LK-210/LK-215
Version: 1.0
MIDI messages that can be sent and received using the USB port
Los mensajes MIDI pueden enviarse y recibirse usando el puerto USB
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Soft pedal
Reverb send
Chorus send
RPN LSB, MSB
All sound off
Reset all controller
NOTICE
Safety Precautions
Congratulations on your selection of the CASIO
electronic musical instrument.
• Before using the instrument, be sure to carefully
read through the instructions contained in this
manual.
• Be sure to keep all user documentation handy for
future reference.
Symbols
Various symbols are used in this user’s guide and on
the product itself to ensure that the product is used
safely and correctly, and to prevent injury to the user
and other persons as well as damage to property.
Those symbols along with their meanings are shown
below.
DANGER
This symbol indicates information that, if ignored
or applied incorrectly, creates the danger of death
or serious personal injury.
Symbol Examples
This triangle symbol ( ) means that the
user should be careful. (The example at
left indicates electrical shock caution.)
This circle with a line through it ( )
means that the indicated action must not
be performed. Indications within or
nearby this symbol are specifically
prohibited. (The example at left indicates
that disassembly is prohibited.)
The black dot ( ) means that the
indicated action must be performed.
Indications within this symbol are actions
that are specifically instructed to be
performed. (The example at left indicates
that the power plug must be unplugged
from the electrical socket.)
WARNING
This indication stipulates matters that have the risk
of causing death or serious injury if the product is
operated incorrectly while ignoring this indication.
CAUTION
This indication stipulates matters that have the risk
of causing injury as well as matters for which there
is the likelihood of occurrence of physical damage
only if the product is operated incorrectly while
ignoring this indication.
E-1
Safety Precautions
DANGER
Alkaline Batteries
Perform the following steps immediately if
fluid leaking from alkaline batteries ever
gets into your eyes.
1. Do not rub your eyes! Rinse them with
water.
2. Contact your physician immediately.
Leaving alkaline battery fluid in your eyes
can lead to loss of sight.
WARNING
Smoke, Strange Odor, Overheating
Continued use of the product while it is
emitting smoke, a strange odor, or heat
creates the risk of fire and electric shock.
Take the following steps immediately.
1. Turn off power.
2. If you are using the AC adaptor for
power, unplug it from the wall outlet.
3. Contact your original retailer or an
authorized CASIO Service Provider.
AC Adaptor
● Misuse of the AC adaptor creates the
risk of fire and electric shock. Always
make sure you observe the following
precautions.
• Be sure to use only the AC adaptor
that is specified for this product.
• Use only a power source whose
voltage is within the rating marked on
the AC adaptor.
• Do not overload electrical outlets and
extension cords.
● Misuse of the AC adaptor’s electric cord
can damage or break it, creating the risk
of fire and electric shock. Always make
sure you observe the following
precautions.
• Never place heavy objects on the cord
or subject it to heat.
• Never try to modify the cord or subject
it to excessive bending.
• Never twist or stretch the cord.
• Should the electric cord or plug
become damaged, contact your
original retailer or authorized CASIO
Service Provider.
E-2
● Never touch the AC adaptor while your
hands are wet.
Doing so creates the risk of electric shock.
● Use the AC adaptor where it will not be
splashed with water. Water creates the
risk of fire and electric shock.
● Do not place a vase or any other container
filled with liquid on top of the AC
adaptor. Water creates the risk of fire
and electric shock.
Batteries
Misuse of batteries can cause them to leak,
resulting in damage to nearby objects, or to
explode, creating the risk of fire and
personal injury. Always make sure you
observe the following precautions.
• Never try to take batteries apart or allow
them to become shorted.
• Never expose batteries to heat or dispose
of them by incineration.
• Never mix old batteries with new ones.
• Never mix batteries of different types.
• Do not charge the batteries.
• Make sure the positive (+) and negative
(–) ends of the batteries are facing
correctly.
Do not incinerate the product.
Never throw the product into fire.
Doing so can cause it to explode, creating
the risk of fire and personal injury.
Water and Foreign Matter
Water, other liquids, and foreign matter
(such as pieces of metal) getting into the
product create the risk of fire and electric
shock. Take the following steps
immediately.
1. Turn off power.
2. If you are using the AC adaptor for
power, unplug it from the wall outlet.
3. Contact your original retailer or an
authorized CASIO Service Provider.
Disassembly and Modification
Never try to take this product apart or
modify it in any way. Doing so creates the
risk of electric shock, burn injury, or other
personal injury. Leave all internal
inspection, adjustment, and maintenance up
to your original retailer or authorized
CASIO Service Provider.
Safety Precautions
Dropping and Impact
Continued use of this product after it has
been damaged by dropping or subjecting it
to strong impact creates the risk of fire and
electric shock. Take the following steps
immediately.
1. Turn off power.
2. If you are using the AC adaptor for
power, unplug it from the wall outlet.
3. Contact your original retailer or an
authorized CASIO Service Provider.
Plastic Bags
Never place the plastic bag the product
comes in over your head or in your mouth.
Doing so creates the risk of suffocation.
Particular care concerning this precaution
is required where small children are
present.
Keep off of the product and stand.*
Climbing onto the product or stand can
cause it to tip over or become damaged.
Particular care concerning this precaution
is required where small children are
present.
Location
Avoid locating the product on an unstable
stand, on an uneven surface, or any other
unstable location. An unstable location can
cause the product to fall over, creating the
risk of personal injury.
CAUTION
AC Adaptor
● Misuse of the AC adaptor creates the
risk of fire and electric shock. Always
make sure you observe the following
precautions.
• Do not locate the electric cord near a
stove or other sources of heat.
• Never pull on the cord when
unplugging from the electrical outlet.
Always grasp the AC adaptor when
unplugging.
● Misuse of the AC adaptor creates the
risk of fire and electric shock. Always
make sure you observe the following
precautions.
• Insert the AC adaptor into the wall
outlet as far as it will go.
• Unplug the AC adaptor from the wall
outlet during lightening storms or
before leaving on a trip or other longterm absence.
• At least once a year, unplug the AC
adaptor from the wall outlet and wipe
away any dust that is built up in the
area around the prongs of the plug.
Relocating the Product
Before relocating the product, always
unplug the AC adaptor from the wall outlet
and disconnect all other cables and
connecting cords. Leaving cords connected
creates the risk of damage to the cords, fire,
and electric shock.
Cleaning
Before cleaning the product, always unplug
the AC adaptor from the wall outlet first.
Leaving the AC adaptor plugged in creates
the risk of damage to the AC adaptor, fire,
and electric shock.
Batteries
Misuse of batteries can cause them to leak
resulting in damage to nearby objects, or to
explode, creating the risk of fire and
personal injury. Always make sure you
observe the following precautions.
• Use only batteries that are specified for
use with this product.
• Remove batteries from the product if you
do not plan to use it for a long time.
E-3
Safety Precautions
Connectors
Connect only the specified devices and
equipment to the product’s connectors.
Connection of a non-specified device or
equipment creates the risk of fire and
electric shock.
Location
Avoid the following locations for this
product. Such locations create the risk of
fire and electric shock.
• Areas subject to high humidity or large
amounts of dust.
• In food preparation areas or other areas
subject to oil smoke.
• Near air conditioning equipment, on a
heated carpet, in areas exposed to direct
sunlight, inside of a vehicle parked in
the sun, or any other area that subjects
the product to high temperatures.
Display Screen
• Never push on the display screen’s LCD
panel or subject it to strong impact. Doing
so can cause the LCD panel’s glass to
crack, creating the risk of personal injury.
• Should the LCD panel ever crack or
break, never touch the liquid inside of
the panel. LCD panel liquid can cause
skin irritation.
• Should LCD panel liquid ever get inside
your mouth, immediately wash out your
mouth with water and contact your
physician.
• Should LCD panel liquid ever get into
your eyes or onto your skin, rinse with
clear water for at least 15 minutes, and
then contact a physician.
Sound Volume
Do not listen to music at very loud volumes
for long periods. Particular care concerning
this precaution is required when using
headphones. High volume settings can
damage your hearing.
Health Precaution
In extremely rare cases, exposure to strong
sudden light or flashing light can cause
momentary muscle spasms, loss of
consciousness, or other physical problems
with some individuals.
• If you suspect that you might be
susceptible to any condition such as this,
be sure to consult with your physician
before using this product.
• Use this product in an area that is well
illuminated.
E-4
• Should you ever feel any symptoms
similar to those described above when
using this product, stop using it
immediately and contact your physician.
Heavy Objects
Never place heavy object on top of the
product.
Doing so can make the product top heavy,
causing the product to tip over or the object
to fall from it, creating the risk of personal
injury.
Correct Stand* Assembly
An incorrectly assembled stand can tip over,
causing the product to fall and creating the
risk of personal injury.
Make sure you assemble the stand correctly,
following the assembly instructions that
come with it. Make sure you mount the
product on the stand correctly.
* Stand is available as an option.
IMPORTANT!
When using batteries, be sure to replace them or shift to
one of the alternate power sources whenever you notice
any of the following symptoms.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Dim power supply indicator
Instrument does not turn on
Dim, difficult to read display
Abnormally low speaker/headphone volume
Distortion of sound output
Occasional interruption of sound when playing at high
volumes
Sudden power failure when playing at high volumes
Dimming of the display when playing at high volume
Continued sound output even after you release a key
A totally different tone may sound
Abnormal rhythm pattern and demo tune play
Abnormally low microphone volume
Distortion of microphone input
Dim power supply indicator when a microphone is used
Sudden power failure when using the microphone
Dimming of keyboard lights when notes sound
Loss of power, sound distortion, or low volume when
playing from a connected computer
Main Features
❐ 264 tones
A wide selection of tones includes stereo piano and synthesized sounds, drum sets, and much more.
Other features include digital effects that control the acoustical characteristic of tones.
❐ PIANO BANK button
The touch of a button takes you directly to piano tones and piano lessons.
❐ 3-Step Lesson System
The 3-Step Lesson System lets you practice at your own pace. The keyboard automatically grades your performances, so you can
trace your progress as you improve.
• 3-Step Lesson System: Use any of the keyboard’s built-in tunes and SMF data from a memory card to learn to play as the
keyboard keys light to teach you the correct notes. First practice the timing of the notes. Next, play along at your own pace.
Soon you will be ready for step three, where you play along at normal speed.
* Note that key lights may be difficult to see under direct sunlight or under other very bright lighting.
• Evaluation System: The keyboard can be configured to rate your performances during Step 3 lesson by assigning points.
❐ 100 built-in tunes, including piano pieces
Built-in tunes are divided into two groups: a Song Bank of 65 tunes with Auto Accompaniment, and a Piano Bank of 35 piano
tunes. You can simply enjoy listening to the built-in tunes, or eliminate either hand part of a tune, and then play along on the
keyboard.
❐ 120 rhythms
A selection of rhythms cover rock, pops, jazz and just about any other musical style imaginable.
❐ Auto Accompaniment
Simply play a chord and the corresponding rhythm, bass, and chord parts play along automatically.
❐ Musical Information System
A big LCD screen graphically shows you fingerings and notes, making keyboard play more informative and enjoyable than ever
before.
❐ Storing and Playing Back Tune Data You Transferred from Your Computer
You can connect your keyboard to a computer, use special CASIO conversion software to convert SMF data you purchase or
create to CASIO format, and then transfer it to the keyboard.
❐ Memory Card Slot
You can load a card with a standard MIDI file (SMF) and play it back on the keyboard.
E-5
Contents
Safety Precautions .................... E-1
Main Features ............................ E-5
Playing a Built-in Tune............ E-19
To play back a Song Bank tune ............. E-19
To play back a Piano Bank tune ............. E-20
General Guide ............................ E-8
Musical Information System ................... E-20
Attaching the Score Stand ..................... E-10
Adjusting the Tempo ............................... E-20
To pause playback ................................. E-21
Quick Reference .......................E-11
To play the keyboard .............................. E-11
Power Supply .......................... E-12
Using batteries ....................................... E-12
Using the AC Adaptor ............................. E-13
Auto Power Off ....................................... E-13
Power On Alert ....................................... E-14
To fast reverse ....................................... E-21
To fast forward ....................................... E-21
Looping a Musical Phrase ...................... E-21
To change the melody tone .................... E-22
To play all tunes in succession ............... E-22
Using the PIANO BANK Button ............. E-22
Using the SMF Data on the
Bundled CD-ROM .................................. E-22
Memory Contents ................................... E-14
Connections ............................ E-14
3-Step Lesson .......................... E-23
Evaluation Mode .................................... E-24
Phones/Output Jack ............................... E-14
USB port ................................................ E-15
Using the Lesson Functions and
Evaluation Mode .................................... E-25
Sustain/Assignable Jack ........................ E-15
Step 1 – Master the timing. .................... E-25
Microphone Jack .................................... E-15
Step 2 – Master the notes. ..................... E-25
Accessories and Options ....................... E-15
Step 3 – Play at normal speed. .............. E-26
Basic Operations ..................... E-16
Voice Fingering Guide ............................ E-27
To play the keyboard .............................. E-16
Selecting a Tone..................................... E-16
Using Tone Effects ................................. E-17
Turning the Key Light System
On and Off .............................................. E-17
Using the Microphone Jack .................... E-17
E-6
Using the Metronome ............................. E-27
Contents
Auto Accompaniment ............. E-28
Selecting a Rhythm ................................ E-28
Playing a Rhythm ................................... E-29
Using Auto Accompaniment ................... E-29
Troubleshooting ...................... E-44
Specifications .......................... E-46
Operating Precautions ............ E-47
Using an Intro Pattern ............................ E-31
Using a Fill-in Pattern ............................. E-31
Using a Rhythm Variation ....................... E-31
Using a Fill-in Pattern with a Variation
Rhythm ................................................... E-32
Synchro Starting Accompaniment with
Rhythm Play ........................................... E-32
Appendix .................................... A-1
Tone List / Note Table ............................... A-1
Drum Assignment List .............................. A-4
FINGERED Chord Chart .......................... A-5
Rhythm List .............................................. A-6
Song List .................................................. A-7
Finishing with an Ending Pattern ........... E-32
Keyboard Settings .................. E-33
MIDI messages that can be sent
and received using the USB port
Using Touch Response
(LK-215 Only) ......................................... E-33
Adjusting Accompaniment and
Song Bank Volume ................................ E-33
Transposing the Keyboard ..................... E-34
Tuning the Keyboard .............................. E-34
Connection to a Computer ..... E-35
Connecting to a Computer ..................... E-35
Expanding the Selections in the
Song Bank Tunes ................................... E-36
General MIDI Tone ................................. E-37
Changing the Settings ............................ E-37
Using a Memory Card ............. E-39
Getting Ready ........................................ E-40
Reading a Memory Card ........................ E-41
Memory Card Error Messages ............... E-42
Company and product names used in this
manual may be registered trademarks of
others.
E-7
General Guide
1
I J
K
2
3
8
9
4
0
L
5
A
M
B
N
6
LK-215
7
C D
E
F
P
O
5
G
*1 *2 *3
H
K
Q
R
T
E-8
U
S
V
W
X
Y
Z [
\
General Guide
NOTE
• Illustrations in this User’s Guide shows the LK-210.
1 MIC VOLUME slider
I Percussion instrument list
2 Power indicator
J CHORD root names
3 POWER/MODE switch
K Speaker
4 MAIN VOLUME slider
L RHYTHM list
5 <LK-210>
FUNCTION button
M TONE list
<LK-215>
TOUCH RESPONSE/FUNCTION button
6 REVERB/CHORUS button
7 KEY LIGHT button
● SONG/PIANO BANK/RHYTHM CONTROLLER
8 REPEAT button, INTRO button
9 REW button, NORMAL/FILL-IN button
0 FF button, VARIATION/FILL-IN button
A PAUSE button, SYNCHRO/ENDING button
B PLAY/STOP button, START/STOP button
C Rhythm controller indicator
D Song/Piano Bank controller indicator
E TEMPO buttons
F SONG BANK button
G PIANO BANK button
H CARD button
N SONG BANK list
O Display
P PIANO BANK list
Q Voice 1 to 5 list
R TONE button
S RHYTHM button
T DATA ACCESS lamp
● 3-STEP LESSON
U STEP 1 button
V STEP 2 button
W STEP 3 button
X SCORING button
Y LEFT button
Z RIGHT button
[ METRONOME button
\ SPEAK button
Controller Indicators
Song/Piano Bank controller indicator
Pressing the SONG BANK or PIANO BANK button causes the Song/Piano Bank controller indicator to light. This indicates that
buttons 8 through B are currently functioning as playback control buttons.
Rhythm controller indicator
Pressing the RHYTHM button to enter the Rhythm Mode causes the Rhythm controller indicator to light. This indicates that
buttons 8 through B are currently functioning as rhythm control buttons.
NOTE
• Display examples shown in this User’s Guide are intended for illustrative purposes only. The actual text and values that
appear on the display may differ from the examples shown in this User’s Guide.
• Viewing a liquid crystal display screen from an angle can change the appearance of display contrast. The display contrast of
this keyboard is set to allow easy viewing for a person seated on a chair in front of the keyboard. Note that display contrast
is fixed, and cannot be adjusted.
E-9
General Guide
*1 Attaching the Score Stand
Insert both ends of the music stand provided
with the keyboard into the two holes on the
top surface.
*2
]
^
] [+]/[–] buttons
^ Number buttons
• Negative values cannot be
input using the number
buttons. Use [+] (increase)
and [–] (decrease) instead.
• For input of numbers to
change a displayed number
or setting.
*3
a
a SD CARD SLOT
Rear Panel
b
b USB port
c
d
e
c SUSTAIN/ASSIGNABLE JACK
d DC 9V jack
e PHONES/OUTPUT jack
E-10
f
f MIC IN jack
Quick Reference
POWER/MODE
SONG BANK
PIANO BANK
Power indicator
Number buttons
STEP2
STEP1
PLAY/STOP
This section provides a quick overview of keyboard operation
using steps one and two of the 3-step lesson feature.
3
To play the keyboard
1
Find the tune you want to play in the SONG BANK
List, and then use the number buttons to input its
two-digit number.
• See page A-7 for the SONG BANK List.
Example: To select “54 ALOHA OE”, input 5 and then 4.
Set the POWER/MODE switch to NORMAL.
A l oha Oe
• This causes the power indicator to light.
Lit
4
Press the STEP 1 button or STEP 2 button.
• The keyboard sounds a count beat and waits for you
to play something on the keyboard. The keys that you
need to press first flash.
2
Press the SONG BANK button.
5
Play the melody along with the selected tune’s
accompaniment.
• Play in accordance with the fingerings, notes, and
dynamic marks that appear on the display.
Note pitch Fingering
Indicator appears
A l oha Oe
E-11
Quick Reference
If you selected lesson Step 1
• Play the notes on the keyboard.
• Accompaniment (left-hand part) plays in time with
the notes.
• With Step 1, the correct melody note is played no
matter which keyboard key you press.
Power Supply
This keyboard can be powered by current from a standard
household wall outlet (using the specified AC adaptor) or by
batteries. Always make sure you turn the keyboard off
whenever you are not using it.
Using batteries
Always make sure you turn off the keyboard before loading
or replacing batteries.
To load batteries
If you selected lesson Step 2
• Play the correct notes on the keyboard.
1
2
Remove the battery compartment cover.
Load 6 AA-size batteries into the battery
compartment.
• Make sure that the positive (+) and negative (–) ends
are facing correctly.
• Press the keyboard key that lights. Note that with a
Piano Bank tune, the keyboard key light turns off as
soon as you press the key.
• The keyboard key for the next note you will need to
play flashes.
• Accompaniment (left-hand part) plays in time with
the notes, as long as you press the correct keyboard
keys.
6
To stop play at any time, press the PLAY/STOP
button.
To play an Etude or Concert Piece tune
1
When you get to step 2 of the above procedure,
press the PIANO BANK button in place of the
SONG BANK button.
3
Insert the tabs on the battery compartment cover
into the holes provided and close the cover.
NOTE
• The keyboard may not function correctly if you load or
replace batteries with power turned on. If this happens,
turning the keyboard off and then back on again should
return functions back to normal.
Important Battery Information
Indicator appears
2
Find the tune you want to play in the PIANO BANK
List, and then use the number buttons to input its
two-digit number.
• See page A-7 for the PIANO BANK List.
3
Next, continue from step 4 of the above procedure.
E-12
■ The following shows the approximate battery life.
Manganese batteries ............................... 1 hour
Alkaline batteries .................................... 4 hours
The above value is standard battery life at normal
temperature, with the keyboard volume at medium
setting. Temperature extremes or playing at very loud
volume settings can shorten battery life.
Power Supply
WARNING
Misuse of batteries can cause them to leak, resulting in
damage to nearby objects, or to explode, creating the risk of
fire and personal injury. Always make sure you observe the
following precautions.
• Never try to take batteries apart or allow them to
become shorted.
• Never expose batteries to heat or dispose of them by
incineration.
• Never mix old batteries with new ones.
• Never mix batteries of different types.
• Do not charge the batteries.
• Make sure the positive (+) and negative (–) ends of
the batteries are facing correctly.
CAUTION
Misuse of batteries can cause them to leak resulting in
damage to nearby objects, or to explode, creating the risk of
fire and personal injury. Always make sure you observe the
following precautions.
• Use only batteries that are specified for use with this
product.
• Remove batteries from the product if you do not plan
to use it for a long time.
Note the following important precautions to avoid damage
to the power cord.
●During Use
• Never pull on the cord with excessive force.
• Never repeatedly pull on the cord.
• Never twist the cord at the base of the plug or connector.
• The power cord should not be stretched tight while it is
in use.
●During Movement
• Before moving the keyboard, be sure to unplug the AC
adaptor from the power outlet.
●During Storage
• Loop and bundle the power cord, but never wind it
around the AC adaptor.
IMPORTANT!
• Make sure that the keyboard is turned off before
connecting or disconnecting the AC adaptor.
• Using the AC adaptor for a long time can cause it to
become warm to the touch. This is normal and does not
indicate malfunction.
Auto Power Off
NOTE
• Do not use an oxyride battery or any other type of nickelbased primary battery with this product.
Incompatibility between such batteries and product
specifications can result in shorter battery life and
product malfunction.
When you are using battery power, keyboard power turns
off automatically whenever you leave it on without
performing any operation for about 6 minutes. When this
happens, adjust the POWER/MODE switch to turn power
back on.
NOTE
• Auto Power Off is disabled (it does not function) when
you are using the AC adaptor to power the keyboard.
Using the AC Adaptor
Make sure that you use only the AC adaptor specified for
this keyboard.
To disable Auto Power Off
Specified AC Adaptor: AD-5
Hold down the TONE button while turning on the keyboard
to disable Auto Power Off.
[Rear Panel]
NOTE
DC 9V jack
AC adaptor AD-5
• When this function is turned off, the keyboard does not
turn off automatically no matter how long it is left with
no operation being performed.
• Auto Power Off is enabled again when you manually
turn off power and then turn it back on again.
AC outlet
E-13
Power Supply
Connections
Power On Alert
Phones/Output Jack
Keyboard keys light to alert you if you leave power on and
do not perform any operation for about 6 minutes. Note that
keys light only, and no sound is produced. When this
happens, press any button or keyboard key to clear the power
on alert.
PREPARATION
• Before connecting headphones or other external
equipment, be sure to first turn down the volume settings
of the keyboard and the connected equipment. You can
then adjust volume to the desired level after connections
are complete.
NOTE
• Power on alert operates only when you are powering
the keyboard using the AC adaptor. It does not operate
when you are using batteries.
[Rear Panel]
1
PHONES/OUTPUT jack
Audio connection
Stereo standard plug
To turn off power on alert
White
1
2
3
2
Press the FUNCTION (LK-215: TOUCH RESPONSE/
FUNCTION) button a number of times until “DEMO
2” appears on the display.
Use the [+] and [–] buttons to change the setting to
“oFF”.
Press the FUNCTION (LK-215: TOUCH RESPONSE/
FUNCTION) button to clear the setting screen from
the display.
Memory Contents
Even when the keyboard is turned off, user song data saved
as Song Bank tunes are retained as long as power is being
supplied to the keyboard.
Unplugging the AC adaptor when batteries are not loaded
or when batteries are dead cuts off the power supply. This
causes all keyboard settings to be initialized to the initial
factory defaults, and clears all data stored in memory.
Power Requirements
Note the following precautions whenever you want to ensure
that current keyboard settings and memory contents are not
lost.
• Make sure the keyboard is being supplied power through
the AC adaptor before replacing its batteries.
• Before unplugging the AC adaptor, make sure that fresh
batteries are loaded in the keyboard.
Make sure that keyboard power is turned off before replacing
batteries or unplugging the AC adaptor.
Red
PIN plug
LEFT RIGHT
AUX IN or similar terminal
of audio amplifier
3
Keyboard amp,
guitar amp, etc.
Connecting Headphones (Figure 1)
Connecting headphones cuts off output from the keyboard’s
built-in speakers, so you can play even late at night without
disturbing anyone.
Audio Equipment (Figure 2)
Connect the keyboard to an audio equipment using a
commercially available connecting cord with a standard plug
on one end and two PIN plugs on the other end. Note that
the standard plug you connect to the keyboard must be a
stereo plug, otherwise you will be able to output only one of
stereo channels. In this configuration, you normally set the
input selector of the audio equipment to the terminal (usually
marked AUX IN or something similar) where the cord from
the keyboard is connected. See the user documentation that
comes with your audio equipment for full details.
Musical Instrument Amplifier (Figure 3)
Use a commercially available connecting cord to connect the
keyboard to a musical instrument amplifier.
NOTE
• Be sure to use a connecting cord that has a stereo
standard plug on the end you connect to the keyboard,
and a connector that provides dual channel (left and
right) input to the amplifier to which you are connecting.
The wrong type of connector at either end can cause
one of the stereo channels to be lost.
When connected to a musical instrument amplifier, set the
volume of the keyboard to a relatively low level and make
output volume adjustments using the amplifier’s controls.
E-14
Connections
Connection Example
Microphone Jack
PIN plug (red)
PIN jack
To keyboard’s
PHONES/OUTPUT
jack
Stereo standard plug
INPUT 1
INPUT 2
PIN plug (white)
Standard plug
Keyboard or
guitar amp
You can connect a commercially available microphone to the
microphone jack and sing along with notes played on the
keyboard. For details, see “Using the Microphone Jack” on
page E-17.
Accessories and Options
USB port
You can also connect the keyboard to a computer. See
“Connecting to a Computer” on page E-35 for details.
Use only the accessories and options specified for this
keyboard. Use of non-authorized items creates the danger of
fire, electrical shock, and personal injury.
Sustain/Assignable Jack
You can connect an optional sustain pedal (SP-3 or SP-20) to
the SUSTAIN/ASSIGNABLE JACK to enable the capabilities
described below.
For details on how to select the pedal function you want, see
“SUSTAIN/ASSIGNABLE JACK (Default: SUS)” on page
E-38.
SUSTAIN/ASSIGNABLE JACK
SP-20
Sustain Pedal
• With piano tones, depressing the pedal causes notes to
linger, much like a piano’s damper pedal.
• With organ tones, depressing the pedal causes notes to
continue to sound until the pedal is released.
Sostenuto Pedal
• As with the sustain pedal function described above,
depressing the sostenuto pedal causes notes to be sustained.
• This difference between a sostenuto pedal and sustain pedal
is the timing. With a sostenuto pedal, you press the keys
and then depress the pedal before you release the keys.
• Only the notes that are sounding when the pedal is
depressed are sustained.
Soft Pedal
Depressing the pedal softens the sound of the notes being
played.
Rhythm Start/Stop Pedal
In this case, the pedal performs the same functions as the
START/STOP button.
E-15
Basic Operations
MAIN VOLUME
POWER/MODE
MIC VOLUME
REVERB/CHORUS
[+] / [–]
KEY LIGHT
This section provides information on performing basic
keyboard operations.
To play the keyboard
1
2
3
Use the MAIN VOLUME slider to set the volume
to a relatively low level.
Play something on the keyboard.
This keyboard comes with 264 built-in tones. Use the
following procedure to select the tone you want.
To select a tone
Find the tone you want to use in the TONE List and
note its tone number.
• Not all of the available tones are shown on the tone
list printed on the keyboard console. For a complete
list, see the “Tone List” on page A-1.
2
Number buttons
3
Use the number buttons to input the three-digit tone
number of the tone you want to select.
Example: To select “049 ACOUSTIC BASS”, input 0, 4
and then 9.
Aco . Ba s s
Set the POWER/MODE switch to NORMAL.
Selecting a Tone
1
Press the TONE button.
Indicator appears
E-16
TONE
NOTE
• Always input all three digits for the tone number,
including leading zeros (if any). If you input one or two
digits and stop, the display will automatically clear your
input after a few seconds.
• You can also increment the displayed tone number by
pressing [+] and decrement it by pressing [–].
• When one of the drum sets is selected (tone numbers
256 through 263), each keyboard key is assigned a
different percussion sound. See page A-4 for details.
Polyphony
The term polyphony refers to the maximum number of notes
you can play at the same time. The keyboard has 32-note
polyphony, which includes the notes you play as well as the
rhythms and auto-accompaniment patterns that are played
by the keyboard. This means that when a rhythm or autoaccompaniment pattern is being played by the keyboard, the
number of notes (polyphony) available for keyboard play is
reduced. Also note that some of the tones offer only 16-note
polyphony.
• When rhythm or auto accompaniment is playing, the
number of sounds simultaneously played is reduced.
Basic Operations
Using Tone Effects
Using the Microphone Jack
Reverb: Makes your notes resonate
Chorus: Adds more breadth to your notes
Connecting a commercially available microphone* to the MIC
IN jack makes it possible to sing along with the keyboard’s
built-in tunes or with SMF playback. When connecting a
microphone, be sure to first adjust the MIC VOLUME to a
relatively low setting, and then adjust to the level you want
after connecting.
* If a microphone was included with your keyboard, use that
microphone. If your keyboard did not come with a
microphone, use a commercially available microphone that
satisfies the stipulated specifications.
1
Press the REVERB/CHORUS button to cycle through
the effect settings as shown below.
• You can find out the current effect setting by looking
at the REVERB and CHORUS indicators.
On
On
On
Off
1
Reverb on
2
Chorus on
Both on
Both off
After turning on the effect you want, use the number
buttons or the [+]/[–] buttons to select the effect
type you want.
• Note that you need to select an effect type with the
number buttons or the [+]/[–] buttons within a few
seconds after turning on an effect. If you don’t, the
display will exit the setting screen.
2
3
Set the MIC VOLUME slider setting so it is on the
“MIN” side.
Turn on the microphone’s on/off switch.
Use the MIC VOLUME slider to adjust microphone
volume to the level you want.
[Rear Panel]
Microphone on/off switch
Microphone
Effect List
Reverb
0: Room 1
1: Room 2
2: Hall 1
3: Hall 2
Chorus
0: Chorus 1
1: Chorus 2
2: Chorus 3
3: Chorus 4
Turning the Key Light System On
and Off
Use the following procedure when you want to turn the key
light system on or off.
To turn the key light system on and off
1
MIC VOLUME slider
IMPORTANT!
• Be sure to use the microphone’s on/off switch to turn off
the microphone and to disconnect the microphone from
the keyboard whenever you are not using it.
Press the KEY LIGHT button to toggle the key light
system on and off.
• The KEY LIGHT indicator disappears when the key
light system is turned off.
NOTE
• The key light system is turned on automatically whenever
you turn on keyboard power.
E-17
Basic Operations
Recommended Microphone Type
• Dynamic microphone (standard plug)
IMPORTANT!
• Be sure to disconnect the microphone from the keyboard
whenever you are not using it.
Howling (Feedback Noise)
Any of the following conditions can cause howling (feedback
noise).
• Covering the head of the microphone with your hand
• Positioning the microphone too near to a speaker
Should howling occur, try grasping the microphone further
away from the head, and move away from any nearby
speaker.
Static Noise
Fluorescent lighting can cause static noise in the microphone
signal. When this happens, move away from the lighting you
suspect may be causing the static.
E-18
Playing a Built-in Tune
REW
REPEAT
TONE
PIANO BANK
SONG BANK
[+] / [–]
Number buttons
FF
PAUSE
TEMPO
PLAY/STOP
Your keyboard comes with a total of built-in 100 tunes. You
can play back built-in tunes for your own listening pleasure,
or you can use them for practice and even sing-along. Builtin tunes are divided between the two groups described below.
3
Use the number buttons to input the tune’s twodigit number.
Example: To select “54 ALOHA OE”, input 5 and then 4.
Song number
• Song Bank Group: 65 tunes
The tunes in this group are Auto Accompaniment tunes.
• Piano Bank Group: 35 tunes
The piano tunes in this group are subdivided between 10
etudes and 25 concert pieces.
In addition to the built-in tunes, you can also play back the
tunes you download over the Internet (page E-36).
To play back a Song Bank tune
PREPARATION
Song name
A l oha Oe
NOTE
• Tune Number 00 is the initial default Song Bank tune
setting whenever you turn on keyboard power.
• You can also increment the displayed tune number by
pressing [+] and decrement is by pressing [–].
• Adjust the main volume (page E-16).
4
1
Press the PLAY/STOP button to start play of the tune.
Staff display
Find the tune you want to play in the SONG BANK
List, and note its number.
A l oha Oe
• See page A-7 for the SONG BANK List.
2
Press the SONG BANK button to enter the Song
Bank Mode.
Fingering
Chord name
5
Indicator appears
Press the PLAY/STOP button to stop playback of
the Song Bank tune.
• The tune you select continues to play until you stop
it.
E-19
Playing a Built-in Tune
To play back a Piano Bank tune
Musical Information System
1
When the keyboard is playing one of its built-in tunes, the
display shows a variety of information about the tune.
Find the tune you want to play in the PIANO BANK
List, and note its number.
• See page A-7 for the PIANO BANK List.
2
Example: Display during Song Bank play
Staff display
Press the PIANO BANK button to specify the Piano
Bank group.
A l oha Oe
Fingering
Chord name
Indicator appears
NOTE
NOTE
• Pressing the PIANO BANK button changes the tone to
STEREO PIANO (Tone Number 000).
3
Use the number buttons to input the two-digit tune
number you looked up in step 1.
Example: To select tune number 07 (ODE TO JOY), input
0 and then 7.
Od e T o J o y
NOTE
• Chord names are not displayed for Piano Bank tunes.
Adjusting the Tempo
The tempo (beats per minute) can be set to a value in the
range of 30 to 255. The tempo value you set is used for Song
Bank, Piano Bank, 3-step lesson, and Auto Accompaniment
chord play, as well as playback from memory card and
metronome operation.
To set the tempo
1
Use the TEMPO buttons to set the tempo.
: Increases the tempo value.
: Decreases the tempo value.
• Tune Number 00 is the initial default Piano Bank tune
setting whenever you turn on keyboard power.
• You can also change the displayed tune number using
the [+] and [–] buttons.
4
5
Flash
Press the PLAY/STOP button to start playback.
To stop playback, press the PLAY/STOP button.
• The tune you select continues to play until you stop
it.
E-20
Tempo value
NOTE
• While the tempo value is flashing, you can also use the
number buttons or [+] and [–] to input a three-digit value.
Note that you must input leading zeros, so 90 is input
as 090.
• Pressing both the and TEMPO buttons at the same
time automatically returns the currently selected rhythm
to its default tempo.
• Piano Bank tunes have tempo changes part way through
in order to produce specific musical effects.
Playing a Built-in Tune
To pause playback
To fast forward
1
1
2
Press the PAUSE button while a tune is playing to
pause it.
While a tune is playing or paused, hold down the
FF button to skip forward at high speed.
• The fast forward operation skips forward one measure
at a time.
• The measure and beat numbers on the display change
while the fast forward operation is being performed.
Pressing the PAUSE button again resumes play from
the point where it was paused.
To fast reverse
1
While a tune is playing or paused, hold down the
REW button to skip in a reverse direction at high
speed.
• The fast reverse operation skips back one measure at
a time.
• The measure and beat numbers on the display change
while the fast reverse operation is being performed.
Measure number
2
Beat number
Releasing the FF button starts song playback from
the measure whose number is shown on the display.
NOTE
• Fast forward does not work while tune play is stopped.
Measure number
2
Beat number
Releasing the REW button starts song playback from
the measure whose number is shown on the display.
Looping a Musical Phrase
You can select one or more measures and “loop” them, which
means that they play again and again until you stop playback.
1
NOTE
• Fast reverse does not work while tune play is stopped.
• Certain playback conditions can cause it to take some
time before fast reverse starts after you press the REW
button.
While the tune is playing, press the REPEAT button
while the measure you want to start from is playing.
• This causes the repeat indicator to flash on the display,
and displays the measure number of the start
measure.
2
When playback is within the measure you want to
specify as the end of the loop, press the REPEAT
button again.
• This displays the measure number of the end measure,
and starts repeat play of the loop.
• To cancel repeat play of a loop, press the REPEAT
button again so the repeat indicator is not displayed.
E-21
Playing a Built-in Tune
To change the melody tone
Using the PIANO BANK Button
1
Pressing the PIANO BANK button provides instant access to
piano tones and piano tune selection.
Press the TONE button.
Initial Piano Bank Setting
Tone: 000 STEREO PIANO
To use the piano bank
Indicator appears
2
1
Press the PIANO BANK button.
Find the tone you want in the TONE List, and then
use the number buttons to input its three-digit
number.
Example: To select “057 VIOLIN”, input 0, then 5, then
7.
• You can select any one of the keyboard’s 264 built-in
tones.
Viol in
NOTE
• You can also use the [+] and [–] buttons to change the
melody tones.
• For two-hand tunes (Piano Bank tunes), the same tone
is applied for both the left and right hand parts.
• Specifying the tune number for the same tune that is
currently selected returns the melody tone to the default
setting for that tune.
To play all tunes in succession
1
Press the SONG BANK button and PIANO BANK
button at the same time.
• Playback starts from Song Bank tune number 00,
followed in sequence by Piano Bank tunes.
2
To stop tune play, press the PLAY/STOP button.
NOTE
• While a tune is playing, you can use the number buttons
or [+] and [–] to change to another tune.
• You can play along with the tunes on the keyboard.
E-22
Indicator appears
2
Now try playing something on the keyboard.
• The notes you play sound with a piano tone.
3
If you want to playback the built-in tune, press the
PLAY/STOP button.
• This causes the currently selected tune to play in an
endless loop.
• To stop playback, press the PLAY/STOP button again.
Using the SMF Data on the
Bundled CD-ROM
The CD-ROM that comes bundled with the keyboard contains
demos as well as 25 tunes (SMF data) that you can use for
step lessons. It also contains PDF format files that contain
the
sheet
music
of
the
included
tunes.
For a full list of the tunes that are included, open the “List.txt”
file located inside the “MusicDataFolder” on the CD-ROM.
For each tune, “List.txt” shows the tune name, SMF file name,
PDF file name of the music score, and the type of lesson* for
which the tune can be used.
* A tune marked with an asterisk (*) can be used for a bothhand lesson. A tune that is not marked with an asterisk can
be used for a right-hand lesson.
NOTE
• You can load SMF data from the CD-ROM to the
keyboard using an SD memory card (page E-41) or using
the SMF converter tool (page E-36).
• You will need to have Adobe Reader or Acrobat Reader
installed on your computer in order to view the contents
of a music score PDF file. If neither of these applications
is installed on your computer, see “Installing Adobe
Reader (Acrobat Reader**)” on page E-35.
3-Step Lesson
PIANO BANK
SONG BANK
[+] / [–]
Number buttons
METRONOME
SPEAK
TEMPO
PLAY/STOP
With the 3-Step Lesson System, you can practice built-in tunes
and SMF data from a memory card, and even plot your
progress according to the evaluation points the keyboard
awards you.
* See “Using a Memory Card” on page E-39 for information
about using the SMF data from a memory card for playback.
Lesson Progress
Step 1
Step 2
Step 3
Evaluation
Targeted Practice
3-Step Lesson
The 3-step lesson feature takes you through the three distinct
steps described below to help you learn to play tunes on the
keyboard.
Step 1 – Master the timing.
In this step, pressing any key on the keyboard plays the
correct note, so you can concentrate on getting the timing
right without worrying about playing the right note.
Accompaniment (left-hand part) waits until you press a key
before proceeding to the next phrase.
Step 2 – Master the notes.
In this step, you use the display to learn which fingers you
should use and how loud or soft to play, and the key light
system to learn which keyboard keys to press.
Accompaniment (left-hand part) waits until your play the
correct note, so you can learn at your own pace.
STEP 1
STEP 2
STEP 3
RIGHT
LEFT
SCORING
Lesson Parts
3-Step Lesson lets you practice the right-hand part, left-hand
part, or the parts for both hands.
Key Lighting System Operation and
Display Contents During 3-step
Lesson Play
Whenever you select an Auto Accompaniment tune for 3-step
lesson play, the key lighting system shows you which keys
to press, while the display shows you the notes and their
fingerings.
Note Pitch
The keyboard key that should be pressed lights, while the
actual pitch of the note appears in the display’s staff notation
area. The fingers you should use to play the notes are also
shown on the display.
Note Length
Keyboard keys stay lit for as long as the note should be
played. The staff notation and fingerings also remain on the
display for the length of the note.
Next Note
The keyboard key for the next note to be played flashes, while
a number appears on the display near the finger you should
use to play the next note.
Series of Same Pitch Notes
The keyboard key light turns off momentarily between the
notes and lights again for each successive note. The staff
notation and fingerings also turn off and back on again.
Step 3 – Play at normal speed.
This is where you enjoy actually playing the tunes you learn
using Step 1 and Step 2. The key light system still shows you
which keyboard keys to press, but accompaniment proceeds
at normal speed regardless of whether or not you play the
correct notes.
E-23
3-Step Lesson
Example: When play requires pressing keys with fingers 3, 2,
and then 1
1st Note
2nd Note
3rd Note
Next note
Current note
Flash Lit
Flash Lit
Lit
Flash
Key light
Evaluation Mode
The keyboard’s Evaluation Mode awards points to your
performances during Step 3 of the 3-Step Lesson. A perfect
score is 100. Also, the Evaluation Mode provides comments
about your play on the monitor screen.
Evaluation Mode Display
Level Indicator (9 Levels): This indicator shows the evaluation
of your current performance at a glance. The more segments
that appear, the higher your points.
Example: 50 points
NOTE
• Note length is not indicated when you are using twohand tunes with 3-step lesson Steps 1 and 2. As soon
as you press a lit key, it goes out and the next key to be
played starts to flash.
• Note length is indicated by the key light system when
you use a two-hand tune with Step 3. In this case, the
next key to be pressed does not flash when you press a
lit key and the next finger number does not appear on
the display. Only the current finger number is shown.
Timing Indicator: In the Evaluation Mode, the configuration
of the star changes with each note to let
you know how your timing is. The more
stars, the better your timing.
Evaluation Results
3-step Lesson Tempo Setting
Use the procedure under “Adjusting the Tempo” on page
E-20 to adjust the tempo for 3-step lesson play.
Dynamic Marks
The dynamic marks listed below appear on the display while
tunes are playing. Adjust the pressure you apply to the
keyboard in accordance with the mark that is on the display.
pianissimo: Very soft
piano: Soft
mezzo piano: Moderately soft
mezzo forte: Moderately loud
forte: Loud
fortissimo: Very loud
cresc. (<) crescendo: Gradually louder
decresc. (>) decrescendo: Gradually softer
E-24
After you finish playing, the keyboard calculates an
evaluation of your total performance, from beginning to end,
and displays your total score on the monitor screen. The
greater the score, the higher your evaluation is.
Evaluation Rank Display Messages
Display Message
“Bravo!”
“Great!”
“Not bad!”
“Again!”
<High>
Evaluation Ranges
<Low>
“****” : indicates that the Evaluation Mode was exited
before an evaluation result could be obtained.
NOTE
• If you press the PLAY/STOP button and interrupt the
Evaluation Mode part way through, the monitor screen
shows the evaluation points you have accumulated up
to that point. In this case, the keyboard does not display
a message.
3-Step Lesson
Using the Lesson Functions and
Evaluation Mode
4
Press any keyboard keys to play the notes.
Perform the following steps to master your favorite tunes.
Step 1 – Master the timing.
1
2
• The key for the next note to be played flashes while
the keyboard waits for you to play it. When you press
any key to play the note, the key remains lit as the
note plays.
• Accompaniment (left-hand part) waits until you press
any key to play a note.
• If you accidentally press more than one key in
succession, accompaniment is played for the
corresponding number of notes.
• Pressing more than one key at the same time counts
as a single note. Pressing a key while another key is
held down is counted as two notes.
Select the tune you want to use.
Press the RIGHT button or the LEFT button to
specify the part you want to practice.
• If you want to practice both hands, press both buttons
at the same time.
• Indicators appear around the hand on the display
whose part is selected for practice.
5
To stop play at any time, press the PLAY/STOP
button.
Indicators
3
Press the STEP 1 button to start Step 1 play.
• After a count sounds, they keyboard stands by and
waits for you to play the first note of the tune.
• Voice fingering guide will use a simulated human
voice to call out fingering numbers during one-hand
part practice. See “Voice Fingering Guide” on page
E-27 for details.
Note pitch
Fingering
A l oha Oe
Step 2 – Master the notes.
1
2
Select the tune you want to use.
Press the RIGHT button or the LEFT button to
specify the part you want to practice.
• If you want to practice both hands, press both buttons
at the same time.
3
Press the STEP 2 button to start Step 2 play.
• After a count sounds, the keyboard stands by and
waits for you to play the first note of the tune.
• Voice fingering guide will use a simulated human
voice to call out fingering numbers during one-hand
part practice. See “Voice Fingering Guide” on page
E-27 for details.
Fingering
Indicator appears
A l oha Oe
Indicator appears
E-25
3-Step Lesson
4
Follow the key light system to press the correct
keyboard keys and play the notes.
• The key for the next note to be played flashes while
the keyboard waits for you to play it. When you press
any key to play the note, the key remains lit as the
note plays.
• If multiple keys light on the on-screen keyboard guide
when you are using a two-hand tune, it means that
you must press all of the keys that are lit.
5
To stop play at any time, press the PLAY/STOP
button.
4
5
To stop play at any time, press the PLAY/STOP
button.
Evaluation: Find out how the
keyboard evaluates your Step 3 play.
Use the SCORING button to check the evaluation of your
play in Step 3.
1
Press the SCORING button.
• This causes the SCORING indicator to appear on the
display.
• A count beat sounds and then evaluation mode starts.
Step 3 – Play at normal speed.
1
2
Follow the key light system to press the correct
keyboard keys and play the notes.
Select the tune you want to play.
Press the RIGHT button or the LEFT button to
specify the part you want to practice.
• If you want to practice both hands, press both buttons
at the same time.
3
Press the STEP 3 button to start Step 3 play.
• Accompaniment (left hand part) starts to play at
normal speed.
Indicator appears
2
Fingering
• To stop evaluation, press the PLAY/STOP button. This
displays only the points accumulated up to that point.
A l oha Oe
3
Indicator appears
Play in accordance with the guidance on the
monitor screen.
After you finished playing, your evaluation result
appears on the display.
• For information about evaluation ranks, see
“Evaluation Results” on page E-24.
• Pressing the SONG BANK button or PIANO BANK
button returns to the tune selection screen.
Bravo !
E-26
3-Step Lesson
Voice Fingering Guide
Using the Metronome
Voice fingering guide uses a simulated human voice to call
out fingering numbers during Step 1 and Step 2 one-hand
part practice. If you need to press a key with your thumb, for
example, voice fingering guide says, “One!” In the case of a
chord to be played with your thumb, middle and little finger,
voice fingering guide says, “One, three, five!”
Voice Fingering Guide calls out fingerings only when you do
not press the proper key when you should.
The metronome feature of this keyboard produces a bell
sound for the first beat of each measure, followed by click
sounds for each successive beat of the measure. It is the perfect
tool for practicing tunes without accompaniment (rhythm).
Voice Fingering Guide
One
Two
Three
Four
Five
:
:
:
:
:
To start the metronome
1
Thumb
Forefinger
Middle finger
Ring finger
Little finger
Press the METRONOME button to start sounding
the metronome.
• This causes “Beat” to appear on the display. Perform
step 2 within five seconds after “Beat” appears.
To turn voice fingering guide on or off
2
Press the SPEAK button to toggle voice fingering guide on
(voice fingering guide indicator displayed) and off (indicator
not displayed).
Use the number buttons or [+] and [–] to change
the number of beats per measure.
• You can specify 0, or a value from 2 to 6 as the number
of beats per measure.
Bea t
Indicator
appears
NOTE
• Note that Voice Fingering is disabled in the Evaluation
Mode.
• Exiting the Evaluation Mode automatically restores the
Voice Fingering setting that was in effect when you
entered the Evaluation Mode.
NOTE
• The bell (indicating the first beat of a measure) does not
sound while one beat per measure is specified. All beats
are indicated by a click sound. This setting lets you
practice with a steady beat, without worrying about how
many beats there are in each measure.
3
Use the TEMPO buttons to set the tempo.
• Press to increase the tempo (make if faster) or
decrease it (make it slower).
to
Flash
Tempo value
NOTE
• While the tempo value is flashing, you can also use the
number buttons or [+] and [–] to input a three-digit value.
Note that you must input leading zeros, so 90 is input
as 090.
• Pressing both the and TEMPO buttons at the same
time automatically returns the currently selected rhythm
or tune to its default tempo.
4
To turn off the metronome, press the METRONOME
button.
E-27
Auto Accompaniment
MAIN VOLUME
POWER/MODE
START/STOP
RHYTHM
[+] / [–]
Number buttons
INTRO
NORMAL/FILL-IN
SYNCHRO/ENDING
VARIATION/FILL-IN
This keyboard automatically plays bass and chord parts in
accordance with the chords you finger. The bass and chord
parts are played using sounds and tones that are
automatically selected to select the rhythm you are using.
All of this means that you get full, realistic accompaniments
for the melody notes you play with your right hand, creating
the mood of an one-person ensemble.
Selecting a Rhythm
This keyboard provides you with 120 exciting rhythms that
you can select using the following procedure.
To select a rhythm
1
Find the rhythm you want to use in the RHYTHM
List and note its rhythm number.
• Not all of the available rhythms are shown on the
rhythm list printed on the keyboard console. For a
complete list, see the “Rhythm List” on page A-6.
2
Press the RHYTHM button.
Pop 1
Indicator appears
3
Use the number buttons to input the three digit
rhythm number for the rhythm you want to select.
Example: To select “075 RHUMBA”, input 0, 7 and then 5.
Rh umb a
NOTE
• You can also increment the displayed rhythm number
by pressing [+] and decrement it by pressing [–].
• Some rhythms consist of chord accompaniments only,
without any drums or other percussion instruments. Such
rhythms do not sound unless CASIO CHORD or
FINGERED is selected as the accompaniment mode.
E-28
Auto Accompaniment
Playing a Rhythm
Use the following procedure to start and stop rhythm play.
3
To stop Auto Accompaniment play, press the START/
STOP button again.
NOTE
To play a rhythm
1
2
4
Set the POWER/MODE switch to NORMAL.
Press the START/STOP button to start play of the
currently selected rhythm.
To stop rhythm play, press the START/STOP button
again.
NOTE
• All of the keyboard keys are melody keys while the
POWER/MODE switch is set to NORMAL.
• If you press the SYNCHRO/ENDING button and then
the INTRO button in place of the START/STOP button
in step 2, accompaniment will start with an intro pattern
when you perform the operation in step 3. For details
about these buttons, see pages E-31 and E-32.
• If you press the SYNCHRO/ENDING button in place of
the START/STOP button in step 4, an ending pattern
will play before accompaniment play is ended. For details
about this button, see page E-32.
• You can adjust the accompaniment part volume level
independently of the main volume. For details, see
“Adjusting Accompaniment and Song Bank Volume” on
page E-33.
CASIO CHORD
Using Auto Accompaniment
The following procedure describes how to use the keyboard’s
Auto Accompaniment feature. Before starting, you should
first select the rhythm you want to use and set the tempo of
the rhythm to the value you want.
To use Auto Accompaniment
1
2
3
Set the POWER/MODE switch to CASIO CHORD
or FINGERED.
Press the START/STOP button to start play of the
currently selected rhythm.
Play a chord.
• The actual procedure you should use to play a chord
depends on the current POWER/MODE switch
position. Refer to the following pages for details on
chord play.
This method of chord play makes it possible for anyone to
easily play chords, regardless of previous musical knowledge
and experience. The following describes the CASIO CHORD
“Accompaniment keyboard” and “Melody keyboard”, and
tells you how to play CASIO CHORDs.
CASIO CHORD Accompaniment Keyboard and Melody
Keyboard
Accompaniment
keyboard
Melody keyboard
NOTE
• The accompaniment keyboard can be used for playing
chords only. No sound will be produced if you try playing
single melody notes on the accompaniment keyboard.
CASIO CHORD .......................... Page E-29
FINGERED ................................... Page E-30
Rh umb a
Chord name
E-29
Auto Accompaniment
Chord Types
CASIO CHORD accompaniment lets you play four types of
chords with minimal fingering.
Chord Types
Example
Major chords
Major chord names are marked above
the keys of the accompaniment
keyboard. Note that the chord
produced when you press an
accompaniment keyboard does not
change octave, regardless of which
key you use to play it.
C Major (C)
Minor chords (m)
To play a minor chord, keep the major
chord key depressed and press any
other accompaniment keyboard key
located to the right of the major chord
key.
C minor (Cm)
Seventh chords (7)
To play a seventh chord, keep the
major chord key depressed and press
any other two accompaniment
keyboard keys located to the right of
the major chord key.
C seventh (C7)
Minor seventh chords (m7)
To play a minor seventh chord, keep
the major chord key depressed and
press any other three accompaniment
keyboard keys located to the right of
the major chord key.
C minor seventh (Cm7)
CDE F GAB C DE F
FINGERED
FINGERED provides you with a total of 15 different chord
types. The following describes the FINGERED
“Accompaniment keyboard” and “Melody keyboard”, and
tells you how to play a C-root chord using FINGERED.
FINGERED Accompaniment Keyboard and Melody
Keyboard
Accompaniment
keyboard
Melody keyboard
CD E F G A B C D E F
NOTE
• The accompaniment keyboard can be used for playing
chords only. No sound will be produced if you try playing
single melody notes on the accompaniment keyboard.
CDE F GAB C DE F
CDE F GAB C DE F
NOTE
C
Cm
Cdim
Caug *1
Csus4
C7 *2
Cm7 *2
Cmaj7 *2
Cm7 5
C7 5 *1
C7sus4
Cadd9 *2
Cmadd9 *2
CmM7 *2
Cdim7 *1
• It makes no difference whether you press black or white
keys to the right of a major chord key when playing minor
and seventh chords.
See the FINGERED Chord Chart on page A-5 for details on
playing chords with other roots.
*1: Inverted fingerings cannot be used. The lowest note is
the root.
*2: The same chord can be played without pressing the 5th G.
E-30
Auto Accompaniment
NOTE
• Except for the chords specified in note*1 above, inverted
fingerings (i.e. playing E-G-C or G-C-E instead of C-EG) will produce the same chords as the standard
fingering.
• Except for the exception specified in note*2 above, all
of the keys that make up a chord must be pressed.
Failure to press even a single key will not play the desired
FINGERED chord.
Using an Intro Pattern
This keyboard lets you insert a short intro into a rhythm
pattern to make startup smoother and more natural.
The following procedure describes how to use the Intro
feature. Before starting, you should first select the rhythm
you want to use, and set the tempo.
Using a Fill-in Pattern
Fill-in patterns let you momentarily change the rhythm
pattern to add some interesting variation to your
performances.
The following procedure describes how to use the Fill-in
feature.
To insert a fill-in
1
2
Press the START/STOP button to start rhythm play.
Press the NORMAL/FILL-IN button to insert a fillin pattern for the rhythm you are using.
NOTE
• The fill-in pattern does not play if you press the
NORMAL/FILL-IN button while an intro pattern is playing.
To insert an intro
1
Press the INTRO button to start the selected rhythm
with an intro pattern.
• With the above setup, the intro pattern is played and
the auto accompaniment with intro pattern starts as
soon as you play chords on the accompaniment
keyboard.
NOTE
• The standard rhythm pattern starts to play after the intro
pattern is complete.
• Pressing the VARIATION/FILL-IN button while an intro
pattern is playing causes the variation pattern to sound
after the intro pattern is complete.
Using a Rhythm Variation
In addition to the standard rhythm pattern, you can also
switch to a secondary “variation” rhythm pattern for a bit of
variety.
To insert the variation rhythm pattern
1
2
Press the START/STOP button to start rhythm play.
Press the VARIATION/FILL-IN button to switch to
the variation pattern for the rhythm you are using.
NOTE
• To switch back to the standard rhythm pattern, press
the NORMAL/FILL-IN button.
E-31
Auto Accompaniment
Using a Fill-in Pattern with a
Variation Rhythm
You can also insert a fill-in pattern while a variation rhythm
pattern is playing.
To insert a fill-in into a rhythm variation
1
While a variation rhythm pattern is playing, press
the VARIATION/FILL-IN button to insert a fill-in
pattern for the variation rhythm you are using.
Synchro Starting Accompaniment
with Rhythm Play
You can set up the keyboard to start rhythm play at the same
time you play the accompaniment on the keyboard.
The following procedure describes how to use synchro start.
Before starting, you should first select the rhythm you want
to use, set the tempo, and use the POWER/MODE switch to
select the chord play method you want to use (NORMAL,
CASIO CHORD, FINGERED).
To use synchro start
1
Press the SYNCHRO/ENDING button to put the
keyboard into synchro start standby.
Flash
2
Playing a chord and the rhythm pattern starts to
play automatically.
NOTE
• If the POWER/MODE switch is set to NORMAL, only
the rhythm plays (without a chord) when you play on the
accompaniment keyboard.
• If you press the INTRO button before playing anything
on the keyboard, the rhythm starts automatically with
an intro pattern when you play something on the
accompaniment keyboard.
• Pressing the VARIATION/FILL-IN button before playing
anything on the keyboard causes play to start with the
variation pattern when something is played on the
keyboard.
• To cancel synchro start standby, press the SYNCHRO/
ENDING button one more time.
E-32
Finishing with an Ending Pattern
You can end your performances with an ending pattern that
brings the rhythm pattern you are using to a natural-sounding
conclusion.
The following procedure describes how to insert an ending
pattern. Note that the actual ending pattern played depends
on the rhythm pattern you are using.
To finish with an ending pattern
1
While the rhythm is playing, press the SYNCHRO/
ENDING button.
• This causes the ending pattern to play, which brings
rhythm accompaniment to an end.
NOTE
• The timing when the ending pattern starts depends on
when you press the SYNCHRO/ENDING button. If you
press the button before the second beat of the current
measure, the ending pattern starts playing immediately.
Pressing the button at any point in the measure after
the second beat results in the ending pattern playing
from the beginning of the following measure.
Keyboard Settings
<LK-215>
FUNCTION
[+] / [–]
TOUCH
RESPONSE/
FUNCTION
Number buttons
Using Touch Response
(LK-215 Only)
Adjusting Accompaniment and
Song Bank Volume
When touch response is turned on, the relative volume of
sound output by the keyboard is varied in accordance with
the amount of pressure applied, just like an acoustic piano.
You can adjust the volume of the accompaniment and Song
Bank tunes independently of the notes you play on the
keyboard. You can specify a volume level in the range of 000
(minimum) to 127 (maximum).
1
Press the TOUCH RESPONSE/FUNCTION button
to enter the Touch Response setting mode.
Touch
2
To adjust the accompaniment volume
<LK-210>
1
Use the [+] and [–] buttons to change the setting.
Touch
Press the FUNCTION button to enter the
accompaniment volume or song volume setting
mode.
<LK-215>
1
NOTE
Press the TOUCH RESPONSE/FUNCTION button
until the accompaniment volume adjustment
screen appears.
• The Touch Response setting screen that appears in Step
1 automatically clears from the display if you do not input
anything within about five seconds.
• Accompaniment does not affect the touch response
setting.
A c omp V o l
Current accompaniment volume setting
2
Use the number buttons or the [+]/[–] buttons to
change the current volume setting value.
Example: 110
A c omp V o l
NOTE
• The current accompaniment volume value that appears
in Step 1 automatically clears from the display if you do
not input anything within about five seconds.
• Pressing [+] and [–] buttons at the same time
automatically sets an accompaniment volume of 115.
E-33
Keyboard Settings
To adjust built-in tune volume
Enter the Song Bank mode or Piano Bank mode, and then
perform the procedure under “To adjust the accompaniment
volume”.
• In this case, a song volume screen will appear in place of
the accompaniment volume screen.
NOTE
• Pressing [+] and [–] buttons at the same time
automatically sets an accompaniment volume of 127.
To adjust volume for playback of SMF
data from a memory card
Load a memory card into the card slot, and then perform the
procedure under “To adjust the accompaniment volume”.
• In this case, a song volume screen will appear in place of
the accompaniment volume screen.
Transposing the Keyboard
Transpose lets you raise and lower the overall key of the
keyboard in semitone units. If you want to play an
accompaniment for a vocalist who sings in a key that’s
different from the keyboard, for example, simply use
transpose to change the key of the keyboard.
NOTE
• The keyboard can be transposed within a range of –12
to +12.
• The default transpose setting is “00” when keyboard
power is turned on.
• If you leave the transpose screen on the display for about
five seconds without doing anything, the screen is
automatically cleared.
• The transpose setting also affects playback from Auto
Accompaniment.
• To return the keyboard to its default key, perform the
above procedure and press the [+] and [–] buttons at
the same time in step 3.
• The effect of a transpose operation depends on the pitch
of each note and on the tone you are currently using. If
a transpose operation causes a note to be outside of
the allowable range for a tone, the same note in the
nearest octave within the range will be substituted.
Tuning the Keyboard
Use the following procedure to fine tune the keyboard to
match the tuning of another musical instrument.
To tune the keyboard
1
To transpose the keyboard
1
3
Tune
Press the RHYTHM button to enter the Rhythm
Mode.
• Note that you cannot transpose the keyboard while
in the Song Bank Mode or Piano Bank Mode.
2
Press the FUNCTION (LK-215: TOUCH RESPONSE/
FUNCTION) button until the tuning screen appears.
Press the FUNCTION (LK-215: TOUCH RESPONSE/
FUNCTION) button until the transpose screen
appears on the display.
2
Use the [+], [–], and the number buttons to adjust
the tuning value.
Example: To lower tuning by 20
Tune
Use [+] and [–] to change the transpose setting of
the keyboard.
Example: To transpose the keyboard five semitones
upwards.
Tr ans .
NOTE
• The keyboard can be tuned within a range of –50 cents
to +50 cents.
* 100 cents is equivalent to one semitone.
• The default tuning setting is “00” when keyboard power
is turned on.
• If you leave the tuning screen on the display for about
five seconds without doing anything, the screen is
automatically cleared.
• The tuning setting also affects playback from Auto
Accompaniment.
• To return the keyboard to its default tuning, perform the
above procedure and press the [+] and [–] buttons at
the same time in step 2.
E-34
LK210_e_33-43.p65
C
34
09.2.25, 0:13 PM
Connection to a Computer
<LK-215>
FUNCTION
[+] / [–]
TOUCH
RESPONSE/
FUNCTION
Number buttons
LEFT
Connecting to a Computer
The keyboard’s USB port makes it quick and simple to connect
to a computer. After installing the USB MIDI driver onto your
computer from the CD-ROM that comes with the keyboard,
you will be able to use commercially available MIDI software
on your computer to exchange data between the keyboard
and your computer.
To install the USB MIDI driver
1
On the computer to which you plan to connect,
install the USB MIDI driver that comes on the CDROM that comes bundled with the keyboard.
• For information about installing the USB MIDI driver,
see the “CASIO USB MIDI Driver User ’s Guide”
(manual_e.pdf) on the “USB Manual and Driver CDROM”.
NOTE
• Before starting actual installation of USB MIDI driver,
be sure to read the contents of the “readme.txt” file in
the “English” folder on the CD-ROM.
• Use Adobe Reader or Acrobat Reader to access the USB
MIDI driver user’s guide.*
* You need to have Adobe Reader or Acrobat Reader installed on
your computer in order to view the contents of the “CASIO USB
MIDI Driver User’s Guide” (manual_e.pdf). If your computer
does not have either Adobe Reader or Acrobat Reader installed,
use the procedure below to install it.
RIGHT
Minimum Computer system Requirements
Supported Operating Systems
Operation is supported under Windows® XP Professional,
Windows® XP Home Edition, Windows® 2000 Professional,
Windows® Me, Windows® 98SE, and Windows® 98.
● Universal
• IBM AT or compatible computer
• USB port that provides normal operation under Windows
• CD-ROM drive (for installation)
• At least 2MB of free hard disk space (not including space
required for Adobe Reader)
● Windows XP
• 300MHz or higher Pentium processor
• At least 128MB of memory
● Windows 2000
• 166MHz or higher Pentium processor
• At least 64MB of memory
● Windows Me, Windows 98SE, Windows 98
• 166MHz or higher Pentium processor
• At least 32MB of memory
NOTE
• Company and product names used herein are
trademarks of their respective owners.
Installing Adobe Reader (Acrobat Reader**)
• Place the “USB Manual and Driver CD-ROM” into your
computer’s CD-ROM drive.
• On the CD-ROM, navigate to the folder named “Adobe”,
open the folder named “English”, and then double-click
“ar601enu.exe” (“ar505enu.exe”**). Follow the instructions
that appear on your computer screen to install Adobe
Reader.
** Adobe Reader cannot be installed on a computer running
Windows 98. If your computer is running under Windows 98,
double-click “ar505enu.exe” to install Acrobat Reader.
E-35
Connection to a Computer
* Before installing SMF Converter, be sure to read the contents of
the “smfreadme.txt” file in each language folder on the CD-ROM.
Using the USB port
Note that you need to purchase a commercially available USB
cable to connect the keyboard to a computer using the USB
port. Once you establish a USB connection between the
keyboard and a computer, you can exchange data between
them.
To connect to a computer using the
USB port
1
Use a commercially available USB cable to connect
the keyboard to the computer.
Computer
USB port
USB cable
For information about using SMF Converter, double-click
“index.html” in the [help] folder, which was created when
you installed SMF Converter. You can also access user
documentation from the Windows [Start] menu by clicking
[Programs] - [CASIO] - [SMF Converter] - [manual].
* A browser that supports frames (like Internet Explorer 4 or
Netscape Navigator 4.04 or higher) is required to view the SMF
Converter manual.
Minimum Computer System Requirements
* Operating System:
Windows 98SE
Windows Me
Windows XP Home Edition/XP Professional
* Storage
At least 10MB free HDD space
* USB interface
USB connector
Keyboard USB port
• You can also obtain a copy of the SMF Converter by
downloading it at the Web page shown below. After
downloading, install the software on your computer.
CASIO MUSIC SITE
http://music.casio.com/
DATA ACCESS Lamp
• The DATA ACCESS lamp lights whenever the keyboard is
exchanging data with a connected computer over a USB
cable connection. Never disconnect the USB cable while the
DATA ACCESS lamp is lit.
Expanding the Selections in the
Song Bank Tunes
You can transfer song data from your computer to the
keyboard. You can store up to 10 tunes (about 320 KB) as
Song Bank tunes 65 through 74. For SMF data you purchase
or create, you need to use an SMF Converter to convert it to
CASIO format before transferring it to the keyboard.
To install the SMF Converter
1
On the computer to which you plan to connect,
install the SMF Converter that comes on the CDROM that comes bundled with the keyboard.
• On the CD-ROM, double-click “SMFConv-e.exe”, and
then follow the instructions that appear on your
computer screen to install SMF Converter.
E-36
• In addition to the software itself, the CASIO MUSIC SITE
will also provide you with information about its installation
and use. You can also find out about the latest news about
your keyboard and other CASIO musical instruments, and
much more.
Song Data Storage
Song data saved as Song Bank tunes are retained even when
power is turned off, as long as the keyboard is being supplied
battery or AC adaptor power. If you remove the batteries or
should the batteries go dead while the keyboard is not being
supplied power by the AC adaptor, song data will be deleted.
Be sure to supply power to the keyboard with the AC adaptor
when replacing batteries.
NOTE
• This keyboard supports SMF 0 and 1 format data.
• Voice Fingering Guide and on-screen fingering indicators
are not supported for commercially available SMF data.
Connection to a Computer
General MIDI Tone
NAVIGATE CHANNEL (Default: 4)
The General MIDI standard defines the tone numbering
sequence, the drum sound numbering sequence, the number
of MIDI channels that can be used, and other general factors
that determine the sound source configuration. Because of
this, musical data produced on a General MIDI sound source
can be played back using similar tones and identical nuances
as the original, even when played on another manufacturers
sound source.
This keyboard conforms with General MIDI standards, so it
can be connected to a computer and used to play back General
MIDI data that has been purchased, downloaded from the
Internet, or obtained from any other source.
When messages are received from a computer for play on
this keyboard, the navigate channel is the channel whose note
data appears on the display. You can select one channel from
01 to 16 as the navigate channel. Since this setting lets you
use the data on any channel of commercially available SMF
data to light on the on-screen keyboard guide, you can
analyze how different parts of an arrangement are played.
1
Na v i . Ch
Changing the Settings
This section tells you how to make the settings required when
connecting to a computer.
2
KEYBOARD CHANNEL (Default: 1)
Press the FUNCTION (LK-215: TOUCH RESPONSE/
FUNCTION) button until the KEYBOARD
CHANNEL screen appears.
Keybd Ch
2
Na v i . Ch
To turn off specific sounds before playing back tune data
that is being received
<<Navigate channel on/off>>
1
While playing tune data, press the RIGHT button.
• This cuts the sound of the navigate channel, but onscreen keyboard guide keys continue to light in
accordance with the channel’s data as it is received.
Press RIGHT button again to turn the channel back
on.
Use the [+], [–], and the number buttons to change
the channel number.
Example: To specify channel 4
Keybd Ch
Use the [+], [–], and the number buttons [0] through
[9] to change the channel number.
Example: To specify channel 2
The keyboard channel is the channel used to send messages
from this keyboard to a computer. You can specify one channel
from 1 to 16 as the keyboard channel.
1
Press the FUNCTION (LK-215: TOUCH RESPONSE/
FUNCTION) button until the NAVIGATE CHANNEL
screen appears.
<<Next lower channel from navigate channel on/off>>
1
While playing tune data, press the LEFT button.
• This cuts the sound of the channel whose number is
one less than the navigate channel, but on-screen
keyboard guide keys continue to light in accordance
with the channel’s data as it is received. Press LEFT
button again to turn the channel back on.
Example: If the navigate channel is channel 4, the above
operation turns off channel 3.
E-37
Connection to a Computer
LOCAL CONTROL (Default: On)
oFF: Anything played on the keyboard is output as a message
from the USB port, without being sounded by the
internal sound source.
• Note that no sound is produced by the keyboard if LOCAL
CONTROL is turned off and no external device is
connected.
1
Press the FUNCTION (LK-215: TOUCH RESPONSE/
FUNCTION) button until the LOCAL CONTROL
screen appears.
Example: When LOCAL CONTROL is on
Loca l
2
GM Mode Receive
When GM off is received and the mode switch is set to a chord
mode, the Auto Accompaniment chord is specified in
accordance with the received message.
When GM on is received, Auto Accompaniment chords
cannot be specified by received messages.
SUSTAIN/ASSIGNABLE JACK
(Default: SUS)
SUS(sustain): Specifies a sustain*1 effect when the pedal is
depressed.
SoS (sostenuto): Specifies a sostenuto* 2 effect when the
pedal is depressed.
SFt (soft): Specifies reduction of the sound’s volume when
the pedal is depressed.
rHy (rhythm): Specifies START/STOP button operation
when the pedal is depressed.
Use the [+] and [–] or [0] and [1] buttons to turn
the setting on and off.
Example: To turn LOCAL CONTROL off
1
Loca l
Press the FUNCTION (LK-215: TOUCH RESPONSE/
FUNCTION) button until the SUSTAIN/
ASSIGNABLE JACK screen appears.
Example: When sustain is currently set
Jack
ACCOMP OUT (Default: Off)
on: Auto Accompaniment is played by the keyboard and
the corresponding message is output from the USB port.
oFF: Auto Accompaniment messages are not output from the
USB port.
1
Press the FUNCTION (LK-215: TOUCH RESPONSE/
FUNCTION) button until the ACCOMP OUT screen
appears.
Example: When ACCOMP OUT is off
A c omp O u t
2
Use the [+] and [–] or [0] and [1] buttons to turn
the setting on and off.
Example: To turn ACCOMP OUT on
A c omp O u t
E-38
2
Use the [+] and [–] or [0], [1], [2], and [3] buttons
to change the setting.
Example: To select rhythm
Jack
*1 Sustain
With piano tones and other sounds that decay, the pedal acts
as a damper pedal, with sounds being sustained longer when
the pedal is depressed. With organ tones and other continuous
sounds, notes played on the keyboard continue to sound until
the pedal is released. In either case, the sustain effect is also
applied to any notes that are played while the pedal is
depressed.
*2 Sostenuto
This effect performs the same way as sustain, except that it is
applied only to notes that are sounding already when the
pedal is depressed. It does not affect notes that are played
after the pedal is depressed.
Using a Memory Card
FUNCTION
<LK-215>
[+] / [–]
Number buttons
CARD
TOUCH
RESPONSE/
FUNCTION
SD CARD SLOT
START/STOP
Your keyboard is equipped with a card slot
that supports use of memory cards
(commercially available SD memory card
or optional CASIO song data card*). This makes it possible
for the keyboard to directly read commercially available SMF
data, which has been saved to a memory card from your
computer, for listening pleasure and lessons. Memory card
data can be used the same way as built-in tunes.
● Supported Memory Cards:
SD memory cards, optional CASIO song data cards*
● Supported SD Cards:
1 GB or less (Cards with capacity greater than 1 GB are
not supported.)
● Maximum Number of Importable Songs: Up to 1,000
• The actual number of songs that can be imported
depends on the size of each file. The actual number will
be less than 1,000 when individual song files are large.
● Supported Data:
SMF Format 0, CASIO Original Format CM2
IMPORTANT!
• Use only an SD memory card or an optional CASIO song
data card* with this keyboard. Proper operation is not
guaranteed when any other type of card is used.
Memory Card and Card Slot
Precautions
IMPORTANT!
• Be sure to carefully read all documentation that comes
with the memory card for important information about
how to handle it.
• SD memory cards have a write protect switch, which
you can use to protect against accidental deletion of
data. After saving important data to an SD memory card,
be sure to use the write protect switch to protect the
data against accidental changes or deletion.
STEP 1
STEP 2
SCORING
STEP 3
• Avoid storing and using memory cards in the following
types of locations. Such conditions can cause corruption
of data stored on the card.
• Areas subject to high temperatures, high humidity, or
corrosive agents
• Areas subject to strong electrostatic charge or
electrical noise
• Whenever handling a memory card, make sure that you
never touch its contacts with your fingers.
• If the data access lamp is lit and the message “Pls Wait”
is on the display, it means that data on the memory card
is being accessed by a save, read, or delete operation.
Never remove the memory card from the card slot or
turn off the keyboard while the card is being accessed.
Doing so can corrupt the data on the memory card or
even damage the card slot.
• Never try to insert anything that is not an SD memory
card or optional CASIO song data card* into the
Keyboard’s memory card slot. Doing so can cause
malfunction of the keyboard.
• Inserting a memory card that is charged with static
electricity into the card slot can cause malfunction of
the keyboard. If this happens, turn the keyboard off and
then back on again.
• A memory card that has been in the card slot for a long
time may feel hot when you remove it. This is normal
and does not indicate malfunction.
• Note that a memory card has a limited service life. After
long use, you may not be able to store data to, read
data from, and/or delete data from a card. When this
happens, you will need to purchase a new memory card.
* May not be available in some geographic areas.
CASIO COMPUTER CO., LTD. assumes no responsibility
for any loss or damage to you or any third party arising
out of the loss or corruption of data.
E-39
Using a Memory Card
Inserting and Removing a Memory
Card
IMPORTANT!
• Make sure you turn off the keyboard before inserting or
removing a memory card.
• Be sure to orient the card correctly when inserting it.
Never try to force a memory card into the card slot when
you feel resistance.
• Never remove the memory card from the card slot or
turn off the keyboard while card data is being accessed
by a read or format operation. Doing so can corrupt the
data on the memory card or even damage the card slot.
To insert a memory card into the card slot
1
With the front side of the memory card facing
upwards, carefully slide it into the card slot. Slide
the card all the way in until you hear it click
securely into place.
Getting Ready
IMPORTANT!
• Before you can use an SD memory card with this
keyboard, you need to perform the procedure below to
format it. After formatting the card, transfer SMF data
from your computer to the card.
• Formatting an SD memory card with this keyboard
automatically creates a folder named “MUSICDAT” on
the card. When transferring SMF data from your
computer to the card for use by the keyboard, be sure
to store it in the “MUSICDAT” folder.
• Note that formatting a card that already contains data
causes all of that data to be deleted. Data deleted by
the format operation cannot be recovered. Before
performing the procedure below, check to make sure
that the media does not contain any data you might need.
PREPARATION
• Insert the SD memory card you want to format into the
keyboard’s card slot. Make sure that the SD memory
card’s write protect is removed, which enables writing.
To format an SD memory card
1
Front
Press the FUNCTION (LK-215: TOUCH RESPONSE/
FUNCTION) button a number of times until the card
format setting screen appears.
F o r ma t ?
To remove a memory card from the card slot
1
2
Press the memory card into the card slot and then
release it. This will cause the card to come part
way out of the keyboard.
Pull the memory card out of the card slot.
E-40
2
Press the [+] (YES) button.
• This will display a confirmation message asking
whether you really want to format the media.
3
Press the [+] (YES) button to start formatting.
• The message “Pls Wait” will remain on the display to
indicate that a procedure is being performed. Never
try to perform any other operation on the keyboard
while the card is being formatted. After formatting is
complete, the keyboard returns to the mode you were
in before you displayed the setting screen.
• To cancel the format operation, press the [–] (NO)
button. This returns to the card format setting screen.
• If an error message appears on the display, see
“Memory Card Error Messages” on page E-42. Pressing
the FUNCTION (LK-215: TOUCH RESPONSE/
FUNCTION) button while an error message is on the
display returns to the card format setting screen.
Using a Memory Card
Reading a Memory Card
1
Press the CARD button.
■ To evaluate your play using SMF Data
3-1
Indicator appears
2
3
Use the number buttons to input the three-digit
number that corresponds to the SMF data you want
to select.
Perform one of the following operations.
Press the SCORING button.
• The keyboard will read the SMF data and enter the
Evaluation Mode.
• An error message will appear if the selected SMF
data file is larger than about 320 KB.
• If an error message appears, see “Memory Card
Error Messages” on the following page for
information about what you need to do.
• The channel specified as the navigate channel is
assigned to the right-hand part, while the channel
that is one less than the channel specified as the
navigate channel is assigned to the left-hand part.
• On-screen fingering indicators are not supported
for SMF data.
4
Press the START/STOP button to stop SMF data play.
■ To play back SMF data
3-1
Press the START/STOP button.
• The keyboard will read the SMF data and play it.
■ To use SMF data in a 3-Step Lesson
3-1
Press the STEP 1, STEP 2, or STEP 3 button.
• The keyboard will read the SMF data and start a
lesson at the step you selected.
• An error message will appear if the selected SMF
data file is larger than about 320 KB.
• If an error message appears, see “Memory Card
Error Messages” on the following page for
information about what you need to do.
• The channel specified as the navigate channel is
assigned to the right-hand part, while the channel
that is one less than the channel specified as the
navigate channel is assigned to the left-hand part.
• Voice Fingering Guide and on-screen fingering
indicators, are not supported for SMF data.
E-41
Using a Memory Card
Memory Card Error Messages
Display Message
Cause
Action
Err No Card
There is no memory card loaded in the keyboard
or the memory card you are using is not loaded
correctly.
Load a memory card or correctly reinsert the
memory card.
..................................................................... page E-40
Err No File
(1) The memory card song data that is supported
by the keyboard is not in the MUSICDAT folder.
(2) The memory card does not have a MUSICDAT
folder.
(1) Move the files containing song data supported
by the keyboard to the MUSICDAT folder.
(2) Create a MUSICDAT folder and move the
applicable files into the folder. Formatting the
card will create a MUSICDAT folder
automatically.
..................................................................... page E-40
Err WrongDat
The data is damaged.
Take the necessary steps to replace the damaged
data with normal data.
Err SizeOver
The file is too large to be played by this keyboard.
The maximum supported file size is 320 KB. Select
a smaller file.
..................................................................... page E-41
Err Protect
The memory card is write-protected.
Remove write protection and re-format the card.
............................................................. pages E-39, 40
Err Format
(1) The memory card has a format that is not
supported by this keyboard.
(2) The memory card has a capacity that is not
supported by this keyboard.
(1) Use this keyboard to format the card.
............................................................... page E-40
(2) This keyboard supports cards with a capacity
of 1 GB or less.
............................................................... page E-39
(3) Use a different card.
(3) There is something wrong with the memory
card.
Err Not SMF0
There is no Format 0 SMF format file. This keyboard
supports Format 0 SMF files only.
Use a Format 0 SMF format file.
..................................................................... page E-39
Err Card R/W
The memory card cannot be written to or formatted
for some reason.
Use a different card.
E-42
Using a Memory Card
Err Mem Full
The keyboard ran out of memory for SMF data
reading during a playback, lesson or use of the
evaluation feature.
After a few seconds, the “Err Mem Full” message will be replaced by one of the messages described
below.
<“dEL UsrSong?”>
This message asks whether you want to delete the contents of Song Bank user area for storage of SMF
data (10 songs) in order to make room for the SMF data you are trying to read. To clear this message
and return to the Card Bank Mode screen, press the [–] (NO) button.
1) Press the [+] (YES) button if you want to delete Song Bank user area contents.
• This causes a confirmation message to appear on the display.
• If you want to cancel the delete operation, press the [–] (NO) button. This returns you to the
confirmation message.
2) Press the [+] (YES) button to delete Song Bank user area contents.
• After Song Bank user area contents are deleted, the keyboard automatically starts reading of the
SMF data you originally selected, and then starts the playback, lesson, or evaluation.
Card Bank Mode screen
Playback
Step1 to 3
Scoring1 to 3
Err Mem Full
After a few seconds
dEL UsrSong?
YES(+)
NO(–)
NO(–)
Sure ?
YES(+)
Pls Wait
The keyboard starts the playback, lesson, or evaluation
E-43
Troubleshooting
Problem
No keyboard sound
Possible Cause
(1) Power supply problem.
(2) Power is not turned on.
(3) Volume setting is too low.
(4) The POWER/MODE switch is
in the CASIO CHORD or
FINGERED position.
(5) LOCAL CONTROL is off.
Any of the following symptoms
while using battery power.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Low battery power
Action
See page
(1) Correctly attach the AC
adaptor, make sure that
batteries poles (+/–) are facing
correctly, and check to make
sure that batteries are not dead.
(2) Adjust the POWER/MODE
switch to turn on power.
(3) Use the MAIN VOLUME slider
to increase volume.
(4) Normal play is not possible on
the accompaniment keyboard
while the POWER/MODE
switch is set to CASIO CHORD
or FINGERED. Change the
POWER/MODE switch setting
to NORMAL.
(5) Turn on LOCAL CONTROL.
Page E-13
Replace the batteries with a set of
new ones or use the AC adaptor.
Pages
E-12, 13
Page E-16
Page E-16
Page E-29
Page E-38
Dim power supply indicator
Instrument does not turn on
Dim, difficult to read display
Abnormally low speaker/headphone volume
Distortion of sound output
Occasional interruption of sound when playing at high volumes
Sudden power failure when playing at high volumes
Dimming of the display when playing at high volume
Continued sound output even after you release a key
A totally different tone may sound
Abnormal rhythm pattern and demo tune play
Abnormally low microphone volume
Distortion of microphone input
Dim power supply indicator when a microphone is used
Sudden power failure when using the microphone
Dimming of keyboard lights when notes sound
Loss of power, sound distortion, or low volume when playing from a connected computer
Auto Accompaniment does not
sound.
Accompaniment volume is set to
000.
Use the FUNCTION (LK-215:
TOUCH RESPONSE/FUNCTION)
button to increase the volume.
Page E-33
Key light stays on.
Keyboard is waiting for play of
the correct note during Step 1 or
Step 2 play.
• Press the lit key to continue with
Step 1 or Step 2 play.
• Press the PLAY/STOP button to
quit Step 1 or Step 2 play.
Pages
E-25, 26
Pages
E-25, 26
Keys are lit though no sound is
being produced.
Power on alert is reminding you
that power was left on without
any operation being performed.
Press any button or keyboard key
to restore power to normal.
Page E-14
Cannot
record
chord
accompaniment data on a computer.
ACCOMP OUT is turned off.
Turn on ACCOMP OUT.
Page E-38
Static noise when a microphone is
connected.
Use of the microphone in the
vicinity of fluorescent lighting.
Move the microphone away from
source of the static.
Page E-17
E-44
Troubleshooting
Problem
No microphone sound
Cannot recall data from a memory
card.
Song play momentarily cuts out
at some points during SMF play.
Possible Cause
Action
See page
(1) Microphone volume setting is
too low.
(2) Microphone on/off switch is
set to off.
(1) Increase the microphone
volume setting.
(2) Change the microphone on/off
switch setting to on.
Page E-17
(1) The memory card is not
inserted correctly into the card
slot.
(2) The memory card is damaged.
(3) The data has not been copied
to
the
memory
card
MUSICDAT folder.
(1) Correctly insert the memory
card into the card slot.
Page E-40
Data is fragmented.
Perform either of the two following
operations.
• Without deleting the original
(fragmented) data, perform a
“save as” operation to save the
data under a different name.
Next, try performing the
operation using the newly saved
data.
• If you saved the data to the card
from another location, format the
card (which will delete its
contents), and then save the data
to the card again. Next, try
performing the operation using
the newly saved data.
Page E-17
(2) Use a different memory card.
(3) Insert a formatted memory card
into the memory card slot of
your computer, and copy the
data you want to play back into
the
directory
named
“MUSICDAT”.
–––
Page E-40
Auto accompaniment chords do
not sound.
The keyboard is in the Song Bank
mode.
Press the RHYTHM button to enter
the rhythm mode, which is
indicated by the rhythm indicator
on the display.
Page E-28
After transferring song data from
my computer, playback stops part
way through.
Digital noise from the USB cable
or power cord caused data
communication between your
computer and keyboard to be
interrupted.
Stop playback, disconnect the USB
cable from and then reconnect it to
the keyboard’s USB port, and then
try playing back the tune again.
If this does not correct the problem,
exit the MIDI software you are
using, and then disconnect the USB
cable from and then reconnect it to
the keyboard’s USB port. Next,
restart your MIDI software and try
playback again.
Page E-36
A tone’s quality and volume
sounds
slightly
different
depending where it is played on
the keyboard.
This is an unavoidable result of the digital sampling process,* and does not indicate
malfunction.
* Multiple digital samples are taken for the low range, middle range, and high range of
the original musical instrument. Because of this, there may be a very slight difference
in tonal quality and volume between sample ranges.
E-45
Specifications
Models:
LK-210/LK-215
Keyboard:
61 standard-size keys, 5 octaves (with touch response <LK-215 only>)
Key Light System:
Can be turned on and off (up to 10 keys can be lit at the same time)
Tones:
264 (128 panel tones + 128 General MIDI tones + 8 drum sets)
Digital Effects:
Reverb (4 types), Chorus (4 types)
Polyphony:
32 notes maximum (16 for certain tones)
Auto Accompaniment
Rhythm Patterns:
Chords:
Rhythm Controller:
Accomp Volume:
120
2 fingering methods (CASIO CHORD, FINGERED)
START/STOP, INTRO, NORMAL/FILL-IN, VARIATION/FILL-IN,
SYNCHRO/ENDING
0 to 127 (128 steps)
3-step Lesson:
Playback:
Lesson Part:
Evaluation Mode:
Voice Fingering Guide:
3 lessons (Step 1, 2, 3)
Repeat play of a single tune
Left hand, right hand, both hands
Scoring
On/Off
Song Bank, Piano Bank
Number of Tunes:
Controllers:
100 (Song Bank: 65, Piano Bank: 35)
PLAY/STOP, PAUSE, FF, REW, REPEAT
User Songs:
Number of Songs: Up to 10 download songs
Capacity: Approximately 320 KB*
* Calculated based on 1 KB = 1024 bytes.
Metronome:
Beat Specification:
On/Off
0, 2 to 6
Other Functions
Tempo:
Transpose:
Tuning:
Card
Supported Memory Cards:
Supported SD Cards:
Maximum Number of
Importable Songs:
Supported Data:
Terminals
SUSTAIN/ASSIGNABLE JACK:
PHONES/OUTPUT Jack:
Microphone In:
USB port:
SD CARD SLOT
Power Jack:
E-46
Variable (226 steps, = 30 to 255)
25 steps (–12 semitones to +12 semitones)
101 steps (A4 = approximatery 440 Hz ±50 Cents)
SD memory cards, optional CASIO song data cards*
* May not be available in some geographic areas.
1 GB or less (Cards with capacity greater than 1 GB are not supported.)
Up to 1,000
SMF Format 0, CASIO Original Format CM2
Standard jack (sustain, sostenuto, soft, rhythm start/stop)
Stereo standard jack
Output Impedance: 78 Ω
Output Voltage: 4.5 V (RMS) MAX
Standard jack
Input impedance: 2 KΩ
Input sensitivity: 10 mV
TYPE B
9V DC
Specifications
Power Supply:
Batteries:
Battery Life:
AC Adaptor:
Auto Power Off:
2-way
6 AA-size batteries
Approximately 1 hour continuous operation on manganese batteries
Approximately 4 hours continuous operation on alkaline batteries
AD-5
Turns power off approximately 6 minutes after last key operation. Enabled under
batter power only, can be disabled manually.
Speaker Output:
<LK-210> 2.0W + 2.0W
<LK-215> 2.5W + 2.5W
Power Consumption:
9V
Dimensions:
94.5 × 37.3 × 13.5 cm (37 1/4 × 14 11/16 × 5 5/16 inch)
Weight:
Approximately 4.7kg (10.4 lbs)(without batteries)
7.7W
• Design and specifications are subject to change without notice.
Operating Precautions
Be sure to read and observe the following operating
precautions.
■ Location
Avoid the following locations for this product.
• Areas exposed to direct sunlight and high humidity
• Areas subjected to temperature extremes
• Near a radio, TV, video deck, or tuner
The above devices will not cause malfunction of the
product, but interference from the product can cause
audio or video interference of a nearby device.
■ User Maintenance
• Never use benzene, alcohol, thinner, or other chemical
agents to clean the product.
• To clean the product or its keyboard, wipe with a soft
cloth moistened in a weak solution of water and a mild
neutral detergent. Wring all excess moisture from the
cloth before wiping.
■ Included and Optional Accessories
Use only accessories that are specified for use with this
product. Use of unauthorized accessories creates the risk
of fire, electric shock, and personal injury.
■ Weld Lines
Lines may be visible on the exterior of the product. These
are “weld lines” that result from the plastic molding
process. They are not cracks or scratches.
■ Musical Instrument Etiquette
Always be aware of others around you whenever using
this product. Be especially careful when playing late at
night to keep the volume at levels that do not disturb
others. Other steps you can take when playing late at night
are closing the window and using headphones.
• Any reproduction of the contents of this manual, either
in part or its entirety, is prohibited. Except for your own,
personal use, any other use of the contents of this manual
without the consent of CASIO is prohibited under
copyright laws.
• IN NO EVENT SHALL CASIO BE LIABLE FOR ANY
DAMAGES WHATSOEVER (INCLUDING, WITHOUT
LIMITATION, DAMAGES FOR LOSS OF PROFITS,
BUSINESS
INTERRUPTION,
LOSS
OF
INFORMATION) ARISING OUT OF THE USE OF OR
INABILITY TO USE THIS MANUAL OR PRODUCT,
EVEN IF CASIO HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
• The contents of this manual are subject to change
without notice.
E-47
038
039
040
041
042
043
044
045
023
024
025
026
027
028
029
030
031
032
033
034
035
036
037
019
020
021
022
000
001
002
003
004
005
006
007
008
009
010
011
012
013
014
015
016
017
018
1
2
016
016
016
017
017
016
016
017
018
019
019
021
021
023
022
024
025
025
026
026
027
027
028
16
16
16
16
16
16
16
16
16
16
32
16
16
16
32
32
32
16
32
16
32
16
32
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
C
C
C
C
C
C
C
C
DRAWBAR ORGAN 1
DRAWBAR ORGAN 2
DRAWBAR ORGAN 3
PERC.ORGAN 1
PERC.ORGAN 2
ELEC.ORGAN 1
ELEC.ORGAN 2
JAZZ ORGAN
ROCK ORGAN
CHURCH ORGAN
CHAPEL ORGAN
ACCORDION
OCTAVE ACCORDION
BANDONEON
HARMONICA
NYLON STR.GUITAR
STEEL STR.GUITAR
12 STR.GUITAR
JAZZ GUITAR
OCT JAZZ GUITAR
CLEAN GUITAR
ELEC.GUITAR
MUTE GUITAR
GUITAR
ORGAN
008
009
011
012
000
000
001
000
001
001
000
003
003
002
002
004
004
005
004
005
006
006
007
5
32
32
32
32
16
32
16
16
16
32
16
16
16
16
16
32
16
16
16
16
32
16
32
4
A
B
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
3
CELESTA
GLOCKENSPIEL
VIBRAPHONE
MARIMBA
CHROMATIC PERC
STEREO PIANO
GRAND PIANO
BRIGHT PIANO
MELLOW PIANO
MODERN PIANO
DANCE PIANO
STRINGS PIANO
HONKY-TONK
OCTAVE PIANO
ELEC.GRAND PIANO
MODERN E.G.PIANO
ELEC.PIANO
CHORUSED EP
MODERN E.PIANO
SOFT E.PIANO
E.PIANO PAD
HARPSICHORD
COUPLED HARPSICHORD
CLAVI
PIANO
1: No./No
4: Maximum Polyphony/Polifonía máxima
002
002
008
002
008
002
001
002
002
001
003
002
003
008
004
004
002
002
008
002
008
002
002
002
002
002
002
002
001
002
003
003
001
008
002
008
002
003
002
009
002
008
008
002
008
002
6
084
085
086
087
088
089
090
073
074
075
076
077
078
079
080
081
082
083
062
063
064
065
066
067
068
069
070
071
072
057
058
059
060
061
049
050
051
052
053
054
055
056
046
047
048
1
C
C
C
C
C
C
C
C
ACOUSTIC BASS
RIDE BASS
FINGERED BASS
PICKED BASS
FRETLESS BASS
SLAP BASS
SAW SYNTH-BASS
SQR SYNTH-BASS
A
C
C
A
C
A
A
A
A
A
A
TRUMPET
TROMBONE
TUBA
MUTE TRUMPET
FRENCH HORN
BRASS
BRASS SECTION
BRASS SFZ
ANALOG SYNTH-BRASS
SYNTH-BRASS 1
SYNTH-BRASS 2
SOPRANO SAX
ALTO SAX 1
ALTO SAX 2
BREATHY A.SAX
TENOR SAX 1
TENOR SAX 2
BREATHY T.SAX
REED
BRASS
A
C
C
C
C
C
C
A
A
A
A
A
A
A
A
A
A
A
STRINGS
SLOW STRINGS
CHAMBER
SYNTH-STRINGS 1
SYNTH-STRINGS 2
CHOIR AAHS
CHOIRS
VOICE DOO
SYNTH-VOICE
SYNTH-VOICE PAD
ORCHESTRA HIT
ENSEMBLE
A
A
C
A
A
VIOLIN
SLOW VIOLIN
CELLO
PIZZICATO STRINGS
HARP
STR/ORCHESTRA
BASS
C
C
C
3
OVERDRIVE GT
DISTORTION GT
FEEDBACK GT
2
2: Tone Name/Nombre de sonido
5: Program Change/Cambio de programa
Tone List / Note Table
Lista de sonidos / Tabla de notas
32
16
32
16
16
32
16
32
32
32
32
16
32
16
16
16
32
16
32
32
16
32
32
32
32
32
32
16
16
32
32
32
32
32
32
16
32
32
32
32
32
32
32
32
16
4
5
6
002
002
002
002
002
002
003
008
008
002
002
056
057
058
059
060
061
061
061
062
062
063
002
001
002
008
001
002
008
002
002
003
002
002
002
008
002
002
008
002
048
049
048
050
051
052
052
053
054
054
055
064
065
065
065
066
066
066
002
008
002
002
002
002
032
002
002
002
002
002
002
002
002
008
040
040
042
045
046
032
032
033
034
035
037
038
039
029
030
031
128
129
130
131
132
133
134
135
122
123
124
125
126
127
110
111
112
113
114
115
116
117
118
119
120
121
102
103
104
105
106
107
108
109
095
096
097
098
099
100
101
091
092
093
094
1
GM PIANO 1
GM PIANO 2
GM PIANO 3
GM HONKY-TONK
GM E.PIANO 1
GM E.PIANO 2
GM HARPSICHORD
GM CLAVI
GM TONE
SITAR
BANJO
SHAMISEN
KOTO
THUMB PIANO
STEEL DRUMS
ETHNIC
FANTASY
WARM PAD
WARM VOX
POLYSYNTH
POLY SAW
BOWED PAD
HALO PAD
ATMOSPHERE
BRIGHTNESS
ECHO PAD
STAR THEME
SPACE PAD
SYNTH-PAD
SQUARE LEAD
SAWTOOTH LEAD
MELLOW SAW LEAD
SINE LEAD
SS LEAD
CALLIOPE
VOICE LEAD
BASS+LEAD
SYNTH-LEAD
PICCOLO
FLUTE 1
FLUTE 2
MELLOW FLUTE
RECORDER
PAN FLUTE
WHISTLE
PIPE
T.SAXYS
BARITONE SAX
OBOE
CLARINET
2
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
A
A
A
A
A
A
C
C
A
A
3
32
32
32
16
32
16
32
32
16
32
32
32
32
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
32
16
16
16
16
32
32
16
16
32
32
32
16
32
32
32
4
3: Range Type/Tipo de gama
6: Bank Select MSB/MSB de selección de banco
5
000
001
002
003
004
005
006
007
104
105
106
107
108
114
088
089
089
090
090
092
094
099
100
102
103
103
080
081
081
080
081
082
085
087
072
073
073
073
074
075
078
066
067
068
071
6
000
000
000
000
000
000
000
000
002
002
002
002
002
002
002
002
008
002
008
002
002
002
002
002
002
008
002
002
008
008
003
002
002
002
002
002
001
008
002
002
002
009
002
002
002
Appendix/Apéndice
A-1
1
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
2
GM CELESTA
GM GLOCKENSPIEL
GM MUSIC BOX
GM VIBRAPHONE
GM MARIMBA
GM XYLOPHONE
GM TUBULAR BELL
GM DULCIMER
GM ORGAN 1
GM ORGAN 2
GM ORGAN 3
GM PIPE ORGAN
GM REED ORGAN
GM ACCORDION
GM HARMONICA
GM BANDONEON
GM NYLON STR.GUITAR
GM STEEL STR.GUITAR
GM JAZZ GUITAR
GM CLEAN GUITAR
GM MUTE GUITAR
GM OVERDRIVE GT
GM DISTORTION GT
GM GT HARMONICS
GM ACOUSTIC BASS
GM FINGERED BASS
GM PICKED BASS
GM FRETLESS BASS
GM SLAP BASS 1
GM SLAP BASS 2
GM SYNTH-BASS 1
GM SYNTH-BASS 2
GM VIOLIN
GM VIOLA
GM CELLO
GM CONTRABASS
GM TREMOLO STRINGS
GM PIZZICATO
GM HARP
GM TIMPANI
GM STRINGS 1
GM STRINGS 2
GM SYNTH-STRINGS 1
GM SYNTH-STRINGS 2
GM CHOIR AAHS
GM VOICE DOO
GM SYNTH-VOICE
GM ORCHESTRA HIT
GM TRUMPET
GM TROMBONE
GM TUBA
GM MUTE TRUMPET
GM FRENCH HORN
GM BRASS
GM SYNTH-BRASS 1
GM SYNTH-BRASS 2
GM SOPRANO SAX
GM ALTO SAX
GM TENOR SAX
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
3
32
32
16
32
32
32
32
16
16
16
16
16
32
16
32
16
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
16
32
32
32
32
16
32
32
16
32
32
32
4
6
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
5
008
009
010
011
012
013
014
015
016
017
018
019
020
021
022
023
024
025
026
027
028
029
030
031
032
033
034
035
036
037
038
039
040
041
042
043
044
045
046
047
048
049
050
051
052
053
054
055
056
057
058
059
060
061
062
063
064
065
066
1
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
2
GM BARITONE SAX
GM OBOE
GM ENGLISH HORN
GM BASSOON
GM CLARINET
GM PICCOLO
GM FLUTE
GM RECORDER
GM PAN FLUTE
GM BOTTLE BLOW
GM SHAKUHACHI
GM WHISTLE
GM OCARINA
GM SQUARE LEAD
GM SAWTOOTH LEAD
GM CALLIOPE
GM CHIFF LEAD
GM CHARANG
GM VOICE LEAD
GM FIFTH LEAD
GM BASS+LEAD
GM FANTASY
GM WARM PAD
GM POLYSYNTH
GM SPACE CHOIR
GM BOWED GLASS
GM METAL PAD
GM HALO PAD
GM SWEEP PAD
GM RAIN DROP
GM SOUND TRACK
GM CRYSTAL
GM ATMOSPHERE
GM BRIGHTNESS
GM GOBLINS
GM ECHOES
GM SF
GM SITAR
GM BANJO
GM SHAMISEN
GM KOTO
GM THUMB PIANO
GM BAGPIPE
GM FIDDLE
GM SHANAI
GM TINKLE BELL
GM AGOGO
GM STEEL DRUMS
GM WOOD BLOCK
GM TAIKO
GM MELODIC TOM
GM SYNTH-DRUM
GM REVERSE CYMBAL
GM GT FRET NOISE
GM BREATH NOISE
GM SEASHORE
GM BIRD
GM TELEPHONE
GM HELICOPTER
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
D
D
D
D
D
A
A
D
D
D
D
3
32
32
32
32
32
32
32
32
32
16
16
32
32
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
32
32
32
32
16
32
32
32
32
16
32
32
32
32
32
32
32
16
16
32
32
4
5
067
068
069
070
071
072
073
074
075
076
077
078
079
080
081
082
083
084
085
086
087
088
089
090
091
092
093
094
095
096
097
098
099
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
6
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
000
1
A-2
D
D
D
D
D
D
D
D
DRUMS
STANDARD SET
ROOM SET
POWER SET
ELECTRONIC SET
SYNTH SET
JAZZ SET
BRUSH SET
ORCHESTRA SET
3
D
D
2
GM APPLAUSE
GM GUNSHOT
32
32
32
32
32
32
32
32
16
32
4
5
000
008
016
024
025
032
040
048
126
127
6
120
120
120
120
120
120
120
120
000
000
• El significado de cada tipo de gama se describe
debajo.
NOTA
• The meaning of each range type is described
below.
NOTE
256
257
258
259
260
261
262
263
254
255
Appendix/Apéndice
Appendix/Apéndice
A=440Hz
Range Type/
Tipo de gama
C-1
C0
C1
C2
C3
C4
C5
C6
C7 G7 C8
C9 G9
A
(Standard type)
(Tipo estándar)
B
“020 GLOCKENSPIEL”/
“095 PICCOLO”
“020 GLOCKENSPIEL”/
“095 PICCOLO”
C
Low pitch
instruments
Instrumentos de
altura tonal baja
D
(Sound Effect)
(Efecto de sonido)
No scale for tones.
Sin escala para los sonidos.
a
........Keyboard range
........Gama del teclado
b
........Available range (using transpose or a message receive)
........Gama disponible (usando la transposición o recepción de mensaje)
A-3
E1 28
C7 96
B6 95
A6 93
G6 91
F6 89
E6 88
D6 86
C6 84
B5 83
A5 81
G5 79
F5 77
E5 76
D5 74
C5 72
B4 71
A4 69
G4 67
F4 65
E4 64
D4 62
C4 60
B3 59
A3 57
G3 55
F3 53
E3 52
D3 50
C3 48
B2 47
A2 45
G2 43
F2 41
E2 40
D2 38
C2 36
B1 35
A1 33
G1 31
F1 29
B 6 94
A6 92
F#6 90
E 6 87
C#6 85
B 5 82
A 5 80
F#5 78
E 5 75
C#5 73
B 4 70
A 4 68
F#4 66
E 4 63
C#4 61
B 3 58
A3 56
F#3 54
E 3 51
C#3 49
B 2 46
A2 44
F#2 42
E 2 39
C#2 37
B 1 34
A1 32
F#1 30
E 1 27
Drumset 1
STANDARD SET
High Q
Slap
Scratch Push
Scratch Pull
Sticks
Square Click
Metronome Click
Metronome Bell
Standard Kick 2
Standard Kick 1
Side Stick
Standard Snare 1
Hand Clap 1
Standard Snare 2
Low Tom 2
Closed Hi-Hat
Low Tom 1
Pedal Hi-Hat
Mid Tom 2
Open Hi-Hat
Mid Tom 1
High Tom 2
Crash Cymbal 1
High Tom 1
Ride Cymbal 1
Chinese Cymbal
Ride Bell
Tambourine 1
Splash Cymbal
Cowbell
Crash Cymbal 2
Vibraslap
Ride Cymbal 2
High Bongo
Low Bongo
Mute High Conga
Open High Conga
Open Low Conga
High Timbale
Low Timbale
High Agogo
Low Agogo
Cabasa
Maracas
Short High Whistle
Long Low Whistle
Short Guiro
Long Guiro
Claves
High Wood Block
Low Wood Block
Mute Cuica
Open Cuica
Mute Triangle
Open Triangle
Shaker
Jingle Bell
Bell Tree
Castanets
Mute Surdo
Open Surdo
Applause 1
Applause 2
Fanfare
One
Two
Three
Four
Five
Drumset 2
ROOM SET
,
,
,
,
,
,
,
,
Room Kick 2
Room Kick 1
,
Room Snare 1
,
Room Snare 2
Room Low Tom 2
,
Room Low Tom 1
,
Room Mid Tom 2
,
Room Mid Tom 1
Room High Tom 2
,
Room High Tom 1
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
Drumset 3
POWER SET
,
,
,
,
,
,
,
,
Power Kick 2
Power Kick 1
,
Power Snare 1
,
Power Snare 2
Power Low Tom 2
,
Power Low Tom 1
,
Power Mid Tom 2
,
Power Mid Tom 1
Power High Tom 2
,
Power High Tom 1
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
Drumset 4
ELECTRONIC SET
,
,
,
,
,
,
,
,
Elec. Kick 2
Elec. Kick 1
,
Elec. Snare 1
,
Elec. Snare 2
Elec. Low Tom 2
,
Elec. Low Tom 1
,
Elec. Mid Tom 2
,
Elec. Mid Tom 1
Elec. High Tom 2
,
Elec. High Tom 1
,
Reverse Cymbal
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
Drumset 5
SYNTH SET
,
,
,
,
,
,
,
,
Synth Kick 2
Synth Kick 1
Synth Rim Shot
Synth Snare 1
Hand Clap 2
Synth Snare 2
Synth Low Tom 2
Synth Closed HH 1
Synth Low Tom 1
Synth Closed HH 2
Synth Mid Tom 2
Synth Open HH
Synth Mid Tom 1
Synth High Tom 2
Synth Crash Cymbal
Synth High Tom 1
Synth Ride Cymbal
,
,
Synth Tambourine
,
Synth Cowbell
,
,
,
Synth High Bongo
Synth Low Bongo
Synth Mute Hi Conga
Synth Open Hi Conga
Synth Open Low Conga
,
,
,
,
,
Synth Maracas
,
,
,
,
Synth Claves
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
Drumset 6
JAZZ SET
,
,
,
,
,
,
,
,
Jazz Kick 2
Jazz Kick 1
,
Jazz Snare 1
,
Jazz Snare 2
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
Drumset 7
BRUSH SET
,
,
,
,
,
,
,
,
Jazz Kick 2
Jazz Kick 1
,
Brush Snare 1
Brush Slap
Brush Snare 2
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
Drumset 8
ORCHESTRA SET
Timpani d
Timpani d Timpani e
Timpani f
,
,
,
Concert Cymbal 2
,
Concert Cymbal 1
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
Closed Hi-Hat
Pedal Hi-Hat
Open Hi-Hat
Ride Cymbal 1
,
,
,
,
Jazz Kick 1
Concert BD 1
,
Concert SD
Castanets
Concert SD
Timpani F
Timpani F Timpani G
Timpani G Timpani A
Timpani A Timpani B
Timpani c
Timpani c • “
” Indica el mismo
sonido que STANDARD
SET.
NOTA
• “
” Indicates the same
sound as STANDARD
SET.
NOTE
➝
A-4
Key/Note number
➝
Drum Assignment List / Lista de asignación de batería
Appendix/Apéndice
[5, 3, 1]
m
7
m7
dim7
M7
m7 5
dim
Root
Chord
Type
B
B
(A )
A
[5, 3, 1]
[5, 2, 1]
[5, 3, 1]
[5, 2, 1]
[5, 3, 1]
[5, 3, 1]
[5, 3, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 3, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 3, 2, 1]
*
*
*
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2]
[5, 3, 2]
[5, 3, 2]
[5, 3, 2]
[5, 3, 2]
[5, 3, 2]
[5, 3, 2]
[5, 3, 2]
[5, 3, 2]
F
(G )
F
E
B
B
(A )
A
A
(G )
[5, 3, 1]
[5, 3, 1]
[5, 4, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2]
A
(G )
[5, 3, 1]
[5, 3, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
C
(D )
G
[5, 3, 1]
[5, 3, 1]
[5, 3, 1]
[5, 3, 1]
[5, 3, 1]
[5, 3, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2]
[5, 3, 2]
G
F
(G )
F
E
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
E
(D )
[5, 3, 1]
[5, 3, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
E
(D )
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
D
[5, 3, 1]
[5, 3, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
D
[5, 3, 1]
[5, 3, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
M
C
[5, 3, 1]
C
(D )
Chord
Type
C
Root
[5, 3, 1]
[5, 3, 1]
[5, 3, 1]
[5, 3, 1]
[5, 3, 1]
[5, 3, 1]
[5, 3, 1]
[5, 3, 1]
[5, 3, 1]
[5, 3, 1]
*
*
aug
[5, 2, 1]
[5, 2, 1]
[5, 2, 1]
[5, 2, 1]
[5, 2, 1]
[5, 2, 1]
[5, 2, 1]
[5, 2, 1]
[5, 2, 1]
[5, 2, 1]
[5, 2, 1]
[5, 2, 1]
sus4
[5, 3, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
7 sus4
Esta tabla muestra las digitaciones (incluyendo las formas invertidas) para varios de los acordes más a menudo usados. Estas
indicaciones de digitación también aparecen sobre la presentación del teclado.
En este teclado, los acordes marcados con asterisco (*) no pueden ejecutarse en el modo de digitación.
This table shows the left-hand fingerings (including inverted forms) for a number of often-used chords. These fingering
indications also appear on the keyboard’s display.
Chords marked with asterisk (*) cannot be played in the Fingered Mode on this keyboard.
FINGERED Chord Chart
Cuadro de acordes digitados
[5, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
m add9
5
1
[5, 3, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
m M7
432
[4, 3, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 4, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
[5, 3, 2, 1]
75
[5, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
[4, 3, 2, 1]
add9
: Números de los
dedos de la mano
izquierda
: Left hand finger
numbers
Appendix/Apéndice
A-5
Appendix/Apéndice
Rhythm List/Lista de ritmos
POPS I
000
POP 1
001
WORLD POP
002
8 BEAT POP
003
SOUL BALLAD 1
004
POP SHUFFLE 1
005
8 BEAT DANCE
006
POP BALLAD 1
007
POP BALLAD 2
008
BALLAD
009
FUSION SHUFFLE
POPS II
010
SOUL BALLAD 2
011
16 BEAT 1
012
16 BEAT 2
013
8 BEAT 1
014
8 BEAT 2
015
8 BEAT 3
016
DANCE POP 1
017
POP FUSION
018
POP 2
019
POP WALTZ
DANCE/FUNK
020
DANCE
021
DISCO 1
022
DISCO 2
023
EURO BEAT
024
DANCE POP 2
025
GROOVE SOUL
026
TECHNO
027
TRANCE
028
HIP-HOP
029
FUNK
ROCK I
030
POP ROCK 1
031
POP ROCK 2
032
POP ROCK 3
033
FOLKIE POP
034
POP SHUFFLE 2
035
ROCK BALLAD
036
SOFT ROCK
037
ROCK 1
038
ROCK 2
039
HEAVY METAL
ROCK II
040
60'S SOUL
041
60'S ROCK
042
SLOW ROCK
043
SHUFFLE ROCK
044
50'S ROCK
045
BLUES
046
NEW ORLNS R&R
047
TWIST
048
R&B
049
ROCK WALTZ
JAZZ
050
BIG BAND 1
051
BIG BAND 2
052
BIG BAND 3
053
SWING
054
SLOW SWING
055
FOX TROT
056
JAZZ COMBO 1
057
JAZZ VOICE
058
ACID JAZZ
059
JAZZ WALTZ
EUROPEAN
060
POLKA
061
POP POLKA
062
MARCH 1
063
MARCH 2
064
WALTZ 1
065
SLOW WALTZ
066
VIENNESE WALTZ
067
FRENCH WALTZ
068
SERENADE
069
TANGO
LATIN I
070
BOSSA NOVA 1
071
BOSSA NOVA 2
072
SAMBA 1
073
SAMBA 2
074
MAMBO
075
RHUMBA
076
CHA-CHA-CHA
077
MERENGUE
078
BOLERO
079 SALSA
LATIN II/VARIOUS I
080
REGGAE
081
PUNTA
082
CUMBIA
083
PASODOBLE
084
SKA
085
BLUEGRASS
086
DIXIE
087
TEX-MEX
088
COUNTRY 1
089
COUNTRY 2
VARIOUS II
090
FOLKLORE
091
JIVE
092
FAST GOSPEL
093
SLOW GOSPEL
094
SIRTAKI
095
HAWAIIAN
096
ADANI
097
BALADI
098
ENKA
099
STR QUARTET
FOR PIANO I
100
PIANO BALLAD 1
101
PIANO BALLAD 2
102
PIANO BALLAD 3
103
EP BALLAD 1
104
EP BALLAD 2
105
BLUES BALLAD
106
MELLOW JAZZ
107
JAZZ COMBO 2
108
RAGTIME
109
BOOGIE-WOOGIE
FOR PIANO II
110
ARPEGGIO 1
111
ARPEGGIO 2
112
ARPEGGIO 3
113
PIANO BALLAD 4
114
6/8 MARCH
115
MARCH 3
116
2 BEAT
117
WALTZ 2
118
WALTZ 3
119
WALTZ 4
NOTE
• Rhythms 110 through 119 consist of chord accompaniments only, without any drums or other percussion instruments. These
rhythms do not sound unless CASIO CHORD or FINGERED is selected as the accompaniment mode. With such rhythms,
make sure that CASIO CHORD or FINGERED is selected before you try playing chords.
NOTA
• Los ritmos 110 al 119 consisten solamente de acompañamientos de acordes, sin ninguna batería ni otros instrumentos de
percusión. Estos ritmos no suenan a menos que CASIO CHORD o FINGERED sean seleccionados como el modo de
acompañamiento. Con tales ritmos, asegúrese de que se selecciona CASIO CHORD o FINGERED, antes de tratar de
ejecutar los acordes.
A-6
32
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
CAN YOU FEEL THE LOVE TONIGHT
(“LION KING”THEME)
HARD TO SAY I’M SORRY
SEPTEMBER
WE WISH YOU A MERRY CHRISTMAS
JINGLE BELLS
SILENT NIGHT
JOY TO THE WORLD
O CHRISTMAS TREE
WHEN THE SAINTS GO MARCHING IN
BEAUTIFUL DREAMER
GREENSLEEVES
SWING LOW, SWEET CHARIOT
JOSHUA FOUGHT THE BATTLE OF JERICHO
AMAZING GRACE
AULD LANG SYNE
TWINKLE TWINKLE LITTLE STAR
LIGHTLY ROW
UNDER THE SPREADING CHESTNUT TREE
COME BIRDS
THE MUFFIN MAN
LONG LONG AGO
DID YOU EVER SEE A LASSIE?
LONDON BRIDGE
THE FARMER IN THE DELL
ON THE BRIDGE OF AVIGNON
SIPPIN’ CIDER THROUGH A STRAW
GRANDFATHER’S CLOCK
MICHAEL ROW THE BOAT ASHORE
DANNY BOY
ANNIE LAURIE
MY BONNIE
IF YOU’RE HAPPY AND YOU KNOW IT, CLAP
YOUR HANDS
MY DARLING CLEMENTINE
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
HOME SWEET HOME
MY WILD IRISH ROSE
ON TOP OF OLD SMOKEY
AMERICA THE BEAUTIFUL
DOWN IN THE VALLEY
I’VE BEEN WORKING ON THE RAILROAD
LITTLE BROWN JUG
AURA LEE
OH! SUSANNA
HOUSE OF THE RISING SUN
SHE WORE A YELLOW RIBBON
WHEN JOHNNY COMES MARCHING HOME
CAMPTOWN RACES
SWANEE RIVER (OLD FOLKS AT HOME)
JEANNIE WITH THE LIGHT BROWN HAIR
YANKEE DOODLE
RED RIVER VALLEY
TURKEY IN THE STRAW
MY OLD KENTUCKY HOME
HOME ON THE RANGE
JAMAICA FAREWELL
ALOHA OE
SAKURA SAKURA
SANTA LUCIA
WALTZING MATILDA
AIR FROM “SUITE no.3”
SPRING FROM “THE FOUR SEASONS”
BRIDAL MARCH FROM “LOHENGRIN”
TRIUMPHAL MARCH FROM “AIDA”
HABANERA FROM “CARMEN”
BRINDISI FROM “LA TRAVIATA”
MARCH FROM “THE NUTCRACKER”
65~74
Loaded songs (user songs)/
Canciones cargadas (canciones del usuario)
ETUDES
MINUET IN G MAJOR
GAVOTTE (GOSSEC)
CHOPSTICKS
AVE MARIA (GOUNOD)
JESUS BLEIBET MEINE FREUDE
CANON (PACHELBEL)
PIANO SONATA op.13 “PATHÉTIQUE” 2nd Mov.
ODE TO JOY
SERENADE FROM “EINE KLEINE NACHTMUSIK”
GOING HOME FROM “FROM THE NEW WORLD”
CONCERT PIECES
10 FÜR ELISE
11 TURKISH MARCH (MOZART)
12 THE ENTERTAINER
13 MAPLE LEAF RAG
14 GYMNOPÉDIES no.1
15 ETUDE op.10 no.3 “CHANSON DE L’ADIEU”
16 PIANO SONATA op.27 no.2 “MOONLIGHT” 1st Mov.
17 HUNGARIAN DANCES no.5
18 TRÄUMEREI
19 HUMORESKE (DVO ÁK)
20 PROMENADE FROM “TABLEAUX D’UNE
EXPOSITION”
21 LE CYGNE FROM “LE CARNAVAL DES
ANIMAUX”
22 CHANSON DU TOREADOR FROM “CARMEN”
23 LARGO (HÄNDEL)
24 WEDDING MARCH FROM “MIDSUMMER
NIGHT’S DREAM”
25 AMERICAN PATROL
26 CSIKOS POST
27 DOLLY’S DREAMING AND AWAKENING
28 LA CHEVALERESQUE
29 PIANO SONATA K.545 1st Mov.
30 LA PRIÈRE D’UNE VIERGE
31 NOCTURNE op.9 no.2 (CHOPIN)
32 MARCHE MILITAIRE no.1
33 BLUMENLIED
34 GRANDE VALSE BRILLANTE op.18 no.1
00
01
02
03
04
05
06
07
08
09
Lista PIANO BANK
Lista SONG BANK
00
PIANO BANK List
SONG BANK
Song List/Lista de canciones
Appendix/Apéndice
A-7
Key’s
Ch’s
After
Touch
Control
Change
Pitch Bender
Note ON
Note OFF
Velocity
0, 32
1
6, 38
7
10
11
64
66
True voice
O
O
O*3
O*4
O
O
O
O
O
O
X
X
X
X
X
O*5
O*5
X
O*3
O 9nH V = 1-127
X 9nH V = 0,8nH V = XX
0-127
12-108*1
Mode 3
X
❊❊❊❊❊❊❊❊❊❊❊❊❊❊
1-16
1-16
Recognized
X
X
X
*2
X 8nH V = 64
36-96
❊❊❊❊❊❊❊❊❊❊❊❊❊❊
Mode 3
X
❊❊❊❊❊❊❊❊❊❊❊❊❊❊
Default
Messages
Altered
Mode
Note
Number
1
1-16
Default
Changed
Transmitted
Basic
Channel
Function ...
Bank select
Modulation
Data entry
Volume
Pan
Expression
Hold1
Sostenuto
XX: no relation
XX: sin relación
*1: See Tone List on page A-1.
*1: Vea la lista de sonidos
en la página A-1.
Remarks
LK-210/LK-215
Version: 1.0
MIDI messages that can be sent and received using the USB port
Los mensajes MIDI pueden enviarse y recibirse usando el puerto USB
Models
*2
*2
*3
*3
Mode 1 : OMNI ON, POLY
Mode 3 : OMNI OFF, POLY
Remarks
*5
*5
*4
*4
: Local ON/OFF
: All notes OFF
: Active Sense
: Reset
Aux
Messages
: Clock
: Commands
System
Real Time
O
O
O
O*4
O
O
Mode 2 : OMNI ON, MONO
Mode 4 : OMNI OFF, MONO
Soft pedal
Reverb send
Chorus send
RPN LSB, MSB
All sound off
Reset all controller
O : Yes
X : No
*6 • Reverb Type [F0] [7F] [7F] [04] [05] [01] [01] [01] [01] [01] [00]
[vv] [F7] vv=00: Room1, 01: Room2, 04: Hall1, 03: Hall2
• Chorus Type [F0] [7F] [7F] [04] [05] [01] [01] [01] [01] [02] [00]
[vv] [F7] vv=00: Chorus1, 01: Chorus2, 02: Chorus3, 03: Chorus4
*6 • Tipo de reverberación [F0] [7F] [7F] [04] [05] [01] [01] [01] [01] [01]
[00] [vv] [F7] vv=00: Room1, 01: Room2, 04: Hall1, 03: Hall2
• Tipo de Chorus [F0] [7F] [7F] [04] [05] [01] [01] [01] [01] [02] [00]
[vv] [F7] vv=00: Chorus1, 01: Chorus2, 02: Chorus3, 03: Chorus4
*7 GM on/off GM ON : [F0] [7E] [7F] [09] [01] [F7] GM OFF : [F0]
[7E] [7F] [09] [02] [F7]
*7 Activación/desactivación GM GM ON: [F0] [7E] [7F] [09] [01] [F7]
GM OFF: [F0] [7E] [7F] [09] [02] [F7]
X
O
O
X
X
X
X
X
X
O*6 *7
O 0-127
❊❊❊❊❊❊❊❊❊❊❊❊❊❊
LK-210:X 9nH V = 98, LK-215:O 9nH V = 1-127
LK-210:X 9nH V = 98, LK-215:O 9nH V = 1-127
Modulation and after touch for each channel are the same effect.
La modulación y después del toque para cada canal tienen el
mismo efecto.
FINE TUNE, COARSE TUNE receive, and PITCH BEND SENSE,
RPN Null receive
FINE TUNE, recepción COARSE TUNE, y PITCH BEND SENSE,
recepción RPN.
In accordance with sustain/assignable jack setting
De acuerdo con el ajuste de la toma asignable.
X
O
X
X
O
O
X
X
X
: Song Pos
: Song Sel
: Tune
System
Common
O 0-127
❊❊❊❊❊❊❊❊❊❊❊❊❊❊
O*6
:True #
O*5
X
O
X
O
O
System Exclusive
Program
Change
67
91
93
100, 101
120
121
ES
