Please read before using this equipment.

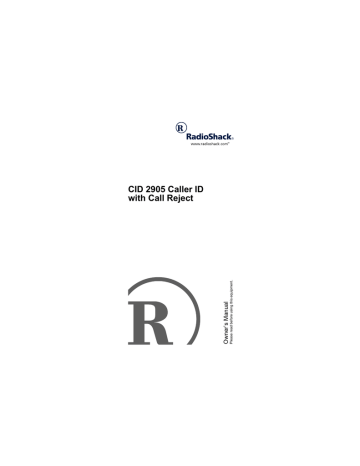

Owner’s Manual
CID 2905 Caller ID
with Call Reject
ˆ Contents
Important Information ......................... 4
Features ............................................... 8
Preparation ........................................ 10
Installing Batteries/Setup ............. 10
Adjusting the
Display’s Contrast .........................13
Connecting to the Phone Line ...... 13
Connecting to an
Answering Machine ...................... 14
Mounting the CID ......................... 15
Operation ...........................................
Incoming Calls ..............................
Using Call Reject ..........................
Message Waiting ..........................
Reviewing Call Records ...............
Caller ID Messages ...............
Deleting Caller ID Records ...........
16
16
17
17
18
19
20
Troubleshooting ................................ 22
Care ............................................. 23
© 2001 RadioShack Corporation. All Rights Reserved.
RadioShack and RadioShack.com are trademarks used
by RadioShack Corporation.
2
WARNING: To reduce the risk of fire or
shock hazard, do not expose this product to
rain or moisture.
CAUTION
RISK OF ELECTRIC
SHOCK. DO NOT OPEN.
!
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK, DO NOT
REMOVE COVER OR BACK. NO USERSERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED PERSONNEL.
This symbol is intended to alert
you to the presence of uninsulated dangerous voltage within
the product’s enclosure that
might be of sufficient magnitude to constitute a risk of
electric shock. Do not open the
product’s case.
!
This symbol is intended to
inform you that important operating
and
maintenance
instructions are included in the
literature accompanying this
product.
3
ˆ Important
Information
• To use this Caller ID (CID), you must
be in an area where Caller ID service
is available, and you must subscribe
to the service.
• Where Caller ID is offered, one or
more of the following options are generally available:
– caller’s number only
– caller’s name only
– caller’s name and number
Your CID displays the caller’s name
only if that option is available in your
area.
• The actual number of Caller ID
records your CID will store depends
on the amount of Caller ID information sent by the phone company.
Your CID is ETL listed to UL standards
and meets all applicable FCC requirements.
4
Important Information
FCC INFORMATION
We have designed your CID to conform to
federal regulations, and you can connect it
to most telephone lines. However, each
CID (and each device, such as a telephone or answering machine) that you
connect to the telephone line draws power
from the line. We refer to this power draw
as the device’s ringer equivalence number, or REN. The REN is on the bottom of
your CID.
If you use more than one phone or other
device on the line, add up all the RENs. If
the total is more than five (three in rural
areas), your phones might not ring. If ringer operation is impaired, remove a device
from the line.
Your CID complies with Part 68 of the
FCC Rules. You must, upon request, provide the FCC registration number and the
REN to your phone company. Both numbers are on the bottom of the CID.
You must not connect your CID to:
• coin-operated systems
• party-line systems
Important Information
5
• most electronic key telephone systems
In the unlikely event that your CID causes
problems on the phone line, the phone
company can temporarily disconnect your
service. If this happens, the phone company attempts to notify you in advance. If
advance notice is not practical, the phone
company notifies you as soon as possible
and advises you of your right to file a complaint with the FCC.
Also, the phone company can make
changes to its lines, equipment, operations, or procedures that could affect the
operation of this CID. The phone company
notifies you of these changes in advance,
so you can take the necessary steps to
prevent interruption of your phone service.
This CID complies with the limits for a
Class B digital device as specified in Part
15 of the FCC Rules. These limits provide
reasonable protection against radio and
TV interference in a residential area. However, your equipment might cause TV or
radio interference even when it is operating properly.
6
Important Information
To eliminate interference, you can try one
or more of the following corrective measures:
• Reorient or relocate the TV or radio’s
receiving antenna.
• Increase the distance between the
CID and the radio or TV.
• Use outlets on different electrical circuits for the equipment and the radio
or TV.
Consult your local RadioShack store if the
problem continues.
LIGHTNING
Your CID has built-in protection circuits to
reduce the risk of damage from surges in
telephone and power line current. These
protection circuits meet or exceed the
FCC requirements. However, lightning
striking the telephone or power lines can
damage your CID.
Lightning damage is not common. Nevertheless, if you live in an area that has severe electrical storms, we suggest that
you unplug your CID when storms
approach to reduce the possibility of damage.
Important Information
7
ˆ Features
Your RadioShack Caller ID displays the
caller’s telephone number (including
name, if available in your area) and the
date and time the call was received, as
provided by your local phone company to
Caller ID service subscribers.
Note: Check with your local phone company regarding name service availability.
Your CID includes these features:
Call Reject — lets you to play a prerecorded message when you receive an unwanted call.
50 Caller ID Memory— stores up to 50
name and number Caller ID records or
number only Caller ID records.
Call Counter — shows the number of
calls you have received.
New Call Indicator — lets you see at a
glance that you have new calls.
Three-Line Display — makes it easy to
see the caller information and the current
time and date simultaneously.
8
Features
Message Waiting — tells you when you
have received a voice mail message (if
you subscribe to the message waiting service from your local phone company).
Note: The Message Waiting feature does
not work with stutter dial tone service.
Check with your telephone company for
the type of service you have.
Trilingual Operation — lets you select
English, French, or Spanish as the message display.
Clock — displays the current time and
date as provided to Caller ID service subscribers by your local telephone company.
Reviewing Scrolling — lets you easily
scroll through all records in Caller ID
memory.
Contrast Control — lets you adjust the
display contrast to match your preference.
Features
9
ˆ Preparation
INSTALLING BATTERIES/
SETUP
You need three AAA batteries (not supplied) to power your Caller ID (CID). For
the longest operation and best performance, we recommend alkaline batteries,
available at your local RadioShack store.
Cautions:
• Always use fresh batteries of the
required size and recommended
type.
• Do not mix old and new batteries, different types of batteries (alkaline,
standard, or rechargeable), or
rechargeable batteries of different
capacities.
Follow these steps to install batteries.
1. Use a flat-blade screwdriver to lift and
remove the battery compartment
cover.
2. Insert three fresh AAA batteries into
the compartment as indicated by the
10
Preparation
polarity symbols (+ and –) marked
inside.
3. Turn the CID over so you can see the
display. After you install the batteries,
I;J B7D=K7=; flashes briefly, then
;D=B?I> (the default display language)
flashes for about 10 seconds.
Note: If you do not press any button
for about 10 seconds, the CID automatically selects English and the time
and date appear.
4. To select another language, press
REVIEW 8. <H;D9> flashes. Press
REVIEW 8 until the desired language flashes.
5. Press REVIEW 9 to store the
selected language. Or, after about 10
seconds, the CID automatically
stores the displayed language.
'(0&&7C '%&' appears.
6. Replace the cover.
When
flashes or the display dims, replace the batteries.
Warning: Dispose of old batteries
promptly and properly. Do not burn or
bury them.
Preparation
11
Caution: If you do not plan to use the CID
for a month, remove the batteries. Batteries can leak chemicals that can destroy
electronic parts.
Notes:
• Before you replace the batteries,
have fresh ones on hand. If you do
not install new batteries within about
2 minutes after removing the old
ones, the CID records and the date
and time will be lost. The records
cannot be replaced, but the date and
time will automatically reset when you
receive the next call.
• Unplug the modular line cord from the
CID before you replace the batteries.
• To reset the language, hold down
REVIEW 8 and 9 until I;J B7D=K7=;
flashes briefly then ;D=B?I> flashes on
the display. Then repeat Steps 4–5 to
set the language.
12
Preparation
ADJUSTING THE DISPLAY’S
CONTRAST
Your CID has eight display contrast settings (0–7).
Follow these steps to adjust the display’s
contrast.
1. Hold down DELETE and REVIEW 9
until 9EDJH7IJ N (N equals the current
contrast setting) appears.
2. Continue to hold down DELETE and
press REVIEW 8 or 9 to select the
desired contrast setting.
3. Release DELETE. The date and time
appear.
CONNECTING TO THE
PHONE LINE
The CID connects to any modular phone
jack and your phone. You can also connect it to an answering machine.
PHONE
Preparation
LINE
13
1. Disconnect your telephone’s line cord
from the modular phone line jack and
plug it into the CID’s PHONE jack.
2. Plug one end of the supplied modular
line cord into the CID’s LINE jack.
3. Plug the cord’s other end into the
modular phone line jack.
CONNECTING TO AN
ANSWERING MACHINE
PHONE
LINE
1. Disconnect the modular line cord that
connects your answering machine to
the modular phone line jack, then
plug it into the CID’s PHONE jack.
2. Plug one end of the supplied modular
line cord into the CID’s LINE jack.
3. Plug the cord’s other end into the
modular phone line jack.
14
Preparation
4. Set your answering machine to
answer after two or more rings. This
gives the Caller ID time to record the
call information that the phone company sends between the first and
second rings.
MOUNTING THE CID
You can place the CID on a flat surface, or
you can mount it on a wall.
Follow these steps to mount the CID on a
wall.
1. Select a location near the phone line
jack, then use the round holes in the
mounting bracket as a template to
mark the mounting screw locations
on the wall.
2. Drill two 1/8-inch (3.5 mm) holes in the
wall at the marked locations.
3. While holding the bracket against the
wall, thread a screw (not supplied)
through each hole in the bracket, then
tighten the screws.
4. Align the slots on the back of the
Caller ID with the holes on the
bracket. Gently slide the CID downward to secure it.
Preparation
15
To remove the bracket from the CID, slide
the bracket down then lift and remove it.
ˆ Operation
INCOMING CALLS
When you subscribe to Caller ID service
from your phone company, the phone
company sends the caller’s phone number (and name, if available) and the call’s
time and date between the first and second rings. Your CID receives and displays
this information for each call and updates
the current date and time. You cannot
manually set the date and time.
97BB and the CALL indicator flash when
you have an incoming call, and the call
record appears for 20 seconds, then the
number of new calls appears.
D;M flashes and the NEW CALL indicator flashes to show that you have received new calls since the last time you
reviewed the stored records.
16
Operation
USING CALL REJECT
When you receive a call you do not want
to answer, press CALL REJECT. The
CALL REJECT indicator lights and the
CID announces “We don’t accept calls
of this nature. Please remove our phone
number from your calling list. Thank
you.”
Note: The CID displays the caller’s
phone number until you delete it (see
“Deleting Caller ID Records” on
Page 20).
MESSAGE WAITING
Note: The message waiting feature does
not work with stutter dial tone service.
Check with your phone company for the
type of service you have.
If you subscribe to the telephone company’s message waiting service and
have a voice-mail message waiting, D;M
97BB and C;II7=;ýM7?J?D= appear on the
display. C;II7=;ýM7?J?D= remains on the
display until you retrieve the message.
If you are talking on the phone when a call
comes in, the incoming call automatically
rolls over to message waiting. The phone
Operation
17
company sends the information after you
end the current call and C;II7=; M7?J?D=
appears on the display.
In some areas, callers can block the sending of their Caller ID information. When a
caller blocks the Caller ID information, #
FH?L7J; 97BB¶ appears instead of the call
information.
REVIEWING CALL RECORDS
Each time you receive a call, your CID
stores a record that you can see while you
are on the phone, or review later. Your
CID saves up to 50 call records, replacing
the oldest call record with a new call
record.
Each call record includes the call number
(order in which the call is received), the
time and date of the call, the caller’s
phone number (if available), and the caller’s name (if available).
To review the call records, repeatedly
press REVIEW 8 or 9.
;D: E< B?IJ appears when you try to scroll
before the first or after the last call record.
18
Operation
Note: The CID shows up to 10 digits of an
incoming phone number. If the number is
longer, you see only the last 10 digits.
Caller ID Messages
Display
(English, French,
Spanish)
D;Mý97BBâIáýNN
Description
Appears the first time
you review a new call
record. (NN is the
number of new calls.)
(three languages)
#FH?L7J; 97BB#
7FF;B F;HIEDD;Bý
BB7C7:7 FH?L7:7
The caller has
blocked the call information from being
sent.
;D: E<ýB?IJ
<?D :;ýB?IJ
<?D :;ýB?IJ7
Appears when you
reach the end of your
call records.
#####;HHEH#####
#####;HH;KH#####
#####;HHEH#####
The call information
was garbled, or there
was an error during
the transmission of
call information.
DE 97BBI
7K9KD 7FF;BI
DE BB7C7:7I
Appears when you
press a REVIEW key
if there are no call
records in the CID’s
memory.
Operation
19
Display
(English, French,
Spanish)
Description
#EKJýE<ý7H;7#
#>EHI PED;#
#<K;H7 :; 7H;7#
The caller is not
within a Caller ID service area. No call
information appears.
C;II7=; M7?J?D=
C;I$ ;D 7JJ;DJ;
C;DI7@; ;IF;H7
Appears when a
message is waiting
(you must subscribe
to your phone company’s message
waiting service to see
this).
Note: The message
waiting feature does
not work with stutter
dial tone service.
DELETING CALLER ID
RECORDS
Caller ID records remain in memory until
you delete them, unless they are lost during battery replacement (see “Installing
Batteries/Setup” on Page 10).
To delete an individual call record, repeatedly press REVIEW 8 or 9 until
you see the record you want to delete,
then press DELETE twice. The record
disappears. The next record appears or,
20
Operation
if no other calls are stored, DE 97BBI appears.
To delete all Caller ID records you have
already reviewed, hold down DELETE for
about eight seconds. ;H7I; 7BB$$$ flashes.
The time and date appear after all reviewed records have been deleted.
Operation
21
ˆ Troubleshooting
If your CID is not working as it should,
these suggestions might help you eliminate the problem.
Problem
Suggestions
Display is
blank.
Replace the batteries. See
“Installing Batteries/Setup”
on Page 10.
You have an
incoming call,
but do not
receive any
call information.
Someone picked up a telephone on the same phone
line before the CID recorded
the call record. This is not a
malfunction.
Check that the CID is correctly and securely connected.
Call your phone company to
verify that your Caller ID service is active.
22
Troubleshooting
CARE
Keep the CID dry; if it gets wet, wipe it dry
immediately. Use and store the CID only
in normal temperature environments.
Handle the CID carefully; do not drop it.
Keep the CID away from dust and dirt,
and wipe it with a damp cloth occasionally
to keep it looking new.
Modifying or tampering with the CID’s
internal components can cause a
malfunction and invalidate its warranty. If
your CID is not performing as it should,
take it to your local RadioShack store for
assistance. If the trouble is affecting the
telephone lines, the phone company can
ask you to disconnect your CID until you
have resolved the problem.
Troubleshooting
23
Limited One-Year Warranty
This product is warranted by RadioShack against manufacturing
defects in material and workmanship under normal use for one (1)
year from the date of purchase from RadioShack company-owned
stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES,
INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE
DURATION OF THE WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack
SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON OR ENTITY WITH RESPECT
TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR
INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT
OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING
FROM INCONVENIENCE, LOSS OF TIME, DATA, PROPERTY,
REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply
to you.
In the event of a product defect during the warranty period, take the
product and the RadioShack sales receipt as proof of purchase
date to any RadioShack store. RadioShack will, at its option, unless
otherwise provided by law: (a) correct the defect by product repair
without charge for parts and labor; (b) replace the product with one
of the same or similar design; or (c) refund the purchase price. All
replaced parts and products, and products on which a refund is
made, become the property of RadioShack. New or reconditioned
parts and products may be used in the performance of warranty
service. Repaired or replaced parts and products are warranted for
the remainder of the original warranty period. You will be charged
for repair or replacement of the product made after the expiration of
the warranty period.
This warranty does not cover: (a) damage or failure caused by or
attributable to acts of God, abuse, accident, misuse, improper or
abnormal usage, failure to follow instructions, improper installation
or maintenance, alteration, lightning or other incidence of excess
voltage or current; (b) any repairs other than those provided by a
RadioShack Authorized Service Facility; (c) consumables such as
fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs of product removal, installation,
set-up service adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort
Worth, TX 76102
We Service What We Sell
03A01
43-2905
12/99
Printed in Malaysia
