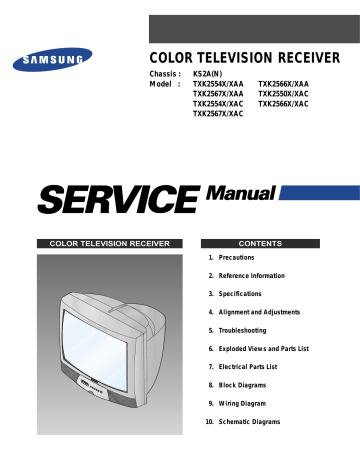

Samsung CL15A8 Specifications

COLOR TELEVISION RECEIVER
Chassis :
Model :
COLOR TELEVISION RECEIVER
KS2A(N)
TXK2554X/XAA
TXK2567X/XAA
TXK2554X/XAC
TXK2567X/XAC
TXK2566X/XAA
TXK2550X/XAC
TXK2566X/XAC
CONTENTS
1. Precautions
2. Reference Information
3. Specifications
4. Alignment and Adjustments
5. Troubleshooting
6. Exploded Views and Parts List
7. Electrical Parts List
8. Block Diagrams
9. Wiring Diagram
10. Schematic Diagrams
ELECTRONICS
© Samsung Electronics Co., Ltd. OCT. 2000
Printed in Korea
3KS2A(N)-2507
Precautions
1. Precautions
Follow these safety, servicing and ESD precautions to prevent damage and protect against potential
hazards such as electrical shock and X-rays.
1-1 Safety Precautions
1. Be sure that all of the built-in protective
devices are replaced. Restore any missing
protective shields.
2. When reinstalling the chassis and its
assemblies, be sure to restore all protective
devices, including: nonmetallic control knobs
and compartment covers.
3. Make sure that there are no cabinet openings
through which people—particularly
children—might insert fingers and contact
dangerous voltages. Such openings include
the spacing between the picture tube and the
cabinet mask, excessively wide cabinet
ventilation slots, and improperly fitted back
covers.
If the measured resistance is less than 1.0
megohm or greater than 5.2 megohms, an
abnormality exists that must be corrected
before the unit is returned to the customer.
4. Leakage Current Hot Check (Figure 1-1):
Warning: Do not use an isolation
transformer during this test. Use a leakagecurrent tester or a metering system that
complies with American National Standards
Institute (ANIS C101.1, Leakage Current for
Appliances), and Underwriters Laboratories
(UL Publication UL1410, 59.7).
5. With the unit completely reassembled, plug
the AC line cord directly into the power
outlet. With the unit’s AC switch first in the
ON position and then OFF, measure the
current between a known earth ground (metal
water pipe, conduit, etc.) and all exposed
metal parts, including: antennas, handle
brackets, metal cabinets, screwheads and
control shafts. The current measured should
not exceed 0.5 milliamp. Reverse the powerplug prongs in the AC outlet and repeat the
test.
Samsung Electronics
LEAKAGE
CURRENT
TESTER
DEVICE
UNDER
TEST
(READING SHOULD
NOT BE ABOVE
0.5mA)
TEST ALL
EXPOSED METAL
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
EARTH
GROUND
Fig. 1-1 AC Leakage Test
6. Antenna Cold Check:
With the unit’s AC plug disconnected from the
AC source, connect an electrical jumper across
the two AC prongs. Connect one lead of the
ohmmeter to an AC prong. Connect the other
lead to the coaxial connector.
7. X-ray Limits:
The picture tube is especially designed to
prohibit X-ray emissions. To ensure continued
X-ray protection, replace the picture tube only
with one that is the same type as the original.
Carefully reinstall the picture tube shields and
mounting hardware; these also provide X-ray
protection.
8. High Voltage Limits:
High voltage must be measured each time
servicing is done on the B+, horizontal
deflection or high voltage circuits.
Correct operation of the X-ray protection
circuits must be reconfirmed whenever they
are serviced.
(X-ray protection circuits also may be called
“horizontal disable” or “hold-down”.)
Heed the high voltage limits. These include
the X–ray Protection Specifications Label, and
the Product Safety and X-ray Warning Note on
the service data schematic.
1-1
Precautions
1-1 Safety Precautions (Continued)
9. High voltage is maintained within specified
limits by close-tolerance, safety-related
components and adjustments. If the high
voltage exceeds the specified limits, check
each of the special components.
10. Design Alteration Warning:
Never alter or add to the mechanical or
electrical design of this unit. Example: Do not
add auxiliary audio or video connectors. Such
alterations might create a safety hazard. Also,
any design changes or additions will void the
manufacturer’s warranty.
11. Hot Chassis Warning:
Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord. If an isolation transformer is not
used, these units may be safely serviced only
if the AC power plug is inserted so that the
chassis is connected to the ground side of the
AC source.
To confirm that the AC power plug is inserted
correctly, do the following: Using an AC
voltmeter, measure the voltage between the
chassis and a known earth ground. If the
reading is greater than 1.0V, remove the AC
power plug, reverse its polarity and reinsert.
Re-measure the voltage between the chassis
and ground.
12. Some TV chassis are designed to operate with
85 volts AC between chassis and ground,
regardless of the AC plug polarity. These units
can be safely serviced only if an isolation
transformer inserted between the receiver and
the power source.
13. Some TV chassis have a secondary ground
system in addition to the main chassis ground.
This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulating material that must not be defeated
or altered.
14. Components, parts and wiring that appear to
have overheated or that are otherwise
damaged should be replaced with parts that
meet the original specifications. Always
determine the cause of damage or
overheating, and correct any potential
hazards.
1-2
15. Observe the original lead dress, especially
near the following areas: Antenna wiring,
sharp edges, and especially the AC and high
voltage power supplies. Always inspect for
pinched, out-of-place, or frayed wiring. Do
not change the spacing between components
and the printed circuit board. Check the AC
power cord for damage. Make sure that leads
and components do not touch thermally hot
parts.
16. Picture Tube Implosion Warning:
The picture tube in this receiver employs
“integral implosion” protection. To ensure
continued implosion protection, make sure
that the replacement picture tube is the same
as the original.
17. Do not remove, install or handle the picture
tube without first putting on shatterproof
goggles equipped with side shields. Never
handle the picture tube by its neck. Some
“in-line” picture tubes are equipped with a
permanently attached deflection yoke; do not
try to remove such “permanently attached”
yokes from the picture tube.
18. Product Safety Notice:
Some electrical and mechanical parts have
special safety-related characteristics which
might not be obvious from visual inspection.
These safety features and the protection they
give might be lost if the replacement
component differs from the original—even if
the replacement is rated for higher voltage,
wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading,
(
) or (
).
Use replacement components that have the
same ratings, especially for flame resistance
and dielectric strength specifications.
A replacement part that does not have the
same safety characteristics as the original
might create shock, fire or other hazards.
Samsung Electronics
Precautions
1-2 Servicing Precautions
Warning1: First read the “Safety Precautions” section of this manual. If some unforeseen circumstance creates a conflict between
the servicing and safety precautions, always follow the safety precautions.
Warning2: An electrolytic capacitor installed with the wrong polarity might explode.
1. Servicing precautions are printed on the
cabinet. Follow them.
2. Always unplug the unit’s AC power cord from
the AC power source before attempting to:
(a) Remove or reinstall any component or
assembly, (b) Disconnect an electrical plug or
connector, (c) Connect a test component in
parallel with an electrolytic capacitor.
3. Some components are raised above the printed
circuit board for safety. An insulation tube or
tape is sometimes used. The internal wiring is
sometimes clamped to prevent contact with
thermally hot components. Reinstall all such
elements to their original position.
4. After servicing, always check that the screws,
components and wiring have been correctly
reinstalled. Make sure that the portion around
the serviced part has not been damaged.
Samsung Electronics
5. Check the insulation between the blades of the
AC plug and accessible conductive parts
(examples: metal panels, input terminals and
earphone jacks).
6. Insulation Checking Procedure: Disconnect the
power cord from the AC source and turn the
power switch ON. Connect an insulation
resistance meter (500V) to the blades of the AC
plug.
The insulation resistance between each blade
of the AC plug and accessible conductive parts
(see above) should be greater than 1 megohm.
7. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of
its assemblies) unless all solid-state heat sinks
are correctly installed.
8. Always connect a test instrument’s ground
lead to the instrument chassis ground before
connecting the positive lead; always remove
the instrument’s ground lead last.
1-3
Precautions
1-3 Precautions for Electrostatically Sensitive Devices (ESDs)
1. Some semiconductor (“solid state”) devices
are easily damaged by static electricity. Such
components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect
transistors. The following techniques will
reduce the occurrence of component damage
caused by static electricity.
2. Immediately before handling any semicon
ductor components or assemblies, drain the
electrostatic charge from your body by
touching a known earth ground. Alternatively,
wear a discharging wrist-strap device. (Be
sure to remove it prior to applying power—
this is an electric shock precaution.)
3. After removing an ESD-equipped assembly,
place it on a conductive surface such as
aluminum foil to prevent accumulation of
electrostatic charge.
4. Do not use freon-propelled chemicals. These
can generate electrical charges that damage
ESDs.
1-4
5. Use only a grounded-tip soldering iron when
soldering or unsoldering ESDs.
6. Use only an anti-static solder removal device.
Many solder removal devices are not rated as
“anti-static”; these can accumulate sufficient
electrical charge to damage ESDs.
7. Do not remove a replacement ESD from its
protective package until you are ready to
install it. Most replacement ESDs are
packaged with leads that are electrically
shorted together by conductive foam,
aluminum foil or other conductive materials.
8. Immediately before removing the protective
material from the leads of a replacement ESD,
touch the protective material to the chassis or
circuit assembly into which the device will be
installed.
9. Minimize body motions when handling
unpackaged replacement ESDs. Motions such
as brushing clothes together, or lifting a foot
from a carpeted floor can generate enough
static electricity to damage an ESD.
Samsung Electronics
Reference Information
2. Reference Information
2-1 Tables of Abbreviations and Acronyms
Table 2-1 Abbreviations
A
Ah
Å
dB
dBm
°C
°F
°K
F
G
GHz
g
H
Hz
h
ips
kWh
kg
kHz
kΩ
km
km/h
kV
kVA
kW
I
MHz
Samsung Electronics
Ampere
Ampere-hour
Angstrom
Decibel
Decibel Referenced to One
Milliwatt
Degree Celsius
Degree Fahrenheit
degree Kelvin
Farad
Gauss
Gigahertz
Gram
Henry
Hertz
Hour
Inches Per Second
Kilowatt-hour
Kilogram
Kilohertz
Kilohm
Kilometer
Kilometer Per Hour
Kilovolt
Kilovolt-ampere
Kilowatt
Liter
Megahertz
MV
MW
MΩ
m
µA
µF
µH
µm
µs
µW
mA
mg
mH
mI
mm
ms
mV
nF
Ω
pF
Ib
rpm
rps
s
V
VA
W
Wh
Megavolt
Megawatt
Megohm
Meter
Microampere
Microfarad
Microhenry
Micrometer
Microsecond
Microwatt
Milliampere
Milligram
Millihenry
Milliliter
Millimeter
Millisecond
Millivolt
Nanofarad
Ohm
Picofarad
Pound
Revolutions Per Minute
Revolutions Per Second
Second (Time)
Volt
Volt-ampere
Watt
Watt-hour
2-1
Reference Information
Table 2-2 Table of Acronyms
ABL
AC
ACC
AF
AFC
AFT
AGC
AM
ANSI
APC
APC
A/V
AVC
BAL
BPF
B-Y
CATV
CB
CCD
CCTV
Ch
CRT
CW
DC
DVM
EIA
ESD
ESD
FBP
FBT
FF
FM
FS
GND
G-Y
H
HF
HI-FI
IC
IC
IF
2-2
Automatic Brightness Limiter
Alternating Current
Automatic Chroma Control
Audio Frequency
Automatic Frequency Control
Automatic Fine Tuning
Automatic Gain Control
Amplitude Modulation
American National Standards Institute
Automatic Phase Control
Automatic Picture Control
Audio-Video
Automatic Volume Control
Balance
Bandpass Filter
Blue-Y
Community Antenna Television (Cable TV)
Citizens Band
Charge Coupled Device
Closed Circuit Television
Channel
Cathode Ray Tube
Continuous Wave
Direct Current
Digital Volt Meter
Electronics Industries Association
Electrostatic Discharge
Electrostatically Sensitive Device
Feedback Pulse
Flyback Transformer
Flip-Flop
Frequency Modulation
Fail Safe
Ground
Green-Y
High
High-Frequency
High Fidelity
Inductance-Capacitance
Integrated Circuit
Intermediate Frequency
I/O
L
L
LED
LF
MOSFET
MTS
NAB
NEC
NTSC
OSD
PCB
PLL
PWM
QIF
R
RC
RF
R-Y
SAP
SAW
SIF
SMPS
S/N
SW
TP
TTL
TV
UHF
UL
UV
VCD
VCO
VCXO
VHF
VIF
VR
VTR
VTVM
TR
Input/output
Left
Low
Light Emitting Diode
Low Frequency
Metal-Oxide-Semiconductor-Field-Effect-Tr
Multi-channel Television Sound
National Association of Broadcasters
National Electric Code
National Television Systems Committee
On Screen Display
Printed Circuit Board
Phase-Locked Loop
Pulse Width Modulation
Quadrature Intermediate Frequency
Right
Resistor & Capacitor
Radio Frequency
Red-Y
Second Audio Program
Surface Acoustic Wave(Filter)
Sound Intermediate Frequency
Switching Mode Power Supply
Signal/Noise
Switch
Test Point
Transistor Transistor Logic
Television
Ultra High Frequency
Underwriters Laboratories
Ultraviolet
Variable-Capacitance Diode
Voltage Controlled Oscillator
Voltage Controlled Crystal Oscillator
Very High Frequency
Video Intermediate Frequency
Variable Resistor
Video Tape Recorder
Vacuum Tube Voltmeter
Transistor
Samsung Electronics
Reference Information
2-2 IC Line Up
Table 2 - 3 IC Line - Up
NO
1
BOARD
MAIN
LOC. NO
SPEC
IC201S
VDP3112B
Video Processor
IC601
MSP3440D
NTSC Sound Processor
IC901
SDA555X
MICOM, Caption (MTP)
IC902
KS24L161
EEPROM
IC602
TDA7297
Audio AMP
HIC201
DRGB001
RGB Drive AMP Hybrid IC
IC301
LA7845
Q401
KSD5703
D409
FMP-3FU
IC401
KA393
Q404
IRF620
IC801S
3S1265R
SPS Controllor
D801S
RBV606
Bridge Diode
PC801S
PC123Y
Photo Coupler
IC805
KA78R05
5V Controlled Regulator
FML-G12S
Rectifier Diode
D806
DESCRIPTION
REMARK
Refer to Table 2-3-1
Refer to Table 2-3-2
VM Option
Vertical IC
Horizontal Drive IC
DH01
E/W Drive IC
Option
DDR01
D807
D805
FMG-G26S
IC804
KA7806
6V Regulator
IC803
KA78R08
8V Controlled Regulator
IC903
KA78RM33
3.3V Regulator
IC904
KIA7025AP
MICOM Reset IC
2N7000
IIC Level Shifter
Q909
Q910
Samsung Electronics
TU01
TCPN3081PA09A(S)
D813
FML-G12S
Main Tuner with IF Block
Rectifier Diode
2-3
Reference Information
Table 2 - 3 IC Line - Up
NO
BOARD
LOC. NO
SPEC
DESCRIPTION
REMARK
IC501
IC502
CRT
TDA6101Q
Video Output AMP R.G.B Drive
IC503
2
QF04
2SC2344
QF05
2SA1011
3
V-S/W
ICS01
TEA6425
4
PIP
ICP01
SDA9388X
Push-Pull (VM)
Option
Video Switching IC with Adder Output
Option
High-end Picture-In Picture IC
Option
Table 2-3-1 VIDEO IC
SPEC
VDP3108B
Basic 1H Comb Filter
VDP3130Y
2H Comb Filter, DVD Input
FUNCTION
REMARK
FUNCTION
REMARK
Table 2-3-2 SOUND AMP
SPEC
2-4
TDA7297
7W x 2CH, 10W x 2CH
TDA7266S
3W x 2CH, 5W x 2CH
Samsung Electronics
Specifications
3. Specifications
Television
System
Multi
Antena Input
Consumption
Power
Requirements
Frequency
NTSC-M, PAL N.M
Option
75ohms, Coaxial Cable
160W (Applied When 29” Flat)
Option
Free Volts(100V-240Volts)
Option
Free Voltage
Not Present R815
50/60Hz
15W x 2CH
Output
10W x 2CH
5W x 2CH
Sound
Vitual Dolby
Effect
Option
Turbo Sound
Pseudo Stereo
RCA Input
Front
(AV2)
S-VHS
Option
Head-Phone
Jacks
2 AV Input
Back
DVD Input(YPbPr)
Option
AV2 Monitor Audio Output
Option
S-VHS
Option
Specifications are subject to change.
Samsung Electronics
3-1
MEMO
3-2
Samsung Electronics
Alignment and Adjustments
4. Alignment and Adjustments
4-1 General Alignment Instructions
1. Usually, a color TV-VCR needs only slight
touch-up adjustment upon installation. Check
the basic characteristics such as height,
horizontal and vertical sync and focus.
5. Avoid overload. Excessive signal from a
sweep generator might overload the front-end
of the TV. When inserting signal markers, do
not allow the marker generator to distort test
results.
2. Observe the picture for good black and white
details. There should be objectionable color
shading; if color shading is present,
demagnetize, perform purity and convergence
adjustments described below.
6. Connect the TV only to an AC power source
with voltage and frequency as specified on the
backcover nameplate.
3. Use the specified test equipment or its
equivalent.
7. Do not attempt to connect or disconnect any
wires while the TV is turned on. Make sure
that the power cord is disconnected before
replacing any parts.
4. Correct impedance matching is essential.
8. To protect against shock hazard, use an
isolation transformer.
4-2 Automatic Degaussing
A degaussing coil is mounted around the
picture tube, so that external degaussing after
moving the TV should be unnecessary. But
the receiver must be properly degaussed upon
installation.
The degaussing coil operates for about 1
second after the power is switched ON. If the
set is moved or turned in a different direction,
the power should be OFF for at least 10
minutes.
If the chassis or parts of the cabinet become
magnetized, poor color purity will result. If
this happens, use an external degaussing coil.
Slowly move the degaussing coil around the
faceplate of the picture tube and the sides and
front of the receiver. Slowly withdraw the coil
to a distance of about 6 feet before turning
power OFF.
If color shading persists, perform the
following Color purity and Convergence
adjustments.
4-3 High Voltage Check
CAUTION : There is no high voltage adjustment
on this chassis. The B+ power supply should be
+135 volts (with full color- bar input and normal
picture level).
1. Connect a digital voltmeter to the second
anode of the picture tube.
2. Turn on the TV. Set the Brightness and
Contrast controls to minimum (zero beam
current).
3. Adjust the Brightness and contrast controls to
both extremes. Ensure that the high voltage
does not exceed 30 KV under any conditions.
Samsung Electronics
4-1
Alignment and Adjustments
4-4 FOCUS Adjustment
1.
Input a black and white signal.
2. Adjust the tuning control for the clearest picture.
3. Adjust the FOCUS control for well defined scanning lines in the center area of the screen.
4-5 SCREEN Adjustment
1. Input Toshiba Pattern
2. Enter “Service Mode”.(Refer to “4-8-1 Service Mode”)
3. Select “G2-Adjust”.
4. Set the values as below.
Table 1. Screen Adjustment Table
No
INCH / CRT
IBRM
WDRV
CDL
COLR G B
(Smallest Value)
1
14” / SDI
205
35
100
100
2
15PF / SDI
220
35
180
100
3
21” 1.7R / SDI
220
35
180
100
4
20V 10.0R/SDI
205
35
115
120
5
21PF / TSB
220
35
180
65
6
21PF / LG
230
35
230
65
7
21PF / SDI
220
35
210
65
8
25PF / SDI
210
35
160
120
9
27V 1.3R / SDI
210
35
170
150
10
27V 1.0R/SDI
210
35
150
180
11
25V 1.0R/SDI
210
35
150
180
12
23V 1.3R/SDI
205
35
120
140
REGION
Normal
5. Turn the SCREEN VR until “MRCR G B” and “MRWDG” are green and those value are about 100.
(The incorrect SCREEN Voltage may result that “MRCR G B” and “MRWDG” should be red)
4-2
Samsung Electronics
Alignment and Adjustments
4-6 E2PROM (IC902) Replacement
1. When IC902 is replaced, all adjustment data revert to the initial values.
So, all adjustment values when servicing should be readjusted.
2. After IC902 is replaced, connect the AC power supply cord.
3. Turn the power switch ON.
4. In stand-by, warm up the TV for at least 10 seconds.
5. Power on the TV.
4-7 White Balance Adjustment
■ Equipment : Color-Analyzer (CA-100)
■ Input Signal : Pattern signal (Toshiba pattern)
1. Select STANDARD from the menu.
2. Input an 100% White pattern.
3. Enter the “Service Mode”. (Refer to “4-8 Service Mode”)
4. Warm up the TV set at least for 30 minutes.
5. Input a Toshiba pattern signal.
6. Enter the “Video Adjust1”.
- Adjust “Sub Contrast” so that Y (luminance) becomes 65 ft ± 3.
- Use “Red Drive” and “ Blue Drive” to adjust High-Light (x : 265, y : 265)
- Adjust “Sub Bright” so that Y (luminance) becomes 1.2ft ± 0.3.
- Use “Red Cutoff” and “Blue Cutoff” to adjust Low-Light (x : 265, y : 265).
7. Adjust CA-100 so that the final adjustment value can be fixed.
8. Use the Channel Up/Down (▲/▼) buttons to move the cursor on the adjustment modes.
9. Use the Volume +/- buttons to change the adjustment value.
Samsung Electronics
4-3
Alignment and Adjustments
4-8 Factory Adjustment
4-8-1 Service Mode
1. To enter the “Service Mode”, Press the remote-control keys in this sequence :
- If you do not have Factory remote-control
PICTURE OFF
MUTE
1,8,2
PICTURE ON
- If you have Factory remote-control
PICTURE ON
DISPLAY (
)
FACTORY
2. After the Service Mode is entered, the initial screen is as shown in the figure below.
xx xx xx *
These hexa digits are check sum value which
* depends
on the MICOM version.
If check sum value is changed, the value of
2
E PROM Data newly initialed.
3. Use the Channel Up/Down buttons to move the cursor in the adjustment parameters.
Note :
2
- When CRT, CRT PCB, FBT, E PROM (sometimes MICOM) is replaced, the adjustment values
should be controlled.
- After the Service adjustment is completed, Do not select “Reset” in the service mode menu.
(After above procedure is done, power is on initially and the “Plug and Play” will be operated.)
4-4
Samsung Electronics
Alignment and Adjustments
SIM-408A USA,LATIN FACTORY (VDP IC VDP3108B)
4-8-2 Deflection (Memory Data)
- SIM408A USA, LATIN FACTORY (VDP IC VDP3108B)
4-8-2(A) GEOMETRIC ADJUSTMENT VALUE
INCH
27V 1.3R
Model
DEFLECTION
H Bow
H Angle
H Dscc
V SHIFT
V AMP
V SLOPE
V SC
H EW
H TRAPEZIUM
H PARABOLA
H SYMMETRY
H CORNER
H SHIFT
PIP CONTRAST
PIP TINT
PIP PAL V.POS
PIP NTSC V.POS
PIP H.POS
INIT
0
0
0
-40
5
-2
-7
64
-20
-13
13
15
4
TXK2767
FIX
FIX
FIX
Control
Control
Control
FIX
Control
Control
Control
FIX
Control
Control
FIX
FIX
FIX
FIX
FIX
INCH
27V 1.3R
Model
VIDEO ADJUST1
RED CUT OFF
GREEN CUT OFF
BLUE CUT OFF
RED DRIVE
GREEN DRIVE
BLUE DRIVE
SUB BRIGHT
SUB CONTRAST
SUB COLOR
SUB TINT
BCL THRESHOLD
BCLGAIN
BCL TIME
DVD SUB TINT
N. YC DELAY
Samsung Electronics
INIT
127
127
127
127
127
127
110
52
27
30
62
8
13
90
0
0
0
3
-27
-50
-7
0
10
-82
-89
13
0
0
0
0
12
12
12
TXK2767
Control
FIX
Control
Control
FIX
Control
Control
Control
FIX
FIX
FIX
FIX
FIX
FIX
FIX
127
127
127
150
127
170
100
52
50
70
60
8
10
100
3
23V 1.3R
CL25D4W
0
0
3
-24
-41
-4
-13
-37
-48
-44
13
69
8
0
0
12
12
12
25V 1R
TXK2550
TXK2554
TXK2566
TXK2567
CL663BW
0
0
3
-18
18
-4
-13
64(FIX)
-20(FIX)
-13(FIX)
13
69(FIX)
13
0
0
12
12
12
27V 1R
20V 1R
15" FLAT
TXK2750
TXK2754
TXK2060
TXK2066
TXK2067
CT-15A8
0
0
3
-18
18
-4
-13
64(FIX)
-20(FIX)
-13(FIX)
13
69(FIX)
13
0
0
12
12
12
0
0
3
-40
5
-2
-13
64(FIX)
-20(FIX)
-13(FIX)
13
69(FIX)
4
0
0
12
12
12
23V 1.3R
25V 1R
27V 1R
20V 1R
CL25D4W
TXK2550
TXK2554
TXK2566
TXK2567
CL663BW
TXK2750
TXK2754
TXK2060
TXK2066
TXK2067
127
127
127
127
127
127
110
52
50
70
54
8
10
100
3
127
127
127
127
127
127
100
52
50
70
58
8
10
100
3
127
127
127
127
127
127
100
52
50
70
58
8
10
100
3
127
127
127
127
127
127
114
52
50
30
70
8
10
100
3
0
0
3
-35
20
-4
-13
64(FIX)
-20(FIX)
-13(FIX)
13
69(FIX)
13
0
0
12
12
12
15" FLAT
CT-15A8
127
127
127
127
127
127
110
52
67
15
40
8
13
120
4
4-5
Alignment and Adjustments
4-8-2(B) SCREEN CHANGE (I2C BUS GEOMETRIC ADJUSTMENT)
1
V Shift
6
V Amp
2
V Slope
7
V SC
3
H EW
8
H Trapizium
4
H Parabola
9
H Symmetry
5
H Corner
10
H Shift
4-6
Samsung Electronics
15
4
H CORNER
H SHIFT
PIP CONTRAST
PIP TINT
PIP PAL V.POS
PIP NTSC V.POS
PIP H.POS
Control
Control
FIX
FIX
FIX
FIX
FIX
0
0
0
0
12
12
12
69
8
0
0
12
12
12
69(FIX)
13
0
0
12
12
12
69(FIX)
13
0
0
12
12
12
69(FIX)
69(FIX)
4
13
0
0
0
0
12
12
Alignment and Adjustments
12
12
12
12
4-8-2(C) VIDEO ADJUST 1
INCH
27V 1.3R
Model
VIDEO ADJUST1
RED CUT OFF
GREEN CUT OFF
BLUE CUT OFF
RED DRIVE
GREEN DRIVE
BLUE DRIVE
SUB BRIGHT
SUB CONTRAST
SUB COLOR
SUB TINT
BCL THRESHOLD
BCLGAIN
BCL TIME
DVD SUB TINT
N. YC DELAY
INIT
127
127
127
127
127
127
110
52
27
30
62
8
13
90
0
TXK2767
Control
FIX
Control
Control
FIX
Control
Control
Control
FIX
FIX
FIX
FIX
FIX
FIX
FIX
127
127
127
150
127
170
100
52
50
70
60
8
10
100
3
23V 1.3R
25V 1R
27V 1R
20V 1R
CL25D4W
TXK2550
TXK2554
TXK2566
TXK2567
CL663BW
TXK2750
TXK2754
TXK2060
TXK2066
TXK2067
127
127
127
127
127
127
114
52
50
30
70
8
10
100
3
15" FLAT
CT-15A8
127
127
127
127
127
127
110
52
50
70
54
8
10
100
3
127
127
127
127
127
127
100
52
50
70
58
8
10
100
3
127
127
127
127
127
127
100
52
50
70
58
8
10
100
3
127
127
127
127
127
127
110
52
67
15
40
8
13
120
4
23V 1.3R
25V 1R
27V 1R
20V 1R
15" FLAT
TXK2750
TXK2754
TXK2060
TXK2066
TXK2067
CT-15A8
Note 1. Beam Control Limit Characteristic
beam
INCH
MIN
27V 1.3R
1.8mA
1.6mA
BCL GAIN
Model
BCL THESHOLD
VIDEO ADJUST2
B STRETCH-BTHR
B DTRETCH-BTLT
B STERTCH-BAM
CORING
NTSC COMB FILTER
RGB BRIGHT
RG B CONTRAST
EHT TIME
EHT VERTICAL
DTI CORING
DTI GAIN
DTI BAND
EHT OFFSET
EHT HORIZONTAL
Samsung Electronics
INIT
50
WDRGB
8
4
31
1
0
0
0
FIX
FIX
FIX
FIX
50
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
MAX
TXK2767
CL25D4W
50
8
4
31
1
0
0
0
60
0
1
1
0
0
50
8
4
31
IRE
1
0
0
0
60
0
1
1
0
0
TXK2550
TXK2554
TXK2566
TXK2567
CL663BW
50
8
4
31
1
0
0
0
60
0
1
1
0
0
50
8
4
31
1
0
0
0
60
0
1
1
0
0
50
8
4
31
1
0
0
0
60
0
1
1
0
0
50
8
4
31
1
0
0
0
60
0
1
1
0
0
4-7
13
90
0
BCL TIME
DVD SUB TINT
N. YC DELAY
FIX
FIX
FIX
10
100
3
10
100
3
10
100
3
27V 1.3R
23V 1.3R
10
100
3
10
100
3
13
120
4
Alignment and Adjustments
4-8-2(D) VIDEO 2 ADJUST
INCH
Model
VIDEO ADJUST2
BB STRETCH-BTHR
STRETCH-BTHR
B DTRETCH-BTLT
B STERTCH-BAM
CORING
NTSC
NTSC COMB
COMB FILTER
FILTER
RGB BRIGHT
RG B CONTRAST
EHT
EHT TIME
TIME
EHT VERTICAL
DTI CORING
DTI GAIN
DTI
DTI BAND
BAND
EHT OFFSET
EHT HORIZONTAL
INIT
50
8
4
31
1
0
0
0
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
TXK2767
CL25D4W
50
8
4
31
1
0
0
0
60
0
1
1
0
0
50
8
4
31
1
0
0
0
60
0
1
1
0
0
25V 1R
TXK2550
TXK2554
TXK2566
TXK2567
CL663BW
50
8
4
31
1
0
0
0
60
0
1
1
0
0
27V 1R
20V 1R
15" FLAT
TXK2750
TXK2754
TXK2060
TXK2066
TXK2067
CT-15A8
50
8
4
31
1
0
0
0
60
0
1
1
0
0
50
8
4
31
1
0
0
0
60
0
1
1
0
0
50
8
4
31
1
0
0
0
60
0
1
1
0
0
4-8-2(E) VIDEO 3 ADJUST
INCH
27V 1.3R
23V 1.3R
Model
TXK2767
CL25D4W
VIDEO ADJUST3
PEAK
PEAK WHITE
WHITE LIMLT
LIMLT
SOFT
LIMIT
SOFT LIMIT SLOPE
SLOPE BB
HARD
HARD LIMIT
LIMIT
MODULATION
MODULATION ON/OFF
ON/OFF
A TILT POINT
B TILT POINT
GAIN 1 (VIDEO)
DELAY 1 (VIDEO)
PEAK VIDEO REF
PEAK VIDEO GAIN
LIMIT VALUE
VALUE
VELOCITY
VELOCITY DELAY
DELAY
VELOCITY CORING
ACC-REF
ACCR
4-8
INCH
Model
INIT
255
4
255
0
0
0
20
21
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
255
4
255
0
0
114
11
3
0
0
74
7
10
20
21
27V 1.3R
TXK2767
25V
27V
25V1R
1R
27V1R
1R
TXK2550
TXK2554 TXK2750
TXK2566 TXK2754
TXK2567
CL663BW
255
4
255
0
0
114
11
3
0
0
74
7
10
20
21
255
4
255
0
0
114
11
3
0
0
74
7
10
20
21
255
4
255
0
0
114
11
3
0
0
74
7
10
20
21
23V 1.3R
25V 1R
CL25D4W
TXK2550
TXK2554
TXK2566
20V
20V1R
1R
15"
15"FLAT
FLAT
TXK2060
TXK2066
TXK2067
CT-15A8
CT-15A8
255
4
255
0
0
114
11
3
0
0
74
7
10
20
21
255
4
255
0
0
114
11
3
0
0
74
7
10
20
21
Samsung Electronics
27V 1R
20V 1R
15" FLA
TXK2060
TXK2066
CT-15A
TXK2750
TXK2754
MODULATION ON/OFF
0
FIX
0
0
VIDEO ADJUST3 0
INIT
A TILT POINT
FIX
0
0
PEAK
WHITE
LIMLT
255
FIX
255
B TILT POINT
0
FIX
114
114 255
SOFT LIMIT SLOPE B
FIX 11
4 11
4
GAIN 1 (VIDEO)
FIX4
LIMIT
255
FIX 3
255 3
255
DELAY 1HARD
(VIDEO)
FIX
MODULATION
ON/OFF FIX0
FIX 0
0 0
0
PEAK VIDEO
REF
A TILT
POINT
FIX 0
0 0
0
PEAK VIDEO
GAIN
FIX0
B TILT POINT
FIX 74 114 74 114
LIMIT VALUE
FIX0
Note 2. Soft Limit & Hard Limit Characteristics
1 (VIDEO)
FIX 7
11 7
11
VELOCITYGAIN
DELAY
FIX
1 (VIDEO)
FIX 10
3 10
3
VELOCITYDELAY
CORING
FIX
Output
VIDEO REF 20 Part
FIX 20 Part 2 0 20
0
ACC-REFPEAK511
FIX1
0
PEAK
VIDEO
GAIN
FIX
0
ACCR
21
FIX
21
21 2 0
Slope 1 [0...15]
4 74
LIMIT400VALUE
FIX0
74
6
2
8
VELOCITY DELAY
FIX4
7
7
10
300
VELOCITY
CORING
FIX68
10
12 10
ACC-REF
20
FIX10
20 Slope142 [0...15]
20
12
200
ACCR
21
FIX14
21
21
0 CL663BW0
0
0
255
114
114
4 11
11
255 3
3
0 0
0
0 0
0
74 114 74
11 7
7
3 10
10
20Hard limiter0 20
0 21
21
74
7
range=256...511
10
20
21
0
0
0
0
255 114 255 114 255
4 11
4 11
4
255 3
255 3
255
Alignment and Adjustments
0 0
0 0
0
0 0
0 0
0
114 74 114 74 114
11 7
11 7
11
3 10
3 10
3
0 20
0 20
0
0 21
0 21
0
74
74
74
Soft Limit Slope B ✐ “Soft Limit” is that Limitting
7
7
7
the peak white without
10
10
10
feed-back, but “Peak Limit” is
20
20
20
that with feed-back for white
21
21
21
peak level
100
tilt 1 [0...511]
tilt 2 [0...511]
INCH
0
0
100
27V 1.3R
200
300
Model
400
500
25V 1RLi
23V 1.3R
600
TXK2767
700
800
900
CL25D4W
4-8-2(F) OTHERS
TXK2550
TXK2554
TXK2566
TXK2567
CL663BW
INIT
OTHERS
VSU
108 INCH FIX
108
100
27V 1.3R104
23V 1.3R
VSU2
FIX
0
0
0
H QEW
0
FIX
0
0
0
CL25D4W
H ZOOM Parabola
8 ModelFIX
-22
8
TXK2767-35
H 16:9 Parabola
-10
FIX
8
13
-18
TTX H Shift
0
FIX
0
0
0
INIT
OTHERS
PAL V SHIFT
FIX
OFFSET
OFFSET
OFFSET
VSU
108
FIX
108 OFFSET
104OFFSET
PAL H SHIFT
FIX
OFFSET
VSU2
FIX 7
0 7
0 7
Melidy Volume
5
FIX
H QEW
0
FIX
0
0
H Control 275/295 35FL 275/295 35FL 275/295
35FL
WHITE BALANCE
H ZOOM Parabola
8
FIX
-22
-35
L Control 275/295 1.2FL 275/295 1.2FL 275/295 1.2FL
H 16:9 Parabola
TTX H Shift
PAL V SHIFT
PAL H SHIFT
Melidy Volume
-10
0
5
H
L
WHITE BALANCE
27V 1R
20V 1R
15" FLAT
TXK2750
TXK2754
TXK2060
TXK2066
TXK2067
CT-15A8
1023
100
25V 1R
104
27V 1R
0
TXK2550
0
TXK2554
8
TXK2566
-18
TXK2567
0
CL663BW
OFFSET
100OFFSET
0 7
0
275/295 35FL
8
275/295 1.2FL
0
0
TXK2750
8
TXK2754
-18
0
OFFSET
100
OFFSET
07
0
275/295 35FL
8
275/295 1.2FL
20V 110
1R
0
TXK2060
0
TXK2066
8
TXK2067
-10
0
OFFSET
104
OFFSET
07
0
275/295 95FL
8
275/295 2.0FL
15" FLAT
CT-15A8
110
0
0
8
FIX
8
13
-18
-18
-18
-10
FIX
0
0
0
0
0
0
FIX
OFFSET
OFFSET
OFFSET
OFFSET
OFFSET
OFFSET
FIX
OFFSET
OFFSET
OFFSET
OFFSET
OFFSET
OFFSET
FIX
7
7
7
7
7
7
Control 275/295 35FL 275/295 35FL 275/295 35FL 275/295 35FL 275/295 35FL 275/295 95FL
Control 275/295 1.2FL 275/295 1.2FL 275/295 1.2FL 275/295 1.2FL 275/295 1.2FL 275/295 2.0FL
4-8-2(G) G2 ADJUST
15" FLAT
INCH
27V 1.3R
Model
INCH
MRC R GG2B Adjust
23V 1.3R
25V 1R
20V 1R
15" FLAT
TXK2550
TXK2060
TXK2554 TXK2750
TXK2066 CT-15A8
TXK2767 CL25D4W
TXK2566 TXK2754
27V 1.3R 23V 1.3RTXK2567
25V 1R
27V 1R TXK2067
20V 1R 15" FLAT
CL663BW
TXK2550
TXK2554
MRC R G B
Max
110TXK2767 110
Model
CL25D4W 110
MRWDG
110
110TXK2566
110
IBRM
FIX
210
210TXK2567
205
WDRV
FIX
35
35CL663BW
35
G2 Adjust
CDL
FIX
170
150
120
MRC R G B MIN Max 150 110
110 150 110
COL
140
MRWDG
IBRM
WDRV
Samsung Electronics
CDL
COL
27V 1R
FIX
FIX
FIX
MIN
110
210
35
170
150
110
205
35
120
140
110
210
35
150
150
TXK2060
TXK2750
110
110
TXK2066
TXK2754
110
110
TXK2067
210
35
150
110
150
110
210
35
150
150
205
35
115
110
120
110
205
35
115
120
110
CT-15A8
110
220
35
180
110
100
110
220
35
180
100
4-9
Alignment and Adjustments
SIM-408A
USA,LATIN
FACTORY (VDP IC VDP3130Y)
4-8-3 Deflection
(Memory
Data)
SIM-408A
USA,LATIN (VDP
FACTORY
(VDP IC VDP3130Y)
- SIM408A USA,
LATIN FACTORY
IC VDP3130Y)
4-8-3(A) GEOMETRIC ADJUSTMENT VALUE
INCH
INCH
MODEL
INCH
MODEL
INIT
MODELINIT
INIT
DEFLECTION
HDEFLECTION
Bow
DEFLECTION
Bow
HH Angle
HHBow
Angle
H Dscc
HHAngle
Dscc
V SHIFT
HV Dscc
SHIFT
V AMP
VVSHIFT
AMP
V SLOPE
VVAMP
SLOPE
VVSLOPE
SC
HE
VHSC
EW
H TRAPEZIUM
HHETRAPEZIUM
W
H PARABOLA
HHTRAPEZIUM
PARABOLA
H SYMMETRY
HHPARABOLA
SYMMETRY
H CORNER
HHSYMMETRY
CORNER
H SHIFT
HHCORNER
SHIFT
PIP CONTRAST
CONTRAST
HPIP
SHIFT
PIP TINT
PIPCONTRAST
TINT
PIP
PIP PAL V.POS
PIPTINT
PAL V.POS
PIP
PIP NTSC V.POS
PIPPAL
NTSC
V.POS
PIP
V.POS
PIP H.POS
PIPNTSC
H.POSV.POS
PIP
PIP H.POS
-40
-405
5-2
-2-7
-764
64
-20
-20
-13
-13
13
13
15
154
4
FIX
FIX
FIX
FIX
FIX
FIX
Control
Control
Control
Control
Control
Control
FIX
FIX
Control
Control
Control
Control
Control
Control
FIX
FIX
Control
Control
Control
FIX
Control
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
4-8-3(B) VIDEO ADJUST
INCH 1
Model
INCH
VIDEO ADJUST1INCH INIT
Model
RED CUT OFF Model 127
VIDEO
ADJUST1
INIT
VIDEO ADJUST1
INIT
GREEN
CUT OFF
127
RED
CUT
OFF
RED
CUT
OFF
127
BLUE CUT OFF
127
GREEN
CUT
OFF
127
GREEN
CUT OFF
RED
DRIVE
127
BLUE
OFF
127
BLUE CUT
CUT
OFF
GREEN
DRIVE
127
RED
127
RED DRIVE
DRIVE
BLUE
DRIVE
127
GREEN
DRIVE
127
GREEN
DRIVE
SUB BRIGHT
110
BLUE
DRIVE
127
BLUE
DRIVE
SUB CONTRAST
52
SUB BRIGHT
110
BRIGHT
SUB COLOR
27
SUB
52
SUB CONTRAST
CONTRAST
SUB
TINT
30
SUB
COLOR
27
SUB
COLOR
BCL THRESHOLD
62
SUB
TINT
30
SUB
TINT
BCLGAIN
8
BCL
THRESHOLD
62
BCL
THRESHOLD
BCL TIME
13
BCLGAIN
BCLGAIN
DVD
SUB TINT
908
BCL
TIME
13
BCLYCTIME
N.
DELAY
0
DVD
90
DVD SUB
SUB TINT
TINT
N.
0
N. YC
YC DELAY
DELAY
4-10
Control
FIX
Control
Control
FIX
Control
Control
FIX
Control
Control
FIX
Control
Control
Control
Control
FIX
Control
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
27V 1.3R
27V 1.3R
TXK2768
TXK2768
0
00
03
3-27
-27
-50
-50-7
-7-6
-610
10
-82
-82
-89
-89
13
130
00
010
1063
6312
1212
1212
12
15" FLAT
15" FLAT
CL15A8
15"
FLAT
CL15A8
CL15A8
0
00
02
2-35
-3520
20-4
-4-6
-6
64(FIX)
-20(FIX)
64(FIX)
-20(FIX)
-13(FIX)
-20(FIX)
-13(FIX)
-13(FIX)
13
13
69(FIX)
69(FIX)
13
130
00
012
1212
1212
12
21" FLAT
21" FLAT
CL21A8
21"
FLAT
CL21A8
CL21A8
0
00
02
2-27
-276
6 -6
-6-6
-643
43-20
-20-29
-2913
1369
69-24
-240
00
012
1212
1212
12
25" FLAT
25" FLAT
25" FLAT
CL25A6
CL25A6
0
00
03
3-50
-50-15
-15-2
-2 -6
-610
10-20
-20-60
-6013
1369
69-27
-27 0
00
0 12
1212
1212
12
27V 1.3R
15" FLAT
21" FLAT
25" FLAT
TXK2768
27V 1.3R
127
TXK2768
127
127
127
127
127
127
127
127
170
127
100
170
52
100
50
52
70
50
60
970
560
259
35
25
3
CL15A8
15"
FLAT
15" FLAT
127
CL15A8
127
127
127
127
127
127
127
127
127
127
110
127
52
110
67
1552
4067
915
540
259
45
25
4
CL21A8
21"
FLAT
21" FLAT
127
CL21A8
CL21A8
127
127
127
127
127
127
127
127
127
127
110
127
52
110
87
3052
6287
930
562
259
45
25
4
CL25A6
25"
FLAT
25" FLAT
127
CL25A6
CL25A6
127
127
127
127
127
127
127
127
127
127
110
52127
87110
3052
6087
930
560
25 9
45
25
4
Samsung Electronics
Alignment and Adjustments
4-8-2(C) VIDEO 2 ADJUST
INCH
INCH
Model
INCH
Model
VIDEO ADJUST2
INIT
Model INIT
ADJUST2
BVIDEO
STRETCH-BTHR
ADJUST2
INIT
B DTRETCH-BTLT
STRETCH-BTHR
50
BVIDEO
BBB STERTCH-BAM
STRETCH-BTHR
508
DTRETCH-BTLT
STERTCH-BAM
BB DTRETCH-BTLT
84
CORING
CORING
31
BNTSC
STERTCH-BAM
4
COMB FILTER
NTSC
COMB
FILTER
CORING
311
RGB
BRIGHT
RGBB BRIGHT
NTSC
COMB FILTER
10
RG
CONTRAST
RG
B
CONTRAST
0
RGB
BRIGHT
0
EHT TIME
0
EHT
TIME
RG
B
CONTRAST
0
EHT VERTICAL
60
EHT
VERTICAL
EHT
TIME
0
DTI CORING
DTI GAIN
CORING
EHT
VERTICAL
600
DTI
DTI
GAIN
DTI BAND
CORING
01
DTI
DTI GAIN
BAND
DTI
11
EHT
OFFSET
EHTBAND
OFFSET
DTI
10
EHT HORIZONTAL
EHT
HORIZONTAL
EHT OFFSET
00
EHT HORIZONTAL
0
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
INCH
4-8-2(D) VIDEO 3 ADJUST
Model
VIDEO ADJUST3INCH
INCH INIT
Model 255
PEAK WHITE LIMLT
Model
VIDEO
ADJUST3
SOFT
SLOPE B INIT
4
VIDEOLIMIT
ADJUST3
INIT
PEAK
WHITE LIMLT 255
HARD
LIMIT
PEAK WHITE LIMLT 255
SOFT LIMIT SLOPE
B
MODULATION
ON/OFF
04
SOFT LIMIT SLOPE
B
HARD
LIMIT
AHARD
TILT POINT
0
255
LIMIT
MODULATION
BMODULATION
TILT POINT ON/OFF
ON/OFF 00
A
TILT POINT
GAIN
(VIDEO)
110
A TILT1 POINT
BDELAY
TILT
POINT
1
(VIDEO)
30
B TILT POINT
GAIN
1
(VIDEO)
PEAK
REF
0
11
GAIN VIDEO
1 (VIDEO)
DELAY
11 (VIDEO)
PEAK
GAIN
03
DELAYVIDEO
(VIDEO)
PEAK
LIMIT
VALUE
1270
PEAK VIDEO
VIDEOREF
REF
PEAK
VIDEO
GAIN
VELOCITY
DELAY
70
PEAK VIDEO GAIN
LIMIT
VALUE
VELOCITY
CORING
2
127
LIMIT VALUE
VELOCITY
ACC-REF
207
VELOCITY DELAY
DELAY
VELOCITY
ACCR
212
VELOCITY CORING
CORING
ACC-REF
ACCR
Samsung Electronics
20
21
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
FIX
27V 1.3R
27V 1.3R
TXK2768
TXK2768
50
508
84
431
313
30
00
08
860
600
01
11
10
00
0
15" FLAT
15" FLAT
CL15A8
15"
FLAT
CL15A8
CL15A8
50
508
84
431
313
30
00
08
860
600
01
11
10
00
0
21" FLAT
21" FLAT
CL21A8
21"
FLAT
CL21A8
CL21A8
50
50 8
84
431
31 3
30
00
08
860
60 0
01
11
10
00
0
25" FLAT
25" FLAT
25" FLAT
CL25A6
CL25A6
50
50 8
84
4 31
31 3
30
00
08
8 60
60 0
01
11
10
00
0
27V 1.3R
15" FLAT
21" FLAT
25" FLAT
TXK2768
27V 1.3R
255
TXK2768
4
255
255
04
0
255
1140
110
3
114
011
03
1270
70
2
127
207
212
20
21
CL15A8
15"
FLAT
15" FLAT
255
CL15A8
CL15A8
4
255
255
04
0
255
1140
110
3
114
011
03
740
70
1074
207
2110
20
21
CL21A8
21"
FLAT
21" FLAT
255
CL21A8
CL21A8
4
255
255
04
0255
1140
11 0
3114
011
03
74 0
70
1074
20 7
2110
20
21
CL25A6
25"
FLAT
25" FLAT
255
CL25A6
CL25A6
4
255
255
04
0255
1140
11 0
3114
0 11
03
74 0
70
1074
20 7
2110
20
21
4-11
Alignment and Adjustments
4-8-3(E) OTHERS
INCH
INCH
Model
INCH
Model
OTHERS
INIT
Model INIT
OTHERS
VSU
108
FIX
OTHERS
INIT
VSU2
0
FIX
VSU
108
FIX
H QE W
0
FIX
VSU2
0
FIX
QE Parabola
HHZOOM
8
FIX
W
0
FIX
H
QE
ZOOM
Parabola
HH16:9
Parabola
-10
FIX
H
ZOOM
Parabola
8
FIX
H 16:9
Parabola
DVD
TINT
CONTROL
1
FIX
-10
FIX
H 16:9
Parabola
DVD
TINT
CONTROL
PAL
V
SHIFT
FIXFIX
DVD
TINT
CONTROL
1
PALHVSHIFT
SHIFT
PAL
FIXFIX
PAL
V
SHIFT
PAL
H
SHIFT
Melidy
5
FIXFIX
PAL HVolume
SHIFT
Melidy
Volume
PIP
BRIGHT
Melidy
Volume
5 FIXFIX
PIP
BRIGHT
PIP
COLOR
FIXFIX
PIP COLOR
BRIGHT
PIP
Control
H
PIP COLOR
FIX
WHITE
BALANCE
L H Control
WHITE BALANCE
Control
WHITE BALANCE
L Control
27V 1.3R
108
TXK2768
0
108
0
0
-22
0
8
-22
1
8
OFFSET1
OFFSET
OFFSET
OFFSET
OFFSET
7
OFFSET
57
75
275/295735FL
275/295
1.2FL
275/295
35FL
15" FLAT
15" FLAT
15" FLAT
CL15A8
CL15A8
110
CL15A8
0
110
0
0
8
0
-10
8
1
-10
OFFSET1
OFFSET
OFFSET
OFFSET
OFFSET
7
OFFSET
5 7
7 5
275/295795FL
275/295
2.0FL
275/295
95FL
100
CL21A8
0
100
0
0
8
0
-13
8
1
-13
OFFSET1
OFFSET
OFFSET
OFFSET
OFFSET
7
OFFSET
5 7
7 5
275/295 765FL
275/295
1.2FL
275/295
65FL
108
CL25A6
0
108
0
0
-12
0
0
-12
1
0
OFFSET 1
OFFSET
OFFSET
OFFSET
OFFSET
7
OFFSET
5 7
7 5
275/295 50FL
7
275/295
1.4FL
275/295
50FL
275/295 1.2FL
275/295 2.0FL
275/295 1.2FL
275/295 1.4FL
27V 1.3R
TXK2768
21" FLAT
21" FLAT
21" FLAT
CL21A8
25" FLAT
25" FLAT
25" FLAT
CL25A6
G+2 Adjust
4-8-3(F)
G2+2 ADJUST
G+2 Adjust
INCH
INCH
INCH
Model
Model
MRC R G B Model
MRC
RR GG BB
MRC
MR
WDG
MR
WDG
MR WDG
IBRM
IBRM
WDRV
WDRV
WDRV
CDL
CDL
CDL
COL
COL
COL
4-12
Max
Max
Max
FIX
FIX
FIX
FIX
FIX
FIX
MIN
MIN
MIN
27V 1.3R
TXK2768
TXK2768
110
110
110
110
210
210
35
35
170
170
150
150
15" FLAT
15" FLAT
FLAT
15"
CL15A8
CL15A8
CL15A8
110
110
110
110
220
220
35
35
180
180
100
100
21" FLAT
21"FLAT
FLAT
21"
CL21A8
CL21A8
110
110
110
110
220
220
35
35
180
180
65
65
25" FLAT
25"FLAT
FLAT
25"
CL25A6
CL25A6
110
110
110
110
210
210
3535
160
160
120
120
Samsung Electronics
Alignment and Adjustments
4-9 MICOM
4-9-1 Pin Layout
Write Protect
EEPROM SDA
EEPROM SCL
Bus-Stop
Main SDA
Main SCL
Sound Reset
Video Reset
VDD 2.5V
GND
VDD 3.3V
CVBS Input
VDD 2.5V
GND
AFT
Scart1 Ident
Scart2 Ident
Key 1
H-Sync
V-Sync
Key 3
Key 2
X-Ray Protect
IR Input
Stand-By LED
Time LED
Samsung Electronics
1
I/O
2
I/O
3
IO
I/O
50
4
I/O
I/O
49
5
I/O
48
6
I/O
47
7
I/O
46
8
I/O
45
9
10
11
12
13
14
15 ADC
16 ADC
PWM
52
51
44
S
D
A
5
5
5
X
43
42
41
40
39
38
37
17 ADC
36
18 ADC
35
19
34
20
33
21 I/O
32
22 I/O
31
23 I/O
30
24 I/O
29
25 I/O
28
26 I/O
I/O
27
Tilt
N.C.
Power
Sound Mute
N.C.
N.C.
PX. Y
PX. Y
VDD 3.3V
GND
VDD 2.5V
CORE
OSD-B
OSD-G
OSD-R
VDD 2.5V
GND
X-TAL Out
X-TAL In
MICOM Reset
N.C.
N.C.
VDD 3.3V
GND
N.C.
Relay
4-13
Alignment and Adjustments
4-9-2 Pin Assignment Specification
PIN NO FUNCTION
ASSIGN
IN/OUT
ACTIVE H/L
Out
Low
DESCRIPTION
1
I/O
Write Protect
2
I/O
ROM SDA
I/O
EEPROM Serial Data Line
3
I/O
ROM SCL
I/O
EEPROM Serial Clock Line
4
I/O
Bus Stop
In
5
I/O
Main SDA
I/O
6
I/O
Main SCL
I/O
Low
Peripheral IC Serial Clock Line
7
I/O
Sound Reset
Out
Low
MSP IC Initial Control
8
I/O
Video Reset
Out
VDP IC Initial Control
9
Vdd
VDD 2.5V
10
GND
11
Vdd
VDD 3.3V
12
CVBS
CVBS Input
In
TTX CVBS Input
13
Vdd
VDD 2.5V
14
GND
15
ADC
AFT
In
Auto Fine Tuning Control
16
ADC
SC1-ID
In
Scart1 Ident
17
ADC
SC2-ID
In
Scart2 Ident
18
ADC
Key1
In
Key1 Input
19
HS
H-Sync
In
Horizontal Sync Input
20
VS
V-Sync
In
Vertical Sync Input
21
I/O
Key3
In
Key3 Input
22
I/O
Key2
In
Key2 Input
23
I/O
X-Ray
In
X-Ray Protection
24
I/O
IR-In
In
Remocon Signal Input
25
I/O
STD-LED
Out
LED Drive Output(Red)
26
I/O
TIM-LED
Out
LED Drive Output(Green)
4-14
Low
EEPROM Write Protection
Disable Micom IIC
Peripheral IC Serial Data Line
Analog B+
Analog Ground
Samsung Electronics
Alignment and Adjustments
4-9-2 Pin Assignment Specification (Continued)
PIN NO FUNCTION
ASSIGN
IN/OUT
ACTIVE H/L
Out
Low
DESCRIPTION
27
I/O
28
N.C.
Not Used (Programmed Gound Level)
29
GND
Analog Ground
30
Vdd
31
N.C.
Not Used (Programmed Gound Level)
32
N.C.
Micom Hardware Reset
33
Reset
Reset
In
Low
Crystal Oscillation Input
34
X-In
X-TAL In
In
6MHz
Crystal Oscillation Output
35
X-Out
X-TAL Out
Out
6MHz
Analog Ground
36
GND
37
Vdd
VDD 2.5V
38
R
OSD-R
Out
OSD/TTX Output (Green)
39
G
OSD-G
Out
OSD/TTX Output (Blue)
40
B
OSD-B
Out
Fast Blank/Half Contrast Output
41
COR
CORE
Out
42
Vdd
VDD 2.5V
43
GND
44
Vdd
VDD 3.3V
45
I/O
PX.Y
In
46
I/O
PX.Y
Out
47
N.C.
48
N.C.
49
I/O
S-Mute
Out
High
Sound Amp Mute
50
I/O
Power
Out
Low
Picture On/Off Control
51
N.C.
52
I/O
Relay
Activate Degausssing Coil
Not Used (Programmed Gound Level)
VDD 3.3V
Analog B+
OSD/TTX Output (Red)
When The Caption Function Adopted, Used.
Not Used (Programmed Gound Level)
Samsung Electronics
Not Used (Programmed Gound Level)
4-15
MEMO
4-16
Samsung Electronics
Troubleshooting
5. Troubleshooting
5-1 No Power
Disconnect
the Power Cord
Check/Replace
IC803, 805
Abnormal
LED ON
Check
Power LED
LED OFF
Check IC908 and
Replace IC901
Check
the voltage of
IC803, 805
Normal
Abnormal
Normal
Check
Q909, Q910
Normal
Check IC901
Pin 50
Abnormal
Normal
Check
IC901 B+
Normal
Check IC901
Pin 5 6
Abnormal
Check
H-OUT of IC201
Pin 50
Abnormal
Abnormal
Check
the voltage of
IC804
Abnormal
Check
the resistance of
FD803
Normal
Check
IC803
Replace
Q909,Q910
Normal
Abnormal
Check
IC803
Replace
IC902
Abnormal
Replace
IC201
Check
IC902
Normal
Check
SCL, SDA Line
Abnormal
Check Q401 and
Horizontal Circuit
Normal
Check the
voltage of
IC803, 805
Normal
Check FBT and
B+(130V)
Replace FD803
Check
IC801, D801 FUSE
Samsung Electronics
5-1
Troubleshooting
5-2 No Raster (Sound OK)
No Raster
(Sound OK)
Check
Fusible Resistance
Check
the fusible resistance
of abnormal volatge line
Abnormal
Abnormal
Check
voltage of
heater
Normal
Check
Abnormal
RK,GK,BK Signal
output from
CRT PCB
Normal
Abnormal
Check
CRT and FBT
Abnormal
Check
the signal output
from IC201 Pin
63
Normal
Check / Replace
IC201
5-2
Check
R.G.B Signal
input to CRT PCB
Abnormal
Check tuner B+
and Main CVBS
Check
R.G.B Signal
Output from
IC201
Normal
Check
B+
(200V, 16V)
Normal
Check
Q501 and re-adjust
Screen Voltage
Normal
Check
Q202, Q203, Q204,
Q207, Q209, Q213,
Q206, Q208, Q210
Samsung Electronics
Troubleshooting
5-3 No Sound
No Sound
Normal
Check
Speaker and Wire
Normal
Check
the signal output
from CN601,
602 Pins
Abnormal
Abnormal
Check
the signal input
to IC602 pins
4 ,12
Normal
Check
the signal input
to IC601 Pin
47
Check
IC602 B+
Abnormal
Abnormal
Normal
Check
IC601 B+
Check
tuner B+ and SIF
Check/Replace
the resistance
of FD802
Normal
Replace
IC602
Abnormal
Check/Replace
IC601
Samsung Electronics
Check
B+ Line (8V)
5-3
Troubleshooting
5-4 Horizontal Lines Appear on screen
Horizontal Lines
Apper on screen
Normal
Normal
Check
the VDP Signal
output from IC201
Pin 31
Check
IC301 B+
(16V, -16V)
Abnormal
Check
B+ Line and the fusible
resistance of R425, 424
Abnormal
Check/Replace
IC301
5-4
Check
IC201
Samsung Electronics
Exploded View & Parts List
6. Exploded View & Parts List
6-1 TXK2566X
No
Samsung Electronics
Code No
Description
Specification
Q’ty
1
AA64-31346A
CABINET-FRONT
;HIPSVOBLKBK708P
1
1-1
AA64-70117B
BADGE-BRAND
“;AL,SS,R2000,25,SILVER CT-633
1
1-2
AA64-10804A
KNOB-POWER
;ABSHBBLK
1
1-3
AA61-60003J
SPRING-CS
;-,-,SUS304,0.5,OD6,H
1
1-4
6002-000514
SCREW-TAPPING
;RH,+,2,M4,L15,ZP
4
1-5
3001-001038
SPEAKER
;6W,16OHM,92DB,140HZ
2
1-6
AA61-40113A
STOPPER-PCB
;-,ABS,HB,NTR.
1
1-7
AA64-40525A
INDICATOR-LED
;ACRYLCLR
1
1-8
AA64-40524A
WINDOW-REMOTE
;PCVIOLET
1
1-9
AA64-10803A
KNOB-CONTROL
;ABSHBBLK
1
2
AA03-00157A
CRT COLOR
;A63QDB891X,+380MG,SAMSUNG
1
2-1
AA65-30107A
CLAMP-DCOIL
;NYLON 66,V2,NTR,-,20-22
4
2-2
AA60-10050R
SCREW-ASSY
;WC,HH,+M5,L31.5,SWR
4
2-3
3704-001105
SOCKET-CRT
;11P,20PI,26.5PI,NI,-
1
3
AA64-01293A
CABINET BACK
;TXK2566/67,CT25B7,HIPS,V0,B
1
3-1
6002-000514
SCREW-TAPPING
;RH,+,2,M4,L15,ZP
7
3-2
AA39-10007Y
POWER-CORD
;-,EP2/YES,SPT-2 18AWGx2C,2.4m
1
Remark
6-1
Electrical Parts List
7. Electrical Parts List
7-1 TXK2554X/XAC (TXK2554X/XAC and TXK2554C/XAA Dissimilar Parts)
Level Loc. No. Code No.
Description ; Specification
Remark
Level Loc. No. Code No.
Description ; Specification
Remark
Remark
Level Loc. No. Code No.
Description ; Specification
Remark
REMOCON
* AA59-10113HREMOCON;DP,TM59,-,-,-,-,-,AA59-10110H,
ASSY ACCESSORY
* AA97-00708AASSY ACCESSORY;-,CT25B3,25,KS2A,SECA
AA68-01185AMANUAL USERS;-,-,FRE,B5,W/P100(G),-,-,-,
7-2 TXK2554C/XAA
Level Loc. No. Code No.
Description ; Specification
ASSY-POWER,CORD
1
* AA96-20129A ASSY-POWER,CORD;-,EP2/YES,H/C300,ME301P,
..2
..2
..2
3811-000401 WIRE-PVC CU;BCWA,300V,ROLL,17/0.16mm,#22
AA61-20284A HOLDER;-,P-CORD,PP,VO,BLK,KE-002
AA39-10007Y POWER-CORD;-,EP2/YES,SPT-2 18AWGx2C,2.4m
..2
ASSY-PCB,A/V FRONT
S.N.A
S.N.A
ASSY CRT
1
* AA97-00700A ASSY CRT;-,-,25,BARE,SAM2540,-
..2
..2
..2
..2
AA27-00083A
AA63-60028A
AA27-00002A
AA03-00032A
AA39-00102M LEAD CONNECTOR-ASSY;,-,-,4P,-,-,-,35155-
1
* AA95-00887A ASSY-PCB,A/V FRONT;DP,TXK2554C/XAA,KS2A,
..2
..2
..2
..2
AA39-20068E
AA41-00323A
0202-000187
3722-001031
1
* AA59-10113B REMOCON;DP,TM59,-,AA59-10110B,-,-,-,-,
..2
AA59-10110B REMOCON;-,TM59,SS,SZM368ET,25,-,-,L/GR
ASSY-SKD
* AA97-00850A ASSY-SKD;-,TXK2554C/XAA,KS2A,NTSC,-,-
..2
..2
..2
..2
..2
..2
AA65-30109A
AA65-30105B
AA65-30104B
AA65-30018A
AA65-30009A
AA27-20001W
CLAMP-FBT;NYLON-66,V2,BLK,-,-,CLAMP-WIRE;NYLON 66,V2,NTR,25MM,ALL MODE
CLAMP-WIRE;NYLON 66,V2,BLK,W2 Z5,ALL MOD
CLAMP-WIRE;NYLON-66,-,-,DATL-600,DONG-A,
CLAMP-FBT;ABS,V0,BLK,-,-,COIL-DEGAUSSING;-,25,7.5ohm,33T,L2800,E
ASSY PACKING
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
1
* AA92-00534A ASSY PACKING;TXK2554C/XAA
..2
AA68-01101A MANUAL USERS;-,-,ENG,B5,W/P100(G),-,-,-,
ASSY CABINET(COM)
1
ASSY SPEAKER
1
* AA96-00529A ASSY SPEAKER;-,16ohm,3W,3001-000003,-,-
..2
3001-000003
Samsung Electronics
SPEAKER;3W,16ohm,88dB,180+-36Hz
S.N.A
REMOCON
DEFLECTION YOKE;25V 1R,DSE-2603AL(T),ST,
SPACER-DY;NEOPRENE,-,BLK,V0 W12,-,MAGNET-CONVERGENCE;-,JH291-SC-OB,29.1MM
CRT-COLOR;-,A63QDB891X,+380MG,26INCH,100
1
LEAD CONNECTOR-ASSY;-,YBNH025-08,67096-0
PCB-AV;TXK2750,FR-1,1L,A,1.6T,245x245
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
JACK-RCA;3P,3.6MM,#18,AU
..2
..2
..2
..2
..2
* AA92-00546A ASSY CABINET(COM);TXK2554C/XAA
BACK AA63-60002Y
CB+CF 6003-001025
CB+RCA6003-001026
CRT+CF AA60-10050R
D-COIL AA65-30113A
SPACER-FELT;FELT,T0.5,BLK,330X20,-,SCREW-TAPTITE;RH,+,B,M4,L20,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
SCREW-ASSY;WC,HH,+,M5,L31.5,SWRCH18A,ZPC
CLAMP-D,COIL;NYLON 66,V2,BLK,TVI 25~29,-
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
7-1
Electrical Parts List
Level Loc. No. Code No.
..2
..2
..2
..2
..2
..2
..2
..2
D-COIL AA65-30017A
PA+CF 6006-001095
SPK+CF 6003-001026
AA63-10007C
AA63-60004G
AA64-00892B
AA64-31138A
AA65-30008A
Description ; Specification
Remark
CLAMP-D,COIL;NYLON-66,V0,NTR,DADH300,25
SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL)
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
BAND-PP;-,-,-,W18,-,CLEAR,1G,SPACER-GUM,CRT;NTR RUBBER,T3.0,GRY,-,-,INLAY BACK;D2,D3,RCA9P,PS SHEET,T0.3,BLK
CABINET-BACK;-,CT-633B,-,HIPS,V0,BLK,-,CLAMP-CORD;PE,HB,BLK,-,-,-
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY CABINET FRONT
1
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
* AA92-00550A ASSY CABINET FRONT;TXK2554C/XAA
KC+CF 6003-001026
KNOPOW
AA64-40473A
AA64-40472A
AA64-70117B
AA65-30105A
AA64-01541A
AA61-40010B
AA64-10732A
AA64-10733A
AA64-31137A
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
S.N.A
AA61-60003JSPRING-CS;-,SUS304,0.5,OD6,H12,N7,-,-,-S.N.A
INDICATOR-LED;-,683B,-,PMMA,HB,CLEAR,WINDOW-REMOCON;-,683B,-,ABS,HB,LG 41338,
S.N.A
BADGE-BRAND;AL,SS,SILVER,L65,R2000,-,S.N.A
CLAMP-WIRE;NYLON 66,V2,NTR,15MM,ALL MODE S.N.A
INLAY AV;633B,683B,PS SHEET,T0.3,-,-,-,
BOSS-WING;-,HIPS,V0,BLK,-,KNOB-CONTROL;-,683B,-,ABS,HB,BLK
KNOB-POWER;-,683B,-,ABS,HB,BLK
CABINET-FRONT;-,CT-633B,BK708P,HIPS,VO,B
S.N.A
ASSY PCB CHASSISPACK
1
..2
...3
...3
..2
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
...3
....4
....4
....4
....4
....4
...3
....4
....4
....4
....4
...3
....4
....4
....4
....4
....4
...3
....4
....4
....4
....4
...3
...3
...3
...3
...3
...3
....4
7-2
* AA93-00062A ASSY PCB CHASSISPACK;-,KS2A,TXK2554C/XAA
AA90-00136G
CHASIS AA61-30009A
CHASIS AA63-10007C
AA94-02926A
C806 2401-001387
CN501BAA39-20054B
CN502BAA39-20053A
D801S 0402-001082
DDR01 AA96-00469F
AA62-00053B
6003-000334
1203-002018
0402-001375
0402-001358
0205-000129
DH01 AA96-00275C
6003-000333
AA62-00051A
AA60-30001A
0502-000209
0205-000129
IC602 AA96-50398B
0205-000129
1201-001308
6003-000333
AA62-30182E
IC801S AA96-50373C
AA62-30181K
AA61-10386A
6003-000333
1203-001482
0205-000129
IC804 AA96-00243C
0205-000129
1203-000284
6003-000335
AA62-00045A
IC901 AA09-00041A
JA701 3722-001333
P802S 1404-000208
T444S AA26-00013A
T801S AA26-00044C
AA99-30195R
C407 2301-001338
ASSY-PACKING,PCB;CHASIS 24.6/131.2kg,K51
LOCKER-BAND,CLIP;-,SPC-1,-,-,18MM T0.5,BAND-PP;-,-,-,W18,-,CLEAR,1G,ASSY PCB MAIN(OPT);TXK2554C/XAA,KS2A,USA
C-AL;470uF,20%,250V,GP,BK,25.4x40,1
LEAD CONNECTOR-ASSY;-,YBNH025-06,S,6P,50
LEAD CONNECTOR-ASSY;-,YBNH025-05,S,5P,40
DIODE-BRIDGE;RBV406LFB,600V,4A,ASSY H/S;-,REGULATOR,AA62-00053B,D10U60
HEAT SINK;DREAM (D2,D3),AL ,T1.0,147,50,
SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
IC-VOLTAGE REGULATOR;78R05,TO-220,4P,10M
DIODE-RECTIFIER;FFPF10U20S,200V,10A,TO-2
DIODE-RECTIFIER;FFPF10U60S,600V,10A,TO-2
GREASE-SILICON;SC102,JAPAN
ASSY H/S;-,POWER,AA62-00051A,2SD1880YD,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT SINK-PS;-,-,-,SILVER,HOLE 31mm,ALL,
WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,-,SBHG
TR-POWER;2SD1880YD,NPN,70W,TO-3P,ST,8
GREASE-SILICON;SC102,JAPAN
ASSY-H/S;-,-,AA62-30182E,TDA7266S,GREASE-SILICON;SC102,JAPAN
IC-POWER AMP;7266,ZIP,15P,-,DUAL,26dB,PL
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT SINK-ES;-,A6063 EXTR,-,WHT,-,-,-,40
ASSY-H/S;-,-,AA62-30181K,KA3S1265R,HEAT SINK-ES;-,AL6063 EXTR.,2,WHT,40MM,BRACKET-IC;-,-,SECC 100,T1.0,-,KA2S0680,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
IC-PWM CONTROLLER;3S1265R,TO-3P,5P,210,P
GREASE-SILICON;SC102,JAPAN
ASSY H/S;-,REGULATOR,AA62-00045A,KA7806
GREASE-SILICON;SC102,JAPAN
IC-POSI.FIXED REG.;7806,TO-220,3P,-,PLAS
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,
IC-MCU;SDA555X-OTP,SDA555X-OTP,-,-,52
JACK-RCA;9P,3.2mm,NI,BLK,THERMISTOR-PTC;7ohm,20%,120V,140V,40A,-,
TRANS-FLYBACK;-,FUH-29A001A(S),29,130V
TRANS SWITCHING;CODE-NO,CT-21A8,-,AC90~2
ASSY-PCB ROBOT; AA94-02926A ,ER
C-FILM,MPE-PPF;0.68nF,5%,1.6kV,TP,28x7x1
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Level Loc. No. Code No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
.....5
.....5
.....5
.....5
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
C815 2401-003026
CN601 3711-003043
CR401S 2301-001219
CR402S 2306-000255
CR405S 2306-000204
CX801S 2306-000318
CX802S 2306-000318
CY802S 2201-000446
D813 0402-000233
FP801S 3601-001012
IC201S 1204-001633
IC301 AA96-50406A
0205-000129
1204-000517
6003-000333
AA62-30180K
IC501 1201-000539
IC502 1201-000539
IC503 1201-000539
IC601 1204-001594
IC803 1203-002085
IC902 1103-001171
L808 AA27-00098A
LD901 AA96-00461A
LR401S AA27-00074A
LX801S AA29-30002N
LX802S AA29-30002N
NT802S 1404-001045
PC801S 0604-001032
RL801S 3501-001040
RM901 AA59-60001U
SW906 3404-001004
T401 AA26-50001R
TU01S AA40-00021A
V999S 3704-001105
AA99-10190X
C102 2401-002463
C103 2301-000383
C104 2401-001363
C105 2301-000383
C106 2401-000603
C115 2202-000121
C116 2202-000121
C201 2401-000553
C202 2401-001840
C203 2401-000660
C211 2202-000796
C212 2301-000224
C213 2301-000247
C214 2305-000665
C215 2401-002235
C216 2305-000665
C217 2401-001026
C218 2202-002037
C219 2202-002037
C220 2202-002037
C221 2202-002037
C222 2202-002037
C223 2202-002037
C224 2201-002031
C225 2201-002031
C228 2301-000356
C229 2401-002235
C231 2401-002235
C232 2202-002037
C233 2305-000412
C234 2305-000412
C235 2305-000412
C236 2305-000412
C237 2401-000914
C239 2401-000603
C240 2201-000354
C242 2301-000310
C243 2202-000121
C244 2202-000121
C245 2202-000121
Description ; Specification
C-AL;330uF,20%,200V,GP,ST,22x35,10
CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH
C-FILM,MPE-PPF;3.9nF,5%,1.6KV,TP,29x8.5x
C-FILM,MPPF;7.4nF,3%,1.6KV,TP,28.5x18.5x
C-FILM,MPPF;430nF,5%,400V,TP,26x20.5x12.
C-FILM,MPPF;220nF,20%,250V,TP,-,22.5mm
C-FILM,MPPF;220nF,20%,250V,TP,-,22.5mm
C-CERAMIC,DISC;3.3nF,20%,400V,Y5U,TP,15x
DIODE-RECTIFIER;FML-G12S,200V,5A,-,FUSE;250V,4A,SLOW-BLOW,GLASS,5.2x20
IC-VIDEO PROCESS;VDP3112B-C3,DIP,64P,709
ASSY-H/S;-,-,AA62-30180K,LA7845,GREASE-SILICON;SC102,JAPAN
IC-VERTIVAL DEF.;LA7845,SIP,7P,-,PLASTIC
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT SINK-ES;-,A6063 EXTR,-,WHT,50/13,-,
IC-VIDEO AMP;6101,ZIP,9P,-,SINGLE,-,PLAS
IC-VIDEO AMP;6101,ZIP,9P,-,SINGLE,-,PLAS
IC-VIDEO AMP;6101,ZIP,9P,-,SINGLE,-,PLAS
IC-SOUND PROCESSOR;MSP3440G-B6,SDIP,52P,
IC-VOLTAGE REGULATOR;78R08,TO-220,4P,-,P
IC-EEPROM;L51DC,16KBit,DIP,8P,300MIL,10m
COIL CHOKE;-,-,24uH,10%,-,0.1,3.0A,DR10X
ASSY LED GUIDE;-,-,SL-255D,RED/GRN
COIL LINEARITY;-,44uH,DR14x15,11mm,18x33
FILTER-LINE NOISE;-,16MH,1.5A,AC100~260V
FILTER-LINE NOISE;-,16MH,1.5A,AC100~260V
THERMISTOR-NTC;4.7OHM,15%,2900K,35.0MW,T
PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST
RELAY-POWER;12VDC,500mW,10A,1FormA,15mS,
MODULE-REMOCON;-,ORC-50VF/SR-12V,38KHz,9
SWITCH-TACT;12V,50MA,160GF,8.4X22.7MM,SP
TRANS-HORIZ.DRIVE;-,80MH,520UH,4UH,G11A
TUNER-F/S;TCPN3081PA09A(S),NTSC,TR,181CH
SOCKET-CRT;11P,20PI,26.5PI,NI,ASSY-PCB MAIN,AUTO; AA99-30195R ,V
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-AL;1uF,10%,50V,GP,TP,5x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;2.2uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5
C-FILM,PEF;33nF,5%,50V,TP,8.1x4.5x13mm,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-CERAMIC,DISC;0.005nF,0.5pF,50V,NP0,TP,
C-CERAMIC,DISC;0.005nF,0.5pF,50V,NP0,TP,
C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-AL;22uF,20%,16V,GP,TP,5x11,5
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,DISC;0.02nF,5%,50V,NP0,TP,5x3,
C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X5,
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
Remark
S.N.A
S.N.A
S.N.A
S.N.A
Samsung Electronics
Electrical Parts List
Level Loc. No. Code No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
C247
C301
C302
C303
C304
C305
C306
C307
C308
C401
C402
C403
C404
C408
C412
C414
C420
C421
C422
C424
C427
C504
C505
C506
C507
C508
C509
C511
C512
C513
C514
C515
C516
C605
C607
C608
C610
C611
C612
C613
C617
C620
C621
C626
C628
C630
C631
C632
C634
C635
C636
C637
C640
C641
C643
C645
C646
C647
C648
C650
C652
C654
C656
C657
C660
C803
C804
C805
C807
C808
C809
C811
C814
C816
C817
C818
C819
2001-000362
2401-000603
2401-000326
2201-002031
2305-000285
2305-000178
2301-000342
2401-000360
2305-000665
2201-000556
2401-001397
2201-000556
2401-001397
2305-000382
2305-000178
2401-002597
2301-001065
2201-000556
2401-001527
2201-000132
2401-002267
2305-000704
2201-000599
2305-000704
2201-000599
2305-000704
2201-000599
2401-000493
2401-000914
2301-000192
2401-000430
2401-001232
2201-002063
2305-000665
2202-000796
2202-000796
2301-000314
2301-000314
2401-001914
2401-001914
2401-000493
2305-000665
2401-001998
2401-001989
2401-001989
2401-002235
2401-002235
2202-000231
2401-001840
2305-000665
2401-001026
2401-000027
2401-000027
2401-000027
2401-000027
2401-002235
2305-000665
2202-000286
2401-001989
2201-000558
2401-001840
2202-000286
2201-000304
2201-000304
2401-001840
2301-000356
2201-000332
2201-000332
2301-001342
2401-002300
2301-000356
2301-000310
2201-000991
2401-000262
2201-000599
2401-000722
2201-000599
Samsung Electronics
Description ; Specification
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-AL;100uF,20%,35V,GP,TP,8x11.5,5
C-CERAMIC,DISC;0.005nF,0.5pF,50V,NP0,TP,
C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15
C-FILM,MPEF;10nF,5%,100V,TP,-,5mm
C-FILM,PEF;2.2nF,5%,50V,TP,7.4x3.9x13mm,
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-FILM,MPEF;4.7nF,5%,400V,TP,-,5mm
C-FILM,MPEF;10nF,5%,100V,TP,-,5mm
C-AL;220uF,20%,35V,GP,TP,10x12.5,5
C-FILM,MPPF;47nF,5%,630V,TP,19x15.5x7,7.
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;47uF,20%,250V,HR,TP,13x25mm,5m
C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5
C-AL;2.2uF,20%,250V,GP,TP,8x11.5,5
C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm
C-AL;22uF,20%,16V,GP,TP,5x11,5
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
C-AL;4.7uF,20%,250V,GP,TP,10x12.5,5
C-CERAMIC,DISC;10nF,+80-20%,3KV,Y5V,TP,1
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-FILM,PEF;8.2nF,5%,50V,TP,6.5x3.0x5.5mm
C-FILM,PEF;8.2nF,5%,50V,TP,6.5x3.0x5.5mm
C-AL;1uF,20%,50V,BP,TP,5x11,5
C-AL;1uF,20%,50V,BP,TP,5x11,5
C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-CERAMIC,MLC-AXIAL;56pF,5%,50V,SL,TP,1.
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-CERAMIC,DISC;0.47nF,10%,50V,Y5P,TP,5x3
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;56pF,5%,50V,SL,TP,1.
C-CERAMIC,DISC;0.001nF,0.25pF,50V,NP0,TP
C-CERAMIC,DISC;0.001nF,0.25pF,50V,NP0,TP
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4
C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4
C-FILM,PPF;1.5nF,5%,800V,TP,15x6.5x11.5m
C-AL;47uF,20%,50V,GP,TP,6.3x11,5
C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X5,
C-CERAMIC,DISC;0.56nF,10%,2kV,Y5P,TP,7.5
C-AL;100uF,20%,160V,HR,TP,16x25,7.5
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;2200uF,20%,25V,WT,TP,16x25,7.5
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
Remark
Level Loc. No. Code No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
C820
C821
C822
C823
C825
C826
C827
C829
C831
C832
C835
C837
C838
C839
C840
C843
C901
C902
C904
C905
C907
C908
C910
C911
C912
C913
C914
C915
C916
C917
C918
C919
C920
C921
CG501
CG502
CG503
CN701
CR01S
CR02S
CR03S
CR04S
CW901
D201
D202
D203
D204
D205
D206
D207
D208
D209
D210
D212
D301
D401
D402
D403
D406
D407
D408
D411
D413
D502
D503
D504
D505
D602
D801
D803
D804
D808
D810
D811
D901
D902
D903
2401-001054
2301-000192
2201-000599
2305-000665
2306-000122
2401-001363
2401-002235
2305-000665
2305-000665
2401-001840
2401-002286
2305-000665
2401-001840
2305-000665
2401-002235
2201-000681
2202-002037
2401-000553
2401-000302
2202-000796
2305-000665
2202-000863
2201-000980
2201-000980
2202-000719
2401-000287
2305-000665
2401-000287
2305-000665
2401-001840
2401-001840
2305-000665
2401-000480
2202-002037
AA27-00084A
AA27-00084A
AA27-00084A
3711-002647
2201-000556
2401-002212
2401-002235
2305-000412
2503-000156
0401-000005
0401-000005
0404-000156
0404-000156
0404-000156
0404-000156
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0402-000546
0402-000540
0402-000540
0402-001321
0402-001321
0402-000493
0402-000546
0402-000546
0402-000537
0402-001321
0401-000005
0401-000005
0401-000005
0401-000005
0402-001111
0402-000546
0401-000005
0402-001321
0402-001321
0402-001321
0404-000156
0404-000156
0404-000156
Description ; Specification
Remark
C-AL;3300uF,20%,25V,GP,TP,18x25,7.5
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;470uF,20%,16V,WT,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-CERAMIC,DISC;0.082nF,5%,50V,SL,TP,5x3,
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-AL;1uF,10%,50V,GP,TP,5x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C-CERAMIC,DISC;0.03nF,5%,50V,NP0,TP,5x3,
C-CERAMIC,DISC;0.03nF,5%,50V,NP0,TP,5x3,
C-CERAMIC,MLC-AXIAL;6.8NF,20%,16V,Y5R,3.
C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm
COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm
COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm
CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;10uF,20%,25V,WT,TP,5x11,5
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-NETWORK;100pFx4,20%,50V
DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP
DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP
DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP
DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP
DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-RECTIFIER;1A4G,400,1A,R-1,TP
DIODE-RECTIFIER;1A4G,400,1A,R-1,TP
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC
DIODE-RECTIFIER;1A4G,400,1A,R-1,TP
DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
DIODE-RECTIFIER;1N5397GP,600V,1.5A,DO-20
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
DIODE-RECTIFIER;1A4G,400,1A,R-1,TP
DIODE-RECTIFIER;1A4G,400,1A,R-1,TP
DIODE-RECTIFIER;1A4G,400,1A,R-1,TP
DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP
DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP
DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP
7-3
Electrical Parts List
Level Loc. No. Code No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
7-4
D904 0404-000156
D905 0404-000156
D907 0402-001321
D908 0401-000005
DR01S 0402-000534
DZ201 0403-000508
DZ202 0403-000508
DZ203 0403-000508
DZ204 0403-000508
DZ302 0403-001329
DZ303 0403-001329
DZ304 0403-001329
DZ305 0403-001221
DZ306 0403-000700
DZ402 0401-000005
DZ502 0403-001211
DZ601 0403-000508
DZ602 0403-000508
DZ603 0403-000720
DZ701 0403-000720
DZ702 0403-000720
DZ801 0403-001322
DZ802 0403-000508
DZ803 0403-001167
DZ804 0403-000700
DZ805 1203-001217
DZ806 0403-000714
DZ808 0403-000719
DZ901 0403-000508
DZ902 0403-000508
DZ903 0403-000508
DZ904 0403-000508
DZ905 0403-000508
DZ906 0403-000508
DZ907 0403-000508
DZR01S 0403-001321
F801A 3602-000114
F801B 3602-000114
FD801S 3601-001086
FD802S 3601-001228
FD803S 3601-001086
IC903 1203-001944
IC904 1203-001943
J126 2701-000114
J501 2001-000832
J699 2701-000168
J709 3301-000287
J909 2001-000429
L102 2701-000159
L103 2701-000115
L201 2701-000114
L202 2701-000114
L203 3301-000287
L207 2701-000168
L208 2701-000168
L209 2701-000168
L301 2701-000114
L302 3301-000287
L303 3301-000287
L601 2701-000168
L602 2701-000114
L603 2701-000114
L604 2701-000168
L609 2701-000168
L610 3301-000287
L801 3301-000287
L802 3301-000287
L803 3301-000287
L804 2901-000297
L806 3301-000287
L807 2901-000297
L809 3301-000287
L901 2901-000299
L903 2901-000299
L904 2901-000299
L905 2001-000995
Description ; Specification
DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP
DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP
DIODE-RECTIFIER;1A4G,400,1A,R-1,TP
DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-SWITCHING;1N4148,100V,200MA,DO-35,
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
IC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL
DIODE-ZENER;MTZJ3.3B,3.3V,3.32-3.53V,500
DIODE-ZENER;MTZJ7.5B,7.5V,7.07-7.45V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ6.8C,6.66-7.01V,500mW,DO
FUSE-HOLDER;-,-,30mohm
FUSE-HOLDER;-,-,30mohm
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
IC-POSI.FIXED REG.;78RM33,TO-220,3P,-,PL
IC-VOL. DETECTOR;7025,TO-92,3P,-,PLASTIC
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
INDUCTOR-AXIAL;3.3uH,5%,2.5x3.4mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
INDUCTOR-AXIAL;22uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;3.3uH,5%,2.5x3.4mm
INDUCTOR-AXIAL;3.3uH,5%,2.5x3.4mm
INDUCTOR-AXIAL;3.3uH,5%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;3.3uH,5%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;3.3uH,5%,2.5x3.4mm
INDUCTOR-AXIAL;3.3uH,5%,2.5x3.4mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM
Remark
S.N.A
S.N.A
Level Loc. No. Code No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
L906
Q201
Q202
Q203
Q204
Q206
Q207
Q208
Q209
Q210
Q211
Q212
Q213
Q222
Q402
Q501
Q802
Q901
Q902
Q903
Q904
Q905
Q906
Q907
Q908
Q909
Q910
Q911
QR01S
QR02S
R102
R103
R105
R106
R201
R202
R203
R204
R205
R206
R207
R208
R209
R210
R211
R212
R213
R214
R215
R216
R222
R223
R224
R225
R226
R228
R231
R232
R233
R234
R235
R236
R237
R238
R239
R241
R245
R246
R248
R249
R250
R251
R252
R253
R254
R255
2701-000114
0501-000389
0501-000389
0501-000389
0501-000389
0501-000283
0501-000389
0501-000283
0501-000389
0501-000283
0501-000389
0501-000389
0501-000389
0501-000389
0502-001007
0501-000283
0501-000369
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0505-000109
0505-000109
0501-000389
0501-000283
0501-000389
2001-000924
2001-000281
2001-000786
2001-000864
2001-000281
2001-000290
2001-000281
2001-000281
2001-000290
2001-000290
2001-000449
2001-000405
2001-000221
2001-000613
2001-000290
2001-000290
2001-000734
2001-000008
2001-000522
2001-000429
2001-000429
2001-000003
2001-000003
2001-000003
2001-000003
2001-001170
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000515
2001-000515
2001-000515
2001-001114
2001-000343
2001-000005
2001-000281
2001-000969
2001-000515
2001-000005
2001-000281
2001-000429
2001-000969
2001-000515
2001-000005
Description ; Specification
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-POWER;KSC2073-H2,NPN,25W,TO-220,ST,6
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC2331-Y,NPN,1W,TO-92L,
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON(S);6.8OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;130OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
Remark
S.N.A
S.N.A
Samsung Electronics
Electrical Parts List
Level Loc. No. Code No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
R256
R258
R259
R260
R261
R262
R263
R264
R265
R267
R301
R302
R303
R304
R305
R306
R309
R310
R313
R314
R315
R401
R402
R403
R405
R407
R408
R409
R410
R412
R414
R424
R425
R426
R429
R432
R433
R434
R436
R501
R502
R503
R504
R505
R506
R507
R508
R509
R510
R511
R512
R513
R514
R515
R517
R518
R519
R520
R521
R522
R523
R524
R525
R526
R529
R601
R602
R603
R604
R605
R606
R607
R608
R609
R610
R611
R612
2001-000281
2001-000969
2001-000515
2001-000290
2001-000290
2001-000290
2001-000786
2001-000003
2001-000003
2001-000003
2004-001397
2004-001984
2001-000016
2008-000254
2008-001107
2008-001107
2001-000290
2001-000290
2001-000890
2004-001986
2004-004970
2003-002186
2003-002186
2003-002037
2008-001018
2001-000066
2008-000284
2001-001410
2001-001114
2001-000020
2001-001165
2008-001018
2008-001018
2003-000540
2004-001397
2004-001397
2008-001127
2003-000664
2003-002151
2001-000429
2001-000429
2001-000429
2001-000449
2001-000449
2001-000449
2001-000085
2001-000515
2002-001017
2001-000085
2001-000515
2002-001017
2001-000085
2001-000515
2002-001017
2001-001077
2001-001185
2001-000864
2001-000449
2001-000832
2008-001129
2008-001129
2008-000299
2001-001062
2002-001009
0403-001316
2001-000290
2001-000290
2001-000429
2701-000114
2001-000281
2001-000290
2001-000429
2001-000429
2001-000281
2001-000281
2001-000281
2001-000281
Samsung Electronics
Description ; Specification
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-METAL(S);4.7Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-FUSIBLE(S);0.68ohm,5%,2W,AF,TP,3.9x10m
R-FUSIBLE(S);300ohm,5%,2W,AG,TP,3.9x12mm
R-FUSIBLE(S);300ohm,5%,2W,AG,TP,3.9x12mm
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-METAL(S);35.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);62Kohm,1%,1/8W,AA,TP,1.8x3.2m
R-METAL OXIDE(S);22Kohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);22Kohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);270ohm,5%,2W,AF,TP,3.9x
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-FUSIBLE(S);0.1OHM,10%,2W,AF,TP,3.9X10M
R-CARBON(S);43OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);56OHM,5%,1/2W,AA,TP,2.4X6.4M
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-METAL OXIDE(S);1Kohm,5%,2W,AF,TP,4x12m
R-METAL(S);4.7Kohm,1%,1/2W,AA,TP,2.4x6.4
R-METAL(S);4.7Kohm,1%,1/2W,AA,TP,2.4x6.4
R-FUSIBLE(S);6.8Kohm,5%,1W,AF,TP,3.9X10m
R-METAL OXIDE(S);33ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE;18KOHM,5%,2W,AG,TP,6X16MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-CARBON(S);150OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);750OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.
R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.
R-FUSIBLE(S);47ohm,5%,2W,AF,TP,3.9x10mm
R-CARBON(S);10MOHM,5%,1/2W,AA,TP,2.4X6.4
R-COMPOSITION;2.7Kohm,10%,1/2W,AA,TP,3.7
DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
Remark
Level Loc. No. Code No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
R613
R614
R615
R616
R617
R619
R620
R621
R622
R623
R666
R701
R702
R703
R704
R705
R706
R707
R708
R709
R715
R716
R719
R723
R730
R731
R802
R803
R804
R805
R806
R807
R808
R809
R810
R811
R812
R813
R816
R817
R818
R819
R821
R824
R825
R826
R827
R828
R829
R831
R832
R833
R835
R836
R901
R902
R903
R904
R905
R906
R907
R908
R909
R910
R911
R912
R913
R914
R915
R916
R917
R918
R919
R920
R921
R923
R924
2001-000281
2001-000780
2001-000780
2001-000780
2001-000780
2001-000281
2001-000290
2001-000890
2001-000890
2001-000281
2009-001011
2001-000969
2001-000969
2001-000969
2001-000969
2001-000969
2001-000281
2001-000281
2001-000281
2001-000938
2001-000290
2001-000290
2001-000969
2001-000281
2001-000281
2001-000281
2003-001025
2003-001025
2003-001025
2001-001150
2001-001150
2003-000746
2003-000746
2001-000022
2001-001178
2001-001135
2001-000780
2001-001153
2001-001088
2001-001088
2001-001113
2004-001983
2004-001889
2001-000522
2001-000066
2001-001072
2008-000284
2008-000266
2003-001036
2001-000780
2001-001153
2001-000472
2003-002211
2003-002211
2001-000734
2001-000281
2001-000734
2001-000734
2001-000734
2001-000734
2001-000281
2001-000734
2001-000281
2001-000429
2001-000429
2001-000429
2001-000947
2001-000221
2001-000577
2001-000007
2001-000878
2001-000009
2001-000780
2001-000780
2001-000734
2001-000924
2001-000429
Description ; Specification
Remark
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL PLATE;0.18ohm,10%,5W,CL,TP,5x14x
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL OXIDE(S);15Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);15Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);15Kohm,5%,2W,AF,TP,3.9x
R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m
R-CARBON(S);33OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);36KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);270KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL(S);2.49Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);127Kohm,1%,1/2W,AA,TP,2.5x6.5
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);12OHM,5%,1/2W,AA,TP,2.4X6.4M
R-FUSIBLE(S);0.1OHM,10%,2W,AF,TP,3.9X10M
R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
R-METAL OXIDE(S);3.3ohm,5%,2W,AF,TP,3.9x
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-METAL OXIDE(S);91Kohm,5%,2W,AG,TP,3.9x
R-METAL OXIDE(S);91Kohm,5%,2W,AG,TP,3.9x
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;6.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
7-5
Electrical Parts List
Level Loc. No. Code No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
7-6
R925 2001-001035
R926 2001-000734
R927 2001-000837
R929 2001-000429
R930 2001-000429
R931 2001-000780
R932 2001-000515
R933 2001-000780
R934 2001-000003
R935 2001-000290
R937 2001-000734
R939 2001-001153
R940 2001-000281
R941 2001-000281
R942 2001-000281
R943 2001-000429
R945 2001-000281
R946 2001-000515
R947 2001-000734
R948 2001-000734
R952 2001-000734
R953 2001-000734
RP801S 2002-001010
RR01S 2008-000264
RR02S 2001-000766
RR03S 2004-001386
RR04S 2001-000908
RR05S 2001-000947
RR06S 2001-000977
RR07S 2001-000290
RR08S 2001-000429
RR09S 2001-000780
RR10S 2001-000290
RR430S 2001-001088
RY802S 2002-001013
SW901 3404-000244
SW902 3404-000244
SW903 3404-000244
Description ; Specification
R-CARBON;91OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;51KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-COMPOSITION;1.8Mohm,5%,1/2W,AA,TP,3.7x
R-FUSIBLE(S);1ohm,5%,1W,AF,TP,3.9x10mm
R-CARBON;43KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL(S);16.9Kohm,1%,1/2W,AA,TP,2.4x6.
R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-COMPOSITION;4.7Mohm,5%,1/2W,AA,TP,3.7x
SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
Remark
Level Loc. No. Code No.
.....5
.....5
.....5
.....5
.....5
.....5
.....5
.....5
...3
...3
...3
SW904 3404-000244
SW905 3404-000244
VP801S 1405-000152
VX801S 1405-000152
X201 2801-003432
X601 2801-003903
X901 2801-003728
AA41-00132D
0202-000187
AA39-20010B
AA64-01230B
Description ; Specification
SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
VARISTOR;560V,2500A,14x8.5mm,TP
VARISTOR;560V,2500A,14x8.5mm,TP
CRYSTAL-UNIT;20.25MHZ,30PPM,28-AAM,13PF,
CRYSTAL-UNIT;18.432MHz,25ppm,28-AAM,12pF
CRYSTAL-UNIT;6MHz,30ppm,28-AAM,20pF,40oh
PCB-MAIN;CB-21A8,FR-1,1L,D,1.6T,330x245
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
LEAD CONNECTOR-ASSY;-,YFH800-01,S,1P,500
INLAY-COVER;D2,D3,PVC-SHEET,T0.4,94V0,-,
Remark
S.N.A
S.N.A
S.N.A
Samsung Electronics
Electrical Parts List
7-3 TXK2567X/XAA (TXK2567X/XAA and TXK2566X/XAA Dissimilar Parts)
Level Loc. No. Code No.
Description ; Specification
Remark
Level Loc. No. Code No.
ASSY-PCB,MAIN(OPT)
Description ; Specification
Remark
ASSY-VIDEO S/W
* AA94-02636AASSY-PCB,MAIN(OPT);KS2A,25,TXK2567
* AA97-00726AASSY-VIDEO S/W;-,CS7202GT7C/EGC,KS2A,-,-
AA94-02636A-AASSY-PCB,MAIN(COM);KS2A,25,TXK2567
3722-001458 JACK-DIN;5P,-,NI,BLK,2701-000142 INDUCTOR-AXIAL;1UH,10%,2.5X3.
1001-001114IC-VIDEO SWITCH;TEA6425,VIDEO SWITCH ,DI
2401-002009C-AL;100UF,20%,16V,GP,TP,6.3X
AA41-00153DPCB-VIDEO SWITCH;CS29A6,FR-1,1L,D,1.6T,2
AA97-00726A-AASSY-VIDEO S/W;-,CS7202GT7C/EGC,KS2A,-,-
ASSY CABINET(COM)
* AA92-00428AASSY CABINET(COM);TXK2567,SEA,KS2A
AA64-00892E INLAY BACK;D2,D3,RCA9P+S-VHS,PS SHEET,T0
7-4 TXK2567X/XAC (TXK2567X/XAC and TXK2566X/XAA Dissimilar Parts)
Level Loc. No. Code No.
Description ; Specification
Remark
Level Loc. No. Code No.
Description ; Specification
Remark
ASSY-PCB,MAIN(OPT)
* AA94-02636AASSY-PCB,MAIN(OPT);KS2A,25,TXK2567
AA94-02636A-AASSY-PCB,MAIN(COM);KS2A,25,TXK2567
2701-000142 INDUCTOR-AXIAL;1UH,10%,2.5X3.
3722-001458 JACK-DIN;5P,-,NI,BLK,-
ASSY ACCESSORY
* AA97-00708AASSY ACCESSORY;-,CT25B3,25,KS2A,SECA
AA68-01185AMANUAL USERS;-,-,FRE,B5,W/P100(G),-,-,-,
AA92-30241B1ASSY-CABINET,FRONT;CT25B7,VO,KS2A.CCX
ASSY CABINET(COM)
* AA92-00427AASSY CABINET(COM);TXK2567,KS2A,SECA
AA64-00892E INLAY BACK;D2,D3,RCA9P+S-VHS,PS SHEET,T0
ASSY-VIDEO S/W
* AA97-00726AASSY-VIDEO S/W;-,CS7202GT7C/EGC,KS2A,-,1001-001114 IC-VIDEO SWITCH;TEA6425,VIDEO SWITCH ,DI
2401-002009 C-AL;100UF,20%,16V,GP,TP,6.3X
3711-002704 PINHEADER;YFAW-025-106(6PIN2.5MM)15.0X
3711-002706 PIN-HEADER;YFAW025-108(8PIN2.5M/M)20.0
AA41-00153D PCB-VIDEO SWITCH;CS29A6,FR-1,1L,D,1.6T,2
AA97-00726A-AASSY-VIDEO S/W;-,CS7202GT7C/EGC,KS2A,-,-
Samsung Electronics
7-7
Electrical Parts List
7-5 TXK2566X/XAA, TXK2566X/XAC
Level Loc. No. Code No.
Description ; Specification
Remark
Level Loc. No. Code No.
ASSY-PCB,MAIN(OPT)
1
A/MAIN AA94-02635A ASSY-PCB,MAIN(OPT),KS2A,25,TXK2566
...3
..2
..2
...3
...3
...3
02VER
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
7-8
AA41-00132C
A/MAIN (AIM)
C/WIRE1 AA65-30105B
C102
2401-002463
C103
2301-000383
C104
2401-001363
C105
2301-000383
C106
2401-000603
C115
2202-000121
C116
2202-000121
C201
2401-001914
C202
2401-001840
C211
2202-000796
C212
2301-000224
C213
2301-000247
C214
2305-000665
C215
2401-002235
C216
2305-000665
C217
2401-001026
C218
2202-002037
C219
2202-002037
C220
2202-002037
C221
2202-002037
C222
2202-002037
C223
2202-002037
C224
2201-002031
C225
2201-002031
C228
2301-000356
C229
2401-002235
C231
2401-002235
C232
2202-002037
C233
2305-000412
C234
2305-000412
C235
2305-000412
C236
2305-000412
C237
2401-000914
C239
2401-000603
C242
2301-000310
C243
2202-000121
C244
2202-000121
C245
2202-000121
C247
2001-000362
C301
2401-000603
C302
2401-000326
C303
2201-002031
C304
2305-000285
C305
2305-000178
C306
2301-000342
C307
2401-000360
C308
2305-000665
C401
2201-000556
C402
2401-001397
C403
2201-000556
C404
2401-001397
C407
2301-001338
C408
2305-000382
C412
2305-000178
C414
2401-002597
C420
2301-001065
C421
2201-000556
C422
2401-001527
C424
2201-000132
C427
2401-002267
C504
2305-000704
C505
2201-000599
PCB;CT21A8,FR-1,1L,C,1.6T,330x245,
AA94-02635A-AASSY-PCB,MAIN(COM);KS2A,25,TXK2566
CLAMP-WIRE;NYLON 66,V2,NTR,25MM,ALL MODE
C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE
C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
C-AL;470UF,20%,16V,GP,TP,10X12
C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
C-AL;1UF,20%,50V,GP,5X11MM,5MM
C-CERAMIC,MLC-AXIAL;100PF,10%,
C-CERAMIC,MLC-AXIAL;100PF,10%,
C-AL;1uF,20%,50V,BP,TP,5x11,5
C-AL;100UF,20%,16V,GP,TP,6.3X1
C-CERAMIC,MLC-AXIAL;1NF,10%,50
C-FILM,PEF;22NF,5%,50V,7.4X3.9
C-FILM,PEF;33NF,5%,50V,8.1X4.5
C-FILM;104J, 60V,5MM TAPING
C-ELECTROLYTIC;CE04W(T)16V10M
C-FILM;104J, 60V,5MM TAPING
C-AL;3.3UF,20%,50V,GP,5X11MM,5
C-CERAMIC,MLC-AXIAL;100NF,+80-20
C-CERAMIC,MLC-AXIAL;100NF,+80-20
C-CERAMIC,MLC-AXIAL;100NF,+80-20
C-CERAMIC,MLC-AXIAL;100NF,+80-20
C-CERAMIC,MLC-AXIAL;100NF,+80-20
C-CERAMIC,MLC-AXIAL;100NF,+80-20
C-CERAMIC,DISC;5pF,0.25pF,50V,NPO,TP,5x3
C-CERAMIC,DISC;5pF,0.25pF,50V,NPO,TP,5x3
C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
C-ELECTROLYTIC;CE04W(T)16V10M
C-ELECTROLYTIC;CE04W(T)16V10M
C-CERAMIC,MLC-AXIAL;100NF,+80-20
C-FILM,MPEF;470NF,5%,63V,-,5MM
C-FILM,MPEF;470NF,5%,63V,-,5MM
C-FILM,MPEF;470NF,5%,63V,-,5MM
C-FILM,MPEF;470NF,5%,63V,-,5MM
C-AL;22UF,20%,16V,GP,5X11,5,TP
C-AL;1UF,20%,50V,GP,5X11MM,5MM
C-FILM,PEF;68NF,5%,50V,8.0X8.5
C-CERAMIC,MLC-AXIAL;100PF,10%,
C-CERAMIC,MLC-AXIAL;100PF,10%,
C-CERAMIC,MLC-AXIAL;100PF,10%,
R-CARBON;150OHM,5%,1/8W,AA,TP,
C-AL;1UF,20%,50V,GP,5X11MM,5MM
C-AL;100UF,20%,35V,GP,8X11MM,5
C-CERAMIC,DISC;5pF,0.25pF,50V,NPO,TP,5x3
C-FILM,MPEF;220NF,5%,100V,-,5M
C-FILM,MPEF;10NF,5%,100V,-,5MM
C-FILM,PEF;2.2nF,5%,50V,TP,7.4x3.9x13mm,
C-AL;100UF,20%,50V,GP,8X11MM,5
C-FILM;104J, 60V,5MM TAPING
C-CERAMIC,DISC;470PF,10%,500V,
C-AL;470UF,20%,25V,GP,10X16MM,
C-CERAMIC,DISC;470PF,10%,500V,
C-AL;470UF,20%,25V,GP,10X16MM,
C-FILM,MPE,PPF0.68nF,5%,1.6kV,TP,28x7x1
C-FILM,MPEF;4.7NF,5%,400V,TP,-,5MM.
C-FILM,MPEF;10NF,5%,100V,-,5MM
C-AL;220uF,20%,35V,GP,TP,10x12.5,5
C-FILM,MPPF;47NF,55,630V,TP,19
C-CERAMIC,DISC;470PF,10%,500V,
C-AL;47UF,20%,250V,HR,13X25MM,
C-CERAMIC,DISC;100PF,10%,500V,Y5P,6X3MM,
C-AL;2.2UF,20%,250V,GP,8X12MM,
C-M,POLYESTER;CFS922MTAPG250V1
C-CERAMIC,DISC;560PF,10%,500V,
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
..2
...3
...3
...3
...3
...3
C506
C507
C508
C509
C511
C512
C513
C514
C515
C516
C605
C607
C608
C609
C610
C611
C612
C613
C617
C620
C621
C622
C625
C626
C628
C630
C631
C632
C634
C635
C636
C637
C638
C639
C640
C641
C643
C645
C646
C647
C648
C650
C652
C654
C656
C657
C660
C803
C804
C805
C806
C807
C808
C809
C811
C814
C815
C816
C817
C818
C819
C820
C821
C822
C823
C825
C826
C827
C829
C831
2305-000704
2201-000599
2305-000704
2201-000599
2401-000493
2401-000914
2301-000192
2401-000430
2401-001232
2201-002063
2305-000665
2202-000796
2202-000796
2401-001840
2301-000314
2301-000314
2401-001914
2401-001914
2401-000493
2305-000665
2401-001998
2401-001989
2401-001989
2401-001989
2401-001989
2401-002235
2401-002235
2202-000806
2401-001840
2305-000665
2401-001026
2401-000027
2202-000231
2202-000231
2401-000027
2401-000027
2401-000027
2401-002235
2305-000665
2202-000286
2401-001989
2201-000558
2401-001840
2202-000286
2201-000304
2201-000304
2401-001840
2301-000356
2201-000332
2201-000332
2401-001387
2301-001342
2401-002300
2301-000356
2301-000310
2201-000991
2401-003026
2401-000293
2201-000599
2401-000722
2201-000599
2401-001054
2301-000192
2201-000599
2305-000665
2306-000122
2401-001363
2401-002235
2305-000665
2305-000665
Description ; Specification
Remark
C-M,POLYESTER;CFS922MTAPG250V1
C-CERAMIC,DISC;560PF,10%,500V,
C-M,POLYESTER;CFS922MTAPG250V1
C-CERAMIC,DISC;560PF,10%,500V,
C-AL;10UF,20%,50V,WT,5X11MM,5M
C-AL;22UF,20%,16V,GP,5X11,5,TP
C-FILM,PEF;1NF,5%,50V,5.3X10MM
C-ELECTROLYTIC;CE04WTAPG250V10
C-AL;4.7UF,20%,250V,GP,10X12.5
C-CERAMIC,DISC;10nF,+80-20%,3KV,Y5V,TP,1
C-FILM;104J, 60V,5MM TAPING
C-CERAMIC,MLC-AXIAL;1NF,10%,50
C-CERAMIC,MLC-AXIAL;1NF,10%,50
C-AL;100UF,20%,16V,GP,TP,6.3X1
C-FILM,PEF;8.2NF,5%,50V,6.5X3.
C-FILM,PEF;8.2NF,5%,50V,6.5X3.
C-AL;1uF,20%,50V,BP,TP,5x11,5
C-AL;1uF,20%,50V,BP,TP,5x11,5
C-AL;10UF,20%,50V,WT,5X11MM,5M
C-FILM;104J, 60V,5MM TAPING
C-AL;1000UF,20%,25V,GP,TP,10X20
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-ELECTROLYTIC;CE04W(T)16V10M
C-ELECTROLYTIC;CE04W(T)16V10M
C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP
C-AL;100UF,20%,16V,GP,TP,6.3X1
C-FILM;104J, 60V,5MM TAPING
C-AL;3.3UF,20%,50V,GP,5X11MM,5
C-AL;4.7UF,20%,50V,GP,5*11MM,5MEA
C-CERAMIC,MLC-AXIAL;330PF,10%,50V,Y5P,3.
C-CERAMIC,MLC-AXIAL;330PF,10%,50V,Y5P,3.
C-AL;4.7UF,20%,50V,GP,5*11MM,5MEA
C-AL;4.7UF,20%,50V,GP,5*11MM,5MEA
C-AL;4.7UF,20%,50V,GP,5*11MM,5MEA
C-ELECTROLYTIC;CE04W(T)16V10M
C-FILM;104J, 60V,5MM TAPING
C-CERAMIC,MLC-AXIAL;56PF,5%,50
C-AL;4.7uF,20%,50V,BP,TP,5x11,5
C-CERAMIC,DISC;470PF,10%,50V,Y
C-AL;100UF,20%,16V,GP,TP,6.3X1
C-CERAMIC,MLC-AXIAL;56PF,5%,50
C-CERAMIC,DISC0.001nF,0.25pF,50V,NP0,TP
C-CERAMIC,DISC0.001nF,0.25pF,50V,NP0,TP
C-AL;100UF,20%,16V,GP,TP,6.3X1
C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
C-CERAMIC,AC;CK45PTAPGE250V222
C-CERAMIC,AC;CK45PTAPGE250V222
C-AL;470uF,20%,250V,GP,BK,25.4x40,1
C-FILM,PPF;1.5nF,5%,800V,TP,15x6.5x11.5m
C-ELECTROLYTIC;CE04WTAPG50V47U
C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
C-FILM,PEF;68NF,5%,50V,8.0X8.5
C-CERAMIC,HIC;CK45(T)B2KV561-K
C-AL;330UF,20%,200V,GP,ST,22X3
C-ELECTROLYTIC;CE04WTAPG200V10
C-CERAMIC,DISC;560PF,10%,500V,
C-AL;2200uF,20%,25V,WT,TP,16x25,7.5
C-CERAMIC,DISC;560PF,10%,500V,
C-AL;3300UF,20%,25V,GP,18X26MM,7.5M
C-FILM,PEF;1NF,5%,50V,5.3X10MM
C-CERAMIC,DISC;560PF,10%,500V,
C-FILM;104J, 60V,5MM TAPING
C-FILM,MPPF;100NF,5%,50V,7.3X4
C-AL;470UF,20%,16V,GP,TP,10X12
C-ELECTROLYTIC;CE04W(T)16V10M
C-FILM;104J, 60V,5MM TAPING
C-FILM;104J, 60V,5MM TAPING
Samsung Electronics
Electrical Parts List
Level Loc. No. Code No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
...3
...3
..2
..2
..2
...3
..2
..2
..2
...3
..2
..2
...3
...3
...3
...3
...3
...3
..2
...3
..2
C832
C835
C837
C838
C839
C840
C841
C843
C901
C902
C904
C905
C907
C908
C910
C911
C913
C914
C915
C916
C917
C918
C919
C920
C921
CG501
CG502
CG503
CN501B
CN501B
CN502B
CN601
CN602
CN701
CR01S
CR02S
CR03S
CR04S
CR401S
CR402S
CR405S
CW901
CX801S
CX802S
CY802S
D201
D202
D203
D204
D205
D206
D207
D208
D209
D210
D212
D301
D401
D402
D403
D406
D407
D408
D411
D413
D502
D602
D603
D801
D801S
D803
D804
D808
D810
D811
D813
D816
2401-001840
2401-002286
2305-000665
2401-001840
2305-000665
2401-002235
2401-000611
2201-000374
2202-002037
2401-000553
2401-000302
2202-000796
2305-000665
2202-000863
2201-000980
2201-000980
2401-000287
2305-000665
2401-000287
2305-000665
2401-001840
2401-001840
2305-000665
2401-000480
2202-002037
AA27-00084A
AA27-00084A
AA27-00084A
AA39-00172A
AA39-20054B
AA39-20053A
3711-002643
3711-002644
3711-002647
2201-000556
2401-002212
2401-002235
2305-000412
2301-001219
2306-000255
2306-000204
2503-000156
2306-000318
2306-000318
2201-000446
0401-000005
0401-000005
0404-000156
0404-000156
0404-000156
0404-000156
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0402-000546
0402-000540
0402-000540
0402-000132
0402-000132
0402-000493
0402-000546
0402-000546
0402-000537
0402-000132
0401-000005
0401-000005
0402-000213
0402-001082
0402-000546
0401-000005
0402-000132
0402-000132
0402-000132
0402-000233
0402-000546
Samsung Electronics
Description ; Specification
C-AL;100UF,20%,16V,GP,TP,6.3X1
C-ELEC;CE04D16VT471-MFR10X12.5
C-FILM;104J, 60V,5MM TAPING
C-AL;100UF,20%,16V,GP,TP,6.3X1
C-FILM;104J, 60V,5MM TAPING
C-ELECTROLYTIC;CE04W(T)16V10M
C-AL;1UF,20%,50V,WT,5X11MM,5MM
C-CERAMIC,DISC;220pF,5%,50V,CH,TP,12.5x3
C-CERAMIC,MLC-AXIAL;100NF,+80-20
C-AL;1UF,10%,50V,GP,5X11MM,5MM
C-AL;100UF,20%,25V,GP,6X11MM,5
C-CERAMIC,MLC-AXIAL;1NF,10%,50
C-FILM;104J, 60V,5MM TAPING
C-CERAMIC;CKOAX7R50VT561-KUP050561
C-CERAMIC,DISC;30PF,5%,50V,NPO,5.0X3.0,5
C-CERAMIC,DISC;30PF,5%,50V,NPO,5.0X3.0,5
C-AL;100UF,20%,16V,WT,6X11MM,5
C-FILM;104J, 60V,5MM TAPING
C-AL;100UF,20%,16V,WT,6X11MM,5
C-FILM;104J, 60V,5MM TAPING
C-AL;100UF,20%,16V,GP,TP,6.3X1
C-AL;100UF,20%,16V,GP,TP,6.3X1
C-FILM;104J, 60V,5MM TAPING
C-AL;10UF,20%,50V,GP,5X11MM,5M
C-CERAMIC,MLC-AXIAL;100NF,+80-20
COIL;S-23,S-23,5000Mohm MIN,8.0*8.5mm,30
COIL;S-23,S-23,5000Mohm MIN,8.0*8.5mm,30
COIL;S-23,S-23,5000Mohm MIN,8.0*8.5mm,30
LEAD-CONNECTOR,ASSY;DREAM,1007#26,UL/CSA
LEAD-CONNECTOR,ASSY;YBNH025-06,S,6P,500m
LEAD-CONNECTOR,ASSY;YBNH025-05,S,5P,400m
POST-HEADER;YW025-04(AUTO)
POST-HEADER;67094-005(AUTO)
POST-HEADER;67094-008(AUTO)
C-CERAMIC,DISC;470PF,10%,500V,
C-AL;10UF,20%,25V,WT,TP,5X11,5
C-ELECTROLYTIC;CE04W(T)16V10M
C-FILM,MPEF;470NF,5%,63V,-,5MM
C-FILM,MPE-PPF;3.9nF,5%,1.6KV,TP,29x8.5x
C-FILM;CF922P1.6KVT742-HBUP
C-FILM,MPPF;430NF,5%,400V,-,20
C-NETWORK;100pFx4,20&,50V
C-FILM,MPPF;220NF,20%,250V,-,2
C-FILM,MPPF;220NF,20%,250V,-,2
C-CERAMIC,AC;CK45PE400V332-M(T
DIODE;1N4148,100V,300mA,,1V,8nS,TAPING
DIODE;1N4148,100V,300mA,,1V,8nS,TAPING
DIODE-SCHOTTKY;RB441Q,10V,100MA,DO-34,TP
DIODE-SCHOTTKY;RB441Q,10V,100MA,DO-34,TP
DIODE-SCHOTTKY;RB441Q,10V,100MA,DO-34,TP
DIODE-SCHOTTKY;RB441Q,10V,100MA,DO-34,TP
DIODE;1N4148,100V,300mA,,1V,8nS,TAPING
DIODE;1N4148,100V,300mA,,1V,8nS,TAPING
DIODE;1N4148,100V,300mA,,1V,8nS,TAPING
DIODE;1N4148,100V,300mA,,1V,8nS,TAPING
DIODE;1N4148,100V,300mA,,1V,8nS,TAPING
DIODE-RECTIFIER;TVR10G,400V,1.
DIODE-RECTIFIER;RU20A,600V,1.5
DIODE-RECTIFIER;RU20A,600V,1.5
DIODE-RECTIFIER;1N4004,400V,1A,DO-41
DIODE-RECTIFIER;1N4004,400V,1A,DO-41
DIODE-RECTIFIER;1R5GU41,400V,1
DIODE-RECTIFIER;TVR10G,400V,1.
DIODE-RECTIFIER;TVR10G,400V,1.
DIODE-RECTIFIER;RH1A,600V,0.6A,
DIODE-RECTIFIER;1N4004,400V,1A,DO-41
DIODE;1N4148,100V,300mA,,1V,8nS,TAPING
DIODE;1N4148,100V,300mA,,1V,8nS,TAPING
DIODE-RECTIFIER;ERB12-06,600V,
DIODEBRIDGE;RBV406LFB,600V,4A
DIODE-RECTIFIER;TVR10G,400V,1.
DIODE;1N4148,100V,300mA,,1V,8nS,TAPING
DIODE-RECTIFIER;1N4004,400V,1A,DO-41
DIODE-RECTIFIER;1N4004,400V,1A,DO-41
DIODE-RECTIFIER;1N4004,400V,1A,DO-41
DIODE-RECTIFIER;FML-G12S,200V,
DIODE-RECTIFIER;TVR10G,400V,1.
Remark
Level Loc. No. Code No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
..2
..2
..2
...3
..2
..2
...3
...3
..2
...3
..2
..2
..2
...3
..2
...3
...3
..2
...3
...3
...3
...3
D901
0404-000156
D902
0404-000156
D903
0404-000156
D904
0404-000156
D905
0404-000156
D906
0401-000005
D907
0402-000132
D908
0401-000005
DDR01 0402-000233
DDR01 0402-001230
DDR01 1203-001006
DH01
0502-000209
DR01S 0402-000534
DZ201 0403-000508
DZ202 0403-000508
DZ203 0403-000508
DZ204 0403-000508
DZ302 0403-001329
DZ303 0403-001329
DZ304 0403-001329
DZ305 0403-001221
DZ306 0403-000700
DZ402 0401-000005
DZ501 0403-001211
DZ502 0403-001211
DZ601 0403-000508
DZ602 0403-000508
DZ603 0403-000720
DZ801 0403-001322
DZ802 0403-000508
DZ803 0403-001167
DZ804 0403-000700
DZ805 1203-001217
DZ806 0403-000714
DZ808 0403-000719
DZ901 0403-000508
DZ902 0403-000508
DZ903 0403-000508
DZ904 0403-000508
DZ905 0403-000508
DZ906 0403-000508
DZ907 0403-000508
DZR01S 0403-000298
F+SH
AA63-00362A
F801A 3602-000114
F801B
3602-000114
FD801S 3601-001086
FD802S 3601-001228
FD803S 3601-001086
FP801S 3601-001012
GT102 AA39-20010B
IC201S 1204-001632
IC301
1204-000517
IC501
1201-000539
IC502
1201-000539
IC503
1201-000539
IC601
1204-001594
IC602
1201-001308
IC801S 1203-001482
IC803
1203-001697
IC804
1203-000284
IC901
AA09-00041A
IC902
1103-001171
IC903
1203-001944
IC904
1203-001943
INLA/PCB AA64-01230B
J126
2701-000114
J501
2001-000832
J699
2701-000168
J709
3301-000287
J909
2001-000429
JA701 3722-001333
L102
2701-000159
L103
2701-000115
L201
2701-000114
L202
2701-000114
L203
3301-000287
Description ; Specification
DIODE-SCHOTTKY;RB441Q,10V,100MA,DO-34,TP
DIODE-SCHOTTKY;RB441Q,10V,100MA,DO-34,TP
DIODE-SCHOTTKY;RB441Q,10V,100MA,DO-34,TP
DIODE-SCHOTTKY;RB441Q,10V,100MA,DO-34,TP
DIODE-SCHOTTKY;RB441Q,10V,100MA,DO-34,TP
DIODE;1N4148,100V,300mA,,1V,8nS,TAPING
DIODE-RECTIFIER;1N4004,400V,1A,DO-41
DIODE;1N4148,100V,300mA,,1V,8nS,TAPING
DIODE-RECTIFIER;FML-G12S,200V,
DIODE-RECTIFIERFMG-G2CS,1000V,3A,TO-22
IC-VOLTAGEREGULATOR78R05,TO-220F,4P
TR-POWER;2SD1880,NPN,1500V,800
DIODE-RECTIFIER;RG10V,400V,1.5
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,
DIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D
DIODE-ZENER;TZP33A,33V,31-35V,
DIODE;1N4148,100V,300mA,,1V,8nS,TAPING
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500
DIODE-ZENER;TZP33A,33V,31-35V,
IC-POST,ADJUSTREG;431,T0-92,3P,4.58MIL,P
DIODE-ZENER;MTZJ3.3B,3.3V,3.32-3.53V,500
DIODE-ZENER;MTZJ7.5B,7.5V,7.07-7.45V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZ6.8C,6.8V,6.66FELT;W25XL8,T2.0,FELT,BLK.
FUSE-HOLDER;-,-,30MOHM
FUSE-HOLDER;-,-,30MOHM
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS
FUSE-FERRULE;250V,4A,SLOW-BLOW
LEAD-CONNECTOR,ASSY;-,YFH800-01,500MM,1P
IC-VIDEOPROCESS,VDP3108B-C3,DIP,64P,PL
IC-LINEAR;LA7845SIPVERTICALAMP
IC-VIDEOAMP;6101,ZIP,9P,-,SING
IC-VIDEOAMP;6101,ZIP,9P,-,SING
IC-VIDEOAMP;6101,ZIP,9P,-,SING
IC-SOUND PROCESSOR;MSP3440G-B6,SDIP,52P,
IC-POWERAMP;7266,ZIP,15P,-,DUAL,26dB,PL
IC-PWMCONTROLLER;3S1265R,TO-3P,5P,210,P
IC-VOLTAGEREGULATOR78R08,TO-220,4P,P
IC-POSI.FIXEDREG.;7806,TO-220,
IC-MCU;SDA555X-OTP,SDA555X-OTP,-,-,52
IC-EEPROM,24L161,16KBIT,DIP,8P,300MIL,10
IC-POSI.FIXEDREG.78RM33,TO-220,3P,PLAST
IC-VOL.DETECTOR;7025,T0-92,3P,PLASTIC
INLAY-COVER;D2,D3,PVC-SHEET,T0.4,94V0,-,
INDUCTOR-AXIAL;10UH,10%,2.5X3.
R-CARBON;510OHM,5%,1/8W,AA,TP,
INDUCTORAXIAL;3.3uH,5%,2.5x3.4mm
CORE-FERRITEBEAD;AA,3.5X1.0X6.
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JACK-RCA9P,3.2mm,NI,BLK
INDUCTORAXIAL;22uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;10UH,10%,2.8X7M
INDUCTOR-AXIAL;10UH,10%,2.5X3.
INDUCTOR-AXIAL;10UH,10%,2.5X3.
CORE-FERRITEBEAD;AA,3.5X1.0X6.
Remark
H/SINK
H/SINK
H/SINK
H/SINK
H/SINK
H/SINK
H/SINK
H/SINK
7-9
Electrical Parts List
Level Loc. No. Code No.
...3
...3
...3
..2
...3
...3
..2
..2
..2
..2
..2
..2
..2
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
7-10
L207
L208
L209
L301
L601
L602
L603
L604
L609
L610
L801
L802
L803
L804
L806
L807
L808
L809
L901
L903
L904
L905
L906
LD901
LR401S
LX801S
LX802S
NT802S
P802S
PC801S
PWR/AC
Q201
Q202
Q203
Q204
Q206
Q207
Q208
Q209
Q210
Q211
Q212
Q213
Q222
Q402
Q501
Q601
Q602
Q802
Q901
Q902
Q903
Q904
Q905
Q906
Q907
Q908
Q909
Q910
Q911
QR01S
QR02S
R102
R103
R105
R106
R201
R202
R203
R204
R205
R206
R207
R208
R209
R210
2701-000168
2701-000168
2701-000168
2701-000114
2701-000169
2701-000114
2701-000114
2701-000169
2701-000169
3301-000287
3301-000287
3301-000287
3301-000287
2901-000297
3301-000287
2901-000297
AA27-10002L
3301-000287
2901-000299
2901-000299
2901-000299
2001-000995
2701-000114
AA96-30006A
AA27-00074A
AA29-30002N
AA29-30002N
1404-001045
1404-000208
0604-001038
AA96-20129A
0501-000389
0501-000389
0501-000389
0501-000389
0501-000283
0501-000389
0501-000283
0501-000389
0501-000283
0501-000389
0501-000389
0501-000389
0501-000389
0502-001007
0501-000283
0501-000389
0501-000389
0501-000369
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0505-000109
0505-000109
0501-000389
0501-000283
0501-000389
2001-000281
2001-000281
2001-000786
2001-000864
2001-000281
2001-000290
2001-000281
2001-000281
2001-000290
2001-000290
2001-000449
2001-000405
2001-000221
2001-000613
Description ; Specification
INDUCTORAXIAL;3.3uH,5%,2.5x3.4mm
INDUCTORAXIAL;3.3uH,5%,2.5x3.4mm
INDUCTORAXIAL;3.3uH,5%,2.5x3.4mm
INDUCTOR-AXIAL;10UH,10%,2.5X3.
INDUCTORAXIAL;3.9uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10UH,10%,2.5X3.
INDUCTOR-AXIAL;10UH,10%,2.5X3.
INDUCTORAXIAL;3.9uH,10%,2.5x3.4mm
INDUCTORAXIAL;3.9uH,10%,2.5x3.4mm
CORE-FERRITEBEAD;AA,3.5X1.0X6.
CORE-FERRITEBEAD;AA,3.5X1.0X6.
CORE-FERRITEBEAD;AA,3.5X1.0X6.
CORE-FERRITEBEAD;AA,3.5X1.0X6.
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,CORE-FERRITEBEAD;AA,3.5X1.0X6.
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,COIL-CHOKE;-,24UH,K,-,2A,-,24U
CORE-FERRITEBEAD;AA,3.5X1.0X6.
FILTER-EMIBEAD;BL02RN2-R65T2DB
FILTER-EMIBEAD;BL02RN2-R65T2DB
FILTER-EMIBEAD;BL02RN2-R65T2DB
R-CARBON;820OHM,5%,1/8W,AA,TP,
INDUCTOR-AXIAL;10UH,10%,2.5X3.
ASSY-LED,GUIDE;-,-,SL255D,RED/GRN
COIL LINEARITY;-,44uH,DR14x15,11mm,18x33
FILTER-LINE NOISE;-,16MH,1.5A,AC100~260V
FILTER-LINE NOISE;-,16MH,1.5A,AC100~260V
THERMISTOR NTC;4.7OHM,15%,2900K,35.0MW,T
POSISTOR;PTH631D02BF7ROM140TDE
PHOTOCOUPLER;TR,130-260%,200MW
ASSY-POWER,CORD;-,EP2/YES,H/C300,ME301P,
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSA539-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSA539-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSA539-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TR-POWER;KSC2073-H2,NPN,150V,1
TRANSISTOR;KSA539-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSC2331-Y(TAPG)
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
FET-SILICON;2N7000,N,60V,200mA,5ohm,400
FET-SILICON;2N7000,N,60V,200mA,5ohm,400
TRANSISTOR;KSC815-Y(TAPG)/YTAM
TRANSISTOR;KSA539-Y(TAPG)/YTAM
TRANSISTOR;KSC815-Y(TAPG)/YTAM
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;47KOHM,5%,1/8W,AA,TP,
R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;2.2KOHM,5%,1/8W,AA,TP
R-CARBON;180OHM,5%,1/8W,AA,TP,
R-CARBON;1.2KOHM,5%,1/8W,AA,TP
R-CARBON;3.9KOHM,5%,1/8W,AA,TP
Remark
Level Loc. No. Code No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
R211
R212
R213
R214
R215
R216
R222
R223
R224
R225
R226
R228
R231
R232
R233
R234
R235
R236
R237
R238
R239
R241
R245
R246
R248
R249
R250
R251
R252
R253
R254
R255
R256
R258
R259
R260
R261
R262
R263
R264
R265
R267
R301
R302
R303
R304
R305
R306
R309
R310
R313
R314
R315
R401
R402
R403
R405
R407
R408
R409
R410
R412
R414
R424
R425
R426
R429
R432
R433
R434
R436
R501
R502
R503
R504
R505
2001-000290
2001-000290
2001-000734
2001-000008
2001-000522
2001-000429
2001-000429
2001-000628
2001-000628
2001-000628
2001-000628
2001-001170
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000515
2001-000515
2001-000515
2001-001114
2001-000343
2001-000005
2001-000281
2001-000969
2001-000515
2001-000005
2001-000281
2001-000429
2001-000969
2001-000515
2001-000005
2001-000281
2001-000969
2001-000515
2001-000290
2001-000290
2001-000290
2001-000786
2001-000003
2001-000003
2001-000003
2004-001397
2004-001984
2001-000016
2008-000254
2008-001107
2008-001107
2001-000290
2001-000290
2001-000890
2004-001986
2004-004970
2003-002186
2003-002186
2003-002037
2008-001018
2001-000066
2008-000284
2001-001410
2001-001114
2001-000020
2001-001165
2008-001018
2008-001018
2003-000540
2004-001397
2004-001397
2008-001127
2003-000664
2003-002151
2001-000429
2001-000429
2001-000429
2001-000449
2001-000449
Description ; Specification
Remark
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;300OHM,5%,1/8W,AA,TP,
R-CARBON;300OHM,5%,1/8W,AA,TP,
R-CARBON;300OHM,5%,1/8W,AA,TP,
R-CARBON;300OHM,5%,1/8W,AA,TP,
R-CARBON(S);6.8OHM,5%,1/2W,AB,
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;220OHM,5%,1/8W,AA,TP,
R-CARBON;220OHM,5%,1/8W,AA,TP,
R-CARBON;220OHM,5%,1/8W,AA,TP,
R-CARBON(S);270OHM,5%,1/2W,AA,
R-CARBON;130OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;390OHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;75OHM,5%,1/8W,AA,TP,1
R-CARBON;220OHM,5%,1/8W,AA,TP,
R-CARBON;390OHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;75OHM,5%,1/8W,AA,TP,1
R-CARBON;220OHM,5%,1/8W,AA,TP,
R-CARBON;390OHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;75OHM,5%,1/8W,AA,TP,1
R-CARBON;220OHM,5%,1/8W,AA,TP,
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;47KOHM,5%,1/8W,AA,TP,
R-CARBON;330OHM,5%,1/8W,AA,TP,
R-CARBON;330OHM,5%,1/8W,AA,TP,
R-CARBON;330OHM,5%,1/8W,AA,TP,
R-METAL(S);4.7KOHM,1%,1/2W,AA,
R-METAL;26.7KOHM,1%,1/2W,AA,TP
R-CARBON(S);1OHM,5%,1/2W,AA,TP
R-FUSIBLE(S);0.68OHM,5%,2W,AF,
R-FUSIBLE(S);300ohm,5%,2W,AG,TP,3.9x12mm
R-FUSIBLE(S);300ohm,5%,2W,AG,TP,3.9x12mm
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;6.8KOHM,5%,1/8W,AA,TP
R-METAL;35.7KOHM,1%,1/2W,AA,TP
R-METAL(S);62Kohm,1%,1/8W,AA,TP,1.8x3.2m
R-METALOXIDE(S);22Kohm,5%,2W,AG,TP,3x
R-METALOXIDE(S);22Kohm,5%,2W,AG,TP,3x
R-METAL OXIDE(S);270OHM,5%,2W,AF,TP,3.9X
R-FUSIBLE(S);0.47OHM,10%,2W,AF
R-CARBON(S);10KOHM,5%,1/2W,AA,
R-FUSIBLE(S);0.1OHM,10%,2W,AF,TP,3.9X10M
R-CARBON;RD1/2T(S)430-J43R
R-CARBON(S);270OHM,5%,1/2W,AA,
R-CARBON(S);22OHM,5%,1/2W,AA,T
R-CARBON(S);56OHM,5%,1/2W,AB,T
R-FUSIBLE(S);0.47OHM,10%,2W,AF
R-FUSIBLE(S);0.47OHM,10%,2W,AF
R-METALOXIDE(S);1KOHM,5%,2W,AD
R-METAL(S);4.7KOHM,1%,1/2W,AA,
R-METAL(S);4.7KOHM,1%,1/2W,AA,
R-FUSIBLE(S);6.8Kohm,5%,1W,AF,TP,3.9x10m
R-METAL OXIDE(S);330HM,5%,2W,AF,TP,4X12M
R-METALOXIDE;18KOHM,5%,2W,AG,TP,6X16
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;2.2KOHM,5%,1/8W,AA,TP
R-CARBON;2.2KOHM,5%,1/8W,AA,TP
Samsung Electronics
Electrical Parts List
Level Loc. No. Code No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
R506
R507
R508
R509
R510
R511
R513
R514
R515
R517
R518
R519
R520
R521
R522
R523
R524
R525
R526
R527M
R529
R601
R602
R603
R604
R605
R606
R607
R608
R609
R610
R611
R612
R613
R614
R615
R616
R617
R619
R620
R621
R622
R623
R624
R625
R626
R666
R701
R702
R703
R704
R705
R706
R707
R708
R709
R710
R715
R716
R719
R723
R730
R731
R802
R803
R804
R805
R806
R807
R808
R809
R810
R811
R812
R813
R816
R817
2001-000449
2001-000085
2001-000515
2002-001017
2001-000085
2001-000515
2001-000085
2001-000515
2002-001017
2001-001077
2001-001185
2001-000864
2001-000449
2001-000832
2008-001129
2008-001129
2008-000299
2001-001062
2002-001009
2002-001017
0403-001316
2001-000290
2001-000290
2001-000429
2701-000114
2701-000114
2001-000290
2001-000429
2001-000429
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000780
2001-000780
2001-000780
2001-000780
2001-000281
2001-000290
2001-000890
2001-000890
2001-000281
2001-000734
2001-000429
2001-000734
2009-000022
2001-000969
2001-000969
2001-000969
2001-000969
2001-000969
2001-000281
2001-000281
2001-000281
2001-000938
2001-000938
2001-000290
2001-000290
2001-000969
2001-000281
2001-000281
2001-000281
2003-001025
2003-001025
2003-001025
2001-001150
2001-001150
2003-000746
2003-000746
2001-000022
2001-001178
2001-001135
2001-000780
2001-001153
2001-001088
2001-001088
Samsung Electronics
Description ; Specification
R-CARBON;2.2KOHM,5%,1/8W,AA,TP
R-CARBON(S);100KOHM,5%,1/2W,AA
R-CARBON;220OHM,5%,1/8W,AA,TP,
R-COMPOSITION;1K,10%,1/2W,AA,TP,3.7x9.0m
R-CARBON(S);100KOHM,5%,1/2W,AA
R-CARBON;220OHM,5%,1/8W,AA,TP,
R-CARBON(S);100KOHM,5%,1/2W,AA
R-CARBON;220OHM,5%,1/8W,AA,TP,
R-COMPOSITION;1K,10%,1/2W,AA,TP,3.7x9.0m
R-CARBON(S);150OHM,5%,1/2W,AA,
R-CARBON(S);750OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;2.2KOHM,5%,1/8W,AA,TP
R-CARBON;510OHM,5%,1/8W,AA,TP,
R-FUSIBLE(S),1.5OHM,5%1/2W,AF,TP,2.5
R-FUSIBLE(S),1.5OHM,5%1/2W,AF,TP,2.5
R-FUSIBLE;RF2RT470-J
R-CARBON(S);10MOHM,5%,1/2W,AA,
R-COMPOSITION;2.7KOHM,10%,1/2W,AA,TP,3.7
R-COMPOSITION;1K,10%,1/2W,AA,TP,3.7x9.0m
DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
INDUCTOR-AXIAL;10UH,10%,2.5X3.
INDUCTOR-AXIAL;10UH,10%,2.5X3.
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;6.8KOHM,5%,1/8W,AA,TP
R-CARBON;6.8KOHM,5%,1/8W,AA,TP
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
R-METAL PLATE;0.47ohm,10%,5W,CL,TP,5x14x
R-CARBON;75OHM,5%,1/8W,AA,TP,1
R-CARBON;75OHM,5%,1/8W,AA,TP,1
R-CARBON;75OHM,5%,1/8W,AA,TP,1
R-CARBON;75OHM,5%,1/8W,AA,TP,1
R-CARBON;75OHM,5%,1/8W,AA,TP,1
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON ;68ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON ;68ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;75OHM,5%,1/8W,AA,TP,1
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-METALOXIDE(S);15KOHM,5%,2W,A
R-METALOXIDE(S);15KOHM,5%,2W,A
R-METALOXIDE(S);15KOHM,5%,2W,A
R-CARBON(S);470KOHM,5%,1/2W,AA
R-CARBON(S);470KOHM,5%,1/2W,AA
R-METALOXIDE(S);56OHM,5%,2W,AD
R-METALOXIDE(S);56OHM,5%,2W,AD
R-CARBON(S);33OHM,5%,1/2W,AA,T
R-CARBON(S);680OHM,5%,1/2W,AA,
R-CARBON(S);36KOHM,5%,1/2W,AA,
R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON(S);47OHM,5%,1/2W,AA,T
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4
Remark
Level Loc. No. Code No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
..2
...3
...3
...3
...3
...3
...3
..2
R818
R819
R821
R822
R823
R824
R825
R826
R827
R828
R829
R831
R832
R833
R835
R836
R901
R902
R903
R904
R905
R906
R907
R908
R909
R910
R911
R912
R913
R914
R915
R916
R917
R918
R919
R920
R921
R923
R924
R925
R926
R927
R929
R930
R931
R932
R933
R934
R935
R937
R938
R939
R940
R941
R942
R943
R945
R946
R947
R948
R952
R953
RL801S
RM901
RP801S
RR01S
RR02S
RR03S
RR04S
RR05S
RR06S
RR07S
RR08S
RR09S
RR10S
RR430S
RW1/FCC
2001-001113
2004-001983
2004-001889
2001-000273
2001-000273
2001-000660
2001-000066
2001-001072
2008-000284
2008-000266
2003-001036
2001-000780
2001-001153
2001-000472
2003-002211
2003-002211
2001-000734
2001-000281
2001-000734
2001-000734
2001-000734
2001-000734
2001-000281
2001-000734
2001-000281
2001-000429
2001-000429
2001-000429
2001-000947
2001-000221
2001-000577
2001-000007
2001-000878
2001-000009
2001-000780
2001-000780
2001-000734
2001-000924
2001-000429
2001-001035
2001-000734
2001-000837
2001-000429
2001-000429
2001-000780
2001-000515
2001-000780
2001-000003
2001-000290
2001-000734
2001-000290
2001-001153
2001-000281
2001-000281
2001-000281
2001-000429
2001-000281
2001-000515
2001-000734
2001-000734
2001-000734
2001-000734
3501-001040
AA59-60001U
2002-001010
2008-000264
2001-000766
2004-001386
2001-000908
2001-000947
2001-000977
2001-000290
2001-000429
2001-000780
2001-000290
2001-001088
2201-000354
Description ; Specification
Remark
R-CARBON(S);270KOHM,5%,1/2W,AA
R-METAL;2.49KOHM,1%,1/2W,AA,TP,2.4X6.4
R-METAL(S);127KOHM,1%,1/2W,AA,TP,2.5X6.5
R-CARBON;100KOHM,5%,1/8W,AA,TP
R-CARBON;100KOHM,5%,1/8W,AA,TP
R-CARBON;33KOHM,5%,1/8W,AA,TP,
R-CARBON(S);10KOHM,5%,1/2W,AA,
R-CARBON(S);12ohm,5%,1/2W,AA,TP,2.4x6.4m
R-FUSIBLE(S);0.1OHM,10%,2W,AF,TP,3.9X10M
R-FUSIBLE(S);1OHM,5%,2W,AF,TP,
R-METALOXIDE(S);3.3OHM,5%,2W,A
R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON(S);47OHM,5%,1/2W,AA,T
R-CARBON;2.7KOHM,5%,1/8W,AA,TP
R-METALOXIDE(S)91Kohm,5%,2W,AG,TP,3x
R-METALOXIDE(S)91Kohm,5%,2W,AG,TP,3x
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;7.5KOHM,5%,1/8W,AA,TP
R-CARBON;1.2KOHM,5%,1/8W,AA,TP
R-CARBON;2KOHM,5%,1/8W,AA,TP,1
R-CARBON;3KOHM,5%,1/8W,AA,TP,1
R-CARBON;6.2KOHM,5%,1/8W,AA,TP
R-CARBON;20KOHM,5%,1/8W,AA,TP,
R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON ;91ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
R-CARBON;51KOHM,5%,1/8W,AA,TP,
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;220OHM,5%,1/8W,AA,TP,
R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;330OHM,5%,1/8W,AA,TP,
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON(S);47OHM,5%,1/2W,AA,T
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;100OHM,5%,1/8W,AA,TP,
R-CARBON;220OHM,5%,1/8W,AA,TP,
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
R-CARBON;4.7KOHM,5%,1/8W,AA,TP
RELAYPOWER;12VDC,500MW,10A,1FO
MODULE-REMOCON;-,ORC-50VF,38KH
R-COMPOSITION;1.8MOHM,10%,1/2W,AA,TP,3
R-FUSIBLE(S);1OHM,5%,1W,AF,TP,
R-CARBON;43KOHM,5%,1/8W,AA,TP,
R-METAL(S);16.9KOHM,1%,1/2W,AA,TP,2.4X6.
R-CARBON ;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;7.5KOHM,5%,1/8W,AA,TP
R-CARBON;8.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;10KOHM,5%,1/8W,AA,TP,
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4
C-CERAMIC,DISC;20PF,5%,50V,NPO
7-11
Electrical Parts List
Level Loc. No. Code No.
..2
..2
...3
..2
...3
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
RW1/OSD2301-000301
RW2/FCC 2401-000603
RY802S 2002-001013
SH+CW AA65-30105B
SH+H/S AA61-00462B
SW901 3404-000244
SW902 3404-000244
SW903 3404-000244
SW904 3404-000244
SW905 3404-000244
SW906 3404-001004
T401
AA26-50001R
T444S AA26-00057A
T801S AA26-00044C
TU01S AA40-00021A
V999S 3704-001105
VP801S 1405-000152
VX801S 1405-000152
X201
2801-003432
X601
2801-003903
X901
2801-003728
AA39-10007Y
AA61-20284A
Description ; Specification
C-FILM,PEF;6.8NF,5%,50V,6.5X5.
C-AL;1UF,20%,50V,GP,5X11MM,5MM
R-COMPOSITION;4.7MOHM,10%,1/2W,AA,TP,3.7
CLAMP-WIRE;NYLON 66,V2,NTR,25MM,ALL MODE
SUPPORT-HEAT-SINK;21A9,ABS,HB,GRAY
SWITCH-TACT;15V,20MA,90-170GF,
SWITCH-TACT;15V,20MA,90-170GF,
SWITCH-TACT;15V,20MA,90-170GF,
SWITCH-TACT;15V,20MA,90-170GF,
SWITCH-TACT;15V,20MA,90-170GF,
SWITCH TACT;12V,50MA,160GF8.4X22.7MM
TRANS HORIZ DRIVE;80MH,580UH,4UH,G11AEI1
TRANS-FBT;-,FUH-29A001B(S),25/29,130
TRANS SWITCHING,CODE-NO,CT-21A8,AC90-260
TUNER-F/S;TCPN3081PA09A(S),NTSC,TR,181CH
SOCKET-CRT;11P,20PI,26.5PI,NI,VARISTOR;560V,2500A,14X8.5MM,T
VARISTOR;560V,2500A,14X8.5MM,T
CRYSTAL-UNIT;20.25MHZ,30PPM,28-AAM,13P
CRYSTAL-UNIT18.432MHz,25ppm,28AAM,12
CRYSTAL-UNIT;6MHz,30ppm,28AAM,20pf,40oh
POWER-CORD;-,EP2/YES,SPT-2 18AWGx2C,2.4m
HOLDER P CORD;PP,VO,BLK,KE-002
ASSY ACCESSORY
Remark
Level Loc. No. Code No.
A/ACCE AA97-00709A ASSY ACCESSORY;-,CT25B3,25,KS2A,SEA
..2
..2
..2
B/WARR L6000-0031-000BLOCKWARRANTYCARD;STATEMENTONL
BATT
4301-000120 BATTERY-MN;1.5V,-,AA
I/B
AA68-01218A MANUAL USERS;ENGLISH,W/P100,KS2A,-,-,-,-
ASSY-CRT
1
A/CRTP
AA94-02379A ASSY-CRT;A63QDB891X,(SAMSUNG CRT),380MG
..2
..2
..2
..2
CRT
C-Y
D-Y
SPACER
AA03-00157A
AA27-00002A
AA27-00027A
AA63-60028A
CRT COLOR;A63QDB891X,+380MG,SAMSUNG
MAGNET-CONVERGENCE;JH291-SC-OB,29.1M
DEFLECTION YOKE (DSE2603AL)
SPACER-DY;-,NEOPRENE,-,BLK,V0W
Remark
ASSY CABINET(COM)
1
A/BACK AA92-00404A ASSY CABINET(COM);CT25B7,KS2A,USA,25
..2
..2
..2
AC+BC
B/C
C/WIRE
CB+CF
FBT
H/T
INLAYB
RCA+CB
SPCBC
..2
..2
..2
..2
..2
AA65-30008A
AA64-01293A
AA65-30018A
6002-000514
AA65-30109A
AA61-00356B
AA64-00892B
6002-000514
AA63-60001X
CLAMP-CORD;-,PE,HB,BLK,-,CABINET BACK;TXK2566/67,CT25B7,HIPS,V0,B
CLAMP-WIRE;-,NYLON6.6,-,-,DATL
SCREW-TAPPING;RH,+,2,M4,L15,ZP
CLAMP-FBT;NYLON-66,V2,BLK,-,-,HOLDER-TUNER,F/JACK;-,501F,ABS,HB,BLK,INLAY BACK;D2,D3,RCA9P,PS SHEET,T0.3,BLK
SCREW-TAPPING;RH,+,2,M4,L15,ZP
SPACER-FELT;-,FELT,T0.5,-,330X
ASSY-PCB,A/V
1
A/A-V
AA98-00081A ASSY-PCB,A/V;FRONT,KS2A
..2
..2
..2
00VER
A/V
CA02
CA03
CA04
CA05
CA06
CA07
CN01A
CN05A
JE01
JR01
LA04
LA05
RA01
RA02
AA41-00320A
AA95-00759A
2202-000121
2202-000121
2202-000720
2202-000720
2401-003102
2401-003102
AA39-20068E
AA39-20069D
3722-000143
3722-001031
2701-000180
2701-000180
2001-000028
2001-000028
..2
..2
1
Description ; Specification
..2
..2
..2
..2
..2
..2
PCB-AV FRONT;CL568B,FR-1,1L,A,1.6T,245x2
ASSY-PCB,A/V FRONT, KS2A
C-CERAMIC,MLC-AXIAL;100PF,10%,
C-CERAMIC,MLC-AXIAL;100PF,10%,
C-CERAMIC,MLC-AXIAL;8.2nF,20%,16V,Y5R,TP
C-CERAMIC,MLC-AXIAL;8.2nF,20%,16V,Y5R,TP
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-AL;100uF,20%,10V,GP,TP,5x11,5
LEAD CONNECTOR-ASSY;-,YBNH025-08,67096-0
LEAD-CONNECTOR,ASSY;-,YBNH025JACK-PHONE;1P,3.4MM,-,MBAG
JACK-RCA;3P,3.6MM,#18,AU
INDUCTOR-AXIAL;33UH,5%,2.5X3.4
INDUCTOR-AXIAL;33UH,5%,2.5X3.4
R-CARBON(S);100OHM,5%,1/2W,AB,
R-CARBON(S);100OHM,5%,1/2W,AB,
REMOCON
1
RMT
AA59-00153A REMOCON;DP,TM58,AA59-00141A,-,-,-,-,-,
ASSY-CABINET,FRONT
1
A/FRNT AA92-00150A1 ASSY-CABINET,FRONT;TXK2566/7,KS2A,XAA
..2
..2
..2
..2
..2
..2
BADGE
CDCOIL
CRT+CF
CW
CWS
D-COIL
DRESB
F/C
IL
INL/AV
KC
KC+CF
KP
L/SPK
PAV+CF
S-CRT
SPK
SPK+CF
SPRING
STOPPER
WIN+CF
WR
..2
...3
..2
...3
...3
..2
..2
..2
..2
..2
...3
..2
...3
...3
7-12
AA64-70117B
AA65-30107A
AA60-10050R
AA65-30105A
AA65-30018A
AA27-20001W
AA65-30018A
AA64-31346A
AA64-40525A
AA64-00738F
AA64-10803A
6002-000514
AA64-10804A
AA39-20111B
6006-001095
AA61-40042A
3001-001038
6002-000514
AA61-60003J
AA61-40113A
6002-000514
AA64-40524A
BADGE-BRAND;AL,SS,R2000,25,SILVER CT-633
CLAMP-DCOIL;NYLON 66,V2,NTR,-,20-22
SCREW-ASSY;WC,HH,+M5,L31.5,SWR
CLAMP-WIRE;NYLON 66N,VO,NTR,15MM
CLAMP-WIRE;-,NYLON6.6,-,-,DATL
COIL-DEGAUSSING;-,25,7.5OHM,3
CLAMP-WIRE;-,NYLON6.6,-,-,DATL
CABINET-FRONT;HIPSVOBLKBK708P
INDICATOR-LED;ACRYLCLR
INLAY AV;KS2A,PS SHEET,-,-,BLK,-,S/T L/
KNOB-CONTROL;ABSHBBLK
SCREW-TAPPING;RH,+,2,M4,L15,ZP
KNOB-POWER;ABSHBBLK
LEAD-CONNECTOR,ASSY;-,YSH025-0
SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL)
SUPPORT-CRT;-,HIPS,VO,BLK,-,-,
SPEAKER;6W,16OHM,92DB,140HZ
SCREW-TAPPING;RH,+,2,M4,L15,ZP
SPRING-CS;-,-,SUS304,0.5,OD6,H
STOPPER-PCB;-,ABS,HB,NTR.
SCREW-TAPPING;RH,+,2,M4,L15,ZP
WINDOW-REMOTE;PCVIOLET
Samsung Electronics
Schematic Diagrams
8. Block Diagrams
8-1 Power Diagram
Samsung Electronics
8-1
Schematic Diagrams
8-2 Block Diagram
8-2
Samsung Electronics
Wiring Diagram
9. Wiring Diagram
FRONT AV PCB
CN06A
L+
R+
L-
TO SPEAKER
R-
CN05A
L+
L-
G
R-
R+
CN01A
VO
GT804
G
Bo
VI
G
LO
RO
LI
RI
CN501B
Go
Ro
Se
8V
GND
+16V
CN502B
G
Heater
NC
180V
L+
CN501A
B Out
L-
G
R-
R+
CN602
G Out
R Out
CN701
Sense
Vo
8V
G
GND
Vi
G
Lo
Ro
Li
CN502A
+16V
Samsung Electronics
G
Heat
NC
180
220V
Ri
GT102
9-1
MEMO
9-2
Samsung Electronics
Schematic Diagrams
10. Schematic Diagrams
10-1 MAIN 1/4 (WITH EW)
TP07
TP01
TP08
TP02
TP09
TP03
TP10
TP04
TP10
TP09
TP01
TP06
TP08
TP05
TP02
TP07
TP05
TP03
TP04
TP06
: Power Line
: Signal Line
Samsung Electronics
10-1
Schematic Diagrams
10-2 MAIN 2/4
TP11
TP12
TP12
TP13
TP13
TP14
TP15
TP11
TP14
TP15
: Power Line
: Signal Line
10-2
Samsung Electronics
Schematic Diagrams
10-3 MAIN 3/4
TP22
TP16
TP23
TP17
TP24
TP18
TP25
TP19
TP23
TP22
TP16
TP18
TP17
TP21
TP19
TP20
TP20
TP24
TP25
TP21
: Power Line
: Signal Line
Samsung Electronics
10-3
Schematic Diagrams
10-4 MAIN 4/4
TP32
TP26
TP33
TP27
TP34
TP28
TP35
TP29
TP35
TP33
TP26
TP34
TP27
TP32
TP31
TP28
TP29
TP30
TP30
TP31
: Power Line
: Signal Line
10-4
Samsung Electronics
Schematic Diagrams
10-5 POWER (W/O -EW)
Samsung Electronics
10-5
Schematic Diagrams
10-6 PIP
10-6
Samsung Electronics
Schematic Diagrams
10-7 VIDEO SWITCH
Samsung Electronics
10-7
