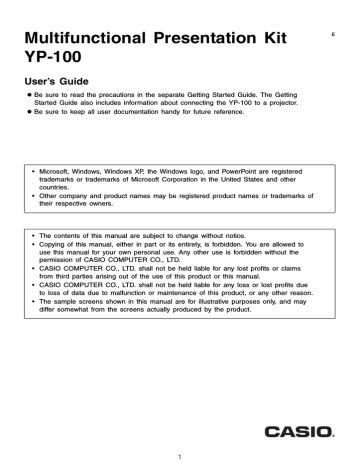

Casio YP-100 - Presentation Support Tool User`s guide

Multifunctional Presentation Kit
YP-100
User’s Guide
z Be sure to read the precautions in the separate Getting Started Guide. The Getting
Started Guide also includes information about connecting the YP-100 to a projector.
z Be sure to keep all user documentation handy for future reference.
• Microsoft, Windows, Windows XP, the Windows logo, and PowerPoint are registered
trademarks or trademarks of Microsoft Corporation in the United States and other
countries.
• Other company and product names may be registered product names or trademarks of
their respective owners.
• The contents of this manual are subject to change without notice.
• Copying of this manual, either in part or its entirety, is forbidden. You are allowed to
use this manual for your own personal use. Any other use is forbidden without the
permission of CASIO COMPUTER CO., LTD.
• CASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or claims
from third parties arising out of the use of this product or this manual.
• CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due
to loss of data due to malfunction or maintenance of this product, or any other reason.
• The sample screens shown in this manual are for illustrative purposes only, and may
differ somewhat from the screens actually produced by the product.
1
E
Contents
About this manual........................................................... 5
Terms and Conventions ................................................................................. 5
About the YP-100’s USB Functions............................... 6
Connecting a USB Device to the YP-100 ...................... 9
Turning On the YP-100 after Connecting a USB Device ............................... 9
Connecting to a USB Device while the YP-100 is On .................................... 9
Installing YP-100 Software ........................................... 10
Minimum System Requirements .................................................................. 10
To install software ........................................................................................ 11
Projecting Presentation Images from a
USB Memory Device ..................................................... 13
Supported USB Memory Devices.........................................................13
Supported Playback Data Types ..........................................................14
Preparing a Presentation with EZ-Converter........................................14
Presentation Data ........................................................................................ 14
Main EZ-Converter Functions ...................................................................... 15
Starting Up and Exiting EZ-Converter.......................................................... 15
Creating New Presentation Data.................................................................. 16
Creating Presentation Data by Converting a PowerPoint File ..................... 16
Creating Presentation Data by Inserting Image Files Manually ................... 18
Configuring the Option Setting ..................................................................... 19
Editing Presentation Data ............................................................................ 20
Configuring Presentation Data Playback Settings ....................................... 22
Saving Presentation Data ............................................................................ 25
Opening Presentation Data.......................................................................... 27
Viewing Help ................................................................................................ 27
Viewing Version Information ........................................................................ 27
EZ-Converter Menu and Button Reference ..........................................28
2
Playing a Presentation with Viewer ......................................................29
To connect a USB memory device to the YP-100........................................ 29
File Menu Operations................................................................................... 30
Using the Presentation Menu....................................................................... 35
Operations during Image File Content Projection ........................................ 37
Operations during a Slideshow .................................................................... 38
Slideshow Start Error ................................................................................... 39
Using Viewer to Play a Movie ...................................................................... 39
Configuring Viewer Setup Menu Settings .................................................... 41
Viewer Error Messages................................................................................ 45
Viewer Troubleshooting........................................................................46
Performing a Presentation Using a Wireless LAN
(Projecting Computer Screen Contents Over a
Wireless LAN)................................................................ 47
Supported Wireless LAN Devices ........................................................47
Computer Requirements .............................................................................. 47
Preparing the Computer for Wireless LAN Connection with the YP-100 ..... 48
About the YP-100’s Wireless LAN........................................................49
Wireless Function and Wireless Connection Software ................................ 49
About Connection Profiles............................................................................ 49
Establishing a Wireless LAN Connection between the
YP-100 and a Computer .............................................................................. 50
Wireless LAN Connection Basics .........................................................51
Establishing a Wireless LAN Connection with a Single
Computer Using a Simple Connection ......................................................... 52
Establishing a Wireless LAN Connection with Multiple
Computers Using a Manual Connection ...................................................... 54
Advanced Wireless LAN Connection Settings......................................64
Web Setup ................................................................................................... 64
Enabling and Disabling Web Setup.............................................................. 66
Switching the YP-100 Connection Profile .................................................... 67
Assigning a Name to a YP-100 Unit............................................................. 70
Configuring a Connection Keyword.............................................................. 71
Modifying YP-100 Manual Connection Settings........................................... 73
Creating a Computer Connection Profile ..................................................... 74
Deleting a Computer Connection Profile...................................................... 77
Assign a User Name to a Computer for Projection ...................................... 78
3
Specifying the Quality of Images Sent from a Computer ............................. 78
Manual Connection Setting Reference ........................................................ 79
Returning YP-100’s Wireless Settings to Their Initial Defaults .................... 83
Viewing Wireless Connection Help .............................................................. 84
Viewing Wireless Connection Version Information ...................................... 84
Wireless LAN Connection Troubleshooting..........................................85
Check the following on the computer. .......................................................... 85
Check the following on the YP-100. ............................................................. 85
Also check the following............................................................................... 85
Wireless Connection Menus and Button Reference.............................89
Using Wireless LAN for Projection .......................................................90
Operations while a Single Computer is Connected to the
YP-100 over a Wireless LAN ....................................................................... 90
Operations while Multiple Computers are Connected to the
YP-100 over a Wireless LAN ....................................................................... 93
Performing a Presentation Using the
YC-400 Document Camera ........................................... 95
YC Camera Application Function and Operation Overview..................95
Connecting the Document Camera to the YP-100....................................... 95
YC Camera Application Operations......................................................99
YC Camera Application Projection Operations ............................................ 99
Configuring YC Camera Application Setup Menu Settings ........................ 104
Appendix...................................................................... 108
Specifying the Display Language .......................................................108
To specify the display language................................................................. 108
Returning the Setup Menu to Its Initial Default Settings .....................109
To restore all settings on the setup menu to their initial defaults ............... 109
Hanging the YP-100 from the Ceiling .................................................110
4
About this manual...
This manual explains how to perform various operations that are enabled when you connect
an external device to the USB port of the YP-100 (Multifunctional Presentation Kit).
Terms and Conventions
In this manual, there are many procedures that require parallel operations on the YP-100
and your computer. The following are special terms and conventions used in this manual
to differentiate between the YP-100 and computer.
• projection area
This is the entire rectangular area that is projected by the projector connected to the
YP-100. Certain YP-100 operations will cause messages and menus to appear within the
projection area.
• computer screen
This is the physical display device of your computer.
5
About the YP-100’s USB Functions
The USB port that is built into the YP-100 lets you connect an external USB device and
use it as an input source for image projection.
USB Memory Device
You can connect a commercially available USB memory device to the USB port of the YP100 and project images and movies stored on the device from the projector also
connected to the YP-100.
XJ-S30, etc.
YP-100
USB memory device
Refer to the following for details.
For more information about this:
Refer to this section of this manual:
Supported USB memory devices
“Supported USB Memory Devices” (page 13)
Supported image and movie file formats
“Supported Playback Data Types” (page 14)
Saving image data to a USB memory device
“Preparing a Presentation with EZ-Converter”
(page 14)
Projecting image and movie data from a USB
memory device
“Playing a Presentation with Viewer” (page 29)
6
Wireless Adapter (CASIO YW-2)
Establishing a connection between the YP-100 and a computer over a wireless LAN makes
it possible to project the display contents of the computer’s screen from the projector
connected to the YP-100.
XJ-S30, etc.
YP-100
CASIO YW-2
You can have up to four computers connected to the YP-100 over a wireless LAN at the
same time. Use the remote controller that comes with the YP-100 to select which of the
four computer screens you want to project.
XJ-S30, etc.
YP-100
Refer to the following for details.
For more information about this:
Refer to this section of this manual:
Supported wireless LAN devices
“Supported Wireless LAN Devices” (page 47)
Setup required to establish a wireless LAN
connection between the YP-100 and a computer
“Wireless LAN Connection Basics” (page 51),
“Advanced Wireless LAN Connection Settings”
(page 64)
Projecting the screen contents of a computer
connected via a wireless LAN
“Using Wireless LAN for Projection” (page 90)
7
Document Camera (CASIO YC-400)
You can connect a CASIO YC-400 Document Camera to the USB port of the YP-100 and
project the images of documents placed on the document stage of the YC-400.
XJ-S30, etc.
YP-100
YC-400
USB
For more information, see “Performing a Presentation Using the YC-400 Document Camera”
on page 95.
8
Connecting a USB Device to the YP-100
What happens when you connect a USB device to the YP-100 depends on whether you
connect them and then turn on the YP-100, or whether the YP-100 is already on when
you connect them.
Turning On the YP-100 after Connecting a USB Device
The YP-100 will perform the following operations if you turn it on while a USB device is
connected to its USB port.
When this type of
device is connected:
The YP-100 does this automatically when turned on:
USB memory device
Starts up Viewer (page 29) and projects the Viewer screen from the
projector connected to the YP-100.
YW-2 Wireless Adapter
Starts up Wireless (page 49) and projects the Wireless screen from the
projector connected to the YP-100.
YC-400 Document
Camera
The YC-400 Document Camera is not detected automatically, so the
message “Connect a USB device.” appears in the projection area.
Connecting to a USB Device while the YP-100 is On
The YP-100 will perform the following operations if you connect a USB device to its USB
port while it is turned on.
When this type of
device is connected:
The YP-100 does this automatically:
USB memory device
Starts up Viewer (page 29) and projects the Viewer screen from the
projector connected to the YP-100.
YW-2 Wireless Adapter
Starts up Wireless (page 49) and projects the Wireless screen from the
projector connected to the YP-100.
YC-400 Document
Camera
When the YC-400 Document Camera is turned on, the YP-100 will start
up the YC Camera application (page 95) and then project the YC
Camera application screen from the projector connected to the YP-100.
9
Installing YP-100 Software
Use the procedures in this section to install the software that comes bundled with the YP100 onto your computer.
When you want to do this:
Install this software:
Convert files created with PowerPoint to image (JPEG) files and store
them on a USB memory device
EZ-Converter
Send computer screen contents to the YP-100 over a wireless connection
and project them from the projector connected to the YP-100
Wireless Connection
Minimum System Requirements
The following describes minimum computer system requirements to run the bundled
software.
• Operating System: Microsoft® Windows® XP or 2000 Professional
• Computer: IBM PC/AT or compatible that conforms to the following conditions.
• Windows® XP or 2000 Professional pre-installed
• PowerPoint 2000, 2002, or 2003 installed (to use EZ-Converter)
• CPU: Pentium III or higher
• USB port (Type A, USB1.1/2.0)
• Memory: 256 MB minimum or amount of memory recommended for operating system
being run
• Hard Disk: At least 40 MB for installation or at least 60 MB when running
• Display: Full-color display with resolution of at least 800 × 600 that is supported by
above operating systems and the computer being used.
• Pointing Device: Mouse or other equivalent device supported by above operating
systems.
• Keyboard
• CD-ROM drive
• Other requirements of operating system being used
• Normal operation may not be possible under certain hardware configurations.
• Operation is not supported on a computer running Windows® NT, Me, 98SE, 98, 95, or
3.1, or on a Macintosh or Mac OS computer.
• Operation on a computer upgraded to Windows® XP, 2000 Professional from another
operating system is not supported.
• Operation on a computer running Windows® XP Professional x64 Edition is not
supported.
10
To install software
1
Place the bundled CD-ROM into your computer’s CD-ROM drive.
2
3
Select the check box of the software you want to install.
4
Keep clicking the [Next] button on the dialog boxes that appear.
z This displays the dialog box shown below.
Click the [Install] button.
z This will start installation.
z If your computer is running Windows XP and the dialog box shown below appears, click
the [Continue Anyway] button.
z If your computer is running Windows 2000 and the message “The software you are
about to install does not contain a Microsoft digital signature.” appears, click the [Yes]
button.
11
z The dialog box shown below will appear after installation is complete.
5
Click the [Finish] button.
12
Projecting Presentation Images from a USB
Memory Device
This section explains how to perform the following operations.
z Using the bundled EZ-Converter software to save a presentation file to a USB memory
device
z Connecting a USB memory device to the YP-100 and using Viewer to project image or
movie data contained on the device
Important!
In order to perform the procedures in this section, you will first need to install the EZConverter software from the bundled CD-ROM onto your computer. For more information,
see “Installing YP-100 Software” (page 10).
Supported USB Memory Devices
The YP-100 supports connection of the following types of FAT/FAT32 format USB memory
devices.
z USB memory
z USB Mass Storage Class compatible digital cameras
z USB Mass Storage Class compatible hard disk drives (excluding types that require power
supply from the USB port)
For details about supported USB memory devices (products whose operation has been
confirmed), see the CASIO website at http://world.casio.com/projector/support/en/.
13
Supported Playback Data Types
The image data types listed below can be played back using the YP-100’s Viewer.
z JPEG format (jpg, jpeg, jpe) and BMP format (bmp) image files
• Playback of image files of approximately 6 Mbytes is supported.
• Progressive JPEG image files are not supported.
z MP4 format (mp4) movie files and AVI format (avi) movie files recorded with a CASIO
digital camera
For details about movie files supported for playback by the YP-100 and playback
specifications, visit the CASIO website at: http://world.casio.com/projector/support/en.
Preparing a Presentation with EZ-Converter
EZ-Converter is software that runs on a Window computer. You can use EZ-Converter to
convert a file (ppt) created with Microsoft PowerPoint to presentation data that can be played
back using the YP-100’s Viewer feature.
Following conversion the presentation data can be stored on a USB memory device, which
can then be connected to the YP-100 for the presentation.
Note that the conversion process may result in some differences between the original
PowerPoint file and the resulting presentation data.
Presentation Data
The presentation data produced by EZ-Converter consists of presentation (plf) files and
image (jpg) files. When you convert a PowerPoint file that includes 10 pages of data, EZConverter will create 10 image (jpg) files and one presentation (plf) file that is linked to
the image files. The presentation file will contain information about the sequence that the
10 image files should be projected, along with other playback settings.
Presentation Data
Presentation File
• Image file information
• Presentation playback setting information
XXX.plf
Image File
Image File
Image File
Image File
Image File
14
Main EZ-Converter Functions
PowerPoint File Conversion
• Conversion of PowerPoint files up to 500 pages in size
• Support for files created using PowerPoint 2000, 2002, 2003 for Windows
• Editing of converted presentation data with EZ-Converter
Important!
PowerPoint file animations are not supported. The image transition effect used is the
one specified by the EZ-Converter presentation file.
Adding Image Files Directly to Presentation Files
In addition to converting PowerPoint pages to image files, you can also add individual
image files directly to presentation data.
• You can add up to 500 JPEG format or BMP format image files directly to presentation
data.
Starting Up and Exiting EZ-Converter
To start up EZ-Converter
On your computer’s Windows Start menu, select [All Programs] - [CASIO] - [EZ-Converter].
This will cause the EZ-Converter window shown below to appear.
The above window indicates that there is no presentation data currently open. This is what
we call an “empty” EZ-Converter window.
Important!
In order to start up EZ-Converter, PowerPoint 2000, 2002, or 2003 will need to be
installed on the computer.
To exit EZ-Converter
On the [File] menu, select [Exit].
15
Creating New Presentation Data
There are two ways that you can use EZ-Converter to create new presentation data: by
converting a PowerPoint file (see below) or by inserting image files into the presentation
data manually (page 18).
Creating Presentation Data by Converting a PowerPoint
File
This procedure creates presentation data that includes all of the pages of the PowerPoint
file. In order to perform this procedure, you will first need to prepare the PowerPoint file
that you want to convert.
To create presentation data by converting a PowerPoint File
1
Start up EZ-Converter.
2
Configure presentation options as required.
3
Either click
z This will display the empty EZ-Converter window.
z If EZ-Converter is already running on your computer and if there is already presentation
data in the EZ-Converter window, click
to clear the data from the EZ-Converter
window.
z For more information, see “Configuring the Option Setting” (page 19).
or select [Convert PowerPoint File] on the [File] menu.
z This displays a dialog box for selecting PowerPoint files.
16
4
Select the PowerPoint file you want to convert and then click [Open].
z This starts conversion of the PowerPoint file, which is indicated by the appearance of a
dialog box that shows the progress of the conversion.
z After conversion is complete, the EZ-Converter widow will reappear with thumbnails of the
converted images.
Selected image number
(from beginning)
Total number of files
Image file display area
5
Add, delete, move, and otherwise edit the images as required.
6
Configure presentation playback settings.
7
To save the presentation data, click the [Save] button.
z For details, see “Editing Presentation Data” (page 20).
z For more information, see “Configuring Presentation Data Playback Settings” (page 22).
z For details, see “Saving Presentation Data” (page 25).
17
Note
z Instead of steps 3 and 4 of the above procedure, you could also drop a single
PowerPoint file into the EZ-Converter window.
z Converting a PowerPoint file to presentation data will generate the following folder,
image files and presentation file.
Example: When converting a 50-page PowerPoint file named “MeetingDocuments”
MeetingDocuments (Folder)
MeetingDocuments.plf
Presentation file
Image files
:
Creating Presentation Data by Inserting Image Files
Manually
You can create new presentation data by dropping multiple image (jpg or bmp) files into
the EZ-Converter window. In order to perform this procedure, you will first need to prepare
the image files that you want to include in the presentation data.
To create presentation data by inserting image files manually
1
Start up EZ-Converter.
2
Use Windows Explorer to select all of the image files you want to include in the
presentation data.
z This will display the empty EZ-Converter window.
z If EZ-Converter is already running on your computer and if there is already presentation
data in the EZ-Converter window, click
to clear the data from the EZ-Converter
window.
18
3
Drag the selected files into the EZ-Converter window.
z This will insert the image files into the presentation data and display their thumbnails in
the EZ-Converter window.
4
Add, delete, move, and otherwise edit the images as required.
5
Configure presentation playback settings.
6
To save the presentation data, click the [Save] button.
z For details, see “Editing Presentation Data” (page 20).
z For more information, see “Configuring Presentation Data Playback Settings” (page 22).
z For details, see “Saving Presentation Data” (page 25).
Configuring the Option Setting
You can use option settings to specify the resolution of image files that are saved as EZConverter presentation data.
Important!
Any changes you make to image settings using the procedure below will go into effect
the next time you convert a PowerPoint file. Changed settings are not applied to
presentation data that has already been created by converting PowerPoint files. Note
that you cannot change the resolution of image data that is included in existing
presentation data.
To configure the option setting
1
On the [Tools] menu, select [Options].
z This will display a dialog box for configuring the option setting.
19
2
3
Configure the setting on the dialog box as described below.
When you want to do this when converting a
PowerPoint file to presentation data:
Select this setting:
Save image files as high-quality JPEG files
[High-quality]
Save image files as higher compression JPEG
files
[Normal-quality]
After selecting the setting you want, click the [OK] button.
z This will apply the setting and close the dialog box.
Editing Presentation Data
After you create presentation data by converting a PowerPoint file or by inserting image
files manually, you can add, delete, and change the positions of image files as required.
Before performing the procedures here, you will need to display the EZ-Converter window
that contains the presentation data that you want to edit. For details about how to do this,
see “Creating New Presentation Data” (page 16) and “Opening Presentation Data” (page
27).
To add image files to presentation data
1
On the EZ-Converter window, click the thumbnail of the image that will come
either before or after the image you are about to add.
2
Use Windows Explorer to select the image file you want to add to the
presentation data.
z You can select one or more image files.
3
Drag the selected files into the EZ-Converter window.
z If you want the image file(s) to be inserted immediately following the image you selected
in step 1, simply drop the image file(s) into the EZ-Converter window. If you want the
image file(s) to be inserted in front of the selected image, hold down your computer’s
[Ctrl] key as you drop the image file(s) into the window.
z This will add the image file(s) and update the thumbnails in the EZ-Converter window.
20
Note
Instead of steps 2 and 3 of the above procedure, you could click
or you could
select [Add Image to Presentation File] on the [Edit] menu. Then on the dialog box that
appears, select one image file that you want to add to the presentation data. This will
insert the image file into the presentation data immediately following the image you
selected in step 1, above.
To delete an image file from presentation data
1
On the EZ-Converter window, click the thumbnail of the image you want to
delete so it is selected.
2
Either click
menu.
or select [Delete Image from Presentation File] on the [Edit]
z This will delete the selected image.
z In place of step 2, you could also press the [Delete] key on your computer keyboard.
Note
Deleting an image file from the presentation data does not delete the image data file
from your computer’s hard disk.
To move an image file forward or back within presentation data
1
On the EZ-Converter window, click the thumbnail of the image you want to move
so it is selected.
2
To move the selected image one position to the left (towards the beginning),
click
or select [Move Image Back] on the [Edit] menu. To move the image
one position to the right (towards the end), click
or select [Move Image
Forward] on the [Edit] menu.
To undo an image operation
Select [Undo] on the [Edit] menu, or press [Ctrl] + [z] on your computer keyboard.
You can use the above operation to undo the last image file add, delete, or move
operation you performed.
21
Configuring Presentation Data Playback Settings
You can configure the following playback settings for playback of EZ-Converter presentation
data with the Viewer of the YP-100.
• Manual or auto image change
• Display time of each image file during auto image change
• Repeat play on/off
• Image transition effect
Note
The playback settings you configure are stored in the presentation (plf) file.
To configure presentation data playback settings
1
On the EZ-Converter window, display the presentation data whose playback
settings you want to configure.
z For details about how to do this, see “Creating New Presentation Data” (page 16) and
“Opening Presentation Data” (page 27).
2
Click
or select [Presentation File Setup] on the [Tools] menu.
z This displays a dialog box for configuring presentation file settings.
22
3
4
Configure the following settings on the dialog box.
When you want to do this:
Do this:
Change images manually during a
presentation
Select [Manual] for [Display Interval].
Have images change automatically during a
presentation
Select [Auto] for [Display Interval].
Specify the display interval during auto image
change
z This setting is available only while [Auto]
is selected for [Display Interval].
Tap the down arrow button of the box under
[Display Interval] and select an interval value
(5 seconds, 10 seconds, 30 seconds, 1
minute, and 5 minutes).
Have the presentation restart from the
beginning after the final image file is reached
Select [On] under [Repeat].
Have the presentation stop after the final
image is reached.
Select [Off] under [Repeat].
Turn off the image transition effect
Select [Off] under [Image Transition Effect].
Turn on the image transition effect
Select [On] under [Image Transition Effect].
Specify the effect to be applied when
transitioning from one image file to the next
z This setting is available only while [On] is
selected for [Image Transition Effect].
Click the down arrow button of the box
under [Image Transition Effect] and select an
effect.
z For details, see “Image Transition Effects”
(page 24).
After configuring all the settings you want, click the [OK] button.
23
Image Transition Effects
When “On” is selected for the “Image Transition Effect” setting on the “Presentation File
Setup” dialog box, you can select a visual effect to be applied any time you transition
from one image file to another. The following shows examples of each of the available
effects.
Effect Name
Example
Slide In - Left to Right
Slide In - Right to Left
Slide In - Top to Bottom
Slide In - Bottom to Top
Wipe - Left to Right
Wipe - Right to Left
Wipe - Top to Bottom
Wipe - Bottom to Top
Dissolve
Note
For information about performing a presentation using playback settings that are different
from those that were stored with presentation data using EZ-converter, see “Configuring
Viewer Setup Menu Settings” (page 41).
24
Saving Presentation Data
Use the procedures in this section to save presentation data to a USB memory device or
to your computer’s hard disk.
To save presentation data to a new file
1
2
Perform the procedure under “Creating New Presentation Data” (page 16).
If you want to save the presentation data to a USB memory device, connect the
device to your computer’s USB port.
z For details about how to connect a USB device, see the user documentation that comes
with your computer and the USB memory device you are using.
3
Click
or select [Save Presentation File As] on the [File] menu.
z This will display a dialog box for specifying a file name.
z If you are saving presentation data produced by converting a PowerPoint file, the name
of the PowerPoint file will be inserted in the dialog box automatically. In other cases,
“New Presentation File” will be displayed in the dialog box.
4
Enter the file name you want and then click the [OK] button.
5
Specify the location where you want to store the file and then click the [OK]
button.
z This will display a dialog box for specifying the location where you want to store the file.
z This will create a folder with the name you specified in step 4 and store the
presentation data in the folder.
z If there is already a folder with the same name as the one you specified at the location
you specified, a confirmation message will appear asking if you want to replace the
existing folder with the new one. If you do, click [Yes] on the dialog box. If you do not
want to replace the existing folder with the new one, click [No]. This will return to the
dialog box in step 3 of this procedure so you can enter a different name.
25
Note
Performing this procedure will generate the presentation files shown below.
Example: When you input the folder name “Market Data 2006” for a 50-image
presentation
Market Data 2006 (Folder)
Market Data 2006.plf
Presentation file
Market Data 2006 001.jpg
Market Data 2006 002.jpg
Market Data 2006 003.jpg
Image files
:
Market Data 2006 050.jpg
To overwrite existing presentation data with newly edited data
1
Perform the procedure under “Editing Presentation Data” (page 20) or
“Configuring Presentation Data Playback Settings” (page 22).
2
Click
or select [Save Presentation File] on the [File] menu.
z This saves the existing presentation data with the edited data.
To save existing presentation data under a different name
1
On the EZ-Converter window, display the presentation data you want to save
under a different name.
2
Click
or select [Save Presentation File As] on the [File] menu.
z This will display a dialog box for specifying a file name.
z For the remainder of this procedure, perform the steps starting from step 4 under “To
save presentation data to a new file” (page 25).
26
Opening Presentation Data
Use the procedure below to open existing presentation data in order to edit it or to save it
under a different name.
Note
To open presentation data, specify a presentation file (plf).
To open a presentation file
1
If the presentation data you want to open is stored on a USB memory device,
connect the device to your computer’s USB port.
2
Click
3
Select the presentation (plf) file you want to open and then click [Open].
or select [Open Presentation File] on the [File] menu.
z This displays a dialog box for opening presentation files.
z This will open the presentation file and display the EZ-Converter window.
Viewing Help
To view EZ-Converter help, select [Help] on the [Help] menu.
Viewing Version Information
To view EZ-Converter version information, select [About EZ-Converter...] on the [Help]
menu.
27
EZ-Converter Menu and Button Reference
This section provides detailed information about the EZ-Converter menu commands and about
the buttons that appear on the EZ-Converter window.
To do this:
Perform this menu
operation:
Convert a PowerPoint file to presentation data and display
it in the EZ-Converter window
[File] - [Convert
PowerPoint File]
Clear presentation data currently in the EZ-Converter
window
[File] - [Clear
Presentation File]
Open an existing presentation (plf) file and display its
contents in the EZ-Converter window
[File] - [Open
Presentation File]
Save the presentation data currently in the EZ-Converter
window to an existing file, which overwrites the current
contents of the existing file
[File] - [Save
Presentation File]
Save the presentation data currently in the EZ-Converter
window to a new file
[File] - [Save
Presentation File As]
Save the presentation data currently in the EZ-Converter
window under a different name
[File] - [Save
Presentation File As]
Exit EZ-Converter
[File] - [Exit]
–
Undo the last editing operation you performed on the EZConverter window
[Edit] - [Undo]
–
Add an image file to the presentation data currently in the
EZ-Converter window
[Edit] - [Add Image to
Presentation File]
Delete an image file from the presentation data currently
in the EZ-Converter window
[Edit] - [Delete Image
from Presentation File]
Move an image file in the presentation data currently in
the EZ-Converter window one position to the left (towards
the beginning)
[Edit] - [Move Image
Back]
Move an image file in the presentation data currently in
the EZ-Converter window one position to the right (towards
the end)
[Edit] - [Move Image
Forward]
Configure playback settings of the presentation data
currently in the EZ-Converter window
[Tools] - [Presentation
File Setup]
Specify the resolution and size of image files that are
saved as EZ-Converter presentation data
[Tools] - [Options]
–
Display EZ-Converter help
[Help] - [Help]
–
Display EZ-Converter version information
[Help] - [About EZConverter...]
–
28
Or click
this button:
Playing a Presentation with Viewer
Viewer is an application built into the YP-100 that lets you display image files and play
back movie files that are stored on a USB memory device that is connected to the YP100. Viewer starts up automatically whenever you connect a supported USB memory
device (see “Supported USB Memory Devices” on page 13) to the USB port of the YP100.
To connect a USB memory device to the YP-100
1
Connect the AC adaptor that comes with the YP-100 to the AC adaptor terminal,
and plug the AC adaptor into a power outlet.
z This will cause the YP-100 to turn on automatically.
z This will cause the YP-100’s [POWER] indicator to light green. The YP-100 logo screen
also will be projected by the connected projector.
2
Plug the USB memory device that contains the data you want to project with
Viewer into the USB port of the YP-100.
z Once the YP-100 recognizes the USB memory device, Viewer will start up automatically
and a menu of the files contained on the USB memory device will be projected in the
projection area.
29
Note
z Only files of formats that are recognized by the YP-100 (jpg, jpeg, jpe, bmp, avi,
mp4) appear in the file menu. Note that even if a file appears in the file menu, it
does not mean that the file can be displayed or played back by the YP-100.
z The file menu displays USB memory device contents in the following sequence:
folders, movie files, image files. For details about how to play back a movie file, see
“Using Viewer to Play a Movie” (page 39).
File Menu Operations
When Viewer starts up, it initially projects a menu of files contained on the USB memory
device. There are two different views for the file menu: a thumbnail view and a tree view.
Thumbnail View
Tree View
Thumbnail View
This View shows thumbnails of the image files and movie files contained on the USB
memory device. Folders are shown as icons.
Note
A question mark (?) in place of a thumbnail indicates an image file that cannot be
displayed by Viewer for some reason.
Tree View
This view shows a Windows Explorer type tree representation of the folders, image files,
and movie files on the USB memory device.
30
To switch between the thumbnail view and the tree view
1
Press the [FUNC] key.
2
Use the [T
T] key to move the highlighting to “Screen Format” and then press
the [ENTER] key.
z This displays the Viewer function menu shown below.
z This toggles between the thumbnail view and the tree view
To scroll file menu pages
To scroll to the next menu page press the […] key. To scroll back to the previous page,
press the [U] key.
Note
Arrow indicators appear on right side of the file menu to indicate that there are more
files above (
) or below (
) the current screen. Press the […] key to scroll down
when
is indicated, or [U] key when
is indicated.
31
To select a file or a folder
Thumbnail View
Use the cursor keys to move the highlighting to the file or folder you want to select.
Highlighting
Tree View
Use the [S] and [T] cursor keys to move the highlighting to the file or folder you want to
select.
Highlighting
32
To open a folder
1
2
Use the cursor keys to select the file you want to open.
Press the [ENTER] key.
z This opens the selected folder and displays a menu of its contents.
z With the tree view, you could also press the [X] key instead of the [ENTER] key.
To close the current folder and move up to the next level
Thumbnail View
Press the [ESC] key.
Tree View
Press the [ESC] key or the [W] key. This will collapse the folder where the highlighting is
currently located and move the highlighting to the next higher level.
To select a file menu item and display its image
1
2
Use the cursor keys to select the file whose image you want to display.
3
To return to the file menu, press the [ESC] key.
Press the [ENTER] key.
z This will display a full-size version of the image that fills the projection area.
Note
z If the selected file is too large to fit within the projection area, the message “Cannot
display an image file.” will appear.
z For information about operations you can perform while the image of a file is being
projected, see “Operations during Image File Content Projection” (page 37).
To start a slideshow from a particular image file
1
Use the cursor keys to select the file whose image from which you want to
start the slideshow.
2
Press the [
3
To stop the slideshow and return to the file menu, press the [ESC] key.
] key.
z This will display a full-size version of the image that fills the projection area. Now the
YP-100 will advance to the next image automatically at a regular interval (default: 5
seconds).
z If “Manual” is selected for the “Image Switching” setting, the image will not change
automatically. In this case, press the [X] key to advance to the next image.
33
Note
z A slideshow displays the image files (jpg or bmp) that are included in the same
folder as the image file you select in step 1 of the above procedure. All other files
are ignored.
z For details about operations you can perform during a slideshow, see “Operations
during a Slideshow” (page 38).
z For information about how you can specify the interval between images, image
transition effects, and other playback settings, see “Configuring Viewer Setup Menu
Settings” (page 41).
z A slideshow that uses presentation data created with EZ-Converter will be played
back in accordance with the playback settings included in the presentation data. For
details, see “Configuring Presentation Data Playback Settings” (page 22).
To move the highlighting to the previously projected image file
1
While the thumbnail view or tree view is being projected, press the [FUNC] key.
2
Use the [T
T] key to move the highlighting to “Return to previously displayed
image.” and then press the [ENTER] key.
z This will display the Viewer function menu.
z This returns to the image file that was projected immediately before the last projected
file.
Note
This function comes in handy in the following cases.
z To return the highlighting to the last projected image file after projecting a movie file.
z To return the highlighting to the image where a slideshow was paused in order to
project a movie file.
34
Using the Presentation Menu
The folder that contains the presentation file created using the EZ-Converter software (page
14) that comes bundled with the YP-100 is called a “presentation folder”.
Presentation folders appear along with other folders on the Viewer file menu, and they are
indistinguishable from other folders. Because of this, Viewer also provides a “presentation
menu” that makes it easy to find all of the presentation folders that are included on a
USB memory device.
To view the presentation menu
1
While the Viewer file menu is shown, press the [FUNC] key.
2
Check to make sure that “View Presentation List” is selected and then press the
[ENTER] key.
z This displays the Viewer function menu shown below.
z This displays a presentation menu like the one shown below.
Thumbnail of first image
file in presentation
Presentation file menu
Presentation properties
Presentation path
35
To perform a slideshow by running a presentation file
1
Use the [T
T] and [S
S] keys to move the highlighting to the presentation file you
want to run.
2
Press the [ENTER] key or the [
3
To stop the slideshow, press the [ESC] key.
] key.
z This will start the currently selected presentation file.
z The image file sequence, display time for each image, and image transition effect will all
be in accordance with the settings stored in the presentation file. For more information,
see “Configuring Presentation Data Playback Settings” on page 22.
Note
z The file menu (not the presentation menu) will reappear after the slideshow stops
when you press the [ESC] key or after it stops automatically.
z For details about operations you can perform during a slideshow, see “Operations
during a Slideshow” (page 38).
To return to the file menu from the presentation menu
Press the [ESC] key.
36
Operations during Image File Content Projection
To scroll between image files
Use the [X] and [W] keys.
To do this:
Press this key:
Display the content of the next image file
[X]
Display the content of the previous image file
[W]
Note
Scrolling to a file that is too large to fit within the projection area will cause the
message “Cannot display an image file.” to appear.
To rotate an image
Use the [S] and [T] keys.
To do this:
Press this key:
Rotate the image 90 degrees right
[S]
Rotate the image 90 degrees left
[T]
Note
You can also rotate an image by pressing the [FUNC] key to display the Viewer
function menu. Move the highlighting to “Rotate Right” or “Rotate Left” and then press
the [ENTER] key.
To start a slideshow from the currently displayed image file content
Press the [
] key.
Note
You can also start a slideshow from the currently displayed image file content by
pressing the [FUNC] key to display the Viewer function menu. Move the highlighting to
“Start Slideshow” and then press the [ENTER] key.
To return to the file menu from image file content
Press the [ESC] key.
37
Operations during a Slideshow
To pause a slideshow while auto image change is turned on
Press the […] key.
To unpause a slideshow while auto image change is turned on
Press the [
] key.
To scroll between image files during a slideshow
Use the cursor keys.
To do this:
Press this key:
Scroll to the content of the next image file
[X]
Scroll to the content of the previous image file
[W]
Note
After scrolling to an image file, the slideshow will scroll to the next image file
automatically after the preset time interval if “Auto” is selected for the “Image Switching”
setting. Note, however, that this is not true while the slideshow is paused.
To stop a slideshow and return to the file menu
Press the [ESC] key.
38
Slideshow Start Error
The error message shown below may appear when you attempt to start a slideshow using
one of the procedures under “To start a slideshow from a particular image file” (page 33),
“To perform a slideshow by running a presentation file” (page 36), or “To start a slideshow
from the currently displayed image file content” (page 37).
There is a problem with the slideshow setup file. Cannot start the slideshow.
If this happens, use EZ-Converter to create a new presentation file and store it on the
USB memory device. Next, use the new presentation file to run the slideshow.
Using Viewer to Play a Movie
This section explains procedures you can use to play a movie using Viewer.
To play a movie file
1
On the file menu, select the movie file you want to play.
2
Press the [ENTER] key.
3
To stop movie playback and return to the file menu, press the [ESC] key.
z For information about how to select a particular file on the file menu, see “To select a
file or a folder” (page 32).
z This will start playback of the selected movie file.
Note
Pressing the [ENTER] key while a file whose playback is not supported by the YP-100
is selected will cause the error message “This movie file cannot be played back.” to
appear. For more information, see “Supported Playback Data Types” (page 14).
39
Operations during Movie File Playback
You can perform the operations described below during movie file playback.
To do this:
Perform this operation:
Pause movie playback
Press the [ENTER] key.
To restart movie playback after it has been pause, press the
[ENTER] key again.
Fast reverse
Press the [W] key.
Fast forward
Press the [X] key.
Stop movie playback
Press the [ESC] key.
Jump to the beginning of the
currently playing movie file
and pause there
1. Press the [FUNC] key to display the viewer function menu.
z “Jump to Beginning” should be selected by default.
2. Press the [ENTER] key.
Jump to the end of the
currently playing movie file
and pause there
1. Press the [FUNC] key to display the viewer function menu.
2. Use the [T] key to move the highlighting to “Jump to End” and
then press the [ENTER] key.
Skip to the beginning of the
next movie file (on the file
menu) and pause there
1. Press the [FUNC] key to display the viewer function menu.
2. Use the [T] key to move the highlighting to “Skip to Next
Movie” and then press the [ENTER] key.
Skip to the beginning of the
previous movie file (on the
file menu) and pause there
1. Press the [FUNC] key to display the viewer function menu.
2. Use the [T] key to move the highlighting to “Skip to Previous
Movie” and then press the [ENTER] key.
Turn display of the playback
time on and off
Press the [ ] key or perform the following steps.
1. Press the [FUNC] key to display the viewer function menu.
2. Use the [T] key to move the highlighting to “Time Indicator
On/Off” and then press the [ENTER] key.
Note
Pressing the [FUNC] key during movie playback will pause playback and display the
Viewer function menu. Playback will resume when you press the [ESC] key to close the
Viewer function menu.
40
Configuring Viewer Setup Menu Settings
You can use the Viewer Setup Menu to configure viewer display settings and to perform a
presentation using playback settings that are different from those that were stored with
presentation data using EZ-Converter.
Note
z When you perform a slideshow by running a presentation file created with EZConverter, the slideshow settings on the Viewer setup menu (Image Switching,
Slideshow Display Interval, Slideshow Transition Effect, and Slideshow Repeat) are
changed automatically to the playback settings (page 22) saved in the presentation
file you are running.
z In order to modify slideshow settings for which “Auto” was selected for the
presentation file’s “Image Switching” setting when the file was created with EZConverter, you need to pause the slideshow, open the menu, and then change the
settings as required.
To configure Viewer setup menu settings
1
2
Press the [MENU] key to display the Viewer setup menu.
Use [T
T] and [S
S] to select the menu item whose setting you want to change.
41
3
What you should do next depends on whether or not [ENTER] is displayed at
the far right of the setting you are configuring (the one that is highlighted).
If [ENTER] is displayed:
a. Press the [ENTER] key.
b. On the submenu that appears, use [T] and [S] to move the highlighting to the setting
you want to select.
Example: The following is the submenu that appears when “Display Sequence Setup” is
selected in step 2, above.
c. Press the [ENTER] key.
z This will return to the Viewer setup menu.
If [ENTER] is not displayed:
Press the [W] or [X] key to select the setting you want (so its button is
4
5
).
Repeat steps 4 and 5 to configure other settings, if you want.
After all the settings are the way you want, press the [MENU] key to exit the
Viewer setup menu.
To restore all settings on the Viewer setup menu to their initial factory
defaults
1
2
Press the [MENU] key to display the Viewer setup menu.
Press the [T
T] key to move the highlighting to “Initialize Viewer Setup” and then
press the [ENTER] key.
z This displays the dialog box shown below.
3
4
Use the [S
S] key to select “Yes”.
5
To exit the Viewer setup menu, press the [ESC] key.
To restore all the settings to their initial defaults, press the [ENTER] key.
z To exit the operation without doing anything, press [ESC] instead of [ENTER].
42
Viewer Setup Menu Contents
This section provides detailed explanations of all of the items included on the Viewer setup
menu.
Setting Name
Description
Image Zoom
In the case of image sizes other than XGA, specifies whether or not to
enlarge or reduce (zoom) images to fit the projection area.
Zoom:
Turns on image zooming.
No Zoom:
Turns off image zooming.
Display Sequence
Setup
Specifies the sequence of images in the file menu or presentation menu.
File Names (Ascending):
Displays files in file name ascending order.
File Names (Descending):
Displays files in file name descending order.
Time (New-to-Old):
Displays files by the time they were last modified, from the newest to the
oldest.
Time (Old-to-New):
Displays files by the time they were last modified, from the oldest to the
newest.
Startup Mode
Specifies whether the initial view when Viewer is started up is the thumbnail
view or tree view. See “File Menu Operations” (page 30) for more information.
Thumbnails:
Specifies thumbnail view.
Tree:
Specifies tree view.
Image Switching
Specifies the slideshow image change method.
Manual:
Specifies manual image change.
Auto:
Specifies auto image change.
Slideshow Display
Interval
Specifies how long each image will remain displayed during a slideshow.
5 seconds, 10 seconds, 30 seconds, 1 minute, 5 minutes
Slideshow
Transition Effect
Specifies the image transition effect to be used during a slideshow. For more
information see “Image Transition Effects” (page 24).
Off, Slide In - Left to Right, Slide In - Right to Left, Slide In - Top to
Bottom, Slide In - Bottom to Top, Wipe - Left to Right, Wipe - Right to
Left, Wipe - Top to Bottom, Wipe - Bottom to Top, Dissolve
43
Setting Name
Description
Slideshow Repeat
Specifies whether or not slideshows and movie file playback should repeat
when the end it reached.
On:
Slideshows and movie playback are repeated.
Off:
Slideshows and movie playback are not repeated.
Movie Display
Specifies the display size during movie playback.
Zoom:
Enlarges to the size of the projection area.
No Zoom:
Specifies the original size of the movie file.
Initialize Viewer
Setup
Returns all Viewer setting menu items to their initial default settings. For
details, see “To restore all settings on the Viewer setup menu to their initial
factory defaults” on page 42.
44
Viewer Error Messages
Message
Cause
Required Action
There is a problem
with the slideshow
setup file. Cannot
start the slideshow.
There is some problem
with the presentation file
created with EZ-Converter.
Use EZ-Converter to regenerate the entire
set of presentation data (presentation file
and image files) and save the new data to
the USB memory device.
Folder does not
contain any image
files.
There is no displayable
folder, image file, or
movie file in the folder
you are trying to access
with Viewer.
z Use EZ-Converter to generate
presentation data and save it to the USB
memory device.
z Copy image files or movie files from your
computer to the folder on the USB
memory device.
Cannot display an
image file.
The image file cannot be
displayed because it is
too large to display within
the projection area or
because there is
something wrong with it.
Make sure the image files on the USB
memory device are no larger than 6
Mbytes.
Important!
Progressive JPEG image files are not
supported.
Could not find an
image file.
One or more image files
that were saved as
presentation data cannot
be found.
Use EZ-Converter to regenerate the entire
set of presentation data (presentation file
and image files) and save the new data to
the USB memory device.
This movie file
cannot be played
back.
The file you are trying to
play back is an
unsupported format or
there is something wrong
with it.
z Convert the unsupported file to a file
format that is supported and copy it to
the USB memory device.
z Copy a movie file that is a format
supported by Viewer to the USB memory
device.
45
Viewer Troubleshooting
Some folders and/or files are not displayed in the file menu
• All the folders and/or files contained in a folder will not be displayed if there are more
than 999 folders and/or files inside the folder. If this happens, reduce the number of
folders and/or files in the folder.
• Viewer supports up to 10 folder nesting levels on a USB memory device. Anything past
the 10th nested folder is not displayed by Viewer.
How can I get images to appear more quickly?
When you select a BMP image or a large image file recorded with a digital camera on
the Viewer’s image menu, it takes considerable time before the image appears. To ensure
that images appear quickly during your presentation, use EZ-Converter to convert the
images to presentation data. This will cause images to be converted to JPEG images,
which appear on the display more quickly.
I am having a hard time getting the results I want when playing a
slideshow.
• Use EZ-Converter to convert the images you want to use in the slideshow to
presentation data.
• In order to start a slideshow by highlighting an image file in a folder that is not a
presentation data folder, you first need to use the Viewer Setup menu to configure
slideshow settings (Slideshow Display Interval, Slideshow Transition Effect, Image
Switching, Slideshow Repeat).
46
Performing a Presentation Using a Wireless LAN
(Projecting Computer Screen Contents Over a Wireless LAN)
This section explains how to establish a wireless LAN connection between the YP-100 and a
computer and project the computer’s screen contents over the wireless LAN.
Supported Wireless LAN Devices
CASIO YW-2S wireless adapters are required in order to establish a wireless LAN connection
between a computer and the YP-100. The YW-2S package includes two YW-2 USB type
wireless adapters, one for the YP-100 and one for the computer.
Important!
z Note that use of any other wireless adapter besides the YW-2 is not supported.
z Use of the stickers that come with the YW-2 Wireless LAN adapter is not necessary
when you connect a YW-2 to the YP-100.
Computer Requirements
In addition to the “Minimum System Requirements” (page 10), the computer must also
conform to any one of the following in order to establish a wireless LAN connection with
the YP-100.
a. YW-2 wireless adapter plugged into a USB port
b. Built-in wireless LAN function conforming to IEEE 802.11b standard
c. Add-on wireless LAN function (other than YW-2) conforming to IEEE 802.11b standard
All of the explanations in this manual are based on a computer that conforms to “a. YW-2
wireless adapter plugged into a USB port”.
Important!
There is no guarantee that all computers conforming to one of the above conditions will
be able to establish a wireless LAN connection with the YP-100.
47
Preparing the Computer for Wireless LAN Connection
with the YP-100
Before attempting the operations in this section, be sure to prepare the computer by
following the steps below.
If you are using the YW-2 wireless adapter
1
On your computer, install “Wireless Connection” from the CD-ROM that comes
bundled with the YP-100.
z For more information, see “Installing YP-100 Software” (page 10).
2
Connect the YW-2 wireless adapter to your computer’s USB port.
If you are using another wireless LAN adapter (including a computer’s builtin wireless LAN)
1
Make sure that the wireless LAN of the computer (either a built-in wireless LAN
or add-on wireless LAN) conforms to the IEEE 802.11b standard.
2
On your computer, install “Wireless Connection” from the CD-ROM that comes
bundled with the YP-100.
z For more information, see “Installing YP-100 Software” (page 10).
48
About the YP-100’s Wireless LAN
Wireless Function and Wireless Connection Software
The YP-100 has a built-in function named “Wireless”, which you can use to configure YP100 settings for wireless LAN connection with a computer, and perform YP-100 operations
(such as displaying connection information, switching computers when there are multiple
computers connected over a wireless LAN, etc.) after a connection is established. Wireless
starts up automatically whenever you connect a CASIO YW-2 wireless adapter to the YP100’s USB port.
Wireless Connection is software that runs on a Windows computer. It lets you configure
computer settings for wireless LAN connection with the YP-100, and perform computer
operations (such as sending computer screen contents to the YP-100) after a connection is
established. You can also use Wireless Connection to display the “Web Setup” page for
configuring advanced wireless LAN connection settings (see “Advanced Wireless LAN
Connection Settings” on page 64).
About Connection Profiles
A setup for a wireless LAN connection is called a “connection profile”. There are two types
of connection profiles: “simple connections” and “manual connections”.
The YP-100 comes with a following connection profiles built in. You can use the YP-100’s
Wireless function to switch the current connection profile. Since Wireless Connection is
already equipped with the same Simple Connection 1, 2, and 3 profiles as the Wireless
function, all you need do is select the same profiles with Wireless and Wireless connection
to establish a wireless LAN connection. Note, however, that this is true only when a
CASIO YW-2 wireless adapter is connected to the computer.
Connection
Profile
Initial Profile
Name
Simple
Connection 1
–
Simple
Connection 2
–
Simple
Connection 3
–
Manual
Connection 1
Sample 1
Manual
Connection 2
Sample 2
Manual
Connection 3
Sample 3
Description
These profiles mainly are for establishing a simple
connection between the YP-100 and a single computer with
a CASIO YW-2 wireless adapter. The settings of these
profiles are fixed and cannot be changed.
These profiles mainly are for wireless LAN connection of
multiple computers to the YP-100 at the same time. The
initial default setup of each profile can be used to configure
a wireless LAN connection, or you can modify the settings
of a profile to improve security and save the profile under
a new name.
49
Establishing a Wireless LAN Connection between the
YP-100 and a Computer
The method you should use to establish a connection between the YP-100 and a
computer depends on the type of connection you want to establish. One important
consideration is whether you want to use a Simple Connection or a Manual Connection
profile.
„ One YP-100 unit and One Computer
In this case, connect using Simple Connection. Make sure that the same Simple
Connection profile (Simple Connection 1 or Simple Connection 2, Simple Connection 3) is
selected on both the YP-100 and on the computer.
If there are multiple 1-to-1 wireless LAN connections in the same area, use a different
connection profile (Simple Connection 1, Simple Connection 2, Simple Connection 3) for
each one.
For more information, see “Establishing a Wireless LAN Connection with a Single Computer
Using a Simple Connection” (page 52).
„ One YP-100 unit and Multiple (Up to 4) Computers
Configure this connection using the Manual Connection Ad Hoc Mode. Make sure that all
of the profile contents (except for the IP address) of the YP-100 and the computer are
identical.
For more information, see “Establishing a Wireless LAN Connection with Multiple Computers
Using a Manual Connection” (page 54).
„ Connection over a Wireless Network
Configure this connection using the Manual Connection Access Point Mode (page 80). Note
that technical knowledge about network connections is required to configure a connection
over a wireless network.
For information about configuring settings, see “To create a new computer connection
profile” (page 74). Supplementary information is also available on the CASIO website
(http://world.casio.com/projector/support/en/).
„ Connection Using a Notebook Computers Built-in Wireless LAN
Use Manual Connection for this type of connection. Note that technical knowledge about
network connections is required to configure a connection over a wireless network.
Supplementary information is available on the CASIO website
(http://world.casio.com/projector/support/en/).
50
Wireless LAN Connection Basics
This section explains the basic procedures for configuring settings for a wireless LAN
connection between the YP-100 and a computer.
z This section includes the basics for establishing a wireless LAN connection between the
YP-100 and a single computer, or between the YP-100 and multiple computers. For details
about increasing security and settings required for connection to a wireless LAN access
point, see “Advanced Wireless LAN Connection Settings” (page 64).
z For details about projection operations after establishing a connection, see “Using Wireless
LAN for Projection” (page 90).
Important!
The operations described here assume that the CASIO YW-2 wireless LAN adapter is
connected to the computer. In the case of a computer equipped with another
manufacturer’s wireless LAN adapter or a built-in wireless LAN adapter, configure
settings in accordance with the user documentation that comes with the adapter you are
using.
51
Establishing a Wireless LAN Connection with a Single
Computer Using a Simple Connection
To establish a wireless LAN connection between a single computer and the
YP-100
Note
The following explains the simplest type of connection. It shows how to use the YP100’s built-in connection profile named “Simple Connection 1” to establish a wireless
LAN connection with a single computer.
1
Connect the AC adaptor that comes with the YP-100 to the AC adaptor terminal,
and plug the AC adaptor into a power outlet.
z This will cause the YP-100 to turn on automatically.
z This will cause the YP-100’s [POWER] indicator to light green. The YP-100 logo screen
also will be projected by the connected projector.
2
Connect the CASIO YW-2 wireless adapter to the YP-100’s USB port.
z You could also turn on the YP-100 with the wireless adapter already connected to the
USB port.
z The YP-100 will detect the wireless adapter and start up its Wireless function
automatically. The message shown below will appear in the projection area.
Check to make sure that “Simple
Connection 1” is shown.
3
4
Turn on your computer and start up Windows.
If your computer is already connected to a network, disable the connection.
z On the Windows Control Panel, click “Network Connections” (“Network and Dial-up
Connection” in the case of Windows 2000). If “Local Area Connection”, “Wireless Network
Connection” or “Network Bridge” is displayed on the window that appears, right-click the
icon and then click “Disable” on the dialog box that appears.
52
5
Connect the YW-2 wireless adapter to your computer’s USB port.
6
Start up Wireless Connection by double-clicking the
icon on your computer
desktop, or select the following from the windows Start menu: [All Programs] [CASIO] - [Wireless Connection].
z The first time you connect a wireless adapter, the message shown below may appear on
your computer screen. If it does, click the [Continue Anyway] button.
z This will cause the dialog box shown below to appear.
z When the computer finds the YP-100, communication will start between them.
z This will establish a wireless LAN connection between the computer and YP-100
automatically and cause the Wireless Connection window shown below to appear on the
computer screen.
z The contents of the computer screen will be projected automatically at this time.
z For details about Wireless Connection window operations and YP-100 remote controller
operations you can perform after establishing a connection, see “Using Wireless LAN for
Projection” (page 90).
53
Note
A message like “Wireless Connection.exe is trying to access the Internet” may appear
when the computer you are using has security software installed. If this happens, select
“Always allow (access)” on the dialog box.
7
To terminate Wireless Connection operation, click the [×] button in the upper
right corner of the Wireless Connection window or select [Exit] on the
[Connection] menu.
z This will close the Wireless Connection window and terminate the connection between the
computer and YP-100. At this time, the projected image will return to the message in
step 2 of this procedure.
Important!
The above procedure will not establish a wireless LAN connection if the connection
profile of the YP-100 is different from the profile used the first time a connection was
established between the computer and YP-100 (Simple Connection 1 in this example). In
this case, press the YP-100’s remote controller […] key to display the “Connection
Profile” menu and then select the original connection profile (Simple Connection 1 for
this example). For details, see “To switch the YP-100 connection profile” (page 68).
Establishing a Wireless LAN Connection with Multiple
Computers Using a Manual Connection
This section explains how to connect up to four computers to a single YP-100 (over a
wireless LAN access point) at the same time. The following are the general steps that are
required.
1 Prepare
2 Create
for wireless LAN connection of the YP-100 and the computers (below).
connection profiles for the computers (page 55).
3 Use
the Manual Connection profile to establish a wireless LAN connection between the
first computer and the YP-100 (page 57).
4 Use
the Manual Connection profile to establish a wireless LAN connection between the
other computers and the YP-100 (page 62).
1 To prepare for wireless LAN connection of the YP-100 and the computers
1
2
Install Wireless Connection on all of the computers.
Connect YW-2 wireless adapters to the USB port of each of the computers.
54
2 To create connection profiles for the computers
1
Start up Wireless Connection on the first computer.
2
On the Wireless Connection window of the first computer, select “Switch
Connection Profile” on the “Connection” menu.
z Wireless Connection should start up automatically when you connect the YW-2 wireless
adapter to the computer’s USB port. If it does not, go to the Windows [Start] menu and
select [All Programs] - [CASIO] - [Wireless Connection].
z This will display a dialog box for switching the connection profile.
3
Click the [New] button.
z This will display a dialog box for configuring a new manual connection profile.
55
4
Configure the settings on the dialog box.
z In this example, we will use the following settings.
Dialog Box Item
Setting
Profile Name
Test
SSID
CASIO_DPJ
Access Mode
Ad Hoc
Security Setup
WEP
WEP Key Format
ASCII/128bit
WEP Key/WPA/WPA2 Pass Phrase
1234567890abc
DHCP
Off
IP Address
192.168.100.1
Subnet Mask
255.255.255.0
Default Gateway
0.0.0.0
Channel
Auto
z For details about each of the settings on the dialog box, see “Manual Connection Setting
Reference” (page 79).
5
6
After configuring all of the settings you want, click the [Register] button.
7
Repeat steps 1 through 5 for all of the other computers.
On the confirmation dialog box that appears, click the [OK] button.
z This will register your settings as a new connection profile (named “Test” here) and
return to the connection profile switching dialog box in step 1. The newly created profile
(Test) will be selected on the dialog box.
z For the settings in step 4, simply change the IP address as shown below.
Computer 2: 192.168.100.10
Computer 3: 192.168.100.11
Computer 4: 192.168.100.12
56
3 To use the Manual Connection profile to establish a wireless LAN
connection between the first computer and the YP-100
Note
Perform the following steps while the connection profile dialog box is on the display at
the end of the procedure under “2 To create connection profiles for the computers”
(page 55).
1
Use the Simple Connection profile to establish a wireless LAN connection
between the first computer and the YP-100.
z See “Establishing a Wireless LAN Connection with a Single Computer Using a Simple
Connection” on page 52 for more information.
z If a Simple Connection is already established between the first computer and the YP-100,
proceed to step 2.
2
On the Wireless Connection window of the first computer, select “Switch
Connection Profile” on the “Connection” menu.
z This will display a dialog box for switching the connection profile.
3
Click the “Profile Name” down arrow button and then select “Test” from the
menu that appears.
4
Click the [Send Settings] button.
5
Select “Manual Connection 1” for “Send Destination”, and then click the [OK]
button.
z This will display a dialog box for sending the setup.
z This will display a dialog box prompting you to enter the current password.
z Enter the password that you use when logging in to Web Setup (page 64). The initial
default password is “casio”.
6
Enter the password and then click the [OK] button.
57
7
Keep clicking the [OK] button on the dialog boxes that appear.
8
9
To return to the Send Settings dialog box, click the [Cancel] button.
z Clicking the [OK] button in response to the “Overwrite it?” message will cause the
settings of the first computer to be sent to the YP-100. At this time, the Manual
Connection 1 settings of the YP-100 will be overwritten with the “Test” settings of the
connection profile of the computer (see step 3 above). The IP address setting will be the
IP address of the computer's connection profile plus 1.
Click the [Close] button.
z This will cause the dialog box shown below to appear.
the YP-100 remote controller, press the […
…] key.
10 On
z This will cause the connection profile menu to appear in the projection area.
the [T
T] key to move the highlighting to “Manual Connection 1” and then
11 Use
press the [ENTER] key.
z This will display the dialog box shown below.
Press the [S
S] key to move the highlighting to “Yes” and then press the [ENTER]
12 key.
z This will cause the message shown below to appear in the projection area.
Check to make sure that “Manual Connection 1
(Test)” is shown.
58
the message that appears on the computer screen.
13 Check
z When the computer finds the YP-100, the display will change to a dialog box like the
one shown below for selecting the connected device.
If there are other YP-100 units (or XJ-S35
Data Projectors) with wireless adapters
connected in the area, all of them that are
detected will appear in the list.
the highlighting to the YP-100 unit to which you want to connect and then
14 Move
click the [OK] button.
z The computer will connect with the YP-100 and the above dialog box will close. Confirm
that the “Connection Profile” setting for the connected device information on the Wireless
Connection window shows “Manual Connection 1” (Test).
Projection area position buttons
(Used in step 18).
59
the Wireless Connection window, select “Options” on the “Tools” menu.
15 On
z This will display a dialog box for configuring the option setting.
“User Name” box, enter the user name (the name you want to appear in
16 Inthetheprojection
area when projecting the screen contents of this computer) for the
computer whose settings you are configuring.
z You can input up to 10 characters for the user name.
17 Click the [OK] button.
60
the Wireless Connection window, click one of the projection area position
18 On
buttons and then click the
button.
z This will cause the contents of the computer screen to be projected so they fill the
entire projection area. At this time the user name will appear in the upper left corner of
the projection area.
the YP-100’s remote controller, press the [ ] key.
19 On
z This will display a user menu like the one shown below. You can use the user menu
when multiple computers are connected to the YP-100 to select which computer’s screen
image will fill the entire projection area. The location of each computer’s image on the
user menu screen will be in accordance with the projection area position button you
selected for the computer.
User Names
“Not connected” appears in
place of the user name for
all positions that do not
have a computer assigned
using the projection area
position buttons.
61
4 To use the Manual Connection profile to establish a wireless LAN
connection between the other computers and the YP-100
Note
Perform the following steps after finishing the procedures under “2 To create connection
profiles for the computers” (page 55) and “3 To use the Manual Connection profile to
establish a wireless LAN connection between the first computer and the YP-100” (page
57).
1
On the connection profile switching dialog box for each of the other computers,
click the “Profile Name” down arrow button and then select “Test” from the
menu that appears.
2
Click the [Close] button.
z This will cause the dialog box shown below to appear.
z When the computer finds the YP-100, the display will change to a dialog box like the
one shown below for selecting the connected device.
3
Move the highlighting to the YP-100 unit to which you want to connect and then
click the [OK] button.
z The computer will connect with the YP-100 and the above dialog box will close. Confirm
that the “Connection Profile” setting for the connected device information on the Wireless
Connection window shows “Manual Connection 1 (Test)”.
62
4
On the Wireless Connection window, select “Options” on the “Tools” menu.
5
In the “User Name” box, enter the user name (the name you want to appear in
the projection area when projecting the screen contents of this computer) for the
computer whose settings you are configuring
z This will display a dialog box for configuring the option setting.
z You can input up to 10 characters for the user name.
6
7
Click the [OK] button.
On the Wireless Connection window, click one of the projection area position
buttons and then click the
button.
z A projection area that is available for selection is indicated by
, while an area that is
already selected is indicated by
. You can select any one of the areas that has
indicated.
z The screen contents of the second computer will appear in the area of the projection
area position button you select here.
8
Repeat steps 1 through 7 for the third and fourth computers.
9
To use the entire projection area to display a particular computer’s screen
image, use the cursor keys to move the highlighting to the desired image and
then press the [ENTER] key (or [ ] key).
z The screen contents of the third and fourth computer will appear in the area of the
projection area position buttons you select here.
z This will cause the contents of the highlighted computer screen to fill the entire projection
area.
z For details about Wireless Connection window operations and YP-100 remote controller
operations you can perform after establishing a connection, see “Using Wireless LAN for
Projection” (page 90).
63
Advanced Wireless LAN Connection Settings
This section explains how to configure advanced settings for a wireless LAN connection
between the YP-100 and a computer.
z All of the operations in this section assume that you have already configured the settings
under “Wireless LAN Connection Basics” (page 51).
z For details about projection operations after establishing a connection, see “Using Wireless
LAN for Projection” (page 90).
Web Setup
In order to modify the settings of a YP-100 manual setup profile and to configure
advanced settings of other YP-100 settings, you need first to display a special web browser
page named “Web Setup” on you computer screen. To display Web Setup, use a web
browser running on a computer that is connected to the YP-100 over a wireless LAN.
To display and log into the Web Setup page
1
Use the Simple Connection profile to establish a wireless LAN connection
between a computer and the YP-100.
z See “Establishing a Wireless LAN Connection with a Single Computer Using a Simple
Connection” on page 52 for more information.
z If a Simple Connection is already established between the first computer and the YP-100,
proceed to step 2.
2
On the Wireless Connection window of the computer, click the
button.
z This will start up the computer’s default browser and display an initial page like the one
shown below.
z The Web Setup page may not appear if your browser is running already. In this case,
quit the browser and then click the
button again.
64
3
Enter the password and then click the [OK] button.
z The initial default password is “casio”.
z The above step will display the Web Setup top page like the one shown below.
Note
z For security reasons, be sure to change the password to something else as soon as
possible. For details, see “To change the Web Setup login password” (page 65).
z You also can display the Web Setup page by selecting “Options” on the Wireless
Connection window’s “Tools” window. On the option dialog box that appears, click the
[Web Setup] button.
To log out of Web setup
Click “Logout” in the upper right corner of the page.
Note
You also will be logged out automatically if you do not perform any Web Setup page
operation for about five minutes.
To change the Web Setup login password
1
On the initial Web Setup page, click the [Change Password] button.
2
In the “Current Password” box, enter the current password (“casio” if you have
not yet changed the initial default password) and then enter the new password
into the “New Password” box.
z This will display the change password page.
z A password must have at least four single-byte characters and it can be up to 16
characters long.
65
3
4
Input the new password again into the lower “New Password” box.
Click the [Change] button.
z If you input all of the required information correctly, your password will be changed and
the Web Setup top page will reappear.
Enabling and Disabling Web Setup
This section explains how you can disable the Web Setup page so it is not displayed
when you perform YP-100 operations. You can disable the Web Setup page when you
want to restrict access to Web Setup while there are multiple computers connected to the
YP-100.
To enable and disable Web Setup
1
While Wireless is shown in the projection area, press the [MENU] key on the
YP-100 remote controller.
z This will display the Wireless setup menu.
2
3
Press the [T
T] key to move the highlighting to “Web Setup”.
4
To exit the Wireless setup menu, press the [ESC] key.
Use [X
X] and [W
W] to select “Enable” or “Disable”.
z Selecting “Disable” will make it impossible to access the Web Setup page from any
computer.
66
Switching the YP-100 Connection Profile
The YP-100 uses one of its six connection profiles to connect to a computer over a
wireless LAN. You can use the following procedure to switch the connection profile as
required.
To view the YP-100’s current connection profile information
1
While Wireless is shown in the projection area, press the [FUNC] key on the YP100 remote controller.
z This will display the Wireless function menu.
z The contents of the Wireless function menu will differ according to the operational status
of the YP-100 when you press the [FUNC] key. The above example shows the menu
when the [FUNC] key is pressed while “Standing by for connection...” is displayed in the
projection area.
2
Check to make sure that “View Connection Info” is selected and then press the
[ENTER] key.
z This will display the connection information window, which shows the currently selected
profile and the settings of the profile.
(Simple Connection Profile)
(Manual Connection Profile)
3
To close the connection information window, press the [ESC] key of the YP-100
remote controller.
Note
You can also view the YP-100’s current connection profile information using the Web
Setup top page. For more information, see “To display and log into the Web Setup
page” (page 64).
67
To switch the YP-100 connection profile
1
On the YP-100 remote controller, press the […
…] key.
z This will cause the connection profile menu to appear in the projection area.
The currently selected connection
profiled is highlighted.
2
Use the [T
T] and [S
S] keys to move the highlighting to the connection profile you
want to select and then press the [ENTER] key.
z This displays the dialog box shown below.
3
Press the [S
S] key to move the highlighting to “Yes” and then press the [ENTER]
key.
z This will switch to the YP-100 connection profile you highlighted in step 2 and then
display the “Standing by for connection...” message.
This is the display of the connection
profile name after switching.
68
To use Web Setup to modify the YP-100 connection profile from a
computer
Important!
Performing the procedure below will terminate the current wireless LAN connection
between the YP-100 and computer. To re-establish a connection, reconfigure the
computer’s wireless LAN settings so they match those of the new YP-100 connection
profile.
1
Perform the procedure under “To display and log into the Web Setup page”
(page 64) to display the Web Setup top page.
2
Click the “Connection Profile” down arrow button and then select the connection
profile you want from the menu that appears.
3
Click the [Switch] button.
z This will display the following message on the Web Setup page.
The connection profile has been changed.
Switch the settings on the computer and then re-connect.
4
Click the [OK] button.
z This will switch the YP-100 to the connection profile you selected in step 2 and
terminate the current wireless LAN connection between YP-100 and computer.
z At this time, the message “Standing by for connection...” will appear in the projection
area, along with the connection profile you switched with “Connection Profile” in step 2
above.
69
Assigning a Name to a YP-100 Unit
You can use Web Setup to assign a unique name to each YP-100 unit, which comes in
handy when you are using multiple YP-100 units. The projector name you assign is
displayed in the following locations.
• In the “Projector Name” box of the Wireless “Standing by for connection...” message
• In the “Projector Name” box of the Wireless Connection data window (page 67)
• In the “Projector Name” box of the Wireless Connection window (page 53)
• In the “Projector Name” box of the Connection dialog box (page 58)
To assign a name to YP-100 unit
1
Perform the procedure under “To display and log into the Web Setup page”
(page 64) to display the Web Setup top page.
2
In the “Projector Setup” area, click the [Edit] button.
3
4
Enter up to 12 characters for the name into the “Projector Name” box.
z This will display a projector setup page.
Click the [Save] button.
Note
You also can use the projector setup page to define a connection keyword (see next
page).
70
Configuring a Connection Keyword
A connection keyboard protects the YP-100 against unauthorized access when there are
multiple computers connected over a wireless LAN using a manual connection profile. You
can specify whether or not input of the connection keyword is required (connection keyword
on/off) to establish a wireless LAN connection with the YP-100 from a computer, and you
can register and modify the connection keyword as required.
You can turn the connection keyword on or off using either Web Setup or the Wireless
setup menu. Connection keyword registration and modification can be performed using Web
Setup.
To modify an existing connection keyword
1
Perform the procedure under “To display and log into the Web Setup page”
(page 64) to display the Web Setup top page.
2
In the “Projector Setup” area, click the [Edit] button.
3
Enter up to 16 single-byte characters or symbols into the “Connection Keyword”
box.
4
Select “On” when you want to require input for connection from a computer to
the YP-100 over a wireless LAN, or “Off” to turn off the connection keyword.
5
After the settings are the way you want, click the [Save] button.
z This will display a projector setup page.
To turn connection keyword input on or off on the YP-100
1
While Wireless is shown in the projection area, press the [MENU] key on the
YP-100 remote controller.
z This will display the Wireless setup menu with “Connection Keyword” highlighted.
2
Use [X
X] and [W
W] to select “On” or “Off”.
3
To exit the Wireless setup menu, press the [ESC] key.
z Selecting “On” will require connection keyword input whenever a computer tries to
connect to the YP-100.
71
To connect to the YP-100 from a computer over a wireless LAN when
connection keyword input is required
1
On the computer, perform the required operation to connect to the YP-100.
2
On the Wireless Connection window, click the
3
Enter the connection keyword that is preset for the YP-100 and then click the
[OK] button.
z To do this, perform the procedures under “Establishing a Wireless LAN Connection with
Multiple Computers Using a Manual Connection” (page 54).
button.
z This will display a dialog box for inputting a connection keyword.
z If the input connection keyword is correct, a wireless LAN connection will be established
between the YP-100 and computer and the computer screen contents will be sent to the
YP-100.
z The connection keyword you input will be cleared if it does not match the one that is
assigned to the YP-100. Re-enter the correct keyword.
z If you input the wrong keyword three times in a row, the connection keyword input dialog
box will not appear again when you click the [OK] button on the error dialog box. To
display the connection keyword input dialog box again, click the
button.
72
Modifying YP-100 Manual Connection Settings
The following are example cases in which you may want to modify YP-100 manual
connection settings.
• When you want to configure YP-100 settings to be compatible with information configured
on the wireless LAN access point you are using
• When you want to enhance security by modifying initial default settings
• When you want to establish a wireless LAN connection using a fixed IP address
• When using another manufacturer’s wireless LAN adapter or a wireless LAN adapter built
into the computer
You can modify manual connection settings using Web Setup.
To modify YP-100 manual connection settings
Important!
Performing the procedure below to modify the connection profile being used for the
wireless LAN connection between the YP-100 and computer will terminate the current
connection. To re-establish a connection, reconfigure the computer’s wireless LAN
settings so they match those of the new YP-100 connection profile.
1
Perform the procedure under “To display and log into the Web Setup page”
(page 64) to display the Web Setup top page.
2
In the “Connection Profile Setup” area, click the [Edit] button.
3
Click a tab (Manual Connection 1, 2, or 3) to display the connection profile
whose settings you want to modify.
4
Configure the settings on the tab that is displayed.
5
To save your settings, click the [Save] button.
z This will display a dialog box for configuring the connection profile.
z For details about each of the settings on the dialog box, see “Manual Connection Setting
Reference” (page 79).
z This should cause the message “Your settings have been saved.” to appear.
z If there is anything wrong with the settings, the message “Some input items are missing.”
will appear. If this happens, click [Return] in the lower left corner of the page to return
to the connection profile setup page, and correct the settings as required. When checking
your settings, refer to “Manual Connection Setting Reference” (page 79).
Note
To use a modified connection profile for a wireless LAN connection, you will need to
switch to the profile (unless you modified the connection profile that you are currently
using). For details, see “To switch the YP-100 connection profile” (page 68).
73
Creating a Computer Connection Profile
After you modify the settings of the YP-100’s manual setting profile, you will also need to
modify the existing wireless LAN connection settings (connection profile) of the computer
accordingly, or you will have to create a new connection profile. This section explains the
procedure for using Wireless Connection to create a new profile or to modify the existing
profile of a computer that has a CASIO YW-2 wireless adapter connected.
Important!
For the required computer wireless LAN connection settings when you are using another
manufacturer’s wireless LAN adapter or the computer’s built-in LAN adapter, see the
user documentation that comes with the wireless LAN adapter or the computer you are
using.
To create a new computer connection profile
Note
This procedure shows how to create a new computer connection profile to match
modifications made in the settings of the YP-100’s connection profile named “Manual
Connection 3”. In this example, the YP-100 name (page 70) is “Projector A”.
1
Perform the procedure under “To modify YP-100 manual connection settings”
(page 73) to modify YP-100 “Manual Connection 3” profile settings as shown
below.
Dialog Box Item
Setting
Profile Name
RoomB
SSID
ROOM_B
Access Mode
Access Point
Security Setup
WPA-PSK
WPA/WPA2 Encoding
TKIP
WEP Key/WPA/WPA2 Pass Phrase
1234567890abc
DHCP
Off
IP Address
192.168.10.1
Subnet Mask
255.255.255.0
Default Gateway
(To match wireless LAN access point settings.)
Channel
Auto
z The above settings are provided as an example only. When you are establishing a
wireless LAN connection using the Access Point Mode, you need to configure settings to
match the actual access point. When configuring the IP address of the YP-100 (and the
computer connecting to the YP-100 over the wireless LAN connection), you need to
make sure that the IP address of the access point is different from all other IP
addresses within the same network.
z The wireless LAN access point used for connection is also assumed to be configured
with the above settings.
z For details about each of the settings on the dialog box, see “Manual Connection Setting
Reference” (page 79).
74
2
Perform the procedure under “To switch the YP-100 connection profile” (page 68)
to switch the YP-100 connection profile to “Manual Connection 3”.
z This will cause the “Standing by for connection...” screen to appear in the projection
area. Confirm that the screen shows “Manual Connection 3” for the connection profile.
3
On the Wireless Connection window, select “Switch Connection Profile” on the
“Connection” menu.
z This will display a dialog box for switching the connection profile.
4
Click the [New] button.
5
On the dialog box for configuring the manual connection setup, configure the
settings so they are the same as those that you configured for Manual
Connection 3 in step 1 of this procedure.
z This will display a dialog box for configuring a new manual connection profile.
z Make sure that the IP address is different from the IP address you set in step 1, the IP
address of the access point, and any other IP address within the same network.
z For details about each of the settings on the dialog box, see “Manual Connection Setting
Reference” (page 79).
75
6
7
After configuring all of the settings you want, click the [Register] button.
8
Click the [Close] button.
On the confirmation dialog box that appears, click the [OK] button.
z This will register your settings as a new connection profile and return to the connection
profile switching dialog box in step 1.
z This closes the connection profile switching dialog box and displays the dialog box shown
below.
z When the computer finds the YP-100, the display will change to a dialog box like the
one shown below for selecting the connected device.
9
Move the highlighting to “Projector A” for the projector name and then click the
[OK] button.
z This will establish a wireless LAN connection between the computer and YP-100.
z This will close the connected device selection dialog box and display the Wireless
Connection dialog box on the computer screen.
the Wireless Connection window, click one of the projection area position
10 On
buttons and then click the
button.
z This will cause the contents of the computer screen to be projected so they fill the
entire projection area.
z For details about Wireless Connection window operations and YP-100 remote controller
operations you can perform after establishing a connection, see “Using Wireless LAN for
Projection” (page 90).
76
To modify an existing computer connection profile
1
Display the Wireless Connection window by double-clicking the
icon on your
computer desktop, or select the following from the windows Start menu: [All
Programs] - [CASIO] - [Wireless Connection].
z This step is not necessary if the Wireless Connection window is already displayed.
2
On the Wireless Connection window, select “Switch Connection Profile” on the
“Connection” menu.
z This will display a dialog box for switching the connection profile.
3
Click the “Profile Name” down arrow button and then select the connection
profile you want to modify from the menu that appears.
4
Click the [Change Setup] button.
5
On the dialog box, modify the settings as required.
6
After configuring all of the settings you want, click the [Register] button.
7
Click the [OK] button.
z This will display a dialog box for configuring a new manual connection profile.
z For details about each of the settings on the dialog box, see “Manual Connection Setting
Reference” (page 79).
z This will cause the dialog box shown below to appear.
z This registers the settings you modified in the manual setting in step 5 and returns to
the connection profile switching dialog box.
Deleting a Computer Connection Profile
You can use the procedure in this section to delete computer connection profiles you
created with Wireless Connection when you no longer need them. Wireless Connection can
also be used to delete the default connection profiles (Manual Connection 1, 2, and 3).
To delete a computer connection profile
1
Display the Wireless Connection window by double-clicking the
icon on your
computer desktop, or select the following from the windows Start menu: [All
Programs] - [CASIO] - [Wireless Connection].
z This step is not necessary if the Wireless Connection window is already displayed.
2
On the Wireless Connection window, select “Switch Connection Profile” on the
“Connection” menu.
z This will display a dialog box for switching the connection profile.
3
Click the “Profile Name” down arrow button and then select the connection
profile you want to delete from the menu that appears.
77
4
5
After the settings are the way you want, click the [Delete] button.
To close the connection profile switching dialog box, click the [Close] button.
z This will return to the Wireless Connection window.
Assign a User Name to a Computer for Projection
User names make it possible to identify each computer when multiple computers are
connected to the YP-100 at the same time. The user name assigned to a computer will
appear in the projection area when the computer’s screen contents are projected. Use
Wireless Connection to assign a user name to each computer.
To assign a user name to a computer for projection
1
On the Wireless Connection window, select “Options” on the “Tools” menu.
2
In the “User Name” box, enter the user name for the computer.
3
Click the [OK] button.
z This will display a dialog box for configuring the option setting.
z Input up to 10 characters.
z This will register the user name.
Specifying the Quality of Images Sent from a Computer
Use the procedure below to specify the quality of images you send from a computer. The
“High-quality” setting provides better image quality, while the “Normal-quality” setting makes
the send operation faster.
To specify image quality
1
On the Wireless Connection window, select “Options” on the “Tools” menu.
2
3
Under [Quality], select the quality setting you want.
z This will display the [Options] dialog box.
When the setting is the way you want, click [OK].
z This will apply your setting.
78
Manual Connection Setting Reference
This section provides detailed explanations of all of the manual connection settings.
• See “To modify YP-100 manual connection settings” (page 73) for information about how
to change YP-100 manual connection settings.
• For information about creating a computer manual connection setting profile for wireless
LAN connection with the YP-100, refer to “To create a new computer connection profile”
(page 74). For information about modifying a manual connection setting profile, refer to
“To modify an existing computer connection profile” (page 77).
YP-100 Manual Connection Setting Screen
Connection Profile Setting Page
Computer Manual Connection Setting Screen
Wireless Connection Manual Connection Setting
Dialog Box
79
Note
The initial default setting for each item is indicated by an asterisk (*).
Setting Name
Description
Profile Name
This is a name assigned to identify each individual manual connection.
Input up to 10 characters.
SSID
Wireless network ID name. This is normally referred to as the SSID, ESS-ID,
or network name. Input up to 32 single-byte alphanumeric characters.
Access Mode
Specifies either wireless LAN connection through an access point or direct
connection between the YP-100 and computer without going through an
access point.
Access Point:
Specifies wireless LAN connection through an access point.
Ad Hoc*:
Specifies direct wireless LAN connection between the YP-100 and
computer.
Security
Setup
Specifies whether or not communication over the wireless LAN connection is
encrypted. A setting to select the encryption type is also provided. The YP100 supports three types of encryption: WEP, WPA-PSK, and WPA2-PSK.
Off*:
Encryption turned off.
WEP:
Turns on WEP encryption. When this option is selected, you also must
specify a WEP key format and a WEP key.
z The letters “WEP” stand for “Wired Equivalent Privacy”. It is a security
protocol that uses a character string to encrypt data and protect against
unauthorized access to wireless communications.
WPA-PSK:
Turns on WPA-PSK encryption. When this option is selected, you also must
specify a WPA/WPA2 encoding and a WPA/WPA2 pass phrase.
z The letters “WPA” stand for “Wi-Fi Protected Access”. Like WEP, it is a
security protocol that encrypts communication data. WPA uses an
automatically generated encryption key that is changed at preset
intervals, which provides stronger security than WEP.
WPA2-PSK:
Turns on WPA2-PSK encryption. When this option is selected, you also
must specify a WPA/WPA2 encoding and a WPA/WPA2 pass phrase.
z WPA2 is a new standard of WPA.
Note
You cannot select WPA-PSK or WPA2-PSK when “Ad Hoc” is selected
for the “Access Mode” setting.
WEP Key
Format
You only need to configure this setting when “WEP” is selected for “Security
Setup”.
You can specify any one of the following formats for input of the WEP key.
ASCII/64bit, ASCII/128bit, HEX/64bit, HEX/128bit*
For more information about inputting the WEP key using the format specified
here, see the “WEP Key / WPA/WPA2 Pass Phrase” item below.
80
Setting Name
Description
WPA/WPA2
Encoding
You only need to configure this setting when “WPA-PSK” or “WPA2-PSK” is
selected for “Security Setup”.
TKIP*:
Select “TKIP” as the encryption type.
AES:
Select “AES” as the encryption type.
WEP Key/
WPA/WPA2
Pass Phrase
Use this input box to enter a WEP key or WPA/WPA2 pass phrase. What
you need to input depends on the encryption type you selected for “Security
Setup”.
z When “WEP” is selected for “Security Setup”
Enter the WEP key. The WEP key character string should be input using
one of the following formats, in accordance with the “WEP Key Format”
setting.
ASCII/64bit
Five single-byte alpha-numeric characters (Example: “MyKey”)
ASCII/128bit
13 single-byte alpha-numeric characters (Example: “MyKey12345678”)
HEX/64bit
10-digit hexadecimal value (Example: 11AA22BB33)
HEX/128bit
26-digit hexadecimal value (Example: 00112233445566778899AABBCC)
z When “WPA-PSK” or “WPA2-PSK is selected for “Security Setup”
Enter the WPA/WPA2 pass phrase (encryption key).
Enter the same encryption key that is currently set on the wireless LAN
access point to which you are planning to connect. You should enter at
least eight and up to 63 single-byte characters, or 64-digit hexadecimal
value.
DHCP
Specifies whether the IP address that is set manually on the device being
configured (YP-100 or computer) or the IP address assigned automatically by
the DHCP server should be used during wireless LAN connection.
On*:
Specifies use of the IP address assigned automatically by the DHCP
server. You do not need to configure the “IP Address”, “Subnet Mask”, or
“Default Gateway” settings when this option is selected.
Off:
Specifies use of the manually set IP address. You need to configure the
“IP Address”, “Subnet Mask”, and “Default Gateway” settings when this
option is selected.
IP Address
Configuration of this setting is required when “Off” is selected for “DHCP”.
Enter the IP address that is assigned to the YP-100/computer. The IP
address consists of four values in the range of 0 to 255, separated by
periods (such as 192.168.10.3).
81
Setting Name
Description
Subnet Mask
Configuration of this setting is required when “Off” is selected for “DHCP”.
Enter a subnet mask value, which specifies the range of the IP address of
the subnet to which the YP-100/computer belongs. The subnet mask consists
of four values in the range of 0 to 255, separated by periods (such as
255.255.255.0).
Default
Gateway
Configuration of this setting is required when “Off” is selected for “DHCP”.
When “Access Point” is selected for “Access Mode”, specify the same value
as the wireless LAN access point.
Channel
Configuration of this setting is required when “Ad Hoc” is selected for
“Access Mode”. When there is a large number of devices performing wireless
LAN communication using frequencies in the same frequency band (2.4 GHz)
used by the YP-100, you can improve communication performance by
assigning different channels to each wireless LAN network. Normally you
should leave this item set to “Auto” (initial default setting).
Auto*:
Automatically assigns a communication channel for wireless LAN
communication. If “Auto” is selected on the YP-100, also select “Auto” for
the computer as well.
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11:
Specify a channel that should be used for wireless LAN communication.
The same channel must be set on the YP-100 and the computer that will
be communicating with each other over the wireless LAN connection.
82
Returning YP-100’s Wireless Settings to Their Initial
Defaults
You can return all YP-100’s Wireless function settings to their initial defaults by executing
“Initialize Wireless Setup”. The following are the Wireless initial default settings configured
by this operation.
Dialog Box Item
Initial Default
Connection Keyword (page 71)
Off (no keyword)
Show User Name Display (page 94)
On
Web Setup (page 66)
Enable
To return YP-100’s Wireless function settings to their initial defaults
1
While Wireless is shown in the projection area, press the [MENU] key on the
YP-100 remote controller.
z This will display the Wireless setup menu.
2
3
Press the [T
T] key to move the highlighting to “Initialize Wireless Setup”.
4
Press the [S
S] key to move the highlighting to “Yes” and then press the [ENTER]
key.
Press the [ENTER] key.
z This displays the dialog box shown below.
z This initializes all Wireless settings.
83
Viewing Wireless Connection Help
To view Wireless Connection help, select “Help” on the Wireless Connection window “Help”
menu.
Viewing Wireless Connection Version Information
To view Wireless Connection version information, select “About Wireless Connection...” on
the Wireless Connection window “Help” menu.
84
Wireless LAN Connection Troubleshooting
Whenever you experience problems with the wireless LAN connection between the YP-100
and the computer, check the following points first.
Check the following on the computer.
• Did you disable “Network Connection” before connecting the YW-2 wireless LAN
adapter to your computer’s USB port?
On the Windows Control Panel, click “Network Connections” (“Network and Dial-up
Connection” in the case of Windows 2000). If you see “Local Area Connection”,
“Wireless Network Connection” or “Network Bridge” on the window that appears, rightclick the icon and then click “Disable”.
• Is a wireless LAN utility other than Wireless Connection (which comes with the
YP-100) running?
If so, shut down the other utility.
Check the following on the YP-100.
• Is the same connection profile selected on the computer and on the YP-100?
Wireless LAN connection is not possible when different connection profiles are selected
on the computer and the YP-100 (such as “Manual Connection 1” on the computer and
“Simple Connection 1” on the YP-100). Make sure the same connection profile is
selected on both.
Also check the following.
• Are the YP-100 and computer too far apart or are they separated by a wall or
other barrier?
Try moving the YP-100 and computer so they are closer to each other.
• Is a microwave oven or a Bluetooth device being used nearby?
Operation of a device that uses the 2.4 GHz frequency band (which is the same
frequency band as the IEEE802.11b wireless standard used by the YP-100) in the
vicinity of the YP-100 can cause radio interference, resulting in a wireless communication
error. Avoid using the nearby microwave oven or Bluetooth device when performing YP100 wireless LAN communication.
If the above countermeasures do not resolve your problem, try the following depending on
the problem you are experiencing.
85
You cannot establish a Manual Connection between the YP-100 and a single
computer or multiple computers.
Except for the IP address setting, all of the settings configured for the YP-100 and the
computer(s) must match in order to establish a Manual Connection. Use the following
procedures to display and check the YP-100 and computer settings. If there are any
differences in the settings, change the settings on the computer(s) so they match. It is
important to remember here, however, that the IP addresses must be different.
To check YP-100 settings
Press the [FUNC] key, confirm that “View Connection Info” is highlighted, and then press
the [ENTER] key.
To check computer settings
1
On the Wireless Connection window, select “Switch Connection Profile” on the
“Connection” menu.
2
On the connection profile switching dialog box that appears, click the “Profile
Name” down arrow button and select the connection profile whose settings you
want to view.
3
Click the [Change Setup] button.
z This will display a dialog box for configuring a new manual connection profile. Use the
dialog box to check the settings and make any changes that are required.
Important!
When establishing wireless LAN connections between the YP-100 and multiple
computers, the YP-100 and each of the computers must have their own unique IP
addresses. For example, you could assign the IP address 192.168.1.100 to the YP-100,
and assign the following IP addresses to the computers: 192.168.1.10, 192.168.1.20,
192.168.1.30, etc.
86
When you establish a wireless LAN connection between the YP-100 and a
computer, it takes a log of time before the contents of the computer
screen is projected.
It can take some time for a wireless LAN connection to be established between the YP100 and computer if any other network connection besides the wireless network connection
used by the YW-2 wireless adapter is enabled on the computer. If this happens, perform
the following steps to disable the other network connections.
1
On the Windows Control Panel, click “Network Connections” (“Network and Dialup Connection” in the case of Windows 2000).
z This will display a “Network Connections” window (“Network and Dial-up Connection”
window).
2
On the window, right click any wireless network connection that is not the one
being used by the YW-2 wireless adapter, and then click “Disable” on the
shortcut menu that appears.
z The wireless network connection used by the YW-2 wireless adapter is the one with the
adapter name “CASIO 802.11b/g Wireless LAN USB Adapter (3887A)”. Disable all
wireless network connections that have any other name.
3
If you see a “Local Area Connection” on the window, right-click its icon and
then click “Disable” on the dialog box that appears.
87
The wireless LAN connection between the YP-100 and computer keeps
dropping.
This can be caused by the following.
• Data communication can slow down and the connection may tend to drop when the YP100 and computer are far from each other (in different rooms, on different floors, etc.)
Move the YP-100 and computer as close together as possible.
• Operation of a device that uses the 2.4 GHz frequency band (which is the same
frequency band as the IEEE802.11b wireless standard used by the YP-100) in the
vicinity of the YP-100 can cause radio interference that results in a wireless
communication error. Avoid using the nearby microwave oven or Bluetooth device when
performing YP-100 wireless LAN communication.
After checking the above two points, select [Exit] on the [Connection] menu of the Wireless
Connection window to exit Wireless Connection, and then restart Wireless Connection.
You cannot display the Web Setup page
The Web Setup page can be displayed only while there is a wireless LAN connection
between the YP-100 and computer. Use a Simple Connection or Manual Connection to
establish a wireless connection between the YP-100 and computer, and then display the
Web Setup page. For more information, see “Web Setup” (page 64).
If the Web Setup page does not appear even through there is a wireless LAN connection
between the YP-100 and computer, check the following points.
• The Web Setup of the YP-100 may be disabled. Use the procedure under “To enable
and disable Web Setup” (page 66) to check the current setting. If it is “Disable”, change
it to “Enable”.
• The browser you are using may be configured to use a proxy server. This can make it
impossible to display the Web Setup page, and so the proxy server settings should be
canceled. See the help and other user documentation for your browser for information
about proxy server settings.
88
Wireless Connection Menus and Button Reference
This section provides detailed information about the Wireless Connection window menu
commands and buttons.
To do this:
Perform this menu
operation:
Use the currently selected connection profile to open a
wireless LAN connection between a computer and the
YP-100
[Connection] - [Connect]
Terminate a wireless LAN connection between a
computer and the YP-100
[Connection] [Disconnect]
On the computer, switch the connection profile used
for wireless connection between a computer and the
YP-100
[Connection] - [Switch
Connection Profile]
–
Terminate the wireless LAN connection between a
computer and the YP-100 and quit Wireless
Connection
[Connection] - [Exit]
–
Select the mouse cursor shape for the projection
screen or turn mouse cursor display off
[Tools] - [Mouse Cursor
Emulation]
Display the Wireless Connection option setting dialog
box (for specifying a user name or to display the Web
Setup page)
[Tools] - [Options]
Display the Web Setup page
–
Pause computer screen contents as they are being
projected
–
Project computer screen contents
–
Stop projection of computer screen contents while
maintaining the connection
–
Or click this
button:
–
View Wireless Connection Help
[Help] - [Help]
–
View Wireless Connection version information
[Help] - [About Wireless
Connection...]
–
89
Using Wireless LAN for Projection
This section explains operations you can perform after a connection is established between
the YP-100 and computer.
For this type of connection:
Refer to this section of this manual:
Single computer connected to the YP100 over a wireless LAN
“Operations while a Single Computer is Connected to the
YP-100 over a Wireless LAN” (below)
Multiple computers connected to the
YP-100 at the same time over a
wireless LAN
“Operations while a Single Computer is Connected to the
YP-100 over a Wireless LAN” (below) and “Operations while
Multiple Computers are Connected to the YP-100 over a
Wireless LAN” (page 93)
Operations while a Single Computer is Connected to the
YP-100 over a Wireless LAN
To project computer screen contents
On the computer screen, click the
button on the Wireless Connection window.
• An image of the computer screen contents will be projected automatically, immediately
after a connection using Simple Connection is established. This means you do not have
to click the
button to project the image.
• This will send the contents of the computer screen to the YP-100, which will project it.
The color of the
button at this time will change from black to green.
90
Note
While the computer screen contents are being projected, the mouse cursor will be
displayed in accordance with the Mouse Cursor Emulation settings configure with
Wireless Connection. For details, see “To display a mouse cursor in the projection area”
(page 91).
To pause computer screen contents as they are being projected
On the computer screen, click the
button on the Wireless Connection window. This will
cause the
button color to change from black to green, and pause the screen contents
in the projection area.
To unpause projection of the mage, click the
button.
To stop projection of computer screen contents while maintaining the
connection
On the computer screen, click the
button on the Wireless Connection window. This will
cause the
button color to change from black to green the projection area to go black.
To resume projection of the image, click the
button.
To display a mouse cursor in the projection area
1
Click the
2
Select the type of mouse cursor you want to use and then click the [OK]
button.
button or select [Mouse Cursor Emulation] on the [Tools] menu.
z This will display a mouse cursor emulation dialog box.
z This will display the selected mouse cursor in the projection area. The mouse cursor will
be located at the same location as the mouse cursor on the computer screen.
91
Note
z The mouse cursor displayed using mouse cursor emulation is not the same mouse
cursor as displayed on the computer screen. Wireless Connection detects the location
of the mouse cursor on the computer screen and displays the mouse cursor
emulation in the projection area.
z If you do not want a mouse cursor in the projection area, select “Off” in step 2
above.
To terminate the wireless LAN connection between a computer and YP-100
from the computer
On the computer screen, click the
button on the Wireless Connection window, or select
“Disconnect” on the “Connection” menu.
This will terminate the wireless LAN connection between the computer and YP-100 and
display “Standing by for connection...” in the projection area.
To restore the wireless LAN connection between a computer and YP-100
from the computer
On the computer screen, click the
button on the Wireless Connection window, or select
“Connect” on the “Connection” menu.
92
Operations while Multiple Computers are Connected to
the YP-100 over a Wireless LAN
While multiple computers are connected to the YP-100 over a wireless LAN, you can
check which computer’s screen contents currently are being projected, and you can switch
projection between computer screens as required. Use the YP-100 remote controller to
perform these operations.
To check which computer’s screen contents currently are being projected.
On the YP-100 remote controller, press the [U] key. This will display the user name of the
computer whose screen contents are currently being projected.
To switch projection from the screen contents of one computer to another
1
While the screen contents of one of the computer’s connected over a wireless
LAN connection are being projected, press the [ ] key on the YP-100 remote
controller.
z This will switch to the user menu that shows thumbnails of the screen contents of all the
connected computers along with their user names, as shown below.
2
Use the cursor keys on the YP-100 remote controller to move the highlighting to
the thumbnail you want to select.
3
Press the [ENTER] key or the [
] key.
z This will cause the contents of the selected computer screen to be projected so they fill
the entire projection area.
93
To turn display of user names in the projection area on and off
Note
Under initial default settings, the user name is displayed in the upper left corner of the
projection area whenever you switch projection from the contents of one computer
screen to another, or when a single computer is connected to the YP-100 over a
wireless LAN.
1
While Wireless is shown in the projection area, press the [MENU] key on the
YP-100 remote controller.
z This will display the Wireless setup menu.
2
3
Press the [T
T] key to move the highlighting to “Show User Name Display”.
4
To exit the Wireless setup menu, press the [ESC] key.
Use [X
X] and [W
W] to select “On” (user name displayed) or “Off” (user name not
displayed).
94
Performing a Presentation Using the
YC-400 Document Camera
This section explains how to connect the CASIO YC-400 Multi PJ Camera System (document
camera) to the YP-100 in order to project the images of documents placed on the document
stage of the document camera. The YP-100’s built-in application named YC Camera is used
to project document images.
Important!
A YC-400 document camera can be connected to the YP-100 only if the camera is
running firmware version 1.1 or higher. For information about checking the firmware
version of your YC-400 document camera, visit the CASIO website at:
http://world.casio.com/projector/download/en/yc_400_firmup/
YC Camera Application Function and Operation
Overview
YC Camera is an application built into the YP-100 that makes it possible to control the YC400 document camera from the YP-100. With the YC Camera application you can project the
image of documents placed on the document stage of the document camera. Connecting the
document camera to the YP-100 USB port and turning on the document camera will cause
the YC Camera application to start up automatically.
Connecting the Document Camera to the YP-100
This section provides the basic steps you need to perform in order to connect the
document camera to the YP-100 and project the image of documents placed onto the
document camera’s document stage.
95
To connect the document camera to the YP-100 and project the image of a
document
1
Connect the AC adaptor that comes with the YP-100 to the AC adaptor terminal,
and plug the AC adaptor into a power outlet.
z This will cause the YP-100 to turn on automatically.
z This will cause the YP-100’s [POWER] indicator to light green. The YP-100 logo screen
also will be projected by the connected projector.
2
Connect the document camera to the YP-100 using the USB cable that comes
bundled with the document camera.
YP-100
YC-400
Camera
USB cable
Camera stand
Document stage
96
3
With nothing on the document stage, press the [
camera stand.
] (power) button on the
z This will turn on the document camera, which will cause its lens to extend.
z The YP-100 will recognize the document camera and start up the YC Camera application
automatically. When the YC Camera application starts up, the YP-100 will project an
image of the document stage along with a dialog box for adjusting the document camera
position.
z If the document camera is positioned correctly, position adjustment will end automatically
and the dialog box will close. At this time the monitor screen (the image being picked
up by the document camera) will be projected.
z If the document camera is not positioned correctly, a message prompting you to adjust
the document camera position will appear. Follow the instructions shown in the message
to adjust the document camera position.
97
4
Place the document whose image you want to project onto the document
camera’s document stage.
z Be sure to place the document in the center of the
stage, and do not let any part of the document
extend off the edges of the stage.
z When placing a landscape orientation document onto
the document stage, the top of the page should face
towards the camera stand.
z Initially the monitor image will be projected, and so
the image will appear a bit fuzzy.
z When the document camera senses that the document on the stage is not being moved,
it will record its image and switch from the fuzzy monitor image to a high-resolution
image (recorded image) automatically.
Rough (Monitor) Image
5
Recorded Image
Now you can replace the document currently on the stage with another one.
z This will switch to the recorded image of the next document automatically.
Note
Step 5 above is what happens while the YP-100’s YC Camera application is configured
with its initial default settings. The recorded image will not switch automatically if you
have changed the “Operation Mode” setting of the YC Camera application to “Manual
Capture”. For more information, see “YC Camera Application Setup Menu Contents” on
page 106.
98
YC Camera Application Operations
This section explains the various types of projection operations you can perform with the YC
Camera application and how to configure YC Camera application settings.
Important!
The procedures in this section assume that you have already connected the YC-400
Document Camera to the YP-100 as explained under “Connecting the Document Camera
to the YP-100” (page 95), and that the YP-100’s YC Camera application is running.
YC Camera Application Projection Operations
The operations in this section are performed using the YC Camera function menu, which
appears when you press the [FUNC] key while the YC Camera application is running.
Some operations can be performed using the remote controller’s [
], [U], and […] keys.
To release the document camera shutter manually
1
Press the [FUNC] key to display the YC Camera application function menu.
2
Press the [ENTER] key to release the document camera shutter.
z The “Camera Shutter” item should be highlighted by default.
z This will cause the image recorded with the document camera to be projected.
Note
While a rough monitor image or recorded image is projected, you can release the
shutter manually by pressing the [ENTER] key, without pressing the [FUNC] key.
99
To adjust the document camera’s zoom setting
1
2
Press the [FUNC] key to display the YC Camera application function menu.
Use the [T
T] key to move the highlighting to “Camera Zoom/Focus” and then
press the [ENTER] key.
z This causes the YC Camera Zoom/Focus dialog box to appear in the projection area.
The “Optical Zoom” item should be highlighted by default.
3
4
Use the [X
X] and [W
W] keys to adjust the document camera’s zoom setting.
After the zoom setting is the way you want, press the [ESC] key.
z This will close the YC Camera Zoom/Focus dialog box.
To adjust document focus manually
1
2
Press the [FUNC] key to display the YC Camera application function menu.
Use the [T
T] key to move the highlighting to “Camera Zoom/Focus” and then
press the [ENTER] key.
z This causes the YC Camera Zoom/Focus dialog box to appear in the projection area.
3
4
5
Press the [T
T] key to move the highlighting to “Focus”.
Use the [X
X] and [W
W] keys to adjust the document camera’s focus.
After the focus is the way you want, press the [ESC] key.
z This will close the YC Camera Zoom/Focus dialog box.
100
To adjust the camera position
1
2
3
Remove all documents and objects from the document stage.
Press the [FUNC] key to display the YC Camera application function menu.
Use the [T
T] key to move the highlighting to “Adjust Camera Position” and then
press the [ENTER] key.
z This displays the camera position adjustment dialog box.
4
Point the document camera downwards so the lens is pointed towards the
document stage.
z Aim the camera as instructed by the text that appears in the projection area.
z When the document camera is positioned correctly, position adjustment will end and the
dialog box will close. At this time the monitor screen (the image being picked up by the
document camera) will be projected.
101
To rotate the currently projected image
Note
This operation will affect only the image that is currently being projected. The projection
image produced the next time you release the shutter will be projected in accordance
with the settings on the YC Camera Application Setup Menu (page 104).
1
2
Press the [FUNC] key to display the YC Camera application function menu.
Use the [T
T] key to move the highlighting to “Rotate Right” and then press the
[ENTER] key.
z This will rotate the projected image 90 degrees to the right.
z Instead of steps 1 and 2 above, you can also rotate the projected image by pressing
the [ ] key.
To perform white enhancement on the currently projected image
Note
z White enhancement causes the background of the projected image to be white
enhanced, which helps to make the text on a document easier to read.
z This operation will affect only the image that is currently being projected. The
projection image produced the next time you release the shutter will be projected in
accordance with the settings on the YC Camera Application Setup Menu (page 104).
Important!
You can perform white balance only on a projected image that has been skew
corrected. For more information, see the note under “To perform manual skew correction
on the currently projected image” (page 103).
1
2
Press the [FUNC] key to display the YC Camera application function menu.
Use the [T
T] key to move the highlighting to “Enhance White” and then press
the [ENTER] key.
z This will enhance the white of the projected image.
z Instead of steps 1 and 2 above, you can also white enhance the projected image by
pressing the [U] key.
102
To perform manual skew correction on the currently projected image
Note
z Skew correction automatically straightens the image of a document that is misaligned
on the document stage of the document camera. Under its initial defaults, the YC
Camera application is configured to perform skew correction automatically. You can
also turn off auto skew correction. If you do, you can use the following procedure to
adjust image alignment manually.
z This operation will affect only the image that is currently being projected. The
projection image produced the next time you release the shutter will be projected in
accordance with the settings on the YC Camera Application Setup Menu (page 104).
1
2
Press the [FUNC] key to display the YC Camera application function menu.
Use the [T
T] key to move the highlighting to “Skew Correction” and then press
the [ENTER] key.
z This will straighten the projected image.
z Instead of steps 1 and 2 above, you can also perform skew correction of the projected
image by pressing the […] key.
103
Configuring YC Camera Application Setup Menu Settings
You can use the YC Camera setup menu to configure various YC Camera application
operation settings.
To configure YC Camera application setup menu settings
1
2
3
4
5
Press the [MENU] key to display the YC Camera application setup menu.
Use [T
T] and [S
S] to select the menu item whose setting you want to change.
Press the [W
W] or [X
X] key to select the setting you want (so its button is
).
Repeat steps 2 and 3 to configure other settings, if you want.
After you are finished, press the [ESC] key to exit the setup menu.
Note
Anytime you change the “White Enhancement” or “Skew Correction” setting, the new
setting goes into effect from the next image you record with the document camera after
exiting the setup menu. Other settings go into effect as soon as you exit the setup
menu.
104
To restore all settings on the YC Camera application setup menu to their
initial factory defaults
1
2
Press the [MENU] key to display the YC Camera application setup menu.
Press the [T
T] key to move the highlighting to “Initialize YC Camera Setup” and
then press the [ENTER] key.
z This displays the dialog box shown below.
3
4
Use the [S
S] key to select “Yes”.
5
After you are finished, press the [ESC] key to exit the setup menu.
To restore all the settings to their initial defaults, press the [ENTER] key.
z To exit the operation without doing anything, press [ESC] instead of [ENTER].
105
YC Camera Application Setup Menu Contents
This section provides detailed explanations of all of the items included on the YC Camera
application setup menu. The initial default setting for each item is indicated by an asterisk
(*).
Setting Name
Description
Operation Mode
Specifies whether recording of documents placed on the document stage of
the document camera should be performed automatically or manually.
Auto Capture*:
Automatically records the image of a document whenever it is placed on the
document stage.
Manual Capture:
Requires manual release of the shutter each time a document is placed on
the document stage.
Monitor Screen
Orientation
Switches the monitor screen orientation.
Horizontal*:
Records the document on the document stage horizontally.
Vertical:
Records the document on the document stage vertically.
White
Enhancement
Specifies whether or not white enhancement should be performed on the
projected image.
Off*:
Turns off white enhancement.
On:
Turns on white enhancement.
Auto:
The decision whether or not to perform white enhancement is made
automatically in accordance with the image being recorded.
Important!
White enhancement cannot be performed while the “Skew Correction”
setting is “Off”.
106
Setting Name
Description
Skew Correction
Specifies whether or not skew correction should be performed automatically
on the projected image.
On*:
Turns on automatic skew correction.
Off:
Turns off automatic skew correction.
Project Document
Monitor Image
Specifies whether or not the camera’s monitor image should be projected
when a document is removed from the document stage.
On*:
Displays the monitor image.
Off:
Does not display the monitor image.
Initialize YC
Camera Setup
Returns all YC Camera application setup menu items to their initial default
settings. For details, see “To restore all settings on the YC Camera
application setup menu to their initial factory defaults” on page 105.
107
Appendix
Specifying the Display Language
You can use the following procedure to change the display language setting of the YP-100 at
any time.
To specify the display language
1
While there is nothing connected to the USB port of the YP-100, press the
[MENU] key.
z This will display a setup menu like the one shown below with “Language” highlighted.
2
Press the [ENTER] key.
3
Use the [T
T] and [S
S] keys to move the highlighting to the language you want to
select and then press the [ENTER] key.
z This displays the language selection dialog box shown below.
z Pressing the [ENTER] key will change the display language setting to the currently
selected language.
4
After you are finished, press the [ESC] key twice to exit the setup menu.
108
Returning the Setup Menu to Its Initial Default
Settings
You can use the following procedure to restore all of the settings on the Viewer setup menu
(page 41), Wireless setup menu (page 83), and the YC Camera setup menu (page 104) to
their initial default settings.
To restore all settings on the setup menu to their initial
defaults
1
While there is nothing connected to the USB port of the YP-100, press the
[MENU] key.
z This will display the setup menu shown below.
2
Press the [T
T] key to move the highlighting to “Restore All Defaults” and then
press the [ENTER] key.
z This displays the dialog box shown below.
3
4
Use the [S
S] key to select “Yes”.
5
After you are finished, press the [ESC] key to exit the setup menu.
To restore all the settings to their initial defaults, press the [ENTER] key.
z To exit the operation without doing anything, press [ESC] instead of [ENTER].
109
Hanging the YP-100 from the Ceiling
The YP-100 can be hung from the ceiling or mounted on another secure surface for
connection to a ceiling-mounted projector.
z For this type of installation, you will need to provide a mounting bracket for the YP-100
like the one shown in the illustration below.
z When securing the YP-100 to the bracket, use of the screws that come with the YP-100
is recommended. When required, you can also use other screws to suit the thickness of
the bracket plate, etc.
z If you prefer to use other screws for anchoring the YP-100, use the following screw type.
Screw Type: M3
z Select anchor screws in accordance with the thickness of the bracket. The tip of the
anchor screws should enter the holes of the YP-100 no more than 2.5 mm.
Anchor Screws
Use the screws that
come with the YP-100
or separately purchased
screws.
Mounting Bracket
(Recommended Plate
Thickness: 1 mm)
Bracket Screws
(purchased separately)
Dimensions (mm)
Screw holes
97
84
6.5
5
22.5
20
5
5
5
Recesses (4 locations): φ 5 mm (MIN)
110
65
Important!
z Damage resulting from improper installation is not covered by the YP-100’s warranty.
z Be sure to request the services of a qualified specialist whenever mounting or
maintaining the YP-100.
z After installing the YP-100 with a mounting bracket, check the screws periodically to
make sure that they are not loose.
z For full details, contact the retailer where you purchased the YP-100.
111
MA0610-B
