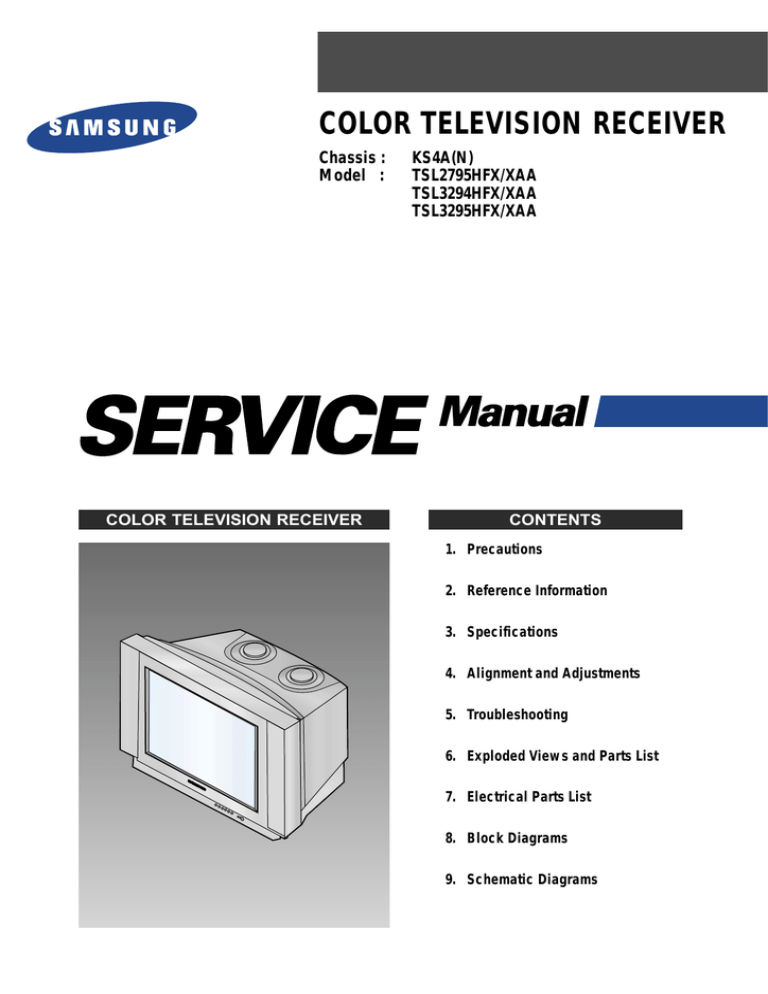

COLOR TELEVISION RECEIVER
Chassis :
Model :
COLOR TELEVISION RECEIVER
KS4A(N)
TSL2795HFX/XAA
TSL3294HFX/XAA
TSL3295HFX/XAA
CONTENTS
1. Precautions
2. Reference Information
3. Specifications
4. Alignment and Adjustments
5. Troubleshooting
6. Exploded Views and Parts List
7. Electrical Parts List
8. Block Diagrams
9. Schematic Diagrams
ELECTRONICS
© Samsung Electronics Co., Ltd. FEB. 2001
Printed in Korea
3KS4A(N)-2701
Precautions
1. Precautions
Follow these safety, servicing and ESD precautions to prevent damage and protect against potential
hazards such as electrical shock and X-rays.
1-1 Safety Precautions
1. Be sure that all of the built-in protective
devices are replaced. Restore any missing
protective shields.
2. When reinstalling the chassis and its
assemblies, be sure to restore all protective
devices, including: nonmetallic control knobs
and compartment covers.
3. Make sure that there are no cabinet openings
through which people—particularly
children—might insert fingers and contact
dangerous voltages. Such openings include
the spacing between the picture tube and the
cabinet mask, excessively wide cabinet
ventilation slots, and improperly fitted back
covers.
If the measured resistance is less than 1.0
megohm or greater than 5.2 megohms, an
abnormality exists that must be corrected
before the unit is returned to the customer.
4. Leakage Current Hot Check (Figure 1-1):
Warning: Do not use an isolation
transformer during this test. Use a leakagecurrent tester or a metering system that
complies with American National Standards
Institute (ANIS C101.1, Leakage Current for
Appliances), and Underwriters Laboratories
(UL Publication UL1410, 59.7).
5. With the unit completely reassembled, plug
the AC line cord directly into the power
outlet. With the unit’s AC switch first in the
ON position and then OFF, measure the
current between a known earth ground (metal
water pipe, conduit, etc.) and all exposed
metal parts, including: antennas, handle
brackets, metal cabinets, screwheads and
control shafts. The current measured should
not exceed 0.5 milliamp. Reverse the powerplug prongs in the AC outlet and repeat the
test.
Samsung Electronics
LEAKAGE
CURRENT
TESTER
DEVICE
UNDER
TEST
(READING SHOULD
NOT BE ABOVE
0.5mA)
TEST ALL
EXPOSED METAL
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
EARTH
GROUND
Fig. 1-1 AC Leakage Test
6. Antenna Cold Check:
With the unit’s AC plug disconnected from the
AC source, connect an electrical jumper across
the two AC prongs. Connect one lead of the
ohmmeter to an AC prong. Connect the other
lead to the coaxial connector.
7. X-ray Limits:
The picture tube is especially designed to
prohibit X-ray emissions. To ensure continued
X-ray protection, replace the picture tube only
with one that is the same type as the original.
Carefully reinstall the picture tube shields and
mounting hardware; these also provide X-ray
protection.
8. High Voltage Limits:
High voltage must be measured each time
servicing is done on the B+, horizontal
deflection or high voltage circuits.
Correct operation of the X-ray protection
circuits must be reconfirmed whenever they
are serviced.
(X-ray protection circuits also may be called
“horizontal disable” or “hold-down”.)
Heed the high voltage limits. These include
the X–ray Protection Specifications Label, and
the Product Safety and X-ray Warning Note on
the service data schematic.
1-1
Precautions
1-1 Safety Precautions (Continued)
9. High voltage is maintained within specified
limits by close-tolerance, safety-related
components and adjustments. If the high
voltage exceeds the specified limits, check
each of the special components.
10. Design Alteration Warning:
Never alter or add to the mechanical or
electrical design of this unit. Example: Do not
add auxiliary audio or video connectors. Such
alterations might create a safety hazard. Also,
any design changes or additions will void the
manufacturer’s warranty.
11. Hot Chassis Warning:
Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord. If an isolation transformer is not
used, these units may be safely serviced only
if the AC power plug is inserted so that the
chassis is connected to the ground side of the
AC source.
To confirm that the AC power plug is inserted
correctly, do the following: Using an AC
voltmeter, measure the voltage between the
chassis and a known earth ground. If the
reading is greater than 1.0V, remove the AC
power plug, reverse its polarity and reinsert.
Re-measure the voltage between the chassis
and ground.
12. Some TV chassis are designed to operate with
85 volts AC between chassis and ground,
regardless of the AC plug polarity. These units
can be safely serviced only if an isolation
transformer inserted between the receiver and
the power source.
13. Some TV chassis have a secondary ground
system in addition to the main chassis ground.
This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulating material that must not be defeated
or altered.
14. Components, parts and wiring that appear to
have overheated or that are otherwise
damaged should be replaced with parts that
meet the original specifications. Always
determine the cause of damage or
overheating, and correct any potential
hazards.
1-2
15. Observe the original lead dress, especially
near the following areas: Antenna wiring,
sharp edges, and especially the AC and high
voltage power supplies. Always inspect for
pinched, out-of-place, or frayed wiring. Do
not change the spacing between components
and the printed circuit board. Check the AC
power cord for damage. Make sure that leads
and components do not touch thermally hot
parts.
16. Picture Tube Implosion Warning:
The picture tube in this receiver employs
“integral implosion” protection. To ensure
continued implosion protection, make sure
that the replacement picture tube is the same
as the original.
17. Do not remove, install or handle the picture
tube without first putting on shatterproof
goggles equipped with side shields. Never
handle the picture tube by its neck. Some
“in-line” picture tubes are equipped with a
permanently attached deflection yoke; do not
try to remove such “permanently attached”
yokes from the picture tube.
18. Product Safety Notice:
Some electrical and mechanical parts have
special safety-related characteristics which
might not be obvious from visual inspection.
These safety features and the protection they
give might be lost if the replacement
component differs from the original—even if
the replacement is rated for higher voltage,
wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading,
(
) or (
).
Use replacement components that have the
same ratings, especially for flame resistance
and dielectric strength specifications.
A replacement part that does not have the
same safety characteristics as the original
might create shock, fire or other hazards.
Samsung Electronics
Precautions
1-2 Servicing Precautions
Warning1: First read the “Safety Precautions” section of this manual. If some unforeseen circumstance creates a conflict between
the servicing and safety precautions, always follow the safety precautions.
Warning2: An electrolytic capacitor installed with the wrong polarity might explode.
1. Servicing precautions are printed on the
cabinet. Follow them.
2. Always unplug the unit’s AC power cord from
the AC power source before attempting to:
(a) Remove or reinstall any component or
assembly, (b) Disconnect an electrical plug or
connector, (c) Connect a test component in
parallel with an electrolytic capacitor.
3. Some components are raised above the printed
circuit board for safety. An insulation tube or
tape is sometimes used. The internal wiring is
sometimes clamped to prevent contact with
thermally hot components. Reinstall all such
elements to their original position.
4. After servicing, always check that the screws,
components and wiring have been correctly
reinstalled. Make sure that the portion around
the serviced part has not been damaged.
Samsung Electronics
5. Check the insulation between the blades of the
AC plug and accessible conductive parts
(examples: metal panels, input terminals and
earphone jacks).
6. Insulation Checking Procedure: Disconnect the
power cord from the AC source and turn the
power switch ON. Connect an insulation
resistance meter (500V) to the blades of the AC
plug.
The insulation resistance between each blade
of the AC plug and accessible conductive parts
(see above) should be greater than 1 megohm.
7. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of
its assemblies) unless all solid-state heat sinks
are correctly installed.
8. Always connect a test instrument’s ground
lead to the instrument chassis ground before
connecting the positive lead; always remove
the instrument’s ground lead last.
1-3
Precautions
1-3 Precautions for Electrostatically Sensitive Devices (ESDs)
1. Some semiconductor (“solid state”) devices
are easily damaged by static electricity. Such
components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect
transistors. The following techniques will
reduce the occurrence of component damage
caused by static electricity.
2. Immediately before handling any semicon
ductor components or assemblies, drain the
electrostatic charge from your body by
touching a known earth ground. Alternatively,
wear a discharging wrist-strap device. (Be
sure to remove it prior to applying power—
this is an electric shock precaution.)
3. After removing an ESD-equipped assembly,
place it on a conductive surface such as
aluminum foil to prevent accumulation of
electrostatic charge.
4. Do not use freon-propelled chemicals. These
can generate electrical charges that damage
ESDs.
1-4
5. Use only a grounded-tip soldering iron when
soldering or unsoldering ESDs.
6. Use only an anti-static solder removal device.
Many solder removal devices are not rated as
“anti-static”; these can accumulate sufficient
electrical charge to damage ESDs.
7. Do not remove a replacement ESD from its
protective package until you are ready to
install it. Most replacement ESDs are
packaged with leads that are electrically
shorted together by conductive foam,
aluminum foil or other conductive materials.
8. Immediately before removing the protective
material from the leads of a replacement ESD,
touch the protective material to the chassis or
circuit assembly into which the device will be
installed.
9. Minimize body motions when handling
unpackaged replacement ESDs. Motions such
as brushing clothes together, or lifting a foot
from a carpeted floor can generate enough
static electricity to damage an ESD.
Samsung Electronics
Reference Information
2. Reference Information
2-1 Tables of Abbreviations and Acronyms
Table 2-1 Abbreviations
A
Ah
Å
dB
dBm
°C
°F
°K
F
G
GHz
g
H
Hz
h
ips
kWh
kg
kHz
kΩ
km
km/h
kV
kVA
kW
I
MHz
Samsung Electronics
Ampere
Ampere-hour
Angstrom
Decibel
Decibel Referenced to One
Milliwatt
Degree Celsius
Degree Fahrenheit
degree Kelvin
Farad
Gauss
Gigahertz
Gram
Henry
Hertz
Hour
Inches Per Second
Kilowatt-hour
Kilogram
Kilohertz
Kilohm
Kilometer
Kilometer Per Hour
Kilovolt
Kilovolt-ampere
Kilowatt
Liter
Megahertz
MV
MW
MΩ
m
µA
µF
µH
µm
µs
µW
mA
mg
mH
mI
mm
ms
mV
nF
Ω
pF
Ib
rpm
rps
s
V
VA
W
Wh
Megavolt
Megawatt
Megohm
Meter
Microampere
Microfarad
Microhenry
Micrometer
Microsecond
Microwatt
Milliampere
Milligram
Millihenry
Milliliter
Millimeter
Millisecond
Millivolt
Nanofarad
Ohm
Picofarad
Pound
Revolutions Per Minute
Revolutions Per Second
Second (Time)
Volt
Volt-ampere
Watt
Watt-hour
2-1
Reference Information
Table 2-2 Table of Acronyms
ABL
AC
ACC
AF
AFC
AFT
AGC
AM
ANSI
APC
APC
A/V
AVC
BAL
BPF
B-Y
CATV
CB
CCD
CCTV
Ch
CRT
CW
DC
DVM
EIA
ESD
ESD
FBP
FBT
FF
FM
FS
GND
G-Y
H
HF
HI-FI
IC
IC
IF
2-2
Automatic Brightness Limiter
Alternating Current
Automatic Chroma Control
Audio Frequency
Automatic Frequency Control
Automatic Fine Tuning
Automatic Gain Control
Amplitude Modulation
American National Standards Institute
Automatic Phase Control
Automatic Picture Control
Audio-Video
Automatic Volume Control
Balance
Bandpass Filter
Blue-Y
Community Antenna Television (Cable TV)
Citizens Band
Charge Coupled Device
Closed Circuit Television
Channel
Cathode Ray Tube
Continuous Wave
Direct Current
Digital Volt Meter
Electronics Industries Association
Electrostatic Discharge
Electrostatically Sensitive Device
Feedback Pulse
Flyback Transformer
Flip-Flop
Frequency Modulation
Fail Safe
Ground
Green-Y
High
High-Frequency
High Fidelity
Inductance-Capacitance
Integrated Circuit
Intermediate Frequency
I/O
L
L
LED
LF
MOSFET
MTS
NAB
NEC
NTSC
OSD
PCB
PLL
PWM
QIF
R
RC
RF
R-Y
SAP
SAW
SIF
SMPS
S/N
SW
TP
TTL
TV
UHF
UL
UV
VCD
VCO
VCXO
VHF
VIF
VR
VTR
VTVM
TR
Input/output
Left
Low
Light Emitting Diode
Low Frequency
Metal-Oxide-Semiconductor-Field-Effect-Tr
Multi-channel Television Sound
National Association of Broadcasters
National Electric Code
National Television Systems Committee
On Screen Display
Printed Circuit Board
Phase-Locked Loop
Pulse Width Modulation
Quadrature Intermediate Frequency
Right
Resistor & Capacitor
Radio Frequency
Red-Y
Second Audio Program
Surface Acoustic Wave(Filter)
Sound Intermediate Frequency
Switching Mode Power Supply
Signal/Noise
Switch
Test Point
Transistor Transistor Logic
Television
Ultra High Frequency
Underwriters Laboratories
Ultraviolet
Variable-Capacitance Diode
Voltage Controlled Oscillator
Voltage Controlled Crystal Oscillator
Very High Frequency
Video Intermediate Frequency
Variable Resistor
Video Tape Recorder
Vacuum Tube Voltmeter
Transistor
Samsung Electronics
Reference Information
2-2 IC Line Up
Block
MAIN
POWER
Des-Loc
Part-Number
IC Name
Description
IC601
1204-001594
MSP3440G-B6
IC701
1001-001073
TEA6415C
IC-VIDEO SWITCH
IC702
1001-001113
TEA6422
IC-AUDIO SWITCH
IC703
1002-001193
PCF8591P
IC-A/D & D/A CONVERTER
TU01
AA40-00020A
TCLN318PA09A(S)
TUNER-F/S
TUP01
AA40-00032A
TCPN3081PC09A(S)
TUNER-F/S
IC905
1103-001213
24C16
IC-EEPROM
ICG01
0801-000314
74HCT86
IC-CMOS LOGIC
ICH01
1204-001454
TDA7449L
IC-VOLUME CONTROL
IC602
1201-000407
TDA7050
IC-POWER AMP
IC603, ICD603
1201-001026
TDA7265
IC-POWER AMP
IC804
1203-000203
SI3050
IC-POSI.ADJUST REG.
IC805
1203-000203
SI3050
IC-POSI.ADJUST REG.
ICD02
1201-000191
4558
IC802
1203-000293
KA7808
IC-POSI.FIXED REG.
IC803
1203-000298
KA7809
IC-POSI.FIXED REG.
IC801
1203-000165
78R12
IC-POSI.ADJUST REG.
IC301
1204-000517
LA7845
IC-VERTIVAL DEF.
IC403
1202-000103
LM393
IC-VOLTAGE COMP.
IC801S
AA13-00018A
STR-F6656
IC-HYBRID
IC803S
AA13-00024A
TNY253P
IC-HYBRID
QH04
0502-000442
2SC4636RB
TR-POWER
Q403
0505-000156
IRF620
FET-SILICON
Q404
0505-001116
BUZ73A
FET-SILICON
Q405
0502-001175
2SC5446
TR-POWER
Q801
AA13-20004H
SE135N-LF12
IC-HYBRID
Samsung Electronics
IC-SOUND PROCESSOR
IC-OP AMP
2-3
Reference Information
Block
Des-Loc
Part-Number
IC01
1204-001598
VPC3230D-A0
IC02
AA13-00095A
SDP01
IC05
1002-001045
SDA9280
IC-D/A CONVERTER
IC06
1204-001372
SDA9361
IC-HOR./VER.PROCESS
IC07
1204-001550
CXA2101AQ
IC02
1105-001172
416C1204
IC-DRAM
IC03
1105-001035
416S1120
IC-DRAM
IC04
1105-001035
416S1120
IC-DRAM
PIC01
1204-001598
VPC3230D-A0
PIC02
1109-001144
81V04160
PIC04
1203-001419
4931
IC-VOLTAGE REGULATOR
PIC05
1203-001419
4931
IC-VOLTAGE REGULATOR
IC902
1203-001140
7039
IC-VOL.DETECTOR
IC903
1203-001274
7545
IC-VOL.DETECTOR
IC11
1203-001419
4931
IC-VOLTAGE REGULATOR
IC12
1203-001140
7039
IC-VOL.DETECTOR
IC13
1203-001359
1086
IC-POSI.FIXED REG.
IC14
1202-000001
KA7533
IC-VOLTAGE COMP.
IC04
1203-001419
4931
IC501
1201-001131
TDA6111Q
IC-VIDEO AMP
IC502
1201-001131
TDA6111Q
IC-VIDEO AMP
IC503
1201-001131
TDA6111Q
IC-VIDEO AMP
QF10
0502-000153
2SC2344-D
TR-POWER
QF09
0502-000131
2SA1011A-D
TR-POWER
IC504
1201-000010
2030
IC-OP AMP
IC601
1204-001198
DPL3519A
IC-DECODER
IC602
1201-000541
062,SOP,8P
IC-OP AMP
MICOM
IC901
AA13-00012A
Z9037112PSC-OTP
3D-COMB
IC01
1204-001556
UPD64082GF
F-BOX
CRT
DOLBY
2-4
IC Name
Description
IC-VIDEO PROCESS
IC-ASIC
IC-VIDEO PROCESS
IC-VIDEO PROCESS
IC-FIFO
IC-VOLTAGE REGULATOR
IC-MCU
IC-SEPARATOR
Samsung Electronics
Specifications
3. Specifications
TSK2792FX, TSK2790FX,
TSK3092WFX, TSK3292FX,
TSK3290FX
Model
Dimensions
(mm)
Set
862 (W) x 515 (D) x 585 (H)
Transmitter
54 (W) x 31.5 (D) x 220 (H)
Set
Weight
Transmitter
Picture Tube
CT-29A7PD9X, CT-34A7PD9X
56.3 Kg
153 g (including batteries)
Hi Contrast Instant Reception Type
VHF (CH 2 ~ 13)
Tuning Ranges
UHF (CH 14 ~ 69)
CATV (CH 1, 14 ~ 125)
Television System
Antenna Input
NTSC-M
VHF, UHF: 75 ohm unbalanced type
Video: 45.75 MHz
Intermediate Frequency
Sound: 41.25 MHz
Chrominance Subcarrier: 42.17 MHz
Automatic Gain Control
Set
Power Supply
Transmitter
Reverse Automatic Gain Control (Reverse AGC)
AC 120 V, 60 Hz
AC 100-240, 50/60Hz
DC 1.5V (AAA Size) x 2
Power Consumption
180 W
Rectification
Insulation Switch
Sound Output
15 W x 2, 8 ohm
Transmitter Adjustment: Infrared Rays Type
Adjustment System
UHF/VHF electronic tuner fine tuning: Electronic Type
Electronic Function Adjustment
Specifications are subject to change.
Samsung Electronics
3-1
MEMO
3-2
Samsung Electronics
Alignment and Adjustments
4. Alignment and Adjustments
4-1 Adjustments
4-1-1 General Alignment Instructions
Usually, a color TV needs only slight touch-up adjustment upon installation. Check the basic
characteristics such as vertical size, horizontal size, and focus. Observe the picture and check for
good black and white details. There must be no objectionable color shading: If color shading is
present, demagnetize the receiver. If color shading persists, re-do purity and convergence adjustments.
Note :
1. This ‘4. Alignment and Adjustments’ applies to KS4A chassis applications.
2. AC Power Supply: 220 V only
3. This service manual has been written on the basis of domestic remote-control model adopting KS4A
chassis. Depending on sales location and product specifications, some of specifications herein may
be changed.
4-1-2 Focus Adjustment
KS4A contains a dynamic focus circuit. When CRT PCB, FBT or CRT is replaced, be sure to adjust
in the following sequence:
Dynamic Focus Adjustment
STATIC FOCUS VR
1. Input a crosshatch pattern.
2. Select “Standard” from the menu,
3. Turn the Static Focus VR clockwise to set it to its maximum.
4. Turn the Dynamic Focus VR counterclockwise to set it to its
maximum.
5. Turn the Static Focus VR counterclockwise slowly for the clearest
center vertical line.
H
DYNAMIC FOCUS VR
V
NO USE
<FBT FOCUS PACK>
After Adjustment
6. Turn the Dynamic Focus VR clockwise slowly for the clearest third line.
1
2
3
7. Check for the FOCUS of entire screen. If necessary, re-do adjustments 3~6.
Samsung Electronics
4-1
Alignment and Adjustments
4-1-3 Screen Voltage Adjustment
1. Enter the Video/Component Mode. Just connect a jack and do not supply a video signal.
2. Use a DC multi-meter to identify RK, GK, BK. And then adjust FBT Screen VR so that the highest
voltage becomes 175 Vp-p.
4-1-4 White Balance Adjustment
1. Select “Standard” from the menu.
2. Input an 100% White pattern.
3. In standby, press the remote-control keys in the following sequence: Mute
1
8
Power on the TV set.
4. Warm up the TV set at least for 30 minutes.
5. Input a 10-step stair signal.
6. Use the Volume +/- buttons on the remote-control to select RDR, GDR, BDR, CON.
7. Adjust Low-Light while viewing the darker side of screen.
8. Use the Volume +/- buttons on the remote-control to select RCT, GCT, BCT, SBT.
9. Adjust High-Light while viewing the brighter side of screen.
10. If not proper, re-adjust White Balance.
11. Press the Memory button to exit.
2
4-1-5 Sub-Brightness Adjustment
1. In standby, press the remote-control keys in the following sequence: Mute
1
8
2
Power on the TV set.
2. Use the Channel Up/Down buttons to receive the sub bright adjustment signal.
3. Use the Volume +/- buttons to select SBT.
4. Press the Menu or Mute button on the remote control to adjust so that the seventh step on
the right of screen cannot be seen.
5. Press the Memory button to exit.
4-2
Samsung Electronics
Alignment and Adjustments
Note1. HOLD-DOWN OR SAFETY CIRCUIT INFORMATION
The high voltage hold-down circuit prevent TV from damage caused by abnormal high voltage.
The energy of FBT(T444S) primary winding is transfered to the secondary winding and
the amount of energy is exactly proportional to high voltage output.
The voltage which is induced from high voltage output is filtered and applied to the reference
pin (#12) of IC06 through fail safe circuit.
If the high voltage is increase to higher point than hold down reference voltage
(DZ403), this voltage is set by two resistors(RX01,RX02),then the voltage level
of IC06 reference pin reaches to its threshold voltage and IC06 turns on.
By the activation of IC06.
The pulse of Horizontal drive turn to zero and the high voltage output fully disabled
the three components, RX02,DD03 and DR22, Make hold down reference voltage.
And the DZ403 current can flow through the three components and the current
the voltage level of IC06 (#12) is maintained always at high level so the protection
cannot be disabled (except reset AC power) .
Fail Safe Test Point
DR46
DD02
IC06
X-RAY
Protection
DC26
DR22
DD03
DR21
RX01
DX02
DX01
DZ403
FBT(T444S)
Heater
Anode
Voltage
RX02
DC130V
ABL
H.Drive
Samsung Electronics
4-3
Alignment and Adjustments
4-2 SZM 410A(ZILOG90371) Micom
4-2-1 Pin Layout
4-4
Samsung Electronics
Alignment and Adjustments
4-2-2 Port Assignment
PIN NAME
PIN NO
DESCRIPTION
D4 PIN
1
P16/SCLK
POWER
POWER CONTROL OUTPUT
2
IRIN
IR INPUT
REMOCON INPUT
3
P0C
VGA ID
PC SIGNAL DETECTOR, X-RAY DETECTOR
4
P0B
N.C
5
P0A
N.C
6
P09
N.C
7
P0D
1080i S/W
8
P07/CYNC
N.C
9
P06/CNTR
5VB CHECK
5V-B+ CHECK
10
P03/1HSYNC
1HSYNC
H/V SYNC FOR CCD
11
P01/I2CSC
SCL2
E2PROM/PIP only
12
P02/I2CSD
SDA2
E2PROM/PIP only, I2C BUS DATA 2
13
CVI/ADC0
CVBS IN
CCD COMPOSITE INPUT
14
LPF
LOOP FILTER
LOOP FILTER
15
AGNDF
GND
ANALOG GND
16
ADC5
S-AFT
PIP AFT INPUT
17
P04/ADC4
KEY1
VOL UP/DOWN,CH UP/DOWN, KEY SCAN INPUT PORT 1
18
P04/ADC3
MAIN AFT
MAIN AFT INPUT
19
P04/ADC2
KEY2
POWER,MENU.TV/VIDEO, KEY SCAN INPUT PORT 2
20
P04/ADC1
BUS STOP
I2C BUS STOP
21
AGND
GND
ANALOG GND
22
AVCC
VCC
ANALOG VCC
23
P0F/SOVL
HALF TONE
HALF TONE
24
V3(B)
OSD B
BLUE SIGNAL OF OSD
25
V2(G)
OSD G
GREEN SIGNAL OF OSD
26
V1(R)
OSD R
RED SIGNAL OF OSD
27
OVL
BLANK
BLANKING SIGNAL OF OSD
28
HSYNC
HSYNC
HORIZONTAL SYNC INPUT FOR OSD
29
VSYNC
VSYNC
VERTICAL SYNC INPUT FOR OSD
30
P12/I2CMD2
SDA1
I2C BUS DATA 1
31
P11/I2CMC2
SCL1
I2C BUS CLK 1
32
P0E
WP
E2PROM WRITE PROTECT
Samsung Electronics
1080i B+ UP S/W
I2C BUS CLK2
4-5
Alignment and Adjustments
PIN NO
4-6
PIN NAME
DESCRIPTION
D4 PIN
33
I2CMD1
N.C
34
I2CMC1
N.C
35
RESET
RESET
36
XTAL1
XTAL1
37
XTAL2
XTAL2
38
GND
GND
GND
39
VCC
VCC
VCC
40
GND
GND
GND
41
PWM1
S-RESET
SOUND RESET
42
PWM2
TILT
TILT CONTROL
43
PWM3
MUTE
SOUND AMP MUTE
44
PWM4
D-COIL
DEGAUSSING COIL CONTROL OUTPUT
45
PWM5
LED1
STAND BY LED
46
PWM6
LED2
TIMER LED
47
P10/R(0)
N.C
-
48
P08/R(1)
N.C
-
49
P18/G(0)
HOLD
50
P13/G(1)
N.C
-
51
52
P14/B(0)
N.C
-
P15/B(1)
N.C
-
RESET INPUT
-
Samsung Electronics
Alignment and Adjustments
4-3 Service Mode Adjustments
KS4A chassis needs I2C for service mode adjustments. Since the outgone TV set has been
adjusted optimum, I2C Adjustment doesn’t need excluding when CRT, FBT, EEPROM (IC902)
is replaced.
4-3-1 Entering the Service Mode
In standby, press the remote-control keys in the following sequence:
MUTE
1
8
2 POWER When the Service Mode is entered, use the Channel
UP/DOWN buttons on the remote control to move to the item to adjust.
4-3-2 Adjustments Adjust
Detailed Items: Use the Channel UP/DOWN buttons.
Data Adjustment: Use the Volume +/- buttons.
Channel Switching: Enter the Channel No.
4-3-3 Special Notes
1. When IC902 (EEPROM) is replaced, warm up the TV for 4~5 seconds after plugging in.
2. After IC902 (EEPROM) is replaced, enter the Service Mode and standard data for all items.
3. Make the following adjustments: Geometric, White Balance, Sub-contrast, PIP contrast,
Sub-brightness
Samsung Electronics
4-7
Alignment and Adjustments
4-4 Option Byte
USA
BYTE
FUNCTION
NORMAL
WIDE
NORMAL
X
NT Latin America
WIDE
X
WIDE
B1
V-CHIP
B2
AFN
B3
NO PC
B4
NO ACS
X
X
X
X
B5
NO X-RAY
X
X
X
X
0A
0B
08
09
X
X
X
X
X
X
X
30
31
0
X
1
X
2
X
0 : V-CHIP OFF
1 : V-CHIP ON
0 : AIR/STD/HRC/IRC
1 : AIR/STD/HRC/AFN
1
0 : X-RAY ON
1 : X-RAY OFF
2
DON'T CARE
3
DON'T CARE
0
DON'T CARE
1
DON'T CARE
2
DON'T CARE
3
DON'T CARE
0
DON'T CARE
1
DON'T CARE
2
0 : PC ON
1 : PC OFF
0 : ACS ON
1 : ACS OFF
DON'T CARE
3
0
3
(HEX)
(HEX)
(HEX)
(HEX)
WIDE
X
0 : 4:3 (NORMAL)
1 : WIDE (16:9)
0
0
0
0
OPTION BYTE 0
OPTION BYTE 1
X
NORMAL
X
B0
OPTION BYTE
4-8
CANADA
DON'T CARE
Samsung Electronics
Alignment and Adjustments
4-5 Geometric
VS
VA
VL
VSC
VE
HA
PPH
PAM
V-SHIFT
V-SIZE
V-LINE
V-S CORR
V-V EHT
H-SIZE
PIN PHS
PIN AMP
RF Mode
85
100
95
135 (FIXED)
42 (FIXED)
145
50
45
29"
480P Mode
115
100
100
135 (FIXED)
42 (FIXED)
145
80
40
FLAT
1080i Mode
95
30
95
135 (FIXED)
42 (FIXED)
130
40
55
PC Mode
100
80
105
130 (FIXED)
42 (FIXED)
120
85
40
RF Mode
65
140
120
80 (FIXED)
42 (FIXED)
145
30
40
34"
480P Mode
100
140
120
80 (FIXED)
42 (FIXED)
140
50
40
FLAT
1080i Mode
80
70
110
80 (FIXED)
42 (FIXED)
120
30
40
PC Mode
80
100
110
100 (FIXED)
42 (FIXED)
130
35
40
RF Mode
80
110
110
30 (FIXED)
100 (FIXED)
140
55
35
32"
480P Mode
110
115
115
30 (FIXED)
100 (FIXED)
140
70
35
WIDE
1080i Mode
85
50
105
30 (FIXED)
100 (FIXED)
130
35
40
PC Mode
90
70
115
30 (FIXED)
100 (FIXED)
115
85
30
DESCRIPTION
DESCRIPTION
UPC
LOC
HEH
HS
VAN
VBO
HSP
UP-CORR
LO-CORR
H-EHT
H-SHIFT
V-ANGLE
V-BOW
H-SYC-PH
RF Mode
150
30
12(FIXED)
110
95
125
138 (FIXED)
29"
480P Mode
155
90
12(FIXED)
35
100
130
133 (FIXED)
FLAT
1080i Mode
170
35
12(FIXED)
35
95
125
139 (FIXED)
PC Mode
140
95
12(FIXED)
85
95
120
140 (FIXED)
RF Mode
150
30
12(FIXED)
115
130
130
138 (FIXED)
34"
480P Mode
155
50
12(FIXED)
35
120
130
133 (FIXED)
FLAT
1080i Mode
170
30
12(FIXED)
35
130
125
139 (FIXED)
PC Mode
115
30
12(FIXED)
85
130
125
140 (FIXED)
RF Mode
155
100
12(FIXED)
110
120
135
138 (FIXED)
32"
480P Mode
135
90
12(FIXED)
45
115
130
133 (FIXED)
WIDE
1080i Mode
170
80
12(FIXED)
50
115
125
139 (FIXED)
PC Mode
165
120
12(FIXED)
85
120
135
140 (FIXED)
Samsung Electronics
4-9
Alignment and Adjustments
4-6 Picture
DESCRIPTION
29" 34" FLAT
32" WIDE
DESCRIPTION
29" 34" FLAT
32" WIDE
DESCRIPTION
29" 34" FLAT
32" WIDE
DESCRIPTION
29" 34" FLAT
32" WIDE
RDR
R-DRIVE
32
20
RDR
GDR
G-DRIVE
32 (FIXED)
20 (FIXED)
GDR
BDR
B-DRIVE
32
20
BDR
RCT
R-CUT OFF
20
20
RCT
GCT
G-CUT OFF
20 (FIXED)
20GCT
(FIXED)
BCT
B-CUT OFF
20
20
BCT
R-DRIVE
32
SBT
20
SUB-BRT
35
25
SBT
G-DRIVE
32 (FIXED)
20 CON
(FIXED)
UB-CON
5
5
CON
B-DRIVE
32
COL
20
UB-COL
12(FIXED)
8
COL
R-CUT OFF
20
HUE
20
SUB-HUE
5 (FIXED)
5 (FIXED)
HUE
G-CUT OFF
20 (FIXED)
20GAM
(FIXED)
GAMMA
10 (FIXED)
7 GAM
(FIXED)
B-CUT OFF
20
20
SUB-BRT
35
25
UB-CON
5
5
UB-COL
12(FIXED)
8
SUB-HUE
5 (FIXED)
5 (FIXED)
GAMMA
10 (FIXED)
7 (FIXED)
DESCRIPTION
29" 34" FLAT
32" WIDE
DESCRIPTION
29" 34" FLAT
32" WIDE
4-7 White Balance
RF : 38
245 (FIXED)
117 (FIXED)
RF : 38
245 (FIXED)
117 (FIXED)
VML
VM-LEVEL
480 : 48
1080 : 58
112 (FIXED)
112 (FIXED)
VML
112 (FIXED)
112 (FIXED)
VM-LEVEL
480 : 48
1080 : 58
112 (FIXED)
112 (FIXED)
112 (FIXED)
112 (FIXED)
PC : 68
88 (FIXED)
88 (FIXED)
PC : 68
88 (FIXED)
88 (FIXED)
W/B
H/L
4-10
L/L
34"
x:275, y:295, y:45
x:275, y:265, y:2
32"
x:275, y:265, y:50
x:275, y:265, y:2.5
29"
x:262, y:264, y:45
x:250, y:250, y:2
Samsung Electronics
Alignment and Adjustments
MEMORY DESCRIPTION
Description
Item
No.
0
V Shift
Vertical Shift
1
V Size
Adjusts the vertical image size
2
V Linearity
Adjusts the vertical linearity
3
V S Correction
Vertical S-Correction
4
V EHT
Adjusts the vertical variance (depending on the high pressure)
5
H Size
Adjusts the horizontal size
6
Pin Phase
Adjusts the left/right symmetry of pincushion
7
Pin AMP
Adjusts Pincushion
8
Upper Corner
Adjusts the upper corner
9
Lower Corner
Adjusts the lower corner
10
H EHT
Adjusts the horizontal variance (depending on the high pressure)
11
H Shift
Horizontal Shift
12
V Angle
Adjusts so that the vertical line becomes rectangular
13
V Bow
Adjusts so that the vertical lines are symmetrical
14
H Sync Phase
Adjusts the horizontal sync phase
Samsung Electronics
4-11
Alignment and Adjustments
4-8 Screen Change (I2C Bus Geometric Adjustment)
1
V Shift
6
V Amp
2
V Slope
7
V SC
3
H EW
8
H Trapizium
4
H Parabola
9
H Symmetry
5
H Corner
10
H Shift
4-12
Samsung Electronics
Alignment and Adjustments
8. Block Diagrams
8-1 Voltage/Current Block
Samsung Electronics
8-1
Troubleshooting
5. Troubleshooting
5-1 No Power
Disconnect
the power cord
Check
Power LED
LED ON
Check IC901
pins 35 , 49
Normal
Check
Q802
Abnormal
Check
IC902,IC903
LED OFF
Check
IC901 B+
Abnormal
Check
R455
Abnormal
Normal
Check/Replace
IC902, Check I2CII
Normal
Check
RL802S
Check IC905
(EEPROM)
Normal
Check
IC803S, PC802S
FA802S
Abnormal
Check
Q405
QF09, QP10
Abnormal
Check
CN902
Abnormal
Check TRANS 28V,
16V LINE
Check
IC804, FA801S
Check
135V line
Normal
Check
F-BOX 5V
B+
Normal
Abnormal
Replace
Q802
Abnormal
Replace
Q802
Abnormal
Check the voltage
of Trans Pin 1
Abnormal
Normal
Check IC801S,
DZ803, PC801S,
DZ804, Q801
Check D806
Check
F-BOX
HD, VD
Abnormal
Check
F-BOX I2C
Check
Q404, Q405
Check
H-BLK, V-BLK
LINE
Normal
Replace
F-BOX
Samsung Electronics
5-1
Troubleshooting
5-2 No Raster (Sound OK)
NO RASTER
(SOUND OK)
Check the fusible
resistance of
abnormal voltage line
Check the fusible
resistance
Abnormal
Check the voltage
of heater
Abnormal
Normal
Check RK, GK, BK
on the CRT PCB
Abnormal
Check
Q504
Normal
Check
B+(200V, 16V)
Normal
Normal
Abnormal
Check CRT and FBT
Abnormal
Check CXA2101
Check
OSD is normal
Check IC501, IC502,
IC503 and readjust
the screen voltag
Normal
Check
CVBS LINE
TUNER
Normal
Check
CVBS LINE
TEA6415
Normal
Check
CVBS LINE
COMB
Normal
Check CVBS LINE
VPC3230
5-2
Samsung Electronics
Troubleshooting
5-3 No Sound
NO SOUND
Normal
Check speaker
and wire
Abnormal
Check
CN601signal
Abnormal
Abnormal
Check
the input signal of
IC603 7 , 11
Check
the input
signal of IC601
Normal
Check
IC603 B+
Normal
Check Tuner B+
and SIF
Abnormal
Normal
Replace IC603
Check
FA802S
Check
IC601 B+
Normal
Check IC601 pins
51 , 52
Samsung Electronics
Check/Replace
IC601
Abnormal
Check
B+(BV) LINE
Check
Dolby-Sound module
5-3
Troubleshooting
5-4 Horizontal Lines Appear on screen
Horizontal Lines
Appear
Normal
Check
IC301 B+
(16V, -13.5V)
Abnormal
Chck B+ Line
and Fusible resistance
Normal
Check
F-BOX B+,
VD+, VDAbnormal
Check/Replace
IC301
5-4
Check IC06
Samsung Electronics
Exploded View & Parts List
6. Exploded View & Parts List
6-1 TSL2795HFX/XAA
Samsung Electronics
No
Code No
Description
Specification
Q’ty
Remark
1
AA91-00565C
ASSY CABINET FRONT
;TANTUS,29A7,SV907P+DG
1
AA64-00627V
CABINET FRONT
;29A7 TANTUS,SV907P+DG908P
1
1-1
AA63-00229F
GRILLE-SPEAKER
;29A7,SV907P,HIPS,-,G4309,
2
1-2
AA64-70117B
BADGE-BRAND
;AL,SS,SILVER,L65,R2000,-,-
1
1-3
AA65-00011C
CLAMP-WIRE
;ALL MODEL,NYLON 66,V2,NTR,25M
1
1-4
AA64-00635B
INDICATOR-LED
;-,29A7,6G,ACRYL,-,SMOG,-
1
1-5
AA61-60003J
SPRING-CS
;-,SUS304,0.5,OD6,H12,N7,-,-,-
1
1-6
AA64-00632B
KNOB-POWER
;-,29A7,AL,ABS,HB,GRAY
1
1-7
AA64-00634B
WINDOW-REMOCON
;-,29A7,-,PC,V0,VIOLET,-
1
1-8
AA64-00630B
KNOB-CONTROL
;-,29A7,AL,ABS,HB,GRAY
1
1-9
6003-001019
SCREW-TAPTITE
;RH,+,B,M4,L12,ZPC(BLK),SWR
2
2
AA95-00744A
ASSY-PCB,A/V SIDE
;-,TSK2790FX/XAA,KS4A,N
1
2-1
AA61-00396N
HOLDER-AV,COVER ASSY
;29A7,ABS,G3676,HB,-
1
2-2
AA61-00198B
HOLDER-AV,COVER
;-,29A7,ABS,HB,G3676,-
1
2-3
AA41-00245A
PCB-SIDE A/V
;KS4A,1L,FR-1,245x245x1.6T,8
1
2-4
AA61-00199B
HOLDER-AV,HOUSING
;-,29A7,ABS,HB,G3676,GN
1
2-5
AA64-01724F
INLAY-SIDE,AV
;29A7,PS SHEET,-,-,BLK #900
1
2-6
AA61-30001A
LATCH-DOOR
;-,-,-,KIFUCO LA701,-
1
2-7
AA61-60109B
SPRING-DOOR
;-,SUS304L,-,-,-,-,0.5,0D5,H8
1
3
AA94-50022A
ASSY-CRT
;A68QCP891X004,+380MG,29’,ITC,C
1
3-1
AA60-10050V
SCREW-ASSY
;WC,HH,+,M6,L30,SWRCH18A,ZPC(S
4
CRT+CF
3-2
3704-001032
SOCKET-CRT
;8P,29PI,35.5PI,AU30U
1
VA999
4
AA91-00337A
ASSY HOLDER SPK
;-,PP,8ohm/15W,blk,housin
1
5
AA91-00258M
ASSY CABINET BACK
;,V0 BLK,SV907P,29A7
1
5-1
AA63-00223A
COVER-SIDE,R ASSY
;-,29A7 GN802P+SV909A,6
1
5-2
AA63-00222A
COVER-SIDE,L ASSY
;-,29A7 GN802P+SV909A,6
1
5-3
AA61-00201B
HOLDER-CABINET
;-,29A7,HIPS,HB,BLK,-
6
5-4
AA91-00087B
ASSY HOLDER SPK
;-,ABS,HB,GRAY,SV704P,29A
2
6
AA96-20129A
ASSY-POWER,CORD
;-,EP2/YES,H/C300,ME301P,
1
KCON+C
6-1
Exploded View & Parts List
6-2 TSL3294HFX/XAA
6-2
No
Code No
Description
Specification
Q’ty
Remark
1
AA91-00302R
ASSY CABINET FRONT
;SEA(D4),34A7,(SPK)SV9
1
AA64-00758Q
CABINET FRONT
;34A7(D4),SV907P+DG908P SEA
1
1-1
AA64-70124C
BADGE-BRAND
;AL,R2500,SILVER,L=70,SAMSUNG
1
1-2
AA63-00220C
GRILLE-SPK,A
;34A7,SV907P,HIPS,-,G4309,HB
2
1-3
6003-001026
SCREW-TAaPTITE
;RH,+,B,M4,L15,ZPC(BLK),SWR
8
1-4
AA64-00632B
KNOB-POWER
;-,29A7,AL,ABS,HB,GRAY
1
1-5
AA61-60003J
SPRING-CS
;-,SUS304,0.5,OD6,H12,N7,-,-,-
1
1-6
AA64-00634B
WINDOW-REMOCON
;-,29A7,-,PC,V0,VIOLET,-
1
1-7
AA64-00635B
INDICATOR-LED
;-,29A7,6G,ACRYL,-,SMOG,-
1
1-8
6003-001019
SCREW-TAPTITE
;RH,+,B,M4,L12,ZPC(BLK),SWR
2
1-9
AA95-00744B
ASSY-PCB,A/V SIDE
;-,TSK3290FX/XAA,KS4A,N
1
1-10
6002-000522
SCREW-TAPPING
;TH,+,2,M4,L15,ZPC(BLK),SWR
2
1-11
AA64-60445Y
INLAY AV
;34A7,PS SHEET,-,-,BLK,-,KS4A S
1
1-12
AA64-00630B
KNOB-CONTROL
;-,29A7,AL,ABS,HB,GRAY
1
1-13
6003-001019
SCREW-TAPTITE
;RH,+,B,M4,L12,ZPC(BLK),SWR
2
1-14
AA91-00335A
ASSY HOLDER SPK
;-,PP,4ohm,blk,housing ch
2
1-15
6003-001019
SCREW-TAPTITE
;RH,+,B,M4,L12,ZPC(BLK),SWR
4
1-16
AA65-00011C
CLAMP-WIRE
;ALL MODEL,NYLON 66,V2,NTR,25M 1
1-17
AA61-00306B
SUPPORT-CRT
;34A7,HIPS,HB,NTR,-,-,-
2
1-18
AA61-10053A
BRACKET-CRATER
;-,7277,STS304,T0.5,-,-,-
2
1-19
6003-001026
SCREW-TAPTITE
;RH,+,B,M4,L15,ZPC(BLK),SWR
2
2
AA94-02060A
ASSY CRT-
;A80LRW350X99,+380MG,34,ITC,-,
1
2-1
AA60-10050V
SCREW-ASSY
;WC,HH,+,M6,L30,SWRCH18A,ZPC(S 4
2-2
AA63-60004G
SPACER-GUM,CR
;NTR RUBBER,T3.0,GRY,-,-,-
4
3
AA91-00338A
ASSY HOLDER SPK
;-,PP,8ohm/15W,blk,housin
1
3-1
AA60-10050A
SCREW-ASSY
;WP,RH,+,M4,L25,SWRCH18A,-,ZPC
4
4
AA64-00759D
CABINET BACK
;34A7,-,HIPS,V0,BLK
1
4-1
AA91-00087B
ASSY HOLDER SPK
;-,ABS,HB,GRAY,SV704P,29A
2
4-2
AA60-10050T
SCREW-TAPPING
;RH,+,2S,M4,L20,ZPC(BLK),SW
6
PORT+C
4-3
AA60-10050T
SCREW-TAPPING
;RH,+,2S,M4,L20,ZPC(BLK),SW
2
CB+TER
4-4
AA60-10050T
SCREW-TAPPING
;RH,+,2S,M4,L20,ZPC(BLK),SW
8
CB+CF
5
AA96-20129A
ASSY-POWER,CORD
;-,EP2/YES,H/C300,ME301P,
1
CF+GRI
LED+CF
AV+CF
KCON+C
SPK+CF
BRAC+C
CRT+CF
DOME+C
Samsung Electronics
Exploded View & Parts List
6-3 TSL3295HFX/XAA
Samsung Electronics
No
Code No
Description
Specification
Q’ty
Remark
1
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
1-9
1-10
1-11
1-12
1-13
1-14
1-15
1-16
1-17
1-18
1-19
AA64-00758R
AA64-70124C
AA63-00220C
6003-001026
AA64-00632B
AA61-60003J
AA64-00634B
AA64-00635B
6003-001019
AA95-00744B
6002-000522
AA64-60445Y
AA64-00630B
6003-001019
AA91-00335A
6003-001019
AA65-00011C
AA61-00306B
AA61-10053A
6003-001026
CABINET FRONT
BADGE-BRAND
GRILLE-SPK,A
SCREW-TAPTITE
KNOB-POWER
SPRING-CS
WINDOW-REMOCON
INDICATOR-LED
SCREW-TAPTITE
ASSY-PCB,A/V SIDE
SCREW-TAPPING
INLAY AV
KNOB-CONTROL
SCREW-TAPTITE
ASSY HOLDER SPK
SCREW-TAPTITE
CLAMP-WIRE
SUPPORT-CRT
BRACKET-CRATER
SCREW-TAPTITE
;34A7(D4),SV907P+DG908P TAN
;AL,R2500,SILVER,L=70,SAMSUNG
;34A7,SV907P,HIPS,-,G4309,HB
;RH,+,B,M4,L15,ZPC(BLK),SWR
;-,29A7,AL,ABS,HB,GRAY
;-,SUS304,0.5,OD6,H12,N7,-,-,;-,29A7,-,PC,V0,VIOLET,;-,29A7,6G,ACRYL,-,SMOG,;RH,+,B,M4,L12,ZPC(BLK),SWR
;-,TSK3290FX/XAA,KS4A,N
;TH,+,2,M4,L15,ZPC(BLK),SWR
;34A7,PS SHEET,-,-,BLK,-,KS4A S
;-,29A7,AL,ABS,HB,GRAY
;RH,+,B,M4,L12,ZPC(BLK),SWR
;-,PP,4ohm,blk,housing ch
;RH,+,B,M4,L12,ZPC(BLK),SWR
;ALL MODEL,NYLON 66,V2,NTR,25M
;34A7,HIPS,HB,NTR,-,-,;-,7277,STS304,T0.5,-,-,;RH,+,B,M4,L15,ZPC(BLK),SWR
1
1
2
8
1
1
1
1
2
1
2
1
1
2
2
4
1
2
2
2
2
2-1
2-2
AA94-02060A
AA60-10050V
AA63-60004G
ASSY CRTSCREW-ASSY
SPACER-GUM,CRT
;A80LRW350X99,+380MG,34,ITC,-,
;WC,HH,+,M6,L30,SWRCH18A,ZPC(S
;NTR RUBBER,T3.0,GRY,-,-,-
1
4
4
3
3-1
AA91-00338A
AA60-10050A
ASSY HOLDER SPK
SCREW-ASSY
;-,PP,8ohm/15W,blk,housin
;WP,RH,+,M4,L25,SWRCH18A,-,ZPC
1
4
DOME+C
4
4-1
4-2
4-3
4-4
AA64-00759D
AA91-00087B
AA60-10050T
AA60-10050T
AA60-10050T
CABINET BACK
ASSY HOLDER SPK
SCREW-TAPPING
SCREW-TAPPING
SCREW-TAPPING
;34A7,-,HIPS,V0,BLK
;-,ABS,HB,GRAY,SV704P,29A
;RH,+,2S,M4,L20,ZPC(BLK),SW
;RH,+,2S,M4,L20,ZPC(BLK),SW
;RH,+,2S,M4,L20,ZPC(BLK),SW
1
2
6
2
8
PORT+C
CB+TER
CB+CF
5
AA96-20129A
ASSY-POWER,CORD
;-,EP2/YES,H/C300,ME301P,
1
CF+GRI
LED+CF
AV+CF
KCON+C
SPK+CF
BRAC+C
CRT+CF
6-3
Electrical Parts List
7. Electrical Parts List
7-1 TSL2795HFX/XAA
Loc. No.
Code No.
Description ; Specification
Remark
ASSY PCB MAIN(OPT)
1 *
AA94-02685C ASSY PCB MAIN(OPT);TSL2795HFX/XAA,KS4A,U
..2 C670
..2 CJ701A
..2 CJ702A
..2 CJ704A
..2 CN803A
..2 CN804A
..2 IC603
...3
...3
...3
...3
..2 IC804
...3
...3
...3
..2 IC805
..2 ICD603
..2 TUP01
..2
...3 CN501A
...3 CN601
...3 CN702A
...3 IC601
...3 IC602
...3 IC701
...3 IC702
...3 IC703
...3 IC801
...3 IC802
....4
....4
....4
...3 IC803
....4
....4
....4
...3 IC905
...3 ICD02
...3 ICH01
...3 TU01
...3
....4C101
....4C102
....4C103
....4C104
....4C105
....4C107
....4C108
....4C109
....4C110
....4C202
....4C203
....4C204
....4C205
....4C601
....4C602
....4C603
....4C604
....4C605
....4C606
....4C607
....4C608
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
3722-001426 JACK-RCA;9P,3.4mm,NI,BLK,3722-001163 JACK-VHS;4P,12mm,AU,BLK,N
3722-001427 JACK-RCA;8P,3.4mm,NI,BLK,3711-003241 CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
3711-003241 CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
AA96-50367A ASSY-H/S;-,-,AA62-30181D,TDA7265,0205-000129 GREASE-SILICON;SC102,JAPAN
1201-001026 IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
AA62-30181D HEAT SINK-ES;-,AL6063 EXTR.,2,WHT,70MM,AA96-50382B ASSY-H/S;-,-,AA62-30180C,SI-3050,1203-000203 IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
AA62-30180C HEAT SINK-ES;-,A6063 EXTR.,2,WHT,50MM,-,
AA96-50382B ASSY-H/S;-,-,AA62-30180C,SI-3050,AA96-50367A ASSY-H/S;-,-,AA62-30181D,TDA7265,AA40-00032A TUNER-F/S;TCPN3081PC09A(S),NTSC,TR,181CH
AA99-30213Z ASSY-PCB ROBOT; AA94-02685C ,ER
3711-003974 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
3711-003043 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH
3711-003641 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
1204-001594 IC-SOUND PROCESSOR;MSP3440G-B6,SDIP,52P,
1201-000407 IC-POWER AMP;7050,DIP,8P,-,SINGLE,-,PLAS
1001-001073 IC-VIDEO SWITCH;TEA6415C,VIDEO SWITCH,DI
1001-001113 IC-AUDIO SWITCH;TEA6422,SOUND SWITCH ,SD
1002-001193 IC-A/D&D/A CONVERTER;PCF8591P,8bit,DIP,1
1203-000165 IC-POSI.ADJUST REG.;78R12,TO-220,3P,-,-,
AA96-50147B ASSY-H/S;-,TR,AA62-30012B,KA7808,1203-000293 IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
AA62-30012B HEAT SINK-ES;-,A6063 EXTR,-,-,45(16) T02
AA96-50147C ASSY-H/S;-,TR,AA62-30012B,KA7809A,1203-000298 IC-POSI.FIXED REG.;7809,TO-220,3P,-,PLAS
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
AA62-30012B HEAT SINK-ES;-,A6063 EXTR,-,-,45(16) T02
1103-001213 IC-EEPROM;M24C16-WBN6,2048x8Bit,SDIP,8P,
1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV
1204-001454 IC-VOLUME CONTROL;TDA7449L,DIP,20P,300MI
AA40-00020A TUNER-F/S;TCLN3181PA09A(S),NTSC,TR,181CH
AA99-10208MASSY-PCB MAIN,AUTO; AA99-30213Z ,V
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
2202-000222 C-CERAMIC,MLC-AXIAL;3.3nF,20%,16V,Y5P,TP
2301-000111 C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
2202-000222 C-CERAMIC,MLC-AXIAL;3.3nF,20%,16V,Y5P,TP
2301-000111 C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
Samsung Electronics
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
....4 C611
....4 C616
....4 C617
....4 C618
....4 C619
....4 C620
....4 C621
....4 C622
....4 C623
....4 C624
....4 C625
....4 C626
....4 C627
....4 C628
....4 C629
....4 C630
....4 C631
....4 C632
....4 C633
....4 C634
....4 C635
....4 C636
....4 C637
....4 C638
....4 C640
....4 C642
....4 C643
....4 C644
....4 C645
....4 C646
....4 C647
....4 C648
....4 C649
....4 C650
....4 C651
....4 C652
....4 C653
....4 C654
....4 C655
....4 C656
....4 C657
....4 C659
....4 C660
....4 C661
....4 C663
....4 C664
....4 C665
....4 C701
....4 C702
....4 C703
....4 C704
....4 C705
....4 C706
....4 C708
....4 C709
....4 C710
....4 C711
....4 C712
....4 C713
....4 C714
....4 C715
....4 C716
....4 C717
....4 C718
....4 C719
....4 C720
....4 C721
Code No.
2202-000796
2401-002235
2401-001840
2201-000558
2201-000374
2201-000112
2401-002235
2401-001026
2305-000665
2401-002235
2401-002235
2401-002235
2202-000632
2401-002235
2401-001840
2201-000558
2202-000286
2202-000286
2201-000304
2201-000304
2401-000480
2401-000480
2301-000232
2401-001840
2401-001840
2401-001840
2305-000665
2401-002458
2305-000665
2305-000665
2401-002458
2401-000027
2202-000183
2401-000832
2401-000027
2202-000183
2401-002216
2201-000119
2401-001840
2401-000603
2401-000962
2401-000480
2301-000232
2401-001840
2305-000665
2401-001840
2202-000632
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-001840
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
Description ; Specification
Remark
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,DISC;0.47nF,10%,50V,Y5P,TP,5x3
C-CERAMIC,DISC;0.22nF,5%,50V,NP0,TP,10.5
C-CERAMIC,DISC;1.5nF,10%,50V,Y5V,TP,5x3.
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,DISC;0.47nF,10%,50V,Y5P,TP,5x3
C-CERAMIC,MLC-AXIAL;56pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;56pF,5%,50V,SL,TP,1.
C-CERAMIC,DISC;0.001nF,0.25pF,50V,NP0,TP
C-CERAMIC,DISC;0.001nF,0.25pF,50V,NP0,TP
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-FILM,PEF;3.3nF,5%,50V,TP,8.1x4.5x13mm,
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;1000uF,20%,35V,GP,TP,16x25,7.5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;1000uF,20%,35V,GP,TP,16x25,7.5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;2.2NF,20%,16V,Y5R,TP
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;2.2NF,20%,16V,Y5R,TP
C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-FILM,PEF;3.3nF,5%,50V,TP,8.1x4.5x13mm,
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
7-1
Electrical
Loc. No.
Parts List
Code No.
....4 C722 2202-000121
....4 C723 2202-000121
....4 C724 2305-000355
....4 C725 2401-002235
....4 C726 2401-002235
....4 C727 2401-002235
....4 C728 2305-000355
....4 C729 2401-002235
....4 C730 2401-002235
....4 C731 2401-002235
....4 C732 2401-001840
....4 C733 2201-000982
....4 C734 2401-001363
....4 C735 2401-001840
....4 C738 2202-000121
....4 C739 2202-000121
....4 C740 2401-002235
....4 C741 2401-002235
....4 C745 2401-001840
....4 C746 2305-000665
....4 C747 2401-000480
....4 C801 2401-000832
....4 C802 2305-000665
....4 C803 2401-001363
....4 C804 2305-000665
....4 C805 2401-000832
....4 C806 2305-000665
....4 C807 2401-001363
....4 C808 2305-000665
....4 C809 2401-000832
....4 C810 2305-000665
....4 C811 2401-001363
....4 C812 2305-000665
....4 C813 2401-001363
....4 C814 2305-000665
....4 C815 2401-001363
....4 C816 2305-000665
....4 C819 2401-001363
....4 C820 2305-000665
....4 C825 2401-000287
....4 C901 2401-001840
....4 C902 2305-000665
....4 C903 2401-001840
....4 C905 2401-001840
....4 C906 2401-001840
....4 CD01 2401-002235
....4 CD02 2401-002235
....4 CD03 2401-002458
....4 CD04 2305-000665
....4 CD05 2401-002458
....4 CD06 2401-002216
....4 CD07 2305-000665
....4 CD08 2305-000665
....4 CD09 2401-000027
....4 CD10 2202-000716
....4 CD11 2401-002459
....4 CD12 2401-000027
....4 CD13 2202-000716
....4 CD14 2202-000796
....4 CD15 2202-000796
....4 CD16 2301-000111
....4 CD17 2301-000111
....4 CD18 2401-002235
....4 CD19 2401-002235
....4 CG01 2401-002235
....4 CG02 2401-002235
....4 CG03 2401-001840
....4 CG04 2305-000665
....4 CG05 2401-002235
....4 CH01 2401-002235
....4 CH02 2401-002235
....4 CH03 2401-000480
....4 CH04 2401-001840
....4 CH05 2305-000665
....4 CN901A3711-002648
....4 CN902A3711-002646
....4 CND01 3711-002644
7-2
Description ; Specification
Remark
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-FILM,MPEF;330nF,5%,63V,TP,-,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-FILM,MPEF;330nF,5%,63V,TP,-,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,4
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;1000uF,20%,35V,GP,TP,16x25,7.5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;1000uF,20%,35V,GP,TP,16x25,7.5
C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;1.8nF,20%,16V,Y5R,TP
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;1.8nF,20%,16V,Y5R,TP
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
CONNECTOR-HEADER;BOX,9P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,5P,1R,2.5mm,STRAIGH
Loc. No.
....4 CND02
....4 CP03
....4 CP04
....4 CP07
....4 CP08
....4 CS02
....4 CS16
....4 CS30
....4 CX01
....4 D201
....4 D202
....4 D203
....4 D204
....4 D601
....4 D602
....4 D603
....4 D604
....4 DG01
....4 DX01
....4 DX03
....4 DZ101
....4 DZ201
....4 DZ202
....4 DZ203
....4 DZ601
....4 DZ602
....4 DZ603
....4 DZD01
....4 DZD02
....4 J312
....4 J375
....4 L101
....4L102
....4 L103
....4 L104
....4 L106
....4 L601
....4 L602
....4 L603
....4 L701
....4 L702
....4 L703
....4 L704
....4 L705
....4 L706
....4 L707
....4 L708
....4 L709
....4 L710
....4 L711
....4 L712
....4 L801
....4 L802
....4 L901
....4 L902
....4 LG01
....4 LH01
....4 LP02
....4 LP03
....4 LP04
....4 LP06
....4 LS07
....4 Q201
....4 Q202
....4 Q601
....4 Q602
....4 Q603
....4 Q702
....4 Q703
....4 Q704
....4 Q705
....4 Q706
....4 Q707
....4 Q708
....4 Q709
....4 Q710
....4 Q711
Code No.
3711-002645
2401-001840
2202-000632
2401-000480
2305-000665
2401-002235
2401-002235
2401-001840
2401-000480
0401-000005
0401-000005
0401-000005
2001-000281
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0403-000700
0403-001211
0403-001320
0403-000367
0403-001316
0403-000367
0403-000367
0403-000700
0403-000700
3301-000287
0401-000005
2701-000115
2701-000114
2701-000114
2701-000116
2701-000115
2701-000170
2701-000115
2701-000115
2701-000115
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000115
2701-000114
2701-000114
2701-000114
2701-000114
2701-001040
2701-001040
2701-000115
2701-000114
0401-000005
2701-000170
2701-000114
2701-000114
2701-000116
2701-000115
2701-000115
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000283
0501-000389
Description ; Specification
Remark
CONNECTOR-HEADER;BOX,6P,1R,2.5MM,STRAIGH
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ6.2C,6.12-6.44V,500mW,DO
DIODE-ZENER;UZ7.5BSC,7.5V,7.33-7.64V,500
DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO
DIODE-ZENER;UZ7.5BSC,7.5V,7.33-7.64V,500
DIODE-ZENER;UZ7.5BSC,7.5V,7.33-7.64V,500
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;3.9uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,4.5x14mm
INDUCTOR-AXIAL;10uH,10%,4.5x14mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
INDUCTOR-AXIAL;3.9uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
Samsung Electronics
Electrical
Loc. No.
....4 Q712
....4 Q901
....4 Q902
....4 QG01
....4 QG02
....4 QX01
....4 R101
....4 R102
....4 R103
....4 R110
....4 R115
....4 R203
....4 R204
....4 R205
....4 R209
....4 R210
....4 R211
....4 R212
....4 R213
....4 R214
....4 R215
....4 R216
....4 R217
....4 R218
....4 R219
....4 R220
....4 R230
....4 R601
....4 R602
....4 R603
....4 R604
....4 R607
....4 R608
....4 R609
....4 R610
....4 R611
....4 R614
....4 R615
....4 R616
....4 R617
....4 R618
....4 R619
....4 R620
....4 R621
....4 R622
....4 R623
....4 R624
....4 R625
....4 R626
....4 R627
....4 R628
....4 R629
....4 R630
....4 R631
....4 R632
....4 R635
....4 R636
....4 R637
....4 R638
....4 R639
....4 R701
....4 R702
....4 R703
....4 R704
....4 R705
....4 R706
....4 R707
....4 R708
....4 R709
....4 R710
....4 R711
....4 R713
....4 R714
....4 R715
....4 R716
....4 R717
....4 R718
Code No.
0504-000123
0504-000123
0504-000123
0501-000389
0501-000389
1203-001274
2001-001006
2001-000281
2001-000429
2003-001093
2001-001006
2001-000281
2001-000281
2001-000281
2001-000281
2701-000184
2701-000184
2001-000969
2001-001006
2001-000281
2001-000281
2001-000281
2001-000449
2001-000290
2001-000290
2001-000522
2001-000449
2001-000281
2001-000281
2001-000429
2001-000429
2001-000577
2001-000591
2001-000290
2001-000591
2001-000290
2001-001187
2001-000290
2001-001093
2001-001093
2001-000786
2001-001146
2001-001093
2001-001093
2001-001146
2001-000786
2001-001050
2001-000780
2001-001088
2001-001088
2001-000290
2001-000522
2001-000290
2001-000273
2001-000290
2001-000290
2001-000290
2001-000780
2001-000290
2001-000290
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000331
2001-000947
2001-000947
2001-000947
2001-000522
2001-000472
2001-000290
2001-000554
2001-000780
2001-000554
2001-000429
Description ; Specification
Remark
TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
IC-VOL. DETECTOR;7545,TO-92,3P,-,PLASTIC
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL OXIDE(S);12Kohm,5%,2W,AF,TP,3.9x
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Samsung Electronics
Loc. No.
....4 R719
....4 R720
....4 R721
....4 R722
....4 R723
....4 R724
....4 R725
....4 R726
....4 R727
....4 R728
....4 R729
....4 R730
....4 R731
....4 R732
....4 R733
....4 R734
....4 R735
....4 R736
....4 R737
....4 R738
....4 R739
....4 R740
....4 R741
....4 R742
....4 R743
....4 R744
....4 R745
....4 R746
....4 R747
....4 R750
....4 R751
....4 R752
....4 R753
....4 R754
....4 R755
....4 R756
....4 R758
....4 R759
....4 R764
....4 R901
....4 R902
....4 R903
....4 R904
....4 R905
....4 R906
....4 R907
....4 R908
....4 R909
....4 R910
....4 RC01
....4 RC02
....4 RC103
....4 RD02
....4 RD03
....4 RD10
....4 RD11
....4 RD12
....4 RD13
....4 RD14
....4 RD15
....4 RD16
....4 RD17
....4 RD18
....4 RD19
....4 RD20
....4 RD21
....4 RD22
....4 RD23
....4 RD24
....4 RD25
....4 RD26
....4 RD27
....4 RD28
....4 RD29
....4 RD30
....4RD31
....4RD32
Code No.
2001-000281
2001-000938
2001-000429
2001-000969
2001-000969
2001-000969
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000969
2001-000429
2001-000429
2001-000429
2001-000281
2001-000003
2001-000003
2001-000429
2001-000429
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000780
2001-000281
2001-000281
2001-000969
2001-000761
2001-000429
2001-000761
2001-000429
2001-000969
2001-000969
2001-000281
2001-000302
2001-000302
2001-000302
2001-000302
2001-000302
2001-000281
2001-000281
2001-000281
2001-000472
2001-000281
2001-000281
2001-000281
2001-000969
2001-000734
2001-000734
2001-001093
2001-001093
2001-001146
2001-000786
2001-001093
2001-001146
2001-001093
2001-000786
2001-000780
2001-001088
2001-001088
2001-000780
2001-001108
2001-001108
2001-000780
2001-000780
2001-001050
2001-000786
2001-000786
2001-000290
2001-000290
2001-000786
2001-000786
Description ; Specification
Parts List
Remark
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
7-3
Electrical
Loc. No.
....4 RG01
....4 RG02
....4 RG03
....4 RG04
....4 RG05
....4 RG06
....4 RH01
....4 RH02
....4 RN701
....4 RU01
....4 RX01
....4 RX02
....4 RX03
....4 X601
....4
..2
..2
..2
..2
..2
..2
..2
..2
..2
Parts List
Code No.
Description ; Specification
Remark
2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2011-000155 R-NETWORK;10Kohm,5%,1/8W,A,SIP,5P,BK
2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
2001-001178 R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4
2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2801-003903 CRYSTAL-UNIT;18.432MHz,25ppm,28-AAM,12pF
AA41-00156E PCB-MAIN;CS29A7HF,FR-1,1L,E,1.6T,330X24
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
AA39-30007A IF-CABLE;-,T,100mm,1365#26
AA39-20536B LEAD CONNECTOR-ASSY;,-,F,F,300MM,1617#22
AA39-20010C LEAD CONNECTOR-ASSY;,1P,YFH800-01,S,600,
AA27-20002Q COIL-DEGAUSSING;-,29,14ohm,70T,L3300,E
AA26-00069A TRANS FBT;FUJ-29C002C(S),DREAM3,4,-,-,-,
AA65-30104B CLAMP-WIRE;NYLON 66,V2,BLK,W2 Z5,ALL MOD
AA65-30018A CLAMP-WIRE;NYLON-66,-,-,DATL-600,DONG-A,
AA65-00011C CLAMP-WIRE;ALL MODEL,NYLON 66,V2,NTR,25M
S.N.A
S.N.A
S.N.A
S.N.A
ASSY-PCB,NTSC MICOM
1 *
AA95-00745A ASSY-PCB,NTSC MICOM;-,TSK2790FX/XAA,KS4A
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
2301-000111 C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
2201-000193 C-CERAMIC,DISC;0.01nF,0.25pF,50V,NP0,TP,
2201-000573 C-CERAMIC,DISC;0.047nF,5%,50V,NP0,TP,5x3
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
2201-000600 C-CERAMIC,DISC;0.56nF,10%,50V,Y5P,TP,5x3
2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP
2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP
3711-003215 CONNECTOR-HEADER;NOWALL,18P,1R,2.5MM,ANG
3711-003543 CONNECTOR-HEADER;NOWALL,16P,1R,2.54MM,AN
AA61-10068A BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,S.N.A
AA61-10068A BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,S.N.A
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
AA09-00101A IC MICOM;Z9037116PSC-OTP,SVP43J5M,52P,5
1203-000515 IC-VOL. DETECTOR;7042,TO-92,3P,177MIL,PL
2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
C901
C902
C903
C904
C905
C906
C907
C908
C910
C911
C912
C913
C914
C915
C916
C917
C918
C919
C920
CN901
CN902
CN903
CN904
D901
D903
DZ901
DZ902
DZ903
DZ904
DZ905
DZ906
IC901
IC902
L901
L902
L903
L906
Q901
Q902
Q903
Q904
R901
R902
R903
R905
R906
7-4
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
R907
R908
R909
R910
R911
R912
R913
R914
R915
R916
R917
R918
R919
R920
R921
R922
R923
R924
R925
R926
R927
R928
R930
R931
R932
R933
R934
R935
R936
R937
R938
R939
R940
R941
R942
R943
R944
R945
R946
R947
R948
R949
R950
R952
R953
R954
R955
R956
R959
R960
R961
R962
X901
Code No.
2001-000734
2001-000290
2001-000786
2001-000281
2001-000281
2001-000947
2001-000947
2001-000734
2001-000241
2001-000290
2001-000281
2001-000241
2001-000290
2001-000780
2001-000290
2001-000429
2001-000734
2001-000734
2001-000734
2001-000577
2001-000577
2001-000577
2001-000429
2001-000591
2001-000290
2001-000591
2001-000429
2001-000591
2001-000290
2001-000281
2001-000281
2001-000449
2001-000449
2001-000429
2001-000734
2001-001062
2001-000864
2001-000734
2001-000281
2001-000734
2001-000290
2001-000780
2001-000429
2001-000429
2001-000429
2001-000780
2001-000411
2001-000290
2001-000429
2001-000281
2001-000008
2001-000832
2801-003224
AA41-00159C
0202-000187
Description ; Specification
Remark
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);10MOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
CRYSTAL-UNIT;32.768KHZ,20PPM,28-AAY,12.5
PCB-NTSC MICOM;CT-29A7DR,FR-1,1L,C,1.6T,
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
S.N.A
ASSY PCB POWER
1 *
AA95-00743A ASSY PCB POWER;TSK2790FX/XAA,KS4A,27,-,
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
2301-001402
2306-000324
2306-000204
2301-001192
2306-000324
2306-001021
2306-000324
2306-000323
2401-000560
2401-003370
2401-003190
2401-002287
2401-003024
2401-000737
2301-001041
C407
C408
C409
C412
C413
C419
C427
C809
C810
C813
C814
C819
C820
C822
CH04
C-FILM,PPF;33nF,5%,630V,BK,20x11x17mm,15
C-FILM,MPPF;3.3nf,5%,1.6KV,TP,28.5x13.5x
C-FILM,MPPF;430nF,5%,400V,TP,26x20.5x12.
C-FILM,MPPF;820nF,5%,400V,TP,29x18.5x25.
C-FILM,MPPF;3.3nf,5%,1.6KV,TP,28.5x13.5x
C-FILM,MPPF;100nF,5%,630V,TP,26x8.5x16.5
C-FILM,MPPF;3.3nf,5%,1.6KV,TP,28.5x13.5x
C-FILM,MPPF;2.2nF,5%,1.6KV,TP,28.5x15.5x
C-AL;1uF,20%,160V,GP,TP,6.3x11,5
C-AL;47uF,20%,450V,GP,BK,16X35.5,7.
C-AL;470uF,20%,450V,GP,BK,35x45,22.
C-AL;470uF,20%,200V,WT,BK,25x40,10
C-AL;220uF,20%,200V,WT,TP,22x35,10
C-AL;2200uF,20%,50V,GP,TP,18x35.5,7
C-FILM,PPF;15nF,5%,1.6KV,TP,29x14x21.5,2
Samsung Electronics
Electrical
Loc. No.
..2 CH05
..2 CN801
..2 CN803
..2 CN804
..2 CX801S
..2 CX802S
..2 CX803S
..2 CY801S
..2 CY802S
..2 D406
..2 D804
..2 D806
...3
...3
...3
...3
...3
..2 D817
...3
...3
...3
...3
...3
..2 D819
..2 FP801S
..2 IC301
...3
...3
...3
...3
..2 IC403
..2 IC801S
...3
...3
...3
...3
..2 IC803S
..2 ICH01
..2 L401
..2 L402
..2 L403
..2 L404
..2 L405
..2 L812
..2 L815
..2 LS401
..2 LX801S
..2 LX802S
..2 NT801S
..2 PC801S
..2 PC802S
..2 PT801S
..2 Q403
..2 Q404
..2 Q405
...3
...3
...3
...3
...3
...3
...3
..2 Q801
..2 QH04
..2 R815
..2 R816
..2 RL801S
..2 RL802S
..2 RS01
..2 RS02
..2 SWS01
..2 SWS02
..2 T401
..2 T402
..2 T444
..2 T801S
..2 TS801S
Code No.
Description ; Specification
Remark
2301-001041 C-FILM,PPF;15nF,5%,1.6KV,TP,29x14x21.5,2
3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAGH
3710-001103 CONNECTOR-SOCKET;14P,1R,2.5mm,STRAIGHT,S
3710-001103 CONNECTOR-SOCKET;14P,1R,2.5mm,STRAIGHT,S
2306-000318 C-FILM,MPPF;220nF,20%,250V,TP,-,22.5mm
2306-000318 C-FILM,MPPF;220nF,20%,250V,TP,-,22.5mm
2306-000112 C-FILM,MPPF;100nF,20%,250V,BK,-,15mm
2201-000539 C-CERAMIC,DISC;4.7nF,20%,250V,Y5V,BK,16x
2201-000539 C-CERAMIC,DISC;4.7nF,20%,250V,Y5V,BK,16x
0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
0402-000250 DIODE-RECTIFIER;RG4C,1000V,1A,AA96-50310A ASSY-H/S;-,POWER,AA62-30150C,RBV606,AA62-30150C HEAT SINK-ES;-,A6063 EXTR,-,WHT,40(24.5)
AA60-30003A WASHER;-,-,-,T1.5,-,SBHG-1,6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
0402-000549 DIODE-BRIDGE;RBV606,600V,6A,-,BK
0205-000129 GREASE-SILICON;SC102,JAPAN
AA96-00309A ASSY H/S;-,POWER,AA62-00061A,FML-G12S +
AA62-00061A HEAT SINK-PS;-,-,T1.0,SILVER,-,-,-,-,104
6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,0402-000231 DIODE-RECTIFIER;FMG-G26S,600V,4A,TO-220F
0205-000129 GREASE-SILICON;SC102,JAPAN
0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS
AA96-50381A ASSY-H/S;-,-,AA62-30180B,LA7845,0205-000129 GREASE-SILICON;SC102,JAPAN
1204-000517 IC-VERTIVAL DEF.;LA7845,SIP,7P,-,PLASTIC
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
AA62-30180B HEAT SINK-ES;-,A6063 EXTR.,2,WHT,70MM,-,
1202-000103 IC-VOLTAGE COMP.;393,DIP,8P,300MIL,DUAL,
AA96-50364C ASSY H/S;-,POWER,AA62-30181A,STR-F6656,
0205-000129 GREASE-SILICON;SC102,JAPAN
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
AA13-00018A IC-HYBRID;-,STR-F6656,LF1351,5PIN,-,AA62-30181A HEAT SINK-ES;A6063,EXTR,SILVER,WHT,ANOD,
AA13-00024A IC-HYBRID;-,TNY253P,-,8PIN,-,1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV
AA27-00057A COIL HORIZ. WIDTH;-,10mH,YL-9N 15x27.5 C
AA27-10004F COIL-CHOKE;-,56uH,K,-,2.5A,BK,-,DR12x15,
AA27-00025A COIL-CHOKE;-,1MH,10%,-,-,BK,-,12X20,14X2
AA27-00070A COIL LINEARITY;-,7uH,YL81 DR1518,11mm,17
AA27-40003P COIL-HORIZ.WIDTH;-,120uH/180uH,Th8x20,US
AA27-10002L COIL-CHOKE;-,24UH,K,-,2A,-,24UH-K,10X10M
AA27-10002L COIL-CHOKE;-,24UH,K,-,2A,-,24UH-K,10X10M
AA27-10002V COIL-CHOKE;-,6.3MH,K,-,500MA,-,NY632K(50
AA29-30001Z FILTER-LINE NOISE;-,10mH,2.8A,-,SQE3535
AA29-30002D FILTER-LINE NOISE;-,10mH,2.8A,-,SQE-3535
1404-001045 THERMISTOR-NTC;4.7ohm,15%,2900K,35.0mW,T
0604-001038 PHOTO-COUPLER;TR,130-260%,200mW,DIP-4,ST
0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST
1404-001026 THERMISTOR-PTC;7ohm,20%,-,290V,25A,-,ST
0505-000156 FET-SILICON;IRF620,N,200V,5A,0.8ohm,50W,
0505-001116 FET-SILICON;BUZ73A,N,200V,22A,0.6ohm,40W
AA96-00310A ASSY H/S;-,POWER,AA62-00062A,FMP-3FU +
AA62-00062A HEAT SINK-PS;-,-,T2.0,SILVER,-,-,-,-,108
AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,-,SBHG
AA02-00007A MICA;DPM-04,MICA,22x29x0.15mm
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
0502-001175 TR-POWER;2SC5446,NPN,200000mW,TO-3PL,BK
0402-001296 DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,TO-3PF,
0205-000129 GREASE-SILICON;SC102,JAPAN
AA13-20004H IC-HYBRID;-,SE135N-LF12,TO220-LF12,3,ERR
0502-000442 TR-POWER;2SC4636RB,NPN,2W,TO-220,ST,102003-002206 R-METAL OXIDE(S);27Kohm,5%,3W,AG,TP,6x16
2003-002206 R-METAL OXIDE(S);27Kohm,5%,3W,AG,TP,6x16
3501-001040 RELAY-POWER;12VDC,500mW,10A,1FormA,15mS,
3501-001053 RELAY-POWER;5Vdc,530mW,10A,1FormA,15mS,5
2006-001081 R-CEMENT;82ohm,5%,5W,CJ,TP,14x10x27mm
2006-001081 R-CEMENT;82ohm,5%,5W,CJ,TP,14x10x27mm
3409-000138 SWITCH-LEVER;30V,200mA,SP3T,NON SHORTING
3409-000138 SWITCH-LEVER;30V,200mA,SP3T,NON SHORTING
AA26-50001S TRANS-HORIZ.DRIVE;-,6.0mH,44uH,1.5uH,EI2
AA26-90002C TRANS-DUMMY;-,3.5mH,EER2834,130/1200,ST
AA26-00082A TRANS FBT;FUJ-29C002F(S),CT29A7DR,1.95mH
AA26-00056A TRANS SWITCHING;-,-,-,AC90~260V,DC135V/2
AA26-00055A TRANS SWITCHING;-,-,-,AC80~280V,-,-,-,4m
Samsung Electronics
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
..2
..2
...3 C301
...3 C302
...3 C304
...3 C305
...3 C306
...3 C307
...3 C401
...3 C402
...3 C406
...3 C410
...3 C411
...3 C416
...3 C417
...3 C418
...3 C420
...3 C421
...3 C422
...3 C423
...3 C424
...3 C425
...3 C426
...3 C428
...3 C429
...3 C430
...3 C431
...3 C440
...3 C452
...3 C453
...3 C454
...3 C803
...3 C804
...3 C805
...3 C806
...3 C808
...3 C811
...3 C812
...3 C816
...3 C817
...3 C818
...3 C821
...3 C824
...3 C825
...3 C826
...3 C828
...3 C829
...3 C833
...3 C834
...3 C835
...3 C838
...3 C839
...3 CH01
...3 CH02
...3 CH06
...3 CH07
...3 CH08
...3 CH11
...3 CS01
...3 D301
...3 D401
...3 D402
...3 D403
...3 D404
...3 D405
...3 D408
...3 D409
...3 D410
...3 D411
...3 D412
...3 D450
...3 D451
...3 D801
...3 D802
...3 D803
...3 D805
...3 D807
Code No.
Parts List
Description ; Specification
AA41-00157D PCB-POWER;CT-29A7DR,CEM-1,1L,D,1.6T,330x
AA99-20078X ASSY-PCB SUB,AUTO; AA95-00743A ,V
2301-000160 C-FILM,PEF;12nF,5%,50V,TP,11.0x6.0x9.0mm
2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5
2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5
2305-000285 C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15
2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5
2301-000247 C-FILM,PEF;33nF,5%,50V,TP,8.1x4.5x13mm,5
2301-000213 C-FILM,PEF;220nF,5%,250V,TP,21.5x11,7.5
2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5
2301-000188 C-FILM,PEF;1nF,5%,100V,TP,10.5x12.5x6.5,
2301-001143 C-FILM,PPF;56nF,5%,400V,TP,20x10x17,7.5
2401-001527 C-AL;47uF,20%,250V,HR,TP,13x25mm,5m
2401-000927 C-AL;22uF,20%,250V,GP,TP,13x20,5
2201-000291 C-CERAMIC,DISC;1nF,10%,500V,Y5P,TP,7.5x3
2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
2401-001655 C-AL;680uF,20%,25V,GP,TP,10x20,5
2401-002597 C-AL;220uF,20%,35V,GP,TP,10x12.5,5
2305-000470 C-FILM,MPEF;68nF,5%,100V,TP,-,5mm
2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
2301-000232 C-FILM,PEF;3.3nF,5%,50V,TP,8.1x4.5x13mm,
2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
2401-001655 C-AL;680uF,20%,25V,GP,TP,10x20,5
2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5
2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
2201-000315 C-CERAMIC,DISC;2.2nF,+80-20%,250V,Y5U,TP
2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,
2201-002076 C-CERAMIC,DISC;0.068nF,5%,1kV,SL,TP,8x4m
2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5
2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5,
2201-000315 C-CERAMIC,DISC;2.2nF,+80-20%,250V,Y5U,TP
2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4
2201-002041 C-CERAMIC,DISC;0.82nF,10%,2kV,Y5P,TP,9x5
2301-001171 C-FILM,PPF;10nF,5%,400V,TP,20x6.5x13,7.5
2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3
2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3
2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
2401-000722 C-AL;2200uF,20%,25V,WT,TP,16x25,7.5
2401-000722 C-AL;2200uF,20%,25V,WT,TP,16x25,7.5
2401-000722 C-AL;2200uF,20%,25V,WT,TP,16x25,7.5
2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5
2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
2401-001363 C-AL;470uF,20%,16V,GP,TP,10x12.5,5
2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3
2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5
2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5
2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5
2401-000287 C-AL;100uF,20%,16V,WT,TP,6.3x11,5
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5
2301-001268 C-FILM,PPF;33nF,5%,630V,TP,20x11x17,7.5
0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
0402-000532 DIODE-RECTIFIER;ERC13-08,800V,1.2A,DO-20
0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
0402-000532 DIODE-RECTIFIER;ERC13-08,800V,1.2A,DO-20
0402-001111 DIODE-RECTIFIER;1N5397GP,600V,1.5A,DO-20
Remark
S.N.A
S.N.A
7-5
Electrical
Loc. No.
...3 D808
...3 D811
...3 D812
...3 D813
...3 D815
...3 D816
...3 D820
...3 D821
...3 DH01
...3 DH02
...3 DS01
...3 DS02
...3 DZ301
...3 DZ302
...3 DZ303
...3 DZ304
...3 DZ305
...3 DZ306
...3 DZ307
...3 DZ401
...3 DZ402
...3 DZ403
...3 DZ801
...3 DZ802
...3 DZ803
...3 FA801S
...3 FA802S
...3 FD802S
...3 FP801A
...3 FP801B
...3 J105
...3 J106
...3 J118
...3 J125
...3 J127
...3 J130
...3 J135
...3 J173
...3 L302
...3 L303
...3 L406
...3 L407
...3 L408
...3 L409
...3 L410
...3 L802
...3 L803
...3 L804
...3 L805
...3 L806
...3 L807
...3 L808
...3 L809
...3 L810
...3 L811
...3 L813
...3 L814
...3 L817
...3 L818
...3 L822
...3 L823
...3 Q401
...3 Q402
...3 Q802
...3 Q803
...3 Q804
...3 QH01
...3 QH02
...3 QH03
...3 R301
...3 R302
...3 R305
...3 R306
...3 R307
...3 R309
...3 R310
...3 R311
7-6
Parts List
Code No.
1405-000152
1405-001030
0403-000716
0402-000534
0403-001322
0402-000132
0402-000132
0402-000546
0402-000254
0402-000254
0402-000132
0402-000132
0403-001329
0403-001329
0403-001221
0403-000700
0403-001325
0403-000716
0403-001328
0403-001322
0403-001325
0403-001325
0403-001322
0403-000508
0403-001327
3601-001228
3601-001228
3601-000120
3602-000114
3602-000114
2001-001043
2001-001043
2001-001043
2001-001043
2001-001043
2001-001043
2001-001043
2001-001043
3301-000287
3301-000287
2901-000297
2901-000297
2901-000297
3301-000287
2701-001032
2901-000299
2901-000297
2901-000297
2901-000297
2901-000297
3301-000287
3301-000287
2901-000297
2701-001030
2901-000297
2901-000297
2901-000297
3301-000287
2701-001030
2901-000299
2901-000299
0501-000389
0501-000389
0501-000369
0501-000369
0501-000389
0501-000283
0501-000389
0501-000283
2001-001093
2001-001093
2001-000016
2001-001163
2001-001144
2001-000016
2003-000746
2003-000746
Description ; Specification
Remark
VARISTOR;560V,2500A,14x8.5mm,TP
VARISTOR;120V,2500A,14x8.5mm,TP
DIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;RGP10J,600V,1A,DO-41,TP
DIODE-RECTIFIER;RGP10J,600V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m
DIODE-ZENER;MTZJ22A,20.15-21.20V,500mW,D
DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
FUSE-AXIAL LEAD;125V,2.5A,FAST-ACTING,GL
FUSE-HOLDER;-,-,30mohm
FUSE-HOLDER;-,-,30mohm
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;100uH,10%,5x14mm
FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-AXIAL;43uH,10%,5x14mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;43uH,10%,5x14mm
FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOTR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOTR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);560OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m
Loc. No.
...3 R312
...3 R313
...3 R314
...3 R315
...3 R316
...3 R401
...3 R402
...3 R403
...3 R404
...3 R405
...3 R406
...3 R407
...3 R408
...3 R409
...3 R410
...3 R411
...3 R412
...3 R413
...3 R414
...3 R415
...3 R416
...3 R418
...3 R419S
...3 R420
...3 R421
...3 R422
...3 R423S
...3 R424S
...3 R425S
...3 R426
...3 R429
...3 R430
...3 R431
...3 R434
...3 R437S
...3 R438
...3 R439
...3 R450
...3 R451
...3 R452
...3 R455
...3 R456
...3 R457
...3 R458
...3 R802
...3 R804
...3 R805
...3 R806
...3 R807
...3 R808
...3 R809
...3 R809S
...3 R810
...3 R811
...3 R812
...3 R813
...3 R814
...3 R817
...3 R818
...3 R819
...3 R821
...3 R823
...3 R824
...3 R825
...3 R826
...3 R827
...3 R830
...3 R831
...3 R832
...3 R833
...3 R834
...3 R835
...3 R836
...3 RH01
...3 RH02
...3 RH03
...3 RH04
Code No.
2004-004366
2001-000016
2004-004366
2001-000290
2001-000356
2008-001031
2001-001168
2001-001108
2001-001045
2003-000664
2001-001122
2003-001037
2001-003218
2003-002130
2003-001037
2001-001088
2001-000052
2001-001121
2003-000592
2004-001390
2004-001397
2001-000429
2008-000266
2001-001155
2001-001106
2001-001108
2008-001011
2008-001011
2008-001019
2003-000540
2004-000698
2004-002016
2004-002019
2004-002016
2008-000282
2001-000028
2001-001178
2008-001033
2004-001390
2001-001081
2008-001003
2003-002064
2001-001159
2003-002064
2001-001055
2001-001159
2003-001093
2003-001093
2003-001093
2001-001129
2001-001129
2008-001011
2001-001178
2001-000066
2009-000017
2001-001097
2001-001170
2001-001144
2001-001045
2001-000429
2001-000429
2001-001086
2001-000085
2001-001106
2001-001088
2001-001097
2001-001072
2001-000028
2001-001088
2001-001070
2003-001090
2001-000429
2008-001050
2001-000008
2001-000812
2001-000221
2001-000331
Description ; Specification
Remark
R-METAL(S);1.3Kohm,1%,1/2W,AA,TP,2.5x6.5
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-METAL(S);1.3Kohm,1%,1/2W,AA,TP,2.5x6.5
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-FUSIBLE(S);1.8ohm,5%,1W,AF,TP,3.9x10mm
R-CARBON(S);6.8KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE(S);33ohm,5%,2W,AF,TP,4x12m
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE(S);39ohm,5%,2W,AF,TP,3.9x1
R-CARBON(S);0.18ohm,10%,1/2W,AA,TP,2.4x6
R-METAL OXIDE(S);15ohm,5%,2W,AF,TP,3.9x1
R-METAL OXIDE(S);39ohm,5%,2W,AF,TP,3.9x1
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE(S);22ohm,5%,2W,AF,TP,4x12m
R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R-METAL(S);4.7Kohm,1%,1/2W,AA,TP,2.4x6.4
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);220KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE;0.2OHM,10%,1/2W,AA,TP,2.5X6.5M
R-METAL OXIDE(S);1Kohm,5%,2W,AF,TP,4x12m
R-METAL;3.3Kohm,1%,1/4W,AA,TP,2.4x6.4m
R-METAL(S);15Kohm,1%,1/2W,AA,TP,2.5x6.5m
R-METAL(S);33Kohm,1%,1/2W,AA,TP,2.5x6.5m
R-METAL(S);15Kohm,1%,1/2W,AA,TP,2.5x6.5m
R-FUSIBLE;0.47ohm,5%,1W,AA,TP,3.9x12mm
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4
R-FUSIBLE(S);10ohm,5%,2W,AF,TP,3.9x10mm
R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R-CARBON(S);160KOHM,5%,1/2W,AA,TP,2.4X6.
R-FUSIBLE(S);5.6ohm,5%,1W,AF,TP,3.9x10mm
R-METAL OXIDE;7.5ohm,5%,2W,AF,TP,10x3.9m
R-CARBON(S);510OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE;7.5ohm,5%,2W,AF,TP,10x3.9m
R-CARBON(S);1.8KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);510OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);12Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);12Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);12Kohm,5%,2W,AF,TP,3.9x
R-CARBON(S);330KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);330KOHM,5%,1/2W,AA,TP,2.4X6.
R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL PLATE;0.1ohm,10%,5W,CL,TP,5x14x1
R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);6.8OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);18KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);220KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);12OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);120OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);10Kohm,5%,2W,AF,TP,4x12
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-FUSIBLE;22ohm,5%,2W,AF,TP,3.9x10mm
R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Samsung Electronics
Electrical
Loc. No.
...3 RH05
...3 RH06
...3 RH07
...3 RH08
...3 RH09
...3 RH10
...3 RH11
...3 RH12
...3 RH14
...3 RH15
...3 RH16
...3 RH17
...3 RH18
...3 RH19
...3 RH20
...3 RH21
...3 RH22
...3 RH23
...3 RH24
...3 RP801S
...3 RS03
...3 RS04
...3 RY801S
...3 VP801S
...3 VX801S
..2
...3
Code No.
Description ; Specification
Remark
2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-001165 R-CARBON(S);56OHM,5%,1/2W,AA,TP,2.4X6.4M
2001-000411 R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-001143 R-CARBON(S);4.3KOHM,5%,1/2W,AA,TP,2.4X6.
2001-001078 R-CARBON(S);15KOHM,5%,1/2W,AA,TP,2.4X6.4
2001-001163 R-CARBON(S);560OHM,5%,1/2W,AA,TP,2.4X6.4
2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4
2001-001055 R-CARBON(S);1.8KOHM,5%,1/2W,AA,TP,2.4X6.
2003-002212 R-METAL OXIDE(S);75Kohm,5%,2W,AF,TP,3.9X
2003-002211 R-METAL OXIDE(S);91Kohm,5%,2W,AG,TP,3.9x
2003-002211 R-METAL OXIDE(S);91Kohm,5%,2W,AG,TP,3.9x
2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2002-001010 R-COMPOSITION;1.8Mohm,5%,1/2W,AA,TP,3.7x
2003-001038 R-METAL OXIDE(S);4.7ohm,5%,2W,AF,TP,3.9x
2003-001038 R-METAL OXIDE(S);4.7ohm,5%,2W,AF,TP,3.9x
2002-001012 R-COMPOSITION;8.2Mohm,5%,1/2W,AA,TP,3.7x
1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP
1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP
AA98-00002A ASSY-SUB,PART;S53A,PCB,POWER,ALL,0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
S.N.A
ASSY PCB CRT
1 *
AA95-00495A ASSY PCB CRT;-,KS4A,29’,-,CRT DRIVE,V/M,
..2 C503
..2 C510
..2 C511
..2 C512
..2 C522
..2 CNC01
..2 CNC01A
..2 CNC02
..2 CNC02A
..2 IC501
...3
...3
...3
...3
..2 IC502
..2 IC503
..2 IC504
...3
...3
...3
..2 QF09
...3
...3
...3
..2 QF10
...3
...3
...3
..2 VA999
..2
..2
...3 C501
...3 C502
...3 C504
...3 C505
...3 C506
...3 C507
...3 C509
...3 C513
...3 C514
...3 C515
...3 C516
...3 C520
2303-000186 C-FILM,PPF;22nF,5%,400V,BK,19.5x13.5x8,1
2303-000186 C-FILM,PPF;22nF,5%,400V,BK,19.5x13.5x8,1
2303-000186 C-FILM,PPF;22nF,5%,400V,BK,19.5x13.5x8,1
2303-000186 C-FILM,PPF;22nF,5%,400V,BK,19.5x13.5x8,1
2201-002117 C-CERAMIC,DISC;4.7nF,20%,3kV,Y5U,TP,16x6
3711-003974 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
AA39-00114C LEAD CONNECTOR-ASSY;,12P,35155-1200,S,50
3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAGH
AA39-00112C LEAD CONNECTOR-ASSY;,10P,35155-1000,S,50
AA96-50151B ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,1201-001131 IC-VIDEO AMP;6111,SIP,9P,-,SINGLE,-,PLAS
6001-000057 SCREW-MACHINE;RH,+,M3,L6,ZPC(BLK),SWRCH1
6021-000222 NUT-HEXAGON;2C,M3,ZPC(YEL),SM20C 1
AA61-10060A BRACKET-TR;-,-,CUS-1 1/2H,T0.5,-,-,AA96-50151B ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,AA96-50151B ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,AA96-00110D ASSY-H/S;-,-,AA62-30013K,TDA2030,1201-000010 IC-OP AMP;2030,PENTAWATT,5P,-,SINGLE,-,C
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
AA62-30013K HEATSINK-ES;-,-,-,-,44/18,-,WHT,A6063 EX
AA96-00111B ASSY-H/S;-,-,AA62-30013L,2SA1011,0502-000131 TR-POWER;2SA1011-D,PNP,1.2W,TO-220,-,60
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
AA62-30013L HEATSINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,AA96-00111A ASSY-H/S;-,-,AA62-30013L,2SC2344,0502-000153 TR-POWER;2SC2344-D,NPN,1.2W,TO-220,-,60
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
AA62-30013L HEATSINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,3704-001032 SOCKET-CRT;8P,29PI,35.5PI,AU30U
AA41-00209B PCB-CRT;-,-,1L,-,-,330x245x1.6T,KS4A,4
AA99-20069U ASSY-PCB SUB,AUTO; AA95-00495A ,V
2201-000949 C-CERAMIC,DISC;0.005nF,0.5pF,50V,UJ,TP,4
2201-000436 C-CERAMIC,DISC;0.002nF,0.25pF,50V,SL,TP,
2301-000016 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
2301-000016 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
2301-000016 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
2301-000016 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
2301-000016 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
2401-001176 C-AL;33uF,20%,25V,GP,TP,5x11,5
2401-000703 C-AL;2200uF,20%,25V,GP,-,12.5x25mm,
Samsung Electronics
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
...3 C528
...3 C531
...3 C532
...3 C533
...3 C534
...3 C535
...3 CF01
...3 CF02
...3 CF03
...3 CF04
...3 CF05
...3 CF06
...3 CF07
...3 CF71
...3 CF73
...3 CF74
...3 CF75
...3 D501
...3 D502
...3 D504
...3 D509
...3 D510
...3 D511
...3 D512
...3 D513
...3 D514
...3 DF01
...3 DF02
...3 DF05
...3 DF06
...3 DF07
...3 DF08
...3 DZ501
...3 DZ502
...3 DZ503
...3 DZ504
...3 DZ510
...3 FN1
...3 FV1
...3 L502
...3 LF01
...3 LF02
...3 LF03
...3 LF04
...3 LF06
...3 LF08
...3 LF09
...3 LF11
...3 Q504
...3 QF01
...3 QF02
...3 QF03
...3 QF04
...3 QF05
...3 R501
...3 R502
...3 R503
...3 R504
...3 R505
...3 R506
...3 R507
...3 R508
...3 R510
...3 R511
...3 R512
...3 R513
...3 R514
...3 R515
...3 R518
...3 R519
...3 R520
...3 R521
...3 R522
...3 R523
...3 R525
...3 R528
...3 R540
Code No.
2401-000832
2401-002264
2401-001563
2305-000665
2401-000832
2401-000914
2201-000982
2201-000292
2201-000192
2201-000516
2301-000261
2201-000192
2201-000604
2401-000832
2401-001157
2401-002235
2401-000045
0401-000005
0402-000546
0402-000132
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0401-000005
0401-000005
0401-000005
0401-000005
0402-000546
0402-000546
0403-001211
0403-001211
0403-001211
0403-001324
0403-000698
3711-002643
3711-002642
2701-000178
3301-000287
3301-000287
2701-000112
3301-000287
2901-000297
2901-000297
2901-000297
2901-000297
0501-000283
0501-000389
0501-000389
0501-000389
0501-000283
0501-000389
2001-000241
2001-000252
2001-000241
2001-001045
2001-001045
2001-001045
2001-000472
2001-000995
2001-001194
2001-001194
2001-001194
2002-001017
2002-001017
2002-001017
2001-001095
2001-000356
2001-000563
2001-000221
2001-000290
2001-000890
2002-001006
2008-000252
2001-000429
Description ; Specification
Parts List
Remark
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;10uF,20%,350V,GP,TP,10x20mm,5m
C-AL;47uF,20%,400V,GP,TP,16x25,7.5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;22uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,4
C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5,
C-CERAMIC,DISC;0.01nF,0.25pF,500V,NP0,TP
C-CERAMIC,DISC;4.7nF,+100-0%,500V,Y5U,TP
C-FILM,PEF;4.7nF,5%,100V,TP,10.5x12.5x6.
C-CERAMIC,DISC;0.01nF,0.25pF,500V,NP0,TP
C-CERAMIC,DISC;0.056nF,+100-0%,500V,SL,T
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;33uF,20%,160V,GP,TP,12.5x20,5
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,160V,GP,TP,10x16,5
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ13A,12.11-12.75V,500mW,D
DIODE-ZENER;TZP12A,12V,11.4-12.6V,1W,DOCONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,STRAIGH
INDUCTOR-AXIAL;33uH,10%,3x7mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;100uH,10%,3x7mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);82KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);82KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);82KOHM,5%,1/2W,AA,TP,2.4X6.4
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-CARBON(S);2.2MOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;150KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-COMPOSITION;4.7Kohm,5%,1/2W,AA,TP,3.7x
R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
7-7
Electrical
Loc. No.
...3 R554
...3 R555
...3 R556
...3 R560
...3 R561
...3 R562
...3 R563
...3 R564
...3 R565
...3 R566
...3 RF02
...3 RF03
...3 RF04
...3 RF17
...3 RF18
...3 RF19
...3 RF20
...3 RF21
...3 RF22
...3 RF23
...3 RF24
...3 RF25
...3 RF26
...3 RF27
...3 RF28
...3 RF29
...3 RF30
...3 RF31
...3 RF32
...3 RF33
...3 RF34
...3 RF35
...3 RF36
..2
..2
..2
Parts List
Code No.
Description ; Specification
Remark
2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-001049 R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
2001-001126 R-CARBON(S);300OHM,5%,1/2W,AA,TP,2.4X6.4
2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2004-001379 R-METAL(S);12Kohm,1%,1/2W,AA,TP,2.4x6.4m
2001-001040 R-CARBON(S);0.68OHM,5%,1/2W,AA,TP,2.4X6.
2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000989 R-CARBON;820KOHM,5%,1/8W,AA,TP,1.8X3.2M
2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M
2001-000022 R-CARBON(S);33OHM,5%,1/2W,AA,TP,2.4X6.4M
2001-000022 R-CARBON(S);33OHM,5%,1/2W,AA,TP,2.4X6.4M
2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
2003-001018 R-METAL OXIDE(S);220ohm,5%,2W,AF,TP,3.9x
2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
2001-001179 R-CARBON(S);68KOHM,5%,1/2W,AA,TP,2.4X6.4
2001-001179 R-CARBON(S);68KOHM,5%,1/2W,AA,TP,2.4X6.4
2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
2001-001071 R-CARBON(S);12KOHM,5%,1/2W,AA,TP,2.4X6.4
2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
2003-000746 R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m
2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4
2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4
2003-000746 R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m
2003-001018 R-METAL OXIDE(S);220ohm,5%,2W,AF,TP,3.9x
AA63-10002A BAND-TIE;-,NYLON66 V2,-,-,L100,NTR,-,0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
AA39-20010B LEAD CONNECTOR-ASSY;,1P,YFH800-01,S,500,
S.N.A
S.N.A
ASSY-PCB,NTSC FBOX
1 *
AA95-00394D ASSY-PCB,NTSC FBOX;-,TSK2790FX/XAA,KS4A,
..2 CN01
..2 CN02
..2 CN03
..2 CN04
..2 CX01
..2 DX01
..2 PX01
..2
...3 CC01
...3 CC02
...3 CC03
...3 CC04
...3 CC05
...3 CC06
...3 CC07
...3 CC08
...3 CC09
...3 CC10
...3 CC11
...3 CC12
...3 CC13
...3 CC14
...3 CC15
...3 CC16
...3 CC17
...3 CC18
...3 CC19
...3 CC20
...3 CC21
...3 CC22
...3 CC23
...3 CC24
...3 CC25
...3 CC26
3711-003543
3711-003543
3711-001283
3711-001283
2801-004019
2801-003811
2801-004019
AA99-20078S
2203-000575
2203-000979
2203-000575
2203-000575
2203-000142
2203-000839
2203-000181
2203-000979
2203-000142
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-001172
2203-001172
2401-002042
2203-000979
2401-002144
2203-000575
2203-000142
2203-000839
2203-000444
2203-000761
2203-000761
2203-000761
7-8
CONNECTOR-HEADER;NOWALL,16P,1R,2.54MM,AN
CONNECTOR-HEADER;NOWALL,16P,1R,2.54MM,AN
CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG
CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG
CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,
CRYSTAL-UNIT;24.576MHZ,20PPM,28-AAM,30PF
CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,
ASSY-PCB SUB,AUTO; AA95-00394D ,V
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.006nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;0.006nF,0.25pF,50V,NP0,TP
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
S.N.A
Loc. No.
...3 CC27
...3 CC28
...3 CC29
...3 CC30
...3 CC31
...3 CC32
...3 CC33
...3 CC35
...3 CC36
...3 CC37
...3 CC38
...3 CC39
...3 CC40
...3 CC41
...3 CC42
...3 CC43
...3 CC44
...3 CC45
...3 CC47
...3 CC48
...3 CC49
...3 CC50
...3 CD01
...3 CD02
...3 CF01
...3 CL05
...3 CL06
...3 CL07
...3 CQ01
...3 CQ02
...3 CQ03
...3 CQ04
...3 CQ05
...3 CR01
...3 CR02
...3 CR03
...3 CR04
...3 CR05
...3 CR06
...3 CR07
...3 CR08
...3 CR09
...3 CR10
...3 CR12
...3 CR13
...3 CR14
...3 CR19
...3 CR20
...3 CR22
...3 CR26
...3 CR27
...3 CR28
...3 CR29
...3 CR30
...3 CR31
...3 CR32
...3 CR33
...3 CR35
...3 CR37
...3 CR38
...3 CR41
...3 CR45
...3 CR46
...3 CR47
...3 CR48
...3 CR49
...3 CR50
...3 CR51
...3 CR52
...3 CR53
...3 CR54
...3 CR55
...3 DC01
...3 DC02
...3 DC03
...3 DC04
...3 DC05
Code No.
2203-000761
2401-002144
2203-000575
2203-000142
2203-000839
2401-002042
2203-000979
2203-000761
2203-000761
2203-000683
2203-000683
2203-000683
2203-000683
2203-001002
2401-002144
2203-000181
2401-002144
2401-000480
2203-000181
2203-005384
2203-005384
2203-005384
0401-000133
0401-000133
2901-001120
2702-001094
2901-000297
2702-001094
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
2007-001166
2007-001166
2007-001166
2007-001166
2007-001166
2007-001166
2007-001166
2007-001166
2007-000290
2007-000290
2007-000947
2007-000947
2007-000947
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000468
2007-000493
2007-000030
2007-000642
2007-000290
2007-000290
2007-000300
2007-000290
2007-000290
2007-000029
2007-000290
2007-000468
2007-000941
2007-000941
2007-000931
2007-000941
2007-000941
2007-000931
2007-000941
2007-000941
2007-000931
2401-003102
2203-000181
2203-000181
2203-000181
2203-000181
Description ; Specification
Remark
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,201
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
INDUCTOR-RADIAL;10uH,10%,6x4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-RADIAL;10uH,10%,6x4mm
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTR-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;270OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
Samsung Electronics
Electrical
Loc. No.
...3 DC06
...3 DC07
...3 DC08
...3 DC09
...3 DC10
...3 DC11
...3 DC12
...3 DC13
...3 DC14
...3 DC15
...3 DC16
...3 DC17
...3 DC18
...3 DC19
...3 DC20
...3 DC21
...3 DC22
...3 DC23
...3 DC24
...3 DC25
...3 DC26
...3 DC27
...3 DC28
...3 DC29
...3 DC30
...3 DC31
...3 DC32
...3 DC33
...3 DC34
...3 DC35
...3 DC36
...3 DC37
...3 DC38
...3 DC39
...3 DC40
...3 DC41
...3 DC42
...3 DC43
...3 DD01
...3 DD02
...3 DD03
...3 DD06
...3 DD07
...3 DL01
...3 DL02
...3 DL03
...3 DL04
...3 DL05
...3 DL06
...3 DL07
...3 DQ01
...3 DR01
...3 DR02
...3 DR03
...3 DR04
...3 DR05
...3 DR06
...3 DR07
...3 DR08
...3 DR09
...3 DR10
...3 DR11
...3 DR12
...3 DR13
...3 DR14
...3 DR15
...3 DR16
...3 DR17
...3 DR18
...3 DR19
...3 DR20
...3 DR22
...3 DR23
...3 DR24
...3 DR25
...3 DR26
...3 DR27
Code No.
2203-000142
2203-000239
2203-000181
2203-000555
2203-000181
2203-000555
2203-000555
2203-000181
2203-000181
2203-000181
2401-002144
2401-003102
2203-000181
2401-003102
2203-000181
2203-001088
2203-001088
2203-002494
2203-000938
2203-000444
2203-000444
2401-000603
2203-000181
2203-000444
2203-000444
2203-000444
2203-000181
2203-000181
2203-001002
2203-000181
2203-000239
2203-000142
2203-000239
2401-000603
2203-000181
2401-000480
2401-000480
2401-000480
0401-000133
0401-000133
0403-000689
0403-000689
0401-000133
2702-001094
2702-001094
2702-001094
2702-001094
2702-001094
2702-001094
2702-001092
0501-000283
2007-000290
2007-000290
2007-001055
2007-000401
2007-000023
2007-000023
2007-000401
2007-000290
2007-000290
2007-000401
2007-000290
2007-000290
2007-000380
2007-000300
2007-000401
2007-000290
2007-000290
2007-001208
2007-000947
2007-000518
2007-000872
2007-000941
2007-000001
2007-000653
2007-000300
2007-001224
Description ; Specification
Remark
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.005nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;0.005nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
DIODE-ZENER;DTZ5.1A,5.1V,4.84-5.04V,200m
DIODE-ZENER;DTZ5.1A,5.1V,4.84-5.04V,200m
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;2.2uH,10%,6x4mm
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;6.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;150OHM,5%,1/10W,DA,TP,2012
R-CHIP;120OHM,5%,1/10W,DA,TP,2012
R-CHIP;120OHM,5%,1/10W,DA,TP,2012
R-CHIP;150OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;150OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;13KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;150OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;82KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;68KOHM,5%,1/10W,DA,TP,2012
R-CHIP;27KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;9.1KOHM,5%,1/10W,DA,TP,2012
Samsung Electronics
Loc. No.
...3 DR28
...3 DR29
...3 DR30
...3 DR31
...3 DR32
...3 DR33
...3 DR34
...3 DR35
...3 DR36
...3 DR37
...3 DR38
...3 DR40
...3 DR41
...3 DR42
...3 DR43
...3 DR44
...3 DR46
...3 DR48
...3 IC01
...3 IC02
...3 IC03
...3 IC04
...3 IC05
...3 IC06
...3 IC07
...3 IC11
...3 IC12
...3 IC13
...3 IC14
...3 PC01
...3 PC02
...3 PC03
...3 PC04
...3 PC05
...3 PC06
...3 PC07
...3 PC08
...3 PC09
...3 PC10
...3 PC11
...3 PC12
...3 PC13
...3 PC14
...3 PC15
...3 PC16
...3 PC17
...3 PC18
...3 PC19
...3 PC20
...3 PC21
...3 PC22
...3 PC23
...3 PC24
...3 PC25
...3 PC26
...3 PC27
...3 PC28
...3 PC29
...3 PC30
...3 PC31
...3 PC32
...3 PC33
...3 PC34
...3 PC35
...3 PC36
...3 PC37
...3 PC38
...3 PC39
...3 PC40
...3 PC41
...3 PC42
...3 PC43
...3 PC44
...3 PC45
...3 PC46
...3 PC52
...3 PC53
Code No.
Parts List
Description ; Specification
Remark
2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
2007-000822 R-CHIP;390OHM,5%,1/10W,DA,TP,2012
2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
2007-000267 R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
2007-000493 R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
2007-000297 R-CHIP;10KOHM,1%,1/10W,DA,TP,2012
1204-001598 IC-VIDEO PROCESS;VPC3230D-B2,QFP,80P,-,P
AA13-00095A IC ASIC;-,SDP01,QFP,128P,PROSCAN
1105-001273 IC-DRAM;416S1120,512Kx16x2Bit,TSOP,50P
1105-001273 IC-DRAM;416S1120,512Kx16x2Bit,TSOP,50P
1002-001045 IC-D/A CONVERTER;9280,8BIT,PLCC,68P,-,-,
1204-001372 IC-HOR./VER.PROCESSO;SDA9361,QFP,44P,-,P
1204-001550 IC-VIDEO PROCESS;CXA2101AQ,QFP,80P,-,PLA
1203-001419 IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x
1203-001140 IC-VOL. DETECTOR;7039,TO-92P,3P,-,PLASTI
1203-001359 IC-POSI.FIXED REG.;1086,TO-263,3P,15.8MM
1202-000001 IC-VOLTAGE COMP.;7533,TO-92,3P,-,SINGLE,
2203-000575 C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
2203-000839 C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-001172 C-CERAMIC,CHIP;0.006nF,0.25pF,50V,NP0,TP
2203-001172 C-CERAMIC,CHIP;0.006nF,0.25pF,50V,NP0,TP
2401-002042 C-AL;220uF,20%,10V,GP,TP,6.3x11,5
2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
2203-000575 C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
2203-000839 C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,2203-000761 C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
2203-000761 C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
2203-000575 C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
2203-000839 C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
2401-002042 C-AL;220uF,20%,10V,GP,TP,6.3x11,5
2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
2203-000575 C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
7-9
Electrical
Loc. No.
...3 PC54
...3 PC55
...3 PC56
...3 PC57
...3 PC58
...3 PC78
...3 PIC01
...3 PIC02
...3 PIC04
...3 PIC05
...3 PL01
...3 PL02
...3 PL03
...3 PR01
...3 PR02
...3 PR03
...3 PR04
...3 PR06
...3 PR07
...3 PR08
...3 PR09
...3 PR10
...3 PR15
...3 PR16
...3 PR17
...3 PR18
...3 PR19
...3 PR20
...3 SC01
...3 SC02
...3 SC03
...3 SC04
...3 SC05
...3 SC06
...3 SC07
...3 SC08
...3 SC09
...3 SC10
...3 SC11
...3 SC12
...3 SC13
...3 SC16
...3 SC17
...3 SC18
...3 SC19
...3 SC20
...3 SC21
...3 SC22
...3 SC23
...3 SC24
...3 SC25
...3 SC26
...3 SC27
...3 SC28
...3 SC29
...3 SC30
...3 SC31
...3 SC32
...3 SC33
...3 SC34
...3 SC35
...3 SC37
...3 SC38
...3 SC39
...3 SC40
...3 SL01
...3 SL02
...3 SL03
...3 SL04
...3 SL06
...3 SR01
...3 SR02
...3 SR03
...3 SR04
...3 SR05
...3 SR06
...3 SR07
7-10
Parts List
Code No.
2203-000575
2203-000761
2203-000761
2203-000761
2203-000761
2203-000181
1204-001598
1109-001144
1203-001419
1203-001419
2702-001094
2901-000297
2901-000297
2007-001166
2007-001166
2007-000290
2007-000290
2007-000947
2007-000947
2007-000947
2007-000029
2007-000029
2007-000029
2007-000029
2007-000029
2007-000029
2007-000029
2007-000290
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2401-002144
2203-000181
2203-000181
2203-000181
2203-000181
2401-002144
2203-000181
2401-002144
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2401-002144
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2401-003102
2203-000181
2401-003102
2203-000181
2203-000181
2401-000603
2203-000181
2203-000181
2401-003102
2203-000239
2007-000493
2901-000297
2702-001094
2702-001094
2901-000297
2007-000572
2007-000572
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
Description ; Specification
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
IC-VIDEO PROCESS;VPC3230D-B2,QFP,80P,-,P
IC-FIFO;81V04160,2x256Kx8Bit,TQFP,100P
IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x
IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x
INDUCTOR-RADIAL;10uH,10%,6x4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
Remark
Loc. No.
...3 SR08
...3 SR09
...3 SR10
...3 SR11
...3 SR12
...3 SR13
...3 SR14
...3 SR15
...3 SR16
...3 SR17
...3 SR50
...3 SR51
...3 SR52
...3 SR53
...3 SR54
...3 SR55
...3 SR56
...3 SR58
...3 SR60
...3 SR61
...3 SR62
...3 SR63
...3 SR64
...3 YC01
...3 YC02
...3 YC03
...3 YC04
...3 YC05
...3 YC08
...3 YC09
...3 YC10
...3 YC11
...3 YC12
...3 YC13
...3 YC14
...3 YC15
...3 YC16
...3 YC17
...3 YC18
...3 YC19
...3 YC20
...3 YC23
...3 YC24
...3 YC25
...3 YC28
...3 YC29
...3 YC30
...3 YC31
...3 YC32
...3 YC33
...3 YC34
...3 YC35
...3 YC36
...3 YC37
...3 YC38
...3 YC39
...3 YC40
...3 YC41
...3 YC42
...3 YC45
...3 YC46
...3 YC47
...3 YC48
...3 YC49
...3 YC50
...3 YC52
...3 YC53
...3 YC54
...3 YC55
...3 YC56
...3 YC57
...3 YC58
...3 YC59
...3 YC60
...3 YC62
...3 YD01
...3 YD02
Code No.
2011-000585
2011-000585
2007-000947
2007-000947
2007-000947
2011-000585
2011-000585
2011-000585
2011-000585
2007-000308
2007-000290
2007-000290
2007-000938
2011-000585
2011-000585
2011-000585
2011-000585
2007-000290
2007-000308
2007-000308
2007-000308
2007-000308
2007-000029
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2401-002144
2203-000181
2203-000260
2203-000181
2203-000181
2401-002144
2203-000181
2203-000181
2203-000181
2203-002494
2401-000493
2203-000260
2203-000260
2203-000260
2203-000260
2203-000260
2203-000260
2401-000480
2203-002494
2203-000260
2203-000260
2203-000260
2203-000260
2203-002494
2203-001088
2203-000181
2203-000181
2203-000181
2203-000181
2401-002144
2203-000181
2203-000181
2203-000181
2401-000603
0403-000620
0403-000620
Description ; Specification
Remark
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,1%,1/10W,DA,TP,2012
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;0.005nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;1uF,20%,50V,GP,TP,5x11,5
DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP
DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP
Samsung Electronics
Electrical
Loc. No.
...3 YD03
...3 YD04
...3 YD05
...3 YF11
...3 YF12
...3 YF13
...3 YF14
...3 YF15
...3 YL01
...3 YQ01
...3 YQ02
...3 YQ03
...3 YQ06
...3 YQ08
...3 YQ11
...3 YQ12
...3 YR03
...3 YR05
...3 YR06
...3 YR07
...3 YR08
...3 YR09
...3 YR10
...3 YR11
...3 YR12
...3 YR14
...3 YR15
...3 YR18
...3 YR23
...3 YR24
...3 YR25
...3 YR26
...3 YR27
...3 YR28
...3 YR29
...3 YR30
...3 YR31
...3 YR32
...3 YR33
...3 YR40
...3 YR41
...3 YR42
...3 YR43
...3 YR44
...3 YR45
...3 YR46
...3 YR47
...3 YR48
...3 YR49
...3 YR50
...3 YR51
...3 YR52
...3 YR53
...3 YR56
...3 YR58
...3 YR59
...3 YR60
...3 YR61
...3 YR62
...3 YR63
...3 YR64
...3 YR65
...3 YR83
...3 YR84
...3 YR88
...3 YR89
...3 YR90
...3 YR91
...3 YR92
...3 YR93
...3 YR98
...3
..2
..2
Code No.
Description ; Specification
Remark
0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
2901-000226 FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
2901-000226 FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
2901-000226 FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
2901-000226 FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
2901-000226 FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm
0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
2007-000938 R-CHIP;47KOHM,1%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000030 R-CHIP;560OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000030 R-CHIP;560OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000030 R-CHIP;560OHM,5%,1/10W,DA,TP,2012
2007-000689 R-CHIP;3.3MOHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
2007-000766 R-CHIP;330OHM,5%,1/10W,DA,TP,2012
2007-000766 R-CHIP;330OHM,5%,1/10W,DA,TP,2012
2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000582 R-CHIP;22KOHM,1%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
AA41-00161B PCB-SCAN BLOCK;CT-29A7DR,FR-4,4L,B,1.6T,
AA63-00100A SHIELD-CASE;-,SPTE,0.5,SCAN-MODULE,FCC
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
Samsung Electronics
Loc. No.
Code No.
Parts List
Description ; Specification
Remark
ASSY-PCB,3D COBM
S.N.A
S.N.A
1 *
AA95-00979A ASSY-PCB,3D COBM;-,CT-29A7DR,KS4A,-,-,AA
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
2401-001496
2203-000181
2401-002464
2401-001914
2203-000181
2203-000181
2203-001035
2401-000598
2401-000455
2301-000111
2203-000181
2203-000181
2203-000181
2203-000181
2401-000455
2203-000181
2401-000455
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2401-001496
2203-000181
2401-001496
2401-001496
2203-000181
2203-000181
2401-001496
2401-001496
2203-000181
2401-001496
2203-000181
2401-001496
2203-000181
2203-000181
2203-000634
2203-000353
2203-000181
2203-000181
2203-000839
2203-000181
2203-000181
2203-000634
2203-000634
2203-000181
2203-000181
3711-002707
3711-002703
0403-001016
0403-001016
0401-000133
2909-001051
2909-001051
2909-001052
2909-001051
1204-001556
1105-001172
1203-001419
2007-000029
2007-000029
2702-001096
2702-001095
2702-001095
2901-000297
2702-001093
0501-000344
0501-000280
0501-000280
0501-000344
CD10
CD11
CD12
CD18
CD20
CD21
CD22
CD23
CD24
CD40
CD41
CD42
CD43
CD44
CD45
CD46
CD47
CD50
CD51
CD52
CD53
CD54
CD55
CD56
CD57
CD58
CD59
CD60
CD62
CD63
CD64
CD66
CD67
CD68
CD69
CD71
CD72
CD74
CD75
CD80
CD81
CD84
CD85
CD86
CD87
CD88
CD89
CD90
CD91
CON01
CON02
DD01
DD02
DD03
FD00
FD01
FD02
FD03
IC01
IC02
IC04
JD01
JD04
LD03
LD05
LD06
LD07
LD09
QD10
QD11
QD12
QD13
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,BP,TP,8x11.5,5
C-AL;1uF,20%,50V,BP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;5.6nF,10%,50V,X7R,TP,2012
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;10uF,20%,35V,GP,TP,4x7mm,5mm
C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;10uF,20%,35V,GP,TP,4x7mm,5mm
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;10uF,20%,35V,GP,TP,4x7mm,5mm
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.15nF,10%,50V,NP0,TP,201
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CONNECTOR-HEADER;NOWALL,9P,1R,2.5mm,ANGL
CONNECTOR-HEADER;NOWALL,5P,1R,2.5mm,ANGL
DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m
DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
FILTER-LC;6MHz,6MHz,0.8dB,TP,5dB/6MHz,30
FILTER-LC;6MHz,6MHz,0.8dB,TP,5dB/6MHz,30
FILTER-LC;3.58MHz,3MHz,1.5dB,TP,11dB/1.0
FILTER-LC;6MHz,6MHz,0.8dB,TP,5dB/6MHz,30
IC-SEPARATOR;UPD64082GF,QFP,100P,-,PLAST
IC-DRAM;416C1204,1Mx16BIT,TSOP,44P,400
IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
INDUCTOR-RADIAL;33uH,10%,6x4mm
INDUCTOR-RADIAL;18uH,10%,6x4mm
INDUCTOR-RADIAL;18uH,10%,6x4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-RADIAL;4.7uH,10%,6x4mm
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
7-11
Electrical
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
QD14
QD15
QD16
QD17
QD18
QD19
QD20
QD21
QD22
QD23
QD24
QD25
QD26
QD27
QD28
QD40
QD41
RD00
RD01
RD02
RD03
RD04
RD05
RD06
RD07
RD08
RD09
RD10
RD11
RD12
RD13
RD14
RD15
RD16
RD17
RD18
RD19
RD20
RD21
RD22
RD23
RD24
RD25
RD26
RD27
RD37
RD38
RD39
RD40
RD41
RD42
RD43
RD50
RD51
RD59
RD62
RD63
RD64
RD65
RD66
RD67
RD68
RD69
RD70
RD71
RD72
RD73
RD74
RD75
RD76
RD77
RD78
RD79
RD82
RD83
RD84
RD85
7-12
Parts List
Code No.
0501-000280
0501-000280
0501-000280
0501-000344
0501-000280
0501-000344
0501-000280
0501-000344
0501-000280
0501-000344
0501-000344
0501-000280
0501-000344
0501-000344
0501-000280
0501-000344
0501-000344
2007-000290
2007-000290
2007-000030
2007-000290
2007-000586
2007-001141
2007-000468
2007-000468
2007-000030
2007-000981
2007-000290
2007-000290
2007-000586
2007-001141
2007-000308
2007-000468
2007-000030
2007-000981
2007-000290
2007-000030
2007-001092
2007-000572
2007-000468
2007-000493
2007-000941
2007-000565
2007-000931
2007-000872
2007-001092
2007-000290
2007-000468
2007-000582
2007-000297
2007-000582
2007-000868
2007-000290
2007-000468
2007-000282
2007-000308
2007-000493
2007-000468
2007-000468
2007-000738
2007-000710
2007-000468
2007-000931
2007-000931
2007-000468
2007-000931
2007-000290
2007-000931
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000308
2007-000493
2007-000030
2007-000981
Description ; Specification
Remark
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTR-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R-CHIP;7.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R-CHIP;7.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;620OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;220KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;620OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;22KOHM,1%,1/10W,DA,TP,2012
R-CHIP;10KOHM,1%,1/10W,DA,TP,2012
R-CHIP;22KOHM,1%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,1%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;30KOHM,5%,1/10W,DA,TP,2012
R-CHIP;3.9KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
Loc. No.
..2 RD86
..2 RD87
..2 RD88
..2 RD89
..2 RD90
..2 RD91
..2 RD92
..2 RD93
..2 RD94
..2 RD95
..2 RD96
..2 RD97
..2 RD98
..2
...3
...3
..2
..2
..2
Code No.
Description ; Specification
Remark
2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012
2007-000781 R-CHIP;33OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
AA98-60005J ASSY-SUB,PART;S51A,SOUND,NICAM,0202-001004 SOLDER-CREAM;SQ-2030M SZH-1,S63A,D0.04,6
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
AA41-00128D PCB-3D COMB;CT-29A76F,FR-4,2L,D,1.6T,180
2801-000199 CRYSTAL-UNIT;20MHz,50ppm,28-AAA,16pF,50o
AA63-40014A SHIELD-CASE,T;-,SPTE,T0.5,SCT51A,-
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY-PCB,DOLBY
1 *
AA95-00758A ASSY-PCB,DOLBY;-,WS32W8HD,KS4A,PAL,-,-
..2 CN601A
..2 CN602A
..2 CN603A
..2
..2
..2
...3 C601
...3 C602
...3 C603
...3 C604
...3 C605
...3 C606
...3 C607
...3 C608
...3 C609
...3 C610
...3 C611
...3 C612
...3 C613
...3 C614
...3 C615
...3 C616
...3 C617
...3 C618
...3 C619
...3 C620
...3 C621
...3 C622
...3 C623
...3 C624
...3 C625
...3 C626
...3 C627
...3 C628
...3 IC601
...3 IC602
...3 L601
...3 L602
...3 L603
...3 L604
...3 R601
...3 R602
...3 R603
...3 R604
...3 R605
...3 R606
...3 R607
...3 R608
...3 R609
...3 R610
...3 R611
3711-002704 CONNECTOR-HEADER;NOWALL,6P,1R,2.5mm,ANGL
3711-002707 CONNECTOR-HEADER;NOWALL,9P,1R,2.5mm,ANGL
AA61-10068A BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,0202-001004 SOLDER-CREAM;SQ-2030M SZH-1,S63A,D0.04,6
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
AA99-20079N ASSY-PCB SUB,AUTO; AA95-00758A ,V
2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
2401-000287 C-AL;100uF,20%,16V,WT,TP,6.3x11,5
2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
2401-000287 C-AL;100uF,20%,16V,WT,TP,6.3x11,5
2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
2203-000761 C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
2401-000287 C-AL;100uF,20%,16V,WT,TP,6.3x11,5
2203-000595 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,2012
2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
2401-000287 C-AL;100uF,20%,16V,WT,TP,6.3x11,5
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
1204-001198 IC-DECODER;DPL3519A-A2,PLCC,68P,-,PLASTI
1201-000541 IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P
2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
2007-001243 R-CHIP;91KOHM,5%,1/10W,DA,TP,2012
S.N.A
S.N.A
S.N.A
S.N.A
Samsung Electronics
Electrical
Loc. No.
...3 R612
...3 R613
...3 R614
...3 R615
...3 R617
...3
Code No.
2007-000282
2007-001243
2007-000282
2007-000029
2007-000029
AA41-00162B
Description ; Specification
Remark
R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
R-CHIP;91KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
PCB-DOLBY;WS32WHD,FR-4,2L,B,1.6T,180x245
Loc. No.
...3 RC07
...3 RC08
...3 RC09
...3 RC12
...3 RC13
..2
ASSY-PCB,A/V SIDE
1 *
1 *
AA95-00603A ASSY-PCB,CONTROL;-,CT-29A7DR,KS4A,NTSC,2
..2 DC01
..2 DC02
..2 PA01
..2 SWC01
..2 SWC02
..2 SWC03
..2 SWC04
..2 SWC05
..2 SWC06
..2 SWC07
..2
..2
..2
...3 CC01
...3 DC03
...3 DC04
...3 QC01
...3 QC02
...3 RC01
...3 RC02
...3 RC03
...3 RC04
...3 RC05
...3 RC06
0601-000465
0601-000465
AA59-60002B
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
AA39-20112C
0202-000187
AA99-20072R
2401-002291
0401-000005
0401-000005
0501-000389
0501-000389
2001-000020
2001-001108
2001-000387
2001-000947
2001-000591
2001-000591
2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-001111 R-CARBON(S);240OHM,5%,1/2W,AA,TP,2.4X6.4
2001-001111 R-CARBON(S);240OHM,5%,1/2W,AA,TP,2.4X6.4
AA41-00246A PCB-CONTROL;KS4A,1L,FR-1,245x245x1.6T,5A
S.N.A
AA91-00565C ASSY CABINET FRONT;TANTUS,29A7,SV907P+DG
S.N.A
S.N.A
S.N.A
ASSY CABINET
1 *
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
LED;ROUND,GRN,5mm,565
LED;ROUND,GRN,5mm,565
MODULE-REMOCON;-,ORC-50HF,38KHZ,940MM,ME
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
LEAD CONNECTOR-ASSY;,9P,YBNH025-09,67096
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
ASSY-PCB SUB,AUTO; AA95-00603A ,V
S.N.A
C-AL;47uF,20%,16V,GP,TP,6.3x5,5
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;16KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
Samsung Electronics
Remark
..2 CF+GRI 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
..2 KCON+C 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
..2 LED+CF 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
..2
AA64-00634B WINDOW-REMOCON;-,29A7,-,PC,V0,VIOLET,..2
AA64-00635B INDICATOR-LED;-,29A7,6G,ACRYL,-,SMOG,..2
AA64-70117B BADGE-BRAND;AL,SS,SILVER,L65,R2000,-,..2
AA65-00011C CLAMP-WIRE;ALL MODEL,NYLON 66,V2,NTR,25M
..2
AA65-30105A CLAMP-WIRE;NYLON 66,V2,NTR,15MM,ALL MODE
..2
AA64-00632B KNOB-POWER;-,29A7,AL,ABS,HB,GRAY
..2
AA61-60003J SPRING-CS;-,SUS304,0.5,OD6,H12,N7,-,-,..2
AA63-00229F GRILLE-SPEAKER;29A7,SV907P,HIPS,-,G4309,
..2
AA64-00627V CABINET FRONT;29A7 TANTUS,SV907P+DG908P
..2
AA64-00630B KNOB-CONTROL;-,29A7,AL,ABS,HB,GRAY
ASSY-PCB,CONTROL
1 *
Description ; Specification
ASSY CABINET FRONT
AA95-00744A ASSY-PCB,A/V SIDE;-,TSK2790FX/XAA,KS4A,N
..2 C701
2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
..2 C702
2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
..2 C705
2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
..2 C706
2202-000263 C-CERAMIC,MLC-AXIAL;470pF,10%,50V,Y5P,TP
..2 C707
2202-000263 C-CERAMIC,MLC-AXIAL;470pF,10%,50V,Y5P,TP
..2 C708
2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
..2 CN701A AA39-20159B LEAD CONNECTOR-ASSY;,12P,YBNH250-12,6709
..2 JA701A 3722-001031 JACK-RCA;3P,3.6MM,#18,AU
..2 JA702A 3722-001163 JACK-VHS;4P,12mm,AU,BLK,N
..2 JA703A 3722-000143 JACK-PHONE;1P(VER),3.4mm,AG,BLK,NO
..2 L706
2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,..2 L707
2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,..2 L708
2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,..2 L709
2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,..2 R706
2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
..2 R707
2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
..2 R708
2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
..2 R709
2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
..2 R710
2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,1.8X3.2MM
..2
AA61-00397A HOLDER-AV,HOUSING ASSY;-,29A7 GN802P,ABS
...3 DAMPER6003-001070 SCREW-TAPTITE;BH,+,B,M2,L4,ZPC(BLK),SWRC
...3
AA61-00199B HOLDER-AV,HOUSING;-,29A7,ABS,HB,G3676,GN
...3
AA61-30001A LATCH-DOOR;-,-,-,KIFUCO LA701,...3
AA61-80002A DAMPER-GEAR;-,DP802,-,37G,BLU,DP802,..2
AA61-60109B SPRING-DOOR;-,SUS304L,-,-,-,-,0.5,0D5,H8
..2
AA63-10002A BAND-TIE;-,NYLON66 V2,-,-,L100,NTR,-,..2
AA61-00396N HOLDER-AV,COVER ASSY;29A7,ABS,G3676,HB,...3
AA61-00198B HOLDER-AV,COVER;-,29A7,ABS,HB,G3676,...3
AA64-01724F INLAY-SIDE,AV;29A7,PS SHEET,-,-,BLK #900
..2
3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
..2
AA61-00200B HOLDER-AV,CONTROL;-,29A7,ABS,HB,G3676,GN
..2
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
..2
AA41-00245A PCB-SIDE A/V;KS4A,1L,FR-1,245x245x1.6T,8
Code No.
Parts List
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
AA90-00639Q ASSY CABINET;29A7,TSL2795HFX/XAA
BRAC+C 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
C/F
AA65-00011C CLAMP-WIRE;ALL MODEL,NYLON 66,V2,NTR,25M
CB+CF AA60-10050T SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW
CB+TER AA60-10050T SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW
CRT+CF AA60-10050V SCREW-ASSY;WC,HH,+,M6,L30,SWRCH18A,ZPC(S
DOME+CAA60-10050A SCREW-ASSY;WP,RH,+,M4,L25,SWRCH18A,-,ZPC
DOOR+C 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
PCB
AA64-01291B INLAY-COVER;D4,PVC-SHEET,T0.4,94 V0,BLK,
PCB+CF 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
PORT+C AA60-10050T SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW
TER+RC AA60-10050T SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW
AA91-00087B ASSY HOLDER SPK;-,ABS,HB,GRAY,SV704P,29A
AA65-30113A CLAMP-D,COIL;NYLON 66,V2,BLK,TVI 25~29,AA65-30017A CLAMP-D,COIL;NYLON-66,V0,NTR,DADH300,25
AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,AA61-10053A BRACKET-CRATER;-,7277,STS304,T0.5,-,-,AA63-10007C BAND-PP;-,-,-,W18,-,CLEAR,1G,AA63-60004Y SPACER-GUM,CRT;NTR RUBBER,T2.0,RED,-,ALL
AA64-60421C INLAY-COVER;-,SEA,PS,T0.3,BLK,-,AA65-30008A CLAMP-CORD;PE,HB,BLK,-,-,-
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY CABINET BACK
1 *
AA91-00258MASSY CABINET BACK;,V0 BLK,SV907P,29A7
..2
...3
..2
...3
...3
..2
...3
...3
..2
..2
AA64-00628G CABINET BACK;29A7,SV907P,HIPS,V0,BLK
AA61-00201B HOLDER-CABINET;-,29A7,HIPS,HB,BLK,AA63-00223A COVER-SIDE,R ASSY;-,29A7 GN802P+SV909A,6
AA63-00176B COVER-SIDE,R;-,29A7,GN802P,HIPS,HB,G4309
AA64-00629B DECORATION-SIDE;-,29A7K,SV909A,ABS,LG TR
AA63-00222A COVER-SIDE,L ASSY;-,29A7 GN802P+SV909A,6
AA63-00177B COVER-SIDE,L;-,29A7,GN802P,HIPS,HB,G4309
AA64-00629B DECORATION-SIDE;-,29A7K,SV909A,ABS,LG TR
AA61-20129B HOLDER-WIRE;,NYLON-66,BLK,DAFC-2500
6006-001095 SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL)
S.N.A
S.N.A
ASSY TERMINAL BOARD
1 *
AA91-00323D ASSY TERMINAL BOARD;-,HIPS,VO,BLK,KS4A S
..2 C701
2202-000145 C-CERAMIC,MLC-AXIAL;120pF,10%,50V,Y5P,TP
7-13
Electrical
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
C702
CN701A
CN702A
JA701A
JA702A
JA703A
L701
L702
L703
L704
L705
R701
R702
TBA+DB
Parts List
Code No.
Description ; Specification
Remark
1 *
..2
..2
..2
..2
..2
6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
6006-001095 SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL)
AA61-20271A HOLDER-CHASSIS;-,CS823V,HIPS,V0,GRY,-
DOUFO
MAIN
POWER
TER+HC
Description ; Specification
Remark
AA98-70011D ASSY-TBC,WIRE(P);-,29’,NTSC,PAL,2P-WH,-
S.N.A
ASSY-POWER,CORD
1 *
AA96-20129A ASSY-POWER,CORD;-,EP2/YES,H/C300,ME301P,
..2
..2
..2
3811-000401 WIRE-PVC CU;BCWA,300V,ROLL,17/0.16mm,#22
AA61-20284A HOLDER;-,P-CORD,PP,VO,BLK,KE-002
AA39-10007Y POWER-CORD;-,EP2/YES,SPT-2 18AWGx2C,2.4m
S.N.A
S.N.A
ASSY ACCESSORY
ASSY CHASSIS PART
AA90-00225C ASSY CHASSIS PART;KS4A,29A7
Code No.
ASSY-TBC,WIRE(P)
2202-000145 C-CERAMIC,MLC-AXIAL;120pF,10%,50V,Y5P,TP
AA39-20055B LEAD CONNECTOR-ASSY;,6P,YBNH025-06,67096
AA39-20069D LEAD CONNECTOR-ASSY;,5P,YBNH025-05,67096
AA63-40258A TERMINAL-SPEAKER;-,ABS,BLK,4P,4
3716-000229 TERMINAL-BLOCK;-,2P,13mm,-,3722-001439 JACK-RCA;2P,3.5mm,NI,BLK,2701-001040 INDUCTOR-AXIAL;10uH,10%,4.5x14mm
2701-001040 INDUCTOR-AXIAL;10uH,10%,4.5x14mm
2701-001040 INDUCTOR-AXIAL;10uH,10%,4.5x14mm
2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
6006-001095 SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL)
AA41-00167B PCB-DOLBY JACK;WS32W8HD,FR-1,1L,B,1.6T,2
AA63-00165B TERMINAL-BOARD,ANT;-,HIPS VO BLK,-,D4,29
AA64-00897D INLAY BACK;D4,DOLBY SEA,PS SHEET,T0.5,BL
1 *
Loc. No.
1 *
AA94-03469G ASSY ACCESSORY;TSL3294HFX/XAA,KS4A,USA
S.N.A
..2
AA68-01066D MANUAL USERS;,ENG,B5,W/P100(G),44PAGE,KS
S.N.A
S.N.A
REMOCON
1 *
AA59-00175B REMOCON;-,TM63,DREAM4,50,L/GRAY,S/S,E/
..2
..2
AA09-00051A IC-MCU;Z86L8808SSC-R501M,SZTM-822,ST,
2802-000194 RESONATOR-CERAMIC;8MHz,1.0%,TP,8.5x4.5x5
ASSY-CRT
1 *
AA94-50022A ASSY-CRT;A68QCP891X004,+380MG,29’,ITC,C
..2
AA03-00076A CRT-COLOR;-,A68QCP891X004(C),+380MG,29IN
S.N.A
ASSY HOLDER SPK
1 *
7-14
AA91-00337A ASSY HOLDER SPK;-,PP,8ohm/15W,blk,housin
Samsung Electronics
Electrical
Parts List
7-2 TSL3294HFX/XAA
Loc. No.
Code No.
Description ; Specification
Remark
ASSY PCB MAIN(OPT)
1
*
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
..2
...3
...3
...3
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
...3
....4
....4
....4
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C670
CJ701A
CJ702A
CJ704A
CN803A
CN804A
IC603
AA94-02687C ASSY PCB MAIN(OPT);TSL3294HFX/XAA,KS4A,U
2401-001840
3722-001426
3722-001163
3722-001427
3711-003241
3711-003241
AA96-50367A
0205-000129
1201-001026
6003-000333
AA62-30181D
IC804
AA96-50382B
1203-000203
6003-000333
AA62-30180C
IC805
AA96-50382B
ICD603 AA96-50367A
TUP01 AA40-00032A
AA99-30213S
CN501A 3711-003974
CN601 3711-003043
CN702A 3711-003641
IC601
1204-001594
IC602
1201-000407
IC701
1001-001073
IC702
1001-001113
IC703
1002-001193
IC801
1203-000165
IC802
AA96-50147B
1203-000293
6003-000333
AA62-30012B
IC803
AA96-50147C
1203-000298
6003-000333
AA62-30012B
IC905
1103-001213
ICD02 1201-000191
ICH01 1204-001454
TU01
AA40-00020A
AA99-10208E
C101
2401-001840
C102
2202-000632
C103
2401-001840
C104
2202-000632
C105
2202-000127
C107
2401-000480
C108
2305-000665
C109
2401-000480
C110
2305-000665
C202
2401-001840
C203
2305-000665
C204
2401-001840
C205
2305-000665
C601
2401-000480
C602
2202-000222
C603
2301-000111
C604
2401-000480
C605
2202-000222
C606
2301-000111
C607
2401-000480
C608
2202-000796
C611
2202-000796
C616
2401-002235
C617
2401-001840
C618
2201-000558
C619
2201-000374
C620
2201-000112
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
JACK-RCA;9P,3.4mm,NI,BLK,JACK-VHS;4P,12mm,AU,BLK,N
JACK-RCA;8P,3.4mm,NI,BLK,CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
ASSY-H/S;-,-,AA62-30181D,TDA7265,GREASE-SILICON;SC102,JAPAN
IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT SINK-ES;-,AL6063 EXTR.,2,WHT,70MM,ASSY-H/S;-,-,AA62-30180C,SI-3050,IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT SINK-ES;-,A6063 EXTR.,2,WHT,50MM,-,
ASSY-H/S;-,-,AA62-30180C,SI-3050,ASSY-H/S;-,-,AA62-30181D,TDA7265,TUNER-F/S;TCPN3081PC09A(S),NTSC,TR,181CH
ASSY-PCB ROBOT; AA94-02687C ,ER
CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
IC-SOUND PROCESSOR;MSP3440G-B6,SDIP,52P,
IC-POWER AMP;7050,DIP,8P,-,SINGLE,-,PLAS
IC-VIDEO SWITCH;TEA6415C,VIDEO SWITCH,DI
IC-AUDIO SWITCH;TEA6422,SOUND SWITCH ,SD
IC-A/D&D/A CONVERTER;PCF8591P,8bit,DIP,1
IC-POSI.ADJUST REG.;78R12,TO-220,3P,-,-,
ASSY-H/S;-,TR,AA62-30012B,KA7808,IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT SINK-ES;-,A6063 EXTR,-,-,45(16) T02
ASSY-H/S;-,TR,AA62-30012B,KA7809A,IC-POSI.FIXED REG.;7809,TO-220,3P,-,PLAS
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT SINK-ES;-,A6063 EXTR,-,-,45(16) T02
IC-EEPROM;M24C16-WBN6,2048x8Bit,SDIP,8P,
IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV
IC-VOLUME CONTROL;TDA7449L,DIP,20P,300MI
TUNER-F/S;TCLN3181PA09A(S),NTSC,TR,181CH
ASSY-PCB MAIN,AUTO; AA99-30213S ,V
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;3.3nF,20%,16V,Y5P,TP
C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;3.3nF,20%,16V,Y5P,TP
C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,DISC;0.47nF,10%,50V,Y5P,TP,5x3
C-CERAMIC,DISC;0.22nF,5%,50V,NP0,TP,10.5
C-CERAMIC,DISC;1.5nF,10%,50V,Y5V,TP,5x3.
Samsung Electronics
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C621
C622
C623
C624
C625
C626
C627
C628
C629
C630
C631
C632
C633
C634
C635
C636
C637
C638
C640
C642
C643
C644
C645
C646
C647
C648
C649
C650
C651
C652
C653
C654
C655
C656
C657
C659
C660
C661
C663
C664
C665
C701
C702
C703
C704
C705
C706
C708
C709
C710
C711
C712
C713
C714
C715
C716
C717
C718
C719
C720
C721
C722
C723
C724
C725
C726
C727
C728
C729
C730
C731
C732
C733
Code No.
2401-002235
2401-001026
2305-000665
2401-002235
2401-002235
2401-002235
2202-000632
2401-002235
2401-001840
2201-000558
2202-000286
2202-000286
2201-000304
2201-000304
2401-000480
2401-000480
2301-000232
2401-001840
2401-001840
2401-001840
2305-000665
2401-002458
2305-000665
2305-000665
2401-002458
2401-000027
2202-000183
2401-000832
2401-000027
2202-000183
2401-002216
2201-000119
2401-001840
2401-000603
2401-000962
2401-000480
2301-000232
2401-001840
2305-000665
2401-001840
2202-000632
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-001840
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2305-000355
2401-002235
2401-002235
2401-002235
2305-000355
2401-002235
2401-002235
2401-002235
2401-001840
2201-000982
Description ; Specification
Remark
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,DISC;0.47nF,10%,50V,Y5P,TP,5x3
C-CERAMIC,MLC-AXIAL;56pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;56pF,5%,50V,SL,TP,1.
C-CERAMIC,DISC;0.001nF,0.25pF,50V,NP0,TP
C-CERAMIC,DISC;0.001nF,0.25pF,50V,NP0,TP
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-FILM,PEF;3.3nF,5%,50V,TP,8.1x4.5x13mm,
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;1000uF,20%,35V,GP,TP,16x25,7.5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;1000uF,20%,35V,GP,TP,16x25,7.5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;2.2NF,20%,16V,Y5R,TP
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;2.2NF,20%,16V,Y5R,TP
C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-FILM,PEF;3.3nF,5%,50V,TP,8.1x4.5x13mm,
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-FILM,MPEF;330nF,5%,63V,TP,-,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-FILM,MPEF;330nF,5%,63V,TP,-,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,4
7-15
Electrical
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C734
C735
C738
C739
C740
C741
C745
C746
C747
C801
C802
C803
C804
C805
C806
C807
C808
C809
C810
C811
C812
C813
C814
C815
C816
C819
C820
C825
C901
C902
C903
C905
C906
CD01
CD02
CD03
CD04
CD05
CD06
CD07
CD08
CD09
CD10
CD11
CD12
CD13
CD14
CD15
CD16
CD17
CD18
CD19
CG01
CG02
CG03
CG04
CG05
CH01
CH02
CH03
CH04
CH05
CN901A
CN902A
CND01
CND02
CP03
CP04
CP07
CP08
CS02
CS16
CS30
CX01
D201
D202
D203
7-16
Parts List
Code No.
2401-001363
2401-001840
2202-000121
2202-000121
2401-002235
2401-002235
2401-001840
2305-000665
2401-000480
2401-000832
2305-000665
2401-001363
2305-000665
2401-000832
2305-000665
2401-001363
2305-000665
2401-000832
2305-000665
2401-001363
2305-000665
2401-001363
2305-000665
2401-001363
2305-000665
2401-001363
2305-000665
2401-000287
2401-001840
2305-000665
2401-001840
2401-001840
2401-001840
2401-002235
2401-002235
2401-002458
2305-000665
2401-002458
2401-002216
2305-000665
2305-000665
2401-000027
2202-000716
2401-002459
2401-000027
2202-000716
2202-000796
2202-000796
2301-000111
2301-000111
2401-002235
2401-002235
2401-002235
2401-002235
2401-001840
2305-000665
2401-002235
2401-002235
2401-002235
2401-000480
2401-001840
2305-000665
3711-002648
3711-002646
3711-002644
3711-002645
2401-001840
2202-000632
2401-000480
2305-000665
2401-002235
2401-002235
2401-001840
2401-000480
0401-000005
0401-000005
0401-000005
Description ; Specification
Remark
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;1000uF,20%,35V,GP,TP,16x25,7.5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;1000uF,20%,35V,GP,TP,16x25,7.5
C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;1.8nF,20%,16V,Y5R,TP
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;1.8nF,20%,16V,Y5R,TP
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
CONNECTOR-HEADER;BOX,9P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,5P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,6P,1R,2.5MM,STRAIGH
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
D204
D601
D602
D603
D604
DG01
DX01
DX03
DZ101
DZ201
DZ202
DZ203
DZ601
DZ602
DZ603
DZD01
DZD02
J312
J375
L101
L102
L103
L104
L106
L601
L602
L603
L701
L702
L703
L704
L705
L706
L707
L708
L709
L710
L711
L712
L801
L802
L901
L902
LG01
LH01
LP02
LP03
LP04
LP06
LS07
Q201
Q202
Q601
Q602
Q603
Q702
Q703
Q704
Q705
Q706
Q707
Q708
Q709
Q710
Q711
Q712
Q901
Q902
QG01
QG02
QX01
R101
R102
R103
R110
R115
R203
Code No.
2001-000281
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0403-000700
0403-001211
0403-001320
0403-000367
0403-001316
0403-000367
0403-000367
0403-000700
0403-000700
3301-000287
0401-000005
2701-000115
2701-000114
2701-000114
2701-000116
2701-000115
2701-000170
2701-000115
2701-000115
2701-000115
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000115
2701-000114
2701-000114
2701-000114
2701-000114
2701-001040
2701-001040
2701-000115
2701-000114
0401-000005
2701-000170
2701-000114
2701-000114
2701-000116
2701-000115
2701-000115
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000283
0501-000389
0504-000123
0504-000123
0504-000123
0501-000389
0501-000389
1203-001274
2001-001006
2001-000281
2001-000429
2003-001093
2001-001006
2001-000281
Description ; Specification
Remark
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ6.2C,6.12-6.44V,500mW,DO
DIODE-ZENER;UZ7.5BSC,7.5V,7.33-7.64V,500
DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO
DIODE-ZENER;UZ7.5BSC,7.5V,7.33-7.64V,500
DIODE-ZENER;UZ7.5BSC,7.5V,7.33-7.64V,500
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;3.9uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,4.5x14mm
INDUCTOR-AXIAL;10uH,10%,4.5x14mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
INDUCTOR-AXIAL;3.9uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
IC-VOL. DETECTOR;7545,TO-92,3P,-,PLASTIC
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL OXIDE(S);12Kohm,5%,2W,AF,TP,3.9x
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
Samsung Electronics
Electrical
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R204
R205
R209
R210
R211
R212
R213
R214
R215
R216
R217
R218
R219
R220
R230
R601
R602
R603
R604
R607
R608
R609
R610
R611
R614
R615
R616
R617
R618
R619
R620
R621
R622
R623
R624
R625
R626
R627
R628
R629
R630
R631
R632
R635
R636
R637
R638
R639
R701
R702
R703
R704
R705
R706
R707
R708
R709
R710
R711
R713
R714
R715
R716
R717
R718
R719
R720
R721
R722
R723
R724
R725
R726
R727
R728
R729
R730
Code No.
2001-000281
2001-000281
2001-000281
2701-000184
2701-000184
2001-000969
2001-001006
2001-000281
2001-000281
2001-000281
2001-000449
2001-000290
2001-000290
2001-000522
2001-000449
2001-000281
2001-000281
2001-000429
2001-000429
2001-000577
2001-000591
2001-000290
2001-000591
2001-000290
2001-001187
2001-000290
2001-001093
2001-001093
2001-000786
2001-001146
2001-001093
2001-001093
2001-001146
2001-000786
2001-001050
2001-000780
2001-001088
2001-001088
2001-000290
2001-000522
2001-000290
2001-000273
2001-000290
2001-000290
2001-000290
2001-000780
2001-000290
2001-000290
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000331
2001-000947
2001-000947
2001-000947
2001-000522
2001-000472
2001-000290
2001-000554
2001-000780
2001-000554
2001-000429
2001-000281
2001-000938
2001-000429
2001-000969
2001-000969
2001-000969
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000969
Description ; Specification
Remark
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
Samsung Electronics
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R731
R732
R733
R734
R735
R736
R737
R738
R739
R740
R741
R742
R743
R744
R745
R746
R747
R750
R751
R752
R753
R754
R755
R756
R758
R759
R764
R901
R902
R903
R904
R905
R906
R907
R908
R909
R910
RC01
RC02
RC103
RD02
RD03
RD10
RD11
RD12
RD13
RD14
RD15
RD16
RD17
RD18
RD19
RD20
RD21
RD22
RD23
RD24
RD25
RD26
RD27
RD28
RD29
RD30
RD31
RD32
RG01
RG02
RG03
RG04
RG05
RG06
RH01
RH02
RN701
RU01
RX01
RX02
Code No.
2001-000429
2001-000429
2001-000429
2001-000281
2001-000003
2001-000003
2001-000429
2001-000429
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000780
2001-000281
2001-000281
2001-000969
2001-000761
2001-000429
2001-000761
2001-000429
2001-000969
2001-000969
2001-000281
2001-000302
2001-000302
2001-000302
2001-000302
2001-000302
2001-000281
2001-000281
2001-000281
2001-000472
2001-000281
2001-000281
2001-000281
2001-000969
2001-000734
2001-000734
2001-001093
2001-001093
2001-001146
2001-000786
2001-001093
2001-001146
2001-001093
2001-000786
2001-000780
2001-001088
2001-001088
2001-000780
2001-001108
2001-001108
2001-000780
2001-000780
2001-001050
2001-000786
2001-000786
2001-000290
2001-000290
2001-000786
2001-000786
2001-000290
2001-000734
2001-000429
2001-000290
2001-000734
2001-000429
2001-000281
2001-000281
2011-000155
2001-000281
2001-001114
2001-001178
Description ; Specification
Parts List
Remark
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-NETWORK;10Kohm,5%,1/8W,A,SIP,5P,BK
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4
7-17
Electrical
Loc. No.
....4 RX03
....4 X601
....4
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
Parts List
Code No.
Description ; Specification
2001-000290
2801-003903
AA41-00156E
AA65-30110A
AA26-00069A
0202-000187
AA65-30018A
AA39-30007A
AA39-20536B
AA39-20519B
AA39-20015B
AA39-20010C
AA27-00060A
Remark
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
CRYSTAL-UNIT;18.432MHz,25ppm,28-AAM,12pF
PCB-MAIN;CS29A7HF,FR-1,1L,E,1.6T,330X24
CLAMP-WIRE;NYLON 66,V2,BLK,PAL TVI,ALL M
S.N.A
TRANS FBT;FUJ-29C002C(S),DREAM3,4,-,-,-,
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
CLAMP-WIRE;NYLON-66,-,-,DATL-600,DONG-A,
S.N.A
IF-CABLE;-,T,100mm,1365#26
LEAD CONNECTOR-ASSY;,-,F,F,300MM,1617#22
LEAD CONNECTOR-ASSY;,6(4)P,YFH806-06,F,6
LEAD CONNECTOR-ASSY;,3(2)P,67096-003,200
LEAD CONNECTOR-ASSY;,1P,YFH800-01,S,600,
COIL DEGAUSSING;-,34,14ohm ,-,L3600,E
ASSY PCB CRT
1
*
AA95-00646A ASSY PCB CRT;-,KS4A,34’,-,CRT DRIVE,V/M,
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
..2
..2
..2
...3
...3
...3
..2
...3
...3
...3
..2
...3
...3
...3
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
C503
C510
C511
C512
C522
CNC01
CNC01A
CNC02
CNC02A
IC501
2303-000186
2303-000186
2303-000186
2303-000186
2201-002117
3711-003974
AA39-00114C
3711-003052
AA39-00112C
AA96-50151B
1201-001131
6001-000057
6021-000222
AA61-10060A
AA96-50151B
AA96-50151B
AA96-00110D
1201-000010
6003-000333
AA62-30013K
AA96-00111B
0502-000131
6003-000333
AA62-30013L
AA96-00111A
0502-000153
6003-000333
AA62-30013L
3704-000114
AA41-00209B
AA99-20073R
2201-000949
2201-000436
2301-000016
2301-000016
2301-000016
2301-000016
2301-000016
2201-000599
2201-000599
2201-000599
2401-001176
2401-000703
2401-000832
2401-002264
2401-001563
2305-000665
2401-000832
2401-000914
2201-000982
2201-000292
2201-000192
2201-000516
2301-000261
2201-000192
2201-000604
2401-000832
IC502
IC503
IC504
QF09
QF10
VA999
C501
C502
C504
C505
C506
C507
C509
C513
C514
C515
C516
C520
C528
C531
C532
C533
C534
C535
CF01
CF02
CF03
CF04
CF05
CF06
CF07
CF71
7-18
C-FILM,PPF;22nF,5%,400V,BK,19.5x13.5x8,1
C-FILM,PPF;22nF,5%,400V,BK,19.5x13.5x8,1
C-FILM,PPF;22nF,5%,400V,BK,19.5x13.5x8,1
C-FILM,PPF;22nF,5%,400V,BK,19.5x13.5x8,1
C-CERAMIC,DISC;4.7nF,20%,3kV,Y5U,TP,16x6
CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
LEAD CONNECTOR-ASSY;,12P,35155-1200,S,50
CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAGH
LEAD CONNECTOR-ASSY;,10P,35155-1000,S,50
ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,IC-VIDEO AMP;6111,SIP,9P,-,SINGLE,-,PLAS
SCREW-MACHINE;RH,+,M3,L6,ZPC(BLK),SWRCH1
NUT-HEXAGON;2C,M3,ZPC(YEL),SM20C 1
BRACKET-TR;-,-,CUS-1 1/2H,T0.5,-,-,ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,ASSY-H/S;-,-,AA62-30013K,TDA2030,IC-OP AMP;2030,PENTAWATT,5P,-,SINGLE,-,C
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEATSINK-ES;-,-,-,-,44/18,-,WHT,A6063 EX
ASSY-H/S;-,-,AA62-30013L,2SA1011,TR-POWER;2SA1011-D,PNP,1.2W,TO-220,-,60
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEATSINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,ASSY-H/S;-,-,AA62-30013L,2SC2344,TR-POWER;2SC2344-D,NPN,1.2W,TO-220,-,60
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEATSINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,SOCKET-CRT;14P,29.1,35.5,SN,ISH09S/BK
PCB-CRT;-,-,1L,-,-,330x245x1.6T,KS4A,4
ASSY-PCB SUB,AUTO; AA95-00646A ,V
C-CERAMIC,DISC;0.005nF,0.5pF,50V,UJ,TP,4
C-CERAMIC,DISC;0.002nF,0.25pF,50V,SL,TP,
C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;33uF,20%,25V,GP,TP,5x11,5
C-AL;2200uF,20%,25V,GP,-,12.5x25mm,
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;10uF,20%,350V,GP,TP,10x20mm,5m
C-AL;47uF,20%,400V,GP,TP,16x25,7.5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;22uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,4
C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5,
C-CERAMIC,DISC;0.01nF,0.25pF,500V,NP0,TP
C-CERAMIC,DISC;4.7nF,+100-0%,500V,Y5U,TP
C-FILM,PEF;4.7nF,5%,100V,TP,10.5x12.5x6.
C-CERAMIC,DISC;0.01nF,0.25pF,500V,NP0,TP
C-CERAMIC,DISC;0.056nF,+100-0%,500V,SL,T
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
CF73
CF74
CF75
D501
D502
D504
D509
D510
D511
D512
D513
D514
DF01
DF02
DF05
DF06
DF07
DF08
DZ501
DZ502
DZ503
DZ504
DZ510
FN1
FV1
L502
LF01
LF02
LF03
LF04
LF06
LF08
LF09
LF11
Q504
QF01
QF02
QF03
QF04
QF05
R501
R502
R503
R504
R505
R506
R507
R508
R510
R511
R512
R513
R514
R515
R518
R519
R520
R521
R522
R523
R524
R525
R528
R540
R554
R555
R556
R560
R561
R562
R563
R564
R565
R566
RF02
RF03
RF04
Code No.
2401-001157
2401-002235
2401-000045
0401-000005
0402-000546
0402-000132
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0401-000005
0401-000005
0401-000005
0401-000005
0402-000546
0402-000546
0403-001211
0403-001211
0403-001211
0403-001324
0403-000698
3711-002643
3711-002642
2701-000178
3301-000287
3301-000287
2701-000112
3301-000287
2901-000297
2901-000297
2901-000297
2901-000297
0501-000283
0501-000389
0501-000389
0501-000389
0501-000283
0501-000389
2001-000241
2001-000252
2001-000241
2001-001045
2001-001045
2001-001045
2001-000472
2001-000995
2001-001194
2001-001194
2001-001194
2002-001017
2002-001017
2002-001017
2001-001095
2001-000356
2001-000411
2001-000221
2001-000290
2001-000890
2002-001012
2002-001006
2008-001013
2001-000429
2001-000429
2001-000429
2001-000429
2001-001049
2001-001126
2001-000273
2001-000273
2001-000290
2004-001379
2001-001040
2001-000924
2001-000522
2001-000989
Description ; Specification
Remark
C-AL;33uF,20%,160V,GP,TP,12.5x20,5
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,160V,GP,TP,10x16,5
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ13A,12.11-12.75V,500mW,D
DIODE-ZENER;TZP12A,12V,11.4-12.6V,1W,DOCONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,STRAIGH
INDUCTOR-AXIAL;33uH,10%,3x7mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;100uH,10%,3x7mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);82KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);82KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);82KOHM,5%,1/2W,AA,TP,2.4X6.4
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-CARBON(S);2.2MOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;150KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-COMPOSITION;8.2Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;4.7Kohm,5%,1/2W,AA,TP,3.7x
R-FUSIBLE(S);1.2ohm,5%,2W,AF,TP,3.9x10mm
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);300OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL(S);12Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-CARBON(S);0.68OHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;820KOHM,5%,1/8W,AA,TP,1.8X3.2M
Samsung Electronics
Electrical
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
..2
..2
RF17
RF18
RF19
RF20
RF21
RF22
RF23
RF24
RF25
RF26
RF27
RF28
RF29
RF30
RF31
RF32
RF33
RF34
RF35
RF36
Code No.
Description ; Specification
2001-000019
2001-000022
2001-000022
2001-000331
2001-000258
2001-000221
2001-000554
2003-001018
2001-000241
2001-001179
2001-001179
2001-000241
2001-001071
2001-000221
2001-000221
2003-000746
2001-001100
2001-001100
2003-000746
2003-001018
0202-000187
AA39-20010B
AA63-10002A
Remark
R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);33OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);33OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL OXIDE(S);220ohm,5%,2W,AF,TP,3.9x
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);68KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);68KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);12KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m
R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE(S);220ohm,5%,2W,AF,TP,3.9x
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
LEAD CONNECTOR-ASSY;,1P,YFH800-01,S,500,
BAND-TIE;-,NYLON66 V2,-,-,L100,NTR,-,S.N.A
ASSY PCB POWER
1
*
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
..2
..2
..2
...3
...3
...3
...3
..2
..2
...3
...3
C407
C408
C409
C412
C413
C419
C427
C809
C810
C813
C814
C819
C820
C822
CN801
CN803
CN804
CX801S
CX802S
CX803S
CY801S
CY802S
D406
D804
D806
AA95-00743B ASSY PCB POWER;TSK3290FX/XAA,KS4A,34,-,
2301-001402
2303-000013
2306-000188
2306-001017
2306-000324
2306-001021
2303-000159
2306-000323
2401-000560
2401-003370
2401-003190
2401-002287
2401-003024
2401-000737
3711-003052
3710-001103
3710-001103
2306-000318
2306-000318
2306-000112
2201-000539
2201-000539
0402-000534
0402-000250
AA96-50310A
AA62-30150C
AA60-30003A
6003-000333
0402-000549
0205-000129
D817
AA96-00309A
AA62-00061A
6003-000335
0402-000233
0402-000231
0205-000129
D819
0402-000233
FP801S 3601-000300
IC301
AA96-50381A
0205-000129
1204-000517
6003-000333
AA62-30180B
IC403
1202-000103
IC801S AA96-50364C
0205-000129
6003-000333
C-FILM,PPF;33nF,5%,630V,BK,20x11x17mm,15
C-FILM,PPF;2.7nF,5%,1.6KV,TP,28.5x13.5x6
C-FILM,MPPF;330nF,5%,400V,TP,26x19.5x11,
C-FILM,MPPF;680nF,5%,400V,TP,26x14.5x24m
C-FILM,MPPF;3.3nf,5%,1.6KV,TP,28.5x13.5x
C-FILM,MPPF;100nF,5%,630V,TP,26x8.5x16.5
C-FILM,PPF;2.2nF,5%,1.6KV,BK,31x15.5x8.5
C-FILM,MPPF;2.2nF,5%,1.6KV,TP,28.5x15.5x
C-AL;1uF,20%,160V,GP,TP,6.3x11,5
C-AL;47uF,20%,450V,GP,BK,16X35.5,7.
C-AL;470uF,20%,450V,GP,BK,35x45,22.
C-AL;470uF,20%,200V,WT,BK,25x40,10
C-AL;220uF,20%,200V,WT,TP,22x35,10
C-AL;2200uF,20%,50V,GP,TP,18x35.5,7
CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAGH
CONNECTOR-SOCKET;14P,1R,2.5mm,STRAIGHT,S
CONNECTOR-SOCKET;14P,1R,2.5mm,STRAIGHT,S
C-FILM,MPPF;220nF,20%,250V,TP,-,22.5mm
C-FILM,MPPF;220nF,20%,250V,TP,-,22.5mm
C-FILM,MPPF;100nF,20%,250V,BK,-,15mm
C-CERAMIC,DISC;4.7nF,20%,250V,Y5V,BK,16x
C-CERAMIC,DISC;4.7nF,20%,250V,Y5V,BK,16x
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RG4C,1000V,1A,ASSY-H/S;-,POWER,AA62-30150C,RBV606,HEAT SINK-ES;-,A6063 EXTR,-,WHT,40(24.5)
WASHER;-,-,-,T1.5,-,SBHG-1,SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
DIODE-BRIDGE;RBV606,600V,6A,-,BK
GREASE-SILICON;SC102,JAPAN
ASSY H/S;-,POWER,AA62-00061A,FML-G12S +
HEAT SINK-PS;-,-,T1.0,SILVER,-,-,-,-,104
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
DIODE-RECTIFIER;FML-G12S,200V,5A,-,DIODE-RECTIFIER;FMG-G26S,600V,4A,TO-220F
GREASE-SILICON;SC102,JAPAN
DIODE-RECTIFIER;FML-G12S,200V,5A,-,FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS
ASSY-H/S;-,-,AA62-30180B,LA7845,GREASE-SILICON;SC102,JAPAN
IC-VERTIVAL DEF.;LA7845,SIP,7P,-,PLASTIC
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT SINK-ES;-,A6063 EXTR.,2,WHT,70MM,-,
IC-VOLTAGE COMP.;393,DIP,8P,300MIL,DUAL,
ASSY H/S;-,POWER,AA62-30181A,STR-F6656,
GREASE-SILICON;SC102,JAPAN
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
Samsung Electronics
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
...3
...3
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
IC803S
L401
L402
L403
L404
L405
L812
L815
LS401
LX801S
LX802S
NT801S
PC801S
PC802S
PT801S
Q403
Q404
Q405
Q801
R815
R816
RL801S
RL802S
RS01
RS02
SWS01
SWS02
T401
T402
T444
T801S
TS801S
C301
C302
C304
C305
C306
C307
C401
C402
C406
C410
C411
C416
C417
C418
C420
C421
C422
C423
C424
C425
C426
C428
C429
C430
C431
C440
C452
C454
C803
C804
C805
C806
Code No.
Description ; Specification
Parts List
Remark
AA13-00018A IC-HYBRID;-,STR-F6656,LF1351,5PIN,-,AA62-30181A HEAT SINK-ES;A6063,EXTR,SILVER,WHT,ANOD,
AA13-00024A IC-HYBRID;-,TNY253P,-,8PIN,-,AA27-00057A COIL HORIZ. WIDTH;-,10mH,YL-9N 15x27.5 C
AA27-10004F COIL-CHOKE;-,56uH,K,-,2.5A,BK,-,DR12x15,
AA27-00025A COIL-CHOKE;-,1MH,10%,-,-,BK,-,12X20,14X2
AA27-00022A COIL-LINEARLITY;-,7.5UH,YL81 DR15X18 C:6
AA27-40003P COIL-HORIZ.WIDTH;-,120uH/180uH,Th8x20,US
AA27-10002L COIL-CHOKE;-,24UH,K,-,2A,-,24UH-K,10X10M
AA27-10002L COIL-CHOKE;-,24UH,K,-,2A,-,24UH-K,10X10M
AA27-10002V COIL-CHOKE;-,6.3MH,K,-,500MA,-,NY632K(50
AA29-30001Z FILTER-LINE NOISE;-,10mH,2.8A,-,SQE3535
AA29-30002D FILTER-LINE NOISE;-,10mH,2.8A,-,SQE-3535
1404-001045 THERMISTOR-NTC;4.7ohm,15%,2900K,35.0mW,T
0604-001038 PHOTO-COUPLER;TR,130-260%,200mW,DIP-4,ST
0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST
1404-001026 THERMISTOR-PTC;7ohm,20%,-,290V,25A,-,ST
0505-000156 FET-SILICON;IRF620,N,200V,5A,0.8ohm,50W,
0505-001116 FET-SILICON;BUZ73A,N,200V,22A,0.6ohm,40W
AA96-00310A ASSY H/S;-,POWER,AA62-00062A,FMP-3FU +
AA62-00062A HEAT SINK-PS;-,-,T2.0,SILVER,-,-,-,-,108
AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,-,SBHG
AA02-00007A MICA;DPM-04,MICA,22x29x0.15mm
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
0502-001175 TR-POWER;2SC5446,NPN,200000mW,TO-3PL,BK
0402-001296 DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,TO-3PF,
0205-000129 GREASE-SILICON;SC102,JAPAN
1004-000101 IC-ECC;SE-140N,DIP,-,-,ST,-,PLASTIC,1
2003-002206 R-METAL OXIDE(S);27Kohm,5%,3W,AG,TP,6x16
2003-002206 R-METAL OXIDE(S);27Kohm,5%,3W,AG,TP,6x16
3501-001040 RELAY-POWER;12VDC,500mW,10A,1FormA,15mS,
3501-001053 RELAY-POWER;5Vdc,530mW,10A,1FormA,15mS,5
2006-001081 R-CEMENT;82ohm,5%,5W,CJ,TP,14x10x27mm
2006-001081 R-CEMENT;82ohm,5%,5W,CJ,TP,14x10x27mm
3409-000138 SWITCH-LEVER;30V,200mA,SP3T,NON SHORTING
3409-000138 SWITCH-LEVER;30V,200mA,SP3T,NON SHORTING
AA26-50001S TRANS-HORIZ.DRIVE;-,6.0mH,44uH,1.5uH,EI2
AA26-90002C TRANS-DUMMY;-,3.5mH,EER2834,130/1200,ST
AA26-00084A TRANS FBT;FUJ-34C001F(S),W32,2.26mH,-,-,
AA26-00056A TRANS SWITCHING;-,-,-,AC90~260V,DC135V/2
AA26-00055A TRANS SWITCHING;-,-,-,AC80~280V,-,-,-,4m
AA98-00002A ASSY-SUB,PART;S53A,PCB,POWER,ALL,0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
AA41-00157D PCB-POWER;CT-29A7DR,CEM-1,1L,D,1.6T,330x
AA99-20078W ASSY-PCB SUB,AUTO; AA95-00743B ,V
2301-000160 C-FILM,PEF;12nF,5%,50V,TP,11.0x6.0x9.0mm
2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5
2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5
2305-000285 C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15
2305-000285 C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15
2301-000247 C-FILM,PEF;33nF,5%,50V,TP,8.1x4.5x13mm,5
2301-000213 C-FILM,PEF;220nF,5%,250V,TP,21.5x11,7.5
2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5
2301-000188 C-FILM,PEF;1nF,5%,100V,TP,10.5x12.5x6.5,
2301-001143 C-FILM,PPF;56nF,5%,400V,TP,20x10x17,7.5
2401-001527 C-AL;47uF,20%,250V,HR,TP,13x25mm,5m
2401-000927 C-AL;22uF,20%,250V,GP,TP,13x20,5
2201-000291 C-CERAMIC,DISC;1nF,10%,500V,Y5P,TP,7.5x3
2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
2401-001655 C-AL;680uF,20%,25V,GP,TP,10x20,5
2401-002597 C-AL;220uF,20%,35V,GP,TP,10x12.5,5
2305-000470 C-FILM,MPEF;68nF,5%,100V,TP,-,5mm
2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
2301-000232 C-FILM,PEF;3.3nF,5%,50V,TP,8.1x4.5x13mm,
2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
2401-001655 C-AL;680uF,20%,25V,GP,TP,10x20,5
2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5
2201-000291 C-CERAMIC,DISC;1nF,10%,500V,Y5P,TP,7.5x3
2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
2201-000315 C-CERAMIC,DISC;2.2nF,+80-20%,250V,Y5U,TP
2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,
2201-002076 C-CERAMIC,DISC;0.068nF,5%,1kV,SL,TP,8x4m
2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
7-19
Electrical
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
C808
C811
C812
C816
C817
C818
C821
C824
C825
C826
C828
C829
C833
C834
C835
C838
C839
CS01
D301
D401
D402
D403
D404
D405
D408
D409
D410
D411
D412
D450
D451
D801
D802
D803
D805
D807
D808
D811
D812
D813
D815
D816
D820
D821
DS01
DS02
DZ301
DZ302
DZ303
DZ304
DZ305
DZ306
DZ307
DZ401
DZ402
DZ403
DZ801
DZ802
DZ803
FA801S
FA802S
FD802S
FP801A
FP801B
J105
J106
J118
J125
J127
J130
J135
J173
L302
L303
L406
L409
L410
7-20
Parts List
Code No.
2201-000292
2201-000315
2201-000332
2201-002041
2301-001171
2201-000551
2201-000551
2201-000556
2401-000722
2401-000722
2401-000722
2401-001397
2305-000412
2401-001840
2201-000556
2401-001363
2201-000551
2301-001268
0402-000546
0401-000005
0401-000005
0402-001105
0402-000493
0402-000534
0402-000540
0402-000540
0401-000005
0402-000546
0401-000005
0402-000132
0402-000132
0402-000532
0402-000546
0402-000546
0402-000532
0402-001111
1405-000152
1405-001030
0403-000716
0402-000534
0403-001322
0402-000132
0402-000132
0402-000546
0402-000132
0402-000132
0403-001329
0403-001329
0403-001221
0403-000700
0403-001325
0403-000716
0403-001330
0403-001322
0403-001325
0403-001325
0403-001322
0403-000508
0403-001327
3601-001228
3601-001228
3601-000120
3602-000114
3602-000114
2001-001043
2001-001043
2001-001043
2001-001043
2001-001043
2001-001043
2001-001043
2001-001043
3301-000287
3301-000287
2901-000297
3301-000287
2701-001032
Description ; Specification
Remark
C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5,
C-CERAMIC,DISC;2.2nF,+80-20%,250V,Y5U,TP
C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4
C-CERAMIC,DISC;0.82nF,10%,2kV,Y5P,TP,9x5
C-FILM,PPF;10nF,5%,400V,TP,20x6.5x13,7.5
C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;2200uF,20%,25V,WT,TP,16x25,7.5
C-AL;2200uF,20%,25V,WT,TP,16x25,7.5
C-AL;2200uF,20%,25V,WT,TP,16x25,7.5
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3
C-FILM,PPF;33nF,5%,630V,TP,20x11x17,7.5
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;ERC13-08,800V,1.2A,DO-20
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;ERC13-08,800V,1.2A,DO-20
DIODE-RECTIFIER;1N5397GP,600V,1.5A,DO-20
VARISTOR;560V,2500A,14x8.5mm,TP
VARISTOR;120V,2500A,14x8.5mm,TP
DIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m
DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D
DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
FUSE-AXIAL LEAD;125V,2.5A,FAST-ACTING,GL
FUSE-HOLDER;-,-,30mohm
FUSE-HOLDER;-,-,30mohm
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;100uH,10%,5x14mm
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
L802
L803
L804
L805
L806
L807
L808
L809
L810
L811
L813
L814
L817
L818
L822
L823
Q401
Q402
Q802
Q803
Q804
R301
R302
R305
R306
R307
R309
R310
R311
R312
R313
R314
R315
R316
R401
R402
R403
R404
R405
R406
R407
R408
R409
R410
R411
R412
R413
R414
R415
R416
R418
R419S
R420
R421
R422
R423S
R424S
R425S
R426
R429
R430
R431
R434
R437S
R438
R439
R450
R451
R452
R455
R456
R457
R458
R802
R804
R805
R806
Code No.
2901-000299
2901-000297
2901-000297
2901-000297
2901-000297
3301-000287
3301-000287
2901-000297
2701-001030
2901-000297
2901-000297
2901-000297
3301-000287
2701-001030
2901-000299
2901-000299
0501-000389
0501-000389
0501-000369
0501-000369
0501-000389
2001-001093
2001-001093
2001-001053
2001-001163
2001-001144
2001-000016
2003-000746
2003-000746
2004-004366
2001-001053
2004-004366
2001-000290
2001-000356
2008-001031
2001-001168
2001-001108
2001-001045
2003-000664
2001-001122
2003-001037
2001-003218
2003-002130
2003-001037
2001-001088
2001-001122
2001-001121
2003-000592
2004-001390
2004-001397
2001-000429
2008-000266
2001-001155
2001-001106
2001-001108
2008-001011
2008-001011
2008-001019
2003-000540
2004-000698
2004-002016
2004-002019
2004-002016
2008-000282
2001-000028
2001-001178
2008-001033
2004-001390
2001-001081
2008-001003
2003-002130
2001-001159
2003-002130
2001-001055
2001-001159
2003-001093
2003-001093
Description ; Specification
Remark
FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-AXIAL;43uH,10%,5x14mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;43uH,10%,5x14mm
FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOTR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOTR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.5OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);560OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m
R-METAL(S);1.3Kohm,1%,1/2W,AA,TP,2.5x6.5
R-CARBON(S);1.5OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL(S);1.3Kohm,1%,1/2W,AA,TP,2.5x6.5
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-FUSIBLE(S);1.8ohm,5%,1W,AF,TP,3.9x10mm
R-CARBON(S);6.8KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE(S);33ohm,5%,2W,AF,TP,4x12m
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE(S);39ohm,5%,2W,AF,TP,3.9x1
R-CARBON(S);0.18ohm,10%,1/2W,AA,TP,2.4x6
R-METAL OXIDE(S);15ohm,5%,2W,AF,TP,3.9x1
R-METAL OXIDE(S);39ohm,5%,2W,AF,TP,3.9x1
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE(S);22ohm,5%,2W,AF,TP,4x12m
R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R-METAL(S);4.7Kohm,1%,1/2W,AA,TP,2.4x6.4
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);220KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE;0.2OHM,10%,1/2W,AA,TP,2.5X6.5M
R-METAL OXIDE(S);1Kohm,5%,2W,AF,TP,4x12m
R-METAL;3.3Kohm,1%,1/4W,AA,TP,2.4x6.4m
R-METAL(S);15Kohm,1%,1/2W,AA,TP,2.5x6.5m
R-METAL(S);33Kohm,1%,1/2W,AA,TP,2.5x6.5m
R-METAL(S);15Kohm,1%,1/2W,AA,TP,2.5x6.5m
R-FUSIBLE;0.47ohm,5%,1W,AA,TP,3.9x12mm
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4
R-FUSIBLE(S);10ohm,5%,2W,AF,TP,3.9x10mm
R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R-CARBON(S);160KOHM,5%,1/2W,AA,TP,2.4X6.
R-FUSIBLE(S);5.6ohm,5%,1W,AF,TP,3.9x10mm
R-METAL OXIDE(S);15ohm,5%,2W,AF,TP,3.9x1
R-CARBON(S);510OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);15ohm,5%,2W,AF,TP,3.9x1
R-CARBON(S);1.8KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);510OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);12Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);12Kohm,5%,2W,AF,TP,3.9x
Samsung Electronics
Electrical
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
R807
R808
R809
R809S
R810
R811
R812
R813
R814
R817
R818
R819
R821
R823
R824
R825
R826
R827
R830
R831
R832
R833
R834
R835
R836
RP801S
RS03
RS04
RY801S
VP801S
VX801S
Code No.
Description ; Specification
2003-001093
2001-001129
2001-001129
2008-001011
2001-001178
2001-000066
2009-000017
2001-001097
2001-001170
2001-001144
2001-001045
2001-000429
2001-000429
2001-001086
2001-000085
2001-001106
2001-001088
2001-001097
2001-001072
2001-000028
2001-001088
2001-001070
2003-001090
2001-000429
2008-001050
2002-001010
2003-001038
2003-001038
2002-001012
1405-000152
1405-000152
Remark
R-METAL OXIDE(S);12Kohm,5%,2W,AF,TP,3.9x
R-CARBON(S);330KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);330KOHM,5%,1/2W,AA,TP,2.4X6.
R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL PLATE;0.1ohm,10%,5W,CL,TP,5x14x1
R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);6.8OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);18KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);220KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);12OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);120OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);10Kohm,5%,2W,AF,TP,4x12
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-FUSIBLE;22ohm,5%,2W,AF,TP,3.9x10mm
R-COMPOSITION;1.8Mohm,5%,1/2W,AA,TP,3.7x
R-METAL OXIDE(S);4.7ohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);4.7ohm,5%,2W,AF,TP,3.9x
R-COMPOSITION;8.2Mohm,5%,1/2W,AA,TP,3.7x
VARISTOR;560V,2500A,14x8.5mm,TP
VARISTOR;560V,2500A,14x8.5mm,TP
ASSY-PCB,NTSC MICOM
1
*
AA95-00745A ASSY-PCB,NTSC MICOM;-,TSK2790FX/XAA,KS4A
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
C901
C902
C903
C904
C905
C906
C907
C908
C910
C911
C912
C913
C914
C915
C916
C917
C918
C919
C920
CN901
CN902
CN903
CN904
D901
D903
DZ901
DZ902
DZ903
DZ904
DZ905
DZ906
IC901
IC902
L901
L902
L903
L906
Q901
Q902
2202-000121
2301-000111
2401-002144
2305-000665
2202-000796
2202-000796
2401-001840
2305-000665
2201-000193
2201-000573
2401-001840
2301-000383
2305-000665
2401-000027
2401-001840
2305-000665
2201-000600
2202-000806
2202-000806
3711-003215
3711-003543
AA61-10068A
AA61-10068A
0401-000005
0401-000005
0403-000508
0403-000508
0403-000508
0403-000508
0403-000508
0403-000508
AA09-00101A
1203-000515
2901-000297
2901-000297
2701-000114
2701-000002
0501-000389
0501-000389
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-CERAMIC,DISC;0.01nF,0.25pF,50V,NP0,TP,
C-CERAMIC,DISC;0.047nF,5%,50V,NP0,TP,5x3
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-CERAMIC,DISC;0.56nF,10%,50V,Y5P,TP,5x3
C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP
CONNECTOR-HEADER;NOWALL,18P,1R,2.5MM,ANG
CONNECTOR-HEADER;NOWALL,16P,1R,2.54MM,AN
BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,S.N.A
BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,S.N.A
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
IC MICOM;Z9037116PSC-OTP,SVP43J5M,52P,5
IC-VOL. DETECTOR;7042,TO-92,3P,177MIL,PL
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
Samsung Electronics
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
Q903
Q904
R901
R902
R903
R905
R906
R907
R908
R909
R910
R911
R912
R913
R914
R915
R916
R917
R918
R919
R920
R921
R922
R923
R924
R925
R926
R927
R928
R930
R931
R932
R933
R934
R935
R936
R937
R938
R939
R940
R941
R942
R943
R944
R945
R946
R947
R948
R949
R950
R952
R953
R954
R955
R956
R959
R960
R961
R962
X901
Code No.
0501-000283
0501-000389
2001-000734
2001-000734
2001-000734
2001-000780
2001-000290
2001-000734
2001-000290
2001-000786
2001-000281
2001-000281
2001-000947
2001-000947
2001-000734
2001-000241
2001-000290
2001-000281
2001-000241
2001-000290
2001-000780
2001-000290
2001-000429
2001-000734
2001-000734
2001-000734
2001-000577
2001-000577
2001-000577
2001-000429
2001-000591
2001-000290
2001-000591
2001-000429
2001-000591
2001-000290
2001-000281
2001-000281
2001-000449
2001-000449
2001-000429
2001-000734
2001-001062
2001-000864
2001-000734
2001-000281
2001-000734
2001-000290
2001-000780
2001-000429
2001-000429
2001-000429
2001-000780
2001-000411
2001-000290
2001-000429
2001-000281
2001-000008
2001-000832
2801-003224
AA41-00159C
0202-000187
Parts List
Description ; Specification
Remark
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);10MOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
CRYSTAL-UNIT;32.768KHZ,20PPM,28-AAY,12.5
PCB-NTSC MICOM;CT-29A7DR,FR-1,1L,C,1.6T,
S.N.A
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
ASSY-PCB,3D COBM
1
*
AA95-00979A ASSY-PCB,3D COBM;-,CT-29A7DR,KS4A,-,-,AA
..2
..2
..2
..2
..2
..2
..2
CD10
CD11
CD12
CD18
CD20
CD21
CD22
2401-001496
2203-000181
2401-002464
2401-001914
2203-000181
2203-000181
2203-001035
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,BP,TP,8x11.5,5
C-AL;1uF,20%,50V,BP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;5.6nF,10%,50V,X7R,TP,2012
7-21
Electrical
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
CD23
CD24
CD40
CD41
CD42
CD43
CD44
CD45
CD46
CD47
CD50
CD51
CD52
CD53
CD54
CD55
CD56
CD57
CD58
CD59
CD60
CD62
CD63
CD64
CD66
CD67
CD68
CD69
CD71
CD72
CD74
CD75
CD80
CD81
CD84
CD85
CD86
CD87
CD88
CD89
CD90
CD91
CON01
CON02
DD01
DD02
DD03
FD00
FD01
FD02
FD03
IC01
IC02
IC04
JD01
JD04
LD03
LD05
LD06
LD07
LD09
QD10
QD11
QD12
QD13
QD14
QD15
QD16
QD17
QD18
QD19
QD20
QD21
QD22
QD23
QD24
QD25
7-22
Parts List
Code No.
2401-000598
2401-000455
2301-000111
2203-000181
2203-000181
2203-000181
2203-000181
2401-000455
2203-000181
2401-000455
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2401-001496
2203-000181
2401-001496
2401-001496
2203-000181
2203-000181
2401-001496
2401-001496
2203-000181
2401-001496
2203-000181
2401-001496
2203-000181
2203-000181
2203-000634
2203-000353
2203-000181
2203-000181
2203-000839
2203-000181
2203-000181
2203-000634
2203-000634
2203-000181
2203-000181
3711-002707
3711-002703
0403-001016
0403-001016
0401-000133
2909-001051
2909-001051
2909-001052
2909-001051
1204-001556
1105-001172
1203-001419
2007-000029
2007-000029
2702-001096
2702-001095
2702-001095
2901-000297
2702-001093
0501-000344
0501-000280
0501-000280
0501-000344
0501-000280
0501-000280
0501-000280
0501-000344
0501-000280
0501-000344
0501-000280
0501-000344
0501-000280
0501-000344
0501-000344
0501-000280
Description ; Specification
Remark
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;10uF,20%,35V,GP,TP,4x7mm,5mm
C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;10uF,20%,35V,GP,TP,4x7mm,5mm
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;10uF,20%,35V,GP,TP,4x7mm,5mm
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.15nF,10%,50V,NP0,TP,201
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CONNECTOR-HEADER;NOWALL,9P,1R,2.5mm,ANGL
CONNECTOR-HEADER;NOWALL,5P,1R,2.5mm,ANGL
DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m
DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
FILTER-LC;6MHz,6MHz,0.8dB,TP,5dB/6MHz,30
FILTER-LC;6MHz,6MHz,0.8dB,TP,5dB/6MHz,30
FILTER-LC;3.58MHz,3MHz,1.5dB,TP,11dB/1.0
FILTER-LC;6MHz,6MHz,0.8dB,TP,5dB/6MHz,30
IC-SEPARATOR;UPD64082GF,QFP,100P,-,PLAST
IC-DRAM;416C1204,1Mx16BIT,TSOP,44P,400
IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
INDUCTOR-RADIAL;33uH,10%,6x4mm
INDUCTOR-RADIAL;18uH,10%,6x4mm
INDUCTOR-RADIAL;18uH,10%,6x4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-RADIAL;4.7uH,10%,6x4mm
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
QD26
QD27
QD28
QD40
QD41
RD00
RD01
RD02
RD03
RD04
RD05
RD06
RD07
RD08
RD09
RD10
RD11
RD12
RD13
RD14
RD15
RD16
RD17
RD18
RD19
RD20
RD21
RD22
RD23
RD24
RD25
RD26
RD27
RD37
RD38
RD39
RD40
RD41
RD42
RD43
RD50
RD51
RD59
RD62
RD63
RD64
RD65
RD66
RD67
RD68
RD69
RD70
RD71
RD72
RD73
RD74
RD75
RD76
RD77
RD78
RD79
RD82
RD83
RD84
RD85
RD86
RD87
RD88
RD89
RD90
RD91
RD92
RD93
RD94
RD95
RD96
RD97
Code No.
0501-000344
0501-000344
0501-000280
0501-000344
0501-000344
2007-000290
2007-000290
2007-000030
2007-000290
2007-000586
2007-001141
2007-000468
2007-000468
2007-000030
2007-000981
2007-000290
2007-000290
2007-000586
2007-001141
2007-000308
2007-000468
2007-000030
2007-000981
2007-000290
2007-000030
2007-001092
2007-000572
2007-000468
2007-000493
2007-000941
2007-000565
2007-000931
2007-000872
2007-001092
2007-000290
2007-000468
2007-000582
2007-000297
2007-000582
2007-000868
2007-000290
2007-000468
2007-000282
2007-000308
2007-000493
2007-000468
2007-000468
2007-000738
2007-000710
2007-000468
2007-000931
2007-000931
2007-000468
2007-000931
2007-000290
2007-000931
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000308
2007-000493
2007-000030
2007-000981
2007-000931
2007-000931
2007-000210
2007-000781
2007-000290
2007-000931
2007-000290
2007-000029
2007-000029
2007-000468
2007-000931
2007-000931
Description ; Specification
Remark
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTR-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R-CHIP;7.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R-CHIP;7.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;620OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;220KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;620OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;22KOHM,1%,1/10W,DA,TP,2012
R-CHIP;10KOHM,1%,1/10W,DA,TP,2012
R-CHIP;22KOHM,1%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,1%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;30KOHM,5%,1/10W,DA,TP,2012
R-CHIP;3.9KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;33OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
Samsung Electronics
Electrical
Loc. No.
..2 RD98
..2
...3
...3
..2
..2
..2
Code No.
Description ; Specification
2007-000029
AA98-60005J
0202-001004
0202-000187
AA41-00128D
2801-000199
AA63-40014A
Remark
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
ASSY-SUB,PART;S51A,SOUND,NICAM,SOLDER-CREAM;SQ-2030M SZH-1,S63A,D0.04,6
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
PCB-3D COMB;CT-29A76F,FR-4,2L,D,1.6T,180
CRYSTAL-UNIT;20MHz,50ppm,28-AAA,16pF,50o
SHIELD-CASE,T;-,SPTE,T0.5,SCT51A,-
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY-PCB,DOLBY
1
*
AA95-00758A ASSY-PCB,DOLBY;-,WS32W8HD,KS4A,PAL,-,-
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
CN601A 3711-002704 CONNECTOR-HEADER;NOWALL,6P,1R,2.5mm,ANGL
CN602A 3711-002707 CONNECTOR-HEADER;NOWALL,9P,1R,2.5mm,ANGL
CN603A AA61-10068A BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,S.N.A
0202-001004 SOLDER-CREAM;SQ-2030M SZH-1,S63A,D0.04,6 S.N.A
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
AA99-20079N ASSY-PCB SUB,AUTO; AA95-00758A ,V
S.N.A
C601
2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C602
2401-000287 C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C603
2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C604
2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C605
2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C606
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C607
2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C608
2401-000287 C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C609
2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C610
2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C611
2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C612
2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C613
2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C614
2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C615
2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C616
2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C617
2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C618
2203-000761 C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C619
2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C620
2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C621
2401-000287 C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C622
2203-000595 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,2012
C623
2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C624
2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C625
2401-000287 C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C626
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C627
2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C628
2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
IC601
1204-001198 IC-DECODER;DPL3519A-A2,PLCC,68P,-,PLASTI
IC602
1201-000541 IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P
L601
2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,L602
2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,L603
2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,L604
2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,R601
2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R602
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R603
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R604
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R605
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R606
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R607
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R608
2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R609
2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R610
2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R611
2007-001243 R-CHIP;91KOHM,5%,1/10W,DA,TP,2012
R612
2007-000282 R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
R613
2007-001243 R-CHIP;91KOHM,5%,1/10W,DA,TP,2012
R614
2007-000282 R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
R615
2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R617
2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
AA41-00162B PCB-DOLBY;WS32WHD,FR-4,2L,B,1.6T,180x245
ASSY-PCB,NTSC FBOX
1
*
AA95-00394D ASSY-PCB,NTSC FBOX;-,TSK2790FX/XAA,KS4A,
Samsung Electronics
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
CN01
CN02
CN03
CN04
CX01
DX01
PX01
CC01
CC02
CC03
CC04
CC05
CC06
CC07
CC08
CC09
CC10
CC11
CC12
CC13
CC14
CC15
CC16
CC17
CC18
CC19
CC20
CC21
CC22
CC23
CC24
CC25
CC26
CC27
CC28
CC29
CC30
CC31
CC32
CC33
CC35
CC36
CC37
CC38
CC39
CC40
CC41
CC42
CC43
CC44
CC45
CC47
CC48
CC49
CC50
CD01
CD02
CF01
CL05
CL06
CL07
CQ01
CQ02
CQ03
CQ04
CQ05
CR01
CR02
CR03
CR04
CR05
CR06
CR07
CR08
CR09
CR10
Code No.
3711-003543
3711-003543
3711-001283
3711-001283
2801-004019
2801-003811
2801-004019
AA99-20078S
2203-000575
2203-000979
2203-000575
2203-000575
2203-000142
2203-000839
2203-000181
2203-000979
2203-000142
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-001172
2203-001172
2401-002042
2203-000979
2401-002144
2203-000575
2203-000142
2203-000839
2203-000444
2203-000761
2203-000761
2203-000761
2203-000761
2401-002144
2203-000575
2203-000142
2203-000839
2401-002042
2203-000979
2203-000761
2203-000761
2203-000683
2203-000683
2203-000683
2203-000683
2203-001002
2401-002144
2203-000181
2401-002144
2401-000480
2203-000181
2203-005384
2203-005384
2203-005384
0401-000133
0401-000133
2901-001120
2702-001094
2901-000297
2702-001094
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
2007-001166
2007-001166
2007-001166
2007-001166
2007-001166
2007-001166
2007-001166
2007-001166
2007-000290
2007-000290
Description ; Specification
Parts List
Remark
CONNECTOR-HEADER;NOWALL,16P,1R,2.54MM,AN
CONNECTOR-HEADER;NOWALL,16P,1R,2.54MM,AN
CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG
CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG
CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,
CRYSTAL-UNIT;24.576MHZ,20PPM,28-AAM,30PF
CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,
ASSY-PCB SUB,AUTO; AA95-00394D ,V
S.N.A
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.006nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;0.006nF,0.25pF,50V,NP0,TP
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,201
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
INDUCTOR-RADIAL;10uH,10%,6x4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-RADIAL;10uH,10%,6x4mm
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTR-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
7-23
Electrical
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
CR12
CR13
CR14
CR19
CR20
CR22
CR26
CR27
CR28
CR29
CR30
CR31
CR32
CR33
CR35
CR37
CR38
CR41
CR45
CR46
CR47
CR48
CR49
CR50
CR51
CR52
CR53
CR54
CR55
DC01
DC02
DC03
DC04
DC05
DC06
DC07
DC08
DC09
DC10
DC11
DC12
DC13
DC14
DC15
DC16
DC17
DC18
DC19
DC20
DC21
DC22
DC23
DC24
DC25
DC26
DC27
DC28
DC29
DC30
DC31
DC32
DC33
DC34
DC35
DC36
DC37
DC38
DC39
DC40
DC41
DC42
DC43
DD01
DD02
DD03
DD06
DD07
7-24
Parts List
Code No.
2007-000947
2007-000947
2007-000947
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000468
2007-000493
2007-000030
2007-000642
2007-000290
2007-000290
2007-000300
2007-000290
2007-000290
2007-000029
2007-000290
2007-000468
2007-000941
2007-000941
2007-000931
2007-000941
2007-000941
2007-000931
2007-000941
2007-000941
2007-000931
2401-003102
2203-000181
2203-000181
2203-000181
2203-000181
2203-000142
2203-000239
2203-000181
2203-000555
2203-000181
2203-000555
2203-000555
2203-000181
2203-000181
2203-000181
2401-002144
2401-003102
2203-000181
2401-003102
2203-000181
2203-001088
2203-001088
2203-002494
2203-000938
2203-000444
2203-000444
2401-000603
2203-000181
2203-000444
2203-000444
2203-000444
2203-000181
2203-000181
2203-001002
2203-000181
2203-000239
2203-000142
2203-000239
2401-000603
2203-000181
2401-000480
2401-000480
2401-000480
0401-000133
0401-000133
0403-000689
0403-000689
0401-000133
Description ; Specification
Remark
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;270OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.005nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;0.005nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
DIODE-ZENER;DTZ5.1A,5.1V,4.84-5.04V,200m
DIODE-ZENER;DTZ5.1A,5.1V,4.84-5.04V,200m
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
DL01
DL02
DL03
DL04
DL05
DL06
DL07
DQ01
DR01
DR02
DR03
DR04
DR05
DR06
DR07
DR08
DR09
DR10
DR11
DR12
DR13
DR14
DR15
DR16
DR17
DR18
DR19
DR20
DR22
DR23
DR24
DR25
DR26
DR27
DR28
DR29
DR30
DR31
DR32
DR33
DR34
DR35
DR36
DR37
DR38
DR40
DR41
DR42
DR43
DR44
DR46
DR48
IC01
IC02
IC03
IC04
IC05
IC06
IC07
IC11
IC12
IC13
IC14
PC01
PC02
PC03
PC04
PC05
PC06
PC07
PC08
PC09
PC10
PC11
PC12
PC13
PC14
Code No.
Description ; Specification
2702-001094
2702-001094
2702-001094
2702-001094
2702-001094
2702-001094
2702-001092
0501-000283
2007-000290
2007-000290
2007-001055
2007-000401
2007-000023
2007-000023
2007-000401
2007-000290
2007-000290
2007-000401
2007-000290
2007-000290
2007-000380
2007-000300
2007-000401
2007-000290
2007-000290
2007-001208
2007-000947
2007-000518
2007-000872
2007-000941
2007-000001
2007-000653
2007-000300
2007-001224
2007-000300
2007-000468
2007-000468
2007-000468
2007-000822
2007-000468
2007-000290
2007-000872
2007-000931
2007-000872
2007-000267
2007-000290
2007-000290
2007-000290
2007-000290
2007-000872
2007-000493
2007-000297
1204-001598
AA13-00095A
1105-001273
1105-001273
1002-001045
1204-001372
1204-001550
1203-001419
1203-001140
1203-001359
1202-000001
2203-000575
2203-000142
2203-000839
2203-000181
2203-000979
2203-000142
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-001172
2203-001172
2401-002042
Remark
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;2.2uH,10%,6x4mm
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;6.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;150OHM,5%,1/10W,DA,TP,2012
R-CHIP;120OHM,5%,1/10W,DA,TP,2012
R-CHIP;120OHM,5%,1/10W,DA,TP,2012
R-CHIP;150OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;150OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;13KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;150OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;82KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;68KOHM,5%,1/10W,DA,TP,2012
R-CHIP;27KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;9.1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;390OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,1%,1/10W,DA,TP,2012
IC-VIDEO PROCESS;VPC3230D-B2,QFP,80P,-,P
IC ASIC;-,SDP01,QFP,128P,PROSCAN
IC-DRAM;416S1120,512Kx16x2Bit,TSOP,50P
IC-DRAM;416S1120,512Kx16x2Bit,TSOP,50P
IC-D/A CONVERTER;9280,8BIT,PLCC,68P,-,-,
IC-HOR./VER.PROCESSO;SDA9361,QFP,44P,-,P
IC-VIDEO PROCESS;CXA2101AQ,QFP,80P,-,PLA
IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x
IC-VOL. DETECTOR;7039,TO-92P,3P,-,PLASTI
IC-POSI.FIXED REG.;1086,TO-263,3P,15.8MM
IC-VOLTAGE COMP.;7533,TO-92,3P,-,SINGLE,
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.006nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;0.006nF,0.25pF,50V,NP0,TP
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
Samsung Electronics
Electrical
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
PC15
PC16
PC17
PC18
PC19
PC20
PC21
PC22
PC23
PC24
PC25
PC26
PC27
PC28
PC29
PC30
PC31
PC32
PC33
PC34
PC35
PC36
PC37
PC38
PC39
PC40
PC41
PC42
PC43
PC44
PC45
PC46
PC52
PC53
PC54
PC55
PC56
PC57
PC58
PC78
PIC01
PIC02
PIC04
PIC05
PL01
PL02
PL03
PR01
PR02
PR03
PR04
PR06
PR07
PR08
PR09
PR10
PR15
PR16
PR17
PR18
PR19
PR20
SC01
SC02
SC03
SC04
SC05
SC06
SC07
SC08
SC09
SC10
SC11
SC12
SC13
SC16
SC17
Code No.
2203-000979
2401-002144
2203-000575
2203-000142
2203-000839
2203-000444
2203-000761
2203-000761
2401-002144
2203-000575
2203-000142
2203-000839
2401-002042
2203-000979
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2401-002144
2203-000181
2401-002144
2401-002144
2203-000181
2401-002144
2203-000575
2203-000979
2203-000575
2203-000761
2203-000761
2203-000761
2203-000761
2203-000181
1204-001598
1109-001144
1203-001419
1203-001419
2702-001094
2901-000297
2901-000297
2007-001166
2007-001166
2007-000290
2007-000290
2007-000947
2007-000947
2007-000947
2007-000029
2007-000029
2007-000029
2007-000029
2007-000029
2007-000029
2007-000029
2007-000290
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2401-002144
2203-000181
2203-000181
2203-000181
2203-000181
2401-002144
2203-000181
2401-002144
2203-000181
Description ; Specification
Remark
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
IC-VIDEO PROCESS;VPC3230D-B2,QFP,80P,-,P
IC-FIFO;81V04160,2x256Kx8Bit,TQFP,100P
IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x
IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x
INDUCTOR-RADIAL;10uH,10%,6x4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
Samsung Electronics
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
SC18
SC19
SC20
SC21
SC22
SC23
SC24
SC25
SC26
SC27
SC28
SC29
SC30
SC31
SC32
SC33
SC34
SC35
SC37
SC38
SC39
SC40
SL01
SL02
SL03
SL04
SL06
SR01
SR02
SR03
SR04
SR05
SR06
SR07
SR08
SR09
SR10
SR11
SR12
SR13
SR14
SR15
SR16
SR17
SR50
SR51
SR52
SR53
SR54
SR55
SR56
SR58
SR60
SR61
SR62
SR63
SR64
YC01
YC02
YC03
YC04
YC05
YC08
YC09
YC10
YC11
YC12
YC13
YC14
YC15
YC16
YC17
YC18
YC19
YC20
YC23
YC24
Code No.
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2401-002144
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2401-003102
2203-000181
2401-003102
2203-000181
2203-000181
2401-000603
2203-000181
2203-000181
2401-003102
2203-000239
2007-000493
2901-000297
2702-001094
2702-001094
2901-000297
2007-000572
2007-000572
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2007-000947
2007-000947
2007-000947
2011-000585
2011-000585
2011-000585
2011-000585
2007-000308
2007-000290
2007-000290
2007-000938
2011-000585
2011-000585
2011-000585
2011-000585
2007-000290
2007-000308
2007-000308
2007-000308
2007-000308
2007-000029
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2401-002144
2203-000181
Parts List
Description ; Specification
Remark
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,1%,1/10W,DA,TP,2012
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
7-25
Electrical
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
YC25
YC28
YC29
YC30
YC31
YC32
YC33
YC34
YC35
YC36
YC37
YC38
YC39
YC40
YC41
YC42
YC45
YC46
YC47
YC48
YC49
YC50
YC52
YC53
YC54
YC55
YC56
YC57
YC58
YC59
YC60
YC62
YD01
YD02
YD03
YD04
YD05
YF11
YF12
YF13
YF14
YF15
YL01
YQ01
YQ02
YQ03
YQ06
YQ08
YQ11
YQ12
YR03
YR05
YR06
YR07
YR08
YR09
YR10
YR11
YR12
YR14
YR15
YR18
YR23
YR24
YR25
YR26
YR27
YR28
YR29
YR30
YR31
YR32
YR33
YR40
YR41
YR42
YR43
7-26
Parts List
Code No.
2203-000260
2203-000181
2203-000181
2401-002144
2203-000181
2203-000181
2203-000181
2203-002494
2401-000493
2203-000260
2203-000260
2203-000260
2203-000260
2203-000260
2203-000260
2401-000480
2203-002494
2203-000260
2203-000260
2203-000260
2203-000260
2203-002494
2203-001088
2203-000181
2203-000181
2203-000181
2203-000181
2401-002144
2203-000181
2203-000181
2203-000181
2401-000603
0403-000620
0403-000620
0403-001117
0403-001117
0403-001117
2901-000226
2901-000226
2901-000226
2901-000226
2901-000226
2702-001094
0501-000280
0501-000280
0501-000280
0501-000344
0501-000280
0501-000344
0501-000344
2007-000468
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000931
2007-000938
2007-000290
2007-000468
2007-000468
2007-000290
2007-000290
2007-000290
2007-000290
2007-000030
2007-000290
2007-000030
2007-000290
2007-000030
2007-000689
2007-000290
2007-000029
2007-000029
Description ; Specification
Remark
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;0.005nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;1uF,20%,50V,GP,TP,5x11,5
DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP
DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
INDUCTOR-RADIAL;10uH,10%,6x4mm
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTR-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,1%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;3.3MOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
..2
YR44
YR45
YR46
YR47
YR48
YR49
YR50
YR51
YR52
YR53
YR56
YR58
YR59
YR60
YR61
YR62
YR63
YR64
YR65
YR83
YR84
YR88
YR89
YR90
YR91
YR92
YR93
YR98
Code No.
Description ; Specification
2007-000029
2007-000029
2007-000290
2007-000290
2007-000290
2007-000029
2007-000766
2007-000766
2007-000029
2007-000290
2007-000468
2007-000029
2007-000300
2007-000290
2007-000941
2007-000468
2007-000290
2007-000290
2007-000582
2007-000290
2007-000290
2007-000468
2007-000468
2007-000290
2007-000290
2007-000290
2007-000029
2007-000872
AA41-00161B
AA63-00100A
0202-000187
Remark
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;330OHM,5%,1/10W,DA,TP,2012
R-CHIP;330OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;22KOHM,1%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
PCB-SCAN BLOCK;CT-29A7DR,FR-4,4L,B,1.6T,
SHIELD-CASE;-,SPTE,0.5,SCAN-MODULE,FCC
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
S.N.A
ASSY-PCB,A/V SIDE
1
*
AA95-00744B ASSY-PCB,A/V SIDE;-,TSK3290FX/XAA,KS4A,N
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
C701
C702
C705
C706
C707
C708
CN701A
JA701A
JA702A
JA703A
L706
L707
L708
L709
R706
R707
R708
R709
R710
2202-000231
2202-000231
2202-000121
2202-000263
2202-000263
2202-000121
AA39-20159B
3722-001031
3722-001163
3722-000143
2901-000297
2901-000297
2901-000297
2901-000297
2001-000947
2001-000522
2001-000273
2001-000273
2001-000490
AA41-00166A
3301-001201
0202-000187
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;470pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;470pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
LEAD CONNECTOR-ASSY;,12P,YBNH250-12,6709
JACK-RCA;3P,3.6MM,#18,AU
JACK-VHS;4P,12mm,AU,BLK,N
JACK-PHONE;1P(VER),3.4mm,AG,BLK,NO
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;200OHM,5%,1/8W,AA,TP,1.8X3.2MM
PCB-SIDE AV;KS4,1L,FR-1,245X245X1.6T,8A,
S.N.A
CORE-FERRITE;AE,21x11x32mm,1500,280G
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
ASSY-PCB,CONTROL
1
*
AA95-00603A ASSY-PCB,CONTROL;-,CT-29A7DR,KS4A,NTSC,2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
DC01
DC02
PA01
SWC01
SWC02
SWC03
SWC04
SWC05
SWC06
SWC07
0601-000465
0601-000465
AA59-60002B
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
AA39-20112C
LED;ROUND,GRN,5mm,565
LED;ROUND,GRN,5mm,565
MODULE-REMOCON;-,ORC-50HF,38KHZ,940MM,ME
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
LEAD CONNECTOR-ASSY;,9P,YBNH025-09,67096
Samsung Electronics
Electrical
Loc. No.
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
Code No.
CC01
DC03
DC04
QC01
QC02
RC01
RC02
RC03
RC04
RC05
RC06
RC07
RC08
RC09
RC12
RC13
Description ; Specification
0202-000187
AA99-20072R
2401-002291
0401-000005
0401-000005
0501-000389
0501-000389
2001-000020
2001-001108
2001-000387
2001-000947
2001-000591
2001-000591
2001-000947
2001-000290
2001-000290
2001-001111
2001-001111
AA41-00246A
Remark
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
ASSY-PCB SUB,AUTO; AA95-00603A ,V
S.N.A
C-AL;47uF,20%,16V,GP,TP,6.3x5,5
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;16KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);240OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);240OHM,5%,1/2W,AA,TP,2.4X6.4
PCB-CONTROL;KS4A,1L,FR-1,245x245x1.6T,5A
S.N.A
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
C702
CN701A
CN702A
JA701A
JA702A
JA703A
L701
L702
L703
L704
L705
R701
R702
TBA+DB
Code No.
2202-000145
AA39-20055B
AA39-20069D
AA63-40258A
3716-000229
3722-001439
2701-001040
2701-001040
2701-001040
2701-000115
2701-000115
2001-000028
2001-000028
6006-001095
AA41-00167B
AA63-00165B
AA64-00897D
*
AA90-00251T ASSY CABINET;34A7,TSL3294HFX/XAA
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
AV+CF
BRAC+C
CB+CF
CB+TER
CRT+CF
DOME+C
PCB
PCB+CF
PORT+C
TER+RC
6002-000522
6003-001026
AA60-10050T
AA60-10050T
AA60-10050V
AA60-10050A
AA64-01291B
6003-001026
AA60-10050T
AA60-10050T
AA91-00087B
AA65-30113A
AA65-30008A
AA61-00306B
AA60-00091J
AA64-60421C
AA64-00759D
AA63-60004G
AA61-20285A
AA61-10053A
SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW
SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW
SCREW-ASSY;WC,HH,+,M6,L30,SWRCH18A,ZPC(S
SCREW-ASSY;WP,RH,+,M4,L25,SWRCH18A,-,ZPC
INLAY-COVER;D4,PVC-SHEET,T0.4,94 V0,BLK,
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW
SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW
ASSY HOLDER SPK;-,ABS,HB,GRAY,SV704P,29A
CLAMP-D,COIL;NYLON 66,V2,BLK,TVI 25~29,CLAMP-CORD;PE,HB,BLK,-,-,SUPPORT-CRT;34A7,HIPS,HB,NTR,-,-,SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,INLAY-COVER;-,SEA,PS,T0.3,BLK,-,CABINET BACK;34A7,-,HIPS,V0,BLK
SPACER-GUM,CRT;NTR RUBBER,T3.0,GRY,-,-,HOLDER-BOX;-,3456,PP,VO,WHT,BRACKET-CRATER;-,7277,STS304,T0.5,-,-,-
S.N.A
S.N.A
S.N.A
S.N.A
*
AA90-00252B ASSY CHASSIS PART;KS4A,34A7
..2
..2
..2
..2
..2
..2
AV
C-B+HC
MAIN
POWER
TER+HC
AA65-00011C
6003-001023
6003-001023
6003-001023
6006-001095
AA61-20271A
AA91-00302R ASSY CABINET FRONT;SEA(D4),34A7,(SPK)SV9
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
CF+GRI
KCON+C
LED+CF
SPK+CF
6003-001026
6003-001019
6003-001019
6003-001019
AA64-00758Q
AA64-60445Y
AA64-60446C
AA64-70124C
AA65-00011C
AA65-30105A
AA91-00335A
AA61-60003J
AA63-00220C
AA64-00630B
AA64-00632B
AA64-00634B
AA64-00635B
1
1
*
AA91-00323D ASSY TERMINAL BOARD;-,HIPS,VO,BLK,KS4A S
..2 C701
2202-000145 C-CERAMIC,MLC-AXIAL;120pF,10%,50V,Y5P,TP
Samsung Electronics
CLAMP-WIRE;ALL MODEL,NYLON 66,V2,NTR,25M S.N.A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL)
HOLDER-CHASSIS;-,CS823V,HIPS,V0,GRY,-
*
AA98-70011F ASSY TBC WIRE(P);-,34inch,NTSC,2P-WH,KS4
S.N.A
ASSY HOLDER SPK
1
*
AA91-00338A ASSY HOLDER SPK;-,PP,8ohm/15W,blk,housin
S.N.A
ASSY CRT-
S.N.A
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
CABINET FRONT;34A7(D4),SV907P+DG908P SEA
INLAY AV;34A7,PS SHEET,-,-,BLK,-,KS4A S
INLAY-PC,JACK;29A6,L/GRAY,PS SHEET,T0.5,
S.N.A
BADGE-BRAND;AL,R2500,SILVER,L=70,SAMSUNG
CLAMP-WIRE;ALL MODEL,NYLON 66,V2,NTR,25M S.N.A
CLAMP-WIRE;NYLON 66,V2,NTR,15MM,ALL MODE S.N.A
ASSY HOLDER SPK;-,PP,4ohm,blk,housing ch
SPRING-CS;-,SUS304,0.5,OD6,H12,N7,-,-,GRILLE-SPK,A;34A7,SV907P,HIPS,-,G4309,HB
KNOB-CONTROL;-,29A7,AL,ABS,HB,GRAY
KNOB-POWER;-,29A7,AL,ABS,HB,GRAY
WINDOW-REMOCON;-,29A7,-,PC,V0,VIOLET,INDICATOR-LED;-,29A7,6G,ACRYL,-,SMOG,-
ASSY TERMINAL BOARD
S.N.A
ASSY TBC WIRE(P)
1
*
Remark
C-CERAMIC,MLC-AXIAL;120pF,10%,50V,Y5P,TP
LEAD CONNECTOR-ASSY;,6P,YBNH025-06,67096
LEAD CONNECTOR-ASSY;,5P,YBNH025-05,67096
TERMINAL-SPEAKER;-,ABS,BLK,4P,4
TERMINAL-BLOCK;-,2P,13mm,-,JACK-RCA;2P,3.5mm,NI,BLK,INDUCTOR-AXIAL;10uH,10%,4.5x14mm
INDUCTOR-AXIAL;10uH,10%,4.5x14mm
INDUCTOR-AXIAL;10uH,10%,4.5x14mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL)
PCB-DOLBY JACK;WS32W8HD,FR-1,1L,B,1.6T,2
TERMINAL-BOARD,ANT;-,HIPS VO BLK,-,D4,29
INLAY BACK;D4,DOLBY SEA,PS SHEET,T0.5,BL
1
S.N.A
S.N.A
S.N.A
S.N.A
ASSY CABINET FRONT
1
Description ; Specification
ASSY CHASSIS PART
ASSY CABINET
1
Parts List
*
..2
AA94-02060A ASSY CRT-;A80LRW350X99,+380MG,34,ITC,-,
AA03-00119A CRT-COLOR;A80LRW350X98(D),A80LRW350X99,3
ASSY-POWER,CORD
1
*
*
..2
..2
..2
AA96-20129A
AA96-20129A
3811-000401
AA61-20284A
AA39-10007Y
ASSY-POWER,CORD;-,EP2/YES,H/C300,ME301P,
ASSY-POWER,CORD;-,EP2/YES,H/C300,ME301P,
WIRE-PVC CU;BCWA,300V,ROLL,17/0.16mm,#22
HOLDER;-,P-CORD,PP,VO,BLK,KE-002
POWER-CORD;-,EP2/YES,SPT-2 18AWGx2C,2.4m
S.N.A
S.N.A
ASSY ACCESSORY
1
*
..2
AA94-03469G ASSY ACCESSORY;TSL3294HFX/XAA,KS4A,USA
S.N.A
AA68-01066D MANUAL USERS;,ENG,B5,W/P100(G),44PAGE,KS
S.N.A
REMOCON
1
..2
..2
*
AA59-00175B REMOCON;-,TM63,DREAM4,50,L/GRAY,S/S,E/
AA09-00051A IC-MCU;Z86L8808SSC-R501M,SZTM-822,ST,
2802-000194 RESONATOR-CERAMIC;8MHz,1.0%,TP,8.5x4.5x5
7-27
Electrical
Electrical Parts List
Parts List
7-3 TSK3295HFX/XAA
Loc. No.
Code No.
Description ; Specification
Remark
ASSY PCB MAIN(OPT)
1
*
..2 C670
..2 CJ701A
..2 CJ702A
..2 CJ704A
..2 CN803A
..2 CN804A
..2 IC603
...3
...3
...3
...3
..2 IC804
...3
...3
...3
..2 IC805
..2 ICD603
..2 TUP01
..2
...3 CN501A
...3 CN601
...3 CN702A
...3 IC601
...3 IC602
...3 IC701
...3 IC702
...3 IC703
...3 IC801
...3 IC802
....4
....4
....4
...3 IC803
....4
....4
....4
...3 IC905
...3 ICD02
...3 ICH01
...3 TU01
...3
....4 C101
....4 C102
....4 C103
....4 C104
....4 C105
....4 C107
....4 C108
....4 C109
....4 C110
....4 C202
....4 C203
....4 C204
....4 C205
....4 C601
....4 C602
....4 C603
....4 C604
....4 C605
....4 C606
....4 C607
....4 C608
....4 C611
....4 C616
....4 C617
....4 C618
....4 C619
....4 C620
AA94-02687D ASSY PCB MAIN(OPT);TSL3295HFX/XAA,KS4A,U
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
3722-001426 JACK-RCA;9P,3.4mm,NI,BLK,3722-001163 JACK-VHS;4P,12mm,AU,BLK,N
3722-001427 JACK-RCA;8P,3.4mm,NI,BLK,3711-003241 CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
3711-003241 CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
AA96-50367A ASSY-H/S;-,-,AA62-30181D,TDA7265,0205-000129 GREASE-SILICON;SC102,JAPAN
1201-001026 IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
AA62-30181D HEAT SINK-ES;-,AL6063 EXTR.,2,WHT,70MM,AA96-50382B ASSY-H/S;-,-,AA62-30180C,SI-3050,1203-000203 IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
AA62-30180C HEAT SINK-ES;-,A6063 EXTR.,2,WHT,50MM,-,
AA96-50382B ASSY-H/S;-,-,AA62-30180C,SI-3050,AA96-50367A ASSY-H/S;-,-,AA62-30181D,TDA7265,AA40-00032A TUNER-F/S;TCPN3081PC09A(S),NTSC,TR,181CH
AA99-30214A ASSY-PCB ROBOT; AA94-02687D ,ER
3711-003974 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
3711-003043 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH
3711-003641 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
1204-001594 IC-SOUND PROCESSOR;MSP3440G-B6,SDIP,52P,
1201-000407 IC-POWER AMP;7050,DIP,8P,-,SINGLE,-,PLAS
1001-001073 IC-VIDEO SWITCH;TEA6415C,VIDEO SWITCH,DI
1001-001113 IC-AUDIO SWITCH;TEA6422,SOUND SWITCH ,SD
1002-001193 IC-A/D&D/A CONVERTER;PCF8591P,8bit,DIP,1
1203-000165 IC-POSI.ADJUST REG.;78R12,TO-220,3P,-,-,
AA96-50147B ASSY-H/S;-,TR,AA62-30012B,KA7808,1203-000293 IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
AA62-30012B HEAT SINK-ES;-,A6063 EXTR,-,-,45(16) T02
AA96-50147C ASSY-H/S;-,TR,AA62-30012B,KA7809A,1203-000298 IC-POSI.FIXED REG.;7809,TO-220,3P,-,PLAS
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
AA62-30012B HEAT SINK-ES;-,A6063 EXTR,-,-,45(16) T02
1103-001213 IC-EEPROM;M24C16-WBN6,2048x8Bit,SDIP,8P,
1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV
1204-001454 IC-VOLUME CONTROL;TDA7449L,DIP,20P,300MI
AA40-00020A TUNER-F/S;TCLN3181PA09A(S),NTSC,TR,181CH
AA99-10208N ASSY-PCB MAIN,AUTO; AA99-30214A ,V
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
2202-000222 C-CERAMIC,MLC-AXIAL;3.3nF,20%,16V,Y5P,TP
2301-000111 C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
2202-000222 C-CERAMIC,MLC-AXIAL;3.3nF,20%,16V,Y5P,TP
2301-000111 C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
2201-000558 C-CERAMIC,DISC;0.47nF,10%,50V,Y5P,TP,5x3
2201-000374 C-CERAMIC,DISC;0.22nF,5%,50V,NP0,TP,10.5
2201-000112 C-CERAMIC,DISC;1.5nF,10%,50V,Y5V,TP,5x3.
Samsung Electronics
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
....4 C621
....4 C622
....4 C623
....4 C624
....4 C625
....4 C626
....4 C627
....4 C628
....4 C629
....4 C630
....4 C631
....4 C632
....4 C633
....4 C634
....4 C635
....4 C636
....4 C637
....4 C638
....4 C640
....4 C642
....4 C643
....4 C644
....4 C645
....4 C646
....4 C647
....4 C648
....4 C649
....4 C650
....4 C651
....4 C652
....4 C653
....4 C654
....4 C655
....4 C656
....4 C657
....4 C659
....4 C660
....4 C661
....4 C663
....4 C664
....4 C665
....4 C701
....4 C702
....4 C703
....4 C704
....4 C705
....4 C706
....4 C708
....4 C709
....4 C710
....4 C711
....4 C712
....4 C713
....4 C714
....4 C715
....4 C716
....4 C717
....4 C718
....4 C719
....4 C720
....4 C721
....4 C722
....4 C723
....4 C724
....4 C725
....4 C726
....4 C727
....4 C728
....4 C729
....4 C730
....4 C731
....4 C732
Code No.
Description ; Specification
2401-002235
2401-001026
2305-000665
2401-002235
2401-002235
2401-002235
2202-000632
2401-002235
2401-001840
2201-000558
2202-000286
2202-000286
2201-000304
2201-000304
2401-000480
2401-000480
2301-000232
2401-001840
2401-001840
2401-001840
2305-000665
2401-002458
2305-000665
2305-000665
2401-002458
2401-000027
2202-000183
2401-000832
2401-000027
2202-000183
2401-002216
2201-000119
2401-001840
2401-000603
2401-000962
2401-000480
2301-000232
2401-001840
2305-000665
2401-001840
2202-000632
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-002235
2401-001840
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2202-000121
2305-000355
2401-002235
2401-002235
2401-002235
2305-000355
2401-002235
2401-002235
2401-002235
2401-001840
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,DISC;0.47nF,10%,50V,Y5P,TP,5x3
C-CERAMIC,MLC-AXIAL;56pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;56pF,5%,50V,SL,TP,1.
C-CERAMIC,DISC;0.001nF,0.25pF,50V,NP0,TP
C-CERAMIC,DISC;0.001nF,0.25pF,50V,NP0,TP
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-FILM,PEF;3.3nF,5%,50V,TP,8.1x4.5x13mm,
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;1000uF,20%,35V,GP,TP,16x25,7.5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;1000uF,20%,35V,GP,TP,16x25,7.5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;2.2NF,20%,16V,Y5R,TP
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;2.2NF,20%,16V,Y5R,TP
C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-AL;22uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-FILM,PEF;3.3nF,5%,50V,TP,8.1x4.5x13mm,
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-FILM,MPEF;330nF,5%,63V,TP,-,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-FILM,MPEF;330nF,5%,63V,TP,-,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
Remark
7-28
Electrical
Loc. No.
....4 C733
....4 C734
....4 C735
....4 C738
....4 C739
....4 C740
....4 C741
....4 C745
....4 C746
....4 C747
....4 C801
....4 C802
....4 C803
....4 C804
....4 C805
....4 C806
....4 C807
....4 C808
....4 C809
....4 C810
....4 C811
....4 C812
....4 C813
....4 C814
....4 C815
....4 C816
....4 C819
....4 C820
....4 C825
....4 C901
....4 C902
....4 C903
....4 C905
....4 C906
....4 CD01
....4 CD02
....4 CD03
....4 CD04
....4 CD05
....4 CD06
....4 CD07
....4 CD08
....4 CD09
....4 CD10
....4 CD11
....4 CD12
....4 CD13
....4 CD14
....4 CD15
....4 CD16
....4 CD17
....4 CD18
....4 CD19
....4 CG01
....4 CG02
....4 CG03
....4 CG04
....4 CG05
....4 CH01
....4 CH02
....4 CH03
....4 CH04
....4 CH05
....4 CN901A
....4 CN902A
....4 CND01
....4 CND02
....4 CP03
....4 CP04
....4 CP07
....4 CP08
....4 CS02
....4 CS16
....4 CS30
....4 CX01
....4 D201
....4 D202
7-29
Electrical Parts List
Parts List
Code No.
Description ; Specification
Remark
2201-000982
2401-001363
2401-001840
2202-000121
2202-000121
2401-002235
2401-002235
2401-001840
2305-000665
2401-000480
2401-000832
2305-000665
2401-001363
2305-000665
2401-000832
2305-000665
2401-001363
2305-000665
2401-000832
2305-000665
2401-001363
2305-000665
2401-001363
2305-000665
2401-001363
2305-000665
2401-001363
2305-000665
2401-000287
2401-001840
2305-000665
2401-001840
2401-001840
2401-001840
2401-002235
2401-002235
2401-002458
2305-000665
2401-002458
2401-002216
2305-000665
2305-000665
2401-000027
2202-000716
2401-002459
2401-000027
2202-000716
2202-000796
2202-000796
2301-000111
2301-000111
2401-002235
2401-002235
2401-002235
2401-002235
2401-001840
2305-000665
2401-002235
2401-002235
2401-002235
2401-000480
2401-001840
2305-000665
3711-002648
3711-002646
3711-002644
3711-002645
2401-001840
2202-000632
2401-000480
2305-000665
2401-002235
2401-002235
2401-001840
2401-000480
0401-000005
0401-000005
C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,4
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;1000uF,20%,35V,GP,TP,16x25,7.5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;1000uF,20%,35V,GP,TP,16x25,7.5
C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;1.8nF,20%,16V,Y5R,TP
C-AL;220uF,20%,25V,LZ,TP,10x16,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;1.8nF,20%,16V,Y5R,TP
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
CONNECTOR-HEADER;BOX,9P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,5P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,6P,1R,2.5MM,STRAIGH
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
Loc. No.
....4 D203
....4 D204
....4 D601
....4 D602
....4 D603
....4 D604
....4 DG01
....4 DX01
....4 DX03
....4 DZ101
....4 DZ201
....4 DZ202
....4 DZ203
....4 DZ601
....4 DZ602
....4 DZ603
....4 DZD01
....4 DZD02
....4 J312
....4 J375
....4 L101
....4 L102
....4 L103
....4 L104
....4 L106
....4 L601
....4 L602
....4 L603
....4 L701
....4 L702
....4 L703
....4 L704
....4 L705
....4 L706
....4 L707
....4 L708
....4 L709
....4 L710
....4 L711
....4 L712
....4 L801
....4 L802
....4 L901
....4 L902
....4 LG01
....4 LH01
....4 LP02
....4 LP03
....4 LP04
....4 LP06
....4 LS07
....4 Q201
....4 Q202
....4 Q601
....4 Q602
....4 Q603
....4 Q702
....4 Q703
....4 Q704
....4 Q705
....4 Q706
....4 Q707
....4 Q708
....4 Q709
....4 Q710
....4 Q711
....4 Q712
....4 Q901
....4 Q902
....4 QG01
....4 QG02
....4 QX01
....4 R101
....4 R102
....4 R103
....4 R110
....4 R115
Code No.
Description ; Specification
Remark
0401-000005
2001-000281
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0403-000700
0403-001211
0403-001320
0403-000367
0403-001316
0403-000367
0403-000367
0403-000700
0403-000700
3301-000287
0401-000005
2701-000115
2701-000114
2701-000114
2701-000116
2701-000115
2701-000170
2701-000115
2701-000115
2701-000115
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000115
2701-000114
2701-000114
2701-000114
2701-000114
2701-001040
2701-001040
2701-000115
2701-000114
0401-000005
2701-000170
2701-000114
2701-000114
2701-000116
2701-000115
2701-000115
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000389
0501-000283
0501-000389
0504-000123
0504-000123
0504-000123
0501-000389
0501-000389
1203-001274
2001-001006
2001-000281
2001-000429
2003-001093
2001-001006
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ6.2C,6.12-6.44V,500mW,DO
DIODE-ZENER;UZ7.5BSC,7.5V,7.33-7.64V,500
DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO
DIODE-ZENER;UZ7.5BSC,7.5V,7.33-7.64V,500
DIODE-ZENER;UZ7.5BSC,7.5V,7.33-7.64V,500
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;3.9uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,4.5x14mm
INDUCTOR-AXIAL;10uH,10%,4.5x14mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
INDUCTOR-AXIAL;3.9uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
IC-VOL. DETECTOR;7545,TO-92,3P,-,PLASTIC
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL OXIDE(S);12Kohm,5%,2W,AF,TP,3.9x
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
Samsung Electronics
Electrical
Electrical Parts List
Loc. No.
....4 R203
....4 R204
....4 R205
....4 R209
....4 R210
....4 R211
....4 R212
....4 R213
....4 R214
....4 R215
....4 R216
....4 R217
....4 R218
....4 R219
....4 R220
....4 R230
....4 R601
....4 R602
....4 R603
....4 R604
....4 R607
....4 R608
....4 R609
....4 R610
....4 R611
....4 R614
....4 R615
....4 R616
....4 R617
....4 R618
....4 R619
....4 R620
....4 R621
....4 R622
....4 R623
....4 R624
....4 R625
....4 R626
....4 R627
....4 R628
....4 R629
....4 R630
....4 R631
....4 R632
....4 R635
....4 R636
....4 R637
....4 R638
....4 R639
....4 R701
....4 R702
....4 R703
....4 R704
....4 R705
....4 R706
....4 R707
....4 R708
....4 R709
....4 R710
....4 R711
....4 R713
....4 R714
....4 R715
....4 R716
....4 R717
....4 R718
....4 R719
....4 R720
....4 R721
....4 R722
....4 R723
....4 R724
....4 R725
....4 R726
....4 R727
....4 R728
....4 R729
Code No.
Description ; Specification
2001-000281
2001-000281
2001-000281
2001-000281
2701-000184
2701-000184
2001-000969
2001-001006
2001-000281
2001-000281
2001-000281
2001-000449
2001-000290
2001-000290
2001-000522
2001-000449
2001-000281
2001-000281
2001-000429
2001-000429
2001-000577
2001-000591
2001-000290
2001-000591
2001-000290
2001-001187
2001-000290
2001-001093
2001-001093
2001-000786
2001-001146
2001-001093
2001-001093
2001-001146
2001-000786
2001-001050
2001-000780
2001-001088
2001-001088
2001-000290
2001-000522
2001-000290
2001-000273
2001-000290
2001-000290
2001-000290
2001-000780
2001-000290
2001-000290
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000331
2001-000947
2001-000947
2001-000947
2001-000522
2001-000472
2001-000290
2001-000554
2001-000780
2001-000554
2001-000429
2001-000281
2001-000938
2001-000429
2001-000969
2001-000969
2001-000969
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Samsung Electronics
Remark
Loc. No.
....4 R730
....4 R731
....4 R732
....4 R733
....4 R734
....4 R735
....4 R736
....4 R737
....4 R738
....4 R739
....4 R740
....4 R741
....4 R742
....4 R743
....4 R744
....4 R745
....4 R746
....4 R747
....4 R750
....4 R751
....4 R752
....4 R753
....4 R754
....4 R755
....4 R756
....4 R758
....4 R759
....4 R764
....4 R901
....4 R902
....4 R903
....4 R904
....4 R905
....4 R906
....4 R907
....4 R908
....4 R909
....4 R910
....4 RC01
....4 RC02
....4 RC103
....4 RD02
....4 RD03
....4 RD10
....4 RD11
....4 RD12
....4 RD13
....4 RD14
....4 RD15
....4 RD16
....4 RD17
....4 RD18
....4 RD19
....4 RD20
....4 RD21
....4 RD22
....4 RD23
....4 RD24
....4 RD25
....4 RD26
....4 RD27
....4 RD28
....4 RD29
....4 RD30
....4 RD31
....4 RD32
....4 RG01
....4 RG02
....4 RG03
....4 RG04
....4 RG05
....4 RG06
....4 RH01
....4 RH02
....4 RN701
....4 RU01
....4 RX01
Parts List
Code No.
Description ; Specification
Remark
2001-000969
2001-000429
2001-000429
2001-000429
2001-000281
2001-000003
2001-000003
2001-000429
2001-000429
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000780
2001-000281
2001-000281
2001-000969
2001-000761
2001-000429
2001-000761
2001-000429
2001-000969
2001-000969
2001-000281
2001-000302
2001-000302
2001-000302
2001-000302
2001-000302
2001-000281
2001-000281
2001-000281
2001-000472
2001-000281
2001-000281
2001-000281
2001-000969
2001-000734
2001-000734
2001-001093
2001-001093
2001-001146
2001-000786
2001-001093
2001-001146
2001-001093
2001-000786
2001-000780
2001-001088
2001-001088
2001-000780
2001-001108
2001-001108
2001-000780
2001-000780
2001-001050
2001-000786
2001-000786
2001-000290
2001-000290
2001-000786
2001-000786
2001-000290
2001-000734
2001-000429
2001-000290
2001-000734
2001-000429
2001-000281
2001-000281
2011-000155
2001-000281
2001-001114
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-NETWORK;10Kohm,5%,1/8W,A,SIP,5P,BK
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
7-30
Electrical
Loc. No.
....4 RX02
....4 RX03
....4 X601
....4
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
Electrical Parts List
Parts List
Code No.
Description ; Specification
Remark
2001-001178
2001-000290
2801-003903
AA41-00156E
AA65-30110A
AA26-00069A
0202-000187
AA65-30018A
AA39-30007A
AA39-20536B
AA39-20519B
AA39-20015B
AA39-20010C
AA27-00060A
R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
CRYSTAL-UNIT;18.432MHz,25ppm,28-AAM,12pF
PCB-MAIN;CS29A7HF,FR-1,1L,E,1.6T,330X24
CLAMP-WIRE;NYLON 66,V2,BLK,PAL TVI,ALL M
TRANS FBT;FUJ-29C002C(S),DREAM3,4,-,-,-,
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
CLAMP-WIRE;NYLON-66,-,-,DATL-600,DONG-A,
IF-CABLE;-,T,100mm,1365#26
LEAD CONNECTOR-ASSY;,-,F,F,300MM,1617#22
LEAD CONNECTOR-ASSY;,6(4)P,YFH806-06,F,6
LEAD CONNECTOR-ASSY;,3(2)P,67096-003,200
LEAD CONNECTOR-ASSY;,1P,YFH800-01,S,600,
COIL DEGAUSSING;-,34,14ohm ,-,L3600,E
S.N.A
S.N.A
S.N.A
ASSY PCB CRT
1
*
AA95-00646A ASSY PCB CRT;-,KS4A,34’,-,CRT DRIVE,V/M,
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
..2
..2
..2
...3
...3
...3
..2
...3
...3
...3
..2
...3
...3
...3
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
C503
C510
C511
C512
C522
CNC01
CNC01A
CNC02
CNC02A
IC501
2303-000186
2303-000186
2303-000186
2303-000186
2201-002117
3711-003974
AA39-00114C
3711-003052
AA39-00112C
AA96-50151B
1201-001131
6001-000057
6021-000222
AA61-10060A
AA96-50151B
AA96-50151B
AA96-00110D
1201-000010
6003-000333
AA62-30013K
AA96-00111B
0502-000131
6003-000333
AA62-30013L
AA96-00111A
0502-000153
6003-000333
AA62-30013L
3704-000114
AA41-00209B
AA99-20073R
2201-000949
2201-000436
2301-000016
2301-000016
2301-000016
2301-000016
2301-000016
2201-000599
2201-000599
2201-000599
2401-001176
2401-000703
2401-000832
2401-002264
2401-001563
2305-000665
2401-000832
2401-000914
2201-000982
2201-000292
2201-000192
2201-000516
2301-000261
2201-000192
2201-000604
IC502
IC503
IC504
QF09
QF10
VA999
C501
C502
C504
C505
C506
C507
C509
C513
C514
C515
C516
C520
C528
C531
C532
C533
C534
C535
CF01
CF02
CF03
CF04
CF05
CF06
CF07
7-31
C-FILM,PPF;22nF,5%,400V,BK,19.5x13.5x8,1
C-FILM,PPF;22nF,5%,400V,BK,19.5x13.5x8,1
C-FILM,PPF;22nF,5%,400V,BK,19.5x13.5x8,1
C-FILM,PPF;22nF,5%,400V,BK,19.5x13.5x8,1
C-CERAMIC,DISC;4.7nF,20%,3kV,Y5U,TP,16x6
CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
LEAD CONNECTOR-ASSY;,12P,35155-1200,S,50
CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAGH
LEAD CONNECTOR-ASSY;,10P,35155-1000,S,50
ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,IC-VIDEO AMP;6111,SIP,9P,-,SINGLE,-,PLAS
SCREW-MACHINE;RH,+,M3,L6,ZPC(BLK),SWRCH1
NUT-HEXAGON;2C,M3,ZPC(YEL),SM20C 1
BRACKET-TR;-,-,CUS-1 1/2H,T0.5,-,-,ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,ASSY-H/S;-,-,AA62-30013K,TDA2030,IC-OP AMP;2030,PENTAWATT,5P,-,SINGLE,-,C
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEATSINK-ES;-,-,-,-,44/18,-,WHT,A6063 EX
ASSY-H/S;-,-,AA62-30013L,2SA1011,TR-POWER;2SA1011-D,PNP,1.2W,TO-220,-,60
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEATSINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,ASSY-H/S;-,-,AA62-30013L,2SC2344,TR-POWER;2SC2344-D,NPN,1.2W,TO-220,-,60
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEATSINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,SOCKET-CRT;14P,29.1,35.5,SN,ISH09S/BK
PCB-CRT;-,-,1L,-,-,330x245x1.6T,KS4A,4
ASSY-PCB SUB,AUTO; AA95-00646A ,V
C-CERAMIC,DISC;0.005nF,0.5pF,50V,UJ,TP,4
C-CERAMIC,DISC;0.002nF,0.25pF,50V,SL,TP,
C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;33uF,20%,25V,GP,TP,5x11,5
C-AL;2200uF,20%,25V,GP,-,12.5x25mm,
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;10uF,20%,350V,GP,TP,10x20mm,5m
C-AL;47uF,20%,400V,GP,TP,16x25,7.5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;22uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,4
C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5,
C-CERAMIC,DISC;0.01nF,0.25pF,500V,NP0,TP
C-CERAMIC,DISC;4.7nF,+100-0%,500V,Y5U,TP
C-FILM,PEF;4.7nF,5%,100V,TP,10.5x12.5x6.
C-CERAMIC,DISC;0.01nF,0.25pF,500V,NP0,TP
C-CERAMIC,DISC;0.056nF,+100-0%,500V,SL,T
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
CF71
CF73
CF74
CF75
D501
D502
D504
D509
D510
D511
D512
D513
D514
DF01
DF02
DF05
DF06
DF07
DF08
DZ501
DZ502
DZ503
DZ504
DZ510
FN1
FV1
L502
LF01
LF02
LF03
LF04
LF06
LF08
LF09
LF11
Q504
QF01
QF02
QF03
QF04
QF05
R501
R502
R503
R504
R505
R506
R507
R508
R510
R511
R512
R513
R514
R515
R518
R519
R520
R521
R522
R523
R524
R525
R528
R540
R554
R555
R556
R560
R561
R562
R563
R564
R565
R566
RF02
RF03
Code No.
Description ; Specification
Remark
2401-000832
2401-001157
2401-002235
2401-000045
0401-000005
0402-000546
0402-000132
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0401-000005
0401-000005
0401-000005
0401-000005
0402-000546
0402-000546
0403-001211
0403-001211
0403-001211
0403-001324
0403-000698
3711-002643
3711-002642
2701-000178
3301-000287
3301-000287
2701-000112
3301-000287
2901-000297
2901-000297
2901-000297
2901-000297
0501-000283
0501-000389
0501-000389
0501-000389
0501-000283
0501-000389
2001-000241
2001-000252
2001-000241
2001-001045
2001-001045
2001-001045
2001-000472
2001-000995
2001-001194
2001-001194
2001-001194
2002-001017
2002-001017
2002-001017
2001-001095
2001-000356
2001-000411
2001-000221
2001-000290
2001-000890
2002-001012
2002-001006
2008-001013
2001-000429
2001-000429
2001-000429
2001-000429
2001-001049
2001-001126
2001-000273
2001-000273
2001-000290
2004-001379
2001-001040
2001-000924
2001-000522
C-AL;220uF,20%,25V,GP,TP,8x11.5,5
C-AL;33uF,20%,160V,GP,TP,12.5x20,5
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,160V,GP,TP,10x16,5
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ13A,12.11-12.75V,500mW,D
DIODE-ZENER;TZP12A,12V,11.4-12.6V,1W,DOCONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,STRAIGH
INDUCTOR-AXIAL;33uH,10%,3x7mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;100uH,10%,3x7mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);82KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);82KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);82KOHM,5%,1/2W,AA,TP,2.4X6.4
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-CARBON(S);2.2MOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;150KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-COMPOSITION;8.2Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;4.7Kohm,5%,1/2W,AA,TP,3.7x
R-FUSIBLE(S);1.2ohm,5%,2W,AF,TP,3.9x10mm
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);300OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL(S);12Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-CARBON(S);0.68OHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Samsung Electronics
Electrical
Electrical Parts List
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
..2
..2
RF04
RF17
RF18
RF19
RF20
RF21
RF22
RF23
RF24
RF25
RF26
RF27
RF28
RF29
RF30
RF31
RF32
RF33
RF34
RF35
RF36
Code No.
Description ; Specification
Remark
2001-000989
2001-000019
2001-000022
2001-000022
2001-000331
2001-000258
2001-000221
2001-000554
2003-001018
2001-000241
2001-001179
2001-001179
2001-000241
2001-001071
2001-000221
2001-000221
2003-000746
2001-001100
2001-001100
2003-000746
2003-001018
0202-000187
AA39-20010B
AA63-10002A
R-CARBON;820KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);33OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);33OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL OXIDE(S);220ohm,5%,2W,AF,TP,3.9x
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);68KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);68KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);12KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m
R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE(S);220ohm,5%,2W,AF,TP,3.9x
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
LEAD CONNECTOR-ASSY;,1P,YFH800-01,S,500,
BAND-TIE;-,NYLON66 V2,-,-,L100,NTR,-,-
S.N.A
S.N.A
ASSY PCB POWER
1
*
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
..2
..2
..2
...3
...3
...3
...3
..2
..2
...3
C407
C408
C409
C412
C413
C419
C427
C809
C810
C813
C814
C819
C820
C822
CN801
CN803
CN804
CX801S
CX802S
CX803S
CY801S
CY802S
D406
D804
D806
AA95-00743B ASSY PCB POWER;TSK3290FX/XAA,KS4A,34,-,
2301-001402
2303-000013
2306-000188
2306-001017
2306-000324
2306-001021
2303-000159
2306-000323
2401-000560
2401-003370
2401-003190
2401-002287
2401-003024
2401-000737
3711-003052
3710-001103
3710-001103
2306-000318
2306-000318
2306-000112
2201-000539
2201-000539
0402-000534
0402-000250
AA96-50310A
AA62-30150C
AA60-30003A
6003-000333
0402-000549
0205-000129
D817
AA96-00309A
AA62-00061A
6003-000335
0402-000233
0402-000231
0205-000129
D819
0402-000233
FP801S 3601-000300
IC301
AA96-50381A
0205-000129
1204-000517
6003-000333
AA62-30180B
IC403
1202-000103
IC801S AA96-50364C
0205-000129
C-FILM,PPF;33nF,5%,630V,BK,20x11x17mm,15
C-FILM,PPF;2.7nF,5%,1.6KV,TP,28.5x13.5x6
C-FILM,MPPF;330nF,5%,400V,TP,26x19.5x11,
C-FILM,MPPF;680nF,5%,400V,TP,26x14.5x24m
C-FILM,MPPF;3.3nf,5%,1.6KV,TP,28.5x13.5x
C-FILM,MPPF;100nF,5%,630V,TP,26x8.5x16.5
C-FILM,PPF;2.2nF,5%,1.6KV,BK,31x15.5x8.5
C-FILM,MPPF;2.2nF,5%,1.6KV,TP,28.5x15.5x
C-AL;1uF,20%,160V,GP,TP,6.3x11,5
C-AL;47uF,20%,450V,GP,BK,16X35.5,7.
C-AL;470uF,20%,450V,GP,BK,35x45,22.
C-AL;470uF,20%,200V,WT,BK,25x40,10
C-AL;220uF,20%,200V,WT,TP,22x35,10
C-AL;2200uF,20%,50V,GP,TP,18x35.5,7
CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAGH
CONNECTOR-SOCKET;14P,1R,2.5mm,STRAIGHT,S
CONNECTOR-SOCKET;14P,1R,2.5mm,STRAIGHT,S
C-FILM,MPPF;220nF,20%,250V,TP,-,22.5mm
C-FILM,MPPF;220nF,20%,250V,TP,-,22.5mm
C-FILM,MPPF;100nF,20%,250V,BK,-,15mm
C-CERAMIC,DISC;4.7nF,20%,250V,Y5V,BK,16x
C-CERAMIC,DISC;4.7nF,20%,250V,Y5V,BK,16x
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RG4C,1000V,1A,ASSY-H/S;-,POWER,AA62-30150C,RBV606,HEAT SINK-ES;-,A6063 EXTR,-,WHT,40(24.5)
WASHER;-,-,-,T1.5,-,SBHG-1,SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
DIODE-BRIDGE;RBV606,600V,6A,-,BK
GREASE-SILICON;SC102,JAPAN
ASSY H/S;-,POWER,AA62-00061A,FML-G12S +
HEAT SINK-PS;-,-,T1.0,SILVER,-,-,-,-,104
SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR
DIODE-RECTIFIER;FML-G12S,200V,5A,-,DIODE-RECTIFIER;FMG-G26S,600V,4A,TO-220F
GREASE-SILICON;SC102,JAPAN
DIODE-RECTIFIER;FML-G12S,200V,5A,-,FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS
ASSY-H/S;-,-,AA62-30180B,LA7845,GREASE-SILICON;SC102,JAPAN
IC-VERTIVAL DEF.;LA7845,SIP,7P,-,PLASTIC
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT SINK-ES;-,A6063 EXTR.,2,WHT,70MM,-,
IC-VOLTAGE COMP.;393,DIP,8P,300MIL,DUAL,
ASSY H/S;-,POWER,AA62-30181A,STR-F6656,
GREASE-SILICON;SC102,JAPAN
Samsung Electronics
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
...3
...3
...3
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
IC803S
L401
L402
L403
L404
L405
L812
L815
LS401
LX801S
LX802S
NT801S
PC801S
PC802S
PT801S
Q403
Q404
Q405
Q801
R815
R816
RL801S
RL802S
RS01
RS02
SWS01
SWS02
T401
T402
T444
T801S
TS801S
C301
C302
C304
C305
C306
C307
C401
C402
C406
C410
C411
C416
C417
C418
C420
C421
C422
C423
C424
C425
C426
C428
C429
C430
C431
C440
C452
C454
C803
C804
C805
Code No.
Description ; Specification
Parts List
Remark
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
AA13-00018A IC-HYBRID;-,STR-F6656,LF1351,5PIN,-,AA62-30181A HEAT SINK-ES;A6063,EXTR,SILVER,WHT,ANOD,
AA13-00024A IC-HYBRID;-,TNY253P,-,8PIN,-,AA27-00057A COIL HORIZ. WIDTH;-,10mH,YL-9N 15x27.5 C
AA27-10004F COIL-CHOKE;-,56uH,K,-,2.5A,BK,-,DR12x15,
AA27-00025A COIL-CHOKE;-,1MH,10%,-,-,BK,-,12X20,14X2
AA27-00022A COIL-LINEARLITY;-,7.5UH,YL81 DR15X18 C:6
AA27-40003P COIL-HORIZ.WIDTH;-,120uH/180uH,Th8x20,US
AA27-10002L COIL-CHOKE;-,24UH,K,-,2A,-,24UH-K,10X10M
AA27-10002L COIL-CHOKE;-,24UH,K,-,2A,-,24UH-K,10X10M
AA27-10002V COIL-CHOKE;-,6.3MH,K,-,500MA,-,NY632K(50
AA29-30001Z FILTER-LINE NOISE;-,10mH,2.8A,-,SQE3535
AA29-30002D FILTER-LINE NOISE;-,10mH,2.8A,-,SQE-3535
1404-001045 THERMISTOR-NTC;4.7ohm,15%,2900K,35.0mW,T
0604-001038 PHOTO-COUPLER;TR,130-260%,200mW,DIP-4,ST
0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST
1404-001026 THERMISTOR-PTC;7ohm,20%,-,290V,25A,-,ST
0505-000156 FET-SILICON;IRF620,N,200V,5A,0.8ohm,50W,
0505-001116 FET-SILICON;BUZ73A,N,200V,22A,0.6ohm,40W
AA96-00310A ASSY H/S;-,POWER,AA62-00062A,FMP-3FU +
AA62-00062A HEAT SINK-PS;-,-,T2.0,SILVER,-,-,-,-,108
AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,-,SBHG
AA02-00007A MICA;DPM-04,MICA,22x29x0.15mm
6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
0502-001175 TR-POWER;2SC5446,NPN,200000mW,TO-3PL,BK
0402-001296 DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,TO-3PF,
0205-000129 GREASE-SILICON;SC102,JAPAN
1004-000101 IC-ECC;SE-140N,DIP,-,-,ST,-,PLASTIC,1
2003-002206 R-METAL OXIDE(S);27Kohm,5%,3W,AG,TP,6x16
2003-002206 R-METAL OXIDE(S);27Kohm,5%,3W,AG,TP,6x16
3501-001040 RELAY-POWER;12VDC,500mW,10A,1FormA,15mS,
3501-001053 RELAY-POWER;5Vdc,530mW,10A,1FormA,15mS,5
2006-001081 R-CEMENT;82ohm,5%,5W,CJ,TP,14x10x27mm
2006-001081 R-CEMENT;82ohm,5%,5W,CJ,TP,14x10x27mm
3409-000138 SWITCH-LEVER;30V,200mA,SP3T,NON SHORTING
3409-000138 SWITCH-LEVER;30V,200mA,SP3T,NON SHORTING
AA26-50001S TRANS-HORIZ.DRIVE;-,6.0mH,44uH,1.5uH,EI2
AA26-90002C TRANS-DUMMY;-,3.5mH,EER2834,130/1200,ST
AA26-00084A TRANS FBT;FUJ-34C001F(S),W32,2.26mH,-,-,
AA26-00056A TRANS SWITCHING;-,-,-,AC90~260V,DC135V/2
AA26-00055A TRANS SWITCHING;-,-,-,AC80~280V,-,-,-,4m
AA98-00002A ASSY-SUB,PART;S53A,PCB,POWER,ALL,0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
AA41-00157D PCB-POWER;CT-29A7DR,CEM-1,1L,D,1.6T,330x
AA99-20078WASSY-PCB SUB,AUTO; AA95-00743B ,V
2301-000160 C-FILM,PEF;12nF,5%,50V,TP,11.0x6.0x9.0mm
2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5
2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5
2305-000285 C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15
2305-000285 C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15
2301-000247 C-FILM,PEF;33nF,5%,50V,TP,8.1x4.5x13mm,5
2301-000213 C-FILM,PEF;220nF,5%,250V,TP,21.5x11,7.5
2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5
2301-000188 C-FILM,PEF;1nF,5%,100V,TP,10.5x12.5x6.5,
2301-001143 C-FILM,PPF;56nF,5%,400V,TP,20x10x17,7.5
2401-001527 C-AL;47uF,20%,250V,HR,TP,13x25mm,5m
2401-000927 C-AL;22uF,20%,250V,GP,TP,13x20,5
2201-000291 C-CERAMIC,DISC;1nF,10%,500V,Y5P,TP,7.5x3
2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
2401-001655 C-AL;680uF,20%,25V,GP,TP,10x20,5
2401-002597 C-AL;220uF,20%,35V,GP,TP,10x12.5,5
2305-000470 C-FILM,MPEF;68nF,5%,100V,TP,-,5mm
2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
2301-000232 C-FILM,PEF;3.3nF,5%,50V,TP,8.1x4.5x13mm,
2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m
2401-001655 C-AL;680uF,20%,25V,GP,TP,10x20,5
2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5
2201-000291 C-CERAMIC,DISC;1nF,10%,500V,Y5P,TP,7.5x3
2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
2201-000315 C-CERAMIC,DISC;2.2nF,+80-20%,250V,Y5U,TP
2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,
2201-002076 C-CERAMIC,DISC;0.068nF,5%,1kV,SL,TP,8x4m
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
7-32
Electrical
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
C806
C808
C811
C812
C816
C817
C818
C821
C824
C825
C826
C828
C829
C833
C834
C835
C838
C839
CS01
D301
D401
D402
D403
D404
D405
D408
D409
D410
D411
D412
D450
D451
D801
D802
D803
D805
D807
D808
D811
D812
D813
D815
D816
D820
D821
DS01
DS02
DZ301
DZ302
DZ303
DZ304
DZ305
DZ306
DZ307
DZ401
DZ402
DZ403
DZ801
DZ802
DZ803
FA801S
FA802S
FD802S
FP801A
FP801B
J105
J106
J118
J125
J127
J130
J135
J173
L302
L303
L406
L409
7-33
Electrical Parts List
Parts List
Code No.
Description ; Specification
Remark
2401-000360
2201-000292
2201-000315
2201-000332
2201-002041
2301-001171
2201-000551
2201-000551
2201-000556
2401-000722
2401-000722
2401-000722
2401-001397
2305-000412
2401-001840
2201-000556
2401-001363
2201-000551
2301-001268
0402-000546
0401-000005
0401-000005
0402-001105
0402-000493
0402-000534
0402-000540
0402-000540
0401-000005
0402-000546
0401-000005
0402-000132
0402-000132
0402-000532
0402-000546
0402-000546
0402-000532
0402-001111
1405-000152
1405-001030
0403-000716
0402-000534
0403-001322
0402-000132
0402-000132
0402-000546
0402-000132
0402-000132
0403-001329
0403-001329
0403-001221
0403-000700
0403-001325
0403-000716
0403-001330
0403-001322
0403-001325
0403-001325
0403-001322
0403-000508
0403-001327
3601-001228
3601-001228
3601-000120
3602-000114
3602-000114
2001-001043
2001-001043
2001-001043
2001-001043
2001-001043
2001-001043
2001-001043
2001-001043
3301-000287
3301-000287
2901-000297
3301-000287
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5,
C-CERAMIC,DISC;2.2nF,+80-20%,250V,Y5U,TP
C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4
C-CERAMIC,DISC;0.82nF,10%,2kV,Y5P,TP,9x5
C-FILM,PPF;10nF,5%,400V,TP,20x6.5x13,7.5
C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;2200uF,20%,25V,WT,TP,16x25,7.5
C-AL;2200uF,20%,25V,WT,TP,16x25,7.5
C-AL;2200uF,20%,25V,WT,TP,16x25,7.5
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3
C-FILM,PPF;33nF,5%,630V,TP,20x11x17,7.5
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;ERC13-08,800V,1.2A,DO-20
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;ERC13-08,800V,1.2A,DO-20
DIODE-RECTIFIER;1N5397GP,600V,1.5A,DO-20
VARISTOR;560V,2500A,14x8.5mm,TP
VARISTOR;120V,2500A,14x8.5mm,TP
DIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m
DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m
DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D
DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO
FUSE-AXIAL LEAD;125V,2.5A,FAST-ACTING,GL
FUSE-HOLDER;-,-,30mohm
FUSE-HOLDER;-,-,30mohm
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
L410
L802
L803
L804
L805
L806
L807
L808
L809
L810
L811
L813
L814
L817
L818
L822
L823
Q401
Q402
Q802
Q803
Q804
R301
R302
R305
R306
R307
R309
R310
R311
R312
R313
R314
R315
R316
R401
R402
R403
R404
R405
R406
R407
R408
R409
R410
R411
R412
R413
R414
R415
R416
R418
R419S
R420
R421
R422
R423S
R424S
R425S
R426
R429
R430
R431
R434
R437S
R438
R439
R450
R451
R452
R455
R456
R457
R458
R802
R804
R805
Code No.
Description ; Specification
Remark
2701-001032
2901-000299
2901-000297
2901-000297
2901-000297
2901-000297
3301-000287
3301-000287
2901-000297
2701-001030
2901-000297
2901-000297
2901-000297
3301-000287
2701-001030
2901-000299
2901-000299
0501-000389
0501-000389
0501-000369
0501-000369
0501-000389
2001-001093
2001-001093
2001-001053
2001-001163
2001-001144
2001-000016
2003-000746
2003-000746
2004-004366
2001-001053
2004-004366
2001-000290
2001-000356
2008-001031
2001-001168
2001-001108
2001-001045
2003-000664
2001-001122
2003-001037
2001-003218
2003-002130
2003-001037
2001-001088
2001-001122
2001-001121
2003-000592
2004-001390
2004-001397
2001-000429
2008-000266
2001-001155
2001-001106
2001-001108
2008-001011
2008-001011
2008-001019
2003-000540
2004-000698
2004-002016
2004-002019
2004-002016
2008-000282
2001-000028
2001-001178
2008-001033
2004-001390
2001-001081
2008-001003
2003-002130
2001-001159
2003-002130
2001-001055
2001-001159
2003-001093
INDUCTOR-AXIAL;100uH,10%,5x14mm
FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-AXIAL;43uH,10%,5x14mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;43uH,10%,5x14mm
FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOTR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOTR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.5OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);560OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m
R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m
R-METAL(S);1.3Kohm,1%,1/2W,AA,TP,2.5x6.5
R-CARBON(S);1.5OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL(S);1.3Kohm,1%,1/2W,AA,TP,2.5x6.5
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-FUSIBLE(S);1.8ohm,5%,1W,AF,TP,3.9x10mm
R-CARBON(S);6.8KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE(S);33ohm,5%,2W,AF,TP,4x12m
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE(S);39ohm,5%,2W,AF,TP,3.9x1
R-CARBON(S);0.18ohm,10%,1/2W,AA,TP,2.4x6
R-METAL OXIDE(S);15ohm,5%,2W,AF,TP,3.9x1
R-METAL OXIDE(S);39ohm,5%,2W,AF,TP,3.9x1
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL OXIDE(S);22ohm,5%,2W,AF,TP,4x12m
R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R-METAL(S);4.7Kohm,1%,1/2W,AA,TP,2.4x6.4
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);220KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE;0.2OHM,10%,1/2W,AA,TP,2.5X6.5M
R-METAL OXIDE(S);1Kohm,5%,2W,AF,TP,4x12m
R-METAL;3.3Kohm,1%,1/4W,AA,TP,2.4x6.4m
R-METAL(S);15Kohm,1%,1/2W,AA,TP,2.5x6.5m
R-METAL(S);33Kohm,1%,1/2W,AA,TP,2.5x6.5m
R-METAL(S);15Kohm,1%,1/2W,AA,TP,2.5x6.5m
R-FUSIBLE;0.47ohm,5%,1W,AA,TP,3.9x12mm
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4
R-FUSIBLE(S);10ohm,5%,2W,AF,TP,3.9x10mm
R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R-CARBON(S);160KOHM,5%,1/2W,AA,TP,2.4X6.
R-FUSIBLE(S);5.6ohm,5%,1W,AF,TP,3.9x10mm
R-METAL OXIDE(S);15ohm,5%,2W,AF,TP,3.9x1
R-CARBON(S);510OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);15ohm,5%,2W,AF,TP,3.9x1
R-CARBON(S);1.8KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);510OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);12Kohm,5%,2W,AF,TP,3.9x
Samsung Electronics
Electrical
Electrical Parts List
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
R806
R807
R808
R809
R809S
R810
R811
R812
R813
R814
R817
R818
R819
R821
R823
R824
R825
R826
R827
R830
R831
R832
R833
R834
R835
R836
RP801S
RS03
RS04
RY801S
VP801S
VX801S
Code No.
Description ; Specification
Remark
2003-001093
2003-001093
2001-001129
2001-001129
2008-001011
2001-001178
2001-000066
2009-000017
2001-001097
2001-001170
2001-001144
2001-001045
2001-000429
2001-000429
2001-001086
2001-000085
2001-001106
2001-001088
2001-001097
2001-001072
2001-000028
2001-001088
2001-001070
2003-001090
2001-000429
2008-001050
2002-001010
2003-001038
2003-001038
2002-001012
1405-000152
1405-000152
R-METAL OXIDE(S);12Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);12Kohm,5%,2W,AF,TP,3.9x
R-CARBON(S);330KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);330KOHM,5%,1/2W,AA,TP,2.4X6.
R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL PLATE;0.1ohm,10%,5W,CL,TP,5x14x1
R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);6.8OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);18KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);220KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);12OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);120OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);10Kohm,5%,2W,AF,TP,4x12
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-FUSIBLE;22ohm,5%,2W,AF,TP,3.9x10mm
R-COMPOSITION;1.8Mohm,5%,1/2W,AA,TP,3.7x
R-METAL OXIDE(S);4.7ohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);4.7ohm,5%,2W,AF,TP,3.9x
R-COMPOSITION;8.2Mohm,5%,1/2W,AA,TP,3.7x
VARISTOR;560V,2500A,14x8.5mm,TP
VARISTOR;560V,2500A,14x8.5mm,TP
ASSY-PCB,NTSC MICOM
1
*
AA95-00745A ASSY-PCB,NTSC MICOM;-,TSK2790FX/XAA,KS4A
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
C901
C902
C903
C904
C905
C906
C907
C908
C910
C911
C912
C913
C914
C915
C916
C917
C918
C919
C920
CN901
CN902
CN903
CN904
D901
D903
DZ901
DZ902
DZ903
DZ904
DZ905
DZ906
IC901
IC902
L901
L902
L903
L906
Q901
2202-000121
2301-000111
2401-002144
2305-000665
2202-000796
2202-000796
2401-001840
2305-000665
2201-000193
2201-000573
2401-001840
2301-000383
2305-000665
2401-000027
2401-001840
2305-000665
2201-000600
2202-000806
2202-000806
3711-003215
3711-003543
AA61-10068A
AA61-10068A
0401-000005
0401-000005
0403-000508
0403-000508
0403-000508
0403-000508
0403-000508
0403-000508
AA09-00101A
1203-000515
2901-000297
2901-000297
2701-000114
2701-000002
0501-000389
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-CERAMIC,DISC;0.01nF,0.25pF,50V,NP0,TP,
C-CERAMIC,DISC;0.047nF,5%,50V,NP0,TP,5x3
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-CERAMIC,DISC;0.56nF,10%,50V,Y5P,TP,5x3
C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP
CONNECTOR-HEADER;NOWALL,18P,1R,2.5MM,ANG
CONNECTOR-HEADER;NOWALL,16P,1R,2.54MM,AN
BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,S.N.A
BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,S.N.A
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
IC MICOM;Z9037116PSC-OTP,SVP43J5M,52P,5
IC-VOL. DETECTOR;7042,TO-92,3P,177MIL,PL
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
Samsung Electronics
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
Q902
Q903
Q904
R901
R902
R903
R905
R906
R907
R908
R909
R910
R911
R912
R913
R914
R915
R916
R917
R918
R919
R920
R921
R922
R923
R924
R925
R926
R927
R928
R930
R931
R932
R933
R934
R935
R936
R937
R938
R939
R940
R941
R942
R943
R944
R945
R946
R947
R948
R949
R950
R952
R953
R954
R955
R956
R959
R960
R961
R962
X901
Parts List
Code No.
Description ; Specification
Remark
0501-000389
0501-000283
0501-000389
2001-000734
2001-000734
2001-000734
2001-000780
2001-000290
2001-000734
2001-000290
2001-000786
2001-000281
2001-000281
2001-000947
2001-000947
2001-000734
2001-000241
2001-000290
2001-000281
2001-000241
2001-000290
2001-000780
2001-000290
2001-000429
2001-000734
2001-000734
2001-000734
2001-000577
2001-000577
2001-000577
2001-000429
2001-000591
2001-000290
2001-000591
2001-000429
2001-000591
2001-000290
2001-000281
2001-000281
2001-000449
2001-000449
2001-000429
2001-000734
2001-001062
2001-000864
2001-000734
2001-000281
2001-000734
2001-000290
2001-000780
2001-000429
2001-000429
2001-000429
2001-000780
2001-000411
2001-000290
2001-000429
2001-000281
2001-000008
2001-000832
2801-003224
AA41-00159C
0202-000187
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);10MOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
CRYSTAL-UNIT;32.768KHZ,20PPM,28-AAY,12.5
PCB-NTSC MICOM;CT-29A7DR,FR-1,1L,C,1.6T,
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
S.N.A
ASSY-PCB,DOLBY
1
*
AA95-00758A ASSY-PCB,DOLBY;-,WS32W8HD,KS4A,PAL,-,-
..2
..2
..2
..2
..2
..2
...3
CN601A 3711-002704 CONNECTOR-HEADER;NOWALL,6P,1R,2.5mm,ANGL
CN602A 3711-002707 CONNECTOR-HEADER;NOWALL,9P,1R,2.5mm,ANGL
CN603A AA61-10068A BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,S.N.A
0202-001004 SOLDER-CREAM;SQ-2030M SZH-1,S63A,D0.04,6
S.N.A
0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
AA99-20079N ASSY-PCB SUB,AUTO; AA95-00758A ,V
S.N.A
C601
2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
7-34
Electrical
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
C602
C603
C604
C605
C606
C607
C608
C609
C610
C611
C612
C613
C614
C615
C616
C617
C618
C619
C620
C621
C622
C623
C624
C625
C626
C627
C628
IC601
IC602
L601
L602
L603
L604
R601
R602
R603
R604
R605
R606
R607
R608
R609
R610
R611
R612
R613
R614
R615
R617
Code No.
Description ; Specification
2401-000287
2203-000938
2203-000142
2401-002235
2203-000181
2401-002235
2401-000287
2203-000938
2203-000142
2401-002235
2203-000444
2305-000412
2203-000142
2203-000444
2305-000412
2203-000142
2203-000761
2203-000142
2203-000938
2401-000287
2203-000595
2401-002235
2401-002235
2401-000287
2203-000181
2401-002235
2203-000181
1204-001198
1201-000541
2901-000297
2901-000297
2901-000297
2901-000297
2007-000468
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000872
2007-000872
2007-001243
2007-000282
2007-001243
2007-000282
2007-000029
2007-000029
AA41-00162B
C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,2012
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
IC-DECODER;DPL3519A-A2,PLCC,68P,-,PLASTI
IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;91KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
R-CHIP;91KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
PCB-DOLBY;WS32WHD,FR-4,2L,B,1.6T,180x245
ASSY-PCB,3D COBM
1
*
AA95-00979A ASSY-PCB,3D COBM;-,CT-29A7DR,KS4A,-,-,AA
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
CD10
CD11
CD12
CD18
CD20
CD21
CD22
CD23
CD24
CD40
CD41
CD42
CD43
CD44
CD45
CD46
CD47
CD50
CD51
CD52
2401-001496
2203-000181
2401-002464
2401-001914
2203-000181
2203-000181
2203-001035
2401-000598
2401-000455
2301-000111
2203-000181
2203-000181
2203-000181
2203-000181
2401-000455
2203-000181
2401-000455
2203-000181
2203-000181
2203-000181
7-35
Electrical Parts List
Parts List
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,BP,TP,8x11.5,5
C-AL;1uF,20%,50V,BP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;5.6nF,10%,50V,X7R,TP,2012
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;10uF,20%,35V,GP,TP,4x7mm,5mm
C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;10uF,20%,35V,GP,TP,4x7mm,5mm
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;10uF,20%,35V,GP,TP,4x7mm,5mm
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
Remark
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
CD53
CD54
CD55
CD56
CD57
CD58
CD59
CD60
CD62
CD63
CD64
CD66
CD67
CD68
CD69
CD71
CD72
CD74
CD75
CD80
CD81
CD84
CD85
CD86
CD87
CD88
CD89
CD90
CD91
CON01
CON02
DD01
DD02
DD03
FD00
FD01
FD02
FD03
IC01
IC02
IC04
JD01
JD04
LD03
LD05
LD06
LD07
LD09
QD10
QD11
QD12
QD13
QD14
QD15
QD16
QD17
QD18
QD19
QD20
QD21
QD22
QD23
QD24
QD25
QD26
QD27
QD28
QD40
QD41
RD00
RD01
RD02
RD03
RD04
RD05
RD06
RD07
Code No.
Description ; Specification
Remark
2203-000181
2203-000181
2203-000181
2203-000181
2401-001496
2203-000181
2401-001496
2401-001496
2203-000181
2203-000181
2401-001496
2401-001496
2203-000181
2401-001496
2203-000181
2401-001496
2203-000181
2203-000181
2203-000634
2203-000353
2203-000181
2203-000181
2203-000839
2203-000181
2203-000181
2203-000634
2203-000634
2203-000181
2203-000181
3711-002707
3711-002703
0403-001016
0403-001016
0401-000133
2909-001051
2909-001051
2909-001052
2909-001051
1204-001556
1105-001172
1203-001419
2007-000029
2007-000029
2702-001096
2702-001095
2702-001095
2901-000297
2702-001093
0501-000344
0501-000280
0501-000280
0501-000344
0501-000280
0501-000280
0501-000280
0501-000344
0501-000280
0501-000344
0501-000280
0501-000344
0501-000280
0501-000344
0501-000344
0501-000280
0501-000344
0501-000344
0501-000280
0501-000344
0501-000344
2007-000290
2007-000290
2007-000030
2007-000290
2007-000586
2007-001141
2007-000468
2007-000468
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.15nF,10%,50V,NP0,TP,201
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CONNECTOR-HEADER;NOWALL,9P,1R,2.5mm,ANGL
CONNECTOR-HEADER;NOWALL,5P,1R,2.5mm,ANGL
DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m
DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
FILTER-LC;6MHz,6MHz,0.8dB,TP,5dB/6MHz,30
FILTER-LC;6MHz,6MHz,0.8dB,TP,5dB/6MHz,30
FILTER-LC;3.58MHz,3MHz,1.5dB,TP,11dB/1.0
FILTER-LC;6MHz,6MHz,0.8dB,TP,5dB/6MHz,30
IC-SEPARATOR;UPD64082GF,QFP,100P,-,PLAST
IC-DRAM;416C1204,1Mx16BIT,TSOP,44P,400
IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
INDUCTOR-RADIAL;33uH,10%,6x4mm
INDUCTOR-RADIAL;18uH,10%,6x4mm
INDUCTOR-RADIAL;18uH,10%,6x4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-RADIAL;4.7uH,10%,6x4mm
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTR-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R-CHIP;7.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
Samsung Electronics
Electrical
Electrical Parts List
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
..2
..2
..2
RD08
RD09
RD10
RD11
RD12
RD13
RD14
RD15
RD16
RD17
RD18
RD19
RD20
RD21
RD22
RD23
RD24
RD25
RD26
RD27
RD37
RD38
RD39
RD40
RD41
RD42
RD43
RD50
RD51
RD59
RD62
RD63
RD64
RD65
RD66
RD67
RD68
RD69
RD70
RD71
RD72
RD73
RD74
RD75
RD76
RD77
RD78
RD79
RD82
RD83
RD84
RD85
RD86
RD87
RD88
RD89
RD90
RD91
RD92
RD93
RD94
RD95
RD96
RD97
RD98
Code No.
Description ; Specification
Remark
2007-000030
2007-000981
2007-000290
2007-000290
2007-000586
2007-001141
2007-000308
2007-000468
2007-000030
2007-000981
2007-000290
2007-000030
2007-001092
2007-000572
2007-000468
2007-000493
2007-000941
2007-000565
2007-000931
2007-000872
2007-001092
2007-000290
2007-000468
2007-000582
2007-000297
2007-000582
2007-000868
2007-000290
2007-000468
2007-000282
2007-000308
2007-000493
2007-000468
2007-000468
2007-000738
2007-000710
2007-000468
2007-000931
2007-000931
2007-000468
2007-000931
2007-000290
2007-000931
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000308
2007-000493
2007-000030
2007-000981
2007-000931
2007-000931
2007-000210
2007-000781
2007-000290
2007-000931
2007-000290
2007-000029
2007-000029
2007-000468
2007-000931
2007-000931
2007-000029
AA98-60005J
0202-001004
0202-000187
AA41-00128D
2801-000199
AA63-40014A
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R-CHIP;7.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;620OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;220KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;620OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;22KOHM,1%,1/10W,DA,TP,2012
R-CHIP;10KOHM,1%,1/10W,DA,TP,2012
R-CHIP;22KOHM,1%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,1%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;30KOHM,5%,1/10W,DA,TP,2012
R-CHIP;3.9KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;33OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
ASSY-SUB,PART;S51A,SOUND,NICAM,SOLDER-CREAM;SQ-2030M SZH-1,S63A,D0.04,6
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
PCB-3D COMB;CT-29A76F,FR-4,2L,D,1.6T,180
CRYSTAL-UNIT;20MHz,50ppm,28-AAA,16pF,50o
SHIELD-CASE,T;-,SPTE,T0.5,SCT51A,-
ASSY-PCB,NTSC FBOX
1
*
AA95-00394D ASSY-PCB,NTSC FBOX;-,TSK2790FX/XAA,KS4A,
Samsung Electronics
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
CN01
CN02
CN03
CN04
CX01
DX01
PX01
CC01
CC02
CC03
CC04
CC05
CC06
CC07
CC08
CC09
CC10
CC11
CC12
CC13
CC14
CC15
CC16
CC17
CC18
CC19
CC20
CC21
CC22
CC23
CC24
CC25
CC26
CC27
CC28
CC29
CC30
CC31
CC32
CC33
CC35
CC36
CC37
CC38
CC39
CC40
CC41
CC42
CC43
CC44
CC45
CC47
CC48
CC49
CC50
CD01
CD02
CF01
CL05
CL06
CL07
CQ01
CQ02
CQ03
CQ04
CQ05
CR01
CR02
CR03
CR04
CR05
CR06
CR07
CR08
CR09
Parts List
Code No.
Description ; Specification
Remark
3711-003543
3711-003543
3711-001283
3711-001283
2801-004019
2801-003811
2801-004019
AA99-20078S
2203-000575
2203-000979
2203-000575
2203-000575
2203-000142
2203-000839
2203-000181
2203-000979
2203-000142
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-001172
2203-001172
2401-002042
2203-000979
2401-002144
2203-000575
2203-000142
2203-000839
2203-000444
2203-000761
2203-000761
2203-000761
2203-000761
2401-002144
2203-000575
2203-000142
2203-000839
2401-002042
2203-000979
2203-000761
2203-000761
2203-000683
2203-000683
2203-000683
2203-000683
2203-001002
2401-002144
2203-000181
2401-002144
2401-000480
2203-000181
2203-005384
2203-005384
2203-005384
0401-000133
0401-000133
2901-001120
2702-001094
2901-000297
2702-001094
0501-000344
0501-000344
0501-000344
0501-000344
0501-000344
2007-001166
2007-001166
2007-001166
2007-001166
2007-001166
2007-001166
2007-001166
2007-001166
2007-000290
CONNECTOR-HEADER;NOWALL,16P,1R,2.54MM,AN
CONNECTOR-HEADER;NOWALL,16P,1R,2.54MM,AN
CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG
CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG
CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,
CRYSTAL-UNIT;24.576MHZ,20PPM,28-AAM,30PF
CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,
ASSY-PCB SUB,AUTO; AA95-00394D ,V
S.N.A
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.006nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;0.006nF,0.25pF,50V,NP0,TP
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,201
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
FILTER-EMI SMD;25V,100mA,-,-,3.2x1.6x1,T
INDUCTOR-RADIAL;10uH,10%,6x4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-RADIAL;10uH,10%,6x4mm
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTR-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
7-36
Electrical
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
CR10
CR12
CR13
CR14
CR19
CR20
CR22
CR26
CR27
CR28
CR29
CR30
CR31
CR32
CR33
CR35
CR37
CR38
CR41
CR45
CR46
CR47
CR48
CR49
CR50
CR51
CR52
CR53
CR54
CR55
DC01
DC02
DC03
DC04
DC05
DC06
DC07
DC08
DC09
DC10
DC11
DC12
DC13
DC14
DC15
DC16
DC17
DC18
DC19
DC20
DC21
DC22
DC23
DC24
DC25
DC26
DC27
DC28
DC29
DC30
DC31
DC32
DC33
DC34
DC35
DC36
DC37
DC38
DC39
DC40
DC41
DC42
DC43
DD01
DD02
DD03
DD06
7-37
Electrical Parts List
Parts List
Code No.
Description ; Specification
Remark
2007-000290
2007-000947
2007-000947
2007-000947
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000468
2007-000493
2007-000030
2007-000642
2007-000290
2007-000290
2007-000300
2007-000290
2007-000290
2007-000029
2007-000290
2007-000468
2007-000941
2007-000941
2007-000931
2007-000941
2007-000941
2007-000931
2007-000941
2007-000941
2007-000931
2401-003102
2203-000181
2203-000181
2203-000181
2203-000181
2203-000142
2203-000239
2203-000181
2203-000555
2203-000181
2203-000555
2203-000555
2203-000181
2203-000181
2203-000181
2401-002144
2401-003102
2203-000181
2401-003102
2203-000181
2203-001088
2203-001088
2203-002494
2203-000938
2203-000444
2203-000444
2401-000603
2203-000181
2203-000444
2203-000444
2203-000444
2203-000181
2203-000181
2203-001002
2203-000181
2203-000239
2203-000142
2203-000239
2401-000603
2203-000181
2401-000480
2401-000480
2401-000480
0401-000133
0401-000133
0403-000689
0403-000689
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;270OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;0.02nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.005nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;0.005nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
DIODE-ZENER;DTZ5.1A,5.1V,4.84-5.04V,200m
DIODE-ZENER;DTZ5.1A,5.1V,4.84-5.04V,200m
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
DD07
DL01
DL02
DL03
DL04
DL05
DL06
DL07
DQ01
DR01
DR02
DR03
DR04
DR05
DR06
DR07
DR08
DR09
DR10
DR11
DR12
DR13
DR14
DR15
DR16
DR17
DR18
DR19
DR20
DR22
DR23
DR24
DR25
DR26
DR27
DR28
DR29
DR30
DR31
DR32
DR33
DR34
DR35
DR36
DR37
DR38
DR40
DR41
DR42
DR43
DR44
DR46
DR48
IC01
IC02
IC03
IC04
IC05
IC06
IC07
IC11
IC12
IC13
IC14
PC01
PC02
PC03
PC04
PC05
PC06
PC07
PC08
PC09
PC10
PC11
PC12
PC13
Code No.
Description ; Specification
Remark
0401-000133
2702-001094
2702-001094
2702-001094
2702-001094
2702-001094
2702-001094
2702-001092
0501-000283
2007-000290
2007-000290
2007-001055
2007-000401
2007-000023
2007-000023
2007-000401
2007-000290
2007-000290
2007-000401
2007-000290
2007-000290
2007-000380
2007-000300
2007-000401
2007-000290
2007-000290
2007-001208
2007-000947
2007-000518
2007-000872
2007-000941
2007-000001
2007-000653
2007-000300
2007-001224
2007-000300
2007-000468
2007-000468
2007-000468
2007-000822
2007-000468
2007-000290
2007-000872
2007-000931
2007-000872
2007-000267
2007-000290
2007-000290
2007-000290
2007-000290
2007-000872
2007-000493
2007-000297
1204-001598
AA13-00095A
1105-001273
1105-001273
1002-001045
1204-001372
1204-001550
1203-001419
1203-001140
1203-001359
1202-000001
2203-000575
2203-000142
2203-000839
2203-000181
2203-000979
2203-000142
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-001172
2203-001172
DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;2.2uH,10%,6x4mm
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;6.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;150OHM,5%,1/10W,DA,TP,2012
R-CHIP;120OHM,5%,1/10W,DA,TP,2012
R-CHIP;120OHM,5%,1/10W,DA,TP,2012
R-CHIP;150OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;150OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;13KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;150OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;82KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;68KOHM,5%,1/10W,DA,TP,2012
R-CHIP;27KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;9.1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;390OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,1%,1/10W,DA,TP,2012
IC-VIDEO PROCESS;VPC3230D-B2,QFP,80P,-,P
IC ASIC;-,SDP01,QFP,128P,PROSCAN
IC-DRAM;416S1120,512Kx16x2Bit,TSOP,50P
IC-DRAM;416S1120,512Kx16x2Bit,TSOP,50P
IC-D/A CONVERTER;9280,8BIT,PLCC,68P,-,-,
IC-HOR./VER.PROCESSO;SDA9361,QFP,44P,-,P
IC-VIDEO PROCESS;CXA2101AQ,QFP,80P,-,PLA
IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x
IC-VOL. DETECTOR;7039,TO-92P,3P,-,PLASTI
IC-POSI.FIXED REG.;1086,TO-263,3P,15.8MM
IC-VOLTAGE COMP.;7533,TO-92,3P,-,SINGLE,
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.006nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;0.006nF,0.25pF,50V,NP0,TP
Samsung Electronics
Electrical
Electrical Parts List
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
PC14
PC15
PC16
PC17
PC18
PC19
PC20
PC21
PC22
PC23
PC24
PC25
PC26
PC27
PC28
PC29
PC30
PC31
PC32
PC33
PC34
PC35
PC36
PC37
PC38
PC39
PC40
PC41
PC42
PC43
PC44
PC45
PC46
PC52
PC53
PC54
PC55
PC56
PC57
PC58
PC78
PIC01
PIC02
PIC04
PIC05
PL01
PL02
PL03
PR01
PR02
PR03
PR04
PR06
PR07
PR08
PR09
PR10
PR15
PR16
PR17
PR18
PR19
PR20
SC01
SC02
SC03
SC04
SC05
SC06
SC07
SC08
SC09
SC10
SC11
SC12
SC13
SC16
Code No.
Description ; Specification
2401-002042
2203-000979
2401-002144
2203-000575
2203-000142
2203-000839
2203-000444
2203-000761
2203-000761
2401-002144
2203-000575
2203-000142
2203-000839
2401-002042
2203-000979
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2401-002144
2203-000181
2401-002144
2401-002144
2203-000181
2401-002144
2203-000575
2203-000979
2203-000575
2203-000761
2203-000761
2203-000761
2203-000761
2203-000181
1204-001598
1109-001144
1203-001419
1203-001419
2702-001094
2901-000297
2901-000297
2007-001166
2007-001166
2007-000290
2007-000290
2007-000947
2007-000947
2007-000947
2007-000029
2007-000029
2007-000029
2007-000029
2007-000029
2007-000029
2007-000029
2007-000290
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2401-002144
2203-000181
2203-000181
2203-000181
2203-000181
2401-002144
2203-000181
2401-002144
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;330nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
IC-VIDEO PROCESS;VPC3230D-B2,QFP,80P,-,P
IC-FIFO;81V04160,2x256Kx8Bit,TQFP,100P
IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x
IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x
INDUCTOR-RADIAL;10uH,10%,6x4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
Samsung Electronics
Remark
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
SC17
SC18
SC19
SC20
SC21
SC22
SC23
SC24
SC25
SC26
SC27
SC28
SC29
SC30
SC31
SC32
SC33
SC34
SC35
SC37
SC38
SC39
SC40
SL01
SL02
SL03
SL04
SL06
SR01
SR02
SR03
SR04
SR05
SR06
SR07
SR08
SR09
SR10
SR11
SR12
SR13
SR14
SR15
SR16
SR17
SR50
SR51
SR52
SR53
SR54
SR55
SR56
SR58
SR60
SR61
SR62
SR63
SR64
YC01
YC02
YC03
YC04
YC05
YC08
YC09
YC10
YC11
YC12
YC13
YC14
YC15
YC16
YC17
YC18
YC19
YC20
YC23
Parts List
Code No.
Description ; Specification
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2401-002144
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2203-000181
2401-003102
2203-000181
2401-003102
2203-000181
2203-000181
2401-000603
2203-000181
2203-000181
2401-003102
2203-000239
2007-000493
2901-000297
2702-001094
2702-001094
2901-000297
2007-000572
2007-000572
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2011-000585
2007-000947
2007-000947
2007-000947
2011-000585
2011-000585
2011-000585
2011-000585
2007-000308
2007-000290
2007-000290
2007-000938
2011-000585
2011-000585
2011-000585
2011-000585
2007-000290
2007-000308
2007-000308
2007-000308
2007-000308
2007-000029
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2203-002494
2401-002144
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,1%,1/10W,DA,TP,2012
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
Remark
7-38
Electrical
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
YC24
YC25
YC28
YC29
YC30
YC31
YC32
YC33
YC34
YC35
YC36
YC37
YC38
YC39
YC40
YC41
YC42
YC45
YC46
YC47
YC48
YC49
YC50
YC52
YC53
YC54
YC55
YC56
YC57
YC58
YC59
YC60
YC62
YD01
YD02
YD03
YD04
YD05
YF11
YF12
YF13
YF14
YF15
YL01
YQ01
YQ02
YQ03
YQ06
YQ08
YQ11
YQ12
YR03
YR05
YR06
YR07
YR08
YR09
YR10
YR11
YR12
YR14
YR15
YR18
YR23
YR24
YR25
YR26
YR27
YR28
YR29
YR30
YR31
YR32
YR33
YR40
YR41
YR42
7-39
Electrical Parts List
Parts List
Code No.
Description ; Specification
Remark
2203-000181
2203-000260
2203-000181
2203-000181
2401-002144
2203-000181
2203-000181
2203-000181
2203-002494
2401-000493
2203-000260
2203-000260
2203-000260
2203-000260
2203-000260
2203-000260
2401-000480
2203-002494
2203-000260
2203-000260
2203-000260
2203-000260
2203-002494
2203-001088
2203-000181
2203-000181
2203-000181
2203-000181
2401-002144
2203-000181
2203-000181
2203-000181
2401-000603
0403-000620
0403-000620
0403-001117
0403-001117
0403-001117
2901-000226
2901-000226
2901-000226
2901-000226
2901-000226
2702-001094
0501-000280
0501-000280
0501-000280
0501-000344
0501-000280
0501-000344
0501-000344
2007-000468
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000290
2007-000931
2007-000938
2007-000290
2007-000468
2007-000468
2007-000290
2007-000290
2007-000290
2007-000290
2007-000030
2007-000290
2007-000030
2007-000290
2007-000030
2007-000689
2007-000290
2007-000029
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012
C-CERAMIC,CHIP;0.005nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;1uF,20%,50V,GP,TP,5x11,5
DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP
DIODE-ZENER;RLZ5.6B,5.6,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
FILTER-EMI SMD;25V,0.3A,-,100pF,3.2x1.25
INDUCTOR-RADIAL;10uH,10%,6x4mm
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTR-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,1%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;560OHM,5%,1/10W,DA,TP,2012
R-CHIP;3.3MOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
..2
YR43
YR44
YR45
YR46
YR47
YR48
YR49
YR50
YR51
YR52
YR53
YR56
YR58
YR59
YR60
YR61
YR62
YR63
YR64
YR65
YR83
YR84
YR88
YR89
YR90
YR91
YR92
YR93
YR98
Code No.
Description ; Specification
2007-000029
2007-000029
2007-000029
2007-000290
2007-000290
2007-000290
2007-000029
2007-000766
2007-000766
2007-000029
2007-000290
2007-000468
2007-000029
2007-000300
2007-000290
2007-000941
2007-000468
2007-000290
2007-000290
2007-000582
2007-000290
2007-000290
2007-000468
2007-000468
2007-000290
2007-000290
2007-000290
2007-000029
2007-000872
AA41-00161B
AA63-00100A
0202-000187
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;330OHM,5%,1/10W,DA,TP,2012
R-CHIP;330OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;22KOHM,1%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
PCB-SCAN BLOCK;CT-29A7DR,FR-4,4L,B,1.6T,
SHIELD-CASE;-,SPTE,0.5,SCAN-MODULE,FCC
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
Remark
S.N.A
S.N.A
ASSY-PCB,A/V SIDE
1
*
AA95-00744B ASSY-PCB,A/V SIDE;-,TSK3290FX/XAA,KS4A,N
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
C701
C702
C705
C706
C707
C708
CN701A
JA701A
JA702A
JA703A
L706
L707
L708
L709
R706
R707
R708
R709
R710
2202-000231
2202-000231
2202-000121
2202-000263
2202-000263
2202-000121
AA39-20159B
3722-001031
3722-001163
3722-000143
2901-000297
2901-000297
2901-000297
2901-000297
2001-000947
2001-000522
2001-000273
2001-000273
2001-000490
AA41-00166A
3301-001201
0202-000187
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;470pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;470pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
LEAD CONNECTOR-ASSY;,12P,YBNH250-12,6709
JACK-RCA;3P,3.6MM,#18,AU
JACK-VHS;4P,12mm,AU,BLK,N
JACK-PHONE;1P(VER),3.4mm,AG,BLK,NO
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;200OHM,5%,1/8W,AA,TP,1.8X3.2MM
PCB-SIDE AV;KS4,1L,FR-1,245X245X1.6T,8A,
CORE-FERRITE;AE,21x11x32mm,1500,280G
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
S.N.A
ASSY-PCB,CONTROL
1
*
AA95-00603A ASSY-PCB,CONTROL;-,CT-29A7DR,KS4A,NTSC,2
..2
..2
..2
..2
..2
..2
..2
..2
..2
DC01
DC02
PA01
SWC01
SWC02
SWC03
SWC04
SWC05
SWC06
0601-000465
0601-000465
AA59-60002B
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
LED;ROUND,GRN,5mm,565
LED;ROUND,GRN,5mm,565
MODULE-REMOCON;-,ORC-50HF,38KHZ,940MM,ME
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
Samsung Electronics
Electrical
Electrical Parts List
Loc. No.
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
Code No.
SWC07 3404-000176
AA39-20112C
0202-000187
AA99-20072R
CC01
2401-002291
DC03
0401-000005
DC04
0401-000005
QC01
0501-000389
QC02
0501-000389
RC01
2001-000020
RC02
2001-001108
RC03
2001-000387
RC04
2001-000947
RC05
2001-000591
RC06
2001-000591
RC07
2001-000947
RC08
2001-000290
RC09
2001-000290
RC12
2001-001111
RC13
2001-001111
AA41-00246A
Description ; Specification
Remark
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
LEAD CONNECTOR-ASSY;,9P,YBNH025-09,67096
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
ASSY-PCB SUB,AUTO; AA95-00603A ,V
C-AL;47uF,20%,16V,GP,TP,6.3x5,5
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;16KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);240OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);240OHM,5%,1/2W,AA,TP,2.4X6.4
PCB-CONTROL;KS4A,1L,FR-1,245x245x1.6T,5A
S.N.A
S.N.A
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
C701
C702
CN701A
CN702A
JA701A
JA702A
JA703A
L701
L702
L703
L704
L705
R701
R702
TBA+DB
Parts List
Code No.
Description ; Specification
Remark
2202-000145
2202-000145
AA39-20055B
AA39-20069D
AA63-40258A
3716-000229
3722-001439
2701-001040
2701-001040
2701-001040
2701-000115
2701-000115
2001-000028
2001-000028
6006-001095
AA41-00167B
AA63-00165B
AA64-00897D
C-CERAMIC,MLC-AXIAL;120pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;120pF,10%,50V,Y5P,TP
LEAD CONNECTOR-ASSY;,6P,YBNH025-06,67096
LEAD CONNECTOR-ASSY;,5P,YBNH025-05,67096
TERMINAL-SPEAKER;-,ABS,BLK,4P,4
TERMINAL-BLOCK;-,2P,13mm,-,JACK-RCA;2P,3.5mm,NI,BLK,INDUCTOR-AXIAL;10uH,10%,4.5x14mm
INDUCTOR-AXIAL;10uH,10%,4.5x14mm
INDUCTOR-AXIAL;10uH,10%,4.5x14mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL)
PCB-DOLBY JACK;WS32W8HD,FR-1,1L,B,1.6T,2
TERMINAL-BOARD,ANT;-,HIPS VO BLK,-,D4,29
INLAY BACK;D4,DOLBY SEA,PS SHEET,T0.5,BL
S.N.A
ASSY CHASSIS PART
ASSY CABINET
1
*
AA90-00251U ASSY CABINET;34A7,TSL3295HFX/XAA
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
AV+CF
BRAC+C
CB+CF
CB+TER
CRT+CF
DOME+C
PCB
PCB+CF
PORT+C
TER+RC
6002-000522
6003-001026
AA60-10050T
AA60-10050T
AA60-10050V
AA60-10050A
AA64-01291B
6003-001026
AA60-10050T
AA60-10050T
AA91-00087B
AA65-30113A
AA65-30008A
AA61-00306B
AA60-00091J
AA64-60421C
AA64-00759D
AA63-60004G
AA61-20285A
AA61-10053A
SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW
SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW
SCREW-ASSY;WC,HH,+,M6,L30,SWRCH18A,ZPC(S
SCREW-ASSY;WP,RH,+,M4,L25,SWRCH18A,-,ZPC
INLAY-COVER;D4,PVC-SHEET,T0.4,94 V0,BLK,
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW
SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW
ASSY HOLDER SPK;-,ABS,HB,GRAY,SV704P,29A
CLAMP-D,COIL;NYLON 66,V2,BLK,TVI 25~29,CLAMP-CORD;PE,HB,BLK,-,-,SUPPORT-CRT;34A7,HIPS,HB,NTR,-,-,SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,INLAY-COVER;-,SEA,PS,T0.3,BLK,-,CABINET BACK;34A7,-,HIPS,V0,BLK
SPACER-GUM,CRT;NTR RUBBER,T3.0,GRY,-,-,HOLDER-BOX;-,3456,PP,VO,WHT,BRACKET-CRATER;-,7277,STS304,T0.5,-,-,-
S.N.A
*
AA91-00302S ASSY CABINET FRONT;SEA TANTUS,34A7,(SPK)
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
CF+GRI
KCON+C
LED+CF
SPK+CF
6003-001026
6003-001019
6003-001019
6003-001019
AA64-00758R
AA64-60445Y
AA64-60446C
AA64-70124C
AA65-00011C
AA65-30105A
AA91-00335A
AA61-60003J
AA63-00220C
AA64-00630B
AA64-00632B
AA64-00634B
AA64-00635B
1
*
AA91-00323D ASSY TERMINAL BOARD;-,HIPS,VO,BLK,KS4A S
Samsung Electronics
AA90-00252B ASSY CHASSIS PART;KS4A,34A7
..2
..2
..2
..2
..2
..2
AV
C-B+HC
MAIN
POWER
TER+HC
AA65-00011C
6003-001023
6003-001023
6003-001023
6006-001095
AA61-20271A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
CLAMP-WIRE;ALL MODEL,NYLON 66,V2,NTR,25M S.N.A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL)
HOLDER-CHASSIS;-,CS823V,HIPS,V0,GRY,-
ASSY HOLDER SPK
1
*
AA91-00338A ASSY HOLDER SPK;-,PP,8ohm/15W,blk,housin
ASSY CRT1
*
..2
AA94-02060A ASSY CRT-;A80LRW350X99,+380MG,34,ITC,-,
AA03-00119A CRT-COLOR;A80LRW350X98(D),A80LRW350X99,3
S.N.A
SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
CABINET FRONT;34A7(D4),SV907P+DG908P TAN
INLAY AV;34A7,PS SHEET,-,-,BLK,-,KS4A S
INLAY-PC,JACK;29A6,L/GRAY,PS SHEET,T0.5,
S.N.A
BADGE-BRAND;AL,R2500,SILVER,L=70,SAMSUNG
CLAMP-WIRE;ALL MODEL,NYLON 66,V2,NTR,25M S.N.A
CLAMP-WIRE;NYLON 66,V2,NTR,15MM,ALL MODE S.N.A
ASSY HOLDER SPK;-,PP,4ohm,blk,housing ch
SPRING-CS;-,SUS304,0.5,OD6,H12,N7,-,-,GRILLE-SPK,A;34A7,SV907P,HIPS,-,G4309,HB
KNOB-CONTROL;-,29A7,AL,ABS,HB,GRAY
KNOB-POWER;-,29A7,AL,ABS,HB,GRAY
WINDOW-REMOCON;-,29A7,-,PC,V0,VIOLET,INDICATOR-LED;-,29A7,6G,ACRYL,-,SMOG,-
ASSY TERMINAL BOARD
*
S.N.A
S.N.A
S.N.A
ASSY CABINET FRONT
1
1
ASSY TBC WIRE(P)
1
*
AA98-70011F ASSY TBC WIRE(P);-,34inch,NTSC,2P-WH,KS4
S.N.A
ASSY-POWER,CORD
1 *
AA96-20129A ASSY-POWER,CORD;-,EP2/YES,H/C300,ME301P,
..2
..2
..2
3811-000401 WIRE-PVC CU;BCWA,300V,ROLL,17/0.16mm,#22
AA61-20284A HOLDER;-,P-CORD,PP,VO,BLK,KE-002
AA39-10007Y POWER-CORD;-,EP2/YES,SPT-2 18AWGx2C,2.4m
S.N.A
S.N.A
ASSY ACCESSORY
1
*
..2
AA94-03469G ASSY ACCESSORY;TSL3294HFX/XAA,KS4A,USA
S.N.A
AA68-01066D MANUAL USERS;,ENG,B5,W/P100(G),44PAGE,KS
S.N.A
REMOCON
1
..2
..2
*
AA59-00175B REMOCON;-,TM63,DREAM4,50,L/GRAY,S/S,E/
AA09-00051A IC-MCU;Z86L8808SSC-R501M,SZTM-822,ST,
2802-000194 RESONATOR-CERAMIC;8MHz,1.0%,TP,8.5x4.5x5
7-40
Alignment and Adjustments
8. Block Diagrams
8-1 Voltage/Current Block
Samsung Electronics
8-1
Block Diagrams
8-2 BLOCK
MONITOR S-OUT
MAIN
TU/LNA/IF
MSP3410(P-NICAM)
MSP3440G-B6
S-OUT
L/R/C/S
MSP3440(KOR/JAP)
MAIN
SOUND
DATA
IN/OUT
H/P
VOL, S/W
PIP MONO
MAIN S-AMP
TDA7265
MSP3400(W/O-NICAM)
NON-SC
ART
PIP
TUNER + IF
MAIN SPEAKER
VAO
OUT
SOUND PROCESS
MAIN SIF
SOUND SWITCH
TEA6422
PIP CVBS
H/P
OUT
SURROUND
SPK JACK
R/L
EEPROM
24C16
DOLBY SOUND
DPL3519A
MAIN CVBS A/V SOUND
SDA,SCL
FEATURE BOX
PIP
REAR
VIDEO SWITCH
TEA6415C
VPC3230
D/S
MAIN
V1,2,3
YC1,2
SRAM
SDA9280
SDA9361
DAC
DEFLECTION
MICOM MODULE
NT: Z90371
MEMORY
VPC3230
CXA2101
MS81V01460
2CH ADC
C/Dec
FRONT
FIFO MEMORY
MATRIX
SDP01
CONTROLLER
OSD
RGB 2H
FROM S/W IC
MAIN COPOSITE
RGB DRIVE
TDA6111Q
TO MICOM
CCD , TTX IN
VIDEO
OUT
V/M
H.V
H.V
VGA INTF
74HC86
3D-COMB(NT)
UPD64082GF
E/W
YUN IN
INPUT
IDENENT
PCF8591
ADC
SDA
SCL
V DRIVE
H DRIVE
8-2
E/W AMP
LM393
VGA R.G.B
Y,Pb,Pr
AC INPUT
CRT
POWER
STR
F6656
VERTICAL AMP
LA7845
H-OUT
2SC5446
FBT
DOUBLE
FOCUS
TRANS
Samsung Electronics
Block Diagrams
8-3 FEATURE BOX
Y.Pb.Pr, VGA
OSD/TTX R.G.B
PIP Y/C, CVBS
VPC3230
ADC/DEC FOR D/S
MS81V01460
FIFO MEMORY
CXA2101
MATRIX
R.G.B
Y.U.V
R.G.B.F/B
Y.U.V
Y/C, CVBS
VPC3230
ADC/DEC FOR MAIN
SDP01
CONTROLLER
SDRAM
MEMORY
Samsung Electronics
SDA9280
DAC
SDA9361
DEFLECTION
HD,VD
8-3
Block Diagrams
8-4 PCB LAYOUT
AC Input
STAND-BY
D-Coil
BLOCK
CONDENSOR
SMPS
Switch
Trans
Horizontal
HRS
DYNAMIC FOCUS
FBT
8-4
VGA
INTF
REGULATOR
LOCK
Rectifier
Circuit
EW
VERTICAL
P
R
O
G
R
A
S
S
I
V
E
M
I
C
O
M
EEP
ROM
SOUND
BLOCK
S/W
BLOCK
3D
COM
M-OUT
VIDEO2
VIDEO1
S1
DVD/YPbPr
VIDEO3
D
O
L
B
Y
M
A
I
N
AMP
MAIN
P
I
P
AMP
SURR
T
T
Samsung Electronics
Block Diagrams
8-5 VIDEO FLOW
V1
V2
V3
V4
S1
S2
PC
R /G /B : T O F - B O X
H /V
IC 6 0 1
74H C T 86
IC 7 0 1
T E A 6415C
JA C K
ID E N T
Y /C
C O M P O S IT E
H /V
V G A ID
T O M IC O M
M- O U T
Y /C M I X
6dB A MP
C O M P O S IT E
Y /C
IC 7 0 3
PC F 8591
T O M IC O M
SD A /SC L
Samsung Electronics
3D
S- R F
Y P b P r ( D V D/ D T V )
MO N IT O R O U T
M- R F
C O MB
T O F - BOX
MA IN Y /C
T O F - BOX
S U B Y /C
C O MP O SIT E
T O F - B OX
Y P bP r
T O F - BOX
8-5
Block Diagrams
8-6 SOUND FLOW
V1
V2
P IP
RF
V4
S 1 Y P b P r ( D V D/ D T V )
MO N IT O R O U T
V3
S2
PC
IC 7 0 2
T E A6422
MO NO
P IP R /L
IC H 0 1
T DA 7449L
R F S IF
M A IN
RF
MA IN R /L
I 2 C D A T A I N /O U T
C L O C K /W O R D S T R O V E
IC 6 0 2
T DA7050
IC 6 0 1
MSP 3440G
H 005
DPL3519A
T O A MP
8-6
MO NIT O R
OUT
T O A MP
T O H /P
Samsung Electronics
Schematic Diagrams
9. Schematic Diagrams
9-1 MAIN 1/3
TP11
TP10
TP04
TP05
TP13
TP03
TP02
TP01
TP12
TP06
TP16
TP09
TP08
TP07
TP15
TP14
TP20
TP17
TP18 TP19
TP21
: Power Line
: Signal Line
Samsung Electronics
9-1
Schematic Diagrams
9-1-1 MAIN 1/3 WAVEFORMS
9-2
TP01
TP07
TP13
TP19
TP02
TP08
TP14
TP20
TP03
TP09
TP15
TP21
TP04
TP10
TP16
TP05
TP11
TP17
TP06
TP12
TP18
Samsung Electronics
Schematic Diagrams
9-2 MAIN 2/3
TP22
TP23
TP23
TP24
TP22
TP25
TP25
TP24
: Power Line
: Signal Line
Samsung Electronics
9-3
Schematic Diagrams
9-3 MAIN 3/3
: Power Line
: Signal Line
9-4
Samsung Electronics
Schematic Diagrams
9-4 MICOM, SIDE AV
MICOM
TP26
TP27
SIDE AV
TP26
TP27
: Power Line
: Signal Line
Samsung Electronics
9-5
Schematic Diagrams
9-5 POWER
TP34
TP35
TP32
TP36
TP33
TP43
TP37
TP42
TP31
TP30
TP40
TP28
TP29
TP41
TP39
TP38
: Power Line
: Signal Line
9-6
Samsung Electronics
Schematic Diagrams
9-5-1 POWER WAVEFORMS
Samsung Electronics
TP28
TP34
TP40
TP29
TP35
TP41
TP30
TP36
TP42
TP31
TP37
TP43
TP32
TP38
TP33
TP39
9-7
Schematic Diagrams
9-6 CRT, CONTROL
CRT
CONTROL
: Power Line
: Signal Line
9-8
Samsung Electronics
Schematic Diagrams
9-7 DOLBY
: Power Line
: Signal Line
Samsung Electronics
9-9
Schematic Diagrams
9-8 3D COMB
9-10
Samsung Electronics
Schematic Diagrams
9-9 DW_SRC 1/4
Samsung Electronics
9-11
Schematic Diagrams
9-10 DW_SRC 2/4
9-12
Samsung Electronics
Schematic Diagrams
9-11 DW_SRC 3/4
Samsung Electronics
9-13
Schematic Diagrams
9-12 DW_SRC 4/4
9-14
Samsung Electronics
