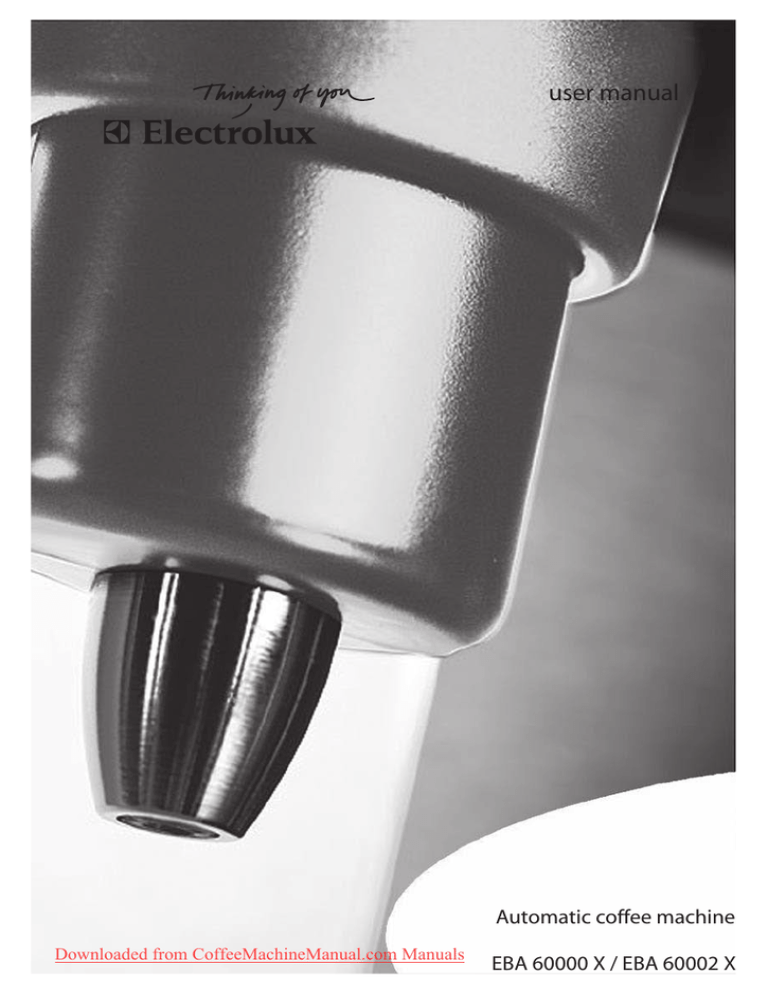

user manual
Automatic coffee machine
Downloaded from CoffeeMachineManual.com Manuals
EBA 60000 X / EBA 60002 X
Downloaded from CoffeeMachineManual.com Manuals
ENGLISH
CONTENTS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
Safety instructions
Description of the coffee machine
Description of the control panel: touch control
Instructions for the first use of the machine
Making Coffee
Hot water
Steam
Programming the amount of coffee beans to be grinded
Programming the volume of coffee dispended in the cup
If you wish to reset the standard values
Signals and alarms
Coffee menus
Cleaning
Installation
Something not working....
Technical specifications
After-sales Service, spare parts and guarantee
Downloaded from CoffeeMachineManual.com Manuals
2/37
1. SAFETY INSTRUCTION
Please read this instruction book before using the appliance and retain for
future reference. These warnings are provided in the interests of your safety,
ensure you understand them fully before using the appliance.
Intended use
•
•
The appliance is intended for use in the home. If the appliance is used for
purposes other than those intended or used incorrectiy, no liability can be
accepted by the manufacturer for any damage or injury that may be caused.
•
Alterations or changes to the appliance are not permitted for reasons of
safety.
Prior to initial start-up
•
Check the appliance for transport damage. Under no circumstance should
a damaged appliance be plugged in! In the event of damage, please contact your retailer.
Safety of children
•
•
Keep packaging material away from children. Risk of suffocation!
Please make old appliances unusable prior to disposal. Pull out the mains
plug, and cut off the mains cable.
DURING USE
CAUTION:
The filtering unit will always be kept very hot to obtain an excellent coffee.
Therefore please empty the “used” coffee tank with extreme care to avoid
being scalded.
•
•
•
•
•
•
This machine must be used only by adults. Make sure that children cannot
touch the controls nor play with the machine.
Modifying or merely trying to modify the characteristics of this product is very
dangerous, and will invalidate your guarantee.
Always keep this machine clean.
The external parts of this machine become very hot while it is operating
and they will not cool down immediately after the machine is switched
off. Keep children out of reach.
Before cleaning or servicing the machine, make sure that it is
disconnected from the power supply.
In case of malfunction, never try to repair the machine yourself. Consult this
manual and if the necessary information cannot be found, please contact the
nearest Service Force Centre. This machine must be serviced exclusively by an
authorised Service Force Centre. Always ensure the use of genuine spare parts.
Downloaded from CoffeeMachineManual.com Manuals
3/37
FOR INSTALLATION AND SERVICING
Keep this instruction manual together with the machine for any future
reference. If the machine is sold or transferred to another person, make sure
that this instruction manual is given to the new user, so that he/she can
become familiar with the machine’s functions and with the
recommendations given.
•
•
•
This machine must be installed and connected to the mains by a
COMPETENT PERSON. Make sure that the machine is DISCONNECTED
from the power supply before any servicing operation.
After unpacking the machine make sure that the product has not suffered any
damage and that the power cord is in perfect condition. In case of damage, please
contact your retailer or our customer service dept.
The Manufacturer declines all responsibility if the safety rules are not
complied with.
SOME HINTS OF ENVIRONMENTAL PROTECTION
PACKAGE
•
All the packing materials are environmentally friendly and they can be recycled.
Please help in preserving the environment, by using the proper channels of
separate collection of rubbish.
DISPOSAL
Appliance Packaging Information
All materials are environmentally sound.
The plastics can be recycled and are identifìed as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior.
>PS< for polystyrene foam, e.g. thè pads, which are ali free of chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed of at a wastepaper recycling collection location.
Diposal of Old Appliances
• Use an authorised disposal site.
Contact your Local Council or Environmental Health Office to see if there
are facilities in your area to recycle the appliance.
on the product or on its packaging indicates that this product may
The symbol
not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent potential negative consequences
for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your household waste
disposal service or the shop where you purchased the product
Downloaded from CoffeeMachineManual.com Manuals
4/37
CE
This machine complies with the directive BT 73/23
Electrical safety rules EN 60335-1 (August 1995 - Safety for electrical household and
similar appliances – General Standard) and EN 60335-2-15 (April 1996 – Specific Rules
concerning the equipment for heating liquids).
Directive EMC 89/336 in conformity with the following standards:
55014-1; 55014-2; 61000-3-2; 61000-3-3
ELECTRICAL CONNECTION
Any electrical work required to install this appliance should be carried out by a qualified
electrician or competent person.
WARNING: THIS APPLIANCE MUSTBE EARTHED.
Should the appliance power supply cable need to be replaced, this must be carried out
by a Service Force agent. The manufacturer declines any liability should this safety
measure not be observed.
Before switching on, make sure the electricity supply voltage is the same as that
indicated on the appliance’s rating plate.
The appliance should be fitted with a 13amp plug. The plug should be fitted with a
13amp ASTA approved BS1363/A fuse. The mains lead of the appliance should be
connected as described below. The wires in the mains lead are coloured in accordance
with the following code:
•
Green and Yellow - Earth
•
Blue - Neutral
•
Brown - Live
In the plug the colours of the wires may not correspond with the markings identified
with the terminals in your plug:
1) Connect the Green and Yellow (earth) wire to the terminal in the plug which is
marked with the letter "E" or the earth symbol or coloured green and yellow.
2) Connect the Blue (neutral) wire to the terminal in the plug which is marked
with the letter "N" or coloured black.
3) Connect the Brown (live) wire to the terminal in the plug which is marked with
the letter "L" or coloured red.
4) Upon completion there must be no cut, or stray strands of wire present and
the cord clamp must be secure over the outer sheath.
Downloaded from CoffeeMachineManual.com Manuals
5/37
THE PLUG MUST STILL BE ACCESSIBLE AFTER THE APPLIANCE HAS
BEEN INSTALLED.
THE APPLIANCE SHOULD NOT BE CONNECTED TO THE ELECTRICAL
SUPPLY BY MEANS OF AN EXTENSION CABLE
PERMANENT CONNECTION
In the case of permanent connection it is necessary that you install a double pole
switch between the appliance and the electricity supply (mains), with a minimum gap
of 3mm between the switch contacts and of a type suitable for the required load in
compliance with the current electrical regulations.
The switch must not break the yellow and green earth cable at any point.
Downloaded from CoffeeMachineManual.com Manuals
6/37
2. DESCRIPTION OF THE COFFEE MACHINE
1.
2.
3.
4.
5.
6.
7.
8.
9.
Water reservoir
Brita filter
Coffee Outlet
Steam/water nozzle
Drip tray
Coffee beans container
Grinding regulation knob
Control panel
“Used” coffee drawer
Downloaded from CoffeeMachineManual.com Manuals
7/37
3. DESCRIPTION OF THE CONTROL PANEL:
TOUCH CONTROLS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Water refill indicator
ON-OFF/stand-by indicator
Start indicator
Hot water selector indicator
Steam selector indicator
Light selector indicator
Espresso coffee indicator
Regular coffee indicator
Used Coffee 'drawer full' indicator
ON-OFF/stand-by control
Start control
Hot water selector control
Steam selector control
Light selector control
Espresso coffee control
Regular coffee control
TOUCH CONTROLS: Instructions for use
These touch controls must be pressed precisely to prevent functions from being
enabled accidentally. Pressing lightly on the respective symbol will enable the
corresponding function.
Downloaded from CoffeeMachineManual.com Manuals
8/37
4 INSTRUCTIONS FOR THE FIRST USE OF THE MACHINE
FILLING UP THE WATER RESERVOIR
•
Squeeze together the
unlocking levers found under
the drip tray
•
Gently pull the coffee machine
forward from the housing by
sliding it along the telescopic
runners.
Downloaded from CoffeeMachineManual.com Manuals
9/37
Hardness of water:
•
Before filling up the water reservoir, make
sure that the decalcifying Brita filter has
been soaked in cold water for at least 30
min. Follow the instructions printed on the
filter package. After this operation insert the
filter into position inside the water reservoir
as shown in the figure.
•
If the machine will not be used for long
periods, empy the water from tank.
•
Brita filters are available from most
supermarkets and domestic goods outlest, at
our After-Sales Service Centres or at the
Shops of Authorized Spare Parts.
•
Remove the reservoir and fill it with
approximately 2.5 litres of water as shown.
•
replace the water reservoir in its own
housing tankig care to fully engage the
water valve into the docking station.
10/37
Downloaded from CoffeeMachineManual.com Manuals
•
Ensure the mains ON/OFF switch(at
rear) is ON
•
push the machine back into the housing
until a “CLICK” can be heard. This
indicate that the machine has been
locked in position.
FILLING UP THE CONTAINER WITH COFFEE BEANS
•
Press the unlocking levers located under
the drip tray and pull the machine as it
is shown in the figure.
•
pull the coffee machine forward from the
housing along the telescopic runners .
11/37
Downloaded from CoffeeMachineManual.com Manuals
•
Pour approximately 200 g of coffee
beans into the container on the top as
shown in the figure.
•
Push the machine back into the housing
until a “CLICK” can be heard. This
indicate that the machine has been
locked in position.
INITIAL START-UP
•
•
Put the main switch in position 1
The led corresponding to the ON-OFF
control will blink rapidly for 3 minutes.
12/37
Downloaded from CoffeeMachineManual.com Manuals
•
The machine is be in stand-by mode when the ON-OFF LED is blinking slowly,
it is then ready to be switched on.
•
Ensuring the water reservoir and the coffee beans container are full, switch
the coffee machine on by pressing the on-off control and the corresponding
LED stops flashing and remains lit.
ADJUSTING THE TEXTURE GROUND COFFEE
CAUTION
•
This machine is calibrated in the factory for an optimum level of ground
coffee. Too “coarse” ground coffee will result in a weaker coffee. Too “fine”
ground coffee will result in very strong coffee, delivered by “drops” and tasting
“bitter”.
The time required for an espresso will
range from 20-30 seconds.
•
Press the unlocking levers available
under the drip tray and pull the machine
as shown in the figure.
13/37
Downloaded from CoffeeMachineManual.com Manuals
•
Pull the coffee machine forward from it’s
housing by sliding it along it’s telescopic
runners.
•
Turning the knob will ad just the coffee
texture. Before adjusting, make a note
of the original setting so that the
machine can be reset, if required, to
the factory settings. Turning the knob
in the clockwise direction will lead to a
fine texture for a stronger coffee.
Turning the knob anti-clockwise will
lead to a coarse texture for a weaker
coffee. The set grinding level can be
read on the lid of the coffee case:
bigger circles means “coarse” grinding
level (fast-flowing weak coffee),
whereas smaller circles means “fine”
grinding level (slow-flowing strong
coffee).
•
Push the machine back into the
housing until a “click” can be heard.
This indicates that the machine is
locked in position.
14/37
Downloaded from CoffeeMachineManual.com Manuals
STAND-BY MODE
•
Once powered and inserted into the cabinet, the machine is in stand-by mode: this
will be signaled by the on/off LED blinking.
•
Press the start control to switch on the machine: the start LED will be illuminated.
•
To come back to the stand-by mode, press the start control once again.
CAUTION:
On start-up, the machine initiates the pre-warming phase for the firs 3
minutes. During this phase the ON/OFF LED will blink quickly and the
machine will be not able to execute any operation. Then the LED blinks
slowly and the machine is ready to operate.
15/37
Downloaded from CoffeeMachineManual.com Manuals
5
MAKING COFFEE
•
Press the control corresponding to the desired selection.
•
Press the start control within 10 seconds and the machine will make the coffee
selected.
The machine will stop automatically
•
CAUTION: the desired function will be disabled if the start control is not pressed
within 10 seconds. It will then be necessary to repeat the procedure.
HOW TO OBTAIN AN EXCELLENT ESPRESSO
•
The brewing time for an excellent espresso will be about 15 - 25 seconds.
Elements affecting this brewing time are the grinding level of the coffee and the
quantity of ground coffee. If necessary, the grinding level, as well as the quantity
of ground coffee can be modified (refer to Chapters 8 & 9. Instructions for the first
use of the machine).
Useful advice: coffee is an hygroscopic element that is its quality and characteristics
strictly depend on weather (humidity). Coffee should be ground coarser if humidity in
the air is very high, otherwise it will become thick and not flow freely; on the contrary,
the coffee should be ground finer in dry conditions.
16/37
Downloaded from CoffeeMachineManual.com Manuals
6
HOT WATER
•
The steam/water pipe can be moved to the back of the
cabinet when not in use.
Pull forward when required.
Do not touch when HOT!
•
•
To dispense hot water, place a container under the steam/water nozzle; then
press the water control.
Press and hold the start control within 10 seconds until the desired amount is
dispensed. To stop the water flowing, simply release the control.
CAUTION: the desired function will be disabled if the start control will be is not
pressed within 10 seconds. It will then be necessary to repeat the procedure.
17/37
Downloaded from CoffeeMachineManual.com Manuals
7
STEAM
•
Press the steam control and the corresponding indicator blinks for 20 seconds.
The machine will be ready to make steam when the indicator stops blinking and
remains lit.
•
•
Place a jug with the liquid to be heated under the steam nozzle.
Press and hold the start control within 10 seconds and wait for the steam function
to commence.
HEATING LIQUIDS
CAUTION: the desired function will be disabled if the start control is not pressed
within 10 seconds. It will then be necessary to repeat the procedure.
•
The steam will continue to spray till the start control is released.
MILK FOR CAPPUCCINO: Pour some cold milk (100cc min.) in a deep jug and
heat it using steam. Agitate the milk jug a little and wait until the foam is
ready (one minute min.). To improve the result gently beat a little the jug on
the table after that the foam is ready.
18/37
Downloaded from CoffeeMachineManual.com Manuals
8
PROGRAMMING THE AMOUNT OF COFFEE BEANS TO BE
GRINDED
•
•
This espresso machine has already been calibrated in factory to dispense the
ideal measure of ground coffee for one cup of espresso.
However this quantity of ground coffee can be increased or reduced, then the
selected measure is stored. The programmable measure of ground coffee
refers to both the espresso selection and to regular coffee selection.
Put the machine on stand-by mode as described.
•
Keep the start control pressed for 10 seconds.
•
Some LEDS will flash, working as indicators, (the more are the LEDS
illuminated the greater the quantity of coffee). Before adjusting make a note
of the original setting so that the machine can be reset to the factory settings
if required.
•
To increase or decrease the quantity of ground coffee just press the
“espresso” control to decrease and “regular coffee” control to increase.
•
19/37
Downloaded from CoffeeMachineManual.com Manuals
•
Once you have modified the coffee ground quantity, press the start control for 10
seconds and the machine will automatically save the quantity desired and it will
return to stand-by mode.
CAUTION: the correct grinding time can change if a different
kind of coffee is used.
If any unpressed coffee powder is found when emptying the “used”
coffee drawer, it means that the grinding time is too long and should be
decreased.
The “exhaust” coffee pods in the “used” coffee drawer can help to
achieve a correct regulation of the grinding-time.
The coffee pods must to be 1 cm in thickness: this is the correct coffee
quantity.
If its thickness is lower, it means that the grinding time is too short and
should be increased.
IMPORTANT: Increasing or decreasing the grinding time can
change the coffee taste.
A stronger coffee taste and a rich aroma can be obtained by slightly
increasing the programmed time.
A weaker coffee can be obtained by slightly decreasing the programmed
time.
20/37
Downloaded from CoffeeMachineManual.com Manuals
9
•
•
PROGRAMMING THE VOLUME OF COFFEE DISPENSED IN
THE CUP
The volume of coffee dispensed can be adjusted as desired as follows:
Press the espresso control.
•
Keep the start control pressed until the programme starts (approximately 5
seconds); the start control LED flashes.
•
When the desired quantity of coffee has been dispensed, press the start control.
The machine will stop the cycle and the coffee measure will be stored
automatically on the correspondant selection.
21/37
Downloaded from CoffeeMachineManual.com Manuals
10
IF YOU WISH TO RESET THE STANDARD VALUES
RESETTING STANDARD VALUES
•
This coffee machine is calibrated in the factory to make the optimum Italian
espresso, the values set for the espresso coffee distribute 30 cc, the values set for
the regular coffee is 80 cc.
•
if the standard values have to be reset From the stand-by control switch on the
machine then press both the on/off and hot-water controls at the same time for 5
seconds.
•
All the LEDs will briefly illuminate to indicate the factory values have been reset.
•
Press the ON/OFF control. Each selection will use the factory values.
N.B.: Only the quantity of water required for each cup of coffee is reset. The
measures of ground coffee will not alter.
22/37
Downloaded from CoffeeMachineManual.com Manuals
11
SIGNAL AND ALARMS
WATER REFILL INDICATOR
•
This machine has a sensor which detects when the water reservoir is empty.
the reservoir empty led will illuminate. The machine will not operate until the
water reservoir is refilled.
VOLUMETER COUNTER FAULT
•
This machine has a volumeter counter which detects the amount of water
distribute by the machine. If the water reservoir is empty or if the volumeter
counter is foulty the reservoir empty led will blinking and the machine will not
operate.
To reset this alarm, please put the machine in stand by mode then turn it on again
“USED COFFEE DRAWER FULL”/ COFFEE BEENS REFILL INDICATOR
•
•
•
Every 20 coffee the machine show you that the coffee beans container is empty
and that the “used coffee drawer” is full.
When the correspounding led will be illuminated, you must empty the Drip tray
and the “used coffee drawer” and refill the coffee beans container.
For instructions on how to empty the “used” coffee drawer, see chapter 13
“CLEANING”.
23/37
Downloaded from CoffeeMachineManual.com Manuals
FAULT INDICATOR
•
The machine incorporates an automatic system that, detecting a fault in operation,
will illuminate all the LEDS. Switch OFF the machine and contact the nearest
Service Force Centre.
12
COFFEE MENUS
ITALIAN CAPPUCCINO
This is a normal espresso with steam-heated milk giving the coffee a milder flavour and
a rich, delicious frothy topping. Serve in a large cup.
Pour some cold milk into a deep jug and heat using the steam jet. Pour only the froth
onto the espresso, tilting and rocking the jug slightly or scoop off the froth with a
spoon.
Some cocoa powder can also be dusted on the milk froth.
VIENNESE CAPPUCCINO
This variation is the result of the age-old Austrian tradition.
Prepare a 'weak' espresso on the machine for 30-35 seconds, then add hot milk topped
by whipped cream. Serve in a medium-sized cup (midway between an espresso cup
and a cappuccino cup).
Decorate with flakes of chocolate.
COLD ESPRESSO SHAKE
Frothy and extremely refreshing, this drink is delicious on hot days.
Prepare an espresso, add sugar and pour into a shaker with large ice cubes. Shake for
few seconds. Serve in a tumbler or flûte.
IRISH COFFEE
Energy-giving and invigorating drink.
Warm a long glass and mix eight parts of hot coffee with one part whisky and brown
sugar.
Gently pour some freshly whipped cream over the back of a spoon so that it floats on
the coffee: the result is a layer of cool white cream on top of the hot dark coffee.
24/37
Downloaded from CoffeeMachineManual.com Manuals
13
CLEANING
OUTER PARTS
•
Clean the stainless steel parts of the
machine with a soft cloth without using
aggressive detergents. Never use any
abrasive sponges nor steel wool to
clean the parts of steel. Dry well with a
soft cloth.
STEAM NOZZLE
•
Remember to clean the steam nozzle periodically that can get internally dirty by
frothing the milk. Remove the nozzle as shown in figure above and wipe it,
together with its cap, using a sponge and hot water.
Caution: to clean the nozzle, switch OFF the machine and wait 20
minutes after use to allow it to cool, to prevent risks of burns.
25/37
Downloaded from CoffeeMachineManual.com Manuals
DRIP TRAY
•
•
Remove the drip tray from the machine as it is shown in the figures above.
Make sure that the drip tray is periodically drained to prevent any liquid from
seeping out and dirtying/damaging the underlying furniture. Drip tray and relevant
grill can be washed in a dishwasher.
TO EMPTY THE “USED” COFFEE DRAWER
It is necessary to remove the drip
tray as it is shown in figure,and drain
it.
26/37
Downloaded from CoffeeMachineManual.com Manuals
Pull open the door and remove the
drawer and empty it.
The drawer can be washed in a
dishwasher or simply with hot water.
Replace the drawer and close the door.
Replace the drip tray.
27/37
Downloaded from CoffeeMachineManual.com Manuals
WATER RESERVOIR
•
•
•
•
If the machine is not used for long periods, change the water in the reservoir and
drain the boiler by pressing the coffee button several times.
Clean the water reservoir periodically .
The water reservoir can be washed in a dishwasher.
When using the Brita filter, replace it after approximately 2000 cups of coffee or at
least every three months.
CLEANING CYCLE OF THE BOILER
•
•
•
•
•
This coffee machine is an appliance using water, therefore it is normal that some
limescale can form in its boiler.
It is reccomended to carry out the following operations every six months:
Fill up the water reservoir with 2 litres of water adding half a glass of vinegar or
citric acid.
Carry out the same operations as preparing some cups of coffee (refer to the
previous Chapter “Coffee”), and some cups of hot water until the reservoir is
completely empty.
Fill the reservoir again with cold water and repeat the above process to rinse the
boiler.
28/37
Downloaded from CoffeeMachineManual.com Manuals
14
INSTALLATION
BUILDING-IN
Installing the machine into kitchen furniture with proper characteristics will ensure a
correct operation of the equipment.
Complying with the safety rules, ensure a proper protection against any contact with
the electric components and with the parts protected only by functional insulation, by
housing the machine correctly into the furniture.
All components that guarantee protection, even a cover panel (for instance, when the
machine is positioned at one of the ends of the modular furniture), should be firmly
fixed so that they cannot be removed without tools.
Install this machine at a certain distance from refrigerators or freezers, because the
heat it emitts can impair their functioning.
COMPONENTS FOR INSTALLING THE MACHINE
This coffee machine and drawer can be installed into cabinets with height of 450 mm
and width ranging from 560 mm to 570 mm. The machine is equipped with the
following components for the installation:
1.
2.
3.
4.
5.
6.
1 fixing base
9 self-threading screws
3.9X19
1 cable clamp
2 side slides
2 side-plates of 1 mm
4 side-plates of 2 mm
29/37
Downloaded from CoffeeMachineManual.com Manuals
ELECTRICAL CONNECTION
•
Fix the power cable onto the left
side of the cabinet using one of the
self-threading screws of the
equipment and the proper cable
clamp as shown in the figure.
•
Unscrew the cable clamp available on the
machine.
•
Fix the power cable onto the machine as
shown in the figure.
30/37
Downloaded from CoffeeMachineManual.com Manuals
•
Connect the power cable as shown in
the figure. This machine is designed for
a single phase voltage of 230V. The
power supply requires only outlets of
13A fuse and a double pole isolation
switch with at least 3 mm between
contacts.
INSTALLING THE MACHINE
•
Lay the U base plate of the machine
on the shelf of the cabinet.
•
Insert
the
L
plates,
compensating for any space. The
width of the housing unit the coffee
machine depends on the thickness of
the cabinet’s sides. six side plates
(four being 2 mm thick and two 1 mm
thick) are provided to compensate for
the different possible measures.
31/37
Downloaded from CoffeeMachineManual.com Manuals
•
They should be used
to compensate for the internal
width of the compartment,
leading to a width of 560/570
mm.
•
Fix the U base plate inserting 4 selfthreading screws into the 4 front holes
of the same plate. Then screw the
telescopic runners to each side with the
remaning 8 self-threading screw.
•
Insert the machine into the housing by
coupling the machine to the runners
fixed to the sides of the carcass.
32/37
Downloaded from CoffeeMachineManual.com Manuals
•
Slide the machine into the cabinet
untill the “click” indicates that it is
locked into Position.
15
SOMETHING NOT
WORKING.....
If this machine does not work, please make sure that the fault is not due to:
1.
2.
no power
no water in the reservoir.
If the power cable is damaged or the machine needs servicing, please contact the
nearest SERVICE FORCE CENTRE
16
TECHNICAL SPECIFICATIONS
•
Width
594 mm
•
Depth
475 mm
•
Height
378 mm
•
Capacity of water reservoir
2.5 l
•
Net weight
25 kg
•
Gross weight
27 kg
•
Supply voltage
230 V
•
Rated power
2000 W
•
Power absorbed by the heating element
1700 W
•
Power absorbed by the pump
50 W
•
Working pressure
12 bar
•
Fuse
13 A
33/37
Downloaded from CoffeeMachineManual.com Manuals
17
AFTER-SALES SERVICE, SPARE PARTS AND GUARANTEE
Standard guarantee conditions:
We, Electrolux, undertake that if within 12 months of the date of the purchase
this Electrolux appliance or any part thereof is proved to be defective by
reason only of faulty workmanship or materials, we will, at our option repair or
replace the same FREE OF CHARGE for labour, materials or carriage on
condition that:
• The appliance has been correctly installed and used only on the
electricity supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and
in accordance with the manufacturer’s instructions.
• The appliance has not been serviced, maintained, repaired, taken
apart or tampered with by any person not authorised by us.
• Electrolux Service Force Centre must undertake all service work under
this guarantee
• Any appliance or defective part replaced shall become the Company’s
property.
• This guarantee is in addition to your statutory and other legal rights.
Exclusions
•
•
•
•
Damage or calls resulting from transportation, improper use or
neglect, the replacement of any light bulbs or removable parts of glass
or plastic.
Costs incurred for calls to put right an appliance which is improperly
installed or calls to appliances outside the United Kingdom.
Appliances found to be in use within a commercial environment, plus
those which are subject to rental agreements.
•
Products of Electrolux manufacturer that are not marketed by
Electrolux
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase
spare parts, please contact your local Service Force Centre by telephoning
0870 5 929 929
Your telephone call will be automatically routed to the Service Force Centre
covering your postcode area. For the address of your local Service Force
Centre and further information about Service Force, please visit the website at
www.serviceforce.co.uk
34/37
Downloaded from CoffeeMachineManual.com Manuals
Before calling out an engineer, please ensure you have read the details under
the heading “Something not working”. When you contact the Service Force
Centre you will need to give the following details:
1.
2.
3.
4.
5.
Your name, address and postcode.
Your telephone number.
Clear concise details of the fault.
The model and Serial number of the appliance (found on the rating plate).
The purchase date.
Please note a valid purchase receipt or guarantee documentation is required
for in guarantee service calls.
Customer Care
For general enquiries concerning your Electrolux appliance, or for further
information on Electrolux products please contact our Customer Care
Department by letter or telephone at the address below or visit our website at
www.electrolux.co.uk
Customer Care Department
Electrolux Major Appliances
Addington Way
Luton
Bedfordshire, LU4 9QQ
Tel: 08705 950 950 (*)
(*) Calls may be recorded for training purposes
European Guarantee
This appliance is guaranteed by Electrolux in each of the countries listed at the back of
this user manual, for the period specified in the appliance guarantee or otherwise by
law. If you move from one of these countries to another of the countries listed below the
appliance guarantee will move with you subject to the following qualifications:
•
The appliance guarantee starts from the date you first purchased the
appliance which will be evidenced by production of a valid purchase document
issued by the seller of the appliance.
•
The appliance guarantee is for the same period and to the same extent for
labour and parts as exists in your new country of residence for this particular
model or range of appliances.
•
The appliance guarantee is personal to the original purchaser of the appliance
and cannot be transferred to another user.
•
The appliance is installed and used in accordance with instructions issued by
Electrolux and is only used within the home, i.e. is not used for commercial
purposes.
35/37
Downloaded from CoffeeMachineManual.com Manuals
•
The appliance is installed in accordance with all relevant regulations in force
within your new country of residence.
The provisions of this European Guarantee do not affect any of the rights granted to
you by law.
www.electrolux.com
36/37
Downloaded from CoffeeMachineManual.com Manuals
37/37
Downloaded from CoffeeMachineManual.com Manuals
Downloaded from CoffeeMachineManual.com Manuals
www.electrolux.com
Downloaded from CoffeeMachineManual.com Manuals
