ENGLISH

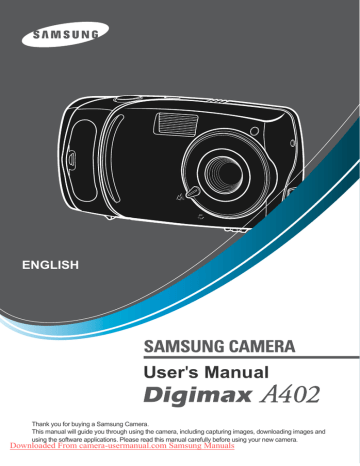

User's Manual
Thank you for buying a Samsung Camera.
This manual will guide you through using the camera, including capturing images, downloading images and
using the software applications. Please read this manual carefully before using your new camera.
Downloaded From camera-usermanual.com Samsung Manuals
Instructions
■ Use this camera in the following order
Set up the
camera driver
Before connecting the camera to a PC, via the
USB cable, you will need to set up the camera
driver. Install the camera driver that is contained in
the Application S/W CD-ROM.(p.89)
Take a picture (p.19)
Take a picture
Insert the
USB cable
Check the
camera’s power
Check
[Removable Disk]
Insert the supplied USB cable into the PC’s USB
port and the camera’s USB connection
terminal.(p.95)
Check the camera’s power. If the power is turned
off, press the camera button to turn on.
Open Window’s EXPLORER and search for
[Removable Disk].(p.96)
● If you use a card reader to copy the images on the memory card to your PC, the images
could be damaged. When transferring the images taken with the camera to your PC, be sure
to use the supplied USB cable to connect the camera to your PC. Please note that the
manufacturer holds no responsibility for loss or damage of images on the memory card due
to the use of a card reader.
Downloaded From camera-usermanual.com Samsung Manuals
《2》
Contents
●Things to watch out for when
READY
taking pictures
●Getting to know your camera
5
●About the icons
5
●Danger
6
●Warning
22
●Using the camera buttons to adjust the
camera
23
■POWER button
23
6
■SHUTTER button
23
●Caution
7
●ZOOM W/T button
24
●An FCC warning
7
●Voice memo/ UP button
25
●System chart
8
●Down button
25
●Identification of features
10
●Flash/ Left button
26
■Front & Top
10
●Self-timer/ Right button
28
■Back & Bottom
10
●MENU/ OK button
29
■Side / 5-function button
11
●+/- button
30
■Mode button
11
●LCD button
33
●Instructions on how to use the
power source
●Using the LCD monitor to adjust the
13
camera settings
34
■Using the batteries
13
●How to use the menu
36
●Connecting to a Power Source
14
■Mode
36
■Using the batteries
14
■Size
37
■Quality
38
15
■Metering
39
■Maintenance of the memory card
15
■Continuous shot
40
■Preserving the memory card data
15
■Effect
40
●Inserting the memory card
17
■Photo Frame
41
●Removing the memory card
17
■Sharpness
42
●Instructions on how to use the
memory card
■Save / Load the camera configuration
RECORDING
(MYSET)
43
●LCD monitor indicator
18
●Starting the recording mode
19
■Taking a still image
19
●LCD monitor indicator
44
■Recording a Movie clip
20
●Starting play mode
45
■Using Successive Recording
20
■Playing back a still image
45
■Playing back a movie clip
46
■Playing back a recorded voice
46
■How to use the VOICE RECORDING
mode
21
■Pausing while recording a
voice recording
PLAY
●Using the camera buttons to adjust the
21
camera
Downloaded From camera-usermanual.com Samsung Manuals
47
《3》
Contents
●Thumbnail/ Enlargement button
47
●Selecting an External Device (USB)
75
●Voice memo / Up button
48
●Quick view
76
●Play & Pause/ Down button
49
●Initialization(RESET ALL)
76
●LEFT/ RIGHT/ MENU/ OK button
50
●Setting up the MYCAM menu
77
●LCD button
50
■Start up image
77
●Delete button
51
■Start up sound
78
●Important notes
79
52
●Warning indicator
81
●Starting the slide show
55
●Before contacting a service centre
82
●Rotating an image
56
●Specifications
85
●Resize
57
●Protecting images
58
●Deleting all images
59
●DPOF
59
●Software Notes
87
●DPOF : STANDARD
60
●System Requirements
87
●DPOF : INDEX
60
●About the software
88
●DPOF : PRINT SIZE
61
●Setting up the application software
89
●DPOF : CANCEL
61
●Starting PC mode
95
●COPY TO CARD
62
●Removing the USB Driver for
●PictBridge
63
Windows 98SE
98
●PictBridge: Picture Selection
64
●Removable Disk
99
●PictBridge: Printing
65
●Removing the removable disk
100
●PictBridge: Print Setting
66
●Setting up the USB Driver for MAC
101
●PictBridge : RESET
67
●Using the USB Driver for MAC
101
●Digimax Viewer 2.1
102
●Using PhotoImpression
103
●FAQ
104
●Setting up the play back function using the
LCD monitor
SETUP
●Setup menu
68
●File name
69
●Auto power off
70
●Language
71
●Formatting a memory card
72
●Setting up the Date
73
●Setting up the Time
73
●Date type
74
●Imprinting the recording date
74
●Beep
75
SOFTWARE
Downloaded From camera-usermanual.com Samsung Manuals
《4》
Getting to know your camera
Thank you for buying a Samsung Digital Camera.
● Prior to using this camera, please read the user manual thoroughly.
● When you require After Sales service, please bring the camera and the cause of the camera
malfunction (such as Batteries, Memory card etc.) to the A/S centre.
● Please check that the camera is operating properly prior to when you intend to use it
(e.g. for a trip or an important event) to avoid disappointment. Samsung camera takes no
responsibility for any loss or damages that may result from camera malfunction.
● Keep the manual in a safe place.
Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation
incorporated in the United States and/or other countries.
All brand and product names appearing in this manual are registered trademarks of their
respective companies.
About the icons
This manual contains instructions on using this camera that will help you to use this camera
safely and correctly. This will help prevent danger and injury to others.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation, which, if not avoided, may
result in a minor or moderate injury.
Downloaded From camera-usermanual.com Samsung Manuals
《5》
Danger
■ Do not attempt to modify this camera in any way. This may result in fire, injury, electric shock
or severe damage to you or your camera. Internal inspection, maintenance and repairs
should be carried out by your dealer or Samsung Camera Service centre.
■ Please do not use this product in close proximity to flammable or explosive gases, as this
could increase the risk of explosion.
■ Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the
camera, and then disconnect the power source.
You must contact your dealer or Samsung Camera Service centre.
Do not continue to use the camera as this may cause a fire or electric shock.
■ Do not insert or drop metallic or inflammable foreign objects into the camera through access
points e.g. the memory card slot and battery chamber.
This may cause a fire or electric shock.
■ Do not operate this camera with wet hands. This could pose a risk of electric shock.
Warning
■ Do not use the flash in close proximity to people or animals.
Positioning the flash too close to your subject’s eyes, may cause eyesight damage.
■ When taking photographs, never point the lens of the camera directly into very strong light.
This may result in permanent damage to your eyesight.
■ For safety reasons keep this product and accessories out of reach of children or animals to
prevent accidents e.g.:
•Swallowing batteries or small camera accessories. If an accident should occur, please
consult a doctor immediately.
•There is the possibility of injury from the camera’s moving parts.
■ Batteries and camera may become hot during prolonged use and it may result in camera
malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it
time to cool.
■ Do not recharge non rechargeable batteries. This may cause an explosion.
■ Do not leave this camera in places subject to extremely high temperatures, such as a sealed
vehicle, direct sunlight or other places of extreme variances in temperature.
Exposure to extreme temperatures may adversely affect the camera’s internal components
and could cause a fire.
■ When in use, do not cover the camera.
This may cause heat to build up and distort the camera body or cause a fire.
Always use the camera and its accessories in a well-ventilated area.
Downloaded From camera-usermanual.com Samsung Manuals
《6》
Caution
■ Leaking, overheating, or burst batteries could result in fire or injury.
•Use batteries with the correct specification for the camera.
•Do not short circuit, heat or dispose of batteries in fire.
•Do not insert the batteries with the reverse polarities.
■ Remove the batteries when not planning to use the camera for a long period of time.
Batteries may leak corrosive electrolyte and permanently damage the camera's
components.
■ Do not fire the flash while it is in contact with hands or objects.
Do not touch the flash after using it continuously. It may cause burns.
■ A non-rechargeable (disposable) battery can be used but has a short lifespan because of its
relatively low battery capacity. We recommend the rechargeable battery which has a bigger
capacity and longer lifespan than the non rechargeable type. (Rechargeable batteries may
not be available everywhere).
An FCC warning
•This device has been tested in accordance with the limits of a class B digital device
under item 15 of the FCC rules. These limits are designed to provide protection
against harmful interference in commercial installation. This equipment generates,
absorbs and can emit radio frequency energy. If it is not installed and used in
accordance with the instructions, it may cause harmful interference to radio
communication.
There is however, no guarantee that interference will not occur in some situations.
Should any interference occur when this device is in operation, please try one or
more of the following measures.
■ Change the location and direction of any aerial.
■ Increase distance between the camera and the affected device.
■ Use a different socket away from the affected device.
■ Please contact a Samsung agent or a radio/TV engineer.
•This device complies with part 15 of the FCC Rules.
•Changes or modifications not expressly approved by the party responsible for
compliance could void user's authority to operate the equipment.
Downloaded From camera-usermanual.com Samsung Manuals
《7》
System chart
Please check that you have the correct contents before using this product. To buy the optional
equipment, contact your nearest Samsung dealer or Samsung service centre.
< Included items >
Pouch
DPOF compatible
printer(see p.59)
User manual
Product warranty
Rechargeable batteries Rechargeable battery AA Alkaline
(SNB-2312)
(SBP-1303)
Batteries
Battery charger Battery charger
(SBC-N1)
(SBC-L1)
Downloaded From camera-usermanual.com Samsung Manuals
《8》
Software CD
(see p.88)
SD memory card
(see p.15)
CR-V3 battery
AC cord
Camera strap
System chart
System Requirements
For Windows
Computer
(see p.95)
PictBridge compatible
printer(see p.63)
•PC with processor better than MMX
Pentium 233MHz (XP : Pentium II 300MHz)
•Windows 98/ 98SE/ 2000/ ME/ XP
•Minimum 32MB RAM (XP : 128MB)
•140MB of available hard-disk space
•USB port
•CD-ROM drive
•800x600 pixels, 16-bit colour display
compatible monitor (24-bit colour display
recommended)
For Macintosh
USB cable
•Power Mac G3 or later
•Mac OS 9.2~10.3
•Minimum 64MB RAM
•110MB of available hard-disk space
•USB port
•CD-ROM drive
•QuickTime 6.01 or later for Movie Clip
CAUTION
When you connect the camera to a
computer or printer, you have to use the
USB cable supplied with the camera, or the
external devices may not recognise the
camera.
Downloaded From camera-usermanual.com Samsung Manuals
《9》
Identification of features
Front & Top
Power button
Microphone
Shutter button
Flash
Self-timer lamp
Strap eyelet
Lens
USB
connection port
Focus ring
Back & Bottom
Camera status lamp
Zoom W button
(Thumbnail)
Mode button
Zoom T button
(Digital zoom)
LCD monitor
LCD button
5-function button
Tripod socket
+/-, DELETE button
Play mode button
Downloaded From camera-usermanual.com Samsung Manuals
《10》
Identification of features
Side / 5-function button
Voice Recording/
Voice memo/ UP button
Battery chamber cover
FLASH/
LEFT
button
Battery
chamber
Memory card slot
SELF-TIMER/
RIGHT button
MENU/
OK button
PLAY&PAUSE/ DOWN button
※ The OK button written in this manual means
the MENU button.
Mode button
■ You can select the desired working mode by using the mode button located on the back of
the camera. This digital camera has 2 recording modes. These are listed below.
■ Pressing the mode button will change the camera modes in order.
(Still image mode → Movie clip mode)
■ Whenever the camera is turned on, the still image mode will display.
● Still image mode
You can select from AUTO(
), PROGRAM(
) or
SCENE mode. In SCENE mode, you can select the NIGHT,
PORTRAIT, LANDSCAPE and FIREWORKS scene menu.
● Movie clip mode
STANDBY
A movie clip can be recorded for as long as the available
recording time of the memory capacity allows. Image size and
type are listed below.
- Image size : 640X480, 320X240 (user selectable)
- Movie clip file type : *. AVI(MJPEG)
Downloaded From camera-usermanual.com Samsung Manuals
《11》
Identification of features
■ Self-timer lamp
Icon
Status
Blinking
Description
For the 2 seconds, the lamp blinks quickly at 0.25-second intervals.
For the first 7 seconds, the lamp blinks at 1 second intervals.
Blinking
For the final 3 seconds, the lamp blinks quickly at 0.25-second intervals.
A picture will be taken after about 10 seconds and 2 seconds later a second
Blinking
picture will be taken.
■ Camera Status Lamp
Status
Description
Power on
The lamp turns on and off when the camera is ready to take a picture
After taking a picture
The lamp blinks while saving the image data and turns off when the camera is ready to take a picture
While movie recording
The lamp blinks at a 1-second interval
While voice recording
The lamp blinks at a 1-second interval
When the USB cable is inserted
The lamp lights up (LCD monitor turns off)
Transmitting Data
The lamp blinks (LCD monitor turns off)
■ Mode icons
MODE
AUTO
PROGRAM
MOVIE CLIP
VOICE RECORDING
PLAY
Icon
SCENE
MODE
NIGHT
PORTRAIT
LANDSCAPE
Icon
Downloaded From camera-usermanual.com Samsung Manuals
《12》
FIREWORKS
Instructions on how to use the power source
■ You can use batteries only to provide the camera with power.
Using the batteries
● We recommend using batteries for a digital camera (Within a year from the date of
manufacture). The batteries are listed below.
Non rechargeable batteries : AA type
- Alkaline
CR-V3 type - Lithium Ion battery
Rechargeable batteries
: AA type
- Ni-MH battery
(Samsung SNB-2312 recommended)
CR-V3 type - Lithium Ion battery
(Samsung SBP-1303 recommended)
● It is easy to buy alkaline batteries. However, the duration for using batteries varies in
accordance with the battery manufacturer or the photographic conditions.
● When the camera is not used, turn off the camera power.
● Do not recharge the non rechargeable batteries. It may cause an explosion.
● Please remove the batteries if the camera will not be used for long periods. Batteries can lose
power over time and are prone to leaking if kept inside the camera.
● We recommend high capacity batteries (listed above) as manganese batteries cannot deliver
sufficient power.
● Low temperatures (below 0°C) can affect the performance of the batteries and you may
experience reduced battery life. Batteries will usually recover at normal temperatures.
● Do not use old and new batteries at the same time.
● During extended use of the camera, the camera body may become warm.
This is perfectly normal.
Downloaded From camera-usermanual.com Samsung Manuals
《13》
Connecting to a Power Source
Using the batteries
: If the camera does not turn on after you have inserted batteries,
please check whether the batteries are inserted with the correct
polarity (+ / -).
1. Open the battery chamber cover by pushing in the direction of the
arrow.
2. Insert the batteries taking note of the
polarity (+ / -).
[ Inserting the AA type battery ]
[ Inserting the CR-V3 type battery ]
3. To close the battery chamber cover, push it until it clicks.
■ There are 3 indicators for battery condition that are displayed on the LCD monitor.
Battery indicator
Battery status
The batteries are fully
charged
Prepare new batteries
Downloaded From camera-usermanual.com Samsung Manuals
《14》
There is no battery capacity.
Replace with new batteries.
Instructions on how to use the memory card
Maintenance of the memory card
● Be sure to format the memory card (see p.72) if you are using a newly purchased memory for
the first time, if it contains data that the camera cannot recognize, or if it contains images
captured with a different camera.
● Turn off the camera power whenever the memory card is being inserted or removed.
● Repeated use of the memory card will eventually reduce the memory card’s performance.
Should this be the case, you will need to purchase a new memory card.
Wear and tear on the memory card is not covered by the Samsung warranty.
● The memory card is an electronic precision device.
Do not bend, drop or subject the memory card to any heavy impact.
● Do not store the memory card in an environment with strong electronic or magnetic fields,
e.g. near loud speakers or TV receivers.
● Please do not use or store in an environment where there are extremes in temperature.
● Do not allow the memory card to become dirty or to come into contact with any liquid.
Should this happen, clean the memory card with a soft cloth.
● Please keep the memory card in its case when not in use.
● During and after periods of extended use, you may notice that the memory card is warm.
This is perfectly normal.
● Do not use a memory card that is used in another digital camera.
To use the memory card in this camera, format first the memory card by using this camera.
● Do not use a memory card formatted by another digital camera or memory card reader.
Preserving the memory card data
● If the memory card is subjected to any of the following, the recorded data may become
corrupted :
- When the memory card is used incorrectly.
- If the power is switched off or the memory card is removed while recording, deleting
(formatting) or reading.
● Samsung cannot be held responsible for lost data.
● It is advisable to copy important data onto other media as back-up e.g. floppy disks, hard
disks, CD etc.
● If there is insufficient memory available : If you press the shutter button for the shot, a
[CARD FULL !] message will appear and the camera will not operate. To optimize the
amount of memory in the camera, replace the memory card or delete unnecessary images
stored on the memory.
Downloaded From camera-usermanual.com Samsung Manuals
《15》
Instructions on how to use the memory card
INFORMATION
● If you open the battery chamber cover when the camera power is turned on, the power
will turn off automatically.
● Don’t remove the memory card when the camera status lamp(Green) is blinking as this
may cause damage to data in the memory card.
■ The camera can use SD Memory Cards and MMC (Multi Media Card).
The SD memory card has a write protect switch
that prevents image files from being deleted or
formatted.
By sliding the switch to the bottom of the SD
memory card, the data will be protected.
By sliding the switch to the top of the SD
memory card, the data protection will be
cancelled. Slide the switch to the top of the SD
memory card before taking a picture.
Card
pins
Write protect
switch
Label
[ SD(Secure Digital) memory card ]
■ When using a 16MB internal memory, the specified shooting capacity will be as follows.
These figures are approximate as image capacities can be affected by variables such as
subject matter.
Mode
STILL IMAGE mode
Quality / Size 2272(P)
MOVIE CLIP mode
2048
1600(M)
1024
640(E)
640
320
SUPER FINE
10
13
17
38
81
-
-
FINE
20
27
37
78
145
-
-
NORMAL
33
42
50
113
234
-
-
15FPS
-
-
-
-
-
26SEC
1MIN11SEC
24FPS
-
-
-
-
-
18SEC
40SEC
Downloaded From camera-usermanual.com Samsung Manuals
《16》
Inserting the memory card
1. Turn off the camera’s power and pull the battery chamber
cover in the direction of the arrow to open.
2. Have the front of the memory card facing toward the back
of the camera (LCD monitor) and the card pins toward the
front of the camera (lens), and then push the memory card
into the card slot until you hear a click.
3. To close, push the battery chamber cover until you hear a
click. If the memory card does not slide in smoothly, do not
attempt to insert it by force. Check the direction of insertion,
and then insert it correctly. Do not insert the memory card
the wrong way round. Doing so may damage the memory
card slot.
Removing the memory card
1. Turn the power off using the power button.
Open the battery chamber cover and press the memory
card as shown in the image and release.
2. Remove the memory card and close the battery chamber
cover.
Downloaded From camera-usermanual.com Samsung Manuals
《17》
LCD monitor indicator
■ The LCD monitor displays information about the shooting functions and selections.
①
⑲
⑱
②
⑰
③
⑯
④
⑮
⑤
⑭
⑥
⑬
⑦
⑫
⑧
⑪
⑨
⑩
[Image & Full Status]
No.
Description
Icons
1
Battery
p.14
2
Recording mode
p.11~12
p.36
3
Continuous shot
p.40
4
Flash
p.26
5
Self-timer
p.28
6
Macro
7
Metering
8
Card inserted indicator
9
Camera shake warning
10
Date/ Time
11
Exposure compensation
p.32
12
White Balance
p.30
p.39
p.22
2005/03/01 00:00AM
Downloaded From camera-usermanual.com Samsung Manuals
《18》
Page
LCD monitor indicator
13
ISO
p.31
14
Sharpness
p.42
15
Image quality
p.38
16
Image size
2272, 2048, 1600, 1024, 640
Number of available shots remaining
20
Remaining time (Movie clip/ Voice recording)
00:01:11/ 00:25:50
p.37
17
18
Voice memo
19
Digital Zoom rate
p.25
Starting the recording mode
■ If the memory card is inserted in the camera, all the camera functions apply only to the
memory card. If the memory card is not inserted in the camera, all the camera functions apply
only to the internal memory.
● Taking a still image
1. Insert the batteries (p.14). Insert the batteries taking note of the polarity (+ / -).
2. Insert the memory card. (p.17) As this camera has a
16MB internal memory, you do not need to insert the
memory card. If the memory card is not inserted, an
image will be stored in the internal memory. If the
memory card is inserted, an image will be stored on the
memory card.
3. Close the battery chamber cover.
4. Press the power button to turn on the camera.
[ STILL IMAGE mode ]
5. Select the STILL IMAGE mode by pressing the mode
button.
6. Point the camera towards the subject and compose the image by using the LCD monitor.
7. Press the shutter button to capture an image.
Downloaded From camera-usermanual.com Samsung Manuals
《19》
Starting the recording mode
● Recording a Movie clip
Steps from 1-4 are the same as those for taking a still
image.
5. Select the MOVIE CLIP mode by pressing the mode
button.
6. Point the camera towards the subject and compose the
image by using the LCD monitor.
7. Press the shutter button to take a movie clip. Press the
shutter button once and movie clips are recorded for as
long as the available recording time allows. Movie clips
will still be recorded if the shutter button is released. If
you wish to stop recording, press the shutter button again.
- Image size: 640X480, 320X240 (Selectable)
- File type : *. AVI(MJPEG)
STANDBY
[ MOVIE CLIP mode ]
● Pausing while recording a movie clip (Successive Recording)
This camera allows you to temporarily stop during unwanted scenes, while recording a movie
clip. Using this function, you can record your favorite scenes into a movie clip without having
to create multiple movie clips.
● Using Successive Recording
Steps from 1-6 are the same as those for MOVIE CLIP
mode.
7. Press the shutter button and movie clips are recorded
for as long as the available recording time. Movie clips
will still be recorded if the shutter button is released.
8. Press the Pause button(
) to pause recording.
9. Press the Pause button(
) again to resume the
recording.
10. If you wish to stop recording, press the shutter button
again.
[ Successive recording of a movie clip ]
Downloaded From camera-usermanual.com Samsung Manuals
《20》
Starting the recording mode
■ How to use the VOICE RECORDING mode (
)
1. Select the VOICE RECORDING mode by pressing the
Voice recording button twice. (In Movie clip mode, press
the Voice recording button once to select the VOICE
RECORDING mode)
2. Press the shutter button to record a voice.
- Press the shutter button once and voice is recorded for
as long as the available recording time (Max : 1 hour)
allows. The recording time will be displayed on the LCD
monitor. Voice will still be recorded if the shutter button
is released.
- If you wish to stop recording, press the shutter button
again.
- File type : *.WAV
* A distance of 40cm between you and the camera
(microphone) is the best distance to record sound.
STANDBY
START:SHUTTER
[VOICE RECORDING mode]
● Pausing while recording a voice recording
This camera allows you to temporarily stop during unwanted recording, while recording a
voice. Using this function, you can record your favorite voices into a voice recording file
without having to create multiple voice recording files.
1. Press the shutter button and voice is recorded for as
long as the available recording time. Voice will still be
recorded if the shutter button is released.
2. Press the Pause button(
) to pause recording.
PAUSE
3. Press the Pause button(
) again to resume the
STOP:SHUTTER
recording.
4. If you wish to stop recording, press the shutter button
[Pausing the voice recording]
again.
INFORMATION
● A distance of 40cm between you and the camera (microphone) is the best distance to
record sound.
Downloaded From camera-usermanual.com Samsung Manuals
《21》
Things to watch out for when taking pictures
■ When the Flash Off or Slow synchro mode is selected in a low lighting condition, the camera
shake warning indicator (
) may appear on the LCD monitor. In this case, use a tripod,
support the camera on a solid surface or change the flash mode to flash shot mode.
■ Backlight compensated shots : When taking an outdoor shot, avoid facing the sun, as the
image may be dark because of the strong backlight. In backlight conditions, please use Fill-in
flash(p.26), Spot metering(p.39) or Exposure compensation(p.32).
■ Avoid obstructing the lens or the flash when you capture an image.
Downloaded From camera-usermanual.com Samsung Manuals
《22》
Using the camera buttons to adjust the camera
■ The RECORDING mode function can be set up by using the camera buttons.
POWER button
● Used for turning the camera’s power on / off.
● If this camera isn’t operated during the specified time(about
60 SEC.), the camera power will be idle(LCD monitor :
OFF, Camera status lamp : ON ) automatically.
To use the camera again, press any of the camera buttons
except the power button. If there is no operation during the
specified time after the idle mode, the camera power will
be turned off automatically to save battery life. Refer to page 70 for more information about
the auto power off function.
SHUTTER button
● Used for taking an image or recording voice in the
RECORDING mode.
● In MOVIE CLIP mode
Pressing the shutter button down fully starts the process
for recording a movie clip. Press the shutter button once
and the movie clip is recorded for as long as the available
recording time in the memory allows. If you wish to stop
recording, press the shutter button again.
● In STILL IMAGE mode
Pressing the shutter down fully takes the image and stores the relevant data regarding the
shot. If you select voice memo recording, the recording will start after the camera has finished
storing the image data.
Downloaded From camera-usermanual.com Samsung Manuals
《23》
ZOOM W/T button
● If the menu is not displayed, this button works as the
DIGITAL ZOOM button.
● TELE Zoom
Digital zoom TELE
: Pressing the ZOOM T button activates the digital zoom software.
Releasing ZOOM T button stops the digital zooming at the required
setting. Once the maximum digital zoom (4X) is achieved, pressing
the ZOOM T button will have no effect. You can check the digital
zoom rate with the [X1.1 ~ X 4.0] numerical mark next to the zoom
bar.
Pressing the
ZOOM T button
[WIDE zoom]
● WIDE Zoom
Digital zoom WIDE
Pressing the
ZOOM T button
[Digital zoom 2.5X]
[Digital zoom 4X]
: When the digital zoom is in operation, pressing the ZOOM W button
will reduce the digital zooming in steps. Releasing ZOOM W button
stops digital zooming.
Pressing the
ZOOM W button
[Digital zoom 4X]
Pressing the ZOOM
W button
[Digital zoom 2.5X]
[WIDE zoom]
INFORMATION
● To use the digital zoom the LCD monitor has to be turned on.
● Images taken using the digital zoom may take a little longer for the camera to process.
Allow time for this to take place.
● The digital zoom cannot be used in movie clip shots.
● You may notice a decrease in image quality when using the digital zoom.
Downloaded From camera-usermanual.com Samsung Manuals
《24》
Voice memo(
)/ UP button
■ While the menu is showing, press the UP button to move up the submenu cursor.
■ When the menu is not displayed on the LCD monitor, the UP button operates as the voice
memo button. You can add your voice-over to a stored still image.
● Recording a voice memo
1. Select the STILL IMAGE mode by pressing the mode button.
2. Press the VOICE MEMO button. If the voice memo indicator is displayed on the LCD
monitor, the setting is completed.
STOP:SHUTTER
[ Preparing for Voice Memo ]
[ Recording Voice Memo ]
3. Press the shutter button and take a picture. The picture is stored on the memory card.
4. Voice memo will be recorded for ten seconds from the moment the picture is stored. In the
middle of the sound recording, pressing the shutter button will stop the voice memo.
INFORMATION
● A distance of 40cm between you and the camera (microphone) is the best distance to
record sound.
● The voice memo function will operate only once, and then it will automatically be
cancelled.
Down button
■ While the menu is showing, press the DOWN button to move from the main menu to a
submenu, or to move down the submenu cursor.
■ Unless the menu is showing, the DOWN button will not work in a Recording mode.
Downloaded From camera-usermanual.com Samsung Manuals
《25》
Flash (
) / Left button
■ When the menu is displayed on the LCD monitor,
pressing the LEFT button makes the cursor shift to the left
tab.
■ When the menu is not displayed on the LCD monitor, the
LEFT button operates as the FLASH (
) button.
● Selecting the flash mode
1. Select the STILL IMAGE mode by pressing the mode
button.
2. Press the Flash button until the desired flash mode
indicator displays on the LCD monitor.
3. A flash mode indicator will be displayed on the LCD
monitor. Use the correct flash to suit the environment.
[Selecting the auto flash]
● Flash range
Focus type
Flash range
Auto
1.0m ~ 2.5m
Macro
0.2m
INFORMATION
● Using the flash frequently will reduce the life of the batteries.
● Under normal operating conditions the charging time for the flash is normally within 5
seconds. If the batteries are weak, the charging time will be longer.
● During the continuous shot, movie clip mode, the flash function will not operate.
● Take photographs within the flash range.
● The image quality is not guaranteed if the subject is too close or highly reflective.
Downloaded From camera-usermanual.com Samsung Manuals
《26》
Flash (
) / Left button
● Flash mode indicator
Icon
Flash mode
Description
Auto flash
If the subject or background is dark, the camera flash will operate
automatically.
Auto &
Red eye
reduction
If a subject or background is dark, the camera flash will work
automatically and will reduce the red-eye effect by using the red-eye
reduction function.
Fill in flash
The flash fires regardless of available light.
Slow synchro
The flash will operate in conjunction with a slow shutter speed in
order to obtain the correct exposure. We recommend using a tripod
for this function. When you take an image in a condition with poor
light, the camera shake warning indicator (
) will display on the
LCD monitor.
Flash off
The flash does not fire. Select this mode when capturing images in a
place or situation where flash photography is prohibited. When you
capture an image in a poorly lit condition, the camera shake warning
indicator (
) will display on the LCD monitor.
● Available flash mode, by recording mode
X
O
X
X
X
X
X
O
O
X
X
O
X
X
X
O
X
X
X
X
X
X
O
X
O
X
X
X
O
O
O
O
O
O
O
Downloaded From camera-usermanual.com Samsung Manuals
《27》
Self-timer (
) / Right button
■ When the menu is displayed on the LCD monitor, pressing the Right button makes the cursor
shift to the right tab.
■ When the menu is not displayed on the LCD monitor, the RIGHT button operates as the
Selftimer(
) button. This function is used when the photographer would also like to be in
the image.
● Selecting the self-timer
1. Select the MOVIE CLIP or STILL IMAGE mode by
pressing the mode button.
2. Press the SELF-TIMER button until the desired mode
indicator displays on the LCD monitor.
A 2 second, 10 second or double self-timer icon appears
on the LCD monitor. In Movie Clip mode, only the
10-second self-timer will work.
·2SEC self-timer (
):
Pressing the shutter button will allow an interval of 2
seconds before the image is taken.
·10SEC self-timer (
):
Pressing the shutter button will allow an interval of 10
seconds before the image is taken.
·Double self-timer (
):
A picture will be taken after about 10 seconds and 2
[ Selecting the 10 SEC self-timer ]
seconds later a second picture will be taken.
When using the flash, the 2-second self-timer may be
delayed for longer than 2 seconds depending on the flash charge time.
3. When you press the SHUTTER button, the picture will be taken after the specified time
has elapsed.
INFORMATION
● When taking a picture using the self-timer, the self-timer lamp works as follows:
2 second self-timer setting : The self-timer lamp blinks at 0.25 second intervals for 2
seconds.
10 second self-timer setting : The self-timer lamp blinks at 1 second intervals for the first
7 seconds. It blinks at 0.25 second intervals for the
remaining 3 seconds.
● If you operate the Power button, Self-timer button and shutter button during the self-timer
operation, the self-timer function is cancelled.
Downloaded From camera-usermanual.com Samsung Manuals
《28》
MENU/ OK button
- When you press the MENU button, a menu related to each camera mode will be displayed
on the LCD monitor. Pressing it again will return the LCD to the initial display.
- A menu option can be displayed when the following are selected : MOVIE CLIP and STILL
IMAGE mode. There is no menu available when the VOICE RECORDING mode is
selected.
- When the menu is displayed on the LCD monitor, this button is used for shifting the cursor
to the sub menu or for confirming data.
Pressing the MENU
button
◀
▶
2272
MODE
AUTO
PROGRAM
SCENE
[ Menu off ]
[ Menu on ]
INFORMATION
● The menu will not be displayed on the LCD monitor in the following circumstances:
- When another button is being operated.
- While image data is being processed.
- When there is no battery capacity.
Downloaded From camera-usermanual.com Samsung Manuals
《29》
+/- button
■ You can use the +/- button to adjust the values for the white balance, ISO, exposure
compensation, shutter speed and aperture value.
Main menu
WHITE BALANCE
Sub menu
AUTO, DAYLIGHT, CLOUDY, SUNSET, FLUORESCENT H,
FLUORESCENT L, TUNGSTEN, CUSTOM.
Exposure compensation
-2.0 ~ 0.0 ~ +2.0 (0.5EV steps)
ISO
AUTO, 100, 200, 400
Aperture value
Shutter speed
Available camera mode
Shutter speed : 8 ~ 1/1,000 Sec.
Aperture value : F 3.5 / F 7.0
■ White balance : The white balance control allows you to adjust the colours to appear more
natural looking.
● Selecting a White Balance
1. Press the +/- button, and then use the UP and DOWN
buttons to select the white balance icon (
).
The white balance menu bar will appear as shown.
2. Use the LEFT and RIGHT buttons to set the white
balance to the desired value. The value you set will be
displayed on the LCD monitor.
AUTO
: The camera automatically
selects the appropriate white balance settings, depending on
the prevailing lighting conditions.
DAYLIGHT
: For taking images outside.
CLOUDY
: For taking images under a cloudy and overcast sky.
SUNSET
: For taking images at sunset.
FLUORESCENT H
: For shooting under daylight fluorescent types of three-way
fluorescent lighting.
FLUORESCENT L
: Shooting under white fluorescent lighting.
TUNGSTEN
: For shooting under tungsten (standard light bulb) lighting.
CUSTOM
: Allows the user to set the white balance according to the
shooting condition.
Different lighting conditions may cause a colour cast on your images.
3. Press the +/- button again. The value you set will be saved and White Balance setup mode
will end.
Downloaded From camera-usermanual.com Samsung Manuals
《30》
+/- button
● Using the Custom White Balance
White balance settings may vary slightly depending on the shooting environment.
You can select the most appropriate white balance setting for a given shooting environment
by setting up the custom white balance.
1. Select the CUSTOM (
) menu of the White
Balance and press the OK button.
2. Place a sheet of white paper in front of the camera so
that the LCD monitor shows only white, and then press
the SHUTTER button.
3. Press the OK button and your custom white balance
value is stored.
- The custom white balance value will be applied,
starting with the next picture you take.
- The user configured white balance will be remain
effective until it is overwritten.
※ The OK button written in this manual means the MENU
button.
[ White paper ]
■ ISO: You can select the ISO sensitivity when taking pictures.
The speed or specific light-sensitivity of a camera is rated by ISO numbers.
● Selecting an ISO Sensitivity
1. Press the +/- button, and then use the UP and DOWN
buttons to select the ISO icon(
). The ISO menu
bar will appear as shown.
2. Use the LEFT and RIGHT buttons to select the desired
ISO sensitivity value.
- AUTO:
The camera's sensitivity is automatically changed by
variables such as lighting value or subject brightness.
- 100, 200, 400:
You can increase the shutter speed while the same amount of light is present, by
increasing the ISO sensitivity. However, the image may be saturated in high luminance.
The higher the ISO value, the higher the camera’s sensitivity to light is and therefore the
greater its capacity to take pictures in dark conditions. However, the noise level in the
image will increase as the ISO value increases, making the image appear coarse.
3. When you press the +/- button again, the value you set will be saved and ISO setup mode
will end.
Downloaded From camera-usermanual.com Samsung Manuals
《31》
+/- button
■ Exposure compensation
: This camera automatically adjusts the exposure according to the ambient lighting
conditions. You can also select the exposure value by using the +/- button.
● Compensating Exposure
1. Press the +/- button, and then use the UP and DOWN
buttons to select the exposure compensation icon (
).
The exposure compensation menu bar will appear as
shown.
2. Use the LEFT and RIGHT buttons to set the desired
exposure compensation factor.
3. Press the +/- button again. The value you set will be
saved and the Exposure Compensation setup mode will close. If you change the exposure
value, the exposure indicator (
) will be displayed on the bottom of the LCD monitor.
* A negative exposure compensation value reduces the exposure.
Note that a positive exposure compensation value increases the exposure and the LCD
monitor will appear white or you may not get good pictures.
■ Setting up the shutter speed and aperture value
: This camera automatically adjusts the shutter speed and aperture values to the shooting
environment. However, in Night scene mode, you can set the shutter speed and aperture
values to your preference.
1) Selecting the Night scene Mode
1. Select the STILL IMAGE mode by pressing the mode
◀
▶
button.
2272
2. Press the MENU button.
MODE
AUTO
NIGHT
3. Use the LEFT and RIGHT buttons to select the [MODE]
PROGRAM
PORTRAIT
menu tab.
SCENE
LANDSCAPE
4. Press the UP and DOWN buttons to select the
BACK:◀
SET:OK
[SCENE] menu and press the RIGHT button.
5. Press the UP and DOWN button to select the [NIGHT]
menu.
6. Press the MENU button. The menu will disappear and the mode will switch to Night scene
mode.
Downloaded From camera-usermanual.com Samsung Manuals
《32》
+/- button
2) Setting up the shutter speed and aperture value
1. In night scene mode, press the +/- button.
A screen appears as shown to the right.
2. Use the LEFT and RIGHT buttons to set the shutter
speed. Use the UP and DOWN buttons to set the
aperture value.
3. Press the +/- button again. The value you set will be
saved and the mode will switch to Night scene mode.
Press the SHUTTER button to take the picture.
LCD button
■ You can check the recording status in the LCD monitor.
Pressing the LCD button in the RECORDING (STILL
IMAGE, MOVIE CLIP) mode will change the display as
shown below.
Pressing the
LCD button
[ Image & full information ]
Pressing the
LCD button
[ Image & basic information ]
[ LCD off ]
Pressing the LCD button
■ If the LCD monitor is turned off, the camera status lamp will light up.
Downloaded From camera-usermanual.com Samsung Manuals
《33》
Using the LCD monitor to adjust the camera settings
■ You can use the menu on the LCD monitor to set up recording functions. In any mode with
the exception of VOICE RECORDING mode, pressing the MENU button displays the menu
on the LCD monitor.
INFORMATION
● The menu will not be displayed on the LCD monitor in the following circumstances:
- When another button is being operated.
- While image data is being processed.
- When there is no battery capacity.
● The OK button written in this manual means the MENU button.
■ The following functions are available, depending on the mode you have selected.
The items indicated by
Menu tab
are default settings.
Main menu
Sub menu
Camera working mode
Page
AUTO
PROGRAM
MODE
S
C
E
N
E
NIGHT
PORTRAIT
p.36
LANDSCAPE
FIREWORKS
2272X1704(P)
2048X1536
1600X1200(M)
SIZE
1024X768
p.37
640X480(E)
640X480
320X240
S.FINE
FINE
QUALITY
NORMAL
p.38
15FPS
24FPS
METERING
MULTI
SPOT
Downloaded From camera-usermanual.com Samsung Manuals
《34》
p.39
Using the LCD monitor to adjust the camera settings
Menu tab
Main menu
SHOOTING
Sub menu
Camera working mode
SINGLE
2, 4, 8 SHOTS
Page
p.40
NORMAL
B&W
EFFECT
p.40
SEPIA
OFF
P.FRAME
1~9
p.41
SOFT
SHARPNESS
NORMAL
p.42
VIVID
MYSET
LOAD
SAVE
CANCEL
MYSET1,2,3
p.43
MYSET1,2,3
* Menus are subject to change without prior notice.
Downloaded From camera-usermanual.com Samsung Manuals
《35》
How to use the menu
1. Turn on the camera and press the MENU button. A menu for each camera mode appears.
However, there is no menu for Voice Recording mode (
).
2. Use the LEFT and RIGHT buttons to navigate through the menus.
◀
▶
◀
Press the LEFT
or RIGHT button.
2272
MODE
▶
SIZE
2272X1704
1600X1200
640X480
AUTO
PROGRAM
SCENE
◀
Press the LEFT
or RIGHT button.
▶
2272
QUALITY
P
S. FINE
FINE
NORMAL
3. Use the UP and DOWN buttons to select a sub menu.
◀
▶
SIZE
2272X1704
1600X1200
640X480
◀
Press the UP or
DOWN button.
P
▶
SIZE
2272X1704
1600X1200
640X480
◀
Press the UP or
DOWN button.
M
▶
SIZE
2272X1704
1600X1200
640X480
E
4. Select a sub menu, and then the value you set will be saved.
Press the MENU button and the menu will disappear.
Mode
■ You can select the desired Still Image mode.
[AUTO] : Use this for shooting basic still images.
◀
▶
[PROGRAM] : Selecting the automatic mode will configure
2048
2272
the camera with optimal settings. You can
MODE
still manually configure all functions except
AUTO
the aperture value and shutter speed.
PROGRAM
SCENE
[SCENE] : Use the menu to easily configure optimal settings
for a variety of shooting situations.
[NIGHT]
- Use this for shooting still images at
[ STILL IMAGE mode ]
night or in other dark conditions.
[PORTRAIT]
- To take picture of a person.
[LANDSCAPE]
- Scenery with green woods or blue sky.
[FIREWORKS]
- Firework scenes.
* When [NIGHT], [FIREWORKS] scene mode are selected, it is possible that camera shake
will occur. If you think this will happen, use a tripod.
Downloaded From camera-usermanual.com Samsung Manuals
《36》
Size
■ You can select the image size appropriate for your application.
MOVIE CLIP mode
STILL IMAGE mode
Mode
Icon
2272
2048
Size
2272X1704
1600
2048X1536 1600X1200
◀
▶
2048
1024
640
640
320
1024X768
640X480
640X480
320X240
◀
▶
FPS
15
2048
SIZE
SIZE
2272X1704
1600X1200
640X480
[ STILL IMAGE mode ]
NOR
P
640X480
320X240
320
[ MOVIE CLIP mode ]
INFORMATION
● The higher the resolution, the lower the number of available shots will be because high
resolution images require more memory than lower resolution images.
● The selectable image sizes in the AUTO mode are listed below.
- P(2272X1704) : For printing the image
- M(1600X1200) : For saving the image to a PC
- E(640X480)
: For sending the image by e-mail
Downloaded From camera-usermanual.com Samsung Manuals
《37》
Quality
■ You can select the compression ratio appropriate for your application of the captured images.
The higher the compression ratio, the lower the picture quality.
STILL IMAGE mode
Mode
MOVIE CLIP mode
Icon
15F
24F
Sub menu
S.FINE
FINE
NORMAL
15FPS
24FPS
File Format
jpeg
jpeg
jpeg
avi
avi
◀
▶
◀
2048
2272
▶
2048
320
NOR
FRAME RATE
QUALITY
S. FINE
FINE
NORMAL
15 FPS
24 FPS
[ STILL IMAGE mode ]
[ MOVIE CLIP mode ]
15F
● When using a 16MB internal memory, the specified shooting capacity will be as follows.
These figures are approximate as image capacities can be affected by variables such as
subject matter.
Mode
STILL IMAGE mode
MOVIE CLIP mode
Quality/Size
2272
2048
1600
1024
640
640
320
S. FINE
10
13
17
38
81
-
-
FINE
20
27
37
78
145
-
-
NORMAL
33
42
50
113
234
-
-
15FPS
-
-
-
-
-
26SEC
1MIN11SEC
24FPS
-
-
-
-
-
18SEC
40SEC
INFORMATION
● S.FINE is the highest quality and NORMAL is the lowest setting.
Choose the setting appropriate for your needs.
● This file format complies with the DCF(Design rule for Camera File system).
● JPEG (Joint Photographic Experts Group) : JPEG is the image compression standard
developed by the Joint Photographic Experts Group. This type of compression is most
commonly used for compressing photos and graphics because it can compress the files
efficiently without damaging the data.
Downloaded From camera-usermanual.com Samsung Manuals
《38》
Metering
■ If you cannot obtain suitable exposure conditions, you can change the metering method to
take brighter pictures.
[MULTI](
)
: Exposure will be calculated based on
an average of the available light in the
image area. However, the calculation
will be biased towards the centre of
the image area. This is suitable for
general use.
◀
▶
2272
2048
NOR
METERING
MULTI
SPOT
[ PROGRAM mode ]
[SPOT] (
)
: The indicated area at the center will
be metered, as shown on the right.
This is suitable when the subject at
the center is exposured correctly
regardless of back lighting.
[ Spot metering zone ]
INFORMATION
● If the subject is not the centre of the focus area, do not use the spot metering as this may
result in an exposure error. In this circumstance, rather use exposure compensation.
Downloaded From camera-usermanual.com Samsung Manuals
《39》
Continuous shot
■ Select the number of pictures in continuous shooting.
- [SINGLE]
: Take one picture only
- [2, 4, 8 SHOTS] : Take the set number of pictures with
one push of the shutter. Continuous
shooting mode is cleared after one
shooting.
◀
▶
2048
NOR
SHOOTING
SINGLE
2 SHOTS
[ PROGRAM mode ]
● Available maximum number of continuous shots, by image size/ quality type
quality
S.FINE
FINE
NORMAL
2272X1704
2
2
2
2048X1536
2
2
2
1600X1200
2
2
4
1024X768
4
8
8
640X480
8
8
8
size
* High resolution and picture quality increases file saving time, which increases stand-by time.
* If the [2, 4, 8 SHOTS] sub menu is selected, the flash will be off automatically.
* If you change the image size and quality after selecting the number of continuous shots, the
[SHOOTING] sub menu will be changed to the [SINGLE] automatically.
Effect
■ By using the camera’s digital processor, it is possible to add special effects to your images.
◀
▶
2048
◀
▶
320
FPS
2048
15
EFFECT
NORMAL
B&W
SEPIA
EFFECT
NOR
[ PROGRAM mode ]
NORMAL
B&W
SEPIA
[ MOVIE CLIP mode ]
NORMAL : No effect is added to the image.
B&W
: Converts the image to black and white.
SEPIA
: Captured images will be stored in a sepia tone
(a gradient of yellowish brown colours).
Downloaded From camera-usermanual.com Samsung Manuals
《40》
NOR
Photo Frame
■ You can add 9 types of frame-like borders to a still image you want to capture.
- If you select the [OFF] sub menu in the [P.FRAME] menu
or turn on and off the camera in the PROGRAM mode,
the selected photo frame will be cancelled.
- Available photo frames are as follows:
◀
▶
2048
NOR
P. FRAME
▲
FRAME
OFF
▼
[ PROGRAM mode ]
[ FRAME 1 ]
[ FRAME 2 ]
[ FRAME 3 ]
[ FRAME 4 ]
[ FRAME 5 ]
[ FRAME 6 ]
[ FRAME 7 ]
[ FRAME 8 ]
[ FRAME 9 ]
Downloaded From camera-usermanual.com Samsung Manuals
《41》
Sharpness
■ You can adjust the sharpness of the picture you want to
take. You cannot check the sharpness effect on the LCD
monitor before you take a picture, because this function is
applied only when the captured image is stored on the
memory.
◀
▶
NOR
2048
SHARPNESS
SOFT
NORMAL
VIVID
[ PROGRAM mode ]
Sub menu
SOFT
NORMAL
Icon
Description
The edges of the image are softened.
This effect is suitable for editing images on your PC.
The edges of the image are sharp.
This is suitable for printing.
The edges of the image are emphasized. The edges will
VIVID
appear sharp, but noise may occur in the recorded image.
Downloaded From camera-usermanual.com Samsung Manuals
《42》
Save / Load the camera configuration (MYSET)
■ Use the MYSET mode to save frequently used camera settings (SAVE) and use it later
(LOAD)
● Saving the camera configuration: Available in the PROGRAM mode.
1. Press the MENU button and select [MYSET] menu by
pressing the LEFT/RIGHT button.
2. Press the UP/DOWN buttons to select the [SAVE] menu
and press the right button.
3. Press the UP/DOWN buttons to select desired MYSET
slot number to save.
4. Press the OK button to save the current configuration in
the selected MYSET slot.
◀
▶
2048
MYSET
CANCEL
MYSET
LOAD
SAVE
MOVE:
▲
▼
CHANGE:▶
[ PROGRAM mode ]
● Loading the saved camera configuration: available in the PROGRAM mode.
1. Press the MENU button and select [MYSET] menu by
◀
pressing the LEFT/RIGHT button.
2048
2. Press the UP/DOWN buttons to select the [LOAD] menu
MYSET
and press the right button.
CANCEL
LOAD
MYSET
SAVE
3. Press the UP/DOWN buttons to select desired MYSET
slot number to load.
MOVE: ▲
CHANGE:▶
▼
4. Press the OK button to set the camera configuration as
[ PROGRAM mode ]
saved in the MYSET slot.
* The current MYSET slot number is displayed in the top
left of the LCD.
* If you select [CANCEL] in the [LOAD] menu or turn on and off the camera in the MYSET
mode, the MYSET mode will be cancelled.
Downloaded From camera-usermanual.com Samsung Manuals
▶
《43》
LCD monitor indicator
■ The LCD monitor displays information about the shooting conditions.
①
100-0009
②
⑦
③
④
⑤
⑥
No.
Description
Icon
Page
1
Battery
2
Play mode
3
File Type
4
Voice memo
p.48
5
Protect indicator
p.58
6
DPOF indicator
p.59
7
Stored image number
p.14
100-0009
■ If you press the LCD button, you can check the following recording information:
100-0009
SIZE
AV
TV
FLASH
DATE
:
:
:
:
:
2272X1704
F3.5
1/18
OFF
2005/03/01
SIZE
: 2272X1704
Size
AV
: F3.5
Aperture value
TV
: 1/18
Shutter speed
FLASH
: OFF
Whether or not the
DATE
: 2005/03/01
flash is used.
Downloaded From camera-usermanual.com Samsung Manuals
《44》
Recording date
Starting play mode
■ If the memory card is inserted in the camera, all the camera functions apply only to the
memory card.
■ If the memory card is not inserted in the camera, all the camera functions apply only to the
internal memory.
■ If you have turned on the camera by pressing the POWER button, you can press the PLAY
MODE button once to switch to Play mode and press it again to switch to Recording mode.
■ You can set up the PLAY mode function by using the camera buttons and LCD monitor.
● Playing back a still image
1. Select the PLAY mode by pressing the play
mode button (
).
2. The last image stored on the memory is
displayed on the LCD monitor.
3. Select an image that you want to play back by
pressing the LEFT / RIGHT button.
※ Press and hold the LEFT or RIGHT button to
fast forward the images played.
INFORMATION
● Press the shutter button in Play mode to switch to the currently set shooting mode.
● The OK button written in this manual means the MENU button.
Downloaded From camera-usermanual.com Samsung Manuals
《45》
Starting play mode
● Playing back a movie clip
Steps from 1-2 are the same as those to play back a still
image.
3. Select the recorded movie clip that you want to play back
by using the LEFT/RIGHT button. If you select a movie
clip, the movie clip indicator (
) will be displayed on
the LCD monitor.
4. Press the play & pause button (
) to play back a
movie clip file.
- To pause a movie clip file while playing it back, press the
play & pause button again.
- Pressing the play & pause button again will cause the
movie clip file will restart.
- To rewind the movie clip while it is playing, press the
LEFT button. To fast forward the movie clip, press the
RIGHT button.
- To stop playback of the movie clip, press the play & pause button, and then press the
LEFT or RIGHT button.
● Playing back a recorded voice
In order to play back voice files recorded with the camera,
the camera must be connected to your PC (See p.95).
Your PC must have a sound card and speakers installed.
Please be sure to install the camera driver before
connecting the camera to your PC.
1. Connect the camera to your PC.
2. Open Windows Explorer and open the
DICM/100SSCAM folder of the Removable Drive.
3. Select a voice file (*.wav).
4. Right-click and select [Copy].
5. Select the folder on your PC to which you want to save
the file, right-click, and select [Paste].
6. Click on the file you just saved. The player will appear on
the left side of the Explorer window.
7. Click on the Play button to play back the voice file.
* The method of playing back voice memos added to still
images is the same as the method of playing back voice
files.
Downloaded From camera-usermanual.com Samsung Manuals
《46》
[ Play Button ]
Using the camera buttons to adjust the camera
■ In Play mode, you can use the buttons on the camera to conveniently set up the Play mode
functions.
Thumbnail(
) / Enlargement(
) button
● You can view multiple pictures, enlarge a selected picture, and crop and save a selected area
of an image.
● Thumbnail display
1. While an image is displayed full screen, press the
thumbnail button.
2. The thumbnail display will highlight the image that had
been showing at the time the thumbnail mode was
selected.
3. Press the 5 function button to move to a desired image.
4. To view an image separately, press the enlargement
button.
100-0009
Pressing the thumbnail
button(
)
Pressing the enlargement
button(
)
Highlighted image
[ Normal display mode ]
◀▶ : MOVE
: DELETE
[ Thumbnail display mode ]
● Image enlargement
1. Select an image that you want to enlarge and press the enlargement button.
2. Different parts of the image can be viewed by pressing
the 5 function button.
3. Pressing the thumbnail button will zoom back to the
original full sized image.
- You can tell whether the image displayed is an
enlarged view by checking the image enlargement
indicator shown at the bottom left of the LCD monitor.
(If the image is not an enlarged view, the indicator will
not be displayed.) You can also check the area of
enlargement.
- Movie clips and WAV files can’t be enlarged.
- If an image is enlarged, a loss of quality may occur.
Downloaded From camera-usermanual.com Samsung Manuals
《47》
Thumbnail(
) / Enlargement(
) button
● The maximum enlargement rate in proportion to the image size.
Image size
2272
2048
1600
1024
640
Maximum enlargement rate
X7.0
X5.0
X3.0
X2.0
X2.0
● Trimming : You can extract part of the image that you want
and save it separately.
TRIMMING?
1. Select an image that you want to enlarge and press the
TRIM
CANCEL
enlargement button.
CONFIRM : OK
2. Different parts of the image can be viewed by pressing
the 5 function button.
3. Press the MENU button and a message will be
displayed as shown alongside.
4. Select the submenu values by pressing the UP/DOWN button and then press the OK
button.
TRIM
: trimmed images are saved in their last file names.
CANCEL : cancels trimming.
※ If there is little memory space to save the trimmed image, the image can’t be trimmed.
Voice (
) memo / Up button
■ When the menu is displayed on the LCD monitor, pressing the UP button makes the menu
cursor move up.
■ When the menu is not displayed on the LCD monitor, the UP button operates as the voice
memo button. You can add your audio to a stored still image.
● Adding a Voice Memo to a Still Image
1. Press the LEFT/ RIGHT button to select an image that
you wish to add sound to.
2. Press the voice memo button (
) and the voice memo
indicator will display. The camera is now ready to record
a voice memo.
Downloaded From camera-usermanual.com Samsung Manuals
《48》
STANDBY
START:SHUTTER
Voice (
) memo / Up button
3. Press the shutter button to start recording and voice will
be recorded to the still image for 10 seconds.
While the voice is recording, the recording status
window will be displayed as shown alongside.
STOP:SHUTTER
4. The recording can be stopped by pressing the shutter
button again.
REC
5. The (
) icon will be displayed on the LCD monitor
after voice memo recording has finished.
- Voice memos can’t be recorded onto movie clip files.
- A distance of 40cm between you and the camera
(microphone) is the best distance to record sound.
- The voice memo will be saved in *.wav format, but has
the same file name as the still image to which it
corresponds.
- If you add a new voice memo to the still image that already has a voice memo, the
existing voice memo will be erased.
Play & Pause (
) / Down button
■ In play mode, the play & pause/ down button works as follows:
- If the menu is displayed
Press the DOWN button to move from the main menu to a sub menu, or to move down the
sub menu cursor.
- If a movie clip is playing
In Stop mode
: Plays a movie clip
During playback : Temporarily stops playback
In Pause mode : Resumes playback
[ Movie clip is stopped ]
[ Movie clip is playing ]
Downloaded From camera-usermanual.com Samsung Manuals
[ Movie clip is paused ]
《49》
LEFT/ RIGHT/ MENU/ OK button
■ LEFT / RIGHT/ MENU/ OK buttons activate the following.
- LEFT button
: While the menu is showing, press the LEFT button to select the menu
tab to the left of the cursor.
- RIGHT button
: While the menu is showing, press the RIGHT button to select the menu
tab to the right of the cursor, or to move an secondary menu.
- MENU button
: When you press the MENU button, the play mode menu will be
displayed on the LCD monitor. Pressing it again will return the LCD to
the initial display.
- OK button
: When the menu is displayed on the LCD monitor, the OK button is used
for confirming data that is changed by using the 5 function button.
LCD (
) button
■ The shooting information will be displayed on the LCD monitor.
The last image stored in the memory is displayed on
the LCD monitor by pressing the play mode button.
Pressing the LCD(
) button in the PLAY mode
will change the display as shown below. [Image &
Icons] → [Image & Information] → [Image only]
Pressing the
LCD button
[ Image & Icons ]
SIZE :
AV :
TV :
FLASH :
DATE :
2272X1704
F3.5
1/18
OFF
2005/03/01
Pressing the
LCD button
[ Image & Information ]
Pressing the LCD button
Downloaded From camera-usermanual.com Samsung Manuals
《50》
[ Image only ]
Delete(
) button
■ This deletes images stored on the memory card.
● Deleting Images in Play Mode
1. Select an image that you want to delete by pressing the
LEFT / RIGHT button and press the DELETE(
)
button.
2. A message will display as shown alongside on the LCD
monitor.
3. Select the submenu values by pressing the UP/DOWN
button and then press the OK button.
If [DELETE] is selected : deletes the selected images.
If [CANCEL] is selected : cancels "Delete Image"
100-0009
DELETE?
DELETE
CANCEL
CONFIRM : OK
● Deleting Images in Thumbnail Display Mode
1. Use the UP, DOWN, LEFT, and RIGHT buttons to select the image you want to delete,
and then press the DELETE button.
2. The following message will be displayed on the LCD monitor.
Press the
DELETE
button.
◀▶ : MOVE
: DELETE
DELETE?
DELETE
CANCEL
CONFIRM : OK
◀▶ : MOVE
: DELETE
3. Select the submenu values by pressing the UP/DOWN button and then press the OK
button.
If [DELETE] is selected : deletes the selected images.
If [CANCEL] is selected : cancels "Delete Image"
INFORMATION
● Before deleting images from the camera, you should protect or download images to your
computer that you wish to keep.
Downloaded From camera-usermanual.com Samsung Manuals
《51》
Setting up the play back function using the LCD monitor
■ PLAY mode functions can be changed by using the LCD monitor. In the PLAY mode,
pressing the MENU button displays the menu on the LCD monitor. The menus you can set
up in Play mode are as follows. To capture an image after setting up the play menu, press
the PLAY button or shutter button.
■ The OK button written in this manual means the MENU button.
Menu tab
Main menu
SLIDE
Sub menu
Secondary menu
INTERVAL
1, 3, 5, 10SEC
REPEAT
OFF / ON
Page
p.55
START
ROTATE
RESIZE
RIGHT90
-
LEFT90
-
180
-
HORIZONTAL
-
VERTICAL
-
2048X1536
-
1600X1200
-
1024X768
-
640X480
-
LOGO
-
ONE PIC
UNLOCK / LOCK
ALL PICS
UNLOCK / LOCK
NO
-
YES
-
STANDARD
ONE PIC/ ALL PICS
INDEX
NO/ YES
SIZE
DEFAULT/3X5/4X6/5X7/8X10
CANCEL
STANDARD/INDEX/SIZE
NO
-
YES
-
PROTECT
DELETE ALL
p.57
p.58
p.59
DPOF
COPY TO CARD
Downloaded From camera-usermanual.com Samsung Manuals
《52》
p.56
p.59
~ p.61
p.62
Setting up the play back function using the LCD monitor
■ This menu is available while the camera is connected to a PictBridge supporting printer
(direct connection to the camera, sold separately) with a USB cable.
Menu tab
Main menu
IMAGES
Sub menu
Secondary menu
ONE PIC
-
ALL PICS
-
STANDARD
-
INDEX
-
NO
-
YES
-
NO
-
YES
-
Page
p.64
p.65
PRINT
p.65
DPOF PRINT
AUTO SET
p.66
AUTO
POSTCARD
4X6
SIZE
2L
A4
LETTER
A3
AUTO
CUSTOM SET
p.66
INDEX
FULL
1
LAYOUT
2
4
6
8
Downloaded From camera-usermanual.com Samsung Manuals
《53》
Setting up the play back function using the LCD monitor
Menu tab
Main menu
Sub menu
Secondary menu
Page
AUTO
PLAIN
TYPE
FAST PHO.
AUTO
DRAFT
QUALITY
NORMAL
CUSTOM SET
p.66
FINE
AUTO
DATE
OFF
ON
AUTO
FILE NAME
OFF
ON
NO
-
YES
-
RESET
p.67
※ Menus are subject to change without prior notice.
Downloaded From camera-usermanual.com Samsung Manuals
《54》
Starting the slide show
■ Images can be displayed continuously at pre-set intervals.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [SLIDE]
menu tab.
● Setting play interval: Set the slide show play interval.
1. Use the Up/Down buttons to select the [INTERVAL] menu
and press the Right button.
2. Use the Up/Down buttons to select the desired interval.
3. Press the OK button to save the configuration.
◀
▶
2048
SLIDE
INTERVAL
REPEAT
START
EXIT:MENU
1 SEC
ON
▲
MOVE: ▼
● Repeat setting : Repeat or not the slide show after finishing
the first cycle.
1. Use the Up/Down buttons to select the [REPEAT] menu and press the Right button.
2. Use the Up/Down buttons to select the desired sub menu.
[OFF] Selected : The slide show is closed after one cycle.
[ON] selected : The slide show is repeated until cancelled.
3. Press the OK button to save the configuration.
● Start the slide show: The slide show can start only in the [START] menu.
1. Use the Up/Down buttons to select the [START] menu.
2. Press the OK button to start the slide show.
- Press the Pause button to pause the slide show.
- Press the Pause button (
) again to resume the slide show.
- Press the Menu button to stop the slide show.
INFORMATION
● The loading time depends on the image size and quality.
● While the slide show is playing, only the first frame of a movie file is displayed.
In case of a voice file, the voice recording icon will appear.
Downloaded From camera-usermanual.com Samsung Manuals
《55》
Rotating an image
■ You can rotate the stored images by various degrees.
◀
▶
2048
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the
[ROTATE] menu tab.
3. Select a desired sub menu by pressing the UP/ DOWN
button.
[RIGHT 90] :
Rotate picture in a clock-wise
direction
[LEFT 90] :
Rotate picture in a counterclock-wise direction
[HORIZONTAL] :
Rotate picture horizontally
ROTATE
RIGHT90
LEFT90
180
EXIT:MENU
▲
MOVE: ▼
[180] :
Rotate picture 180 degrees
[VERTICAL] :
Rotate picture vertically
4. Press the OK button. The rotated image will be saved with a new file name and the menu will
disappear. If you display the rotated image on the LCD monitor, empty spaces may appear to
the left and right of the image.
Downloaded From camera-usermanual.com Samsung Manuals
《56》
Resize
■ Change the resolution (size) of pictures taken. Select [LOGO] to save an image to be the
start-up image. The resized image will have a new file name.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [RESIZE]
menu tab.
◀
3. Select a desired sub menu by pressing the UP/ DOWN
2048
button and press the OK button.
RESIZE
▶
2048X1536
1600X1200
1024X768
EXIT:MENU
▲
MOVE: ▼
● Image Resize Types
Resize
2048X
1536
1600X
1200
1024X
768
640X
480
LOGO
2272
O
O
O
O
O
2048
X
O
O
O
O
1600
X
X
O
O
O
1024
X
X
X
O
O
640
X
X
X
X
O
INFORMATION
● A large sized image can be resized to a smaller sized image, but not vice versa.
● Only JPEG images can be resized. MOVIE and WAV files can’t be resized.
● You can change the resolution of only those files compressed in the JPEG 4:2:2 format.
● The resized image will have a new file name. The [LOGO] image is stored not on the
memory card but on the internal memory.
● Only one [LOGO] image can be saved. If you save a new [LOGO] image, the existing
startup image will be deleted.
● If the memory capacity is insufficient to store the resized image, a [CARD FULL!]
message will display on the LCD monitor and the resized image will not be stored.
Downloaded From camera-usermanual.com Samsung Manuals
《57》
Protecting images
■ This is used to protect specific shots from being accidentally erased (LOCK).
It also unprotects images that have been previously protected (UNLOCK).
● Protecting Images
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the
[PROTECT] menu tab.
3. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[ONE PIC] : Only an image that is displayed on the
LCD monitor is protected or unprotected.
[ALL PICS] : All of the stored images are protected or
unprotected.
4. Select the desired secondary menu by pressing the
UP/DOWN button and press the OK button.
[UNLOCK] : Cancels the protect function.
[LOCK]
: Sets up the protect function.
- If you select the[ONE PIC] sub menu at step 3, you can
protect or unprotect another image by pressing the
LEFT/ RIGHT button. If you press the SHUTTER
button, the Image Protection menu will disappear.
- If you selected [ALL PICS] in Step 3, the Image
Protection menu will disappear.
- If you protect an image, the protect icon(
) will be
displayed on the LCD monitor.
(An unprotected image has no indicator)
- An image in LOCK mode will be protected from
[DELETE] or [DELETE ALL] functions, but will NOT be
protected from the [FORMAT] function.
◀
▶
2048
PROTECT
ONE PIC
ALL PICS
▲
EXIT:MENU
MOVE: ▼
100-0009
▲
UNLOCK
▼
EXIT:SH
MOVE PIC:◀▶
100-0009
▲
LOCK
▼
EXIT:SH
MOVE PIC:◀▶
Downloaded From camera-usermanual.com Samsung Manuals
《58》
SET:OK
SET:OK
Deleting all images
■ Of all the files stored in the memory card, the unprotected files in the DCIM subfolder will be
deleted. Remember that this will permanently delete unprotected images. Important shots
should be stored on a computer before deletion takes place. The startup image is stored in
the camera's internal memory (i.e., not on the memory card) and it will not be deleted even if
you delete all files on the memory card.
● Deleting all images
1. Press the play mode button and press the menu button.
◀
▶
2. Press the LEFT/ RIGHT button and select the [DELETE
2048
ALL] menu tab.
DELETE ALL
3. Select a desired sub menu by pressing the UP/ DOWN
NO
YES
button and press the OK button.
Selecting [NO] : Cancels “Delete All”
▲
EXIT:MENU
MOVE: ▼
Selecting [YES] : Displays the dialogue box to confirm
the delete.
- If [DELETE] is selected : press the OK button and all unprotected pictures are deleted.
- If [CANCEL] is selected : press the OK button and images are not deleted.
DPOF
■ DPOF(Digital Print Order Format) allows you to embed printing information on your memory
card’s MISC folder. Select the pictures to be printed and how many prints to make.
■ The DPOF indicator will display on the LCD monitor when an image that has DPOF
information plays back. Images can then be printed on DPOF printers, or at an increasing
number of photo labs.
■ This function is not available for Movie clips and Voice recording files.
■ When this menu is selected without inserting a memory card, you can't select the [DPOF] sub
menu.
Downloaded From camera-usermanual.com Samsung Manuals
《59》
DPOF : STANDARD
■ This function allows you to embed print quantity information on a stored image.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [DPOF]
menu tab.
3. Select the [STANDARD] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Use the UP and DOWN buttons to select [ONE PIC] or
[ALL PICS], and then press the OK button. A window for
selecting number of copies.
[ONE PIC] : Set the number of copies to print for the
current picture only.
[ALL PICS] : Set the number of copies to print for each
picture, excluding movie clips and voice
recordings.
5. Use the UP and DOWN buttons to select the number of
copies and then press the OK button.
- The DPOF icon (
) will appear by the pictures for
which the number of copies to print is set.
◀
▶
2048
DPOF
STANDARD
INDEX
SIZE
ONE PIC
ALL PICS
BACK:◀
SET:OK
100-0009
▲
00 PRINTS
▼
EXIT:SH
MOVE PIC:◀▶
SET:OK
DPOF : INDEX
■ Images (except for movie clips and voice file) are printed as index type.
1. Press the play mode button and press the menu button.
◀
2. Press the LEFT/ RIGHT button and select the [DPOF]
2048
menu tab.
DPOF
STANDARD
NO
3. Select the [INDEX] menu by pressing the UP/ DOWN
INDEX
YES
button and press the RIGHT button.
SIZE
4. Select a desired sub menu by pressing the UP/ DOWN
BACK:◀
SET:OK
button.
If [NO] is selected : The image will not be printed in
index format.
If [YES] is selected : The image will be printed in index format.
5. Press the OK button to confirm the setting.
Downloaded From camera-usermanual.com Samsung Manuals
《60》
▶
DPOF : PRINT SIZE
■ You can specify the print size when printing images stored on the memory card.
The [SIZE] menu is available only for DPOF 1.1 compatible printers.
● Setting the Print Size
1. Press the play mode button and press the menu button.
◀
▶
2. Press the LEFT/ RIGHT button and select the [DPOF]
2048
menu tab.
DPOF
3. Select the [SIZE] menu by pressing the UP/ DOWN button
STANDARD
DEFAULT
INDEX
3X5
and press the RIGHT button.
SIZE
4X6
4. Select a desired sub menu by pressing the UP/ DOWN
BACK:◀
SET:OK
button and press the OK button.
* SIZE : DEFAULT, 3X5, 4X6, 5X7, 8X10
* The [DEFAULT] print size varies depending on the printer manufacturer.
For your printer's default value, please refer to the user's guide that came with your printer.
DPOF : CANCEL
■ You can cancel the [STANDARD], [INDEX], or [SIZE] settings. Cancel the setting to reset the
value to its default.
1. Press the play mode button and press the menu button.
◀
▶
2. Press the LEFT/ RIGHT button and select the [DPOF]
2048
menu tab.
DPOF
3. Select the [CANCEL] menu by pressing the UP/ DOWN
INDEX
STANDARD
SIZE
INDEX
button and press the RIGHT button.
CANCEL
SIZE
4. Select a desired sub menu by pressing the UP/ DOWN
BACK:◀
SET:OK
button.
If [STANDARD] is selected : Cancels the standard print setting.
If [INDEX] is selected
: Cancels the index print setting.
If [SIZE] is selected
: Cancels the print size setting.
5. Press the OK button to confirm the setting.
Downloaded From camera-usermanual.com Samsung Manuals
《61》
COPY TO CARD
■ This enables you to copy image files to the memory card.
● Copying to the Memory Card
1. Press the play mode button and press the menu button.
◀
▶
2. Select the [COPY TO CARD] menu tab by pressing the
2048
LEFT/ RIGHT button.
COPY TO CARD
3. Select a desired sub menu by pressing the UP/ DOWN
NO
YES
button and press the OK button.
- [NO] : Cancels "COPY TO CARD".
EXIT:MENU
MOVE: ▲
▼
- [YES] : All images saved in the internal memory are
copied to the memory card after the [PLEASE
WAIT!] message is displayed. After copying
has been completed, the screen will return to play mode.
INFORMATION
● When this menu is selected without inserting a memory card, you can't select the
[COPY TO CARD] sub menus.
● If there is not enough space available in the memory card to copy saved images in the
internal memory (16MB), the [COPY TO CARD] command will copy only some of the
images and display [CARD FULL!] message. Then the system will return to the playback
mode. Please be sure to delete any unnecessary images to free up space before
inserting the memory card into the camera.
● When you move the images that are stored in the internal memory by doing [COPY TO
CARD] to the card, 101SSCAM folder will be created in the card to avoid duplication of
the sub folder name. Whenever you carry out the [COPY TO CARD] function, the number
of SSCAM folder increases. (Ex : 100SSCAM, 101SSCAM, 102SSCAM, 103SSCAM...)
After completing [COPY TO CARD], the last stored image of the last copied folder is
displayed on the LCD monitor. When you take an image, the image is stored in the last
copied folder.
Downloaded From camera-usermanual.com Samsung Manuals
《62》
PictBridge
■ You can use the USB cable to connect this camera to a printer that supports PictBridge (sold
separately) and print the stored images directly. Movie clips and voice files cannot be printed.
You can set up the following settings from the PictBridge menu.
IMAGES
: Select the pictures to be printed.
PRINTER SETUP
: Setting up printing(AUTO SET/CUSTOM SET)
PRINT
: Printing pictures
DPOF PRINT
: Printing the DPOF files
RESET
: Initializing the PictBridge functions
● Connecting the Camera to a Printer
1. Press the power button to turn the camera power on.
2. In a mode other than Voice Recording mode, press the
◀
▶
MENU button.
2048
3. Press the LEFT/ RIGHT button and select [SETUP]
SETUP
menu tab.
IMPRINT
COMPUTER
BEEP
4. Select [USB] menu by pressing the UP/ DOWN button
PRINTER
USB
and press the RIGHT button.
BACK:◀
SET:OK
5. Select [PRINTER] menu by pressing the UP/ DOWN
button and press the OK button.
6. Press the menu button twice and the menu will disappear.
7. Use the supplied USB cable to connect the camera to the printer as shown below.
8. Turn on the printer to connect the camera to the printer.
※ If you selected [COMPUTER] in Step 5, when you connect the camera to your printer, the
camera status lamp(Green) will illuminate and the connection will not be established. In this
case, disconnect the USB cable, and then follow the procedure from Step 2 and onward.
Downloaded From camera-usermanual.com Samsung Manuals
《63》
PictBridge: Picture Selection
■ Select pictures to print
1. Connect the camera to your printer. The USB menu must
◀
be set to [PRINTER] before you connect the camera to
the printer.(See p.63)
IMAGES
2. The [IMAGES] menu will appear.
ONE PIC
3. Use the UP and DOWN buttons to select the desired
ALL PICS
submenu value, and then press the OK button.
MOVE: ▲
SET:OK
▼
When [ONE PIC] is selected : The PictBridge function
will be applied only to the
picture currently displayed.
When [ALL PICS] is selected : The PictBridge function will be applied to all pictures,
excluding movie clips and voice files.
▶
● Setting the Number of Copies to Print
- Select [ONE PIC] or [ALL PICS]. A screen where you can set the number of copies to print
will appear as shown below.
00 PRINTS
00 PRINTS
EXIT:SH
MOVE PIC:◀▶
SET:OK
[ When [ONE PIC] is selected ]
EXIT:SH
SET:OK
[ When [ALL PICS] is selected ]
- Press the Up/Down button to select the number of prints. Maximum 30 prints.
- Use the Left/Right button to select another picture and select the number of prints for
another picture.
- After setting the number of prints, press the OK button to save.
- Press the Shutter button to return to the menu without setting the number of prints.
Downloaded From camera-usermanual.com Samsung Manuals
《64》
PictBridge: Printing
■ Printing Pictures
1. Connect the camera to your printer. The USB menu
◀
must be set to [PRINTER] before you connect the
camera to the printer.(See p.63)
PRINT
2. Use the LEFT and RIGHT buttons to select the [PRINT]
STANDARD
menu tab.
INDEX
3. Use the UP and DOWN buttons to select the desired
MOVE: ▲
SET:OK
▼
submenu value, and then press the OK button.
[STANDARD] : Print the pictures stored in the memory
card in set numbers. One picture is printed on one piece of paper.
[INDEX]
: Print multiple images on one sheet of paper.
▶
4. The screen shown on the right will appear and the picture will be printed. If no picture is
selected, the
[NO IMAGE!] message will be displayed. Press the
shutter button while printing to cancel the printing and
the [IMAGES] menu is displayed.
NOW PRINTING
※ Number of pictures in a index print varies depends on
the printer used.
001/001
EXIT:SH
■ DPOF PRINT : This allows you to directly print the files with DPOF information.
1. Connect the camera to your printer. The [USB] menu
must be set to [PRINTER] before you connect the
camera to the printer.(See p.63)
2. Use the LEFT and RIGHT buttons to select the [DPOF
PRINT] menu tab.
3. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
[NO] : Cancel the printing
[YES]: Directly print the file with the DPOF information
◀
▶
DPOF PRINT
NO
YES
MOVE: ▲
▼
SET:OK
※ Depending on the manufacturer and printer model, some menus may not be available.
With a printer without supporting the DPOF, the menu is still displayed but not available.
Downloaded From camera-usermanual.com Samsung Manuals
《65》
PictBridge: Print Setting
■ AUTO SET
1. Connect the camera to your printer. The USB menu
◀
must be set to [PRINTER] before you connect the
camera to the printer.(See p.63)
AUTO SET
2. Use the LEFT and RIGHT buttons to select the
NO
YES
[AUTO SET] menu tab.
3. Use the UP and DOWN buttons to select the desired
MOVE: ▲
SET:OK
▼
submenu value, and then press the OK button.
[NO] : [CUSTOM SET] values are kept.
[YES]: All values in the [CUSTOM SET] are automatically changed.
▶
■ CUSTOM SET : You can select the Paper Size, Print Format, Paper Type, Print Quality,
Date Print, and File Name Print menus for printed pictures.
1. Connect the camera to your printer. The [USB] menu
must be set to [PRINTER] before you connect the
camera to the printer.(See p.63)
2. Use the LEFT and RIGHT buttons to select the
[CUSTOM SET] menu tab.
3. Use the UP and DOWN buttons to select the desired
submenu value, and then press the RIGHT button.
4. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
◀
▶
CUSTOM SET
SIZE
LAYOUT
TYPE
BACK:◀
AUTO
POSTCARD
4x6
SET:OK
● The menus you can set up are as follows:
Menu
SIZE
LAYOUT
TYPE
QUALITY
DATE
FILE NAME
Function
Sub menu
Setting the size of the printing paper
AUTO, POSTCARD, 4X6, 2L, A4, LETTER, A3
Setting the number of pictures to be
printed on a sheet of paper
AUTO, INDEX, FULL, 1, 2, 4, 6, 8
Setting the quality of the printing paper AUTO, PLAIN, PHOTO, FASTPHO.
Setting the quality of the picture to be printed
AUTO, DRAFT, NORMAL, FINE
Setting whether to print the date
AUTO, OFF, ON
Setting whether to print the file name
AUTO, OFF, ON
※ Some menu options are not supported in all manufacturer and printer models.
If not supported, the menus are still displayed in the LCD, but are not selectable.
※ If the setting values are not changed in the automatic/manual setting, the setting values are
automatically kept.
Downloaded From camera-usermanual.com Samsung Manuals
《66》
PictBridge : RESET
■ Initializes user-changed configurations.
1. Connect the camera to your printer. The [USB] menu
◀
must be set to [PRINTER] before you connect the
camera to the printer.(See p.63)
2. Use the LEFT and RIGHT buttons to select the [RESET]
menu tab.
3. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
- If [NO] is selected
: Settings will not be reset.
- If [YES] is selected : All print and image settings will be reset.
▶
RESET
NO
YES
MOVE: ▲
▼
SET:OK
※ Default print setting varies depending on the printer manufacturer.
For your printer’s default setting, refer to the user’s guide that came with your printer.
Downloaded From camera-usermanual.com Samsung Manuals
《67》
Setup menu
■ In this mode, you can set up basic settings.
You can use the setup menu in all camera modes, except Voice Recording mode.
The items indicated by
are default settings.
■ The OK button written in this manual means the MENU button.
Menu tab
Main menu
Sub menu
Secondary menu
Page
RESET
p.69
FILE
SERIES
PWR SAVE
OFF, 1, 3, 5, 7, 10MIN
ENGLISH
p.70
PORTUGUÊS
한국어
FRANÇAIS
DEUTSCH
DANSK
ESPAÑOL
SVENSKA
LANGUAGE
p.71
ITALIANO
P”CCK»…
BAHASA
DUTCH
NO
FORMAT
p.72
YES
DATE
05/03/01
p.73
TIME
13:00
p.73
YY/MM/DD
DATE TYPE
DD/MM/YY
p.74
MM/DD/YY
OFF
IMPRINT
DATE
p.74
D & TIME
OFF
BEEP
p.75
ON
Downloaded From camera-usermanual.com Samsung Manuals
《68》
Setup menu
Menu tab
Main menu
Sub menu
Secondary menu
Page
COMPUTER
p.75
USB
PRINTER
Q.VIEW
OFF, 0.5, 1, 3SEC
p.76
NO
RESET
p.76
YES
* Menus are subject to change without prior notice.
File name
■ This function allows the user to select the file naming format.
● Assigning File Names
1. In any mode with the exception of Voice Recording mode,
◀
▶
press the MENU button.
2048
2. Press the LEFT/ RIGHT button and select the [SETUP]
SETUP
menu tab.
RESET
FILE
SERIES
PWR SAVE
3. Select the [FILE] menu by pressing the UP/ DOWN
LANGUAGE
button and press the RIGHT button.
BACK:◀
SET:OK
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[RESET] : After using the reset function, the next file name will be set from 0001 even
after formatting, deleting all or inserting a new memory card.
[SERIES] : New files are named using numbers that follow the previous sequence, even
when a new memory card is used, or after formatting, or after deleting all
pictures
5. Press the menu button twice and the menu will disappear.
Downloaded From camera-usermanual.com Samsung Manuals
《69》
File name
INFORMATION
● The first stored folder name is 100SSCAM, and the first file name is S4020001.
● File names are assigned sequentially from S4020001 → S4020002 → ~ → S4029999.
● The folder number is assigned sequentially from 100 to 999 as follows: 100SSCAM →
101SSCAM → ~ → 999SSCAM.
● The files used with the memory card conform to the DCF(Design rule for Camera File
systems) format.
Auto power off
■ This function switches the camera off after a set amount of time in order to prevent
unnecessary battery drainage.
● Setting Power Off
1. In any mode with the exception of Voice Recording mode,
◀
▶
press the MENU button.
2048
2. Press the LEFT/ RIGHT button and select the [SETUP]
SETUP
menu tab.
1 MIN
FILE
3 MIN
PWR SAVE
3. Select the [PWR SAVE] menu by pressing the UP/
5 MIN
LANGUAGE
DOWN button and press the RIGHT button.
BACK:◀
SET:OK
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
Selecting [OFF]
: The power off function will not operate.
[1, 3, 5, 7, 10 MIN] : The power will turn off automatically if not used for the period of time
specified.
5. Press the menu button twice and the menu will disappear.
INFORMATION
● Even if the batteries are removed and inserted again, the power off setting will be
preserved.
● Note that the automatic power off function will not operate if the camera is in PC mode,
slide show, playing back a movie clip.
Downloaded From camera-usermanual.com Samsung Manuals
《70》
Language
■ There is a choice of languages that can be displayed on the LCD monitor. Even if the
batteries are removed and inserted again, the language setting will be preserved.
● Setting Language
1. In any mode with the exception of Voice Recording mode,
◀
press the MENU button.
2048
2. Press the LEFT/ RIGHT button and select the [SETUP]
SETUP
menu tab.
ENGLISH
FILE
한국어
PWR SAVE
3. Select the [LANGUAGE] menu by pressing the UP/
FRANÇAIS
LANGUAGE
DOWN button and press the RIGHT button.
BACK:◀
SET:OK
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
LANGUAGE sub menu
English, Korean, French, German, Spanish, Italian, S. Chinese, T. Chinese, Japanese,
Russian, Portuguese, Dutch, Danish, Swedish, Finnish, Thai, BAHASA(MALAY/
INDONISIA) and Arabic.
5. Press the menu button twice and the menu will disappear.
Downloaded From camera-usermanual.com Samsung Manuals
▶
《71》
Formatting a memory card
■ This is used for formatting the memory card. If you run [FORMAT] on the memory card, all
images, including the protected images, will be deleted. Be sure to download important
images to your PC before formatting the memory card.
■ If the memory card is not inserted, the internal memory will be formatted.
● Formatting a Memory Card
1. In any mode other than Voice Recording mode, press the
◀
▶
MENU button.
2048
2. Press the LEFT/ RIGHT button and select the [SETUP]
SETUP
menu tab.
PWR SAVE
NO
LANGUAGE
3. Select the [FORMAT] menu by pressing the UP/ DOWN
YES
FORMAT
button and press the RIGHT button.
BACK:◀
SET:OK
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [NO] is selected : The memory card will not be formatted.
Press the menu button twice and the menu display will disappear.
If [YES] is selected : A confirmation window will display. Select the [FORMAT] menu by
pressing the UP/DOWN button and press the OK button. A [PLEASE
WAIT!] message appears and the memory card will be formatted. If
you ran FORMAT in Play mode, a [NO IMAGE!] message will
appear.
INFORMATION
● Be sure to run [FORMAT] on the following types of memory card.
- A new memory card, or an unformatted memory card.
- A memory card that has a file this camera can’t recognize or one that has been taken
from another camera.
● Always format the memory card using this camera. If you insert a memory card that has
been formatted using other cameras, memory card readers, or PCs, you will get a [CARD
ERROR!] message.
Downloaded From camera-usermanual.com Samsung Manuals
《72》
Setting up the Date
■ You can change the date that will be displayed on the captured images.
● Setting Date
1. In any mode with the exception of Voice Recording mode,
◀
▶
press the MENU button.
2048
2. Press the LEFT/ RIGHT button and select the [SETUP]
SETUP
menu tab.
▲
LANGUAGE
2005/03/01
3. Select the [DATE] menu by pressing the UP/ DOWN
FORMAT
▼
DATE
button and press the RIGHT button.
BACK:◀
SET:OK
4. Use the UP, DOWN, LEFT, and RIGHT buttons to select
the desired submenu value, and then press the OK
button.
RIGHT button : Selects the year / month / day.
LEFT button : Moves the cursor to the [DATE] main menu if the cursor is at the first item of
the date setup. In all other cases, the cursor will be shifted to the left of its
current position.
UP and DOWN buttons : Changes the setting value.
5. Press the menu button twice and the menu will disappear.
Setting up the Time
■ You can change the time that will be displayed on the captured images.
● Setting Time
1. In any mode with the exception of Voice Recording mode,
◀
▶
press the MENU button.
2048
2. Press the LEFT/ RIGHT button and select the [SETUP]
SETUP
menu tab.
▲
FORMAT
DATE
13:00
3. Select the [TIME] menu by pressing the UP/ DOWN
▼
TIME
button and press the RIGHT button.
BACK:◀
SET:OK
4. Use the UP, DOWN, LEFT, and RIGHT buttons to select
the desired submenu value, and then press the OK
button.
RIGHT button : Selects the hour/ minute.
LEFT button : Moves the cursor to the [TIME] main menu if the cursor is at the first item of
the time setup. In all other cases, the cursor will be shifted to the left of its
current position.
UP and DOWN buttons : Changes the setting value.
5. Press the menu button twice and the menu will disappear.
Downloaded From camera-usermanual.com Samsung Manuals
《73》
Date type
■ You can change the date type that will be displayed on the captured images.
● Setting up the Date type
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [DATE TYPE] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
- Date type : [YY/MM/DD] / [MM/DD/YY] / [DD/MM/YY]
5. Press the menu button twice and the menu will disappear.
◀
▶
2048
SETUP
DATE
TIME
DATE TYPE
BACK:◀
YY/MM/DD
MM/DD/YY
DD/MM/YY
SET:OK
Imprinting the recording date
■ There is an option to include DATE/ TIME on still images.
● Date Imprinting
1. In any mode with the exception of Voice Recording mode,
◀
press the MENU button.
2048
2. Press the LEFT/ RIGHT button and select the [SETUP]
SETUP
menu tab.
OFF
TIME
DATE
DATE TYPE
3. Select the [IMPRINT] menu by pressing the UP/ DOWN
D & TIME
IMPRINT
button and press the RIGHT button.
BACK:◀
SET:OK
4. Use the UP and DOWN buttons to select the desired date
imprint type, and then press the OK button.
[OFF]
: The DATE & TIME will not be imprinted on the image file.
[DATE]
: Only the DATE will be imprinted on the image file.
[D&TIME] : The DATE & TIME will be imprinted on the image file.
5. Press the menu button twice and the menu will disappear.
INFORMATION
● The Date & Time are imprinted at the bottom right side of the still image.
● The date will be imprinted as a DATE TYPE setting.
● TIME is imprinted in the following way : [Hour : Minute : Second] and hours are shown
using the 24 hour clock.
● The imprint function is applied only to still images.
Downloaded From camera-usermanual.com Samsung Manuals
《74》
▶
Beep
■ If you set the operation sound to ON, various sounds will be activated for camera startup,
when button are pressed, and if there is a card error, so that you can be aware of the camera
operation status.
● Setting Operation Sounds
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [BEEP] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[BEEP] sub menu : OFF/ON
5. Press the menu button twice and the menu will disappear.
◀
▶
2048
SETUP
DATE TYPE
IMPRINT
BEEP
BACK:◀
OFF
ON
SET:OK
Selecting an External Device (USB)
■ You can select an external device to which you want to connect the camera using the USB cable.
● Selecting an External Device
1. In any mode with the exception of Voice Recording mode,
◀
▶
press the MENU button.
2048
2. Press the LEFT/ RIGHT button and select the [SETUP]
SETUP
menu tab.
IMPRINT
COMPUTER
BEEP
3. Select the [USB] menu by pressing the UP/ DOWN button
PRINTER
USB
and press the RIGHT button.
BACK:◀
SET:OK
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[COMPUTER] : Select this if you want to connect the camera to your PC.
Refer to page 95 for instructions on how to connect the camera to your
PC.
[PRINTER]
: Select this if you want to connect the camera to your printer.
Refer to page 63 for instructions on how to connect the camera to your
printer.
5. Press the menu button twice and the menu will disappear.
Downloaded From camera-usermanual.com Samsung Manuals
《75》
Quick view
■ If you enable Quick View before capturing an image, you can view the image you just
captured on the LCD monitor for the duration set in the [Q.VIEW] setup. Quick view is
possible only with still images.
● Setting Quick View
1. In any mode with the exception of Voice Recording mode, ◀
press the MENU button.
2048
2. Press the LEFT/ RIGHT button and select the [SETUP]
SETUP
OFF
BEEP
menu tab.
0.5 SEC
USB
3. Select the [Q.VIEW] menu by pressing the UP/ DOWN
1 SEC
Q.VIEW
button and press the RIGHT button.
BACK:◀
SET:OK
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[OFF]
: The quick view function can’t be activated.
[0.5, 1, 3 SEC] : The captured image is briefly displayed during the selected time.
5. Press the menu button twice and the menu will disappear.
▶
Initialization(RESET ALL)
■ All camera menu and function settings will be restored to their default values.
However, values for DATE/TIME and LANGUAGE will not be changed.
● Initializing the Camera
1. In any mode with the exception of Voice Recording mode,
◀
press the MENU button.
2048
2. Press the LEFT/ RIGHT button and select the [SETUP]
SETUP
menu tab.
USB
NO
Q.VIEW
3. Select the [RESET] menu by pressing the UP/ DOWN
YES
RESET
button and press the RIGHT button.
SET:OK
BACK:◀
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [NO] is selected : Settings will not be restored to their defaults.
If [YES] is selected : All settings will be restored to their defaults.
5. Press the menu button twice and the menu will disappear.
Downloaded From camera-usermanual.com Samsung Manuals
《76》
▶
Setting up the MYCAM menu
■ You can set up a start up image and start up sound. Every camera working mode (with the
exception of Voice recording mode) has the MyCAM menu.
The items indicated by
are default settings.
Menu tab
Main menu
Sub menu
Page
OFF
IMAGE 1
IMAGE 2
USER IMAGE
OFF
ON
p.77
S.IMAGE
S.BEEP
p.78
* Menus are subject to change without prior notice.
Start up image
■ You can select the image that is first displayed on the LCD monitor whenever the camera is
turned on.
● Setting a Startup Image
1. In any mode with the exception of Voice Recording mode, ◀
▶
press the MENU button.
2048
2. Press the LEFT/ RIGHT button and select the [MYCAM]
MYCAM
S.IMAGE
menu tab.
S.BEEP
3. Select the [S.IMAGE] menu by pressing the UP/ DOWN
button and press the RIGHT button.
BACK:◀
SET:OK
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
5. Press the menu button twice and the menu will disappear.
INFORMATION
● Use a saved image for the start-up image with the [LOGO] in the [RESIZE] menu in the
play mode.
● The start-up image will not be deleted by deleting all images or [FORMAT] menu.
Downloaded From camera-usermanual.com Samsung Manuals
《77》
Start up sound
■ You can select the sound that is activated whenever the
camera is turned on.
● Setting the Startup Sound
1. In any mode with the exception of Voice Recording mode, ◀
press the MENU button.
2048
2. Press the LEFT/ RIGHT button and select the [MYCAM]
MYCAM
OFF
S.IMAGE
menu tab.
ON
S.BEEP
3. Select the [S.BEEP] menu by pressing the UP/ DOWN
button and press the RIGHT button.
BACK:◀
SET:OK
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [OFF] is selected : Start up sound will not be activated whenever the camera is turned
on.
If [ON] is selected : Start up sound will be activated whenever the camera is turned on.
5. Press the menu button twice and the menu will disappear.
Downloaded From camera-usermanual.com Samsung Manuals
《78》
▶
Important notes
Be sure to observe the following precautions!
■ This unit contains precision electronic components. Do not use or store this unit in the
following locations.
- Areas exposed to severe changes in temperature and humidity.
- Areas exposed to dust and dirt.
- Areas exposed to direct sunlight or the inside of a vehicle in hot weather.
- Environments where there is high magnetism or excessive vibration.
- Areas with high explosives or highly flammable materials.
■ Do not leave this camera in places subject to dust, chemicals (like naphthalene and
mothball), high temperature and high humidity.
Keep this camera with silica gel in a hermetically sealed box when not planning to use the
camera for a long period of time
■ Sand can be particularly troublesome to cameras.
- Do not let sand get inside the unit when using it on beaches, coastal dunes, or other areas
where there is lots of sand.
- Doing so may result in failure or may permanently render the unit unusable.
■ Handling the camera
- Never drop the camera or subject it to severe shocks or vibrations.
- This camera is not waterproof.
To avoid dangerous electrical shocks, never hold or operate the camera with wet hands.
- If you use this camera in wet places, such as beach or pool, do not let water or sand get
inside the camera. Doing so may result in failure or may permanently damage the unit.
■ Extremes in temperature may cause problems.
- If the camera is transferred from a cold to a warm and humid environment, condensation
can form on the delicate electronic circuitry. If this occurs, turn the camera off and wait for at
least 1 hour until all moisture is dispersed. Moisture build up can also occur in the memory
card. If this happens, turn off the camera and remove the memory card. Wait until the
moisture has dispersed.
Downloaded From camera-usermanual.com Samsung Manuals
《79》
Important notes
■ Caution on Using the Lens
- If the lens is subjected to direct sunlight, it could result in discoloration and deterioration of
the image sensor.
- Pay attention not to get fingerprints or foreign substances on the surface of the lens.
■ If the digital camera is not used for a long period, an electric discharge can occur.
It is a good idea to remove the batteries and the memory card if you do not intend using the
camera for an extended period of time.
■ If the camera is exposed to an electronic interference, it will turn itself off to protect the
memory card.
■ Camera Maintenance
- Use a soft brush (available from photo stores) to gently clean the lens and LCD assemblies.
If this does not work, lens-cleaning paper with lens cleaning fluid can be used.
Clean the camera body with a soft cloth. Do not allow this camera to come into contact with
solvent materials such as benzol, insecticide, thinners etc. This may damage the body shell
of the camera and also affect its performance. Rough handling can damage the LCD
monitor. Take care to avoid damage and keep the camera in its protective carry case at all
times when not in use.
■ Do not attempt to disassemble or modify the camera.
■ Under certain conditions, static electricity can cause the flash unit to fire. This is not harmful to
the camera and is not a malfunction.
■ When images are uploaded or downloaded, the data transfer may be affected by static
electricity. In this case, disconnect and re-connect the USB cable before trying the transfer
again.
■ Before an important event or going on a trip, you should check the camera condition.
- Take a picture for testing the camera condition and prepare extra batteries.
- Samsung cannot be held responsible for camera malfunctions.
Downloaded From camera-usermanual.com Samsung Manuals
《80》
Warning indicator
■ There are several warnings that may appear on the LCD display
CARD ERROR !
ㆍMemory card error
→ Turn off the camera power and turn it on again
→ Insert the memory card again
→ Insert the memory card and format the memory card (p.72)
MEMORY ERROR!
ㆍInternal memory error
→ Turn off the camera power and turn it on again
→ Format the memory with the memory card removed. (p.72)
NO CARD !
ㆍA memory card is not inserted
→ Insert a memory card
ㆍThe camera can’t recognize the memory card
→ Insert the memory card again
→ Turn off the camera power and turn it on again
CARD LOCKED !
ㆍThe memory card is locked
→ SD memory card : Slide the write protect switch to the top of the memory card
CARD FULL !
ㆍThere is insufficient memory capacity to take an image
→ Insert a new memory card
→ Delete unnecessary image files to free up some memory
NO IMAGE !
ㆍThere are no images stored on the memory card
→ Take images
→ Insert a memory card that is holding some images
FILE ERROR !
ㆍFile error
→ Format the memory card
ㆍMemory card error
→ Contact a camera service centre
Downloaded From camera-usermanual.com Samsung Manuals
《81》
Warning indicator
LOW BATTERY !
ㆍThere is low battery capacity
→ Insert fresh batteries
LOW LIGHT !
ㆍWhen taking pictures in dark places
→ Use a tripod and take pictures in Flash Photography mode
SET USB
ㆍ [USB] sub menu and connected device are not matched.
→ Reconfigure [USB] in the [SETUP] menu.
OUT OF NUMBER
ㆍ When selecting too many printing pages in the PictBridge menu.
→ Select printing page within the limitation.
Before contacting a service centre
■ Please check the following
The camera doesn’t switch on
ㆍThere is low battery capacity
→ Insert fresh batteries
ㆍBatteries are inserted incorrectly with the reverse polarities
→ Insert the batteries according to the polarity marks (+, -)
The camera power ceases whilst in use
ㆍThe batteries are exhausted
→ Insert fresh batteries
ㆍThe Camera is turned off automatically
→ Turn off the camera power and turn it on again
Batteries drain quickly
ㆍThe Camera is being used in low temperatures
→ Keep the camera in warm conditions (i.e. inside a coat or jacket) and only remove it in
order to take images
Downloaded From camera-usermanual.com Samsung Manuals
《82》
Before contacting a service centre
Camera does not take images when pressing the Shutter button
ㆍThere is insufficient memory capacity
→ Delete unnecessary image files
ㆍThe memory card has not been formatted
→ Format the memory card (p.72)
ㆍThe memory card is exhausted
→ Insert a new memory card
ㆍThe memory card is locked
→ Refer to [CARD LOCKED!] error message (p.81)
ㆍThe camera’s power is off
→ Turn the camera power on
ㆍThe batteries are exhausted
→ Insert fresh batteries
ㆍBatteries are inserted incorrectly with the reverse polarities
→ Insert the batteries according to the polarity marks (+, -)
The camera suddenly stops working while in use
ㆍThe camera was stopped due to a malfunction
→ Remove /re-insert batteries and switch the camera on
The images are unclear
ㆍAn Incorrect focus mode is selected.
→ Select a correct focus mode related to the distance.
ㆍTaking a picture beyond the flash range
→ Take a picture within the flash range
ㆍThe lens is smudged or dirty
→ Clean the lens
The flash does not fire
ㆍFlash off mode has been selected
→ Dis-engage flash off mode
ㆍThe camera mode can’t use the flash
→ Refer to the FLASH instruction (p.26)
Incorrect date and time is displayed
ㆍThe date and time have been set incorrectly or the camera has adopted the default settings
→ Reset the date and time correctly
Downloaded From camera-usermanual.com Samsung Manuals
《83》
Before contacting a service centre
The images don't play back
ㆍIncorrect file name (Violation of DCF format)
→ Do not change the image file name
Colour of image is different to the original scene
ㆍWhite balance setting is incorrect
→ Select appropriate White balance
Images are too bright
ㆍExposure is excessive
→ Reset exposure compensation
When using the PC’s explorer, the [Removable Disk] file does not show
ㆍCable connection is incorrect
→ Check the connection
ㆍThe camera is off
→ Turn the camera on
ㆍThe operating system is not Windows 98, 98SE, 2000, ME, XP/ Mac OS 9.2~10.3.
Alternatively the PC does not support USB
→ Install Windows 98, 98SE, 2000, ME, XP/ Mac OS 9.2~10.3 to PC that supports USB
ㆍThe camera driver is not installed
→ Install a [USB Storage Driver]
Downloaded From camera-usermanual.com Samsung Manuals
《84》
Specifications
Type
Image Sensor Effective Pixels
Total Pixels
Focal Length
Lens
F No.
Digital Zoom
LCD
Type
Focusing
Range
Type
Speed
Shutter
Control
Exposure
Compensation
ISO Equivalent
Modes
Range
Recharging Time
Flash
Sharpness
Effect
White Balance
Photo Frame
Voice Recording
Date Imprinting
Still Image
Shooting
Movie Clip
Self-timer
Media
Storage
File Format
1/2.5" CCD
Approx. 4.0 Mega-pixel
Approx. 4.2 Mega-pixel
Lens f=5.8mm
(35mm film equivalent:35mm)
F 3.5 / F7.0
Still Image mode: 1.0X ~ 4.0X
Play mode: 1.0X ~ 7.0X (depends on Image size)
1.8" color TFT LCD
Fixed focus with two steps manual adjustment
Macro: 0.2m
Normal: 1.0m~infinity
Mechanical and Electronic shutter
2 - 1/1000 sec.(8 – 1/1000sec.in Night Mode)
Programmed AE
Metering: Multi, Spot
±2.0EV (0.5EV steps)
Auto,100,200,400
Auto, Auto & Red - eye reduction, Fill-in flash, Slow sync, Flash Off
0.2m ~ 2.5m
Approx. 5 sec.
Soft, Normal, Vivid
Normal, B&W, Sepia
Auto, Daylight, Cloudy, Sunset, Fluorescent(H), Fluorescent(L), Tungsten, Custom
9 Frames
Voice Recording (max. 1 hour)
Voice Memo on Still Image (max. 10.sec)
Off, Date, Date & Time (User selectable)
Mode: Auto, Program, Scene
Scene : Night, Portrait, Landscape, Fireworks
Shooting: Single, continuous
With audio (recording time: memory capacity dependent)
Size: 640 x 480, 320 x 240
Frame rate: 24, 15fps
2sec, 10 sec, Double self (10/2sec.)
Internal memory: 16MB flash memory
External memory: SD card /MMC
(Up to 512MB Guaranteed)
Still Image: JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0
Movie Clip: AVI (MJPEG)
Audio: WAV
Downloaded From camera-usermanual.com Samsung Manuals
《85》
Specifications
Image Size
Storage
Capacity
(16MB)
Image Play
Type
Editing
Interface
Power Source
Dimensions (WxHxD)
Weight
Operating Temperature
Operating Humidity
Camera Driver
Software
Application
2272 : 2272X1704
2048 : 2048X1536
1600 : 1600X1200
1024 : 1024X768
640 : 640X480
2272 : Super fine (10) Fine (20) Normal (33)
2048 : Super fine (13) Fine (27) Normal (42)
1600 : Super fine (17) Fine (37) Normal (50)
1024 : Super fine (38) Fine (78) Normal (113)
640 : Super fine (81) Fine (145) Normal (234)
* These figures are measured under Samsung’s standard conditions
and may vary depending on shooting conditions and camera settings.
Single image / Thumbnails / Slide show/ Movie clip
Rotation, Trimming, Resizing
Digital output connector: USB 1.1
Primary battery : 2 x AA alkaline, Lithium, Ni-Mn,
Ni-Zn, 1X CR-V3
Rechargeable battery : 2 x AA Ni-MH,
Ni-Cd / 1 x I-Pack (SBP-1303)
96.5 x 52.5 x 30.5 mm
Approx. 90g (without batteries and card)
0 ~40 °C
5 ~85%
Storage Driver (Windows98/98SE)
Digimax Viewer, Arcsoft PhotoImpression
* Specifications are subject to change without prior notice.
* All trademarks are the property of their respective owners.
Downloaded From camera-usermanual.com Samsung Manuals
《86》
Software Notes
Please ensure that you read the instruction manual carefully before use.
ㆍThe attached software is a camera driver and image editing software tool for Windows.
ㆍUnder no circumstances should all or part of either the software or the user manual be
reproduced.
ㆍCopyrights for software are licensed only for use with a camera.
ㆍIn the unlikely event of a manufacturing fault, we will repair or exchange your camera.
We cannot, however, be held responsible in any way for damage caused by inappropriate
use.
ㆍUsing a Hand-made PC or a PC and OS that has not been guaranteed by the manufacturer is
not covered by the Samsung warranty.
ㆍBefore reading this manual, you should have a basic knowledge of computers and O/S
(Operating Systems).
System Requirements
For Windows
PC with processor better than MMX
For Macintosh
Power Mac G3 or later
Pentium 233MHz (XP : Pentium II 300MHz)
Windows 98/98SE/2000/ME/XP
Mac OS 9.2~10.3
Minimum 32MB RAM (XP : 128MB)
Minimum 64MB RAM
140MB of available hard-disk space
110MB of available hard-disk space
USB port
USB port
CD-ROM drive
CD-ROM drive
800x600 pixels, 16-bit colour display
QuickTime 6.01 or later for Movie Clip
compatible monitor (24-bit colour display
recommended)
Downloaded From camera-usermanual.com Samsung Manuals
《87》
About the software
After inserting the CD-ROM provided with this camera into the CD-ROM drive, the following
window should automatically run.
Before connecting the camera to the PC,
you should first install the camera driver.
■ Camera driver : This enables images to transfer between the camera and PC.
This camera uses the USB Storage Driver as the camera driver. You can use the camera as
a USB card reader. After installing the driver and connecting this camera to the PC, you can
find [Removable Disk] in [Windows Explorer] or [My computer]. A USB Storage Driver is
provided only for Windows. A USB Driver for MAC is not included with the Application CD.
But you can use the camera with Mac OS 9.2~10.3.
■ Digimax Viewer : This is a program for viewing stored images.
You can see the stored images in the memory directly on a PC monitor. You can also copy,
move or delete the images and enlarge/downscale the image sizes with Digimax Viewer.
This software is only compatible with Windows.
■ PhotoImpression : Image editing program.
You can edit or store still images that you download from the camera. This software is only
compatible with Windows.
INFORMATION
● Be sure to check the system requirements (p.87) before installing the driver.
● You should allow 5 ~ 10 seconds for running the automatic setup program according to
the capability of the computer. If the frame does not show, run the [Windows Explorer]
and select [Samsung.exe] in the CD-ROM Drive root directory.
Downloaded From camera-usermanual.com Samsung Manuals
《88》
Setting up the application software
To use this camera with a PC, install the application software first. After this has been done, the
stored images in the camera can be moved to the PC and can be edited by an image editing
program.
INFORMATION
● Close other programs before installing the application software.
● Before installing the application software, disconnect the USB connection.
You can visit the Samsung web-site through the internet.
http://www.samsungcamera.com : English
http://www.samsungcamera.co.kr : Korean
1. Click the [Install] menu in the Autorun frame.
The camera driver is installed automatically.
[Click!]
2. Camera driver installation is complete.
Click the [Finish] button.
[Click!]
Downloaded From camera-usermanual.com Samsung Manuals
《89》
Setting up the application software
3. A window for which you can select application
software will be displayed. Select the
application program and click the [Install]
button. Refer to page 88 for more information
about the application program.
[Click!]
INFORMATION
● If you select [Exit] at the step 3, the application program installation will be cancelled.
4. Install Digimax Viewer.
Click [Next >] button.
[Click!]
INFORMATION
● If you select [Cancel] at step 4, a window for installing PhotoImpression will be displayed.
5. The Software License Agreement window will
be displayed. If you agree to this, click [Yes],
the window will then move to the next step.
If you disagree, click [No] and the installation
program will be cancelled.
[Click!]
6. A destination selection window will open.
Click [Next >]. To copy to the files to another
folder, click [Browse...] and choose a folder
you want.
[Click!]
Downloaded From camera-usermanual.com Samsung Manuals
《90》
Setting up the application software
7. A window will open, asking you to choose a
folder to which program icons will be added.
Click [Next >] button. If you want to add the
program icons to a different folder, choose
another folder, and then click [Next >] button.
[Click!]
8. Digimax Viewer installation is successfully
completed. Click the [Finish] button to install
PhotoImpression. The system will not reboot
even if the [Yes, I want to restart the computer
now] option is selected.
* The frame 8 may not appear according to the
system requirements.
[Click!]
9. The PhotoImpression installation window will be
displayed as shown alongside.
Click the [OK] button.
[Click!]
10. A Welcome window will be displayed.
Click the [Next >] button.
[Click!]
Downloaded From camera-usermanual.com Samsung Manuals
《91》
Setting up the application software
11. The Software License Agreement window will
be displayed. If you agree to this, click [Yes],
the window will then move to the next step.
If you disagree, click [No] and the installation
program will be cancelled.
[Click!]
12. A destination selection window will open.
Click [Next >]. To copy to the files to another
folder, click [Browse...] and choose a folder
you want.
[Click!]
13. The [Select Components] window will appear.
Click [Next >] button.
[Click!]
14. A window will open, asking you to choose a
folder to which program icons will be added.
Click [Next >] button. If you want to add the
program icons to a different folder, choose
another folder, and then click [Next >] button.
[Click!]
Downloaded From camera-usermanual.com Samsung Manuals
《92》
Setting up the application software
15. Installation is complete. To apply changes,
you must restart the computer.
Select [Yes, I want to restart my computer
now], and then click [OK].
[Click!]
* The frame 15 may be displayed according to the
system requirements.
Click the [Finish] button to restart the computer.
[Click!]
16. After restarting the computer, connect the PC to the camera with the USB cable.
17. Turn the camera power on. [Found New
Hardware Wizard] will open and the computer
will recognise the camera.
* If you have ever installed an image viewer
program or your OS is Windows XP, an image
viewer program will open. If the image viewer
program opens, the camera driver was setup
successfully.
18. If you can see [Removable Disk] under [My
computer], the camera driver installation was
successful. Now you can transfer image files
from the camera to PC via the USB cable.
Downloaded From camera-usermanual.com Samsung Manuals
《93》
Setting up the application software
INFORMATION
● If you have installed the camera driver, [Found New Hardware Wizard] may not open.
● On a Windows 98 or 98 SE system, the Found New Hardware Wizard dialog box opens
and a window asking you to select a driver file may appear. In this case, specify "USB
Driver" in the CD supplied.
● Before connecting the camera to the PC, You should first install the camera driver.
● After installing the camera driver, you have to restart your PC.
● If you connect the camera to the PC before installing the camera driver, the [Found New
Hardware Wizard] will open.
In this case, cancel the [Found New Hardware Wizard] and disconnect the camera. Install
the camera driver (p.89) and connect the camera to the PC again.
● Should the computer not find the camera driver after installation, please try one or more of
the following measures.
1. Delete the camera driver (p.98), and re-install the driver.
2. Refer to FAQ (p.104) to check for a possible solution to the problem.
3. If your PC’s central processing unit is VIA chip (This is shown in the USB Host
Controller), download the patch file from the Samsung Camera web page.
(http://www.samsungcamera.com)
Downloaded From camera-usermanual.com Samsung Manuals
《94》
Starting PC mode
• If you connect the USB cable to a USB port on your PC and then turn on the power, the
camera will automatically switch to "computer connection mode".
• In this mode, you can download stored images to your PC through the USB cable.
• The LCD monitor is always turned off in PC mode.
• The camera status lamp will blink when the files are transferring via the USB connection.
■ Connecting the camera to a PC
1. Turn the PC power on.
◀
2. Turn the camera power on.
2048
3. In any mode other than Voice Recording mode, press
SETUP
the MENU button.
IMPRINT
COMPUTER
BEEP
4. Press the LEFT/ RIGHT button and select the [SETUP]
PRINTER
USB
menu tab.
BACK:◀
SET:OK
5. Select the [USB] menu by pressing the UP/ DOWN
button and press the RIGHT button.
6. Use the UP and DOWN buttons to select [COMPUTER], and then press the OK button.
7. Press the menu button twice and the menu will disappear.
8. Connect the PC and the camera via the USB cable.
- Insert the small plug of the USB cable into the camera USB connection terminal.
- Insert the large connector of the USB cable into the USB port of the PC.
- The plugs must be firmly inserted.
▶
※ If you selected [PRINTER] in Step 6, when
you connect the camera to your printer, the
[CONNECTING…] message will be
displayed on the LCD monitor and the
connection will not be established. In this
case, disconnect the USB cable, and then
follow the procedure from Step 3 and
onward.
■ Disconnecting the camera and PC : Refer to page 98(Removing the removable disk).
INFORMATION
● The camera driver must be installed before using PC mode.
Downloaded From camera-usermanual.com Samsung Manuals
《95》
Starting PC Mode
■ Downloading stored images
You can download the still images stored on the camera to your PC's hard disk and print
them or use a photo editing software to edit them.
1. Connect the camera to your PC with the USB cable.
2. On your computer's desktop display, select
[My computer] and double click [Removable Disk
→ DCIM → 100SSCAM].
The image files will then be displayed.
3. Select an image and press the right mouse
button.
4. A pop-up menu will open.
Click [Cut] or [Copy] menu.
- [Cut] : cuts a selected file.
- [Copy] : copies files.
5. Click a folder where you want to paste the file.
Downloaded From camera-usermanual.com Samsung Manuals
《96》
Starting PC Mode
6. Press the right mouse button and a pop-up menu
will open. Click [Paste].
7. An image file is transferred from the camera to
your PC.
- By using [Digimax Viewer], you can see the stored images in the memory directly on the PC
monitor and you can copy or move the image files.
Downloaded From camera-usermanual.com Samsung Manuals
《97》
Removing the USB Driver for Windows 98SE
■ To remove the USB driver, refer to the process shown below.
1. Trace [Start → Settings] and click [Control Panel].
2. Double-click [Add/Remove programs].
3. The [Add/Remove Programs Properties] window
will open. Click [Digimax A402] and click the
[Add/Remove] button.
[Click!]
4. Uninstallation is complete.
Click the [Finish] button and the window will
disappear.
[Click!]
Downloaded From camera-usermanual.com Samsung Manuals
《98》
Removable Disk
■ To use this camera as a Removable Disk, install (p.89) the USB Driver.
1. Before turning the camera power on, connect the camera to the PC with the USB cable.
2. Click [Removable Disk] under [My computer] or [Windows Explorer].
3. Image files stored in the Removable Disk (DCIM → 100SSCAM) can be transferred to the
PC.
INFORMATION
Important information whilst using the Removable Disk
● The [Removable Disk] indicator will not show when the camera power is off or the USB
cable is removed.
● We recommend that you should copy the images to the PC to view them. Opening
images directly from the removable disk may be subject to unexpected disconnection.
● When uploading images from the PC to the camera, ensure that the uploaded file names
are not the same as those already stored on the memory.
● When you upload a file that is not taken by this camera to Removable Disk, the [FILE
ERROR!] message will be displayed on the LCD monitor in the PLAY mode, and nothing
is displayed in THUMBNAIL mode.
● The camera status lamp will blink, when a file is
transferred (copy or deletion) between the PC and
the camera. Do not remove the USB cable until the
lamp stops blinking.
To remove the USB cable in Windows 2000/ME/XP,
use the [Unplug or Eject Hardware] icon on the task
bar.
Downloaded From camera-usermanual.com Samsung Manuals
《99》
Removing the removable disk
■ Windows 98SE
1. Check whether the camera and PC are transferring a file. If the camera status lamp blinks,
you have to wait until the lamp illuminates.
2. Unplug the USB cable.
■ Windows 2000/ME/XP
(The illustrations may be different from the real display in accordance with the Windows O/S.)
1. Check whether the camera and PC are transferring a file. If the camera status lamp blinks,
you have to wait until the lamp illuminates.
2. Double-click the [Unplug or Eject Hardware]
icon on the task bar.
[Double-click!]
3. The [Unplug or Eject Hardware] window will
open. Select the [USB Mass Storage Device]
and click the [Stop] button.
[Click!]
4. The [Stop a Hardware device] window will
open. Select the [USB Mass Storage Device]
and click the [OK] button.
[Click!]
5. A [Safe to Remove Hardware] window will
open. Click the [OK] button.
[Click!]
Downloaded From camera-usermanual.com Samsung Manuals
《100》
Removing the removable disk
6. A [Unplug or Eject Hardware] window will open.
Click the [Close] button and the removable disk
will be removed safely.
7. Unplug the USB cable.
[Click!]
Setting up the USB Driver for MAC
1. A USB Driver for MAC is not included with the software CD as MAC OS supports the
camera driver.
2. Check the MAC OS. You can check the MAC OS version during MAC OS start-up.
This camera is compatible with MAC OS 9.2~10.3.
3. Connect the camera to the Macintosh and turn the camera power on.
4. A new icon will be displayed on the desktop after connecting the camera to the MAC.
Using the USB Driver for MAC
1. Double click a new icon on the desktop and the folder in the memory will be displayed.
2. Select an image file and copy or move it to MAC.
INFORMATION
● For Mac OS 10.0 or later : First complete uploading from computer to camera and then
remove the removable disk with the Extract command
Downloaded From camera-usermanual.com Samsung Manuals
《101》
Digimax Viewer 2.1
■ This software is only compatible with Windows.
1. To open Digimax Viewer, click the [Start →
Programs → Samsung → Digimax Viewer 2.1 →
Digimax Viewer 2.1 ] and Digimax Viewer 2.1 will
then open.
2. If the [Auto Launch] option is selected, this program will be executed automatically by
recognising the camera.
3. You can easily use the Digimax viewer 2.1 program
as it offers a FILE menu and TOOL bar.And, you can
use the pop up menu. Click an image and press the
right mouse button.
Digimax Viewer functions are listed below.
- Basic functions
: Copy, Move, Delete, Rotate, Rename, changing file type, Resize,
Property.
- Advanced functions : Print, Slide show, Export, Sending e-mail, On-line print, Web album
etc.
INFORMATION
● Before deleting images from the camera, you should protect or download images to your
computer that you wish to keep.
● Refer to the [Help] menu in Digimax viewer 2.1 for further information.
Downloaded From camera-usermanual.com Samsung Manuals
《102》
Using PhotoImpression
With PhotoImpression, you can edit or store still images that you downloaded from the camera.
This software is only available in Windows version.
To start the program, click [Start → Programs → ArcSoft PhotoImpression → PhotoImpression].
The following screen will appear.
[ Help Button ]
[ Command
Button ]
[ Tool Bar ]
You can use PhotoImpression to perform the following tasks.
■ Command Button
Button
Description
Imports a picture from an album, a source folder, or the camera/scanner, or
captures screen shots of what is being viewed on the current monitor.
Selects Cut, Resize, Edit Image, Insert Text, Enhance Picture, Insert
Effects, or Layer.
Performs Insert Frame, Insert Borders, Insert Calendar, Insert Greeting
Cards, Insert Template, or Connect with Other Software.
Saves the edited picture, and sends an e-mail or uses it as the background
image.
Outputs the edited picture according to your preferences.
Downloaded From camera-usermanual.com Samsung Manuals
《103》
Using PhotoImpression
■ Tool Bar
Button
Description
Button
Description
Resize Layer
Rotate Layer
Flip Layer Horizontally
Rotate All Layers
Undo
Redo
Copy
Paste
Delete Layer
Close Picture
INFORMATION
● For detailed instructions on how to use PhotoImpression, please refer to the program's Help.
FAQ
■ Please check the following if the USB connection malfunctions.
[Case 1]
The camera power is off.
→ Turn the camera power on. We recommend using an AC power adapter in PC
mode.
[Case 2]
USB Driver is not installed correctly.
→ Install the USB Driver correctly. Refer to page 89.
[Case 3]
The USB cable is not connected or you are using a cable with an incorrect
specification.
→ Use a USB cable with the correct specification.
Downloaded From camera-usermanual.com Samsung Manuals
《104》
FAQ
[Case 4]
The camera is not recognised by your PC.
Sometimes, the camera may appear under [Unknown Devices] in Device
Manager.
→ Install the camera driver correctly.
Turn off the camera, remove the USB cable, plug in the USB cable again, and
then turn on the camera.
[Case 5]
There is an unexpected error during file transfer
→ Turn the camera power off and on again. Transfer the file again.
[Case 6]
How do I know my computer supports a USB Interface?
→ Check the USB port in your computer or keyboard.
→ Check the OS version. A USB Interface is available in Windows 98, 98SE, 2000,
ME .XP.
→ Check [Universal Serial Bus controllers] in Device Manager. Do the following to
check [Universal Serial Bus controllers].
Win 98/ME : Trace [Start → Settings → Control Panel → System → Device
Manager → Universal Serial Bus controllers].
Win 2000 : Trace [Start → Settings → Control Panel → System → Hardware
→ Device Manager → Universal Serial Bus controllers].
Win XP
: Trace [Start → Control Panel → System → Hardware → Device
Manager → Universal Serial Bus controllers].
There must be USB Host Controller and USB root hub under [Universal Serial
Bus controllers].
In addition, double-click on the USB Universal Host Controller and the USB Root
Hub to check if the Device Status states "This device is working properly". If the
Device Status says the device is "not working properly", click the "Driver" tab and
then click [Update Driver] or [Reinstall Driver].
→ When all the conditions mentioned above are met, the computer can support the
USB interface.
[Case 7]
When using the USB hub.
→ There may be a problem in connecting the camera to the PC through the USB
hub if the PC and the hub are not compatible.
Wherever possible, connect the camera to the PC directly.
[Case 8]
Are other USB cables connected to the PC?
→ The camera may malfunction when it is connected to the PC at the same time as
another USB cable. In this case, disconnect the other USB cable, and connect
only one USB cable to the camera.
Downloaded From camera-usermanual.com Samsung Manuals
《105》
FAQ
[Case 9]
When I open the Device Manager (by clicking Start → (Settings) → Control
Panel → (Performance and Maintenance) → System → (Hardware) → Device
Manager), there are「 Unknown Devices 」or「 Other Devices 」entries with a
yellow question mark(?) beside them or devices with an exclamation mark(!)
beside them.
→ Right-click on the entry with the question(?) or exclamation (!) mark and select
"Remove". Restart the PC and connect the camera the again.
For Windows 98 PC, remove the camera driver also, restart the PC, and then
reinstall the camera driver.
→ Double-click on the entry with the question (?) or exclamation (!) mark, click the
"Driver" tab, and click [Update Driver] or [Reinstall Driver]. If a message appears
asking you to specify the location of the appropriate device driver, specify "USB
Driver" in the CD supplied.
■ Please check the following if the movie clip doesn't play back.
※ If you installed an incorrect codec onto your PC, the movie clip may not play back on the
PC.
1. Check whether the DirectX provided with the camera is installed.
→ If you didn't install the camera driver, please install the DirectX included in the
application S/W CD-ROM. If not, the movie clip may not play back on the PC.
[ Installing the DirectX ]
1) Insert the CD provided with the camera.
2) Run the windows explorer and select the CD-ROM drive.
3) Select the DirectX8.1 folder and double click the Setup.exe file.
The codec will be installed.
Downloaded From camera-usermanual.com Samsung Manuals
《106》
FAQ
● If a PC (Windows 98) stops responding while the camera and PC are connected
repeatedly
→ If a PC (Windows 98) is turned on for a long time and connect the camera repeatedly, the
PC may not recognise the camera. In this case, re-start the PC.
● If a PC connected with the camera stops responding while the Windows is starting.
→ In this case, disconnect the PC and the camera and the windows will start correctly.
If the problem happens continuously, set the Legacy USB Support to disable and re-start
the PC. The Legacy USB Support is in the BIOS setup menu. (The BIOS setup menu
differs from the PC manufacturers and some BIOS menus don’t have Legacy USB
Support) If you can’t change the menu by yourself, contact to the PC manufacturer or
BIOS manufacturer.
● If the movie clip can’t be deleted, removable disk can’t be extracted or an error
message displays during the file transfer.
→ If you install only the Digimax Viewer, the problems mentioned above occasionally
happen.
- Close the Digimax Viewer program by clicking the Digimax Viewer icon on the Taskbar.
- Install all the application programs included in the software CD. (You must install the
Movie clip codec)
Downloaded From camera-usermanual.com Samsung Manuals
《107》
SAMSUNG TECHWIN CO., LTD.
OPTICS & DIGITAL IMAGING DIVISION
145-3, SANGDAEWON 1-DONG, JUNGWONGU,
SUNGNAM-CITY, KYUNGKI-DO, KOREA
462-121
TEL : (82) 31-740-8086,8088, 8090, 8092, 8099
FAX : (82) 31-740-8398, 8111
www.samsungcamera.com
SAMSUNG OPTO-ELECTRONICS AMERICA, INC.
HEADQUARTERS
40 SEAVIEW DRIVE, SECAUCUS, NJ07094, U.S.A.
TEL : (1) 201-902-0347
FAX : (1) 201-902-9342
WESTERN REGIONAL OFFICE
18600 BROADWICK ST.,
RANCHO DOMINGUEZ, CA 90220, U.S.A.
TEL : (1) 310-900-5263/5264
FAX : (1) 310-537-1566
www.samsungcamerausa.com
SAMSUNG OPTO-ELECTRONICS UK LIMITED
SAMSUNG HOUSE
1000 HILLSWOOD DRIVE
HILLSWOOD BUSINESS PARK
CHERTSEY KT16 OPS U.K.
TEL : 00800 12263727
(free for calls from UK only)
SERVICE HOTLINE : 01932455320
www.samsungcamera.co.uk
SAMSUNG OPTO-ELECTRONICS GMBH
AM KRONBERGER HANG 6
D-65824 SCHWALBACH/TS., GERMANY
TEL : (49) 6196 66 53 03
FAX : (49) 6196 66 53 66
www.samsungcameras.de
SAMSUNG FRANCE S.A.S.
BP 51 TOUR MAINE MONTPARNASSE
33, AV .DU MAINE
75755, PARIS CEDEX 15, FRANCE
HOTLINE PHOTO NUMÉRIQUE :
00 800 22 26 37 27(Numéro Vert-Appel Gratuit)
TEL : (33) 1-4279-2200
FAX : (33) 1-4538-6858
www.samsungphoto.fr
SAMSUNG TECHWIN MOSCOW OFFICE
RUSSIA, 125167, MOSCOW LENNINGRADSKY,
PR-KT, 37-A, KORP14
TEL : (7) 095-258-9299/96/98
FAX : (7) 095-258-9297
http://www.samsungcamera.ru
TIANJIN SAMSUNG OPTO-ELECTRONICS CO.,LTD.
7 PINGCHANG ROAD NANKAI DIST., TIANJIN
P.R CHINA
POST CODE:300190
TEL : (86) 22-2761-8867
FAX : (86) 22-2761-8864
www.samsungcamera.com.cn
* Internet address - http : //www.samsungcamera.com/
The CE Mark is a Directive conformity
mark of the European Community (EC)
Downloaded From camera-usermanual.com Samsung Manuals
6806-2560
