Emulex Driver for HP-UX Manual Version 4.20.04 Table

Emulex Documentation, Drivers, and Software

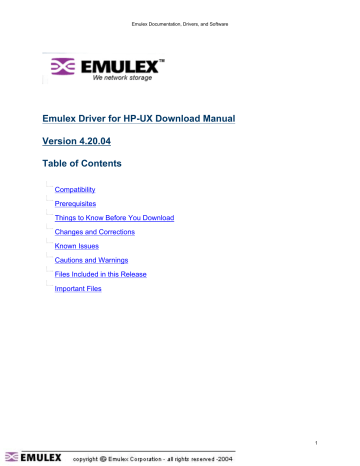

Emulex Driver for HP-UX Download Manual
Version 4.20.04
Table of Contents
Compatibility
Prerequisites
Things to Know Before You Download
Changes and Corrections
Known Issues
Cautions and Warnings
Files Included in this Release
Important Files
1
Emulex Documentation, Drivers, and Software
Driver Information
Compatibility
●
●
●
Emulex Fibre Channel adapters LP10000DC and LP10000
Emulex Fibre Channel adapters LP9802DC and LP9802
Emulex Fibre Channel adapters LP9002DC, LP9002L and LP9000 (minimum
firmware revision 3.81a1)
●
Emulex Fibre Channel adapters LP8000 and LP8000DC
●
Emulex Fibre Channel adapter LP7000E (minimum firmware revision 3.21a0)
●
If your HBA has a Dragonfly chip version 2.00 or greater, use firmware version
3.90a7.
●
If your HBA has a Dragonfly chip below version 2.00, use firmware version 3.30a7.
●
Hewlett Packard PA_RISC platforms:
❍
rp2400, 5400, 7400 and 8400 series
❍
Superdome
❍
Testing has also been performed with HP9000 A400, A500, B2000, L and
N class servers as well as C240 and C3600 workstations (Note: HP 9000
A180 is not supported)
Prerequisites
●
●
HP-UX 10.2 (32-bit OS), HP-UX 11.0 (64-bit OS), HP-UX 11i (32-bit or 64-bit)
Patches: HP-UX 10.2, PHKL-22689 WSIO SCSI Cumulative Patch
HP-UX 11.0, PHKL-21989 SCSI IO Subsystem Cumulative Patch
HP-UX 11.0 was tested with the March 2003 patch bundle
HP-UX 11i was tested with the September 2003 patch bundle
●
64 MB system RAM
●
Video driver set to 640 x 480 mode (recommended)
2
Emulex Documentation, Drivers, and Software
●
●
Installed Fibre Channel host bus adapter
For dual channel host bus adapters only: a version of firmware with boot code must
be present on the adapter before installing in an HP-UX 11i (11.11) system.
3
Emulex Documentation, Drivers, and Software
Using the UNIX-based Utility
1. Enter the appropriate command to start the lputil utility:
For AIX enter: /usr/lpp/diagnostics/lputil
For HP-UX enter: /opt/lpfc/bin/lputil
For Linix enter: /usr/sbin/lpfc/lputil
For Solaris enter: /usr/sbin/lpfc/lputil
The main menu is displayed.
2. Select 2, Adapter Information. The Adapter Information Menu is displayed.
4
Emulex Documentation, Drivers, and Software
3. Select 2, Adapter Revision Levels. If there are multiple host adapters, a list is displayed and
you need to select an adapter. The following type of information is displayed for the host bus
adapter (this is an example only).
Version 1 shows a chipset revision that contains 210 near the end of the
BIU number.
Version 2 shows a chipset revision that contains 250 near the end of the
BIU number.
5
Emulex Documentation, Drivers, and Software
Things to Know Before You Download
●
Before you download, create a temporary directory for the driver kit.
●
Before you update your driver, make backup copies of critical files.
●
For HP-UX version 11.11, when installing the HP-UX driver and updating its
firmware on a dual channel adapter, you must use a firmware image containing
boot code.
6
Emulex Documentation, Drivers, and Software
Changes and Corrections
●
'isoscan' was enhanced to better detect targets.
●
The driver software now supports analyzing trace data from a crash dump.
●
The lpfc script in /sbin/init.d executes with the correct permissions.
●
Corrected a mispelling in adapCfg.h.
7
Emulex Documentation, Drivers, and Software
Known Issues
The adapCfg.h file
You may need to modify the adapCfg.h file after installing the driver. You might also need
to modify the file if the hardware configuration changes, e.g., by adding additional disk
drives to the Fibre Channel interface.
adapCfg.h - Configuration header file specifying tunable parameters for LightPulse
adapters attached to the host machine; this file is located in /opt/lpfc/conf.
Configuring this file is discussed in greater detail in the Configuration manual.
Discovering Disk Drives
To list all the SCSI devices discovered by the lpfc driver, or to list newly attached
devices, enter:
ioscan -fkC
disk
Sometimes, the driver recognizes disk drives at boot time but you won't be able to
use those drives because special file entries for them do not exist. To create these
special files, run:
insf e
Ioscan on 64-bit HP-UX 11i
If the ioscan does not report the software state correctly for lpfd (Pseudo HBA) and
devices attached to it, the I/Os are still sent to those devices. You may be required
to run ioscan multiple times to report the software state correctly.
FCP - Different SCSI Target IDs on Different Hosts
A Fibre Channel target is assigned its D_ID at loop initialization time; the SCSI
target ID for that target is assigned by the device driver when the device is first
discovered. It is possible for the D_ID to change between one loop initialization and
the next. Every time a system boots or a target is added to, or removed from, the
Fibre Channel, the loop will be re-initialized. After a system has booted, it will
maintain a constant view of the same target ID because the driver software remaps
8
Emulex Documentation, Drivers, and Software
the SCSI target ID to the new D_ID on the fly. However, a second system may use
a different SCSI target ID for that target. Thus, if you are seeking to work with the
same target across multiple hosts you must be prepared to encounter the situation
where the same Fibre Channel target is known by different SCSI target IDs. The
persistent binding feature of this device driver can be used to maintain a consistent
target ID on all systems.
Drive light turns off
On some disk drives with down level firmware, the drive light will turn off. Typically,
the drive light does not turn on again under its own power. In some situations,
however, the light will turn on when a command to it times out and the driver tries
to abort the command. It may also turn on at the next loop event. Contact the drive
manufacturer for new firmware to fix the problem.
LIP type F8
Some disk drive firmware does not recover from a LIP type F8 in the way expected
by other Fibre Channel devices; the result can be a loop full of devices that are
confused. Usually, the best that can be done for recovering from this situation is to
reboot all the hosts involved and power cycle all the disk drives involved.
Unfortunately, it may be difficult to realize that an F8 LIP has happened:
subsequent loop events may obscure the relevant log messages on the console or
in the system log. The Emulex Digital Hub will bypass devices sending LIP F8, and
keep your loop up and running.
9
Emulex Documentation, Drivers, and Software
Cautions and Warnings
●
●
CAUTION: Failure to update the firmware with an image containing boot code will
make the dual channel adapter unavailable after a system reboot.
For HP-UX version 11.11, when installing the HP-UX driver and updating its
firmware on a dual channel adapter, you must use a firmware image containing
boot code.
10
Emulex Documentation, Drivers, and Software
Files Included in this Release
This driver kit includes the following files.
File Name
Description
catalog/INDEX
SWPackage-generated files
catalog/dfiles/INDEX
SWPackage-generated files
catalog/dfiles/INFO
SWPackage-generated files
catalog/LPFC/pfiles/INDEX
SWPackage-generated files
catalog/LPFC/pfiles/INFO
SWPackage-generated files
catalog/LPFC/pfiles/README
File that contains Emulex Technical
Support information
catalog/LPFC/pfiles/checkremove
Configuration/script file
catalog/LPFC/driver/INDEX
SWPackage-generated files
catalog/LPFC/driver/INFO
SWPackage-generated files
catalog/LPFC/driver/configure
Configuration file for main driver
catalog/LPFC/driver/postinstall
Configuration/script file
catalog/LPFC/driver/postremove
Configuration/script file
catalog/LPFC/driver/preremove
Configuration/script file
catalog/LPFC/diagnostics/INDEX
SWPackage-generated file
catalog/LPFC/diagnostics/INFO
SWPackage-generated file
catalog/LPFC/diagnostics/configure
Diagnostics script file
catalog/LPFC/diagnostics/
postremove
Diagnostics script file
11
Emulex Documentation, Drivers, and Software
LPFC/driver/opt/lpfc/conf/adapCfg.h
Driver configuration file
LPFC/driver/sbin/init.d/lpfc
Start up script
LPFC/driver/usr/conf/lib/lpfc.a
Device driver library file
LPFC/driver/usr/conf/master.d/lpfc
Device driver master file
LPFC/driver/usr/conf/space.h.d/lpfc.h
Device driver header file
LPFC/driver/usr/sam/lib/kc/drivers.
lpf.tx
Used by SAM
LPFC/drivr/usr/sam/lib/kc/params.lpf.
tx
Used by SAM
LPFC/diagnostics/opt/lpfc/bin/dfc
Diagnostic utility
LPFC/diagnostics/opt/lpfc/bin/lputil
Diagnostic utility for adapter
maintenance
LPFC/diagnostics/usr/lib/libdfc32.a
Driver diagnostics interface library for
32-bit.
Note: The last 3 characters in this
file name vary depending upon
whether the driver is for a 32-bit or
64-bit operating system (the file
name for 64-bit is libdfc64.a)
Important Files
The following file may need to be modified after installing the driver or if your hardware
configuration changes, such as by adding additional disk drives to the Fibre Channel
interface.
adapCfg.h
Configuration header file specifying tunable parameters for all LightPulse adapters
attached to the host machine; this file is located in /opt/lpfc/conf.
12
Emulex Documentation, Drivers, and Software
Verifying the Dragonfly Chip Version
There are three methods for determining the Dragonfly chip version:
Looking at the Host Bus Adapter, running the DOS utility, or running
the UNIX-based utility.
Looking at the Host Bus Adapter
The Dragonfly version number can be found on the top of the large chip, usually
after the term "DRAGONFLY" or "DFLY".
Running the DOS Utility
1. Boot up the computer in DOS.
2. Enter this command to start the lp6dutil program.
c:\>lp6dutil
The lp6dutil program runs preliminary tests on all host adapters.
3. Press the Return or Enter key until the main menu is displayed. The lp6dutil
utility resets all host adapters and resource information for all host bus adapters
is displayed.
Note Press 0 to go back to the previous screen.
4. Select 6, Show Host Adapter Info.
The Option menu is displayed.
13
Emulex Documentation, Drivers, and Software
5. Select 3, Adapter Revision Levels . If there are multiple host adapters,
specify a list of numbers from 1 – 3 separated by spaces, or use a '–'
between two numbers to specify a range of host adapters. The following
type of information is displayed for the host bus adapter (this is an example
only).
Version 1 shows a chipset revision that contains 210 near the end of the
adapter's hex number (DragonFly Revision number).
Version 2 shows a chipset revision that contains 250 near the end of the
adapter's hex number.
14
Emulex Documentation, Drivers, and Software
Using the UNIX-based Utility
1. Enter the appropriate command to start the lputil utility:
The main menu is displayed.
2. Select 2, Adapter Information. The Adapter Information Menu is displayed.
15
Emulex Documentation, Drivers, and Software
3. Select 2, Adapter Revision Levels. If there are multiple host adapters, a list is
displayed and you need to select an adapter. The following type of information
is displayed for the host bus adapter (this is an example only).
Version 1 shows a chipset revision that contains 210 near the end of the
BIU number.
Version 2 shows a chipset revision that contains 250 near the end of the
BIU number.
16
Emulex Documentation, Drivers, and Software
Emulex Driver for HP-UX Installation Manual
Version 4.20.04
Table of Contents
Compatibility
Prerequisites
Installation
Install the Driver
Remove Existing Driver
17
Emulex Documentation, Drivers, and Software
Driver Information
Compatibility
●
●
●
Emulex Fibre Channel adapters LP10000DC and LP10000
Emulex Fibre Channel adapters LP9802DC and LP9802
Emulex Fibre Channel adapters LP9002DC, LP9002L and LP9000 (minimum
firmware revision 3.81a1)
●
Emulex Fibre Channel adapters LP8000 and LP8000DC
●
Emulex Fibre Channel adapter LP7000E (minimum firmware revision 3.21a0)
●
If your HBA has a Dragonfly chip version 2.00 or greater, use firmware version
3.90a7.
●
If your HBA has a Dragonfly chip below version 2.00, use firmware version 3.30a7.
●
Hewlett Packard PA_RISC platforms:
❍
rp2400, 5400, 7400 and 8400 series
❍
Superdome
❍
Testing has also been performed with HP9000 A400, A500, B2000, L and
N class servers as well as C240 and C3600 workstations (Note: HP 9000
A180 is not supported)
Prerequisites
●
●
HP-UX 10.2 (32-bit OS), HP-UX 11.0 (64-bit OS), HP-UX 11i (32-bit or 64-bit)
Patches: HP-UX 10.2, PHKL-22689 WSIO SCSI Cumulative Patch
HP-UX 11.0, PHKL-21989 SCSI IO Subsystem Cumulative Patch
HP-UX 11.0 was tested with the March 2003 patch bundle
HP-UX 11i was tested with the September 2003 patch bundle
●
64 MB system RAM
●
Video driver set to 640 x 480 mode (recommended)
18
Emulex Documentation, Drivers, and Software
●
●
Installed Fibre Channel host bus adapter
For dual channel host bus adapters only: a version of firmware with boot code must
be present on the adapter before installing in an HP-UX 11i (11.11) system.
19
Emulex Documentation, Drivers, and Software
Using the UNIX-based Utility
1. Enter the appropriate command to start the lputil utility:
For AIX enter: /usr/lpp/diagnostics/lputil
For HP-UX enter: /opt/lpfc/bin/lputil
For Linix enter: /usr/sbin/lpfc/lputil
For Solaris enter: /usr/sbin/lpfc/lputil
The main menu is displayed.
2. Select 2, Adapter Information. The Adapter Information Menu is displayed.
20
Emulex Documentation, Drivers, and Software
3. Select 2, Adapter Revision Levels. If there are multiple host adapters, a list is displayed and
you need to select an adapter. The following type of information is displayed for the host bus
adapter (this is an example only).
Version 1 shows a chipset revision that contains 210 near the end of the
BIU number.
Version 2 shows a chipset revision that contains 250 near the end of the
BIU number.
21
Emulex Documentation, Drivers, and Software
Install the Driver
To install the driver and boot the system, follow these instructions. While it is possible to
install lpfc onto one or more clients from a server, that procedure is not covered here; refer
to your HP-UX system administration documentation for that procedure. If a prior version
of the lpfc device driver is already installed on the system, you must first remove the old
driver.
Note
A new adapCfg.h file is copied into the opt/lpfc/conf/
directory during installation. If this driver was previously
installed and you have configuration changes you wish to
save, copy the original opt/lpfc/conf/adapCfg.h file to a safe
place and transfer any edits from the old file to the new file
after installation.
1. Login as or su to root.
2. Load the depot file from your distribution medium into a directory, referred to here
as <where-you-put-it>. The depot file name is lpfc.depot.
3. At the shell prompt, type:
cd <where-you-put-it>
swinstall -s `pwd`/lpfc.depot -x autoreboot=true LPFC
The system will reboot automatically, and the lpfc driver will be included in the HPUX kernel.
4. Before you proceed, decide whether you must change any driver configuration
parameter, beyond the defaults established by the installation process.
22
Emulex Documentation, Drivers, and Software
5. To modify the default driver configuration parameter, rebuild Kernel and Reboot the
machine using the following commands:
/usr/sbin/mk_kernel -o /stand/vmunix
sync
reboot or shutdown -r
23
Emulex Documentation, Drivers, and Software
Remove the Emulex lpfc Device Driver
Driver Removal (swremove)
The driver can be removed by using swremove. Run the following command:
swremove –x autoreboot=true LPFC
The system will automatically reboot after the driver is removed.
For further information on installing and removing drivers, consult the HP-UX system
administration documentation and the swinstall(1M) and swremove(1M) manual pages.
24
Emulex Documentation, Drivers, and Software
Emulex Driver for HP-UX Configuration Manual
Version 4.20.04
Table of Contents
Introduction
Change Configuration Parameters
Set Up Persistent Binding and LUN Blocking
View IOSCAN Report
Understand Device Numbering
View adapCfg.h File Parameters
List Adapters
View Adapter Information
Update Firmware
Install Boot Code
Reset Adapter
Download PCI Configuration
25
Emulex Documentation, Drivers, and Software
Introduction
You can use either of the following methods to configure the driver for HP-UX:
●
●
Use HP's System Administration Tool (SAM) to make changes globally.
Use a text editor to make changes per adapter. The adapCfg.h configuration file is
a C header file and is located in the /opt/lpfc/conf directory. The adaCfg.h file
provides examples of code to modify driver parameters.
26
Emulex Documentation, Drivers, and Software
Change Configuration Parameters Per Adapter
1. Using a text editor, access the adapCfg.h configuration file by entering:
cd /opt/lpfc/
conf
2. Locate the following section of code in the adapCfg.h configuration file.
3. Replace the variable # (on line 3) with the adapter instance number.
4. Replace the variable PARAMETER, SETTING with the parameter and setting you want. See
the config structures table for more information on each parameter setting.
5. Locate the following lines of code in the adapCfg.h file and delete or comment these lines and
all example rows in between:
#ifdef
ThisIsJustAnExample
#endif /* just an example
*/
Note
(Approximately line #133)
(second to last line)
Comment out or delete all rows that provide example
information. Once you delete the above lines of code, the
system will consider all code when compiling.
6. Set the Per-Adapter Configuration Structure. Locate the following lines of code and modify the
entry for adapters that have been configured by removing the 0 and comment tags. In the
sample, only adapters 0 and 1 have configuration changes.
27
Emulex Documentation, Drivers, and Software
7. Save the adapCfg.h file. We recommended that you make a copy of the modified adapCfg.h
file and keep it as a backup. If a new driver is installed, this file will be overwritten and all
parameters will revert back to default.
8. Rebuild the kernel by entering:
# /usr/sbin/mk_kernel -s /stand/system -o /stand/vmunix
# sync
# reboot
9. Reboot the system.
10. Run ioscan to discover hardware, view bindings and view LUNs. Enter:
# ioscan -fnC
disk
The IOSCAN report displays information such as the hardware path, driver, software state,
hardware type and description device.
28
Emulex Documentation, Drivers, and Software
adapCfg.h File
Click on a parameter to view a detailed description.
Cfg Parameter
Default Min Max
Comments
CFG_ACK0
0
0
1
Use ACK0 for Class 2
CFG_AUTOMAP
1
0
3
Automatically assigns SCSI
IDs to FCP targets detected.
CFG_CHECK_COND_ERR
0
boolean
0=false,
1=true
Treat certain FCP Check
conditions as FCP RSP
errors.
CFG_DELAY_RSP_ERR
0
boolean
0=false,
1=true
Treat FCP RSP errs like nodevice-delay.
CFG_DQFULL_THROTTLE
1
boolean
0=false,
1=true
Decrement LUN throttle on
queue fulls.
CFG_DQFULL_THROTTLE_UP_TIME 1
0
30
(seconds) Number of
seconds to start increment
the current Queue depth.
CFG_DQFULL_THROTTLE_UP_INC
1
0
128
Number of Queue depth to
increment.
CFG_FCP_CLASS
3
2
3
Fibre Channel class for FCP
data transmission.
CFG_FCP_ON
1
boolean
0=false,
1=true
Turn on FCP.
CFG_LINK_SPEED
0
0
2
Set link speed: auto, 1G, 2G.
CFG_LINKDOWN_TMO
30
0
255
(seconds) How long driver
waits before deciding FC
link is down.
CFG_DFT_LUN_Q_DEPTH
30
1
128
Override default
CFG_DFT_LUN_Q_DEPTH.
CFG_DFT_TGT_Q_DEPTH
0
0
10240 Override default
CFG_NO_DEVICE_DELAY
1
0
30
Second delay to fail back an
I/O.
CFG_HOLDIO
0
0
1
Hold I/O errors forever if
device disappears.
CFG_DFT_TGT_Q_DEPTH.
29
Emulex Documentation, Drivers, and Software
CFG_NODEV_TMO
0
0
255
Seconds to hold I/O if
device disappears.
CFG_NUM_BUFS
512
64
4,096
ELS and misc data buffers.
CFG_NUM_IOCBS
512
128 10,240 Adapter command/response
CFG_SCAN_DOWN
2
0
2
Select method for A_PA to
SCSI ID mapping.
CFG_TOPOLOGY
0
0
6
Fibre Channel link topology.
CFG_USE_ADISC
0
boolean
0=false,
1=true
Send ADISC instead of
PLOGI for device discovery.
CFG_LOG_ONLY
1
0
1
Logging to log file only.
CFG_LOG_VERBOSE
0
0
0xff
(bit mask) Extra activity
logging.
CFG_XMT_Q_SIZE
256
128 10.240 Transmit queue length of
CFG_ZONE_RSCN
0
0
structures.
mbufs.
1
Check NameServer for
RSCNs.
30
Emulex Documentation, Drivers, and Software
Set Up Persistent Binding and LUN Blocking
Persistent bindings are based on the target device's WWPN, WWNN or DID. This binding guarantees
that target assignments are preserved between reboots
1. Using your text editor, access the adapCfg.h configuration file by entering:
cd opt/lpfc/
conf
2. Locate the following section of code in the adapCfg.h configuration file.
3. Replace the variable # (on line 3) with the adapter instance number.
4. Turn off automapping by replacing the variable PARAMETER, SETTING with CFG_AUTOMAP
0.
5. Locate the above section of code in the adapCfg.h configuration file.
6. Replace the variable METHOD (on line 14) with either D_ID, WWPN or WWNN.
7. Replace the variable # (on line 14) with the adapter instance number.
8. Set bindings as follows:
NUMBER:
lpfcXtY
where NUMBERis a 6-digit representation of the target's device ID (DID), OR the 1631
Emulex Documentation, Drivers, and Software
digit representation of the target's WWPN or WWNN.
Xis the driver instance number
Yis the target assignment.
Line 15 provides a sample.
Multiple entries must be separated by a comma, with the last entry terminated with 0 as shown
on line 19.
9. Enter LUNs to be blocked in curly brackets separated by commas (see line 16).
NUMBER:lpfcXtY{#,#,#,#,
#}
where NUMBER:lpfcXtYsets the binding
#are the LUNs to be blocked.
Line 16 provides a sample.
10. Summarize the adapter configuration (this is required). Locate the following section in the
adapCfg.h file.
11. Replace the variable # with the adapter instance number.
12. If changes were made to the adapter configuration parameters, line 25 should be changed from
0 to lpfcOver_#, as shown in line 25. This is to set the Per-Adapter Configuration Structure.
13. If persistent bindings were set up, lines 26, 27 or 28 reflect the change depending on whether
the bindings were made based on the WWNN (line 26), WWPN (line 27) or D_ID (line 28). The
above sample shows a binding that was made using the D_ID of the target.
14. Follow steps 5 through 10 of the Change Configuration Parameters procedure. These
necessary steps include setting the per-adapter configuration structure, summarizing adapter
information, saving the adapCfg.h file, rebuilding the kernel, rebooting the system and running
ioscan.
32
Emulex Documentation, Drivers, and Software
Interpreting the IOSCAN Report
From the output of ioscan you can determine the hardware address and LUN.
This sample output has been color coded to help with the explanation.
Use the information in this table to help determine the SCSI ID and the actual LUN number.
Parent lpfc adapter
SCSI ID Offset Values: 0 or 1. If 0, the SCSI ID is
determined by adding 0 to the SCSI Index. If 1, the SCSI
ID is determined by adding 256 to the SCSI Index.
SCSI Index Use this number with the SCSI ID Offset to
determine the SCSI ID
LUN Offset Values: 0 or 1. If 0, add 0 to the LUN
Index to determine the actual LUN number. If 1, add
128 to the LUN Index to determine the actual LUN
number.
Pseudo Target ID Used with the LUN Value to
determine the LUN Index.
LUN Index = ((Target ID) x 8) + (LUN Value)
LUN Value Used with the Target ID to
determine the LUN Index.
LUN Index = ((Target ID) x 8) + (LUN
Value)
Examples
Hardware address: 10/1/5/0.0.22
SCSI ID = SCSI Offset + SCSI Index = 0 + 22 = 22
This hardware address results from binding 0000e8:lpfc0t22
33
Emulex Documentation, Drivers, and Software
Hardware address: 10/1/8/0.1.22
SCSI ID = SCSI Offset + SCSI Index = 255 + 22 = 277
This hardware address results from binding 0000e4:lpfc0t277
Hardware address: 10/1/8/0.1.22.0.2.7
SCSI ID = SCSI Offset + SCSI Index = 255 + 22 = 277
LUN = LUN Offset + ((Target ID)x8) + LUN Value
LUN = 0 + (2x8) + 7 = 23
Hardware address: 10/1/8/0.1.255.1.8.5
SCSI ID = SCSI Offset + SCSI Index = 255 + 255 = 511
LUN = LUN Offset + ((Target ID)x8) + LUN Value
LUN = 128 + (8x8) + 5 = 197
34
Emulex Documentation, Drivers, and Software
Understand Device Numbering
When the driver is configured, there are various configuration parameters that rely upon
device numbers. This section explains the two levels of device numbering and how they
apply to specific configuration parameters.
The first level of device numbering is the driver instance number. This is the number that is
displayed in log messages to syslog or the console, for example: lpfcX. The adapCfg.h
configuration parameters that use lpfcXtY rely on X to be the driver instance number and Y
to be the FCP target number. This format is used to configure persistent binding. In
systems where adapters are moved around or changed, it is possible for the driver
instance number to exceed the number of adapters.
The second level of numbering is the SCSI controller number. This number is assigned by
the system for each Pseudo HBA driver it detects. It is typically in the special files created
to access each SCSI device: for example, /dev/dsk/cZt0d0s2.
Once these numbers are assigned, they stay the same between reboots if there are no
LightPulse hardware changes to the system.
35
Emulex Documentation, Drivers, and Software
List Adapters
When you start the LightPulse Utility (lputil), all adapters are listed with information such as
the host adapter number, instance number (i.e. lpfc0), board model type, whether it is a
standard or non-standard device and whether the adapter is ready to use.
From the Main menu, enter 1, List Adapters.
MAIN MENU
1. List Adapters
2. Adapter Information
3. Firmware Maintenance
4. Reset Adapter
0. Exit
Enter choice => 1
36
Emulex Documentation, Drivers, and Software
View Adapter Information
The LightPulse Utility (lputil) allows you to view information for a selected adapter. Once
you start lputil, the Main menu opens:
MAIN MENU
1. List Adapters
2. Adapter Information
3. Firmware Maintenance
4. Reset Adapter
0. Exit
Enter choice => 2
Select choice #2. If you have multiple adapters, a list displays, you select an adapter and
the Adapter Information Menu opens. If you have only one adapter, the Adapter
Information Menu opens for that adapter.
ADAPTER INFORMATION MENU
1. PCI Configuration Parameters
2. Adapter Revision Levels
3. Wakeup Parameters
4. IEEE Address
5. Loop Map
6. Status and Counters
7. Link Status
8. Configuration Parameters
0. Return to Main Menu
Enter choice =>
PCI Configuration Parameters - Displays parameters from the PCI configuration space
on the adapter. Examples of this information include vendor ID, device ID, base
addresses, ROM address, header type, subclass and base class.
Adapter Revision Levels - Displays firmware revision levels, including kernel and overlay
version information.
37
Emulex Documentation, Drivers, and Software
Wakeup Parameters - Displays BIOS status and version, as well as SLI (service level
interface).
IEEEE Address - Displays the adapter board address.
Loop Map - If you are currently using arbitrated loop topology, this menu option displays
information about your connected devices, such as AL_PA and D_ID.
Status and Counters - Tracks such activities as link failure, loss synch and elastic overlay.
Configuration Parameters - Displays parameters such as link failure count, loss sync
count and timeout.
38
Emulex Documentation, Drivers, and Software
Update Firmware
Prerequisites
●
●
●
The driver for HP-UX is installed properly.
The firmware file has been downloaded to a local drive. Firmware versions differ
between adapter versions. Make sure you have downloaded the appropriate
firmware for your adapter.
If you are updating the firmware on a RISC-PA system with an LP9802DC,
LP9402DC, LP9002DC, or LP8000DC HBA in HP-UX version 11.11, you must
either first install OpenBoot on the HBA, or install a version of firmware that
includes boot code (not available in all firmware versions).
Load Firmware
This procedure uses the lputil utility, which is installed with the driver.
Caution
If you are installing the driver for HP-UX with a dual
channel adapter and update the firmware, you must use
a firmware image containing OpenBoot. Use ddc files for
the LP8000DC, cdc files for the LP9002DC, and hdc and
hfc files for the LP9802DC. Failure to load OpenBoot will
make the dual channel adapter unavailable after a
system reboot.
1. Start the utility by entering the complete path to lputil. The path in the example
reflects the default installation path. If the installation path was modified, adjust the
command appropriately.
/opt/lpfc/bin/lputil
2.
3.
4.
5.
From the Main menu, enter 3, Firmware Maintenance.
If prompted, choose the HBA that is being updated.
Enter 1, Load Firmware Image.
Enter the full path to the firmware file.
The new firmware is transferred to flash ROM.
If you are updating the firmware on a dual-channel HBA, repeat steps 3 through 5 to
update the firmware on the second port.
39
Emulex Documentation, Drivers, and Software
Loading Boot Code
If you are using the HP-UX 11.11 operating system with an Emulex LP9802DC,
LP9402DC or LP8000DC host bus adapter, you must load the boot code before updating
the firmware.
Prerequisites:
●
The driver for HP-UX is installed properly.
●
You have at least one dual channel adapter.
●
The boot code file has been downloaded to a local drive.
This procedure uses the lputil utility, which is installed with the driver.
Caution
Failure to load the boot code will make a dual channel
adapter unavailable after a system reboot.
Procedure
1. Start the utility by entering the complete path to lputil. The path in the example
reflects the default installation path. If the installation path was modified, adjust the
command appropriately.
/opt/lpfc/bin/lputil
2. From the Main menu, enter 3, Firmware Maintenance.
3. Enter 1, Load Firmware Image.
4. Enter the full path to the boot code file.
The new boot code is transferred to flash ROM.
40
Emulex Documentation, Drivers, and Software
Reset the Adapter
The LightPulse Utility (lputil) is loaded automatically when the driver utilities kit is installed
and allows you to reset the adapter using lputil. Start lputil (see Introduction for start up
instructions).
Once you start the utility, the Main menu is displayed:
MAIN MENU
1. List Adapters
2. Adapter Information
3. Firmware Maintenance
4. Reset Adapter
0. Exit
Enter choice => 4
Select 4, Reset Adapter. Resetting the adapter runs self tests and reestablishes links
(causes discovery of devices). Once the adapter has successfully reset, the Main Menu is
displayed.
If you have multiple adapters, a list is displayed and you can select the adapter you want
to reset.
Caution Do not reset your adapter while copying or writing files.
This could result in data loss or corruption. We
recommend contacting Emulex Technical Support before
resetting your adapter.
41
Emulex Documentation, Drivers, and Software
Download PCI Configuration
Note
Select this option only if you are familiar with PCI
configuration registers.
To download PCI Configuration follow these steps. From the lputil Main menu:
1. Select 3, Firmware Maintenance.
The Firmware Maintenance menu is displayed.
2. Select 5, Load PCI Configuration File. PCI configuration data is contained in .cfl
files, which can be used across any supported platform.
3. Enter the region in Flash ROM to download the data, and press <Enter>.
You can download one of three data sets for the PCI configuration registers.
❍
Default PCI Configuration Region
❍
PCI Configuration Region 1
❍
PCI Configuration Region 2
4. Upon completion, press 0 to return to Main menu.
5. Press 0 to exit the utility.
6. Power down the system.
7. Restart system to load new configuration data.
42
Emulex Documentation, Drivers, and Software
Emulex Driver for HP-UX Troubleshooting Manual
Version 4.20.04
Table of Contents
Introduction
HBA Not Available After A Firmware Update
Error Codes Table
43
Emulex Documentation, Drivers, and Software
Introduction
There are several circumstances in which your system may operate in an unexpected
manner. The Troubleshooting manual explains many of these circumstances and offers
one or more workarounds for each situation.
44
Emulex Documentation, Drivers, and Software
HBA Not Available After A Firmware Update
Situation:
On HP-UX 11.11 systems, if firmware is updated on a dual channel HBA without including
boot bios that HBA is no longer available when the system is rebooted.
Resolution
Remove the HBA from the system, install it in a different type of system, obtain the driver/
utility for that system and add the boot bios.
45
Emulex Documentation, Drivers, and Software
Error Codes Table
Error/warning messages are logged only into /var/adm/syslog/syslog.log file. Some
messages are recorded only if the log-verbose configuration parameter is turned on. With
the verbose parameter, you can set a bit mask to record specific types of verbose
messages:
0x1
ELS events
0x2
Device Discovery events
0x4
Mailbox Command events
0x8
Misc events
0x10
Link Attention events
0x20
IP events
0x40
FCP events
0x80
Node table events
The following section describes each error/warning message and indicates any user
actions needed. In addition, the message status (ERROR, WARNING, PANIC) and driver
source code location are also given.
Error messages are of the format:
LpfcN: Num : Message Data: Variables
Where Nis the interface number
Numis a unique 3 digit error code
Messageis the error message
Variablesare four message-dependent data variables
46
Emulex Documentation, Drivers, and Software
Platform Independent errors - 001 to 099
lpfcN: 1 : Stray ELS completion
Received an ELS command completion without issuing a corresponding ELS
command (based on the IOTAG field in the CMD_ELS_REQUEST_CR IOCB). The
IOCB command and IOTAG are used to match are recorded.
ACTION: This error could indicate a software driver or firmware problem. If the
problems persist, report these errors to technical support.
ERROR always fcelsb.c
lpfcN: 2 : ELS [command response] completion error
An ELS command completed with a status error in the IOCB. The IOCB command,
IOCB status, IOCB parameter error, as well as the PortID this ELS command was
directed to are recorded. This is only a warning. It could mean
❍
❍
The Fibre Channel device on the network is not responding.
The Fibre Channel device is not an FCP target.
The Fibre Channel driver will automatically retry this ELS command if needed.
ACTION: If the ELS command is a PLOGI or PRLI, and the destination PortID is
not an FCP target, no action is needed. Otherwise, check the physical connections
to the Fibre Channel network and the state of the remote PortID.
WARNING ELS verbose fcelsb.c
47
Emulex Documentation, Drivers, and Software
lpfcN: 3 : Device Discovery completion error
This indicates that an uncorrectable error was encountered during device (re)
discovery after a link up. Fibre Channel devices will not be accessible if this
message is displayed. The location within the driver is recorded.
ACTION: Reboot the system. If the problem persists, contact technical support.
Run with verbose mode on for more details.
ERROR always fcelsb.c
lpfcN: 4 : Device Discovery completes
This indicates successful completion of device (re)discovery after a link up. The
location within the driver is recorded.
ACTION: None needed.
WARNING DISCOVERY verbose fcelsb.c
lpfcN: 5 : Unknown ELS [command response IOCB]
An ELS command, ELS response, or ELS ring IOCB are not supported or have an
illegal value.
The illegal/unknown value is recorded.
ACTION: This error could indicate a software driver or firmware problem. If the
problems persist, report these errors to technical support.
ERROR always fcelsb.c
48
Emulex Documentation, Drivers, and Software
lpfcN: 6 : FARP-[REQ RSP] received
A FARP ELS command was received from a fabric. The command originator’s
PortID is recorded.
ACTION: None needed.
WARNING IP verbose fcelsb.c
lpfcN: 7 : FLOGI completes successfully
A fabric login completed successfully. The assigned PortID, RATOV and EDTOV
are recorded.
ACTION: None needed.
WARNING DISCOVERY verbose fcelsb.c
lpfcN: 8 : PRLI completes successfully
A PRLI to a FCP target completed successfully. Target PortID and FCP SCSI ID
(PAN, SID) are recorded.
ACTION: None needed.
WARNING FCP / DISCOVERY verbose fcelsb.c
49
Emulex Documentation, Drivers, and Software
lpfcN: 9 : FAN received
A FAN ELS command was received from a fabric. The assigned PortID and
internal driver state are recorded.
ACTION: None needed.
WARNING DISCOVERY verbose fcelsb.c
lpfcN: 10 : RSCN received
A RSCN ELS command was received from a fabric. The internal driver state and
size of the RSCN payload is recorded.
ACTION: None needed.
WARNING DISCOVERY verbose fcelsb.c
lpfcN: 11 : Unknown Identifier in RSCN payload
Typically the identifier in the RSCN payload specifies a domain, area or a specific
NportID. If none of these are specified, a warning will be recorded. The value of the
illegal identifier will be recorded.
ACTION: Potential problem with the fabric. Check with the fabric vendor.
WARNING always fcelsb.c
50
Emulex Documentation, Drivers, and Software
lpfcN: 12 : ELS Retry failed
If an ELS command fails, it may be retried up to 3 times. This message will be
recorded if the driver gives up retrying a specific ELS command. The value of the
ELS command and the remote PortID will be recorded.
ACTION: If the ELS command is a PRLI, and the destination PortID is not an FCP
target, no action is needed. Otherwise, check physical connections to the Fibre
Channel network and the state the remote PortID is in.
WARNING ELS verbose fcelsb.c
lpfcN: 13 : Service Level Interface selected
Either a CONFIG_PORT (SLI2) or PART_SLIM (SLI1) mailbox command was
issued. The SLI selected, 1 or 2, and the virtual address of the SLIM will be
recorded.
ACTION: None needed.
WARNING MISC verbose fcmboxb.c
lpfcN: 14 : Memory Buffer Pool is below low water mark
A driver memory buffer pool is low on buffers. The buffer pool number and low
water mark are recorded.
ACTION: None needed.
WARNING MISC verbose fcmemb.c
51
Emulex Documentation, Drivers, and Software
lpfcN: 15 : Memory Buffer Pool is out of buffers
A driver memory buffer pool is exhausted. The buffer pool number is recorded.
ACTION: Configure more resources for that buffer pool. If the problems persist,
report these errors to technical support.
ERROR always fcmemb.c
lpfcN: 16 : Cannot find virtual address for mapped buffer
The driver cannot find the specified buffer in its mapping table. Thus it cannot find
the virtual address needed to access the data. The mapped buffer address and
ring number are recorded.
ACTION: If the problems persist, report these errors to technical support.
ERROR always fcmemb.c
lpfcN: 17 : Ran out of Node Table entries
The driver maintains a node table with one entry for every device it needs to
communicate with on the Fibre Channel network. The number of table entries and
the PortID for the device that failed are recorded. This message will be a warning/
verbose if the driver can free up some unused node table entries.
ACTION: Reduce the number of devices in your Fibre Channel network. If the
problems persist, report these errors to technical support.
ERROR always fcrpib.c
52
Emulex Documentation, Drivers, and Software
lpfcN: 18 : Device Discovery Started
Device discovery/rediscovery after FLOGI or FAN has started. The location within
the driver is recorded.
ACTION: None needed.
WARNING DISCOVERY verbose fcrpib.c
lpfcN: 19 : Stray FCP Completion
Received an FCP command completion without issuing a corresponding FCP
command (based on the iotag field in the FCP IOCB). The IOCB command, IOCB
status, IOCB parameter and iotag used to match are recorded.
ACTION: This error could indicate a software driver or firmware problem. If the
problems persist, report these errors to technical support.
ERROR always fcscsib.c
lpfcN: 20 : FCP completion error
An FCP command completed with a status error in the IOCB. The IOCB status, the
IOCB parameter error, as well as the PortID this FCP command was directed to
are recorded.
ACTION: If there are many errors to one device, check the physical connections to
Fibre Channel network and the state of the remote PortID.
ERROR always fcscsib.c
53
Emulex Documentation, Drivers, and Software
lpfcN: 21 : Rcv Ring: out of posted buffers
If the ring number is 1 (IP ring) this usually means the system is out of TCP/IP
buffers. The ring number and missed buffer count are recorded
ACTION: Try allocating more IP buffers (STREAMS buffers or mbufs) of size 4096
and/or increasing the post-ip-buf configuration parameter. Reboot the system.
ERROR IP verbose fcscsib.c
lpfcN: 22 : NameServer Rsp buffer allocation failed
A name server response was received and a buffer is needed to put it in. This
usually means the system is out of TCP/IP buffers.
ACTION: Try allocating more IP buffers (STREAMS buffers or mbufs) of size 4096
and/or reboot the system.
ERROR always fcscsib.c
lpfcN: 23 : Post buffer for IP ring fails
The driver cannot post a buffer to the IP ring. This usually means the system is out
of TCP/IP buffers. The missed buffer count is recorded.
ACTION: Try allocating more IP buffers (STREAMS buffers or mbufs) of size 4096
and/or reboot the system.
ERROR always fcscsib.c
54
Emulex Documentation, Drivers, and Software
lpfcN: 24 : Command ring timeout
An IOCB command was posted to a ring and did not complete within a timeout
based on R_A_TOV. The ring number and the IOCB command are recorded.
ACTION: This error could indicate a software driver or firmware problem. If no I/O
is going through the adapter, reboot the system. If these problems persist, report
the errors to technical support.
ERROR always fcscsib.c
lpfcN: 25 : Mailbox command timeout
A mailbox command was posted to the adapter and did not complete within 30
seconds. The mailbox command and status are recorded.
ACTION: This error could indicate a software driver or firmware problem. If no I/O
is going through the adapter, reboot the system. If these problems persist, report
the errors to technical support.
ERROR always fcscsib.c
lpfcN: 26 : FAN timeout
A link up event was received without the login bit set, so the driver waits E_D_TOV
for the fabric to send a FAN. If no FAN if received, a FLOGI will be sent after the
timeout.
ACTION: None needed. The driver recovers from this with a FLOGI to the fabric.
WARNING always fcscsib.c
55
Emulex Documentation, Drivers, and Software
lpfcN: 27 : NameServer Registration timeout
Our registration request to the fabric is not acknowledged within R_A_TOV.
ACTION: Check the fabric configuration. The driver recovers from this and
continues with device discovery.
WARNING always fcscsib.c
lpfcN: 28 : Nameserver Query timeout
Node Authentication timeout
Node Discovery timeout
A name server query to the fabric or discovery of reported remote NPorts is not
acknowledged within R_A_TOV.
ACTION: Check the fabric configuration. The driver recovers from this and
continues with device discovery.
WARNING always fcscsib.c
lpfcN: 29 : pt2pt timeout
A PLOGI has not been received within R_A_TOV, after a successful FLOGI, which
indicates that the topology is point-to-point with another NPort. Typically this
PLOGI is used to assign a NPortID.
ACTION: None needed, driver will recover by configuring the NPortID as 0.
WARNING always fcscsib.c
56
Emulex Documentation, Drivers, and Software
lpfcN: 30 : SCSI timeout
An FCP IOCB command was posted to a ring and did not complete within ULP
timeout seconds. The IOCB command, NPortID and SCSI ID are recorded.
ACTION: If no I/O is going through the adapter, reboot the system; otherwise
check the state of the target in question.
WARNING FCP verbose fcscsib.c
lpfcN: 31 : Link [Up Down] Event received [ALPAmap]
Either a link up or link down link event is received. It is also possible for multiple
link events to be received together. If this happens the current event number, last
event number received, AL_PA granted, and number of entries in the loop init LILP
AL_PA map are recorded. For a link up, an AL_PA map message is also recorded
if LINK_EVENT verbose mode is set. Each AL_PA map message contains 16
ALPAs.
ACTION: If numerous link events are happening, check the physical connections to
Fibre Channel network.
WARNING always / LINK_EVENT fcscsib.c
lpfcN: 32 : Unknown Mailbox completion
An unsupported or illegal mailbox command completed. The unknown value is
recorded.
ACTION: This error could indicate a software driver or firmware problem. If the
problems persist, report these errors to technical support.
ERROR always fcscsib.c
57
Emulex Documentation, Drivers, and Software
lpfcN: 33 : SCSI Link reset
The SCSI layer has determined that the link needs to be reset. A LIP is sent to
restart loop initialization.
ACTION: None needed.
WARNING always fcscsib.c
lpfcN: 34 : Bring Adapter online
The driver has received a request to bring the adapter online. This may happen
when running the LightPulse Utility (lputil).
ACTION: None needed.
WARNING always fcscsib.c
lpfcN: 35 : Bring adapter offline
The driver has received a request to bring the adapter offline. This may happen
when running lputil.
ACTION: None needed.
WARNING always fcscsib.c
58
Emulex Documentation, Drivers, and Software
lpfcN: 36 : Abort Target I/O: clearq
This is displayed if the driver internally detects that it needs to abort all I/O to a
specific device. This results in a Fibre Channel ABTS to abort the I/O in process.
The target N_Port ID, SCSI ID and LUN are recorded.
ACTION: Check the state of the target in question.
WARNING FCP verbose fcscsib.c
lpfcN: 37 : Abort Target I/O: issue_abort
This is displayed if the SCSI layer detects that it needs to abort all I/O to a specific
device. This results in an FCP Task Management command to abort the I/O in
progress. The target N_Port ID, SCSI ID and LUN are recorded.
ACTION: Check the state of the target in question.
WARNING always fcstratb.c
lpfcN: 38 : FCP command failed
A target has sent an FCP RSP error. Because of the amount of information that
needs to be recorded, two back-to-back messages are generated. The first records
the IOCB information, the IOCB cmd, IOTAG, status and parameter error field. The
second records FCP information, N_Port ID, SCSI ID, LUN and FCP response
status bytes.
ACTION: Check the state of the target in question.
WARNING FCP verbose fcscsib.c
59
Emulex Documentation, Drivers, and Software
lpfcN: 39 : Cannot issue FCP command
A valid login with a target no longer exists. The target NPortID, SCSI ID and LUN
are recorded.
ACTION: Check the state of the target in question.
WARNING always fcstratb.c
lpfcN: 40 : No room on IP xmit queue
The system is generating IOCB commands to be processed faster than the adapter
can process them.
ACTION: Check the state of the link. If the link is up and running, reconfigure the
xmit queue size to be larger. Note, a larger queue size may require more system IP
buffers. If the link is down, check physical connections to the Fibre Channel
network.
WARNING IP verbose fcxmitb.c
lpfcN: 41 : Stray XmitSequence completion
Received an XMIT_SEQUENCE IOCB completion without issuing a corresponding
XMIT_SEQUENCE command (based on the IOTAG field in the
XMIT_SEQUENCE_CR IOCB). The IOCB command and IOTAG used to match
are recorded.
ACTION: This error could indicate a software driver or firmware problem. If the
problems persist,report these errors to technical support.
ERROR always fcxmitb.c
60
Emulex Documentation, Drivers, and Software
lpfcN: 42 : Xmit sequence completion error
A XMIT_SEQUENCE command completed with a status error in the IOCB. The
IOCB status, the IOCB IOTAG, the IOCB parameter error, as well as the PortID
this command was directed to are recorded. The driver attempts to recover by
creating a new exchange to the remote device.
ACTION: If there are many errors on one device, check the physical connections to
the Fibre Channel network and the state of the remote PortID.
WARNING IP verbose fcxmitb.c
lpfcN: 43 : Stray CreateXRI completion
Received a CREATE_XRI command completion without issuing a corresponding
CREATE_XRI command (based on the IOTAG field in the CREATE_XRI_CR
IOCB). The IOCB command and IOTAG used to match are recorded.
ACTION: This error could indicate a software driver or firmware problem. If the
problems persist, report these errors to technical support.
ERROR always fcxmitb.c
lpfcN: 44 : Adapter failed to initialize
The host adapter failed to initialize properly. The status register is recorded.
ACTION: This error usually indicates a hardware problem with the adapter, run
diagnostics.
ERROR always lp6000.c
61
Emulex Documentation, Drivers, and Software
lpfcN: 45 : Adapter initialization failed, Mailbox command
The host adapter failed to initialize properly because a mailbox command failed.
The mailbox command and mailbox status value are recorded.
ACTION: This error usually indicates a hardware problem with the adapter, run
diagnostics.
ERROR always lp6000.c
lpfcN: 46 : RUN_BIU_DIAG failed
The host adapter failed to initialize properly because a PCI bus DMA test failed.
ACTION: This error usually indicates a hardware problem with the adapter, run
diagnostics.
ERROR always lp6000.c
lpfcN: 47 : WorldWide PortName doesn't conform to IP Profile
In order to run IP, the WorldWide PortName must be of type IEEE (NAA = 1). This
message is display if the adapter WWPN doesn’t conform to the standard. The
NAA is recorded.
ACTION: Turn off the network-on configuration parameter or have a different
WWPN assigned.
ERROR always lp6000.c
62
Emulex Documentation, Drivers, and Software
lpfcN: 48 : Enable interrupt handler failed
This error occurs if the driver cannot assign an interrupt vector to the host adapter.
ACTION: Check the configuration of the adapter in the system.
ERROR always lp6000.c
lpfcN: 49 : Adapter Hardware Error
A FireFly error interrupt occured and the status register indicates a nonrecoverable error. The adapter status register is recorded.
ACTION: This error usually indicates a hardware problem with the adapter, run
diagnostics.
ERROR always lp6000.c
lpfcN: 50 : Stray Mailbox Interrupt
Received a mailbox command completion and the mailbox is not owned by the
host. The mailbox command and status are recorded.
ACTION: This error could indicate a software driver or firmware problem. If the
problems persist, report these errors to technical support.
ERROR always lp6000.c
63
Emulex Documentation, Drivers, and Software
lpfcN: 51 : [29,xx] Check condition received
Could indicate a problem with an FCP target. The check condition response info
fields are recorded. A 29,xx check condition is recorded only in verbose mode.
ACTION: Check the state of the FCP target
ERROR always lp6000.c
lpfcN: 52 : [Xmit Received] ELS [command response]
Could indicate a problem with an FCP target. The check condition response info
fields are recorded. A 29,xx check condition is only recorded in verbose mode.
ACTION: No action needed.
WARNING ELS verbose fcelsb.c
64
Emulex Documentation, Drivers, and Software
HP-UX specific errors
General HP-UX error codes range from 100 to 109. HP-UX FCP specific error codes range
from 120 to 139.
lpfcN: 100 : Attach failure: XXXXX
The driver attach routine failed for reason XXXXX. The assigned DIP and attach
routine cmd are recorded.
ACTION: This error could indicate a software driver or firmware problem. If the
problems persist, report these errors to technical support.
ERROR always fcHPUX.c
lpfcN: 101 : Detach failure: XXXXX
The driver detach routine failed for reason XXXXX. The assigned DIP and attach
routine cmd are recorded.
ACTION: This error could indicate a software driver or firmware problem. If the
problems persist, report these errors to technical support.
ERROR always fcHPUX.c
lpfcN: 102 : Config error: XXXXX
Parameter XXXXX in the driver conf file has a bad value. The bad value and new
value are recorded.
ACTION: Check the driver .conf file, usually located in /opt/lpfc/conf/adapCfg.h
ERROR always fcHPUX.c
65
Emulex Documentation, Drivers, and Software
lpfcN: 103 : fc_malloc: XXXXX
The driver memory allocation routine failed for reason XXXXX. Various memory
allocation parameters are recorded.
ACTION: This error could indicate a software driver or firmware problem. If the
problems persist report, these errors to technical support.
ERROR always fcHPUX.c
lpfcN: 104 : fc_bufmap: XXXXX
The driver memory mapping routine failed for reason XXXXX. Various memory
mapping parameters are recorded.
ACTION: This error could indicate a software driver or firmware problem. If the
problems persist, report these errors to technical support.
ERROR always fcHPUX.c
lpfcN: 121 Override default targetX SCSI options
The message indicates that the default SCSI options for target X have been
overridden. The SCSI ID, new SCSI option, and default SCSI option is recorded.
ACTION: No action needed.
WARNING FCP verbose fcHPUX.c
66
Emulex Documentation, Drivers, and Software
lpfcN: 122 Override default SCSI tag age limit
The default SCSI tag age limit has been overridden. The new tag age and default
tag age are recorded.
ACTION: No action needed.
WARNING FCP verbose fcHPUX.c
lpfcN: 123 Override default SCSI reset delay
The default SCSI reset delay has been overridden. The new reset delay and
default reset delay are recorded.
ACTION: No action needed.
WARNING FCP verbose fcHPUX.c
lpfcN: 124 Exceeded max s/g size
The scatter/gather elements received by the driver exceeded the number (64) it
can handle. The SCSI ID, LUN, the number of elements supported and number of
elements received from the upper layer are recorded.
ACTION: This error could indicate an HP-UX problem. To workaround it, you can
issue smaller I/Os, or install more memory. If the problems persist, report these
errors to technical support.
ERROR always fcHPUX.c
67
Emulex Documentation, Drivers, and Software
lpfcN: 125 DMA allocation error
Indicates an error for allocating a DMA memory. The MALLOC status error is
recorded.
ACTION: This error could indicate a software driver or firmware problem. If the
problems persist, report these errors to technical support.
ERROR always fcHPUX.c
lpfcN: 128 Invalid FCP Response Code received
An invalid FCP response code has been received. The SCSI ID, LUN and FCP
task mgmt response status (rspinfo3) are recorded.
ACTION: This error could indicate a software driver or target problem. If the
problems persist, report these errors to technical support.
ERROR always fcHPUX.c
lpfcN: 129 FCP Read Check Error
The adapter detects corrupted and missing frames, which happen only when an
entire sequence is dropped. The IOCB cmd, FCP response SCSI status (rspinfo2)
and FCP task mgmt response status (rspinfo3) are recorded.
ACTION: Check the link connection to the target.
WARNING FCP verbose fcHPUX.c
68
Emulex Documentation, Drivers, and Software
lpfcN: 130 SCSI Auto Sense is not enabled
The target driver can either issue a SCSI Request Sense command when the error
occurred or enable the AutoSense capability through the driver interface routine.
The SCSI ID and LUN are recorded.
ACTION: No action needed.
WARNING FCP verbose fcHPUX.c
lpfcN: 131 Can’t copy ARQ data, size mismatch
The SCSI ARQ status buffer is greater than the SCB length. The SCSI ID, LUN,
SCB length and length of the buffer are recorded.
ACTION: This error could indicate a software driver or firmware problem. If the
problems persist, report these errors to technical support.
ERROR always fcHPUX.c
69
