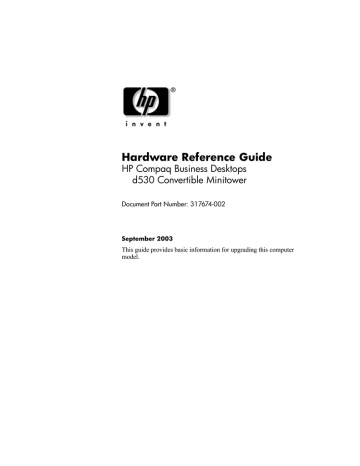

HP Compaq d530 MT Hardware reference guide

Hardware Reference Guide
HP Compaq Business Desktops
d530 Convertible Minitower
Document Part Number: 317674-002
September 2003
This guide provides basic information for upgrading this computer
model.
© Copyright 2003 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft, MS-DOS, Windows, and Windows NT are trademarks of Microsoft
Corporation in the U.S. and other countries.
Intel, Pentium, Intel Inside, and Celeron are trademarks of Intel Corporation in
the U.S. and other countries.
Adobe, Acrobat, and Acrobat Reader are trademarks or registered trademarks of
Adobe Systems Incorporated.
The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable
for technical or editorial errors or omissions contained herein.
This document contains proprietary information that is protected by copyright.
No part of this document may be photocopied, reproduced, or translated to
another language without the prior written consent of Hewlett-Packard
Company.
Å
WARNING: Text set off in this manner indicates that failure to follow
directions could result in bodily harm or loss of life.
Ä
CAUTION: Text set off in this manner indicates that failure to follow
directions could result in damage to equipment or loss of information.
Hardware Reference Guide
HP Compaq Business Desktops
d530 Convertible Minitower
Second Edition (September 2003)
First Edition (May 2003)
Document Part Number: 317674-002
Contents
1 Product Features
Standard Configuration Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1
Front Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
Rear Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3
Easy Access Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4
Customizing the Easy Access Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
Using the Windows Logo Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
Special Mouse Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Serial Number Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Changing from a Minitower to a Desktop Configuration . . . . . . . . . . . . . . . . . . . . . . . 1–7
Changing from a Desktop to a Minitower Configuration . . . . . . . . . . . . . . . . . . . . . . 1–10
2 Hardware Upgrades
Serviceability Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Smart Cover Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2
Using the Smart Cover FailSafe Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2
Removing the Computer Access Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4
Removing the Front Bezel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5
Removing Bezel Blanks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6
Installing Additional Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7
DIMMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7
DDR-SDRAM DIMMs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7
DIMM Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8
Installing DDR-SDRAM DIMMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–10
Installing or Removing an Expansion Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–12
Drive Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–17
Installing Additional Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–18
Installing an Optical or other Removable Storage Device . . . . . . . . . . . . . . . . . . 2–19
Hardware Reference Guide
www.hp.com
iii
Contents
Installing a Hard Drive into a 3.5-inch Drive Bay . . . . . . . . . . . . . . . . . . . . . . . .
Removing a Drive from the Drive Bay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Working with the MultiBay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
“Hot-Plugging” or “Hot-Swapping” MultiBay Drives . . . . . . . . . . . . . . . . . . . . .
Partitioning and Formatting a MultiBay Hard Drive . . . . . . . . . . . . . . . . . . . . . .
Uninstalling the MultiBay Security Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inserting a Drive into the MultiBay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing a Drive from the MultiBay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–22
2–26
2–30
2–30
2–31
2–32
2–33
2–34
A Specifications
B PATA Hard Drive Installation Guidelines
Using the Cable-Select Feature with Parallel ATA (PATA) Devices. . . . . . . . . . . . . . B–1
Guidelines for Installing PATA Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–1
C Battery Replacement
D Security Lock Provisions
Installing a Security Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D–1
E Port Security Bracket
Installing the Port Security Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E–1
Removing the Port Security Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E–5
F Electrostatic Discharge
Preventing Electrostatic Damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F–1
Grounding Methods. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F–1
G Routine Computer Care and Shipping Preparation
Routine Computer Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Optical Drive Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shipping Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
iv
www.hp.com
G–1
G–2
G–2
G–2
G–2
G–3
Hardware Reference Guide
Contents
Index
Hardware Reference Guide
www.hp.com
v
Contents
vi
www.hp.com
Hardware Reference Guide
1
Product Features
Standard Configuration Features
The HP Compaq Convertible Minitower computer can be easily
converted to a desktop. Features may vary depending on the model.
For a complete listing of the hardware and software installed in the
computer, run Diagnostics for Windows. Instructions for using this
utility are provided in the Troubleshooting Guide on the
Documentation Library CD.
Compaq Convertible Minitower Configuration
Hardware Reference Guide
www.hp.com
1–1
Product Features
Front Panel Components
Drive configuration may vary by model.
Front Panel Components
1
Optical Drives
7
Optical Drive Eject Buttons
2
Optical Drive Activity Lights
8
Power Button
3
Diskette Drive (optional)
9
Power On Light
4
Diskette Drive Activity Light (optional)
-
USB (Universal Serial Bus) Ports
5
Diskette Eject Button (optional)
;
Headphone Jack
6
Hard Drive Activity Light
<
Microphone Connector
✎
An optical drive is a CD-ROM, CD-R/RW, DVD-ROM, DVD-R/RW, or
CD-RW/DVD Combo drive.
1–2
www.hp.com
Hardware Reference Guide
Product Features
Rear Panel Components
Rear Panel Components
1
Power Cord Connector
7
n RJ-45 Network Connector
2
Voltage Select Switch
8
l Parallel Connector
PS/2 Mouse Connector
9
c Monitor Connector
3
b
4
a PS/2 Keyboard Connector
-
h Headphone/Line-Out Connector
5
o Universal Serial Bus (USB)
q
j Line-In Audio Connector
6
m
w
g
Serial Connector
Microphone Connector
✎ Arrangement and number of connectors may vary by model.
The monitor connector on the system board is inactive when an AGP expansion card is installed in
the computer, or when both an AGP and PCI graphics card are installed.
If only a PCI graphics card is installed, the connectors on the card and the system board may be
used at the same time. Some settings may need to be changed in F10 setup to use both connectors.
For more information about Boot Order, refer to the Computer Setup (F10) Utility Guide on the
Documentation Library CD.
If you have installed an AGP and PCI graphics card, the connectors on both cards are active and
can be used at the same time.
Hardware Reference Guide
www.hp.com
1–3
Product Features
Easy Access Keyboard
Easy Access Keyboard Components
1
Function Keys
Perform special functions, depending on the software application
being used.
2
Easy Access Buttons
Provide quick access to specific Internet destinations.
3
Editing Keys
Includes the following: Insert, Home, Page Up, Delete, End, and
Page Down.
4
Status Lights
Indicate the status of the computer and keyboard settings
(Num Lock, Caps Lock, and Scroll Lock).
5
Numeric Keys
Work like a calculator keypad.
6
Arrow Keys
Used to navigate through a document or Web site. These keys
allow you to move left, right, up, and down, using the keyboard
instead of the mouse.
7
Application Key*
Used (like the right mouse button) to open pop-up menus in a
Microsoft Office application. May perform other functions in
other software applications.
8
Windows Logo Keys*
Used to open the Start menu in Microsoft Windows. Used in
combination with other keys to perform other functions.
9
Ctrl Key
Used in combination with another key; its effect depends on the
application software you are using.
*Keys available in select geographic regions.
1–4
www.hp.com
Hardware Reference Guide
Product Features
Customizing the Easy Access Buttons
All Easy Access buttons can be reprogrammed to open any software
application or data file on the hard drive, or any Internet address.
To reprogram the Easy Access buttons, complete the following steps:
1. Double-click the keyboard icon in the notification area (lower
right corner) of the Windows taskbar. The Keyboard Properties
dialog box is displayed.
2. Click the Help button on the Keyboard Properties dialog box for
instructions.
Using the Windows Logo Key
Use the Windows Logo key in combination with other keys to
perform certain functions available in the Windows operating system.
Refer to the “Easy Access Keyboard” section to identify the Windows
Logo key.
Windows Logo Key
Displays or hides the Start menu
Windows Logo Key + d
Displays the Desktop
Windows Logo Key + m
Minimizes all open applications
Shift + Windows Logo Key + m
Undoes Minimize All
Windows Logo Key + e
Launches My Computer
Windows Logo Key + f
Launches Find Document
Windows Logo Key + Ctrl + f
Launches Find Computer
Windows Logo Key + F1
Launches Windows Help
Windows Logo Key + l
Locks the computer if you are connected to a
network domain, or allows you to switch users if you
are not connected to a network domain
Windows Logo Key + r
Launches the Run dialog box
Windows Logo Key + u
Launches the Utility Manager
Windows Logo Key + Tab
Activates the next Taskbar button
Hardware Reference Guide
www.hp.com
1–5
Product Features
Special Mouse Functions
Most software applications support the use of a mouse. The functions
assigned to each mouse button depend on the software applications
you are using.
Serial Number Location
Each computer has a unique serial number that is located on the side
access panel. Keep this number available for use when contacting
customer service for assistance.
Serial Number Location
1–6
www.hp.com
Hardware Reference Guide
Product Features
Changing from a Minitower to a Desktop
Configuration
1. If you have locked the Smart Cover Lock, see the “Smart Cover
Lock” section or use Computer Setup to unlock it.
2. Turn off the computer properly through the operating system and
turn off any external devices. Disconnect the power cord from the
power outlet and disconnect any external devices.
3. Remove the computer access panel as described in the
“Removing the Computer Access Panel” section.
4. Remove the front bezel as described in the “Removing the Front
Bezel” section.
5. Disconnect all power and data cables from the back of the drives
in the 5.25-inch drive bays.
6. To release the drives from the 5.25-inch drive bay, lift the release
tab on the green latch drive bracket for the drive. While lifting the
release tab, slide the drive from its drive bay. Repeat this step for
each 5.25-inch drive.
Releasing the 5.25-inch Drives from the Drive Bays (Minitower)
Hardware Reference Guide
www.hp.com
1–7
Product Features
7. Before you reinstall each drive into the chassis, turn the drive so
that it is perpendicular to the internal 3.5-inch drive. The drive
should be parallel to the green latch drive bracket.
Installing a Drive in the Desktop Configuration
8. Gently slide the drive into the uppermost available bay until it
snaps into place. When the drive is properly inserted, the
drivelock will secure it. Repeat this step for each drive.
Ä
CAUTION: The bottom 5.25-inch drive bay has a shorter depth than the
upper two bays. The bottom bay supports a drive that is no more than 6.7
inches in depth, including the cables that attach to the back of the drive.
Do not try to force a larger drive, such as an optical drive or MultiBay
drive, into the bottom bay. This could cause damage to the drive and the
system board.
The use of unnecessary force when installing any drive into the drive bay
may result in damage to the drive.
9. Reconnect all power and data cables to the drives in the 5.25-inch
drive bays.
10. Remove the bezel subpanel as described in the “Removing Bezel
Blanks” section.
Ä
1–8
CAUTION: Hold the subpanel straight when you pull it away from the
front bezel. Pulling the subpanel away at an angle could damage the pins
that align it within the front bezel.
www.hp.com
Hardware Reference Guide
Product Features
11. Reposition the bezel blanks within the subpanel in the proper
orientation for the desktop configuration.
12. Reposition the subpanel (rotate it 180°) with the logo at the
bottom, then snap it back into the bezel.
Changing from a Minitower to a Desktop Configuration
13. Replace the front bezel and computer access panel.
14. Reconnect the external equipment.
15. If you normally lock the Smart Cover Lock, use Computer Setup
to relock the lock and enable the Smart Cover Sensor.
Hardware Reference Guide
www.hp.com
1–9
Product Features
Changing from a Desktop to a Minitower
Configuration
1. If you have locked the Smart Cover Lock, see the “Smart Cover
Lock” section or use Computer Setup to unlock it.
2. Turn off the computer properly through the operating system and
turn off any external devices. Disconnect the power cord from the
power outlet and disconnect any external devices.
3. Remove the computer access panel as described in the
“Removing the Computer Access Panel” section.
4. Remove the front bezel as described in the “Removing the Front
Bezel” section.
5. Disconnect all power and data cables from the back of the drives
in the 5.25-inch drive bays.
6. To release the drives from the 5.25-inch drive bay, press down
on the short yellow drivelock as shown. While pressing the
drivelock, pull the drives out of the drive bay.
Releasing the 5.25-inch Drives from the Drive Bays (Desktop)
1–10
www.hp.com
Hardware Reference Guide
Product Features
7. Before you reinstall each drive into the chassis, turn it so that it is
in the same orientation as the internal 3.5-inch drive. The bottom
of the drive should be parallel to the yellow drivelock.
Installing a Drive in the Minitower Configuration
8. Gently slide the drive into the uppermost available bay until it
snaps into place. When the drive is properly inserted, the
drivelock will secure it. Repeat this step for each drive.
Ä
CAUTION: The bottom 5.25-inch drive bay has a shorter depth than the
upper two bays. The bottom bay supports a drive that is no more than 6.7
inches in depth, including the cables that attach to the back of the drive.
Do not try to force a larger drive, such as an optical drive or MultiBay
drive, into the bottom bay. This could cause damage to the drive and the
system board.
The use of unnecessary force when installing any drive into the drive bay
may result in damage to the drive.
9. Reconnect all power and data cables to the drives in the 5.25-inch
drive bays.
Hardware Reference Guide
www.hp.com
1–11
Product Features
10. Remove the bezel subpanel as described in the “Removing Bezel
Blanks” section.
Ä
CAUTION: Hold the subpanel straight when you pull it away from the
front bezel. Pulling the subpanel away at an angle could damage the pins
that align it within the front bezel.
11. Reposition the bezel blanks within the subpanel in the proper
orientation for the desktop configuration.
12. Reposition the subpanel (rotate it 180°) with the logo at the
bottom, then snap it back into the bezel.
Changing from a Desktop to a Minitower Configuration
13. Replace the front bezel and computer access panel.
14. Reconnect the external equipment.
15. If you normally lock the Smart Cover Lock, use Computer Setup
to relock the lock and enable the Smart Cover Sensor.
1–12
www.hp.com
Hardware Reference Guide
2
Hardware Upgrades
Serviceability Features
The computer includes features that make it easy to upgrade and
service. No tools are needed for most of the installation procedures
described in this chapter.
Warnings and Cautions
Before performing upgrades be sure to carefully read all of the
applicable instructions, cautions, and warnings in this guide.
Å
WARNING: To reduce the risk of personal injury from electrical shock
and/or hot surfaces, be sure to disconnect the power cord from the wall
outlet and allow the internal system components to cool before touching.
Å
WARNING: To reduce the risk of electrical shock, fire, or damage to the
equipment, do not plug telecommunications/telephone connectors into the
network interface controller (NIC) receptacles.
Ä
CAUTION: Static electricity can damage the electrical components of the
computer or optional equipment. Before beginning these procedures,
ensure that you are discharged of static electricity by briefly touching a
grounded metal object. See Appendix F, “Electrostatic Discharge” for
more information.
Ä
CAUTION: Before removing the computer cover, ensure that the
computer is turned off and that the power cord is disconnected from the
electrical outlet.
Hardware Reference Guide
www.hp.com
2–1
Hardware Upgrades
Smart Cover Lock
Smart Cover Lock is an optional feature included on select
✎ The
models only.
The Smart Cover Lock is a software-controllable cover lock,
controlled by the setup password. This lock prevents unauthorized
access to the internal components. The computer ships with the
Smart Cover Lock in the unlocked position. For more information
about locking the Smart Cover Lock, refer to the Desktop
Management Guide on the Documentation Library CD.
Using the Smart Cover FailSafe Key
If you enable the Smart Cover Lock and cannot enter your password
to disable the lock, you will need a Smart Cover FailSafe Key to open
the computer cover. You will need the key to access the internal
computer components in any of the following circumstances:
Ä
■
Power outage
■
Startup failure
■
PC component (for example, processor or power supply) failure
■
Forgotten password
CAUTION: The Smart Cover FailSafe Key is a specialized tool available
from HP. Be prepared; order this key before you need one.
To obtain a FailSafe Key:
2–2
■
Contact an authorized HP reseller or service provider. Order PN
166527-001 for the wrench-style key or PN 166527-002 for the
screwdriver bit key.
■
Refer to the HP Web site (www.hp.com) for ordering information.
■
Call the appropriate number listed in the warranty.
www.hp.com
Hardware Reference Guide
Hardware Upgrades
To open the access panel:
1. Turn off the computer properly through the operating system and
turn off any external devices.
2. Disconnect the power cord from the power outlet, and disconnect
any external devices.
3. Using the Smart Cover FailSafe Key, remove the two
tamper-proof screws that secure the Smart Cover Lock to the
chassis.
Removing the Smart Cover Lock Screws
4. Remove the access panel.
To reattach the Smart Cover Lock, secure the lock in place with the
tamper-proof screws.
Hardware Reference Guide
www.hp.com
2–3
Hardware Upgrades
Removing the Computer Access Panel
1. If you have locked the Smart Cover Lock, see the previous
“Smart Cover Lock” section or use Computer Setup to unlock it.
2. Turn off the computer properly through the operating system and
turn off any external devices.
3. Disconnect the power cord from the power outlet, and disconnect
any external devices.
Ä
CAUTION: Before removing the computer access panel, ensure that the
computer is turned off and that the power cord is disconnected from the
electrical outlet.
4. Lay the computer down on its large base for greater stability.
5. Lift up on the access panel handle 1, slide the access panel back
about 1 inch (2.5 cm), then lift it up and off the unit 2.
Removing the Computer Access Panel
To replace the access panel, reverse steps 1–5.
2–4
www.hp.com
Hardware Reference Guide
Hardware Upgrades
Removing the Front Bezel
1. If you have locked the Smart Cover Lock, see the “Smart Cover
Lock” section or use Computer Setup to unlock it.
2. Turn off the computer properly through the operating system and
turn off any external devices. Disconnect the power cord from the
power outlet and disconnect any external devices.
3. Remove the computer access panel.
4. Push up on the two release tabs 1, then rotate the front bezel
away from the chassis to release it 2.
Removing the Front Bezel
replacing the front bezel, ensure that the bottom hinge points
✎ When
are properly placed in the chassis before rotating the front bezel back
into its original position.
Hardware Reference Guide
www.hp.com
2–5
Hardware Upgrades
Removing Bezel Blanks
1. If you have locked the Smart Cover Lock, see the “Smart Cover
Lock” section or use Computer Setup to unlock it.
2. Turn off the computer properly through the operating system and
turn off any external devices. Disconnect the power cord from the
power outlet and disconnect any external devices.
3. Remove the computer access panel then remove the front bezel.
4. Gently pull the subpanel, with the bezel blanks secured in it,
away from the front bezel, then remove the desired bezel blank.
Ä
CAUTION: Hold the subpanel straight when you pull it away from the
front bezel. Pulling the subpanel away at an angle could damage the pins
that align it within the front bezel.
Removing Bezel Blanks from the Subpanel (Desktop Shown)
replacing the subpanel, ensure that the aligning pins and any
✎ When
remaining bezel blanks are in their proper orientation. The logo on the
subpanel should be located at the bottom of the subpanel when
properly oriented.
2–6
www.hp.com
Hardware Reference Guide
Hardware Upgrades
Installing Additional Memory
The computer comes with double data rate synchronous dynamic
random access memory (DDR-SDRAM) dual inline memory
modules (DIMMs).
DIMMs
The memory sockets on the system board can be populated with up to
four industry-standard DIMMs. These memory sockets are populated
with at least one preinstalled DIMM. To achieve the maximum
memory support, you can populate the system board with up to 4GB
of memory configured in a high-performing dual channel mode.
DDR-SDRAM DIMMs
For proper system operation, if the computer supports DDR-SDRAM
DIMMs, the DIMMs must be:
■
industry-standard 184-pin
■
unbuffered PC2100 266 MHz-, PC2700 333 MHz-, or PC3200
400 MHz-compliant
■
2.5 volt DDR-SDRAM DIMMs.
The DDR-SDRAM DIMMs must also:
■
support CAS latency 2 or 2.5 (CL = 2 or CL = 2.5)
■
contain the mandatory JEDEC SPD information
In addition, the computer supports:
■
128Mbit, 256Mbit, and 512Mbit non-ECC memory technologies
■
single-sided and double-sided DIMMS
■
DIMMs constructed with x8 and x16 DDR devices; DIMMs
constructed with x4 SDRAM are not supported
The following processor bus frequencies are required for the system
to run at the supported memory frequencies.
Hardware Reference Guide
www.hp.com
2–7
Hardware Upgrades
Memory Frequency
Required Processor Bus Frequency
266 MHz
400 MHz, 533 MHz, or 800 MHz
333 MHz
533 MHz or 800 MHz
400 MHz
800 MHz
If a memory frequency is paired with an unsupported processor bus
frequency, the system will run at the highest supported memory
speed. For example, if a 333 MHz DIMM is paired with a 400 MHz
processor bus, the system will run at 266 MHz, the highest supported
memory speed.
✎ The system will not start if you install unsupported DIMMs.
DIMM Sockets
The system will automatically operate in single channel mode or a
higher-performing dual channel mode, depending on how the DIMMs
are installed.
2–8
■
In single channel mode, the maximum operational speed is
determined by the slowest DIMM in the system. For example, if
the system is populated with a DIMM that is 266 MHz and a
second DIMM that is 333 MHz, the system will run at the slower
of the two speeds.
■
In dual channel mode, all DIMMs must be identically matched.
DIMMs in the XMM1 and XMM3 black sockets must be
identical; DIMMs in the XMM2 and XMM4 blue sockets must
also be identical. Therefore, if you have one preinstalled DIMM
in socket XMM1 and are adding a second DIMM, it is
recommended that you install an identical DIMM into the XMM3
socket. If you are populating all four DIMM sockets, use identical
DIMMs in each socket. Otherwise, the system will not operate in
dual channel mode.
www.hp.com
Hardware Reference Guide
Hardware Upgrades
There are four DIMM sockets on the system board, with two sockets
per channel. The sockets are labeled XMM1, XMM2, XMM3, and
XMM4. Sockets XMM1 and XMM2 operate in memory channel A.
Sockets XMM3 and XMM4 operate in memory channel B.
DIMM Socket Locations
Hardware Reference Guide
Item
Description
Socket Color
1
DIMM socket XMM1, Channel A
Black
2
DIMM socket XMM2, Channel A
Blue
3
DIMM socket XMM3, Channel B
Black
4
DIMM socket XMM4, Channel B
Blue
www.hp.com
2–9
Hardware Upgrades
Installing DDR-SDRAM DIMMs
Ä
CAUTION: The memory module sockets have gold metal contacts. When
upgrading the memory, it is important to use memory modules with gold
metal contacts to prevent corrosion and/or oxidation resulting from having
incompatible metals in contact with each other.
Ä
CAUTION: Static electricity can damage the electronic components of
the computer or optional cards. Before beginning these procedures,
ensure that you are discharged of static electricity by briefly touching a
grounded metal object. For more informations, refer to Appendix F,
“Electrostatic Discharge”.
Ä
CAUTION: When handling a memory module, be careful not to touch
any of the contacts. Doing so may damage the module.
1. If you have locked the Smart Cover Lock, see the “Smart Cover
Lock” section or use Computer Setup to unlock it.
2. Turn off the computer properly through the operating system and
turn off any external devices. Disconnect the power cord from the
power outlet.
3. Remove the access panel and locate the memory module sockets.
Å
WARNING: To reduce risk of personal injury from hot surfaces, allow
the internal system components to cool before touching.
4. Open both latches of the memory module socket 1, and insert the
memory module into the socket 2.
you have one preinstalled DIMM in socket XMM1 and are adding a
✎ Ifsecond
DIMM, it is recommended that you install an identical DIMM
into the XMM3 socket. If you are populating all four DIMM sockets,
use identical DIMMs in each socket. Otherwise, the system will not
operate in dual channel mode.
2–10
www.hp.com
Hardware Reference Guide
Hardware Upgrades
Installing a DIMM
module can be installed in only one way. Match the notch
✎ Aonmemory
the module with the tab on the memory socket.
5. Push the module down into the socket, ensuring that the module
is fully inserted and properly seated. Make sure the latches are in
the closed position 3.
6. Repeat steps 4 and 5 for to install any additional modules.
7. Replace the access panel.
8. If you normally lock the Smart Cover Lock, use Computer Setup
to relock the lock and enable the Smart Cover Sensor.
The computer should automatically recognize the additional memory
the next time you turn on the computer.
Hardware Reference Guide
www.hp.com
2–11
Hardware Upgrades
Installing or Removing an Expansion Card
The computer contains expansion slots that can be used to upgrade or
add components to the computer.
1. If you have locked the Smart Cover Lock, see the “Smart Cover
Lock” section or use Computer Setup to unlock it.
2. Turn off the computer properly through the operating system and
turn off any external devices.
3. Disconnect the power cord from the power outlet, then disconnect
any external devices.
4. Remove the computer access panel and locate the correct vacant
expansion socket on the system board and the corresponding
expansion slot on the back of the computer chassis.
5. Push down and out on the two green thumb tabs inside the chassis
and rotate the expansion card retention latch up.
Opening the Expansion Slot Retainer
2–12
www.hp.com
Hardware Reference Guide
Hardware Upgrades
6. If you are installing an expansion card in a vacant socket, remove
the appropriate expansion slot on the back of the chassis. Lift the
expansion slot cover from the expansion slot.
Removing an Expansion Slot Cover
Hardware Reference Guide
www.hp.com
2–13
Hardware Upgrades
7. If removing an expansion card from a standard expansion
socket, hold the card at each end and carefully rock it back and
forth until the connectors pull free from the socket. Lift the card
straight up to remove it. Be sure not to scrape the card against
other components.
removing an installed expansion card, disconnect any cables
✎ Before
that may be attached to the expansion card.
Removing an Expansion Card from a Standard Expansion Socket
2–14
www.hp.com
Hardware Reference Guide
Hardware Upgrades
8. If removing an AGP card from an AGP expansion socket with a
retention mechansim, pull the retention arm away from the socket
then carefully rock the card back and forth until the connectors
pull free from the socket. Lift the card straight up to remove it. Be
sure not to scrape the card against other components.
Removing an AGP Card from a Socket with a Retention Mechansim
9. Store the card in anti-static packaging.
10. If you are not installing a new expansion card, install an
expansion slot cover to close the open slot.
Ä
Hardware Reference Guide
CAUTION: After removing an expansion card, you must replace it with a
new card or cover the open slot (for example, with a metal slot cover or a
piece of duct tape) for proper cooling of internal components during
operation.
www.hp.com
2–15
Hardware Upgrades
11. To install a new expansion card, slide the bracket on the end of
the card down into the slot on the back of the chassis and press
the card down firmly into the socket on the system board.
Installing an Expansion Card
you install an expansion card, make sure you press firmly on
✎ When
the card so that the whole connector seats properly in the expansion
card socket.
12. Close the expansion card retention latch, making sure that it snaps
firmly into place.
13. Connect external cables to the installed card, if needed. Connect
internal cables to the system board, if needed.
14. Replace the computer access panel.
15. If you normally lock the Smart Cover Lock, use Computer Setup
to relock the lock and enable the Smart Cover Sensor.
16. Reconfigure the computer, if necessary. Refer to the Computer
Setup (F10) Utility Guide on the Documentation Library CD for
instructions about using Computer Setup.
2–16
www.hp.com
Hardware Reference Guide
Hardware Upgrades
Drive Positions
Desktop and Minitower Drive Positions
1
Three 5.25-inch, half-height bays for optional drives
2
One standard 3.5-inch, one-third height bay (1.44-MB
diskette drive shown)*
3
Two internal 3.5-inch, one-third height bays for hard drives
*Depending on the computer configuration, you may have a
bezel blank in this position. If you do not have a drive in this
slot, you may choose to install a 3.5-inch device (such as a
diskette drive, hard drive, or Zip drive) later on.
To verify the type and size of the storage devices installed in the
computer, run Computer Setup. Refer to the Computer Setup (F10)
Utility Guide on the Documentation Library CD for more
information.
Hardware Reference Guide
www.hp.com
2–17
Hardware Upgrades
Installing Additional Drives
The computer supports up to six drives which may be installed in
various configurations.
When installing additional drives, follow these guidelines:
■
For optimal performance, connect hard drives to the primary
controller. Connect expansion devices, such as optical, IDE tape,
and diskette drives, to the secondary controller using
an 80-conductor IDE cable.
■
You may install either a third-height or a half-height drive into a
half-height bay.
■
You must install guide screws to ensure the drive will line up
correctly in the drive cage and lock in place. HP has provided
extra guide screws with the computer. The hard drive uses 6-32
standard screws, four of which are installed on the hard drive
bracket under the access panel. All other drives use M3 metric
screws, eight of which are installed on the diskette drive bracket
under the access panel or on the front of the chassis behind the
front bezel. The HP-supplied metric screws are black. The
HP-supplied standard screws are silver.
Ä■
CAUTION: To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a hard drive, shut down the operating
system properly, then turn off the computer. Do not remove a hard
drive while the computer is on or in standby mode.
■
Before handling a drive, ensure that you are discharged of static
electricity. While handling a drive, avoid touching the connector.
For more information about preventing electrostatic damage, refer to
Appendix F, “Electrostatic Discharge.”
■
■
■
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or
products that have magnetic fields such as monitors or speakers.
le:
2–18
www.hp.com
Hardware Reference Guide
Hardware Upgrades
Installing an Optical or other Removable Storage Device
optical drive is a CD-ROM, CD-R/RW, DVD-ROM, DVD-R/RW,
✎ An
or CD-RW/DVD Combo drive.
1. If you have locked the Smart Cover Lock, see the “Smart Cover
Lock” section or use Computer Setup to unlock it.
2. Turn off the computer properly through the operating system and
turn off any external devices. Disconnect the power cord from the
power outlet and remove the computer access panel.
3. Remove the front bezel.
4. Install two guide screws in the lower holes on each side of the
drive 1.
and diskette drives use M3 metric guide screws. Eight extra
✎ Optical
metric guide screws are provided on the front of the chassis under the
front bezel, or on the diskette drive bracket under the access panel.
The HP-supplied metric screws are black.
Hardware Reference Guide
www.hp.com
2–19
Hardware Upgrades
Installing a 5.25-Inch Drive on a Minitower (top) and Desktop (bottom)
5. Install the drive in the desired drive bay by sliding it into the front
of the drive cage 2; the drivelock automatically secures the drive
in the bay.
Ä
CAUTION: The bottom 5.25-inch drive bay has a shorter depth than the
upper two bays. The bottom bay supports a drive that is no more than 6.7
inches in depth, including the cables that attach to the back of the drive.
Do not try to force a larger drive, such as an optical drive or MultiBay
drive, into the bottom bay. This could cause damage to the drive and the
system board.
The use of unnecessary force when installing any drive into the drive bay
may result in damage to the drive.
2–20
www.hp.com
Hardware Reference Guide
Hardware Upgrades
you are installing a third optional drive in the bottom 5.25-inch
✎ Ifdrive
bay, you must also install an expansion card with an IDE
controller and data cable (not supplied) because the secondary IDE
controller supports only two drives.
6. Connect the drive power 1 and signal 2 cables and, if it is an
optical drive and if analog audio is preferred to digital audio,
connect the audio cable 3. The other end of the audio cable
should be connected to the embedded audio connector on the
system board.
Connecting the Drive Cables
7. Remove the appropriate bezel blank from the subpanel inside the
front bezel. See the “Removing Bezel Blanks” section for more
information.
8. Replace the computer access panel and front bezel.
9. If you normally lock the Smart Cover Lock, use Computer Setup
to relock the lock and enable the Smart Cover Sensor.
10. Reconfigure the computer, if necessary. Refer to the Computer
Setup (F10) Utility Guide on the Documentation Library CD for
instructions about using Computer Setup.
Hardware Reference Guide
www.hp.com
2–21
Hardware Upgrades
Installing a Hard Drive into a 3.5-inch Drive Bay
parallel advanced technology attachment (PATA) and serial
✎ Both
advanced technology attachment (SATA) hard drives can be installed
on this computer.
If you are installing a SATA drive in your computer for the first time,
refer to the white paper “Implementation of Serial ATA on HP
Business Desktops” for more information. The white paper is located
at www.hp.com/support.
sure to back up the data on the old hard drive before removing
✎ Make
it so that you can install the data onto the new hard drive.
To install a hard drive in a 3.5-inch drive bay:
1. If you have locked the Smart Cover Lock, see the “Smart Cover
Lock” section or use Computer Setup to unlock it.
2. Turn off the computer properly through the operating system and
turn off any external devices. Disconnect the power cord from the
power outlet and remove the computer access panel.
3. Install four 6-32 standard guide screws, two on each side of the
drive.
Installing the Hard Drive Guide Screws
hard drive uses 6-32 standard guide screws. Four extra guide
✎ The
screws are installed on the hard drive bracket under the access panel.
The HP-supplied standard screws are silver.
2–22
www.hp.com
Hardware Reference Guide
Hardware Upgrades
4. Slide the hard drive down into the drive cage; the drivelock
automatically secures the drive in the bay.
Installing a Hard Drive into the Hard Drive Bay
Ä
Hardware Reference Guide
CAUTION: Make sure the guide screws line up with the guide slots in the
drive cage. The use of unnecessary force when installing any drive into the
drive bay may result in damage to the drive.
www.hp.com
2–23
Hardware Upgrades
5. Connect the power cable 1 and data cable 2 to the hard drive.
Connecting the Data Cable and Power Cable (PATA Hard Drive)
Connecting the Data Cable and Power Cable (SATA Hard Drive)
2–24
www.hp.com
Hardware Reference Guide
Hardware Upgrades
6. Connect the opposite end of the data cable to the appropriate
system board connector.
has only one SATA hard drive, you must connect the
✎ Ifhardyourdrivesystem
to the connector labeled SATA 0 first to avoid any hard
drive performance problems.
Hard Drive Connector Locations
1
SATA hard drive connector
2
PATA hard drive connector
7. Replace the computer access panel.
8. If you normally lock the Smart Cover Lock, use Computer Setup
to relock the lock and enable the Smart Cover Sensor.
9. Reconfigure the computer, if necessary. Refer to the Computer
Setup (F10) Utility Guide on the Documentation Library CD for
instructions about using Computer Setup.
Hardware Reference Guide
www.hp.com
2–25
Hardware Upgrades
you have installed a PATA hard drive that is not automatically
✎ Ifrecognized
by the computer, see Appendix B, “PATA Hard Drive
Installation Guidelines.”
If you have installed a SATA hard drive that is not automatically
recognized by the computer, refer to the white paper “Implementation
of Serial ATA on HP Business Desktops” for operating system
instructions. The white paper is located at www.hp.com/support.
replaced the primary hard drive, insert the Restore Plus! CD
✎ Ifto you
restore the operating system, software drivers, and any software
applications that were preinstalled on the computer. Follow the
instructions in the guide included with the Restore Plus! CD. When
the restore process has completed, reinstall any personal files that you
backed up before replacing the hard drive.
Removing a Drive from the Drive Bay
1. If you have locked the Smart Cover Lock, see the “Smart Cover
Lock” section or use Computer Setup to unlock it.
2. Turn off the computer properly through the operating system and
turn off any external devices. Disconnect the power cord from the
power outlet and remove the computer access panel.
3. Remove the front bezel.
4. Disconnect the power and data cables on the back of the drive. If
it is an optical drive, you may also need to disconnect the audio
connector.
Ä
2–26
CAUTION: When removing the cables, pull the tab or connector instead
of the cable itself to avoid damaging the cable.
www.hp.com
Hardware Reference Guide
Hardware Upgrades
5. Remove the drive from the drive bay as follows:
❏
To remove an optical drive in the desktop configuration, press
down on the yellow drivelock mechanism 1 and slide the
drive from the drive bay 2.
Removing an Optical Drive in the Desktop Configuration
Hardware Reference Guide
www.hp.com
2–27
Hardware Upgrades
❏
To remove a diskette drive or an optical drive in the
minitower configuration, pull up on the green drivelock
mechanism 1 for that specific drive and slide the drive from
the drive bay 2.
Removing a Diskette Drive or an Optical Drive in the Minitower
Configuration (Optical Drive Shown)
2–28
www.hp.com
Hardware Reference Guide
Hardware Upgrades
❏
To remove a hard drive, pull up on the green hard drive
drivelock mechanism 1 for that drive and slide the drive from
the drive bay 2.
Removing a Hard Drive
6. Store the removed drive in anti-static packaging.
Hardware Reference Guide
www.hp.com
2–29
Hardware Upgrades
Working with the MultiBay
The MultiBay is pre-installed in some models. It is a special drive bay
that supports a variety of optional 12.7-mm removable drives.
Ä■
CAUTION: To prevent loss of work and damage to the computer or a drive:
If you are inserting or removing a hard drive, exit all software
applications, shut down the operating system software, and turn off
the computer. Do not remove a hard drive while the computer is on or
in standby mode.
■
Before handling a drive, ensure that you are discharged of static
electricity. While handling a drive, avoid touching the connector.
■
Before traveling with, shipping, storing, or removing a drive other than
a hard drive, make sure that no media, such as a CD-ROM or
DVD-ROM, is in the drive and that the media tray is closed.
■
■
■
Handle a drive carefully; do not drop it.
■
If a drive must be mailed, place the drive in a bubble-pack mailer
or other suitable protective packaging and label the package “Fragile:
Handle with Care.”
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or
products that have magnetic fields such as monitors or speakers.
“Hot-Plugging” or “Hot-Swapping” MultiBay Drives
Ä
CAUTION: If you are inserting or removing a hard drive, shut down the
computer to prevent damage to the computer, the drive, and any data
stored on the drive. Never remove a hard drive while the computer is on
or in standby. To ensure that the computer is not in standby, turn the
computer on, then shut it down.
If the computer is running a preinstalled operating system supplied by
HP, you can insert or remove any drive except a hard drive while the
computer is on, off, or in standby.
2–30
www.hp.com
Hardware Reference Guide
Hardware Upgrades
Partitioning and Formatting a MultiBay Hard Drive
must be logged on as an administrator or a member of the
✎ You
Administrators group in order to complete this procedure.
1. Exit all software applications, turn off the computer properly
through the operating system, then turn off any external devices.
2. Insert the hard drive into the MultiBay as shown in the “Inserting
a Drive into the MultiBay” section.
3. Turn on the computer. Right-click the My Computer icon, then
click Manage > Disk Management.
4. Select the MultiBay hard drive.
5. On the Partition menu, click Create. Carefully read and respond
to any prompts that appear on the screen.
Refer to the Microsoft Management Console online Help (click
Action > Help, while running Management Console) for additional
information.
Hardware Reference Guide
www.hp.com
2–31
Hardware Upgrades
Uninstalling the MultiBay Security Screw
When installed, the MultiBay security screw disables the MultiBay
eject lever, so that a drive installed in the MultiBay cannot be
removed.
To remove a drive installed in the MultiBay, you must first remove the
security screw, if installed, using the FailSafe Key.
a FailSafe Key was not provided with the computer, contact an
✎ Ifauthorized
HP reseller or service provider. Order PN 166527-001 for
the wrench-style key or PN 166527-002 for the screwdriver bit key.
Uninstalling the MultiBay Security Screw
2–32
www.hp.com
Hardware Reference Guide
Hardware Upgrades
Inserting a Drive into the MultiBay
1. Exit all software applications, turn off the computer properly
through the operating system, then turn off any external devices.
2. Remove any removable media, such as a compact disc, from the
drive.
3. With the top of the drive facing up and the drive connector facing
the computer, slide the drive into the MultiBay and push firmly to
ensure that the electrical connector is properly seated.
Inserting a Drive into the MultiBay
If the device does not start, ensure that the necessary device drivers
are installed on the system. If they are not available, they may be
downloaded, at no cost, from the HP Web site at www.hp.com.
Hardware Reference Guide
www.hp.com
2–33
Hardware Upgrades
Removing a Drive from the MultiBay
1. Exit all software applications, turn off the computer properly
through the operating system, then turn off any external devices.
2. Remove the MultiBay security screw, if it has been installed.
Refer to the “Uninstalling the MultiBay Security Screw” section
for instructions on removing the MultiBay security screw.
3. Slide the eject lever 1 to the left to eject the drive from the
MultiBay 2.
Removing a Drive from the MultiBay
2–34
www.hp.com
Hardware Reference Guide
A
Specifications
HP Compaq d530 Convertible Minitower
Desktop Dimensions
Height
Width
Depth (depth will increase if the computer is
equipped with a port security bracket)
6.6 in
17.65 in
17.8 in
16.7 cm
44.8 cm
45.2 cm
17.65 in
6.6 in
17.8 in
44.8 cm
16.7 cm
45.2 cm
35 lb
15.9 kg
100 lb
45.5 kg
50° to 95°F
-22° to 140°F
10° to 35°C
-30° to 60°C
10-90%
5-95%
10-90%
5-95%
10,000 ft
30,000 ft
3048 m
9144 m
Tower Dimensions
Height
Width
Depth (depth will increase if the computer is
equipped with a port security bracket)
Approximate Weight
Weight Supported (maximum distributed
load for Desktop configuration only)
Temperature Range
Operating
Nonoperating
Relative Humidity (noncondensing)
Operating
Nonoperating (38.7°C max wet bulb)
Maximum Altitude (unpressurized)
Operating
Nonoperating
Hardware Reference Guide
www.hp.com
A–1
Specifications
HP Compaq d530 Convertible Minitower (Continued)
Heat Dissipation
Maximum
Typical (idle)
1,260 BTU/hr
256 BTU/hr
Power Supply
115V
Operating Voltage Range
Rated Voltage Range*
Rated Line Frequency
Power Output
Rated Input Current (maximum)*
318 kg-cal/hr
65 kg-cal/hr
230V
90-132 VAC
100-127 VAC
50-60 Hz
180-264 VAC
200-240 VAC
50-60 Hz
240 W
240 W
6A @ 100VAC
3A @ 200VAC
*This system utilizes a passive power factor corrected power supply when used in the 230V
mode. This allows the system to pass the CE mark requirements for use in the countries of the
European Union.
A–2
www.hp.com
Hardware Reference Guide
B
PATA Hard Drive Installation Guidelines
more information about Serial ATA (SATA) devices, refer to the
✎ For
white paper “Implementation of Serial ATA on HP Business
Desktops”. The white paper is located at www.hp.com/support.
Using the Cable-Select Feature with Parallel ATA
(PATA) Devices
Optional drives are available from HP in kits that include a special
drive cable. The configuration of the drive employs a cable-select
feature that identifies the drive as device 0 (primary drive) or device 1
(secondary drive).
Device 1 is the drive connected to the cable’s middle connector.
Device 0 is the drive connected to the cable’s end connector (applies
only to 80-conductor ATA cables). See “Guidelines for Installing
PATA Drives” in this appendix for an example of an PATA cable.
HP hard drives ship with jumpers preset to cable-select mode;
therefore, no jumper setting changes on the existing or optional drives
are required. If you purchase a third-party hard drive, refer to the
documentation included with the kit to ensure proper installation and
configuration of cables.
a second device on the primary controller, you must use
✎ Ifaninstalling
80-conductor PATA cable for optimal performance. This cable is
standard on select models.
Guidelines for Installing PATA Drives
When installing additional drives, follow these guidelines:
Hardware Reference Guide
www.hp.com
B–1
PATA Hard Drive Installation Guidelines
■
If using multiple devices, HP recommends that the devices be
split between the primary and secondary channels for optimum
performance. Use an additional cable to connect the additional
device to the system board.
■
80-conductor PATA cable:
❏
18 inches maximum total length, 80-conductor cable with
maximum spacing of 6 inches between Device 0 and
Device 1.
80-Conductor PATA Cable
1
Device 0 (primary drive) connector
2
Device 1 (secondary drive) connector
3
System board connector
■
For optimal performance, connect hard drives to the primary
controller. Connect expansion devices, such as ATA optical drives
and tape drives, to the secondary controller.
■
Install either a third-height or a half-height drive into a
half-height bay.
■
Install guide screws to ensure that the drive lines up correctly in
the drive cage. Hard drives use 6-32 standard guide screws. Four
extra guide screws are installed on the hard drive bracket under
the access panel. HP-supplied standard screws are silver.
■
If only one device is connected to a cable, that device must be
attached to the end (Device 0) connector.
you have only one device, make sure to connect it to the Device 0
✎ Ifconnector.
If you connect it to the Device 1 connector, the system will
not recognize the device and you may receive a “no fixed disk found”
error message.
B–2
www.hp.com
Hardware Reference Guide
C
Battery Replacement
The battery that comes with the computer provides power to the
real-time clock. When replacing the battery, use a battery equivalent
to the battery originally installed in the computer. The computer
comes with a 3-volt lithium coin cell battery.
lifetime of the lithium battery can be extended by plugging the
✎ The
computer into a live AC wall socket. The lithium battery is only used
when the computer is NOT connected to AC power.
Å
WARNING: The computer contains an internal lithium manganese dioxide
battery. There is a risk of fire and burns if the battery is not handled properly. To
reduce the risk of personal injury:
■
■
■
Do not attempt to recharge the battery.
■
Replace the battery only with the HP spare designated for this product.
Do not expose to temperatures higher than 60°C (140ºF).
Do not disassemble, crush, puncture, short external contacts, or
dispose of in fire or water.
Ä
CAUTION: Before replacing the battery, it is important to back up the
computer CMOS settings. When the battery is removed or replaced, the
CMOS settings will be cleared. Refer to the Computer Setup (F10) Utility
Guide on the Documentation Library CD for information on backing up
the CMOS settings.
N
Batteries, battery packs, and accumulators should not be disposed of
together with the general household waste. In order to forward them to
recycling or proper disposal, please use the public collection system or
return them to HP, their authorized partners, or their agents.
Hardware Reference Guide
www.hp.com
C–1
Battery Replacement
Ä
CAUTION: Static electricity can damage the electronic components of
the computer or optional equipment. Before beginning these procedures,
ensure that you are discharged of static electricity by briefly touching a
grounded metal object.
1. If you have locked the Smart Cover Lock, use Computer Setup to
unlock the lock and disable the Smart Cover Sensor.
2. Turn off the computer properly through the operating system,
then turn off any external devices. Disconnect the power cord
from the power outlet and disconnect any external devices. Then
remove the computer access panel.
be necessary to remove an expansion card to gain access to
✎ Itthemay
battery.
3. Locate the battery and battery holder on the system board.
4. Depending on the type of battery holder on the system board,
complete the following instructions to replace the battery.
Type 1
a. Lift the battery out of its holder.
Removing a Coin Cell Battery (Type 1)
b. Slide the replacement battery into position, positive side up.
The battery holder automatically secures the battery in the
proper position.
C–2
www.hp.com
Hardware Reference Guide
Battery Replacement
Type 2
a. To release the battery from its holder, squeeze the metal
clamp that extends above one edge of the battery.
b. When the battery pops up, lift it out.
Removing a Coin Cell Battery (Type 2)
Hardware Reference Guide
www.hp.com
C–3
Battery Replacement
c. To insert the new battery, slide one edge of the replacement
battery under the holder’s lip with the positive side up. Push
the other edge down until the clamp snaps over the other edge
of the battery.
Replacing a Coin Cell Battery (Type 2)
the battery has been replaced, use the following steps to
✎ After
complete this procedure.
5. Replace the computer access panel.
6. Plug in the computer and turn on power to the computer.
7. Reset the date and time, your passwords, and any special system
setups, using Computer Setup. Refer to the Computer Setup (F10)
Utility Guide on the Documentation Library CD.
8. If you normally lock the Smart Cover Lock, use Computer Setup
to relock the lock and enable the Smart Cover Sensor.
C–4
www.hp.com
Hardware Reference Guide
D
Security Lock Provisions
Installing a Security Lock
The security locks displayed below and on the following page can be
used to secure the Convertible Minitower computer.
Installing a Cable Lock
Hardware Reference Guide
www.hp.com
D–1
Security Lock Provisions
I
Installing a Padlock
D–2
www.hp.com
Hardware Reference Guide
E
Port Security Bracket
Installing the Port Security Bracket
1. Insert the tabs on the bottom section of the port security bracket
into the slots on the back 1 of the chassis and rotate the bracket
into place 2.
Hardware Reference Guide
www.hp.com
E-1
Port Security Bracket
2. Connect the cables to the computer.
E-2
www.hp.com
Hardware Reference Guide
Port Security Bracket
3. Position the top of the port security bracket over the cables 1 and
rotate the the bracket into place 2.
Hardware Reference Guide
www.hp.com
E-3
Port Security Bracket
4. The illustration below shows the proper installation.
E-4
www.hp.com
Hardware Reference Guide
Port Security Bracket
Removing the Port Security Bracket
1. Lay the computer down on its large base for greater stability.
2. Lift up on the access panel handle 1, slide the access panel back
about 1 inch (2.5 cm), then lift it up and off the unit 2.
Hardware Reference Guide
www.hp.com
E-5
Port Security Bracket
3. Push in on the tabs 1 and rotate the top of the bracket away from
the computer 2.
E-6
www.hp.com
Hardware Reference Guide
Port Security Bracket
4. Disconnect the cables from the computer.
Hardware Reference Guide
www.hp.com
E-7
Port Security Bracket
5. Push down on the tab to release the bottom of the bracket from
the chassis 1. Rotate the bracket away from the chassis 2.
E-8
www.hp.com
Hardware Reference Guide
F
Electrostatic Discharge
A discharge of static electricity from a finger or other conductor may
damage system boards or other static-sensitive devices. This type of
damage may reduce the life expectancy of the device.
Preventing Electrostatic Damage
To prevent electrostatic damage, observe the following precautions:
■
Avoid hand contact by transporting and storing products in
static-safe containers.
■
Keep electrostatic-sensitive parts in their containers until they
arrive at static-free workstations.
■
Place parts on a grounded surface before removing them from
their containers.
■
Avoid touching pins, leads, or circuitry.
■
Always be properly grounded when touching a static-sensitive
component or assembly.
Grounding Methods
There are several methods for grounding. Use one or more of the
following methods when handling or installing electrostatic-sensitive
parts:
■
Hardware Reference Guide
Use a wrist strap connected by a ground cord to a grounded
workstation or computer chassis. Wrist straps are flexible straps
with a minimum of 1 megohm +/- 10 percent resistance in the
ground cords. To provide proper ground, wear the strap snug
against the skin.
www.hp.com
F–1
Electrostatic Discharge
■
Use heelstraps, toestraps, or bootstraps at standing workstations.
Wear the straps on both feet when standing on conductive floors
or dissipating floor mats.
■
Use conductive field service tools.
■
Use a portable field service kit with a folding static-dissipating
work mat.
If you do not have any of the suggested equipment for proper
grounding, contact an HP authorized dealer, reseller, or service
provider.
more information on static electricity, contact an HP authorized
✎ For
dealer, reseller, or service provider.
F–2
www.hp.com
Hardware Reference Guide
G
Routine Computer Care and
Shipping Preparation
Routine Computer Care
Follow these suggestions to take care of the computer and monitor:
Hardware Reference Guide
■
Operate the computer on a sturdy, level surface. Leave a 3-inch
(7.6-cm) clearance at the back of the system unit and above the
monitor to permit the required airflow.
■
Never operate the computer with the cover or side panel removed.
■
Never restrict the airflow into the computer by blocking the front
vents or air intake. Do not place the keyboard, with the keyboard
feet down, directly against the front of the desktop unit as this
also restricts airflow.
■
Keep the computer away from excessive moisture, direct sunlight,
and extremes of heat and cold. For information about the
recommended temperature and humidity ranges for the computer,
refer to Appendix A, “Specifications” in this guide.
■
Keep liquids away from the computer and keyboard.
■
Never cover the ventilation slots on the monitor with any type of
material.
■
Turn off the computer before you do either of the following:
❏
Wipe the exterior of the computer with a soft, damp cloth as
needed. Using cleaning products may discolor or damage the
finish.
❏
Occasionally clean the air vents on the front and back of the
computer. Lint and other foreign matter can block the vents
and limit the airflow.
www.hp.com
G–1
Routine Computer Care and Shipping Preparation
Optical Drive Precautions
Be sure to observe the following guidelines while operating or
cleaning the optical drive.
Operation
■
Do not move the drive during operation. This may cause it to
malfunction during reading.
■
Avoid exposing the drive to sudden changes in temperature, as
condensation may form inside the unit. If the temperature
suddenly changes while the drive is on, wait at least one hour
before you turn off the power. If you operate the unit
immediately, it may malfunction while reading.
■
Avoid placing the drive in a location that is subject to high
humidity, extreme temperatures, mechanical vibration, or direct
sunlight.
■
Clean the panel and controls with a soft, dry cloth or a soft cloth
lightly moistened with a mild detergent solution. Never spray
cleaning fluids directly on the unit.
■
Avoid using any type of solvent, such as alcohol or benzene,
which may damage the finish.
Cleaning
Safety
If any object or liquid falls into the drive, immediately unplug the
computer and have it checked by an authorized HP service provider.
G–2
www.hp.com
Hardware Reference Guide
Routine Computer Care and Shipping Preparation
Shipping Preparation
Follow these suggestions when preparing to ship the computer:
1. Back up the hard drive files on PD discs, tape cartridges, CDs,
or diskettes. Be sure that the backup media is not exposed to
electrical or magnetic impulses while stored or in transit.
hard drive locks automatically when the system power is
✎ The
turned off.
2. Remove and store any program diskettes from the diskette drives.
3. Insert a blank diskette into the diskette drive to protect the drive
while in transit. Do not use a diskette on which you have stored or
plan to store data.
4. Turn off the computer and external devices.
5. Disconnect the power cord from the electrical outlet, then from
the computer.
6. Disconnect the system components and external devices from
their power sources, then from the computer.
that all boards are seated properly and secured in the board
✎ Ensure
slots before shipping the computer.
7. Pack the system components and external devices in their original
packing boxes or similar packaging with sufficient packing
material to protect them.
environmental nonoperating ranges, see Appendix A,
✎ For
“Specifications” in this guide.
Hardware Reference Guide
www.hp.com
G–3
Routine Computer Care and Shipping Preparation
G–4
www.hp.com
Hardware Reference Guide
Index
A
desktop configuration 1–7
DIMMs 2–7
diskette drive
features 1–2
installing 2–19
drive positions 2–17
DVD-ROM drive
See optical drive
access panel
locking and unlocking 2–2, D–1
removing 2–4, E–5
AGP card
See expansion card
B
battery replacement C–1
bezel blanks 2–6
E
C
CD-ROM drive
See optical drive
changing computer configuration 1–7, 1–10
components
front panel 1–2
keyboard 1–4
rear panel 1–3
computer
access panel 2–4, E–5
changing from desktop to minitower 1–10
changing from minitower to desktop 1–7
features 1–1
preventing electrostatic damage F–1
routine care G–1
security lock 2–2, D–1
shipping preparation G–3
specifications A–1
D
DDR-SDRAM 2–7
Hardware Reference Guide
electrostatic discharge F–1
expansion card
AGP socket 2–15
installing 2–12
removing 2–12
standard socket 2–14
expansion slot cover
removing 2–13
replacing 2–15
F
formatting a MultiBay hard drive 2–31
front bezel
blanks 2–6
removing 2–5
front panel components 1–2
H
hard drive
activity light 1–2
connector location 2–25
guide screws 2–22
www.hp.com
Index–1
Index
installing PATA 2–22, B–1
installing SATA 2–22
MultiBay 2–31
PATA cable 2–24, B–2
restoring 2–26
SATA cable 2–24
headphone jack 1–2
partitioning and formatting hard drive
2–31
removing drives 2–34
removing security screw 2–32
O
I
installing
additional drives 2–18
diskette drive 2–19
expansion card 2–12
hard drive 2–22
memory 2–7
optical drive 2–19
port security bracket E–1
internal components, accessing 2–4, E–5
K
keyboard
components 1–4
customizing 1–5
PS/2 connector 1–3
M
memory
dual channel mode 2–8
installing 2–7
locating sockets 2–8
specifications 2–7
microphone connector 1–2
minitower configuration 1–10
mouse
PS/2 connector 1–3
special functions 1–6
MultiBay
hot-plugging or hot-swapping drives 2–30
inserting drives 2–33
Index–2
optical drive
ATA B–2
audio connections 2–21
features 1–2
guide screws 2–19
installing 2–19
P
partitioning a MultiBay hard drive 2–31
PATA
See hard drive
PCI card
See expansion card
port security bracket E–1
installing E–1
removing E–5
power
button 1–2
light 1–2
R
rear panel components 1–3
removable drives 2–30
removing
AGP card 2–15
battery C–1
bezel blanks 2–6
computer access panel 2–4, E–5
drives from drive bay 2–26
expansion card 2–12
expansion slot cover 2–13
front bezel 2–5
port security bracket E–5
www.hp.com
Hardware Reference Guide
Index
S
SATA
See hard drive
security
cable lock D–1
padlock D–2
Smart Cover FailSafe Key 2–2
Smart Cover Lock 2–2
serial number location 1–6
shipping preparation G–3
Hardware Reference Guide
Smart Cover FailSafe Key 2–2
Smart Cover Lock 2–2
specifications A–1
U
unlocking access panel 2–2, D–1
USB ports 1–2
W
Windows logo key 1–5
www.hp.com
Index–3
Index
Index–4
www.hp.com
Hardware Reference Guide
