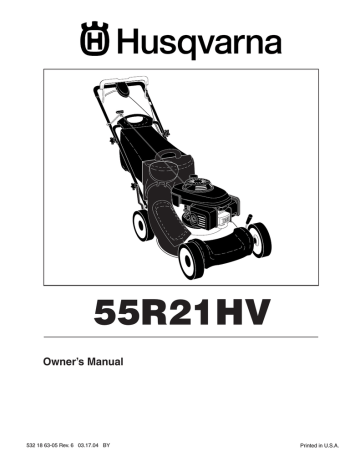

55R21HV
Owner’s Manual
532 18 63-05 Rev. 6 03.17.04 BY
Printed in U.S.A.
SAFETY RULES
Safe Operation Practices for Walk-Behind Mowers
IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE
TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.
DO NOT:
• Do not trim near drop-offs, ditches or embankments.
The operator could lose footing or balance.
• Do not trim excessively steep slopes.
• Do not mow on wet grass. Reduced footing could cause
slipping.
I. GENERAL OPERATION
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Read, understand, and follow all instructions on the
machine and in the manual(s) before starting. Be thoroughly familiar with the controls and the proper use of
the machine before starting.
Do not put hands or feet near or under rotating parts.
Keep clear of the discharge opening at all times.
Only allow responsible individuals, who are familiar
with the instructions, to operate the machine.
Clear the area of objects such as rocks, toys, wire,
bones, sticks, etc., which could be picked up and thrown
by the blade.
Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area.
Do not operate the mower when barefoot or wearing
open sandals. Always wear substantial foot wear.
Do not pull mower backwards unless absolutely necessary. Always look down and behind before and while
moving backwards.
Do not operate the mower without proper guards,
plates, grass catcher or other safety protective devices
in place.
See manufacturer’s instructions for proper operation
and installation of accessories. Only use accessories
approved by the manufacturer.
Stop the blade(s) when crossing gravel drives, walks,
or roads.
Stop the engine (motor) whenever you leave the equipment, before cleaning the mower or unclogging the
chute.
Shut the engine (motor) off and wait until the blade comes
to complete stop before removing grass catcher.
Mow only in daylight or good artificial light.
Do not operate the machine while under the influence
of alcohol or drugs.
Never operate machine in wet grass. Always be sure of
your footing: keep a firm hold on the handle and walk;
never run.
Disengage the self-propelled mechanism or drive clutch
on mowers so equipped before starting the engine (motor).
If the equipment should start to vibrate abnormally,
stop the engine (motor) and check immediately for the
cause. Vibration is generally a warning of trouble.
Always wear safety goggles or safety glasses with side
shields when operating mower.
III. CHILDREN
Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the machine and the mowing activity. Never assume that
children will remain where you last saw them.
• Keep children out of the trimming area and under the
watchful care of another responsible adult.
• Be alert and turn machine off if children enter the
area.
• Before and while walking backwards, look behind and
down for small children.
• Never allow children to operate the machine.
• Use extra care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision.
IV. SERVICE
•
•
•
•
•
•
•
II. SLOPE OPERATION
•
Slopes are a major factor related to slip and fall accidents
which can result in severe injury. All slopes require extra
caution. If you feel uneasy on a slope, do not mow it.
•
DO:
• Mow across the face of slopes: never up and down. Exercise extreme caution when changing direction on slopes.
• Remove obstacles such as rocks, tree limbs, etc.
• Watch for holes, ruts, or bumps. Tall grass can hide
obstacles.
•
•
2
Use extra care in handling gasoline and other fuels.
They are flammable and vapors are explosive.
- Use only an approved container.
- Never remove gas cap or add fuel with the
engine running.
Allow engine to cool before
refueling. Do not smoke.
- Never refuel the machine indoors.
- Never store the machine or fuel container inside
where there is an open flame, such as a water
heater.
Never run a machine inside a closed area.
Never make adjustments or repairs with the engine
(motor) running. Disconnect the spark plug wire, and
keep the wire away from the plug to prevent accidental
starting.
Keep nuts and bolts, especially blade attachement
bolts, tight and keep equipment in good condition.
Never tamper with safety devices. Check their proper
operation regularly.
Keep machine free of grass, leaves, or other debris
build-up. Clean oil or fuel spillage. Allow machine to
cool before storing.
Stop and inspect the equipment if you strike an object.
Repair, if necessary, before restarting.
Never attempt to make wheel height adjustments while
the engine (motor) is running.
Grass catcher components are subject to wear, damage, and deterioration, which could expose moving
parts or allow objects to be thrown. Frequently check
components and replace with manufacturer’s recommended parts, when necessary.
Mower blades are sharp and can cut. Wrap the blade(s)
or wear gloves, and use extra caution when servicing
them.
Do not change the engine governor setting or overspeed
the engine.
Look for this symbol to point out impor tant safety precautions. It means
CAUTION!!! BECOME ALERT!!! YOUR
SAFETY IS INVOLVED.
WARNING: Battery posts, terminals and
related accessories contain lead and
lead compounds, chemicals known to
the State of California to cause cancer
and birth defects or other reproductive
harm. Wash hands after handling.
CAUTION: Always disconnect spark plug
wire and place wire where it cannot contact
spark plug in order to prevent accidental
starting when setting up, transporting,
adjusting or making repairs.
CAUTION: Muffler and other engine
parts become extremely hot during
operation and remain hot after engine
has stopped. To avoid severe burns on
contact, stay away from these areas.
WARNING: Engine exhaust, some of
its constituents, and certain vehicle
components contain or emit chemicals known to the State of California
to cause cancer and birth defects or
other reproductive harm.
PRODUCT SPECIFICATIONS
CONGRATULATIONS on your purchase of a new lawn
mower. It has been designed, engineered and manufactured
to give you the best possible dependability and performance.
Should you experience any problem you cannot easily
remedy, please contact your nearest authorized service
center/department. We have competent, well-trained
technicians and the proper tools to service or repair this
lawn mower.
Please read and retain this manual. The instructions will
enable you to assemble and maintain your lawn mower
properly. Always observe the “SAFETY RULES”.
Gasoline Capacity
and Type:
1.0 Quarts
(Unleaded Regular Only)
Oil Type (API-SF-SJ):
SAE 10W-30
Oil Capacity:
18.5 Ounces
Spark Plug:
NGK BPR6ES (Gap: .030")
Valve Clearance:
(± 0.04 mm)
Intake: 0.015 mm
Exhaust: 0.020 mm
Blade Bolt Torque:
35-40 ft. lbs.
SERIAL
NUMBER: _________________________________
DATE OF PURCHASE: _______________________
THE MODEL AND SERIAL NUMBERS WILL BE FOUND
ON A DECAL ATTACHED TO THE REAR OF THE LAWN
MOWER HOUSING.
CUSTOMER RESPONSIBILITIES
•
•
YOU SHOULD RECORD BOTH SERIAL NUMBER AND
DATE OF PURCHASE AND KEEP IN A SAFE PLACE
FOR FUTURE REFERENCE.
•
Read and observe the safety rules.
Follow a regular schedule in maintaining, caring for and
using your lawn mower.
Follow the instructions under “Maintenance” and “Storage” sections of this owner’s manual.
TABLE OF CONTENTS
SAFETY RULES ......................................................... 2-3
PRODUCT SPECIFICATIONS ....................................... 3
CUSTOMER RESPONSIBILITIES................................. 3
ASSEMBLY ................................................................. 4-5
OPERATION ............................................................. 6-10
MAINTENANCE SCHEDULE ...................................... 11
MAINTENANCE ...................................................... 11-13
SERVICE AND ADJUSTMENTS ............................ 13-15
STORAGE ............................................................... 15-16
TROUBLESHOOTING ................................................. 17
REPAIR PARTS....................................................... 18-23
WARRANTY................................................................. 24
3
ASSEMBLY
Read these instructions and this manual in its entirety before
you attempt to assemble or operate your new lawn mower.
IMPORTANT: THIS LAWN MOWER IS SHIPPED WITHOUT OIL OR GASOLINE IN THE ENGINE.
Your new lawn mower has been assembled at the factory
with the exception of those parts left unassembled for shipping purposes. All parts such as nuts, washers, bolts, etc.,
necessary to complete the assembly have been placed in
the parts bag. To ensure safe and proper operation of your
lawn mower, all parts and hardware you assemble must
be tightened securely. Use the correct tools as necessary
to ensure proper tightness.
OPERATOR PRESENCE
CONTROL BAR
UPPER HANDLE
LOWER HANDLE
LIFT UP
LIFT
UP
TO REMOVE LAWN MOWER FROM CARTON
1. Remove loose parts included with mower.
2. Cut down two end corners of car ton and lay end panel
down flat.
3. Remove all packing materials except padding between
upper and lower handle and padding holding operator
presence control bar to upper handle.
4. Roll lawn mower out of carton and check carton thorougly for additional loose parts.
MOWING
POSITION
FIG. 1
HOW TO SET UP YOUR LAWN MOWER
TO UNFOLD HANDLE (See Figs. 1 and 2)
BOLT
IMPORTANT: UNFOLD HANDLE CAREFULLY SO AS
NOT TO PINCH OR DAMAGE CONTROL CABLES.
1. Raise lower handle to operating position and align hole
in handle with one of the height positioning holes in
the handle bracket.
2. Insert handle bolt through handle and bracket and
secure with knob.
3. Repeat for opposite side of handle.
4. Remove protective padding, raise upper handle section into place on lower handle and tighten both handle
knobs.
5. Remove packing material from around control bar.
Your handles may be adjusted for your mowing comfort.
Refer to “ADJUST HANDLE” in the Service and Adjustments
section of this manual.
KNOB
HANDLE
BRACKET
FIG. 2
4
ASSEMBLY
TO ASSEMBLE GRASS CATCHER
(See Figs. 3 and 4)
1. Slide grass catcher bag over the frame. Make sure
the rear handle is on top (the same side as the front
handle) and the strap is on the bottom.
2. Slip vinyl bindings over frame.
NOTE: If vinyl bindings are too stiff, hold them in warm water
for a few minutes. If bag gets wet, let it dry before using.
3. Close grass catcher door.
NOTE: When fully closed, door will “snap” shut over frame
and vinyl bindings.
DOOR
GRASS
CATCHER
FRAME
VINYL
BINDINGS
BAG
FIG. 4
REAR
HANDLE
STRAP
TO INSTALL ATTACHMENTS
Your lawn mower was shipped ready to be used as a
mulcher. To convert mower to bagging or discharging,
see “TO CONVERT MOWER” in the Operation section of
this manual.
FRONT
HANDLE
DOOR
FIG. 3
5
OPERATION
KNOW YOUR LAWN MOWER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER.
Compare the illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments.
Save this manual for future reference.
These symbols may appear on your lawn mower or in literature supplied with the product. Learn and understand
their meaning.
OPERATOR PRESENCE CONTROL BAR
STARTER
HANDLE
DRIVE CONTROL LEVER
HANDLE
KNOB
DRIVE COVER
GASOLINE FILLER CAP
GRASS
CATCHER
FUEL VALVE LEVER
AIR FILTER
DUAL POINT HEIGHT
ADJUSTER LEVER
ENGINE OIL CAP
WITH DIPSTICK
MULCHER DOOR
MUFFLER
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the engine.
HOUSING
MEETS CPSC SAFETY REQUIREMENTS
Our rotary walk-behind power lawn mowers conform to the safety standards of the American National Standards Institute
and the U.S. Consumer Product Safety Commission. The blade turns when the engine is running.
OPERATOR PRESENCE CONTROL BAR - must be held
down to the handle to start engine. Release to stop engine.
MULCHER DOOR - allows conversion to discharge or
bagging operation.
STARTER HANDLE - used for starting the engine.
DRIVE CONTROL LEVER - used to engage power-propelled forward motion lawn mower.
DUAL POINT HEIGHT ADJUSTER – used to adjust cutting
height of lawn mower.
6
OPERATION
The operation of any lawn mower can result in foreign objects thrown into the eyes, which can result
in severe eye damage. Always wear safety glasses or eye shields while operating your lawn mower or
performing any adjustments or repairs. We recommend standard safety glasses or a wide vision safety
mask over spectacles.
HOW TO USE YOUR LAWN MOWER
2. Pull out button on underside of drive control, then push
it back in.
3. Operate mower to test drive speed. If there is no increase, your drive belt is worn and should be replaced.
ENGINE SPEED
The engine speed was set at the factory for optimum performance. Speed is not adjustable.
TO ADJUST CUTTING HEIGHT (See Fig. 6)
ENGINE ZONE CONTROL
Both front wheels are adjusted by a single lever on the left
front wheel. Likewise, both rear wheels are adjusted by a
single lever on the left rear wheel.
• Pull adjuster lever toward wheel. To raise mower, move
lever forward to desired position. To lower mower, move
the lever toward the rear.
Be sure to adjust both front and rear wheels to same height.
CAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the risk
of blade contact injury. Do not under
any circumstances attempt to defeat
the function of the operator control.
The blade turns when the engine is
running.
•
HEIGHT
ADJUSTER
LEVER
LEVER BACKWARD
TO LOWER MOWER
Your lawn mower is equipped with an operator presence
control bar which requires the operator to be positioned
behind the lawn mower handle to start and operate the
lawn mower.
DRIVE CONTROL (See Fig. 5)
•
Self-propelling is controlled by holding the operator
presence control bar down to the handle and pulling
the drive control lever rearward to the handle. The
farther toward the handle the lever is pulled, the faster
the unit will travel.
• Forward motion will stop when either the operator presence control bar or drive control lever are released. To
stop forward motion without stopping engine, release
the drive control lever only. Hold operator presence
control bar down against handle to continue mowing
without self-propelling.
NOTE: If after releasing the drive control the mower will
not roll backwards, push the mower forward slightly to
disengage drive wheels.
LEVER FORWARD
TO RAISE MOWER
FIG. 6
TO CONVERT MOWER (See Figs. 7 thru 9)
Your lawn mower was shipped ready to be used as a mulcher.
To convert to rear bagging or side discharging:
REAR BAGGING
• Remove knob securing mulcher door to mower housing.
• Open mulcher door and insert tabs of discharge chute
into hinge bracket opening and position rear of chute
over threaded stud.
OPERATOR PRESENCE CONTROL BAR
DISCHARGE CHUTE TABS
DRIVE
CONTROL
LEVER
ADJUSTMENT
BUTTON (ON
UNDERSIDE)
TO ENGAGE
DRIVE
CONTROL
DRIVE
CONTROL
DISENGAGED
FIG. 5
DRIVE CONTROL ADJUSTMENT (See Fig. 5)
Over time, the drive control system may become “loose”,
resulting in decreased speed. There is a button on the
underside of the drive control housing to increase tension
on the drive cable. Proceed as follows:
1. Turn unit off and disconnect spark plug wire from plug.
HINGE BRACKET
7
FIG. 7
MULCHER DOOR
OPERATION
•
Secure rear of discharge chute to lawn mower housing
with knob.
• Place rear handle of grass catcher on the crossbar of
the lawn mower's lower handle as shown.
• Lift the round door of the discharge chute and place
the grass catcher into place on the discharge chute.
NOTE: Be sure round door of discharge chute rests on
grass catcher as shown.
• Mower is now ready for rear bagging operation.
• To convert to mulching operation, remove grass catcher
and discharge chute. Secure mulcher door to mower
housing with knob.
• To convert to side discharging operation, remove grass
catcher and discharge chute. Install side discharge
deflector and secure it to mower housing with knob.
•
•
•
Mower is now ready for side discharging operation.
To convert to mulching operation, side discharge deflector must be removed and mulcher door secured to
mower housing with knob.
To convert to rear bagging operation, side discharge
deflector must be removed; discharge chute and grass
catcher installed and discharge chute secured to mower
housing with knob.
MULCHER
DOOR
KNOB
THREADED
STUD
REAR HANDLE
CROSSBAR
GRASS
CATCHER
SIDE
DISCHARGE
DEFLECTOR
FIG. 9
ROUND
DOOR
SIMPLE STEPS TO REMEMBER WHEN
CONVERTING YOUR LAWN MOWER
FOR MULCHING 1. Grass catcher, discharge chute and side discharge
deflector removed.
2. Mulcher door secured to mower housing with knob.
KNOB
DISCHARGE
CHUTE
THREADED
STUD
FOR REAR BAGGING 1. Side discharge deflector removed.
2. Grass catcher and discharge chute installed with
discharge chute secured to lawn mower housing with
knob.
3. Round door of discharge chute resting on top of grass
catcher.
MULCHER
DOOR
FOR SIDE DISCHARGING 1. Grass catcher and discharge chute removed.
2. Side discharge deflector installed and secured to mower
housing with knob.
FIG. 8
SIDE DISCHARGING
• Grass catcher and discharge chute must be removed.
• Open mulcher door and install front of side discharge
deflector beneath it as shown.
• Secure rear of side discharge deflector to lawn mower
housing with knob.
CAUTION: Do not run your lawn mower
without mulcher door closed; side discharge deflector installed, or discharge
chute and approved grass catcher in
place. Never attempt to operate the lawn
mower with mulcher door or round door
removed or propped open.
8
OPERATION
TO EMPTY GRASS CATCHER (See Figs. 10 –11)
CAUTION: DO NOT overfill engine with
oil, or it will smoke heavily from the mufler on startup.
1. Open round door of discharge chute to move starter
rope out and away from grass catcher.
1. Be sure lawnmower is level.
2. Remove oil dipstick from oil fill spout.
3. Engine holds 18.5 ounces of oil. For type and grade
of oil to use, see “ENGINE” in the Maintenance section
of this manual.
4. Pour oil slowly. Do not overfill. Wait one minute to allow oil to settle. Use guage on oil fill cap/dipstick for
checking level. Insert dipstick into the tube and rest
the oil fill cap on the tube. DO NOT thread the cap into
the tube when taking reading.
5. Always be sure to tighten dipstick before starting engine.
FRONT
HANDLE
OPEN
ROUND
DOOR
STARTER
ROPE
IMPORTANT:
•
FIG. 10
•
2. Remove grass catcher with clippings from lawn mower
using both front and rear handles.
3. Empty clippings from bag using rear handle and strap.
The weight of the grass will open the door.
4. Snap door shut over frame before installing grass
catcher on mower.
NOTE: Do not drag the bag when emptying; it will cause
unnecessary wear.
Check oil level before each use. Add oil if needed. Fill
to full line on dipstick.
Change the oil after every 25 hours of operation or each
season. You may need to change the oil more often
under dusty, dirty conditions. See “TO CHANGE ENGINE OIL” in the Maintenance section of this manual.
OIL FILLER CAP/DIPSTICK
UPPER LIMIT
LOWER LIMIT
REAR
HANDLE
STRAP
FIG. 12
GASOLINE
FILLER CAP
FRONT
HANDLE
DOOR
OIL
FILLER
CAP
FIG. 13
FIG. 11
ADD GASOLINE (See Fig. 12)
BEFORE STARTING ENGINE
•
ADD OIL (See Figs. 12 and 13)
Your lawnmower is shipped without oil in the engine. For type
and grade of oil to use, see “ENGINE” in the Maintenance
section of this manual.
9
Fill fuel tank to bottom of tank filler neck. Do not overfill. Use fresh, clean, regular unleaded gasoline with
a minimum of 87 octane. Do not mix oil with gasoline.
Purchase fuel in quantities that can be used within 30
days to assure fuel freshness.
OPERATION
MOWING TIPS
CAUTION: Wipe off any spilled oil or
fuel. Do not store, spill or use gasoline
near an open flame.
Alcohol blended fuels (called gasohol
or using ethanol or methanol) can attract moisture which leads to separation
and formation of acids during storage.
Acidic gas can damage the fuel system of an engine while in storage. To
avoid engine problems, the fuel system
should be emptied before storage of
30 days or longer. Empty the gas tank,
start the engine and let it run until the
fuel lines and carburetor are empty. Use
fresh fuel next season. See Storage
Instructions for additional information.
Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
•
•
•
•
•
MULCHING MOWING TIPS
TO STOP ENGINE
•
Under certain conditions, such as very tall grass, it
may be necessary to raise the height of cut to reduce
pushing effort and to keep from overloading the engine
and leaving clumps of grass clippings. It may also be
necessary to reduce ground speed and/or run the lawn
mower over the area a second time.
For extremely heavy cutting, reduce the width of cut
by overlapping previously cut path and mow slowly.
For better grass bagging and most cutting conditions,
the engine speed should be set in the fast position.
Pores in cloth grass catchers can become filled with
dirt and dust with use and catchers will collect less
grass. To prevent this, regularly hose catcher off with
water and let dry before using.
Keep top of engine around starter clear and clean of
grass clippings and chaff. This will help engine air flow
and extend engine life.
IMPORTANT: FOR BEST PERFORMANCE, KEEP MOWER
HOUSING FREE OF BUILT-UP GRASS AND TRASH. SEE
“CLEANING”INTHEMAINTENANCESECTIONOFTHISMANUAL.
To stop engine, release operator presence control bar.
Wait until blade and all moving parts have stopped and
turn fuel valve to OFF position if you do not intend to
restart the engine soon.
•
TO START ENGINE (See Fig. 14)
NOTE: Due to protective coatings on the engine, a small
amount of smoke may be present during the initial use of
the product and should be considered normal.
1. Be sure fuel valve is in the ON position.
2. Move choke lever to ON ( ) position.
3. Hold operator presence control bar down to the handle
and pull starter handle quickly. Do not allow starter rope
to snap back.
NOTE: The choke lever automatically begins moving to
the OFF position when operator presence control bar is
held down to handle.
OFF
•
•
CHOKE LEVER
The special mulching blade will recut the grass clippings many times and reduce them in size so that as
they fall onto the lawn they will disperse into the grass
and not be noticed. Also, the mulched grass will biodegrade quickly to provide nutrients for the lawn. Always
mulch with your highest engine (blade) speed as this
will provide the best recutting action of the blades.
Avoid cutting your lawn when it is wet. Wet grass tends
to form clumps and interferes with the mulching action.
The best time to mow your lawn is the early afternoon.
At this time the grass has dried, yet the newly cut area
will not be exposed to direct sunlight.
For best results, adjust the lawn mower cutting height
so that the lawn mower cuts off only the top one-third
of the grass blades (See Fig. 15). If the lawn is overgrown it will be necessary to raise the height of cut to
reduce pushing effort and to keep from overloading
the engine and leaving clumps of mulched grass. For
extremely heavy mulching, reduce your width of cut by
overlapping previously cut path and mow slowly.
MAX 1/3
ON
(
)
OFF
ON
•
FUEL VALVE LEVER
FIG. 14
•
10
FIG. 15
Certain types of grass and grass conditions may require
that an area be mulched a second time to completely
hide the clippings. When doing a second cut, mow
across (perpendicular) to the first cut path.
Change your cutting pattern from week to week. Mow
north to south one week then change to east to west the
next week. This will help prevent matting and graining
of the lawn.
MAINTENANCE
BEFORE
EACH
USE
AFTER
EACH
USE
EVERY
10
HOURS
EVERY
25 HOURS
OR SEASON
EVERY
100
HOURS
BEFORE
STORAGE
Check for Loose Fasteners
Clean / Inspect Grass Catcher *
Check Tires
Check Drive Wheels ***
Clean Lawn Mower ****
Clean under Drive Cover ***
Check Drive Belt / Pulleys ***
Check / Sharpen / Replace Blade
Lubrication
Clean and Recharge Battery **
Check Engine Oil level
Change Engine Oil
Clean Air Filter
Inspect Muffler
Replace Spark Plug
Replace Air Filter Paper Cartridge
Empty fuel system or add Stabilizer
* (if so equipped)
** Electric-Start mowers
*** Power-Propelled mowers
a scraper
**** Use
to clean under deck
1 - Change more often if operating under a heavy load or in high outdoor temperatures.
2 - Service more often if operating in dirty or dusty conditions.
3 - Replace blades more often when mowing in sandy soil.
4 - Charge 48 hours at end of season.
5 - And after each 5 hours of use.
GENERAL RECOMMENDATIONS
LUBRICATION CHART
The warranty on this lawn mower does not cover items
that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain mower as instructed in this manual.
Some adjustments will need to be made periodically
to properly maintain your unit. At least once a season,
check to see if you should make any of the adjustments
described in the Service and Adjustments section of this
manual.
• At least once a year, replace the spark plug, clean or
replace air filter element and check blade for wear.
A new spark plug and clean/new air filter element
assure proper air-fuel mixture and help your engine
run better and last longer.
• Follow the maintenance schedule in this manual.
BEFORE EACH USE
➁ ENGINE OIL
➀ MULCHER
DOOR
HINGE PIN
➀ REAR DOOR HINGE
1. Check engine oil level.
2. Check for loose fasteners.
LUBRICATION
Keep unit well lubricated (See “LUBRICATION CHART”).
IMPORTANT: DO NOT OIL OR GREASE PLASTIC WHEEL
BEARINGS. VISCOUS LUBRICANTS WILL ATTRACT DUST
AND DIRT THAT WILL SHORTEN THE LIFE OF THE SELFLUBRICATING BEARINGS. IF YOU FEEL THEY MUST BE
LUBRICATED, USE ONLY A DRY, POWDERED GRAPHITE
TYPE LUBRICANT SPARINGLY.
➀ HANDLE BRACKET MOUNTING PINS
➀ SPRAY LUBRICANT
➁ SEE “ENGINE” IN MAINTENANCE SECTION
11
MAINTENANCE
•
LAWN MOWER
Always observe safety rules when performing any maintenance.
TIRES
•
•
Keep tires free of gasoline, oil, or insect control chemicals which can harm rubber.
Avoid stumps, stones, deep ruts, sharp objects and
other hazards that may cause tire damage.
To check blade balance, drive a nail into a beam or
wall. Leave about one inch of the straight nail exposed.
Place center hole of blade over the head of the nail.
If blade is balanced, it should remain in a horizontal
position. If either end of the blade moves downward,
sharpen the heavy end until the blade is balanced.
BLADE
BLADE ADAPTER
TRAILING
EDGE
DRIVE WHEELS
Check rear drive wheels each time before you mow to be
sure they move freely.
The wheels not turning freely means trash, grass cuttings,
etc. are in the drive wheel area and must be cleaned to
free drive wheels.
If necessary to clean the drive wheels, be sure to clean
both rear wheels.
HARDENED
WASHER
LOCK
WASHER
BLADE CARE
For best results, mower blade must be kept sharp. Replace
bent or damaged blades.
BLADE BOLT
FIG. 16
GRASS CATCHER
TO REMOVE BLADE (See Fig. 16)
1. Disconnect spark plug wire from spark plug and place
wire where it cannot come in contact with spark plug.
2. Turn lawn mower on its side. Make sure air filter and
carburetor are up.
3. Use a wood block between blade and mower housing
to prevent blade from turning when removing blade bolt.
NOTE: Protect your hands with gloves and/or wrap blade
with heavy cloth.
4. Remove blade bolt by turning counter-clockwise.
5. Remove blade and attaching hardware (bolt, lock washer
and hardened washer).
•
•
The grass catcher may be hosed with water, but must
be dry when used.
Check your grass catcher often for damage or deterioration. Through normal use it will wear. If catcher
needs replacing, replace only with approved replacement catcher shown in the Repair Parts section of this
manual. Give the lawn mower model number when
ordering.
ENGINE
LUBRICATION
Use only high quality detergent oil rated with API service
classification SF-SJ. Select the oil's SAE viscosity grade
according to your expected operating temperature.
TO REPLACE BLADE (See Fig. 16)
1. Position blade on the blade adapter aligning the two
(2) holes in the blade with the raised lugs on the
adapter.
2. Be sure the trailing edge of blade (opposite sharp edge)
is up toward the engine.
3. Install the blade bolt with the lock washer and hardened
washer into blade adapter and crankshaft.
4. Use block of wood between blade and lawn mower
housing and tighten the blade bolt, turning clockwise.
• The recommended tightening torque is 35-40 ft. lbs.
NOTE: Multi-viscosity oils (5W30, 10W30 etc.) improve
starting in cold weather, and you should check your engine
oil level frequently to avoid possible engine damage from
running low on oil.
Change the oil after every 25 hours of operation or at least
once a year if the lawn mower is not used for 25 hours in
one year.
Check the crankcase oil level before starting the engine
and after each five (5) hours of continuous use. Tighten oil
plug securely each time you check the oil level.
IMPORTANT: BLADE BOLT IS HEAT TREATED. IF BOLT NEEDS
REPLACING, REPLACE ONLY WITH APPROVED BOLT SHOWN
IN THE REPAIR PARTS SECTION OF THIS MANUAL.
TO SHARPEN BLADE
NOTE: We do not recommend sharpening blade - but if
you do, be sure the blade is balanced.
Care should be taken to keep the blade balanced. An
unbalanced blade will cause eventual damage to lawn
mower or engine.
• The blade can be sharpened with a file or on a grinding
wheel. Do not attempt to sharpen while on the mower.
12
MAINTENANCE
TO CHANGE ENGINE OIL (See Fig. 17)
AIR FILTER
NOTE: Before tipping lawn mower to drain oil, empty fuel
tank by running engine until fuel tank is empty.
1. Disconnect spark plug wire from spark plug and place
wire where it cannot come in contact with spark plug.
2. Remove engine oil cap; lay aside on a clean surface.
3. Tip lawn mower on its side as shown and drain oil into
a suitable container. Rock lawn mower back and forth
to remove any oil trapped inside of engine.
Your engine will not run properly and may be damaged
by using a dirty air filter. Replace the air filter every 100
hours of operation or every season, whichever occurs first.
Ser vice air cleaner more often under dusty conditions. See
the maintenance section of your engine manual.
MUFFLER
Inspect and replace corroded muffler as it could create a
fire hazard and/or damage.
SPARK PLUG
OIL FILLER CAP/DIPSTICK
Replace spark plug at the beginning of each mowing season
or after every 100 hours of operation, whichever occurs
first. Spark plug type and gap setting are shown in the
“PRODUCT SPECIFICATIONS” section of this manual.
CLEANING
UPPER
LIMIT
IMPORTANT: FOR BEST PERFORMANCE, KEEP MOWER
HOUSING FREE OF BUILT-UP GRASS AND TRASH. CLEAN
THE UNDERSIDE OF YOUR MOWER AFTER EACH USE.
LOWER
LIMIT
CAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with spark plug.
FIG. 17
•
4. Wipe off any spilled oil from lawn mower or side of
engine.
5. Slowly pour oil down the oil fill spout, stopping every
few ounces to check the oil level with the dipstick.
6. Stop adding oil when you reach the FULL mark on the
dipstick. Wait a minute to allow oil to settle.
7. Continue adding small amounts of oil, rechecking the
dipstick until oil level settles at FULL. DO NOT overfill, or engine will smoke heavily from the muffler on
startup.
8. Always be sure to retighten oil dipstick before starting
engine.
9. Reconnect spark plug wire to spark plug.
•
•
•
Clean the underside of your lawn mower by scraping
to remove build-up of grass and trash.
Clean engine often to keep trash from accumulating. A
clogged engine runs hotter and shortens engine life.
Keep finished surfaces and wheels free of all gasoline,
oil, etc.
We do not recommend using a garden hose to clean
lawn mower unless the electrical system, muffler, air
filter and carburetor are covered to keep water out.
Water in engine can result in shortened engine life.
CLEAN UNDER DRIVE COVER
Clean under drive cover at least twice a season. Scrape underside of cover with putty knife or similar tool to remove any
build-up of trash or grass on underside of drive cover.
SERVICE AND ADJUSTMENTS
CAUTION: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:
1. Release control bar and stop engine.
2. Make sure the blade and all moving parts have completely stopped.
3. Disconnect the spark plug wire from the spark plug and place the wire where it cannot come
into contact with the spark plug.
LAWN MOWER
REAR DEFLECTOR
TO ADJUST CUTTING HEIGHT
The rear deflector, attached between the rear wheels of
your mower, is provided to minimize the possibility that
objects will be thrown out of the rear of the mower into
the operator's mowing position. If the deflector becomes
damaged, it should be replaced.
See “TO ADJUST CUTTING HEIGHT” in the Operation
section of this manual.
13
SERVICE AND ADJUSTMENTS
TO REMOVE DRIVE BELT (See Figs. 18–20)
HOUSING
HOLE
1. Disconnect spark plug wire from spark plug and place
wire where it cannot come in contact with spark plug.
2. Remove screws retaining drive cover and remove drive
cover from lawn mower housing (See Fig. 18).
CRANKSHAFT
TAB
BLADE
ADAPTER
HARDENED
WASHER
SCREWS
DEBRIS
SHIELD
LOCKWASHER
SCREW
LAWN
MOWER
HOUSING
BLADE
BOLT
TRAILING
EDGE
FIG. 20
7. Use a wood block between blade and mower housing
to prevent blade from turning when removing blade
bolt.
NOTE: Protect your hands with gloves and/or wrap blade
with heavy cloth.
8. Remove blade bolt.
9. Remove blade, attaching hardware (bolt, lock washer,
hardened washer), blade adapter and debris shield as
one assembly.
10. Remove drive belt from blade adapter and debris shield;
discard old belt.
DRIVE
COVER
FIG. 18
3. Remove drive cable from anchor, then detach spring
from idler arm assembly (See Fig. 19).
DRIVE CABLE ANCHOR
IDLER ARM ASSEMBLY
TO REPLACE DRIVE BELT (See Figs. 18–21)
DRIVE BELT
1. Place new drive belt in the belt retainer of the debris
shield. Be sure to route belt between belt keepers and
through slot as shown (See Fig. 21).
BELT RETAINER
TAB
BELT
KEEPERS
DRIVE
PULLEY
PIVOT
BELT
KEEPER
DRIVE
BELT
HOUSING
HOLE
FIG. 19
4. Pivot idler arm assembly to slacken drive belt, then
remove drive belt from drive pulley, belt keepers and
idler arm.
5. Turn lawn mower on its side. Make sure air filter and
carburetor are up.
6. Remove screw securing debris shield. Note that the
debris shield has a tab which fits into a gap in the
housing (See Fig. 20).
SLOT
FIG. 21
14
DEBRIS
SHIELD
SERVICE AND ADJUSTMENTS
2. Route the other end of the new drive belt through hole
in housing.
3. Reattach debris shield to housing with screw previously removed. Be sure tab of debris shield is in gap
of housing.
4. Position blade on the blade adapter aligning the two
(2) holes in the blade with the raised lugs on the
adapter.
5. Be sure the trailing edge of blade (opposite sharp edge)
is up toward the engine as shown (See Fig. 20).
6. Install the blade bolt with the lock washer and hardened
washer into blade adapter and crankshaft.
7. Use block of wood between blade and lawn mower
housing and tighten the blade bolt, turning clockwise.
• The recommended tightening torque is 35-40 ft. lbs.
KNOB
BOLT
LOW
HANDLE
BRACKET
HIGH
IMPORTANT: BLADE BOLT IS HEAT TREATED. IF BOLT NEEDS
REPLACING, REPLACE ONLY WITH APPROVED BOLT SHOWN
IN THE REPAIR PARTS SECTION OF THIS MANUAL.
ENGINE
8. Return mower to upright position.
9. Install new drive belt into idler arm assembly, then
around the drive pulley. Be sure belt is inside of belt
keepers (See Fig. 19).
NOTE: Pulling on the drive belt (to install it on the drive
pulley) will cause the other end of the belt to free itself from
the debris shield retainer and come into contact with the
pulley end of the blade adapter.
10. Reattach drive cable spring to the idler arm assembly,
then reattach drive cable to anchor.
11. Reattach drive cover with screws previously removed
(See Fig. 18).
FIG. 22
Maintenance, repair, or replacement of the emission control devices and systems, which are being done at the
customers expense, may be performed by any non-road
engine repair establishment or individual. Warranty repairs
must be performed by an authorized engine manufacturer's
service outlet.
ENGINE SPEED
12. Connect spark plug wire to spark plug.
Your engine speed has been factory set. Do not attempt to
increase engine speed or it may result in personal injury. If
you believe that the engine is running too fast or too slow,
take your lawn mower to an authorized service center for
repair and adjustment.
TO ADJUST HANDLE (See Fig. 22)
CARBURETOR
The handle on your lawn mower has multiple height positions - adjust to height that suits you.
1. Remove knob and carriage bolt on one side of the
lower handle.
2. While holding handle assembly, remove knob and carriage bolt from opposite side, align hole in handle with
desired hole in handle bracket and reassemble bolt and
knob and tighten securely.
3. Align opposite side of handle with same positioning
hole and secure with bolt and knob.
Your carburetor is not adjustable. If your engine does not
operate properly due to suspected carburetor problems,
take your lawn mower to an authorized service center for
repair and/or adjustment.
IMPORTANT: NEVERTAMPER WITHTHE ENGINE GOVERNOR,
WHICH IS FACTORY SET FOR PROPER ENGINE SPEED.
OVERSPEEDING THE ENGINE ABOVE THE FACTORY HIGH
SPEED SETTING CAN BE DANGEROUS. IF YOU THINK THE
ENGINE-GOVERNED HIGH SPEED NEEDS ADJUSTING,
CONTACT YOUR NEAREST AUTHORIZED SERVICE CENTER,
WHICH HAS PROPER EQUIPMENT AND EXPERIENCE TO
MAKE ANY NECESSARY ADJUSTMENTS.
STORAGE
Immediately prepare your lawn mower for storage at the end of the season or if the unit will not be used for 30 days or more.
LAWN MOWER
When lawn mower is to be stored for a period of time, clean
it thoroughly, remove all dirt, grease, leaves, etc. Store in
a clean, dry area.
1. Clean entire lawn mower (See “CLEANING” in the
Maintenance section of this manual).
2. Lubricate as shown in the Maintenance section of this
manual.
3. Be sure that all nuts, bolts, screws, and pins are securely fastened. Inspect moving parts for damage,
breakage and wear. Replace if necessary.
4. Touch up all rusted or chipped paint surfaces; sand
lightly before painting.
15
STORAGE
HANDLE (See Figs. 23 and 24)
ENGINE
You can fold your lawn mower handle for storage.
1. Loosen the two (2) handle knobs on sides of the upper
handle and allow handle to fold down to the rear.
2. Remove the two (2) handle knobs and carriage bolts
on sides of the lower handle and pivot entire handle
assembly forward and allow it to rest on mower.
3. Reinstall knobs and carriage bolts to lower handle or
handle brackets for safe keeping.
• When setting up your handle from the storage position, you must manually lock the lower handle into the
mowing position.
FUEL SYSTEM
IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS
FROM FORMING IN ESSENTIAL FUEL SYSTEM PARTS SUCH
AS CARBURETOR, FUEL FILTER, FUEL HOSE, OR TANK
DURING STORAGE. ALSO, ALCOHOL BLENDED FUELS
(CALLED GASOHOL OR USING ETHANOL OR METHANOL)
CAN ATTRACT MOISTURE WHICH LEADS TO SEPARATION
AND FORMATION OF ACIDS DURING STORAGE. ACIDIC GAS
CAN DAMAGE THE FUEL SYSTEM OF AN ENGINE WHILE IN
STORAGE.
•
Empty the fuel tank by starting the engine and letting
it run until the fuel lines and carburetor are empty.
• Never use engine or carburetor cleaner products in the
fuel tank or permanent damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during storage.
Add stabilizer to gasoline in fuel tank or storage container.
Always follow the mix ratio found on stabilizer container.
Run engine at least 10 minutes after adding stabilizer to
allow the stabilizer to reach the carburetor. Do not empty
the gas tank and carburetor if using fuel stabilizer.
IMPORTANT: WHEN FOLDING THE HANDLE FOR STORAGE
OR TRANSPORTATION, BE SURE TO FOLD THE HANDLE AS
SHOWN OR YOU MAY DAMAGE THE CONTROL CABLES.
OPERATOR PRESENCE
CONTROL BAR
UPPER HANDLE
FOLD
FORWARD
FOR
STORAGE
LOWER
HANDLE
ENGINE OIL
Drain oil (with engine warm) and replace with clean engine oil. (See “ENGINE” in the Maintenance section of
this manual).
CYLINDER
MOWING
POSITION
1. Remove spark plug.
2. Pour one ounce (29 ml) of oil through spark plug hole
into cylinder.
3. Pull starter handle slowly a few times to distribute oil.
4. Replace with new spark plug.
FIG. 23
OTHER
KNOB
•
•
BOLT
•
•
HANDLE
BRACKET
Do not store gasoline from one season to another.
Replace your gasoline can if your can starts to rust.
Rust and/or dirt in your gasoline will cause problems.
If possible, store your unit indoors and cover it to give
protection from dust and dirt.
Cover your unit with a suitable protective cover that
does not retain moisture. Do not use plastic. Plastic
cannot breathe, which allows condensation to form and
will cause your unit to rust.
IMPORTANT: NEVER COVER MOWER WHILE ENGINE AND
EXHAUST AREAS ARE STILL WARM.
CAUTION: Never store the lawn mower
with gasoline in the tank inside a building where fumes may reach an open
flame or spark. Allow the engine to cool
before storing in any enclosure.
FIG. 24
16
TROUBLESHOOTING POINTS
PROBLEM
Does not start
CAUSE
1. Dirty air filter.
2. Out of fuel.
3. Stale fuel.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Loss of power
CORRECTION
1. Clean/replace air filter.
2. Fill fuel tank.
3. Empty fuel tank and refill tank with fresh,
clean gasoline.
Water in fuel.
4. Empty fuel tank and refill tank with fresh,
clean gasoline.
Spark plug wire is disconnected.
5. Connect wire to plug.
Bad spark plug.
6. Replace spark plug.
Loose blade or broken blade adapter.
7. Tighten blade bolt or replace blade adapter.
Control bar in released position.
8. Depress control bar to handle.
Control bar defective.
9. Replace control bar.
Fuel valve lever (if equipped) in OFF position. 10. Turn fuel valve lever to the ON position.
Weak battery (if equipped).
11. Charge battery.
Disconnected battery connector (if equipped). 12. Connect battery to engine.
1. Rear of lawn mower housing or cutting
blade dragging in heavy grass.
2. Cutting too much grass.
3. Dirty air filter.
4. Buildup of grass, leaves and trash under
mower.
5. Too much oil in engine.
6. Walking speed too fast.
1. Raise cutting height.
2. Raise cutting height.
3. Clean/replace air filter.
4. Clean underside of mower housing.
5. Check oil level.
6. Cut at slower walking speed.
Poor cut –
uneven
1. Worn, bent or loose blade.
2. Wheel heights uneven.
3. Buildup of grass, leaves and trash under
mower.
1. Replace blade. Tighten blade bolt.
2. Set all wheels at same height.
3. Clean underside of mower housing.
Excessive
vibration
1. Worn, bent or loose blade.
2. Bent engine crankshaft.
1. Replace blade. Tighten blade bolt.
2. Contact a qualified service center.
Starter rope
hard to pull
1. Engine flywheel brake is on when control
bar is released.
2. Bent engine crankshaft.
3. Blade adapter broken.
4. Blade dragging in grass.
1. Depress control bar to upper handle before
pulling starter rope.
2. Contact a qualified service center.
3. Replace blade adapter.
4. Move lawn mower to cut grass or other
hard surface before starting.
Grass catcher
not filling
(if so equipped)
1. Cutting height too low.
2. Lift on blade worn off.
3. Catcher not venting air.
1. Raise cutting height.
2. Replace blade.
3. Clean grass catcher.
Hard to push
1. Grass is too high or wheel height is too low.
2. Rear of lawn mower housing or cutting
blade dragging in heavy grass.
3. Grass catcher too full.
4. Handle height position not right for you.
1. Raise cutting height.
2. Raise rear of lawn mower housing one (1)
setting higher.
3. Empty grass catcher.
4. Adjust handle height to suit.
Loss of drive
(or slowing of
drive speed)
1.
2.
3.
4.
1.
2.
3.
4.
Belt wear.
Belt off of pulley.
Drive cable worn or broken.
“Loose” drive control system.
17
Check/replace drive belt.
Check/reinstall drive belt.
Put belt on pulleys / replace belts if broken.
Adjust drive control.
ROTARY LAWN MOWER - - MODEL NUMBER 55R21HV (55R21HVA) - PRODUCT NUMBER 954 22 32-10
18
ROTARY LAWN MOWER - - MODEL NUMBER 55R21HV (55R21HVA) - PRODUCT NUMBER 954 22 32-10
19
KEY
NO.
PART
NO.
1
2
3
4
5
6
7
8
--
532 18 60-03
532 06 53-22
532 18 34-83
532 18 52-28
532 18 34-81
812 00 00-14
532 18 60-02
532 18 34-79
532 18 63-02
9
10
11
12
817 41 13-18
532 18 43-31
532 18 34-63
---
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
532 18 37-70
532 18 45-72
532 15 04-06
532 18 71-83
532 85 10-74
532 85 02-63
532 18 34-31
532 18 34-25
532 18 36-90
817 60 04-06
532 18 36-09
532 75 11-52
532 18 34-45
532 18 34-46
532 10 73-39
DESCRIPTION
Handle, Grassbag, Rear
Hairpin Cotter
Rod, Rear Handle, Grassbag
Grassbag
Frame, Grassbag
E-Ring
Door, Grassbag
Rod, Pivot
Grassbag Assembly, Complete
(Consists of Key Numbers 1-8)
Screw
Tube, Rear Skirt
Skirt, Rear
Engine, Honda, Model Number GCV160
(Order parts from Engine Manufacturer)
Cover, Front
Screw, Hex Washer Head
Bolt, Engine Mounting
Blade, 21"
Washer, Hardened
Washer, Lock
Screw, Hex Head, Grade 8
Adapter, Blade
Debris Shield
Screw, Hex Head, Serrated
Mounting Bracket, Mulcher Door
Nut, Hex
Rod, Hinge
Spring, Mulcher Door
Decal, Danger
KEY
NO.
PART
NO.
28
29
30
31
32
33
--
532 18 59-95
532 18 34-47
532 18 60-01
532 18 34-78
532 18 34-45
532 18 60-00
532 18 63-01
34
35
36
37
38
39
40
42
43
44
45
46
47
48
49
50
51
---
532 18 74-25
532 18 55-88
532 18 34-65
532 18 59-96
532 18 74-26
532 18 45-68
532 06 64-26
532 18 70-96
532 18 62-98
532 18 27-48
532 18 62-96
532 18 34-73
532 18 45-70
532 12 52-03
532 18 45-69
532 18 34-69
532 18 79-59
532 16 23-00
532 18 63-05
DESCRIPTION
Mulcher Door
Knob
Door, Discharge Chute
Spring, Door, Discharge Chute
Rod, Door, Discharge Chute
Discharge Chute, Plastic
Discharge Chute Assembly, Complete
(Consists of Key Numbers 30-33)
Adjustment Bracket, Lower Handle, LH
Knob, Star
Bolt, Shoulder
Deflector, Discharge
Adjustment Bracket, Lower Handle, RH
Bolt, Handle
Wire Tie
Handle Assembly, Lower
Bail, Control
Grip, Foam
Handle Assembly, Upper (Includes Foam Grip)
Cable, Engine Zone Control
Screw
Bracket, Upstop
Nut, Hex
Rope Guide
Kit, Housing
Decal, Warning (not shown)
Owner's Manual
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
ROTARY LAWN MOWER - - MODEL NUMBER 55R21HV (55R21HVA) - PRODUCT NUMBER 954 22 32-10
20
ROTARY LAWN MOWER - - MODEL NUMBER 55R21HV (55R21HVA) - PRODUCT NUMBER 954 22 32-10
21
KEY
NO.
PART
NO.
1
532 18 53-12
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
532 18 82-79
532 18 73-53
532 19 02-83
532 18 82-78
532 18 16-98
532 18 70-97
532 18 62-97
532 18 82-80
532 18 59-97
532 18 45-71
812 00 00-12
532 18 34-50
532 18 71-20
532 18 36-99
532 75 10-68
532 18 70-93
817 54 10-11
532 18 47-49
532 13 20-10
532 18 37-01
532 18 45-43
532 18 81-52
532 14 52-12
873 93 05-00
532 18 70-98
532 16 60-43
532 16 08-29
817 06 04-10
DESCRIPTION
Drive Control Assembly, Complete
(Consists of Key Numbers 2 through 7)
Cover, Drive Control, Top
Pulley, Drive Control
Lever, Drive Control (blue)
Cover, Drive Control, Bottom
Screw, Torx Head #8-5/8
Bracket, Mounting, Drive Control
Cap, Drive Control, Bottom
Cable, Drive Control
Cover Assembly, Drive
Screw
Ring, Retaining
Screw
Bearing / Axle Support
Gear Case Assembly (See Breakdown)
Bearing, Ball (Wheel)
Bracket, Gear Case / Drive Pulley
Screw
Pulley, Drive
Nut, Hex, Flangelock
Bolt, Idler
Pulley Assembly, V-Groove
O-Ring
Nut, Hex, Flangelock
Nut, Hex, Lock
Idler Arm
Pulley, Idler
Bolt, Hex Head, Shoulder
Screw 1/4-20 x 1/16
KEY
NO.
PART
NO.
DESCRIPTION
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
532 18 34-57
532 08 83-48
532 18 43-68
532 08 39-23
532 18 36-95
532 18 59-94
532 18 82-91
532 17 50-98
812 00 00-58
532 17 51-03
532 17 51-05
532 17 51-04
532 18 41-72
532 18 70-92
532 18 70-90
532 16 34-09
532 18 43-69
532 18 34-38
532 16 96-75
532 18 70-89
532 18 36-88
532 18 83-31
532 17 51-02
532 18 70-91
532 18 83-30
532 18 73-56
532 18 59-13
Cover, Dust, Wheel
Washer, Flat 3/8
Wheel Assembly, Rear 9 x 2-1/4
Nut, Hex
Hubcap
Knob
Spring, Torsion
Pawl
E-Ring
Gear
Retainer, Drive, LH
Disc, Drive
Seal, Friction
Lever, Selector, Wheel Height, Rear
Lever, Selector, Wheel Height, Front
Screw
Wheel Assembly, Front 9 x 2-1/4
Bushing, Front Axle
Retainer, Hairpin Cotter
Torque Shaft Assembly, Front
Belt, Drive
Pinion Assembly, LH
Retainer, Drive, RH
Rear Axle Assembly
Pinion Assembly, RH
Decal, Drive Control
Decal, Drive Control Adjustment (bottom)
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
ROTARY LAWN MOWER - - MODEL NUMBER 55R21HV (55R21HVA)
PRODUCT NUMBER 954 22 32-10
GEAR CASE ASSEMBLY - - PART NUMBER 532 18 36-99
KEY
NO.
PART
NO.
DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
--
817 54 10-11
532 16 06-72
532 05 70-72
532 18 39-08
532 16 08-18
532 07 78-81
532 16 08-17
532 85 08-48
532 18 41-34
532 16 06-79
532 16 06-73
532 05 70-79
812 00 00-39
532 08 64-47
532 75 03-69
Screw, Tapping #10-24 x .668
Gear Case, Upper
Seal
Drive Shaft
Bearing, Needle, Thrust
Bearing
Washer, Thrust
Key, Hi-pro
Shaft, Worm
Gear, Helical
Gear Case, Lower
Washer, Hardened
E-Ring
Plug
Grease
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
22
SERVICE NOTES
23
24
The product must exhibit reasonable care, maintenance, operation, storage and general upkeep as written
in the maintenance section of the Owner’s/Operator’s manual. Should an operational problem or failure occur,
the product should not be used, but delivered as is to an authorized Husqvarna dealer for evaluation. Proof
of purchase, as explained in section 6, rests solely with the customer.
90 Day Warranty: Automatic Mower, Chain saws, power cutters, stump grinders, pole saws, pole pruners, snow throwers, model series 580 & 600 walk-behind mowers and commercial turf equipment or any
Husqvarna product used for commercial, institutional, professional, or income producing purposes or use
except as otherwise provided herein.
The following items are not covered by this warranty:
(1)Normal customer maintenance items which become worn through normal regular use, including, but
not limited to, belts, blades, blade adapters, bulbs, filters, guide bars, lubricants, rewind springs, saw
chain, spark plugs, starter ropes and tines;
(2)Natural discoloration of material due to ultraviolet light;
(3)Engine and drive systems not manufactured by Husqvarna; these items are covered by the respective
manufacturer’s warranty as provided in writing with the product information supplied at the time of purchase; all claims must be sent to the appropriate manufacturer;
(4)Lawn and garden attachments are covered by a third party which gives a warranty, all claims for warranty should be sent to the manufacturer; and
(5)Emission Control System components necessary to comply with CARB-TIER-II and EPA regulations
which are manufactured by third party engine manufacturer.
SECTION 3: ITEMS NOT COVERED BY THIS WARRANTY
Husqvarna will repair or replace defective components without charge for parts or labor if a component
fails because of a defect in material or workmanship during the warranty period.
SECTION 2: HUSQVARNA’S OBLIGATIONS UNDER THE WARRANTY
30 Day Warranty: Replacement parts, accessories including bars and chains, tools and display items.
HUSQVARNA
7349 Statesville Road
Charlotte, NC 28269
531 83 81-23
2002
To obtain the benefit of this warranty, the product believed to be defective must be delivered to an authorized Husqvarna dealer in a timely manner, no later than thirty (30) days from date of the operational
problem or failure. The product must be delivered at the owner’s expense. Pick-up and delivery charges are
not covered by this warranty. An authorized Husqvarna dealer can be normally located through the “Yellow
Pages” of the local telephone directory or by calling 1-800-HUSKY62 for a dealer in your area.
Proof of purchase must be presented to the authorized Husqvarna dealer in order to obtain warranty service. This proof must include date purchased, model number, serial number, and complete name and address
of the selling dealer.
It is the Owner’s and Dealer’s responsibility to make certain that the Warranty Registration Card is properly
filled out and mailed to Husqvarna Forest & Garden Company. This card should be mailed within ten (10) days
from the date of purchase in order to confirm the warranty and to facilitate post-sale service.
SECTION 6: PROCEDURE TO OBTAIN WARRANTY CONSIDERATION
SECTION 5: CUSTOMER RESPONSIBILITIES
Batteries have a one-year prorated limited warranty with 100% replacement during the first 6 months.
Husqvarna Safety Apparel carries a 90-day warranty from the date of the customer’s original purchase
for defects in material and workmanship. Normal wear, tear or abuse is not covered under warranty. Product must be returned to Charlotte with a warranty claim form. All care and maintenance instructions must
be followed as stated by the manufacturer on the care label. The fit of the protective apparel/boot is not
covered under warranty.
Some states do not allow the exclusion of incidental or consequential damages, or limitations on how long
an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF
THE PURCHASER. HUSQVARNA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THESE PRODUCTS EXCEPT
TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO
THE WARRANTY PERIOD AS DEFINED IN THE LIMITED WARRANTY STATEMENT. HUSQVARNA RESERVES THE RIGHT TO CHANGE OR IMPROVE THE DESIGN OF THE PRODUCT WITHOUT NOTICE,
AND DOES NOT ASSUME OBLIGATION TO UPDATE PREVIOUSLY MANUFACTURED PRODUCTS.
This warranty shall be inapplicable to defects resulting from the following:
(1)Accident, abuse, misuse, negligence and neglect, including stale fuel, dirt, abrasives, moisture, rust,
corrosion, or any adverse reaction due to incorrect storage or use habits;
(2)Failure to operate or maintain the unit in accordance with the Owner’s/Operator’s manual or instruction sheet furnished by Husqvarna;
(3)Alterations or modifications that change the intended use of the product or affects the product’s performance, operation, safety, or durability, or causes the product to fail to comply with any applicable
laws; or:
(4)Additional damage to parts or components due to continued use occurring after any of the above.
SECTION 4: EXCEPTIONS AND LIMITATIONS
WARRANTY STATEMENT
1 Year Warranty: Power cutters, stump grinder, pole pruners and pole saws for non-commercial, non-professional, non-institutional or non-income producing use. All trimmers, brushcutters, clearing saws, hovering trimmers, stick edgers, backpack blowers, hand held blowers, hedge trimmers, power-assist collection
systems used for commercial, institutional, professional or income producing purposes or use.
Emission control system components necessary to comply with CARB-TIER-II and EPA regulations,
except for those components which are part of engine systems manufactured by third party engine manufacturers for which the purchaser has received a separate warranty with product information supplied at
time of purchase.
2 Year NON-COMMERCIAL Warranty: Automatic Mower, Riding lawn mowers, yard and garden tractors,
walk behind mowers, tillers, chain saws, trimmers, brushcutters, clearing saws, snow blowers, handheld
blowers, backpack blowers, hedge trimmers, electrical products and power-assist collection systems for
noncommercial, nonprofessional, noninstitutional or nonincome producing use, except as herein stated.
2 Year COMMERCIAL-Warranty: Husqvarna Commercial Turf Equipment—zero turn riders, wide area
walks, and ground engaging commercial equipment.
3 Year Warranty: Spindles (on Zero Turn Riders and Commercial Walk-Behinds)
Husqvarna Forest & Garden Company (“Husqvarna”) warrants Husqvarna product to the original purchaser to be free from defects in material and workmanship from the date of purchase for the “Warranty
Period” of the product as set forth below:
Lifetime Warranty: All tiller tines against breakage, trimmer shafts, ignition coils and modules on hand
held product.
SECTION 1: LIMITED WARRANTY
