Centennial School District
Business Office
433 Centennial Road
Warminster, PA 18974-5455
Phone: 215-441-6000 x11011
Fax: 215-441-5105
www.centennialsd.org

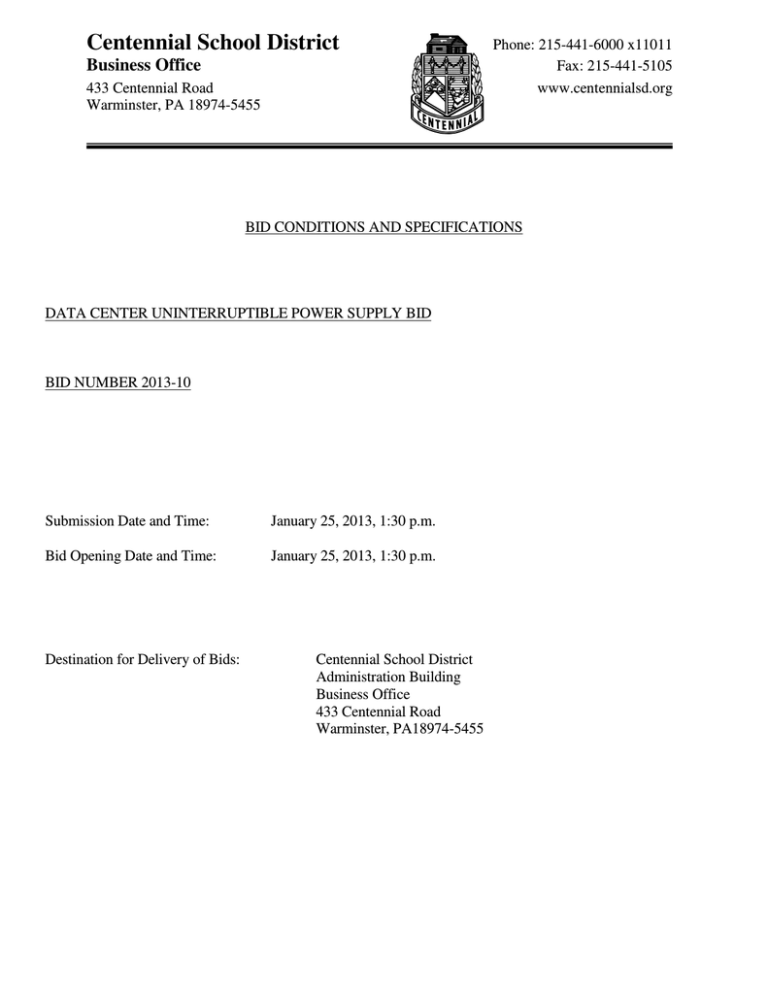

BID CONDITIONS AND SPECIFICATIONS
DATA CENTER UNINTERRUPTIBLE POWER SUPPLY BID
BID NUMBER 2013-10
Submission Date and Time:
January 25, 2013, 1:30 p.m.
Bid Opening Date and Time:
January 25, 2013, 1:30 p.m.
Destination for Delivery of Bids:
Centennial School District
Administration Building
Business Office
433 Centennial Road
Warminster, PA18974-5455
CENTENNIAL SCHOOL DISTRICT
Administration Building
Warminster, PA18974-5455
Bid Number 2013-10
DATA CENTER UNINTERRUPTIBLE POWER SUPPLY BID
January 2013
The Centennial School District (CSD) is soliciting bids on a project to provide uninterruptible power supply
(UPS) units to serve the data center in the District Administration Building. This capability, provided by
battery operated unit as specified below, will maintain power in the event of a power outage until the
generator located at the building can begin providing replacement power. Therefore, the duration during
which time this UPS unit will be providing power is estimated to be 10-15 seconds. The District is asking
for respondents to provide installation bid cost. Also, as an option, the District is asking respondents to
provide wiring costs from the building’s main electrical panel to the Data Center should such wiring
upgrade be deemed necessary.
1. Sealed bids for furnishing the Centennial School District with this UPS system shall be in the hands of Mr.
Christopher Berdnik, Chief Financial Officer, Administration Building, 433 Centennial Road, Warminster,
PA 18974-5455 on or before 1:30 p.m., January 25, 2013 and plainly marked on the envelope "Data Center
Uninterruptible Power Supply Bid No. 2013-10".
2. Bids will be opened on January 25, 2013 in the Centennial School District Business Office, Administration
Building, 433 Centennial Road, Warminster, PA 18974-5455 beginning at 1:30 p.m.
3. Each bid totaling $10,000 or more must be accompanied by a Certified or Bank Issued Check or Bid Bond,
made payable to Centennial School District, in the amount of 10% of the total bid as a guarantee of
successful completion of the contract. All checks submitted with bids will be held uncashed and returned to
all unsuccessful bidders when bids are awarded.
4. Centennial School Board reserves the right to waive any or all the technicalities in this bid. Bidders will
guarantee the bid price will remain firm for 90 days from date of the bid opening.
5. The District reserves the right to increase or decrease quantities.
6. The Centennial School Board reserves the right to accept or reject any or all bids and to determine for itself
what shall be acceptable as equals.
7. Failure to complete and return the enclosed Non-Collusion affidavit with your bid will result in
disqualification.
8. Bidder agrees to adhere to Anti-Discrimination Clause included within the contents of this bid.
9. Acceptable manufacturer - Liebert® APM™ UPS with the following model numbers:
UPS - NRB41CCSAHA3C98
Bypass Distribution Cabinet - NRMB0C4C0RA0H64
Internal Batteries - HX150-FR
10. Substitutions – In order to maintain compatibility with the District’s existing Liebert UPS monitoring
system, no substitutions will be accepted.
11. UPS Specifications
Page 1
11.1. SUMMARY
This specification defines the electrical and mechanical characteristics and requirements for a
continuous-duty three-phase, solid-state, scalable (field-upgradable) uninterruptible power system
(UPS). The UPS shall provide high-quality AC power for sensitive electronic equipment.
11.2. STANDARDS
The UPS shall be designed in accordance with the applicable sections of the current revision of the
following documents. Where a conflict arises between these documents and statements made herein, the
statements in this specification shall govern.
11.3.
UL Standard 1778
11.4.
CSA 22.2, No. 107.3, 4th edition
11.5.
FCC Part 15, Class A
11.6.
IEC 61000-3-4,4-4,4-2,4-3,4-6,2-2
11.7.
National Electrical Code (NFPA-70)
11.8.
NEMA PE-1
11.9.
ISTA_1H
11.10. ANSI C62.41, Categories A3 and B3
11.11. The UPS shall be UL and cUL listed per UL Standard 1778.
11.12. SYSTEM DESCRIPTION
11.13. Design Requirements - UPS Module
11.14. Voltage. Input/output voltage specifications of the UPS shall be:
11.14.1.1.1.
11.14.1.1.2.
11.14.1.1.3.
Rectifier Input: 208 volts, three-phase, 4-wire-plus-ground
Bypass Input: 208 volts, three-phase, 4-wire-plus-ground
Output: 208 volts, three-phase, 4-wire-plus-ground
11.14.1.2. Output Load Capacity. Specified output load capacity of the UPS shall be scalable from
15-45 kVA at unity power factor.
11.14.1.3. Scalable Output Capacity. UPS rated output capacity will be scalable by Emerson
Network Power Liebert Services. Models will be available in two different frames:
11.14.1.3.1. 45kVA Frame - Scalable in 15kVA increments with Liebert FlexPower™
modules: 15, 30 and 45kVA
11.14.2. Design Requirements - Battery
11.14.2.1. Battery Cells: Valve-regulated, lead acid batteries.
11.14.2.2. Reserve Time: 12 minutes at 45 kVA/kW, unity power factor, with ambient temperature
of 77°F (25°C). Unit shall provide terminal for connection of external batteries.
11.14.2.3. Recharge Time: to 95% capacity within ten (10) times discharge time.
Page 2
11.14.3. Modes of Operation
The UPS shall be designed to operate as an on-line, double-conversion, reverse-transfer system
with the following operating modes:
11.14.3.1. Normal - The critical AC load is continuously supplied by the UPS inverter. The
rectifier/charger derives power from an AC source and supplies DC power to the inverter
while simultaneously float-charging the reserve battery.
11.14.3.2. Emergency - Upon failure of utility AC power, the critical AC load is supplied by the
inverter, which obtains power from the battery. There shall be no interruption in power to the
critical load upon failure or restoration of the utility AC source.
11.14.3.3. Recharge - Upon restoration of utility AC power after a utility AC power outage, the
rectifier/charger shall automatically restart, gradually ramp up output voltage and assume the
inverter and battery recharge loads.
11.14.3.4. Bypass - If the UPS must be taken out of service for maintenance or repair or if the
inverter overload capacity is exceeded, the static transfer switch shall perform a reverse
transfer of the load from the inverter to the bypass source with no interruption in power to the
critical AC load.
11.14.4.
Performance Requirements
11.14.4.1. AC Input to UPS
11.14.4.1.1.
Voltage Configuration for Standard Units: 208V, three-phase, four-wire plus
ground
11.14.4.1.2.
Voltage Range: +15%, -20% of nominal without derating
11.14.4.1.3.
Frequency: 40-70Hz
11.14.4.1.4.
Power Factor: 0.99 full load, 0.98 half load
11.14.4.1.5.
Inrush Current: UPS inrush current not to exceed 1.5 times rated input current.
Maintenance bypass and distribution cabinet inrush current not to exceed 8 times
rated input current.
11.14.4.1.6.
Current Limit: 140% of nominal AC input current maximum
11.14.4.1.7.
Current Distortion: <3% reflected THD maximum at full load
11.14.4.1.8.
Surge Protection: Sustains input surges without damage per criteria listed in IEC
1000-4-5
11.14.5.
AC Output, UPS Inverter
11.14.5.1. Voltage Configuration: three-phase, 4-wire plus ground
11.14.5.2. Voltage Regulation:
11.14.5.3. ±1% three-phase RMS average for a balanced three-phase load for the combined
variation effects of input voltage, connected load, battery voltage, ambient temperature
and load power factor
Page 3
11.14.5.4. ±5% three-phase RMS average for a 100% unbalanced load for the combined variation
effects of input voltage, connected load, battery voltage, ambient temperature and load
power factor
11.14.5.5. Frequency:
±0.1% (single Liebert FlexPower assembly)
±0.25% (six Liebert FlexPower assemblies)
11.14.5.6. Frequency Slew Rate: Selectable from 0.1Hz/sec to 3.0Hz/sec maximum for single unit
11.14.5.7. Phase Balance: 120 degrees ±1 degree for balanced load
120 degrees ±1.5 degrees for 100% unbalanced load
11.14.5.8. Voltage Distortion: <1% total harmonic distortion (THD) for linear loads
<5% THD for 100% nonlinear loads (3:1 crest factor) without kVA/kW
derating
11.14.5.9. Load Power Factor Range: 0.7 lagging to 0.9 leading without derating
11.14.5.10.
Output Power Rating: 0.99 full load. 0.98 half load
11.14.5.11.Overload Capability:
110% for 60 minutes
125% for 10 minutes
150% for 60 seconds
11.14.5.12.
Voltage Transient Response: 100% load step, ±5.0%
11.14.5.13.
a cycle
Transient Recovery Time: to within 5% of steady state output voltage within half
11.14.5.14.
Voltage Unbalance: 100% unbalanced load, ±5%
11.15. ENVIRONMENTAL CONDITIONS
The UPS shall be able to withstand the following environmental conditions without damage or
degradation of operating characteristics:
11.15.1. Operating Ambient Temperature
11.15.1.1. UPS Module: 32°F to 104°F (0°C to 40°C)
11.15.1.2. Battery: 77°F ±9°F (25°C ±5°C)
11.15.2. Storage/Transport Ambient Temperature
11.15.2.1. UPS Module: -4°F to 158°F (-20°C to 70°C)
11.15.2.2. Battery: -4°F to 86°F (-20°C to 30°C)
11.15.3. Relative Humidity- 0 to 95%, non-condensing
11.15.4. Altitude
11.15.4.1. Operating: 3300 ft. (1000m) above sea level; derate power by 1% per 330 ft. between
3300 and 6000 ft.
Page 4
11.15.4.2. Storage/Transport: to 40,000 ft. above mean sea level.
11.15.5. Audible Noise - 56 dB (45kW/kVA model)
12. SUBMITTALS
12.1.
Proposal Submittals - Submittals with the proposal shall include:
12.1.1. DATA CENTER UNINTERRUPTIBLE POWER SUPPLY BID – PRICING SHEET – (Pg. 18)
12.2.
Upon the award of a purchase order, the successful bidder will submit with five (5) business days:
12.2.1. System configuration with single-line diagrams
12.2.2. Functional relationship of equipment including weights, dimensions and heat dissipation
12.2.3. Descriptions of equipment to be furnished, including deviations from these specifications
12.2.4. Size and weight of shipping units to be handled by installing contractor
12.2.5. Detailed layouts of customer power and control connections
12.2.6. Detailed installation drawings including all terminal locations
12.2.7. One (1) set of instruction manuals that shall include a functional description of the equipment
with block diagrams, safety precautions, instructions, step-by-step operating procedures and
routine maintenance guidelines, including illustrations.
13. WARRANTY
The UPS manufacturer shall warrant the UPS against defects in materials and workmanship for one
(1) year. The no-hassle replacement warranty shall include shipping to and from the customer site.
All battery replacements are covered within the 1 year warranty period.
14. QUALITY ASSURANCE
14.1. Manufacturer Qualifications
A minimum of 20 years’ experience in the design, manufacture and testing of solid-state UPS systems
is required. The system shall be designed and manufactured according to world-class quality standards.
The manufacturer shall be ISO 9001:2000 certified.
14.2. Factory Testing
Before shipment, the manufacturer shall fully and completely test the system to assure compliance with
the specification.
15. PRODUCT
15.1.
FABRICATION
15.1.1. Materials
All materials of the UPS shall be new, of current manufacture and high grade and shall not have
been in prior service except as required during factory testing. All active electronic devices shall be
solid-state. All power semi-conductors shall be sealed. Control logic and fuses shall be physically
isolated from power train components to ensure operator safety and protection from heat. All
Page 5
electronic components shall be accessible from the front without removing sub-assemblies for
service access.
15.1.2. Wiring
Wiring practices, materials and coding shall be in accordance with the requirements of the National
Electrical Code, OSHA and applicable local codes and standards. All bolted connections of
busbars, lugs and cables shall be in accordance with requirements of the National Electrical Code
and other applicable standards. All electrical power connections shall be torqued to the required
value and marked with a visual indicator.
Provisions shall be made in the cabinets to permit installation of input, output and external control
cabling, using raceway or conduit. Provision shall be made for top and bottom access to input,
output, bypass and DC connections. In conformance with NEC, connection cabinets shall provide
for adequate wire bend radius. All copper busbars for customer power connections shall be tin
plated for connection integrity.
15.1.3. Construction and Mounting
The UPS shall be in NEMA Type 1 enclosures, designed for floor mounting. The UPS shall be
structurally adequate and have provisions for hoisting, jacking and forklift handling. Maximum
cabinet height shall be 78.7 in.
15.1.4. Cooling
Cooling of the UPS shall be by forced air using a redundant fan configuration. Fan power shall be
provided by the UPS. The Liebert APM UPS requires 12 inches (305mm) rear clearance for air
flow, and the following requirements for top clearance air flow:
15.1.4.1. 45kVA UPS with either top or bottom cable entry: 12" (305mm) clearance unless UPS
Fan kit accompanies the system providing mounting flush to the wall.
The thermal design, along with all thermal and ambient sensors, shall be coordinated with the
protective devices before excessive component or internal cabinet temperatures are exceeded. Air
filters shall be located at the point of air inlet and be changeable.
Access shall be:
15.2.
15.1.4.2.
Liebert APM UPS and Battery Storage Cabinet: Front access
15.1.4.3.
Liebert APM maintenance bypass cabinet: Front access only
COMPONENTS
15.2.1. Rectifier/Charger
15.2.1.1.
General
The term rectifier/charger shall denote the solid-state equipment and controls necessary
to convert AC to regulated DC for input to the inverter and for charging the battery.
15.2.1.2.
AC Input Current Limiting
The rectifier/charger unit shall be provided with AC input current limiting whereby the
maximum input current shall be limited to 140% of the full input current rating.
15.2.1.3.
DC Filter
The rectifier/charger shall have an output filter to minimize ripple current into the battery.
Page 6
The AC ripple voltage of the rectifier DC output shall not exceed 1% RMS of the float
voltage. The filter shall be adequate to ensure that the DC output of the rectifier/charger
will meet the input requirements of the inverter without the battery connected.
15.2.1.4.
Automatic Rectifier Restart
Upon restoration of utility AC power, after a utility AC power outage and prior to a UPS
automatic end-of-discharge shutdown, the rectifier/charger shall automatically restart,
walk-in and gradually assume the inverter and battery recharge loads.
15.2.1.5.
Battery Recharge
In addition to supplying power for the inverter load, the rectifier/charger shall be capable
of producing battery charging current sufficient to replace 95% of the battery discharge
power within ten (10) times the discharge time. After the battery is recharged, the
rectifier/charger shall maintain the battery at full charge until the next emergency
operation.
15.2.1.6.
Overvoltage Protection
There shall be DC overvoltage protection so that if the DC voltage rises to the preset
limit, the UPS will shut down automatically and initiate an uninterrupted load transfer to
the static bypass line.
15.2.2. Inverter
15.2.2.1.
General
The term inverter shall denote the equipment and controls to convert DC from the
rectifier/charger or battery to precise AC to power the load. The inverter shall be solidstate, capable of providing rated output power, and for increased performance the inverter
shall be a pulse-width-modulated design and utilize insulated gate bipolar transistors
(IGBTs).
15.2.2.2.
Overload Capability
The inverter shall be capable of supplying current and voltage for overloads exceeding
100%. The inverter is to provide 150% of full load for 60 seconds, 125% of full load for
10 minutes and 110% of full load for 60 minutes.
A status indicator and audible alarm shall indicate overload operation. The UPS shall
transfer the load to bypass when overload capacity is exceeded.
15.2.2.3.
Fault Clearing and Current Limit
The inverter shall be capable of supplying an overload current of 150% of its full-load
rating for one minute. For greater currents or longer time duration, the inverter shall have
electronic current-limiting protection to prevent damage to components. The critical load
will be transferred to the static bypass automatically and uninterrupted. The inverter shall
be self-protecting against any magnitude of connected output overload. Inverter control
logic shall sense and disconnect the inverter from the critical AC load without the
requirement to clear protective fuses.
15.2.2.4.
Step Load Response
15.2.2.5.
Voltage Distortion
Total harmonic distortion in the output voltage will not exceed 1% for 0% to 100% linear
loads.
Total harmonic distortion in the output voltage will not exceed 4% for 0% to 100% nonPage 7
linear loads.
Total harmonic distortion in the output voltage will not exceed 5% for 0% to 100% nonlinear, unbalanced loads.
15.2.2.6.
Phase Balance
Electronic controls shall be provided to regulate each phase so that an unbalanced loading
will not cause the output voltage to go outside the specified voltage unbalance or phase
displacement. With 100% load on one phase (and 0% load on the other two phases) or
100% load on two phases (and 0% load on the other phase), the voltage balance is to be
within 5% and the phase displacement is to be 120 degrees within a range of ±1.5
degrees.
15.2.2.7.
Inverter Shutdown
For rapid removal of the inverter from the critical load, the inverter control electronics
shall instantaneously turn off the inverter transistors. Simultaneously, the static transfer
switch shall be turned on to maintain continuous power to the critical load.
15.2.2.8.
Inverter DC Protection
The inverter shall be protected by the following disconnect levels:
15.2.2.8.1.
15.2.2.8.2.
15.2.2.8.3.
15.2.2.9.
DC Overvoltage Shutdown
DC Undervoltage Warning (Low Battery Reserve)—pre-warning time is
adjustable
DC Undervoltage Shutdown (End of Discharge)
Output Frequency
The output frequency of the inverter shall be controlled by a high-speed DSP capable of
holding the inverter output frequency to within ±0.1% for a single Liebert FlexPower
assembly or ±0.25% for six Liebert FlexPower assemblies during steady state and
transient conditions. Total deviation from the rated frequency, including short time
fluctuations and drift, shall not exceed 0.1% for a single Liebert FlexPower assembly or
0.25% for six Liebert FlexPower assemblies.
15.2.3. Display and Controls
15.2.3.1.
Monitoring and Control
The UPS shall be provided with a microprocessor-based unit status display and controls
section designed for convenient and reliable user operation. A graphical liquid crystal
display (LCD) shall be used to show a single-line diagram of the UPS and shall be
provided as part of the monitoring and controls sections of the UPS. All operator controls
and monitors shall be located on the front of the UPS cabinet. Monitoring functions such
as metering, status and alarms shall be displayed on the graphical LCD. Additional
features of the monitoring system shall include:
15.2.3.1.1.
15.2.3.1.2.
15.2.3.1.3.
15.2.3.1.4.
15.2.3.2.
Menu-driven display with pushbutton navigation
Real-time clock (time and date)
Alarm history with time and date stamp
Memory with battery backup
Metering
The following parameters shall be displayed:
15.2.3.2.1.
15.2.3.2.2.
Input AC voltage line-to-line
Input AC current for each phase
Page 8
15.2.3.2.3.
15.2.3.2.4.
15.2.3.2.5.
15.2.3.2.6.
15.2.3.2.7.
15.2.3.2.8.
15.2.3.2.9.
15.2.3.2.10.
15.2.3.2.11.
15.2.3.3.
Alarm Messages
The following alarm messages shall be displayed on the home screen:
15.2.3.3.1.
15.2.3.3.2.
15.2.3.3.3.
15.2.3.3.4.
15.2.3.3.5.
15.2.3.3.6.
15.2.3.3.7.
15.2.3.3.8.
15.2.3.3.9.
15.2.3.3.10.
15.2.3.3.11.
15.2.3.3.12.
15.2.3.3.13.
15.2.3.3.14.
15.2.3.3.15.
15.2.3.3.16.
15.2.3.3.17.
15.2.3.3.18.
15.2.3.3.19.
15.2.3.3.20.
15.2.3.4.
Mains Voltage Abnormal
Mains Undervoltage
Mains Freq. Abnormal
Charger Fault
Battery Reversed
No Battery
Control Power 1 Fail
Parallel Comm. Fail
Bypass Unable To Track
Bypass Abnormal
Inverter Asynchronous
Fan Fault
Control Power 2 Fail
Unit Over Load
System Over Load
Bypass Phase Reversed
Transfer Time-Out
Load Sharing Fault
Bypass Over Current
Output Ground Fault
Status Messages
The following UPS status messages shall be displayed locally:
15.2.3.4.1.
15.2.3.4.2.
15.2.3.4.3.
15.2.3.4.4.
15.2.3.4.5.
15.2.3.4.6.
15.2.3.4.7.
15.2.3.4.8.
15.2.3.4.9.
15.2.3.4.10.
15.2.3.4.11.
15.2.3.4.12.
15.2.3.4.13.
15.2.3.5.
Input frequency
Battery voltage
Battery charge/discharge current
Output AC voltage line-to-line
Output AC current for each phase
Output frequency
Apparent power
Active power
Battery time left during battery operation
Rectifier (Off / Soft Start / Main Input On / Battery Input On)
Input Supply (Normal Mode / Battery Mode / All Off)
Battery Self Test (True / False)
Input Disconnect (Open / Closed)
EPO (True / False)
Charger (On / Off)
Output Disconnect (Open / Closed)
Maint. Disconnect (Open / Closed)
Bypass Disconnect (Open / Closed)
Inverter (Off / Soft Start / On)
Bypass (Normal / Unable To Trace / Abnormal)
Output Supply (All Off / Bypass Mode / Inverter Mode / Output Disable)
Inverter On (Enable / Disable)
Controls
UPS startup, shutdown and static bypass operations shall be accomplished through
pushbutton controls on the front panel. Menu-driven user prompts shall be provided to
Page 9
guide the operator through system operation without the use of additional manuals.
Pushbuttons shall be provided to display the status of the UPS and to test and reset visual
and audible alarms. A mimic screen shall be available on the LCD to depict a single-line
diagram of the UPS with switch positions and power flow.
15.2.3.6.
On-Line Battery Test
The UPS shall be provided with a menu-driven On-Line Battery Test feature. The test
shall ensure the capability of the battery to supply power to the inverter while the load is
supplied power in the normal mode.
15.2.4. Static Transfer Switch
15.2.4.1.
General
A static transfer switch and bypass circuit shall be provided as an integral part of the
UPS. The static switch shall be a naturally commutated high-speed static (SCR-type)
device rated to conduct full load current continuously. The switch shall have an overload
rating to clear a 20-ampere load branch circuit breaker.
The static transfer switch control logic shall contain an automatic transfer control circuit
that senses the status of the inverter logic signals and operating and alarm conditions.
This control circuit shall provide an uninterrupted transfer of the load to an alternate
bypass source without exceeding the transient limits specified herein, when an overload
or malfunction occurs within the UPS or to bypass the UPS for maintenance.
15.2.4.2.
Uninterrupted Transfer
The transfer control logic shall automatically turn on the static transfer switch,
transferring the critical AC load to the bypass source, after the transfer logic senses any
of the following conditions:
15.2.4.2.1.
15.2.4.2.2.
15.2.4.2.3.
Inverter overload capacity exceeded
Critical AC load overvoltage or undervoltage
UPS fault condition
The transfer control logic shall inhibit an automatic transfer of the critical load to the
bypass source if any of the following conditions are present:
15.2.4.2.4.
15.2.4.2.5.
15.2.4.3.
Uninterrupted Retransfer
Retransfer of the critical AC load from the bypass source to the inverter output shall be
automatically initiated unless inhibited by manual control. The transfer control logic shall
inhibit an automatic retransfer of the critical load to the inverter if one of the following
conditions exists:
15.2.4.3.1.
15.2.4.3.2.
15.2.4.3.3.
15.2.4.3.4.
15.2.4.4.
Bypass frequency out of limits
Bypass out-of-synchronization range with inverter output
Bypass out of synchronization range with inverter output
Inverter/bypass voltage difference exceeding preset limits
Overload condition exists in excess of inverter full load rating
UPS fault condition present
Battery Power Pack
The battery power pack shall include valve-regulated, lead-acid battery cells housed in a
separate cabinet that matches the UPS cabinet styling to form an integral system lineup.
Page 10
Battery cells shall be mounted on slide-out trays for ease of maintenance. A battery
disconnect circuit breaker shall be included for isolation of the battery pack from the UPS
module. Casters and leveling feet shall also be provided with the battery power pack
cabinet for ease of installation. When the application calls for the battery cabinet to be
bolted to the UPS cabinet, an interconnecting cable kit will be available, precut and prelugged.
15.2.5. Required Accessories
15.2.5.1.
Liebert IntelliSlot® Web Card (ISWEB-L)
Provides communication outputs to indicate a change of status of the UPS. Outputs are
provided for:
15.2.5.1.1.
15.2.5.1.2.
15.2.5.1.3.
SNMP
HTML - Web page
Allow use of Liebert Nform™ and or network management systems
SNMP protocol shall provide remote communications to Liebert Nform with the
following messages:
15.2.5.1.4.
15.2.5.1.5.
15.2.5.1.6.
15.2.5.1.7.
15.2.5.1.8.
15.2.5.1.9.
15.2.5.1.10.
15.2.5.1.11.
15.2.5.1.12.
15.2.5.1.13.
15.2.5.1.14.
15.2.5.1.15.
15.2.5.1.16.
15.2.5.1.17.
15.2.5.1.18.
15.2.5.1.19.
15.2.5.1.20.
15.2.5.1.21.
15.2.5.1.22.
15.2.5.1.23.
15.2.5.2.
Mains Voltage Abnormal
Mains Undervoltage
Mains Freq. Abnormal
Charger Fault
Battery Reversed
No Battery
Control Power 1 Fail
Parallel Comm. Fail
Bypass Unable To Track
Bypass Abnormal
Inverter Asynchronous
Fan Fault
Control Power 2 Fail
Unit Over Load
System Over Load
Bypass Phase Reversed
Transfer Time-Out
Load Sharing Fault
Bypass Over Current
Output Ground Fault
Matching Maintenance Bypass and Distribution Cabinet
A make-before-break maintenance bypass with Solenoid Key Release Unit (SKRU)
interlock shall be available in a cabinet that matches and may be bolted up to the right
side of the UPS. Installation of the cabinet shall not affect the cooling ability of the UPS.
Thermal-magnetic breakers shall be provided for bypass and maintenance isolation.
16. EXECUTION
16.1. FIELD QUALITY CONTROL
The following inspections and test procedures shall be performed by factory-trained field service
personnel during the UPS startup.
Page 11
16.1.1. Visual Inspection
16.1.1.1.
16.1.1.2.
16.1.1.3.
16.1.1.4.
16.1.1.5.
16.1.1.6.
16.1.1.7.
Inspect equipment for signs of damage.
Verify installation per drawings.
Inspect cabinets for foreign objects.
Verify neutral and ground conductors are properly sized and configured.
Inspect battery cases.
Inspect battery for proper polarity.
Verify all printed circuit boards are configured properly.
16.1.2. Mechanical Inspection
16.1.2.1.
16.1.2.2.
16.1.2.3.
Check all control wiring connections for tightness.
Check all power wiring connections for tightness.
Check all terminal screws, nuts and/or spade lugs for tightness.
16.1.3. Electrical Inspection
16.1.3.1.
16.1.3.2.
16.1.3.3.
Check all fuses for continuity.
Confirm input voltage and phase rotation is correct.
Assure connection and voltage of the battery string(s).
16.1.4. Preventive Maintenance
16.1.4.1.
16.1.4.2.
16.2.
Startup shall include one preventive maintenance visit during the first year scheduled at
customer’s convenience. The PM will include the following services for one UPS
module: consult with personnel responsible for the equipment, visually inspect internal
sub-assemblies and major components, check all mechanical connections for tightness
and heat discolorations, clean any foreign material and dust from internal compartments,
check status of all alarm circuits, calibrate equipment to manufacturer's specifications,
check the normal operation of the system, check battery transfer/discharge and perform a
short duration battery run, perform any required engineering field changes, return unit to
operational service with normal load then verify the output.
See section 16.2.3 for detailed scope.
MANUFACTURER’S FIELD SERVICE
16.2.1. Service Personnel
The UPS manufacturer shall directly employ a nationwide service organization consisting of
factory-trained field service personnel dedicated to the startup and maintenance of UPS and
power equipment.
The manufacturer shall provide a national dispatch center to coordinate field service personnel
schedules. One toll-free number shall reach a qualified support person 24 hours/day, 7
days/week, 365 days/year. If emergency service is required, on-site response time shall be four
hours or less within 150 miles of a Liebert Services center.
Two local customer engineers shall be assigned to the site with a regional office as a backup.
Escalation procedures shall be in place to notify Power Technical Support if a site is not
functioning within 24 hours.
16.2.2. Replacement Parts Stocking
Parts shall be available through an extensive network to ensure round-the-clock parts availability
Page 12
throughout the country.
Spare parts shall be stocked by local field service personnel with backup available from national
parts center and the manufacturing location. A national parts center Customer Support Parts
Coordinator shall be on call 24 hours a day, 7 days a week, 365 days a year for immediate parts
availability.
16.2.3. Maintenance Contracts
Vendor shall provide service contract following the expiration of the UPS warranty for years 2-5.
Contract shall cover the UPS, Internal Batteries, and Maintenance bypass with the following
service and scope:
16.2.3.1.
16.2.3.2.
UPS Service Contract Scope:
Guaranteed 4-hour on-site emergency response, 7 days/week, 24 hours/day, within 150
miles of Manufacturer Services’ Service city.
16.2.3.3. Includes 100% parts coverage (excluding air filters and proactive full bank capacitor
replacement).
16.2.3.4. Internal Battery Coverage - Includes parts, labor and battery jars as required - up to 10%
of the battery string per year (not accumulated over contract term).
16.2.3.5. Includes 100% labor and travel coverage 7 days/week, 24 hours/day.
16.2.3.6. Performed by Level I Liebert factory trained Customer Engineers.
16.2.3.7. Includes battery recycling as required, with documentation meeting EPA requirements.
16.2.3.8. Includes one Annual Preventive Maintenance Service and one Semi-Annual Preventive
Maintenance Service visit on the UPS and internal battery cabinet scheduled by the
customer between 8am-5pm, Monday-Friday (excluding national holidays).
16.2.3.9. Includes 1-800-LIEBERT Customer Response Center.
16.2.3.10. Includes access to Liebert Customer Services Network On-Line Internet portal.
16.2.3.11. Subject to all Terms & Conditions as noted in the Liebert Services Terms & Conditions.
16.2.4. UPS Preventive Maintenance
UPS Preventive Maintenance shall be performed annually and semiannually Monday thru Friday
between 8AM and 5PM with the following scope:
16.2.4.1. UPS Annual and Semi-Annual Preventive Maintenance Services Include:
16.2.4.1.1. Perform a temperature check on all breakers, connections and associated controls.
Repair and/or report all high temperature areas.
16.2.4.1.2. Perform a complete visual inspection of the equipment, including sub-assemblies,
wiring harnesses, contacts, cables and major components.
16.2.4.1.3. Inspect for broken, brittle, damaged, or heat stressed components and cables.
16.2.4.1.4. Clean any foreign material and dust from internal compartments.
16.2.4.1.5. Perform a status check of alarm circuits.
16.2.4.1.6. Install or perform Engineering Field Modifications including firmware revisions as
necessary.
16.2.4.1.7. Return the system to normal load and verify the output voltage.
16.2.4.1.8. Review system performance with customer to address any system questions.
16.2.4.1.9. Record phase to phase input voltages from display *
16.2.4.1.10. Check all nuts, bolts, screws, and connections for heat discoloration.*
16.2.4.1.11. Perform an operational test of the system including unit transfer to and from
bypass.*
16.2.4.1.12. Perform an operational test of the system including unit transfer to and from
battery.*
*Service Performed Annually Only
Page 13
16.2.4.2. UPS Internal Battery Semi-Annual Service
16.2.4.2.1. Inspect the appearance and cleanliness of the battery and the battery room. Clean
normal cell top dirt accumulation (to be done only with battery off line).
16.2.4.2.2. Measure and record the total battery float voltage and charging current.
16.2.4.2.3. Measure and record the overall AC ripple current.
16.2.4.2.4. Measure and record the overall AC ripple voltage.
16.2.4.2.5. Visually inspect the jars and covers for cracks and leakage.
16.2.4.2.6. Visually inspect for evidence of corrosion.
16.2.4.2.7. Measure and record the ambient temperature.
16.2.4.2.8. Verify the condition of the ventilation equipment, if applicable.
16.2.4.2.9. Verify the integrity of the battery rack/cabinet.
16.2.4.2.10. Measure and record 100% of the cell temperatures.
16.2.4.2.11. Measure and record the float voltage of all cells.
16.2.4.2.12. Measure and record all internal impedance readings.
16.2.4.2.13. Provide a detailed written report noting any deficiencies and corrective action
needed, taken and/or planned.
16.2.4.2.14. Re-tighten all battery connections to the battery manufacturer's specifications, offline
only.*
*Service performed Annually Only
16.2.4.3. Corrective Battery Maintenance Performed as Required
16.2.4.3.1. Refurbish cell connections as deemed necessary by the detailed inspection report.
17. Optional Rack Power distribution
17.1. SUMMARY
Liebert MPH Managed Rack PDU power system, hereafter referred to as the Liebert MPH, delivers
power distribution, monitoring and receptacle control to plug/cord connected IT devices and sensitive
electronic equipment loads.
17.2. STANDARDS
Liebert MPH is designed in accordance with the applicable sections of the current revision of the
following documents. Where a conflict arises between these documents and statements made herein,
the statements in this specification will govern.
17.3.
North America
17.3.1.1.
120V & 208V Single Phase and 3 phase Units
17.3.1.1.1.
17.3.1.1.2.
17.3.1.1.3.
17.3.1.1.4.
17.3.1.1.5.
UL 60950-1 Information Technology Equipment
CAN/CSA-C22.2 No. 60950-1-03 Information Technology Equipment
FCC, Title 47, Part 15 Subpart B for Class B operation as defined by ANSI
Standard C63.4
ROHS Compliant
ISTA Procedure 1A and 2A
17.4. System Description
Liebert MPH Rack PDU’s, with remote monitoring and/or control capabilities for power distribution at
the load/equipment level, are designed to support the growth in rack electrical needs while meeting the
new demands for remote power management. These products are a part of the Rack PDU’s from
Emerson Network Power - a family of rack power distribution systems designed to manage power from
the UPS all the way to each individual receptacle.
Page 14
Liebert MPH monitors electrical attributes of an individual Rack PDU, including real-time remote and
(optional) local display of monitoring of aggregate and branch electrical parameters (status, thresholds,
alarms) including voltage, amps, kW, and kW-hr. Liebert MPH features include: Rack PDU and
Branch load monitoring and control for continuous uptime and minimum disruptions; Expandable
monitoring interface providing simplified growth management; rugged construction; offered factory
installed in the Knurr rack enclosure system.
All Rack PDU’s include a 10ft. (3meter) input power cord with appropriate input plug connection and
overload protection from a Hydraulic-Magnetic 20 amp branch breaker ; basic tool-less rack mounting
provisions are also provided for Emerson Network Power Knurr racks. Liebert MPH Managed Rack
PDU’s are available in rack-mount and vertical zero-U form factors and are painted black.
17.4.1. Vertical-Mount Dimensions:
68.1" (1730 mm) H x 1.9" (50 mm) W x 3.1" (80 mm) D
17.4.2. Rack-Mount Dimensions:
1.7" (44 mm) H x 17.2" (438 mm) W x 7.0 (178 mm) D
17.5.
Liebert MPH Managed Rack PDU’s
17.5.1. Liebert MPH – Managed Rack PDU (Branch Monitoring Only)
Liebert MPH-NB series power strips provide local and remote monitoring of individual PDU
volts, amps, watts, and kilowatt-hours.
17.5.2. Liebert MPH – Managed Rack PDU’s – ALL Systems
All Liebert MPH systems are provided with factory integrated Liebert Rack PDU Card (RPC1000) that provides web based remote monitoring via a direct IP network connection, Rack PDU
Array interface connection to three additional Liebert MPH or Liebert MPX systems to allow
viewing of up to four Rack PDU’s on a single IP connection, an environmental sensor port, and a
port for connection to the optional local display. Local display monitoring is provided via the
optional Basic Display Module (Liebert RPC-BDM). Each Liebert MPH Unit is provided with
basic rack mounting provisions to meet a range of installation needs.
17.5.3. North American Input / Output Systems
17.5.3.1.
120VAC-Single Phase Input / Output – Rack-mount Form Factor
17.5.3.1.1.
9 outlet / 20 or 30 Amp includes 5-20R (T-blade) receptacles; L5-20P or L5-30P
plug connection, 3.0 m / 10 foot input power cord, and is 1U tall.
17.5.3.2.
120VAC-Single Phase Input / Output – Vertical Form Factor
17.5.3.2.1.
27 outlet / 20 or 30 Amp includes 5-20R (T-blade) receptacles; L5-20P, or L530P plug connection, 3.0m / 10 foot input power cord, and is 1735mm / 68.25 in. long.
17.5.3.3.
200-240VAC-Single Phase Input / Output – Rack-mount Form Factor
17.5.3.3.1.
9 outlet / 20 or 30 Amp includes IEC-C13 receptacles; L6-20P or L6-30P plug
connection, 3.0m / 10 foot input power cord, and is 1U tall.
17.5.3.4.
200-240VAC-Single Phase Input / Output – Vertical Form Factor
17.5.3.4.1.
27 or 21 + 6 outlet / 20 or 30 Amp includes twenty-seven IEC-C13 or twenty-one
IEC-C13 plus six IEC-C19 receptacles; L6-20P or L6-30P plug connection, 3.0m / 10
Page 15
foot input power cord, and is 1735mm / 68.25 in. long.
17.5.3.5.
120/208VAC-Three Phase Input / 208 & 120VAC Output – Vertical Form Factor
17.5.3.5.1.
27 or 21 + 6 outlet / 30 Amp includes twenty-seven IEC-C13 or twenty-one IECC13 plus six IEC-C19 receptacles; L21-30P plug connection, 3.0m / 10 foot input power
cord, and is 1735mm / 68.25 in. long.
17.6.
ENVIRONMENTAL CONDITIONS
17.6.1. Ambient Temperature
17.6.1.1.
17.6.1.2.
Operating: 32°F ─ 131°F (0°C ─ 55°C) for altitudes 10,000 ft (3000 meters) above sea
level.
Storage: -4°F ─ 140°F (-20°C ─ 60°C)
17.6.2. Relative Humidity
17.6.2.1.
0 ─ 95% non-condensing, non-corrosive
17.6.3. C. Altitude:
17.6.3.1.
10,000 m (3,000 m max.), without power derating when operated within the temperature
specified in section 1.4.A. Ambient temperature will be derated 5°C for each additional
500 m (1640 ft.)
17.6.4. Electrostatic Discharge
17.6.4.1.
The 120/230 VAC units are able to withstand an electrostatic discharge compliant to
EN61000-4-2, level 3, Criteria A , without damage and without affecting the connected
load.
17.7. USER Accessories and Packaging
Liebert MPH system is supplied with (1) user's manual. The manual includes installation drawings and
instructions, a functional description of the equipment, safety precautions, illustrations, and operating
procedures. The package meets the requirements of ISTA Procedure 1A and 2A.
17.8. WARRANTY
The manufacturer warrants the MPH against defects in materials and workmanship for five (5) years.
Specific terms are defined by Emerson Network Power
18. UPS INSTALLATION
18.1.
INSTALLATION SCOPE OF WORK
18.1.1. Option: Provide and install (1) 350MCM Type MC feeder cable from boiler room to Data Center
through utility tunnel.
18.1.2. Option: Provide and install surface mounted EMT conduit for feeder in boiler room and Data
Center.
18.1.3. Existing OCP devices to be re-used.
18.1.4. Take delivery of and install UPS equipment, provided by Manufacturer.
18.1.5. Remove existing MDF panel board, install junction box.
18.1.6. Provide and install surface conduit from UPS to new junction box, cut-over branch circuits.
18.1.7. UPS and branch circuit cut-over to be performed during off-hours.
Page 16
18.1.8. Disconnect existing UPS, remove existing feeder.
18.1.9. UPS removal by others.
18.2.
INSTALLATION CLAIRIFICATIONS
18.2.1. Final design is subject to the Authority Having Jurisdiction (AHJ) and is subject to change.
18.2.2. Permit and inspection fees are not included.
18.2.3. Demolition has not been included unless indicated above.
18.2.4. Excavation of rock has not been included.
18.2.5. Prevailing labor rates have not been included.
18.2.6. Cutting, patching and painting have not been included in the proposal.
18.2.7. The cost of bonding has not been included in this proposal.
18.2.8. This proposal is part of the agreement and takes precedence over all other information.
18.2.9. The pricing in this proposal is valid as long as the contract is fully executed within 30 calendar
days of the proposal date.
18.2.10. All work will be performed during normal business hours, Monday through Friday
18.2.11. This proposal and all subsequent agreements are governed by the installers Standard Terms &
Conditions, a copy is available.
18.3.
INSTALLATION WARRANTY
18.3.1. The warranty is for one year from the date of substantial completion.
18.3.2. The warranty is governed by Installers Standard Terms & Conditions.
18.3.3. There is no charge for warranty work during normal business days and hours. A charge will be
made for the premium cost of after hour warranty work.
19. If there are any questions concerning item description, quantity or other aspects of these specifications,
please call Bob Reed at (215) 441-6000, ext. 11051.
20. Bidder should provide at least five installation references of comparable systems. K-12 references located
in southeastern Pennsylvania are preferred. References should include institution name, address, contact
name, and telephone number.
21. Please provide one original on paper, one paper copy, and an electronic copy of your proposal.
22. Please check the Legal Notices page on Centennial School District’s website, www.centennialsd.org, for
addenda prior to submitting your bid.
Page 17
DATA CENTER UNINTERRUPTIBLE POWER SUPPLY BID – PRICING SHEET
Bid Number 2013-10
Centennial School District
Business Office, Administration Building
433 Centennial Road
Warminster, PA18974-5455
January 25, 2013
We propose to furnish a Liebert System–45 kVA APM UPS as per the specifications contained in the above
referenced Bid:
Equipment:
• Liebert System–45 kVA APM UPSw/1 year warranty and 4 year service contract (including the battery),
Liebert IntelliSlot® Web Card (ISWEB-L), and Matching Maintenance Bypass and Distribution
Cabinet: Total #1 $__________________
Installation:
• Installation of all components listed under “Equipment”: Total #2 $___________________
Credit for Existing UPS:
• Existing UPS is to be picked up by the successful bidder. Total #3 $___________________
Options
• 18.1.1 Option: Provide and install (1) 350MCM Type MC feeder cable from boiler room to Data Center
through utility tunnel. $___________________
•
18.1.2 Option: Provide and install surface mounted EMT conduit for feeder in boiler room and Data
Center.$___________________
•
Optional Power Distribution Equipment (Quantity to be determined):
o 120VAC-Single Phase Input / Output – Rack-mount Form Factor
9 outlet / 20 or 30 Amp includes 5-20R (T-blade) receptacles; L5-20P or L5-30P plug connection, 3.0 m / 10 foot input
power cord, and is 1U tall.
MPH-NBR09AXXC30 Unit Cost $___________________
MPH-NBR09AXXD30 Unit Cost $___________________
o 120VAC-Single Phase Input / Output – Vertical Form Factor
27 outlet / 20 or 30 Amp includes 5-20R (T-blade) receptacles; L5-20P, or L5-30P plug connection, 3.0m / 10 foot
input power cord, and is 1735mm / 68.25 in. long.
MPH-NBV27AXXC30 Unit Cost $___________________
MPH-NBV27AXXD30 Unit Cost $___________________
o 200-240VAC-Single Phase Input / Output – Rack-mount Form Factor
9 outlet / 20 or 30 Amp includes IEC-C13 receptacles; L6-20P or L6-30P plug connection, 3.0m / 10 foot input
power cord, and is 1U tall.
MPH-NBR09NXXE30 Unit Cost $___________________
MPH-NBR09NXXF30 Unit Cost $___________________
Page 18
o 200-240VAC-Single Phase Input / Output – Vertical Form Factor
27 or 21 + 6 outlet / 20 or 30 Amp includes twenty-seven IEC-C13 or twenty-one IEC-C13 plus six IEC-C19
receptacles; L6-20P or L6-30P plug connection, 3.0m / 10 foot input power cord, and is 1735mm / 68.25 in. long.
MPH-NBV27NXXE30 Unit Cost $___________________
MPH-NBV27NXXF30 Unit Cost $___________________
MPH-NBV27NOXF30 Unit Cost $___________________
o 120/208VAC-Three Phase Input / 208 & 120VAC Output – Vertical Form Factor
27 or 21 + 6 outlet / 30 Amp includes twenty-seven IEC-C13 or twenty-one IEC-C13 plus six IEC-C19 receptacles;
L21-30P plug connection, 3.0m / 10 foot input power cord, and is 1735mm / 68.25 in. long.
MPH-NBV27AXXH30 Unit Cost $___________________
MPH-NBV27ANXH30 Unit Cost $___________________
MPH-NBV27AMXH30 Unit Cost $___________________
Total Bid cost: (Totals #1 + #2 + #3): $______________________________
A Certified Check, Bank Check, or a Bid Bond in the amount of $ ________________ is enclosed.
The Non-Collusion Affidavit is signed and attached ________
Bidder Proposal or Reference# _________________
Special Instructions/exceptions:
Are procurement cards (VISA) accepted for payment? YES or NO
If procurement cards are accepted, are there any restrictions or conditions?
Are ACH Payments accepted? YES or NO
If ACH payments are accepted, are there any restrictions or conditions?
Firm Name
Authorized Signature
Address
Print Name
City
State
Zip
Phone Number
Date
Fax Number
Email
Page 19
ANTI-DISCRIMINATION CLAUSE
(Section 755, Pennsylvania School Code)
1. In accordance with the provisions of the Pennsylvania School Code, the contractor agrees:
a. That in the hiring of employees for the performance of work under this contract, or any
subcontractor hereunder, no contractor, subcontractor, nor any person acting on behalf of such contractor of
subcontractor, shall by reason of race, creed, color, discriminate against any citizen of the Commonwealth
of Pennsylvania who is qualified and available to perform work to which the employment relates;
b. That no Contractor, subcontractor, or any person acting on behalf, shall in any manner
discriminate against or intimidate any employee hired for performance of work under this contract on
account of race, creed, or color;
c. That there may be deducted from the amount payable to the contractor under this contract, a
penalty of five dollars ($5.00) for each person for each calendar day during which such person was
discriminated against or intimidated, in violation of the provisions of the contract; and,
d. That this contract may be canceled or terminated by the school district, and all money due or to
become due hereunder may be forfeited, for a second or any subsequent violation of the terms or conditions
of this portion of the contract.
INSTRUCTIONS FOR NON-COLLUSION AFFIDAVIT
1. This Non-Collusion Affidavit is material to any contract awarded pursuant to this bid.
According to the Pennsylvania Antibid-Rigging Act. 73 P.S. 1611 et seq.. governmental agencies
may require Non-Collusion Affidavits to be submitted together with bids.
2. This Non-Collusion Affidavit must be executed by the member, officer or employee of the
bidder who makes the final decision on prices and the amount quoted in the bid.
3. Bid rigging and other efforts to restraint competition, and the making of false sworn statements
in connection with the submission of bids are unlawful and may be subject to criminal
prosecution. The person who signs the affidavit should examine it carefully before signing and
assure himself or herself that each statement is true and accurate, making diligent inquiry, as
necessary, of all other persons employed by or associated with the bidder with responsibilities for
the preparation, approval or submissions of the bid.
4. In the case of a bid submitted by a joint venture, each party to the venture must be identified in
the bid documents, and an affidavit must be submitted separately on behalf of each party.
5. The term "complementary bid" as used in the Affidavit has the meaning commonly associated
with that term in the bidding process, and includes the knowing submission of bids higher than the
bid of another firm, any intentionally high or noncompetitive bid, and any other form of bid
submitted for the purpose of giving a false appearance of competition.
6. Failure to file an Affidavit in compliance with these instructions will result in disqualification
of the bid.
Page 20
NON-COLLUSION AFFIDAVIT
Contract/Bid No. __________
State of _________________________ :
:s.s.
County of _______________________ :
I state that I am _______________________________ of ________________________________________________
(Title)
(Name of Company)
and that I am authorized to make this affidavit on behalf of my firm, and its owners, directors, and officers, I am the
person responsible in my firm for the price(s) and the amount of this bid.
I state that:
(1) The price(s) and amount of this bid have been arrived at independently and without consultation,
communication or agreement with any other contractor, bidder or potential bidder.
(2) Neither the price(s) nor the amount of this bid, and neither the approximate price(s) nor the approximate
amount of this bid, have been disclosed to any other firm or person who is a bidder or potential bidder, and they will not
be disclosed before the bid opening.
(3) No attempt has been made or will be made to induce any firm or person to refrain from bidding on this
contract, or to submit a bid higher than this bid, or to submit an intentionally high or noncompetitive bid or other form of
complementary bid.
(4) The bid of my firm is made in good faith and not pursuant to any agreement or discussion with or
inducement from, any firm or person to submit a complementary or other noncompetitive bid.
(5) ___________________________________________________________, its affiliates, subsidiaries,
(Name of my firm)
officers, directors and employees are not currently under investigation by any governmental agency and have not in the
last four years been convicted or found liable for any act prohibited by State or Federal law in any jurisdiction, involving
conspiracy or collusion with respect to bidding on any public contract, except as follows:
I state that _____________________________________________________ understands and acknowledges
(Name of my firm)
that the above representations are material and important, and will be relied on by the Centennial School District when
recommending for award the contract(s) for which this bid is submitted, I understand and my firm understands that any
misstatement in this affidavit is and shall be treated as fraudulent concealment from the Centennial School District of the
true facts relating to the submission of bids for this contract.
___________________________________
(Signature)
Sworn to and subscribed before me this ________ day of _______________________, 20____
___________________________________
Notary Public
My commission expirers on __________________________________
Page 21
