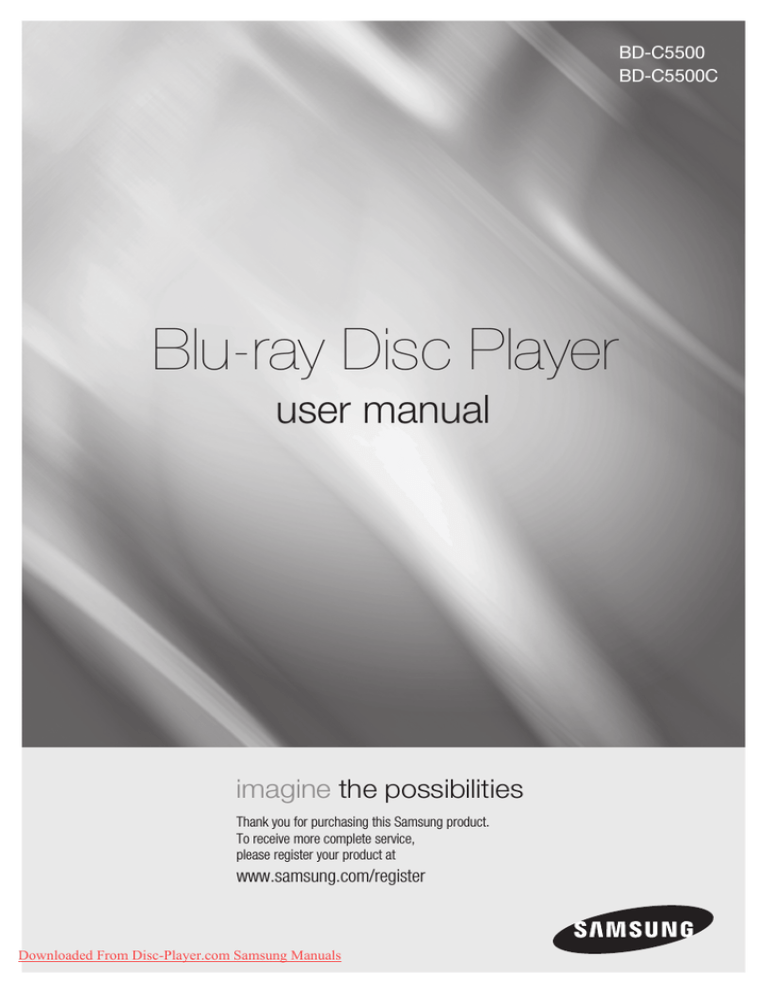

BD-C5500
BD-C5500C
Blu-ray Disc Player
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
Downloaded From Disc-Player.com Samsung Manuals
Key features
Blu-ray Disc Features
Blu-ray Discs support the highest quality HD video
available in the industry - Large capacity means
no compromise on video quality. Furthermore, a
Blu-ray Disc has the same familiar size and look
as a DVD.
The following Blu-ray Disc features are disc
dependant and will vary.
Appearance and navigation of features will also
vary from disc to disc.
Not all discs will have the features described
below.
Video highlights
The BD-ROM format supports three highly advanced
video codecs, including AVC, VC-1 and MPEG-2.
HD video resolutions are also available:
• 1920 x 1080 High Definition
• 1280 x 720 High Definition
For High-Definition Playback
To view high-definition contents on a Blu-ray Disc,
an HDTV (High Definition Television) is required.
Some Blu-ray Discs may require using the player’s
HDMI OUT to view high-definition content.
The ability to view high-definition content on
Blu-ray Discs may be limited depending on the
resolution of your TV.
Interactivity
Certain Blu-ray Discs may contain Animated
menus and Trivia games.
User Browsable Slideshows
With Blu-ray Discs, you can browse through
various still pictures while the audio remains
playing.
DownloadedEnglish
From Disc-Player.com Samsung Manuals
Subtitles
Depending on what is contained on the Blu-ray
Disc, you may be able to select different font
styles, sizes and colors for the subtitles. Subtitles
may also be animated, scrolled or faded in and
out.
BD-LIVE
You can use a Blu-ray Disc supporting BD-LIVE
through network connection to enjoy various
contents provided by the disc manufacturer.
Blu-ray Disc Player Features
Internet@TV
You can download various chargeable or free-ofcharge applications through network connection.
Various internet service and contents will be
provided, which include news, weather forecast,
stock market, games, movies and music.
Safety Information
02
Warning
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lighting flash and Arrowhead within the CAUTION: TO REDUCE THE RISK OF ELECTRIC The explanation point within the triangle
triangle is a warning sign alerting you of
SHOCK, DO NOT REMOVE COVER (OR BACK)
is a warning sign alerting you of important
dangerous voltage inside the product.
NO USER SERVICEABLE PARTS INSIDE. REFER instructions accompanying the product.
SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
• To reduce the risk of fire or electric shock, do
not expose this appliance to rain or moisture.
FCC NOTE (for U.S.A)
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on.
The user is encouraged to try to correct the
interference by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect this equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
• This class B digital product meets all
requirements of the Canadian Interference Causing Equipment Regulations.
Note to CATV system installer
This reminder is provided to call CATV system
installer’s attention to Article 820-40 of the
National Electrical Code (Section 54 of Canadian
Electrical Code, Part I) that provides guidelines
for proper grounding and, in particular, specifies
that the cable ground shall be connected to the
grounding system of the building as close to the
point of cable entry as practical.
Downloaded From Disc-Player.com Samsung Manuals
CLASS 1 LASER product
This Compact Disc player is classified as a CLASS
1 LASER product. Use of controls, adjustments
or performance of procedures other than those
specified herein may result in hazardous radiation
exposure.
Complies with 21CFR 1040.10 except for
deviations pursuant to Laser Notice No. 50, dated
June 24, 2007.
DANGER :
• VISIBLE AND INVISIBLE LASER RADIATION
WHEN OPEN. AVOID DIRECT EXPOSURE TO
BEAM. (FDA 21 CFR)
CAUTION :
• CLASS 3B VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN. AVOID EXPOSURE
TO THE BEAM (IEC 60825-1)
• THIS product UTILIZES A LASER. USE
OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE. DO NOT OPEN COVER AND DO
NOT REPAIR YOURSELF. REFER SERVICING
TO QUALIFIED PERSONNEL.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1 PRODUCTO
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
LÁSER CLASE 1
✎ NOTE
▪ If the Region number of a Blu-ray Disc/DVD disc
does not correspond to the Region number of this
player, the player cannot play the disc.
English
Safety Information
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Safety Information
Precautions
Important Safety Instructions
Read these operating instructions carefully before
using the unit. Follow all the safety instructions
listed below.
Keep these operating instructions handy for future
reference.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
11. Only use attachments/accessories specified
by the manufacturer.
12. Use only with the cart,
stand, tripod, bracket,
or table specified by the
manufacturer, or sold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
DownloadedEnglish
From Disc-Player.com Samsung Manuals
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Disc Storage & Management
Disc Handling
Disc Shape
• Use discs with regular
shapes. If an irregular disc
(a disc with a special shape)
is used, this player may be damaged.
Holding discs
• Avoid touching the surface of a
disc where recording is performed.
Blu-ray Discs
• If the player is not used for a long period of time,
remove the Blu-ray Disc from the player and
store it in its case.
• Be careful not to leave fingerprints or scratches
on the surface of the Blu-ray Disc.
DVD-VIDEO, Audio CD (CD-DA)
• Wipe off dirt or contamination on the disc with a
soft cloth.
Handling Cautions
• Do not write on the printed side with a ball-point
pen or pencil.
• Do not use record cleaning sprays or antistatic.
Also, do not use volatile chemicals, such as
benzene or thinner.
• Do not apply labels or stickers to discs. (Do not
use discs fixed with exposed tape adhesive or
leftover peeled-off stickers.)
• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers
available on the market.
• Do not load warped or cracked discs.
• Before connecting other components to this
player, be sure to turn them all off.
• Do not move the player while a disc is being
played as the disc may be scratched or broken,
or the player’s internal parts may be damaged.
• Do not put a flower vase filled with water or any
small metal objects on the player.
• Be careful not to put your hand into the disc
tray.
• Do not place anything other than the disc in the
disc tray.
• Exterior interferences such as lightning and
static electricity can affect the normal operation
of this player. If this occurs, turn the player
off and on again with the POWER button, or
disconnect and then reconnect the AC power
cord to the AC power outlet. The player will
operate normally.
Downloaded From Disc-Player.com Samsung Manuals
Maintenance of Cabinet
For safety reasons, be sure to disconnect the AC
power cord from the AC outlet.
• Do not use benzene, thinner, or other solvents
for cleaning.
• Wipe the cabinet with a soft cloth.
Restrictions on Playback
• This player may not respond to all operating
commands because some Blu-ray, DVD and
CD discs allow specific or limited operation and
features during playback.
Please note that this is not a defect in the
player.
• Samsung cannot assure that this player will
play every disc bearing the Blu-ray Disc, DVD
or CD logo because disc formats evolve, and
problems and errors may occur during the
creation of Blu-ray Disc, DVD, CD software
and/or the manufacture of discs.
Please contact the SAMSUNG customer care
center if you have questions or encounter
difficulty in playing Blu-ray, DVD, or CD discs
in this player. Also, refer to rest of this user
manual for additional information on playback
restrictions.
English
Safety Information
Be careful not to damage the disc because the
data on these discs is highly vulnerable to the
environment.
• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
• Keep in a clean protection jacket.
• If you move your player suddenly from a cold
place to a warm place, condensation may
generate on the operating parts and lens and
cause abnormal disc playback. If this occurs,
wait for two hours before connecting the plug to
the power outlet.
Then insert the disc and try to play back again.
• Be sure to remove the disc and turn off the
player after use.
• Disconnect the AC power cord from the AC
outlet when you don’t intend to use the player
for long periods of time.
• To clean a disc, wipe it in a straight
line from the inside to the outside of
the disc.
• Do not expose the player to any
liquid.
• When the AC plug is connected to a wall outlet,
the player will still draw power (standby mode)
when it is turned off.
• Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus.
• The main plug is used as a disconnect device
and shall stay readily operable at any time.
02
Disc Storage
Contents
Key features
2
2
Blu-ray Disc Features
Blu-ray Disc Player Features
Safety Information
3
4
4
4
4
Warning
Precautions
Important Safety Instructions
Disc Storage & Management
Disc Handling
Getting Started
10
10
10
11
11
13
13
14
14
15
16
17
18
18
19
19
Before using the User Manual
Disc Types and Contents that can be played.
Disc types that cannot be played
Blu-ray Disc Compatibility
Disc Types
Region Code
Copyright
Logos of Discs that can be played
Accessories
Front Panel
Front Panel Display
Rear Panel
Remote Control
Tour of the Remote Control
Setting the Remote Control
Controllable Tv Codes
Connections
20
20
Connecting to a TV
Case 1 : Connecting to a TV with an HDMI Cable
- Best Quality (Recommended)
Case 2 : Connecting to a TV with DVI Cable
- Best Quality (Recommended)
Case 3 : Connecting to a TV (Component)
- Better Quality
Case 4 : Connecting to a TV (Video)
- Good Quality
21
22
23
DownloadedEnglish
From Disc-Player.com Samsung Manuals
26
26
27
Connecting to an Audio System
Case 1 : Connecting to an Audio System
(HDMI Supported Amplifier) - Best Quality
(Recommended)
Case 2 : Connecting to an Audio System
(Dolby Digital, DTS Amplifier) - Better Quality
Case 3 : Connecting to an Audio System
(2 Channel Amplifier) - Good Quality
Connecting to the Network
Cable Network
Wireless Network
28
29
30
30
30
30
32
32
32
32
32
32
32
33
34
34
34
34
34
34
34
35
35
35
36
36
36
39
40
Before Starting (Initial Settings)
Setting the Menu
Display
TV Aspect
BD Wise (Samsung Players only)
Resolution
HDMI Format
Movie Frame (24Fs)
Progressive Mode
Still Mode
HDMI Deep Color
Audio
Digital Output
PCM Downsampling
Dynamic Range Control
Downmixing Mode
DTS Neo:6
System
Initial Settings
Internet@TV Screen Size
Anynet+(HDMI-CEC)
BD Data Management
Clock
DivX(R) Registration
DivX(R) Deactivation
Network
Network Settings
Network Status
BD-LIVE Internet Connection
24
24
25
25
Setup
Downloaded From Disc-Player.com Samsung Manuals
English
ENGLISH
Connections
Contents
Setup
40
40
40
40
41
41
41
41
41
41
41
42
Language
Security
Parental Rating
Change Password
General
Background
Energy Saving
Front Display
Power On/Off Sound
Support
Software Upgrade
Contact Samsung
Basic Functions
43
43
43
43
43
43
43
44
44
44
44
44
44
44
45
45
45
45
45
46
46
46
46
47
Playing a Disc
Playback
Disc Structure
Using the Disc menu/Title menu/Popup menu
Using the Disc Menu
Using the Title Menu
Playing the Title List
Using the Popup Menu
Using the Search and Skip Functions
Searching for a Desired Scene
Skipping Chapters
Slow Motion Play/Step Motion Play
Slow Motion Play
Step Motion Play
Repeat Playback
Repeat the Title or Chapter
Repeat the Section
Using the TOOLS button
Moving to a Desired Scene Directly
Selecting the Audio Language
Selecting the Subtitle Language
Changing the Camera Angle
Selecting the Picture Setting
Setting BONUSVIEW
DownloadedEnglish
From Disc-Player.com Samsung Manuals
48
48
48
49
49
49
50
51
Listening to Music
Buttons on the Remote Control used for Music
Playback
Playing an Audio CD (CD-DA)/MP3
Repeat an Audio CD (CD-DA)/MP3
Playlist
Playing back a Picture
Playing a JPEG Disc
Using the TOOLS button
Playing back a USB Storage Device
Notes on USB connection
Network Services
52
52
54
55
56
56
56
Using Internet@TV
Getting Started with Internet@TV
Settings
Samsung Apps
BD-LIVE™
Software Upgrade Notification
Using the AllShare Function
Appendix
58
61
62
63
63
64
65
Troubleshooting
Index
Specifications
Compliance and Compatibility Notice
Copy Protection
Network Service Disclaimer
License
Downloaded From Disc-Player.com Samsung Manuals
47
47
English
ENGLISH
Basic Functions
Getting Started
Before using the User Manual
Disc Types and Contents that can be played.
Term
Logo
Icon
h
�
Z
BD-ROM
BD-RE/-R
DVD-VIDEO
Definition
This involves a function available on a BD-ROM.
This involves a function available on a BD-RE/-R disc recorded in the BD-RE format.
This involves a function available on a DVD-VIDEO.
DVD-RW(V)
DVD-R
�
DVD+RW
This involves a function available on recorded DVD+RW or DVD-RW(V)/DVD-R/+R
discs that have been recorded and finalized.
DVD+R
MP3
WMA
-
JPEG
-
o
�
G
DivX
MKV
MP4
-
�
Audio CD
This involves a function available on an audio CD-RW/-R (CD-DA format).
This involves a function available in a CD-RW/-R, DVD-RW/-R, BD-RE/-R disc or a
USB storage media containing MP3 or WMA contents.
This involves a function available in a CD-RW/-R, DVD-RW/-R, BD-RE/-R disc or a
USB storage media containing JPEG contents.
This involves a function available in a CD-RW/-R, DVD-RW/-R, BD-RE/-R disc or a
USB storage media containing DivX, MKV, MP4 contents.
✎ NOTE
▪ The player may not play certain CD-RW/-R and DVD-R due to the disc type or recording conditions.
▪ If a DVD-RW/-R disc has not been recorded properly in DVD video format, it will not be playable.
▪ If contents which are consisting of more than 10 Mbps bit-rate have been recorded in DVD-R, it is not supported.
If contents which are consisting of more than 30 Mbps bit-rate have been recorded in BD-R or USB, it is not supported.
Disc types that cannot be played
• HD DVD
• DVD-ROM/PD/MVDisc, etc
10
• DVD-RAM
• Super Audio CD
(except CD layer)
Downloaded From
Disc-Player.com Samsung Manuals
English
• DVD-RW(VR mode)
• 3.9 GB DVD-R Disc for
Authoring.
• CVD/CD-ROM/CDV/
CD-G/CD-I/LD
(CD-Gs play audio only,
not graphics.)
▪
▪
▪
▪
▪
▪
Do not allow the disc to become dirty or scratched.
Fingerprints, dirt, dust, scratches or deposits of
cigarette smoke on the recording surface may make
it impossible to use the disc for playback.
Discs with PAL programs recorded on them cannot
be played using this player.
This player is compatible with the NTSC color system
only.
When a BD-J title is played, loading may take longer
than a normal title, or some functions may perform
slowly.
This player may not respond to all operating
commands because some Blu-ray, DVD and CD
discs allow specific or limited operation and features
during playback.
Please note that this is not a defect in the player.
Samsung cannot assure that this player will play
every disc bearing the Blu-ray Disc, DVD or CD logo
because disc formats evolve, and problems and
errors may occur during the creation of Blu-ray Disc,
DVD, CD software and/or the manufacture of discs.
Please contact the SAMSUNG customer care center
if you have questions or encounter difficulty when
playing Blu-ray, DVD, or CD discs in this player.
Also, refer to rest of this user manual for additional
information on playback restrictions.
Blu-ray Disc Compatibility
Blu-ray Disc is a new and evolving format.
Accordingly, disc compatibility issues are possible.
Not all discs are compatible and not every disc will
play back. For additional information, refer to the
Compliance and Compatibility Notice section of
this user manual.
Downloaded From Disc-Player.com Samsung Manuals
BD-ROM
Getting Started
▪
outside your region may not be playable with this
player. When these discs are played, either “This
disc can not be played.” or “Cannot read this disc.
Please check the regional code of the disc.” will be
displayed.
Playback may not work for some types of discs, or
when specific operations, such as angle change and
aspect ratio adjustment, are being performed.
Information about the discs is written in detail on the
disc box. Please refer to this if necessary.
Disc Types
03
✎ NOTE
▪ Some commercial discs and DVD discs purchased
This Blu-ray disc can only be played back.
This player can play back pre-recorded
commercial BD-ROM discs.
BD-RE/-R
This Blu-ray disc can be recorded and played
back.
This player can play back a BD-RE/-R disc
recorded by other compatible Blu-ray disc
recorders.
DVD-VIDEO
• This player can play back pre-recorded
commercial DVD discs (DVD-VIDEO discs) with
movies.
• When switching from the first layer to the
second layer of a dual-layered DVD-VIDEO disc,
there may be momentary distortion in the image
and sound. This is not a malfunction of the
player.
DVD-RW
This player can play back a DVD-RW disc
recorded and finalized with a DVD video recorder.
Ability to play back may depend on recording
conditions.
DVD-R
This player can play back a DVD-R disc recorded
and finalized with a DVD Video recorder. Ability to
play back may depend on recording conditions.
DVD+RW
• This player can play back a DVD+RW disc
recorded with a DVD Video recorder. Ability to
play back may depend on recording conditions.
English
11
Getting Started
DVD+R
• This player can play back a DVD+R disc
recorded and finalized with a DVD Video
recorder. Ability to play back may depend on
recording conditions.
Audio CD (CD-DA)
• This player can play back CD-DA format audio
CD-RW/-R discs.
• The player may not be able to play some
CD-RW/-R discs due to the condition of the
recording.
CD-RW/-R
• Use a 700MB(80 minutes) CD-RW/-R disc.
If possible, do not use a 800MB(90 minutes) or
above disc, as the disc may not play back.
• If the CD-RW/-R disc was not recorded as a
closed session, you may experience delays
when playing back the beginning of the disc or
all recorded files may not play.
• Some CD-RW/-R discs may not be playable
with this player, depending on the device which
was used to burn them. For contents recorded
on CD-RW/-R media from CDs for your
personal use, playability may vary depending on
contents and discs.
12
Downloaded From
Disc-Player.com Samsung Manuals
English
AVCHD (Advanced Video Codec High
Definition)
• This player can playback AVCHD format discs.
These discs are normally recorded and used in
camcorders.
• The AVCHD format is a high definition digital
video camera format.
• The MPEG-4 AVC/H.264 format is capable of
compressing images at higher efficiency than
that of the conventional image compressing
format.
• Some AVCHD discs use the “x.v.Color” format.
• This player can playback AVCHD discs using
“x.v.Color” format.
• “x.v.Color” is a trademark of Sony Corporation.
• “AVCHD” and the AVCHD logo are trademarks
of Matsushita Electronic Industrial Co., Ltd. and
Sony Corporation.
✎ NOTE
▪ Some AVCHD format discs may not play, depending
▪
▪
on the recording condition.
AVCHD format discs need to be finalized.
“x.v.Color” offers a wider color range than normal
DVD camcorder discs.
Some DivX, MKV and MP4 format discs may not
play, depending on the video resolution and frame
rate condition.
Disc Type
Blu-ray
Region
Code
DVD-VIDEO
Area
a
North America, Central America,
South America, Korea, Japan,
Taiwan, Hong Kong and South
East Asia.
b
Europe, Greenland, French
territories, Middle East, Africa,
Australia and New Zealand.
c
© 2010 Samsung Electronics Co.,Ltd.
All rights reserved; No part or whole of this user’s
manual may be reproduced or copied without the
prior written permission of Samsung Electronics
Co.,Ltd.
India, China, Russia, Central
and South Asia.
1
The U.S., U.S. territories and
Canada
2
Europe, Japan, the Middle East,
Egypt, South Africa, Greenland
3
Taiwan, Korea, the Philippines,
Indonesia, Hong Kong
4
Mexico, South America,
Central America, Australia,
New Zealand, Pacific Islands,
Caribbean
5
Russia, Eastern Europe, India,
most of Africa, North Korea,
Mongolia
6
China
Downloaded From Disc-Player.com Samsung Manuals
English
13
Getting Started
Both the player and the discs are coded by region.
These regional codes must match in order to play
the disc. If the codes do not match, the disc will
not play.
The Region Number for this player is described on
the rear panel of the player.
Copyright
03
Region Code
Getting Started
Logos of Discs that can be played
Blu-ray Disc
DTS-HD Master Audio
Dolby TrueHD
NTSC broadcast system in U.S.A, Canada,
Korea, Japan
DivX
BD-LIVE
Java
Accessories
Check for the supplied accessories below.
Audio/Video cable
(AC39-00073A)
HDMI cable (BD-C5500C only)
(MF39-00299A)
Batteries for Remote Control (AAA Size)
(AC43-12002H)
POWER
TV
POWER
BONUSVIEW
SOURCE
SUBTITLE
DISC MENU
AUDIO
MENU
TITLE MENU
POPUP
TOOLS
INFO
RETURN
EXIT
INTERNET@ FULL SCREEN REPEAT
79
MUTE
VOL
CH
AK59-00104R
User Manual
(AK68-01854A)
14
Quick Guide
(AK68-01855A)
Downloaded From
Disc-Player.com Samsung Manuals
English
Remote Control
(AK59-00104R)
03
Front Panel
Getting Started
a
b c
def g
h
1
DISC TRAY
Opens to accept a disc.
3
REMOTE CONTROL SENSOR
Detects signals from the remote control.
DISPLAY
Displays the playing status, time, etc.
OPEN/CLOSE BUTTON
Opens and closes the disc tray.
STOP BUTTON
Stops disc playback.
PLAY/PAUSE BUTTON
Plays a disc or pauses playback.
POWER BUTTON
Turns the player on and off.
USB HOST
A USB memory flash stick can be connected here and used as storage when
connected to BD-LIVE. It can also be used for software upgrades and MP3/JPEG/
DivX/MKV/MP4 playback.
2
4
5
6
7
8
✎ NOTE
▪ Software upgrades using the USB Host jack must be performed with a USB memory flash stick only.
▪ In disc menu of BD title, it does not operate play action by front panel's PLAY button.
Downloaded From Disc-Player.com Samsung Manuals
English
15
Getting Started
Front Panel Display
a
b
c
1
2
3
16
IN DISC INDICATOR
Lights when a disc is inserted or played back.
CURRENT TIME AND
STATUS INDICATOR
Displays the play time and the current status.
WIFI INDICATOR
Lights when the wireless network is connected.
Downloaded From
Disc-Player.com Samsung Manuals
English
Getting Started
ab c
03
Rear Panel
d
g f e
1
WIRELESS LAN ADAPTER
Connect the optional Wireless LAN Adapter (WIS09ABGN) here to use the Wireless
network.
LAN
Can be used for network based services (See pages 52~57), BD-LIVE and software
upgrades using a network connection.
HDMI OUT
4
Using an HDMI cable, connect this HDMI output terminal to the HDMI input terminal
on your TV for the best quality picture or to your Receiver for the best quality sound.
COMPONENT OUT
Connects to equipment having component video input.
6
VIDEO OUT
Connects the input of external equipment using a video cable.
AUDIO OUT
Connects to the audio input of external equipment using audio cables.
DIGITAL AUDIO OUT
Connects to a Receiver.
2
3
5
7
Downloaded From Disc-Player.com Samsung Manuals
English
17
Getting Started
Remote Control
Tour of the Remote Control
Turn the player on and off.
To open and close the disc tray.
POWER
TV
POWER
BONUSVIEW
SOURCE
Turn the TV on and off.
(To operate your TV, please refer to page 19)
After setup, allows you to set the input
source on your TV.
Press this to use Bonusview function.
Press numeric buttons to operate options.
Press this to switch the Blu-ray Disc/DVD’s
subtitle language.
SUBTITLE
Use this to access various audio functions
on a disc (Blu-ray Disc/DVD).
AUDIO
Press to skip backwards or forwards.
Press to search a disc backwards or
forwards.
Press to pause a disc.
Press to stop a disc.
Use this to enter the disc menu.
DISC MENU
MENU
TITLE MENU
POPUP
Press this to move to the home menu.
TOOLS
INFO
RETURN
EXIT
Press this to use Tools menu.
Return to the previous menu.
Press this to link to various Internet@TV
services.
These buttons are used both for menus
on the player and also several Blu-ray Disc
functions.
79
Allows you to repeat a title, chapter, track
or disc.
MUTE
TV volume adjustment.
Mutes the speakers of your TV.
VOL
CH
AK59-00104R
Installing batteries
Use this to select a TV program.
✎ NOTE
▪ If the remote does not operate properly :
•
•
•
•
18
Downloaded From
Disc-Player.com Samsung Manuals
English
Use this to enter the popup menu/title
menu.
Use this to display the playback information
during playing a Blu-ray/DVD disc.
Select menu items and change menu value.
Press this to exit the menu.
INTERNET@ FULL SCREEN REPEAT
Press this to see the full screen on a TV.
Press to play a disc.
Check the polarity +/– of the batteries (Dry-Cell)
Check if the batteries are drained.
Check if remote sensor is blocked by obstacles.
Check if there is any fluorescent lighting nearby.
Button
TV POWER
TV SOURCE
TV VOL (+/–)
Function
Used to switch the television on and off.
Used to select an external source
connected to the TV.
Used to adjust the volume of the television.
TV CH (,/.) Used to select the desired channel.
TV MUTE
✎
Used to toggle the sound on and off.
NOTE
▪
The functions listed above will not necessarily work
on all televisions. If you encounter problems, operate
the television directly.
To determine whether your television is
compatible, follow the instructions below.
1. Switch your television on.
2. Point the remote control towards the
television.
3. Press and hold the TV POWER button and
enter the two-figure code corresponding to
the brand of your television by pressing the
appropriate number buttons.
If your television is compatible with the remote
control, it will switch off.
It is now programmed to operate with the
remote control.
✎ NOTE
▪ If several codes are listed for your television brand,
▪
try each one in turn until you find one that works.
If you replace the remote control’s batteries, you
must set the brand code again.
Brand
SAMSUNG
AIWA
TV POWER+82
ANAM
TV POWER+10, +11,
+12, +13, +14,
+15, +16, +17, +18
BANG & OLUFSEN TV POWER+57
BLAUPUNKT
TV POWER+71
BRIONVEGA
TV POWER+57
BRANDT
CGE
CONTINENTAL
EDISON
DAEWOO
EMERSON
FERGUSON
FINLUX
FORMENTI
FUJITSU
GRADIENTE
GRUNDIG
HITACHI
IMPERIAL
JVC
LG
LOEWE
LOEWE OPTA
MAGNAVOX
METZ
MITSUBISHI
MIVAR
NEC
NEWSAN
Downloaded From Disc-Player.com Samsung Manuals
Code
TV POWER+01, +02,
+03, +04, +05,
+06, +07, +08, +09
TV POWER+73
TV POWER+52
TV POWER+75
TV POWER+19, +20,
+23, +24, +25,
+26, +27, +28,
+29, +30, +31,
+32, +33, +34
TV POWER+64
TV POWER+73
TV POWER+06, +49,
+57
TV POWER+57
TV POWER+84
TV POWER+70
TV POWER+49, +52,
+71
Brand
NOBLEX
NOKIA
NORDMENDE
PANASONIC
PHILIPS
PHONOLA
Code
TV POWER+66
TV POWER+74
TV POWER+72, +73,
+75
TV POWER+53, +54,
+74, +75
TV POWER+06, +55,
+56, +57
TV POWER+06, +56,
+57
PIONEER
TV POWER+58, +59,
+73, +74
RADIOLA
TV POWER+06, +56
RADIOMARELLI TV POWER+57
RCA
TV POWER+45, +46
SABA
TV POWER+57, +72,
+73, +74, +75
REX
TV POWER+74
SALORA
TV POWER+74
SANYO
TV POWER+41, +42,
+43, +44, +48
SCHNEIDER
SELECO
SHARP
TV POWER+06
TV POWER+74
TV POWER+36, +37,
+38, +39, +48
SIEMENS
TV POWER+71
TV POWER+52
SINUDYNE
TV POWER+57
TV POWER+06, +19,
+20, +21, +22, +78
TELEAVA
TV POWER+60, +72,
+73, +75
TV POWER+61, +79
TV POWER+06, +69
TV POWER+06, +57
TV POWER+40
TV POWER+57
TV POWER+06, +48,
+62, +65
SINGER
SONY
TELEFUNKEN
THOMSON
TV POWER+57
TV POWER+35, +48
TV POWER+73
TV POWER+67, +73,
+75, +76
TV POWER+72, +73,
+75
THOMSON ASIA TV POWER+80, +81
TOSHIBA
TV POWER+47, +48,
+49, +50, +51, +52
TV POWER+52, +77
WEGA
TV POWER+57
TV POWER+68
ZENITH
TV POWER+63
TV POWER+83
YOKO
TV POWER+06
English
19
Getting Started
You can control certain functions of your TV with
this remote control.
Controllable Tv Codes
03
Setting the Remote Control
Connections
Connecting to a TV
Case 1 : Connecting to a TV with an HDMI Cable - Best Quality
(Recommended)
1. Using an HDMI cable, connect the HDMI OUT terminal on the rear of the player to the HDMI IN
terminal of your TV.
2. Turn on the player and TV.
3. Press the input selector on your TV remote control until the HDMI signal from the player appears on
your TV screen.
• If you have set the remote control to operate your TV (See page 19), press the TV SOURCE
button on the remote control and select HDMI as the external source of the TV.
HDMI cable
(not included)
✎ NOTE
▪ An HDMI cable outputs digital video/audio, so you don’t need to connect an audio cable.
▪ If the player is connected to your TV in HDMI 720p, 1080i, 1080p output mode, you must use a High speed(category2)
▪
▪
▪
20
HDMI cable.
HDMI outputs only a pure digital signal to the TV.
If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.
Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.
When you connect the player to the TV using the HDMI cable for the first time or to a new TV, the HDMI output
resolution will be automatically set to the highest supported by the TV.
Downloaded From
Disc-Player.com Samsung Manuals
English
04
Case 2 : Connecting to a TV with DVI Cable - Best Quality
(Recommended)
2. Using the audio cables, connect the AUDIO OUT (red and white) terminals on the rear of the player
to the AUDIO IN (red and white) terminals of your TV.
3. Turn on the player and TV.
4. Press the input selector on your TV remote control until the HDMI-DVI signal from the player appears
on your TV screen.
• If you have set the remote control to operate your TV (See page 19), press the TV SOURCE
button on the remote control and select HDMI-DVI as the external source of the TV.
HDMI-DVI cable
(not included)
Audio cable
TV monitor
Red
White
✎ NOTE
▪ HDMI outputs only a pure digital signal to the TV. If your TV does not support HDCP (High-bandwidth Digital Content
▪
▪
Protection), random noise appears on the screen.
Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.
When you connect the player to the TV using the HDMI-DVI cable for the first time or to a new TV, the HDMI output
resolution will be automatically set to the highest supported by the TV.
Downloaded From Disc-Player.com Samsung Manuals
English
21
Connections
1. Using an HDMI-DVI cable, connect the HDMI OUT terminal on the rear of the player to the DVI IN
terminal of your TV.
Connections
Case 3 : Connecting to a TV (Component) - Better Quality
- Connecting to your TV using Component video cables.
- You will enjoy high quality images with accurate color reproduction. Component video separates the
picture element into black and white(Y), blue(PB) and red(PR) signals to present clear and clean images.
(Audio signals are delivered through the audio output.)
1. Using Component video cables, connect the COMPONENT OUT terminals on the rear of the player
to the COMPONENT IN terminals of your TV.
2. Using the audio cables, connect the AUDIO OUT (red and white) terminals on the rear of the player
to the AUDIO IN (red and white) terminals of your TV.
3. Turn on the player and TV.
4. Press the input selector on your TV remote control until the “COMPONENT” signal from the player
appears on the TV screen.
• If you have set the remote control to operate your TV (See page 19), press the TV SOURCE
button on the remote control and select COMPONENT as the external source of the TV.
Audio cable
Red
White
Red
Blue
Component cable
(not included)
Green
✎ NOTE
▪ Depending on the manufacturer, the component terminals on your TV may be marked “R-Y, B-Y, Y ” or “Cr, Cb, Y”
▪
▪
▪
22
instead of “PB, PR, Y”. The number and position of terminals may vary depending on the TV set.
Please refer to the user manual of your TV.
You can select from a variety of resolution settings for Blu-ray Discs such as 1080i, 720p, 480p, 480i, depending on
the disc type. (See pages 30~31)
The actual resolution may differ from the setting in the setup menu if both Component and HDMI cables are connected.
The resolution may also be different depending on the disc. (See pages 30~31)
In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p, 1080i or
720p mode, the Display Setup menu will show the output resolution as 1080p, 1080i or 720p in the menu.
The resolution is actually 480i.
Downloaded From
Disc-Player.com Samsung Manuals
English
04
Case 4 : Connecting to a TV (Video) - Good Quality
2. Turn on the player and TV.
3. Press the input selector on your TV remote control until the “VIDEO” signal from the player appears
on the TV screen.
• If you have set the remote control to operate your TV (See page 19), press the TV SOURCE
button on the remote control and select VIDEO as the external source of the TV.
Audio/Video cable
Red
White
Yellow
✎ NOTE
▪ Noise may be generated if the audio cable is placed too close to the power cable.
▪ If you want to connect to an Amplifier, please refer to the Amplifier connection pages. (See pages 24~25)
▪ The number and position of terminals may vary depending on your TV set. Please refer to the user manual of your TV.
▪ If there is only one audio input terminal on the TV, connect it to the AUDIO OUT(right/white) terminal of the player.
! CAUTION
▪ Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection
systems and the picture will be distorted on the television.
Downloaded From Disc-Player.com Samsung Manuals
English
23
Connections
1. Using video/audio cables, connect the VIDEO OUT (yellow) / AUDIO OUT (red and white)
terminals on the rear of the player to the VIDEO IN (yellow) / AUDIO IN (red and white) terminals of
your TV.
Connections
Connecting to an Audio System
• Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause
damage to the speakers and your ears.
• Please set the audio in the menu screen according to the Amplifier. (See pages 32~34)
• The position of HDMI terminals may vary depending on the Amplifier. Please refer to the user manual
of your Amplifier.
Case 1 : Connecting to an Audio System (HDMI Supported Amplifier)
- Best Quality (Recommended)
1. Using an HDMI cable, connect the HDMI OUT terminal on the rear of the player to the HDMI IN
terminal of your Amplifier.
2. Using an HDMI cable, connect the HDMI OUT terminal of the Amplifier to the HDMI IN terminal of
your TV.
3. Turn on the player, TV and Amplifier.
4. Press the input select button of the Amplifier to select the external input in order to hear sound from
the player. Refer to your Amplifier’s user manual to set the Amplifier’s audio input.
HDMI cable
(not included)
HDMI cable
(not included)
24
Downloaded From
Disc-Player.com Samsung Manuals
English
2. Using the video signal cable(s), connect
the HDMI, COMPONENT or VIDEO OUT
terminals on the rear of the player to the
HDMI, COMPONENT or VIDEO IN terminal
of your TV. (See pages 20~23)
2. Using the video signal cable(s), connect
the HDMI, COMPONENT or VIDEO OUT
terminals on the rear of the player to the
HDMI, COMPONENT or VIDEO IN terminal
of your TV. (See pages 20~23)
1. Using an optical cable, connect the DIGITAL
AUDIO OUT (OPTICAL) terminal on the
rear of the player to the DIGITAL AUDIO IN
(OPTICAL) terminal of your Amplifier.
3. Turn on the player, TV and Amplifier.
4. Press the input select button of the Amplifier
to select the external input in order to
hear sound from the player. Refer to your
Amplifier’s user manual to set the Amplifier’s
audio input.
Case 2 : Optical cable
(not included)
Red
1. Using the audio cables, connect the AUDIO
OUT (red and white) terminals on the rear of
the player to the AUDIO IN (red and white)
terminals of your Amplifier.
3. Turn on the player, TV and Amplifier.
4. Press the input select button of the Amplifier
to select the external input in order to
hear sound from the player. Refer to your
Amplifier’s user manual to set the Amplifier’s
audio input.
Case 3 : Audio cable
White
✎ NOTE
▪ When following the case 2 connection, discs with PCM audio soundtracks will only be heard over the front two
channels.
Downloaded From Disc-Player.com Samsung Manuals
English
25
Connections
Case 3 : Connecting to an Audio
System (2 Channel Amplifier)
- Good Quality
04
Case 2 : Connecting to an Audio
System (Dolby Digital, DTS
Amplifier) - Better Quality
Connections
Connecting to the Network
This player enables you to view network based services (See pages 52~57) such as Internet@TV and
BD-LIVE, as well as receive software upgrades when a network connection is made. We recommend
using an AP (Access Point) or IP router for the connection. For more information on router connection,
refer to the user manual of the router or contact the router manufacturer for technical assistance.
Cable Network
1. Using the Direct LAN Cable (UTP cable), connect the LAN terminal of the player to the LAN terminal
of your modem.
2. Set the network options. (See pages 36~39)
Router
Broadband
service
Broadband modem
(with integrated router)
Or
Broadband modem
Networking with PC for
AllShare function
(See pages 56~57)
Broadband
service
✎ NOTE
▪ Internet access to Samsung’s software update server may not be allowed, depending on the router you use or the ISP’s
▪
▪
26
policy. For more information, contact your ISP (Internet Service Provider).
For DSL users, please use a router to make a network connection.
For the AllShare function, a PC must be connected in the network as shown in the figure.
Downloaded From
Disc-Player.com Samsung Manuals
English
04
Wireless Network
1. A wireless AP/IP router is required to make a wireless network connection. Connect the wireless
LAN adapter to the Wireless LAN Adapter on the rear panel of the player.
2. Set the network options. (See pages 36~39)
Broadband
service
Wireless IP sharer
Wireless LAN Adapter
(not included)
Networking with PC for
AllShare function
(See pages 56~57)
✎ NOTE
▪ Use only the Samsung wireless LAN adapter with this player. (Model name: WIS09ABGN).
▪
▪
▪
▪
▪
Do not use this adapter with any other third-party players.
Please contact the retailer of this player for purchasing the wireless LAN adapter.
You must use a wireless IP sharer that supports IEEE 802.11 a/b/g/n. (n is recommended for stable operation of the
wireless network.)
Wireless LAN, by its nature, may cause interference, depending on the use condition (AP performance, distance,
obstacles, interference by other radio devices, etc).
Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.
When applying the security key for the AP (wireless IP sharer), only the following is supported.
1) Authentication Mode : WEP, WPAPSK, WPA2PSK
2) Encryption Type : WEP, AES
For the AllShare function, a PC must be connected in the network as shown in the figure.
Downloaded From Disc-Player.com Samsung Manuals
English
27
Connections
You can connect to network with a Wireless IP sharer.
Setup
Before Starting (Initial Settings)
1. Turn on your TV after connecting the player.
(When the player is connected to TV for the
first time, player will turn on automatically and
the Initial Settings screen will be displayed.)
Initial Settings I On-Screen Language
Select a language for the on-screen displays.
English
5. Press the ◄► buttons to the select the
desired Network Settings: Wired, Wireless or
PBC (WPS), then press the ENTER button.
(See pages 36~39)
The Network Test will start and Initial Settings
will be completed.
6. Press the OK button.
The home menu will be displayed. (For more
information about home menu, please see
page 29)
• Home Menu
Français
Deutsch
Español
Italiano
Nederlands
You Tube
internet radio service
Please activate Internet@TV
to enjoy a variety of Internet Services.
> Move " Select
2. Press the ▲▼ buttons to select desired
language, then press the ENTER button.
3. Press the ENTER button to select Start
button.
Each setting may be changed later under "Settings"
▪
Start
a Previous " Select
4. Press the ▲▼ buttons to select the desired
TV Aspect ratio, then press the ENTER
button. (See page 30)
▪
▪
▪
Initial Settings I Network
▪
Network Setting is needed to use various Internet services.
Choose the primary method for connecting to network.
Wired : Set the network connection using the Ethernet cable.
Please make sure that the Ethernet cable is connected.
Wired
28
Wireless
a Previous
PBC (WPS)
d Skip < Move
a Change Device d View Devices
" Enter
✎ NOTE
▪ When the player is connected to TV for the first time,
Initial Settings
TV Aspect and Network will be set.
No Disc
" Select
Downloaded From
Disc-Player.com Samsung Manuals
English
player will turn on automatically.
Do not confuse because this is not malfunction.
The home menu will not be displayed if you do not
configure the initial settings.
If you press the BLUE(D) button during the network
setup, you can access the home menu even if the
network setup is not completed yet.
When you return to home menu, the full screen
mode will be cancelled automatically.
If you want to display Initial Setting screen again
in order to make changes, press the STOP (
)
button on the front panel of the player for more than
5 seconds with no disc inserted.
Use the HDMI cable to connect the player to an
Anynet+(HDMI-CEC)-compliant Samsung TV.
If the TV uses a language supported by the player,
that language will be set to a preferred language
automatically.
However, the Anynet+(HDMI-CEC) feature should
be set to On in both TV and the player.
TV
POWER
BONUSVIEW
SOURCE
DISC MENU
MENU
RETURN
EXIT
4
MENU Button : Press this to move to the home menu.
79
2
RETURN Button : Return to the previous menu.
MUTE
VOL
3
4
2. Press the ◄► buttons to select Settings,
then press the ENTER button.
✎ NOTE
▪ When the player is connected to the network, select
INTERNET@ FULL SCREEN REPEAT
1
Displays buttons available.
5. Press the EXIT button to exit the menu.
INFO
3
2
6
4. Press the ▲▼ buttons to select the desired
item, then press the ENTER button.
TITLE MENU
POPUP
TOOLS
Selects the Settings.
3. Press the ▲▼ buttons to select the desired
submenu, then press the ENTER button.
Setting the Menu
1
5
▪
▪
CH
ENTER / DIRECTION Button :
Move the cursor
or select an item.
AK59-00104R
Select the currently selected item.
Confirm the setting.
Internet@TV from the home menu.
Download desired content from Samsung Apps.
(See page 55)
The access step may differ depending on the
selected menu.
The OSD (On Screen Display) may change in this
player after upgrading the software version.
EXIT Button : Press this to exit the menu.
1. Press the POWER button.
The Home Menu will appear.
• Home Menu
You Tube
internet radio service
Please activate Internet@TV
to enjoy a variety of Internet Services.
2
3
4
1
5
No Disc
a Change Device 1
Selects the Internet@TV.
2
Selects the Videos.
3
Selects the Music.
4
Selects the Photos.
d View Devices
" Enter
Downloaded From Disc-Player.com Samsung Manuals
6
English
29
Setup
If the player is left in the stop mode more than 5
minutes without being used, a screen saver will
appear on your TV. If the player is left in the screen
saver mode for more than 25 minutes, the power
SUBTITLE
will automatically
turn off. AUDIO
05
▪
POWER
Setup
Display
You can configure various display options such as
the TV Aspect, Resolution, etc.
TV Aspect
Depending on the type of television you have, you
may want to adjust the screen setting.
• 16:9 Normal
• 16:9 Wide
Certain movies(4:3 source) will be
displayed in 4:3 Pillarbox (black
bars on sides of picture) if 16:9
normal is selected.
You can view the full 16:9 picture
on your widescreen TV.
▪
BD Wise (Samsung Players only)
BD Wise is Samsung’s latest inter-connectivity
feature.
When you connect Samsung players with BD
Wise to each other via HDMI, the optimum
resolution will be set automatically.
• On : The original resolution of the BD/DVD disc
will be output to the TV.
• Off : The output resolution will be fixed
according to the Resolution previously set,
regardless of the resolution of the disc.
✎ NOTE
▪ If you want to change the resolution in BD Wise, you
▪
• 4:3 Letter Box
• 4:3 Pan-Scan
Select when you want to see the
total 16:9 ratio screen a Blu-ray
Disc/DVD supplies, even though
you have a TV with a 4:3 ratio
screen. Black bars will appear at
the top and bottom of the screen.
Select when you want to see the
16:9 video supplied by the Blu-ray
Disc/DVD without the black bars
on top and bottom, even though
you have a TV with a 4:3 ratio
screen(extreme left and right portion
of the movie picture will be cut off).
✎ NOTE
▪ Depending on the disc type, some aspect ratios may
▪
▪
30
not be available.
If you select an aspect ratio and option which is
different than the aspect ratio of your TV screen,
then the picture might appear to be distorted.
If you select the 4:3 Pan-Scan or 4:3 Letter Box, you
can’t see full screen by pressing the FULL SCREEN
button on the remote control.
Downloaded From
Disc-Player.com Samsung Manuals
English
If you select the 16:9 Normal, 4:3 Pillarbox may
displayed.
In this case, you can’t see full screen by pressing
the FULL SCREEN button on the remote control.
▪
▪
must set BD Wise to Off in advance.
If you set off the BD Wise, the resolution of the
connected TV will be adjusted to its maximum
resolution automatically.
If the player is connected to a device that does not
support BD Wise, you can not use the BD Wise
function.
For proper operation of BD Wise, set the BD Wise
menu of both the product and the TV to On.
Resolution
Sets the output resolution of the Component and
HDMI video signal.
The number in 1080p, 1080i, 720p, 480p, 480i
indicates the number of lines of video.
The i and p indicate interlace and progressive
scan, respectively.
• Auto : It automatically checks and sets the
optimal resolution.
• BD Wise : Automatically sets the optimal
resolution when connected via HDMI to a TV
with the BD Wise feature. (The BD Wise menu
item appears only if BD Wise is set to On.)
• 1080p : Outputs 1080 lines of progressive
video.
• 1080i : Outputs 1080 lines of interlaced video.
• 720p : Outputs 720 lines of progressive video.
• 480p : Outputs 480 lines of progressive video.
• 480i : Outputs 480 lines of interlaced video.
Output
Setup
HDMI / connected
Setup
• Blu-ray Disc playback
05
Resolution according to the output mode
HDMI / not connected
HDMI Mode
Component/VIDEO Mode
Component Mode
VIDEO Mode
1080p@60F
480i
-
-
Auto
Optimal Resolution
1080p/1080i,
Movie Frame(24Fs) on
1080p@24F
480i
-
-
1080i, Movie Frame(24Fs) off
1080i
480i
1080i
480i
480p
480p
480i
480p
480i
1080p, Movie Frame(24Fs) off
720p
480i
720p
Output
HDMI / connected
Component/VIDEO Mode
1080p@60F
480i
1080i
1080i
720p
480p
480i
480i
HDMI Mode
Optimal Resolution
720p
480p
-
✎ NOTE
▪ If the connected TV does not support Movie Frame or
the selected resolution, the message “If no pictures
are shown after the selection, please wait for 15
seconds. And then, the resolution will be reverted to
the previous value automatically. Would you like to
make a selection?” will be displayed.
If you select Yes and the resolution is not supported,
the TV’s screen will be blank. Please wait for 15
seconds and the resolution will be reverted to the
previous value automatically.
Downloaded From Disc-Player.com Samsung Manuals
-
720p
-
Auto
1080p
480i
-
• DVD playback
Setup
480i
480i
-
480i
480i
HDMI / not connected
Component Mode
-
VIDEO Mode
-
480i
480p
480i
480i
480p
480i
480i
480p
-
480i
▪
▪
▪
▪
480i
480i
If the screen is blank, press and hold the STOP (
)
button on the front of the player for more than 5
seconds (no disc inserted). All settings are restored to
the factory default. Follow the steps on the previous
page to access each mode and select the Display
Setup that your TV will support.
When the factory default settings are restored, all
the user data stored in the BD data will be deleted.
The Blu-ray Disc must have the 24 frame feature in
order to use the Movie Frame (24Fs) mode.
If both HDMI and Component jacks are connected
and you are currently viewing component output,
there is a difference between resolution table and
actual resolution depending on your TV.
English
31
Setup
HDMI Format
You can optimize the color setting from the HDMI
output.
Select a connected device Type.
• TV : Select if connected to a TV via HDMI.
• Monitor : Select if connected to a Monitor via
HDMI.
Movie Frame (24Fs)
Setting the Movie Frame (24Fs) feature to On
allows you to adjust the player’s HDMI output to
24 frames per second for improved picture quality.
You can enjoy the Movie Frame (24Fs) feature only
on a TV supporting this frame rate. This menu can
only be selected in 1080i or 1080p HDMI output
resolution modes.
• On : Movie Frame (24Fs) functions will work.
• Off : Movie Frame (24Fs) functions will not work.
✎ NOTE
▪ If your TV does not support Movie Frame (24Fs)
function, the pop-up message will be displayed.
Progressive Mode
Set to improve picture quality when viewing DVDs.
• Auto : Select this to have the player
automatically set the best picture for the DVD
you’re watching.
• Video : Select for the best picture quality from
concert or TV show DVDs.
Still Mode
Set the type of picture shown when you pause
DVD playback.
• Auto : Automatically set the best still picture
depending on the content.
• Frame : Select when pausing a scene with a
little action.
• Field : Select when pausing a scene with a lot
of action.
32
Downloaded From
Disc-Player.com Samsung Manuals
English
HDMI Deep Color
Set to output the picture from the HDMI OUT jack
with Deep Color or not. Deep Color allows more
accurate color reproduction with deeper color
depth.
• Auto : The picture will be output with Deep
Color to the connected TV which supports
HDMI Deep Color.
• Off : The picture will be output without Deep
Color.
Audio
Digital Output
Set Digital Output depending on the connected
receiver. (For more details, please refer to the
digital output selection on the next page)
• PCM
• Bitstream(Re-encode)
• Bitstream(Audiophile)
✎ NOTE
▪ Be sure to select the correct Digital Output or you
▪
▪
▪
▪
▪
will hear no sound or a loud noise.
If the HDMI device (Receiver, TV) is not compatible
with compressed formats (Dolby digital, DTS), the
audio signal outputs as PCM.
Regular DVDs do not have BONUSVIEW audio and
Navigation Sound Effects.
Some Blu-ray Discs do not have BONUSVIEW audio
and Navigation Sound Effects.
This Digital Output setup does not effect the analog
(L/R) audio or HDMI audio output to your TV.
It effects the optical and HDMI audio output when
connected to a receiver.
If you play MPEG audio soundtracks, audio signal
outputs PCM regardless of Digital Output Selections
(PCM or Bitstream).
Connection
PCM
Dolby Digital
Dolby Digital
Audio Stream
Plus
on Blu-ray
Dolby TrueHD
Disc
DTS
DTS-HD HRA
DTS-HD MA
PCM
Audio Stream
Dolby Digital
on DVD
DTS
Definition for
Blu-ray Disc
Bitstream
(Re-encode)
PCM
Any
HDMI Receiver
Up to 7.1ch
Up to 5.1ch
Bitstream
(Audiophile)
Optical
HDMI Receiver or Optical
HDMI Receiver
PCM 2ch
DTS re-encoded
Dolby Digital
PCM 2ch
DTS re-encoded
PCM
Dolby Digital
Plus
Setup
Setup
05
Digital Output Selection
Optical
PCM 2ch
Dolby Digital
Up to 7.1ch
PCM 2ch
DTS re-encoded
Up to 7.1ch
PCM 2ch
DTS re-encoded
Dolby TrueHD
Dolby Digital
Up to 7.1ch
PCM 2ch
DTS re-encoded
DTS-HD HRA
DTS
Up to 6.1ch
Up to 7.1ch
PCM 2ch
Up to 5.1ch
Up to 6.1ch
PCM 2ch
PCM 2ch
PCM 2ch
PCM 2ch
PCM 2ch
DTS re-encoded
DTS re-encoded
PCM 2ch
Dolby Digital
DTS
Decodes main feature audio
Decodes main feature audio
and BONUSVIEW audio stream
and BONUSVIEW audio
together into PCM audio and
stream together into PCM
add Navigation Sound Effects,
audio and add Navigation
then re-encodes the PCM audio
Sound Effects.
into DTS bitstream.
Blu-ray Discs may include three audio streams.
- Main Feature Audio : The audio soundtrack of
the main feature.
- BONUSVIEW audio : Additional soundtrack
such as director or actor's commentary.
- Navigation Sound Effects : When you choose
some menu navigation, Navigation Sound
Effects may sounds. Navigation Sound Effects
is different on each Blu-ray Disc.
DTS
DTS-HD MA
PCM 2ch
Dolby Digital
DTS
Dolby Digital
DTS
DTS
PCM 2ch
Dolby Digital
DTS
Outputs only main feature audio
stream so that your AV receiver
can decode the audio bitstream.
You will not hear BONUSVIEW
audio and Navigation Sound
Effects.
PCM Downsampling
Set whether to downsample 96kHz signals.
• On : Select this when the Amplifier connected
to the player is not 96kHz compatible. 96kHz
signals will be down converted to 48kHz.
• Off : Select this when the Amplifier connected
to the player is 96kHz compatible.
✎ NOTE
▪ Even when PCM Downsampling is set to Off, some
discs will only output downsampled audio through
the optical digital outputs.
Downloaded From Disc-Player.com Samsung Manuals
English
33
Setup
HDMI
• If your TV is not compatible with compressed
multi-channel formats (Dolby Digital, DTS), the
player may output PCM 2ch downmixed audio
even though you set Bitstream(either Re-encode
or Audiophile) on your setup menu.
• If your TV is not compatible with PCM sampling
rates over 48kHz, the player may output 48kHz
downsampled PCM audio even though you set
PCM Downsampling to Off.
Dynamic Range Control
You can listen at low volumes but still hear dialog
clearly.
This is only active when a Dolby Digital signal is
detected.
• Auto : The Dynamic Range Control will be set
automatically based on the information provided
by the Dolby TrueHD Soundtrack.
• On : When Movie soundtracks are played at low
volume or from smaller speakers, the system
can apply appropriate compression to make
low-level content more intelligible and prevent
dramatic passages from getting too loud.
• Off : You can enjoy the movie with the standard
Dynamic Range.
Downmixing Mode
Set whether to downmix the multi-channel audio
into fewer channels.
• Normal Stereo : Downmixes the multi-channel
audio into two channel stereo. Choose when
connected to equipment that does not support
virtual surround functions such as Dolby Pro
Logic.
• Surround Compatible : Downmixes multichannel audio into surround compatible stereo.
Choose when connected to equipment that
supports virtual surround functions such as
Dolby Pro Logic.
DTS Neo:6
You can enjoy multi-channel sound from a simple
2-channel audio source.
• Off : Outputs a 2-channel audio signal through
the front speakers only.
34
Downloaded From
Disc-Player.com Samsung Manuals
English
• Cinema : Select this if you want to play
2-channel movie sound over multi-channels.
• Music : Select this if you want to play 2-channel
music sound over multi-channels.
✎ NOTE
▪ If you are using HDMI receiver, this option is
available when you set Digital Output setup as PCM.
System
Initial Settings
By using Initial Settings, you can set language, TV
aspect and Network Settings, etc.
For more information on the settings, refer to the
corresponding section in this user manual.
(See pages 28~42)
Internet@TV Screen Size
Set the Internet@TV Screen to the optimal size.
• Size 1 : Display smaller application icons, you
may see some black on sides of screen.
• Size 2 : Display normal application icons, image
may be too large for your TV screen.
• Size 3 : Display larger application icons, image
may be too large for your TV screen.
Anynet+(HDMI-CEC)
Anynet+ is a convenient function that offers linked
operations with other Samsung players with the
Anynet+ feature.
To operate this function, connect this player to a
Samsung TV with an HDMI cable.
You can operate this player using a Samsung TV
remote control and start disc playback simply
by pressing the PLAY (
) button on the TV’s
remote control.
For more information, please see the TV user
manual.
• On : Anynet+ functions will work.
• Off : Anynet+ functions will not work.
▪
If your Samsung TV has an n logo, then it
supports the Anynet+ function.
Depending on your TV, certain HDMI output
resolutions may not work.
Please refer to the user manual of your TV.
BD Data Management
Enables you to manage the downloaded contents
from a Blu-ray disc that supports the BD-LIVE
service.
You can check the device information including
the storage size, delete the BD data or change the
Flash memory device.
Settings
Display
Audio
System
Network
Language
Security
General
Support BD Data Management
Current Device
Total Size
Available Size
:Not Selected
:0MB
:0MB
Delete BD Data
Change Device
:Not Selected
\
" Select ' Return
Description of Device(Storage) Information on
the Player
• Total Size : Total size of the Device(Storage).
• Available Size : Available size of the Device
(Storage).
✎ NOTE
▪ In the external memory mode, disc playback will
▪
▪
▪
be stopped if you disconnect the USB device in the
middle of the playback.
Only those USB devices formatted in FAT file system
(DOS 8.3 volume label) are supported, and it is
recommended to use USB devices that support USB
2.0 protocol, 4 MB/sec or faster read/write speed.
The Resume Play function may not work after
formatting the storage device.
The total size of BD Data Management may differ,
depending on the conditions.
Downloaded From Disc-Player.com Samsung Manuals
Set time-related functions.
Setup
▪
not support CEC.
Clock
05
✎ NOTE
▪ This function is not available if the HDMI cable does
Settings
Display
Audio
System
Network
Language
Security
General
Support Clock Mode
Clock Set
Time Zone
DST
Clock
:Auto
\
:GMT + 0:00
:Off
> Move " Enter ' Return
• Clock Mode : You can set it to Auto or
Manual.
If you select Manual, the Clock Set menu will
be activated while DST will be deactivated.
• Clock Set : You can specify the current time
and date manually.
• Time Zone : You can specify the time zone that
is applicable to your area.
• DST : You can set DST (Daylight Saving Time)
on or off.
DivX(R) Registration
View DivX(R) VOD Registration Code to purchase
and play DivX(R) VOD content.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Initial Settings
Audio
DivX(R)
Video On Demand:
Subtitle
:
Your registration
code is : XXXXXXXXXX
To learn more visit www.divx.com/vod
OK
✎ NOTE
▪ This option is not activated if you select OK.
To activate this option, please activate the DivX(R)
Deactivation.
English
35
Setup
DivX(R) Deactivation
Select this to get a new registration code.
Settings
Display
Audio
System
Network
Language
Security
General
Support
✎
Initial Settings
Audio
:
Subtitle
:
Do you want
to deactivate your device?
Yes
No
NOTE
▪
This function can be operated when DivX(R)
Registration function is deactivated.
Network
To begin setting up the network connection for
your player, follow these steps:
1. In the Home menu, press the ◄► buttons
to select the Settings, and then press the
ENTER button.
2. Press the ▲▼ buttons to select Network, and
then press the ENTER button.
3. Press the ▲▼ buttons to select Network
Settings, and then press the ENTER button.
4. Press the ▲▼ buttons to select Network
Type, and then press the ENTER button.
5. Press the ▲▼ buttons to select Wired or
Wireless, and then press the ENTER button.
6. Go to the next section.
Network Settings
Please contact your ISP to find out if your IP
address is static or dynamic. If it is dynamic, we
recommend using the Auto setting. This is the
easiest and will work in the majority of cases. If it is
static, you must use the manual set up procedure.
Directions for wired networks are below. Directions
for wireless networks are after the directions for
wired networks.
36
Downloaded From
Disc-Player.com Samsung Manuals
English
Wired Network
1. In the Network Settings menu, press the ▲▼
buttons to select Network Setting, and then
press the ENTER button.
The Internet Protocol Setup screen appears.
2. Press the ► button, then select Auto or
Manual, and then press the ENTER button.
Setting Up a Wired Connection - Auto
1. If you selected Auto, the Network Function
acquires and fills in the values for IP Address,
Subnet Mask, etc., automatically.
✎ NOTE
▪ This process can take up to five minutes.
Settings
Network Setting
Display
Internet Protocol Setup :Auto
Audio
0
IP Address
: 0
System
0
Subnet Mask
: 0
Network
0
Gateway
: 0
Language
DNS
:Auto
Security
0
DNS Server
: 0
General
Support
\
0
0
0
0
0
0
0
0
> Move " Select ' Return
2. After the Network Function has acquired the
network values, press the RETURN button.
Then, run a Network Test to ensure the player
has connected to your network (See page 39).
3. If the Network Function does not acquire the
network values or you selected Manual, go to
the directions for Manual Setup.
1. Right click the Network icon on the bottom
right of the screen.
2. In the pop-up menu, click Status.
3. On the dialog that appears, click the Support
tab.
4. On the Support tab, click the Details button.
The Network settings are displayed.
To enter the Network settings into your player,
follow these steps:
1. On the Internet Protocol Setup screen, press
the ENTER button.
2. Press the ▲▼ buttons to select Manual, and
then press the ENTER button.
3. Press the ▼ button to go to the first entry field
(IP Address).
Settings
Network Setting
Display
Internet Protocol Setup :Manual
Audio
0
0
IP Address
: 0
System
Subnet Mask
: 255 255 255
Network
0
0
Gateway
: 0
Language
DNS
:Manual
Security
0
0
DNS Server
: 0
General
Support
\
0
0
0
0
> Move " Select ' Return
4. Use the number buttons on your remote to
enter numbers.
9. Press the Return button on your remote.
10. Run a Network Test to ensure the player has
connected to your network (See page 39).
Wireless Network
You can setup the wireless network three ways:
• Using PBC (WPS)
• Using the Auto Network Search function.
• Manually.
Each method is described below.
Setting Up the Wireless Network Connection
- PBC (WPS)
The easiest way to set up the wireless network
connection is using the PBC (WPS) function.
If your wireless router has a PBC (WPS) button,
follow these steps:
1. In the Network Settings menu, press the ▲▼
buttons to select Network Setting, and then
press the ENTER button.
The Internet Protocol Setup screen appears.
2. Press the RED(A) button on the remote
control.
3. Press the PBC (WPS) button on your router
within two minutes. Your player displays the
Network Selection Screen, and automatically
acquires all the network setting values it
needs and connects to your network. When
it is done, it displays an OK button. Press the
Enter button on your remote.
4. After the network connection is set up, press
the Return button to exit the Network
Setting screen.
5. When done with each field, use the ► button
to move successively to the next field.
You can also use the other arrow buttons to
move up, down, and back.
6. Enter the IP Address, Subnet Mask, and
Gateway values.
7. Press the ▼ button to go to DNS.
8. Press the ▼ button to go to the first DNS
entry field. Enter the numbers as above.
Downloaded From Disc-Player.com Samsung Manuals
English
37
Setup
If the Auto Setting does not work, you’ll need to
set the Network Setting values manually.
To get the Network setting values from most
Windows computers, follow these steps:
05
Setting Up a Wired Connection - Manual
Setup
Setting Up the Wireless Network Connection
- Auto Network Search
Most wireless networks have an optional security
system that requires devices that access the
network to transmit an encrypted security code
called an Access or Security Key. The Security
Key is based on a Pass Phrase, typically a word
or a series of letters and numbers of a specified
length you were asked to enter when you set up
security for your wireless network. If you use this
method of setting up the network connection, and
have a Security Key for your wireless network,
you will have to enter the Pass Phrase during the
setup process.
 Setting Up the Network Connection
To set up the wireless connection using Auto
Network Search, follow these steps:
2. Press the ▲▼ buttons to select the Internet
Protocol Setup, and then press the ENTER
button.
3. Press the ▲▼ buttons to select Auto or
Manual, and then press the ENTER button.
Settings
Network Setting
Display
Access Point Selection :Not Selected
Audio
Internet Protocol Setup :Auto
System
0
0
IP Address
: 0
Network
0
0
Subnet Mask
: 0
Language
0
0
Gateway
: 0
Security
DNS
:Auto
General
0
0
DNS Server
: 0
Support
\
0
0
0
0
a PBC (WPS) > Move " Select ' Return
4. If you selected Auto, press the ▲ button to
go to Access Point Selection, and then
press the ENTER button.
The Network function searches for available
wireless networks.
When done, it displays a list of the available
networks.
5. In the list of networks, press the ▲▼ buttons
to select a network, and then press the
ENTER button.
38
Downloaded From
Disc-Player.com Samsung Manuals
English
7. Press the ▲▼ buttons to select PIN or
Security.
For most home networks, you would select
Security (for Security Key).
8. On the Security screen, enter your network’s
Pass Phrase.
✎ NOTE
▪ You should be able to find the Pass Phrase on one of
the set up screens you used to set up your router or
modem.
Settings
Display
Audio
System
Network
Language
Security
General
Support Security Key
Network Settings
a b c
lid Only)
Security Key
1
.,@
7
pqrs
4
ghi
a/A/1/
a Clear All
2
abc
3
8
tuv
9
5
0
jkl
]
1. In the Network Settings menu, press the ▲▼
buttons to select Network Setting, and then
press the ENTER button.
The Internet Protocol Setup screen appears.
6. If the PIN/Security pop-up appears, go to
Step 7. If the Network Connecting Screen
appears, go to Step 11.
b Space
6
(0)
def
mno
wxyz
Delete
c Done
(/) Cursor " Select ' Return
9. To enter the Pass Phrase, follow these
general directions:
• Press the number keys on your remote to
enter numbers.
• Use the arrow keys on your remote to move
from button to button on the Security Key
screen.
• To enter letters, move to the button labeled
a/A/1/, and then press the ENTER button.
Each time you press the ENTER button,
you change the kind of characters you can
enter (a/A/1/).
• To enter a letter, press the number button
that corresponds to the letter. Pressing the
button repeatedly changes the letter.
• To delete the last letter or number you
entered, move to the Delete button, and
then press the ENTER button.
• To clear all entered letters and numbers,
move to the Clear key, and then press the
ENTER button. You can also just press the
RED(A) button on your remote.
12. To test the connection, press the ▼ button
to select Network Test, and then press the
ENTER button.
Setting Up the Wireless Network Connection
- Manual
If the Auto Setting does not work, you need to
enter the Network settng values manually.
To get the Network setting values from most
Windows computers, follow these steps:
1. Right click the Network icon on the bottom
right of the screen.
2. In the pop-up menu, click Status.
3. On the dialog that appears, click the Support
tab.
4. On the Support tab, click the Details button.
The Network settings are displayed.
To Enter the Network settings into your player,
follow these steps:
5. When done with each field, use the ► button
to move successively to the next field.
You can also use the other arrow buttons to
move up, down, and back.
6. Enter the IP Address, Subnet Mask, and
Gateway values.
7. Press the ▼ to go to DNS.
8. Press the ▼ button to go to the first DNS
entry field. Enter the numbers as above.
9. When done, press the ▲ button to return to
Access Point Selection. Select the network,
and then press the ENTER button.
10. Go to Step 6 in the Automatic Wireless
procedure above, and follow the directions
from that point on.
Network Test
Use this menu to connect the wired network
or check whether your network connection is
working or not.
Network Status
Check whether a connection to the network and
the Internet have been established.
1. On the Internet Protocol Setup screen, press
the ENTER button.
2. Press the ▲▼ buttons to select Manual, and
then press the ENTER button.
3. Press the ▼ button to go to the first entry field
(IP Address).
Settings
Network Setting
Display
Access Point Selection :Not Selected
Audio
Internet Protocol Setup :Manual
System
0
0
IP Address
: 0
Network
Subnet Mask
: 255 255 255
Language
0
0
Gateway
: 0
Security
DNS
:Manual
General
0
0
DNS Server
: 0
Support
\
0
0
0
0
a PBC (WPS) > Move " Select ' Return
Downloaded From Disc-Player.com Samsung Manuals
English
39
Setup
11. Wait until the connection confirmation
message is displayed, and then press the
ENTER button. The Network Settings screen
reappears.
4. Use the number buttons to enter numbers.
05
10. When done, press the YELLOW(C) button
on your remote, or move to the Done button,
and then press the ENTER button.
The Network Connecting screen appears.
Setup
BD-LIVE Internet Connection
Set to allow internet connection when BD-LIVE
service is used.
• Allow (All) : The Internet connection will be
allowed for all BD-LIVE contents.
• Allow (Valid Only) : The Internet connection will
be allowed only for BD-LIVE contents containing
a valid certificate.
• Prohibit : No Internet connection will be allowed
for any BD-LIVE content.
✎ NOTE
▪ What is a valid certificate?
▪
When the player uses BD-LIVE to send the disc data
and a request to the server to certify the disc, the
server uses the transferred data to check if the disc is
valid and sends the certificate back to the player.
The Internet connection may be restricted while you
are using BD-LIVE contents.
Language
You can select the language you prefer for home
menu, disc menu, etc.
• On-Screen Menu : Select the language for the
on-screen displays.
• Disc Menu : Select the language for the disc
menu displays.
• Audio : Select the language for disc audio.
• Subtitle : Select the language for disc subtitles.
✎
NOTE
▪ The selected language will only appear if it is
supported on the disc.
Security
When you operate this menu for the first time,
password setup screen will be displayed.
Enter the desired 4-digit password using the
number buttons.
40
Downloaded From
Disc-Player.com Samsung Manuals
English
Parental Rating
This function works in conjunction with Blu-ray
Disc/DVDs that have been assigned a rating,
which helps you control the types of Blu-ray Disc/
DVDs that your family watches.
Select the rating level you want to set.
A larger number indicates that the program is
intended for adult use only. For example, if you
select up to Level 6, discs that contain Level 7, 8
will not play.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Parental Rating
Change Password
 Off
8(Adults)
7
6
5
4
|
Change Password
Change the 4-digit password used to access
security functions.
If you forgot your password
1. Remove the disc.
2. Press and hold the STOP (
) button on the
front panel for 5 seconds or more.
All settings will revert to the factory settings.
✎ NOTE
▪ When the factory default settings are restored, all
the user data stored in the BD data will be deleted.
Support
Change the background theme of the menu screen.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Background
Skin 1
Skin 2
Skin 3
Skin 4
Skin 5
Software Upgrade
This menu allows you to upgrade software
for performance improvements or additional
services. You can check the current software
version, upgrade using the internet and set the
Auto upgrade notification. If the player is properly
connected to the network by cable or wirelessly,
the player will automatically connect to Samsung’s
website each time it is turned on and download
update files if any valid upgrade exists.
> Move " Select ' Return
Settings
Display
Software Upgrade
Software
Upgrade :
Audio
Disc Menu
System Current Version
Audio :XXX-XXXXXXXXX
:
Network
Subtitle
:
By Internet
\
Language
Auto Upgrade Notification:On
Security
General
" Select ' Return
Support
Energy Saving
You can reduce power consumption by setting
the front panel to turn off automatically when there
is no operation for 5 seconds.
• On : The front panel will automatically turn off
when there is no operation for 5 seconds.
• Off : Energy Saving function is not used.
Front Display
Change the brightness of the front panel.
• Auto : Dim during playback.
• Dim : Dim the display window.
• Bright : Brighten the display window.
Power On/Off Sound
Play a melody when the player is turned on and off.
• On : Turn Power Sound On.
• Off : Turn Power Sound Off.
1. To select By Internet, press the ENTER
button.
A popup message will appear if an update is
available.
2. If you select Yes, the player will turn off
automatically before restarting.
(Never turn it on manually.)
3. The update progress popup will appear.
When the update is completed, the player will
turn back off automatically.
4. Press the POWER button to turn on the
player.
✎ NOTE
▪ The Update will be completed when the player turns
▪
Downloaded From Disc-Player.com Samsung Manuals
off after restarting. Press the POWER button to turn
on the updated player for your use.
Never turn off or on the player manually during the
update process.
Samsung Electronics shall take no legal responsibility
for player malfunction caused an unstable internet
connection or consumer negligence during software
upgrade.
English
41
Setup
Background
05
General
Setup
You can also update software in any of the two
ways as follows: Software update is the same as
in the By Internet menu.
• USB : Visit www.samsung.com/bluraysupport,
then download and store the latest software
(RUF file) into a USB flash drive. Connect
the USB flash drive to the USB port of the
player (disc tray must be empty) to update the
software, then follow the on-screen instructions.
• CD/DVD : Visit www.samsung.com/
bluraysupport, download and write the latest
software (RUF file) onto a disc. Insert and play
the disc in the player to start the update, then
follow the on-screen instructions.
✎ NOTE
▪ Software upgrades using the USB Host jack must be
▪
▪
▪
▪
performed with no disc inside.
If you want to cancel the upgrade in the process of
downloading the upgrade data, press the ENTER
button.
When the system upgrade is done, check the
software details in the software Upgrade menu.
Do not turn off the player during the System
Upgrade, as it may cause the player to not work
properly.
Software upgrades using the USB Host jack must be
performed with a USB memory flash stick only.
Contact Samsung
Provide contact information for assistance with
your player.
42
Downloaded From
Disc-Player.com Samsung Manuals
English
Basic Functions
1. Press the OPEN/CLOSE (
open the disc tray.
) button to
3. Press the OPEN/CLOSE (
close the disc tray.
) button to
2. Place a disc gently into the tray with the disc’s
label facing up.
4. Press the PLAY (
) button.
Playback related buttons
PLAY (
)
STOP (
)
PAUSE (
Stops playback.
• If pressing the button once : The
stop position will be memorized.
• If pressing the button twice : The
stop position will be not memorized.
Pauses playback.
✎ NOTE
▪ For some discs, pressing the STOP (
) button
once may not memorize the resume position.
Disc Structure
The contents of disc are usually divided as below.
• Blu-ray Disc, DVD-VIDEO
title 1
chapter 1 chapter 2
chapter 1
• Audio CD (CD-DA)
track 1
track 2
track 3
title 2
chapter 2
chapter 3
track 4
track 5
• MP3, WMA, DivX, MKV and MP4
folder (group) 1
file 1
file 2
file 1
hZ
1. During playback, press the DISC
MENU button on the remote control.
2. Press the ▲▼◄► buttons to make
the desired selection, then press the
ENTER button.
✎ NOTE
▪ Depending on the disc, the menu items may differ
Starts playback.
)
Using the Disc Menu
folder (group) 2
file 2
file 3
Downloaded From Disc-Player.com Samsung Manuals
and this menu may not be available.
Using the Title Menu
Z
1. During playback, press the TITLE
MENU button on the remote control.
2. Press the ▲▼◄► buttons to make
the desired selection, then press the
ENTER button.
✎ NOTE
▪ Depending on the disc, the menu items may differ
and this menu may not be available.
Playing the Title List
z
1. During playback, press the DISC
MENU or TITLE MENU button.
2. Press the ▲▼ buttons to select an
entry you want to play from Title List,
then press the ENTER button.
✎ NOTE
▪ If your disc has the playlist, press the GREEN(B)
button to go to the Playlist.
English
43
Basic Functions
Playback
Using the Disc menu/Title menu/
Popup menu
06
Playing a Disc
Basic Functions
Using the Popup Menu
h
1. During playback, press the POPUP
MENU button on the remote control.
2. Press the ▲▼◄► buttons or ENTER
button to select the desired menu.
✎ NOTE
▪ Depending on the disc, the menu items may differ
and this menu may not be available.
Using the Search and Skip Functions
During play, you can search quickly through a
chapter or track, and use the skip function to
jump to the next selection.
Searching for a Desired Scene
hzZyx
• During playback, press the SEARCH (
)
button.
Each time you press the SEARCH (
)
button, the playback speed will change as follows.
BD-ROM,
BD-RE/-R,
DVD-RW/-R,
DVD+RW/+R,
DVD-VIDEO
DivX, MKV, MP4
)1)2)3
)4)5)6)7
(1(2(3
(4(5(6(7
)1)2)3
(1(2(3
• To return to normal speed playback, press the
PLAY (
) button.
✎ NOTE
▪ No sound is heard during search mode.
44
Downloaded From
Disc-Player.com Samsung Manuals
English
Skipping Chapters
hzZyx
• During playback, press the SKIP (
)
button.
If you press the SKIP (
) button, it moves to
the next chapter.
If you press the SKIP (
) button, it moves to
the beginning of the chapter. One more press
makes it move to the beginning of the previous
chapter.
Slow Motion Play/Step Motion Play
Slow Motion Play
hzZyx
• In pause mode, press the SEARCH (
)
button.
If you press the SEARCH (
) button, the
playback speed is reduced to
* 1/8 * 1/4 * 1/2
• To return to normal speed playback, press the
PLAY (
) button.
✎ NOTE
▪ No sound is heard during slow mode.
Step Motion Play
hzZyx
• In pause mode, press the PAUSE (
) button.
Each time the PAUSE (
) button is pressed,
a new frame will appear.
• To return to normal speed playback, press the
PLAY (
) button.
✎ NOTE
▪ No sound is heard during step mode.
hzZy
Repeat the disc title or chapter.
Depending on the disc, the Repeat function may
not be available.
1. During playback, press the REPEAT
button on the remote control.
2. Press the ▲▼ buttons to select Chapter or
Title, then press the ENTER button.
Repeat
> Chapter
5. To return to normal play, press the REPEAT
button again.
6. Press the ENTER button.
✎ NOTE
▪ If you set point (B) before 5 seconds has lapsed, the
prohibition message will appear.
Using the TOOLS button
During playback, you can operate disc
menu by pressing the TOOLS button.
• Tools Menu Screen
Title
4. Press the ▲▼ buttons to select Off, the press
the ENTER button.
Repeat the Section
hzZy
1. During playback, press the REPEAT
button on the remote control.
2. Press the ▲▼ buttons to select Repeat A-B.
Repeat
> Repeat A-B : Off " Mark A
3. Press the ENTER button at the point where
you want repeat play to start (A).
Downloaded From Disc-Player.com Samsung Manuals
:
<
Audio
: 1/7 ENG Multi CH
Subtitle
Angle
:
00:12:06
:
1/6 ENG
:
BONUSVIEW Video:
BONUSVIEW Audio:
1/1
4/21
Chapter
Playing Time
3. To return to normal play, press the REPEAT
button again.
Tools
Picture Setting
>
1/1
Off
0/1 Off
< Change " Enter
✎ NOTE
▪ Depending on the disc, the Tools menu may differ.
Moving to a Desired Scene Directly
hzZy
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Title, Chapter
or Playing Time.
3. Enter the desired Title, Chapter or Playing
Time using the number buttons, then press
the ENTER button.
English
45
Basic Functions
Repeat the Title or Chapter
4. Press the ENTER button at the point where
you want repeat play to stop (B).
06
Repeat Playback
Basic Functions
Selecting the Audio Language
hzZx
You can also operate this function by
pressing the AUDIO button on the
remote control.
1. During playback, press the TOOLS button.
✎ NOTE
▪ Depending on the Blu-ray Disc / DVD, you may be
▪
▪
2. Press the ▲▼ buttons to select Audio.
▪
✎ NOTE
▪ The ◄► indicator will not be displayed on the
▪
3. Press the ◄► buttons to select the desired
audio language.
▪
▪
▪
▪
▪
screen if the BONUSVIEW section does not contain
any BONUSVIEW audio settings.
Information about the main feature/BONUSVIEW
mode will also be displayed if the Blu-ray Disc has a
BONUSVIEW section.
Use the ◄► button to switch between main feature
and BONUSVIEW audio modes.
This function depends on what audio languages are
encoded on the disc and may not be available.
A Blu-ray Disc can contain up to 32 audio languages
and a DVD up to 8.
Some Blu-ray Discs may allow you to select either
the multi-channel LPCM or Dolby digital audio
soundtrack in English.
If you press the AUDIO button on the remote control,
Audio bar will be displayed.
Press the RETURN button to remove the Audio bar.
Selecting the Subtitle Language
hZx
You can also operate this function by
pressing the SUBTITLE button on the
remote control.
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Subtitle.
3. Press the ◄► buttons to select the desired
subtitle language.
46
Downloaded From
Disc-Player.com Samsung Manuals
English
▪
▪
able to change the desired subtitle in the Disc Menu.
Press the DISC MENU button.
This function depends on what subtitles are encoded
on the disc and may not be available on all Blu-ray
Discs/DVDs.
A Blu-ray Disc can contain up to 255 subtitle
languages and a DVD up to 32.
Information about the main feature/BONUSVIEW
mode will also be displayed if the Blu-ray Disc has a
BONUSVIEW section.
This function changes both the primary and
secondary subtitles at the same time.
The total number of subtitles is the sum of the
primary and secondary ones.
If you press the SUBTITLE button on the remote
control, the subtitle bar will be displayed.
Press the RETURN button to remove the subtitle bar.
Changing the Camera Angle
hZ
When a Blu-ray Disc/DVD contains multiple angles
of a particular scene, you can use the ANGLE
function.
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Angle.
3. Press the ◄► buttons to select the desired
Angle.
Selecting the Picture Setting
hzZy
This function enables you to adjust video quality
when you are connected to a TV via HDMI.
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Picture Setting,
then press the ENTER button.
3. Press the ◄► buttons to select the desired
Picture Setting, then press the ENTER button.
• Movie : This is the best setting for watching
movies.
• User : The user can adjust the sharpness
and noise reduction function respectively.
Setting BONUSVIEW
ow
Buttons on the Remote Control
used for Music Playback
h
You can also operate this function by
pressing the BONUSVIEW button on
the remote control.
!
9
3. Press the ◄► buttons to select the desired
bonusview.
✎ NOTE
▪ If you switch from BONUSVIEW Video, BONUSVIEW
Audio will change automatically in accordance with
BONUSVIEW Video.
Tools
Off
0/1 Off
SOURCE
SOURCE
SUBTITLE
SUBTITLE
AUDIO
AUDIO
>
< Change " Enter
2
DISC MENU
MENU
DISC
MENU
MENU
TITLE MENU
MENU
TITLE
3
POPUP
POPUP
TOOLS
TOOLS
INFO
INFO
RETURN
RETURN
EXIT
EXIT
4
7
5
6
INTERNET@ FULL
FULL SCREEN
SCREEN REPEAT
REPEAT
INTERNET@
79
79
MUTE
MUTE
1
2
3
4
5
6
7
8
9
0
Downloaded From Disc-Player.com Samsung Manuals
1
8
2. Press the ▲▼ buttons to select BONUSVIEW
Video or BONUSVIEW Audio.
Picture Setting
BONUSVIEW
BONUSVIEW
0
1. During playback, press the TOOLS button.
BONUSVIEW Audio:
TV
TV
POWER
POWER
@
The BONUSVIEW feature allows you to view
additional content (such as commentaries) in a
small screen window while the movie is playing.
This function is only available if the disc has the
bonusview feature.
BONUSVIEW Video<
POWER
SEARCH buttons
VOL : Fast Play.
CH
(Audio CD (CD-DA) only)
PAUSE button : Pauses playback.
AK59-00104R
AK59-00104R
PLAY button : Plays the currently selected track.
▲▼ buttons : Selects a track in the Music List or
Playlist.
YELLOW(C) button : Select or deselect a track in
the music list.
REPEAT button : Selects the play mode in the
Playlist.
ENTER button : Plays and pauses the selected
track.
◄► buttons : Jump Play.
(except for Audio CD (CD-DA))
STOP button : Stops a track.
SKIP button : During playback, moves to the next
page in the Music List or moves to the next track in
the Playlist.
English
47
Basic Functions
• Normal : Choose this setting for most
viewing applications.
06
Listening to Music
• Dynamic : Choose this setting to increase
Sharpness.
Basic Functions
SKIP button : During playback, moves to the
previous page in the Music List or moves to the
previous track in the Playlist.
If you press this button after three seconds of
playback in the Playlist, the current track will be
replayed from the beginning. But, if you press this
button within three seconds after playback starts in
the Playlist, the previous track will be played.
!
NUMBER buttons : During the Playlist playback,
press the desired track number. The selected track
will be played.
@
Playing an Audio CD (CD-DA)/MP3
1. Insert an Audio CD (CD-DA) or an MP3 Disc
into the disc tray.
• For an Audio CD (CD-DA), the first track will
be played automatically.
• For an MP3 disc, press the ◄► buttons
to select Music, then press the ENTER
button.
Audio CD (CD-DA)/MP3 Screen Elements
1
2
TRACK 001
TRACK 001
3
Playlist
05:57
TRACK 002
+
00:08 / 05:57
04:07
TRACK 004
03:41
TRACK 005
03:17
TRACK 006
" Pause
5
1
Displays the music information.
2
Displays the playlist.
3
Display the current track/total tracks.
4
Displays buttons available.
48
Shows the current play time/total play time.
6
Displays the current playback status
7
Displays the repeated playback status.
2. Press the ▲▼ buttons to select the track
you want to play, and then press the ENTER
button.
Repeat an Audio CD (CD-DA)/MP3
1. During the Playlist playback, press the
REPEAT button.
2. Select the desired play mode by
pressing the REPEAT button repeatedly.
Off
Audio CD
(CD-DA)/MP3
(
)Track
(
)One
Audio CD
(CD-DA)
(
)All
Audio CD
(CD-DA)/MP3
(
) Shuffle
Audio CD
(CD-DA)/MP3
MP3
Tracks on a disc are
played in the order in
which they were recorded
on the disc.
Current track is repeated.
Current track is repeated.
All tracks are repeated.
The random option plays
a disc’s track in random
order.
04:27
TRACK 003
7
6
1/6
5
03:35
Tools ' Return
4
Downloaded From
Disc-Player.com Samsung Manuals
English
Playlist
1. Insert an Audio CD (CD-DA) or an MP3 Disc
into the disc tray.
• For an Audio CD (CD-DA), the first track will
be played automatically.
• For an MP3 disc, press the ◄► buttons
to select Music, then press the ENTER
button.
2. To move to the Music List, press the STOP (
or RETURN button.
The Music List screen is displayed.
)
Playing a JPEG Disc
1. Insert a JPEG disc into the disc tray.
3 files selected 1/2 Page
TRACK 003
TRACK 001
TRACK 002
TRACK 003
TRACK 004
2. Press the ◄► buttons to select the Photos,
and then press the ENTER button.
00:04:27
00:05:57
00:03:41
00:04:07
3. Press the ▲▼◄► buttons to select the folder
you want to play, and then press the ENTER
button.
TRACK 006
TRACK 005
00:03:35
00:03:17
TRACK 008
TRACK 007
00:03:49
00:03:47
TRACK 010
TRACK 009
00:03:53
CDDA
G
c Select
00:03:45
() Jump page
4. Press the ▲▼◄► buttons to select the photo
you want to play, and then press the ENTER
button.
The Slide Show starts automatically.
' Return
4. If there is an undesired track in the playlist,
press the YELLOW(C) button again.
The selected track will be deleted.
✎ NOTE
▪ You can’t enlarge the subtitle and PG graphic in the
5. Press the ENTER button to play the selected
tracks.
Selected tract will automatically play.
TRACK 001
TRACK 001
TRACK 002
TRACK 003
+
Playlist
full screen mode.
Using the TOOLS button
1/3
During the slide show playback, you
can use various function by pressing the
TOOLS button.
05:57
04:27
04:07
00:08 / 05:57
Stop Slide Show
" Pause
Slide Show Speed : Tools ' Return
6. To go to the Music List, press the STOP (
or RETURN button.
Tools
Background Music
Normal
Zoom
Rotate
)
Information
>Move "Enter 'Return
7. To go to the Playlist, press the ENTER
button.
✎ NOTE
▪ You can create a playlist with up to 99 tracks on
Audio CD (CD-DA).
Downloaded From Disc-Player.com Samsung Manuals
• Stop Slide Show : Select this if you want to
stop the slide show.
• Slide Show Speed : Select this if you want to
adjust the Slide Show speed.
• Background Music : Select this if you want to
listen to music while viewing a picture.
English
49
Basic Functions
Music
06
Playing back a Picture
3. Press the ▲▼◄► buttons to move desired
track, then press the YELLOW(C) button to
check desired tracks.
Repeat this procedure to select additional
tracks.
Basic Functions
• Zoom : Select this if you want to enlarge the
current picture. (Enlarged up to 4 times)
• Rotate : Select this if you to rotate the picture.
(This will rotate the picture either clockwise or
counter clockwise.)
• Information : Shows the picture information
including the name and size, etc.
5. Press the ▲▼ buttons to select the USB,
then press the ENTER button.
6. Press the ◄► buttons to select the desired
Videos, Music or Photos, then press the
ENTER button.
4-1. Press the BLUE(D) button.
✎ NOTE
▪ Before you can enable the background music
Please activate Internet@TV service
to enjoy a variety of Internet Services.
function, the photo file should exist in the same
storage media with the music file. However, the
sound quality can be affected by the bit rate of the
MP3 file, the size of the photo and the encoding
method.
USB
USB
Playing back a USB Storage Device
You can use the USB connection to play multimedia
files (MP3, JPEG, DivX, etc) downloaded from the
USB storage device.
1. Move to the home menu.
2. In Stop mode, connect the USB storage
device to the USB port on the front panel of
the player.
The message “Do you want to access the
device?” will be displayed.
7. For playing back Video, Music or Photo files,
refer to pages 47~50.
✎ NOTE
▪ You must remove the USB storage device safely
▪
You Tube
internet radio service
Please activate Internet@TV
to enjoy a variety of Internet Services.
▪
50
USB
USB a Change Device c Safely Remove USBd View Devices" Enter
Downloaded From
Disc-Player.com Samsung Manuals
English
" Enter
6-1. Press the ▲▼ buttons to select the desired Videos, Music or Photos, then press the ENTER button.
4. Press the RED(A) button.
d Home
5-1. Press the ◄► buttons to select the USB, then press the ENTER button.
3. Press the ◄► button to select Yes, then
press the ENTER button.
CD
(by performing the “Safely Remove USB” function)
in order to prevent a possible damage to the USB
memory. Press the MENU button to move to the
home menu, and select the YELLOW(C) button and
press the ENTER button.
When the Audio-CD (CD-DA), MP3 and JPEG files
are in stop mode, you can’t see full screen by
pressing the FULL SCREEN button on the remote
control.
If you insert the disc when playing USB storage
device, the device mode is changed to “DVD or CD”
automatically.
•
•
•
•
•
•
Supported devices: USB storage media, MP3 player, digital camera, USB card reader
Does not support if a folder or file name is longer than 128 characters.
A certain USB/digital camera device may not be compatible with the product.
FAT16, FAT32 and NTFS file systems are supported.
Connect directly to the product's USB port. Connecting through another cable may raise problems
with USB compatibility.
Inserting more than one memory device to a multi-card reader may not operate properly.
PTP protocol is not supported.
Do not disconnect USB device during a "loading" process.
Bigger the image resolution, the longer the delay to displaying.
DRM applied MP3 files downloaded from a commercial site are not played back.
External HDD device is not supported.
Supported file formats
Video File Support
File Extension
Container
*.avi
AVI
*.mkv
MKV
*.wmv
WMV (wmv9)
*.mp4
MP4
*.mpg
*.mpeg
PS
Music File Support
Video Codec
DivX 3.11/4.x/5.1/6.0
XviD
MP4v3
H.264 BP/MP/HP
VC-1 AP
DivX 5.1/6.0
XviD
H.264 BP/MP/HP
VC-1 AP
VC-1 SM
MP4 (mp4v)
H.264 BP/MP/HP
MPEG1
MPEG2
H.264 BP/MP/HP
File Extension
Container
Audio Codec
*.wma
WMA
WMA
*.mp3
MP3
MP3
Downloaded From Disc-Player.com Samsung Manuals
Audio Codec
MP3
AC3
DTS
WMA
PCM
MP3
AC3
DTS
WMA
AAC
MP1, 2
AC3
DTS
Resolution
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
Support Range
-
Compliant with WMA version 10
* Sampling rates (in kHz) - 8, 11, 16, 22, 32, 44.1, 48
* Bit rates - All bit-rates in the range 5kbps to 384kbps
English
51
Basic Functions
•
•
•
•
•
06
Notes on USB connection
Network Services
You can enjoy various network services such as
Internet@TV or BD-LIVE by connecting the player
to the network system.
Check the following instructions before using
any network service.
1. Connect the player to the network.
(See pages 26~27)
2. Configure the network settings.
(See pages 36~39)
4. When you have agreed on the service
agreement, the Internet@TV service will start
being updated. It takes several minutes.
When the update is completed, you will see
the Internet@TV menu screen.
Internet@TV at a Glance
1
2
Recommended
Using Internet@TV
My Applications
Connect this player to the network to download
various for a fee or free-of-charge applications.
Internet@TV brings useful and entertaining content
and services directly from the web to your player
such as news, weather forecasts, stock market
quotes, games, movies and music.
You can also operate this function by
pressing the INTERNET@ button on
the remote control.
6
1
Getting Started with Internet@TV
1. Move to the home menu.
2
3
You Tube
internet radio service
Please activate Internet@TV
to enjoy a variety of Internet Services.
4
No Disc
a Change Device d View Devices
" Enter
2. Press the ◄► buttons to select Internet@TV
and press the ENTER button.
3. In the start screen of the Internet@TV service,
you will see the service agreement screen.
You should agree to the service terms and
conditions before you can use the Internet@
TV service.
52
3
Downloaded From
Disc-Player.com Samsung Manuals
English
5
6
by Date 1/3
Samsung Apps Settings
a Login b Mark as Favourite d Sort by ' Return
5
4
Commercial : Displays Internet@TV Guide, product
introduction and new application introduction.
Recommended : Displays recommended contents
managed by Samsung.
My Applications : Displays your personal gallery
which can be added and deleted by you.
Navigation Help : Displays remote control buttons
available.
• RED(A) : To log in to Internet@TV.
• GREEN(B) : To mark the application as a favorite.
• BLUE(D) : To sort the applications.
• Return : To return to the previous menu.
Settings : You can set the system setup and create
accounts, etc.
Samsung Apps : You can download various
chargeable or free-of-charge application services.
1
4
7
2
5
ghi
Input Mode
9
tuv
0
a
6
jkl
8
pqrs
3
abc
A
1
def
13. Press the ENTER button.
14. The map and address appear on the screen.
✎ NOTE
▪ Samsung Electronics shall take no legal responsibility
▪
mno
wxyz
Delete

For example, here is how to search an address in
Google Maps:
▪
1. Press the ENTER button on the remote at the
Google Maps icon at the Internet@TV.
▪
3. Press the ◄► buttons to move to the “Search
or address” window.
▪
5. For example, suppose that you want to input
‘105 Challenger Rd., Ridgefield Park NJ’.
▪
2. Press Green(B) button to use the SEARCH
function.
▪
4. Press the ENTER button to use Search or
address function.
▪
6. Press the SUBTITLE button on the remote
twice to change the input mode from lower
case to numbers.
7. Press ‘1’, ‘0’, ‘5’.
8. Press the Yellow(C) button on the remote
to input a blank space.
for any interruption of the Internet@TV service
caused by the service provider for any reasons.
The Internet@TV service is to download and process
data via the Internet so that you can enjoy the
contents on the TV screen.
If the Internet connection is unstable, the service
may be delayed or interrupted.
Furthermore, the player may be turned off automatically.
If this is the case, check the Internet connection and
try again.
The application service may be provided in English
only and the contents available may vary, depending
on the area.
When using a application service, you can not
operate FULL SCREEN button on the remote control.
For more information about the Internet@TV service,
visit the web site of the applicable service provider.
The provided services are subject to change,
depending on the Internet@TV service provider.
The Internet@TV service contents may differ
according to the firmware version.
For-a-fee DivX contents with copy protection can
only be played using HDMI cable.
If you have connected your player to your TV using
Component or video cables, the DivX video signal
can not output or the popup message “Connect
with a HDMI cable to play this file.” or “Cannot play
current file.” will be displayed.
9. Press the SUBTITLE button on the remote
3 times to change the input mode from
numbers to upper case.
10. Press ‘2’ button on the remote 3 times to
input C.
11. Press the SUBTITLE button on the remote 3
times to change the input mode from upper
case to lower case.
Downloaded From Disc-Player.com Samsung Manuals
English
53
Network Services
Through your remote, you can use the On-Screen
Keypad in several Internet@TV applications to enter
text.
Pressing the SUBTITLE button on the remote while
you are using the Screen Keypad lets you change
the text fields to lower case, upper case, numbers
and icons.
12. Press buttons on the remote to input the rest
of ‘Challenger Rd., Ridgefield Park NJ’.
07
Using the Keypad
Network Services
Account Login
For a more enjoyable application experience,
register and log in to your account.
To do this, you must create an account first.
(For instructions on creating an account, refer to
Internet@TV ID on this page)
1. Press the ▲▼◄► buttons to select the
desired application and press the RED(A)
button.
Recommended
Login
My Applications
User account:
aaa
by Date 1/3
Password:
a Create [0~9] Enter PIN ' Cancel
Samsung Apps Settings
a Login b Mark as Favourite d Sort by ' Return
2. Enter the user account and password.
Settings
Create IDs and configure Internet@TV settings
from this screen.
Settings
 System setup
 Internet@TV ID
 Service Manager
 Properties
54
Change the Service Lock password
Reset
' Return
Downloaded From
Disc-Player.com Samsung Manuals
English
System Setup
Reset
Resets Internet@TV settings to factory default
settings.
✎ NOTE
▪ If you forgot your password, press the STOP (
)
button on the front panel of the player for more than
5 seconds with no disc inserted.
Internet@TV ID
Use this menu to create or delete an account and
enter or delete account information.
You can control your account including contents
site’s account information.
This account is only for Internet@TV.
Create
Create an account and link it with desired service
applications.
✎ NOTE
▪ The account name must be at least 1 character in
▪
length but no more than 8.
You can register up to 10 User Account Names.
Manager
• Service Site : Register login information for
service sites.
• Change Password : Change account
password.
• Delete : Delete the account.
Lock
Lock the application. Accessing a locked
application requires the password.
Delete
Internet@TV Services Available
Delete the application.
Properties
Display information about Internet@TV. Use the
“Check the speed of your internet connection”
option to test your network connection.
Samsung Apps
Various applications are available from here,
organized into different categories. Some
applications have a download fee.
Samsung Apps
What's New?
 Video
 Game
 Sports
 Lifestyle
 Information
 Other

My page
Help
Video
Featured
• RED(A) (Login) : To log in to the internet
service.
• GREEN(B) (Thumbnail View) : To change the
view mode.
• BLUE(D) (Sort by) : To sort the applications by
Featured, Most Downloaded, Most Recent or
Name.
1/1
Most downloaded
Most recent
YouTube
TV store Test User002
Name
Free
• YouTube/Pandora/Netflix/Blockbuster/USA
Today News
- Blockbuster : You can view movies streamed
by Blockbuster.
- YouTube : You can view video streamed by
YouTube.
- Netflix : You can view movies streamed by
Netflix.
- Pandora : You can listen to Internet radio.
- USA Today News : You can read news
streamed by USA Today News.
- AccuWeather : You can view weather
information by AccuWeather.
✎ NOTE
▪ The available Internet contents services may be
added or deleted.
a Login
b Thumbnail View
d Sort by
' Return
My page
Displays the application list.
Help
If you questions about Internet@TV, check this
section first. If none of the tips apply, please visit
the help website.
Downloaded From Disc-Player.com Samsung Manuals
English
55
Network Services
Delete and lock applications installed to Internet@
TV.
Using the color buttons with the Samsung
Apps
07
Service Manager
Network Services
Using the AllShare Function
BD-LIVE™
Once the player is connected to the network, you
can enjoy various movie-related service contents
using a BD-LIVE compliant disc.
1. Check the size of the remaining memory.
The memory device must have at least 1GB
of free space to accommodate the BD-LIVE
services.
2. Insert a Blu-ray disc that supports BD-LIVE.
3. Select an item from various BD-LIVE service
contents provided by the disc manufacturer.
✎ NOTE
▪ The way you use BD-LIVE and the provided contents
may differ, depending on the disc manufacturer.
Software Upgrade Notification
In network connection, the player will notice you of
any new software version with a popup message.
AllShare enables you to play music, video and
photo files in your PC using the player.
To use AllShare, you must connect the player to
your PC via the network (See pages 26~27) and
install the SAMSUNG PC Share Manager on the
PC.
1. Visit the Samsung website at www.samsung.
com.
2. Download the SAMSUNG PC Share Manager
and install it on the PC.
3. When the installation is completed, you will
see the SAMSUNG PC Share Manager icon
on your desktop.
Double-click the icon to launch the application.
Application Program at a Glance
SAMSUNG PC Share Manager
1. Turn on the player.
File
2. From the Software Upgrade menu, set Auto
Upgrade Notification to On. (See page 41)
If there is a new software version available, the
player will notice you with a popup message.
▪
56
after restarting. Press the POWER button to turn on
the updated player for your use.
Never turn off or on the player manually during the
update process.
Samsung Electronics shall take no legal responsibility
for player malfunction caused by unstable of internet
connection or consumer negligence during software
upgrade.
Downloaded From
Disc-Player.com Samsung Manuals
English
Server
Help
Server : PC Share Manager
My Computer
C: Document and settings Admin
Name
Folder 1
Size
Folder 2
Folder 3
4. The update progress popup will appear.
When the update is completed, it will turn
back off automatically.
✎ NOTE
▪ Update will be completed when the player turns off
Share
2345
3. To upgrade the firmware, select Yes.
It will turn off automatically before restarting.
(Never turn it on manually.)
5. Press the POWER button to turn on the
player.
6
1
8
1
2
3
4
5
6
Shared Folder
Kind
File
Folder
Folder 1
Full Path
C: Document and settin..
File
File
7
Menu Bar
Share Folder Enabled icon : Use this if you want to
select a folder in your PC to share.
Share Folder Disabled icon : Use this if you want
to set folder sharing off.
Refresh icon : Use this if you want to refresh list of
folders and files in My Computer.
Set Change State icon : Select a folder to share
and don’t forget to press this button.
The updated state will be applied to the server.
Server : Displays the name of the sharing server.
4. Select a folder to share from the My computer
pane, and click the Share Folder Enabled
icon ( ).
(To remove a shared folder : Select a folder to
remove from the shared folders, and click the
Share Folder Disabled icon ( ).)
5. To apply the updated sharing state to the
server, click the Set Change State icon (
6. To enable the player to locate a PC server,
click Share from the menu bar.
Click Set Device Policy and click Accept.
).
SAMSUNG PC Share Manager
File
Share
Server
Help
Server : PC Share Manager
Set Device Policy
My Computer
Shared Folder
C: Document and settings Admin
Folder
IP
Device
State
Folder 1
Name
Size
Kind
SAMSUNG Blu-ray
FolderXXX.XXX.X.XX
1
FileDisc Player Deny
Folder 2
Folder 3
▪
▪
▪
▪
Delete Selected Item
Full Path
Set State
C: Document and settin..
Accept
File
▪
▪
File
OK
▪
Cancel
7. Click the Set Change State icon (
move to the home menu on player.
modem or router, HD video may not play properly.
If your system uses a firewall, the player may not
locate your PC on the TV screen.
AllShare does not support the following functions.
- The Background Music and Background Music
Setting functions.
- Sorting files by preference in the Photo, Music,
and Movie folders.
- The Change Group function.
- The Safe Remove function.
The Sorting method may differ depending on the
sever function.
The search and skip operation may differ depending
on the sever function.
If you press the STOP (
) button during video
playback, stop position will be memorized and it will
be memorized only end user’s operation.
But stop position will not be memorized depending
on the sever function.
During video playback, play time will not display.
To use AllShare function, please locate both this
player and PC in same subnet.
) and
8. To select a device, use the RED(A) or BLUE(D)
button to select a file to play.
(For playing back Video, Music or Photos files,
see pages 47~50.)
You Tube
internet radio service
Please activate Internet@TV
to enjoy a variety of Internet Services.
No Disc
a Change Device d View Devices
" Enter
Downloaded From Disc-Player.com Samsung Manuals
English
57
Network Services
My Computer : Displays a list of the folders and
files in the PC.
8
✎ NOTE
▪ Depending on the performance of the external
07
Shared Folder : Displays a list of the shared folders.
7
Appendix
Troubleshooting
Before requesting service, please check the following.
PROBLEM
SOLUTION
No operation can be performed with the
remote control.
• Check the batteries in the remote control. They may need replacing.
• Operate the remote control at a distance of no more than 20 feet.
• Remove batteries and hold down one or more buttons for several minutes
to drain the microprocessor inside the remote control to reset it. Reinstall
batteries and try to operate the remote control again.
Disc does not play.
• Ensure that the disc is installed with the label side facing up.
• Check the region number of the Blu-ray Disc/DVD.
Disc Menu does not appear.
• Ensure that the disc has disc menus.
The prohibition message appears on the
screen.
• This message appears when an invalid button is pressed.
• The Blu-ray Disc/DVD’s software doesn’t support the feature (e.g., angles)
• You’ve requested a title or chapter number or search time that is out of
range.
Play mode differs from the Setup Menu
selection.
• Some of the functions selected in the Setup Menu may not work properly if
the disc is not encoded with the corresponding function.
The screen ratio cannot be changed.
• The Screen Ratio is fixed on your Blu-ray Disc/DVDs.
• This is not a problem with the player.
No audio.
• Make sure you have selected the correct Digital Output in the Audio Options
Menu.
The screen is blocked
• If the HDMI output is set to a resolution your TV cannot support (for
example, 1080p), you may not see a picture on your TV.
• Press the STOP (
) button (on front panel) for more than 5 seconds with
no disc inside. All settings will revert to the factory settings.
• When the factory default settings are restored, all the user data stored in
the BD data will be deleted.
58
Downloaded From
Disc-Player.com Samsung Manuals
English
SOLUTION
08
• Press the STOP (
) button (on front panel) for more than 5 seconds with
no disc inside. All settings including the password will revert to the factory
settings.
Don’t use this unless absolutely necessary.
• When the factory default settings are restored, all the user data stored in
the BD data will be deleted.
If you experience other problems.
• Go to the contents and find the section of the user manual that contains the
explanations regarding the current problem, and follow the procedure once
again.
• If the problem still cannot be solved, please contact your nearest Samsung
authorized service center.
The picture is noisy or distorted
• Make sure that the disc is not dirty or scratched.
• Clean the disc.
No HDMI output.
• Check the connection between the TV and the HDMI jack of the player.
• Check if your TV supports 480p, 720p, 1080i, 1080p HDMI input resolution.
Abnormal HDMI output screen.
• If random noise appears on the screen, it means that TV does not support
HDCP (High-bandwidth Digital Content Protection).
PC Share Manager function
I can see folders shared through the PC
Share Manager, but I cannot see the files.
AllShare function
• Since it shows only files corresponding to the Image, Music, and Movie
categories, files that do not correspond to these categories may not be
displayed.
Video is played intermittently.
• Check if the network is stable.
• Check if the network cable is properly connected and if the network is not
overloaded.
• Wireless connection between the server and the player is unstable.
Check the connection.
AllShare connection between TV and PC is
unstable.
• IP address under the same subnetwork should be unique, otherwise IP
collision can results in such a phenomenon.
• Check if you have a firewall enabled.
If so, disable the firewall function.
Downloaded From Disc-Player.com Samsung Manuals
English
59
Appendix
Forgot password
PROBLEM
Appendix
PROBLEM
BD-LIVE
SOLUTION
I cannot connect to the BD-LIVE server.
• Check whether the network connection is successful or not by using
Network Test menu. (See page 39)
• Check whether the USB memory device is connected with player
or not.
• The memory device must have at least 1GB of free space to accommodate
the BD-LIVE service.
You can check the available size in BD Data Management. (See page 35)
• Please check whether the BD-LIVE Internet Connection menu is set to
Allow(All).
• If all above fails, contact the contents provider or update the latest
firmware.
When using the BD-LIVE service, an error
occurs.
• The memory device must have at least 1GB of free space to accommodate
the BD-LIVE service.
You can check the available size in BD Data Management. (See page 35)
✎ NOTE
▪ When the factory default settings are restored, all the user data stored in the BD data will be deleted.
60
Downloaded From
Disc-Player.com Samsung Manuals
English
14
27
34
46
56~57
B
BD Wise
30
BD Data Management
35
BD-LIVE
39, 56
BONUSVIEW
47
Background Music
49
C
Component
Cable Network
Camera Angle
22
26
46
D
Digital Output
32~33
Dynamic Range Control
34
Downmixing Mode
34
DTS Neo:6
34
DST (Daylight Saving Time) 35
DivX
35~36
Disc Menu
43
Disc Structure
43
H
HDMI
20, 34
HDMI Supported Amplifier 24
HDMI Deep Color
32
I
Internet@TV
Initial Settings
JPEG
M
Movie Frame (24F)
MP3
N
Network Setup
O
Optimal Resolution
P
PCM Downsampling
Popup Menu
Picture Setting
49
32
48~49
36~39
30~31
33
43~44
46~47
T
TV Aspect
Title Menu
Tools Menu
30
43
45~47
U
USB Storage Device 50
W
Wireless Network 27, 37~39
Wireless LAN Adapter
27
Z
Zoom
50
R
Region Code
13
Remote Control Sensor
15
Remote Control
18
Resolution
30
Repeat
45, 48
S
Software Upgrade
Search and Skip
Slow and Step
Subtitle Language
Slide Show
SAMSUNG PC Share
Manager
41, 56
44
44
46
49
56~57
34, 52~55
28, 34
Downloaded From Disc-Player.com Samsung Manuals
English
61
Appendix
Accessories
Ad-hoc
Anynet+ (HDMI-CEC)
Audio Language
AllShare
J
08
A
Index
Appendix
Specifications
Power Requirements
AC 120V, 60Hz
Weight
3.8 Ibs
Power Consumption
General
Dimensions
Operating Temperature Range
Operating Humidity Range
BD (Blu-ray Disc)
DVD (Digital Versatile Disc)
Disc
CD : 5 inches (COMPACT DISC)
CD : 3 1/2 inches (COMPACT DISC)
Composite Video
Video Output
Video/Audio
Component Video
HDMI
2 Channel
Digital Audio Output
Audio Output
*Frequency Response
*S/N Ratio
*Dynamic Range
*Total Harmonic Distortion
14W
17.1 (W) X 8.1 (D) X 1.7 (H) inches
+41°F to +95°F
10 % to 75 %
Reading Speed : 4.917 m/sec
Reading Speed : 3.49 ~ 4.06 m/sec.
Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 74 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 20 min.
1 Channel : 1.0 Vp-p (75Ω load)
Blu-ray/DVD Disc : 480i
Y :1.0 Vp-p (75Ω load)
PR:0.70 Vp-p (75Ω load)
PB:0.70 Vp-p (75Ω load)
Blu-ray Disc : 1080i, 720p, 480p, 480i
DVD : 480p, 480i
1080p, 1080i, 720p, 480p
PCM multichannel audio, Bitstream audio
L(1/L), R(2/R)
Optical
48 kHz Sampling : 4 Hz to 22 kHz
96 kHz Sampling : 4 Hz to 44 kHz
110 dB
100 dB
0.003%
*: Nominal specification
- Design and specifications are subject to change without prior notice.
- Weight and dimensions are approximate.
62
Downloaded From
Disc-Player.com Samsung Manuals
English
08
Compliance and Compatibility Notice
Copy Protection
• Because AACS (Advanced Access Content System) is approved as content protection system for
Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain
restrictions are imposed on playback, analog signal output, etc., of AACS protected contents.
The operation of this product and restrictions on this product may vary depending on your time of
purchase as those restrictions may be adopted and/or changed by AACS after the production of this
product. Furthermore, BD-ROM Mark and BD+ are additionally used as content protection system for
Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM
Mark and/or BD+ protected contents. To obtain additional information on AACS, BD-ROM Mark, BD+,
or this product, please contact SAMSUNG customer care center.
Downloaded From Disc-Player.com Samsung Manuals
English
63
Appendix
NOT ALL discs are compatible
• Subject to the restrictions described below and those noted throughout this Manual, including the Disc
Type and Characteristics section of this user manual, disc types that can be played are: pre-recorded
commercial BD-ROM, DVD-VIDEO, and Audio CD (CD-DA) discs; BD-RE/-R, DVD-RW/-R discs; and
CD-RW/-R discs.
• Discs other than the above cannot and/or is not intended to be played by this player. And some of the
above discs may not play due to one or more reasons provided below.
• Samsung cannot assure that this player will play every disc bearing the BD-ROM, BD-RE/-R,
DVD-VIDEO, DVD-RW/-R, DVD+RW/+R and CD-RW/-R logos, and this player may not respond to
all operating commands or operate all features of every disc. These and other disc compatibility and
player operation issues with new and existing format discs are possible because:
- Blu-ray is a new and evolving format and this player may not operate all features of Blu-ray Discs
because some features may be optional, additional features may have been added to the Blu-ray
Disc format after the production of this player, and certain available features may be subject to
delayed availability;
- not all new and existing disc format versions are supported by this player;
- new and existing disc formats may be revised, changed, updated, improved and/or supplemented;
- some discs are produced in a manner that allows specific or limited operation and feature during
playback;
- some features may be optional, additional features may have been added after the production of this
player or certain available features may be subject to delayed availability;
- some discs bearing the BD-ROM, BD-RE/-R, DVD-VIDEO, DVD-RW/-R, DVD+RW/+R and
CD-RW/-R logos may still be non-standardized discs;
- some discs may not be played depending on their physical state or recording conditions;
- problems and errors can occur during the creation of Blu-ray Disc, DVD software and/or the
manufacture of discs;
- this player operates differently than a standard DVD player or other AV equipment; and/or
- for reasons noted throughout this user manual and for other reason(s) discovered and posted by
SAMSUNG customer care center.
• If you encounter disc compatibility or player operation problems, please contact SAMSUNG customer care
center.
You may also contact SAMSUNG customer care center for possible updates on this player.
• For additional information on playback restrictions and disc compatibility, refer to the Precautions,
Before Reading the user manual, Disc Types and Characteristics, and Before Playing sections of this
user manual.
Appendix
• Many Blu-ray Disc/DVD discs are encoded with copy protection. Because of this, you should only
connect your Player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted
picture from copy-protected Blu-ray Disc/DVD discs.
• This item incorporates copy protection technology that is protected by U.S. patents and other
intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use,
display, distribution, or revision of television programs, videotapes, Blu-ray Discs, DVDs, and other
materials may subject you to civil and/or criminal liability.
• For Blu-ray Disc Player progressive scan output : CONSUMERS SHOULD NOTE THAT NOT
ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS product AND
MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF PROGRESSIVE SCAN
PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO
THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET
COMPATIBILITY WITH THIS product, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.
Network Service Disclaimer
All content and services accessible through this device belong to third parties and are protected by
copyright, patent, trademark and/or other intellectual property laws. Such content and services are
provided solely for your personal noncommercial use. You may not use any content or services in a
manner that has not been authorized by the content owner or service provider. Without limiting the
foregoing, unless expressly authorized by the applicable content owner or service provider, you may
not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or
distribute in any manner or medium any content or services displayed through this device.
THIRD PARTY CONTENT AND SERVICES ARE PROVIDED “AS IS.” SAMSUNG DOES NOT WARRANT
CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE.
SAMSUNG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED
TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SAMSUNG
DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS
OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO
CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER IN
CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN
CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF ANY
CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
Third party services may be terminated or interrupted at any time, and Samsung makes no representation
or warranty that any content or service will remain available for any period of time. Content and services
are transmitted by third parties by means of networks and transmission facilities over which Samsung
has no control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any
responsibility or liability for any interruption or suspension of any content or service made available
through this device.
Samsung is neither responsible nor liable for customer service related to the content and services.
Any question or request for service relating to the content or services should be made directly to the
respective content and service providers.
64
Downloaded From
Disc-Player.com Samsung Manuals
English
08
License
Appendix
• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.
• Manufactured under license under U.S. Patent #’s : 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567
& other U.S. and worldwide patents issued & pending. DTS and the Symbol are
registered trademarks, & DTS-HD, DTS-HD Master Audio, and the DTS logos are
trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
• ABOUT DIVX VIDEO : DivX® is a digital video format created by DivX,Inc. This is an official
DivX Certified device that plays DivX video. Visit www.divx.com for more information and
software tools to convert your files into DivX video.
• ABOUT DIVX VIDEO-ON-DEMAND : This DivX Certified® device must be registered in order to play
DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section
in the device setup menu. Go to vod.divx.com with this code to complete the registration process and
learn more about DivX VOD.
• DivX Certified to play DivX video up to HD 1080p, including premium content.
• The product unit accompanying this user manual is licensed under certain intellectual property rights of
certain third parties. This product is covered by one or more of the following U.S. patents : 5,457,669
5,561,649 5,705,762 6,043,912 6,438,099 6,467,061 6,556,521 6,578,163 6,697,307 6,728,474
6,771,891 6,894,963 6,895,593 6,937,815 6,996,327 7,009,926 7,085,221 7,088,649 7,092,327
7,099,566 7,123,564 7,142,493 7,142,495 7,145,861 7,146,624 7,151,729 7,161,879 7,164,647
7,167,437 7,173,891 7,177,250 7,194,187 7,203,891 7,209,423 7,210,067 7,228,062 7,245,566
7,245,567 7,257,065 7,263,045 7,269,110 7,272,086 7,272,106 7,280,460 7,283,729 7,286,454
7,304,938
• This license is limited to private non-commercial use by end-user consumers for licensed contents.
No rights are granted for commercial use. The license does not cover any product unit other than this
product unit and the license does not extend to any unlicensed product unit or process conforming to
ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit.
The license only covers the use of this product unit to encode and/or decode audio files conforming to
the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features
or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
• Open Source License Notice
- In the case of using open source software, Open Source Licenses are available on the product
menu.
Downloaded From Disc-Player.com Samsung Manuals
English
65
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and
delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing
defects in materials and workmanship for the following limited warranty period:
One (1) Year Parts / One (1) Year Labor
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United
States, and does not include transportation, installation, removal or reinstallation. Warranty repairs must be performed by
SAMSUNG’s authorized service center. To receive warranty service, the original dated bill of sale must be presented upon
request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. Transportation to and from the service
center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge with new or reconditioned parts, if found to be
defective during the limited warranty period specified above. The product must be returned during the warranty period with
transportation charges prepaid to SAMSUNG’s designated service center. Prior to returning any product for warranty service,
the purchaser must contact SAMSUNG for problem determination and service procedures. SAMSUNG does not warrant
uninterrupted or error-free operation of the product.
All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and
products assume the remaining original warranty, or ninety (90) days, whichever is longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use
of this product and shall not apply to the following, including, but not limited to: damage which occurs in shipment; applications
and uses for which this product was not intended; failures or problems which are caused by products or equipment not supplied
by SAMSUNG; accidents, misuse, abuse, neglect, misapplication, fire, water, lightning or other acts of nature; incorrect electrical
line voltage, fluctuations or surges; damage caused by improper or faulty installation; improper connection with any peripheral;
product alteration or modification; improper or unauthorized repair; cosmetic damage or exterior finish; product with altered serial
numbers; failure to follow operating instructions, customer adjustments, maintenance and environmental instructions that are
covered and prescribed in the instruction book; use of non-SAMSUNG or unauthorized parts, supplies, accessories or equipment
which damage this product or result in service problems; failures or problems due to incompatibility with other equipment.
No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any
manner whatsoever. The time within which an action must be commended to enforce any obligations of SAMSUNG arising under
the warranty or under any statute, or law of the United States or of any state thereof, is hereby limited to ninety (90) days from the
date you discovered or should have discovered the defect. This limitation does not apply to implied warranties arising under state
law, if any.
SAMSUNG does not warrant (i) disc compatibility with new and existing format discs or (ii) error free playback in full compliance
with specifications of the compatible disc formats, and SAMSUNG shall not be liable for any data loss recorded in your discs.
SAMSUNG’s responsibility shall be limited to appropriate warranty services during the warranty period through SAMSUNG
customer care center. If you encounter compatibility or data loss problems, please contact SAMSUNG customer care center.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES
WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED
ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF
REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF
THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE
PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING
THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND
PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY
TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS
LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS
NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights,
and you may also have other rights which vary from state to state.
To obtain warranty service, please contact SAMSUNG customer care center.
Downloaded From Disc-Player.com Samsung Manuals
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
Area
` North America
Contact Center 
Web Site
Canada
Mexico
U.S.A
1-800-SAMSUNG (726-7864)
01-800-SAMSUNG (726-7864)
1-800-SAMSUNG (726-7864)
www.samsung.com
www.samsung.com
www.samsung.com
Argentine
Brazil
Chile
Colombia
Costa Rica
Dominica
Ecuador
El Salvador
Guatemala
Honduras
Jamaica
Nicaragua
Panama
Peru
Puerto Rico
Trinidad &
Tobago
Venezuela
0800-333-3733
0800-124-421 / 4004-0000
800-SAMSUNG (726-7864)
01-8000112112
0-800-507-7267
1-800-751-2676
1-800-10-7267
800-6225
1-800-299-0013
800-7919267
1-800-234-7267
00-1800-5077267
800-7267
0-800-777-08
1-800-682-3180
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
1-800-SAMSUNG (726-7864)
www.samsung.com
0-800-100-5303
www.samsung.com
Albania
42 27 5755
0810 - SAMSUNG (7267864,
€ 0.07/min)
-
` Latin America
` Europe
Austria
Belgium
02-201-24-18
Bosnia
Bulgaria
Croatia
05 133 1999
07001 33 11
062 SAMSUNG (062 726 7864)
800-SAMSUNG (800-726786)
Samsung Zrt., česká organizační
složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8
70 70 19 70
030 - 6227 515
01 48 63 00 00
01805 - SAMSUNG (726-7864
€ 0,14/Min)
06-80-SAMSUNG (726-7864)
800-SAMSUNG (726-7864)
+381 0113216899
261 03 710
023 207 777
020 405 888
0900-SAMSUNG
(0900-7267864) (€ 0,10/Min)
815-56 480
0 801 1SAMSUNG (172678)
/ 022-607-93-33
80820-SAMSUNG (726-7864)
1. 08010 SAMSUNG (72678) doar din reţeaua Romtelecom,
tarif local
2. 021.206.01.10 - din orice
reţea, tarif normal
Czech
Denmark
Finland
France
Germany
Hungary
Italia
Kosovo
Luxemburg
Macedonia
Montenegro
Netherlands
Norway
Poland
Portugal
Rumania
www.samsung.com
www.samsung.com/
be (Dutch)
www.samsung.com/
be_fr (French)
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
Downloaded From Disc-Player.com Samsung Manuals
Area
Serbia
Slovakia
Spain
Sweden
Contact Center 
0700 Samsung (0700 726
7864)
0800-SAMSUNG (726-7864)
902-1-SAMSUNG (902 172 678)
0771 726 7864 (SAMSUNG)
Switzerland
0848-SAMSUNG (7267864,
CHF 0.08/min)
U.k
Eire
Lithuania
Latvia
Estonia
0330 SAMSUNG (7267864)
0818 717100
8-800-77777
8000-7267
800-7267
Russia
Georgia
Armenia
Azerbaijan
Uzbekistan
Kyrgyzstan
Tadjikistan
8-800-555-55-55
8-800-555-555
0-800-05-555
088-55-55-555
8-10-800-500-55-500
(GSM: 7799)
8-10-800-500-55-500
00-800-500-55-500
8-10-800-500-55-500
Ukraine
0-800-502-000
Belarus
Moldova
810-800-500-55-500
00-800-500-55-500
Australia
New Zealand
China
1300 362 603
0800 SAMSUNG (0800 726 786)
400-810-5858 / 010-6475 1880
Hong Kong
(852) 3698 4698
` CIS
Kazakhstan
` Asia Pacific
Web Site
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com/ch
www.samsung.com/
ch_fr/(French)
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.ua
www.samsung.com/
ua_ru
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com/hk
www.samsung.com/
hk_en/
Singapore
Thailand
Taiwan
Vietnam
3030 8282 / 1800 110011 /
1800 3000 8282 / 1800 266 8282
0800-112-8888 /
021-5699-7777
0120-327-527
1800-88-9999
1-800-10-SAMSUNG(726-7864) /
1-800-3-SAMSUNG(726-7864) /
1-800-8-SAMSUNG(726-7864) /
02-5805777
1800-SAMSUNG (726-7864)
1800-29-3232 / 02-689-3232
0800-329-999
1 800 588 889
Bahrain
Egypt
Jordan
Morocco
Oman
Saudi Arabia
Turkey
U.A.E
8000-4726
08000-726786
800-22273
080 100 2255
800-SAMSUNG (726-7864)
9200-21230
444 77 11
800-SAMSUNG (726-7864)
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
Nigeria
South Africa
0800-SAMSUNG (726-7864)
0860-SAMSUNG (726-7864 )
www.samsung.com
www.samsung.com
India
Indonesia
Japan
Malaysia
Philippines
` Middle East
` Africa
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
QUESTIONS OR COMMENTS?
COUNTRY
CALL
OR VISIT US ONLINE AT
IN THE US
1-800-SAMSUNG
(7267864)
www.samsung.com
WRITE
Samsung Electronics America, Inc.
85 Challenger Road Ridgefield Park,
NJ 07660-2112
AK68-01854A-00
Downloaded From Disc-Player.com Samsung Manuals
