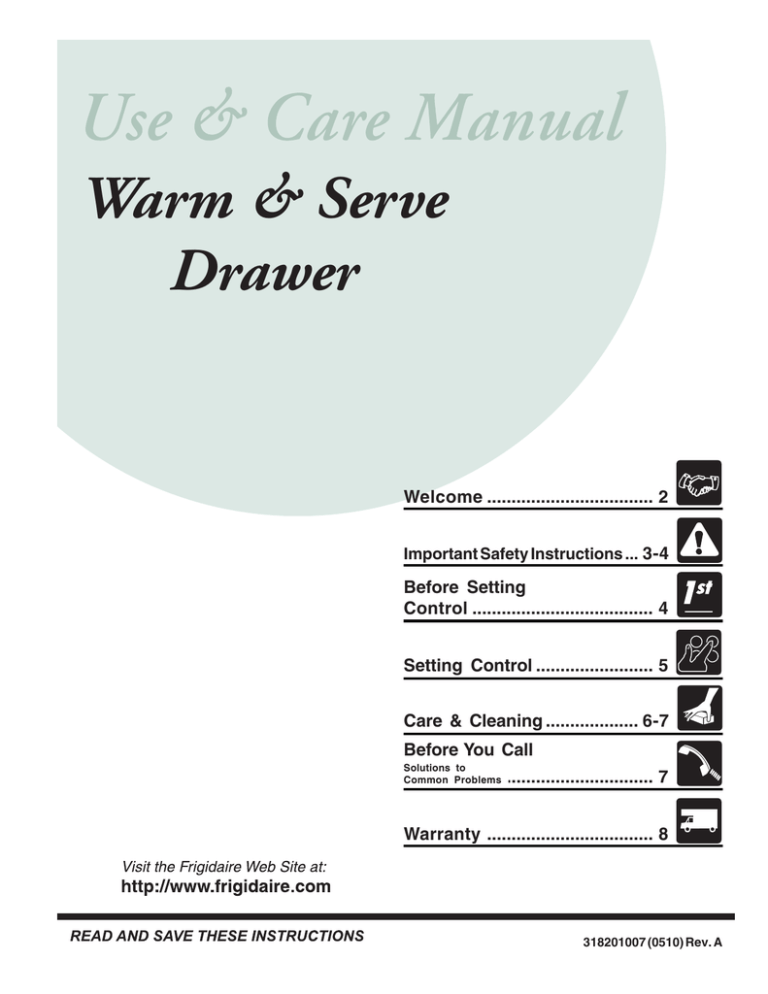

Warm & Serve
Drawer
Welcome .................................. 2
Important Safety Instructions ... 3-4
Before Setting
Control ..................................... 4
Setting Control ........................ 5
Care & Cleaning ................... 6-7
Before You Call
Solutions to
Common Problems
.................................................. 7
Warranty .................................. 8
318201007 (0510) Rev. A
Welcome & Congratulations
Questions?
1-800-944-9044
(United States)
1-866-294-9911
(Canada)
Please attach sales receipt
here for future reference.
Congratulations on your purchase of a new appliance! At Electrolux Home
Products, we are very proud of our product and are completely committed to
providing you with the best service possible. Your satisfaction is our number one
priority.
We know you’ll enjoy your new appliance and Thank You for choosing our product.
We hope you consider us for future purchases.
PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS
This Use & Care Manual contains general operating instructions for your appliance
and feature information for several models. Your product may not have all the
described features. The graphics shown are representative. The graphics on your
appliance may not look exactly like those shown. These instructions are not
meant to cover every possible condition and situation that may occur. Common
sense and caution must be practiced when installing, operating and maintaining
any appliance.
Please record your model and serial numbers below for future reference.
Model Number:
Serial Number:
Purchase Date:
Product Registration
Register Your Product
The PRODUCT REGISTRATION CARD should
be filled in completely, signed and returned to
Electrolux Home Products.
Serial Plate Location
Serial Plate Location
© 2005 Electrolux Canada Corp.
All rights reserved
Printed in United States
2
Important Safety Instructions
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all
instructions given.
This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.
This symbol will help alert you to situations that may cause bodily injury or property damage.
• Remove all tape and packaging wrap before using the
appliance. Destroy the carton and plastic bags after
unpacking the appliance. Never allow children to play
with packaging material.
Stepping, leaning or sitting on the door or
drawer can result in serious injuries and may also cause
damage to the warmer drawer. Do not allow children to
climb or play around the drawer. An open drawer, when hot,
may cause burns.
• Proper Installation—Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Electrical Code ANSI/
NFPA No. 70—latest edition in the U.S. A., or CSA
C22.1, Part 1 in Canada, and local code requirements.
Install only per installation instructions provided in this
manual.
• Storage in or on Appliance—Flammable materials
should not be stored in the drawer. This includes paper,
plastic and cloth items, such as cookbooks, plasticware
and towels, as well as flammable liquids. Do not store
explosives, such as aerosol cans, on or near the warmer
drawer. Flammable materials may explode and result in fire
or property damage.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the
electrical power to the drawer at the circuit breaker or fuse box
in case of an emergency.
• Do not leave children alone. Children should not be left
alone or unattended in the area where an appliance is
in use. They should never be allowed to sit or stand on any
part of the appliance.
• User Servicing—Do not repair or replace any part of the
appliance unless specifically recommended in the
manuals. All other servicing should be done only by a
qualified technician to reduce the risk of personal injury and
damage to the appliance.
• DO NOT TOUCH INTERIOR SURFACES OF THE
WARMER DRAWER. Surfaces may be hot even though
they are dark in color. During and after use, do not touch,
or let clothing or other flammable materials touch these
areas until they have had sufficient time to cool.
• Never modify or alter the construction of a drawer by
removing panels, wire covers, locking plates, or any
other part of the product.
• All Warm and
Serve Drawer
can tip.
• Injury to persons
could result.
• Install anti-tip
device packed
with warmer
drawer.
• See installation
instructions.
• Wear Proper Apparel—Loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable materials
contact hot surfaces.
To reduce the
risk of tipping of the Warm &
Serve Drawer, the drawer must
be secured by properly installed
anti-tip locking plates provided
with the drawer. To check if the
locking plates are installed
properly, grasp the handle of the
open drawer and see if the
drawer will slide out of the
opening. Refer to the installation
instructions for proper locking
plate installation.
• Use Only Dry Potholders—Moist or damp potholders
on hot surfaces may result in burns from steam. Do not
let the potholders touch hot heating elements. Do not use
a towel or other bulky cloth instead of a potholder.
• Do Not Heat Unopened Food Containers—Build-up of
pressure may cause the container to burst and result in
injury.
• IMPORTANT—Do not attempt to operate the warmer
drawer during a power failure. If the power fails, always
turn the control off. If the drawer is not turned off and the
power resumes, the drawer may begin to operate again.
Food left unattended could spoil.
Do not use the warmer drawer for storage.
3
Important Safety Instructions
moved while hot, use extreme caution. Use potholders and
grasp the rack with both hands to reposition. Do not let
potholders contact the hot element or interior of the warmer
drawer. Remove all utensils from the rack before removing
rack.
Never use your appliance for warming or
heating the room.
IMPORTANT INSTRUCTIONS FOR USING
YOUR WARM & SERVE DRAWER
• Protective Liners—Do not use aluminum foil to line
warmer drawer. Any other use of protective liners or
aluminum foil may result in poor performance or damage to
the appliance. Only use aluminum foil as recommended for
baking if used as a cover placed on the food.
IMPORTANT INSTRUCTIONS FOR
CLEANING YOUR WARM & SERVE DRAWER
• Clean the drawer regularly to keep all parts free of
grease that could catch fire. Do not allow grease to
accumulate. Greasy deposits could catch fire.
• Kitchen cleaners/aerosols—Always follow the
manufacturer's recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite
causing damage and/or injury.
• Glazed Cooking Utensils—Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for use without breaking due to the
sudden change in temperature. Check the manufacturer's
recommendations.
IMPORTANT SAFETY NOTICE
• Use Care When Opening Warmer Drawer—Stand to the
side of the unit when opening the door of a hot drawer. Let
hot air or steam escape before you remove or replace food
in the warmer drawer.
The California Safe Drinking Water and Toxic Enforcement Act
requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects or
other reproductive harm, and requires businesses to warn
customers of potential exposure to such substances.
• Placement of Warmer Drawer Racks—Always place rack
in desired location while drawer is cool. If rack must be
SAVE THESE INSTRUCTIONS
Before Setting Control
Arranging Warmer Drawer Rack Positions
Set the warmer drawer rack in the vertical position as shown below.
The rack can be used in 2 ways:
• In the upright position to allow low profile food items to be placed both under and on top of the rack (for example, rolls or
biscuits on top of the rack and a casserole dish under).
• In the downward position to allow you to place light weight food items and empty dishware (for example, rolls or pastries
and dinner plates).
Upright Position
Downward Position
4
Setting Control
Use the warmer drawer to keep hot
foods hot such as: vegetables, gravies,
meats, casseroles, biscuits and rolls,
pastries and heated dinner plates.
The warmer drawer is equipped with a
catch which may require a small amount
of force when opening and closing the
drawer.
To Operate the Warmer Drawer
The purpose of the warmer drawer is to keep hot cooked foods at serving
temperature. Always start with hot food. It is not recommended to heat cold food
in the warmer drawer.
All food placed in the warmer drawer should be covered with a lid or aluminum foil
to maintain moisture and softness. Do not cover crisp foods. Do not use plastic
wrap to cover food. Plastic may melt onto the drawer and be very difficult
to clean.
Use only dishware, utensils and cookware recommended for oven
use in the warmer drawer.
Always use potholders or oven mitts when removing food from the warmer drawer
as cookware and plates will be hot.
Indicator Light
The indicator light is located above the thermostat control knob. It turns on when
the control is set, and stays on until the control is turned off. Make sure indicator
light is off when removing food from drawer.
To Set the Thermostat Control
The thermostat control knob is used to select the temperature of the warmer
drawer. It is located at the right side of the warmer drawer in the open position. The
temperatures are approximate, and are designated by HI, MED and LO. The
control can be set to the three settings, or anywhere between.
Warmer Drawer Recommended
Food Settings Chart
Food Item
Setting
Bacon
Biscuits
Casseroles
Eggs
Empty Dinner Plates
Fish, Seafood
Fried Foods
Gravies, creams, sauces
Ham
Hamburger Patties
Pancakes, Waffles
Pastries
Pies
Pizza
Pork Chops
Potatoes (baked)
Potatoes (mashed)
Poultry
Roasts (Beef, Pork, Lamb)
Rolls, soft
Rolls, hard
Vegetables
HI
MED
MED
MED
LO
MED
HI
MED
MED
HI
HI
MED
MED
HI
HI
HI
MED
HI
MED
LO
MED
MED
1. To set the thermostat, push in and turn the knob to the desired setting.
2. For best results, preheat the drawer before adding food. An empty drawer will
reach the LO setting in about 12 minutes, the MED setting in about 15
minutes, and the HI setting in about 18 minutes.
3. When done, turn the thermostat control to OFF.
Temperature Selection
Refer to the chart in the side column for recommended settings. If a particular food
is not listed, start with the medium setting. If more crispness is desired, remove
the lid or aluminum foil.
Most foods can be kept at serving temperatures by using the medium setting.
When a combination of foods are to be kept warm (for instance, a meat with
2 vegetables and rolls), use the high setting.
Refrain from opening the warmer drawer while in use to eliminate loss of heat from
the drawer. Open only for adding or removing food.
To Warm Serving Bowls and Plates
Heat bowls and plates on the LO setting. Place empty dishes on the rack to raise
them off drawer bottom. To further heat dishes or to heat fine china, check with
the manufacturer for maximum heat tolerance.
5
Care & Cleaning
Surfaces
How to Clean
Vinyl
Use hot, soapy water and a cloth. Dry with a clean cloth.
Plastic
Control Knobs, Control Panel
To remove control knob, turn to the OFF position; grasp firmly and pull straight off the
shaft. Clean with a cloth soaked in soapy water. Rinse with a clean water and a dishcloth.
Be sure to squeeze excess water from the cloth before wiping the panel; especially when
wiping around the controls. Excess water in or around the controls may cause damage
to the appliance. To replace knob after cleaning, line up the flat sides of both the knob
and the shaft; then push the knob into place.
Easy Care™ Stainless
Steel (some models)
Front Panel
Your appliance finish is made with Easy Care™ Stainless Steel (some models).
Clean the stainless with warm soapy water using a clean sponge or cloth. Rinse with
clean water and dry with a soft clean cloth. DO NOT use ANY store bought cleaners
like Stainless Steel cleaners or any other types of cleaners containing any abrasive,
chlorides, chlorines or ammonia. It is recommended to use mild dish soap and water
or a 50/50 solution of water and vinegar.
Porcelain Enamel
Drawer Liner, Body Parts and
Drawer Cavity
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clear water and ammonia. If necessary, cover difficult spots with an ammoniasoaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and
then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove
all cleaners or the porcelain may become damaged during future heating. DO NOT use
spray oven cleaners.
Warmer Drawer Rack
The rack may be removed for cleaning. Clean by using a mild, abrasive cleaner following
manufacturer's instructions. Rinse with clean water and dry.
6
Care & Cleaning
Turn the warmer drawer
control knob to OFF before removing the
drawer. DO NOT touch the warmer
drawer element. The element may still
be hot enough to cause burns, even if it
is dark in color.
Latch
Pull up latch
with finger
Left Glide
To Remove and Replace Warmer Drawer
To Remove Warmer Drawer:
1.
2.
3.
4.
5.
6.
Turn power off before removing the warmer drawer.
Open the drawer to the fully opened position.
Locate the latches on both sides of the warmer drawer.
Pull up on the left glide latch and push down on the right glide latch.
Pull the drawer away from the appliance.
To clean warmer drawer, gently scour with a soapy scouring pad, this will
remove most spots. Rinse with a 1:1 solution of clear water and ammonia. If
necessary, cover difficult spots with an ammonia-soaked paper towel for 30
to 40 minutes. Rinse with clean water and a damp cloth. Remove all cleaners
or the porcelain may become damaged during future heating. DO NOT use
spray oven cleaners on the cooktop.
To Replace Warmer Drawer:
1. Align the glide latches on both sides of the drawer with the slots on the drawer.
2. Push the drawer back into the appliance.
Latch
Electrical Shock Hazard can occur and result
in serious injury or death. Disconnect appliance from electric
power before cleaning and servicing the warmer drawer.
Right Glide
Push down latch
with finger
Warmer Drawer
Before you call
Solutions to Common Problems
OCCURRENCE
POSSIBLE CAUSE/SOLUTION
Drawer is not level.
Poor installation. Place a level on the cutout bottom. Make sure bottom is level.
Be sure cutout bottom is strong and stable enough to adequately support drawer
(and wall oven, if applicable).
Cannot move appliance easily.
Appliance must be accessible for
service.
Cabinets not square or are built in too tightly. Contact builder or installer to make
appliance accessible.
Warmer drawer does not operate.
Make sure cord/plug is plugged tightly into outlet.
Service wiring is not complete. Contact your dealer, installing agent or authorized
servicer.
Power outage. Check house lights to be sure. Call your local electric company
for service.
7
LIMITED WARRANTY
Your Warm & Serve Drawer is protected by this warranty
WARRANTY
PERIOD
THROUGH OUR AUTHORIZED
SERVICERS WE WILL:
THE CONSUMER WILL BE
RESPONSIBLE FOR:
FULL ONE-YEAR
WARRANTY
One year from original
purchase date.
Pay all costs for repairing or replacing any parts of this Costs of service calls that are listed under NORMAL
appliance which prove to be defective in materials or RESPONSIBILITIES OF THE CONSUMER.*
workmanship.
LIMITED WARRANTY
(Applicable to the
State of Alaska)
Time periods listed above.
All of the provisions of the full and limited warranties above Costs of the technician's travel to the home and any costs
and the exclusions listed below apply.
for pick up and delivery of the appliance required because
of service.
In the U.S.A., your appliance is warranted by Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. We authorize
no person to change or to add to any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed
by us or an authorized servicer.
* NORMAL
RESPONSIBILITIES
OF THE CONSUMER
This warranty applies only to products in ordinary household use, and the consumer is responsible for
the items listed below:
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in
accordance with all local plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which
are not a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation.
6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation
or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary
household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by servicers other than Electrolux Home Products, Inc., Electrolux Canada
Corp., or their authorized servicers; use of parts other than genuine Electrolux parts; obtained from persons other
than such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.
IF YOU NEED
SERVICE
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the warranty
period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This
written warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service
under this warranty must be obtained by contacting Electrolux Home Products, Inc. or Electrolux Canada Corp.
This warranty only applies in the 50 states of the U.S.A., Puerto Rico, and Canada. Product features or specifications as described or illustrated are subject to change without
notice. All warranties are made by Electrolux Home Products, Inc. or Electrolux Canada Corp.
2004_02
USA
800•944•9044
Electrolux Home Products, Inc.
P.O. Box 212378
Augusta, GA 30917
Canada
866•294•9911 (English or French)
Electrolux Canada Corp.
6150 McLaughlin Road
Mississauga, Ontario, Canada
L5R 4C2
8
