E

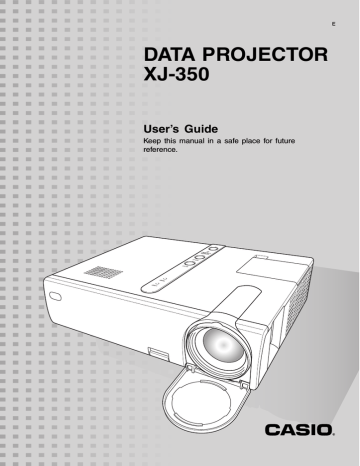

DATA PROJECTOR
XJ-350
User’s Guide
Keep this manual in a safe place for future
reference.
•
•
•
•
Digital Light ProcessingTM, DLPTM, Digital Micromirror DeviceTM, and DMDTM
are trademarks of Texas Instruments Incorporated of the United States.
Microsoft, Windows, Windows NT, Windows XP, and the Windows logo are
registered trademarks or trademarks of Microsoft Corporation of the United
States in the United States and other countries.
Apple and Macintosh are registered trademarks of Apple Computer, Inc. of
the United States.
Other company and product names may be registered trademarks or
trademarks of their respective owners.
この装置は、情報処理装置等電波障害自主規制協議会(VCCI)の基準に基づく
クラス B の情報技術装置です。この装置は、家庭環境で使用することを目的と
していますが、この装置がラジオやテレビジョン受信機に近接して使用される
と、受信障害を引き起こすことがあります。取扱説明書に従って正しい取り扱
いをしてください。
Safety Precautions
Thank you for selecting this CASIO product. Be sure to read these “Safety
Precautions” before trying to use it. After reading this User’s Guide, keep it in a
safe place for future reference.
Safety Precautions
About safety symbols
Various symbols are used in this User’s Guide and on the product itself to ensure
safe use, and to protect you and others against the risk of injury and against
material damage. The meaning of each of the symbols is explained below.
Danger
This symbol indicates a condition that, if ignored or applied
incorrectly, creates the risk of death or serious personal injury.
Warning
This symbol indicates a condition that, if ignored or applied
incorrectly, could possibly create the risk of death or serious
personal injury.
Caution
This symbol indicates a condition that, if ignored or applied
incorrectly, could possibly create the risk of personal injury or
material damage.
Icon Examples
A triangle indicates a situation against which you need to exercise
caution. The example shown here indicates you should take precaution
against electric shock.
A circle with a line through it indicates information about an action that
you should not perform. The specific action is indicated by the figure inside
the circle. The example shown here means disassembly is prohibited.
A black circle indicates information about an action that you must
perform. The specific action is indicated by the figure inside the circle.
The example shown here indicates you must unplug the power cord from
the power outlet.
3
Safety Precautions
Precautions During Use
Warning
●Smoke, odor, heat, loud noise,
and other abnormalities
●Power cord
Misuse of the power cord creates
the risk of fire and electric shock.
Make sure that you always
observe the following precautions.
• Make sure that you use a
power source with the same
voltage as that specified for
the projector.
• Do not overload a power outlet
with too many devices.
Should you ever notice smoke,
strange odor, or loud noise being
emitted by the projector, or any
other abnormality, immediately
stop using the projector.
Continued use creates the risk of
fire and electric shock.
Immediately perform the following
steps.
1.
2.
●Power cord
Unplug the projector.
A damaged power cord creates
the risk of fire and electric shock.
Make sure that you always
observe the following precautions.
• Never place heavy objects on
the power cord and never
expose it to heat.
• Make sure the power cord is
not pinched between the wall
and the rack or table where
the projector is located, and
never cover the power cord
with a cushion or other object.
• Never try to modify the power
cord, allow it to become
damaged, or subject it to
excessive bending.
• Do not twist the power cord or
pull on it.
Contact your original dealer or
authorized CASIO service
center.
●Malfunction
Immediately stop using the
projector if the screen appears
abnormal, if sound is not
produced, or if any other
abnormal operation occurs even
though you are operating the
projector correctly. Continued use
creates the risk of fire and
electric shock. Immediately
perform the following steps.
1.
2.
3.
Turn off the projector.
Unplug the projector.
Contact your original dealer or
authorized CASIO service
center.
●Power cord
Never touch the power cord or
plug while your hands are wet.
Doing so creates the risk of
electric shock.
4
Safety Precautions
3.
●Water and foreign matter
Never allow water to get on the
projector. Water creates the risk
of fire and electric shock.
Contact your original dealer or
authorized CASIO service
center.
●Disposal by burning
Never try to dispose of the
projector by burning it. Doing so
can cause an explosion, which
creates the risk of fire and
personal injury.
Never place a vase or any other
container of water on top of the
projector. Water creates the risk
of fire and electric shock.
Water or other liquid, or foreign
matter (metal, etc.) getting into
the projector creates the risk of
fire and electric shock. Should
anything get inside the projector,
immediately perform the following
steps.
●Looking into the lens or vents
while lamp is on
1.
2.
3.
●Blocking the vents
Never look directly into the lens
or vents while lamp is on. The
strong light emitted by the
projector creates the risk of eye
damage.
Turn off the projector.
Never allow the intake vents (on
the bottom or back of the
projector) or the exhaust vents
(on the side of the projector) to
become blocked. Doing so
causes internal heat build up,
which creates the risk of fire and
breakdown of the projector.
Touching the projector while it is
hot creates the risk of burn
injury. Make sure that you always
observe the following precautions.
• Allow at least 30 cm (11.8
inches) between the projector
and walls.
• Do not insert the projector into
any space where air circulation
is poor.
• Never cover the projector with
a blanket or any similar item.
• Never use the projector on a
carpet, blanket, towel, or other
soft material.
• Never stand the projector up
on either end during use.
Unplug the projector.
Contact your original dealer or
authorized CASIO service
center.
●Disassembly and modification
Never try to take the projector
apart or modify it in any way.
The projector contains a large
number of high-voltage
components that create the risk
of electric shock and burn injury.
Be sure to leave all internal
inspection, adjustment, and repair
up to your original dealer or
authorized CASIO service center.
●Dropping and impact
Continued use of the projector
after it has been damaged by
dropping or other mistreatment
creates the risk of fire and
electric shock. Immediately
perform the following steps.
1.
2.
Turn off the projector.
Unplug the projector.
5
Safety Precautions
●Projector cabinet
●Heavy objects
Never open the projector’s
cabinet. Doing so creates the risk
of electric shock.
Never place heavy objects on the
projector or climb on top of the
projector. Doing so creates the risk of
fire and electric shock.
●Cleaning
●Water
Before cleaning the projector, be
sure to turn it off and unplug it
from the power outlet. Failure to
do so creates the risk of electric
shock.
Never locate the projector in a
bathroom or anywhere else there is the
chance that it will be splashed with
water.
●Exhaust vents
●Unstable location
The exhaust vents become very hot
while the projector is running. Never
touch them. Doing so creates the risk
of burn injury. The areas near the
exhaust vents also become quite hot.
Never locate objects made of plastic or
other heat-sensitive materials near or
under the projector. Doing so creates
the risk of deformation and discoloration
of the object.
Never place the projector on an
unstable surface or on a high
shelf. Doing so can cause it to
fall, creating the risk of personal
injury.
●Using the projector on a base
with casters
Whenever using the projector on a base
that has casters, make sure that you
lock the casters when not moving the
base.
●Lens cover
●Lightening
Be sure to open the lens cover before
turning on the projector. Never close the
lens cover while the projector is in use.
During a lightening storm, do not touch
the plug of the projector’s power cord.
●Location
Never locate the projector in any of the
following types of locations. Doing so
creates the risk of fire and electric
shock.
• Near an area subject to strong
vibration
• An area subject to large
amounts of moisture or dust
• In a kitchen or other area
exposed to oil smoke
• Near a heater, on a heated
carpet, or in an area exposed
to direct sunlight
• An area subject to temperature
extremes (Operating
temperature range is 5°C to
35°C (41 to 95 °F)).
6
Safety Precautions
Caution
●Power cord
●Backup of important data
Misuse of the power cord creates
the risk of fire and electric shock.
Make sure that you always
observe the following precautions.
• Do not locate the power cord
near a stove.
• When unplugging the power
cord, always grasp the plug,
and do not pull on the power
cord.
Be sure to keep separate written
records of all data stored in
projector memory. Memory data
can be lost due to breakdown,
maintenance, etc.
●Lens effect
Never have an aquarium or any other
object that produces a lens effect in
front of the projector while the lamp is
on. Such an object creates the risk of
fire.
●Power cord
●Lens
Misuse of the power cord creates
the risk of fire and electric shock.
Make sure that you always
observe the following precautions.
• Insert the plug into the power
outlet as far as it will go.
• After using the projector, turn
it off and allow it to cool
down. Next, unplug it from the
power outlet.
• Unplug the projector from the
power outlet if you do not plan
to use it for a long time.
• To avoid the built up of dust
between the prongs of the
plug, unplug it from the power
outlet and clean between the
prongs at least once a year.
• Before moving the projector, be
sure to turn it off and unplug
it from the power outlet first.
Never touch the lens with your hand.
7
Safety Precautions
Battery Precautions
Warning
Caution
Misuse of batteries can cause them to
leak and stain the area around them,
or to explode, creating the risk of fire
and personal injury. Make sure that you
always observe the following
precautions.
• Never try to take batteries
apart and do not allow them
to become shorted.
• Never expose batteries to heat
or throw them into fire.
• Never mix old batteries and
new ones.
• Never mix batteries of different
types.
• Never try to charge batteries.
• Take care that batteries are
oriented correctly when you
load them.
Misuse of batteries can cause them to
leak and stain the area around them,
or to explode, creating the risk of fire
and personal injury. Make sure that you
always observe the following
precautions.
• Use only the type of batteries
that is specified for the remote
controller.
●Dead batteries
Be sure to remove batteries from the
remote controller as soon as they go
dead.
• Remove batteries from the
remote controller if you do not
plan to use it for a long time.
●Disposing of batteries
Make sure that you dispose of used
batteries in accordance with the rules
and regulations in your local area.
8
Safety Precautions
Lamp Precautions
Warning
Caution
●Lamp removal
●Lamp replacement
Never remove the lamp from the
projector immediately after using
it. The lamp becomes very hot
during use, creating the risk of
burn injury. Turn off the projector.
After the POWER/STANDBY
indicator changes to steady (not
flashing) amber, unplug the
projector from the power outlet.
Next, wait for at least 60 minutes
before removing the lamp.
Before replacing the lamp, be
sure to turn off the projector and
unplug it from the power outlet.
Failure to do so creates the risk
of electric shock.
• Take care when replacing a
broken lamp.
A broken lamp can cause
glass fragments to be
scattered inside the lamp
housing. Glass inside of the
lamp housing may also be
discharged from the projector’s
vent exhaust ports. Gas inside
of the lamp includes mercury,
so be sure to ventilate the
area whenever the lamp
breaks. Should you accidentally
inhale gas fumes or should
gas fumes get into your eyes,
immediately contact a
physician.
●Specified lamp type
Use only the lamp type that is
specified for this projector. Use of
any other type of lamp creates
the risk of fire and breakdown.
●Broken lamp
Never attempt to replace a
broken lamp on your own. The
projector uses a mercury lamp
with high internal pressure as its
light source. Should the lamp
break, be sure to contact your
original dealer or authorized
CASIO service center to request
replacement. Attempting to
replace a broken lamp on your
own creates the risk of personal
injury due to broken glass or
dispersed mercury.
9
Operating Precautions
Operating Precautions
Lamp Handling Precautions
Caution!
Continued use of a lamp that has passed its lamp life increases the risk of
the lamp rupturing. Replace the lamp with a new one as soon as possible
after the replacement message appears.
● Never touch the glass of the lamp with your fingers. Doing so can damage the
lamp and shorten its life.
● The light source lamp is a consumable item. The average life of a lamp is
●
●
●
●
approximately 2000 hours. After 2000 hours, a message appears to alert you to
the need of lamp replacement. However, note that the characteristics of a
particular lamp or lamp operating conditions can cause the lamp to start to go
dim or even fail before the message appears.
Lamps are guaranteed for 90 days from the date of purchase or for 500 hours
operation, whichever comes first.
A mercury lamp with high internal pressure is used as the light source. A lamp
that is weakened by impact, damage, or expiration of its lamp life may explode or
fail to light if exposed to loud noise. Note that the performance of the lamp differs
greatly from lamp to lamp, and due to conditions under which a lamp is used.
The replacement message appears and the LAMP indicator flashes red after the
lamp life is reached. When this happens, replace the lamp using the instructions
provided in this User’s Guide.
If the lamp continues to be used after its lamp life is reached, after 100 hours
the projector will enter a cool down state and then go into standby. The
projector will not turn on again until you replace the lamp.
Lamp Replacement Precautions
● When the lamp life is reached, the message “It is time to replace the lamp.
●
●
●
●
Use the procedure in the User’s Guide to replace the lamp as soon as
possible.” appears on the display for about 10 seconds, and the LAMP indicator
starts to flash red in one-second intervals. Replace the lamp as soon as
possible after the message appears or the LAMP indicator flashes.
Replace the lamp with a special YL-30 replacement lamp, which should be
available from your original dealer.
Turn off the projector. After the POWER/STANDBY indicator changes to steady
(not flashing) amber, unplug the projector from the power outlet. Next, wait for
at least 60 minutes before removing the lamp. Note that the lamp cartridge
becomes very hot during normal use and during standby. Handling it when hot
creates the risk of burn injury.
The lamp contains mercury. Dispose of old lamps in accordance with the rules
and regulations of your local jurisdiction.
When replacing the lamp, use the special screwdriver that comes with the YL-30
replacement lamp.
10
Operating Precautions
Other Precautions
This projector is made of precision components. Failure to observe the following
precautions can result in inability to correctly save data and malfunction.
●Never use or store the projector in the following locations. Doing so
creates the risk of malfunction of and damage to the projector.
• Locations subjected to electrostatic
charge
• Locations subjected to temperature
extremes
• Locations where there is extreme
moisture
• Locations subjected to sudden
temperature changes
• Locations where there is a lot of
dust
• On a shaky, slanted, or otherwise
unstable surface
• Locations where there is the danger of getting wet
●Avoid using the projector under the following conditions. Such
conditions create the risk of malfunction of and damage to the
projector.
• Avoid areas subject to temperature extremes
(operating temperature range is 5°C to 35°C
(41 to 95 °F)).
• Never place heavy objects on the projector
or climb on top of the projector.
• Never insert or allow foreign objects to drop
into the projector.
• Never place a vase or any other container of
water on top of the projector.
11
Operating Precautions
●Never leave dead batteries inside the remote controller for a long
time.
Batteries can leak, which leads to malfunction of and damage to the remote
controller.
●Clean with a soft, dry cloth.
When very dirty, use a soft cloth that has been dampened in a weak solution of
water and a mild neutral detergent. Wring all excess water from the cloth before
wiping. Never use thinner, benzene, or any other volatile agent to clean the
projector. Doing so can remove its markings and cause staining of the case.
●Missing Screen Dots
Though this projector is manufactured using the most advanced digital technology
available today, some of the dots on the screen may be missing. This is normal,
and does not indicate malfunction.
• The contents of this User’s Guide are subject to change without notice.
• Copying of this manual, either in part or its entirety, is forbidden. You are
allowed to use this manual for your own personal use. Any other use is
forbidden without the permission of CASIO COMPUTER CO., LTD.
• CASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or
claims from third parties arising out of the use of this product or this manual.
• CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost
profits due to loss of data caused by malfunction or maintenance of this
product, or any other reason.
• The sample screens shown in this manual are for illustrative purposes only,
and appear differently from the screens actually produced by the product.
12
Contents
Safety Precautions..........................................................................3
About safety symbols ........................................................................................ 3
Icon Examples................................................................................................... 3
Precautions During Use .................................................................................... 4
Battery Precautions........................................................................................... 8
Lamp Precautions ............................................................................................. 9
Operating Precautions .................................................................10
Features and Functions ...............................................................15
General Guide ...............................................................................16
Remote Controller.........................................................................23
General Guide................................................................................................. 23
Loading Remote Controller Batteries .............................................................. 25
Remote Controller Signal Range .................................................................... 27
Getting Ready................................................................................28
Setting Up the Projector .................................................................................. 28
Setup Precautions........................................................................................... 30
Projector Angle to the Screen ......................................................................... 31
Adjusting the Projector Elevation Angle .......................................................... 32
Rear Projection (From the Back of the Screen) .............................................. 34
Connecting a Computer to the Projector (Video and Audio) ........................... 34
Connecting a Computer to the Projector’s USB Port ...................................... 35
Connecting to a Standard Video Device ......................................................... 36
Connecting to a Component Video Output Device ......................................... 37
Turning On the Projector................................................................................. 38
Turning Off the Projector................................................................................. 41
Projection Operations ..................................................................43
Projecting onto a Screen................................................................................. 43
Keystone Correction (KEYSTONE)................................................................. 50
Adjusting the Volume Level (VOL +/–) ............................................................ 53
Enlarging the Projected Image (D-ZOOM +/–)................................................ 54
Using Picture-in-Picture (P-IN-P) .................................................................... 56
Muting the Image and Audio (MUTE).............................................................. 58
Freezing the Projected Image (FREEZE) ....................................................... 59
Operating the Computer with the Remote Controller (Wireless Mouse) ......... 59
13
Contents
Using the Setup Menu ..................................................................61
Setup Menu Overview..................................................................................... 61
Before Configuring Menu Settings .................................................................. 64
Setup Menu Screen Operations...................................................................... 65
Setup Menu Reference ................................................................................... 73
Image Adjustment ........................................................................................ 73
Volume Adjustment ...................................................................................... 78
Screen Settings............................................................................................ 79
Input Settings ............................................................................................... 85
Option Settings............................................................................................. 89
Operational Info............................................................................................ 99
Restore All Defaults ................................................................................... 100
User Maintenance .......................................................................101
Cleaning the Projector................................................................................... 101
Reattaching the Lens Cover.......................................................................... 101
Replacing the Lamp ...................................................................................... 102
Troubleshooting..........................................................................110
Indicators and Alert Tones ............................................................................ 110
Projector Troubleshooting ............................................................................. 112
Appendix......................................................................................114
Specifications ................................................................................................ 114
Computer System Requirements for USB Connection ................................. 115
Supported Signals......................................................................................... 116
14
Features and Functions
Features and Functions
The following are some of the major features and functions of this product.
■230 × 55 × 171 mm (9.1 × 2.2 × 6.7 inch), 1.8 kg (3.97 lbs) lightweight
and compact data projector
Though it is compact and lightweight enough to go just about anywhere, the projector’s highluminosity allows (2200ANSI lumen) clear projection of images, even in a brightly lit room.
■Versatile projection range
The shortest projection distance is 0.8 meters (2.62 feet), which means that very little space
is required for projection. 2X zoom makes it possible to produce a projected image of the
size you want from a range of possible distances. To project onto a 60-inch screen, for
example, you can set up the projector anywhere from 1.6 meters (5.25 feet) to 3.2 meters
(10.5 feet) from the screen.
■A selection of possible input sources
Possible input sources are a computer’s RGB signal, a video device’s VIDEO/S-VIDEO signal,
and a component video signal (Y·Cb/Pb·Cr/Pr).
■Various automated features
Everything from setup configuration to projection is quick and easy thanks to auto input
source switching, auto image adjustment, auto keystone correction, and more.
■Versatile projection functions
A collection of powerful projection tools let you enlarge a specific part of the projected image
with digital zoom, use picture-in-picture to insert a video input sub-window into a projected
computer image, and much more.
■Remote controller also performs computer mouse functions
You can use the remote controller that comes with the projector to perform mouse operations
on the computer connected to the projector’s USB port, to perform page up and page down
operations, and more. The remote controller helps to make presentations more effective.
15
General Guide
General Guide
This section defines the names and explains the main functions of each part of the projector.
[Front/Right Side]
1
2
6
45
3
1
Remote control signal receiver : Receives the remote control signal.
) Remote Controller Signal Range (page 27)
2
Lens
: Projects the image from the projector.
Caution!
Never look into the lens while the projector is turned on.
3
Lens cover
: Covers the lens to protect it. Be sure to open this cover
when using the projector.
Should the lens cover become accidentally detached, use
the procedure under “Reattaching the Lens Cover” on
page 101 to reattach it.
4
Focus ring
: Rotate to focus the projected image.
5
Zoom ring
: Rotate to change the size of the projected image.
) Zoom and Focus (page 47)
6
Release button
: Press to release the elevation adjustment foot.
16
General Guide
[Top, Left Side, Back]
* For details about the terminals on the back of the projector, see “Back, Terminals” on page 22.
1
5
2
6
3
4
7
1
Projection key panel cover
2
Key and Indicator Panel
: This panel includes the [ ] (power) key and various indicators.
) Key and Indicator Panel, Projection Key Panel (page 19)
3
Speaker
) Back, Terminals (page 22)
4
Exhaust vents
: Exhaust air for cooling.
) Setup Precautions (page 30)
Caution!
z
z
5
: Protects a key panel for projection operations.
: Outputs audio input through the AUDIO terminal.
Never allow the exhaust vents to become blocked, and make sure there is
at least 30 cm (11.8 inches) clearance around the projector. Blocked vents
can cause heat to build up, creating the risk of fire and malfunction.
Never touch the areas around the exhaust vents.
These areas can become very hot, and create the risk of burn injury.
Intake vents
: Intake air for cooling.
) Setup Precautions (page 30)
Caution!
Never allow the intake vents on the back or the bottom of the
projector to become blocked. Blocked vents can cause heat to build
up, creating the risk of fire and malfunction.
6
Anti-theft lock hole
7
Remote control signal receiver : Receives the remote control signal.
) Remote Controller Signal Range (page 27)
: An anti-theft chain can be passed through this hole. Visit
the Kensington Lock Website at http://www.kensington.com/
for more information.
17
General Guide
[Bottom]
1
2
4
3
2
1
Elevation adjustment foot
: Rotate to change the angle of the projector.
) To change the projector elevation angle (page 32)
2
Left, right adjustment feet (2)
3
Intake vents
: Intake air for cooling.
) Setup Precautions (page 30)
: Rotate for fine adjustment of the left and right angle of
the projector.
) To change the projector elevation angle (page 32)
Caution!
4
Never allow the intake vents on the back or the bottom of the projector
to become blocked. Blocked vents can cause heat to build up, creating
the risk of fire and malfunction.
Lamp cover
: Open this cover to replace the lamp.
) To replace the lamp (page 105)
18
General Guide
[Key and Indicator Panel, Projection Key Panel]
* The illustration below shows the configuration when the projection key panel cover is open.
See the next page for information about opening and closing the projection key panel cover.
1
2
7
8
3
9
4
5
6
bk
bl
1
LAMP indicator
: Indicates the current lamp status.
) Indicators and Alert Tones (page 110)
) Replacing the Lamp (page 102)
2
TEMP indicator
: Indicates the error status of the projector.
) Indicators and Alert Tones (page 110)
3
[AUTO] key
4
[INPUT] key
: Press to cycle through available projector input sources.
) Manually Selecting the Input Source (page 45)
5
POWER/STANDBY indicator
: Indicates the current projector status.
) Turning On the Projector (page 38)
) Indicators and Alert Tones (page 110)
6
[ ] (power) key
: Turns projector power on and off.
) Turning On the Projector (page 38)
7
[KEYSTONE] key
8
[MENU] key
: Automatically adjusts the projected image in accordance
with RGB input.
) Auto Adjustment of an RGB Image (page 48)
: Press this key to automatically correct the projected image
and remove vertical and horizontal keystoning.
) Keystone Correction (KEYSTONE) (page 50)
: Press this key to display the projector setup menu on the
projected image.
) Setup Menu Screen Operations (page 65)
19
General Guide
9
Cursor keys
: Use these keys to perform the operations described below.
z To move the highlighting (selection cursor) on the menu screen ()page 65)
bk
[ENTER] key
: Use this key to perform the operations described below.
z To execute the command currently highlighted on the menu screen ()page 65)
bl
[ESC] key
: Use this key to perform the operations described below.
z When a menu screen is displayed, to back-step to the previous screen ()page 65)
z You can disable certain key operations, if you want. For details, see “Option Settings J
Key Lock” on page 91.
20
General Guide
Using the Projection Key Panel
You can use the keys on the projection key panel to control the projector when the remote
controller is not available for some reason.
Opening and Closing the Projection Key Panel Cover
Hook your finger
here and lift to open.
21
General Guide
[Back, Terminals]
1
2
3
4
6
5
1
RGB input terminal
2
USB port
3
AUDIO input terminal
: For connection to the audio output terminal of a computer
or video device using a commercially available audio cable
(∅3.5mm stereo).
) Connecting a Computer to the Projector (Video and Audio) (page 34)
) Connecting to a Standard Video Device (page 36)
4
S-VIDEO input terminal
5
VIDEO input terminal
6
Power connector
: For connection of the bundled AC power cord.
) Turning On the Projector (page 38)
: For connection to the video output terminal of a computer
or component video device using the bundled Mini D-Sub
cable or the optional component video cable (YK-3).
) Connecting a Computer to the Projector (Video and Audio) (page 34)
) Connecting to a Component Video Output Device (page 37)
: For connection to a USB port of a computer using the
bundled USB cable.
) Connecting a Computer to the Projector’s USB Port (page 35)
: For connection to the S-VIDEO output terminal of a video
device using a commercially available S-video cable.
: For connection to the VIDEO output terminal of a video
device using the bundled video cable.
) Connecting to a Standard Video Device (page 36)
22
Remote Controller
Remote Controller
This section defines the names and explains the main functions of each part of the remote
controller.
General Guide
1
2
3
bl
4
5
6
7
bm
8
bn
9
bo
bq
bk
bp
br
z The asterisks (*) in the following explanations indicate keys that have the same names
and functions as keys on the projector itself. Note that the operations of remote controller
keys 3, 4, and 5 can be performed using the projector’s [INPUT] key.
z Some remote controller keys have the same names as projector keys. Unless stated
otherwise in this manual, the remote controller keys perform the same functions as their
corresponding projector keys.
CLASS 1 LED PRODUCT
1
Remote control signal emitter
2
*[ ] (power) key
: Turns projector power on and off.
) Turning On the Projector (page 38)
3
[S-VIDEO] key
4
[VIDEO] key
: Press to select the VIDEO input terminal as the input
source.
5
[RGB/COMPONENT] key
: Press to select the RGB input terminal as the input
source.
: Press to select the S-VIDEO input terminal as the input
source.
) Manually Selecting the Input Source (page 45)
23
Remote Controller
6
[MUTE] key
7
[FREEZE] key
: Freezes the projected image.
) Freezing the Projected Image (FREEZE) (page 59)
8
[VOL +] / [VOL –] keys
9
*[MENU] key
bk
[PAGEUP] / [PAGEDOWN] keys : Press to perform page up and page down operations on
the computer connected to the projector’s USB port.
) Operating the Computer with the Remote Controller (Wireless Mouse) (page 59)
bl
*[AUTO] key
bm
[P-IN-P] key
bn
[D-ZOOM +] / [D-ZOOM –] keys : Press the [+] key to increase the size of the projected
image, and the [–] key to decrease it.
) Enlarging the Projected Image (D-ZOOM +/–) (page 54)
bo
*[KEYSTONE] key
bp
*Cursor keys
: Use these keys to perform the operations described below.
z To move the highlighting (selection cursor) on the menu screen ()page 65)
z To perform mouse operations on the computer connected to the projector’s USB port
()page 60)
z In this manual, cursor key operations are indicated as [S], [T], [W], [X].
bq
*[ENTER] key
: Use this key to perform the operations described below.
z To execute the command currently highlighted on the menu screen ()page 65)
z To perform a mouse left-click operation on the computer connected to the projector’s
USB port ()page 60)
br
*[ESC] key
: Use this key to perform the operations described below.
z When a menu screen is displayed, to back-step to the previous screen ()page 65)
z To perform a mouse right-click operation on the computer connected to the projector’s
USB port ()page 60)
: Press to momentarily cut off the projected image and
audio output from the projector’s speaker.
) Muting the Image and Audio (MUTE) (page 58)
: Press the [+] key to increase volume, and the [–] key to
decrease volume.
) Adjusting the Volume Level (VOL +/–) (page 53)
: Press this key to display the projector setup menu on the
projected image.
) Using the Setup Menu (page 61)
: Automatically adjusts the projected image in accordance
with RGB input.
) Auto Adjustment of an RGB Image (page 48)
: When projecting RGB (computer) input, press this key to
project video input in a sub-window.
) Using Picture-in-Picture (P-IN-P) (page 56)
: Press this key to automatically correct the projected image
and remove vertical and horizontal keystoning.
) Keystone Correction (KEYSTONE) (page 50)
24
Remote Controller
Loading Remote Controller Batteries
Before you can use the remote controller for the first time, you need to load the two
batteries that come with it. Replace remote controller batteries with a set of new ones
whenever the remote controller does not work or if you need to move the remote controller
very close to the projector before it will work.
Caution!
Misuse of batteries can cause them to leak and stain of the area
around them, or to explode, creating the risk of fire and personal injury.
Make sure that you always observe the following precautions.
z Take care that batteries are oriented correctly when you load them.
z Never mix old batteries and new ones.
z Never mix batteries of different types.
z Use only battery type that is specified for use with the remote
controller.
To load remote controller batteries
1. Remove
the battery cover from the back of the remote controller.
z If there are old batteries inside the case, remove them.
25
Remote Controller
2. Load
two new batteries into the case, making sure that their positive (+)
and negative (–) ends are facing correctly.
3. Replace
the battery cover on the back of the remote controller.
26
Remote Controller
Remote Controller Signal Range
When performing an operation on the remote controller, point it at the remote control signal
port on the back or front of the projector. The following illustration shows the range of the
remote controller signal.
±40 degrees
max.
9 meters
(29.53 feet)
max.
±40
degrees max.
9 meters
(29.53 feet)
max.
Front
±20
degrees max.
±20
degrees max.
9 meters
(29.53 feet)
max.
9 meters
(29.53 feet)
max.
27
Back
Getting Ready
Getting Ready
This section explains how to set up the projector to get it ready for use, and how to connect
it to an input source (computer or video device).
It also includes information about how to turn on the projector, how to select the display
language the first time you turn it on, and precautions you need to keep in mind concerning
the power supply.
Setting Up the Projector
This projector is designed for tabletop use only. Place the projector onto a table, desk, or
stand that is level and firm, making sure you allow enough room around it.
z The following illustrations show how the projector should be oriented for optimum
projection relative to the screen.
Viewed from Above
Viewed from the Side
Screen
Screen
The center of the projector’s lens
should be aligned with the horizontal
center of the screen.
Make sure the projector is at a right
angle to the screen.
z You can place the projector on a surface that is angled up to 30 degrees up or down
during use.Angling the projector more than 30 degrees up or down can cause rupture or
premature aging of the projector's lamp,or malfunction of the projector.
z The above setup enables proper projection without any image correction. If the projector
is at an angle to the screen, a phenomenon called “keystoning” will occur, which causes
the sides, and/or the top and bottom of the image to be different lengths. The projector
comes with a keystone correction feature that automatically corrects the image. See
“Keystone Correction (KEYSTONE)” on page 50 for information about keystone correction.
28
Getting Ready
z
The allowable projection range is from 0.8 meter (2.62 feet) to 16 meters (52.49 feet),
which is the distance from the surface of the lens to the screen.
Screen Size 300
8.0 m to 16.0 m
(26.25 feet to 52.49 feet)
Screen Size 30
0.8 m to 1.6 m
(2.62 feet to 5.25 feet)
Screen Size 60
1.6 m to 3.2 m
(5.25 feet to 10.50 feet)
16 m
12 m
10 m
14 m
(52.49 feet) (45.93 feet) (39.37 feet) (32.81 feet)
8 m
6 m
(26.25 feet) (19.69 feet)
4 m
(13.12 feet)
2 m
(6.56 feet)
Minimum: 0.8 meter
(2.62 feet)
Maximum: 16 meters (52.49 feet)
The following table shows the relationship between the distance and projected image size.
Projection Size
Screen Size
Projection Distance
Diagonal (cm)
Minimum
Distance
(m)
Maximum
Distance
(m)
Minimum
Distance
(feet)
Maximum
Distance
(feet)
30
76
0.8
1.6
2.62
40
102
1.1
2.1
3.61
6.89
60
152
1.6
3.2
5.25
10.50
80
203
2.1
4.3
6.89
14.11
100
254
2.7
5.3
8.86
17.39
120
305
3.2
6.4
10.50
21.00
150
381
4.0
8.0
13.12
26.25
200
508
5.3
10.7
17.39
35.10
250
635
6.7
13.3
21.98
43.64
300
762
8.0
16.0
26.25
52.49
z Note that the distances provided above are for reference only. Actual distances will be
within ±5% of those provided.
29
5.25
Getting Ready
Setup Precautions
Note that the condition of the environment where you use the projector greatly affects its
performance. Make sure that the following are the conditions of projector setup whenever you
use it.
z Use a conveniently located power outlet that you can reach easily when you need to
unplug the projector.
z Do not place any objects within the area indicated by the dashed line in the illustration
below. Be especially careful that you never block intake and exhaust vents.
30 cm
(11.8 inches)
Exhaust vents
Allow sufficient
clearance and
do not block
intake vents.
Intake vents
Allow sufficient
clearance and do not
block vents.
z
z
z
z
z
z
Do not locate any objects near the projector while it is in use. Keep all items at least
30 cm (11.8 inches) away from the exhaust vents.
The vents become quite hot while the projector is in use. Never touch the vents with your
hands. Also, the areas near the exhaust vents also become quite hot. Never locate
objects made of plastic or other heat-sensitive materials near or under the projector. Doing
so creates the risk of deformation and discoloration of the object.
Avoid placing the projector on a surface that is unstable or prone to vibration. Never
place the projector on top of a carpet, blanket, towel, or other soft material.
Do not locate the projector where it will be exposed to direct sunlight.
Avoid locations where there are large amounts of dust and moisture.
Keep the projector away from speakers, TVs, radios, and other devices that generate
magnetism, as well as from heaters.
30
Getting Ready
Projector Angle to the Screen
The following shows the allowable angle that the projector can be positioned relative to the
screen.
Vertical
Horizontal
Screen
Screen
Up to about 30 degrees
Up to about 8 degrees
Up to about 30 degrees
Up to about 8 degrees
z The angles shown in the above illustration are subject to the following conditions.
z Projection of an image from a computer (Resolution: 1024 × 768; Vertical Frequency:
60Hz)
z Resize Image To Fit: On
z Either vertical or horizontal keystone correction only.
z The correction range of horizontal keystone correction is narrower while vertical keystone
correction is in effect.
z Actual correction ranges are affected by the type of signal being projected, zoom, the
“Resize Image To Fit” setting, the aspect ratio setting, and other factors.
31
Getting Ready
Adjusting the Projector Elevation Angle
You can change the elevation angle of the projector in a range of 0 to 8 degrees. You can
also make fine adjustments to the left and right side elevation angle when necessary.
To change the projector elevation angle
1. Lift
up the front of the projector and press the release button.
z This causes the elevation adjustment foot to drop from the bottom of the projector.
2. While
holding down the release button, raise and lower the front of the
projector until the elevation adjustment foot is approximately the length
you need.
3. Release
the release button to lock the elevation adjustment foot in its
current position.
4. Rotate
the elevation adjustment foot for fine adjustment of its length.
Longer
Shorter
32
Getting Ready
5. Use
the left and right adjustment feet to further fine adjust the elevation
angle.
Rotate to adjust horizontal alignment.
z To retract the elevation adjustment foot, hold down the release button and slide the
elevation adjustment foot back into the projector. Never try to forcibly change the elevation
adjustment foot position without pressing the release button.
33
Getting Ready
Rear Projection (From the Back of the Screen)
Distances and angles for rear projection are the same as those for front projection. In the
case of rear projection, however, left/right orientation is opposite that of front projection, so
you need to configure the setup menu accordingly. For details, see “Screen Settings J Flip
Horizontal” on page 82.
Connecting a Computer to the Projector
(Video and Audio)
You can use the projector to project an image of video output from a computer. You can also
output audio from the computer through the projector’s speaker.
z Always turn off the projector and the computer before connecting them.
Projector
RGB input terminal
AUDIO input terminal
Computer
Audio cable (commercially available)
To line output terminal
Bundled mini D-Sub cable
To monitor terminal (analog RGB output terminal)
z
z
You can use the bundled mini D-Sub cable to connect to a D-Sub 15-pin type monitor
terminal. For other types of monitor terminals (like the one on the old model Macintosh),
you need to purchase an optional adapter. See the documentation that came with your
computer for information about its terminal.
The analog RGB video output display mode (resolution and frequency combination) of your
computer may not allow proper operation with the projector. See “Supported Signals” on
page 116 for information about the computer display modes supported by this projector.
34
Getting Ready
Connecting a Computer to the Projector’s
USB Port
After you connect a computer to the projector’s USB port, you can use the remote controller
to perform computer mouse operations, and previous page and next page operations. The
illustration shows how to connect to the USB port.
Projector
USB port
Computer
Bundled USB cable
z
z
To USB port
For details about computer requirements, see “Computer System Requirements for USB
Connection” on page 115.
For details about operation over a USB connection, see “Operating the Computer with the
Remote Controller (Wireless Mouse)” on page 59.
35
Getting Ready
Connecting to a Standard Video Device
You can use the projector to project an image from a video deck, TV, video camera, or other
video device. You can also output audio from the video device through the projector’s speaker.
z Always turn off the projector and the video device before connecting them.
Projector
Video device
Commercially available audio cable
To AUDIO output terminal
To S-VIDEO output terminal
To VIDEO output terminal
VIDEO input terminal
S-VIDEO input terminal
AUDIO input terminal
z
z
Commercially available S-video cable
Bundled video cable
You can use the bundled video cable to connect to a pin jack (RCA) type VIDEO output
terminal. When connecting a video camera or other video device with a special video
output terminal, use the special cable that comes with the video device. For details, see
the documentation that comes with the video device.
Note that the projector is equipped with separate circuits for the VIDEO input terminal and
S-VIDEO input terminal. Make sure you connect the video device to the correct terminal.
The projector lets you switch the input source between RGB (or Component), VIDEO, and
S-VIDEO whenever you want.
36
Getting Ready
Connecting to a Component Video Output Device
Some video devices are equipped with a component video output terminal. You can use an
optionally available component video cable (YK-3) to connect the RGB input terminal of the
projector to the component video output terminal of a video device.
z Always turn off the projector and the video device before connecting them.
Projector
RGB input
terminal
AUDIO input terminal
Commercially available audio cable
To AUDIO output
terminal
Video device
Optional component video cable
(YK-3)
To Component video
output terminal
z
z
z
z
Component video output terminals come in 3-terminal sets: Y·Cb·Cr or Y·Pb·Pr. Be sure to
match the colors of the plugs on the optional YK-3 component video cable with the colors
of the terminals (Green: Y; Blue: Cb/Pb; Red: Cr/Pr).
You can use the optional YK-3 component video cable to connect to pin jack (RCA) type
component video output terminals. The projector does not support connection to any other
type of terminal.
Note that connection only to an analog component video output terminal is supported.
Connection to a digital output terminal is not supported.
In order to connect to a component video terminal, you must use the setup menu to
configure input settings. For details, see “Input Settings J RGB Input” on page 85.
37
Getting Ready
Turning On the Projector
Before performing any of the operations in this section, make sure you first set up the
projector (page 28) and connect to an output device (pages 34 to 37).
AC Power Cord Precautions
z
z
z
z
z
z
z
Make sure that you use a power source with the same voltage as that specified for the
projector.
Do not share the outlet supplying power to the projector with other devices. If you are
using an extension cord, make sure that the ampere rating of the extension cord is
compatible with the power consumption value of this projector.
Never use the power cord while it is still bundled together.
Never place objects on top of the power cord and do not step on it.
Never pull on the power cord. When unplugging it, grasp the plug.
Use a conveniently located power outlet that you can reach easily when you need to
unplug the projector.
If you need more information about the power supply, contact your original dealer or
authorized CASIO service center.
To turn on the projector
1. Use
the bundled AC power cord to plug the projector into a power
outlet.
Power supply connector
Bundled AC power cord
The shape of the plug depends on
your geographical area.
z Plugging into a power outlet causes the three indicators on the top of the projector to
light amber. After a short while, two of the indicators will go out and only the POWER/
STANDBY indicator will remain lit amber, which indicates the standby state.
z Note that the projector will not turn on if you press the [ ] (power) key while all three
indicators are lit amber. Wait until the projector is in the standby state before trying to
turn it on.
2. Turn
on the computer or video device that is connected to the projector.
38
Getting Ready
3. If
the projector’s lens cover is closed, open it.
4. Press
the [
] (power) key.
z This causes the POWER/STANDBY indicator to flash green, which indicates that the
projector is warming up. After a short while, the start up screen will be projected (warm
up is still in progress).
z After warm up is complete, POWER/STANDBY indicator stops flashing and remains lit
green, and the projector starts projecting an image from the device connected to it. It
normally takes about 60 seconds from the point that warm up starts until an image is
projected from the connected device.
z A “Language” window will be projected the first time you turn on the projector. Use the
procedure under “Specifying the Display Message Language” on page 40 to configure
the language settings.
Startup screen
Input image projection
z You can configure the startup screen so it shows a custom logo you created yourself, or
so nothing appears at startup. For details, see “Option Settings J Custom Logo Settings”
on page 92 and “Screen Settings J Startup Screen” on page 82.
z If the projector is configured for low-noise mode operation, the LAMP indicator lights
green when warm up starts. See “Option Settings J Low-noise Mode” on page 90 for
information about the low noise mode.
z For details about projection operations, see “Projecting onto a Screen” on page 43.
39
Getting Ready
Specifying the Display Message Language
A “Language” window will be projected the first time you turn on the projector. Use the menu
on this screen to specify the display language you want to use.
1. Use
the cursor [S] and [T] keys to highlight the language you want to
use.
2. Press
the [ENTER] key.
z This applies the selected language, closes the “Language” window, and displays the
projected image from the connected device.
z You can change the display language selection later, if you need to. For details, see
“Option Settings J Language” on page 98.
z For details about projection operations, see “Projecting onto a Screen” on page 43.
40
Getting Ready
Turning Off the Projector
z When you turn off the projector, the lamp goes out and the projector goes into a cool
down state. Note that you will not be able to turn the projector back on again while it is
cooling down.
z The projector may remain quite hot for a while after you turn it off. Avoid touching the
projector after you turn it off.
z Note that the projector may still be quite warm even after it completes its cool down
procedure. Before packing up the projector, it is recommended that you check to make
sure that the fan is stopped and that the projector is no longer warm.
To turn off the projector
1. Press
the [
] (power) key.
z This causes a confirmation message like the one shown below to appear in the center
of the projection screen.
z If you do not turn off the projector the confirmation message will disappear
automatically after about 10 seconds. The confirmation message will also disappear if
you press [ESC] key.
2. To
turn off the projector, press the [ ] (power) key again in response
to the confirmation message.
z This causes the projector lamp to go out and stops projection.
z Also the POWER/STANDBY indicator starts to flash amber, which indicates that the
projector is cooling down. It takes about 90 seconds from the start of cool down until
the projector turns off.
z The projector will not turn back on again while it is cooling down.
z After cool down is finished, the POWER/STANDBY indicator on the top of the projector
will light amber, which indicates the standby state. You can now turn the projector back
on, if you want.
41
Getting Ready
3. After
confirming that cool down is complete, unplug the AC power cord
from the power outlet.
z Note that the projector may still be quite warm even after it completes its cool down
procedure. Before packing up the projector, it is recommended that you check to make
sure that the fan is stopped and that the projector is no longer warm.
z This causes the POWER/STANDBY indicator to go out.
4. After
ensuring that the projector and the connected computer or video
device are turned off, disconnect the connecting cables from the
projector and the connected device.
5. Close
the lens cover.
z Make sure that the lens is not extended before trying to close the lens cover.
Auto Power Off
Auto Power Off automatically turns off the projector whenever there is no input signal from
the currently selected input source, and no operation is performed on the projector for about
10 minutes.
When Auto Power Off is triggered, the projector first enters a cool down state, the same as
it does when you press the [ ] (power) key to turn it off.
z The POWER/STANDBY indicator flashes amber to indicate that the projector is cooling
down. It takes about 90 seconds from the start of cool down until the projector turns off.
z The projector will not turn back on again while it is cooling down.
z After cool down is finished, the POWER/STANDBY indicator on the top of the projector to
lights amber, which indicates the standby state. You can now turn the projector back on,
if you want.
z You can turn off Auto Power Off, if you want. See “Option Settings J Auto Power Off”
on page 91.
42
Projection Operations
Projection Operations
This section explains operations that are related to projection of an image.
Projecting onto a Screen
This section explains the basic steps for projecting an image.
Basic Flow
Set up the projector and point it at the screen.
“Setting Up the Projector” (page 28)
Connect the computer or video device to the projector ( 34 to 37).
Preparing the Projector
Turn on the projector and the connected computer or video device.
] (power) key to turn on the projector.
Press the [
“Turning On the Projector” (page 38)
Perform fine adjustment of the projection position and angle.
“Adjusting the Projector Elevation Angle” (page 32)
Select the input source.
“Manually Selecting the Input Source” (page 45)
Starting
Projection
Adjust the projected image size and focus the image.
“Zoom and Focus” (page 47)
Start projection (presentation, video, etc.)
• Perform the required operation on the input source computer or video equipment.
• Use the projector’s various functions to adjust the projected image as required.
43
Projection Operations
Auto Input Source Selection
When you turn on the projector, it checks the status of each input source (whether or not
the input source is sending a signal) in the sequence shown below. It automatically selects
the first input source it finds that is sending an input signal, and projects the applicable
image.
RGB terminal input
VIDEO terminal input
S-VIDEO terminal input
(RGB/Component)
(VIDEO)
(S-VIDEO)
If the RGB input terminal is connected to a computer and the S-VIDEO input terminal is
connected to a video deck and signals are being supplied by both, for example, the projector
automatically selects RGB input when it is turned on. The currently selected input source
name is shown in the upper right corner of the projection screen.
Input source name
RGB
z If the projector does not find any input signal, the message “No signal input” appears in
place of the input source name.
z Whether the displayed input source name shows [RGB] or [Component] depends on the
current “Input Settings J RGB Input” (page 85) setting that is configured on the
projector’s setup menu.
If the input source name shows this:
RGB
Component
It means this input is selected:
RGB
Component video
For information about configuring setup menu settings, see “Using the Setup Menu” on
page 61. For information about component video, see “Connecting to a Component Video
Output Device” on page 37.
z Note that the projector does not select the input source automatically when “Off” is
selected for the “Option Settings J Auto Input Detect” (page 89) setting on the setup
menu.
44
Projection Operations
Manually Selecting the Input Source
The procedure you should use to select the input source depends on whether you are using
projector keys or remote controller keys.
[Projector]
[Remote Controller]
[S-VIDEO] key
[VIDEO] key
[RGB/COMPONENT] key
[INPUT] key
To select the input source using projector keys
On the projector, press the [INPUT] key to cycle through input sources in the sequence
shown below.
(RGB/Component)
(VIDEO)
45
(S-VIDEO)
Projection Operations
To select the input source using remote controller keys
On the remote controller, press the [RGB/COMPONENT], [VIDEO], or [S-VIDEO] key to select
the input source you want.
z The currently selected input source name is shown in the upper right corner of the
projection screen.
z If the currently selected input source is not sending an input signal, the message “No
signal input” appears in place of the input source name.
z Whether the displayed input source name shows [RGB] or [Component] depends on the
current “Input Settings J RGB Input” (page 85) setting that is configured on the
projector’s setup menu.
If the input source name shows this:
RGB
Component
It means this input is selected:
RGB
Component video
For information about configuring setup menu settings, see “Using the Setup Menu” on
page 61. For information about component video, see “Connecting to a Component Video
Output Device” on page 37.
46
Projection Operations
Zoom and Focus
Use the zoom ring to adjust the image size, and the focus ring to focus the image.
To adjust the image size
Zoom ring
Smaller
Larger
To focus the image
It is best to have a still image on the screen when you focus the image.
Focus ring
z Performing zoom after focusing can cause the image to go out of focus. If this happens,
focus again.
47
Projection Operations
Auto Adjustment of an RGB Image
When the input source is RGB (computer), the projector automatically adjusts vertical and
horizontal positioning, frequency, and phase whenever it detects an RGB signal (following input
source selection, power up, etc.) You can also execute an automatic adjustment operation by
pressing the [AUTO] key.
z You can turn off auto adjustment (page 90) when you want to disable auto adjustment
and maintain manual settings.
z The projected image may become distorted while an auto adjustment operation is in
progress.
z The [AUTO] key is disabled whenever S-VIDEO, VIDEO, or Component is selected as the
input source.
z If an image is unclear following the auto adjustment operation, you can use the menu to
adjust items manually. For details, see “Image Adjustment” on page 73.
48
Projection Operations
Full-screen Display of an RGB Image
The projector outputs images using XGA (1024 pixels × 768 pixels) video resolution. When
the input signal from the computer connected to the projector is not an XGA signal, “Resize
Image To Fit” automatically enlarges or reduces the image so it matches the projector’s video
resolution and fills the entire screen. The following shows how different input signals from a
computer are adjusted during projection.
Input Signal Example
Projected Image
800 × 600
1024 × 768
1280 × 1024
z Resizing of an input image by “Resize Image To Fit” can call coarsening of the image or
can cause part of the image to be cut off. If this happens, try turning off “Resize Image
To Fit”. See “Screen Settings J Resize Image to Fit” on page 81 for more information.
49
Projection Operations
Keystone Correction (KEYSTONE)
When the projector is at an angle to the screen it is projecting on, the projected image may
have different length left and right edges, or top and bottom edges. This phenomenon is
called, “keystoning”. This projector comes with functions for automatic as well as manual
keystone correction, which provides a regularly shaped projected image.
z Keystone correction (auto or manual) can cause dustortion of the projected image. If this
happens try moving the screen and/or projector so they are oriented close to the
configuration shown under “Setting Up the Projector” on page 28.
z Keystone correction can cause the corrected image to be smaller than the original
(uncorrected) image.
Automatic Keystone Correction
Automatic keystone correction correct the image to counteract the effects of vertical
keystoning.
Performing auto keystone correction causes the message “Auto Keystone Corrected.” to appear
in the center of the projected image.
50
Projection Operations
z Note that auto keystone correction is possible within a range of about –30 degrees to
+30 degrees.
Screen
Up to about 30 degrees
Up to about 30 degrees
z Auto keystone correction is performed by detecting the elevation angle of the projector.
This means that the surface you are projecting onto needs to be standing straight up. If
the surface you are projecting onto is not straight, use manual keystone correction to
correct the image.
z You can turn auto keystone correction on or off as required. For details, see “Option
Settings J Auto Keystone Correction” on page 89.
z Note that auto keystone correction is not performed for horizontal keystoning. Use manual
correction for horizontal keystoning.
z Performing manual horizontal keystone correction and then automatic keystone correction
can cause the manual horizontal keystone correction value to change, and can magnify
horizontal keystoning. This occurs when vertical keystone correction narrows the allowable
manual horizontal keystone correction range, causing the manually specified correction
value to be outside the correction range.
If this happens, rearrange the projector and screen so the lens is pointing straighter at
the screen, and then perform manual keystone correction or auto keystone correction
again.
51
Projection Operations
Manual Keystone Correction
Manual keystone correction can be used to correct for both vertical and horizontal keystoning.
To use manual keystone correction
1. Press
the [KEYSTONE] key.
z This causes the keystone correction screen to appear on the projected image.
2. Use
the [S] and [T] keys to select either “Vertical Keystone Correction”
or “Horizontal Keystone Correction”.
3. Use
the [W] and [X] keys to correct for keystoning.
z Each press of [W] or [X] shifts the indicator on the currently selected bar left or right.
z Keystone correction is possible within the range that the indicator is able to move within
the selected bar. Depending on conditions, the indicator may not move all the way to
either end of the bar.
z Repeat steps 2 and 3 to perform keystone correction for the other direction, if you
want.
4. After
the settings are the way you want, press the [ESC] key or the
[KEYSTONE] key.
z This causes the keystone correction screen to disappear.
52
Projection Operations
z The allowable ranges for manual keystone correction are –30 to +30 degrees vertically,
and –8 to +8 degrees horizontally.
z Performing horizontal keystone correction and then vertical keystone correction can cause
the horizontal keystone correction value to change. This occurs when vertical keystone
correction narrows the allowable manual horizontal keystone correction range, causing the
horizontal keystone correction value to be outside the correction range.
If this happens, rearrange the projector and screen so the lens is pointing straighter at
the screen, and then perform manual keystone correction or auto keystone correction
again.
Adjusting the Volume Level (VOL +/–)
You can use the remote controller keys to adjust the volume level of the audio that is output
from the projector’s speaker.
To adjust the volume level
1. On
the remote controller, press the [VOL +] or [VOL –] key.
z This causes the [Volume] screen to appear on the projected image.
2. Press
the [VOL +] key or the [X] key to increase the volume, or the
[VOL –] or [W] key to lower the volume.
3. After
the setting is the way you want, press the [ESC] key.
z This causes the [Volume] screen to disappear.
53
Projection Operations
Enlarging the Projected Image (D-ZOOM +/–)
You can use the remote controller’s zoom keys to enlarge a specific part of the projected
image up to four times its original size.
To enlarge part of the projected image
1. On
the remote controller, press the [D-ZOOM +] or [D-ZOOM –] key.
z This causes a cross cursor to appear on the projected image.
2. Use
the remote controller’s cursor keys to move the cross cursor to the
part of the image that you want in the center of the enlarged image.
54
Projection Operations
3. On
the remote controller, press the [D-ZOOM +] key to enlarge the
image.
z You can press the [D-ZOOM +] key again to further enlarge the image, up to 4 times.
z You can back step through the image enlargements by pressing the [D-ZOOM –] key.
z You can shift the zoomed image up, down, left, or right by pressing the applicable
remote controller cursor key.
4. To
exit image enlargement and return the image to its original size,
press the remote controller’s [ESC] key.
55
Projection Operations
Using Picture-in-Picture (P-IN-P)
While RGB is selected as the input source, you can display a sub-window that simultaneously
displays the image being input through the VIDEO or S-VIDEO terminal. This function is
called “picture-in-picture” or “P-IN-P”.
RGB input
VIDEO
(or S-VIDEO)
input image
z The initial default setting for the sub-window input source is VIDEO. Use the setup menu
when you want to change the sub-window input source to S-VIDEO. For details, see
“Input Settings J P-in-P Input” on page 87.
z Note that P-IN-P can be used only when RGB is selected as the input source. It is not
available while any other input source is selected.
z If Component is selected for “Input Settings J RGB Input” on the setup menu, you need
to change the setting to RGB in order to use picture-in-picture. Note that the initial
default setting for “Input Settings J RGB Input” is RGB.
56
Projection Operations
To display the sub-window
1. On
the remote controller, press the [RGB/COMPONENT] key to select
RGB as the input source.
z You can also select the input source using the projector’s [INPUT] key.
2. On
the remote controller, press the [P-IN-P] key to display the subwindow.
z This causes the sub-window, containing the image input through the VIDEO or S-VIDEO
terminal, to appear on the projected image. The sub-window will be located at the
position that was used the last time a sub-window was displayed. The initial default
location is the lower right corner.
z You can leave the sub-window where it is, or move it to another location within the
projected image. See “To change the location of the sub-window” for more information.
z You can also select one of three sizes for the sub-window. See “To change the size of
the sub-window” for more information.
3. To
close the sub-window, press the remote controller’s [P-IN-P] key or
the [ESC] key.
To change the location of the sub-window
While a sub-window is displayed, use the remote controller’s cursor keys to move it to one of
the nine locations shown below.
57
Projection Operations
To change the size of the sub-window
While a sub-window is displayed, use the [D-ZOOM +] and [D-ZOOM –] keys to select one
of the three available sub-window sizes (small, medium, large).
[D-ZOOM +] key
Large
Medium
Small
[D-ZOOM –] key
z When RGB is selected as the input source, certain signal types (1600 × 1200 UXGA
signal, for example) do not support selection of the large sub-window size.
Muting the Image and Audio (MUTE)
The mute function causes the projected image to go to black screen, and stop output of the
audio from the speaker.
To mute the image and audio
1. On
the remote controller, press the [MUTE] key.
z This causes the projected image to go to a black screen, and stops output from the
speaker.
2. To
restore the image and audio, press the [MUTE] key again or press
the [ESC] key.
z You can select a black screen, blue screen, or a logo screen for the mute function. For
details, see “Screen Settings J Mute Screen” on page 83.
58
Projection Operations
Freezing the Projected Image (FREEZE)
The freeze function stores the current projected image in projector memory, and projects it as
a still image.
To freeze the projected image
1. On
the remote controller, press the [FREEZE] key.
z This freezes the image that was being projected when you pressed the [FREEZE] key.
2. To
unfreeze the image, press the [FREEZE] key again or press the
[ESC] key.
Operating the Computer with the Remote
Controller (Wireless Mouse)
You can use the remote controller as a wireless mouse to perform mouse operations on the
computer that is connected to the projector. Wireless mouse capabilities really come in handy
when you need to open a presentation software file for projection during a meeting or
presentation.
z To use the remote controller as a wireless mouse, the computer must be connected to
the projector by the USB cable that comes with the projector. For details, see
“Connecting a Computer to the Projector’s USB Port” on page 35.
z Note that wireless mouse capabilities are available only when RGB is selected as the
input source and there is RGB input from the computer to the projector.
To operate the computer with the remote controller
1. Use
the mini D-Sub cable and USB cable that come with the projector
to connect the computer to the projector. After that, turn on the
projector and the computer.
z See the following for more information.
) Connecting a Computer to the Projector (Video and Audio) (page 34)
) Connecting a Computer to the Projector’s USB Port (page 35)
2. On
the remote controller, press the [RGB/COMPONENT] key to select
RGB as the input source.
z You can also select the input source using the projector’s [INPUT] key.
59
Projection Operations
3. Use
the remote controller to perform mouse operations as described
below.
To do this:
Move the pointer on the computer screen
up, down, left, or right
Scroll up one page
Scroll down one page
Perform a left-click operation
Perform a right-click operation
Use this remote controller key:
Cursor key
[PAGE UP]
[PAGE DOWN]
[ENTER]
[ESC]
z Note that wireless mouse operations are not possible while a manual keystone correction
(page 52), volume adjustment (page 53), image enlargement (page 54), or P-IN-P (page 56)
operation is in progress, or while the menu is displayed (page 61). Wireless mouse
capabilities will be restored as soon as the operation that disabled them is complete.
z Note that wireless mouse operation is not supported when the input signal from the
computer is larger than XGA, and “Resize Image To Fit” (page 81) is turned off. Wireless
mouse operation will be supported for an input signal that is larger than XGA if “Resize
Image To Fit” is turned on.
z Note that drag-and-drop is not supported by wireless mouse operations.
60
Using the Setup Menu
Using the Setup Menu
This section explains how to configure setup menu settings, and provides details about each
of the settings.
Setup Menu Overview
Pressing the [MENU] key while an image is being projected displays the setup menu on the
projected image. The setup menu can be used to configure a variety of different projector
settings. See the “Setup Menu Setting List” on page 62 for details about the settings that are
available.
Using the Setup Menu Setting List
z
z
z
The settings that can be configured and the settings that appear on the item depend on
the input source that is currently selected. Under “Input Source” in the following list, there
is a column for each of the input sources listed below. A “ ” in a column means that
the menu item to the left is displayed for that input source, while “ ” indicates that the
menu item is not displayed.
Column name:
Input source:
R
RGB
C
Component
S
S-VIDEO
V
VIDEO
No Signal
No signal being input
The “Sub-menu Item Type” column shows the type of the applicable sub-menu item. Refer
to the pages noted below for more information about each item type.
Value Setting: Specifies a numeric value () page 67).
Selection:
Allows selection from multiple options () page 67).
Setting Screen: Numeric value specification or option selection on a separate setting screen
() page 68).
Execution:
Initializes a setting () page 69).
Information:
Displays information only () page 69).
The “See page” column shows where you should go for more information.
61
Using the Setup Menu
Setup Menu Setting List
Main menu
Adjustment
Volume
Adjustment
Screen
Settings
Input
Settings
*1
*2
*3
*4
*5
*6
This
This
This
This
This
This
Sub-menu
Brightness
Contrast
Sharpness
Saturation
Tint
Gamma Mode
Color Balance
Vertical Position
Horizontal Position
Frequency
Phase
Noise Filter
Restore Menu
Defaults
Volume
Restore Menu
Defaults
Vertical Keystone
Correction
Horizontal Keystone
Correction
Aspect Ratio
Resize Image To Fit
Flip Horizontal
Startup Screen
No Signal Screen
Mute Screen
Restore Menu
Defaults
RGB Input
Video Signal
S-Video Signal
P-in-P Input
Signal Name
Indicator
Special Signal
Restore Menu
Defaults
setting
setting
setting
setting
setting
setting
Sub-menu Item
Type
Value Setting
Value Setting
Value Setting
Value Setting
Value Setting
Setting Screen
Setting Screen
Value Setting
Value Setting
Value Setting
Value Setting
Selection
R
C
Input source
S
V No Signal
*2
See page
page
page
page
page
page
page
page
page
page
page
page
page
*2
Execution
73
73
73
73
73
74
74
76
76
77
77
77
page 78
*1
Value Setting
page 78
Execution
page 78
Value Setting
page 79
Value Setting
Selection
Selection
Selection
Selection
Selection
Selection
page 79
*3
page
page
page
page
page
page
Execution
Selection
Setting Screen
Setting Screen
Selection
page 84
*4
*5
*6
*7
Selection
Setting Screen
page
page
page
page
85
86
86
87
page 87
*7
Execution
is for the currently selected input source.
can be configured only for an NTSC or NTSC4.43 signal.
can be selected only when the aspect ratio of the input signal is 4:3.
can be configured only when the input source is RGB/Component.
can be configured only when the input source is VIDEO.
can be configured only when the input source is S-VIDEO.
62
80
81
82
82
83
83
page 88
page 88
Using the Setup Menu
Setup Menu Setting List
Main menu
Sub-menu
Sub-menu Item
Type
Selection
Auto Input Detect
Auto Keystone
Selection
Correction
Auto Adjust
Selection
Low-noise Mode
Selection
Auto Power Off
Selection
Option
Key Lock
Selection
Settings
Custom Logo
Special*8
Settings
Language
Setting Screen
Alert Tones
Selection
Restore Menu
Execution
Defaults
Lamp Time
Information
Reset Lamp Time
Execution
Input Signal
Information
Signal Name
Information
Operational
Index
Information
Info
Resolution
Information
Horizontal Frequency
Information
Vertical Frequency
Information
Scan System
Information
Restore All
Restore All Defaults
Execution
Defaults
R
C
Input source
S
V No Signal
See page
page 89
page 89
*7
page
page
page
page
page 92
page 98
page 98
page 99
page 99
page 99
page 99
page 99
page 99
page 99
page 99
page 99
page 100
page 100
*7 This setting can be configured only when the input source is RGB.
*8 This is a special sub-menu item that is different from other types. For details, see “Option
Settings J Custom Logo Settings” on page 92.
63
90
90
91
91
Using the Setup Menu
Before Configuring Menu Settings
Always remember that the settings you configure on the setup menu are applied for the input
source (RGB, Component, S-VIDEO, VIDEO) that was selected when you displayed the setup
menu. Note the following important points.
z The items that appear on the setup menu depend on the currently selected input source
and other factors.
Some items apply to a certain specific input source, while some apply to multiple input
sources.
z Even for menu items that are common to multiple input sources, the setting range or
selectable options may differ according to the input source.
z With certain exceptions, there are basically two types of settings that can be configured
for multiple input sources. One type lets you configure different settings for each individual
input source. The other type applies a single setting to all input sources. The volume
level setting, for example, lets you configure a different setting for each input source, while
the keystone correction setting lets you configure a single common setting for all input
sources.
z For details about how settings are saved, and other details, see “Setup Menu Reference”
on page 73.
64
Using the Setup Menu
Setup Menu Screen Operations
This section explains projector operations you need to perform while configuring setup menu
settings. It also provides details about each sub-menu item type.
Basic Setup Menu Operations
The following is the general flow of the steps you need to perform when configuring setup
menu operations.
1. Select
the input source whose settings you want to configure.
2. Press
the [MENU] key.
z This causes the setup menu screen to appear in the center of the projected image.
z The setup menu has a main menu on the left side. On the right side is a sub-menu of
settings that can be configured for the currently selected main menu item.
Main menu
Sub-menu
z The items that appear in the sub-menu depend on the currently selected input source,
and whether or not a signal is being input from the input source. For details, see
“Setup Menu Overview” on page 61.
3. Use
the [S] and [T] keys to select the main menu whose sub-menu
contains the settings you want to configure.
z The settings for the selected main menu item appear in the sub-menu.
65
Using the Setup Menu
4. Press
the [ENTER] key.
z This selects the top item in the sub-menu.
5. Use
the [S] and [T] keys to select the sub-menu item whose setting
you want to change.
6. Change
the setting or select an option to configure the currently
selected sub-menu item.
z The operation you need to perform depends on the sub-menu item type. See “Setup
Menu Overview” on page 61 for more information.
z For information about how to configure settings for each sub-menu item, see “Sub-menu
Operations” on page 67.
z After configuring the settings of one sub-menu item, you can repeat steps 5 and 6 to
select another item on the same sub-menu and configure its setting.
z If you want to configure the settings of another main menu item, press the [ESC] key
to exit the current sub-menu. Next, repeat steps 3 through 6 to select another main
menu item and change the settings of its sub-menu.
7. Press
the [MENU] key to exit the setup menu.
z This causes the setup menu to disappear from the projected image.
66
Using the Setup Menu
Sub-menu Operations
This section explains steps you need to perform in order to configure settings for each submenu item type (value, selection, setting screen, execution, information).
Value Setting Type Sub-menu Item
This type of sub-menu item consists of a value and a bar graph.
Examples: Image Adjustment J Brightness; Screen Settings J Vertical Keystone
Correction
Operation: Press the [W] key to make the value smaller, or the [X] key to make it larger.
A value can be selected within the range that the indicator is able to move
within the selected bar. Depending on conditions, the indicator may not move
all the way to either end of the bar.
Selection Type Sub-menu Item
This type of sub-menu item provides a number of options from which you can choose.
Examples: Screen Settings J Startup Screen; Option Settings J Auto Keystone Correction
Operation: The currently selected option is indicated by a black button next to it. Use the
[W] and [X] keys to move between the selections, which causes the buttons
next to them to become either black (selected) or white (deselected).
z For details about the options that are available for each selection type sub-menu item,
see “Setup Menu Reference” on page 73.
67
Using the Setup Menu
Setting Screen Type Sub-menu Item
This type of sub-menu item displays a separate screen that you use to configure its settings.
Examples: Image Adjustment J Gamma Mode; Option Settings J Language, etc.
Operation: The following example shows how to configure settings for Input Settings J
Video Signal, S-Video Signal
1. On
the remote controller, press the [VIDEO] key to select the VIDEO
input terminal as the input source.
2. Perform
steps 2 through 4 under “Basic Setup Menu Operations” on
page 65. On the “Input Settings” main menu, select the “Video Signal”
sub-menu item.
3. Press
the [ENTER] key.
z This displays the video signal selection screen shown below.
4. Use
the [S] and [T] keys to highlight the item you want to select, and
then press the [ENTER] key.
5. After
you are finished configuring the settings, press the [ESC] key to
close the setting screen and return to the sub-menu screen.
z After you are finished, press the [MENU] key to exit the setup menu.
68
Using the Setup Menu
z Note that the available settings and configuration procedures depend on the setting
screen. See “Setup Menu Reference” on page 73 for details about each sub-menu item.
Execution Type Sub-menu Item
This type of sub-menu item returns a setting to its initial default value.
Examples: Image Adjustment J Restore Menu Defaults; Operational Info J Reset Lamp
Time
) Initializing Settings (page 70)
) Resetting the Lamp Time (page 108)
Information Type Sub-menu Item
This type of sub-menu item provides status and setup information.
Examples: Operational Info J Lamp Time; Operational Info J Input Signal
Refer to the following for details about the type of information that is available using the
information type sub-menu items.
) Operational
) Operational
) Operational
) Operational
) Operational
) Operational
) Operational
) Operational
Info
Info
Info
Info
Info
Info
Info
Info
(page 99)
J Input Signal (page 99)
J Signal Name (page 99)
J Index (page 99)
J Resolution (page 99)
J Horizontal Frequency (page 99)
J Vertical Frequency (page 99)
J Scan System (page 100)
69
Using the Setup Menu
Initializing Settings
The setup menu lets you initialize the settings of a particular main menu item, or for all
setup menu items.
To initialize the settings of a particular main menu item
Example: To initialize the settings of the “Image Adjustment” main menu item.
z Performing the following procedure returns all of the sub-menu items under the currently
selected main menu item to their initial default settings.
z Initializing the settings of the “Image Adjustment” main menu item returns the “Vertical
Position”, “Horizontal Position”, “Frequency”, and “Phase” settings of the current signal
type only (XGA/60Hz, UXGA/60Hz, etc.) to their initial defaults.
1. Select
the input source whose settings you want to initialize.
2. Perform
steps 2 through 4 under “Basic Setup Menu Operations” on
page 65. Select the “Image Adjustment” main menu, and then select
the “Restore Menu Defaults” sub-menu item.
70
Using the Setup Menu
3. Press
the [ENTER] key.
z This displays a confirmation message asking if you want to initialize settings.
4. Use
the [S] and [T] keys to select [Yes].
5. Press
the [ENTER] key to initialize the menu’s settings, or the [ESC]
key to exit the initialize operation without doing anything.
z Pressing the [ENTER] key returns all of the sub-menu items on the currently selected
main menu to their initial default settings.
71
Using the Setup Menu
To initialize all menu settings
z Performing the following procedure initializes all sub-menu items for all menus, except for
the language (Option Settings J Language) and the lamp time (Operational Info J Lamp
Time).
z Note that initialization does not delete the custom logo.
1. Perform
steps 1 through 4 under “Basic Setup Menu Operations” on
page 65. Select the “Restore All Defaults” main menu, and then select
the “Restore All Defaults” sub-menu item.
2. Press
the [ENTER] key.
z This displays a confirmation message asking if you want to initialize all settings.
3. Use
the [S] and [T] keys to select [Yes].
4. Press
the [ENTER] key to initialize all menu settings, or the [ESC] key
to exit the initialize operation without doing anything.
z Pressing the [ENTER] key initializes all menu items except for “Language” and “Lamp
Time”.
72
Using the Setup Menu
Setup Menu Reference
This section provides detailed explanations about the contents for all of the setup menu items.
z The titles in this section use the format: Main Menu Item J Sub-menu Item.
Image Adjustment
■Image Adjustment J Brightness
This sub-menu adjusts the brightness of the projected image. A larger value produces a
brighter image.
z This setting is not possible when there is no input signal.
z A different setting can be configured and is stored for each input source.
■Image Adjustment J Contrast
This sub-menu adjusts the contrast of the projected image. A larger value produces a
stronger contrast.
z This setting is not possible when there is no input signal.
z A different setting can be configured and is stored for each input source.
■Image Adjustment J Sharpness
This sub-menu adjusts the sharpness of the projected image. A larger value makes the image
sharper, while a smaller value makes it softer.
z This setting is not possible when there is no input signal.
z A different setting can be configured and is stored for each input source.
■Image Adjustment J Saturation
This sub-menu adjusts the color saturation of the projected image. A larger value increase
color saturation.
z This setting is not possible when the input source is RGB and when there is no input
signal.
z A different setting can be configured and is stored for each input source.
■Image Adjustment J Tint
This sub-menu adjusts the tint of the projected image. A larger value makes the overall
image more reddish, while a smaller value makes the overall image more bluish.
z This setting is not possible when the input source is RGB and when there is no input
signal.
z A different setting can be configured and is stored for each input source.
73
Using the Setup Menu
■Image Adjustment J Gamma Mode
This sub-menu lets you select the gamma mode for the projected image.
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
Standard, (Presentation), Theater, Graphics
Component
Standard, Presentation, (Theater), Graphics
S-VIDEO
VIDEO
No Signal
None
Setting Explanations
Standard:
Standard gamma mode
Presentation: Emphasis on clarity to make text easy to read
Theater:
Emphasis on reproduction of moderate color tones and dark image areas
Graphics:
Emphasis on color gradations and contrast
Setting Storage
A different setting is stored for each input source.
■Image Adjustment J Color Balance
This sub-menu lets you adjust the color balance of the projected image. There are two
methods you can use to adjust color balance, selecting a preset color temperature value or
adjusting the red, green, or blue components of each color.
z Note that you can adjust the color balance either by selecting a color temperature value
or by adjusting color components. You cannot do both.
z Color balance settings cannot be configured when there is no input signal.
z A different setting can be configured and is stored for each input source.
Adjusting Color Balance by Selecting a Color Temperature Value
You can use the procedure below to adjust color balance by selecting one of three color
temperatures (low, normal, high).
Changing the color temperature of an image alters its whiteness. A lower color temperature
makes whites redder, while a higher color temperature makes them bluer.
1. On
the “Image Adjustment” main menu, select the “Color Balance” submenu item, and then press the [ENTER] key.
z This displays the color balance setting screen.
74
Using the Setup Menu
2. Use
the [S] and [T] keys to select “Color Temperature”, and then
press the [ENTER] key.
z This causes a z marker to appear at the beginning of the “Color Temperature” line,
which indicates that color temperature value selection is enabled.
3. Use the [W] and [X] keys to select the color temperature setting you want.
4. After
the setting is the way you want, press the [MENU] key.
Adjusting Color Balance by Adjusting Color Components
Instead of specifying a color temperature to adjust color balance, you can also individually
adjust the relative intensity of the red, green, and blue components.
1. On
the “Image Adjustment” main menu, select the “Color Balance” submenu item, and then press the [ENTER] key.
z This displays the color balance setting screen.
2. Use
the [S] and [T] keys to select “Color”, and then press the
[ENTER] key.
z This causes a z marker to appear at the beginning of the “Color” line, which indicates
that color adjustment is enabled.
3. Use
the [S] and [T] keys to select the color you want to adjust, and
then use the [W] and [X] keys to adjust it.
75
Using the Setup Menu
4. After
all the settings are the way you want, press the [MENU] key.
■Image Adjustment J Vertical Position
This sub-menu lets you adjust the vertical position of the input source image within the
projection area.
z
z
This setting is not possible when there is no input signal.
“Image Adjustment” main menu item settings are saved for the current signal type only
(XGA/60Hz, UXGA/60Hz, etc.), and not for the input signal source. Note, however, that the
number of signal type settings that can be saved is limited. Exceeding the limit causes
the oldest setting to be deleted automatically.
■Image Adjustment J Horizontal Position
This sub-menu lets you adjust the horizontal position of the input source image within the
projection area.
z
z
This setting is not possible when there is no input signal.
See “Image Adjustment J Vertical Position” for details about how settings are saved.
76
Using the Setup Menu
■Image Adjustment J Frequency
This sub-menu lets you manually control the frequency of the image.
Normally, the projector is able to adjust the frequency automatically. If there are vertical bands
in the projected image, however, it means that automatic adjustment is not possible for some
reason. When this happens use this setting to adjust the image frequency.
z This setting is possible only when RGB is selected as the input source.
z Settings are saved for each signal type (XGA/60Hz, UXGA/60Hz, etc.). Note, however, that
the number of signal type settings that can be saved is limited. Exceeding the limit
causes the oldest setting to be deleted automatically.
z If, for some reason, your manual frequency settings cause the image input from the
computer to disappear from the projection, you can press the [AUTO] key to perform an
auto adjust operation (page 48), which should cause the image to reappear.
■Image Adjustment J Phase
This sub-menu lets you manually control the phase of the image.
Normally, the projector is able to adjust the phase automatically. If there are color errors or
flickering in the projected image, however, it means that automatic adjustment is not possible
for some reason. When this happens use this setting to adjust the image phase.
z This setting is possible only when RGB is selected as the input source.
z See “Image Adjustment J Frequency” for details about how settings are saved.
■Image Adjustment J Noise Filter
This sub-menu provides a choice of noise filter levels to remove digital noise from the
projected image when RGB is selected as the input source. Note that the noise filter may not
be able to remove certain types of digital noise.
z This setting is possible only when RGB is selected as the input source. The setting is
saved for the RGB input source only.
z Turning off the projector automatically returns this sub-menu to its initial default setting
(Normal).
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
Low, (Normal), High
Component
None
S-VIDEO
VIDEO
No Signal
77
Using the Setup Menu
■Image Adjustment J Restore Menu Defaults
This sub-menu returns all of the sub-menu items on the Image Adjustment main menu to
their initial default settings.
z You can perform initialization even when there is no input signal. In this case, the
initialization is performed for the currently selected input source.
z “Image Adjustment” main menu “Vertical Position”, “Horizontal Position”, “Frequency”, and
“Phase” settings are initialized for the current signal type (XGA/60Hz, UXGA/60Hz, etc.)
only.
z For details about the initialization procedure, see “To initialize the settings of a particular
main menu item” on page 70.
Volume Adjustment
■Volume Adjustment J Volume
This sub-menu can be used to adjust the volume level of the projector’s speaker. This setting
is also linked to volume settings made with the remote controller’s [VOL +] and [VOL –] keys.
z Changing this setting when there is no input signal changes the volume setting of the
currently selected signal source.
z A different setting is stored for each input source.
■Volume Adjustment J Restore Menu Defaults
This sub-menu returns Volume to its initial default setting.
z You can perform initialization even when there is no input signal. In this case, the
initialization is performed for the currently selected input source.
z Initialization is performed separately for each input source.
z For details about the initialization procedure, see “To initialize the settings of a particular
main menu item” on page 70.
78
Using the Setup Menu
Screen Settings
■Screen Settings J Vertical Keystone Correction
This sub-menu lets you correct for vertical keystoning of the projected image.
z
z
Vertical keystone correction can be performed regardless of the currently selected input
source.
A single setting is stored, which is applied to all input sources.
■Screen Settings J Horizontal Keystone Correction
This sub-menu lets you correct for horizontal keystoning of the projected image.
z
z
Horizontal keystone correction can be performed regardless of the currently selected input
source.
A single setting is stored, which is applied to all input sources.
z Performing horizontal keystone correction and then vertical keystone correction can cause
the horizontal keystone correction value to change. This occurs when vertical keystone
correction narrows the allowable manual horizontal keystone correction range, causing the
horizontal keystone correction value to be outside the correction range. If this happens,
rearrange the projector and screen so the lens is pointing straighter at the screen, and
then perform manual keystone correction or auto keystone correction again.
79
Using the Setup Menu
■Screen Settings J Aspect Ratio
This sub-menu lets you select the aspect ratio (ratio between the vertical and horizontal
dimensions) of the projected image.
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
None
Component
(4:3), 16:9
S-VIDEO
VIDEO
No Signal
None
Setting Explanations
4:3:
Sets the aspect ratio of the projected image to 4:3 (same as a standard TV
screen). This setting is normally used when S-VIDEO or VIDEO is selected as
the input source.
16:9: Sets the aspect ratio of the projected image to 16:9 (same as a movie screen
or high-definition TV screen). Using this setting when the input source image is
a 16:9 image that has been squeezed to a 4:3 image causes the image to be
projected with its normal 16:9 aspect ratio.
Setting Storage
A different setting is stored for each input source.
z When a component signal with an aspect ratio of 16:9 is sent from the input source, the
aspect ratio of the projected image is automatically switched to 16:9. In this case, this
setting cannot be changed.
z Using this projector to reduce, enlarge, or otherwise alter an image for business purposes
or public display may infringe upon the rights of the individual who holds the copyright of
the image.
80
Using the Setup Menu
■Screen Settings J Resize Image to Fit
When RGB is selected as the input source and the video resolution of the connected
computer is anything other than XGA (1024 × 768 pixels), “Resize Image To Fit” automatically
enlarges or reduces the input image so it matches the video resolution of the projector and
fills the entire screen.
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
(On), Off
Component
None
S-VIDEO
VIDEO
No Signal
Setting Explanations
On: When the input signal from the computer connected to the projector is not an
XGA signal, the image is automatically enlarged or reduced so it matches the
projector’s video resolution and fills the entire screen.
Off: Turns off resizing of the image input from the computer. If the image input from
the computer is smaller than XGA, the size of the projected image will also be
smaller. When the image input from the computer is larger than XGA, only the
center part of the image that corresponds to XGA size is projected.
z Resizing of an input image by “Resize Image To Fit” can call coarsening of the image or
can cause part of the image to be cut off. If this happens, try turning off “Resize Image
To Fit”. Note, however, that turning off “Resize Image To Fit” can cause the projected
image to become smaller, or it can cause only the center part of the image to be
projected.
Setting Storage
This setting is possible only when RGB is selected as the input source. The setting is
saved for the RGB input source only.
81
Using the Setup Menu
■Screen Settings J Flip Horizontal
Use this sub-menu to flip the projected image horizontally when projecting from the back of
the screen.
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
On, (Off)
Component
S-VIDEO
VIDEO
No Signal
Setting Explanations
On: Flips the image horizontally.
Off: Projects the image normally (without flipping it).
Setting Storage
A single setting is stored, which is applied to all input sources.
■Screen Settings J Startup Screen
Use this sub-menu to specify whether or not a startup screen should be projected whenever
the projector is turned on.
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
(Logo), None
Component
S-VIDEO
VIDEO
No Signal
Setting Explanations
Logo: Projects the logo screen as the startup screen.
A built-in logo screen is the initial default startup screen. You can also create a
custom logo, if you want. For details, see “Option Settings J Custom Logo
Settings” on page 92.
None: No startup screen is projected.
Setting Storage
A single setting is stored, which is applied to all input sources.
82
Using the Setup Menu
■Screen Settings J No Signal Screen
This sub-menu lets you specify what should be projected when there is no input signal to the
projector.
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
(Blue), Black, Logo
Component
S-VIDEO
VIDEO
No Signal
Setting Explanations
Blue: Displays a blue screen when there is no input signal.
Black: Displays a black screen when there is no input signal.
Logo: Displays a logo screen when there is no input signal.
A built-in logo screen is the initial default startup screen. You can also create a
custom logo, if you want. For details, see “Option Settings J Custom Logo
Settings” on page 92.
Setting Storage
A single setting is stored, which is applied to all input sources.
■Screen Settings J Mute Screen
This sub-menu lets you specify what should be projected during mute (page 58).
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
Blue, (Black), Logo
Component
S-VIDEO
VIDEO
No Signal
Setting Explanations
Blue: Displays a blue screen during mute.
Black: Displays a black screen during mute.
Logo: Displays a logo screen during mute.
A built-in logo screen is the initial default startup screen. You can also create a
custom logo, if you want. For details, see “Option Settings J Custom Logo
Settings” on page 92.
83
Using the Setup Menu
Setting Storage
A single setting is stored, which is applied to all input sources.
■Screen Settings J Restore Menu Defaults
This sub-menu returns all of the sub-menu items on the Screen settings main menu to their
initial default settings.
z You can perform initialization even when there is no input signal. In this case, the
initialization is performed for the currently selected input source.
z Basically, initialization initializes the settings of the current input source. Note, however, that
the following settings are always initialized, regardless of the currently selected input
source.
z
Vertical keystone correction
Horizontal keystone correction
Flip horizontal
Startup screen
No signal screen
Mute screen
For details about the initialization procedure, see “To initialize the settings of a particular
main menu item” on page 70.
z Initializing these settings when “Option Settings J Auto Keystone Correction” is turned on
causes automatic keystone correction to be performed after initialization is complete, which
causes “Vertical Keystone Correction” setting to show a corrected value.
84
Using the Setup Menu
Input Settings
■Input Settings J RGB Input
This sub-menu lets you specify the type of input signal in accordance with the device
connected to the projector’s RGB terminal.
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
(RGB), Component
Component
S-VIDEO
None
VIDEO
No Signal
(RGB), Component
* Only when the currently selected input source is RGB or
Component.
Setting Explanations
RGB:
Select this setting when a computer is connected to the projector’s RGB
input terminal. For details about connection, see “Connecting a Computer
to the Projector (Video and Audio)” on page 34.
Component: Select this setting when the projector’s RGB input terminal is connected
the component video output terminal of a video device using an optionally
available YK-3 component video cable. For details about connection, see
“Connecting to a Component Video Output Device” on page 37.
Setting Storage
This setting is saved for the RGB input terminal only.
85
Using the Setup Menu
■Input Settings J Video Signal, S-Video Signal
This sub-menu specifies the input signal for the projector’s VIDEO and S-VIDEO input
terminals.
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
None
Component
S-VIDEO
(Auto), NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM
VIDEO
No Signal
(Auto), NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM
* Only when the currently selected input source is VIDEO or
S-VIDEO.
Setting Explanations
Auto:
Select this setting to have the projector switch the video signal system
automatically in accordance with the input signal from the video device
that is connected to the VIDEO or S-VIDEO input terminal. This is the
setting you should normally use.
Other settings: Each setting selects the applicable video system. Use these settings
when you want to specify only one specific video signal for the VIDEO
and S-VIDEO input terminals.
Setting Storage
This setting is saved for the VIDEO and S-VIDEO input terminals only.
86
Using the Setup Menu
■Input Settings J P-in-P Input
This sub-menu lets you select the input source for the image that appears in the P-in-P subwindow (page 56).
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
(VIDEO), S-VIDEO
Component
None
S-VIDEO
VIDEO
No Signal
(VIDEO), S-VIDEO
* Only when the currently selected input source is RGB.
Setting Explanations
VIDEO:
Select VIDEO as the input source of the sub-window.
S-VIDEO: Select S-VIDEO as the input source of the sub-window.
Setting Storage
This setting is saved for the RGB input terminal only.
■Input Settings J Signal Name Indicator
This sub-menu lets you specify whether or not the name of the currently selected input
source should be displayed in the projected image.
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
(On), Off
Component
S-VIDEO
VIDEO
No Signal
Setting Explanations
On: Turns on display of the name of the currently selected input source in the
projected image.
Off: Turns off display of the input source name.
Setting Storage
A single setting is stored, which is applied to all input sources.
87
Using the Setup Menu
■Input Settings J Special Signal
When a computer is connected to the RGB input terminal, the projector automatically detects
the type of RGB signal being sent from the computer and projects the image. Some signals,
however, cannot be detected properly by the projector. When auto detection is not possible for
some reason, try using this setting for a computer signal with a resolution of SXGA (1280 ×
1024) or SXGA+ (1400 × 1050).
Input Source Specific Menu Items
Input Source
RGB
Available Items (Parentheses indicate defaults.)
(1280 × 1024), 1400 × 1050
Component
None
S-VIDEO
VIDEO
No Signal
* Only when the currently selected input source is RGB.
Setting Explanations
1280 × 1024: Specifies an SXGA (1280 × 1024) resolution RGB signal.
1400 × 1050: Specifies an SXGA+ (1400 × 1050) resolution RGB signal.
Setting Storage
This setting is saved for the RGB input terminal only.
■Input Settings J Restore Menu Defaults
This sub-menu returns all of the sub-menu items on the Input Settings main menu to their
initial default settings.
z You can perform initialization even when there is no input signal. In this case, the
initialization is performed for the currently selected input source.
z Basically, initialization initializes the settings of the current input source. Note, however, that
the signal name indicator setting is always initialized, regardless of the currently selected
input source.
z For details about the initialization procedure, see “To initialize the settings of a particular
main menu item” on page 70.
88
Using the Setup Menu
Option Settings
■Option Settings J Auto Input Detect
This sub-menu lets you specify whether auto detect of the input source should be performed
whenever the projector is turned on (page 44).
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
(On), Off
Component
S-VIDEO
VIDEO
No Signal
Setting Explanations
On: Turns on auto detection of the input source whenever the projector is turned on.
Off: Turns off auto detection of the input source whenever the projector is turned on.
Setting Storage
A single setting is stored, which is applied to all input sources.
■Option Settings J Auto Keystone Correction
This sub-menu lets you specify whether auto keystone correction should be performed
whenever the elevation angle of the projector is changed (page 50).
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
(On), Off
Component
S-VIDEO
VIDEO
No Signal
Setting Explanations
On: Turns on auto keystone correction.
Off: Turns off auto keystone correction.
Setting Storage
A single setting is stored, which is applied to all input sources.
89
Using the Setup Menu
■Option Settings J Auto Adjust
This sub-menu lets you specify whether or not auto adjustment should be performed (page
48) when RGB is selected as the input source.
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
(On), Off
Component
None
S-VIDEO
VIDEO
No Signal
(On), Off
* Only when the currently selected input source is RGB.
Setting Explanations
On: Turns on auto adjustment, which is performed when RGB is selected as the input
source.
Off: Turns off auto adjustment.
Setting Storage
This setting is saved for the RGB input terminal only.
■Option Settings J Low-noise Mode
The low-noise mode reduces the luminosity of the projection lamp and the speed of the
cooling fan, allowing quieter projector operation.
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
(Off), On
Component
S-VIDEO
VIDEO
No Signal
Setting Explanations
Off (normal mode):
This mode projects at normal luminosity.
On (low-noise mode): This mode reduces luminosity and fan motor speed for quieter
operation than the normal mode.
Setting Storage
A single setting is stored, which is applied to all input sources.
90
Using the Setup Menu
■Option Settings J Auto Power Off
This sub-menu lets you turn Auto Power Off (page 42) on or off.
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
(On), Off
Component
S-VIDEO
VIDEO
No Signal
Setting Explanations
On: Turns on Auto Power Off.
Off: Turns off Auto Power Off.
Setting Storage
A single setting is stored, which is applied to all input sources.
■Option Settings J Key Lock
This sub-menu lets you turn key lock on and off.
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
On, (Off)
Component
S-VIDEO
VIDEO
No Signal
Setting Explanations
On: Turns on key lock and disables projector keys.
Off: Turns off key lock and enables projector keys.
Setting Storage
A single setting is stored, which is applied to all input sources.
91
Using the Setup Menu
z Besides the menu operation explained above, the following operations can also be used
to turn off key lock.
z While the projector is on: Hold down the projector’s [ESC] key for about five seconds.
z While the projector is off: Simultaneously hold down the projector’s [ESC] and [ ]
(power) keys for about five seconds. This turns on the
projector and also turns off key lock.
z You can use the above projector operations to turn off key lock if the remote controller
batteries unexpectedly go dead, etc.
■Option Settings J Custom Logo Settings
With this sub-menu, you can cut part of the projected screen and use it to create an original
logo, which you can display for the startup screen, the no signal screen, and the mute
screen. An original logo that you create is called a “custom logo”. The custom logo settings
let you create a custom logo, view your custom logo, and perform other operations.
z Custom logo settings cannot be configured when there is no input signal.
z A single custom logo is stored, which is applied to all input sources.
Capturing a Custom Logo Image
You can create a custom logo by capturing part of an image that is currently being
projected by the projector.
z The display size and position of a custom logo created by capturing an image depend on
the configuration of the following settings when you capture the image: Logo Vertical, Logo
Horizontal, Custom Logo Zoom, Background Color, and Resolution. Make sure that you
configure these settings the way you want before performing the image capture operation.
For details of these operations, see “Configuring Custom Logo Capture Settings” on page
95.
92
Using the Setup Menu
To capture a custom logo
1. Project
the still image that you want to use as the custom logo.
2. Perform
steps 1 through 4 under “Basic Setup Menu Operations” on
page 65. Select the “Option Settings” main menu, and then select
the “Custom Logo Settings” sub-menu item.
3. Press
the [ENTER] key.
z This displays the custom logo settings screen.
4. Use
the [S] and [T] keys to select “Start Capture”, and then press
the [ENTER] key.
z This causes a cross cursor to appear in the projected image.
Cross cursor
5. Use
the cursor keys to move the cross cursor to the location where
you want the upper left corner of the selection boundary to be.
6. Press
the [ENTER] key.
z This fixes the current cross cursor location as the upper left corner of the selection
boundary.
93
Using the Setup Menu
7. Use
the cursor keys to move the cross cursor and draw the
selection boundary.
Pressing the cursor key
moves the lower right corner
of the selection boundary.
8. When
the area you want to capture is enclosed by the selection
boundary, press the [ENTER] key.
z This causes the message “Start image capture and registration as custom logo?” to
appear.
9. Press
the [ENTER] key to capture the image enclosed by the
selection boundary.
z After a few moments, a dialog box with the message “Image capture and
registration as custom logo complete!” appears to let you know when the capture
operation is complete.
10. To
view the custom logo (captured image), press the [ENTER] key.
z This projects the custom logo. After you are finished viewing it, press the [ESC] key
to return to custom logo setting screen in step 3.
11. Press
the [MENU] key to exit the setup menu.
94
Using the Setup Menu
Configuring Custom Logo Capture Settings
Before capturing a custom logo, configure the following settings to control its position,
zoom, and other parameters when it is projected.
Setting
Available Items (Parentheses indicate defaults.)
Logo Vertical
Top, (Center), Bottom
Logo Horizontal
Left, (Center), Right
Custom Logo Zoom
(100%), 200%, Fit To Screen
Background Color
(White), Black
Resolution
(Normal), High
z The “Logo Vertical”, “Logo Horizontal”, and “Background Color” settings are not used
when the zoom setting is “Fit To Screen”.
z Note that you cannot change the above settings for a custom logo after you capture it.
z The following are some examples of how the above settings affect the custom logo.
Logo Vertical: Center
Logo Horizontal: Center
Custom Logo Zoom: 100%
Background Color: White
Logo Vertical: Center
Logo Horizontal: Center
Custom Logo Zoom: 200%
Background Color: White
Logo Vertical: Bottom
Logo Horizontal: Left
Custom Logo Zoom: 100%
Background Color: White
Logo Vertical: Center
Logo Horizontal: Center
Custom Logo Zoom: 100%
Background Color: Black
z
If an error occurs with the “High” resolution setting, try changing the resolution setting to
“Normal”. This will increase the chance of a successful capture. If you experience
problems capturing with the “Normal” setting, it may also mean that the area you are
trying to capture is too large. Try selecting a smaller area.
95
Using the Setup Menu
To configure custom logo settings
1. Perform
steps 2 and 3 under “To capture a custom logo” on page
93 to display the custom logo setting screen.
2. Use
the [S] and [T] keys to select the custom logo item whose
setting you want to change.
3. Use
the [W] and [X] keys to select the setting you want. The button
next to the currently selected setting is black ( z).
4. Repeat steps 2
and 3 to configure all of the custom logo settings
you want.
5. After
you are finished, press the [MENU] key to exit the setup menu.
To view the current custom logo
1. Perform
steps 2 and 3 under “To capture a custom logo” on page
93 to display the custom logo setting screen.
2. Use
the [S] and [T] keys to select “View Custom Logo”, and then
press the [ENTER] key.
z This projects the currently registered custom logo.
3. To
return to the custom logo setting screen, press the [ESC] key.
4. Press
the [MENU] key to exit the setup menu.
96
Using the Setup Menu
To initialize the custom logo
z Initializing custom logo settings clears the currently registered custom logo and returns all
of the settings of the custom logo setting screen to their initial defaults.
1. Perform
steps 2 and 3 under “To capture a custom logo” on page
93 to display the custom logo setting screen.
2. Use
the [S] and [T] keys to select “Initialize Custom Logo Settings”,
and then press the [ENTER] key.
z This displays a confirmation message asking if you want to initialize custom logo
settings.
3. Use
the [S] and [T] keys to select [Yes].
4. Press
the [ENTER] key to initialize the custom logo settings, or the
[ESC] key to exit the initialize operation without doing anything.
z Pressing the [ENTER] key initializes settings and returns to the custom logo settings
screen.
z Pressing the [ESC] key returns to the custom logo settings screen without initializing
anything.
5. Press
the [MENU] key to exit the setup menu.
z Initializing the custom logo settings and deleting the custom logo causes the projector’s
preset logo to appear when “Logo” is selected for the startup screen (page 82), no
signal screen (page 83), and mute screen (page 83).
97
Using the Setup Menu
■Option Settings J Language
This sub-menu lets you specify the language to use for messages, setup menus, etc.
Input Source Specific Menu Items
Input Source
Available Items
RGB
English, French, German, Italian, Spanish, Portuguese, Chinese
(Simplified), Chinese (Traditional), Korean, Japanese
Component
S-VIDEO
VIDEO
No Signal
Setting Storage
A single setting is stored, which is applied to all input sources.
z This setting is required the first time you turn on the projector. For more information, see
“Specifying the Display Message Language” on page 40.
■Option Settings J Alert Tones
This sub-menu lets you turn alert tones on and off.
Input Source Specific Menu Items
Input Source
Available Items (Parentheses indicate defaults.)
RGB
(On), Off
Component
S-VIDEO
VIDEO
No Signal
Setting Explanations
On: Turns on error alert, which sounds a tone when an error occurs.
Off: Turns off error alert.
Setting Storage
A single setting is stored, which is applied to all input sources.
z For details about the alert tone that sounds for each type of error when the alert tone is
turned on, see “Indicators and Alert Tones” on page 110.
98
Using the Setup Menu
■Option Settings J Restore Menu Defaults
This sub-menu returns all of the sub-menu items on the Option Settings main menu to their
initial default settings.
z You can perform initialization even when there is no input signal. In this case, the
initialization is performed for the currently selected input source.
z The Auto Adjust item is initialized only when RGB is selected as the input source. All
other items are always initialized, regardless of the currently selected input source.
z For details about the initialization procedure, see “To initialize the settings of a particular
main menu item” on page 70.
Operational Info
■Operational Info J Lamp Time
This sub-menu item shows the cumulative number of hours the current lamp has been used
to date.
Use this value as a reference when deciding whether or not the current lamp needs to be
replaced. For details about replacing the lamp, see “Replacing the Lamp” on page 102.
■Operational Info J Reset Lamp Time
Use this submenu item to reset the lamp time to 0 hours. For details about replacing the
lamp and the initialization procedure, see “Replacing the Lamp” on page 102.
■Operational Info J Input Signal
This sub-menu item shows the currently selected input signal (RGB, Component, S-VIDEO, or
VIDEO). “None” is indicated here when there is no input signal.
■Operational Info J Signal Name
This sub-menu item shows the signal name of the signal input to the projector. The “Signal
Name” column of the table under “Supported Signals” on page 116 shows the signal names
that are displayed by this sub-manu item.
■Operational Info J Index
This sub-menu item appears only when RGB or Component is the input signal. It shows
projector internal information.
■Operational Info J Resolution
This sub-menu item appears only when RGB is the input signal, and shows the resolution of
the RGB input signal in terms of vertical and horizontal pixels.
■Operational Info J Horizontal Frequency
This sub-menu item appears only when RGB, Component, S-VIDEO, or VIDEO is the input
signal. It shows the horizontal frequency of the input signal.
■Operational Info J Vertical Frequency
This sub-menu item appears only when RGB, Component, S-VIDEO, or VIDEO is the input
signal. It shows the vertical frequency of the input signal.
99
Using the Setup Menu
■Operational Info J Scan System
This sub-menu item appears only when RGB or Component is the input signal, and shows
the scanning frequency of the input signal. The input signal is interlace or non-interlace for
RGB signal input, and interlace or progressive for Component signal input.
Restore All Defaults
■Restore All Defaults J Restore All Defaults
This sub-menu returns all of sub-menu items on all main menus to their initial default
settings. This operation can be performed regardless of the currently selected input source
and regardless of whether or not a signal is currently being input.
For details about this initialization procedure, see “To initialize all menu settings” on page 72.
100
User Maintenance
User Maintenance
This section explains user maintenance procedures, including lamp replacement and projector
cleaning.
Cleaning the Projector
Always turn off the projector before cleaning it.
Cleaning the Projector Exterior
Wipe the exterior of the projector with a soft cloth that has been moistened in a weak
solution of water and a mild neutral detergent. Be sure to wring all excess moisture from the
cloth before wiping.
Never use benzene, alcohol, thinner, or any other volatile agent for cleaning.
Cleaning the Lens
Carefully wipe the lens with a lens cloth or lens cleaning paper, which you should be able to
purchase from a nearby eye wear or camera shop. When cleaning the lens, be very careful
to avoid scratching it.
Reattaching the Lens Cover
Use the following procedure to reattach the lens cover if it should accidentally become
detached from the projector.
1. Positioning
the lens cover so it is at an angle that is more than 90
degrees relative to the lens, insert left hinge 3 of the lens cover into
the slot on the left 1.
1
2
3
4
101
User Maintenance
2. Without
changing the angle of the lens cover relative to the lens, use
the end (not the tip) of a pen or some similar instrument to gently
press the right hinge of the cover 4 inwards as you insert the hinge
into the slot on the right 2.
Insert the right hinge
while pressing here.
z When reattaching the lens cover, make sure it is at an angle that is more than 90
degrees relative to the lens as shown in the illustration on the left. If you reattach the
lens cover while it is at an angle less than 90 degrees as shown in the illustration on
the right, the lens cover will not open and close correctly, and may become damaged.
Replacing the Lamp
Caution!
z
Continued use of a lamp that has passed its lamp life increases the risk of
the lamp rupturing. Replace the lamp with a new one as soon as possible
after the replacement message appears.
The light source lamp is a consumable item. The average life of a lamp is approximately
2000 hours. After 2000 hours, a message appears to alert you to the need of lamp
replacement. However, note that the characteristics of a particular lamp or lamp operating
conditions can cause the lamp to start to go dim or even fail before the message
appears.
102
User Maintenance
To check the current lamp use time
1. Press
the [MENU] key to display the setup menu.
2. Press
the [T] key to select the “Operational Info” main menu.
z The “Lamp Time” sub-menu item shows the number of hours that the current lamp has
been used.
3. Press
the [MENU] key to exit the setup menu.
When to replace the lamp
The LAMP indicator starts to flash red and the message shown below appears whenever the
lamp time exceeds 2000 hours.
It is time to replace the lamp. Use the procedure in the User’s Guide to replace the lamp
as soon as possible.
When this message appears, replace the lamp as soon as possible using the procedure
under “Replacing the Lamp” on page 104.
Note that the above message will disappear about 10 seconds after you turn on the projector,
even if you do not replace the lamp.
You will be able to continue using the projector without replacing the lamp until the lamp time
reaches 100 hours. At that time, the LAMP indicator will stop flashing and remain lit red, the
following message will appear for about 10 seconds, and then the projector will turn off
automatically.
The lamp has exceeded its service life! The projector will not turn on until you replace the lamp.
When this message appears, replace the lamp immediately using the procedure under
“Replacing the Lamp” on page 104.
103
User Maintenance
Replacing the Lamp
z
z
z
Caution
z
z
z
z
During normal use, the lamp and the area around it become
extremely hot. Before replacing the lamp, turn off the projector
and wait for the cool down operation (indicated when the
POWER/STANDBY indicator is flashing amber) to finish. Next,
disconnect the AC power cord from the projector, and wait for at
least 60 minutes to allow it to cool down even further.
Touching the lamp or the area around it during operation or
immediately after turning off the projector creates the risk of
serious burn injury.
Replace the lamp using the YL-30 optional lamp cartridge only.
The projector uses a mercury lamp with high internal pressure
as its light source. A lamp that is weakened by impact, damage,
or expiration of its lamp life may explode or fail to light.
Note that the performance of the lamp differs greatly from lamp
to lamp, and due to conditions under which a lamp is used.
Never touch the glass of the lamp with your fingers. Doing so
can cause the lamp to rupture and shorten its life.
A broken lamp can cause glass fragments to be scattered inside
the lamp housing. Gas inside of the lamp housing may also be
discharged from the projector’s vent exhaust ports. Gas inside of
the lamp includes mercury, so be sure to ventilate the area
whenever the lamp breaks. Should you accidentally inhale gas
fumes or should gas fumes get into your eyes, immediately
contact a physician.
Should the lamp break, take care to avoid personal injury on the
glass fragments. Never try to replace a broken lamp on your
own. Be sure to contract your original dealer or authorized
CASIO service center to request replacement.
The lamp contains mercury. Dispose of old lamps in accordance
with the rules and regulations of your local jurisdiction.
z Disposing of the Lamp (U.S.A. Only)
This product utilizes a lamp containing mercury. Disposal of the lamp
may be regulated due to environmental considerations. For disposal or
recycling information, please contact your local authorities or the
Electronic Industries Alliance: http://www.eiae.org.
104
User Maintenance
To replace the lamp
z When replacing the lamp, use the special screwdriver that comes with the YL-30
replacement lamp. The projector does not come with a screwdriver.
1. Turn
off the projector and unplug its AC power cord.
2. Wait
for about 60 minutes to allow the projector’s current lamp to cool
down completely.
3. Turn
over the projector and place it on top of a desk or on some other
stable surface.
4. Loosen the
lamp cover screw, and then remove the lamp cover.
Lamp cover
105
User Maintenance
5. Loosen
the three screws securing the lamp cartridge.
Screws
Lamp cartridge
6. Use
the lamp cartridge handle to pull the lamp cartridge from the
projector.
z Bracing your thumb on the projector as shown in the illustration, slowly lift the cartridge
handle and pull the cartridge out of the projector.
106
User Maintenance
7. Insert the
new lamp cartridge as far as it will go, as shown in the
illustration.
z After inserting the lamp cartridge, lay its handle down in the position shown in the
illustration under step 5 on page 106.
z Never touch the lamp with your
hand. Doing so can cause the lamp
to rupture and shorten its life.
8. Secure
the lamp cartridge with the three screws.
9. Return
the lamp cover to its original position, and secure it with the
screw.
z After replacing the lamp, be sure to perform the procedure under “Resetting the Lamp
Time” on page 108.
107
User Maintenance
Resetting the Lamp Time
The reset lamp time operation you need to perform depends on when you replace the lamp.
It is time to replace the lamp. Use the procedure in the User’s Guide to replace the lamp
as soon as possible.
If you replace the lamp when the above message appears, use the procedure under “To
reset the lamp time” on page 108.
The lamp has exceeded its service life! The projector will not turn on until you replace the
lamp.
If you replace the lamp after the above message appears, use the procedure under “To reset
the lamp time after exceeding the lamp life” on page 109.
To reset the lamp time
1. Use the procedure under “To
turn on the projector” on page 38 to turn
on the projector.
z There is no need to connect a computer or video device to the projector if you plan
only to reset the lamp time.
2. Press
the [MENU] key to display the setup menu.
3. Press
the [T] key to select “Operational Info”, and then press the
[ENTER] key.
z On the sub-menu that appears, select “Reset Lamp Time”.
4. Press
the [ENTER] key.
z This causes the message “Reset lamp time?” to appear.
108
User Maintenance
5. Press
the [S] key to select “Yes”, and then press the [ENTER] key.
z This resets the lamp time to 0 hours.
6. Press
the [MENU] key to exit the setup menu.
z This causes the setup menu to disappear from the projected image.
To reset the lamp time after exceeding the lamp life
If you use the existing lamp until its life is exceeded, you will not be able to turn on the
projector even after you replace the lamp with a new one. Perform the following procedure to
initialize the lamp time in this case, which will make it possible to turn on the projector.
1. Use
the bundled AC power cord to plug the projector into a power
outlet.
z Connecting to a power outlet causes the POWER/STANDBY and LAMP indicators on
the top of the projector to light red, which indicates that the lamp has exceeded its
service life.
2. While
holding down the projector’s [W] key, hold down the [AUTO] key
for about five seconds.
z This will reset the lamp time, cause the POWER/STANDBY indicator to change from red
to amber, and also cause the LAMP indicator to go out.
3. Press
the [
normally.
] (power) key to ensure that the projector turns on
109
Troubleshooting
Troubleshooting
This section explains how to interpret the projector’s indicators, and what you need to do
when you experience problems with projector operation.
Indicators and Alert Tones
The status of the indicators let you know the current operational status of the projector. This
section provides details about indicators, and about the error alert tones.
LAMP indicator
TEMP indicator
POWER/STANDBY indicator
Normal Operation Indicators
z
“POWER” in the following table stands for the “POWER/STANDBY” indicator.
When this indicator
Is this
It means this
You have just plugged the AC cord into
a power outlet. Wait until the projector
enters the standby state (see below)
before trying to turn on power.
See page
POWER:
Amber steady
TEMP:
Amber steady
LAMP:
Amber steady
POWER:
Amber steady
Standby state: The AC power cord is
plugged in and the projector is in
standby.
POWER:
Green flashing
Projector is warming up after being
turned on.
POWER:
Green steady
Projector is on and standing by for use.
POWER:
Amber flashing
Projector is cooling down after being
turned off.
41
LAMP:
Green steady
Projector is in the low noise mode.
90
110
38
38
Troubleshooting
Error Indicators
z
z
z
“POWER” in the following table stands for the “POWER/STANDBY” indicator.
“ ” in the “Alert” column indicates that the projector will emit four long beeps when an
error occurs. “U” in the “Alert” column indicates that the projector will emit two short
beeps when an error occurs. Note that alert tones sound only when “On” is specified for
“Option Settings J Alert Tones”.
When an error occurs, wait until cool down is complete and the fan stops before
unplugging the AC power cord. If you unplug the AC power cord while the fan is still
operate, and error may occur when you plug the AC power cord back in.
Indicator
POWER : Amber flashing J
Red steady
TEMP
: Red steady
POWER : Amber flashing J
Red steady
TEMP
: Red flashing
(0.5-second interval)
POWER : Amber flashing J
Red steady
TEMP
: Red flashing
(1-second interval)
POWER : Amber flashing J
Red steady
TEMP
: Red flashing
(0.5-second interval)
LAMP
: Red flashing
(0.5-second interval)
Alert
Description
An operational problem was caused by external
noise or some other factor. After confirming that the
POWER/STANDBY indicator is lit red (steady) and
that the fan has stopped, unplug the AC power
cord. After the indicator goes out, plug the AC
power cord back in and turn on the projector again.
If the error occurs again when you turn power back
on, contact your retailer or nearest authorized
CASIO Service Center.
There is some problem with the fan.
After confirming that the POWER/STANDBY indicator
is lit red (steady) and that the fan has stopped,
unplug the AC power cord. After the indicator goes
out, plug the AC power cord back in and turn on
the projector again. If the error occurs again when
you turn power back on, contact your retailer or
nearest authorized CASIO Service Center.
Power has turned off automatically due to internal
overheating. Perform the following steps.
1 After confirming that the POWER/STANDBY
indicator is lit red, unplug the AC power cord
and wait for about 60 minutes to allow the
projector to cool down.
2 Check for any blocking of the projector’s intake
vents and exhaust vents, and make sure that
there is sufficient space around the projector.
) “Setup Precautions” (page 30).
3 Plug the AC power cord back in, and turn on
the projector again.
Power has turned off automatically due to a lamp
problem.
After confirming that the POWER/STANDBY indicator
is lit red, unplug the AC power cord, then plug it
back in and turn on the projector again. If this does
not correct the problem, wait for the projector to
cool down and then check the lamp cartridge for
damage. If there is nothing wrong with the lamp
cartridge, take it to your retailer or nearest
authorized CASIO Service Center.
111
Troubleshooting
Indicator
Alert
POWER : Amber flashing J
Red steady
TEMP
Power has turned off automatically because the lamp
cover is open. Perform the following steps.
1 After confirming that the POWER/STANDBY
indicator is lit red, unplug the AC power cord
and wait for about 60 minutes to allow the
projector to cool down.
2 Close the lamp cover.
) “To replace the lamp” (page 105).
3 Plug the AC power cord back in, and turn on
the projector again.
: Amber flashing
POWER : Amber flashing J
Red steady
TEMP
: Red flashing
(1-second interval)
POWER : Amber flashing J
Red steady
LAMP
Internal memory error.
After confirming that the POWER/STANDBY indicator
is lit red, unplug the AC power cord, wait for about
60 minutes to allow the projector to cool down, and
then take it to your retailer or nearest authorized
CASIO Service Center.
: Red flashing (2second interval)
POWER : Green steady
LAMP
: Red steady
Description
U
It is time to replace the lamp.
Replace the lamp following the steps under
“Replacing the Lamp” on page 102.
The allowable life for the lamp has been exceeded,
and the projector will not turn on.
Replace the lamp following the steps under
“Replacing the Lamp” on page 102.
Projector Troubleshooting
Check the following items whenever you experience any problem with the projector.
Problem
The projector does not turn
on when I press the [ ]
(power) key.
Cause and Recommended Action
See page
If the POWER/STANDBY indicator is not lit, the
AC power cord may not be connected correctly.
J Make sure the AC power cord is connected
correctly to the projector and the power outlet.
38
If the TEMP or LAMP indicator remains flashing
or lit, it means some type of error has occurred.
J See “Error Indicators”.
111
112
Troubleshooting
Problem
The projector does not
project any image from the
connected device.
Cause and Recommended Action
See page
The connected computer or video device may not
be turned on, or it may not be outputting a video
signal.
J Make sure the connected computer or video
device is turned on, and perform the required
operation on it to output a video signal.
—
The correct output source is not selected on the
projector.
J On the projector, select the input source that
corresponds to the device whose image you
are trying to project.
45
The projector does not
correctly project the image
from the connected device.
Images may not project correctly when you have
the component output of a video device
connected to the RGB input terminal of the
projector.
J Try using the projector’s VIDEO input terminal
or S-VIDEO input terminal.
36
When RGB/Component is
selected as the input
source, the color of the
projected image or the
image itself is abnormal.
The settings configured on the setup menu’s
“Input Settings J RGB Input” menu may not be
compatible with the device connected to the RGB
input terminal.
J Use the setup menu to configure the “Input
Settings J RGB Input” menu settings to correct
the problem.
85
The projector keys to not
work.
Key lock may be turned on.
J Turn off key lock.
91
The remote controller does
not work.
The remote controller batteries may be dead.
J Replace the batteries.
25
The remote controller may be too far from the
projector.
J Make sure the remote controller is within the
allowable range when you operate it.
27
The TEMP or LAMP
indicator is flashing or lit.
J See “Error Indicators”.
111
The message “It is time to
replace the lamp.” is being
projected.
It is time to replace the lamp.
J Replace the lamp.
102
The message “The lamp
has exceeded its service
life!.” is being projected.
The allowable life for the lamp has been
exceeded, and the projector will not turn on.
J Replace the lamp.
102
113
Appendix
Appendix
Specifications
Model Name
XJ-350
Projection System
DLP (DMD, single panel)
DMD
Size
0.7inch
Number of
Pixels
XGA (1024 × 768)
Projection Lens
Manual, optical zoom (×2); manual focus
F = 2.0 to 2.8 f = 20 to 40mm
Light Source
200W high-pressure mercury lamp
RGB input terminal
RGB mini D-Sub 15-pin × 1
(Also used as component signal input terminal.)
VIDEO input terminal
RCA pin jack × 1
S-VIDEO input terminal
Mini DIN4-pin × 1
Audio input terminal
Stereo mini jack × 1
Audio output
1W monaural
USB port
USB TYPE B
Environment
Operating Temperature: 5 to 35°C (41 to 95°F)
Operating Humidity: 20 to 80% (non-condensation)
Power Requirements
100-240V AC, 50/60Hz
Dimensions
230(W) × 55(H) × 171(D) mm (excluding projections)
(9.1 × 2.2 × 6.7 inch)
Weight
1.8kg (3.97 lbs)
* Specifications are subject to change without notice.
114
Appendix
Computer System Requirements for USB Connection
The following are the minimum Windows and Macintosh computer system requirements for
USB connection with the projector.
■Windows
IBM PC/AT or compatible computer with USB port and Windows 98, 98SE, Me, 2000
Professional, or XP preinstalled
■Macintosh
Macintosh computer with USB port and OS 8.6 to 9, 10.1, or 10.2 preinstalled
z Normal USB operation may not be possible under certain system configurations.
z Proper operation is not guaranteed on computers that have been upgraded from another
version operating system.
115
Appendix
Supported Signals
RGB Signal
Signal Name
VESA
APPLE
NEC
Other
640 × 350/85
640 × 400/85
720 × 400/85
640 × 480/60
640 × 480/72
640 × 480/75
640 × 480/85
800 × 600/56
800 × 600/60
800 × 600/72
800 × 600/75
800 × 600/85
1024 × 768/43i
1024 × 768/60
1024 × 768/70
1024 × 768/75
1024 × 768/85
1152 × 864/75
1280 × 960/60
1280 × 960/85
1280 × 1024/60
1280 × 1024/75
1280 × 1024/85
1600 × 1200/60
640 × 480/67M13
832 × 624/75M16
1024 × 768/75M19
1152 × 870/75M21
640 × 480/117iM
800 × 600/95iM
1024 × 768/75iM
640 × 400/56
1400 × 1050/A
1400 × 1050/B
1152 × 864/70
1152 × 864/85
1280 × 960/75
Resolution
640 × 350
640 × 400
720 × 400
640 × 480
640 × 480
640 × 480
640 × 480
800 × 600
800 × 600
800 × 600
800 × 600
800 × 600
1024 × 768
1024 × 768
1024 × 768
1024 × 768
1024 × 768
1152 × 864
1280 × 960
1280 × 960
1280 × 1024
1280 × 1024
1280 × 1024
1600 × 1200
640 × 480
832 × 624
1024 × 768
1152 × 870
640 × 480
800 × 600
1024 × 768
640 × 400
1400 × 1050
1400 × 1050
1152 × 864
1152 × 864
1280 × 960
116
Horizontal
Frequency (kHz)
37.9
37.9
37.9
31.5
37.9
37.5
43.3
35.2
37.9
48.1
46.9
53.7
35.5
48.4
56.5
60.0
68.7
67.5
60.0
85.9
64.0
80.0
91.1
75.0
35.0
49.7
60.2
68.7
56.0
59.0
59.0
24.8
64.0
64.0
64.0
77.5
75.0
Vertical
Frequency (Hz)
85
85
85
60
73
75
85
56
60
72
75
85
87
60
70
75
85
75
60
85
60
75
85
60
67
75
75
75
117
95
75
56
59
60
70
85
75
Appendix
Component Signal
Signal Name
HDTV
1080i60
720p60
576p50
576i50
480p60
480i60
SDTV
Horizontal
Frequency (kHz)
33.7
45.0
31.3
16.6
31.5
15.7
Vertical
Frequency (Hz)
60
60
50
50
60
60
Video/S-Video Signal
Signal Name
NTSC
NTSC4.43
PAL
PAL-M
PAL-N
PAL60
SECAM
Horizontal
Frequency (kHz)
15.7
15.7
15.6
15.7
15.6
15.7
15.6
Vertical
Frequency (Hz)
60
60
50
60
50
60
50
* Listing of a device in the above table does not guarantee that you will be able to display
its images correctly.
* When “640 × 350/85” is the input signal, the “Operational Info” sub-menu items show 640 ×
400/85 information.
* When “1024 × 768/75iM” is the input signal, the “Operational Info” sub-menu items show
“1024 × 768/75” information.
* If you experience problems projecting the image of a “1280 × 1024/60”, “1400 × 1050/A” or
“1400 × 1050/B” signal, you may be able to obtain a correct image by changing to “Special
Signal”.
117
