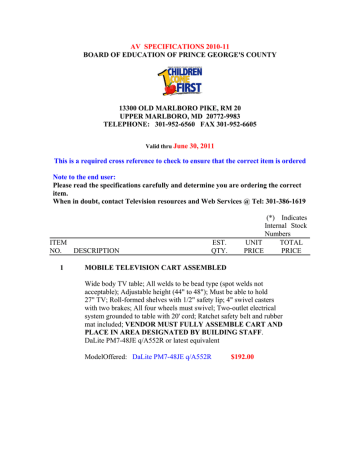

AV SPECIFICATIONS 2010-11
BOARD OF EDUCATION OF PRINCE GEORGE'S COUNTY
13300 OLD MARLBORO PIKE, RM 20
UPPER MARLBORO, MD 20772-9983
TELEPHONE: 301-952-6560 FAX 301-952-6605
Valid thru June 30, 2011
This is a required cross reference to check to ensure that the correct item is ordered
Note to the end user:
Please read the specifications carefully and determine you are ordering the correct
item.
When in doubt, contact Television resources and Web Services @ Tel: 301-386-1619
ITEM
NO.
DESCRIPTION
1
EST.
QTY.
(*) Indicates
Internal Stock
Numbers
UNIT
TOTAL
PRICE
PRICE
MOBILE TELEVISION CART ASSEMBLED
Wide body TV table; All welds to be bead type (spot welds not
acceptable); Adjustable height (44" to 48"); Must be able to hold
27" TV; Roll-formed shelves with 1/2" safety lip; 4" swivel casters
with two brakes; All four wheels must swivel; Two-outlet electrical
system grounded to table with 20' cord; Ratchet safety belt and rubber
mat included; VENDOR MUST FULLY ASSEMBLE CART AND
PLACE IN AREA DESIGNATED BY BUILDING STAFF.
DaLite PM7-48JE q/A552R or latest equivalent
ModelOffered: DaLite PM7-48JE q/A552R
$192.00
(*)
Internal Stock Numbers
ITEM
NO.
DESCRIPTION
2
EST.
QTY.
UNIT
PRICE
Indicates
TOTAL
PRICE
FLAT SCREEN TUBE SDTV/DVD/VCR COMBO
General Specifications:
27" tube TV: Flat tube TV, providing a wide viewing angle and
minimizing reflections SDTV (480i) with digital tuner: built-in digital
(ATSC) tuner DVD player: built-in progressive-scan DVD player
compatible with DVD-Video (movies) and DVD+R/RW, VCD, SVCD,
music CDs, MP3-CD, CD-R/RW, and Picture CD (JPEG).
Switchable between VHS and DVD. Built-in speakers with dynamic
stereo Dolby Digital Component video, S-video and composite.
Philips 27PC4326/37 SDTV/DVD/VCR Combo or latest equivalent
ModelOffered:____No Award
3
LCD TV/MONITOR, 26” with built-in DVD player
This is intended for viewing TV, and video playback in small offices
or use in TV Studio control rooms.
General Specifications:
26" widescreen HDTV,
1366 x 768 resolution (16:9 aspect ratio, 300cd/m2 brightness, 5ms response
time, 1000:1 dynamic contrast ratio built-in digital (ATSC) and analog
(NTSC),
QAM cable TV tuner,digital comb filter, auto channel memory, sleep (off)
timer,
closed caption, V-Chip, built-in stereo speakers (2.5 watts x 2), A/V inputs,
HDMI v1.3 digital audio/video input (accepts signals up to 1080i) PC input:
analog RGB (D-Sub 15-pin) with PC audio, Audio enhancements: Dolby®
Digital/
DTS® compatible, bass/treble balance, surround sound, Unified remote
control, RF
input for antenna/cable signals, Wall mountable DVD Player, Playable disc
types:
DVD/DVD-R/DVD-RW/CD/CD-R/CD-RW/VCD DivX® Home Theater
Certified
Playback of WMA and MP3 files, Digital picture zoom headphone output,
and
VESA-compliant mounting holes (100mm pattern). One year Warranty,
Toshiba 26LV610U or latest equivalent
ModelOffered: Toshiba 26LV610U
$340
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
4
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
HDTV Monitor, LED back lit LCD Flat Panel, Multimedia, 32”
Note to the End user:
This is intended for use in classrooms, offices and small space environments
(Please remember to order appropriate wall/ceiling mount)
General Specifications:
Full HD TV Monitor, LED-Backlit LCD, 32" Screen Size (Measured Diagonally),
Multimedia inputs, composite, S-Video, Component, VGA, HDMI, Audio in
/outs, PC Audio in, multi scan formats, multi standard tuner
(NTSC/ATSC/QAM), Dolby, Surround Sound, 2 X 7.5 W speakers, Hi
brightness, Hi dynamic contrast ratio, Internet enabled broadband, V chip
parental control, intelligent sensor, Wide angle viewing, Fast response, Energy
efficient Flat panel
Specifications:
Video Signal Standard: HDTV 1080p
Backlight Technology: Direct LED
Tuner : NTSC / ATSC
Dynamic Contrast Ratio: 3000000:1
Aspect Ratio: 16 : 9
RMS Output Power: 15 W (7.5 Watts x 2)
Connections:
4 HDMI (High-Definition Multimedia Interface) version 1.3: 2 back
Anynet+™ (HDMI-CEC): Allows peripheral AV devices such as a DVD
player to be controlled by a Samsung TV remote control.
2 USB: 2 back
1 Component video input: 1 back
1 Optical sound output: 1 back
1 PC input: 1 back
1 Ethernet: 1 back
Audio:
Dolby® Digital
DTS™
audio power stereo broadcast reception: Supports multichannel sound
(MTS) and second audio program (SAP) with 181-channel capacity
Operating Power Consumption: 43.20 W
Height: 21.7"
Width: 30.9"
Depth: 9.4"
Without Stand: 18.1 lbs
With Stand: 24.3 lbs
Shipping: 28.7 lbs
VESA Mount Standard 200 x 200
Manufacturers Warranty: 1 Year Parts and Labor
Samsung UN32C5000 or Equivalent
Model Offered: Samsung UN32C5000
ITEM
NO.
DESCRIPTION
5
$708.00
EST.
QTY.
(*) Indicates
Internal Stock
Numbers
UNIT
TOTAL
PRICE
PRICE
HDTV Monitor, LED back lit LCD Flat Panel, Multimedia, 37”
Note to the End user:
This is intended for use in office rooms. (Please remember to order
appropriate
wall/ceiling mount)
General Specifications:
Full HD TV Monitor, LCD, 37" Screen Size (Measured Diagonally), Multimedia
inputs, composite, S-Video, Component, VGA, HDMI, Audio in /outs, PC Audio in,
multi scan formats, multi standard tuner (NTSC/ATSC/QAM), 2 X 10 W speakers,
Hi brightness, Hi dynamic contrast ratio, Internet enabled broadband, V chip parental
control, intelligent sensor, Wide angle viewing, Fast response, Energy efficient Flat
panel
Specifications:
Maximum Resolution: 1920 x 1080
Contrast Ratio:
50000:1
Brightness:
500 Nit
Response Time:
5ms
Tuner: NTSC/ATSC
Total Output Power:
20 w, Stereo, Surround, Dolby
IN/Outs
1 x Audio/Video In Side
1 x HDMI Digital Audio/Video In Side
2 x HDMI Digital Audio/Video In Rear
1 x RF Antenna In Rear
2 x Component Audio/Video In Rear
1 x 15-pin HD-15 VGA In Rear
1 x Audio Line In Rear
1 x Digital/Optical Audio Line Out Rear
Dimensions: 23.4" Height x 36.11" Width x 3.5" Depth
Weight: 32 lbs
Manufacturer Warranty: One Year Parts and Labor
LG 37LH30 37" 1080p LCD HDTV
Model Offered: LG 37LH200C $686.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
6
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
HDTV Monitor, LED back lit LCD Flat Panel, Multimedia, 42”
General Specifications:
3D Ready, (3D glasses required ). Full HD TV Monitor, LED-Backlit LCD, 42"
Screen Size (Measured Diagonally), 1920x1080 / LED Plus w/ Local Dimming /
TruMotion 240Hz / 5M:1 Dynamic Contrast Ratio / NetCast Entertainment
Access / Wi-Fi Ready
Multimedia inputs, composite, S-Video, Component, VGA, HDMI, Audio in
/outs, PC Audio in, multi scan formats, multi standard tuner
(NTSC/ATSC/QAM), Dolby, Surround Sound, 2 X 10 W speakers, Hi brightness,
Hi dynamic contrast ratio, Internet enabled broadband, local dimming feature, V
chip parental control, intelligent sensor, Wide angle viewing, Fast response,
Energy efficient Flat panel
Specifications:
Display Type: 3D LED-backlit
Screen Size (Inches/Diagonal) 42
HDTV Capable 3D HDTV Ready
Broadcast system: ATSC/NTSC/Clear QAM
Full HD 1080p Resolution
8,000,000:1 Dynamic Contrast Ratio
Screen Format 16:9 Widescreen TV Imaging
Viewing Angle: 178º / 178º
Native Display Resolution: 1920 x 1080
Refresh Rate: 240 Hz
Intelligent Sensor: Yes
Response Time: 2.0 ms
Pictures, Music and Video via USB 2.0: Yes
Audio Output Power (Watts - THD 10%): 20W (10W x 2)
Speaker System Details: 2 Way 4 Speakers
Surround System: Infinite Sound
Side Inputs/Outputs: 1 x AV In, 1x Component Video In + Audio, 1 x
HDMI/HDCP (V1.3), 2 x USB 2.0 (JPEG/MPEG-4/DivX HD), 1 x Headphone
Out
Rear Inputs/Outputs: 1 x RF In (Antenna/Cable), 1 x AV In, 2 x Component
Video In (Y, Pb, Pr) + Audio, 1 x Digital Audio Out (Optical), 3 x HDMI/HDCP
Input (V.1.3 w/Deep Color), 1 x RGB In (D-Sub 15pin) - PC, 1 x PC Audio Input,
1 x LAN, 1 x RS-232c In (Control/Service), 1 x Wireless Control
Picture Wizard II (Easy Picture Calibration)
AV Mode II (Cinema, Sports, Game)
Clear Voice II
ISFccc Ready
24P Real Cinema
USB 2.0 (JPEG, MP3, DivX HD)
DivX HD
SIMPLINK Connectivity
Dolby Digital 5.1 Decoder
Infinite Sound
NetCast Entertainment Access (Broadband): Yes
Internet Services: Yahoo! TV Widgets, Netflix, Vudu, YouTube, Picasa
Wireless HD Ready: Yes
WiFi Ready: Yes
Skype Ready: Yes
DNLA Certified: Yes
Smart Energy Saving
ENERGY STAR 4.0 Qualified
Intelligent Sensor
Swivel Stand (degrees): +20º / -20º
Remote Control Type: Universal
VESA Compliant (WxH): 200mvm x 200mm
TV without stand (WxHxD): 40.0 x 24.8 x 1.2 in.
TV with stand (WxHxD): 40.0 x 27.2 x 10.6 in.
TV without stand weight: 36.8 lbs.
TV with stand weight: 43.0 lbs.
Manufacturer Warranty: One Year Parts and Labor
LG Electronics 42" 1080p 3D-Ready, Internet Enabled 42LX6500 or Equivalent
ModelOffered: LG 42LX6500 $1,650.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
7
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
HDTV Monitor, LED back lit LCD Flat Panel, Multimedia, 47”
Note to the End user:
This is intended for use in classroom, science lab, auditorium,
main lobby and indoor sport venues etc. (Please remember to order appropriate
wall/ceiling mount)
General Specifications:
Full HD TV Monitor, LED-Backlit LCD, 47" Screen Size (Measured Diagonally),
Multimedia inputs, composite, S-Video, Component, VGA, HDMI, Audio in
/outs, PC Audio in, multi scan formats, multi standard tuner
(NTSC/ATSC/QAM), Dolby, Surround Sound, 2 X 10 W speakers, Hi brightness,
Hi dynamic contrast ratio, Internet enabled broadband, local dimming feature, V
chip parental control, intelligent sensor, Wide angle viewing, Fast response,
Energy efficient Flat panel
Specifications:
Screen Size: 47”
Resolution: 1920 x 1080p
Dynamic Contrast Ratio: 5,000,000:1
Response Time (GTG): 2.4ms
TruMotion 120Hz
Local Dimming
Viewing Angle: 178º/178º
Video
Built-In Tuner: ATSC/NTSC/Clear QAM
XD® Engine
Aspect Ratio: 16:9
Aspect Ratio Correction: 6 Modes
Just Scan (1:1 Pixel Matching)
HDMI™: 1080p/1080i/720p
Component: 1080p/1080i/720p
RF: 1080i/720p
Color Temperature Control: 3 Modes
24p Real Cinema (5:5/2:2 Pulldown)
3:2 Pulldown
Picture Reset
AV Mode II: 3 Modes
Picture Mode: 8 Modes
ISFccc® Ready
Intelligent Sensor Mode
x.v.Color™
DTV Signal Strength Indicator
Audio
Mono/Stereo/Dual (MTS/SAP)
Audio Output Power (Watts - THD 10%): 20W (10W + 10W)
Speaker System Details: 2 Way/4 Speakers
Dolby® Digital Decoder
Surround System: Infinite Sound
Bass/Treble/Balance Controls
Clear Voice II
Auto Volume Leveler II
EZ Sound Mode: 5 Modes
Broadband
NetCast™ Entertainment Access
Yahoo!® TV Widgets
Netflix® Instant Streaming Ready
Vudu™ (Streaming)
Picasa™ Web Albums
YouTube™
Skype™ Ready
DLNA® Certified
Special Features
Wireless 1080p Ready (WHDI™)
Wi-Fi® Ready
Picture Wizard II
Backlight Control
Smart Energy Saving
1080p Source Input
HDMI™: 60p/30p/24p
Component: 60p/30p/24p
RGB: 60p (WXGA)
A/V Input Navigation
Input Labeling
Quick View (Flashback)
Parental Control w/V-Chip
Key Lock
Closed Caption
SIMPLINK™ (HDMI CEC)
Language: 4 (English/Spanish/French/Korean)
Auto Tuning/Programming
Channel Add/Delete
Favorite Channel Programming
Auto/Manual Clock
On/Off Timer
Sleep Timer
Auto Off/Auto Sleep (When no video is present)
Inputs / Outputs
RF In (Antenna/Cable): 1 (rear)
AV In: 1 (rear) 1 (side w/gender)
Component Video In (Y, Pb, Pr) + Audio: 2 (rear) 1 (side w/gender)
Digital Audio Out (Optical): 1 (rear)
HDMI™/HDCP Input (V.1.3 w/Deep Color): 3 (rear) 1 (side)
RGB In (D-Sub 15pin) - PC: 1 (rear)
PC Audio Input: 1 (rear)
LAN: 1 (rear)
RS-232c In (Service Only): 1 (rear)
USB 2.0 (JPEG, MPEG-4/DivX HD): 2 (side)
Wireless Control: 1 (rear)
Headphone Out: 1 (side)
Cabinet/Accessories
Cabinet Color: Glossy Black/Evening Purple
Swivel Stand (degrees): +20º / -20º
Remote Control Type: Universal
VESA® Compliant (WxH): 2000mm x 200mm
Remote Control: 1 (Universal)
Power
Voltage, Hz: 100V ~ 240V, 50/60 Hz
Stand-by Mode: >0.1W
ENERGY STAR® 4.0 Compliant
Approximate Dimensions:
Without Stand
Height: 27.2"
Width: 44.4"
Depth: 1.2"
With Stand
Height: 30"
Width: 44.4"
Depth: 10"
Without Stand: 43.2 lbs
With Stand: 50.5 lbs
Shipping: 60 lbs:
Manufacturer Warranty: One Year Parts and Labor
ModelOffered: NO Award
8
HDTV Monitor, LED back lit LCD Flat Panel, Multimedia, 52”
Note to the End user:
This is intended for use in classroom, science lab, auditorium,
main lobby and large indoor venues etc. (Please remember to order appropriate
wall/ceiling mount)
General Specifications:
Full HD TV Monitor, LED-Backlit LCD, 52" Screen Size (Measured Diagonally),
Multimedia inputs, composite, S-Video, Component, VGA, HDMI, Audio in
/outs, PC Audio in, multi scan formats, multi standard tuner
(NTSC/ATSC/QAM), Dolby, Surround Sound, 2 X 10 W speakers, Hi brightness,
Hi dynamic contrast ratio, Internet enabled broadband, local dimming feature, V
chip parental control, intelligent sensor, Wide angle viewing, Fast response,
Energy efficient Flat panel
Specifications
Display Features
Backlight Type : LED
Deep Black Panel
Display Device : LCD
TV System
Display Resolution : Full HD 1080(1920x1080)
Screen Size (cm) : 132.2cm
Screen Size (measured diagonally) : 52"
Viewing Angle (Right/Left) : 178(89/89)
Viewing Angle (Up/Down) : 178(89/89)
Channel Coverage : VHF: 2-13ch UHF: 14-69ch CATV (analog): 1-135ch CATV
(digital) : 1-135ch
Color System : NTSC
Number of Tuners (Digital) : 1(Hybrid)
TV System (Analog) : M
TV System (Digital) : ATSC
Tuner (Cable) : Clear QAM
Tuner (Terrestrial) : ATSC™ / NTSC
Aspect Ratio : 16:9
Video
Video Signal : 1080/60p (HDMI™ / COMPONENT), 1080/60i, 1080/24p (HDMI™
ONLY), 720/60p, 480/60p, 480/60i
24p True Cinema™ Technology : Yes
3D Comb Filter : Yes
4:3 Default : Yes
Advanced Contrast Enhancer (ACE) : Yes
Auto Wide : Yes
CineMotion® Reverse 3:2 Pulldown Technology : Yes
Cinema Mode : Yes
Deep Color : Yes
Live Color™ Technology : Yes
MPEG Noise Reduction : Yes
Motionflow™ Technology : 240Hz
PhotoTV HD : Yes
Picture Mode : Vivid, Standard, Custom, Cinema, Game-Standard, Game-Original,
Sports, Graphics, Photo-Vivid, Photo-Standard, Photo-Original, Photo-Custom
Video Processing : BRAVIA Engine 3™ Technology
Wide Mode : Normal, Zoom, Wide Zoom, Full (Full1-2 for PC), H Stretch
Audio
5.1 Channel Audio Out : Yes
5.1ch Through Out (Handycam) : Yes
Alternate Audio (Digital) : Yes
Audio Out : Variable/Fixed
Auto Mute (on no signal) : Yes
Auto SAP : Yes
Clear Voice : Yes
Dolby® : Dolby® Digital
Invisible Speaker (w/Sound Elevation) : Yes
S-Master : Yes
Sony Original Surround : Yes
Sound Enhancer : Yes
Sound Mode : Dynamic, Standard, Clear Voice, Custom
SteadySound® Automatic Volume Control : Yes
Stereo System : MTS
Surround Effect : Cinema, Music, Live Sports, Game
Audio Power Output : 20W (10W x 2)
Speaker Configuration : 2
Speakers (Total) : 2
Inputs and Outputs
AC Power Input : 1 (Rear)
Analog Audio Input(s) (Total) : 3 (2 Side/1 Rear)
Audio Out : 1 (Rear)
Component Video (Y/Pb/Pr) Input(s) : 1(1 Side) (Composite input common use))
Composite Video Input(s) : 2 ( 1 Side (Component input common use)/ 1 Rear)
Digital Audio Output(s) : Optical Digital Output - 1 (Rear)
Ethernet Connection(s) : 1 (Rear)
HDMI™ Connection(s) (Total) : 4(2 Side/2 Rear)
HDMI™ PC Input : Yes (see owner's manual for supported timings)
PC In (D-Sub) + Audio In (Stereo Mini) : 1 (Side)
RF Connection Input(s) : 1 (Rear)
USB 2.0 : 1 (Side)
Internet Video
Internet Widgets
DLNA
Photo MAP
Energy Efficiency
Backlight Off Mode
Dynamic Backlight Control
Eco Settings Energy Saving Switch
Estimated Annual Energy Consumption (kWh) : 209.2kWh/year
Idle TV Standby
LightSensor™ Technology
Power Saving Modes
General
Audio Return Channel : Yes
Closed Captions (CC) : Analog, Digital
Finish (Surface Color) : Black
HDMI™ InstaPort : Yes
Illuminated Sony Logo : Yes
Touch Sensor : Blind Touch Key
XMB : Yes
VESA® Hole Pitch : 300x300 M6
VESA® Hole Spacing Compatible : Yes
Dimensions (Approx.) : 49 3/4 x 32 1/4 x 15 3/4 in (1261 x 819 x 400mm) with
pedestal; 49 3/4 x 31 x 2 5/8 in (1261 x 787 x 64mm) without pedestal
Weight (Approx.) : 79.6 lbs. (36.1kg) with pedestal; 66.3 lbs. (30.1kg) without
pedestal
Power
Power Consumption (in Download Acquisition Mode) : Less than 16 W
Power Consumption (in Operation) max. : 169W
Power Consumption (in Standby) : 0.17W
Power Requirements (frequency) : 60Hz
Power Requirements (voltage) : AC 120V
Other
Auto Photo Mode : via HDMI, via DLNA, via USB
Auto Picture Setting w/ HDMI™ : Cinema, Sport, Music, Photo, Graphics, Game
Auto Shut-off : Yes
BRAVIA® Sync™ : Yes
BRAVIA® Sync™ Menu Button : Yes (on Remote Control)
Channel Block (with password) : Yes
Channel Jump : Yes
Channel Labels : Yes
Channel Surf : Yes
Edit Channel Labels : Yes
Favorites : Yes
Info Banner : TV Guide on Screen, PSIP, XDS
Input Skip : Automatic
Internet Radio : Yes
Label Inputs : Yes
Multiple Language Display : English, French, Spanish
On-Screen Clock : Yes
On-Screen Display for External Input : Yes
On-Screen Operating Instructions
On/Off Timer PIP (Picture in Picture) : PC Input(HDMI)/TV Channel&CVBS
Parental Control
Picture Adjustments Lock Picture Frame Mode
Quick Start
Scene Select : Auto, Cinema, Sports, Photo, Music, Game, Graphics, OFF
Show/Hide Channels
Sleep Timer Stand Swivel
Stand Swivel Range : Left 20°/Right 20°
Stand Tilt Stand Tilt Range : 2position 0°/ Back 6°"
Start Up Sony Logo Display TV Guide On-Screen Theatre Mode (Theatre Button)
Theatre Mode with Cinema Surround USB Application(s) : Photo Viewer (jpeg),
Photo Viewer (RAW), Music Player (mp3), Video Player (AVCHD), Video Player
(AVC), Video Player (MPEG4)
USB Player
White Balance : RGB Gain/Bias
Wireless LAN : Integrated
Include accessories:
AC Power Cord
Remote Control
Batteries (Type AAA x2)
Table Top Stand (separate, pre-assembled)
Warranty 1 year parts and labor from date of purchase
Sony BRAVIA 52" 1080p LED-Backlit LCD HDTV Model - KDL-52NX800 or
Equivalent
ModelOffered: SONY KDL-52NX800
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
9
$2,005.71
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
HDTV Monitor, LED back lit LCD Flat Panel, Multimedia, 55”
Note to the End user:
This is indented for use in classroom, science lab, auditorium,
main lobby and indoor sport venues etc. (Please remember to order appropriate
wall/ceiling mount)
General Specifications
Full HD TV Monitor, LED-Backlit LCD, 55" Screen Size (Measured Diagonally),
Multimedia inputs, composite, S-Video, Component, VGA, HDMI, Audio in
/outs, PC Audio in, multi scan formats, multi standard tuner
(NTSC/ATSC/QAM), Dolby, Surround Sound, 2 X 10 W speakers, Hi brightness,
Hi dynamic contrast ratio, Internet enabled broadband, local dimming feature, V
chip parental control, intelligent sensor, Wide angle viewing, Fast response,
Energy efficient Flat panel
Features:
LED Plus w/Local Dimming
NetCast Entertainment Access* (Wi-Fi® Ready)
Wireless 1080p Ready*
TruMotion 120Hz
Full HD 1080p Resolution
Picture Wizard II (Easy Picture Calibration)
Smart Energy Saving
ENERGY STAR® 4.0 Qualified
Intelligent Sensor
AV Mode II (Cinema, Sports, Game)
Clear Voice II
ISFccc® Ready
24P Real Cinema
USB 2.0 (JPEG, MP3, DivX HD)
DivX® HD
4 HDMI™ V.1.3 w/Deep Color
SIMPLINK™ Connectivity
Dolby® Digital 5.1 Decoder
Infinite Sound
Specifications:
Screen Size: 55” Class (54.6” diagonal)
Resolution: 1920 x 1080p
Dynamic Contrast Ratio: 5,000,000:1
Response Time (GTG): 2.4ms
TruMotion 120Hz
Local Dimming
Viewing Angle: 178º/178º
Video
Built-In Tuner: ATSC/NTSC/Clear QAM
XD® Engine
Aspect Ratio: 16:9
Aspect Ratio Correction: 6 Modes
Just Scan (1:1 Pixel Matching)
HDMI™: 1080p/1080i/720p
Component: 1080p/1080i/720p
RF: 1080i/720p
Color Temperature Control: 3 Modes
24p Real Cinema (5:5/2:2 Pulldown)
3:2 Pulldown
Picture Reset
AV Mode II: 3 Modes
Picture Mode: 8 Modes
ISFccc® Ready
Intelligent Sensor Mode
x.v.Color™
DTV Signal Strength Indicator
Audio
Mono/Stereo/Dual (MTS/SAP)
Audio Output Power (Watts - THD 10%): 20W (10W + 10W)
Speaker System Details: 2 Way/4 Speakers
Dolby® Digital Decoder
Surround System: Infinite Sound
Bass/Treble/Balance Controls
Clear Voice II
Auto Volume Leveler II
EZ Sound Mode: 5 Modes
Broadband
NetCast™ Entertainment Access
Yahoo!® TV Widgets
Netflix® Instant Streaming Ready
Vudu™ (Streaming)
Picasa™ Web Albums
YouTube™
Skype™ Ready
DLNA® Certified
Special Features
Wireless 1080p Ready (WHDI™)
Wi-Fi® Ready
Picture Wizard II
Backlight Control
Smart Energy Saving
1080p Source Input
HDMI™: 60p/30p/24p
Component: 60p/30p/24p
RGB: 60p (WXGA)
A/V Input Navigation
Input Labeling
Quick View (Flashback)
Parental Control w/V-Chip
Key Lock
Closed Caption
SIMPLINK™ (HDMI CEC)
Convenience
Language: 4 (English/Spanish/French/Korean)
Auto Tuning/Programming
Channel Add/Delete
Favorite Channel Programming
Auto/Manual Clock
On/Off Timer
Sleep Timer
Auto Off/Auto Sleep (When no video is present)
Inputs / Outputs
RF In (Antenna/Cable): 1 (rear)
AV In: 1 (rear) 1 (side w/gender)
Component Video In (Y, Pb, Pr) + Audio: 2 (rear) 1 (side w/gender)
Digital Audio Out (Optical): 1 (rear)
HDMI™/HDCP Input (V.1.3 w/Deep Color): 3 (rear) 1 (side)
RGB In (D-Sub 15pin) - PC: 1 (rear)
PC Audio Input: 1 (rear)
LAN: 1 (rear)
RS-232c In (Service Only): 1 (rear)
USB 2.0 (JPEG, MPEG-4/DivX HD): 2 (side)
Wireless Control: 1 (rear)
Headphone Out: 1 (side)
Cabinet/Accessories
Cabinet Color: Glossy Black/Evening Purple
Swivel Stand (degrees): +20º / -20º
Remote Control Type: Universal
VESA® Compliant (WxH): 2000mm x 200mm
Remote Control: 1 (Universal)
Power
Voltage, Hz: 100V ~ 240V, 50/60 Hz
Stand-by Mode: >0.1W
ENERGY STAR® 4.0 Compliant
Approximate Dimensions:
Without Stand
Height: 31.4"
Width: 51.4"
Depth: 1.2"
With Stand
Height: 34.1"
Width: 51.4"
Depth: 11.3"
Approximate Weight:
Without Stand: 63.5 lbs
With Stand: 76.1 lbs
Shipping: 86 lbs
Warranty Information:
Manufacturer Warranty: One Year Parts and Labor
LG Electronics 55" 1080p Internet Enabled LED-Backlit LCD HDTV 55LE5500 Or Equivalent
Model Offered: LG 55LE5500 $2,175.00
10
HDTV/MONITOR, 65” MULTIMEDIA
This is a very large Flat Panel display specially intended for use
in large auditoriums, Lecture halls, main lobby and indoor sport
venues, conference rooms etc. and as a replacement option for video
projectors. (Note to end-user: Please remember to order appropriate
Pedestal & mounting hardware). Vendor is responsible for the complete
installation!
General Specifications:
Flat panel display LCD/Plasma, size 65” Full HD, with
built-in ATSC & NTSC tuners, Composite, component, A/V,
S-Video , HDMI, audio inputs, VGA, with PC Audio IN, Head phone out,
built-in vertical speakers, Multiple aspect ratio selectable
Specifications:
Progressive scan, Closed caption, MTS support, PIP/Split Screen,
65" screen (measured diagonally)
widescreen 16:9 aspect ratio
built-in digital ATSC , QAM and analog NTSC, tuners
1920 x 1080 pixels (full HD) ,100,000:1 dynamic contrast ratio
digital video processing , Four built-in speakers (31 watts)
A/V inputs, including: minimum 1 composite video,1 S-video ,2 component
video
(accepting signals up to 1080p)
3 HDMI ,PC input: analog RGB (D-Sub 15-pin) ,RF input for antenna/cable
signals
optical digital audio output, USB port
Wide Viewing Angle, Support for 480i, 480p, 720P, 1080i,
V- Chip Parental Control, 2:2/3:2 Pull Down,
Pro Setting Menu, Studio Reference Mode, 900 lines or more moving picture
resolution
AR (Anti-Reflective) Filter screen coating, 4:3/Zoom/Full/Just/H-fill TV/AV
aspect control,
4:3/Full for PC, 480 Hz Sub-field Drive,, Motion adaptive 3D-Y/C digital
comb filter,
Deep Color/x.v. Color via HDMI, Digital Cinema Color, 3D Color
Management,,
Motion pattern noise reduction, Sub Pixel Control, Pixel Shifter (anti-image
retention)
SD/SDHC memory card slot/Gallery Player ready-to-view with
AVCHD/MPEG2
Playback,capability-(H.264)
VIERA Cast IPTV capable with Ethernet port
Mini D-Sub 15-pin PC input, RS-232C port. Game Mode
Video Picture Memory, video input labeling, V-Chip program lockout,
Closed caption decoder
detachable swivel stand , wall-mountable, remote control
Energy Star regulatory approvals, 3 Year warranty,
3 Year Parts and Labor w/ Onsite Coverage for 1st Year.
Panasonic Viera TH-65PZ850U 65" Plasma TV or latest equivalent
ModelOffered: Panasonic Viera TH-65PZ850U 65TCP65V10 $3,499.00
11
Blu-Ray disc player
This is intended for use in classroom, office, auditorium, lobby etc
Bluray DVD playback operations
General Specifications:
1080p high definition resolution Compatible with Blu ray disc and backward
compatible with
CD/DVD, Up scaling, WiFi Ready, Interactive, Netflix and Pandora streaming
capable
Specifications
BD Profile 2.0 (BD-Live Ready); BD Wise
2 USB 2.0 (front and back)
1 Ethernet
Audio Output Mode: Stereo
Parental Lock
Form Factor: Tabletop
DVD Media Loading: Tray
Width: 17 inches
Depth: 7.8 inches
Height: 2.1 inches
Weight: 4.9 pounds
Include: Wireless adapter, Remote control
Manufacturers’ One Year Warranty
Samsung BD-P1590 Blu-Ray disc player or Equivalent
ModelOffered: TOSHIBA BDX2000
$135.48
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
12
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
DVD/S-VHS/HDD COMBO RECORD/PLAY
FOR CLASS ROOMS.
General Specifications:
3-in-1 DVD/VHS/HDD video recorder. DVD-R-RW/DVD
+R/+RW/RAM DVD recorder, VHS HiFi VCR, Hard Disk
video recorder with an 80GB hard drive standard cable-ready tuner,
analog and Firewire AV inputs, progressive scan, DivX, and video
upscaling via HDMI output, I/O Digital coaxial output, Component
video output, S-video outputs, Composite, Digital Audio (TOSLINK),
HDMI. One year warranty.
Panasonic DMR-EH75VS or latest equivalent
ModelOffered: Panasonic DMR-EH69GAK $380.00
13
DVD/VCR Rec/ Playback
General Specifications:
DVD/VCR combo, Multi format, Progressive scanning (line doubling),
simultaneous recording and playback
Dolby Digital output, S-VHS quasi playback, one-touch recording/playback,
PEG photo playback, 24bit / 192kHz A/D, DTS digital output,
DVD
Media Type : CD-R, CD-RW, DVD-R, DVD-RW, DVD, CD, Video CD
Video D/A Converter : 14bit / 108MHz
Audio D/A Converter: 24bit / 192kHz
DVD Additional Features: JPEG photo playback
VCR
Media Type : VHS
Recording / Playback Speed : SLP, SP, EP
Audio
24bit / 192kHz A/D, DTS digital output,
Stereo, 3D Surround
IN/Outs
1 x component video output ( RCA phono x 3 ) - rear 1 x composite
video/audio input ( RCA phono x 3 ) - front 1 x composite video/audio input (
RCA phono x 3 ) - rear 1 x composite video/audio output ( RCA phono x 3 ) rear 1 x S-Video output ( 4 pin mini-DIN ) - rear 1 x SPDIF output ( RCA
phono ) – rear
Width : 17.1 in
Depth : 9.2 in
Height : 3.7 in
Weight: 6 lbs
Include Remote control
Manufacturer’s Warranty One Year
Toshiba SD V296 or Equivalent
ModelOffered: Toshiba SD V296
14
$63.00
CART FOR LCD DISPLAY
INCLUDING 2 VCR/DVD PLAYER MOUNTING SHELVES
ASSEMBLY & INSTALLATION REQUIRED
BY THE VENDOR
General Specifications:
LCD mobile cart to position the display anywhere along its poles and
to safely support any AV equipment mounted and placed upon it. The
kit shall consist of the LCD Display Cart with appropriate mount and
2 X equipment shelves to place one VCR and one DVD player. 60”
post height, Lockable casters, - shelf dimensions are 20"W x 16"D with
manufacturer's limited lifetime warranty. The vendor shall assemble and
securely install the equipment on the shelves. The wiring for proper operation
shall also be completed by the vendor. Premier Mounts UPD Series with
Clevis Universal Mount & PSD-SHA Optional Shelf or latest equivalent
ModelOffered: No award
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
15
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
MINI DV/DVD/HDD COMBO
This is intended for multimedia recording, playback and dubbing
General Specifications:
Three-in-one video recorder, All-digital formats of Mini DV,
250GB hard disk drive (HDD), and DVD, stand alone
editing/dubbing/viewing
production system, built-in Simple non-linear 'play-list'
editing, and facility to create finished DVD programs
without a computer , Compatible with most non-linear
editing systems, IEEE-1394 In/Out, & BNC Connection,
dubbing to/from Mini DV tape,
Program storage on HDD , High quality DVD creation and
duplication , DVCAM™
playback capability, Multi-format DVD (recording & playback of
DVD-R, DVD-RW, and DVD-RAM as well as playback of +R or +RW.)
JVC SR-DVM700US or Latest equivalent
Model Offered: JVC SR-DVM700US $1,124.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
16
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
TV Tuner/Receiver, Digital,ATSC/QAM - For Cable & Terrestrial
Broadcasts
Note to End User :
This is intended for use as an external TV tuner for DVD/VHS, TV and
projectors
This unit can receive digital ATSC over-the-air HDTV broadcast signals from
external antenna or digital Cable clear non-encrypted QAM 64 and 256 TV signal
from Cable RF source.
(The Comcast is sending a mixture of both analog and digital channels. Some of
the analog channels already converted to unencrypted standard digital (SD)
format that can be displayed by the DCT618.
Digital tuner displaying only Standard Digital (SD) or High Definition (HD)
Digital channels. However, RF bypass feature to pass analog channels
General Specifications
Fully DVB-C/MPEG2 compliant 256QAM HDTV Receiver 480i, 480p, 720p,
and 1080i Selectable Outputs
Receive and decode all over-the-air (ATSC) HDTV/SDTV formats.
Receive and decode Digital Cable (Clear non-encrypted QAM tuner) in
HDTV/SDTV formats.
HD Component (Y-Pb-Pr), RGB, and HDMI HDTV outputs.
Composite Video (CVBS) and S-Video outputs.
Rear-panel switch for selecting output resolution (1080i / 720p / 480p / 480i).
Digital Volume Control.
V-CHIP & Closed Captioning.
Instant Channel information, signal strength indicator and Electronic
Programming Guide (EPG) at one glance.
Master Channel list and 3 Favor Channel lists from OSD menu and remote
control access.
selectable 16:9 and 4:3 aspect ratio.
Front panel display for channel number, automatic channel time clock display,
channel scan etc , RF passthrough connector
Decoded video in channel 3 or 4 output by CH3/4 switch.
Specifications
Video System (ATSC) : (ATSC) MPEG-2 MP@HL compliant video decoder
Video Type: 480i, 480p, 720p, 1080i
Sound System (ATSC): Dolby Digital PCM
V-Chip and MPAA : Parental Guide Rating Support
AUDIO : MTS, Mono / Stereo / SAP
Aspect Ratio: Normal / Full / Zoom
OSD : Multi language OSD
External
Connections
1 x RCA Stereo (L/R) Out
1 x RCA Video Out (480i)
1 x S-video Out (480i)
1 x Component Out (1080i, 720p, 480p)
1 x D-Sub (15 Pin) Out (1080i, 720p, 480p)
1 x HDMI Out(1080i, 720p, 480p)
1 x USB v.2.0 Jack for Service (ATSC Module)
SPDIF (Optical) : Dolby Digital or PCM
TV Antenna: Antenna In (75ohm Coaxial cable, F-connector)
RF Out : F-connector, CH 3/Analog pass through
Power Supply : AC 120V, 60Hz
Power Consumption : 15 W
Dimensions: 14.17”(W)×1.96”(H)×9.84”(D)
Include
Remote Control & Batteries
Composite Audio/Video Cable (RCA, Red/White/Yellow)
Component Video Cable (RCA, Red/Green/Blue)
User's Manual
Warranty Terms: - 1 year, Parts, Labor - 90 days
DCT618 HDTV receiver or equivalent
(http://www.barrel-of-monkeys.com/graphics/dct618/dct618.shtml)
Model Offered: APEX DT502 $49.95
17
CAMCORDER, Multi Format,
Note to the End User:
( Please remember to order re-usable P2 Card for tapeless recording !)
General Specifications:
Handheld Varicam camcorder 3CCD, 1/3-inch 16:9
progressive CCD 1100000 Pixel, with LEICA DICOMAR lens
intended for use in TV production Elementary & Middle schools
Specifications
Pick-up Device: 3CCD; (1/3-inch interline transfer type, and
progressive modes supported); Lens: LEICA DICOMAR lens with
optical image stabilizer, motorized/manual mode switching, 13 ×
zoom,F1.6 - 3.0 (f=3.9mm to 51mm / 35mm latest equivalent: 28mm
ro 368mm); Optical Color Separation: Prism system; ND Filter: 1/4,
1/16, 1/64; Video P2 General (DV CPRO HD , 1080i / 720p);
Sampling Frequency: Y : 74.25 MHz, PB/PR: 37.125 MHz; Quantizing:
8 bits; Video Compression System: Compression ratio 1/6.7, DCT +
variable length code; Video Recording Bit Rate: 100 Mbps; Audio P2
General (DV CPRO HD , 1080i / 720p); Sampling Frequency: 48 kHz
Quantizing: 16 bits / 4ch; Frequency characteristics: 20 Hz to 20kHz
Memory Card; Recording Format: DV CPRO HD : (59.94 Hz) 1080/60i
(30p over 60i, 24p over 60i, 24pA over 60i), 720/59.94p (30p over 60p,
24p over 60p), 720/30pN (Native), 720/24pN (Native); DV CPRO 50/DV
CPRO /DV : 480/60i (30p over 60i, 24p over 60i, 24pA over 60i)
Audio Recording Format: PCM digital recording 48 kHz / 16 bits
4ch (DV CPRO HD / DV CPRO 50), 2ch/4ch selectable (DV CPRO /DV )
Recording/Playback Time*: Approx.64 minutes; VIDEO connectors
SDI Out: BNC x 1, 0.8Vp-p, 75; HD : SMPTE 292M/296M/299M Standard
SD: SMPTE 259M-C/272M-A/IT U-R.BT656-4 Standard Analog Component
Output: Component Video Terminal x 1, Y : 1.0Vp-p, 75 Ω , PB/PR: 0.7Vp-p,
75 Ω; Analog Composite Output: Pin jack x 1, 1.0Vp-p, 75 Ω; Audio
Connectors
XLR Input: XLR (3-pin) × 2 (Input 1/Input 2), Input High-Impedance Line:
0dBu,
MIC: -50/-60dBu (selectable in menu GUI); Line Output: Pin-jack × 2
(ch1,ch2)
316mV, 600 Ω; Built-in Microphone: Stereo microphone; Phones: Stereo mini
jack
(3.5mm diameter); Built-in Speaker: 20mm round shape x 1; Other
Connectors
IE 1394: 6 pin Digital x 1 (Input/Output), based on IE 1394 standard USB:
Type
mini B connector (USB ver.2.0); Camera Remote: 2.5mm diameter super mini
jack for zoom and rec start/stop; 3.5mm diameter mini jack for focus and iris;
Monitor, AC Adapter, and other packages; LCD Monitor: 3.5 inches, LCD
color
monitor, 210,000 pixels; Viewfinder: 0.44 inches, LCD color viewfinder,
235,000
pixels; AC Adapter: Weight: 160 g; Dimensions: 70 (W) mm x 44.5 (H) mm x
116
(D) mm; Supplied Accessories: A C adapter/charger, AC cord, DC cord, Eye
cup,
5400mAh battery pack, Wireless remote controller with button-type battery,
Microphone holder, Shoulder strap, Ferrite core, Component video cable, PinBNC
conversion plug, P2 card software driver install CD-RO M; Include: Lithium
Battery
Battery Charger; A/C Adapter. 5 Year warranty.
Panasonic AG-HPX170 or Latest equivalent
ModelOffered: Panasonic AG-HPX170 $3.864.00
(*) Indicates Internal Stock Numbe rs
ITEM
NO.
DESCRIPTION
18
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
TRIPOD SYSTEM (MINI DV CAMERA)
This is a camera support system is for light weight cameras and
intended for use in TV studio or for remote location shooting. Tripod
system for use with Mini DV Camcorders to support a minimum of 22
lbs. Consists of a universal tripod, featuring robust built-in geared column,
integrated adjustable spreader, retractable spiked feet and universal-flat
based head mount with Fluid Head- providing continuous adjustable drag
control with integrated counter balance mechanism, camera mounting plate,
with 2 pan handles; Dolly with locking capability.
ModelOffered: Manfrotto model 3068/516/3156 $630.00
19LED Dance Floors
General Specifications:
This is intended for use in creative & performance arts schools for use
as a dance floor with programmable lighting effects; LED lighted dance
floors sections in 4’x4’ steel decks that hold at least 1200 lb’s a piece and can
be
clamped together to make any size dance floor as needed. Each installed with
4
LED light strips, the steel frame, a 3/4 “ Plexiglas deck, all the cables and
includes
all materials, safety rails, installation and operator instruction; software
application
to program and save individual blocks for color, patterns, effects and
combinations.
Usable from regular 20amp power outlet, LED Party floor model or latest
equivalent
ModelOffered: No Award
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
20TELEVISION STUDIO FOR ELEM. SCHOOLS
General Specifications:
This is intended for live and taped video production of morning address,
instructional materials, documentaries, events, info/educational programs. The
studio will also be used for teaching Television classes and training students.
The vendor shall procure, install, test and maintain for three years a complete
and fully functional functioning Turn-key system including but not limited to
the following items or its latest equivalent and compatible replacements. All
items shall be of pro-sumer / industrial grade supplied with a minimum of one
year OEM warranty for parts & labor together with an extended service contract
from the vendor. All items, cables shall be marked, labeled, and the wiring be
carried out in a professional manner following all industry and safety standards.
The vendor shall provide a minimum of 16 hours of training. Up on
commissioning, the vendor shall also provide test results, schematics,
documentation and manuals. The system shall be installed in low profile mobile
dual video and single audio rack consoles to facilitate remote productions within
the school complex (schematic Diagram is available from TV Resources up on
request)
ITEM DESCRIPTION
Camcorder, 3CCD adapted for studio use with Tally, ext.
VF, P2 Card (as specified in bid item#11)
AC ADAPTER/BATTERY CHARGER
LI-ION BATTERY, 2 HR.
BATTERY ADAPTER
TRIPOD, WITH CAMERA ADAPTER,HEAD, Handle
DOLLY for camera support system
MIC,LAVALLIER, ELECTRIC CONDENSER, SONY
MIC, HAND HELD
VIDEO PROD. SWITCHER, Integrated TriCaster VM™,
TimeWarp™, LiveText™, DataLink
MONITOR 4",PVW, LCD,MARSHALL ELECTRONICS
MONITOR,LCD, 7", MARSHALL ELECTRONICS
TV/ MONITOR, LCD, 19",Wide screen
MICROPHONE STAND, HEIGHT ADJUSTABLE
Rack case, Fly pack, shock mounted, 12RU, 14” d w.
casters , mobile,
THREE IN ONE RECORDER, MINI DV+DVD+HDD,
JVC
AUDIO MIXER, 14 IN, MACKIE
CD/DVD PLAYER, SAMSUNG
A/V SELECTOR SWITCH, 5 X 1, JVC
HEAD SET, JVC
INTERCOM SYSTEM, WIRELESS, 4 USERS,
TELEPROMPTER SYSTEM W. LCD, TO FIT ITEM #1
TYPICAL MAKE /MODEL
ECM-44B
SHURE SM57
2
2
2
2
2
2
3
3
*Newtek Tricaster
V-LCD4-PRO-L
V-ASL7070
TOSHIBA 19LV610U
MS-10 C
1
4
2
3
3
Panasonic AG-HPX170
2
SR-DVM70US
Mackie 1402-VLZ3
DVD-HD841
JVC JX-S111S
HA G101
EAR-TD904
DV-11
Image west model
KIT/LED-1500
Chyron ChyTV-IP-N
LL LC5781 +314
Comprehensive CVG-5A
AJA
TView Gold
LIGHTING, LED KIT, 1500W
MESSAGING/ INFORMATION/ALERT SYSTEM
CHROMA KEY SCREEN with support
DA, AUDIO & VIDEO
Signal converter, analog to digital & digital to Analog each
SCAN CONVERTER
INSTALLATION, DOCUMENTATION & TRAINING
UPS, APC SmartUPS , 1400VA, RACK MOUNT
SUA1500RM2U Smart-UPS
*100% credit to be applied when upgraded to a higher system!- for example,
composite to SD
Model Offered: AS Specified
$44,360.50
QT
Y
2
1
1
1
2
1
1
1
1
1
2
1
1
1
1
ITEM
NO.
DESCRIPTION
21
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
TELEVISION STUDIO FOR MIDDLE SCHOOLS
General Specifications:
This is intended for live and taped video production of morning address, instructional
materials, documentaries, events, info/educational programs. The studio will also be used
for teaching Television classes and training students. The vendor shall procure, install,
test and maintain for three years a complete and fully functional functioning Turn-key
system including but not limited to the following items or its latest equivalent and
compatible replacements. All items shall be of pro-sumer / industrial grade supplied
with a minimum of one year OEM warranty for parts & labor together with an extended
service contract from the vendor. All items, cables shall be marked, labeled, and the
wiring be carried out in a professional manner following all industry and safety standards.
The vendor shall provide itemized prizes, and may substitute latest equivalent items
without affecting the integrity of the system. The vendor shall provide a minimum of 16
hours of training. Up on commissioning, the vendor shall also provide test results,
schematics, documentation and manuals. The system shall be installed in low profile
mobile dual video and single audio rack consoles to facilitate remote productions within
the school complex. (schematic is available from TV resources up on request)
ITEM DESCRIPTION
Camcorder, 3CCD adapted for studio use with Tally, ext.
VF, P2 Card (as specified in bid item#11)
Signal converter, analog to digital & digital to Analog each
AC ADAPTER/BATTERY CHARGER
LI-ION BATTERY
BATTERY ADAPTER
TRIPOD, W. CAMERA ADAPTER, Fluid head, +2
HANDLES
DOLLY for the camera support system
MIC,LAVALLIER, ELECTRIC CONDENSER, SONY
MIC, HAND HELD
VIDEO PROD. SWITCHER, Integrated TriCaster VM™,
TimeWarp™, LiveText™, DataLink
TV/Monitor, 32”, Flat Panel,Multimedia VGA, HDMI, RF,
LCD 19",Wide screen HDTV/monitor
MICROPHONE STAND, HEIGHT ADJUSTABLE
Rack case, Fly pack, shock mounted, 12RU,14” d w. casters ,
mobile,
Signal converter, digital to analog, analog to digital, each
THREE IN ONE RECORDER, MINI DV+DVD+HDD, JVC
MONITOR,LCD, 7", DUAL
TYPICAL MAKE /MODEL QTY
Panasonic AG-HPX170
AJA
3
1
2
2
2
Sachtler DV II
Sachtler
ECM-44B
SHURE SM57
3
3
3
3
Newtek Tricaster
Viewsonic N3290W
Toshiba 19HLV87
MS-10 C
1
2
2
1
any
AJA
SR-DVM70US
LAIRD LTM-2LCD7
2
2
2
2
AUDIO MIXER, 14 IN, eq, mic/Line
VHS/DVD Combo,
HEAD SET, JVC
INTERCOM SYSTEM, WIRELESS, 4 USERS,
TELEPROMPTER SYSTEM W. LCD, TO FIT ITEM #1
LIGHTING, LED KIT, 1500W
CHROMA KEY SCREEN with support
DA, SDI
UPS, APC SmartUPS , 1400VA, RACK MOUNT
SCAN CONVERTER
MESSAGING/ INFORMATION/ALERT SSYTEM
Microphone snake cable assy, 50', FM. XLR
Interface Panels, A/V I/O
HD/SD Sync Generator
Mackie 1402-VLZ3
JVC HR-XVC19S
HA G101
EAR-TD904
Broadcast 15 Prompter
Image west model
KIT/LED-1500
LL LC5781 +314
AJA
SUA1500RM2U Smart-UPS
TView Gold
Chyron ChyTV-IP-N
Markertek SIG-12F
As needed
GEN10
MIC, WIRELESS, FREQ.AGILE, SYSTEM
ATW-1128
INSTALLATION/DOCUMENTATION/TRAINING
*100% credit to be applied when upgraded to a higher system!- for example,
composite to SD
Model Offered: AS Specified
$61,268.25
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
21TELEVISION STUDIO FOR HIGH SCHOOLS
General Specifications:
This is intended for live and taped video production of morning address, instructional
materials, documentaries, events, info/educational programs. The studio will also be used
for teaching Television classes and training students. The vendor shall procure, install,
test and maintain for three years a complete and fully functional functioning Turn-key
system including but not limited to the following items or its latest equivalent and
compatible replacements. All items shall be of pro-sumer / industrial grade supplied
with a minimum of one year OEM warranty for parts & labor together with an extended
service contract from the vendor. All items, cables shall be marked, labeled, and the
wiring be carried out in a professional manner following all industry and safety standards.
The vendor shall provide itemized prizes, and may substitute latest equivalent items
without affecting the integrity of the system. The vendor shall provide a minimum of 16
hours of training. Up on commissioning, the vendor shall also provide test results,
schematics, documentation and manuals. The system shall be installed in low profile
1
1
2
1
1
1
1
2
2
1
1
1
1
1
1
1
mobile dual video and single audio rack consoles to facilitate remote productions within
the school complex. (schematic diagram is available from TV resources up on request)
ITEM DESCRIPTION
CAMCORDER, ½” CMOS, STUDIO PACKAGE,
MEMORY CARD, W. Lens, CABLES
AC ADAPTER/BATTERY CHARGER
LI-ION BATTERY
BATTERY ADAPTER
TRIPOD, W. CAMERA ADAPTER, Fluid head, +2
HANDLES
DOLLY for the camera support system
MIC,LAVALLIER, ELECTRIC CONDENSER, SONY
MIC, HAND HELD
INTEGRATED VIDEO PRODUCTION SWITCHER,
digital, SDI, LiveText, CG, NewTek iVGA, LiveSet
TV/Monitor, 32”, Flat Panel, Multimedia VGA, HDMI,
RF,
LCD 19",Wide screen HDTV/monitor
MICROPHONE STAND, HEIGHT ADJUSTABLE
Fly pack, Rack case shock mounted,16RU,14” d w.
casters , mobile,
THREE IN ONE RECORDER, MINI DV+DVD+HDD,
JVC
Wide Screen LCD Monitor with SDI Input, 7”
AUDIO MIXER, 14 IN, mic / line, eq,
VHS/DVD Combo,
A/V SELECTOR SWITCH, 5 X 1, JVC
HEAD SET, JVC
INTERCOM SYSTEM, WIRELESS, 4 USERS,
TELEPROMPTER SYSTEM W. LCD, TO FIT ITEM #1
LIGHTING, LED KIT, 1500W
CHROMA KEY SCREEN with support
MINI Converter, SDI to analong NTSC w.Power Supply
MINI Converter, analog NTSC to SDI, w. Power supply
UPS, APC SmartUPS , 1400VA, RACK MOUNT
SCAN CONVERTER
MESSAGING/ INFORMATION/ALERT SSYTEM
Memory Recorder, XDCAM EX
Signal converter, multi format, analog to digital
Microphone snake cable assy, 50', FM. XLR
Interface Panels, A/V I/O
TYPICAL MAKE /MODEL QTY
Sony PMW-EX3
3
2
2
2
Satchler SACH-0472, FSB6,3270
3
Sachtler DV 100
3
ECM-44B
3
Shure SM58-CN
3
*TriCaster BROADCAST
1
Viewsonic N3290W
Toshiba 19LV610U
Atlas MS-10C
2
2
1
2
JVC SR-DVM700US
Marshall V-R70P-SD 7
Mackie 1402-VLZ3
JVC HR-XVC19S
JVC JX-S111S
JVC HAG101
Ear TD904
Broadcast 15 Prompter
Image west model
KIT/LED-1500
LL LC5781 +314
AJA D4E
AJA D5D
APC SUA1500RM2U
TView Gold
Chyron ChyTV-IP-N
PMWEX30
AJA
Rapco SIG-12F-50
As needed
2
2
1
1
1
2
1
1
1
1
1
1
2
1
1
1
1
1
1
HD/SD Sync Generator
GEN10
MIC, WIRELESS, FREQ.AGILE, SYSTEM
ATW-1128
INSTALLATION/DOCUMENTATION/TRAINING
* 100% credit to be applied for upgrade to a higher system!- for example, SD to
HD
Model Offered: AS Specified
$82,500.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
22
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
Multimedia Projector, 3 LCD, portable
This is intended for use in classrooms, science labs, conference rooms etc.
Front/Rear projection, 3,000 ANSI Lumens (Max)1,contrast ratio of 2000:1
(Full on/Full off), Native XGA (1024 x 768) resolution, with auto sync up to
UXGA (1600 x 1200), Lens: standard with optical zoom ratio 1: 1.6x Manual
Zoom Lens, Verical & Horiz. Kerning correction, Full connectivity supporting
PC, S-video, composite video, component video via VGA and RS-232
connectors
full range of television and video standards support, including NTSC, NTSC
4.43,
PAL, PAL-N, PAL M, SECAM and HDTV (480i/P, 576i/P, 720P, 1080i), 16.7
Million true colors, extended lamp life (up to 6000 hours), Light weight>3 kg,
all
relevant cables, remote, hard carrying case. Power: AC power input socket,
Computer
Input: One VGA 15 pin D-sub, Computer Output: One VGA 15-pin D-sub,
Video Input:
One Composite Video RCA, one RGB/component and one S-Video RS232
Port, USB
Port, Closed Captioning, Networked monitoring & control, message
broadcasting,
USB display compatible with Mac. Same 2-in-1 function for display and mouse
(no audio). Improved Microphone Support. Supports "plug-in-power" or
"condenser" microphones.
Web Remote Function. virtual remote control that works via the web browser.
1
1
1
Pattern Function. Eliminates the need to draw lines on the board. Displays grids
for graphs or lines for lettering. Works with black or white backgrounds.
Minimum 3-years warranty, guarantee minimum downtime to less than 48
hours.
Epson Powerlite 825 + or latest equivalent
Model Offered: Epson Powerlite 825
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
$698.00
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
24 Projector, Multimedia Interactive
Note to the end-user:
This is intended for use in new classroom as a wall mounted unit above the hard
writing board, which is also used as the screen.
Maximum display size , up to 96" . Please note that no separate projector screen
is required. The projector is interfaced via USB.
Functionally, this interactive projector may be considered equivalent to a smart
board. It is notintended for desk-top or ceiling mounted applications.
General Description
Interactive,native WXGA 1280 X 800 pixels), 3LCD, 3-chip , 2500 lumens,
contrast ratio 2000:1, 16.7 Million color, 10 W audio,
Computer/component video, S-video: ,Composite video,Audio in , Microphone in
,Variable audio out’LAN ,
Serial: RS-232c ,USB , Wireless port 802.11 a/b/g
Specifications
Projection System
ƒ
Epson 3LCD, 3-chip optical engine
Projection Method
ƒ
Front/rear/wall mount
Driving Method
ƒ
Epson Poly-silicon TFT Active Matrix
Pixel Number
ƒ
1,024,000 dots (1280 x 800) x 3
White Light Output
ƒ
2500 lumens (ISO 21118 Standard)1
Color Light Output
ƒ
2500 lumens1
Aspect Ratio
ƒ
16:10 (native), 16:9, 4:3
Native Resolution
ƒ
1280 x 800 (WXGA)
Input Signal
ƒ
NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAM
Display Performance
NTSC: 560 lines
PAL: 560 lines
Interfaces
Computer/component video: D-sub 15 pin x 2
S-video: Mini DIN x 1
Composite video: RCA x 1
Audio in x 3: RCA (L&R) x 1, mini stereo x 2
Microphone in x 1
Variable audio out: mini stereo x 1
LAN networking: RJ-45 x 1
Serial: RS-232c x 1
Monitor out: D-sub 15 pin x 1
USB Type B x 1 (USB display, interactive pen)
USB Type A x 1 (USB memory device)
Wireless port 802.11 a/b/g (optional module sold separately)
Resize
ƒ
640 x 480 (VGA), 800 x 600 (SVGA),
1024 x 768 (XGA), 1152 x 864 (SXGA1),
1280 x 960 (SXGA2), 1280 x 1024 (SXGA3),
1280 x 768 (WXGA60-1), 1360 x 768 (WXGA60-2),
1440 x 900 (WXGA+), 1400 x 1050 (SXGA+),
1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+)
Throw Ratio Range
ƒ
0.37' – 0.50' (16:10)
0.37' – 0.50' (16:9)
0.44' – 0.59' (4:3)
Plug 'n Play
ƒ
USB Plug 'n Play for Windows® 2000 or later and Mac OS® X 10.5.1 or later
Projection Lens
ƒ
ƒ
ƒ
ƒ
Type
Manual focus
F-number
1.80
Focal Length
4.68 mm
Zoom Ratio
Digital zoom 1.0 – 1.35x
Lamp
ƒ
ƒ
Type
E-TORL 230 W UHE
Life (Typical)2
Up to 3500 hours (ECO Mode)
Up to 2500 hours (Normal Mode)
Screen Size: (Projected Distance)
ƒ
ƒ
59" – 96" WXGA
55" – 85" XGA
Keystone Correction
ƒ
Vertical: ±5 degrees
Contrast Ratio
ƒ
Up to 2000:1
Color Reproduction
ƒ
16.77 million colors
Sound Output
ƒ
10W monaural
Operating Temperature
ƒ
41 ° to 95 °F (5 ° to 35 °C)
Power Supply Voltage
ƒ
100 – 240 V, ±10%, 50/60 Hz AC
Power Consumption
363 W
10 W standby (network on)
0.3 W standby (network off)
Direct power on/off
Instant off
Dimension
ƒ
(W x D x H)
14.5" x 19.0" x 6.1"
Weight
ƒ
ƒ
14.1 lb with slide plate
12.9 lb without slide plate
Fan Noise
ƒ
35 dB (Normal Mode)
28 dB (ECO Mode)
Remote Control
ƒ
ƒ
ƒ
Features
Source search, power, aspect, color mode, volume, e-zoom, A/V mute, freeze,
menu, help, auto, enter, esc
Operating Angle
Rear:
Right/left: - 55 to +55 degrees
Upper/lower: +75 to +15 degrees
Front:
Right/left: - 30 to +30 degrees
Upper/lower: 0 to +60 degrees
Operating Distance
19.7 ft (6 m)
Control I/O
Input Device
Digital infrared pen Security
Kensington®-style lock provision
Security anchor (metal) bar
Password protection function
Include Accessories
Projector mount
projector template sheet
installation guide
quick users guide
power cable
USB A/B cabl
computer/VGA cable
user manual
interactive driver
interactive software
network software
remote control with batteries
2 X two interactive pens with batteries
PrivateLine support card
Road Service Program
password protection sticker
Three Year Replacement Warranty Required
Epson BrightLink 450Wi Interactive Projector or equivalent
Model Offered: Epson 450WI
$1,595.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
EST.
QTY.
25
UNIT
PRICE
TOTAL
PRICE
Projector, Large Venue
Note to the End user
This is intended for use in large venue locations, such as auditoriums in High
Schools. Please order the Lens separately depending on the throw distance and
application (In the new HS auditoriums, Zoom Lens shall be specified for
projection of images 240” dia. from a throw distance of 95’)
General Description
Projector , Large venue, multi media, DLP The 6500 lumens projector features a
Dual Color Wheel system and their exclusive Active Maintenance Filter with
Dual Lamp Interval system , Hi lumen, hi contrast,
Wireless HD transmission , Dust-resistant sealed optical engine, 24/7 feature
"Lamp interval function"
Specifications
Technology:
Native Res.:
Brightness:
Contrast Ratio:
DLP
1080p
6500 ANSI lumens
7500:1
Colors:
16.9 million colors
Aspect Ratio:
16:9
Compatibility:
UXGA/SXGA+/SXGA/WXGA/XGA/SVGA/VGA/MAC, 1080p24/25/30/48/50/60, 1080psf-24/25/30
1080i-50/60,720p-50/60/575p/480p/575i/480i
Inputs (Video):
Digital video input x 2 ; DVI-D x 1(HDCP compatible),
HDMI x 1(Ver 1.3b(Deep
color)) , Analog
RGB input x 1 ; D-sub 15-pin x 1; BNC x 5 (RGBHV,
VIDEO)
Outputs (Video):
Weight:
Dimensions:
D-sub15 x 1(Analog RGB, Y- Pb/Cb-Pr/Cr, VIDEO)
43.6 lbs.
15.75in W 9.55in H 20.61in D
Minimum 3 Years Warranty required, 90 Days on Lamp, Quick Repair Program (QRP)
Under Warranty
Include: Zoom 1: 18 or equivalent Lens
Sanyo PDG-DHT100L or Equivalent
ModelOffered: Sanyo PDG-DHT100L
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
26
$16,925.52
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
Projector, Multi purpose room
This is intended for multimedia projection in the Multi purpose room
General Description
WXGA Widescreen Networking Multimedia DLP Projector with 4000 Lumen
DarkChip2™ DLP® Technology , Cable-free projection with standard Internal
wireless connectivity providing a link for both data and video from up to four
computers simultaneously
contrast 2500:1, 1.6x zoom Lens with vertical and horizontal lens shift ,
integrated RJ45 connection
Specifications
Resolution : Native WXGA (1280 x 800)
Maximum Resolution : WUXGA (1920 x 1200)
Brightness (Typical): 4000 ANSI Lumens
Contrast Ratio : 2500:1 (Full On/Full Off)
Throw Ratio : 1.57-2.39:1 (Distance/Width)
Image Size (Diagonal): 23.2" to 295.7" (0.59 to 7.51m)
Displayable Colors: 134.2 Million
Aspect Ratio: 16:10 Native, 16:9 and 4:3 Compatible
Keystone Correction: ±30° Vertical
Computer Compatibility: WUXGA, UXGA, SXGA+, XGA, SVGA, VGA
Resized, VESA, PC and Mac Compatible
Video Compatibility: NTSC, PAL, SECAM, SDTV (480i), EDTV (480p),
HDTV (720p, 1080i/p)
I/O Connectors: HDMI (Audio Supported), DVI-D w/HDCP, Two VGA-In,
VGA-Out, S-Video, Composite Video, Two Mini-Jack Audio-In, RCA Audio-In,
Mini-Jack Audio-Out, USB, RS-232, RJ45, +12V Trigger
Projection Lens: F= 2.41~3.2, f = 22.18~33.27 mm, 1.5x Manual Zoom and
Focus
Lens Shift: Vertical 105-130% Offset, Horizontal ±30% Image Width at
v="105%"
Projection Method : Front, Rear, Ceiling Mount, Table Top
Horizontal Scan Rate: 15 - 91 kHz
Vertical Refresh Rate: 50 - 85 Hz
Noise Level (STD/Bright): 30dB/32dB
Operating Temperature: 41 - 95°F (5 - 35°C), 80% Max Humidity, Adjustable
Fan Speed for High Altitude Application
Dimensions (W x H x D) : 14.3" x 5" x 11.1" (364 x 127 x 283mm)
Weight : 12 lbs
Include:
Lens
AC Power Cord, VGA to VGA Cable, USB Cable, RS-232 Cable, Remote
Control, Batteries for Remote, Lens Cap, CD-ROM User's Manual, Quick Start
Card
Warranty
3 Years Optoma Express Replacement Service, 1 Year on Lamp
Optoma TW766W - Professional Series or equivalent
ModelOffered: Optoma TW766W
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
27
$1,444.00
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
Projector Screen, Large, Dual vision (Rear/ Front projection)
Note to the End user
This is intended for use in large venue locations, such as auditoriums in High
Schools for both front & Rear projection. The screen is mounted at least 16’ from
the front edge of the stage.
General Description
Projector screen, motorized, ,Dual Vision Finish .Front or Rear Projection, 120V,
60Hz Large Venue tensioned Electric Screen, ceiling suspended, HDTV Format,
viewing area 146” X 260”, seamless fabrics, automatic thermal overload cutoff to
prevent accidental burn-outs. The braking system is designed to eliminate
"coasting".
Single Motor Low Voltage Controller
Specifications
Style
Professional Electrol
Front/Rear Projection
Front or Rear
Mount
Wall or Ceiling
Finish
Dual Vision - flame retardant and mildew resistant fiberglass
Tension Control
Tensioned
Image Size
146 x 260" (3.7 x 6.6 m)
Diagonal
298" (7.6 m)
Format
HDTV
Aspect Ratio
16:9
asking Options
12" of black drop at the top
Controls
120V, 60Hz
Integrated Control
3 position control switch with cover plate
Motor mounted inside the roller with a patented noise silencer
Pre-set but adjustable limit switches to automatically stop picture surface in the
"up" and "down" positions
Control Options
Single Motor Low Voltage Control (LVC)
Wireless Remote Control for LVC
Radio Frequency Remote
Infrared Remote
Key Locking Switch Cover Plate for 120V Switch or LVC Switch
Key Operated Switch for 120V only (Note: Cannot be used with LVC)
220V (50Hz) Motor, Video Projector Interface Control - 12V or 5V
External SCB-100 - RS-232 Serial Control Board
NET-100 Ethernet-Serial Adapter
Dalite 35283, professional 298 or equivalent
ModelOffered: Dalite 35283
$4,634.55
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
28
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
MONITOR, LCD, 10”
This is intended for video signal display & monitoring applications.
General Description
10.2" Widescreen TFT LCD Color Display
Dual ATSC/NTSC Tuner for Digital and Standard TV broadcast reception
Accepts DTV signals up to 1080i
AV Input Jacks for use with media players, DVR/VCRs, video games, and
more
15-pin VGA Interface for use with Computer Systems
Full-range Stereo speakers (6W)
Digital Comb Filter and noise reduction
V-Chip parental control, Closed-Caption, and Electronic Program Guide
support
Multi-language on-screen display
Wall-mountable design (VESA 75mm x 75mm)
Display Resolution: 800 x 480
Contrast Ratio: 400:1
Brightness: 300 cd/m^2
Pixel Response: 30 ms
DTV Input Format: 480i, 480p, 720p, 1080i
Video System: ATSC/QAM/NTSC
Menu Language Support: English, Spanish, French
Additional Functions: MTS (Stereo/SAP/Mono); Sleep Timer
Audio Input: RCA Composite Audio; 3.5mm Audio
Audio Output: Integrated Stereo Speakers (6W); 3.5mm Headphone
Video Input: Coaxial Antenna; RCA Composite Video; 15-pin PC VGA
Power: Main Unit: AC 100-240V; Remote: 2 x 1.5V "AAA"
Unit Dimension (WHD): 12.21" x 12.19" x 5.24"
AV Cable
Remote Control
2 x 1.5V "AAA" Batteries
100-240V UL
PRODUCT SPECIFICATIONS
Screen Size (Inches/Diagonal) 10”
HDTV Capable
Screen Format : 16:9 Widescreen TV Imaging
Audio Inputs X 2
Video Inputs X 3
Screen Resolution - Maximum 800x480
Contrast Ratio : 400:1
Response Time (Milliseconds) : 30
Speakers Built-in
Coby TF-TV1022 10.2" Widescreen LCD Digital TV/Monitor or latest
equivalent
Model ffered: Coby TF-TV1022 $109.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
29
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
VIDEO VISUALIZER
General Description
Digital/Video display, scan/ capture 3 D objects,, transparencies,
slides, photo films & X-Rays. 5M pixel CMOS sensor with built-in
light box, capable of displaying opaque, Full HD 1080p (1920x1080)
output resolution Auto Focus, and auto Image, Continuous Capture,
Networking, Annotation, Recording, Split-Screen, PIP, Interactive
software with Annotation tool, Video & Audio recording, and Networking,
Split Screen, Picture-in-Picture, Display Mode, Capture Mode, Flicker
Filter Control, 160X Total Zoom with a minimum of 20 X Optical Zoom,
SD card slot , On-Screen Display (OSD), Color/ B&W/ Negative/
Mirror/Freeze
Functions. DVI-I Output, RGB Input/Output, S-Video, Composite Video
Output, RS-232 Port, USB 2.0 Port, LED Light Source
Specifications:
Sensor : 1/2.5”, color image sensor C MOS
Total Pixels 5 Million
RGB Output Resolution : Full HD 1080p (1920x1080)
Light source: LED
Lens : F3.5; f= 6~60mm; Auto Focus
Zoom optical ; minimum X 20
Image Adjust. (White Balance & Exposure & Night View)
Lens: F3.5; f= 6~60mm; Auto Focus
Focus : Auto/ Manual
Electronic Image Rotation: 0°/ 90°/180°/270°/360°
Split screen: Vertical & Horizontal
Built-in Memory minimum: 50
SD card slot
Inputs: VGA(15-Pins D-sub, Pass Through)
NTSC , S video (PC Camera/ Mass Storage
Compatible Operating Systems: Windows®, Macintosh®
Accessories to be included:
Power Adapter & Cord
VGA Cable
S-Video Cable
USB Cable
RCA Cable
Remote Control with Batteries
User Manual
Software for annotation tools
Aver vision SPB 350 or latest equivalent
Model Offered: Aver vision SPB 350
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
30
$974.00
EST.
QTY.
UNIT
PRICE
OVERHEAD PROJECTOR
General Description
120V single phase, ENX projection lamp, 4300 lumens light output,
TOTAL
PRICE
lamp changer; aperture to be 10” x 10” with a 12.5” projection
lens. Closed head. Unit must contain overheating cut-off device
and built in safety interlock switch; power cord to be no less than
15 feet long; angle adjustment for head to be 30 degrees or more.
Closed size and weight to be no more than 13” wide, 18.5 “ long,
8” high and 14 lb. Unit to include side brackets and roll. 3M 1825
or latest equivalent.
Model Offered: 3M 1825
$179.98
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
31
EST.
QTY.
CATV sub channel upstream link
UNIT
PRICE
TOTAL
PRICE
(T9-T13)
General Description
This system consists of a modulator, processor and two diplexers, as listed in
the table below to constitute an upstream link to the head end. This is to send
signals
from a remote location such as Auditorium, classroom, sports field etc.
The modulator with sub channel output module option 4 shall be installed
at the transmitting end. One diplexer is also used at this location. The
processor
with optional module 17 for sub channel input is for use at the Head end
along with a diplexer.
ITEM DESCRIPTION
Modulator, frequency Agile, with sub band channel output
Processor Sub channel input to CATV channel
Diplexer
Minimum 1 Year Parts & Labor Warranty required.
Blonder tongue brand or latest equivalent
ModelOffered: Blonder tongue
$1,855.66
TYPICAL MAKE /MODEL QTY
1
AM-60-550 w. option 4
Ap-60-550 w. option 17
1
DSV-42
2
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
32
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
EDITING CONSOLE FOR PRODUCTION/EDITING SYSTEM
The console is intended for installation of video & audio equipment.
3-bay all in one editing console for use with the video production
system, monitors, VCR Editing system; Shelves adjust for operator's
comfort; Overall dimensions are 33 1/4"H x 72"W x 28"D; Console will
be composed from the following components:
1 ea. Winsted E4103 3-bay open console or latest equivalent
5 ea. 41583CR shelf or latest equivalent
VENDOR MUST FULLY ASSEMBLE CONSOLE AND PLACE IN AREA
DESIGNATED.
Model Offered: No Award
33
LECTERN/PODIUM, TWO PIECE
General Description
This is intended for use in conference rooms and small auditoriums.
free standing, detachable top for use as a table top lectern provision
for accessory storage in the bottom half, on floor glides with casters.
Available in oak or walnut finish, One year warranty. Luxor LX-100
Two Piece Lectern or latest equivalent
Model Offered: Luxor LX-100
34
$749.98
HANDHELD MICROPHONE
Omni directional dynamic type with 80 - 13K Hz response,
impedance 150 ohms, to include: 25' cable, A3F connector, and
312A clamp. Electro-Voice Model 635A w/25’ XLR cable or latest
equivalent.
Model Offered: Electro-Voice Model 635A
$98.06
35
PZM MICROPHONE
Frequency response 20 - 18,000 HZ; 600 ohm impedance;
2,000 hour life with one AA battery; 16 feet of cable; 1/4"
phone connector. Crown Sound Grabber 2 or latest equivalent
Model Offered: Crown Sound Grabber
36
$51.00
(LAVALIERE MICROPHONE WITH 25’ CABLE
Miniature dynamic microphone; Omni directional pickup
pattern; Lo Z; XLR-3-M connector; To include a 25’ M to
F XLR microphone extension cable. Shure SM11-CN
W/Microphone Cable or latest equivalent
Model Offered: Shure SM-11CN
$92.20
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
37
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
WIRELESS MICROPHONE SYSTEM RECEIVER
General Description
True-diversity; dbx noise reduction; 10 channels; A/B channel
LED indicator for diversity monitoring; Independent channel
mute controls for the dual antennas; Power on/off LED; Volume
control; External AC power supply; 12 VDC compatible; to include
RM-1 rack-mount accessory; 30 Hz to 16 KHz ±3dB; -20 dBm
volume adjustable, 0 dB max.; 5 K Ohms; Signal to noise better
than 100 dB; 15dB/Microvolt = S/N 60 dB; 10.7 MHz IF; THD
less than .5% at 1 KHz. To include the following:
BELT PACK TRANSMITTER:
Compact, streamlined body pack transmitter; Strategically located
mute on/off switch; Power on/off switch located on side of unit; 6-pin
input jack; Battery level indicator; Wire transmitter antenna; Easy-grip
battery compartment lid; 174-216 MHz FM crystal controlled; 50
milli watts 50 Ohms; 300 foot range; 15 KHz modulation at -10 dBv
input; 9 volt battery, approx. 5-6 hours; 4.3 oz; to include P-6 microphone
connector with Shure SM-11 microphone installed. Samson SW4R00
Receiver, P-6 connector installed on a Shure SM-11 and CT3L
Belt Pack Transmitter or latest equivalent.
ModelOffered: Shure SM-11 and CT3L
$290.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
38
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
MICROPHONE/LINE MIXER
General Description
This is intended for multiple audio source mixing as in video production,
small scale events. 6 Mono balanced XLR microphone/ 1/4-inch line inputs;
balanced 1/4-inch stereo line inputs; 2 Aux sends per channel; 3-bands
of EQ on each input; 48-volt phantom power for condenser microphones;
built-in power supply; 60mm log-taper faders; Outputs: Stereo XLR
balanced switchable from +4dBu to microphone level, 1/4-inch balanced,
2 1/4-inch balanced auxiliary sends, 1/4-inch balanced stereo control room
outputs, Stereo RCA tape outputs, Multi-input source matrix; 3-year parts
and labor warranty.
Mackie 1402-VLZ PRO or latest equivalent.
Model Offered: Mackie 1402-VLZ PRO
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
39
$337.00
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
LIGHT KIT, LED
General Description
This is intended for location lighting needs in studio & remote
video productions. Light weight. Low heat low power , LED lighting kit,
each of the LED lights with 30 degree beam angle lens shock proof
construction offering bright light in a small form factor operating on
12v DC or with the included AC adapter drawing >50 watts of electrical
power causing virtually no heat radiation, built-in full continuous dimmer
Consisting of:
3 X 500 W Led light fixtures
3X 8’ stands
Carrying bags
1 X Lighting DVD
AC adapter for each
Specifications:
Size: 14"W/7.5"H/4.0"D
Weight: 6 lbs
Power Draw: 50 Watts
Hot Light Equivalent: 500 Watts
Voltage: 12v DC, 100-240v AC 50/60hz
CRI: >90
Color Temperature: 5400 +/- 5%
Mounting: Horizontal/Vertical 5/8"
500 LEDs - 500W Output
Ultra Bright 5400K LED's
Runs on 12v or 100-240 AC
Included 12v AC Adapter
Pro Quality 4 Pin XLR Power
Power consumption 50W
High CRI
Adjustable Output
Image west model KIT/LED-1500: 1500 Watt LED 3
Light Kit or latest equivalent.
Model Offered: Flolight KH/LED-1500 $1,350.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
40
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
PORTABLE HAND HELD DIGITAL STILL CAMERA,
WITH ACCESSORIES
General Description
This is intended for digital still photography. 12.3 Megapixel,
DX Format CMOS Sensor, 3" VGA LCD Display, Live View,
Self-Cleaning Sensor, D-Movie Mode, High Sensitivity (ISO 3200),
4.5 fps Burst, In-Camera Image Editing, GPS geo-tagging, Includes:
4GB Professional SD Memory Card, camera bag, Battery Charger
UC-E4 USB Cable, EG-D2 Audio/Video Cable, AN-DC1 Neck Strap,
BM-10 LCD Monitor Cover, BF-1A Body Cap, DK-5 Eyepiece Cap,
DK-21 Rubber Eyecup, BS-1 Accessory Shoe Cap, Nikon Software
Suite CD-ROM, User Guides, 3 year warranty. Nikon D90 12.3 MP
Digital SLR Camera Body or latest equivalent
Model Offered: Nikon D90 12.3 MP
$799.90
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
41
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
Bulletin Board/Messaging/Alert Digital Signage System
This device is intended for use in schools for displaying school related
messages,notices, reminders, upcoming events, emergency alerts etc on TV
Channel.
General Description
Compact, stand-alone High-Performance, Low-Cost Video Graphics and
Information, Alert System for Public-space Television, Video Displays,
CATV and CCTV Surveillance Systems to create graphic and text
pages using standard applications or supplied templates
Squeeze and position live video window, including dynamic transitions
Dynamic broadcast quality effects such as text pushes, fades and crawls
Animated Text, Graphics and Logos using GIF, AVI, TGA,
Multiple text and graphic zones may be independently sized and positioned
Play audio WAV files with incoming audio page scheduling, including
looping durations, specific day, date and time, Ethernet connectivity and
remote accessibility, capable of external data interfaces for real-time data
updates
such as news, sports, and weather. Rack mounted.
Chyron ChyTV-IP-N or Latest equivalent
Model Offered: Chyron ChyTV-IP-N
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
42
$1,500.00
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
WALL MOUNT FOR FLAT PANEL DISPLAY
Note to the End user:
(Please provide the brand/model number of the Flat panel while ordering1)
General Description
Multi-configurable mount with a single arm, double arm articulating
or near flush mount, ability to configure the mount into several different
mounting styles. accommodate nearly every wall mount application, to
hold most 10" - 21" LCD monitors, Accommodates monitors with 75
or 100mm VESA standards, Adjustable tilt -5 to +10 degrees, Mount
rotates 240 degrees at monitor, 160 degrees at the wall, and 240 degrees
at the elbow joint (double arm configuration) , Feed through wall plate
with decorative cover, Load capacity 25 lbs. Total extension with both
arms joined is 14.25". Luxor LLMSW - Universal LCD Monitor
Wall Mount or latest equivalent
Model Offered: Luxor LLMSW
43
$46.61
TELEVISION WALL MOUNT WITH VCR SHELF
Note to the End user:
(Please provide the brand/model number of the Flat panel while ordering1)
General Description
Heavy gauge steel tube construction (16 gauge); Arc-welded
joints; Triple-stud wall mounting; Steel stabilizer brackets;
Swivel and tilt adjustments; Handles 19” to 31” diagonal TV;
Video player mount and security locks included; 300 lb. load
capacity. Assembly & Installation required!
Advance WMY-2134 w/VP-2, TVM-LK and VP-LK
or latest equivalent.
Model Offered: Advance WMY-2134 w/VP-2, TVM-LK and VP-LK $199.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
44
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
TELEVISION WALL MOUNT (WITHOUT
VCR MOUNT)
Note to the End user:
(Please provide the brand/model number of the Flat panel while ordering1)
Heavy gauge steel tube construction (16 gauge); Arc-welded
joints; Triple-stud wall mounting; Steel stabilizer brackets;
Swivel and tilt adjustments; Handles 19” to 31” diagonal TV;
300 lb. load capacity. Assembly & Installation required!
Advance WMY-2134 w/TVM-LK or latest equivalent.
Model Offered: Advance WMY-2134 w/TVM-LK
$183.00
(*) Indicates Internal Stock Numbers
NO.
45
DESCRIPTION
QTY.
PRICE
PRICE
WALL MOUNT FOR LCD PANEL DISPLAY
(Medium size)
Note to the End user:
(Please provide the brand/model number of the Flat panel while ordering1)
This is for mounting medium sized Flat Panel Displays to walls.
Cantilever design, allowing large LCD's (30"-40") to store flat against
wall or pullout via an articulating arm, Mount extends from wall and
allows TV to be rotated. Max load - 80 lbs. , VESA 75/100/200
(200mm x 100mm) /400 (200mm x 200mm) compliant, Arm length:
wall to hinge is 13.5"; hinge to TV is 8.5" ,Wall plate dimensions:
14.75" H X 1.75" W , Arm extends 25" from wall ,Depth of mount
is 3.75" when retracted , 25 degree up/down tilt, controlled with tension
screws. Note: provide suitable adapter plate for the specified LCD Screen
OmniMount FP-CL - Large LCD Cantilever Mount or Latest equivalent
Model Offered: OmniMount FP-CL
46
$119.98
TV WALL MOUNT, UNIVERSAL,
CANTILEVER FOR LCD (LARGE SIZE)
Note to the End user:
(Please provide the brand/model number of the Flat panel while ordering1)
This is for mounting large Flat Panel Displays to walls.
(Order mount to the specific LCD display size, make & Model)
Note: Verify the part is suitable for the make and model
VESA Compatible, Safely designed to be mounted in public places,
Made of durable materials such as steel and anodized aluminum alloys.
Strong enough to support the specified weight of the FDD with
sufficient ‘margin of safety’, support minimum 148 lbs. mounting
supports too be finished finished with a strong, smooth and environmentfriendly ABS or polyamide (PA) epoxy coating. compliant with the
TUV/GS quality standards, which include product exposure to three
times the admissible load for consumer products and up to five times
the admissible load for products in the professional range, three pivoting
points, Universal adapter with auto lock system, suitable for Screen size
range: 40-65 inches with fittings, decorative caps, installation instructions
and a unique five-year guarantee. Vogels Evolution Series Triple Pivot
Plasma/LCD Wall Mount (Vesa) EFW-2010 or latest equivalent
Model Offered: Vogels EFW-2010
$264.98
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
47
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
MOBILE CART FOR LCD DISPLAY, 60” HEIGHT
Note to the End user:
(Please provide the brand/model number of the Flat panel while ordering1)
This is intended for mounting Flat Panel Displays in a mobile environment.
Q-Latch Mounting System, pitch adjustable mobile cart with total lock
casters to prevent accidental movement of the screen. Height adjustable,
allows installation in landscape/portrait views, Height adjustable ,Pitch
adjustment 5° up & 15° down, Four 4" swivel casters , Two with total-lock
brakes, Two 2" diameter chrome posts , Allows 2° roll adjustment right & left
for screen leveling Optional Accessory shelves, One 13" x 13" swivel shelf ,
18" x 22" attaches to both posts, tilt wall mount, Requires all items needed for
safe mounting and portability of the FDD. Chief's PTC-CART Mobile Cart
or latest equivalent.
Model Offered: Chief's PTC-CART
48
$430.00
MOBILE CART FOR LCD DISPLAY – 60” HEIGHT
Note to the End user:
(Please provide the brand/model number of the Flat panel while ordering1)
Modular design, lightweight, collapsible design to meet a wide range
of applications and support weight up to 200 lbs. telescoping heightadjustment mechanism, integrated cable management, Telescoping display
height adjustment (4 ft - 6 ft), Smooth rolling casters (2 locking casters),
Integrated cable management pathways, CentrisTM mechanism for fingertip
tilt adjustments. Lightweight aluminum construction, Must supports portrait/
landscape display orientation, facility to rotate without removing the screen,
facility to support up to three optional adjustable-height shelves, Weight
capacity:
200 lbs . Includes custom Chief Manufacturing PSB Custom Interface
Bracket Kit for Panasonic Viera TH-65PZ850U 65" Plasma TV.
Chief PFC-2000 Flat Panel Display Mobile Cart or latest equivalent
Model Offered: Chief PFC-2000
$490.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
49
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
AV PRESENTATION CART
General Description
This mobile cart may be used to place video projector for
presentation in locations. AV Presentation Cart , Height adjustable
from 14 inches to 39 1/2 inches 3 sturdy 18"W adjustable, heavy-duty
3" casters ( at least 2 locking), Grommets to keep cords managed between
Shelves, Top shelf to hold projector measuring a minimum 8"W x 16"D;
lap top shelf size 18"W x 14"D, bottom shelf - 18"W x 18"D.
Balt AV Cart with Adjustable Height Shelf or latest equivalent
Assembly required by Vendor.
Model Offered: Balt 89768
$193.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
50
EST.
QTY.
UNIT
PRICE
SCAN CONVERTER
General Description
This item is intended for converting computer signals in to video
and to interface to the video production switcher. PC-to-TV
video scan converter, supporting resolutions of up to 1600x1280,
in 24-bit color, both Mac and PC compatible, supporting NTSC,
PAL, and SCART outputs, complete with a remote for pan, zoom,
sharpness, highlight, spotlight, and pointer capabilities.
TView Gold or latest equivalent
TOTAL
PRICE
ModelOffered: TView Gold
51
$153.00
CHROMAKEY BACKDROP
This is intended for use in TV studio as a chroma key background
Green Screen Chrom Key 10'x12' with LastoLite's Background
Supports #314. LastoLite LC5781 or latest equivalent
ModelOffered: LastoLite LC5781
52
$113.00
A/V CART
This cart may be used in classrooms to install A/V items of equipment.
A/V cart, wooden presentation center with locking storage for AV
equipment and supplies, Equipped with convenient roll bar and two 5"
casters for portability. Retractable shelf for use with laptop and presentation
materials. Includes 2 shelves, middle shelf adjusts up or down 3" in three
positions. Storage drawer 17-1/4"W x 11"D x 8"H. 23-1/2"W x 17”D x 411/2” H
over all. Shipping wt: 78 lbs;
Mobile Media Center, Model No. Y3666 or latest equivalent
Model Offered: Balt ROLZ 2
$395.69
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
53
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
TELEPROMPTER SYSTEM
General Description
This device is intended for prompting talents and is used in TV
Studio Production. Teleprompter, LCD, 11”, with mounting accessories
and software DV-9 7.2" Active Matrix LCD Color Display, DV-11 9.0"
Active Matrix LCD Color Display, Composite RCA input 12V power, AC
adapter, Flips image horizontally and vertically Two video inputs,
one mono audio input ,Wireless remote control, 16:9, 4:3 under scan,
over scan selectable. PC teleprompter software , Designed for 1 & 3 chip
MiniDV included, LCD monitor reverses text, Composite Video Input
wireless support, 4:3 or 16:9 monitor, pending mirror assembly with
60/40 beam splitter, accepting any text file from all popular word processing
packages including Microsoft Word. Scroll control by the mouse or the
optional wireless controller. DV-11 Prompter or latest equivalent
Model Offered: Prompter People Flex-11
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
54
$1,125.00
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
DISK RECORDER
General Description
This device is intended for multi track recording and playback in
Music/Instrument music rooms. Digital Multitrack Recorder, 8
track simultaneous recording/16 track Playback digital workstation
fully functional control surfaces with integrated hard drive and highspeed on-board CD burner to record , upload tracks to computer, 8-track
of simultaneous recording with 160 V-takes & 16-track of playback
8 balanced XLR-1/4 inch phone combo inputs with phantom power
16-bit/44.1 kHz linear PCM recording in WAV format, Over 100 effects
for guitar/bass/vocal recording, mixing, and mastering Drum/Bass machine
with touch-sensitive pads and 500 drum sounds, Built-in CD-R/RW drive
and 80 GB HD, Control Surface function for DAW software, Bundled with
Steinberg Cubase LE, Sampler function lets you add original drum sounds to
Drum Kit, Expanded sampling memory to 60 seconds, Built-in USB 2.0
interface,
Meter-bridge features easily viewable 5-segment LED level meters
Zoom HD16CD Multi track Recording package or latest equivalent
Model Offered: Zoom HD 16CD
55
$562.00
MULTI TRACK DVD RECORDER/MIXER FOR HS
General Description
This is intended for multi track recording for music recording applications
16-track digital recording, high speed CD burning, software
enhancements, featuring a total of 16 tracks plus 8 virtual tracks.
40GB internal HD, non-destructive editing with waveform display
and zoom feature for precise waveform editing, digital mixing,
minimum 3-band EQ with parametric mid and high on all 16
channels, master EQ, channel and master compressors, eight mic
inputs (two with XLR, insert and phantom power), ADAT optical I/O,
minimum two effect sends and two aux sends per channel (switchable
pre/post), and Scene Memory, at least two multi-effect DSPs, Internal
CD-R/RW drive. Fader Pairing allowing channels be paired or ganged
in stereo sets , Channel Solo, BPM Delay, Internal E-IDE 3.5 in. hard
disk
recording medium, Recording format: FDMS-3 (Fostex Disk
Management
System-3 ver. 1), Sampling frequency: 44.1kHz, Quantization: 16bit
linear
(non compressed), ADC: 20bit 64-time over sampling Delta/Sigma,
DAC:
24bit 128-time over sampling Delta/Sigma Frequency response: 20Hz
– 20kHz,
Dynamic range: 88dB or more T.H.D: 0.01% (typical), Crosstalk: 60dB
or
more @1kHz Latest equivalentizer: - 400Hz +/- 18dB (Shelving) 500Hz
– 20.2kHz +/-18dB
(Parametric) 500Hz – 20.2kHz +/-18dB (Parametric, Shelving) Inputs
Level:
-50dBV (mic) - +2dBV (line), variable -Impedance : 50k ohm or more
Insert x 2,
Monitor Out (L, R), Headphone, AUX Send (1/2): Stereo Out (L, R),
Footswitch,
Digital In/Out , MIDI: In/Out.
Fostex VF160EX Multitrack Digital Recorder
with CD Burner and Effects and Carry Bag Or Latest equivalent.
Model Offered: Tascam 2488NEO
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
56
$629.00
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
USB / MIDI audio Interface
Note to the End User
This is intended for use for the music department and for post production music
sweetening, This may be used in conjunction with any popular music software
programs such as the Protools listed below.
General Description
PC /MAC Compatible, High-speed USB 2.0 interface,
simultaneous 8 x 8 24bit/96kHz audio
DSP technology, flexible channel routing, monitor sub-mixing and effects
processing
Preamps M-Audio Octane™ technology, premium input circuitry
compatible with Mac and PC, Compatible with all ASIO- and Core Audio-based
applications
high-speed USB 2.0 connectivity, MX Core™ DSP mixer and four preamps with Octane™
technology. Featuring both analog and digital I/O, recording on all eight channels simultaneously
with 24-bit/96kHz fidelity, processes eight hardware inputs and eight software returns to the eight
hardware outputs, delivering flexible routing and monitoring with delay and reverb. Compatible
with most major audio software
Built-in Effects Processing , Dual Headphone Amp , reverb and delay on the
headphone outputs
six channels of analog inputs and outputs plus 2-channel digital S/PDIF I/O
The robust MX Core™ mixer employs an array of eight individual DSP cores to
deliver near-zero latency and a matrix for sophisticated channel routing options
low-noise, high-gain preamplification
+48V phantom power for condenser mics, signal/peak LED indicator lights, gain
control
Bundled software
M-Audio Fast Track Ultra 8 X 8High Speed USB 2.0 Interface with MX Core
DSP Technology or equivalent
Model Offered: M Audio Fast track Ultra
57
$296.47
Music Software
General Description
PC /MAC Compatible, industry standard in audio/MIDI production software
simple and intuitive interface
session compatibility with all current Pro Tools systems > create anywhere, anytime
hardware compatible with dozens of M-Audio interfaces > flexible options
industry-standard audio/MIDI production environment > know one Pro Tools
system, know them all
easy to learn and use > make better music faster
expands the power of your current hardware interface, allowing you to work with
up to 48 mono or stereo audio tracks.
Professional Recording, Editing and Mixing
effortlessly manipulate or correct the pitch of any audio region in real time, right
inside the Edit window
Containing music creation and sound processing plug-ins
integrated MIDI sequencer and editor allow you to record, edit, and mix up to 256
MIDI tracks
Scoring Music based on Sibelius notation engine, Score Editor to view, edit,
arrange and print MIDI data as music notation, Transcribe MIDI parts in real
time. Print out a score in its entirety or print only certain instrumental parts,
export sessions,
Looping Tools
Allowing use of Third party audio Suite plug-ins
array of new MIDI tools to streamline production with both virtual and traditional
instruments.
MIDI Editor windows displaying MIDI and automation data for Instrument,
MIDI and Auxiliary Input tracks
multiple Automation and Controller lanes.
support for files up to 4GB
Pro Tools M-Powered 8 or latest equivalent
ModelO ffered: M-Audio
$134.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
58
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
CHARACTER GENERATOR, TV STUDIO Production
General Description
This is used for basic titling applications for TV productions. Stand
alone, Titler and character generator display, insert text over video,
display titles, lower third, crawl, roll, etc internally generated colour
backgrounds and superimpose over any external NTSC video source.
For live& post video production applications, Different font & text color
selections, text positioning, editing functions required. To include:
All required software
Character Generator
AT101 Computer Keyboard (KB)
Two 6 Ft BNC|RCA Cables (BNC|RCA)
Standard Power Cable (SPC#1)
Owners Manual (VM-OM)
90 days phone support
One Year Warrant
Video Messenger model VM-3 or Latest equivalent
ModelOffered: VM-3
59
$544.00
MICROPHONE
Mic, hand-held, dynamic, Cardioid (unidirectional) dynamic, Frequency
response: 40 to 15,000 Hz, 3-pin professional audio connector (male
XLR type)
With accessories Swivel Adapter, 25’ Mic cable, Storage Bag. Shure
SM57
Cardioid Dynamic Microphone or latest equivalent
Model Offered: Shure Sm 57
60
$81.10
DVD PLAYER
General Description
Progressive scan DVD, DivX playback: compatible with CD, CDR/CD-RW, Video CD/SVCD, DVD, DivX, DVD+R/+RW, DVD-R/-RW
DivX, DivX Ultra Video & CD, MP3-CD, MP3-DVD, CD-R/RW,
WMA-CD-R/W formats. 12-bit video processing, 24-bit ,192KHz
sampling resolution, Composite, A/VComponentVideo, HDMI ,Digital
Coaxial
One year warranty. Philips DVP5960 or latest equivalent
Model Offered: Sony DVPSRZWP/B
$41.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
61
EST.
QTY.
UNIT
PRICE
VIDEO ADAPTER KIT
This is for interfacing different types of Video connectors.
Containing items including but not limited to the below listed
popular video interfaces and adapters
3) BNC Plug to UHF Jack
1) Phono Jack to Jack (Barrel)
3) BNC Jack to UHF Plug
4) Phono Plug to BNC Jack
2) BNC Jack, Plug, Jack (T)
TOTAL
PRICE
1) Phono Plug to UHF Jack
2) BNC Jack to Jack (Barrel)
1) Phono Plug to 'F" Jack
2) 'F' Jack to Jack Barrel
4) Phono Jack to BNC Plug
2) BNC 751/2 Terminator
1) Phono Jack to UHF Plug
1) BNC Jack, Jack, Jack (T)
1) Phono Jack to 'F' Plug
1) BNC Plug to Plug, Barrel
1) 'F' 751/2 Terminator
1) BNC Jack to Plug (Rt. Angle)
1) S-VHS Female Barrel
Model Offered: VKIT-1
62
$42.00
AUDIO ADAPTER KIT
This is for interfacing different types of audio connectors.
Containing items including but not limited to the below
listed popular audio interfaces and adapters
3) 3.5mm Mini Male to RCA Phono Female
2) 1/4" Standard Phone Female to Female (Barrel)
3) 3.5mm Mini Male to Standard Phone Female
1) RCA Phono Male to 3 Pin XLR Female
3) RCA Phono Male to Mini Female
1) 1/4" Standard Phone Male to 3 Pin XLR Female
3) RCA Phono Female to Female, Barrel
1) 3 Pin XLR Male to RCA Phono Female
2) RCA Phono Male to 1/4" Standard Phone Female
1) 3 Pin XLR Male to 1/4" Standard Phone Female
2) 3.5mm Mini Female to Female, Barrel
1) 3 Pin XLR Male to Male, Barrel
2) 1/4" Standard Phone Male to RCA Phono Female
1) 3 Pin XLR Female to Female, Barrel
2) 1/4" Standard Phone Male to 3.5mm Mini Female
1) Firewire 4 pin to 6 pin
1) Firewire 6 pin to 6 pin
Model Offered: AKIT-1
$42.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
63
SCREEN - TRIPOD – LENTICULAR
70" x 70" flat white surface, mildew and flame proof,
tensioning device, spring roller, adjustable height, and
metal case. Bretford 3770 or latest equivalent.
Model Offered: Buhl TPS-T70
64
$70.00
SCREEN - GLASS BEADED
9' x 12', spring roller wall and ceiling type enclosed in a rigid
metal case with brackets. Flame and mildew resistant. No border.
Draper Luma 2 or latest equivalent.
Model Offered: Draper Luma 2
65
$469.00
SCREEN - WALL TYPE (CLASSROOM)
96" x 96" matte white surface, mildew and flame proof,
spring roller, with safety roller lock enclosed in metal case.
Dalite or latest equivalent.
Model Offered: Dalite 96 X 96 M/W
66
____
$112.45
PORTABLE CASSETTE RECORDER/PLAYER
WITH LISTENING CENTER
Unit must have permanently attached 3 wire power cord with
storage compartment, power output of 10 watts, must contain 6
headphone jacks each 1/4 inch monaural type, must have built-in
condenser microphone as well as 1/4 inch input jack for external
microphone, auxiliary input and speaker output.
Califone 5270AV w/4805A hand held microphone or latest equivalent.
Model Offered: Califone 5272 AV w/4805A
67
$76.10
LISTENING POST (JACK BOXES)
Must contain eight (8) 1/4" standard phone jacks for headsets,
and one (1) 1/4" standard phone jack for connecting additional
listening posts. Box must be made of plastic and measure
3-3/4" x 6-1/4" x 2". With coiled cord. Permanently attached.
UL Approved. Avedex or latest equivalent
Mode Offered: Califone 1209 AV/PY $6.94
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
68
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
COMBO CASSETTE RECORDER AND CD PLAYER
General Description
This is mainly intended for use in auditorium, TV studio and other
professional applications. Professional CD/cassette player, MP3
playback from CD capability, Individual outputs for CD, cassette,
and CD plus cassette, Fader start on both CD and cassette decks, Pitch
control, Single-track play possibility, Auto cue after track selection
Digital SPDIF cinch output, Dolby B/C and HX-pro noise reduction
Automatic and manual record level, 2 microphone inputs, Digital tape
counter with memory, Quick reverse with optical sensing, Professional
control buttons, 6.3mm headphone output with source selector, CD
synchro recording and dubbing, CD dubbing searches for CD peak level
and automatically adjusts record level, Continuous rec/play via cascading
connection, One Year Warranty.
Marantz PMD351 CD & Cassette
Combo Deck or latest equivalent
Model Offered: Marantz PMD 351
69
$563.98
COMBO CASSETTE RECORDER & CD PLAYER
General Description
This is mainly intended for use in classroom audio playback
Applications, Combo CD Player/Audio Tape Recorder/Player , 7
Watts RMS (T.H.D. 10%) speaker amplifier , ¼" stereo phone jacks
x 5, Aux input (mini x Records audio tapes directly from CD's.
Vibration & skip resistance CD deck. Left & right balance control.
Built-in Listening Center with 5 headset jacks. Audio Deck: Record,
play, review, cue/fast forward, pause, stop, eject. CD Deck: Play, stop/
clear, skip. Automatic Record level control (ALC), built in Speaker &
Headphone jacks. Specifications:
Amplifier : 7 Watts RMS (per
channel),
(D.H.T. 5%)
Frequency Response: 125Hz ~ 8KHz
Signal To Noise Ratio: 45 dB
Eiki7070ACDPlayer&Tape Player/Recorder or latest equivalent
ModelOffered: Eiki 8080
$214.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
70
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
27" LAMINATOR
General Description
25 to 27" laminating width; Pre-set 5.5'/minute speed and pressure;
Spring loaded adjustable tension on laminating and pull rollers;
Adjustable tension on both upper and lower supply rolls; External
thermometer; Accommodation for 1000' rolls (.0015" plastic);
Adjustable feed guides; Teflon coated heat shoes; Separate heat shoe
and heating element; Adjustable temperature; Constant heat recovery;
Maximum temperature stop; Manual; Heavy-duty chain and sprocket
drive; Interchangeable laminating and pull rollers made of top-grade
silicone rubber; Serrated edge for trimming; 15" x 32" x 20"; 63 lb.;
2300 watts.
One Year Warranty.
Dry-Lan Model 25 or latest equivalent
Model Offered: DryLan 25 (LPE6510)
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
71
$1,369.95
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
P2 Memory Card
Note to the End user
This is intended for use with P2 compatible Panasonic Cameras and replaces the
tape media.
General Description
P2 memory card, 16GB E-Series P2 Card featuring memory technology, high
transfer speeds, reusable compatible with the entire line of P2 products.
Specifications
Capacity
16GB
Maximum Record Time
16 minutes in DVCPRO HD or AVC-Intra 100
20 minutes in AVC-Intra at 1080/24p Native
40 minutes in DVCPRO HD or AVC-Intra 100 at 720/24p Native
32 minutes in DVCPRO50 or AVC-Intra 50
64 minutes in DVCPRO
Compatible Cameras
P2HD Cameras and Players
Panasonic E-Series AJ-P2E016XG
Model Offered: Panasonic AJ-P2E 16 XG $375.00
72
DVC PRO VIDEOCASSETTE STUDIO
64 MINUTE – Large size, 64 minute DVC Pro
videocassette. Panasonic AJ-P64L or latest equivalent.
Model Offered: Panasonic AJ-P66M
73
$15.00
DVC PRO VIDEOCASSETTE STUDIO
126 MINUTE – Large size, 126 minute DVC Pro
videocassette. Panasonic AJ-P126L or latest equivalent.
Model Offered: Panasonic AJ-P126L
74
$22.00
DVC PRO VIDEOCASSETTE
CAMCORDER 66 MINUTE - Medium
Medium size 66 minute DVC Pro videocassette.
Fuji DVCPRO 66M or latest equivalent.
Model Offered: Fuji DVCPRO 66M
$13.93
75
DVC PRO VIDEOCASSETTE CLEANING TAPE
______
LARGE SIZE - DVC Pro head cleaning videocassette.
Panasonic AJ-CL12L or latest equivalent.
Model Offered: Panasonic AJ-CL 121
76
$25.73
DVC PRO VIDEOCASSETTE CLEANING TAPE
MEDIUM SIZE - DVC Pro head cleaning videocassette.
Panasonic AJ-CL12M or latest equivalent.
Model Offered: Panasonic AJ-CL12M $16.78
77
S-VHS VIDEOTAPE, 182 MINUTE.
182 minute S-VHS, back coated, broadcast quality videocassette.
Maxell ST-182BQ or latest equivalent.
Model Offered: Maxell ST-128BQ
78
$13.98
S-VHS VIDEOTAPE, 126 MINUTE.
126-minute S-VHS, back coated, broadcast quality videocassette.
Maxell ST-126BQ or latest equivalent.
Model Offered: Maxell ST-126BQ
$8.98
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
79
EST.
QTY.
MINI DV VIDEOTAPE, 63 MINUTE.
63-minute MiniDV videotape cassette, back coated,
broadcast quality videocassette.
Panasonic DVM63 or latest equivalent.
UNIT
PRICE
TOTAL
PRICE
Model Offered: Panasonic AYDYM 63PQ
80
$2.33
DV VIDEO CASSETTE VIDEOTAPE, 124 MINUTE
124-minute DV digital videocassette, back coated, broadcast
quality videocassette. Panasonic AY-DV124MQ or latest equivalent.
Model Offered: Panasonic AYMDV124AMQ
81
$12.10
CONSUMER DV MINI PLASTIC CASE, 60 MINUTE.
Linear Plus technology. featuringDiamond-like, carbon-coated
thin film for durability and reduced tape friction.
Panasonic AYDVM60 or latest equivalent
Model Offered: JVC MDC60DV
82
$1.50
PERSONAL STEREO AUDIO HEADPHONES
Stereo headphones for use with audio components. Lightweight,
adjustable headband for comfort of any student k-12. Replaceable
foam ear cushions that keep unit comfortable and easy to clean.
Two meter cord with 1/8” plug and a ¼” adapter. Unit should include
a re-closeable bag that when sealed kills lice in 24-48 hours without
the use of chemicals and also gives students a place to write their names.
Hamilton Electronics model HA2/MS-2F as above or latest equivalent
Model Offered: Hamilton HA-2M
83
$2.75
PERSONAL AUDIO STEREO HEADPHONE
CLASS/LAB PACK (24 per kit)
General Description
Class/Lab pack includes 24 headphones with re-closeable bags,
and a durable lockable carrying case capable of holding thirtyfour headphones. Stereo headphones for use with audio components.
Lightweight, adjustable headband for comfort of any student k-12.
Replaceable foam ear cushions that keep unit comfortable and easy
to clean. Two meter cord with 1/8” plug and a ¼” adapter. Unit should
include a re-closeable bag that when sealed kills lice in 24-48 hours
without the use of chemicals and also gives students a place to write
their names. Hamilton Electronics model LCP/24/HA2 or latest equivalent
ModelOffered: Hamilton LCP/24/HPZ
$60.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
84
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
ERSONAL AUDIO STEREO HEADPHONE
REFRESH KIT
Refresh kit for Hamilton Eklectronics model HA2/MS-2f
Headphones, Kit includes a new re-closeable storage bag and a
pair of new ear cushions. Hamilton Electronics #5076 or latest equivalent
Model Offered: Hamilton SO76
85
$1.50
PROFESSIONAL TELEVISION LIGHTING KIT
General Description
This item is intended for lighting needs in remote production.
Portable television light kit consists of (3) 1-lamp fixtures with
55 watt high frequency ballasts, (3) light stands, assorted gel
frames and control screens and one set each of 3200K and 5600K
lamps. The equipment is packaged within a soft-sided case that has
a pop-up handle and casters for pull behind transport. Must include
three p/n 016-117-P pipe clamp mounts (not normal component of the kit).
Brightline model SK1.1N-3 light kit.
No substitutions accepted.
Model Offered: NO Award
ITEM
NO.
DESCRIPTION
86
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
A/V RECEIVER, 7.1 CHANNEL SURROUND SOUND
General Description
This is intended for use in auditorium, multi-purpose halls,
large avenue. It may be used to integrate all sources and to
connect a high quality output to large Flat Panel Display or projector.
Audio
Impedance: 8 Ohm
Channel Power Rating: 120 Watts X 7 Amplifier Power (8 ohms, 1Khz, 0.7%
THD)
Sound Fields: Cinema - 4; Music - 8; Auto Format Decoding - 12; 2 Channel 1
Zones: 2 Zone/2 Room
Tuner Type: Auto Tuning, Direct Tuning, Station Name, Presets 30/30/30
(XM/FM/AM)
Digital Cinema Sound Technology
Dolby Digital Decoding - Dolby Pro LogicII Decoding
dts 96/24 Decoding - dts NEO:6 Decoding
Dolby Digital EX Decoding
Dolby Pro Logic IIX Decoding
Amplification Relocation
Dolby Pro Logic Decoding
dts-ES Decoding
Convenience
AM/FM Memory Presets: 30 FM - 30 AM
XM Connect and Play Compatible - XM Memory Presets: 30
Sound Fields
A/B Speaker Switch: A / B / A+B
On Screen Display
Digital Cinema Auto Calibration (Mic- Mono)
HDMI Technology: Intelligent A/V Selector
Inputs and Outputs
S-Video Input(s): 4 (1 Front, 3 Rear) - S-Video Output(s): 1 (Rear)
Composite Video Input(s): 5 (1 Front, 4 Rear)
Composite Video Output(s): 3 (Rear-1 Monitor Output, 2 Video Outputs)
Optical Audio Input(s): 4 (1 Front, 3 Rear)
Optical Audio Output(s): 1 (Rear)
Coaxial Audio Digital Input(s): 3 (Rear)
RCA Audio Input(s): 4
RCA Audio Output(s): 2
Multi-Channel Input(s): 1 (Rear, 7.1 Channel)
Subwoofer Output(s): 1 (Rear)
AC Outlet: 2 (Rear) Switched
Antenna Terminal (AM Loop): 1 (Rear)
Antenna Terminal (FM 75 Ohm): 1 (Rear)
Headphone Output(s) (Front- Gold)
Speaker Terminal Type: Screw Binding Posts (A & B)
HD Component Video Input(s): 2 (Rear)
HD Component Video Output(s): 1 (Rear)
HDMI Connection Input(s): 2 (Rear)
HDMI Connection Output(s): 1 (Rear) Repeater
Minimum One Year Waranty
Sony STR-DG1000 or latest equivalent
Model Offered: Sony STR-DN1000
$329.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
87
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
LOUDSPEAKER, WALL MOUNT
This is intended to be used with the A/V Receivers or for any
sound applications. 150W, 4-WAY, Wall-Mount, 8ohm, magnetically
shielded, 55Hz-40kHz frequency range. 700Hz, 4kHz, 20kHz cross over
Frequency, Warranty minimum of 5 Year Parts & Labor. JBL LC2
Studio L Series 4-Way Dual 6" 150-Watts or latest equivalent
ModelOffered: JBL LC2 L Series
$270.00
(*) Indicates Internal Stock Numbers
ITEM
88
EST.
UNIT
PORTABLE HANDHELD DV CAMCORDER
FOR ELEMENTARY SCHOOLS
1/6" 680,000 Pixels, 32x Optical, .7" Wide LCD monitor, Optical
Image Stabilization, Digital effects, Zoom Mic, Link IEEE1394: x1, A/V: - x1, USB, Item shall include LI Battery pack, battery
adapter/charger, camera bag. 1 Year Warranty.
Panasonic PV-GS80 or latest equivalent
Model Offered: Panasonic ADR-S26K
$239.98
TOTAL
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
89
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
PORTABLE HD CAMCORDER
This item is a handheld camcorder/digital camera combo which
may be used for recording events and programs in remote locations.
AVC HD, /4" CCD x 3, 560K Pixels x 3, Leica Dicomar, F= 1.8-2.8,
12 X Zoom Optical Image Stabilizer, Stereo 5ECM 5.1ch Surround Sound,
Focus, Aperture, Shutter Speed, White Balance, Records to SD/SDHC,
2.1 MEGA: 1920 x 1080 (16:9) still, Microphone IN USB2.0,HDMI,
Composite, Component Video outs, Item shall include:
4GB SDHC Card
IR Remote
A/C Adapter & Cable
DC Cable
LI Battery Pack, Battery Charger
USB
A/V Cables
Component video cables, Camera bag
Operations Manual
One Year Warranty
Panasonic HDC-SD60Kor latest equivalent
Model Offered: Panasonic HDC-SD60K
(*) Indicates Internal Stock Numbers
ITEM
90
$424.00
EST.
UNIT
TOTAL
CAMCORDER, MULTI-FORMAT, DIGITAL, HD
General Description
1.1 million active pixels with a spatial offset , 14-bit A/D
conversion and 19-bit inner processing ,3 X -1/3 in 235K pixels
CCD, 3 Lux sensitivity, Mini DV &
Solid-State, Memory Card, HD Format Camcorder, PCM Stereo,
3.5 in. Color Viewfinder LCD, Wider Angle (13X) Leica Dicomar®
Zoom Lens,
Optical Image Stabilizer, Cam-driven manual zoom, large manual
iris control, focus assist, gain, two ND filters (1/8th and 1/64th) as
well as slow, synchro and high-speed shutter
Specifications
Support for 1080/60i, 1080/24p, 1080/24pA, 1080/30p, 720p/60p, 720/24p
(over 60p), 720/30p (over 60p), 720/24pN native, 720/30pN native 480/60i,
480/24p (over 60i), 480/24pA (over 60i), 480/30p (over 60i)
Uncompressed 4-channel, 16-bit digital audio recording in DVCPRO HD and
DVCPRO50
Eight Gamma settings for various shooting scenarios,
Internal downconversion to Mini-DV Tape
3.5" LCD monitor
IEEE 1394 and USB 2.0 beyond all other A/V connectivity I/O: SVideo, Composite (Video) , Audio (RCA) , Headphones Jack,
FireWire / DV / iLink, IEEE 1394 and USB 2.0. To include:
Software,
Include:
A/V Cable, Shoulder Strap, 2 Hour Lithium Rechargeable Battery
Battery Charger, AC Power Adapter, Remote Control, Camcorder
,UV Filter,
Deluxe Camcorder Case, Deluxe Lens Care and Maintenance
Package,
Screen LCD Protectors, Mini DV Head Cleaner, One Year
Warranty.
Panasonic AGHVX200A HD or Latest equivalent
Model Offered: Panasonic AGHVX 200A
91
$3,503.00
NLE EDITING, TURN-KEY SYSTEM, FINAL CUT PRO
General Description
This is intended for post production editing of programs taped
in the TV Studio in Final cut format. The suite will also be used for
teaching Television classes and training students.
The vendor shall provide all system components including cables,
hardware, software in
required quantities to form a complete, functional Non Linear Editing
system but not
limited to the items listed below.
Apple - Mac Pro Two 2.66GHz Dual-Core Intel Xeon, 1GB, 250GB, 7300
GT, No BT or AP
Apple - Mac Pro Two 2.66GHz Dual-Core Intel Xeon, 1GB, 250GB, 7300 GT
Specifications
Two 2.66GHz Dual-Core Intel Xeon 1GB (2 x 512MB) 250GB 7200-rpm
Serial ATA 3Gb/s
NVIDIA GeForce 7300 GT 256MB (single-link DVI/dual-link DVI)One 16x
SuperDrive
Apple Keyboard and Mighty Mouse - U.S. English Mac OS X - U.S. English
Apple Cinema Display 23" Flat Panel
Apple Aluminum Cinema Display 23" Flat Panel
Apple Final Cut Studio 2
Apple Final Cut Studio 2 (Retail SKU) - With six applications, Final Cut Pro
6 for video and film
editing, Motion 3 for graphics and animation in 3D, Soundtrack Pro 2 for
professional
audio post-production, Color Compressor 3 and DVD Studio Pro 4 for digital
delivery
Model Offered: No Award
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
92
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
NON LINEAR EDITING, TURN-KEY SYSTEM- AVID
This is intended for post production editing of programs taped
in the TV Studio in Final cut format. The suite will also be used for
teaching Television classes and training students.
The vendor shall provide all system components including cables,
hardware, software in
required quantities to form a complete, functional Non Linear Editing
system but not
limited to the items listed below.
HP Workstation xw8400
2.66 GHz (or faster) Dual Dual-Core Xeon
NVidia Quadro FX1500
Cache Memory
4 MB L2 cache
Cache Per Processor
4 MB ( 2 x 2 MB )
RAM
2 GB (installed) / 32 GB (max) - DDR II SDRAM - ECC - 667 MHz - PC25300
Storage Controller
RAID ( Serial ATA-300 ) ; RAID ( Serial Attached SCSI )
Hard Drive
1 x 160 GB - standard - Serial ATA-300
Optical Storage
DVD±RW (+R DL) with LightScribe Technology
Monitor
22” Widescreen TFT LCD Monitor
1000:1 Contrast Ratio ,500 cd/m2 brightness 1680 x 1050 resolution ,
5 ms response time, DVI-I & VGA inputs, Integrated speakers
X@GEN MW22U or latest equivalent
Software
Avid Xpress® Pro
Compatible with Microsoft Windows XP SP2 & Mac OS X 10.4.6, 10.4.7 or
10.4.8
Avid Xpress® Pro shall include:
Avid Marquee® ,Digidesign® AudioSuite™ ,IllusionFX™
Avid Filmmaker’s Toolkit ,SmartSound SonicFire Pro
Sorenson Squeeze Compression Suite, Sonic DVDit (PC Only)
Noise Industries Factory Tools (Mac only)
Avid Xpress Pro Users Guide, Basics Guide, and Effects Guide manuals
Support for the following Project formats:
NTSC, 720p/23.976, 720p/29.97 HDV, 1080p/23.976,1080p/24, 1080i/59.94
HDV
10-bit 1:1 SD video support , DV50 capture and output over IEEE-1394
MXF media support, MPEG-4 (.mp4) , H.264 ,3GPP ,AVC , AVC HD,Sony
PSP,
Macromedia Flash Movie (.swf), Macromedia Flash Video (.flv) ,QuickTime
(.mov) ,
Windows Media Video (.wmv), RealMedia (.rm) , MPEG-1/2 (.mpg),DVD
Model Offered: No Award
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
93
EST.
QTY.
UNIT
PRICE
CD PLAYER/AUDIO TAPE RECORDER/PLAYER
COMBO, WITH BUILT-IN SPEAKERS
TOTAL
PRICE
This is a lightweight portable combo unit for use in classrooms
and other educational applications. This is 120 V AC 60Hz A/C
only device! Cassette, stereo, Record, Playback and Erase Heads,
7 Watts RMS (per channel), (D.H.T. 5%) speakers; Microphone Input,
Auxilary Input Jack, 120 V AC 60Hz, Built-in Listening Center
with 5 headset jacks. Direct recording from CDs. Audio Deck: Record,
play, review, cue/fast forward, pause, stop, eject. CD Deck: Play,
stop/clear, skip Automatic level control (ALC) for Record level control.
Signal To Noise Ratio 45 dB C-30, C-60, C-90 tape capacity, resettable
Tape Counter.
EIKI Model 7070 or latest equivalent
Model Offered: NO Award
94
MULTI TRACK PORTABLE HANDHELD RECORDER
General Description
Built-in X/Y stereo condenser mics , variable recording patterns at
either
90° or 120°. digitally controlled, high-quality mic preamp, ability
to use internal
and external mics simultaneously for 4 channel recording, LCD
screen,
Built-in X/Y stereo mics record at either 90° or 120°, Four channel
simultaneous
recording using built-in and external mics; Digitally controlled,
high-quality
mic preamp for improved audio quality, Large 1.9-Inch LCD screen
and improved
user interface for easy operation, 24bit/96kHz Linear PCM
recording for
pristine recording, MP3 recording for increased recording time,
Built-in reference
speaker to check recordings, Shock resistant rubberized body for
improved chassis
protection, Broadcast Wave Format (BWF) compatible time stamp
and track marker,
Records on SD/SDHC media of up to 32GB for maximum recording
time, Autorecord and pre-record feature so you never miss a moment, Variable
speed playback
capability for phrase training, Stamina mode enables 10 hours of
continuous battery life,
Onboard mid-side matrix decoder for additional miking
possibilities, Built-in mounting
joint for tripod and mic stand mounting, USB 2.0 port for faster file
transfer, XLR mic
inputs with phantom power allow recording with any mic, Supports
plug-in power
type external mics, Hi-Z Inputs for recording guitar and bass,
Studio effects onboard,
including guitar and bass amp modeling, USB audio interface
capability, Low-cut filter
to reduce noise, Normalizing and file splitting functions, Mono mix
function, Onboard
tuner and metronome. To include 1 GB SD card, wind screen, mic
clip adapter, AC
adapter, USB cable, protective case and Cubase LE recording
software, RC4 remote control
Zoom H4n Handy Portable Digital Recorder or latest equivalent
Model Offered: Zoom H4N
$235.00
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
95
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
PORTABLE PA SYSTEM
This is meant to be used for sound reinforcement for small
gathering
at locations. PA Package consisting of 20 channel mixer and two
speakers ,
floor monitors and the power amp three vocal microphones ,
speaker and
mic cables, 2 x 600-Watt stereo powered mixer (1,200 Watt bridged
mode),
20-channel mixer section, 12 mono and 4 stereo channels plus
separate tape returns,
2 studio-grade 24-bit stereo FX processors with minimum 100
presets including
reverb, chorus, flanger, delay, pitch shifter and various multieffects, FBQ Feedback
Detection system revealing critical frequencies for easy feedback
removal, 12 highquality IMP Invisible Mic Preamps with switchable +48 V phantom
power for
condenser microphones 3-band EQ, switchable Low cut filter and
Clip LEDs on
all mono channels, Stereo 7-band graphic EQ for precise frequency
correction of
monitor or main outputs, Voice Canceller function Selectable
stereo (main L/R), double
mono (main/monitor) or bridged mono amplifier, operation mode
Standby switch to
mute all mic input channels during breaks while background music
is provided via
tape inputs 3D stereo surround effect for more vitality and
enhanced stereo image,
Adjustable stereo CD/Tape input for connecting external line
sources, Multi-functional
stereo Preamp outputs, response and very low power consumption.
To include the
following items:
1 X 1200 Watt 20 Channel Powered Mixer (2 x 600-Watt stereo
powered mixer
(1,200 Watt bridged mode)
2X 15 inch 2 Way PA Enclosures
1X Power Amp
2 X Tripod Speaker Stands
3X Vocal Mics with Clip
3 X 20 foot CBI MLC20 Mic Cables
2 X 12 Inch Floor Monitors
2 X 10 Foot Instrument Cables
4 X Speak on to Quarter Inch Speaker Cables
Specifications
Microphone Inputs
Type: XLR, electronically balanced, discrete input circuit
Frequency Response: <10 Hz-155 kHz (-1 dB), <10Hz- >200
kHz (-3 dB)
Gain: +10 dB, +60 dB
Max Input Level: +12 dBu @ +10 dB gain
Impedance: approx. 2.6 k ohms balanced/ 1.3 k ohms unbalanced
Signal-to-Noise Ratio: 109 dB/ 112 dB A-weighted (0 dBu IN @
+10 dB gain)
Distortion (THD+N): 0.002% / 0.0018% A-weighted
Mono Line Inputs
Type: 1/4" TS connectors, balanced
Impedance: approx 20k ohms
Max Input Level: +21 dBu
Stereo Line Inputs
Type: 1/4" TRS connectors, unbalanced
Impedance: >3.6k ohms
Max Input Level: +22 dBu
Latest equivalentizer
Low: 80 Hz / +/- 15 dB
Mid: 100 Hz-8kHz/ +/- 15 dB
High: 12 kHz / +/- 15 dB
CD/Tape Input
Type: RCA
Impedance: approx 3.6 k ohms, balanced
Max Input Level: +21 dBu
Main Preamp Outputs
Type: 1/4" TRS connectors, unbalanced
Impedance: approx 150 k ohms, unbalanced
Max Input Level: +21 dBu
Monitor Preamp Outputs
Type: 1/4" TRS connectors, unbalanced
Impedance: approx 150 k, unbalanced
Max Input Level: +21 dBu
Stereo Outputs
Type: ¼ inch TRS connectors, unbalanced
Impedance: approx 150 ohms, unbalanced
Max Output Level: +21 dBu
Stereo Outputs
Type:RCA
Impedance: approx 1k ohms
Max Output Level: +21 dBu
Loudspeaker Outputs
Type: compatible to Neutrik Speakon
Load Impedance
Main L/R: 4-8 ohms
Monitor/Main Mono: 4-8 ohms
Main Mono/Main Mono: 4-8 ohms
Bridge: 8-16 ohms
DSP
Converter: 24-bit Delta-Sigma, 64/128-times oversampling
Dynamics D/A: 90 dB
Sampling Rate: 46.875 kHz
Delay Time: max 5s
Signal Run Time (Line in>>Line out): approx 1.5 ms
Display
Type: 2 Dual 7-Segment LED
Amplifier (Power Amp Output)
Power @ 4 ohms: 2 x 450 w
Power @ 8 ohms: 2 x 215 w
Power @ 8 ohms (Bridge): 1 x 1200 w
Power Supply
Mains Voltage: 230V~, 50 Hz
Power Consumption: 1000 w
Fuse: T 6,3 A H 250V
Mains Connector: Standard IEC receptacle
Speakers
400 Watts program power, 800 Watts peak
HF Driver protection network
3/4 inch MDF construction
Two 1/4 inch inputs
Metal handles
Heavy duty carpet
Full metal perforated grill
Audio Power Amplifiers
2 x 700 Watts in 2-Ohm/1400 Watts in 4-Ohm bridged operation
2-channel, parallel or bridged mono operating modes for flexible
application
Independent limiters for each channel offer dependable
protection against distortion
Precise signal and clip LED indicators to monitor performance
Selectable low-frequency filters (30 Hz or 50 Hz) remove
distracting infra-sound frequencies
Professional Speakon® and touch-proof binding post
loudspeaker outputs enable secure operation
Balanced XLR and 1/4 inch TRS inputs
Connection option for extra amps in parallel operation
Ultra-reliable Toshiba®/Fairchild® high-power transistors
High-current Toroid® toroidal transformer
Back-to-front ventilation system including air filter with
automatically adjusting fan speed for smooth operation
Independent DC and thermal overload protection on each
channel to automatically protect amplifier and speakers
Floor Monitor
Two-way sound reinforcement monitor enclosure
30 and 45 degree dual-angle monitoring
woofer with 2.5-inch voice coil
1.4-inch 14XT titanium diaphragm compression driver
tweeter protection
500 Watt program/1000 Watt peak power handling
Heavy duty crossover network for driver protection and EQ
Lightweight trapezoidal enclosure
90¢ª x 40¢ª coverage constant directivity horn for better offaxis tonality
High quality, heavy duty carpet covering
Steel handle
Rugged dado and rabbet construction for lightweight- yet-strong
joints
T-Nut speaker mounting
Heavy duty, full-length steel grille , Pole mount
AMS Concert Portable PA System or latest equivalent
Model Offered: No Award
(*) Indicates Internal Stock Numbers
ITEM
NO.
DESCRIPTION
96
EST.
QTY.
UNIT
PRICE
TOTAL
PRICE
PROCESSOR-CONTROLLED 400-WATT 2-WAY PA
SPEAKER SYSTEM WITH 15-INCH WOOFER AND
1.25-INCH TITANIUM COMPRESSION DRIVER
Ultra-Low Noise (ULN) Mic/Line input with Volume control plus
dedicated 2-band EQ.
High-power 400-Watt 2-way PA sound reinforcement speaker
system for live and playback applications
Ultra-compact lightweight system delivers excellent sound even at
extreme sound pressure levels
Integrated sound processor for ultimate system control and speaker
protection, Extremely powerful 15-inch long-excursion driver
provides incredibly deep bass and acoustic power. State-of-the-art
1.25-inch titanium-diaphragm compression driver for exceptional
high-frequency reproduction, Ultra-wide dispersion, large-format
exponential/conical horn, Ultra-low noise Mic/Line input with
Volume control and Clip LED,
Dedicated 2-band EQ for perfect sound adjustment, Additional Line
output allows linking of additional speaker systems, Versatile
trapezoidal enclosure design allows different positioning, Stand
mounting with 35-mm pole socket, Tilts on its side for use as a
floor monitor, Ergonomically shaped handles for easy carrying and
setup, High-quality components and exceptionally rugged
construction ensure long life.
Specifications:
Output Power
Low-frequency range:
RMS @ 1%THD (sine wave): 200 W @ 8 ohms
Peak Power: 320 W @ 8 ohms
High-frequency range:
RMS @ 1% THD (sine wave): 50 W @ 8 ohms
Peak Power: 80 W @ 8 ohms
Input
XLR connector (servo-balanced)
Sensitivity: -40 to +4 dBu
Input impedance: 20k ohms
1/4 inch jack (servo-balanced)
Sensitivity: -40 to +4 dBu
Input impedance: 20k ohms
Link Output
XLR connector
System Data
Frequency range: 55 Hz to 20 kHz
Crossover frequency: 1.9 kHz (12 dB)
Maximum sound pressure level: 125 dB @ 1 m
Limiter: optical
Dynamic: processor-controlled Latest equivalentizer
High: 12 kHz / +-15 dB
Low: 80 Hz / +-15 dB
Power Supply
Mains voltage: 120 Volts, 60 Hz
Power consumption: maximum 450 W
Behringer Eurolive B215A Powered PA Speaker 15 Inch, 400
Watts or latest equivalent
Model Offered: Eurolive B215A
$194.12
