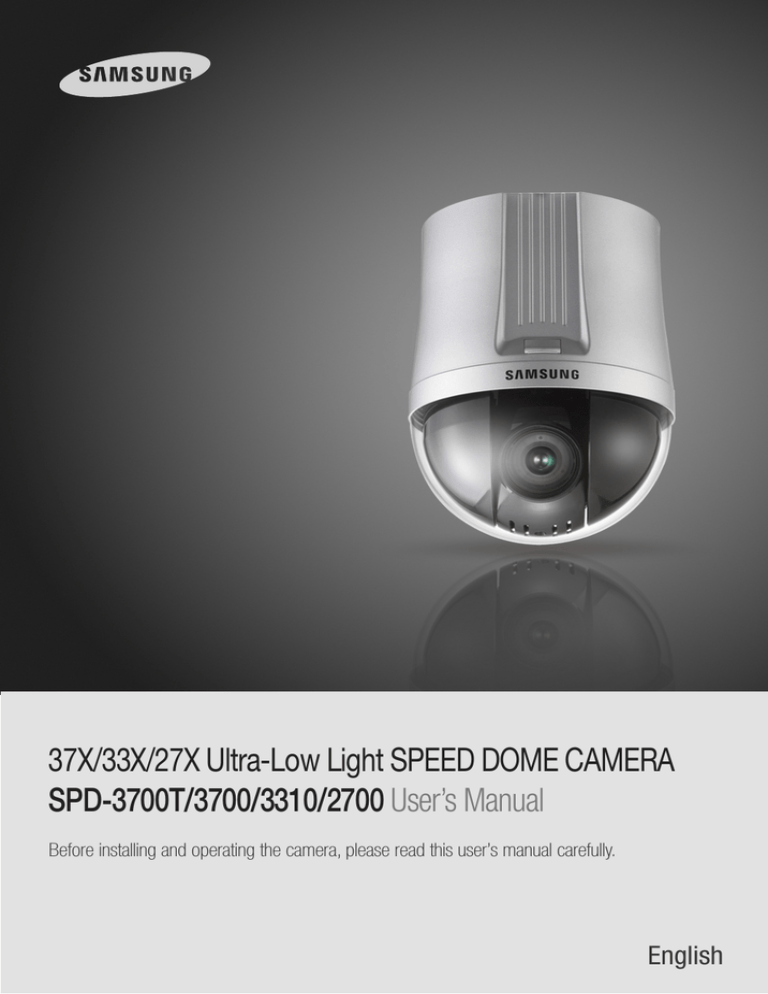

Samsung SPD-3700T User`s manual

37X/33X/27X Ultra-Low Light SPEED DOME CAMERA
SPD-3700T/3700/3310/2700 User’s Manual
Before installing and operating the camera, please read this user’s manual carefully.
English
The lightning flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
INFORMATION -This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference
at his own expense.
WARNING
- CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE
MANUFACTURER COULD VOID THE USER'S AUTHORITY TO OPERATE
THE EQUIPMENT.
- TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE.
CAUTION : To prevent electric shock and risk of fire hazards:
- The installation for this apparatus should be by a qualified service person
and should conform to all local codes.
- Do NOT use power sources other than Class 2 power source.
- Carefully push the unlock buttons to prevent injury due to falling of this
apparatus.
This installation should be made by a qualified service person and
should conform to all local codes.
Contents
• Features…………………………………………………………………………… 6
■ Sequence Setting…………………………………………………………… 48
• Cautions for Using Auto Track (SPD-3700T)…………………………… 7
• Warnings & Cautions… ……………………………………………………… 9
• Components and Accessories……………………………………………… 12
• Component Names and Functions………………………………………… 13
• Installing Your Camera………………………………………………………… 15
■ Speed Dome Camara and Appliances Wiring Diagram………… 15
■ Communication DIP Switch Settings (SW2)………………………… 17
▶ Protocol Settings……………………………………………………………………… 17
▶ Baud Rate Settings…………………………………………………………………… 18
▶ Communication Method Settings………………………………………………… 18
▶ Communication Response Settings……………………………………………… 18
▶ Termination Settings………………………………………………………………… 18
▶ Camera Backup Settings…………………………………………………………… 19
■ Camera ID DIP Switch Settings (SW1)… …………………………… 19
▶ Camera ID Chart……………………………………………………………………… 20
■ On-Ceiling Mount Type Installation Example……………………… 29
• Interface Symbols……………………………………………………………… 32
• Operating Your Camera……………………………………………………… 33
• Functional Description………………………………………………………… 37
■ Camera Setting……………………………………………………………… 37
▶ Focus and Zoom………………………………………………………………………
▶ White Balance…………………………………………………………………………
▶ Exposure…………………………………………………………………………………
▶ Backlight…………………………………………………………………………………
▶ AGC………………………………………………………………………………………
▶ SSNR(Samsung Super Noise Reduction)… ……………………………………
▶ Day & Night… …………………………………………………………………………
▶ Others……………………………………………………………………………………
SPEED DOME CAMERA
4
User’s Manual
▶ Power On Resume & MD Dwell Time ……………………………………………
▶ Preset ……………………………………………………………………………………
▶ Swing SEQ………………………………………………………………………………
▶ Group SEQ………………………………………………………………………………
▶ Tour SEQ…………………………………………………………………………………
▶ PTZ Trace… ……………………………………………………………………………
▶ Auto Run…………………………………………………………………………………
48
49
53
54
55
56
57
■ P/T Setting… ………………………………………………………………… 58
▶ Pan/Tilt Limit……………………………………………………………………………
▶ Area Setting……………………………………………………………………………
▶ Area Masking… ………………………………………………………………………
▶ Prop. P/T…………………………………………………………………………………
▶ Digital Flip………………………………………………………………………………
▶ Image Hold………………………………………………………………………………
▶ Auto Track1… …………………………………………………………………………
▶ Auto Track2… …………………………………………………………………………
58
59
60
61
62
63
64
66
• OSD Setting……………………………………………………………………… 68
• Alarm Setting… ………………………………………………………………… 69
• Initialization Setting…………………………………………………………… 73
• Status Check……………………………………………………………………… 75
• Product Specifications………………………………………………………… 76
37
39
40
41
44
45
46
47
SPEED DOME CAMERA
5
User’s Manual
Cautions for Using Auto Track (SPD-3700T)
Features
A/F 37x/33x/27x Optical Zoom
Smart P/T
The built-in 37x(SPD-3700T/37-0)/33x(SPD-3310)/27x
(SPD-2700) optical zoom lens with auto-focus is combined
with a 12x digital zoom, providing a maximum of 444x/
396x/324x zoom.
Versatile Protocol Processing
Day & Night
This camera supports a total of 8 types of communication
protocols: Samsung Techwin, Pelco-D, Pelco-P, Samsung
Electronics, Panasonic, Honeywell, AD and Vicon.
Wide Range Auto Security
Functions
- Auto Tracking(SPD-3700T Only) : A moving object or a
person can be tracked and recorded automatically by
the camera with its Pan, Tilt, and Zoom functions.
- Multiple Preset Function Saving : Up to 13 camera
image properities can be saved individually to provide
high quality pictures.
- Image Holding : When moving between presets in Group
and Tour functions, using this Preset Freeze function
holds the image status and helps the screen observer
relieve visual fatigue.
- PIZ Trace : Patterns operated with the joystick can be
saved and replayed by users.
- Swing : Using the Swing function commands the
camera to move between 2 selected locations,
monitoring the route.
- Group Search : Maximum 255 Preset positions are
toured in order.
- Tour Search : Maximum 6 Group Search functions are
toured in order.
Digital Flip
The Digital Flip function is useful to monitor moving
objects or people passing directly under the camera.
When an object or a person passes directly under the
camera, its tilt monitor follows the object or person over
100 degrees to the other side of the tilt area without
panning. The screen inversion starting to occur at 100
degrees or higher is digitally adjusted.
SPEED DOME CAMERA
The Smart P/T function automatically adjusts the
control speed of the Pan and Tilt functions according to
the current zoom power. It is useful to adjust the
functions manually for detailed controls when
monitoring a high-powered zoom.
6
With its daytime & nighttime switch and Sens-Up
functions based on the ICR (Infrared Cut filter Removal)
method, the camera provides high quality pictures
regardless of whether it is day or night.
*Sens-Up increases the CCD sensitivity by electrically
extending the camera’s exposure time.
* Day & Night enables you to select between color and
B/W modes depending on the lighting conditions.
OSD (On Screen Display)
The camera IDs, camera preset numbers, preset names,
area names, and camera operation status are displayed
on the monitor, allowing set up of various camera
functions through the OSD menu screen.
Preset Position Saving and Loading
Up to 255 preset positions can be set. Using this
function saves and brings up the camera feed of a
selected monitoring location.
Camera Backup
The following cautions are for the Auto Track function built-in with the SPD-3700T; The SPD3700/3310/2700 do not have Auto Track.
To use Auto Track to its full potential, please read and be aware of the following cautions.
Neglecting the cautions may cause unsatisfactory performance of the tracking function as
well as camera malfunctions.
• Auto Track is specifically to track down unknown intruders. It is not be suitable to monitor
a crowd.
• If the camera is not safely secured, tracking errors may occur.
• If the camera lens is smeared with foreign substances, snow flakes, or raindrops, the
camera may incur unsatisfactory performance in the tracking function. For optimal
performance, please install the camera in an environment safe from contamination, and
clean the camera lens on regular basis.
• If the tracking function shows poor performance at nighttime or under low light
circumstances, use the Sens-Up function.
• Auto Track may have errors at times when pronounced shadows are created: e.g. sunrise
and sunset.
• The camera may catch and follow unintended movements – car traffic or swaying tree
branches – during the Auto Track operation. To prevent and correct such errors, adjust the
installation direction and angle of the camera, or use Zone Settings (Mask) (page 67).
• Adjust the installation direction and angle of the camera, or use Zone Settings also under
the following conditions: With excessively bright light sources, under flickering lights, or if
the camera displays internal reflections.
• When using Auto Track, it is recommended to adjust the tracking object size to 1/4 of the
screen.
• This feature may not perform as expected depending on the situation and circumstances.
Samsung Techwin is not responsible for injuries and financial damage caused by the
situation described above.
This is to back up the camera’s sequence information
and presets. This is useful when the camera or its
install base are damaged or malfunctions occur.
Area Masking
If a monitoring location includes a highly private area,
the area can be selectively masked on the screen.
User’s Manual
SPEED DOME CAMERA
7
User’s Manual
Samsung Techwin cares for the environment at all product manufacturing
stages to preserve the environment, and is taking a number of steps to provide
customers with more environment-friendly products. The Eco mark represents
Samsung Techwin's will to create environment-friendly products, and indicates
that the product satisfies the EU RoHS Directive.
Warnings & Cautions
Warnings & Cautions
Warnings
Stop using the camera if smoke or
abnormal heat is detected.
Do not install on your own.
This information is provided to ensure your safety and to prevent any losses, financial or
otherwise. Please read it carefully and use the product accordingly.
* For product inquiries, please contact the retail shop where you bought the camera. The use of equipment such as
an aerial ladder while providing after-sales service shall be at your expense.
* Unplug the power plug when thunder crashes or lightning flashes to prevent fire and damage to the product.
* This product is support equipment for a security system. Therefore, we can't compensate for material losses and/or
personal injuries by robbery, fire, natural disaster, or anything of the sort.
Warning/Caution/Special Mark Messages
Ignoring this information may
result in material loss and/or
serious personal injuries, including
death.
Ignoring this information may
result in material loss and/or slight
injuries.
Indicates “Prohibited”.
Indicates “No Disassembly”.
This installation should be made by a qualified service
person. Installing this product on your own may result in
fire or electric shock. For the installation service, contact
the retail shop where you bought the product.
May cause fire.
Do not install in high humidity or in a
place that may be exposed to oil or gas.
May cause product malfunctions, electric shocks, and fire.
Do not install on an unsubstantial wall
that may be subject to vibrations.
May cause the product to fall.
Do not handle the power plug
with wet hands.
May cause electric shock.
SPEED DOME CAMERA
8
User’s Manual
Do not disassemble the camera or
insert foreign subjects.
May cause fire and damage to the product.
SPEED DOME CAMERA
9
User’s Manual
Warnings & Cautions
Warnings & Cautions
Detailed Warnings and Cautions
Cautions
Do not install under extreme
temperature conditions.
Do not install under unstable
lighting conditions.
Use only under temperature conditions between -0ºC
and +50ºC to prevent low graphics quality and product
malfunctions. When using in high temperature conditions,
provide good ventilation.
Severe lighting changes or flickering may hinder normal
camera operation.
Do not drop the camera or subject
it to physical shock.
Never keep the camera face to direct
sunlight or any other strong lights.
May cause product malfunctions.
May cause critical damage to the CCD.
Do not install in a place that may be
exposed to rain, water, or radioactivity.
Avoid touching the camera lens.
The lens is the most important component of the camera.
Be careful not to smear it with fingerprints.
SPEED DOME CAMERA
Water leakage into the camera may cause damage.
10 User’s Manual
- Avoid operating the camera for long durations under high temperatures and in high
humidity. Excessive heat can shorten the lifespan of the camera components.
- Do not install or place the camera near any heat sources.
- Subjecting the dome cover to physical shock may damage the camera and cause water
leakage into it.
- Do not place the camera facing direct sunlight or other intense light sources. Strong lights
such as spotlights can cause distortions—blooming and smear—as well as discolorations
on the screen by heating up the color filter of the camera. They also may cause internal
reflections of the camera, leading to operational malfunctions.
- Do not drop the camera or subject it to physical shock or vibration; this can cause serious
damage to the camera.
- When installing the camera near a power line, make sure to keep at least 1 meter distance
from the power line, or earth an additional metal pipe to separate the camera from the
power source.
- This camera is to install on the ceiling. Installing it on the ground or a unleveled location
may cause product malfunctions and shorten its lifespan.
- This camera is provided with separate indoor and outdoor housings. When installing it in
an outdoor environment, use the outdoor housing.
- Avoid installing and operating the camera in the following places.
∙ Places whose temperature exceed the camera’s recommended range. (Indoor: -10℃ ~
50℃, Outdoor: Refer to the housing manual)
∙ Places where drastic temperature changes occur: e.g. Near an air conditioner.
∙ Places that are exposed to steam, oil, and inflammable substances: e.g. Inside a kitchen.
∙ Places that are exposed to radioactivity, X-rays, strong electric waves, and electromagnetic waves.
∙ Places that are exposed to outdoor air contaminants: e.g. Dust and car exhaust.
∙ Places in high humidity.
∙ Places that are exposed to corrosive gas: e.g. Next to the sea.
- Smeared and dusty dome covers decrease the picture and video quality. Clean the dome
cover and camera lens on a regular basis.
- Remove the plastic wrap on the dome cover only after the camera installation is complete.
- This camera is not equipped with a power switch. Plug in the camera only after the
installation is complete.
SPEED DOME CAMERA
11 User’s Manual
Component Names and Functions
Components and Accessories
* Components
Front
Power Adapter (AC 24V, Peak 2.5A)
Side
User’s Manual
* Accessories
The following items are sold separately from the camera.
1
Housings
STH-380PO
Ultra LowTemperature
Heavy
(-40℃~50℃)
STH-370PO
LowTemperature
Heavyweight
(-20℃~50℃)
STH-360PO
LowTemperature
Lightweight
(-20℃~50℃)
STH-370PEV
Flush-Mount
Indoor Housing
(-10℃~50℃)
STH-370PI
Indoor Housing
(-10℃~50℃)
Bottom
2
Brackets
STB-350PPM
Parapet Mount
STB-340PCM
Corner Mount
1
2
3
4
Unlock Button
SW2: Communication DIP Switch
SW1: ID DIP Switch
Safety Wire Holder
STB-330PPM
Pole Mount
3
STB-25PF
Indoor Flange
STB-30PF
Indoor Flange
STB-370PC
Surface-mount
Install Base
STB-496PPV
Ceiling Bracket
STB-270PWV
Wall Bracket
STB-270B
Setup Box
4
Notes
• For the DIP switch settings, please refer to the “Installing Your Camera” on Page 17.
SPEED DOME CAMERA
12 User’s Manual
SPEED DOME CAMERA
13 User’s Manual
Installing Your Camera
Component Names and Functions
Speed Dome Camara and Appliances Wiring Diagram
Camera Wiring Interface Board (Sold Separately)
For the camera wiring, please refer to the picture below.
The camera’s wiring interface board is equipped to a housing that is sold separately.
Video Output
Connecting with Samsung Techwin’s “Stand Alone DVR”
·RS-485 :
Camera
Alarm
D+
D-
Stand Alone DVR
T(TX)+
T(TX)-
SVR-1680/1660/1645/960/
Alarm Output
·RS-422 :
Fan Heater
Connector
Camera
Alarm Input
Communications and AUX
·RS422 Communications
Camera
D+
DTXD+
TXD-
TXD+
TXD-
Controller
or DVR
TXD+
TXDRXD+
RXD-
SPEED DOME CAMERA
SVR-940/450
Power Input
Ground
Notes
• The maximum power capacity of the built-in
relay is 30VDC/2A, 125VAC/0.5A, and
250VAC/0.25A.
• Connecting the power connector and GND
incorrectly to the NC/NO and COM ports may
cause a short circuit and fire, damaging the
camera.
14 User’s Manual
·RS-485 :
SCC-3100A
Data Box PORT1
Camera
RX+
RX-
D+
D-
TX+
TXSCC-3100A
Data Box PORT1
·RS-422 :
Camera
TX+
TX-
RX+
RX-
D+
D-
TX+
TX-
SPEED DOME CAMERA
15 User’s Manual
SCC-3100A Data Box
D+
D-
R(RX)+
R(TX)-
Connecting with the Samsung Techwin Controller SCC-3100A
AUX Output
Controller
or DVR
TXD+
TXD-
SVR-945
SVR-1650/1640A/950E
Refer to the below Control
Signal Connection chart
·RS485 Communications
Camera
T(TX)+
T(TX)-
Power Supply
AC24V 2.5A
Control Signal Connection
Stand Alone DVR
D+
D-
Installing Your Camera
Note!
* The following DVR models support all functions of the camera.
- 16Ch : SVR-1680/1660/1645/1650E/1640A
- 9Ch : SVR-960/945/950E
- 4Ch : SVR-440
* The following DVR models support only the Pan, Tilt, Zoom, and Focus functions of
the camera.
- 9Ch : SVR-940
- 4Ch : SVR-450
Installing Your Camera
Communication Protocol DIP Switch Settings (SW2)
SW2 Pin No.
1~4
5~6
7
8
9
10~11
12
* Memo
MEMO
Purpose
Protocol Settings
Baud Rate Settings
Transfer Method (RS-485/422) Settings
Response Mode Settings
Backup Mode Settings 1
Termination Settings
Backup Mode Settings 2
• Protocol Settings
Select a communication protocol for the camera
No
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SPEED DOME CAMERA
16 User’s Manual
Protocol
Samsung
Pelco-D
Pelco-P
Samsung Elec.
Panasonic
Vicon
Honeywell
AD
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
SW2-#1
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
SPEED DOME CAMERA
SW2-#2
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
SW2-#3
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
17 User’s Manual
SW2-#4
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
Installing Your Camera
Installing Your Camera
Baud Rate Settings
•
Select the transfer speed of a selected communication protocol.
No.
1
2
3
4
Baud Rate(BPS)
2,400
4,800
9,600
19,200
SW2-#5
ON
ON
OFF
OFF
• Camera Backup Settings
SW2-#6
ON
OFF
OFF
ON
Select a communication method for the camera.
Function
Transfer Mode Switch
Backup Function
Backup(IB→D)
Backup(D→IB)
Backup Disable
SW2- #9
OFF
ON
-
SW2- #12
OFF
OFF
ON
- Backup(IB→D) : Enables transferring the current camera's sequence information to a new
camera.
- Backup(D→IB) : Enables transferring the current camera's sequence information to a new
install base.
• Communication Method Settings
SW2- #7
These settings are useful when the camera or its install base are damaged or malfunctions
occur. When replacing the camera or its install base, you can transfer existing presets and
sequence information to the replacement using these settings.
ON
RS-422(4Wire)
OFF
RS-485(2Wire)
*IB: Install base, D: Dome Camera
Notes
• Communication Response Settings
Select a communication response method for the camera and controller: Response or No
Response.
SW2- #8
Function
Response Mode Switch
ON
Response
OFF
No Response
Camera ID DIP Switch Settings (SW1)
• Termination Settings
To prevent the attenuation of communication signals between the camera and controller, 2
cameras in a longest distance for the camera and controller communication loop must be
set up with the termination settings.
Camera Input Position
Termination of Longest Path
On the Path
SPEED DOME CAMERA
• To use a third party controller with this product, please contact our After-Sales Service or
Technology Department.
• AD Protocol Control Method
- Input Camera OSD: 3+Auxiliary On
- Output Camera OSD: 3+Auxiliary Off
- Enter: IRIS Open
- ESC: IRIS Close
• For more information about the protocols, refer to our official website.
SW2- #10
ON
OFF
18 User’s Manual
To set up camera IDs, refer to the “Camera ID Chart” next.
SW2- #11
ON
OFF
SPEED DOME CAMERA
19 User’s Manual
Installing Your Camera
Installing Your Camera
• Camera ID Chart
ID
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
SW1-#1
ON/OFF
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
SW1-#2
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
SW1-#3
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
SW1-#4
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
SPEED DOME CAMERA
SW1-#5
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
20 User’s Manual
SW1-#6
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
SW1-#7
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SW1-#8
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ID
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
SW1-#1
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
SW1-#2
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
SW1-#3
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
SW1-#4
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
SPEED DOME CAMERA
SW1-#5
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
SW1-#6
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
21 User’s Manual
SW1-#7
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
SW1-#8
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Installing Your Camera
ID
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
SW1-#1
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
SW1-#2
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
SW1-#3
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
SW1-#4
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
SPEED DOME CAMERA
SW1-#5
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
22 User’s Manual
SW1-#6
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
Installing Your Camera
SW1-#7
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
SW1-#8
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ID
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
SW1-#1
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
SW1-#2
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
SW1-#3
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
SW1-#4
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
SPEED DOME CAMERA
SW1-#5
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SW1-#6
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
23 User’s Manual
SW1-#7
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SW1-#8
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
Installing Your Camera
ID
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
SW1-#1
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
SW1-#2
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
SW1-#3
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
SW1-#4
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
SPEED DOME CAMERA
SW1-#5
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
24 User’s Manual
SW1-#6
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Installing Your Camera
SW1-#7
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
SW1-#8
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ID
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
SW1-#1
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
SW1-#2
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
SW1-#3
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
SW1-#4
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
SPEED DOME CAMERA
SW1-#5
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
SW1-#6
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
25 User’s Manual
SW1-#7
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
SW1-#8
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
Installing Your Camera
Installing Your Camera
Preparing and Installing Camera Bracket
Preparing Adapter and Cables
– Power Adapter
Power adapter has the capacity of AC24V 2.5A.
For the installation guidelines for the brackets and housings, refer to the user’s manual
enclosed with the bracket or housing that is sold separately.
• Camera Wiring Diagram 1
– Video Cable
A BNC coaxial cable shown in the picture is required to connect Speed Dome’s video
output terminal to the monitor.
Distance
500m or shorter
500m or longer
Recommended Cable Specification
5C2V Coaxial Cable
7C2V Coaxial Cable
– Communications Cable
For the camera to communicate with the controller, a RS-485/422 communications line is
required. To ensure the quality of long distance communications and the accuracy of the
overall communications, using a twisted pair cable such as UTP Cable is recommended.
* Caution!
Depending on the camera’s environment, the communications distance may vary.
Notes
• Neither the video nor communications cable is enclosed with the camera.
SPEED DOME CAMERA
26 User’s Manual
SPEED DOME CAMERA
27 User’s Manual
Installing Your Camera
Installing Your Camera
On-Ceiling Mount Type Installation Example
• Camera Wiring Diagram 2
1. Attaching Template and Installing STB-370PC
Attach the enclosed template to the ceiling, then drill a hole in the ceiling according to the
diameter marked on the template. Drop the camera cables down from the ceiling through
the hole. Next, install the exposed bracket STB-370PC to the ceiling as shown in the
picture.Before installing the exposed bracket, open the hinged door at the bottom of the
bracket as shown in the picture. Hold the knob on the hinged door to open.
Template
Knob
2. Wiring Terminal Cables
Connect the cables to the terminal block on the
hinged door. For the location of the wiring pins,
please refer to the “Camera Wiring Diagram”
on Page 14. Once the wiring is successful, close
the hinged door.
Notes
• Do not connect the camera to a power outlet until the installation is complete. Supplying
power in the middle of the installation may cause fire or damage the product.
SPEED DOME CAMERA
28 User’s Manual
SPEED DOME CAMERA
29 User’s Manual
Installing Your Camera
3. Setting Up Camera DIP Switches
DIP switches for communication and ID protocols are located on the bottom of the
camera. For the switch settings, refer to the dip switch settings of this manual.
ID(SW1)
Protocol(SW2)
Installing Your Camera
✽ To attach or detach the camera, refer to the picture.
* Attaching the camera: Hold up the camera and push it to the mount as shown in the
picture. Push the camera until you hear a “click”.
* Detaching the camera: To detach the camera, pull the camera downward while pushing
the unlock buttons on the camera upward.
Unlock Button
UNLOCK
5. Connecting Camera Safety Cable and Attaching Camera
Carefully attach the camera to the mount following the alignment guide marks as shown
in the picture. First hook the camera's safety cable on the mount, and then attach the
camera.
To attach the
camera
To detach the
camera
Alignment
Direction
Guides
Safety
Cable
Alignment
Direction
Guides
Alignment
Directions
✽ To attach the camera to the mount, refer to the alignment guide marks as shown in the picture.
Notes
• Make sure to first hook the camera's safety cable to the mount before proceeding.
Otherwise you may be exposed to serious injury caused by a fallen camera.
SPEED DOME CAMERA
30 User’s Manual
SPEED DOME CAMERA
31 User’s Manual
Operating Your Camera
Interface Symbols
• Motion Detection Standby/Operation Display :
- When in standby mode, the " " in the upper right of the screen blinks and then
changes to " " if motion is detected.
• Alarm Input Port Status Display :
- "①","②","③" and "④" in the upper right of the screen blink.
• Current Alarm Port Display According to Input Alarm Ports(Priority) :
- Only one of " "," "," "," " in the upper right of the screen blinks.
• Preset Number Display Settings :
- '*' : If a preset number is already available
- 'H' : If a preset location is the camera’s home position
- 'T' : If a preset location is the camera’s Auto Track starting point (SPD-3700T Only)
• If an OSD Menu has Sub Menus :
- The color of the circle around the menu number shows as embossed, e.g. "①".
• If an OSD Menu Does Not Have Sub Menus :
- The circle around the menu number shows as engraved, e.g. "".
Motion Detect
Alarm Input
• PTZ Function Screen :
Area Display
Sequence Status
Preset Info
ID=001
①②③④
Area1 Area Name
G-SEQ1
PRESET=001 Preset Name
P:300 T:040 10X
Preset Edit
Preset=011* (1~255)
SPEED DOME CAMERA
Sub Menu Available
Sub Menu Not Available
Camera Setting
① Focus & Zoom
White Balance
-- ---
ATW
Operating Your Camera
• Panning and Tilting
- Use the joystick of the controller or its direction buttons.
• Controlling Zoon
- Move the joystick clockwise (Tele) or counterclockwise (Wide), or use the Zoom
button.
• Accessing Screen Menus
- Press the Menu or OSD button on the controller.
✽ For more detailed information about controls using a third party controller or a DVR, refer to the
user’s manual of the product.
OSD Commands, Function Chart, and Menu Controls
This dome camera can be operated using two methods: Using hot keys on its dedicated
controller, or accessing the OSD (On Screen Display) on the video output. The OSD menu
commands are as follows:
Command
Move the joystick up/down/left/right
Enter/Focus Far
ESC/Focus Near
Function
Moves the OSD menus up/down/left/right, respectively.
Selects a menu and allows access to the sub menus.
Cancels a command and moves back to an upper-level menu.
Dome Cover Setting
Before optimizing the camera focus settings for the dome cover shape, please select the
dome cover type on the camera’s main menu. (Refer to Page 48)
• Preset Number Setting Screen :
• OSD Menu Screen :
32 User’s Manual
Dome Cover Setting
Outer
Inner
None
Installation Type
Dome cover type for outdoor housings except the indoor flush model.
Default dome cover type including the indoor flush model.
When using the camera without a dome cover.
SPEED DOME CAMERA
33 User’s Manual
Operating Your Camera
Operating Your Camera
*OSD Menu Chart
P1
①Camera
Setting
P2
P3
①Focus Mode
P4
P5
Auto/Manual/One Shot AF
①Focus
Mode
Auto/Tracking/Off
②Zoom Tracking
Speed
Slow/Medium/Fast
&Zoom
③Digital Zoom
Off/2X/3X/4X/5X/.../12X
ATW/INDOOR/OUTDOOR/AWC
②White
AWB Mode
Red
Manual
Balance
Blue
①Brightness
0~100
Auto
②Iris
Manual
Iris Level
③Exposure
③Shutter
---/A.FLK/Manual
Sens-Up Limit
④Sens-Up
Auto/Off
X2/X4...X256
①Off
Level
Low/High
②HLC
Mask Color 0~10
④Back Light
Up/Down/Left/Right/
③User
Increase/Decrease
Off/Low/Medium/High
⑤AGC
Manual
Level
5~41
⑥SSNR
Off/Low/Medium/High
Auto
Burst Level
Mode
Color
⑦Day 0~100
&Night
B/W
Burst On/Off
Duration
Slow/Fast
Dwell Time
5/7/10/15/20/30/40/60 Sec
Internal
Sync
Line Lock
Line Lock Phase
Stabilizer
On/Off
⑧Others
①Sharpness On(0~32)/Off
Image Adj.
②Color
0~100
Freeze
On/Off Dome Cover
Inner/Outer/None
①Setting②Edit③Home Position④Execute⑤Clear
①Preset
⑥Status
①Pan Swing
①Setting②Execute③Clear
②Swing SEQ. ②Tilt Swing
①Setting②Execute③Clear
③P&T Swing
①Setting②Execute③Clear
SPEED DOME CAMERA
34 User’s Manual
Default
One Shot AF
Auto
Fast
Off
ATW
117
93
50
Auto
F1.6
---
②
Sequence
Setting
Auto(X2)
Off
Low
5
Medium
5 dB
Medium
Color
Fast
5 Sec
Internal
Off
24
50
Off
Inner
③Group SEQ. Group1~6
①Setting②Execute③Clear
④Tour SEQ. ①Setting②Execute③Clear
⑤PTZ Trace Trace1~4
①Replay②Memorize
Off/Home/Preset/Swing/Group/
①Mode
Tour/Trace/A.Pan
⑥Auto Run
②Time
1~60(Sec), 1~60(Min)
⑦Power On
On/Off
Resume
⑧MD Dwell ①Off
Time
②On
1~60(Sec),1~60(Min)
①Position
①Pan Limit
①Pan/Tilt
②On/Off
Limit
①Position
②Tilt Limit
②On/Off
②Area Setting Area1~8
①Name/②Position/③On/Off
③Area
Mask1~8
①Position/②On/Off
Masking
④Prop.P/T
On/Off
⑤Digital Flip On/Off
⑥Image Hold On/Off
③P/T
Setting
①Auto Track
②Camera Height
③Object Size
④Sensitivity
⑦Auto Track 1
⑤Zoom Control
⑥Auto Release
⑦Auto Return
⑧Lost Mode
①Zone Setting
⑧Auto Track 2
②Indicator
③Target Lock
①Camera ID On/Off
①On/Off
②Camera
Name
②Edit
③Preset
On/Off
Number
SPEED DOME CAMERA
Off
30 Sec
On
30 Sec
Off
Off
Off
Off
On
On
Off
On/Off
2.5m~30m
Small/Medium/Large
High/Medium/Low
Off/One Shot/Continuous
Off/10sec~5min
Off/1sec~5min
Stop/Research/Zoom Out
①Position
②Mode(Alarm/
Zone1~8
Mask)
③On/Off
Off/On/Pointer/Target
On/Off
Off
2.5 m
Small
High
Off
Off
Off
Stop
Mask
Off
Off
Off
On
Off
On
35 User’s Manual
Operating Your Camera
④OSD
Setting
⑤Alarm Setting
④Preset
Name
⑤Sequence
Status
⑥Area Name
⑦PTZ
Position
⑧Language
①Alarm
Enable
⑥Initialize
Camera Setting
①On/Off
②Edit
Off
On/Off
On
On/Off
Off
On/Off
On
English/Chinese/Français/Deutsch/Español/Italiano
English
Main Menu
Off
On/Off
①In1
②In2
②Alarm Input
③In3
④In4
Out1~2
③Alarm
Output
Functional Description
Time1~2
①On/Off
④Aux. Output
②Time
①Power On
Cancel/Execute
Reset
②Factory
Cancel/Execute
Default Set
③Camera
Cancel/Execute
Default Set
④Auto
Off,1~7Days
Refresh
⑤Auto Track
Cancel/Execute
Default
MOD:NC/NO/OFF
Priority:1~4 SEQ:Preset/Swing/Group/Tour/
A.Pan/Trace/Off
1~4,MD,TRK
Off/On/Momentary
1~60(Sec),
Dwell Time
1~60(Min),
1~60(Hour)
On/Off
1~60(Sec), 1~60(Min)
⑦Status
Off
Off
Off
Off
1. Focus and Zoom Settings
1.1 Focus Mode and Digital Zoom Setting Menu
▶ Main Menu/Camera Setting/Focus & Zoom
①
②
③
④
⑤
⑥
Focus Mode :
- Auto : Performs continuous auto-focus.
- Manual : Changes the camera mode to Manual Focus.
- One Shot AF : Auto-focuses the camera once after the
Pan, Tilt, or Zoom function is used.
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Digital Zoom :
Enables the maximum digital zoom.
Setting the digital zoom to 12X provides a total zoom of
444x(SPD-3700T/3700)/396x(SPD-3310)/324x(SPD-2700).
➡
Camera Setting
① Focus & Zoom
White Balance
③ Exposure
④ Back Light
AGC
SSNR
⑦ Day & Night
⑧ Others
ATW
Medium
Medium
➡
Focus & Zoom
Focus Mode ONE SHOT AF
② Zoom Tracking
③ Digital Zoom OFF
SPEED DOME CAMERA
36 User’s Manual
Notes
• Unlike the optical zoom, the graphics quality of the
digital zoom decreases as its zoom power increases.
• The auto-focus function may not operate normally
under the following conditions :
- When background illumination is low
- While Slow-Shutter is in operation
- If the zoom level is set too high
- When background illumination is too high
- If a long distance object and a close distance object
appear together within a monitoring area
- If there is no contrast, e.g. the sky or a wall
- If the camera is facing a thin horizontal line
• Auto Focus focuses on an object in the center of the
screen; objects around the screen edges may not be
properly in focus.
SPEED DOME CAMERA
37 User’s Manual
Functional Description
Functional Description
2. White Balance
1.2 Zoom Tracking
▶ Main Menu/Camera Setting/Focus & Zoom/Zoom Tracking
Through this menu you can set up the camera’s focus mode
when zooming.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Mode :
- Auto : Auto-focuses when zooming.
- Tracking : Focuses manually when zooming.
- Off : Disable the focus modes when zooming. (Full
manual mode)
Speed :
- Slow/Fast : Adjusts the zooming speed.
➡
▶ Main Menu/Camera Setting/White Balance
① Focus & Zoom
White Balance
③ Exposure
④ Back Light
AGC
SSNR
⑦ Day & Night
⑧ Others
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
- ATW : Adjusts the screen color automatically.
- Indoor : Adjusts the screen color to be optimal in an
indoor environment.
- Outdoor : Adjusts the screen color to be optimal in an
outdoor environment.
- AWC : Adjusts the screen color to be optimized to the
current lighting and monitor conditions. Using this
setting may require an readjustment if the lighting
conditions changes.
- MANUAL : Enables customization the Red and Blue gains.
➡
Camera Setting
The White Balance menu adjusts the balance of the screen
colors under different lighting conditions.
Main Menu
Camera Setting
ATW
Medium
Medium
➡
① Focus & Zoom
White Balance
③ Exposure
④ Back Light
AGC
SSNR
⑦ Day & Night
⑧ Others
ATW
OFF
Medium
Medium
Focus & Zoom
Notes
Focus Mode ONE SHOT AF
② Zoom Tracking
③ Digital Zoom OFF
White Balance may not work properly under the following conditions.
When the color temperature of the environment surrounding the subject is out of the
control range.(e.g. Clear sky or sunset)
When the ambient illumination of the subject is dim.
If the camera is directed towards a fluorescent light or is installed in a place where
illumination changes dramatically, White Balance adjustments may not deliver
consistent results.
➡
Zoom Tracking
Mode
② Speed
AUTO
FAST
SPEED DOME CAMERA
38 User’s Manual
SPEED DOME CAMERA
39 User’s Manual
Functional Description
Functional Description
3. Exposure
4. Backlight
▶ Main Menu/Camera Setting/Exposure
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
➡
Camera Setting
① Focus & Zoom
White Balance
③ Exposure
④ Back Light
AGC
SSNR
⑦ Day & Night
⑧ Others
ATW
OFF
Medium
Medium
➡
The Exposure settings are to control the camera’s exposure
meter.
Brightness : Adjusts the screen brightness.
(Over 50: Brighter, Under 50: Darker)
Iris :
- Auto : Automatically adjusts the exposure meter.
- Manual : E nables manual adjustment of the exposure
meter. (Over 50: Brighter, Under 50: Darker)
Shutter : Controls the camera’s electronic shutter.
- --- : The shutter speed is fixed at 1/60 for NTSC and 1/50
for PAL. Operates when Iris is on the Auto Mode.
- ESC : Adjusts the shutter speed automatically according
to the screen brightness. Operates when Iris is on
the Manual Mode.
- A.FLK : S elect this setting when you experience picture
flickering. Flickering can happen when artificial
lighting frequencies clash with camera frame rates.
- Manual : Enables manual adjustment of the shutter speed.
Sens-Up :
- Auto : Automatically detects light levels and maintains a
clear picture at night or under low-light conditions.
- Sens-Up Limit : Adjusts to the maximum-powered zoom
per frame.
Brightness
Iris
Shutter
Sens-Up
Unlike other cameras, Samsung Techwin’s unique SV-IV DSP
chip gives you a clear image of the subject even with bright
backlight.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Back Light Mode :
- Off : Disables the Backlight mode.
- HLC : Activates the High Light Compensation mode.
- User : Activates a user defined backlight compensation
mode.
➡
Camera Setting
① Focus & Zoom
White Balance
③ Exposure
④ Back Light
AGC
SSNR
⑦ Day & Night
⑧ Others
ATW
OFF
Medium
Medium
Notes
Exposure
4.1 Backlight Mode Settings
▶ Main Menu/Camera Setting/Back Light
050
AUTO
--AUTO
• For optimal performance of the A.FLK mode, avoid
using the mode in conjunction with Backlight.
• While the Internal Sync mode is in effect, setting the
shutter to '---' and facing the camera directly to a
bright light source may cause poor camera
performance.
• Sens-Up is disabled when the shutter is in Manual or
A. FLK mode.
SPEED DOME CAMERA
40 User’s Manual
SPEED DOME CAMERA
41 User’s Manual
Functional Description
Functional Description
4.2 HLC
▶ Main Menu/Camera Setting/Back Light/HLC
The HLC settings selectively eliminates high lights in a limited
environment such as the entrance to an apartment parking lot
or gas station, and is useful to detect a small objects like car
license plates.
HLC is disabled during the daytime. While monitoring
nighttime car traffic, if car headlamps reflect too bright lights
on the screen, the camera automatically eliminates the
headlamp lights and adjusts the colors of the license plate
accordingly.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
➡
Camera Setting
① Focus & Zoom
White Balance
③ Exposure
④ Back Light
AGC
SSNR
⑦ Day & Night
⑧ Others
HLC
Medium
Medium
<HLC OFF>
Limit :
Adjusts the HLC sensitivity level.
HLC Setting
Medium
05
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Four-direction Joystick Controls :
- Moving the joystick in all four directions—upward,
downward, left, and right—adjusts the location and size
of a selected area.
Zoom Control :
- Zoom Tele : Enlarges the size of a selected area.
- Zoom Wide : Reduces the size of a selected area.
Camera Setting
ATW
<HLC ON>
You can selectively choose a screen area to see objects within
the area more clearly than others.
Main Menu
➡
HLC Masking Area
➡
Limit
Mask Color
4.3 User Area Setting
▶ Main Menu/Camera Setting/Back Light/User
Mask Color :
Adjusts the mask color on the highlighted area.
Notes
① Focus & Zoom
White Balance
③ Exposure
④ Back Light
AGC
SSNR
⑦ Day & Night
⑧ Others
ATW
USER
Medium
Medium
➡
↑:Up↓:Down ←:Left →:Right
W:Decrease T:Increase
• Even if HLC is on, car license plates may not be detectable depending on the location and
angle of the camera as well as the lighting condition.
SPEED DOME CAMERA
42 User’s Manual
SPEED DOME CAMERA
43 User’s Manual
Functional Description
Functional Description
5. AGC
6. SSNR (Samsung Super Noise Reduction)
▶ Main Menu/Camera Setting/AGC
AGC (Automatic Gain Control) adjusts the camera’s gain
control and the screen brightness if the camera has captured
an object under low-light conditions.
The Off, Low, Medium, High, and Manual modes are available.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
▶ Main Menu/Camera Setting/SSNR
Main Menu
SSNR significantly reduces the amount of low luminance noise.
- Off : Disables the noise reduction function.
- Low : Reduces only a small amount of noise, but generates
almost no afterimage.
- Medium : The most commonly used mode. Reduces a suitable
amount of noise while generating a subtle
afterimage.
- High : R educes noise significantly, but generates obvious
afterimages.
➡
① Focus & Zoom
White Balance
③ Exposure
④ Back Light
AGC
SSNR
⑦ Day & Night
⑧ Others
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
➡
Camera Setting
①
②
③
④
⑤
⑥
Camera Setting
ATW
OFF
Medium
Medium
① Focus & Zoom
White Balance
③ Exposure
④ Back Light
AGC
SSNR
⑦ Day & Night
⑧ Others
ATW
OFF
Medium
Medium
Notes
• SSNR is disabled when the AGC mode is turned off.
SPEED DOME CAMERA
44 User’s Manual
SPEED DOME CAMERA
45 User’s Manual
Functional Description
Functional Description
7. Day & Night
8. Others
▶ Main Menu/Camera Setting/Day & Night
The Day & Night function allows the camera to switch
between the Color and B/W modes.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Modes :
- Auto : Operates in Color mode most times, and switches
to B/W mode if a low light level is detected during
nighttime.
- Color : Operates in Color mode at all times.
- B/W : Operates in B/W mode at all times. By using the
Burst On/Off sub menu, burst signals can be
retained or disabled.
➡
Camera Setting
① Focus & Zoom
White Balance
③ Exposure
④ Back Light
AGC
SSNR
⑦ Day & Night
⑧ Others
ATW
OFF
Medium
Medium
✽ If the camera is in B/W mode and connected to equipment
that requires external sync through burst signals, set the
Burst On/Off option to “On.”
Duration :
The camera’s light sensitivity is adjustable as in the chart
below. The camera’s ambient light diversion performance
may vary depending on its environment.
➡
Fast
Slow
Day & Night
① Mode
Duration
③ Dwell Time
▶ Main Menu/Camera Setting/Others
COLOR
FAST
0.5 SEC
Color -> B/W
2.5 Lux
0.8 Lux
B/W -> Color
4 Lux
6 Lux
Dwell Time :
The duration of both the lighting conditions can be
customized to let the camera divert between the daytime
and nighttime settings.
Notes
• The Auto mode is disabled when AGC is turned off. This function is only available when
the Color or B/W mode is selected.
• Using B/W mode under sunlight or a halogen lamp may decrease the focusing
performance.
SPEED DOME CAMERA
46 User’s Manual
Sync : Enables selecting Internal Synchronization or the
external Line Lock. (SPD-3700T not supported)
- Internal : Synchronizes the camera’s output timing to the
internal crystal.
- Line Lock : Synchronizes the camera’s output timing to
the AC adapter power to synchronize multiple
cameras. This option is useful when using a
switch such as Matrix Switcher.
- Line Lock Phase : Enables setting the adapter’s
synchronization phase between 0 and
360°.
Stabilizer : The Stabilizer compensates for any small
movements of the camera caused by due to
the wind and other reasonsor other causes.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
➡
Camera Setting
① Focus & Zoom
White Balance
③ Exposure
④ Back Light
AGC
SSNR
⑦ Day & Night
⑧ Others
ATW
OFF
Medium
Medium
➡
Others
Sync
Stabilizer
③ Image Adj
Freeze
Dome Cover
INTERNAL
OFF
OFF
Inner
Notes
• The Stabilizer uses the digital zoom and may cause
low picture quality.
• The Stabilizer is disabled if the ambient light is too
low.
• The Stabilizer is disabled if the field of view has very
low or no contrast, e.g. The sky or a white wall.
Image Adj :
- Sharpness : Sharpens outlines of an image.
- Color : Adjusts the color density of an image.
Freeze : Stops or reanimates an image.
Dome Cover : These settings are to optimize the camera’s focused object
position according to the dome cover type.
- Inner : Default dome cover type including the indoor flush
model. (Factory Release Mode)
- Outer : Dome cover type for outdoor housings except the
indoor flush model.
- None : When using the camera without a dome cover.
SPEED DOME CAMERA
47 User’s Manual
Functional Description
Sequence Setting
10. Preset
9. Power On Resume and MD Dwell Time
▶ Main Menu/Sequence Setting
Power On Resume : This is useful when the power is disconnected and
reconnected due to power failures or other power
interruptions.
If the camera was performing a sequence action prior to a
power disconnection, the camera automatically resumes
the action when the power is reconnected.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
➡
Sequence Setting
①
②
③
④
⑤
⑥
Preset
Swing SEQ
Group SEQ
Tour SEQ
PTZ Trace
Auto Run
Power On Resume
MD Dwell Time Functional Description
ON
ON
MD Dwell Time :
When Motion Detection under the Preset Edit menu is
selected, MD Dwell Time performs the Tour or Group
function.
While the camera is performing a sequence action, if
motion is detected from a selected preset location, the
camera pauses the sequence action operation and starts
monitoring the location instead for a duration that is set
under the MD Dwell Time menu.
If the motion is no longer detectable or the duration
expires, the camera aborts the monitoring operation and
then resumes the sequence action.
10.1 Preset Location Saving
▶ Main Menu/Sequence Setting/Preset/Setting
This function enables the memorization of a selected location
and activates the Pan, Tilt, and Zoom functions at that location.
Saved locations can be recalled using the Preset Execute
command.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Setting Up Preset Numbers :
Selecting the Preset Setting menu brings up a screen as
shown below. Move the joystick in all four directions to
select the desired number.
➡
Preset Setting
Sequence Setting
①
②
③
④
⑤
⑥
Preset
Swing SEQ
Group SEQ
Tour SEQ
PTZ Trace
Auto Run
Power On Resume
MD Dwell Time ➡
Preset
Setting
Edit
Execute
Clear
Status
Preset = 001 (255)
ON
OFF
Saving Preset Locations :
Selecting a preset number and pressing the Enter key
redirects the menu to the screen shown below.
Using the joystick, adjust the location of the Pan and Tilt
functions and then set the Zoom and Focus command.
In Preset Settings, the Zoom and Focus command is
controllable only by the Zoom command. To switch
between Zoom and Focus, use the Preset 1 and 2
commands as shown below.
Preset Setting Z>Z00M
1+PST:ZOOM 2+PST:FOCUS
Use W/T Preset
SPEED DOME CAMERA
48 User’s Manual
SPEED DOME CAMERA
49 User’s Manual
Functional Description
Functional Description
10.3 Preset Name Setting
▶ Main Menu/OSD Setting/Preset Name/Edit
10.2 Preset Edit
▶ Main Menu/Sequence Setting/Preset/Edit
You can edit the 13 preset items such as Pan/Tilt location,
Zoom and Focus, which are selected among camera functions.
Main Menu
① Camera Setting
② Sequence Setting
....
PTZ :
Recalls saved locations using the Preset Settings command.
➡
Focus Mode :
Refer to the section entitled Setting Up Your Camera.
Sequence Setting
Brightness :
Refer to the section entitled Setting Up Your Camera.
① Preset
② Swing SEQ
③ Group SEQ
....
Iris :
Refer to the section entitled Setting Up Your Camera.
➡
Backlight :
Refer to the section entitled Setting Up Your Camera.
Preset
③
Setting
Edit
Home Position
Execute
Clear
Status
OFF
➡
Preset Edit
Preset = 001* (1~255)
➡
Preset Edit
[001]
271/045/1X
ONE SHOT AF
050
AUTO
⑤
⑧
PTZ
Focus Mode
Brightness
Iris
Back Light
Day & Night
After Act.
Scene Adj.
Day & Night :
Refer to the section entitled Setting Up Your Camera.
After Act :
Enables setting up an automatic action after the camera
arrives at a selected preset location.
- TRACK : Commands the camera to perform the Auto
Tracking function.
- MD : Commands the camera to perform the Motion
Detection function.
- None : Select this when no action is desired.
Scene Adj :
Enables setting the Shutter, AGC, SSNR, Sens-Up, White
Balance, and Stabilizer functions. For more information
about interface terminology, please refer to the section
entitled Setting Up Your Camera.
B/W
OFF
SPEED DOME CAMERA
50 User’s Manual
Using this function, you can add names to preset locations.
up to 12 characters.
Once a name is entered, use the joystick and the Enter key to
perform the Set command and save the name.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
➡
OSD Setting
① Camera
② Camera
③ Preset
④ Preset
....
ID
Name
Number
Name
ON
ON
➡
Preset Name
ON/OFF
Edit
OFF
➡
Preset Edit
Preset = 001* (1~255)
➡
PSET Name 001[
]
0123456789()[]#&%/~-=_
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
äöÖüÄÜàâçéèêëîïôûôùÿñÑáí
óúÀÂÇÉÈÊËïïÔߌæÑÛÙŸÁÍÓÚÂ
ABC->中文1 BACK SPACE CLR SET
SPEED DOME CAMERA
51 User’s Manual
Functional Description
Functional Description
11. Swing SEQ
10.4 Preset Execution/Deletion/Memory Check
▶ Main Menu/Sequence Setting/Preset
Home Position :
Sets one of the currently configured preset positions as the
home position.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Execute :
Recalls a saved preset location.
Clear :
Deletes the selected preset location.
Status :
Opens a map of saved preset locations.
An area saved as a preset location is displayed with the
'■' icon.
➡
Sequence Setting
①
②
③
④
⑤
⑥
Preset
Swing SEQ
Group SEQ
Tour SEQ
PTZ Trace
Auto Run
Power On Resume
MD Dwell Time Preset Status
ON
OFF
➡
Preset
③
Setting
Edit
Home Position
Execute
Clear
Status
OFF
:
:
:
:
:
:
:
:
:
□□□□□ □□□□□ □□□□□ □□□□□
□□□□□ □□□□□ □□□□□ □□□□□
□□□□□ □□□□□ □□□□□ □□□□□
□□□□□ □□□□□ □□□□□ □□□□□
□□□□□ □□□□□ □□□□□ □□□□□
□□□□□ □□□□□ □□□□□ □□□□□
□□□□□ □□□□□ □□□□□ □□□□□
□□□□□ □□□□□ □□□□□ □□□□□
□□□□□ □□□□□ □□□□□ □□□□□
➡
Preset Status
SPEED DOME CAMERA
001
021
041
061
081
101
121
141
161
181
201
221
241
:
:
:
:
□□□□□ □□□□□ □□□□□ □□□□□
□□□□□ □□□□□ □□□□□ □□□□□
□□□□□ □□□□□ □□□□□ □□□□□
□□□□□ □□□□□ □□□□□ □□□□□
52 User’s Manual
▶ Main Menu/Sequence Setting/Swing SEQ
The Swing function commands the camera to move between 2
selected locations, monitoring the route.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Pan Swing :
Activates the Pan function for the Swing operation.
Tilt Swing :
Activates the Tilt function for the Swing operation.
P&T Swing :
Activates both the Pan and Tilt functions for the Swing
operation.
Swing Settings/Execute/Clear :
- Settings : Each of the Swing menus have sub menus with
the settings.
➡
Sequence Setting
①
②
③
④
⑤
⑥
Preset
Swing SEQ
Group SEQ
Tour SEQ
PTZ Trace
Auto Run
Power On Resume
MD Dwell Time ➡
Pan Swing
① Setting
② Execute
③ Clear
ON
OFF
➡
➡
Pan Swing Setting
Swing SEQ
[001]←→[***]
① Pan Swing
② Tilt Swing
③ P&T Swing
SPEED=64 (1~64)
DWT =003(1~128)(s)
Select 2 preset locations by using the joystick.
Speed indicates the camera’s movement speed. DWT indicates
the camera’s duration of stay at a preset location.
- Execute: Executes the Swing operation.
- Clear: Deletes data in the Swing memory.
SPEED DOME CAMERA
53 User’s Manual
Functional Description
Functional Description
12. Group SEQ
13. Tour SEQ
▶ Main Menu/Sequence Setting/Group SEQ
Selecting Group SEQ recalls a group of multiple preset
locations in a consecutive manner. A group can contain up to
255 preset locations.
Main Menu
①
②
③
④
⑤
⑥
▶ Main Menu/Sequence Setting/Tour SEQ
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Setting :
Using the joystick, enter desired preset numbers into the
PSET section. DWT indicates the camera’s duration of stay
at a preset location. SPD shows the camera’s movement
speed by 64 different levels.
➡
Sequence Setting
Group SEQ 1
①
②
③
④
⑤
⑥
Preset
Swing SEQ
Group SEQ
Tour SEQ
PTZ Trace
Auto Run
Power On Resume
MD Dwell Time ➡
Group SEQ
① Group
② Group
③ Group
④ Group
....
1
2
3
4
ON
OFF
NO
001:
002:
003:
004:
005:
006:
007:
PSET DWT(s) SPD
*** : 003 : 64
*** : 003 : 64
*** : 003 : 64
*** : 003 : 64
*** : 003 : 64
*** : 003 : 64
*** : 003 : 64
Execute :
Executes the group operation.
Clear :
Deletes the selected group.
Selecting Tour SEQ recalls groups of preset locations in a
consecutive manner. Up to 6 groups can be listed for this
function.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Settings :
Selecting the Settings menu brings up the following screen.
Using the joystick, you can enter desired group numbers to
the Group section. DWT indicates the camera’s standby
time before a new group is recalled.
➡
Tour SEQ
Sequence Setting
①
②
③
④
⑤
⑥
Preset
Swing SEQ
Group SEQ
Tour SEQ
PTZ Trace
Auto Run
Power On Resume
MD Dwell Time ➡
Tour SEQ
Setting
Execute
Clear
ON
OFF
NO Group DWT(s)
01: *
003
02: *
003
03: *
003
04: *
003
05: *
003
06: *
003
Execute :
Executes the group operation.
Clear :
Deletes the selected group.
➡
Group SEQ 1
Setting
Execute
Clear
SPEED DOME CAMERA
54 User’s Manual
SPEED DOME CAMERA
55 User’s Manual
Functional Description
Functional Description
14. PTZ Trace
15. Auto Run
▶ Main Menu/Sequence Setting/PTZ Trace
Maximum 4 patterns of the manual operation paths (for Pan,
Tilt, Zoom and Focus) are memorized and replayed.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Replay :
Replays a route saved by the Trace function. Use the Stop
button to stop the replay.
Memorize :
Up to 120 seconds of a memory can be saved. The memory
duration varies depending on the difficulty level of the PTZ
Trace action. If the memory capacity is full, the Over
message appears and the memorization action is
terminated.
➡
Sequence Setting
①
②
③
④
⑤
⑥
Preset
Swing SEQ
Group SEQ
Tour SEQ
PTZ Trace
Auto Run
Power On Resume
MD Dwell Time ON
OFF
Trace
Trace
Trace
Trace
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Mode :
- Home : Auto run Home Position (Refet to the Preset
Menu.)
- Preset : Auto run a selected preset number.
- Swing : Auto run a selected Swing mode.
- Group : Auto run a selected Group mode.
- Tour : Auto run a selected Tour mode.
- Trace : Auto run a selected trace mode.
- A.Pan : Auto run a 360-degree pan. To activate the
panning command, you need to set up the
camera's tilt angle and auto pan speed manually.
➡
Sequence Setting
①
②
③
④
⑤
⑥
Preset
Swing SEQ
Group SEQ
Tour SEQ
PTZ Trace
Auto Run
Power On Resume
MD Dwell Time ON
OFF
Time :
Enables setting up an Auto Run duration. (The duration can
be 1~60 seconds, or 1~60 minutes.)
➡
PTZ Trace
①
②
③
④
If there is no controller operation by the user for a certain time,
the sequence operation designated by the user will be
executed.
Main Menu
➡
▶ Main Menu/Sequence Setting/Auto Run
Auto Run
1
2
3
4
Mode
Time
OFF
30 SEC
➡
PTZ Trace 1
Replay
Memorize
SPEED DOME CAMERA
56 User’s Manual
SPEED DOME CAMERA
57 User’s Manual
Functional Description
Functional Description
P/T Setting
17. Area Setting
▶ Main Menu/P/T Setting/Area Setting
16. Pan/Tilt Limit
▶ Main Menu/P/T Setting/Pan/Tilt Limit
Main Menu
The moving ranges in the Pan/Tilt directions can be limited.
Position :
Selecting the Position menu brings up the following screen
if it is for the Pan Limit setting. Move the joystick left and
right to select a movement range from the starting point to
the end.
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Start Limit
End Limit
➡
P/T Setting
①
②
③
⑦
⑧
Pan/Tilt Limit
Area Setting
Area Masking
Prop. P/T Digital Flip
Image Hold
Auto Track1
Auto Track2
⇨
Enter: Set
ON
ON
OFF
ESC: Exit
Enter: Set
ESC: Exit
The following picture shows the Tilt Limit setting.
Move the joystick left and right to select a movement
range from the starting point to the end.
➡
Start Limit
End Limit
Pan/Tilt Limit
⇨
① Pan Limit
② Tilt Limit
➡
Enter: Set
ESC: Exit
Enter: Set
ESC: Exit
Pan/Tilt Limit
① Position
② ON/OFF
OFF
On/Off :
Cancels or activates the Pan/Tilt Limit functions.
SPEED DOME CAMERA
58 User’s Manual
The Area Setting menu enables selecting certain locations in
the course of the Pan and Tilt operation, and then display the
areas with the OSD (On Screen Display) texts when the camera
passes through them. Up to 8 areas can be selected.
Main Menu
① Camera Setting
② Sequence Setting
③ P/T Setting
④ OSD Setting
⑤ Alarm Setting
⑥ Initialize
Status
Area Name :
You can add names to selected areas. Names can be up to
12 characters and can be entered via the joystick and the
Enter key. Once a name is entered, use the joystick and the
Enter key to perform the Set command and save the name.
➡
P/T Setting
① Pan/Tilt Limit
② Area Setting
③ Area Masking
Prop. P/T Digital Flip
Image Hold
⑦ Auto Track1
⑧ Auto Track2
ON
ON
OFF
➡
Position :
As shown in the picture below, move the joystick to select
the upper left corner and lower right corner of an area.
Area Setting
① Area
② Area
③ Area
④ Area
....
Area Name 001[
]
0123456789()[]#&%/~-=_
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
äöÖüÄÜàâçéèêëîïôûôùÿñÑáí
óúÀÂÇÉÈÊËïïÔߌæÑÛÙŸÁÍÓÚÂ
ABC->中文1 BACK SPACE CLR SET
1
2
3
4
Start Position
⇨
➡
Area 1
Area Name
Position
ON/OFF
End Position
Enter: Set
OFF
ESC: Exit
Enter: Set
ESC: Exit
On/Off :
Cancels or activates the display function of selected areas.
SPEED DOME CAMERA
59 User’s Manual
Functional Description
Functional Description
18. Area Masking
19. Prop. P/T
▶ Main Menu/P/T Setting/Area Masking
If a monitoring location includes a highly private area, the area
can be selectively excluded from monitoring.
Main Menu
①
②
③
④
⑤
⑥
▶ Main Menu/P/T Setting/Prop. P&T
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Position :
As shown in the picture below, move the joystick to select
the upper left corner and lower right corner of an area.
Start Position
End Position
➡
①
②
③
⑦
⑧
Pan/Tilt Limit
Area Setting
Area Masking
Prop. P/T Digital Flip
Image Hold
Auto Track1
Auto Track2
Enter: Set
ON
ON
OFF
ESC: Exit
Enter: Set
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
P/T Setting
ESC: Exit
On/Off :
Cancels or activates the Area Masking function.
➡
➡
⇨
P/T Setting
This commands the camera to change the Pan and Tilt speed
automatically according to the current zoom power. Moving
the joystick clockwise (Tele) slows down and counterclockwise
(Wide) accelerates the Pan and Tilt speed, allowing detailed
adjustments.
Turning this “Off” executes the function the optical 1x zoom
speed regardless of how high a the zoom power is.
Main Menu
①
②
③
⑦
⑧
Pan/Tilt Limit
Area Setting
Area Masking
Prop. P/T Digital Flip
Image Hold
Auto Track1
Auto Track2
ON
ON
OFF
Area Setting
① Mask
② Mask
③ Mask
④ Mask
....
1
1
3
4
➡
Mask 1
Position
ON/OFF
OFF
SPEED DOME CAMERA
60 User’s Manual
SPEED DOME CAMERA
61 User’s Manual
Functional Description
Functional Description
20. Digital Flip
21. Image Holding
▶ Main Menu/P/T Setting/Digital Flip
Digital Flip is useful to monitor a moving object or a person
passing directly under the camera.
When an object or a person passes directly under the camera,
the camera tilt monitor follows the object or person over 100
degrees to the other side of the tilt area without panning. The
screen inversion occurs at 100 degrees or higher and is
digitally adjusted.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
▶ Main Menu/P/T Setting/Image Hold
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
➡
➡
P/T Setting
P/T Setting
①
②
③
⑦
⑧
Pan/Tilt Limit
Area Setting
Area Masking
Prop. P/T Digital Flip
Image Hold
Auto Track1
Auto Track2
When the camera is moving between preset locations, this
function stops a previous camera feed until the camera
reaches the next location. This is useful to help the screen
observer keep sharp eyes and to monitor multiple locations
within a network.
Main Menu
ON
ON
OFF
SPEED DOME CAMERA
62 User’s Manual
①
②
③
⑦
⑧
Pan/Tilt Limit
Area Setting
Area Masking
Prop. P/T Digital Flip
Image Hold
Auto Track1
Auto Track2
ON
ON
OFF
SPEED DOME CAMERA
63 User’s Manual
Functional Description
22. Auto Track 1 (SPD-3700T Only)
▶ Main Menu/P/T Setting/Auto Track1
This function is available only with the SPD-3700T.
This commands the camera to automatically follow a moving
object or a person on the screen.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Auto Track :
On/Off: Turns Auto Track on or off.
Camera Height :
Adjusts the height of the camera. Tracking performance
may decrease if the camera height is not adjusted properly.
➡
P/T Setting
①
②
③
⑦
⑧
Pan/Tilt Limit
Area Setting
Area Masking
Prop. P/T Digital Flip
Image Hold
Auto Track1
Auto Track2
ON
ON
OFF
Auto Track 1
Auto Track
Camera Height
Object Size
Sensitivity
Zoom Control
Auto Release
Auto Return
Lost Mode Auto Release :
Enables setting a maximum duration to follow an object. When the duration expires, the camera
stops following the object and returns to the start position to follow another objects.
Auto Return :
- Off : C ommands the camera to stay on a last spot instead of returning to the initial position.
- Time Setting : Sets a duration for the camera to standby upon the Auto Release expiration and
then return to the start position.
Lost Mode :
Sets up an action for the camera in case the object it is following goes out of the detection
range.
- Stop : Commands the camera to stop and abort tracking at the spot where its object
disappeared.
- Research : Commands the camera to stop and standby at the spot where its object
disappeared.
- Zoom-Out : Commands the camera to zoom out and look for a new object in case its current
object disappears.
Sensitivity :
The object detection sensitivity is adjustable. Lower the
sensitivity if the camera catches a swaying tree branch,
raindrops, or snowflakes during the Auto Track operation.
➡
Object Size :
Sets a maximum zoom power to zoom in on an object if
the Zoom function is used for the tracking operation.
- Small : Zooms in on a tracking object up to 1/4 of the
screen height.
- Medium : Zooms in on a tracking object up to 2/4 of the
screen height.
- Large : Zooms in on a tracking object up to 3/4 of the
screen height.
Functional Description
OFF
02.5M
SMALL
HIGH
OFF
OFF
OFF
STOP
Zoom Control :
The function’s zoom control settings are as follows.
- Off : Disables the Zoom control.
- One Shot : P erforms the Zoom control once during the
Motion Detection and Auto Track operations.
Depending on the movement detection, the
camera performs the Zoom control multiple
times.
- Continuous : Performs the Zoom control continuously.
SPEED DOME CAMERA
64 User’s Manual
SPEED DOME CAMERA
65 User’s Manual
Functional Description
Functional Description
- Target : Indicates the camera’s target for the Auto Track operation; when a moving object is
detected, a square grid appears and surrounds the object.
23. Auto Track 2 (SPD-3700T Only)
▶ Main Menu/P/T Setting/Auto Track2
This function is available only with the SPD-3700T.
Auto Track 2 provides Auto Track related settings other than
the ones programmed in the Auto Track 1 menu.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
Zone Setting :
- Position : E nables designating certain areas as zones for
the Auto Track operation. The setting procedures
are the same as for Area Mask.
- Mode : Two modes are available: Mask and Alarm. When
Mask is selected, the camera does not follow the
object entering the masked zone. This is useful if
the camera catches swaying objects such as tree
branches and flags during the Auto Track peration.
When Alarm is selected, the camera activates an
alarm if an object enters the zone.
- On/Off : Activates or deactivates the Zone function.
➡
P/T Setting
①
②
③
⑦
⑧
Pan/Tilt Limit
Area Setting
Area Masking
Prop. P/T Digital Flip
Image Hold
Auto Track1
Auto Track2
ON
ON
OFF
➡
Auto Track 2
① Zone Setting
Indicator
Target Lock
Track Zone
OFF
OFF
① Zone
② Zone
③ Zone
④ Zone
⑤ Zone
⑥ Zone
⑦ Zone
⑧ Zone
1
2
3
4
5
6
7
8
Zone 1
① Position
② Mode
③ ON/OFF
⇨
MASK
OFF
Indicator :
Indicates objects with icons on the screen.
- Off : Disables the Indicator function.
- On : Indicates both the pointer and target.
- Pointer : Indicates the indicator when following an object
using the joystick; shows as a cross in the center
of the screen.
SPEED DOME CAMERA
66 User’s Manual
Target Lock :
Target Lock is useful to select and follow an object using the Auto Track mode while operating
the camera with the joystick. Target Lock can be turned On or Off.
To activate the Auto Track mode, turn on Target Lock, select an object to follow, and then press
Enter.
Notes
• Auto Track is specifically to track down intruders. Thus, it may not be suitable to monitor a
crowd.
• If the camera is not safely secured, tracking errors may occur.
• If the camera lens is smeared with foreign substances or is scratched, an error may
occur causing the camera to not behave as expected.
• The camera may not follow an object or tracking errors may occur under the following
conditions:
∙ If the contrast between an object and the background is low
∙ If the camera lens is smeared with foreign substances, e.g. raindrops or snowflakes
∙ If the lighting is changing dramatically
∙ If many movements around an object are detected
∙ If an object moves vertically on the optic angle of the camera
∙ If an object passes directly under the camera
∙ If an object creates inconsistent light levels, e.g. the object is too shiny or flickering
∙ In environments where there are light reflections causing internal reflections of camera,
e.g. windows, shiny road surfaces, and backlights
∙ If an object moves behind large and tall objects, e.g. telephone poles
∙ If an object moves too quickly
∙ If the camera is vibrating
SPEED DOME CAMERA
67 User’s Manual
Functional Description
Functional Description
OSD Setting
Alarm Setting
24. OSD Setting
25. Alarm Setting
▶ Main Menu/OSD Setting
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
➡
OSD Setting
①
②
③
⑦
⑧
Camera ID
ON
Camera Name
Preset Number ON
Preset Name ON
Sequence Status ON
Area Name
OFF
PTZ Position ON
Language
English
XXX Name 001[
]
0123456789()[]#&%/~-=_
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
äöÖüÄÜàâçéèêëîïôûôùÿñÑáí
óúÀÂÇÉÈÊËïïÔߌæÑÛÙŸÁÍÓÚÂ
ABC->中文1 BACK SPACE CLR SET
Camera ID :
Displays or hides Camera ID in the upper left of the screen.
Camera Name :
Add a name to the camera. (First check the Note.)
Preset Number :
Displays or hides Preset Numbers on the screen.
Preset Name :
Add names to preset locations. (First check the Note.)
Sequence Status :
Displays or hides the status of a sequence action that is in
progress.
Area Name :
Displays or hides the Area Name for the Area Settings on
the screen.
PTZ Position :
Displays or hides the status of the Pan, Tilt, and Zoom
operation that is in progress.
Language :
Enables changing the system language. This camera
supports English, Chinese, French, German, Spanish, and
Italian.
✽ When selecting the Camera Name and Preset
Name, the screen displays the Left keypad.
Names can be up to 12 characters and can be
entered via the joystick and the Enter key. Once a
name is entered, use the joystick and the Enter key
to perform the Set command and save the name.
SPEED DOME CAMERA
68 User’s Manual
25.1. Setting Up Alarm Input
▶ Main Menu/Alarm Setting/Alarm Input
Alarm Enable :
- On/Off : Enables or disables the Alarm function.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
MOD :
Enables selecting an Alarm Input method.
- NO (Normally Open)
IN 1.2.3.4
⇨
➡
Alarm Setting
②
③
④
IN 1.2.3.4
ALM GND
Alarm Enable
OFF
Alarm Input
Alarm Output
Aux Output
➡
ALM GND
ALARM OFF
ALARM ON
- NC (Normally Closed)
ALM MOD P SEQ. NO
IN1
IN2
IN3
IN4
OFF
OFF
OFF
OFF
1
2
3
4
OFF
OFF
OFF
OFF
IN 1.2.3.4
IN 1.2.3.4
⇨
ALM GND
ALARM OFF
SPEED DOME CAMERA
69 User’s Manual
ALM GND
ALARM ON
Functional Description
Functional Description
25.2. Alarm Output
▶ Main Menu/Alarm Setting/Alarm Output
Notes
• As shown in the picture above, the Alarm Input must be entered with the Open and Close
switch signals. Supplying power without entering the signals may damage the product.
P (Priority) :
Set the priority of Alarm Inputs. If more than one alarm is simultaneously activated,
the alarm with the highest priority activates before the others. Once the alarm is canceled, the
next highest priority alarm activates.
SEQ :
Enables setting up a sequence action for the camera in response to an alarm. Available
sequence actions are Preset, Swing, Group, Tour, Trace and A.Pan.
Setting 1,2 :
Enables selecting an Alarm Output method.
- 1, 2, 3, 4, and MD on the menu selection indicate the
alarm input port and motion detection input. Up to 4
alarm inputs can be set for each MD (Motion Detection)
and TRK (Auto Track). 1 alarm output port can be used for
more than 2 alarm inputs along with ones for MD and
TRK.
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
➡
Alarm Setting
②
③
④
Alarm Enable
OFF
Alarm Input
Alarm Output
Aux Output
➡
Alarm Output
Setting1 □1 □2 □3 □4 □MD □TRK
Setting2 □1 □2 □3 □4 □MD □TRK
Timer 1 OFF
Timer 1 OFF
✽ The TRK function becomes activated only if the Zone mode
under Zone Settings under Auto Track 2 is set to Alarm.
Timer :
Enables selecting an Alarm Output method.
- On : Retains an alarm output for a set duration from a
minimum of 1 second to a maximum of 60 hours
upon the alarm occurrence.
- Momentary : Retains an alarm output only until the alarm
is canceled.
✽ The Alarm Output is equipped with a relay circuit. The
operation of the alarm output port is as shown in the
diagram below.
NO
COM
NO
⇨
NC
Alarm Out OFF
COM
NC
Alarm Out ON
Notes
• Connecting the power connector and GND incorrectly to the NC/NO and COM ports may
cause a short circuit and fire, damaging the camera.
• The maximum power capacity of the built-in relay is 30VDC/2A, 125VAC/0.5A, and
250VAC/0.25A. Operating the camera beyond the capacity may decrease the camera’s
lifespan and damage it.
SPEED DOME CAMERA
70 User’s Manual
SPEED DOME CAMERA
71 User’s Manual
Functional Description
Functional Description
25.3. Aux Output
▶ Main Menu/Alarm Setting/Aux Output
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
On/Off :
- Cancels or activates the Aux function.
Time :
Enables setting up a duration for the Aux output when the
Aux command is transmitted from the controller. A
duration can be selected from a minimum of 1 second to a
maximum of 60 minutes.
➡
Alarm Setting
②
③
④
26. Initialization Menu
AUX Output menu is to operate the camera’s peripheral
devices such as lamps and sirens through the controller and
switches as well as through network communications.
Main Menu
Initialize
Alarm Enable
OFF
Alarm Input
Alarm Output
Aux Output
NO
COM
AUX Off
NO
⇨
COM
AUX On
➡
AUX Output
On/Off
Time
OFF
00 SEC
Notes
• Connecting the power connector and GND incorrectly to the Aux terminal’s NO and COM
ports may cause a short circuit and fire, damaging the camera.
• The maximum power capacity of the built-in relay is 30VDC/2A, 125VAC/0.5A, and
250VAC/0.25A. Operating the camera beyond the capacity may decrease the camera’s
lifespan and damage it.
SPEED DOME CAMERA
72 User’s Manual
▶ Main Menu/Initialize
Main Menu
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
➡
Initialize
①
②
③
⑤
Power On Reset
Factory Default
Camera Default
Auto Refresh
OFF
Auto Track Default
Power On Reset :
Restarts the camera.
Factory Default :
Enables resetting the camera to its factory default settings.
When the mode is selected, all custom data such as preset
locations is deleted from the camera.
Use this function if it is necessary to reset the settings of
the camera.
Camera Default :
This mode can be used if the camera module has been
replaced and you want to keep the camera's existing
settings for the new module.
To do reset the camera, first replace the old module with a
new camera module. When the replacement is properly
installed, turn on the module, then execute this command.
Auto Refresh :
Enables optimizing the status of the camera’s built-in
electric circuits and components on a regular basis. (A
regular operation can be scheduled.)
This mode can be used to maintain and repair the current
settings of the camera when anomalous operations occur:
e.g. The camera happened to directly face a light source, or
the settings have been canceled after the camera
repeatedly rotated in all four directions for a long time to
monitor a specific location.
The default setting is Off.
- Off, 1~7 Days: Selecting Off disables Auto Refresh and but
automatically executes it after 1~7 Days days has passed.
action once the refresh is complete.
SPEED DOME CAMERA
73 User’s Manual
Functional Description
✽ Auto Refresh takes approximately 10 seconds to finish. If Auto Refresh activates in the middle of a
sequence action, the camera pauses the sequence action and performs an Auto Refresh, then
resumes the sequence action once the refresh is complete.
Auto Track Default :
Enables resetting the Auto Track settings.
Operating Your Camera
Status
27. Status
▶ Main Menu/Status
Main Menu
Displays the settings and version of the dome camera.
Cam Model :
Indicates the model name of the camera.
Cam Version :
Indicates the software version of the camera.
Dome Version :
Indicates the version of the camera control board.
CON Protocol :
Indicates the status of the current protocol.
Dome ID :
Dome Camera ID
Controller :
Indicates the settings of the current communications mode.
Track Version :
Indicates the Auto Track software version of the camera.
①
②
③
④
⑤
⑥
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
➡
Camera Status
CAM MODEL =
CAM VERSION =
DOME VERSION=
CON PROTOCOL=
DOME ID =
CONTROLLER =
TRACK VERSION=
SPEED DOME CAMERA
74 User’s Manual
37PC
2.3
0.10
SAMSUNG TW
001
Simplex-9600
0.10
SPEED DOME CAMERA
75 User’s Manual
Product Specification
SPD-3700T
Imaging Device
TV Standard
Total Pixels
Effective Pixels
Scanning System
Synchronization
Horizontal Scan Rate
Vertical Scan Rate
Horizontal Resolution
Min. Illumination
S/N (Y Signal)
Video Output
Zoom Ratio
Focal Length
Min. Object Distance
Angular Field
of view
Focus
Zoom Speed
IRIS
Lens Initialization
Auto Tracking
Horizontal
Rotation Angle
Horizontal
Rotation Speed
Vertical Rotation Angle
Vertical Rotation Speed
Preset Position
Preset Accuracy
Camera ID
Day & Night
Backlight
Motion Detection
Stabilizer
Privacy Mask
SSNR
SPD-3700
SPD-3310
Product Specification
SPD-2700
1/4 inch, Super HAD color CCD
NTSC / PAL
NTSC:811(H) x 508(V) / PAL:795(H) x 596(V)
NTSC:768(H) x 494(V) / PAL:752(H) x 582(V)
2:1 Interlace
Internal
Internal/External(AC Line Lock)
NTSC:15.734 KHz / PAL:15.625 KHz
NTSC:59.94 Hz / PAL: 50 Hz
550 TV Line(Color)/680 TV Line(B/W)
0.4 Lux @ F1.6 ( Color ), 0.001Lux @ F1.6 (Sens-up 256X)
0.02 Lux @ F1.6 ( B/W )
50 dB
CVBS:1.0Vp-p/75Ω
33X (Optical),
27X(Optical),
37X (Optical),12X (Digital)
12X (Digital)
12X(Digital)
3.5~115.5mm
3.5~94.5mm
3.5~129.5mm (F1.6 ~3.9)
(F1.6 ~3.6)
(F1.6~2.9)
1.9m
H:55.5°(Wide)
H:55.5°(Wide)
H:55.5°(Wide)~1.59°(Tele)
~1.77°(Tele)
~2.24°(Tele)
V:42.5°(Wide)
V:42.5°(Wide)
V:42.5°(Wide)~1.19°(Tele)
~1.33°(Tele)
~1.79°(Tele)
AUTO / MANUAL / ONE-SHOT
2.5sec
AUTO/MANUAL
Built-In
Built-In
-
Sens-up
Gain Control
White Balance
Electronic Shutter
Serial Com.
Protocol
Alarm
Digtal Flip
Operating Temperature/
Humidity
Storage Temperature/
Humidity
Input Voltage
Power Consumption
External Dimensions
(Ø×D)
Weight
On/Off (Selectable limit ~ 256X )
LOW/MEDIUM/HIGH/MANUAL/OFF
ATW/INDOOR/OUTDOOR/AWC/MANUAL
AUTO(NTSC:1/60~120,000sec, PAL:1/50~120,000sec)/MANUAL/A.FLK
RS-422/485
Samsung Techwin, Pelco-D, Pelco-P, Panasonic, Honeywell, AD, Vicon, Samsung Electronics
4 In, 2 Out, 1 Aux
ON/OFF
-10℃ to +50℃ / 20% to 80% RH
-20℃ to +60℃ / 20% to 95% RH
AC24V ± 10%
Max. 15W
Max. 13W
Ø155×243.4mm
2Kg
360° Endless
Manual:0.024°/sec ~120°/sec, Preset 500°/sec
-5° ~ 185°
Manual:0.024°/sec ~120°/sec, Preset 500°/sec
255
±0.1°
255
AUTO / COLOR / BW
USER / HLC / OFF
ON/OFF
ON/OFF
ON/OFF (8 Areas)
LOW/MEDIUM/HIGH/OFF
SPEED DOME CAMERA
76 User’s Manual
SPEED DOME CAMERA
77 User’s Manual
DECLARATION OF CONFORMITY
Application of Council Directive(s)
EMC-Directive 92/31 EEC and its amendments
Manufacturer's Name SAMSUNG TECHWIN CO., LTD
Manufacturer's Address
SAMSUNG TECHWIN CO., LTD
42, SUNGJU-DONG CHANGWON-CITY,
KYUNGNAM, KOREA, 641-716
MEMO
European Representative Name
European Representative Address
Equipment Type/Environment Dome Camera
Model Name SPD-3700T/3700/3310/2700
Beginning Serial NO. S8110001
Year of Manufacture 2008.11.29
Conformance to EN 55022 : 2006
EN 50130-4 : 2003
We, the undersigned, hereby declare that the equipment specified above conforms
to the above Directive(s).
Manufacturer SAMSUNG TECHWIN CO., LTD Legal Representative in Europe
Signature Signature
Full Name HAN SEUG KIM
Full Name Position QUALITY CONTROL MANAGER Position Place CHANGWON, KOREA
Place
Date 2008.11.29
Date
SPEED DOME CAMERA
78 User’s Manual
SPEED DOME CAMERA
79 User’s Manual
SALES NETWORK
•
•
AMSUNG TECHWIN CO.,LTD.
S
145-3, Sangdaewon1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-703, Korea
TEL : +82-31-740-8151~8 FAX : +82-31-740-8145
AMSUNG TECHWIN AMERICA Inc.
S
1480 Charles Willard St. Carson, CA 90746, UNITED STATES
TEL : +1-310-632-1234 FAX : +1-310-632-2195
www.samsungtechwin.com
www.samsungcctv.com
•
AMSUNG TECHWIN EUROPE CO., LTD.
S
Samsung House, 1000Hillswood Drive, Hillswood Business
Park Chertsey,Surrey,UNITED KINGDOM KT16 OPS
TEL : +44-1932-45-5308 FAX : +44-1932-45-5325
S.No:Z6806096601A
VAN 09. 01
