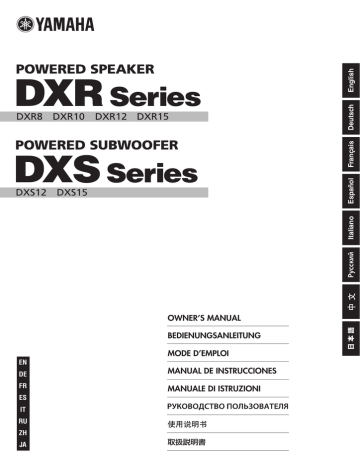

Yamaha DXR15 Owner`s manual

English
Deutsch
Français
Español
Italiano
OWNER’S MANUAL
BEDIENUNGSANLEITUNG
EN
MODE D’EMPLOI
DE
MANUAL DE INSTRUCCIONES
FR
MANUALE DI ISTRUZIONI
ES
IT
RU
ZH
JA
Explanation of Graphical Symbols
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
The above warning is located on the rear of the unit.
IMPORTANT SAFETY INSTRUCTIONS
1
2
3
4
5
6
7
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8 Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9 Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11 Only use attachments/accessories specified by
the manufacturer.
12 Use only with the cart, stand,
tripod, bracket, or table
specified by the
manufacturer, or sold with the
apparatus. When a cart is
used, use caution when
moving the cart/apparatus
combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or
when unused for long periods of time.
14 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
(UL60065_03)
2
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
FCC INFORMATION (U.S.A.)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions
contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your
authority, granted by the FCC, to use the product.
2. IMPORTANT: When connecting this product to accessories
and/or another product use only high quality shielded
cables. Cable/s supplied with this product MUST be used.
Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product
in the USA.
3. NOTE: This product has been tested and found to comply
with the requirements listed in FCC Regulations, Part 15 for
Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your
use of this product in a residential environment will not result
in harmful interference with other electronic devices. This
equipment generates/uses radio frequencies and, if not
installed and used according to the instructions found in the
users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in
all installations. If this product is found to be the source of
interference, which can be determined by turning the unit
“OFF” and “ON”, please try to eliminate the problem by
using one of the following measures:
Relocate either this product or the device that is being
affected by the interference.
Utilize power outlets that are on different branch (circuit
breaker or fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient the
antenna. If the antenna lead-in is 300 ohm ribbon lead,
change the lead-in to co-axial type cable.
If these corrective measures do not produce satisfactory
results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate
retailer, please contact Yamaha Corporation of America,
Electronic Service Division, 6600 Orangethorpe Ave, Buena
Park, CA90620
The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.
* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA.
(class B)
In Finland: Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan.
In Norway: Apparatet må tilkoples jordet stikkontakt.
In Sweden: Apparaten skall anslutas till jordat uttag.
(class I hokuo)
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE,
AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
IMPORTANT NOTICE FOR THE UNITED KINGDOM
Connecting the Plug and Cord
WARNING: THIS APPARATUS MUST BE EARTHED IMPORTANT.
The wires in this mains lead are coloured in accordance with the following code:
GREEN-AND-YELLOW : EARTH
BLUE
: NEUTRAL
BROWN
: LIVE
As the colours of the wires in the mains lead of this apparatus may not
correspond with the coloured markings identifying the terminals in
your plug proceed as follows:
The wire which is coloured GREEN-and-YELLOW must be connected
to the terminal in the plug which is marked by the letter E or by the
safety earth symbol
or colored GREEN or GREEN-and-YELLOW.
The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.
* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA.
* This information is located on the bottom of the unit.
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH
CANADIAN ICES-003.
CET APPAREIL NUMÉRIQUE DE LA CLASSE B
EST CONFORME À LA NORME NMB-003 DU CANADA.
(3 wires)
* This information is located on the bottom of the unit.
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
3
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
* Please keep this manual in a safe place for future reference.
English
WARNING
Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical
shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:
Power supply/Power cord
Water warning
• Do not place the power cord near heat sources such as heaters or radiators, and
do not excessively bend or otherwise damage the cord, place heavy objects on
it, or place it in a position where anyone could walk on, trip over, or roll anything
over it.
• Only use the voltage specified as correct for the device. The required voltage is
printed on the name plate of the device.
• Use only the supplied power cord/plug.
If you intend to use the device in an area other than in the one you purchased,
the included power cord may not be compatible. Please check with your Yamaha
dealer.
• Check the electric plug periodically and remove any dirt or dust which may have
accumulated on it.
• Be sure to connect to an appropriate outlet with a protective grounding
connection. Improper grounding can result in electrical shock.
• Do not expose the device to rain, use it near water or in damp or wet conditions,
or place on it any containers (such as vases, bottles or glasses) containing
liquids which might spill into any openings. If any liquid such as water seeps
into the device, turn off the power immediately and unplug the power cord from
the AC outlet. Then have the device inspected by qualified Yamaha service
personnel.
• Never insert or remove an electric plug with wet hands.
Fire warning
• Do not put burning items, such as candles, on the unit. A burning item may fall
over and cause a fire.
If you notice any abnormality
Do not open
• This device contains no user-serviceable parts. Do not open the device or
attempt to disassemble the internal parts or modify them in any way. If it should
appear to be malfunctioning, discontinue use immediately and have it inspected
by qualified Yamaha service personnel.
• When one of the following problems occur, immediately turn off the power
switch and disconnect the electric plug from the outlet. Then have the device
inspected by Yamaha service personnel.
- The power cord or plug becomes frayed or damaged.
- It emits unusual smells or smoke.
- Some object has been dropped into the instrument.
- There is a sudden loss of sound during use of the device.
• If this device should be dropped or damaged, immediately turn off the power
switch, disconnect the electric plug from the outlet, and have the device
inspected by qualified Yamaha service personnel.
CAUTION
Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage
to the device or other property. These precautions include, but are not limited to, the following:
Power supply/Power cord
• When removing the electric plug from the device or an outlet, always hold the
plug itself and not the cord. Pulling by the cord can damage it.
• Remove the electric plug from the outlet when the device is not to be used for
extended periods of time, or during electrical storms.
Location
• Do not place the device in an unstable position where it might accidentally fall
over.
• Unless the device is securely affixed, do not install it in a location where it might
fall, even if the surface is level.
• Do not block the vents. This device has ventilation holes at the rear to prevent
the internal temperature from becoming too high. Inadequate ventilation can
result in overheating, possibly causing damage to the device(s), or even fire.
PA_en_1
4
• Do not use the device in a confined, poorly-ventilated location. Make sure that
there is adequate space between the device and surrounding walls or other
devices: at least 30cm at the sides, 30cm behind and 30cm above. Inadequate
ventilation can result in overheating, possibly causing damage to the device(s),
or even fire.
• Do not use the speaker’s handles for suspended installation. Doing so can result
in damage or injury.
• Do not hold the bottom of the device when transporting or moving it. In doing
so, you may pinch your hands under the device, and result in injury.
• Do not press the rear panel of the device against the wall. Doing so may cause
the plug to come in contact with the wall and detach from the power cord,
resulting in short circuiting, malfunction, or even fire.
• Do not place the device in a location where it may come into contact with
corrosive gases or salt air. Doing so may result in malfunction.
• Before moving the device, remove all connected cables.
1/2
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
• When setting up the device, make sure that the AC outlet you are using is easily
accessible. If some trouble or malfunction occurs, immediately turn off the
power switch and disconnect the plug from the outlet. Even when the power
switch is turned off, electricity is still flowing to the product at the minimum
level. When you are not using the product for a long time, make sure to unplug
the power cord from the wall AC outlet.
Handling caution
• Avoid inserting or dropping foreign objects (paper, plastic, metal, etc.) into any
gaps or openings on the device (panel) If this happens, turn off the power
immediately and unplug the power cord from the AC outlet. Then have the
device inspected by qualified Yamaha service personnel.
• When transporting or moving the DXS15, DXS12, or DXR15, always use two or
more people. Attempting to lift the DXS15, DXS12, or DXR15, by yourself may
damage your back, result in other injury, or cause damage to the device itself.
• If you use the pole socket on the DXS15 to mount a satellite speaker, use a
speaker of 19.3kg (42.5lbs) or less in weight and 60.1cm (23-5/8") or less in
height. If you use the pole socket on the DXS12 to mount a satellite speaker, use
a speaker of 14.6kg (32.2lbs) or less in weight and 50.2cm (19-6/8") or less in
height. Also, use a speaker pole no longer than 120cm (47.2") with an outer
diameter of 35mm (1-3/8").
• Always consult qualified Yamaha service personnel if the device installation
requires construction work, and make sure to observe the following precautions.
- Choose mounting hardware and an installation location that can support the
weight of the device.
- Avoid locations that are exposed to constant vibration.
- Use the required tools to install the device.
- Inspect the device periodically.
• Do not rest your weight on the device or place heavy objects on it, and avoid use
excessive force on the buttons, switches or connectors.
• Do not use the device for a long period of time at a high or uncomfortable
volume level, since this can cause permanent hearing loss. If you experience
any hearing loss or ringing in the ears, consult a physician.
• Do not operate the device if the sound is distorting. Prolonged use in this
condition could cause overheating and result in fire.
• Do not pull the cables connected to the microphones, etc.
Connections
• Before connecting the device to other devices, turn off the power for all devices.
Before turning the power on or off for all devices, set all volume levels to
minimum.
Maintenance
• Remove the power plug from the AC outlet when cleaning the device.
XLR-type connectors are wired as follows (IEC60268 standard): pin 1: ground, pin 2: hot (+), and pin 3: cold (-).
Interference From Cell Phones
Using a cell phone near the speaker system can induce noise. If this occurs, move the cell phone further away from the speaker system.
Yamaha cannot be held responsible for damage caused by improper use or modifications to the device, or data that is lost or destroyed.
Always turn the power off when the device is not in use.
The performance of components with moving contacts, such as switches, volume controls, and connectors, deteriorates over time. Consult qualified Yamaha service
personnel about replacing defective components.
• The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.
• The illustrations as shown in this manual are for instructional purposes only, and may appear somewhat different from those on your instrument.
• Specifications and descriptions in this owner’s manual are for information purposes only. Yamaha Corp. reserves the right to change or modify products or specifications at
any time without prior notice. Since specifications, equipment or options may not be the same in every locale, please check with your Yamaha dealer.
PA_en_1
2/2
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
5
English
• Do not insert your fingers or hands in any gaps or openings on the device
(panel).
Introduction
Introduction
English
Thank you for purchasing the Yamaha DXR series powered speaker or DXS series powered subwoofer.
Please read this manual thoroughly to ensure optimum use of the DXR/DXS series for the longest possible period of time.
Keep the manual in a safe place for future reference.
Contents
Introduction............................................................................. 6
Main Features of the DXR/DXS Series.................................. 6
Controls and Functions .......................................................... 7
Setup Examples ................................................................... 10
Troubleshooting.................................................................... 12
References ........................................................................... 80
Main Features of the DXR/DXS Series
DXR8
DXR10
DXR12
DXR15
DXS12
DXS15
■ FIR-X tuning™(DXR series)
■ Mixing/LINK functionality (DXR series)
The advanced DSP processing featured in these series has
been inherited from the high-end DSR series. Our proprietary
sound-processing technology utilizing a linear-phase FIR
filter delivers excellent sound quality at high resolution with a
smooth frequency response that is unaffected by phase
interference near the crossover point.
The DXR series features mixing functionality, enabling you to
mix sounds by directly inputting three channel signals into
the unit.
■ D-CONTOUR (Dynamic CONTOUR)
■ DSP-controlled advanced protection
In addition, the LINK function enables you to easily configure
a stereo or dual-mono SR (Sound Reinforcement) system
using two DXRs.
system
(DXR series)
D-CONTOUR is a multiband compressor that dynamically
controls the level of each frequency range according to the
application and human hearing characteristics. It features a
FOH/MAIN mode for using your DXR as a main speaker, and
a MONITOR mode that has been optimized for use as a floor
monitor. Select the mode that suits your application.
■ D-XSUB (DXS series)
D-XSUB is a newly-developed processing technology
exclusively for subwoofers that dynamically controls the low
frequency range. It features a BOOST mode that enhances
and provides punch to the sound, and an XTENDED LF mode
that extends the bottom of the low frequency range. You can
select either mode in accordance with various applications
and musical genres.
6
Powerful protection circuits ensure secure protection in the
speaker unit, amplifier unit, and power supply unit. This
protection functionality promotes optimal performance of
each component and optimum reliability without distortion
even in challenging environments.
Included Accessories
• AC power cord
• Owner’s manual (this book)
Optional accessories
U brackets for mounting the DXR series on the wall or ceiling
are available as follows:
• UB-DXR15 (for DXR15)
• UB-DXR12 (for DXR12)
• UB-DXR10 (for DXR10)
• UB-DXR8 (for DXR8)
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
Controls and Functions
Controls and Functions
English
Rear panel
3
4
5
1
6
7
9
3
8
2
1
3
4
5
1
6
)
7
8
1
2
1
!
3
$
#
%
^
@
DXR15, DXR12, DXR10, DXR8
DXS15, DXS12
1 INPUT jacks
NOTE
These are balanced XLR input jack(s) (INPUT 1), unbalanced
phones (INPUT 2) and RCA pin input jacks (INPUT 3).
• If the output voltage of the amplifier has exceeded the maximum
value, or if excessive integral power consumption is detected, the
LIMIT indicator will light when the amount of attenuation is 3dB or
higher.
You can connect a mixing console or microphone to INPUT
1, a keyboard or electric-acoustic guitar to INPUT 2, and a
portable audio player or CD player to INPUT 3. Signals from
INPUT 1-3 are mixed inside the DXR unit.
• The integral power consumption refers to the sum of power
The DXS series input features only balanced XLR input jacks
(L, R). L and R signals are mixed inside the DXS unit.
Lights when an audio input signal is detected.
consumption provided to the speaker driver per unit time.
5 SIGNAL indicator
6 PROTECTION indicator
2 THRU jack(s)
These are balanced XLR output jack(s). Input signals will be
passed through unaffected, since these are parallel
connected to the INPUT jacks.
Lights when the protection system is active. The protection
system will operate and the speaker output will be muted in
the following situations.
• If amplifier overheating is detected:
3 LEVEL control
Adjusts the level of each INPUT signal. If you connect a
device that features a nominal output level of +4dBu (such as
a mixing console), set the MIC/LINE switch (9) on the DXR
series to LINE, and adjust the LEVEL control using its 12
o’clock position as a reference.
4 LIMIT indicator
Lights when the output limiter is active. The output limiter will
operate in order to protect the speaker and amp, attenuating
the output signal to the amplifier. If this indicator stays lit,
lower the level of the input signal.
• If DC output is detected:
• If overcurrent is detected:
• When turning the power on:
The protection system will be activated to prevent noise and
the indicator will light for about two seconds. The indicator
turns off when the power supply has started normally.
• When turning the power off:
Or if the power turns off due to an unexpected error, the
protection system will be activated to prevent noise, and then
the power will be shut down.
NOTE
If the protection system has engaged after the problem was
detected, waiting until the amplifier cools down or powering off and
on again will return to normal operation. If the unit does not return to
normal operation, please contact your Yamaha dealer.
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
7
Controls and Functions
7 POWER indicator
# LINK MODE switch (DXR series)
Lights when the power switch (*) is set to on.
Enables you to select whether the mixed signal (on the
original DXR) will be played in stereo or monaural on the
original and linked DXRs. The following signals are mixed
and output according to the switch setting.
8 FRONT LED DISABLE switch
English
Selects turning on or off the FRONT LED at the left of the
unit’s front grille. The LED will light when this switch is set to
off (N). Turn this switch on (O) when you want to turn off the
LED.
NOTE
When the limiter for protecting the amplifier operates, the LED will
light brighter than usual in proportion to the amount of attenuation
(3dB or higher).
9 MIC/LINE switch (DXR series)
Set this switch to MIC or LINE for INPUT1 jack, depending on
the level of the input signal. For low-level signals (such as
microphones), set the switch to the MIC position. For high
level signals (such as mixer), set the switch to the LINE
position.
) D-CONTOUR switch (DXR series)
Selects one of the D-CONTOUR (Dynamic CONTOUR)
presets. The FOH/MAIN setting will boost the high and low
frequency components so that the frequency response will
become suitable for a main speaker. The MONITOR setting
also suppresses the low range, which could otherwise tend
to be boomy if the speaker is set directly on the floor or used
along with a main speaker. With the FOH/MAIN or MONITOR
setting, the D-CONTOUR function is enabled and controls
the boost and attenuation amounts dynamically in relation to
the sound volume. When this switch is set to OFF, a generic
frequency response setting will be used and the
D-CONTOUR function will be turned off.
! HPF switch (DXR series)
Specifies the HPF’s cut-off frequency.
If the switch is set to 120Hz or 100Hz, the high-pass filter will
cut the frequency components below that threshold. If you
plan to use your DXR without a subwoofer, set this switch to
OFF. If you plan to use the DXR along with a subwoofer, we
recommend that you set this switch to 120Hz or 100Hz.
@ LINK OUT jack (DXR series)
This XLR jack outputs signals (routed from each INPUT jack)
to a connected DXR series speaker. Connect this jack to the
INPUT 1 (XLR) jack on the linked DXR series speaker.
Signals at the LINK OUT jack are line-level. Set the MIC/LINE
switch on the linked DXR series speaker to LINE. For stereo
signals, set the LEVEL control on the linked DXR to the 12
o’clock position to balance the levels between two DXRs.
8
LINK MODE
STEREO
Input of the
original DXR
INPUT1
Output of the
original DXR
Output of the
linked DXR
MONO
INPUT2/3
INPUT1
INPUT2/3
L
R
L


–


–


R
NOTE
If you use only a single, stand-alone DXR, set this switch to MONO
(N). If you set the switch to STEREO (O), audio signals input at the
R channel of INPUT 2/3 will not be output.
$ POLARITY switch (DXS series)
Selects the subwoofer polarity.
In most cases, for example if the subwoofer and DXR series
speaker are installed on a speaker pole, set this switch to
NORM (NORMAL). However, an INVT (INVERTED) setting
may improve low-range response, depending on the type
and location of the speaker system. Try both settings and
select the one that produces the best low-end sound.
% D-XSUB switch (DXS series)
Selects one of the D-XSUB presets. The BOOST setting
boosts the low frequency range to enhance and punch-up
the frequency response. The XTENDED LF extends the
bottom of the low frequency range to enhance broad lowrange frequency response. With the BOOST or XTENDED LF
setting, the D-XSUB function is enabled and controls the
boost amount dynamically in relation to the sound volume.
When this is set to OFF, a generic frequency response will be
used and the D-XSUB function will be turned off.
^ LPF switch (DXS series)
Specifies the low-pass filter’s cutoff frequency at 120Hz,
100Hz, or 80Hz. The filter will cut the frequency components
above the specified threshold. If you are using the DXS along
with a DXR, match this frequency to DXR’s HPF switch
setting.
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
Controls and Functions
*
$
English
&
#
DXR15, DXR12, DXR10, DXR8, DXS15, DXS12
& AC IN socket
* Power switch
Connect the supplied AC power cord here. First, connect the
power cord to the device, then insert the power cord plug
into the AC outlet.
Turns the power supply on or off.
Press the switch to the On position to turn the power on (O).
NOTE
If you are using multiple devices, turn on the power to each device
individually. If you turn on the power to multiple devices
simultaneously, a temporary drop in the power voltage may occur,
possibly resulting in abnormal operation of the devices.
Be sure to turn the power off before connecting
or disconnecting the power cord.
CAUTION
Rapidly turning the unit on and off in
succession can cause it to malfunction. After
turning the unit off, wait for about 5 seconds
CAUTION
before turning it on again.
Tiltable pole socket (DXR series)
Suspended installation
If you plan to suspend your DXR series speaker, attach
commercially-available eye bolts to the screw holes (which
are sealed at the time of shipment) located on the top (two
locations) and on the lower part of the rear (one location).
7˚
(
0˚
( Tiltable pole socket (DXR series)
This mount has two pole sockets. You can choose the angle
of the DXR (mounted on a speaker pole) so that the speaker
will be horizontal to the floor or tilting toward the floor by 7
degrees.
The size of the screw holes on the DXR15 and DXR12 is
M10 (for an eye bolt length of 18mm or less). The size of
the screw holes on the DXR10 and DXR8 is M8 (for an eye
bolt length of 15mm or less). Keep in mind that you will
need three eye bolts to suspend it. Make sure to use the
eye bolts according to the standards and safety
regulations in your area.
Before doing any installation or construction
work, consult with an installation expert.
CAUTION
7˚
When choosing the installation location,
suspension wire and mounting hardware, make
sure all are strong enough to support the
weight of the speaker.
Some fittings may deteriorate over extended
periods of time due to wear and/or corrosion.
For optimum safety, the installation should be
checked thoroughly at regular intervals.
Yamaha cannot be held responsible for damage
or injury caused by insufficient strength of the
support structure or improper installation.
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
9
Setup Examples
Setup Examples
1. Basic SR system
English
This example illustrates a basic SR system setup using two 2-way speakers. The system is suitable for a small-sized live
space, a restaurant and a practice studio. As necessary, add a stage monitor system illustrated in no. 3.
2. SR system with subwoofer
This example illustrates an SR system setup using two 2-way speakers and subwoofers with speaker poles. The system is
suitable for a small-sized music venue, a house of worship and an event site. We recommend that the subwoofer’s input
LEVEL control is set to a 12 o'clock position. If you prefer, you can adjust the level as desired. As necessary, add a stage
monitor system illustrated in no. 3.
NOTE
Pole sockets for mounting speaker poles are provided at the bottom of the DXR series, and at the top of the DXS series. Please refer to the
“Precautions” (page 4).
If you use multiple subwoofers at the same time, set the POLARITY switch of adjacent subwoofers to the same position. Otherwise, the sounds
from each speaker may cancel each other, resulting in diminished sound pressure.
Yamaha recommends that if you use the DSR118W as a subwoofer in combination with the DXR15 or DXR12. In this case, set HPF to 120Hz.
10
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
Setup Examples
3. Stage monitor system
This SR system is suitable as a performer’s monitoring system. For use as a vocal monitor, set D-CONTOUR to MONITOR.
As necessary, connect speakers in parallel.
English
NOTE
Up to four speakers can be connected in parallel.
Next
4. SR system with a single DXR
This example illustrates an SR system using one 2-way speaker connected directly to a microphone, musical instrument, or
playback source. This system can be used in a wide range of places such as corporate events, presentations, and
restaurants. Adjust the volume with the LEVEL control to prevent feedback.
MONO
5. Simple SR system with two DXRs
This example illustrates a simple SR system using two 2-way speakers linked to each other. This system is suitable for a smallsized live venue. Audio can be output in stereo or monaural, by using one 2-way speaker connected directly to a microphone,
musical instrument, or BGM sound source, then linking the speaker to another 2-way speaker via the LINK OUT jack. If you
want to output in stereo, set the LINK MODE switch to the stereo position.
MONO
STEREO
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
11
Troubleshooting
Troubleshooting
Symptom
Possible causes
Possible solution
Power does not turn on.
The power cord is not connected
properly.
Connect the power cord properly.
Power suddenly went
off.
The protection system has
operated, shutting down the power
supply.
Turn off the power, wait until the amplifier cools
down, and then turn on again.
The cable is not connected
properly.
Connect to the INPUT jack properly.
The LINK MODE switch is set
incorrectly.
If you are using a single DXR, set the LINK
MODE switch to MONO.
The protection system has
operated, muting the output.
Wait until the amplifier cools down. If the device
won’t automatically reset itself, turn off the power,
and then on again.
No sound.
Sound is interrupted
suddenly.
A microphone is directed toward the Keep the speaker away from the area where the
speaker.
microphone picks up sound.
Sound is amplified too much.
Lower the volume of the input device and locate
the microphone more closely to the sound
source.
The setting of the HPF switch is not
appropriate.
Set the HPF switch on 120Hz or 100Hz if you get
feedback in low frequency bands.
Settings for each speaker differ.
• (DXR series) Set the HPF and D-CONTOUR
switches of each speaker to the same
positions.
• (DXS series) Set the POLARITY switch, the LPF
switch, and D-XSUB switch of each speaker to
the same position.
Input volume is excessive.
• Lower the volume of the input device to a point
no higher than where the LIMIT indicator lights
occasionally.
• If sound continues to be distorted even if you
turn down the volume to the minimum, set the
MIC/LINE switch to the LINE position (if the
switch is set to MIC).
Output volume is excessive.
Use the LEVEL control to lower the output level to
a point no higher than where the LIMIT indicator
lights occasionally.
The microphone
volume is too low.
The MIC/LINE switch is set to LINE.
Set the MIC/LINE switch to the MIC position.
Low and high
frequency are
unbalanced.
The output limiter is active.
Lower the input level or the output level to a point
no higher than where the LIMIT indicator lights
occasionally.
Sound howls
(feedback)
Each speaker sound
differs
(if multiple speakers
are used)
Sound is distorted
*If any specific problem should persist, however, please contact your Yamaha dealer.
12
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
References
References
Specifications
English
General
DXR15
DXR12
DXR10
System Type
2-way, Bi-amp Powered Speaker, Bass-reflex Type
Frequency Range (-10dB)
49Hz – 20kHz
Coverage Angle
H90° x V60° Constant Directivity Horn
52Hz – 20kHz
Deutsch
Crossover Type
FIR-X tuning™ (Linear Phase FIR Filter)
Crossover Frequency
2.1kHz
Measured Maximum SPL (peak) 133dB SPL
IEC noise@1m
Transducer
Français
LF
HF
DXS15
57Hz – 20kHz
45Hz – 160Hz
DXS12
Powered Subwoofer, Band-pass Type
47Hz – 160Hz
–
–
2.1kHz
2.3kHz
2.4kHz
–
132dB SPL
131dB SPL
129dB SPL
132dB SPL
DXR15
Diameter
56Hz – 20kHz
DXR8
DXR12
DXR10
DXR8
131dB SPL
DXS15
DXS12
15" Cone
12" Cone
10" Cone
8" Cone
15" Cone
12" Cone
Voice coil
2.5"
2.5"
2"
2"
2.5"
2.5"
Magnet
Ferrite
Diaphragm
1.4"
–
Español
Type
1" Throat Compression Driver
–
Magnet
Ferrite
–
Enclosure
DXR15
DXR12
DXR10
DXR8
DXS15
DXS12
Italiano
Material, Finish, Color
ABS, Matte Black
Floor Monitor Angle
50° Symmetrical
50° Symmetrical
50°
–
Wood, Paint, Black
–
Dimensions
(WxHxD, with rubber feet)
445×700×380 mm
(17-1/2" x 27-1/2"
x 15")
362×601×350 mm
(14-1/4" x 23-5/8"
x 13-3/4")
305×502×310 mm
(12" x 19-3/4"
x 12-1/4")
280×458×280 mm
(11" x 18" x 11")
478×618×624 mm
(18-7/8" x 24-3/8"
x 24-1/2")
397×563×594 mm
(15-5/8" x 22-1/8"
x 23-3/8")
19.3kg (42.5lbs)
14.6kg (32.2lbs)
13.5kg (29.8lbs)
38.0kg (83.8lbs)
33.0kg (72.8lbs)
Net Weight
22.5kg (49.6lbs)
Handles
Aluminium die-cast (Side x 2)
Pole Socket
35mm with 2-way feature (0 or 7 degree)
Rigging points
Optional Accessory (U-bracket)
Amplifier
Aluminium die-cast (Top x 1)
Metal (Side x 2)
Top x 2, Rear x 1
(Fits for M10 x 18mm eyebolts)
Top x 2, Rear x 1
(Fits for M8 x 15mm eyebolts)
–
UB-DXR15
UB-DXR10
–
UB-DXR12
DXR15
Amplifier Type
35mm (Top)
DXR12
DXR10
Class-D
Power Rating*1 Dynamic
Continuous
UB-DXR8
DXR8
DXS15
1100W (LF: 950W, HF: 150W)
950W
700W (LF: 600W, HF: 100W)
600W
Cooling
Fan cooling, 4 speeds
AD/DA
24bit 48kHz sampling
DXS12
Class-D
Signal Processing
48bit (Accumulator: 76bit)
HPF/LPF
OFF, 100, 120Hz 24dB/oct HPF
80, 100, 120Hz 24dB/oct LPF
D-CONTOUR: FOH/MAIN, MONITOR, OFF
D-XSUB: BOOST, XTENDED-LF, OFF
DSP preset
Protection
Speaker
Clip limiting, Integral Power Protection, DC-fault
Amplifier
Thermal, Output over current
Power supply
Thermal, Output over voltage, Output over current
Connectors
Input
INPUT1: XLR3-31 x 1, INPUT2: Phone x 2 (Unbalanced),
INPUT3: RCA PIN x 2 (Unbalanced)
INPUT: XLR3-31 x 2
Output
THRU: XLR3-32 x 1 (Parallel with INPUT1), LINK OUT: XLR x1
THRU: XLR3-32 x 2 (Parallel with INPUT)
Input
Impedance
INPUT1
LINE: 12kΩ, MIC: 8kΩ
10kΩ
INPUT2, 3
L, R: 40kΩ, MONO: 20kΩ
–
Input Sensitivity INPUT1
(LEVEL:
INPUT2, 3
Maximum)
80
LINE: +1dBu, MIC: -32dBu
+1dBu
-13dBu
–
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
References
DXR15
DXR12
DXR10
DXR8
DXS15
DXS12
Input Sensitivity INPUT1
(LEVEL:
INPUT2, 3
Center)
LINE: +11dBu, MIC: -22dBu
+11dBu
-3dBu
–
Maximum Input INPUT1
Level
INPUT2, 3
LINE: +24dBu, MIC: +20dBu
+24dBu
+16dBu
–
Controls
LEVEL x3, LINE/MIC, HPF, D-CONTOUR, FRONT LED DISABLE, LINK MODE,
POWER
LEVEL, POLARITY, LPF, D-XSUB,
FRONT LED DISABLE, POWER
Idle Power Consumption
35W
110W
Power Requirements
100V – 240V, 50Hz/60Hz
90W
120W
Deutsch
1/8 Power Consumption
English
Amplifier
Italiano
Español
Français
0dBu is referenced to 0.775Vrms.
*1 Power rating (120V, 25°C). This is total value of individual output power.
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
81
References
Dimensions
DXR15
DXR12
°
50
Deutsch
402
456
°
50
English
445
380
362
Français
601
700
350
Español
Italiano
Unit: mm
DXR10
Unit: mm
DXR8
355
°
50
310
458
Unit: mm
82
280
280
502
305
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
Unit: mm
References
DXS12
624
594
Italiano
Español
563
618
397
Français
478
Deutsch
English
DXS15
Unit: mm
Unit: mm
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
83
DXR15/DXR12/DXR10/DXR8/DXS15/DXS12 Owner’s Manual
HA
HA
HA
HA
LEVEL
LEVEL
LINE/
MIC (100Hz HPF)
THRU
R (LINE)
THRU
L (LINE)
INPUT
HA
HA
DXS block diagram
R
3 (LINE)
L
R
2 (LINE)
L/MONO
THRU
1 (MIC/LINE)
INPUT MIX
LINK (MONO/STEREO)
LEVEL
AD
FOH/MAIN
OFF
MONITOR
100Hz
OFF
D-CONTOUR
120Hz
HPF
PORALITY
BOOST
OFF
120Hz
100Hz
XTENDED LF
D-XSUB
80Hz
EQ
DSP
HF
EQ
LF
FIR-X
DSP
LINK OUT (LINE)
LPF
STEREO: INPUT1+2(R)+3(R)
MONO: INPUT1+2(L+R)+3(L+R)
MONO: INPUT1+2(L+R)+3(L+R)
STEREO: INPUT1+2(L)+3(L)
SIGNAL
AD
SIGNAL
Italiano
LEVEL
DELAY
EQ
EQ
Español
HA
ON/OFF
MUTE
INTEGRAL
OUTPUT
POWER
OUTPUT
VOLTAGE
PROTECTION LOGIC
OUTPUT
CURRENT
DC-FAULT
MUTE
●PROTECTION
DA
DA
DA
AMP
(LF)
AMP
(HF)
SUB WOOFER
AMP
ON/OFF
MUTE
INTEGRAL
OUTPUT
POWER
OUTPUT
VOLTAGE
PROTECTION LOGIC
OUTPUT
CURRENT
DC-FAULT
MUTE
TEMP.
LIMITER
●PROTECTION
MUTE
TEMP.
LIMITER
●LIMIT
DELAY
●LIMIT
LIMITER
Français
INPUT
Deutsch
84
INPUT MIX
English
DXR block diagram
LF
HF
References
Block Diagram
Information for Users on Collection and Disposal of Old Equipment
This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should
not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with
your national legislation and the Directives 2002/96/EC.
By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.
[For business users in the European Union]
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
[Information on Disposal in other Countries outside the European Union]
This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the
correct method of disposal.
Verbraucherinformation zur Sammlung und Entsorgung alter Elektrogeräte
Befindet sich dieses Symbol auf den Produkten, der Verpackung und/oder beiliegenden Unterlagen, so sollten benutzte elektrische
Geräte nicht mit dem normalen Haushaltsabfall entsorgt werden.
In Übereinstimmung mit Ihren nationalen Bestimmungen und den Richtlinien 2002/96/EC, bringen Sie alte Geräte bitte zur fachgerechten Entsorgung, Wiederaufbereitung und Wiederverwendung zu den entsprechenden Sammelstellen.
Durch die fachgerechte Entsorgung der Elektrogeräte helfen Sie, wertvolle Ressourcen zu schützen und verhindern mögliche negative Auswirkungen auf die menschliche Gesundheit und die Umwelt, die andernfalls durch unsachgerechte Müllentsorgung auftreten
könnten.
Für weitere Informationen zum Sammeln und Wiederaufbereiten alter Elektrogeräte, kontaktieren Sie bitte Ihre örtliche Stadt- oder Gemeindeverwaltung, Ihren Abfallentsorgungsdienst oder die Verkaufsstelle der Artikel.
[Information für geschäftliche Anwender in der Europäischen Union]
Wenn Sie Elektrogeräte ausrangieren möchten, kontaktieren Sie bitte Ihren Händler oder Zulieferer für weitere Informationen.
[Entsorgungsinformation für Länder außerhalb der Europäischen Union]
Dieses Symbol gilt nur innerhalb der Europäischen Union. Wenn Sie solche Artikel ausrangieren möchten, kontaktieren Sie bitte Ihre örtlichen Behörden oder Ihren Händler und fragen Sie nach der sachgerechten Entsorgungsmethode.
Information concernant la Collecte et le Traitement des déchets d’équipements électriques et électroniques.
Le symbole sur les produits, l'emballage et/ou les documents joints signifie que les produits électriques ou électroniques usagés ne
doivent pas être mélangés avec les déchets domestiques habituels.
Pour un traitement, une récupération et un recyclage appropriés des déchets d’équipements électriques et électroniques, veuillez les
déposer aux points de collecte prévus à cet effet, conformément à la réglementation nationale et aux Directives 2002/96/EC.
En vous débarrassant correctement des déchets d’équipements électriques et électroniques, vous contribuerez à la sauvegarde de
précieuses ressources et à la prévention de potentiels effets négatifs sur la santé humaine qui pourraient advenir lors d'un traitement
inapproprié des déchets.
Pour plus d'informations à propos de la collecte et du recyclage des déchets d’équipements électriques et électroniques, veuillez
contacter votre municipalité, votre service de traitement des déchets ou le point de vente où vous avez acheté les produits.
[Pour les professionnels dans l'Union Européenne]
Si vous souhaitez vous débarrasser des déchets d’équipements électriques et électroniques veuillez contacter votre vendeur ou fournisseur pour
plus d'informations.
[Information sur le traitement dans d'autres pays en dehors de l'Union Européenne]
Ce symbole est seulement valables dans l'Union Européenne. Si vous souhaitez vous débarrasser de déchets d’équipements électriques et électroniques, veuillez contacter les autorités locales ou votre fournisseur et demander la méthode de traitement appropriée.
Información para Usuarios sobre Recolección y Disposición de Equipamiento Viejo
Este símbolo en los productos, embalaje, y/o documentación que se acompañe significa que los productos electrónicos y eléctricos
usados no deben ser mezclados con desechos hogareños corrientes.
Para el tratamiento, recuperación y reciclado apropiado de los productos viejos, por favor llévelos a puntos de recolección aplicables, de acuerdo a su legislación nacional y las directivas 2002/96/EC.
Al disponer de estos productos correctamente, ayudará a ahorrar recursos valiosos y a prevenir cualquier potencial efecto negativo
sobre la salud humana y el medio ambiente, el cual podría surgir de un inapropiado manejo de los desechos.
Para mayor información sobre recolección y reciclado de productos viejos, por favor contacte a su municipio local, su servicio de
gestión de residuos o el punto de venta en el cual usted adquirió los artículos.
[Para usuarios de negocios en la Unión Europea]
Si usted desea deshacerse de equipamiento eléctrico y electrónico, por favor contacte a su vendedor o proveedor para mayor información.
[Información sobre la Disposición en otros países fuera de la Unión Europea]
Este símbolo sólo es válidos en la Unión Europea. Si desea deshacerse de estos artículos, por favor contacte a sus autoridades locales y pregunte
por el método correcto de disposición.
Informazioni per gli utenti sulla raccolta e lo smaltimento di vecchia attrezzatura
Questo simbolo sui prodotti, sull’imballaggio, e/o sui documenti che li accompagnano significa che i prodotti elettriche e elettroniche
non dovrebbero essere mischiati con i rifiuti domestici generici.
Per il trattamento, recupero e riciclaggio appropriati di vecchi prodotti, li porti, prego, ai punti di raccolta appropriati, in accordo con
la Sua legislazione nazionale e le direttive 2002/96/CE.
Smaltendo correttamente questi prodotti, Lei aiuterà a salvare risorse preziose e a prevenire alcuni potenziali effetti negativi sulla salute umana e l'ambiente, che altrimenti potrebbero sorgere dal trattamento improprio dei rifiuti.
Per ulteriori informazioni sulla raccolta e il riciclaggio di vecchi prodotti, prego contatti la Sua amministrazione comunale locale, il Suo
servizio di smaltimento dei rifiuti o il punto vendita dove Lei ha acquistato gli articoli.
[Per utenti imprenditori dell'Unione europea]
Se Lei desidera disfarsi di attrezzatura elettrica ed elettronica, prego contatti il Suo rivenditore o fornitore per ulteriori informazioni.
[Informazioni sullo smaltimento negli altri Paesi al di fuori dell'Unione europea]
Questo simbolo è validi solamente nell'Unione europea. Se Lei desidera disfarsi di questi articoli, prego contatti le Sue autorità locali o il rivenditore
e richieda la corretta modalità di smaltimento.
(weee_eu)
Česky
Důležité oznámení: Záruční informace pro zákazníky v EHS* a ve Švýcarsku
Podrobné záruční informace o tomto produktu Yamaha a záručním servisu v celém EHS* a ve Švýcarsku naleznete na níže
uvedené webové adrese (soubor k tisku je dostupný na našich webových stránkách) nebo se můžete obrátit na zastoupení firmy
Yamaha ve své zemi (další stránka). * EHS: Evropský hospodářský prostor
Magyar
Fontos figyelmeztetés: Garancia-információk az EGT* területén és Svájcban élő vásárlók számára
A jelen Yamaha termékre vonatkozó részletes garancia-információk, valamint az EGT*-re és Svájcra kiterjedő garanciális
szolgáltatás tekintetében keresse fel webhelyünket az alábbi címen (a webhelyen nyomtatható fájlt is talál), vagy pedig lépjen
kapcsolatba az országában működő Yamaha képviseleti irodával (következő oldal). * EGT: Európai Gazdasági Térség
Eesti keel
Oluline märkus: Garantiiteave Euroopa Majanduspiirkonna (EMP)* ja Šveitsi klientidele
Täpsema teabe saamiseks selle Yamaha toote garantii ning kogu Euroopa Majanduspiirkonna ja Šveitsi garantiiteeninduse kohta,
külastage palun veebisaiti alljärgneval aadressil (meie saidil on saadaval prinditav fail) või pöörduge Teie regiooni Yamaha
esinduse poole (järgmine lehekülg). * EMP: Euroopa Majanduspiirkond
Latviešu
Svarīgs paziņojums: garantijas informācija klientiem EEZ* un Šveicē
Lai saņemtu detalizētu garantijas informāciju par šo Yamaha produktu, kā arī garantijas apkalpošanu EEZ* un Šveicē, lūdzu,
apmeklējiet zemāk norādīto tīmekļa vietnes adresi (tīmekļa vietnē ir pieejams drukājams fails) vai sazinieties ar jūsu valsti
apkalpojošo Yamaha pārstāvniecību (nākamā lappuse). * EEZ: Eiropas Ekonomikas zona
Lietuvių kalba
Dėmesio: informacija dėl garantijos pirkėjams EEE* ir Šveicarijoje
Jei reikia išsamios informacijos apie šį „Yamaha“ produktą ir jo techninę priežiūrą visoje EEE* ir Šveicarijoje, apsilankykite mūsų
svetainėje toliau nurodytu adresu (svetainėje yra spausdintinas failas) arba kreipkitės į „Yamaha“ atstovybę savo šaliai (kitas
puslapis). *EEE – Europos ekonominė erdvė
Slovenčina
Dôležité upozornenie: Informácie o záruke pre zákazníkov v EHP* a Švajčiarsku
Podrobné informácie o záruke týkajúce sa tohto produktu od spoločnosti Yamaha a garančnom servise v EHP* a Švajčiarsku
nájdete na webovej stránke uvedenej nižšie (na našej webovej stránke je k dispozícii súbor na tlač) alebo sa obráťte na zástupcu
spoločnosti Yamaha vo svojej krajine (nasledujúca strana). * EHP: Európsky hospodársky priestor
Slovenščina
Pomembno obvestilo: Informacije o garanciji za kupce v EGP* in Švici
Za podrobnejše informacije o tem Yamahinem izdelku ter garancijskem servisu v celotnem EGP in Švici, obiščite
spletno mesto, ki je navedeno spodaj (natisljiva datoteka je na voljo na našem spletnem mestu), ali se obrnite na Yamahinega
predstavnika v svoji državi (naslednja stran). * EGP: Evropski gospodarski prostor
Български език
Важно съобщение: Информация за гаранцията за клиенти в ЕИП* и Швейцария
За подробна информация за гаранцията за този продукт на Yamaha и гаранционното обслужване в паневропейската зона на
ЕИП* и Швейцария или посетете посочения по-долу уеб сайт (на нашия уеб сайт има файл за печат), или се свържете с
представителния офис на Yamaha във вашата страна (следваща страница). * ЕИП: Европейско икономическо пространство
Limba română
Notificare importantă: Informaţii despre garanţie pentru clienţii din SEE* şi Elveţia
Pentru informaţii detaliate privind acest produs Yamaha şi serviciul de garanţie Pan-SEE* şi Elveţia, vizitaţi site-ul la adresa de
mai jos (fişierul imprimabil este disponibil pe site-ul nostru) sau contactaţi biroul reprezentanţei Yamaha din ţara dumneavoastră
(pagina următoare). * SEE: Spaţiul Economic European
Français
Remarque importante: informations de garantie pour les clients de l’EEE et la Suisse
Pour des informations plus détaillées sur la garantie de ce produit Yamaha et sur le service de garantie applicable dans l’ensemble
de l’EEE ainsi qu’en Suisse, consultez notre site Web à l’adresse ci-dessous (le fichier imprimable est disponible sur notre site
Web) ou contactez directement Yamaha dans votre pays de résidence (page suivante). * EEE : Espace Economique Européen
Nederlands
Belangrijke mededeling: Garantie-informatie voor klanten in de EER* en Zwitserland
Voor gedetailleerde garantie-informatie over dit Yamaha-product en de garantieservice in heel de EER* en Zwitserland, gaat u
naar de onderstaande website (u vind een afdrukbaar bestand op onze website) of neemt u contact op met de vertegenwoordiging
van Yamaha in uw land (volgende pagina). * EER: Europese Economische Ruimte
Español
Aviso importante: información sobre la garantía para los clientes del EEE* y Suiza
Para una información detallada sobre este producto Yamaha y sobre el soporte de garantía en la zona EEE* y Suiza, visite la
dirección web que se incluye más abajo (la version del archivo para imprimir esta disponible en nuestro sitio web) o póngase en
contacto con el representante de Yamaha en su país (página siguiente). * EEE: Espacio Económico Europeo
Italiano
Avviso importante: informazioni sulla garanzia per i clienti residenti nell’EEA* e in Svizzera
Per informazioni dettagliate sulla garanzia relativa a questo prodotto Yamaha e l’assistenza in garanzia nei paesi EEA* e in
Svizzera, potete consultare il sito Web all’indirizzo riportato di seguito (è disponibile il file in formato stampabile) oppure contattare
l’ufficio di rappresentanza locale della Yamaha (pagina seguente). * EEA: Area Economica Europea
Português
Aviso importante: informações sobre as garantias para clientes da AEE* e da Suíça
Para obter uma informação pormenorizada sobre este produto da Yamaha e sobre o serviço de garantia na AEE* e na Suíça,
visite o site a seguir (o arquivo para impressão está disponível no nosso site) ou entre em contato com o escritório de representação da Yamaha no seu país (próxima página). * AEE: Área Econômica Européia
Ελληνικά
Σημαντική σημείωση: Πληροφορίες εγγύησης για τους πελάτες στον ΕΟΧ* και Ελβετία
Για λεπτομερείς πληροφορίες εγγύησης σχετικά με το παρόν προϊόν της Yamaha και την κάλυψη εγγύησης σε όλες τις χώρες του
ΕΟΧ και την Ελβετία, επισκεφτείτε την παρακάτω ιστοσελίδα (Εκτυπώσιμη μορφή είναι διαθέσιμη στην ιστοσελίδα μας) ή
απευθυνθείτε στην αντιπροσωπεία της Yamaha στη χώρα σας (επόμενη σελίδα). * ΕΟΧ: Ευρωπαϊκός Οικονομικός Χώρος
Svenska
Viktigt: Garantiinformation för kunder i EES-området* och Schweiz
För detaljerad information om denna Yamahaprodukt samt garantiservice i hela EES-området* och Schweiz kan du antingen
besöka nedanstående webbaddress (en utskriftsvänlig fil finns på webbplatsen) eller kontakta Yamahas officiella representant i
ditt land (nästa sida). * EES: Europeiska Ekonomiska Samarbetsområdet
Norsk
Viktig merknad: Garantiinformasjon for kunder i EØS* og Sveits
Detaljert garantiinformasjon om dette Yamaha-produktet og garantiservice for hele EØS-området* og Sveits kan fås enten ved å
besøke nettadressen nedenfor (utskriftsversjon finnes på våre nettsider) eller kontakte kontakte Yamaha-kontoret i landet der du
bor (neste side). *EØS: Det europeiske økonomiske samarbeidsområdet
Dansk
Vigtig oplysning: Garantioplysninger til kunder i EØO* og Schweiz
De kan finde detaljerede garantioplysninger om dette Yamaha-produkt og den fælles garantiserviceordning for EØO* (og Schweiz)
ved at besøge det websted, der er angivet nedenfor (der findes en fil, som kan udskrives, på vores websted), eller ved at kontakte
Yamahas nationale repræsentationskontor i det land, hvor De bor (næste side). * EØO: Det Europæiske Økonomiske Område
URL_3
Polski
Ważne: Warunki gwarancyjne obowiązujące w EOG* i Szwajcarii
Aby dowiedzieć się więcej na temat warunków gwarancyjnych tego produktu firmy Yamaha i serwisu gwarancyjnego w całym EOG* i
Szwajcarii, należy odwiedzić wskazaną poniżej stronę internetową (Plik gotowy do wydruku znajduje się na naszej stronie internetowej)
lub skontaktować się z przedstawicielstwem firmy Yamaha w swoim kraju (następna strona). * EOG — Europejski Obszar Gospodarczy
Deutsch
Wichtiger Hinweis: Garantie-Information für Kunden in der EWR* und der Schweiz
Für nähere Garantie-Information über dieses Produkt von Yamaha, sowie über den Pan-EWR*- und Schweizer Garantieservice, besuchen
Sie bitte entweder die folgend angegebene Internetadresse (eine druckfähige Version befindet sich auch auf unserer Webseite), oder
wenden Sie sich an den für Ihr Land zuständigen Yamaha-Vertrieb (nächste Seite). *EWR: Europäischer Wirtschaftsraum
http://europe.yamaha.com/warranty/
Suomi
Tärkeä ilmoitus: Takuutiedot Euroopan talousalueen (ETA)* ja Sveitsin asiakkaille
Tämän Yamaha-tuotteen sekä ETA-alueen ja Sveitsin takuuta koskevat yksityiskohtaiset tiedot saatte alla olevasta nettiosoitteesta. (Tulostettava tiedosto saatavissa sivustollamme.) Voitte myös ottaa yhteyttä paikalliseen Yamaha-edustajaan (seuraavalla
sivulla). *ETA: Euroopan talousalue
English
Important Notice: Guarantee Information for customers in EEA* and Switzerland
For detailed guarantee information about this Yamaha product, and Pan-EEA* and Switzerland warranty service, please either
visit the website address below (Printable file is available at our website) or contact the Yamaha representative office for your
country (next page). * EEA: European Economic Area
Important Notice: Guarantee Information
for customers in European Economic Area
(EEA) and Switzerland
e_list_2
ESTONIA
Yamaha Music Europe GmbH
Sp. z o.o. Oddział w Polsce
(Branch Poland)
ul. 17 Stycznia 56
PL-02-146 Warszawa Poland
Tel: +48 (0)22 500 29 25
Fax: +48 (0)22 500 29 30
DENMARK
YS Copenhagen Liaison Office
(Yamaha Scandinavia AB Filial Denmark)
Generatorvej 6A, 2730 Herlev, Denmark
Tel: +45 44 92 49 00
Fax: +45 44 54 47 09
CZECH REPUBLIC
Yamaha Music Europe GmbH
Branch Austria (Central and Eastern Europe)
Schleiergasse 20, A-1100 Wien Austria
Tel: +43 (0)1 602 03900
Fax: +43 (0)1 602 039051
CYPRUS
NAKAS Music Cyprus Ltd.
31C Nikis Ave., 1086 Nicosia
Tel: +357 (0)22 510 477
Fax: +357 (0)22 511 080
BULGARIA
Yamaha Music Europe GmbH
Branch Austria (Central and Eastern Europe)
Schleiergasse 20, A-1100 Wien Austria
Tel: +43 (0)1 602 03900
Fax: +43 (0)1 602 039051
BELGIUM
Yamaha Music Europe
Branch Benelux
Clarissenhof 5b NL, 4133 AB. Vianen
The Netherlands
Tel: +31 (0)347 358040
Fax: +31 (0)347 358060
AUSTRIA
Yamaha Music Europe GmbH
Branch Austria
Schleiergasse 20, A-1100 Wien Austria
Tel: +43 (0)1 602 03900
Fax: +43 (0)1 602 039051
HUNGARY
Yamaha Music Europe GmbH
Branch Austria (Central and Eastern Europe)
Schleiergasse 20, A-1100 Wien Austria
Tel: +43 (0)1 602 03900
Fax: +43 (0)1 602 039051
GREECE
PH. Nakas S.A.Music House/Service
19 KM Leoforos Lavriou
19002 Peania / Attiki, Greece
Tel: +30 (0)210 6686260
Fax: +30 (0)210 6686269
GERMANY
Yamaha Music Europe GmbH
Siemensstr 22-34
D-25462 Rellingen, b. Hamburg, Germany
Tel: +49 (0)4101 3030
Fax: +49 (0)4101 303 77702
IRELAND (REPUBLIC OF IRELAND)
Yamaha Music UK Ltd.
Sherbourne Drive
Tilbrook, Milton Keynes MK7 8BL
United Kingdom
Tel: +353 (0) 1526 2449
Fax: +44 (0) 1908 369278
FRANCE
Yamaha Musique France
Zone d’activité de Pariest
7, rue Ambroise Croizat
77183 Croissy-Beaubourg, France
(B.P. 70, 77312 Marne la Vallée Cedex 2
France-Adresse postale)
Tel: +33 (0)1 64 61 4000
Fax: +33 (0)1 64 61 4079
LITHUANIA
Yamaha Music Europe GmbH
Sp. z o.o. Oddział w Polsce
(Branch Poland)
ul. 17 Stycznia 56
PL-02-146 Warszawa Poland
Tel: +48 (0)22 500 29 25
Fax: +48 (0)22 500 29 30
LIECHTENSTEIN
Yamaha Music Europe GmbH, Rellingen,
Branch Switzerland in Zurich
Seefeldstrasse 94, CH-8008
Zürich, Switzerland
Tel: +41 (0)44 3878080
Fax: +41 (0)44 3833918
LATVIA
Yamaha Music Europe GmbH
Sp. z o.o. Oddział w Polsce
(Branch Poland)
ul. 17 Stycznia 56
PL-02-146 Warszawa Poland
Tel: +48 (0)22 500 29 25
Fax: +48 (0)22 500 29 30
ITALY
Yamaha Musica Italia s.p.a.
Viale Italia 88
20020, Lainate (Milano), Italy
Tel: +39 (0)02 93577 1
Fax: +39 (0)02 937 0956
(For Pro Audio)
Yamaha Scandinavia AB
J A Wettergrens gata 1
Västra Frölunda, Sweden
(Box 300 53, 400 43 Goteborg
Sweden - Postal Address)
Tel: +46 (0)31 893400
Fax: +46 (0)31 454026
ICELAND
(For Musical Instrument)
HLJODFAERAHUSID EHF
Sidumula 20
108 Reykjavik, Iceland
Tel: +354 525 50 50
Fax: +354 568 65 14
(For Pro Audio)
Yamaha Scandinavia AB
J A Wettergrens gata 1
Västra Frölunda, Sweden
(Box 300 53, 400 43 Goteborg
Sweden - Postal Address)
Tel: +46 (0)31 893400
Fax: +46 (0)31 454026
FINLAND
(For Musical Instrument)
F - Musiikki OY
Kaisaniemenkatu 7, PL260
00101 Helsinki, Finland
Tel: +358 (0)9 618511
Fax: +358 (0)9 61851385
ROMANIA
Yamaha Music Europe GmbH
Branch Austria (Central and Eastern Europe)
Schleiergasse 20, A-1100 Wien Austria
Tel: +43 (0)1 602 03900
Fax: +43 (0)1 602 039051
PORTUGAL
Yamaha Música Ibérica, S.A.U.
Sucursal Portuguesa
Rua Alfredo da Silva
2610-016 Amadora, Portugal
Tel: +351 214 704 330
Fax: +351 214 718 220
POLAND
YAMAHA Music Europe GmbH
Sp. z o.o. Oddział w Polsce
ul. 17 Stycznia 56
02-146 WARSZAWA/POLSKA
Tel: +48 (0)22 500 29 25
Fax: +48 (0)22 500 29 30
NORWAY
YS Oslo Liaison Office
(Yamaha Scandinavia AB Filial Norway)
Grini Naeringspark 1
1361 Osteras, Norway
Tel: +47 67 16 77 70
Fax: +47 67 16 77 79
NETHERLANDS
Yamaha Music Europe
Branch Benelux
Clarissenhof 5b NL, 4133 AB. Vianen
The Netherlands
Tel: +31 (0)347 358040
Fax: +31 (0)347 358060
MALTA
Olimpus Music Ltd.
The Emporium, Level 3, St. Louis Street
Msida MSD06
Tel: +356 (0)2133 2093
Fax: +356 (0)2133 2144
LUXEMBOURG
Yamaha Music Europe
Branch Benelux
Clarissenhof 5b NL, 4133 AB. Vianen
The Netherlands
Tel: +31 (0)347 358040
Fax: +31 (0)347 358060
Yamaha Representative Offices in Europe
UNITED KINGDOM
Yamaha Music UK Ltd.
Sherbourne Drive
Tilbrook, Milton Keynes MK7 8BL
United Kingdom
Tel: +44 (0) 870 4445575
Fax: +44 (0) 1908 369278
SWITZERLAND
Yamaha Music Europe GmbH, Rellingen,
Branch Switzerland in Zurich
Seefeldstrasse 94, CH-8008
Zürich, Switzerland
Tel: +41 (0)44 3878080
Fax: +41 (0)44 3833918
SWEDEN
Yamaha Scandinavia AB
J A Wettergrens gata 1
Västra Frölunda, Sweden
(Box 300 53, 400 43 Goteborg
Sweden - Postal Address)
Tel: +46 (0)31 893400
Fax: +46 (0)31 454026
SPAIN
Yamaha Música Ibérica, S.A.U.
Ctra. de la Coruna km.17, 200
28230 Las Rozas de Madrid, Spain
Tel: +34 902 39 8888
Fax: +34 91 638 4660
SLOVENIA
Yamaha Music Europe GmbH
Branch Austria (Central and Eastern Europe)
Schleiergasse 20, A-1100 Wien Austria
Tel: +43 (0)1 602 03900
Fax: +43 (0)1 602 039051
SLOVAKIA
Yamaha Music Europe GmbH
Branch Austria (Central and Eastern Europe)
Schleiergasse 20, A-1100 Wien Austria
Tel: +43 (0)1 602 03900
Fax: +43 (0)1 602 039051
For details of products, please contact your nearest Yamaha
representative or the authorized distributor listed below.
Pour plus de détails sur les produits, veuillez-vous adresser à Yamaha ou
au distributeur le plus proche de vous figurant dans la liste suivante.
NORTH AMERICA
CANADA
Yamaha Canada Music Ltd.
135 Milner Avenue, Scarborough, Ontario,
M1S 3R1, Canada
Tel: 416-298-1311
U.S.A.
Yamaha Corporation of America
6600 Orangethorpe Ave., Buena Park, Calif. 90620,
U.S.A.
Tel: 714-522-9011
CENTRAL & SOUTH AMERICA
MEXICO
Yamaha de México S.A. de C.V.
Calz. Javier Rojo Gómez #1149,
Col. Guadalupe del Moral
C.P. 09300, México, D.F., México
Tel: 55-5804-0600
BRAZIL
Yamaha Musical do Brasil Ltda.
Rua Joaquim Floriano, 913 - 4' andar, Itaim Bibi,
CEP 04534-013 Sao Paulo, SP. BRAZIL
Tel: 011-3704-1377
ARGENTINA
Yamaha Music Latin America, S.A.
Sucursal de Argentina
Olga Cossettini 1553, Piso 4 Norte
Madero Este-C1107CEK
Buenos Aires, Argentina
Tel: 011-4119-7000
PANAMA AND OTHER LATIN
AMERICAN COUNTRIES/
CARIBBEAN COUNTRIES
Yamaha Music Latin America, S.A.
Torre Banco General, Piso 7, Urbanización Marbella,
Calle 47 y Aquilino de la Guardia,
Ciudad de Panamá, Panamá
Tel: +507-269-5311
EUROPE
THE UNITED KINGDAM/IRELAND
Yamaha Music Europe GmbH (UK)
Sherbourne Drive, Tilbrook, Milton Keynes,
MK7 8BL, England
Tel: 01908-366700
GERMANY
Yamaha Music Europe GmbH
Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: 04101-3030
SWITZERLAND/LIECHTENSTEIN
Yamaha Music Europe GmbH
Branch Switzerland in Zürich
Seefeldstrasse 94, 8008 Zürich, Switzerland
Tel: 044-387-8080
AUSTRIA/BULGARIA
Yamaha Music Europe GmbH Branch Austria
Schleiergasse 20, A-1100 Wien, Austria
Tel: 01-60203900
CZECH REPUBLIC/HUNGARY/
ROMANIA/SLOVAKIA/SLOVENIA
Yamaha Music Europe GmbH
Branch Austria (Central Eastern Europe Office)
Schleiergasse 20, A-1100 Wien, Austria
Tel: 01-602039025
POLAND/LITHUANIA/LATVIA/ESTONIA
Yamaha Music Europe GmbH
Branch Sp.z o.o. Oddzial w Polsce
ul. 17 Stycznia 56, PL-02-146 Warszawa, Poland
Tel: 022-500-2925
PA29
Die Einzelheiten zu Produkten sind bei Ihrer unten aufgeführten
Niederlassung und bei Yamaha Vertragshändlern in den jeweiligen
Bestimmungsländern erhältlich.
Para detalles sobre productos, contacte su tienda Yamaha más
cercana o el distribuidor autorizado que se lista debajo.
MARTA
ASIA
Olimpus Music Ltd.
The Emporium, Level 3, St. Louis Street Msida
MSD06
Tel: 02133-2144
THE PEOPLE’S REPUBLIC OF CHINA
Yamaha Music & Electronics (China) Co.,Ltd.
2F, Yunhedasha, 1818 Xinzha-lu, Jingan-qu,
Shanghai, China
Tel: 021-6247-2211
THE NETHERLANDS/
BELGIUM/LUXEMBOURG
Yamaha Music Europe Branch Benelux
Clarissenhof 5-b, 4133 AB Vianen, The Netherlands
Tel: 0347-358 040
FRANCE
Yamaha Music Europe
BP 70-77312 Marne-la-Vallée Cedex 2, France
Tel: 01-64-61-4000
PT. Yamaha Musik Indonesia (Distributor)
PT. Nusantik
Gedung Yamaha Music Center, Jalan Jend. Gatot
Subroto Kav. 4, Jakarta 12930, Indonesia
Tel: 021-520-2577
Yamaha Music Europe GmbH, Branch Italy
Viale Italia 88, 20020 Lainate (Milano), Italy
Tel: 02-935-771
KOREA
SPAIN/PORTUGAL
Yamaha Music Europe GmbH Ibérica, Sucursal
en España
Ctra. de la Coruna km. 17, 200, 28230
Las Rozas (Madrid), Spain
Tel: +34-902-39-8888
GREECE
Philippos Nakas S.A. The Music House
147 Skiathou Street, 112-55 Athens, Greece
Tel: 01-228 2160
Yamaha Music (Russia)
Room 37, bld. 7, Kievskaya street, Moscow,
121059, Russia
Tel: 495 626 5005
OTHER EUROPEAN COUNTRIES
Yamaha Music Europe GmbH
Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: +49-4101-3030
AFRICA
Yamaha Corporation,
Asia-Pacific Sales & Marketing Group
Nakazawa-cho 10-1, Naka-ku, Hamamatsu,
Japan 430-8650
Tel: +81-53-460-2303
MIDDLE EAST
TURKEY/CYPRUS
Yamaha Music (Malaysia) Sdn., Bhd.
Lot 8, Jalan Perbandaran, 47301 Kelana Jaya,
Petaling Jaya, Selangor, Malaysia
Tel: 03-78030900
TAIWAN
Yamaha Music Europe GmbH, Tyskland – filial
Denmark
Generatorvej 6A, DK-2730 Herlev, Denmark
Tel: 44 92 49 00
RUSSIA
MALAYSIA
Yamaha Music (Asia) Pte., Ltd.
#03-11 A-Z Building
140 Paya Lebor Road, Singapore 409015
Tel: 6747-4374
Yamaha Music Europe GmbH Germany filial
Scandinavia
J. A. Wettergrens Gata 1, Box 30053
S-400 43 Göteborg, Sweden
Tel: 031 89 34 00
Yamaha Music Europe GmbH Germany Norwegian Branch
Grini Næringspark 1, N-1345 Østerås, Norway
Tel: 67 16 77 70
Yamaha Music Korea Ltd.
8F, 9F, Dongsung Bldg. 158-9 Samsung-Dong,
Kangnam-Gu, Seoul, Korea
Tel: 02-3467-3300
SINGAPORE
SWEDEN/FINLAND/ICELAND
NORWAY
Yamaha Music India Pvt. Ltd.
5F Ambience Corporate Tower Ambience Mall Complex
Ambience Island, NH-8, Gurgaon-122001, Haryana, India
Tel: 0124-466-5551
INDONESIA
ITALY
DENMARK
INDIA
Yamaha KHS Music Co., Ltd.
3F, #6, Sec.2, Nan Jing E. Rd. Taipei.
Taiwan 104, R.O.C.
Tel: 02-2511-8688
THAILAND
Siam Music Yamaha Co., Ltd.
4, 6, 15 and 16th floor, Siam Motors Building,
891/1 Rama 1 Road, Wangmai,
Pathumwan, Bangkok 10330, Thailand
Tel: 02-215-2622
OTHER ASIAN COUNTRIES
Yamaha Corporation,
Asia-Pacific Sales & Marketing Group
Nakazawa-cho 10-1, Naka-ku, Hamamatsu,
Japan 430-8650
Tel: +81-53-460-2303
OCEANIA
AUSTRALIA
Yamaha Music Australia Pty. Ltd.
Level 1, 99 Queensbridge Street, Southbank,
Victoria 3006, Australia
Tel: 3-9693-5111
COUNTRIES AND TRUST
TERRITORIES IN PACIFIC OCEAN
Yamaha Corporation,
Asia-Pacific Sales & Marketing Group
Nakazawa-cho 10-1, Naka-ku, Hamamatsu,
Japan 430-8650
Tel: +81-53-460-2303
Yamaha Music Europe GmbH
Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: 04101-3030
OTHER COUNTRIES
Yamaha Music Gulf FZE
LOB 16-513, P.O.Box 17328, Jubel Ali,
Dubai, United Arab Emirates
Tel: +971-4-881-5868
HEAD OFFICE Yamaha Corporation, Pro Audio Division
Nakazawa-cho 10-1, Naka-ku, Hamamatsu, Japan 430-8650
Tel: +81-53-460-2441
Yamaha Pro Audio global website
http://www.yamahaproaudio.com/
Yamaha Manual Library
http://www.yamaha.co.jp/manual/
C.S.G., Pro Audio Division
© 2011 Yamaha Corporation
111MWCR*.*-**B0
Printed in China
ZA97860
