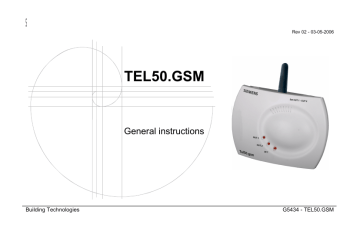

Siemens TEL50.GSM Operating instructions

s
Rev 02 - 03-05-2006
TEL50.GSM
General instructions
Building Technologies
G5434 - TEL50.GSM
en
1.
1.1
1.2
1.3
1.4
1.5
2.
2.1
2.2
3.
4.
4.1
4.2
4.3
4.4
4.5
4.6
5.
6.
6.1
6.2
6.3
7.
7.1
7.2
Modification of Input-Output identification string 20
7.3
Alarm notification enabling ................................. 22
7.3.1
IN1 closed alarm...................................... 22
7.3.2
Temperature alarm.................................. 22
7.4
Digital I/O status................................................. 24
8.
ENVIRONMENTAL COMPATIBILITY AND DISPOSAL ..... 25
English
INTRODUCTION ......................................................... 1
Copyright.............................................................. 1
Trademarks .......................................................... 1
Declaration of conformity ..................................... 2
Warranty .............................................................. 3
Contents of sales pack ......................................... 3
INSTRUCTIONS ......................................................... 4
Safety instructions................................................ 4
Operating instructions .......................................... 6
GENERAL INFORMATION ........................................... 7
INSTALLATION .......................................................... 8
Wall-mounting ...................................................... 8
Electrical connections .......................................... 8
Connection of stilo antenna................................ 11
Connection of external antenna (optional) ......... 11
Insertion of SIM card .......................................... 12
Checking of indicator lamps ............................... 13
TECHNICAL DATA .................................................... 14
BASIC CONFIGURATION........................................... 15
Commands via DTMF tones............................... 15
Commands via SMS........................................... 16
Temperature probe querying.............................. 17
EXTENDED CONFIGURATION ................................... 18
Creation of a qualified users list......................... 18
Building Technologies
i
TEL50.GSM
en
English
1.
Introduction
Thank you for choosing this product. Please read this manual carefully to optimize use of the TEL50.GSM.
1.1 Copyright
Siemens S.p.A. All rights reserved.
The reproduction, modification or transcription of this document without prior written authorization is forbidden except as
allowed under the copyright laws.
Copyright© 2005
1.2 Trademarks
TEL50.GSM is a Siemens S.p.A. registered trademark.
Building Technologies
-1-
TEL50.GSM
1.3 Declaration of conformity
Siemens S.p.A.
Building Technologies
Viale Piero ed Alberto Pirelli, 10 - 20126 Milano (MI) Italy
declares on its sole responsibility that the following product:
TEL50.GSM
complies with the regulations in force with reference to the R&TTE 99/5/EC directive
and, above all, with the following standards:
Health and Safety (Art. 3.1 a) EN 60950
EMC (Art. 3.1 b) EN 301 489-1/-7
RF spectrum efficiency (Art. 3.2) EN 301 511, EN 300 607-1
Building Technologies
-2-
TEL50.GSM
1.4 Warranty
This product is guaranteed against any material and manufacture defects. SIEMENS reserves the right, at its own discretion, to
repair or replace faulty products. The warranty is deemed null and void if the fault is caused by improper use or by an operating
procedure that is not included in this manual.
The warranty will not cover faults caused by:
• improper and careless use
• damage caused by atmospheric agents
• acts of vandalism
• material that is subject to wear and tear
1.5 Contents of sales pack
• User Manual (this manual)
• TEL50.GSM device
• 230VAC / 12VDC 1A power supply
• GSM stilo antenna
Building Technologies
-3-
TEL50.GSM
2.
Instructions
In order to use the product safely and efficiently, please read the following instructions carefully before use.
The product may only be employed for the use for which it has been conceived and manufactured. Any other
use shall be considered the user’s sole responsibility.
2.1 Safety instructions
Installation, programming and commissioning should only be carried out by qualified operators; these operators must be
physically and mentally capable of performing the task. Commissioning may only occur after the product has been correctly
installed. For this reason, users must carefully perform all the operations described in the manual supplied.
SIEMENS will disclaim all responsibility for any failure, breakage, accident, etc. due to the lack of knowledge of or failure to
observe given instructions. The same shall apply to any unauthorized changes.
SIEMENS reserves the right to change the product for constructive or commercial reasons without being obliged to update
reference manuals promptly.
The TEL50.GSM uses the GSM standard for mobile telephony. As a result; it cannot be used in areas that are outside the
system coverage area.
Since the GSM system is a radiofrequency (RF) technology, it may interfere with other telephones or create problems with
electronic devices that are not adequately protected from RF energy.
Building Technologies
-4-
TEL50.GSM
Precautions:
Do not install and use the product in close
proximity to electromedical equipment without
checking that this is permitted.
During operating, the product may cause
interference to transceiver equipment such as
televisions, radios, PCs. Move the product so
that there is no more interference.
Hearing aids or pacemakers or other personal
medical devices may be subjected to interference
when the device is in operation. Consult your
doctor for further information.
Dispose of the product and accessories at the
end of their service life in accordance with
regulations.
The device must not be tampered with. Only
replacement of the SIM card is permitted. Any other
modification will render the warranty void. Contact
the authorised service centres if necessary.
The device must not be used in the proximity of filling stations or where there is a risk of explosion. It must not be used in
places where chemical agents are in use and special attention must be paid to the safety regulations for environments that are
saturated (or potentially saturated) with volatile gases or exhalations.
The product is fully compliant with the safety standards with regard to exposure to radiofrequency energy.
Building Technologies
-5-
TEL50.GSM
2.2 Operating instructions
1.
The SIM Card must always be inserted and removed when there is no power supply. If not, the SIM Card read
interface inside the GSM module could be damaged.
2.
Always disable the PIN code of the SIM card. If not, the TEL50.GSM cannot be enabled. Do this using a normal
mobile phone. SIM card (non included) could be for voice traffic only. However we recommend using SIM cards that are
also enabled for data traffic.
3.
Check that the area of use has adequate GSM coverage for the selected operator. Check that the GSM signal is
present using the special LED on the device (see par. 4.6) or a normal mobile phone. Place the device in an area
where there is good signal reception (eg. near a window or door). If there is no signal or the signal is weak, you can
install an external antenna in a more favourable place using the optional lead.
4.
Do not power the TEL50.GSM without first connecting the stilo antenna supplied: otherwise, the power section
of the radio transmitter in the GSM unit could be seriously damaged.
5.
There is no guarantee of SMS message forwarding times from and to the device (commands, querying or alarm
reception). SMS management is the exclusive responsibility of the mobile telephone network companies.
Building Technologies
-6-
TEL50.GSM
3.
General information
The TEL50.GSM phone remote control has been designed for remote operation of electrical or electro-hydraulic equipment
such as room thermostats, boilers, burners, heaters, zone valves, circulation pumps, irrigation systems, etc. It is particularly
suitable for holiday home installations where there is no fixed telephone network.
The remote control can only be used through the GSM mobile network. Commands can be sent via the fixed telephone network
(DTMF tones) or GSM mobile network (DTMF tones and SMS messages with preset syntax). The TEL50.GSM also allows
connection of an LG-Ni1000 temperature sensor (optional) and forwarding via SMS, subject to special querying, of the
temperature value measured at that time.
The device can handle both a temperature threshold exceeded alarm (adjustable) and a general alarm to be connected to the
respective input on the terminal box. In both cases, activation of the alarm generates a specific SMS that is sent to a
predefined user list.
The 2 control outputs can be enabled completely
SMS
separately. You can enable and/or disable the outputs
DTMF
locally using the button on the device according to the
following binary sequence.
Cycle
OUT1
OUT2
1
OFF
OFF
2
ON
OFF
3
OFF
ON
4
ON
ON
The device is suitable for use with the Chronogyr
programmable thermostats REV16 – REV23 – REV33 –
REV100 – REV200
Building Technologies
DTMF
-7-
TEL50.GSM
4.
Installation
Comply with the permitted temperature and humidity conditions (see Technical Data).
4.1 Wall-mounting
Mount the device on the wall or 3-module flush-mounted box (503 type) using the special holes in
the rear part of the container. During installation, be careful not to damage the internal
components.
4.2 Electrical connections
To make the electrical connections, remove the plastic cover of the TEL50.GSM:
when you have finished, remember to put the cover back into position. Make the
electrical connections as shown in the enclosed diagrams.
The device must be powered with direct current with nominal stabilized voltage
between 10 and 30 V by a source that can supply at least a 1A current. Only use
the included standard mains supply (230Vac 50Hz) and connect it to the
respective terminals in the device using the correct polarity.
The power supply input is protected against polarity reversal.
Building Technologies
-8-
TEL50.GSM
Connecting terminals.
+ -
+ - Power supply input.
Only use the supplied power supply. Use of incompatible power supplies may cause irreversible
damage to the device. Check the correct polarity.
OUT2
OUT1
1
1
2
IN 1
1
2
OUT1 - Relay output 1
Potential-free relay contact for control of special devices (boiler, zone valve, heater, etc.).
Observe the max current rating of the electrical contacts indicated in the technical data.
OUT2 - Relay output 2
Potential-free relay contact for control of other devices (lights, irrigation, etc.).
Observe the max current rating of the electrical contacts indicated in the technical data.
2
TEMP
1
2
3
4
5
TEMP - Analog input for connection of an LG-Ni1000 temperature sensor
Terminals 1 e 4: not used.
Terminals 2 and 3: connect LG-Ni1000 sensor.
Terminal 5: connect shielding of sensor cable (earth)
IN1 - general alarm input with potential-free contact
contact closed = alarm present (factory setting)
Building Technologies
-9-
TEL50.GSM
230 V AC
Power supply input:
12VDC - 1A
L
Button for local
activation of relay
outputs
B1
+
-
-
1
N
2
3
4
5
TEMP
TEL50.GSM
IN 1
OUT 2
1
2
1
2
REV....
OUT 1
1
2
CI
T1 T2
-
+
Alim.
L
+
L
SIM card holder
L1 N1
M
M1
S1
L1
N
E1
V1
OUT2
OUT1
1
1
2
2
IN 1
1
2
TEMP
1
2
3
4
5
Legend
Alim = Stabilized power supply 230/12VDC 1A
CI = TEL50.GSM telephone remote control
Relay
output
2
N1= REV.. Room thermostat or other electric equipment
B1 = LG-Ni1000 temperature sensor
Relay
output
1
Alarm
input
S1= Potential free generic alarm contact
L1 = Electrical device to be activated
E1 = Boiler
M1 = Circulation pump
Ni1000
V1 = Zone valve
Building Technologies
- 10 -
TEL50.GSM
4.3 Connection of stilo antenna
The TEL50.GSM is supplied with its own dual band stilo antenna with the following characteristics:
PARAMETER
CHARACTERISTICS
Profile
900MHz band
1,800MHz band
Impedance
WSVR
Type
Radiation diagram on horizontal plane
Radiation diagram on vertical plane
Connector
Dual-Band GSM
890-960MHz
1710-1,880MHz
50 ohm
<= 1:1,5
Omnidirectional
Circular @ ± 0.5dB
± 35° @ 3dB
SMA (male)
4.4 Connection of external antenna (optional)
In the top part of the TEL50.GSM, there is an RF female SMA connector that is normally connected to the specially supplied
stilo antenna. Ensure that the antenna connector is securely fastened.
In some operating conditions, the stilo antenna does not permit optimum reception of the RF signal and, for this reason, the
TEL50.GSM can also be used with a high gain directive or omnidirectional external antenna (optional). If this is necessary,
remove the stilo antenna connector and connect the external antenna one.
Building Technologies
- 11 -
TEL50.GSM
Recommendations for use of fixed or external antenna
You are advised to observe the following recommendations:
•
The antenna must be placed at least 2m from any electronic equipment, at least 15cm from any obstacles and in a
position where there is good reception.
•
If malfunctioning or interference to the local electrical equipment occurs during use of the TEL50.GSM, reposition the
device / antenna.
•
Do not use the stilo antenna if the TEL50.GSM is used in enclosed or particularly shielding environments.
•
Use external antennas with characteristics that operate in the GSM Dual Band frequency band (890-960 MHz and 17101880 MHz) with nominal impedance of 50 ohm.
•
Do not hold the antenna when the device is in use. This affects the quality of the connection and requires an increase in
transmission power in the TEL50.GSM.
•
Do not use the TEL50.GSM if the antenna is damaged. Use of antennas prescribed by SIEMENS SpA. is recommended.
4.5 Insertion of SIM card
The SIM-reader is located in the top of the device and can only be accessed by first removing the plastic cover. When correctly
inserted, the SIM card should be positioned as shown in the figure below.
F
F
IMPORTANT: The SIM Card must always be inserted and removed
when there is no power supply. Only reconnect the power supply when
you have finished.
The TEL50.GSM only works with latest generation 3 volt SIM cards. If
you possess an old SIM card, contact your provider who will replace it
with a latest generation one. We recommend using SIM Cards that are
enabled for data traffic.
Building Technologies
- 12 -
TEL50.GSM
4.6 Checking of indicator lamps
The TEL50.GSM has 5 LED indicator lamps. Three of these can be seen on the front of the device and the other two are
located in the lower part and can be seen through the plastic grid.
LEDs
Button for local activation
of relay outputs
s
SET OUT1 - OUT2
Status LEDs for:
- Relay output 1
- Relay output 2
- Alarm input
OUT1
(red)
OUT2
(red)
IN1 alarm
(red)
power
supply
(green)
On
Off
contact
closed
contact
closed
contact
closed
contact
open
contact
open
contact
open
power supply
present
no power
supply
On
Flashing (3s)
Flashing (1s)
device
transmitting
field
present
field
absent
OUT1
OUT2
IN1
Presence LEDs for:
- GSM field
- Power supply
LEDs
Tel50.gsm
GSM field
(red)
When first switched on, the TEL50.GSM will require a few seconds to connect to the GSM network. During this initial stage, the
front LEDs may flash on and off and the GSM field LED flash quickly (one pulse every second). Connection to the GSM
network will be confirmed by the slow flashing of the red LED located in the bottom part of the device (one flash every 3
seconds approx.). Check that this occurs before going on to use the TEL50.GSM.
Building Technologies
- 13 -
TEL50.GSM
5.
Technical data
Power supply
Average consumption
Alarm input
Temperature sensor input
Length of temp. sensor connections
Control outputs (2)
Protection rating
Operating temperature
Operating humidity
Dimensions
10…30 VDC stabilized (230VAC +10 -15% 50-60Hz with supplied power supply)
In operation: 700mA @ 12VDC
On stand-by: 60mA @ 12VDC
- Power supply present
- GSM field present
- Status of alarm input
- Status of relay outputs (2)
Potential-free and normally open (factory setting) or normally closed (selectable)
LG-Ni1000
50 m max with 1.5 mm2 cable
Potential-free contact relay 250V AC 3A
IP42 when correctly installed
0…50°C
20…90% R.H. without condensation
139 mm x 98 mm x 40 mm
compliant
Health and Safety (Art. 3.1 a)
EMC (Art. 3.1 b)
RF spectrum efficiency (Art. 3.2)
EN60950:2000
EN 301489-7 v1.1.1 (09/2000)
(3-2000) EN 301419-1 v4.1.1 incl. EN 301511 v7.0.1 (12/2000)
LED indicator lamps
Building Technologies
- 14 -
TEL50.GSM
6.
Basic configuration
With the factory configuration, the TEL50.GSM can already handle the following voice (DTMF tones) and SMS commands.
In order to operate safely and correctly, the device must be correctly connected to the GSM network (see par. 4.6). Carefully
check that this is the case during installation and before leaving the device’s final location.
ABC
6.1 Commands via DTMF tones
Ensure that the calling telephone is enabled to send DTMF tones (multifrequency). Almost all phones
currently on sale (both for fixed network and mobiles) have this option. Make sure that the keypad has
been set correctly. To do this, carefully read the instructions or contact the telephone manufacturer.
The DTMF commands sent to the TEL50.GSM will consist of an ID number for the device receiving the
command (input or output), a command number (ON, OFF or status request) plus a control signal
(confirm or cancel).
Device ID
3
4
5
6
IN1
OUT1
OUT2
TEMP
Command
number
0
OFF
1
ON
2
STATUS
Control signal
TEL50.GSM reply
#
*
ON
OFF
ERROR
ENTER Confirmation of dialled command
CANCEL Cancellation of dialled command
DEF
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
a/A
+
0
*
Beep-beep
Beep
Beep-Beep-Beep-Beep
41#
Example: OUT1 output enabled:
OUT1
ENTER
è
Beep-Beep
ON
Building Technologies
- 15 -
TEL50.GSM
When the “#” tone is received, if the command is effected, the sequence of corresponding beeps (ON or OFF) is generated. If
the command is not recognized or is not applicable (for example, if an ON command is sent to an input “31#”), the ERROR tone
is generated. If the “? ” tone is received, the OFF tone is generated as confirmation of the command.
Call the telephone number for the TEL50.GSM and wait for the device to answer (a beep after the first ring).
Dial the command you require from those available (see table).
Command
Reply
Action
41#
51#
40#
50#
42#
52#
32#
62#
beep-beep
beep-beep
beep
beep
beep-beep (contact closed) – beep (contact open)
beep-beep (contact closed) – beep (contact open)
beep-beep (contact closed) – beep (contact open)
beep-beep (temp. alarm active) – beep (temp. alarm not active)
closes contact relay 1 (eg. boiler start-up)
closes contact relay 2 (eg. irrigation enabled)
opens contact relay 1 (eg. boiler shut-down)
closes contact relay 2 (eg. irrigation stopped)
queries the status of contact relay 1
queries the status of contact relay 2
queries the status of alarm input
queries the status of temperature alarm
6.2 Commands via SMS
Commands and queries via SMS must be sent to the TEL50.GSM with the following syntax:
- all letters must be uppercase
- no spaces at top or bottom of message. Observe spacing as indicated.
An unexpected command, for example IN1=1 (an input cannot be enabled), or with incorrect syntax (for example, use of
lowercase characters) produces a reply SMS with message “ERROR 03”. Make sure that the source number is in the USER list
(see par. 7.1) or, if it is not, that the incoming call control is not enabled (SECURITY=0 factory disabled).
Building Technologies
- 16 -
TEL50.GSM
SMS text
SMS reply
Action
OUT1=1
OUT1=1
closes contact relay 1
OUT1=0
OUT1=0
opens contact relay 1
OUT2=1
OUT2=1
closes contact relay 2
OUT2=0
OUT2=0
opens contact relay 2
OUT1
OUT1=0 or OUT1=1 (*)
queries the status of contact relay 1 – OUT1=0 contact open OUT1=1 contact closed
OUT2
OUT2=0 or OUT2=1 (*)
queries the status of contact relay 2 – OUT2=0 contact open OUT2=1 contact closed
IN1
IN1=0 or IN1=1 (*)
queries the status of alarm input - IN1=0 contact open IN1=1 contact closed
(*) Note: with factory settings enabled. See “digital I/O states” chapter.
6.3 Temperature sensor querying
Querying of the temperature sensor is only possible via SMS and querying is not possible via voice commands (DTMF tones).
The temperature reading is available with 1 °C resolution. If no sensor is connected to the TEMP terminals, querying of the
temperature will produce a reply SMS with the message “TEMP NOT VALID”.
Querying of the temperature sensor during an active alarm condition produces a reply SMS with the message “TEMP xx C
ALARM”
SMS text
SMS reply
Action
Example of reply
TEMP
TEMP
TEMP
TEMP xx C
TEMP xx C ALARM
TEMP NOT VALID
reading temp. sensor Ni1000
reading temp. sensor Ni1000 with alarm threshold exceeded
sensor Ni-1000 not connected or interrupted
TEMP 22 C
TEMP 02 C ALARM
Building Technologies
- 17 -
TEL50.GSM
7.
Extended configuration
Using the basic configuration already present, the user can customize device parametrization by changing some of the system
parameters via SMS. Carefully note any changes made and keep them with these instructions in order to ensure that the
device is correctly controlled even after a long period of time or by other qualified users.
7.1 Creation of a qualified user list
All the telephone numbers of users (both fixed and mobile), up to a maximum of 20, that have access to the different features of
the device are entered in this section. The numbers entered must have a minimum length of 6 numbers to be considered valid.
If the security parameter is enabled (SECURITY=1) the calls coming from numbers not included in the list will not be accepted.
If there are no configured users or the security parameter is disabled (SECURITY=0), the caller’s number will not be checked.
The telephone number and type of user (see below: configuration valid only for commands sent by SMS) must be entered for
each user. All the users in the list will receive notification of temperature alarms (if a remote temperature sensor is present) and
alarms generated by closure of input IN1.
Users can be entered with three different profiles:
Administrator (extension .1)
This type of user has full control of the device and can therefore insert and remove functional parameters, control and check
states of inputs and outputs and receive notification of alarms and temperature readings.
User (extension .2)
This type of user has partial control of the device and can therefore only control and check states of inputs and outputs, receive
notification of alarms and receive temperature readings. He/she cannot change or query functional parameters.
Notify (extension .3)
This type of user has no control of the device and can therefore only receive notification of alarms.
Building Technologies
- 18 -
TEL50.GSM
[USER]
SMS command
SMS reply
Action
USER USER01=3351234567.1
USER01=3351234567.1
User USER01 set as Administrator
USER USER02=3471234567.2
USER02=3471234567.2
User USER02 set as User
USER USER03=3291234567.3
USER03=3291234567.3
User USER03 set as Notify
USER USER20=3201234567
USER20=3201234567
User 20 set as Notify
USER USER01
USER01=3351234567.1
queries USER01 position
USER USER05
USER05 deleted
queries USER05 position (no number present)
USER USER01=
USER01 deleted
cancels USER01 position
The USER numbers entered without extension assume the Notify User (extension.3) default value. There is no limit to the
number of users for each profile. In this section there is a SECURITY parameters that enables control of the incoming call
numbers. When this parameter is enabled (SECURITY=1), only the users in the USER list can interact with the device
according to their profile (administrator, user, notify). A voice call or an SMS message from a number that is not on the USER
list will not receive a reply. The SMS number must be exactly the same as the configured SMS or it will not be recognized.
When the list is empty, in case of activation SECURITY=1, the number used to send this SMS will automatically be inserted as
administrator even in case it has been inserted as user or notify.
[USER]
SMS command
SMS reply
Action
USER SECURITY=0
USER SECURITY=1
USER SECURITY
Building Technologies
SECURITY=0
SECURITY=1
SECURITY=0 or SECURITY=1
Incoming calls filter disabled
Incoming calls filter enabled
queries status of SECURITY variable
- 19 -
TEL50.GSM
7.2 Modification of Input-Output identification string
In this section the User can modify the identification string (ALIAS) for the device inputs/outputs.
If no changes are made, the factory settings are maintained.
The defined alias will have a maximum length of 10 alphanumeric characters ( 0÷9, A÷Z ). Observe the syntax indicated below.
Note that the characters “space (blank), +, -, _, etc”, are not included and, consequently, are not recognized by the device.
Inputs - Outputs
Factory setting
Any modification
Example
Incorrect example
Alarm input
Relay output 1
Relay output 2
Temp. sensor input
IN1
OUT1
OUT2
TEMP
max 10 characters ( 0÷9, A÷Z).
max 10 characters ( 0÷9, A÷Z).
max 10 characters ( 0÷9, A÷Z).
max 10 characters ( 0÷9, A÷Z).
ALARM
BOILER
LIGHTS
TEMPEXT
ALARM 1
PUMP+1
HOME LIGHTS
TEMPERATURE
Some examples of correct syntax for modifying the identification strings are shown below.
[ALIAS]
SMS command
ALIAS IN1=ALARM
ALIAS OUT1=BOILER
ALIAS OUT2= LIGHTS
ALIAS ANALOG=TEMPEXT
(*) factory preset ANALOG=TEMP
Building Technologies
SMS reply
Action
IN1=ALARM
OUT1= BOILER
OUT2= LIGHTS
ANALOG=TEMPEXT (*)
identification input 1 with “ALARM”
identification relay output 1 with “BOILER”
identification relay output 2 with “LIGHTS ”
identification analogue input with “TEMPEXT”
- 20 -
TEL50.GSM
[ALIAS]
SMS command
ALIAS IN1
ALIAS OUT1
ALIAS IN1=
ALIAS OUT1=
SMS reply
Action
IN1=ALARM
OUT1= BOILER
IN1 deleted
OUT1 deleted
querying of IN1 input identification string
querying of OUT1 output identification string
cancels IN1 input identification string (resets IN1 string)
cancels OUT1 output identification string (resets OUT1 string)
Caution. After modifications are made, the SMS commands for enabling/querying the inputs/outputs must include the newly set
strings:
SMS command
SMS reply
Action
BOILER =1
BOILER =0
LIGHTS =1
LIGHTS =0
BOILER
BOILER =1
BOILER =0
LIGHTS =1
LIGHTS =0
BOILER =0
BOILER =1
LIGHTS =0
LIGHTS =1
ALARM=0
ALARM=1
closes contact relay 1
opens contact relay 1
closes contact relay 2
opens contact relay 2
queries the status of contact relay 1
LIGHTS
ALARM
Building Technologies
queries the status of contact relay 2
queries the status of alarm input
- 21 -
OUT1=0 contact open
OUT1=1 contact closed
OUT2=0 contact open
OUT2=1 contact closed
IN1=0 contact open
IN1=1 contact closed
TEL50.GSM
7.3 Alarm notification enabling
The TEL50.GSM can handle the following alarms:
- Contact IN1 closed alarm
- Temperature threshold exceeded alarm
7.3.1
IN1 closed alarm
This alarm may come from any device whose status needs to be monitored (eg. home alarm system, boiler burner block, etc.).
A potential-free contact must be used. When the contact is closed, an SMS is sent to all the users on the USER list. The text of
the message will contain “ALARM IN1” or ALARM followed by a new identification string for the IN1 input if it has been
changed.
7.3.2
Temperature alarm
This alarm can only be generated if the temperature sensor LG-Ni1000 is correctly connected to the respective input. The
alarm and reset values must be set according to a hysteresis cycle. The values themselves will define the alarm activation
logic. If the ALARM value is greater than the RESET value, the alarm will be triggered if the current value is higher than the
alarm value. Consequently, the alarm will stop if the current value is lower than the reset value. If the ALARM value is lower
than the RESET value, operating will be reversed. The factory settings are ALARM=5°C and RESET=6°C (frost protection).
The user can modify the alarm and reset thresholds as shown in the examples below.
When an alarm is triggered, an SMS is sent to all the users on the USER list. The text of the message will contain ALARM
TEMP or ALARM followed by a new identification string for the ANALOG/TEMP analogue input if it has been changed.
Building Technologies
- 22 -
TEL50.GSM
Example:
SMS command
allarme
SMS reply
Action
ALARM=5
RESET=6
alarm threshold set to 5°C
reset threshold set to 6°C
ON
TEMP ALARM=5
TEMP RESET=6
impostazione
di fabbrica
OFF
5
6
temp.
19 20
temp.
allarme
SMS command
SMS reply
Action
TEMP ALARM=20
TEMP RESET=19
ALARM=20
RESET=19
alarm threshold set to 20°C
reset threshold set to 19°C
ON
OFF
Alarm notification is automatically enabled when the ALARM and RESET thresholds are set. The identification string of the
analogue input can be modified if necessary:
SMS command
SMS reply
Action
ALIAS ANALOG=TEMPEXT
ANALOG=TEMPEXT
identification TEMP input with “TEMPEXT”.
Note : if there is no identification, the “ANALOG” factory identification is used.
Building Technologies
- 23 -
TEL50.GSM
7.4 Digital I/O status
In this section, the idle and/or operating condition of the digital input IN1 and relay outputs OUT1 and OUT2 can be redefined.
The factory setting has the following conditions:
- The alarm input IN1 is active high, ie. the alarm is sent with the input IN1 closed
- The control outputs OUT1 and OUT2 are normally open
For input IN1, the alarm status (active low or high) for sending notification to all the users is defined whereas for the outputs,
the idle state is defined (normally open or closed).
These settings can be modified as shown in the table below
SMS reply
Action
SMS command
DIGITAL IN1-ALARM=0
DIGITAL IN1-ALARM=1
DIGITAL OUT1-CONTACT=0
DIGITAL OUT1-CONTACT=1
DIGITAL OUT2-CONTACT=0
DIGITAL OUT2-CONTACT=1
Building Technologies
IN1-ALARM=0
IN1-ALARM=1
OUT1-CONTACT=0
OUT1-CONTACT=1
OUT2-CONTACT=0
OUT2-CONTACT=1
input IN1 active open
active input IN1 closed (factory setting)
control output 1 normally open (factory setting)
control output 1 normally closed
control output 2 normally open (factory setting)
control output 2 normally closed
- 24 -
TEL50.GSM
8.
Environmental compatibility and disposal
This product has been developed and constructed using materials and processes that take account of
environmental issues.
Refer to the following notes for disposal of the product at the end of its service life or if it
needs to be replaced:
•
•
•
•
For disposal purposes, this product is classified as an electrical and electronic device: do not dispose of it as
household waste especially as far as the printed circuit is concerned.
Comply with all local laws that are in force.
Reuse raw materials as much as possible in order to minimize environmental impact.
Use local tips and waste recycling companies or contact suppliers or manufacturers to return used products or obtain
additional information on environmental compatibility and waste disposal.
The TEL50.GSM packaging is reusable.
Keep it for future use or if the product needs to be returned to the supplier.
Building Technologies
- 25 -
TEL50.GSM
Building Technologies
- 26 -
TEL50.GSM
Siemens SpA
Building Technologies
Viale Piero ed Alberto Pirelli, 10
I - 20126 Milano - I
Tel 02 243 1
Fax 02 243 65 750
www.siemens.it/sbt
Building Technologies
- 27 -
TEL50.GSM
