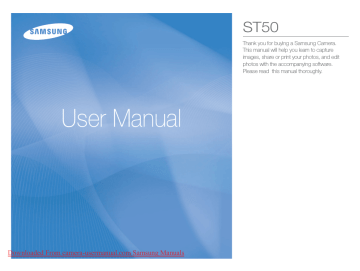

Samsung ST50 User manual

ST50
Thank you for buying a Samsung Camera.
This manual will help you learn to capture
images, share or print your photos, and edit
photos with the accompanying software.
Please read this manual thoroughly.
User Manual
Downloaded From camera-usermanual.com Samsung Manuals
Instructions
Getting to Know your camera
Use this camera in the following order.
Setting up the application
software
Take a picture
Insert the USB cable
To use this camera with a PC,
install the application software
first. After this has been done, the
stored images in the camera can be
moved to the PC and can be edited
by an image editing program. (p.92)
Take a picture. (p.19)
Insert the supplied USB cable
into the PC’s USB port and the
camera’s USB connection
terminal. (p.94)
Check the camera's power
Check the camera’s power. If the
power is turned off, preset the
camera button to turn it on.
Check [Removable Disk]
Open Windows’s EXPLORER
and search for [Removable Disk].
(p.95)
Downloaded From camera-usermanual.com Samsung Manuals
Thank you for buying a Samsung Digital Camera.
Prior to using this camera, please read the user manual
thoroughly.
If you require After Sales service, please bring the camera and
the cause of the camera malfunction (such as battery, Memory
card etc.) to the A/S centre.
Please check that the camera is operating properly prior to when
you intend to use it (e.g. for a trip or an important event) to avoid
disappointment. Samsung takes no responsibility for any loss or
damage that may result from camera malfunction.
Keep this manual in a safe place.
If you use a card reader to copy the images on the memory card to
your PC, the images could be damaged. When transferring the
images taken with the camera to your PC, be sure to use the
supplied USB cable to connect the camera to your PC. Please note
that the manufacturer holds no responsibility for loss or damage of
images on the memory card due to the use of a card reader.
The contents and illustrations of this manual are subject to
change without prior notice for upgrading the camera functions.
Ä Microsoft, Windows and Windows logo are registered trademarks
of Microsoft Corporation incorporated in the United States and/or
other countries.
Ä Adobe and Reader are either trademarks or registered
trademarks in the United States and/or other countries.
Ä All brand and product names appearing in this manual are
registered trademarks of their respective companies.
1
Danger
Warning
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Do not attempt to modify this camera in any way. To do so may
result in fire, injury, electric shock or severe damage to you or
your camera. internal inspection, maintenance and repairs should
only be carried out by your dealer or Samsung Camera Service
centre.
Please do not use this product in close proximity to flammable or
explosive gases, as this could increase the risk of explosion.
Should any form of liquid or a foreign object enter the camera,
do not use it. Switch off the camera, and then disconnect the
power source. You must contact your dealer or Samsung Camera
Service centre. Do not continue to use the camera as this may
cause a fire or electric shock.
Do not insert or drop metallic or inflammable foreign objects into
the camera through access points e.g. the memory card slot and
battery chamber. This may cause a fire or electric shock.
Do not operate this camera with wet hands. This could pose a
risk of electric shock.
Do not use the flash in close proximity to people or animals.
Positioning the flash too close to your subject’s eyes may cause
eyesight damage.
For safety reasons keep this product and accessories out of
reach of children or animals to prevent accidents e.g.:
- Swallowing battery or small camera accessories. If an accident
should occur, please consult a doctor immediately.
- There is the possibility of injury from the camera’s moving parts.
Battery and camera may become hot during prolonged use and it
may result in camera malfunction. Should this be the case, allow
the camera to sit idle for a few minutes to allow it time to cool.
Do not leave this camera in places subject to extremely high
temperatures, such as a sealed vehicle, direct sunlight or other
places of extremes in temperature. Exposure to extreme
temperatures may adversely affect the camera’s internal
components and could cause a fire.
When in use, do not cover the camera or Charger. This may cause
heat to build up and distort the camera body or cause a fire. Always
use the camera and its accessories in a well-ventilated area.
Downloaded From camera-usermanual.com Samsung Manuals
2
Caution
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in a minor or moderate injury.
Leaking, overheating, or damaged battery could result in fire or injury.
- Use battery with the correct specification for the camera.
- Do not short circuit, heat or dispose of battery in fire.
- Do not insert the battery with the polarities reversed.
Remove the battery when not planning to use the camera for a
long period of time. Otherwise the battery may leak corrosive
electrolyte and permanently damage the camera’s components.
Do not fire the flash while it is in contact with hands or objects. Do
not touch the flash after using it continuously. It may cause burns.
Do not move the camera while it is switched on, if you are using
the AC adapter. After use, always switch off the camera before
unplugging the cable from the wall socket. Then make sure that
any connector cords or cables to other devices are disconnected
before moving the camera. Failure to do so may damage the
cords or cables and cause a fire or electric shock.
Take care not to touch the lens or lens cover to avoid taking an
unclear image and possibly causing camera malfunction.
Avoid obstructing the lens or the flash when you capture an image.
When using this camera in low temperatures, you may experience
the following. These are not camera malfunctions and usually
recover at normal temperature.
- It takes longer to turn on the LCD monitor and the colour may
differ from the subject.
- When changing the composition, there may be an after image on
the LCD monitor.
Credit cards may be demagnetized if left near case. Avoid leaving
magnetic strip cards near the case.
Never connect the 20 pin connector to the USB port of a PC. This
Downloaded
From
camera-usermanual.com
Samsung Manuals
carries a high
risk of
computer malfunction.
Contents
READY 007 System chart
007
007
008
008
009
010
010
011
011
011
012
014
015
Package Contents
Sold Separately
Identification of features
Front & Top
Back
Bottom
5 Function button
Self-timer lamp
Camera Status Lamp
Mode icon
Connecting to a Power Source
Inserting the memory card
Instructions on how to use the memory card
RECORDING 017 LCD monitor indicator
018
019
019
019
020
020
021
021
How to use the menu
Starting the recording mode
Selecting modes
How to use the Program mode
How to use the Movie clip mode
Recording the movie clip without sound
Pausing while recording a movie clip
(Successive Recording)
Things to Watch Out for When Taking
Pictures
3
Contents
022
022
023
023
023
024
025
026
027
027
029
031
031
031
032
032
033
034
034
036
037
037
038
038
Using the camera buttons to set the camera
POWER button
SHUTTER button
Smart button
Mode switch
Zoom W/T Lever
Info (DISP) / Up button
Macro / Down button
Focus lock
Flash / Left button
Self-timer / Right button
MENU button
OK button
Functions
How to Enable Functions Using the
MENU Button
Exposure compensation
White balance
ISO
Face Detection
Image Size
Quality / Frame rate
ACB
Metering
Drive mode
Downloaded From camera-usermanual.com Samsung Manuals
4
039
039
040
041
042
042
043
043
044
Frame Guide
Auto Focus type
Photo Style Selector
Image Adjust
DIS
Movie Clip frame stabiliser
Voice Memo
Voice Recording
Recording the movie clip without voice
SETUP 045 Sound menu
045
045
045
045
045
046
046
046
046
046
046
047
047
047
Sound
Volume
Start up sound
Shutter sound
Beep Sound
AF sound
Self Portrait
Setup menu
Display
Language
Function Description
Start up image
Display Bright
Quick view
Contents
047
048
048
048
049
049
049
050
050
051
051
052
Display SAVE
Settings
Formatting a memory
Initialisation
Setting up the Date / Time / Date type
Time Zone
File name
Imprinting the recording date
Auto power off
Auto Focus lamp
Selecting Video out type
Setting the USB
PLAY 053 Starting play mode
053
053
054
054
055
055
056
056
056
056
059
Playing back a still image
Playing back a movie clip
Movie clip capture function
Playing back a recorded voice
Playing back a voice memo
LCD monitor Indicator
Using the camera buttons to set the camera
Play mode button
Thumbnail / Enlargement Lever
Smart Album
Info (DISP) / Up button
Downloaded From camera-usermanual.com Samsung Manuals
059
060
060
061
063
063
064
064
065
067
067
067
068
068
069
069
069
069
070
070
071
073
Play & Pause / OK button
Left / Right / Down / MENU button
Delete button
Setting up the play back function using
the LCD monitor
Edit
Resize
Rotating an image
Photo Style Selector
Image Adjust
View
Starting the Multi Slide Show
Start the Multi Slide Show
Selecting Images
Configure Multi Slide Show effects
Setting play interval
Setting Background Music
File Options
Deleting images
Protecting images
Voice memo
DPOF
Copy To Card
5
Contents
SMART MODE 074 Smart mode
074
075
075
076
077
Smart mode display
Starting Smart mode
Selecting modes
How to use Smart Auto mode
How to use Smart Movie Clip mode
SMART 077 Setting up the Smart menu
SETUP MODE
SMART 079 Smart Play mode display
PLAY MODE 079 Setting up the Smart Play menu
PICTBRIDGE 080 PictBridge
081
081
082
PictBridge : Picture Selection
PictBridge : Print Setting
PictBridge : Reset
APPENDIX 082 Important notes
084
085
087
Warning indicator
Before contacting a service centre
Specifications
SOFTWARE 090 Software Notes
090
091
System Requirements
About the software
Downloaded From camera-usermanual.com Samsung Manuals
6
092
094
097
098
101
101
102
Setting up the application software
Starting PC mode
Removing the removable disk
Samsung Master
Setting up the USB Driver for MAC
Using the USB Driver for MAC
FAQ
System chart
Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the
optional equipment, contact your nearest Samsung dealer or Samsung service centre. Parts and accessories illustrated below may differ
from exact appearance.
Package Contents
Camera
Rechargeable battery
AC adapter / USB cable
Camera case
AV cable
Camera strap
Software CD
(see p.91)
User manual,
Product warranty
Sold Separately
SD/SDHC memory card / MMC
(see p.16)
Downloaded From camera-usermanual.com Samsung Manuals
7
Identification of features
Front & Top
Zoom T Lever (Digital zoom)
Zoom W Lever (Thumbnail)
Power button
Shutter button
Speaker
Smart button
Flash
Self-timer lamp /
AF Lamp
USB / AV / DC terminal
Lens/ Lens cover
Microphone
Downloaded From camera-usermanual.com Samsung Manuals
8
Identification of features
Back
Camera status lamp
Mode switch
LCD monitor
Strap eyelet
5 function button
Delete button
MENU button
Play mode button
Downloaded From camera-usermanual.com Samsung Manuals
9
Identification of features
Bottom
5 Function button
Battery chamber
Information / Up button
OK / Play & Pause
button
Self-timer /
Right button
Flash /
Left button
Battery
holder
Battery chamber cover
Memory card slot
Tripod socket
Ä To open the battery chamber cover, slide it in the direction shown
above.
Downloaded From camera-usermanual.com Samsung Manuals
10
Macro / Down button
Identification of features
Self-timer lamp
Icon
Mode icon
Status
Description
- For the first 8 seconds, the lamp blinks at 1 second
intervals.
Blinking
- For the final 2 seconds, the lamp blinks quickly at
0.25-second intervals.
Refer to page 19/75 for more information about the camera mode
setting.
MODE
Blinking
For the 2 seconds, the lamp blinks quickly at
0.25-second intervals.
Blinking
A picture will be taken after about 10 seconds and 2
seconds later a second picture will be taken.
SMART
MODE
Blinking
After pressing the Shutter button, the image is taken
in accordance with the subject’s movement.
ICON
Program
Movie
Smart Auto
Smart Movie
ICON
Camera Status Lamp
Status
Description
The lamp turns on and off when the camera
is ready to take a picture
The lamp blinks while saving the image data and
turns off when the camera is ready to take a picture
Power on
After taking a picture
When flash battery is charging The lamp blinks
When the USB cable is
inserted to a PC
The lamp lights up
(LCD monitor turns off after initializing the device)
Transmitting Data with a PC The lamp blinks (LCD monitor turns off)
When the USB cable is
inserted into a printer
The lamp blinks
When the printer is printing The lamp blinks
The lamp turns on
(The camera focus on the subject)
The lamp blinks
camera-usermanual.com
Samsung Manuals
(The camera doesn’t focus on the subject)
When the AF activates
Downloaded From
11
Connecting to a Power Source
You should use the rechargeable battery SLB-07A supplied with the
camera. Be sure to charge the battery before using the camera.
SLB-07A rechargeable battery Specification
Model
SLB-07A
Type
Lithium lon
Capacity
720mAh
Voltage
3.7V
Charging time
Approximately 120 Minutes
Number of images and battery life: Using the SLB-07A
Battery life /
Number of images
Conditions
Using the fully charged battery, Auto
mode, 12M image size, Fine image
quality, Shot to shot interval: 30Sec.
Approx. 100 MIN / Changing the zoom position between
Still image
Approx. 200 shots the Wide and the Tele after every shot.
Using the flash on every second shot.
Using the camera for 5 minutes and
then powering it off for 1 minute.
Movie
Approx. 80 MIN
Using the fully charged battery
800x592 image size
20fps frame rate
Ä These figures are measured under Samsung’s standard conditions
and shooting conditions and may vary depending on the user’s
methods.
Downloaded From camera-usermanual.com Samsung Manuals
12
Important information about battery usage.
When camera is not in use, turn off the power.
Please remove the battery if the camera will not be used
for long periods. Batteries can lose power over time and are
prone to leaking if kept inside the camera.
Low temperatures (below 0°C) can affect the performance
of the battery and you may experience reduced battery life.
Batteries will usually recover at normal temperatures.
During extended use of the camera, the camera body may
become warm. This is perfectly normal.
If you connect the AC adapter to the USB cable, you can use it
as an AC cable and recharge the spare battery with it.
- Using an AC cable
: Connect the AC adapter to the
USB cable. It can be used as a
power cable.
- Using a USB cable
: Remove the AC adapter.You can
download stored images to your
PC (p.94) or supply the power
to your camera through the USB
cable.
Connecting to a Power Source
Important information about USB cable usage.
Use a USB cable with the correct specification.
If the camera is connected to the PC through a USB hub :
connect the camera directly to the PC.
If the camera and other devices are connected to the PC at
the same time : remove other device.
Camera can not be detected using the front side USB port
of computer. In this case, use the back side USB port of
computer.
If the USB port of the PC doesn’t meet the Power output
standard (5V, 500mA), the camera may not be charged.
How to charge the rechargeable battery
Before inserting any cables or AC adapter, check the directions and
do not insert by force. It may cause breakage of cable or camera.
If the charging LED of the AC Charger does not turn on or blink
after inserting the rechargeable battery, please check whether the
battery is inserted correctly.
If you charge the battery with the camera power on, the battery won’t
be fully charged. Turn the camera off while charging the battery.
Charging LED of the AC Adapter
Charging LED
Being Charged
Red LED is on
Charging is complete
Green LED is on
Charging error
Orange colored LED is off or blinking
If you insert the fully discharged battery to charge it, do not turn on
the camera at the same time. The camera may not be turned on
because of the low battery capacity. Charge the battery for more
than 10 minutes before using the camera.
Do not use the flash frequently or take a movie clip with the fully
discharged battery charged for a short time. Even if the charger
is inserted, the camera power may be turned off because the
rechargeable battery is discharged again.
Downloaded From camera-usermanual.com Samsung Manuals
13
Connecting to a Power Source
Inserting the memory card
Insert the battery as shown
Insert the memory card as shown.
- If the camera does not turn on
after you have inserted battery,
please check whether the
battery (+ / -).
- When the battery chamber
cover is opened, do not force
the battery chamber cover,
this may damage it.
There are 4 indicators for battery condition that are displayed on
the LCD monitor.
Battery
indicator
Battery
status
The battery is
fully charged
Low battery
Low battery
Battery empty.
capacity
capacity
(Recharge
(Prepare to
(Prepare to
or use spare
recharge or use recharge or use
battery)
spare battery) spare battery)
Ä When using the camera and the battery in a place that is excessively cold or hot,
the battery status on the LCD may be different from the actual battery status.
Downloaded From camera-usermanual.com Samsung Manuals
14
- Turn off the camera’s power
before inserting the memory card.
- Have the front of the memory
card facing toward the back of
the camera (LCD monitor) and
the card pins toward the front of
the camera (Lens).
- Do not insert the memory card
the wrong way round. Doing so
may damage the memory card
slot.
Instructions on how to use the memory card
Be sure to format the memory card (see p.48) if you are using
a newly purchased memory card for the first time, if it contains
data that the camera cannot recognise, or if it contains images
captured with a different camera.
Turn off the camera power whenever the memory card is being
inserted or removed.
Repeated use of the memory card will eventually reduce the
memory card’s performance. Should this be the case, you will
need to purchase a new memory card. Wear and tear on the
memory card is not covered by the Samsung warranty.
The memory card is an electronic precision device.
Do not bend, drop or subject the memory card to any heavy
impact.
Do not store the memory card in an environment with strong
electronic or magnetic fields, e.g. near loud speakers or TV
receivers.
Please do not use or store in an environment where there are
extremes in temperature.
Do not allow the memory card to become dirty or to come into
contact with any liquid. Should this happen, clean the memory
card with a soft cloth.
Please keep the memory card in its case when not in use.
During and after periods of extended use, you may notice that the
memory card is warm. This is perfectly normal.
Do not use a memory card that is used in another digital camera.
To use the memory card in this camera, format the memory card
using this camera.
Do not use a memory card formatted by another digital camera or
memory card reader.
Downloaded From camera-usermanual.com Samsung Manuals
If the memory card is subjected to any of the following, the
recorded data may become corrupted :
- When the memory card is used incorrectly.
- If the power is switched off or the memory card is removed
while recording, deleting (formatting) or reading.
Samsung cannot be held responsible for lost data.
It is advisable to copy important data onto other media as back-up
e.g. floppy disks, hard disks, CD etc.
If there is insufficient memory available :
A [Memory Full] message will appear and the camera will not
operate. To optimise the amount of memory in the camera,
replace the memory card or delete unnecessary images stored
on the memory card.
Don't remove the memory card when the camera status lamp is
blinking as this may cause damage to data in the memory card.
15
Instructions on how to use the memory card
The camera can use SD/SDHC Memory Cards and MMC (Multi
Media Cards).
When using a 1GB SD memory, the specified shooting capacity will be
as follows. These figures are approximate as image capacities can be
affected by variables such as subject matter and memory card type.
Card pins
Write protect switch
Recorded image Super
size
Fine
About
169
Fine
Normal 30 FPS 20 FPS 15 FPS
About
240
About
365
-
-
-
About
196
About
270
About
411
-
-
-
About
231
About
308
About
481
-
-
-
About
246
About
328
About
519
-
-
-
About
365
About
493
About
705
-
-
-
About
548
About
680
About
759
-
-
-
About
986
About
1095
About
1232
-
-
-
-
-
-
-
About
32'48"
-
-
About
01:03'47"
-
About
02:00'00"
Label
[SD (Secure Digital) memory card]
The SD/SDHC memory card has a write protect switch that
prevents image files from being deleted or formatted. By sliding
the switch to the bottom of the SD/SDHC memory card, the data
will be protected. By sliding the switch to the top of the SD/SDHC
memory card, the data protection will be cancelled.
Slide the switch to the top of the SD/SDHC memory card before
taking a picture.
Still
*Movie
clip
-
-
-
About
33'43"
-
-
-
About
01:55'08"
The Zoom W/T lever doesn’t function during the movie recording.
The recording times can be changed by the zoom operation.
Several videos were recorded in succession to determine the
Downloaded From camera-usermanual.com Samsung Manuals
16
total recording time.
LCD monitor indicator
The LCD monitor displays information about the shooting functions
and selections.
[Image & Full Status]
No.
Description
Icons
Page
No.
Description
5
Memory card icon /
Internal memory icon
Icons
Page
-
6
Battery
p.14
7
Flash
p.27
8
Self-timer
p.29
9
Macro
p.26
10
Photo Style Selector
p.40
11
Face Detection
p.34
12
DIS
p.42
13
Image Adjust /
Without Sound
p.41/44
14
Date / Time
2009/01/01 01:00 PM
p.49
15 Camera shake Warning
p.21
16
Auto Focus Frame
p.39
17
Drive mode
p.38
18
Metering
p.38
1
Recording mode
p.19
Optical / Digital Zoom bar /
Digital Zoom rate
19 Image Quality / Frame Rate
p.37
2
p.24
20
Image Size
p.36
3
Voice Memo
p.43
21
ISO
p.34
4
Number of available shots
remaining
p.16
22
White Balance
p.33
00001
Remaining time
00:00:00
p.16
Downloaded
From camera-usermanual.com
Samsung Manuals
23 Exposure compensation
p.32
17
How to use the menu
1. Turn on the camera and press the MENU button. A menu for each camera mode appears.
EV
Functions
White Balance
Sound
ISO
Display
Face Detection
Settings
Photo Size
Quality
ACB
Exit
Change
2. Use the up or down buttons to navigate through the menus.
EV
Functions
White Balance
Sound
ISO
Display
Face Detection
Settings
Press the
UP or DOWN
button.
Volume
Functions
Photo Size
Start Sound
Sound
Shutter Sound
Display
Beep Sound
Settings
Quality
AF Sound
Self-Portrait
ACB
Exit
Change
Exit
Change
3. Use the left or right buttons to select a sub menu.
Volume
Functions
Start Sound
Sound
Shutter Sound
Display
Beep Sound
Settings
Exit
Press the
LEFT or
RIGHT button.
Volume
:Medium
Start Sound
:Off
Shutter Sound
:1
Beep Sound
:1
Press the
LEFT or
RIGHT button.
Off :Medium
Start Sound
Low:Off
Shutter Sound
Medium
:1
High
:1
Beep Sound
AF Sound
AF Sound
:On
AF Sound
:On
Self-Portrait
Self-Portrait
:On
Self-Portrait
:On
Change
Exit
Back
4. Select a submenu and click the OK button to save settings and return to the previous window.
Downloaded From camera-usermanual.com Samsung Manuals
18
Volume
Back
Set
Starting the recording mode
Selecting modes
How to use the Program mode (
Mode selection using the Mode switch
Selecting the automatic mode will configure the camera with
optimal settings. You can still manually configure all functions
except the aperture value and shutter speed.
You can use the Mode switch on the back of your camera to select
the correct mode.
[Program mode]
[Movie Clip mode]
)
1. Insert the batteries (p.14). Insert the
batteries taking note of the polarity
(+ / -).
2. Insert the memory card (p.14).
As this camera has a 31MB internal
memory, you do not need to insert
the memory card. If the memory
card is not inserted, an image will be
stored in the internal memory. If the memory card is inserted,
an image will be stored on the memory card.
3. Close the battery chamber cover.
4. Press the power button to turn on the camera.
5. Use the Mode switch to select Program mode (p.19).
6. Press the Menu button to configure advanced functions.
(See p.31 for further details.)
If the auto focus frame turns to red when you press the shutter
button down half way, it means that the camera cannot focus
on the subject. Should this be the case, the camera is unable to
capture an image clearly.
Avoid obstructing the lens or the flash when you capture an image.
Downloaded From camera-usermanual.com Samsung Manuals
19
Starting the recording mode
How to use the Movie clip mode (
)
A movie clip can be recorded for as long as the available recording
time (maximum of 20 minutes) of the memory capacity allows.
1. Use the Mode switch to select Movie
Clip mode. (The Movie clip mode icon
and available recording time will display
on the LCD monitor.).
2. Point the camera towards the subject
and compose the image by using the
LCD monitor.
3. Press the Shutter button once and movie clips are recorded for
up to 20 minutes. Movie clips will still be recorded if the shutter
button is released. If you wish to stop recording, press the shutter button again.
Ä Image size and type are listed below.
- Image size
: 800x592, 640x480, 320x240 (Selectable)
- Movie clip file type : AVI (MPEG-4)
- Frame Rate
: 30 FPS, 20 FPS, 15 FPS (Selectable)
- The frame rate can be selected when the following image size
is selected.
800x592: 20FPS selectable
640x480, 320x240: 30FPS, 15FPS selectable
- If the recording time is takes longer 20 minutes, the recording
is stopped and then saved.
Downloaded From camera-usermanual.com Samsung Manuals
20
Recording the movie clip without sound
You can record the movie clip without sound.
Steps from 1 -3 are the same as those for
MOVIE mode.
4. Press the Menu button.
5. Press the Up / Down button to select the
[Functions] menu and press the Right
button.
6. Select the [Voice] menu by pressing the Up / Down button and
press the OK button.
7. Select the [Off] menu by pressing the Left / Right button.
8. Press the OK button. You can record a movie without sound.
Ä See p.44 for further details.
Starting the recording mode
Things to Watch Out for When Taking Pictures
Pausing while recording a movie clip (Successive Recording)
Pressing the shutter button down half way.
Lightly press the shutter button to confirm focus and flash battery
charge. Press the shutter button all way down to take the picture.
This camera allows you to temporarily stop during unwanted
scenes, while recording a movie clip. Using this function, you can
record your favourite scenes into a movie clip without having to
create multiple movie clips.
Using Successive Recording
Steps from 1-2 are the same as those for
MOVIE CLIP mode.
3. Press the shutter button and movie
clips are recorded for as long as the
available recording time. Movie clips
will still be recorded if the shutter button
Stop
Record
is released.
4. Press the OK button to pause recording.
5. Press the OK button again to resume the recording.
6. If you wish to stop recording, press the shutter button again.
[Lightly press the shutter button]
[Press the shutter button]
The available memory capacity may vary depending on shooting
conditions and camera settings.
When the Flash Off, Slow synchro mode or DIS mode is selected
in a low lighting condition, the camera shake warning indicator
( Ã ) may appear on the LCD monitor. In this case, use a tripod,
support the camera on a solid surface or change to flash shot
mode.
Shooting against the light : Please do not take pictures against the
sun. Doing so may make the picture
dark. To take a picture against the light,
please use the fill-in flash (see page 28),
spot metering (see page 38), exposure
compensation (see page 32) or ACB (see
page 37) function.
Avoid obstructing the lens or the flash when you capture an image.
Compose the image by using the LCD monitor.
Downloaded From camera-usermanual.com Samsung Manuals
21
Things to Watch Out for When Taking Pictures
Using the camera buttons to set the camera
Under certain conditions the auto focus system may not perform
as expected.
- When photographing a subject that has little contrast.
- If the subject is highly reflective or shiny.
- If the subject is moving at high speed.
- When there is strong reflected light, or when the background is
very bright.
- When the subject matter has only horizontal lines or the subject
is very narrow (such as a stick or flagpole).
- When the surroundings are dark.
The recording mode function can be set up by using the camera buttons.
Downloaded From camera-usermanual.com Samsung Manuals
22
POWER button
Used for turning the camera’s power on / off.
If there is no operation during the specified
time, the camera's power will be turned off
automatically to save battery life.
Refer to page 50 for more information
about the auto power off function.
SHUTTER button
Used for taking an image or recording voice in the RECORDING
mode.
In MOVIE CLIP mode
Pressing the shutter button down fully
starts the process for recording a movie
clip. Press the shutter button once and
the movie clip is recorded for as long
as the available recording time in the
memory allows. If you wish to stop recording, press the shutter
button again.
In STILL IMAGE mode
Pressing the shutter button down halfway activates the autofocus
and checks the condition of the flash. Pressing the shutter button
down fully takes and stores the image. If you select voice memo
recording, the recording will start after the camera has finished
storing the image data.
Smart button
Mode switch
You can use the Mode switch on the back
of your camera to select the correct mode.
•Normal mode
When recording a movie clip : Push the Mode switch down to select
Movie Clip mode (The time available
for recording movie clips is displayed
on the LCD monitor).
When capturing a still image : Push the Mode switch up to select
Program mode.
•Smart mode
When recording a movie clip : Push the Mode switch down to select
Smart Movie Clip mode (The time
available for recording movie clips is
displayed on the LCD monitor).
When capturing a still image : Push the Mode switch up to select
Smart Auto mode.
You can use the Smart button at the top
of your camera to select the correct smart
mode.
Ä See p.75 for further details.
Downloaded From camera-usermanual.com Samsung Manuals
23
Zoom W/T Lever
When the menu window is not displayed,
this lever is used to control the optical or
digital zoom.
This camera has a 3X optical zoom and
a 5X digital zoom function. Using both
will offer a total zoom ratio of 15X.
WIDE Zoom
Optical zoom WIDE : Move the Zoom W/T lever to the left in
optical zoom mode to see subjects in the
distance. Continue to move the Zoom W/T
lever to the left to disable optical zoom.
TELE Zoom
Optical zoom TELE : Move the Zoom W/T lever to the right to
see the subject closer.
Digital zoom TELE : Move the Zoom W/T lever to the right once
again in optical 3x zoom mode to enable
digital zoom (software tele). Stop moving
the Zoom W/T lever to stop the operation
of digital zoom (tele). In digital 5x zoom
mode, digital zoom is disabled even if you
operate the Zoom W/T lever.
[TELE zoom]
Digital zoom WIDE
Optical zoom
Digital zoom
[WIDE zoom]
[TELE zoom]
[WIDE zoom]
: Move the Zoom W/T lever to the left
in digital zoom mode to enable digital
zoom (software wide). Stop moving the
Zoom W/T lever to stop the operation of
digital zoom. Continue to move the Zoom
W/T lever to the left when digital zoom is
disabled to disable optical zoom (optical
tele).
[Digital zoom 5.0X]
[Digital zoom 5.0X]
Downloaded From camera-usermanual.com Samsung Manuals
24
[Optical zoom 2X]
[TELE zoom]
[WIDE zoom]
Zoom W/T Lever
Images taken using the digital zoom may take a little longer for
the camera to process. Allow time for this to take place.
If the Zoom W/T lever is being pressed during the Movie shots,
the voice will not be recorded.
You may notice a decrease in image quality when using the
digital zoom.
To view a clearer digital zoom image, press the shutter button
halfway at the maximum optical zoom position and move the
Zoom W/T lever to the right again.
The digital zoom does not work in Movie Clip, Smart Auto and
Smart Movie Clip modes.
Take care not to touch the lens to avoid taking an unclear image
and possibly causing camera malfunction. If the image is dim, turn
the camera power off and on again to modify the lens position.
Take care not to press the lens as this may cause a camera
malfunction.
When the camera is turned on, take care not to touch the camera’s
moving lens parts as this may cause the resulting image to be dim
and unclear.
Downloaded From camera-usermanual.com Samsung Manuals
Info (DISP) / Up button
While the menu is showing, the Up button operates as a direction button.
In the recording modes or playback mode, pressing this button will
display the image information.
[Filming screen]
[Information screen]
25
Macro (
) / Down button
While the menu is showing, the Down button operates as a direction
button. When the menu is not showing, you can use the MACRO
( ) / DOWN button to take macro pictures.
The distance ranges are shown below. Press the Macro button until
the desired macro mode indicator appears on the LCD monitor.
Types of focus mode and focus range (W : Wide, T : Tele)
Mode
Program (
)
Focus Type
macro (
Focus range
W : 10 ~ 80
T : 50 ~ 80
(Unit: cm)
)
Normal
W : 80 ~ Infinity
T : 80 ~ Infinity
When the macro mode is selected, be particularly careful to avoid
camera shake.
When you take a picture within 40cm (Wide zoom) or 50cm
(Tele zoom) in the Macro mode, select the FLASH OFF mode.
[Auto Focus]
[Macro (
)]
Available focusing method, by recording mode
( o : Selectable, : Infinity focus range)
Mode
Downloaded From camera-usermanual.com Samsung Manuals
26
Macro
Normal
o
o
o
o
Focus lock
Flash (
To focus on a subject not positioned in the centre of the picture, use
the focus lock function.
When the menu is displayed on the LCD
monitor, pressing the LEFT button makes
the cursor shift to the left tab.
When the menu is not displayed on the
LCD monitor, the LEFT button operates as
the FLASH ( ) button.
Using the Focus Lock
1. Ensure the subject is in the centre of the autofocus frame.
2. Press the SHUTTER button halfway. When the green auto focus
frame lights up, it means the camera is focused on the subject.
Be careful not to press the SHUTTER button all the way down to
avoid taking an unwanted picture.
3. With the SHUTTER button still pressed down only halfway, move
the camera to recompose your picture as desired, and then
press the SHUTTER button completely to take the picture. If you
release your finger from the SHUTTER button, the focus lock
function will be cancelled.
) / Left button
[Selecting the Auto flash]
Selecting the flash mode
1. Use the Mode switch to select a mode other than Movie Clip mode.
(p.19)
2. Press the Flash button until the desired flash mode indicator is
displayed on the LCD monitor.
3. A flash mode indicator will be displayed on the LCD monitor.
Use the correct flash to suit the environment.
Flash range
ISO
1. The image to be
captured.
2. Press the SHUTTER
button halfway and
focus on the subject.
3. Recompose the picture
and fully depress the
SHUTTER button.
Downloaded From camera-usermanual.com Samsung Manuals
AUTO
(Unit: m)
Normal
Macro
Auto macro
WIDE
TELE
WIDE
TELE
WIDE
TELE
0.8~3.0
0.8~2.0
0.4~0.8
0.5~0.8
0.4~3.0
0.5~2.0
27
Flash (
) / Left button
If you press the shutter button after selecting the flash, the first
flash fires to check the shooting condition (Flash range and
Power ratio of flash). Do not move the camera until the second
flash fires.
Using the flash frequently will reduce the life of the battery.
Under normal operating conditions the re-charging time for
the flash is usually within 4 seconds. If the battery is weak, the
charging time will be longer.
The flash does not work in Movie Clip mode.
Take photographs within the flash range.
The image quality is not guaranteed if the subject is too close
or highly reflective.
When taking an image in poorly lit conditions with the flash,
there may be a white speck in the captured image. The speck
is caused by the flash light reflecting off atmospheric dust.
Flash mode indicator
Icon
Flash mode
Auto flash
Description
If the subject or background is dark, the
camera flash will operate automatically.
Auto & Red eye
reduction
If a subject or background is dark, the
camera flash will work automatically and
will reduce the red-eye effect by using the
red-eye reduction function.
Fill in flash
The flash fires regardless of the available light. The intensity of the flash will be
automatically controlled to suit the prevailing
conditions.
Slow synchro
The flash operates with a slow shutter speed
to obtain a balanced correct exposure. In
poor lighting conditions the camera shake
warning indicator ( Ã ) will display on the
LCD monitor.
When a shot with "red eye" is detected,
Red-eye reduction this mode will reduce the red-eye effect
automatically.
Flash off
Downloaded From camera-usermanual.com Samsung Manuals
28
Smart Auto flash (
mode.
The flash does not fire.
Select this mode when capturing images in
a place or situation where flash photography
is prohibited. When you capture an image
in poorly lit conditions, the camera shake
warning indicator ( Ã ) will appear on the
LCD monitor.
) icon will appear in [Smart Auto]
Flash (
Self-timer (
) / Left button
Available flash mode, by recording mode
( o : Selectable)
Mode
o
o
o
o
o
o
o
Self-timer (
) / Right button
When the menu is displayed on the LCD monitor, pressing the Right
button makes the cursor shift to the right tab.
When the menu is not displayed on the LCD monitor, the RIGHT
button operates as the Self-timer ( ) button. This function is used
when the photographer would also like to be in the image.
) / Right button
Selecting the self-timer
1. Select a Recording mode with the
exception of Voice recording mode. (p.19)
2. Press the SELF-TIMER / RIGHT ( )
button until the desired mode indicator
displays on the LCD monitor. A 10 second,
2 second, Double self-timer or Motion timer
icon appears on the LCD monitor.
3. When you press the SHUTTER button,
the picture will be taken after the
specified time has elapsed.
[Selecting the 10 SEC
self-timer]
Self-timer mode indicator
Icon
Mode
Description
10SEC Pressing the shutter button will allow an interval
self-timer of 10 seconds before the image is taken.
If you operate the Self-timer button during the self-timer
operation, the self-timer function is cancelled.
Use a tripod to prevent the camera from shaking.
In Movie Clip mode, only the 10SEC self-timer will work.
Downloaded From camera-usermanual.com Samsung Manuals
2SEC Pressing the shutter button will allow an interval
self-timer of 2 seconds before the image is taken.
A picture will be taken after about 10 seconds
and 2 seconds later a second picture will be
Double
taken. When using the flash, the 2-second
self-timer
self-timer may be delayed for longer than 2
seconds depending on the flash charging time.
The camera detects the subject's movement 6
Motion
seconds after pressing the Shutter button, and the
Timer
picture is taken when the movement is stopped.
29
Self-timer (
) / Right button
In the following cases, the Motion Timer may not operate.
Motion Timer
Motion
Pressing the Shuter button after
setting the Motion Timer
Icon & Self-timer lamp
Blink (1 second interval)
Detecting the subject's movement
Blink (0.25 second interval)
No movement is detected
Turn on and the image is taken
after 2 seconds
The Motion Timer flows are as followings. (Movie Clip mode excluded)
Selecting the Motion Timer Pressing the Shutter button Confirming the composition (Within 6 sec.)*1 Starting the
detection (Swing your hands fully)*2 Stopping the detection
(Do not move) Taking an image (after 2 sec.)
*1: The camera detects the subject's movement 6 seconds after pressing the
Shtter button, so confirm the composition within 6 seconds.
*2: Move your body or hands fully.
Downloaded From camera-usermanual.com Samsung Manuals
30
The focus distance is over 3m.
The exposure is too bright or dark
In backlight conditions.
The movement is insignificant
The movement is detected beyond
the center part (50%) of the sensor
where the movement is recognized.
If the camera doesn`t sense any
movement for 30 seconds, or the
camera doesn’t sense stillness
after sensing movement
The detection range of
Motion Timer
MENU button
Functions (
- When you press the MENU button, a menu related to each
camera mode will be displayed on the LCD monitor. Pressing it
again will return the LCD to the initial display.
- A menu option can be displayed when the following are selected :
MOVIE CLIP and STILL IMAGE mode. There is no menu
available when the voice recording function is selected.
Mode
EV
Functions
White Balance
Sound
ISO
Display
Face Detection
)
Use the menu that enables the functions to bring up the menus below:
Menu
Available mode
Page
EV
p.32
White Balance
p.33
ISO
p.34
Face Detection
p.34
Photo Size / Movie Size
p.36
Quality / Frame Rate
p.37
ACB
p.37
Metering
p.38
Photo Size
Settings
[Pressing the MENU button]
Quality
ACB
Exit
[Menu off]
Change
[Menu on]
(Functions)
OK button
- When the menu is displayed on the LCD monitor, this button is
used for shifting the cursor to the sub menu or for confirming data.
EV
Functions
White Balance
EV
[Pressing the
OK button]
White Balance
Sound
ISO
Display
Face Detection
Face Detection
Photo Size
Photo Size
Quality
Quality
ACB
ACB
Settings
Exit
Change
ISO
Exit
Back
Downloaded From camera-usermanual.com Samsung Manuals
Drive
p.38
Frame Guide
p.39
Focus Area
p.39
Photo Style Selector
p.40
Image Adjust
p.41
DIS
p.42
Stabiliser
p.42
Voice
p.43
31
Functions (
)
How to Enable Functions Using the MENU Button
Exposure compensation
1. Press the MENU button in an available mode.
2. Press the Up / Down button to select the [Functions] menu and
press the Right/OK button.
EV
Functions
EV
White Balance
White Balance
Sound
ISO
ISO
Display
Face Detection
Settings
Photo Size
Quality
Face Detection
Right/OK
button
Photo Size
Quality
ACB
Exit
ACB
Change
Exit
Back
3. Select a desired menu by pressing the Up / Down button and
then press the OK button.
EV
EV
White Balance
White Balance
ISO
ISO
Up / Down
button
Face Detection
Photo Size
Quality
Face Detection
Photo Size
Quality
ACB
Exit
ACB
Back
Exit
Back
4. Select a desired menu by pressing the Left / Right button and
then press the OK button.
White Balance
Daylight
Left / Right
button
Back
Move
Back
Move
Downloaded From camera-usermanual.com Samsung Manuals
32
This camera automatically adjusts the exposure according to the
ambient lighting conditions.
You can also select the exposure value by using the [EV] menu.
Compensating Exposure
1. Click the Up/Down button from the
EV
).
Functions menu to select [EV] (
2. Use the LEFT and RIGHT buttons to
set the desired exposure compensation
factor.
Back
Move
3. Press the OK button. The value you
set will be saved and the Exposure Compensation setup mode
will be closed. If you change the exposure value, the exposure
indicator (
) will be displayed on the Left of the LCD monitor.
Ä A negative exposure compensation value reduces the exposure.
Note that a positive exposure compensation value increases the
exposure and the LCD monitor will appear white or you may not
get good pictures.
Functions (
)
Using the Custom White Balance
White balance
The white balance control allows you to
adjust the colours to appear more natural.
White Balance
Back
Mode
Icon
White balance settings may vary slightly depending on the
shooting environment. You can select the most appropriate
white balance setting for a given shooting environment by setting
up the custom white balance.
Move
Description
Auto WB
The camera automatically selects the appropriate white balance settings, depending
on the prevailing lighting conditions.
Daylight
For taking images outside.
Cloudy
For taking images under a cloudy and
overcast sky.
Fluorescent_H
For shooting under daylight fluorescent
types of three-way fluorescent lighting.
Fluorescent_L
Shooting under white fluorescent lighting.
Tungsten
Custom Set
1. Select the CUSTOM (
) menu of
the White Balance and place a sheet
of white paper in front of the camera
so that the LCD monitor shows only
white.
2. OK button
White paper
: selects previous
custom white balance.
Shutter button : saves new custom white balance.
- The custom white balance value will be applied, starting with
the next picture you take.
- The user configured white balance will be remain effective
until it is overwritten.
For shooting under tungsten (standard light
bulb) lighting.
Allows the user to set the white balance
according to the shooting condition.
Ä Different lighting conditions may cause a colour cast on your images.
Downloaded From camera-usermanual.com Samsung Manuals
33
Functions (
)
ISO
Face Detection
You can select the ISO sensitivity when taking pictures.The speed or
specific light-sensitivity of a camera is rated by ISO numbers.
If you use face detection options, your
camera can detect a human face. When
focusing on a human face, the brightness
of the face is also adjusted. You can also
capture natural facial expressions by using
self portrait, smile shot or blink detection.
[Auto] : The camera's sensitivity is
automatically changed by
variables such as lighting value
or subject brightness.
ISO
[ISO 80, 100, 200, 400, 800, 1600, 3200] :
Back
Move
You can increase the shutter speed while
the same amount of light is present, by increasing the ISO sensitivity.
However, the image may be saturated in high luminance. The higher
the ISO value, the higher the camera’s sensitivity to light and therefore
the greater its capacity to take pictures in dark conditions. However,
the noise level in the image will increase as the ISO value increases,
making the image appear coarse.
Ä When [Motion Capture] is set, ISO speed will be set to Auto.
Ä [ISO] is enabled only in [Program] mode.
Ä When the ISO 3200 menu is selected, the image size is fixed to
under 3M.
Move
This mode detects the face position of the subject automatically
and then sets the focus and exposure. Select this mode for quick
and easy face picture.
1. The size and position of the auto
focus frame is set at the face of the
subject automatically.
3. Press the shutter button fully to take
a picture.
34
Back
Normal
2. Press the shutter button halfway.
The focus frame turns to green
when the focus is activated.
Downloaded From camera-usermanual.com Samsung Manuals
Face Detection
Functions (
)
This function can detect up to 10 persons.
When the camera recognises many people at the same
time, it will focus on the nearest person.
The Digital zoom is not activated in this mode.
When the camera detects a target face, the white colour
focus frame will be displayed over the target face and the
grey colour focus frame appears over the remaining faces.
Press the shutter button halfway down to focus on the face
and the white focus frame turns green.
Return to previous AF mode if face detection was failure.
In some conditions this function cannot work properly.
- When a person wears dark glasses or some part of the
face is hidden.
- When the person being taken does not look at the camera.
- Camera doesn't detect a face as the brightness is too dark
or too bright.
- The distance between the camera and object are far.
The maximum available Face Detection range is 2.5m (Wide).
The nearer the subject, the faster the camera can recognize
the subject.
Beauty Shot
Take a photo of a person with options
to hide facial imperfections.
Self Portrait
When taking pictures of yourself, the area of your face is
automatically detected so that you can take self pictures more
easily and quickly.
1. For self-filming, set the camera lens
towards the face of the object. It
automatically detects the face of the
object, and emits a guiding sound.
2. Start filming by pressing the shutter
button.
When locating the face in the center of the screen, it repeatedly
emits a faster sound unlike the sounds that are emitted when
the face is not in the center.
The guiding sound can be set using the sound setting
menu. (See p.46)
Downloaded From camera-usermanual.com Samsung Manuals
35
Functions (
)
Smile Shot
The camera automatically takes a
picture by detecting the face of the
subject although you don’t press the
shutter button. If you press the Shutter
button, the picture is taken in the
normal way. When taking a picture of
smile shot, showing teethes or keeping
the smiley face of your subject helps
detecting the smile face of the subject.
Blink Detection
If the eyes of the subject are closed
when the shutter button is pressed,
the camera takes 2 continuous shots
and then the images are saved. The
camera takes only one picture if the
eyes of the subject are open when the
Shutter button is pressed.
Detecting the smiling face or the blinking eyes may not be
available if any of the following situations occurs:
- If the subject is wearing sunglasses.
- When the subject is not facing directly to the camera.
- If the environmental light is too bright or too dark to detect
the face of the subject.
- When the camera is far from the subject. (Orange colored
focusing mark)
- If there is reflection of the light or the back light that are too
bright.
Downloaded
From camera-usermanual.com Samsung Manuals
36
Image Size
You can select the image size appropriate for your application.
(Unit: pixel)
Still
mode
Movie
clip
mode
Icon
Size
4000X 3984X 3968X 3264X 2592X 2048X 1024X
3000 2656 2232 2448 1944 1536
768
Icon
Size
800X592
320X240
Movie Size
Photo Size
Back
640X480
Move
[ STILL IMAGE mode ]
Back
Move
[ MOVIE CLIP mode ]
The higher the resolution, the lower the number of shots
available because high resolution images require more memory.
Functions (
)
Quality / Frame rate
ACB
You can select the compression ratio appropriate for your application
of the captured images. The higher the compression ratio, the lower
the picture quality.
This function is to adjust the contrast
automatically when taking photos in an environment with big exposure difference i.e.
backlight or contrast. This function adjusts
the brightness automatically and allows the
subject to be photographed clearly.
Mode
STILL IMAGE mode
MOVIE CLIP mode
ACB
Back
Move
Icon
Sub menu
Super
Fine
Fine
Normal
30 FPS
20 FPS
15 FPS
File
Format
jpeg
jpeg
jpeg
avi
avi
avi
- [ACB] Sub menus: [Off], [On].
Ä When using the [Program] mode, the ACB function will operate.
Quality
Back
Frame Rate
Move
[ STILL IMAGE mode ]
Back
Move
[ MOVIE CLIP mode ]
This file format complies with the DCF (Design rule for Camera
File system).
JPEG (Joint Photographic Experts Group) :
JPEG is the image compression standard developed by the
Joint Photographic Experts Group. This type of compression
is most commonly used for compressing photos and graphics
because it can compress the files efficiently.
Downloaded From camera-usermanual.com Samsung Manuals
37
Functions (
)
Metering
Drive mode
If you cannot obtain suitable exposure conditions, you can change
the metering method to take brighter pictures.
You can select single, continuous, motion capture, and AEB (Auto
Exposure Bracketing).
[Multi] (
) : Exposure will be calculated
based on an average of
Metering
the available light in the
image area. However, the
calculation will be biased
towards the centre of the
Back
Move
image area. This is suitable
for general use.
[Spot] ( ) : Only the rectangular area in the centre of the LCD
monitor will be metered for light. This is suitable
when the subject in the centre is exposed correctly,
regardless of the back lighting.
[Center Weighted] ( )
: Exposure will be calculated based on an average of
the available light in the image area. However, the
calculation will be biased towards the centre of the
image area. This is suitable for taking a picture of
small object like a flower or insects.
Ä If the subject is not the centre of the focus area, do not use the
spot metering as this may result in an exposure error. In this
circumstance, it is better to use exposure compensation.
Downloaded From camera-usermanual.com Samsung Manuals
38
[Single] (
)
[Continuous] (
[Motion Capture] (
[AEB] (
)
: Take one picture only.
) : Images will be taken
Drive
continuously until the
shutter button is
released.
) : This takes 5 shots
Back
Move
per second, when
the shutter is pressed and held down. After
completing the continuous shooting, images
are saved and the images play back on the
Rear LCD. The maximum number of shots is
30 and the image size is fixed as VGA.
: Take three pictures in a series in different
exposures: standard exposure (0.0EV),
short exposure (-1/2EV) and over exposure
(+1/2EV).
High resolution and picture quality increases file saving time,
which increases stand-by time.
If the [Continuous], [Motion Capture], [AEB] sub menu is selected,
the flash will be off automatically.
If less than 3 pictures are available in the memory, the AEB
shooting is not available.
It is best to use a tripod for the AEB shooting as the time to save
each image file is longer and blurring caused by camera shake
may occur.
Functions (
)
Frame Guide
Auto Focus type
Set [Frame Guide] mode when you want
someone else to take a picture for you
from the angle you choose.
You can select your preferred Focus Area
according to the shooting conditions.
Frame Guide
Focus Area
Back
Move
Ŷ How to use the [Frame Guide] mode
Back
[Center AF] (
1. Take a picture from the angle you
choose.
- A guide appears round the sides of the
picture.
[Multi AF] (
Move
) : The rectangular area in the center of the LCD
monitor will be focused
) : This camera selects all of available AF point
from the 9 AF points.
Cancel Frame: OK
Guide
2. Then another person can take the picture
by aligning the edge of the picture to be
taken with the guide framing the sides of
the window.
[Center AF]
[Multi AF]
Cancel Frame: OK
Ä When the camera focuses on the subject, the auto focus frame
turns to green. When the camera doesn't focus on the subject,
the auto focus frame turns to red.
Cancel Frame: OK
Downloaded From camera-usermanual.com Samsung Manuals
39
Functions (
)
Custom colour : You can change the
R (Red), G (Green)
and B (Blue) values
of the image.
Photo Style Selector
You can add various effects to the image
without using image editing software.
Photo Style Selector
Back
Move
Back
Move
Back
Move
- Up/Down button : Selects R, G, B
- Left/Right button : Changes the values
1. Select the desired Photo style selector by pressing the Left/Right
button and press the OK button.
2. Press the Shutter button to take an image.
Style mode
Normal
Icon
Description
No style effect is applied.
Soft
Soft style is applied.
Vivid
Vivid style is applied.
Forest
Forest style is applied.
Retro
Sepia style is applied.
Cool
Cool style is applied.
Calm
Calm style is applied.
Classic
Negative
Custom RGB
Black & white effect is applied.
Negative effect is applied.
Define an RGB tone to create your own photo style.
Downloaded From camera-usermanual.com Samsung Manuals
40
When picture style is set, face detection is not available.
When Soft or Vivid in photo style is set, saturation is not available.
When Negative in photo style is set, contrast is not available.
Functions (
)
Image Adjust
Saturation
You can change the saturation of the image.
Contrast
You can change the contrast of the image.
1. Select [Contrast] by pressing the
Up/Down button.
2. Change the contrast by pressing the
Left/Right button.
3. Press the Shutter button to take an
image.
1. Select [Saturation] by pressing the
Up/Down button.
2. Change the saturation by pressing
the Left/Right button.
3. Press the Shutter button to take an
image.
Image Adjust
Contrast
Sharpness
Saturation
Back
Move
Image Adjust
Contrast
Sharpness
Saturation
Back
Move
When Soft or Vivid in photo style is set, saturation is not
available.
When Negative in photo style is set, contrast is not available.
Sharpness
You can adjust the sharpness of the
picture you are about to take.
You cannot check the sharpness effect
on the LCD monitor before you take a
picture, because this function is applied
only when the captured image is stored
on the memory.
Image Adjust
Contrast
Sharpness
Saturation
Back
Move
1. Select [Sharpness] by pressing the Up/Down button.
2. Change the Sharpness by pressing the Left/Right button.
3. Press the Shutter button to take an image.
Downloaded From camera-usermanual.com Samsung Manuals
41
Functions (
)
DIS
Movie clip frame stabiliser
Digital Image Stabilization (DIS)
This function helps minimize camera shake
when capturing a still image.
This function helps stabilize images
captured during movie recording. You can
select this menu only in the Movie clip
mode. If the memory card is not inserted,
this function will not operate.
DIS
Back
Stabiliser
Move
Back
[Off] (
) : Disables the DIS function when capturing a still image.
[On] (
) : Enables the DIS function when capturing a still image.
Things to watch out for using the DIS function
1. The digital zoom will not operate in the DIS function.
2. If the lighting condition is brighter than fluorescent lighting conditions, the DIS will not activate.
3. If the lighting condition is darker than in fluorescent lighting conditions, camera shake warning indicator ( Ã ) will display. For
best results only take pictures in situations where the camera
shake warning indicator ( Ã ) is not displayed.
4. If the subject is moving, the captured image may be blurred.
5. As the DIS uses the camera's digital signal processor, it may
take a little longer for the camera to process and save the
images.
Downloaded From camera-usermanual.com Samsung Manuals
42
Move
[Off] (
) : Movie clip frame stabilizer function is disabled.
[On] (
) : Minimises camera shake during movie recording.
Ä The recording frame range becomes narrow when you select this
menu.
Functions (
)
Voice Recording
Voice Memo
You can add your voice-over to a stored
still image. (Max. 10 sec.)
A voice can be recorded for as long as the
available recording time (Max. 10 hour)
allows.
Memo
Back
Move
- If the voice memo indicator is displayed
on the LCD monitor, the setting is
completed.
Record
Back
Move
Press the shutter button to record a voice.
- Press the shutter button once and voice
is recorded for as long as the available
recording time (max:10 hour) allows. The
recording time will be displayed on the
LCD monitor. Voice will still be recorded
if the shutter button is released.
- Press the shutter button and take a
picture. The picture is stored on the
memory card.
- If you wish to stop recording, press the
shutter button again.
- Voice memo will be recorded for ten
seconds from the moment the picture
is stored. In the middle of the sound
recording, pressing the shutter button
will stop the voice memo.
Record
Exit
[Voice recording mode]
- File type : *.wav
Stop
Downloaded From camera-usermanual.com Samsung Manuals
43
Functions (
)
Pausing while recording a voice
Recording the movie clip without voice
Using this function, you can record your
favourite voice clips into a voice recording
file without having to create multiple voice
recording files.
You can record the movie without voice.
Stop
Record
[Voice recording mode]
1. Press the OK button to pause recording.
2. Press the OK button again to resume the recording.
3. If you wish to stop recording, press the shutter button again.
A distance of 25cm between you and the camera (microphone)
is the best distance to record sound.
If the camera power is turned off while the voice recording is
paused, the voice recording is cancelled.
Downloaded From camera-usermanual.com Samsung Manuals
44
Select [Off] of [Voice] menu in the Movie
clip mode. (
) icon will appear on the
LCD monitor. Press the Shutter button
and a movie will record for as long as the
memory capacity allows without voice.
Off
Back
Move
Sound menu
In this mode, you can set up sound settings. You can use the setup
menu in all camera modes, except Voice Recording mode.
The items indicated by * are default settings.
Ä Menus are subject to change without prior notice.
Shutter sound
You can select the shutter sound.
- Shutter sound : [Off], [1]*, [2], [3]
Sound (  )
Volume
:Medium
Start Sound
:Off
Shutter Sound
Off :1
Beep Sound
1
AF Sound
2
:On
Self-Portrait
3
:On
Back
:1
Set
Volume
You can select a volume of start up
sound, shutter sound, beep sound and AF
sound.
- [Volume] sub menu : [Off], [Low],
[Medium]*, [High]
Volume
Off :Medium
Start Sound
Low :Off
Shutter Sound
Medium
:1
High
:1
Beep Sound
AF Sound
:On
Self-Portrait
:On
Back
Set
Beep Sound
If you set sound to ON, a beep will sound when buttons are
pressed, letting you know the camera operation status.
- [Beep Sound] sub menu : [Off], [1]*, [2], [3]
Volume
:Medium
Start Sound
Start up sound
You can select the sound that is activated
whenever the camera is turned on.
- Start up sound : [Off]*, [1], [2], [3]
Volume
Start Sound
Off :Off
1
:1
Beep Sound
2
:1
3
Self-Portrait
Back
Off :1
Beep Sound
1
AF Sound
2
:On
Self-Portrait
3
:On
:1
:Medium
Shutter Sound
AF Sound
:Off
Shutter Sound
Back
Set
:On
:On
Set
Downloaded From camera-usermanual.com Samsung Manuals
45
Sound (  )
Setup menu
AF sound
In this mode, you can set up basic settings. You can use the setup
menu in all camera modes, except Voice Recording mode.
The items indicated by * are default settings.
Ä Menus are subject to change without prior notice.
If you set AF sound to on, AF sound will be activated when the
Shutter button is pressed down half way so that you can be aware
of the camera operation status.
- [AF sound] sub menu : [Off], [On]*
Volume
:Medium
Start Sound
:Off
Shutter Sound
:1
Beep Sound
:1
AF Sound
Off :On
Self-Portrait
On :On
Back
Display (
)
Language
There is a choice of language that can be
displayed on the LCD monitor. Even if the
battery is removed and inserted again, the
language setting will be preserved.
Set
Self Portrait
Display Brightness
Quick View
Back
Volume
Deutsch
:Auto
Español
:0.5sec
Italiano
:Off
Set
:Off
Shutter Sound
:1
Beep Sound
:1
AF Sound
Off :On
Self-Portrait
On :On
Set
Function Description
You can select whether the function description can be displayed
on the window in recording mode.
- Function Description sub menu
[Off] : The function description
function can’t be activated.
[On]* : The name and description of the
option is displayed.
Language
Function Description
Start Image
:English
Off
On
:On
:Off
Display Brightness
:Auto
Quick View
:0.5sec
Power Save
:Off
Back
Downloaded From camera-usermanual.com Samsung Manuals
46
:English
English
:On
䚐ạ㛨
:Off
Français
:Medium
Start Sound
Back
Function Description
Start Image
Power Save
This occurs when it automatically detects the location of the
subject’s face when taking a self-portrait.
- This feature can be set by using the [Off]
and [On]* buttons.
Language
Set
Display (
)
Start up image
Quick view
You can select the image that is first displayed on the LCD monitor
whenever the camera is turned on.
If you enable Quick View before capturing an image, you can view
the image you just captured on the LCD monitor for the duration
set in the [Quick View] setup. Quick view is possible only with still
images.
- Sub menus : [Off]*, [Logo], [User Image]
- Use a saved image for the start-up
image with the [Start Image] in the
[Resize] menu in the play mode.
- The start-up image will not be deleted by
[Delete] or [Format] menu.
- The User images will be deleted by
[Reset] menu.
Language
:English
Function Description
:On
Start Image
:Off
Off
:Auto
Display Brightness
Quick View
:0.5sec
Power Save
Exit
:Off
Back
Language
:English
Function Description
:On
Start Image
:Off
Display Brightness
Off :Auto
Quick View
0.5 sec
:0.5sec
Power Save
1 sec:Off
3 sec
Back
Set
Display SAVE
Display Bright
You can adjust the LCD brightness.
- Sub menus : [Auto]*, [Dark],
[Normal], [Bright]
- Sub menus
[Off]
: The quick view function can’t
be activated.
[0.5 sec]*, [1 sec], [3 sec]
: The captured image is briefly
displayed during the selected
time.
Language
:English
Function Description
:On
Start Image
:Off
Display Brightness
Auto:Auto
Quick View
Dark:0.5sec
Normal
:Off
Power Save
Bright
Back
Set
If you set the [Power Save] to On and the camera isn't operated
during the specified time, the LCD monitor will be turned off
automatically.
- Sub menus
[Off]* : The LCD monitor will not be turned off.
[On] : If the camera isn't operated
during the specified time (about
30 SEC.), the camera power will
be idle (Camera status lamp:
Blinking) automatically.
Language
:English
Function Description
:On
Start Image
:Off
Display Brightness
:Auto
Quick View
Power Save
:0.5sec
Off
:Off
On
Back
Set
Ä You can’t set the [Power Save] menu of Playback Mode.
Downloaded From camera-usermanual.com Samsung Manuals
47
Settings ( ” )
Formatting a memory
Initialisation
This is used for formatting the memory. If you run [Format] on the
memory, all images, including the protected images, will be deleted.
Be sure to download important images to your PC before formatting
the memory.
All camera menu and function settings will be restored to their
default values. However, values for DATE / TIME, LANGUAGE,
and VIDEO OUT will not be changed.
- Sub menus
[Yes] : A window for confirming the
selection displays. Select the [Yes]
menu. A [Formatting] message
appears and the memory will be
formatted. If you run FORMAT in
Play mode, a [Format is completed]
message will appear.
[No]* : The memory will not be formatted.
Format
Reset
Yes
No
Date & Time
:Off
Time Zone
:London
File No.
:Series
Imprint
:Off
Auto Power Off
Back
:3 min
Set
Be sure to run [Format] on the following types of memory card.
- A new memory card, or an unformatted memory card
- A memory card that has a file this camera can't recognise or one
that has been taken from another camera.
- Always format the memory card using this camera. If you insert a
memory card that has been formatted using other cameras,
memory card readers, or PCs, you will get a [Card Error]
message.
Downloaded From camera-usermanual.com Samsung Manuals
48
- Sub menus
[Yes] : A window to confirm the
selection will be displayed.
Select the [Yes] menu and
all settings will be restored
to their defaults.
[No]* : Settings will not be restored to
their defaults.
Format
Reset
Date & Time
Yes
No
:Off
Time Zone
:London
File No.
:Series
Imprint
:Off
Auto Power Off
Back
:3 min
Set
Settings ( ” )
Setting up the Date / Time / Date type
File name
You can change the date and time that will be displayed on the
captured images and set up the date type. Setting [Time Zone]
enables you to display the local date and time on the LCD monitor
when travelling overseas.
This function allows the user to select the file naming format.
- Date type : [yyyy/mm/dd], [mm/dd/yyyy],
[dd/mm/yyyy], [Off]*
Format
Reset
Date & Time
:Off
yyyy mm dd
Time Zone
2009 / 01 / 01
File No.
:London
13:00 :Series
Off
Imprint
:Off
Auto Power Off
Back
:3 min
Set
Time Zone
Available cities:
London, Cape Verde, Mid-Atlantic,
Time Zone
Buenos Aires, Newfoundland, Caracas,
La Paz, NewYork, Miami, Chicago,
Dallas, Denver, Phoenix, LA, San FranLondon
cisco, Alaska, Honolulu, Hawaii, Samoa,
[GMT +00:00] 2009/01/01 01:00 PM
Midway, Wellington, Auckland, Okhotsk,
Back
DST
Guam, Sydney, Darwin Adelaide, Seoul,
Tokyo, Beijing, Hong Kong, Bankok, Jakarta, Yangon, Almaty,
Kathmandu, Mumbai, New Delhi, Tashkent, Kabul, Abu Dhabi,
Teheran, Moscow, Athens, Helsinki, Rome, Paris, Berlin
[Reset] : After using the reset function,
the next file name will be set
from 0001 even after formatting,
deleting all or inserting a new
memory card.
Format
Reset
Date & Time
:Off
Time Zone
:London
File No.
Imprint
Auto Power Off
:Series
Reset
:Off
Series
:3 min
Back
Set
[Series]* : New files are named using
numbers that follow the previous sequence, even when
a new memory card is used, or after formatting, or after
deleting all pictures.
- The first stored folder name is 100SSCAM, and the first file
name is SDC10001.
- File names are assigned sequentially from SDC10001 SDC10002 ~ SDC19999.
- The folder number is assigned sequentially from 100 to 999 as
follows: 100SSCAM 101SSCAM ~ 999SSCAM.
- Maximum numbers of files in a folder are 9999.
- The files used with the memory card conform to the DCF (Design
rule for Camera File systems) format. If you change the image
file name, the image may not play back.
Ä DST : Daylight Saving Time
Downloaded From camera-usermanual.com Samsung Manuals
49
Settings ( ” )
Imprinting the recording date
Auto power off
There is an option to include DATE / TIME on still images.
This function switches the camera off after a set amount of time in
order to prevent unnecessary battery drainage.
- Sub menus
[Off]*
: The DATE & TIME will not be
imprinted on the image file.
[Date]
: Only the DATE will be
imprinted on the image file.
[Date & Time] : The DATE & TIME will be
imprinted on the image file.
Format
Reset
Date & Time
:Off
Time Zone
:London
File No.
Imprint
Auto Power Off
Back
Off
:Series
Date
:Off
Date & Time
:3 min
Set
Ä The Date & Time are imprinted at the bottom right side of the still
image.
Ä The imprint function is applied only to still images.
Ä Depending on the manufacturer and print mode, the date printed
on an image may not be printed correctly.
Downloaded From camera-usermanual.com Samsung Manuals
50
- Sub menus
[Off]
: The power off function will not
operate.
[1 min], [3 min]*, [5 min], [10 min]
: The power will turn off
automatically if not used for the
period of time specified.
Format
Reset
Date & Time
Off
:Off
Time Zone
1 min:London
File No.
3 min:Series
Imprint
Auto Power Off
Back
5 min:Off
10 min
:3 min
Set
- After replacing the battery, the power off setting will be preserved.
- Note that the automatic power off function will not operate if the
camera is in the PC / Printer mode, slide show, playing back a
voice recording and playing back a movie clip.
Settings ( ” )
Auto Focus lamp
Selecting Video out type
You can turn on and off the Auto Focus lamp.
The Movie output signal from the camera can be NTSC or PAL.
Your choice of output will be governed by the type of device
(monitor or TV, etc.) to which the camera is connected. PAL
mode can support only BDGHI.
- Sub menus
[Off] : The AF lamp will not light up in
low light conditions.
[On]* : The AF lamp will light up in low
light conditions.
AF Lamp
Video Out
USB
Back
:On
Off
On :NTSC
:Auto
Set
Connecting to an external monitor
When the camera is connected to an
external monitor, the image and menus
on the LCD monitor will be visible on the
external monitor and the LCD monitor of
the camera.
AF Lamp
:On
Video Out
:NTSC
NTSC
:Auto
PAL
USB
Back
Set
Yellow - Video
White - Sound
Downloaded From camera-usermanual.com Samsung Manuals
51
Settings ( ” )
- NTSC : U.S.A, Canada, Japan, South Korea, Taiwan, Mexico.
- PAL : Australia, Austria, Belgium, China, Denmark, Finland,
Germany, U.K., Holland, Italy, Kuwait, Malaysia, New
Zealand, Singapore, Spain, Sweden, Switzerland,
Thailand, Norway.
- When using a TV as an external monitor, you will need to select
the external or AV channel of the TV.
- There will be a digital noise on the external monitor, but it is not a
malfunction.
- If the image is not in the centre of the screen, use the TV controls
to centre it.
- When the camera is connected to an external monitor, some parts
of the image may not be displayed.
- When the camera is connected to an external monitor, the menu
will be visible on the external monitor and the menu functions are
the same as those indicated on the LCD monitor.
Downloaded From camera-usermanual.com Samsung Manuals
52
Setting the USB
If the camera is set to connect automatically to a PC or a printer
using a USB cable, you can manually set [Computer] or [Printer].
-[USB] sub menus:
[Auto]*
: Automatically enables an
AF Lamp
:On
external device connected
Video Out
:NTSC
USB
:Auto
with a USB cable.
Auto
Computer
[Computer] : Sets computer connection
Printer
mode if the connected external
device cannot be recognized
Back
Set
automatically.
[Printer] : Sets printer connection mode if the connected
external device cannot be recognized automatically.
Starting play mode
Turn the camera on and select Play mode by pressing the play
mode button ( Î ). The camera can now play back the images
stored in the memory.
If the memory card is inserted in the camera, all the camera
functions apply only to the memory card.
If the memory card is not inserted in the camera, all the camera
functions apply only to the internal memory.
Playing back a still image
1. Select the PLAY mode by pressing
the play mode button ( Î ).
2. The last image stored on the
memory is displayed on the
LCD monitor.
Playing back a movie clip
1. Select the recorded movie clip that
you want to play back by using the
Left/Right button.
2. Press the OK button to play back a
movie clip file.
Play
Capture
- To pause a movie clip file while playing
it back, press the OK button again.
- Pressing the OK button again will
cause the movie clip file to restart.
- To rewind the movie clip while it is
playing, press the Left button. To
fast forward the movie clip, press
the Right button.
- To stop playback of the movie clip, press the OK button, and
then press the Left or Right button.
3. Select an image that you want to
view by pressing the Left/ Right
button.
Ä Press and hold the Left or Right
button to play back the images
quickly.
Downloaded From camera-usermanual.com Samsung Manuals
53
Starting play mode
Movie clip capture function
Playing back a recorded voice
You can capture still images from the movie clip.
1. Select the recorded voice that you want to
play back by using the Left/Right button.
2. Press the OK button to play back a
recorded voice file.
- To pause a recorded voice file, while
Play
playing it back, press the OK button
again.
- To resume playback of the voice file, press the OK button.
- To rewind the voice file while it is playing, press the Left button.
To fast forward the voice file, press the Right button.
- To stop playback of the voice memo, press the Down button.
How to capture the movie clip
1. Press the OK button while playing the
movie clip. Then press the Down button.
2. The paused movie clip is saved in a
new file name.
Play
Ä The captured movie clip file is the
same size as the original movie clip
(800x592, 640x480, 320x240).
Ä When you press the down button at
the beginning of the movie clip, the
first frame of the movie clip will be
saved as a still image.
Capture
[Paused]
[Press the down button]
Downloaded From camera-usermanual.com Samsung Manuals
54
Starting play mode
LCD monitor Indicator
Playing back a voice memo
The LCD monitor displays shooting information about the displayed image.
1. Select a still image that has the voice
memo.
2. Press the OK button to play back the
voice memo.
- To pause the voice memo, while
playing it back, press the OK button
again.
- To resume playback of the voice memo,
press the OK button.
Play
Pause
Downloaded From camera-usermanual.com Samsung Manuals
No.
1
Description
Playback mode
Icon
2
Voice Memo
3
DPOF
p.71
4
5
Protect
Folder name & File name
100-0010
p.70
p.49
6
Memory card indicator
-
7
8
9
10
11
12
13
Battery
ISO
Aperture value
Shutter speed
Flash
Image size
Recording date
80~3200
F3.0 ~ F5.6
8 ~ 1/1,500
On/Off
4000X3000 ~ 320X240
2009/01/01
p.14
p.34
p.27
p.36
p.49
Î
Page
p.53
p.70
55
Using the camera buttons to set the camera
In Play mode, you can use the buttons on the camera to conveniently
set up the Play mode functions.
Play mode button
If you have turned on the camera by
pressing the POWER button, you can
press the Play mode button once to
switch to Play mode and press it again
to switch to Recording mode.
You can turn the power on with the Play
mode button. The camera is turned on in
play mode. Press the Play mode button
again to turn off the camera.
Manner mode: To select the Manner mode, press the Play mode
button for more than 3 seconds. In the Manner
mode, Operating sound, Effect sound, Start-up
sound and Shutter sound will not be generated. To
cancel the Manner mode, turn on the camera by
pressing the POWER button.
Downloaded From camera-usermanual.com Samsung Manuals
56
Thumbnail ( º ) / Enlargement ( í ) Lever
Smart Album
You can view multiple pictures, enlarge a selected picture, and crop
and save a selected area of an image.
1. Turn the Thumbnail lever to the left
when one picture is displayed to enter
the Smart Album screen.
2. Press the Left/Right button to move to
a desired image.
3. Turn the Digital Zoom lever to the right
to move to the normal display screen.
Turn the Thumbnail
(º) lever to the left.
Turn the Digital Zoom
(í) lever to the right.
11
12
Filter
[Highlighted image]
1
3
5
2009/01/01
[Smart Album 3-Thumbnail Window]
Thumbnail ( º ) / Enlargement ( í ) Lever
Ŷ Searching or Deleting Files
Ŷ Smart Album Filter
1. Press the MENU button in Smart Album
mode.
2. Selecting the desired category enables to
categorize and search the files by using
the Up/Down button.
1. Turn the Thumbnail lever to the left on
the Smart Album screen.
2. Each time you turn the Thumbnail lever to
the left, files in the relevant category are
displayed on the Smart Album screen.
3. Select the file by pressing the Up/Down/ Left/Right buttons.
4. Press the Delete ( Õ ) button to delete the selected file.
Type
Date
Colour
Week
11
12
Back
1
3
5
Set
Ŷ Details of Each Category
11
12
1
Filter
3
5
2009/01/01
[3-Thumbnail Window]
11
12
Filter
1
3
5
2009/01/01
[9-Thumbnail Window]
11
12
Filter
1
3
5
2009/01/01
Category
[20-Thumbnail Window]
Ɣ When Smart Album feature runs or a category is selected, it
may take few seconds depends on recorded data volume.
However, it is not a malfunction please wait until Smart Album
screen appears.
Downloaded From camera-usermanual.com Samsung Manuals
Description
Type
Categorized depending on the file type
(e.g., picture, video, or voice)
Date
Categorized depending on the sequence of
recorded dates.
Colour
Categorized depending on the main color.
Week
Categorized depending on the sequence of
recorded weeks.
File Format
Pictures,
Videos,
Voice
57
Thumbnail ( º ) / Enlargement ( í ) Lever
Image enlargement
1. Select the picture you want to
enlarge and move the Digital Zoom
lever to the right. Then the selected
picture will be digitally enlarged.
2. Different parts of the image can be
viewed by pressing the 5 function
button.
3. Move the Thumbnail lever to the
left to return the enlarged picture to
its original size.
- You can tell whether the image
displayed is an enlarged view by
Trim
checking the image enlargement
indicator shown at the top left of the LCD monitor. (If the image
is not an enlarged view,
the indicator will not be displayed.) You can also check the
area of enlargement.
- Movie clips and WAV files can’t be enlarged.
- If an image is enlarged, a loss of quality may occur.
The maximum enlargement rate in proportion to the image size
Image size
Maximum
enlargement X10.2 X10.2
rate
X9.3
X10.2
X8.1
X6.4
Trimming : You can extract part of the image that you want and
save it separately.
1. Select an image that you want to
enlarge and press the enlargement
button. Press the OK button and a
Trimming?
Yes
message will be displayed.
No
2. Select a desired sub menu by
pressing the Up / Down button
Confirm
and press the OK button.
- [Yes] : The trimmed image will be saved as a new file name,
and appear on the LCD monitor.
- [No] : The trimming menu will disappear.
Ä If there is not enough memory space to save the trimmed
image, the image can’t be trimmed.
Downloaded From camera-usermanual.com Samsung Manuals
58
X3.2
Info (DISP) / Up button
Play & Pause / OK button
When the menu is displayed on the LCD monitor, the UP button
operates as a direction button.
When the menu is not displayed on the LCD monitor, pressing the
Info button will display image information on the LCD monitor.
In Play mode, the play & pause/ OK button works as follows:
Info (DISP) button
Info (DISP) button
- When the menu is displayed on the LCD monitor, the OK button
is used for confirming data that is changed by using the 5 function
button.
- If a still image with a voice memo, a voice file, or a movie clip is
playing
·In Stop mode
: Plays a still image with a voice memo, a
voice file, or a movie clip.
·During playback : Temporarily stops playback.
·In Pause mode : Resumes playback
Info (DISP) button
Play
[ Voice recording is stopped ]
Downloaded From camera-usermanual.com Samsung Manuals
Pause
Stop
[ Voice recording is playing ]
Play
Stop
[ Voice recording is paused ]
59
Left / Right / Down / MENU button
Delete ( Õ ) button
LEFT / RIGHT / DOWN / MENU buttons activate the following.
This deletes images stored on the memory card.
- LEFT button
: While the menu is showing, the LEFT button
operates as a direction button. While the menu is
not showing, press the LEFT button to select the
previous image.
- RIGHT button : While the menu is showing, the RIGHT button
operates as a direction button. While the menu
is not showing, press the RIGHT button to select
the next image.
- DOWN button : While the menu is showing, the Down button
operates as a direction button.
- MENU button : When you press the MENU button, the play mode
menu will be displayed on the LCD monitor. Pressing
it again will return the LCD to the initial display.
1. Select an image that you want to delete by pressing the
Left / Right button and press the DELETE ( Õ ) button.
Delete File?
Delete File?
Yes
No
Multiple Delete
Yes
No
Multiple Delete
11
Set
[Single Image]
12
1
3
5
Set
[Thumbnail Image]
2. To add images to delete, select the [Multiple Delete] menu.
- Left/Right button : Selects images
- OK button
: checks for deletion
- Delete ( Õ ) button : deletes the
selected images.
Prev
Select
Next
Delete
3. Select the submenu values by pressing the Up / Down button
and then press the OK button.
- If [Yes] is selected : deletes the selected images.
- If [No] is selected : cancels "Delete Image".
Downloaded From camera-usermanual.com Samsung Manuals
60
Setting up the play back function using the LCD monitor
PLAY mode functions can be changed by using the LCD monitor.
In the PLAY mode, pressing the MENU button displays the menu
on the LCD monitor. The menus you can set up in Play mode are
as follows. To capture an image after setting up the play menu,
press the PLAY mode button or shutter button.
Menu Tab
Main Menu
Resize
Rotate
Edit
)
(
Photo Style
Selector
Image Adjust
View
(
Single, 3, 9, 20
)
Multi Slide
Show
)
(
Sub Menu
2592X1944
2048X1536
1024X768
2592X1728
1800X1200
2592X1458
1920X1080
Start Image
Right 90˚
Left 90˚
180˚
Horizontal
Vertical
Normal
Soft
Vivid
Forest
Retro
Cool
Calm
Classic
Negative
Custom
ACB
Red-eye Fix
Face Retouch
Brightness
Contrast
Saturation
Add Noise
-
Start
Images
Play / Repeat
All
Select
Main Menu
Effect
Page
p.63
Multi Slide
Show
)
(
Interval
Music
p.64
Delete
p.64
Protect
p.65
p.67
Date
-
Menu Tab
File
Options
(
)
Voice memo
DPOF
p.67
p.68
Downloaded From camera-usermanual.com Samsung Manuals
Copy To Card
Sub Menu
Secondary
Menu
Off
Calm
-
Sweet
Rural
-
Vivid
Lively
-
Shine
Relax
-
1, 3, 5, 10 sec
-
Off
Mist
-
Muse
Fall
-
Dawn
Party
-
Drops
Trip
-
Select
-
All
Yes / No
Select
-
All
Unlock / Lock
Off
-
On
-
Standard
Select / All /
Reset
Index
Yes / No
Size
Select / All /
Reset
Yes
-
No
-
Page
p.68
p.69
p.69
p.69
p.70
p.70
p.71
~
p.72
p.73
61
Setting up the play back function using the LCD monitor
This menu is available while the camera is connected to a PictBridge
supporting printer (direct connection to the camera, sold separately)
with a USB cable.
Menu Tab
Main Menu
Images
Size
❹
Layout
Sub Menu
Secondary Menu Page
One Photo
-
All Photos
-
Auto
-
PostCard
-
Card
-
4X6
-
L
-
2L
-
Letter
-
A4
-
A3
-
Auto
-
Full
-
1
-
2
-
4
-
8
-
9
-
16
-
Index
-
Main Menu
Type
p.81
Quality
❹
Date
File Name
p.81
Downloaded From camera-usermanual.com Samsung Manuals
62
Menu Tab
Reset
Sub Menu
Secondary Menu Page
Auto
-
Plain
-
-
FastPhoto
-
Auto
-
Draft
-
Normal
-
Fine
-
Auto
-
Off
-
On
-
Auto
-
Off
-
On
-
Yes
-
No
-
Ä Menus are subject to change without prior notice.
p.81
p.82
Edit (
)
Resize
Change the resolution (size) of pictures taken. Select [Start image]
to save an image to be the start-up image.
1. Press the play mode button and
press the MENU button.
2. Click the Up/Down button from the
Edit menu to select [Resize] (
)
menu tab and press the OK button.
3. Select a desired sub menu by
pressing the Left / Right button and
press the OK button.
Resize
Back
Image Resize Types
Move
( o : Selectable)
o
o
o
o
o
o
o
o
o
o
o
o
o
- A large sized image can be resized to a smaller sized image,
but not vice versa.
- Only JPEG images can be resized. Movie clip (AVI), Voice
recording (WAV) files can’t be resized.
- You can change the resolution of only those files compressed in
the JPEG 4:2:2 format.
- The resized image will have a new file name. The [Start
Image] image is stored not on the memory card but on the
internal memory.
- If a new user image is saved, one of the two user images will be
deleted in order.
- If the memory capacity is insufficient to store the resized image,
a [Memory Full] message will appear on the LCD monitor and
the resized image can't be stored.
o
o
o
o
o
o
o
Downloaded From camera-usermanual.com Samsung Manuals
63
Edit (
)
Rotating an image
Photo Style Selector
You can rotate the stored images by various degrees.
It is possible to add various effects to your images by using this function.
1. Press the play mode button and press
the MENU button.
2. Click the Up/Down button from the Edit
menu to select [Rotate] ( ò ) menu tab
and press the OK button.
3. Select a desired sub menu by pressing
the Left / Right button and press the
OK button.
1. Press the play mode button and
press the MENU button.
2. Click the Up/Down button from the
Edit menu to select [Photo Style
Selector ] (
) menu tab and press
the OK button.
3. Select a desired sub menu by pressing
the Left / Right button and press the
OK button.
Right 90˚
Left 90˚
Rotate
Back
Move
Style mode
180˚
Normal
Back
Move
[ ô : Right 90˚]
: Rotate picture in a
clock-wise direction
Back
Horizontal
Back
Move
Back
Move
[ ó : Left 90˚]
[ õ : 180˚]
: Rotate picture in a
: Rotate picture 180 degrees
counter-clock-wise direction
Vertical
Move
[
: Horizontal]
: Rotate picture horizontally
Back
Move
[ ® : Vertical]
: Rotate picture vertically
Icon
Vivid
Vivid style is applied.
Forest
Forest style is applied.
Retro
Sepia style is applied.
Cool
Cool style is applied.
Calm
Calm style is applied.
Negative
Move
No style effect is applied.
Soft style is applied.
Custom RGB
Back
Description
Soft
Classic
Photo Style Selector
Black & white effect is applied.
Negative effect is applied.
Define an RGB tone to create your own photo style.
If you display the rotated image on the LCD monitor, empty
spaces may
appear
to the left and right of the image.
Downloaded
From
camera-usermanual.com
Samsung Manuals 4. The changed image is saved as a new file name.
64
Edit (
)
Red eye Removal
Custom colour
Red eye effect can be removed from the captured image.
You can change the R (Red), G (Green)
and B (Blue) values of the image.
- OK button : Select / setup the Custom
Colour
- Up / Down button : Selects R, G, B
- Left / Right button : Change the values
Back
Move
Red-eye Fix
Back
Back
Move
Move
Image Adjust
Face Retouch
You can make the skin in an image appear clear and beautiful.
1. Press the play back button and press the MENU button.
2. Click the Up/Down button from the Edit menu to select
[Image Adjust] (
) menu tab and press the OK button.
ACB
You can automatically adjust the brightness of the dark area,
caused by under exposure to the light source.
1. Select (
) by pressing the Left/
Right button and press the OK button.
2. The [Making New Image] message is
displayed and the image is saved as a
new file name.
1. Select ( ) by pressing the Left/Right
button and press the OK button.
2. The [Making New Image] message is
displayed and the image is saved as a
new file name.
1. Select (
) by pressing the
Left/Right button and press the OK
button. Then a bar for selecting the
face retouch will be displayed.
2. Change the face retouch by pressing the
Left/Right button.
3. Press the OK button and the image will
be saved as a new file name.
Face Retouch
Back
Move
ACB
Back
Move
Downloaded From camera-usermanual.com Samsung Manuals
65
Edit (
)
Brightness control
Saturation control
You can change the brightness of the image.
1. Select (
) by pressing the
Left/Right button and press the OK
button. Then a bar for selecting the
brightness will be displayed.
2. Change the brightness by pressing the
Left/Right button.
3. Press the OK button and the image will
be saved as a new file name.
You can change the saturation of the image.
Brightness
Back
Move
Back
Move
You can add noise to an image to add a more classic feel to
your photo.
You can change the contrast of the image.
1. Select (
) by pressing the Left/
Right button and press the OK button.
2. The [Making New Image] message is
displayed and the image is saved as a
new file name.
Contrast
Back
Add Noise
Move
Downloaded From camera-usermanual.com Samsung Manuals
66
Saturation
Noise effect
Contrast control
1. Select ( ) by pressing the Left/Right
button and press the OK button. Then
a bar for selecting the contrast will be
displayed.
2. Change the contrast by pressing the
Left/Right button.
3. Press the OK button and the image will be
saved as a new file name.
1. Select (
) by pressing the Left/Right
button and press the OK button. Then
a bar for selecting the saturation will be
displayed.
2. Change the saturation by pressing the
Left/Right button.
3. Press the OK button and the image will be
saved as a new file name.
Back
Move
View (
Starting the Multi Slide Show ( )
)
You can view the thumbnails and easily categorize or search a large
amount of content such as pictures and videos.
1. Press the MENU button in playback
mode.
2. Press the Up/Down button to select
the desired menu.
3. Press the OK button and selected
thumbnail screen will appear.
Images can be displayed continuously at pre-set intervals.
You can view the Multi Slide Show by connecting the camera to an
external monitor.
1. Press the play mode button and press the menu button.
2. Press the Up / Down button and select the [Multi Slide Show]
menu tab and press the OK button.
Single
3
9
20
Start the Multi Slide Show
Exit
Back
The Multi Slide Show can start only in the [Start] menu.
1. Use the Up / Down buttons to select the [Start] menu and press
the Right button.
2. Select a desired sub menu by pressing
the Up / Down button.
[Play] : The Multi Slide Show is
closed after one cycle.
[Repeat] : The Slide show is repeated
until cancelled.
Start
Images
Effect
Play
Repeat:All
:Off
Interval
:1 sec
Music
:Off
Back
Set
3. Press the OK button and the slideshow will be started.
- To pause the slide shown while playing it back, press the OK
button again.
- Pressing the OK button again will cause the Multi Slide Show
restart.
- To stop playback of the Multi Slide Show, press the OK button,
and then press the Left or Right button.
Downloaded From camera-usermanual.com Samsung Manuals
67
Starting the Multi Slide Show ( )
Selecting Images
Configure Multi Slide show effects
You can select image to view
Unique screen effects can be used for the Multi Slide Show.
1. Use the Up / Down buttons to select the
[Images] menu and press the Right button.
Start
Images
Effect
All
:All
:Off
Date
:1 sec
Select
Interval
2. Select a desired sub menu by pressing
Music
:Off
the Up / Down button.
[All]
: All images saved in the
Back
Set
Memory are played back.
Press the OK button to save the configuration.
[Date] : Images taken in a specified date are played back.
Press the OK button to save the configuration.
[Select] : Play only the selected images. The selected image
can be saved as [Select1], [Select2] and [Select3].
If you save the selected image with the [New Select]
command, it will be saved as [Select1]. But when a
new image is saved again using [New Select], the
former image which had been saved as [Select1] will
be saved as [Select2] automatically.You can change
and cancel the images which were saved as [Select1],
[Select2] and [Select3]. Press the ( Õ ) button to save
the configuration.
3. Select [Play] or [Repeat] in the [Start] menu to start the multi
slide show.
Downloaded From camera-usermanual.com Samsung Manuals
68
1. Select the [Effect] sub menu by pressing the UP / DOWN button and press
the RIGHT button.
2. Use the Up / Down button to select
the type of effect.
3. Press the OK button to confirm the
setting.
Start
Effect
Off
:All
Calm
:Off
Sweet
Interval
Rural:1 sec
Music
Vivid:Off
Lively
Images
Back
Set
Starting the Multi Slide Show ( )
File Options (
Setting play interval
1. Press the play mode button and press the menu button.
2. Press the Up / Down button and select the [File Options] menu
tab and press the OK button.
Set the Multi Slide Show play interval.
1. Select the [Interval] sub menu by
pressing the UP / DOWN button and
press the RIGHT button.
2. Use the Up / Down buttons to select
the desired interval.
3. Press the OK button to save the
configuration.
Start
Images
:All
Effect
:Off
Interval
1 sec:1 sec
Music
3 sec:Off
Deleting images
This deletes images stored on the memory.
5 sec
10 sec
Back
Set
The loading time depends on the image size and quality.
While the Multi Slide Show is playing, only the first frame
of a MOVIE file is displayed.
While the Multi Slide Show is playing, the voice recording file
will not display.
The interval menu functions in the [Off] menu only.
1. Press the Up / Down button and select
Delete
Select
the [Delete] menu tab. And then press
Protect
All
Voice memo
:Off
the Right button.
DPOF
2. Select a desired sub menu by pressing the
Copy To Card
UP / DOWN button and press the OK button.
[Select] : Selection window for an image
Back
Set
to delete is displayed.
- Up/ Down/ Left/ Right : Select an image
- OK button : Select the image for
deletion. ( Ë mark)
- Delete Button : Press the Delete button to
display the confirmation
Select
Delete
message. Select the [Yes]
menu and press the OK
button to delete marked
images.
Delete All File(s)?
Yes
[All] : Displays confirmation window.
No
Select the [Yes] menu and press the
OK button to delete all unprotected
Set
images. If there aren’t protected
images, all the images are deleted and a [No Image File]
message will appear.
3. After deletion, the screen will be changed to the play mode screen.
11
Setting Background Music
Set the Multi Slide Show music.
1. Select the [Music] sub menu by pressing
the UP / DOWN button and press the
RIGHT button.
2. Use the Up / Down buttons to select the
desired Music.
3. Press the OK button to save the
configuration.
)
Start
Images
Off
Effect
Mist :All
Muse:Off
Interval
Fall :1 sec
Music
Dawn
:Off
Party
Back
Set
Downloaded From camera-usermanual.com Samsung Manuals
12
1
3
5
69
File Options (
)
Of all the files stored in the memory card, the unprotected files
in the DCIM subfolder will be deleted. Remember that this
will permanently delete unprotected images. Important shots
should be stored on a computer before deletion takes place.
The startup image is stored in the camera's internal memory
(i.e., not on the memory card) and it will not be deleted even if
you delete all files on the memory card.
[All] : Protect / release all saved images
- If you protect an image, the protect
icon will be displayed on the LCD
monitor. (An unprotected image has
no indicator)
- An image in LOCK mode will be
protected from the delete function
or [Delete] functions, but will NOT be
protected from the [Format] function.
Protect All?
Lock
Unlock
Set
Protecting images
This is used to protect specific shots from being accidentally erased (Lock).
It also unprotects images that have been previously protected (Unlock).
1. Press the Up / Down button and select
the [Protect] menu tab. And then press
the Right button.
2. Select a desired sub menu by pressing the
UP / DOWN button and press the OK button.
[Select ] : Selection window for an
image to be protected /
released is displayed.
- Up / Down / Left / Right : Select an image
- OK button : Protect / release the
- Delete button : Your changes will be
saved and the menu
will disappear.
You can add your voice to a stored still image.
Delete
Protect
Select
:Off
All
Voice memo
Delete
DPOF
Protect
Copy To Card
Voice memo
DPOF
Copy To Card
Back
Off
:Off
On
Set
Back
Set
[Voice memo menu]
11
12
Select
1
3
5
Set
Downloaded From camera-usermanual.com Samsung Manuals
70
Voice memo
Start
[Ready for recording]
Stop
[Voice is recording]
- Press the shutter button to record up to 10 seconds of voice into
a stored still image.
- To stop the recording, press the shutter button.
File Options (
)
DPOF
DPOF(Digital Print Order Format) allows you to embed printing
information on your memory card’s MISC folder. Select the
pictures to be printed and how many prints to make.
The DPOF indicator will display on the LCD monitor when an image
that has DPOF information plays back. Images can then be printed
on DPOF printers, or at an increasing number of photo labs.
This function is not available for Movie clips and Voice recording files.
When the wide angle image is printed as a wide angle print,
8% of the left and right side of the image may not be printed.
Check that your printer can support the wide angle image when
you print the image. When you print the image at a photo lab,
request that the image is printed as a wide angle image. (Some
photo labs may not support the wide angle size print.)
Standard
This function allows you to embed printing quantity information on
a stored image.
1. Press the Up / Down button and select
the [DPOF] menu tab. And then press
the Right button.
Delete
Protect
Voice Select
memo Image
Select
All
Copy To CardReset
2. Press the Right button again and
[Standard] sub menu will display.
3. Select a desired sub menu by pressing
the Up / Down button and press the OK
button.
[Select] : Selection window for an
image to print is displayed.
- Up / Down / Left / Right : Select an
image to print.
- Zoom W/T Lever : Select the number of
prints.
[All] : Configure number of prints for all
pictures except movie and voice
files.
- Up / Down button : Select a number of
prints
[Reset] : Cancel the print setup.
:Off
DPOF
Standard
Index
Size
Back
11
12
Set
1
3
Quantity
5
Set
01
Quantity
Set
4. Press the OK button to confirm the setting. If an image carries
DPOF instructions, the DPOF indicator (
) will show.
Downloaded From camera-usermanual.com Samsung Manuals
71
File Options (
)
Index
Images (except for movie clips and voice file) are printed as index
type.
1. Press the Up / Down button and select
the [DPOF] menu tab. And then press
the Right button.
2. Select the [Index] menu and press
the Right button again. Sub menu will
display.
Print size
You can specify the print size when printing images stored on the
memory card. The [Size] menu is available only for DPOF 1.1
compatible printers.
Delete
Protect
Voice memo
Setting Index?
DPOF
Yes
Copy To Card No
:Off
Standard
Index
Size
Back
Set
3. Select a desired sub menu by pressing the UP / DOWN button.
If [Yes] is selected : The image will be printed in index format.
If [No] is selected : Cancel the index print setting.
4. Press the OK button to confirm the setting.
1. Press the Up / Down button and select
the [DPOF] menu tab. And then press
the Right button.
Delete
Protect
VoiceSelect
memoImage
Select
DPOF
All
Copy To CardReset
2. Select the [Size] menu and press the
Right button again. Sub menu will
display.
:Off
Standard
Index
Size
Back
3. Select a desired sub menu by pressing
the UP / DOWN button and press the
OK button.
[Select] : Selection window to change
the printed size of the image
is displayed.
- Up / Down / Left / Right : Select an image.
- Zoom W/T Lever : Change the print size.
- Delete button : Your changes will be
saved and the menu
will disappear.
[All] : Change print size of all saved
images.
- Up / Down button : Select a print size
- OK button : Confirm the changed setting.
[Reset] : Cancel all of the print size settings.
11
12
Set
1
3
Size
5
Set
3X5
Size
Set
Ä DPOF [Size] secondary menu : Cancel, 3X5, 4X6, 5X7, 8X10
Depending on the manufacturer and print model, cancelling the
Downloaded From camera-usermanual.com Samsung Manuals
72
printing may take a little longer for the printer to process.
File Options (
)
Copy To Card
If there is not enough space available in the memory card to
This enables you to copy image files, movie clips and voice recording
files to the memory card.
1. Select the [Copy To Card] menu tab by
pressing the Up / Down button. And then
press the Right button.
Delete
Protect
Voice memo
:Off
DPOF
Copy To Card
2. Select a desired sub menu by pressing
Yes
No
the UP/ DOWN button and press the OK
button.
Back
Set
- [Yes] : All images, movie clips and voice
recording files saved in the internal memory are copied
to the memory card after the [Copying] message is
displayed. After copying has been completed, the screen
will return to play mode.
- [No] : Cancels "Copy to Card".
Downloaded From camera-usermanual.com Samsung Manuals
copy saved images in the internal memory (About 31MB), the
[Copy To Card] command will copy only some of the images
and display [Memory Full] message. Then the system will
return to the playback mode. Please be sure to delete any
unnecessary files to free up space before inserting the memory
card into the camera.
When you move the images that are stored in the internal
memory by doing [Copy To Card] to the card, the next number
of file names will be created in the card to avoid duplication of
the file name.
- When the [Reset] of the [File No.] setup menu is set : The
copied file names start from after the last stored file name.
- When the [Series] of the [File No.] setup menu is set : The copied file names start from after the last captured file name. After
completing [Copy To Card], the last stored image of the last
copied folder is displayed on the LCD monitor.
73
Smart mode
Smart mode display
Ŷ Smart mode
Smart mode allows users to take a photo simply, without setting any of
the more complex functions available. Even beginners can easily learn
how to operate it.
Ŷ The LCD monitor displays information about the current Smart mode
setting.
[Smart Auto mode]
[Smart Movie Clip mode]
Ŷ You can use the Smart button at the
top of the camera to start Smart mode.
[Image & Full Status]
Ä When you press the Smart button, it
will turn blue.
Downloaded From camera-usermanual.com Samsung Manuals
74
Smart mode display
Starting Smart mode
Page
Selecting modes
Recording mode
p.75
Mode selection using the Smart button
2
Optical Zoom bar
p.24
3
Number of available
shots remaining
00001
Remaining time
00:00:00
No.
Description
1
Icons
p.16
4
Memory card icon /
Internal memory icon
-
5
Battery
p.14
6
Flash
p.27
7
Self-timer
p.29
8
Image Size
p.36
9
Frame rate
p.37
10
Date / Time
11
Auto Focus Frame
2009/01/01 01:00 PM
You can use the Smart button at the top of your camera to select the
correct smart mode.
[Program mode]
[Smart Auto mode]
p.49
p.39
Downloaded From camera-usermanual.com Samsung Manuals
75
Starting Smart mode
How to use Smart Auto mode (
)
The camera automatically chooses the appropriate camera settings based
on a detected type of scene. It will be helpful if you are not familiar with the
camera settings for various scenes.
1. Use the Smart button to select Smart Auto
mode.
2. The camera selects a scene automatically.
An appropriate mode icon will appear at the
top left of the screen.
3. Press the Shutter button to capture an
image.
If the camera does not recognize a proper scene mode, the
default settings will be used.
Even if there is a face detected, the camera may not select a
portrait mode depending on the subject’s position or lighting.
The camera may not select the correct scene depending on
shooting environments, such as camera shake, lighting, and
distance to the subject.
The [Night] mode recognizes scenes only when the flash is set
to off. The camera operates the [Tripod] mode after checking
the shooting condition on the tripod for a certain time.
Despite using a tripod, the camera may not select a tripod
mode depending on the subject’s movement.
Downloaded From camera-usermanual.com Samsung Manuals
76
Each scene is recognized in the following conditions;
[Landscape]
(
) : When shooting outdoor scenes
[White]
(
) : When shooting in a very bright environment
[Nights]
(
) : When shooting the nighttime scenes
[Night Portrait]
(
) : When shooting people in a dark outdoor place
[Backlight]
(
) : When shooting a backlit scenery
without a portrait
[Backlight Portrait] (
) : When shooting a backlit portrait
[Portrait]
(
) : When shooting a portrait
[Macro]
(
) : When shooting close-ups
[Macro Text]
(
) : When shooting texts in a close focus
[Tripod]
(
) : When shooting a subject without any
movement on the tripod
[Action]
(
) : When shooting a subject making
frequent movements
Starting Smart mode
How to use Smart Movie Clip mode (
Setting up the Smart menu
)
This mode allows users to record a movie clip simply, without setting
any of the more complex functions available.
1. Use the Smart button to select Smart
Movie Clip mode.
2. Point the camera towards the subject and
compose the image by using the LCD
monitor.
3. Press the shutter button once and movie
clips are recorded for as long as the available recording time allows. Movie clips
will still be recorded if the shutter button
is released. If you wish to stop recording,
press the shutter button again.
Ŷ Smart mode allows users to take a photo simply, without setting any
of the more complex functions available. Even beginners can easily
learn how to operate it.
- Pressing the Menu button will display a menu screen for each Smart
mode. Pressing it again will return to the previous screen.
[Pressing the MENU
button]
Photo Size
:
Flash
:
Timer
: Off
Volume
: Medium
Exit
[Menu off (Smart Auto)]
Change
[Menu on (Smart Auto)]
- Press the Up/Down button to select the Smart menu and press the
Right button, and then you can set a sub menu.
Photo Size
:
Photo Size
Flash
:
Flash
Timer
: Off
Volume
: Medium
Exit
Downloaded From camera-usermanual.com Samsung Manuals
Change
Right button
12M
8M
3M
:
:
Timer
: Off
Volume
: Medium
Back
Set
77
Setting up the Smart menu
Menu items available in Smart mode are as shown below.
The items indicated by
are default settings.
Main Menu
Photo Size
Sub Menu
4000X
3000
3264X
2448
Main Menu
Page
2048X
1536
Movie Size
800X592
640X480
320X240
Frame Rate
30 FPS
20 FPS
15 FPS
p.36
p.37
Okhotsk
Guam, Sydney
Adelaide, Darwin
Seoul, Tokyo
Beijing, Hong Kong
Bankok, Jakarta
Yangon
Almaty
Mumbai, New Delhi
Kabul
Flash
Off
Smart Flash
p.27
Timer
Off
10 Sec
p.29
Tashkent
Off
Low
Medium
Language
Display Brightness
Date & Time
Time Zone
High
-
p.45
Dark
Normal
Bright
yyyy/mm/dd
mm/dd/yyyy
dd/mm/yyyy
Off
London
Cape Verde
Mid-Atlantic
Buenos Aires
Newfoundland
Caracas, La Paz
Miami, New York
Chicago, Dallas
Denver, Phoenix
LA, San Francisco
Alaska
Hawaii, Honolulu
p.47
p.49
p.49
Downloaded From camera-usermanual.com Samsung Manuals
Abu Dhabi
Teheran
Moscow
Athens, Helsinki
p.49
Berlin, Paris, Rome
-
Format
No
Yes
p.48
Video Out
NTSC
PAL
p.51
p.46
Auto
Page
Auckland, Wellington
Kathmandu
Volume
78
Time Zone
Sub Menu
Midway, Samoa
Ä For more information on how to set up the Smart menu, refer to the
Normal mode sections.
Smart Play mode display
Setting up the Smart Play menu
The LCD monitor displays information about the Smart mode setting
of the current photo.
Ŷ Setting up the Smart Play menu
You can use the Smart Play menu to set play mode functions easily.
Menu items available in Smart Play mode are as shown below.
The items indicated by
are default settings.
Main Menu
Edit
Description
1
Smart Play mode
Icon
Page
p.53
2
Voice Memo
p.70
3
DPOF
p.71
4
5
Protect
Folder name & File name
p.70
p.49
6
Memory card indicator
100-0010
Page
ACB
Red-eye Fix
Face Retouch
-
p.65
Single
3
9
20
Multi Slide Show
Play
Repeat
p.67
Delete
Select
All
p.69
Protect
Select
All
p.70
View
No.
Sub Menu
p.67
Ä For more information on how to set up the Smart Play menu, refer
to the Normal mode sections.
-
p.14
7
Battery
8
ISO
80~3200
p.34
9
Aperture value
F3.0 ~ F5.6
10
Shutter speed
8 ~ 1/1,500
11
Flash
On/Off
p.27
12
Image size
4000X3000 ~ 320X240
p.36
13
Recording
date
2009/01/01 Samsungp.49
Downloaded
From camera-usermanual.com
Manuals
79
PictBridge
You can use the USB cable to connect this camera to a printer that
supports PictBridge (sold separately) and print the stored images
directly. Movie clips and voice files cannot be printed.
Setting up the camera for connection to the printer
1. Connect the camera and printer with USB cable.
2. Once the camera is turned on, the camera automatically recognizes
the printer and is connected to it.
Ä If automatic connection fails, set the [USB] menu to [Printer]. (p.52)
Ä For a printer that can enable removable disks, set the [USB] menu
to [Printer].
Connecting the Camera to a Printer
Downloaded From camera-usermanual.com Samsung Manuals
80
Easy printing
When you connect the camera to printer
in the Play back mode, you can print a
picture easily.
- Pressing the Left / Right button :
Selects a previous / next image.
- Pressing the OK button :
Currently displayed image will be
printed with the printer’s default setting.
Print
Menu
PictBridge : Picture Selection
PictBridge : Print Setting
You can select images you want to print.
You can select the Paper Size, Print Format, Paper Type, Print
Quality, Date Print, and File Name Print menus for printed pictures.
Images
:One Photo
Setting the Number of Copies to Print
One Photo
Size
All:Auto
Photos
1. Press the Menu button and the
Layout
:Auto
PictBridge menu will display.
Type
:Auto
2. Use the Up / Down buttons to
Quality
:Auto
select the [Images] menu and
Back
Set
press the Right button.
3. Use the Up / Down buttons to select a desired sub menu and
press the OK button.
- Select [One Photo] or [All Photos]. A screen where you can
set the number of copies to print will appear as shown below.
1. Press the Menu button and the
PictBridge menu will display.
2. Use the Up / Down buttons to select
the desired menu, and then press the
Right button.
3. Use the Up / Down buttons to select
the desired sub menu value, and then
press the OK button.
Menu
0
Quantity
Set
[When [One Photo] is selected]
Quantity
- Press the Up / Down button to select the number of prints.
- When [One Photo] is selected : Use the Left / Right button to
select another picture. After
selecting another picture, select
the number of prints for another
picture.
- After setting the number of prints, press the OK button to save.
- Press the Shutter button to return to the menu without setting
the number of prints.
4. Press the play mode button ( Î ) and images will be printed.
Downloaded From camera-usermanual.com Samsung Manuals
Card
:Auto
4x6
L :Auto
Layout
Type
2L
:Auto
Quality
Back
Set
Sub menu
Auto, PostCard, Card, 4X6, L,
2L, Letter, A4, A3
Layout
Set the number of pictures to
be printed on a sheet of paper
Auto, Full, 1, 2, 4, 8, 9,
16, Index
Type
Set the quality of the printing
paper
Auto, Plain, Photo,
FastPhoto
Quality
Set the quality of the picture
to be printed
Auto, Draft, Normal, Fine
Date
Set whether to print the date
Auto, Off, On
File Name
Set whether to print the file name
Auto, Off, On
Set
[When [All Photos] is selected]
:One Photo
Auto
:Auto
Postcard
Size
Set the size of the printing
paper
Size
1
Function
Images
Ä Some menu options are not supported on all printers.
If not supported, the menus are still displayed in the LCD, but are not
selectable.
81
PictBridge : Reset
Important notes
Initialises user-changed configurations.
Be sure to observe the following precautions!
1. Use the Up / Down buttons to select
the [Reset] menu tab. And then press
the Right button.
2. Use the Up / Down buttons to select
the desired sub menu value, and then
press the OK button.
Date
:Auto
File Name
Reset
:Auto
No
No
Yes
Back
Set
If [Yes] is selected : All print and image settings will be reset.
If [No] is selected : Settings will not be reset.
Ä Default print setting varies depending on the printer manufacturer.
For your printer’s default setting, refer to the user’s guide that
came with your printer.
This unit contains precision electronic components. Do not use or
store this unit in the following locations.
- Areas exposed to severe changes in temperature and humidity.
- Areas exposed to dust and dirt.
- Areas exposed to direct sunlight or the inside of a vehicle in hot
weather.
- Environments where there is high magnetism or excessive vibration.
- Areas with high explosives or highly flammable materials.
Do not leave this camera in places subject to dust, chemicals (like
naphthalene and mothballs), high temperature and high humidity.
Keep this camera with silica gel in a hermetically sealed box when
not planning to use the camera for a long period of time
Sand can be particularly troublesome to cameras.
- Do not let sand get inside the camera when using it on beaches,
coastal dunes, or other areas where there is lots of sand.
- Doing so may result in failure or may permanently render the
camera unusable.
Handling the camera
- Never drop the camera or subject it to severe shocks or vibrations.
- Protect the large size LCD monitor from an impact. When this
camera is not used, keep it in the camera case.
- Avoid obstructing the lens or the flash when you capture an image.
- This camera is not waterproof.
To avoid dangerous electrical shocks, never hold or operate the
camera with wet hands.
Downloaded From camera-usermanual.com Samsung Manuals
82
Important notes
- If you use this camera in wet places, such as beach or pool, do
not let water or sand get inside the camera. Doing so may result
in failure or may permanently damage the unit.
Extremes in temperature may cause problems.
- If the camera is transferred from a cold to a warm and humid
environment, condensation can form on the delicate electronic
circuitry. If this occurs, turn the camera off and wait for at least
1 hour until all moisture is dispersed. Moisture built up can also
occur on the memory card. If this happens, turn off the
camera and remove the memory card. Wait until the moisture
has dispersed.
Caution on Using the Lens
- If the lens is subjected to direct sunlight, it could result in the
discoloration and deterioration of the image sensor.
- Take care not to get fingerprints or foreign substances on the
surface of the lens.
If the digital camera is not used for a long period, an electric
discharge can occur. It is a good idea to remove the battery and
the memory card if you do not intend using the camera for an
extended period of time.
If the camera is exposed to an electronic interference, it will turn
itself off to protect the memory card.
Downloaded From camera-usermanual.com Samsung Manuals
Camera Maintenance
- Use a soft brush (available from photo stores) to gently clean the
lens and LCD assemblies. If this does not work, lens-cleaning
paper with lens cleaning fluid can be used.
Clean the camera body with a soft cloth. Do not allow this
camera to come into contact with solvent materials such as
benzol, insecticide, thinners etc. This may damage the body
shell of the camera and also affect its performance. Rough
handling can damage the LCD monitor. Take care to avoid
damage and keep the camera in its protective carry case at all
times when not in use.
Do not attempt to disassemble or modify the camera.
Under certain conditions, static electricity can cause the flash unit
to fire. This is not harmful to the camera and is not a malfunction.
When images are uploaded or downloaded, the data transfer may
be affected by static electricity. In this case, disconnect and reconnect the USB cable before trying the transfer again.
Before an important event or going on a trip, you should check
the camera condition.
- Take a picture for testing the camera condition and prepare extra battery.
- Samsung cannot be held responsible for camera malfunctions.
If the digital camera is not used for a long period, the date and time
may adopt the default settings by automatical battery discharged. In
this case, reset the date and time correctly before the recording.
83
Important notes
Warning indicator
Tempered glass is used for the camera’s LCD monitor, but excessive
shock may damage the glass. If there are any cracks in it, do not
touch them, or you may injure yourself.
There are several warnings that may appear on the LCD display.
[Card Error]
Memory card error
Turn off the camera power and turn it on again
Insert the memory card again
Insert and format the memory card (p.49)
[Card Locked]
The memory card is locked
SD/SDHC memory card : Slide the write protect switch to the
top of the memory card
[Memory Full]
The memory card or internal memory is full.
Insert new memory card.
Delete the unnecessary image files
[No Image File]
There are no images stored on the memory
Take images
Insert a memory card that is holding some images
[File Error]
File error
Delete the file.
Memory card error
Contact a camera service centre.
[Low Battery]
There is low battery capacity
Insert fresh batteries.
Downloaded From camera-usermanual.com Samsung Manuals
84
Before contacting a service centre
Please check the following
The camera doesn’t switch on
There is low battery capacity
Insert fresh batteries. (p.14)
Battery is inserted incorrectly with the polarities reversed.
Insert the battery according to the polarity marks (+, -).
The camera power ceases while in use
The battery is exhausted
Insert fresh batteries.
The Camera is turned off automatically
Turn on the camera power again.
Operation has ceased in a low temperature outside of the camera
usage temperature range.
Make the camera and battery warm by placing them in your
pocket, etc. and then immediately before shooting, place the
battery in the camera and then shoot.
Camera does not take images when pressing the Shutter button
There is insufficient memory capacity
Delete unnecessary image files
The memory card has not been formatted
Format the memory card (p.48)
The memory card is exhausted
Insert a new memory card
The memory card is locked
Refer to [Card Locked] error message
The camera's power is off
Turn the camera power on
The battery is exhausted
Insert fresh batteries (p.14)
Battery is inserted incorrectly with the polarities reversed.
Insert the battery according to the polarity marks (+, -)
The camera suddenly stops working while in use
The camera stopped due to a malfunction
Remove /re-insert battery and switch the camera on
The images are unclear
A picture was taken of the subject without setting an appropriate
macro mode
Select an appropriate macro mode to take a clear image.
Taking a picture beyond the flash range
Take a picture within the flash range
The lens is smudged or dirty
Clean the lens
Downloaded From camera-usermanual.com Samsung Manuals
85
Before contacting a service centre
The flash does not fire
Flash off mode has been selected
Dis-engage flash off mode
The camera mode can't use the flash
Refer to the FLASH instruction (p.27)
Incorrect date and time is displayed
The date and time have been set incorrectly or the camera has
adopted the default settings
Reset the date and time correctly
The camera buttons do not operate
Camera malfunction
Remove/re-insert battery and switch the camera on
A card error has occurred while the memory card is in the camera.
Incorrect memory card format
Re-format the memory card
The images don't play back
Incorrect file name (Violation of DCF format)
Do not change the image file name
Colour of image is different to the original scene
White balance or effect setting is incorrect
Select appropriate White balance and effect
Images are too bright
Exposure is excessive
Reset exposure compensation
Downloaded From camera-usermanual.com Samsung Manuals
86
No image on external monitor
The external monitor has not been connected properly with
the camera
Check the connection cables
There are incorrect files in the memory card
Insert a memory card that has correct files
When using the PC’s explorer, the [Removable Disk] file does not show
Cable connection is incorrect
Check the connection
The camera is off
Turn the camera on
The operating system is not Windows 2000, XP, Vista / Mac OS
10.3. Alternatively the PC does not support USB
Install Windows 2000, XP, Vista / Mac OS 10.3 to PC that
supports USB
A part of the LCD screen does not occasionally turn on or a spot appears.
Although the LCD screen is manufactured with high precision
technology, the precision pixels are not occasionally lighted or the
red, white and blue spots appear.
ĺ This phenomenon does not affect the quality of the recorded
image and it is not a malfunction.
A vertical line appears on the LCD screen when taking a picture of a
bright object.
If a subject is exposing bright lights, a gray, black, red or purple
vertical line may appear.
ĺ This is a phenomenon called smear and it does not affect the
quality of the recorded image. This is not a malfunction.
Specifications
Image Sensor - Type : 1/2.33" CCD
- Effective Pixel : Approx. 12.2 Mega-pixel
- Total Pixel : Approx. 12.4 Mega-pixel
Lens
- Focal Length : SAMSUNG Lens f = 6.3 ~ 18.9mm
(35mm film equivalent : 35 ~ 105mm)
- F No. : F3.0(W) ~ F5.6(T)
- Digital Zoom : ·Still Image mode :1.0X ~ 5.0X
·Play mode : 1.0X ~ 10.2X
(depends on image size)
Flash
- Modes : Auto, Auto & Red-eye reduction, Fill-in
flash, Slow sync, Flash off, Red Eye Fix
- Range : Wide : 0.4m ~ 3.0m,
Tele : 0.5m ~ 2.0m
- Recharging Time : Approx. 4 sec
Sharpness
- Soft+, Soft, Normal, Vivid, Vivid+
White Balance
- Auto, Daylight, Cloudy, Fluorescent_H,
Fluorescent_L, Tungsten, Custom
LCD Monitor
- 2.7" color TFT LCD (230,000 dots)
Voice Recording - Voice Recording (max. 10 hours)
- Voice Memo in Still Image (max. 10 sec.)
Focusing
- Type : TTL auto focus
(Multi AF, Center AF, Face Detection AF)
- Range
Date Imprinting
- Date, Date & Time, Off (user selectable)
Shooting
- Still Image
·Mode : Smart Auto, Program
·Smart Auto : Portrait, Night Portrait, Night,
Backlight Portrait, Backlight,
Landscape, White, Macro, Macro
Text, Tripod, Action
·Shooting : Single, Continuous, Motion Capture, AEB
·Self-timer : 10 sec., 2 sec., Double,
Motion Timer
Normal
Wide
Tele
80cm ~ Infinity
Macro
10cm ~ 80cm
50cm ~ 80cm
Shutter
- Smart Auto : 8 ~ 1/1,500 sec.,
Program : 1 ~ 1/1,500 sec.
(AEB, Continuous : 1/4 ~ 1/1,500 sec.)
Exposure
- Control : Program AE
- Metering : Multi, Spot, Center-Weighted,
Face Detection AE
- Compensation : ±2EV (1/3EV steps)
- ISO : Auto, 80, 100, 200, 400, 800, 1600, 3200
(Up to 3M Size)
Downloaded From camera-usermanual.com Samsung Manuals
87
Specifications
- Movie Clip
·With Audio or without Audio
(user selectable, recording time : max 20 min.)
·Size : 800x592(20 fps), 640x480(30 fps & 15 fps),
320x240(30 fps & 15 fps)
·Frame rate : 30 fps, 20 fps, 15 fps
·3X Optical Zoom, Mute during zoom operation,
sound recording on/ off selectable
·Movie Editing (Embedded): Movie Stabilization,
Pause during recording, Still Image Capture,
Time Trimming
Storage
4000X
3000
- Media
·Internal memory : About 31MB flash memory
·External Memory (Optional) :
MMC card (Up to 2GB guaranteed)
SD card (Up to 4GB guaranteed)
SDHC card (Up to 8GB guaranteed)
- File Format
·Still Image : JPEG (DCF), EXIF 2.21, DPOF 1.1,
PictBridge 1.0
·Movie Clip : AVI (MPEG-4)
·Audio : WAV
- Image Size
3984X
2656
3968X
2232
3264X
2448
2592X
1944
2048X
1536
1024X
768
Downloaded From camera-usermanual.com Samsung Manuals
88
- Capacity (1GB Size)
Super Fine About 169 About 196 About 231 About 246 About 365 About 548 About 986
Fine
About 240 About 270 About 308 About 328 About 493 About 680 About 1095
Normal About 365 About 411 About 481 About 519 About 705 About 759 About 1232
Ä These figures are measured under Samsung standard conditions and
may vary depending on shooting conditions and camera settings.
Effect
- Effect : Photo Style Selector, Image Adjust
(Sharpness, Contrast, Saturation)
- Editing : Resize, Rotate, Photo Style Selector,
Image Adjust (ACB, Face Retouch, Red
Eye Fix, Brightness, Contrast, Saturation,
Add Noise)
Image Play
- Type : Single image, Thumbnails, Multi slide show,
Movie Clip, Smart Album
Ä Multi slide show : Slide show with Effect & Music
Interface
- Digital output connector : USB 2.0
- Audio : Mono
- Video output : NTSC, PAL (user selectable)
- DC power input connector : 4.2 V
Specifications
Power Source
- Rechargeable battery : SLB-07A, 3.7V
(720mAh)
Ä Included battery may vary depending on
sales region.
Dimensions (WxHxD)
- 94.2 x 55.7 x 16.6mm (excluding protrusions)
94.2 x 55.7 x 14.2mm (Minimum thinness)
Weight
- Approx. 121.4g (without batteries and card)
Operating Temperature - 0 ~ 40°C
Operating Humidity
- 5 ~ 85%
Software
- Samsung Master, Adobe Reader
Specifications are subject to change without prior notice.
All trademarks are the property of their respective owners.
Downloaded From camera-usermanual.com Samsung Manuals
89
System Requirements
Software Notes
Please ensure that you read the instruction manual carefully before use.
- Under no circumstances should all or part of either the software
or the user manual be reproduced.
- Copyrights for software are licensed only for use with a camera.
- In the unlikely event of a manufacturing fault, we will repair or
exchange your camera. We cannot, however, be held responsible
in any way for damage caused by inappropriate use.
- Using a Hand-made PC or a PC and OS that has not been
guaranteed by the manufacturer is not covered by the Samsung
warranty.
- Before reading this manual, you should have a basic knowledge
of computers and O/S (Operating Systems).
For Windows
PC with processor better
than Pentium III 500MHz
USB
Connection (Pentium III 800MHz recommended)
Specifications Windows 2000 / XP / Vista
Minimum 256MB RAM
(Over 512MB recommended)
250MB of available hard disk
space (Over 1GB recommend)
Software 1024x768 pixels, 16bit color
Support
display compatible monitor
Specifications (24bit color display recommended)
Microsoft DirectX 9.0c or later
For Macintosh
Power Mac G3 or later
Mac OS 10.3 or later
Minimum 256MB RAM
(Over 512MB recommended)
110MB of available hard disk
space
-
Ä It is not compatible with Windows XP and Vista 64-bit Edition.
Ä Samsung is not responsible for any defects or damages caused
by the use of unauthorized computer including an assembled PC.
Downloaded From camera-usermanual.com Samsung Manuals
90
About the software
After inserting the CD-ROM provided with this camera into the
CD-ROM drive, the following window should automatically run.
You should allow 5 ~ 10 seconds for running the automatic
setup program according to the capability of your computer.
If the frame does not appear, run the [Windows Explorer] and
select [Installer.exe] in the CD-ROM Drive root directory.
XviD codec : This makes movie clips (MPEG-4) recorded with this
camera play back on a PC.
To play back a movie clip recorded with this camera, you must install
the XviD codec. If a movie clip recorded with this camera does not
play well, install this codec. This software is only compatible with
Windows.
Samsung Master : This is the all-in-one multi media software
solution.
You can download, view, edit and save your digital images and
movie clips with this software. This software is only compatible
with Windows.
Downloaded From camera-usermanual.com Samsung Manuals
91
Setting up the application software
To use this camera with a PC, install the application software first.
After this has been done, the stored images in the camera can be
moved to the PC and can be edited by an image editing program.
You can visit the Samsung web-site through the internet.
http://www.samsungcamera.com : English
http://www.samsungcamera.co.kr : Korean
1. The auto run frame will display.
Click the [Samsung Digital
Camera Installer] menu in the
Auto run frame.
Downloaded From camera-usermanual.com Samsung Manuals
92
2. Install DirectX, XviD, Samsung Master by selecting a button
shown on the monitor. If a recent version of DirectX has been
installed on your computer, DirectX may not be installed.
Setting up the application software
3. To play back the movie clip recorded with this camera on the
computer, install the XviD codec.
4. Install the software by instructions on the monitor.
Ä The XviD codec is distributed according to the GNU General
Public License and everyone can copy, distribute and change this
codec. This License applies to any program or other work which
contains a notice placed by the copyright holder saying it may be
distributed under the terms of this General Public License. For
more information, see the License documents (http://www.gnu.
org/copyleft/gpl.html).
Downloaded From camera-usermanual.com Samsung Manuals
93
Setting up the application software
Starting PC mode
5. After restarting the computer, connect the PC to the camera with
the USB cable.
If you connect the USB cable to a USB port on your PC and then
turn on the power, the camera will automatically switch to "computer
connection mode". In this mode, you can download stored images
to your PC through the USB cable.
6. Turn the camera power on.
The [Found New Hardware Wizard]
will open and the computer will
recognise the camera.
Ä If your OS is Windows XP/ Vista, an image viewer program will
open.
PDF documents of user manual are included in the Software
CD-ROM supplied with this camera. Search the PDF files with
Windows explorer. Before opening the PDF files, you must
install the Adobe Reader included in the Software CD-ROM.
Install Adobe Reader from the CD provided. If the Internet is
not enabled, install Adobe Reader by using the executable file
located in the CD.
To install the Adobe Reader 6.0.1 correctly, Internet Explorer
5.01 or later has to be installed. Visit "www.microsoft.com" and
upgrade the Internet Explorer.
Downloaded From camera-usermanual.com Samsung Manuals
94
Camera settings for connection
1. Turn on the camera.
2. Connect the camera and computer with the supplied USB
cable.
3. Once the camera is turned on, the camera automatically
recognizes the computer and is connected to it.
Ä If automatic connection fails, set the [USB] menu to [Computer].
(p.52)
Starting PC mode
Connecting the camera to a PC
Downloading stored images
You can download the still images stored on the camera to your
PC's hard disk and print them or use a photo editing software to
edit them.
1. Connect the camera to your PC with the USB cable.
2. On your computer's desktop display,
select [My computer] and double
click [Removable Disk DCIM
100SSCAM].The image files will
then be displayed.
Disconnecting the camera and PC
Refer to page 97 (Removing the removable disk).
Downloaded From camera-usermanual.com Samsung Manuals
3. Select an image and press the right
mouse button.
95
Starting PC mode
4. A pop-up menu will open.
Click the [Cut] or [Copy] menu.
- [Cut]
: cuts a selected file.
- [Copy] : copies files.
- By using [Samsung Master], you can see the stored images in the
memory directly on the PC monitor and you can copy or move the
image files.
We recommend that you should copy the images to the PC to
5. Click a folder where you want to paste the file.
6. Press the right mouse button and a
pop-up menu will open.
Click [Paste].
7. An image file is transferred from the
camera to your PC.
Downloaded From camera-usermanual.com Samsung Manuals
96
view them. Opening images directly from the removable disk
may be subject to unexpected disconnection.
When you upload a file that is not taken by this camera to the
Removable Disk, the [File Error] message will be displayed on
the LCD monitor in the PLAY mode, and nothing is displayed in
THUMBNAIL mode.
Removing the removable disk
Windows 2000/XP/Vista
(The illustrations may differ from those shown depending on the
Windows O/S.)
1. Check whether the camera and PC are transferring a file.
If the camera status lamp blinks, please wait until the lamp has
finished blinking and is constantly on.
5. A [Safe to Remove Hardware] window
will open. Click the [OK] button.
6. A [Unplug or Eject Hardware] window
will open. Click the [Close] button and
the removable disk will be removed
safely.
2. Double-click the [Unplug or Eject
Hardware] icon on the task bar.
[Double-click!]
7. Unplug the USB cable.
3. The [Unplug or Eject Hardware]
window will open. Select the [USB
Mass Storage Device] and click the
[Stop] button.
4. The [Stop a Hardware device]
window will open. Select the [USB
Mass Storage Device] and click the
[OK] button.
Downloaded From camera-usermanual.com Samsung Manuals
97
Samsung Master
You can download, view, edit and save your images and movies
with this software. This software is only compatible with Windows.
To start the program, click [Start Programs Samsung Samsung Master].
Downloading images
1. Connect the camera to your PC.
2. A window for downloading images
will be displayed after connecting
the camera to your PC.
- To download the captured images,
select the [Select All] button.
- Select desired folder in the
window and click the [Select All]
button. You can save captured
images and selected folder.
- If you click the [Cancel] button, downloading will be cancelled.
3. Click [Next >] button.
4. Select a destination and make
a folder to save downloaded
images and folders.
- Folder names can be made in
order of date and images will be
downloaded.
- Folder name will be made as
you want and images will be
downloaded.
- After selecting a folder that was
made before, images will be
downloaded.
5. Click [Next >] button.
6. A window will open as shown
alongside.
The destination of the selected
folder will be displayed on the
upper side of the window.
Click the [Start] button to
download the images.
7. Downloaded images will be
displayed.
Downloaded From camera-usermanual.com Samsung Manuals
98
Samsung Master
Image viewer : You can view the stored images.
- Image viewer functions are listed below.
Ì Menu bar : You can select menus. File, Edit, View, Tools,
Change functions, Auto download, help, etc.
Í Image selection window : You can select the desired images
in this window.
Media type selection menu : You can select image viewer, image edit
and movie edit functions in this menu.
Preview window : You can preview an image or a movie clip and
check the multi media information.
Zoom bar : You can change preview size.
Folder display window : You can see the folder location of the
selected image.
Image display window : Images of the selected folder are displayed.
Ä Refer to the [Help] menu in Samsung Master for further information.
Image edit : You can edit the still image.
- Image edit functions are listed below.
Ì Edit menu : You can select the following menus.
[Tools] : You can resize or crop the selected image. See the
[Help] menu.
[Adjust] : You can modify image quality. See the [Help] menu.
[Retouch] : You can change image or insert effects on the image.
See the [Help] menu.
Í Drawing tools : Tools for editing an image.
Image display window : A selected image displays in this window.
Preview window : You can preview the changed image.
Ä A still image edited with Samsung Master can’t be played back on
the camera.
Ä Refer to the [Help] menu in Samsung Master for further information.
Downloaded From camera-usermanual.com Samsung Manuals
99
Samsung Master
Movie edit : You can get the still image, movie clip, narration,
music files together in a movie clip.
- Movie clip edit functions are listed below.
Ì Edit menu : You can select the following menus.
[Add Media] : You can add other media elements to a movie.
[Edit Clip] : You can change the brightness, contrast, colour
and saturation.
[Effects]
: You can insert an effect.
[Set Text]
: You can insert texts.
[Narrate]
: You can insert a narration.
[Produce] : You can save the edited multi media as a new file
name. You can select AVI, Windows media (wmv)
and Windows media (asf) file types.
Í Frame display window : You can insert multi media in this window.
Downloaded From camera-usermanual.com Samsung Manuals
100
Ä Some movie clips that were compressed with a codec that is
not compatible with the Samsung Master can’t play back in the
Samsung Master.
Ä Refer to the [Help] menu in Samsung Master for further information.
Setting up the USB Driver for MAC
Using the USB Driver for MAC
1. A USB Driver for MAC is not included with the software CD as
MAC OS supports the camera driver.
2. Check the MAC OS version during start-up. This camera is
compatible with MAC OS 10.3.
3. Connect the camera to the Macintosh and turn the camera power
on.
4. A new icon will be displayed on the desktop after connecting the
camera to the MAC.
1. Double click a new icon on the desktop and the folder in the
memory will be displayed.
2. Select an image file and copy or move it to MAC.
Downloaded From camera-usermanual.com Samsung Manuals
First complete uploading from computer to camera and then
remove the removable disk with the Extract command.
101
FAQ
Please check the following if the USB connection malfunctions.
Case 1
USB cable is not connected or it is not the supplied
USB cable.
Connect the supplied USB cable.
Case 2
The camera is not recognised by your PC.
Sometimes, the camera may appear under [Unknown
Devices] in Device Manager.
Turn off the camera, remove the USB cable, plug in the
USB cable again, and then turn on the camera.
Case 3
There is an unexpected error during file transfer.
Turn the camera power off and on again. Transfer the
file again.
Case 4
When using the USB hub.
There may be a problem in connecting the camera to
the PC through the USB hub if the PC and the hub are
not compatible. Wherever possible, connect the camera
to the PC directly.
Case 5
Case 6
When I open the Device Manager (by clicking Start
(Settings) Control Panel (Performance and Maintenance) System (Hardware) Device Manager),
there are Unknown Devices or Other Devices entries
with a yellow question mark(?) beside them or devices
with an exclamation mark(!) beside them.
Right-click on the entry with the question (?) or exclamation
(!) mark and select "Remove". Restart the PC and connect
the camera again.
Case 7
In some security programs (Norton Anti Virus, V3,
etc.), the computer may not recognise the camera as a
removable disk.
Stop the security programs and connect the camera to
the computer. Refer to the security program instructions
about how to temporarily disable the program.
Case 8
The camera is connected to the USB port located on
the front of the computer.
When the camera is connected to the USB port located
on the front of the computer, the computer may not
recognise the camera. Connect the camera to the USB
port located on the back of the computer.
Are other USB cables connected to the PC?
The camera may malfunction when it is connected to
the PC at the same time as another USB cable. In this
case, disconnect the other USB cable, and connect
only one USB cable to the camera.
Downloaded From camera-usermanual.com Samsung Manuals
102
FAQ
When the movie clip doesn’t play back on the PC
Ä When the movie clip recorded by the camera doesn’t play back
on the PC, the causes are mostly due to the codec installed on
the PC.
When codec for play back the movie clip isn’t installed
Install the codec as listed below.
[Installing codec for Windows]
Installing the XviD codec
1) Insert the CD provided with the camera.
2) Run the windows explorer and select [CD-ROM drive:\XviD]
folder and click the XviD-1.1.2-01112006.exe file.
Ä The XviD codec is distributed according to the GNU General
Public License and everyone can copy, distribute and
change this codec. This License applies to any program or
other work which contains a notice placed by the copyright
holder saying it may be distributed under the terms of this
General Public License. For more information, see the
License documents (http://www.gnu.org/copyleft/gpl.html).
[Installing codec for Mac OS]
1) Visit the following site for downloading the codec.
(http://www.divx.com/divx/mac)
2) Click the [Free Download] menu on the top right side of the
window then download windows appears.
3) Check the version of Mac OS and click the [Download]
button to download the file and save it on a desired folder.
4) Run the downloaded file and the codec for playing back the
movie clip will be installed.
Ä If the movie file is not played back on the Macintosh OS,
Downloaded
Samsung
Manuals
use aFrom
mediacamera-usermanual.com
player that supports Xvid codec
(e.g: Mplayer).
When the DirectX 9.0c or later is not installed
Install the DirectX 9.0c or later
1) Insert the CD provided with the camera
2) Run the windows explorer and select the [CD-ROM drive:\
DirectX] folder and click the DXSETUP.exe file.
The DirectX will be installed. Visit the following site for
downloading the DirectX.http://www.microsoft.com/directx
If a PC connected with the camera stops responding while Windows
is starting.
In this case, disconnect the PC and the camera and Windows
will start. If the problem happens continuously, set the Legacy
USB Support to disable and re-start the PC. The Legacy USB
Support is in the BIOS setup menu. (The BIOS setup menu
differs from the PC manufacturers and some BIOS menus
don’t have Legacy USB Support) If you can’t change the
menu by yourself, contact to the PC manufacturer or BIOS
manufacturer.
If the movie clip can’t be deleted, or the removable disk can’t be
extracted or an error message displays during the file transfer.
If you install only the Samsung Master, the problems mentioned
above occasionally happen.
- Close the Samsung Master program by clicking the Samsung
Master icon on the Taskbar.
- Install all the application programs included in the software
CD.
103
Correct disposal of batteries in this product
Correct disposal of batteries in this product
(Applicable in the European Union and other European
countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that
the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked, the
chemical symbols Hg, Cd or Pb indicate that the battery contains
mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances
can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please
separate batteries from other types of waste and recycle them
through your local, free battery return system.
The rechargeable battery incorporated in this product is not user replaceable.
For information on its replacement, please contact your service provider.
Correct Disposal of This Product
Correct Disposal of This Product (Waste Electrical &
Electronic Equipment) (Applicable in the European
Union and other European countries with separate
collection systems)
This marking shown on the product or its literature, indicates that
it should not be disposed with other household waste at the end of
its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this
from other types of waste and recycle it responsibly to promote the
sustainable re-use of material resources. Household users should
contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can
take this item for environmentally safe recycling. Business users
should contact their supplier and check the terms and conditions of
the purchase contract. This product should not be mixed with other
commercial waste for disposal.
This Class [B] digital apparatus complies with Canadian ICES-003.
Samsung Eco-mark
Downloaded From camera-usermanual.com Samsung Manuals
104
It is Samsung’s own symbol mark is used to effectively
communicate Samsung’s environmental friendly product
activities to the consumers. The mark represents
Samsung’s continuous effort on development of
environmental conscious products.
Downloaded From camera-usermanual.com Samsung Manuals
