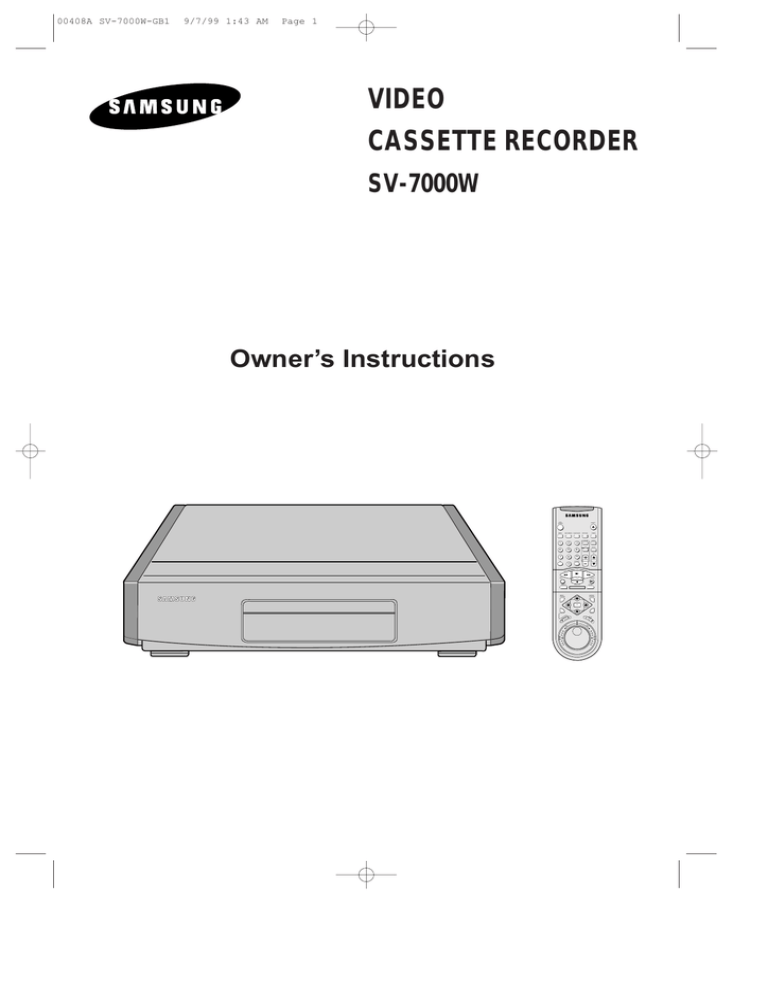

Samsung SV7000W Specifications

00408A SV-7000W-GB1
9/7/99 1:43 AM
Page 1
VIDEO
CASSETTE RECORDER
SV-7000W
Owner’s Instructions
VCR
POWER
EJECT
INDEX
REC.SPEED
CLK/COUNT
1
2
3
4
5
6
7
8
TIMER
STROBE
AUDIO
ART
INPUT
CH
100
9
CLR/RST
0
PLAY
F.F
REW
REC
P/STILL
STOP
DISPLAY
MONITOR
A.DUB
INPUT
SYSTEM
OUTPUT
SYSTEM
OK
AUTO
MENU
G
KIN
AC
TR
V
RE
SL
OW
FW
D
00408A SV-7000W-GB1
9/7/99 1:43 AM
Page 2
Contents
GB
◆ FOREWORD
■
■
Safety Instructions .........................................................................................
Getting Started ..............................................................................................
4
5
◆ CONNECTING YOUR VIDEO CASSETTE RECORDER
■
■
■
■
■
■
■
Background to the Worldwide VCR ...............................................................
Worldwide TV Color System..........................................................................
Multi-System VCR vs Worldwide VCR ..........................................................
System Conversion with the Worldwide VCR................................................
Tape Conversion with the Worldwide VCR ...................................................
Deciding How to Connect Up Your VCR .......................................................
Connecting Your VCR to the TV....................................................................
6
6
7
8
9
11
12
◆ SETTING UP YOUR VIDEO CASSETTE RECORDER
■
■
■
■
■
■
■
■
■
■
■
■
■
Inserting the Batteries in the Remote Control................................................
Plug and Initial Setting...................................................................................
Setting the Date and Time.............................................................................
User SET1 Setting.........................................................................................
User SET2 Setting.........................................................................................
Displaying/Hiding On-Screen Information .....................................................
Tuning System...............................................................................................
Setting the VCR RF out System ....................................................................
Setting the RF OUT CHANNEL.....................................................................
Presetting the Stations Automatically ............................................................
Presetting the Stations Manually ...................................................................
Clearing a Preset Station...............................................................................
Changing the Preset Station Table................................................................
13
13
14
15
15
16
16
17
18
19
20
21
22
◆ RECORDING TELEVISION BROADCASTS
■
■
■
■
■
■
■
■
■
■
■
■
Selecting the Cassette Type..........................................................................
Selecting the Recording Speed .....................................................................
Protecting a Recorded Cassette....................................................................
Recording a Programme Immediately ...........................................................
Stopping a Recording Temporarily ................................................................
Recording a Programme with Automatic Stop...............................................
Using the Timer Programming Feature .........................................................
Using the VIDEOPLUS+/SHOWVIEW Feature.............................................
Modifying VIDEOPLUS+/SHOWVIEW programming....................................
NICAM ...........................................................................................................
Checking a Preset Recording........................................................................
Cancelling a Preset Recording ......................................................................
23
23
23
24
24
25
26
27
28
29
30
30
◆ PLAYING BACK
■
■
■
■
■
■
Playing a Cassette.........................................................................................
Selecting the PLAY SYSTEM Mode..............................................................
SQPB (Super VHS Quasi Playback) .............................................................
Adjusting Picture Alignment Manually ...........................................................
Adjusting Picture Sharpness .........................................................................
Selecting the Audio Output Mode..................................................................
31
31
32
32
33
33
◆ REWINDING AND FAST-FORWARDING
■
■
■
■
2
Rewinding and Fast-forwarding a Cassette...................................................
Playing a Cassette in Slow Motion ................................................................
Playing a Sequence Frame by Frame ...........................................................
Playing a Sequence at Variable Speeds .......................................................
34
34
35
35
00408A SV-7000W-GB1
9/7/99 1:43 AM
Page 3
Contents (cont.)
GB
◆ SPECIAL FUNCTION
■
■
■
STROBE........................................................................................................
ART ...............................................................................................................
MONITOR......................................................................................................
36
36
36
◆ SEARCHING FOR A SEQUENCE
■
■
Searching for a Specific Sequence ...............................................................
Using the Tape Counter ................................................................................
37
38
◆ ADVANCED RECORDING FEATURES
■
■
■
■
■
■
■
■
■
■
Using the Assemble Edit Function.................................................................
Connecting Other Equipment to Your VCR ...................................................
Connecting an RCA Audio/Video Input Cable ...............................................
Recording from Another VCR or Camcorder.................................................
TV System Conversion..................................................................................
Playback Conversion.....................................................................................
Convert Recording.........................................................................................
Hi-Fi Audio System........................................................................................
Audio Dubbing a Pre-recorded Cassette.......................................................
Recording an FM Simulcast Programme.......................................................
39
40
41
42
43
43
44
45
46
47
◆ OTHER FUNCTIONS AND USEFUL RECOMMENDATIONS
■
■
■
Locking Your VCR .........................................................................................
Resetting Your VCR ......................................................................................
Technical Specifications ................................................................................
48
48
49
◆ SOLVING PROBLEMS
■
Problems and Solutions.................................................................................
50
◆ VCR OVERVIEWS
■
■
■
■
Front View of the VCR...................................................................................
Rear View of the VCR ...................................................................................
Display Indicators ..........................................................................................
Infrared Remote Control ................................................................................
51
51
52
52
◆ WORLD BROADCAST SYSTEMS
53
◆ INTERNATIONAL SERVICE NETWORK
54
Symbols
1
1
☛
➢
Press/push
Hold down
Important
Note
1 = Step number
3
00408A SV-7000W-GB1
9/7/99 1:43 AM
Page 4
Safety Instructions
GB
The following illustrations represent the precautions to be taken when using this video cassette
recorder.
The lightning flash with arrowhead in the triangle is a warning sign alerting you to
dangerous voltage inside the product.
DO NOT OPEN THE VCR.
10%
75%
40°C
H
H
5°C
Do NOT expose the VCR to
extreme temperature conditions (below 5°C and above
40°C) or to extreme humidity
conditions (less than 10% and
more than 75%).
Do NOT expose the VCR to
direct sunlight.
Do NOT expose the VCR to
any liquids.
Do NOT place any objects on
the VCR or remote control.
During a storm and/or lightning, unplug the VCR from the
mains socket and aerial.
If the remote control is not
used for a long period of time,
remove the batteries and store
it in a cool, dry place.
THIS DEVICE IS NOT FOR USE IN INDUSTRIAL
ENVIRONMENTS.
4
00408A SV-7000W-GB1
9/7/99 1:43 AM
Page 5
Getting Started
GB
You have just purchased a SAMSUNG Video Cassette Recorder (VCR).
Together with your VCR, you will find the following accessories in the box.
REMOTE CONTROL
& BATTERIES “AAA”
POWVCR
ER
OWNER’S
INSTRUCTIONS
& POWER ADAPTER
COAXIAL CABLE
COAXIAL CABLE
& RF ADAPTERS
A/V RCA CABLES
IND
EX
REC
.SPE
1
ED
4
CLK
/CO
UNT
2
EJE
CT
PICT
7
5
URE
3
100
8
STR
OBE
6
0
9
TIM
ER
AUD
IO
ART
CLR
/RST
RE
W
INPU
REC
T
CH
PL
AY
DISP
LAY
STO
P
F.F
INPU
SYS
T
TEM
MON
ITOR
P/ST
ILL
A.DU
B
AUT
O
OK
TRACK
ING
OUT
SYS
PUT
TEM
REV
MEN
W
SLO
U
FWD
(OPTION)
Your Owner’s Instructions contain much valuable information on setting up and using your VCR.
Please take the time to read them as they will help you take full advantage of the VCR’s features.
The booklet is organized as follows:
◆ The simple describing of Worldwide VCR.
◆ A series of step-by-step procedures for each function available forms the main body of the
booklet.
◆ At the end of the booklet, you will find illustrations of the VCR (front and rear), the display and
the remote control unit to help you find the buttons and understand the symbols displayed (see
pages 51 and 52).
Preparing Your Video Cassette Recorder
Before being able to play and record video cassettes, you must prepare and connect your VCR.
◆ Insert batteries in the remote control.
◆ Connect your VCR to the television.
◆ Set the date and time used to display information on the television screen.
◆ Preset the stations.
All these operations are essential so you must follow the step-by-step instructions carefully.
5
00408A SV-7000W-GB1
9/7/99 1:43 AM
Page 6
Background to the Worldwide VCR
GB
“Worldwide Communication through VCR”
Today the Video Recorder is a major media and communication tool, used for both business and home
entertainment. Furthermore, the emergence of the camcorder has extended the versatility of the video
with home video making.
Video communication is increasingly becoming a global medium, but the different TV broadcasting
systems around the world hinder the worldwide exchange of video tapes.
The Samsung SV-7000W overcomes the incompatibility of different TV broadcasting systems through
sophisticated digital technology, allowing any standard VHS tapes to be played on any TV, any where in
the world (with free voltage).
Worldwide TV Color System
Many countries have different TV signal formats, with no exchangeability between them. This makes it
impossible to play back or record tapes with different signal formats. This worldwide common VCR
overcomes this problem by converting the signal format of any tape into the format you desire.
Comparison of TV color systems
NTSC
Number of
scanning lines
Field
frequency
Line frequency
Color signal
modulation
system
Color signal
frequency
Burst signal
☛
➢
➢
NTSC4.43
PAL-M
PAL
PAL-N
SECAM
525
625
60Hz
50Hz
15.734KHz
15.625KHz
Sub carrier suppression quadrature modulation
3.579545
MHz
4.433619
MHz
Fixed phase
3.575611
MHz
4.433619
MHz
Inverted by 1 H
3.582056
MHz
MESECAM
FM modulation
DB 4.25MHz
DR 4.40625MHz
DR.DB alternation
Classification of TV color systems by country
◆ NTSC
: Korea, U.S., Canada, Japan, Taiwan, and Philippines
◆ PAL
: United Kingdom, Germany, Western Europe, China, and Singapore
◆ SECAM
: France, Eastern Europe, and CIS
◆ PAL-M
: Brazil
◆ PAL-N
: Argentina (The tape is the same as that of PAL)
◆ NTSC4.43 : Pseudo NTSC signal which is made to use the NTSC tape in the Middle East
(The tape is the same as that of NTSC3.58)
◆ MESECAM : The name of a tape which uses the method of recording the SECAM signal.
The output signal during playback is SECAM signal.
Worldwide Broadcasting system is B/G, I, D/K, M, N, L.
6
00408A SV-7000W-GB1
9/7/99 1:43 AM
Page 7
Multi-System VCR vs Worldwide VCR
GB
The Worldwide VCR is similar to the Multi-System VCR in that it will play back tapes recorded in any
TV Broadcasting System. However, there are a few key differences:
Multi-System VCR
NTSC
SECAM
PAL
NTSC
PAL
SECAM
With a Multi-System VCR:
The TV must correspond to the system of the tape being
played, otherwise, a Multi-System TV is also required;
Tape duplication with system conversion (eg NTSC to PAL) is
not possible.
SV-7000W Worldwide VCR
ANY TV
NTSC
PAL
SECAM
With the Worldwide VCR:
Tapes can be played on any TV monitor;
Recordings can be made in any TV Broadcasting System,
even if the tape is of a different system;
Tape duplication with system conversion is possible.
7
00408A SV-7000W-GB1
9/7/99 1:43 AM
Page 8
System Conversion with the Worldwide VCR
GB
System conversion is the most complex digital process undertaken by the Worldwide VCR, converting
the “input” into a different “output”, eg from NTSC to PAL, or from PAL to SECAM.
EJECT
POWER
NORMAL(VHS)
SQPB ONLY
SPEED
TRACKING
LINE 1 IN
VIDEO
L
AUDIO
RESET
R
INPUT
OUTPUT
NTSC
AUTO
PAL
NTSC
THROUGH
NTSC4.43
PAL
SECAM
REC
PAL-N
AUDIO OUT
CHANNEL
PAUSE/STILL
PLAY
PAL-M
REW
SECAM
F.F
PAL-N
MESECAM
PAL-M
STOP
“input”
select panel
“output”
select panel
PLAY
REW
F.F
STOP
INPUT
OUTPUT
NTSC (3.58)
NTSC (3.58)
NTSC 4.43
NTSC 4.43
PAL
PAL
PAL-M
PAL-M
PAL-N
PAL-N
SECAM
SECAM
MESECAM (TAPE ONLY)
III
SYSTEM CONVERSION
I
INPUT SELECTION
VCR digitally converts scanning
lines, frequency fields and color
signal into the desired system as
selected in step ll.
VCR automatically selects the
correct TV broadcast system of
the input signal:
II
OUTPUT SELECTION
A. When RECORDING
The broadcast system of the
tape - on which the recording is
to be made - is to be selected
on the VCR ‘output’ panel
Recording in the desired
TV system
The broadcast system of the
TV - on which playback is to
be viewed - is to be selected
on the VCR ‘output’ panel
Playback can be viewed
on any monitor
The ‘input’ is the extemal TV
signal or the output from a
second VCR or LDP
B. During PLAYBACK
The ‘input’ comes from the
tape loaded for playback
A. TV RECORDING
LINE IN
ANY
TAPE
Input signal to be
recorded
NTSC
PAL
PAL-M
SECAM
MESECAM
Output:
Input signal converted to the
system of the tape loaded
B. PLAYBACK
ANY
TAPE
8
Input
NTSC
PAL
PAL-M
SECAM
MESECAM
Output
ANY TV
00408A SV-7000W-GB1
9/7/99 1:43 AM
Page 9
Tape Conversion with the Worldwide VCR
GB
One of the most useful functions of the Worldwide VCR is the combination of tape duplication and
system conversion, more simply known as “Tape Conversion”. This allows the user to copy, for
example, a SECAM tape and simultaneously convert it to PAL or NTSC. This is particularly useful for
duplicating home video camcorder recordings and sending them to friends or relatives abroad.
Any VHS Tape
NTSC
Any VHS Tape
NTSC
PAL
PAL
PAL-M
PAL-M
SECAM
SECAM
MESECAM
MESECAM
SV-7000W
AS A PLAYBACK VCR
SAMSUNG
Worldwide VCR
2nd VCR
AS A PLAYBACK VCR
Corresponding VCR
NTSC
NT4.43
PAL
PAL-N
PAL-M
SECAM
2nd VCR
AS A RECORDING VCR
SV-7000W
AS A RECORDING VCR
Any VCR
SAMSUNG
Worldwide VCR
NTSC
PAL
PAL-M
PAL-N
SECAM
MESECAM
Corresponding
VHS Tape
NTSC
Any VHS Tape
NTSC
PAL
PAL
PAL-M
PAL-M
SECAM
SECAM
MESECAM
MESECAM
9
00408A SV-7000W-GB1
9/7/99 1:43 AM
Page 10
GB
Any 8mm Tape
Any VHS-C
Tape
PUSH
LOCK
S-VIDEO
STANDBY
MIC
V HS-
C
VHS-C Tape
Adapter
8mm CAMCORDER
AS A PLAYBACK VCR
Corresponding
Camcorder
2nd VCR
AS A PLAYBACK VCR
Corresponding VCR
PUSH
LOCK
EO
S-VID
STANDB
Y
MIC
SV-7000W
AS A RECORDING VCR
SAMSUNG Worldwide VCR
SV-7000W
AS A RECORDING VCR
SAMSUNG
Worldwide VCR
Any VHS Tape
Any VHS Tape
NTSC
10
NTSC
PAL
PAL
PAL-M
PAL-M
SECAM
SECAM
MESECAM
MESECAM
00408A SV-7000W-GB1
9/7/99 1:43 AM
Page 11
Deciding How to Connect Up Your VCR
GB
You must take into account various factors when deciding how to connect up your various audio
and/or video systems.
◆ Types of connectors available on your systems.
◆ Systems connected permanently to the VCR (satellite receiver for example) or from time to
time (camcorder for example).
Your VCR is equipped with the following connectors.
Connector
Location
Type
AV
Rear
SCART
Direction
Recommended Use
In/Out
◆ Television
Audio/Video RCA
Out
◆ Television
◆ Other VCR
Audio/Video RCA
In
◆ Audio system
◆ Camcorder
◆ Other VCR
Audio/Video RCA
In
◆
◆
◆
◆
EURO AV
LINE
Rear
R-A
OUT 2
OUT 1
R
AUDIO
L
VIDEO
LINE 1
Front
LINE 1 IN
VIDEO
LINE 2
L
AUDIO
Rear
R
LINE 2 IN
R - AUDIO - L
OUT TO TV
Rear
TV
IN FROM ANT. Rear
☛
VIDEO
75 Ω
coaxial
Out
75 Ω
coaxial
In
Audio system
Camcorder
Satellite receiver
Other VCR
◆ Television
◆ Aerial
◆ Cable television network
Whenever you connect an audio or video system to your VCR, ensure that all units are
switched off.
Refer to the documentation supplied with your equipment for detailed connection instructions
and associated safety precautions.
11
00408A SV-7000W-GB1
9/7/99 1:43 AM
Page 12
Connecting Your VCR to the TV
GB
To receive television programmes from an air or cable television
network, a signal must be received from one of the following sources.
◆ An outdoor aerial.
◆ An indoor aerial.
◆ A cable television network.
2
☛
TV
Make sure that both the television and the VCR are
switched off before connecting the cables.
1
Remove the aerial or network input cable from the television.
2
Connect this cable to the 75Ω coaxial socket marked
rear of your VCR.
3
Plug the coaxial cable supplied into the
4
Plug the other end of the coaxial cable into the connector
previously used for the aerial on the television.
5
Connect one end of the RCA cable supplied to the output socket
(OUTPUT1 or OUTPUT2) on the rear of the VCR, if your television
is equipped with this type of connection.
TV
on the
socket on your VCR.
TV
3
➢
LINE 2 IN
R - AUDIO - L
OUT 2
VIDEO
OUT 1
Respect the colour coding of the Audio and Video In/Out
cable.
R
AUDIO
EURO AV
L
6
Connect one end of the SCART cable to the EURO AV socket on
the rear of the VCR, if your television is equipped with this type of
connection.
7
Plug the other end (of the RCA cable or SCART cable) into the
appropriate connector on the television.
VIDEO
5
LINE 2 IN
R - AUDIO - L
OUT 2
VIDEO
OUT 1
R
AUDIO
L
EURO AV
VIDEO
TV
◆ Regardless of the type of connection chosen, you must
always connect the coaxial cable supplied. Otherwise, no
picture will be visible on the screen when the VCR is
switched off.
◆ Make sure that both the television and the VCR are
switched off before connecting the cables.
6
* NOTICE:
You can select the coaxial cable using the RF Adapter
according to your Antenna socket.
[NTSC/PAL-M Region]
TV
12
00408A SV-7000W-GB1
9/7/99 1:43 AM
Page 13
Inserting the Batteries in the Remote Control
GB
You must insert or replace the batteries in the remote control when
you:
◆ purchase the video cassette recorder ; or
◆ find that the remote control is no longer working
correctly.
1
Push the tab in the direction of the arrow to release the battery
compartment cover on the rear of the remote control.
2
Insert two AAA or equivalent batteries (supplied), taking care to
respect the polarities.
◆
+ on the battery with + on the remote control.
◆
– on the battery with – on the remote control.
3
Replace the cover by aligning it with the base of the remote
control and pushing it back into place.
1
Plug and Initial Setting
The VCR automatically display initial setting MENU when the VCR
is plugged into the AC outlet first time.
** LANGUAGE SET **
1
Plug the VCR into the AC outlet.
Result:
The LANGUAGE SET is displayed.
2
Press the
Result:
3
Press the , , button to select your country.
Result:
The country list is displayed.
4
Press the , , and OK button to select your country.
Result:
The option selected flashes.
5
Press the or buttons to increase or decrease the value.
Result:
The initial setting is finished.
¨ ENGLISH
DEUTSCH
FRANÇAIS
ITALIANO
JAPAN
, and OK button to select your favorite language.
The COUNTRY SET is displayed.
MEMORY:(OK)
¹
➢
If your country dose not exist in the country list, then select
the other.
** COUNTRY SET **
¨ EUROPE
AMERICA
EASIA/OCEANIA
MIDDLE EAST/AFRICA
¨
¹
END:(MENU)
** EUROPE **
¨U.K.
GERMANY
ITALY
SPAIN
SWEDEN
SWISS
AUSTRIA
RUSSIA
NETHERLANDS
FRANCE
OTHERS L/G/I/K:G
¹
¨
MEMORY:(OK)
13
00408A SV-7000W-GB1
9/7/99 1:43 AM
Page 14
Setting the Date and Time
GB
Your VCR contains a 24-hour clock and calendar used to:
◆ preset your VCR to record a programme automatically.
You must set the date and time when:
◆ you purchase the video cassette recorder.
◆ the power supply remains off for more than 60 minutes.
OK
AUTO
MENU
1
G
KIN
AC
TR
SL
OW
☛
◆ The date and time are set automatically from the
broadcast signal, but this function will not operate if
there is no PDC or Teletext signal.
◆ Do not forget to reset the time when you change
clocks from winter to summer time and vice versa.
FW
EV
1
Press MENU on the remote control.
Result:
The programming menu is displayed.
2
Press the or buttons, until the cursor is placed in front of the
CLOCK SET option.
3
Press the button to select this option.
Result:
The CLOCK SET menu is displayed.
4
Press or to select the hour, minutes, day, month and year.
Result:
The option selected flashes.
5
Press the or buttons to increase or decrease the value.
Result:
The day of the week is displayed automatically.
** M E N U **
TIMER PROGRAMMING
USER SET
INSTALLATION
LANGUAGE SET
¨ CLOCK SET
¨
¹
END:(MENU)
** CLOCK SET **
12:00
➢
1/JAN/1999
FRI
You can hold the
or
quickly through the values.
buttons down to scroll more
AUTO CLOCK : ON
è
6
END:(MENU)
¹
INPUT
SYSTEM
2
OUTPUT
SYSTEM
3
OK
2
AUTO
G
14
MENU
On completion, press MENU twice to exit the menu.
00408A SV-7000W-GB1
9/7/99 1:44 AM
Page 15
USER SET1 Setting
The user set is initially setted in factory. If you want any change
about USER SET, must check the below explanation.
1
Press MENU on the remote control.
The programming menu is displayed.
Result:
2
Press the
Result:
, , button to select user set.
The USER SET1 is displayed.
3
Press the
,
4
Check the below, and change the item.
,
GB
** M E N U **
TIMER PROGRAMMING
¨ USER SET
INSTALLATION
LANGUAGE SET
CLOCK SET
to select the USER SET1 item.
¨
¹
END:(MENU)
* USER SET1
ITEM
USAGE
COMMENT
TAPE
SELECT
tape length select
Select the recording tape type for
remain time.
CLOCK
TYPE
12H/24H mode
Select your favorite clock type.
PLAY
SYSTEM
play tape system
selection
OSD
OSD display on/off
USER SET2 USER SET2 select
The VCR automatically select play
system. If the auto detection error is
occurred, then select the play
system manually.
** USER SET1 **
¨ TAPE SELECT
:E180/
T120
:24H
:AUTO
:ON
CLOCK TYPE
PLAYSYSTEM
OSD
USER SET2
¨
¹
END:(MENU)
Initial setting is on.
Select to go to USER SET2 page.
USER SET2 Setting
1
** M E N U **
Press MENU on the remote control.
Result:
The programming menu is displayed.
2
Press the
Result:
, , button to select user set.
The USER SET1 is displayed.
3
4
5
Press the
,
,
to select the USER SET2.
Press the
,
,
to select the USER SET2 menu item.
TIMER PROGRAMMING
¨ USER SET
INSTALLATION
LANGUAGE SET
CLOCK SET
¨
¹
END:(MENU)
Check the below, and change the item.
* USER SET2
ITEM
** USER SET1 **
USAGE
COMMENT
NICAM
NICAM on/off
(EUROPE only)
Initial is on(NICAM stereo mode).
If the NICAM stereo sound is
distorted, then select off mode for
mono sound receiving.
COLOUR
COLOUR or B/W
select
Initial is on. Colour off mode is B/W.
If colour distortion is occurred in
play or conversion mode, then
select colour off mode.
BLUE
SCREEN
BLUE SCREEN
on/off
Initial is blue screen on.
If any problem is occurred by blue
screen, then select blue screen off.
SQPB
S-VHS Playback
See page 32.
USER SET1 USER SET1 select
Select to go to USER SET1 page.
TAPE SELECT
CLOCK TYPE
PLAYSYSTEM
OSD
¨ USER SET2
¹
¨
:E180/
T120
:24H
:AUTO
:ON
END:(MENU)
** USER SET2 **
¨ NICAM
COLOUR
BLUE SCREEN
SQPB
USER SET1
¹
¨
:ON
:ON
:ON
:OFF
:ON
END:(MENU)
15
00408A SV-7000W-GB1
9/7/99 1:44 AM
Page 16
Displaying/Hiding On-Screen Information
GB
Your VCR displays most information both on the VCR and television.
** M E N U **
You can choose to display or hide this information on the television
screen (except for the Index, Timer Programming function, which
cannot be hidden).
TIMER PROGRAMMING
¨ USER SET
INSTALLATION
LANGUAGE SET
CLOCK SET
¨
¹
END:(MENU)
1
Press MENU on the remote control.
Result:
The programming menu is displayed.
2
Press the corresponding
or
buttons, until the cursor is
placed in front of the USER SET option.
3
Press the button to select this option.
Result:
The USER SET1 menu is displayed.
4
Press the corresponding
or
placed in front of the OSD option.
5
To:
Press
display on-screen information
ON is displayed.
hide on-screen information
OFF is displayed.
** USER SET1 **
TAPE SELECT
CLOCK TYPE
PLAYSYSTEM
¨ OSD
USER SET2
¨
¹
:E180/
T120
:24H
:AUTO
:ON
END:(MENU)
6
buttons, until the cursor is
or
, until:
On completion, press MENU twice to exit the menu.
Tuning System
You can select the Tuning System if you live in the U.K.
** INSTALLATION **
1
Press MENU on the remote control.
Result:
The programming menu is displayed.
2
Press the corresponding or buttons, until the cursor is placed
in front of the INSTALLATION option.
3
Press the button to select this option.
Result:
The INSTALLATION menu is displayed.
4
Press the corresponding or
in front of the COUNTRY option.
5
Press the
button to select the EUROPE option.
6
Press the
button to select the EUROPE and U.K. option.
7
On completion, press OK to memory.
¨ COUNTRY
AUTO SET UP
MANUAL SET UP
¨
¹
END:(MENU)
** EUROPE **
¨U.K.
GERMANY
ITALY
SPAIN
SWEDEN
SWISS
AUSTRIA
RUSSIA
NETHERLANDS
FRANCE
OTHERS L/G/I/K:G
¹
¨
MEMORY:(OK)
16
buttons, until the cursor is placed
