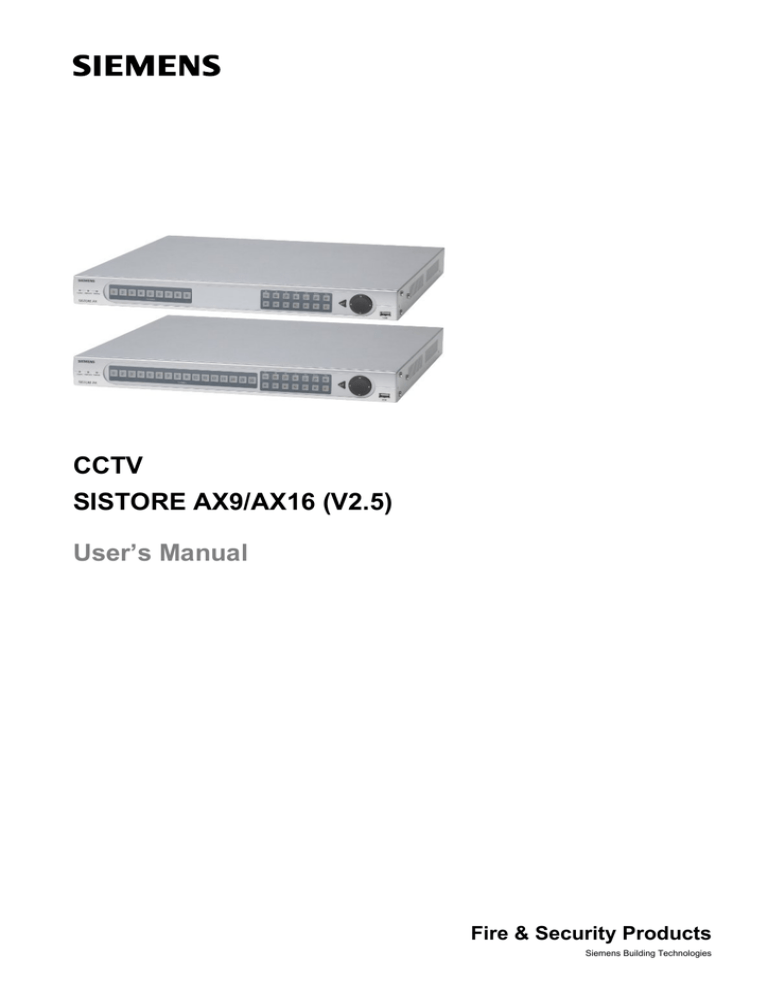

Siemens SISTORE AX9 User`s manual

CCTV
SISTORE AX9/AX16 (V2.5)
User’s Manual
Fire & Security Products
Siemens Building Technologies
Liefermöglichkeiten und technische Änderungen vorbehalten.
Data and design subject to change without notice. / Supply subject to availability.
© 2004 Copyright by
Siemens Building Technologies AG
Wir behalten uns alle Rechte an diesem Dokument und an dem in ihm dargestellten Gegenstand vor. Der Empfänger anerkennt diese
Rechte und wird dieses Dokument nicht ohne unsere vorgängige schriftliche Ermächtigung ganz oder teilweise Dritten zugänglich machen
oder außerhalb des Zweckes verwenden, zu dem es ihm übergeben worden ist.
We reserve all rights in this document and in the subject thereof. By acceptance of the document the recipient acknowledges these rights
and undertakes not to publish the document nor the subject thereof in full or in part, nor to make them available to any third party without our
prior express written authorization, nor to use it for any purpose other than for which it was delivered to him.
Contents
Preface......................................................................................................................7
Compliance notice of FCC ........................................................................................7
Important Safeguards ................................................................................................8
1
1.1
1.2
Introduction ...........................................................................................11
Features ..................................................................................................11
Technical Overview.................................................................................12
2
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.8.1
2.8.2
2.8.3
2.8.4
2.9
2.10
2.11
2.12
2.13
2.14
2.15
Installation .............................................................................................13
Package Contents...................................................................................13
Required Installation Tools .....................................................................13
Setting Unit for PAL or NTSC .................................................................13
Connecting the Video Source .................................................................14
Connecting the Loop Through Video ......................................................14
Connecting the Monitor...........................................................................14
Connecting Audio....................................................................................15
Connecting Alarms..................................................................................15
AI 1 to 16 (Alarm In) ................................................................................16
GND (Ground).........................................................................................16
AO 1 and 4 (Alarm Out) ..........................................................................16
ARI (Alarm Reset In) ...............................................................................16
Connecting to the RS485........................................................................17
Connecting to the RS232 Port ................................................................17
Connecting to the UltraWide SCSI Port ..................................................18
Connecting to the Network Port ..............................................................18
Connecting to the USB Port....................................................................19
Factory Reset..........................................................................................19
Connecting the Power Cord....................................................................20
3
3.1
3.1.1
3.1.2
3.1.3
3.1.4
3.1.5
3.1.6
3.1.7
3.1.8
3.1.9
3.1.10
3.1.11
3.1.12
3.1.13
3.1.14
3.1.15
3.1.16
3.1.17
3.1.18
3.1.19
3.1.20
Configuration.........................................................................................21
Front Panel Controls ...............................................................................21
Power LED ..............................................................................................21
Network LED ...........................................................................................21
Backup LED ............................................................................................21
Camera Buttons (1 to 16)........................................................................21
Sequence Button.....................................................................................22
Display Button .........................................................................................22
PTZ Button ..............................................................................................22
Freeze Button..........................................................................................22
Alarm Button ...........................................................................................22
Spot Button .............................................................................................22
Menu Button............................................................................................22
RW (Rewind) Button ...............................................................................23
PREV (Previous) Button .........................................................................23
Search/Stop Button .................................................................................23
PLAY/PAUSE Button ..............................................................................23
Next Button .............................................................................................23
FF (Fast Forward) Button........................................................................23
REC (Record) Button ..............................................................................23
Enter Button ............................................................................................24
Up, Down, Left, Right Arrow Buttons ......................................................24
3
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
3.2
3.3
3.4
3.5
3.5.1
3.5.2
3.5.3
3.5.4
3.5.5
3.5.6
3.6
3.6.1
3.6.2
3.6.3
3.6.4
3.6.5
3.6.6
3.7
3.7.1
3.7.2
3.7.3
3.7.4
3.8
3.8.1
3.8.2
3.8.3
3.8.4
3.8.5
3.8.6
3.8.7
3.8.8
3.8.9
3.9
3.9.1
3.9.2
3.9.3
3.10
3.10.1
3.10.2
3.10.3
3.10.4
3.11
3.12
3.12.1
3.12.2
3.12.3
3.12.4
Turning on the Power..............................................................................24
Initial Unit Setup ......................................................................................24
Quick Setup Screen ................................................................................25
Normal Setup Screen..............................................................................26
System Information .................................................................................26
Date/Time Setup .....................................................................................29
System Check Screen.............................................................................32
Storage Screen .......................................................................................33
System Log Screen.................................................................................35
System Shutdown ...................................................................................35
Configuring Input Devices .......................................................................36
Camera Setup Screen.............................................................................36
Alarm In Setup Screen ............................................................................37
Motion Detector.......................................................................................38
Alarm Out Setup Screen .........................................................................40
Audio Setup Screen ................................................................................41
RS232/RS485 Setup Screen ..................................................................42
Configuring Recording Settings ..............................................................43
Record Mode Setup Screen....................................................................43
Time-Lapse Record Mode Setup Screen................................................44
Time-Lapse Recording Schedule............................................................45
Pre-Event Recording Setup Screen........................................................46
Event Action Setup..................................................................................47
Alarm In Event Action (Record) Setup Screen........................................47
Alarm In Event Action (Alarm Out) Setup Screen ...................................48
Alarm In Event Action (Notify) Setup Screen ..........................................49
Motion Detector Event Action (Record) Setup Screen ...........................49
Motion Detector Event Action (Alarm Out) Setup Screen.......................50
Motion Detector Event Action (Notify) Setup Screen..............................51
Video Loss Event Action (Record) Setup Screen ...................................51
Video Loss Event Action (Alarm Out) Setup Screen ..............................52
Video Loss Event Action (Notify) Setup Screen......................................53
Display Setup ..........................................................................................54
OSD (On-Screen Display) Setup Screen................................................54
Main Monitoring Setup Screen................................................................55
Spot Monitoring Setup Screen ................................................................56
Network Setup Screen ............................................................................57
LAN Setup Screen ..................................................................................58
Modem Setup ..........................................................................................59
Callback Center (LAN) Setup Screen .....................................................60
Callback Center (Modem) Setup Screen ................................................61
Password Setup Screen..........................................................................62
Config Screen .........................................................................................63
Archive ....................................................................................................64
Clip Copy.................................................................................................66
Load Default Setup .................................................................................68
Clear All Data ..........................................................................................68
4
4.1
4.2
4.2.1
4.2.2
4.2.3
Operation ...............................................................................................69
Turning on the Power..............................................................................69
Live Monitoring........................................................................................69
Active Cameo Mode................................................................................70
PIP Mode.................................................................................................70
PTZ Mode................................................................................................70
4
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
06.2004
4.3
4.4
4.5
4.5.1
4.5.2
4.5.3
4.5.4
4.5.5
4.5.6
4.5.7
4.6
4.6.1
4.6.2
4.6.3
4.6.4
Recording Video......................................................................................71
Recording Audio......................................................................................71
Playing Recorded Video .........................................................................72
Camera Buttons (1 to 16)........................................................................72
Display Button .........................................................................................72
RW (Rewind) Button ...............................................................................72
PREV (Previous) Button .........................................................................72
Stop Button .............................................................................................72
Next Button .............................................................................................72
FF (Fast Forward) Button........................................................................73
Searching Video......................................................................................73
Change Data Source ..............................................................................73
Date/Time Search ...................................................................................74
Calendar Search .....................................................................................74
Event Search...........................................................................................75
5
5.1
5.2
Appendix A — USB-IDE Hard Disk Drive Preparation.......................78
Preparing the USB-IDE hard disk drive in Windows 2000......................78
Preparing the USB-IDE hard disk drive in Windows 98..........................79
6
Appendix B — Reviewing Video Clips ................................................80
7
Appendix C — Troubleshooting ..........................................................82
8
8.1
Appendix D — Connector Pin Outs.....................................................83
Alarm I/O Connector and RS485 Connector Pin Outs............................83
9
9.1
9.2
9.3
Appendix E — Connection Diagram ...................................................84
Sample I. Connecting the Dome Camera and SISTORE AX9/AX16 ....84
Sample II. Connecting the External Modem and SISTORE AX RAS ....84
Sample III. Connecting the SISTORE AX and SCU ...............................85
10
10.1
Appendix F — Recording Table...........................................................86
All 16 Channel Recording Times with 250 GB HDD (Days) ...................86
11
Appendix G — Screens Map ................................................................87
12
Appendix H — Specifications ..............................................................88
13
Keyword Index.......................................................................................90
5
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Preface
Preface
Compliance notice of FCC
This equipment has been tested and found to comply with the limits for a CLASS A
Digital Device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate frequency energy and if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference, in which case users will be required to correct the interference at their
own expense.
WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. This class
of digital apparatus meets all requirements of the Canadian Interferencecausing Equipment Regulations.
The information in this manual is believed to be accurate as of the date of
publication. Siemens is not responsible for any problems resulting from the use
thereof. The information contained herein is subject to change without notice.
Revisions or new editions to this publication may be issued to incorporate such
changes.
7
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Preface
Important Safeguards
WARNING
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
z Read Instructions
z
z
z
z
z
All the safety and operating instructions should be read before the appliance is
operated.
Retain Instructions
The safety and operating instructions should be retained for future reference.
Cleaning
Unplug this equipment from the wall outlet before cleaning it. Do not use liquid
aerosol cleaners. Use a damp soft cloth for cleaning.
Attachments
Never add any attachments and/or equipment without the approval of the
manufacturer as such additions may result in the risk of fire, electric shock or
other personal injury.
Water and/or Moisture
Do not use this equipment near water or in contact with water.
Accessories
z Do not place this equipment on an unstable cart, stand or table. The equipment
may fall, causing serious injury to a child or adult, and serious damage to the
equipment. Wall or shelf mounting should follow the manufacturer's instructions,
and should use a mounting kit approved by the manufacturer.
z This equipment and cart combination should be moved with care. Quick stops,
z
z
z
z
z
excessive force, and uneven surfaces may cause the equipment and cart
combination to overturn.
Power Sources
This equipment should be operated only from the type of power source indicated
on the marking label. If you are not sure of the type of power, please consult
your equipment dealer or local power company.
Power Cords
Operator or installer must remove power and TNT connections before handling
the equipment.
Lightning
For added protection for this equipment during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet
and disconnect the antenna or cable system. This will prevent damage to the
equipment due to lightning and power-line surges.
Overloading
Do not overload wall outlets and extension cords as this can result in the risk of
fire or electric shock.
Objects and Liquids
Never push objects of any kind through openings of this equipment as they may
touch dangerous voltage points or short out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the equipment.
8
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Preface
z Servicing
z
z
z
z
z
z
z
z
z
Do not attempt to service this equipment yourself. Refer all servicing to qualified
service personnel.
Damage requiring Service
Unplug this equipment from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
– When the power-supply cord or the plug has been damaged.
– If liquid is spilled, or objects have fallen into the equipment.
– If the equipment has been exposed to rain or water.
– If the equipment does not operate normally by following the operating
instructions, adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in damage
and will often require extensive work by a qualified technician to restore the
equipment to its normal operation.
– If the equipment has been dropped, or the cabinet damaged.
– When the equipment exhibits a distinct change in performance — this
indicates a need for service.
Replacement Parts
When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or that have the same
characteristics as the original part. Unauthorized substitutions may result in fire,
electric shock or other hazards.
Safety Check
Upon completion of any service or repairs to this equipment, ask the service
technician to perform safety checks to determine that the equipment is in proper
operating condition.
Field Installation
This installation should be made by a qualified service person and should
conform to all local codes.
Correct Batteries
Warning: Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
Tmra
A manufacturer’s maximum recommended ambient temperature (Tmra) for the
equipment must be specified so that the customer and installer may determine a
suitable maximum operating environment for the equipment.
Elevated Operating Ambient Temperature
If installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than room ambient.
Therefore, consideration should be given to installing the equipment in an
environment compatible with the manufacturer’s maximum rated ambient
temperature (Tmra).
Reduced Air Flow
Installation of the equipment in the rack should be such that the amount of
airflow required for safe operation of the equipment is not compromised.
Mechanical Loading
Mounting of the equipment in the rack should be such that a hazardous
condition is not caused by uneven mechanical loading.
9
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Preface
z Circuit Overloading
Consideration should be given to connection of the equipment to supply circuit
and the effect that overloading of circuits might have on over current protection
and supply wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.
z Reliable Earthing (Grounding)
Reliable grounding of rack mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connections to
the branch circuit (e.g., use of power strips).
z Cable lengths
For reasons of EMC the cable used for RS232, audio In / Out, SCSI
connections and power supply must be not any longer than 3 meters.
10
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Introduction
1
Introduction
1.1
Features
Your color digital video recorder (DVR) provides recording capabilities for 9 or 16
camera inputs. It provides exceptional picture quality in both live and playback
modes, and offers the following features:
z Efficient video compression through “MPEG4 Technology“
z 9 or 16 Composite Input Connectors
z Compatible with Color (PAL or NTSC) and B&W (CCIR and EIA-170) Video
z
z
z
z
z
z
z
z
z
z
z
z
z
Sources
Multiple Search Functions (Date/Time, Calendar, Event)
Records up to 50 PAL Images per Second (60 NTSC Images per Second)
“Loop-Through” Video Connectors
Continuous Recording in Disk Overwrite Mode
Video Archiving via Ultra SCSI Interface
Continues Recording while Archiving, Transmitting to Remote Site and during
Playback
User-friendly Graphical User Interface (GUI) Menu System in Multiple
Languages
Two Record Modes (Time and Event)
Audio Recording and Playback
Alarm Connections Include: Input, Output and Reset Input
Built-in Alarm Buzzer
Live or Recorded Video Access via Ethernet or External Modem
Fig. 1
Typical DVR installation.
11
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Introduction
1.2
Technical Overview
Your DVR can replace both a time-lapse VCR and a multiplexer in a security
installation. However, it has many features that make it much more powerful and
easier to use than even the most advanced VCR.
The DVR converts analog PAL or NTSC video to digital images and records them
on a hard disk drive. Using a hard disk drive allows you to access recorded video
almost instantaneously; there is no need to rewind tape. The technology also
allows you to view recorded video while the DVR continues recording video.
Digitally recorded video has several advantages over analog video recorded on
tape. There is no need to adjust tracking. You can freeze frames, fast forward,
fast reverse, slow forward and slow reverse without image streaking or tearing.
Digital video can be indexed by time or events, and you can instantly view video
after selecting the time or event.
Your DVR can be set up for event or time-lapse recording. You can define times to
record, and the schedule can change for different days of the week and user
defined holidays.
The DVR can be set up to alert you when the hard disk drive is full, or it can be set
up to record over the oldest video once the disk is full.
Your DVR uses a proprietary encryption scheme making it nearly impossible to
alter video.
You can view video and control your DVR remotely by connecting via modem or
Ethernet. There is a SCSI port that can be used to record or archive video to
external hard disk drives, and also there are two USB ports that can be used to
upgrade the system or copy video clips to external hard disk drives, CD-RW drives
or flash drives.
NOTE:
This manual covers the 9- and 16-channel digital video recorders.
The DVRs are identical except for the number of cameras and alarms that can be
connected and the number of cameras that can be displayed.
For simplicity, the illustrations and descriptions in this manual refer to the 16camera model.
12
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Installation
2
Installation
2.1
Package Contents
The package contains the following:
z Digital video recorder
z Adaptor (including power cord)
z Alarm I/O board
z Multilingual user’s manual, multilingual RAS software and user’s manual on CDROM
z CD-ROM
z Multilingual quick reference guide
z 19 inch bracket
2.2
Required Installation Tools
No special tools are required to install the DVR. Refer to the installation manuals
for the other items that make up part of your system.
Fig. 2
2.3
16-Channel DVR rear panel.
Setting Unit for PAL or NTSC
Fig. 3
PAL / NTSC switch.
Your DVR can be used with either PAL or NTSC equipment. Before turning on the
DVR, set the switch to P (PAL) or N (NTSC) to match your equipment.
NOTE:
You cannot mix PAL and NTSC equipment. For example you cannot use a PAL camera and an
NTSC monitor.
CAUTION
If you set the switch from PAL (NTSC) to NTSC (PAL), please do the Factory
Reset and Clear All Data. If not, it causes the DVR to perform wrong
operations.
13
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Installation
2.4
Connecting the Video Source
Fig. 4
Video input connectors.
Connect the coaxial cables from the video sources to the BNC Video In
connectors.
2.5
Connecting the Loop Through Video
Fig. 5
Video Loop Through connectors.
If you would like to connect your video source to another device, you can use the
Loop BNC connectors.
NOTE:
The Loop BNC connectors are auto terminated. Do NOT connect a cable to the Loop BNC unless it is
connected to another terminated device because it will cause poor quality video.
2.6
Connecting the Monitor
Fig. 6
Video Out connectors.
Connect the monitor to either the Video Out or SVHS Out connector.
Connect the spot monitor to the SPOT connector if required.
NOTE:
If your monitor has an SVHS input, use it for better quality video display.
NOTE:
The Video Out (BNC) and the SVHS Out connectors may be connected to individual monitors for
simultaneous operation.
14
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Installation
2.7
Connecting Audio
NOTE:
It is the user’s responsibility to determine if local laws and regulations permit recording audio.
Fig. 7
Audio In and Out connectors.
Your DVR can record audio. Connect the audio source to Audio In. Connect
Audio Out to your amplifier.
NOTE:
The DVR does not have amplified audio output, so you will need a speaker with an amplifier. The
audio input can be from an amplified source or directly from a microphone.
2.8
Connecting Alarms
Fig. 8
Alarm Input/Output and RS485 connector
Fig. 9
Alarm Input/Output board and alarm connector strips
An Alarm I/O port (DB-25 male connector) is provided to connect the alarm inputs
and alarm outputs. Connect the wires to connectors on the Alarm I/O board
(supplied with the unit), and then connect the board to the Alarm I/O port.
CAUTION
Do not attempt to wire directly to the DB-25 male connector.
NOTE:
The Alarm I/O Board consists of alarm connector strips and RS485 connector.
15
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Installation
2.8.1
AI 1 to 16 (Alarm In)
You can use external devices to signal the DVR to react to events. Mechanical or
electrical switches can be wired to the AI (Alarm In) and GND (Ground)
connectors. The threshold voltage is 4.3V and should be stable at least 0.5
seconds to be detected. See Chapter 3 — Configuration for configuring alarm
input.
2.8.2
GND (Ground)
NOTE:
All the connectors marked GND are common.
Connect the ground side of the Alarm input and/or alarm output to the GND
connector.
2.8.3
AO 1 and 4 (Alarm Out)
The DVR can activate external devices such as buzzers or lights. Connect the
device to the AO (Alarm Out) and GND (Ground) connectors. AO is an active low
open collector output which sinks 5 mA 12 V and 30 mA 5V. See Chapter 3 —
Configuration for configuring alarm output.
2.8.4
ARI (Alarm Reset In)
An external signal to the Alarm Reset In can be used to reset both the Alarm Out
signal and the DVR’s internal buzzer. Mechanical or electrical switches can be
wired to the AI (Alarm In) and GND (Ground) connectors. The threshold voltage is
4.3 V and should be stable at least 0.5 seconds to be detected. Connect the wires
to the ARI (Alarm Reset In) and GND (Ground) connectors.
16
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Installation
2.9
Connecting to the RS485
Fig. 10
RS485 connector
The DVR can be controlled remotely by an external device or control system, such
as a control keyboard, using RS485 half-duplex serial communications signals.
The RS485 connector can also be used to control PTZ (pan, tilt, zoom) cameras.
Connect RX+ and TX+ of the control system to the RX+/TX+ of the DVR, and RXand TX- to the RX-/TX-. See Chapter 3 — Configuration and the PTZ camera
manufacture’s manual for configuring the RS485 connection.
2.10
Connecting to the RS232 Port
Fig. 11
RS232 connector
An RS232 port is provided to connect a remote control keyboard, or connect an
external modem for remote monitoring, configuration and software upgrades. Use
a modem cable with a DB-9 female connector to connect to the DVR.
See Chapter 3 — Configuration for configuring the modem.
NOTE:
The DVR is not supplied with a modem cable, and many modems are not supplied with cables. Make
certain you have the correct cable when purchasing the modem.
17
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Installation
2.11
Connecting to the UltraWide SCSI Port
Fig. 12
SCSI connector
A SCSI port is provided to connect external storage devices for expanded storage.
Connect the external SCSI hard disk drive (RAID) cable to the high-density 68-pin
female UltraWide SCSI port. The length of SCSI cable should not exceed
1.5 meters. You can connect up to 15 UltraWide SCSI devices with SCSI IDs set
to 0, 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 12, 13, 14 and 15 respectively.
NOTE:
Do NOT set the SCSI ID to 7 because the ID number 7 was assigned to the Host.
NOTE:
The SCSI bus must be terminated properly, otherwise the DVR will not operate properly.
2.12
CAUTION
Do NOT connect the SCSI device while the DVR power is on. The DVR
must be powered down to connect the SCSI device and powered up again
after the SCSI device has been connected. Power up the SCSI device so it
is ready for operation in advance of powering up the DVR.
CAUTION
If the SCSI device is shut down while the device is operating, the DVR
system may not work normally.
Connecting to the Network Port
Fig. 13
Network connector.
The DVR can be networked using the 10/100 MB Ethernet connector. Connect a
Cat5 cable with an RJ-45 jack to the DVR connector. The DVR can be networked
for remote monitoring, searching, configuration and software upgrades. See
Chapter 3 — Configuration for configuring the Ethernet connections.
18
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Installation
2.13
Connecting to the USB Port
Fig. 14
USB connector.
Two USB ports are provided to connect external hard disk drives, CD-RW or flash
drive for clip copy or system upgrade. Position the external drive close enough to
the DVR so that you can make the cable connections, usually less than 6 feet.
Use the USB cable provided with the drive to connect it to the DVR.
2.14
Factory Reset
Fig. 15
Factory reset switch.
The DVR has a Factory Reset switch to the right of the USB port. This switch will
only be used on the rare occasions that you want to return all the settings to the
original factory settings.
CAUTION
When using the Factory Reset, you will lose any setting you have made.
To reset the unit, you will need a straightened paperclip:
1. Unplug the power to turn the DVR off.
2. Plug the power to turn it on again.
3. While the DVR is initializing, poke the straightened paperclip in the unlabeled
hole above the PAL / NTSC switch.
4. Hold the switch until all the LEDs on the front panel are lit.
NOTE:
When the DVR successfully resets to factory defaults all the LEDs on the front panel flash three times.
5.
Release the reset switch. All of the DVR’s settings are now at the original
settings it had when it left the factory.
19
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Installation
2.15
Connecting the Power Cord
Fig. 16
Power cord connector.
Connect the DC power cord of the adaptor to the DVR, and connect the AC power
cord to the adaptor and then to the wall outlet.
NOTE:
The power cord connector locks into position to prevent accidental power loss. Be sure to slide the
release away from the socket before removing the plug.
WARNING
ROUTE POWER CORDS SO THAT THEY ARE NOT A TRIPPING HAZARD.
MAKE CERTAIN THE POWER CORD WILL NOT BE PINCHED OR ABRADED
BY FURNITURE. DO NOT INSTALL POWER CORDS UNDER RUGS OR
CARPET.
THE POWER CORD HAS A GROUNDING PIN. IF YOUR POWER OUTLET
DOES NOT HAVE A GROUNDING PIN RECEPTACLE, DO NOT MODIFY THE
PLUG.
DO NOT OVERLOAD THE CIRCUIT BY PLUGGING TOO MANY DEVICES IN
TO ONE CIRCUIT.
Your DVR is now ready to operate.
Refer to Chapter 3 - Configuration and Chapter 4 - Operation.
20
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3
Configuration
NOTE:
Your DVR should be completely installed before proceeding. Refer to Chapter 2 - Installation.
3.1
Front Panel Controls
Fig. 17
16-Channel DVR front panel.
The front panel looks and operates much like a VCR combined with a multiplexer.
Many of the buttons have multiple functions. The following describes each button
and control. Take a few minutes to review the descriptions. You will use these to
initially set up your DVR and for daily operations.
3.1.1
Power LED
The Power LED is lit when the DVR is on.
3.1.2
Network LED
The Network LED is lit when the unit is connected with RAS (Remote
Administration System) either via Ethernet or modem.
3.1.3
Backup LED
The Backup LED is lit when data is being backed up using the USB port.
3.1.4
Camera Buttons (1 to 16)
Pressing the individual camera buttons will cause the selected camera to display
full screen. They are also used to enter passwords.
21
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.1.5
Sequence Button
When in the live mode, pressing the Sequence button displays another full live
channel sequentially. When in one of the multi-view formats, pressing this button
will cause the DVR to sequence cameras in two sequence modes: “Page” and
“Cameo”. In the Page mode, the DVR sequences through user-defined screen
layouts (pages). In the Cameo mode, the bottom, right screen to display live
cameras sequentially. Pressing the Sequence button while in the Sequence mode
will exit the Sequence mode. Zooms Out in PTZ mode.
3.1.6
Display Button
Pressing the Display button toggles between different display formats. The
available formats are: full, 4 x 4, 3 x 3, 2 x 2 and PIP. Zooms In in PTZ mode.
3.1.7
PTZ Button
Pressing the PTZ button opens a Pan/Tilt/Zoom screen which allows you to control
properly configured cameras.
3.1.8
Freeze Button
Pressing the Freeze button freezes the current live screen. Used for near Focus in
the PTZ mode.
3.1.9
Alarm Button
The Alarm button has two functions. First, it will reset the DVR’s outputs including
the internal buzzer during an alarm. Second, it will display the event log when you
are in the live monitoring mode unless there is an active alarm. This operation can
be user password protected. Used for far Focus in PTZ mode.
3.1.10
Spot Button
Pressing the Spot button and pressing the individual camera buttons displays the
selected camera on the spot monitor. For the sequence display on the spot
monitor, press the Spot button and then Sequence button. Saves Presets in PTZ
mode.
3.1.11
Menu Button
Pressing the Menu button enters the Quick Setup screen. You will need to enter
the administrator password to access the Quick Setup. Pressing the button also
closes the current menu or setup dialog box. Pressing the MENU button displays
the Search menu while in the Playback mode. Pressing the button again closes
the Search menu. Loads a Preset View in PTZ mode.
22
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.1.12 RW (Rewind) Button
Pressing the RW button plays video backward at high speed. Pressing the button
again toggles the playback speed from
,
and
. The screen displays
,
and
respectively.
Entering Fast Backward Playback mode from Live Monitoring mode can be
password protected.
3.1.13
PREV (Previous) Button
The PREV button only functions when playback video has been paused. Pressing
the PREV button plays video backward image-by-image.
3.1.14 Search/Stop Button
Pressing the Search/Stop button displays the Search menu. Pressing the button
again will exit the Search menu. This operation can be user password protected.
Pressing the Search/Stop button during Playback mode returns the DVR to the
Live Monitoring mode.
3.1.15 PLAY/PAUSE Button
Pressing the PLAY/PAUSE button plays back images at regular speed. Pressing
the button while in the playback mode will pause the video. The screen displays
when the DVR is playing back video. The screen displays when in the Pause
mode.
Entering Playback mode from Live Monitoring mode can be user password
protected.
3.1.16
Next Button
The Next button only functions when playback video has been paused. Pressing
the Next button plays video forward image-by-image.
3.1.17 FF (Fast Forward) Button
Pressing the FF button plays video forward at high speed. Pressing the button
again toggles the playback speed from
,
and
. The screen displays
,
and
respectively.
Entering Fast Playback mode from Live Monitoring mode can be password
protected.
3.1.18 REC (Record) Button
Press the REC button to set the DVR so that it is ready to record video, and
NOTHING will stop the recording, except an end of disk condition when the unit is
set to stop recording at the end of disk. A red dot appears on the screen when the
DVR is recording video. Press the button again to stop recording video. This
operation can be user password protected.
23
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.1.19
Enter Button
The
(Enter) button selects a highlighted item or completes an entry that you
have made. It also sets or releases active cameo mode in the live or playback
modes.
3.1.20 Up, Down, Left, Right Arrow Buttons
These buttons are used to navigate through menus and Graphic User Interface
(GUI). They are also used to control Pan and Tilt when in the PTZ mode. The
arrow buttons can be used to move the position of the active cameo screen, and
also move through screen pages.
3.2
Turning on the Power
Connecting the power cord to the DVR turns on the unit. The unit will take
approximately 60 seconds to initialize.
3.3
Initial Unit Setup
Before using your DVR for the first time, you will want to establish the initial
settings. This includes items such as time and date, display language, camera,
audio, remote control, record mode, network and password. Your DVR can be set
up using various screens and dialog boxes.
Press the Menu button to enter the setup screens. The Admin Password screen
appears.
Fig. 18
Admin Password screen.
Enter the password by pressing the appropriate combination of Camera number
buttons and then the Enter button. The factory default password is 4321. There
are two Setup screens: Quick Setup and Normal Setup. The factory default is the
Quick Setup screen.
NOTE:
The setup screens can also be accessed by entering the User password if the User password is
turned on. However, only access to the Clip Copy and Password setup screens is permitted.
24
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.4
Quick Setup Screen
Fig. 19
Quick Setup screen.
The Quick Setup screen allows you to set up the most commonly used features of
your DVR. Use the arrow buttons to move through the options. Pressing the
button lets you make your selections.
NOTE:
If you enter the Quick Setup screen by entering User password, only Password setup will be
permitted.
z Highlight the box beside Quick Setup and press the
button to toggle between
On and Off. If you select Off, you will use the Normal Setup screen to change
the DVR’s settings.
z Highlight the Record Speed box and select recording speeds from as few as one
image every 10 seconds to as fast as 50 ips PAL (60 ips NTSC).
z Highlight the Record Quality box and select from Very High, High, Standard and
Low.
z Highlight the box beside Audio Recording and select either On or Off.
NOTE:
It is the user’s responsibility to determine if local laws and regulations permit recording audio.
z Highlight the box beside Sequence Dwell Time and select from 3 to 60 seconds
z
z
z
z
z
z
z
for the camera sequence dwell time.
Selecting System Information… enters that screen.
Selecting Storage… enters a screen where you can check the storage status.
Selecting Camera… enters a screen where you can set up camera information.
Selecting Network Setup… enters a screen where you can set up network
information.
Selecting Password… enters a screen where you will be able to change
passwords.
Selecting Date/Time… enters a screen where you will be able to set the DVR’s
time and date.
Selecting System Shutdown… shuts the DVR down. When shutting down the
DVR, you need to confirm that you want to shut down the unit, and you will be
asked for an administrator password.
25
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.5
Normal Setup Screen
Fig. 20
Normal Setup screen.
Press the Menu button to enter the setup screen. If the Quick Setup screen
appears, turn it off as described above. The Normal Setup screen gives you
access to all the DVR’s setup screens.
NOTE:
Switching between Quick Setup and Normal Setup returns their settings to the factory default settings.
3.5.1
System Information
Highlight System Information and press the
screen appears.
Fig. 21
button. The System Information
System Information screen.
In the System Information screen, you can name the site location, assign a unit ID
number, select the language for the screen display and upgrade the software.
button. The System Information Change
Highlight Change and press the
screen appears.
26
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
Fig. 22
System Information Change screen.
z Highlight the box beside Unit ID and press the
button. Change the number
by highlighting it and using the Up and Down arrow buttons to increase and
decrease the number. The Unit ID number is used to identify the unit when it is
networked with other DVRs. You cannot use the same number for two or more
DVRs that are within the same network.
z Highlight the box beside Language and press
button. A dropdown menu
displays the available languages. Highlight the desired language and press the
button.
Fig. 23
Language dropdown menu.
z Highlight the box beside Site Description and press the
button. A virtual
keyboard displays.
Fig. 24
Virtual keyboard.
27
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
z Use the arrow keys to highlight the first character you want in the Site Title and
button. That character appears in the title bar and the cursor
press the
moves to the next position. Pressing
toggles between the upper and
lower case keyboards,
backspaces, and
deletes entered characters.
You can use up to 20 characters including spaces in your title.
z Once you have entered your title, highlight Close and press the
button.
z After you have created a title, assigned a unit ID number and selected a
language, you can save your changes by highlighting OK and pressing the
button. Selecting Cancel exits the screen without saving the changes.
z The box beside Version displays the software version of the DVR.
NOTE:
You can upgrade the software only in the System Information Change screen.
z To upgrade the software, connect the USB device containing the upgrade
button. The
package file to the DVR. Highlight Upgrade… and press the
System Upgrade screen appears. The screen displays the upgrade package file
name.
CAUTION
System upgrade via USB port might NOT be completed properly if the USB
device has been connected to the other USB port. Please remove any other
USB device before system upgrade is attempted.
NOTE:
If the file system on the USB-IDE hard disk drive or USB flash drive is NOT FAT16 or FAT32 format,
format the drive using FAT16 or FAT32 format.
Fig. 25
System Upgrade screen.
z Select Start and enter the Admin password to start the upgrade. The system
restarts automatically after completing the upgrade.
NOTE:
Only the system administrator can upgrade the software.
NOTE:
You cannot upgrade software during clip copy.
28
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.5.2
Date/Time Setup
Highlight Date/Time in the Main Menu and press the
setup screen appears.
Fig. 26
CAUTION
button. The Date/Time
Date/Time setup screen.
If you set a date and time that is older than some of your recorded images, any
images with dates and times later than the new setting will be deleted.
z Highlight the first box beside Date/Time and press the
button. The individual
sections of the date will highlight. Use the Up and Down arrow buttons to change
the number. Use the Left and Right arrow buttons to move between month, date
button.
and year. Once you have the correct date, press the
z Highlight the second box beside Date/Time and press the
button. The
individual sections of the time will highlight. Use the Up and Down arrow buttons
to change the number. Use the Left and Right arrow buttons to move between
hour, minutes and seconds. Once you have the correct time, press the
button.
NOTE:
The clock will not start running until you have restarted the unit, so you may wish to set the time last.
z Highlight the box beside Time Zone and press the
button. Select the time
button.
zone you are in from the list and press the
z Highlight the box beside Daylight Saving Time and press the
button.
button toggles between On and Off.
Pressing the
z Highlight the Holiday Setup… box and press the
button. You can set up
holidays by highlighting Add: and pressing the
button. The current date
appears.
z Highlight the month and day and change them by using the Up and Down arrow
button to add the date. Dates can be deleted by
buttons. Press the
button.
highlighting the X beside the date and pressing the
NOTE:
Holidays that do not fall on the same date each year should be updated once the current year’s
holiday has passed.
29
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
Fig. 27
Holiday Setup screen.
z You can save your changes by highlighting OK and pressing the
button.
Selecting Cancel exits the screen without saving the changes.
z Highlight the Time Sync… box and press the
button. You can set up time
synchronization between the DVR and standard time servers that are available
in most time zones and countries or between the DVR and another DVR.
Fig. 28
Time Sync screen.
z Highlight the box beside Automatic Time Sync and press the
button. This
toggles between On and Off.
z Highlight the box beside SNTP Server and press the
button. Change the
numbers by highlighting them and using the Up and Down arrow buttons to
increase or decrease the number value.
z Highlight the box beside Interval and press the
button. Set the time interval
for synchronization from 1 to 300 minutes.
z The box beside System Clock displays the DVR's time setting.
z The box beside Server Clock displays the time setting of the time server.
button updates the server
Highlighting the Update button and pressing the
clock.
NOTE:
The Server Clock will display “–” when the DVR cannot load the time information from the time server.
30
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
z The box beside Next Synchronization displays the scheduled time for the next
synchronization. If you want to synchronize the time instantly, highlight the
button.
Now… button and press the
CAUTION
When selecting Now…, any video with a later time and date will be lost if the
time and date of a time server is earlier than the last recorded image of the
DVR.
NOTE:
When the time difference between the DVR and the time server is more than one minute, the DVR
might not synchronize the time to prevent an unexpected loss of recorded video data. If you want to
synchronize the time manually, select Now….
z Highlight the Run as Server box and press the
z
z
z
z
button. Pressing the
button toggles between On and Off. When it is On, the DVR you are setting up
will run as a time server.
You can save your changes by highlighting OK and pressing the
button.
Selecting Cancel exits the screen without saving the changes.
Highlight the box beside Date Format and press the
button. A list of date
button.
formats appears. Highlight the format you wish to use and press the
The choices are:
MM-DD-YYYY
DD-MM-YYYY
YYYY-MM-DD
MM/DD/YYYY
DD/MM/YYYY
YYYY/MM/DD
To change the time format, highlight the box beside Time Format and press the
button. The DVR toggles between 12 Hours (AM/PM) and 24 Hours (military
time).
You can save your changes by highlighting OK and pressing the
button.
Selecting Cancel exits the screen without saving the changes.
31
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.5.3
System Check Screen
button. The System
Highlight System Check in the Main menu and press the
Check setup screen appears.
Fig. 29
System Check screen.
z Highlight the box under the On/Off heading and press the
button. This
toggles between On and Off. When it is On, the DVR reports a fault condition if
it does not detect any recording or if there is an alarm during the designated time.
button. A slide bar
z Highlight the box under the Interval heading and press the
appears allowing you to set the check interval from 1 Hour to 30 Days by using
the Left and Right arrow buttons.
z The Status field displays the fault conditions. When it is Good, there was
recording or an alarm occurred during the designated time. When it is Bad,
there was no recording or no alarm occurred during the designated time.
32
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.5.4
Storage Screen
button. The Storage setup
Highlight Storage in the Main menu and press the
screen appears. The DVR displays the storage status when the installed IDE hard
disk drives support the S.M.A.R.T. (Self-Monitoring Analysis and Reporting
Technology) monitoring program.
Fig. 30
Storage Check screen.
When the DVR has more than four storage devices, you can scroll through the list
by selecting the Up and Down arrow buttons.
The Type field displays the type and capacity of storage devices.
The Capacity field displays the storage capacity.
The Status field displays “Good”, “Bad”, “S.M.A.R.T. Not work”, “S.M.A.R.T. Alert”,
“High Temperature” or “Not installed”, depending on storage conditions.
• Good — The storage condition is normal.
• Bad — Data cannot be written to or read from the storage device.
• S.M.A.R.T. Not work — Storage conditions are normal, however, the S.M.A.R.T.
monitoring is not working or supported
• S.M.A.R.T. Alert — S.M.A.R.T. monitoring has detected a fault condition.
• High Temperature — S.M.A.R.T. monitoring has detected that the temperature of
storage device exceeded the preset temperature threshold.
• Not installed — The storage device is not installed.
NOTE:
Once the “S.M.A.R.T. Alert” message displays, replacing the hard disk drive is recommended, usually
within 24 hours.
The °C field displays the temperature of the storage device.
The Usage field displays the device usage.
NOTE:
When the device is an IDE hard disk drive, you can change its usage to either Rec. On or Rec. Off.
When the device is a SCSI hard disk drive, you can change its usage to either Extension or Archive..
33
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
A “−“ displays when connecting a hard disk drive that was previously used for
something else. In this situation, device usage can be changed as desired
usages; e.g., Extension to Archive or Archive to Extension. However, data on
the device will be lost if the device usage is changed.
CAUTION
The DVR can be set to react to storage problems by activating an internal buzzer
or external alarms, and/or notifying a PC running RAS (Remote Administration
System). Highlight the box beside Storage Problem Action: Alarm Out / Notify and
button to select from Beep, the alarm output terminal that you want to
press the
associate with the storage problem event, and/or Notify.
Highlight S.M.A.R.T. Setup… and press the
screen appears.
Fig. 31
button. The S.M.A.R.T. Setup
S.M.A.R.T. Setup screen.
Your DVR shows the condition of the hard disk drives if the installed IDE hard disk
drives support the S.M.A.R.T. (Self-Monitoring, Analysis and Reporting
button to toggle
Technology) program. Highlight the box beside Use. Press the
between On and Off.
z The Last-check filed displays the date and time information of the last storage
check.
z Highlight the box beside Period, and select from Daily, Weekly or Monthly for the
check interval.
NOTE:
When selecting Weekly or Monthly, the Day of Week or Day of Month field will display under the
Period filed. Select the check day or date.
z Highlight the box beside Check Time, and adjust the numbers using arrow
buttons.
z Highlight the box beside Temperature Threshold and adjust the numbers using
arrow buttons. Set the temperature number to the hard disk drive
manufacturer’s specifications. If this temperature is ever exceeded, the
S.M.A.R.T. Alert message will display.
z Highlight the box beside Sensor Unit and select from Celsius or Fahrenheit.
z You can save your changes by highlighting OK and pressing the
button.
Selecting Cancel exits the screen without saving the changes.
34
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.5.5
System Log Screen
Highlight System Log in the Main menu and press the
screen appears.
Fig. 32
button. The System Log
System Log screen.
The System Log screen displays a record of various events logged by the DVR.
The list shows the dates and times the system was turned ON and OFF, power
failed, recording was started or stopped, playback was started or stopped, setup
changes were made, and data banks were cleared.
The events are listed from the most recent to the oldest. You can scroll through
the list a page at a time by selecting the Up and Down arrow buttons and pressing
button. You can go directly to an event number by highlighting the event
the
button, using the arrow buttons
number box (left of the UP arrow), pressing the
button.
to change the number, and pressing the
3.5.6
System Shutdown
button. This shuts
Highlight System Shutdown in the Main menu and press the
the DVR down. When shutting down the DVR, you need to confirm that you want
shut down the unit, and you will be asked for an administrator password.
35
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.6
Configuring Input Devices
You can configure the video, audio and remote control devices connected to the
DVR.
Fig. 33
3.6.1
Device menu screen.
Camera Setup Screen
Highlight Camera in the Main menu and press the
screen appears.
Fig. 34
button. The Camera setup
Camera setup screen.
The Camera setup screen displays the camera inputs in groups of four: 1 to 4, 5 to
8, 9 to 12 and 13 to 16.
You can turn the camera number on or off and also hide the video from a camera
button. Select from
by highlighting the camera Setup heading and pressing the
On, Off, Covert 1 or Covert 2.
NOTE:
When set to Covert 1, the DVR displays the camera title and status icons on the covert video. When
set to Covert 2, the DVR displays only the camera title on the covert video.
36
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
You can assign titles to each camera by highlighting the camera title box and
button. A virtual keyboard allows you to enter camera names.
pressing the
Selecting the PTZ Device box causes a list of controllable cameras to display.
button. You will need to connect
Select your camera from the list and press the
the camera to the RS485 terminal on the back of the DVR following the camera
manufacturer’s instructions.
Fig. 35
PTZ Device list.
You can assign IDs to each camera by highlighting the ID heading and pressing
button. Change the number by highlighting it and using the Up and Down
the
arrow buttons to increase and decrease the number. The PTZ ID number can be
set from 0 to 256.
3.6.2
Alarm In Setup Screen
Highlight Alarm In in the Main menu and press the
screen appears.
Fig. 36
button. The Alarm In setup
Alarm In setup screen.
The alarm terminal strip on the back of the DVR has inputs associated with each
alarm. You can set up each input on the Alarm In Setup screen. The inputs are
displayed in groups of four. You can turn each input On or Off. Each input can be
given a title, and the inputs can be set as NO (normally open) or NC (normally
closed) independently.
37
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.6.3
Motion Detector
Fig. 37
Motion Detector setup screen.
Your DVR has built-in video motion detector. Video motion detection can be
turned On or Off for each camera.
Highlighting the box under the Sensitivity heading allows you to adjust the DVR’s
sensitivity to motion. There are five settings with 1 being the least sensitive and 5
being the most sensitive.
You can adjust the minimum number of detection blocks that must be activated to
trigger a motion alarm. Highlight a box under the Min Size heading and adjust the
number. The smaller the number, fewer detection blocks must be activated and
therefore more sensitive.
Turning the View setting On will allow you to observe how the DVR is reacting to
motion. When in the motion viewing mode, the detection zone of video will be
displayed in green. Any detected motion within the zone will be displayed in red.
You can define the area of the image where you want to detect motion; e.g., a
button. The
doorway. Highlight the icon under the Zone heading, and press the
Motion Detection Zone screen will display.
Fig. 38
Motion Detection Zone screen.
38
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
The Motion Detection Zone screen is laid over the video for the selected camera.
You can set up motion detection zones by selecting or clearing blocks.
NOTE:
You can set up motion zones one block at a time in groups of 9 or 16 individual block groups (9- and
16-channel DVR respectively). A block group is positioned within the image area using the Up and
Down arrow buttons, and individual blocks within the block groups are selected or cleared using the
camera buttons.
button to display the menu screen. The menu on the setup screen
Press the
has the following functions:
Fig. 39
Motion Detection Zone screen.
z Close this menu — Closes the menu so that you can see the entire screen.
z Select Current Blocks — Activates highlighted blocks to detect motion.
z Clear Current Blocks — Deactivates highlighted blocks so that they will not
z
z
z
z
detect motion.
Select All Blocks — Activates all blocks to detect motion.
Clear All Blocks — Deactivates all blocks so that they will not detect motion.
Reverse All Blocks — Activates inactive blocks and deactivates active blocks.
Exit Zone Setup — Asks you to confirm changes and then returns to the
previous screen.
39
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.6.4
Alarm Out Setup Screen
The Alarm Out setup screen allows you to establish a schedule for each alarm
output from the DVR.
Fig. 40
Alarm Out setup screen.
Each alarm output can be given its own title by highlighting the box under the Title
button. A virtual keyboard appears allowing you to
heading and pressing the
enter the title.
button opens a schedule screen.
Highlighting the Sched field and pressing the
You can schedule alarm output in 30-minute increments from 0:00 to 24:00.
Fig. 41
Alarm Out Schedule screen.
You can select individual blocks of time, entire days of the week, entire blocks of
time or the entire schedule. Select a specific block of time by highlighting it. Select
an entire day by highlighting the day of the week or Holiday on the left of the
screen. Select an entire block of time by highlighting the time at the top of the
screen. Select the entire screen by highlighting the empty box in the upper left
button from No Arming (no block) to On (blue
corner of the screen. Press the
block) to Event (yellow block).
When set to On, the Alarm Out is active during the scheduled time. When set to
Event, the Alarm Out is only active when there is an Event during the scheduled
time.
40
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.6.5
Audio Setup Screen
Highlight Audio in the Main menu and press the
screen appears.
Fig. 42
button. The Audio Setup
Audio Setup screen.
button. This toggles
Highlight the box beside Audio Recording and press the
between On and Off. When it is On, the DVR also records audio when it is
recording video.
button. This toggles between On
Highlight the box beside Mute and press the
and Off. When it is On, the DVR will NOT play live or recorded audio.
button toggles between Mic In
Highlight the box beside Audio In. Pressing the
and Line In. Mic In is for an un-amplified source while Line In is for an amplified
source.
You can save your changes by highlighting OK and pressing the
Selecting Cancel exits the screen without saving the changes.
button.
NOTE:
If you set up the recording speed less than 1 ips, the DVR will NOT guarantee the standard quality
audio playback.
41
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.6.6
RS232/RS485 Setup Screen
The RS232/RS485 setup screen allows you to set up the RS232 and RS485 ports
to communicate with external devices such as modems, remote controls and dome
cameras.
Fig. 43
RS232/RS485 setup screen.
Highlight the field for the settings you wish to make. Select the correct Baud Rate,
Parity, Data Bits and Stop Bits for the device you are connecting to the DVR.
For RS485, it is possible to select either Remote Control or PTZ Control in the
Usage field.
It is possible to select either External Modem or Remote Control in the RS232 ─
Usage field, and select either Remote Control or PTZ Control in the RS485 ─
Usage field.
NOTE:
Both the RS232 and RS485 ports cannot be configured to communicate with remote controls at the
same time.
NOTE:
If networking is configured by the external modem, the RS232 port cannot be set up for the remote
control. In the Network Setup menu, set up the DVR for LAN connections first.
42
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.7
Configuring Recording Settings
NOTE:
Pressing the REC button on the front of the DVR will cause the red LED above the button to light and
indicates the DVR is ready to record. However, this does not mean the DVR is recording. The DVR
records video based on the parameters such as schedule and events defined during configuration.
The red dot appears on the monitor when the DVR is recording.
Your DVR offers a variety of flexible recording modes. You can set it up to record
all the time or to only record events. It can be set up to continue recording once
the hard disk drive is full by recording over the oldest video, or you can set it up to
alert you when the hard disk is full and stop recording.
3.7.1
Record Mode Setup Screen
Fig. 44
Record Mode Setup screen.
z Highlight the box beside Record Resolution and press the
button. This
toggles between Standard and High. When set to Standard, the DVR records
video with the resolution similar to VHS quality. When set to High, the DVR
records video with the resolution similar to DVD quality.
NOTE:
When the Record Resolution is set to High, the recording and playback speed will be decreased in
half.
NOTE:
The Record Resolution will be fixed to Standard when the DVR is in the Quick Setup mode.
z Highlight the box beside End Of Disk and press the
button. This toggles
between Overwrite and Stop. When in the Overwrite mode, the DVR continues
recording when the hard disk drive is full by overwriting the oldest video. When
in the Stop mode, the DVR stops recording when the hard disk drive is full.
z If the DVR is set to the Stop mode, you can set it to beep or activate the Alarm
Out AO1 port when the hard disk drive is full. Highlight the box beside On Disk
button to toggle between On and Off. Highlight the
Full: Beep and press the
button to toggle between
box beside On Disk Full: Alarm Out and press the
On and Off.
43
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
z Highlight the box beside Field Detect. Pressing the
button toggles between
On and Off. When set to On, the Field Detection helps prevent shaking in the
Simplex mode. It does this by recording odd numbered fields from odd
numbered cameras and even numbered fields from even numbered cameras.
z Highlight the first box beside Auto Deletion. Pressing the
button toggles
between On and Off. When set to On, the DVR will delete video recorded prior
to the user-defined period. Highlight the second box beside Auto Deletion and
button to select the length of time recorded data will be kept (from 1
press the
to 99 days).
z You can save your changes by highlighting OK and pressing the
button.
Selecting Cancel exits the screen without saving the changes.
3.7.2
Time-Lapse Record Mode Setup Screen
Fig. 45
Time-Lapse Record Setup screen.
z Highlight the box under Speed and press the
button. A drop-down list of
record speeds appears. You can select from 1 image per 10 seconds to 50
images per second for PAL (to 60 images per second NTSC).
NOTE:
If you have set the Record Resolution for High, you will not be able to select 50 ips PAL (60 ips
NTSC).
44
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
z Highlight the box under Quality and press the
button. A drop-down list
appears. You can select from Very High, High, Standard and Low image quality.
All other variables being equal; Very High will require 600% more hard disk
space than Standard, High will require 250% more, and Low 30% less.
NOTE:
Higher quality images require more storage space and will reduce the recording capacity of the hard
disk drive.
You can set the maximum amount of time-lapse video to be stored. Once the DVR
reaches this amount, it will start recording over the oldest time-lapse video. The
time-lapse video is stored separate from Event video.
When Keep the continuous pictures is set to On, you can set the time from 1 Hour
to the maximum allowed by the storage capacity of your hard disk drive.
NOTE:
The maximum storage time is only an estimate because the amount of space required to store video
varies depending on many factors such as motion and image complexity.
3.7.3
Time-Lapse Recording Schedule
Fig. 46
Time-Lapse Recording Schedule screen.
You can program the DVR to record only during certain times based on time, day
of the week, and holidays. The smallest time segment you can use is 30 minutes.
A blue rectangle indicates the DVR is set to record during those 30 minutes. When
there is no rectangle, the DVR will not record during those 30 minutes.
There are several ways to set recording times:
z You can highlight an individual block and toggle it On or Off by pressing the
button.
z You can change a 30-minute segment for all days by placing the cursor on the
button to toggle the segment On or Off.
time line and pressing the
z You can change an entire day by placing the cursor on the day of the week and
button to toggle the day On or Off.
pressing the
z You can change the entire calendar by placing the cursor in the upper left-hand
button to
box (above “S” and to the left of the time line) and pressing the
toggle the entire calendar On and Off.
45
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
NOTE:
The Holiday (H) schedule applies to the dates you established as holidays when setting Date/Time.
You can save your changes by highlighting OK and pressing the
Selecting Cancel exits the screen without saving the changes.
3.7.4
button.
Pre-Event Recording Setup Screen
Fig. 47
Pre-Event Record Setup screen.
When the DVR is in the Event Record mode it is possible to have it record images
before the event occurs. The Pre-Event Record screen allows you to define how to
handle pre-event recording.
You can turn individual cameras On or Off for pre-event recording. The image
speed can be set from 0.1 to 50 ips (60 ips NTSC), and image quality can be
selectable from High, Standard and Low.
You can set the amount of time to record prior to the event by adjusting the Dwell.
You can set the Dwell from 1 to 300 seconds.
NOTE: When the DVR is in the Time-Lapse mode, it ignores the pre-event settings and follows the
time-lapse settings.
46
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.8
Event Action Setup
You can program the DVR to record, activate the alarm output and/or notify the
remote site whenever sensor, motion or video loss events are detected. Highlight
the Alarm In Event Action, Motion Detector Event Action, or Video Loss Event
Action in the Main menu. The following Event Action setup screens will appear.
3.8.1
Alarm In Event Action (Record) Setup Screen
The DVR can be set to react to alarm events differently. Each sensor can be
assigned a schedule, camera, recording speed, video quality and dwell time.
Fig. 48
Alarm In Event Action (Record) setup screen.
z Highlight the Sched box and press the
button. A schedule screen appears.
Set the schedule as described earlier.
z Highlight the Camera box and press the
button. A camera selection screen
appears. Select the camera number you would like to associate with the sensor.
NOTE:
You can associate multiple cameras with a sensor.
z Highlight the Speed box and select number of images per second you would like
to record from the drop-down menu.
z Highlight the Quality box and select the image quality you want to record from
the drop-down menu.
z Highlight the Dwell box and set the length of time you would like to record for the
associated event.
47
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.8.2
Alarm In Event Action (Alarm Out) Setup Screen
The DVR can be set to react to alarm events differently by activating an internal
buzzer or external alarms.
Fig. 49
Alarm In Event Action (Alarm Out) setup screen.
z Highlight the Sched box and press the
button. A schedule screen appears.
Set the schedule as described earlier.
z Highlight the Alarm-Out box and select either Beep or the alarm output terminal
that you want to associate with the sensor.
z Highlight the Dwell box and set the length of time you want the output activated.
NOTE: When setting the Dwell to “0 sec”, the alarm output will be activated throughout the sensor
activation period, and inactive while the sensor is inactive.
48
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.8.3
Alarm In Event Action (Notify) Setup Screen
The DVR can be set to contact a computer running RAS (Remote Administration
System) or send an e-mail (LAN connections) when certain events occur. See the
Figure 61 – Callback Center (LAN) Setup screen or Figure 62 – Callback Center
(Modem) Setup screen.
Fig. 50
Alarm In Event Action (Notify) setup screen.
z Highlight the Sched box and press the
button. A schedule screen appears.
Set the schedule as described earlier.
z Highlight the Notify box and press the
button. This toggles between On and
Off. When it is On, the DVR notifies the remote site when certain alarm inputs
are activated based on a defined schedule.
3.8.4
Motion Detector Event Action (Record) Setup Screen
The DVR can be set to react to motion detector differently. Each camera can be
assigned a schedule, associated camera, recording speed, video quality and dwell
time.
Fig. 51
Motion Detector Event Action (Record) setup screen.
49
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
z Highlight the Sched box and press the
button. A schedule screen appears.
Set the schedule as described earlier.
z Highlight the Camera box and press the
button. A camera selection screen
appears. Select the camera number you would like to associate with the
camera.
NOTE:
You can associate multiple cameras with a camera that detects motion.
z Highlight the Speed box and select number of images per second you would like
to record from the drop-down menu.
z Highlight the Quality box and select the image quality you want to record from
the drop-down menu.
z Highlight the Dwell box and set the length of time you would like to record for the
associated motion event.
3.8.5
Motion Detector Event Action (Alarm Out) Setup Screen
The DVR can be set to react to motion events differently by activating an internal
buzzer or external alarms.
Fig. 52
Motion Detector Event Action (Alarm Out) setup screen.
z Highlight the Sched box and press the
button. A schedule screen appears.
Set the schedule as described earlier.
z Highlight the Alarm-Out box and select either Beep or the alarm output terminal
that you want to associate with the motion event.
z Highlight the Dwell box and set the length of time you want the output activated.
NOTE:
When setting the Dwell to “0 sec”, the alarm output will be activated throughout the sensor activation
period, and inactive while the sensor is inactive.
50
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.8.6
Motion Detector Event Action (Notify) Setup Screen
The DVR can be set to contact a computer running RAS (Remote Administration
System) or send an e-mail (LAN connections) when certain motion events occur.
See the Figure 61 – Callback Center (LAN) Setup screen or Figure 62 – Callback
Center (Modem) Setup screen.
Fig. 53
Motion Detector Event Action (Notify) setup screen.
z Highlight the Sched box and press the
button. A schedule screen appears.
Set the schedule as described earlier.
z Highlight the Notify box and press the
button. This toggles between On and
Off. When it is On, the DVR notifies the remote site when certain motion events
occur based on a defined schedule.
3.8.7
Video Loss Event Action (Record) Setup Screen
The DVR can be set to react to video loss from a camera differently. Each camera
can be assigned a schedule, associated camera, recording speed, video quality
and dwell time.
Fig. 54
Video Loss Event Action (Record) setup screen.
51
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
z Highlight the Sched box and press the
button. A schedule screen appears.
Set the schedule as described earlier.
z Highlight the Camera box and press the
button. A camera selection screen
appears. Select the camera number you would like to associate with the camera
that has lost video.
NOTE:
You can associate multiple cameras with a camera.
z Highlight the Speed box and select number of images per second you would like
to record from the drop-down menu.
z Highlight the Quality box and select the image quality you want to record from
the drop-down menu.
z Highlight the Dwell box and set the length of time you would like to record for the
associated video loss.
3.8.8
Video Loss Event Action (Alarm Out) Setup Screen
The DVR can be set to react to video loss differently by activating an internal
buzzer or external alarms.
Fig. 55
Video Loss Event Action (Alarm Out) setup screen.
z Highlight the Sched box and press the
button. A schedule screen appears.
Set the schedule as described earlier.
z Highlight the Alarm-Out box and select either Beep or the alarm output terminal
that you want to associate with the camera that has lost video.
52
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.8.9
Video Loss Event Action (Notify) Setup Screen
The DVR can be set to contact a computer running RAS (Remote Administration
System) or send an e-mail (LAN connections) in the case of video loss. See the
Figure 61 – Callback Center (LAN) Setup screen or Figure 62 – Callback Center
(Modem) Setup screen.
Fig. 56
Video Loss Event Action (Notify) setup screen.
z Highlight the Sched box and press the
button. A schedule screen appears.
Set the schedule as described earlier.
z Highlight the Notify box and press the
button. This toggles between On and
Off. When it is On, the DVR notifies the remote site when it loses video input
from a camera based on a defined schedule.
53
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.9
Display Setup
Highlight the OSD, Main Monitoring or Sport Monitoring in the Main menu, and
press the
button to set up the on-screen display and camera display on the
main monitor or spot monitor.
3.9.1
OSD (On-Screen Display) Setup Screen
The DVR can be set up to display Date, Time, Title and Status on screen. Each
feature can be turned on or off, and you can adjust the margins.
Fig. 57
OSD Setup screen.
z Highlight the box beside Date and press the
z
z
z
z
z
button to toggle the date display
On and Off.
Highlight the box beside Time and press the
button to toggle the time display
On and Off.
Highlight the box beside Title and press the
button to toggle the camera title
display On and Off.
Highlight the box beside Status and press the
button to toggle status display
On and Off.
Highlight the box beside Left/Right Margin and press the
button to adjust the
left and right margins. The margins can be set from 1 to 24.
Highlight the box beside Top/Bottom Margin and press the
button to adjust
the top and bottom margins. The margins can be set from 1 to 24.
54
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.9.2
Main Monitoring Setup Screen
You can adjust the display dwell time for each camera displayed on the main
monitor. You can also turn camera sequence and event monitoring on and off.
Fig. 58
Main Monitoring Setup screen.
z Highlight the box beside Sequence Dwell Time and press the
button. You
can adjust the display dwell time from 3 to 60 seconds.
z Highlight the box beside Sequence in Cameo and press the
button to toggle
between On and Off.
z Pressing the Sequence button causes the DVR to sequence cameras, and the
DVR can sequence cameras in two modes: “Page” and “Cameo”. In the Page
mode, the DVR sequences through user-defined screen layouts (pages). In the
Cameo mode, the bottom right window in a multi-screen format sequences
through all cameras.
NOTE:
The DVR does not sequence the camera having video loss in the Cameo mode.
You can define the screen layout in a variety of formats and set the DVR to
sequence through the different screen layouts (pages) so that all the cameras will
be displayed. You can also set up the DVR to display one camera or a group of
cameras all the time while cycling through the remaining cameras in a “cameo”
window. This can be done with one camera displayed full screen while displaying
the cameo window as a PIP (picture in picture), or displaying the cameras in a grid
pattern with the bottom right window as the cameo.
NOTE:
Sequence cannot be used in the 4 x 4 display mode of the 16-channel and 3 x 3 mode of the
9-channel DVR.
z Highlight the box beside Event Monitoring and press the
button to toggle
between On and Off. When On, video from the lowest camera number among
those associated with the sensor that detected the event will be displayed fullscreen on the monitor for the preset dwell time.
z Highlight the box beside Event Monitoring Dwell Time and press the
button.
Select the event monitoring dwell time from 3 to 60 seconds.
55
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.9.3
Spot Monitoring Setup Screen
You can adjust the display dwell time for each camera displayed on the spot
monitor. You can also turn event monitoring on and off.
Fig. 59
Spot Monitoring Setup screen.
z Highlight the box beside Sequence Dwell Time and press the
button. You
can adjust the sequence dwell time from 3 to 60 seconds.
z Highlight the box beside Event Monitoring and press the
button to toggle
between On and Off. When it is On, the video of the lowest camera number
among cameras associated with the event-detected sensor will be displayed in
full-screen on the spot monitor during the preset dwell time.
z Highlight the box beside Event Monitoring Dwell Time and press the
button.
You can adjust the event monitoring dwell time from 3 to 60 seconds.
56
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.10
Network Setup Screen
In the Network Setup screen you can set up the DVR for LAN connections.
Fig. 60
Network Setup screen.
z Highlight the box beside Connection. Press the
button to toggle between
LAN and Modem.
z Highlight the box beside Admin Password and press the
button. A virtual
keyboard appears. You will first be asked to enter the current password. Then
you can enter a new password; you will be asked to confirm the new password
before it is accepted.
z Highlight the box beside User Password and press the
button. A virtual
keyboard appears. You will first be asked to enter the current password. Then
you can enter a new password; you will be asked to confirm the new password
before it is accepted.
NOTE:
These passwords are for network use. They are different from the Admin and User passwords for the
DVR itself.
NOTE:
The passwords are case sensitive. The factory default password for both Administrator and User is
12345678.
CAUTION
Write the password down and keep it in a safe place. Once the password has
been reset, the default will no longer work. If the password is forgotten, the unit
must be reset using the Factory Reset Button and all data settings will be lost.
z Highlight the box beside Transfer Control. Press the
button to toggle
between On and Off. When On, you can set the transfer speed and remote
quality of the image transferred to a computer running RAS (Remote
Administration System).
z Highlight the box beside Transfer Speed and press the
button. Select the
transfer speed from 1 to 25 ips for PAL (1 to 30 ips for NTSC).
NOTE:
When the Record Quality is set to High during the Record Mode setup, the transfer speed can be set
from 1 to 10 ips for PAL (1 to 15 ips for NTSC).
NOTE:
The transfer speed you set is the maximum speed. Depending on the network environment, this
speed may not be achieved.
57
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
NOTE:
The transfer speed indicates the image rate transferred to each RAS. If two remote sites (RAS) are
connecting to the DVR, the number of images transferred via network will be ‘Transfer Speed x 2’.
NOTE:
The Transfer Control option will affect the DVR’s recording performance. The number of remote sites
(RAS) connected to the DVR does not affect the recording speed. The local recording speed will be
affected only by Transfer Speed. The local recording speed will not be affected if the DVR is not
connected remotely.
NOTE:
If Transfer Control is not used, the speed of data transfer to a remote site will be the same as the local
recording speed.
z Highlight the box beside Remote Quality and press the
button. Select the
image quality from Very High, High, Standard and Low.
3.10.1 LAN Setup Screen
Fig. 61
LAN Setup screen.
Highlight the box beside Use dynamic IP Configuration (DHCP) and press the
button to toggle between On and Off.
NOTE:
When set to On, the IP Address, Gateway and Subnet Mask will be set automatically, so you cannot
change the LAN settings.
NOTE:
When you use the DHCP, the IP address of the DVR might be changed whenever turning the DVR on.
You can check the current IP address of the DVR in the System Information screen.
Change the numbers by highlighting them and using the Up and Down arrow
buttons to increase or decrease the number.
NOTE:
You will need to get the appropriate IP Address, Gateway, Subnet Mask and IP Port Number for each
RAS-related program (Admin, Watch, Search and Callback) from your network administrator.
58
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
The factory default LAN settings are:
DHCP:
Off
IP Address:
192.168.1.129
Gateway:
192.168.1.254
Subnet Mask: 255.255.255.0
The factory default IP Port settings are:
Admin:
8200
Watch:
8016
Search:
10019
Callback:
8201
NOTE:
Do NOT use the same IP port number for two different programs; otherwise, the DVR cannot be
connected with a PC running RAS.
CAUTION
When changing the IP port settings, you must change the IP port settings on a
PC running RAS as well. Refer to the RAS manual for details.
You can save your changes and return to the Network Setup screen by highlighting
OK and pressing the
button. Selecting Cancel exits the screen without saving
the changes.
3.10.2
Modem Setup
Fig. 62
RS232/RS485 setup screen.
NOTE:
Modem setup is done through the RS232/RS485 screen in the Devices menu, which can be accessed
from the Main Menu.
NOTE:
If the RS232 port is in use for the remote control, the networking cannot be configured by the modem.
In the RS232/485 Setup menu, set up the RS232 port to communicate with the external modem first.
z
59
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
z Highlight the box beside Baud Rate of the RS232 field and press the
z
z
z
z
3.10.3
button.
A list of baud rates ranging from 300 to 115,200 appears.
Highlight the box beside Parity of the RS232 field and press the
button. A
drop-down list appears. You can select from None, Odd or Even parity.
Highlight the box beside Data Bit of the RS232 field. Pressing the
button
toggles between 7 bit and 8 bit formats.
Highlight the box beside Stop Bit of the RS232 field. Pressing the
button
toggles between 1 and 2 Stop Bits.
You can save your changes by highlighting OK and pressing the
button.
Selecting Cancel exits the screen without saving the changes.
Callback Center (LAN) Setup Screen
Fig. 63
Callback Center (LAN) Setup screen.
z The DVR can be set to contact a computer running RAS (Remote Administration
z
z
z
z
z
z
System) or send an e-mail on a LAN when an event occurs.
Highlight the box beside IP Address and enter the IP address of the computer
you want contacted during an event.
Highlight the box beside Retry and enter the number of times you would like the
DVR to try contacting the computer. You can select from 1 to 10 retries.
button to toggle
Highlight the box beside E-mail notification and press the
between On and Off.
Highlight the box beside SMTP Server IP and enter the SMTP server IP address,
obtained from your system administrator.
Highlight the box beside E-mail recipient and enter the recipient’s e-mail address.
Use the virtual keyboard to enter the e-mail address.
Highlight the box beside E-mail sender and enter the sender’s e-mail address.
NOTE:
The e-mail address must include the character “@” to be a valid address.
60
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.10.4
Callback Center (Modem) Setup Screen
Fig. 64
Callback Center (Modem) Setup screen.
z If you have a modem connected to the DVR, it can be set up to contact a
computer running RAS (Remote Administration System) when an event occurs.
z Highlight the box beside Remote Server Phone Number and enter the telephone
number of the computer running RAS. Enter the number as it must be dialed
from your telephone system; for example, if you must dial “0” for an outside line,
enter “0” before the pager number.
z Highlight the box beside Callback Phone Number and enter the telephone
number of the DVR. This phone number will be used to contact the DVR from a
remote site.
z Highlight the box beside Retry and enter the number of times you would like the
DVR to try contacting the computer. You can select from 1 to 10 retries.
NOTE:
When any event occurs, the DVR will call a remote site to give notice of an event. The DVR will hold
the phone line for 30 seconds after connecting a remote site to wait for other events that might occur.
If another event occurs while the DVR is holding the line, the DVR will hold the line for another 30
seconds. If no other event occurs, the DVR automatically disconnects the line
NOTE:
When any event occurs, the connection made from a remote site to the DVR will be disconnected
automatically in order for the DVR to call a remote site to give notice of an event.
z You can save your changes by highlighting OK and pressing the
button.
Selecting Cancel exits the screen without saving the changes.
61
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.11
Password Setup Screen
An Administrator password is required to turn the system off, enter the setup
screen, load default setups, clear all data, change system date and time and
change the Administrator password. A User password is required to enter the
playback, fast forward playback and fast backward playback modes from the live
monitoring mode. A User password is also required to enter the search menu
screen in the live monitoring mode, enter setup screen (access to only the Clip
Copy and Password setup screens). When pressing the ALARM button to display
the event log in the live monitoring mode unless there is an active alarm, a User
password is also required. Highlight Password in the Main menu and press to
enter the Password screen.
Fig. 65
Password setup screen.
Highlight the box beside User and press the
button to toggle between On and
Off. If the password is set to On, you will be asked to enter the current password
so that you can turn it Off. If the password is set to Off, you will be asked to enter
the new password and to confirm it before it will be turned on.
The Administrator password cannot be turned On and Off. You can change the
Administrator password by first entering the current password, entering a new
password and finally confirming the new password.
button. A
To change the password, highlight the Password box and press the
window appears asking you to enter the current password. If you enter the correct
password, another window appears asking you to enter a new password using the
button, another screen appears asking
camera buttons. After you press the
you to confirm the new password.
NOTE:
The Admin and User passwords are composed of up to eight digits using the camera buttons. The
default Admin password is: 4321.
CAUTION
Write down the new password and save it in a secure place. If the password is
forgotten, the unit must be reset using the Factory Reset Button and all data
settings will be lost.
62
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
To lock front panel buttons, highlight Key Lock On and press the
button. Once
the buttons are locked, pressing any front panel button will cause a password
screen to display. You will need to enter the correct password to unlock the keys.
The Key Lock password is 4231.
You can save your changes by highlighting OK and pressing
Cancel exits the screen without saving the changes.
3.12
button. Selecting
Config Screen
The Config menu is used to perform functions such as switching between Quick
Setup and System Setup, archiving video, copying video clips, loading default
setup and clearing all data.
Fig. 66
Config screen.
63
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.12.1 Archive
The Archive screen can be used to archive video automatically or manually.
Fig. 67
Archive screen.
Selecting Update loads the latest information displayed on the Archive screen.
Selecting Clear erases all archived data.
Selecting Setup displays a screen where you set up archive parameters.
Fig. 68
Archive Setup screen.
button. This toggles
Highlight the box beside End Of Disk and press the
between Overwrite and Stop. When set to Overwrite, the DVR continues archiving
when the device drive is full by overwriting the oldest video. When set to Stop, the
DVR stops archiving when the device drive is full.
button. This toggles
Highlight the box beside Auto Archive and press the
between On and Off. When it is On, the DVR will archive video automatically from
the time set on the Archive From field.
Highlight the box beside Archive From and press the
archive start date and time.
button to set up the
Highlight the box beside Working From / Working To and press the
up the time span of the automatic archive.
button to set
64
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
You can save your changes by highlighting OK and pressing
Cancel exits the screen without saving the changes.
button. Selecting
Selecting Manual displays a screen where you set up manual archive parameters.
Fig. 69
Manual Archive screen.
Highlight the boxes beside From and To and press the
archive start and stop times and dates.
button to set up the
Once you set the archive start and stop times and dates, highlight the Archive Now
button.
button and press the
You can end the archiving process at any time by highlighting the Stop button and
button.
pressing the
NOTE:
The Stop button will display only during archiving.
NOTE:
If you have a large quantity of recorded video to archive, either stop recording or reset the recording
speed. The oldest data to be archived might be overwritten if the hard disk is full.
65
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
3.12.2
Clip Copy
The Clip Copy screen can be used to copy video clips to an external USB hard disk
drive, CD-RW drive or flash drive. The copied clips can be viewed on computers
running Microsoft Windows 98, ME, 2000 or XP. Refer to the Appendix A — USB
Hard Disk Drive Preparation for information on preparing the external drive for clip
copy.
Fig. 70
Clip Copy screen.
To select the data source to back up, highlight the first box on the top and press
button. A drop-down list of available data source appears. You can select
the
from Local or Archive.
To select the type of the USB drive to use for clip copy, highlight the box on the top
button. A drop-down list of USB drives appears. You can select
and press the
from USB HDD or USB CD-RW. Placing a checkmark in the Audio box copies
recorded audio with video.
NOTE:
To copy clips using the USB CD-RW there must be two of fewer external SCSI hard disk drives
connected to the DVR.
You can define how much video to copy changing the start and end times and
dates. You can also select which camera you wish to copy.
button. A virtual keyboard appears.
Highlight the File Name box and press the
Enter a file name for the video you are copying and select Close. The DVR will
automatically add the camera number (for example “01”) and “.exe” to the file
name. If you want to save the file in a specific folder, enter the folder name
followed by a “/”. For example: “folder/filename”
Once you have given the video a file name, highlight the Start button and press the
button to start clip copy.
When you select the USB CD-RW, the DVR will display the drive capacity, the clip
size and ask if you want to continue.
When more than two USB hard disk drives are installed on the DVR, the following
USB Device Selection screen appears. Select the drive to use for clip copy and
button. Selecting Return to Clip Copy Menu and pressing the
press the
66
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
button exits the screen and returns to the Clip Copy screen without saving the
changes.
Fig. 71
USB Device Selection screen.
When the selected drive has more than 2 partitions, the following Disk Partition
Selection screen appears. If the file system is not FAT16 or FAT32, the TYPE
displays NOT Supported.
Fig. 72
Disk Partition Selection screen.
Once you select the drive and partition to use for clip copy, the DVR will display the
drive capacity, the clip size and ask if you want to continue.
NOTE:
Do not copy clips larger than 2GB.
You can use other functions on the DVR while video is being copied. To do this,
button. You can return to the Clip
highlight the Close button and press the
Copy screen at any time to check the progress.
NOTE:
You can not end the clip copy process during CD burning.
Refer to Appendix – Reviewing Video Clips for instructions on how to review the
images you have copied.
67
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Configuration
NOTE:
During clip copy, you can neither change the system date and time, shut the system down, switch to
the Quick Setup mode, clear all data, nor change the system setup from a remote site.
CAUTION
3.12.3
Do NOT disconnect the USB cable or the power from the external drive while
copying clips. If the external drive is shut down or the USB cable is
disconnected while copying clips, THE DVR SYSTEM MAY NOT WORK
NORMALLY OR THE EXTERNAL DRIVE COULD BE DAMAGED, and you will
get an error message the next time you try to copy clips. You will need to power
down the DVR and restart it to get rid of the error message. Once the file
system of the USB-IDE hard disk drive has been corrupted, this error message
cannot be dismissed. Even after restarting the DVR it may automatically restart
while preparing clip copy. You must recover the file system using the recovery
program, or you must reformat the hard disk drive.
Load Default Setup
Highlighting and selecting Load Default Setup will bring up screen asking you if you
really want to load default settings and confirm it with a password.
NOTE:
Loading the Default Setup will not change the current time, time zone, daylight saving time and
network settings.
3.12.4
Clear All Data
Highlighting and selecting Clear All Data will bring up screen asking you if you
really want to clear all data and confirm it with a password.
CAUTION
Selecting Clear All Data will erase all recorded video.
68
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Operation
4
Operation
NOTE:
This chapter assumes your DVR has been installed and configured. If it has not, please refer to
Chapters 2 and 3.
The DVR’s controls are similar to a VCR. As with a VCR, the main functions are
recording and playing back video. However, you have much greater control over
recording and playing back video. You can establish recording schedules based
on time of day and day of the week. The DVR allows you to search through the
recorded video using much more sophisticated tools than those available with
VCRs. Additional DVR features that are not available with VCRs are remote
control and viewing, and recording video at the same time you are watching
previously recorded video.
The front panel controls are described in Chapter 3 — Configuration.
4.1
Turning on the Power
Once you have installed the DVR following the instructions in Chapter 2 —
Installation, it is ready to record. Plugging in the power cord will cause unit to go
through its self-diagnostics.
4.2
Live Monitoring
As soon as the DVR completes its initialization process, it will begin showing live
video on the attached monitor and playing live audio through the attached speaker.
The default mode is to display all cameras at once. Pressing any camera button
will cause that camera to display full screen. It displays live video and plays live
audio until the user enters another mode.
Pressing the Display button cycles the DVR through the different display formats.
Pressing the Sequence button will cause the cameras to display sequentially on
the monitor. When in one of the multi-view formats, pressing this button will cause
the DVR to through user-defined screen layouts (page sequence), or the bottom,
right screen to display live cameras sequentially (cameo sequence). Selecting
another display mode, or pressing the Sequence button again will exit the
Sequence mode. When in one of the multi-view formats, pressing the Left or Right
arrow buttons will cause the DVR to go to the previous or the next page. For
example, if you press the Right arrow button while in 4x4 format, the DVR changes
the page as follows:
Pressing the Freeze button will freeze the current image on the screen until you
press the button again.
69
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Operation
4.2.1
Active Cameo Mode
You can enter the Active Cameo mode by pressing the
button in any multi-view
format. The grey-highlight box at the bottom of video indicates the active cameo,
button
and pressing the arrow buttons moves the active cameo. Pressing the
while in the Active Cameo mode exits the Active Cameo mode. The active cameo
mode will remain in effect for 15 seconds if there is no further action.
In Active Cameo mode, press the camera button you want to display as active
cameo. After selecting a camera number as active cameo, the DVR moves the
active cameo to the next position. You can change the screen layout using this
process. The screen layout can also be changed in the playback mode.
The active cameo also can be used to select a camera to control Pan, Tilt and
Zoom capabilities. In the PTZ mode, enter the Active Cameo mode by pressing
button, and move the active cameo to the camera you want to control. Then
the
button again to control the
exit from the Active Cameo mode by pressing the
selected camera.
NOTE:
The active cameo mode can be set or released in the playback mode while playback video is paused.
4.2.2
PIP Mode
You can display a Picture-in-Picture by pressing the Display button. You can
change the location of the PIP by pressing the Up and Down arrow buttons and its
size by pressing the Left and Right arrow buttons.
4.2.3
PTZ Mode
The DVR will control cameras with Pan, Tilt and Zoom capabilities. Press the PTZ
button to enter the PTZ mode. You can control the camera using front panel
control buttons or by setting up presets. To use the front panel buttons, press the
Left and Right arrow buttons to pan left and right. Press the Up and Down arrow
buttons to tilt the camera up and down. Press the Display button to zoom in, and
press the Sequence button to zoom out. You can use the Freeze and Alarm
buttons to focus the image.
Fig. 73
PTZ Preset screen.
70
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Operation
Fig. 74
Preset View screen.
You can save camera position settings as “presets” so that you can go directly to
desired views. Once you have the camera at the desired settings, press the
Search button, and the PTZ Preset dialog box will appear. Select the number you
want to assign to the preset and press the
button. Use the virtual keyboard to
enter the preset name. Press the Menu button to load the PTZ preset and the
Preset View dialog box will appear. Select the desired preset and press the
button to load the preset.
4.3
Recording Video
Once you have installed the DVR following the instructions in Chapter 2 —
Installation, it is ready to record.
Although you will be able to record without changing the unit from its original
factory settings, you will want to take advantages of the DVR’s many tools. See
Chapter 3 — Configuration for detailed descriptions of the recording mode options.
NOTE:
The DVR is NOT recording if only the red LED above the REC button is lit. When the DVR is set for
Time-lapse or Event recording, the red LED above the REC button indicates the unit is ready to
record. The red dot appears on the monitor when the clock reaches a scheduled recording time and
the DVR starts recording video.
4.4
Recording Audio
If the DVR was set up to record audio, it will record audio when video is recording.
NOTE:
Make certain you comply with all local and federal laws and regulations when recording audio.
71
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Operation
4.5
Playing Recorded Video
Once video has been recorded, you can view it by pressing the Play/Pause button.
When playing video for the first time, the DVR will display the most recent image.
When playing video subsequent times, the DVR will start playing video from the
last recalled image.
NOTE:
If the DVR is set in the Simplex mode, you will need to stop recording before playing back video.
When you return to the Live Monitoring mode, pressing the REC button is required to start recording
again.
Pressing the Play/Pause button again will freeze the video on the screen.
4.5.1
Camera Buttons (1 to 16)
Pressing a camera button will display that camera full screen.
4.5.2
Display Button
Pressing the Display button during will cycle the display through the different
screen layouts. The display modes are: full, 4 x 4, 3 x 3, and 2 x 2 (not all formats
are available for the 9- and 4- channel DVRs).
NOTE:
You cannot change the display format while playing back video. Pause the video first, then change
the format.
4.5.3
RW (Rewind) Button
Pressing the RW button plays video backward at high speed. Pressing the button
again toggles the playback speed from
,
and
. The screen displays
,
and
respectively.
Entering Fast Backward Playback mode from Live Monitoring mode can be
password protected.
4.5.4
PREV (Previous) Button
The PREV button only functions when playback video has been paused. Pressing
the PREV button plays video backward image-by-image.
4.5.5
Stop Button
Pressing the Stop button during Playback mode returns the DVR to the Live
Monitoring mode.
4.5.6
Next Button
The Next button only functions when playback video has been paused. Pressing
the Next button plays video forward image-by-image.
72
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Operation
4.5.7
FF (Fast Forward) Button
Pressing the FF button plays video forward at high speed. Pressing the button
again toggles the playback speed from
,
and
. The screen displays
,
and
respectively.
Entering Fast Playback mode from Live Monitoring mode can be password
protected.
4.6
Searching Video
Pressing the Search button displays the Search Menu.
Fig. 75
Search Menu.
z Change Data Source… — Changes the data source to be searched (see below
z
z
z
z
z
for more details)
Go to First — Displays the first recorded image
Go to Last — Displays the last recorded image
Date/Time Search… — Searches by date and time (see below for more details)
Calendar Search… — Searches using a calendar (see below for more details)
Event Search… — Selects video from the event log (see below for more details)
NOTE:
The searching speed might decrease when all camera channels are in the pre-alarm recording mode.
4.6.1
Change Data Source
Fig. 76
Change Data Source screen.
You can select the data source to be searched from local storage (Search On
Local) or archive storage (Search On Archive). To select the data source, highlight
button.
the data source to be searched and press the
73
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Operation
4.6.2
Date/Time Search
Fig. 77
Date/Time Search screen.
z Move the cursor over the date and press the
button. You can use the Left
and Right arrow buttons to highlight the year, month and day. Use the Up and
Down arrow buttons to change to the date you want to search for. Once you
button.
have set the date you want, press the
z Move the cursor over the time and press the
button. You can use the Left
and Right arrow buttons to highlight the hour, minutes and seconds. Use the Up
and Down arrow buttons to change to the time you want to search for. Once you
button.
have entered the time you want, press the
z Once you have set the date and time you want to search for, highlight the OK
button and press the
button. The selected date and time will display. (If no
video was recorded at the selected time, a blank screen will display.) The
Play/Pause, RW, FF, PREV, and Next buttons can now be used to review the
surrounding video.
4.6.3
Calendar Search
Fig. 78
Calendar Search screen.
Days with recorded video display on the calendar with white numbers. You can
highlight the days with recorded video by using the arrow buttons. Once you have
button to select it.
highlighted a day, press the
A time bar will display at the bottom of the calendar. Hours in which video was
recorded will be highlighted. You can use Up and Down arrow buttons to highlight
the time bar. Once the time bar is highlighted, you can select the time by using the
Left and Right arrow buttons.
74
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Operation
NOTE:
The time bar is in one-hour segments. If a segment is highlighted, it means that some video was
recorded during that hour. However, it does NOT mean video was recorded for the entire hour.
Once you have set the date and time you want to search, highlight the GO button
button. The selected date and time will display. The Play/Pause,
and press the
RW, FF, PREV, and Next buttons can now be used to review the surrounding
video.
4.6.4
Event Search
Fig. 79
Event Log screen.
The DVR maintains a log of each time the Alarm Input port is activated. The Event
Log screen displays this list. Use the arrow buttons to highlight the event for which
you would like to see video.
NOTE:
Event Search does not work when the data source is set to Search On Archive.
button will extract the event video and display the first image of the
Pressing the
event. Pressing the Play/Pause button will start playing the “event” video segment.
Pressing Stop returns to live monitoring. Pressing Search returns to the Event
Log.
You can also narrow your event search by selecting the Query… button and setting
up the new search condition.
75
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Operation
Fig. 80
Event Search (by Camera) screen.
Fig. 81
Event Search (by Event) screen.
Highlight the box beside Search by and press the
Camera and Event.
button to toggle between
You can search video from the first to last recorded images, or you can set the
start and stop times and dates.
When you select the Search by Camera, select the target cameras and event
options. When you select the Search by Event, select event options for each
device.
Once you set your desired search conditions, highlight Search and press the
button to display the search results in the Event Log screen. Selecting Cancel
exits the screen without saving the changes.
76
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
77
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Appendix A — USB-IDE Hard Disk Drive Preparation
5
Appendix A — USB-IDE Hard Disk Drive Preparation
5.1
Preparing the USB-IDE hard disk drive in Windows 2000
NOTE:
Preparing a USB-IDE hard disk drive under Windows XP is almost identical to Windows 2000.
1.
2.
3.
4.
5.
6.
Connect the USB-IDE hard disk drive to your computer using the USB Cable.
Turn on your computer.
The USB device icon should display on the Taskbar.
If the USB-IDE hard disk drive is partitioned or has data, it will show up in My
Computer as a hard disk drive icon. Check the file system by right clicking on
the icon and checking under Properties > General > File System. If the file
system is NOT FAT32 format, format the USB-IDE hard disk drive using the
FAT32 format.
If the USB-IDE hard disk drive is not partitioned, go to Administrative Tools in
Control Panel and launch Computer Management. Open Disk Management
in Storage and right click an unallocated region of the USB-IDE hard disk
drive. Then, click Create Partition.
In the Create Partition wizard, click Next then Primary Partition, and follow the
instructions on the screen. Make sure that the FAT32 is selected for the file
system.
NOTE:
The partition size should be less than 32 GB because of Microsoft limitations.
After formatting is complete, the USB-IDE hard disk drive will be added to My
Computer.
7.
Connect the USB-IDE hard disk drive to the DVR.
78
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Appendix A — USB-IDE Hard Disk Drive Preparation
5.2
Preparing the USB-IDE hard disk drive in Windows 98
NOTE:
Preparing a USB-IDE hard disk drive under Windows ME is almost identical to Windows 98.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Connect the USB-IDE hard disk drive to your computer using the USB Cable.
Turn on your computer. The Add New Hardware wizard window will appear.
Install the device driver for the USB backup device following the instructions
provided with your USB hard disk drive.
If the USB-IDE hard disk drive is partitioned or contains data, it will show up in
My Computer as a hard disk drive icon. Check the file system in Properties >
General > File System. If the file system is NOT FAT32 format, format the
USB-IDE hard disk drive with FAT32 format.
Run the FDISK utility by clicking Start then RUN. Type “fdisk” and click OK.
When the MS-DOS command prompt appears, type “Y” and hit the enter key.
In the FDISK Option menu, choose “5. Change current fixed disk drive.”
Choose the appropriate letter corresponding to the USB-IDE hard disk drive.
In the FDISK Option menu, choose “1. Create DOS partition or Logical DOS
Drive.”
In the Create DOS Partition or Logical DOS Drive menu, choose “1. Create
Primary DOS Partition.” And Type “Y” to use all available space and hit the
enter key. Hit ESC to exit the screen after the USB-IDE hard disk drive
partition is created.
Restart your computer and verify the newly created drive is in My Computer.
Right click the newly created hard disk drive icon and select “Format”.
In the Format Screen, select “Full” as the “Format type” and click “Start”.
After formatting is complete, connect the USB-IDE hard disk drive to the DVR.
79
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Appendix B — Reviewing Video Clips
6
Appendix B — Reviewing Video Clips
NOTE:
It is suggested that the computer used for the Player program has at least an 800MHz Pentium III. If
your CPU is slower than this, video clips recorded at maximum speed with very high image quality will
be played back slowly.
Disconnect the external USB-IDE hard disk drive or USB CD-RW drive from the
DVR, and connect it to your PC. Double-clicking the target clip starts the Player
program.
NOTE: You do not need to install any special software on your personal computer to review the video.
The copied clip contains the Player program.
Fig. 82
Player screen.
The Monitoring Screen displays the clip images. Clicking the right mouse button on
the images switches the screen size between 320 x 240 and 640 x 480.
Clicking the Quit button exits the Player program.
Click the Print button to print the current image on the printer connected to your
computer.
Click the Save button to save the current image in a bitmap file format to the local
hard disk drive or floppy disk.
The Backup File Information window displays information regarding the clip file.
Location displays the site description of the DVR where the clip copy was made.
Record displays the time span of the video clip file. Encryption displays whether
the clip file has been tampered with. Normal means the file has not been tampered
with, Wrong means the system has detected tampering, and no mark means the
user cancelled the encryption check.
80
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Appendix B — Reviewing Video Clips
The Current Image Information window displays information about the current
image. Camera Title displays the camera name of the current image, and Time
displays the date and time the image was recorded.
The Image Search Slide Bar displays the current playback position. The user can
move to another image clicking the mouse and dragging along the slide bar.
The Playback Function Buttons include fast backward, backward, play, pause, fast
forward, go to the first image, go to the previous image, go to the next image, and
go to the last image buttons.
The Brightness Control Slide Bar adjusts the brightness of the clip images by
clicking the mouse and dragging along the slider bar. Minute brightness change
can be made by using the arrow buttons located at each end of the bar.
The Brightness Revert Button reloads to the original image.
Clicking the Mute button mutes the recorded audio.
Clicking the OSD (On-Screen Display) Button switches the OSD option. The OSD
information includes camera location and date/time.
81
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Appendix C — Troubleshooting
7
Appendix C — Troubleshooting
Problem
Possible Solution
No Power
z Check power cord connections.
z Confirm that there is power at the outlet.
No Live Video
z Check camera video cable and connections.
z Check monitor video cable and connections.
z Confirm that the camera has power.
z Check camera lens settings.
Live Video Very Bright
If a cable is attached to the “Loop” connector, make certain it is
connected to a properly terminated device.
REC LED is Lit but DVR is
not recording
Unit will only record video based on the parameters such as
schedule and events defined during configuration. REC LED
indicates the DVR is ready to record.
DVR has stopped
recording
If hard disk drive is full, you will either need to delete video or set the
DVR to the Overwrite Mode.
DVR displays an error
message stating that the
last recorded image date
and time is later than the
current date and time
setting of the DVR.
The DVR will automatically reset the time and date of the unit,
according to the time and date of the last recorded image. If this is
not the correct time and date, reset the time and date manually. If
the correct time and date is earlier than the last recorded image, any
video with a later time and date will be lost when resetting the correct
time and date.
82
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Appendix D — Connector Pin Outs
8
Appendix D — Connector Pin Outs
8.1
Alarm I/O Connector and RS485 Connector Pin Outs
Pin Number
Pin Assignment
Pin Number
Pin Assignment
1
RS485 RX-/TX-
14
RS485 RX+/TX+
2
Alarm Output 3
15
Alarm Output 2
3
Alarm Output 1
16
Alarm Output 4
4
Alarm Reset
17
Ground
5
Alarm Input 16
18
Alarm Input 15
6
Alarm Input 14
19
Alarm Input 13
7
Alarm Input 12
20
Alarm Input 11
8
Alarm Input 10
21
Alarm Input 9
9
Ground
22
Alarm Input 8
10
Alarm Input 7
23
Alarm Input 6
11
Alarm Input 5
24
Alarm Input 4
12
Alarm Input 3
25
Alarm Input 2
13
Alarm Input 1
83
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Appendix E — Connection Diagram
9
Appendix E — Connection Diagram
9.1
Sample I. Connecting the Dome Camera and
SISTORE AX9/AX16
RS485/ Alarm I/0
RS485
Remarks
z Default interface parameter for CCDA Dome and SIVIS MINI DOME :
z Baud Rate: 19200 / Parity: NONE / Data Bit: 8 / Stop Bit: 1 / Usage: PTZ Control
9.2
Sample II. Connecting the External Modem and
SISTORE AX RAS
RS485
Analog Modem
Remarks
z Only two users can connect to the DVR from a remote site at the same time via RAS
z
z
z
z
z
z
program. External modem and remote controller cannot be used at the same time.
Default interface parameter for external analog modem
Baud Rate: 57600 / Data Bit: 8 / Stop Bit: 1 / Parity: NONE
Default interface parameter for external ISDN modem
Baud Rate: 115200 / Data Bit: 8 / Stop Bit: 1 / Parity: NONE
Callback to RAS and callback to the pager cannot be used at the same time.
The following modem is recommended: Manufacturer: Devolo, Modem: Microlink
ISDN i, Distributor: www.alternate.de. The modem works with 1 channel
(64 Kbit).
84
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Appendix E — Connection Diagram
9.3
Sample III. Connecting the SISTORE AX and SCU
PT40P
CDC0402
RS232-Current
Loop Converter
TTY
RS232-RS485
Converter
AXAX9/AX16
RS485
Configuration of SISTORE AX:
z In the RS232/RS485 menu:
RS485: Baud Rate: 2400
Parity: Even
Data: 8
Stop: 1
Usage: PTZ Control
z In the „Camera“ menu:
Camera setting:
PTZ Device: Siemens SCU
ID: 1
Configuration of the Roline RS232<->RS485 Converter:
z T-RTS
Rx ON
z DTE (or DCE; must not be identical with the other converter)
Configuration of the RS232<->Current Loop Converter:
z 20 (mA)
z Rx ACT (Active)
z Tx ACT (Active)
z DCE (or DTE; must not be identical with the other converter)
(If the two converters are connected using a cross-over cable,
either DCE or DTE must be set on both converters.)
85
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Appendix F — Recording Table
10
Appendix F — Recording Table
10.1
All 16 Channel Recording Times with 250 GB HDD (Days)
Recording Quality (Standard Resolution)
Recording Speed
Very High (18KB)
High (7KB)
Standard (3KB)
Low (2KB)
60 ips NTSC
2.7
6.9
16.1
24.1
50 ips PAL
3.2
8.3
19.3
28.9
30 ips NTSC
5.4
13.8
32.2
48.2
25 ips PAL
6.4
16.5
38.6
57.9
20 ips
8.0
20.7
48.2
72.3
15 ips
10.7
27.6
64.3
96.5
10 ips
16.1
41.3
96.5
144.7
5 ips
32.2
82.7
192.9
289.4
2.5 ips
64.3
165.3
385.8
578.7
1 ips
160.8
413.4
964.5
1,446.8
0.5 ips
321.5
826.7
1,929.0
2,893.5
0.25 ips
643.0
1,653.4
3,858.0
5,787.0
1,607.5
4,133.6
9,645.1
14,467.6
0.1 ips
Recording Quality (High Resolution)
Recording Speed
Very High (32.4KB)
High (12.6KB)
Standard (5.4KB)
Low (3.6KB)
60 ips NTSC
1.5
3.8
8.9
13.4
50 ips PAL
1.8
4.6
10.7
16.1
30 ips NTSC
3.0
7.7
17.9
26.8
25 ips PAL
3.6
9.2
21.4
32.2
20 ips
4.5
11.5
26.8
40.2
15 ips
6.0
15.3
35.7
53.6
10 ips
8.9
23.0
53.6
80.4
5 ips
17.9
45.9
107.2
160.8
2.5 ips
35.7
91.9
214.3
321.5
1 ips
89.3
229.6
535.8
803.8
0.5 ips
178.6
459.3
1,071.7
1,607.5
0.25 ips
357.2
918.6
2,143.3
3,215.0
0.1 ips
893.1
2,296.4
5,358.4
8,037.6
NOTE:
The ips (images per second) of the above table is not the configured recording speed per camera, but
the total number of recorded images per second. The values of the table represent the average case,
therefore it is not guaranteed.
The SISTORE AX has a maximum recording speed of 50 images for PAL (60 images for NTSC) per
second (ips) that will be applied globally depending on the number of cameras recorded.
86
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Appendix G — Screens Map
11
Appendix G — Screens Map
87
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Appendix H — Specifications
12
Appendix H — Specifications
VIDEO
Signal Format
PAL or NTSC (selector switch)
Video Input
Composite: 9 or 16 looping inputs, 1 Vp-p,
auto-terminating, 75 Ohms
Monitor Outputs
Composite: One, 1 Vp-p, 75 Ohms
SVHS: One
Video Resolution
Standard: 336 x 272 (PAL), 336 x 224 (NTSC)
High: 672 x 272 (PAL), 672 x 224 (NTSC)
Playback/Record Speed Standard Resolution: 50 ips (PAL), 60 ips (NTSC)
(images per second)
High Resolution: 25 ips (PAL), 30 ips (NTSC)
INPUTS/OUTPUTS
Alarm Input
9 or 16 TTL, NC/NO programmable, 4.3 V threshold,
using supplied Alarm I/O Board
Alarm Output
4 dry contact (open collector), 5 mA / 12 V,
30 mA / 5 V
Alarm Reset Input
1 dry contact, 4.3 V threshold,
using supplied Alarm I/O Board
Network Connectivity
10/100 Mbps Ethernet
RS232 for external modem
Audio Input
One, “line in” or “mic” programmable
Audio Output
One, “line”
CONNECTORS
Video Input
Composite: 9 or 16 BNC
Video Loop
Composite: 9 or 16 BNC
Monitor Output
Composite: 1 BNC
SVHS: 1 Y/C
Audio In
RCA connector
Audio Out
RCA connector
Alarms / RS485
DB-25 male connector (with alarm I/O board)
Ethernet Port
RJ-45
RS232 Serial Port
DB-9 male connector
SCSI Port
High-density UltraWide SCSI connector (68-pin)
USB Port
USB connector
88
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Appendix H — Specifications
STORAGE
Primary Storage
EIDE hard disk drive (up to 2)
Secondary Storage
SCSI hard disk drive (RAID)
Backup Storage
USB hard disk drive
GENERAL
Dimensions (W x H x D)
16.9" x 1.7" x 15.7" (430 x 44 x 399 mm)
Unit Weight
14.3 lbs. (6.5 kg)
Shipping Weight
20.0 lbs. (9.1 kg)
Shipping Dimensions
21.3" x 12.1" x 20.1" (540 x 175 x 510 mm)
(W x H x D)
Operating Temperature
41 to 104°F (5 to 40°C)
Operating Humidity
0 to 90%
Power Supply
100 to 240 V AC, 1/2 A, 60/50 Hz
Auto ranging adapter included.
Input Voltage / Current
12 V DC / 5.8 A
Power Consumption
70 Watts Max.
APPROVALS
FCC
FCC PART 15 Subpart B, Class A
CE
EMI: EN55022, 1998, Class A
Safety: EN60950
Immunity: EN50130-4, 1998, Alarm Standard
Specifications are subject to change without notice.
89
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Keyword Index
13
Keyword Index
A
Active Cameo Mode, 71
AI 1 to 16 (Alarm In), 16
Alarm Button, 22
Alarm I/O Connector, 85
Alarm In Event Action (Alarm Out) Setup Screen,
49
Alarm In Event Action (Notify) Setup Screen, 50
Alarm In Event Action (Record) Setup Screen, 48
Alarm In Setup Screen, 38
Alarm Out Setup Screen, 41
AO 1 and 2 (Alarm Out), 16
ARI (Alarm Reset In), 16
Audio Setup Screen, 42
Event Search, 77
F
Factory Reset, 19
Features, 11
FF (Fast Forward) Button, 23, 74
Freeze Button, 22
Front Panel Controls, 21
G
GND (Ground), 16
I
Initial Unit Setup, 24
Installation, 13
B
L
Backup LED, 21
Clip Copy, 67
LAN Setup Screen, 59
Live Monitoring, 70
Load Default Setup, 69
C
Calendar Search, 75
Callback Center (LAN) Setup Screen, 61
Callback Center (Modem) Setup Screen, 62
Camera Buttons (1 to 16), 21, 73
Camera Setup Screen, 37
Clear All Data, 69
Config Screen, 64
Configuration, 21
Configuring Input Devices, 37
Configuring Recording Settings, 44
Connecting Alarms, 15
Connecting Audio, 15
Connecting the Loop Through Video, 14
Connecting the Monitor, 14
Connecting the Power Cord, 20
Connecting the Video Source, 14
Connecting to the Network Port, 18
Connecting to the RS232 Port, 17
Connecting to the RS485, 17
Connecting to the UltraWide SCSI Port, 18
Connecting to the USB Port, 19
Connector Pin Outs, 85
D
Date/Time Search, 75
Date/Time Setup, 29
Display Button, 22, 73
Duplex LED, 21
E
Enter Button, 24
Event Action Setup, 48
M
Menu Button, 22
Modem Setup, 60
Motion Detector, 39
Motion Detector Event Action (Alarm Out) Setup
Screen, 51
Motion Detector Event Action (Notify) Setup
Screen, 52
Motion Detector Event Action (Record) Setup
Screen, 50
N
Network connector, 18
Network LED, 21
Network Setup Screen, 58
Next Button, 23, 74
Normal Setup Screen, 26
O
Operation, 70
OSD (On-Screen Display) Setup Screen, 55
P
Package Contents, 13
Password Setup Screen, 63
PIP Mode, 71
Playing Recorded Video, 73
Power cord connector, 20
Pre-Event Recording Setup Screen, 47
PREV (Previous) Button, 23, 73
PTZ Button, 22
PTZ Mode, 71
90
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Keyword Index
Q
Quick Setup Screen, 25
R
REC (Record) Button, 23
Record Mode Setup Screen, 44
Recording Audio, 73
Recording Table, 88
Recording Video, 72
Required Installation Tools, 13
Reviewing Video Clips, 82
RS232 connector, 17
RS232/RS485 Setup Screen, 43
RS485 connector, 17
RS485 Connector Pin Outs, 85
RW (Rewind) Button, 23, 73
S
SCSI connector, 18
Search Button, 22
Searching Video, 74
Sequence Button, 22
Sequence Display Setup Screen, 56
Setting Unit for PAL or NTSC, 13
Stop Button, 23, 74
Storage Check Screen, 33
System Check Screen, 32
System Information, 26
System Log Screen, 36
System Shutdown, 36
T
Time-Lapse Record Mode Setup Screen, 45
Time-Lapse Recording Schedule, 46
Troubleshooting, 84
Turning on the Power, 24, 70
U
Up, Down, Left, Right Arrow Buttons, 24
USB connector, 19
USB Hard Disk Drive, 80
V
Video Loss Event Action (Alarm Out) Setup Screen,
53
Video Loss Event Action (Notify) Setup Screen, 54,
55
Video Loss Event Action (Record) Setup Screen,
52
91
Siemens Building Technologies
Fire & Security Products
SISTORE AX9 AX16_EN.doc
09.2004
Issued by SGS
Fire & Security Products
D-76187 Karlsruhe
www.sbt.siemens.com/FSP
Document no.
A24205-A336-B545
Edition
09.2004
© 2004 Copyright by
Siemens Building Technologies AG
Data and design subject to change without notice.
Supply subject to availability.
Printed in the Federal Republic of Germany
on environment-friendly chlorine-free paper.
