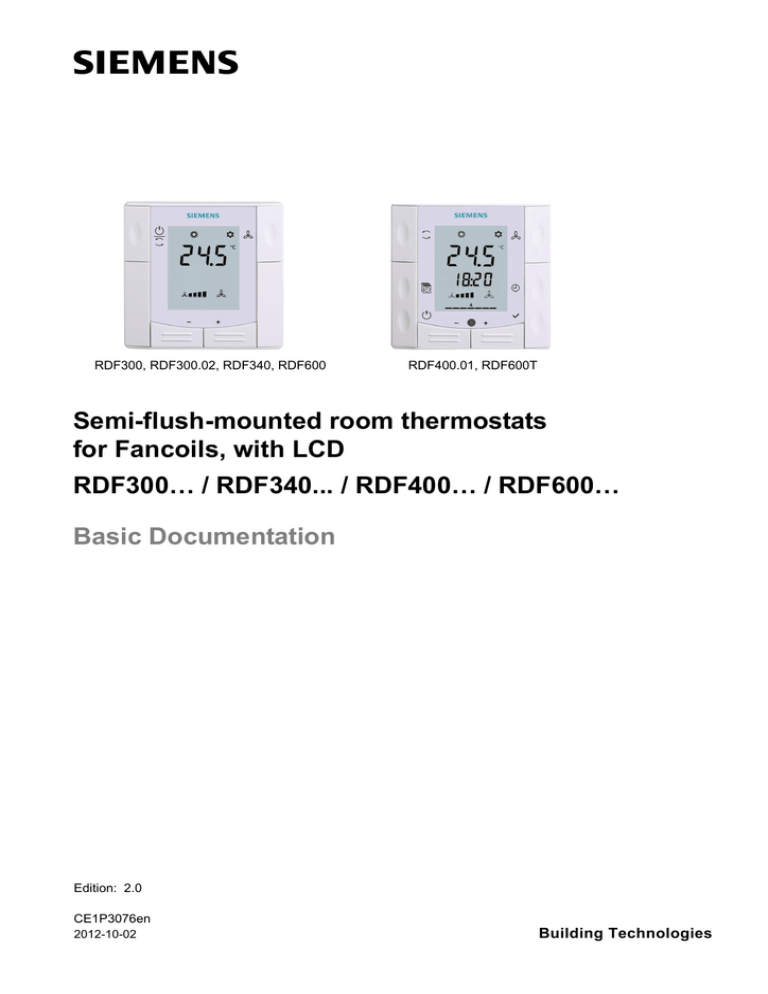

Siemens RDF300 Operating instructions

s
RDF300, RDF300.02, RDF340, RDF600
RDF400.01, RDF600T
Semi-flush-mounted room thermostats
for Fancoils, with LCD
RDF300… / RDF340... / RDF400… / RDF600…
Basic Documentation
Edition: 2.0
CE1P3076en
2012-10-02
Building Technologies
Table of contents
1
1.1
1.2
1.3
1.3.1
1.3.2
1.3.3
About this document ..............................................................................3
Revision history.........................................................................................3
Reference documents ...............................................................................3
Before you start .........................................................................................3
Copyright ...................................................................................................3
Quality assurance .....................................................................................3
Document use / request to the reader ......................................................4
2
2.1
2.2
2.3
2.4
2.5
Summary ..................................................................................................5
Brief description ........................................................................................5
Features ....................................................................................................5
Type summary...........................................................................................6
Equipment combinations...........................................................................7
Accessories ...............................................................................................8
3
Use............................................................................................................8
4
4.1
4.2
4.3
4.4
4.5
4.6
4.6.1
4.6.2
4.6.3
4.7
4.8
4.9
4.10
4.11
4.12
4.13
4.14
Functions .................................................................................................9
Temperature control ..................................................................................9
Operating modes.....................................................................................10
Room temperature setpoints...................................................................11
Applications .............................................................................................12
Additional features ..................................................................................13
Control sequences ..................................................................................15
2-pipe fan coil unit ...................................................................................16
2-pipe fan coil unit with electrical heater .................................................17
4-pipe fan coil unit ...................................................................................19
Control outputs ........................................................................................21
Fan control ..............................................................................................22
Multifunctional input ................................................................................25
Auto Timer (RDF400… / RDF600T only) ................................................26
Error handling..........................................................................................28
Infrared remote control............................................................................28
DIP switches............................................................................................29
Control parameters .................................................................................29
5
5.1
5.2
5.3
Handling .................................................................................................32
Mounting and installation ........................................................................32
Operating Instructions .............................................................................33
Disposal...................................................................................................33
6
6.1
6.2
6.2.1
6.2.2
6.2.3
Engineering............................................................................................34
Connection terminals ..............................................................................34
Connection diagrams ..............................................................................35
Water-based fan coil applications with RDF300... / RDF400... /
RDF600… ...............................................................................................35
Compressor-based applications with RDF300... / RDF400... / RDF600…36
Water-based fan coil applications with RDF340... ..................................37
7
7.1
Mechanical design ................................................................................38
Dimensions..............................................................................................39
8
Technical data........................................................................................40
Index
................................................................................................................42
2 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Contents
CE1P3076en
2012-10-02
1
About this document
1.1
Revision history
Edition
Date
Changes
Section
Pages
2.0
Oct 2012
Added RDF600…
All
All
1.1
28 Aug 2008
Left column in table
4.4 Applications
12
1.0
10 July 2008
First edition
1.2
Reference documents
Ref.
Document titel
Type of document
Document No.
N3076
Datasheet
CE1N3076
B3076
Semi-flush-mounted room temperature
controllers with LCD
Operating instructions
M3076
Mounting instructions RDF3... RDF400
CE1M3076
M3163
Mounting instructions RDF600…
CE1M3163
1.3
Before you start
1.3.1
Copyright
CE1B3076....
This document may be duplicated and distributed only with the express permission
of Siemens, and may be passed only to authorized persons or companies with the
required technical knowledge.
1.3.2
Quality assurance
These documents have been prepared with great care:
 The contents of all documents are checked at regular intervals
 Any corrections necessary are included in subsequent versions
 Documents are automatically amended as a consequence of modifications and
corrections to the products described
Please ensure that you are aware of the latest revision date of the documentation.
If you find lack of clarity while using this document, or if you have any criticisms or
suggestions, please contact the Product Manager in your nearest branch office.
The addresses of the Siemens Regional Companies are available at
www.buildingtechnologies.siemens.com.
3 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
About this document
CE1P3076.en
2012-10-02
1.3.3
Document use / request to the reader
Before using our products, it is important that you read the documents supplied
with or ordered at the same time as the products (equipment, applications, tools,
etc.) carefully and in full.
We assume that persons using our products and documents are authorized and
trained appropriately and have the technical knowledge required to use our
products as intended.
More information on the products and applications is available:
 On the intranet (Siemens employees only) at
https://workspace.sbt.siemens.com/content/00001123/default.aspx
 From the Siemens branch office near you
www.buildingtechnologies.siemens.com or from your system supplier
 From the support team at headquarters fieldsupport-zug.ch.sbt@siemens.com
if there is no local point of contact
Siemens assumes no liability to the extent allowed under the law for any losses
resulting from a failure to comply with the aforementioned points or for the improper
compliance of the same.
4 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
About this document
CE1P3076.en
2012-10-02
2
Summary
2.1
Brief description
The devices support:
– 2-pipe, 2-pipe with electrical heater and 4-pipe fan coil units
– Compressors in DX-type equipment
 RDF300… / RDF400… / RDF600… :
AC 230 V operating voltage, on/off or 3-position control outputs
 RDF340 AC 24 V operating voltage, DC 0…10 V control outputs
 Output for 3-speed or 1-speed fan
 Two multifunctional inputs for keycard contact, external sensor, etc.
 Operating modes: Comfort, Economy and Protection
 Automatic or manual heating/cooling changeover
 Adjustable commissioning and control parameters
 Minimum and maximum setpoint limitation
Additional features
 Backlit LCD
(RDF300.02, RDF400.01, RDF600, RDF600T)
 Infrared remote control receiver
(RDF400.01, RDF600T)
 Auto Timer mode with 8 programmable timers
(RDF400.01, RDF600T)
Type of mounting / suitable conduit boxes
 RDF600... for Round CEE box, with min 60 mm diameter, min 40 mm depth
 RDF3… / RDF400... for recessed rectangular box with 60.3 mm fixing centers
2.2
Features
 Maintain room temperature via built-in temperature sensor or external room
temperature / return air temperature sensor
 Automatic or manual changeover between heating and cooling mode
 Select applications via DIP switches
 Select operating mode via the operating mode button on the controller
 Single or 3-speed fan control (automatic or manual)
 Display current room temperature or setpoint in °C and/or °F
 Minimum and maximum setpoint limitation
 Keypad lock (automatic and manual)
 Two multifunctional inputs, freely selectable for:
– Operating mode switchover contact (key card)
– Automatic heating/cooling changeover sensor
– External room temperature or return air temperature
– Dewpoint sensor
– Electrical heater enable
– Alarm input
 Advanced fan control function, i.e. fan kick, fan start, selectable fan operation
(enable, disable or depending on heating or cooling mode)
 Purge function together with 2-port valve in a 2-pipe changeover system
 Reminder to clean filters
 Floor heating temperature limit
 Reload factory settings for commissioning and control parameters
 Weekly time program: 8 programmable timers to switch over between Comfort
and Economy mode (RDF400.01 / RDF600T)
 Optional backlit LCD (RDF300.02 / RDF400.01 / RDF600 / RDF600T)
 Optional infrared remote control ( RDF400.01 / RDF600T)
5 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Summary
CE1P3076.en
2012-10-02
RDF300
RDF300.02
RDF400.01
RDF340
RDF600
RDF600T
RDF300
RDF300.02
RDF400.01
RDF340
S55770-T291
S55770-T292
AC 230V
AC 230V
AC 230V
AC 24V
AC 230V
AC 230V













conduit
2)
box



Suitable



DC 0..10V
Infrared
1)
receiver
3pt
LCD
on/off
Backlit
Control outputs
program
Features
Time
Stock
number
Voltage
Product
number
Type summary
Operating
2.3
rectangular
rectangular
rectangular
rectangular
round
round
1) Infrared remote control is to be ordered as separate item
2) Rectangular conduit box e.g. ARG71. ,
Round conduit box min 60 mm diameter and min 40 mm depth
6 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Summary
CE1P3076.en
2012-10-02
2.4
Equipment combinations
Product number
Data
sheet
IRA211
3060
Cable temperature sensor
QAH11.1
1840
Room temperature sensor
QAA32
1747
QXA2000 /
AQX2000
1542
MVI…/MXI…
4867
SFA21...
4863
STA23...
STA21... *)
STP23...
STP21... *)
4884
4893 *)
4884
4893 *)
SUA…
4832
SSA31...
4893
SSP31…
4864
SSB31...
4891
SQS35…
4573
SSA61...
4893
SSP61…
4864
SSB61...
4891
SQS65…
4573
STS61
4880
Type of unit
Infrared remote control
on/off actuators
Condensation detector /
Supply unit
Electromotive on/off valve and
actuator
(only available in AP, UAE, SA and IN)
Electromotive on/off actuator
Thermal actuator
(for radiator valves)
Thermal actuator
(for small valves 2.5 mm)
Zone valve actuators
(only available in AP, UAE, SA and IN)
3-position actuators
DC 0..10 V actuators
Electrical actuator, 3-position
(for radiator valve)
Electrical actuator, 3-position
(for small valve 2,5 mm)
Electrical actuator, 3-position
(for small valve 5,5 mm)
Electromotive actuator, 3-position
(for valves 5.5 mm)
Electrical actuator, DC 0..10V
(for radiator valve)
Electrical actuator, DC 0..10V
(for small valve 2,5 mm)
Electrical actuator, DC 0..10V
(for small valves 5.5 mm)
Electromotive actuator, DC 0..10V
(for valves 5.5 mm)
Thermal actuator, DC 0..10V
(for small valves and radiator
valves)
*) Not available any more
7 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Summary
CE1P3076.en
2012-10-02
2.5
Accessories
Designation
Changeover mounting kit
(50 pcs/package)
Plastic mounting bracket for semi-flushmount thermostats RDF3... RDF400…
for increasing the headroom in the
conduit box by 10mm
Conduit box for semi-flush mounted
thermostat RDF3... RDF400…
3
Data
Sheet
Product no.
ARG86.3
N3009
ARG70.3
N3009
ARG71 /
S55770-T137
N3009
Use
To control the room temperature in individual rooms and zones that are:






Heated or cooled with 2-pipe fan coil units
Heated or cooled with 2-pipe fan coil units with electrical heater
Heated and cooled with 4-pipe fan coil units
Heated or cooled with compressor in DX-type equipment
Heated or cooled with compressor in DX-type equipment with electrical heater
Heated and cooled with compressor in DX-type equipment
The RDF300…/RDF400… / RDF600... controls:





One single or 3-speed fan
One or two on/off valve actuators
One on/off valve actuator and one 1-stage electrical heater
One 3-position valve actuator
One 1-stage compressor in DX-type equipment or one 1-stage compressor with
electrical heater
The RDF340… controls:
 One single or 3-speed fan
 One or two DC 0…10 V valve actuators
 One DC 0…10 V valve actuators and one modulating
electrical heater (DC 0…10 V)
Use in systems with:




Heating or cooling mode
Automatic heating/cooling changeover
Manual heating/cooling changeover
Heating and cooling mode (e.g. 4-pipe system)
8 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Use
CE1P3076.en
2012-10-02
General note
4
Functions
4.1
Temperature control
The setting of he control parameters (P01 etc., mentioned throughout the
document) is described in section 4.14.
The controller acquires the room temperature via built-in sensor, external room
temperature sensor (QAA32), or external return air temperature sensor (QAH11.1),
and maintains the setpoint by issuing actuator control commands to heating and/or
cooling equipment. The following control outputs are available depending on the
controller type:
 On/off control (2-position) with RDF300…/RDF400… / RDF600…
 Modulating PI control with 3-position control output on RDF300…/RDF400… /
RDF600…
 Modulating PI control with DC 0..10 V control output on RDF340
The switching differential or proportional band is 2 K for heating mode and 1 K for
cooling mode (adjustable via parameters P30 and P31).
The integral action time for continuous PI control is 5 minutes (adjustable via
parameter P35).
Display
/
Concurrent display of
°C and °F
The display shows the acquired room temperature or the setpoint for the current
operating mode, selectable via parameter P06. The factory setting displays the
current room temperature.
Use parameter P04 to display the room temperature or setpoint in °F rather than
°C as needed.
If the controller is used in a system with manual heating/cooling changeover
(P01=2), the heating and cooling
symbols on the display show the fan coil or
terminal unit status. Thus, the symbols are displayed even when the controller
operates in the neutral zone. For all other cases, the heating and cooling
symbols are displayed when the heating or cooling output is energized.
Concurrent display of the current temperature or setpoint in °C and in °F
(parameter P07) is possible on the controller without weekly time program.
9 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
4.2
Operating modes
Select the controller's operating mode via operating mode button on the controller or operating mode input (e.g. keycard occupancy sensor, when X1 or X2 set to
3 (P38, P40)). A corresponding setpoint is used to maintain the room temperature
at the desired level depending on the active operating mode. The following
operating modes are available:
Comfort mode
In Comfort mode, the controller maintains the setpoint which can be adjusted via
the +/- buttons. The fan can be set to automatic or manual fan speed: Low, medium
or high.
Economy
Economy mode helps save energy. Select it by pressing the operating mode button
if parameter P02 is set accordingly, or if the external operating mode switchover
contact is active (e.g. window contact).
Note
If the external operating mode switchover contact is active, user operations are
ineffective and “OFF” is displayed. Control will then be according to Economy
setpoints (P11 and P12).
Protection mode
In Protection mode, the system is
– protected against frost (factory setting 8°C, can be disabled or changed via P65)
– protected against overheating (factory setting OFF, can be enabled or changed
via P66)
Auto Timer mode
(only with RDF400... ,
RDF600T)
AUTO
In Auto Timer mode , the controller automatically changes from Comfort to
Economy mode as per the 8 preprogrammed timers. The display shows the Auto
AUTO
Timer mode symbol
along with the symbol for the current operating mode
(Comfort
or Economy ).
Automatic is the default fan speed in Auto Timer mode.
AUTO
10 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
4.3
Room temperature setpoints
Comfort mode
The setpoint in Comfort mode can be adjusted via the +/- buttons.
Setpoint limitation
For energy saving purposes, the setpoint adjusting range can be limited to
minimum (P09) and maximum (P10).
P09 < P10
 If the minimum limit P09 is set lower than the maximum limit P10, both heating
and cooling are adjustable between these two limits.
P09 ≥ P10
 For heating or cooling applications (e.g. 2-pipe)
– The setting range in cooling mode is from P09…40° instead of 5…40°
– The setting range in heating mode is from 5…P10° instead of 5…40°
 For heating and cooling applications (e.g. 4-pipe)
– P09 is the setpoint for cooling and P10 the setpoint for heating;
– the setpoint can no longer be adjusted via the +/- buttons
Examples
2-pipe Heating OR cooling
4-pipe Heating AND cooling
P09 < P10
5°C
18°C
P09
25°C
P10
40°C
Cooling setpoint adjustable 18…25°C
Heating setpoint adjustable 18…25°C
P09 ≥ P10
5°C
21°C
P10
25°C
P09
40°C
5°C
18°C
P09
25°C
P10
40°C
Cooling setpoint adjustable 18…25°C
Heating setpoint adjustable 18…25°C
Cooling fixed = 25°C (P09)
Heating fixed = 21°C (P10)
Cooling settable 25…40°C
Heating settable 5…21°C
Temporary setpoint
If the “Temporary setpoint function” is enabled via parameter P69, the setpoint
adjusted via the +/- buttons is set back to the Comfort basic setpoint when the
operating mode changes.
The factory setting for the Comfort basic setpoint is 21 °C and can be changed via
parameter P08.
Economy mode
Use control parameters P11 and P12 to adjust the Economy mode setpoints.
The heating setpoint is factory-set to 15 °C and to 30 °C for cooling.
Protection mode
Caution
Use control parameters P65 and P66 to adjust the Protection mode setpoints.
The heating setpoint is factory-set to 8 °C (frost protection) and to OFF for cooling.
If a setpoint is set to OFF (P65, P66), the controller does not maintain the setpoint
in the corresponding mode (heating or cooling).
This means no protective heating or cooling function and thus risk of frost in the
heating mode or risk of overheat in cooling mode!
11 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
4.4
Applications
The controller supports following applications, which can be configured by DIPswitches on the inner side of the controller front panel. Depending on the type,
on/off or modulating control outputs are available.
2-pipe/1-stage compressor
on/off
2-pipe fan coil unit,
heating and cooling
2-pipe
modulating, 3-position
Type
reference
DIPswitch
RDF300...
Diagram
3076D20
Application and
Control output
ON
RDF400...
1
RDF600...
2
T
RDF300...
B2
T
(B1)
ON
RDF400...
1
RDF600...
Y1
2
M1
4-pipe/compressor for H+C
on/off
4-pipe fan coil unit,
heating and cooling
4-pipe modulating,
DC 0…10 V
RDF340
T
1
RDF300...
(B1)
2
3076D22
2-pipe
modulating, DC 0…10 V
ON
ON
RDF400...
1
RDF600...
2
Y2
ON
RDF340
T
(B1)
1
2
Y1
M1
T
(B1)
2-pipe/1-stage compressor
with electrical heater on/off
ON
RDF300...
RDF400...
RDF600...
1
3076D21
2-pipe fan coil unit
with electrical heater,
heating or cooling with
electric heater
B2 E1
2
T
T
2-pipe with electrical heater
modulating, DC 0…10 V
(B1)
ON
RDF340
Y1
1
2
Note: Modulating electrical heater
M1
T
(B1)
Key
Y1
Y2
Heating or heating/cooling valve actuator
Cooling valve actuator
M1
B1
E1
Electrical heater
B2
3-speed or single-speed fan
Return air temperature sensor or
external room temperature sensor (optional)
Changeover sensor (optional)
Note: The diagrams above show only the water based fan coil application, but not compressor!
12 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
Water-based fan coil
application
Use with one or two valves for heating and cooling, heating/cooling with
changeover, heating only, or cooling only.
Compressor-based
application
Use with one 1-stage compressor for heating and cooling, or cooling only, or
heating only.
Universal applications
Thanks to a flexible fan control, the RDF3xx / RDF4xx can also be used in
universal applications, e.g. fan coil-based cooling and floor heating, or chilled
ceiling and electrical heater etc. See also section 4.8 “Fan control”.
4.5
Automatic H/C
changeover
Additional features
The water temperature acquired by the changeover sensor (QAH11.1 + ARG86.3)
is used to change over from heating to cooling mode and vice-versa. When the
water temperature is above 28 °C (parameter P37), the controller changes over to
heating mode, and to cooling mode when below 16 °C (parameter P36). If the
water temperature is between the 2 changeover points immediately after power up,
the controller starts in previous mode.
The water temperature is acquired at 30-second intervals and the operating state is
updated accordingly.
M
16
Tw[°C]
28
M Operating mode
Tw Water temperature
Remote heating/
cooling changeover
Cooling mode
Heating mode
The QAH11.1 cable temperature sensor for automatic heating/cooling changeover
can be replaced by an external switch for manual, remote changeover:
X2
M
T
QAH11.1
Contact open  heating mode
X2
M
3076Z03
Contact closed  cooling mode
T °C
The sensor or switch can be connected to the input terminal of X2 (factory setting)
or X1 depending on the commissioning of inputs X1 and X2. See also section 4.9
“Multifunctional input”.
External / return air
temperature sensor
The controller acquires the room temperature via built-in sensor, external room
temperature sensor (QAA32), or external return air temperature sensor (QAH11.1)
connected to multifunctional input X1 or X2.
Inputs X1 or X2 need to be commissioned accordingly. See section 4.9 “Multifunctional input”.
13 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
Purge function
The changeover sensor is tasked with initiating changeover from heating to cooling
mode based on the acquired water temperature. We recommend activating the
purge function (parameter P50) with 2-port valves. This function ensures correct
acquisition of the medium temperature even if the 2-port valve is closed for an
extended period of time. The valve is then opened for 1 to 5 minutes (adjustable) at
2-hour intervals during off-hours.
Caution
The purge function (parameter P50) must be disabled if the controller is to be used
in compressor-based applications.
Avoid damage from
moisture
In very warm and humid climates, the fan can be run periodically or continuously at
a low fan speed (e.g. in empty apartments or shops) in Economy mode by setting
parameter P61 to avoid damage from moisture due to a lack of air circulation. See
also section 4.8 “Fan control”, under “Fan kick function”.
Minimum output
on-time/off-time
Limit the on/off switching cycle to protect the compressor and reduce wear and
tear. The minimum output on-time and off-time for 2-position control output
Y11/Y21 can be adjusted from 1 to 20 minutes via parameters P48 and P49.
The factory setting is 1 minute
Readjusting the setpoint or heating/cooling mode changeover immediately results
in calculation of the output status; controller output Y11/Y21 may not hold the min.
1-minute on/off time.
If parameter P48 or P49 is set to above 1 minute, the min. on/off time for Y11 is
maintained as set, even if setpoint or changeover mode is readjusted.
This function is only available for on/off control.
Floor heating
limitation function
The floor heating limitation function is a part of the floor heating application (heating
with fan disabled).
The floor temperature sensor, connected to multifunctional input X1 or X2,
measures the floor temperature. If the temperature exceeds the parameterized limit
(parameter P51), the heating valve is fully closed until the floor temperature drops
to 2K below the parameterized limit.
This function is factory-set to OFF (disabled).
Input X1 or X2 must be commissioned accordingly (P38 or P40 = 1).
See section 4.9 “Multifunctional input”.
Parameter
P51
OFF
OFF
10...50˚C
External temperature
sensor available
No
Yes
No
Source for display of
room temperature
Built-in sensor
External temp
Built-in sensor
10…50˚C
Yes
Built-in sensor
Dewpoint monitoring
Output control
according to
Built-in sensor
External temp. sensor
Built-in sensor
Built-in sensor + limit
by external sensor
Floor temp.
limit function
Not active
Not active
Not active
Active
Dewpoint monitoring is essential to prevent condensation on the chilled ceiling
(cooling with fan disabled). It helps to avoid associated damage to the building.
A dewpoint sensor with a voltage-free contact is connected to multifunctional input
X1 or X2. If there is condensation, the cooling valve is fully closed until no more
condensation is detected, and the cooling output is disabled temporarily.
The condensation symbol is displayed during temporary override.
Input X1 or X2 must be commissioned accordingly.
See section 4.9 “Multifunctional input”.
14 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
Keypad lock
If the keypad lock function is enabled by parameter P14, then the keypad will be
locked or unlocked by pressing 7 seconds (RDF600...: 3 seconds) on the operating
mode button .
If “Auto lock” is configured, then the controller will automatically lock the keypad 30
seconds after the last adjustment.
4.6
Control sequences
The controller can be used in systems featuring:




Heating or cooling mode (P01=0 or P01=1)
Manual heating/cooling changeover (P01=2)
Automatic heating/cooling changeover (P01=3)
Heating and cooling mode (e.g. 4-pipe system) (P01=4)
The relevant modes are available and can be adjusted via commissioning
parameter “Control sequence” P01, depending on the selected application.
Sequence
T
T °C
T °C
Parameter
Mode
P01 = 0
Heating mode
P01 = 1
Cooling mode
*) 2-pipe with
el. heater
Available for:
2-pipe,
2-pipe & el. heater
4-pipe


P01 = 2
Manually select
heating or
cooling mode
T °C
T °C
P01 = 3
Automatic
heating/cooling
changeover via
external water
temperature
sensor or
remote switch




P01 = 4
Heating and
cooling mode,
i.e. 4-pipe

15 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
4.6.1
2-pipe fan coil unit
On/off output
Heating or cooling
In 2-pipe applications, the controller controls a valve in heating/cooling mode with
changeover (automatic or manual), heating only mode, or cooling only mode.
Cooling only is factory set (P01=1).
Control sequence
on/off output
The diagram below shows the control sequence for on/off (2-position) control.
Cooling mode
Y1
1
w
T[°C]
w
0
½ SDH
½ SDH
T[°C]
½ SDC
½ SDC
T[°C]
Room temperature
SDH
Switching differential “Heating”
w
Room temperature setpoint
SDC
Switching differential “Cooling”
Y1
Control command “Valve” or “Compressor”
The diagram below shows the control sequence for continuous PI control.
Cooling mode
100
3076D03
Y [%]
Y1
0
XpH
Y [%]
3076D04
Heating mode
Notes:
Y1
1
0
Control sequence
modulating output
Y
3076D01
Y
3076D02
Heating mode
Y1
100
w
T[°C]
0
T[°C]
w
XpC
T[°C]
Room temperature
XpH
Proportional band “Heating”
w
Room temperature setpoint
XpC
Proportional band “Cooling”
Y1
Control command “Valve”
 The diagrams only show the PI thermostat’s proportional part.
 For the fan sequence see section 4.8.
16 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
4.6.2
2-pipe fan coil unit with electrical heater
Heating or cooling with
electric heater
In 2-pipe applications with electrical heater, the controller controls a valve in
heating/cooling mode with changeover, heating only mode, or cooling only mode
plus auxiliary electrical heater. Cooling only is factory set (P01=1) with enabled
electrical heater (P13).
Electrical heating,
active in cooling mode
In cooling mode, the valve receives an OPEN command if the acquired
temperature is above the setpoint. The electrical heater receives an ON command
if the acquired room temperature drops below “setpoint” – “dead zone” (=“setpoint
for electrical heater”) while the electrical heater is enabled (parameter P13).
Note: “Setpoint for electrical heater” is limited by parameter “Maximum heating
setpoint” (P10).
Electrical heating in
heating mode
Electrical heating, and
manual changeover
In heating mode, the valve receives an OPEN command if the acquired
temperature is below the setpoint. The electric heater is used as additional heating
source when the heating energy controlled by the valve is insufficient. The
electrical heater receives an ON command, if the temperature is below “setpoint” –
“setpoint differential” (=setpoint for electrical heater).
The electrical heater is active in heating mode only and the control output for the
valve is permanently disabled when manual changeover is selected (P01=2).
Digital input “Enable
electrical heater”
Remote enabling/disabling of the electrical heater is possible via digital input X1/X2
for tariff regulations, energy saving etc.
Input X1 or X2 must be commissioned accordingly. See section 4.9 “Multifunctional
input”.
Control sequence
on/off output
The diagram below shows the control sequence for on/off (2-position) control.
Heating mode
Cooling mode
(automatic changeover=heating or heating only)
(man. /auto. changeover=cooling or cooling only)
wD
Y1
Y
YE
xdz
Y1
3076D05
YE
3076D06
Y
1
1
w
0
½ SDH
T[°C]
½ SDH
½ SDC
½ SDH
½ SDH
½ SDH
w
0
T[°C]
½ SDC
½ SDH
Heating mode with manual changeover
(P01=2)
(manual changeover=heating)
3076D07
Y
YE
1
0
½ SDH
Note
w
T[°C]
½ SDH
T[°C] Room temperature
W
Room temperature setpoint
Y1
Control command “Valve” or “Compressor”
YE
Control command “electrical heater”
SDH Switching differential “Heating”
SDC Switching differential “Cooling”
Xdz
Dead zone
wD
Setpoint differential
For better temperature control performance with 2-pos electrical heater, we
suggest to set the switching differential heating (P30) to 1K
17 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
The diagram below shows the control sequence for continuous PI control.
Heating mode
Cooling mode
(automatic changeover=heating or heating only)
(man. /auto. changeover=cooling or cooling only)
Y1
YE
wD
YE
xdz
Y1
100
100
0
Y [%]
3076D08
Y [%]
3076D09
Control sequence
modulating output
XpH w
XpH
0
T[°C]
XpH
w XpC
T[°C]
Heating mode with manual changeover
(P01=2)
Y [%]
3076D10
(manual changeover=heating)
YE
100
T[°C] Room temperature
W
Room temperature setpoint
Y1
Control command “Valve”
YE
Control command “electrical heater”
XpH Proportional band “Heating”
0
XpH
Notes:
w
T[°C]
XpC Proportional band “Cooling”
Xdz
Dead zone
wD
Setpoint differential
 The diagrams only show the PI thermostat’s proportional part.
 For the fan sequence see section 4.8.
18 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
4.6.3
4-pipe fan coil unit
In 4-pipe applications, the controller controls two valves in heating and cooling
mode, heating/cooling mode by manual selection, or heating and cooling mode
with changeover. Heating and cooling mode (P01=4) is factory set.
4-pipe application with
manual selection
The heating or cooling output can be released via operating mode selector button if
parameter P01 is set to manual (P01=2).
“Main and Secondary”
application (4-pipe
with changeover)
The heating and cooling output is swapped per the sensor input status (see
automatic heating and cooling changeover sensor), if parameter P01 is set to
changeover (P01=3). This mode is used for “Main and Secondary” application,
which equates to a 4-pipe fan coil unit system with different capacity for heating
and cooling coils. The water circuit is changed to optimize the energy exchange
depending on the season (summer/winter).
Y
Changeover
Y1
1
3076D15
3076D23
Heating and cooling
Y2
T B2
Y2
Y1
w
0
T[°C]
w
M1
T
B1
Control sequence
on/off output
The diagram below shows the control sequence for on/off (2-position) control.
Heating and cooling mode (P01 = 4 or 3)
½ xdz
Y2
½ xdz
1
w
0
½ SDC
½ SDH
T[°C]
½ SDC
½ SDH
Y1
Control. command “Valve” or “Comp.” Heat
Y2
Control. command “Valve” or “Comp.” Cool
SDH Switching differential “Heating”
SDC Switching differential “Cooling”
Dead zone
Cooling mode with manual selection
(P1=2)
Y
Y2
1
1
½ SDH
Room temperature setpoint
3076D01
Y1
0
w
Xdz
Heating mode with manual selection
(P01=2)
Y
T[°C] Room temperature
3076D13
Y1
3076D11
Y
w
T[°C]
½ SDH
w
0
½ SDC
T[°C]
½ SDC
19 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
The diagram below shows the control sequence of a continuous PI control.
Control sequence
modulating output
Heating and cooling mode (P01 = 4 or 3)
Y2
½ xdz ½ xdz
100
0
T[°C]
w XpC
XpH
Heating mode with manual selection
(P01=2)
100
3076D03
Y [%]
Y1
T[°C]
Room temperature
w
Room temperature setpoint
Y1
Control command “Valve” Heating
Y2
Control command “Valve” Cooling
XpH
Proportional band “Heating”
XpC
Proportional band “Cooling”
Xdz
Dead zone
Cooling mode with manual selection
(P1=2)
Y [%]
Y2
3076D14
Y1
3076D12
Y [%]
100
0
XpH
w
T[°C]
0
T[°C]
w
XpC
This function (4-pipe modulating) is only available with RDF340 (2 analog outputs
DC 0…10 V are required).
Notes:
 The diagrams only show the PI thermostat’s proportional part.
 For the fan sequence see section 4.8.
20 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
4.7
Overview of control
outputs
Control outputs
Different control output signals are available depending on the controller type.
Control output
Type reference
RDF300…
RDF400…
RDF340…
RDF600
RDF600T
on/off
3-position
Y11, Y21 (2)
Y11, Y21 (2)
Y11/Y21 (1)
Y11/Y21 (1)
Y11, Y21 (2)
Y11, Y21 (2)
Y11/Y21 (1)
Y11/Y21 (1)
DC 0…10 V
Y10, Y20 (2)
( ) Number of outputs
on/off control signal
(2-position)
The valve or compressor receives the OPEN/ON command via control output Y11
or Y21:
1. When the acquired room temperature is below the setpoint (heating mode) or
above the setpoint (cooling mode).
2. When control outputs Y11/Y21 were not energized for more than the “Minimum
output off time” (factory setting 1 minute, adjustable via parameter P48).
The valve or compressor receives the CLOSE/OFF command via control output
Y11 or Y21:
1. When the acquired room temperature is above the setpoint (heating mode) or
below the setpoint (cooling mode).
2. When control outputs Y11/Y21 were energized for more than the “Minimum
output on time”; (factory setting 1 minute, adjustable via parameter P49).
3-position control
signal
Output Y11 provides the OPEN command, and Y21 the CLOSE command to the 3position actuator. The factory setting for the runtime is 150 seconds (adjustable via
parameter P44 from 50…240 seconds).
1. When the controller gets powered up, a closing command for the actuator
runtime + 150% is provided to ensure that the actuator fully closes and
synchronizes to the control algorithm. (RDF3..., 4...: SW < 3.1: + 20%).
2. When the controller calculates the positions fully close or fully open, the
actuator runtime is extended + 150% to ensure the right actuator position
synchronized to the control algorithm. (RDF3..., 4...: SW < 3.1: + 20%).
3. After the actuator reaches the position calculated by the controller, a waiting
time of 30 seconds is applied to stabilize the outputs.
Electrical heater
control signal
(2-position)
The electrical heater receives an ON command via the auxiliary heating control
output Y21:
1. When the acquired room temperature is below “setpoint for electric heater”.
2. When the electrical heater has been switched off for more than 1 minute.
The OFF command for the electrical heater is output:
1. When the acquired room temperature is above the setpoint (electric heater).
2. When the electrical heater has been switched on for more than 1 minute.
Caution!
DC 0..10 V control
signal
A safety thermostat (to prevent overheating) must be provided externally.
The demand calculated by PI control from the current room temperature and
setpoint is provided via Y10 and Y20 to the valve actuator as a continuous
DC 0...10 V signal.
21 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
4.8
Fan control
The fan operates in automatic mode or at the selected speed with manual mode.
In automatic mode, the fan speed depends on the setpoint and the current room
temperature. When the room temperature reaches the setpoint, the control valve
closes and the fan switches off or stays at fan speed 1 (parameter P60)
Factory setting for P60,:
 RDF600...
fan Off in dead zone
 RDF3..., RDF4... fan speed1 in dead zone
The individual switching points for ON of each fan stage can be adjusted via control
parameters P55 – P57. The fan speed switch-off point is 20% below the switch-on
point. The diagram below shows fan speed control for continuous PI control.
Q
Fan control with
modulating control
Q3
Q2
Q1
100
YH[%]
0
XpH
w
xdz
100
0
w
Room temperature setpoint
Q
YH
Fan speed
Control demand “Heating”
YC
Control demand “Cooling”
XpH
Proportional band “Heating”
XpC
Proportional band “Cooling”
Xdz
Dead zone
YC[%]
XpC
Note: The diagram only shows the PI controller’s proportional part.
Fan control with
on/off control
In applications with on/off control (2-position):
1) The switching point for low fan speed (Q1) is synchronized to the
heating/cooling output. Parameter “Switching point fan speed low” P57 is not
relevant.
2) The maximal switching range of the fan (XpHFan/XpCFan) is defined by the
switching differential (SDH/SDC) via a look-up table.
Y
xdz
1
0
w
SDH
T[°C]
SDC
Q
Q3
Cool
Room temperature setpoint
Fan speed
Y
Control command “Valve”
SDH
Switching differential “Heating”
SDC
Switching differential “Cooling”
Xdz
Dead zone
XpCFan Switching range for fan “Cooling”
Q1
XpHFan
3-speed/1-speed fan
Room temperature
w
Q
XpHFan Switching range for fan “Heating”
Q2
Look-up table with
on/off control
T[°C]
SDH/SDC
[K]
XpHFan/XpCFan [K]
w
0.5
2
T[°C]
XpCFan
1.0
3
1.5
4
2.0
5
2.5
6
3.0
7
3.5
8
4.0
9
>4.5
10
The fan speed controller can control a 3-speed or single-speed fan (selected via
control parameter P53). A single-speed fan is connected to terminal Q1, a 3-speed
fan to terminals Q1, Q2 and Q3.
22 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
Fan operation as per
heating/cooling
mode, or disabled
Fan operation can be limited to be active only in cooling or heating mode, or even
totally disabled via control parameter “Fan operation” P52. When fan operation is
disabled, the fan symbol on the display disappears and actuating the fan button
has no influence. This function allows for using the controller in universal
applications such as floor heating with fan coil cooling etc.
Fan minimum ontime
In automatic mode, a dwelling time of 2 minutes (factory setting) is active. The fan
maintains each speed for at least 2 minutes before it changes to the next speed.
This minimum on-time can be adjusted from 1…5 minutes via parameter P59.
Fan operation in
dead zone
In automatic fan mode and with the room temperature in the dead zone, the control
valve normally is closed and the fan is disabled. With the fan kick function, the fan
can be released from time to time at low speed for minimum on-time (see above)
even if the valve is closed.
This function can be used to avoid damage from moisture due to a lack of air circulation, or to allow a return air sensor to measure the correct room temperature.
Y
10385D22en
Q1
0
t [h:mm]
Periodic fan kick
Minimum
on-time
Periodic fan kick
Minimum
on-time
The periodic fan kick time can be selected individually for Comfort mode via
parameter P60 and for Economy mode via parameter P61.
Note: Fan kick value “0” means the fan runs continuously in the dead zone.
Fan kick value “OFF” means the fan is not running in the dead zone.
Fan start
When the fan starts from standstill, it starts at speed 3 for 1 second to guarantee
safe fan motor start by overcoming inertia and friction (selected via parameter
P58).
Q
1 sec
Q3
Q2
Q1
0
Fan overrun for
electric heater
Fan failure
T
When the electrical heater is switched off, the fan overruns for 60 seconds
(parameter P54) to avoid overtemperatures of the electrical heater or prevent
thermal cutout from responding.
In case of fan failure, the controller cannot protect the electrical heater against
overtemperatures. That is why the electrical heater must feature a separate safety
device (thermal cutout).
23 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
Clean fan filter
reminder
The clean fan filter reminder function counts the fan operating hours and displays
message “FIL” to remind the user to clean the fan filter as soon as the threshold
is reached. This does not impact controller operations, which continues to run
normally.
The service interval can be set via parameter P62.
The clean filter reminder is reset when the operating mode is manually set to
Protection respectively .
Fan in Auto Timer
mode
(RDF400… only)
In Auto Timer mode, default fan mode is automatic. The fan mode can be changed
to manual by pushing the “FAN” button. The fan returns to the automatic default
mode after each switchover from Comfort to Economy and vice-versa.
24 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
4.9
Multifunctional input
The controller offers two multifunctional inputs X1 and X2. A sensor of type NTC
like QAH11.1 (AI) or a switch (DI) can be connected to the input terminals. The
functionality of both inputs can be configured via parameters P38 for input X1 and
P40 for input X2.
#
0
1
Function of input X1/X2
Not used
External/Return air temp.
2
Heat/cool changeover
3
Operating mode switchover
4
Dewpoint monitor
5
Enable electrical heater
6
Alarm
Description
No function.
Sensor input for external room
temperature sensor or return air
temperature sensor to measure the
current room temperature, or floor
heating temperature sensor to limit
the heating output.
Note: The room temperature is
measured by the built-in sensor if
the floor heating limitation function
is enabled via parameter P51.
Sensor input for automatic heating /
cooling changeover function.
A switch can also be connected
rather than a sensor (switch closed
= cooling, see section 4.5).
Digital input to switch over the
operating mode to Economy.
If the operating mode switchover
contact is active, user operations
are ineffective and “OFF” is
displayed.
Digital input for a dewpoint sensor
to detect condensation. Cooling is
stopped if condensation occurs.
Digital input to enable/disable the
electrical heater via remote control.
Digital input to signal an alarm. If
the input is active, “ALx” (x:=1 or 2) is
displayed.
Note: Alarm displays do not influence controller operations. They
merely represent a visual signal.
Example: dirty air filter
Type
AI
AI/(DI)
DI
DI
DI
DI
Operational action can be changed between normally open (N.O.) and normally
closed (N.C.) via parameter P39 or P41 if it is a digital input (DI).
Each function can only be assigned to input X1 or X2; only “Alarm” can be
assigned to both inputs.
X1 is factory-set to “Operating mode switchover” (3) and X2 to “Heating/cooling
changeover” (2).
For more information see section 4.4 “Applications”.
25 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
4.10
Auto Timer (RDF400… / RDF600T only)
The controller provides an Auto Timer mode with 8 programmable timers.
Each timer can be assigned to one or several days. In this mode, the controller
automatically changes over between Comfort and Economy mode as per the
preprogrammed timers.
Auto Timer for Comfort mode
Set timers
Auto Timer for Economy mode
Each timer has a Comfort mode start and end time that can be applied to one or
several weekdays.
button for 3 seconds to go to the
To adjust the time schedule, press the
programmable timer setting mode.
This mode is indicated by Ax (x= auto timer 1...8) and the time – – : – – flashes.
Proceed as follows for each Auto Timer:
1.
The and symbols are displayed. Press + or - to adjust the Comfort mode
start time and confirm by pressing .
2.
The and symbols are displayed. Press + or - to adjust the Comfort mode
end time or Economy start time and confirm by pressing .
26 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
3.
Symbol
flashes. Press + or - to select or clear each day and go to the next
day. Confirm the actual timer settings by pressing and go to the next timer.
The controller closes the programmable timer setting mode if no button is pressed
within 20 seconds. All changes made after pressing the button for the last time
are lost.
View timers
Press the
Default timer setting
Timers A1…A4 have the following default settings (residential use):
button to review the 8 timers in sequence.
Day/s
Mo (1) – Fr (5)
Sa (6)
Su (7)
Reload default timer
setting
Time when controller is in Comfort mode
06:30 – 08:30 (A1)
17:30 – 22:30 (A2)
08:00 – 23:00 (A3)
08:00 – 22:30 (A4)
- For the remainder, the controller is in Economy mode .
- Timers A5…A8 are open, no default setting.
The setting of these timers can be changed to individual needs.
The default setting can be reloaded any time:
1. Set the controller to Protection .
2. Press + and - simultaneously for 3 seconds. Release and press
2 seconds..
Then, the display will show “8888” during the reloading process.
Overlapping of timer
sequences
twice within
When several timer sequences overlap, the resulting output is the OR combination
of the normal operating mode time of all timers.
09:00
12:00
20:00
22:00
A1=09:00-22:00
A2=12:00-20:00
Resulting output = 09:0022:00
3076D99
27 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
7-day time clock
The 7-day time clock supports 12 hour and 24 hour format. Select the format while
setting the time clock as follows:
Set the time clock
1. Press the
button until the time digits start to flash and then press + or - to set
the time of day. If the current time is in the 24-hour format and you want to
change to 12-hour format, press + passing 23:59 or press - passing 00:00 and
vice-versa to return to 24-hour format.
2. Confirm the time of day by pressing and the weekday indicator starts to flash.
3. Press + or - to set the current weekday.
4. Confirm the current weekday by pressing .
Power failure
In the event of a power failure, the clock stops, but its last time is stored. This time
information is reloaded and starts running after power up. On RDF400.01, the clock
flashes to indicate that there was a power failure until the time is confirmed by
pressing , or readjusted by following the above procedure.
4.11
Error handling
Temperature out of
range
When the room temperature is outside the measuring range, i.e. above 49 °C or
below 0 °C, the limiting temperatures flash, e.g. “0 °C” or “49 °C”.
Output Y11 is energized if the current setpoint is not set to “OFF”, the controller is
in heating mode and the temperature is below 0 °C. For all other cases, output Y11
is de-energized. The controller resumes Comfort mode after the temperature
returns to within the measuring range.
Power failure
In the event of a power failure, all working conditions (operating mode, setpoint, fan
stage, all control parameter settings) are stored without time limitation.
When power returns, the thermostat reloads this data and continues to work in the
same conditions as before.
For thermostats with auto timer refer to section 4.10.
4.12
Infrared remote control
Use the IRA211 infrared remote control to operate a controller with built-in infrared
receiver. The following operations can be carried out remotely:
 Select operating modes Protection, Comfort or Auto Timer.
 Adjust setpoint in Comfort mode.
 Select fan modes Automatic or Manual.
A buzzer in the thermostat indicates remote control command reception.
Infrared remote control can be disabled via parameter P70.
28 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
4.13
ON
1
2
DIP switches
Use the DIP switches on the inner side of the front panel to commission the basic
controller applications prior to snapping it to the base.
RDF300… / RDF400… / RDF600... have the following DIP switch settings:
RDF300… / RDF400… /
RDF600...
DIP switch number
1
2
OFF
ON
OFF
ON
OFF
OFF
ON
ON
Application
2-pipe
2-pipe, 3 position
2-pipe & electrical heater
4-pipe1)
RDF340 has the following DIP switch settings:
RDF340
DIP switch number
1
2
OFF
OFF
ON
OFF
ON
ON
Application
2-pipe
2-pipe & electrical heater
4-pipe1)
1) Factory setting
Note: During startup, the controller reloads the control parameter factory settings
after each DIP switch settings change.
4.14
Control parameters
A number of control parameters can be readjusted to optimize control performance.
These parameters can also be set during operation without opening the unit. In the
event of a power failure, all control parameter settings are retained.
The control parameters are divided in two levels:
 “Service” level, and
 “Expert” level, including Diagnostic and Test
The “Service” level contains a small set of parameters to set up the controller for
the HVAC system and to adjust the user interface. These parameters can usually
be adjusted any time.
Change parameters in the “Expert” level only carefully, as they impact control
performance and functionality of the controller.
Parameter setting
Change the parameters as follows:
Enter only “Service”
level
1. Set the controller to Protection
*)
2. Press buttons + and - simultaneously for 4 seconds.
Release and press button + again within 2 seconds until the display shows
“P01”.
Continue at Step 3.
Enter “Service” and
“Expert” level.
1. Set the controller to Protection
*)
2. Press buttons + and – simultaneously for 4 seconds.
Release and press button – again within 2 seconds until the display shows
“P01”.
29 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
Adjust parameters
3. Select the required parameter by repeatedly pressing buttons + and -.
4. When you press buttons + and - simultaneously, the current value of the
selected parameter starts to flash, which can be changed by repeatedly
pressing buttons + or -.
5. When you again press buttons + and – simultaneously, the next parameter is
displayed.
6. Repeat Steps 3 to 5 to display and change additional parameters.
7. All changes are saved and the controller returns to Protection 10 seconds after
the last display or setting.
Reset parameters
The factory settings for the control parameters can be reloaded via parameter P71,
by changing the value to “ON”, and confirming by pressing buttons + and –
simultaneously. The display shows “8888” during reload.
Note! *)
 RDF400... and RDF600T: Step 1 is not required.
 RDF3... and RDF600: Step 1 is required.
If one of the digital inputs is commissioned as window contact, and the contact is
closed, the controller will be switched to ECO mode and parameter setting will
not be possible. Solution: open the window contact.
Service Level
P01
Control sequence
2-pipe: [0..3]
1 (Cool only)
4-pipe:
[2…4]
4 (Heat&Cool)
Setting range
0:= Heating only
1:= Cooling only
2:= Manual H/C
3:= Auto changeover
4:= Heating & cooling
1 = Stb,Comf
2 = Stb, Comf, Eco
(0) °C or
(1) °F
– 3 ... +3 K
P02
Mode selection via user operating mode button
1 (Stb, Comf)
P04
Selection of °C or °F
°C (0)
P05
Sensor calibration
0.0 K
P06
Standard temperature display
0 (Room temp)
P07
Additional user info
0 (no display)
P08
Comfort basic setpoint
21 °C
0:= Room temperature
1:= Setpoint
0:= no display
1:= Temp in °C and °F
5 ... 40 °C
P09
Minimum setpoint limitation for Comfort (WminComf)
5 °C
5 ... 40 °C
P10
Maximum setpoint limitation for Comfort (WmaxComf)
35 °C
5 ... 40 °C
P11
Heating setpoint for Economy
(WheatEco)
15 °C
OFF, 5 °C…WcoolEco
P12
Cooling setpoint for Economy
(WcoolEco)
30 °C
OFF, WheatEco…40 °C
P13
Electrical reheater for cooling mode
ON
P14
Keypad lock
(Press the operating mode button
for 7 seconds to enable
or disable the keypad lock) RDF600... : 3 seconds
0 (Unlocked)
ON:= enabled
OFF:= disabled
0:= Unlocked
1:= Auto lock
2:= Manual lock
Note
RDF400…
RDF600T
Factory
setting
Parameter
RDF340…
#
RDF300…
RDF600
Control parameters







































 P02 is not available when the controller is commissioned for manual
heating/cooling changeover P01=2
 Parameter display depends on selected application and function
(x) Not available
30 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
2K
1K
2K
2K
5 min
16 °C
28 °C
3 (Op mode
switchover)
P39
Operating action for X1 if digital input
0 (N.O.)
P40
P41
X2 functionality
Operating action for X2 if digital input
2 (H/C c/o)
0 (N.O.)
P44
P48
P49
P50
Runtime for 3-position output (Y11/Y21)
Minimum output on-time via on/off control output
Minimum output off-time via on/off control output
Purge function (minimum every 2 hours)
150 s
1 min.
1 min.
OFF
P51
P52
Floor heating limit temperature
Fan operation
OFF
1 (Enabled)
P53
Fan speed
2 (3-speed)
P54
P55
P56
P57
P58
Fan overrun time (only when electric heater is used)
Switching point fan speed high
Switching point fan speed med
Switching point fan speed low
Fan start kick
60 sec
100%
65%
10%
ON
P59
P60
Fan minimum on-time
Fan kick in Comfort mode (time to next kick)
P61
P62
P65
P66
P69
Fan kick in Economy mode (time to next kick)
Clean filter reminder runtime
(WheatStb)
Heating setpoint for Protection
(WcoolStb)
Cooling setpoint for Protection
Temporary setpoint for Comfort mode
2 min
0 (continuous)
Off
OFF
OFF
8 °C
OFF
OFF
P70
Infrared receiver
OFF
P71
Parameter reset
Set value to ON and confirm by pressing the + and – buttons
Diagnostic & Test
d01
Application
OFF
Diagnose
d02
Status input X1
Diagnose
d03
d05
Status input X2
Test mode to check the 3-position Y11/Y21 actuator direction.
Note that this parameter can be quit only if the setting is back
at “---” and by pressing + and – buttons
Diagnose
Diagnose
0.5 … 6 K
0.5 … 6 K
0.5 … 5 K
0.5 … 5 K
0…10 min
10…25 °C
27…40 °C
0:= NA
1:= Ext/Return air temp
2:= Heat/cool changeover
3:= Operating mode switch
4:= Dewpoint monitor
5:= Enable electrical heater
6:= Alarm input
0:= Normally open
1:= Normally closed
Same as P38
0:= Normally open
1:= Normally closed
50…240 sec
1...20 minutes
1...20 minutes
OFF: Inactive
1…5 min
OFF, 10..50 °C
0:= Disabled
1:= Enabled
2:= Only in heating
3:= Only in cooling
1:= 1-speed
2:= 3-speed
0 ... 300 sec
80..100%
30..75%
1..15%%
ON: enabled
OFF: disabled
1 ... 5 min
0…89min, OFF
0…359min, OFF
OFF, 100 … 9900 hours
OFF, 5 °C…WcoolStb
OFF, WheatStb …40 °C
OFF:= Disabled
ON := Enable
OFF:= Disabled
ON := Enable
OFF:= Idle
ON: = Reset
2P:= 2-pipe
2PEL:= 2-pipe & el. heater
4P:= 4-pipe
2P3P:= 2-pipe 3pos
0:= Digital input
not activated
1:= Digital input activated
0…49 °C = measured
temp. value
00 := H/C input short
100:= H/C input open
Same as d02
“---” := no signal
OPE:= Y11 active open
CLO:= Y21 activeclose
RDF400…
RDF600T
Expert Level
P30
P-band/Switching differential for heating mode
P31
P-band/Switching differential for cooling mode
P33
Dead zone in Comfort mode
P34
Setpoint differential
P35
Integral time
P36
Heating/cooling changeover switching point for cooling
P37
Heating/cooling changeover switching point for heating
P38
X1 functionality
Setting range
RDF340…
Factory
setting
Parameter
RDF300…
RDF600
#
























































































 




















31 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Functions
CE1P3076.en
2012-10-02
5
Handling
5.1
Mounting and installation
Mount the room controller on the conduit box. Do not mount on a wall in niches or
bookshelves, behind curtains, above or near heat sources, or exposed to direct
solar radiation. Mount about 1.5 m above the floor.
Mounting /
dismounting
 Devices must be mounted on clean, dry indoor place without direct airflow from
a heating / cooling device, and not be exposed to dripping or splashing.
 RDF3... / RDF400… : In case of limited space in the conduit box use the
mounting bracket ARG70.3 to increase the headroom by 10mm.
 Before removing the front cover, disconnect the power supply.
Wiring
See the mounting instructions enclosed with the thermostat:
M3076... for RDF3..., RDF4... ; M3063 for RDF600... .
 Comply with local regulations to wire, fuse and earth the controller
 Properly size the cables to the controller, fan and valve actuators for AC 230 V
mains voltage
 Use only valve actuators rated for AC 230 V on RDF300… / RDF400… /
RDF600...
 The AC 230 V mains supply line must have an external fuse or circuit breaker
with a rated current of no more than 10 A
 Isolate the cables of SELV inputs X1-M/X2-M if the conduit box carries AC 230 V
mains voltage
 Inputs X1-M or X2-M of different units (e.g. summer/winter switch) may be
connected in parallel with an external switch. Consider overall maximum contact
sensing current for switch rating
 No metal conduits
 No cables provided with a metal sheath
 Disconnect from supply before opening the cover
Commissioning
Set the controller application via the DIP switches before snapping the front panel
on the mounting base.
After power is applied, the controller carries out a reset during which all LCD
segments flash indicating that the reset was correct. After the reset, which takes
about 3 seconds, the controller is ready for commissioning by qualified HVAC staff.
The control parameters of the controller can be set to ensure optimum performance
of the entire system (see “Set control parameters”).
Control sequence
 The control sequence may need to be set via parameter P01 depending on the
application. The factory setting for the 2-pipe application is “Cooling only”; and
“Heating and Cooling” for the 4-pipe application
32 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Handling
CE1P3076.en
2012-10-02
Compressor-based
application
Calibrate sensor
Setpoint and range
limitation
 When the controller is used with a compressor, the minimum output on-time
(parameter P48) and off-time (parameter P49) for Y11/Y21 must be adjusted to
avoid damaging the compressor and shortening its life
 Recalibrate the temperature sensor if the room temperature displayed on the
controller does not match the room temperature measured. To do this, change
parameter P05
 We recommend to review the setpoints and setpoint ranges (parameters
P08…P12) and change them as needed to achieve maximum comfort and save
energy
5.2
Operating Instructions
See the operating instructions B3076... enclosed with the controller.
5.3
Disposal
The device is classified as waste electronic equipment in terms of the European
Directive 2002/96/EC (WEEE) and should not be disposed of as unsorted municipal waste.
The relevant national legal rules are to be adhered to. Regarding disposal, use
the systems setup for collecting electronic waste.
Observe all local and applicable laws.
33 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Handling
CE1P3076.en
2012-10-02
Engineering
6.1
Connection terminals
L
N
X1
M
X2
Q1 Q2 Q3
SELV
RDF300… / RDF400… /
RDF600….
6
Y11 N Y21
L, N
Q1
Q2
Q3
Y11,Y21
X1, X2
M
RDF340…
G
G0
X1
M
X2
SELV
L Q1 Q2 Q3 Y10 G0 Y20
G, G0
L
Q1
Q2
Q3
Y10,Y20
X1, X2
M
Operating voltage AC 230 V
Control output “Fan speed 1 AC 230 V”
Control output “Fan speed 2 AC 230 V”
Control output “Fan speed 3 AC 230 V”
Control output “Valve” AC 230 V (N.O., for
normally closed valves), output for
compressor or output for electrical heater
Multifunctional input for temperature
sensor (e.g. QAH11.1) or potential-free
switch
Measuring neutral for sensor and switch
Operating voltage controller AC 24 V
Operating voltage for fan AC 230 V
Control output “Fan speed 1 AC 230 V”
Control output “Fan speed 2 AC 230 V”
Control output “Fan speed 3 AC 230 V”
Control output for 0…10 V actuator
Multifunctional input for temperature
sensor (e.g. QAH11.1) or switch
Measuring neutral for sensor and switch
34 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Engineering
CE1P3076.en
2012-10-02
6.2
Connection diagrams
6.2.1
Water-based fan coil applications with RDF300... /
RDF400... / RDF600…
Application:
M1
N1
L
2-pipe fan coil units
10 A
S1
S2
B1
B2
X1
AC 230 V
L
X2
M
Q1 Q2 Q3
N
I
Y21
Y11
N1
II III
3-speed fan
Room thermostat
RDF300... /
RDF400... / RDF600…
Y1
Zone valve
S1, S2 Switch (keycard, window contact, etc.)
B1, B2 Temperature sensor (return air temperature,
external room temperature, changeover
sensor, etc.)
M1 Y1
5(2)A
max.
N
Application:
5(2)A
max.
M1
N1
L
2-pipe fan coil units
with electrical heater
10 A
S1
S2
B1
B2
X1
AC 230 V
L
X2
M
Q1 Q2 Q3
N
I
5(2)A
max.
N
E1
5(2)A
max.
5(2)A
max.
M1
N1
L
4-pipe fan coil units
10 A
S1
S2
B1
B2
X1
AC 230 V
L
N
M
X2
Q1 Q2 Q3
I
Y21
Y11
N1
II III
M1 Y1
5(2)A
max.
N
Application:
N1
II III
M1 Y1
Application:
Y21
Y11
Y2
5(2)A
max.
AC 230 V
10 A
S1
S2
B1
B2
L
X1
N
M
M1
N1
X2
Q1 Q2 Q3
I
Y11
Y21
N1
II III
Application:
10 A
AC 230 V
Note: Single-speed fan
possible also in other
applications!
5(2)A
max.
M1
N1
L
2-pipe fan coil units
with single-speed fan
S1
S2
B1
B2
L
N
X1
M
X2
Q1 Q2 Q3
Y11
I
M1
N
5(2)A
max.
3-speed fan
Room thermostat
RDF300... /
RDF400... / RDF600…
Y1
Zone valve, 3-position
S1, S2 Switch (keycard, window contact, etc.)
B1, B2 Temperature sensor (return air temperature,
external room temperature, changeover
sensor, etc.)
Y1
M1
5(2)A
max.
N
3-speed fan
Room thermostat
RDF300... / RDF400... / RDF600…
Y1
Zone valve “Heating”
Y2
Zone valve “Cooling”
S1, S2 Switch (keycard, window contact, etc.)
B1, B2 Temperature sensor (return air temperature,
external room temperature, changeover
sensor, etc.)
5(2)A
max.
L
2-pipe fan coil units,
3-position
3-speed fan
Room thermostat
RDF300... /
RDF400... / RDF600…
Y1
Zone valve
E1
Electrical heater
S1, S2 Switch (keycard, window contact, etc.)
B1, B2 Temperature sensor (return air temperature,
external room temperature, changeover
sensor, etc.)
Y21
N1
Single-speed fan
Room thermostat
RDF300... /
RDF400... / RDF600…
Y1
Zone valve
S1, S2 Switch (keycard, window contact, etc.)
B1, B2 Temperature sensor (return air temperature,
external room temperature, changeover
sensor, etc.)
Y1
5(2)A
max.
35 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Engineering
CE1P3076.en
2012-10-02
6.2.2
Compressor in DX-type
equipment
(DIP setting: "2-pipe")
M1
L
10 A
S1
S2
B1
B2
L
AC 230 V
Application:
Compressor-based applications with RDF300... /
RDF400... / RDF600…
X1
M
I
Room thermostat
RDF300... /
RDF400... / RDF600…
C1
Compressor
S1, S2 Switch (keycard, window contact, etc.)
B1, B2 Temperature sensor (return air temperature,
external room temperature sensor, etc.)
X2
Q1 Q2 Q3
N
3-speed fan
N1
Y21
Y11
N1
II III
M1 C1
5(2)A
max.
N
Compressor in DX-type
equipment with
electrical heater
(DIP setting: "2-pipe & el.
heater")
M1
N1
L
10 A
S1
S2
B1
B2
L
AC 230 V
Application:
5(2)A
max.
X1
M
X2
Q1 Q2 Q3
N
I
5(2)A
max.
N
E1
5(2)A
max.
5(2)A
max.
M1
N1
L
10 A
AC 230 V
Compressor in DX-type
equipment heating and
cooling
(DIP setting: "4-pipe")
N1
II III
M1 C1
Application:
Y21
Y11
S1
S2
B1
B2
X1
L
N
M
X2
Q1 Q2 Q3
I
Y21
Y11
N1
II III
M1 C1
N
3-speed fan
Room thermostat
RDF300... /
RDF400... / RDF600…
C1
Compressor
E1
Electrical heater
S1, S2 Switch (keycard, window contact, etc.)
B1, B2 Temperature sensor (return air temperature,
external room temperature sensor, etc.)
5(2)A
max.
C2
5(2)A
max.
5(2)A
max.
3-speed fan
Room thermostat
RDF300... /
RDF400... / RDF600…
C1
Compressor “Heating”
C2
Compressor “Cooling”
S1, S2 Switch (keycard, window contact, etc.)
B1, B2 Temperature sensor (return air temperature,
external room temperature sensor, etc.)
Note:
Use an external relay for designated reversing valve
and compressor equipment terminal connections.
See DX equipment wiring diagram for connection
details.
36 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Engineering
CE1P3076.en
2012-10-02
6.2.3
Water-based fan coil applications with RDF340...
Application:
M1
N1
Y1
2-pipe fan coil units
3-speed fan
Room thermostat RDF340...
Zone valve
S1, S2 Switch (keycard, window contact, etc.)
B1, B2 Temperature sensor (return air temperature,
external room temperature,
changeover sensor, etc.)
Y1
Application:
2-pipe fan coil units
with electrical heater
Y1
M1
N1
Y1
YR
E1
S1, S2
B1, B2
3-speed fan
Room thermostat RDF340...
Zone valve
0..10 signal converter/current valve
Electrical heater
Switch (keycard, window contact, etc.)
Temperature sensor (return air temperature,
external room temperature,
changeover sensor, etc.)
M1
N1
Y1
Y2
S1, S2
B1, B2
3-speed fan
Room thermostat RDF340...
Zone valve “Heating”
Zone valve “Cooling”
Switch (keycard, window contact, etc.)
Temperature sensor (return air temperature,
external room temperature,
changeover sensor, etc.)
M1
N1
Y1
S1, S2
B1, B2
3-speed fan
Room thermostat RDF340...
Zone valve
Switch (keycard, window contact, etc.)
Temperature sensor (return air temperature,
external room temperature,
changeover sensor, etc.)
YR
E1
Application:
4-pipe fan coil units
Y1
Y2
Application:
4-pipe fan coil units
with single-speed fan
Note: Single-speed fan
also possible in other
applications!
Y1
Y2
37 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Engineering
CE1P3076.en
2012-10-02
7
Mechanical design
The controller consists of 2 parts:
 Front panel accommodating the electronics, operating elements and built-in room
temperature sensor.
 Mounting base with the power electronics.
The rear of the mounting base contains the screw terminals.
Slide the front panel in the mounting base and snap on.
Operation and settings
RDF300… / RDF340… /
RDF600
2
1
1.
Operating mode selector / Protection
2.
Change fan operation
3.
Adjust setpoint and control parameters
3
RDF400… / RDF600T
2
1
1.
Change operating mode selector
2.
Change fan operation
3.
6
4
7
5
3
8
Display
4.
Auto Timer program
5.
Protection
6.
Set time of day and weekday
7.
Confirm
8.
Infrared receiver
2.
8
Display room temperature, setpoints and
control parameters.
3
1
Adjust setpoint, control parameters and time
of day
Symbol used to display the current
room temperature
2
5
3.
Heating/cooling mode
Cooling mode
Heating mode,
Electrical heater active
4
4.
9
Fan mode
Auto fan active
7
6
Fan speed low, medium, high
5.
Additional user information (RDF3xx) or
current time of day (RDF400... / RDF600T)
1.
Operating mode
6.
Weekday 1..7 (1 = Monday/7 = Sunday)*
Auto Timer mode*
7.
Keypad lock active
Comfort mode
8.
Protection mode
AUTO
Economy mode
* only on RDF400… / RDF600T
Condensation in room (dewpoint sensor
active)
9.
Indicate alarm or reminder
38 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Mechanical design
CE1P3076.en
2012-10-02
7.1
Dimensions
Dimensions in mm
86
14
16
30
3076M12
3076M02
86
3076M01
3076M01
86
RDF600…
86
RDF3… RDF400...
60
80
3076M03
67
3076M13_01
52
39 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Mechanical design
CE1P3076.en
2012-10-02
8
Power supply
Outputs
Inputs
Technical data
Rated voltage
RDF300… /400… / 600...
RDF340…
AC 230 V
SELV AC 24  20 %
Frequency
50/60 Hz
Power consumption RDF300... / RDF400.. RDF340… Max. 8 VA
RDF600…
Max 3.5 VA / 0.8 W
Fan control Q1, Q2, Q3-N
AC 230 V
Rating
Min. 5 mA, Max. 5(2) A
Control output Y11-N/Y21-N (N.O.)
AC 230 V
Rating
Min. 5 mA, Max. 5(2) A
SELV DC 0…10 V
Control output Y10-G0/Y20-G0
39 mV
Resolution
Max.  1 mA
Current
Max. total load current through terminal "L" (Qx + Yxx) Max. 7 A
Multifunctional input X1-M/X2-M
Temperature sensor input:
QAH11.1 (NTC)
Type
0...49 °C
Temperature range
Max. 80 m
Cable length
Digital input:
Selectable (N.O./N.C.)
Operating action
SELV DC 0...5 V/max 5 mA
Contact sensing
Parallel connection of several thermostats Max. 20 thermostats per
switch
for one switch
4 kV, reinforced insulation
Insulation against mains voltage (SELV)
Function input:
Selectable
External temperature sensor, heating/cooling changeover
sensor, operating mode switchover contact, dewpoint
monitor contact, enable electrical heater contact, alarm
contact
Operational data
Switching differential, adjustable
Heating mode
Cooling mode
Setpoint setting and range
Comfort mode
Economy mode
Protection
Multifunctional input X1/X2
Input X1
Input X2
Built-in room temperature sensor
Measuring range
Accuracy at 25 °C
Temperature calibration range
Settings and display resolution
Setpoints
Current temperature value displayed
(P30)
(P31)
(P08)
(P11-P12)
(P65-P66)
2 K (0.5...6K)
1 K (0.5...6K)
21°C
(5...40 °C)
15°C/30°C (OFF, 5...40 °C)
8°C/OFF (OFF, 5...40 °C)
Selectable 0…6
3: (P38) operating mode
switchover
2: (P40) heating/cooling
changeover sensor
0…49 °C
< ± 0.5 K
± 3.0 K
0.5 °C
0.5 °C
40 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Technical data
CE1P3076.en
2012-10-02
Environmental
conditions
Standards
As per IEC 721-3-3
Class 3K5
0 ...+ 50 °C
< 95 % r.h.
As per IEC 721-3-2
Class 2K3
 25...+60 °C
< 95 % r.h.
Class 2M2
As per IEC 721-3-1
Class 1K3
 25...+60 °C
< 95 % r.h.
Operation
Climatic conditions
Temperature
Humidity
Transport
Climatic conditions
Temperature
Humidity
Mechanical conditions
Storage
Climatic conditions
Temperature
Humidity
conformity
EMC directive
Low-voltage directive
2004/108/EC
2006/95/EC
C-tick conformity to
EMC emission standard
AS/NSZ 4251.1:1999
Reduction of hazardous substances
Product standards
Automatic electrical controls for household and
similar use
Special requirements for temperature-dependent
controls
Electronic control type
General
Electromagnetic compatibility
Emissions
Immunity
Protective class
Pollution class
Degree of protection of housing
Connection terminals
Housing front color
Weight
RDF3..., RDF4...
RDF600...
2002/95/EC
EN 60730–1
EN 60730–2-9
2.B (microdisconnection on
operation)
IEC/EN 61000-6-3
IEC/EN 61000-6-2
II as per EN 60730
Normal
IP 30 to EN 60529
Solid wires or prepared
stranded wires
1 x 0.4…1.5 mm2
RAL 9003 white
0.220 kg
0.150 kg
41 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Technical data
CE1P3076.en
2012-10-02
Index
1
12 hour and 24 hour format ........... 28
1-speed fan.................................... 22
2
2-pipe fan coil unit ....................... 12
3
3-position ....................................... 21
4
4-pipe fan coil unit ....................... 12
A
Alarm ............................................. 25
Auto Timer ..................................... 26
Automatic heating/cooling
changeover .......................... 13, 15
F
Factory settings ............................. 29
Fan kick function ........................... 23
Fan minimum on-time.................... 23
Fan operation as per heating/cooling
mode, or disabled ...................... 23
Fan operation in dead zone .......... 23
Fan overrun ................................... 23
Fan start ........................................ 23
Floor heating limitation function .... 14
H
Heat/cool changeover ................... 25
Heating and cooling mode............. 15
Heating mode ................................ 15
I
Infrared receiver .............................. 6
Integral action time .......................... 9
B
Backlit LCD ...................................... 6
Button lock ..................................... 15
K
Keypad lock ................................... 15
C
Calibrate sensor ............................ 33
Clean fan filter reminder ................ 24
Comfort mode ................................ 10
Commissioning .............................. 32
Conduit box...................................... 6
Control output .................................. 6
Control parameters ........................ 29
Cooling mode................................. 15
M
Manual changeover....................... 17
Manually select heating or cooling
mode .......................................... 15
Minimum output............................. 14
Modulating output.......................... 16
Moisture......................................... 14
Mounting and installation............... 32
Multifunctional inputs..................... 25
D
DC 0…10 V control signal ............. 21
Dewpoint........................................ 25
Diagnostic ...................................... 29
Digital input .................................... 25
DIP switches .................................. 29
O
On/off control output signals.......... 21
On/off control signal ...................... 21
Operating mode button.................. 10
Operating mode input.................... 10
Operating mode switchover .......... 25
Operating voltage ............................ 6
E
Economy........................................ 10
Electrical heater ............................. 17
Enable/disable the electrical heater
............................................. 17, 25
Expert level parameters................. 29
External/Return air temp................ 25
External/return air temperature
sensor......................................... 13
P
Parameter setting .......................... 29
Power failure ................................. 28
Programmable timers .................... 26
Proportional band ............................ 9
Protection mode ............................ 10
Purge function ............................... 14
R
Reload default timer setting .......... 27
42 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Index
CE1P3076.en
2012-10-02
Reload factory settings.................. 30
Remote heating/ cooling changeover
................................................... 13
Reset parameters .......................... 30
S
Sensor input .................................. 25
Service level parameters ............... 29
Set the time clock .......................... 28
Set timers ...................................... 26
Setpoint and range limitation......... 33
Setpoint limitation ...........................11
Switching differential........................ 9
T
Temperature out of range............28
Temporary setpoint.........................11
Test.................................................29
Time program ...................................6
U
Universal application ......................13
V
View timers.....................................27
43 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
Index
CE1P3076.en
2012-10-02
Siemens Switzerland Ltd.
Infrastructure & Cities Sector
Building Technologies Division
International Headquarters
Gubelstrasse 22
CH-6301 Zug
Tel. +41 41-724 24 24
Fax +41 41-724 35 22
www.siemens.com/sbt
© 2008 - 2012 Siemens Switzerland Ltd.
Subject to change
44 / 44
Siemens
Building Technologies
RDF300… / RDF340... / RDF400… / RDF600… Basic Documentation
CE1P3076.en
2012-10-02
