Electrolux AW 465 Specifications

Graphic project VISUAL DIVISION Milan Italy

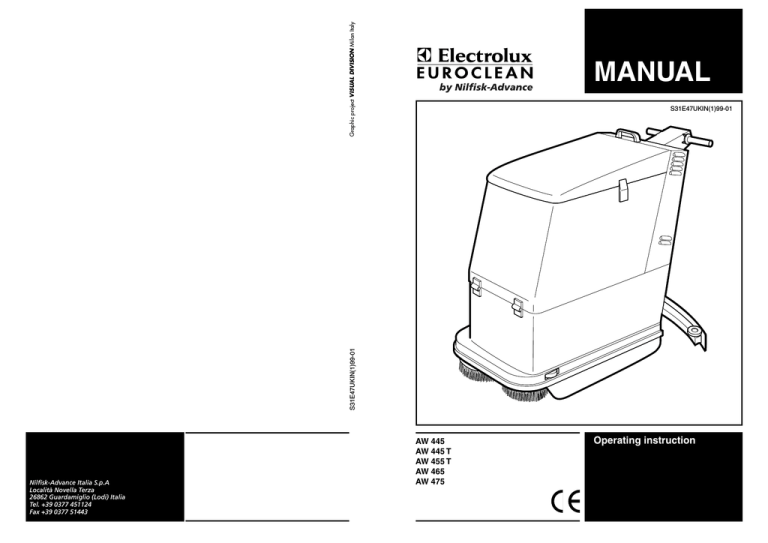

MANUAL
S31E47UKIN(1)99-01
S31E47UKIN(1)99-01
Nilfisk-Advance Italia S.p.A
Località Novella Terza
26862 Guardamiglio (Lodi) Italia
Tel. +39 0377 451124
Fax +39 0377 51443
AW 445
AW 445 T
AW 455 T
AW 465
AW 475
Operating instruction
INDEX
SAFETY FEATURES
ON
OFF
The multifunction display on the control panel can
show some code numbers when the safety devices
of the machine are operated.
The list of the safety code numbers is shown
below:
SAFETY CODE-EVENT
MACHINE BEHAVIOUR
302:
TROUBLE ON THE ELECTRONIC AUTOMATIC STOP OF THE
CONTROL OF THE DRIVE
MACHINE.
FUNCTION.
pag.
INTRODUCTION AND WARNINGS .......................................1
UNPACKING ......................................................................2
TECHNICAL SPECIFICATIONS ............................................3-5
MACHINE CONTROLS AND MONITORS ...............................6
PREPARATION FOR USE .................................................7-11
SCRUBBING AND DRYING OPERATION ........................12-17
CLEANING OR REPLACING THE BRUSHES ..........................18
MAINTENANCE ...........................................................19-21
OPTIONALS.................................................................22-23
SAFETY FEATURES ........................................................24-25
POSSIBLE INTERVENTION
NOTES
BEFORE REPLACING THE POWER ELECTRONIC BOARD:
1-CHECK THE CONTINUITY OF THE CONNECTION CABLES
FOR FURTHER DETAILS SEE THE
BETWEEN THE POWER ELECTRONIC BOARD AND THE
WORKSHOP MANUAL OR CALL
DRIVE MOTOR
THE SERVICE PERSONNEL.
2-CHECK THE OPERATION OF THE DRIVE MOTOR AND OF
ITS CARBON BRUSHES.
IF THE AMBIENT TEMPERATURE IS HIGH (OVER 35°C)
THIS COULD BE A NORMAL CONDITION.
OTHERWISE CHECK THAT THE ROTATION OF THE DRIVE
MOTOR AND/OR OF THE BRUSH MOTOR(S) IS FREE.
IT COULD BE USEFULL TO REDUCE THE PRESSURE OF THE
BRUSH(ES) ON THE FLOOR.
304:
OVERTEMPERATURE ON THE
POWER ELECTRONIC BOARD.
THE MULTIFUNCTION DISPLAY
ON THE CONTROL PANEL IS
FLASHING AND THE MACHINE
IS STILL WORKING.
306:
OVERTEMPERATURE ON THE
POWER ELECTRONIC BOARD.
TURN-OFF THE KEY AND WAIT FOR THE SELF COOLING OF
THE ELECTRONIC BOARD (AT LEAST 20 MINUTES). THEN
IF THE 306 CODE OCCURS
AUTOMATIC STOP OF ALL THE CHECK THAT THE ROTATION OF THE DRIVE MOTOR AND/
FREQUENTLY CALL THE SERVICE
FUNCTIONS OF THE MACHINE. OR OF THE BRUSH MOTOR(S) IS FREE.
PERSONNEL.
IT COULD BE USEFULL TO REDUCE THE PRESSURE OF THE
BRUSH(ES) ON THE FLOOR.
307:
WRONG SWITCH-ON
SEQUENCE: THE ACCELERATOR THE MACHINE IS NOT ABLE TO
THUMB WHEELS WERE OUT OF WORK.
THE NEUTRAL POSITION WHEN
TURNING ON THE KEY.
308:
THE WIRES OF THE
POTENTIOMETER ARE CUT.
PUT THE ACCELERATOR THUMB WHEELS IN THE NEUTRAL
POSITION.
IN THE EVENT THAT THE 307 CODE IS STILL FLASHING A
CHECK OF THE TWO MICROSWITCHES DEDICATED TO THE
FORWARD/REVERSE DRIVE CONTROL MUST BE DONE
(CALL THE SERVICE PERSONNEL).
CHECK THAT NO INTERFERENCE OCCURS BETWEEN THE
HAND GRIPS AND THE THUMB WHEELS.
1-CHECK THE CONNECTION CABLES OF THE
POTENTIOMETER DEDICATED TO THE SPEED CONTROL.
THE MACHINE IS NOT ABLE TO
2- IF THE POTENTIOMETER CONNECTION CABLES ARE
WORK.
GOOD REPLACE THE POTENTIOMETER (CALL THE SERVICE
PERSONNEL).
25
SAFETY FEATURES
For all models:
Safety micro switch:
Micro switch to shut off all the functions when the
tank unit is in the upright position. (SEMKO
APPROVAL).
INTRODUCTION AND WARNINGS
INTRODUCTION
This manual is a guide to the efficient use of the machine and also contains practical information concerning the
functioning, adjustments and user maintenance of your new scrubber/drier. Your machine has been designed and
constructed to ensure maximum performarnce and ease of operation in a wide variety of applications. Before delivery, the
machine has been tested in our factory and by our distributor to ensure that it is delivered to you in perfect condition. To
maintain the machine in this condition and guarantee functioning without problems, it is essential that the periodic
maintenance operations indicated in this manual are properly carried out. Before using the machine, carefully read this
manual and keep it within easy reach for your future reference. Indications of “LEFT” and “RIGHT” are as seen from the
operator position. If you should need any further information concerning the machine, please do not hesitate to contact
either Electrolux Euroclean or our local distributor.
GENERAL SAFETY RULES
The rules below have to be followed carefully in order to
avoid damages to the operator and to the machine.
- Read the labels carefully on the machine; Do not cover
them for any reason and replace them immediately if
damaged.
- The socket for the power supply must be fitted with a
standard earthing (ground) system.
- With the brushes in working position, avoid touching or
passing over the mains cable. Avoid damaging by
squashing, bending or stressing.
- Where there is damage to the mains cable, stop the
machine, take off the plug from the mains system, and
replace the damaged cable immediately by calling the
Electrolux Service department.
- Do not mix different detergents, avoiding harmful odours.
- Do not place any liquid containers onto the machine.
- The storage temperature has to be between +15°C and +
55°C.
- The perfect operating temperature should be between 0°
C and 40° C.
- The humidity should be between 30 and 95%.
- Do not use the machine in explosive atmosphere.
- Do not use the machine as a means of transport.
- Do not use acid solutions which could damage the
machine.
- Avoid working with the brushes when the machine stands
still, in order to prevent floor damages.
- Do not vacuum iflammable liquids.
- In case of fire, use a powder extinguisher. Do not use
water.
- Do not strike shelvings or scaffoldings, where there is
danger of falling objects.
- Adapt the utilization speed to the adhesion conditions.
- Do not exceed over the limit gradient stated, to avoid
conditions of instability (2% max).
- The machine has to carry out simultaneously the
operations of washing and drying. Different operations
have to be carried out in areas which are not permitted
for the passage of non employed staff. Signal the areas
of moist floors with suitable signs.
- If the machine does not work properly, check by
conducting simple maintenance procedures. Otherwise,
it is better to ask for technical service.
-Where parts are required, ask for ORIGINAL spare parts
to an agent and/or to an authorized dealer.
- For any maintenance operation take off the power supply
from the machine.
- Do not take off the pieces which require the use of tools
to be removed.
- Do not wash the machine with direct water jets or with
high water pressure not with corrosive material.
- Every 200 working hours have a machine check through
a service department.
- The machine should not be abandoned, because of the
presence of toxic-harmful materials (batteries, oil etc.).
This disposal must be subject to the rules which provide
for its scrapping in appropiate centres.
- The machine does not cause any harmful vibrations.
MODIFICATIONS AND IMPROVEMENTS
Electrolux Euroclean aim toward continuous improvement of its machines and reserves the right to carry out modifications
and improvements whenever necessary without being obliged to update machines which have been sold previously.
SAFETY
You too can avoid accidents.
No accident prevention programme is effective without the total co-operation of the person directly responsible for the
functioning of the machine. The majority of accidents which may occur either during work or transferring the machine from
site to site are caused by the non-observance of the most elementary safety rules. An alert and cautious operator is the best
guarantee against accidents and is more effective than any other part of an accident prevention programme.
The machine must be switched off and disconnected from either its battery or mains supply before any servicing or
adjustment of operational parts be carried out. Ensure that any assistant is clear of the machine and that covers are closed
before switching on.
24
1
UNPACKING
OPTIONALS
Check that you have received the following parts
together with the machine:
1- Connecting hose for squeegee
For models AW445, AW445 T and
AW455 T:
Kit of cables to transform the machine from mains
version to battery operated version.
Mains unit (or transformer) to change the machine
from the battery operated version to the mains
version.
2- Plastic bag with cables for connection of
batteries
NOTE: Not supplied with mains cable versions of
models AW445, AW445 T and AW455 T.
3- Squeegee
4- Documents
2
For all versions of models AW445,
AW445 T and AW455 T:
A kit is available to equip the machine with the
membrane; in this case also the water pump must
be mounted.
For all models:
A front splash guard is also available.
For all models:
In order to reduce the pressure of the machine on
the floor (according to norm DIN 18032) two rear
twin wheels can be mounted.
23
OPTIONALS
TECHNICAL SPECIFICATION
In addition to the normal accessories supplied
with the machine the following optionals are
available:
Batteries:
- For models AW465 and AW475: four 6 V
batteries 240 amp.h wet type.
MODELS
Voltage
Drive motor
Vacuum motor rating
- For models AW445 T and AW455 T: two 12
V batteries 140 amp.h wet type.
Vacuum depression (mm H2O)
Brush motor
Brush
- For model AW445: two 12 V batteries 115
amp.h wet type.
Brush speed (scrubbing)
Brush pressure to floor (Kg)
Automatic Click OFF/Click ON
420W-2 stages
AW 445 T
CABLE
220VAC-24VDC
24V
220VAC-24VDC
-
24V-90W
24V-90W
420W-2 stages
420W-2 stages
420W-2 stages
1150
1150
1150
1150
24V-250W
24V-250W
24V-250W
24V-250W
nr. 1x 430mm
nr. 1x 430mm
nr. 1x 430mm
nr. 1x 430mm
330 RPM
330 RPM
330 RPM
330 RPM
from 9 to 21
from 9 to 21
from 9 to 24
from 9 to 24
yes
yes
yes
nr. 3 hole
diameters:
3.5-4.5-5.5mm
nr. 3 hole
diameters:
3.5-4.5-5.5mm
nr. 3 hole
diameters:
3.5-4.5-5.5mm
12V-31W-0.9lt/1’
12V-31W-0.9lt/1’
12V-126W- 9lt/1’
12V-126W- 9lt/1’
1.3-2.6
1.3-2.6
1.3-2.6
1.3-2.6
1.9-3
1.9-3
2.8-4.5
2.8-4.5
Max slope
-
-
2%
2%
Driving speed F/R (Km/h)
-
-
3/2.25
3/2.25
Working width (mm)
430
430
430
430
Squeegee width (mm)
700
700
700
700
34
34
34
34
50
50
50
50
35
35
35
35
51
51
51
51
Suggested batteries (wet)
nr.2 12V-115Ah
-
nr.2 12V-140Ah
-
Suggested batteries (dry)
nr.2 12V-70Ah
-
-
-
Running time (with wet batteries)
about 2h
-
2.8-3h
-
Running time (with dry batteries)
about 1h 30’
-
-
-
Suggested battery charger
(for wet battery)
CBN2 20A-24V
-
CBN2 25A-24V
-
Suggested battery charger
(for dry battery)
CBS2 20A-24V
-
CBS2 25A-24V
-
-
220/240 VAC
50/60HZ
-
220/240 VAC
50/60HZ
Front wheels diameter (mm)
nr.2-150
nr.2-150
nr.2-150
nr.2-150
Rear wheels diameter (mm)
nr.2-80
nr.2-80
nr.2-80
nr.2-80
-
-
nr.1-150
nr.1-150
Water flow (lt/min)
Water flow + pump lt/min (opt)
Solution tank capacity (lt)
with membrane (optional) (lt)
Recovery tank capacity (lt)
with membrane (optional) (lt)
Feeder
Union mix scrub brush
Polypropylene scrub brush
Silicon Carbide scrub brush
Pad holder
24V
AW 445 T
BATTERY
yes
Water pump (optional)
Different types of brushes and pad holders are
available.
AW 445
CABLE
nr. 3 hole
diameters:
3.5-4.5-5.5mm
Electrovalves
Battery chargers:
- For all models: charger for wet batteries
charger for dry batteries
AW 445
BATTERY
Middle drive wheel diameter
Width (mm)
460
460
460
460
Length (mm)
1235
1235
1235
1235
Height (mm)
1050
1050
1050
1050
Weigth without batteries (Kg)
81
-
91
-
Total weigth with feeder (Kg)
-
115
-
125
For sizes and codes consult the factory.
22
3
TECHNICAL SPECIFICATION
MODELS
Voltage
Drive motor
Vacuum motor rating
Vacuum depression (mm H2O)
Brush motor
Brush
Brush speed (scrubbing)
Brush pressure to floor (Kg)
Automatic Click OFF/Click ON
Electrovalves
Water pump (optional)
AW 455 T
BATTERY
AW 455 T
CABLE
24V
220VAC-24VDC
24V-120W
24V-120W
540W-3 stages
540W-3 stages
1700
1700
24V-200W
24V-200W
nr. 2x 280mm
nr. 2x 280mm
430 RPM
430 RPM
from 14 to 27
from 14 to 27
yes
yes
nr. 3 hole diameters:
3.5-4.5-5.5mm
nr. 3 hole diameters:
3.5-4.5-5.5mm
12V-126W-9lt/1’
12V-126W-9lt/1’
Water flow (lt/min)
1.3-2.6
1.3-2.6
Water flow + pump lt/min (opt)
2.8-4.5
2.8-4.5
nr.2-max. 4.5
nr.2-max. 2.5
nr.2-max. 4.5
nr.2-max. 2.5
Driving speed F/R (Km/h)
Parking brake
yes
yes
Working width (mm)
538
538
16 %
16 %
800
800
Max slope
Squeegee width (mm)
Solution tank capacity (lt)
with membrane (optional) (lt)
38
38
54
54
Recovery tank capacity (lt)
with membrane (optional) (lt)
39
39
55
55
Suggested batteries (wet)
nr.2 12V-140Ah
-
about 2.5h
-
Suggested battery charger
(for wet battery)
CBN2 25A-24V
-
Suggested battery charger
(for dry battery)
CBS2 25A-24V
-
-
220/240VAC-50/60HZ
Front wheels diameter (mm)
nr.2-150
nr.2-150
Rear wheels diameter (mm)
nr.2-80
nr.2-80
Running time (with wet batteries)
Feeder
4
MAINTENANCE
Width (mm)
580
580
Length (mm)
1235
1235
Height (mm)
1050
1050
Weigth without batteries (Kg)
108
-
Total weigth with feeder (Kg)
-
142
Regularly inspect the squeegee for damage or
wear to the lips. The lips may be easily replaced
by unscrewing the retaining strips; remove the
lips, replace with the new ones then screw the
cover strips back again to retain them.
The rear lip can be turned to be used on both
upper and lower sides.
21
MAINTENANCE
Periodically remove the filter inside the dirty water
tank, scrub it with a stiff brush under running
water to remove any accumulated foreign matter.
TECHNICAL SPECIFICATION
MODELS
Voltage
Drive motor
Vacuum motor rating
Vacuum depression (mm H2O)
Note: This operation is very important to
prevent the reduction of the suction
(drying) capability of the squeegee.
Brush motor
Brush
Brush speed (scrubbing)
Brush pressure to floor (Kg)
Automatic Click OFF/Click ON
AW 475
24V
24V
24V-200W
24V-200W
540W-3 stages
540W-3 stages
1700
1700
24V-250W
24V-375W
nr. 2x320mm
nr. 2x370mm
270 RPM
180 RPM
from 21 to 36
from 30 to 45
yes
yes
Electrovalves
nr. 3 hole diameters:
3.5-4.5-5.5mm
nr. 3 hole diameters:
3.5-4.5-5.5mm
Water pump
12V-126W-9lt/1’
12V-126W-9lt/1’
Water flow pump OFF (lt/min)
1.3-2.6
1.3-2.6
Water flow pump ON (lt/min)
2.8-4.5
2.8-4.5
nr.2-max. 5.0
nr.2-max. 2.5
nr.2-max. 5.0
nr.2-max. 2.5
Driving speed F/R (Km/h)
Parking brake
yes
yes
Working width (mm)
628
728
Max slope
The plastic buffles can be easily removed for the
best cleaning of the tanks.
AW 465
16 %
16 %
920
1010
Solution tank capacity (lt)
with membrane
72
72
Recovery tank capacity (lt)
with membrane
74
74
Suggested batteries (wet)
nr.4 6V-240Ah
nr.4 6V-240Ah
3h
3h
Suggested battery charger
(for wet battery)
CBN2 25A-24V
CBN2 25A-24V
Front wheels diameter (mm)
nr.2-200
nr.2-200
Rear wheels diameter (mm)
nr.2-100
nr.2-100
Squeegee width (mm)
Running time (with wet batteries)
Width (mm)
685
775
Length (mm)
1330
1330
Height (mm)
1095
1095
Weigth without batteries (Kg)
125
135
Total weigth with batteries (Kg)
257
267
The three solenoid valve bodies may be removed
by turning them through 90 degrees and lifting
them away to reveal the plunger and seating of
each valve. These should be cleaned of scale and
of any other foreign matter.
20
5
MACHINE CONTROLS AND MONITORS
4
56
MAINTENANCE
BEFORE ANY MAINTENANCE IS CARRIED
OUT THE BATTERY MUST BE UNPLUGGED,
OR THE MAINS LEAD UNPLUGGED.
7
ON
1
8
OFF
2
9
3
10
12 11
1- Scrubbing detergent flow adjustment push
button
2- Suction motor operation indicator
3- Scrubbing detergent tank empty indicator
warning
4- Scrubbing detergent flow monitor
5- Scrubbing detergent flow: boost pump
monitor
6- Scrubbing detergent flow: boost pump on/
off push button *
7- Multifunction display
8- Push button for selection of runtime or
battery voltage
9- Brush release push button
10- Master key switch
11- Recovery tank full warning indicator
12- Brush motor operation indicator
13- Handle
14- Drive control thumb wheels *
15- Switch for the selection of the speed range *
16- Scrubbing detergent tank emptying hose
17- Handle height adjustment locking knob
18- Battery cable
19- Lever for squeegee lifting/lowering and
suction motor switch on/off
20- Recovery tank emptying hose
21- Brake pedal **
22- Brush pressure control knob
23- Squeegee pressure control knob
24- Squeegee angle control knob
25- Pedal for brush lifting/lowering and brush
motor switch on/off.
26- Squeegee
6
* - This function is not available on model AW445
(both battery and cable versions).
**- This function is not available on models AW445
and AW445 T (both battery and cable versions).
Periodically remove the filter inside the scrubbing
detergent tank; scrub it with a stiff brush under
running water to remove any accumulated foreign
matter.
Note: The filter is mounted by simply pressing it
toward the bottom of the tank (no need to screw/
unscrew it).
The level of the liquid inside batteries must be
checked periodically, and topped up with distilled
water if necessary.
Raise the tank unit, remove caps and check level.
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Special care should be taken
when handling battery liquid
as it is corrosive. If it should
come into contact with skin
or eyes, wash abundantly
with water and consult a
doctor.
Recharge batteries when necessary with a
specific battery charger.
If the batteries are of the wet type open all the
battery caps before starting the recharge.
The recarge must be done in a well ventilated
area.
19
CLEANING OR REPLACING THE BRUSHES
PREPARATION FOR USE
To replace the brushes (or to clean them) carry out
the following sequence of operations:
Partially unscrew the two middle levers on the
squeegee. Push the squeegee into the locating
lugs as illustrated and fully tighten the hand-levers.
(Pull the lever up to disingage it and make its
rotation free).
The machine must be switched on but all functions
switched off; it means that the squeegee must be
lifted.
Raise the brush unit by pressing down the relevant
pedal and latching it in its lowest position.
A
Press the brush release push button A momentarily
(1 or 2 seconds) and the brushes will be unloaded
from the machine.
ON
OFF
Push the coiled end of the squeegee hose fully
home onto the tubular spigot in the centre of the
squeegee.
Move the machine backward by rolling the drive
control thumb wheels rearward until the brushes
are visible in front of the machine.
(pull the machine that is not equipped with the
drive motor).
Clean carefully the three pins of each brush to
keep efficient the Click ON/Click OFF function.
Push the straight end of the squeegee hose onto
the tank inlet pipe which protrudes through a slot
in the rear panel.
To mount the new brushes see the “Preparation for
use” at page 10.
18
7
PREPARATION FOR USE
SCRUBBING AND DRYING OPERATION
For models working with batteries follow the
instructions below, whereas in the case of mains
operated models the transformer (or mains unit)
has already been placed inside the machine and
needs no further installation.
The batteries are supplied without liquid, therefore
they must be filled up with the appropriate acid
solution (concentration greater than 30%) before
they can be used.
Take special care when handling the acid
solution as it is corrosive. If it should
come into contact with skin or eyes,
wash abundantly with water and consult
a doctor.
Remove the cap from the hose unscrewing the
knob and empty the tank.
The AW445, AW445 T and AW455 T
models use two 12 Volt batteries connected
in series.
The AW465 and AW475 models use four 6
Volt batteries connected in series. Please study
the applicable illustration then fit the batteries
and connect the supplied links as indicated.
When the battery set has been properly charged
plug the battery socket into the machine as
shown. Lower the tank unit to safely cover
exposed working parts.
+
There is a water level sensor also in the tank for
the clean water (A).
When the tank is going to be empty the red light
B will turn-on; 80 seconds later the automatic
switch “off” of the water flow (electrovalves and
water pump) will occur and a beep will be
heared.
-
A
B
- +
A
+
+
-
8
The display A normally shows the voltage of the
battery (or the output voltage of the transformer
unit for the machines with mains cable).
By pushing button B one time the working hours
of the machine will be shown (hour meter); by
pushing the button B two times the working
minutes will be shown. Push the third time or wait
10 seconds to restore the battery voltage.
B
ON
OFF
17
SCRUBBING AND DRYING OPERATION
PREPARATION FOR USE
After filling the batteries must stand for at least 1
hour and then they must be filled up if necessary.
After one further hour the batteries must be
recharged: remove the battery caps during the
recharge operation.
The new batteries will gradually “run in “ and will
increase their capacity.
The maximum capacity will be achieved in about
10 charge/discharge cycles.
Also the tilting of the squeegee can be adjusted
by means of the dedicated knob, in order to
improve the drying capability of the machine.
Move the machine slowly forward, and adjust the
squeegee pressure and tilting controls until the lips
bend over evenly as illustrated below.
TRAVEL DIRECTION
When necessary the batteries must be charged
using an appropriate battery charger. Remove the
battery caps during the charging operation.
FLOOR LEVEL
The lips must be replaced when they become
feather edged or torn.
When the recovery tank (dirty water) will be filled
the red light A will turn “on”; within 5 seconds the
automatic switch-off of the suction motor will also
occur.
water
level sensor
Check that the Volt and Hertz
reading of the mains supply
correspond to those of the battery
charger.
For further information about battery
maintenance see also the relevant
paragraph.
A
In order to be able to re-use the machine the
recovery tank must be emptied. Then lift the
squeegee and the brushes by means of the
relevant lever and pedal. Turn the master key OFF
and disconnect the hose.
16
9
PREPARATION FOR USE
SCRUBBING AND DRYING OPERATION
Drive the machine forward by holding the handgrips, then rolling the thumb wheels forward until
the machine moves.
In the event of a temporary stop (releasing thumb
wheels) the automatic switch-off of the all functions
will occur (AUTOPOWER-OFF).
B
A
For models equipped with parking brake: press
pedal A to engage the brake.
Press pedal B to disingage it.
Turn the thumb wheels in order to restart the
normal operation; all the functions will restart
automatically
(AUTOPOWER-ON).
NOTE: for all versions of model AW445 and
(brush driven model) the rotation of the brush will
make the forward displacement of the machine
easyer. On the same model the “AUTOPOWEROFF”/“AUTOPOWER-ON” function is not
available.
The following adjustments can be done on the
machine: increase or reduction of the pressure of
the brushes on the floor by means of the
dedicated rotating knob: the required pressure
will depend on the kind of floor and dirt to be
scrubbed.
Drop the brushes roughly side by side in front of
the machine; the actual position does not matter.
NOTE: Set the pressure to the minimum possible
value, consistantly with the kind of dirt to be
cleaned: this will increase the battery working
time.
ON
OFF
Switch the machine on by turning the key switch a
quarter of turn clockwise. Wait momentarily until
the multifunction display lights showing the
battery voltage.
Increase or reduce of the pressure of the
squeegee on the floor by means of the dedicated
knob: again the required pressure will be different
depending on the kind of floor to be dryed.
10
15
SCRUBBING AND DRYING OPERATION
PREPARATION FOR USE
C
In order to achieve a further reduction of the
water flow the water pump can also be switched
off by means of push button C.
The same button allows to re-switch on the water
pump.
ON
OFF
NOTE: on all versions of model AW445 (without
traction) the push button C is not available.
Drive the machine forward by holding the handgrips, then rolling the thumb wheels forward until
the machine moves completely over the brushes.
To stop release the thumb wheels and they will
return to a neutral position. This will ensure the
brushes are fully located under the drive plates.
NOTE: for the models without traction the
machine must be pushed over the brush.
Pull down the squeegee to the floor by lifting the
dedicated lever; the automatic switch-on of the
suction motor will also occur.
Lower the brush unit by pushing the pedal to the
right to unlatch it. Then allow it to rise as far as it
will go.
ON
OFF
ON
OFF
The relevant green light indicator will turn “on” on
the control panel.
14
The brush motors will start automatically; the
indicator will light and the motors will engage the
brushes.
11
SCRUBBING AND DRYING OPERATION
Once the brushes have been locked on, raise the
brush unit by pushing the pedal down and
latching it at its lower position.
Now the machine is ready for use.
SCRUBBING AND DRYING OPERATION
A
The height of the handle can be adjusted using
the dedicate knob A.
B
The speed range can be selected by means of
switch B.
Switch the machine “on” by turning the key in the
master key-switch a quarter turn clockwise.
Open the tank lid.
Fill the left tank with water to about 75mm (3”)
from the top edge then add the scrubbing
detergent in a quantity to make a dilution
according to its instruction.
Too strong a mix wastes detergent, too weak a
mix will not work efficiently.
The machine is now ready for use; so move off to
the site to be cleaned.
12
Lower the brushes by pushing the relevant pedal
to the right to unlatch it and bring it to the upper
position: the brush motors, the electrovalves and
the water pump will start automatically in a few
seconds.
The relevant green light indicators will turn “on”
on the control panel.
AMOUNT OF
CLEAN WATER
A
To increase or reduce the flow of the clean water
to the floor the push buttons A (+ to increase) or B
(- to reduce) can be used.
NOTE: For all the versions of models AW445,
AW 445 T and AW455 T the membrane and
the water pump are optional items.
In any case the pump green light indicator will
turn “ON” when the brushes are lowered.
WATER PUMP
WORKING
ON
OFF
B
BRUSH MOTOR TURNING
13
