WR300N
Portable Wireless-N Repeater

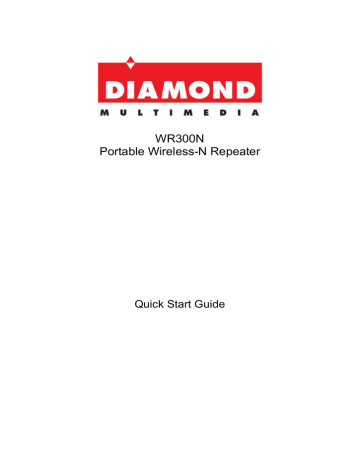

Quick Start Guide
User Manual
Table of Contents
Page 2 of 38
User Manual
About the Device
Diamond Multimedia WR300N Portable Wireless-N Repeater supports wireless 802.11b/g/n standards with one 10/100Base-T Ethernet port.
WR300N is designed with MIMO technology to extend the reach of any existing wireless router/AP to maximize the coverage in your home or office. It basically receives the signal from your wireless router/AP and repeats it to extend the range to farther locations that are previously unreachable.
Equipped with 64/128-bit WEP, WIFI Protected Access (WPA), and the latest WPA2 encryption with TKIP and AES algorithm to protect your wireless network from unauthorized access. MAC Address Filtering for wireless links provides an additional layer of security for your wireless network.
The device comes with 1 x 10/100M Auto MDI/MDIx Ethernet port that can be used to connect to an existing wired network to serve as a wireless AP or wireless bridge. It can also be used to configure the device via its web-based GUI, or upgrade the firmware when connected to the Network Interface Card of your PC.
Page 3 of 38
User Manual
Minimum System Requirements
Your computer must meet the following minimum requirements.
Any operating system can be used
Web Browser
233MHz processor
Ethernet network adapter
Or Wireless network adapter
Package Contents
Package contents are listed below.
WR300N
Ethernet cable
Easy Start Guide
Resource CD
Page 4 of 38
User Manual
Device Overview
Front Panel
POWER LED
ETHERNET LED
LABEL
WIRELESS LED
WPS LED and BUTTON
On – Solid Green
Off
On – Solid Green
On – Blinking Green
Off
On – Solid Green
On – Blinking Green
Off
On – Solid Green
On – Blinking Green
Off
STATE DESCRIPTION
Device is powered ON
Device is powered OFF
Ethernet device is connected
Indicates LAN activity
No Ethernet device connected
Wireless interface is UP
Indicates wireless activity
Wireless interface is DOWN
WPS association is successful
WPS authentication on going
WPS disabled
Page 5 of 38
User Manual
Bottom Panel
RESET
ETHERNET PORT
LABEL DESCRIPTION
Press the Reset button for 5 seconds to restore the device to default factory settings
Connect to computers/Ethernet devices
Page 6 of 38
User Manual
Tips for placing the Repeater
Before proceeding to configure your WR300N, it is often a good idea to identify the areas where you have good wireless reception and weak or no wireless signal at all. Based from this assessment you may place the wireless repeater in between a location where you have good wireless reception and where you have poor wireless coverage. This will serve as the identified location for the WR300N. The illustration below is an example of a network diagram.
NOTE: Placement of the Wireless Repeater is crucial to get the best possible results for extending your existing wireless signal. It is ideal for the wireless repeater to be placed in a location where it can receive good wireless signal from the wireless router/Access Point (AP) so as to avoid disconnection and packet loss.
Page 7 of 38
User Manual
Configuring the Repeater
Setting up the device is easy. Follow the steps below to configure the device for your current wireless router/AP.
Ensure to disable the wireless connection on the PC or laptop used for configuring the WR300N. Please note that the main router/AP and Wireless Repeater must be on the same wireless channel.
To configure your device via the Web GUI:
1. Connect the WR300N to a power outlet.
2. Connect an Ethernet cable from your PC’s Ethernet port to the Ethernet port at the base of the WR300N.
3. Once a connection to the WR300N is established, your PC/laptop will receive an IP address and you can start the configuration using the web graphical user interface.
4. To access the web GUI, Launch your web browser and input 10.0.10.254 on the address bar.
Page 8 of 38
5. Input admin for username and input admin for password. Click the OK button.
User Manual
6. Click on the Auto Setup button. This will show the available wireless networks that are in range of the
WR300N.
NOTE: If you are connecting to a hidden wireless network, you need to go through the Manual Setup and key-in the information from your existing wireless router/AP manually. Also un-tick the Broadcast SSID option so your wireless network can remain hidden.
Page 9 of 38
User Manual
7. Click the Connect button located on the right side of the wireless network you want to connect to. Click
Refresh if you don't see your wireless SSID on the list.
Page 10 of 38
User Manual
8. Input the current wireless network key/passphrase. Click the Apply button to commit the changes.
9. Close the web browser and power down the WR300N by unplugging the device from the wall plug.
10. Plug the WR300N to a power outlet at the identified location.
11. You may now use your wireless devices such as laptops, smart phones, etc. with the Repeater.
NOTE:
*You may need to reboot your laptop to connect to the WR300N.
**You may need to enable Enhanced Compatibility if you are using Windows 7 OS with certain brands of
Wireless routers.
Use the Device as a Wireless Repeater
Once the wireless connection from the WR300N to the main AP/router is established you can connect your wireless devices like laptops and smart phones through the wireless repeater. These devices will obtain an IP address from the main AP/router and should be able to access the Internet from farther locations previously unreachable by your wireless signal.
Page 11 of 38
User Manual
Setup Diagram
Use the Device as a Wireless Bridge
Connect wired devices to your wireless network by connecting an Ethernet cable from a wired device, such as a
Desktop PC, Game Console or Internet-ready LCD TV, to the Ethernet port of the WR300N.
Setup Diagram
Page 12 of 38
User Manual
Configure the WR300N as a Wireless AP
Use the WR300N as a Wireless Access Point to turn a regular modem-router into a wireless capable networking device to connect wireless-enabled devices such as laptops and smart phones.
To setup the device as a wireless AP :
1. Connect a PC/laptop to the Wireless Repeater. Plug an Ethernet cable to the Ethernet port at the base portion of the device.
2. Once a connection to the device is established, your PC/laptop will receive an IP address and you can start the configuration using the web graphical user interface.
3. To access the web GUI, Launch your web browser and input 10.0.10.254 on the address bar.
4. Input username as admin and password as admin. Click the OK button.
5. Click on the Manual Setup button and enter the SSID, security type, encryption type and WEP/passphrase for your Wireless Access Point, then click the Apply button.
6. After the settings are applied, unplug the Ethernet cable from your PC and connect it to an available
Ethernet port in your modem-router to match the hardware setup illustrated below.
Page 13 of 38
User Manual
Setup Diagram
NOTE: To change any wireless settings on the WR300N, you would need to set a static IP address on your wireless network card to be able to access the web GUI before you can configure the settings. Please refer to the steps on how to set a static IP on your PC also included in this manual.
Changing the Wireless Settings
Modify the default Wireless Settings to suit your own preference.
To change the Wireless settings via the Web GUI:
1. Open your browser
Page 14 of 38
2. Type 10.0.10.254 on the address bar
3. Input admin for both username and password fields and click on OK
4. On the top pane, click the Wireless button to show the menu
5. You can change the advanced wireless settings as preferred from this page
User Manual
6. Click Apply to commit the changes
7. Ensure to recreate the wireless profile on your computer to match the new settings
Changing the Wireless Security Settings
Modify the default Wireless Security Settings to suit your own preference.
To change the Wireless security settings via the Web GUI:
1. Open your browser
2. Type 10.0.10.254 on the address bar
3. Input admin for both username and password fields and click on OK
4. Click the Wireless button, and click the Security menu. You can change the wireless security settings as preferred from this page
Page 15 of 38
User Manual
5. Click Apply to commit the changes
6. Ensure to recreate the wireless profile on your computer to match the new settings
WPS
WPS or Wifi Protected Setup makes it easy for wireless clients to connect to the wireless repeater. Simply press the WPS button on the repeater and press the WPS button on the wireless client within 2 minutes, and the wireless security authentication will be done automatically.
Page 16 of 38
User Manual
Configuring Wireless MAC Filtering
Wireless MAC Filtering allows you to select which wireless clients to allow or deny access to the Wireless
Repeater.
Page 17 of 38
User Manual
To configure Wireless MAC Filtering via the Web GUI:
1. Open your browser
2. Type 10.0.10.254 on the address bar
3. Input admin for both username and password fields and click on OK
4. Click the Wireless button, and click MAC filter menu. You can select Allow or Deny from the Policy drop down box and enter the MAC address of the wireless client you wish to allow/deny access to the wireless repeater
5. Click Apply to commit the settings
Viewing the Home Page
The Home Page will tell you information about your device.
To view the Home Page via the Web GUI:
1. Open your browser
Page 18 of 38
2. Type 10.0.10.254 on the address bar
3. Input admin for both username and password fields and click on OK
User Manual
4. AP Client Connection Status displays the Connection status and SSID of the Access Point being extended.
5. Wireless Client List displays the current wireless clients connected to the repeater.
Page 19 of 38
User Manual
System Management
The System Management menu is used for device settings administration.
Accessing System Management
To access the Web User Interface:
1. Open your browser.
2. Type-in 10.0.10.254 on the address bar and then press Enter.
3. Input admin for both username and password fields and click on OK
What’s on System Management
System Management includes the following options:
Information
Firmware
Reboot
Password
Page 20 of 38
Information
This page shows the device information. Below is the list of information shown in this menu.
User Manual
Firmware Version – Shows the current firmware version of the device
Build Date – Shows the firmware release date
Serial Number – Shows the serial number of the device
ETH MAC Address – Shows device’s Ethernet interface MAC address
Wireless MAC Address – Shows device’s wireless interface MAC address
Wireless Status – Shows the status of the wireless interface.
Page 21 of 38
User Manual
Firmware
Firmware menu allows you to see the current firmware version and build date as well as upgrade the firmware of the device.
Firmware Information – Shows the current firmware’s version and build date
Firmware Upgrade – Load a new firmware upgrade file to the device
NOTE: Make sure you connect to the device via Ethernet cable when upgrading the firmware to avoid corruption during the firmware upgrade procedure.
Page 22 of 38
Reboot
Reboot allows you to reboot the device for new settings to take effect.
User Manual
Reboot – Allows you to reboot the device
Page 23 of 38
User Manual
Password
Password menu allows you to change the device’s password to access the Graphical User Interface (GUI).
Password – Allows you to change the router’s password
Page 24 of 38
User Manual
Setting a Static IP on your PC
The WR300N Wireless N Repeater will only give an IP address to your PC upon initial installation. Once you have associated it with your Wireless Router/AP, you will no longer have access to the device’s web GUI. If you wish to change any settings on the WR300N, you need to set a Static IP address on your PC. Just remember to set it back to “Obtain and IP address automatically” after you are done.
To set a static IP address on your PC using Windows XP:
1. Click Start > Control Panel
2. Click on Network and Internet Connections
3. Click on Network Connections
Page 25 of 38
User Manual
4. Right-Click on the Network Adapter you will use to configure the wireless repeater and click Properties
5. Click to select Internet Protocol (TCP/IP) and click Properties
Page 26 of 38
User Manual
6. Select “Use the following IP address:” and key in 10.0.10.1 as the IP address and 255.255.255.0 for the
Subnet mask. Leave the other fields blank.
7. Click OK to commit the settings.
To set a static IP address on your PC using Windows Vista:
Page 27 of 38
User Manual
1. Click Start > Control Panel
2. Double-Click Network and Sharing Center
3. Click Manage network connections
4. Right-Click on the Network Adapter you will use to configure the wireless repeater and click Properties
Page 28 of 38
User Manual
5. Click to select Internet Protocol Version 4 (TCP/Ipv4) and click Properties
6. Select “Use the following IP address:” and key in 10.0.10.1 as the IP address and 255.255.255.0 for the
Subnet mask. Leave the other fields blank.
Page 29 of 38
User Manual
7. Click OK to commit the settings.
To set a static IP address on your PC using Windows 7:
1. Click Start > Control Panel
2. Click View network status and tasks
Page 30 of 38
User Manual
3. Click Change adapter settings
4. Right-Click on the Network Adapter you will use to configure the wireless repeater and click Properties
5. Click to select Internet Protocol Version 4 (TCP/Ipv4) and click Properties
Page 31 of 38
User Manual
6. Select “Use the following IP address:” and key in 10.0.10.1 as the IP address and 255.255.255.0 for the
Subnet mask. Leave the other fields blank.
7. Click OK to commit the settings
Page 32 of 38
User Manual
Safety Precautions
Do not open, service, or change any component.
Only qualified technical specialists are allowed to service the equipment.
Observe safety precautions to avoid electric shock
Check voltage before connecting to the power supply. Connecting to the wrong voltage will damage the equipment.
Page 33 of 38
User Manual
Technical Support
Diamond Technical Support staff is here to help resolve any issues that you may be experiencing. Prior to contacting technical support please make sure you have the following information available.
1. Model #: (Printed on the bar code, located on the box)
2. Installation CD Version: (printed on the CD label)
3. The version of Windows that your system is running.
4. The manufacturer and model # of your computer.
5. CPU type and speed (example: Intel Pentium4 2.4GHZ)
6. A complete description of the problem that you are experiencing including any steps that you have taken to try to resolve the issue.
Technical Support Options
Free Telephone Support
818-357-5165
(long distance rates may apply)
Mon - Fri, 8 - 4:30 PST http://www.diamondmm.com
Page 34 of 38
User Manual
SHIPPING
Starting June 1st 2009 Diamond Multimedia will pay for shipping cost from Diamond back to US and Canadian customers provided the product is indeed under warranty and there is no damage caused by improper installation or modification of the merchandise. Customers located outside of the United States and Canada or using military addresses (APO,etc) will be required to pay for return shipping. Average shipping times range from 5 to 10 days, depending on actual shipment destination. Shipments made outside the US may take longer to deliver.
Diamond Multimedia reserves the right to claim for shipping fees along with service charges for any product that is returned incomplete or not under warranty. Return Authorization ( RMA ) is required for all warranty return products.
ONE YEAR LIMITED WARRANTY
The warranty described below is extended only to the original buyer and is not transferable.
Diamond warrants to the original purchaser of the hardware product, that the product is free from defects in materials or workmanship under normal use and service for a period of one (1) year from the date of purchase.
All cables and accessories provided with a Diamond product are warranted to be free from defects in materials or workmanship under normal use and service for a period of for (90) ninety days from date of purchase.
Diamond’s sole obligation under this warranty shall be, at Diamond’s option, to: (I) repair the defective product or parts; (II) deliver to customer an equivalent product or part to replace the defective product. When a product or part is replaced or exchanged, that item becomes the customer’s property and the replaced or exchanged item becomes Diamond’s property. When a refund or replacement product is given, the defective product becomes
Diamond’s property. Replacement parts or products may be new or include serviceable used parts with at least the same functional equivalence to the original product. If, at the time of repair, a product is "out of warranty" or within the last ninety (90) days of the warranty period, Diamond warrants any repair for ninety (90) days. All software provided is subject to the terms of the associated software end-user license agreement.
WARRANTY EXCLUSIONS AND LIMITATIONS
TO BE ELIGIBLE FOR THIS WARRANTY, YOU NEED TO PROVIDE THE ORIGINAL SALES RECEIPT
SHOWING THE DATE OF PURCHASE OF THE PRODUCT. DIAMOND MAY REQUEST THE ORIGINAL
SALES RECEIPT OR A COPY AS PROOF OF THE DATE OF PURCHASE.
Diamond does not warrant third party products which Diamond distributes "AS IS" unless otherwise specified.
Third party products may be warranted by the third party.
Diamond makes no warranty or representation that: (I) the operation of the product will be uninterrupted or error free; (II) defects in the product will be corrected; or (III) that the product will meet Customer’s requirements or work in combination with any hardware or software provided by third parties.
TO THE FULLEST EXTENT ALLOWED BY LAW, THE WARRANTIES, REMEDIES AND LIMITATIONS
CONTAINED HEREIN ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, TERMS OR
CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR
OTHERWISE, INCLUDING WITHOUT LIMITATION, WARRANTIES, TERMS OR CONDITIONS OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, QUALITY, CORRESPONDENCE WITH
DESCRIPTION AND NON-INFRINGEMENT, ALL OF WHICH ARE EXPRESSLY DISCLAIMED.
DIAMOND WILL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE
THAT THE ALLEGED DEFECT OR MALFUNCTION IN THE PRODUCT OR SOFTWARE DOES NOT EXIST
OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PARTY’S MISUSE, NEGLECT, IMPROPER
INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO OPEN, REPAIR OR MODIFY THE PRODUCT
OR SOFTWARE, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY
ACCIDENT, FIRE, LIGHTNING, OTHER HAZARDS, OR ACTS OF GOD. THIS WARRANTY WILL NOT APPLY
Page 35 of 38
User Manual
TO PRODUCTS USED FOR NUCLEAR RELATED, WEAPONS RELATED, MEDICAL OR LIFE SAVING
PURPOSES.
TO THE FULLEST EXTENT ALLOWED BY LAW, DIAMOND ALSO EXCLUDES FOR ITSELF AND ITS
SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR
INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND, OR FOR
LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF
DIAMOND, ITS SUPPLIERS OR ITS RESELLER HAS BEEN ADVISED OF THE POSSIBLITY OF SUCH
DAMAGES. DIAMOND’S SOLE LIABILITY WITH RESPECT TO ITS PRODUCT IS LIMITED TO REPAIR OR
REPLACEMENT OF THE PROD UCT, AT DIAMOND ’S OPTION. THIS DISCLAIMER OF LIABILITY FOR
DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL FOR ESSENTIAL
PURPOSE.
DISCLAIMER: Some jurisdictions may not allow the exclusion or limitation of incidental or consequential damages for products supplied to consumers, or the limitation of liability for personal injury, so the foregoing limitations and exclusions may not apply or may be limited in their application to you. When implied warranties are not allowed to be excluded in their entirety, they will be limited to the duration of the applicable written warranty. This warranty gives you specific legal rights that may vary depending on the law of the applicable jurisdiction.
OBTAINING WARRANTY SERVICE: Please review the "help" resources referred to in your products accompanying documentation before seeking warranty service. If the product is still not functioning properly after making use of these resources, please access the support page at http://www.diamondmm.com/support.php for warranty instructions and services. Some additional charges may apply for phone support.
Page 36 of 38
User Manual
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Diamond Multimedia could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC rules.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Exposure Information to Radio Frequency Energy
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.
© Copyright 2010 All rights reserved.
No part of this document may be reproduced, republished, or retransmitted in any form or by any means whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying, recording, information recording, or through retrieval systems without the express written permission.
Page 37 of 38
User Manual
We reserve the right to revise this document at any time without the obligation to notify any person and/or entity. All other company or product names mentioned are used for identification purposes only and may be trademarks of their respective owners.
LIMITATION OF LIABILITY AND DAMAGES
THE PRODUCT AND THE SOFTWARES WITHIN ARE PROVIDED "AS IS," BASIS. THE MANUFACTURER AND MANUFACTURER’S RESELLERS (COLLECTIVELY REFERRED
TO AS “THE SELLERS”) DISCLAIM ALL WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF NON-
INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY WARRANTIES ARISING FROM COURSE OF DEALING, COURSE OF
PERFORMANCE, OR USAGE OF TRADE. IN NO EVENT WILL THE SELLERS BE LIABLE FOR DAMAGES OR LOSS, INCLUDING BUT NOT LIMITED TO DIRECT, INDIRECT,
SPECIAL WILLFUL, PUNITIVE, INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL, DAMAGES, DAMAGES FOR LOSS OF BUSINESS PROFITS, OR DAMAGES FOR LOSS OF
BUSINESS OF ANY CUSTOMER OR ANY THIRD PARTY ARISING OUT OF THE USE OR THE INABILITY TO USE THE PRODUCT OR THE SOFTWARES, INCLUDING BUT NOT
LIMITED TO THOSE RESULTING FROM DEFECTS IN THE PRODUCT OR SOFTWARE OR DOCUMENTATION, OR LOSS OR INACCURACY OF DATA OF ANY KIND, WHETHER
BASED ON CONTRACT, TORT OR ANY OTHER LEGAL THEORY, EVEN IF THE PARTIES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE ENTIRE RISK
AS TO THE RESULTS AND PERFORMANCE OF THE PRODUCT OR ITS SOFTWARE IS ASSUMED BY CUSTOMER. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF LIABLITY FOR DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO THE PARTIES. IN NO EVENT WILL THE SELLERS’ TOTAL CUMULATIVE
LIABILITY OF EACH AND EVERY KIND IN RELATION TO THE PRODUCT OR ITS SOFTWARE EXCEED THE AMOUNT PAID BY CUSTOMER FOR THE PRODUCT.
Page 38 of 38
advertisement
Key Features
- Wireless-N Repeater
- Extends Wireless Range
- 802.11b/g/n Standards
- 10/100Base-T Ethernet Port
- WPS Support
- MAC Address Filtering
- WPA/WPA2 Security
Related manuals
Frequently Answers and Questions
What is the purpose of the WR300N?
What wireless standards does the WR300N support?
How do I connect the WR300N to my existing wireless network?
advertisement
